SENARA (SEJAHTERA INTERGENERATIONAL AREA): MIXEDUSE FACILITY FOR THE ELDERLY’S PROSPERITY
Aruna Arundaya
Approved on 15221054
Design Supervisor,
Dr. Ir. Woerjantari Kartidjo, M.T.
TABLE OF CONTENTS
for eyang, aki, kajong, tamong
Chapter 01
Project Programming
Chapter 01
Project Programming
The rise of number in the elderly’s population in Indonesia comes with a growing concern, which is the decreasing health quality of the elderly.
SENARA:
Chapter 01
SENARA:
Chapter 01
approaches to increase interaction frequency for the elderly
(Usar Suragarn, Ph.D., MSN, R.N.,
2021)
intergenerational interaction
children
between elderly
aging-friendly community
physicalgroup-based activities
Research has consistently shown that intergenerational interaction, such as daily engagement between the elderly and children—not only enhances emotional well-being but also contributes to cognitive vitality and physical health in older adults. Simultaneously, children benefit from the wisdom, patience, and life experience of their elders, fostering empathy, respect, and cultural continuity.
To provide spaces and programs that encourage meaningful social interaction between the elderly and children in a safe, inclusive, and engaging environment.
To enhance the quality of life and health of the elderly through adaptive and interactive physical environments that support active involvement in daily activities.
To build a supportive intergenerational community by integrating elderly housing and children’s education center functions within a single, unified facility.
Creating adaptive and interactive spaces through the design approach of an Intergenerational Mixed-Use Facility: Elderly Housing and Children Education Center, which fosters intergenerational social interaction to enhance the physical and psychological well-being of the elderly.
Housing Function
elderly living.
Education Function
children education center.
To provide public spaces that facilitate interaction and collaboration, while also supporting the active participation of the elderly in the community.
Recreative Function
intergenerational spaces in between functions.
To provide adequate healthcare facilities to improve and maintain the users’ health quality through collaboration with RSIA Parahyangan. Chapter 01
To provide private spaces that meet the needs of elderly residents within the context of adequate housing, while accommodating intergenerational interaction between residents and caregivers.
Kota Baru Parahyangan Jl. Raya Parahyangan, Kertajaya, Padalarang, Kabupaten Bandung Barat
Kp. NangkubKancah
SDN Darma Bakti
Kp. NangkubKancah
Masjid UkhuwahAl-
Tatar Tarubhawana
Tatar Naganingrum
Penabur
Tatar Lokacitra
Wahoo Waterworld

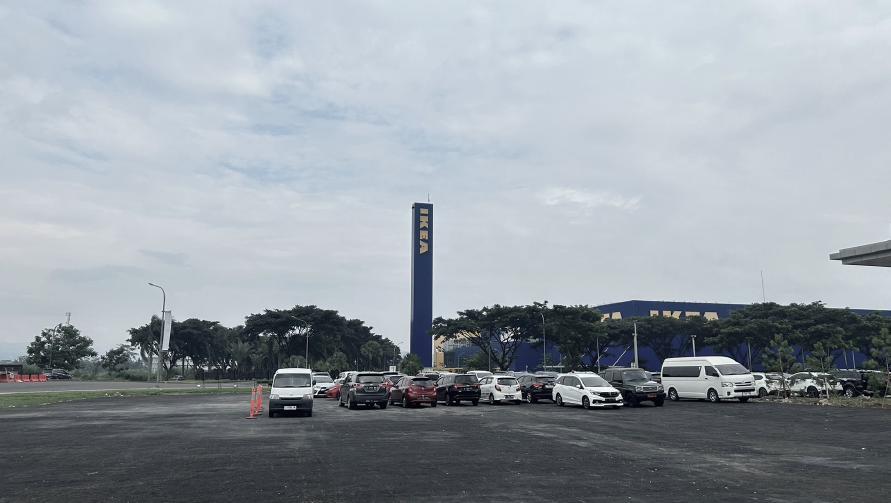

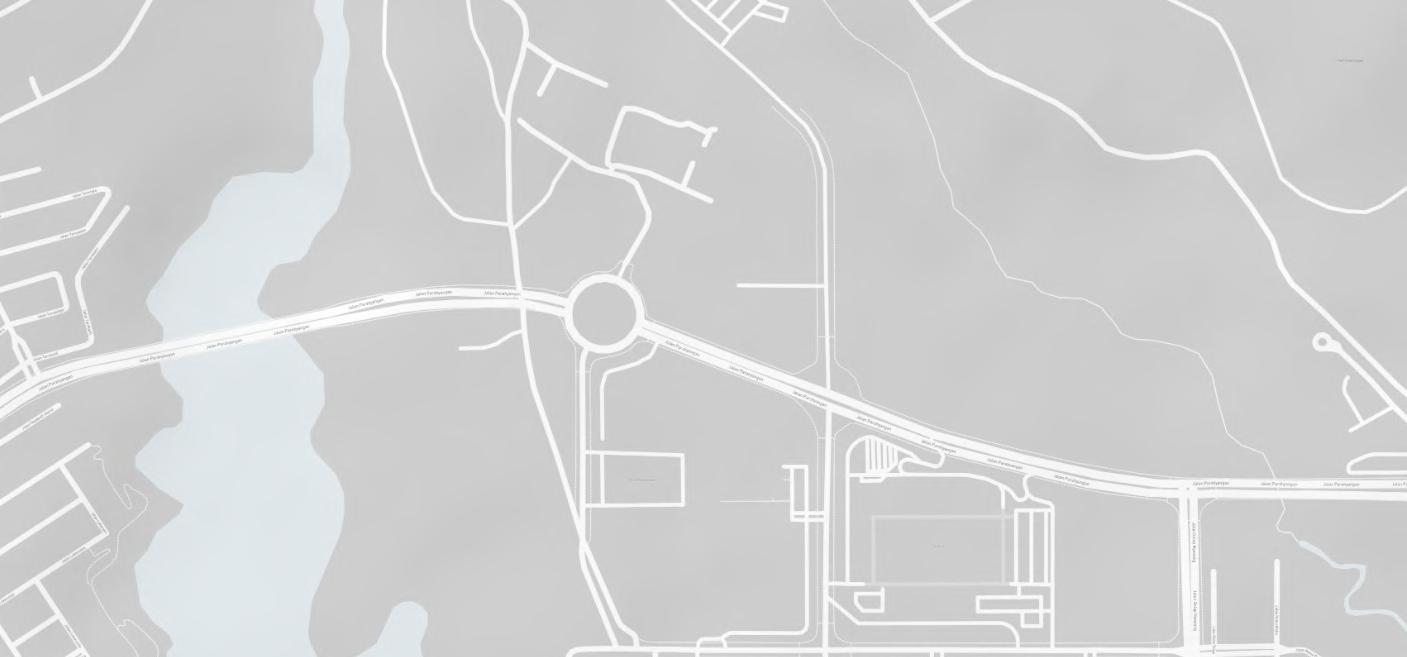

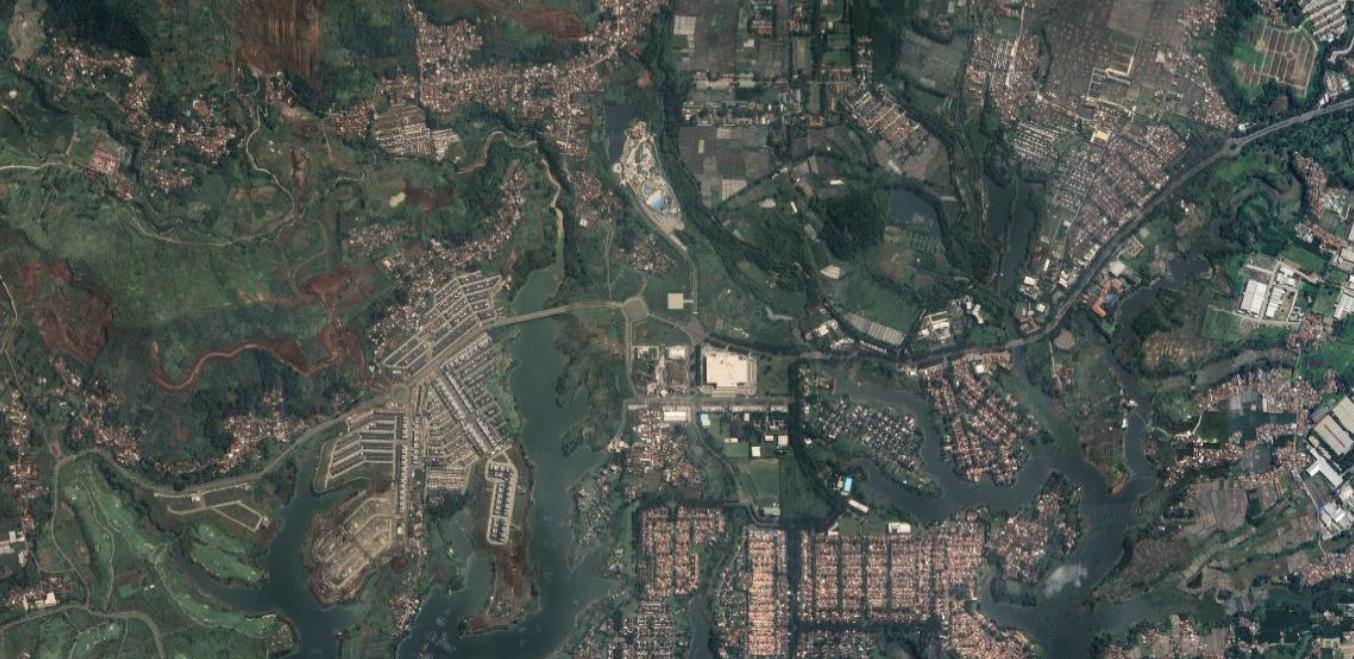

PROJECT LOCATION
Kota Baru Parahyangan Jl. Raya Parahyangan, Kertajaya, Padalarang, Kabupaten Bandung Barat
MAIN ACCESSIBILITY
SUNPATH & REGULATIONS
PUBLIC AMENITIES

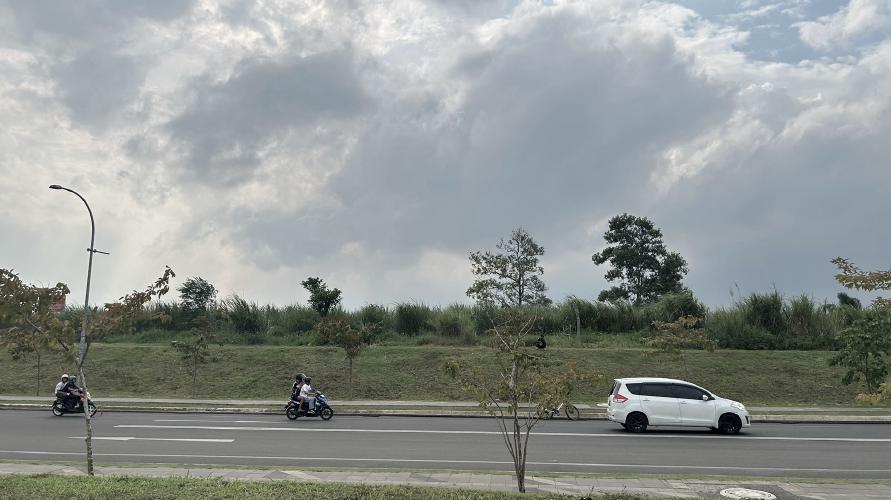

Jl. Parahyangan Raya (Width: 20 meters) : Direct Access towards Tolls
Jl. Bujanggamanik Kav. (Width: 15 meters)
NORTH SOUTH
direct access towards RSIA Parahyangan key!!
The infrastructure surrounding the site is still under development.
There is a lack of natural vegetation to buffer sunlight, which needs to be addressed during the design process.
Access from the site to destinations within Kota Baru Parahyangan relies on private vehicles.

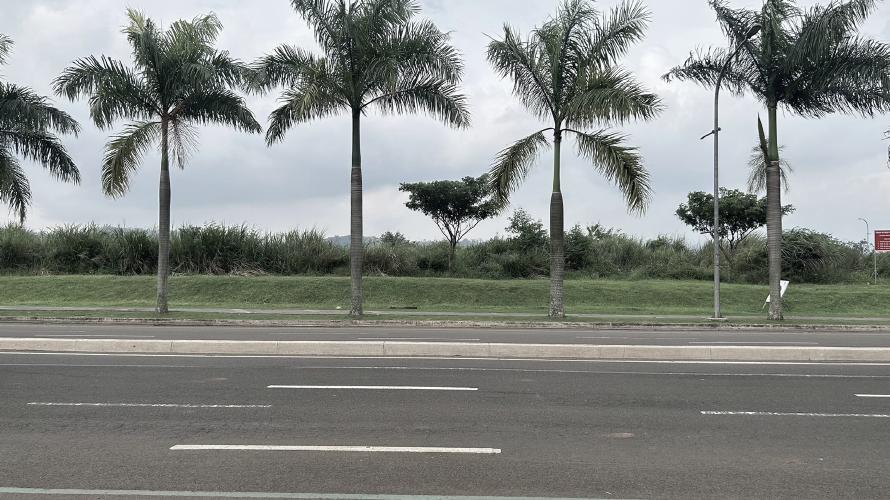

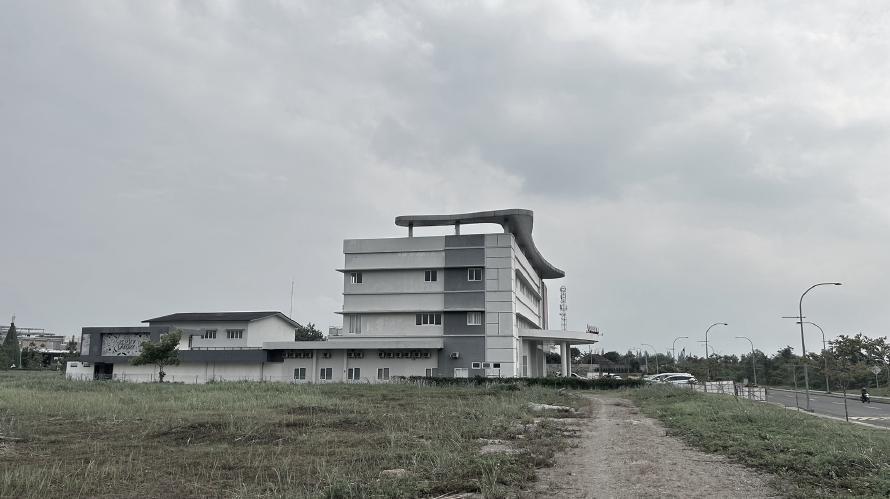

The site is an empty plot with no existing buildings.
It is easily accessible from two major cities via public transportation or private vehicles.
It is adjacent to several public facilities, including healthcare and commercial amenities.
There are no sensory issues such as unpleasant odors, as there is no waste surrounding the site.
The site offers potential views of green open spaces, which can serve as restorative elements.
The terrain is relatively flat, allowing easier mobility for the elderly.
Chapter 02
Functional Study
SENARA: Mixed-Used Facility for The Elderly’s Prosperity
The Qinghuayuan
Intergenerational Community Center Renovation / ATELIER XI
Desain ruang fleksibel untuk mengakomodasi kebutuhan pengguna yang berbeda-beda.
Memfasilitasi interaksi antar generasi melalui fasilitas perpustakaan dan aula serbaguna yang digunakan sebagai pusat kegiatan penduduk dari berbagai kalangan usia.
Melibatkan komunitas lokal dan organisasi sosial melalui kolaborasi dengan penyedia layanan pihak ketiga untuk perawatan lansia dan kegiatan anak-anak.
Mengintegrasikan layanan publik melalui perawatan lansia dan pengasuhan anak yang digabungkan ke dalam satu fasilitas.
STA | zwei+plus
02

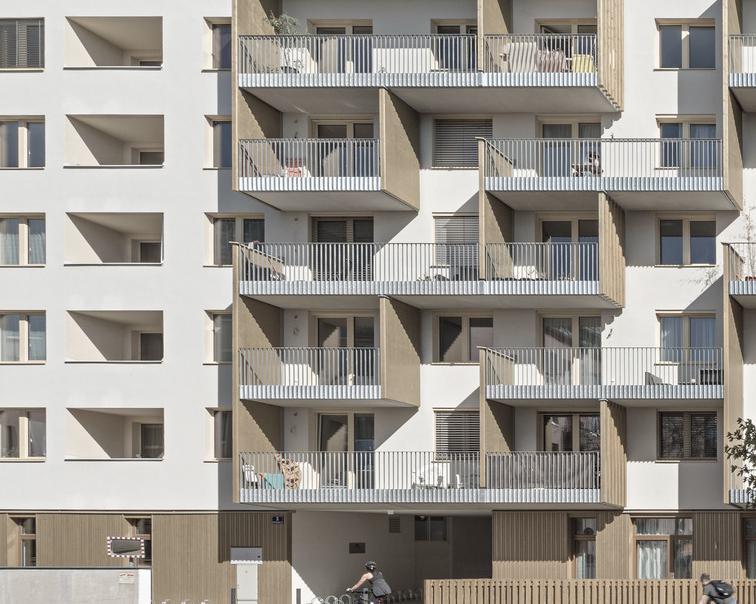

Intergenerational Housing / trans_city TC
Mendukung tempat tinggal antargenerasi dengan memasangkan dua rumah tangga dalam satu unit.
Inklusi ruang komunitas bersama, mendorong penduduk untuk berkumpul dan berinteraksi.
Denah lantai berbeda yang mengakomodasi konfigurasi rumah tangga yang berbeda, seperti orang tua tunggal atau keluarga dengan anggota lansia.
Mengintegrasikan fasilitas untuk anak-anak dan lansia dalam komunitas, desain ini mendukung kerja sama antargenerasi.
01 03
Belong Chester Intergenerational Community Village
Fasilitas publik terintegrasi yang dirancang untuk digunakan oleh semua anggota komunitas, sehingga mendukung adanya interaksi antar generasi.
Pusat komunitas yang terbuka untuk publik (community hub).
Desain bangunan memperhatikan aksesibilitas untuk semua usia, termasuk mereka yang memiliki mobilitas terbatas.
Mengadopsi model interaksi antargenerasi, di mana orang tua dan anak-anak hidup dan belajar bersama.

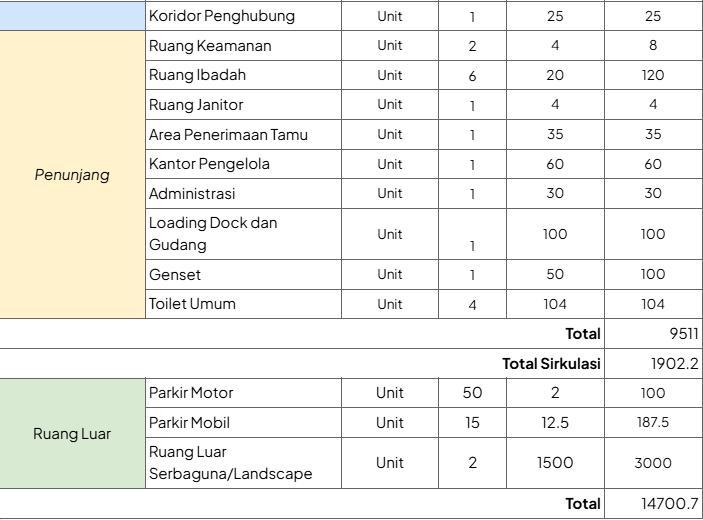

Chapter 03
Project Programming
DESIGNING SPACES THAT FOSTER INTERGENERATIONAL INTERACTION
1.
design issues
create shared spaces that naturally foster intergenerational interaction, enabling meaningful connections between children and older adults through everyday activities, mutual learning, and inclusive spatial experiences.
create an environment that not only accommodates the physical limitations of older adults, but also actively encourages movement, independence, and social engagement in support of active aging

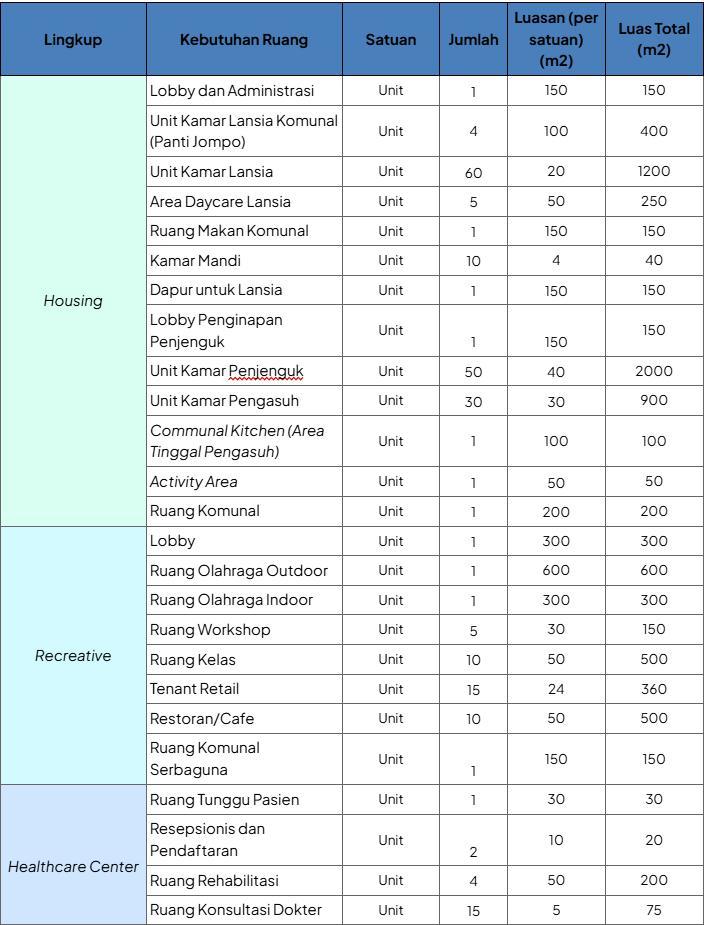

Recreative Function Other
Education Function
Housing Function
Chapter 03
Chapter 03
Design Concept & Strategies

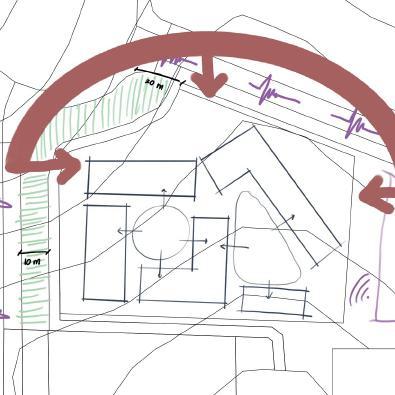

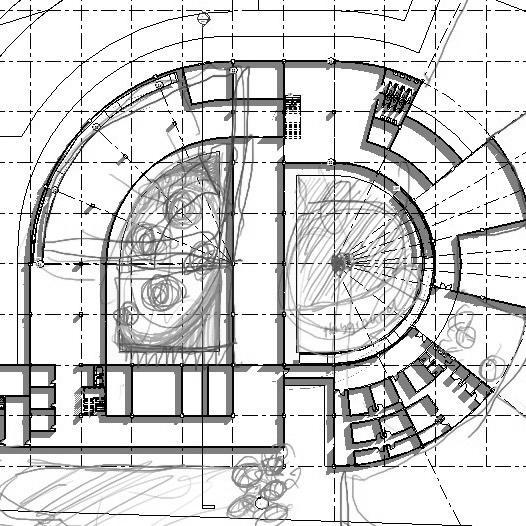

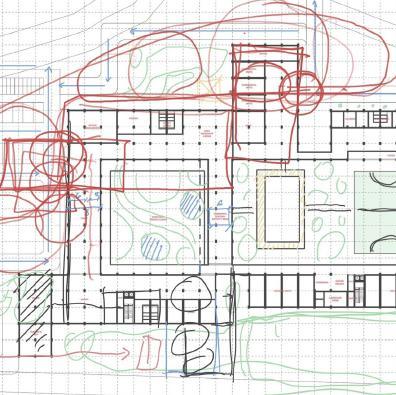

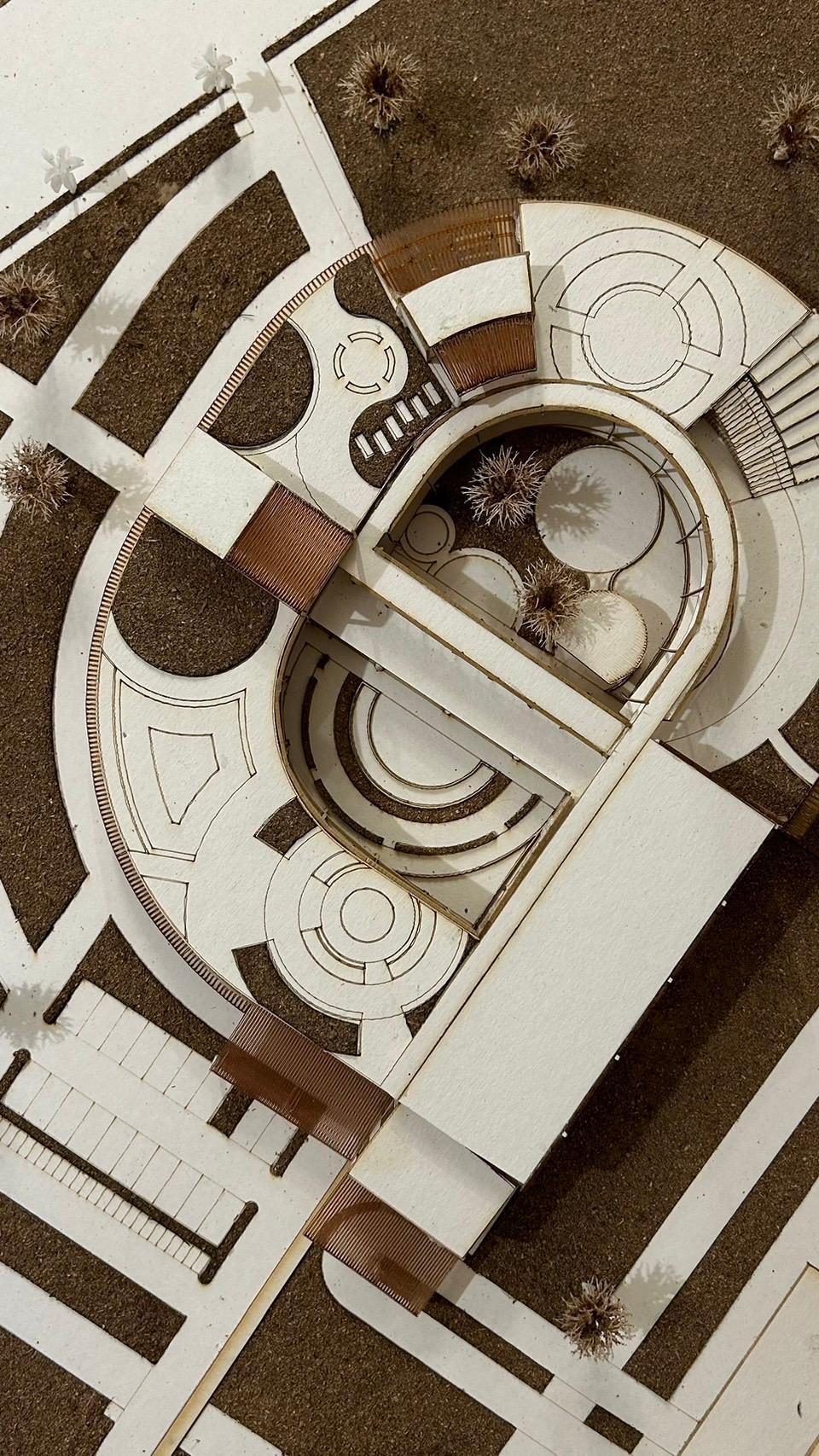

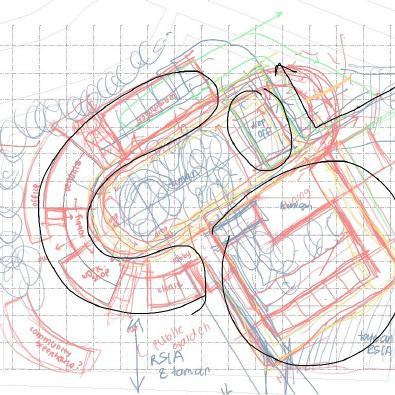

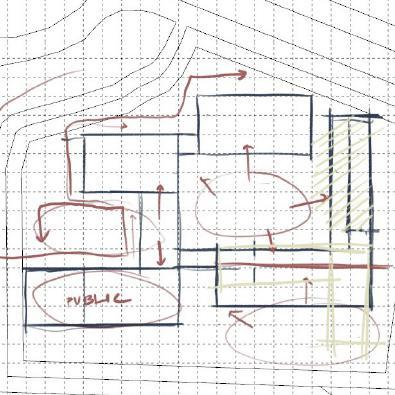

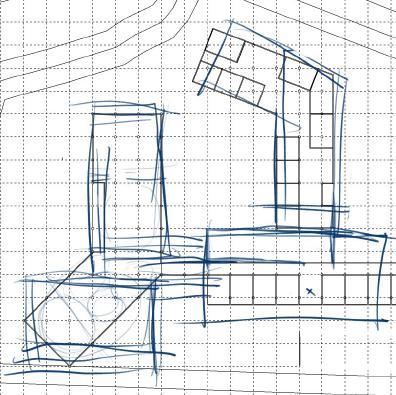

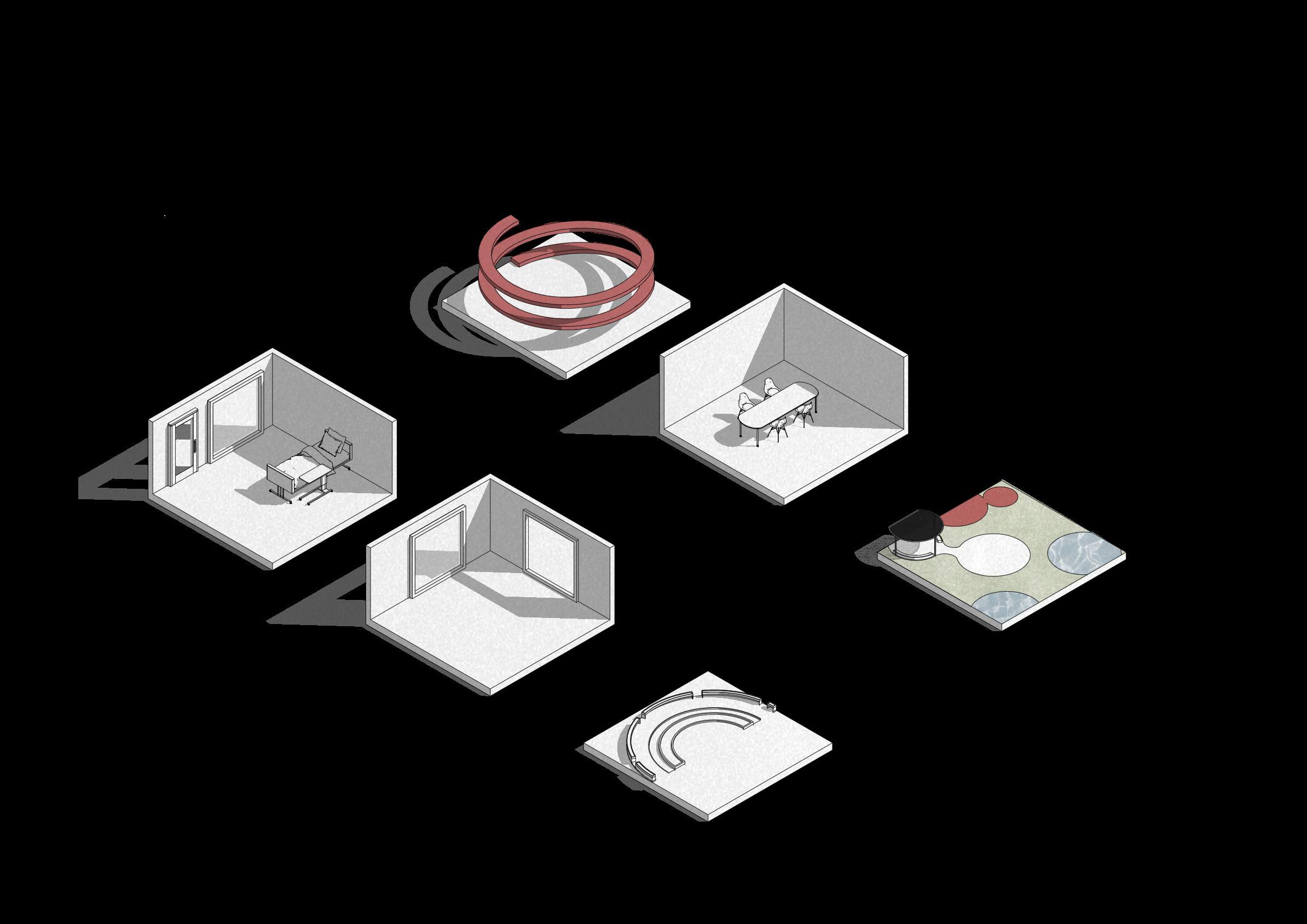

MASSING ALTERNATIVES
living children education center
for the elderly’s comfort and health quality
multi-
purpose halls function flexibility
universal design principle & attraction for both generations
restorative & sensory training element
SENARA: Mix
designsolution
elderly housing
sensory walkways to help with the elderly’s cognitive senses
healthcare function by direct connection to RSIA parahyangan
multi-purpose spaces for workshops & usage flexibility

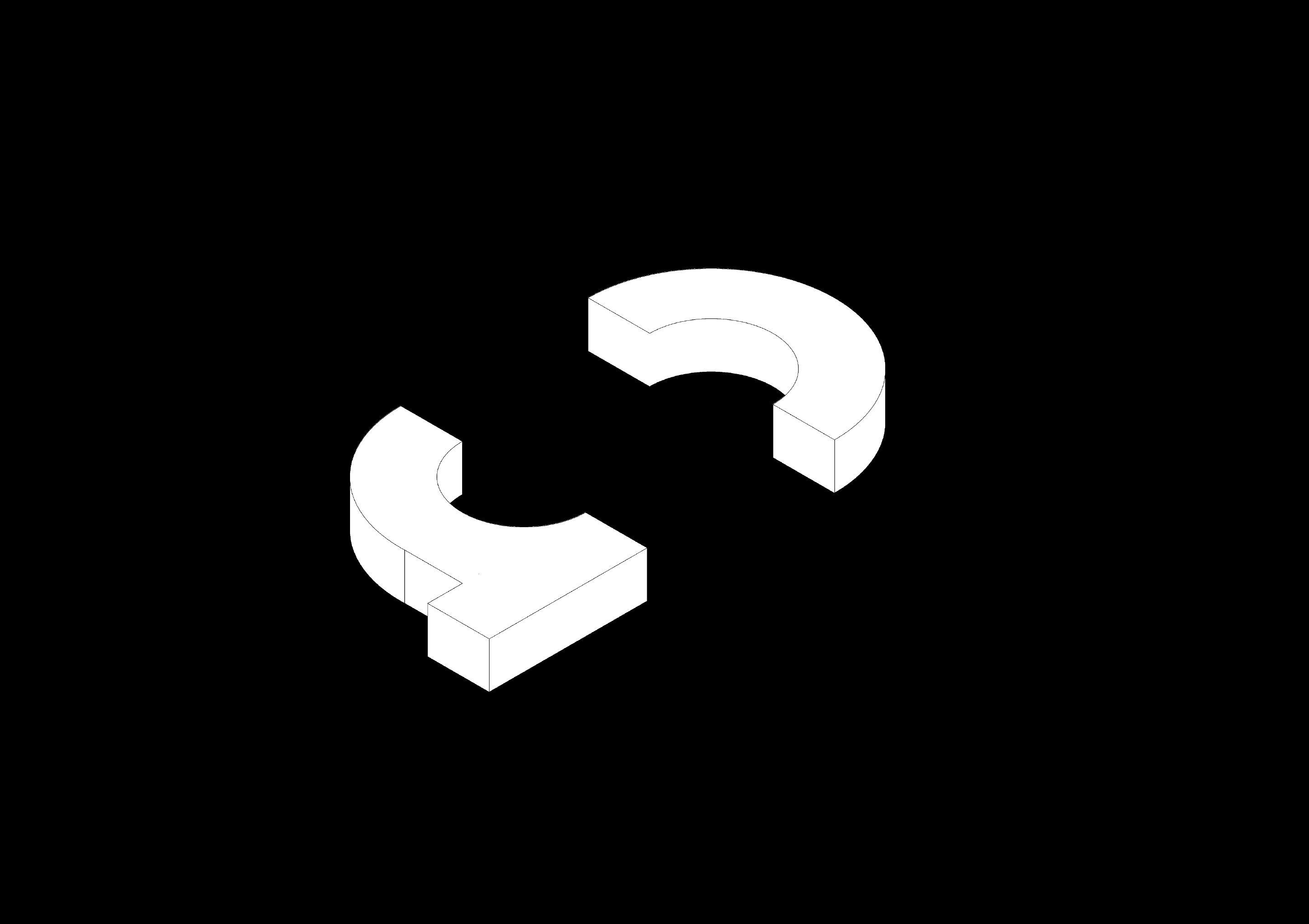

dividing mass between functions
urban-farming to encourage participation & implement a routine
children education center
universal design through ramp as main circulation & attraction
sociopetal spaces to encourage interaction
Chapter 04
Design Concept & Strategies
Chapter 04
Design Concept & Strategies

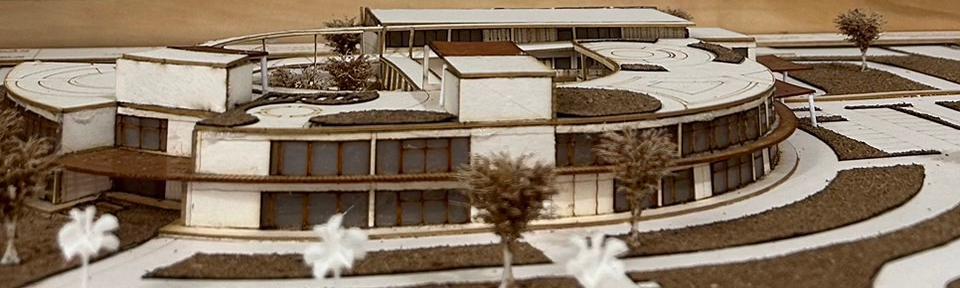

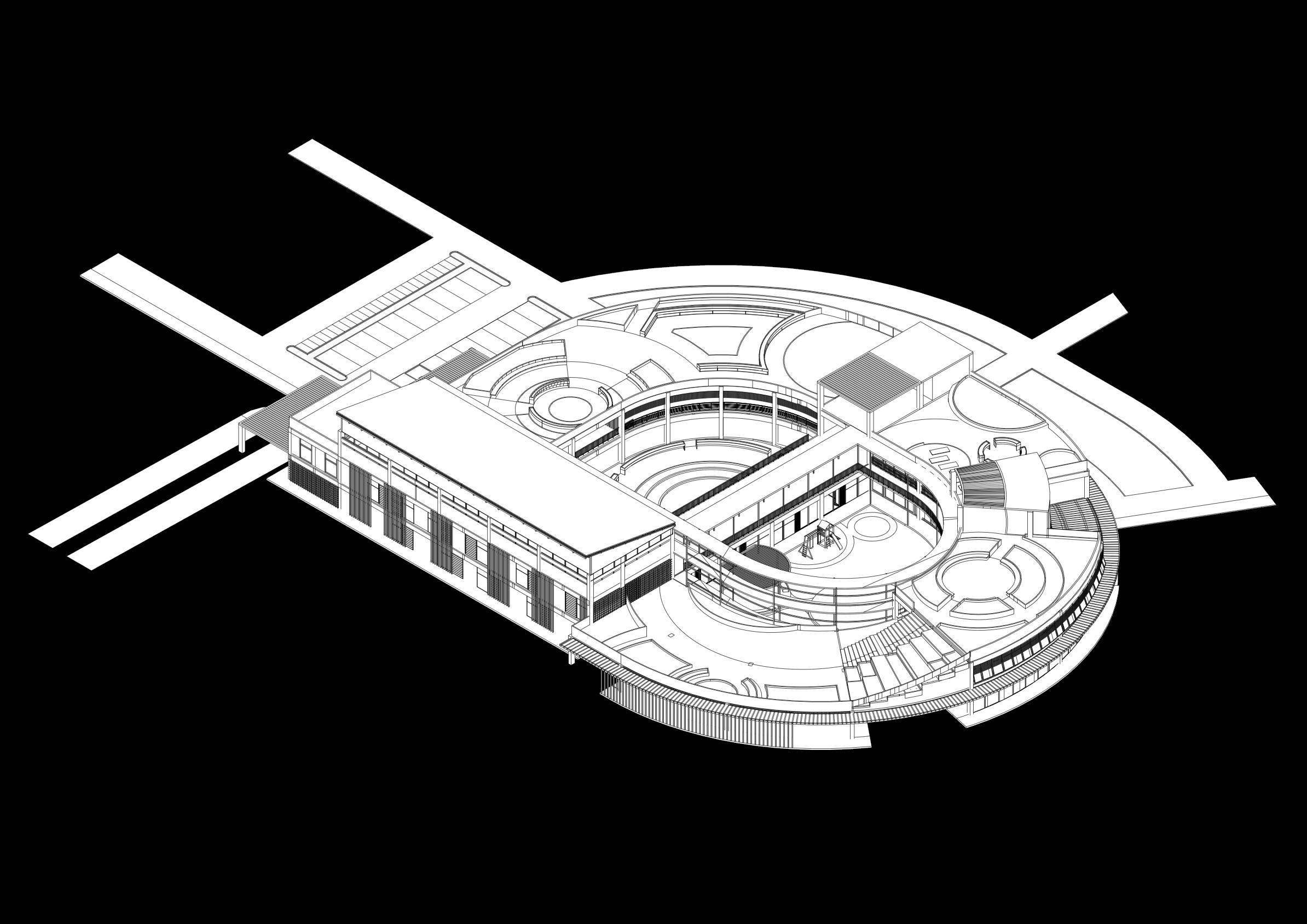

to live, learn, and belong are three different things. but what if all three exist in one facility?
SENARA:
Chapter 04
Design Concept & Strategies

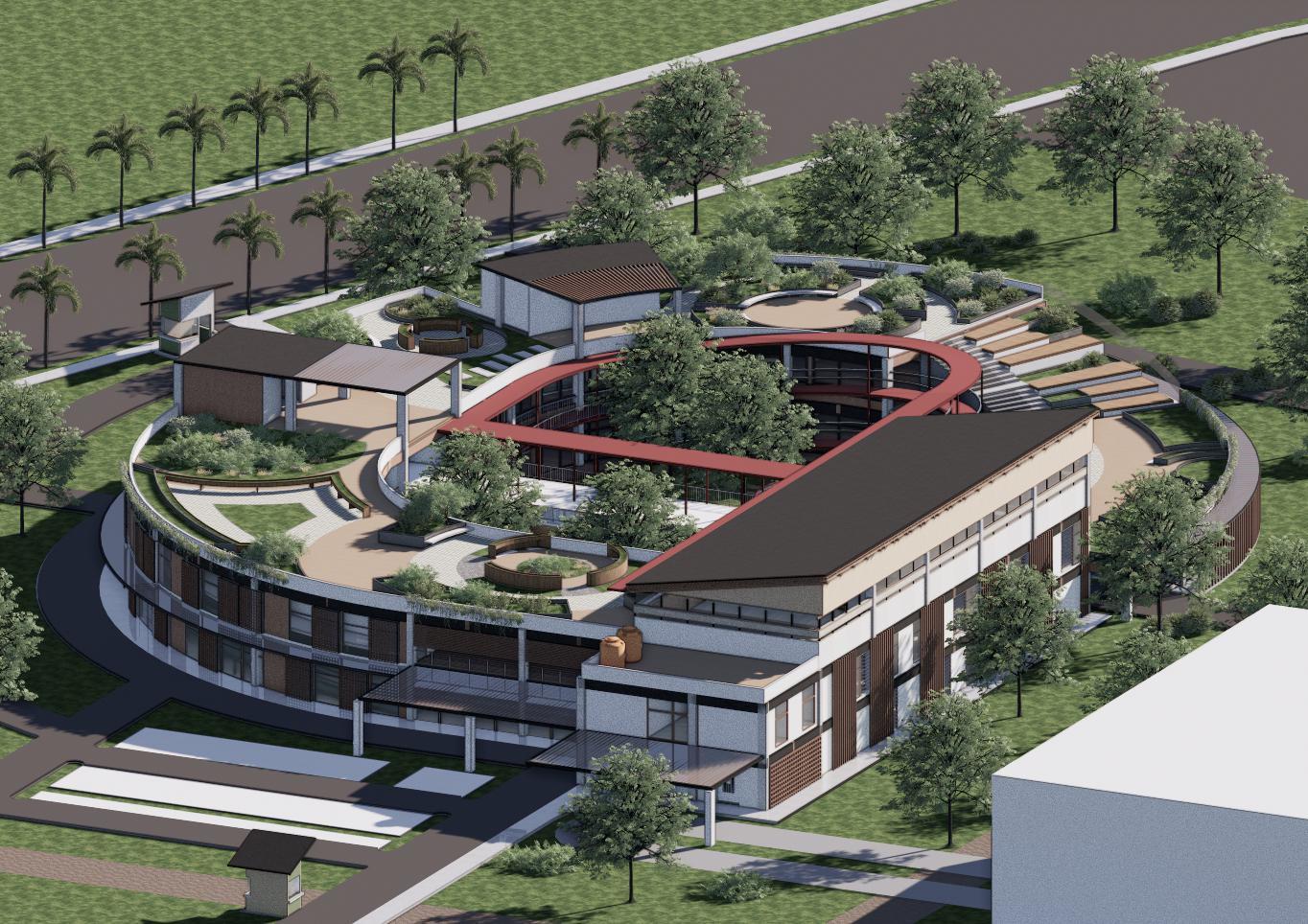

multipurpose
amphitheater
roof garden
ramp
classrooms
tutoring corridor
back of the house
retail area
lobby children side landscape
sports/event hall rooftank
SENARA:
Chapter 04
Design Concept & Strategies

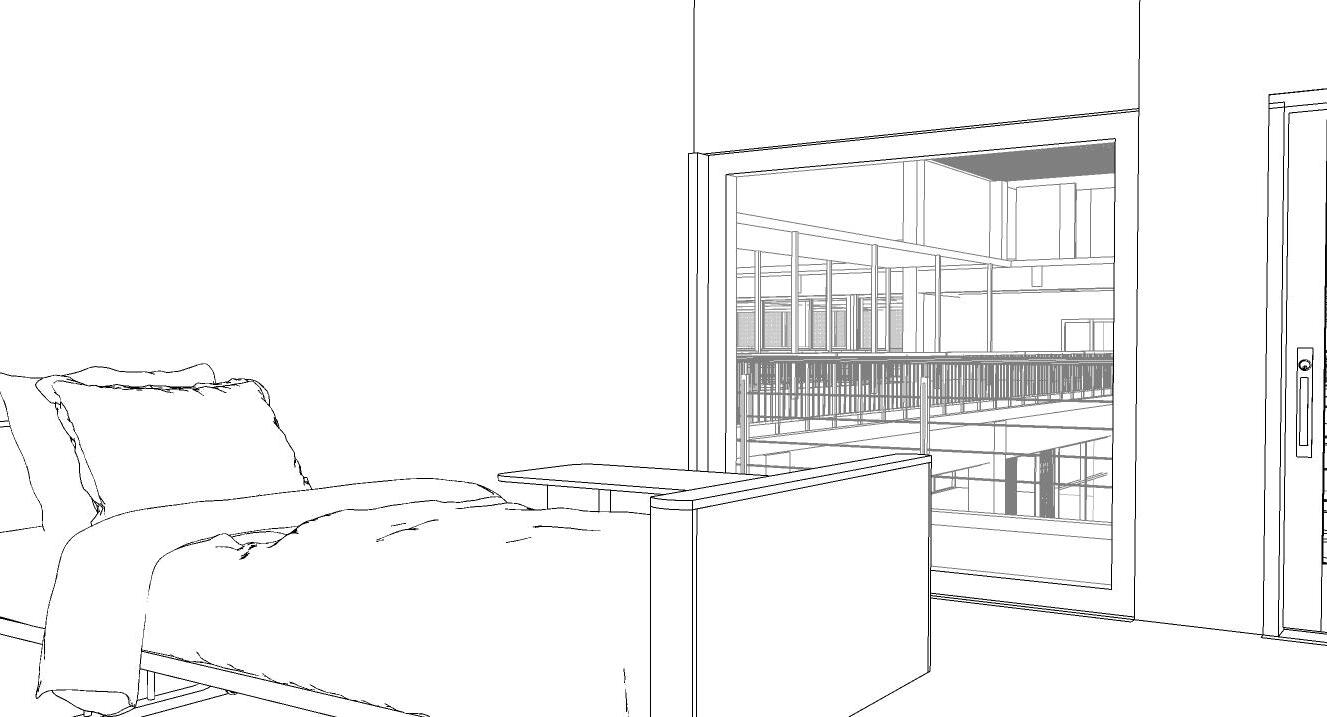

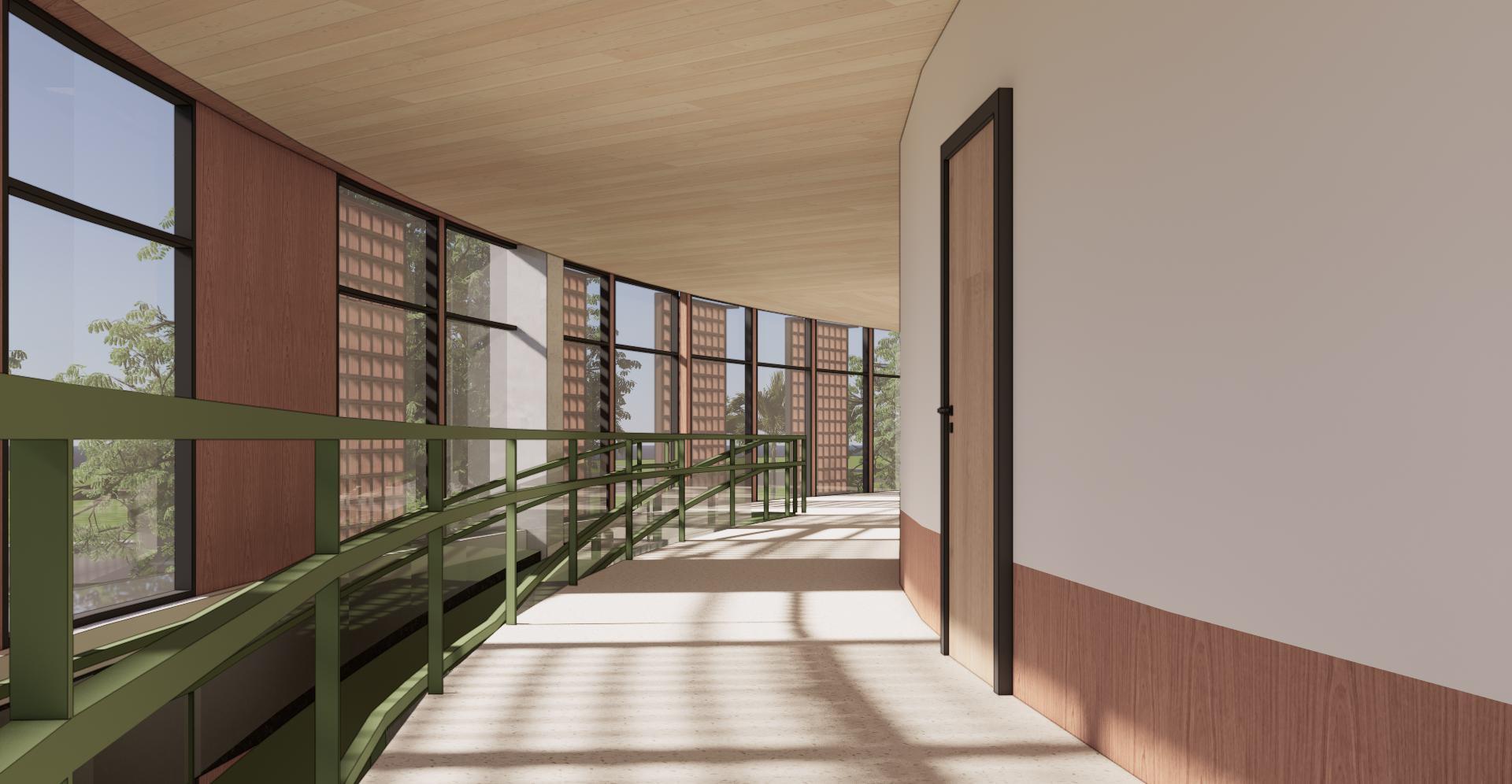

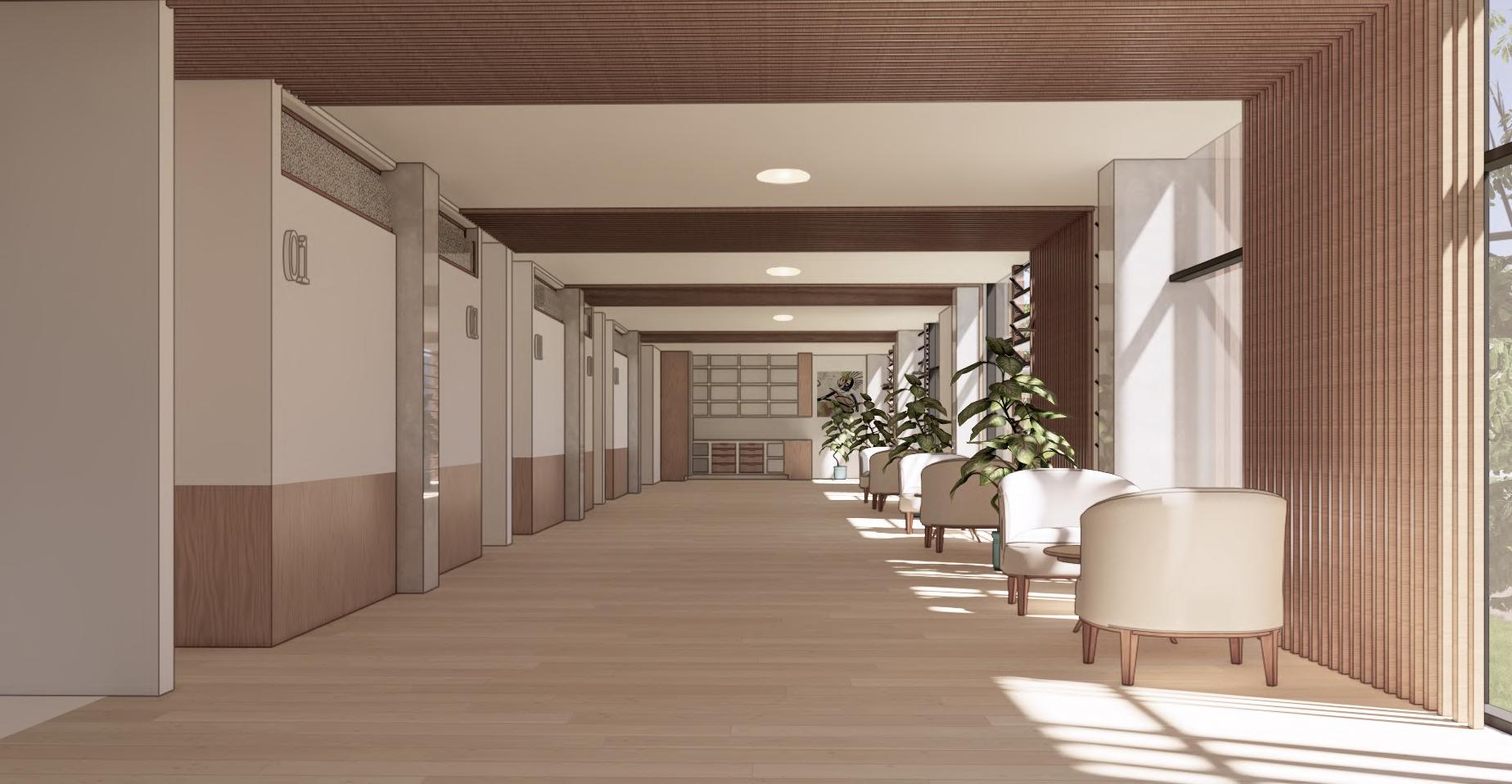

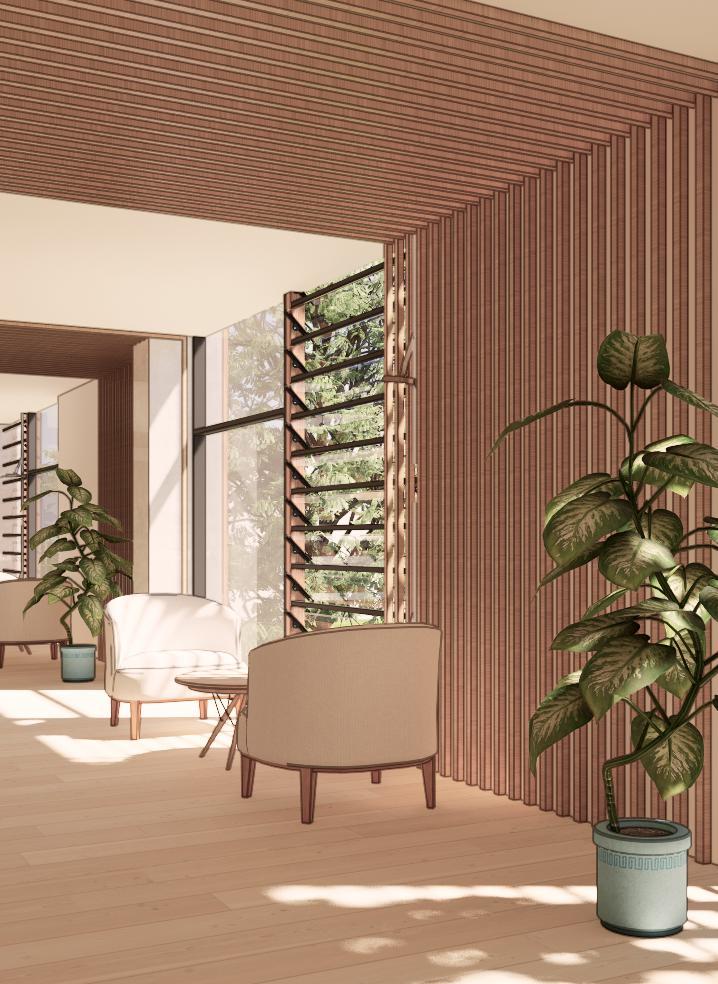

the elderly living facility’s rooms are placed with a fairly wide corridor as it is also functioned as a seating area. the corridor’s walls are designed with windows in which some are jalousie windows to not only allow light to seep through but also ventilation. the corridor is also designed to feel as homey as possible to make the elderly feel safe & at home.
sitting area for the elderly to spend time outside of their room (alone/with visitors)
natural lighting & ventilation
numbered rooms to help memorization
warm corridor with nonmonotonous view to help with the elderly’s spatial

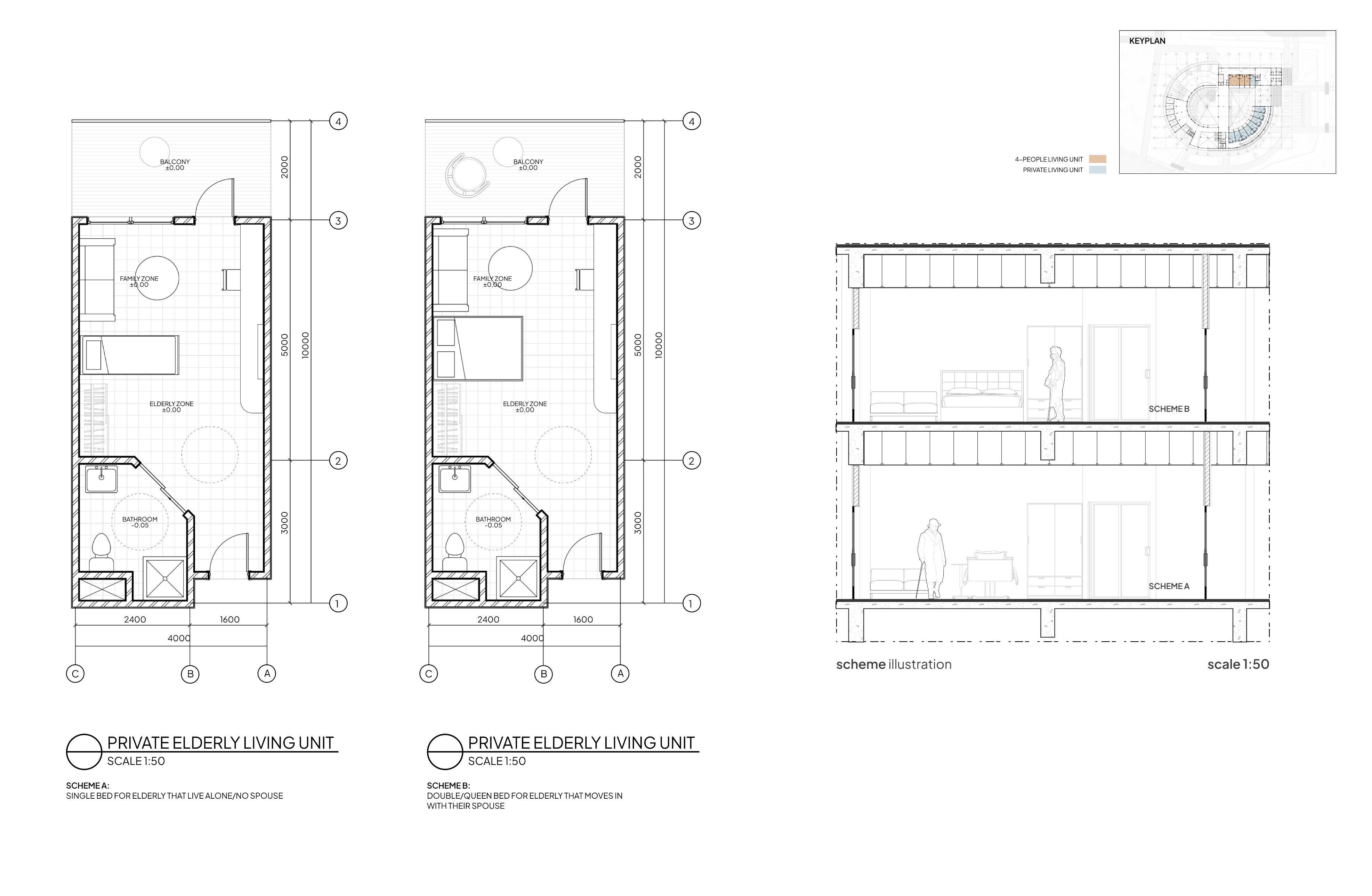

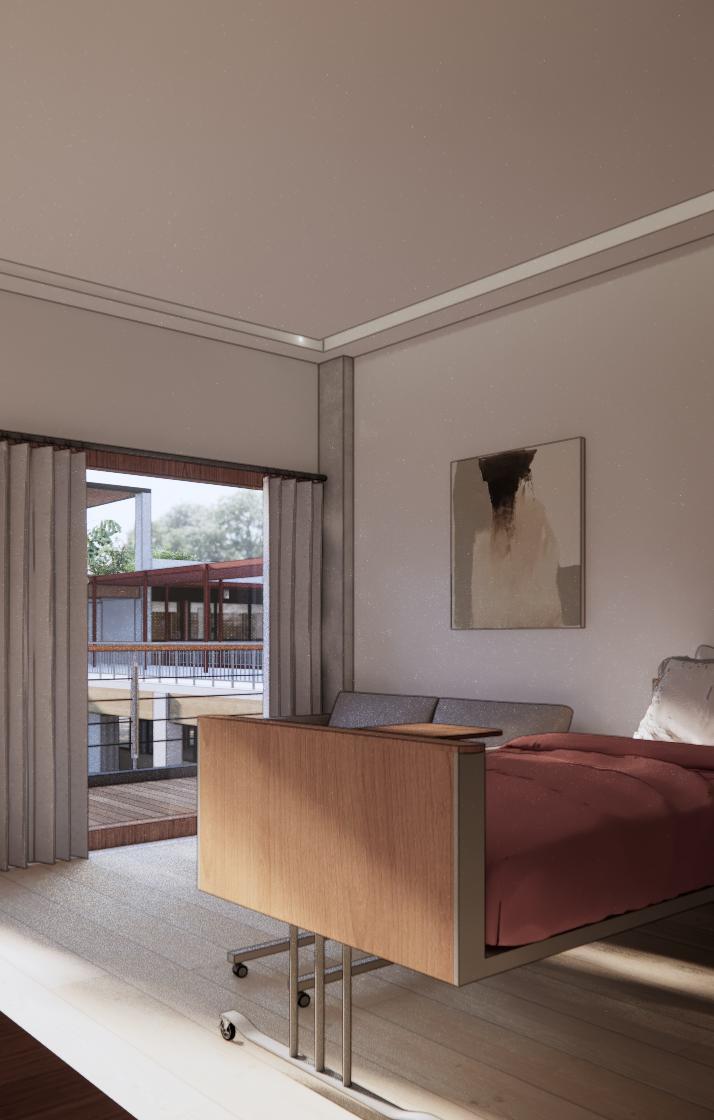

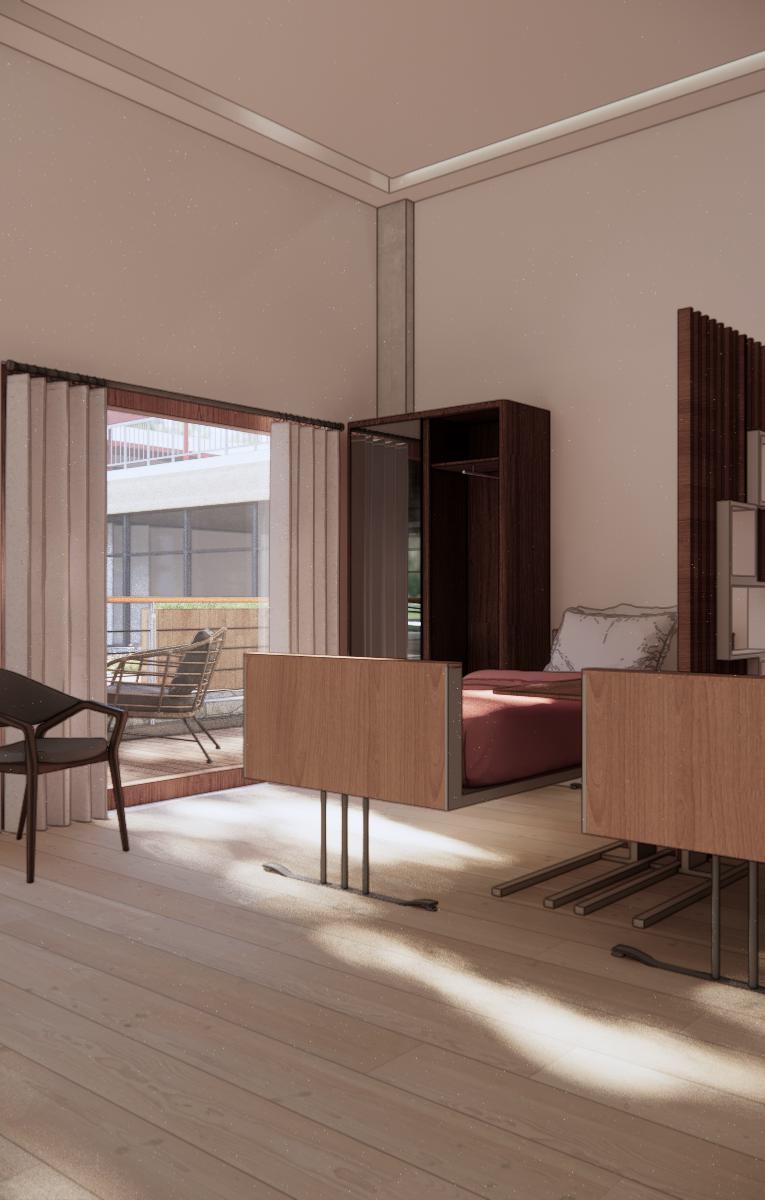

private living unit

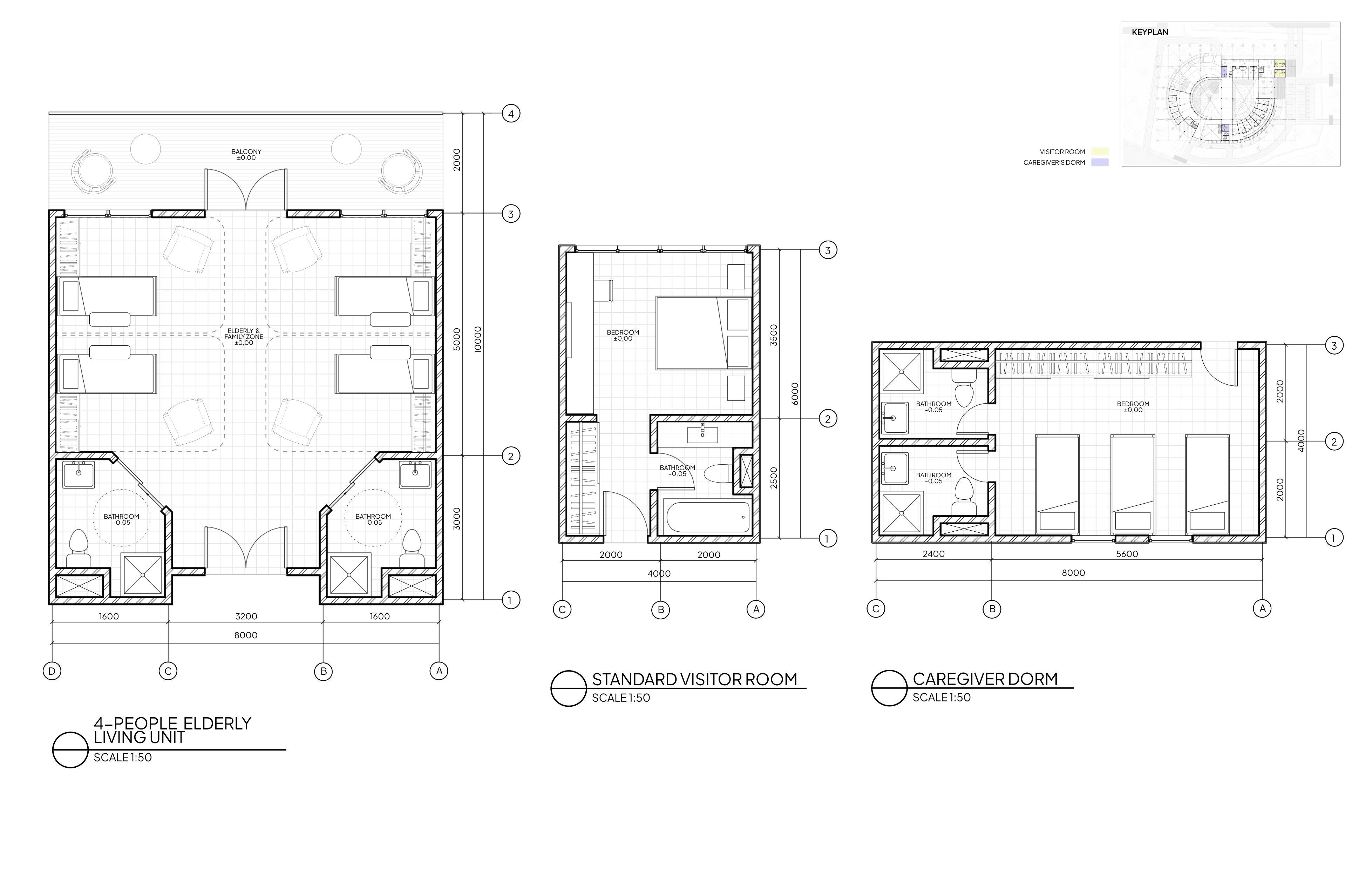

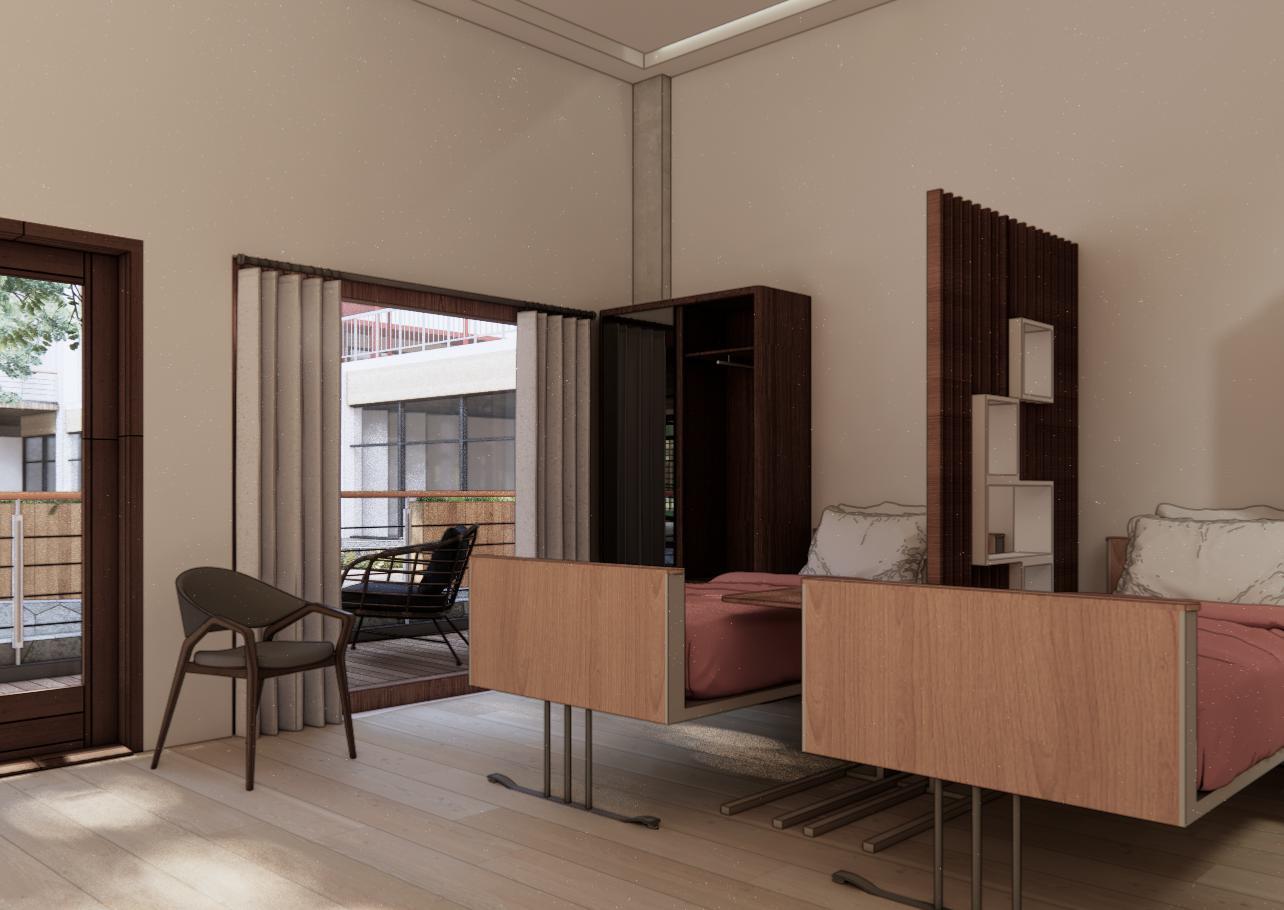

4-peoplle elderly living unit
homey & warm with a touch of color to help with the elderly’s cognitive senses
view towards courtyard
natural lighting & ventilation
customizable area
Chapter 04
Design Concept & Strategies
SENARA: Mixed-Used Facility for The Elderly’s Prosperity
the corridor on the rounded side of the elderly living facility is directly accessible through the indoor ramp. it also provides a clear view towards the outdoors through the windows installed with a sun shading facade.
URBAN FARMING AREA
SENSORY WALKPATH HELP FOSTER A SENSE OF PURPOSE & ROUTINE WHICH CAN HELP REDUCE FEELINGS OF ISOLATION OR DEPRESSION FOR THE ELDERLY
OFFERS A GENTLE AND ENGAGING WAY TO PROMOTE BOTH PHYSICAL AND COGNITIVE WELL-BEING OF THE ELDERLY
SEPARATOR BETWEEN THE COURTYARD AND LIVING UNITS THAT ALSO ACT AS A RESTORATIVE ELEMENT
WOODEN DECK
EXTENSION FROM THE FACILITY’S MULTIPURPOSE HALL WHICH CAN FUNCTION AS A PLACE FOR THE ELDERLY TO BATHE IN THE SUN OR EXERCISE (E.G: TAI-CHI)
CHILDREN PLAYGROUND
encourage social interaction, helping children learn cooperation, communication, and conflict resolution in a natural setting
POND
OFFERS A UNIQUE BLEND OF LEARNING,S ENSORY ENGAGEMENT, AND NATURAL PLAY WHILE ALSO CREATING A SOOTHING ENVIRONMENT
help foster empathy, communication, and intergenerational cultural exchange by becoming a neutral and nurturing meeting point
WOODEN DECK
warm, versatile surface that blends learning with nature, creating a safe and comfortable zone for outdoor classes, group discussions, and reading sessions
AREA
provide space for physical play, exploration, and unstructured
GAZEBO
GREEN
POND
GARDEN

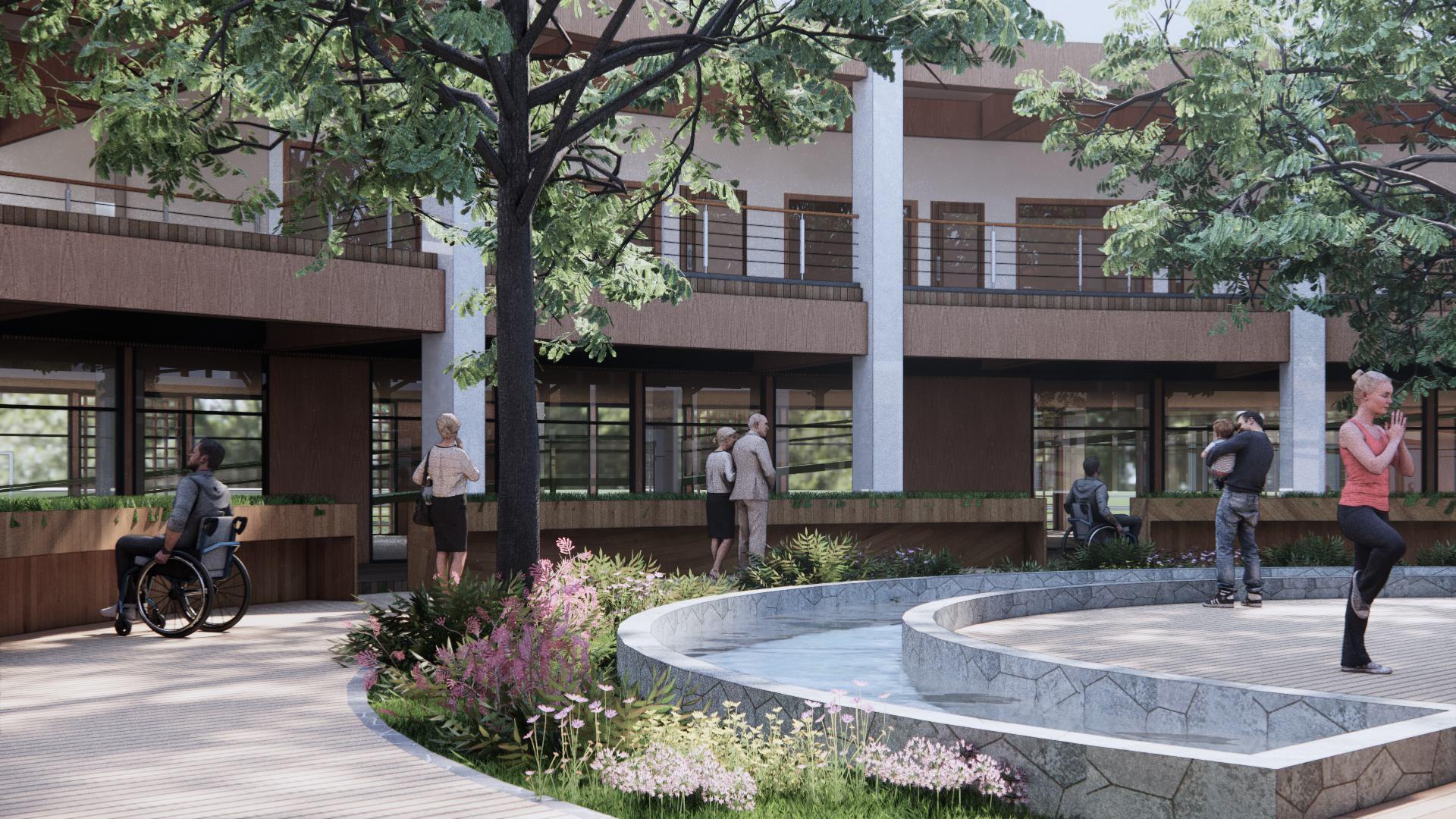

elderly landscape designed with sensory walkway and garden for the elderly’s cognitive senses & wheelchair/disabled-friendly planters for urban farming uses.
Chapter 04
Design Concept & Strategies
SENARA: Mixed-Used Facility for The Elderly’s Prosperity

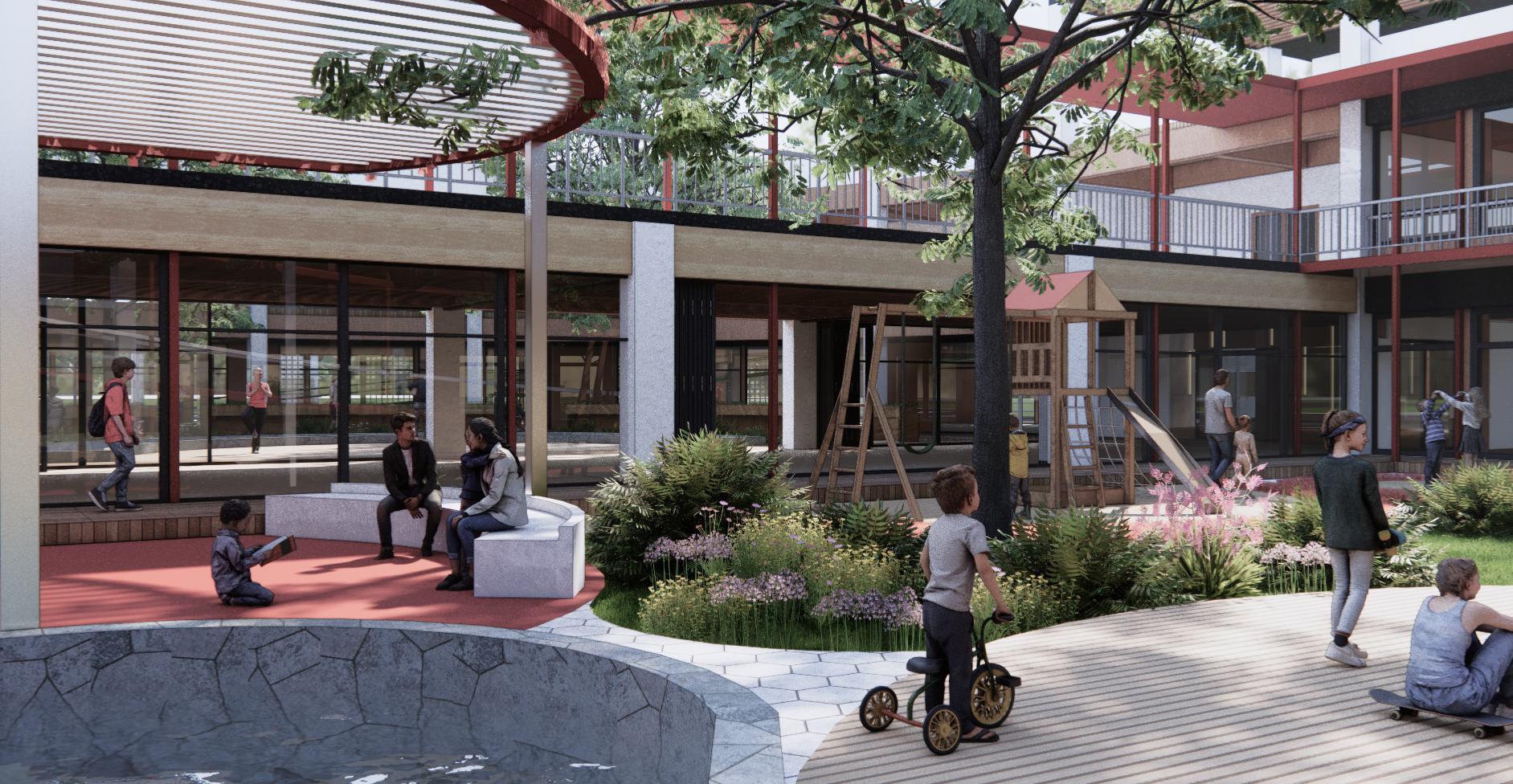

children’s landscape designed with large open space for them to let out their energy, playground area with soft ground, and gazebo as a waiting & seating area. not only that, it’s designed with trees & vibrant greens as part of the ramp’s main attraction.

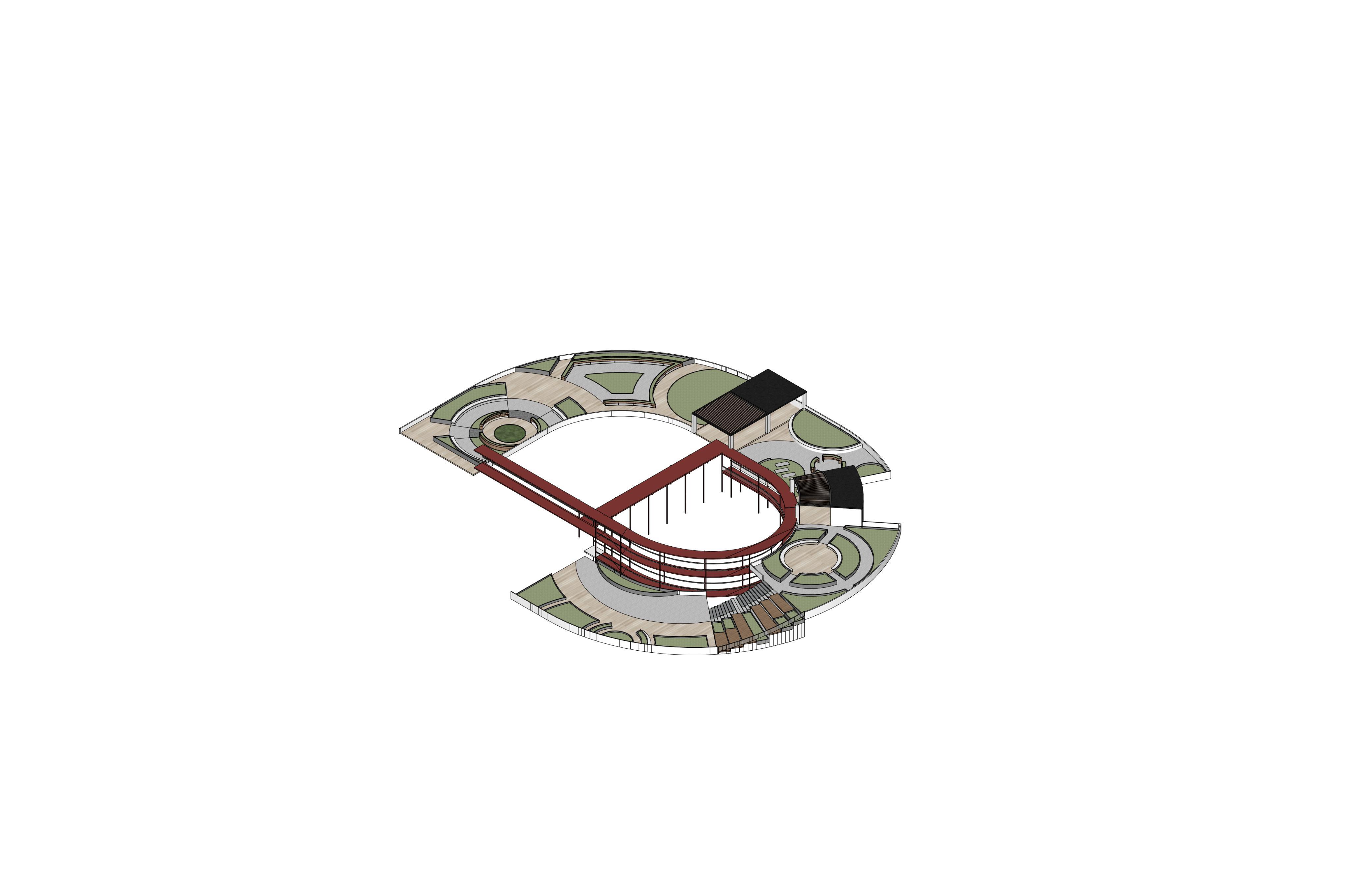

ROOF GARDEN PLAN

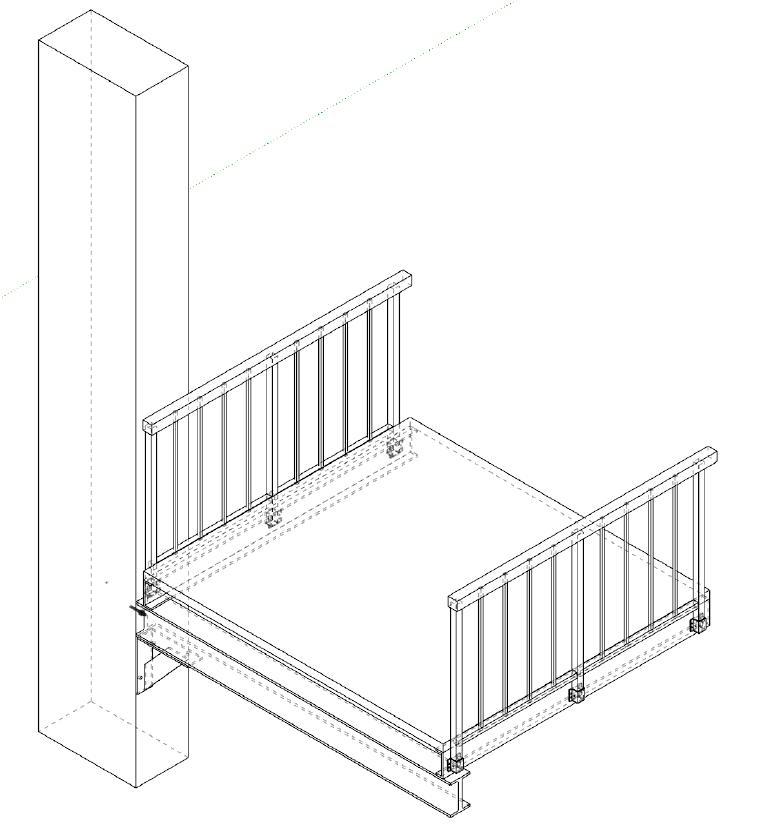

essential circulation element for accessibility, but also as a playful and engaging feature BY ENSURING smooth, barrier-free movement for users of all ages.
URBAN FARMING
HELP both children and THE ELDERLY engage in meaningful routines that foster shared responsibility, patience, and care
SENSORY GARDEN
nurturing & restorative environment where both elderly and children benefit from sensory stimulation

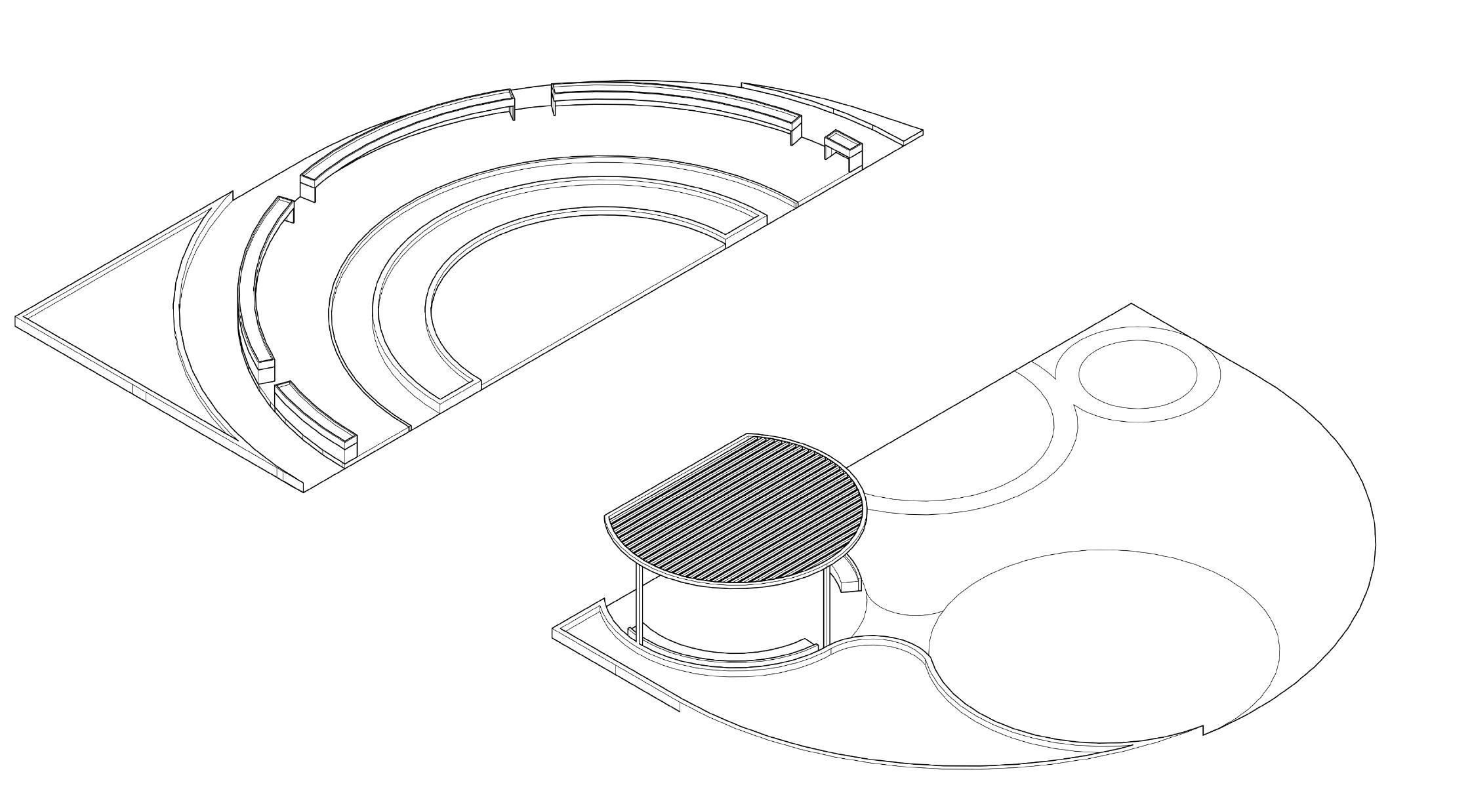

AMPHITHEATER
encourages gathering AND FOSTERING connection, expression, and shared INTERGENERATIONAL EXPERIENCE
ELEVATOR & RESTING AREA
ACCESS TOWARDS ROOFGARDEN THROUGH ELEVATOR WITH CANOPY & SEATING AREA
landscaperoofgarden detail
Design Concept & Strategies
PLANTABLES
WELL-ADAPTED TO THE TROPICAL CLIMATE, SHALLOW LIGHTWEIGHT, REQUIRES MINIMAL PHYSICAL EFFORT TO PLANT AND HARVEST
SAWI
ZINNIA
Chapter 04
Design Concept & Strategies
SENARA: Mixed-Used Facility for The Elderly’s Prosperity

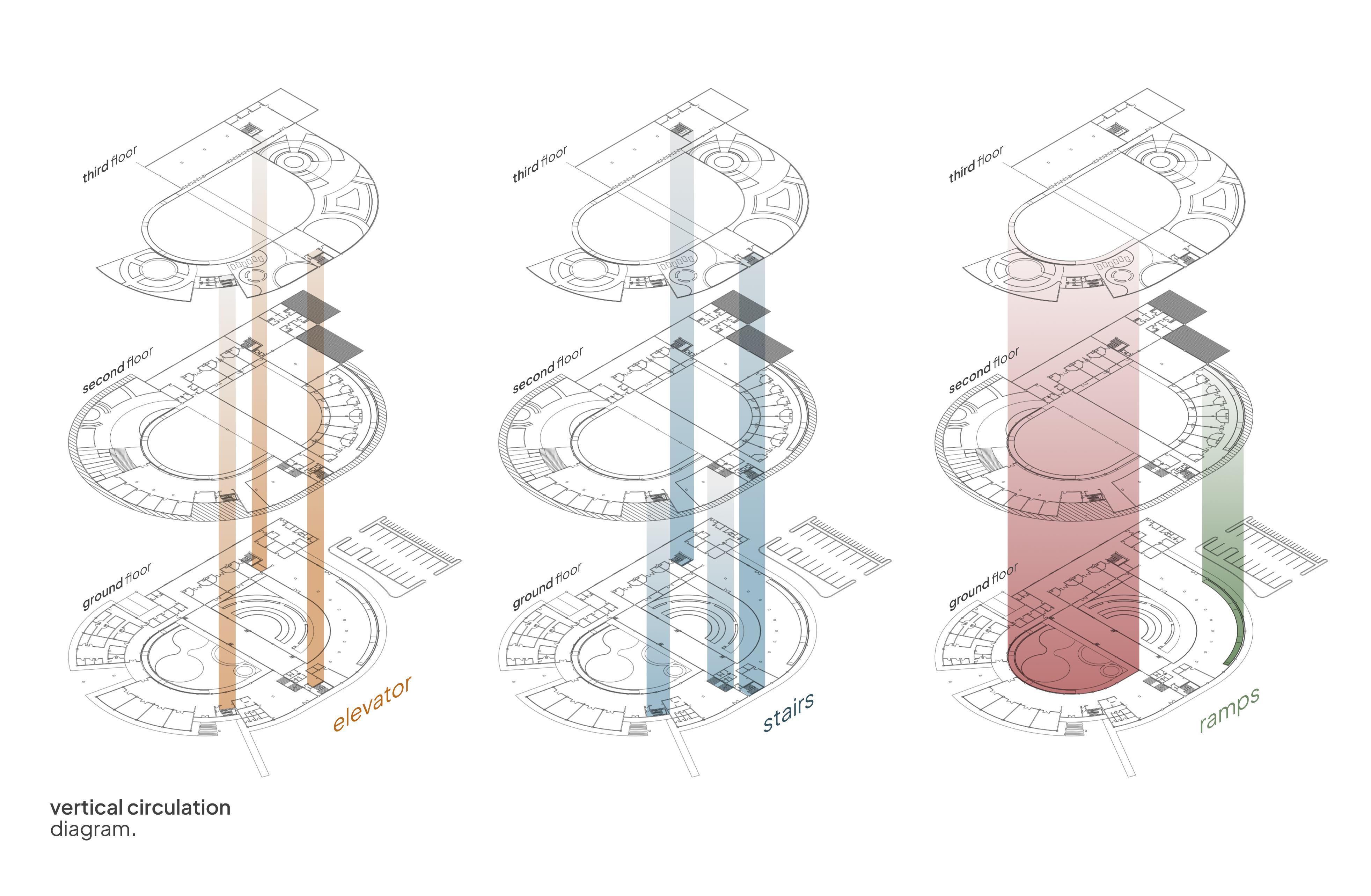

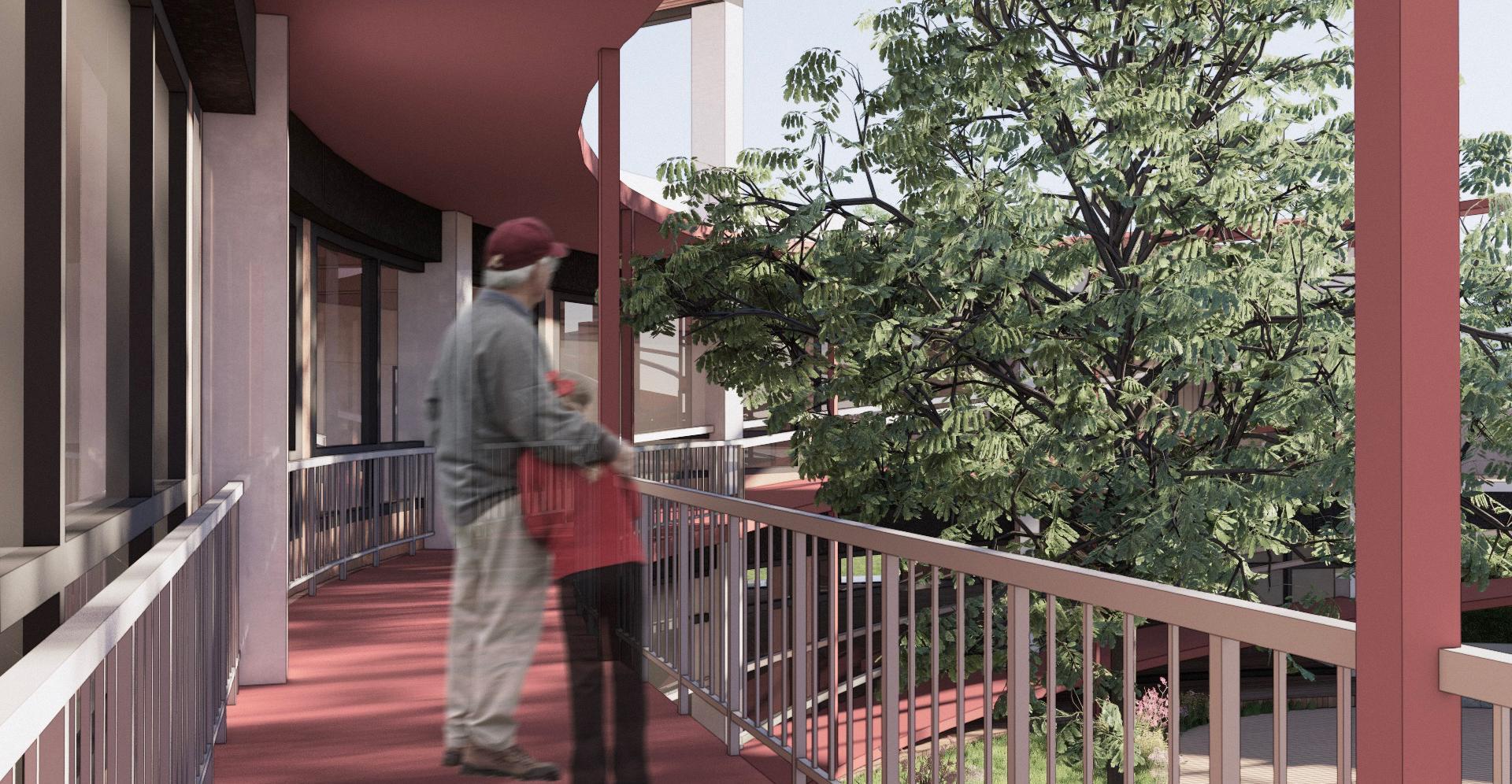

implementing the universal design’s concept to make the higher levels accessible to all kinds of users. the ramp’s vibrant colors make this ramp the main attraction of the children side massing with a view towards the courtyard

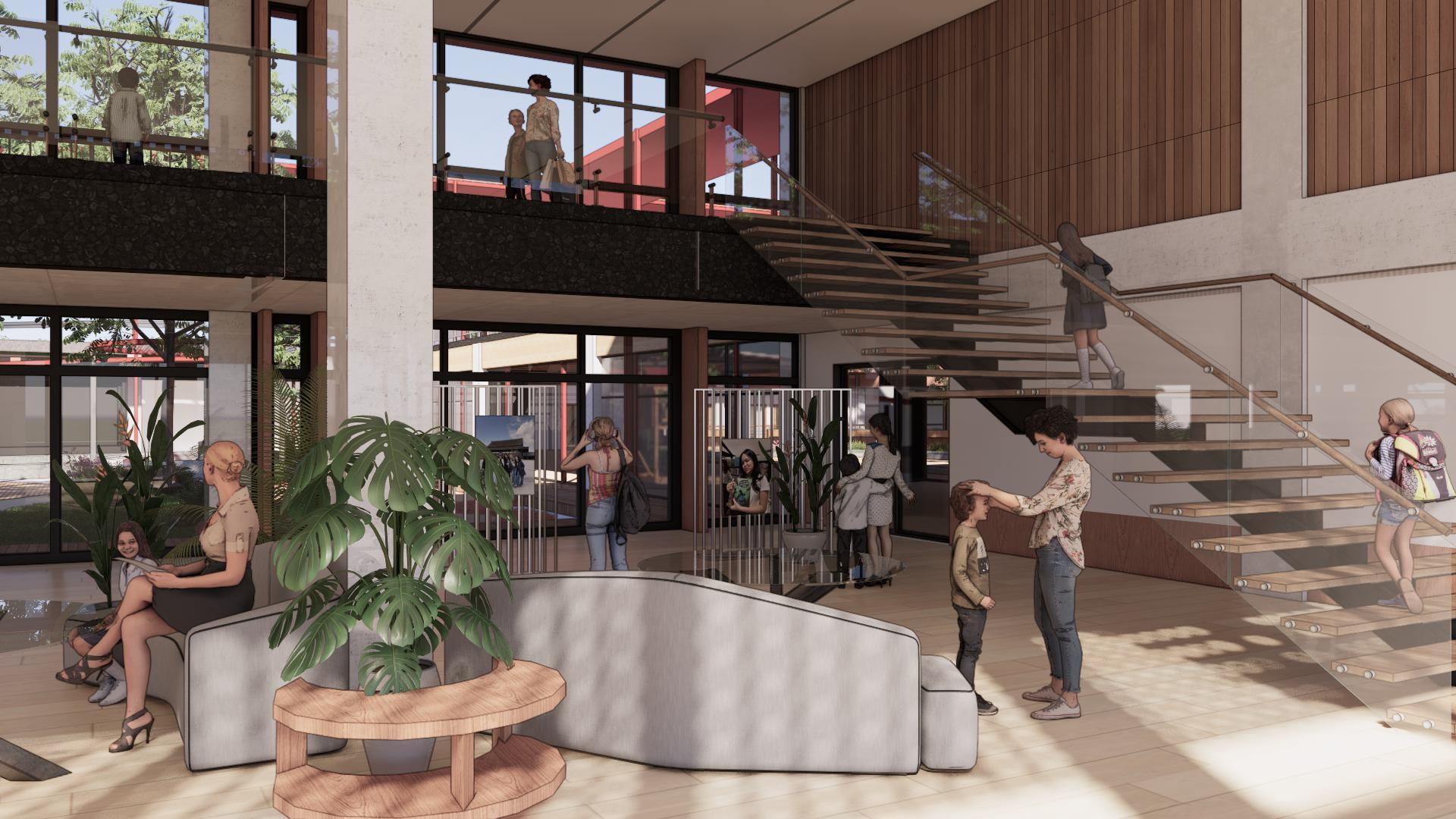

the children education center’s lobby is equipped with a seating area to accommodate parents that wait for their children. not only that, it also has a direct access towards the courtyard and a grand staircase leading to the second floor which is where the classes are located. it also has an exhibition area showcasing the works of the children who participated in intergenerational workshops with the elderly.

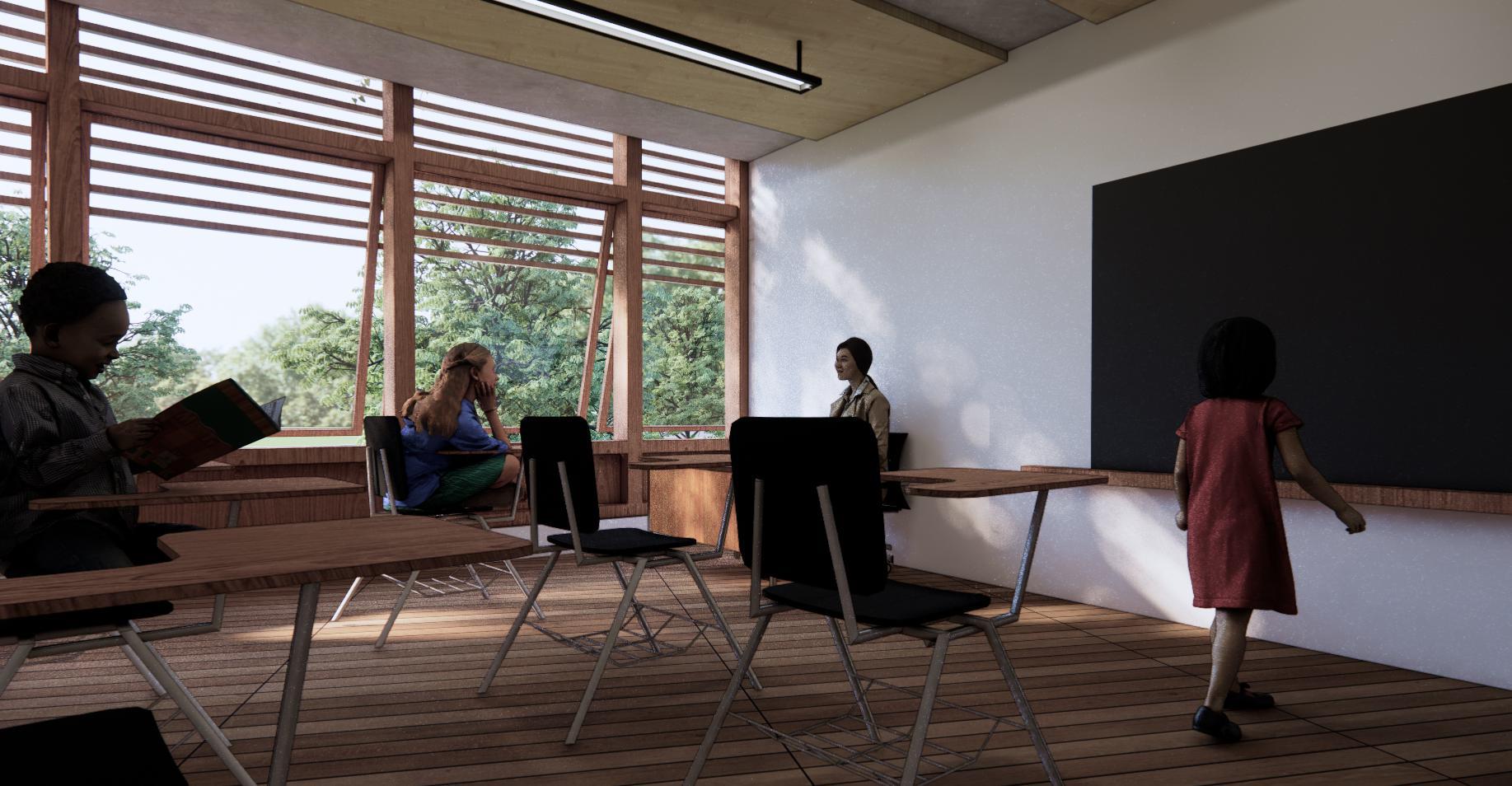

children’s
classes

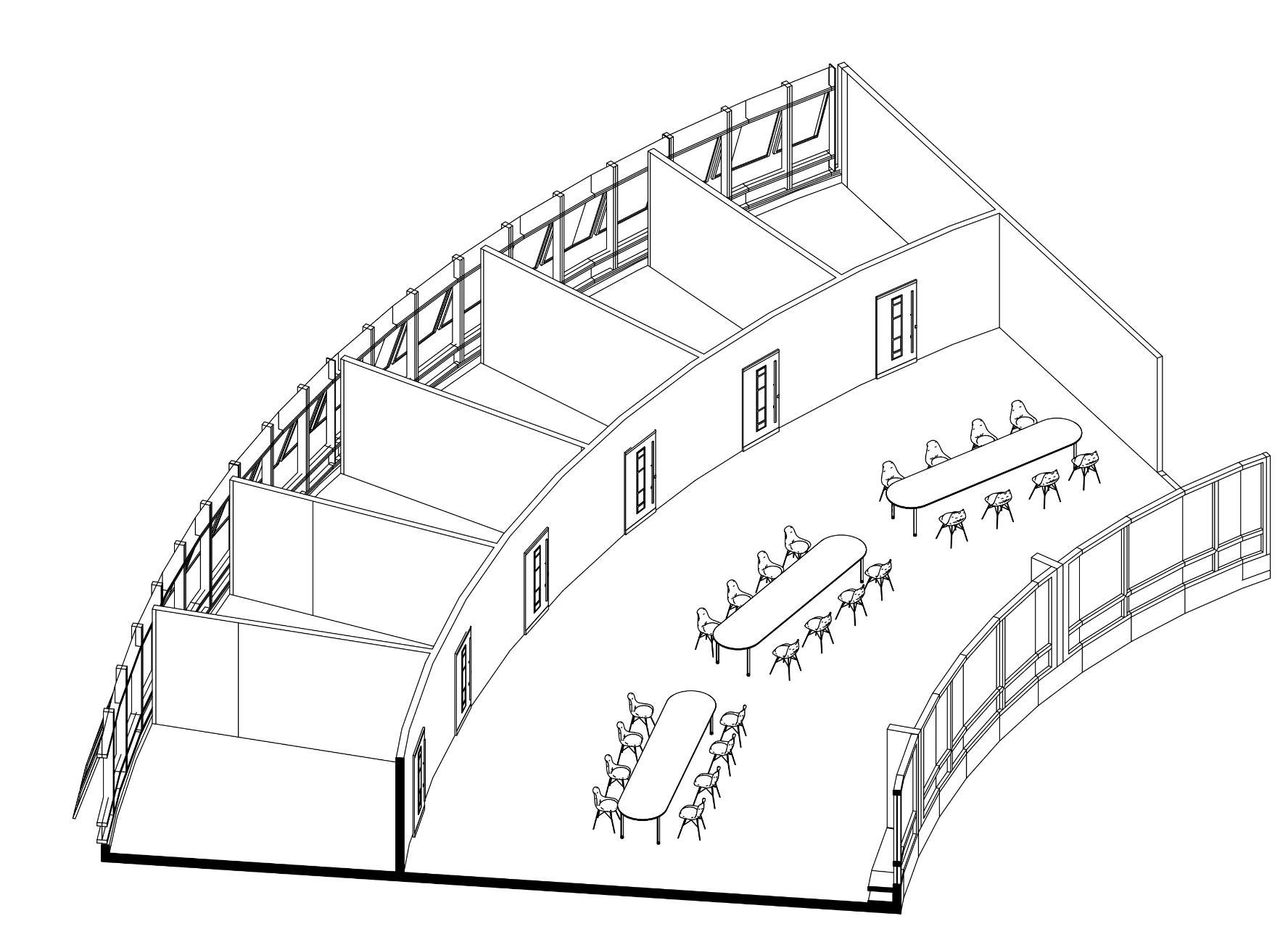

where the heart of the children education center lies, designed with openable windows for ventilation & natural lighting
second floor tutoring corridor
co-working space
offers a calm yet engaging environment designed for parents, tutors, and young professionals who wish to remain close while children engage in learning activities.

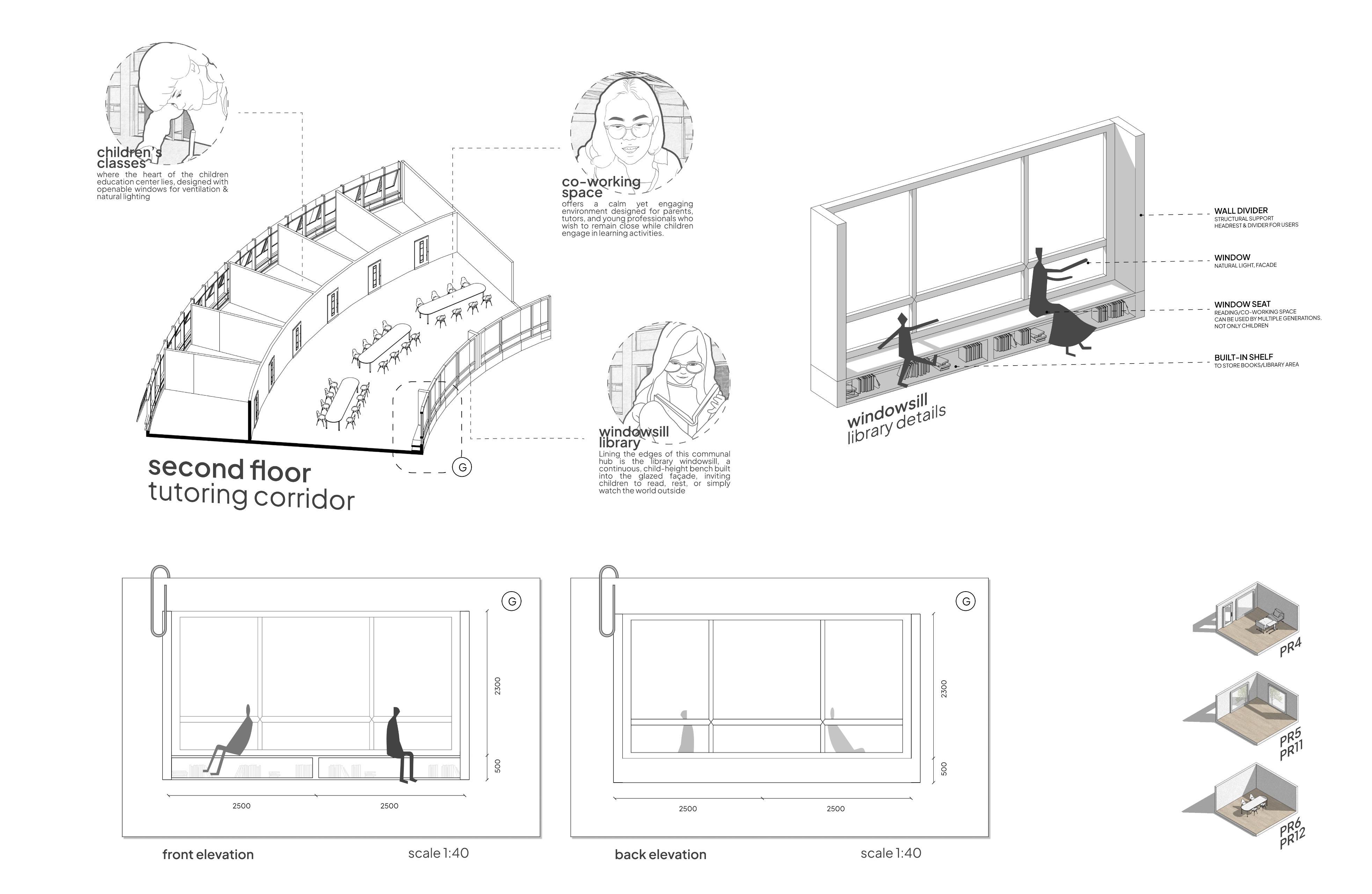

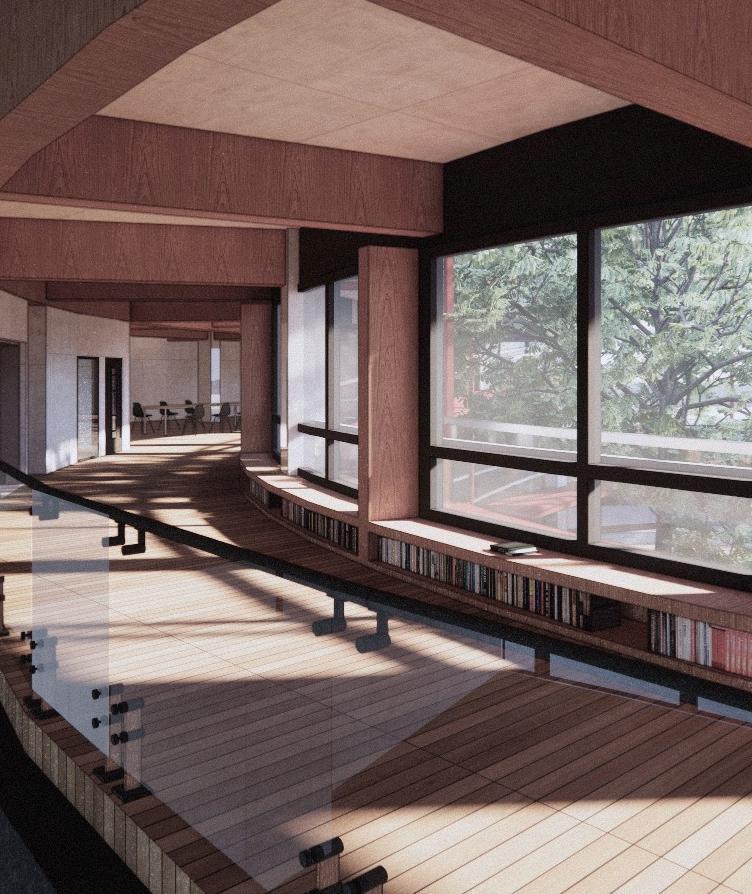

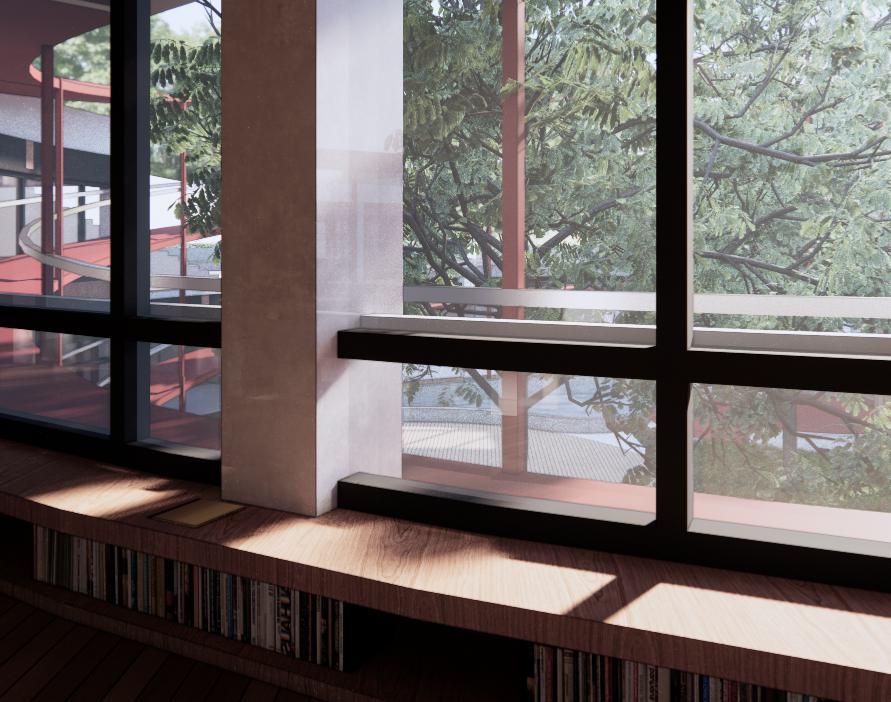

windowsill library
Lining the edges of this communal hub is the library windowsill, a continuous, child-height bench built into the glazed façade, inviting children to read, rest, or simply watch the world outside
Chapter 04
Design Concept & Strategies
SENARA: Mixed-Used Facility for The Elderly’s Prosperity
the children education center’s classrooms are equipped with opened built-in locker windows, allowing natural light and ventilation to seep in. it’s also designed with a second skin facade that act as a buffer for the sunlight.
the children education center’s second floor corridor’s window is made into a seating/reading area by installing a shelf under the window sill that can be seated on. the wall divider is also made to be a place where the users can rest their head on.
group exercises yoga, tai chi, or stretching sessions that are safe for the elderly but fun for children when done together.
story
telling
elders share traditional stories or life experiences, while children listen, ask questions, or draw scenes from the stories.
main feature:

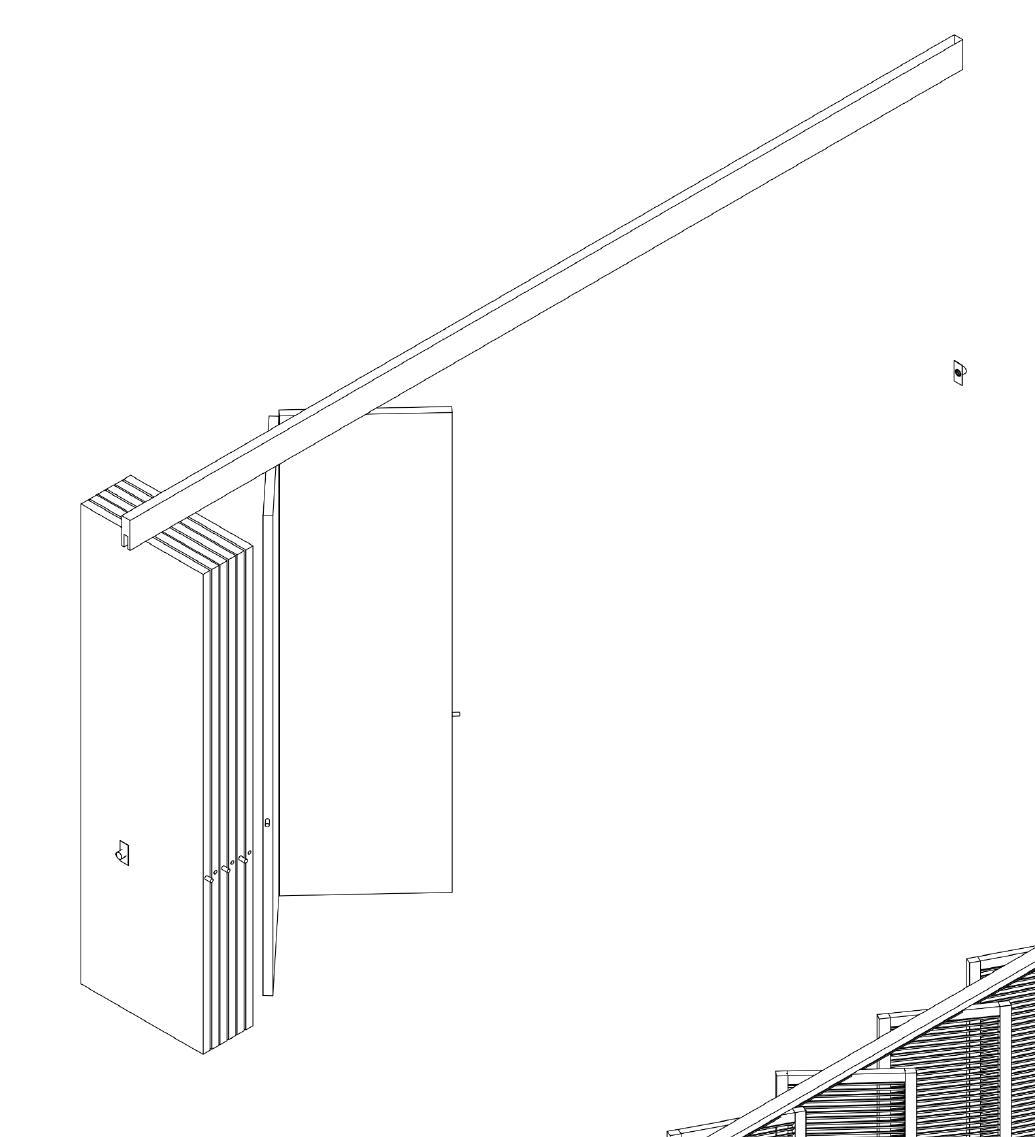

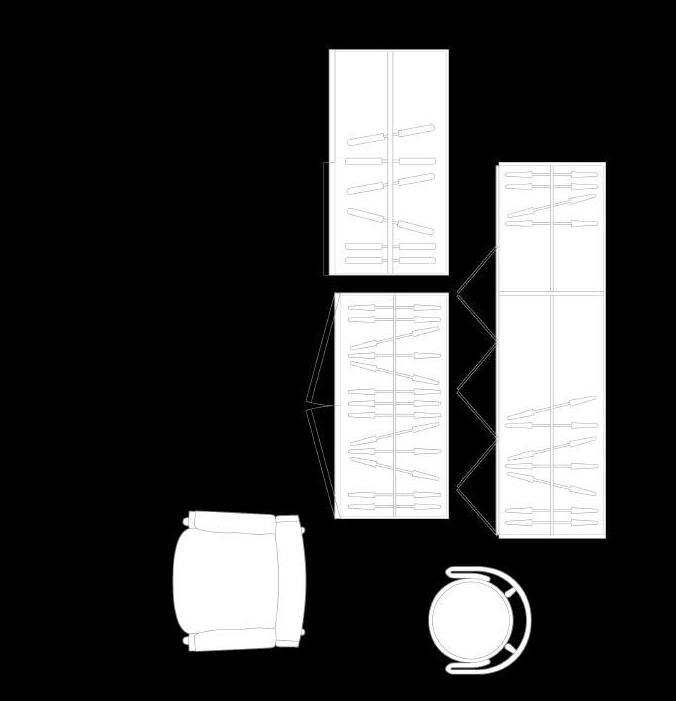

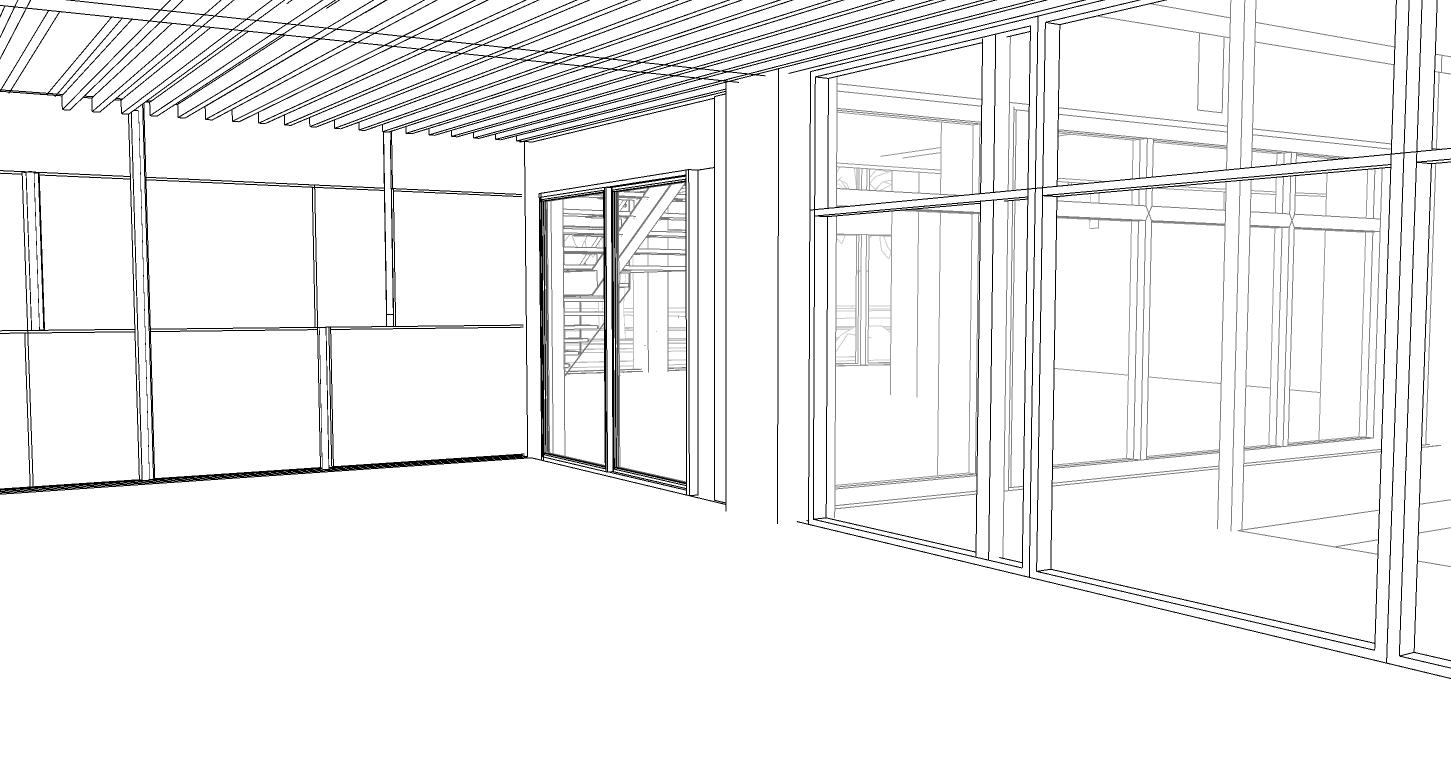

folding walls to adjust each section’s function depending on the kind of event held

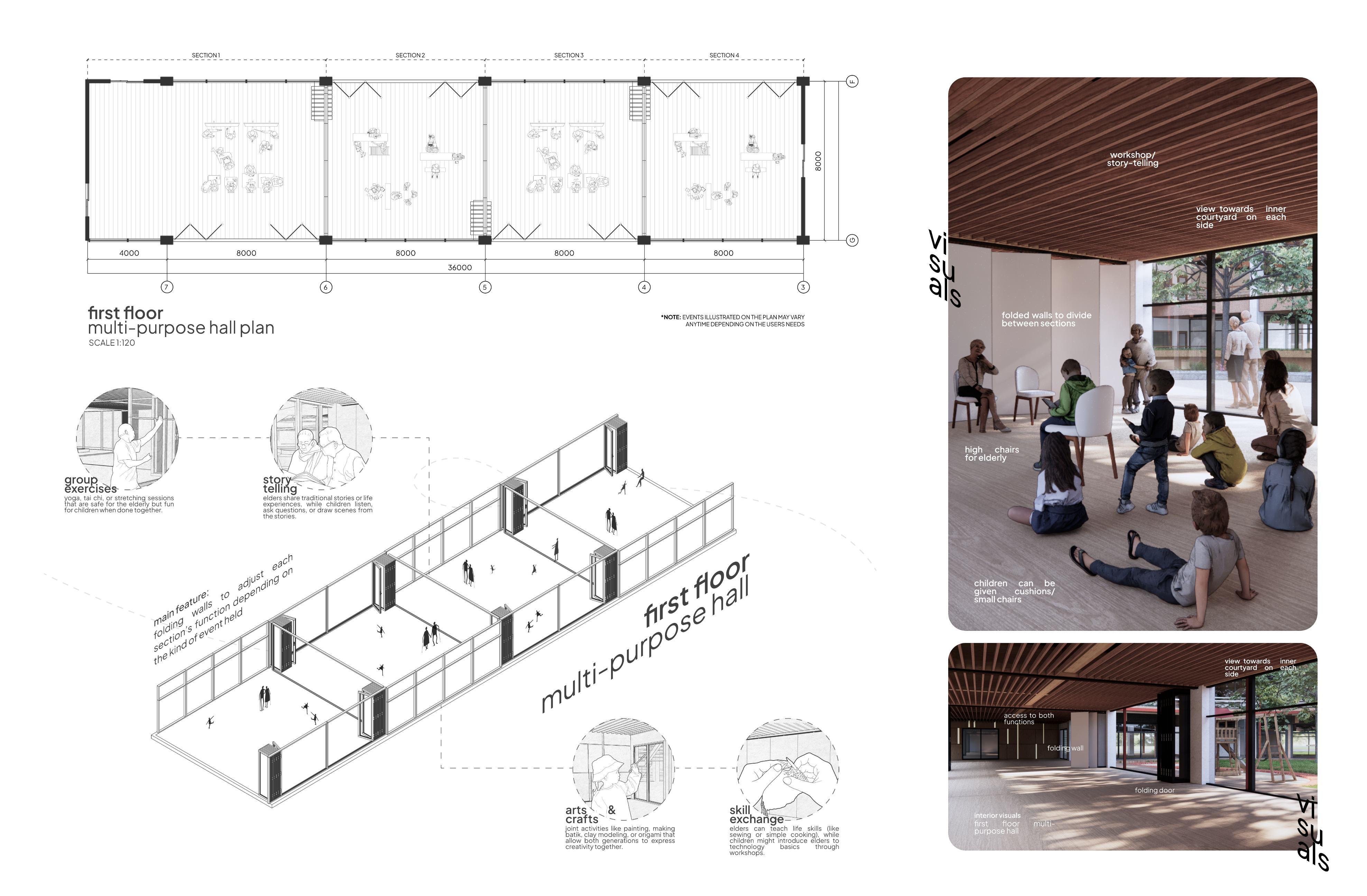

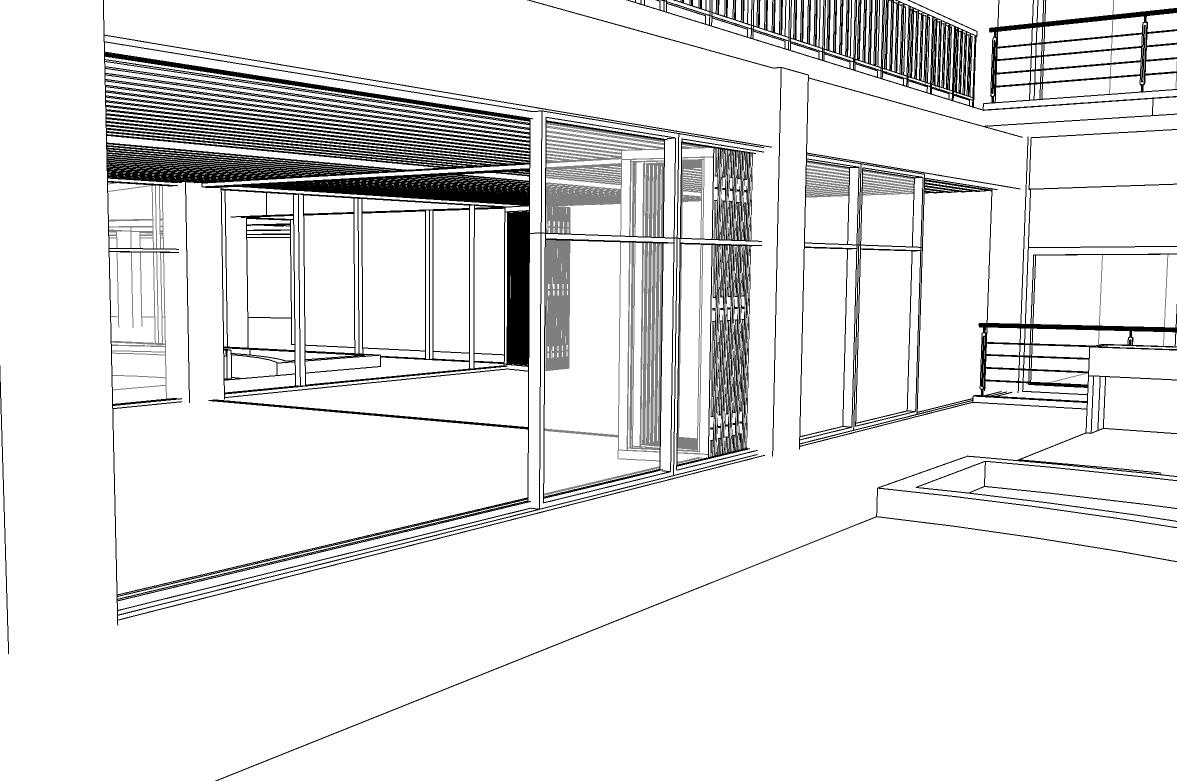

first multi-purposefloor hall
arts & crafts
joint activities like painting, making batik, clay modeling, or origami that allow both generations to express creativity together.
elders can teach life skills (like sewing or simple cooking), while children might introduce elders to technology basics through
Chapter 04
Design Concept & Strategies

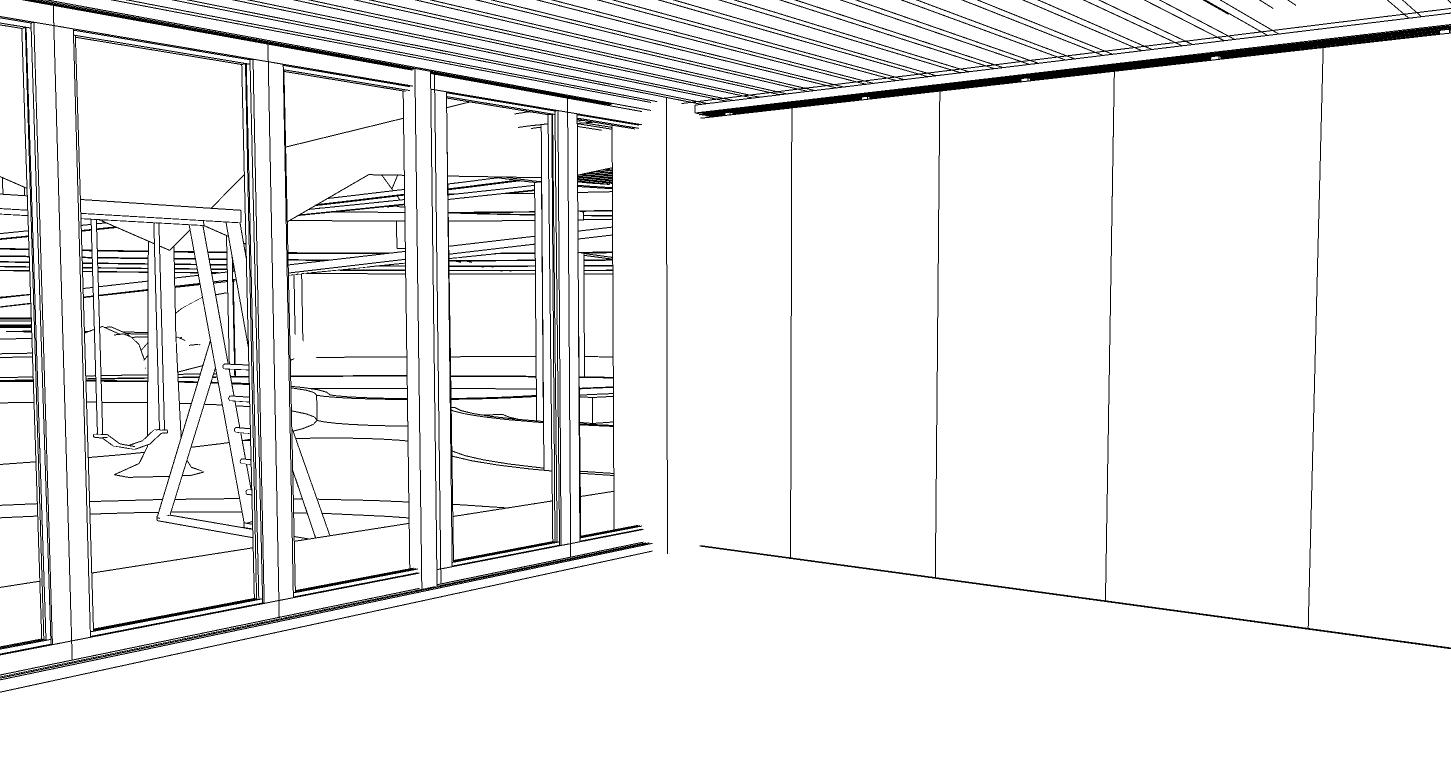

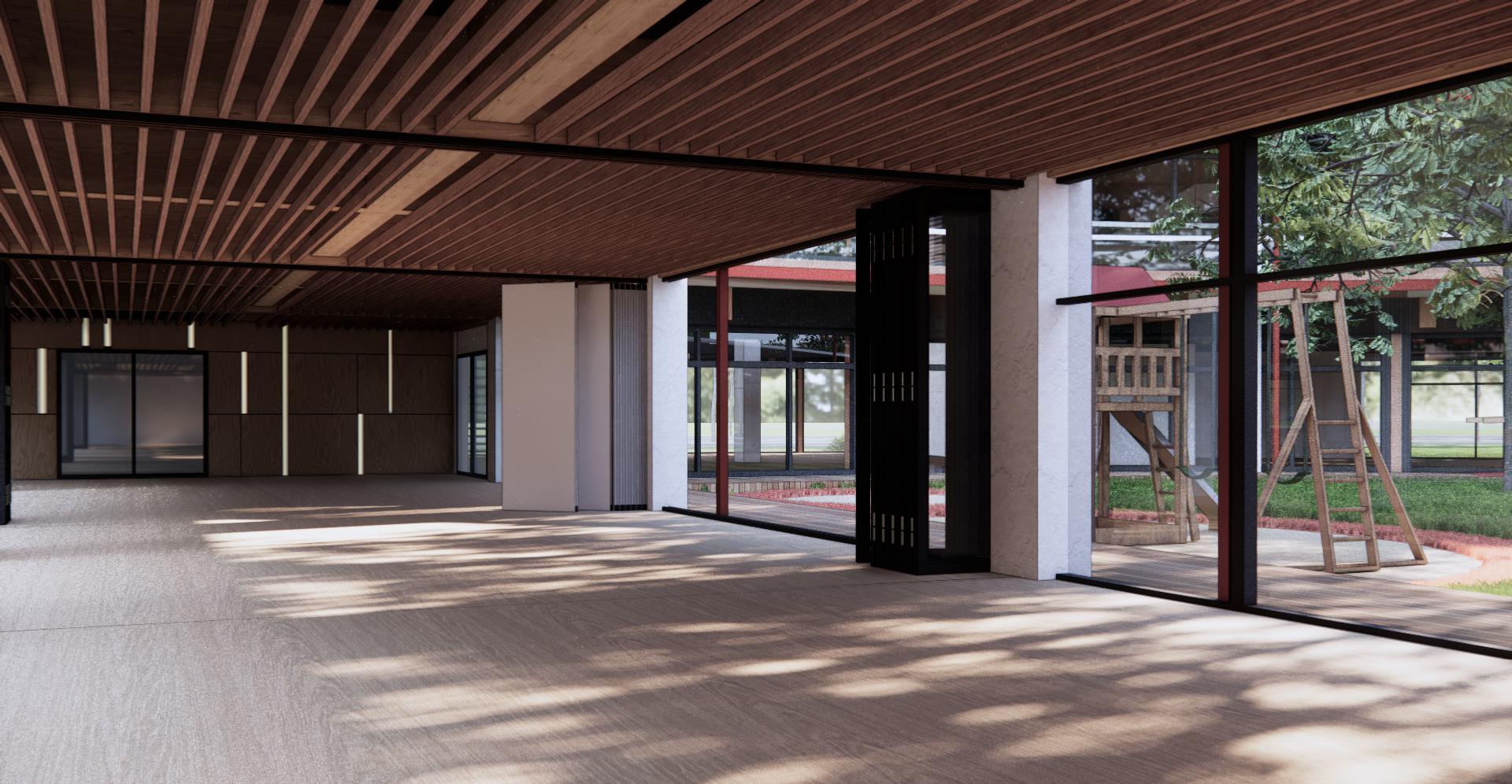

the multipurpose hall located on the first floor is made accessible from both functions, with foldable doors & windows facing towards both courtyards. to accommodate various functions, it’s also equipped with foldable wall partitions that may be opened or closed whenever needed.
when opened, the wall partitions help divide the large hall into smaller rooms that may be functioned for various activities.
for example, when used for story- telling workshops the small space feels more intimate with a view towards both courtyards.
the children will then be given cushions while the elderly will be given chairs as they have mobility limitations.

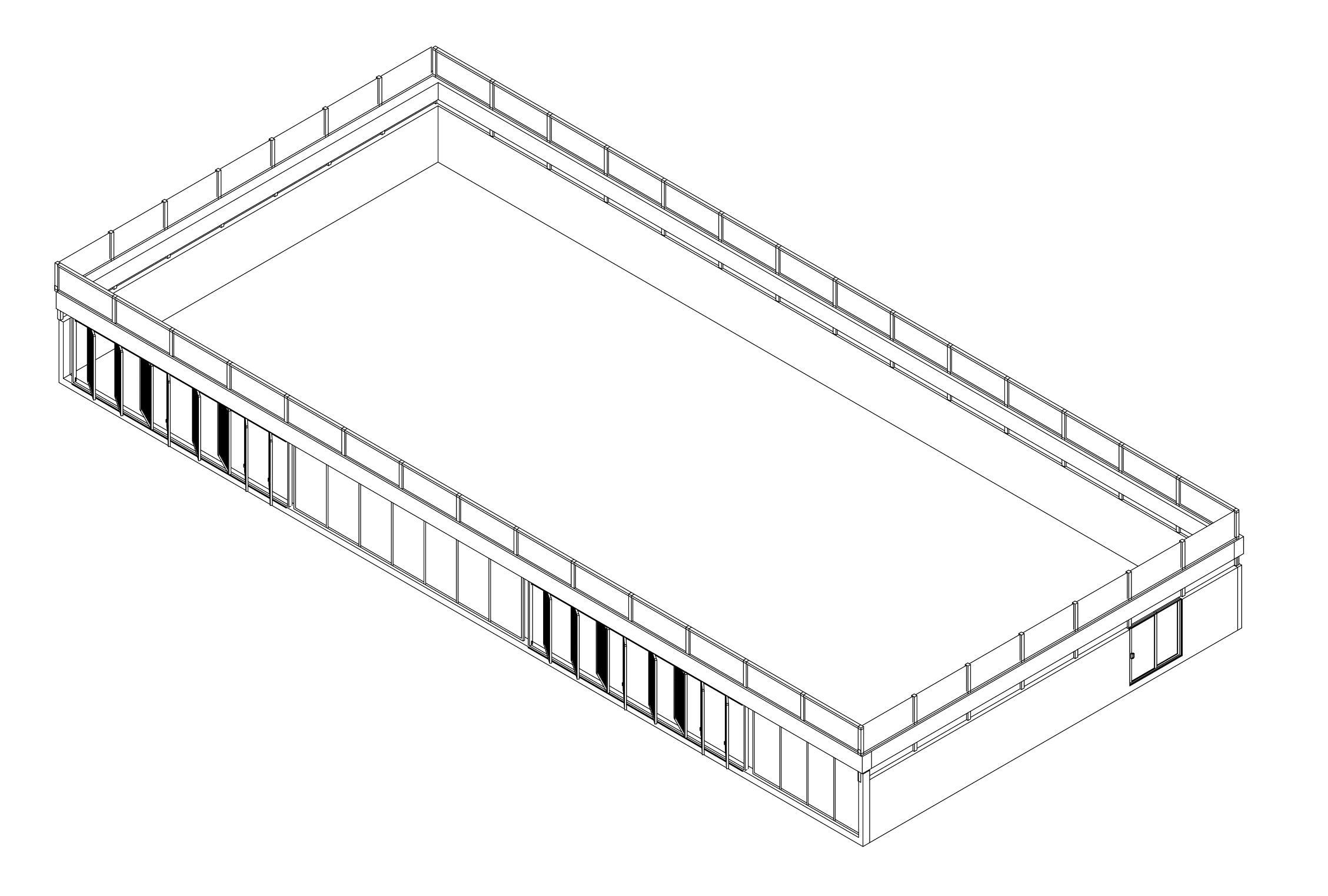

third floor multi-purpose hall
pri
mary: secon
dary
multiple sports standard size for multiple sport categories, can be rented on the weekends so communities can make use of this space.
SENARA: Mixed-Used Facility for The Elderly’s Prosperity

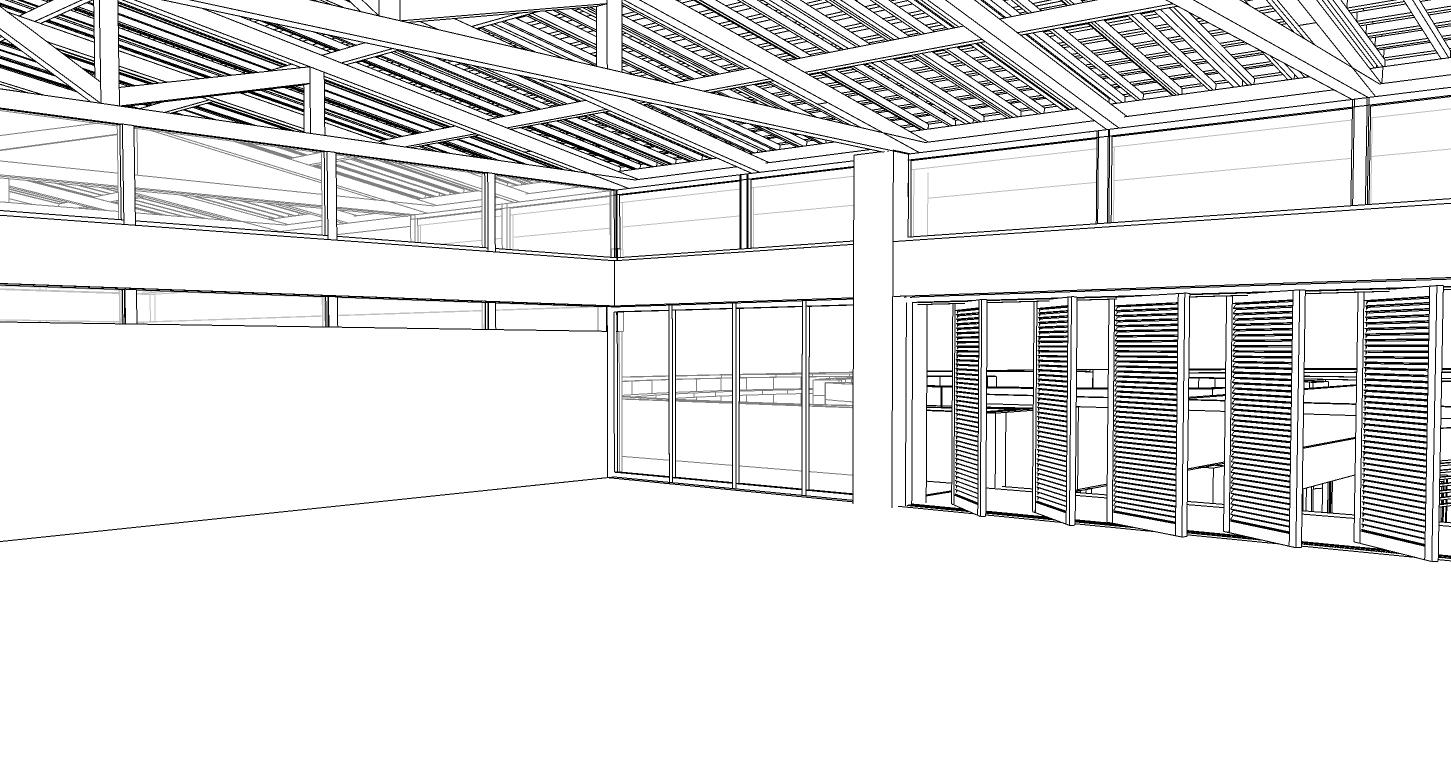

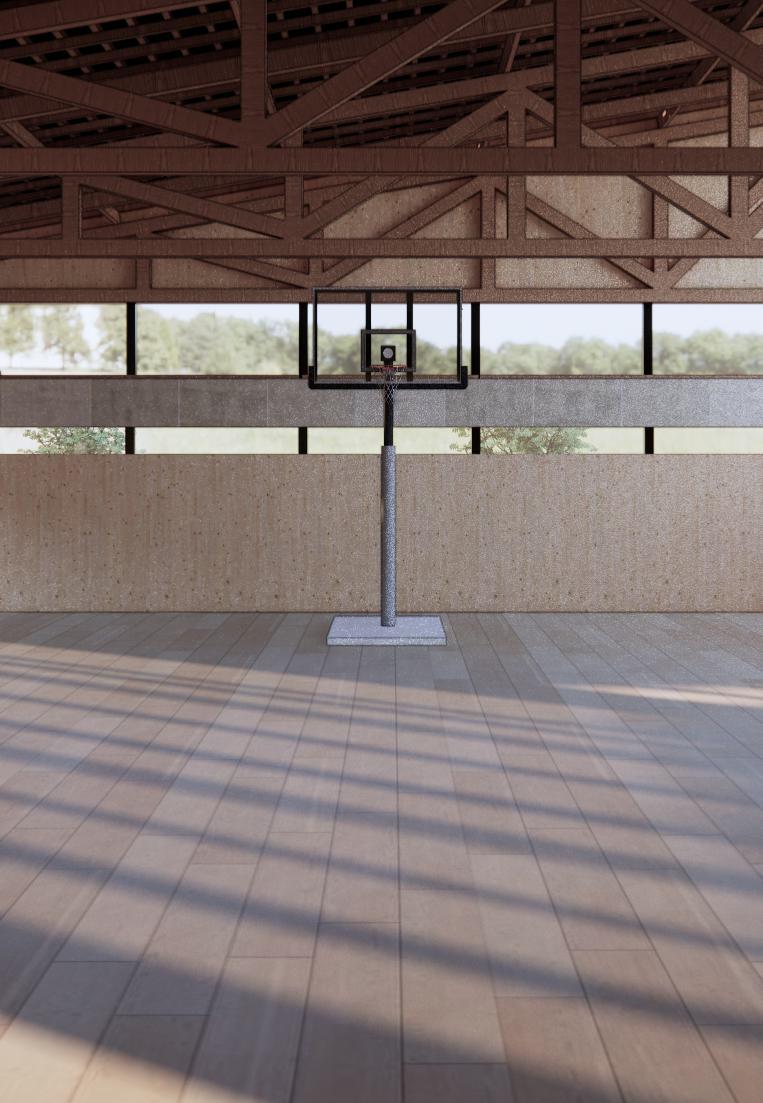

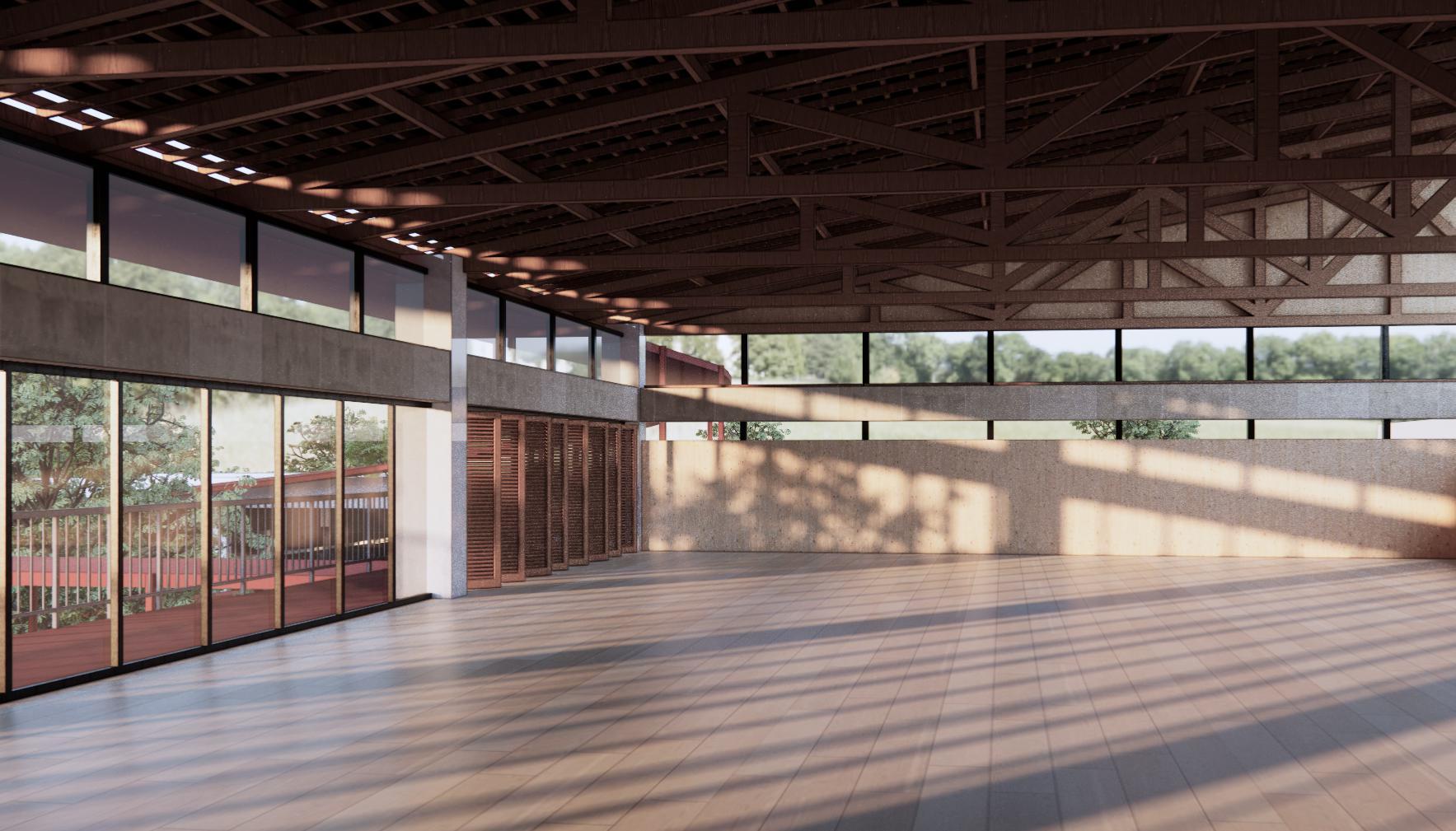

the third floor multipurpose sports/events hall is quite different from the first floor as it doesn’t have the partitions needed to divide the hall into smaller rooms. however, it’s designed with the standard size for multiple indoor sports so that its function can switch between sports easily. it’s also made rentable for the public on the weekends so that the local community may make use of it as well.
Chapter 04
Design Concept & Strategies

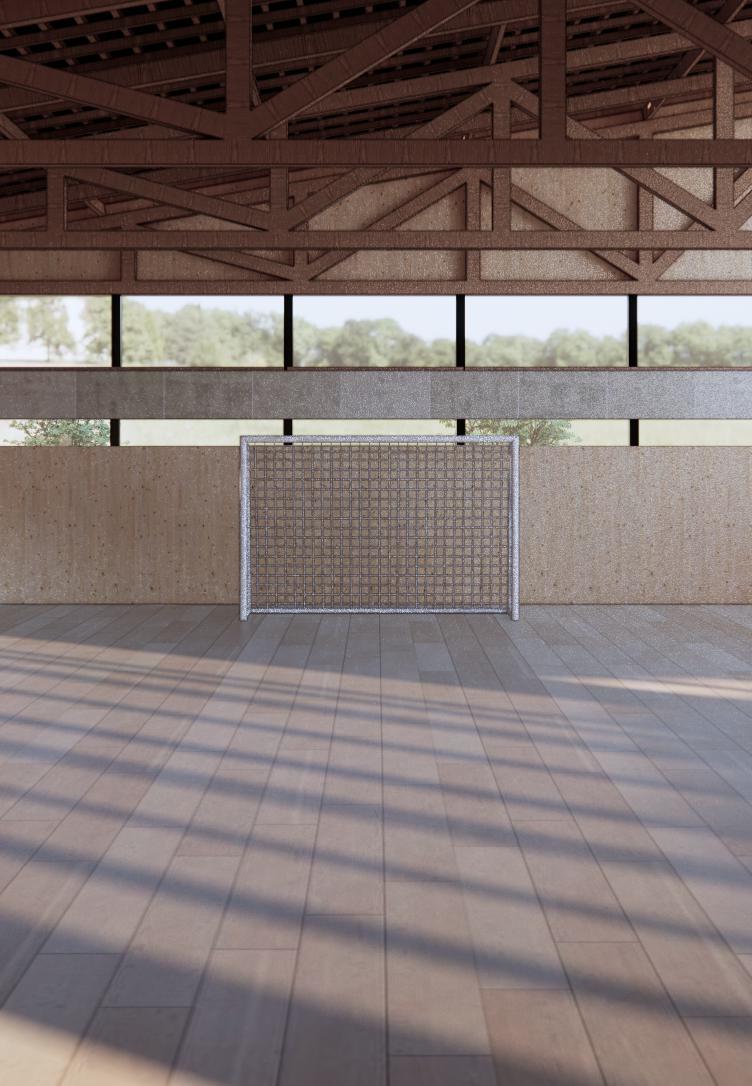

switchable sport schemes
from basketball to minisoccer, to low mobility exercises like yoga, this multipurpose hall is here to accommodate them.
Chapter 04
Design Concept & Strategies
SENARA: Mixed-Used Facility for The Elderly’s Prosperity
besides sports, this event hall may also be functioned as a seminar hall. for example, a healthcare seminar for the elderly. the pivoting door & openings give this hall natural lighting & ventilation. giving the users a view towards the roofgarden & courtyard
Chapter 05

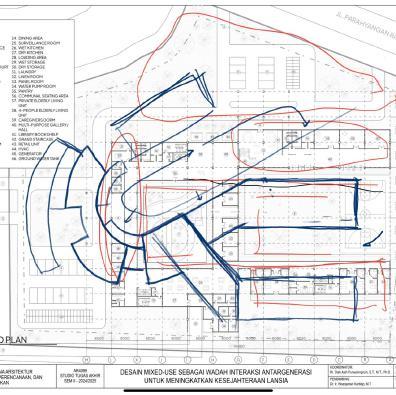

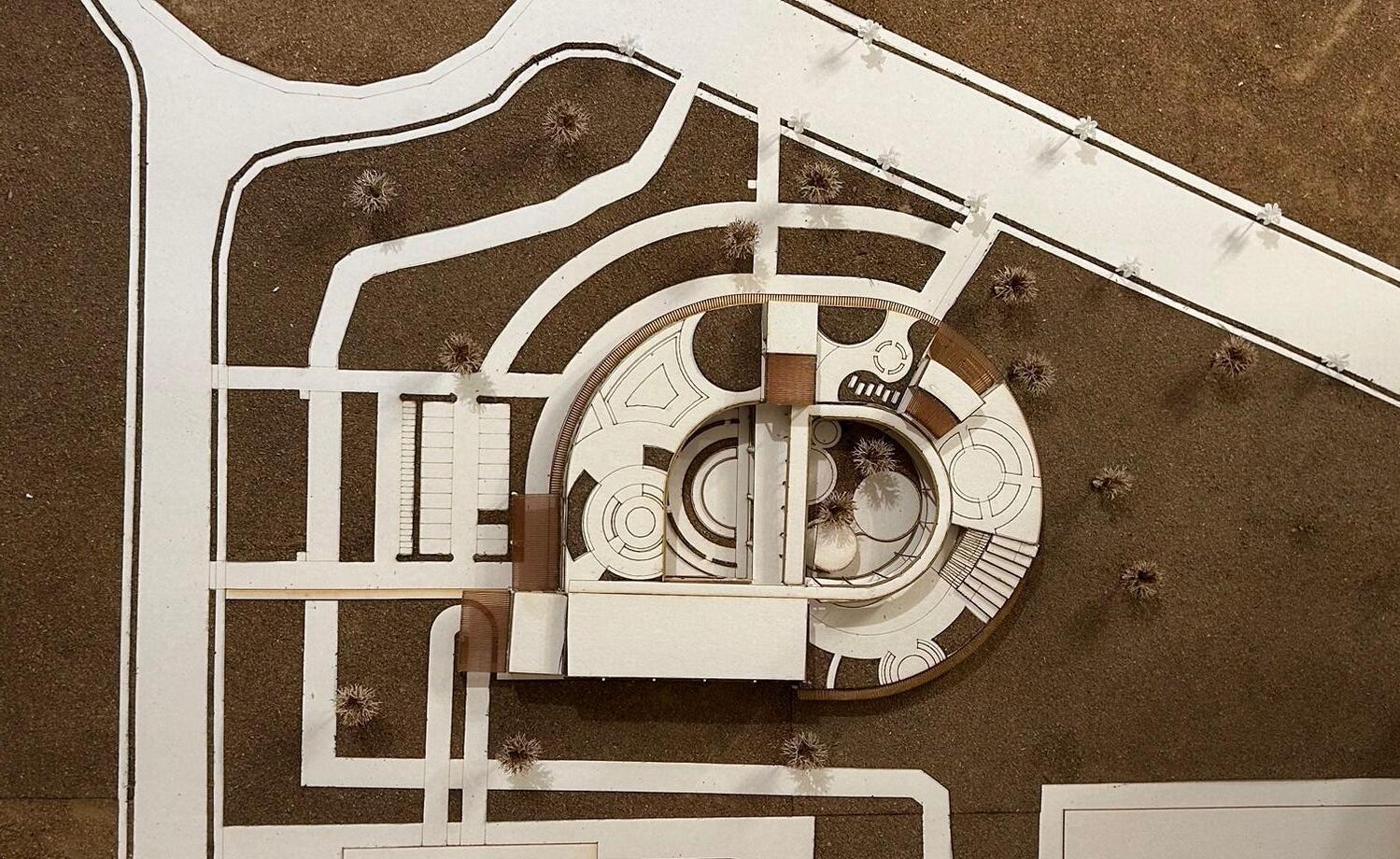

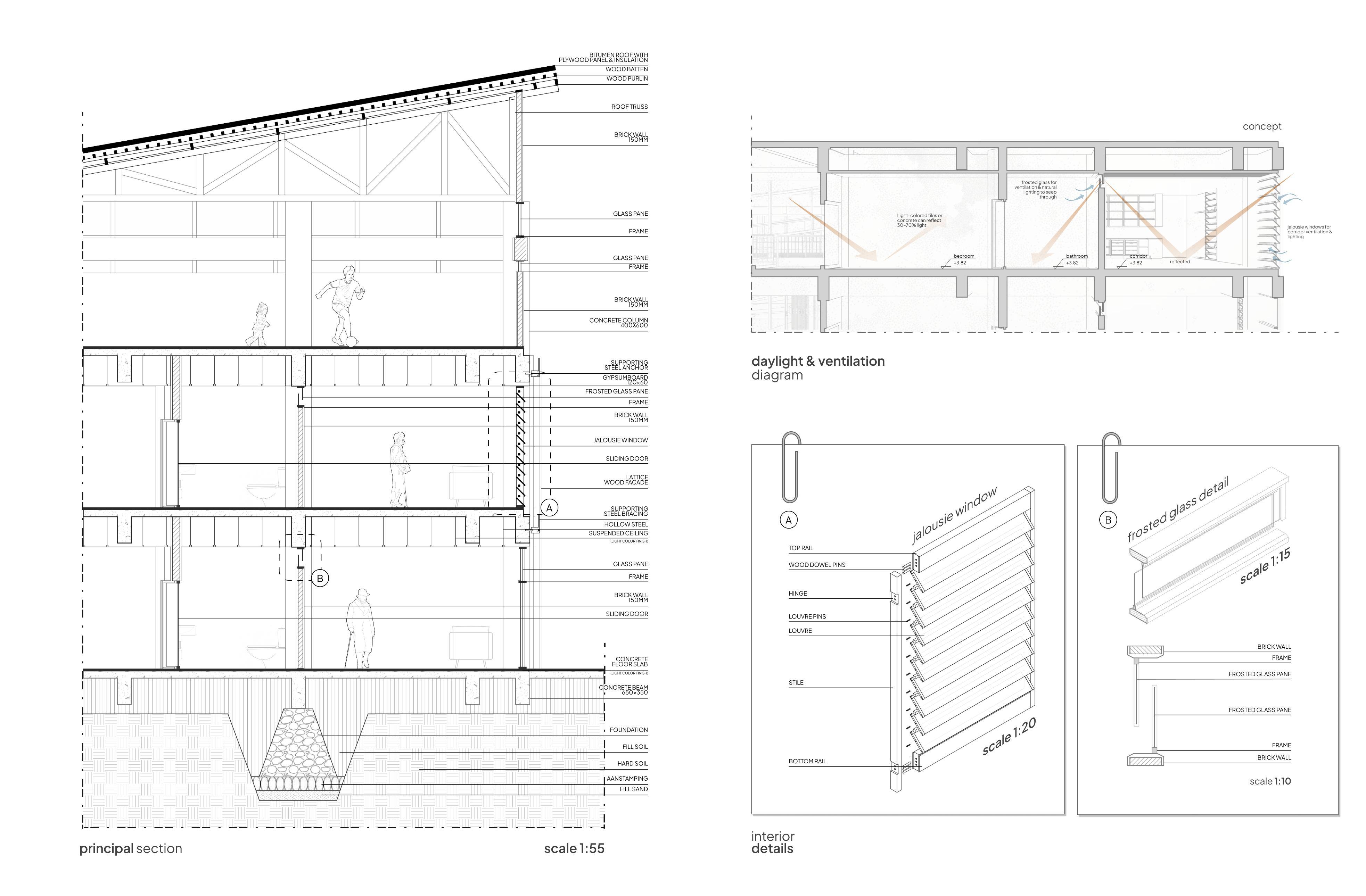

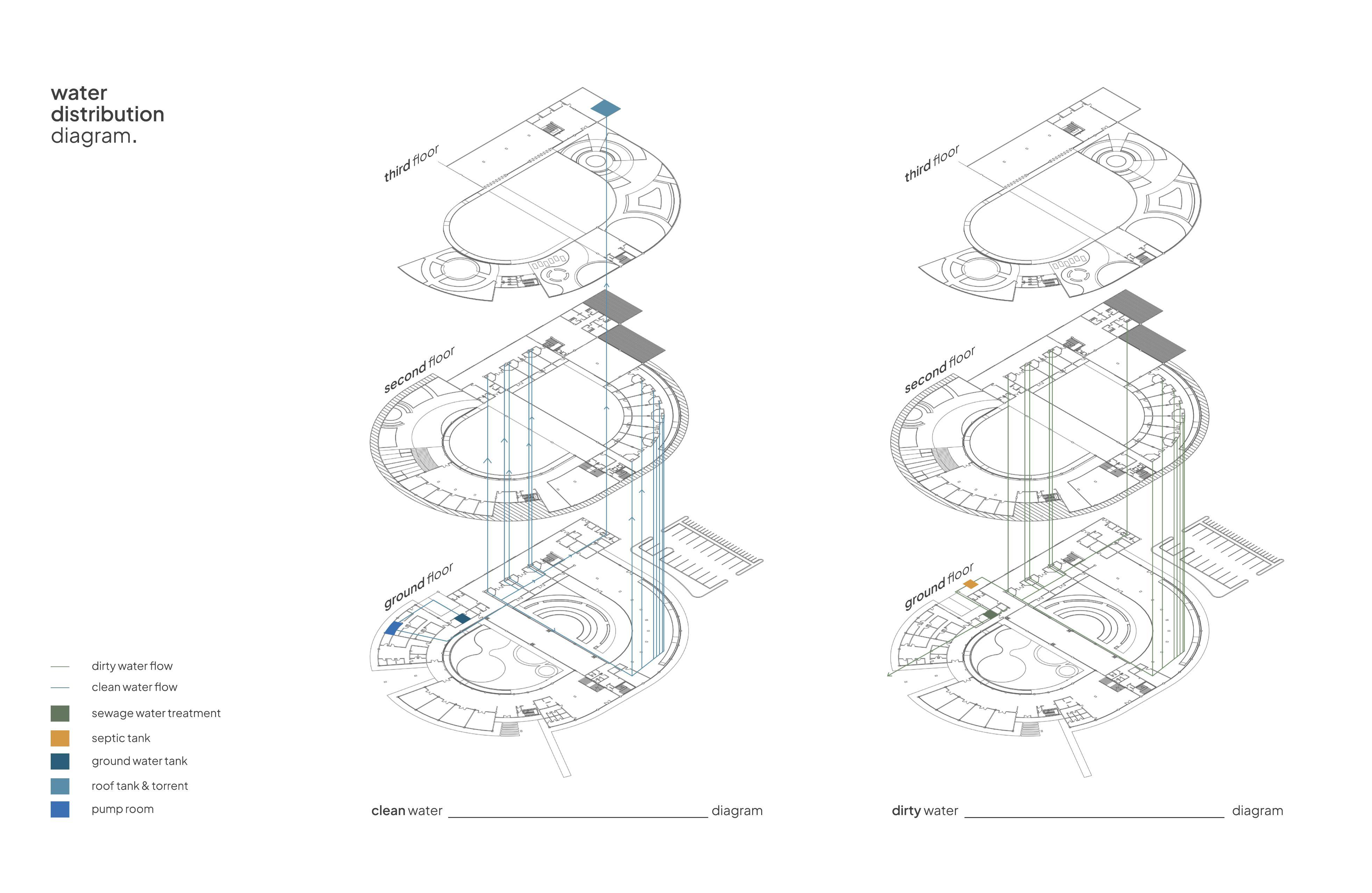

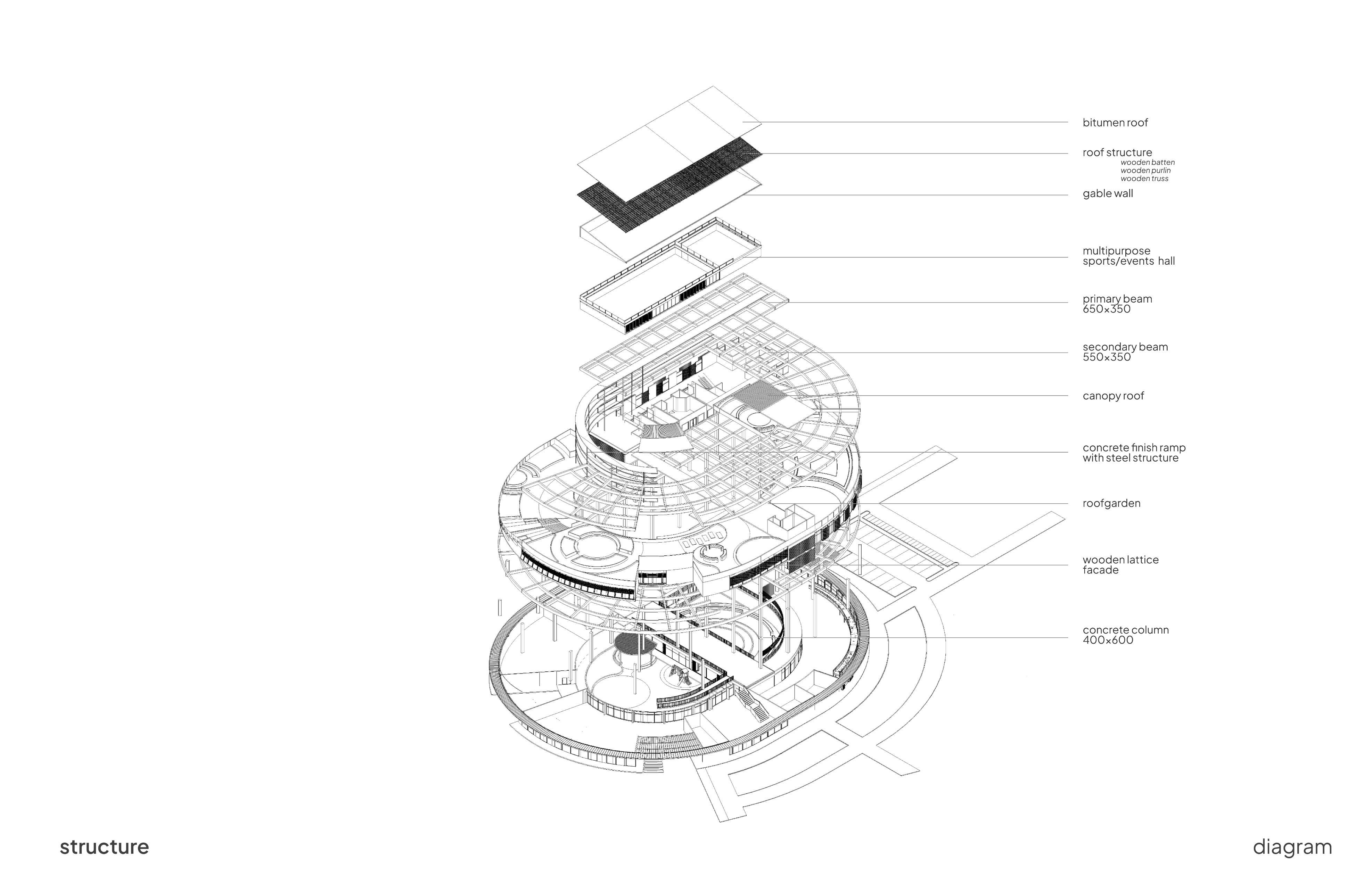

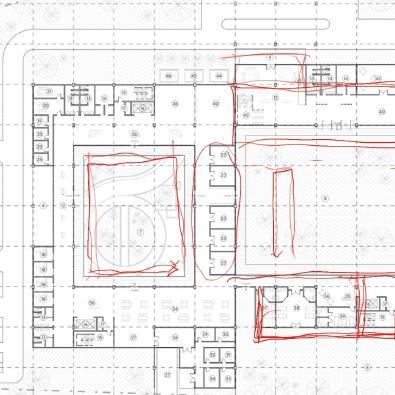

Preliminary Drawings

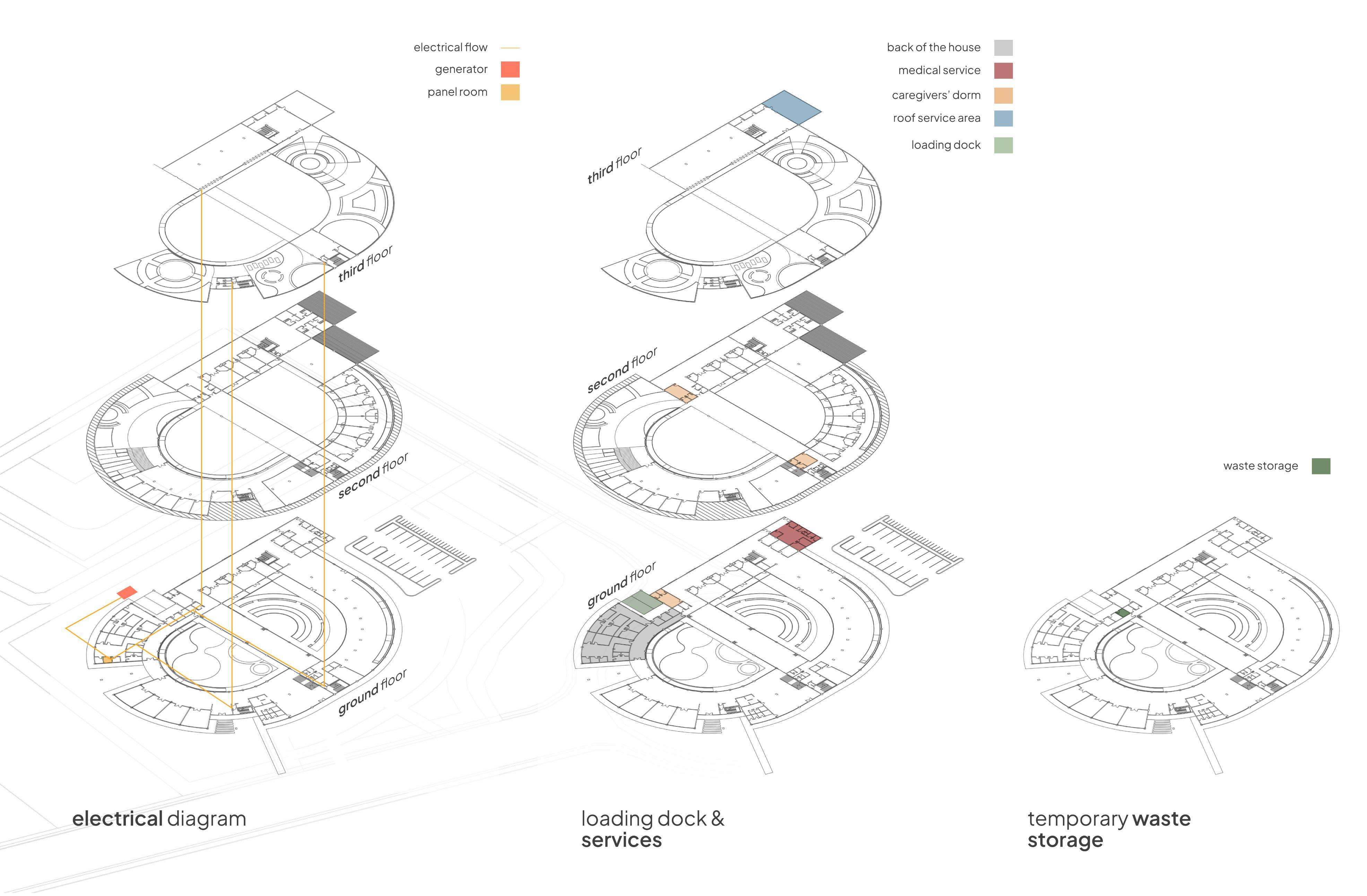

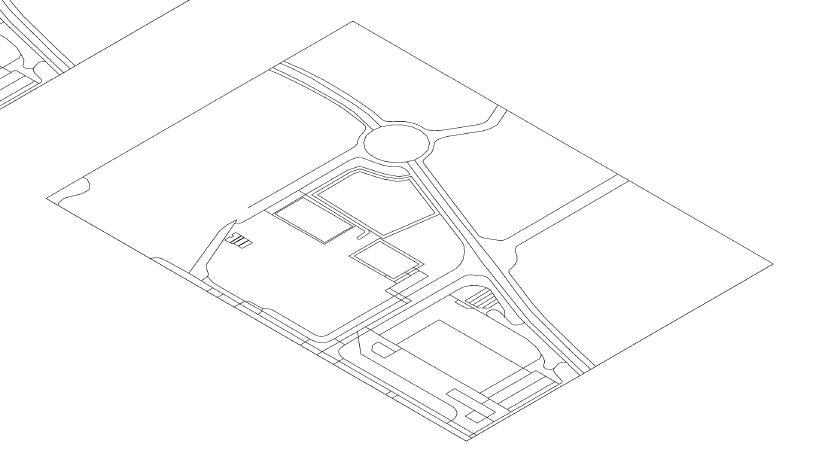

VEHICLE CIRCULATION
PEDESTRIAN ACCESS
AMBULANCE ACCESS
SERVICE CIRCULATION

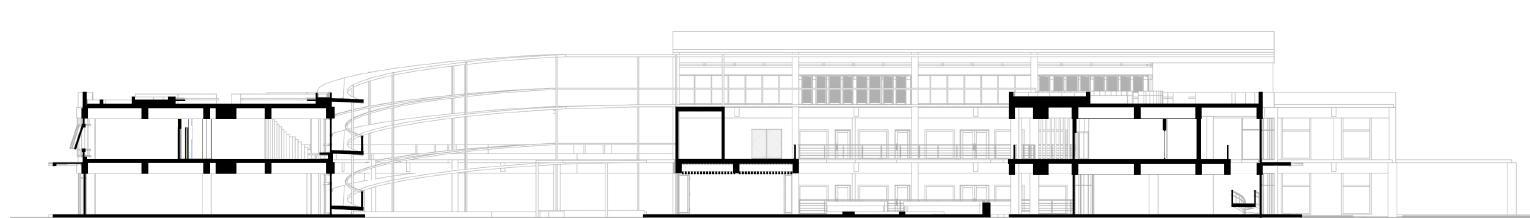

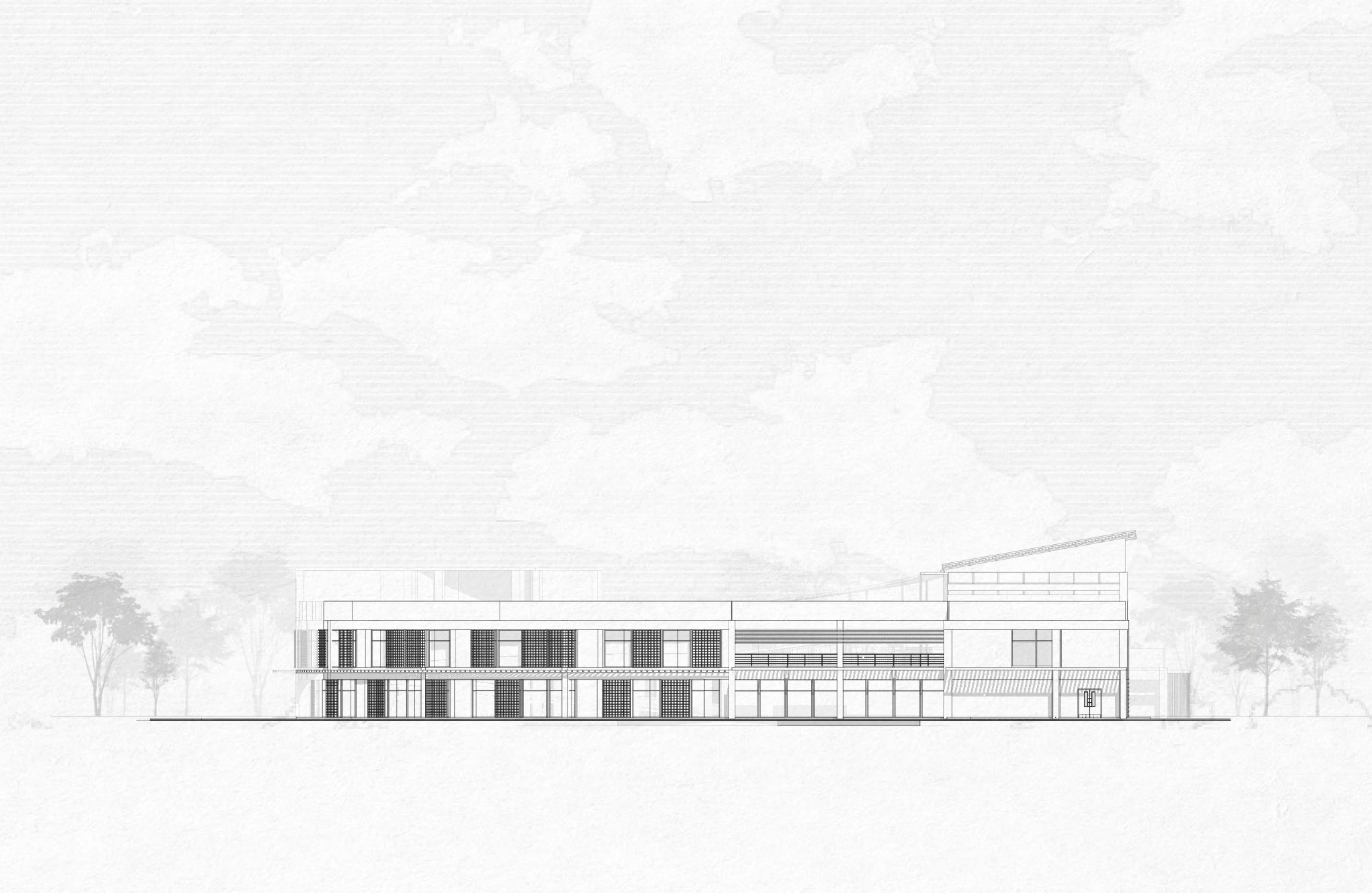

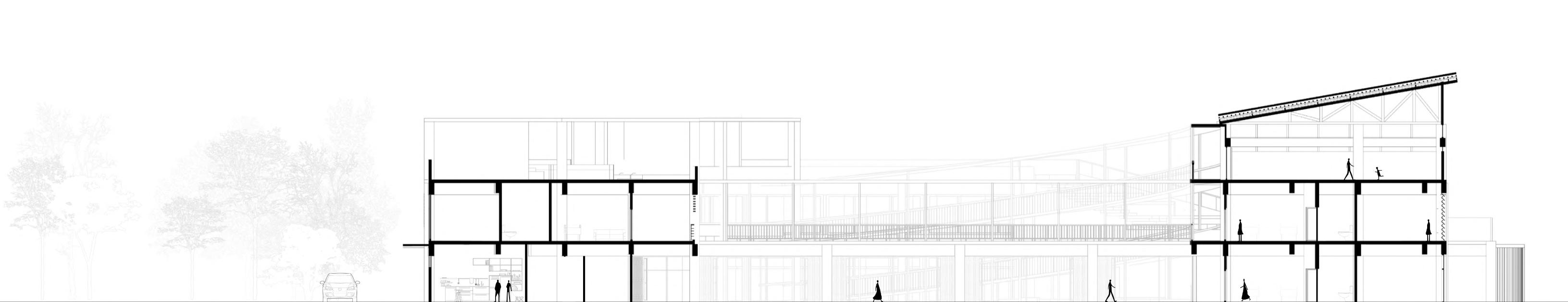

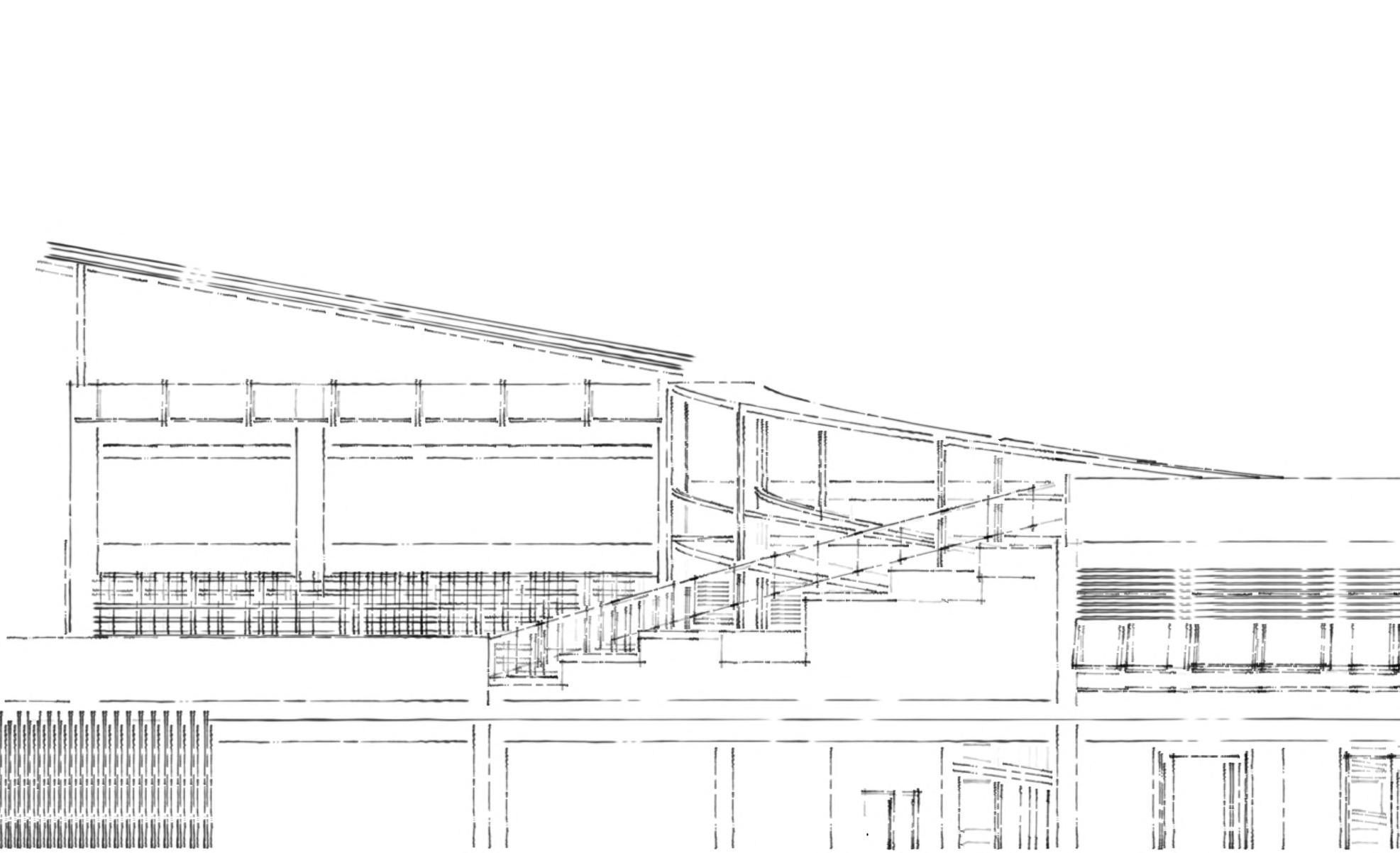

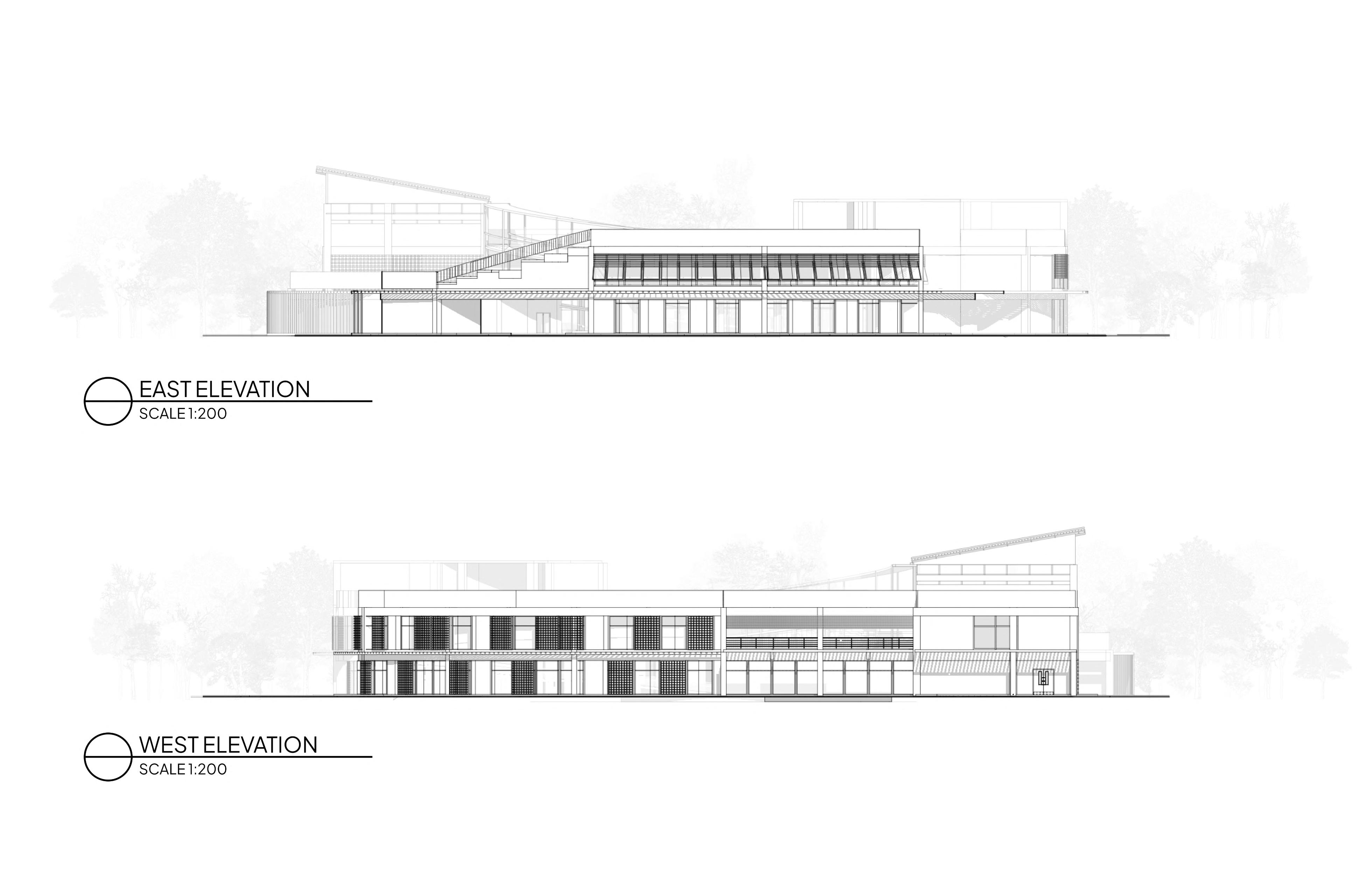

A-A’ SITE SECTION
B-B’ SITE SECTION

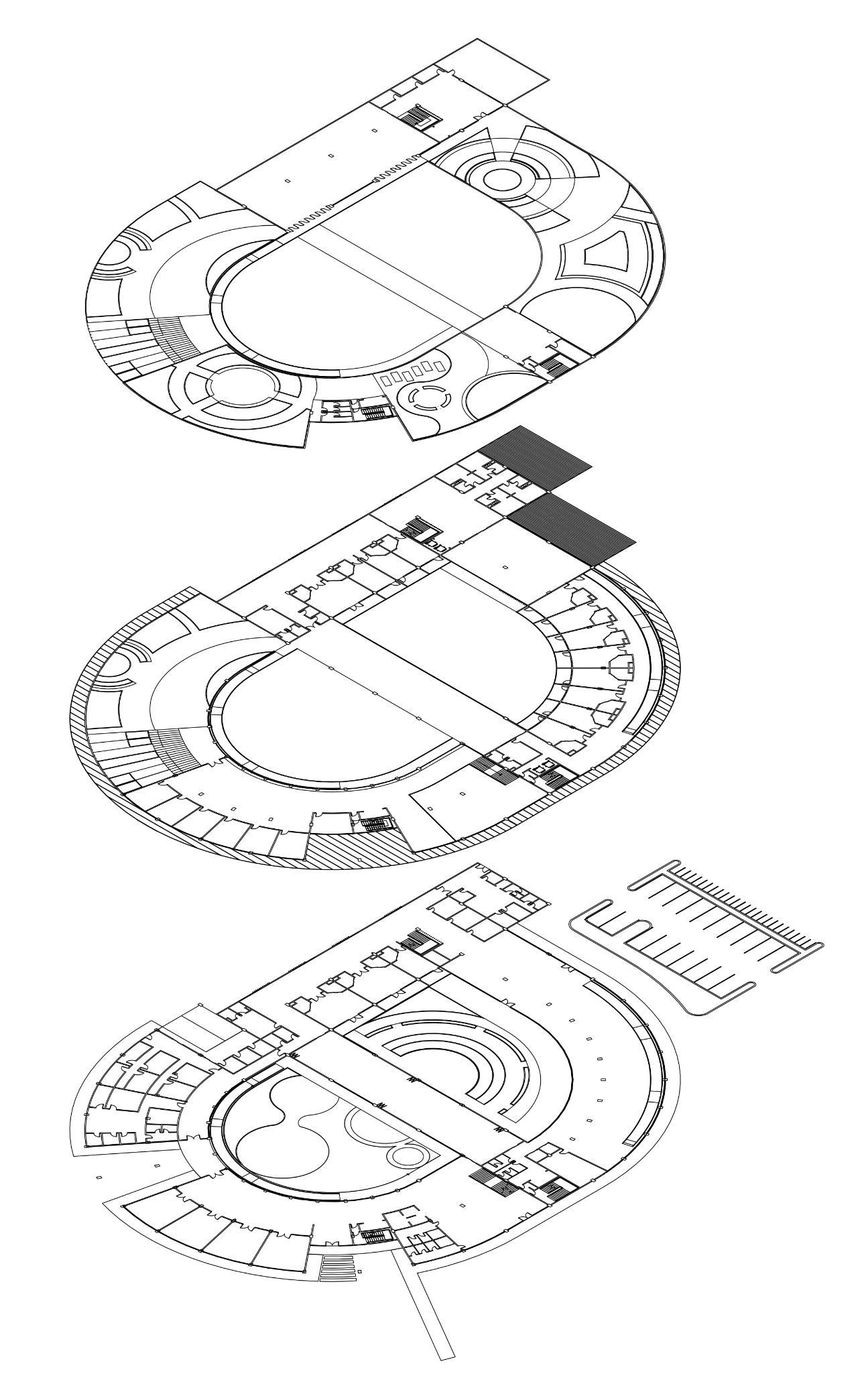

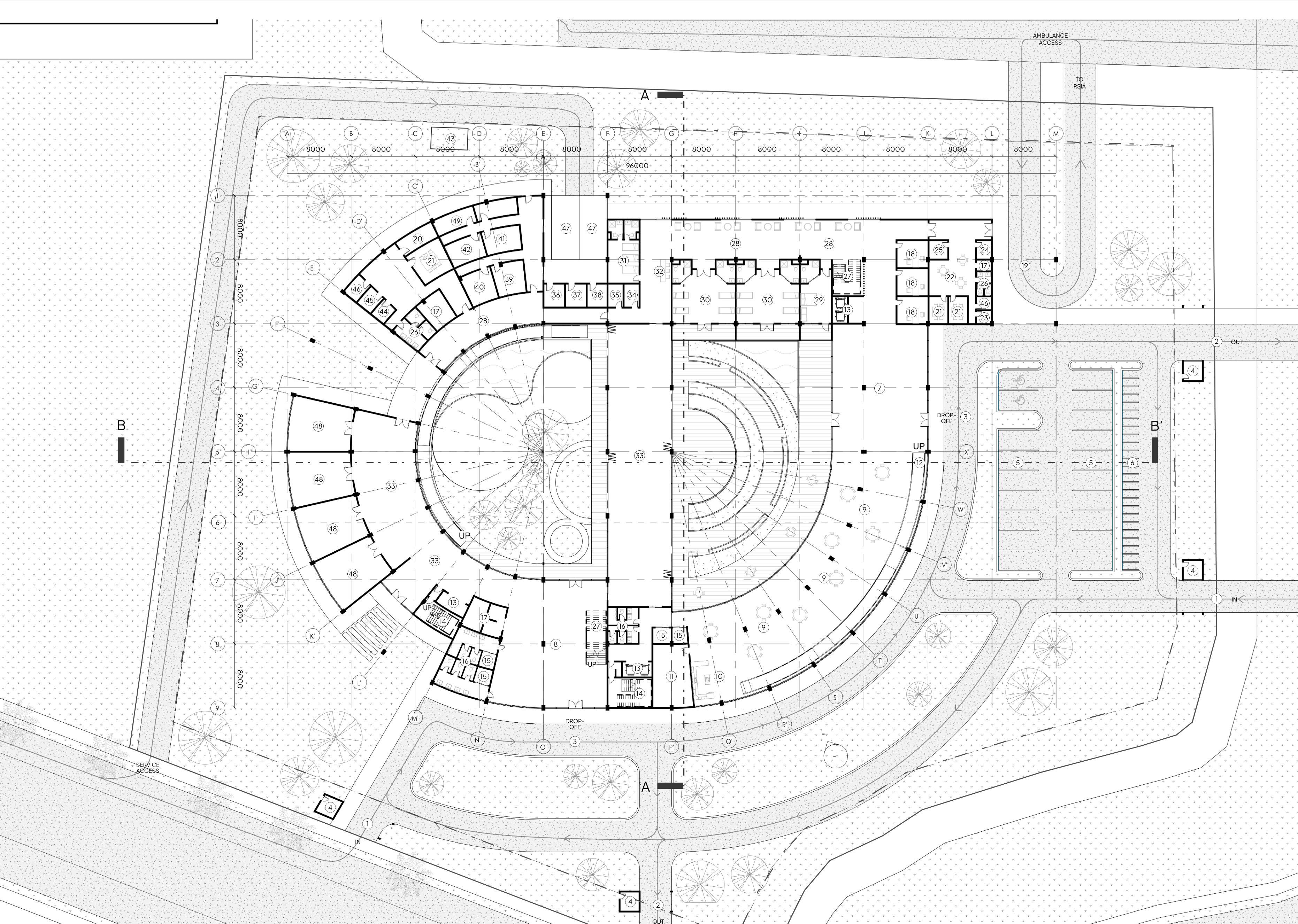

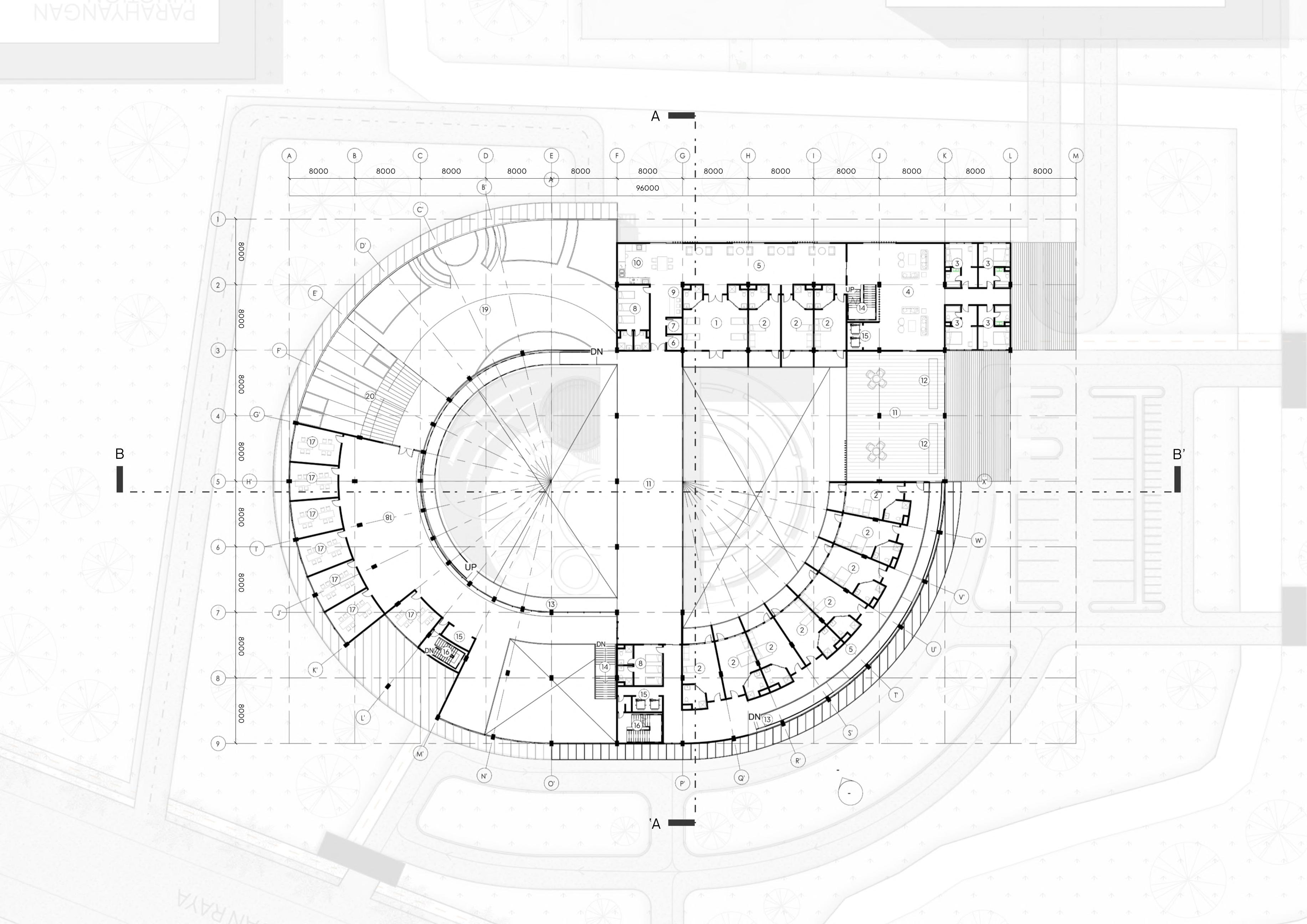

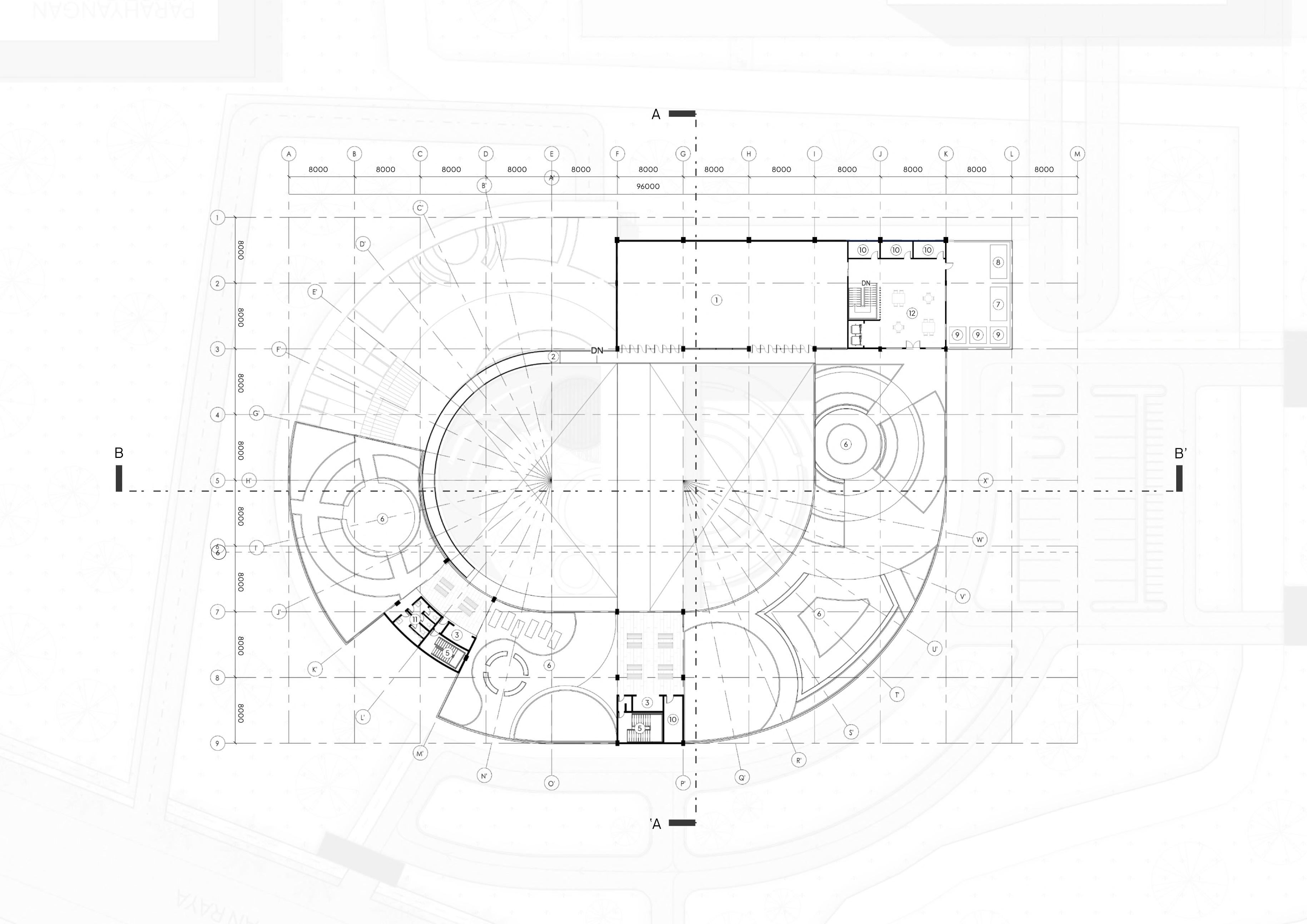

THIRD FLOOR PLAN
URBAN FARMING AREA
HELP FOSTER A SENSE OF PURPOSE & ROUTINE WHICH CAN HELP REDUCE FEELINGS OF ISOLATION OR DEPRESSION FOR THE ELDERLY
SENSORY WALKPATH
OFFERS A GENTLE AND ENGAGING WAY TO PROMOTE BOTH PHYSICAL AND COGNITIVE WELL-BEING OF THE ELDERLY
SEPARATOR BETWEEN THE COURTYARD AND LIVING UNITS THAT ALSO ACT AS A RESTORATIVE ELEMENT
WOODEN DECK
EXTENSION FROM THE FACILITY’S MULTIPURPOSE HALL WHICH CAN FUNCTION AS A PLACE FOR THE ELDERLY TO BATHE IN THE SUN OR EXERCISE (E.G: TAI-CHI)
CHILDREN PLAYGROUND
encourage social interaction, helping children learn cooperation, communication, and conflict resolution in a natural setting
POND
OFFERS A UNIQUE BLEND OF LEARNING,S ENSORY ENGAGEMENT, AND NATURAL PLAY WHILE ALSO CREATING A SOOTHING ENVIRONMENT
help foster empathy, communication, and intergenerational cultural exchange by becoming a neutral and nurturing meeting point
WOODEN DECK
warm, versatile surface that blends learning with nature, creating a safe and comfortable zone for outdoor classes, group discussions, and reading sessions
GREEN AREA
provide space for physical play, exploration, and unstructured
GAZEBO
POND
GARDEN

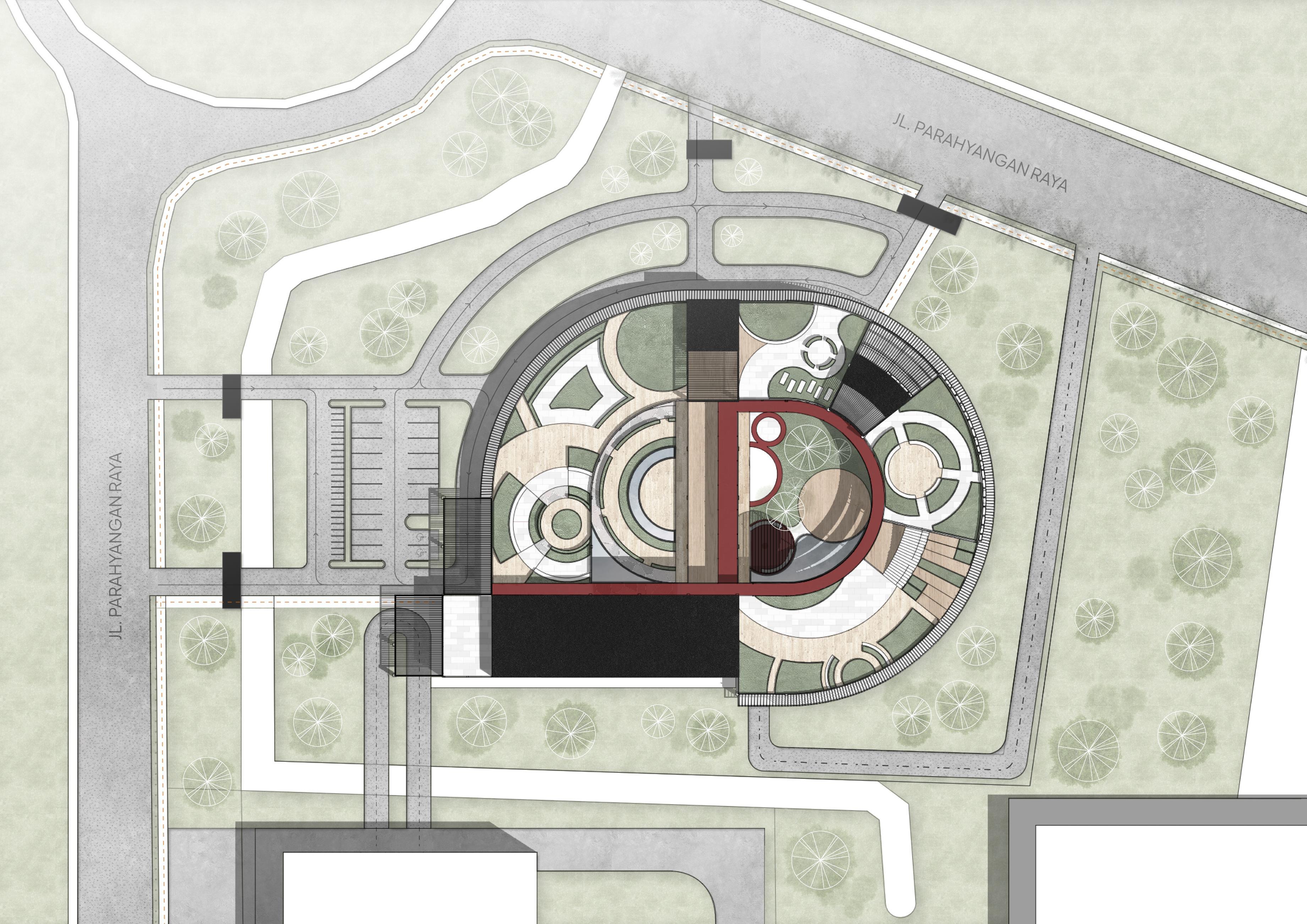

ROOF GARDEN PLAN
essential circulation element for accessibility, but also as a playful and engaging feature BY ENSURING smooth, barrier-free movement for users of all ages.
URBAN FARMING
HELP both children and THE ELDERLY engage in meaningful routines that foster shared responsibility, patience, and care
SENSORY GARDEN
nurturing & restorative environment where both elderly and children benefit from sensory stimulation
