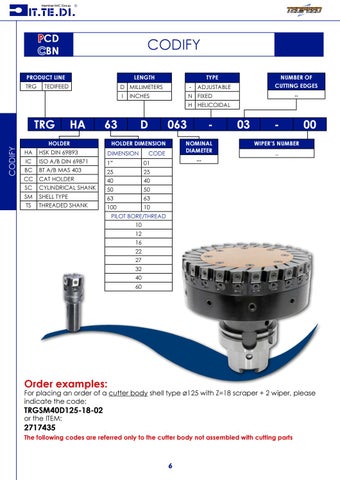

PCD CBN
CODIFY
PRODUCT LINE TRG
LENGTH
TEDIFEED
TYPE
D MILLIMETERS
-
I
N FIXED
INCHES
NUMBER OF CUTTING EDGES
ADJUSTABLE
..
H HELICOIDAL
CODIFY
TRG
HA
63
HOLDER
D
063
HOLDER DIMENSION
HA
HSK DIN 69893
DIMENSION
IC
ISO A/B DIN 69871
BC
BT A/B MAS 403
1”
01
CC
CAT HOLDER
25
25
SC
CYLINDRICAL SHANK
40
40
SM
SHELL TYPE
50
50
TS
THREADED SHANK
63
63
100
10
-
NOMINAL DIAMETER
CODE
...
03
-
00
WIPER’S NUMBER ..
PILOT BORE/THREAD 10 12 16 22 27 32 40 60
Order examples:
For placing an order of a cutter body shell type ø125 with Z=18 scraper + 2 wiper, please indicate the code:
TRGSM40D125-18-02 or the ITEM:
2717435
The following codes are referred only to the cutter body not assembled with cutting parts
