Copenhagen, Denmark. Pladehals Allé 33, 01 Tv, 2450, København SV. Www.linkedin.com/in/franco-nm-arch
Mail: Frnicolas77@gmail.com
Tel: +4571601076
TABLE OF
CONTENTS
:
University Projects 2020 - 2022:
Abasto Multi-Media Library.
Thesis Project - Alta Cordoba Sports Center.
MSc. in Energy-Efficiency and Environmental Building Design 2024:
Residential Building - brunnshög.
Professional experience 2022 - 2023:
Casa Quincho.
Casa 11X4.
Casa Richa.
Participants: Antonella Guidi, Gina Parnenzini, Franco N. Martinoli
ABASTO MULTI-MEDIA LIBRARY.

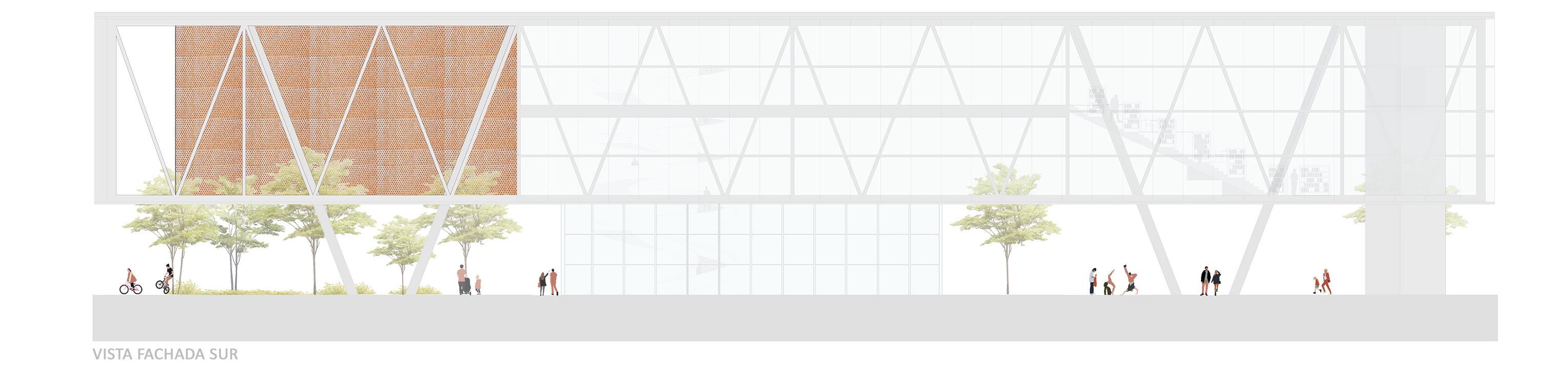

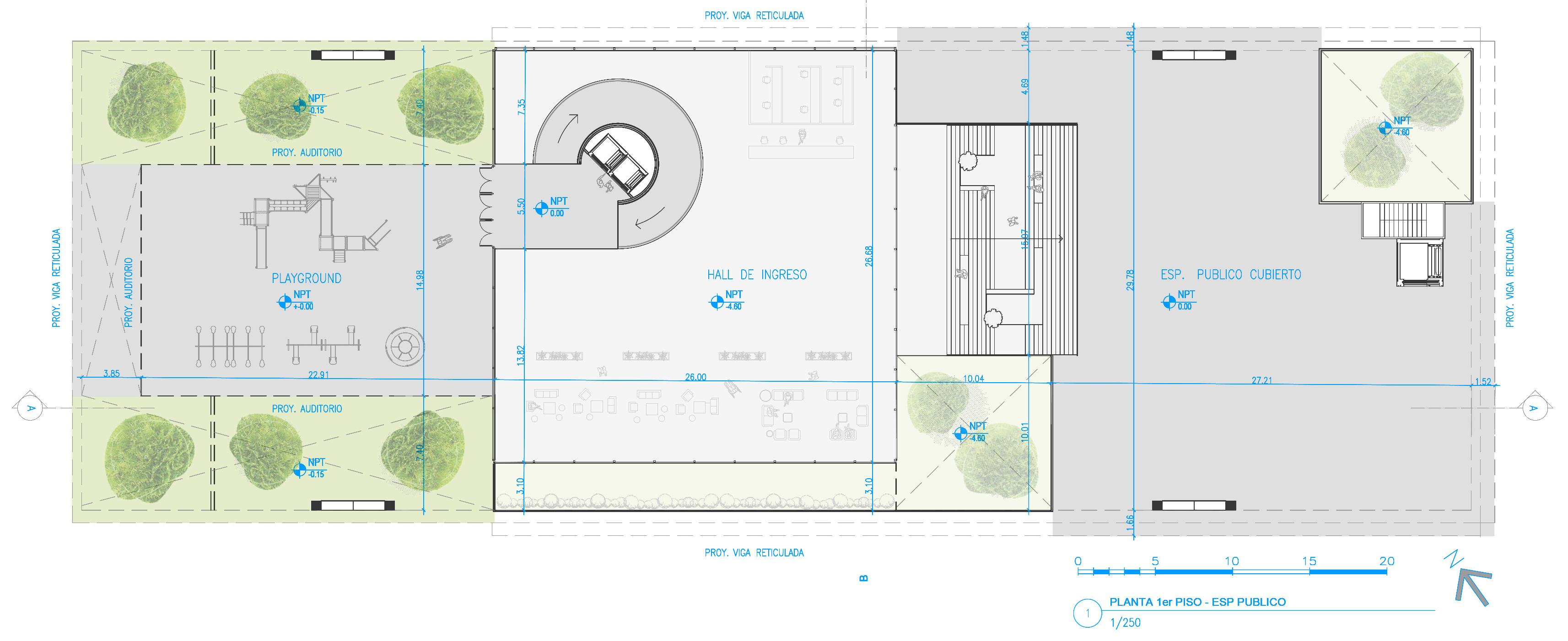

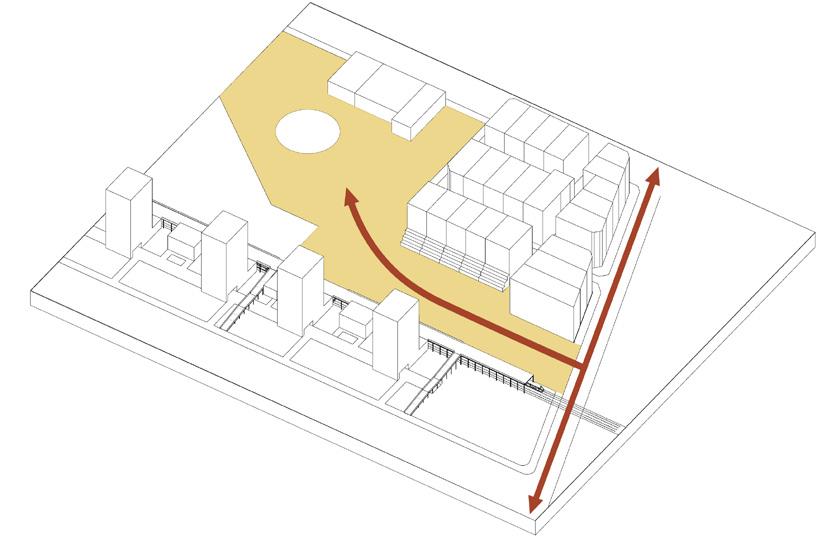

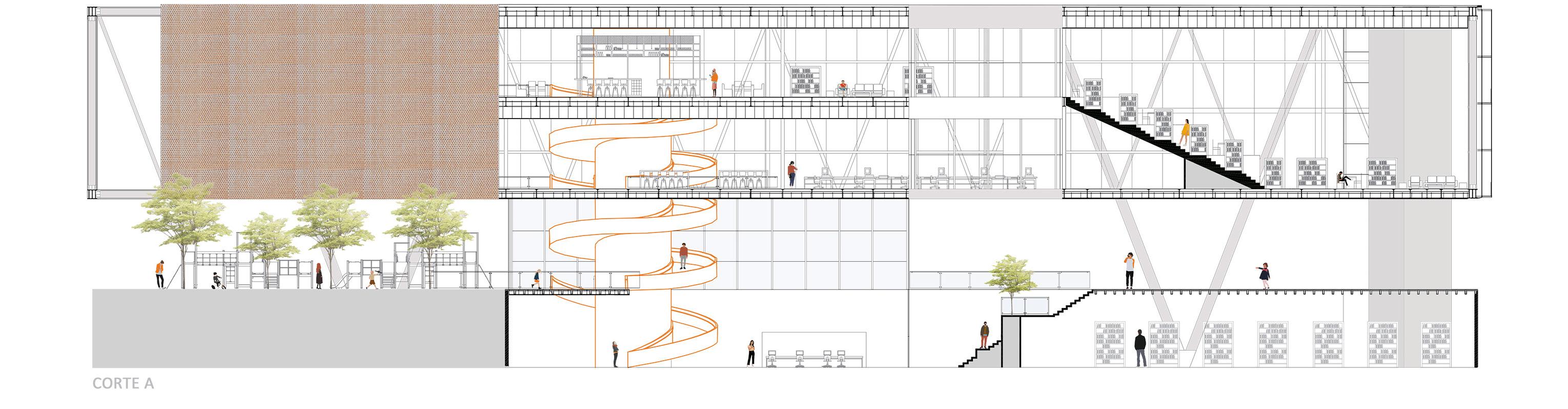

The Provincial Multi-Media Library of Cordoba is located in a post-industrial abandoned land on the periphery of Cordobas city center, Argentina, next to the Suquia river. Under the urgent need for a public space that allows the recovery of the river, reduces insecurity, allows social interaction, and connects the neighborhood with the city, a building is proposed. A large perforated raised volume supported by a structural system of a “pratt” truss, generates a large building for community meetings, learning, and entertainment. At the street level, a covered plaza hosts spontaneous social activities, and inside a central ramp distributes the user through the different educational, recreational, and cultural levels.

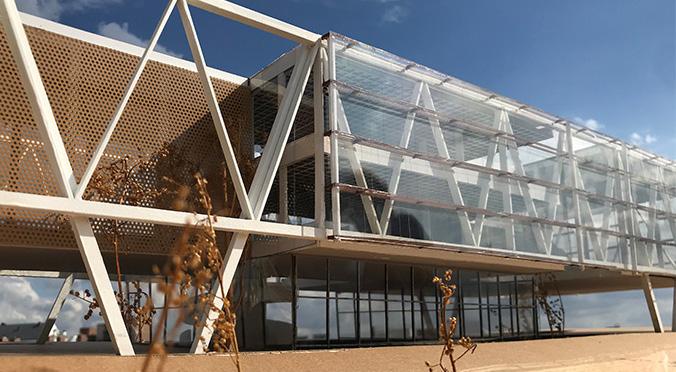

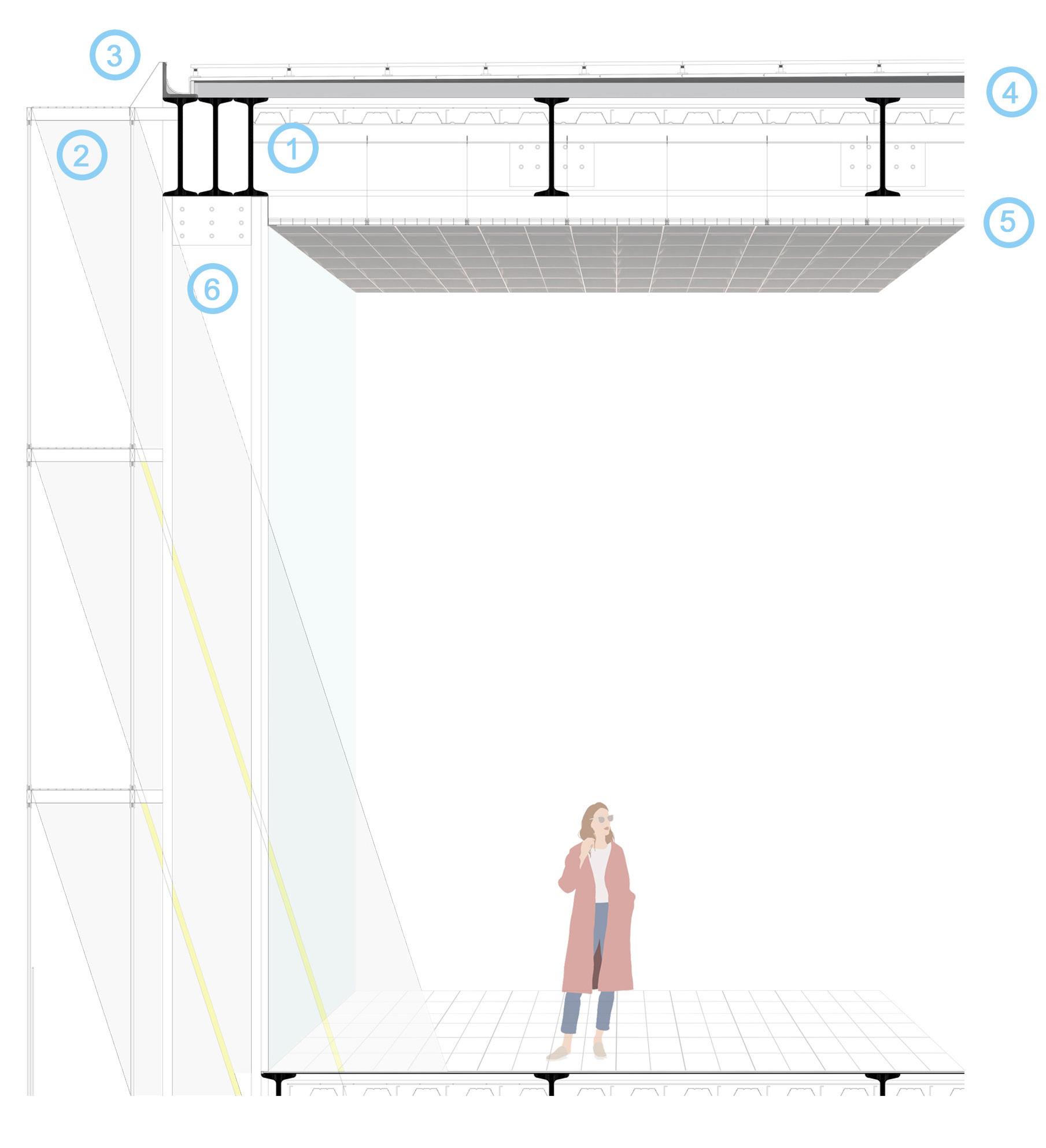

Pratt truss made up of three metal beams I 600mm, welded and bolted.
Ventilated facade, composed of double laminated glass, 70cm air chamber, welded to Pratt beam by means of metal tubes.
Galvanized steel rain drain gutter.
Steel deck slab + floating flat rooftop.
Grid-type metallic skinwall ceiling.
6. Vertical beam I 600mm in Pratt truss.
Participants: Franco N. Martinoli
THESIS PROJECT - ALTA CORDOBA SPORTS CENTER.

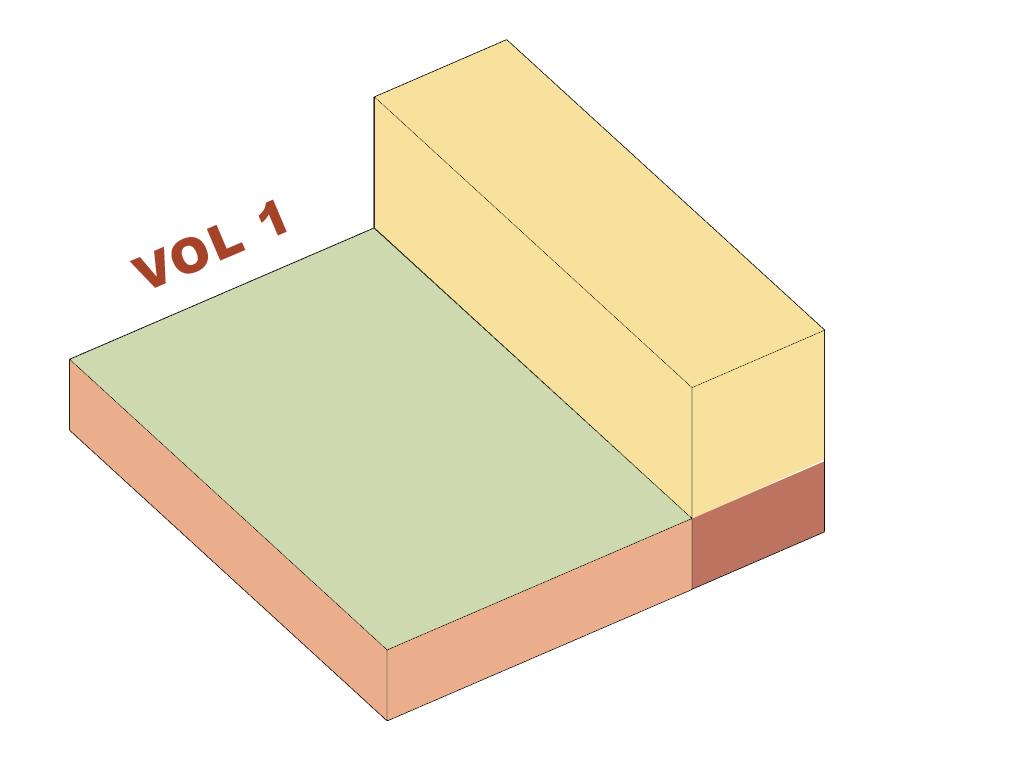

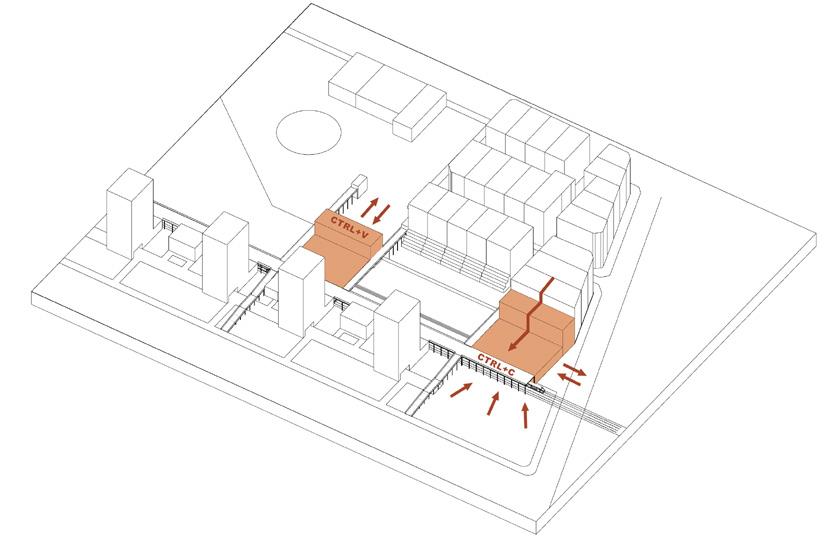

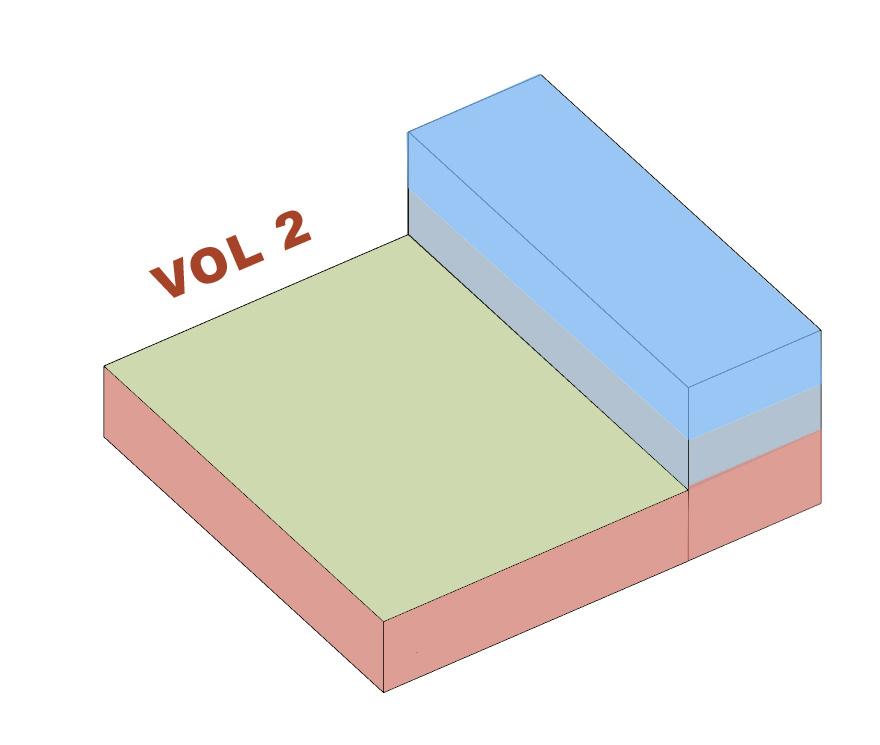

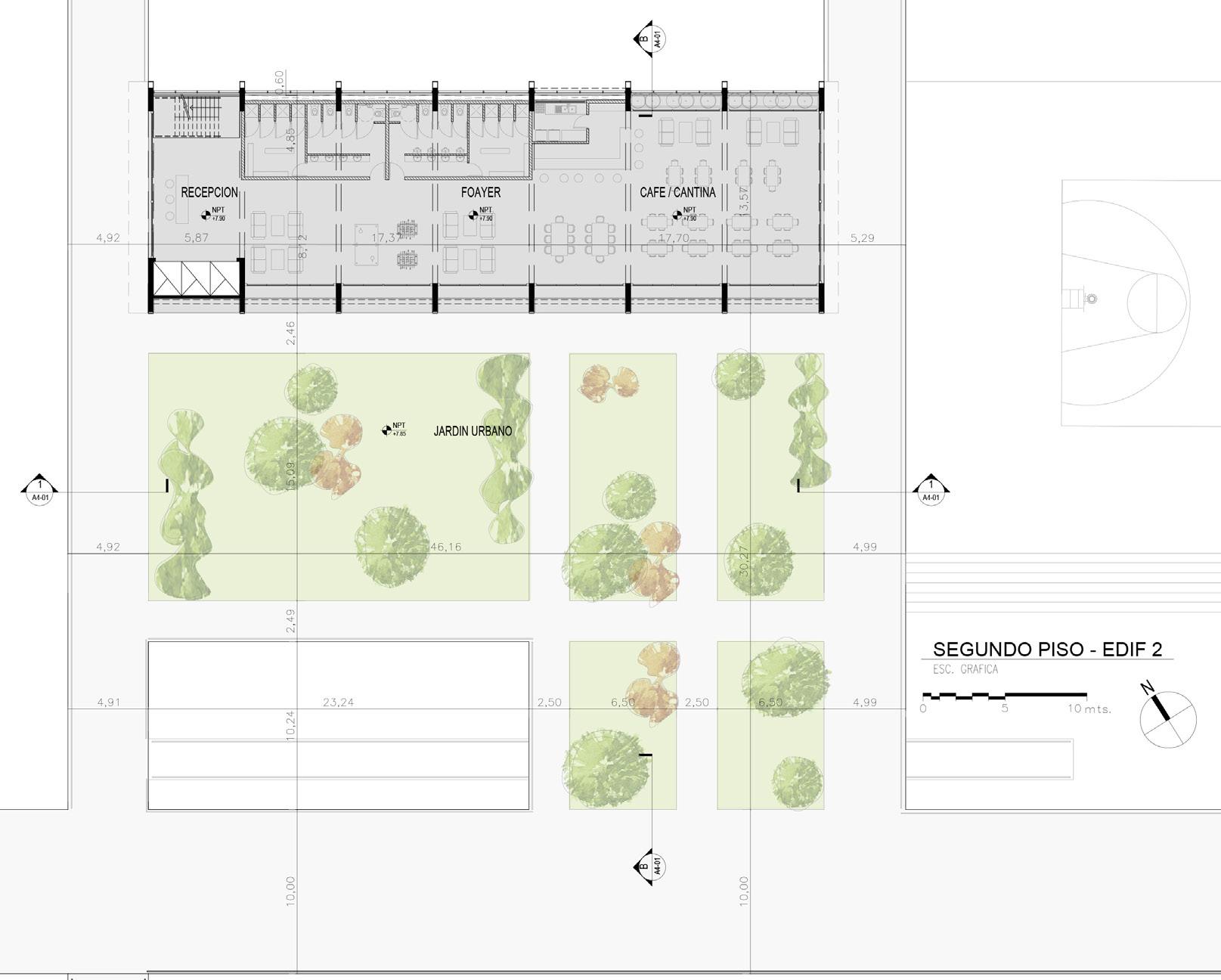

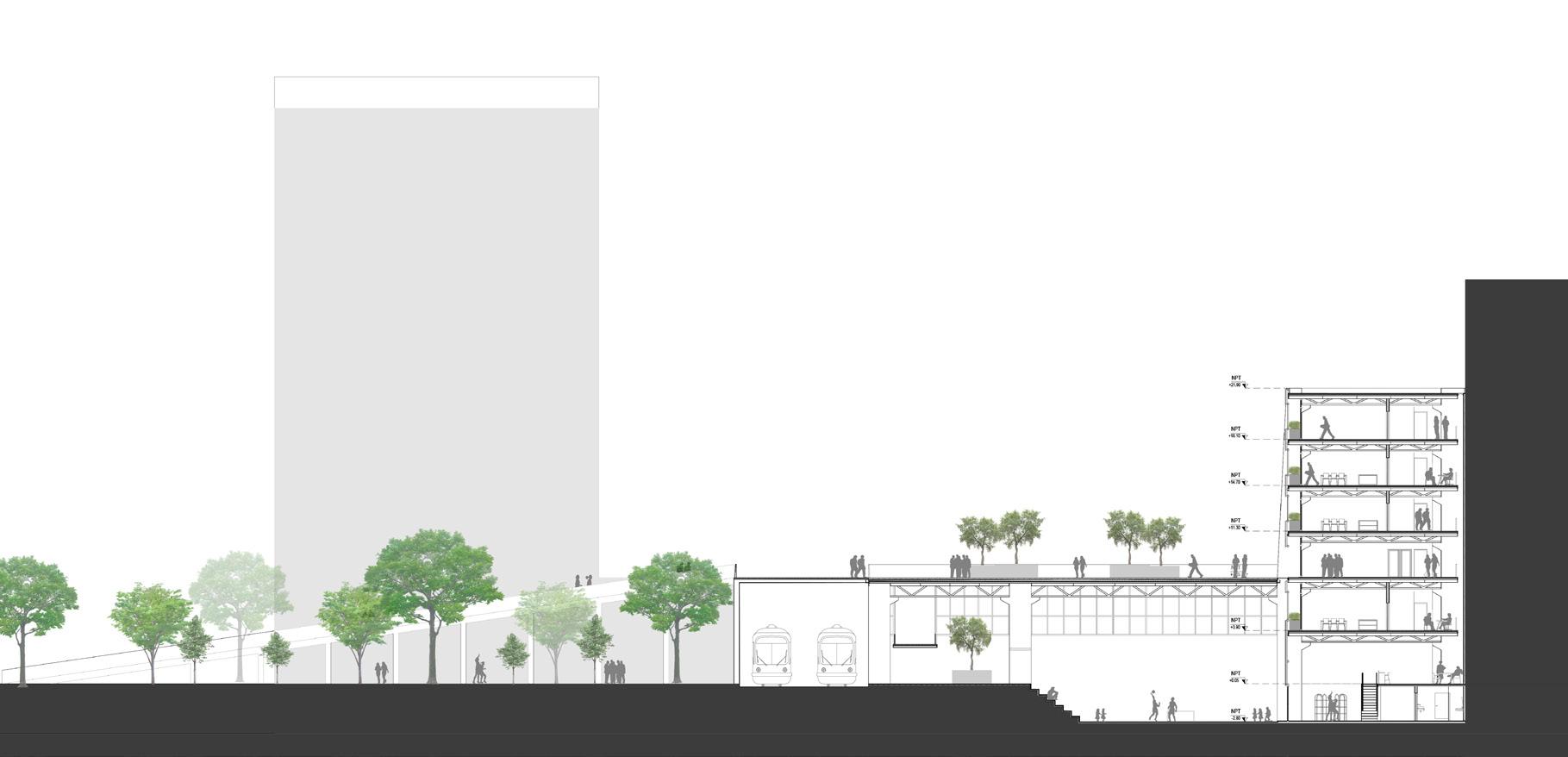

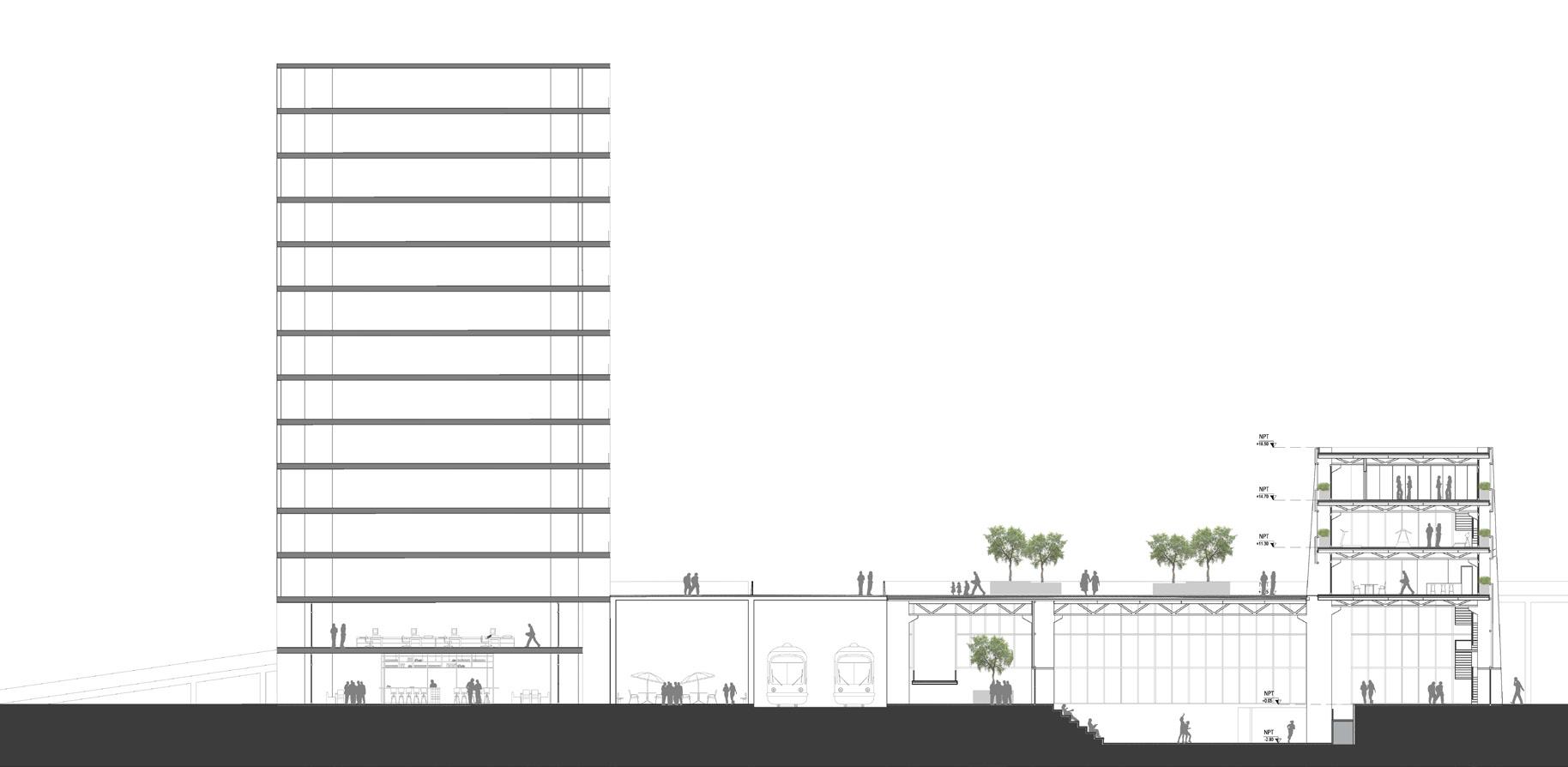

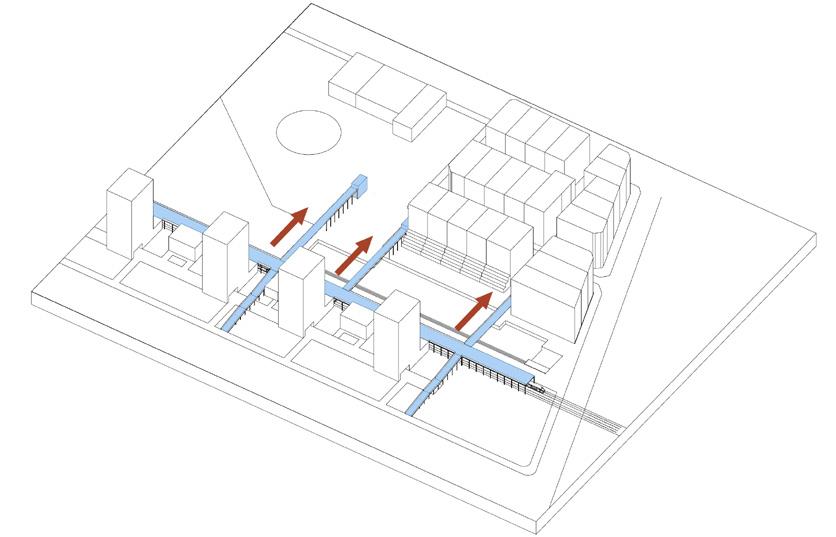

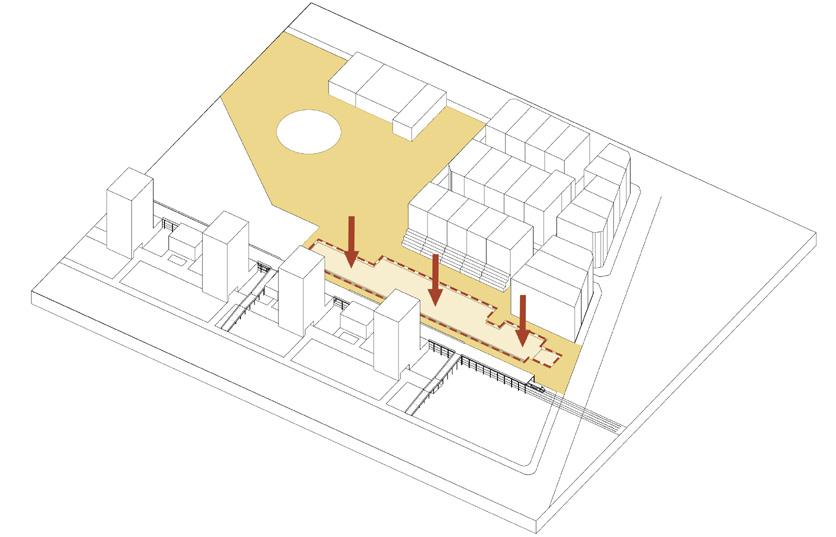

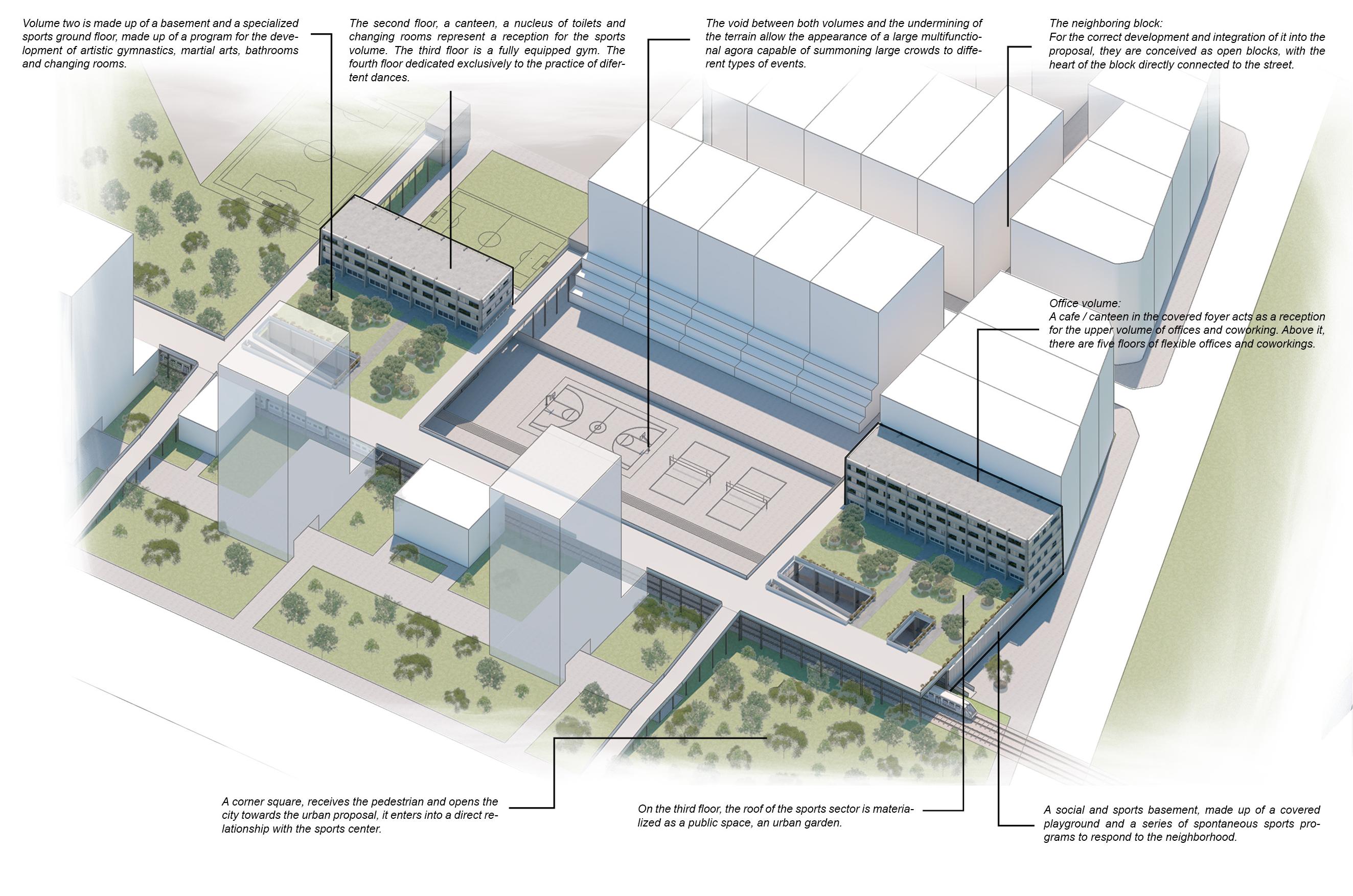

The Alta Cordoba Sports Center is composed of two identical volumes, arranged to articulate the scale of a complex urban proposal with a multiple-use program. Volume one serves as a office building, while volume two serves exclusively as a high performing sports center. The green rooftops of the buildings are connected in height with the walkway platform which allows the normal functioning of a public transport tram line. Under the roofs, a series of structural beams allow the development of large open covered spaces, a continuation of the ground-level public space, projected towards the interior of the building and connecting the sports park with Av. Juan B. Justo.

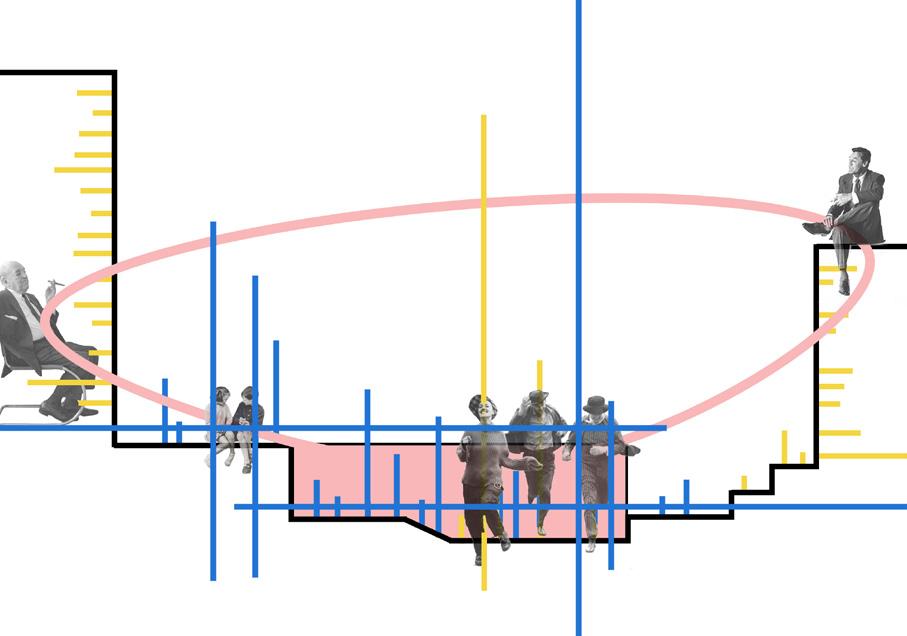

A level drop of -2.80m allows the appearance of different interaction levels, thus generating a multiplicity of horizontal planes in visual and programmatic coexistence while allowing the sports program to gain the necessary height and the spectator stands.
Urban Garden
Urban Sports
Foayer - Canteen - Playground

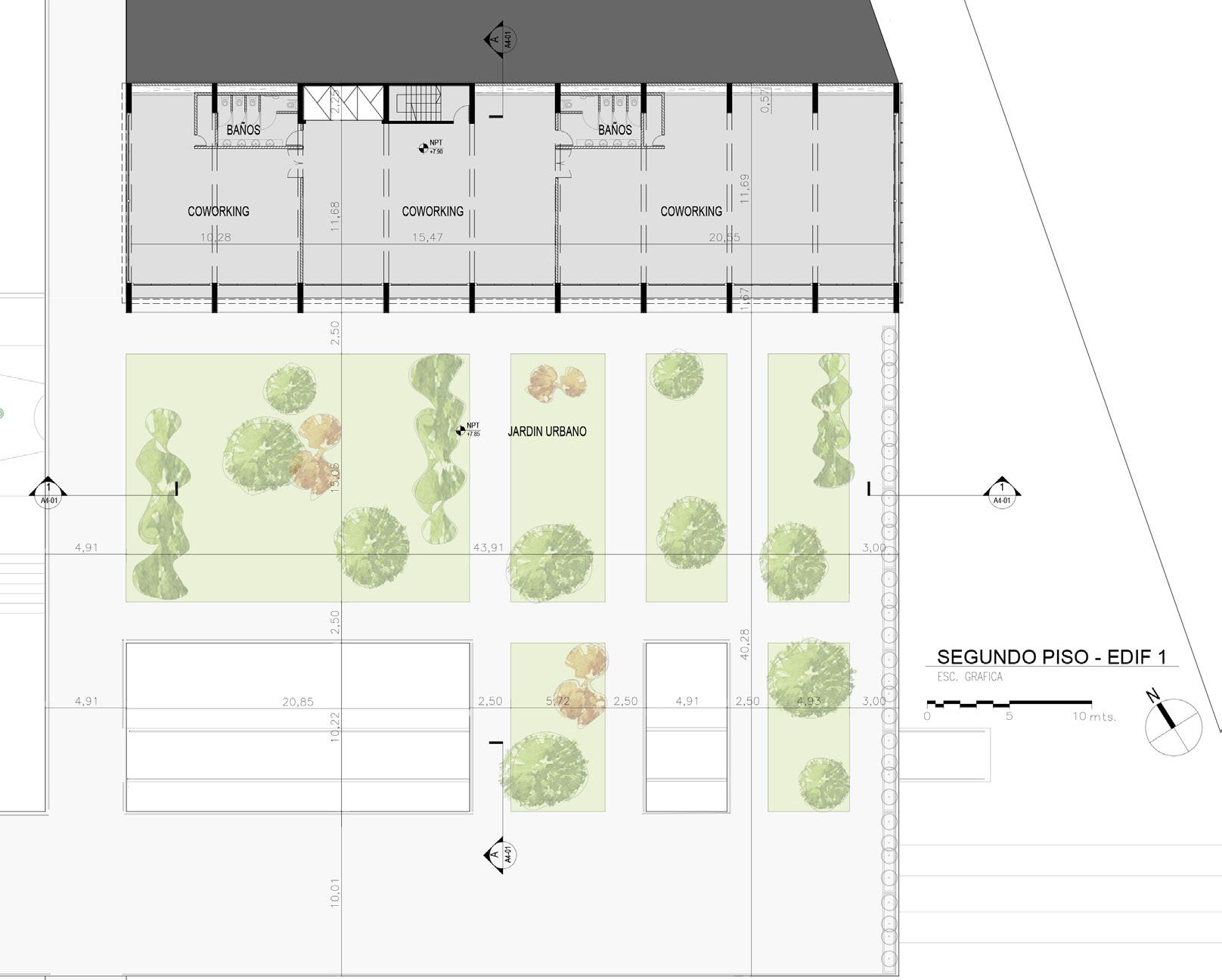

Offices - Coworking

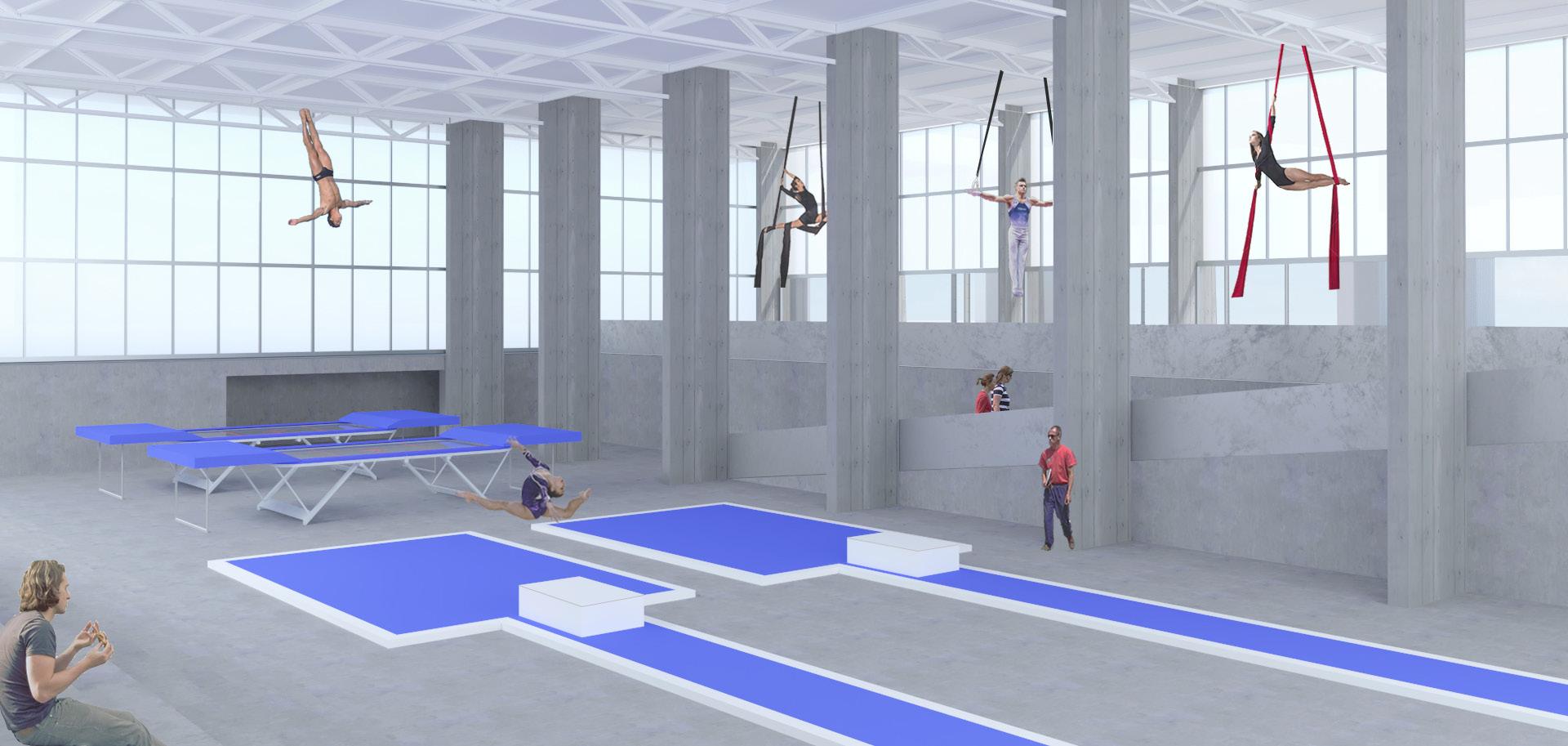

Artistic Gymnastics
Foayer - Canteen - Dressing Rooms
Gym - Dances
TFC ll
TFC ll
Participants: Thomas Obermair, Mehmet Said Durmas Franco N. Martinoli
RESIDENTIAL BUILDING - BRUNNSHÖG.

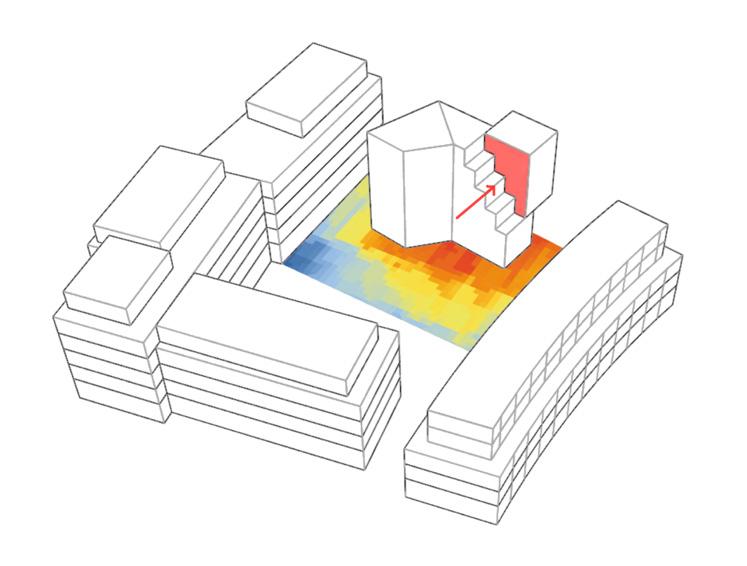

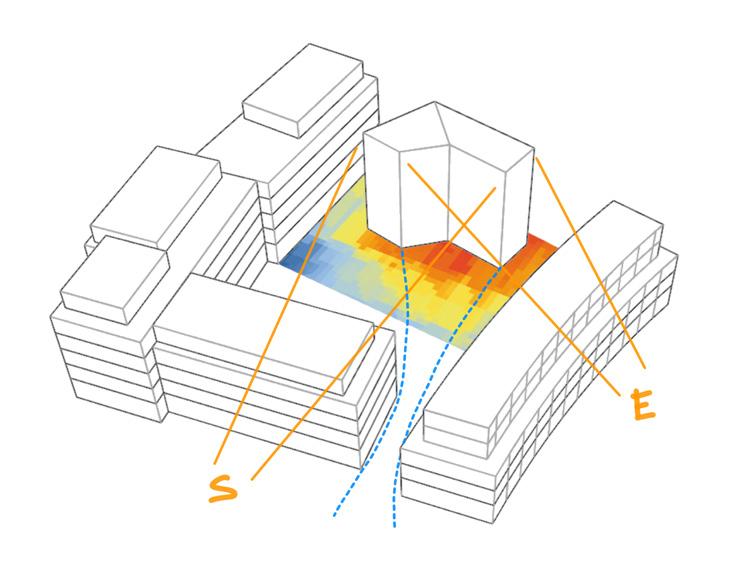

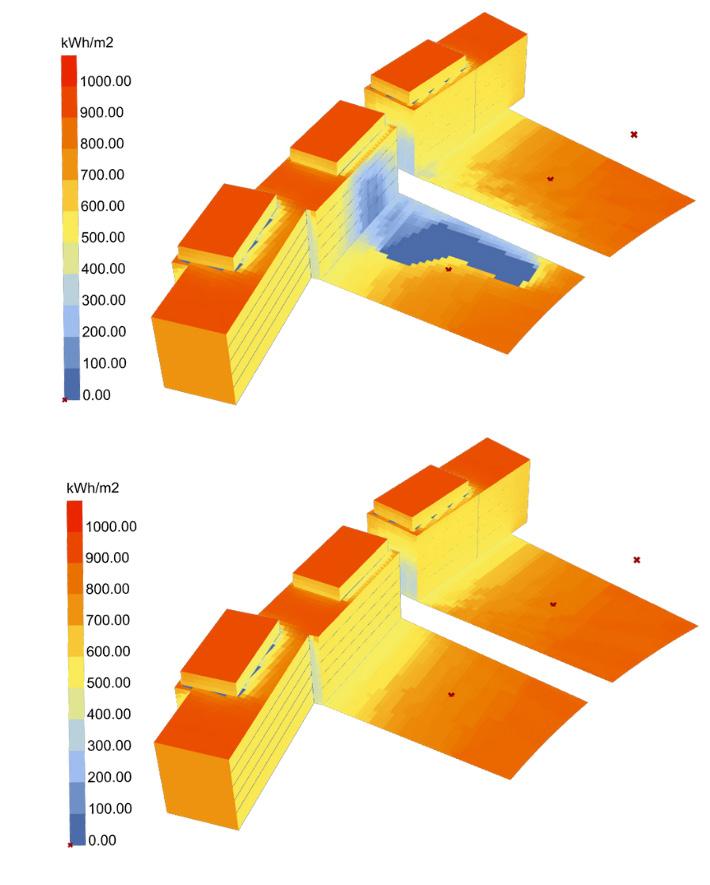

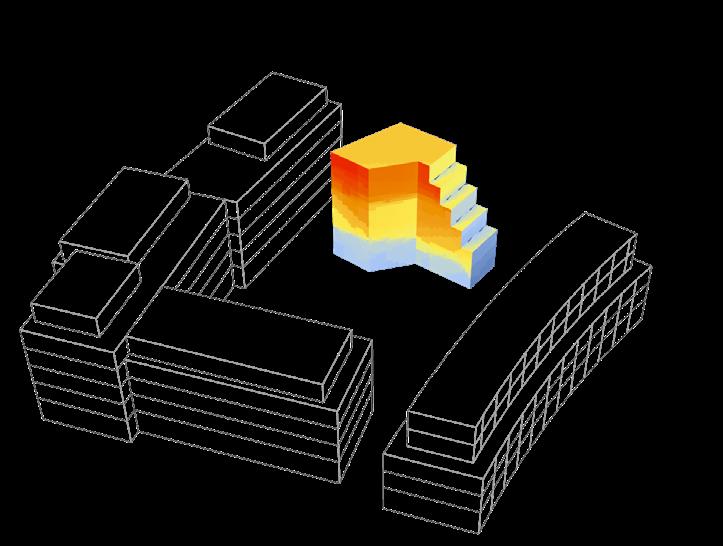

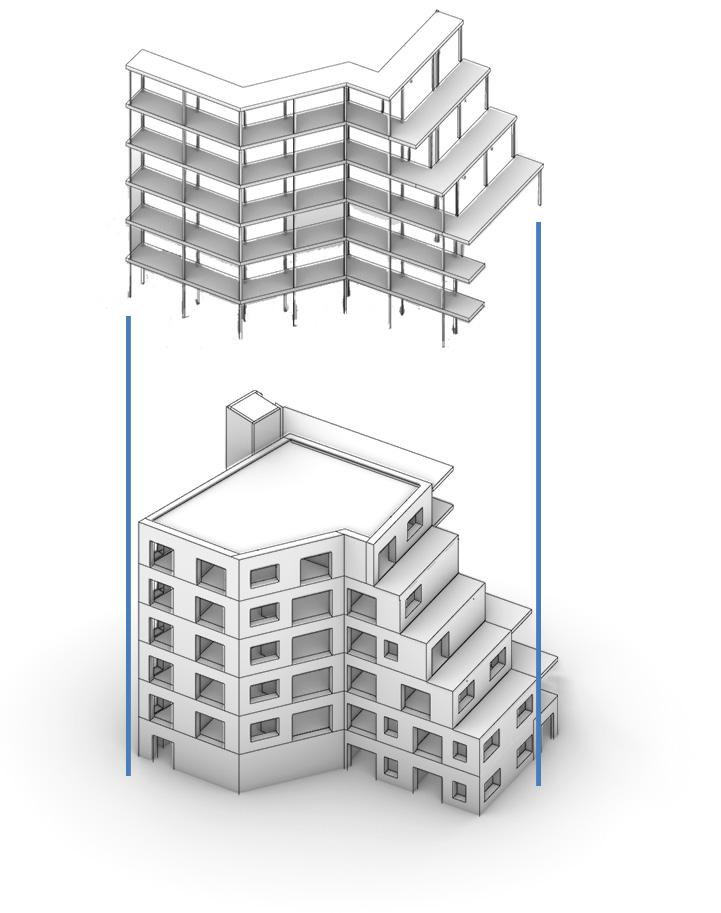

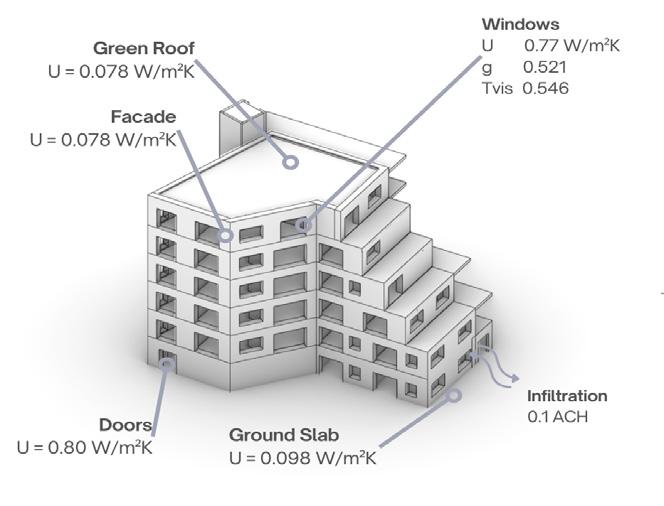

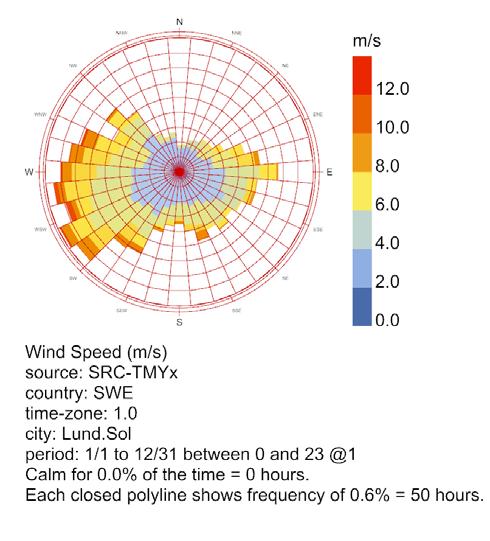

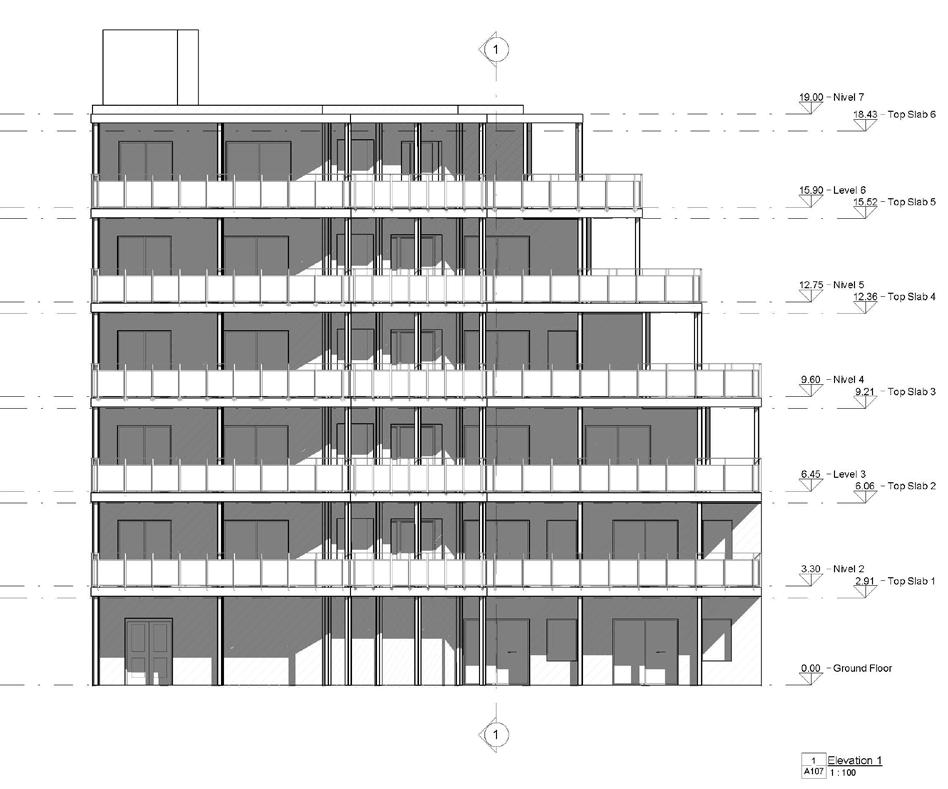

A multi-family residential building was requested to be designed in the district of Brunnshög in Lund, Sweden following the parameters of energy efficiency, moisture safety, and passive conditioning to meet the Swedish building codes requirements (i.e. Primary Energy Use ≤ 75 kWh/m²). The base requirements included a heated floor area of 900 m² and an average window-to-wall ratio of 30%, aiming to ensure basic thermal comfort properties without active cooling, not exceeding 26°C of room temperature more than 10% of the time in summer (April to September), and an overall net zero energy consumption from the grid. After finding the best-performing shape, a correct consideration of a low-embodied Co2 materiality was crucial. Composed mostly of CLT systems and hemp insulation boards, which were assessed for thermal bridges in Heat2 and moisture safety in WUFI. Passive design strategies like horizontal and vertical shadings and special performing windows were analyzed to reach the desired thermal comfort. The construction aims to meet the Miljö Byggnad sustainable building certification and single parameters of other certifications such as FEBY or Passive House.
2nd Floor (energy simulation)

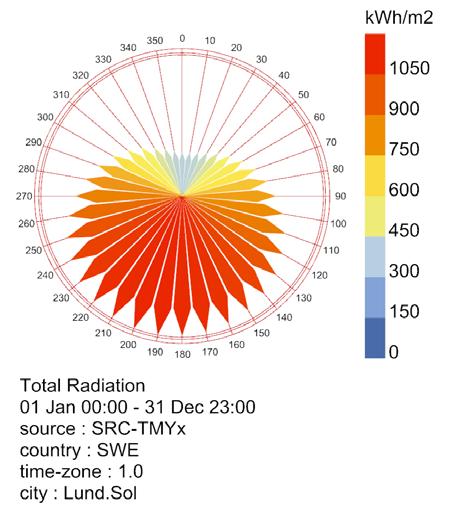

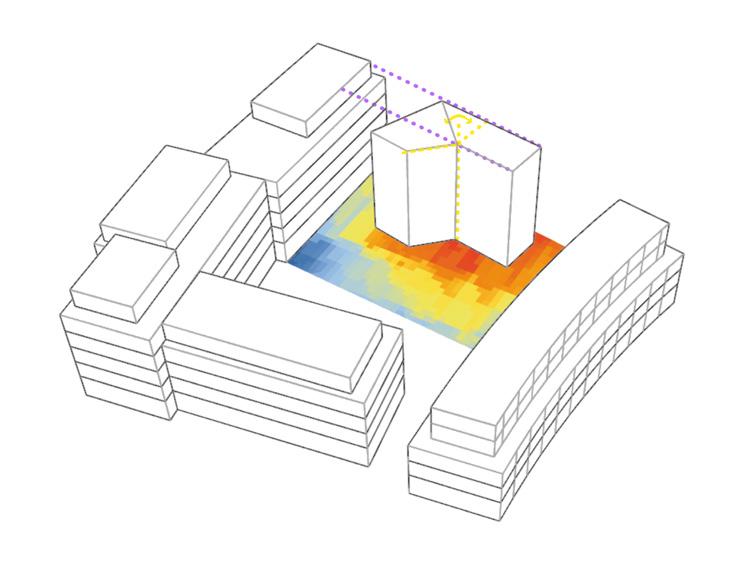

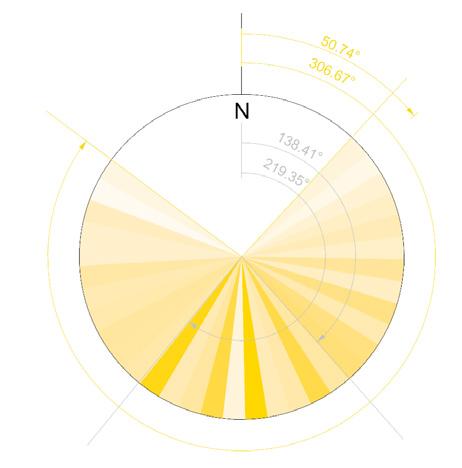

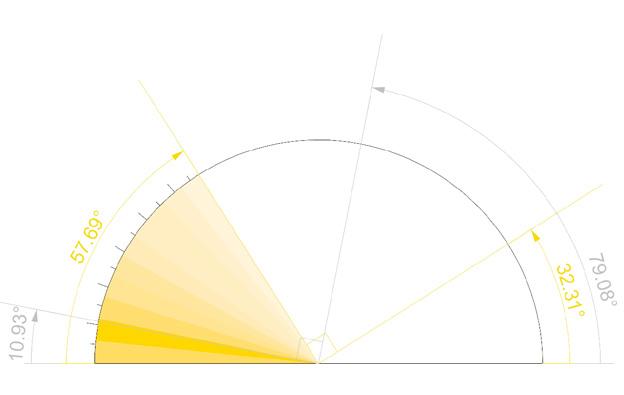

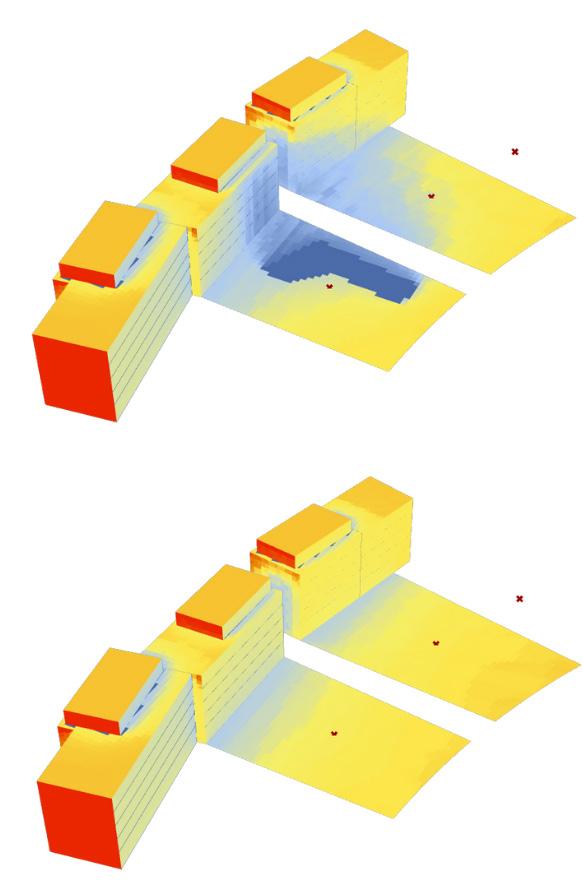

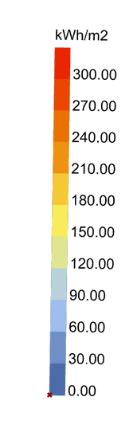

Histogram of Sun Hours by altitude for Lund, Sweden with marked values for the altitude at noon for winter (grey)
Construction Detail of the foundation, wall, roof joint, balcony attachment and the intermediate floor, Esc. 1:5.

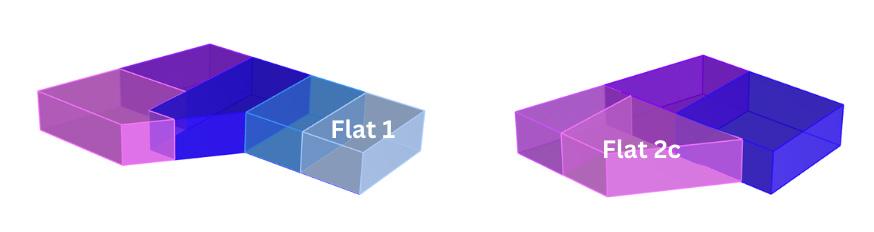

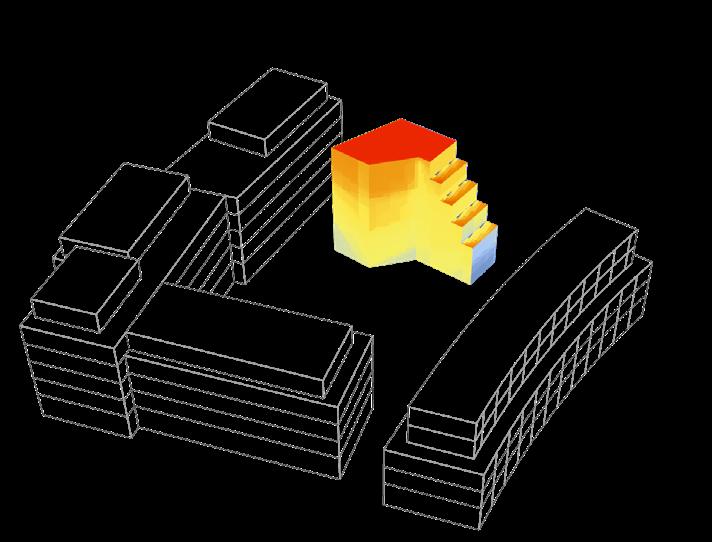

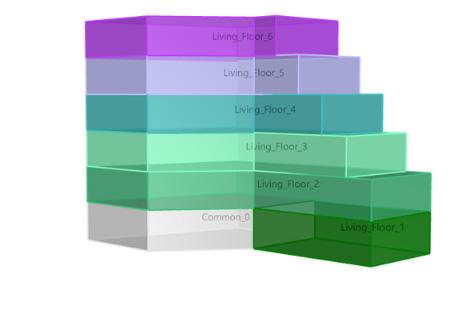

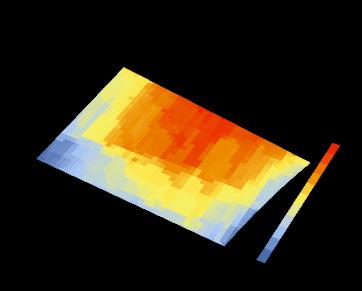

Climate Studio - Energy Zones.
Overheating
Overheating
Overheating
THERMAL COMFORT STRATEGIES

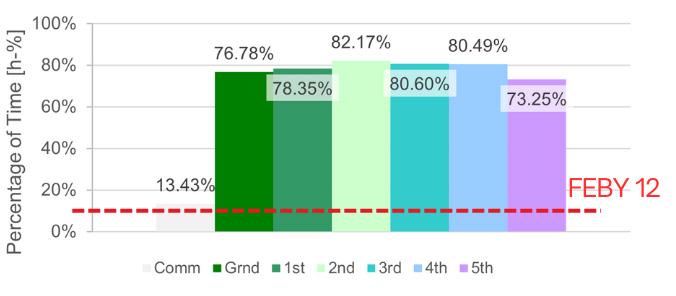

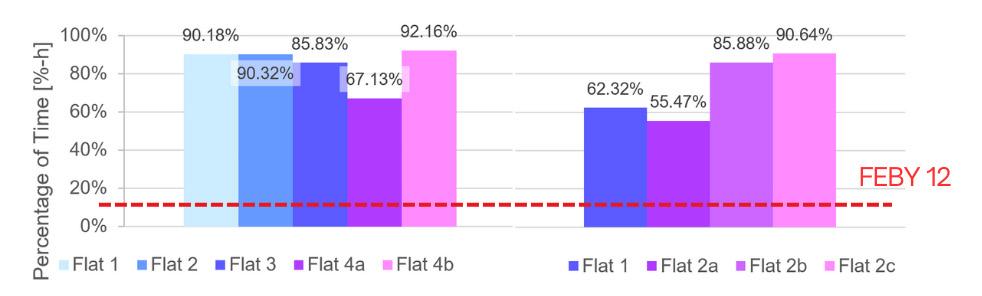

Base Case initial geometry simulations in Climate Studio showed excessive overheating, overpassing the FEBY 12 standard. Being the 2nd and 5th floor the particular cases to study in depth.

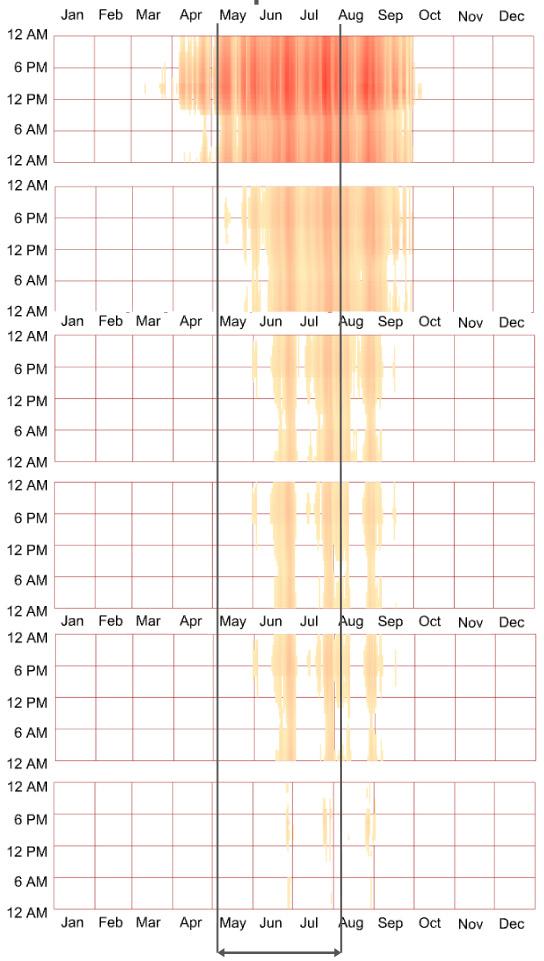

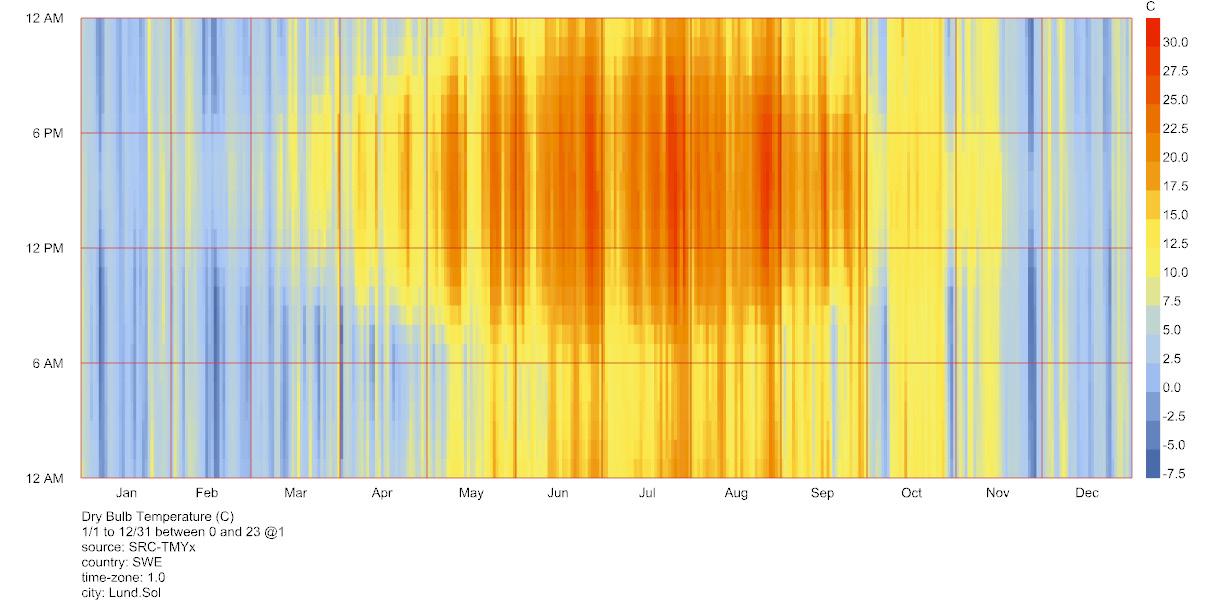

Flat 1 on the second floor exceeded 26°C for 90.18% of the time between April and September, highlighting the need for improvements. (see hourly carpet plot of the operative room temperature per improvements).

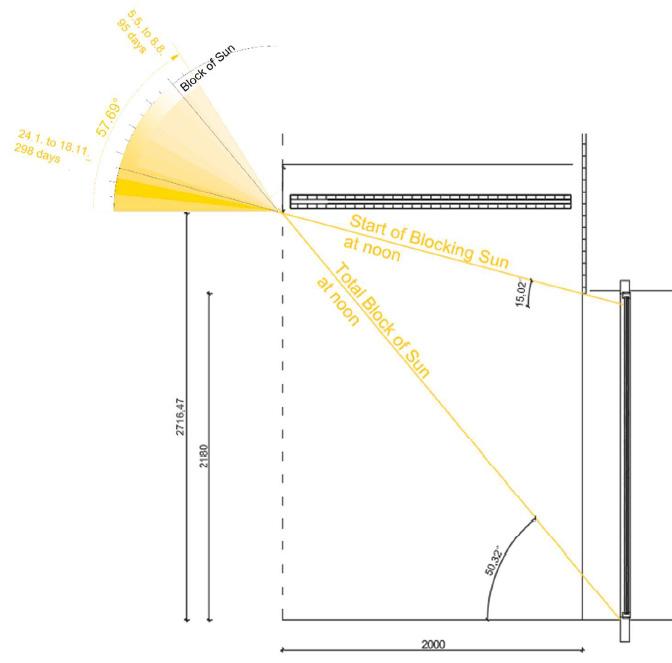

A two-meter-deep balcony reduced overheating to 59.73h-% in Flat 1 and 44.90h-% in Flat 2c by blocking the summer sun while allowing winter solar gains.
An optimized window assembly, upgrading them to better performing panes with lower U-value and g-value, cuting overheating to 35.58h-% in Flat 1 and 13.30h-% in Flat 2c with a minimal heating demand impact.

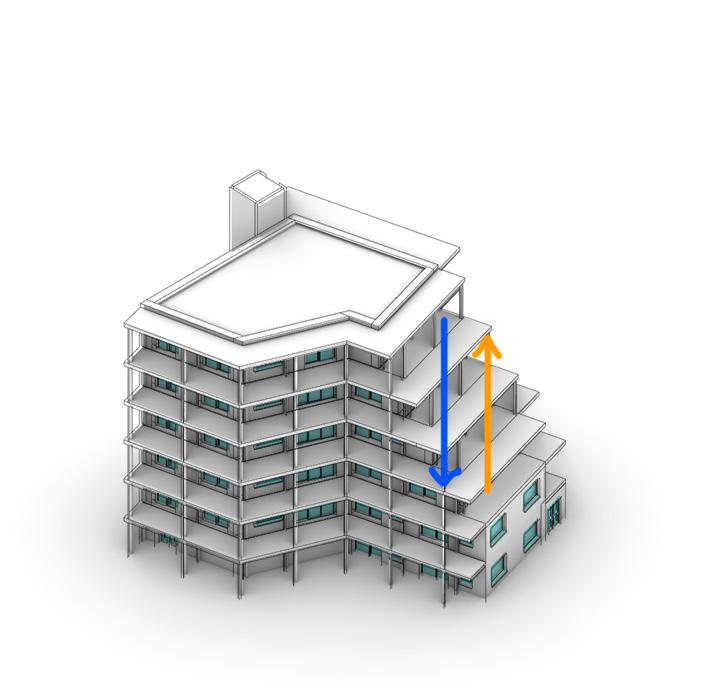

Adding Mechanical Night Purge during summer nights, helped further reducing overheating to 24.58h-% in Flat 1 and 6.97h-% in Flat 2c.

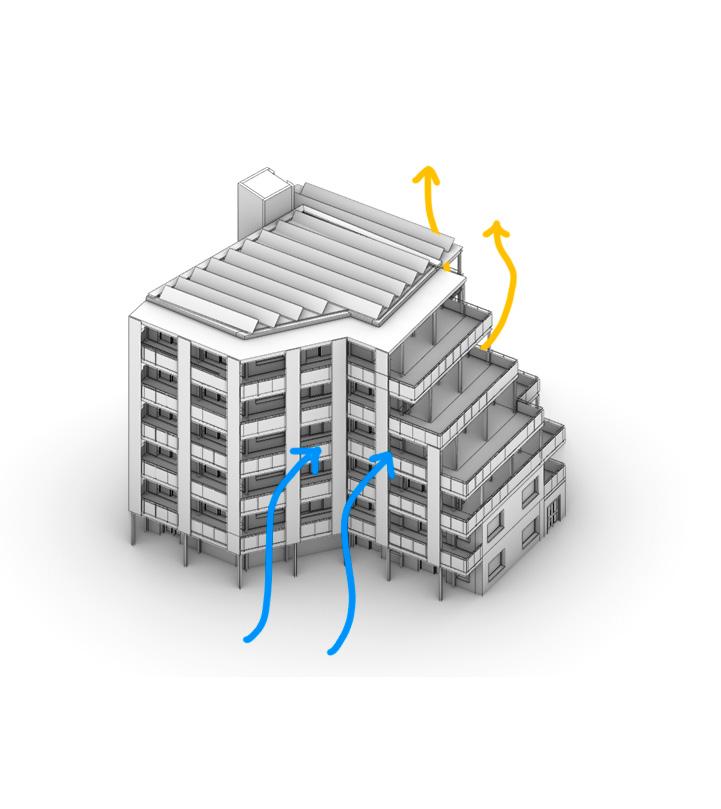

Lastly, Incorporating Natural Ventilation when indoor temperature was higher than 26°C, lowered overheating to 2.80h-% in Flat 1 and 1.23h-% in Flat 2c, meeting the FEBY standard by having overheating under 10%.

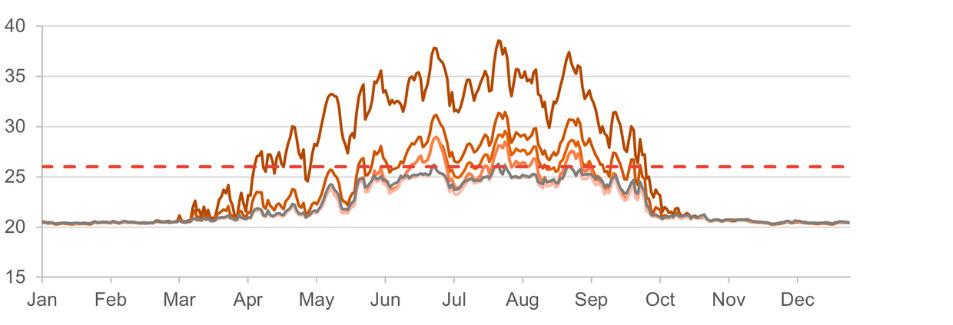

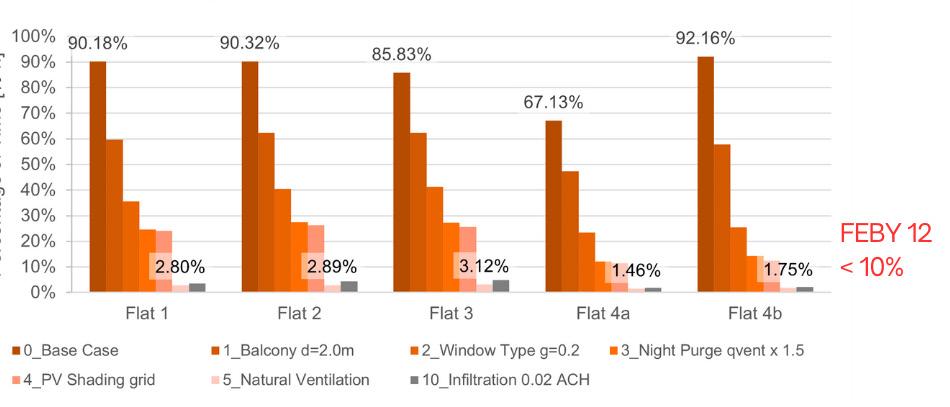

April to September - All Cases, 2nd Floor
Overheating

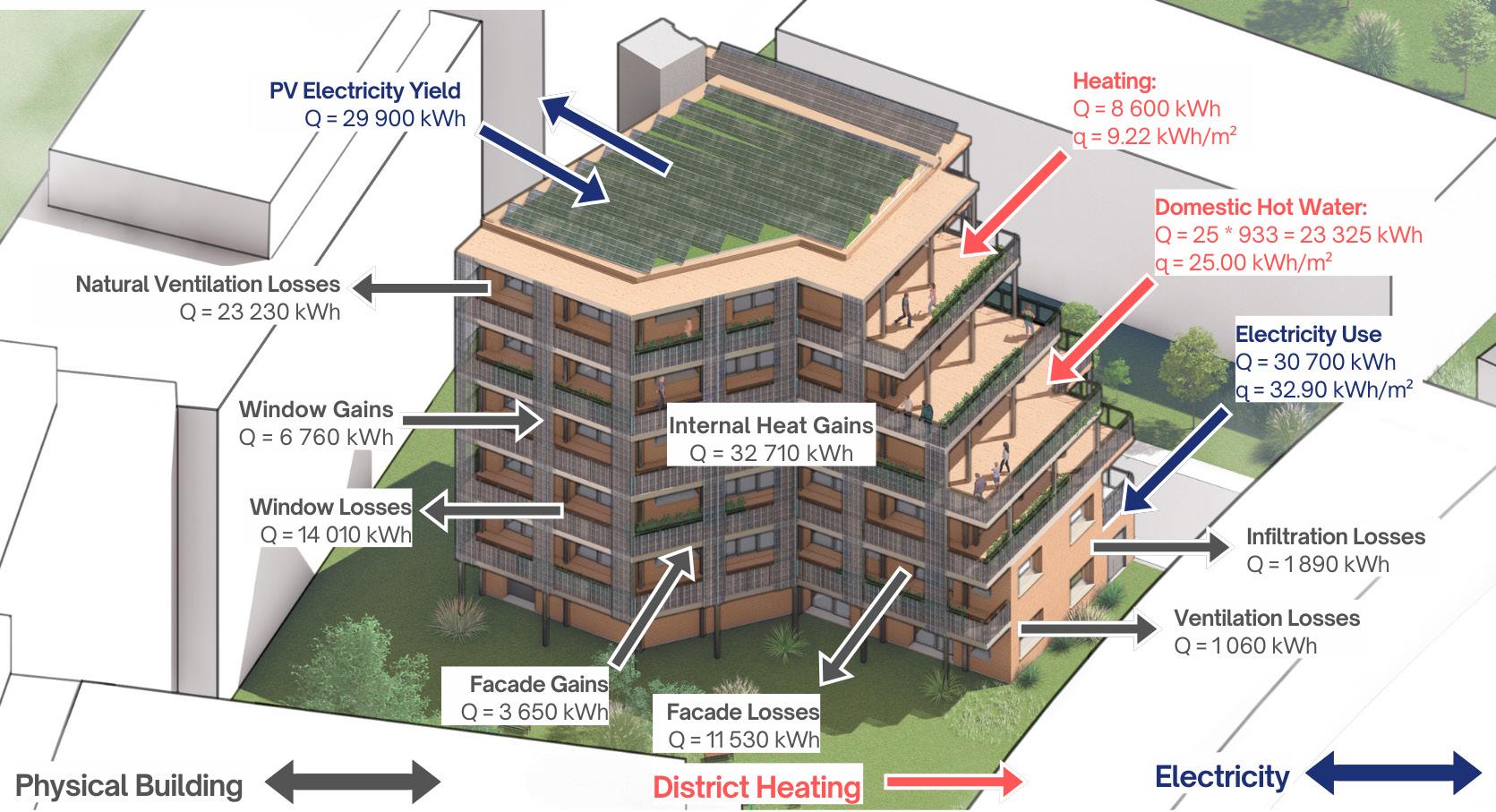

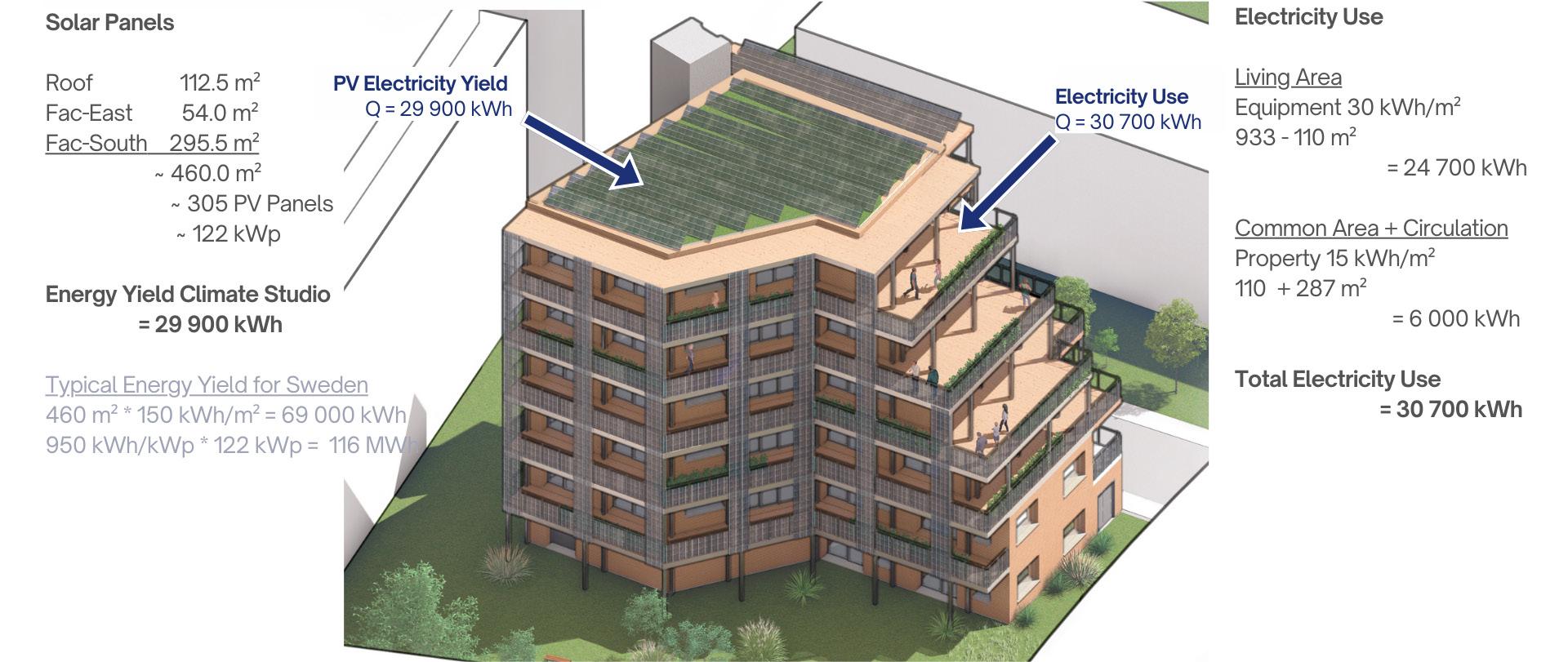

N et-Zero Energy Goal
Annual Electricity Flows in the system boundaries.

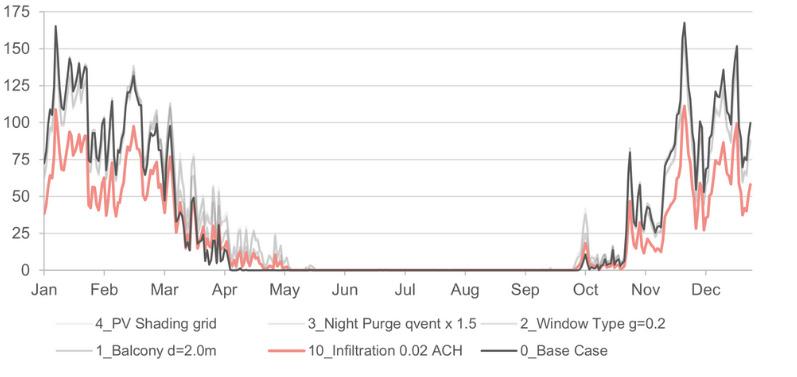

Daily Total Heating Need per Case

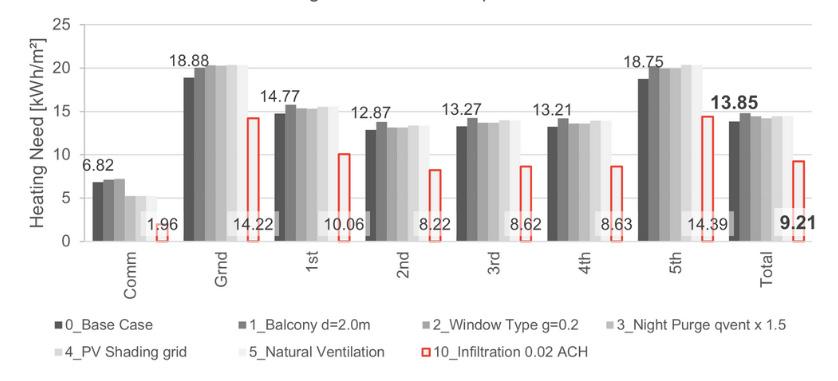

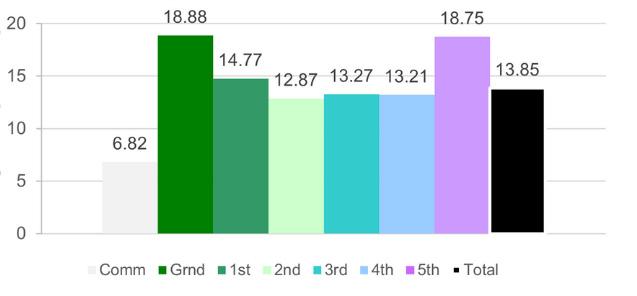

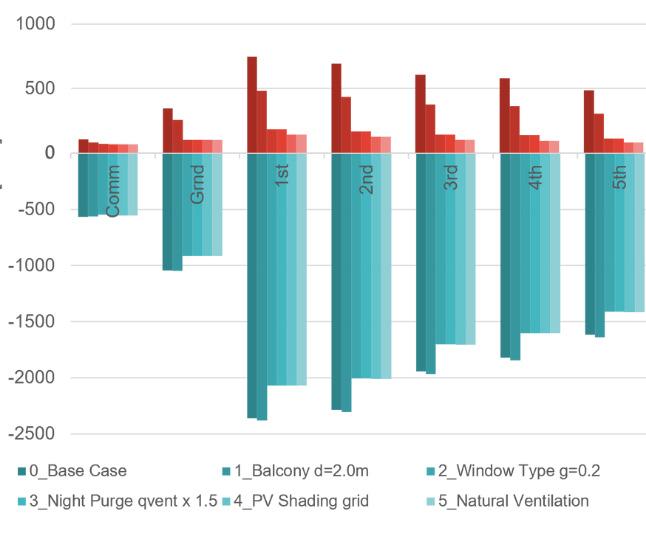

Annual Heating Need - All Cases per Floor and Total
Participants: DOS F Estudio - Franco N. Martinoli
Rendering: BAG Estudio

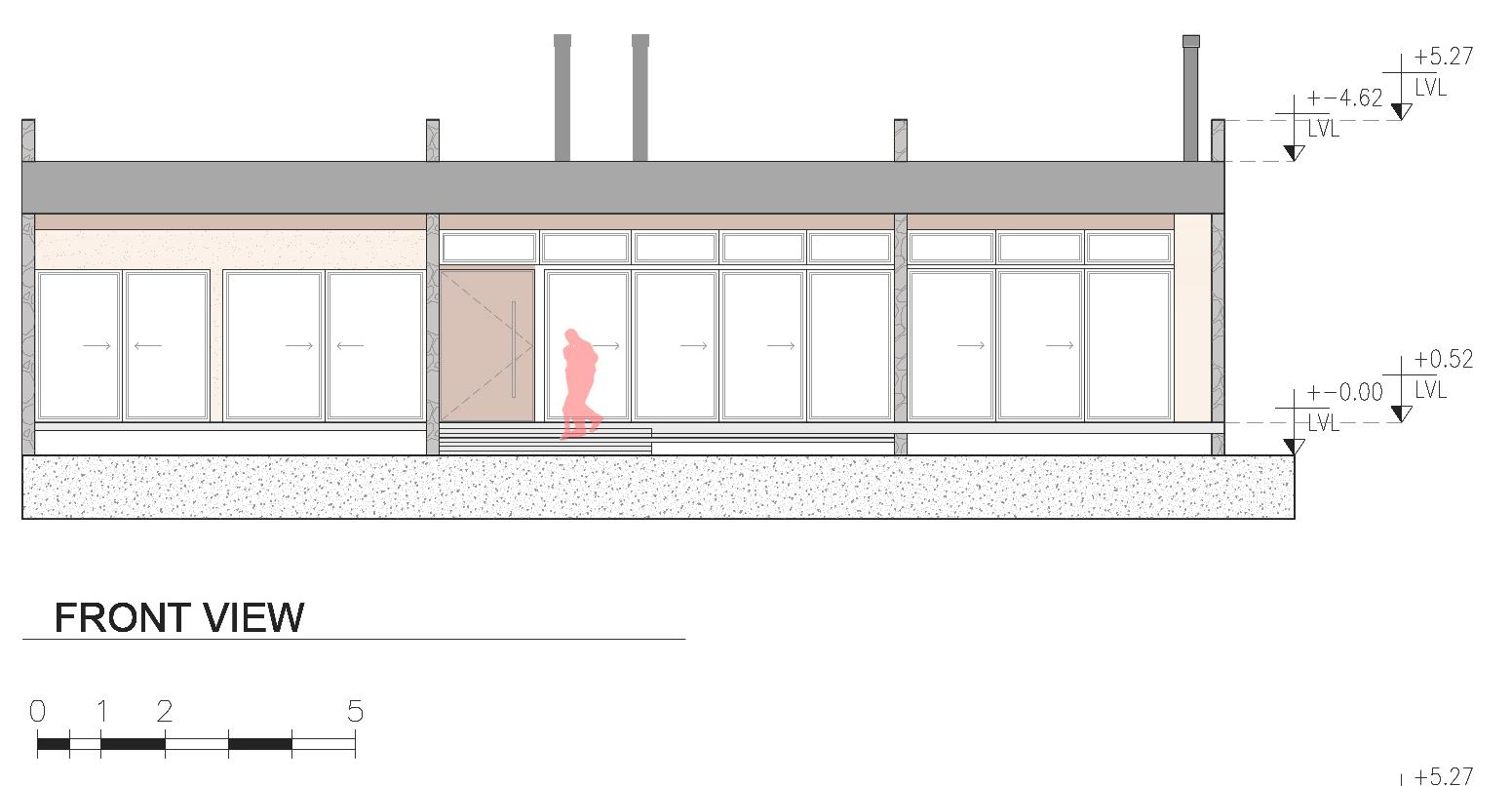

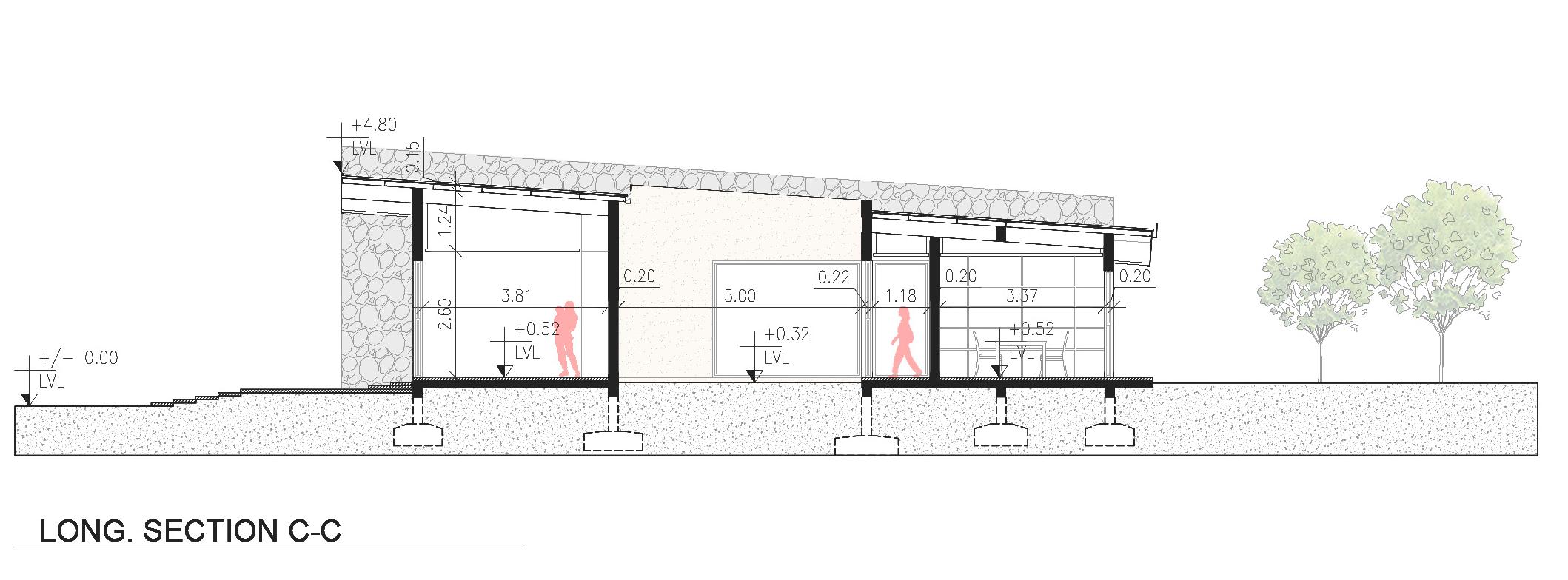

Technical Drawings and Plans: Franco N. Martinoli.

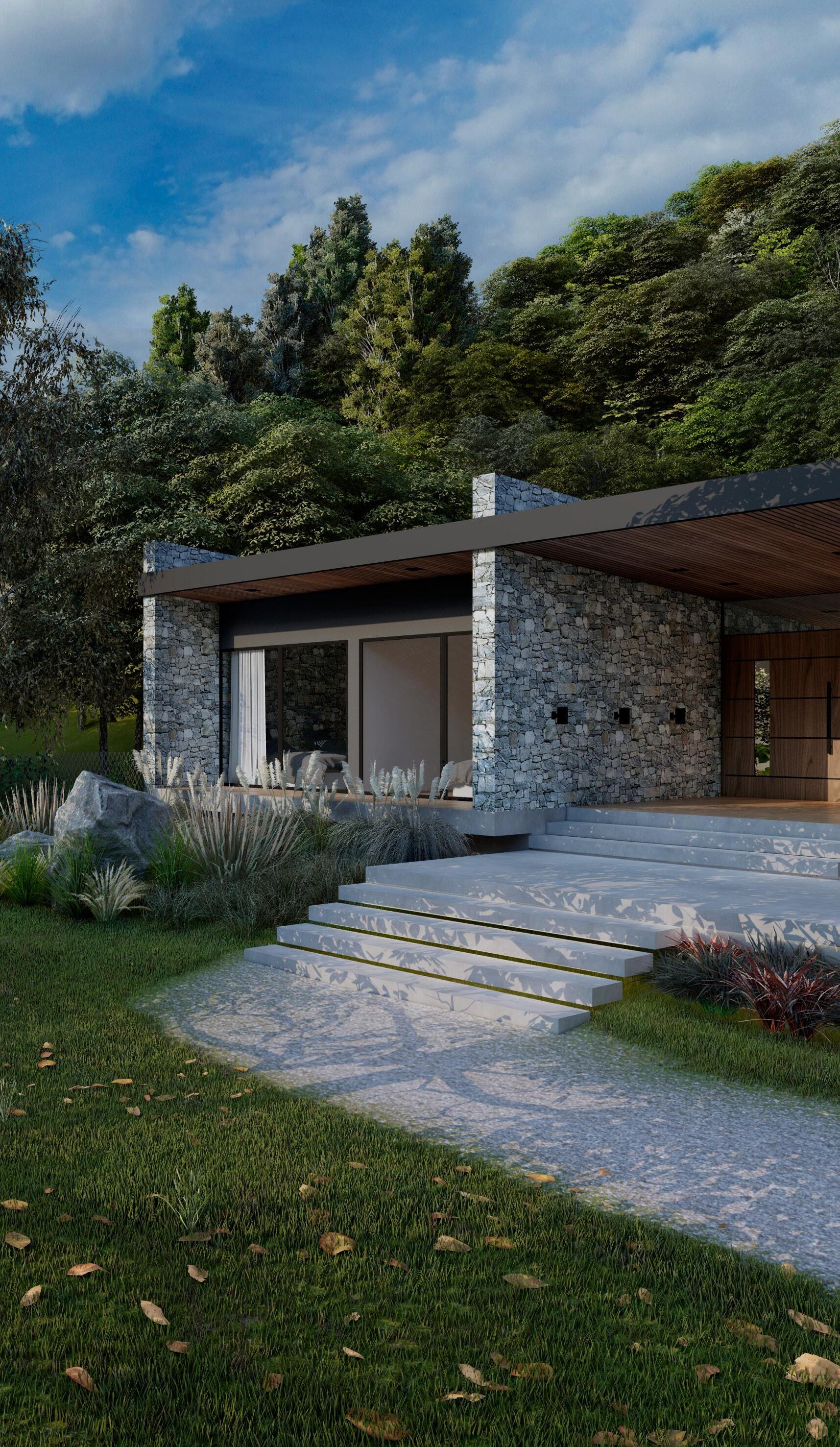

CASA QUINCHO.

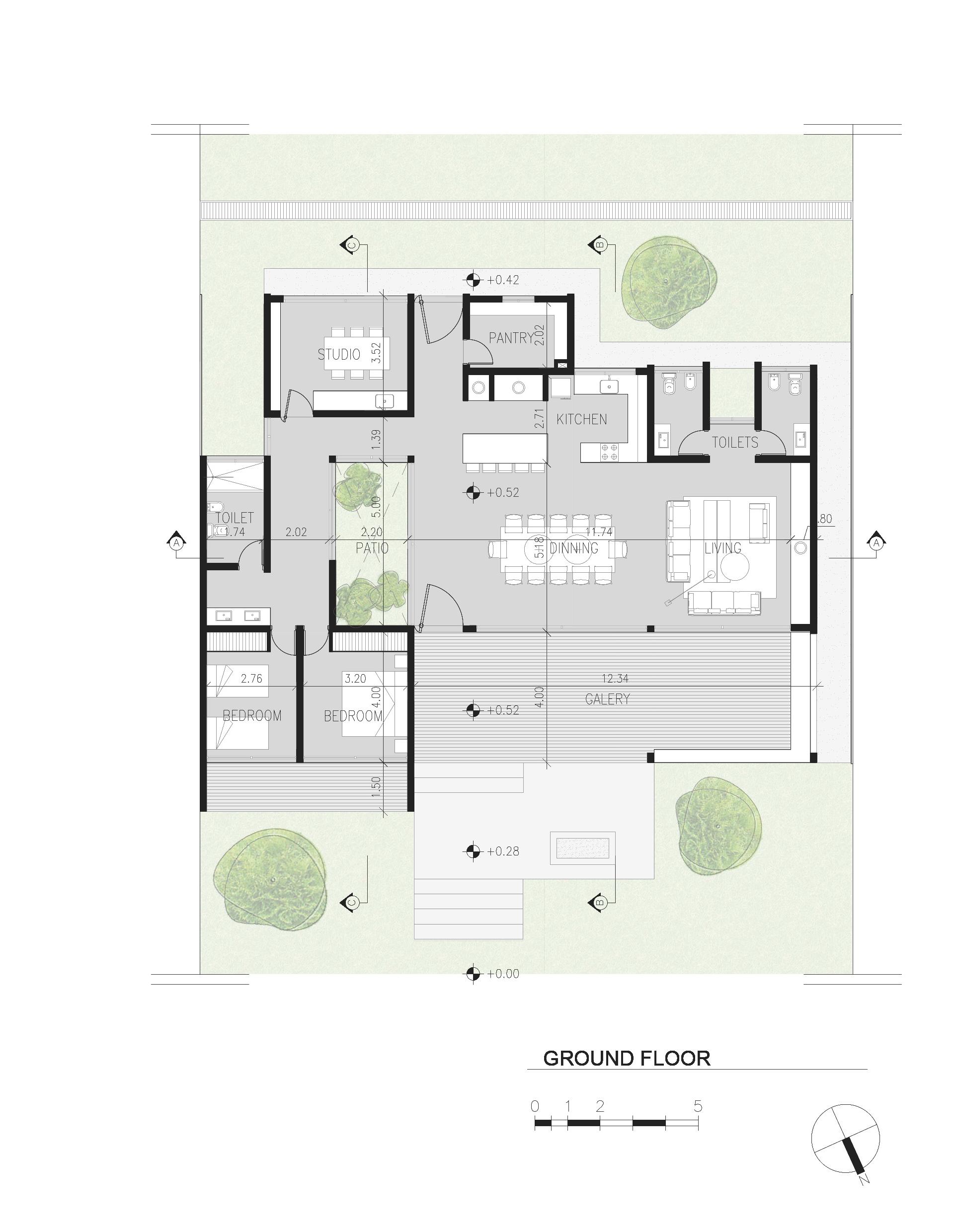

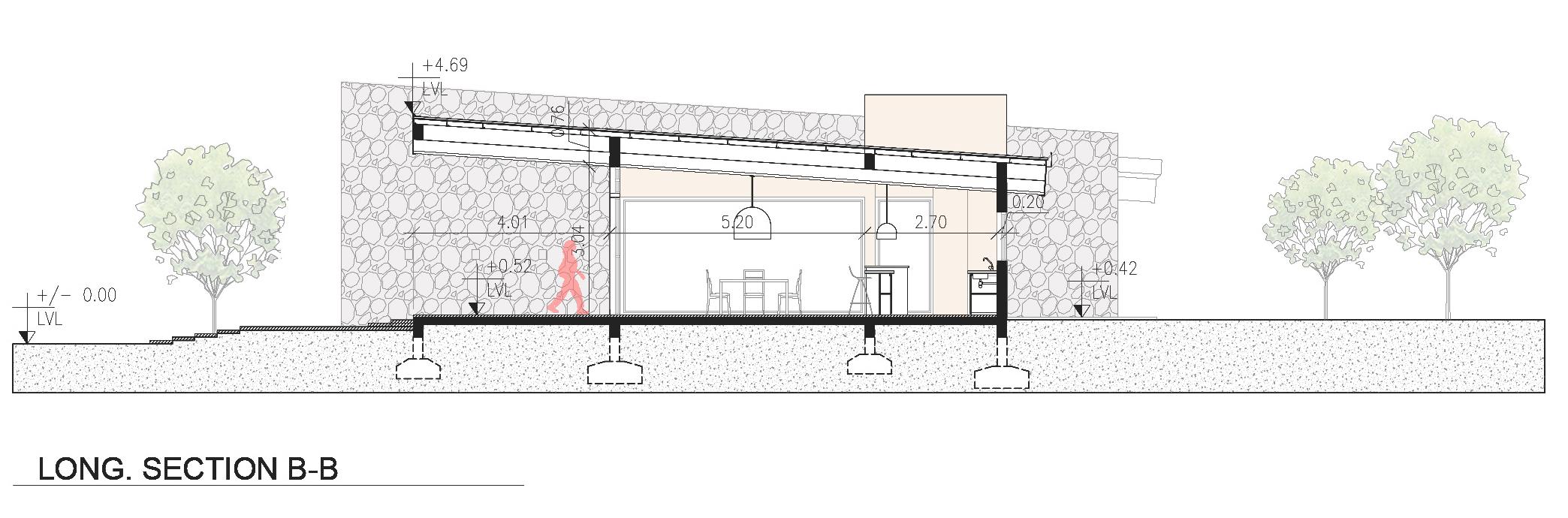

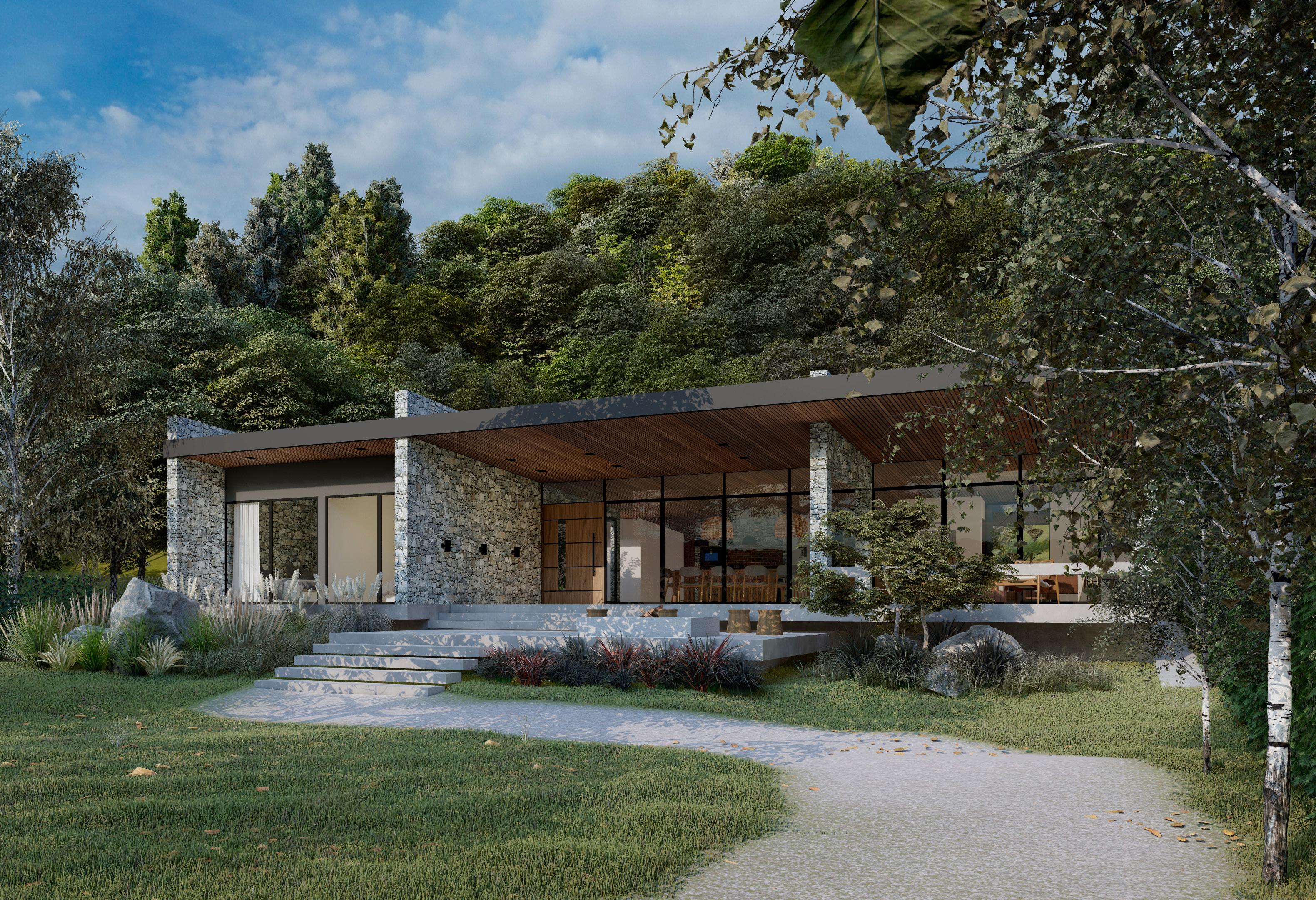

Casa Quincho is a private summer house nestled in the serene village of Yala, Jujuy , Argentina. Surrounded by nature, this retreat is designed for a family of three seeking privacy and memorable moments with loved ones. The house features a private area with two bedrooms and private toilets, along with a studio. The social area boasts an integrated kitchen, a spacious dining room, and a large living room, seamlessly connected to a comfortable gallery. This inviting space serves as the perfect backdrop for entertaining family and friends. A peaceful environment where nature meets warm social gatherings, exclusively for private use.
Participants: DOS F Estudio - Franco N. Martinoli .
Rendering: BAG Estudio

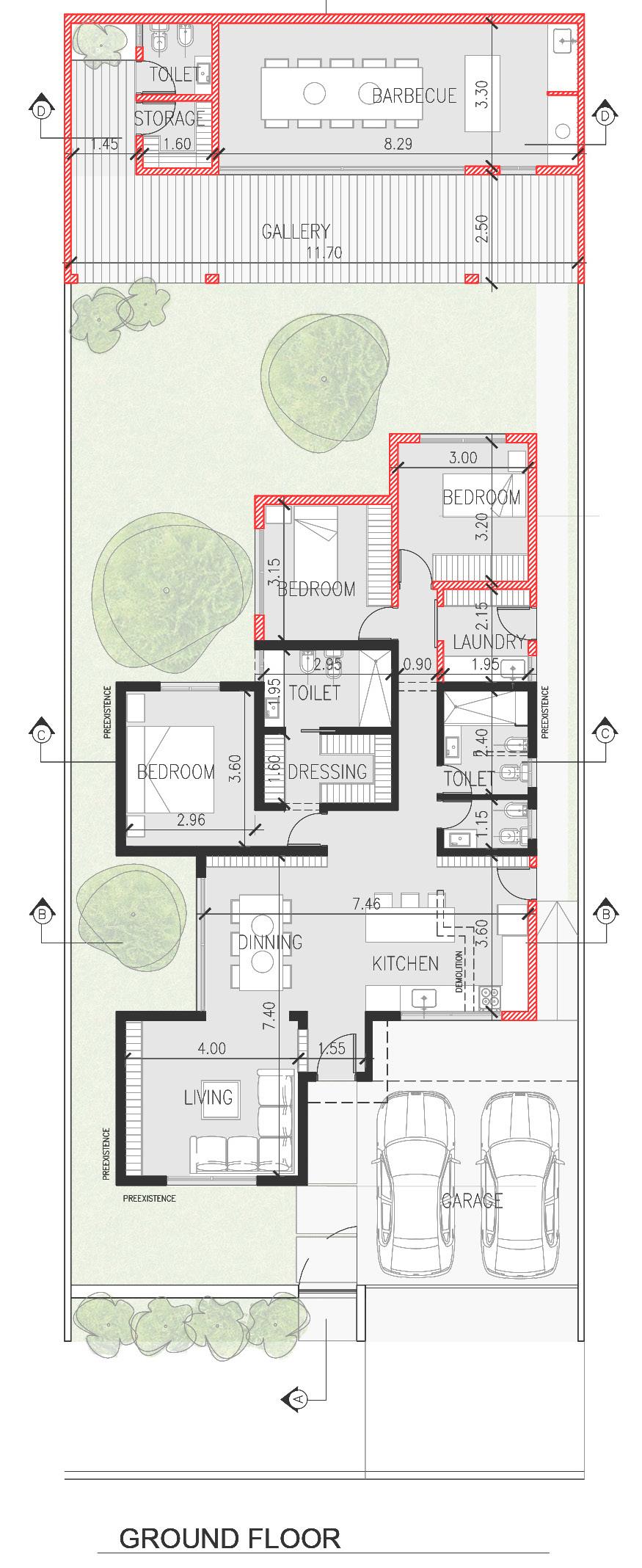

Technical Drawings and Plans: Franco N. Martinoli.

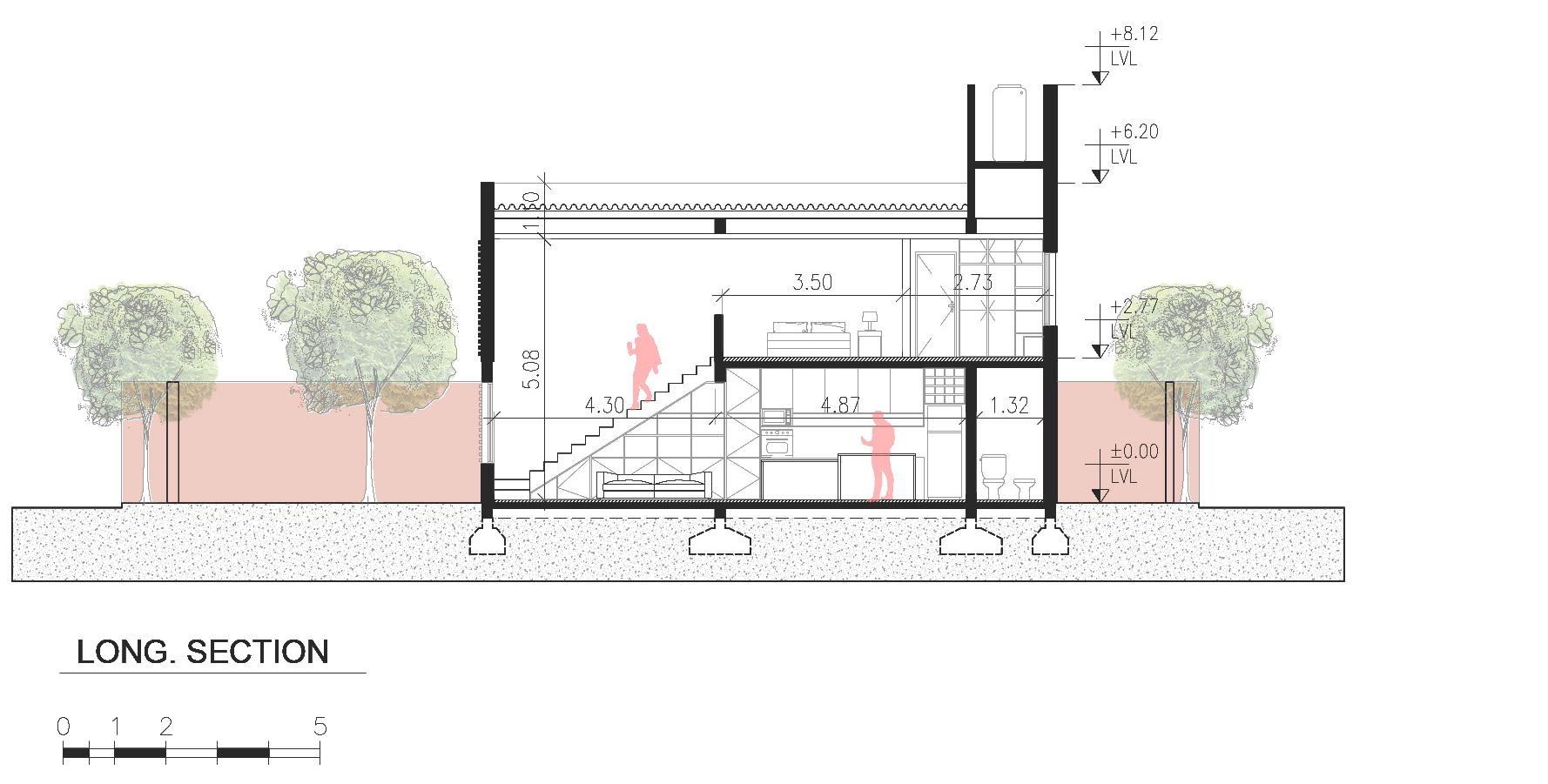

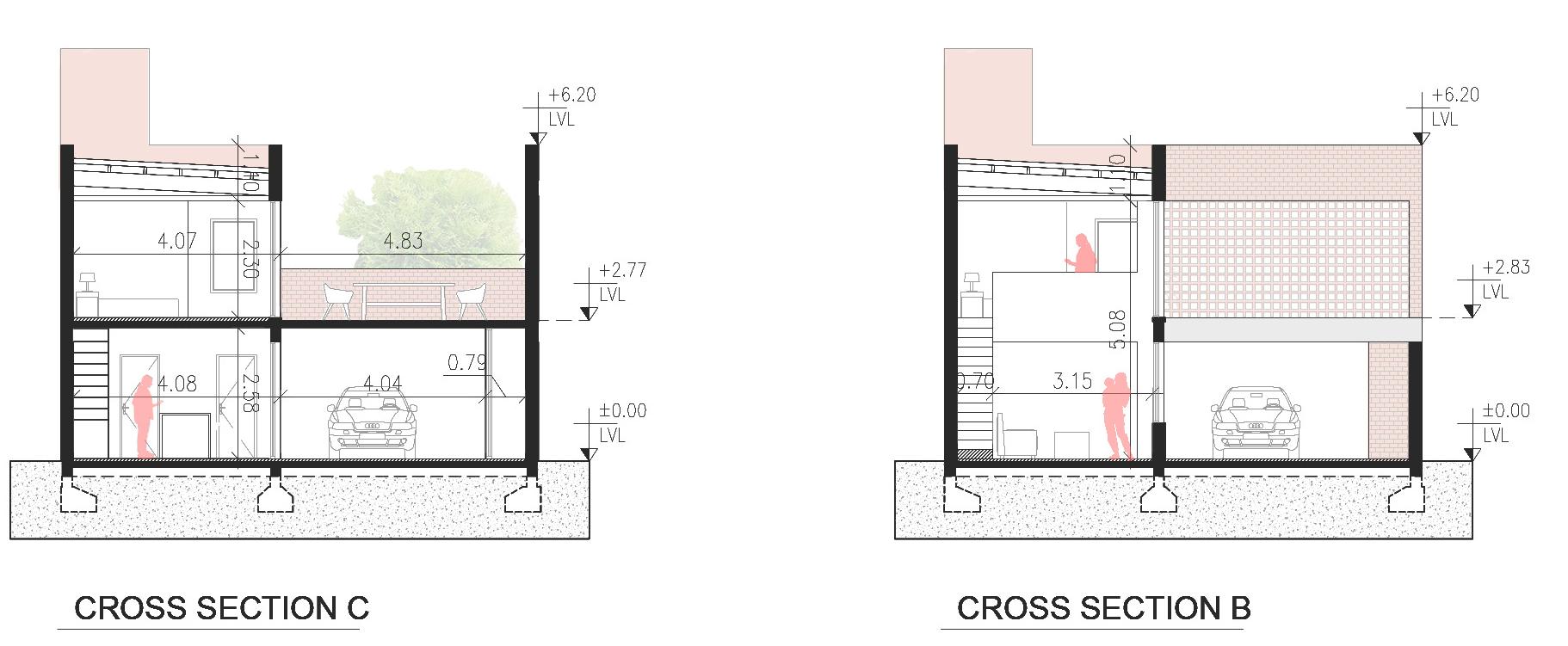

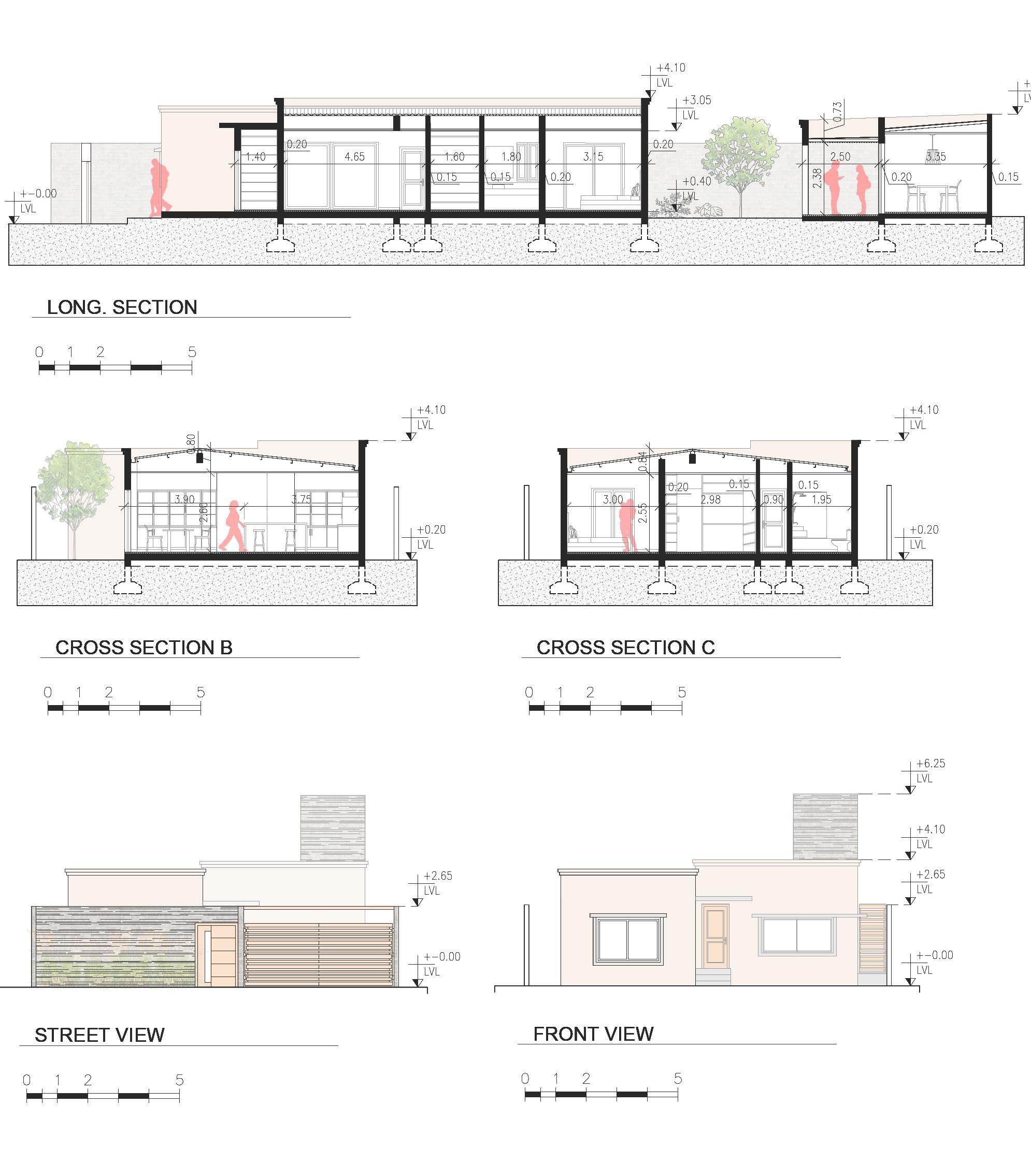

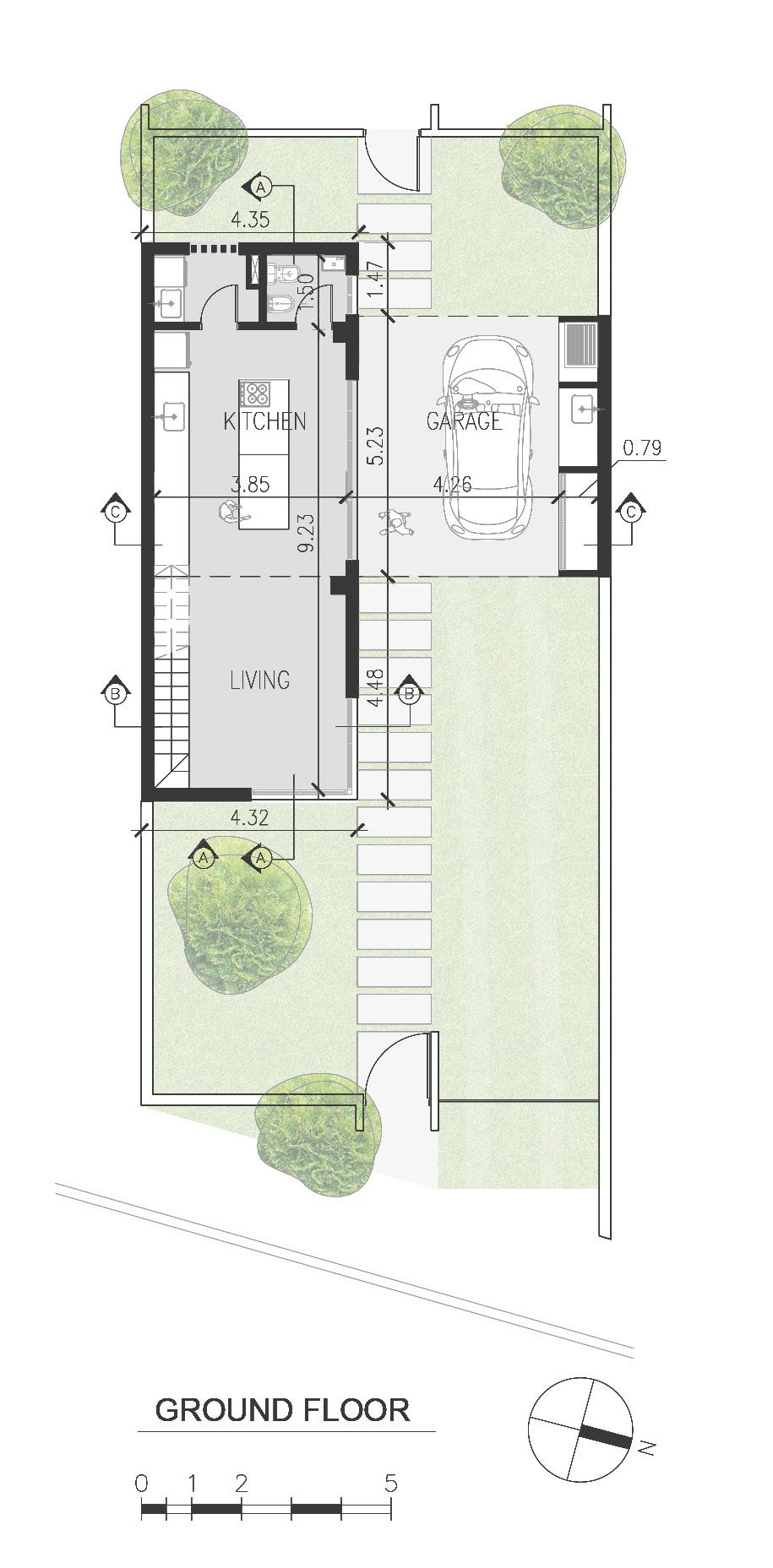

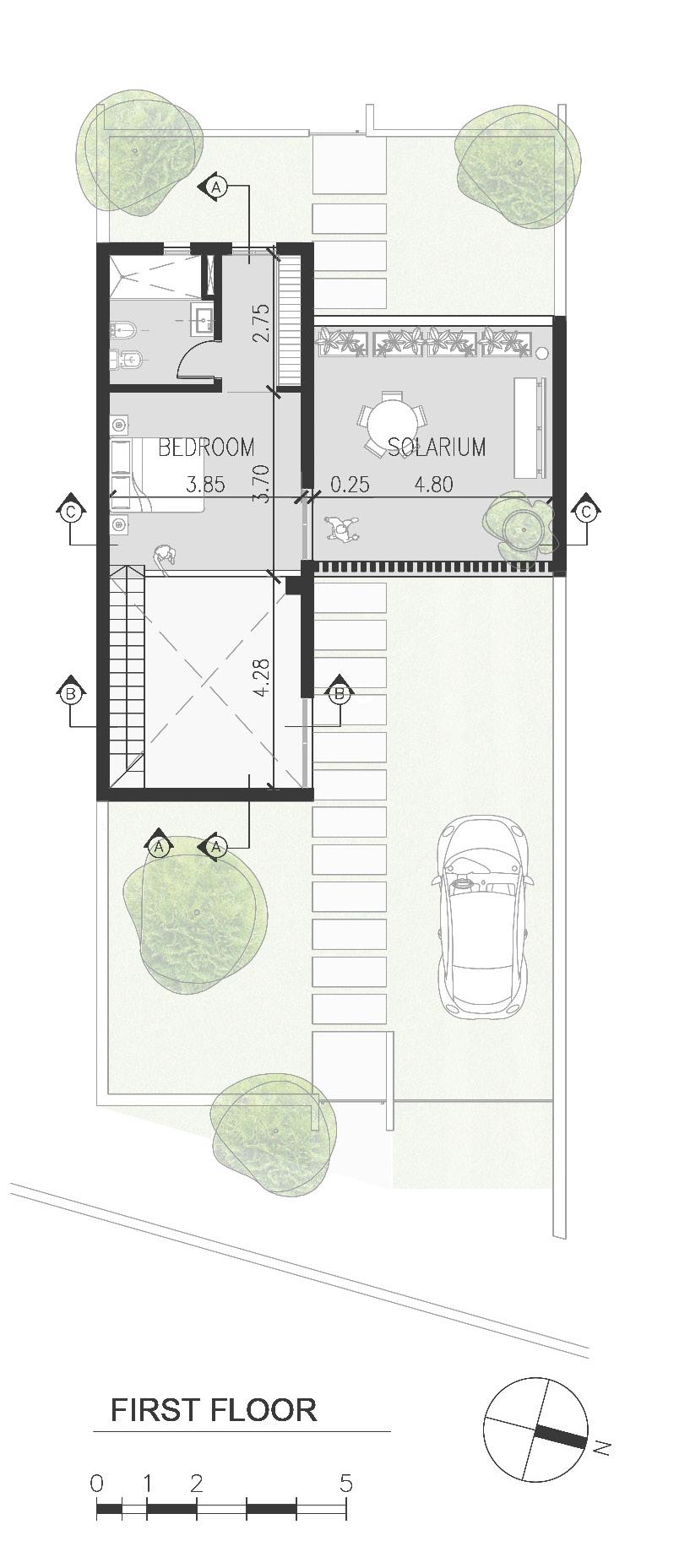

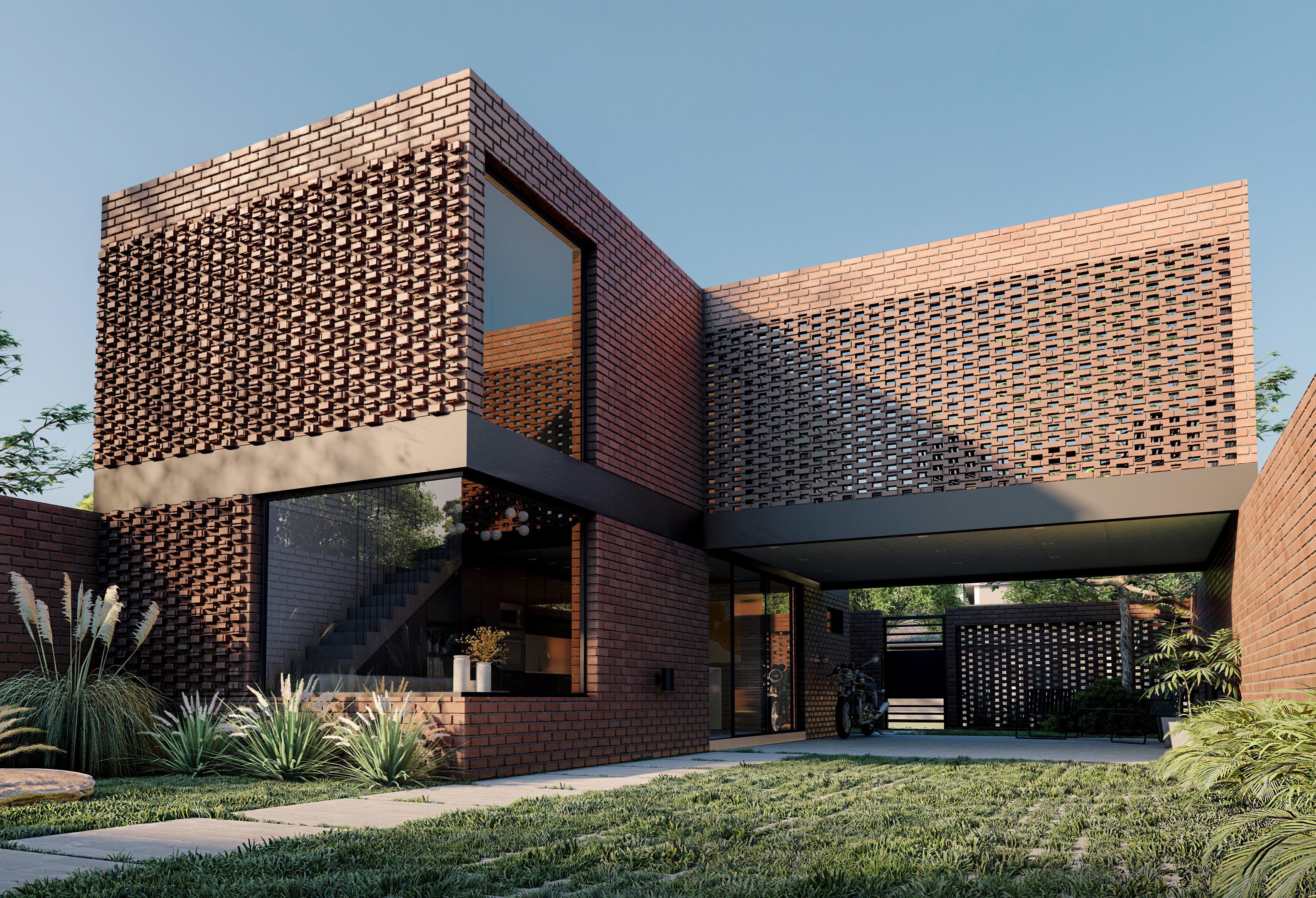

This affordable loft is located in the peaceful suburbs of San Salvador de Jujuy, Argentina. Designed with simplicity in mind, it is perfect for a single woman seeking a serene living space surrounded by natural beauty.

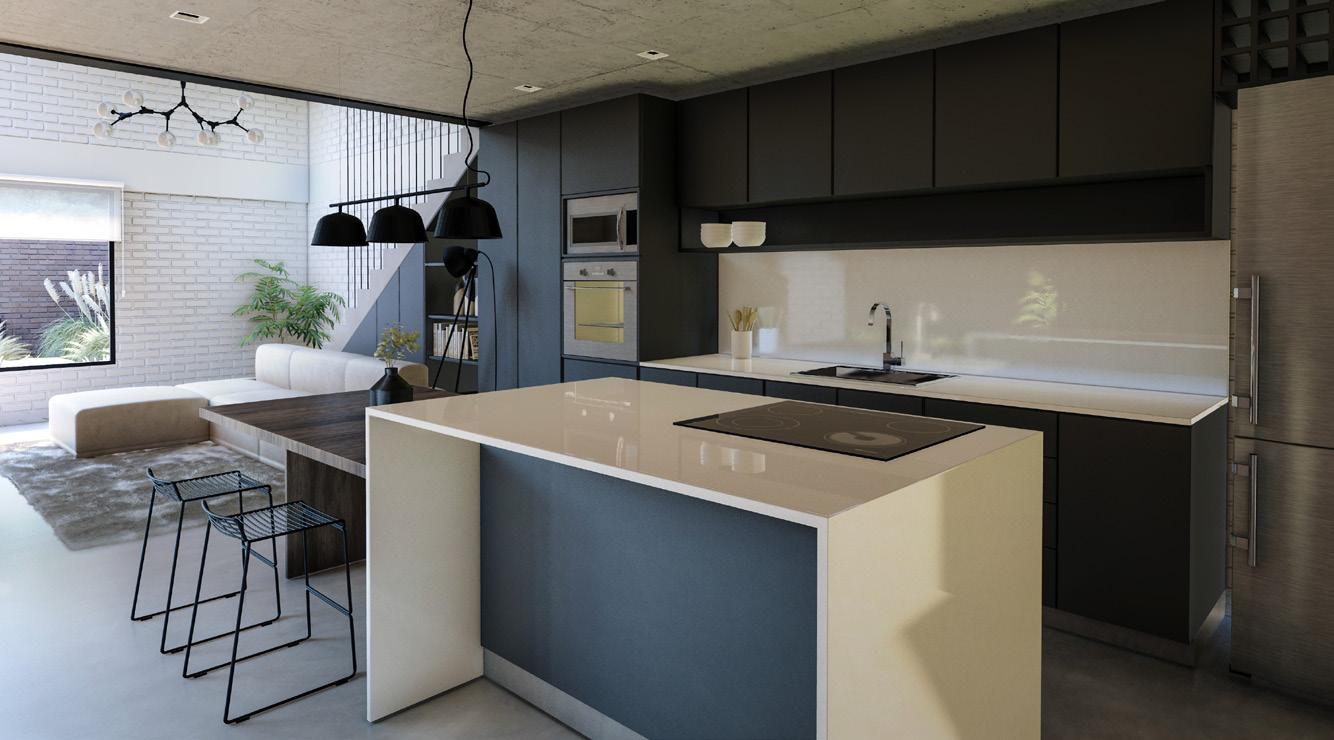

The loft features an open and flexible layout. The social area includes a partially covered barbecue, a functional kitchen, and a bright double-height living room with large windows that offer captivating views of the lush green surroundings.

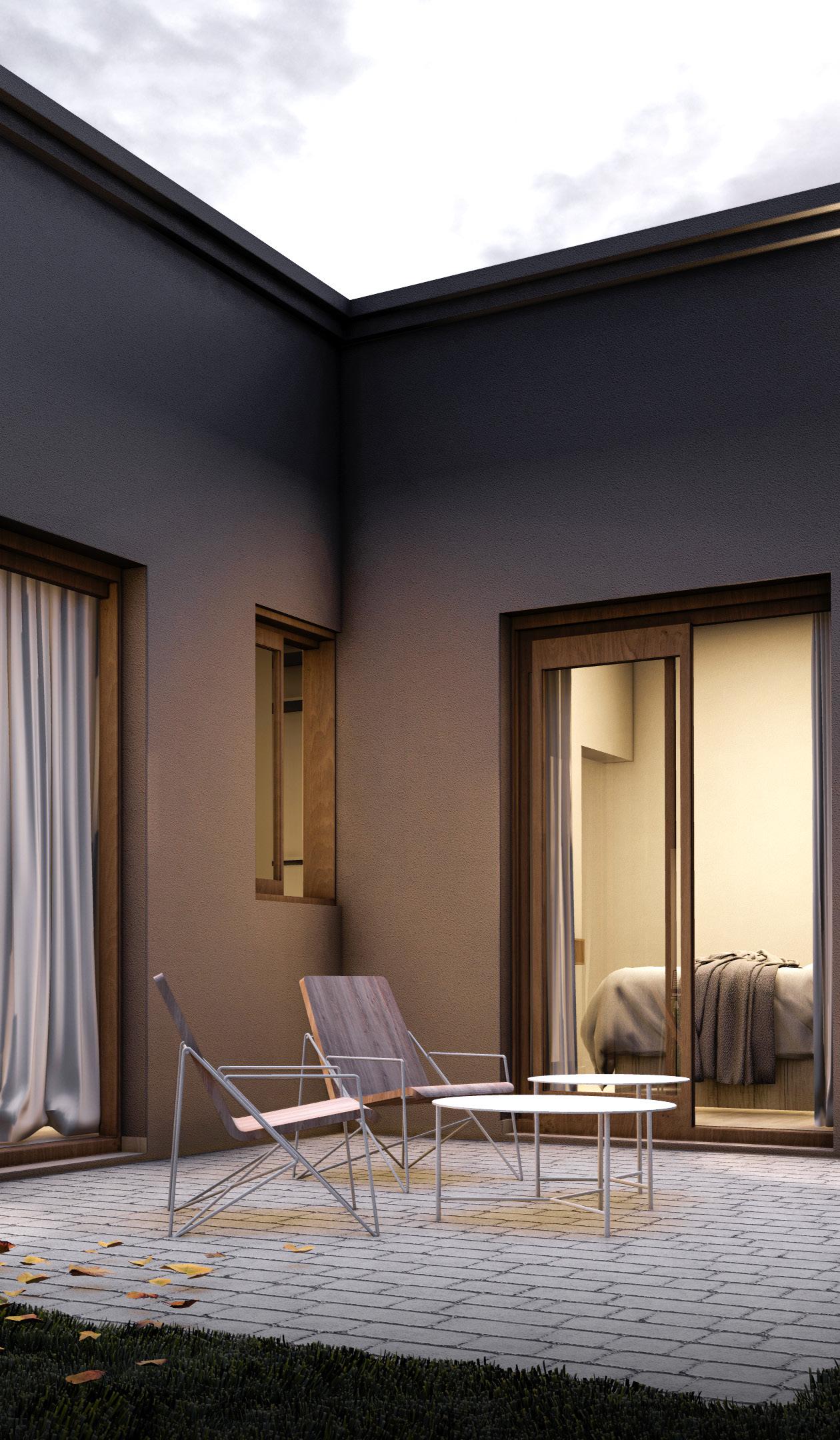

Beyond the social area is a private sanctuary. The en-suite bedroom and solarium provides a retreat for relaxation. This private space allows you to unwind, soak up the sun, and connect with nature. It can be easily transformed into an additional room when needed, offering flexibility.
Participants: DOS F Estudio - Franco N. Martinoli
Rendering: BAG Estudio

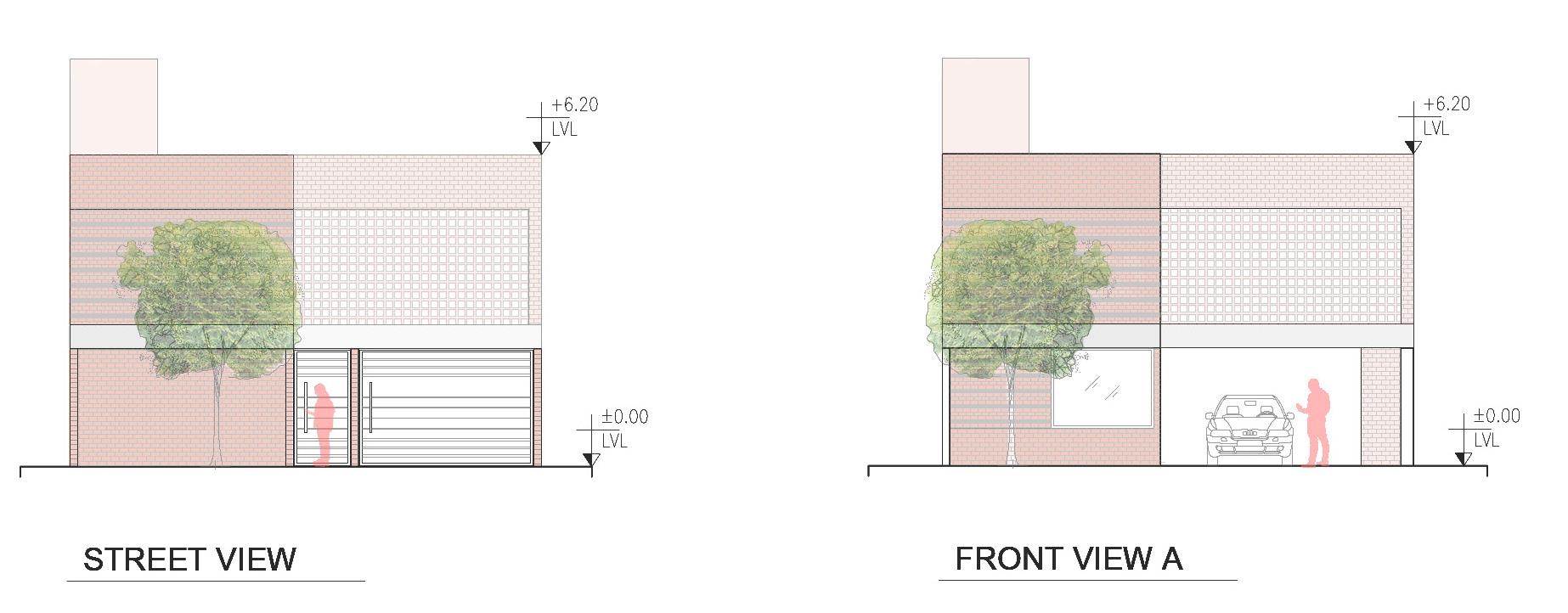

Technical Drawings and Plans: Franco N. Martinoli
CASA RICHA.

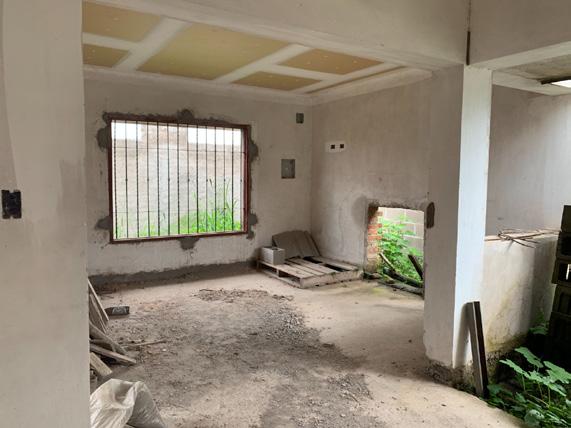

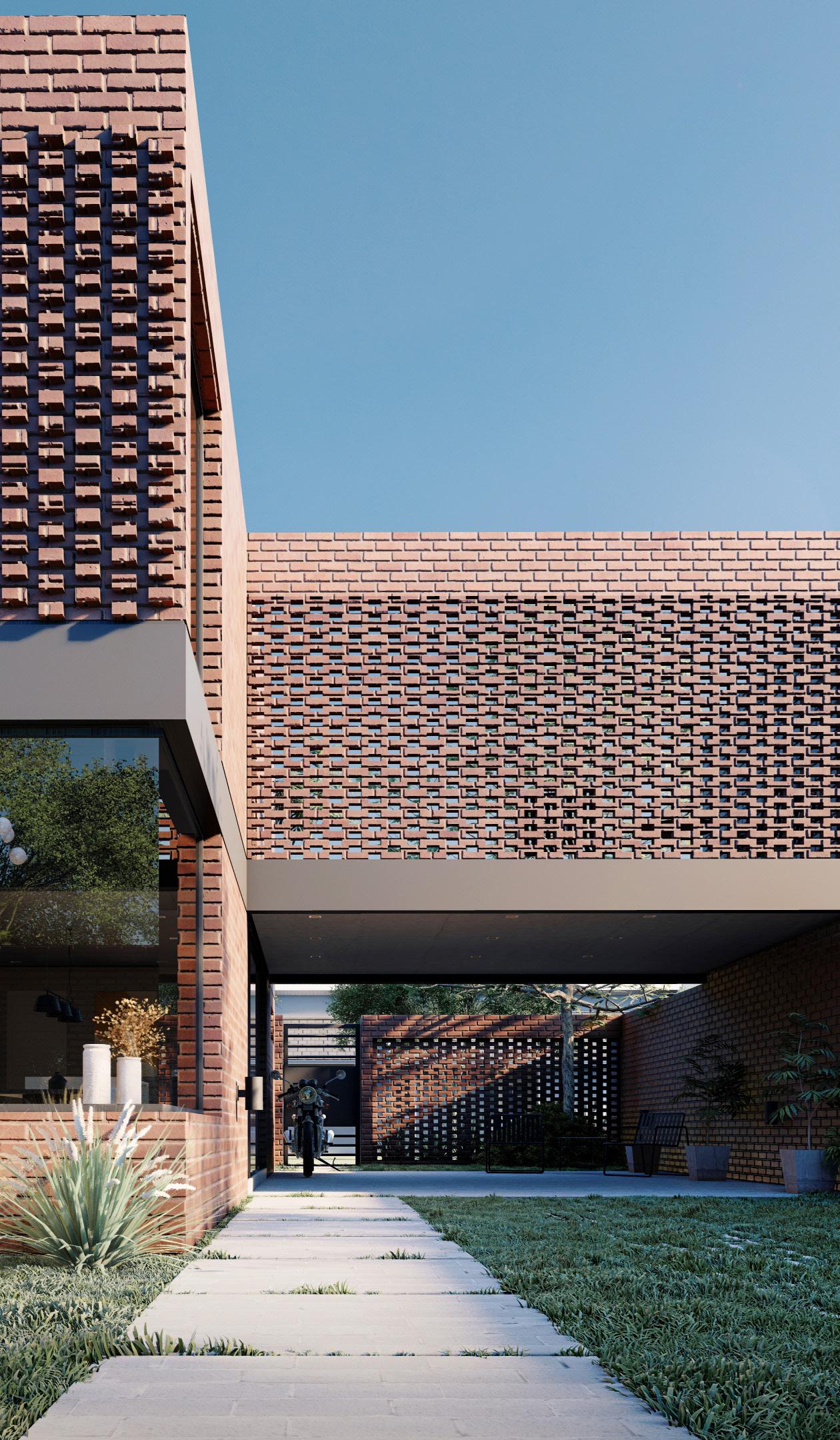

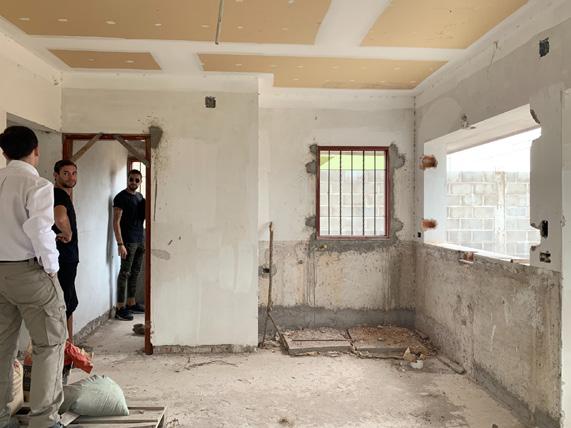

Located in the suburbs of San Salvador de Jujuy, Argentina, this remodel of an abandoned house transforms it into a funcional minimalistic family home while respecting the preexisting construction. The design seamlessly integrates the old construction with new elements to create a harmonious living space focusing on simplicity and functionality and providing a balanced program that attends to the needs of its occupants while it offers a perfect blend of indoor and outdoor living, creating a harmonious environment for family life and social gatherings.
