C O N T E N T S
03
01 02 03 04 BUNGALOW HERNÁNDEZ EBARQUÍN XSOME RAMOS RHOUSE ODRIGUEZ MURILLO AHOUSE LVAREZ HOUSE REMODELING
FORMATIVE EDUCATION CENTER FOR YOUTH IN A STATE OF HOMELESSNESS, LOCATED IN VERACRUZ PNEUMOLOGY HOSPITAL DR RICARDO LÁZARO PACHECO ALLEY REHABILITATION J J HERRERA 006 5 SCHOOL FISHERMEN 07 08
Project located in the central neighborhood, in the city of Veracruz Ver with a remodeling area of 60 00 m2 for the facade and an interior remodeling area of 40 m2

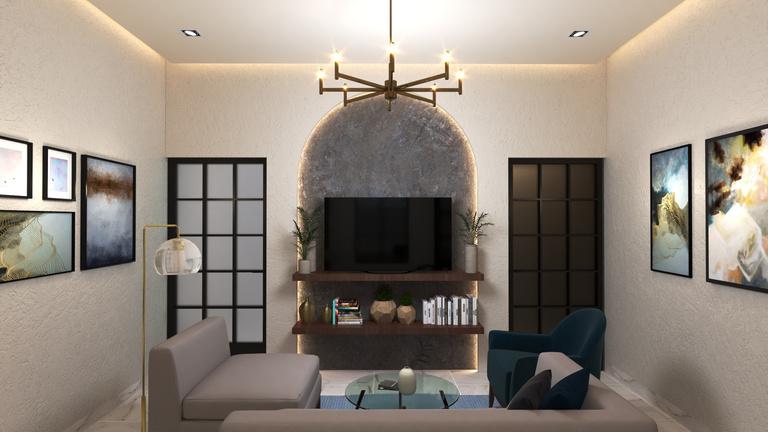

Basing the existing details and mixing them with a mood board of neutral elements and without highlighting tones.

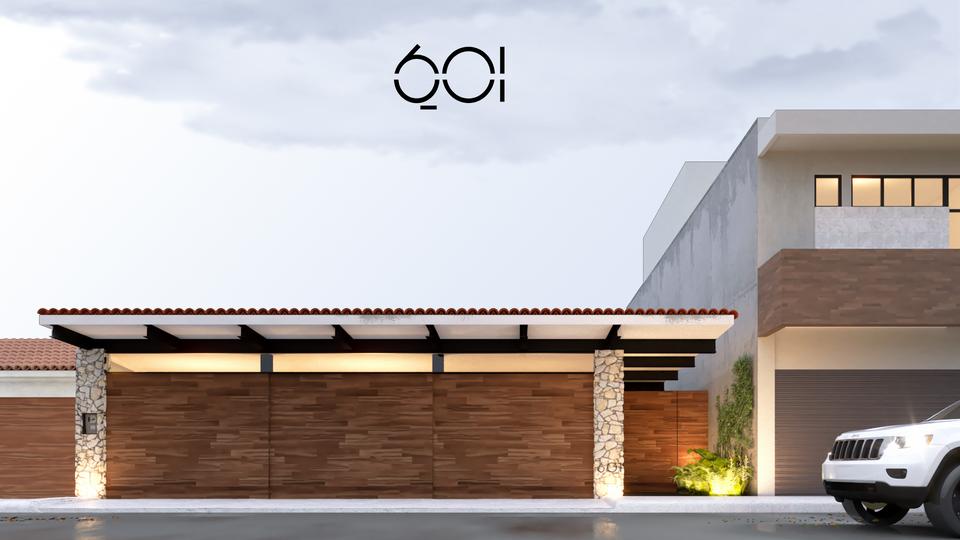

ALVAREZ HOUSE REMODELING
Based on a study in context with the area and capturing the client's ideas, it was possible to generate a colonial contemporary type facade
CURRENT STATUS House Room of more than 30 years of Antiquity, located in a central area of the municipality of Veracruz

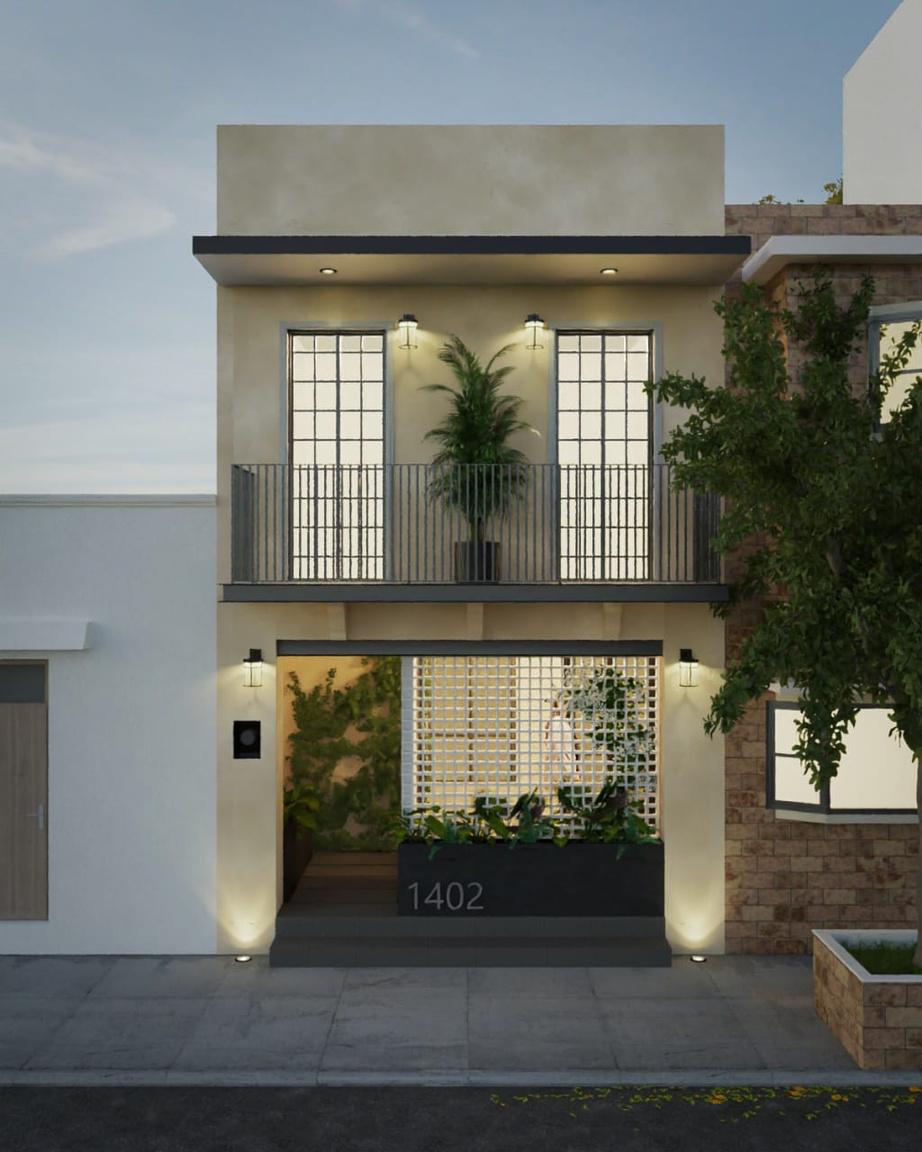

ARCHITECTURAL FACADE PROPOSAL
RODRÍGUEZ MURILLO HOUSE

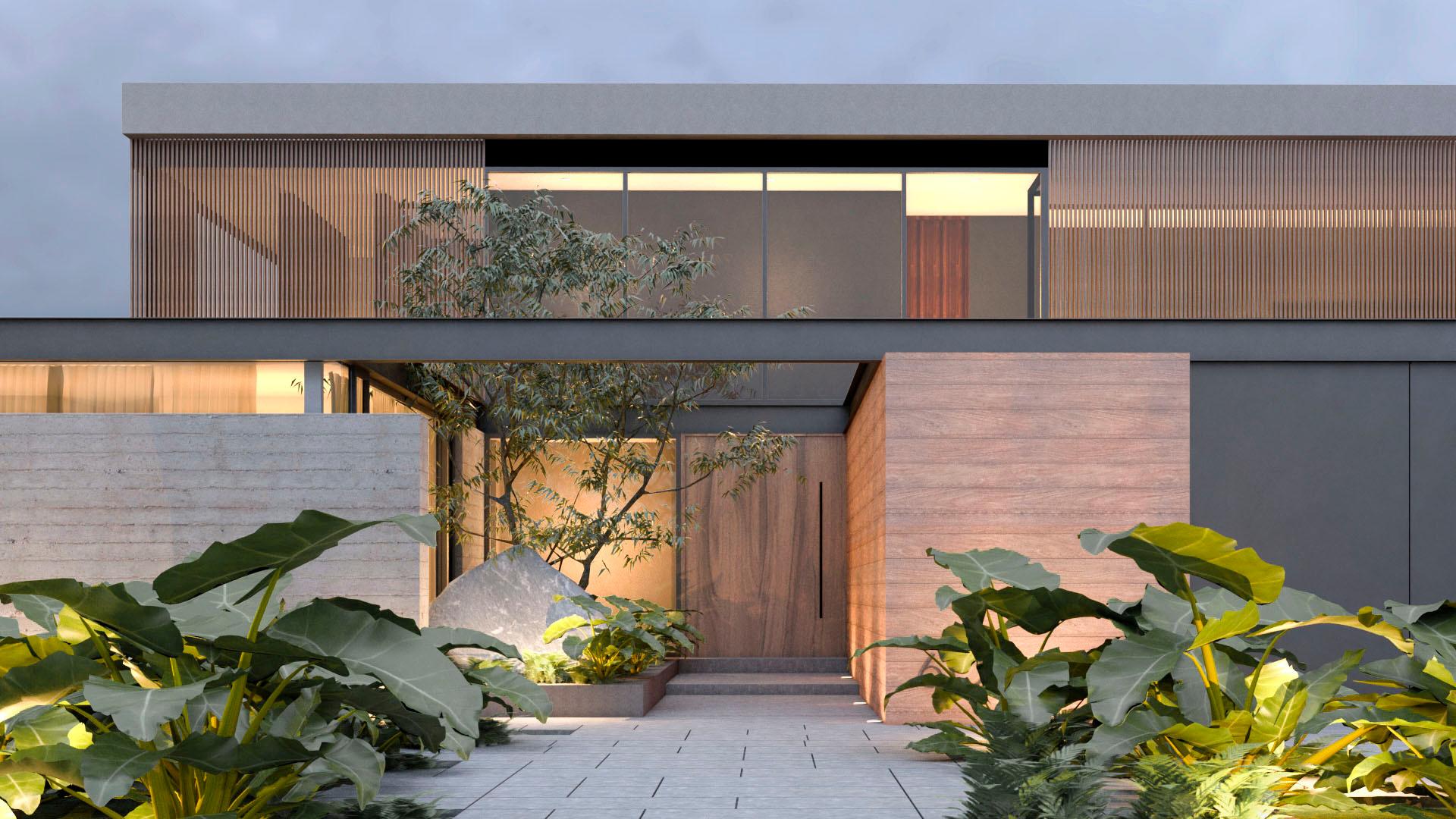

Project located in the Costa de Oro subdivision, with a construction area of 280 00 m2 and a land area of 360.00 m2.
The proposals are based on generating various options on the façade, using two contrasting mood boards As a first option we have stone as the main material, then a façade with materials such as apparent concrete

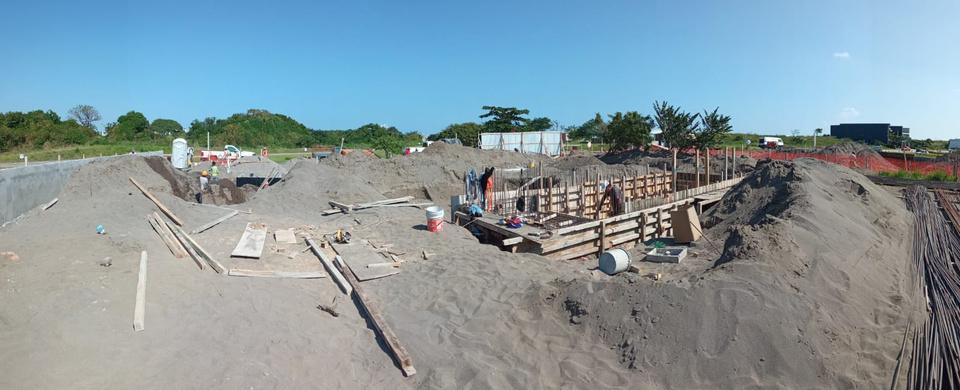

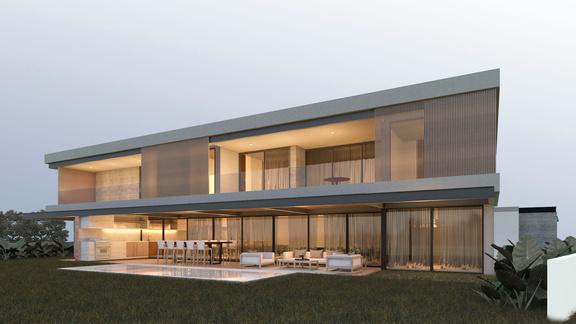

EXSOME RAMOS HOUSE Project located in the Punta Tiburon subdivision, with a construction area of 634.08 m2 and a land area of 1000 m2, generating an industrial type façade with frames with matt black finish frames and a mixed structural system with a metal skeleton, ribbed slab and concrete reinforcements Currently it is already in its beginnings of work.
14

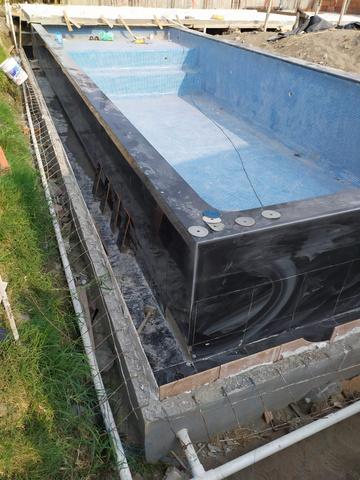

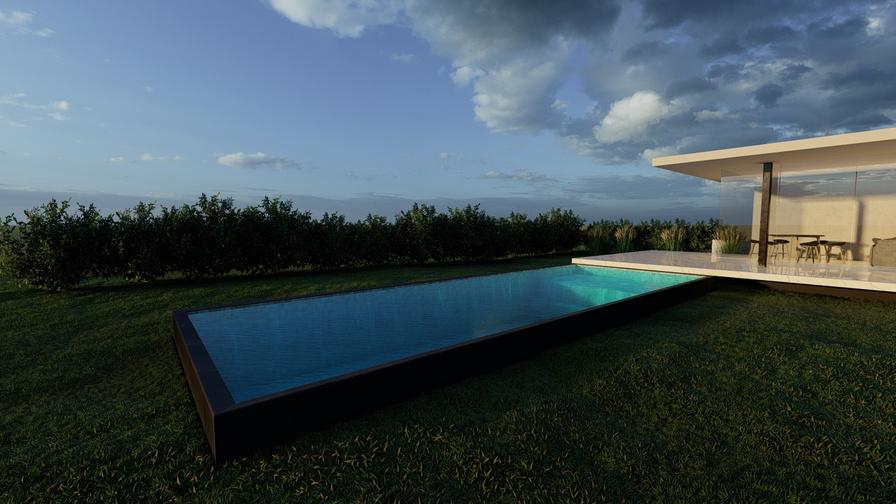

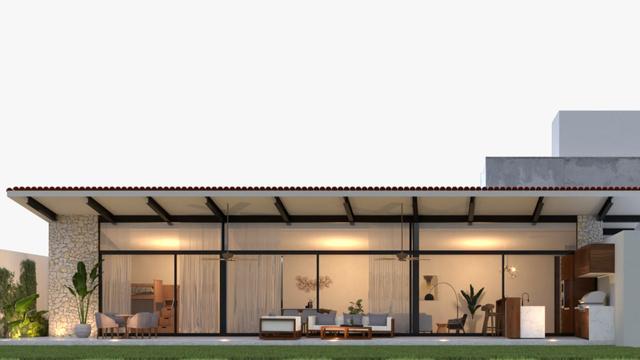

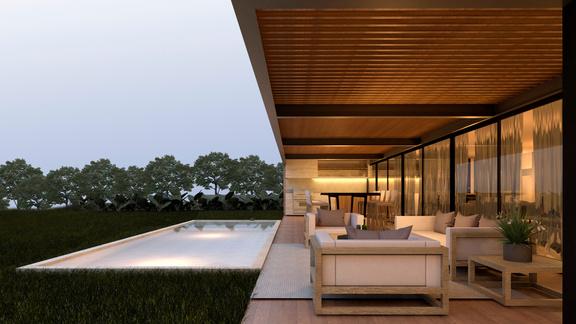

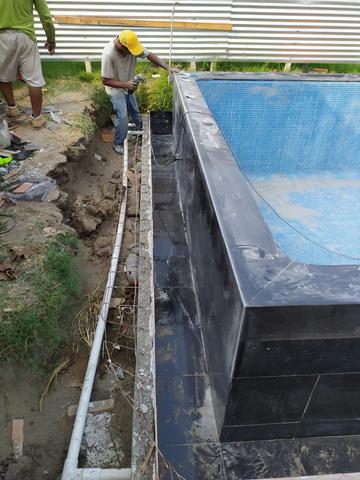

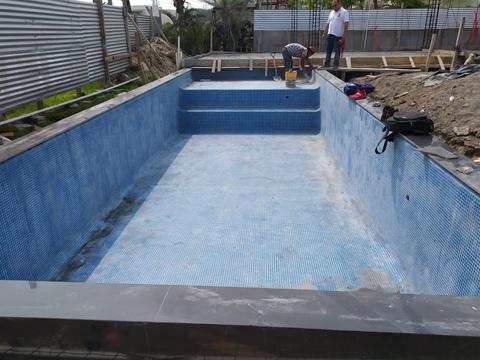

Project located in the fracc Dos Ribieras for the Hernández Barquín Family, consists of an extension of an existing residential house, designing a bungalow with a slab and cantilevered terrace to give a floating sensation with a diamond cut covered with calacatta marble. It also includes a pool with infinity effect being just below the terrace to give an appearance of infinity Participating mainly in the construction supervisor in the pool, as well as management of executive plans of the project in general BUNGALOW HERNÁNDEZ BARQUÍN
SCHOOL FISHERMEN

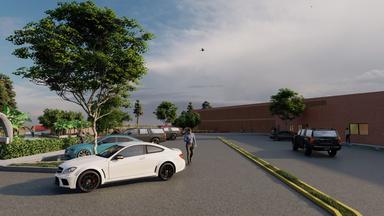

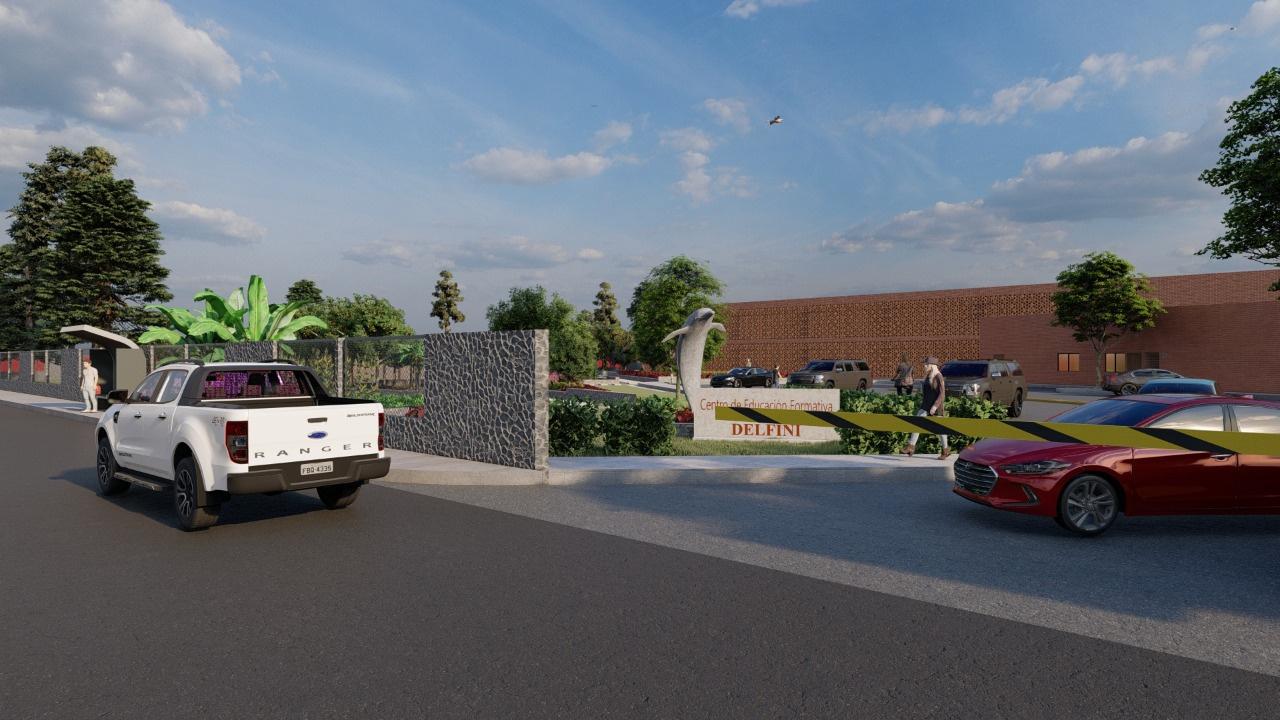

Winning preliminary project among different participating offices of the republic It is about the remodeling of the TecMilenio school located in Puente Moreno that is currently for sale The purpose is to remodel the facilities considering the needs of clients and private partners

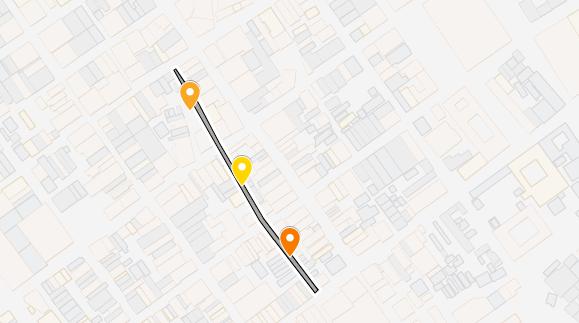

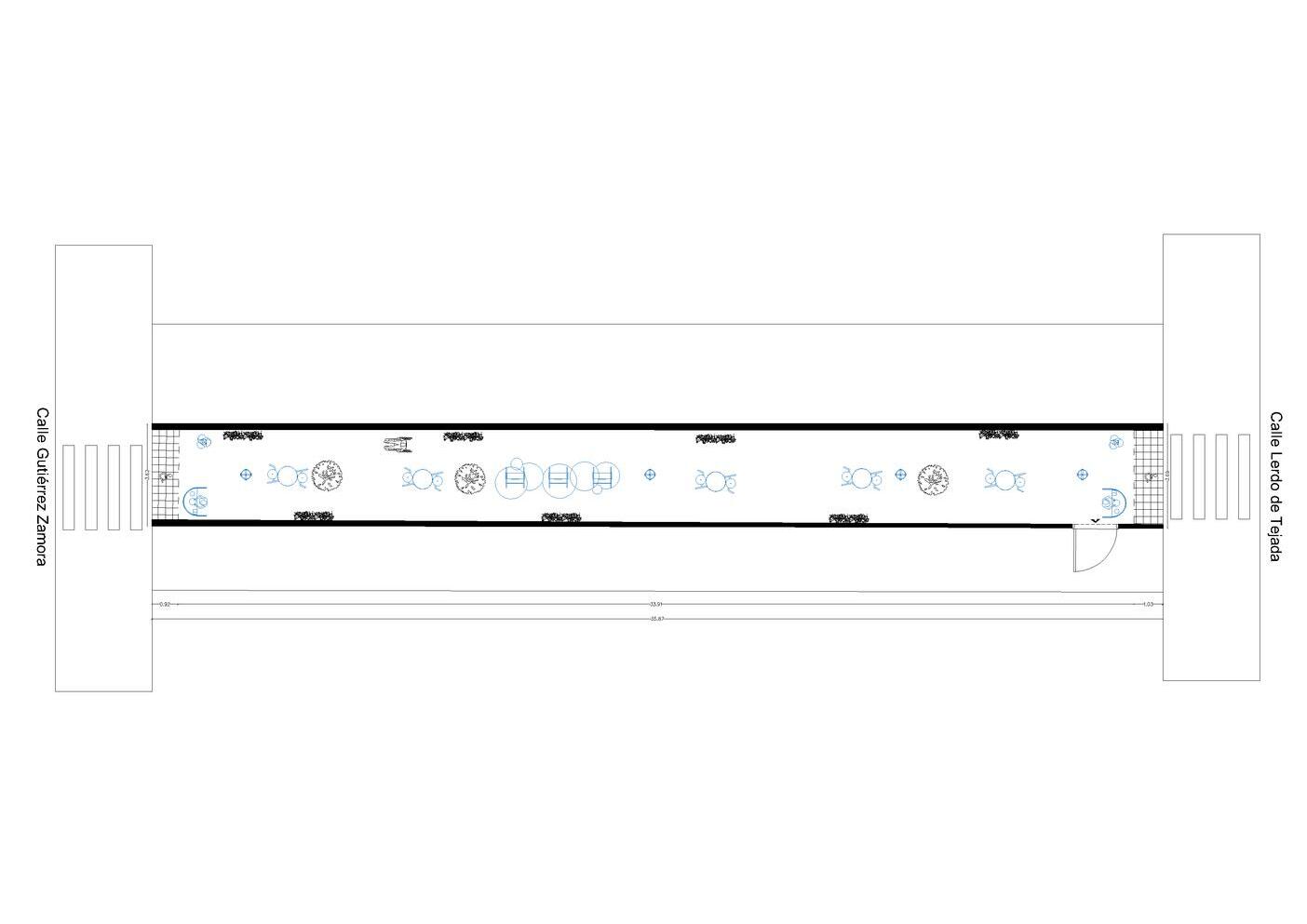

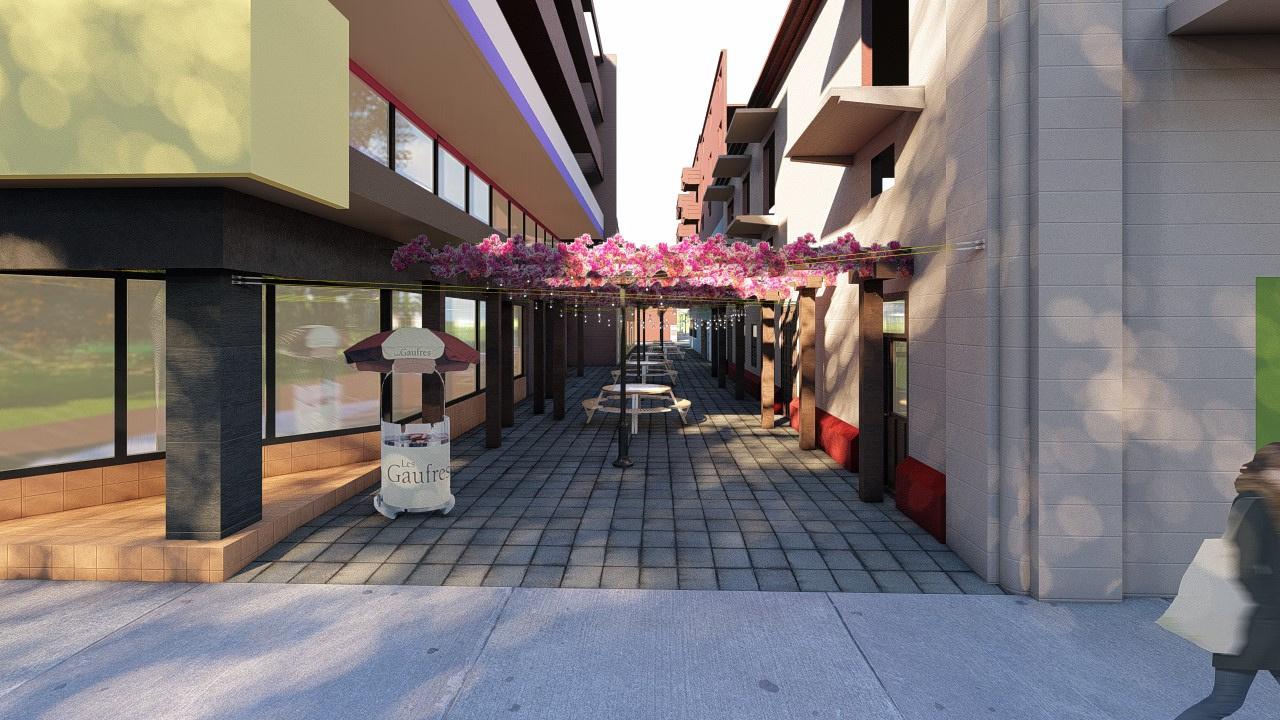

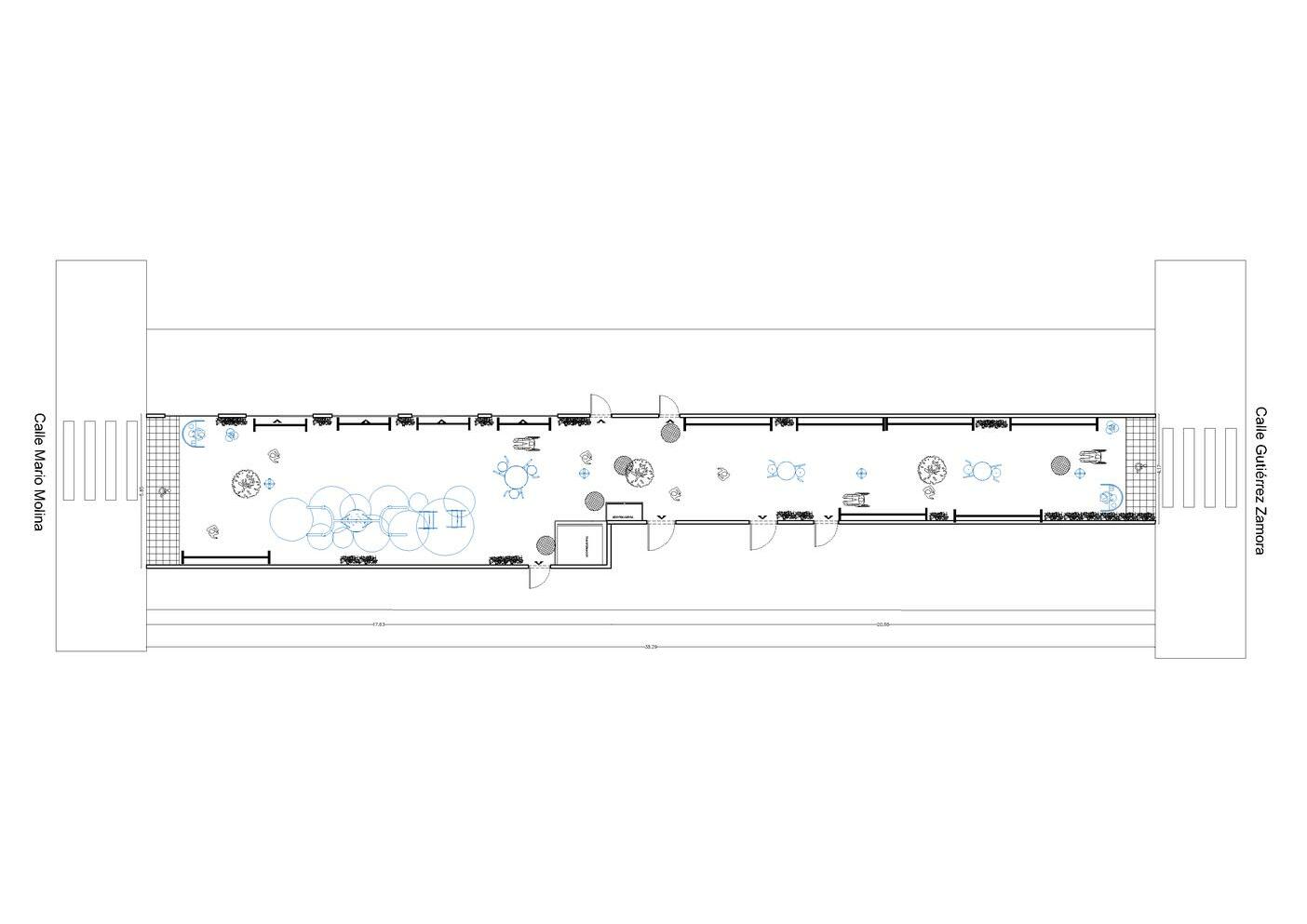

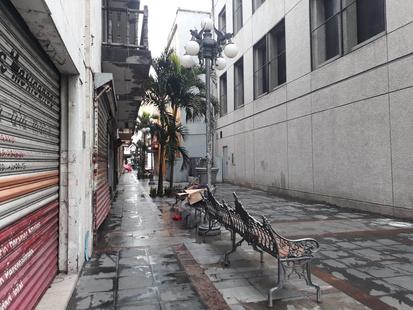

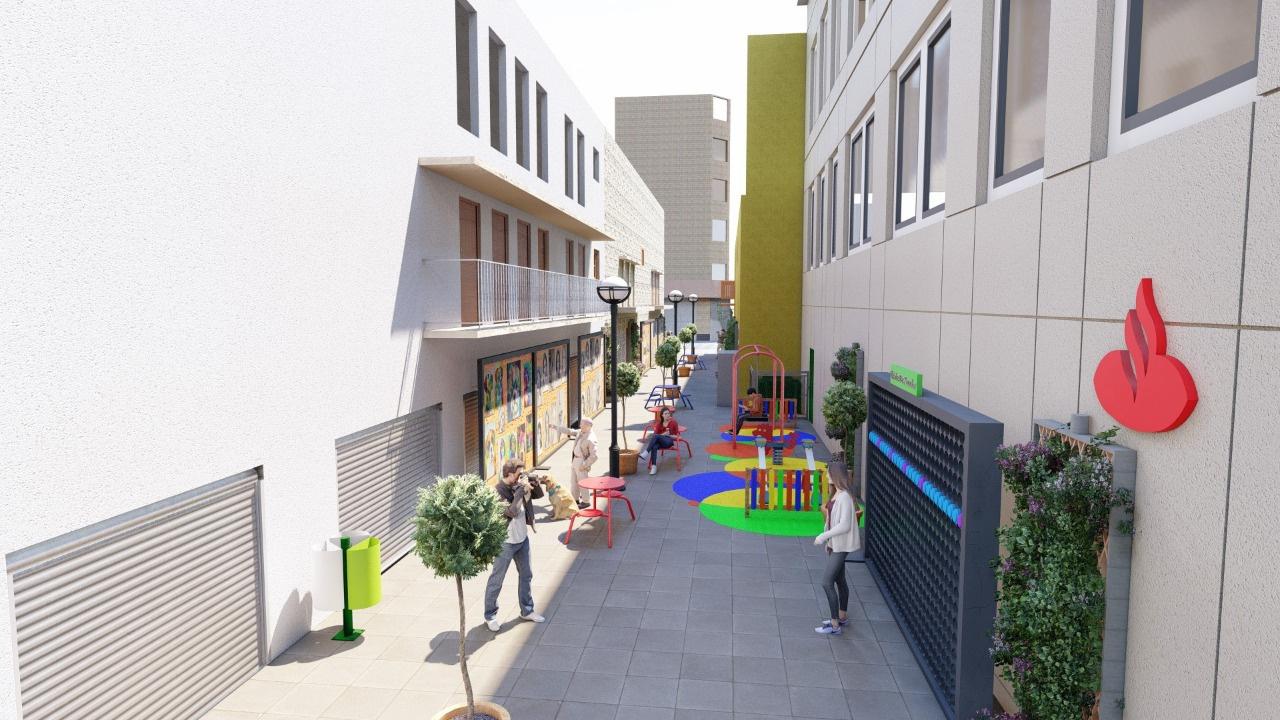

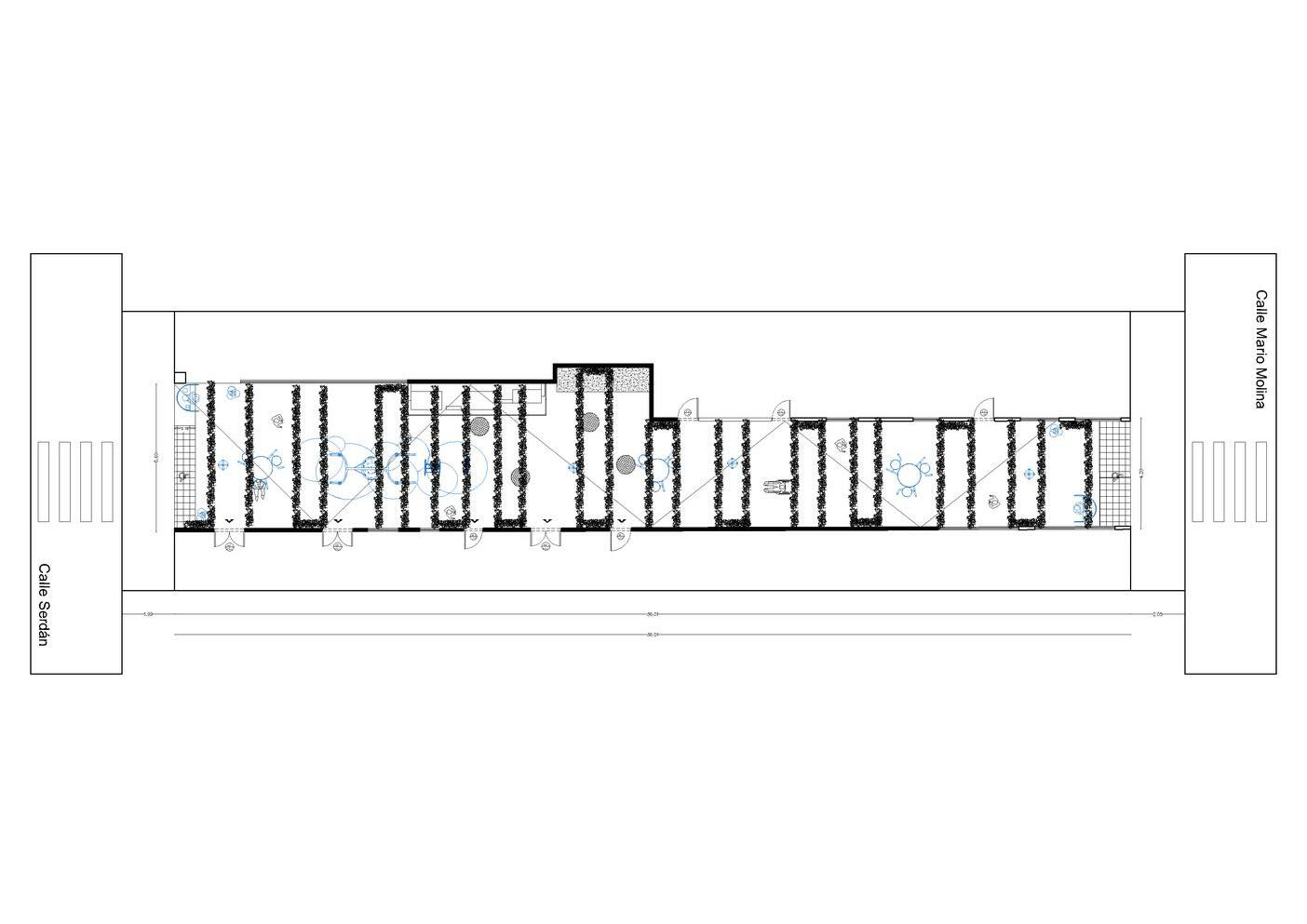

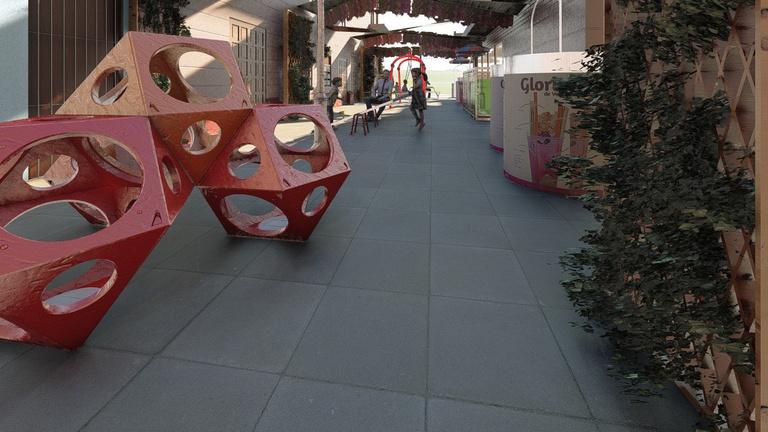

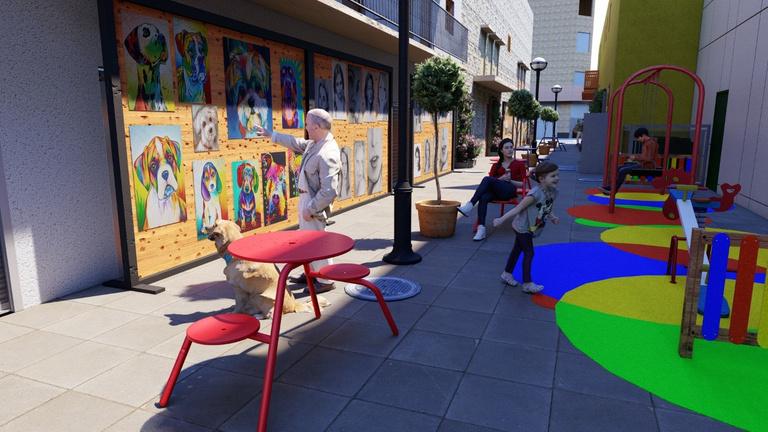

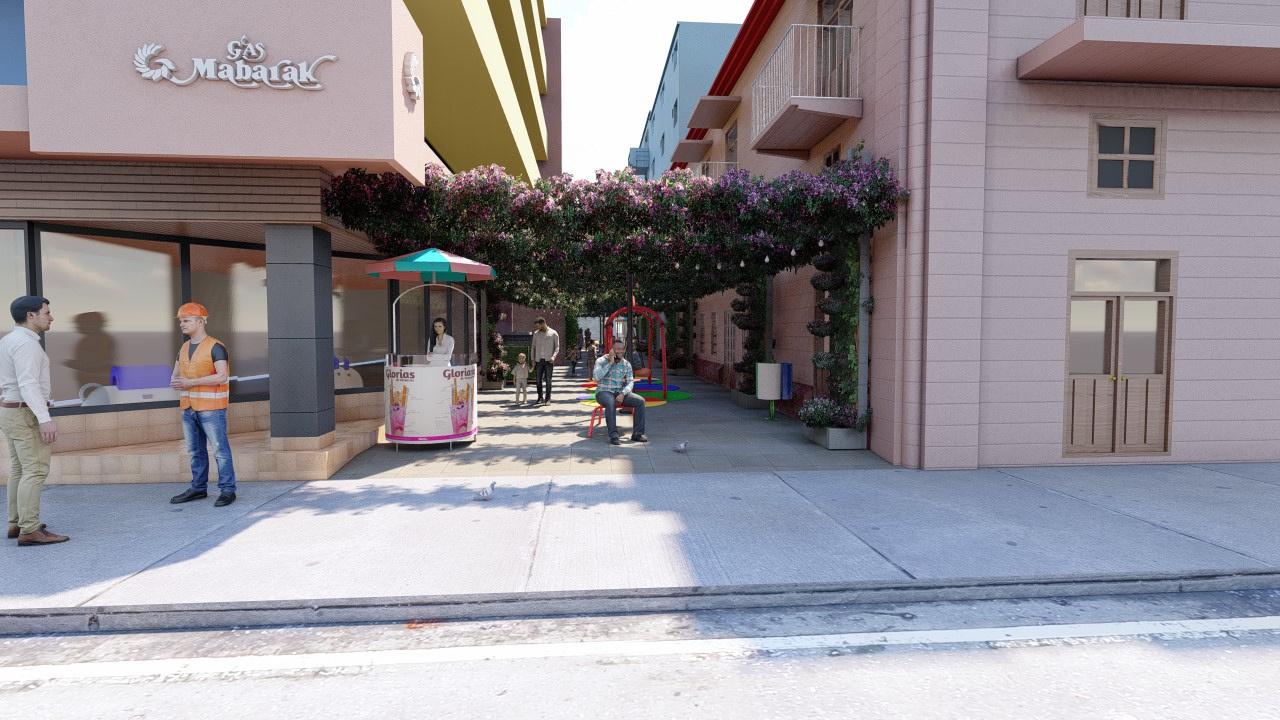

ALLEY REHABILITATION J.J.HERRERA LOCATION It covers the streets Lerdo de Tejada, Gutiérrez Zamora and Mario Molina between 5 de Mayo and Independencia, Veracruz, Veracruz. PROPOSAL FOR IMPROVEMENT Bougainvillea vines Create custom food carts. Include a space for artists who would like to show their works Initiative "pixelated". place children's educational games
search of the rehabilitation of the historic center of the City of Veracruz. The concept of the alley consists of three sections of this, in each section although diverse themes are integrated, together they manage to capture the essence of the city
21

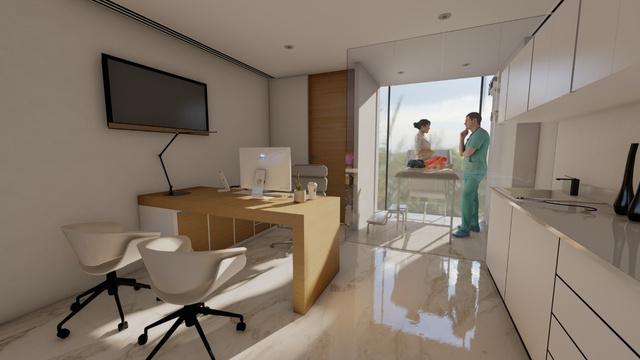

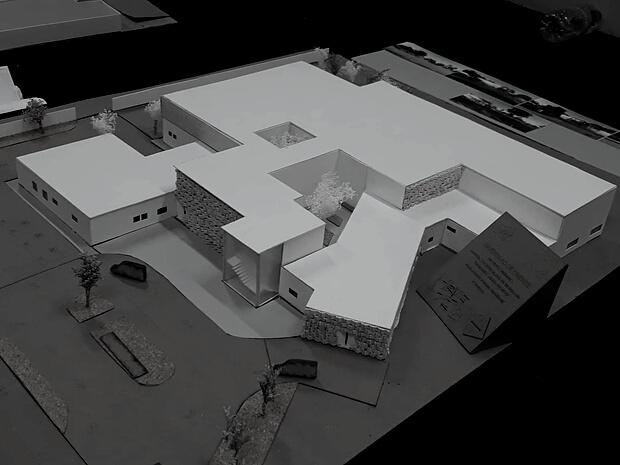

PNEUMOLOGY HOSPITAL DR. RICARDO LÁZARO PACHECO LOCATION Paseo del Puerto avenue, Ibiza corner, "hacienda de los portales" subdivision, Veracruz, Veracruz URBAN EQUIPMENT After an investigation of the area around the land, in a radius of 2 km it was found that it is made up of a general hospital, a shopping plaza, restaurants and small food outlets, parks in subdivisions, and has water, drainage services and electricity LAND SURFACE 7,200 m2
This architectural project was aimed at the health sector, so this project has the specialty of Pulmonology. Since after a previous investigation and the various diseases that have been generated in recent years[ ]

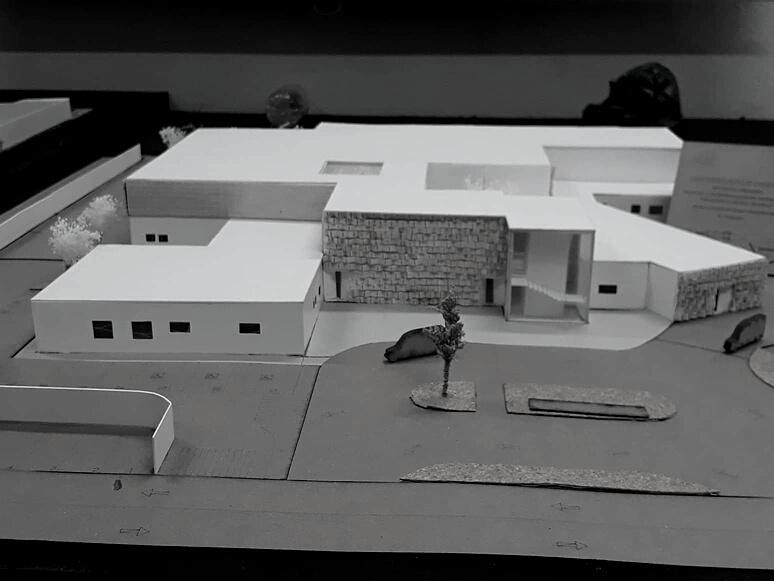

The design of the Hospital is based on modules and functionality that provide a better transfer and flow within the enclosure.
[...] among other factors, such as the absence of this type of hospital
27

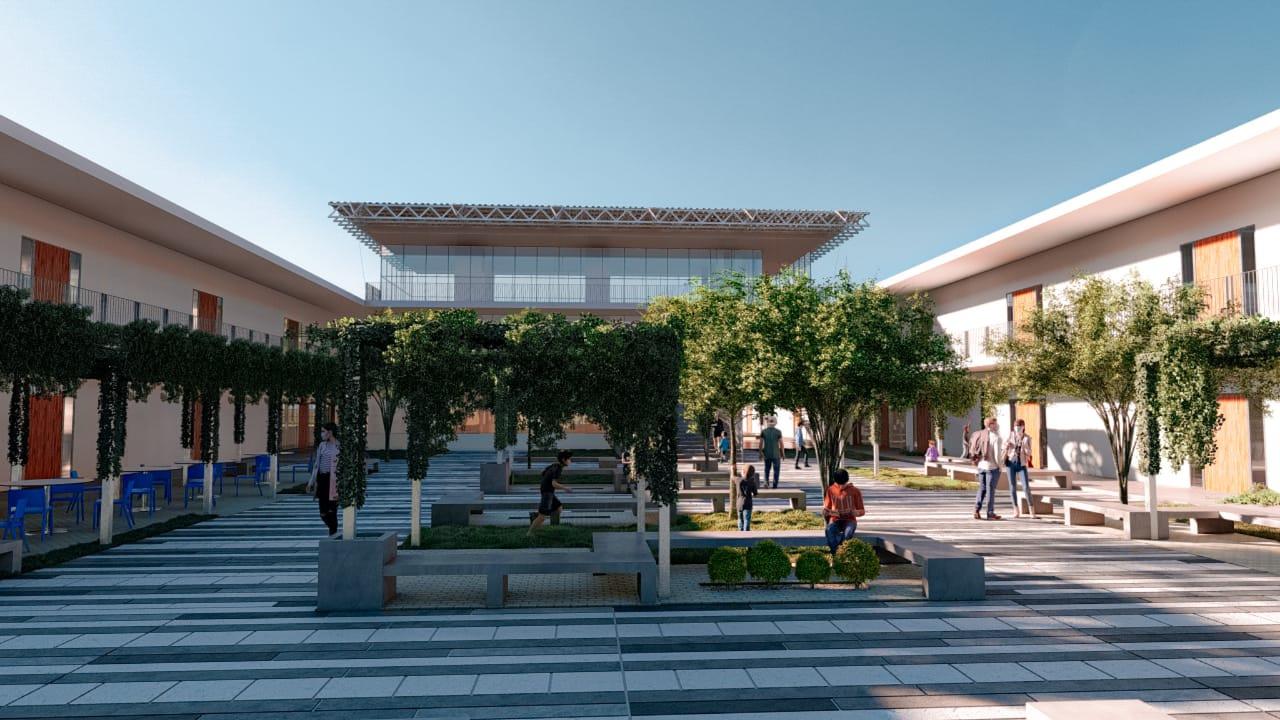

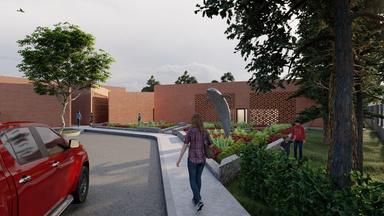

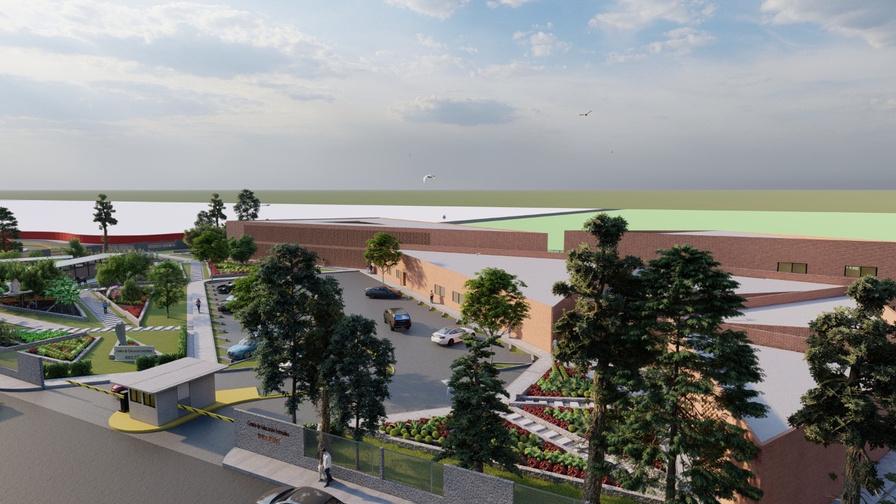

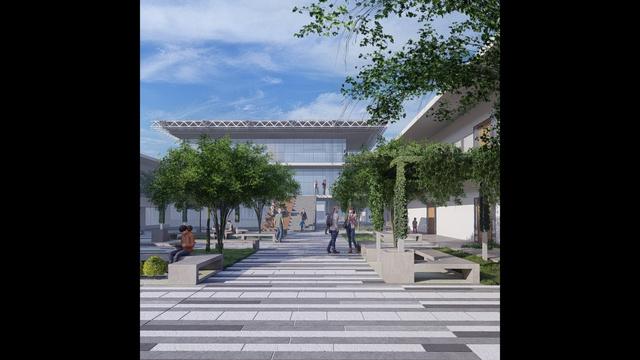

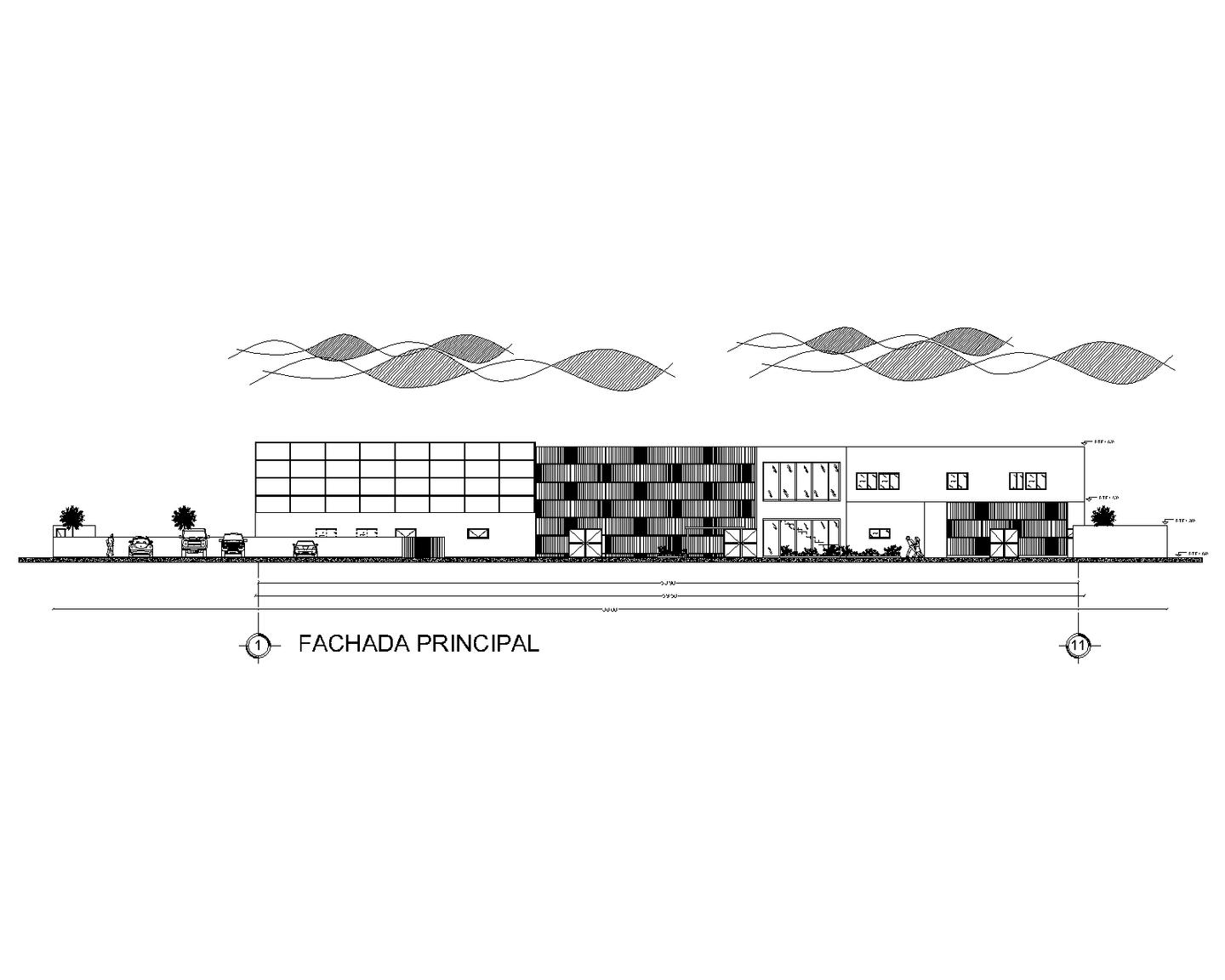

FORMATIVE EDUCATION CENTER FOR YOUTH IN A STATE OF HOMELESSNESS, LOCATED IN VERACRUZ.

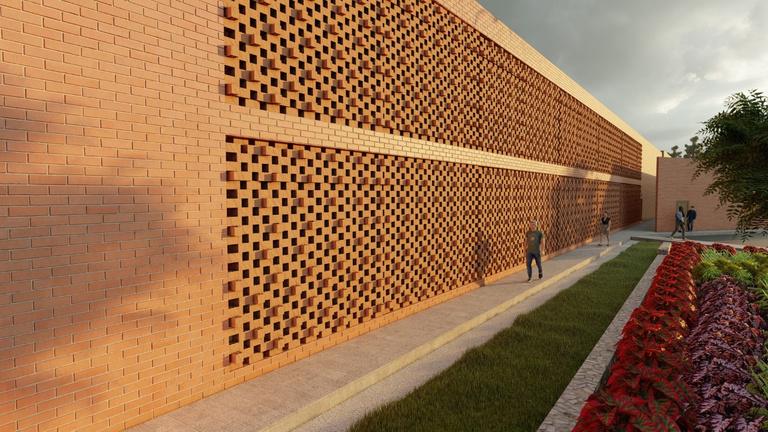

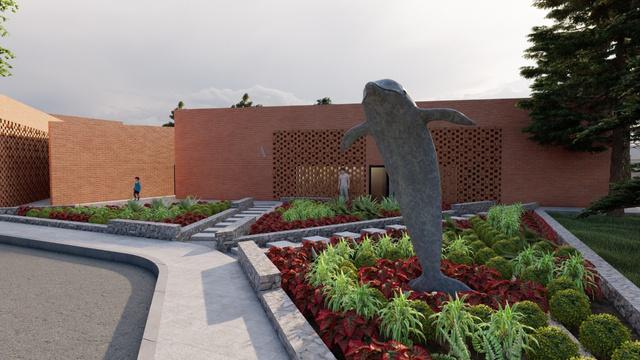

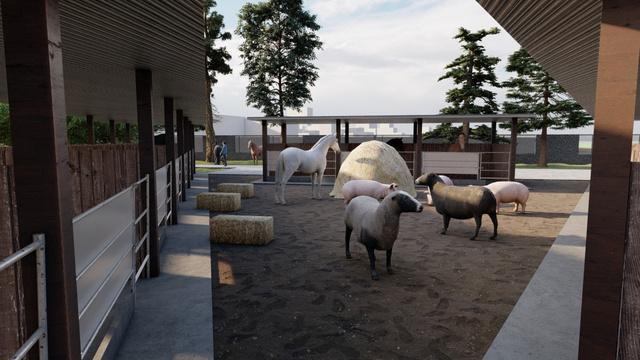

It is based on a project combining a community and an organization that is in charge of giving support to young people in a state of vulnerability, that is, those who present a case of extraordinary situation (orphans, homeless or abused). Within this project, the possibilities of merging a children's home and a job training center were contemplated, so that young people in this situation have the opportunity to receive education and training in different sectors of work depending on their profile. This architectural project is integrated with workshops, classrooms, common rooms, orchards, which enable the sustainability of the site and those who inhabit it
Av. Valente Díaz Dos Lomas, Veracruz, Veracruz, LOCATION 13,613 66 M2 LAND SURFACE According to the previous investigation to know the equipment of the land in a radius of 5 km, the basic services, electricity, water, drainage were recognized. Like this area, it has a hospital, churches, restaurants, parks, schools, etc URBAN EQUIPMENT CONCEPT OF DESIGN
BLOCK B: Medical area
BLOCK E: Workshop area, there are workshops for job training, such as construction, SMEs, beauty, food, agriculture, air conditioning and customer service.
BLOCK F: Private area, where the bedrooms and common rooms are located.

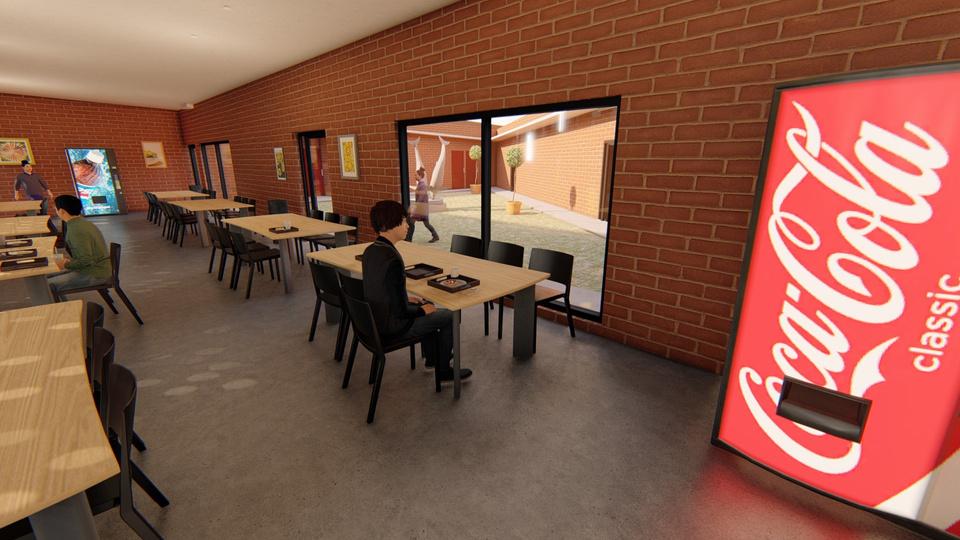

BLOCK C: Educational area BLOCK D: Services Area, integrates a common dining room, kitchen, laundry, a multipurpose room
Zoning the areas within the following blocks BLOCK A: Administrative area, it is the first filter to access the premises

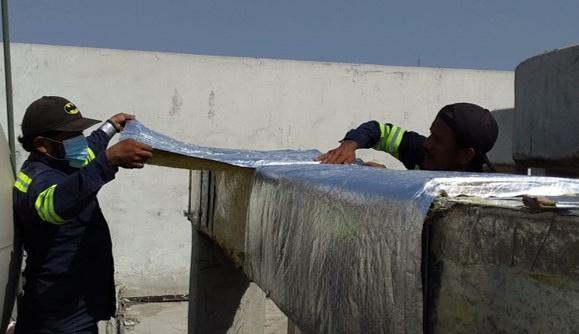

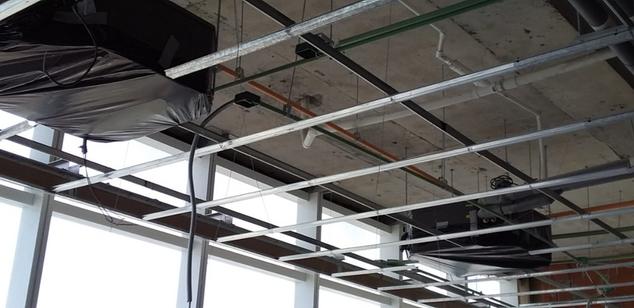

ADDITIONAL WORKS
ADDITIONAL WORKS
