• Compatible coils: TPP DM Argus MT and XT coils
Here you will find a user manual for the Voopoo Argus MT kit and for the Voopoo Argus XT kit. These 2 kits are very similar, but offer two different autonomy. The Argus MT electronic cigarette has a built in 3000mAh battery and the Argus XT vape requires a 21700 or 18650 battery to operate. These electronic cigarette kits are powerful and are associated with the Maat 6.5ml clearomiser. These electronic cigarettes are manufactured by the big vapor vaper brand Voopoo.
• Mods: Argus XT / Argus MT Voopoo
• Power: Up to 100W
• Maat Tank Clearomizer
• Autonomy: 1* 18650 or 21700 battery for the XT ( not included ) / integrated 3000mAh battery for the MT
We offer here an Argus MT Voopoo manual as well as a Voopoo Argus XT manual in order to facilitate their handling. This Voopoo Argus XT user guide, which, you will have understood, also serves as a Voopoo Argus MT user guide, will allow you to solve your worries, in the event that you encounter a problem during the Argus update XT or Argus MT update. This Voopoo user manual in French will also allow you to master the modes of use, the adjustment of the air intake of the Maat Tank or to solve any Voopoo Argus MT / XT problem that you may encounter. To indicate the differences between the 2 kits, refer to the color code! Orange for Argus MT and green for Argus XT.
• Capacity: 6.5ml
• Filling: from the top of the clearomiser
Voopoo Argus MT and XT user manual
Argusmanual:XT
Detailed view of the Voopoo Argus XT and Argus MT kit + Maat clearomiser:
Below is a detailed view of the kit, also available in the Voopoo Argus XT adjustment manual, as well as in the Voopoo Argus MT adjustment
Notice Voopoo box Argus MT / XT and clearomizer Maat
Insert the 18650 or 21700 battery into the Argus XT Voopoo box:
It will be necessary to open the battery door, located under the box, and insert the battery respecting the direction of polarity + and . You can put a vape battery in 21700 or 18650. If you use an 18650 battery, be sure to use the adapter provided in the kit.
In this Argus MT and XT manual, there are several indications on the use of these vaping kits.
Argus MT
Press the Fire button while inhaling through the drip tip. A “puff” will generally last between 3 and 10 seconds. A puff longer than 10 seconds will be automatically stopped for safety.
Quickly and successively press the Fire button five times to turn on your Voopoo Argus XT or MT box . To turn off the mod, perform the same maneuver.
Start / Shut down the Argus XT or MT mod box:
The coils supplied with the Argus XT and MT kits are dedicated to direct inhalation. But, the wide choice offered by the range of DM coils will also allow you to use your Voopoo kit in restrictive direct inhalation. For more information, please read the description of the Voopoo Argus XT and MT resistors, present on the Argus XT / MT article page or that of the TPP DM resistors.
Change mode / setting on the Argus XT and MT Voopoo box:
Vaping with the Argus XT and MT box kit:
Simply press the + and button simultaneously to enter the modes of use of the box. You will then have the choice between the modes using the + and buttons: Turbo, Smart, RBA and TC (temperature control). All you need to do is press the fire button to validate your choice.
Lock / unlock the Argus MT and XT box:
Load the Voopoo Argus XT and MT box mod:
To block or unblock the Argus MT or XT box, use the lock screen located at the bottom of the screen for the MT box and above the Fire button for the XT box.
How to update the Argus XT or MT box:
It is possible to update Voopoo Argus MT or XT directly on the official Voopoo website. You can update the firmware of the Voopoo box using the USB C cable provided in the box.
Adjusting the airflow of the Maat Tank Clearomiser:
How to change the screen brightness of the Argus XT or MT box: Also go to Settings and select Brightness. Press the + button or the button to increase or decrease the brightness of the screen.
Reset the puff counter of the Argus XT and MT kit:
Go to the Settings menu, then to Puff. Then select Puff=0 to reset the puff counter to zero. You can also do it faster by pressing the and Fire buttons simultaneously.
If you have the Argus XT version, we do not recommend using this mode of recharging via the USB cable on a daily basis. In order to preserve the connections of your box and to obtain a complete and secure charge of your battery, we recommend that you use a compatible battery charger for vaping.
To charge your Argus MT or XT box, plug the USB C cable into the USB Type C port of the one you have. Once the Voopoo box is connected to a wall adapter or a computer USB port, the screen will indicate the charging status. The indicator will then evolve according to the charge level of the batteries. The USB C port of the Argus XT or MT box is protected by a hatch to prevent dust and water infiltration.

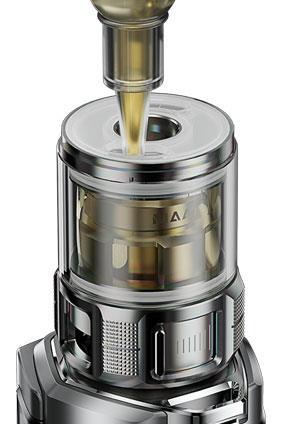

• Unscrew the top cap of the Maat clearomiser and you will have access to the 2 filling holes protected by a silicone membrane.
The air inlet is located at the base of the Maat Clearomiser. This one is notched for a simple and reliable use. By sliding this notch, you can obtain a very airy vapor to a little tighter according to your desires.
• Pour the e liquid for Maat clearomizer in 30/70 in the opening provided for this purpose.
Fill the Argus XT or MT clearomiser with your e liquid:
• Screw the top cap back on.
To find out which PG/VG rate to use with your TPP resistor, we invite you to consult the table of resistors available for purchase: Replace the TPP Maat Tank resistor of the Argus XT and MT Voopoo:
• Fill the clearomiser before vaping even if it is not completely empty to avoid a dry.
• Screw the clearomiser back onto the box.
• Keep the device out of the reach of children and pets.
The manufacturer Voopoo provides precautions for use of its equipment in its Argus MT or XT Voopoo manual .
Precautions for use of the Voopoo Argus MT or XT kit provided by the manufacturer
• Avoid using the Voopoo Argus MT and Argus XT kit in humid, dusty environments, or with extreme temperatures.
• For possible side effects, contact the manufacturer.
• Insert the new TPP DM Voopoo resistor into the clearomiser.
• Do not use nicotine e liquid for people under the age of 18, pregnant or breastfeeding women, people with cardiovascular disease or dysfunction, long term respiratory problems (bronchitis, asthma), hypertension or diabetes, people with an overactive thyroid gland or suffering from pheochromocytoma, and people taking the medicines Theophylline, Ropinirole or Clozapone.
• Remove the clearomiser from the Argus XT or MT box and put it upside down.
Attention ! When using a new resistor, regardless of the model of your equipment, it must first be primed. That is to say, make sure that the TPP Voopoo coil is well soaked in e liquid and thus avoid “burning” the dry cotton. The easiest way is to wait at least 15 minutes after filling and before using the electronic cigarette.
• Pull on the used Argus TPP DM Voopoo coil to extract it from the clearomizer.
• Unscrew the base of the Maat Clearomiser.
