MODUSCAPE.
PROJECT ONE | LOS ANGELES, CA
MODUSCAPE IS A PROPOSED LOS ANGELES AFFORDABLE HOUSING SOLUTION. ADAPATBILITY IS THE DRIVING FORCE OF MODUSCAPE, WITH MOVING PANELS, SIMPLE GEOMETRIES, MOVABLE FURNITURE UNITS, AND UNIQUE OUTDOOR COMMUNITY SPACES. THE PROJECT IS DESIGNED TO BE INTEGRATED INTO EXISTING SINGLE FAMILY NEIGHBORHOODS AND PROMOTE UNITY BETWEEN RESIDENTS IN BOTH HOUSING TYPES.
MODUSCAPE WAS ENTERED INTO BUILDNER’S 2023 LOS ANGELES AFFORDABLE HOUSING IDEAS COMPETITION. THE PROJECT WAS SHORTLISTED AND THE FINAL BOARD IS DISPLAYED ON BUILDNER’S WEBSITE.
ModuScape Elevational Perspective 4
5
WE HAVE SOUGHT TO DESIGN MULTIFUNCTIONAL SPACES WHICH PROMOTE SUSTAINABILITY AND UTILITY. EACH UNIT IS THOUGHTFULLY DESIGNED TO SERVE MULTIPLE PURPOSES, PROVIDING RESIDENTS WITH THE FREEDOM TO CUSTOMIZE THEIR LIVING SPACES ACCORDING TO THEIR PREFERENCES. THIS INTENTIONAL FOCUS ON ADAPTABILITY ALIGNS WITH A COMMITMENT TO SUSTAINABILITY, ENCOURAGING A MORE CONSCIOUS AND RESPONSIBLE USE OF RESOURCES.
MODUSCAPE WAS DESIGNED WITH THE HOPE THAT ADAPTABLE HOUSING COULD BE PROVIDED FOR A DIVERSE L.A. POPULATION INCLUDING FAMILIES, SINGLE PROFESSIONALS, COUPLES, & SMALL BUSINESSES. L.A. RESIDENTS SEEKING AFFORDABLE OR TRANSITIONAL HOUSING WILL ENJOY A SPACE WHICH ADAPTS TO THEIR LIFESTYLE AND PROVIDES OUTDOOR COMMUNITY SPACES WHICH CONNECT THE NEIGHBORHOOD TO THE LARGER CITY. MODUSCAPE CULTIVATES A SENSE OF BELONGING & CONNECTION AMONG RESIDENTS WITH A PEDESTRIAN STREET THAT HARMONIOUSLY MERGES TOGETHER PEOPLE OF ALL FINANCIAL, CULTURAL, AND SOCIAL BACKGROUNDS.
WHERE MODUSCAPE WORKS BEST... INTEGRATING DENSE AFFORDABLE HOUSING INTO TRADITIONAL SINGLE FAMILY NEIGHBORHOODS USING ABANDONED, VACANT, OR EMPTY LOTS WITHIN NEIGHBORHOODS TO DENSIFY SUBURBAN AREAS BY USING WHOLE LOTS MODUSCAPE DENSIFYS 4X MORE THAN LOS ANGELES SB9 LAW MODUSCAPE DENSITY: 72 UNITS ACRE CREATING A PEDESTRIAN STREET WITH THE LAYOUT OF MODUSCAPE’S ADAPTABLE UNITS RESIDENTS FROM BOTH SINGLE FAMILY HOUSING AND MODUSCAPE UTILIZE THE URBAN WALKWAY PROVIDES EASIER CONNECTION TO PUBLIC TRANSIT AND EFFICENT PEDESTRIAN MOVEMENT THROUGHOUT THE NEIGHBORHOOD PROMOTES SUSTAINABLE TRAVEL SUCH AS BIKING AND WALKING. BIKE RACKS ARE LOCATED AT EACH ENTRANCE AND EXIST INTEGRATION OF OUTDOOR PUBLIC COMMUNITY SPACES MODUSCAPE INCLUDES: COOKOUT & EATING AREAS, CONVERSATION PITS, WORKOUT AREAS, AND GREENSPACE COMMUNITY SPACES PROVIDE FURTHER CONNECTION BETWEEN SINGLE FAMILY HOUSING AND AFFORDABLE HOUSING RESIDENTS. BREAKING DOWN STEREOTYPES AND STIGMAS BIOPHILIC DESIGN! MODUSCAPE DESIGNS FOR THE HEALTH OF ITS RESIDENTS ADAPTABILITY FOR AFFORDABILITY MODUSCAPE’S INNOVATIVE DWELLING & URBAN DESIGN MEETS L.A.’S SOCIAL HOUSING NEEDS & AIDS IN THE BROADER RENEWAL OF L.A. SUBURBIA TRADITIONAL SINGLE FAMILY HOUSING HOUSING DESIGNED FOR AN UNREALISTIC IDEAL AMERICAN FAMILY. A DIVERSE COUNTRY NEEDS DIVERSE HOUSING OPTIONS TO SUSTAINABLY & AFFORDABLY HOUSE ITS RESIDENTS. MODUSCAPE: ADAPTABLE HOUSING ADAPTABLE HOUSING PROVIDES CUSTOMIZABLE OPTIONS FOR ANY FAMILY, SINGLE RESIDENT, COMPANY, ETC. THE SKY IS THE LIMIT. MOVING PANELS & FURNITURE MODULES ALLOW FOR INDIVIDUALIZED SPACES. WHY ADAPTABILITY... HOW MODUSCAPE WORKS... BED/LIVING KITCHEN/DINING BATH/STORAGE RESIDENTS DESIGN THEIR SPACE IN A VARIETY OF WAYS PEDESTRIAN STREET AND OUTDOOR SOCIAL SPACES MERGE MODUSCAPE WITH THE SURROUNDING NEIGHBORHOOD 6 ModuScape Axon & Concept Diagrams CONCEPT.
1 | EACH MODUSCAPE APARTMENT IS PAIRED WITH A VARIETY OF PRE-FABRICATED ADAPTABLE FURNITURE UNITS. EACH UNIT ROLLS FOR EASY MOVING, FOLDS TO ALLOW FOR MORE SPACE, AND FEATURES EXTRA STORAGE SPACE FOR RESIDENTS.
COOK
KITCHEN FURNITURE UNIT WITH OUTLETS AND WORK SPACE
andModuScapeisbuiltpre-fabricated financialfurnishedtocreatelessofa burdenonresidentsCOOK
2 | MODUSCAPE’S ADAPTABLE FURNITUE ALLOWS RESIDENTS TO QUICKLY MOVE IN AND FEEL AT HOME IN THEIR PERSONALIZABLE SPACE.
THIS SYSTEM IS EFFECTIVE FOR TRANSITIONAL HOUSING.
furnitureAcollectionofadaptable,multi-use allowsformaximum flexibilityinthesmallestofspacesDESK
3 | MODUSCAPE ADAPTS AS ITS RESIDENT’S LIVES CHANGE.
THE BEDROOM, DESK, AND KITCHEN UNITS MODIFY FOR A VARIETY OF RESIDENTS AND THEIR NEEDS OVER TIME.
DESK
OFFICE WORKSPACE WITH STORAGE FOR RESIDENTS DOING HOMEWORK OR THOSE WORKING FROM HOME
Furnitureisabletobe
tranformedastoallowforthemakingofspace wellasfuntionabilityoftasks
7
Adaptable Furniture Unit Axons
FOLDABLE BED UNITS WITH STORAGE FOR RESTFUL NIGHT BED
16x16
UNITS ARE DESIGNED TO ALLOW FOR DIVERSE RESIDENTIAL AND COMMERCIAL USE
ALL MAJOR UTILITIES ARE LOADED ONTO ONE WALL TO CUT COSTS
Lorem ipsum dolor sit amet,
16x16
ADAPTABLE PRE-FABRICTAED FURNITURE UNITS ALLOW RESIDENTS TO EASILY TRANSITION TO THEIR NEW HOME. ALL YOU NEED IS A CHAIR!
SPACE IS ABLE TO BE CHANGED OVER TIME, ADAPTING TO IMMEDIATE & FUTURE NEEDS
A SYSTEM OF VERTICAL SUPPORTS ARE GIVEN TO EACH UNIT TO OUTLINE AND CREATE FLEXIBLE SPACE, MAXIMIZING AFFORDABILITY WITH A SYSTEMATIC GRID ROOMS CAN BE BASEDORGANIZED ON A SPECIFIC NEED OR LIFESTYLE
RESIDENTS MOVE WALL PANELS WITH THE STRUCTURAL GRID AS A GUIDE TO CUSTOMIZE SPACE
THE INTERSECTION OF AFFORDABILITY AND FLEXIBILITY IN INVOLVESARCHITECTURE PREFABRICATION AND ADAPTABLE SPACES
8 Adaptable Room Layout Axons

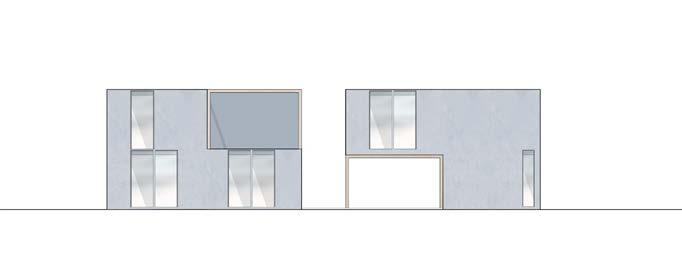

9 Elevations | 1st Floor Plan Detail

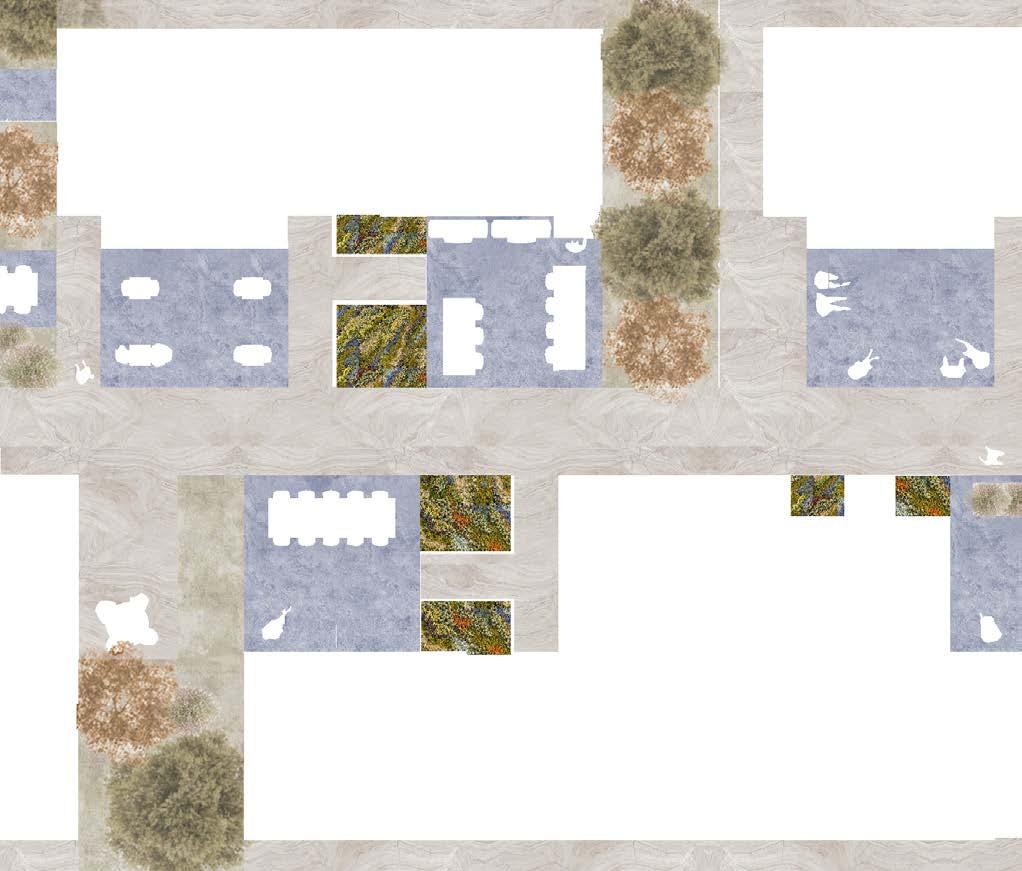

10 1st Floor/Site Plan
11
12 ModuScape Pedestrian Street Perspective
13

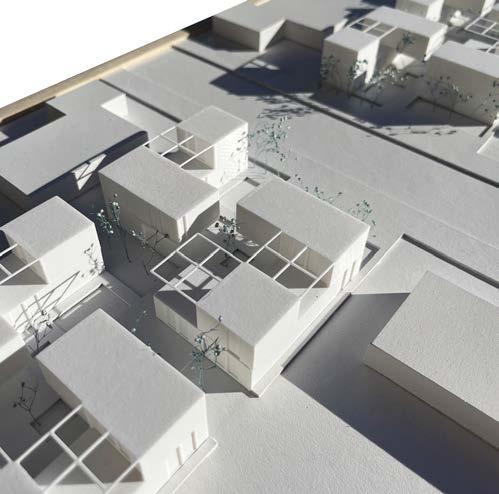

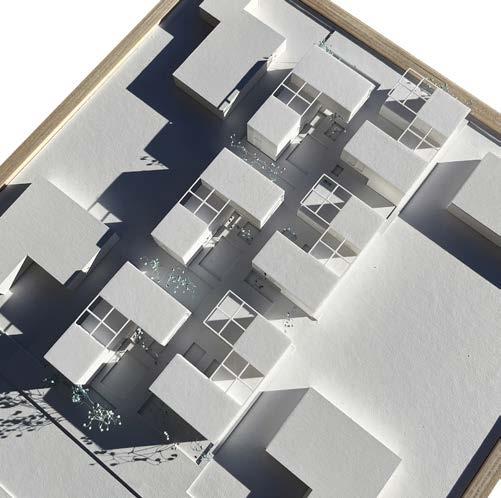

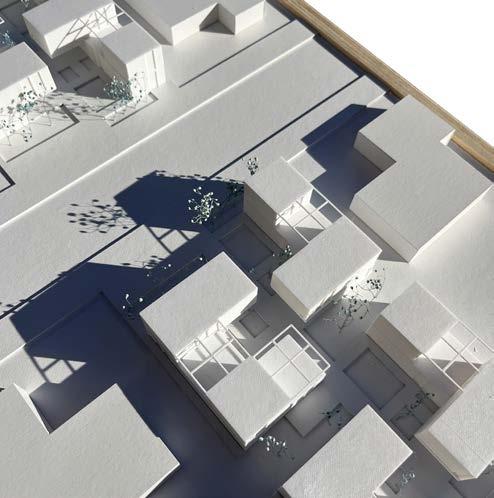

14 Moduscape Physical Model | Plan View
15 ModuScape Physical Model Details
MAR VISTA.
PROJECT TWO | LOS ANGELES, CA
PROJECT TWO FEATURES A PROPOSED RENOVATION OF GREGORY AIN’S MAR VISTA HOME [TYPE 2LT]. THE RENOVATION UTILIZES LOS ANGELES SB9 LAW TO ADD TWO ADDITIONAL DWELLING UNITS (ADU) TO THE PROPERTY. THE RENOVATION IS DESIGNED FOR AN ARTIST COLLECTIVE WHO NEED AN ELEGANT LIVE/WORK SPACE. THE NEW ADUS CREATE A PRIVATE COURTYARD WHERE EACH RESIDENT CAN ENTER THEIR LIVING QUARTERS AND TRANSFORMS THE FRONT OF THE HOUSE INTO PUBLIC SPACE TO ENTERTAIN CLIENTS. THE REDESIGN AIMS TO COMPLIMENT GREGORY AIN’S HORIZONTALITY WITH CONTRASTING VERTICALS.
16
Mar Vista Elevational Perspective

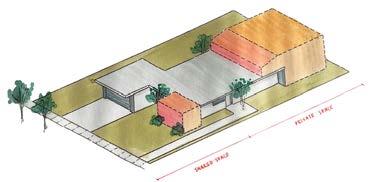

EARLY SKETCH OF MAR VISTA MASSING
EIFS [EXTERIOR INSULATION FINISHING SYSTEM]
SUSTAINABLE & AFFORDABLE EXTERIOR MATERIAL CHOICE. SYSTEM WITH A WATER RESISTANT BARRIER, DRAINAGE, & CONTINUOUS INSULATION THAT REDUCES THERMAL LOADS ON THE EXTERIOR WALLS.
EIFS WALL DETAIL
AU2
AU1
NORTH
MORGAN JONES [GRAPHIC DESIGNER - 25 - ADA]
LEO, JANE, & OAKLEY [ACTOR, NURSE, TEEN]
AU3

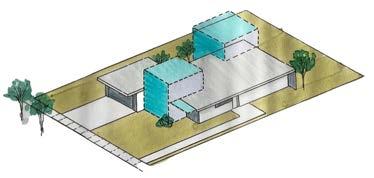

ROOF PLACEMENT FOR SOLAR PANELS
SOLAR PANELS ARE HIDDEN BY EXTENDED WALLS. THIS ALLOWS FOR A CLEAN FACADE & SPACE FOR SUSTAINABLE PRACTICES.
WATER CONSERVATION FOCUSED LANDSCAPING
NATIVE WATER CONSERVING PLANTS:
CALIFORNIA BUCKEYE, CALIFORNIA JUNIPER, BUSH MONKEY FLOWER, TOYON, SUGAR BUSH, COYOTE BUSH, YELLOW BUSH PENSTEMON
SOUTH
WEST
AVERY ALVARADO [ARTIST - 32]
AVERY IS A FREELANCE ARTIST WHO PAINTS ABSTRACT LATIN AMERICAN LANDSCAPES WHICH REMIND HER OF HOME. SHE IS A CLIMATE ACTIVIST AND IS OBSESSED WITH CREATING A PEACEFUL SPACE FOR HERSELF. SHE IS USUALLY IN THE YARD OFF THE SIDE OF THE HOUSE PAINTING, DOING YOGA, MEDITATING, OR COOKING IN THE OUTDOOR KITCHEN. MORGAN IS PARALIZED FROM THE WAIST DOWN FROM A CAR ACCIDENT AS A TEEN. HE DOES NOT LET THAT STOP HIS PASSION FOR WORK AND IS A WELL KNOWN GRAPHIC DESIGNER. MORGAN ENTERTAINS CLIENTS OFTEN IN THE FRONT PUBLIC AREAS OF THE HOUSE & ENJOYS THE SHARED STUDIO SPACE ON THE 1ST FLOOR OF THE HOUSE.
AU1
LEO IS AN ASPIRING ACTOR WHO CONSISTANTLY HAS SMALL FILM JOBS. HE IS OFTEN READING SCRIPTS WITH COWORKERS UPSTAIRS IN THE GALLERY WHILE DRINKING COFFEE AT THE BAR. HE ENTERTAINS OFTEN & IS MADLY IN LOVE WITH HIS WIFE,
AU2
THE ARTIST COLLECTIVE
THE GROUP MET RANDOMLY THROUGH MUTUAL FRIENDS & CAME TOGETHER SINCE THEY EACH NEEDED AN AFFORDABLE SPACE. THEY ENJOY SHARING CERTAIN SPACES SUCH AS THE KITCHEN, STUDIO, AND GALLERY. THEY ENJOY EACHOTHERS PRESENCE, BUT HAVE AMPLE OPPORTUNITY FOR PRIVACY.
AMENITY: GALLERY W/ BAR & COFFEE
A SPACE FOR ALL RESIDENTS TO ENTERTAIN, CONNECT WITH CLIENTS, & SHOW OFF THEIR WORK
AU3
TRANSFORMATION
JANE, WHO IS A RN AT A LOCAL HOSPITAL. THEY HAVE A 14 YEAR OLD DAUGHTER NAMED OAKLEY WHO GOES TO A PUBLIC SCHOOL NEARBY. OAKLEY ENJOYS HAVING FRIENDS OVER UPSTAIRS AND IN THE OUTDOOR SPACES THE HOUSE. SHE UTILIZES THE STUDIO SPACE FOR HOMEWORK & HER OWN CREATIVE PROJECTS.
NATURAL
USE OF VEGITATION TO MITIGATE YEARLY CLIMATE CHANGE & TO SHADE PRIVATE RESIDENT SPACES ADAPTIVE STUDIO SPACE
SUSTAINABILITY OCCUPANCY
COOLING/SHADING

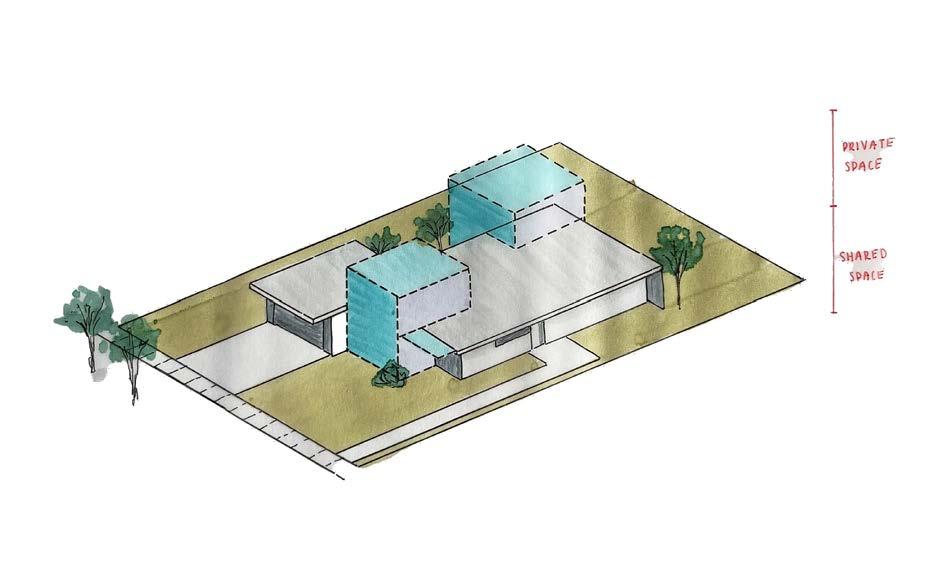

ORIGINAL AIN HOUSE: TYPE 2LT ADAPTED TO INCLUDE A NEW ENTRY WAY & LOFTED LIVING SPACE OFF THE REAR REVISED TO CONTAIN TWO CONTRASTING ADDITIONS WHICH EMPHASIZE VERTICALITY & BALACE THE EXISTING ELEVATIONS 1| 2| 3| 18 Sustainability & Occupancy Diagrams | Exterior Perspective

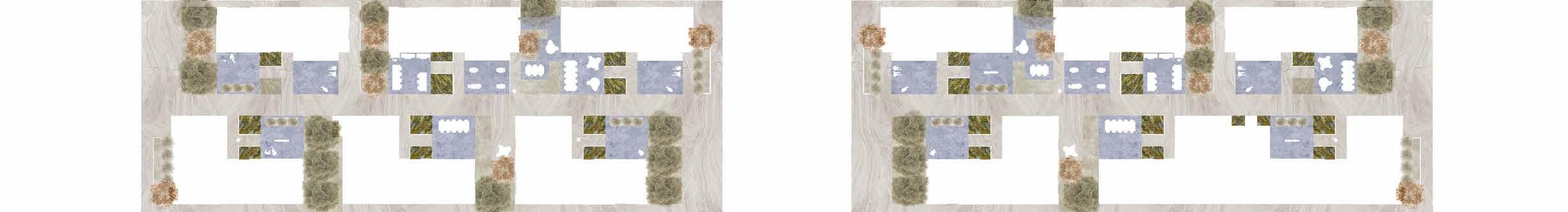

PLAN PLAN ROOF COFFEE/CONFERENCE ADU 2 OPEN TO BELOW OPEN TO BELOW ADU 1 PLAN PLAN ADU 3 1st Floor Plan 2nd Floor Plan 19 1st Floor Plan | 2nd Floor Plan
PUBLIC

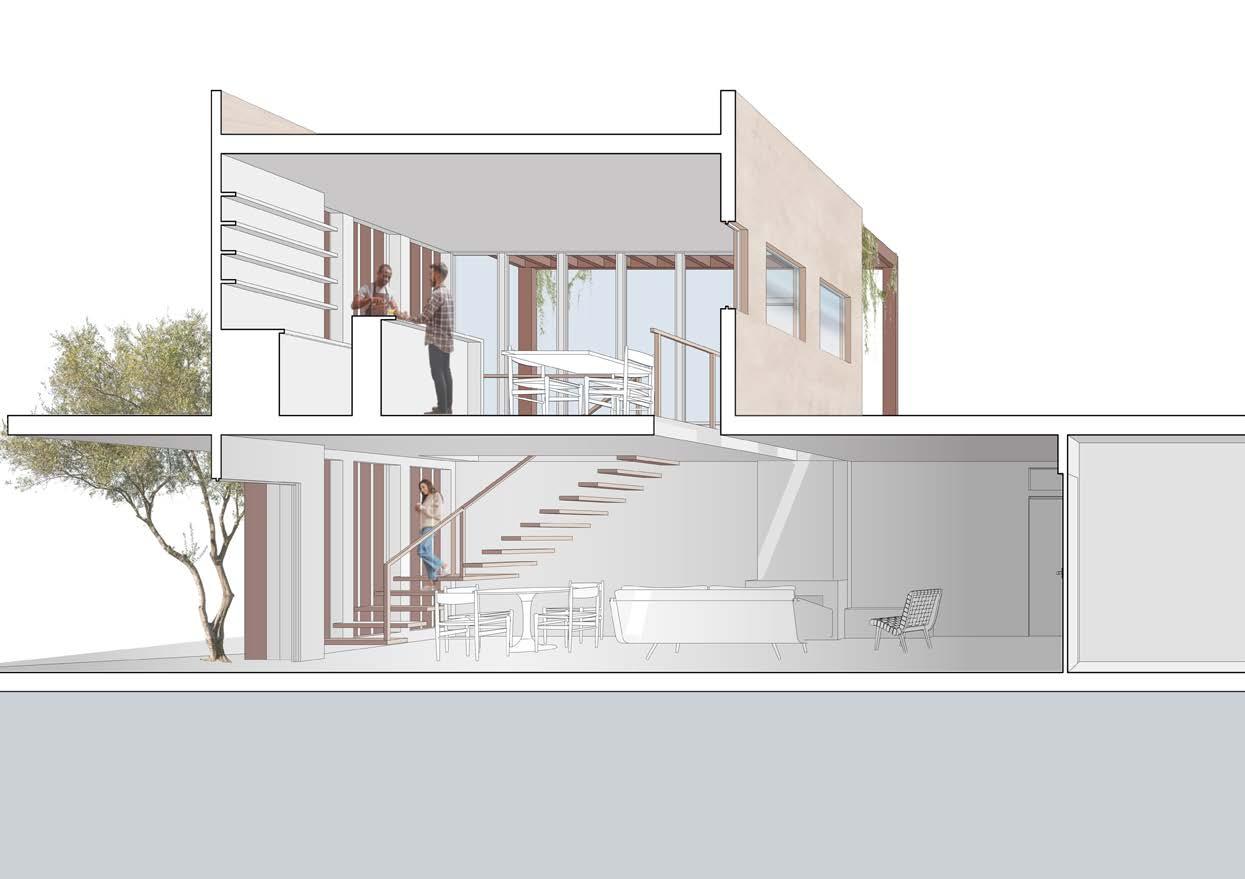

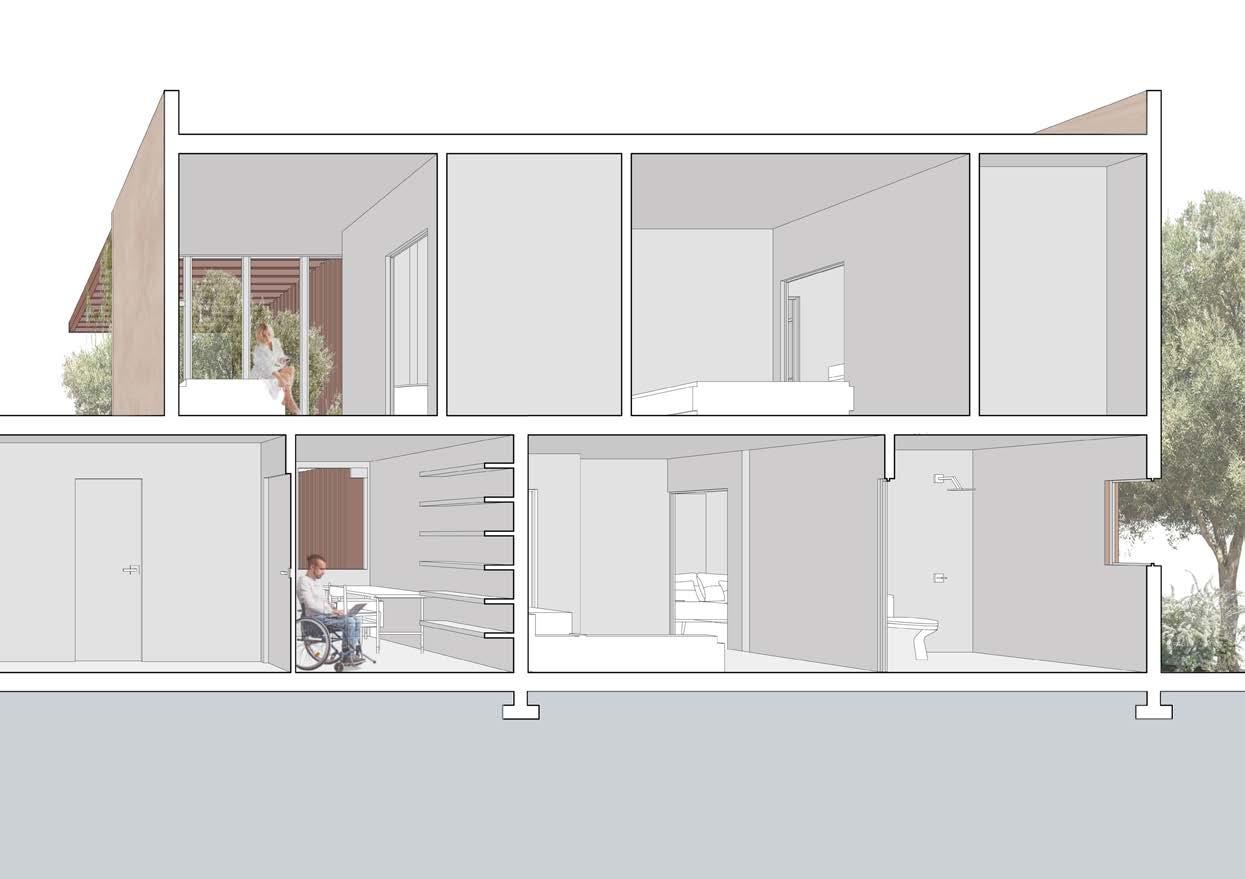

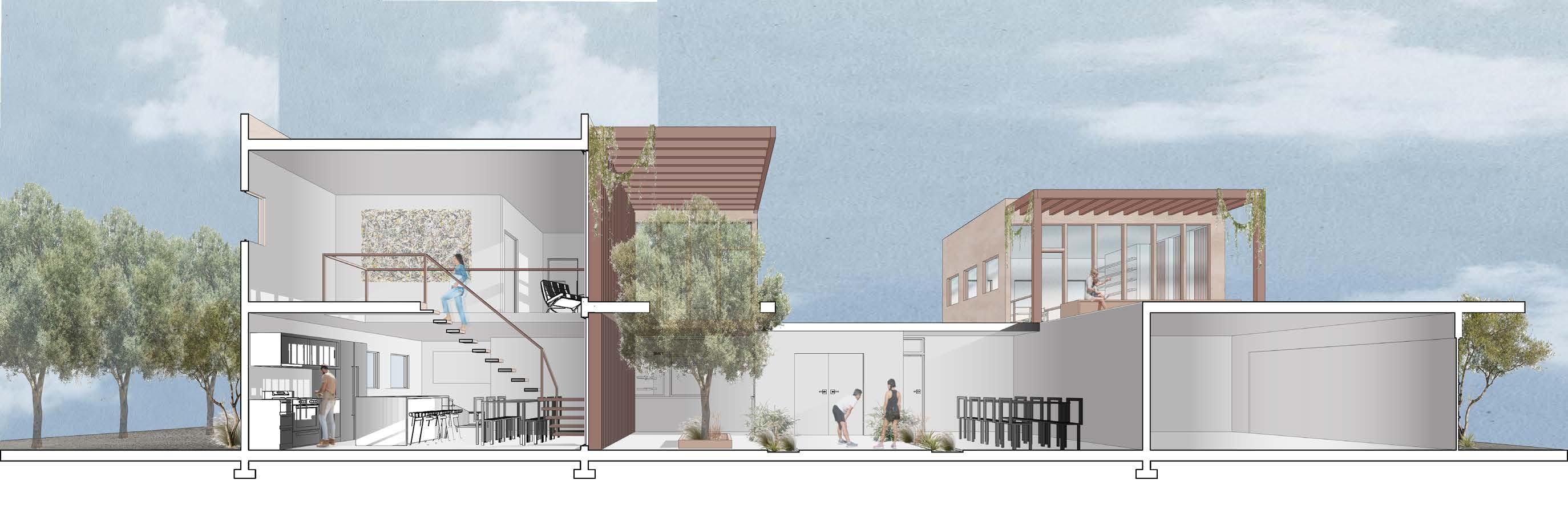

20 Top | East West Section Perspective PRIVATE
Bottom | West East Section Perspective PUBLIC 21 PRIVATE
OPEN AIR MARKET.
PROJECT THREE | CHICAGO, IL
THE CHICAGO MARKETPLACE IS A CANTILEVERED DESIGN WITH A STUNNING UNDULATING ROOF. SHOPPERS WILL BE MESMERIZED BY THE SHADOW PLAY AS THEY WEAVE THROUGH VENDOR STANDS. THE DESIGN WAS INITIALLY INSPIRED BY GAS STATION CANOPIES THROUGHOUT RURAL AMERICA. THE GOAL OF THE PROJECT IS TO FURTHER CONNECT URBAN CHICAGO TO THE SURROUNDING AGRICULTURE OF ILLINOIS. THE MARKETPLACE FEATURES OUTDOOR VENDER UNITS, AN INDOOR COMMUNITY CENTER, COFFEE BAR, COMMUNITY GARDEN BEDS, AND CREATIVE PLAY AREAS FOR CHILDREN.
22
Chicago Marketplace Street Perspective
23
4| CLADDING/ TERTIARY STRUCTURE
3| SKYLIGHT
2| SECONDARY STRUCTURE
1| PRIMARY STRUCTURE
PLAN VIEW OF STRUCTURE
3| CUT/SPLIT

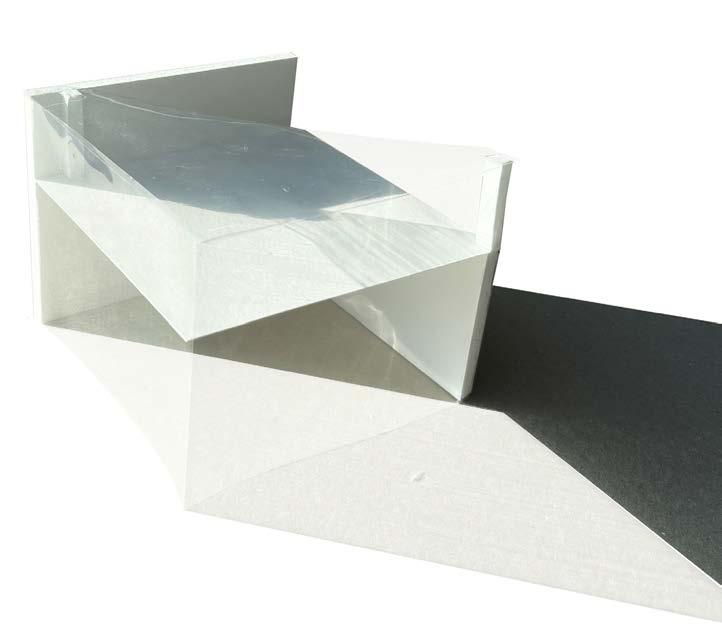

Single Bay Structural Diagram | Design Transformation Diagram
24
SINGLE BAY STRUCTURE DIAGRAM CONCEPT/REALIZATION DIAGRAM
Marketplace Detail Perspective 25
1st Floor/Site Plan 1 26
MEZZANINE FLOORPLAN SCALE 1/16” : 1’ MARKET PROGRAM 1. SMALL MARKET STALLS 2. LARGE MARKET STALLS 3. MECHANICAL 4. STORAGE 5. RESTROOMS 6. COVERED PERFORMACE AREA 7. COMMUNITY GARDEN 8. OUTDOOR PATIO 9. BALCONY 1 10. MANAGEMENT OFFICE 11. COFFEE BAR 12. BALCONY 2 2 3 4 5 6 7 8 9 10 11 12 FIRST FLOORPLAN SCALE 1/16” : 1’ 27

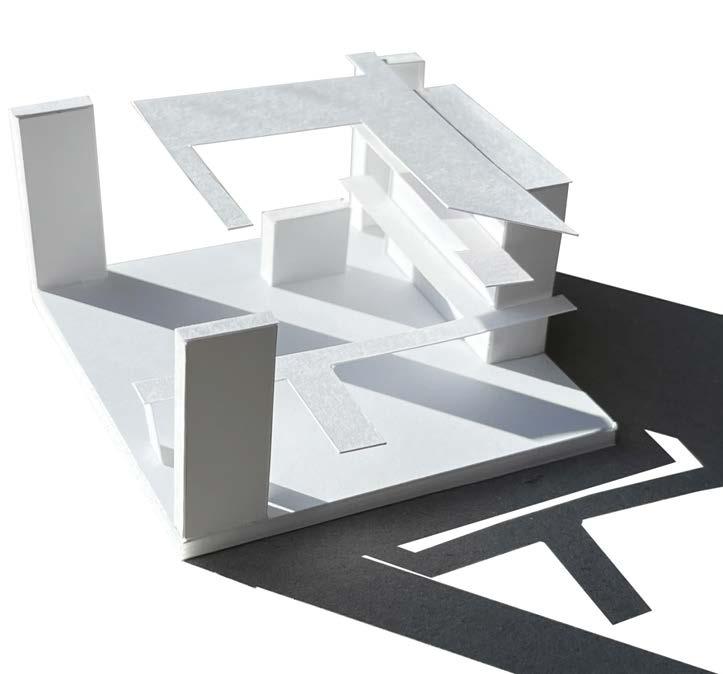

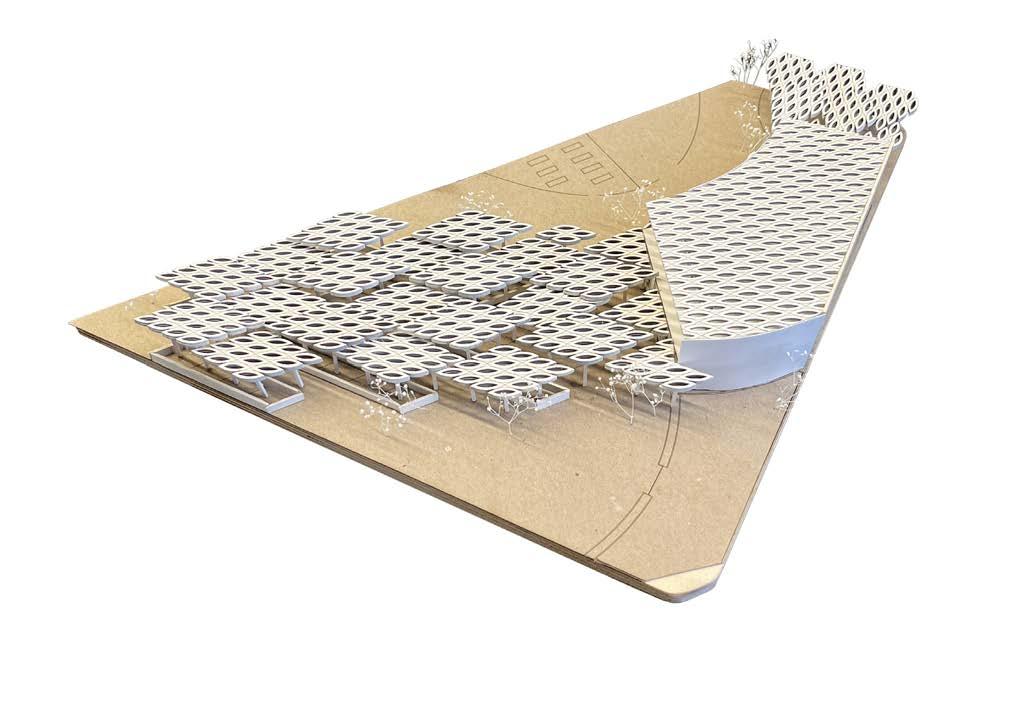

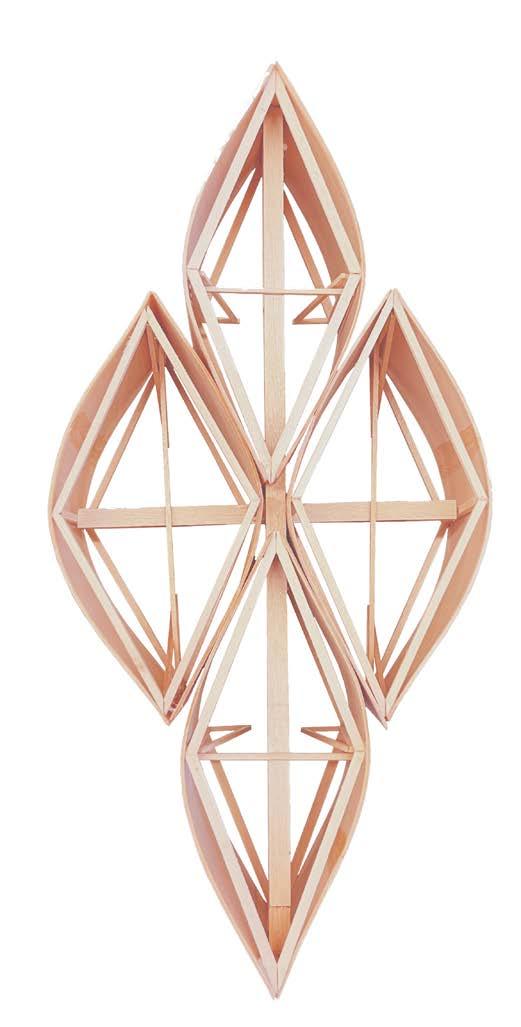

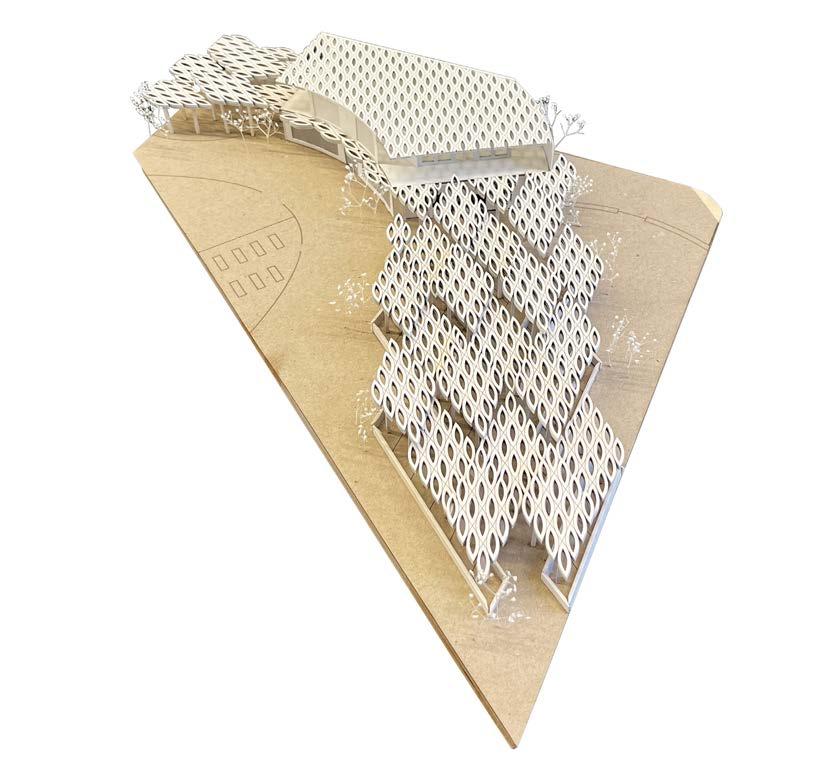

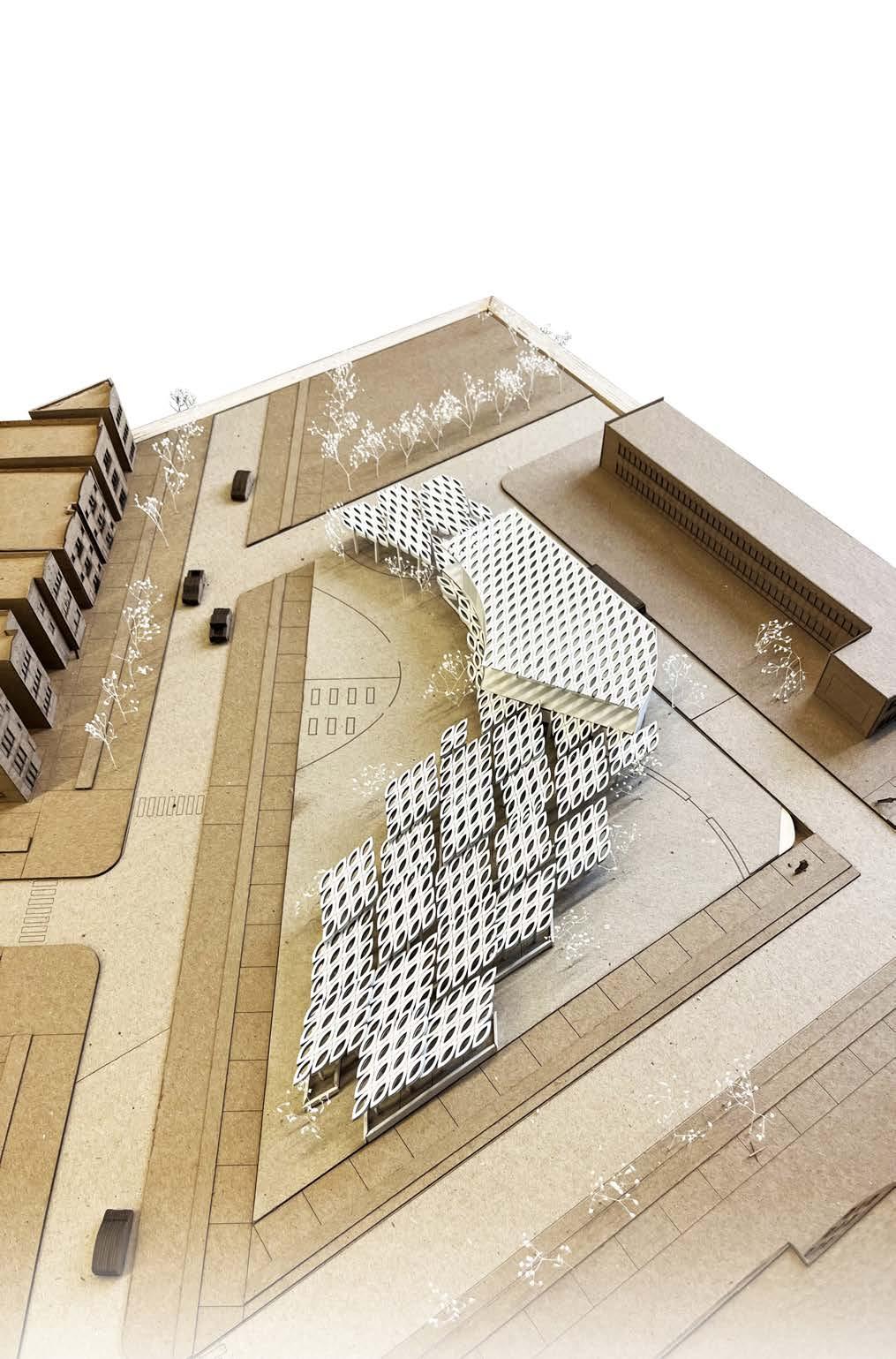

Chicago Marketplace Physical Model 28
29

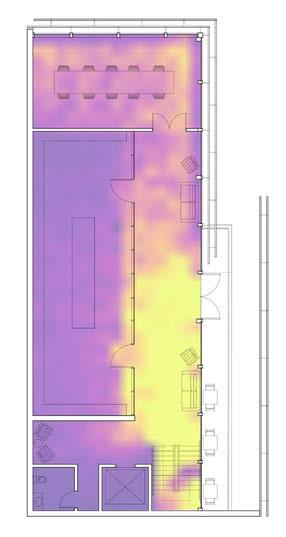

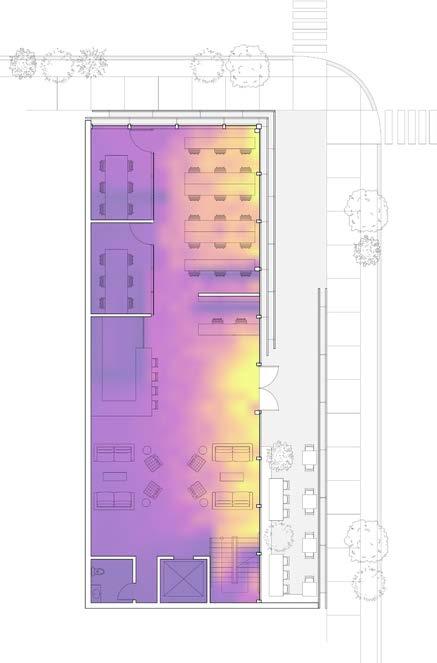

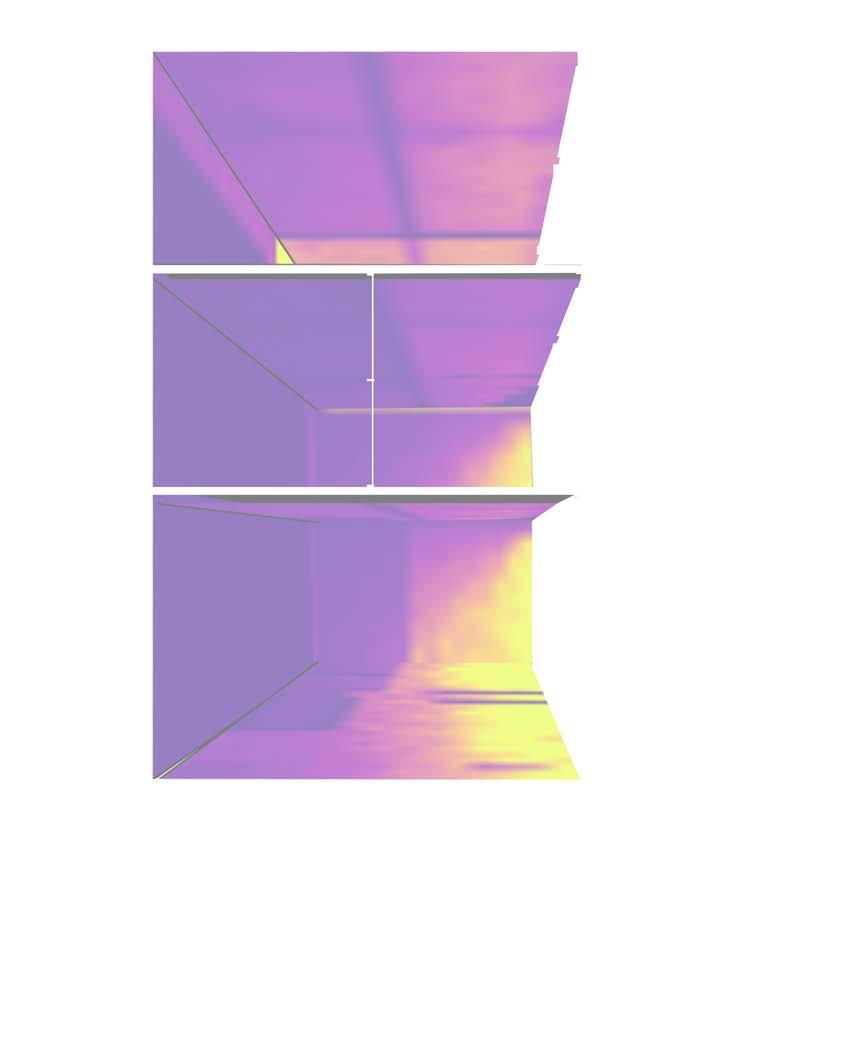

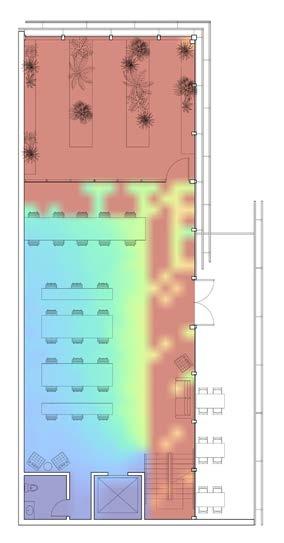

Climate Studio Studies | NYC Hell’s Kitchen Building Mockup 30 1st Floor Plan | Annual Solar Radiation (Warm Hours) 2nd Floor Plan | Annual Solar Radiation (Cold Hours) 3rd Floor Plan | Annual Avg Illumination Section Perspective | Annual Solar Radiation (Warm Hours)
Section. Scale: 1/4”=1’ Section. Scale: 1/4”=1’
Plan. Scale: 1/4”=1’
Construction Detailing 31 FAY JONES SCHOOL OF ARCHITECTURE + DESIGN UNIVERSITY OF ARKANSAS FALL 2023 ARCH 3143 VISUAL PORTFOLIO LAST, FIRST Existing Wall Proposed Wall. Plan. Scale: 3”=1’ 2x6 Rafter Plywood Sheathing Gypsum Lath Gypsum Plywood Sheathing Batt Insulation Waterproofing XPS Rigid Insulation Masonry Clips Modular Brick Masonry Modular Brick Masonry Masonry Ties XPS Rigid Insulation Plywood Sheathing 2x4 Stud Gypsum Lath Batt Insulation Plywood Sheathing REGAN, ASPEN DESIGN FALL 2023 ARCH 3143
Masonry Ties Modular Brick Masonry Batt Insulation Plywood Sheathing XPS Rigid Insulation 2x6 Stud 2x4 Stud Drip Edge Asphalt, Bitumen Float, & Gravel Aggregate Fascia Board Rafter Top Plate Plywood Sheathing XPS Rigid Insulation Modular Brick Masonry Batt Insulation Gypsum Lath Bottom Plate Masonry Clips Floor Joist Drip Edge Asphalt, Bitumen Float, & Gravel Aggregate Fascia Board Rafter Top Plate Plywood Sheathing XPS Rigid Insulation Modular Brick Masonry Batt Insulation Gypsum Lath Bottom Plate Masonry Clips Rim Joist S01 S02 E D01 D02 FAY JONES SCHOOL OF ARCHITECTURE + DESIGN UNIVERSITY OF ARKANSAS FALL 2023 ARCH 3143 VISUAL PORTFOLIO LAST, FIRST GROWTH Existing Wall Proposed Wall. Plan. Scale: 3”=1’ Existing Floor l Proposed Floor. Section. Scale: 3”=1’ 2x6 Rafter Plywood Sheathing Gypsum Lath Gypsum Plywood Sheathing Batt Insulation Waterproofing XPS Rigid Insulation Masonry Clips Modular Brick Masonry Modular Brick Masonry Masonry Ties XPS Rigid Insulation Plywood Sheathing 2x4 Stud Gypsum Lath Batt Insulation Plywood Sheathing REGAN, ASPEN

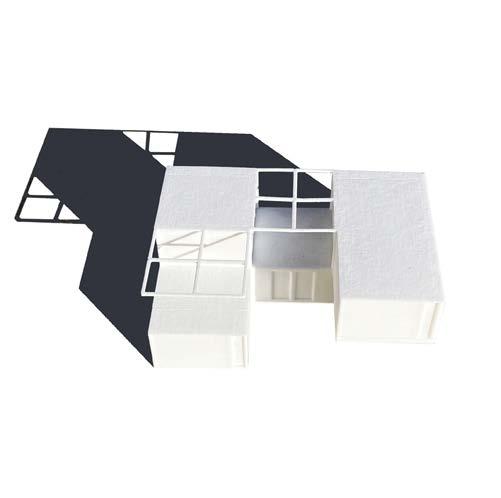

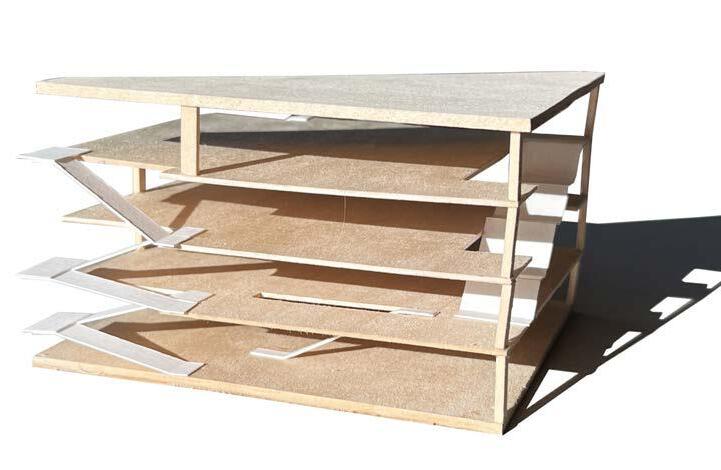

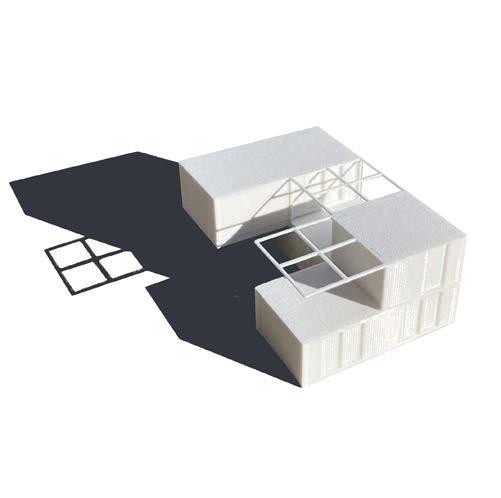

ASPEN REGAN UNDERGRADUATE ARCHITECTURE PORTFOLIO aregan@uark.edu 32 20222024 Study Models | Shadow Study
