WHO IS SOVAL?

HIGH QUALITY VALVES AND FITTINGS AT THE MOST COMPETITIVE PRICES IN THE WORLD SINCE 1971

5 STAR CUSTOMER SERVICE

Serving the Following Markets:

! United States

! Canada

! Europe

! Latin America

! The Caribbean

! Asia

Domestic and International locations for easy pricing and fast shipping directly to customers.

Most orders ship same day with 99% fill rates.

SAFETY AND STANDARDS CERTIFICATIONS

!"#"$%&'(

The UL Listed mark indicates our products have been tested to meet Nationally Recognized Standards for Safety

FM is an international insurance carrier. Their mark indicates our products have been scientifically researched and tested to meet the highest standards for safety and loss prevention

The AWWA is an international, nonprofit, scientific and educational society dedicated to providing total water solutions assuring the effective management of water.

NSF-61 is a set of national standards that relates to water treatment and establishes stringent requirements for the control of equipment that comes in contact with either potable water or products that support the production of potable water.

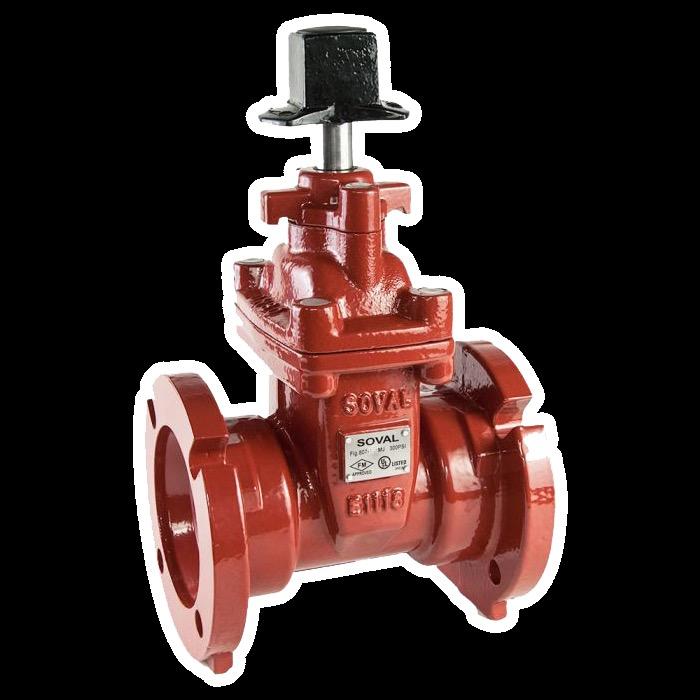

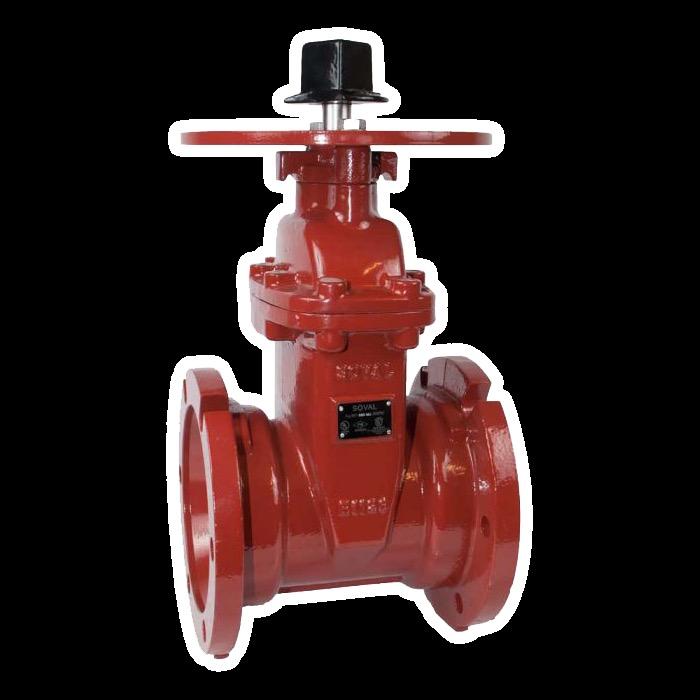

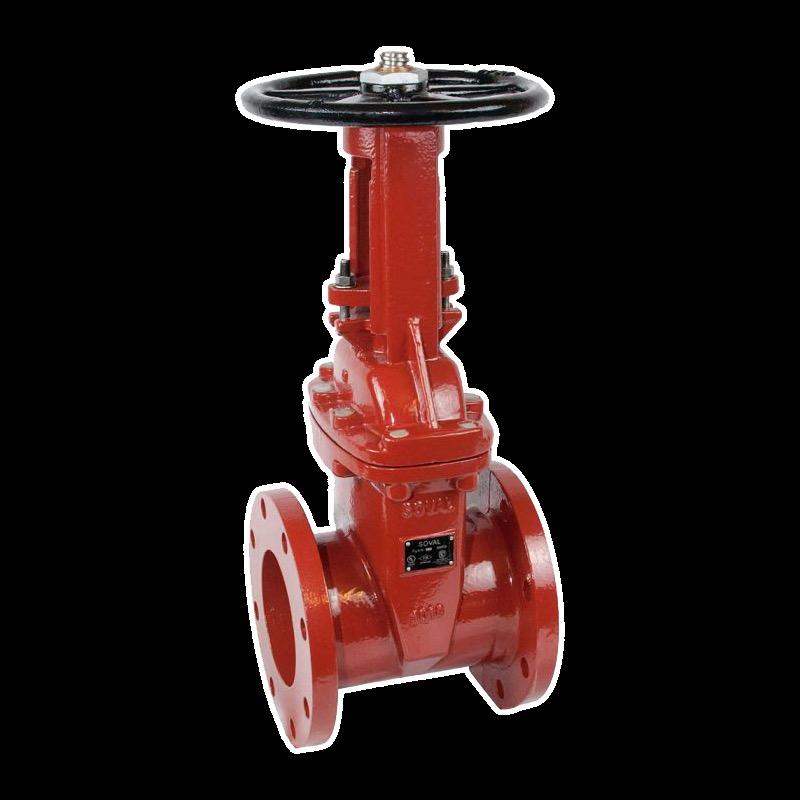

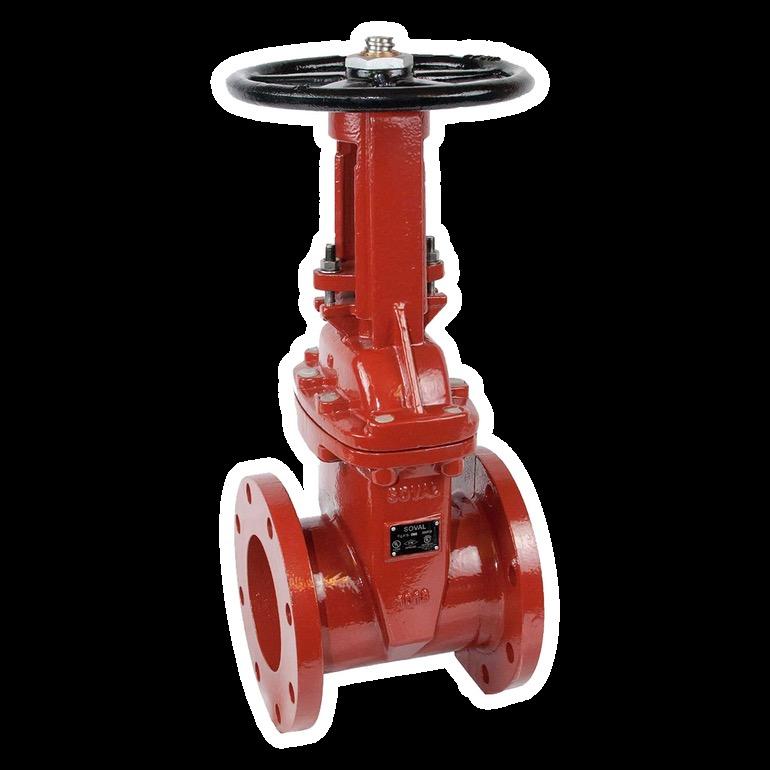

Ductile Iron Gate Valves

Easy to operate, reliable long-lasting seals and built to last a lifetime.

VARIOUS FEATURES BASED ON SERIES

! Fusion Bonded Expoxy Coatings

! Non-Rising Stainless-Steel Stem AISI 420

! Resilient Seat

! Working Temp 42°F to 180°F

! Working Pressure to 300psi

! Rubber Encapsulated Iron Wedge

! Triple O-Ring Stem Seal

! Lifting Lug Built into Stuffing Gland

! Sizes 2" to 24" (Larger by Special Order)

STANDARDS AND CERTIFICATIONS BASED ON SERIES

! Complies with AWWA C515 Standards

! Flanges conform to ANSI B16.1 / Class 125

! UL Listed / FM Approved @ 300psi

! Certified to NSF / ANSI 61 & 372

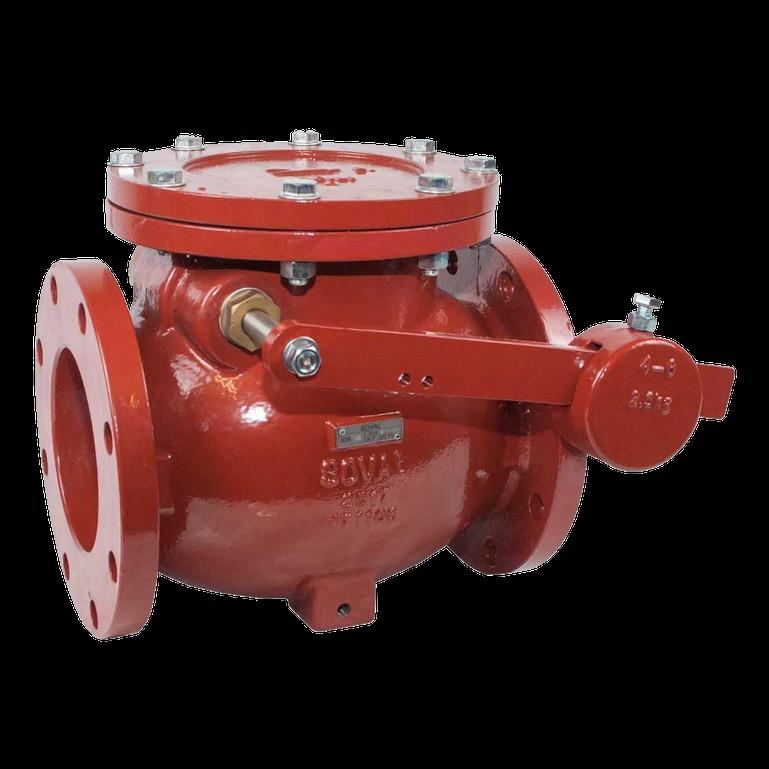

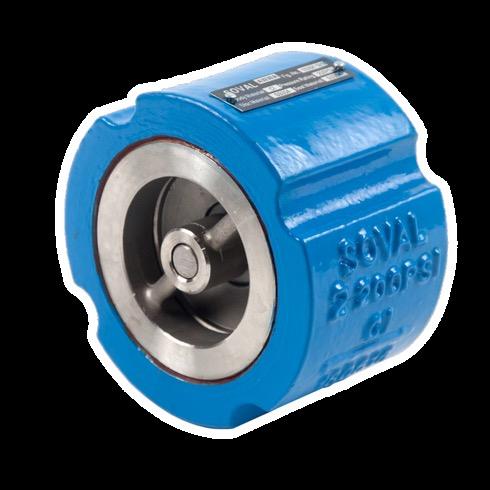

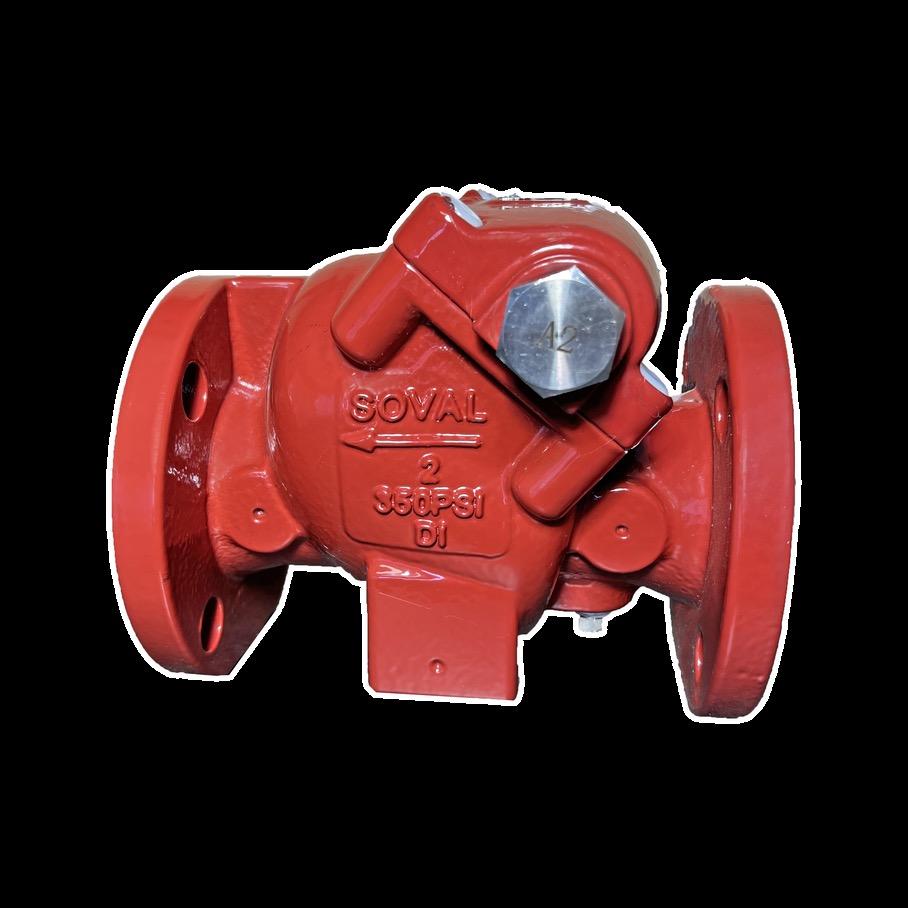

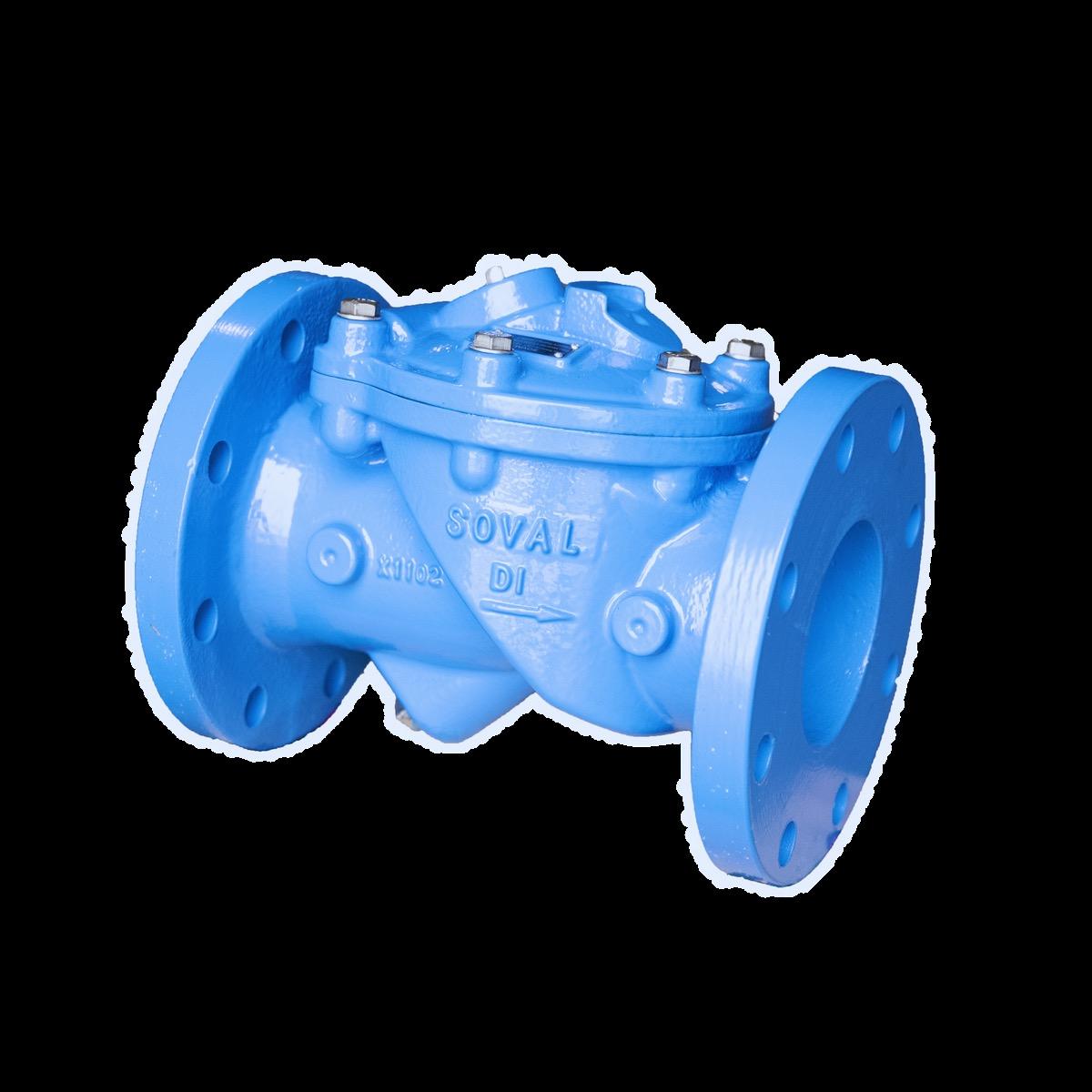

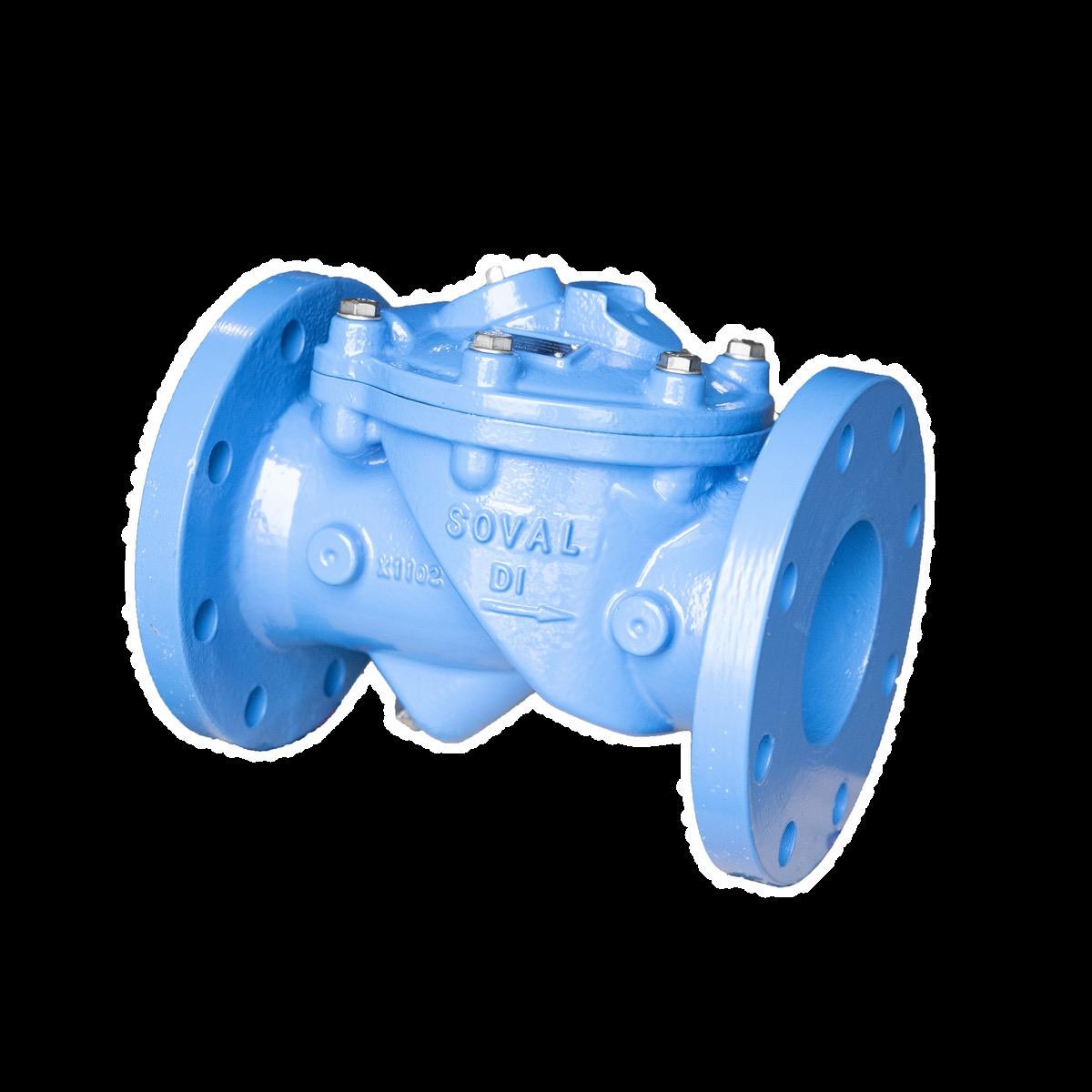

Ductile and Cast Iron Check Valves

Our check valves will ensure things are going in the right direction.

VARIETIES BASED ON SERIES

! Swing / Swing with Lever and Weight

! Wafer / Wafer Silent

! Globe

! Flange Ball / Flanged Ends

! Flex

FEATURES BASED ON SERIES

! Working Pressure 300 psi

! Working Temp 42°F to 180°F

! Fusion Bonded Epoxy Coating Interior and Exterior

! Vertical and Horizontal Installation

STANDARDS AND CERTIFICATIONS

! Complies with AWWA C508 Standards

! AWWA C550 Standards for Epoxy Coating

! UL Listed / FM Approved @ 300psi

! Certified to NSF-372 and Lead Free

! Certified to NSF / ANSI 61 & 372

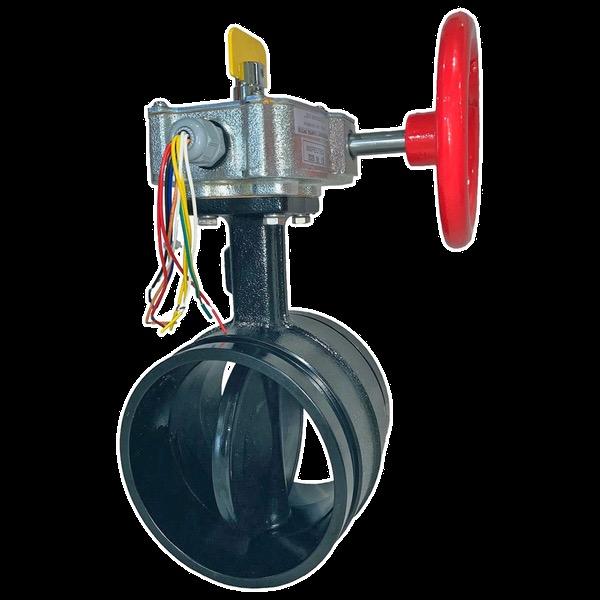

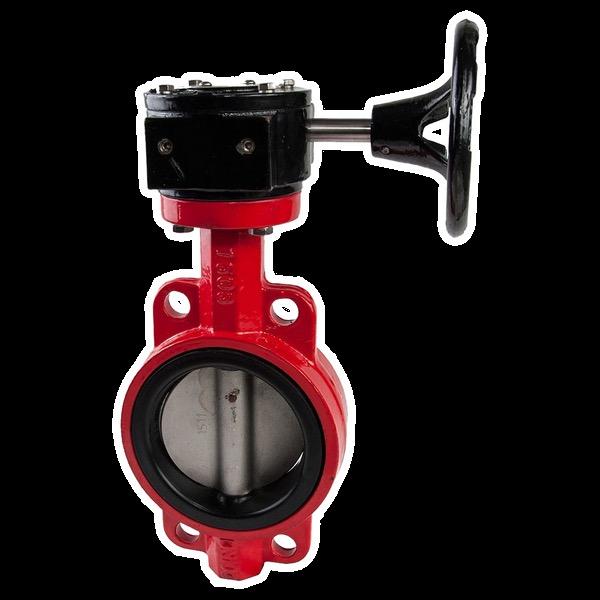

Iron Butterfly Valves

The perfect robust solution for a tight squeeze

Options

! Flanged

! Mechanical Joint

! Flanged x MJ

! Lug Style

! Grooved

! Wafer Style

FEATURES BASED ON SERIES

! Epoxy Coatings

! Stainless Steel Discs

! Gear Operation

! Handwheels

! Operating Nuts

! Built-in Tamper Switches

! Liquids or Gas

! Low Torques

STANDARDS AND CERTIFICATIONS

! AWWA C504

! UL/ULC Listed / FM Approved

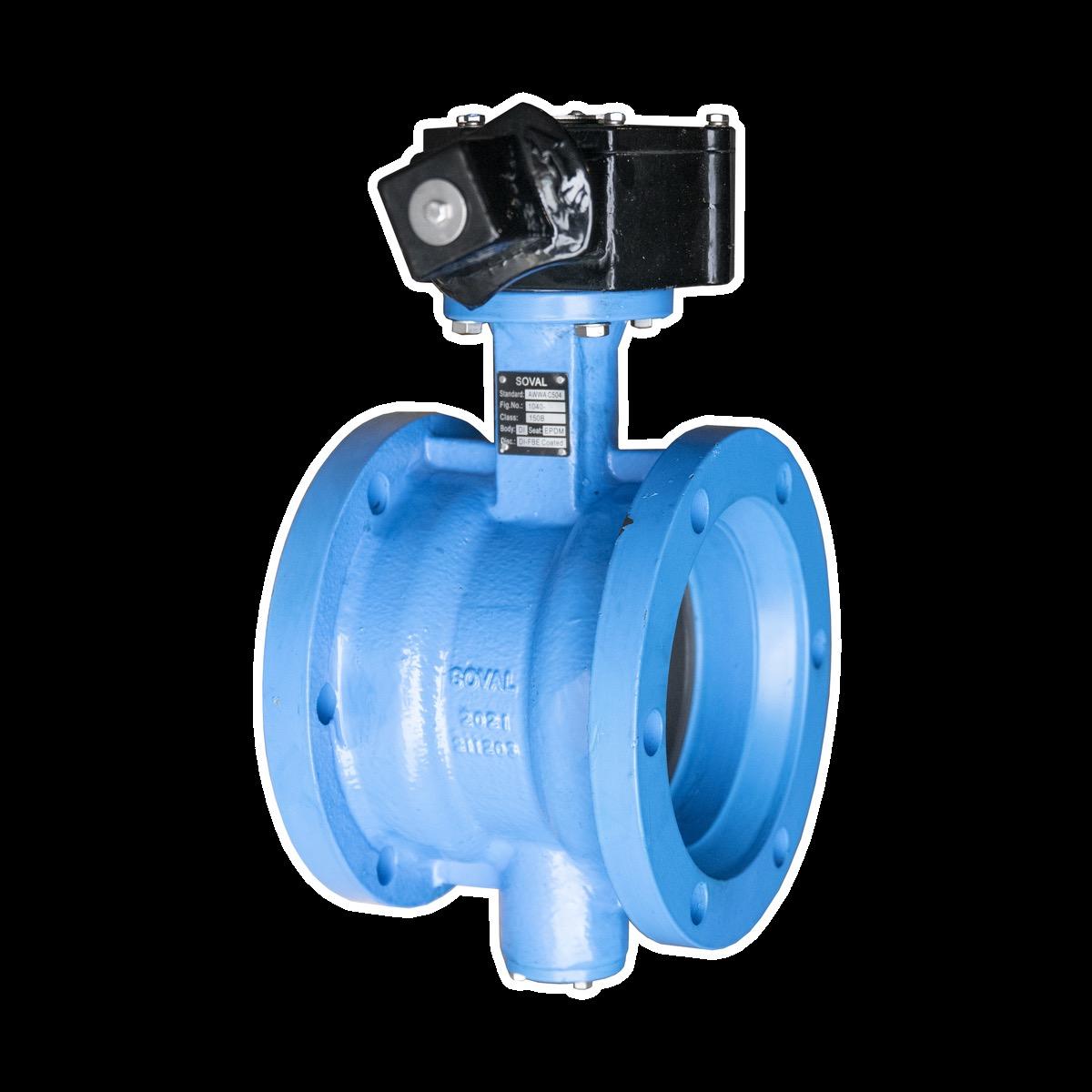

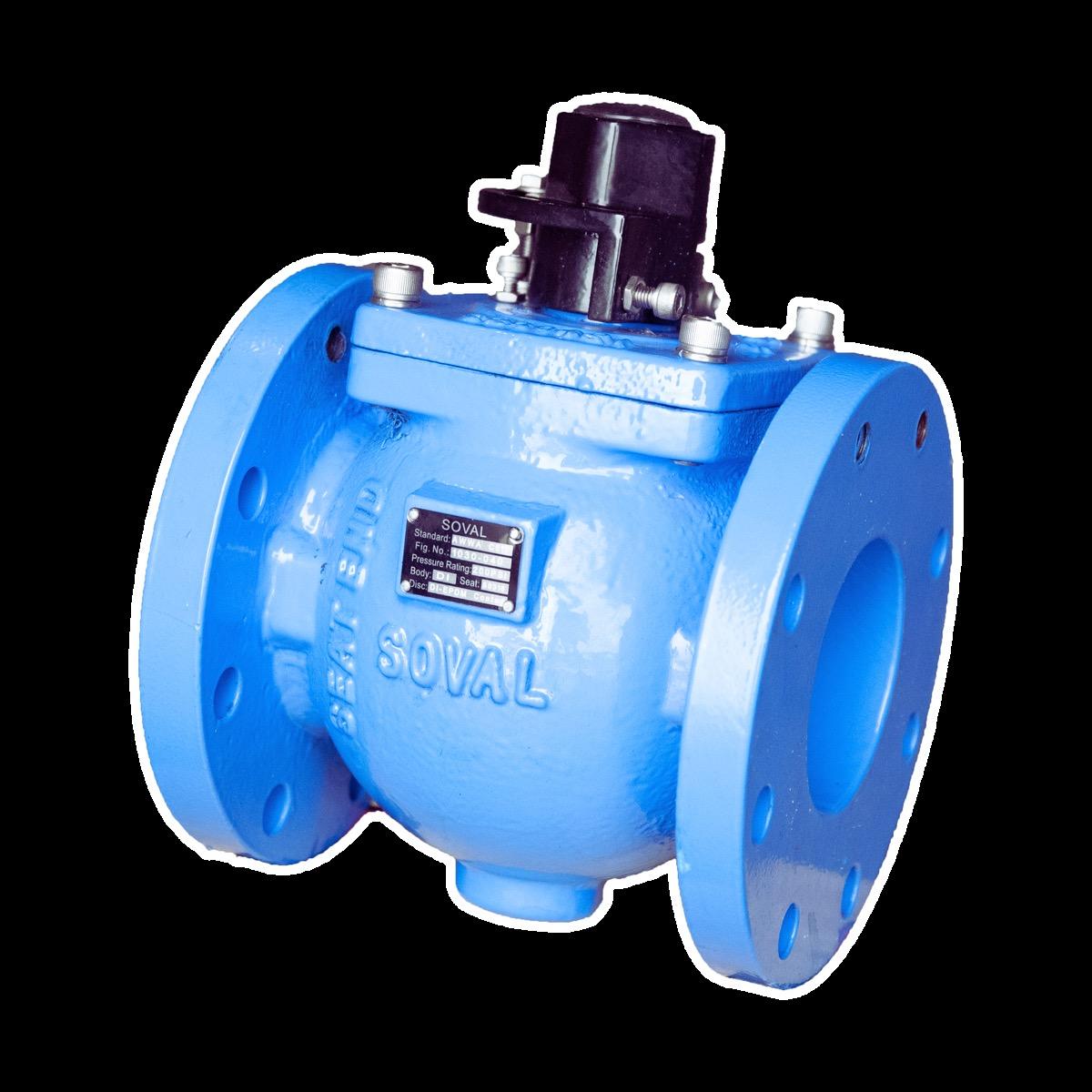

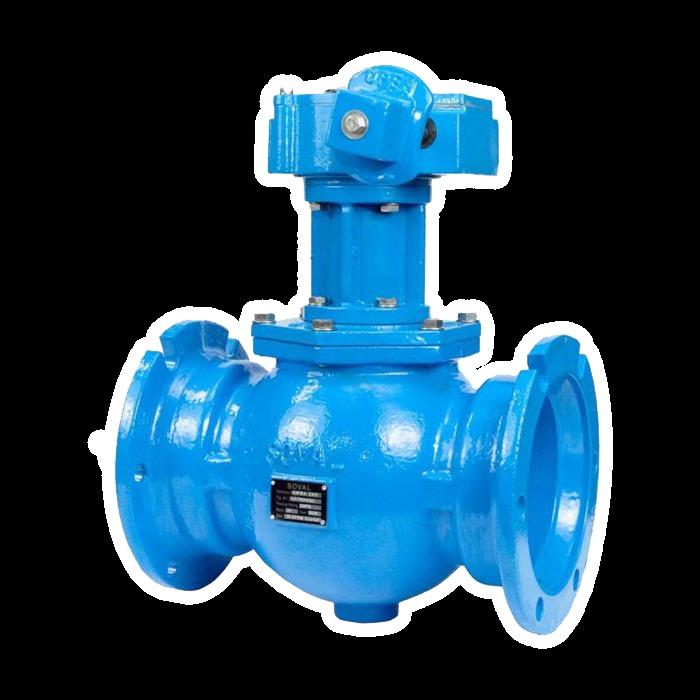

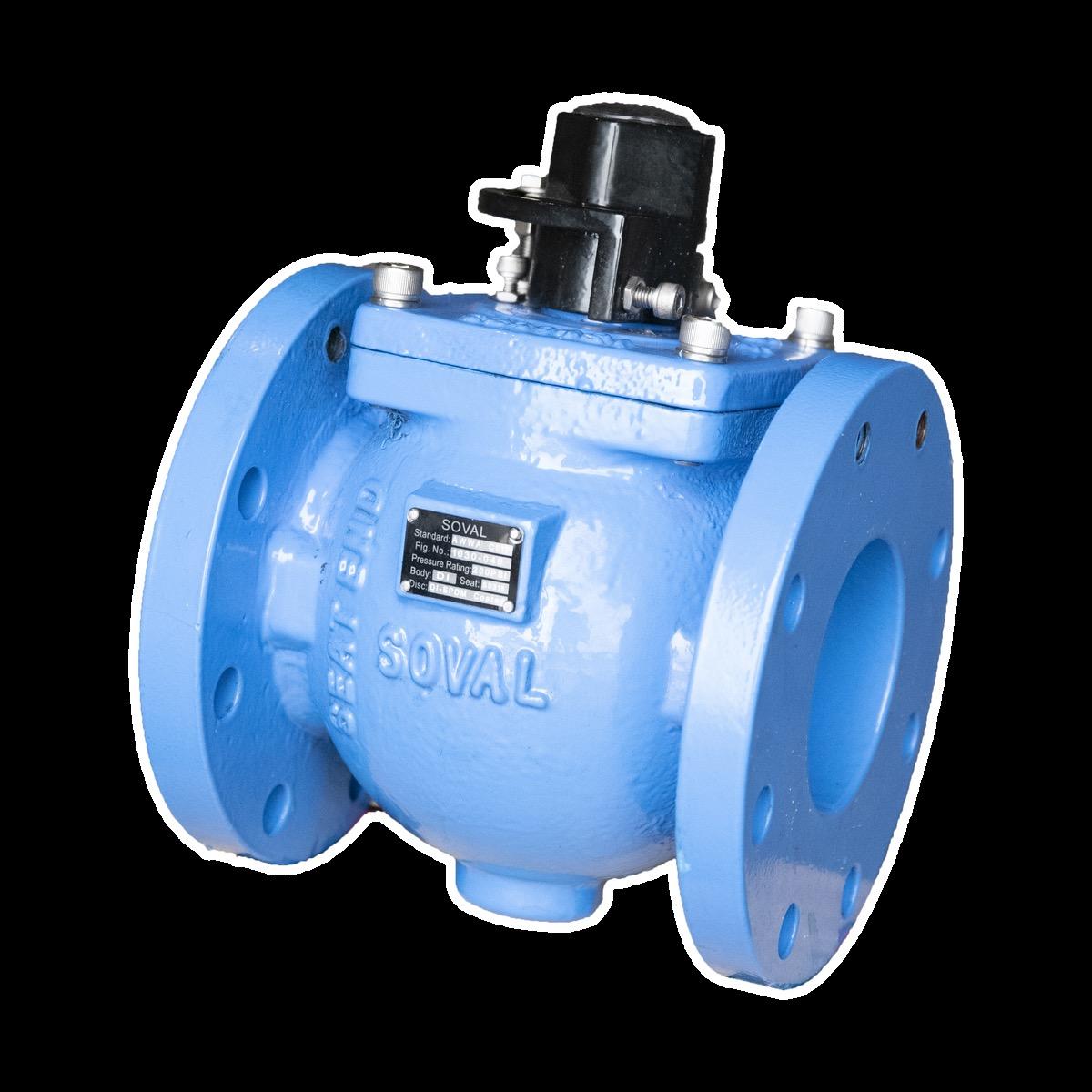

Ductile Iron Plug Valves

Soval’s trusty solution for great flow control and isolation of media.

Options

! Flanged

! Mechanical Joint

! Flanged x MJ

FEATURES BASED ON SERIES

! 2” Direct Nut Actuator

! Worm Gear Operator w/ Handwheel or OP Nut

! Horizontal or Vertical Installation

! Internally and Externally liquid epoxy painted

! 250 psi

! Bearings of sintered SS316

! Oil-impregnated and permanently lubricated

! Class 125 Flanges

! Full flow round plug design

STANDARDS AND CERTIFICATIONS

! AWWA C517

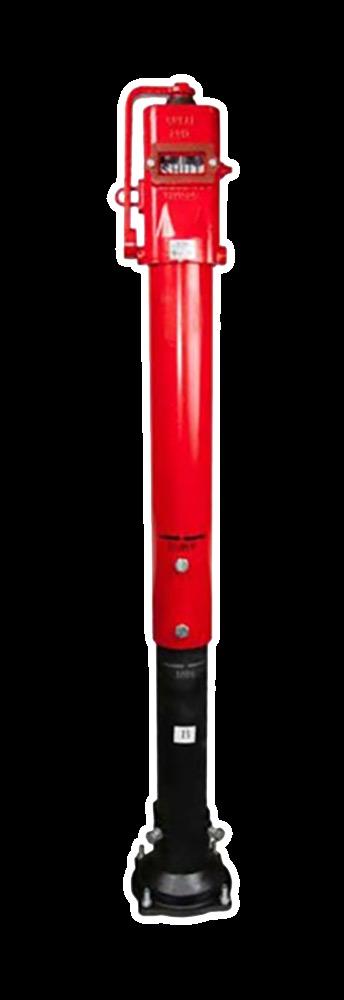

Iron Indicator Posts

For the operation of valves while providing a visual indication as to whether or not the valves are open or shut. With these indicator posts, valves can be locked into a particular position and operated from outside of the protected property, which makes prompt valve operations possible in case of emergency.

LENGTHS*

! A - 18.25" to 39.50"

! B - 36.00" to 60.50"

! C - 57.00" to 81.50"

! D - 78.00" to 102.25"

! E - 99.00" to 123.50” (Available upon Request)

! F - 120.00" to 144.50” (Available upon Request)

FEATURES*

! OPEN/SHUT Indicator

! Telescopic Stem Adjustment w/o Cutting

! Internally and Externally Spray Epoxy Painted RAL3000

! UL/ULC Listed / FM Approved

*Telescopic Indicator Post

Wall Post

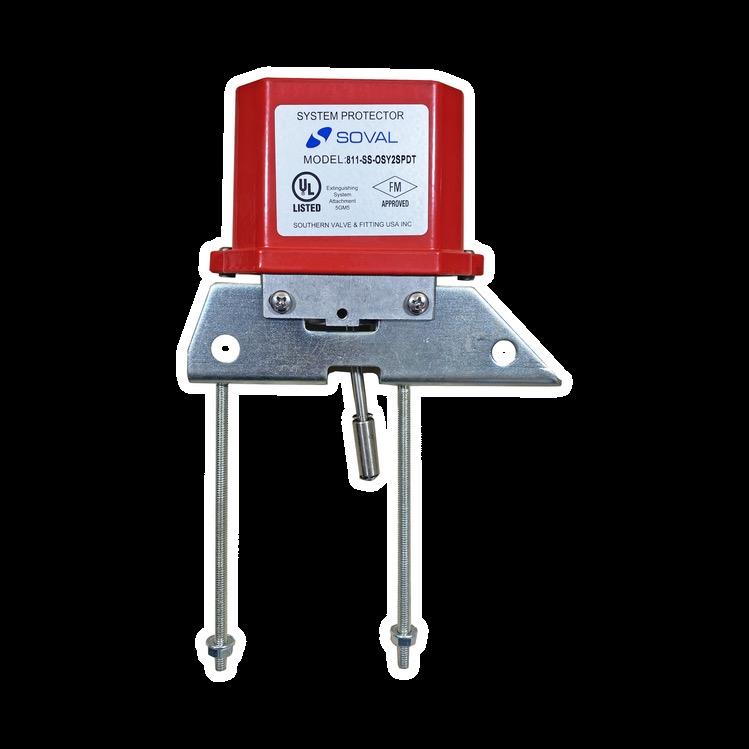

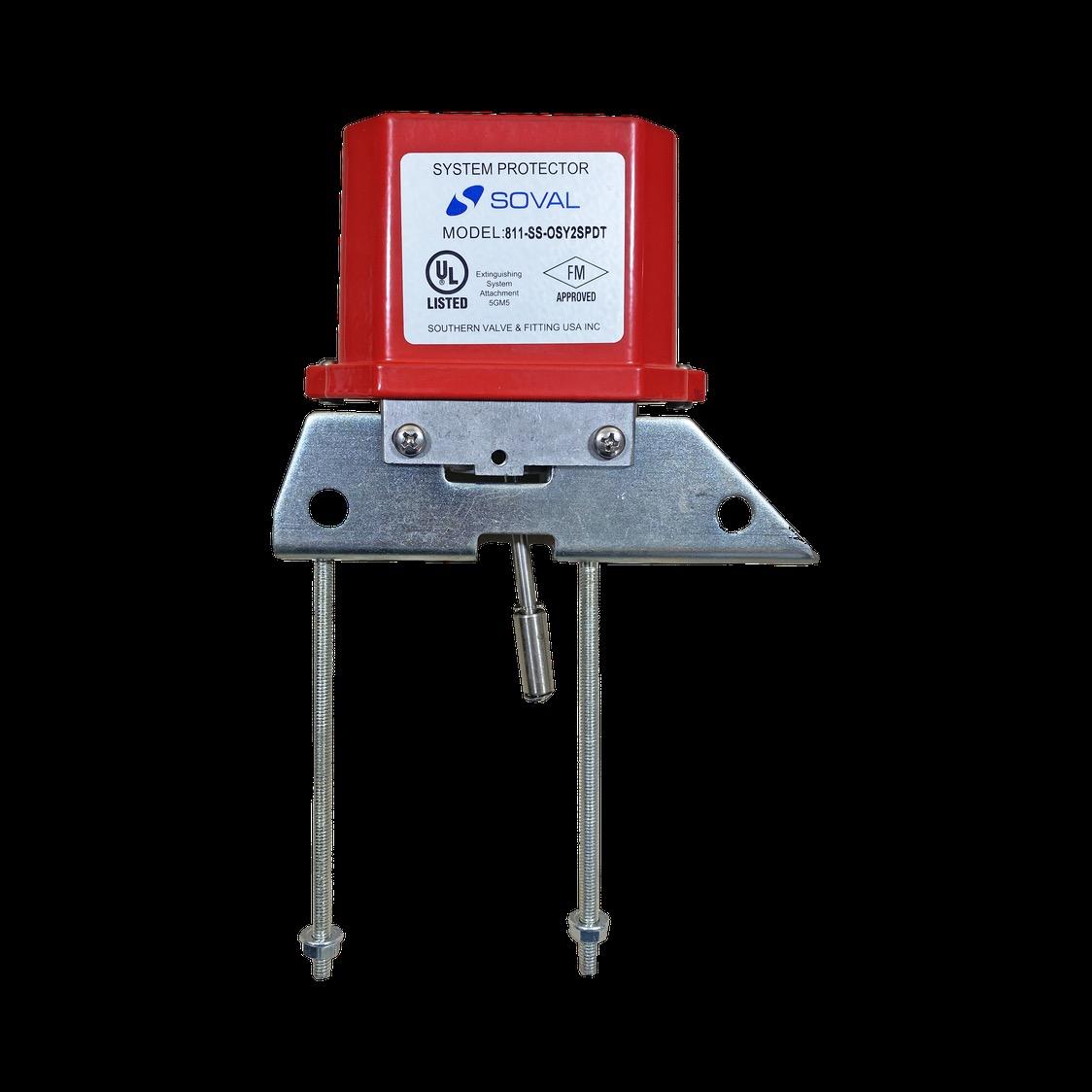

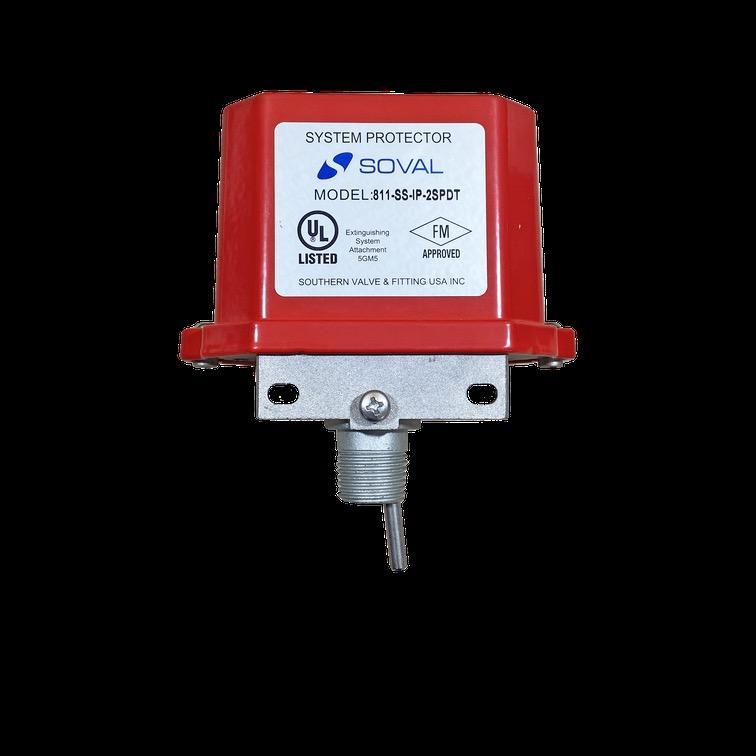

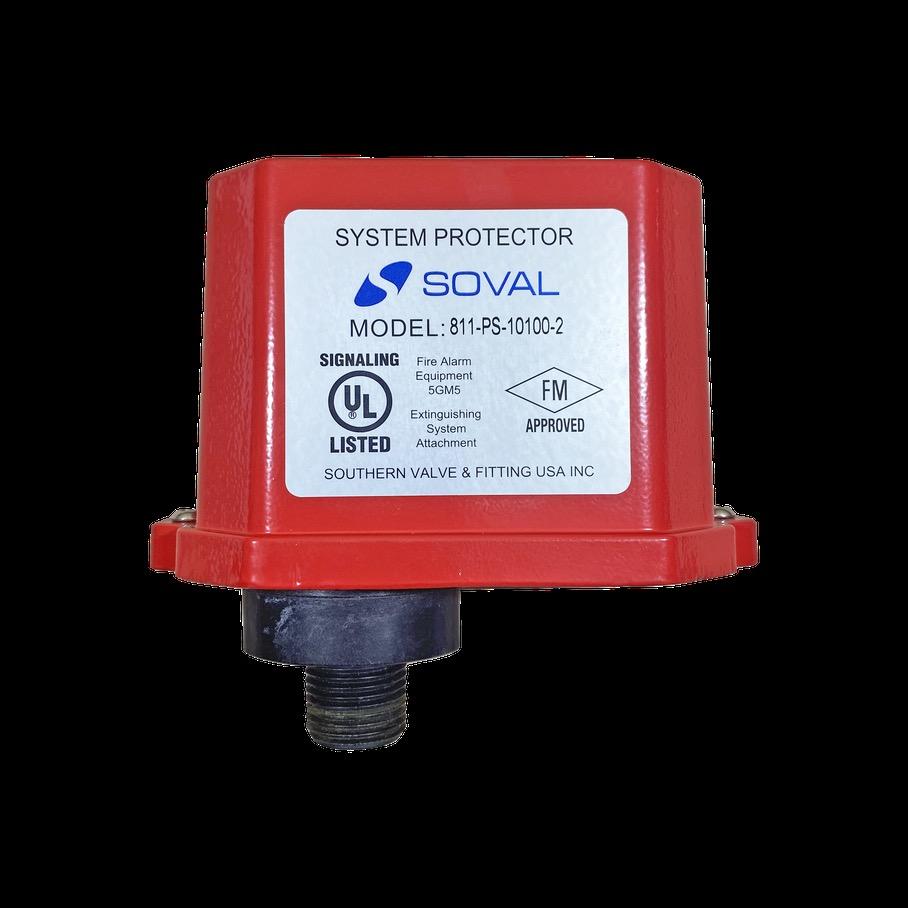

Tamper Switches

Our SOVAL line of Tamper Switches and Flow detectors are engineered to reliably and accurately monitor your Water and Fire Suppression Systems.

VARIETIES

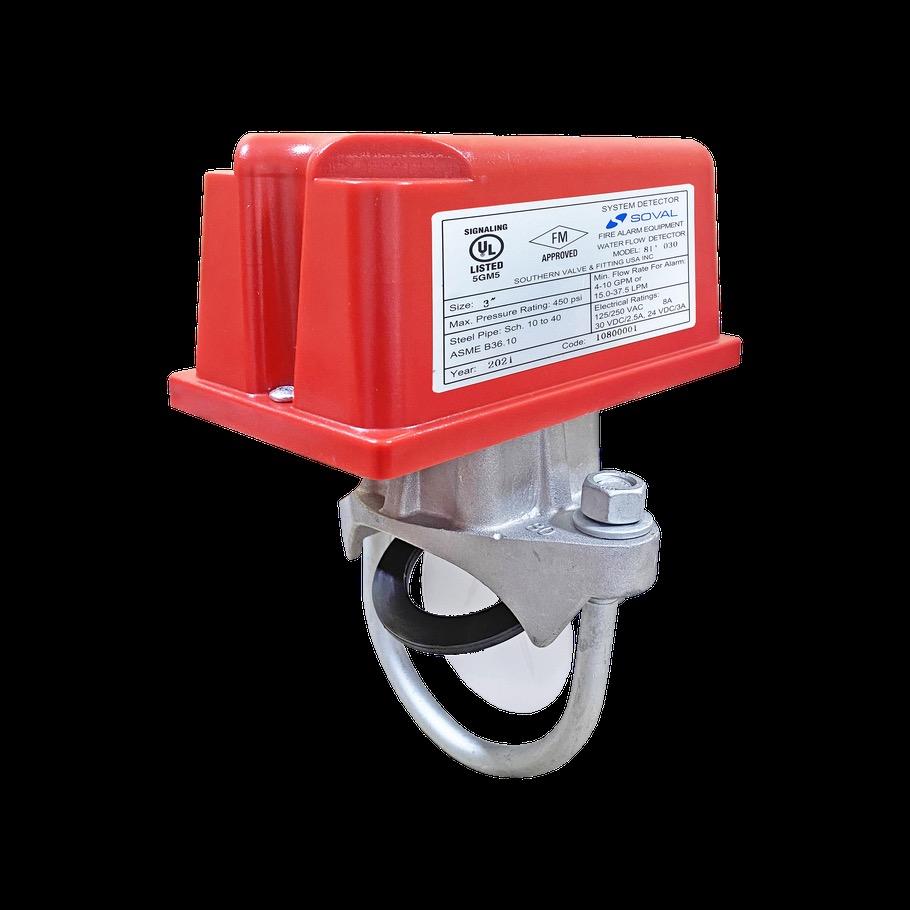

! Flow Detector

! Pressure Switches

! Supervisory Switches for Indicators and OS&Y Valves

FEATURES BASED ON SERIES

! Temps -40°F to 60°F

! Indoor and Outdoor Uses

! Sturdy Die Cast Housings

! Accurate and Reliable

STANDARDS AND CERTIFICATIONS

! UL/ULC Listed / FM Approved

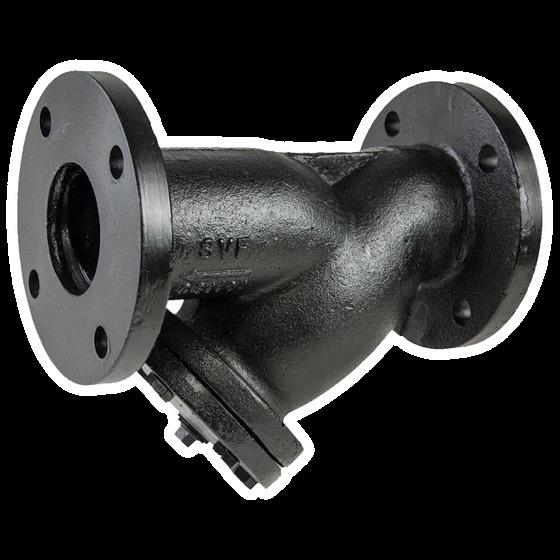

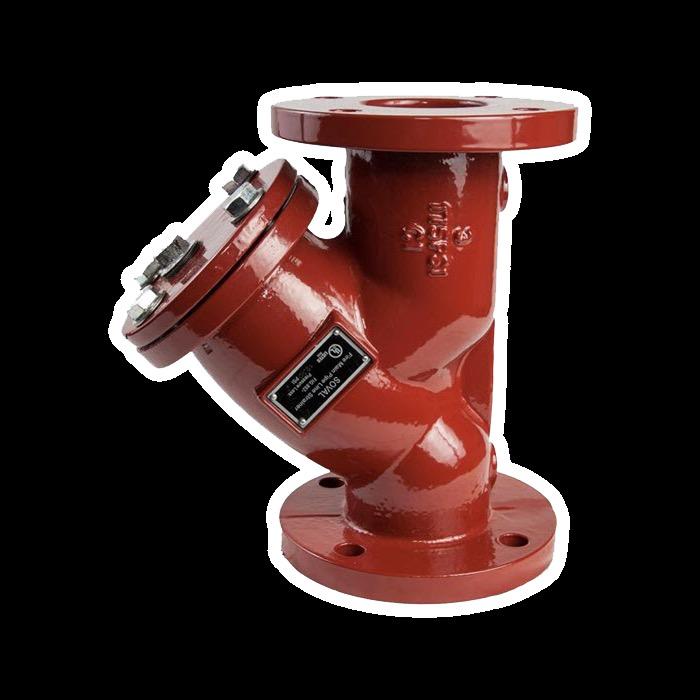

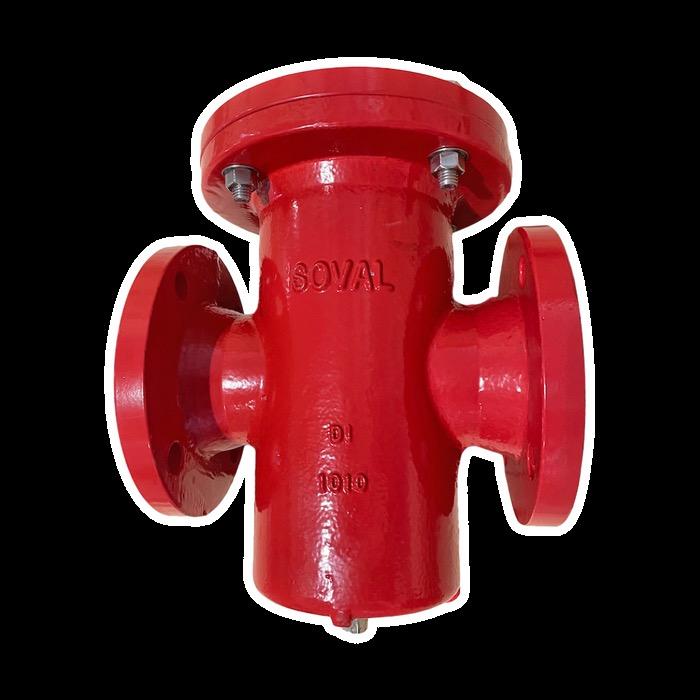

Iron Strainers

Keep the muck out and the flow going with Soval’s easy-to-maintain strainers.

VARIETIES BASED ON SERIES

! Basket

! Wye

! Ductile Iron

! Cast Iron

VARIOUS FEATURES BASED ON SERIES

! Fusion Bonded Epoxy Coatings

! Rubber EPDM D2000 Gaskets

! Excellent Flow Characteristics and Low -Pressure Losses at High Rates

! Working Pressures to 175 psi and 200 psi

! Working Temps 14°F to 248°F

STANDARDS AND CERTIFICATIONS

! UL/ULC 321 Listed
