ARCHITECTURE PORTFOLIO by Zainab Alsalah



     

     









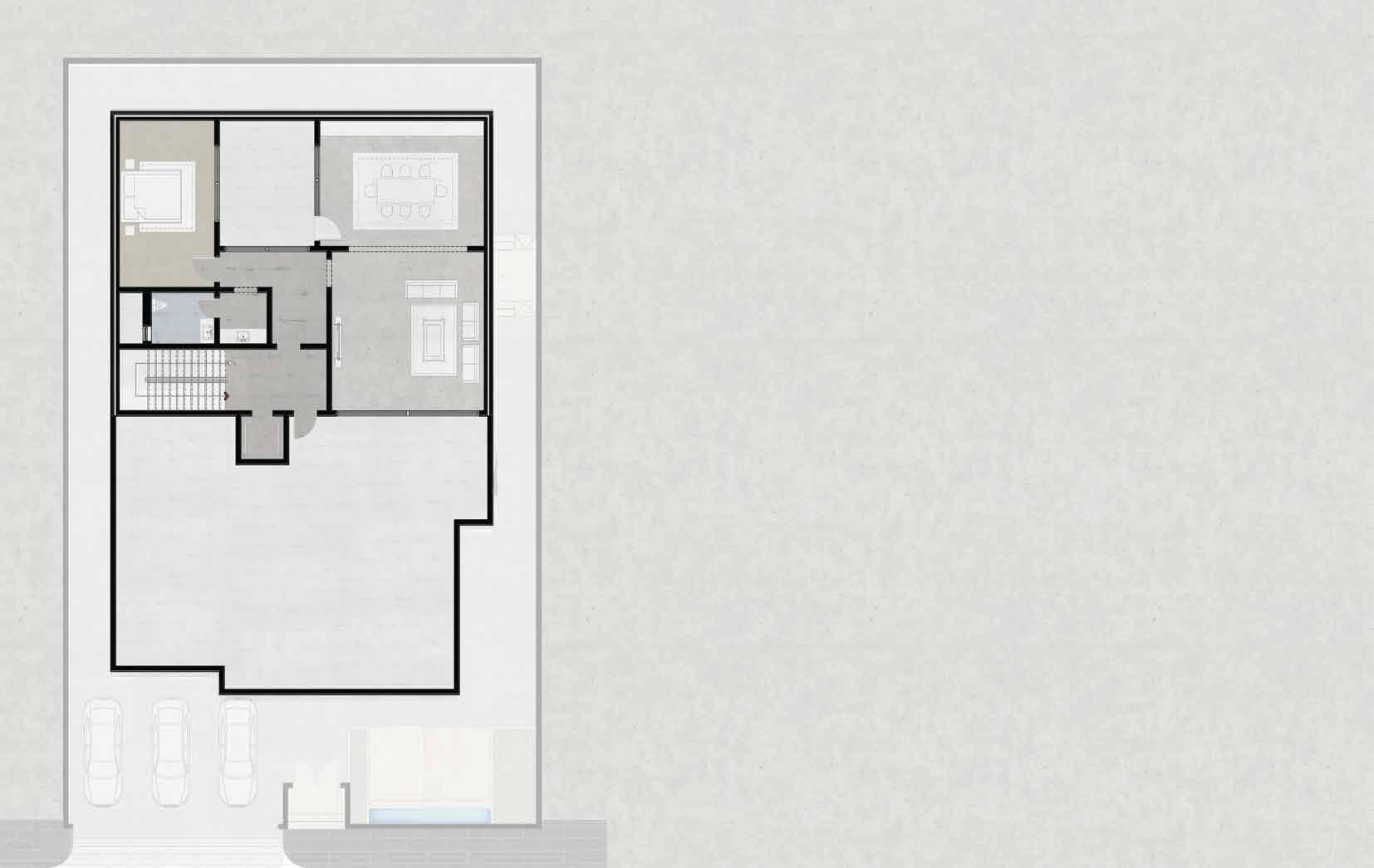

Majles , Toilets , Wash Area ,Foyer Women Guest Zone Guest Dinning Room Men Guest Zone Private Zone Family Zone Living Room Utility Zone 1 Majles , Toilets , Wash Area ,Foyer Hall , Dinning Area Mater Bedroom , Multipurpose Room , Bathroom Kitchen , Storage ,Lundry , Maid Room 2 3 4 5 6 7 

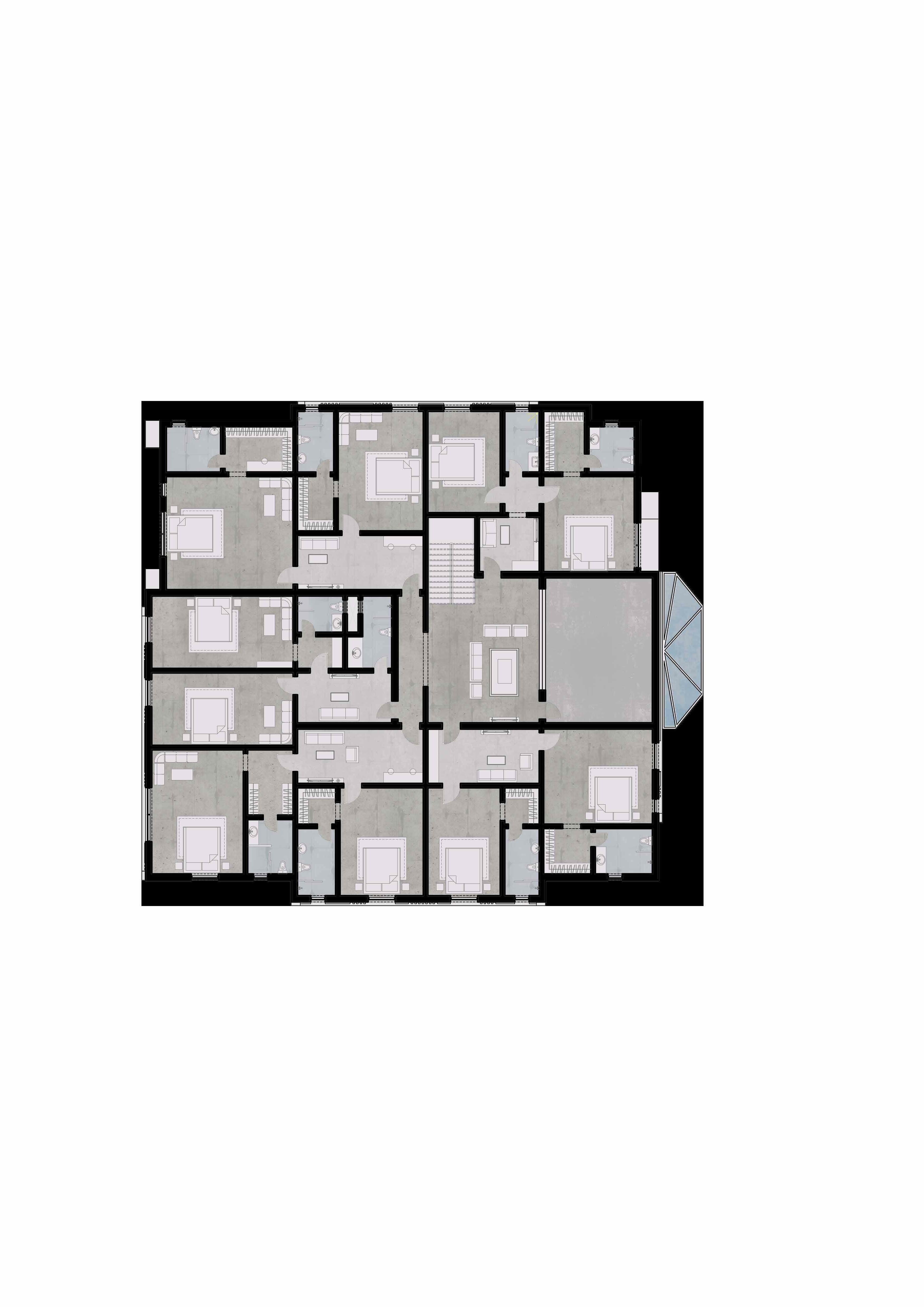

Total Area : 700 m2 The second floor contains Five Two Bedroom Suites Living Area Balccony 



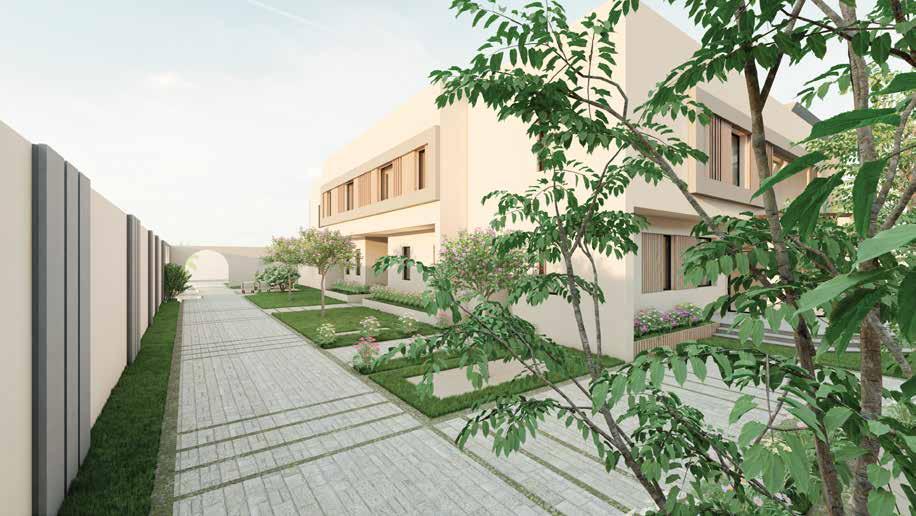

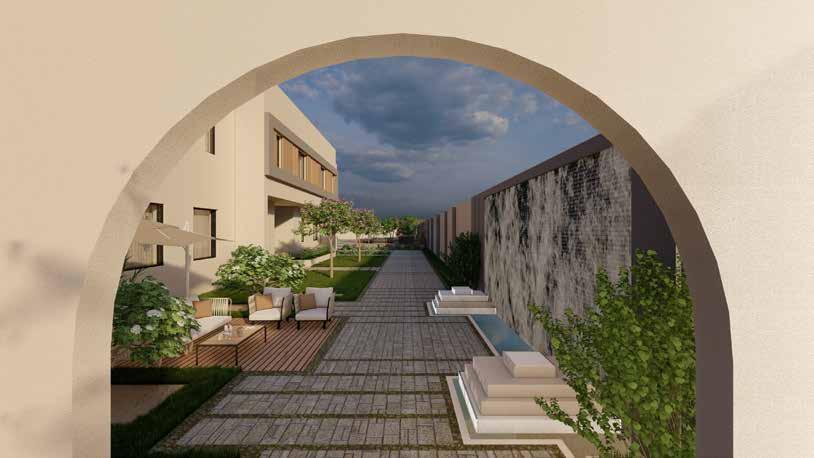

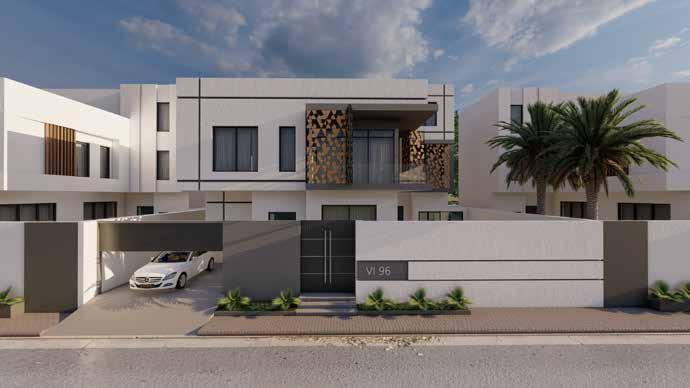

TWO STOREY VILLA PLOT AREA : 600 m2 SAFWA 

  1 2 3 4 5 6 7 8 9 10 Garage Majles Bathroom Family Hall Kitchen Storage -dirty kitchen Lundray Elevator Bedroom Master Bedroom 2 4 5 6 7 9 10 8 3 Apt. 2 Apt. 1 1 2 5 3 4 3 2  1 9 3 1 2 3 4 5 Living Room - Kitchen Storage Badroom Bathroom Master Bedroom 1 5 3 3 4 G-FLOOR 1ST-FLOOR A-A A-A A-A A-A

   1 2 4 3  0.60m 0.00m 1.05m 5.05m 8.65m 10.25m 12.25m 1 2 3 4 Living Room Dinning Room Bedroom Bathroom 1ST-FLOOR A-A A-A

TWO STOREY VILLA PLOT AREA : 500 m 2 SAFWA TWO STOREY VILLA PLOT AREA : 500 m 2 QATIF 

PLOT AREA

m 2

ELEVATION

PROJECT



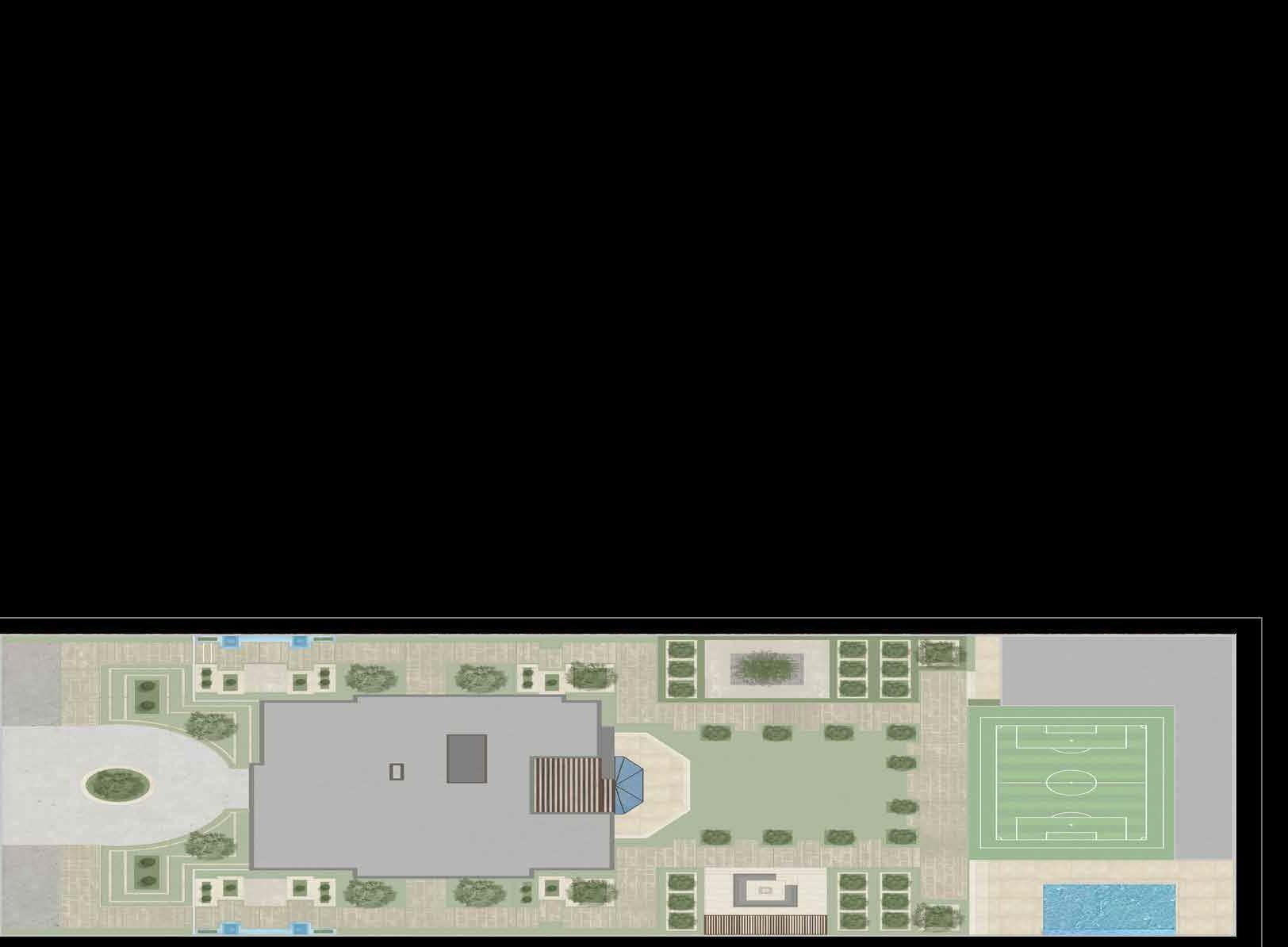

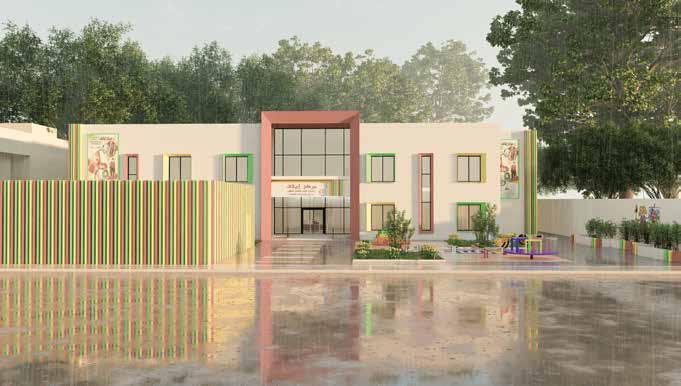

REHABILITATION CENTER

:2200

SAFWA REDESIGN

COMMERCIAL

DAMMAM



 

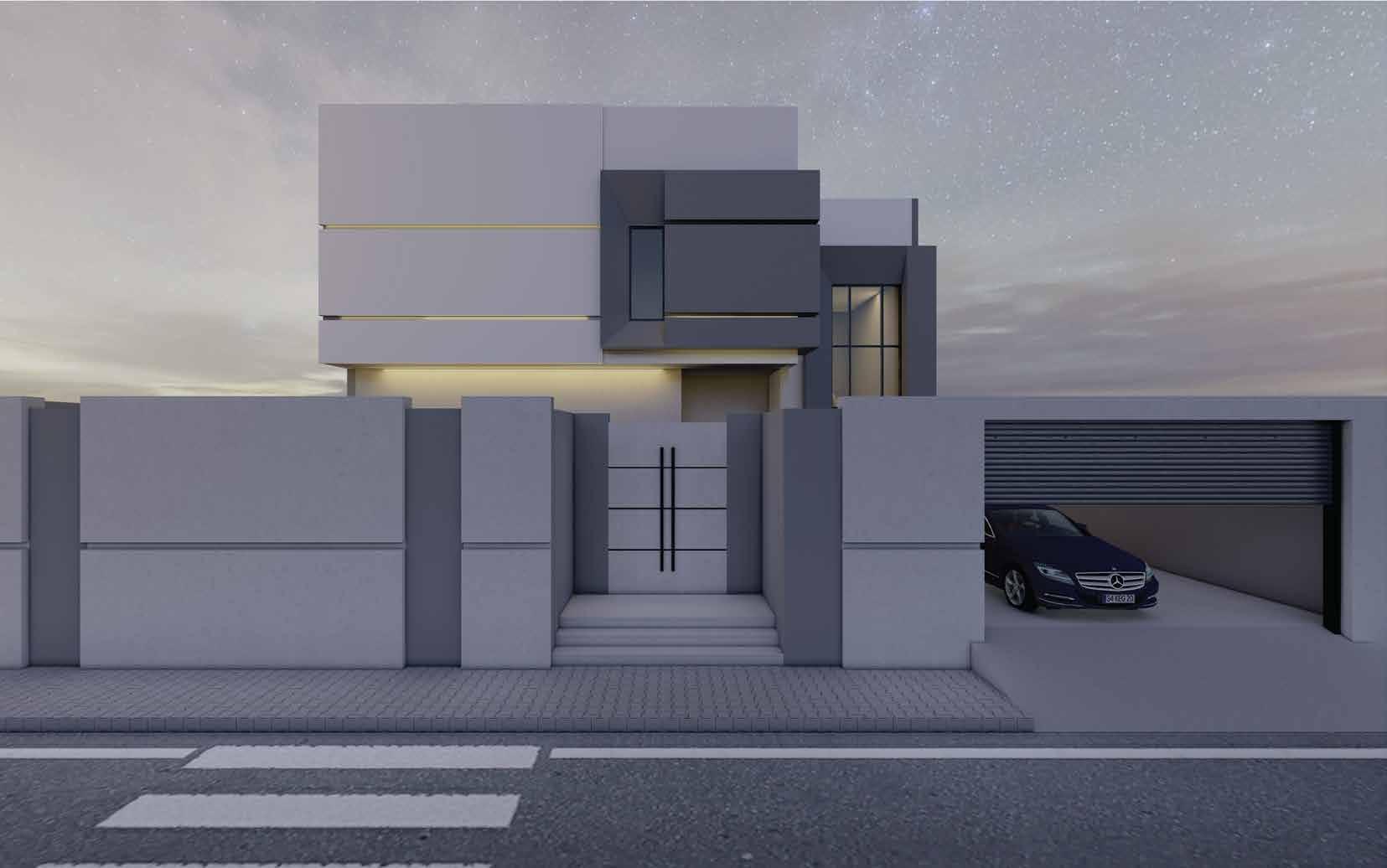

TWO STOREY VILLA PLOT AREA : 500 m 2 QATIF 

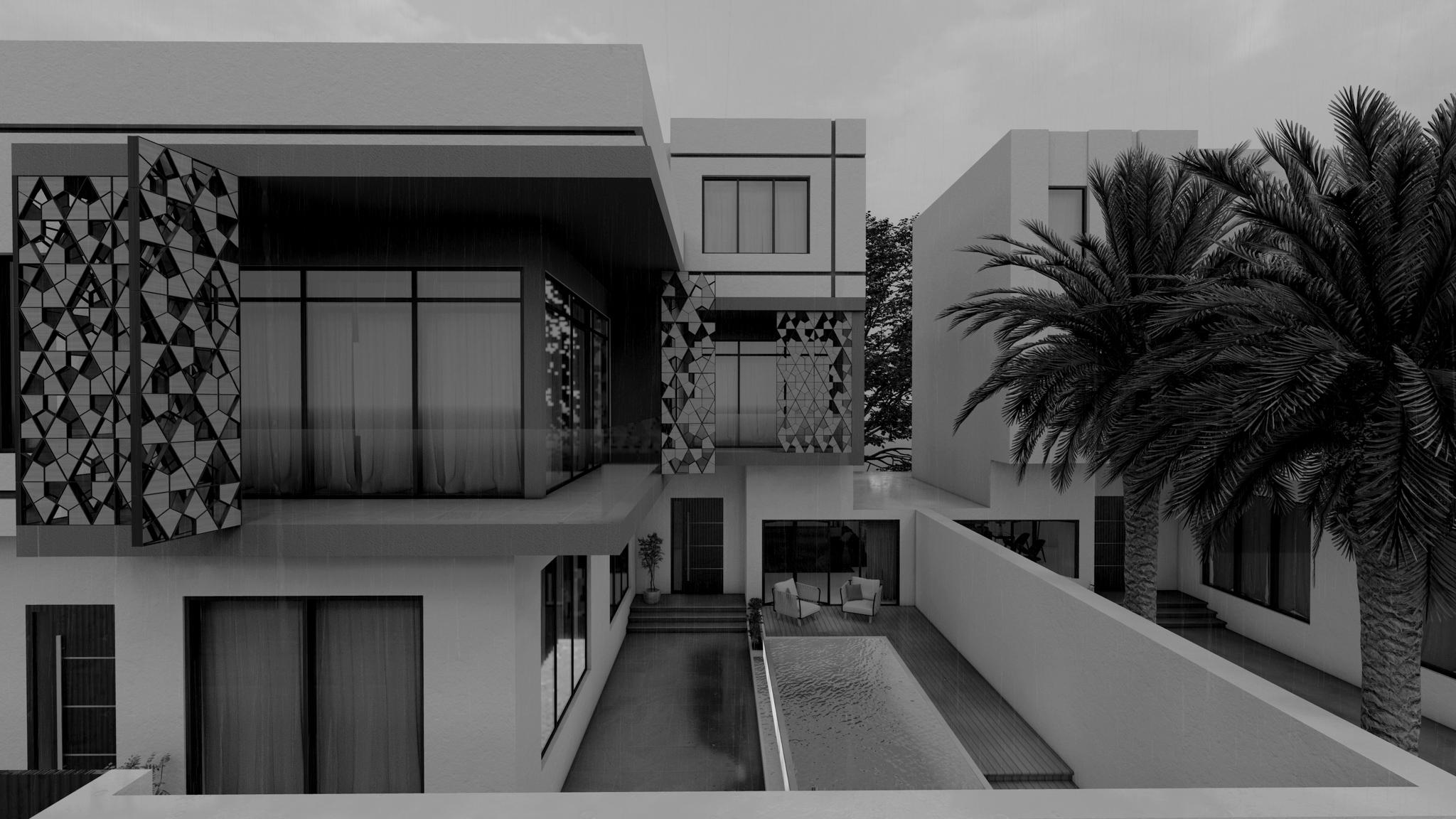

Modern villa design of glass and concrete , The design had an interesting open layout of living and dining area which open to the garden.

 1 2 3 4 5 6 7 8 9 Majles Living Area Dinning Area Elevator Master Bedroom Kitchen Storage Lundray Swimming Pool 1 9 2 3 4 5 6 7 8 

Commercial Project

PLOT AREA : 3208 m 2 Tarout, Qatif

Two prposed plan were design with different ideas :

NEIGHBOR

The first propsed plan spread diveded into 600 m 2 subermarket and 9 shops .

The second plan designed as two storey building distributin ground floor in first floor . ground floor includes 10 restruent , first floor includes 4 restrunrt with balcony





    



 

The Desert Resort is located in Al Asfar lake, Al Ahsa in Saudi Arabia. The aim of the project is to provide place that combines two different ecological environments that is desert and lake, to sense the diversity of the nature. In addition, the project makes a major contribution to inbound tourism by providing a place provides a unique evolution that embraces the heritage, culture, wildlife ha bitat and the environment of Al Ahsa, Saudi Arabia. The resort includes 32 villas, main center, sport center, research center, activity building, staff building.

The design concept is to create an eco-friendly and sustainable desert resort at Al Asfar lake in Saudi Arabia that would characterize Al Ahsa by its architectural and cultural character strongly related to existing heritage. The main functions of this project is to be a tourist destination that will help visitors to explore the lake view and surrounding unique landscape.

The lake is near to the mountain (114 above above the sea level ) that enriches the landscape and guest”s experience

Place the parking zone faraway to keep the cars far from the precious landscape. The guest would be collected by a resort transpot

Easy access by an existing sandy road to get maximum of the best view at the lake all the facilities will be face the north placed on the highest level on the site , placed on the opposite side of the resort , it has the most appealing view of the lake , guest can star their touring to the magnificent lake to go to the activity

3 4 1 2 Facilities Zone Staff Zone Parking Zone

3 1 2

Activity Zone

- Roundabout with four paths

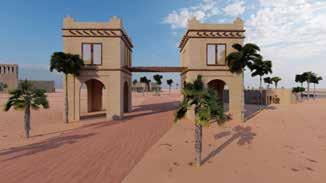

-The first one is for the main entrance for the resort

- The second one is for the facility of our resort as you can see every function has its own path

- The other path is for the villas

- The right one contains 6 bedrooms villa in the be ginning of the path to be close to the research zone and the distance between each villa is more than the other side which is 20 and above

- The left side contains 6 two-bedroom, three-be droom, and 4 one-bedroom are placed in the end of the path to get more quiet time and privacy.

- Also, we do a road for the activity zone and activity building

- Before the entrance gate we placed the staff buil ding

BEST Master

Plan

By considering the culture of Saudi Arabia, each villa in the resort was designed carefully with an em phasis on comfort and privacy. As an example, the villas were separated with a distance of 15m to 20m between each villa, trees were added in the distance between villas for privacy, areesh partition in the balcony and part of the swimming pool were covered. Additionally, as a sustainable measure, the villas were raised off the ground through piles.

Al the facilities are oriented to:

- North direction to get maximum day light

- Wind direction from the north

- Best view of the site from the north ( lake and mountain )

VIEW

SPORT CENTER MAIN CENTER BESTVIEW

BESTVIEW

Ground Floor Plan First Floor Plan

Ground

Floor

A-A

A-A A-A

1- Entrance 2- Balcony 3- Lobby 4- Administration Lobby 5- Fire stair 6- Shope 7- Clinic 8- Toilet 9- Storage 10- Cafe 11-Restraurant 12- Kitchen

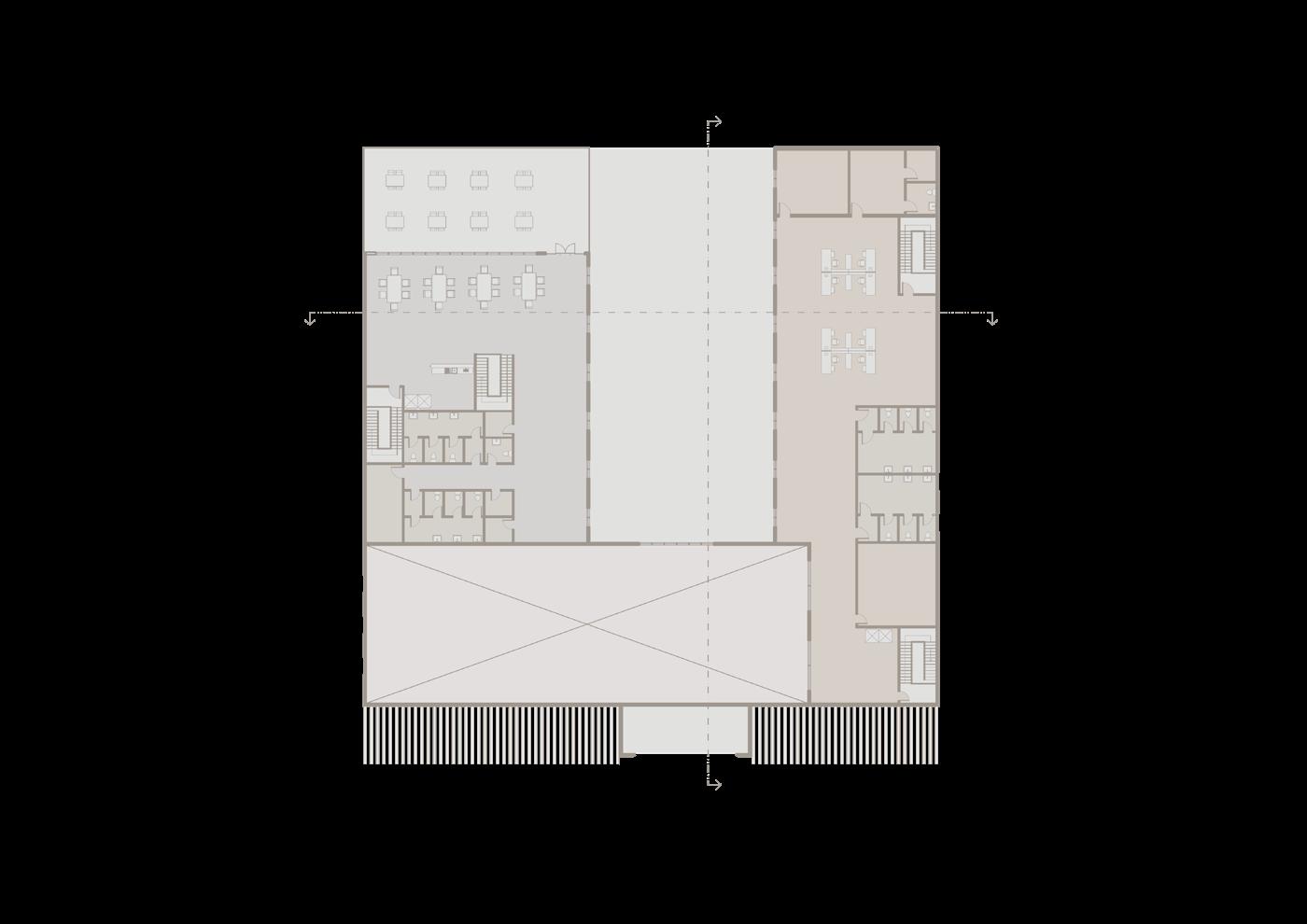

First Floor 1- Lobby 2- Fire stair 3- Break room 4- Toilet 5- Offices 6- Manger Office 7- Meeting room 8- Restraurant 9- Terrass

3 2 2 4 5 6 7 8 10 9 5 8 9 11 12 9 5 3 4 7 6 2 2 5 4 2 9 8 0.00m 1.00m 6.00m 9.00m 12.00m

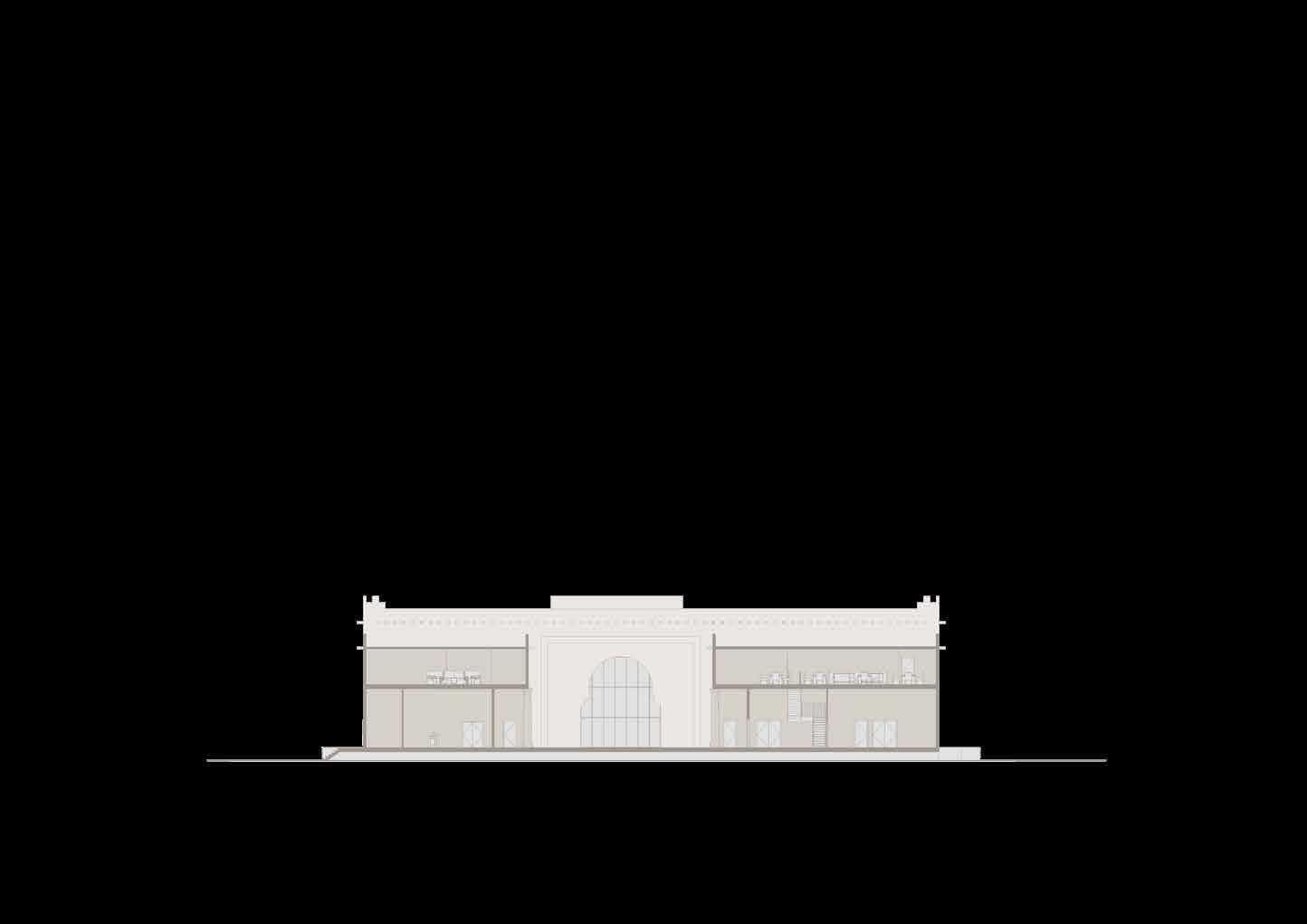

Section A-A A-A

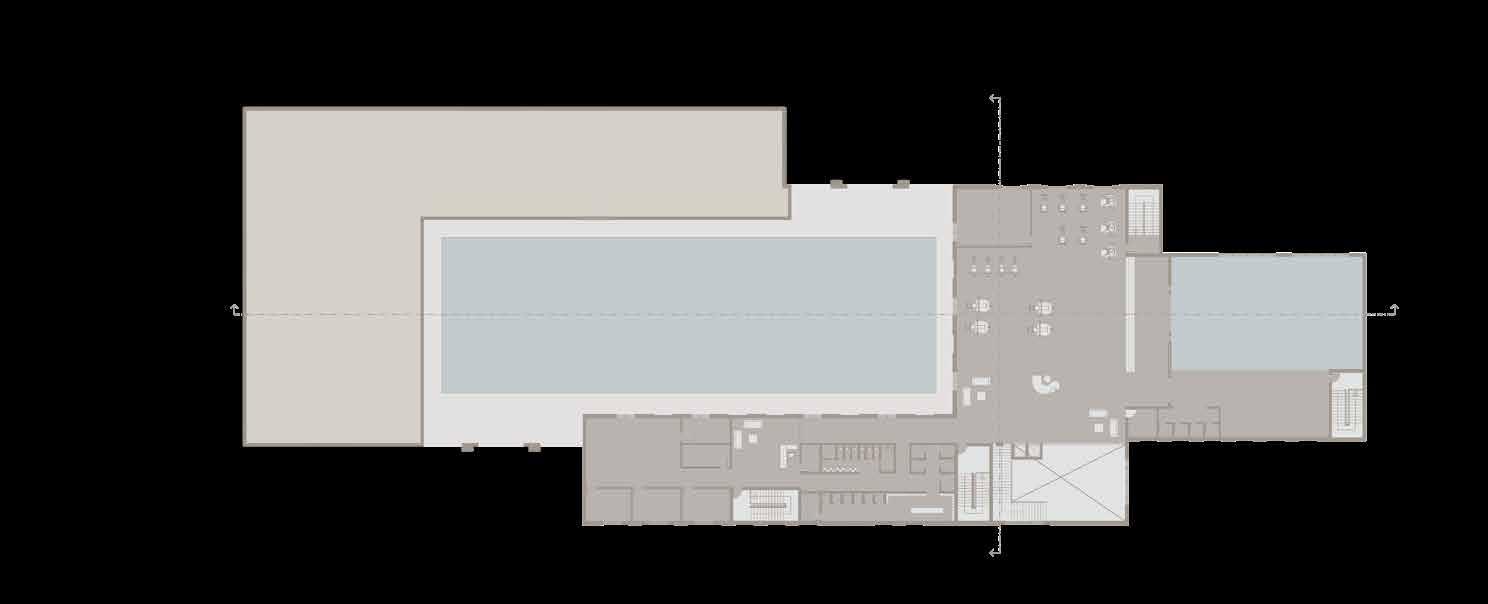

Sport Center

By considering the culture of Saudi Arabia, we designed separate sports cen ters, one for females and the other one for males. Both centers connected with a longi tudinal swimming pool centered in the courtyard. Both centers include a spa, gym, and game room. In addition, the ground floor of the female center includes kids’ zone, kids' training room, and café.

First Floor Plan

Ground Floor

1- Entrance 2- Lobby 3- Office 4- Game room 5- Gym 6- Training room 7- Changing room 8- Shower 9- Toilet 10- Spa 11- Swimming pool 12- Kids zone 13- Fire stair 14- Kitchen 15- Cafe

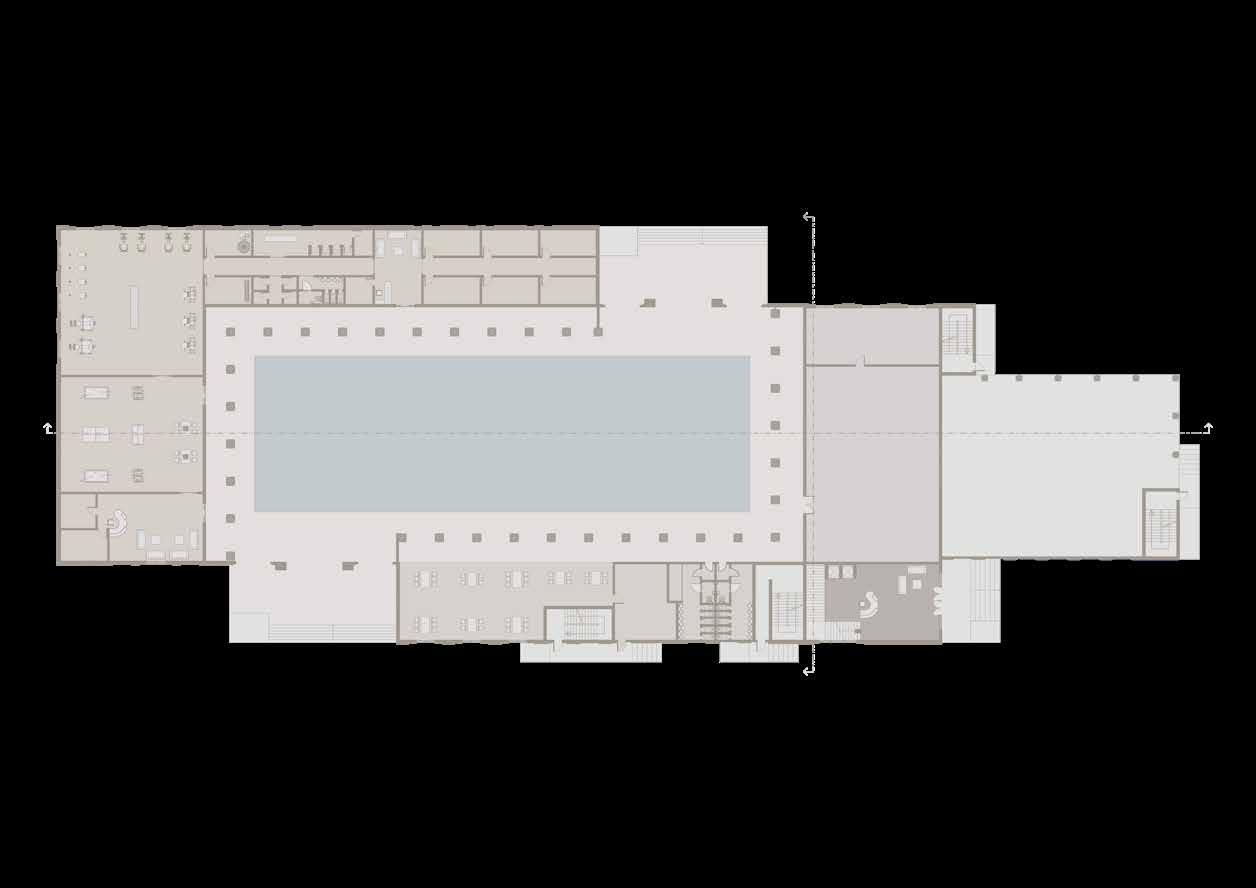

First Floor 1- Salon 2- Spa 3- Lobby 4- Fire Stair 5- Toilet 6- Changing room 7- Shower 8- Gym 9- Training room 10- Swimming pool

Ground

Floor Plan

Section A-A

1 4 3 2

3 5 2 4

6 7 4

0.00m 1.00m 5.00m 11.00m A-A A-A 9

9 10 7

1 11 2 4 5 2 10 15

12 14 6 6 3 7 9 8 3 3 13 13 13

12 2

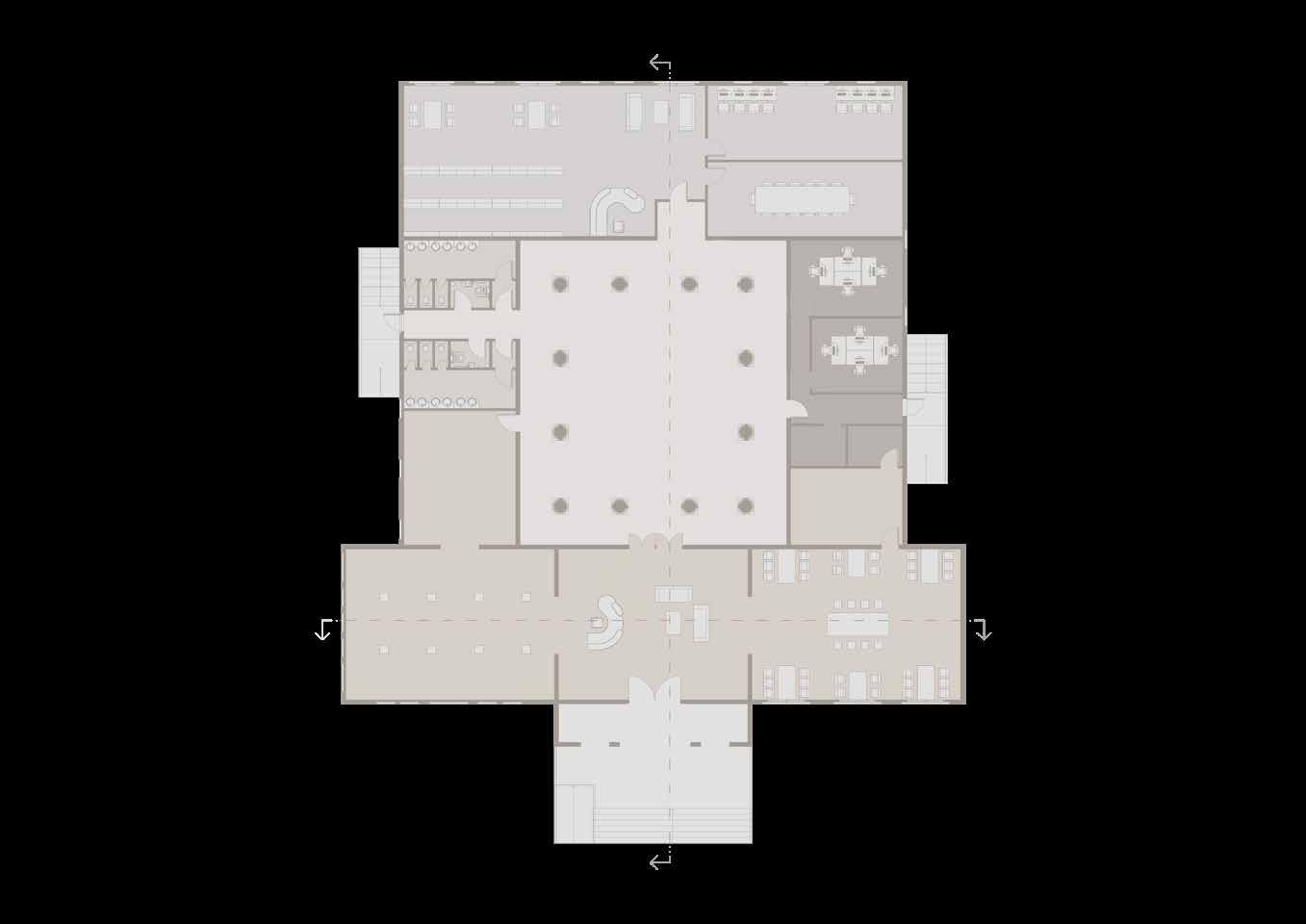

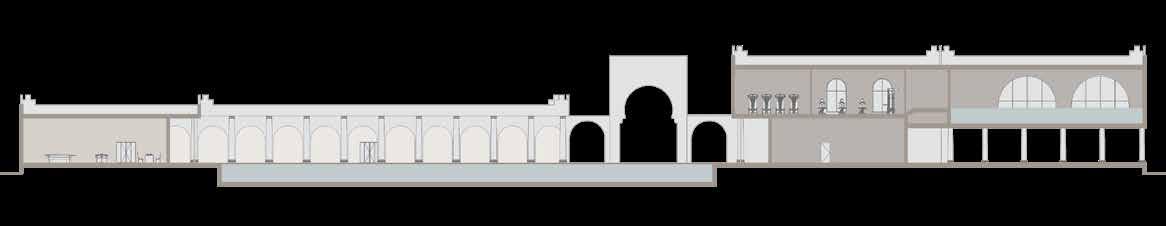

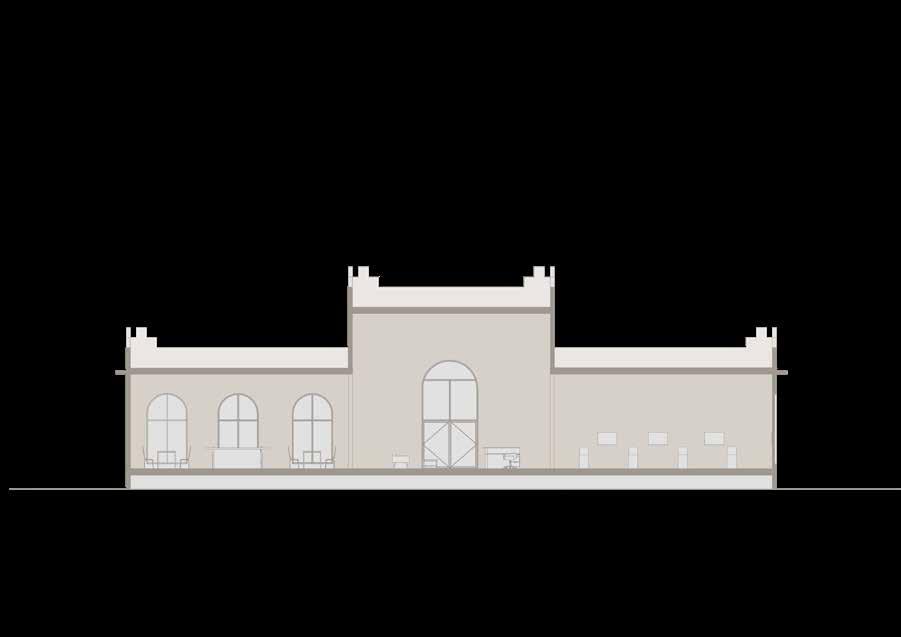

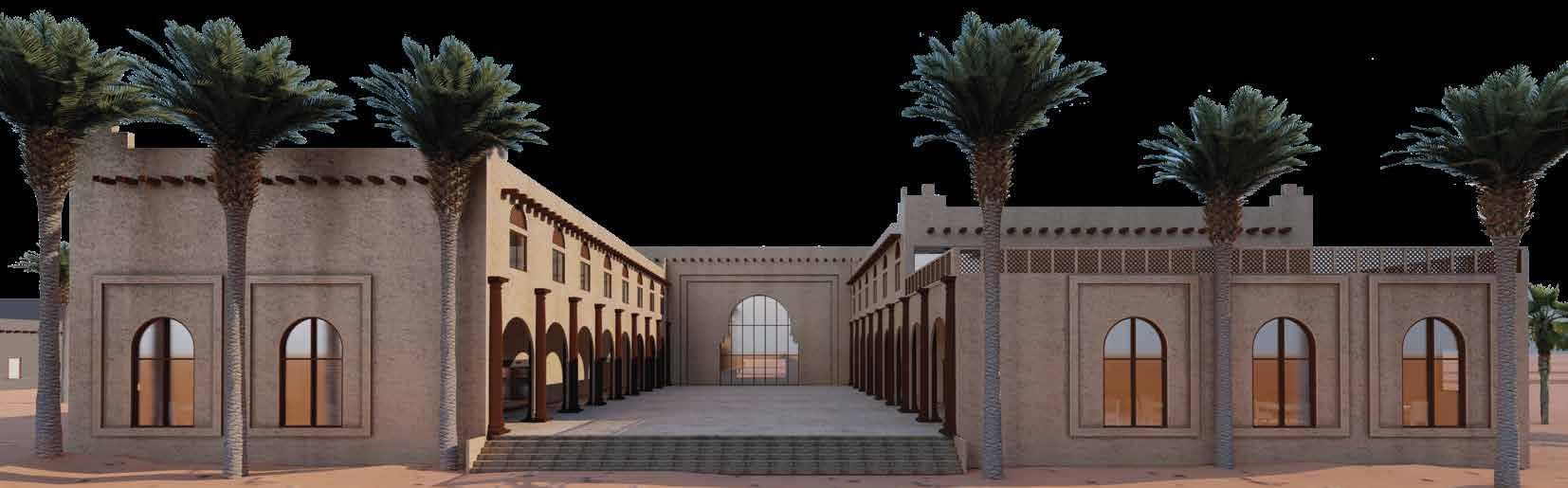

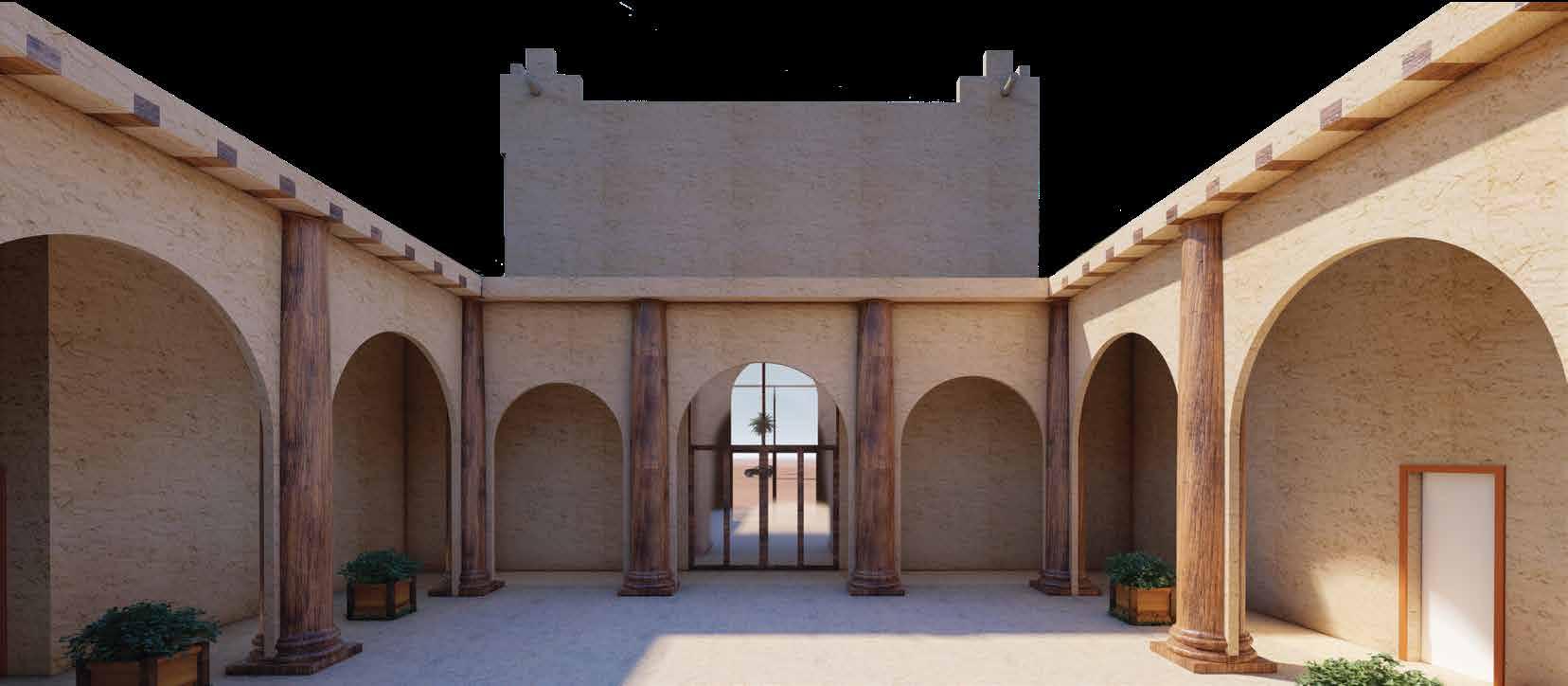

Section A-A 0.00m 1.00m 6.00m 7.00m 9.00m A-A A-A Ground Floor Plan 1 3 2 14 13 12 11 11 4 5 10 9 7 8 6 1- Entrance 2- Lobby 3- Gallery 4- Worksop 5- Toilet 6- Library 7- Media room 8- Meeting room 9- Courtyard 10- Riwaq 11- Offices 12- Storage 13- Kitchen 14- Cafe

Villas

Designed the villas in a way to maximize the lake view and to provide privacy for the guests. The design of the villas is inspired from Al Ahsa heritage buildings.

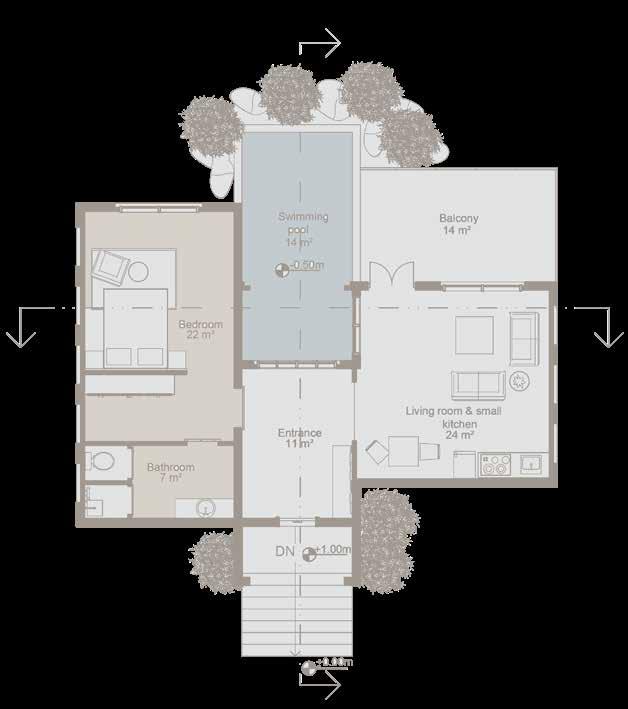

One Bedroom

The villa includes a bedroom, living room, dining table, kitchen, and balcony with a longitudinal swimming pool facing the beautiful lake.

The total area of the villa: 73 m²

Total number of one-bedroom villa in the resort: 10 Villas

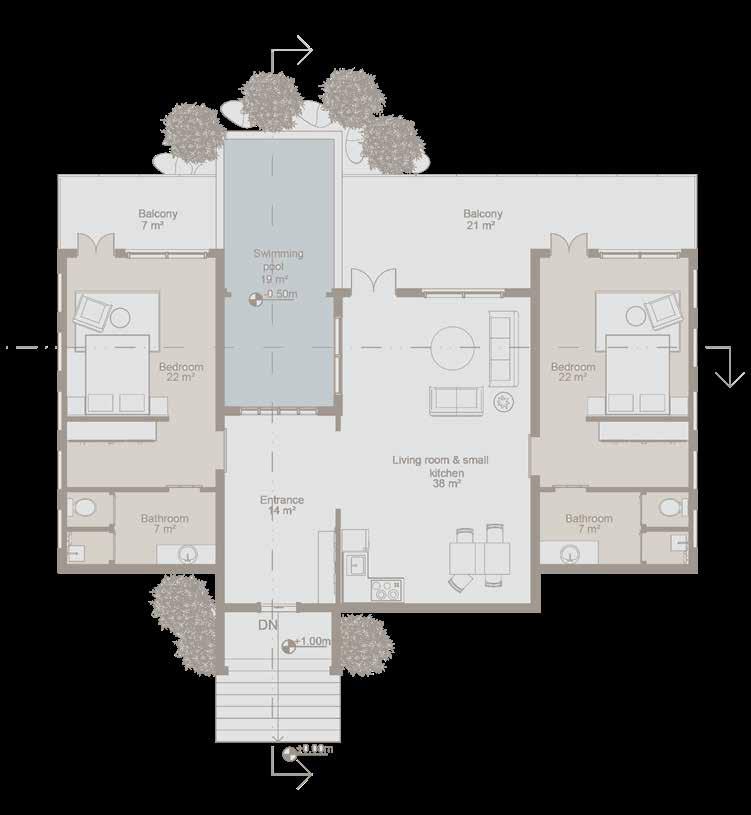

Two Bedroom

The villa includes two bedrooms, living room, dining table, kitchen, and balcony with a longitudinal swimming pool facing the beautiful lake. The total area of the villa: 124 m²

Total number of one-bedroom villa in the resort: 11 Villas

Villas

Designed the villas in a way to maximize the lake view and to provide privacy for the guests. The design of the villas is inspired from Al Ahsa heritage buildings.

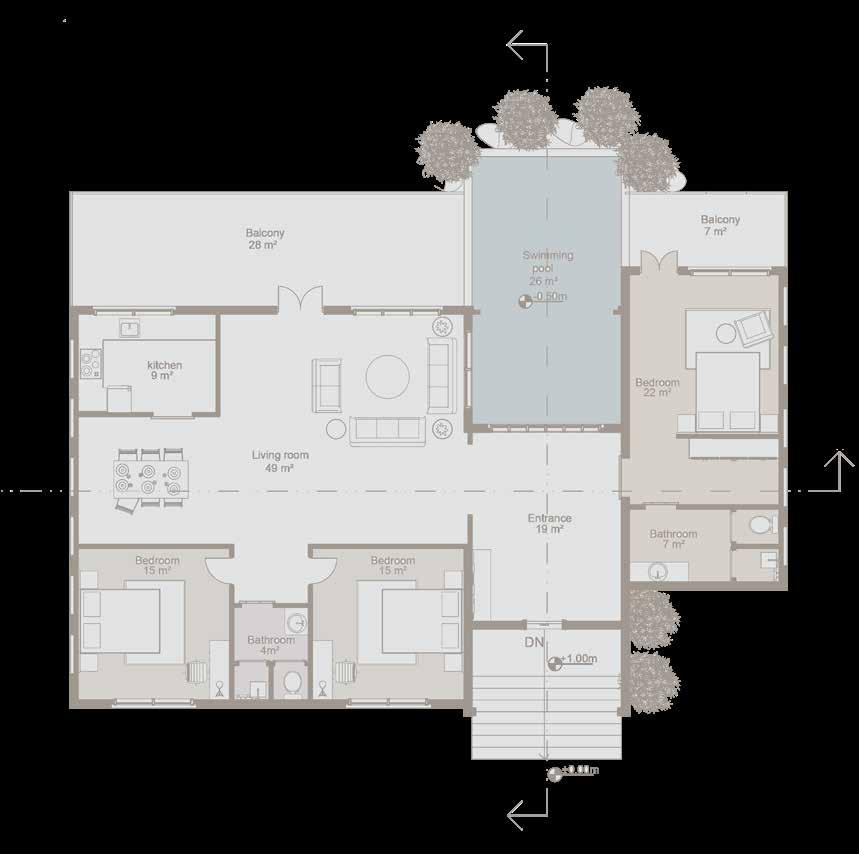

Three Bedroom

The villa includes three bedrooms, living room, dining table, kitchen, and balcony with a longitudinal swimming pool facing the beautiful lake.

The total area of the villa: 185 m²

Total number of one-bedroom villa in the resort: 11 Villas

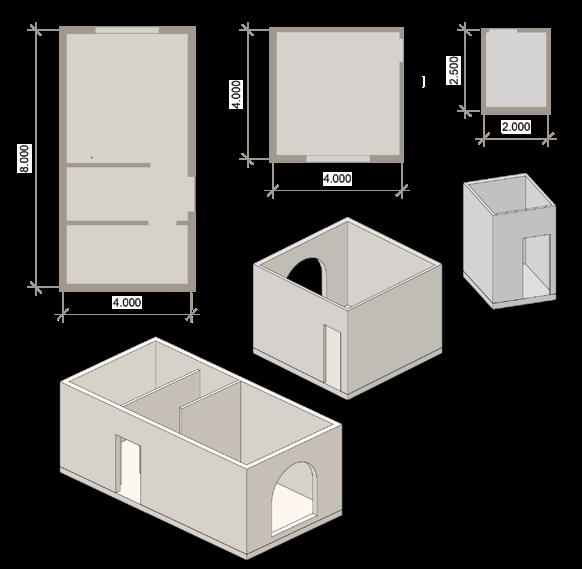

E NGINEERING SOLUTIONS

The objective is to protect the environment area such as vegetation and fragile landscapes. To decrease the use of concrete since it needs much of heavy concrete trucks to be in the site. All the buildings are all prefabricated construction.

Master Bedroom Bedroom Bathroom
