Product Guide
DESIGNER DRAINAGE SYSTEMS
Swimming Pools — Balconies — Flush Thresholds — Showers
aquabocci.co.uk
aquabocci.co.uk
THRESHOLD
SHOWER DRAINS
A25 R-47 LOW RIBBON 12 FOR INTERNAL AND EXTERNAL USE INCLUDING SHOWERS BLADE-T 08 EXTERNAL SLOT DRAIN S66 SLIMLINE 10 FOR INTERNAL AND EXTERNAL USE INCLUDING SHOWERS R-47 THRESHOLD 18 FLUSH THRESHOLD DOOR DRAIN R-47 LOW PROFILE 16 FLUSH THRESHOLD DOOR DRAIN R-47 X BLADE THRESHOLD 20 FLUSH THRESHOLD DOOR DRAIN A30 LOW PROFILE 06 FOR INTERNAL AND EXTERNAL USE INCLUDING SHOWERS A25 ULTRA LOW PROFILE 04 FOR INTERNAL AND EXTERNAL USE INCLUDING SHOWERS
DRAINS

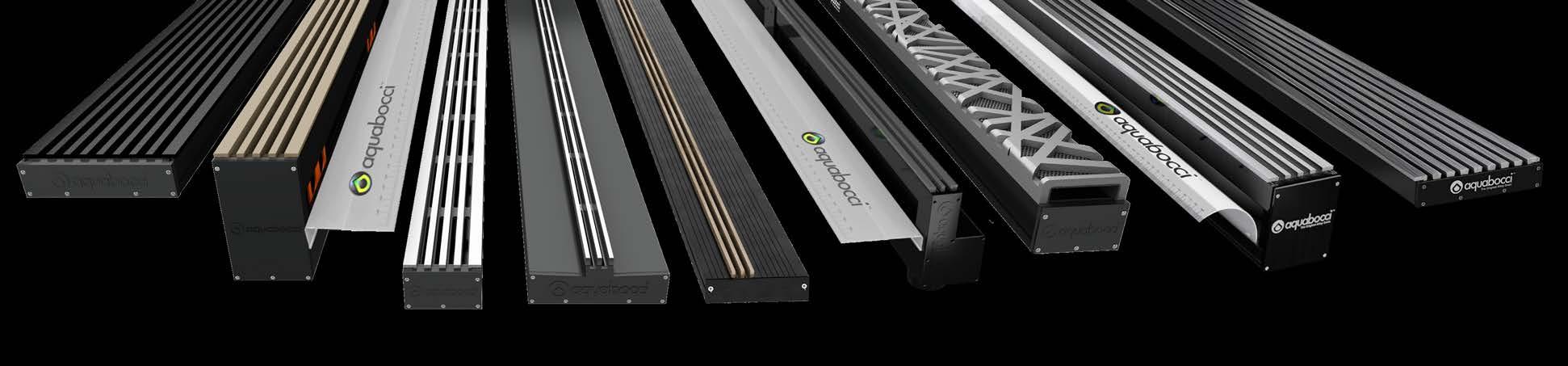

BLADE SHOWER KIT 2 2 MINIMAL SHOWER SLOT DRAIN AQUABOCCI PRODUCT RANGE NEW NEW NEW NEW A30 R-47 S66 BLADE-T BLADE SHOWER R-47 X BLADE RIBBON 02 03 aquabocci.co.uk
LOW PROFILE DRAINS
LENGTHS
PERFORMANCE + FINISH

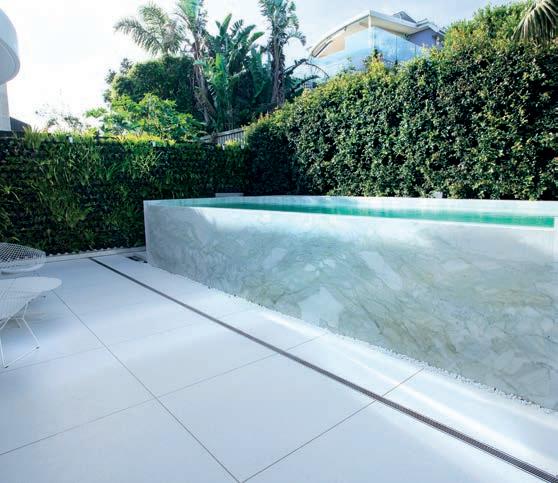

Locations Swimming Pools, Wet Rooms, Balconies and Driveways
Flow Rates Up to 30 litres Per Min / 50mm outlet and 34 litres Per Min / 90mm outlet
Slip Rating Optional Aquabocci WunderGrip ( CSIRO R-13 )/ Non Slip finish available on all Aquabocci products
Anti Corrosion Will not rust or tea stain around salt water or chlorine
Heelguard Safe? Yes
Function Can be cut to any length
Aquabocci Custom 4 colours available
“Ultra Low Profile ideal for shallow installations.”
NEW
A25 ULTRA LOW PROFILE DRAIN 2400mm 1200mm

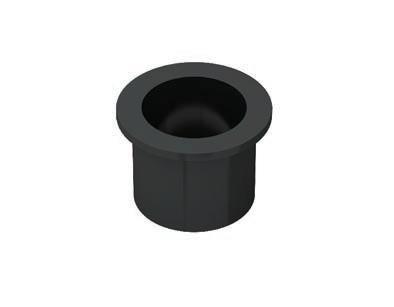

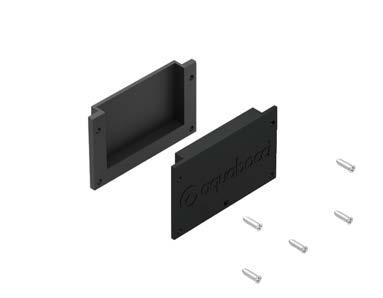

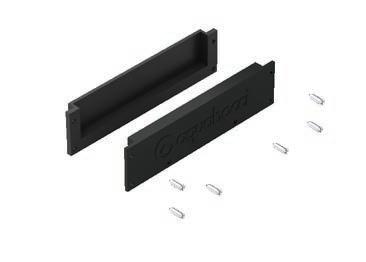

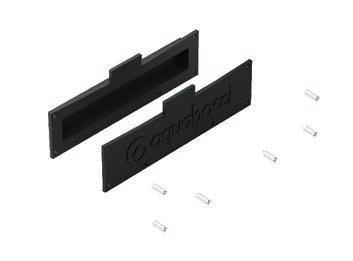

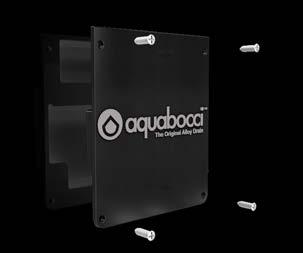

END CAP WITH EPDM SEALS AND SCREWS SPIGOT

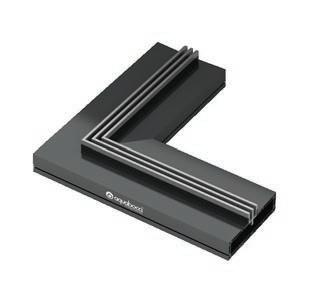

CORNER

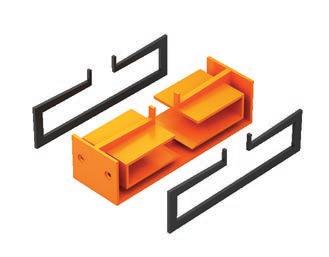

CONNECTOR WITH EPDM SEALS AND SCREWS
120mm 25mm PROFILE
04 05 aquabocci.co.uk
GT Silver Titanium Black Champagne
COLOURS
PERFORMANCE + FINISH
Locations Swimming Pools, Wet Rooms, Balconies and Driveways
Flow Rates Up to 35 litres Per Min / 50mm outlet and 44 litres Per Min / 90mm outlet
Slip Rating Optional Aquabocci WunderGrip ( CSIRO R-13 )/ Non Slip finish available on all Aquabocci products
Anti Corrosion Will not rust or tea stain around salt water or chlorine
Heelguard Safe? Yes
Function Can be cut to any length
Aquabocci Custom 4 colours available
LENGTHS A30 LOW PROFILE DRAIN 2400mm 1200mm 120mm 35mm
END CAP WITH EPDM SEALS AND SCREWS SPIGOT
CORNER
CONNECTOR WITH EPDM SEALS AND SCREWS
PROFILE
06 07 aquabocci.co.uk
GT Silver Titanium Black Champagne
COLOURS
PERFORMANCE + FINISH

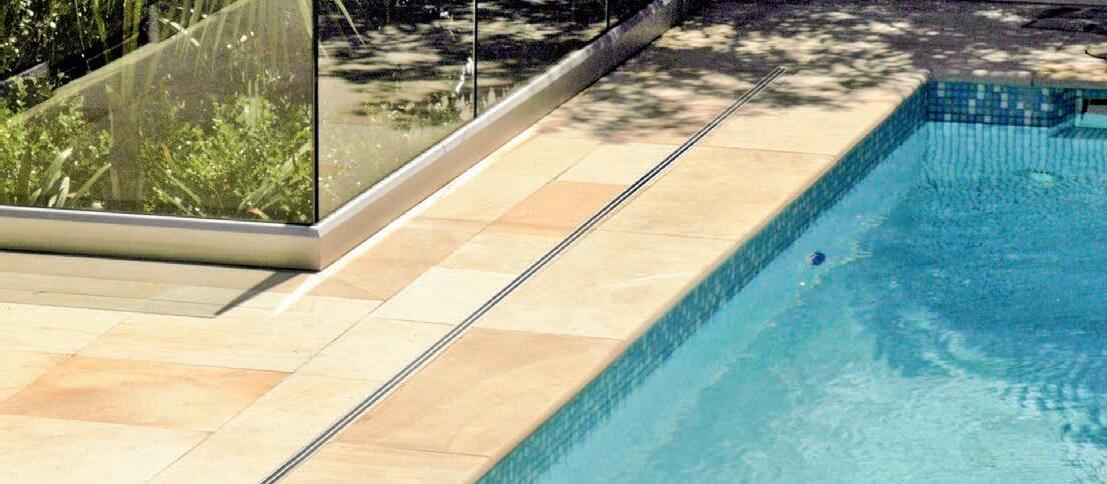

Locations Swimming Pools, Balconies and Courtyards
Flow Rates Up to 38 litres Per Min / 50mm outlet and 44 litres Per Min / 90mm outlet
Slip Rating Optional Aquabocci WunderGrip (CSIRO R-13 ). Non Slip finish available on all Aquabocci products
Anti Corrosion Will not rust or tea stain around salt water or chlorine
Heelguard Safe? Yes
Function Can be cut to any length
Aquabocci Custom 4 colours available
LENGTHS BLADE-T EXTERNAL
2400mm 1200mm
SLOT DRAIN
END CAP WITH EPDM SEALS AND SCREWS SPIGOT

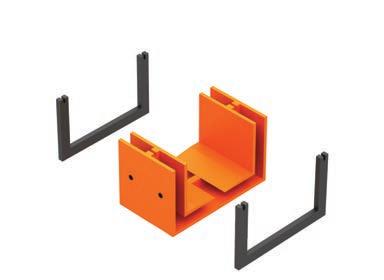

CORNER
CONNECTOR WITH EPDM SEALS AND SCREWS
124mm 24mm 20mm 48mm 32mm PROFILE COLOURS 08 09 aquabocci.co.uk
GT Silver Titanium Black Champagne
PERFORMANCE + FINISH
Locations Wet rooms, balconies, swimming pools and courtyards
Flow Rates Up to 43 litres per minute with a 50mm outlet
Slip Rating Optional Aquabocci WunderGrip (CSIRO R-13 ). Non Slip finish available on all Aquabocci products
Anti Corrosion Will not rust or tea stain around salt water or chlorine
Heelguard Safe? Yes
Function Can be cut to any length
Aquabocci Custom 4 colours available
LENGTHS S66 SLIMLINE DRAIN 2400mm 1200mm
END CAP WITH EPDM SEALS AND SCREWS SPIGOT
CORNER
CONNECTOR WITH EPDM SEALS AND SCREWS
43mm PROFILE COLOURS 10 11 aquabocci.co.uk
GT Silver Titanium Black Champagne
66mm
PROFILE
PERFORMANCE + FINISH

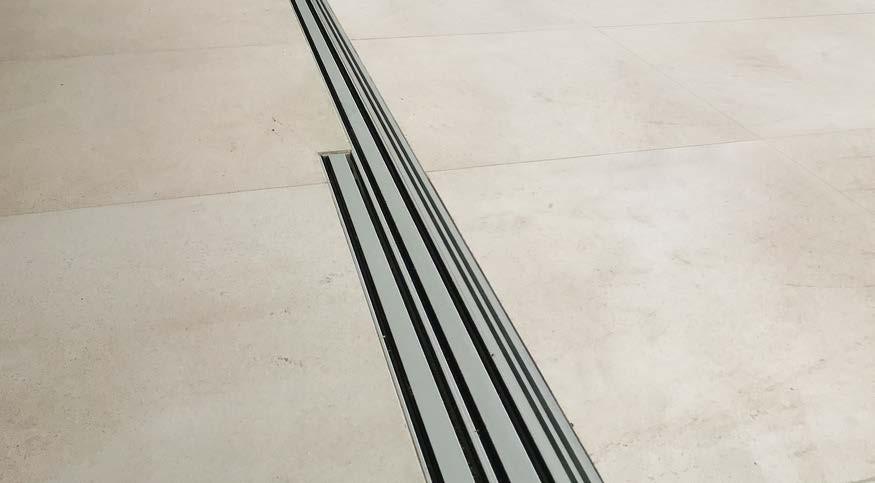

Locations Wet Rooms, balconies and thresholds
Flow Rates Up to 43 litres per minute with a 50mm outlet
Slip Rating Optional Aquabocci WunderGrip (CSIRO R-13 ). Non Slip finish available on all Aquabocci products
Anti Corrosion Will not rust or tea stain around salt water or chlorine
Heelguard Safe? Yes
Function Can be cut to any length
Aquabocci Custom 4 colours available
LENGTHS RIBBON DESIGNER LINEAR DRAIN 2400mm 1200mm
END CAP WITH EPDM SEALS AND SCREWS SPIGOT

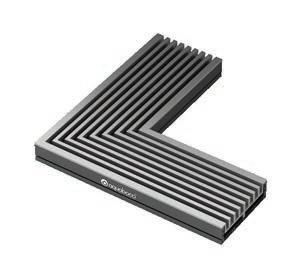

CORNER
CONNECTOR WITH EPDM SEALS AND SCREWS
66mm 48mm 8mm
12 13 aquabocci.co.uk
GT Silver Titanium Black Champagne
COLOURS
R-47 LOW PROFILE
R-47 X BLADE

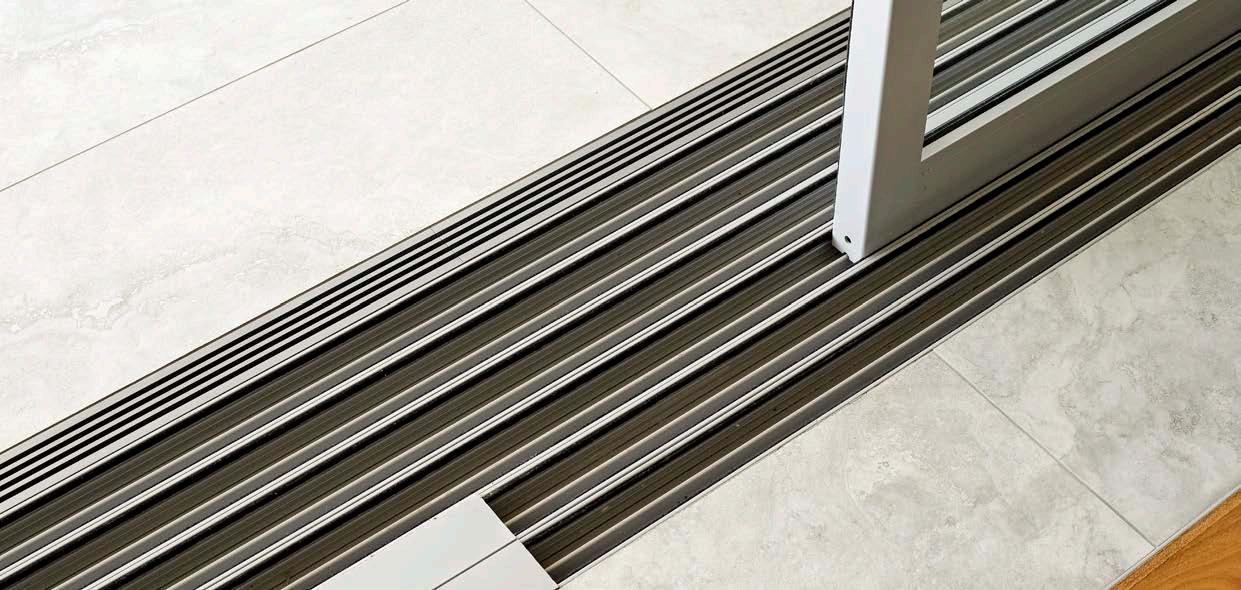

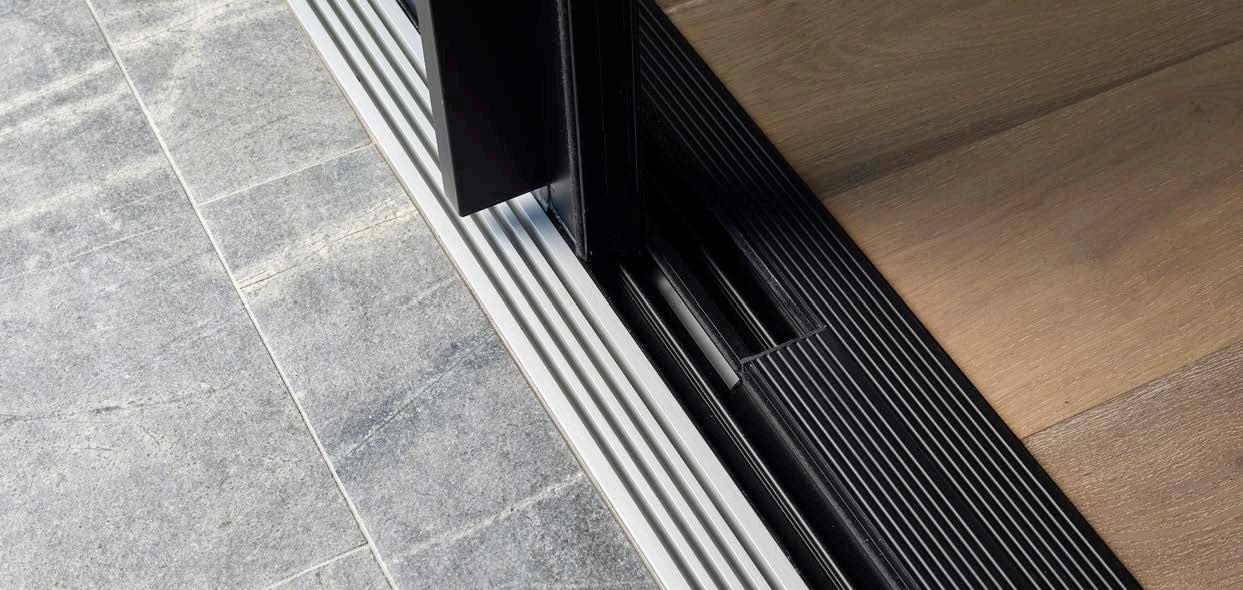

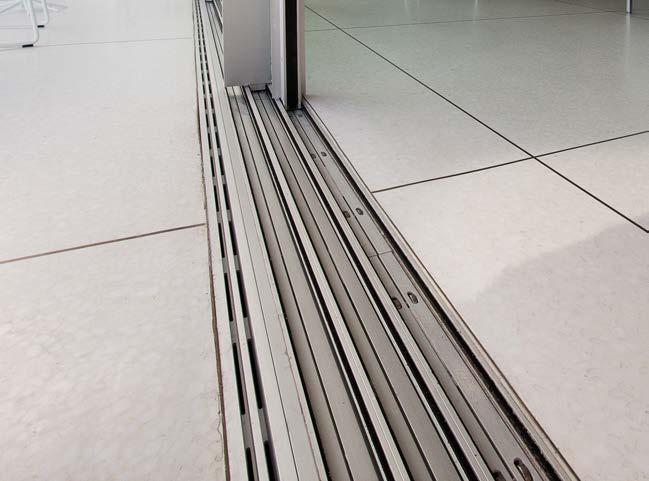

FLUSH THRESHOLD DRAINS
R-47
26mm 48mm 40mm 122mm 66mm 24.75mm 8.5mm 6mm 4mm 19.5mm 4mm 16mm 20mm 32mm 3.25mm 60mm 48mm 65.5mm 56.75mm 116.75mm 26mm 26 mm 29mm 88mm 66mm NEW 14 15 aquabocci.co.uk
PROFILE
PERFORMANCE + FINISH

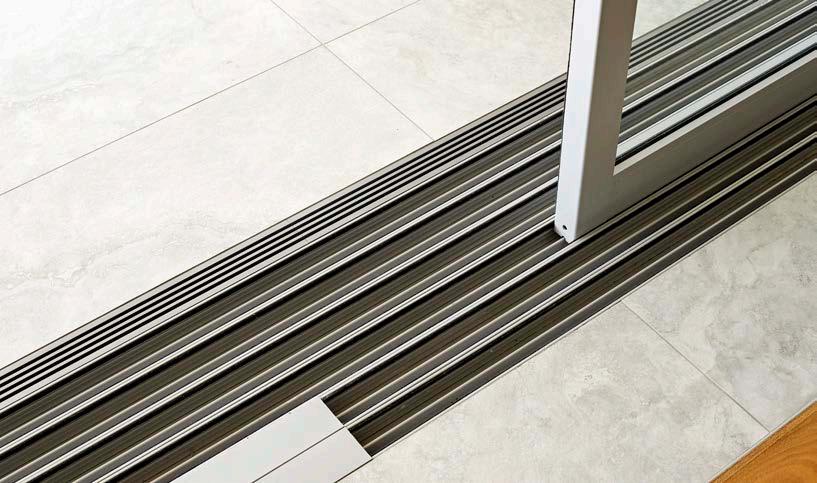

Locations Bi-fold track doors and thresholds
Flow Rates Up to 43 litres per minute with a 50mm outlet
Slip Rating Optional Aquabocci WunderGrip (CSIRO R-13 ). Non Slip finish available on all Aquabocci products
Anti Corrosion Will not rust or tea stain around salt water or chlorine
Heelguard Safe? Yes
Function Can be cut to any length
Aquabocci Custom 4 colours available
R-47 LOW PROFILE FLUSH THRESHOLD DRAIN 2400mm 1200mm
LENGTHS
END CAP WITH EPDM SEALS AND SCREWS SPIGOT
GT Silver Titanium Black Champagne
CORNER
CONNECTOR WITH EPDM SEALS AND SCREWS
This item requires 2 connectors. Includes a perfectly mitre cut metal grate and pre-welded PVC channel.

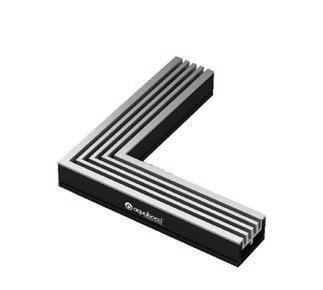

Internal Corner
26mm 26 mm 29mm 88mm 66mm NEW 16 17 aquabocci.co.uk
“Designed for shallow balcony installations.”
COLOURS
PERFORMANCE + FINISH

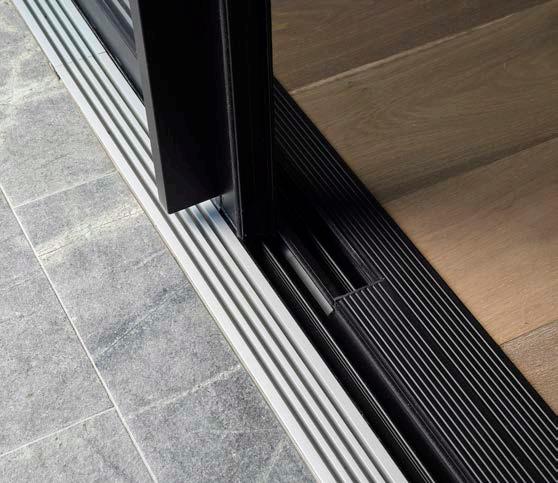

Locations Bi-fold track doors and thresholds
Flow Rates Up to 63 litres per minute with a 50mm outlet
Slip Rating Optional Aquabocci WunderGrip (CSIRO R-13 ). Non Slip finish available on all Aquabocci products
Anti Corrosion Will not rust or tea stain around salt water or chlorine
Heelguard Safe? Yes
Function Can be cut to any length
Aquabocci Custom 4 colours available
COLOURS
LENGTHS R-47 FLUSH THRESHOLD DRAIN 2400mm 1200mm
END CAP WITH EPDM SEALS AND SCREWS SPIGOT
26mm 48mm 40mm 122mm 66mm
GT Silver Titanium Black Champagne
CORNER
CONNECTOR WITH EPDM SEALS AND SCREWS
This item requires 2 connectors. Includes a perfectly mitre cut metal grate and pre-welded PVC channel.
PROFILE 18 19 aquabocci.co.uk
Internal Corner
PERFORMANCE + FINISH
Locations Bi-fold track doors and thresholds
Flow Rates Up to 61 litres per minute with a 50mm outlet
Slip Rating Optional Aquabocci WunderGrip (CSIRO R-13 ). Non Slip finish available on all Aquabocci products
Anti Corrosion Will not rust or tea stain around salt water or chlorine
Heelguard Safe? Yes
Function Can be cut to any length
Aquabocci Custom 4 colours available
COLOURS
This item requires 2 connectors. Includes a perfectly mitre cut metal grate and pre-welded PVC channel.
END CAP WITH EPDM SEALS AND SCREWS SPIGOT INTERNAL DIMENSION: 80MM LONG X 20MM WIDE

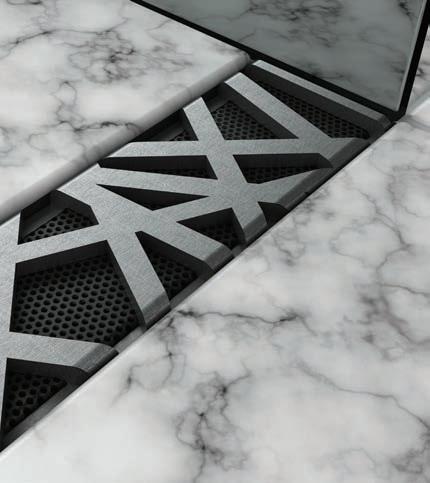

R-47 X BLADE FLUSH THRESHOLD DRAIN 2400mm 1200mm
LENGTHS
CORNER
CONNECTOR WITH EPDM SEALS AND SCREWS
24.75mm 8.5mm 6mm 4mm 19.5mm 4mm 16mm 20mm 32mm 3.25mm 60mm 48mm 65.5mm 56.75mm 116.75mm
GT Silver Titanium Black Champagne
External Corner
PROFILE
20 21 aquabocci.co.uk
Internal Corner

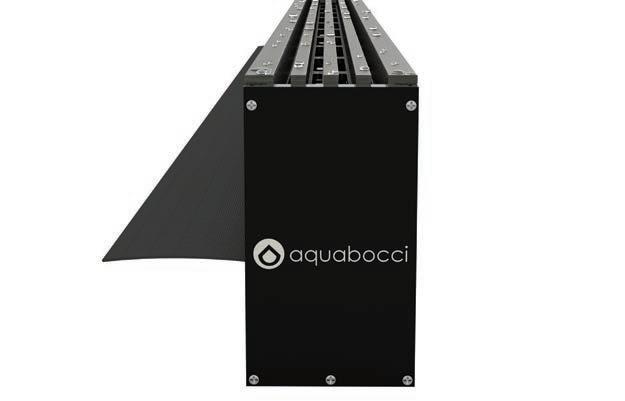

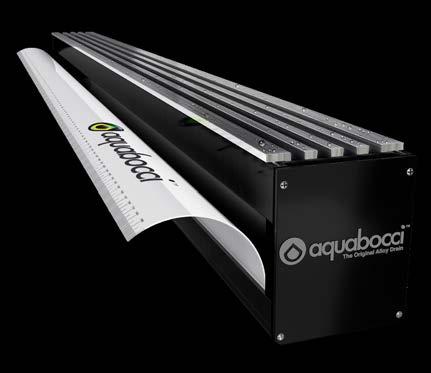

AQUABOCCI BLADE SHOWER KIT FEATURES — 1200MM AND 2400MM LENGTHS | REMOVABLE ANODIZED ALUMINIUM GRATE | AVAILABLE IN 4 COLOURS, GT SILVER, MATT BLACK, CHAMPAGNE & TITANIUM | UNLIMITED DESIGN POSSIBILITIES | HIEGHT ADJUSTABLE SPACERS TO MATCH TILE THICKNESS | HEELGUARD SAFE | VULCAN SYPHON TRAP WITH BUILT IN WATER PROOF MEMBRANE | PVC CHANNEL AND ALUMINIUM GRATE CAN BE CUT TO THE EXACT LENGTH YOU REQUIRE
ALL NEW DESIGN
aquabocci.co.uk 23 22
SHOWER DRAIN THAT IS SPECTACULAR OUTSIDE AND BRILLIANT INSIDE
COLOURS

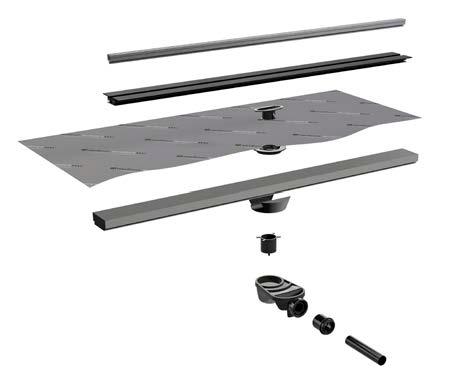

1200MM SHOWER KIT INCLUDES:
1 Grate
2 PVC channel
3 End cap with EPDM seal and screws
4 Spigot can be fixed in any location along channel
5 Fabric membrane sheet with EPDM seal
6 Template
7 Syphon insert
8 Syphon
9 Connector with EPDM Seal
10 Standard Pipe

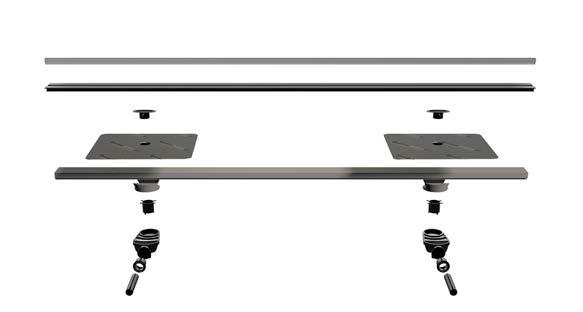

2400MM SHOWER KIT INCLUDES:
1 Grate
2 PVC channel
3 End cap with EPDM seal and screws
4 Spigot can be fixed in any location along channel
5 Fabric membrane sheet with EPDM seal
6 Template
7 Syphon insert
8 Syphon
9 Connector with EPDM Seal
10 Standard Pipe
2 3 4 5 7 6 8 8 9 9 10 10 BLADE
KIT PROFILE
SHOWER
GT Silver Titanium Black Champagne
1 2 3 5 4 6 7 25 aquabocci.co.uk 24
020 3697 1252 aquabocci.co.uk 28
