Page 1

Entrance

DOORS

The defining feature of your home


Cover Image Colour Arctic White Hardware Client Supplied Door type Plasma - PLA00


Altherm Entrance Doors A good entrance door does more than just provide access; it makes a statement. The inspiring thing about the Altherm range is that you can make any statement you like, from a nod to tradition in the form of tongue-and-groove, to something clean and architectural in glass, to a declaration of your unique style with an individualised combination of patterns and colours. The common theme is quality. Altherm Entrance Doors are built to last with low maintenance, enhanced stability, security and thermal efficiency. What’s more, they are widely available wherever you live, thanks to a network of almost 20 manufacturers nationwide. So make your statement with Altherm Window Systems.

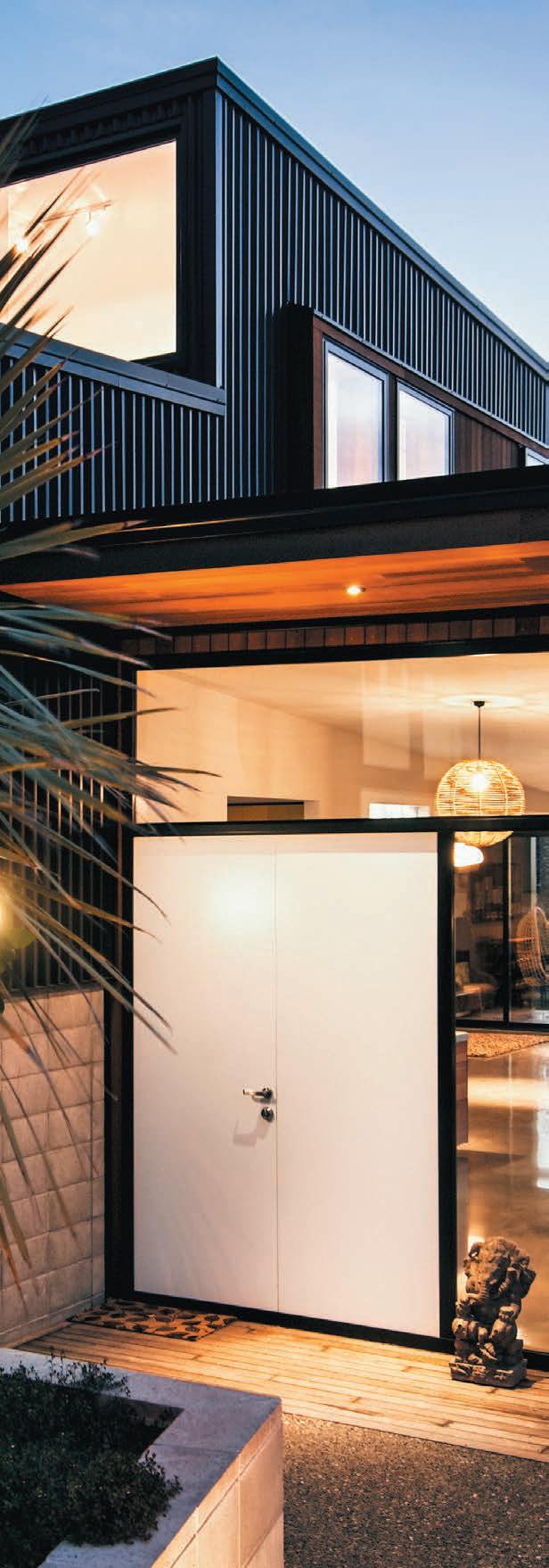

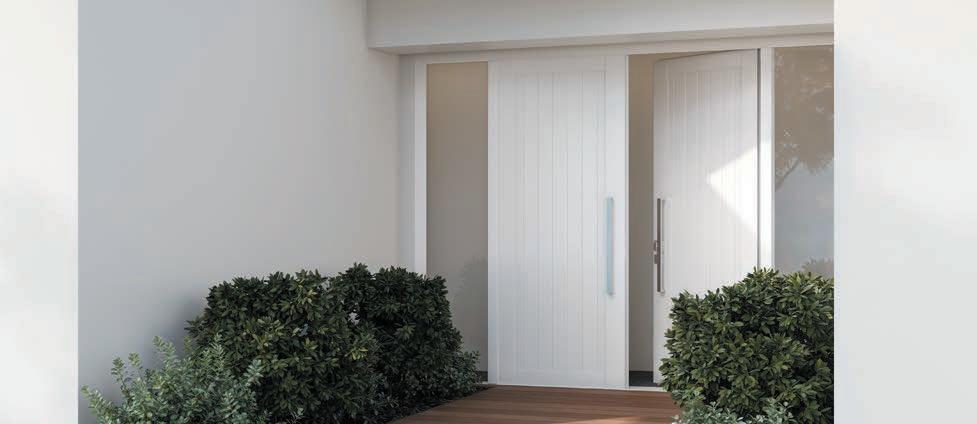

Plasma French Door Colour Arctic White Hardware Client Supplied Configuration PLA00

3


Plasma Colour Silver anodised Hardware Zealous Drift pull handle Configuration PLA00

4


Contents Why choose our Entrance Doors?..................................................................... 7 Latitude...................................................................................................................... 8 Plasma......................................................................................................................14 Axis.............................................................................................................................20 Classic.......................................................................................................................26 Aquila........................................................................................................................32 Glass Plasma..........................................................................................................38 Lindo.........................................................................................................................44 Entrance Door Hardware...................................................................................49 Urbo Hardware......................................................................................................50 Miro Hardware.......................................................................................................52 Icon Hardware.......................................................................................................54 Elemental Hardware............................................................................................56 Yale Hardware........................................................................................................58 Windsor Hardware................................................................................................59 Yale Gripset Products...........................................................................................60 Yale Digital Products.............................................................................................61 Surface Finishing...................................................................................................62 Entrance Door Configurations..........................................................................68

5

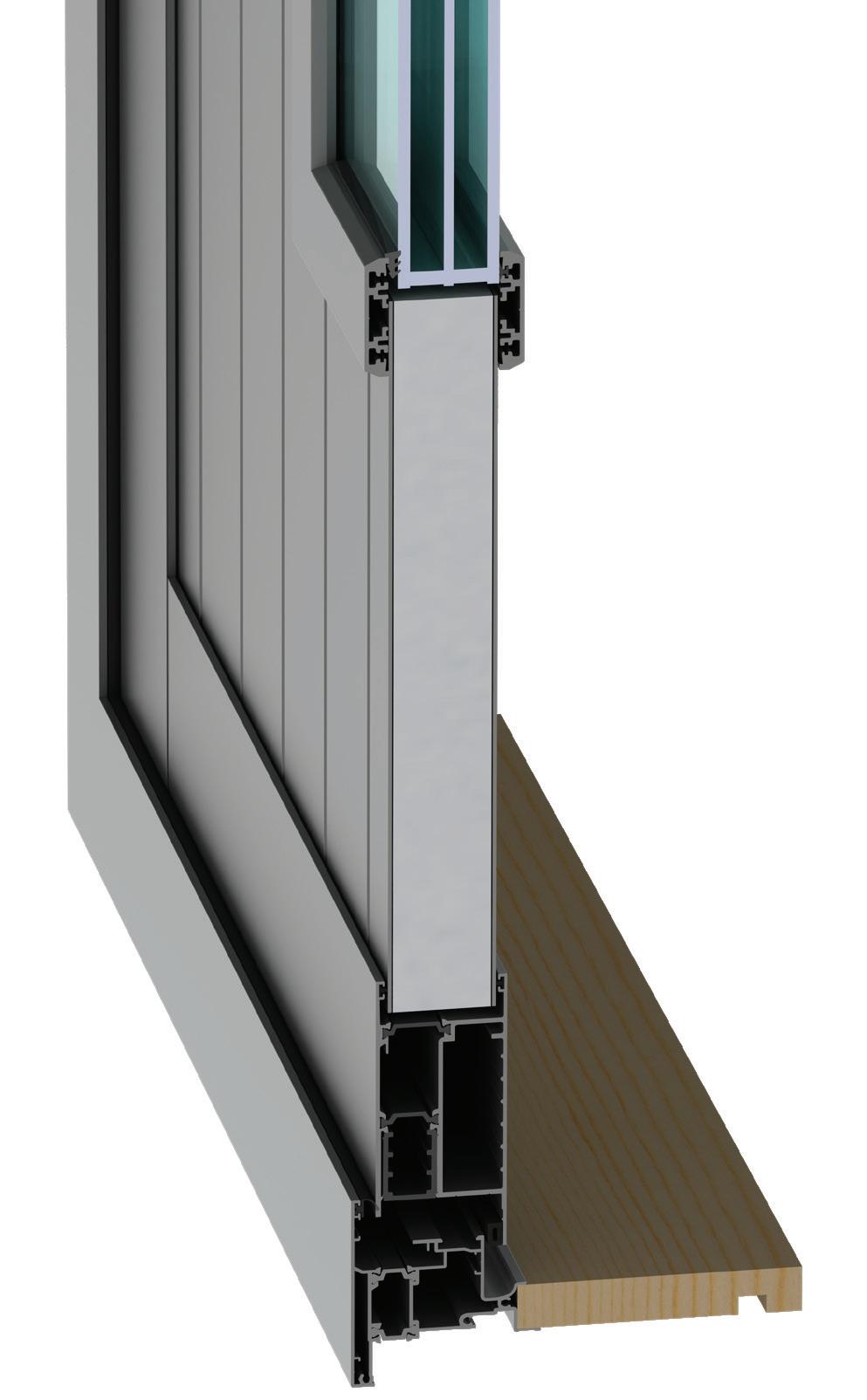

Solid foam core

Aluminium clad door for superior strength and durability

6


Why choose our expertly designed entrance doors Low maintenance

Thermal efficiency

Our doors are easy to clean and require little upkeep to keep them in top condition

Insulated with a solid, premium grade foam inner core prevents the transfer of hot and cold temperatures for greater thermal efficiency for your home

Durability Our doors are built to last, expertly designed and built with the latest manufacturing technologies for maximum strength and stability

Aluminium construction Constructed from aluminium for reliability and high performance under a range of weather conditions

Stability

Security

Built with durable materials, there is little risk of the door swelling and warping in damp conditions

Multi locking technologies are available for the increased security of your home

Colour options Using the colourfast technologies of anodising and powdercoating, we have a wide selection of up-to-date colour and finish options available

Acoustic performance Our doors reduce the transfer of noise into your home

7


Latitude ENTRANCE DOORS

8


Vertical Colour Mannex Arctic White Hardware Urbo lever handle Configuration LAT00

9


Latitude Features ƒ

Aluminium clad doors combining tongue and groove boards in either a vertical or horizontal pattern

ƒ

Sturdy frame around the door panel

ƒ

Customisable options include dual colour schemes, glass inserts, thermal breaks, and a range of door hardware.

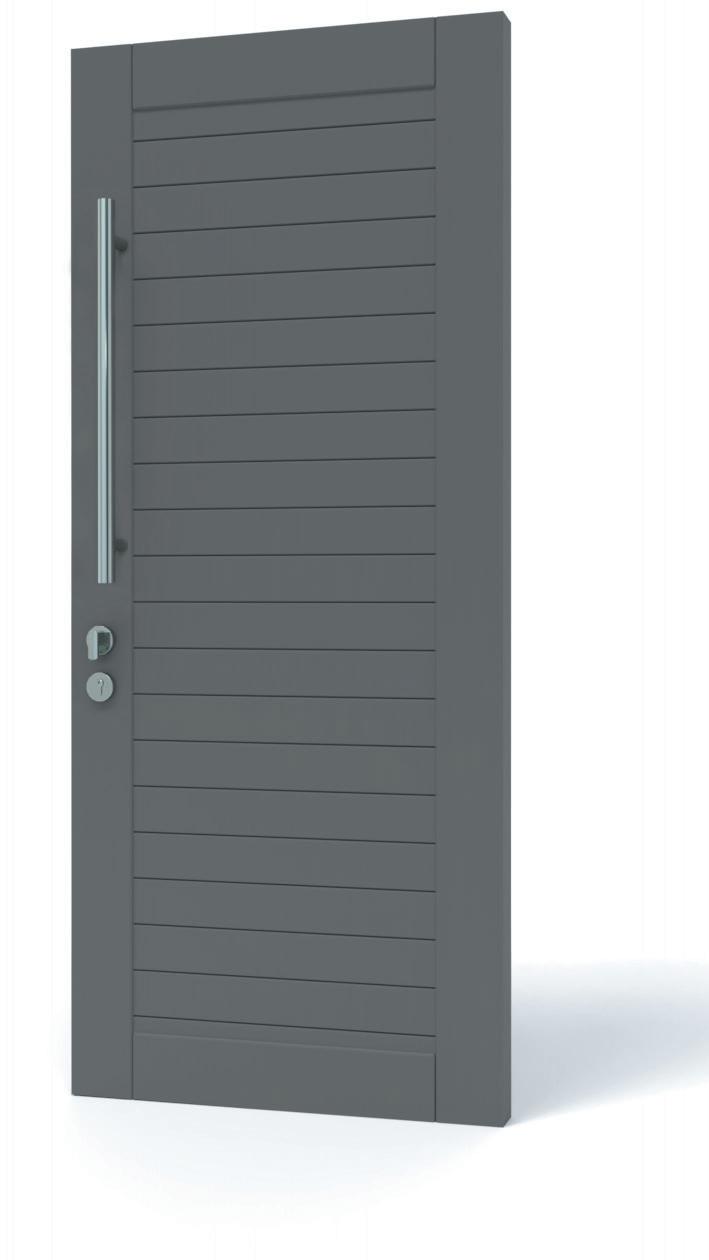

Horizontal Colour Mannex Sandstone Grey Hardware Yale 145 pull handle Configuration LAT102

10

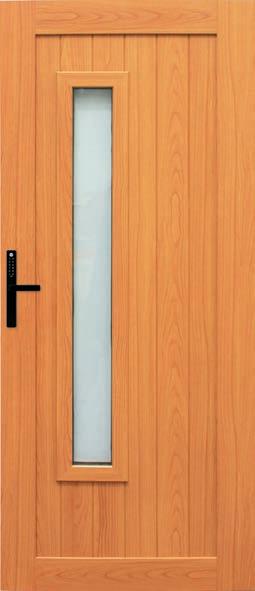

Half Lite

Long Lite

Colour Mannex Sandstone Grey

Colour Light Cedar Woodgrain

Hardware Icon lever handle - small

Hardware Icon lever handle - small

Configuration LAT01

Configuration LAT02

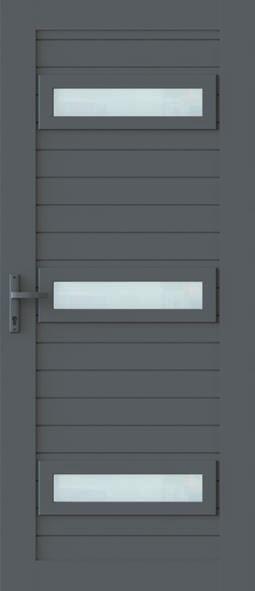

Horizontal Triple Lite Colour Mannex Ironsand Hardware Yale 142 pull handle with Apex turn set

Triple Lite Colour Dark Cedar Woodgrain Hardware Icon lever handle - small Configuration LAT04

Configuration LAT102

11

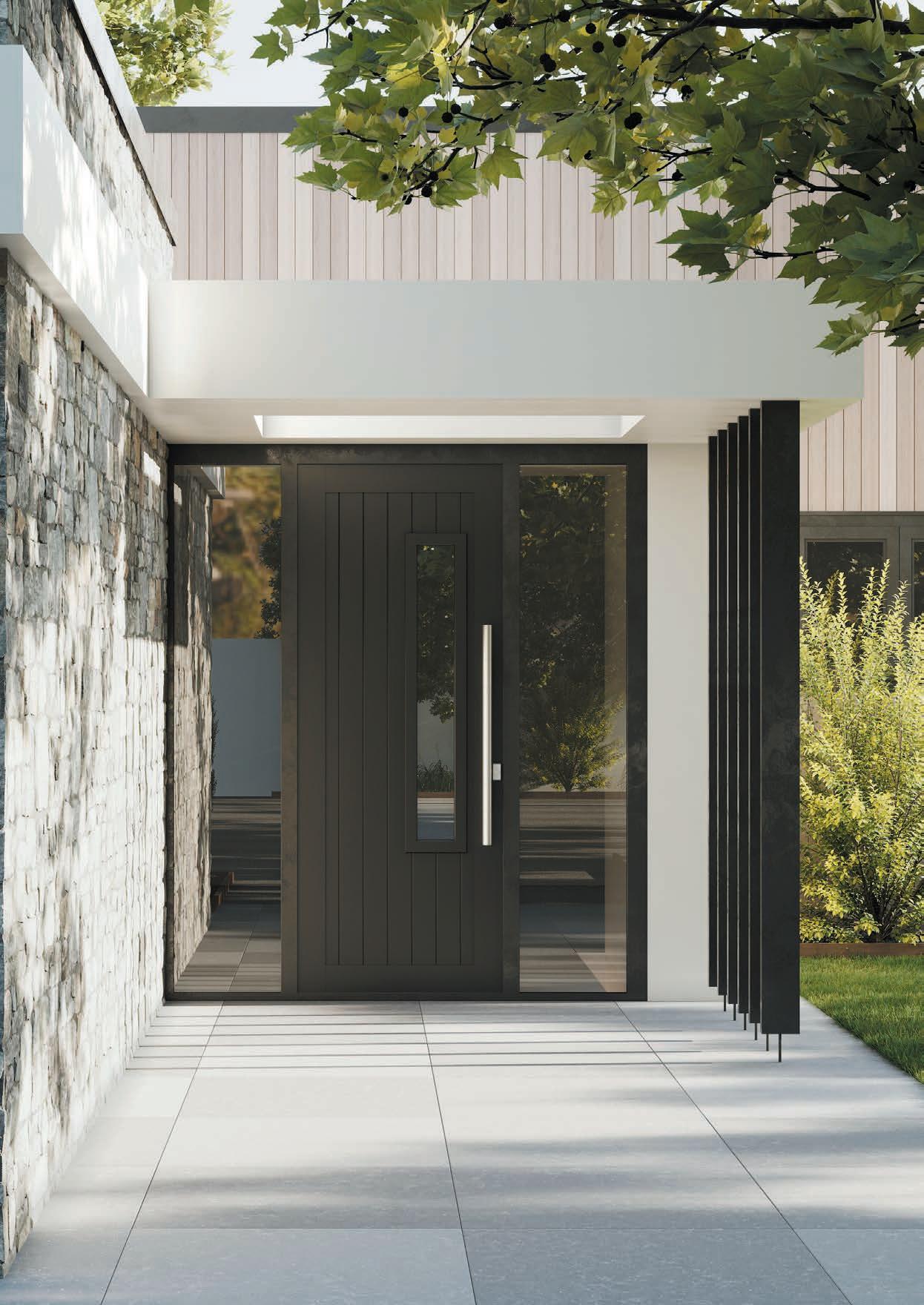

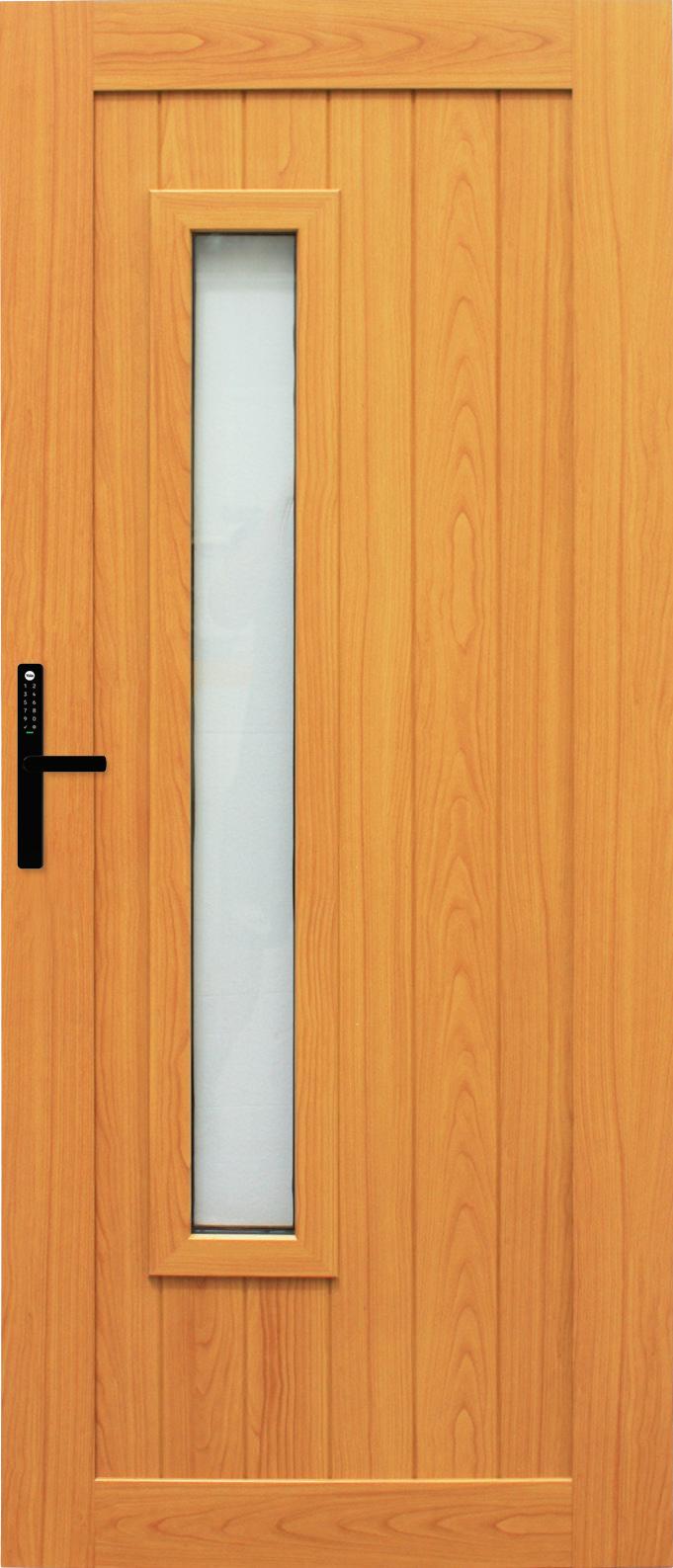

Horizontal Long Lite

Vertical

Colour Mannex Appliance White

Colour Dark Cedar Woodgrain

Hardware Icon lever handle - small

Hardware Yale 145 pull handle with Apex turn set

Configuration LAT101

Twin Lite

Horizontal

Colour Mannex Bronco

Colour Matt Gull Grey

Hardware Icon lever handle - small

Hardware Icon 1200mm pull handle with Apex turn set

Configuration LAT03

12

Configuration LAT00

Configuration LAT100

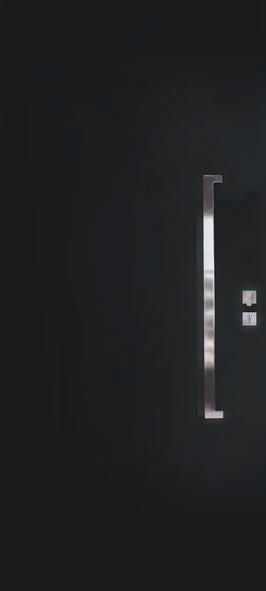

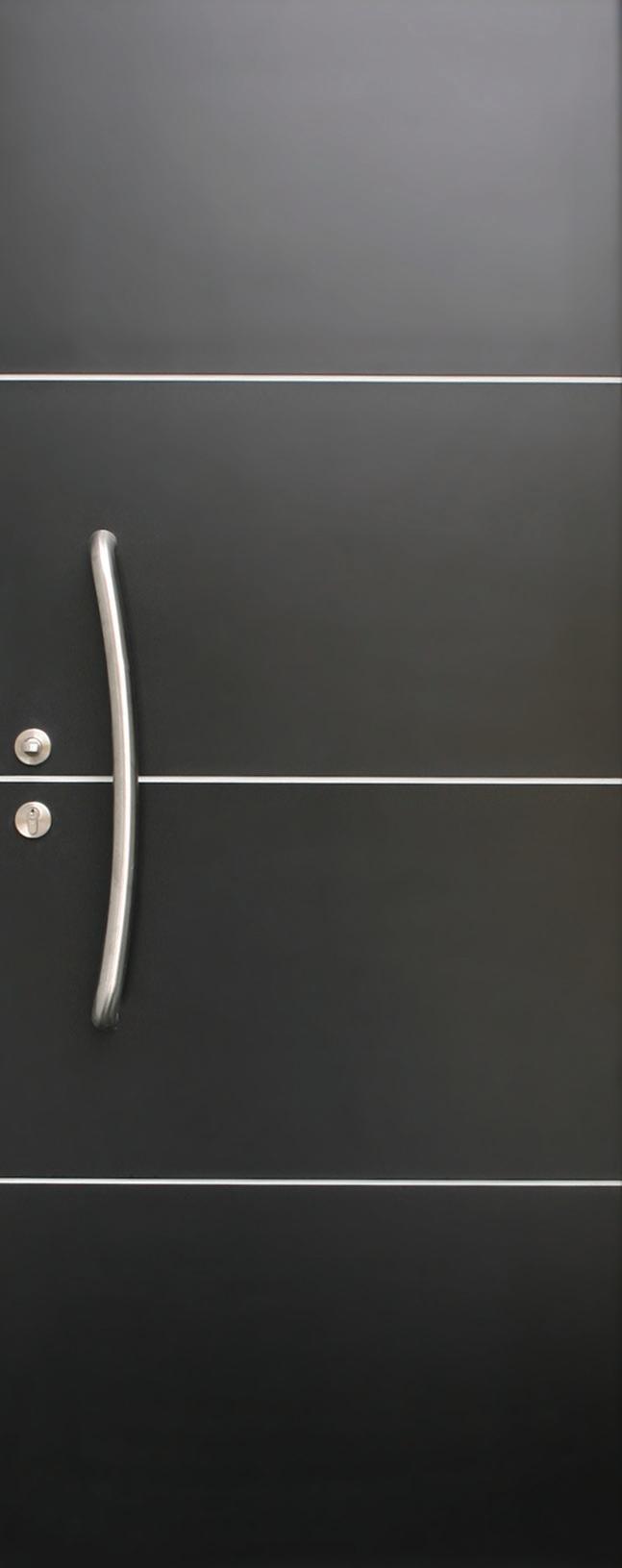

Horizontal Colour Mannex Matt Black Hardware Yale 143 pull handle Configuration LAT102

13

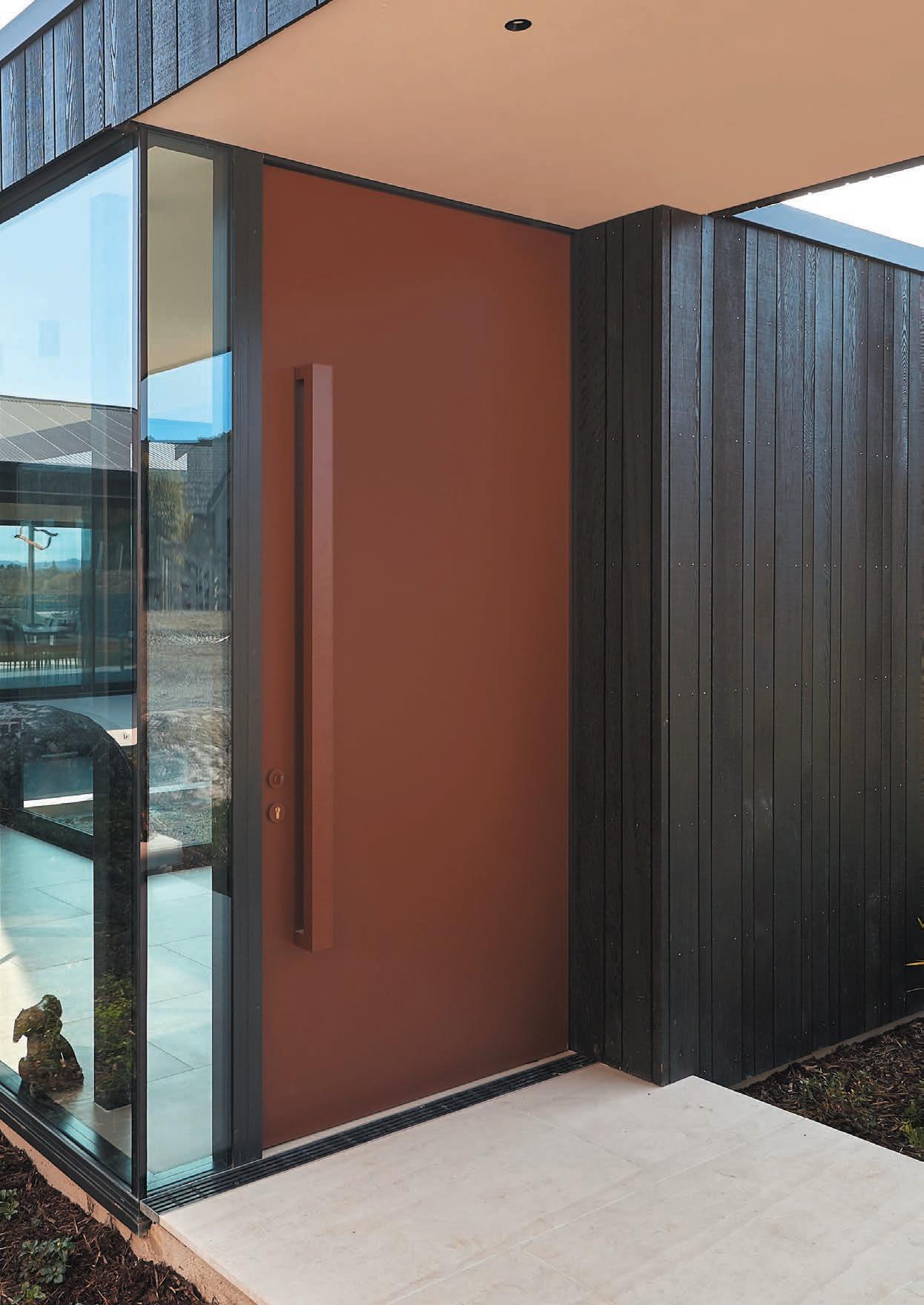

Plasma ENTRANCE DOORS

14

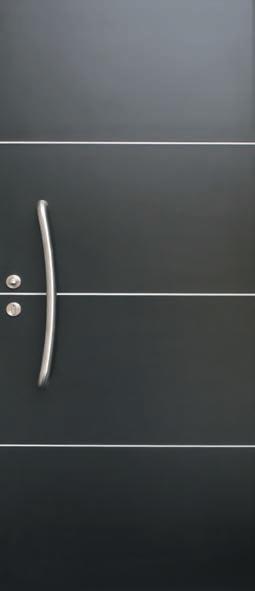

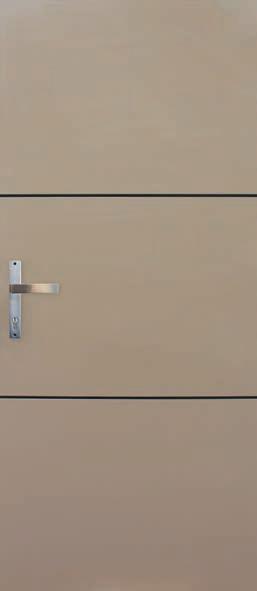

Negative Detail Colour Mannex Grey Friars Hardware Icon lever handle - large Configuration PLA04

15


Plasma Features ƒ

Smooth, flat aluminium finish for a minimalist look

ƒ

Customisable options include door size, dual colours to match interior and exterior and a range of door hardware

ƒ

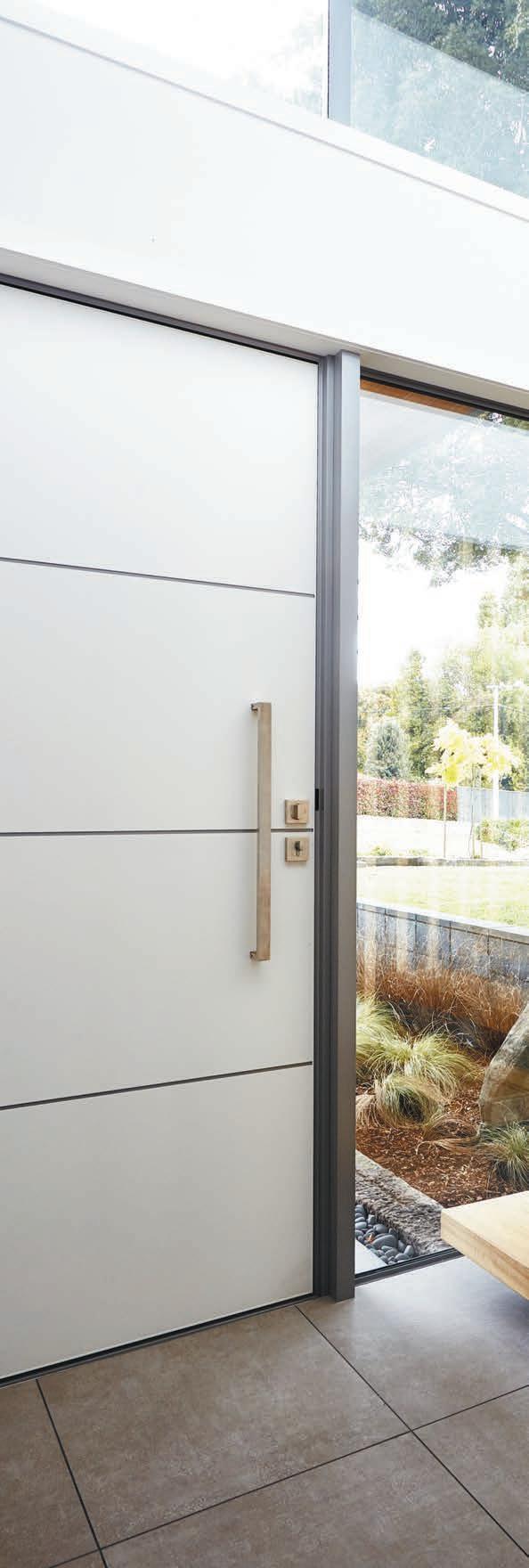

Different finishes available including horizontal detailed lines, tongue and groove and glass inserts or cladding.

Other Plasma door options available include: Slimline Plasma ƒ

A more economical version of our Plasma door offering the same look, with more limited options

Commercial grade Plasma ƒ

A thicker door with extra internal aluminium webbing for enhanced rigidity and durability.

Long Lite Colour Mannex Matt Black Hardware Urbo lever handle Configuration PLA01 (Custom)

16

Limited customisable options are available.


Negative Detail

TGV Horizontal

Colour Matt Intensity Flame

Colour Dark Cedar Woodgrain

Hardware Icon 900mm pull handle with Apex turn set

Hardware Icon 1800mm pull handle with Apex turn set

Configuration PLA03

Configuration PLA06

Negative Detail

Standard

Colour Matt Kauri

Colour Mannex Grey Friars

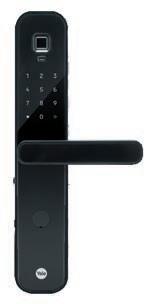

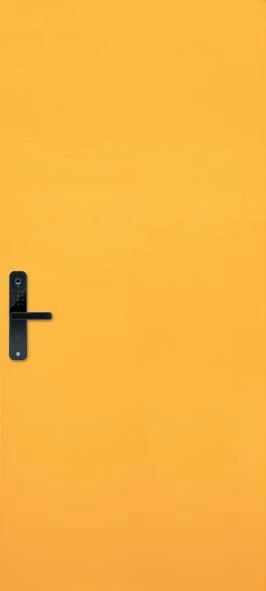

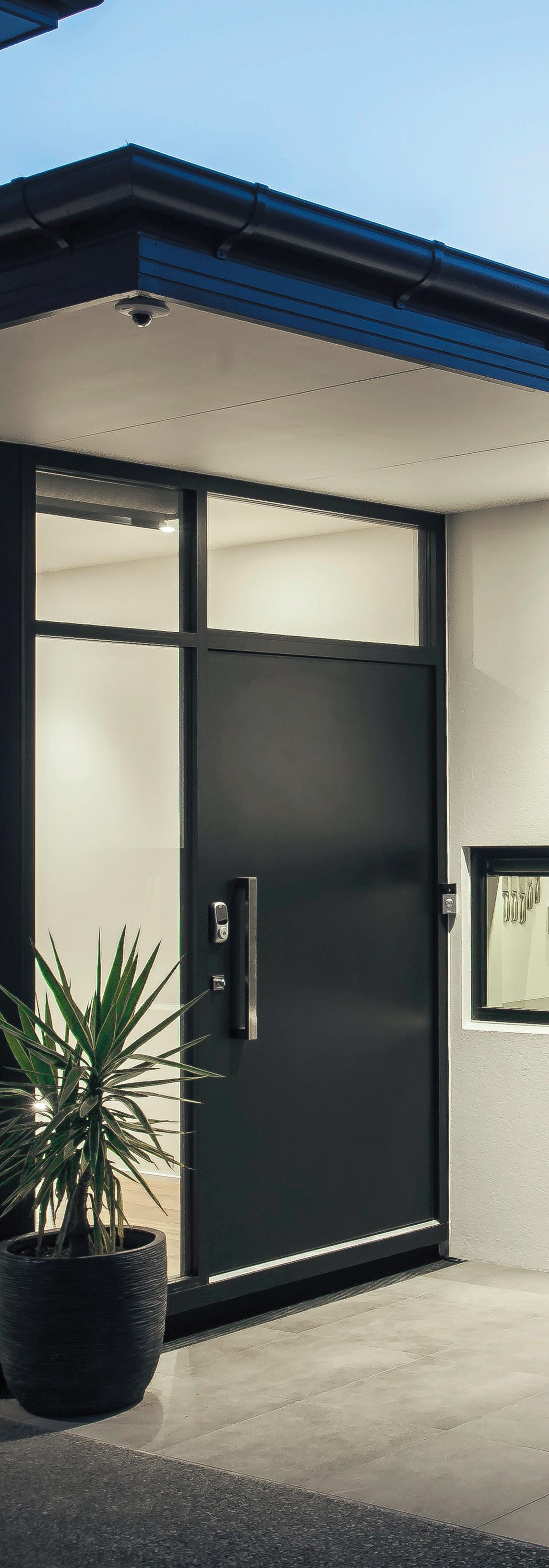

Hardware Yale 3109 digital lock

Hardware Icon 900mm pull handle with Apex turn set

Configuration PLA03

Configuration PLA00

17


Long Lite

Negative Detail

Colour Mannex Wasp

Colour Mannex Matt Black

Hardware Icon lever handle - small

Hardware Windsor 7181 pull handle with turn set

Configuration PLA01

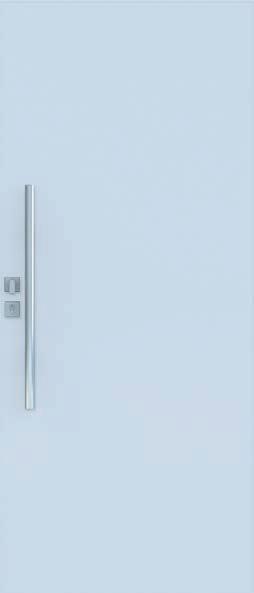

Standard Colour Sky Hardware Icon 1800mm pull handle with Apex turn set Configuration PLA00

Configuration PLA04

Long Lite Horizontal Colour Mannex Grey Friars Hardware Elemental lever handle - large Black anodised Configuration PLA01 TG/VH

18


Negative detail Colour Mannex Arctic White Hardware Icon lever handle - large Configuration PLA03

19

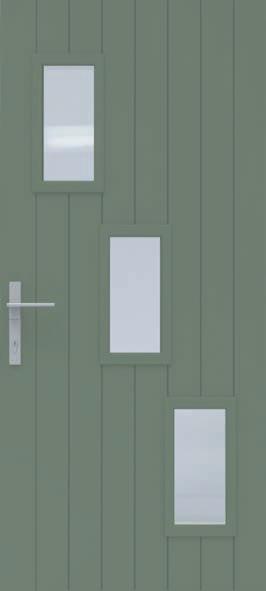

Axis

ENTRANCE DOORS

20


Solid French Door Colour Mannex Cola Red Hardware Yale 145 Pull Handle Configuration AX00

21


Axis Features ƒ

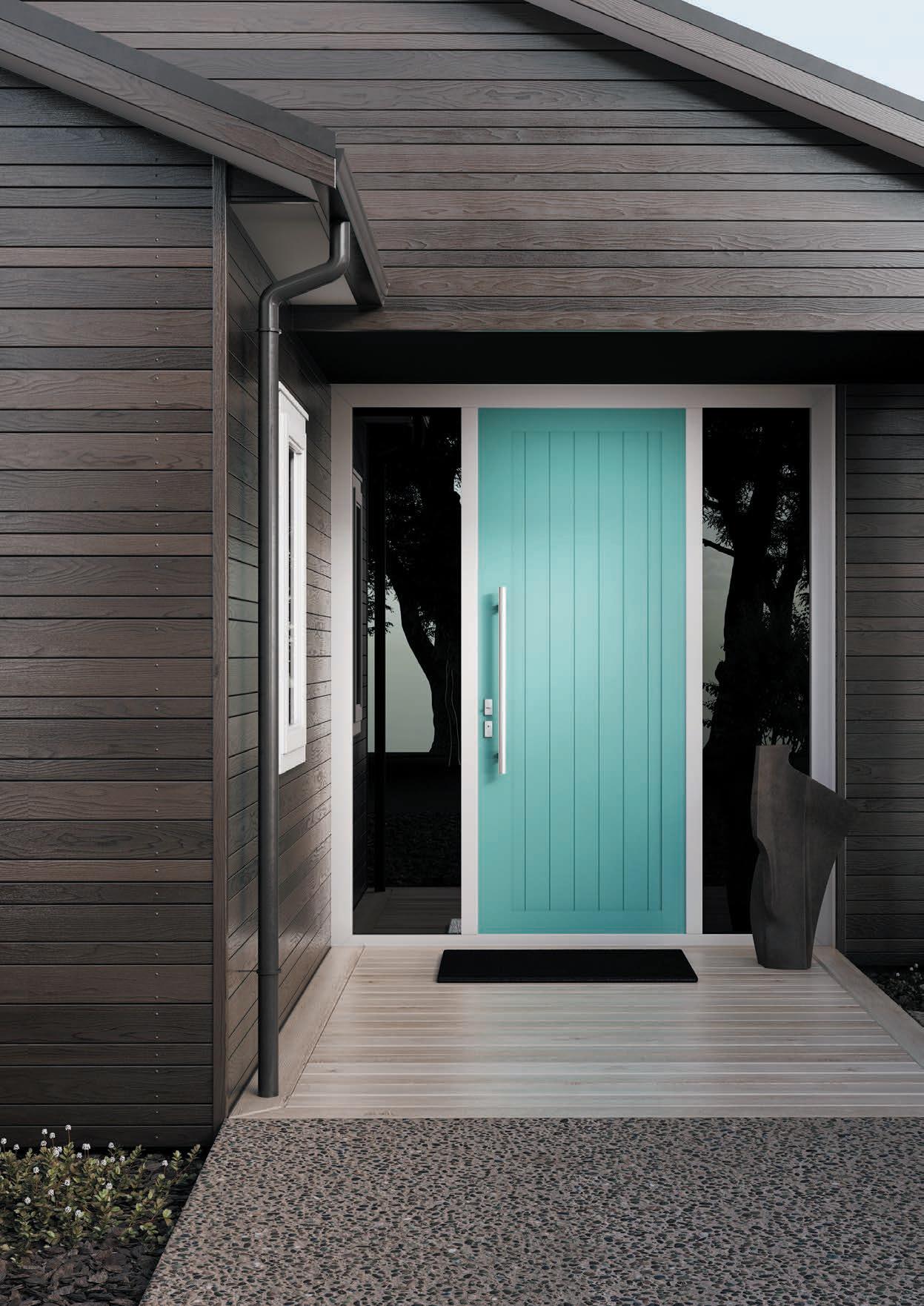

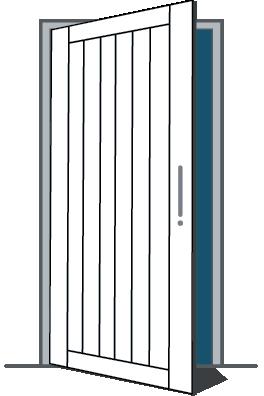

Vertical tongue and groove panel design with clean, straight lines

ƒ

Tall heights of up to 2.6m are possible

ƒ

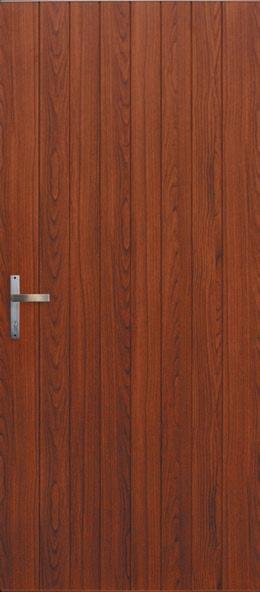

Available finishes include woodgrain appearance, powdercoated or anodised.

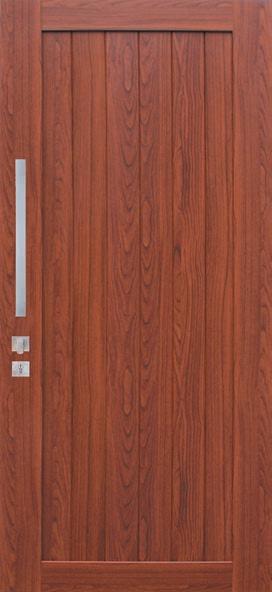

Solid Colour Mannex Ironsand Hardware Orbit knobset Configuration AX00

22

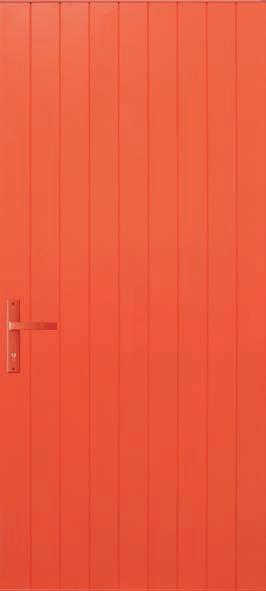

Solid

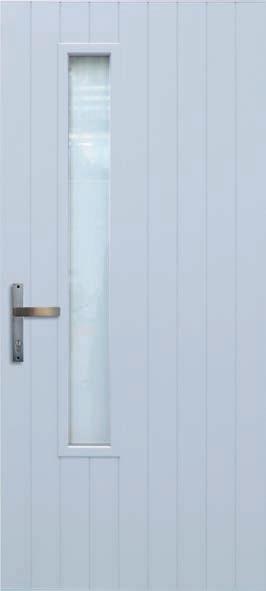

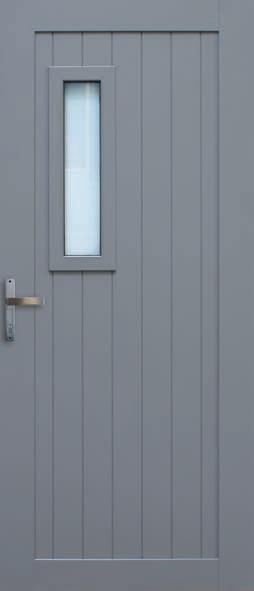

Long Lite Custom

Colour Woodgrain Dark Cedar

Colour Mannex Grey Friars

Hardware Icon lever handle - small

Hardware Icon lever handle - small

Configuration AX00

Configuration AX01 (Custom)

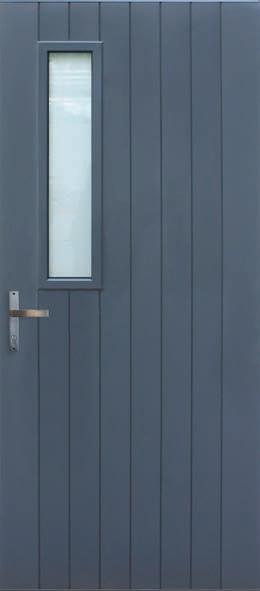

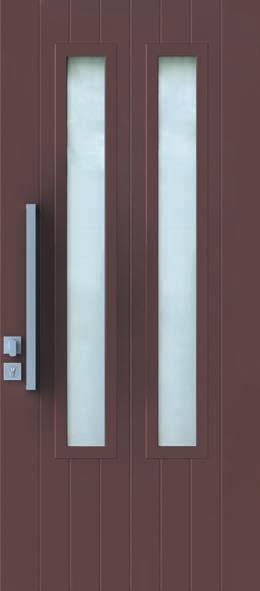

Twin Lite

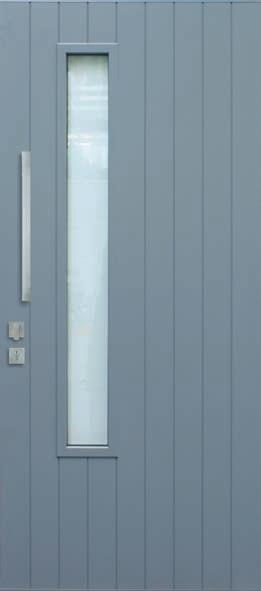

Long Lite

Colour Mannex Scoria

Colour Mannex Sandstone Grey

Hardware Yale 143 pull handle with Apex turn set

Hardware Yale 143 pull handle with Apex turn set

Configuration AX02

Configuration AX01

23


24

Standard

Long Lite

Colour Mannex Tomcat

Colour Mannex Arctic White

Hardware Icon lever handle - small

Hardware Icon lever handle - small

Configuration AX00

Configuration AX01

Twin Lite

Three Lite

Colour Mannex Metropolis Coal Dust

Colour Matt Storm Blue

Hardware Icon lever handle - small

Hardware Elemental lever handle large Silver anodised

Configuration AX02

Configuration AX03


Standard Colour Silver Pearl Hardware Icon lever handle - large Configuration AX00

25


Classic ENTRANCE DOORS

26


Four Panel Glazed Colour Matt Canvas Cloth Hardware Miro lever handle Configuration CLA05

27


Classic Features ƒ

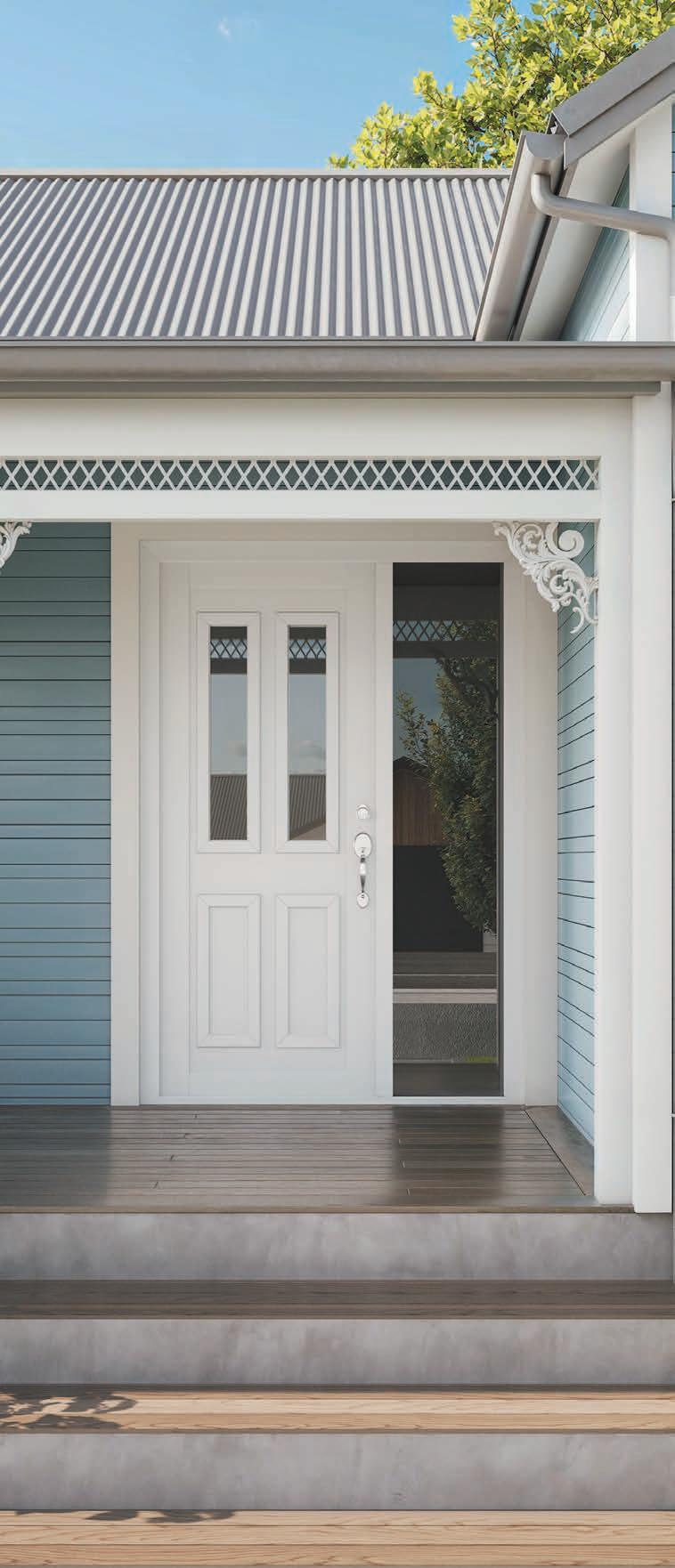

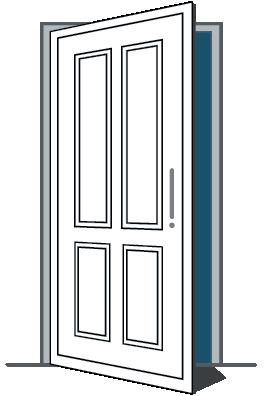

Designed with rectangular patterns in either scrolled or contemporary edgings

ƒ

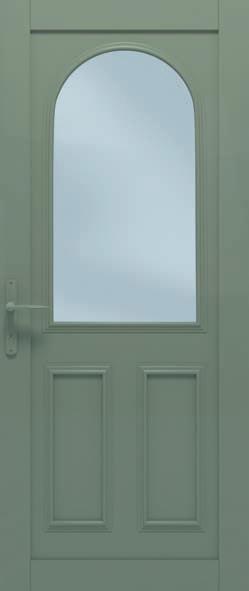

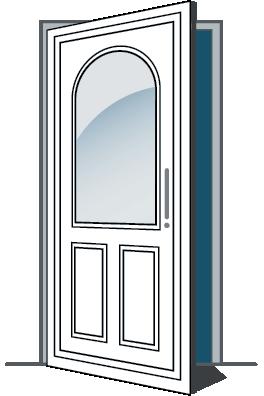

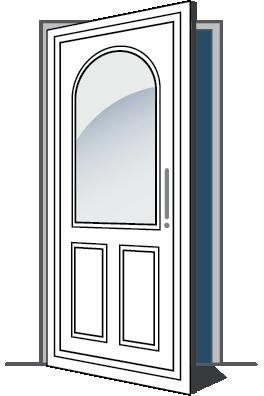

Available with double glazed units set in the door, including arched options

ƒ

Available in dual colours for separate interior and exterior choices.

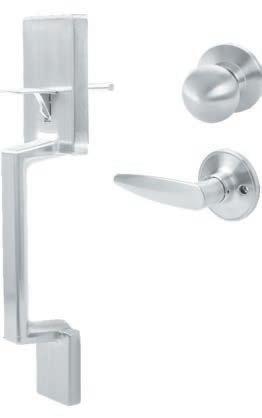

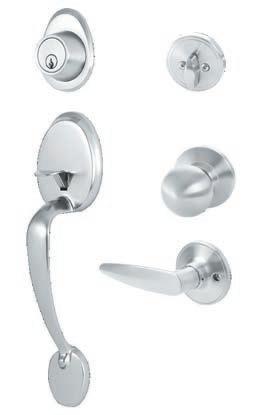

Four Panel Solid Colour Warm White Pearl Hardware Mayfair Entrance Set Configuration CLA06

28

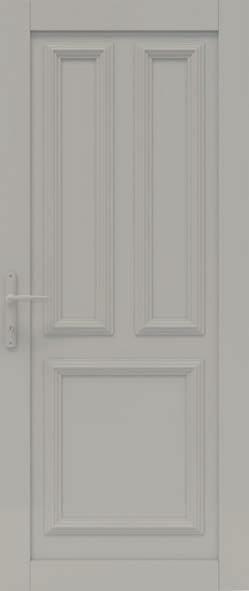

Three Panel Glazed

Three Panel Solid

Colour Mannex New Denim Blue

Colour Mannex Bronco

Hardware Miro lever handle

Hardware Miro lever handle

Configuration CLA00

Configuration CLA01

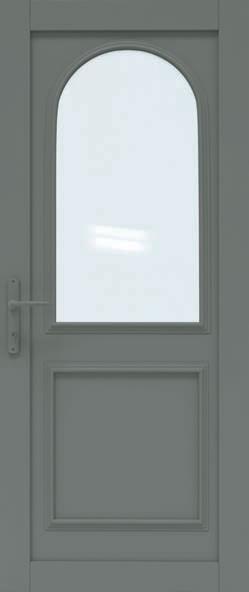

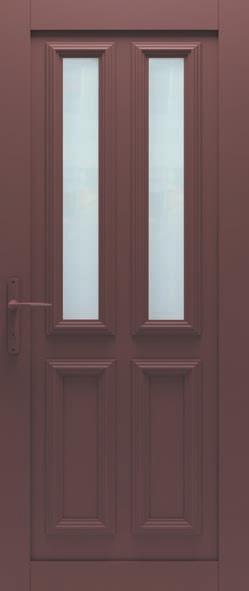

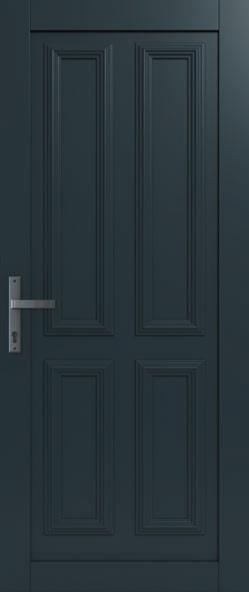

Four Panel Glazed

Four Panel Solid

Colour Mannex Scoria

Colour Mannex Matt Black

Hardware Miro lever handle

Hardware Miro lever handle

Configuration CLA05

Configuration CLA06

29


30

Eight Panel Solid

Three Panel Glazed

Colour Mannex Grey Friars

Colour Matt Mist Green

Hardware Miro lever handle

Hardware Miro lever handle

Configuration CLA07

Configuration CLA4105

Five Panel Glazed

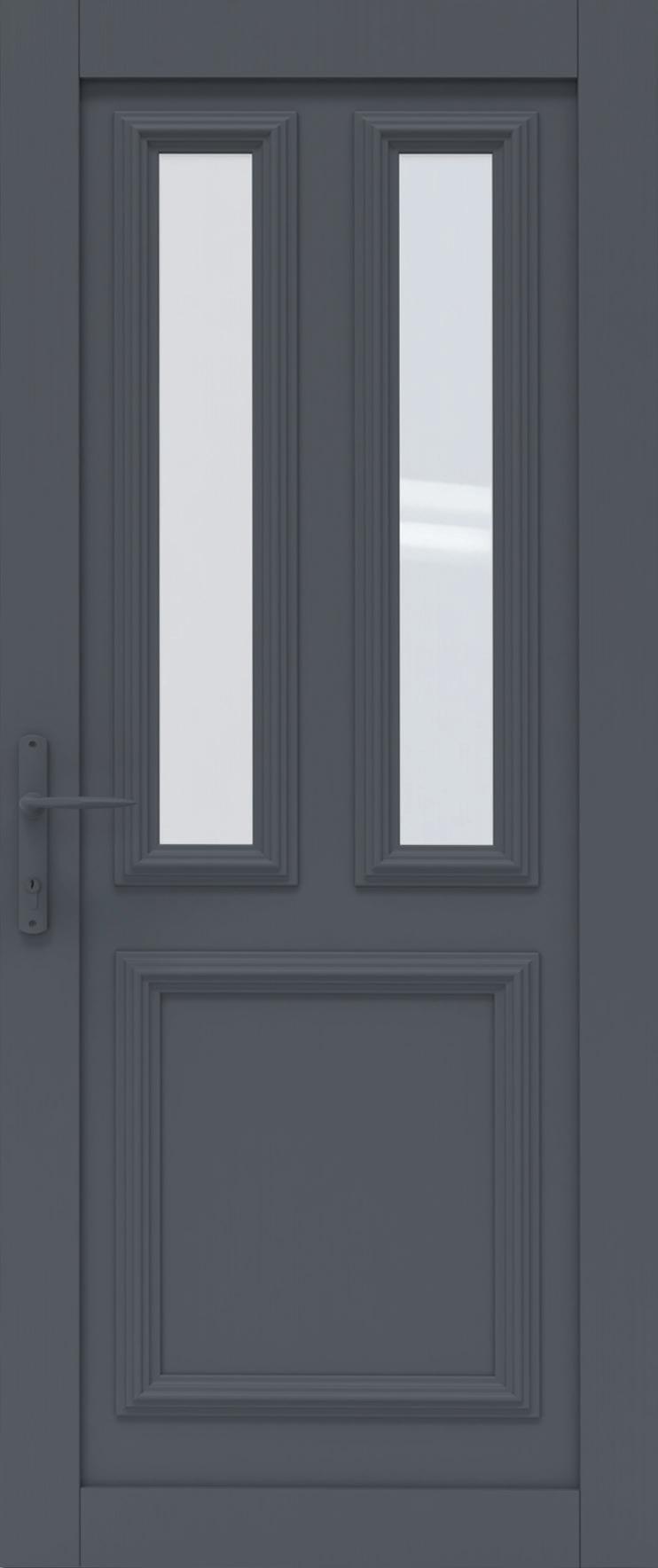

Two Panel Glazed

Colour Matt Magnolia

Colour Mannex Sandstone Grey

Hardware Miro lever handle

Hardware Miro lever handle

Configuration CLA4109

Configuration CLA4100


Three Panel Glazed Colour Mannex Silver Pearl Hardware Icon lever handle - small Configuration CLA00

31


Aquila ENTRANCE DOORS

32


Standard Colour Mannex Cola Red Hardware Yale 145 pull handle Configuration AQ00

33


Aquila Features ƒ

This design combines horizontally stacked 100mm wide tongue and groove boards, with a chunky modern frame

ƒ

Option of a double glazed unit within the door.

Standard Colour Mannex Warm White Pearl Hardware Urbo lever handle - small Configuration AQ00

34


Standard

Single Lite

Colour Dark Cedar Woodgrain

Colour Mannex Sandstone Grey

Hardware Icon lever handle - small

Hardware Urbo lever handle - small

Configuration AQ00

Configuration AQ01

Twin Lite

Three Lite

Colour Mannex Desert Sand

Colour Mannex New Denim Blue

Hardware Urbo lever handle - small

Hardware Urbo lever handle - small

Configuration AQ02

Configuration AQ03

35


Four Lite

Five Lite

Colour Mannex Titania

Colour Mannex Matt Black

Hardware Yale 142 pull handle with Apex turn set

Hardware Urbo lever handle - small

Configuration AQ04

Six Lite Colour Mannex Grey Friars Hardware Urbo lever handle - small Configuration AQ06

36

Configuration AQ05


Standard Colour Mannex Cola Red Hardware Urbo lever handle Configuration AQ00

37

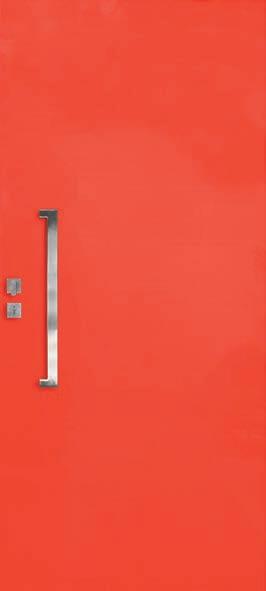

Glass Plasma ENTRANCE DOORS

38


Glass Plasma Colour Jalapeno Red Hardware Customer supplied handle with an Apex turn set Configuration GPL00

39


Glass Plasma Features ƒ

Clad in 5mm toughened glass sheets with a minimal aluminium edge

ƒ

Available in a wide variety of colours and can be custom matched

ƒ

Available in dual colours for separate interior and exterior choices

ƒ

Glass Plasma Colour Metropolis Electric Cow Hardware Yale 142 pull handle Configuration GPL00

40

Flush flat surface finish.


Glass Plasma

Glass Plasma

Colour Gloss Cola Red

Colour Gloss Black

Hardware Icon 600mm pull handle with Apex turn set

Hardware Icon 900mm pull handle with Apex turn set

Configuration GPL00

Configuration GPL00

Glass Plasma Colour Resene Galliano Hardware Yale 3109 digital lock Configuration GPL00

41


Negative Detail Colour Burnished Copper Hardware Windsor 7093 pull handle Door type PLA03

42


43


Lindo

ENTRANCE DOORS

44


Lindo Colour Matt Wizard Hardware Icon lever handle - large

45


Lindo Features ƒ

Highly personalised design using a plank system

ƒ

Negative detail lines can be used to enhance the design

ƒ

Available in dual colours – interior and exterior choices

ƒ

Potential to incorporate elements of your own design or personal taste.

Lindo Colour Assortment of colours Hardware Yale 3109 digital lock

46


Lindo Colour Assortment of colours Hardware Icon 600mm pull handle

47


48

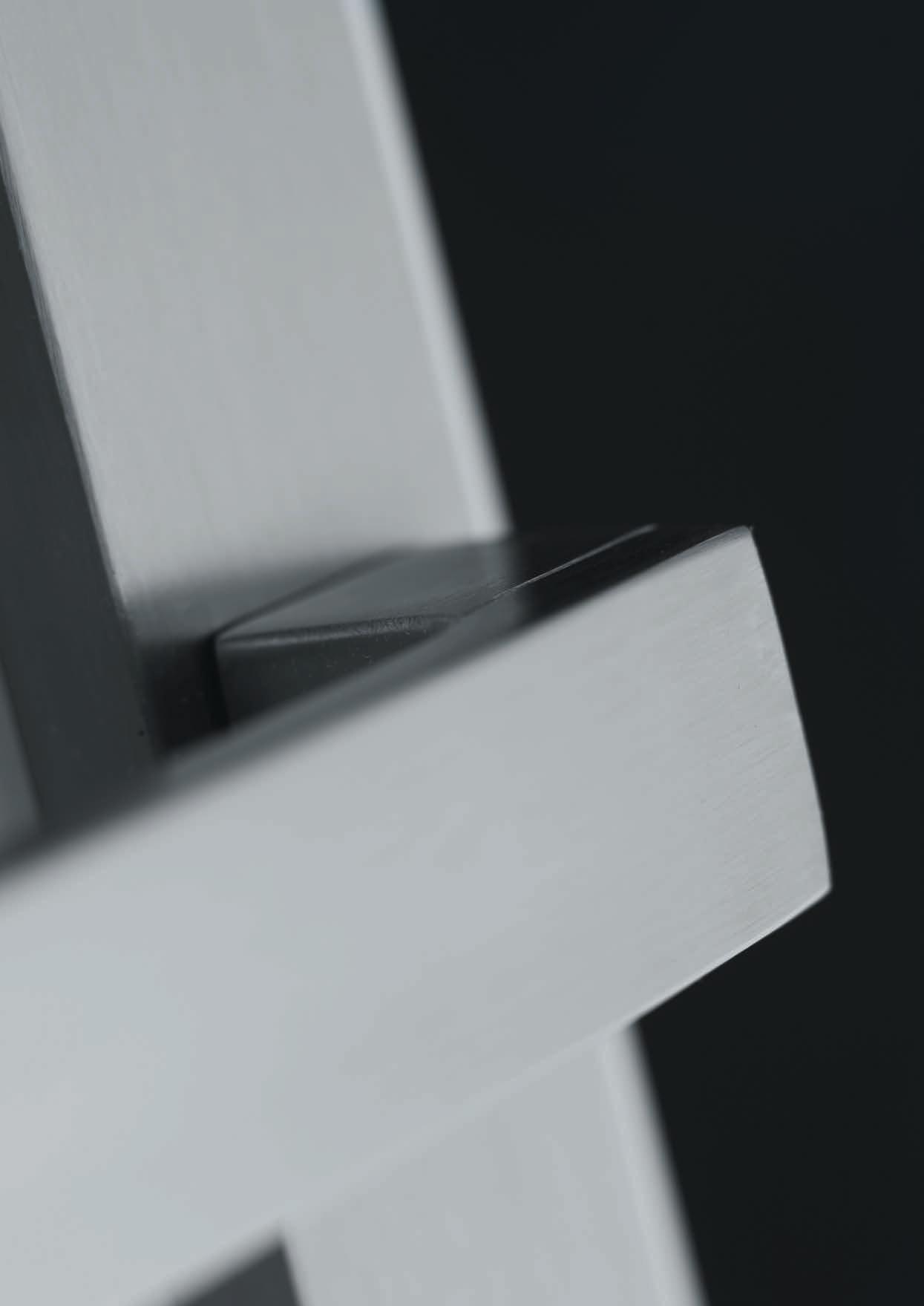

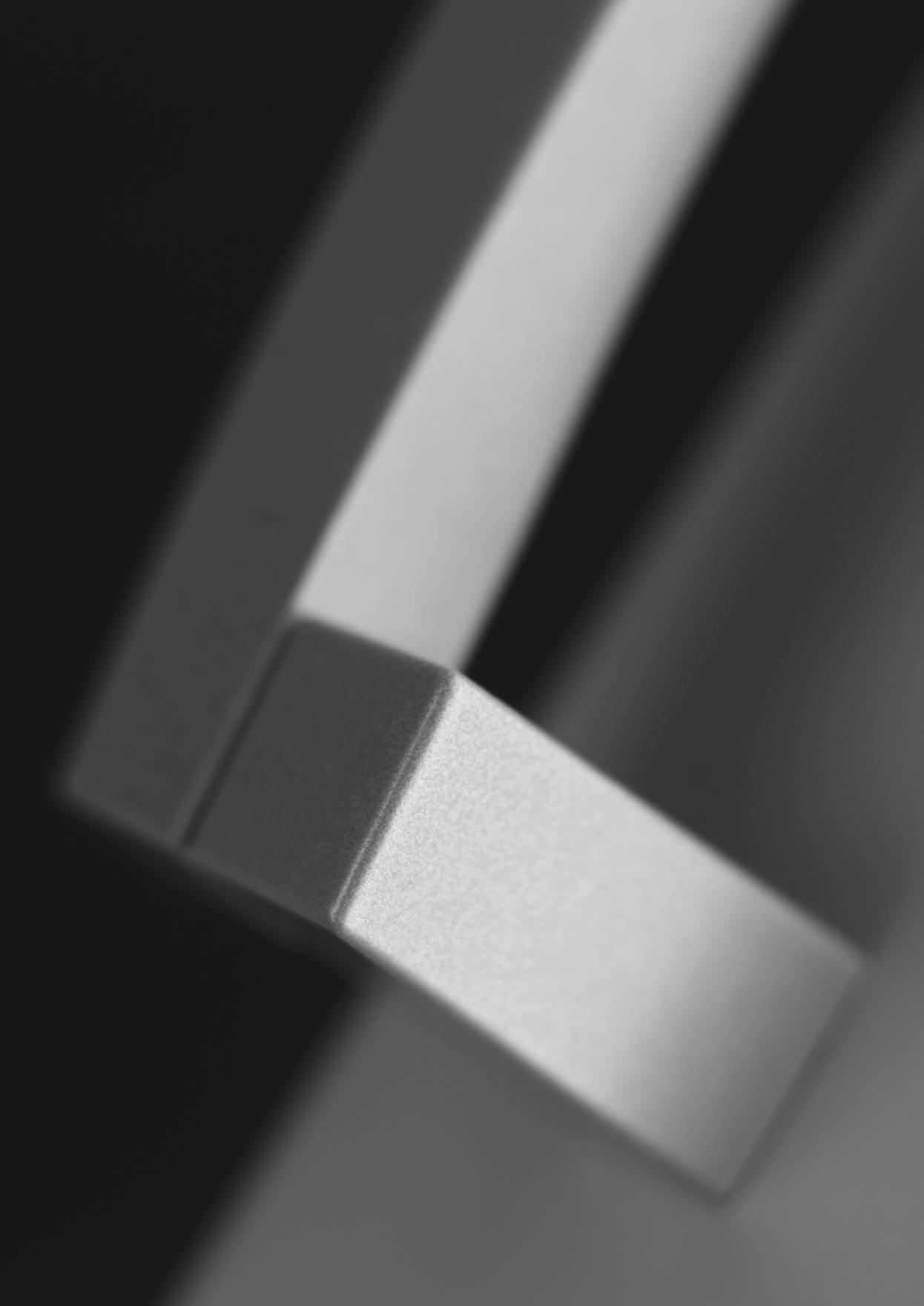

Entrance Door Hardware Our range of hardware gives you choice in shape, function and finish, all with secure and convenient locking features. Our most popular options are shown on the following pages. Refer to your local manufacturer for the full range.

49


Urbo H A R D WA R E

50

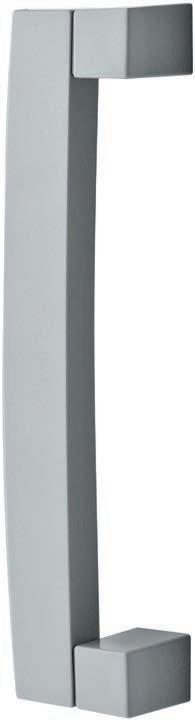

Pull handle

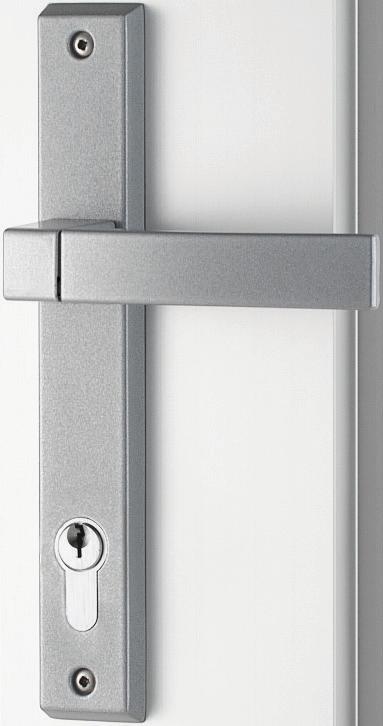

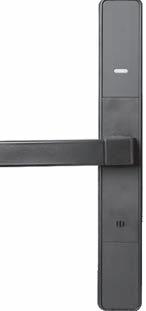

Lever handle

Lock is fixed separately to the door and is activated by a key or interior turn knob. A four-point locking system is available. Apex or Windsor turn sets are compatible with this handle.

Offers multi-point locking, and when the handle is lifted upwards it activates locking rods at the top and bottom of the door for added security.

Available in

Available in

Small

Large

Small

Large

Handle 255mm h

Handle 323mm h

Handle 120mm x 22mm with a base plate of 212mm h x 32mm w

Handle 150mm x 30mm with a base plate of 292mm h x 44mm w

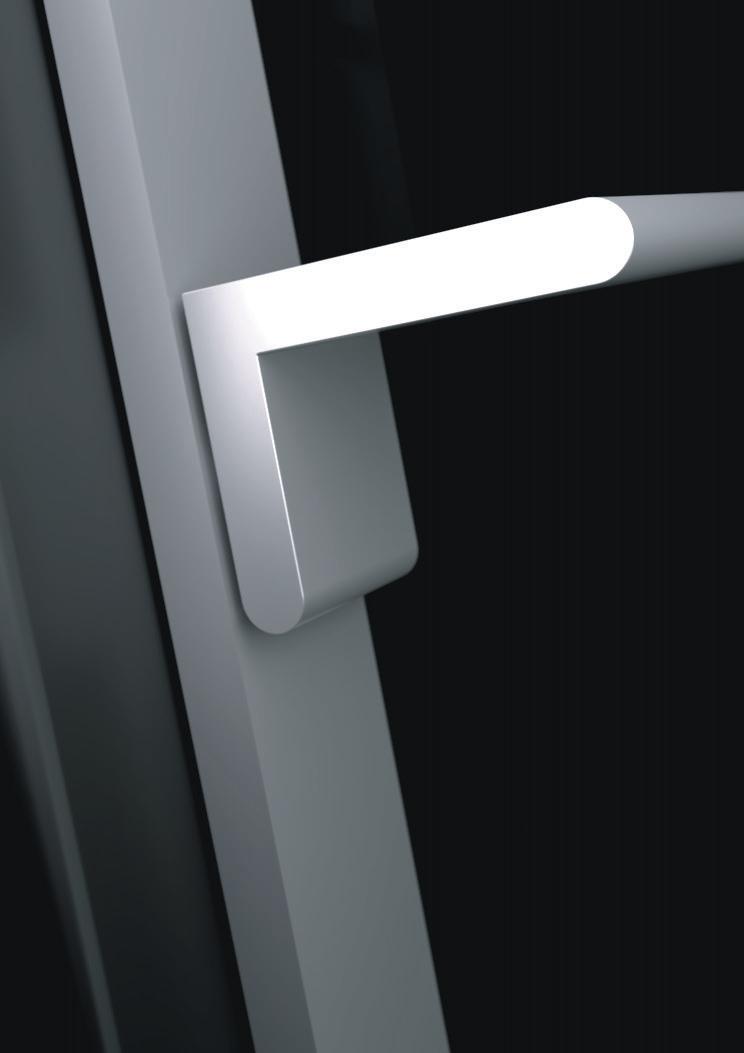

Urbo features ƒ

Comfortable, smooth handles that can be powdercoated to your choice of colour.

51

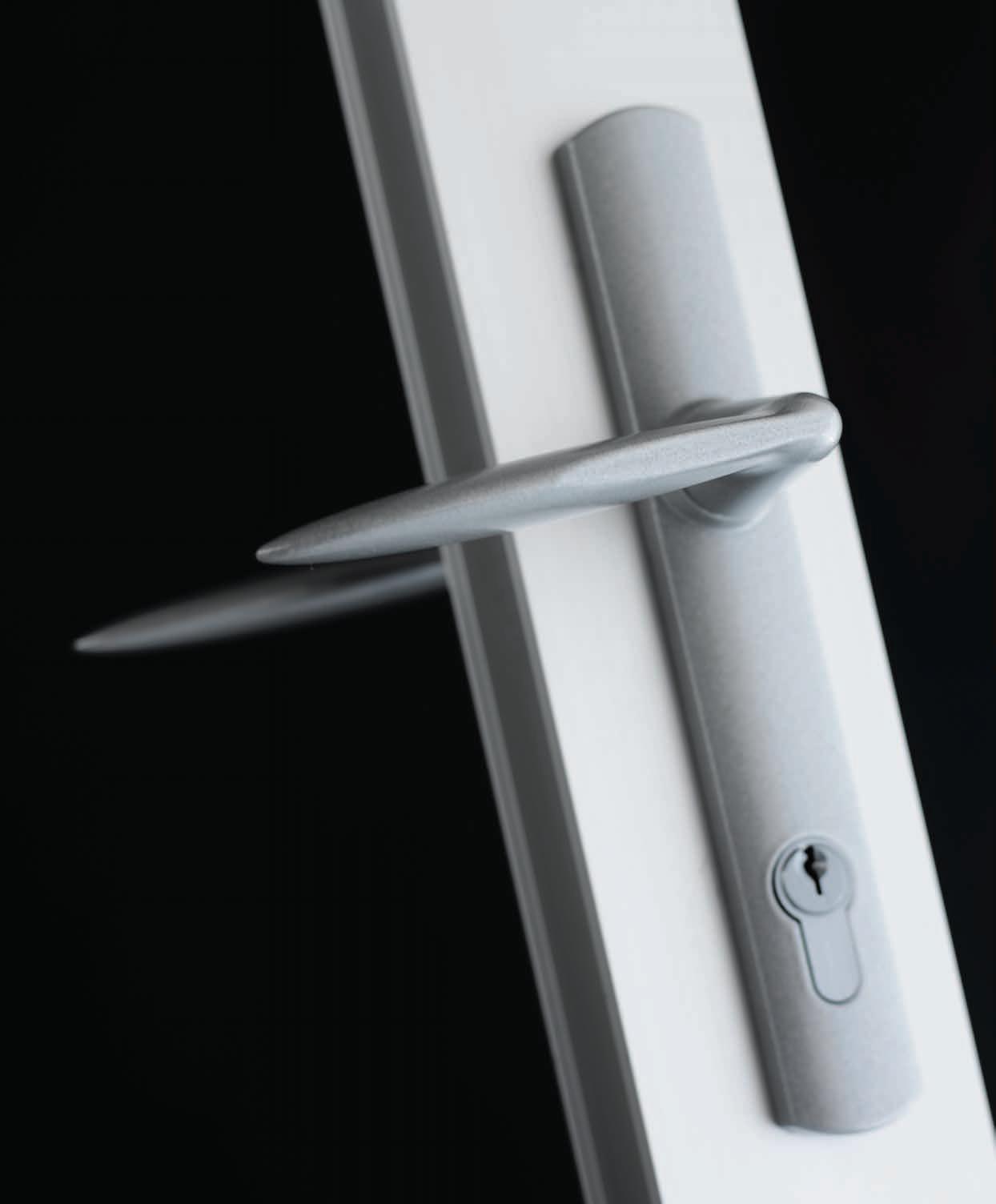

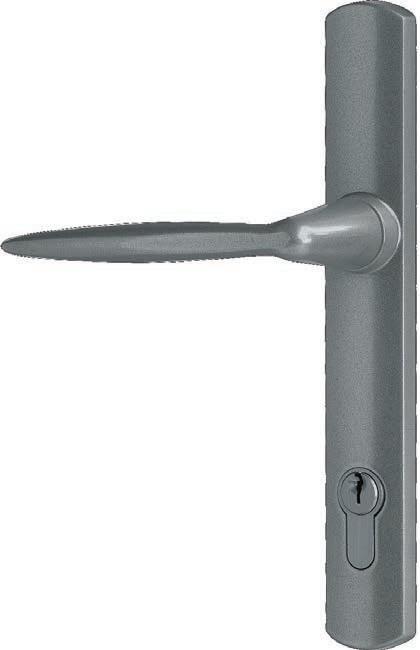

Miro H A R D WA R E

52

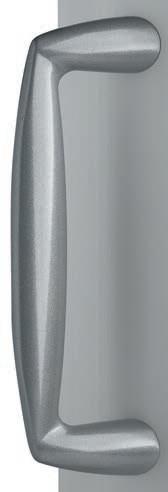

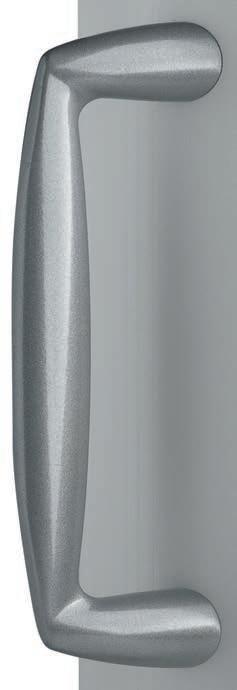

Pull handle

Lever handle

Lock is fixed separately to the door and is activated by a key or interior turn knob. A four-point locking system is available. Apex or Windsor turn sets are compatible with this handle.

Available in a variety of locking options. An upward handle movement activates multi-point locking.

Available in

Available in

Small

Large

Handle 166mm h

Handle 240mm h

Handle 117mm x 13mm with a base plate of 210mm h x 30mm w

Miro features ƒ

Contemporary classic die-cast handles, characterised by elegant, ergonomic curves

ƒ

Can be powdercoated to your choice of colour.

53

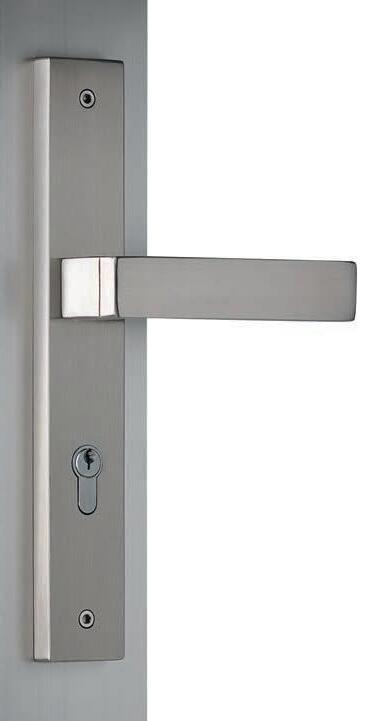

Icon H A R D WA R E

54

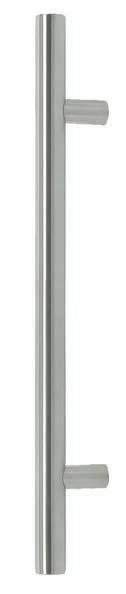

Pull handle

Lever handle

Fixed to the door on both the interior and exterior with a lock fixed separately. Apex or Windsor turn sets are compatible with this handle.

A clean compact lever handle. Available in a variety of locking options. An upward handle movement activates multi-point locking.

Available in

Available in

325mm, 630mm, 930mm, 1230mm, 1530mm, 1820mm

Small

Large

Handle 110mm x 21mm with a base plate of 210mm h x 30mm w

Handle 150mm x 30mm with a base plate of 290mm h x 45mm w

Icon features ƒ

Strong, contemporary handles made of 316 grade stainless steel

ƒ

A brushed stainless steel finish.

55

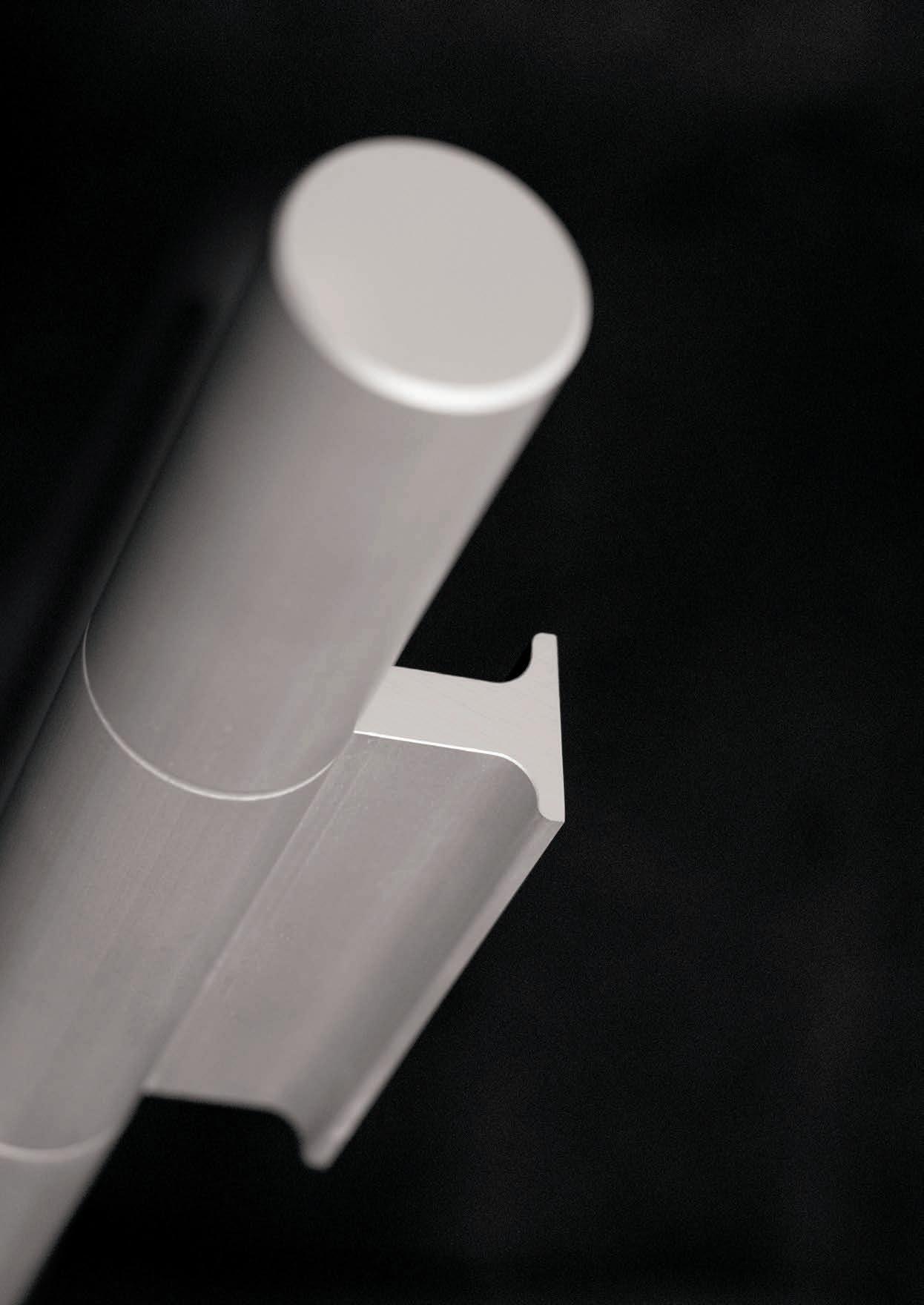

Elemental H A R D WA R E

56

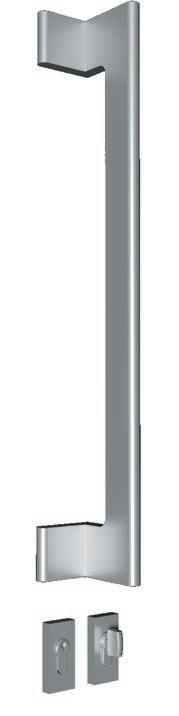

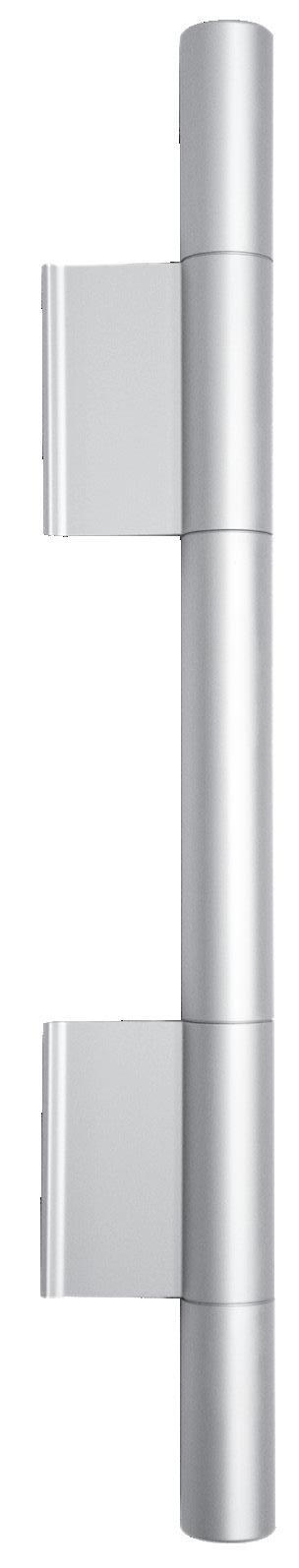

Pull handle

Lever handle

Available in two standard sizes but can be made to any length by special order. The pull handle is separate from the lock, which is operated by a key or snib.

Snib or key operation is available for secure four-point locking.

Available in

Available in

Small

Large

Small

Large

Handle 250mm h

Handle 325mm h

Handle 125mm x 22mm with a base plate of 212mm h x 32mm w

Handle 140mm x 30mm with a base plate of 292mm h x 44mm w

Also available in custom lengths.

Elemental features ƒ

Minimalist style handles that strive for simplicity and elegance

ƒ

Made of ultra durable anodised extruded aluminium, available in either black, silver or bronze.

57


Yale H A R D WA R E

141 pull handle

142 pull handle

143 pull handle

145 pull handle

Contemporary handles with a round handle and square fixing

Contemporary handles with a round look

Contemporary handles with a flush square look

Contemporary handles with a square look

Available in

Available in

Available in

Available in

300mm, 450mm and 600mm

300mm, 450mm and 600mm

300mm, 450mm, and 600mm

255mm, 375mm and 525mm

Apex Turn Set The Apex turn set provides the ideal locking solution for your entrance door. Providing a consistent finish to match your stainless steel pull handles, the Apex turn set allows for ease of use and secure locking.

Yale features

58

ƒ

304 grade stainless steel

ƒ

A lock that is fixed separately to the door and is activated by a key or interior turn knob.


Windsor H A R D WA R E

Polo pull handle

Square pull handle

Round pull handle

Contemporary handles with smooth, radiused edges

Square look 25mm x 25mm handles

Round look 32mm diameter handles

Available in

Available in

300mm, 450mm, 600mm, 900mm, 1200mm and 1800mm

600mm, 900mm, 1200mm and 1800mm

Available in 450mm, 600mm and 900mm

Windsor Turn Set Specifically designed for New Zealand conditions. A neat accompaniment to a set of pull handles offering easy and secure locking of your entrance door.

Windsor features ƒ

304 grade stainless steel

ƒ

A lock that is fixed separately to the door and is activated by a key or interior turn knob.

59


Yale Gripset PRODUCTS

Mayfair

Alexander

An elegant locking entrance set that allows ease of use with added security of a key deadbolt and a choice of lever or knob for internal handle.

An elegant locking entrance set that allows ease of use with added security of a key deadbolt and a choice of lever or knob for internal handle.

This digital entrance set incorporates the new Yale Touchscreen Digital Deadbolt with the styling of the Mayfair and Alexander gripsets. This stylish combo is easy to install and is ideal for both new and retrofit applications.

Features

Features

Features

ƒ Satin chrome finish

ƒ Satin chrome finish

ƒ Satin nickel finish

ƒ Deadbolt cylinder and turn knob available

ƒ Deadbolt cylinder and turn knob available

ƒ Supplied as standard with 5-pin cylinders

ƒ Kit includes both the Hawthorn lever and Orbit knob, for your choice of internal handle.

ƒ Adjust lock features and personalise settings in the Yale app

ƒ Kit includes both the Hawthorn lever and Orbit knob, providing choice for the internal handle.

60

Touchscreen Deadbolt

ƒ Create up to 12 unique pin codes ƒ Compatible with Android devices running 4.3 or later, iOS devices running 9.0 or later and Samsung Gear smartwatches running 4.3 or later.


Yale Digital PRODUCTS

Assure Lock with Bluetooth

3109 Digital Door Lock

ƒ

ƒ

Keyless entry using your Bluetooth enabled device or you can use the touch screen

ƒ

Share or delete digital keys using the app

ƒ

One touch locking by simply tapping the key pad

ƒ

Match with your choice of pull handle

ƒ

Available in satin nickel or satin chrome finish.

Three access solutions, PIN code, proximity card or key for your convenience

ƒ

Smart touchpad to prevent the password from being exposed due to residual fingerprints after opening the door, with an optional scrambling code to reduce the risk of exposing your code to others

ƒ

Automatically locks the door after checking that it is properly closed

ƒ

80db alarm goes off if anyone attempts to damage the lock or force the door open.

61


Surface Finishing ƒ

You can never have too many options when it comes to choosing a colour for your entrance door – which is why we have a large range of colours and finishes that you can choose from

ƒ

Please ask your manufacturer for a colour brochure to see our full range of powdercoat options, including our range of popular Mannex colours

ƒ

When you are choosing door colours, always assess swatches in natural light and consider aspect and exposure influence

ƒ

We have all of the Dulux powdercoat colours on offer, as well as more specific finishes.

62


Negative Detail Colour Mannex Cola Red Hardware Yale 143 pull handle with Apex turn set Configuration PLA04

63


Mannex Surface Finish Feel the finish on this door to give you an indication of this durable surface finish. It will feel and look slightly different to powdercoating on the windows and doors in the rest of your home.

64


Mannex A low sheen surface finish highly resistant to marking and scuffing – specifically for use on entrance doors. There are a wide variety of colours available. Please ask your manufacturer for a colour brochure to see our full range of Mannex powdercoat options. Please note that the finish of the Mannex powdercoating will look slightly different to the powdercoating on your aluminium joinery. See the door on the left for an indication of the surface finish.

Intensity There are six bold bright Matt colours in this Dulux DURATEC range, ensuring excellent colour retention and are exceptionally hard wearing.

Dual colour All of our doors are available in dual colour, with the exception of the Slimline and Commercial Plasma and Aquila. This means you can match the look of your internal and external colour schemes, rather than having to pick one look for both sides of your door.

Fading and bowing Dark colours may not be suitable for doors that are exposed to prolonged direct sunlight as this may cause the colour to fade, so careful consideration needs to be made when choosing your entrance door colour/s. Doors with a thermal break built into them may experience slight temporary bowing due to the difference in temperature between the inside and outside of the door, especially when exposed to direct sunlight. We stress that this is only a temporary effect and the door will revert back to its normal shape as the aluminium cools. This may occur primarily with dark colours, so can be minimised by selecting lighter external colours or increasing cover over the door area.

65


Axis Solid Colour Dark Cedar Woodgrain Hardware Icon lever handle - large Configuration AX00

66


Woodgrain finish This unique application gives the appearance of natural wood, with all of the benefits of an aluminium door.

Acacia

Dark Cedar

Light Cedar

Light Walnut

White Pine

Light Oak

The colours shown above are indicative only. Consult your local manufacturer for an aluminium colour swatch.

67


Entrance door C O N F I G U R AT I O N S

68


Latitude

LAT00

LAT01

LAT02

LAT03

LAT04

LAT100

PLA01

PLA03

PLA04

PLA01 TG / VH

PLA06 TG / VH

AX01

AX02

AX03

CLA01

CLA05

CLA06

LAT101

LAT102

Plasma

PLA00

Axis

AX00

PLA06 TG / VH SIDELIGHT

PLA00 SIDELIGHT

AX01 SIDELIGHT

Classic

CLA00

CLA07

CLA4100

CLA4105

CLA4109

Aquila

AQ00

AQ01

AQ02

AQ03

AQ04

AQ05

CLA00 SIDELIGHT

CLA01 SIDELIGHT

AQ06

Glass Plasma Note: Configurations are subject to change. Please confirm with your local manufacturer.

GPL00

GPL00 SIDELIGHT

GPL00 FRENCH DOOR

69


Plasma Colour Matt Sandstone Grey Hardware Icon lever handle - large Configuration PLA00


Home of quality brands The Altherm brand is owned by APL Window Solutions, New Zealand’s leading window systems company. At APL, it’s all about quality. From aluminium extruding, to surface finishing, specialised manufacturing, distribution, and we continually invest in leading-edge products and processes. APL also brings scale. We have New Zealand’s largest extrusion plant, an in-house powdercoating facility, and a manufacturing subsidiary for specialised aluminium work. We use our distribution fleet to make sure the product arrives at our manufacturers in the best possible condition. An extensive network of Altherm manufacturers stretches throughout New Zealand. These businesses are individually owned and managed, with knowledge, expertise and skills to assist with your next building or renovation project. They are exclusive providers of the Altherm range of products. See our website for manufacturer details, or visit your local Altherm manufacturer to view our wide range of windows and doors. All of which adds up to a big tick for the Altherm brand.

altherm.co.nz

aplnz.co.nz

71


Plasma Negative Detail Colour Electric Cow Hardware Windsor pull handle with turn set Configuration PLA03 Custom


9990341


A L T H E R M

W I N D O W

S Y S T E M S

|

E N T R A N C E

D O O R S

2019

Profile for APL | Architectural Profiles Ltd

ALTHERM Entrance Doors Brochure

A large range of stunning entrance doors grouped into several design series. Available through the ALTHERM Window Systems manufacturer netwo...

ALTHERM Entrance Doors Brochure

A large range of stunning entrance doors grouped into several design series. Available through the ALTHERM Window Systems manufacturer netwo...

Profile for aplnz
