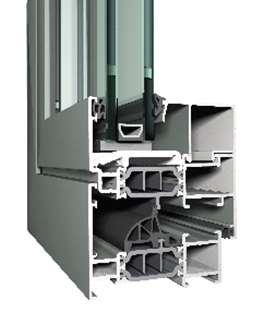

Featuring Reynaers CP 130

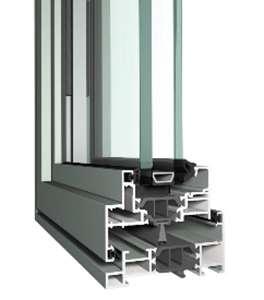

Featuring Reynaers CF 77
MinVisible widthframe15mm51mm
Min. Visible widthframe-vent65mm89mm
Min. Visible widthT-profile50mm76mm
Max.widthvent1200mm200mm
Max.heightvent1500mm2800mm
Overall system depth68mm Rebate height18mm25mm
MinGlass thickness28mm28mm
Max.Glassthickness43mm52mm
Thermal breakFibreglass reinforced polyamide strips
Air tightnessmax. pressure 4(600Pa)
Water tightnessmax. pressure E1200(1200Pa)9A(900Pa)
Windloadresistance
Acoustic performance 47(-2;-7)dB
Burglarresistance
Exxx(>2000Pa)
PAS24
Thermal insulation (Uw)upto1.1W/m2K(Uw)upto1.5W/m2K
Min.Visiblewidthframe30mm
Visibleheight – Frame/ThresholdLevel10 – 15mm
Visibleheight – Frame/ThresholdLevel29 – 30mm
Visibleheight – Frame/ThresholdLevel323 – 44mm
Visibleheight – Frame/ThresholdLevel423 – 74mm
Min.Visiblewidthmeetingsection131mm Max.widthvent1200 Max.heightvent2500
Maxelementventweight120kg Overallsystemdepth68mm Rebateheight14mm
Visibleheightvent59mm Min.Glassthickness28mm Max.Glassthickness55mm
ThermalbreakFibreglassreinforcedpolyamidestrips
Subjecttothresholdlevelchosen
Airtightnessmax.pressure 4(600Pa)
Watertightnessmax.pressure
Windloadresistance
Acousticperformance
Burglarresistance
Thermalinsulation
Upto9A(600Pa)
UptoB3(1200Pa)
Rw(C;Ctr)=35(-1;-4)dB/40(-2;-4)db
PAS24
Upto1.1W/m2K
Min.Visiblewidthframe43mm Visibleheight – Frame/Threshold28/35/40mm Vent94mm
Min.Visiblewidthmeetingsection50/69/98mm Meetingsection – 4doors194mm Max.widthvent2700mm Max.heightvent2700mm Maxelementventweight300kg
OverallsystemdepthMonorailandDualRail1392mm TripleRail210mm Rebateheight25mm Min.Glassthickness28mm Max.Glassthickness43mm
ThermalbreakFibreglassreinforcedpolyamidestrips
PanelDoorPivotDoor
Visible height – Frame/Threshold 17.5mm
Minvisiblewidthmee ngsec on76mm80mm
Max width vent 1200mm 2000mm
Maxheightvent28004000mm
Max element weight 170kg 500kg
Overall system depth 68mm 77mm
Rebate height 25mm 27mm
Minglassthickness28mm28mm
Max glass thickness 52mm 62mm Thermal

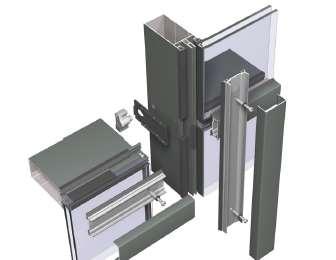

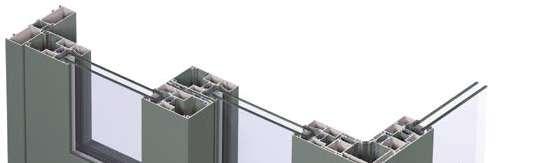

Visiblewidthinside50mm
Visiblewidthoutside50mm
Maxinertiamullions(Ix:windload)2690cm4
Mininertiatransoms(Ix:windload)4cm4 Rebateheight20mm Minglassthickness28mm Maxglassthickness60mm FixingmethodFixingbypressureplates

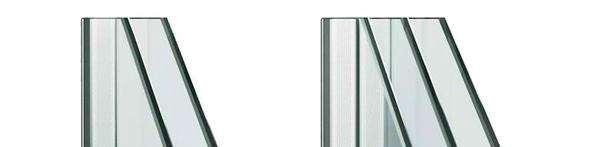

DoubleGlazedTripleGlazed
Height Built in frame 68 mm / 100 mm
Visiblewidth/height
Vent8mm/10mm Mee ngsec on35mm Mee ngsec on4doors67mm/69mm Wall35mm
Overall system depth Frame Duo Rail : 148 mm 3-Rail:236.5mm Duo Rail : 180 mm 3-Rail:284.5mm Vent 44 mm 60 mm
Max height 4000 mm
Maxventweight ManualVent300kg MotorisedVent750kg FixedVent1200kg GlassThickness36.5-38.5mm52.5-54.5mm
GlazingMethodStructuralglazing(sliding)+ Standardglazing(fixed)
ThermalInsula on52mm fibreglassreinforcedpolyamidestrips
Airtightnessmax.pressure 4(600Pa)
Watertightnessmax.pressure UptoE750(750Pa)
Windloadresistance Upto5(2000Pa)
PAS24
Burglarresistance
Thistableshowsclassesandvaluesofperformances,whichcanbeachievedforspecificconfigura onsandopeningtypes.
(1)TheUf-valuemeasurestheheat flow.ThelowertheUf-value,thebe erthethermalinsula onoftheframe.
(2)Theair ghtnesstestmeasuresthevolumeofairthatwouldpassthroughaclosedwindowatacertainairpressure.
(3)Thewater ghtnesstes nginvolvesapplyingauniformwatersprayatincreasingairpressureun lwaterpenetratesthewindow.
(4)Thewindloadresistanceisameasureoftheprofile’sstructuralstrength,testedbyapplyingincreasinglevelsofairpressuretosimulatethewind force.
(5)Theburglarresistanceistestedbysta canddynamicloads,aswellasbysimulateda emptstobreakinusingspecifiedtools.
(6)Onlyformotorized
