PORTFOLIO 2023.

"Don't wait until you know who you are to get started."

-Austin Kleon

CONTENTS.

PROFILE.

PROFILE

KAKA STEPPER

Exercise easily just by stepping around.

ROCKET

Sleep as comfortable as floating in space.

TOEAT

Touch and enjoy the meal.

ARANEAPE

A tape measure that will never hit your hands.

REVOLVE

A moment of respite from the hustle.

OTHER WORKS Sketch, 3D model, etc.

Works selected from 2019 to 2023.

Hi! My name is Pin-He Huang, but you can call me Peter, Aouteka, しげ, or whatever you prefer :)

PIN-HE HUANG

-1999.10.09

Education

National Cheng Kong University-Industrial Design

Taipei Municiple Cheng Gong High School

Software Languages

Solidworks

KeyShot

Blender

Arduino

Adobe Illustrator

Adobe Photoshop

Adobe InDesign

EXPERIENCE

Skill

Design Thinking

Sketching

3D modeling

Rendering

Prototyping

Researching

Facilitating

2022 / Internship in LASTY

English - IELTS overall 6.5

Japenese - N2

Mandarin- Mother Tongue

Taiwanese - Mother Tongue

2021 / NCKUID Summer Semester Exhibition-Gold Award

2021 / Leader of NCKUID Graduation Projects Marketing

2020 / NCKU Art Center, souvenir design

2020 / Shiau Ching She Workshop

PROJECT.

Hi! My name is Pin-He Huang, but you can call me Peter, Aouteka, しげ, or whatever you prefer :)

Exercise Product Design

Hard to get into the habit of exercising ?

In response to the public's increasing health awareness and the trend of working at home since the post-pandemic era, we hope that KAKA STEPPER allows users complete simple exercise at every nook and corner of the home, also gets them into the habit of exercising.

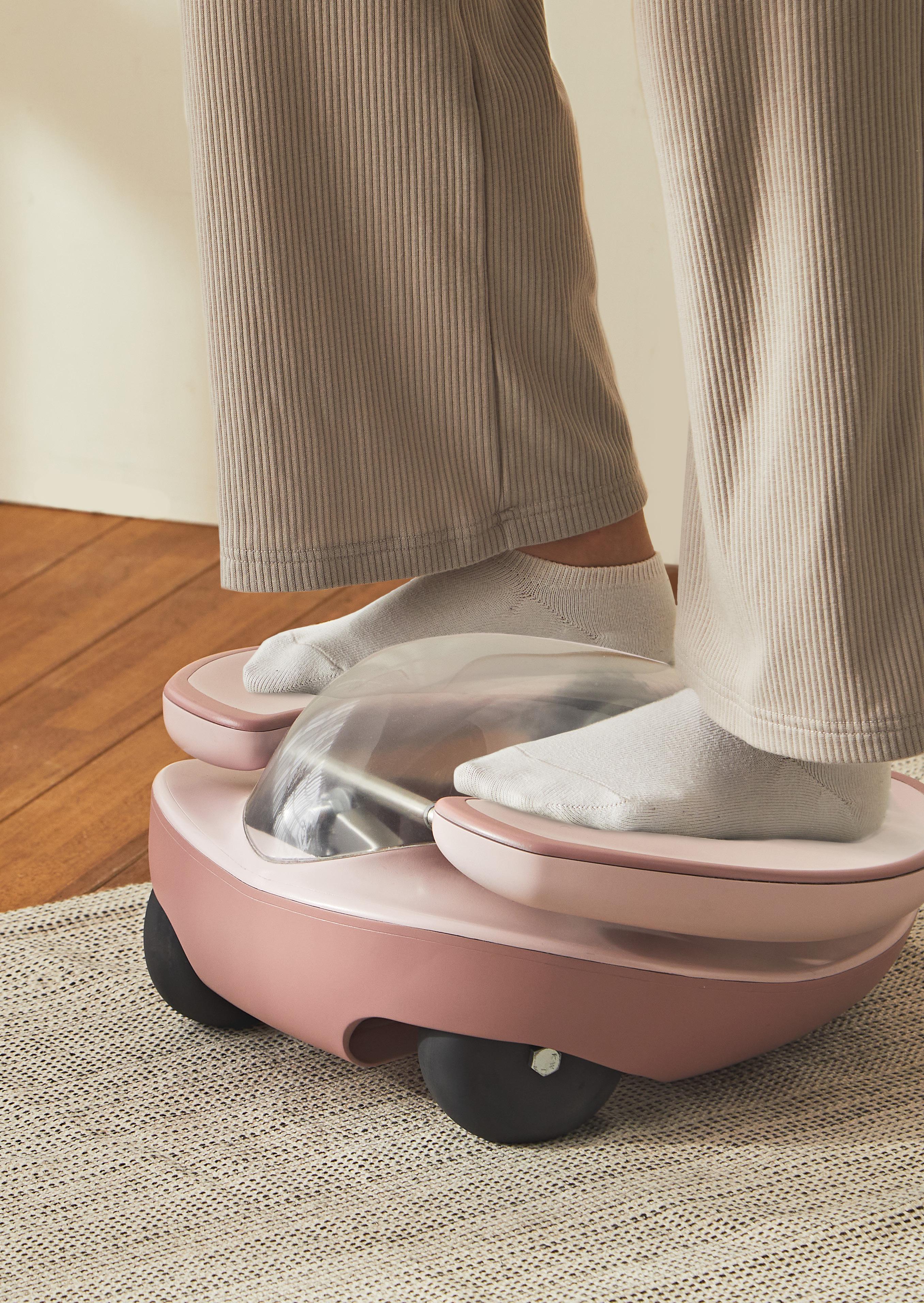

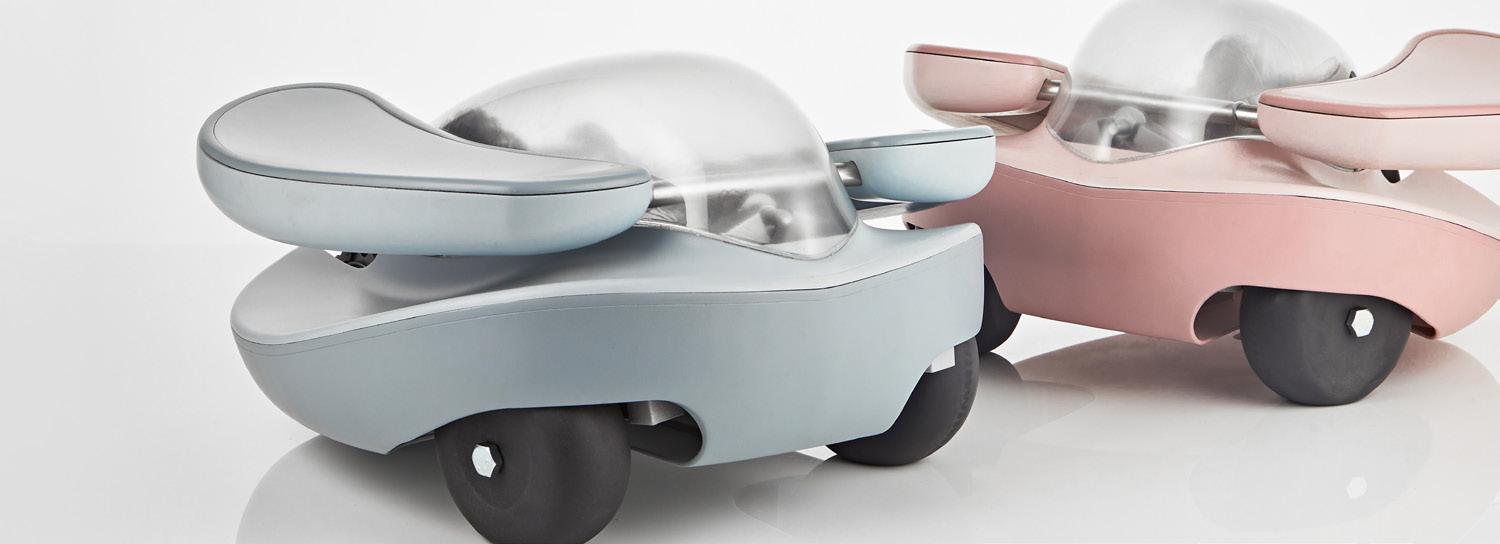

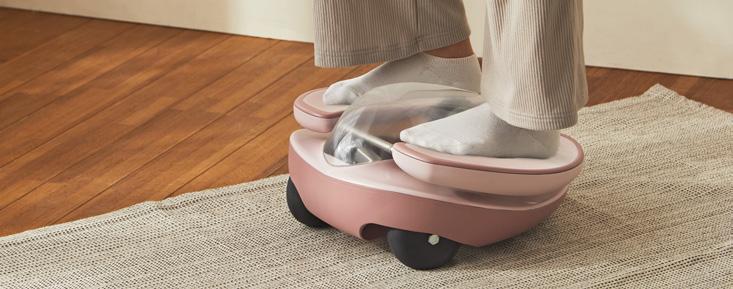

KAKA STEPPER

Exercise easily just by stepping around

KAKA STEPPER is a new kind of stepper that users can move around at home by stepping on it. Users can also complete easy resistance exercises while moving from a spot to another.

Group Project: Be in charge of the whole design, particularly in model making, and machnism design.

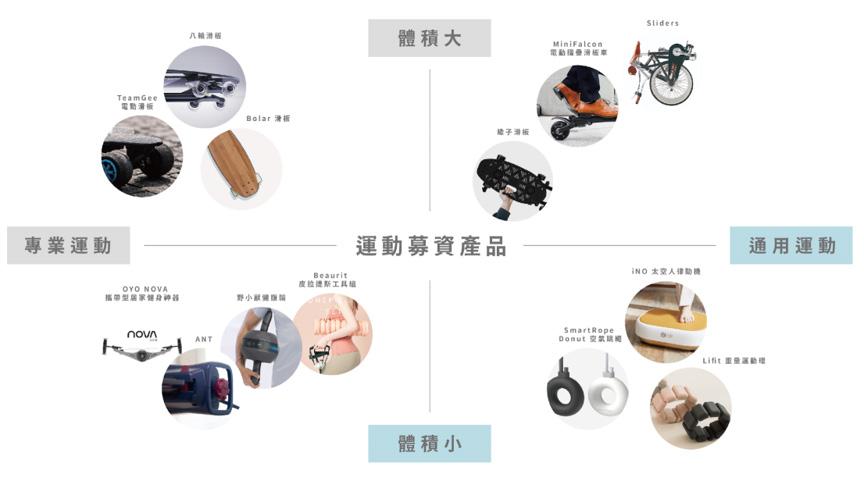

Design Positioning

The best way to develop a habit is to start with simple actions, gradually and consistently. Based on this, we referred to innovative sports products on the market and summarized the concepts of "Laziness exercise" and "Passive exercise", which we incorporated into the design of KAKA STEPPER.

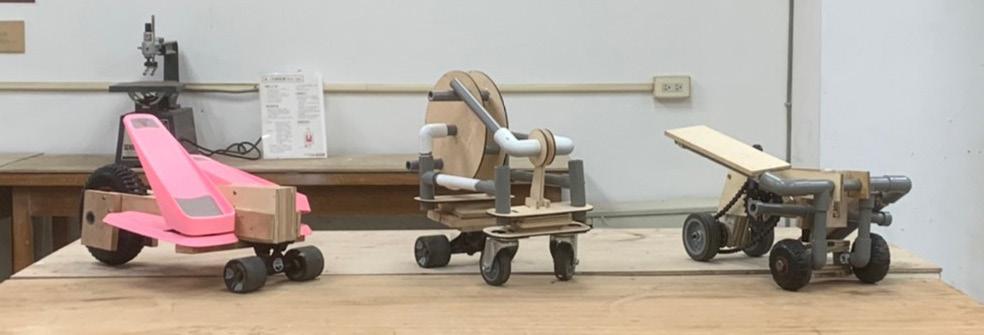

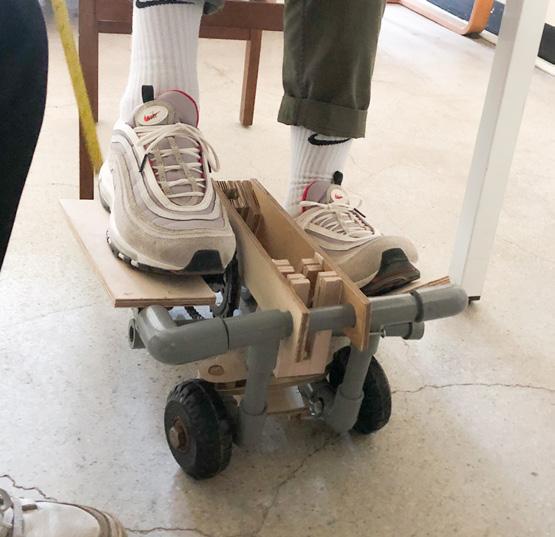

Design Process

During the design process, multiple iterations of prototypes were created to develop the model. Additionally, to ensure that the prototype could support the weight of the user, we collaborated with manufacturers and metal welders to develop the necessary mechanisms.

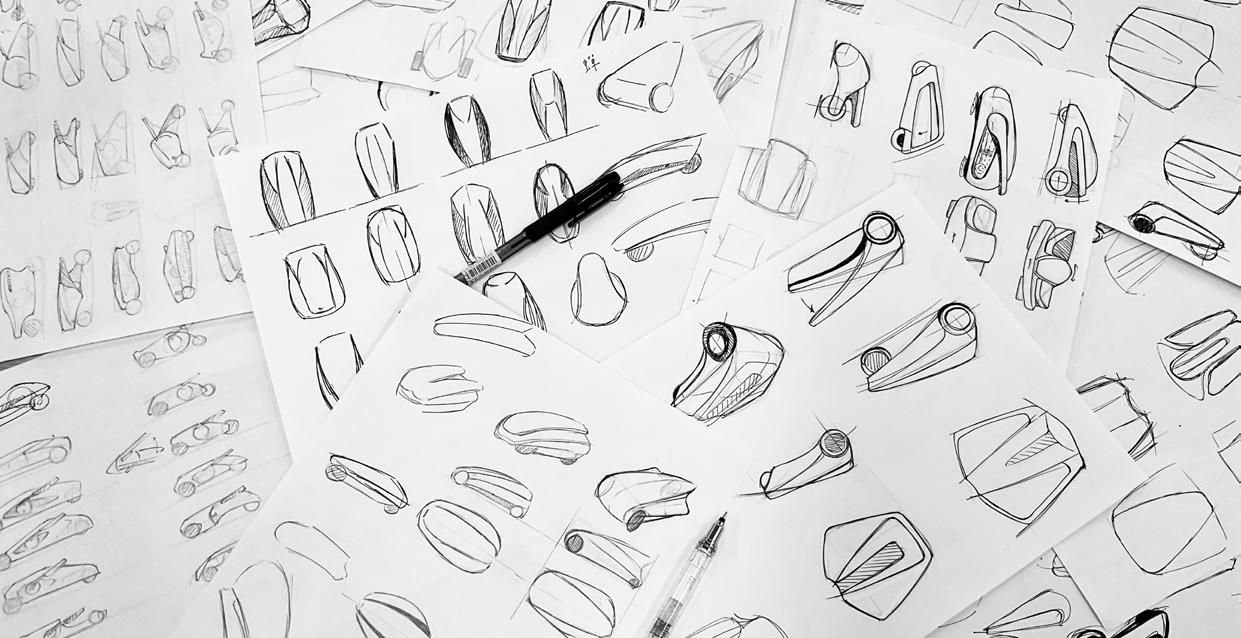

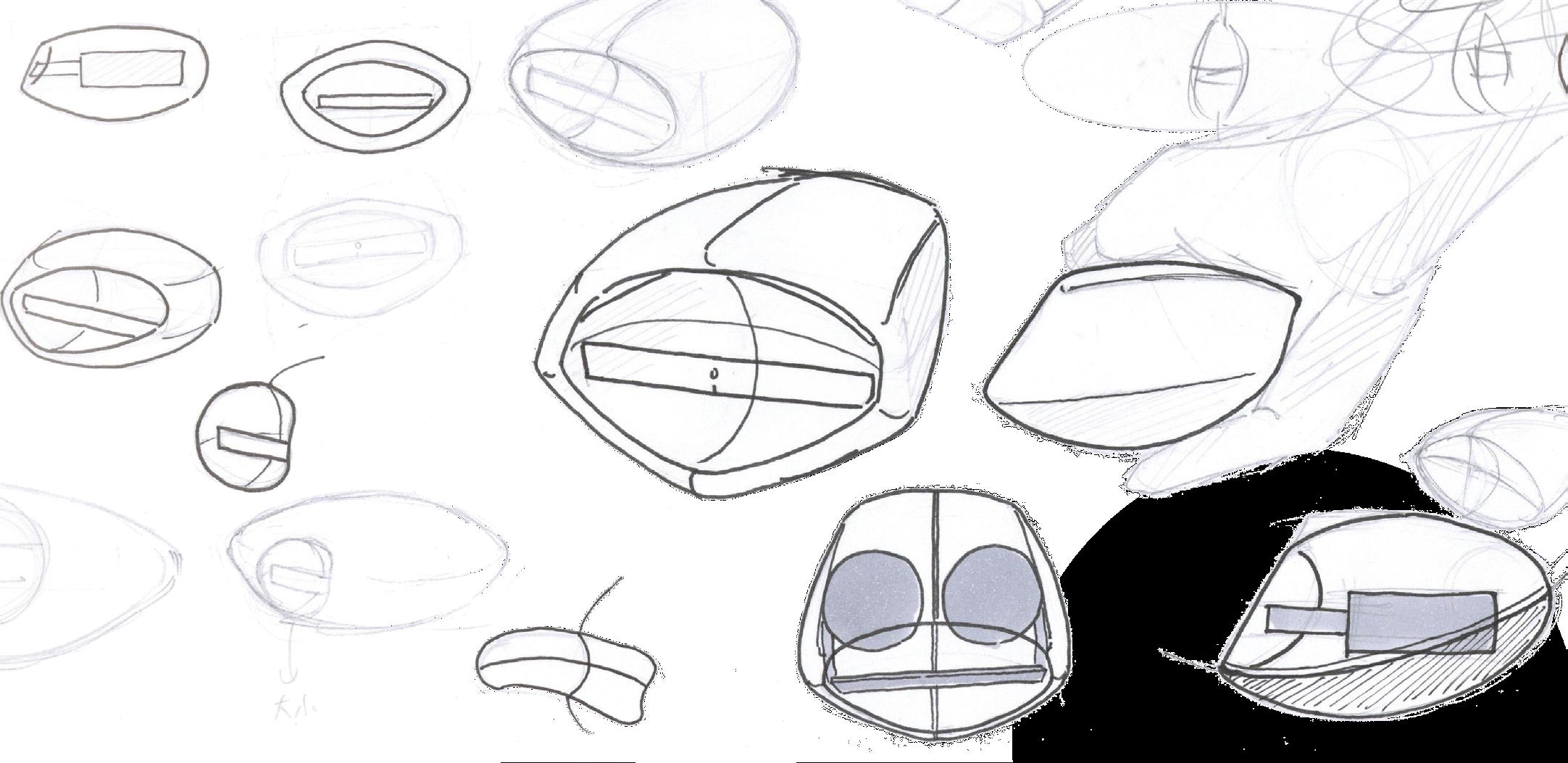

Sketch

Taking the feeling of home as the starting point of the appearence, we developed three directions of form: sharp edge, sharp curves, and round and full shapes as modeling ideas.

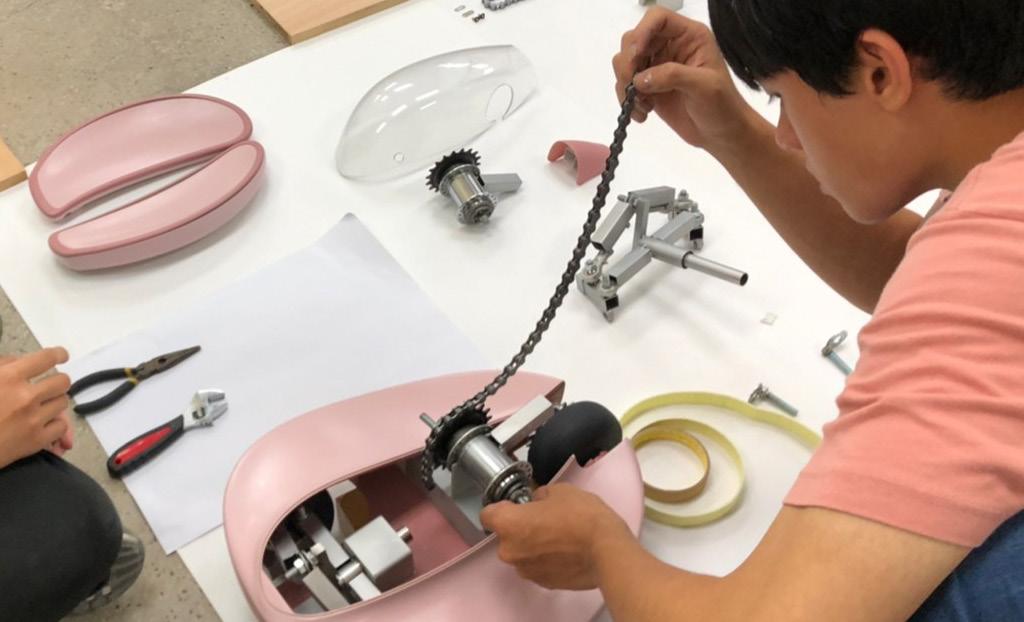

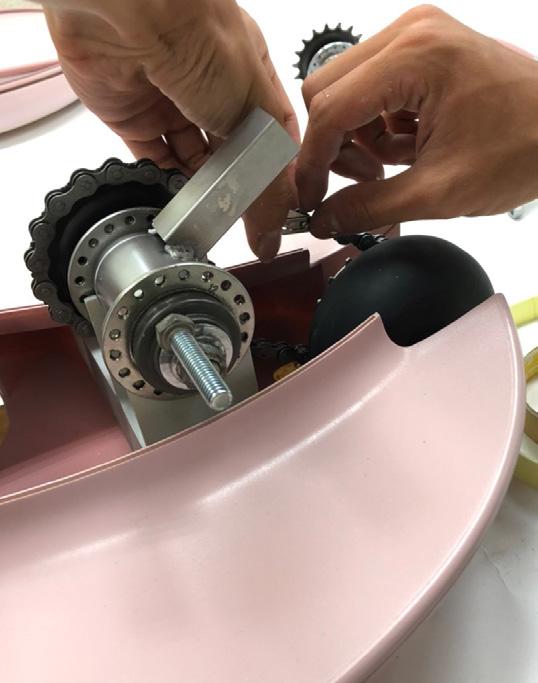

Model Making

As for the appearance of KAKA STEPPER, we meticulously painted and assembled each plastic shell to cover the internal metal mechanism, adhering to the CMF setting and assembly sequence.

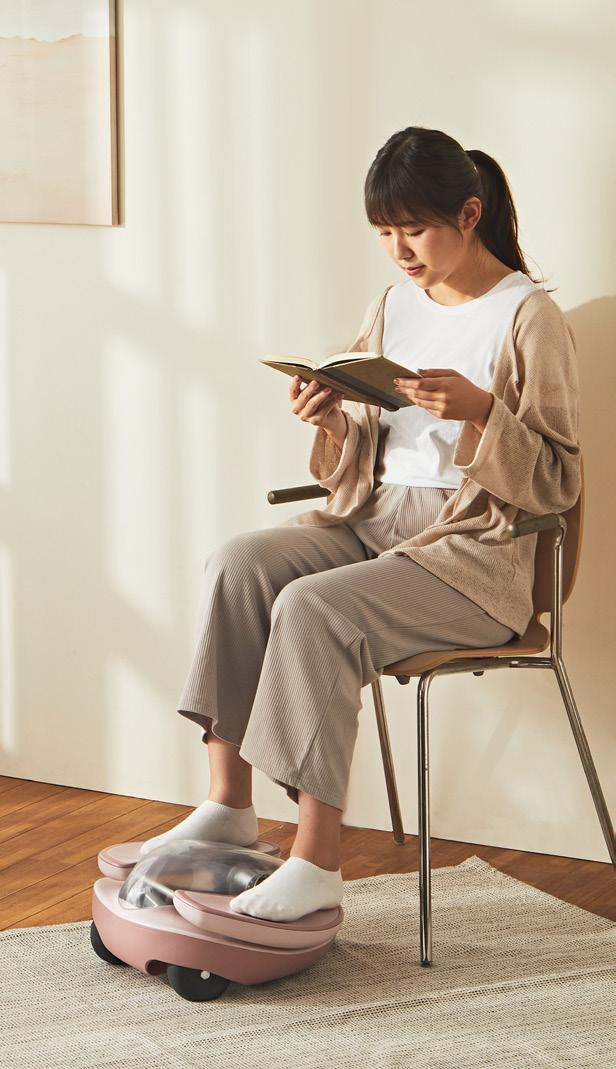

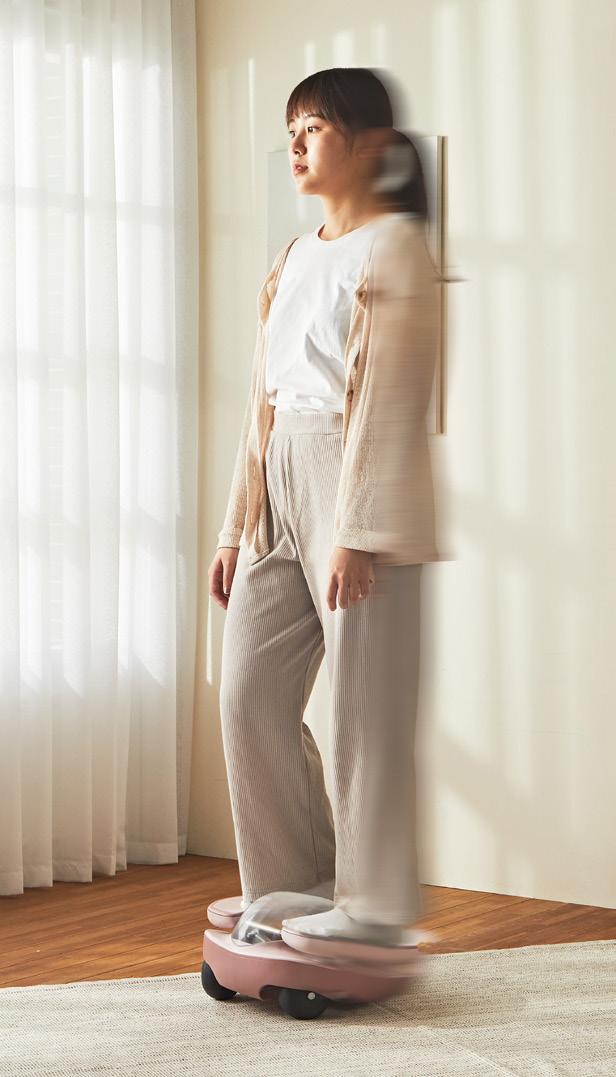

Scenario

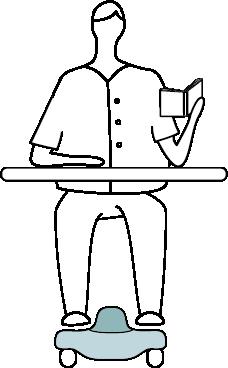

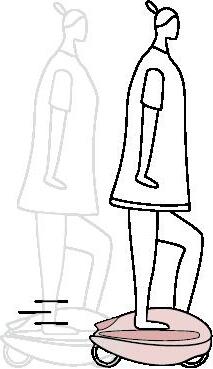

Whenever you are sitting and relaxing in your spare time or standing up doing housework, you can make a habit of exercise easily.

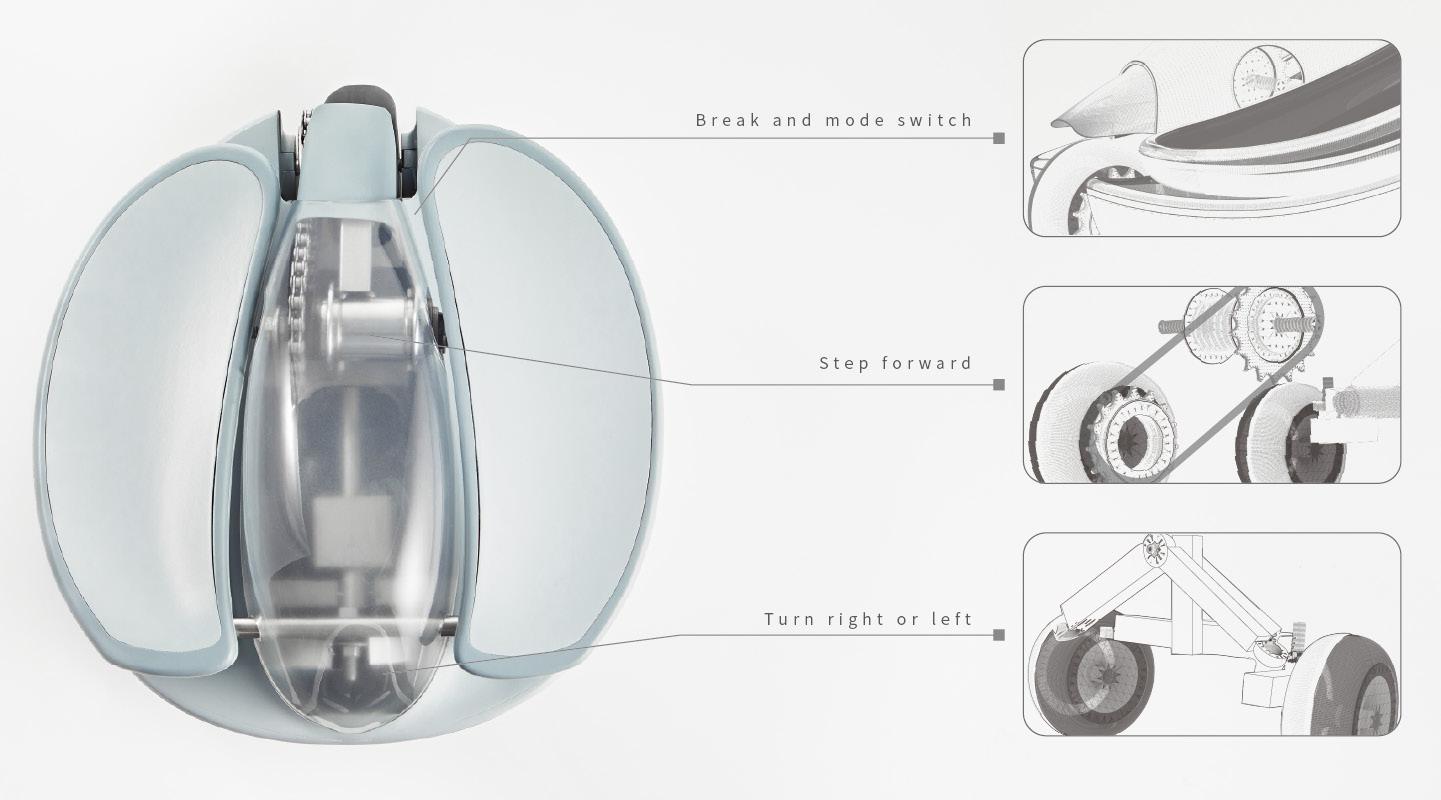

Structure

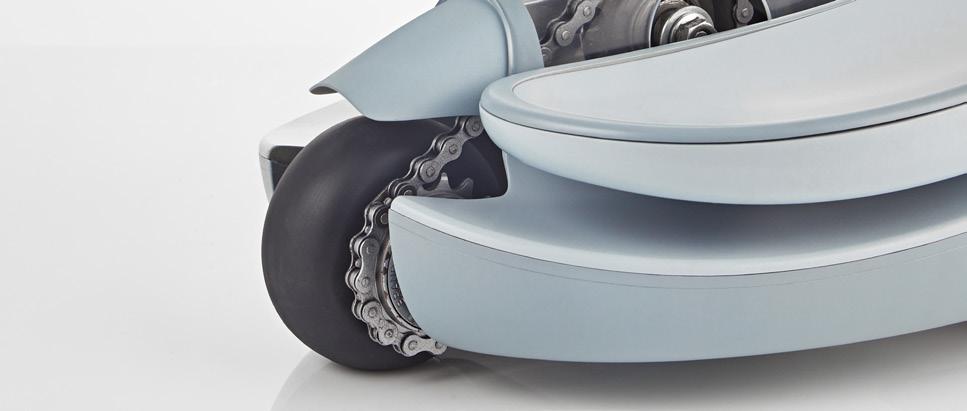

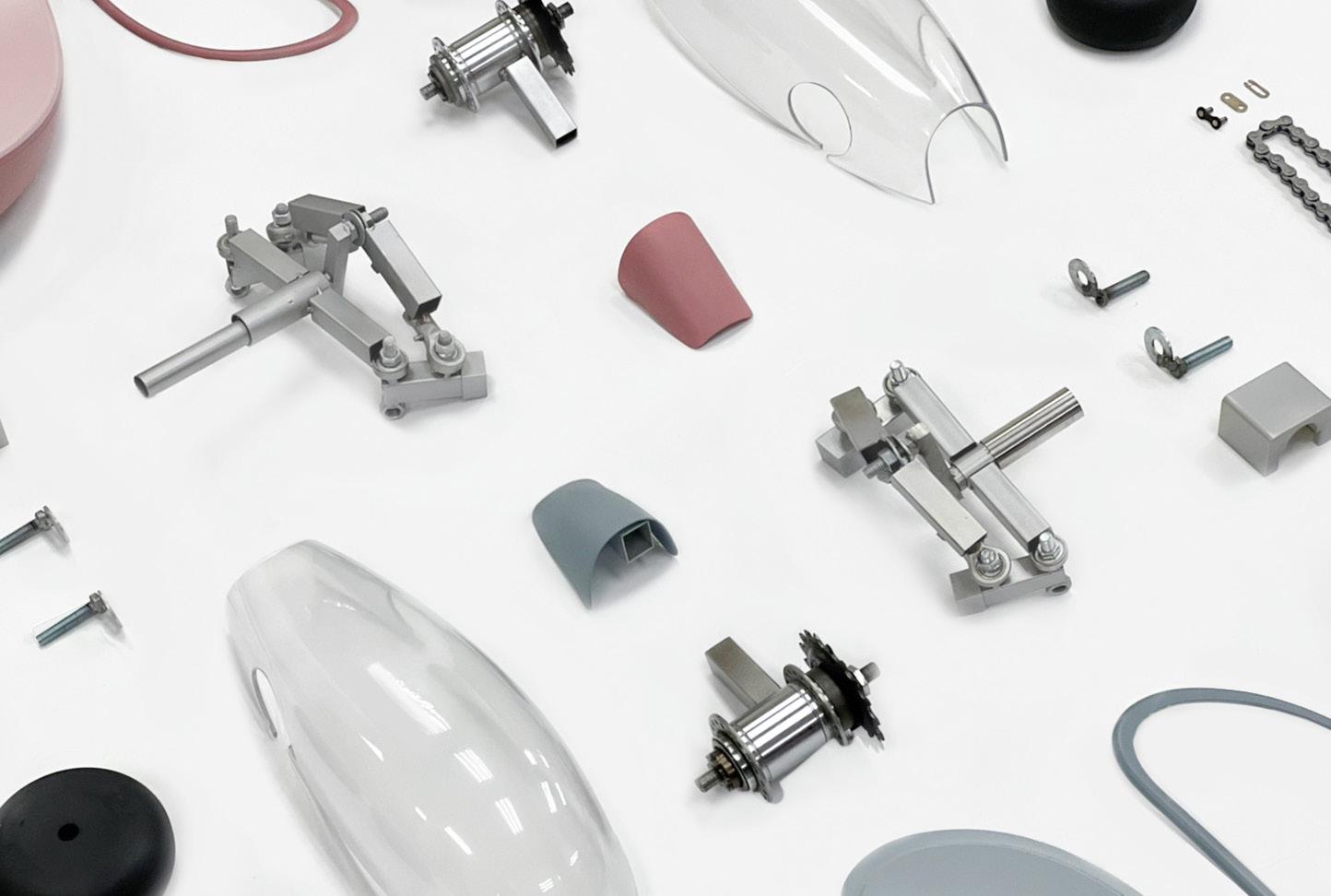

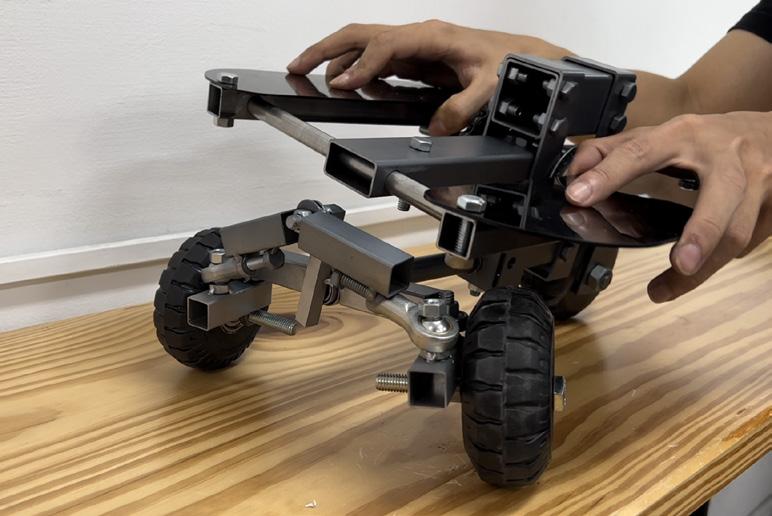

KAKA STEPPER has a mechanism that consists of three main parts: the chain and linkage to move the stepper forward, the tramping structure that increases resistance, and a mechanism that allows users to turn around.

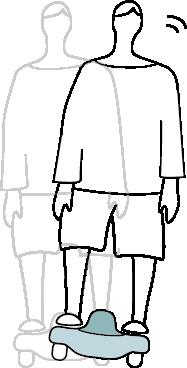

Step Forward Bank Turn Switch Mode Fixed Mode

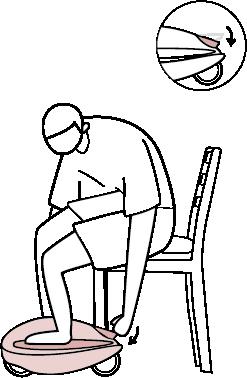

How To Use

In order to meet the situation of home use, fixed and floating mode can also be switched on the stepper. In addition to moving at home, you can also pedal at a fixed point.

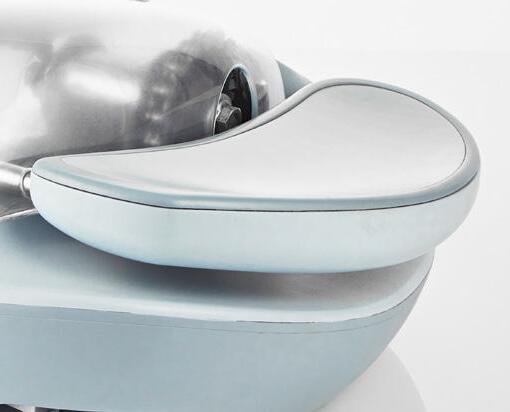

Color Material and Finishing

KAKA STEPPER fits into the home environment through its arc and neat shape and mild color matching.

In Taiwan alone, there are 46,000 visually impaired people, and a study by the Vision Loss Expert Group predicts that the global population of people with blindness will triple to 115 million by 2050."

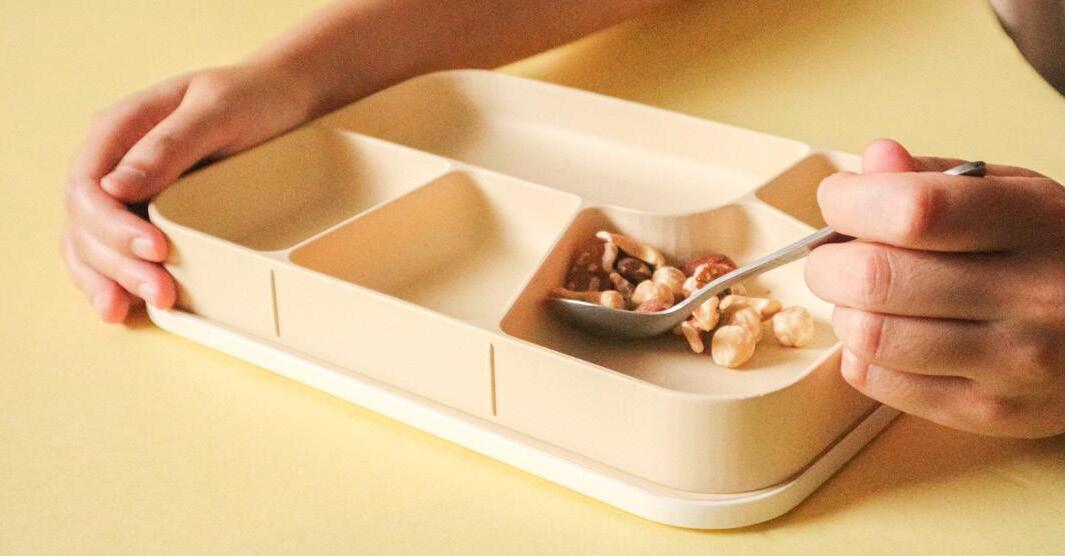

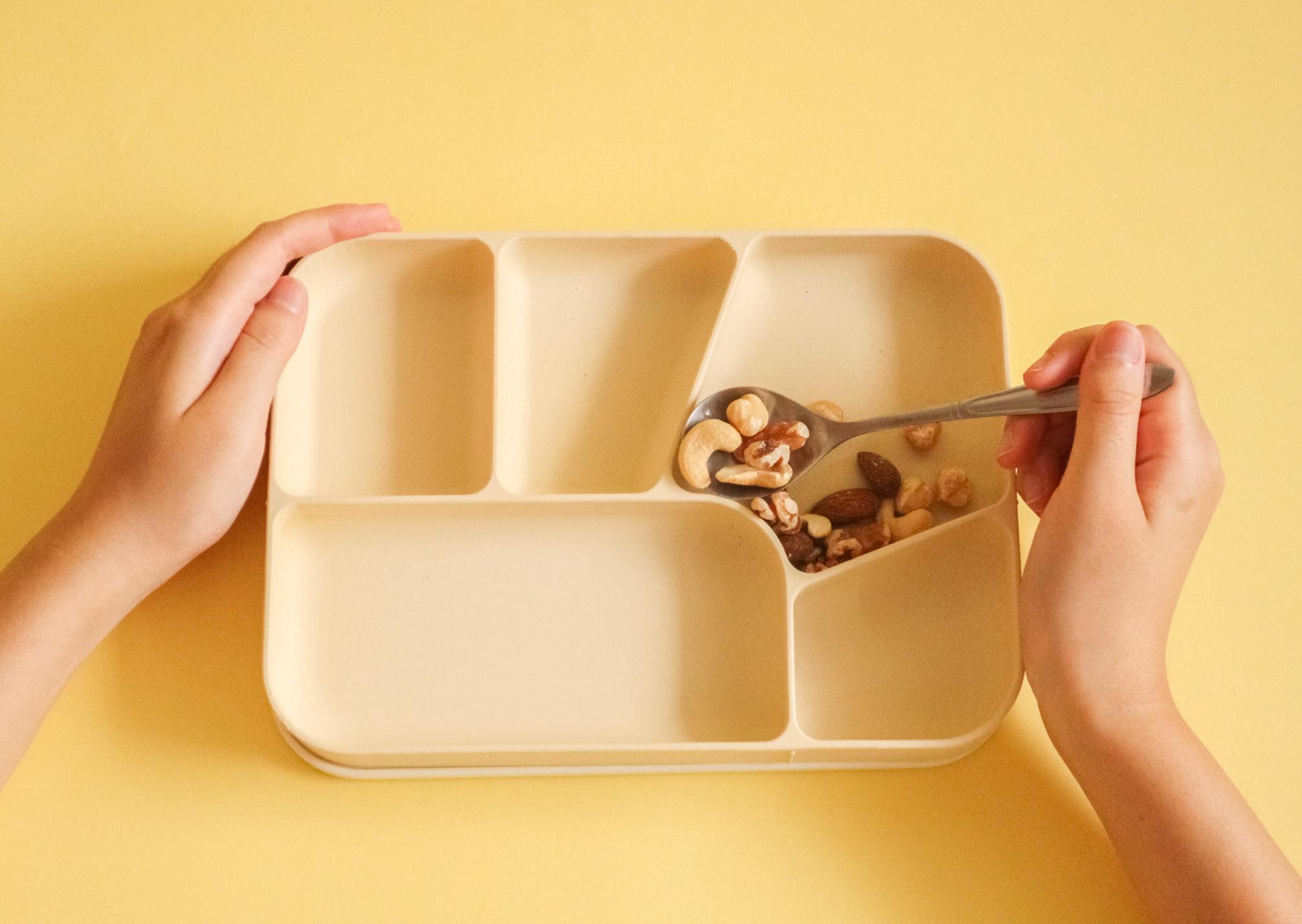

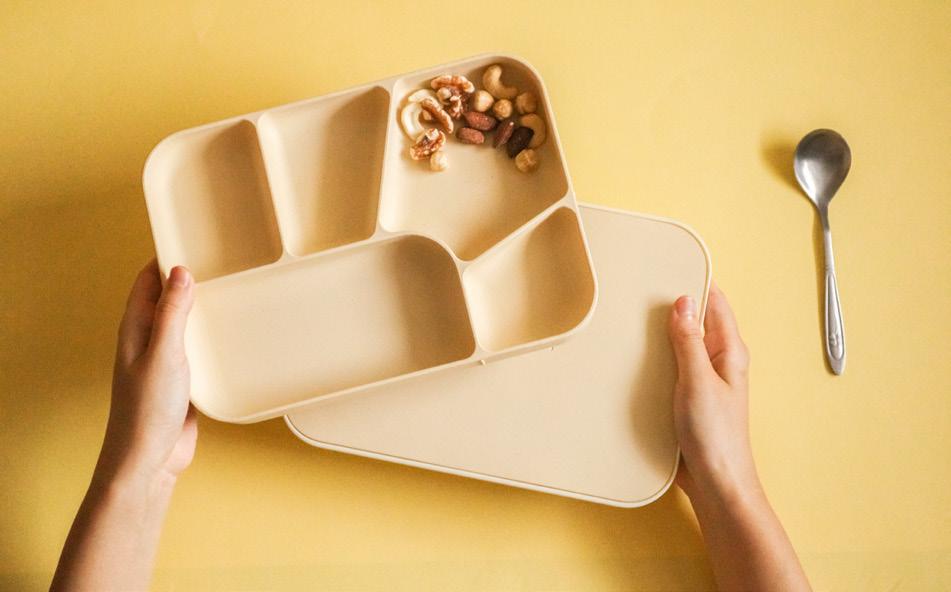

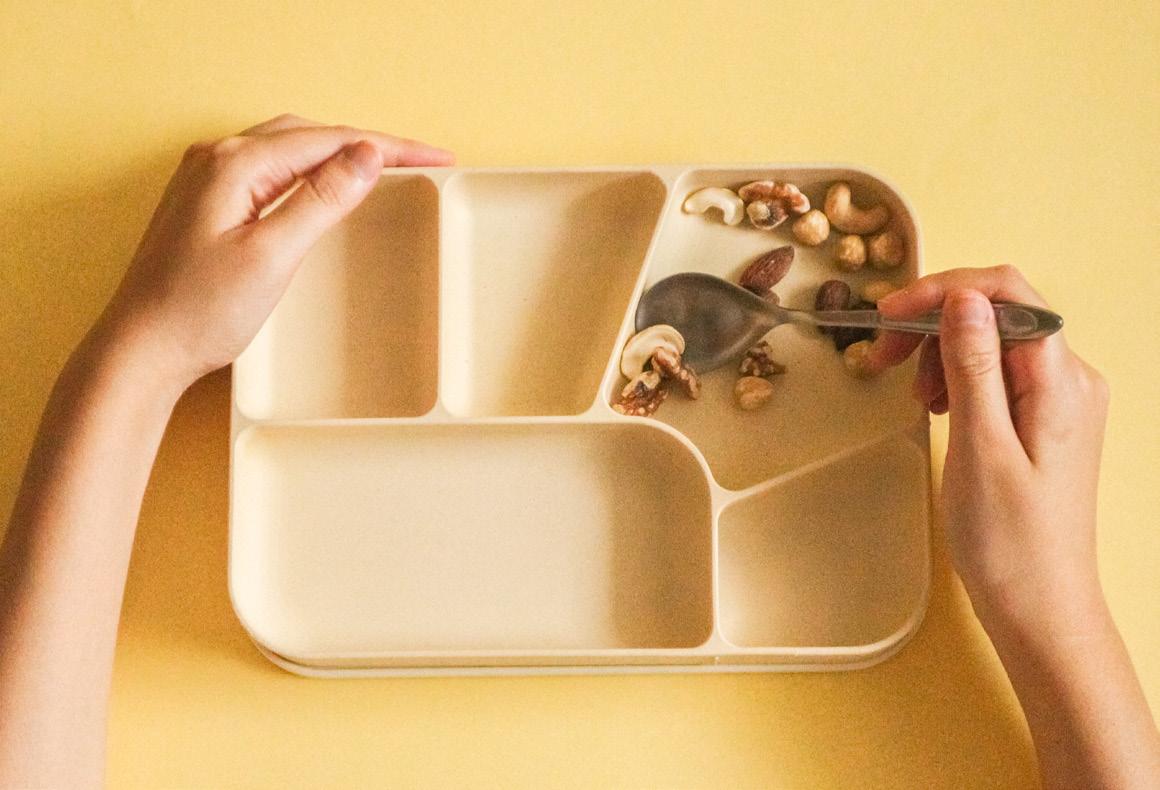

TOEAT

Touch and enjoy the meal.

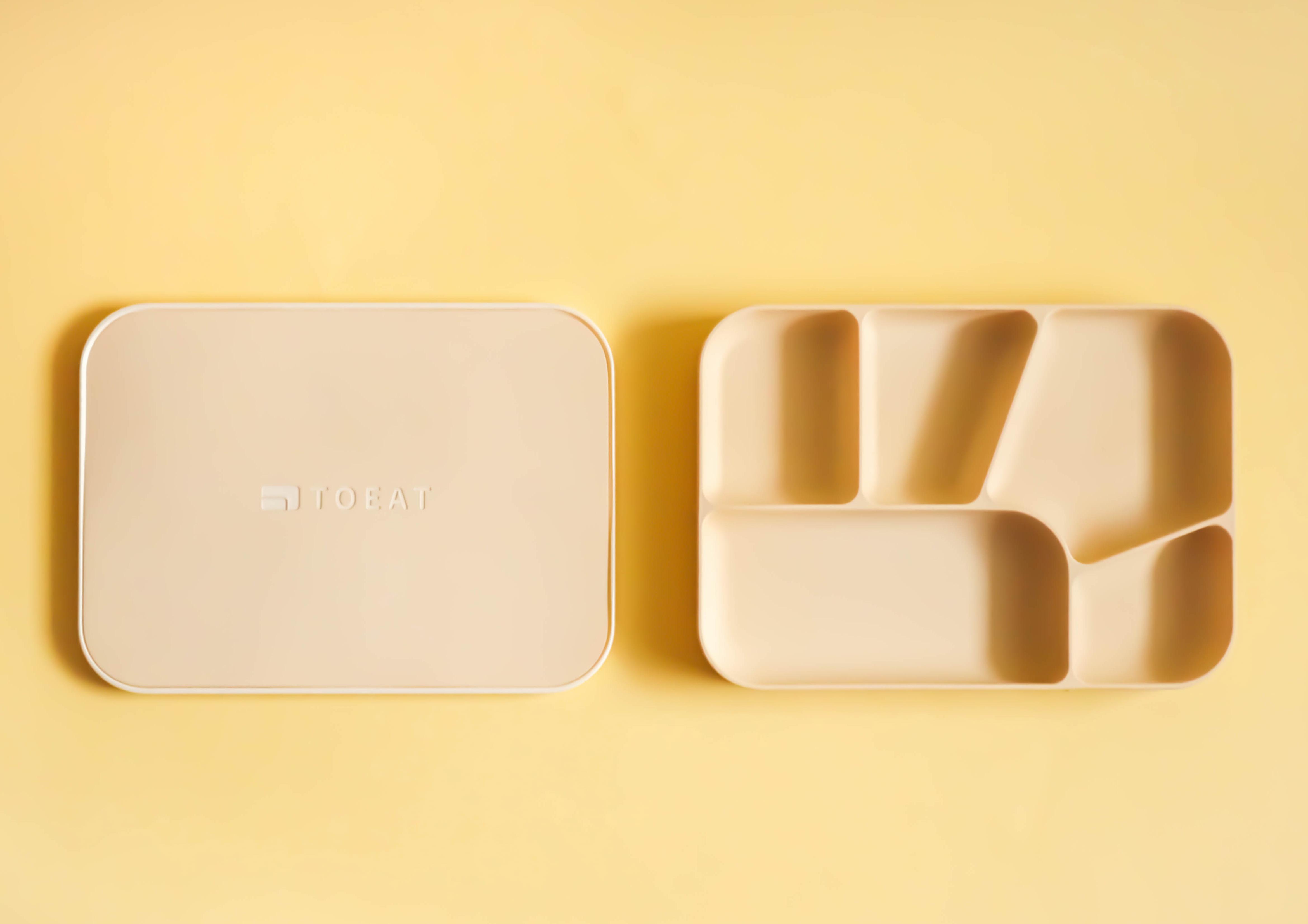

A redesigned lunch box that helps visually impaired individuals easily enjoy multi-dish meals.

Group Project: Be in charge of the whole design, particularly in design research, and model making.

With several observations and interviews, we found that visually impaired individuals often encounter difficulties in distinguishing between dishes when having multi-dish meals, such as bento or cafeteria meals. They frequently have to rely on others for assistance or resort to mixing different dishes into one container.

Difficulty of identifying No mixing food in container. Valuing independence

Design Positioning

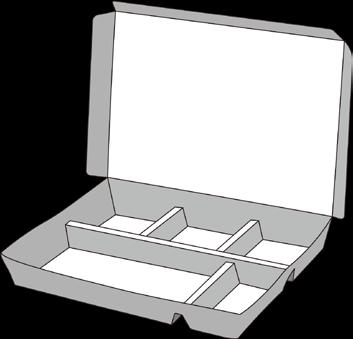

Redesign the traditional lunch box, helping the visually impaired people easily recognized the position of different food.

For many of us, eating can be a pleasurable, but what about those who are visually impaired ?

Insight

Semi-structured interview

In the beginning, we interviewed three visually impaired and asked them about their experience of having a meal.

QFD Method

After summarizing their problems and needs, we used Quality Function Deployment (QFD) to select a suitable solution from a more objective perspective. In this case, we identified technical elements such as magnets, concavo-convex shapes, and route design, which we later integrated into our design.

Design Process

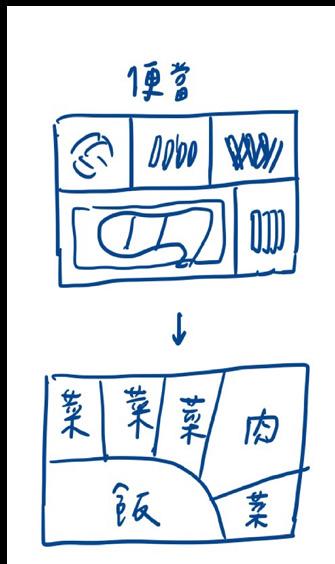

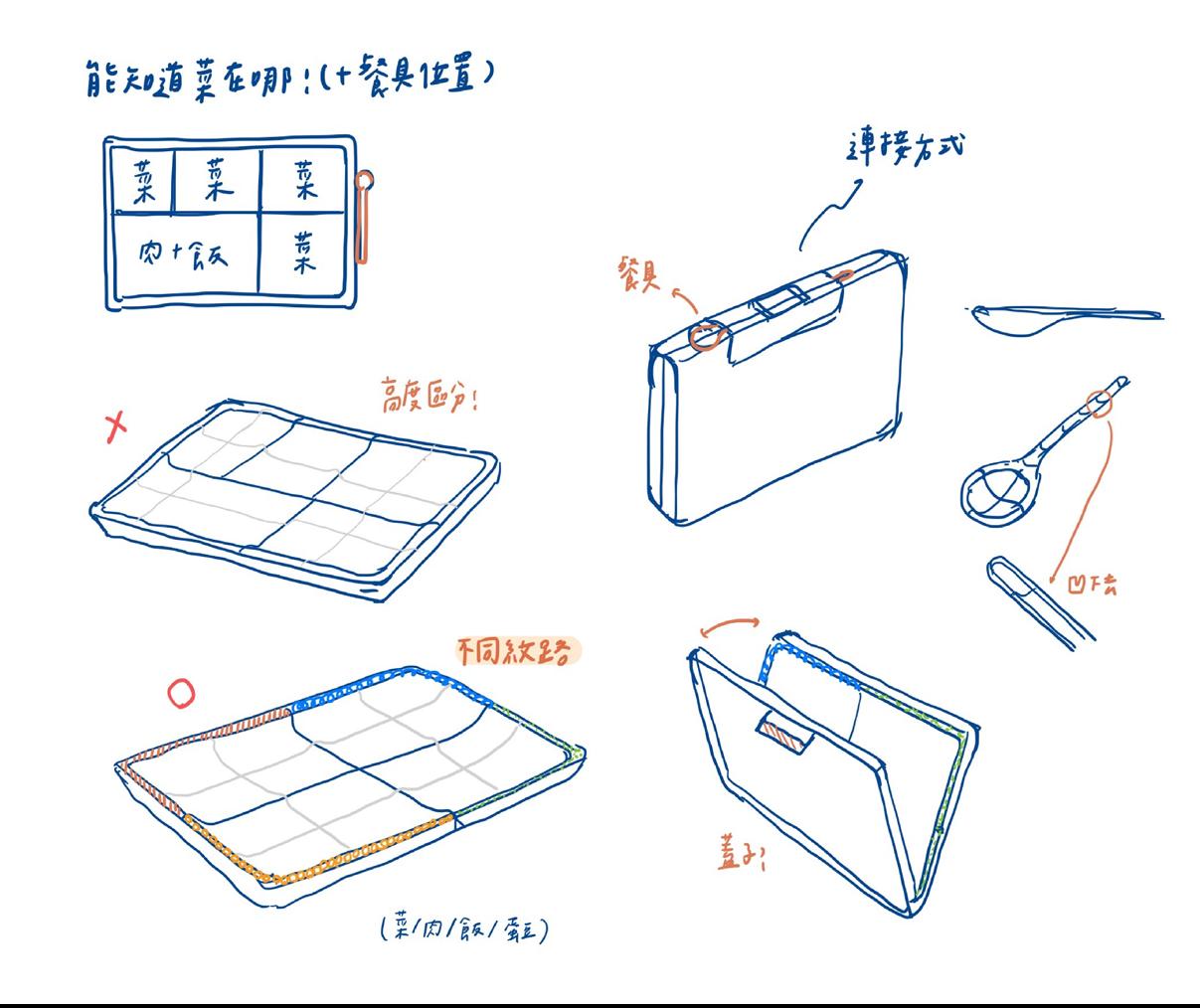

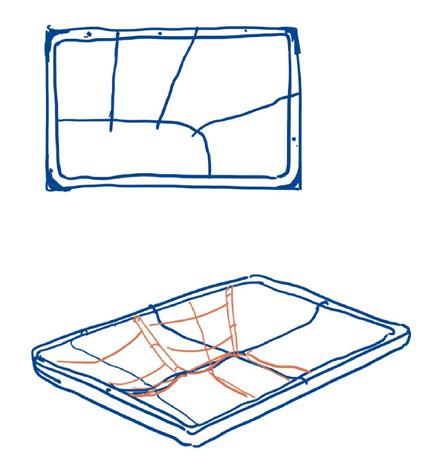

With the insight derived from the QFD result, several idea were thoght up.

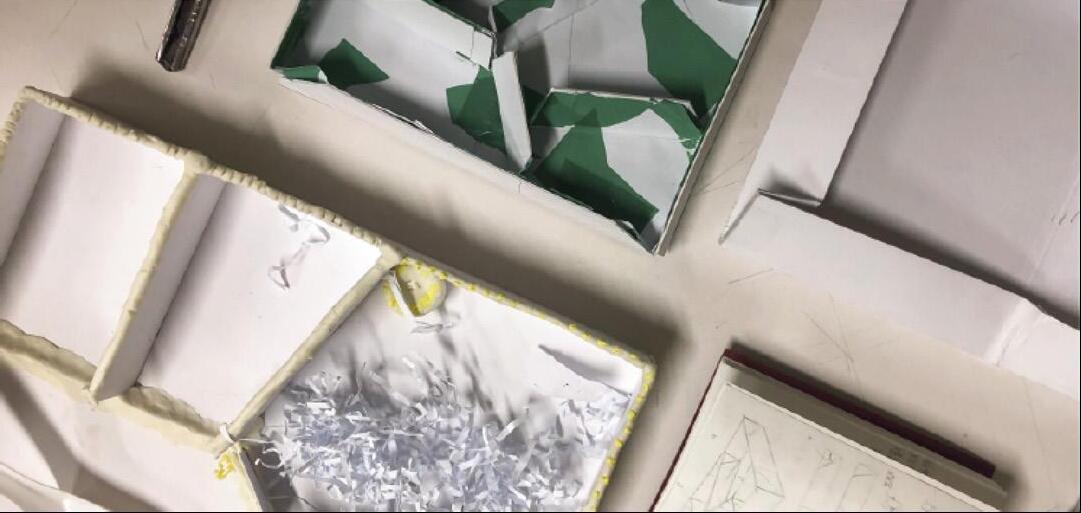

Prototyping and Testing

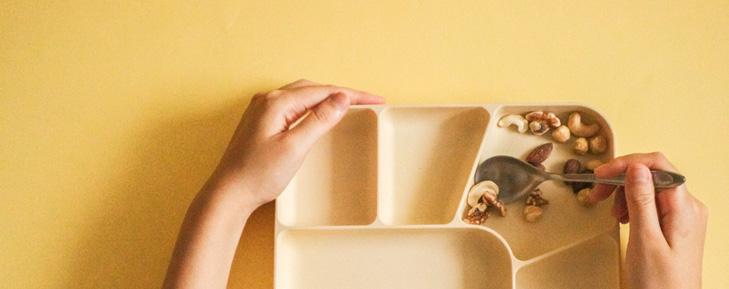

We tested prototypes of TOEAT with visually impaired individuals who provided positive feedback and suggested improvements such as moving the bulge to the side and having uniform compartment heights. We modified our design based on this feedback and iterated on our prototypes, leading to the final version of TOEAT.

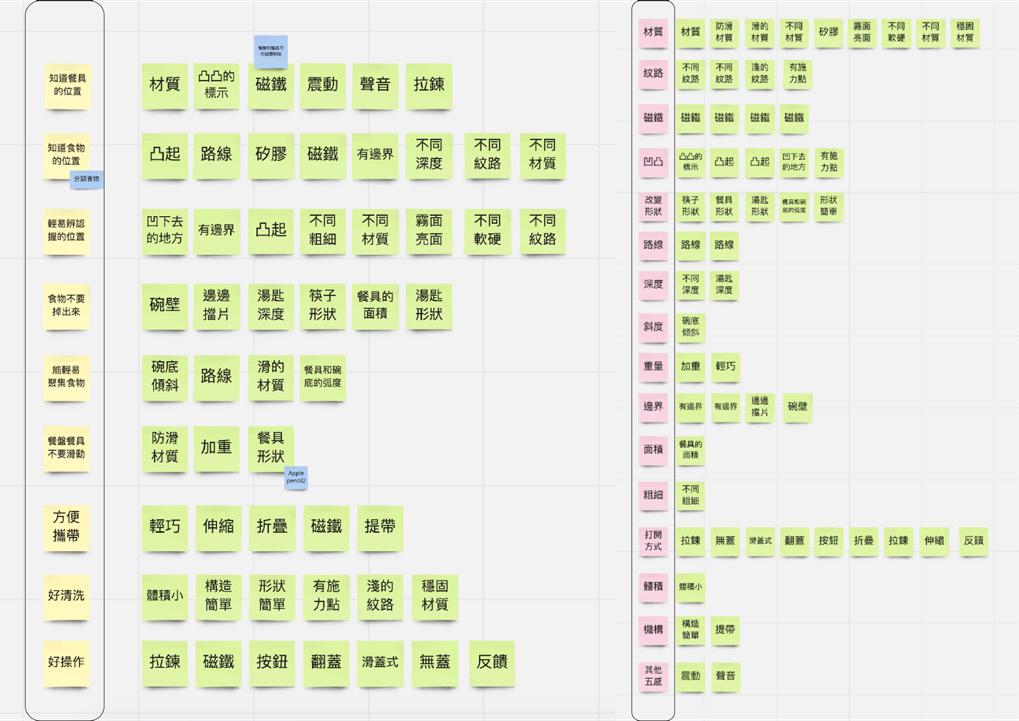

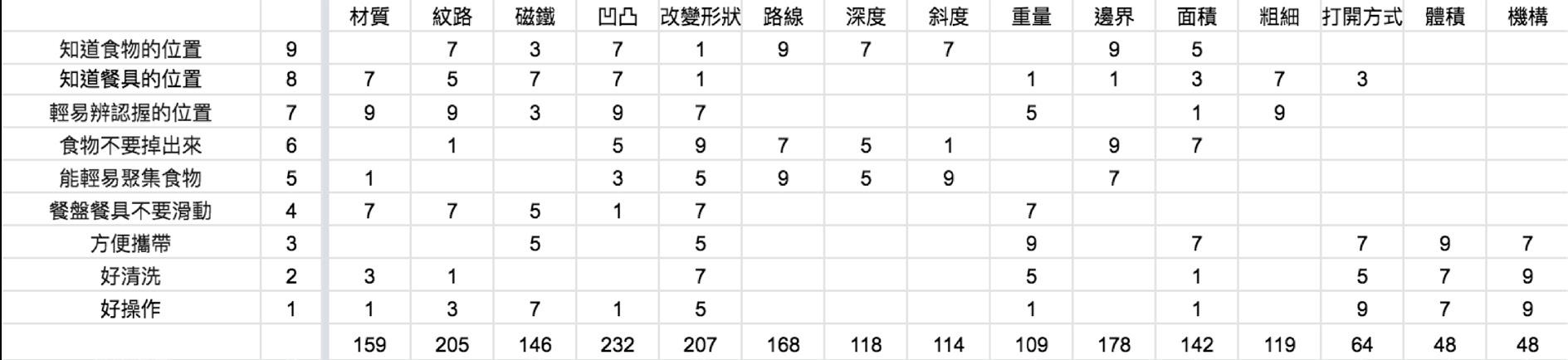

QFD Matrix

Voice of the customer

Get to know the position of the foods, etc.

Technical Requirements

Magnet, Concavo-Convex, and Route, etc.

Mr. Chang Mr. Lu Ms. Wu

Voice of the customer Technical Requirements

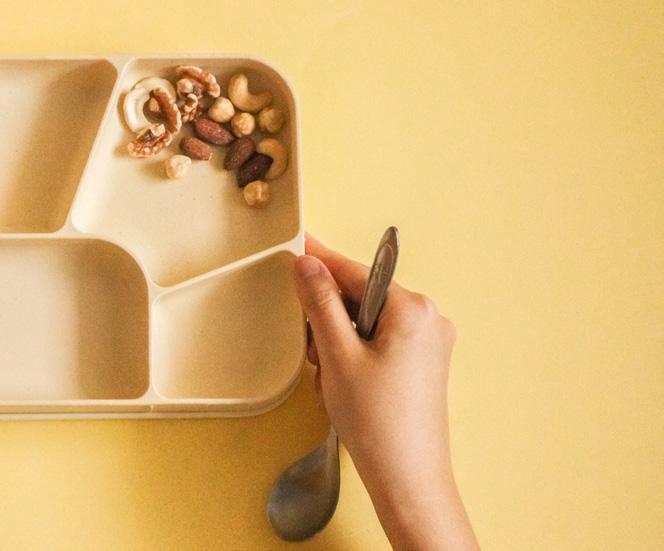

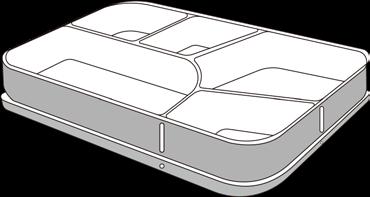

Features 01

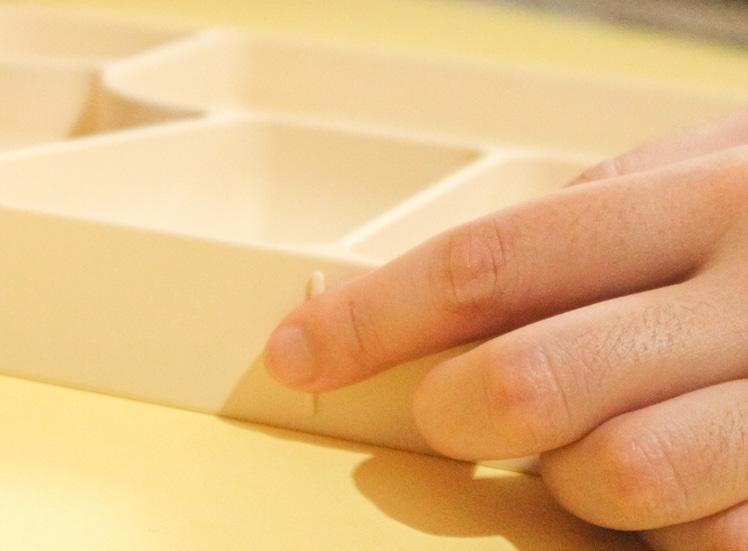

Bulges are added to the sides of the lunch box to help visually impaired individuals understand the position of the compartments in the lunch box, making it easier for them to identify the location of different dishes.

Features 03

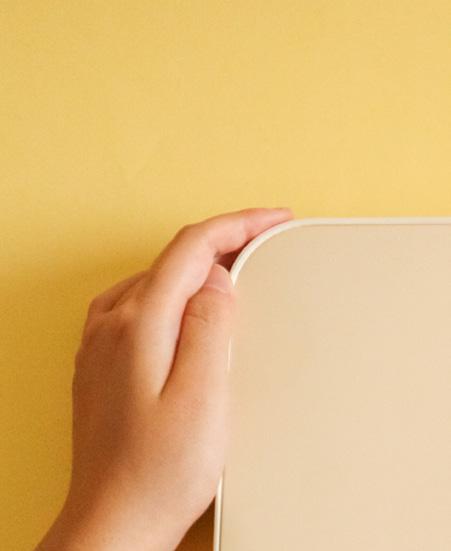

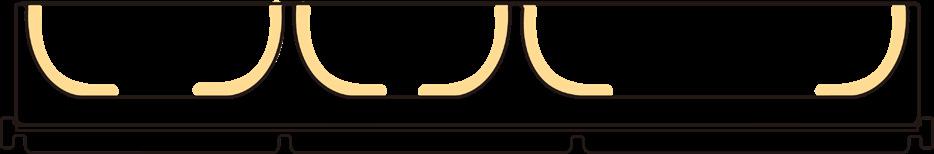

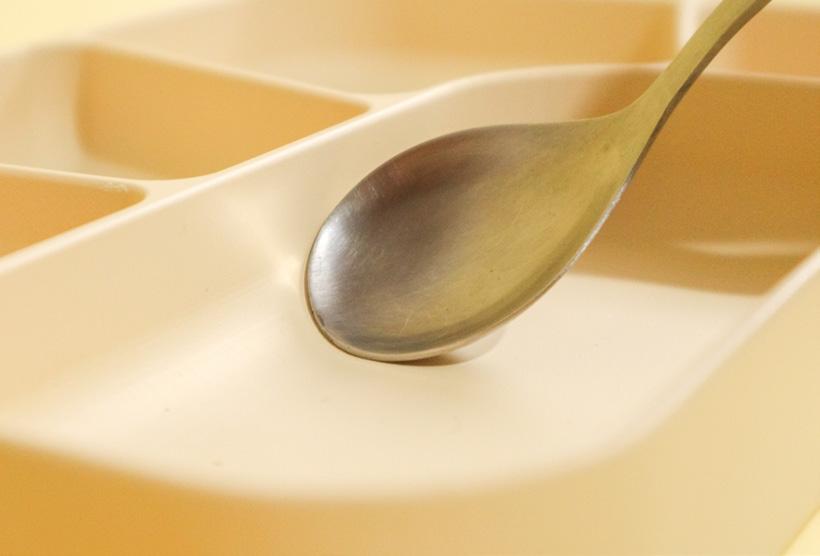

The radian of the edge of the box corresponds with the radian of the spoon, to make scoop the food more convenient.

Features 02

Improve

Features 04

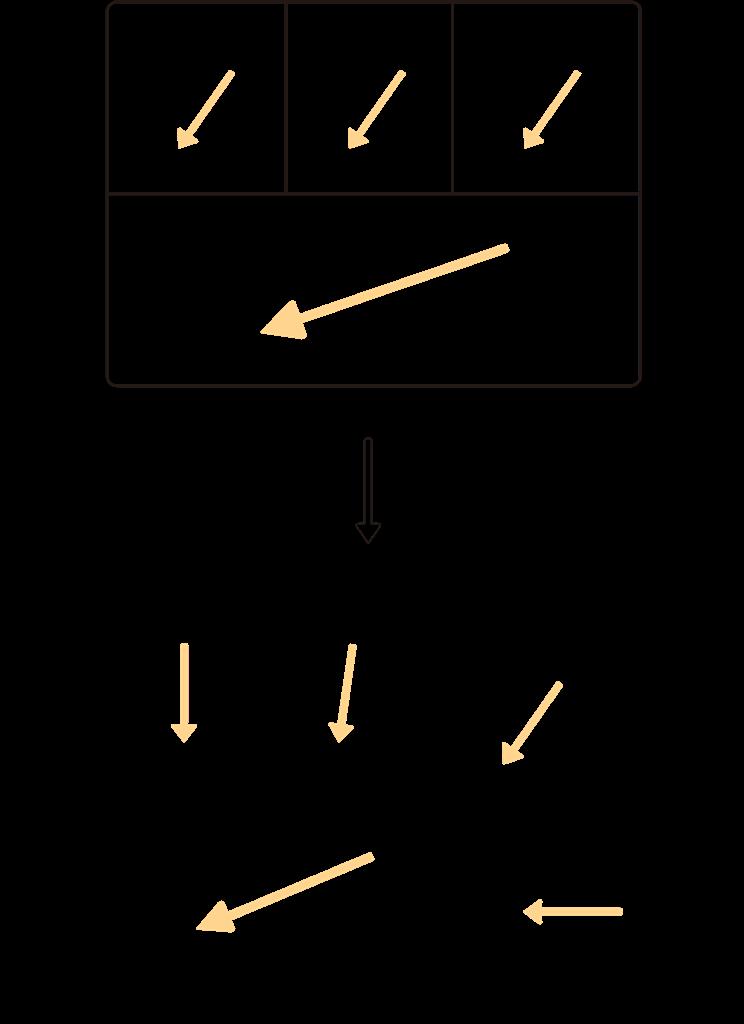

the arrangement of compartments in the lunch box by aligning them with the direction of scooping, making it easier to scoop up food.

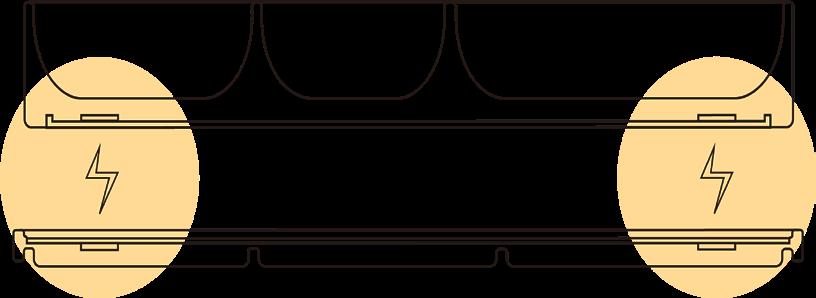

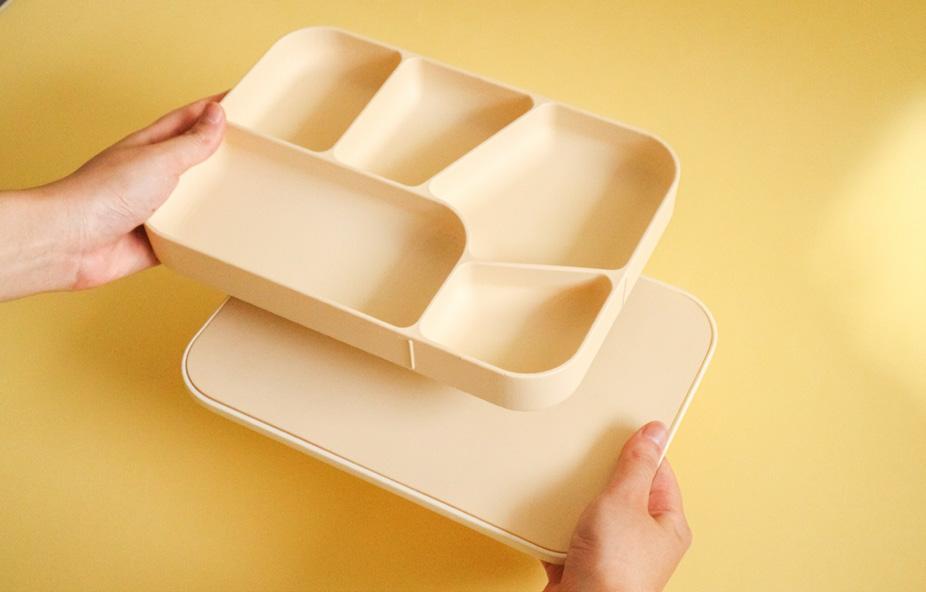

The lunch box and the lid can be attracted by magnets to prevent the lunch box from sliding.

Healing Product Design

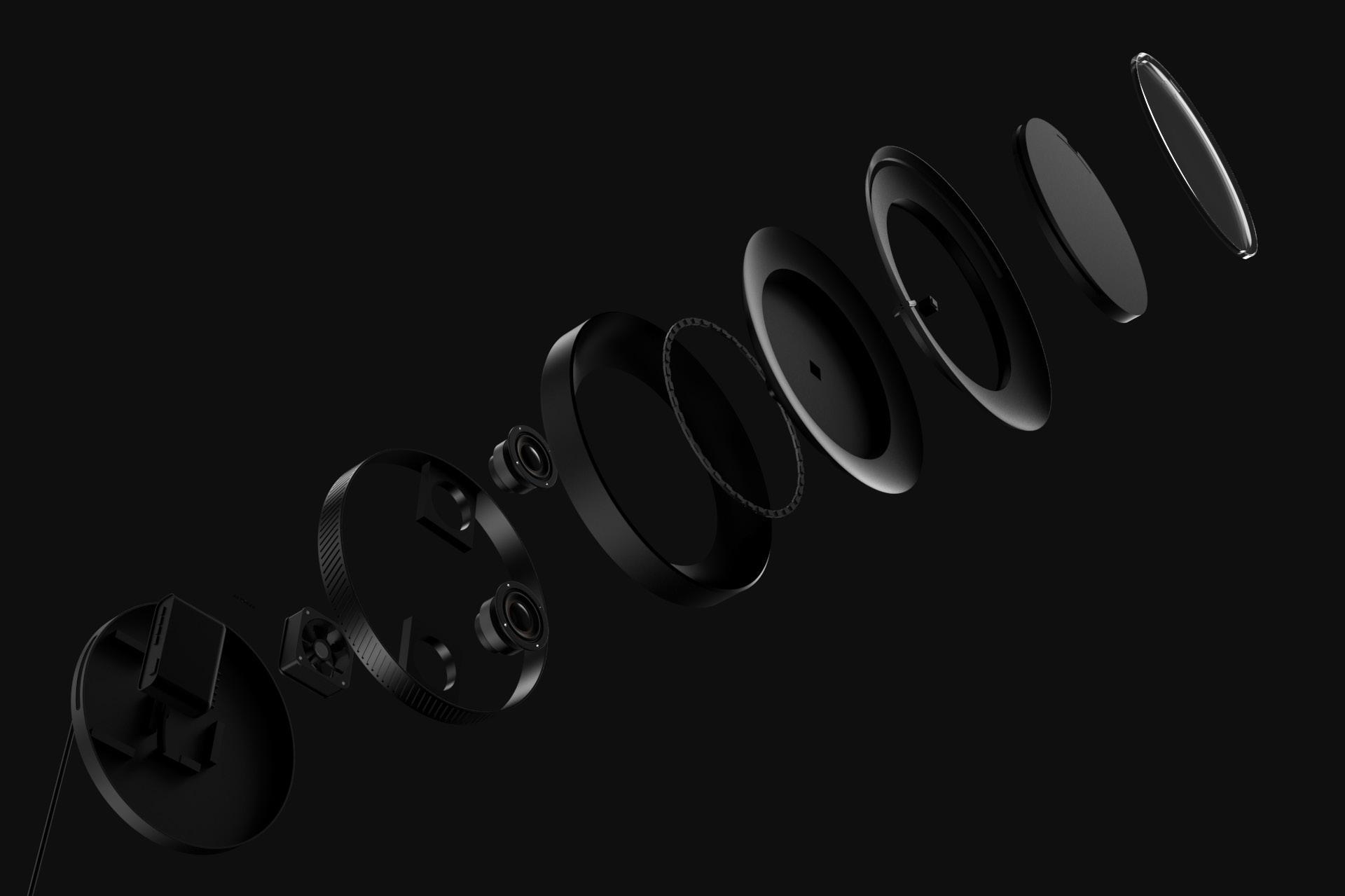

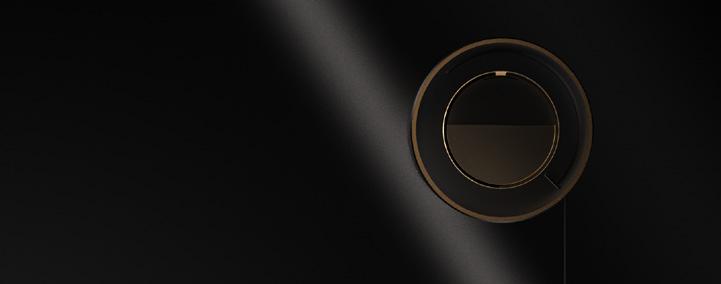

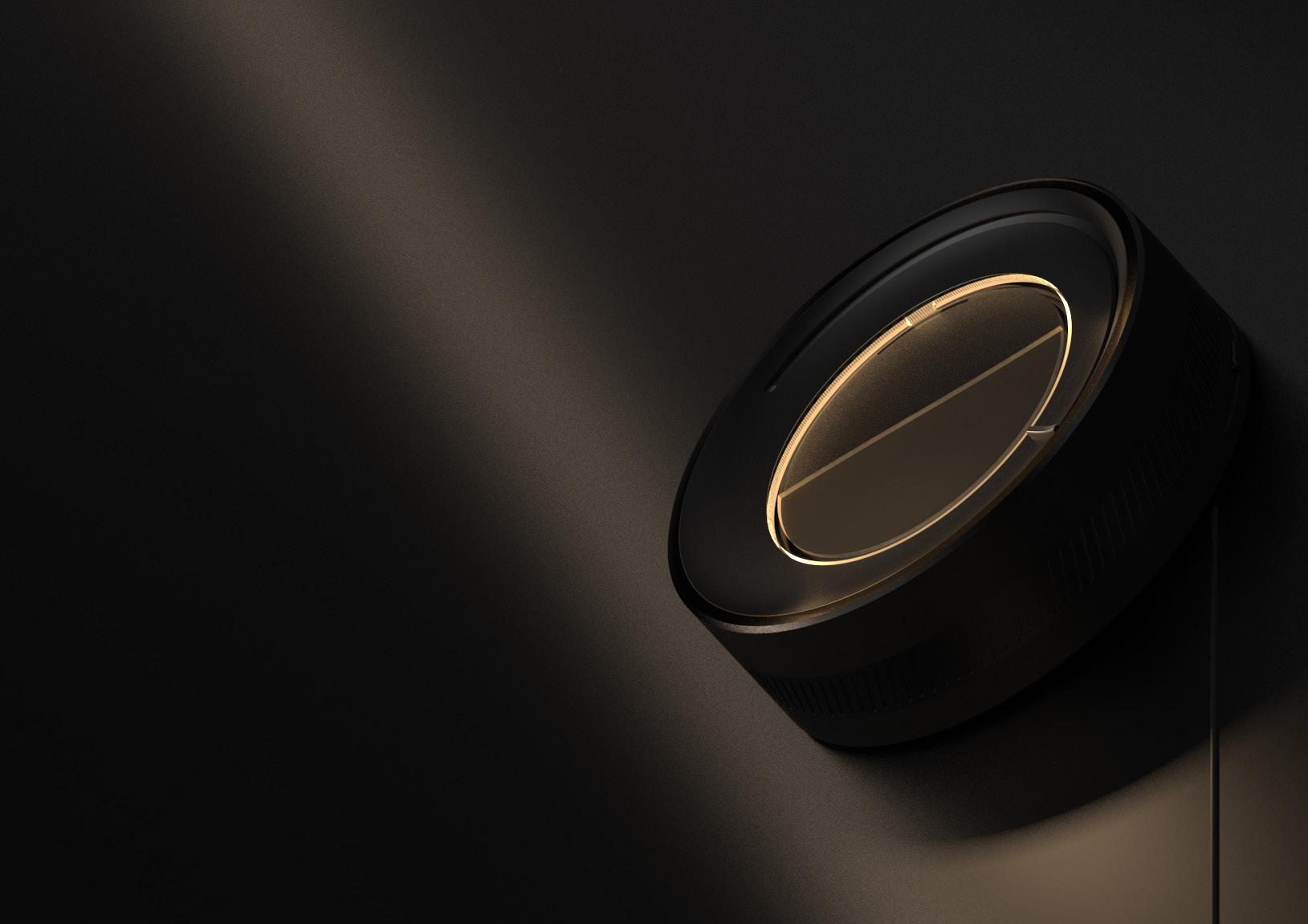

REVOLVE

A moment of respite from the hustle.

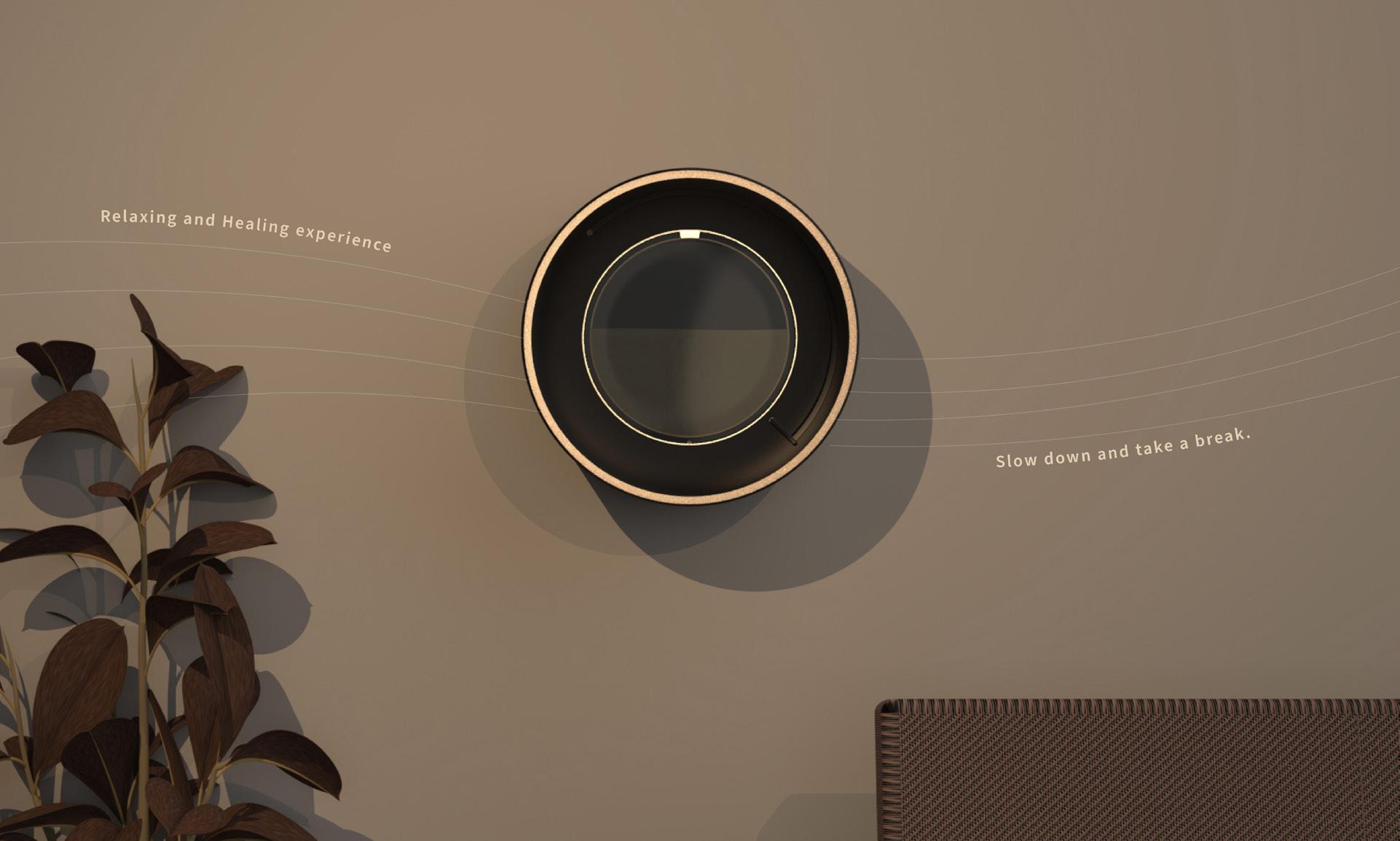

Revolve is an elegant speaker combined with a diffuser, designed to create a relaxing listening experience that allows busy people to slow down and let their minds rest.

Group Project: Be in charge of the whole design, particularly in rendering and animation.

In a fast-paced life, stress and fatigue can leave people feeling breathless. Taking time to slow down and change one's mood to relax is an essential topic for modern individuals.

Design Process

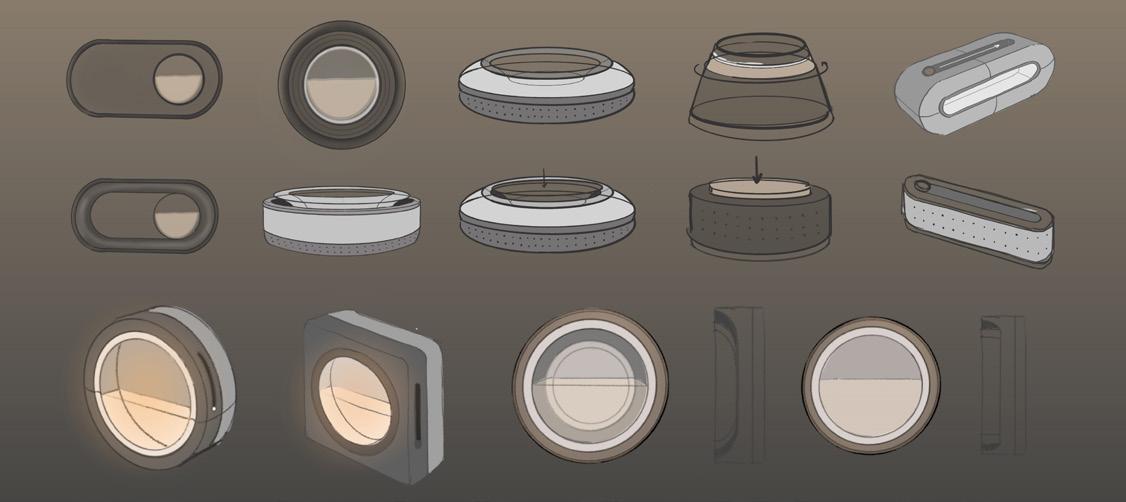

We took inspiration from images such as sunsets and airplane windows to create an atmosphere through the product's design. We also drew sketches based on these elements to explore the possibilities of the product's form and usage.

Scenario

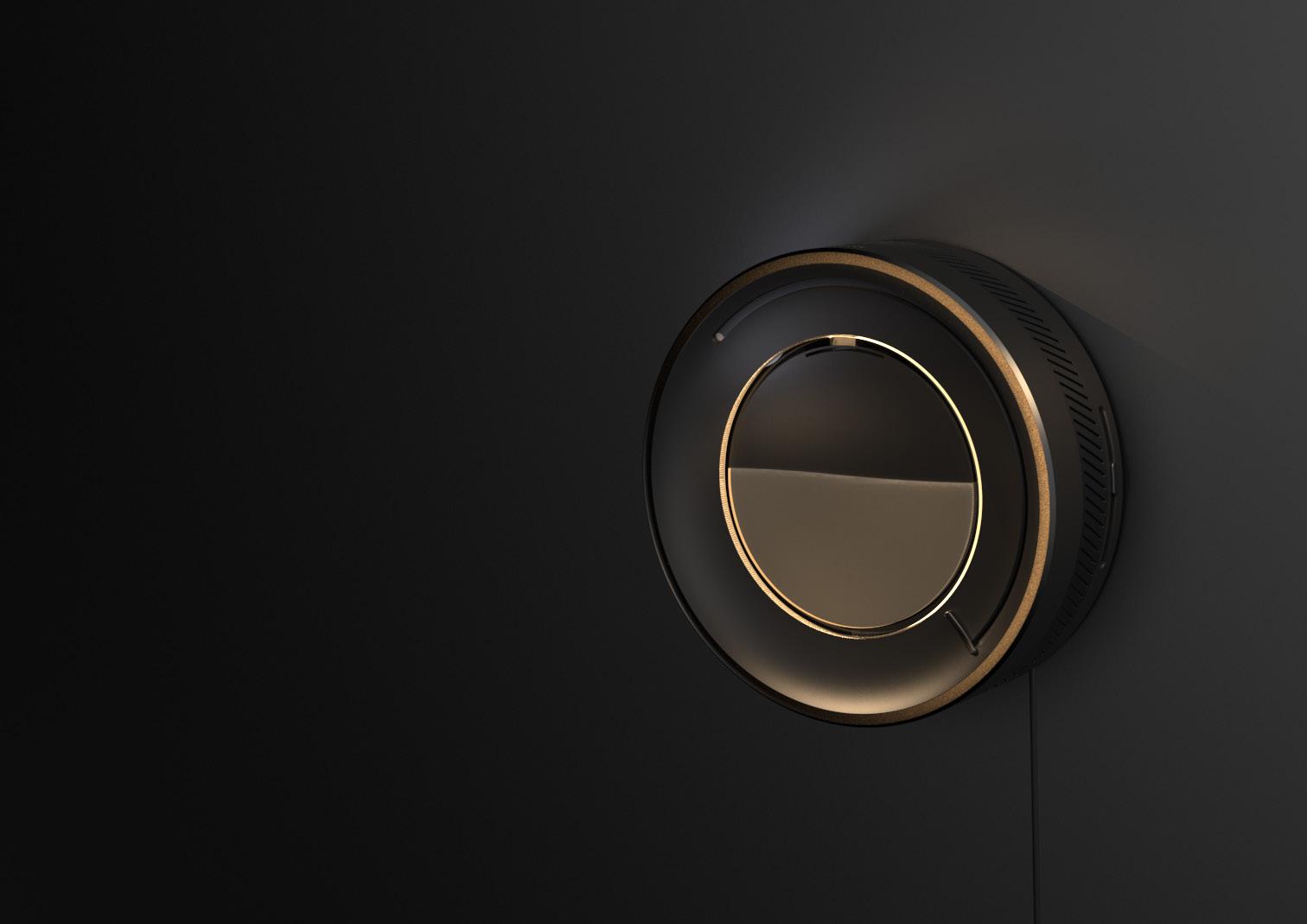

We designed REVOLVE as a scented Bluetooth speaker that hangs on the wall for home use. It provides a simple and comfortable way to relax and unwind after a busy day when returning home.

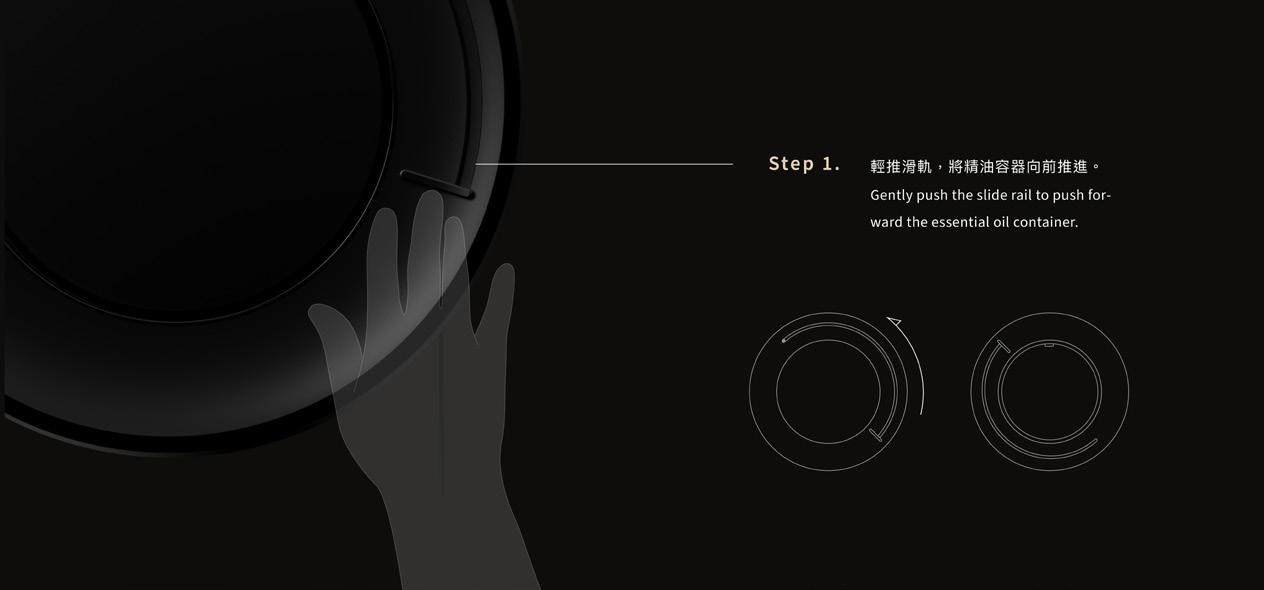

Step 01

Gently push the slide rail to push forward the essential oil container.

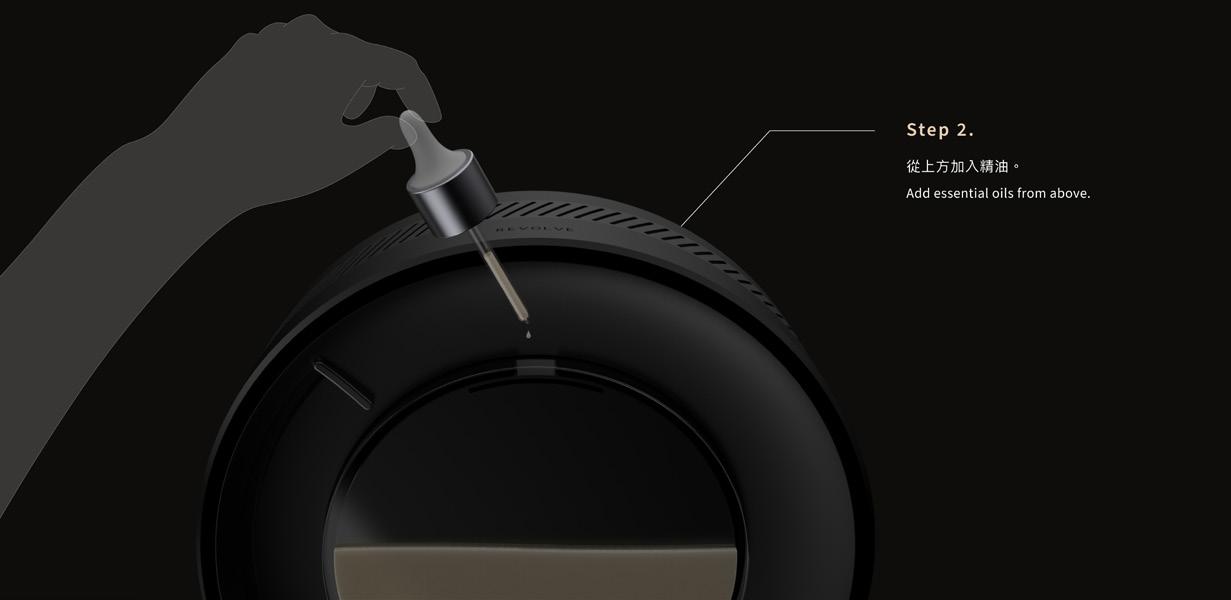

Step

Add essential oils from above. It can be any scent that the user prefees.

Step

02

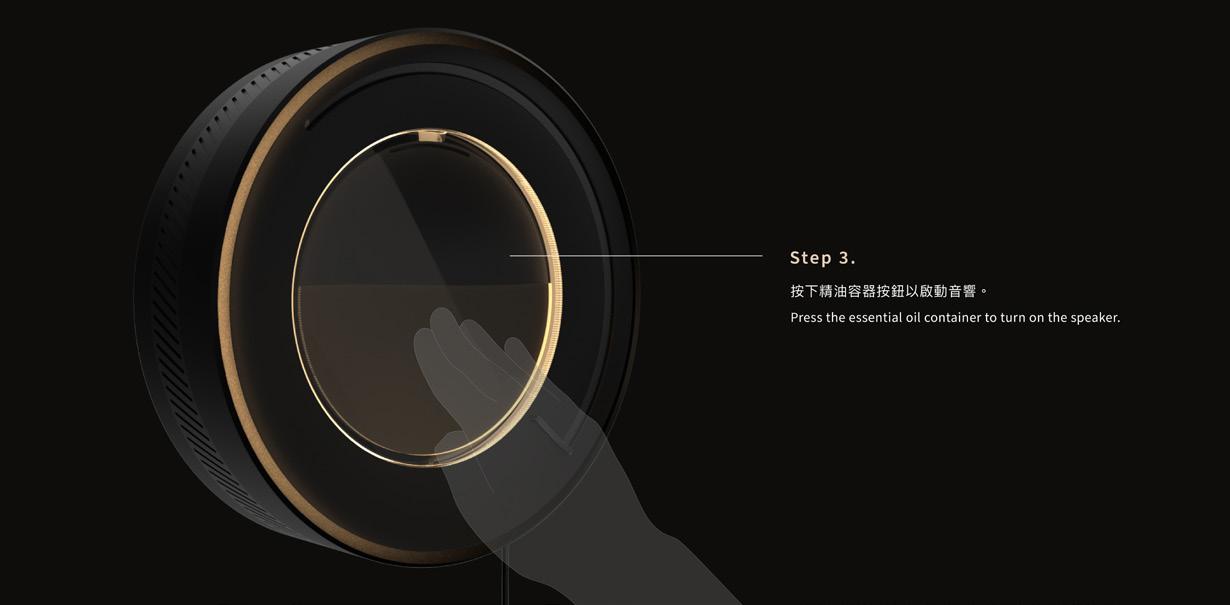

Press the essential oil container to turn on the speaker.

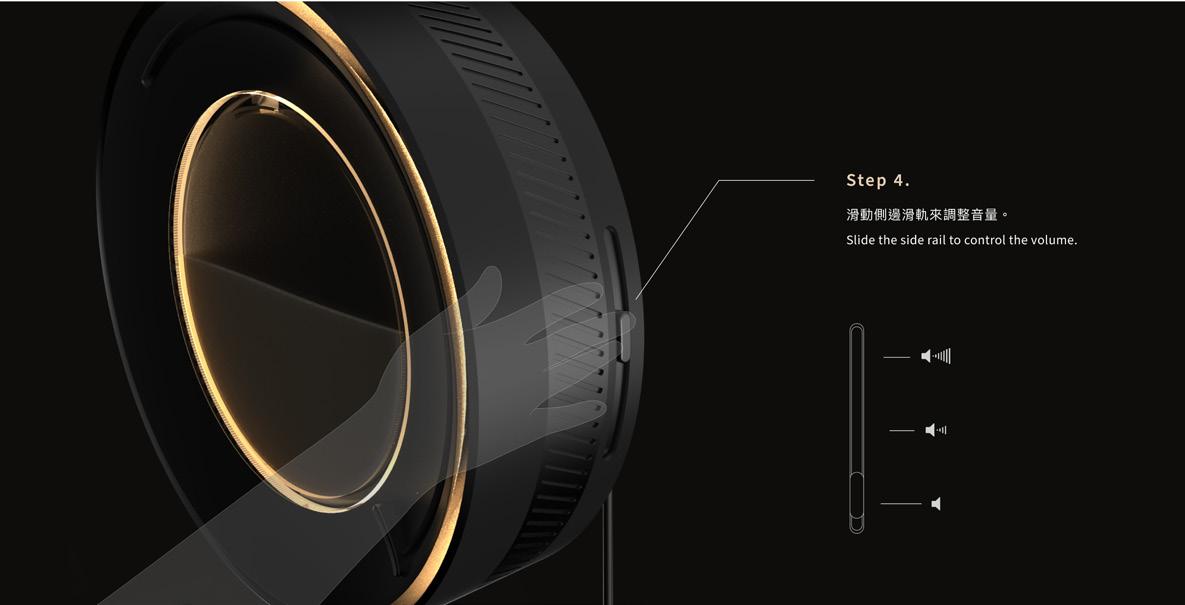

Step 03

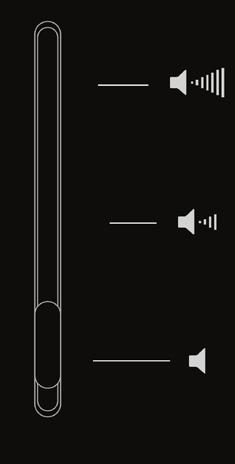

Slide the side rail to control the volume.

04

Sound Fragrance

Use the structure of anhydrous fragrance machine to make essential oil diffuse a fragrance through the sound hole.

Use the structure of anhydrous fragrance machine to make essential oil diffuse a fragrance through the sound hole.

Sleep Aid Product Design

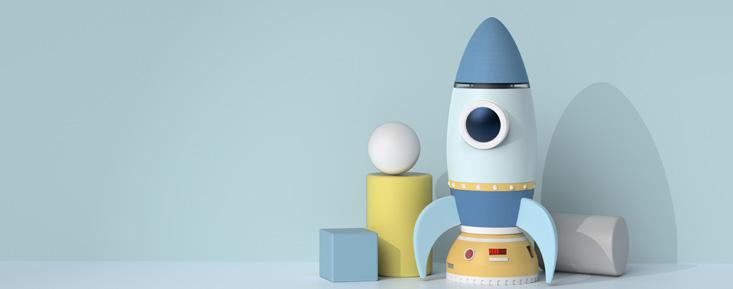

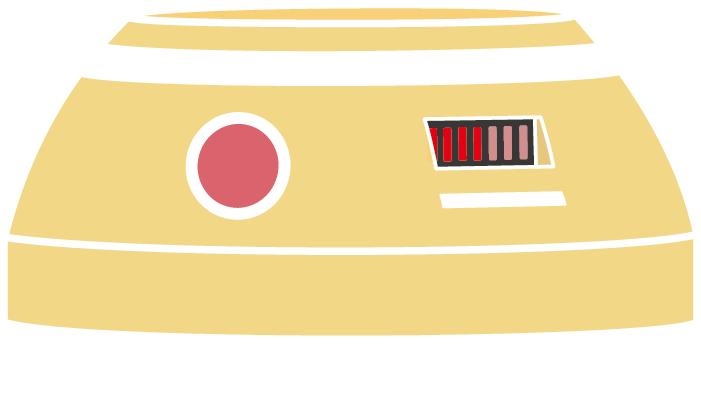

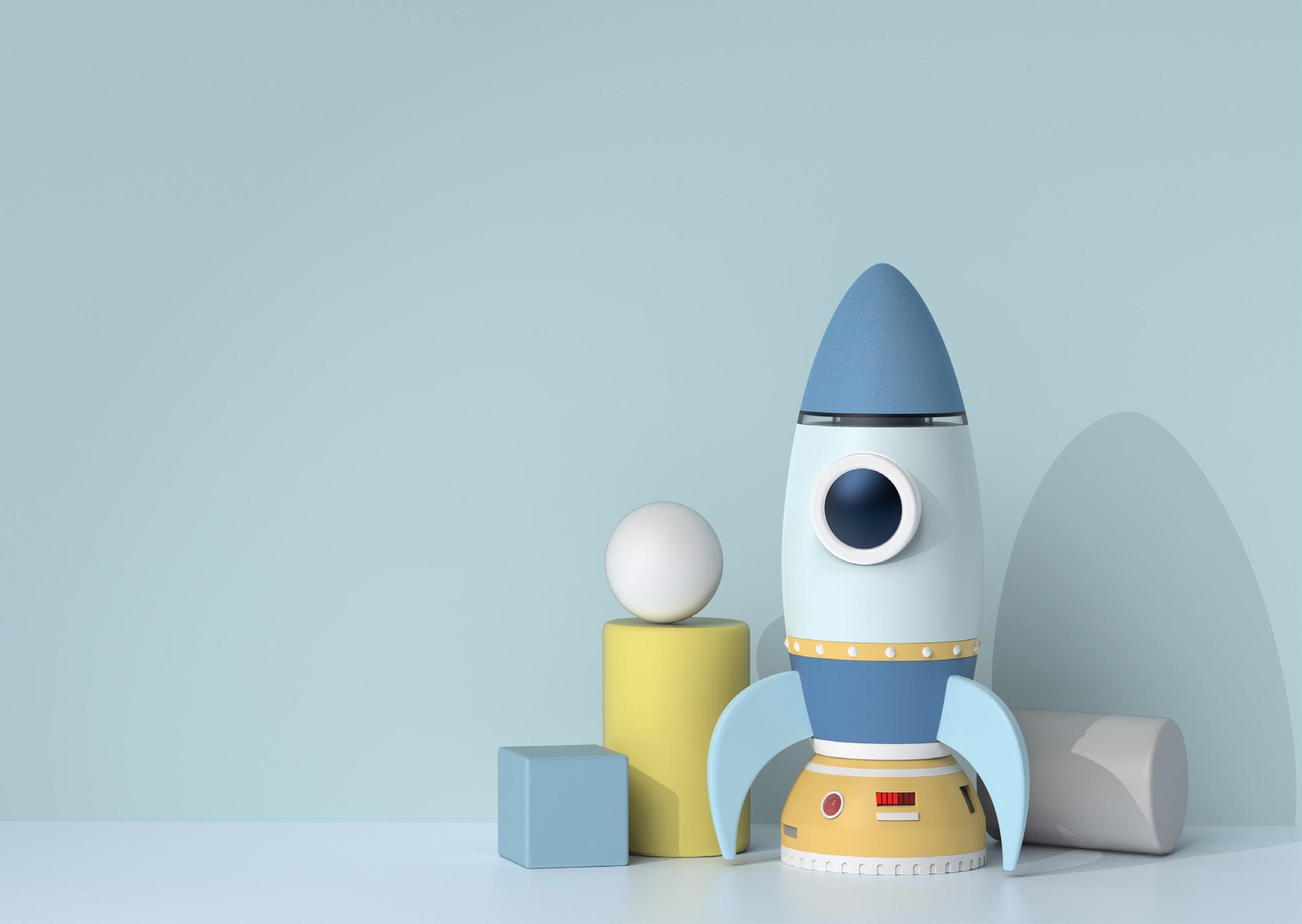

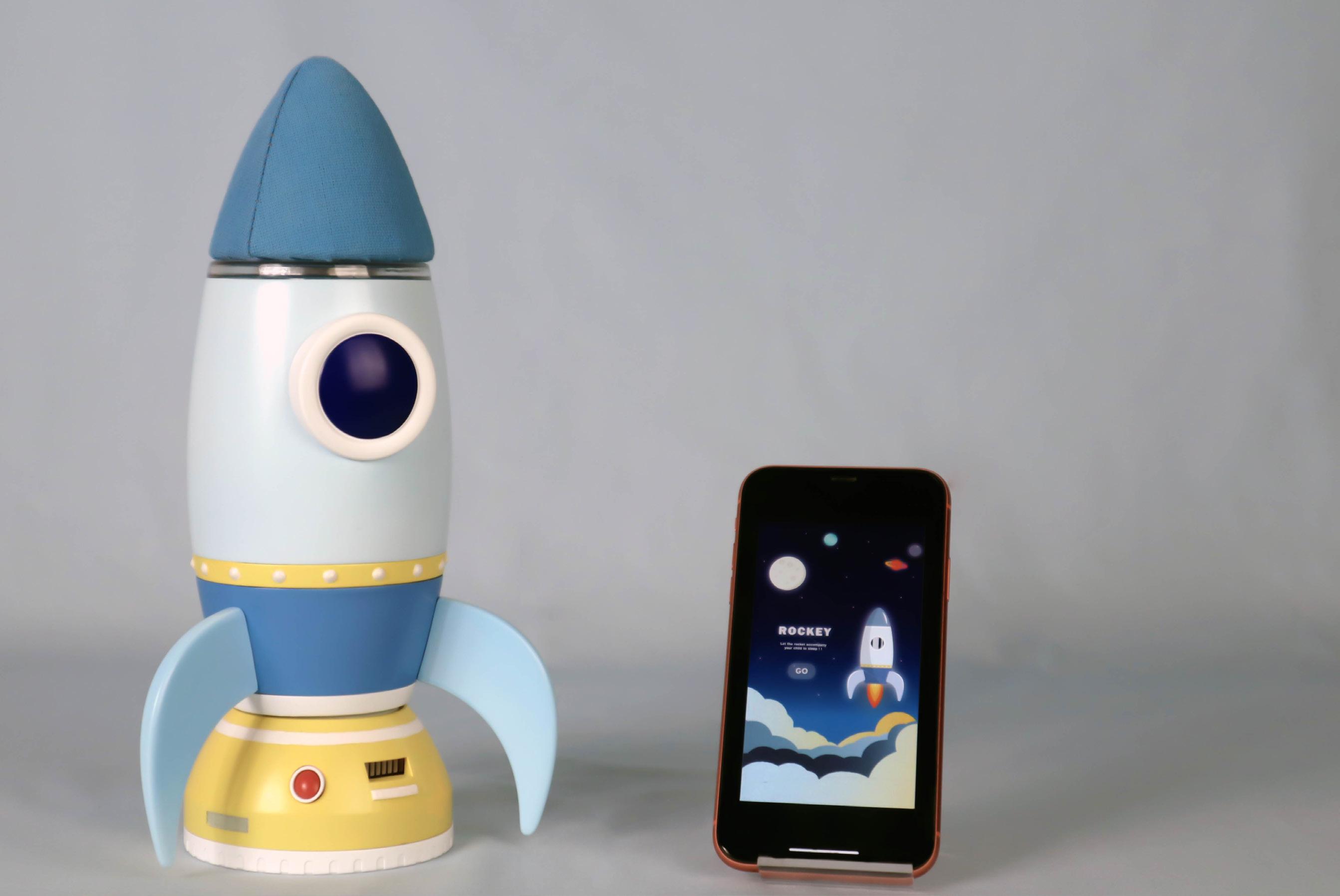

ROCKEY

Sleep as comfortable as floating in space.

ROCKEY helps children learn independence and sleep better. Connected to a parent's device, it converts ambient sound into soothing light and sound to assist with falling asleep.

Group Project: Be in charge of the whole design, particularly in coding and model making.

Kids adapting to sleep alone.

Sleep plays a vital role in the growth process of children. However, a few children do not get adequate sleep. As many people have experienced, we found that darkness is a common reason for children to have trouble falling asleep. Therefore, we chose "Fear of darkness" as our topic, surveyed and researched everything related to the topic.

Insight

We discovered that parents encourage their children to sleep alone not only to help them get used to it but also to have some personal time and space for themselves. Thus, the main idea behind ROCKY is to assist children in falling asleep peacefully while allowing parents to avoid being compelled to stay in their children's room every night.

Data Gathering

We conducted a questionnaire survey and interviewed parents of several kindergarten students. While there were some special cases, we found that the primary age group that fears the dark is between 4 and 6 years old. We then analyzed the reasons for this fear and what parents do to alleviate the situation, aiming to identify pain points.

Conducted Solutions

Accompany from family Turned kid's attention

Faint light

Physical relaxation

Auditory soothing

Analysis of Root Causes

Specific events that cause trauma

Sense of insecure

Kid's Imagination and guessing

Fear of unlnown

Design Process

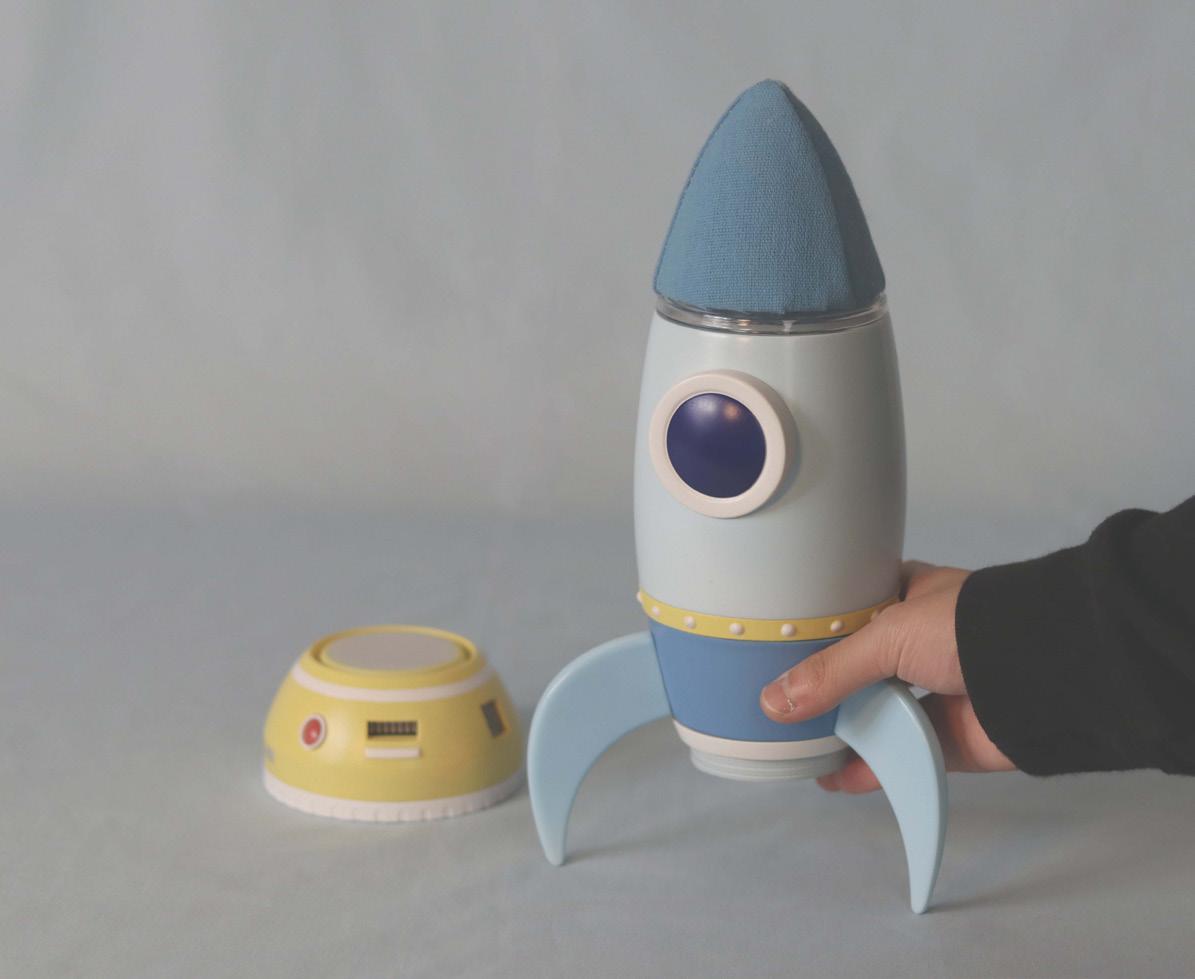

During the design process, in addition to conducting the analysis, I personally took charge of creating the working prototype. This involved creating a 3D model as well as designing the circuit using Arduino and modules. After numerous iterations of redoing and coding, we were fortunate enough to create a functioning prototype.

How To Use

The final method consists of a set of interactive toys accompanied by an app for adults. To use the product, start by unplugging the rocket from its power source. Then, take the rocket to the child's room where it will be used. Next, turn on the device to activate the sound effects. Finally, adjust the activity duration as per preference.

ROCKEY receives the ambient sound in the house, transfer the data to the children's room and turn into lighting changes, let the children knows that there's other members inside the house, they're not alone.

Light Projection

Transforming noise in the house and presenting it in

Sound Sensor Recieving Feedback

Transforming noise in the house and presenting it in the child's room.

lighting effects changes with the detection of noise.

White Noise

Transforming noise in the house and presenting it in the child's room.

Step 2 Take into the kid's room

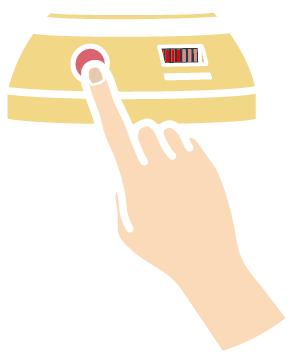

Step 3 Turn on the device Step 4 Set the closure time

Step 1 Unplug the rocket

the child's room.

Scenario

Because the parents and their kids won't be in the same place, we also designed an application to control ROCKEY remotely, simplifying the process and making sure the kids are sleeping peacefully.

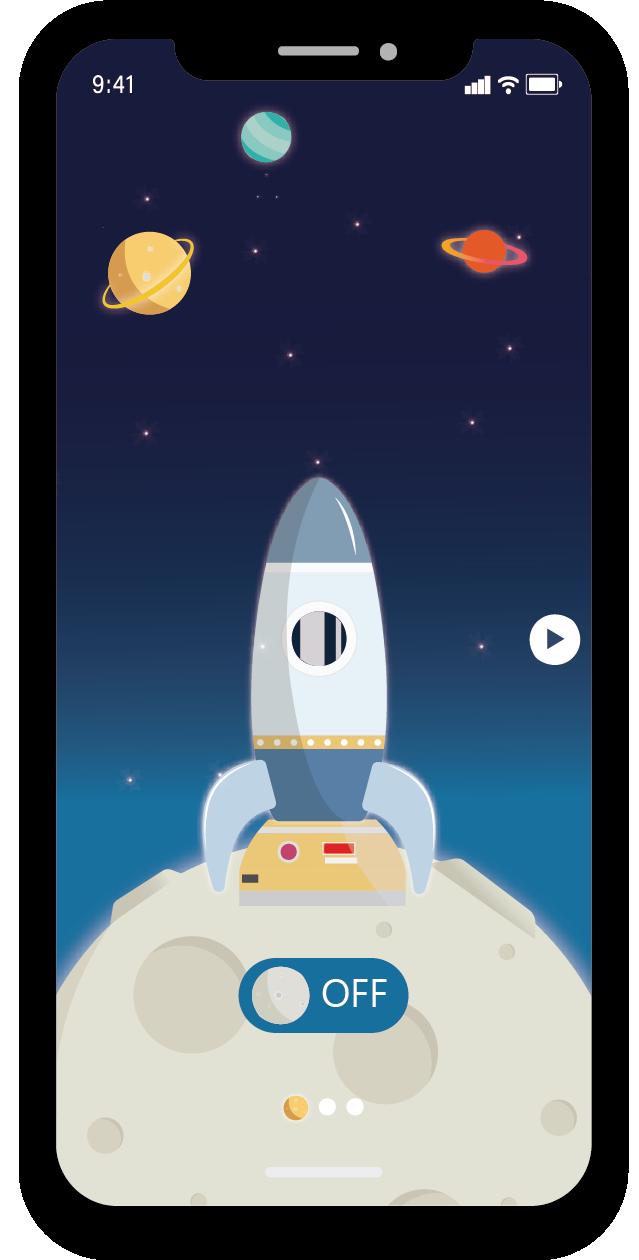

Phone Application Swich Control

Besides the existing bottom on the launcher, it is also feasible to turn on ROCKEY by the application. The animation in the app represents that every single night is a space trip, it's not scary at all.

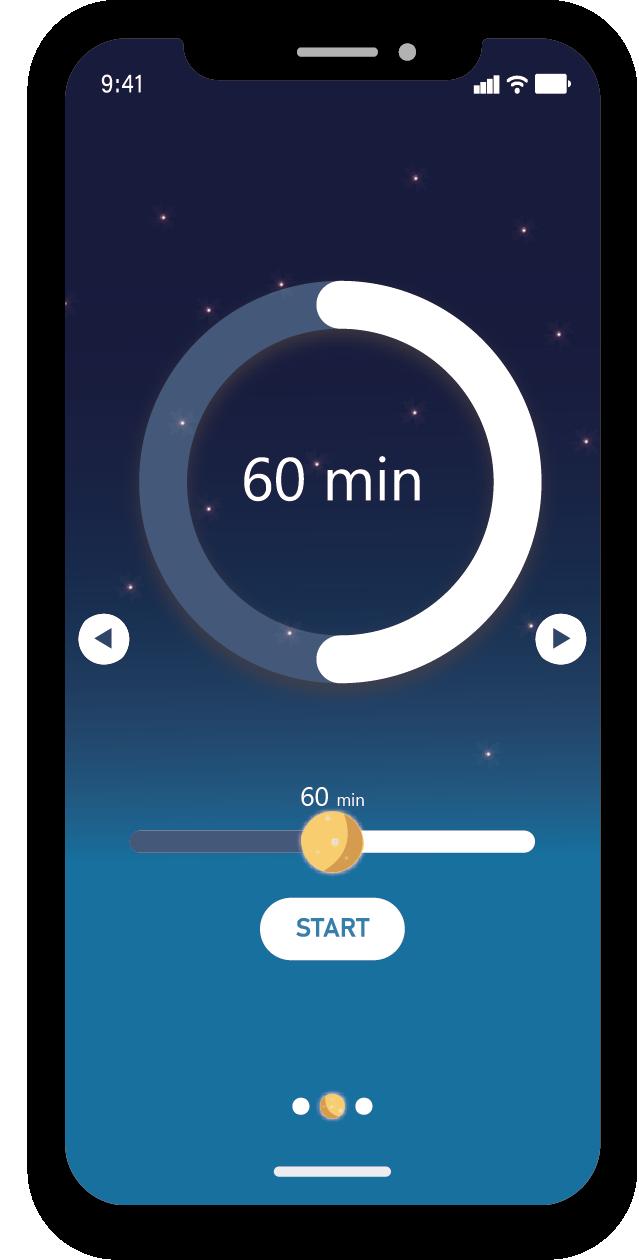

It is not appropriate for a kid to sleep while the light being turned on through the night according to the research. Therefore, parents can launch the countdown system and set up the time. The light effects of ROCKEY will fade out when the time is up.

Time Setting Sleep Monitoring

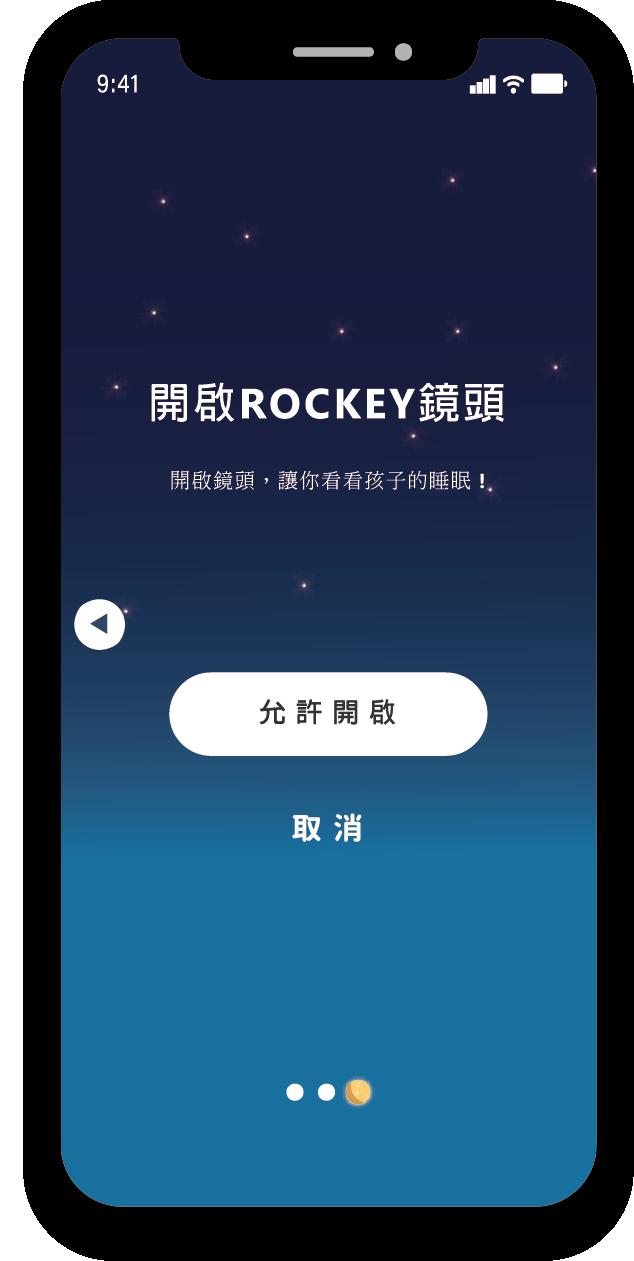

For we want relieve the parents, we installed a micro camera on ROCKEY, the parents can not only confirm the status but can also turn off ROCKEY whenever they want, everything is under control.

Product Design

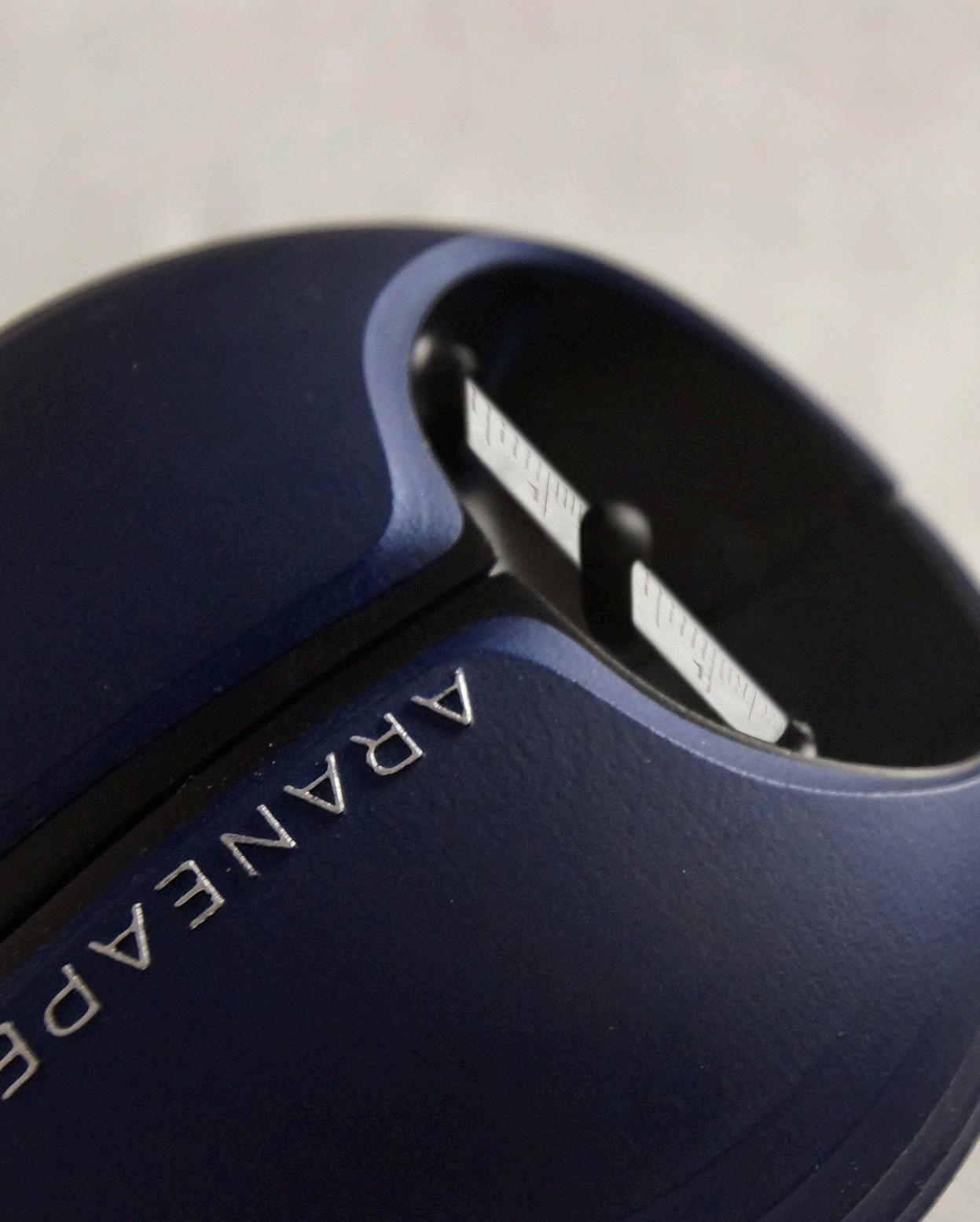

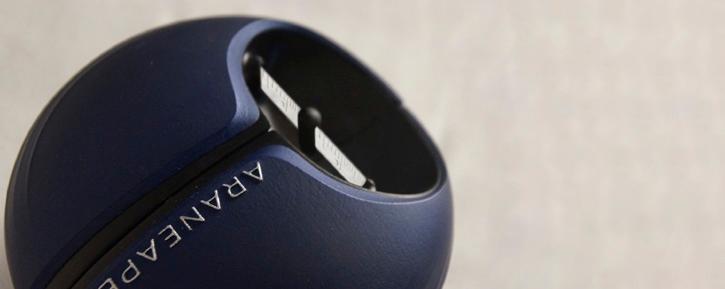

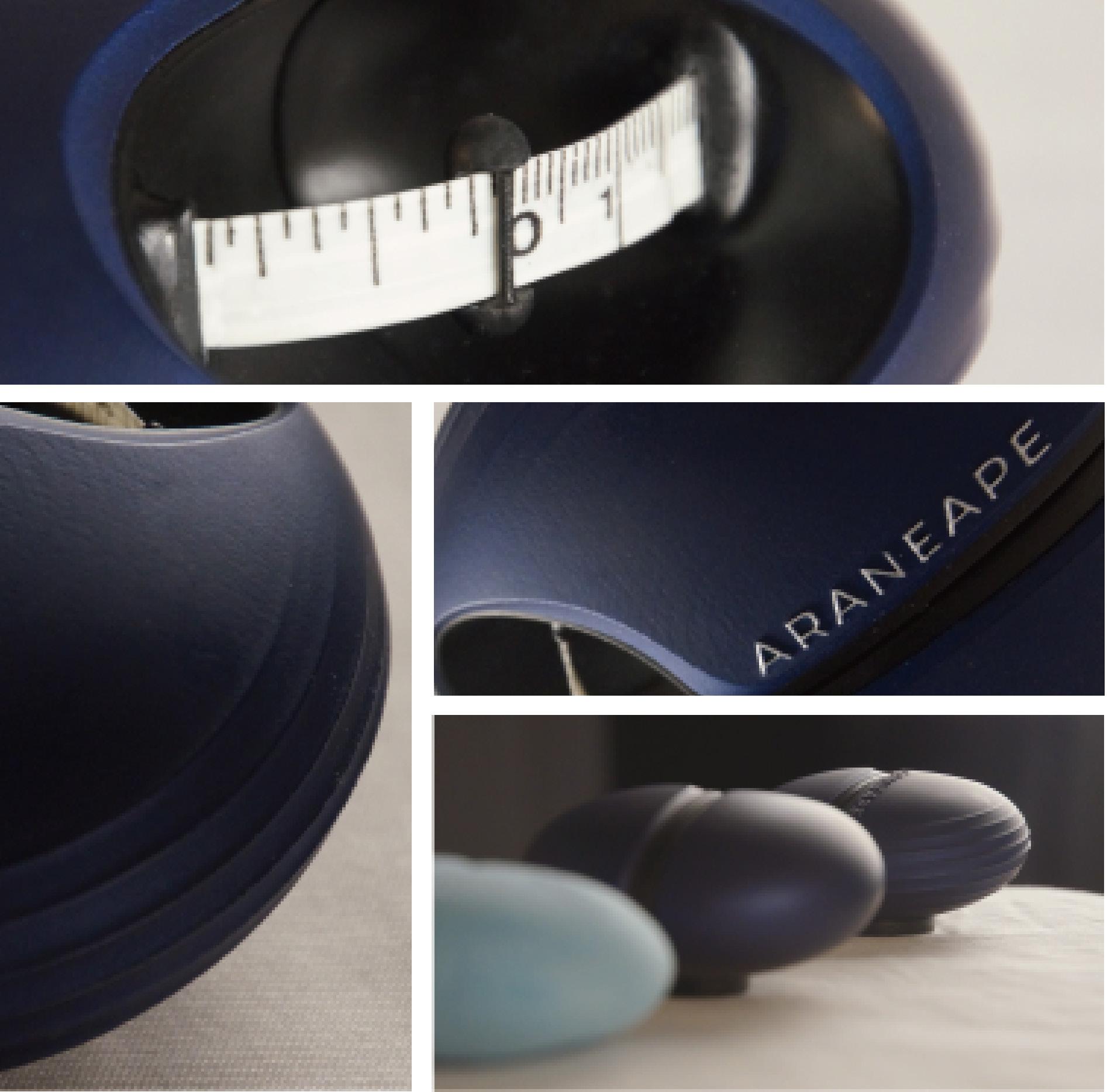

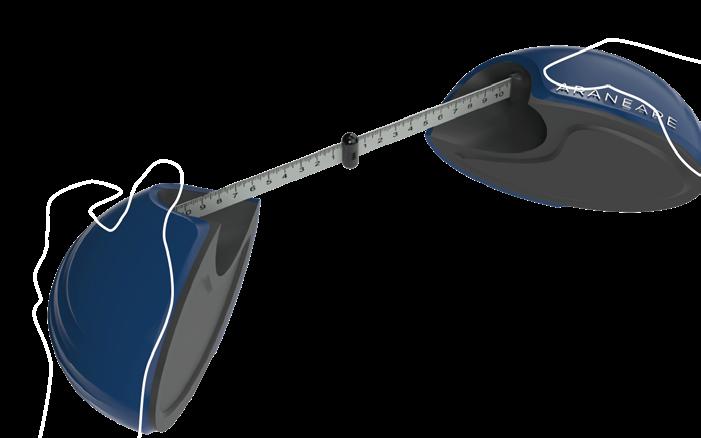

ARANEAPE

A tape measure that will never hit your hands.

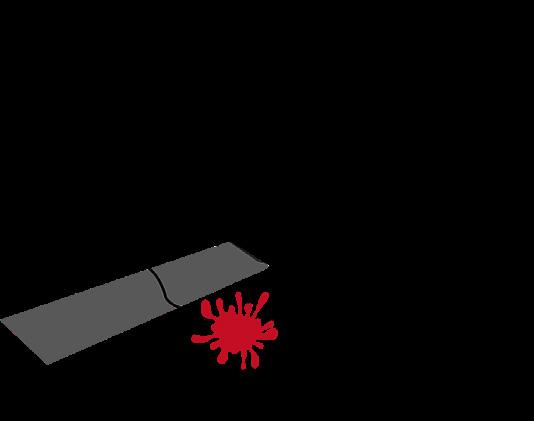

Araneape is a tape measure for tailors that reduces the danger of injury when finishing its use, as people are often afraid of being hurt by the tape flying back to them.

Individual Project

Design Positioning

Araneape aims to design a tape measure for tailor by reduceing the danger automatically. While finishing using a tape measure, people usually be afraid of being hurt by the speedy tape flying back to them.

Design Process

Sketching, extracting the elements to be conveyed from natural objects. I hope that users can feel the hint of pulling and extracting on Araneape. Therefore, I used the shape of a spider as a reference and hoped to apply the image of a spider spinning silk to the part where the ruler enters and exits. Also, using details on its body to create a sense of a tiny arthropod.

Design Positioning

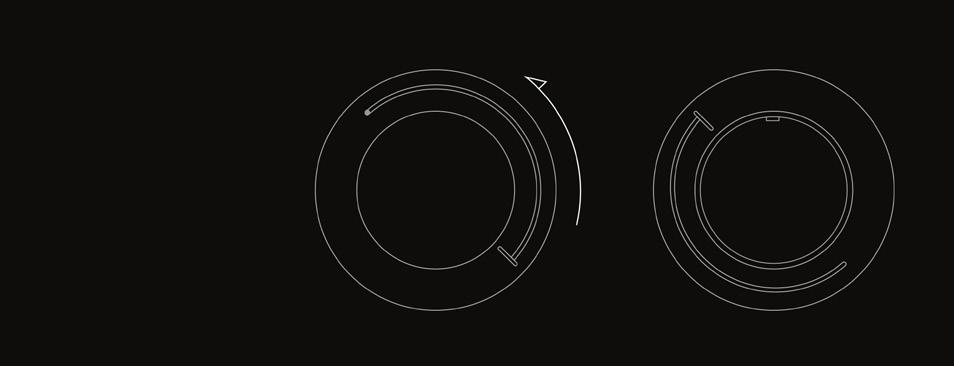

The tape measures we are familiar with contain a core inside, pulling back the tape. And that’s why they are so dangerous. On the contrary, Araneape contains two cores which pull a single tape, making it be safer.Before modeling Araneape, the design went through the process of sketchimg and prototype, while trying to make the most creative design and present the perspective image.

Core

Pulling Core

Features

Place "0" in the center of the scale surface and arrange the different units side by side, making it clear at a glance. It can be used on one side or both sides, allowing for intuitive reading or figure addition.

ARANEAPE can be separated into two parts, which are attracted to each other by magnets. There is a pointer in the middle that can correspond to the position of "0", making it easy to align.

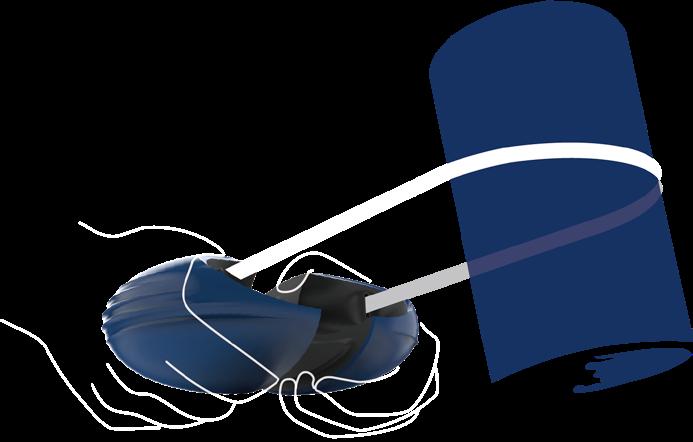

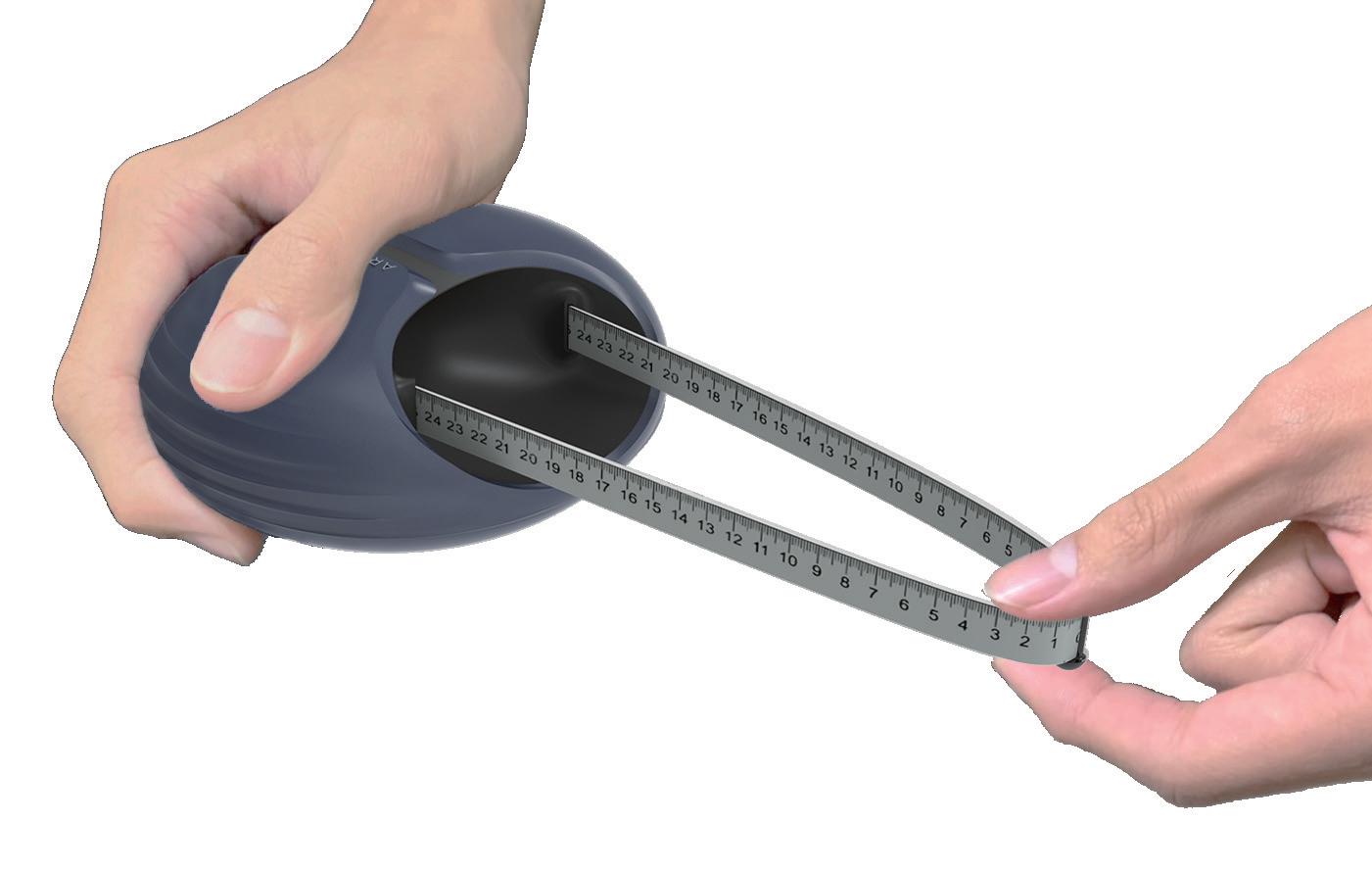

New tape-pulling method enables use of soft material for tape measure, allowing for precise measurement of cylinders.

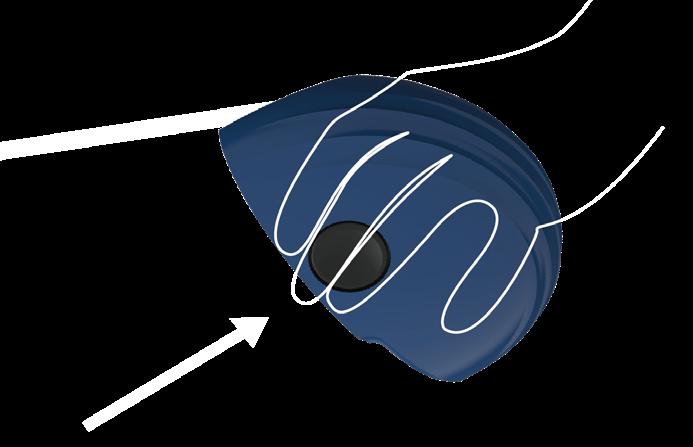

Press the button under thetape measure. In this way, you are now able to hold the rular and measure longer object.

OTHER WORKS.

Hi! My name is Pin-He Huang, but you can call me Peter, Aouteka, しげ, or whatever you prefer :)
