Hello,I'mAnziba.

I'manarchitecturestudentwhowishestoexplorethedifferent possibilitiesandaspectsinArchitecture Mygoalistocontinually expandmyskillsandknowledgeinthefieldataprofessionallevel withhard-workanddetermination.IbelieveIcancontributemy skillsandgainprogressbothprofessionallyandpersonally.

Communication

VOLUNTEERINGEXPERIENCE

GITEX

Dubaimarathon

DubaiEXPO2020

NATAentranceexamvolunteer

SOFTWARESKILLS

Advanced

Enscape

Intermediate

Revit Lumion

Autocad Sketchup

Photoshop Canva

CHAPTER1

Todesignacommunitywitha blendofaffordablehousing, socializingopportunitiesandecofriendlyspaces.

SOCIALHOUSING

Thedesignbriefspecifiedtherequirementsforahousingcommunityin theshoppingdistrictofDubai,AlKarama.Theconceptistoprovide spacesforinterconnectivitywithineachblock.Thiscanbedoneby providingsocialareasintheformofterracedparks,lounges,internal courtyards,andgatheringspaces

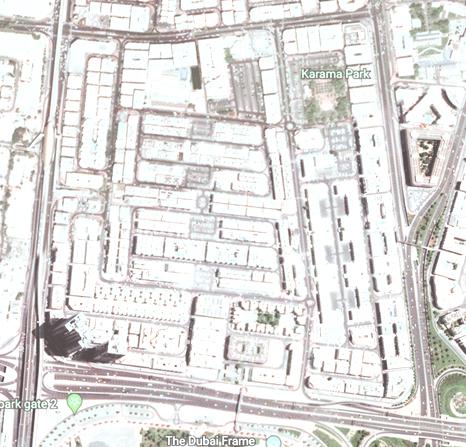

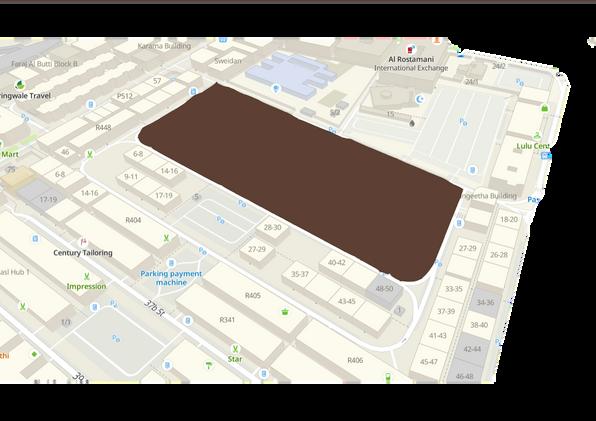

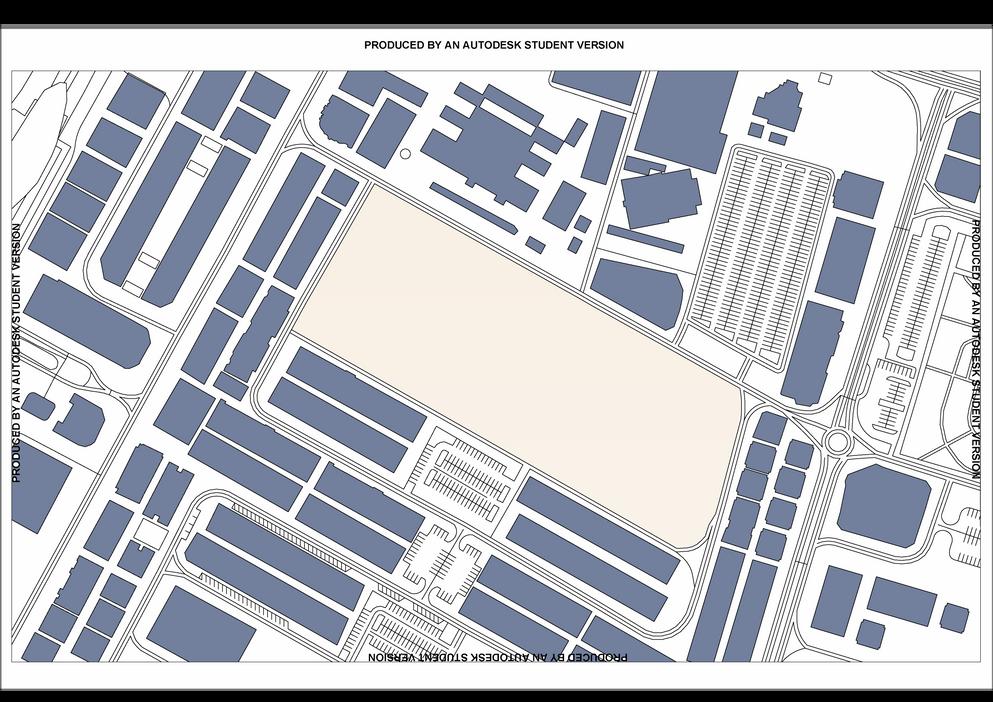

CASESTUDIES SITEANALYSIS

MASSING MAINSTREET

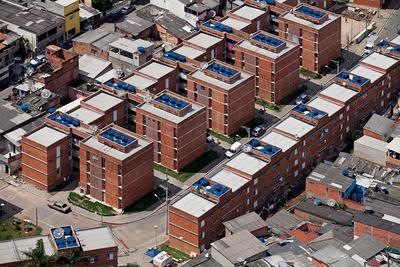

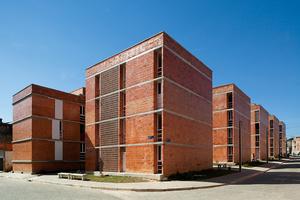

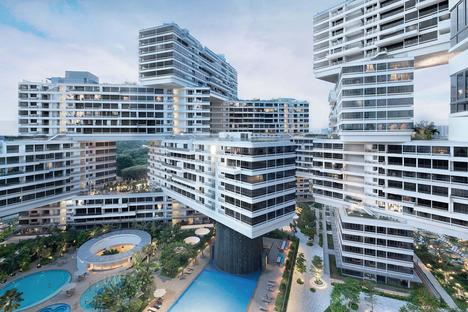

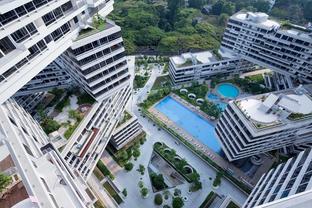

TheInterlace

SOLIDS

JardimVicentinaUrbanization

Metro Station- 385.98m

Apple international school165m

VEHICULARMOVEMENT

Karama Masjid- 160m

Lulu Supermarket - 206m

Aster Clinic - 409m

Bus Station - 540m

DESIGNDEVELOPMENT

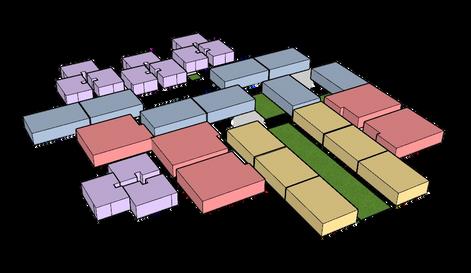

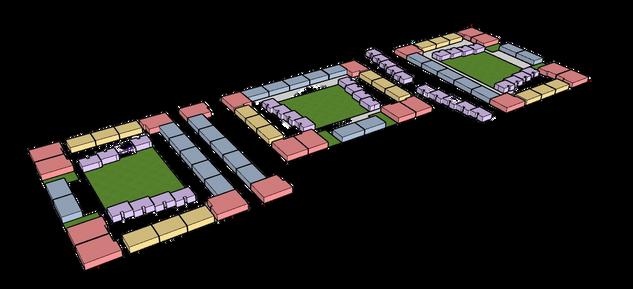

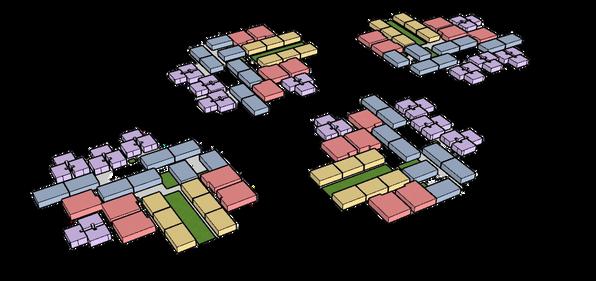

INITIAL PLACEMENTOF BLOCKS MODIFIEDPLACEMENT OFBLOCKS

The blocks will be repeatedly stacked upon each other to form large scale open and permeable courtyards. Courtyards will be designed in a way it helps in the social interaction between the occupants.

1BHK

2BHK

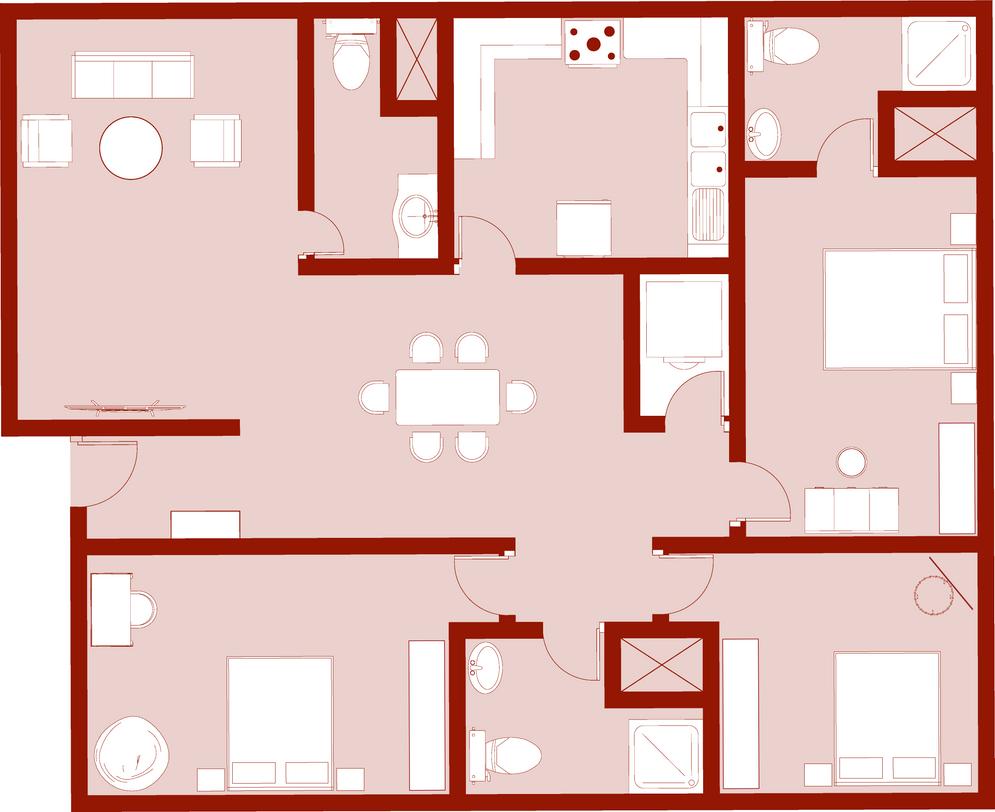

3BHK

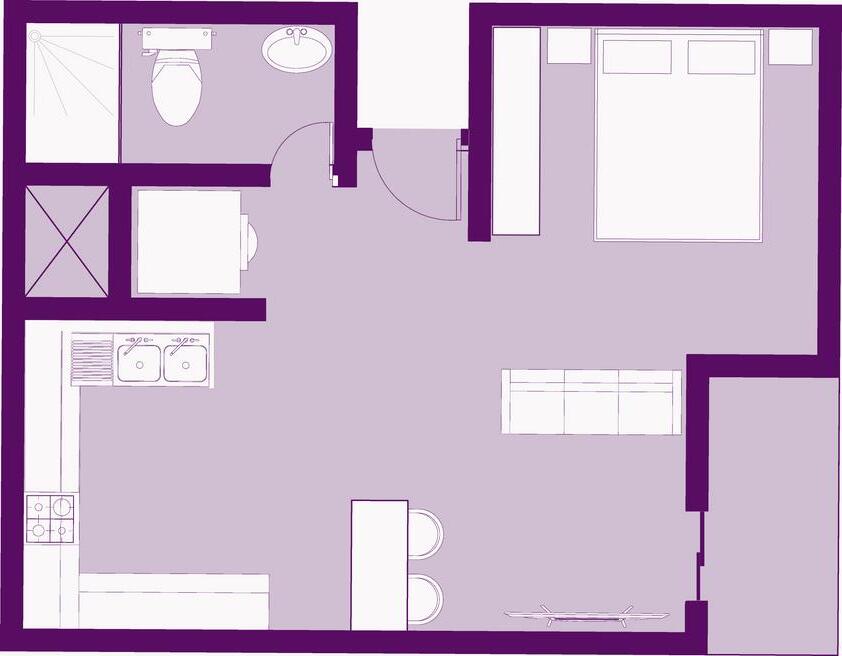

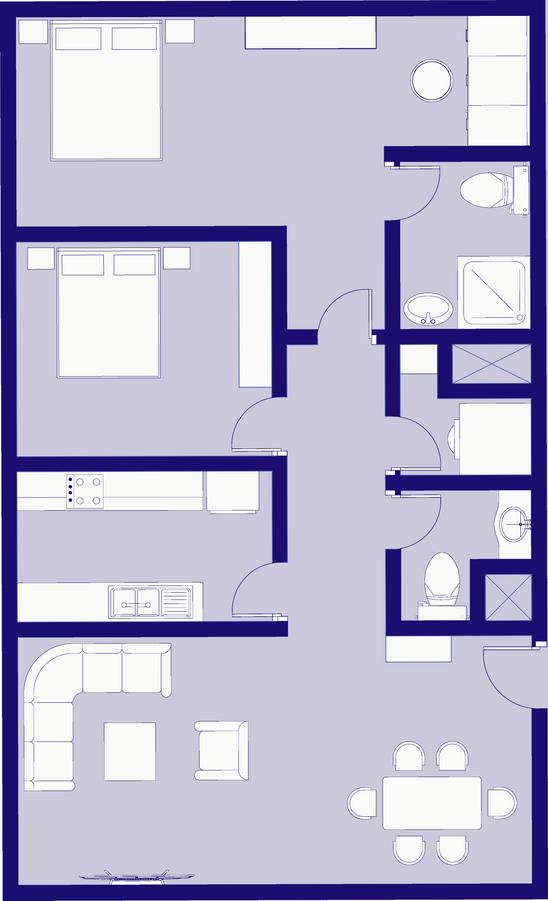

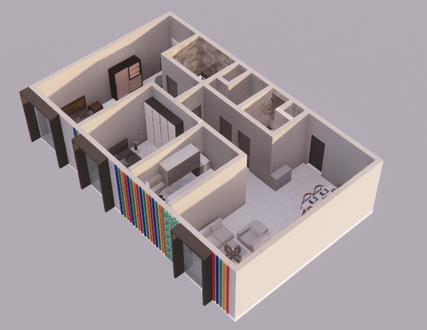

3BHK apartment

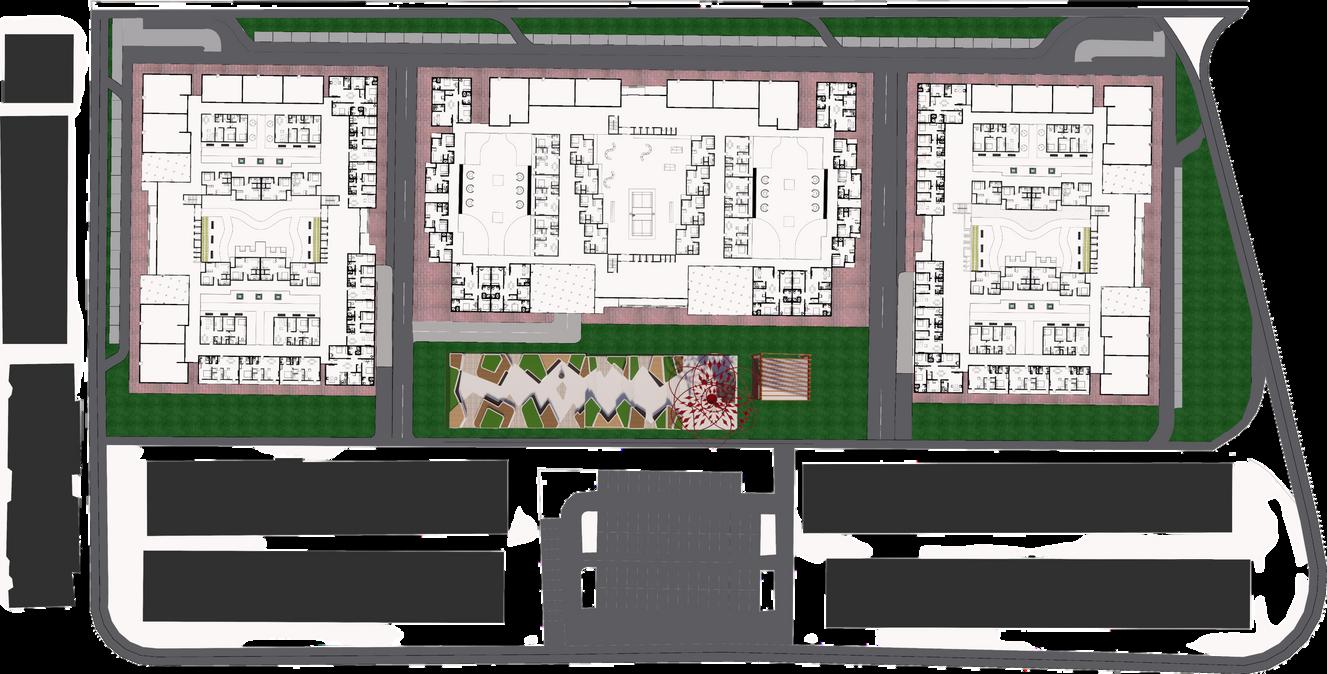

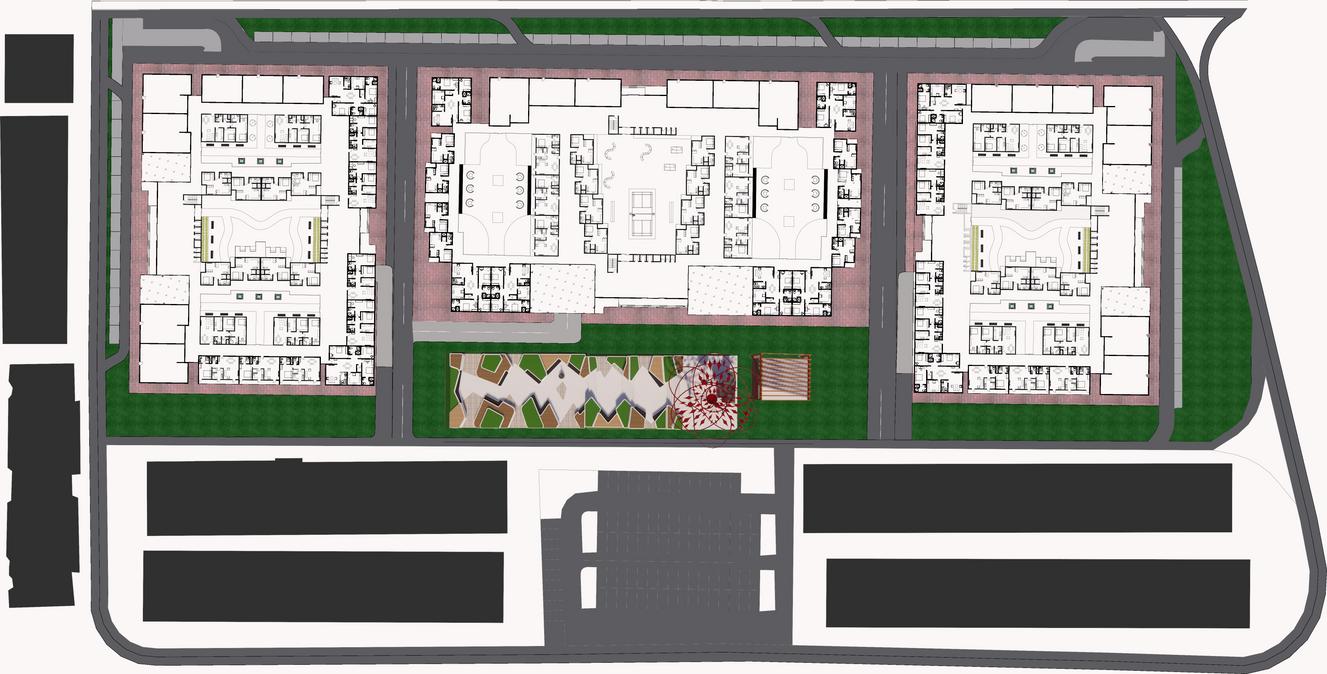

SITEPLAN

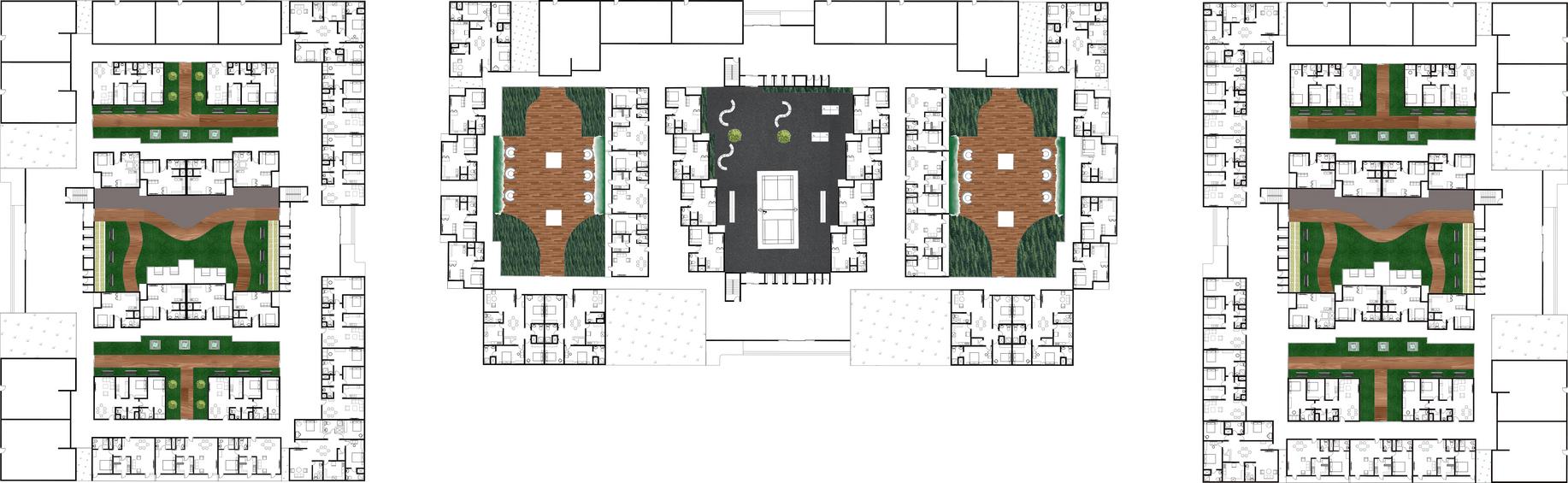

GROUNDFLOOR

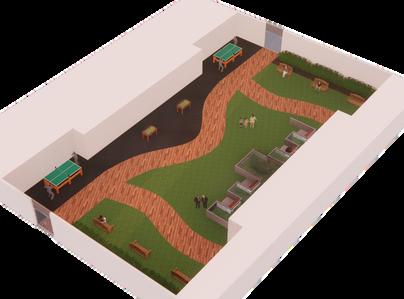

Podseatingshavebeen designedfortheagroup ofthreeorfourpeople whorequirespartial privacy

Badmintoncourtalong withtabletennisforthe sportenthusiastsprovided withseatingstowatchthe gameandspendsome qualitytime

Thespaceisdesignedtoensure thereisabundantplantsand bushestomaintainthegreenery throughout.Fewoftheseating's areadjacenttoawaterfeature tokeeptheaircooler

Thiselongatedcourtyardisinawayit providesprivacytoeachuser.Thereare twotypesofseating's,outofwhichoneis shadedbyatreeandpositionedinaway itgetstherequiredamountofsunlight.

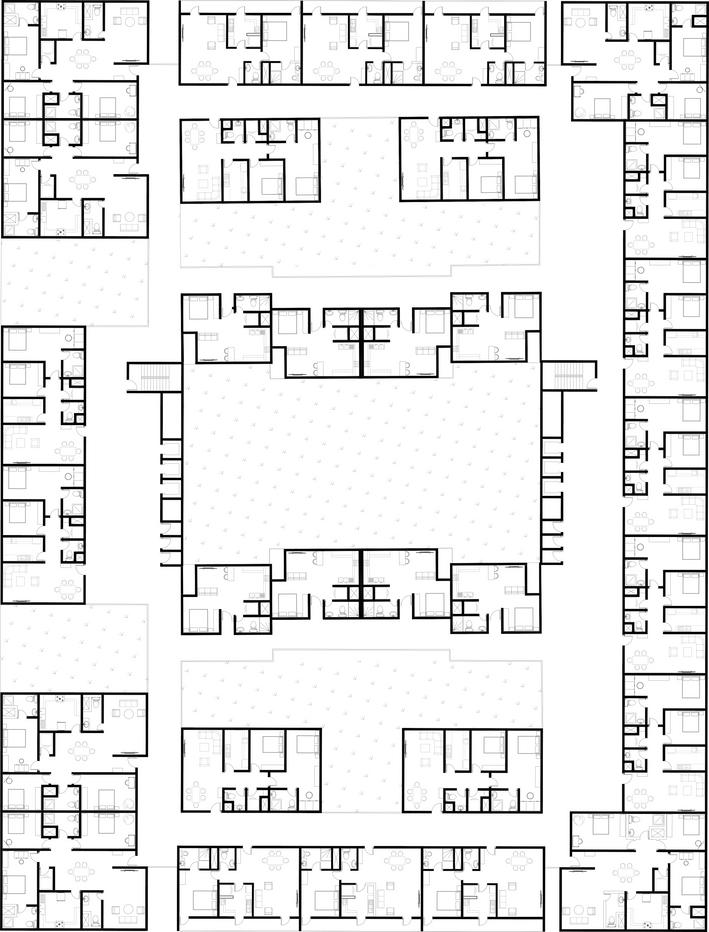

TYPICALFLOOR

Thecorridor'sineachfloorfloorwillgetabundantsunlightthroughthecurtain wallswhichoverlooksthecourtyard'sintheGroundfloor

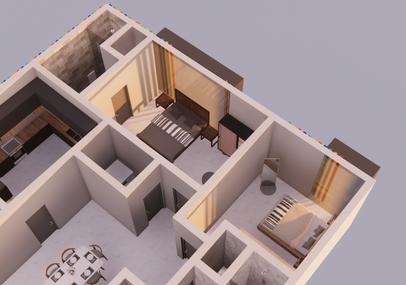

Theapartmentsplacedinsidealsohasmeansofnaturallightandventilation astheyhasviewsofthecourtyards.Cut-outsarealsomadealongthe perimeterofthebuildingtoprovidethesame

TOPFLOOR

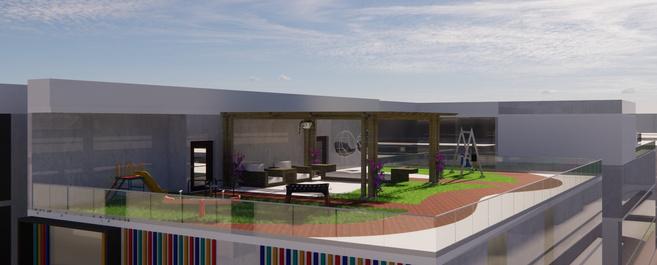

Playareaswithopenspace andplayingequipmentshas beendesignedforthekids. Seatingwithpassivemeansof shadingisalsoprovidedforthe users.

Adifferentdesignofplay areaisintroducedinthe centerblock Comfortable seatingwithabohotheme hasbeenintroducedalong withawaterwalltokeep theaircool

Oneswimmingpoolhasbeenprovidedineachblock.

SOCIALIZINGAREA WITHCAFE

3DVIEWS

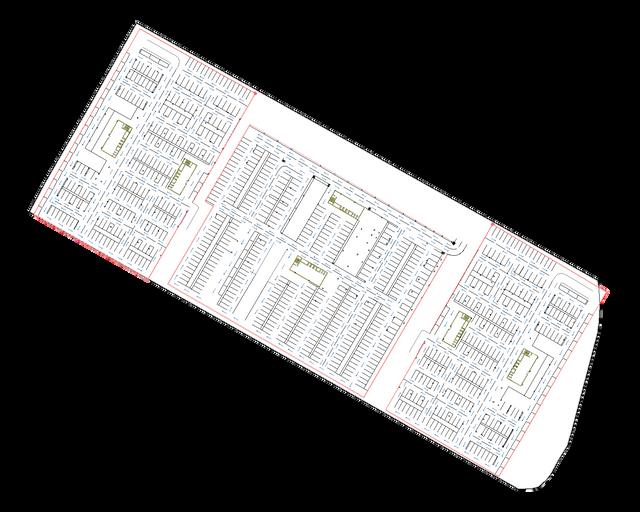

BasementParking layout

Verticalaluminumpanelsorslatson exterior,makingadoubleskinfacade.On windows.thisskinbecomeslouvred shutters.

FACADE DETAILS

GREENWALL:

Removeairpollutants. Reduceurbantemperatures. Thermalbenefitstobuildings. Improvebiodiversity.

Aluminium:

Strong Sustainable Environment-friendly Recyclable

CURTAINWALL

CHAPTER2

Tocreateamulti-blockhubtohost virtualcultural,social,and educationaleventssuchasshows, digitalartgalleries,markets, lecturesandexhibitions.

CULTURALHUB

Thedesignbriefspecifiedtherequirementsfordesigningacultural hubinAlQouz.Itemphasizedonthesiteplanningofamulti-block projectandDesignofhugecongregationalspaceswithFormstructure.Themainideaistocreatespacesemergingfromtheiconic buildinginAlSerkalAvenue-Theconcrete.Theculturalhubwill complementtheadjacentsiteinadifferentway,suchthatthefocusis stillontheconcretebutgivesawholedifferentfeelofculturalhubinan industrialarea.

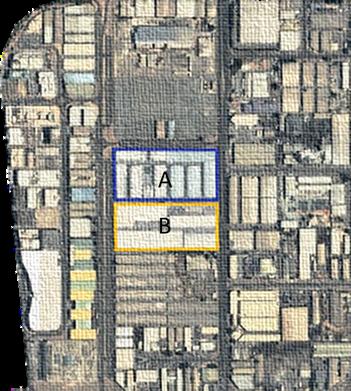

SITEANALYSIS

RESIDENTIAL SHOPPING

PUBLICSPACES

CASESTUDIES

Access:Bycar,primary andsecondaryroadways. Accessiblebymetroand bustoo.

The Green art museum

Streetmekka

MultipurposecommunalspaceExhibitionspaces,PhotographyStudio, DanceandMusicstudio

Co-workingspaces-Cubicles,Meeting rooms,Offices,workingspace.

Accomodation-Guestrooms

Library

Foodtrucks

Fleamarketandbreakoutspace

Outdoorexhibitionareas

DESIGNDEVELOPMENT

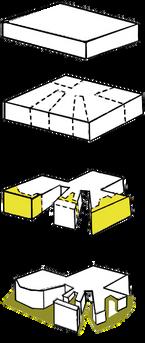

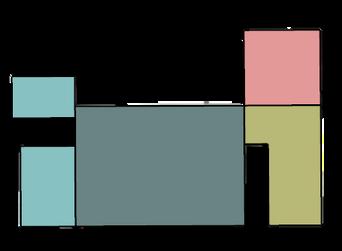

Positioningofblocksonsite

Theblockshavetobeblendedwiththenatureby incorporatingpocketspacesofgreeneryand courtyards.

Createaboundaryinwhichthe differentblocksareplaces

Createhybridspacesthatare insideandoutsideatthesame time.

Similarly,cutoutspacesinside theblocks.

fleamarket+breakoutspace

brary

Unifyingtheoutdoorspaceswith theinsidebyincludingopen courtyardsandgreenspacesin aswell

exhibitionspaces+ studios

Theculturalhubwill complementtheadjacent siteinadifferentway,such thatthefocusisstillonthe concretebutgivesawhole differentfeelofculturalhub inanindustrialarea.

ROOFSTRUCTURE

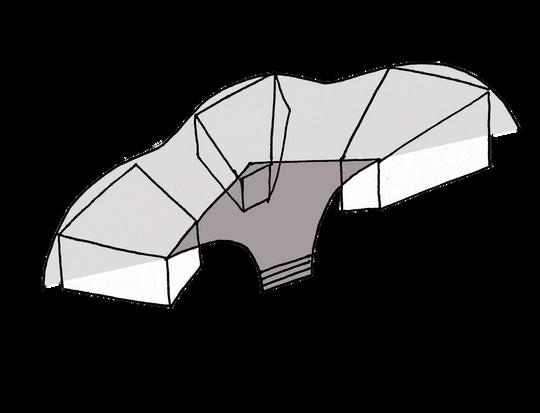

Parametricroofwhich coverstheenitre structurewithadropin theoutdoorareas.

co-workngspaces+guest ooms

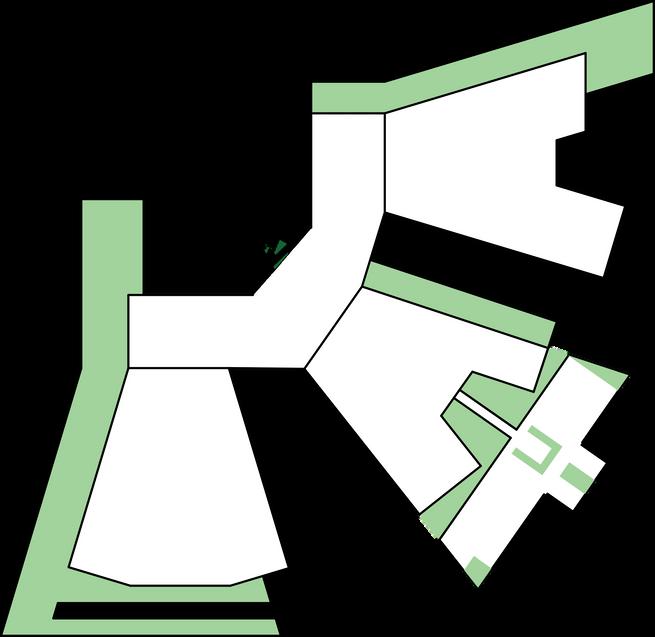

CIRCULATION

CENTERPOINT

Thecenterpointis fromwhereyou haveaccessto everyspaceinthe culturalhub

Windpath

Sunpath

LIBRARY

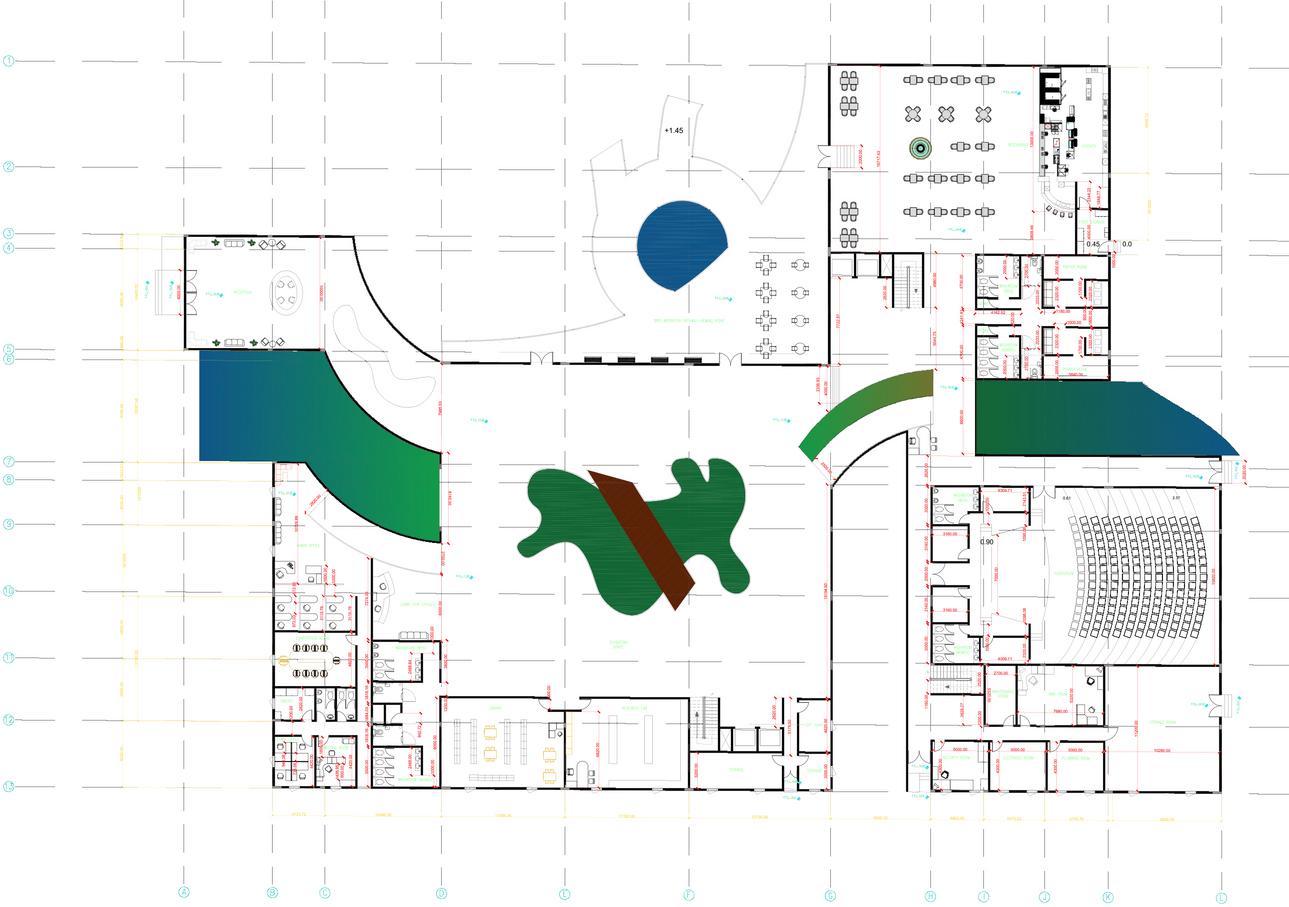

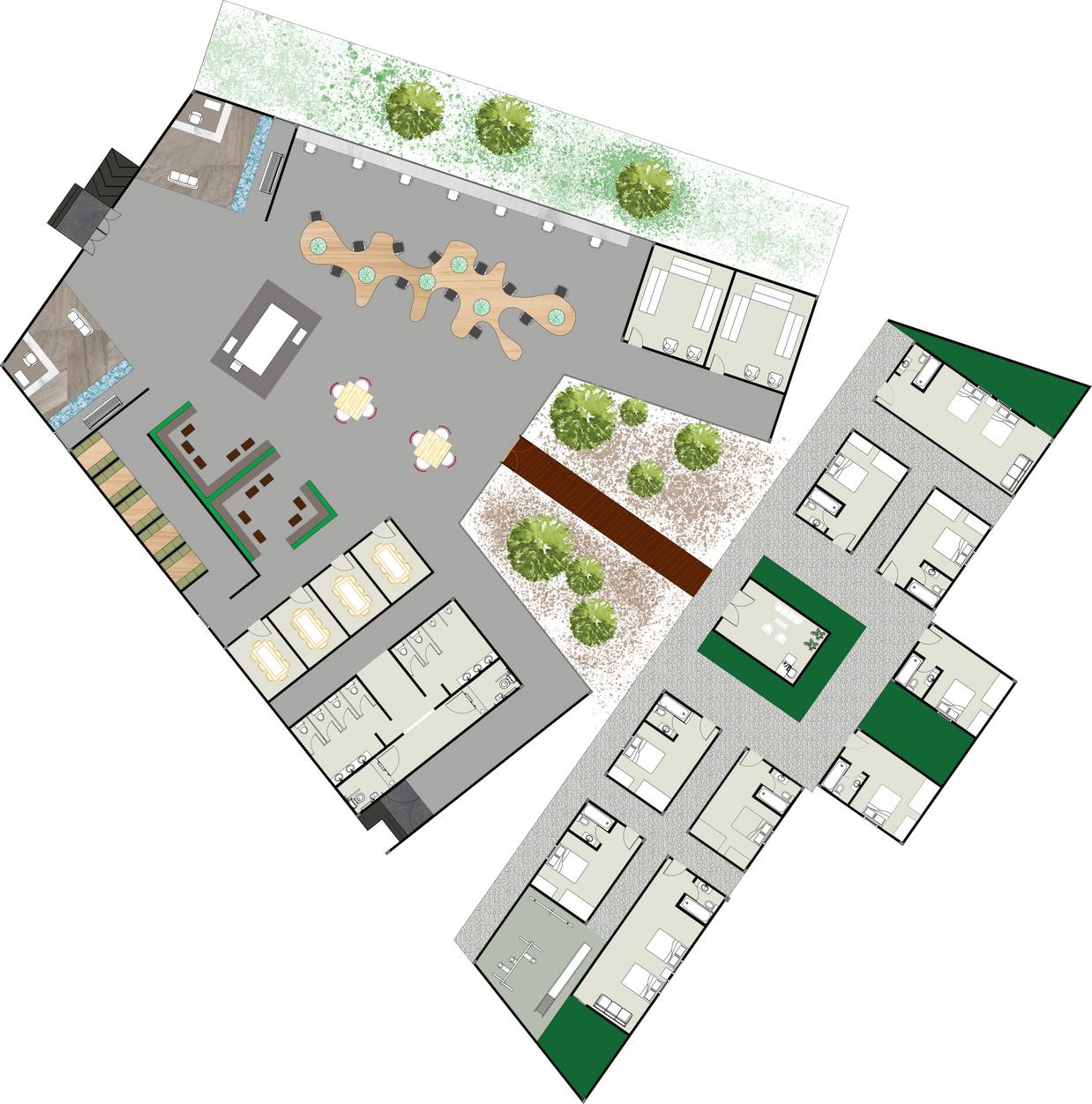

SITEPLAN

GUESTACCOMODATION

CO-WORKINGSPACE

MULTI-PURPOSEHALL

SKATEPARK ACCESSTOALSERKALAVENUE

CO-WORKING SPACE

Theco-workingblockis dividedintodifferentzones dependingonone'sneeds

KEYPLAN

Sunkenseating

Steppedseating

3DVIEWS

Elevationsandcourtyards

Foodtruckswith outdoorseatings.

Courtyardinthelibraryblocktoprovide outdoorreadingareawithsufficientshading andcooling.

Courtyardalongthe walkwaytotheguest accomodation.

KEYPLAN

PASSIVESTRATEGIES

Skylightsandopencourtyards.

Longwallsarefacingsouth. Orientationofwallsandwindows aredoneaccordingtothewind directionandsunpath. Coolpavements:Keepsthe temperaturelowerthanthe traditionalpavements

MATERIALS

Porcelaintile:

Naturalandeco-friendlymaterial. Verylowporosity.

Impermeabletowater,acidsand dirt

Usedincladdingforfloorsand façade.

Concrete:

Usedforwalls. Highlydurableandhasgood mechanicalresistance.

Rampaccompaniesbystairswhich takesyoutoaspacetogivetheviewof thewholearea.Itactsasagrand entrancetotheplaza.

CHAPTER3

Tocreatedifferentzonesthatare specialized forcommunicatingthe significanceandmeaningofthe heritageoftheareaorsite.

INTERPRETATIONCENTRE

Thedesignbriefspecifiedtherequirementsforaninterpretation CentreinWarsan,neartheMoroccocluster,InternationalCity.Itisby theWarsanlake,whichisconnectedbytwolakesinInternationalcity. Thecentrewouldprovidespectacularviewsofthebirdsinhabitingin theWarsanlake.Themainideaofthedesignwastoconnectthe interpretationcentrewiththesitebycreatingspacestoexperiencethe differentstagesofbird'smigrationcycle.

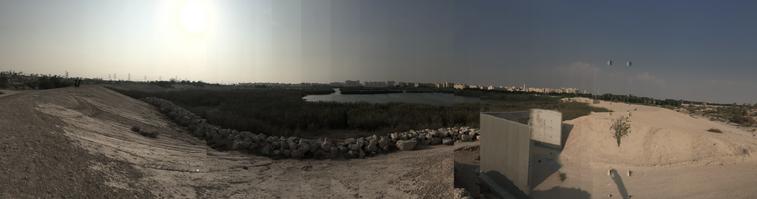

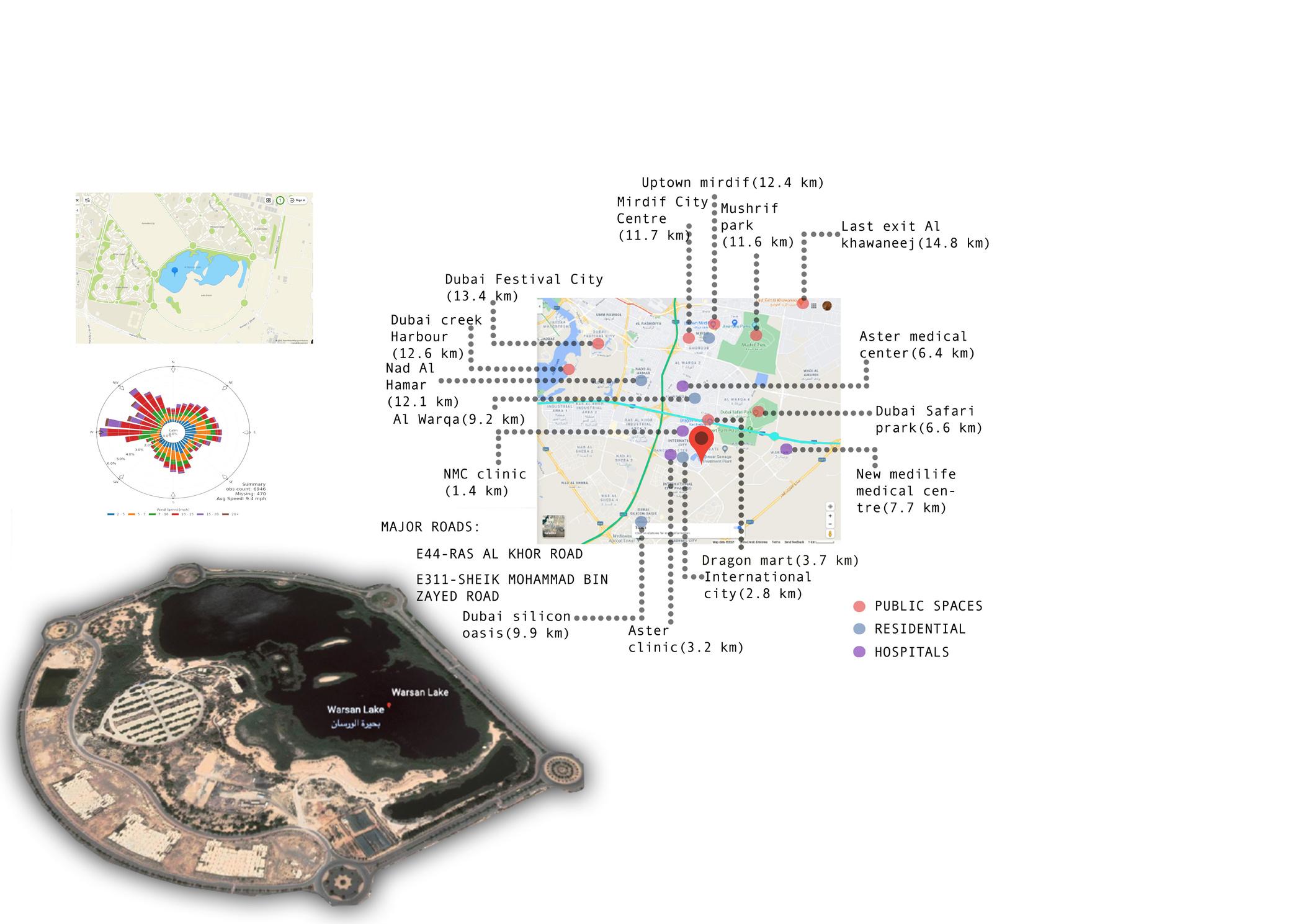

SITEANALYSIS

Access:Bycar,parkatthe SWcornerofthepublic parkingarea.

CASESTUDIES

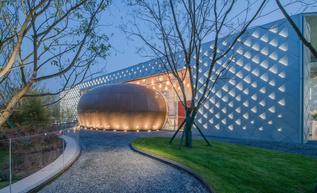

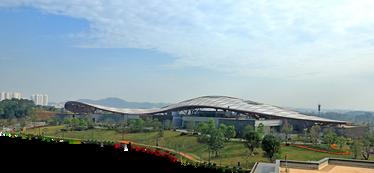

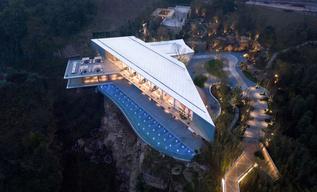

Yulin artistic center

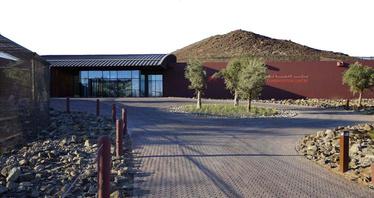

AlHefaiyahmountain conservationcentre

DESIGNDEVELOPMENT

Thestructureisdesigned,keepinginmindtoincorpratefew waterelementsandlandscappedareaswithinthebuildingto expresstheboundarylessconnectionwiththelake.The translucentskinfacingtheAlwarsanlakewillbefixedwith adjustablealuminumpanelsandglasstocontrolglareand addprivacy.Thebuildingoffersdifferentviewstothelake fromdifferentsidesasyoufollowthepathofthebirdsanffly along.

ZONING:

Thespacialarrangementofthebuilding isbasedonthedifferentstagesof migration.Zoninghasbeendone accordinglyprovidingtheexperienceof eachstageinaverysubtlemanner.

ZONE1:NESTING-Receptiom, administration,officeblock.

ZONE2:ROOSTING-Exhibition,learning space.

ZONE3:FEEDING-Restaurant

ZONE4:FORAGING-Auditorium, maintainance.

Landcsappedareaswithwaterelementsto expressthehabitofbirdsfindingtheirown comfortablespacetorestduringtheir journey.

The roof of this structure cantilivers in all directions to shade the facades which recieves a lot of sunlight throught the day and provide a cool exterior and interior envrionment. The shape of the roof follows the outline of the building rising to a higher level carrying the floor height along leading to double hight spaces in different areas of the structure. The exhibition spaces also houses the observation decks at the next floor as small pods emerging out, visible from the ground floor.

WINDFLOW

SUNPATH

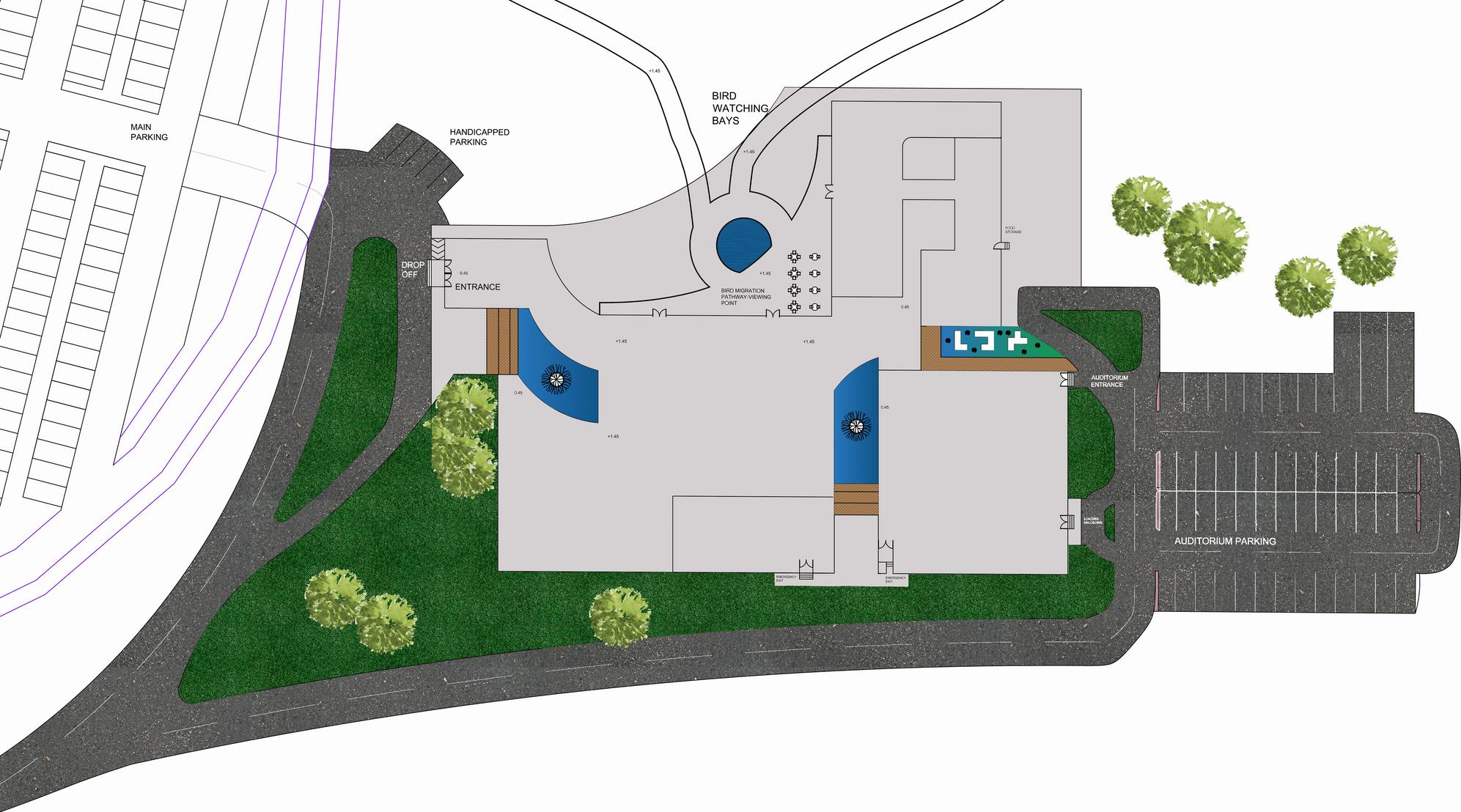

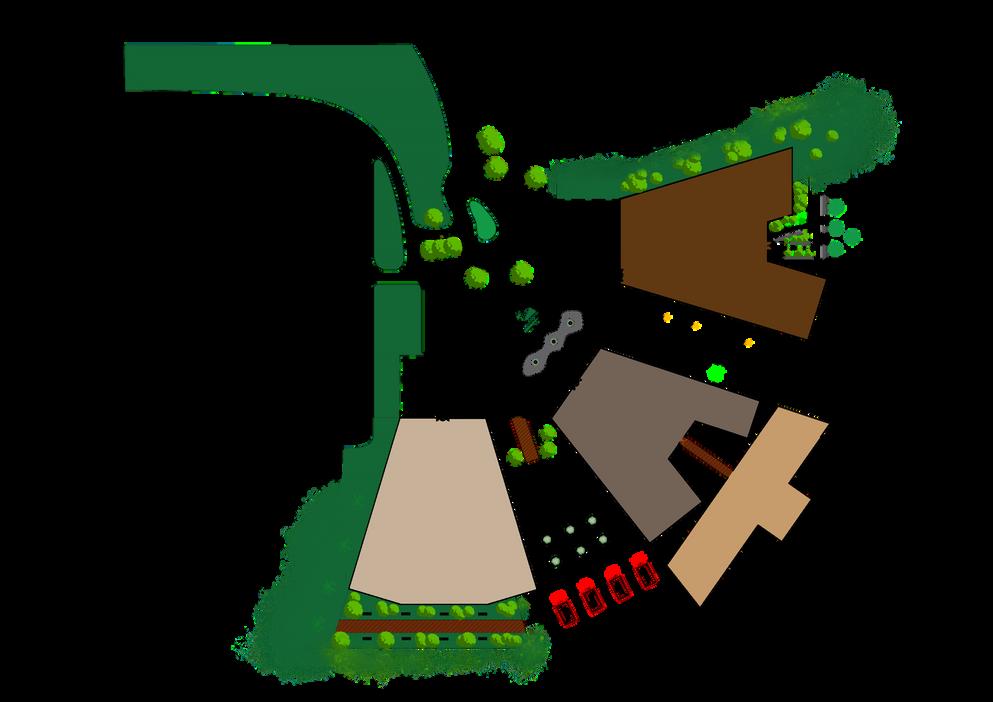

SITEPLAN

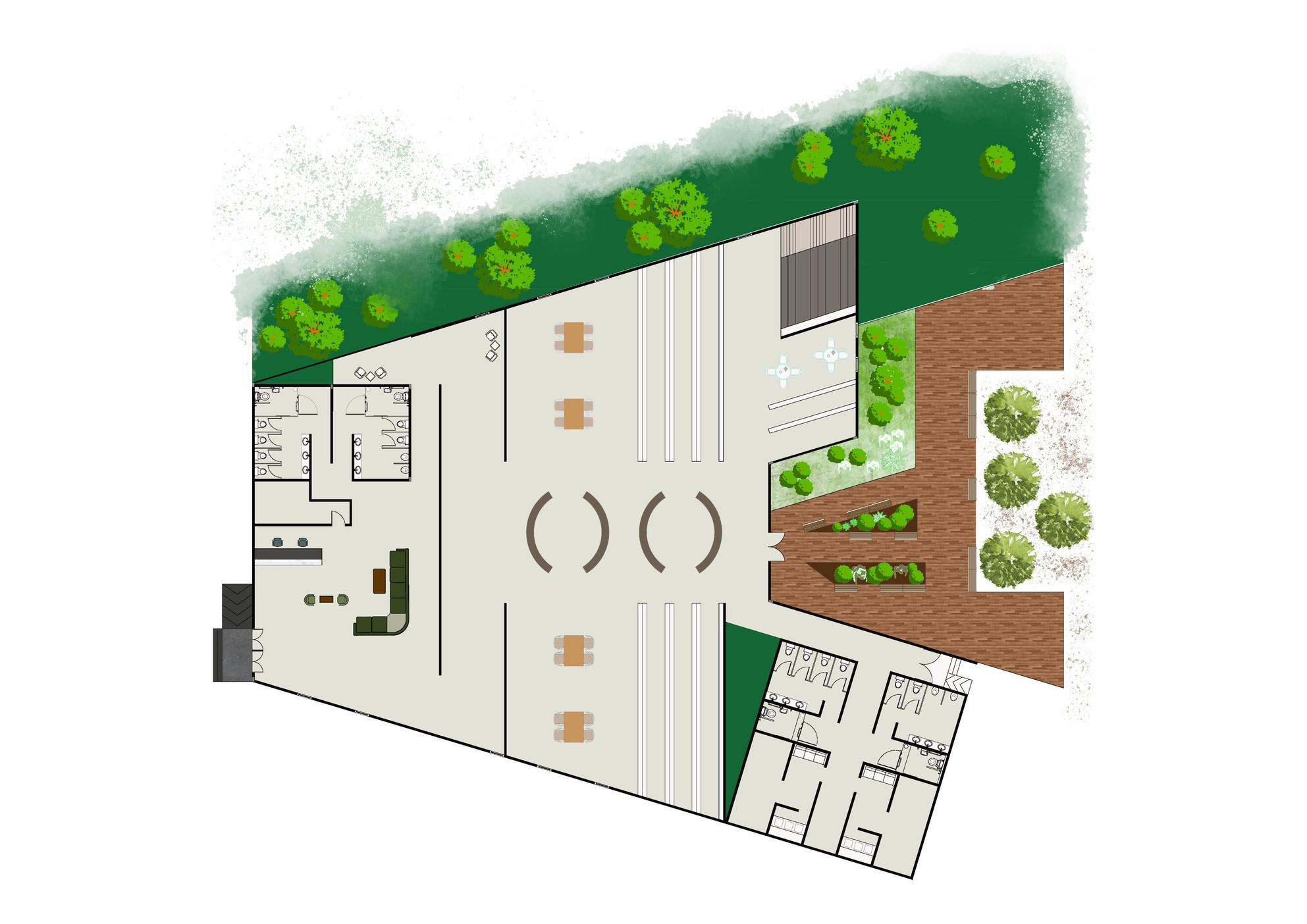

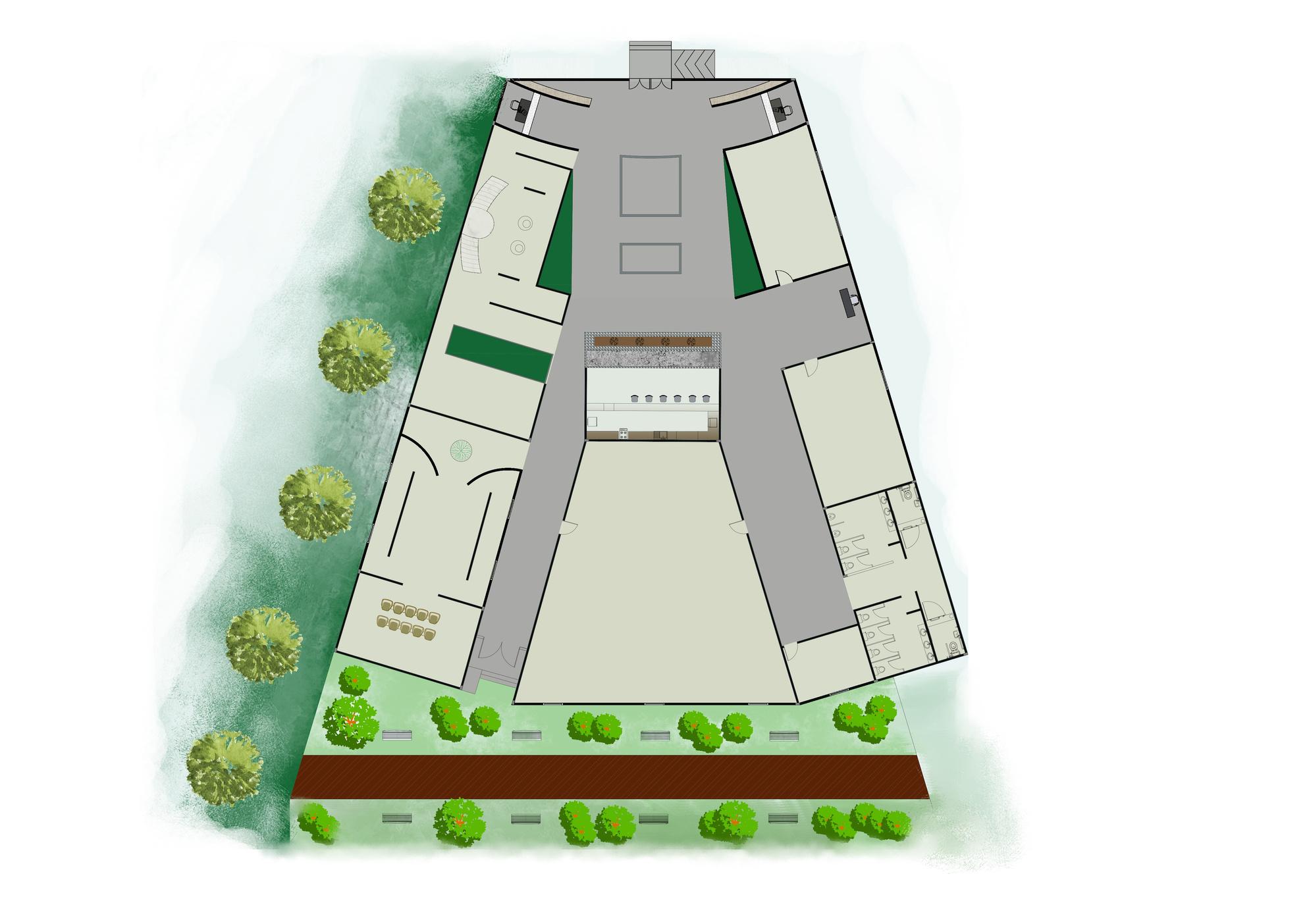

GROUNDFLOOR

MEZZANINE FLOOR

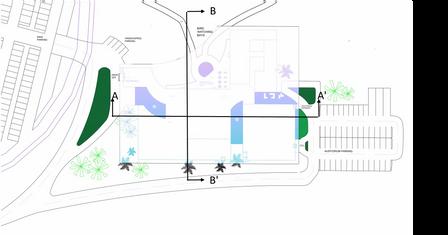

SECTIONAA' SECTIONBB'

SECTIONS

KEYPLAN

ELEVATIONS

Birdmigrationpathway: VIEWINGPOINT

Exhibitionspaces

3DVIEW

BUILDINGORIENTATION:

Thestructureisplacedonsitetakingintoconsiderationthe windflowandsunpath.

Theopeningsandtheoutdoorareasareplacedtowardsthe Northwestandwest.

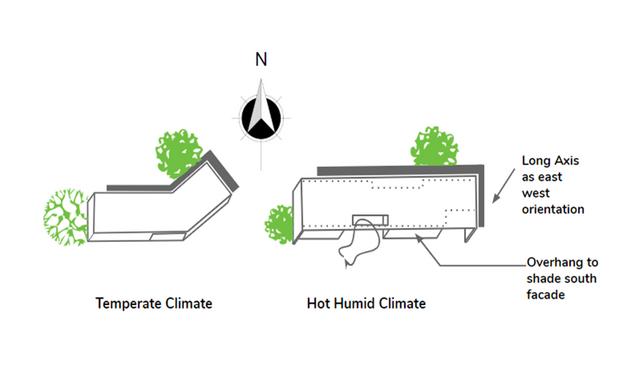

Thelongestfacadesarenorthandsouthfacingsothatthe buildingcantakeadvantageofthedirectsunlight(Without glareanddirectsolarheatgain)fromthenorthandcontrolled directsolarheatgainfromthesouth.

STACKEFFECT:

Duringtheheatingseason,thewarmerindoorairrisesup throughthebuildingandescapesatthetopeitherthrough openwindows,ventilationopenings,ortheskylights.The risingwarmairreducesthepressureinthebaseofthe building,drawingcoldairinthrougheitheropendoors, windows,orotheropeningsandleakage.Duringthecooling season,thestackeffectisreversed,butistypicallyweaker duetolowertemperaturedifferences.

PASSIVE STRATEGIES

MATERIALS

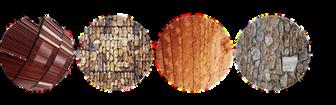

Bamboohasbeenusedfortheroofconsideringitisanecofriendymaterial

Rammedearthhas beenusedforfooringinthe observationdecks.Rammedearthwalls(orevenfloors)can beusedasthermalstorage,allowingthesuntowarmthem inthedayandthenslowlyreleasethewarmthinthecool evenings.

Limewashisusedforthewals Unlikemany paints,limewashisagreatsustainablechoiceasitisnot madefromsyntheticchemicals,whichcanbelessheathy fortheenvironment;instead,itisamixtureofnaturalclays, mineralsandpigments

CASEMENTWINDOWSANDALUMINIUMPANELS

Whenclosed,casementwindowshaveanairtightseal, preventingunwantedairfowintoandoutofthehouse The perforatedaluminumpanesofvaryingdensitiestofilterthe eveningsun.
