Hi, I am Anushka currently in my 4th year of Architecture undergraduate degree.

This portfolio that you're about to look at is a compilation of my academic works till now.

Experimenting with forms, materials and structures in the past 4 years has helped me develop a sense of understanding of the user better and hence working on building more user centric experiences has been the focal point of my projects. A diligent and user - driven approach helps me to inculcate a better design solution.

Being in the leading role at various stages of my life has shaped me as a responsible, punctual, problem solver and empath. An easy going nature and strong communication skills adds a charm to my overall personality.

Graphic design | Ux/Ui Design | Architecture Photography | BIM

Achievements Proficient Proficient

Education

2022

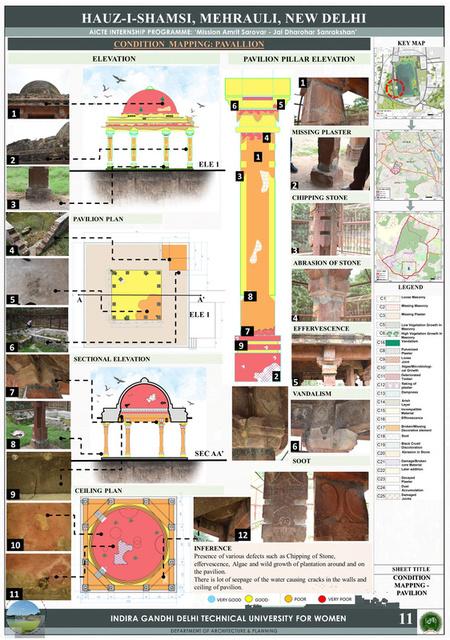

Top 20 - All over India Amrit Sarovar Mission, Govt.of India project

2022

Top 5 - Out of 33 Batch of 2019-24, 6th semester

B. Arch 2019 - 24 Indira Gandhi Delhi Technical University for Women, Kashmere gate, Delhi

cbse XII 2017-18 Ramjas School Pusaroad, Karol Bagh, New Delhi

Roles n Responsibilities 20192022 -Present

Class Representative Batch of 2019-24, DAP, IGDTUW

cbse X 2015-16 Ramjas School Pusaroad, Karol Bagh, New Delhi

-Present

Software skills

-Present

2022

2022

Vice President Student Administrative Body, Deptt of Architecture and Planning, IGDTUW Core Head Unnat Bharat Abhiyan, Govt. initiative

Drafting AutoCad Revit

2022

Revit AutoCad 3d Sketchup

Lead User Interface designer Prekshya - Photography society, IGTUW

2021

Content core Synergy - Sports society, IGDTUW

Rendering

2021

Education mentor Desh ke mentor, Delhi govt. Initiative

BIM/ 3DModelling

Revit Lumion VRay

Analysis Revit Climate Consultant

Presentation Microsoft suite Adobe Photoshop Adobe InDesign Adobe Illustrator Canva

Ideation Figma Miro Boards

Experience 2021 June July

2021 Feb April

Team Leader - Graphic design Godwill PLanners Team Leader - Graphic Design BloggerBunny

content

2022-23

01

housing design - PARN working drawings

02 03

hospital design

04 05

08

08

09

06

07

2019

2020

02 03 05

2021

04

2022

01

2023

ui/ux design

ANDC project

08

06

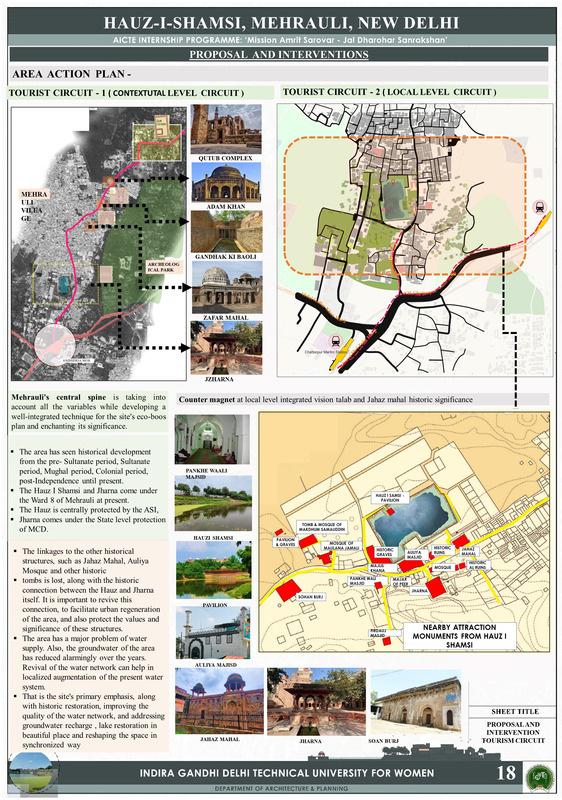

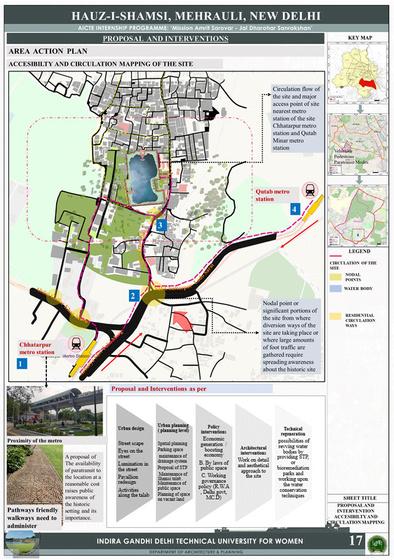

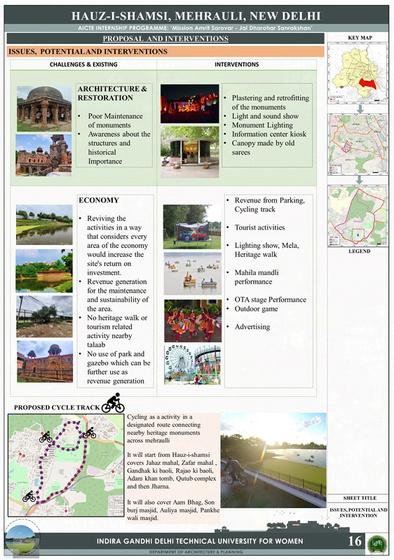

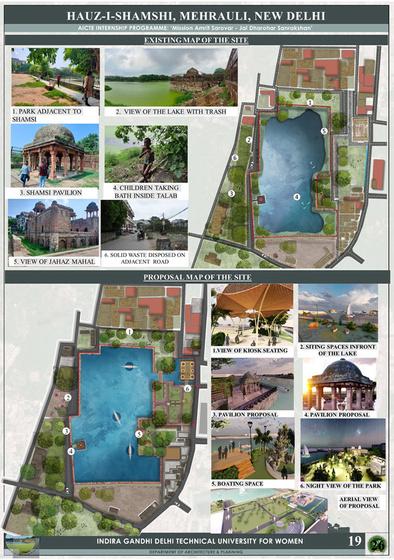

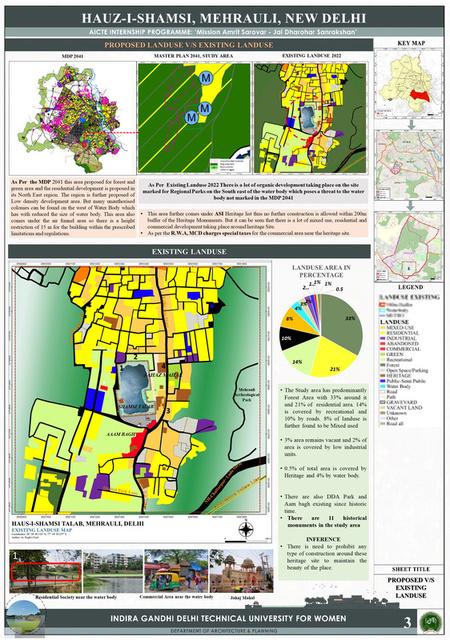

amrit sarovar mission project

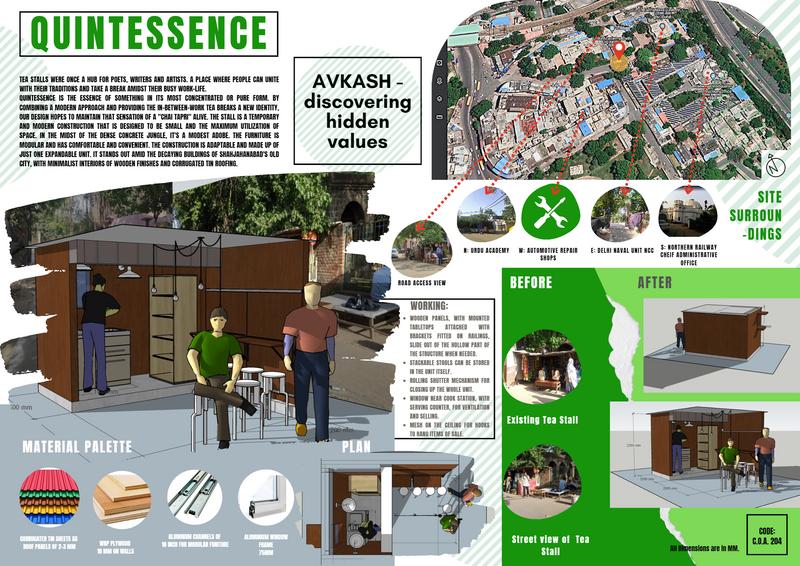

tea stall design - AVKASH

06 07

retreat design - PRADAN working drawings

photography

01

parn

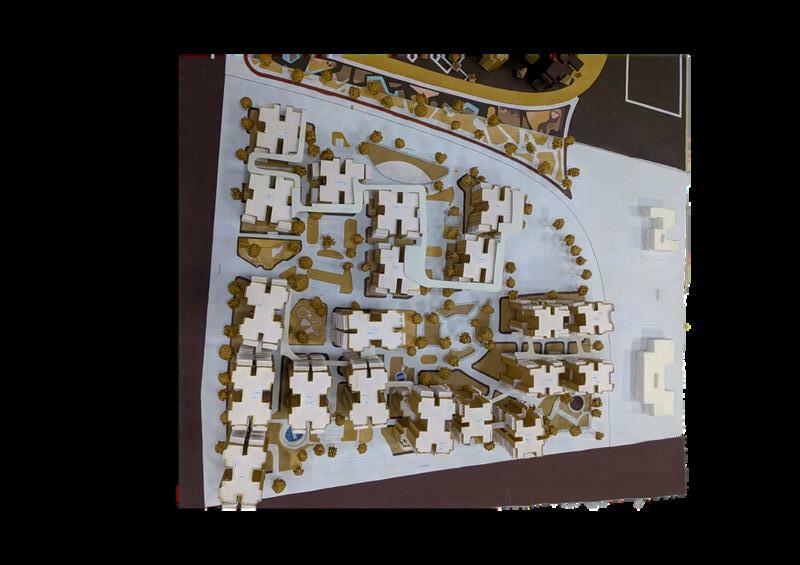

concept Parn is the sanskrit word for leaf. The attempt is to mimic the character of the green belt which is a major element of the masterplan, responsible for rpoviding the quality of life to the residents. Similar to that of a leaf, a central spine is planned to serve as the main ‘artery’ to connect and function the branches further.

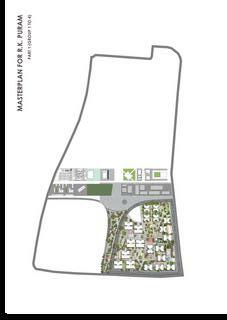

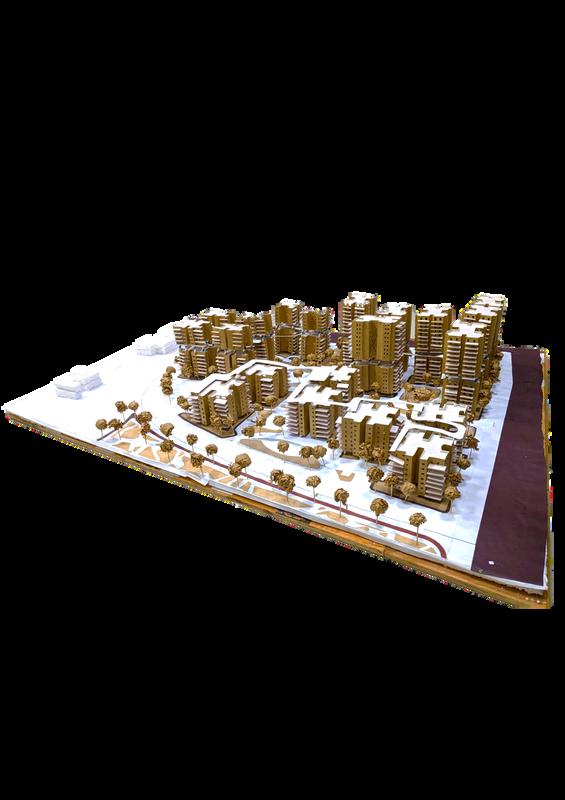

The project aims to redevelop the central government housing complex in R.K Puram, Sector- 5. The area of the site is 90.8 acres which is further divided into 4 plots of 14 acres each. To build a housing complex which is mid rise and high density, affordable, provides quality of life and communal experiences within the complex. The housing to be constructed is of 840 units considering type I, type II and type III as given by CPWD.

key plan

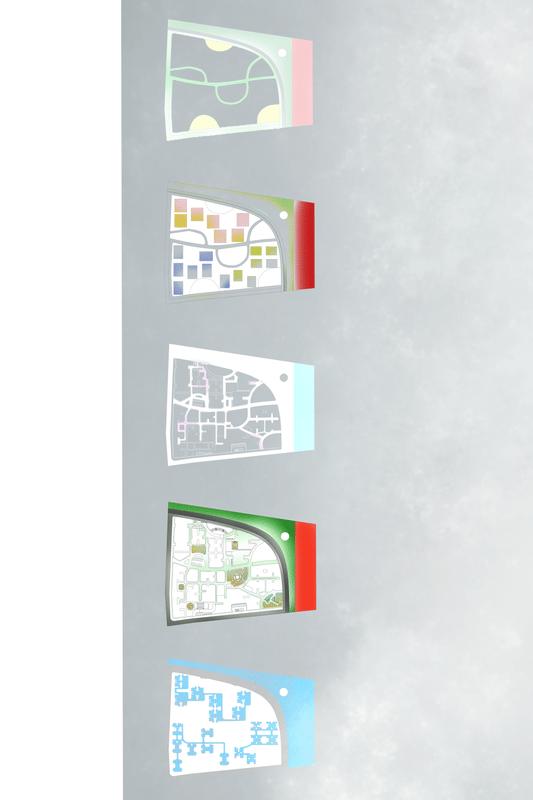

defining central spine to mimic the central green spine and the central artery of a leaf, placing activity nodes for individual cluster zone

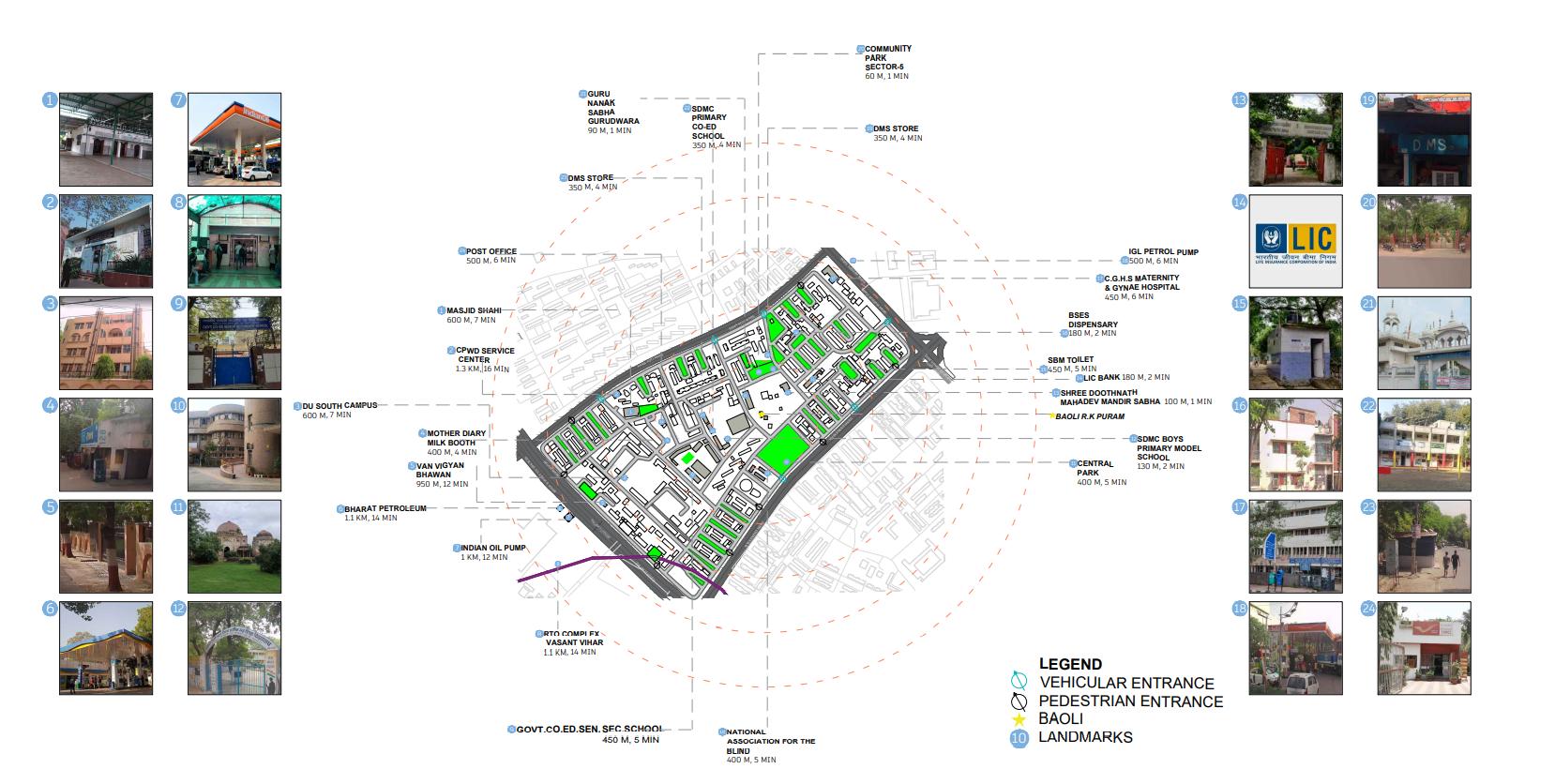

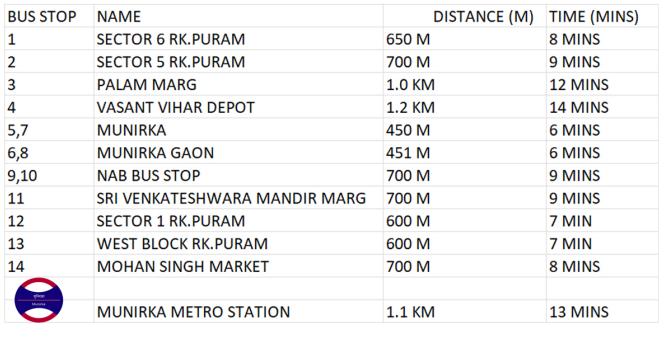

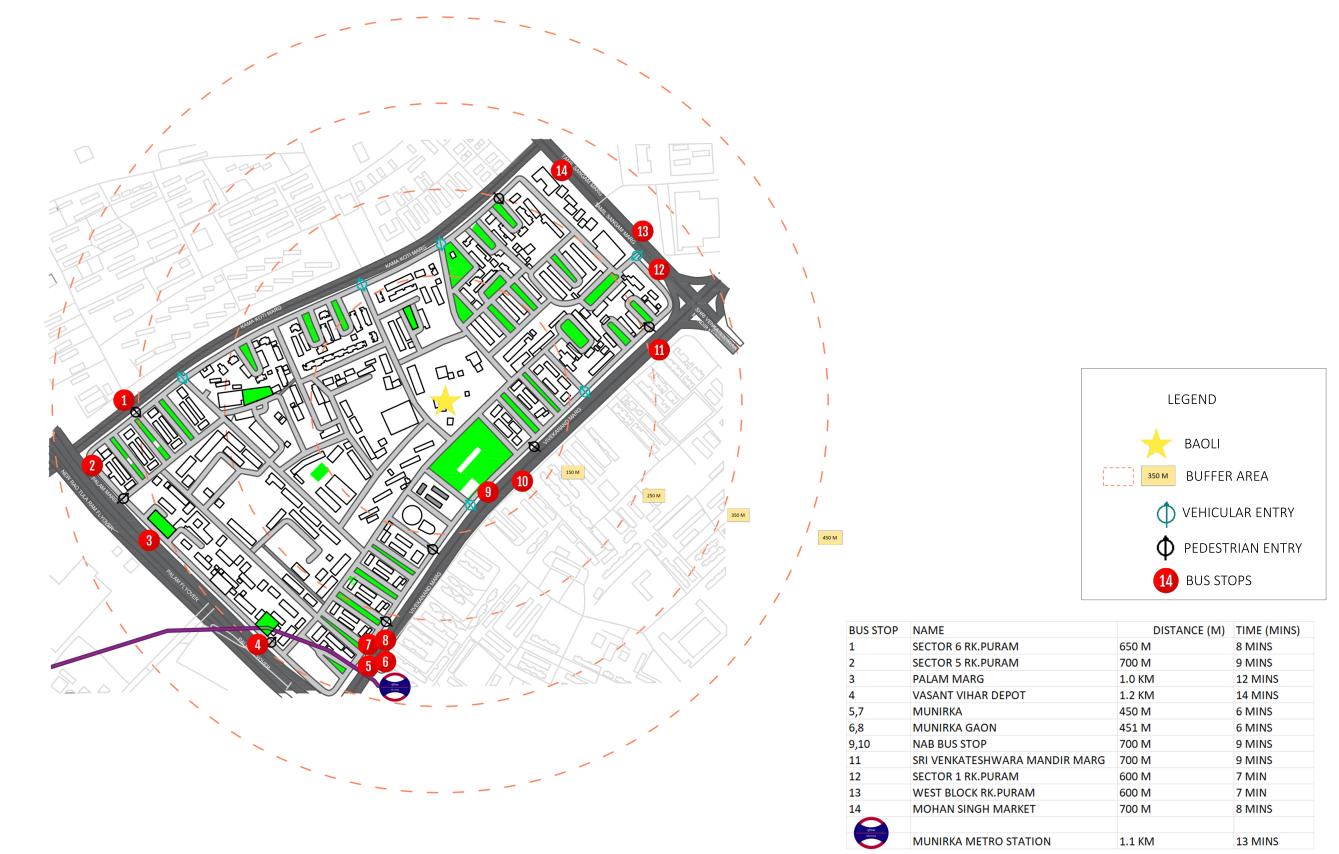

site analysis connectivity and neighborhood

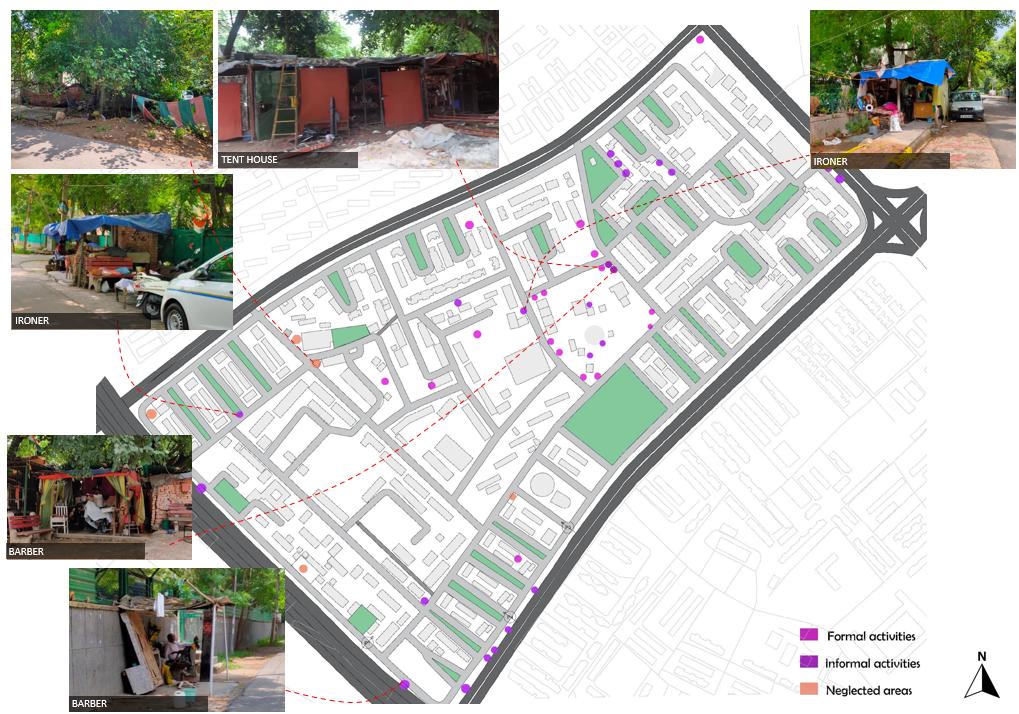

activity mapping at nodes on the site

placing clusters of typologies, visual segregation for privacy while inducing interactive spaces, orientation for proper natural lighting and ventilation.

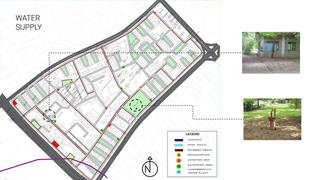

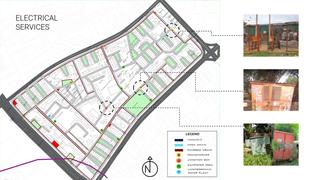

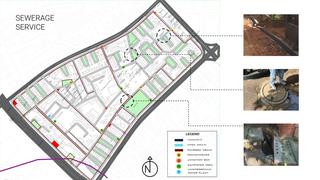

services

defining branching roads and culdisacks for safety, designing for vehicular and pedestrian roads

defining green spaces, community spaces and other activity zones for interactive sensory spaces and experiences across the site

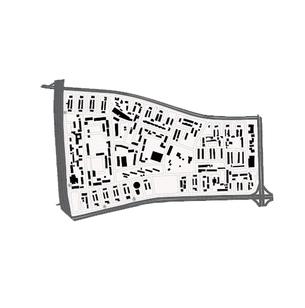

figure ground mapping BUILT AREA - 41% (heritage structure and baoli) UNBUILT AREA - 59%· 32% ROADS 18% GREENS 09% OPEN AREA GRID-IRON PLANNING REPETITIVE CLUSTER PATTERN RESIDENTIAL - GREEN AREA CLOSE PROXIMITY

land use mapping

building heights mapping

built typologies mapping

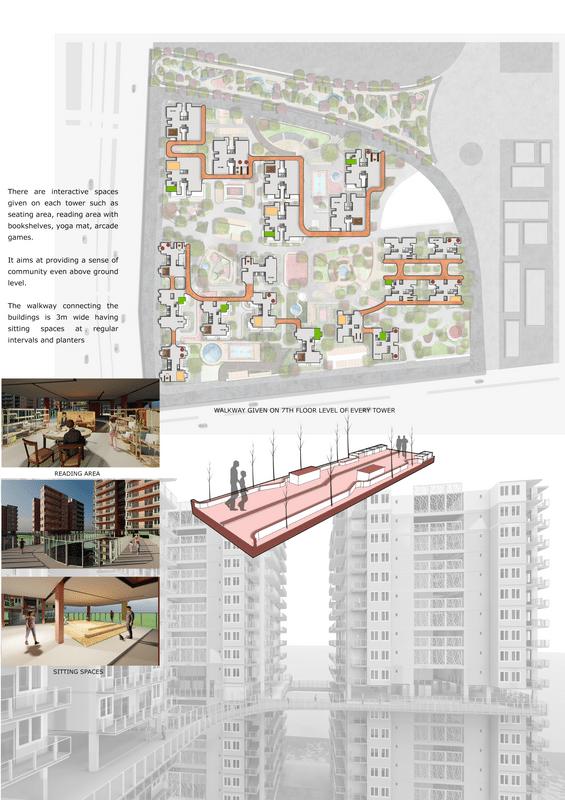

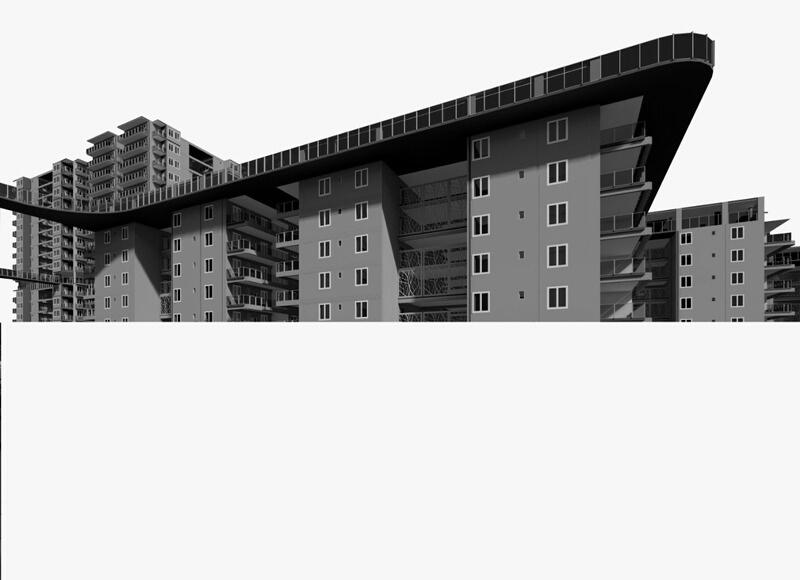

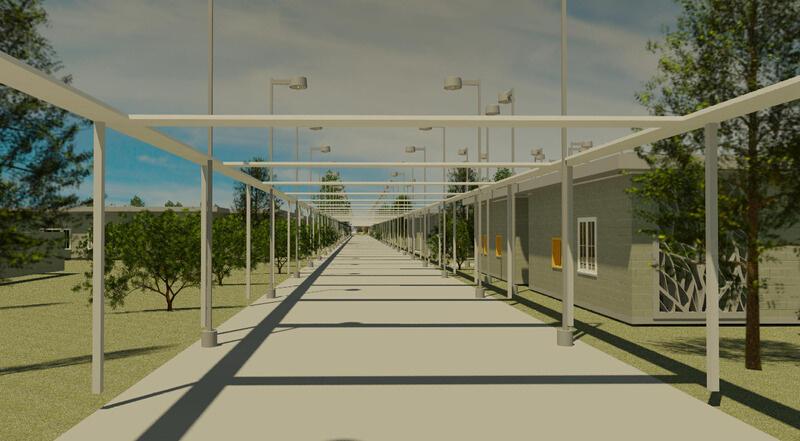

introducing double heighted walkways for connecting clusters of individual types.

01

parn

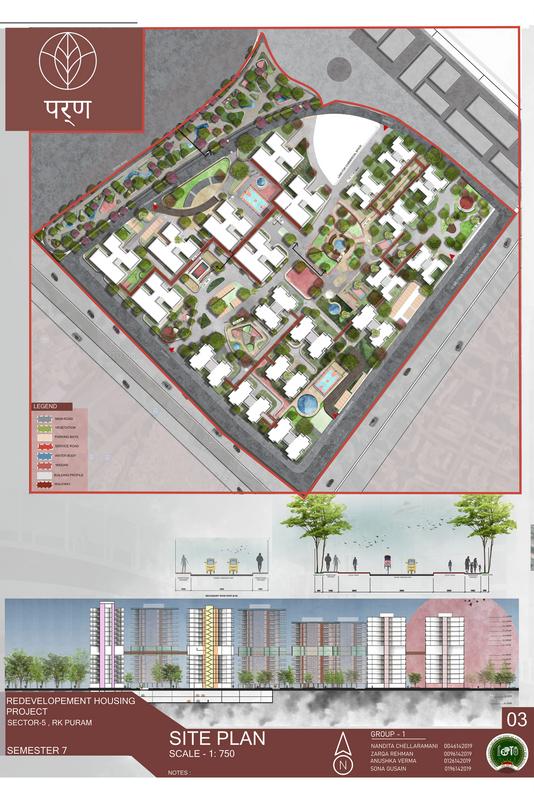

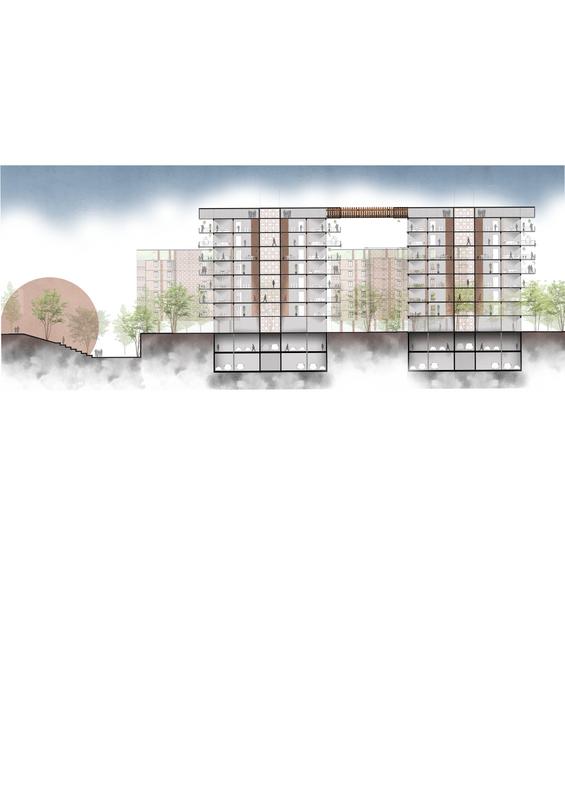

site plan, site elevations & site sections

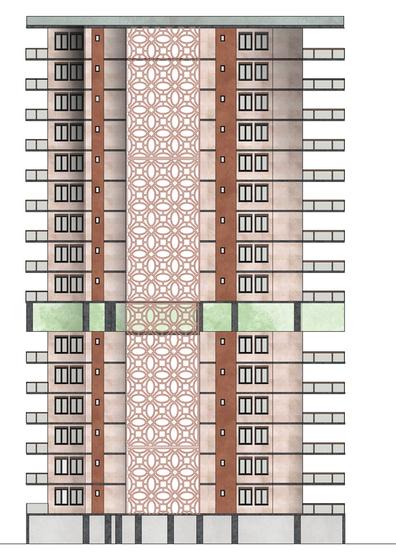

type 2 cluster elevation

type 3 cluster elevation

type 2 cluster section

01

parn

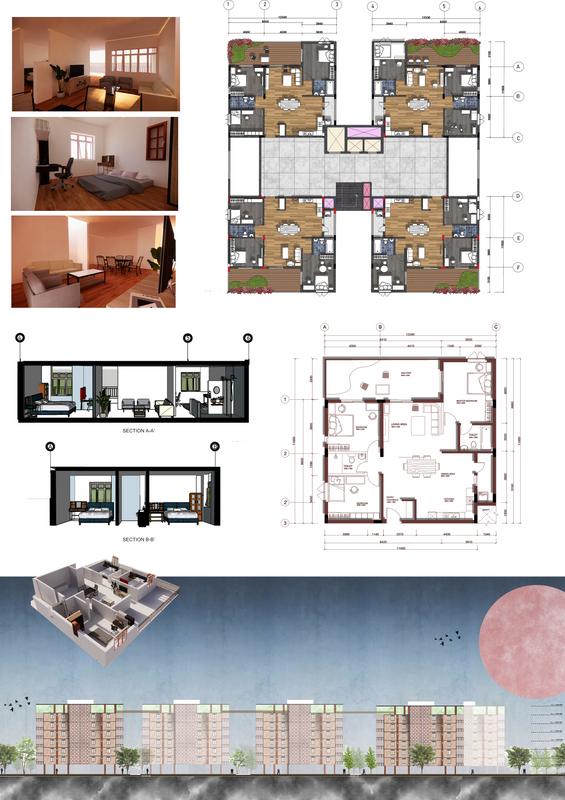

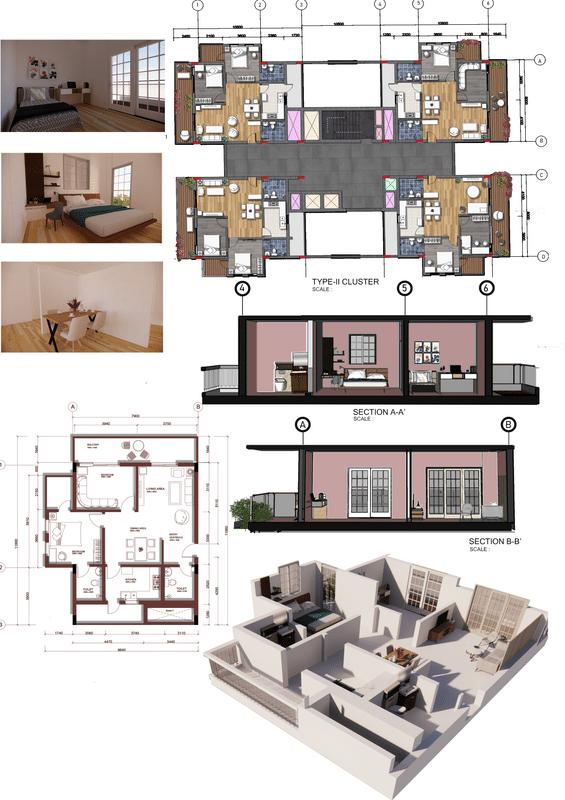

cluster plans, unit plans, cluster elevations & sections type 1

type 2

type 1 cluster plan

type 1 cluster elevation

type 2unit interiors

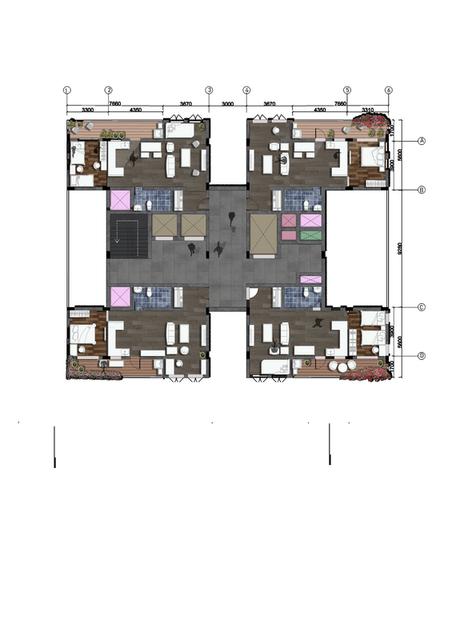

type 1 unit plan

type 1 unit sections

type 2unit plan

type 1 unit plan

type 1 unit interiors

type 2 cluster elevation

01

parn

cluster plans, unit plans, cluster elevations & sections type 3

type 3 cluster plan

type 3 unit plan

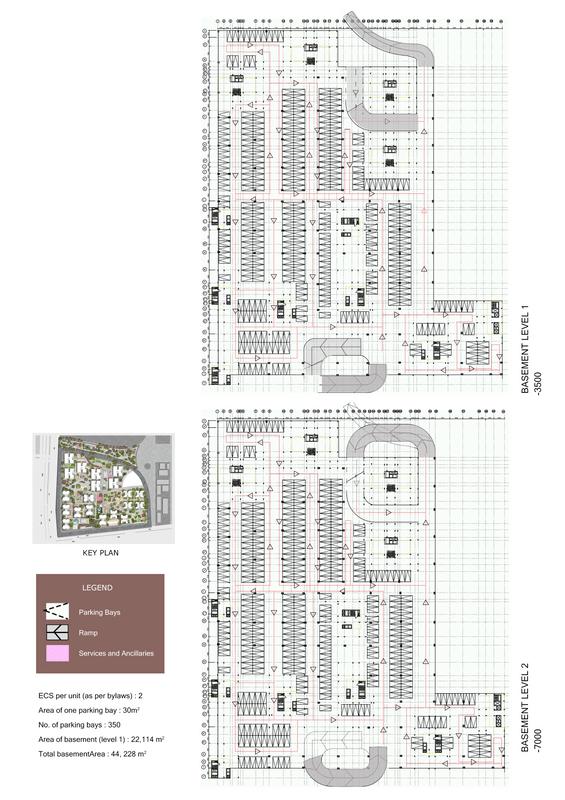

basement

01

parn

cluster plans, unit plans, cluster elevations & sections walkway

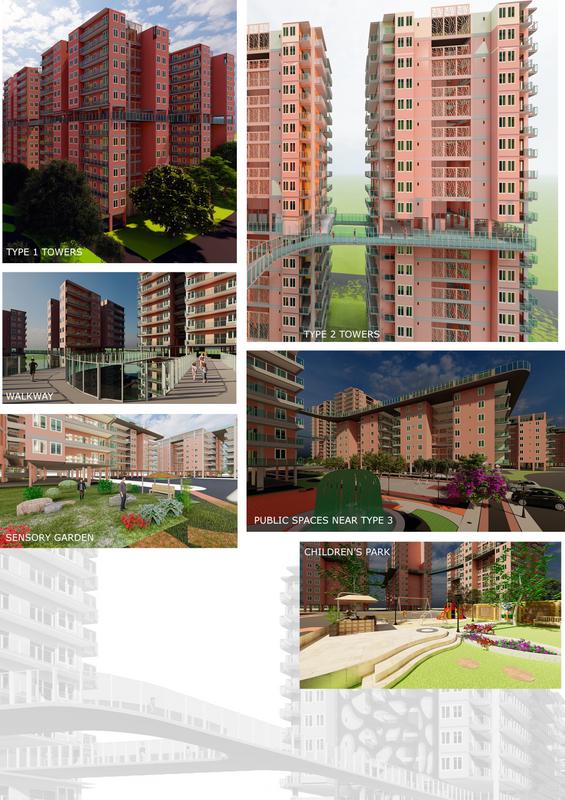

views

01

parn

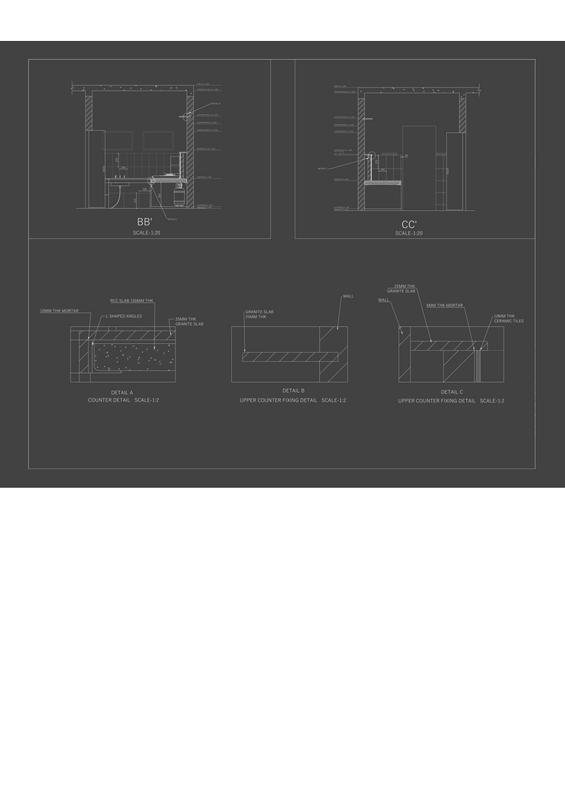

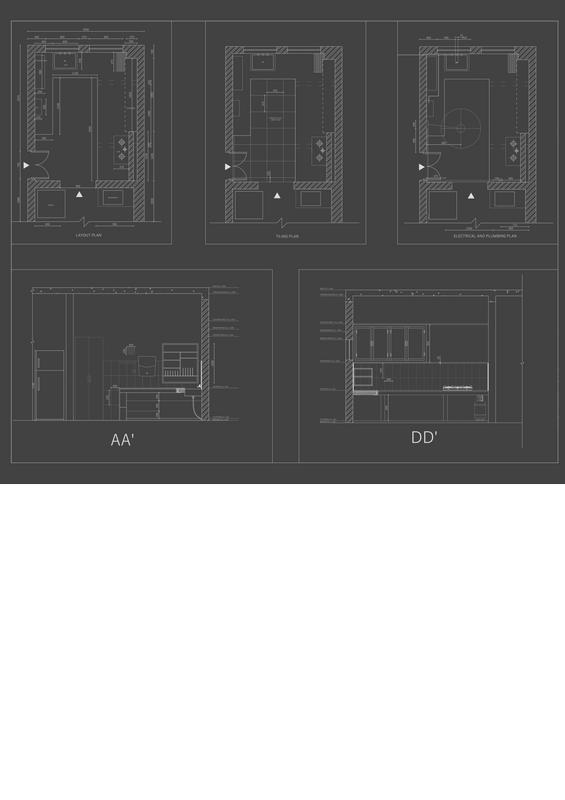

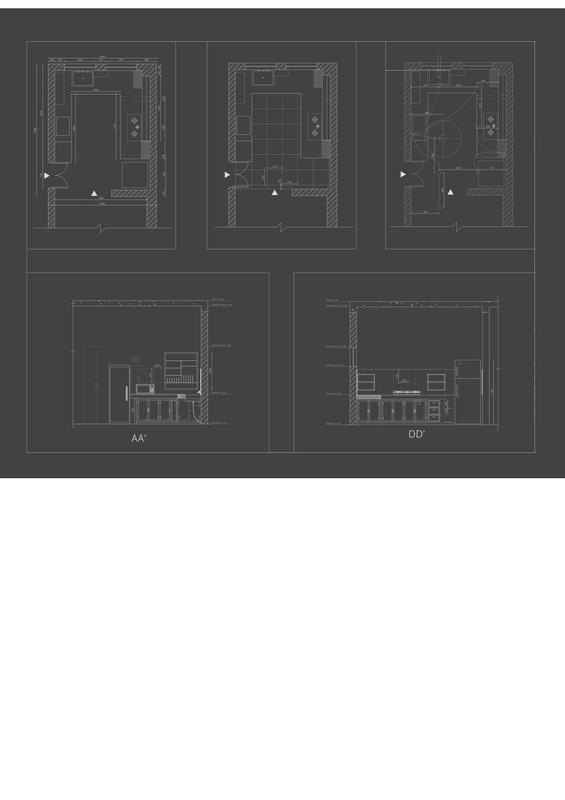

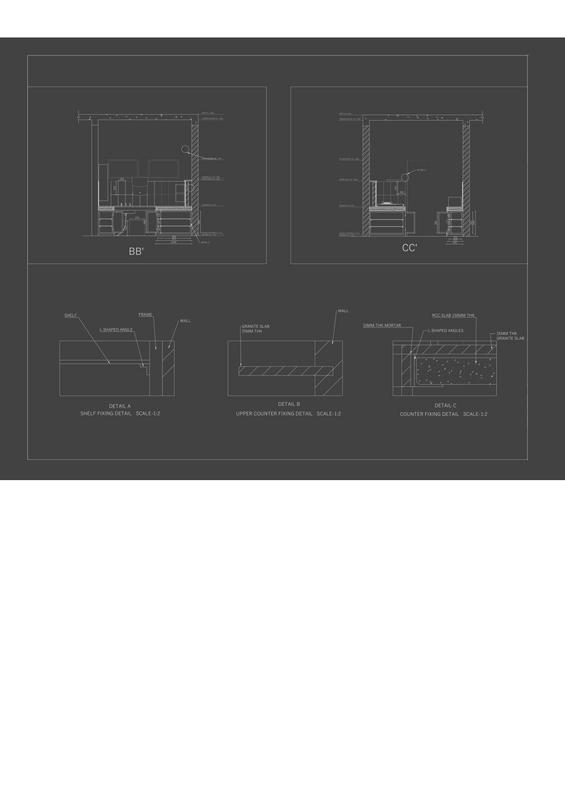

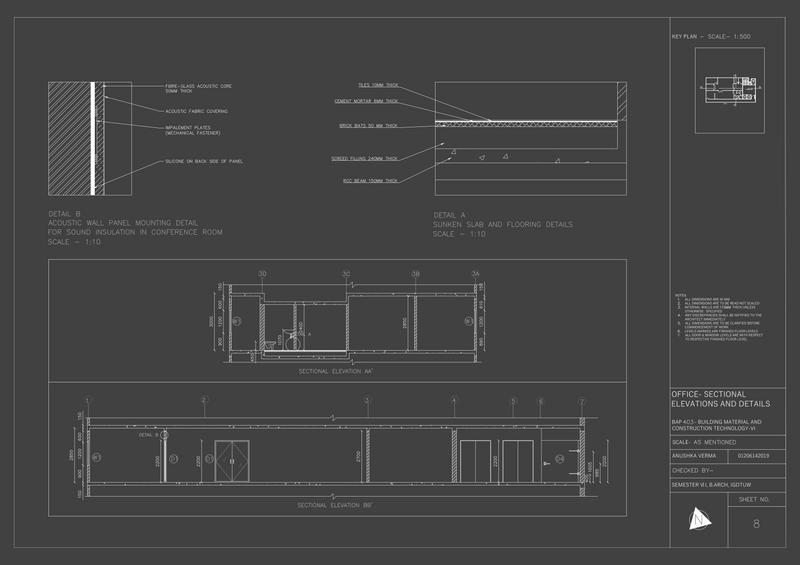

working drawings existing and modified kitchen drawings

working drawings

2

working drawings

2

02

pradan

concept note: Pradan being a community driven ngo drives with an aim of uplifting the quality of life of those who are not provided with much of opportunities. it strives for equity and spreading awareness and knowledge among the people they work for and work with, hence the design aims to provide that essence of equity in the spaces.

The dining block being the main focus of equity where everyone, irrespective of their societal status, sits together and eat the food, the only thing that we all work so hard for, to fulfil our stomachs.

The site is divided into two halves – on the upper half of the site all the working blocks and spaces are arranged in a hierarchy of spaces of use. admin, conference and workshops with supporting staff, breakout pavilions and oat. On the lower half all the residential and personal spaces are arranged following the hierarchy of use of spaces, i.e. cottages of personal residences for the long staying professionals and hostels for the professionals and guests coming during the time of retreat. the library is sandwiched between the two so that it could be accessible by the people of both the blocks of hostel as well as the residences.

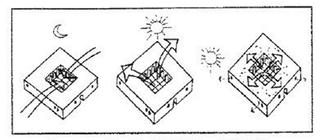

Because of the climatic and environmental factors of the site, a system of connected courtyards have been followed, interconnecting the spaces internally via courtyard thus creating an interesting experience for the users of the space.

The buildings are placed closely for providing a pedestrian scale to the whole campus and providing shaded regions from the built form itself, thus reducing the use of excess materials for providing shading devices in the built structures. The buildings formations are done in response to the climatic factors, thus allowing the built shape to reduce direct heat gain from the dominant directions of sun exposure.

INSTITUTION DESIGN FOR PRADAN NGO AT KESLA, ITARSI Pradan is an NGO ofa international repute, working in the domain of livelihood generation, youth empowerment, community development and gender empowerment for the tribal communities. Prdan works on the model of connecting highly educated professional youths from the premier institutes of India, or global institutes, to work with rural communities, in synergistic collaborations.

Pradan proposes to build a Retreat Centre in the central part of India, and hence Itarsi has been selected, because of its good connectivity with rest of India. The center will have following broad activities: 1. A livelihood generation and community development program supported by about 15 professionals in residency .

2. A retreat center for year long retreats by individuals /families/ group of colleagues to relax, introspect, read or take a break. These are usually of 3-4 weeks duration.

3. An annual retreat with about 100 people in attendance from all over India, for peer reviews, discussions, sharing of ideas and experiences, and annual planning. area program S.NO

BUILDING TYPE

1.

ADMINISTRATION BLOCK

2.

3.

CARPET SQM)

AREA

(IN

S.NO

BUILDING TYPE

4.

WORKSHOPS AND CONFERENCE HALLS

CARPET SQM)

SITE MANAGER

12

4 HALLS FOR 30 PEOPLE EACH

80 EACH

PROGRAM MANAGER

12

PANTRY AND KITCHENETTE

10

ACCOUNTS

12

LOUNGE ROOM

20

HR AND ADMIN

12

SUPPORT STAFF

10

CONFERENCE ROOM FOR 10 PEOPLE

24

SERVICES

12

STORE

10

LAB CUM WORKSHOP AREA

24

DOUBLE SEATER ROOM WITH 100-120 PEOPLE WITH ATTACHED BATHROOMS

18 EACH

SHOP/ COUNTER

12

LOUNGE

30

SERVICES

12

STORE

15

SICK ROOM

12

NURSE AND FIRST AID ROOM

10

5.

LIBRARY

20

INDIVIDUAL WORK SPACES/ NICHES FOR 6

20

AMPHITHEATRE FOR 120 PEOPLE

500

LIBRARIAN ROOM

12

10 BREAKOUT PAVILIONS FOR 10-12 PEOPLE

16 EACH

STAFF ROOM

12

SERVICES

12

STORE

10

STORE

10

SERVICES

12

DINING ROOM

100-120

KITCHEN

70

PANTRY

12

STORE

12

HANDWASH AND UTENSIL WASH

12

SERVICES

12

SEPT- OCT

OCT-FEB

COMPUTER ROOM

DINING

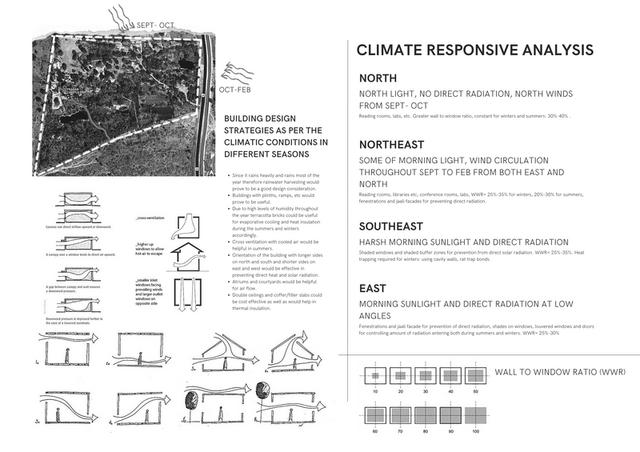

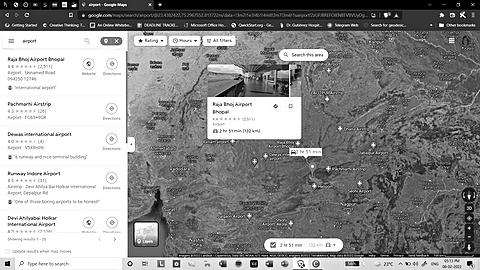

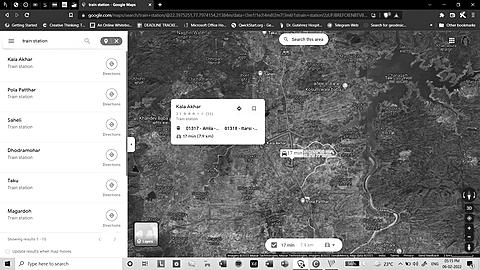

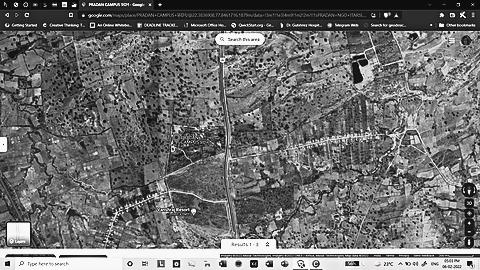

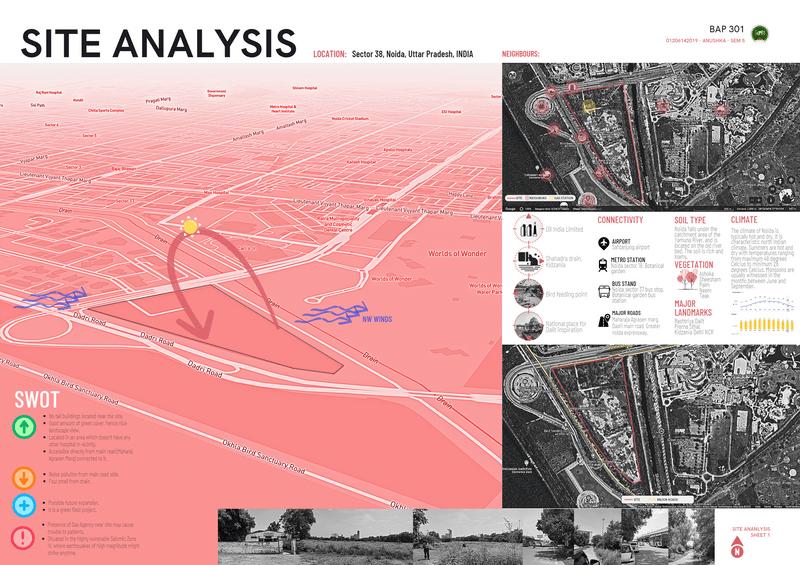

site analysis

OCT-FEB

70

7.

(IN

HOSTEL

BOOKS CUM READING ROOM

6.

AREA

AMPHITHEATRE

RESIDENCES

6- 1BHK UNITS

70 EACH

2- 2 BHK UNITS

90-100 EACH

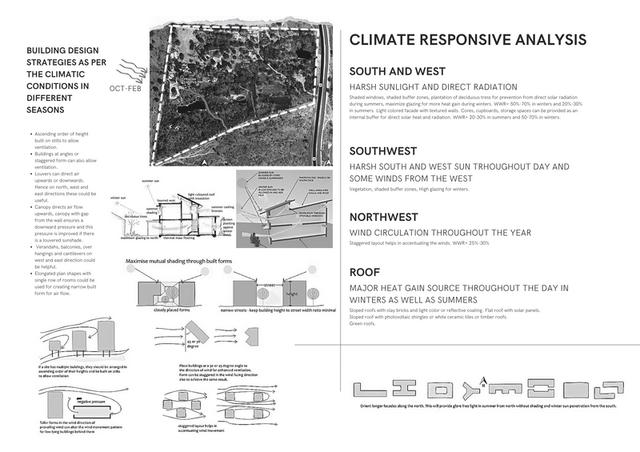

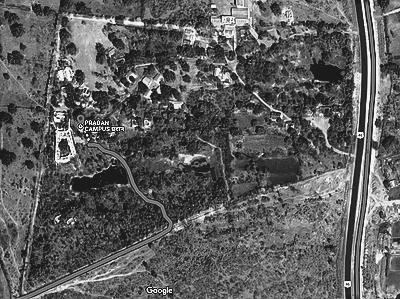

LOCATION: 22°23'02.5"N 77°50'28., Block 9, ITARSI, BHOPAL, M.P, INDIA

CONNECTIVITY & LANDMARKS

VEGETATION AND SOIL TYPE

CLOUD COVERAGE AND WIND DIRECTION

NH - 46 - MAJOR ROAD LANDMARK: VANSHRAJ RESORT HOSPITAL: DAYAL MULTI SPECIALITY HOSPITAL (50 MINS - 31.1KMS) FIRE STATION (1HR -48.9 KMS) POLICE STATION: KESLA (20 MINS - 12.2KMS)

TREES: MAHUA, TEAK, TOBACCO SOIL: BLACK SOIL, SANDY CLAY LOAM

CLOUD COVERAGE MAX IN JUNE JULY AUG MIN IN NOV DEC JAN WIND DIRECTION: FROM WEST- FEB-SEPT FROM NORTH- SEPT-OCT FROM EAST- OCT-FEB WINDIER MONTHS- APRIL-JUNE-SEPT- >7.9MILES/HR CALMER MONTHS- SEPT-OCTOBER-APRIL- AVG-5.3MILES/HR

CLIMATE TROPICAL CLIMATE: SUMMERS (APRIL-JUNE)- 28-45 C MONSOON (MAY-OCT)- 31-45-34 C- 0.5in-14in WINTER (NOV-MARCH)- 9-27 C

NEIGHBORS NORTH: BHARAT PETROL PUMP, NARMADA EAST: OPEN LAND/FOREST WEST: FOREST SOUTH: VANSHRAJ RESORT

HUMIDITY MAX: MAY- NOV MAY-AUG-OCT- MUGGY, AUG BEING THE MUGGIEST MIN: DEC- APRIL NOV- APRIL- LEAST MUGGY

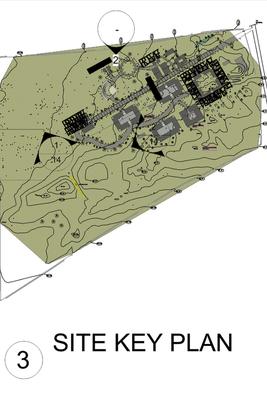

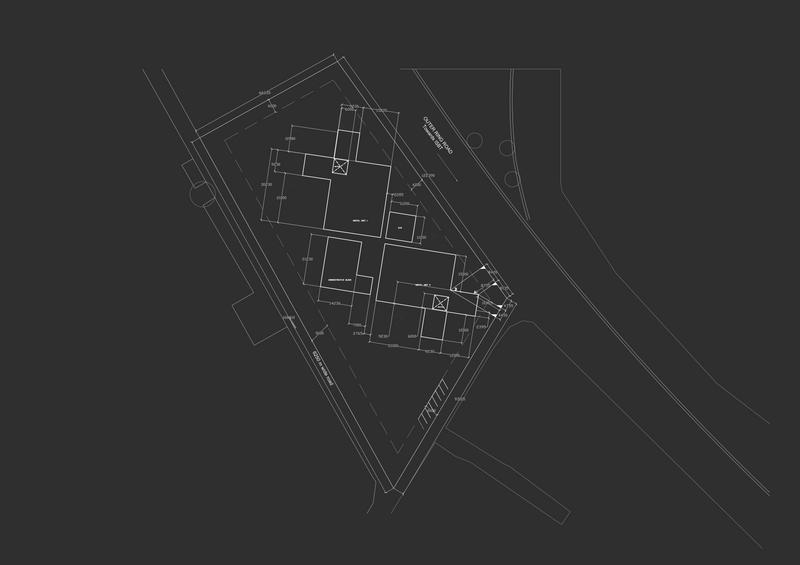

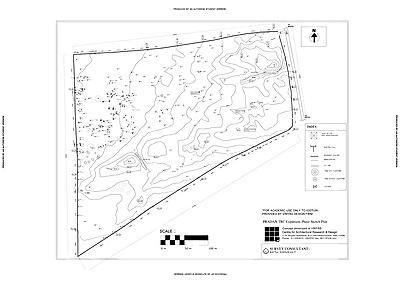

02 site plan

pradan

02

pradan

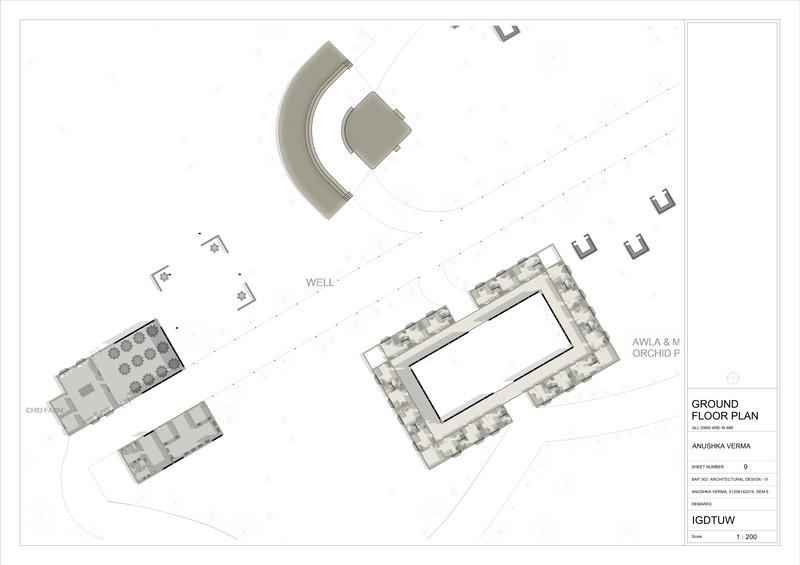

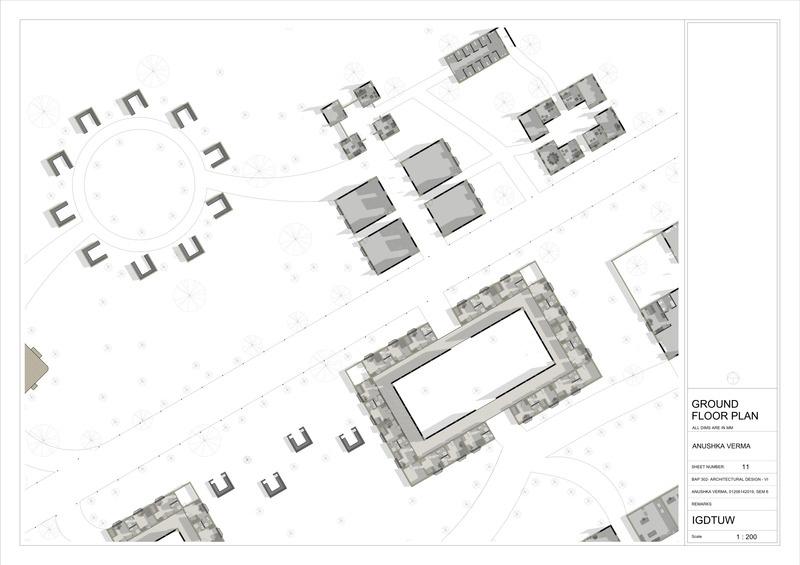

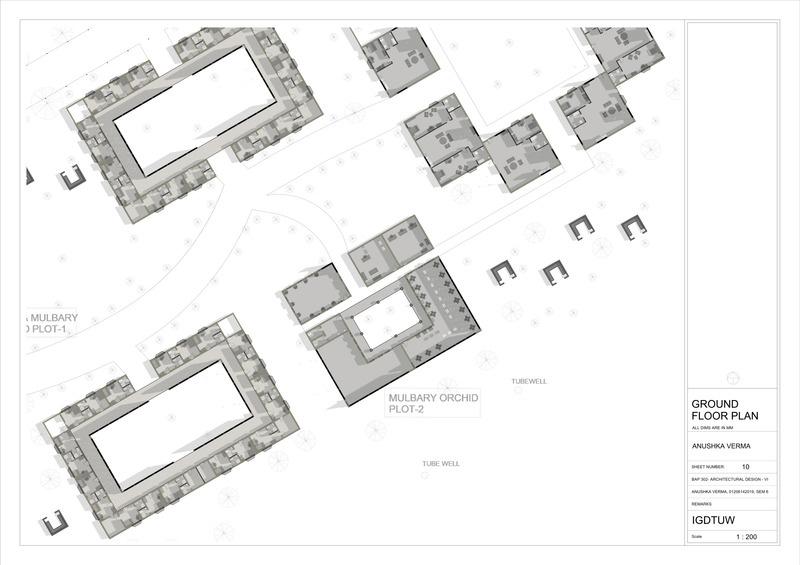

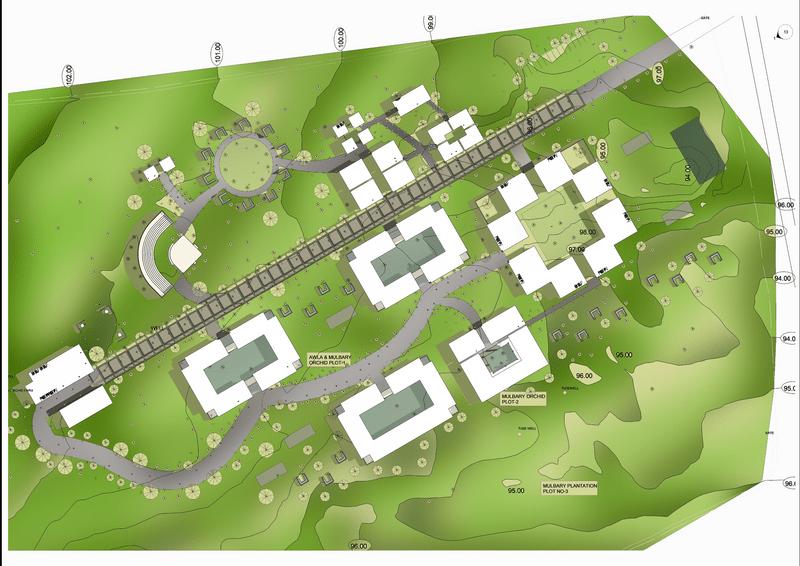

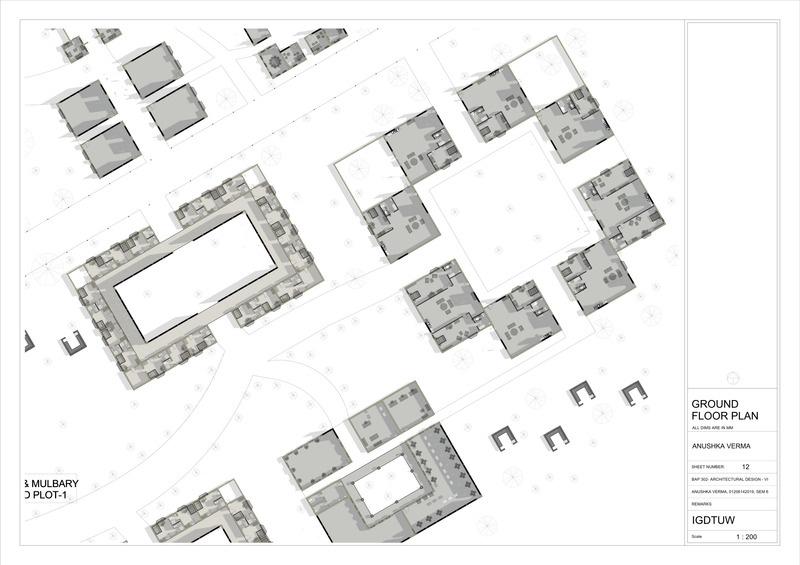

ground floor plan on site

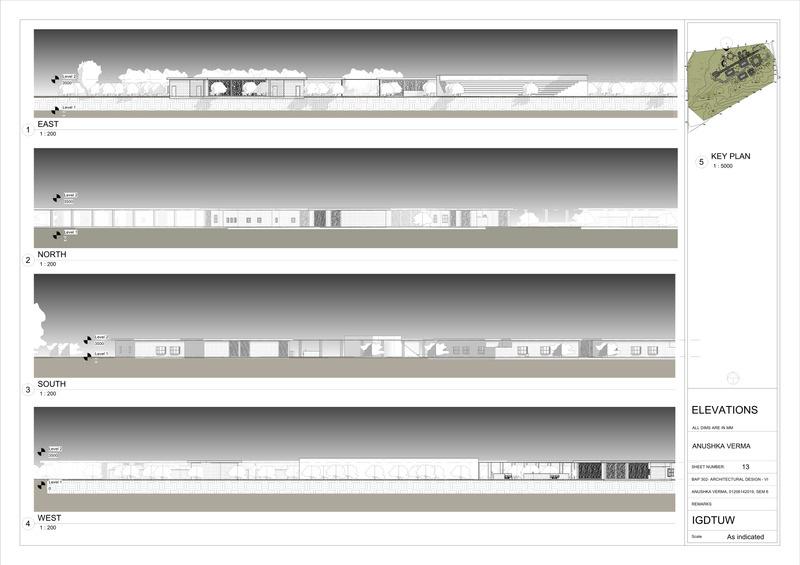

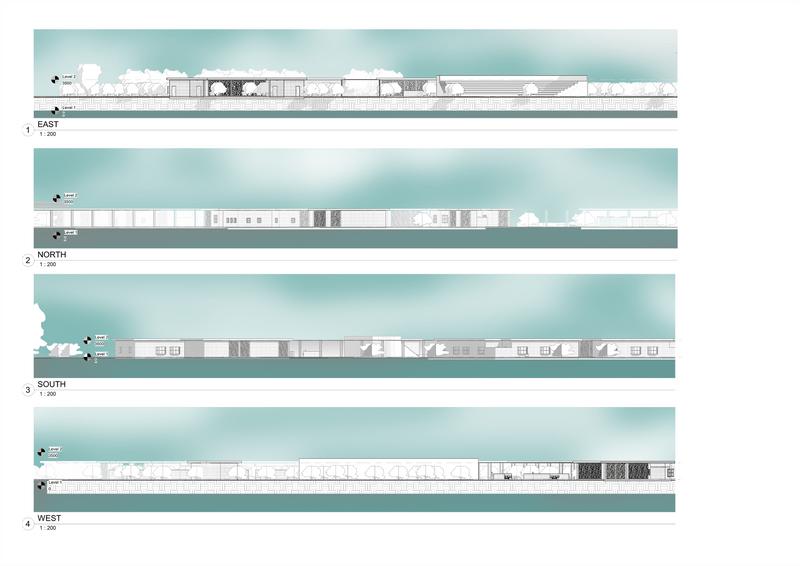

02 pradan elevations

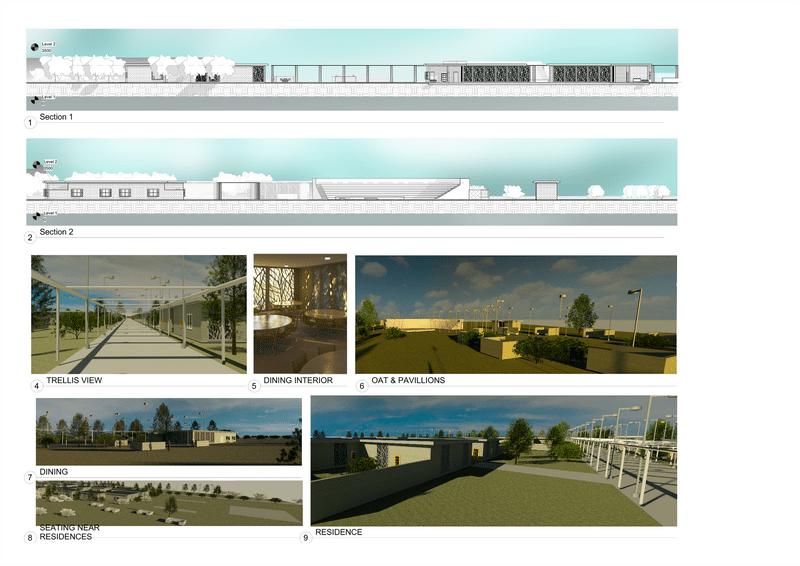

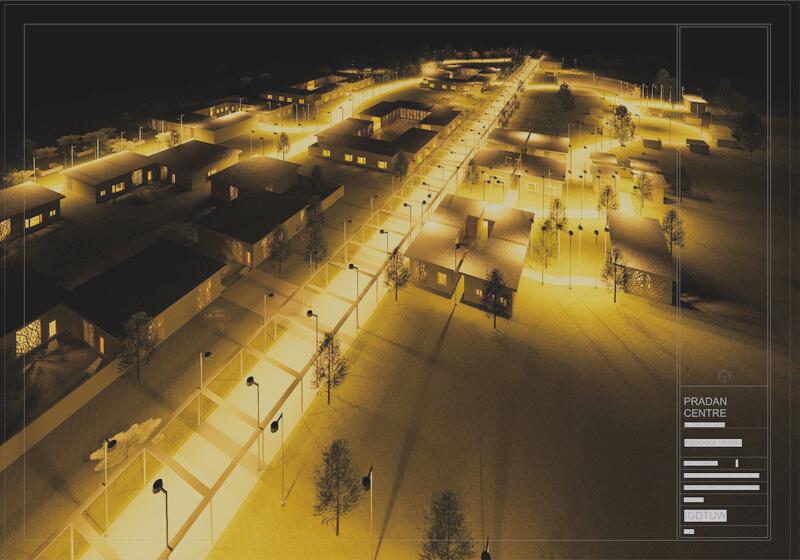

02 pradan sections and views

1. setting out plan - building profile

2. site plan with ground floor

3. ground floor plan

4. typical floor plan

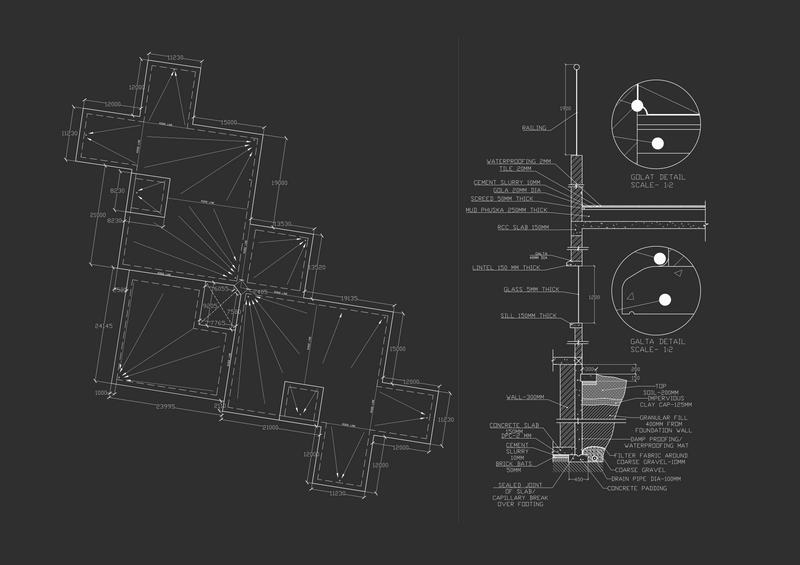

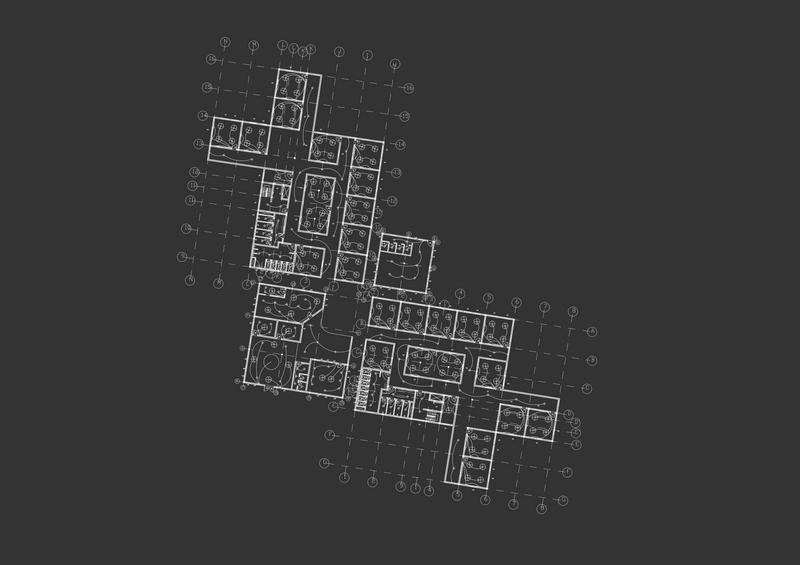

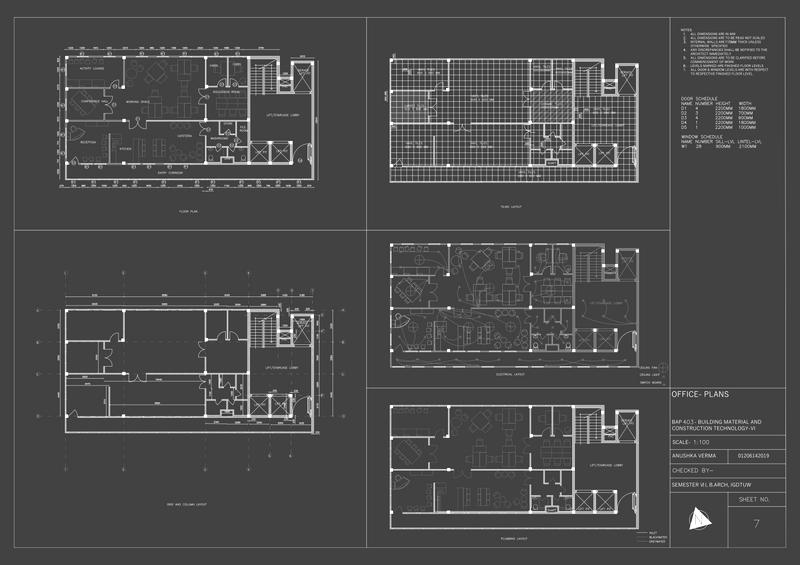

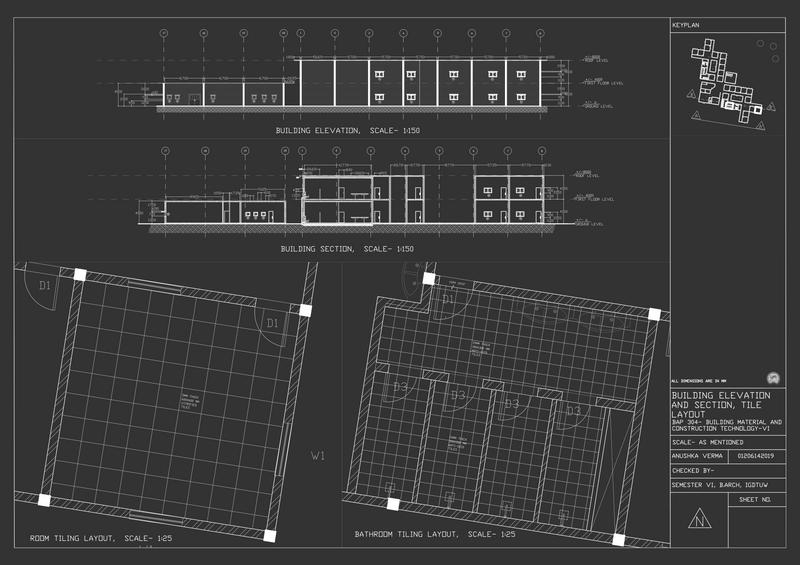

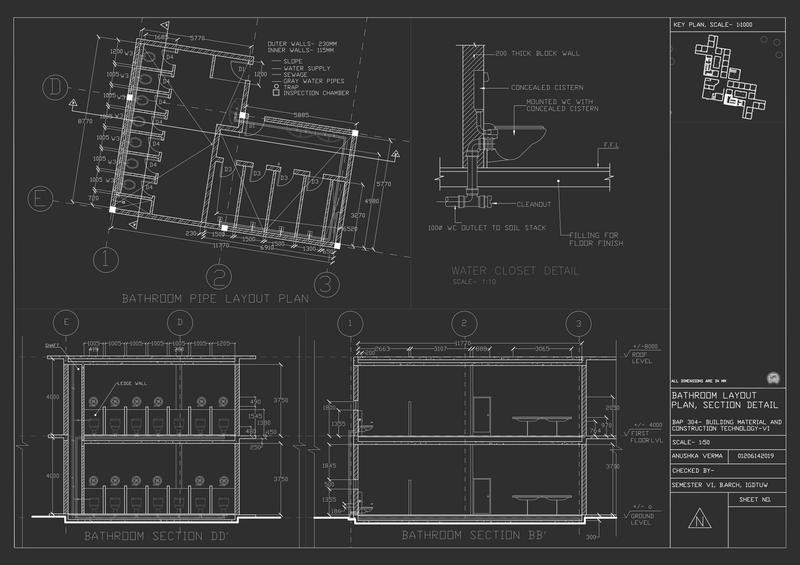

working drawings

hostel working drawings

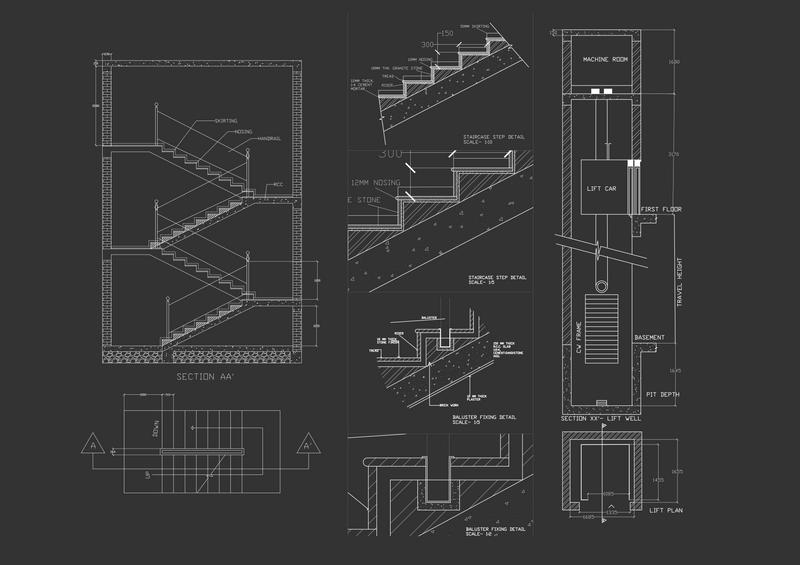

7. terrace plan, external wall section, staircase & lift details

6. electrical layout

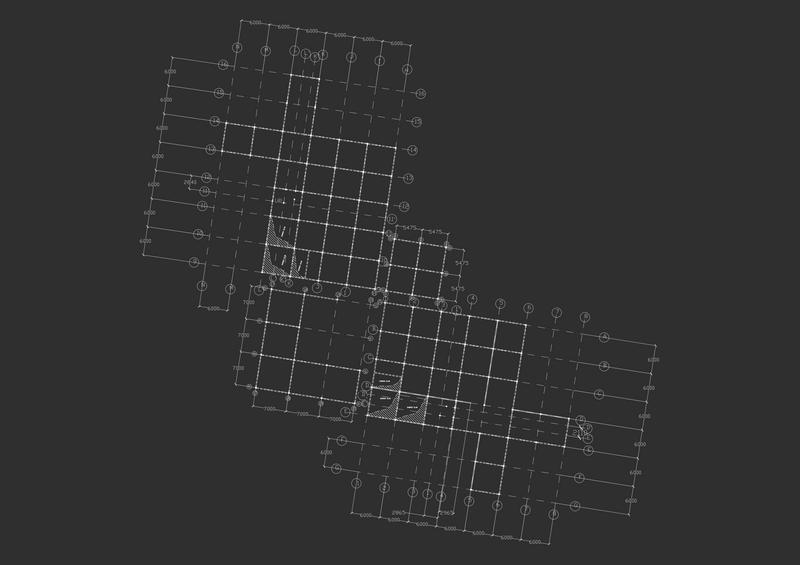

5. framing layout

working drawings

working drawings

working drawings

03

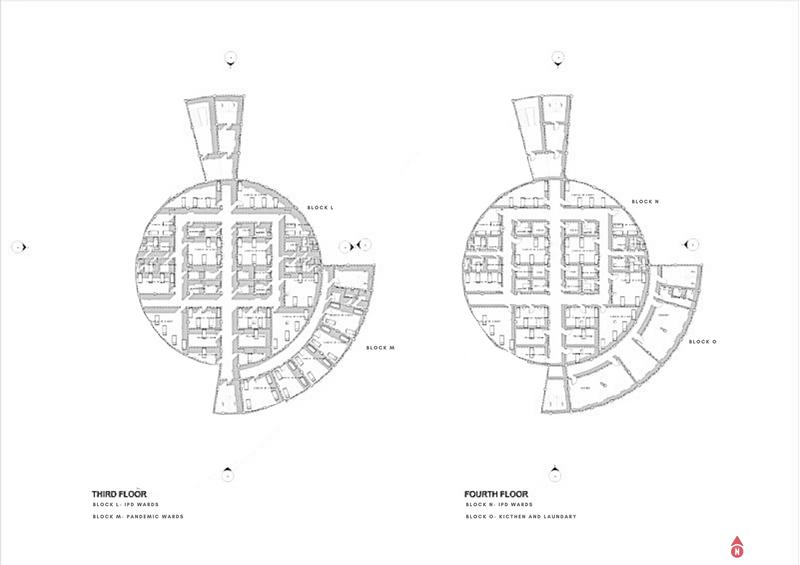

hospital

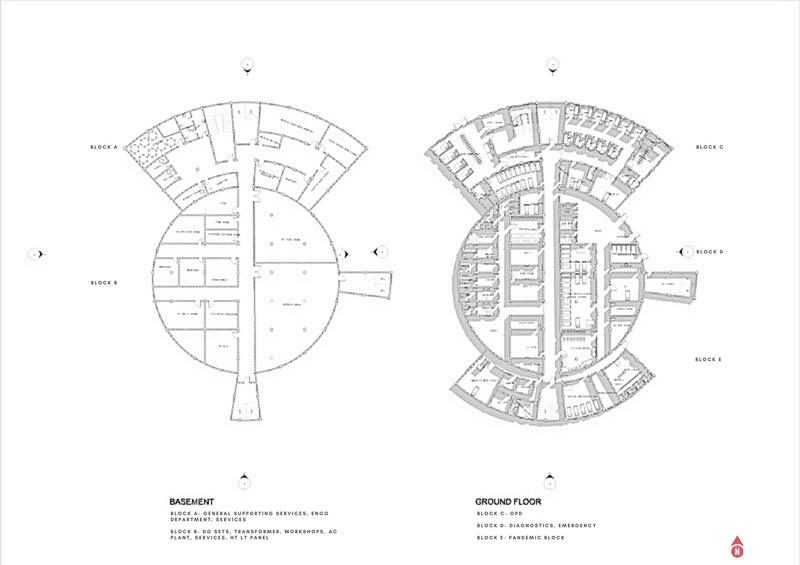

project requirement As per the present situation faced by the world, the pandemic has changed the concept of designing and operations of the hospital buildings. The infrastructure development of such buildings running 24x7x365 days is expected to incorporate separate provisions to cater to the present policies in medical terms. Medical Industry has witnessed a paradigm shift in the fast-paced growing infrastructure and people’s perception to health and health reforms thereof.

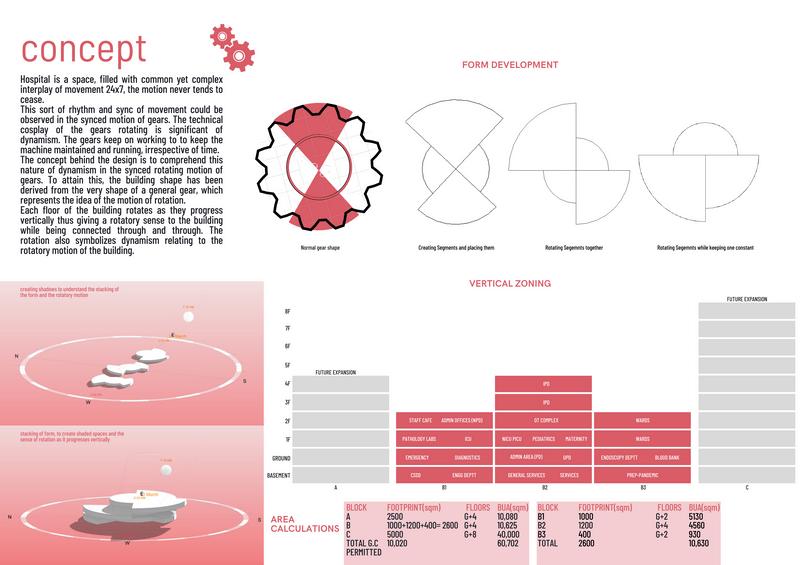

concept Hospital is a space, filled with common yet complex interplay of movement 24x7, the motion never tends to cease.

This sort of rhythm and sync of movement could be observed in the synced motion of gears. The technical cosplay of the gears rotating is significant of dynamism. The gears keep on working to keep the machine maintained and running, irrespective of time.

The concept behind the design is to comprehend this nature of dynamism in the synced rotating motion of gears. To attain this, the building shape has been derived from the very shape of a general gear, which represents the idea of the motion of rotation.

Each floor of the building rotates as they progress vertically thus giving a rotatory sense to the building while being connected through and through. The rotation also symbolizes dynamism relating to the rotatory motion of the building.

03

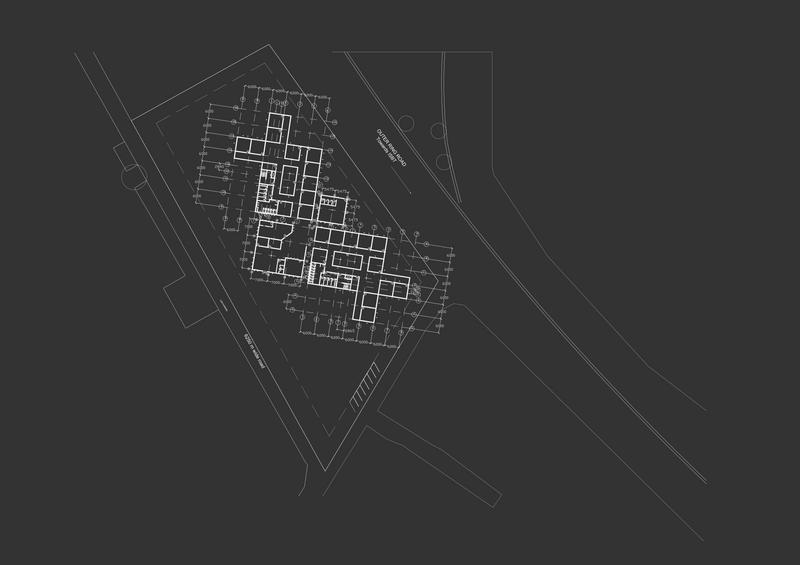

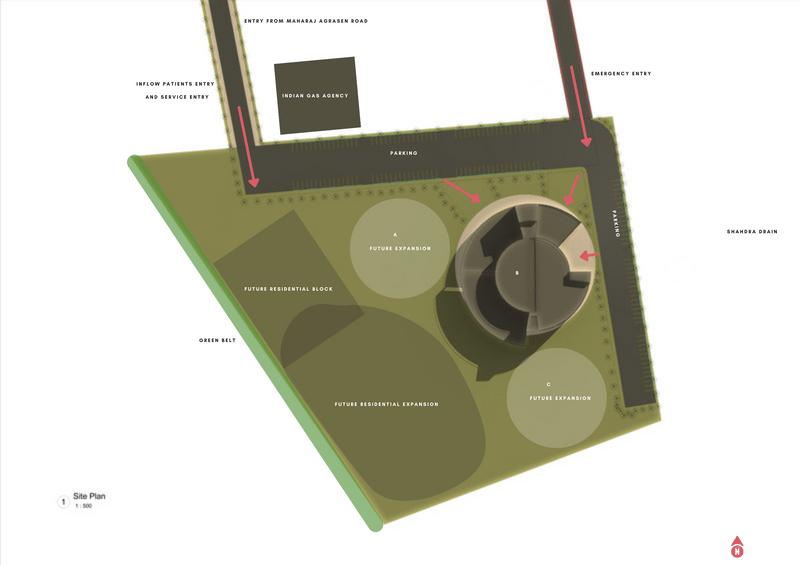

site plan

hospital

03

hospital

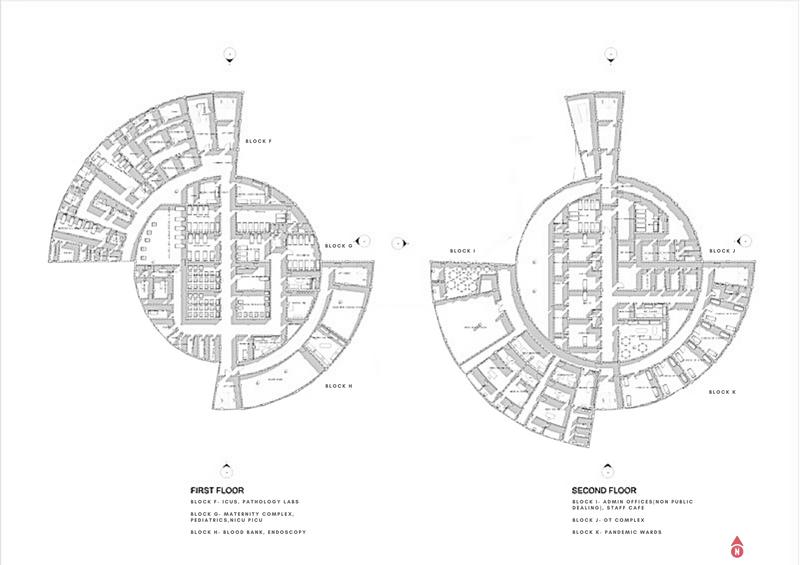

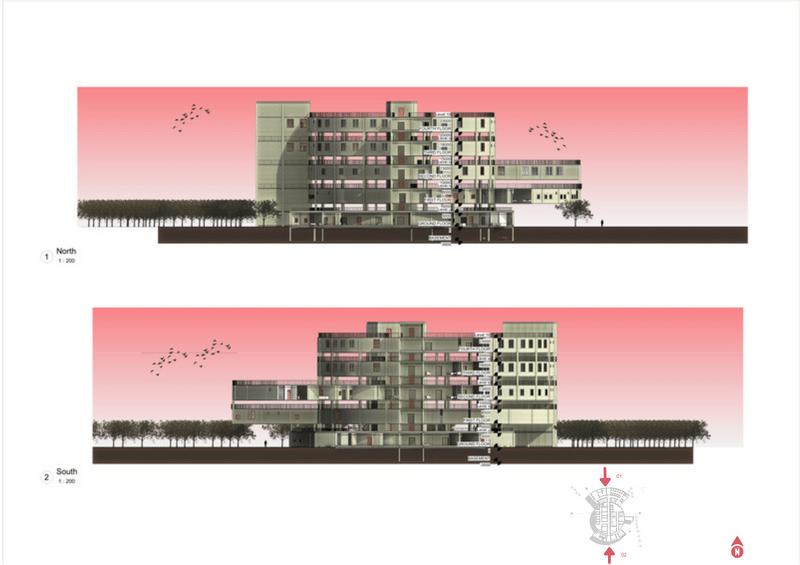

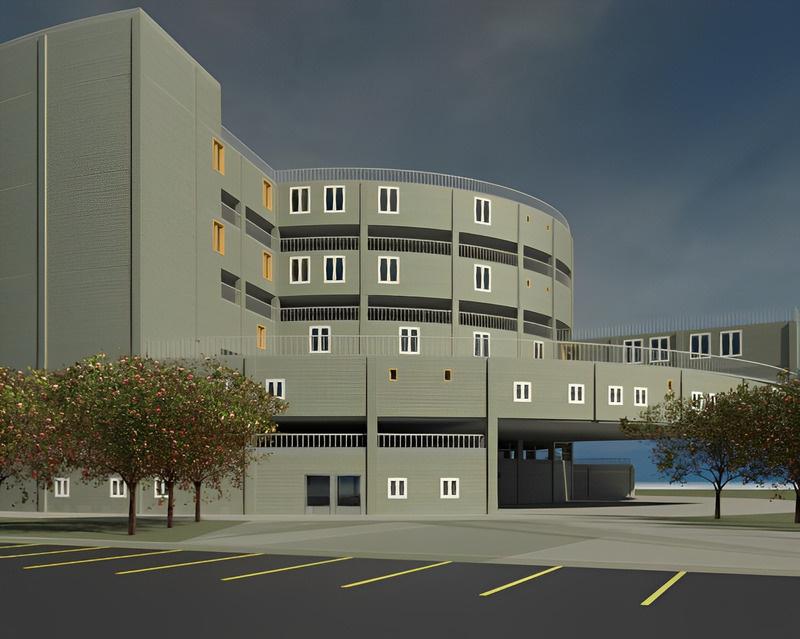

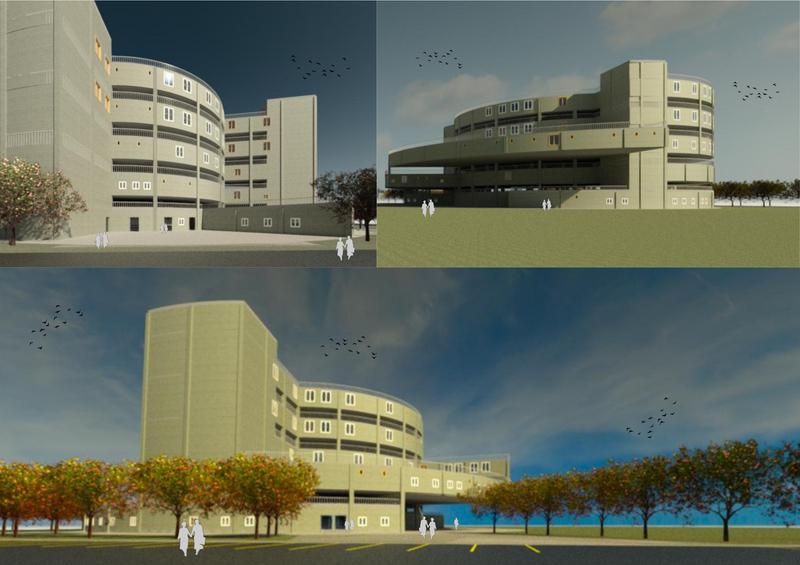

elevations, sections & views

hospital

04

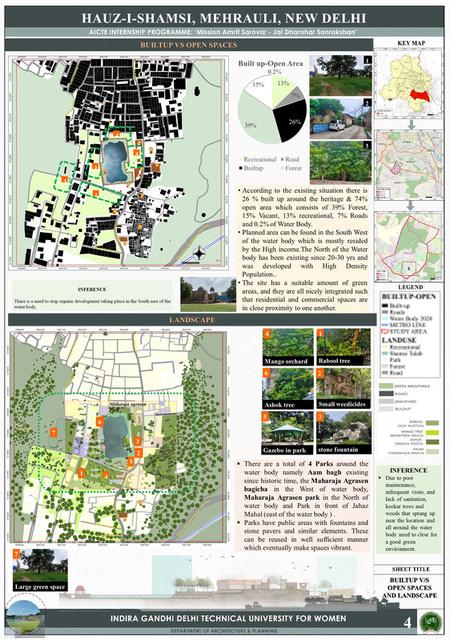

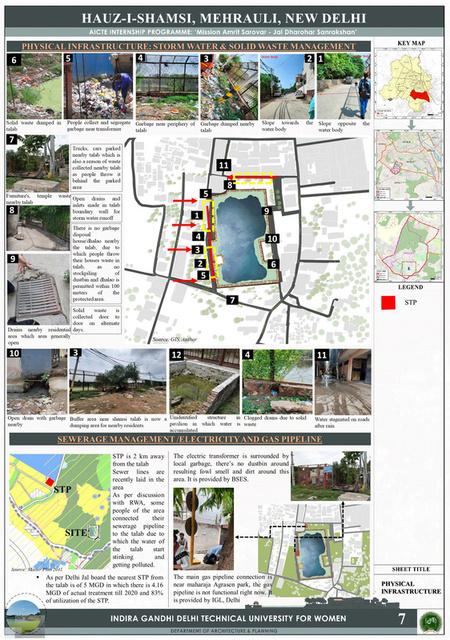

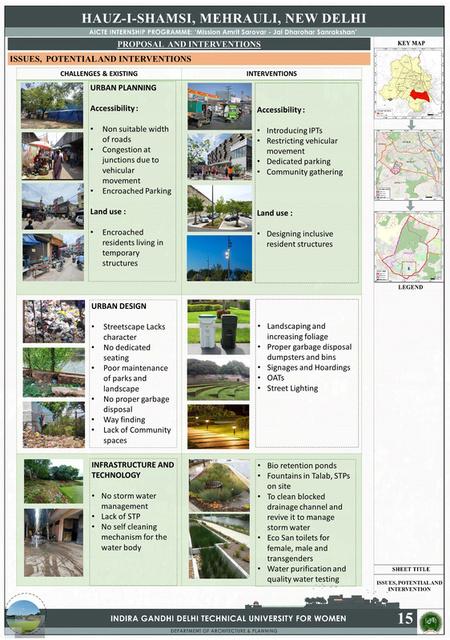

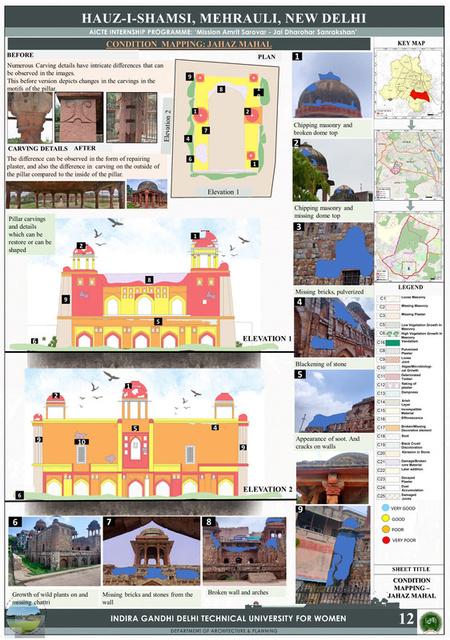

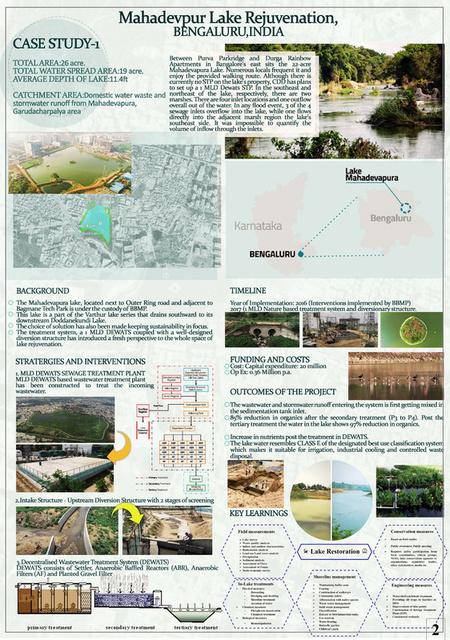

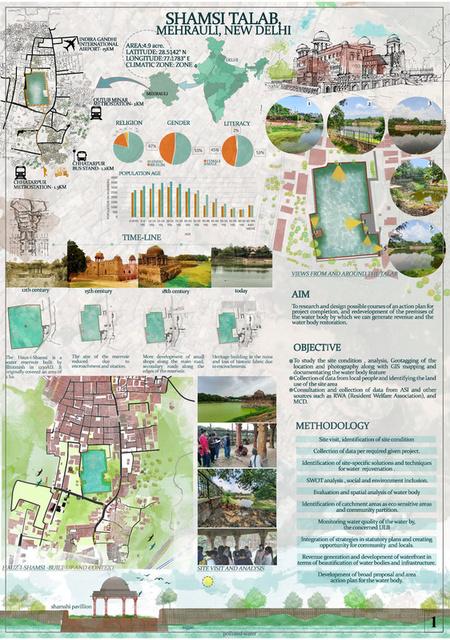

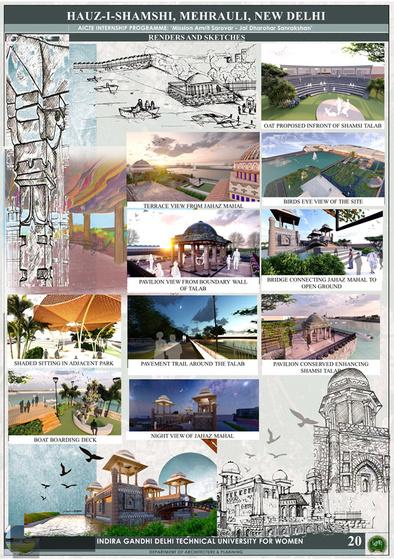

asm

04

asm

05

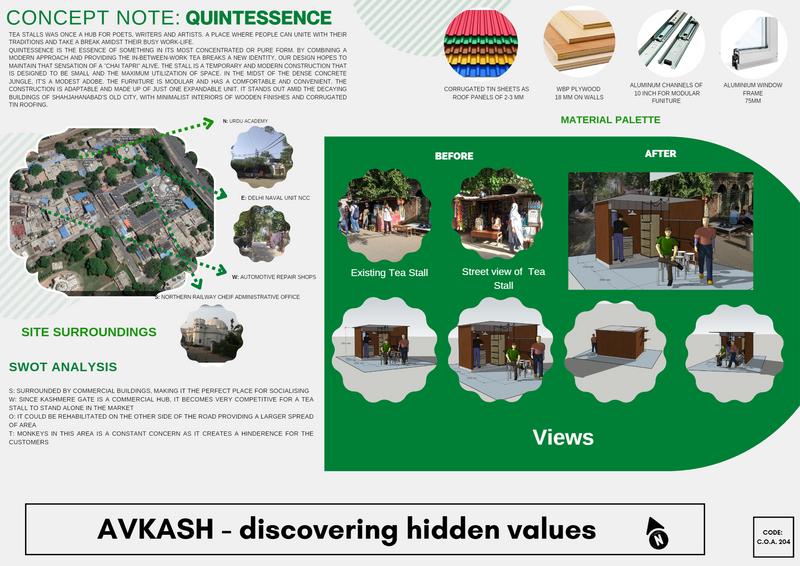

avkash

06

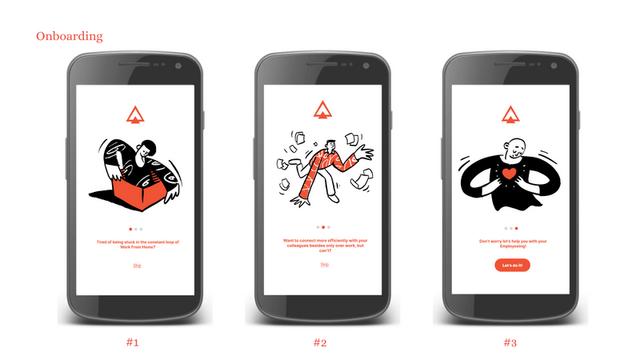

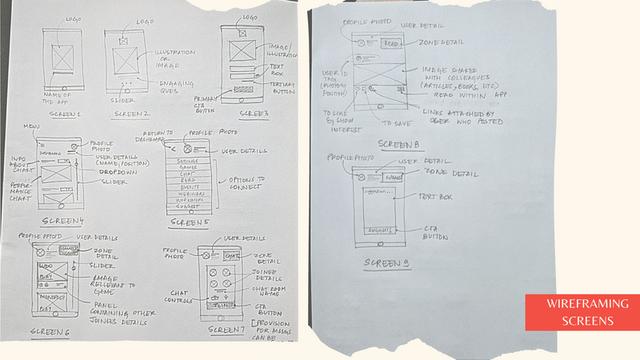

ui/ux design

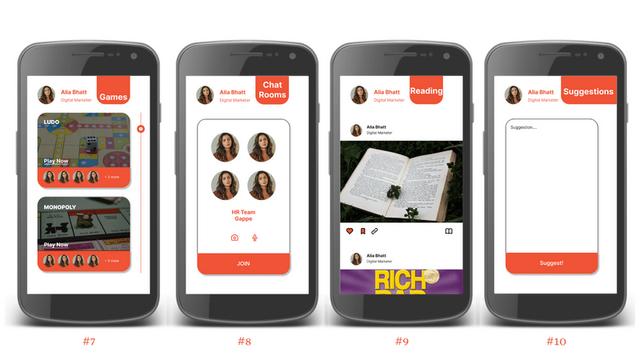

Keeping the WFH theme for this project we had to identify a major problem faced by the people who work from home on a regular basis and design a product for the solution. user persona

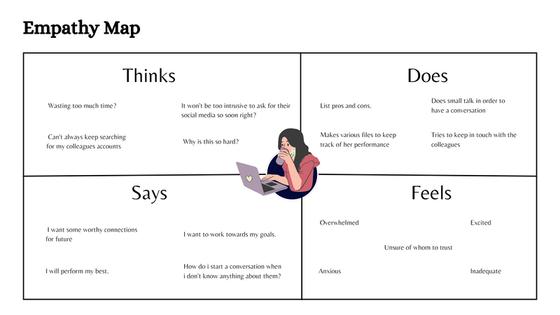

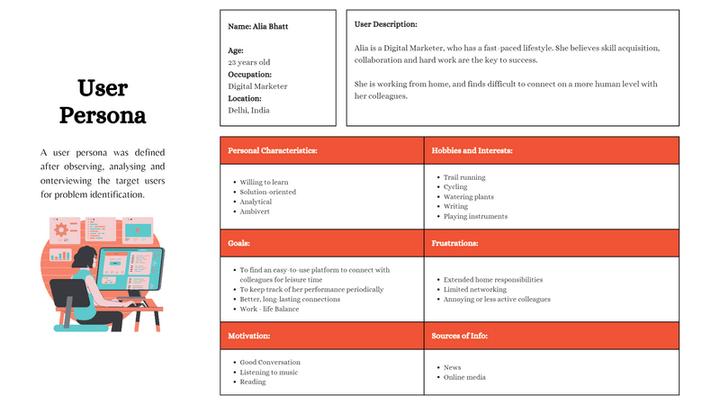

empathy mapping of user persona

problem statement Alia needs a way to connect with her colleagues and bond with them on a personal level other than work, to have good connections. Work from home already requires different software for different tasks, be it work, performance mapping, activities or even leisure for that matter.

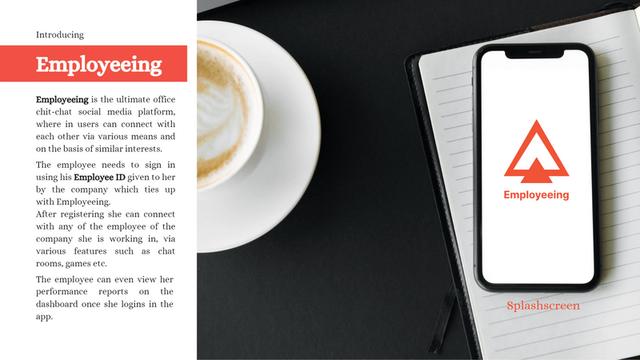

Hence, an app to generate interactions amongst the employees while having fun leisure time would not only help them make worthy connections but also help generate healthy competition.

06

ui/ux design

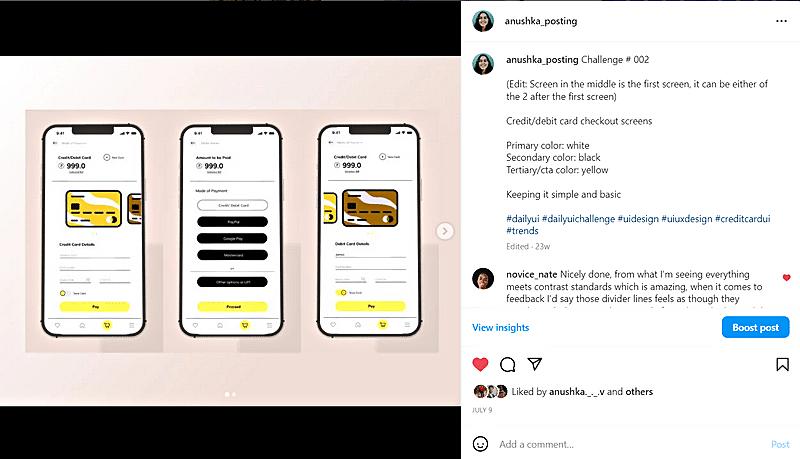

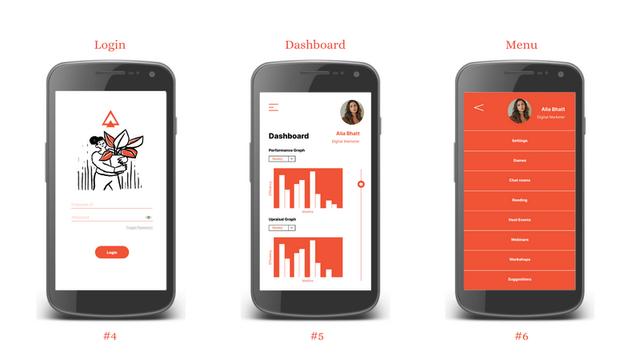

designed interface for credit/debit card checkout screens

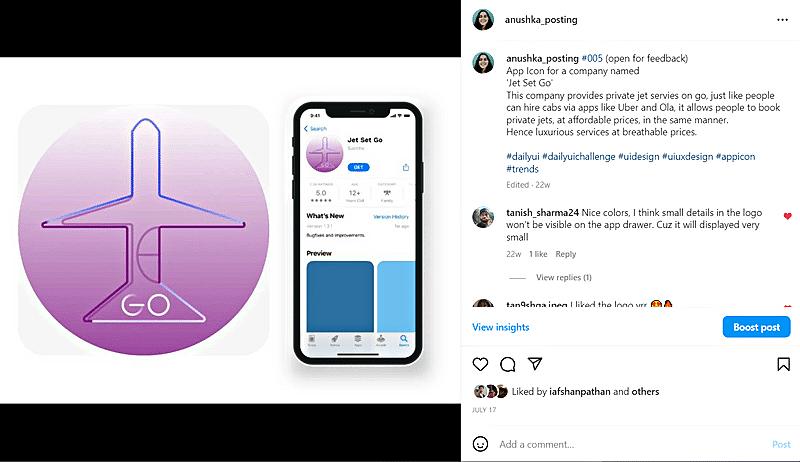

designed app icon for a comapny named jet set go, uber for jets

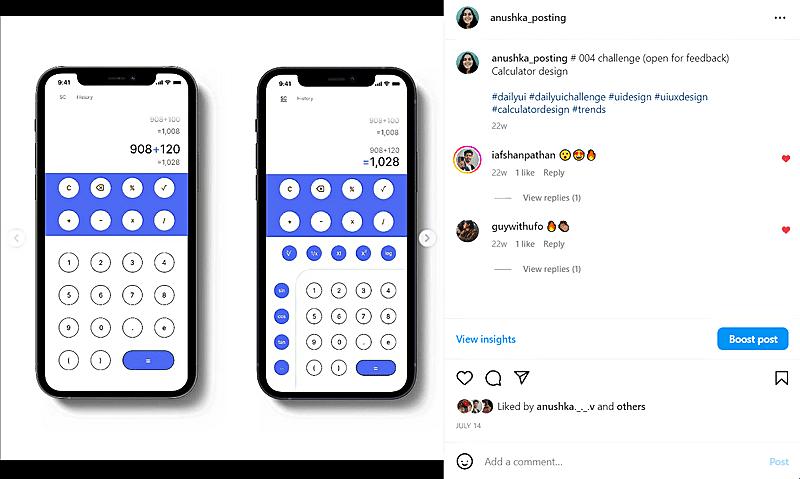

designed user interface for phone calculator screen

07

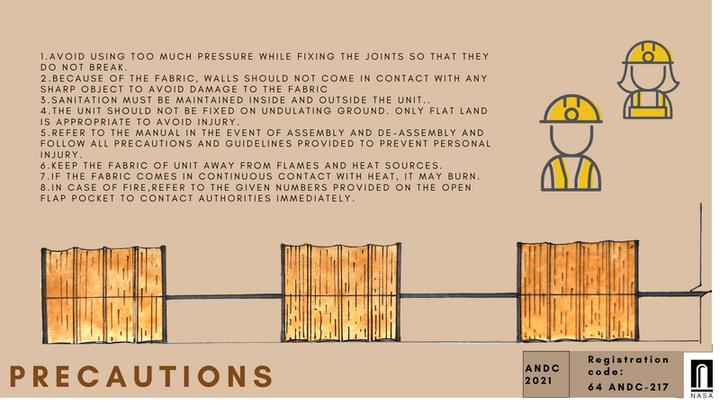

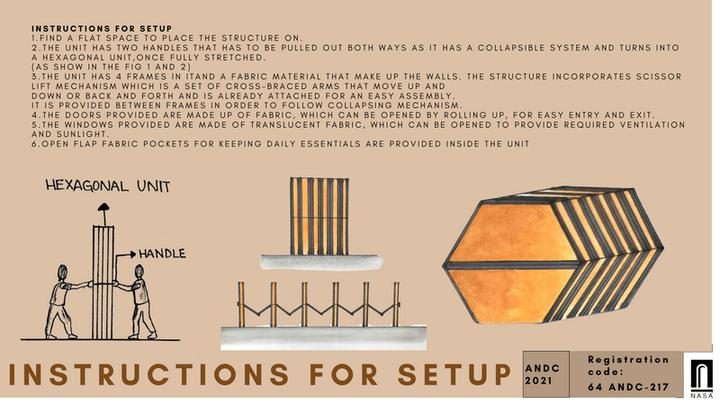

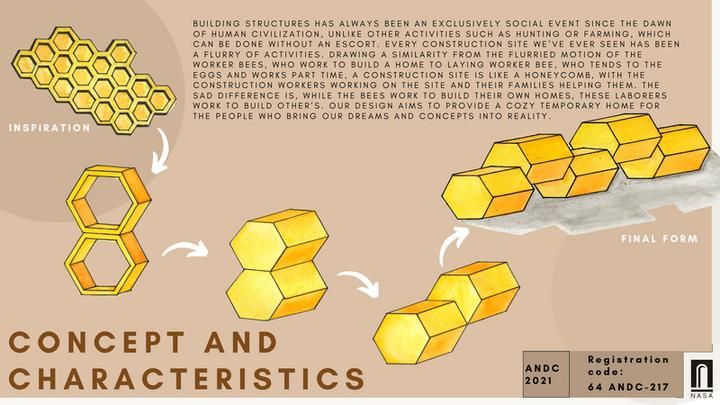

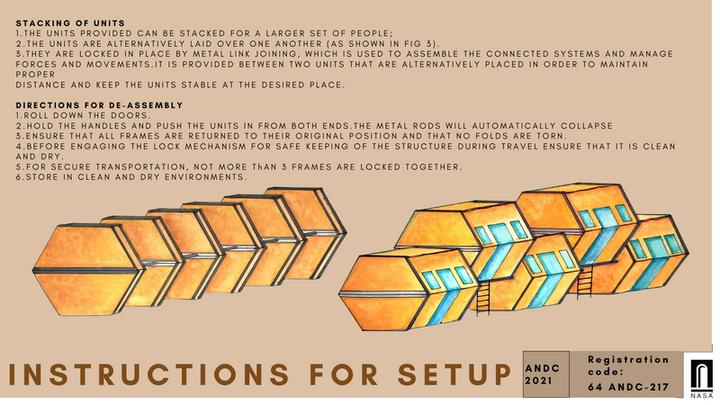

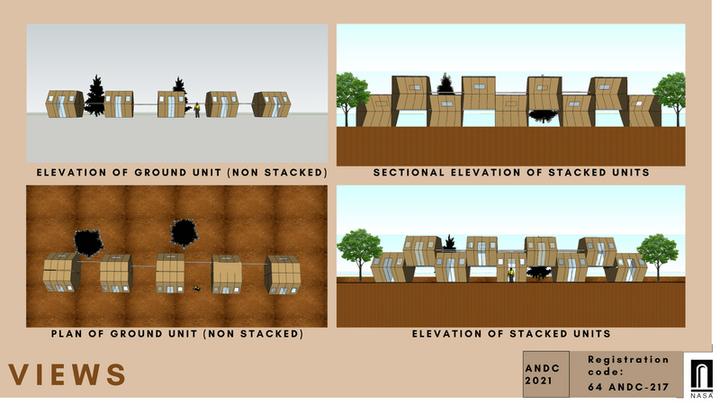

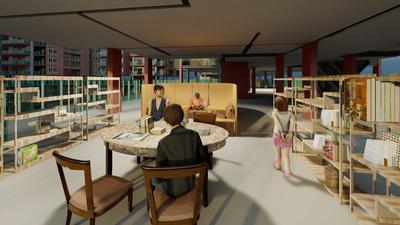

ANDC project
