S ANDC NASA Competon -2021

Module Design Competon 120 HOURS Architectural Compeon NASA winter school- Secure by Design Course Archaeoastronomy Course- Coursera Climate Responsive Design- Udemy Remote Sensing and GIS Mapping Green Campus Interior Landscaping Mastering Kitchen (Hafele)

After a study tour to Rajashthan we designed a PYAO in Jodhpur city by studying the climatology, topography, cultural aspects of the city and it’s people. PYAO, a traditional water station where trespassers, tourists halt for refreshment. The main objective was to create an open and inviting atmosphere for the users with a climate responsive approach. Creating a free pathway for the visitors with open entrances.

As arches being the traditional element of Rajasthan giving, creating a bold impression.

RELIGIOUS IDOLS PLACED INSIDE GRILLS TO PROTECT THE WATER TANK COOLERS FROM NATURAL DAMAGE AS WELL AS HUMAN DAMAGE LOCATED ON A BUSY STREET FOR ACCESSIBILITY GLASSES ARE CHAINED TO THE PYAO BY ANALYSING THE BEHAVIOUR OF THE USERS. IMPROPER MANAGEMENT OF WATER SUPPLY LEADING TO STAGNATION OF WATER AND GROWTH OF FUNGUS. VENDORS

AROUND THE SITE,

PLINTH AND THE PYAO ARE MADE UP OF RCC STRUCTURE.

ACTIVITY

OCCUPYING MORE STREET AREA

PY AO DESIGN /////////////////////////////////////////////////////////////// /////// ////////// ///////////// //////// /////// ////////

CHAURAHA

PYAO DESIGN

-THE WHOLE STRUCTURE IS MADE UP OF SANDSTONE WHICH IS LOCALLY AVAILABLE IN JODHPUR.

-THE ROOFING STRUCTURE HAS PUNCTURE FOR THE EXISTING TREE, THUS KEEPING THE TREE UNDISTURBED.

-PYAO IS THE MAIN ELEMENT WHICH IS CENTRALLY PLACED ON THE SITE.

-THE CONSTANT FLOWING WATER FROM THE WATER STATION CREATES GOOD ACOUSTICS.

-FOUNTAIN PLACED AT THE MIDDLE OF WATER STATION KEEPS THE COURTYARD COOL.

-INTERSECTING 2 SEMI-CIRCULAR ARCH TO FORM A POINTED ARCH.

-ARCADE OF ARCHES FOR THE USERS TO INCREASES THE SOCIAL CONNECTIVITY DUE TO BARRIER FREE ENVIRONMENT.

SYMMETRY OF AXIS

-THE SITE IS LOCATED AT CHAR-RASTA, CREATING HEAVY TRAFFIC ZONE.

-A DESIGN WITH OPEN ENTRANCES TO INCREASE THE USERS INTERACTION IN AND AROUND.

ENTRY FROM ALL SIDES

ENTRY RESTRICTED FROM ONLY ONE DIRECTION

MOVEMENT AROUND THE SITE

OFFSET OF 1M AROUND THE SITE GREEN POCKETS UNBUILT AREA BUILT UP AREA

FORMING SEMI-SHADED COURTYARDS BY CREATING ARCADED SPACE USING THE SITE BOUNDARIES. ANGLED VERTICAL ARCHES ACT AS SUN BREAKERS TO REDUCE HEAT GAIN FROM THE EAST, WEST & SOUTH SIDES GENERATING COOLER INTERNAL SPACES. SHEAR VOLUME CREATING BOLD ARCHITECTURAL IMPRESSIONS. PEDESTRIAN FRIENDLY SOCIAL SPACE. WATER A TOOL WHICH INVOLVES PEOPLE TO STOP, OBSERVE ,AND INTERACT WITH IT.

-PYAO DERIVED FROM THE SECTION OF ARCH, PLACED IN CIRCULAR FORM. -WATER FROM THE PYAO FOLLOWS IN A SWIRL PATTERN. -DUE TO SWIRL PATTERN THE USAGE OF WATER DECREASES UP TO 15% THEN USUAL WATER FLOW. -THE WATER FLOWING VERTICALLY DOWNWARDS FROM THE PYAO IS REUSED TO FORM THE SWIRL FOUNTAIN PLACED BETWEEN THE 6 WATER PYAOS.

-THE WATER FLOWING FROM THE PYAO CAN BE USED FOR MULTIPLE TASKS LIKE FOR DRINKING PURPOSE, FOOTBATHS, FOR REFRESHMENT.

3.5 5.6 5M 0.6 B’ B ELEVATION SECTIONAL ELEVATION

-THE CONTINUOUS FLOW OF WATER CREATES A SOOTHING ACOUSTICS AROUND THE SITE, WHICH ATTRACTS THE USERS TO VISIT THE STRUCTURE AND SPEND TIME IN IT.

RETHINKINGTHELIVES REOFLABOURSARTISANS THINKINGTHELIVES OFLABOURSARTISANS

64 ANDC-97

Desiging temporary modules with a perspective of not only reconstructing them from time to time on different sites as per the needs, but also responding towards the comfort and safely of the Artisan group. Labour group playing the most important part in the society by constructing our homes, yet are forced to live in hapazardous conditions. This is an attempt to do right towards them.

//////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////

AFTER THE PROJECT IS COMPLETED THE MODULAR PIECE ARE DETACHED AND TRANSPORTED TO OTHER LOCATION TO RE-INSTALL. NAME OF THE PROJECT :HUB TOWN SEASONS YEAR OF CONSTRUCTION :PHASE ONE COMPLETE(2022) AREA OF SITE :10 ACRES APPROX RETHINKING THE LIVES OF LABOURS ARTISIANS DRINKING WATER FOR W.C AND GENERAL SANITATION KITCHEN USAGE NATURAL VENTILATION ELECTRICAL CONNECTIONS CHARGING POINTS COMMON WATER SUPPLY STORED IN SINTEX TANK. DAILY SCHEDULE INCLUDES COOKING FOOD ON CHULLAH AS NO STOVE AVAILABLE. COMMUNAL GATHERING AT TEA STALL. IMPROPER SANITARY SYSTEM. TEMPORARY LIVING SPACES BUILD FROM ON SITE MATERIALS-FORMWORK, BUILDING BLOCKS,ETC. CURRENT SITUATIONS WATER REQUIREMENTS ENERGY REQUIREMENTS TRAPULIN SHEET PVC GUTTER PIPE RAINWATER HARVESTING TANK MODULE DESIGN STRUCTURE BEING FOLDABLE, CONVERTIBLE, DETACHABLE, PACKING MODULE WHICH CAN BE EASILY TRANSPORTED AND INSTALLED WITH DIFFERENT POSSIBILITIES AND PROBABILITIES IN ANY GIVEN SITE. ADDRESSING THE CORNER PROBLEMS AND USING THEM AS THE STRENGTH OF THE MODULE.

PROJECT INTENSION

In response to the recent COVID-19 outbreak, It was a necessity to build a high-end Medical Facility to treat patients in quick time. Using Octagon modules which are highly versatile, pre-engineered modular system, this facility was quickly designed and can be dismantled in no time, with limited man power and quick assembly.

///////////////////////////////////////////////////////////////////////////////// ///////////////// // /// //////// /////// ///////////////

T H E O C T A G O N

WALL PANELS (X8) FLOOR PANELS (X8) ROOF PANELS(X8) NUTS AND BOLTS DOORS AND WINDOWS STRUCTURAL MEMBERS (X8) ROOF SUPPORTS (X16) FLOOR AND ROOF FRAME ANCHORS(X9) FIBER CEMENT BOARDS STEEL CHANNELS ASA (ACRYLIC STYRENE ACRONITRILE ) CORK FLOORING 1 INSOLATION WARD support staﬀ support staﬀ doctors washroom washroom despensary ambulance exit entry vehicalparking CONSTRUCTION PROCESS 2 3 4 5 6 7 8 9 TOTAL COST : APROX. 4300 INR WASHROOM PATIENT A PATIENT B INTERIOR AND EXTERIOR VIEWS MODULE PLAN ALL YOU NEED TO BUILT A MODULE. THE OCTAGON Unique modular system can easily be recongured and redeployed in numerous ways. Includes facilities - vehicular parking, support staff, dispensary, washrooms, insolation wards, ambulance allotted spaces.

“Bombay Development Department”.

Realizing the urgency to improve living conditions of the city’s working classes in the aftermath of this plague, BDD was established to provide better and more hygienic accommodations for the city’s growing working classes.

The BDD chawls were built between 1920-1925 and thus represent the state’s rst interventions in public housing. The combination of well planned and organized buildings, arranged around a handful of small open spaces of an economically marginal neighbourhood.

/////////////////////////////////////////////////////// ///////////////// ////////// ///////////// //////// /////// //////////////////

MAPPING BDD CHAWL WORLI

PLAN EXISITNG OPEN SPACES TEMPLES SURVEY BUILDINGS START POINT BUS STOP CHEMIST MOSQUE N CONSTRUCTION 4.46 4.46 4.46 PLAN 3.50 1.15 1.90 SECTION 6.96 3.39 6.96 2.92 1.54 3.50 1.90 3.00 PLAN SECTION EXISTING UNIT PLAN BDD CHAWL OPEN SPACE BETWEEN TWO BUILDING BDD CHAWL EXISTING BUILDING SOCIAL ACTIVITY / PLAY EXISTING BUILDING OPEN SPACE BETWEEN TWO BUILDING BDD CHAWL SOCIAL ACTIVITY / PARKING EXISTING BUILDING ELEVATION SITE SECTION 195 BDD Chawls located at Worli, occupying area of 59.69 acre.Out of the 195 BDD chawls, the maximum of 121 chawls are in Worli. In all, there are 16203 tenements of which 2901 tenements have been earmarked for police housing.

URBAN BLOCK

MULTIPURPOSE STAIRCASE INSPIRED BY THE WORKS OF MODERN ARTIST CLAUDE MONET. ////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////// ///////////////// ////////// ///////////// //////// /////// ///////////////////////////////////////////////////////////////////////////////////////

Claude Monet was a modern painter. inspired by naturalistic form and style of water lily. His work was said to be inuenced by the different ways in which objects would look depending on the time of the day.

The paintings depicted the light not obviously to the viewer, but is fully represented in how it affects the object in paintings.

Naturalistic both in the form of colour and light. Ambition was to create a panorama to envelope the viewer

The primary characteristic focus texture, light and brushstrokes.

PLAN

R.H.S. ELEVATION FRONT ELEVATION

TRANLUCENT GLASS STAIRCASE WITH HOLLOW CYLINDRICAL COLUMN AT THE CENTRAL PART WITH THE HELP OF STEEL BARS AROUND THE COLUMN. WOODEN FRAMEWORK ATTACH TO THE STEPS FOR STABILITY AND REMOVED AFTER CONSTRCUTION OF STAIRCASE

L.H.S. ELEVATION

MATERIAL SPECIFICATIONS

M U L T I P U R P O S E S T A I R C A S E

The project aims to revive traditional public library while providing a conducive learning and interactive social space. Library needs to be transformed as an active social space. A public library is just not a space to access physical and digital data but also create an environment to initiate interaction of people and exchange of ideas among all people of diverse backgrounds and age groups visiting the library. The project exemplify practices of cost-effectiveness and energy-efciency.

/////////////////////////////////////////////////////////////// ///////////////// ////////// ///////////// //////// /////// ///////////////////////////////

C I T Y L I B R A R Y

LOCATION: Sector 4 Kharghar, Navi mumbai.

LANDMARK: Utsav Chowk

AREA: 6888M

CLIMATE: Tropical, wet and dry

ALTITUDE: 200m.

Design to maintain the visual axis from a sunken space of communal gathering through a glass aperture opening towards the existing topography; to enhance the experience of a reader, observer and interaction of urban space with the city. The idea is to achieve complexity by merging simpler build forms.

AS THE SKY DIMS, REFLECTING ON THE PIECE OF GLASS THE FUTURE READER QUIETLY SITS ENGROSSED INTO THE READ YET GLIMPSE AROUND WATCHING THE WEATHER CHANGE, TREE SHEDS IT’S LEAVES WHAT IT CONTAINS IS THE RICH FEELING AND E X P E R I E N C E S B A S I C S H A P E S CONNECTIONS, WITHIN AND OUTDOOR TO THE MAIN SUBJECT OF THE SPACE POCKETS OF GREEN GARDENS WITH AN OUTDOOR READING EXPERIENCE WITH ACTIVITIES UNDERNEATH THE SUNKEN C O U R T Y A R D D I R E C T S S P A C E M " A IN ORDER TO CONTINUE THE WARM MEMORY OF THE BOOKS IN THIS SPACE,HIGH-RISE ATRIUM FORMING C O N N E C T I O N B E T W E E N T W O R E A D I N G S P A C E S T A I R W A Y S I N T R U D I N G C O R R E L A T I N G S P A C E S M E R G I N G W I T H A D J A C E N T S T R E E T O P E N U R B A N I S M

PASSIVE STRATEGY EARTH COOLING SYSTEM FOR SUNKEN LIBRARY

HARVESTING MORNING EAST DIRECTION SUNRAYS SUNKEN COURTYARD COMMUNAL GATHERINGS PREVAILING WINDS SUMMER WINDS WIND FLOW WIND DIRECTION ORIENTATION

EXPLODED VIEW

ORIENTATION

DESIGN STRATEGIES

M M 9 M 5 M M M M 5 5575M M M 5 M BASEMENT

F I R S T F L O O R P L A N R O O F P L A N PLANS PROJECT VIEWS

FLOOR PLAN

R O U N D F LO O R P L A N

A G E I N T E N T I O N A L L Y L E F T B L A N K

1 45M 5 575M 6 175M 9 70M 12 7M 1 45M 5 575M 6 475M 9 70M 12 7M ACADEMIC STUDY AREA ACADEMIC STUDY AREA SUNKEN LIBRARY DIGITALRECORD ROOM CAFETERIA ROOFTOP GARDEN SUNKEN COURTGATHERINGS OPEN PLAZAWITH OUTDOOR BOOK STACKS ROOFTOPGARDEN HANGOUTS ADULTSECTION OF LIBRARY BASEMENT CAR PARK ADULT SECTION OF LIBRARY RECEPTIONAREA ROOFTOP GARDEN CAFETERIAAND LONGUE ENTRANCE LONGUE PROJECT VIEWS SECTIONS

PEOPLE FROM DIFFERENT PARTS OF THE CITY COMING TOGETHER, HANDS ON PERFORMING, REJOICING KEEPING THIS MEMORIES TUCK INSIDE A CHEST FOREVER.

READING TILL MY NECK STARTS TO HURT, STILL HOLDING TO THAT BOOK, BUT DIDN'T KNOW AT WHAT TIME I’LL START, FOR THE BOOKMARK WHICH NEED TO LOOK.

DINING OUT AND LETTING OUR NOSE TICKLE WITH THE FRESH SCENT OF POHA, SAID THE READER ABOVE WHO WAS LOST IN THOSE WARM PAGES OF HER BOOK.

LET’S GET ALONG TOGETHER, IN THIS CITY'S HUSTLE AND BUSTLE, CHERISHING THE MOMENTS WHICH CAN LAST FOREVER, FORMING A RHYTHM, AND NEVER BREAKING IT EVER.

A space which reects the idea of Inclusivity for the proposed community centre for the kolhapur craft community of leather matts and the local neighbourhood people, an opportunity to create a platform of facilitation and empowerment of the user group. The design encourages exibility to the main spaces to be able to host a variety of activities as per the need in the local scenario. The overall design environment organizes a communal experience and interaction amongst the various participatory groups at the centre.

THE BREEZE SWAYING MY HAIR, AND MY HAND HOLDING THEM AROUND LOST IN THOSE WALL MURALS, TILL I GOT FULLY ASTOUND DIFFERENT SCREAMS AND DIFFERENT SOUNDS, ACROSS THOSE ROOMS FILLED WITH MISCHIEVOUS CLOWNS.

FAMILY THEY TURNED, BINDING EACH OTHER BY EVERYDAY WORK. WALKING THROUGH A INFINITE LOOP EXPERIENCING EVERYTHING BY PEEING INTO PEEPING SUNLIGHT THROUGH THOSE TINY SLITS, MORNING TURNS BRIGHTER BIT BY BIT THEN THE MOONSHINE PEEPING AGAIN, TILL THE NEXT START OF THE DAY BEGINs. LOOKING UP AND LOOKING DOWN, LOOKING SIDEWAYS….OHH! SO MANY ACTIVITIES HAPPENING AROUND GESTURES...!

TREATING OUR EYES WITH BEAUTIFUL COLOURS ACROSS, WITH SUN AND SHADE CREATING A DIFFERENT CONTRAST, WITH THE FRESH SCENT OF EVERY FLOWER THAT BLOOMS, TAKING A FEW HOME TO EXPERIENCE THE SAME IN MY OWN BEDROOM.

FROM COLLEAGUES TO

/////////////////////////////////////////////////////////////////////////////////////////// ///////////////// ////////// ///////////// //////// /////// ////////////////////////////////////

T H E L I V I N G S T R E E T

“VERNACULAR ARCHITECTURE”

WADAS- COURTYARD HOUSE, ORNAMENTATION OPENINGS, WOODEN DECORATED DOORS, DETAILS BRACKETS OF LOTUS AND DRAGONS, WALL NICHES TO PROTECT DIYAS FROM WIND

-SHRI MAHALAKSHMI TEMPLE

-BHAVANI MANDAP -RANKALA LAKE -KOPESHWAR TEMPLE -VISHALGAD -PANHALA FORT -SHALINI PALACE

“TALEEM OF KOLHAPUR”- A LEGACY IN WRESTLING. DAILY LIFE AT A TALEEM IS BASED ON EGALITARIANISM, STRICT DISCIPLINE, HEALTHY DIET, HIGH MORALS AND ETHICAL LIVING. WHEN A PEHELWAN COMPLETES HIS TALEEM, IT BRINGS HIGH SOCIAL STATUS FOR THE ENTIRE FAMILY

kolhapur

THE KOLHAPURI CHAPPALS ARE MADE FROM LEATHER THAT IS CURED AND TANNED USING ONLY NATURAL INGREDIENTS AND THEY ARE COMPLETELY HANDMADE. THIS MAKES THE CHAPPALS SUITABLE FOR ALL TYPES OF WEATHERS. THEY TURN SOFT AND COMFORTABLE AFTER CONTACT WITH BODY HEAT AND SWEAT OF THE PERSON WEARING THEM.

THE NINE DAYS OF NAVRATRI CELEBRATED IN GARUD MANDAAP SANJSOORYA KIRNOSTAV- IN THE MONTH OF POUSH THE SUN RAYS ENTER THE MAHALAXMI TEMPLE AND FALL DIRECTLY ON THE FEET OF GODDESS

ABALAL RAHIMAN PAINTINGS

-SHOWING BEAUTIFUL RENDERING OF THE COMPLEXION OF THE FIGURE AS WELL AS THE DRAPERY- I.E. A NINE YARD SAREE OF KOLHAPUR..

COMMUNITY CENTER

CLIMATE RESPONSIVE STRATERGIES

SUMMER SUN

WINTERSUN

THE BUILDING FACADE ORIENTED SUCH AS TO CUT DOWN THE SUMMER SUN AND LET IN THE WINTER SUN, THUS REDUCING THE INTERNAL TEMPERATURE . WINDOW GLAZE OPENED FOR VENTILATION WINDOW GLAZE CLOSED FOR DAYLIGHT IN THE ANGULAR CLADDING IS SUPPORTED BY RCC CANOPY PROTRUDING OUT THROUGH THE SLAB. MATERIAL- HARDWOOD FUNDERMAX

THE AIM IS TO SHOWCASE THE ESSENCE OF JOURNEY FROM ONE ACTIVITY TO ANOTHER BY MAKING SPACES IN SUCH A WAY THAT THERE IS ONENESS REFLECTED BY THE PEOPLE AND FOR THE PEOPLE COMING TOGETHER FROM DIFFERENT BACKGROUNDS AND MERGING THEIR

THOUGHTS AND ACTIONS IN A COLLECTIVE WAY.

IT CREATES A SPECIAL CORNER, AN URBAN VOID TO HIGHLIGHT AND PROMOTE THE SKILLS OF THE COMMUNITY PEOPLE WHICH CAN MAKE THE SITE OPEN, INCLUSIVE AND PARTICIPATORY.

VERTICAL CONNECTION

•

ALUMINIUM FRAMING INSULATION HARDWOOD FUNDERMAX CEMENT BOARD

•

CONNECTING VIEWS

1. 2. 3. 4. 5. 6. 7. 8. 9.

1. 2. 3. 4. 5. 6. 7. 8. 9. 10. 11. 1.

1. 2. 3. 4. 5. 6. 7. 8. 9. 10. R O A D 1. 1. 1. 2. 3. 4. 5. 6. 7. 8. 9. 10. 11. 12. 13. 14.

FIRST FLOOR

SECOND FLOOR

THIRD FLOOR FORM DEVELOPMENT

THE WEAVING FESTIVAL!

ASSEMBLING BAMBOOS FOR ERECTION AND USING BAMBOO AS STRUCTURAL FRAME.

CRAFT ABSTRACTION

WEAVING ARCHITECTURE FROM ARTIFICIAL LEATHER.

MULTIPLE LEATHER PATTERNS THAT OVERLAY TO AVOID AN OVERHEATED INTERIOR SPACE. THE LEATHER RELEASES THE HEAT THAT WAS GAINED DURING THE DAY AND IN THE EVENING KEEPS THE CORRIDOR WARM.

DURING RAINS THE WATER DRIPPING DOWN THROUGH THE BAMBOO FRAME REACHES THE CREEPERS ON THE PARAPET WALLS

THE LEATHER ABSORBS PERSPIRATION WHICH IS A FACTORY OF COMFORT THE EXCESS WATER ON THE SURFACES DRIPS DOWN AND MAKES THE LEATHER MORE FLEXIBLE.

IN WEAVING TECHNIQUES, STRIPE-SHAPED ELEMENTS ARE OFTEN BENT AND INTERWEAVED.

OBSERVING THE STRUCTURE OF WEAVING PATTERNS, WE REALIZE THAT IT CONSISTS UNDULATING STRIPES ARRANGED IN PERPENDICULAR DIRECTIONS.

BIND TOGETHER WITH NATURAL ROPES TO HOLD THEM STIFF

THE LOCAL COMMUNITY ARTIST CAN EXPERIMENT ON DIFFERENT WEAVING PATTERNS AND MAKE HUGE MATS OF ARTIFICIAL LEATHER AND CONDUCT WORKSHOPS TO TEACH THE WEAVING TECHNIQUE.

THE WEAVING IS DONE IN SUCH A WAY THAT IF DAMAGED IT CAN BE EASILY REMOVED AND REPLACED WITH NEW ONE.

COMMUNITY CENTER

• KOLHAPUR IS HOME FOR 20 SUGARCANE FACTORIES.

• BAGASSE IS THE RESIDUE OBTAINED FROM CRUSHING CANE IN SUGARCANE FACTORY.

• IT CONTAINS 50% MOISTURE AND 2% SUGAR AND BALANCE IS FIBRE.

• BAGASSE WASTE HAS BEEN BURNED IN THE FEILDS, AND THEREBY CREATING POLLUTION.

• FOR EACH 10 TONNES OF SUGARCANE CRUSHED, A SUGAR FACTORY PRODUCES NEARLY 3 TONNES OF WET BAGASSE.

• BY MAKING USE OF BAGASSE BY TREATING IT AND MOULDING INTO BOARDS, THE BAGASSE CAN BE USED AS PARTITION WALLS.

RIGID- FOLDABLE ORIGAMI WHICH CAN BE CONTINUOUSLY TRANSFORMED FROM A FLAT PLANE TO A 3D PLANE. RADIAL SYMMETRY WITH REPEATING PANELS.

FORMED BY TETRAHEDRON LATTICE FRAMEWORK.

STIFF PANELS SUPPORTED WITH PIVOT HINGE SYSTEM.

PARTITION WALL DESIGN

TETRAHEDRON LATTICE

ONE SIDE WHEN

PARTITION WHEN FOLDED ON ONE SIDE

SLIDDED FOR PARTITION

HOLLOW

STEEL PIPE FRAMEWORK ELEVATION WHEN FOLDED ON

SLIDDED FOR

WHEN

GREEN MEASURES

PRINCIPLE RAFTER CROSS PURLINS GUTTER GUSSET PLATE BOLTING

LEVEL +0.00M

LEVEL +0.45M

FLOOR SLAB LEVEL +4.65M

FLOOR SLAB LEVEL +9.0M

FLOOR SLAB LEVEL +9.0M 150MM THICK PCC BED BOTTOM TIER FIRST TIER GRILLAGE FOUNDATION STEEL BEAM FLOOR INSULATION DPC MEMBRANE 38MM THICK FLOOR FINISH HOLLOW STEEL COLUMN 10MM UNIVERSAL STEEL COLUMN STEEL BEAM RCC BEAM STEEL CHANNEL CORRUGATED SHEET SHEATHERING BOARD 10MM THICK CSEB BLOCKS 300X150X90 INSULATION WINDOW SILL GLASS WINDOW RCC CHAJJA SHADING DEVICE PANEL RCC SLAB 15O MM DEPTH WITH REINFORCEMENT RIDGE BOARD RCC FOUNDATION 450MM DEPTH TRUSS NETWORK CROSS PURLINS GRC MATERIAL ROOFING

WALL SECTION PART ELEVATION

GROUND

PLINTH

FIRST

SECOND

THIRD

END

ROOF DETAILS

CSEB BLOCKS, MATERIALS WITH HIGH RECYCLABLE CONTENT, AND ROCK WOOL INSULATION FOR OUTER WALLS HAVE BEEN USED USE OF RENEWABLE BAMBOO, SUGARCANE COMPOSITE MATERIAL FOR DOOR FRAMES AND SHUTTERS. UPVC WINDOWS WITH SEALED GLASS. CALCIUM SILICATE CEILING TILES WITH HIGH RECYCLABLE CONTENT AND GRASS PAVER BLOCKS ON PAVEMENTS .

OF WASTE WATER THROUGH SEWAGE TREATMENT PLANT AND RAIN WATER HARVESTING.

OF PLANTS WITH LOW WATER DEMAND IN LANDSCAPING.

STAND TO PROMOTE WALK-IN AND BICYCLE ENTRIES.

POLLUTED VEHICULAR ACTIVITY BY PROVIDING A PARKING LOT AT A VERY SMALL DISTANCE FROM THE COMMUNITY CENTRE.

RECYCLING

USE

BICYCLE

AVOIDING

‘

“VASUDHAIVA

KUDUMBAKUM”-

The world is one family

Based on the principles of Mahatma Gandhi, a School designed to shape the lives of the students. A school which promotes outdoor study environment because it believes learning is beyond the four walls of a room.

The project also creates spaces for panchayat meetings, weekly markets to exhibit hand-crafted goods.

A SCHOOL PROJECT /////// ////////// ///////////// //////// /////// /////////////////////////////////////// ///////////////////////////////////////////////////////////

N G A N W A D I ’

Separate module cluster for kinder garden, forming outdoor learning activity within the nature.

Open courts forms the main gathering space, prayer hall, outdoor play area, exhibition space, workshops with childrens overlooking from the above, creating vertical interactions

F O R M D E V E L O P M E N T

CLASSROOM MODULE OF 8X6M TRUNCATED AT THE EDGES TO GIVE A BROADER VIEW REPETITION OF MODULES THE ZENITH LIGHT COUNTERACTS THE LUMINOUS CONTRASTS ON THE INSIDE, OBTAIN MORE HOMOGENOUS NATURAL LIGHTING. THE GREATER HEIGHT IMPROVES THERMAL CONDITIONS IN SUMMER. THE PYRAMID-SHAPED ROOFING OF THE SPACE COMPLETED WITH A SKYLIGHT, RESPONDS TO BOTH HEAVY RAINS AND ADDITIONAL LIGHT IN TAKE.

GROUND FLOOR PLAN SECTION AA’ A A’

N N’ B

WEST ELELVATION

SECTION NN’

S E C T I O N S A N D E L E V A T I O N SECTION BB’

A G E I N T E N T I O N A L L Y L E F T B L A N K

ADMIN BLOCK

KINDER GARDEN BLOCK

SCHOOL BLOCK

BREEZE CAN BE CHANNELLED FROM ONE PLACE TO ANOTHER. MAJOR VISTAS CLASSIFICATION ACCORDING OF INTEREST OF DIFFERENT AGE GROUPS.

THE DESIGN OF THE MAIN ENTRANCE AS ITS REPRESENTATION PRESENTS A NATURAL AND SOFT ATMOSPHERE WITH A PLANT NURSERY ADJACENT WHICH IS ACCESSIBLE BY THE LOCAL PEOPLE. LANDSCAPE DESIGNED AROUND THE SCHOOL BLOCK IS ACCORDING TO DIFFERENT AGE GROUP UNDERSTANDING. THE PATHWAYS GUIDE THE FLOW OF SPACES. DUE TO THE EXISTING COUNTERS A CONCEPT OF STEPPED GARDENS IS INCORPORATED.

PLANNING STRATERGIES

PLANT NURSERY PLAYGROUND SPACE VIEWS FROM THE SITE RECREATIONAL GROUNDS CENTRAL COURT

COMMUNITY SPACE LANDSCAPE DETAILING

BICYCLE TRACK MAIN AXIS OF

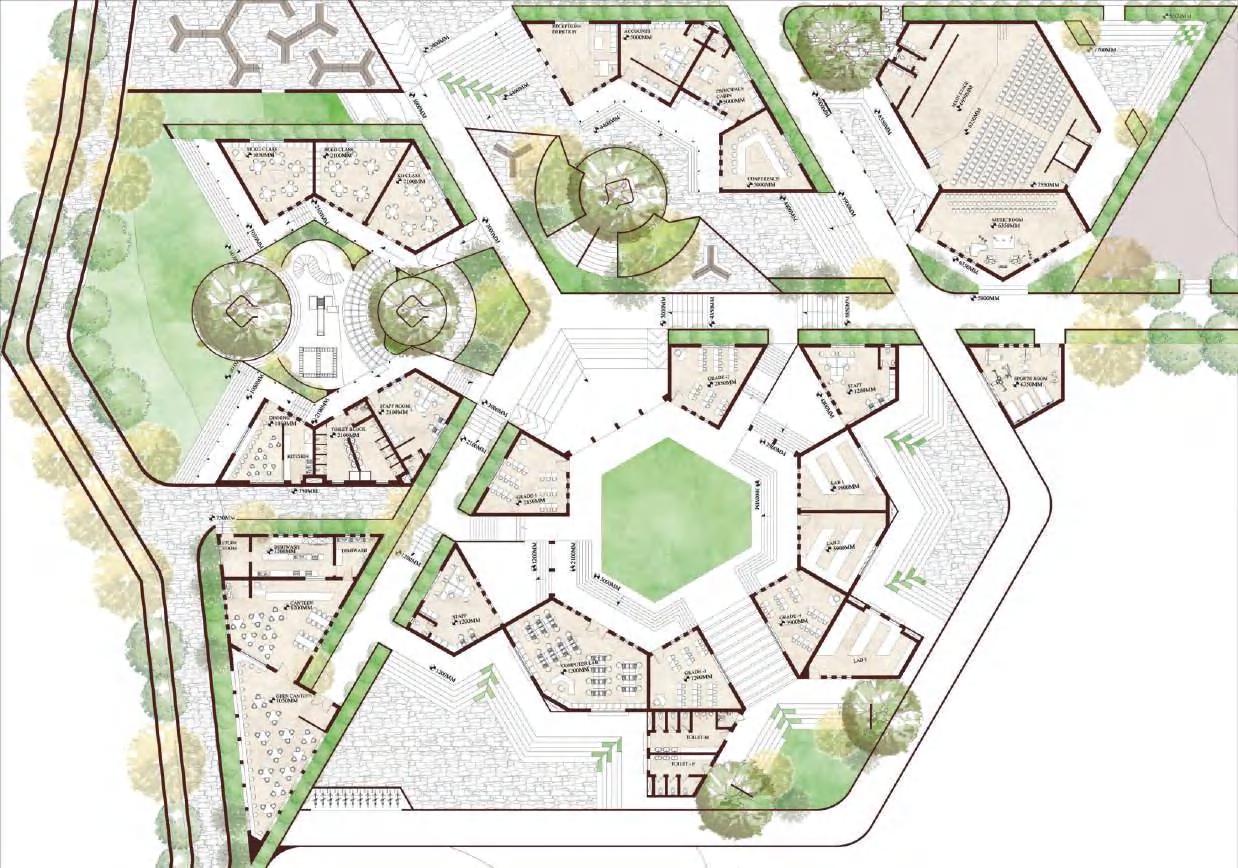

LANDSCAPE PLAN

DOCUMENTATION

DOCUMENTATION

DOCUMENTATION

DOCUMENTATION

DOCUMENTATION

DOCUMENTATION

BAMBOO WORKSHOP WORKSHOPS

ARTWORKS AND PHYSICAL MODELS

GILARDI HOUSE ~LUIS BARRAGAN LAZER CUT MODEL

2.Dimensionsaretobereadalways,notmeasured. 3.Levelsindicatedarespecifictothisbuildinginisolationand donotrelatetotheindicatedlevelsofotherbuildingon site.

4.Thisdrawingistobereadlongandco-coordinatedwith relevantconsultantsdrawings.Incaseofanydiscrepancy notifythearchitectimmediatelybeforeproceedingwithany workonthatpart

5.Referdetaileddrawingswhereverrelevant.

SETTINGOUTPLAN 7505 A 2730 M 49520 44375 P S T 92900 84950 DATUMPOINTQ7685 DATUMPOINT 5000 5000R DATUMPOINTX Y 11195 8240139007255 11855 9080 11220 44415 41285 3150 5155 6230 6285 6110 5680 5140 4605 4645 5000 48865 5025 5780 4195 6790 40655 47460 70720 47460 5000 7835 7960 9150 11270 8150 DATUMPOINT B C DE F G H J K 5000 29410 76870 5635 5625 4285 10425 5530 5985 9640 47450 L 6790 9640 1500mmEXCAVATION PLOTBOUNDARY 104454 U V W X Y N O X

NOTES: 1.AlldimensionsareinMM

North LEGENDS: PROJECTTITLE: CITYLIBRARYDESIGN STAMPANDGUIDE'SSIGNATURE NAME:ANUSHKAKDESHPANDE 3RDYEAR/SEMESTER-6 ROLLNUMBER:AR19009 SHEETTITLE: SETTINGOUTDRAWING SCALE:1:200 DATE:29/04/2022 SHEETNO:24 VivekanandEducationSociety's CollegeofArchitecture KEYPLAN SCALE-1:2000

NOTES:

1.AlldimensionsareinMM

2.Dimensionsaretobereadalways,notmeasured.

3.Levelsindicatedarespecifictothisbuildinginisolationand donotrelatetotheindicatedlevelsofotherbuildingon site.

4.Thisdrawingistobereadlongandco-coordinatedwith relevantconsultantsdrawings.Incaseofanydiscrepancy notifythearchitectimmediatelybeforeproceedingwithany workonthatpart

5.Referdetaileddrawingswhereverrelevant.

TILES

PROOFING

VITRIFIESTILE.

FIRE STAIRCASE 19 18 17 16 15 14 10 UP W1 W1 W1 D1 V1 V1 D2 W2W2W2 W2W2W2 W3 W3 2020 15900 14809709702450 1000 3830 6000 10720 1215 1215 6520 14809709702450 1000 15900 D5 Ø5500 D6 DISCUSSIONSPACE +1.45M ACADEMICSTORAGE +1.45M 1060 840 6780 1170 4890 5940 2215 2170 6220 3800 11000 4115 4310 26200 4050 2500 19420 10720 SHELVINGANDREADING AREA +1.45M 10 17 18 19 20 21 22 23 24 4230 7300 585 1450 985 9230 1780 11460 10720 SHELVINGAREA +1.45M 7780 11 12 300 300 300 300 300 300 300 300 300 300 300 300 2000 2000380 1500 4380 3100 4450 4550 4800 3200 6400 RECEPTIONAREA +1.45M CORRIDOR +1.30M D4D4D4D4 D4D4D4D4 D7 D7 D7 GLASS PARTITION WALL BLOCKS W2 W2 W2 W3 UP 3003003003003003003002005 Ø5500 D6 DISCUSSIONSPACE +1.45M ACADEMICSTORAGE +1.45M D5 W4 980 9015 12185 1475 14100 3630 3635 11260 1470 1045 970 970 1800 1735 13878 3315 2940 912 1280 667 3475 10810 7235 7260 2009565 6540 G1 G1 G1 G1 G1 G1 G1 G1 G1 G1 G1 G1 G1 G1 2920 1200 1290 460 20108 150 150 150 2920 150 150 1501680 150 150 150 150 2920 150 150 150 150 3200 COURTYARD +1.00M 150MMPARAPETWALL 900MMHEIGHT BRICK JALI D8 18865 22185 7895 15385 9155 5470 17870 DOWNTO 14 10 1067 20110 20565 14110 6010 2000 300 4500 9606 20205 4280 4350 2100 2000 2000 4200 300 300 300 300 300 300 300 300 300 300 300 300 +1.45M +0.90M ±0.00M ENDFACE +70.720 START FACE+0.00 START FACE +0.00 ENDFACE +77.5 780 3020 1025180018001000180010001800 1000 1290 1025180018001000180010001800 1000 4330100 218513501875 1275 500 2705 2000 1500 W1F3 S3C1 W2F2 S2C2 W1F3 S3C1 W1F3 S3C1 W1F3 S3C1 W1F3 S3C1 W1F3 S3C1 +1.45M GROUNDFLOORABLOCK RAMP VOIDABOVE GROUND FLOOR +1.45M UP UP +2.77M T=0.3M R=0.165M +2.145 T=0.3M R=0.165M 13 24 25 230mmHIGHSTANDARDBRICKWALL WITHALGIPLASTADMIXTURE SINGLEPIECEGRANITEWITH TRADEANDRISERWITH DADOOFSAMEFINISH PRE-POLISHED GRANITEFINISH PRE-POLISHED GRANITEFINISH MULLION GLAZING KOTASTONEFINISH EXTERNALCORRIDOR 2750 4300 4300MMWIDEEXTERNALPASSAGE KOTASTONEFINISH MAINENTRANCE UP UP UP +2.145 W5 W5 100MMTHICKINTERNAL PARTITIONWALL 2200MMHEIGHT C54 C63 C67C68 C80 C89 C90 C108 C112 C123 C124 C125 C127 C128 C129 C130C131 C133 C134 C135 C136 C145 C143 C142 C148 C149 C150 C151 C152 C144 C147 C141 C139 C132 C87 C85 C86 C88 C153 C154 P O S T X Z A3 A4 A5 A6 1234 6 9 12 16 19 A6 A5 A4 A3 Z X T S P O 1234 6 9 12 16 19 ±0.00M

North PROJECTTITLE: CITYLIBRARYDESIGN STAMPANDGUIDE'SSIGNATURE NAME:ANUSHKAKDESHPANDE 3RDYEAR/SEMESTER-6 ROLLNUMBER:AR19009 SHEETTITLE: GROUNDFLOORWORKINGDRAWING LVL-1.45M SCALE:1:100 DATE:29/04/2022 SHEETNO.:29 VivekanandEducationSociety's CollegeofArchitecture 20003000MM 24002500MM 2500X2200MM 750X2200 3000 OUTDOORREAD, AUDITORIUM LIFTANDSTAIRCASE LOBBY SUNKENLIBRARY SPACE TOILETDOOR D1 D2 D3 D4 D1 D2 D3 D4 2500 2200 2200 LAMINATEFINISHBRINGINGOUT DIFFERENTSHADESOFWOOD DOUBLELEAFDOOR, ALUMINUMALLOY+FROSTEDGLASS POLYPROPYLENEFINISH ELECTRICGLASSSLIDINGDOOR ALUMINUMFRAME ELEVATIONNAME OPENING WIDTHXHEIGHTLINTELLEVEL MATERIAL SPECIFICATIONSLOCATION SCHEDULEFORDOORS

ELEVATIONNAME OPENING WIDTHXHEIGHTLINTELLEVEL MATERIAL SPECIFICATIONSLOCATION TYPE W1RADIUS-2000MM2850MMFIXEDINSULATED WINDOW-TOUGHTENGLASS ALUMINUMFRAMEWITH STUDS,5MMTHICKGLASS SHELVINGAND READING V1600X600MM ALUMINUMALLOY FRAME ALUMINUMLOUVERSBASEMENTCAR PARK

NO. SURFACE THICKNESS DESCRIPTION W1 WALLFINISH

W2 WALLFINISH 25MM

WALLFINISH

W1 F1 FLOORFINISH

F2 FLOORFINISH 25MM

1800X2500

D5 D5

1800X2500

D6 2500

D6 1000X2200D7 2200

D7 D8 4000X3000D8 3000

W2450X4000MM650FIXEDINSULATEDWINDOW,

W3600X6500MM650SLIDINGWINDOWALUMINIUMFRAME, 5MMTHICKGLASS ACADEMIC STORAGE W4RADIUS-1500MM500 ACADEMIC STORAGE FIXEDINSULATED WINDOW-TOUGHTENGLASS ALUMINUMFRAMEWITH STUDS,5MMTHICKGLASS G11400X8200MM CORRIDOR AREA MULLIONGLAZINGALUMINUMFRAMEWITH STUDS W51000X1000MM500 TOILET FIXEDINSULATED WINDOW-TOUGHTENGLASS ALUMINUMFRAMEWITH STUDS,5MMTHICKGLASS F3 FLOORFINISH 25MM PREPOLISHEDGRANITEFLOORING S3 SKIRTINGFINISH 20MM KOTASTONEFLOORINGTILEAND SKIRTING KEYPLAN 1:750

SCHEDULEFORWINDOWSANDOPENINGS

SCHEDULEFORFINISHES

EXPOSEDBRICKWALLANDCONCRETE

400X400MMCERAMICWALLTILE

SOUNDABSORBINGFORMINSULATION

WOODENFINISHPLANKS

1200X600KAJARIADURATECHVITRIFIED

CELINGFINISH 10MM FORMFINISHEDCONCRETE C2 CELINGFINISH 10MM FINISHEDPLASTER,PAINT,ANDWATER

S1 SKIRTINGFINISH 25MM WOODENSKIRTINGFINISH S2 SKIRTINGFINISH 20MM 200MMNIGHDADOTILE,400X400MM

ACADEMICSTORAGE

2500 DOUBLELEAFDOOR, WITHMATTFINISH

DISCUSSIONSPACE

SLIDINGDOORWITH FROSTEDGLASS

TOILETDOORPOLYPROPYLENEFINISH

ENTRANCEREVOLVINGDOORWITHALUMINUM FRAMEANDTOUGHENGLASS

ALUMINIUMFRAME LAMINATEDTHICKGLASSACADEMIC STORAGE

NOTES:

1.AlldimensionsareinMM

2.Dimensionsaretobereadalways,notmeasured.

3.Levelsindicatedarespecifictothisbuildinginisolationand donotrelatetotheindicatedlevelsofotherbuildingon site.

4.Thisdrawingistobereadlongandco-coordinatedwith relevantconsultantsdrawings.Incaseofanydiscrepancy notifythearchitectimmediatelybeforeproceedingwithany workonthatpart

5.Referdetaileddrawingswhereverrelevant.

NORTH-WESTELEVATION SCALE-1:150 4 7 12 20 25 33 LEVEL+1.45M LEVEL+5.20M LEVEL+8.95M LEVEL+9.25M W1 W1 W1 NORTH-EASTELEVATION SCALE-1:150 BE IK P U A13 LEVEL+0.00M LEVEL+8.95M LEVEL+5.20M LEVEL+1.45M LEVEL+11.95M V1 V1 V1 V1 V1 A12 A8A10 A3 W2 W2 W2 W2 W2 W2 G1G1G1 G1G1G1G1G1 G1G1G1 G1G1G1G1G1 D8 D8 G1G1G1G1G1G1G1G1G1G1G1G1G1G1 V1V1V1V1 V1V1V1V1 MAINLIBRARYSPACE BASEMENTCARPARK SCHEDULEFORWINDOWSANDOPENINGS ELEVATIONNAME OPENING WIDTHXHEIGHTSILLLEVEL TYPE MATERIALSPECIFICATIONS FRAME SHUTTER W1 W1 V1 V1 (RADIUS)2000MM2850mm 600X600MM FIXEDINSULATED WINDOW,FINISHED ALUMINUMFRAME LOUVERED VENTILATORSIN BASEMENT ALUMINUMFRAME WITHSTUDS 75X100TEAKWOOD FRAME ALUMINUMFRAME WITHLOUVERS 5MMTHICKGLASS LOCATION ACADEMICSTORAGE W2 W2 450x4000mm FIXEDINSULATED WINDOW,FINISHED ALUMINUMFRAME ALUMINUMFRAME LAMINATEDTHICKGLASS ACADEMICSTORAGE W3 W3 600X6500mm SLIDINGWINDOWALUMINUMFRAME 5MMTHICKGLASS 650mm 650mm W4 W4 (RADIUS)1500MM500mmFIXEDINSULATED WINDOW,FINISHED ALUMINUMFRAME ALUMINUMFRAME WITHSTUDS 5MMTHICKGLASS ACADEMICSTORAGE G1 G1 MULLIONGLAZINGALUMINUMFRAME WITHSTUDS 5MMTHICKGLASS CORRIDORAREA 1400X8200mm 2000X3000MM 2400X2500MM 2500X2200MM 750X2200 1800x2500 3000 OUTDOORREAD, AUDITORIUM LIFTANDSTAIRCASE LOBBY SUNKENLIBRARY SPACE TOILETDOOR ACADEMICSTORAGE SCHEDULEFORDOORS D1 D2 D3 D4 D5 D1 D2 D3 D4 D5 2500 2200 2200 2500 LAMINATEFINISHBRINGINGOUT DIFFERENTSHADESOFWOOD DOUBLELEAFDOOR, ALUMINUMALLOY+GLASS POLYPROPYLENEFINISH ELECTRICGLASSSLIDINGDOOR ALUMINUMFRAME ELEVATIONNAME OPENING WIDTHXHEIGHTLINTELLEVELMATERIALSPECIFICATIONSLOCATION DOUBLELEAFDOOR,WITHMATT FINISH 1800x2500 DISCUSSIONSPACE D6 D6 2500SLIDINGDOORWITH TRANSLUCENTGLASS 1000X2200 TOILETDOOR D7 D7 2200POLYPROPYLENEFINISH 4000X3000 ENTRANCE D8 D8 3000 REVOLVINGDOORWITH ALUMINUMALLOY+TOUGHENED GLASS SCHEDULEFORFINISHES NO. SURFACE THICKNESS DESCRIPTION W1 WALLFINISH EXPOSEDBRICKWALLANDCONCRETE W2 WALLFINISH 25MM 400X400MMCERAMICWALLTILE WALLFINISH SOUNDABSORBINGFORMINSULATION W1 F1 FLOORFINISH WOODENFINISHPLANKS F2 FLOORFINISH 25MM 1200X600KAJARIADURATECHVITRIFIED TILES C1 CELINGFINISH 10MM FORMFINISHEDCONCRETE C2 CELINGFINISH 10MM FINISHEDPLASTER,PAINT,ANDWATER PROOFING S1 SKIRTINGFINISH 25MM WOODENSKIRTINGFINISH S2 SKIRTINGFINISH 20MM 200MMNIGHDADOTILE,400X400MM VITRIFIESTILE. F3 FLOORFINISH 25MM ROUGHKOTASTONE S3 SKIRTINGFINISH 20MM KOTASTONEFLOORINGTILEAND SKIRTING LEVEL+6.10M

North LEGENDS: PROJECTTITLE: CITYLIBRARYDESIGN STAMPANDGUIDE'SSIGNATURE NAME:ANUSHKAKDESHPANDE 3RDYEAR/SEMESTER-6 ROLLNUMBER:AR19009 SHEETTITLE: ELEVATIONDETAIL SCALE:1:150 DATE:04/04/2022 SHEETNO.:34 VivekanandEducationSociety's CollegeofArchitecture KEYPLAN SCALE-1:750

BRICKWALL

NOTES:

1.AlldimensionsareinMM

2.Dimensionsaretobereadalways,notmeasured.

3.Levelsindicatedarespecifictothisbuildinginisolationand donotrelatetotheindicatedlevelsofotherbuildingon site.

4.Thisdrawingistobereadlongandco-coordinatedwith relevantconsultantsdrawings.Incaseofanydiscrepancy notifythearchitectimmediatelybeforeproceedingwithany workonthatpart

5.Referdetaileddrawingswhereverrelevant.

8MMØSCREW

FILLETWELD

160 DIRECTSREW ORBOLTFIXING 900 75 TEMPEREDGLASSPANEL BRACKET 1OMMPLASTER STAIRCASEREINFORCEMENT FLOORFINISH DISTRIBUTIONBARS 50MMMETALRAIL GROUTINTREAD NOSING PRECASTTERRAZZOSTEP SLURRYBONDCOAT BALUSTERDETAIL STAIRCASEDETAIL 230 SLABDETAILS REINFORCEMENT BARS RAILINGDETAIL TEMPERED GLASSPANEL BRACKET 4 1916 156 15 23 8 17 79 18 10 14 UP 111213 252423222120 300300300300300300300300300300300300 300300300300300300300300300300300300 2000 2000 380 D2 1500 4380 3100 536 C105 C104 C94 C95 L1 BASEMENT GROUNDFLOOR FIRSTFLOOR TERRACELEVEL 4500 4500 4500 2500 4120 4120 4660 1960 LEVEL-3.00M LEVEL+1.45M LEVEL+6.15M LEVEL+10.8M LEVEL+13.5M SECTIONAA' PLAN 330 4500 4500 4500 2500 LEVEL-3.00M LEVEL+1.45M LEVEL+6.15M LEVEL+10.8M LEVEL+13.5M 330 2500 2500 2500 SECTIONBB' A A' 'B B

METALBALUSTER CONVEXMETALHANDRAIL

METALRAIL

North LEGENDS: PROJECTTITLE: CITYLIBRARYDESIGN STAMPANDGUIDE'SSIGNATURE NAME:ANUSHKAKDESHPANDE 3RDYEAR/SEMESTER-6 ROLLNUMBER:AR19009 SHEETTITLE: STAIRCASEDETAIL SCALE:1:50 DATE:24/3/2022 SHEETNO.:36 VivekanandEducationSociety's CollegeofArchitecture KEYPLAN SCALE-1:750 BRICKWALL

1.AlldimensionsareinMM 2.Dimensionsaretobereadalways,notmeasured.

3.Levelsindicatedarespecifictothisbuildinginisolationand donotrelatetotheindicatedlevelsofotherbuildingon site.

4.Thisdrawingistobereadlongandco-coordinatedwith relevantconsultantsdrawings.Incaseofanydiscrepancy notifythearchitectimmediatelybeforeproceedingwithany workonthatpart 5.Referdetaileddrawingswhereverrelevant.

FLOORTILES -1.2X0.6M (DURATECH) VITRIFIED MATTTILES 750 1800 1000 1800 1000 1800 1000 455 2700 1085 2185 100 630 700 645645 5360 4300 350 350 350 1800 1000 1800 1000 1800 1000 1800 1000 350 3502170 3000 630 1500 100 1000 1000 JAGUAR MODULAR PARTITION NAHANITRAP0.1X0.1M FLOORTILES -0.4X0.4M 500 CERAMICWALLTILES-0.4X0.4M CERAMICWALLTILES-1.2X0.6M JAGUAREW.CFITTINGWITHP-TRAP BRICKBATCOBA SOILPIPE WASTEWATERPIPE75MM CONCRETESLAB0.15M TEAKWOODFLUSHDOOR MIRROR BOTTLETRAP JAGUARBASINTAP WHITEMARBLEFINISH WATERSUPPLY RWHTREATEDWATER TOW.C-Ø25MM WASTEWATER PIPE-Ø75MM SOILPIPE-Ø0.15M 900 630 1200 600 2220 1000 1086 3880 3000 400 400 A A' B B' TOILETLAYOUT WATERSUPPLYANDDRAINAGELAYOUT SECTIONAA' SECTIONBB' 600 1200 617 100 3880 450 4300 1500 2220 900463 FROMOHT-Ø25MM VITRIFIEDMATT TILES0.02MTHICKNESS URINALS

NOTES:

North LEGENDS: PROJECTTITLE: CITYLIBRARYDESIGN STAMPANDGUIDE'SSIGNATURE NAME:ANUSHKAKDESHPANDE 3RDYEAR/SEMESTER-6 ROLLNUMBER:AR19009 SHEETTITLE: TOILETDETAIL SCALE:1:40 DATE:04/04/2022 SHEETNO.:34 VivekanandEducationSociety's CollegeofArchitecture KEYPLAN SCALE-1:750 BRICKWALL
