SF Centre of Perspectives & Perceptions
Ever since I was a child my family made an effort to see different perceptions of the cities we visited that were unique to what the usual tourist would experience.This gave me a different sense (Perspective) on how cities can be viewed. The program is a viewing gallery as well as a school where tourists and film & photography students can intertwine in a way that tourists get a glimpse of how students create and frame their work. Through the concept of framing that was inspired by a camera frame, user-groups gain a sense of various perspectives which allows them to construct their views both inside and outside into the city of San Francisco. The frames also encourage them to adopt another way of seeing how other people view their surroundings. Since my building aspires to help give users new perspectives and perceptions, the hope is that the use of framing throughout the building can be used as a device to allow individuals to be more accepting of one anothers ways of looking at things.
a
Most) Mapping out Landmarks of SF

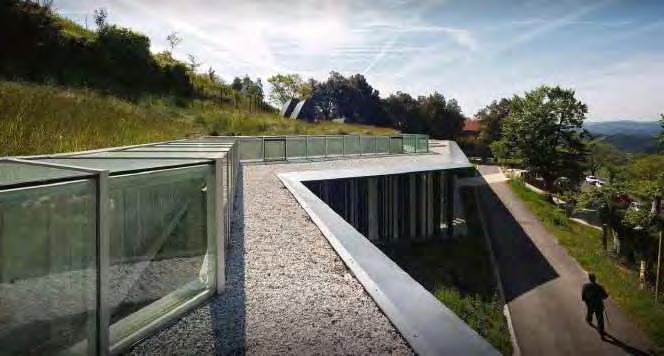

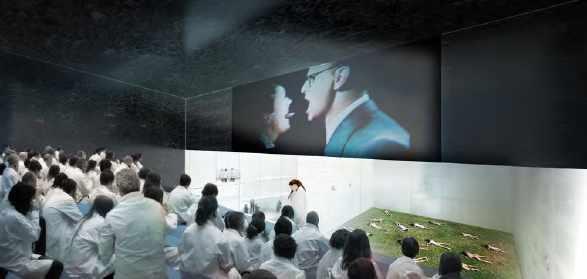

MARINA ABRAMOVIC INSTITUTE:
& photography students create and frame user-groups gain a both inside and to adopt another perceptions, the hope device to allow individuals
Famous LandMarks of San Francisco
Main Market ST.

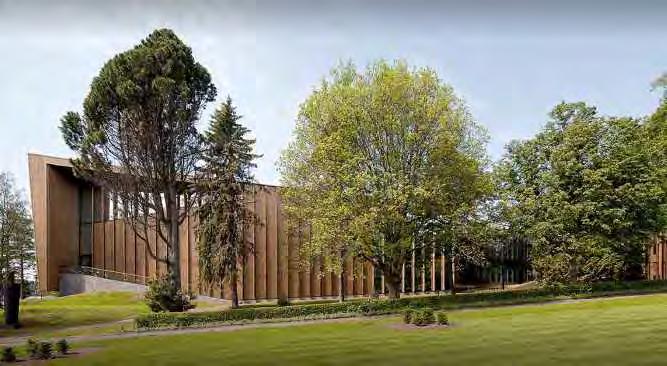

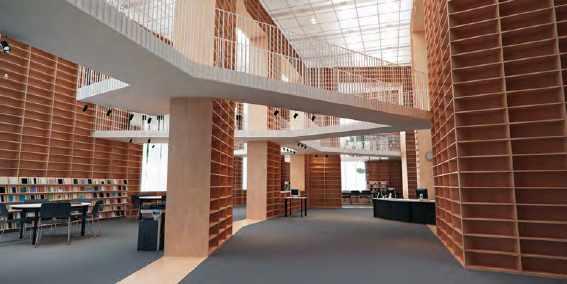

MUSASHINO LIBRARY: CINEMA HOUSE:
CINEMA HOUSE:
Above is a Movie room where people sit down and interact with the space in
Mapping out Landmarks in SF
Utilized Landmarks to develop concepts and ideas behind the process of the design.
Clusters
Zonnings begins to emerge
Coit Tower Perspective
Site

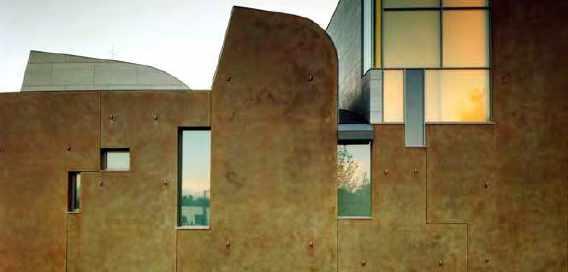

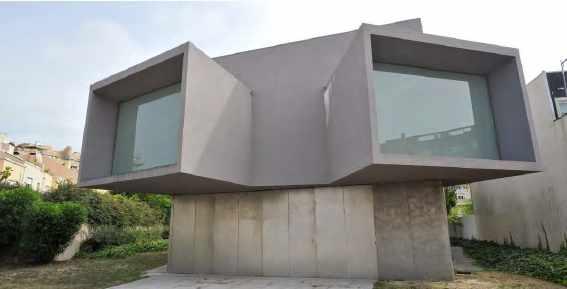

CHAPEL OF ST. IGNATIUS/ STEVEN HOLL ARCHITECTS:
CHAPEL OF ST. IGNATIUS/ STEVEN HOLL ARCHITECTS:
Second Floor connection going through each Main frame of buildings various programs.

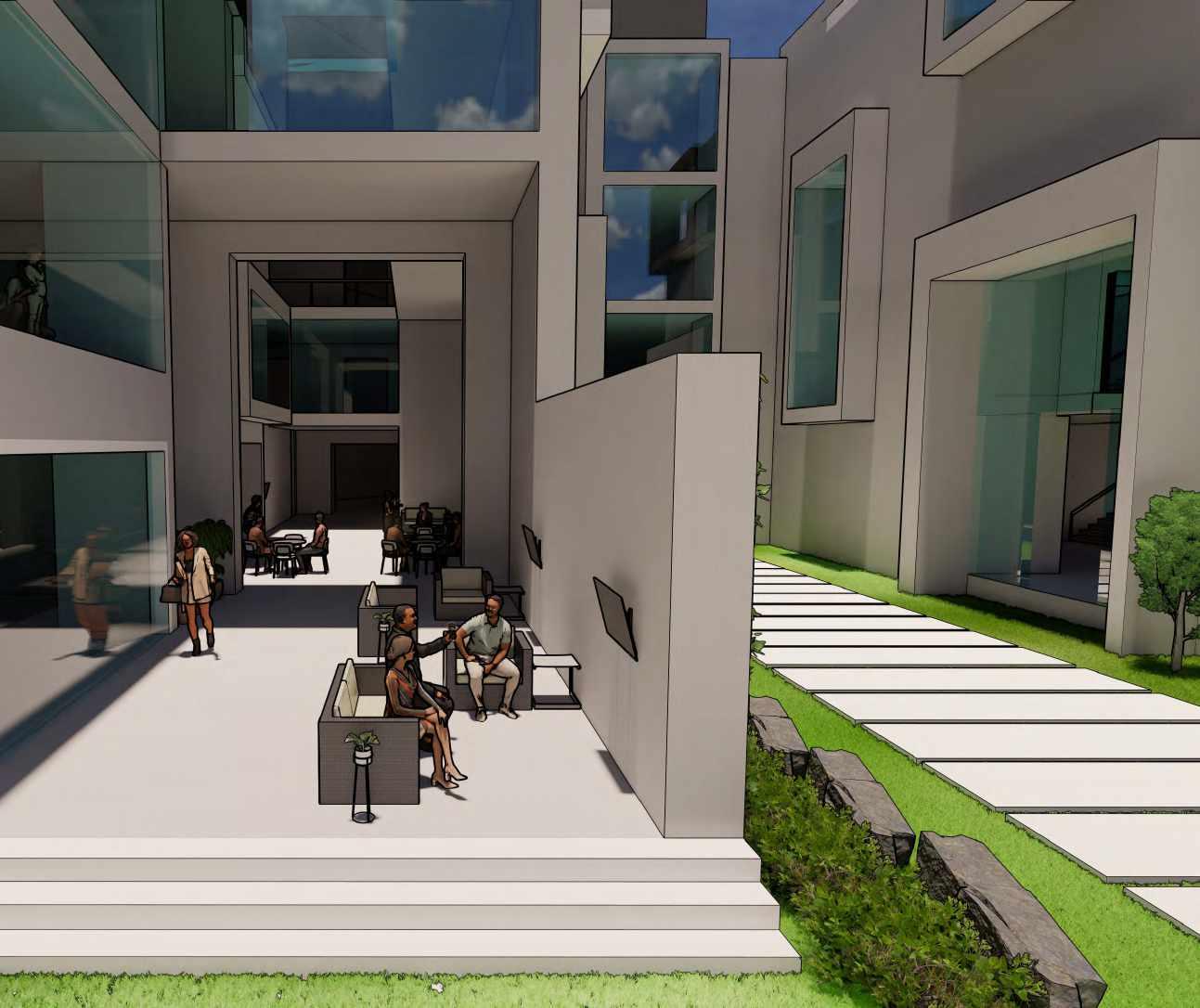

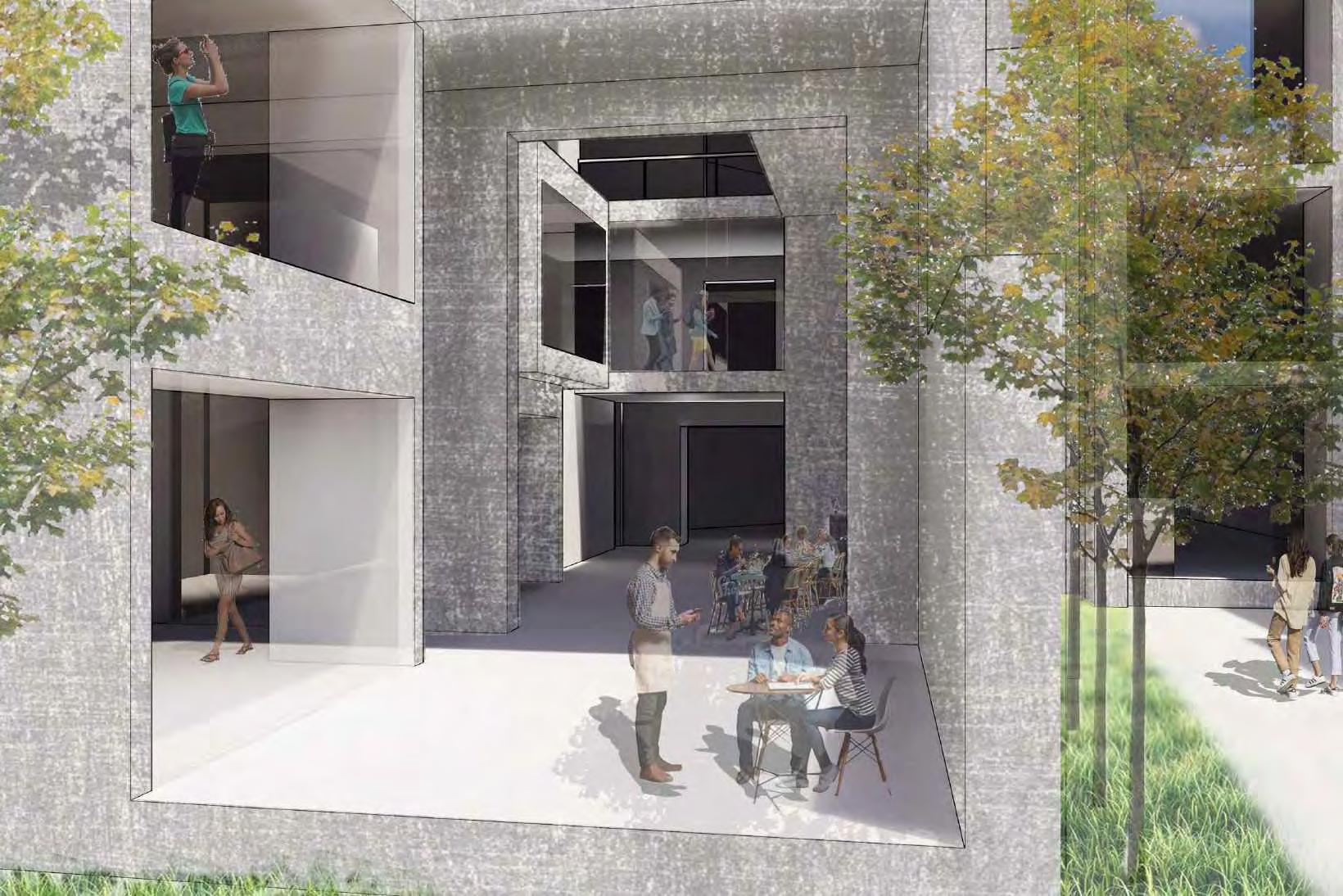

The frames are extruded out to emphasize the views beyond. With the help of site context and orientationof the frames, an individual may be able to experience each view uniquely.
Frames created through two walls joined together
Seam inbetween walls joins (connects) to form frames.
Marina Abramovic Institute
Musashino Library
Cinema House
Chapel of St.Igatius
CHAPEL OF ST. IGNATIUS/ STEVEN HOLL ARCHITECTS:
Analysis of Mapping Diagram
Transformation takes place and creates more concepts and ideas.
This perspective is personal to me as I am the Photographer of the image to the left. This therefore interprets my perspective and perception of the city.
The frames are extruded out to emphasize the views beyond. With the help of site context and orientationof the frames, an individual may be able to experience each view uniquely.

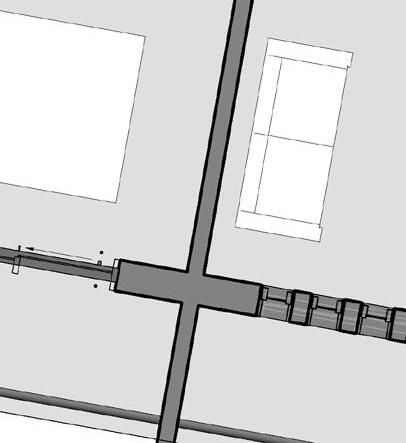

PLAN VIEW OF PERSPECTIVE IDEA:
Represantation of Looking through a frame. An example would be similar to watching a movie (Spectacle) and viewing (Audience). It is framed and allows a sense of perception through spaces.
ADAM NURU |ARH 410: STUDIO 7 PRECEDENT STUDIES & DIAGRAMS APPLIED TO PROJECT |SPRING 2019

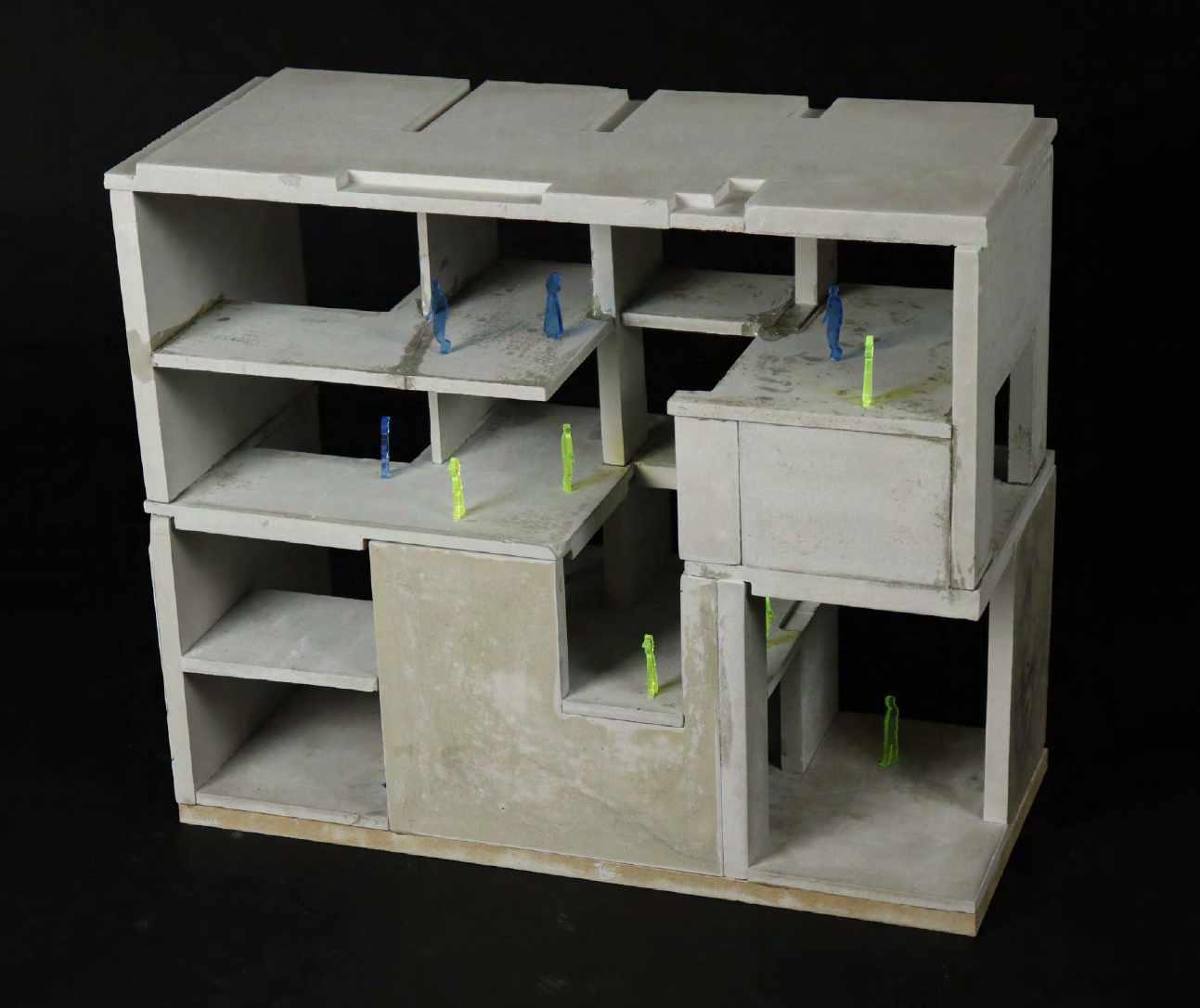

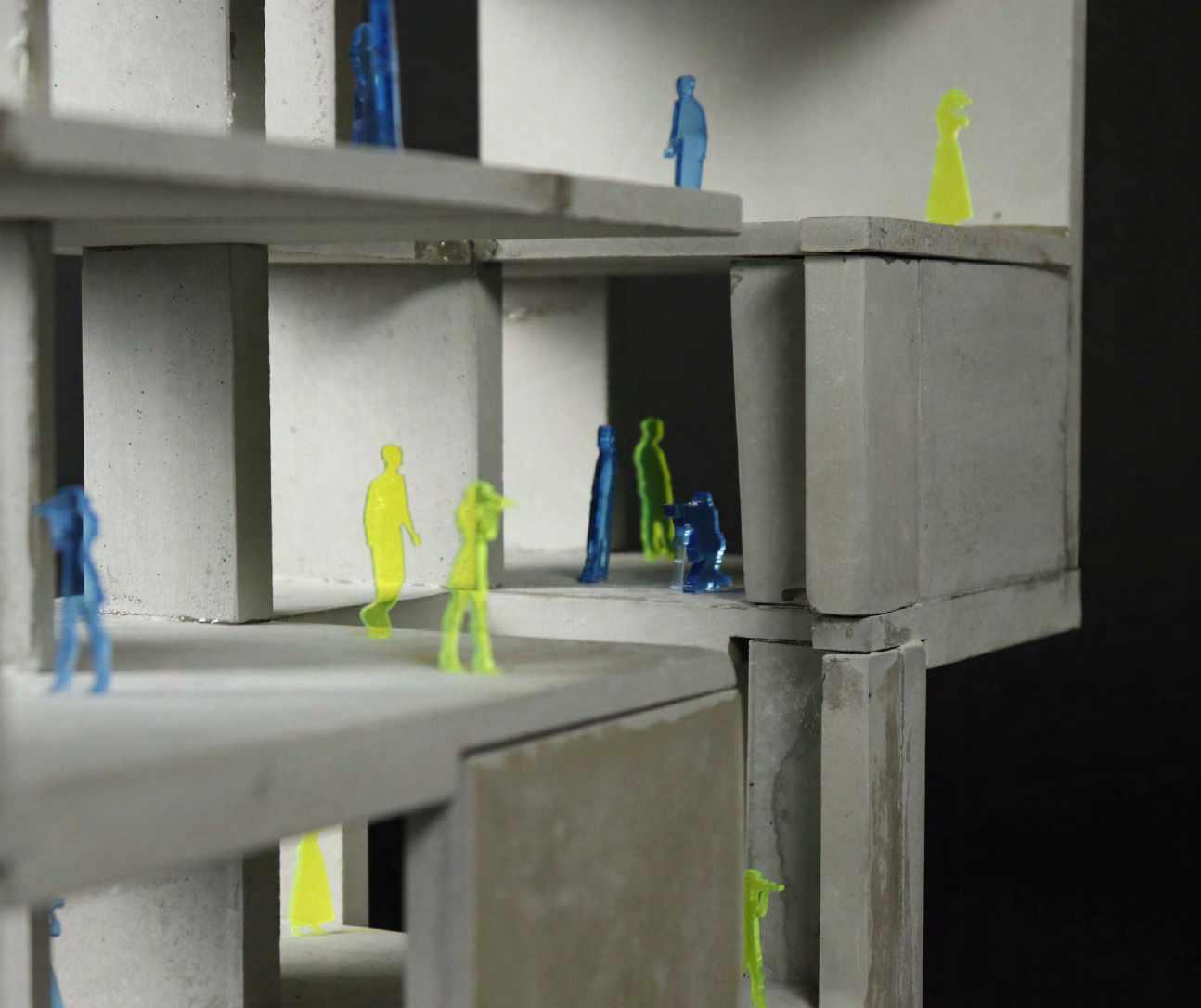

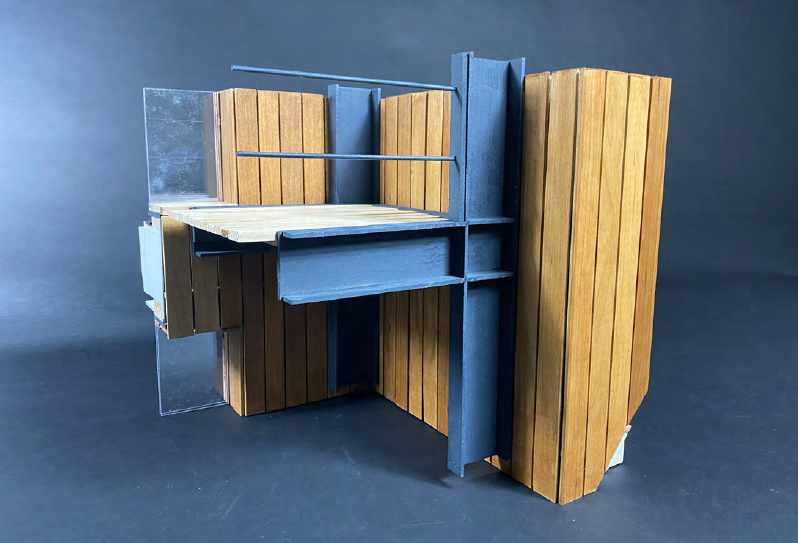

Concept Models

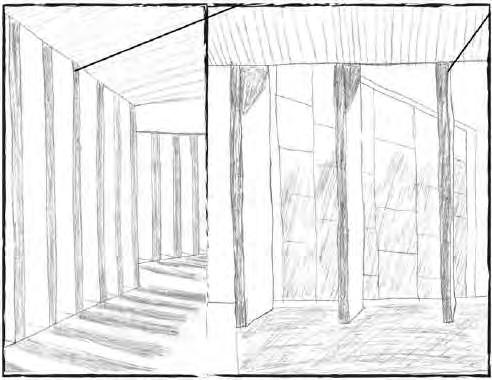

Frames created through two walls joined together
Main walls with frame like cut outs to distinguish between spaces. Acts as a major threshold for individuals to pass through and get a different experience. It has vairous angles of orientation to allow the frames to be located at different locations around the building.
Seam inbetween walls joins (connects) to form frames.
PLAN VIEW OF PERSPECTIVE IDEA:
Frames created through two walls joined together
Seam inbetween walls joins (connects) to form frames.
SECTION VIEW OF PERSPECTIVE IDEA:
Derived from the mapping exercise to enhance the idea about perspectives and perceptions of individuals
The frames are extruded out to emphasize the views beyond. With the help of site context and orientationof the frames, an individual may be able to experience each view uniquely.
Frames created through two walls joined together. Seam inbetween walls joins (connects) to form frames.
ADAM NURU |ARH 410: STUDIO 7 PRECEDENT STUDIES & DIAGRAMS APPLIED TO PROJECT |SPRING 2019

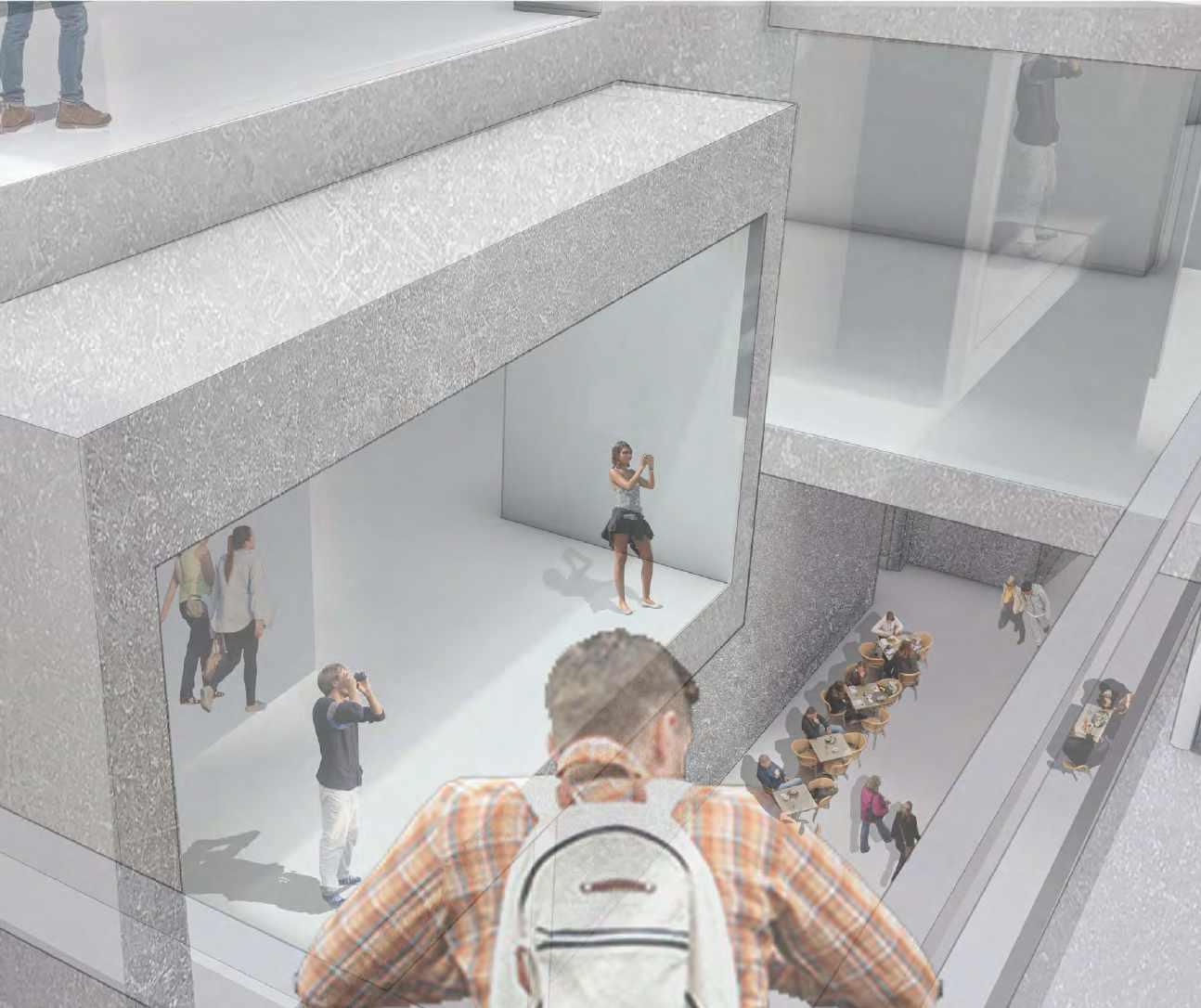

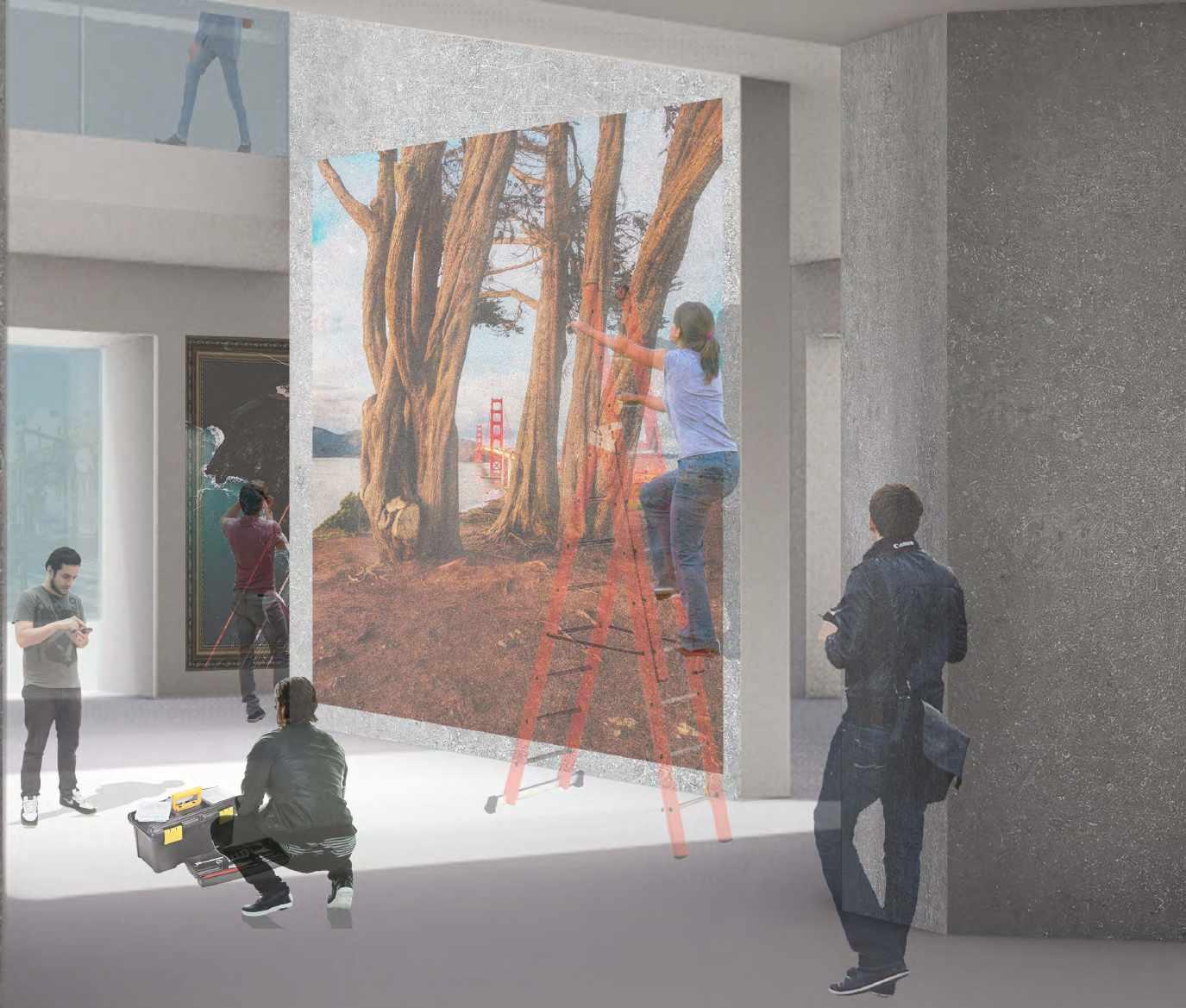

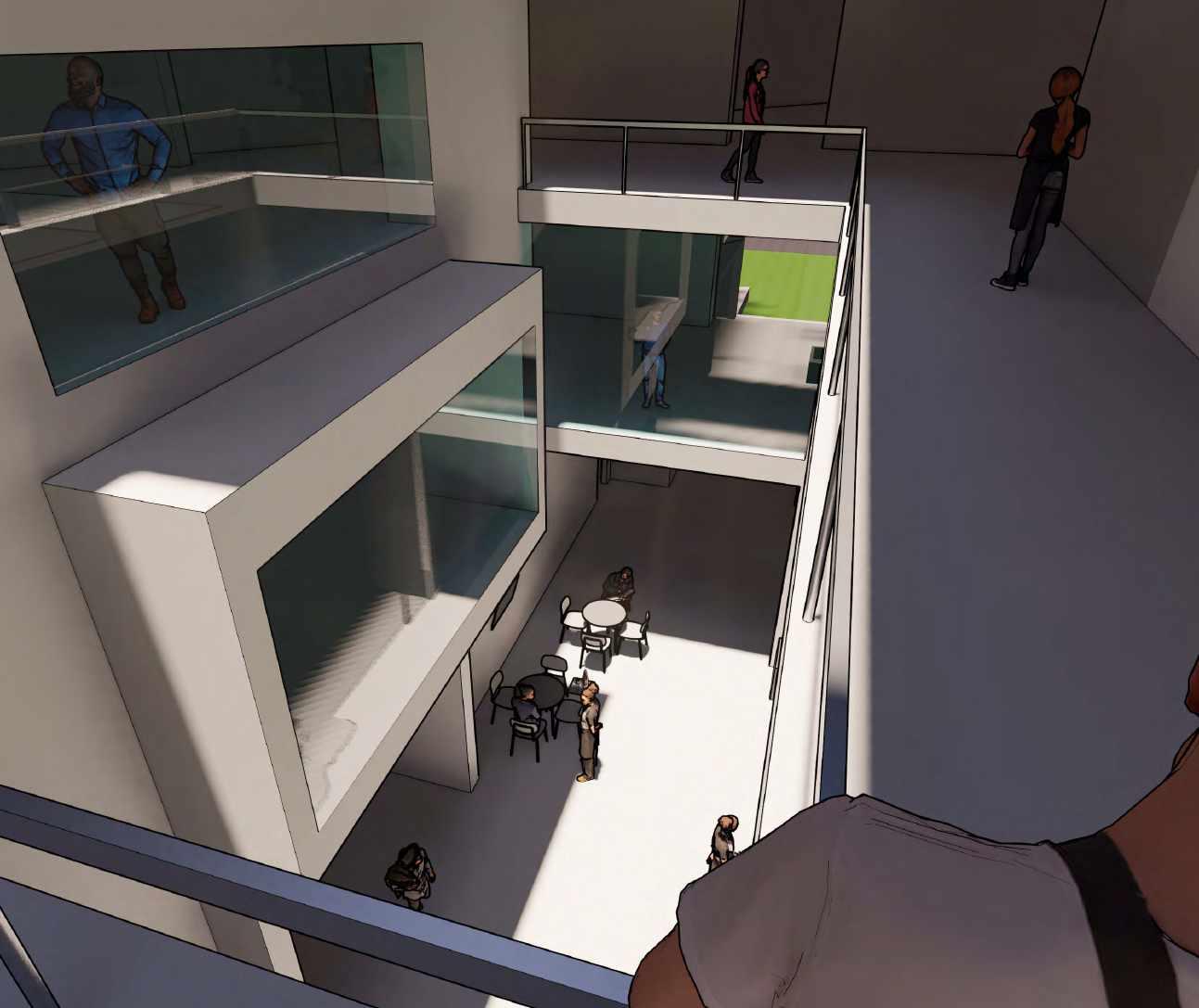

AUDIENCE (SPECTATOR) VS PERFORMER THROUGH SPECTACLE:
The Various usergroups in the building act as the performer or spectator looking through a frame ( spectacle) to get different perspectives on how others interact and use spaces throughout the building. This allows for them to get numorous perceptions of there own.
AUDIENCE (SPECTATOR) VS PERFORMER THROUGH SPECTACLE:
The Various usergroups in the building act as the performer or spectator looking through a frame ( spectacle) to get different perspectives on how others interact and use spaces throughout the building. This allows for them to get numorous perceptions of there own.
ADAM NURU |ARH 410: STUDIO 7 PRECEDENT STUDIES & DIAGRAMS APPLIED TO PROJECT |SPRING 2019
Spectacle Performers Audience
Plan View of Perspective Idea Pentaprism View Finder Condenser lens Reflex Mirror Shutter Image Sensor LCD Screen Lens Matte Focusing Screen PROJECT 01 | 02 | 03 | 04 | PART A PROJECT 01 TECTONICS AND STRUCTURE Site Famous Landmarks in San Francisco Market street La Ha ia um ic C U io S C Tow b m No Hill Fina D Ex lo a ium Em Fe ildin Tow M im Na io His P Lo a e Tr is Famous LandMarks of San Francisco SIte Main Market ST. T& P D lo CLASSROOMS CONFERENCE ROOM OFFICES MULTI-PURPOSE ROOM MEP RESTROOMS STORAGE TOUR COMPANY INFO DESK TICKETS OFFICES TOUR BUSES PHOTOGRAPHY GALLERY MAIN GALLERY PANTRY STORAGE ROOM
8 9 ADAM NURU, ARCH
ADAM NURU |ARH 410: STUDIO 7 PRECEDENT STUDIES & DIAGRAMS APPLIED TO PROJECT |SPRING 2019

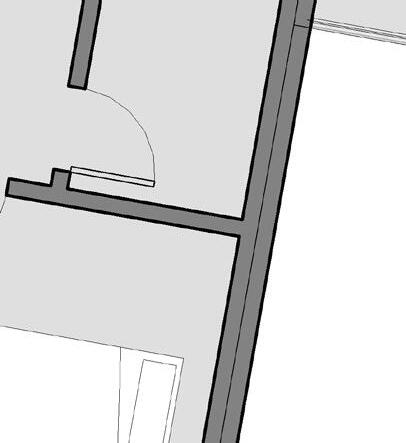

STRUCTURAL PLAN
SCALE: 1/32 = 1’-0”

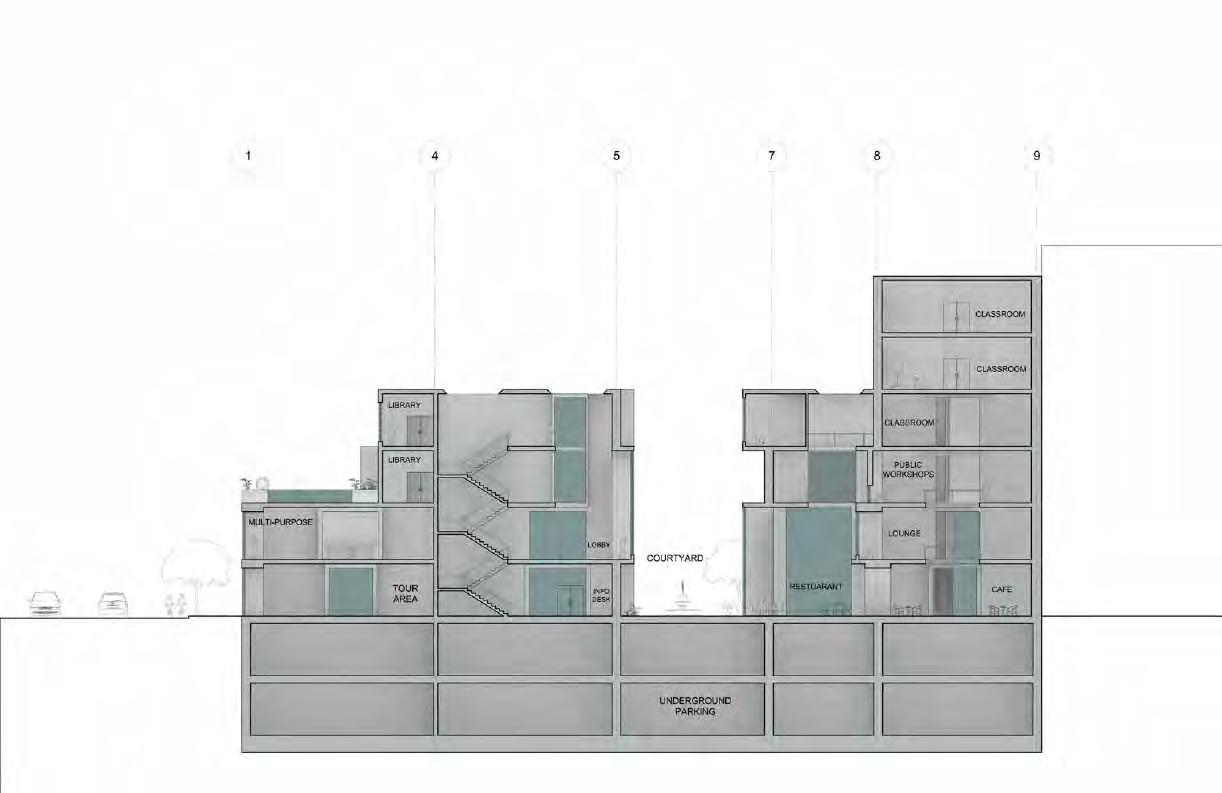

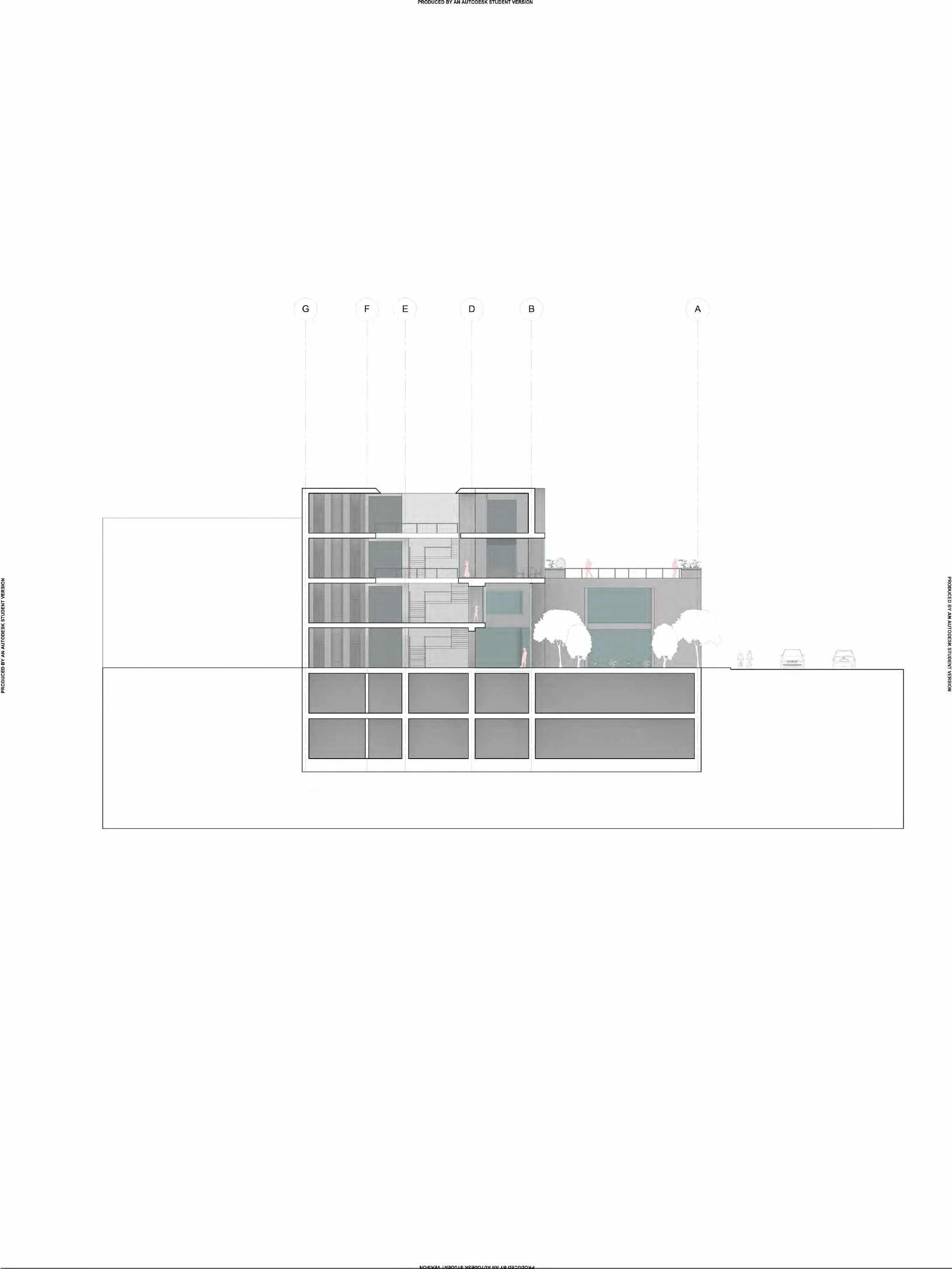

STRUCTURAL SECTION A-A
SCALE: 1/32 = 1’-0”
STRUCTURAL SLAB OF PLAN
Structural Slab Bubble Deck Slab Recycled plastic spheres are sandwiched between layers of reinforcing steel lattice (squared) to introduce voids into the two-way slab. Build More With Less, Reduced Overall Cost, Faster Construction, Lower Risk, LEED Compatible

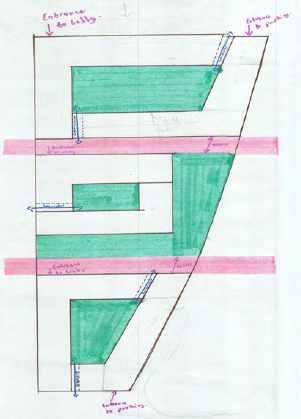

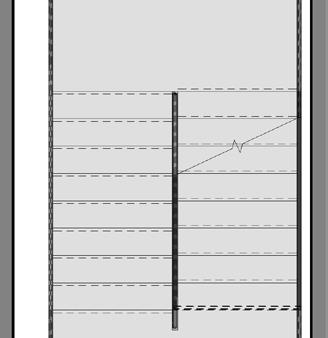

Egress and Circulation
STRUCTURAL PLAN
SCALE: 1/32 = 1’-0”
EGRESS & CIRCULATION
STRUCTURAL |SPRING 2019
STRUCTURAL SECTION A-A
SCALE: 1/32 = 1’-0”
Is interstitial space that accomodates Identity-defining activities. Gray Space may have opportunity to shift or adjust according to program
Course
Housing and Comprehensive Design
Instructors
Goetz Frank & Bradley Sugarman
Semester
Fall 2019
Location
Santa Rosa, California

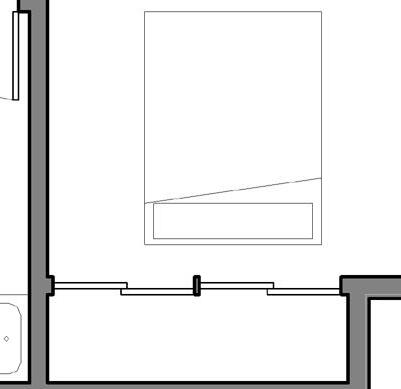

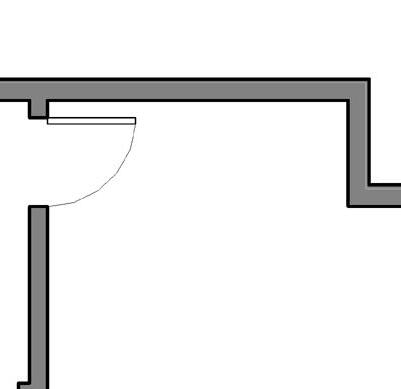

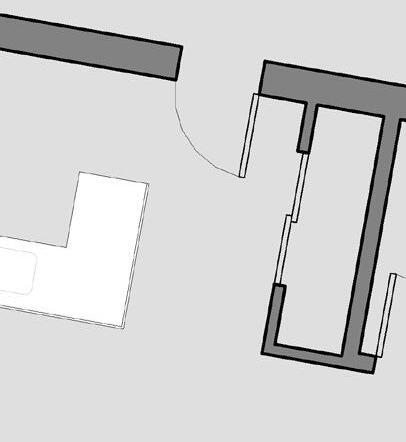

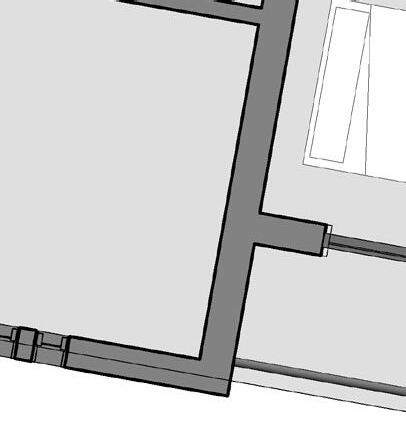

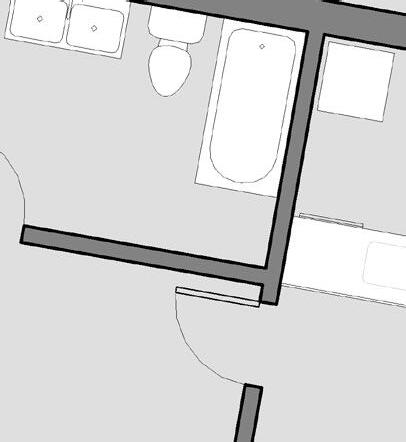

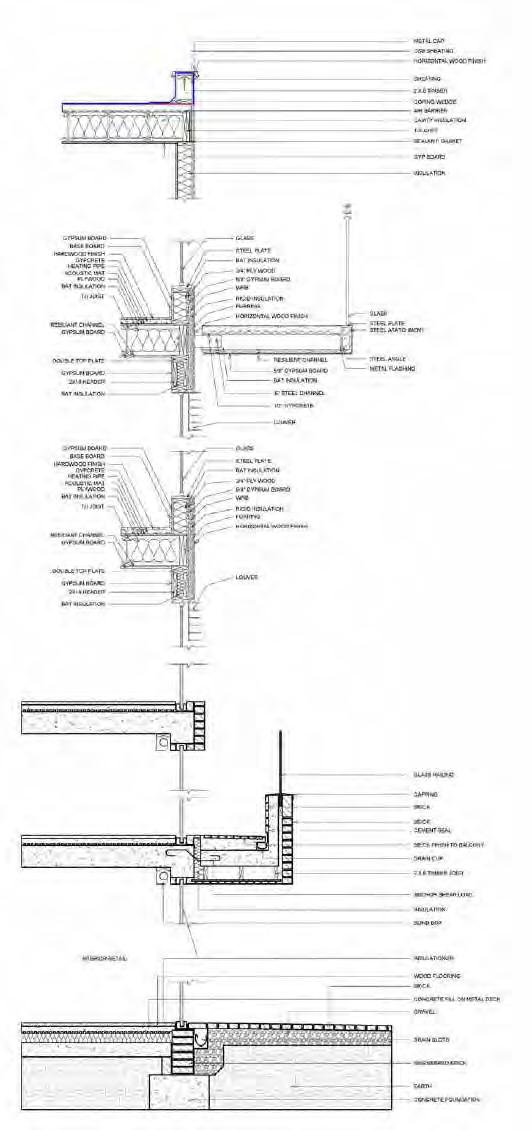

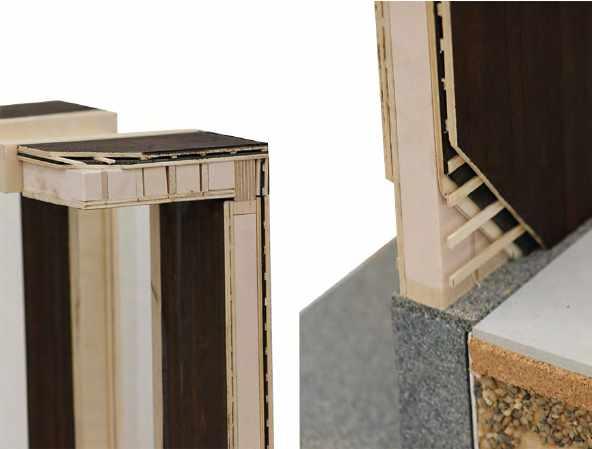

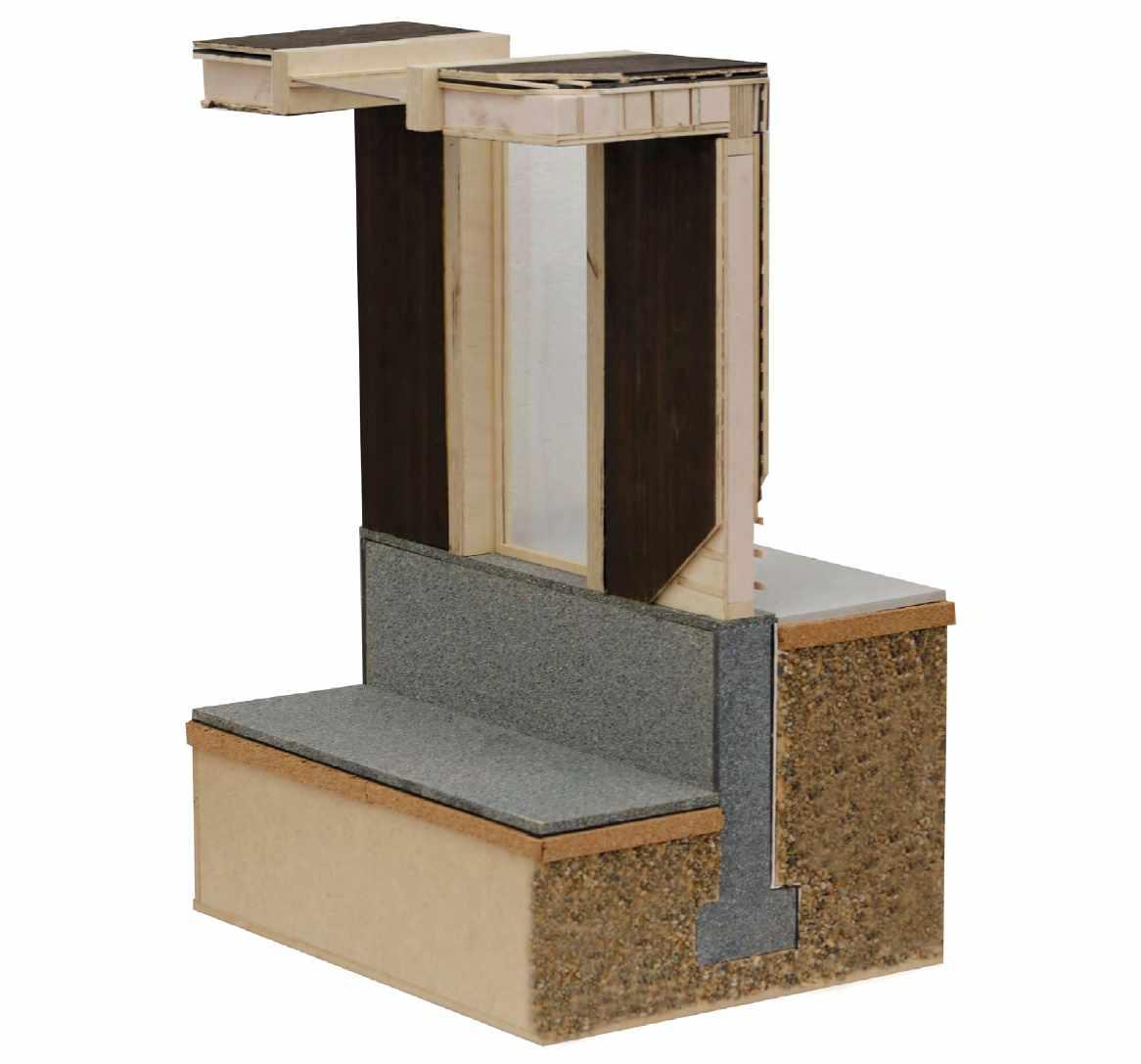

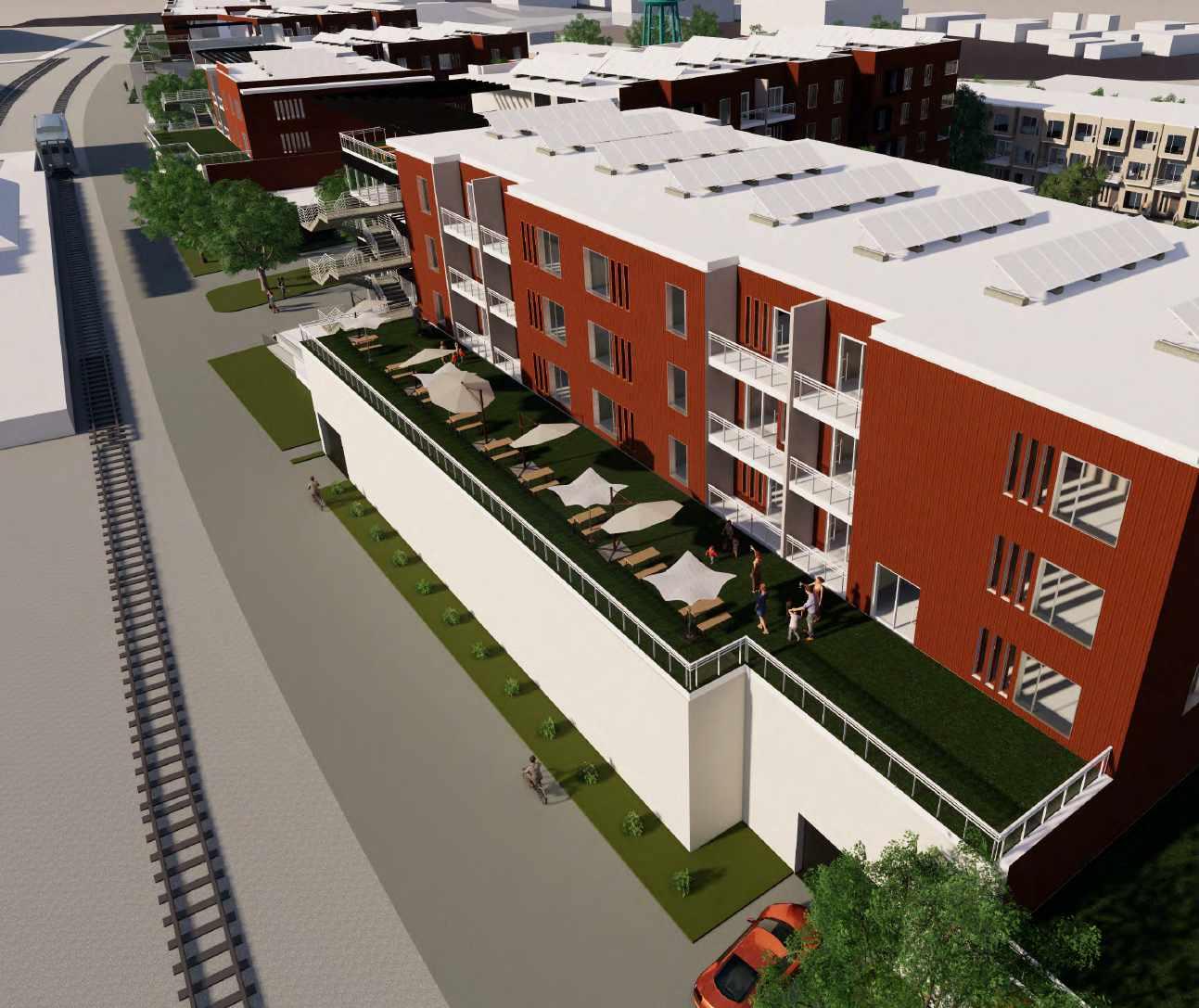

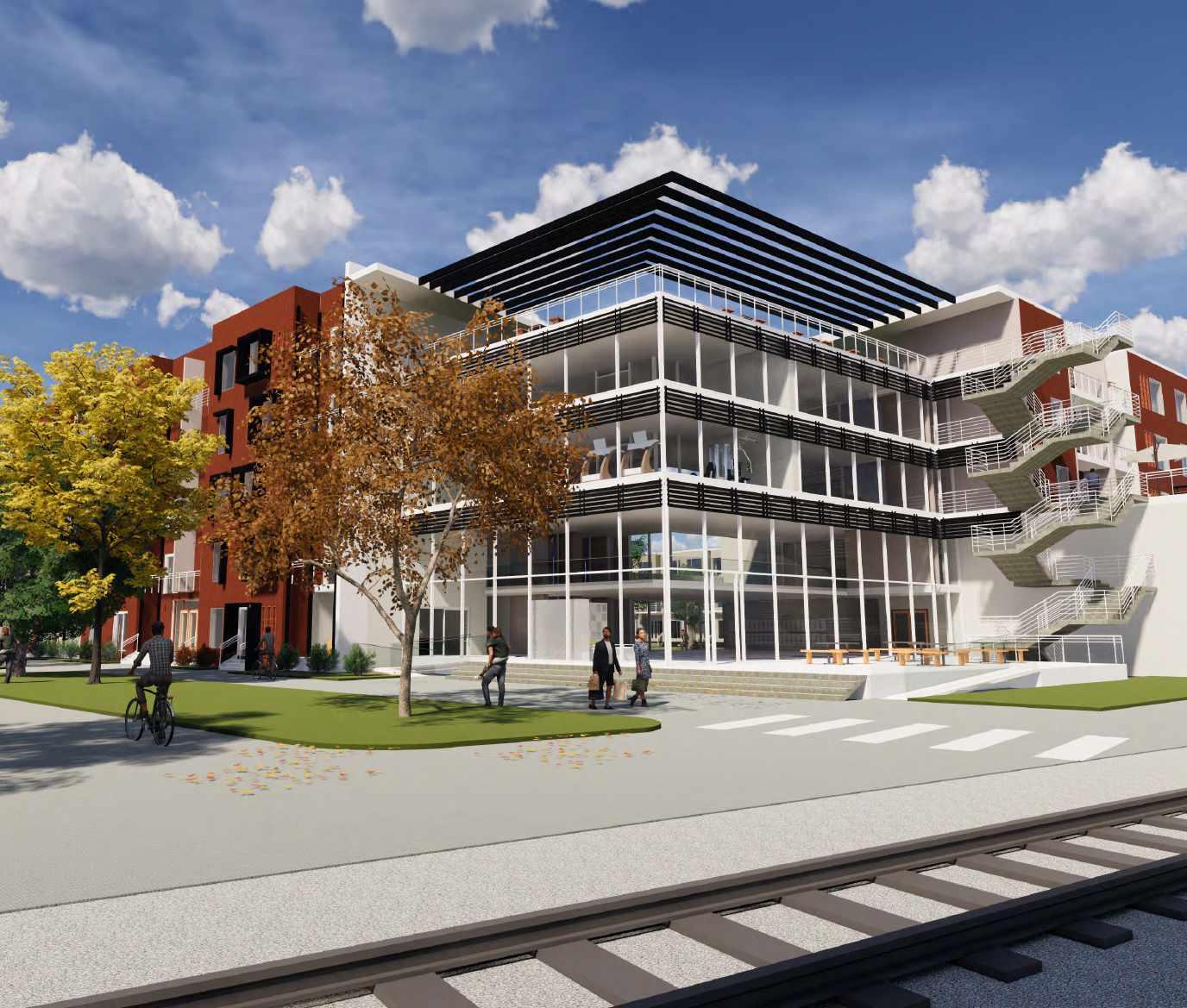

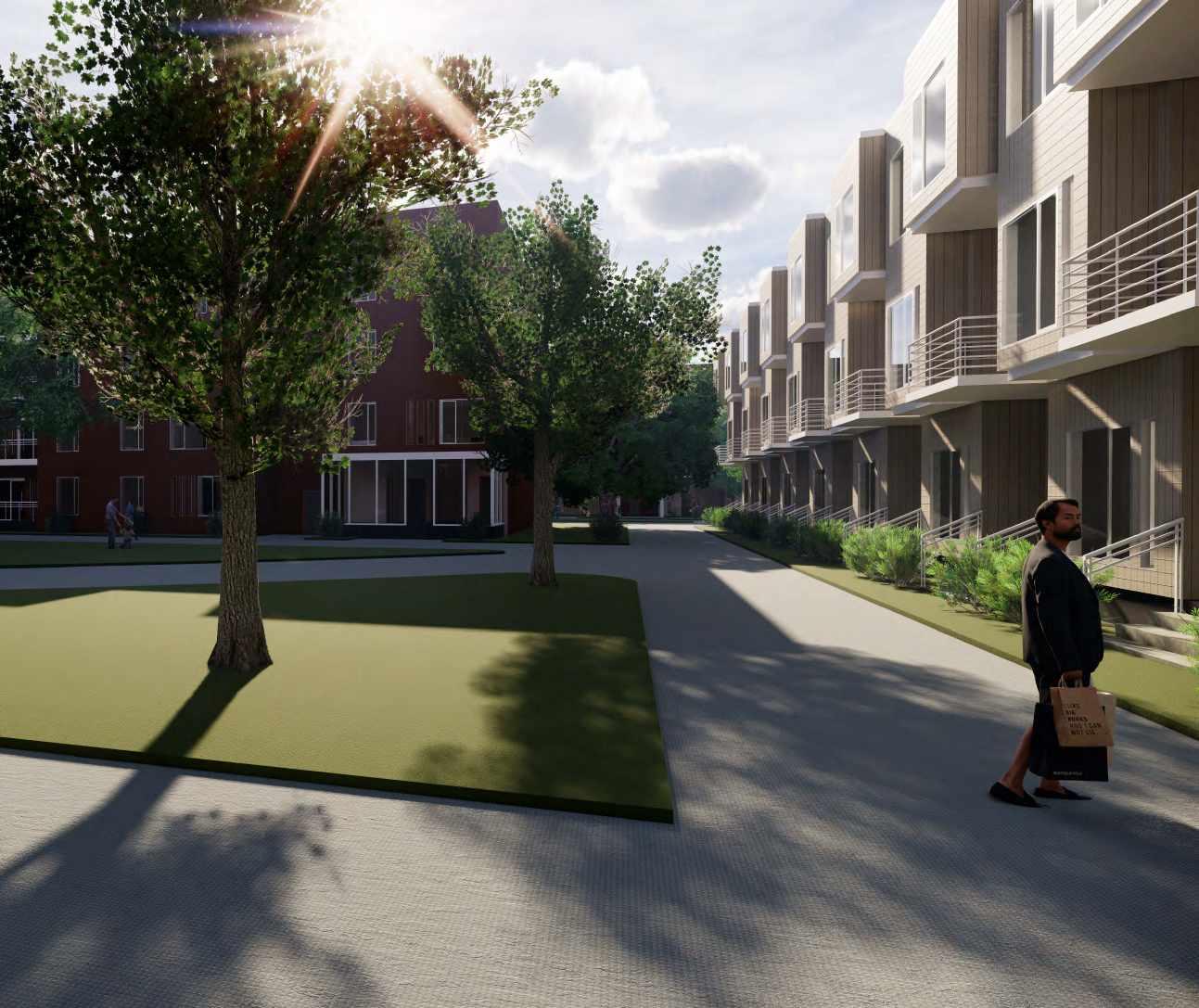

The “L” Building

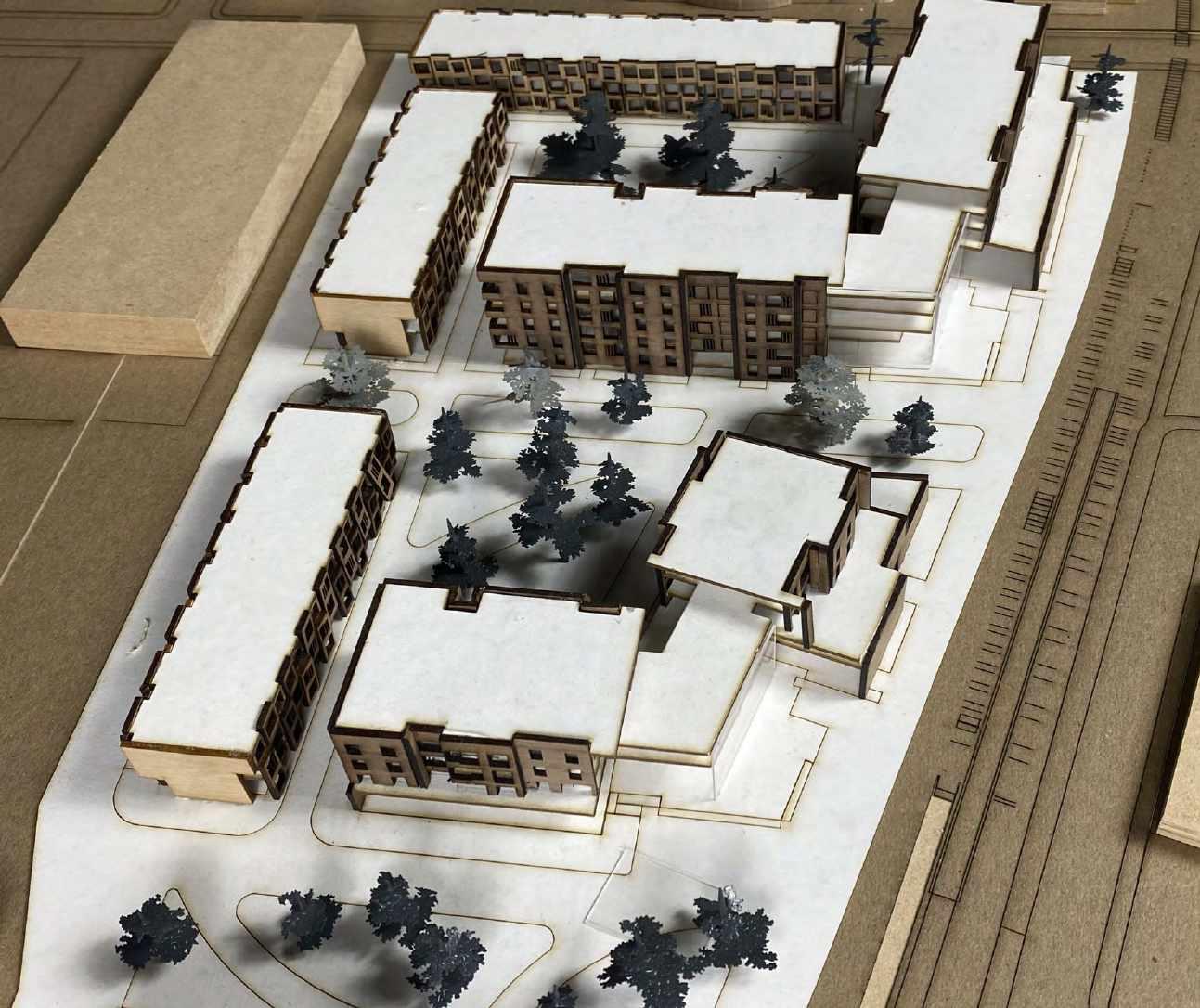

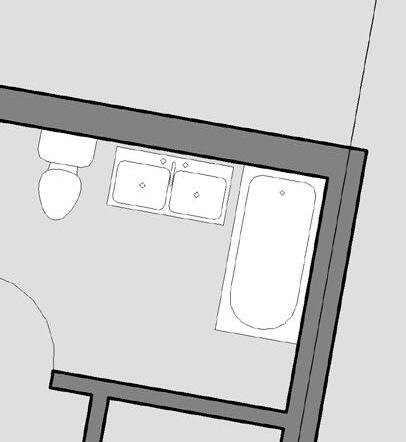

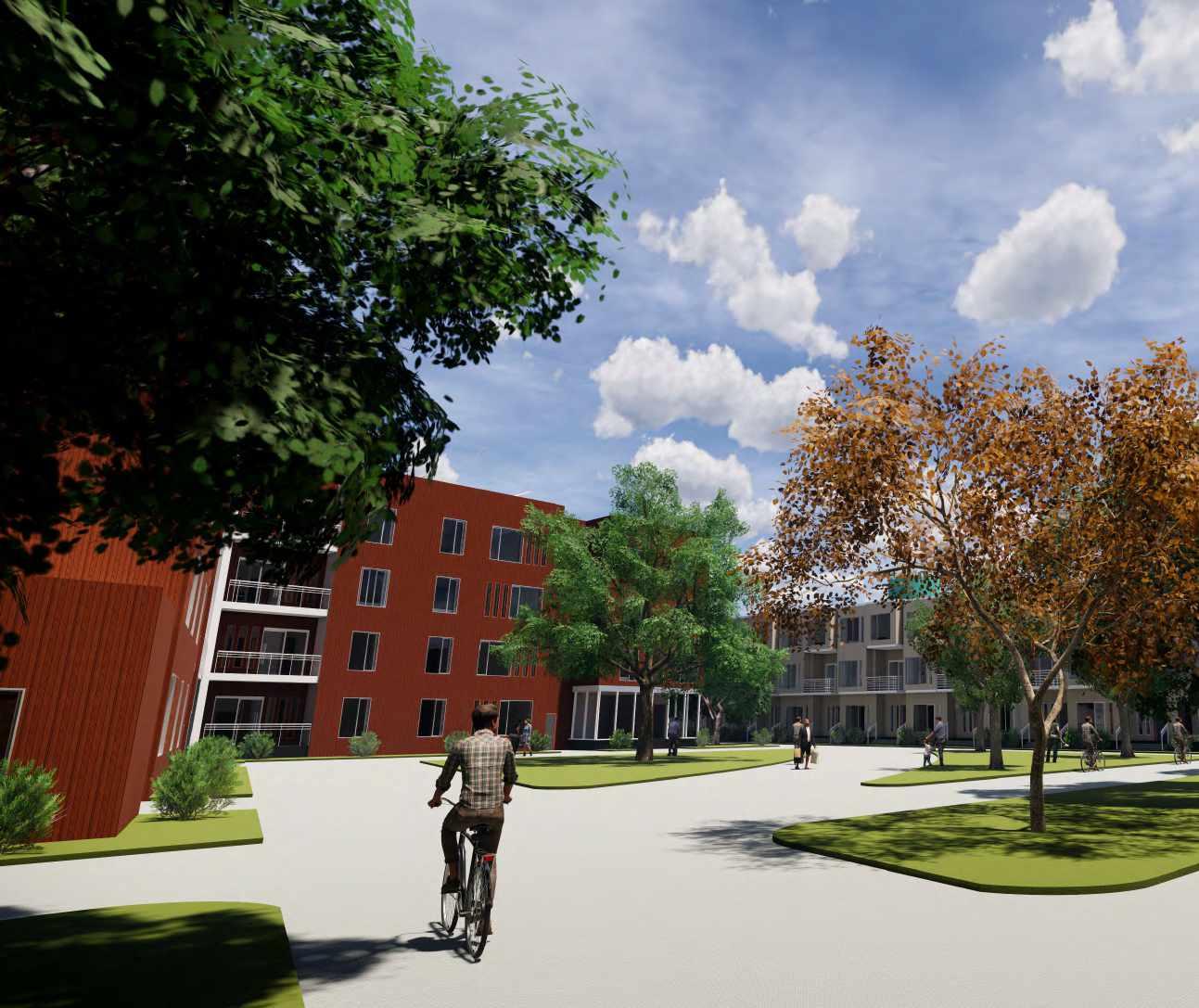

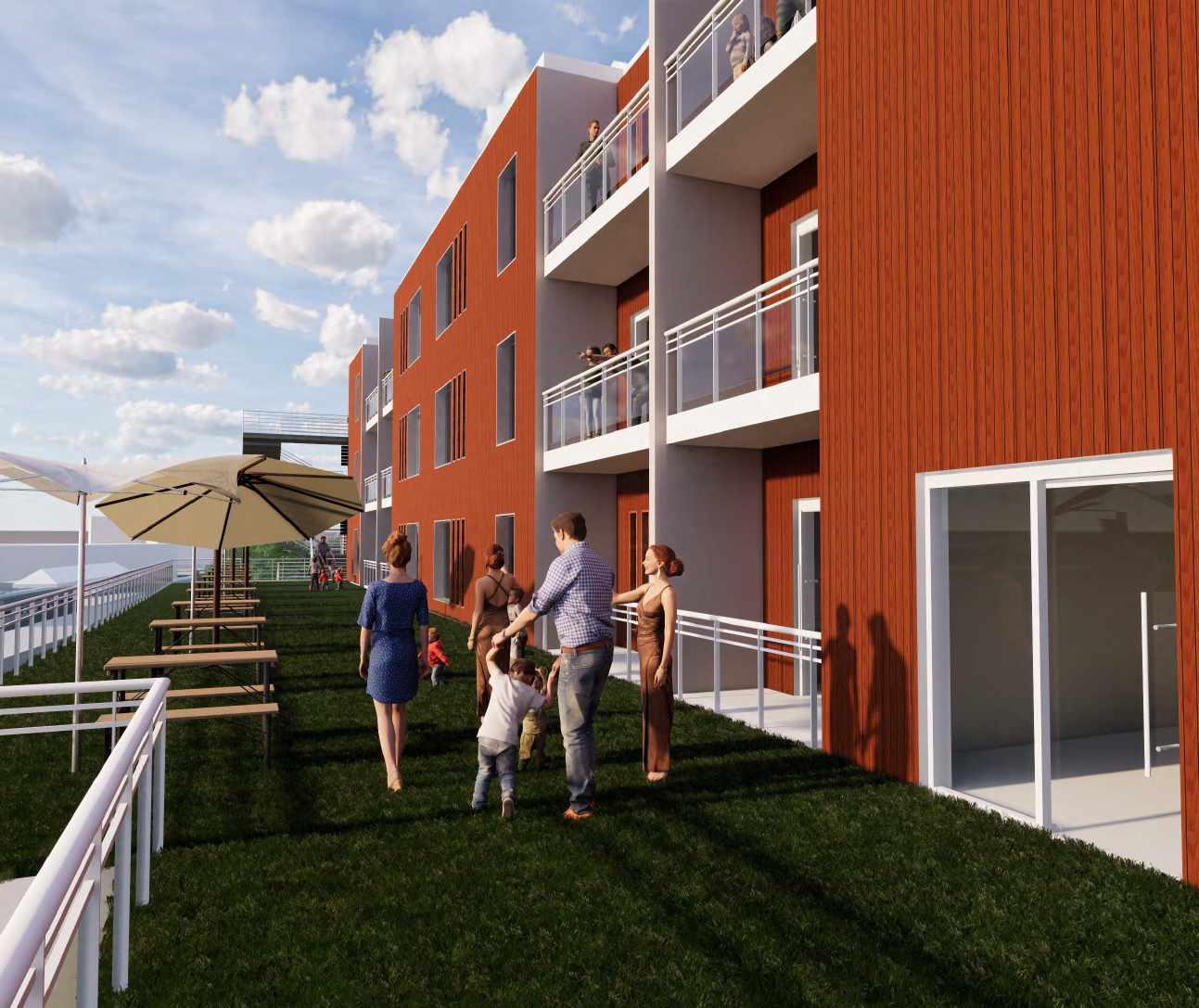

To create an effecient housing complex that is sustainable and affordabe for the community of Santa Rosa that were affected by the wildfires in 2019. The aim of the project is to house about 200 families within variations of apartment styles. The approach of the project was interesting as we started off as conceptual but transitioned into technical. The ability to acheive such progress was uniquely developed and thought-out by analyitical stages. Providing a flow through the site allows for individuals to feel invited to pass through and explore the local businesses as well as the architecture.

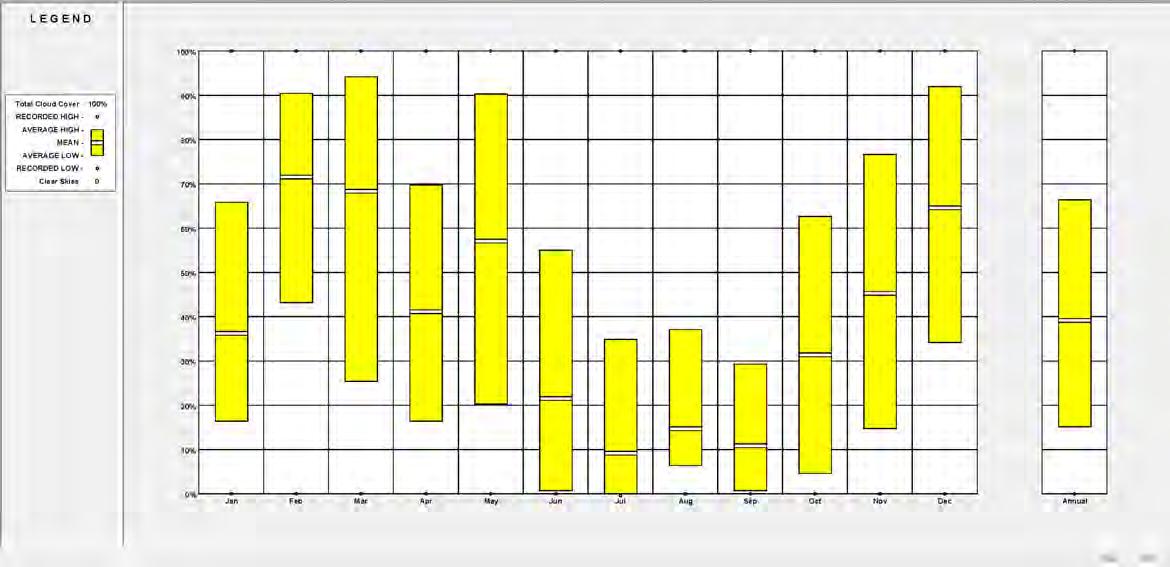

MICRO CLIMATE: The variations in localised climate around a building
Site Context
MACRO CLIMATE: The climate of larger area such as a region or a country

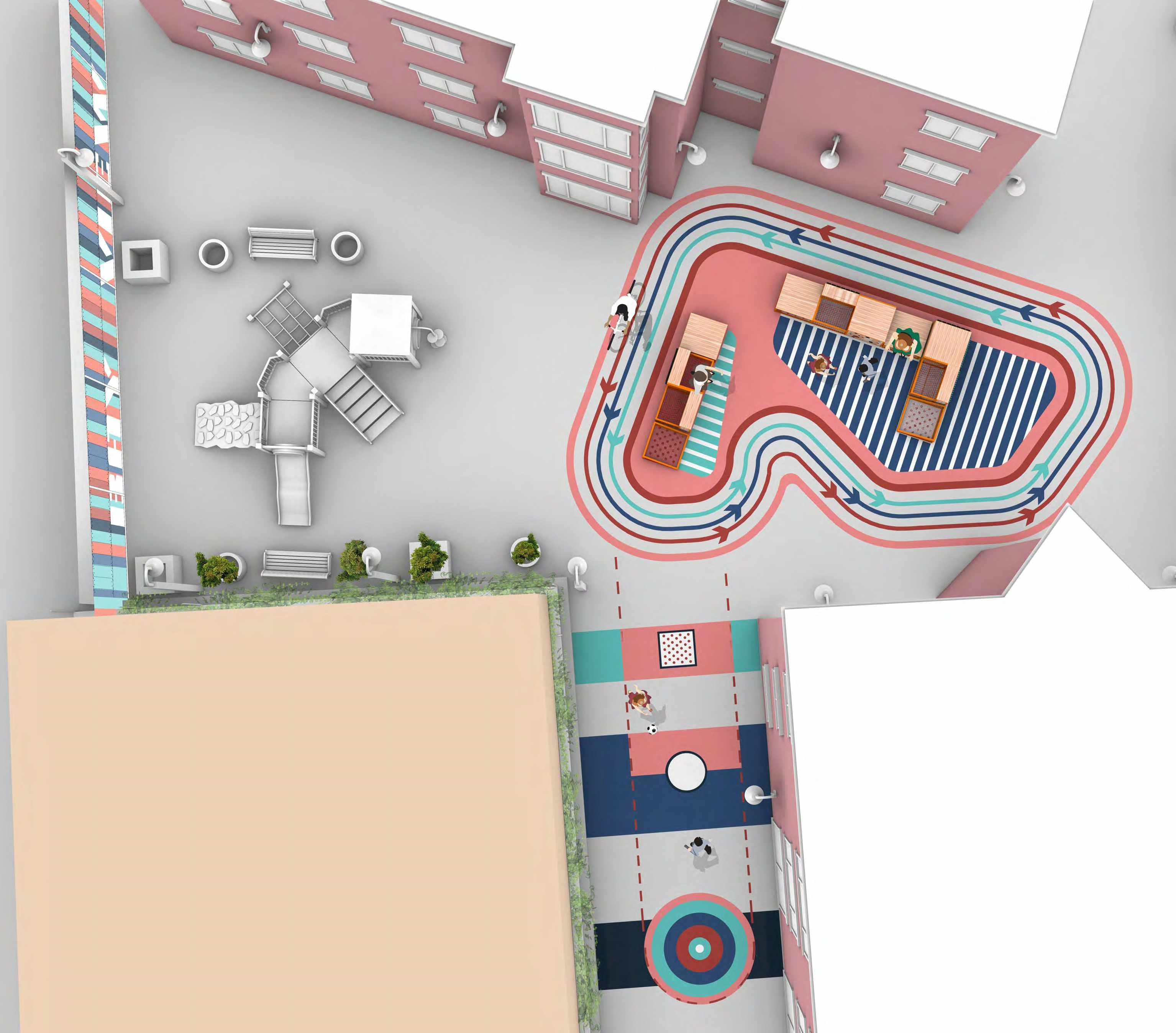

Teen Club
*THROUGHOUT THE SUMMER TEMPERATURE RANGES FROM 60F -70F
*DURING WINTER TEMPERATURES RANGES FROM 45F - 55F

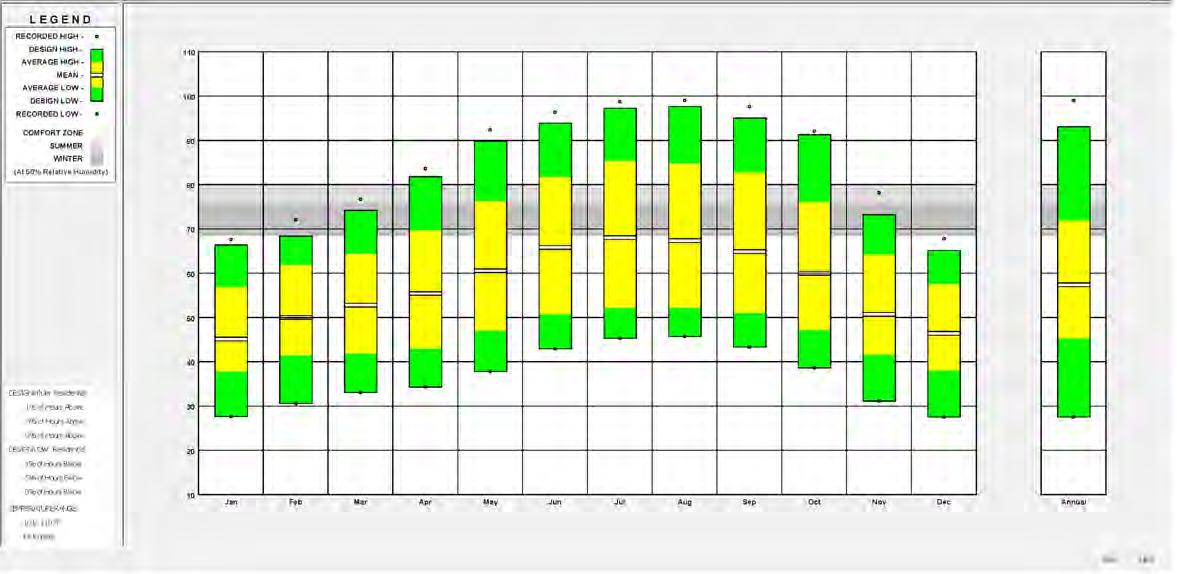

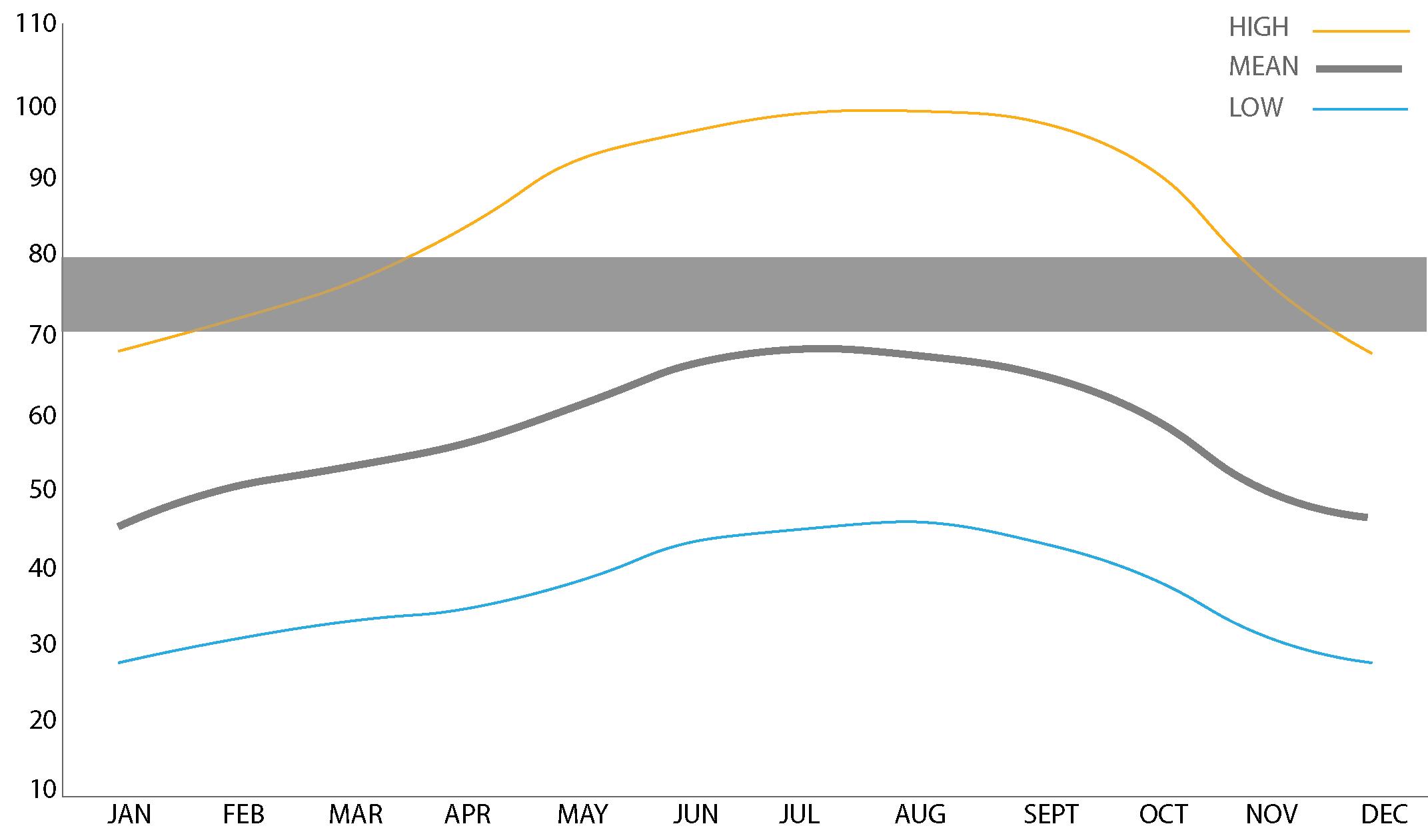

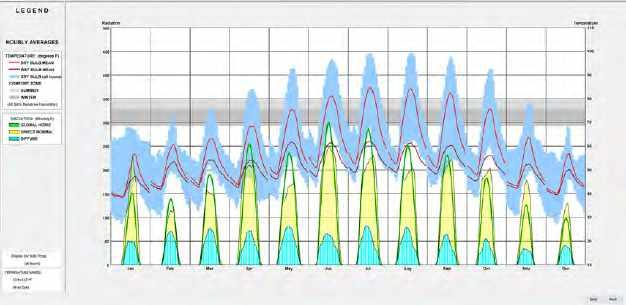

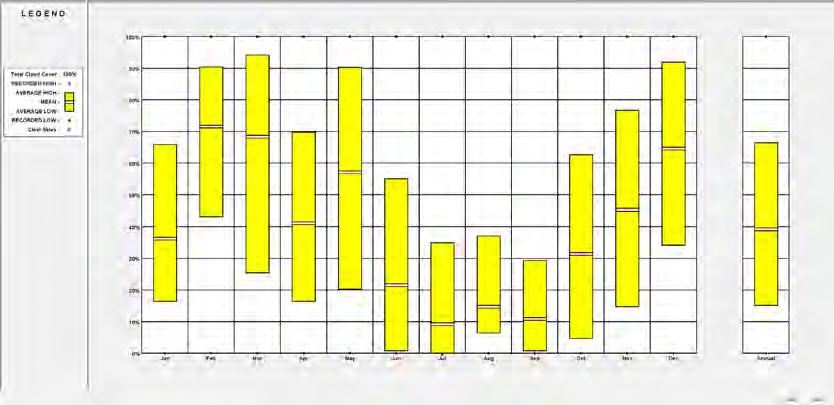

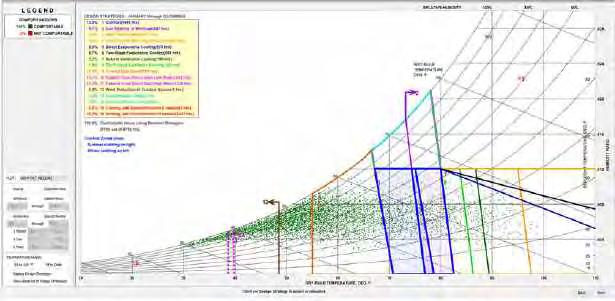

Temperature Range

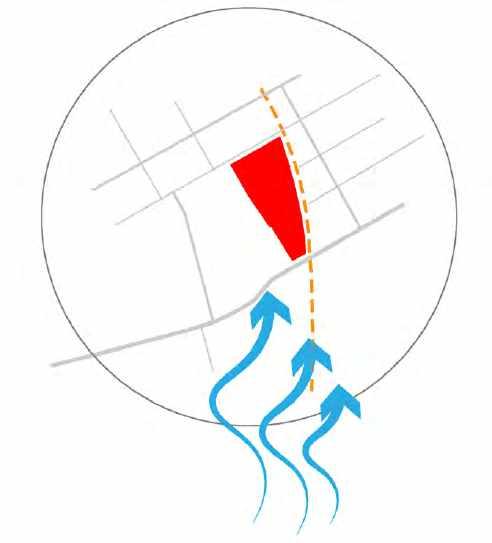

AVERAGE WIND SPEED RANGES FROM 6.4 MPH - 8.1 MPH
SITE CONTEXT:

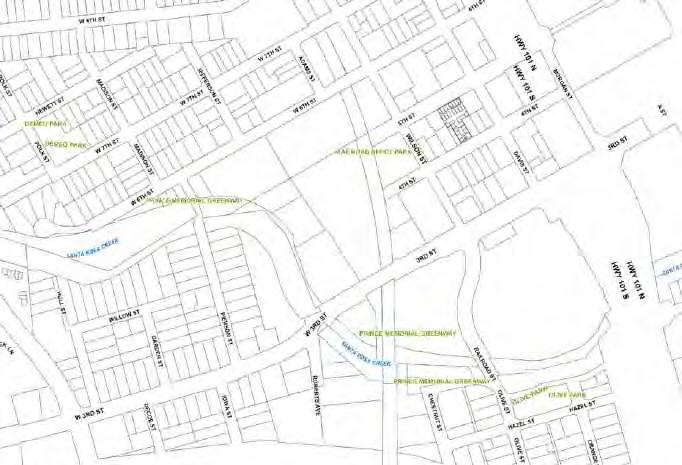

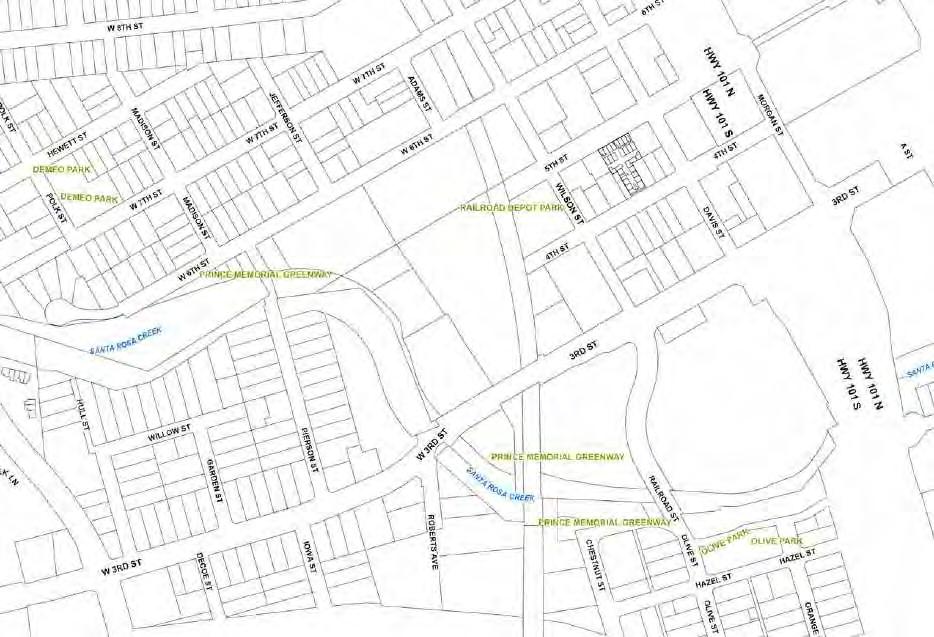

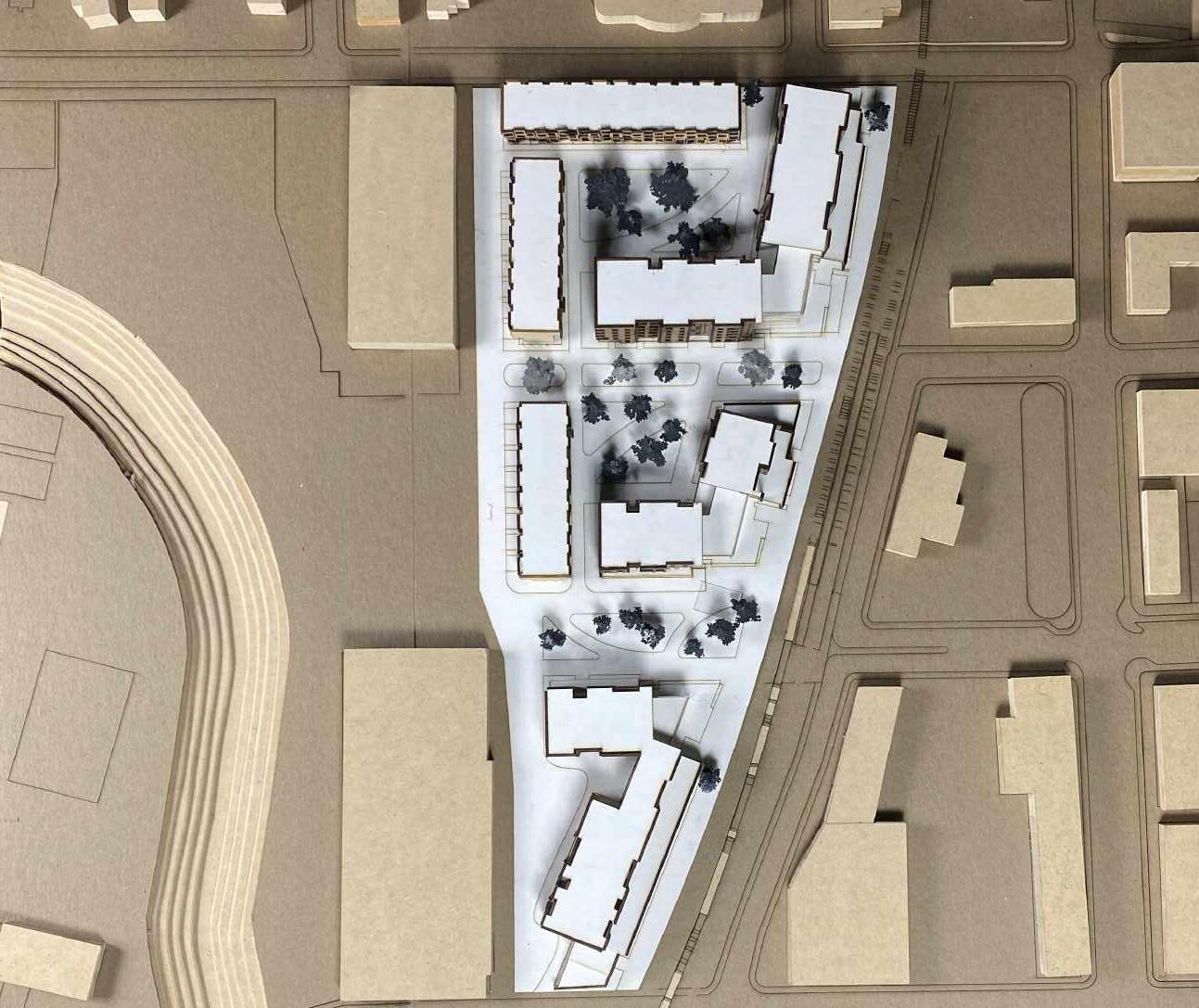

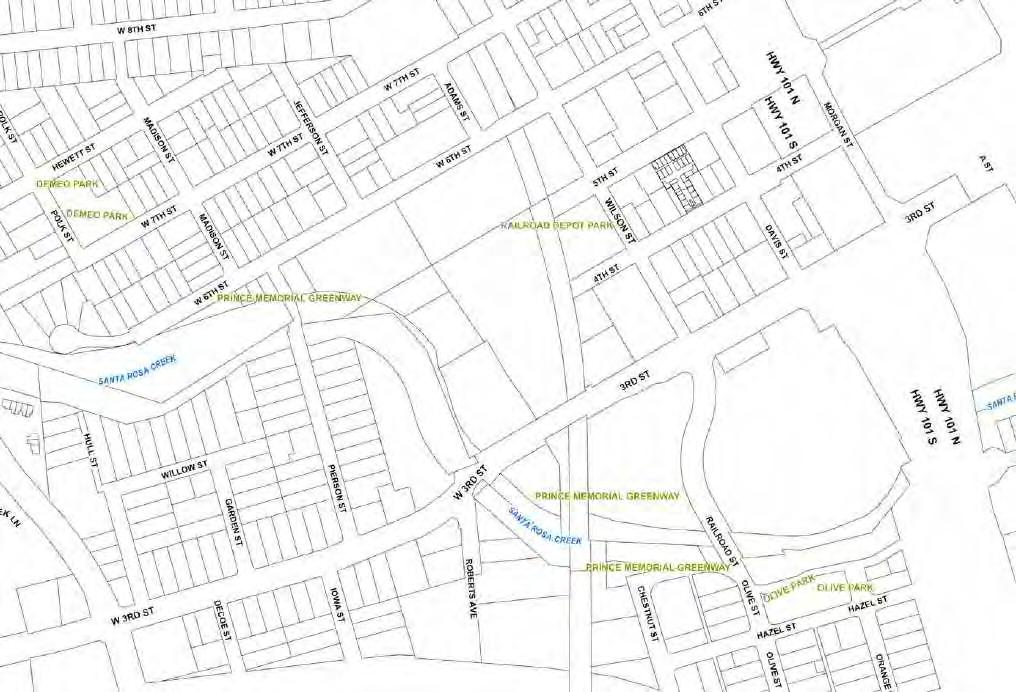

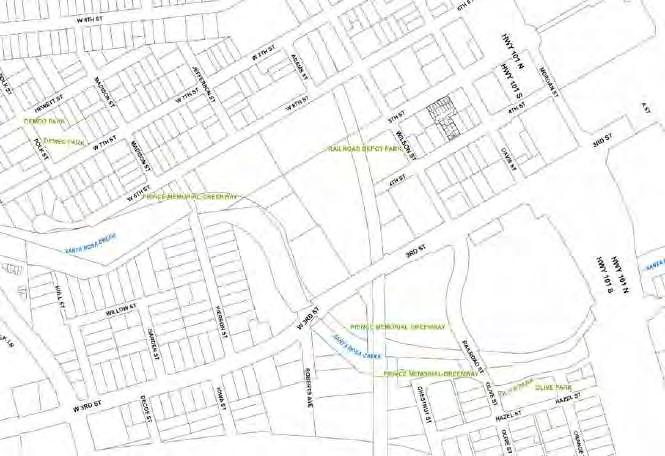

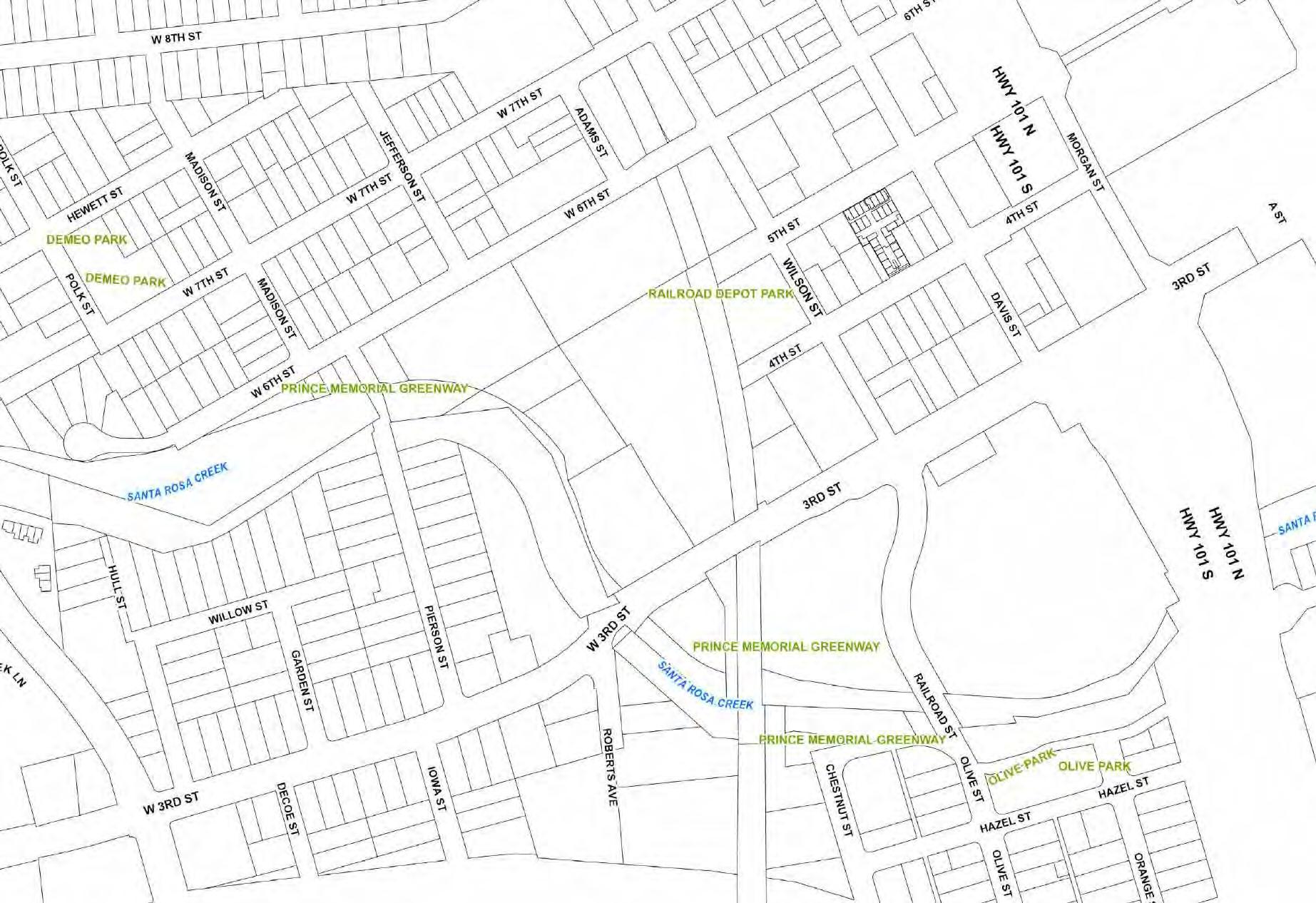

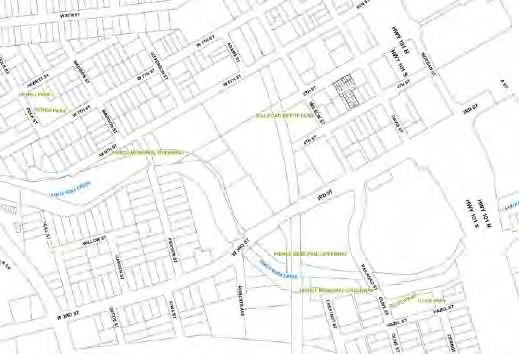

Road and Transit Site Map

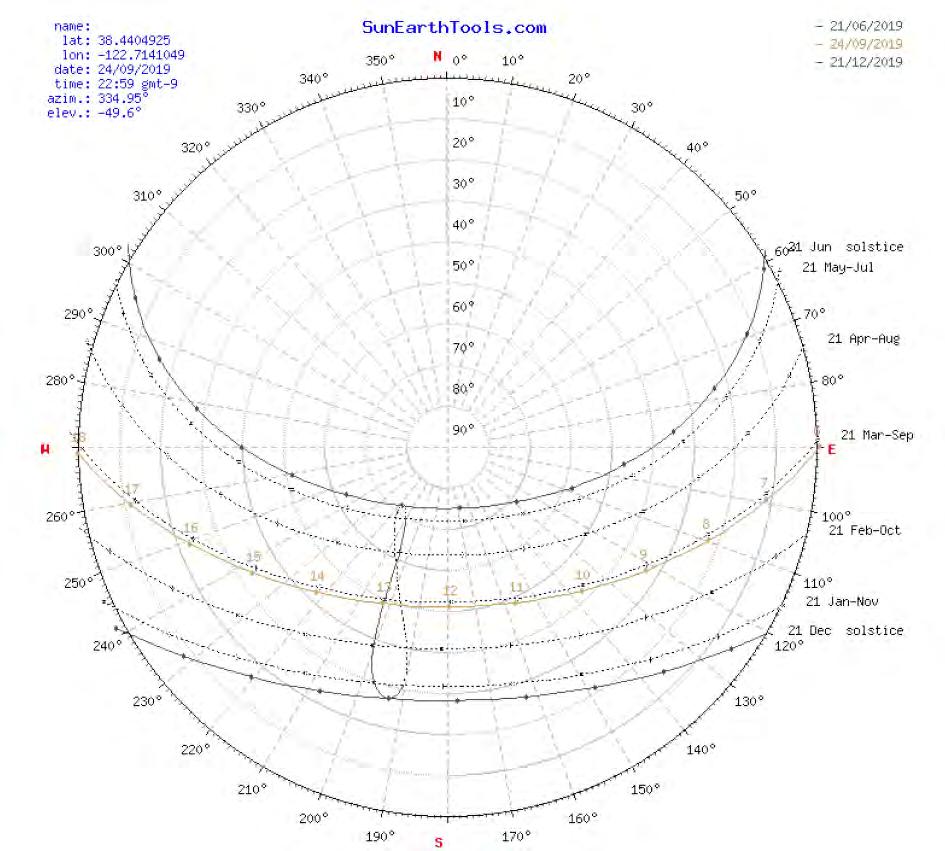

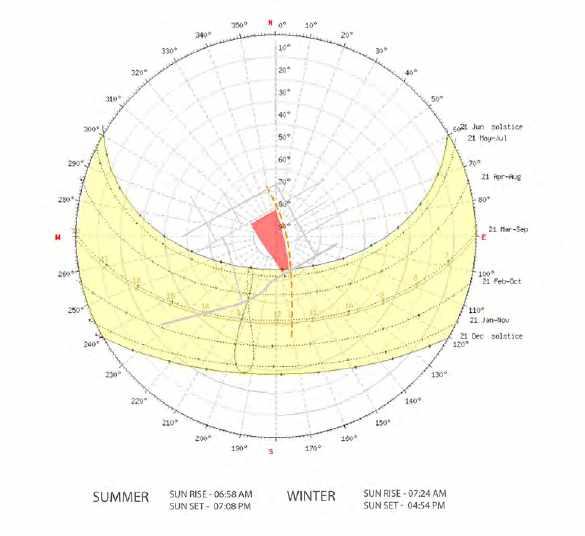

SUNPATH DIAGRAM
The site context had to deal with looking at the environment in which our transit oriented site is located. It is between the historic downtown and green spaces along the Santa Rosa Creek. The urban context around comprises of Single family residential to the north west & commercial to the South East in an Alignment.
The site context had to deal with looking at the environment in which our transit oriented site is located. It is between the historic downtown and green spaces along the Santa Rosa Creek. The urban context around comprises of Single family residential to the north west & commercial to the South East in an Alignment. TEMPERATURE

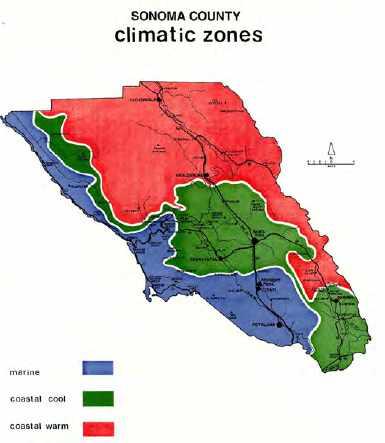

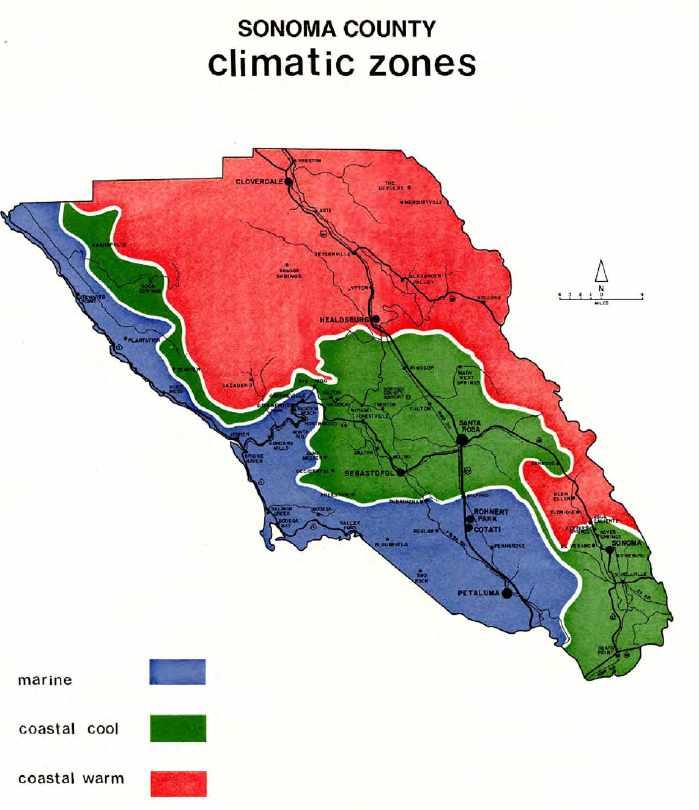

COASTAL COOL: The coastal cool zone includes narrow band of ridge tops along the coast above 800 to 1,000 ft., the areas east of the western hills of Sebastopol, areas bounded on the north by the Russian River, and the northern and southern portions of the Valley of the Moon. Cold foggy air is diverted by Sonoma Mountain and the Santa Rosa plain in the south; western and eastern mountains contain it, and hills and distance (time) reduces its northern migration. This climatic zone averages 2,582 degree days per year, but can range from 1,900 to 3,600 depending on the year. It has 800 to 1,100
ft., the areas east of the western hills of Sebastopol, areas bounded on the north by the Russian River, and the northern and southern portions of the Valley of the Moon. Cold foggy air is diverted by Sonoma Mountain and the Santa Rosa plain in the south; western and eastern mountains contain it, and hills and distance (time) reduces its northern migration. This climatic zone averages 2,582 degree days per year, but can range from 1,900 to 3,600 depending on the year. It has 800 to 1,100 hours between 70 and 90ºF per year.
COASTAL COOL: The coastal cool zone includes a narrow band of ridge tops along the coast above 800 to 1,000 ft., the areas east of the western hills of Sebastopol, areas bounded on the north by the Russian River, and the northern and southern portions of the Valley of the Moon. Cold foggy air is diverted by Sonoma Mountain and the Santa Rosa plain in the south; western and eastern mountains contain it, and hills and distance (time) reduces its northern migration. This climatic zone averages 2,582 degree days per year, but can range from 1,900 to 3,600 depending on the year. It has 800 to 1,100 hours between 70 and 90ºF per year.

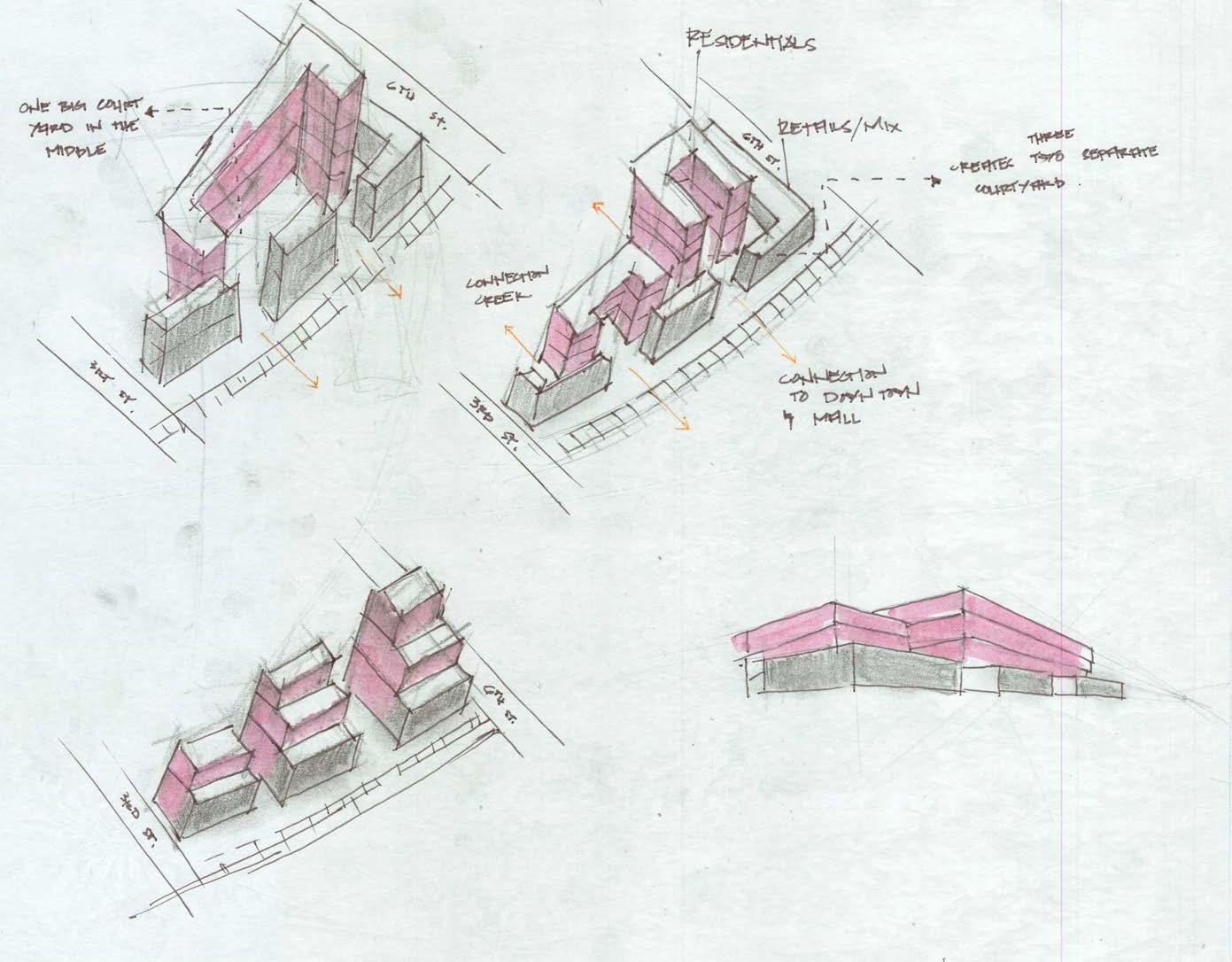

Nearby downtown Santa Rosa has numerous retail stores and places to eat which provide a consistent flow of pedestrians that circulate near our site. Our plan and mission is to connect the downtown area on 4th and 5th street through our site leading toward a connection of the Santa Rosa creek.

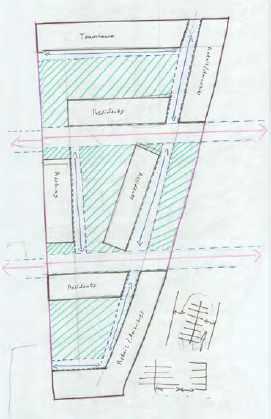

To follow the city grid naturally through the site to create a flow of users to and from the context of Santa Rosa. It allows for the site to be split into 3 sections that can further the idea of affordable housing.
Water Pump System Heat
System
Instructors
Lise Barriere & Peter StrzebniokSemester
Fall 2018
Location
San Francisco, CA

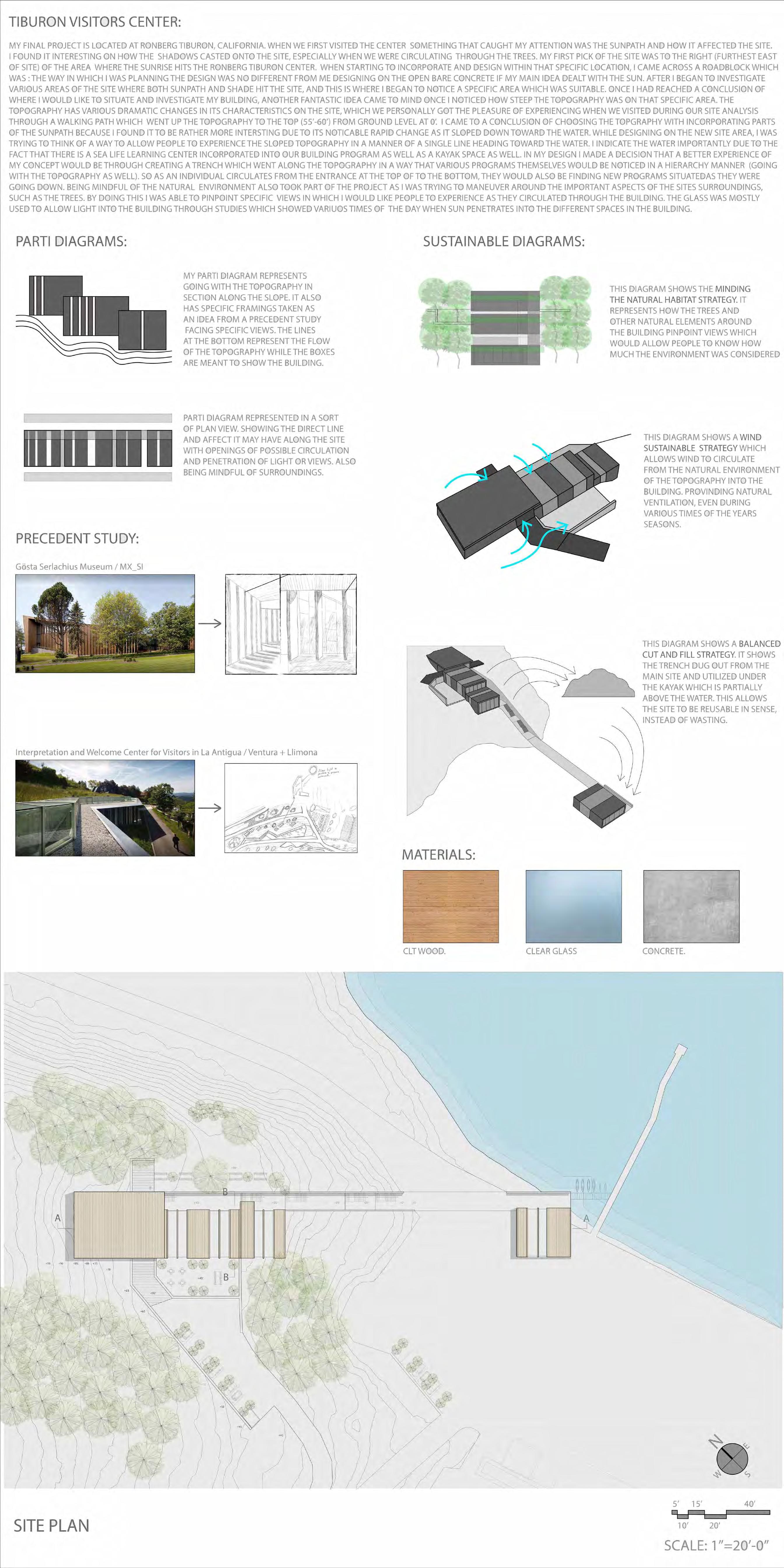

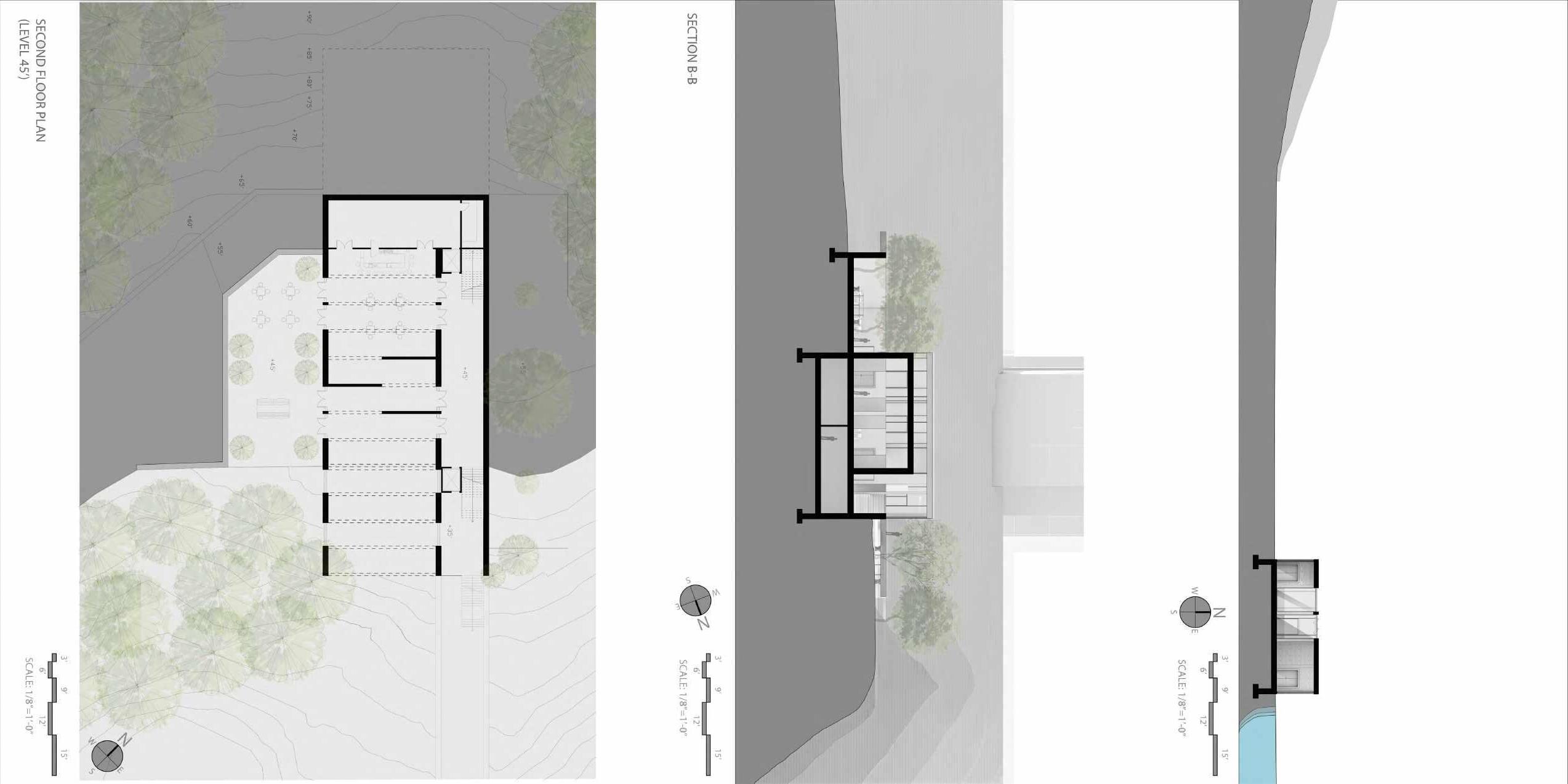

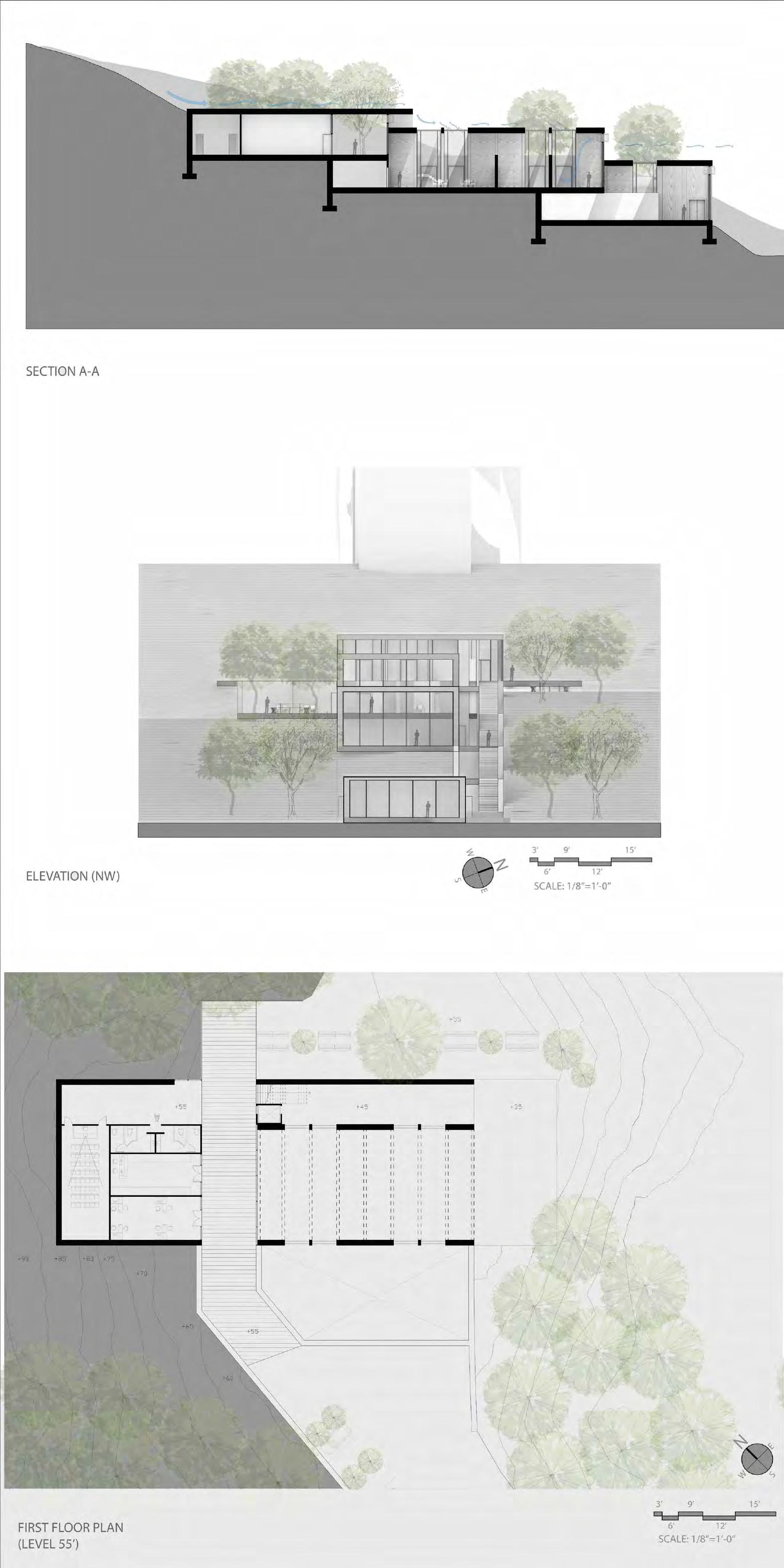

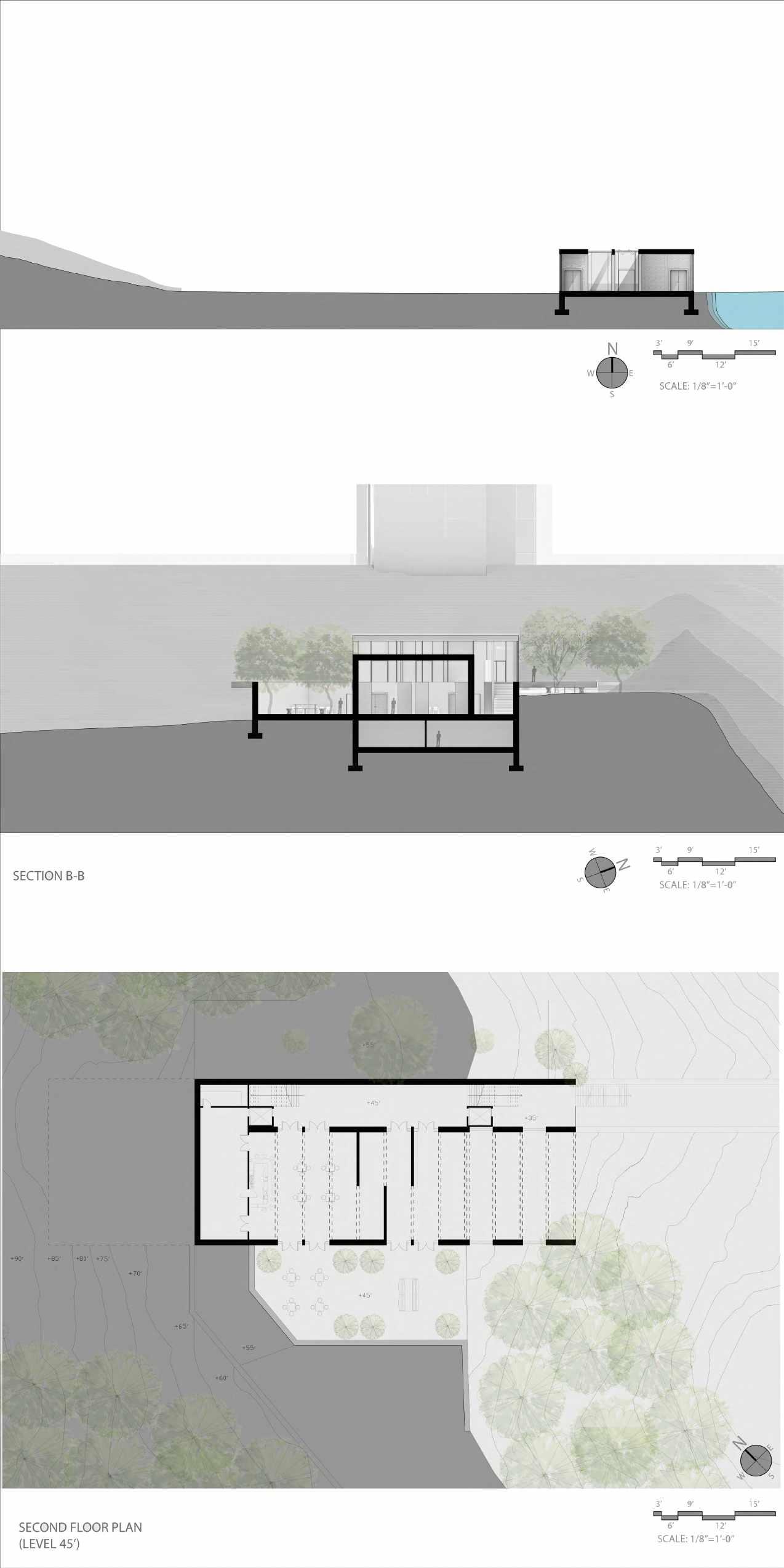

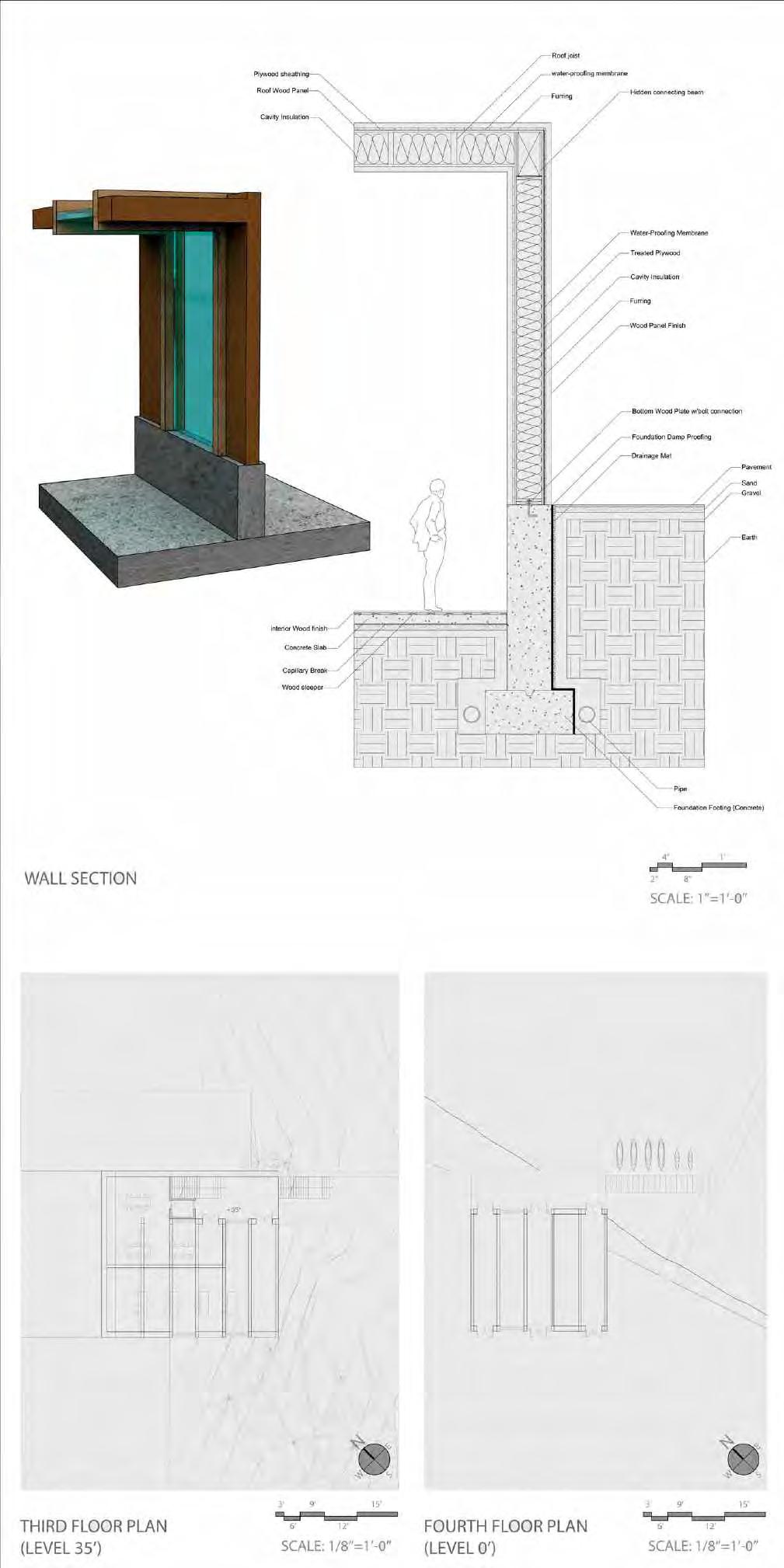

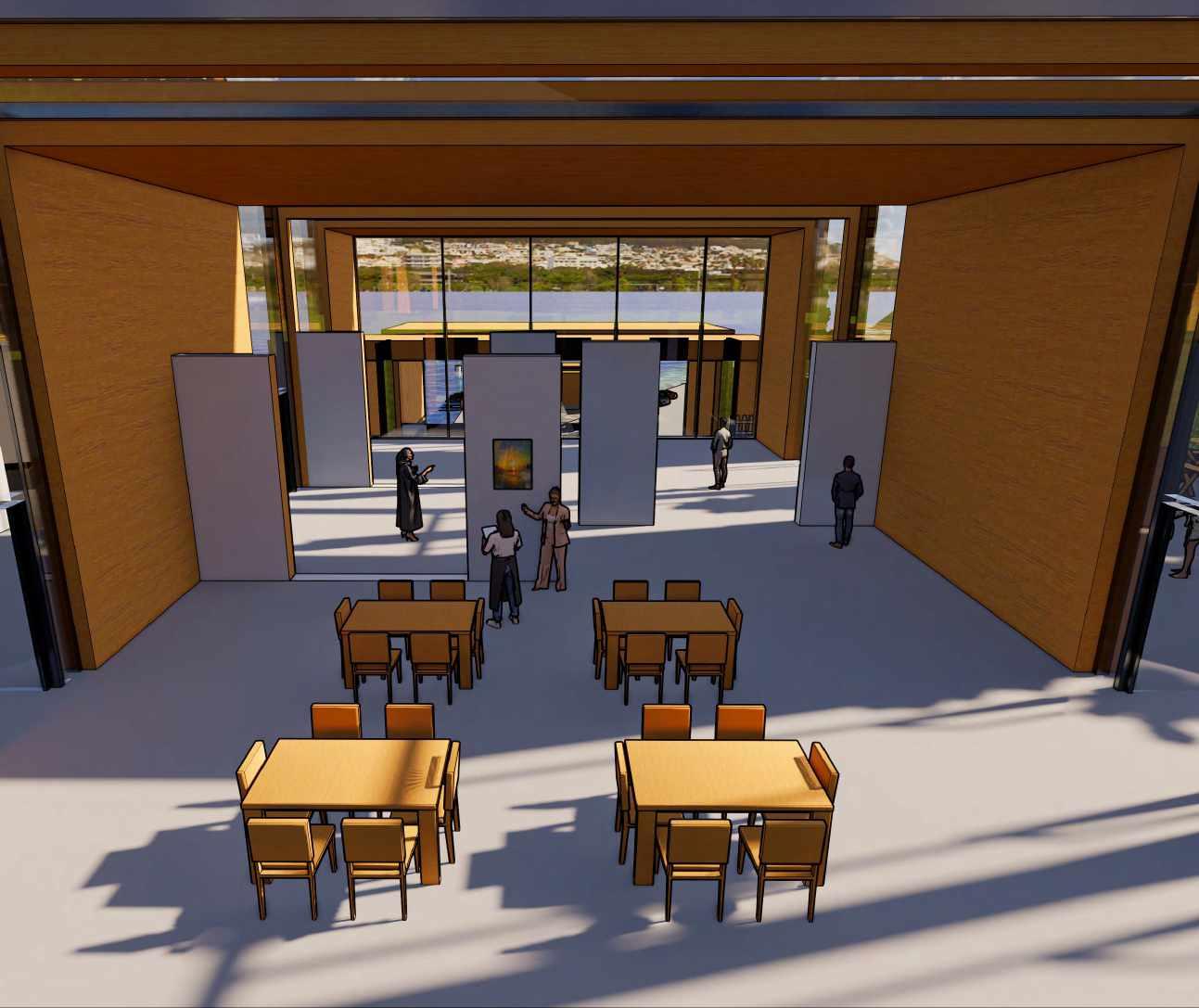

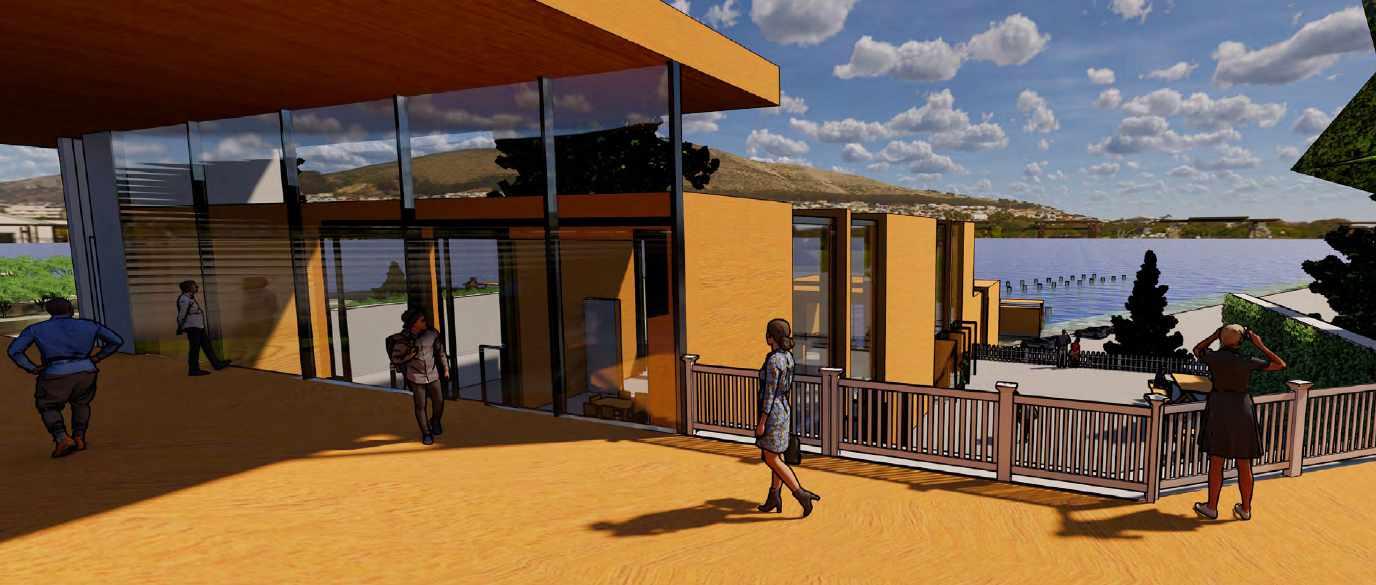

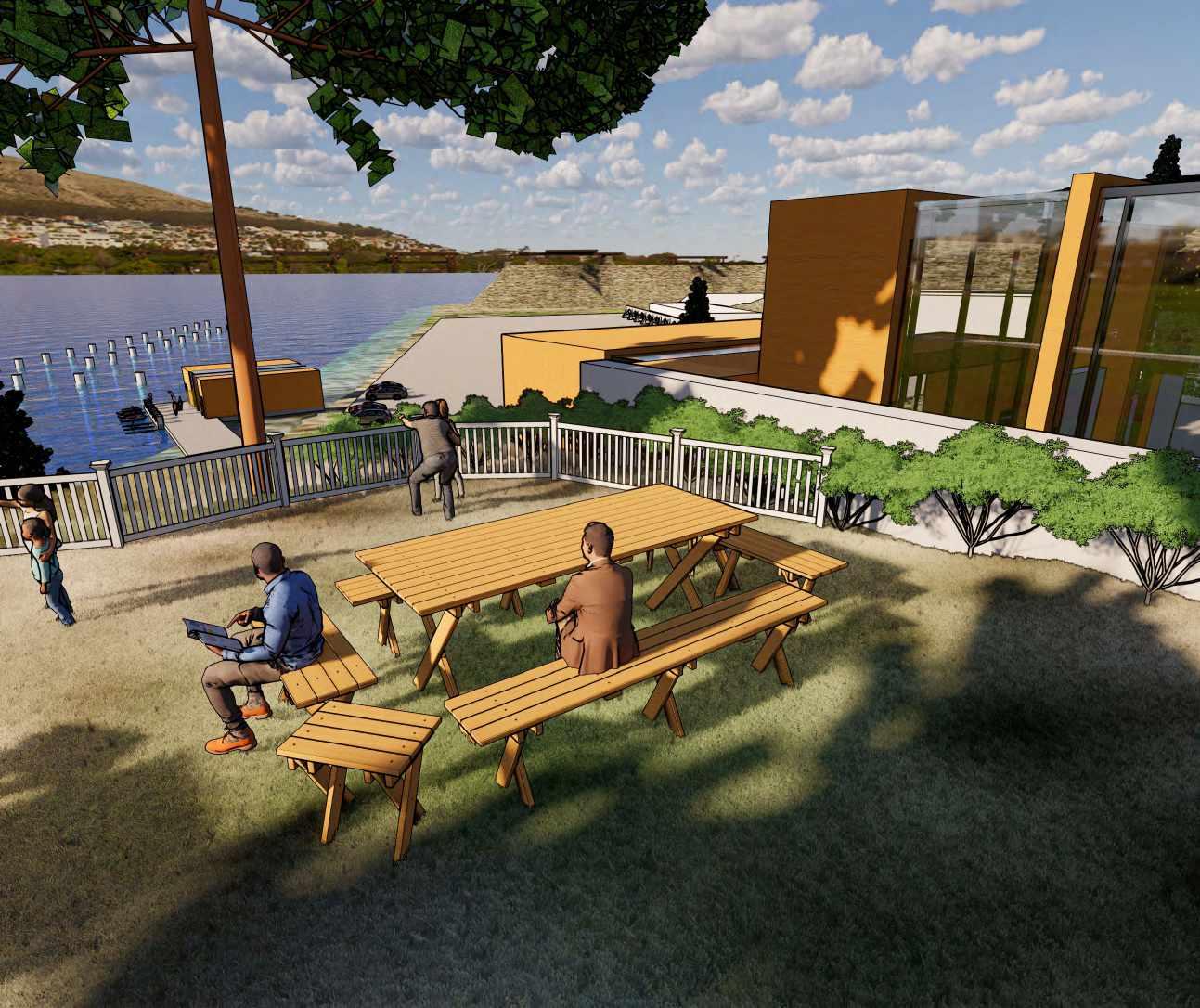

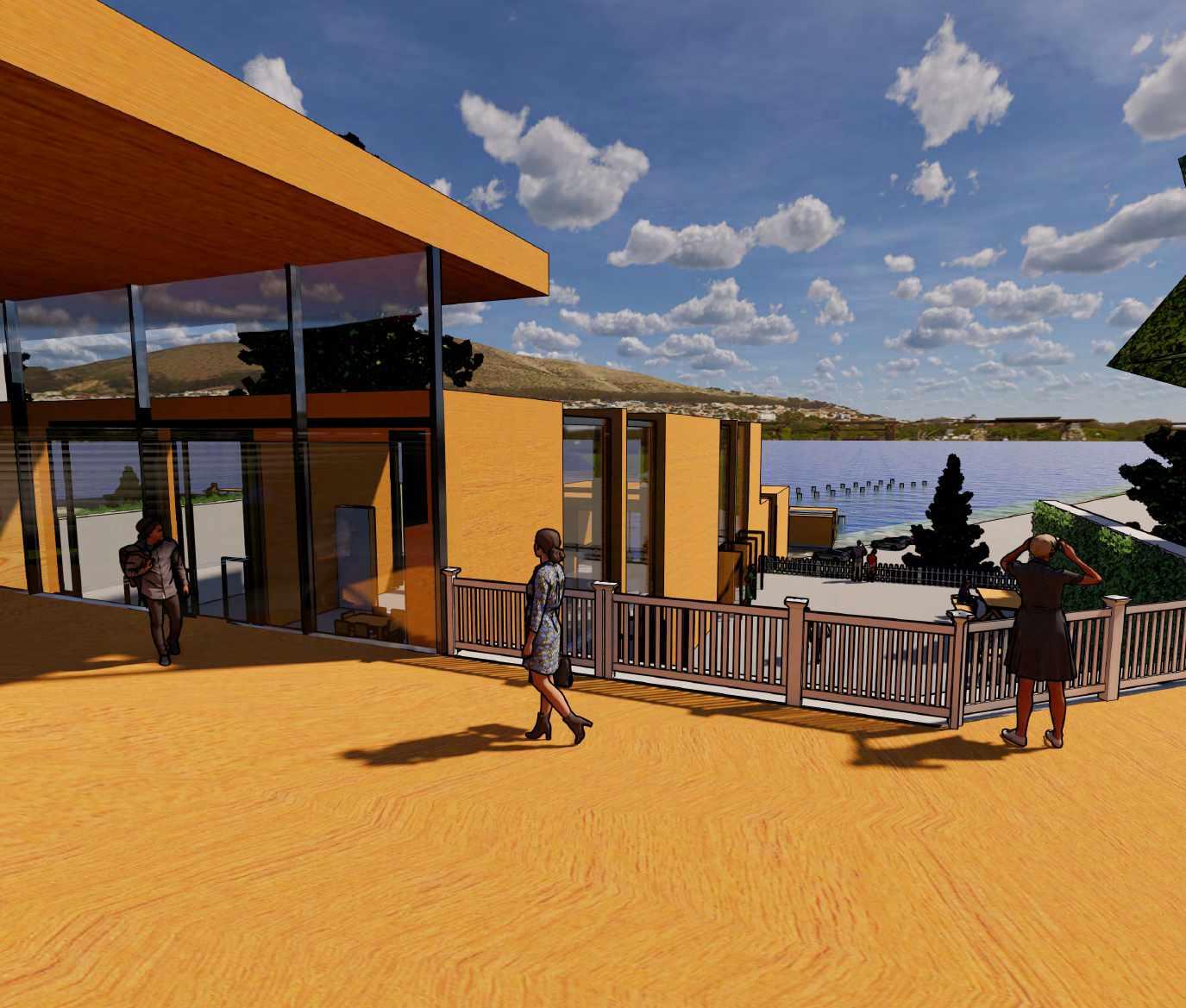

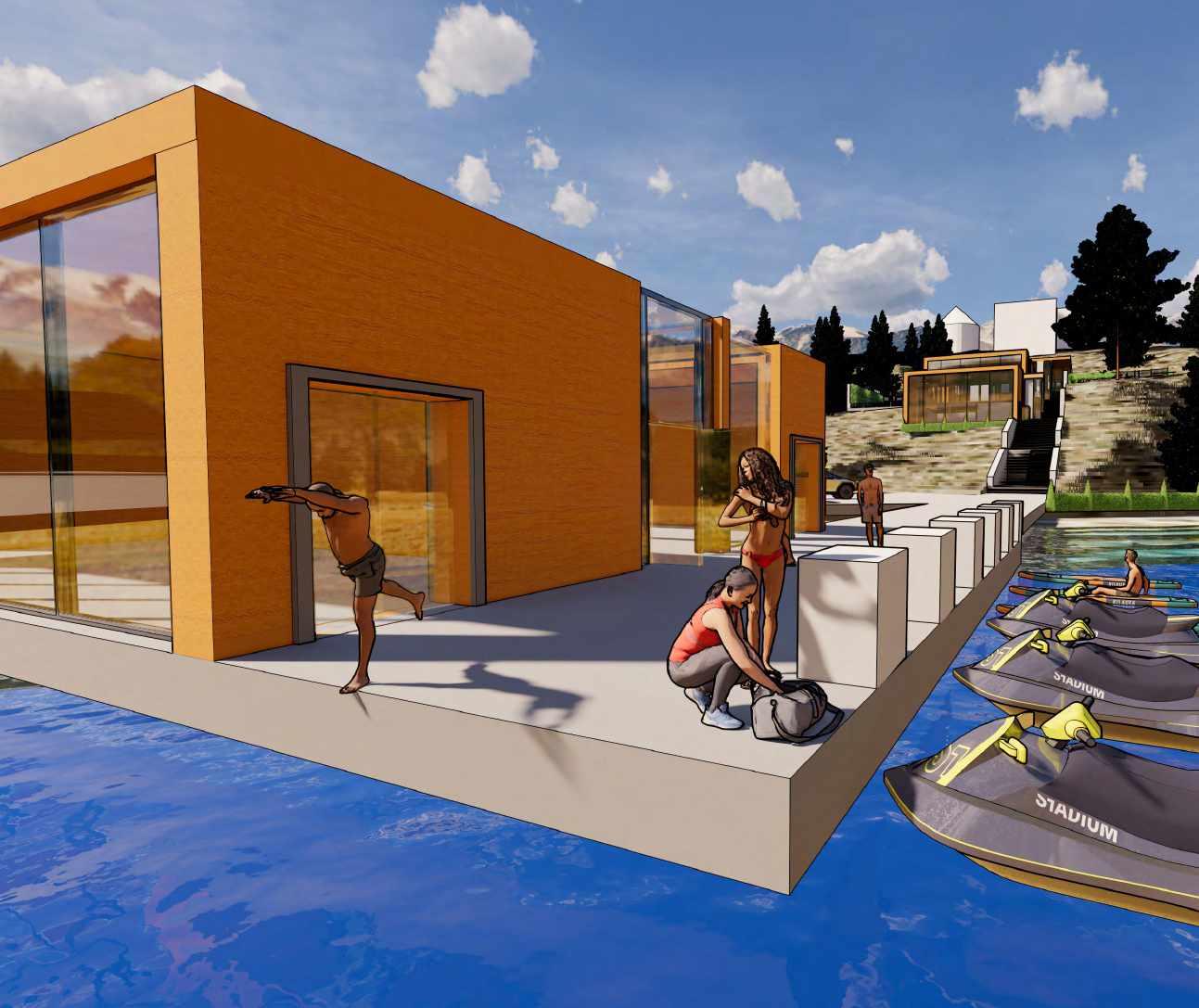

Tiburon Visitors Center
I found it interesting on how the shadows casted onto the site, especially when we were circulating through the trees. my first pick of the site was to the right (furthest east of site) of the area where the sunrise hits the ronberg tiburon center. After began to investigate various areas of the site where both sunpath and shade hit the site, and this is where began to notice a specific area which was suitable. another idea came to mind once i noticed how steep the topography was on that specific area. the topography has various dramatic changes in its characteristics on the site, which we personally got the pleasure of experiencing when we visited during our site analysis through a walking path which went up the topography to the top (55’-60’) from ground level at 0’. so as an individual circulates from the entrance at the top of to the bottom, they would also be finding new programs situated as they were going down. being mindful of the natural environment also took part of the project as was trying to maneuver around the important aspects of the sites surroundings, such as the trees.

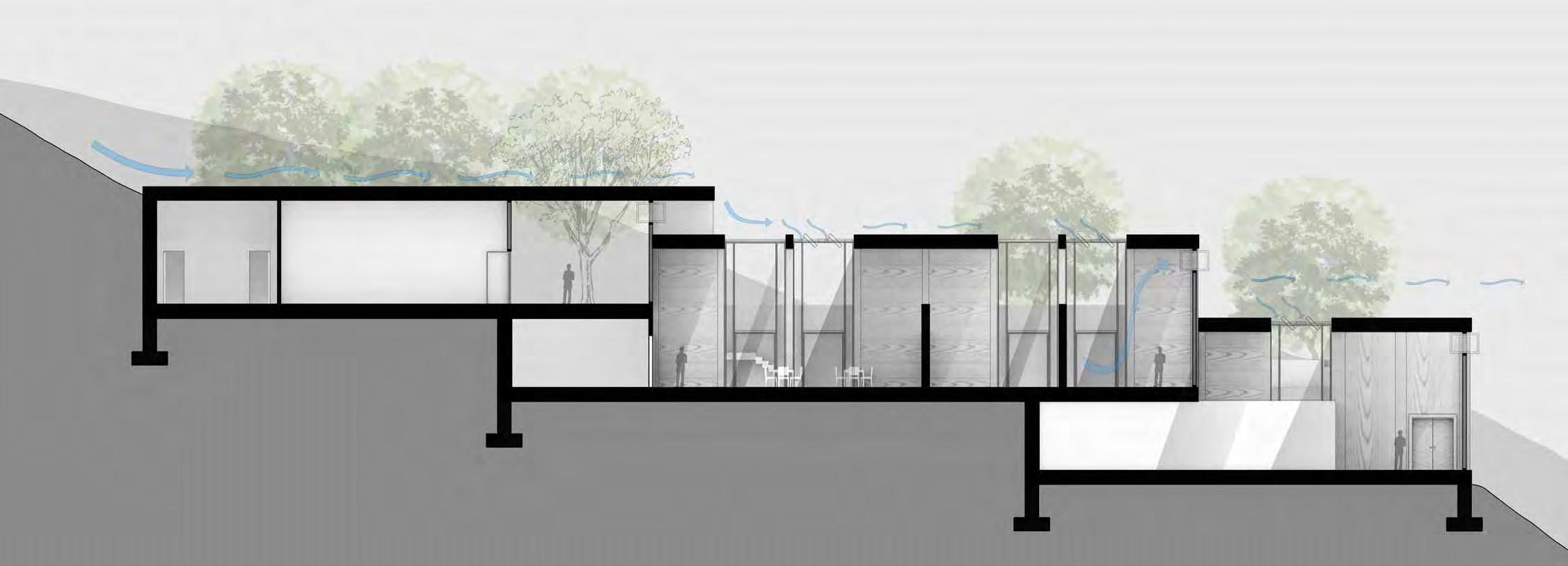

Parti Diagram One Concept
My parti diagram represents going with the topography in section along the slope. It also has specific framings taken as an idea from a precedent study facing specific views. The lines at the bottom represent the flow of the topography while the boxes are meant to show the building.
Parti Diagram Two
Parti diagram represented in a sort of plan view. Showing the direct line and affect it may have along the site with openings of possible circulation and penetration of light or views. Also being mindful of surroundings.

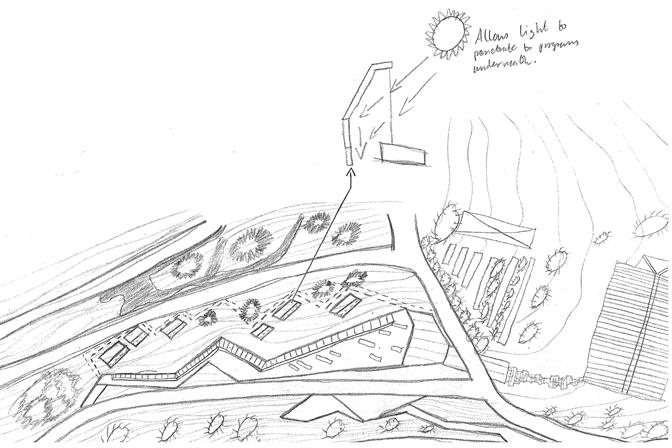

Sustainability Strategy (Nature)
This diagram shows the minding the natural habitat strategy. It represents how the trees and other natural elements around the building pinpoint views which would allow people to know how much the environment was considered.
Sustainability Strategy (Cut and Fill)
This diagram shows a balanced cut and fill strategy. It shows the trench dug out from the main site and utilized under the kayak which is partially above the water. This allows the site to be reusable in sense, instead of wasting.
Sustainability Strategy (Wind)
This diagram shows a wind sustainable strategy which allows wind to circulate from the natural environment of the topography into the building. Provinding natural ventilation, even during various times of the years seasons.
Underground trench with
pipe loops
