Georgia Tech Atlanta, GA, USA - 2023

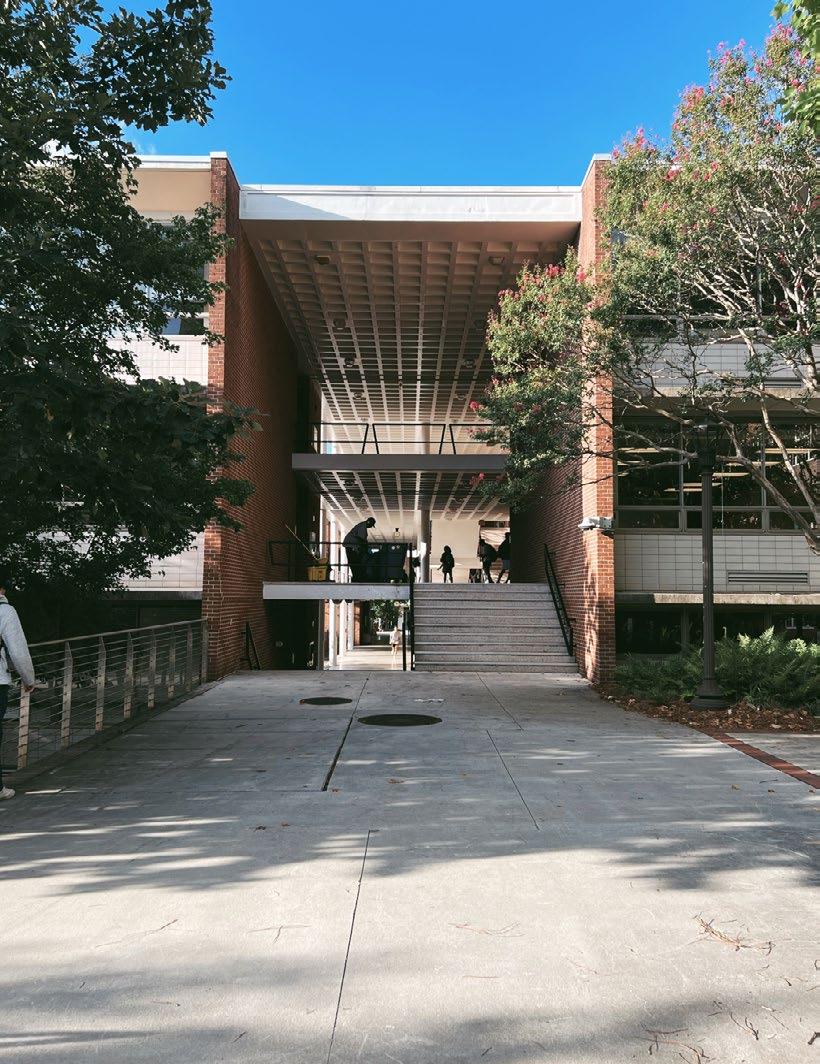

Skiles Classrooms,

A SOCIETY OF ROOMS

RECREATIONAL CENTRE

Year - 2023, Fall Semester

Type - Advanced Studio (Individual)

Professor - Prof. Mark Cottle

Location - Atlanta, Georgia, USA.

The phrase “A society of rooms” comes from a speech Louis Kahn gave in the 70s, strongly criticising the dominant paradigm of modernist universal space, epitomised by the free plan, saying that it separated built environment from human experience and social life.

In De Re Aedificatoria, Alberti stated “a building is a form of body, operating at the scale of a room, for an individual; at the scale of a building, for a family; and at the scale of a city, for a community.”

Kahn drew on this line of thought, both formal and social, when he called the street “the room of agreement.”

We, too, have been interested in the room, the building and the city.

ABOUT THE SITE

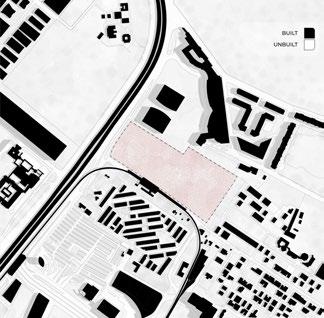

Location - 89 Luckie St. NW, Atlanta, GA

- 13500 sq. ft

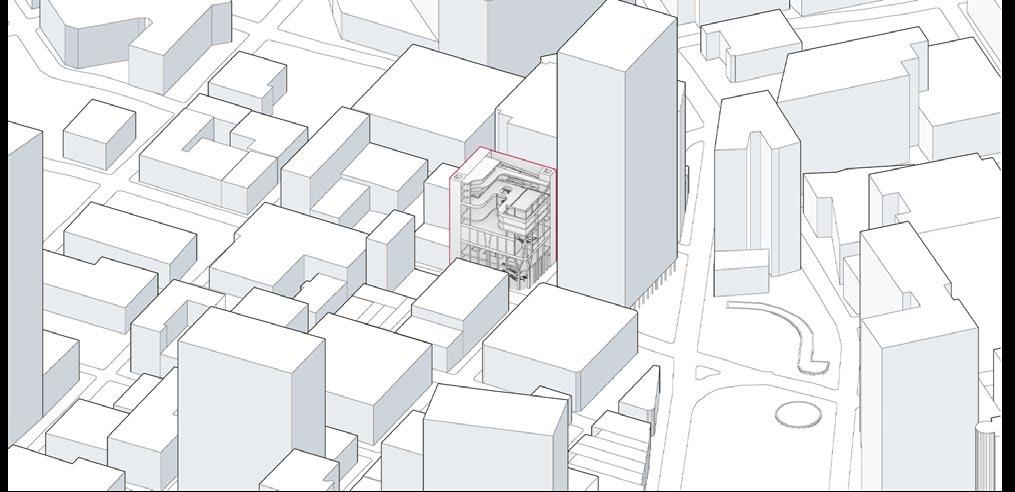

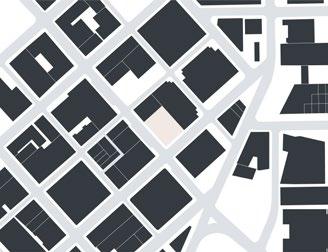

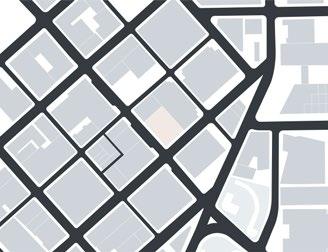

The site is located in Fairlie Poplar district in Downtown Atlanta. Known for its business and entertainment, the district is famous for its street murals, city views, casual eateries and art. Right opposite to the street is Georgia State University’s Rialto Arts Center, and the street leads directly to the Centennial Olympic Park.

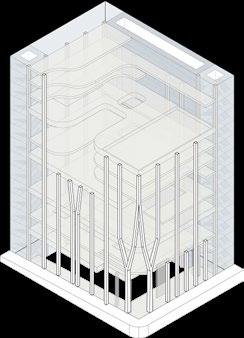

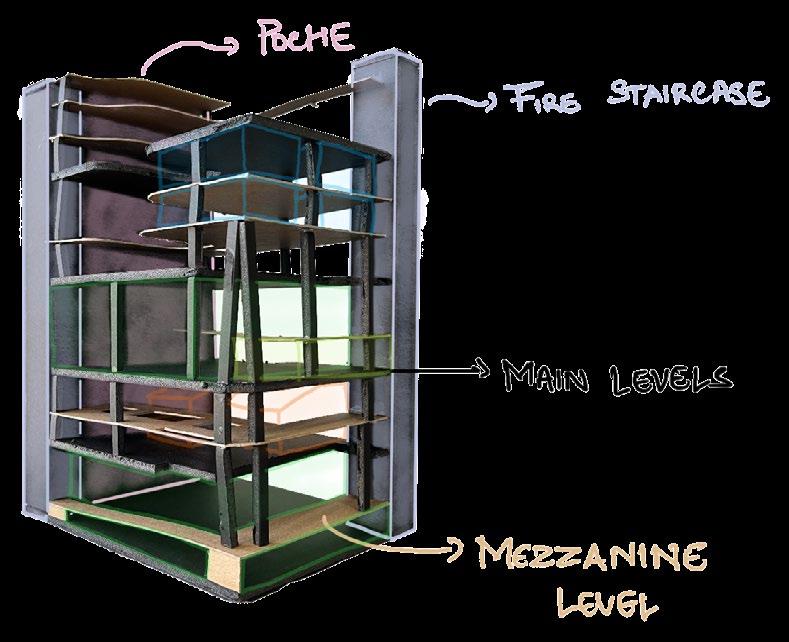

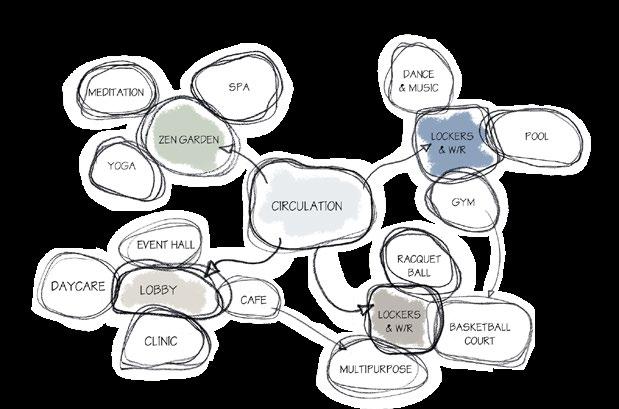

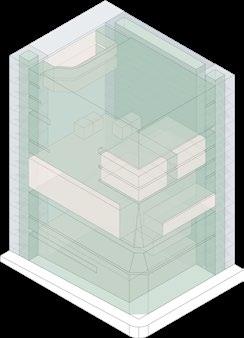

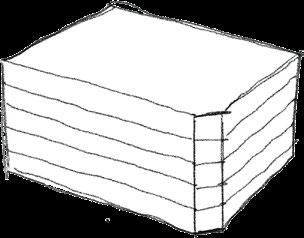

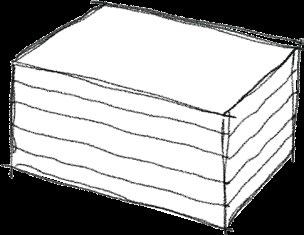

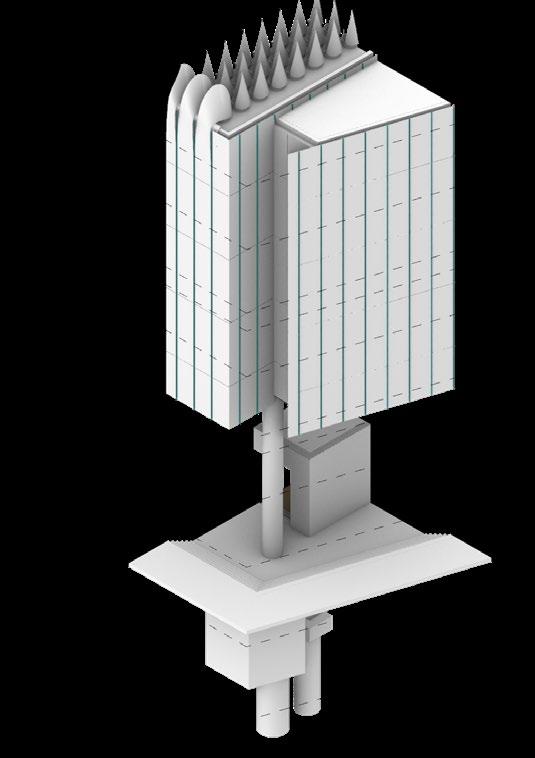

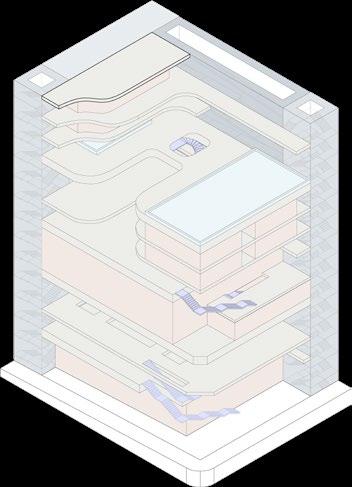

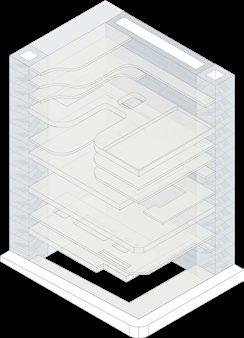

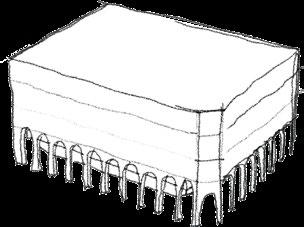

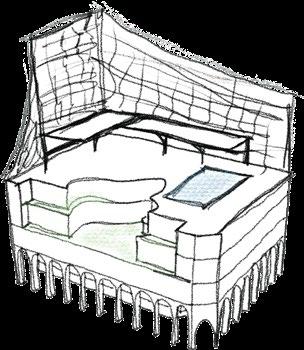

| Massing the form

| Chamfering the corner

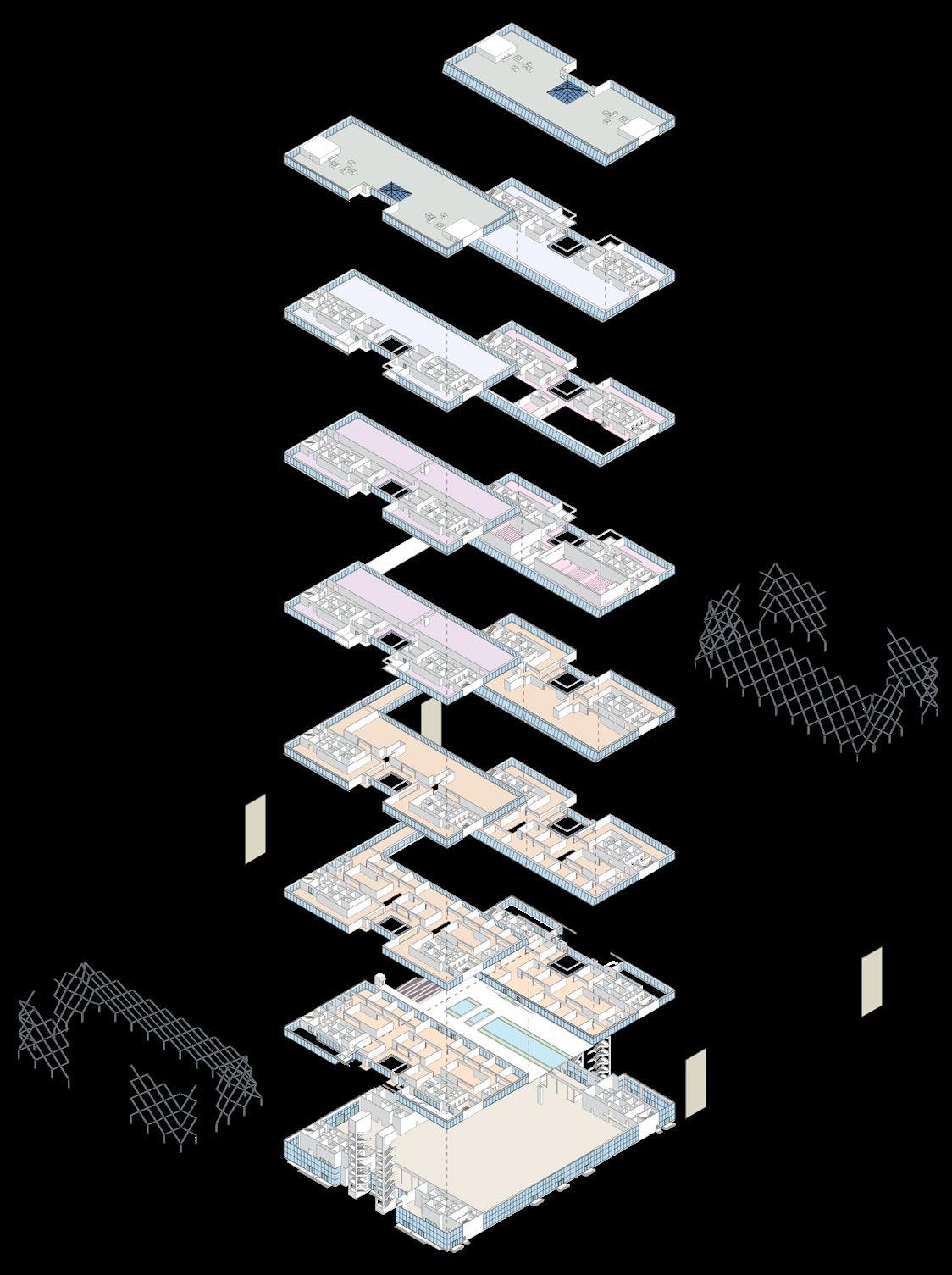

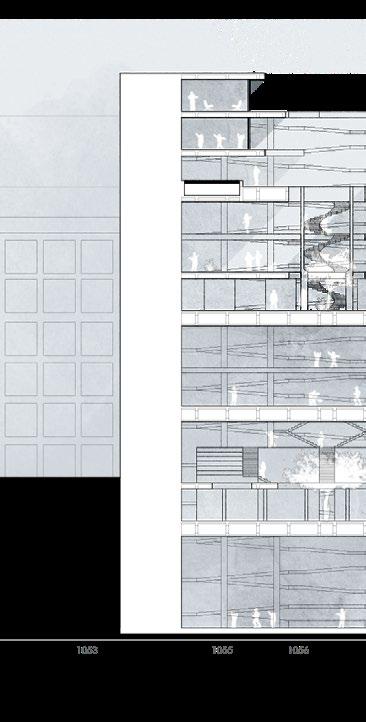

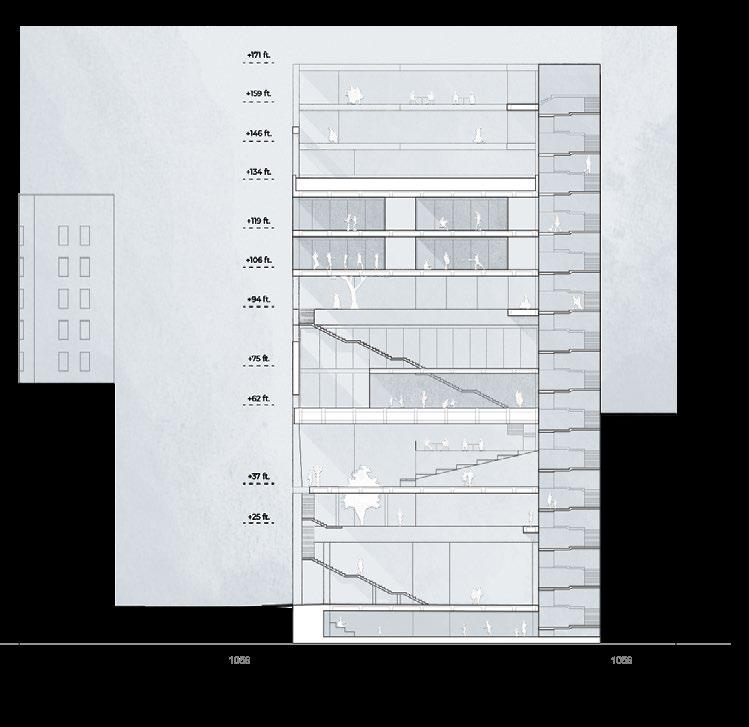

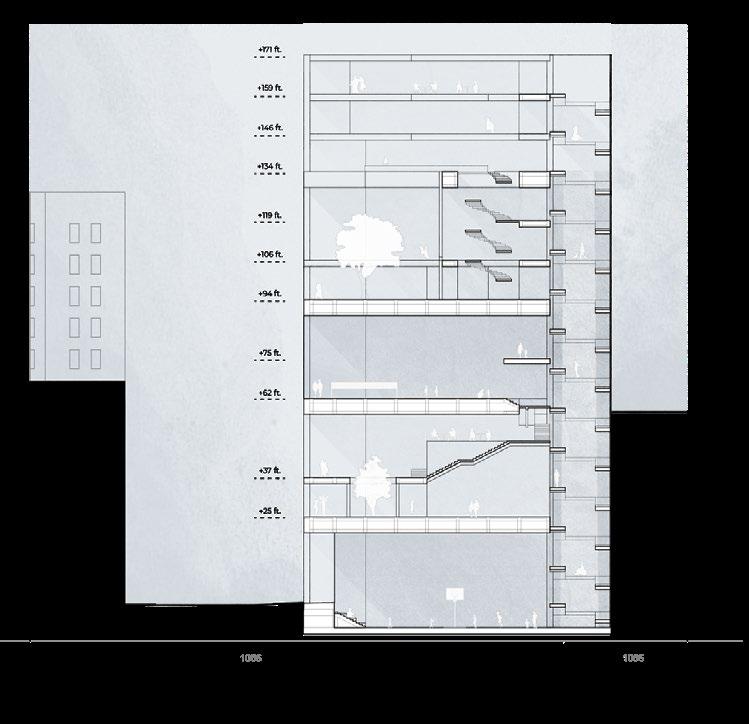

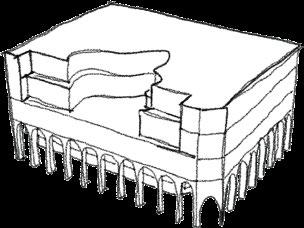

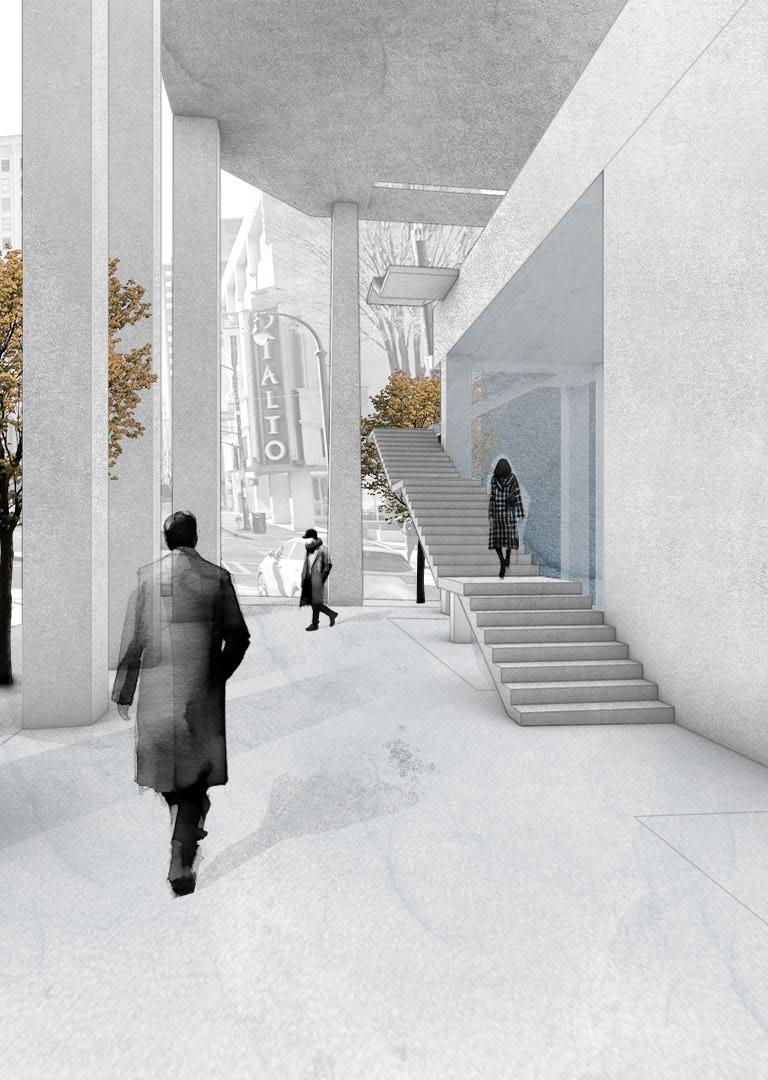

| Establishing a portico

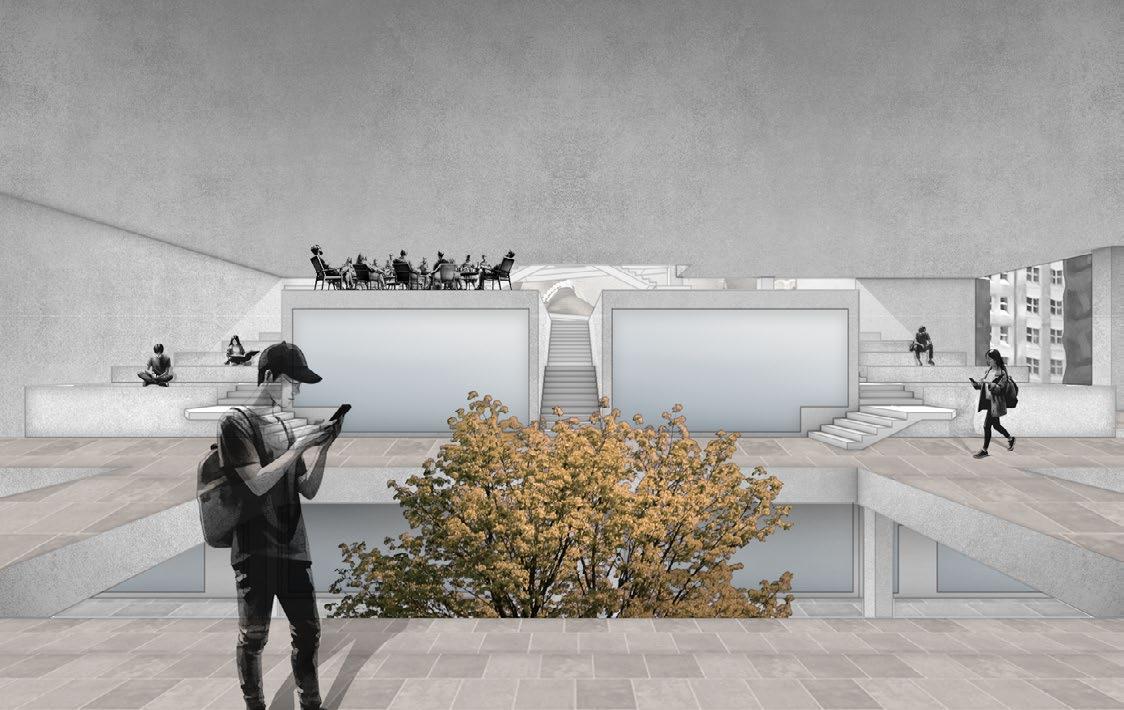

| Introducing overlooking spaces

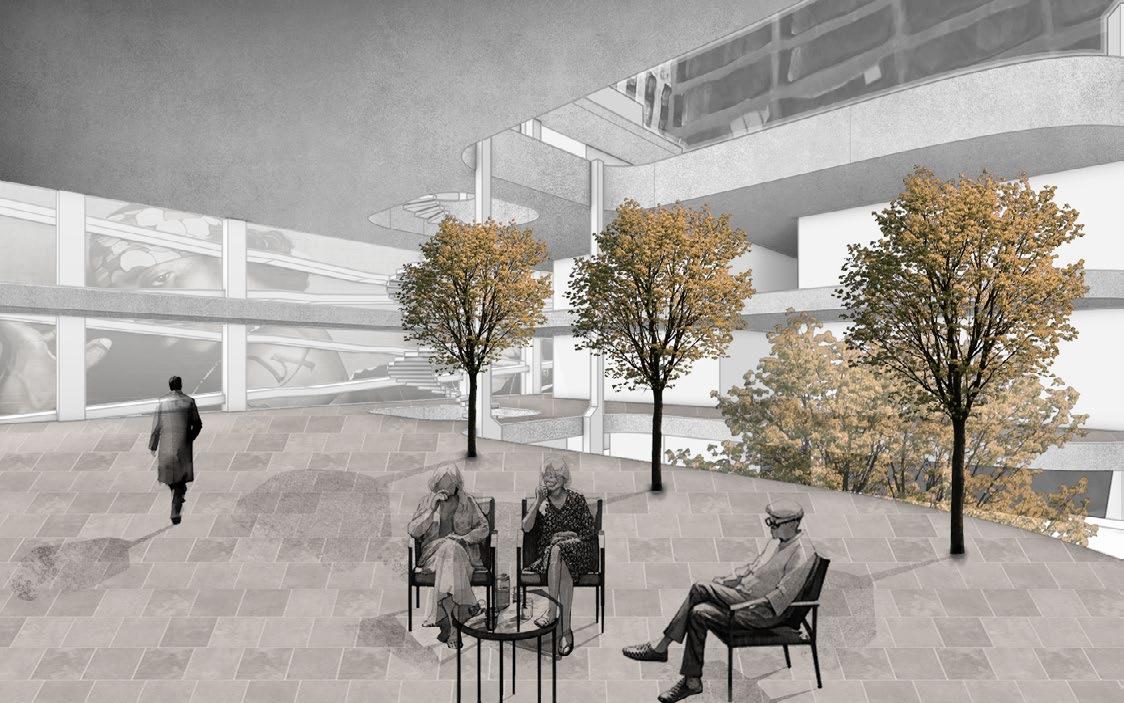

| Adding leisure spaces on terrace

WORLD TRADE CENTER COMMERCIAL HUB

Year - 2021, 8th Semester

Type - Architectural Thesis (Individual)

Thesis Guide - Ar. Anshuman Dubey,

Thesis Mentor - Ar. J.B. Khadkiwala

Location - Gurugram, Haryana, India

With the growth of capitalism, almost everyone is searching for strategies to earn more money. From start ups to people investing in stock markets, the purpose is the same. One city that has expanded significantly over the past several years is Gurugram, which provides many opportunities and jobs to those who seek them.

The World Trade Organisation, is an organisation that looks forward to bind these sectors of commerce together, to give many entreprenuers a place where they can create, expand and grow. The intent of this design is to create a complex that is efficient enough to become a major commercial & recreational hub in the NCR region.

ABOUT THE SITE

Location - Sector 25, DLF Phase III, Gurugram, Haryana, India

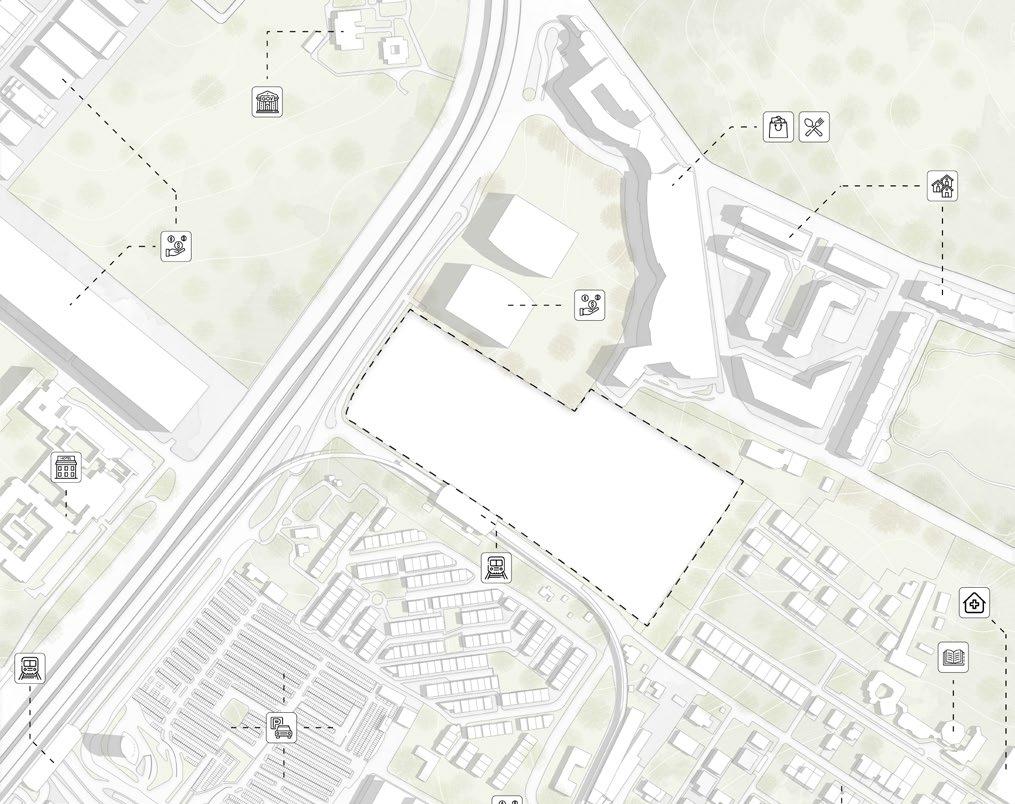

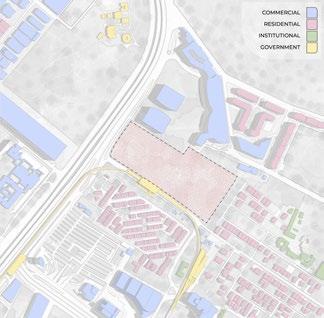

To have an impact on the commercial sector, the location of the WTC needed to be in proximity of the largest commercial hub in Northern India, which is the Cyberhub, Gurugram. Environed by a mall that receives the highest footprint in Gurugram, the Cyber Hub, the National Media Center, some residential buildings and some of the best five star hotels, this site was considered to be one of the best locations for a World Trade Center.

Not only this location will invite more businesses for leasing of the office spaces, it will also invite a lot of public for recreational activities. Area - 9.7 Hectares Land Use - Commercial

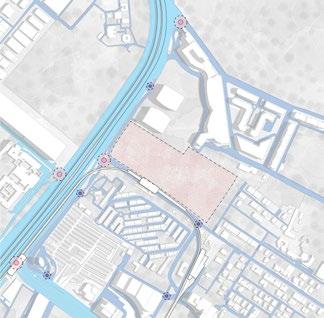

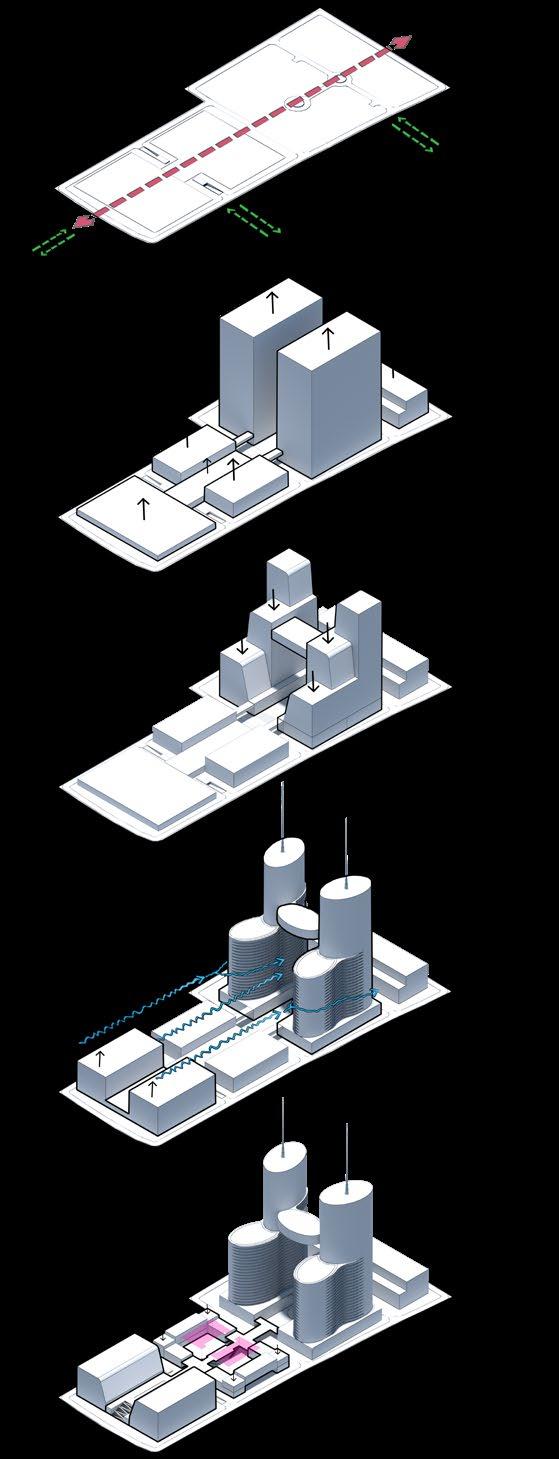

ANALYSING AXIS AND ENTRY POINTS ON THE SITE

MASSING AROUND THE AXIS

ANALYSING DIFFERENT FORMS FOR MAXIMUM LIGHT, VENTILATION & AREA

REITERATING FORM TO ACCOUNT FOR WIND MOVEMENT & LOAD

CREATING PLAZAS & VOIDS FOR RECREATIONAL ACTIVITIES

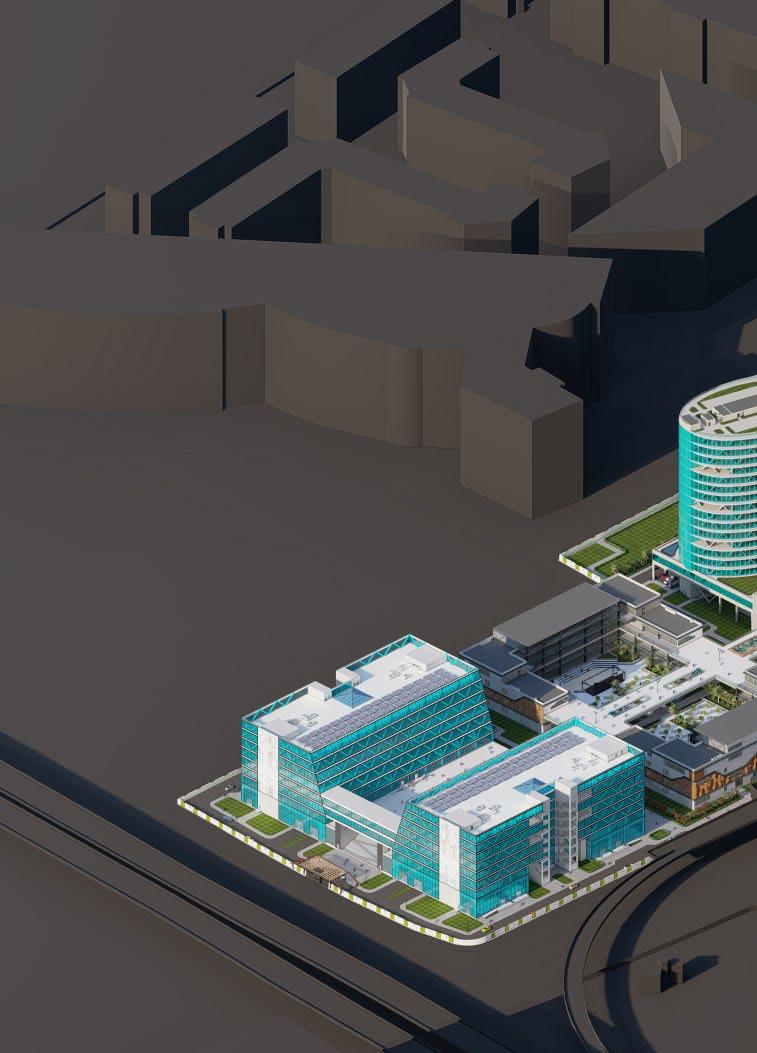

The design is distributed in three zones based on access -

The first zone, as one enters the complex is the for the public, and houses activities like the trade center, auditoriums, shopping complex, exhibition and restaurants and cafes.

The second zone is private and limited to employees and clients of the office space.

Lastly, at the end is a semi-public zone which is a business hotel that offers services to users of the whole complex.

All of these zones are joined together by a pedestrian bridge at the second floor level.

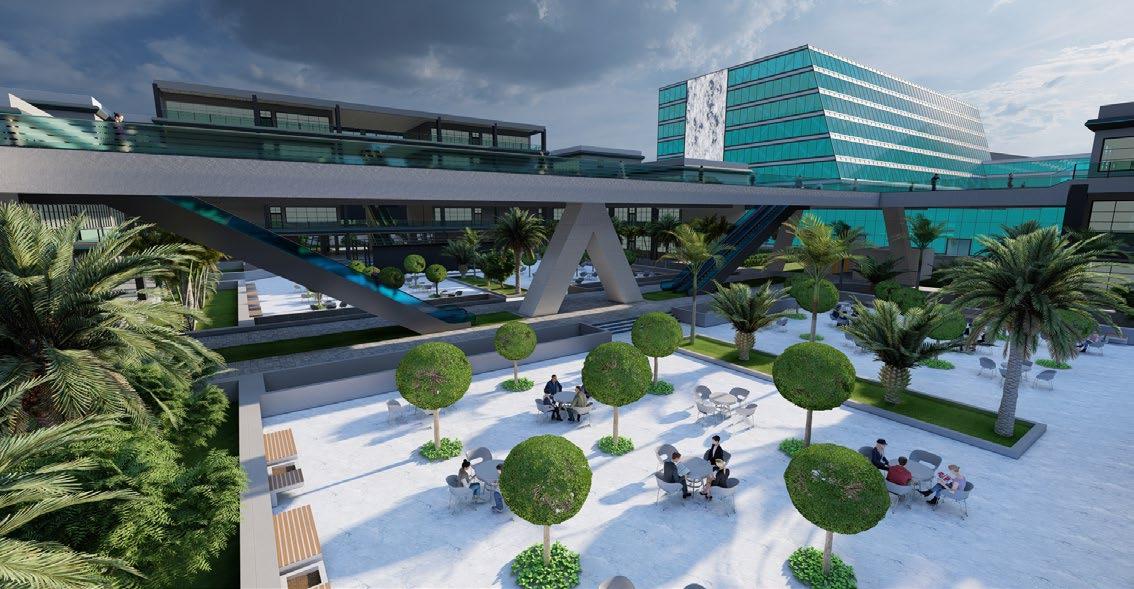

RESTAURANTS & CAFES

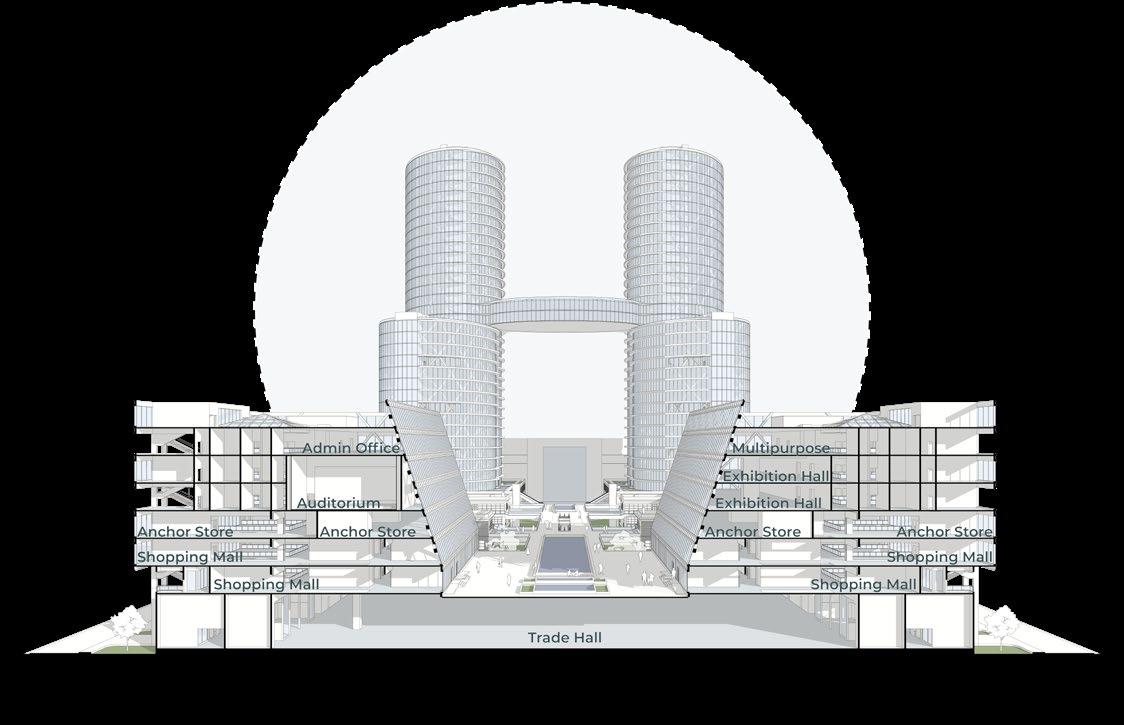

WTC ONE SHOPPING MALL AND ACTIVITIES

BUSINESS HOTEL

PROPOSED, NOT DESIGNED

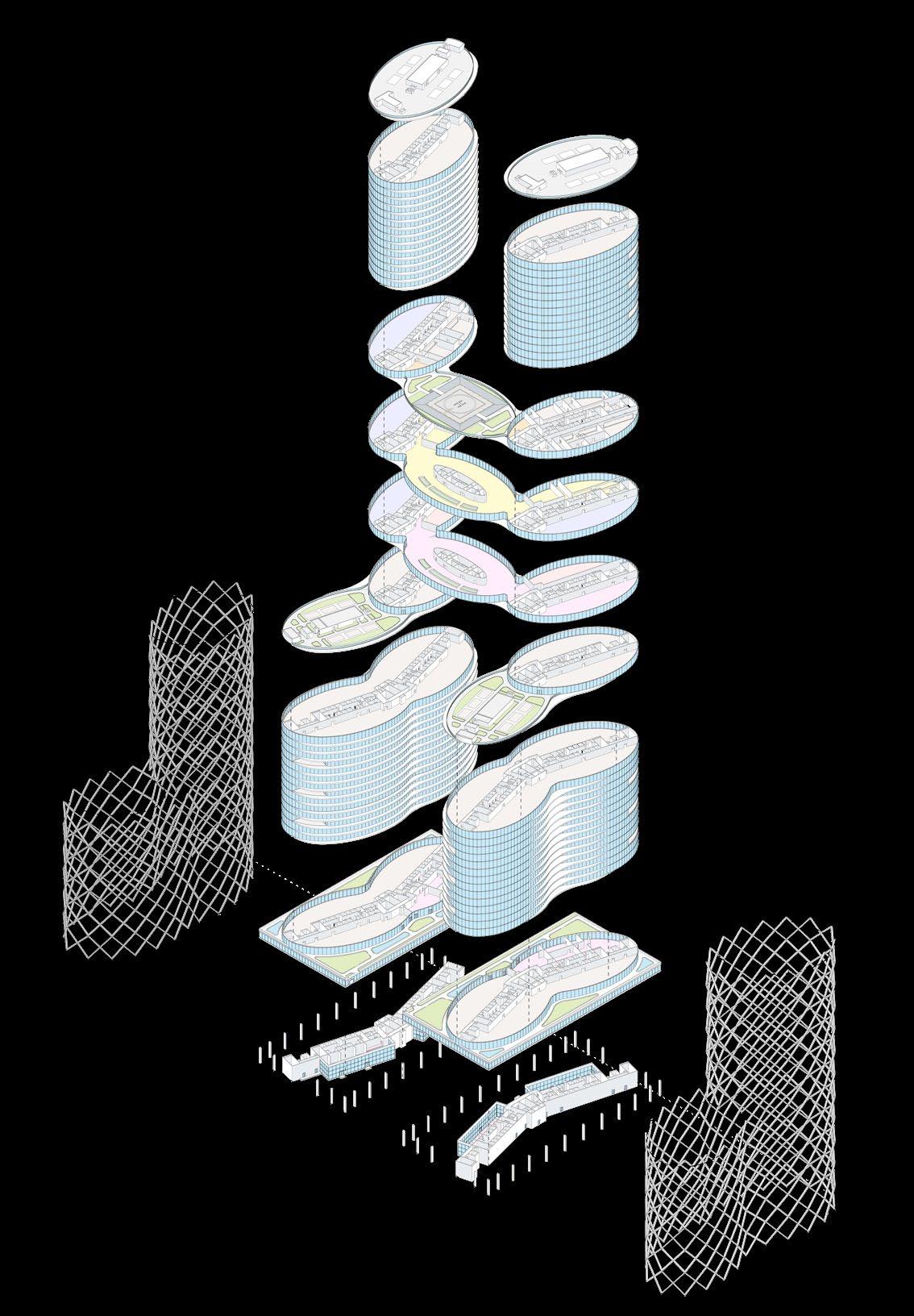

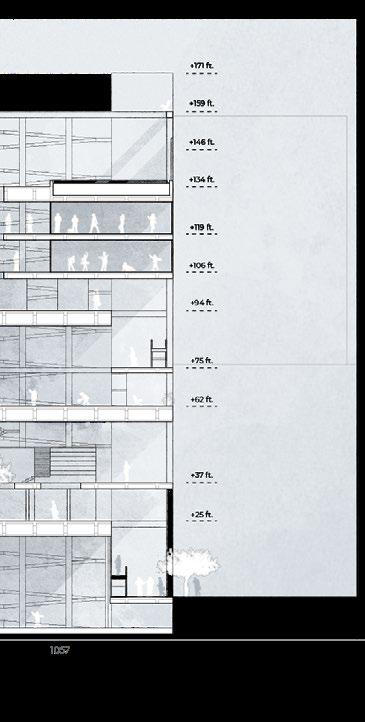

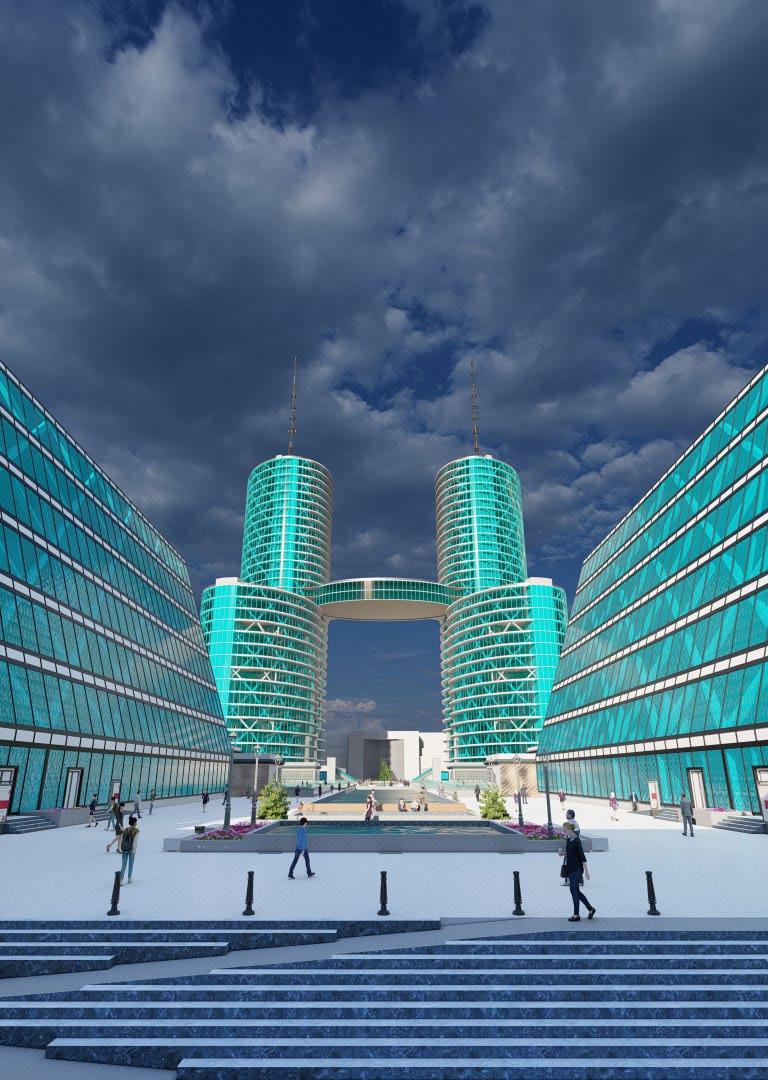

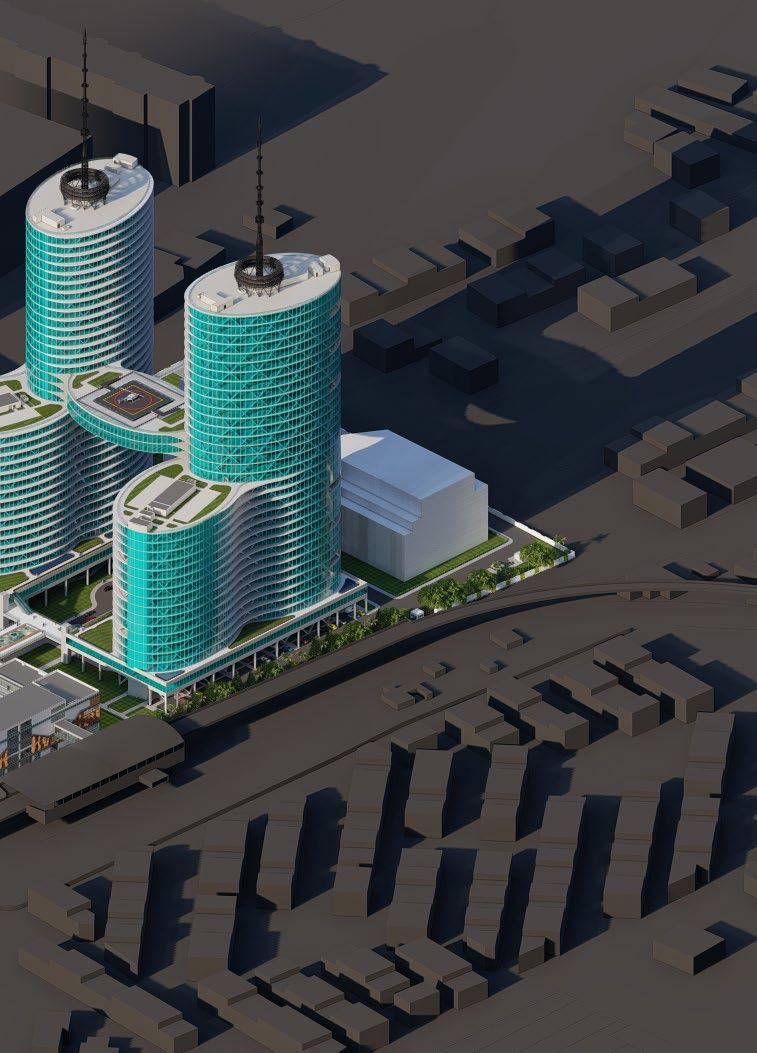

TWIN TOWERS

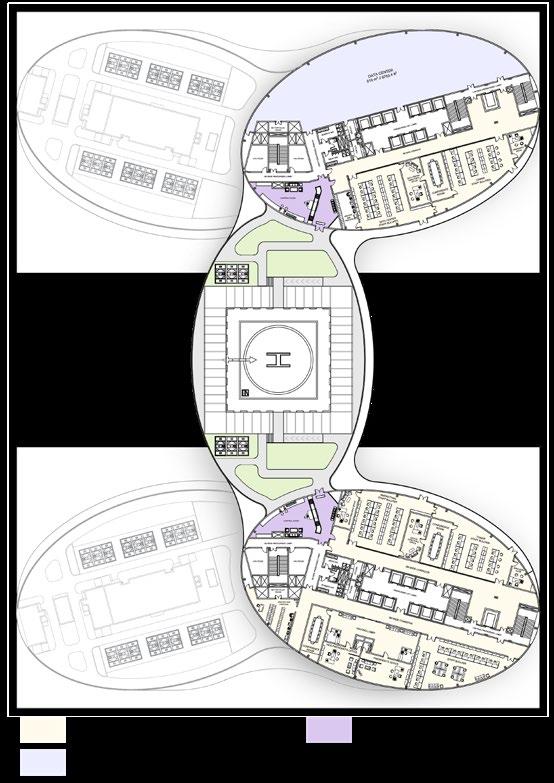

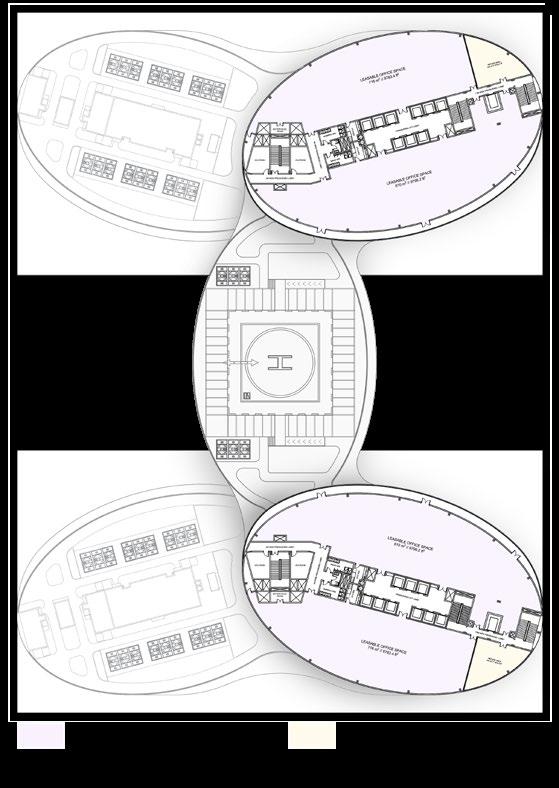

OFFICE SPACE AND SKYBRIDGE

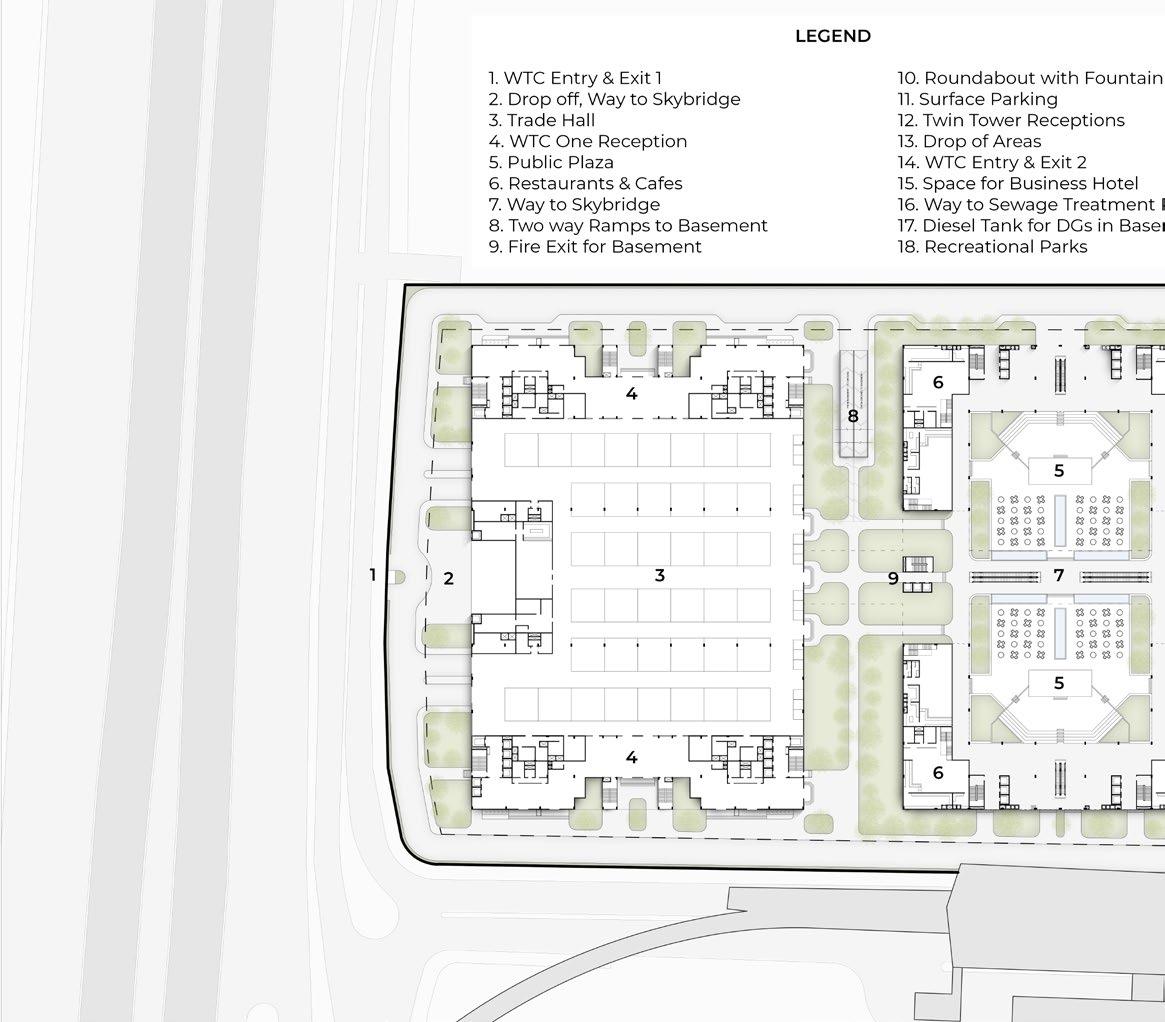

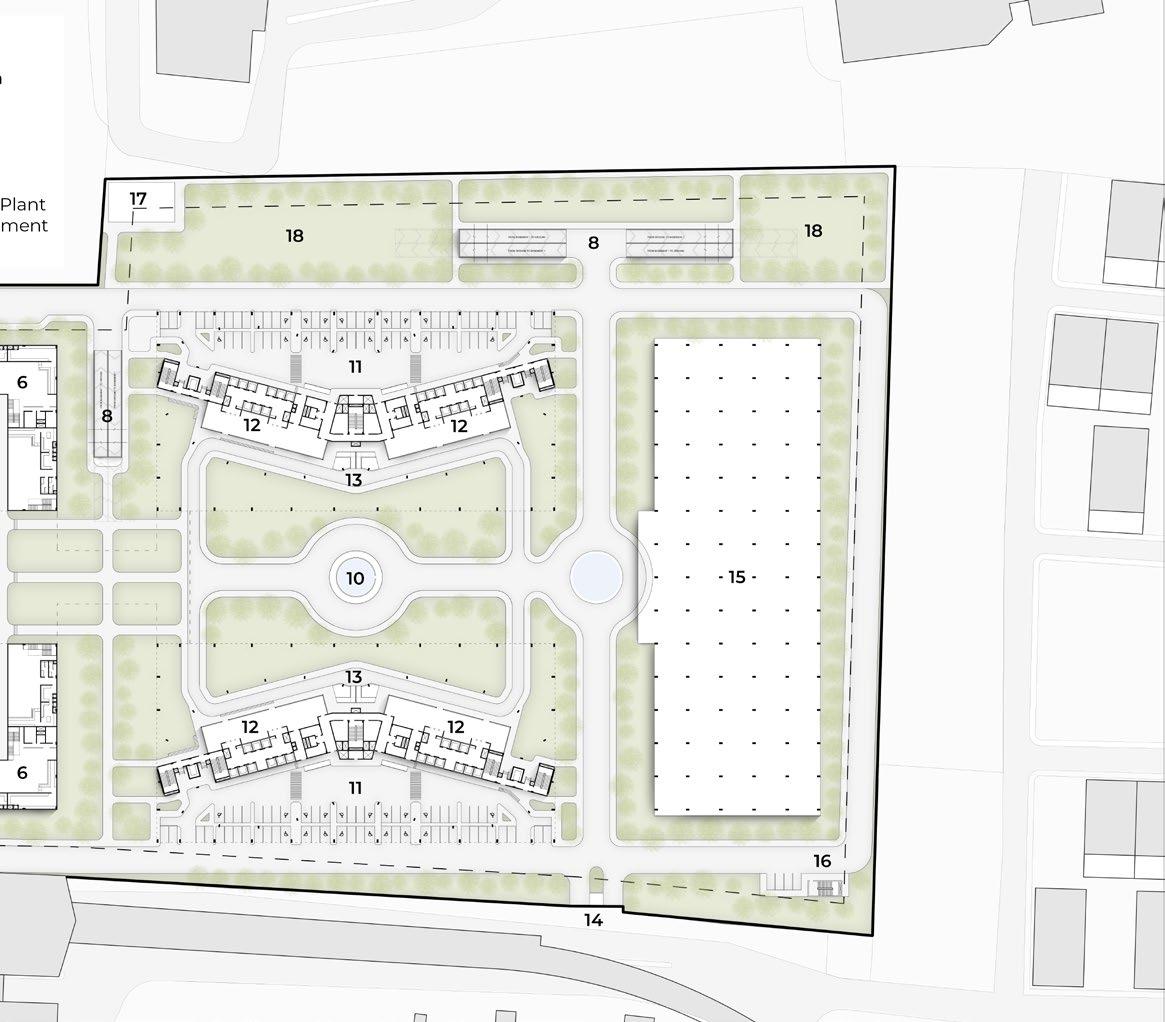

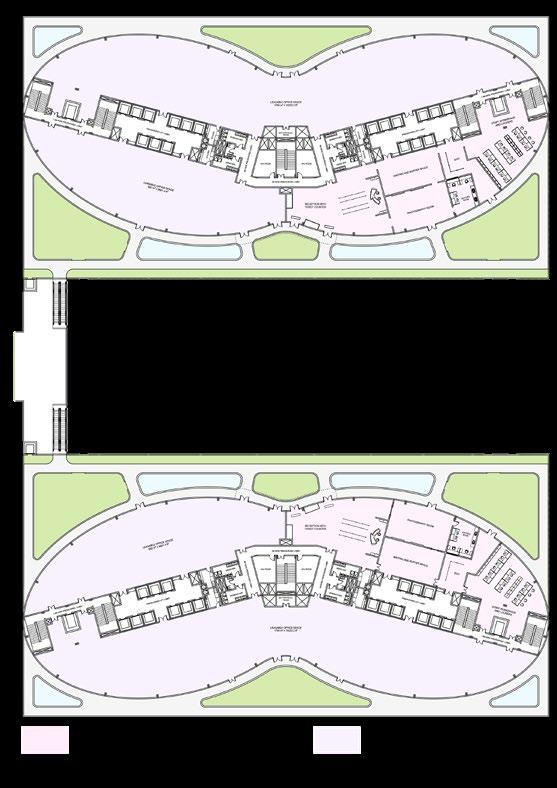

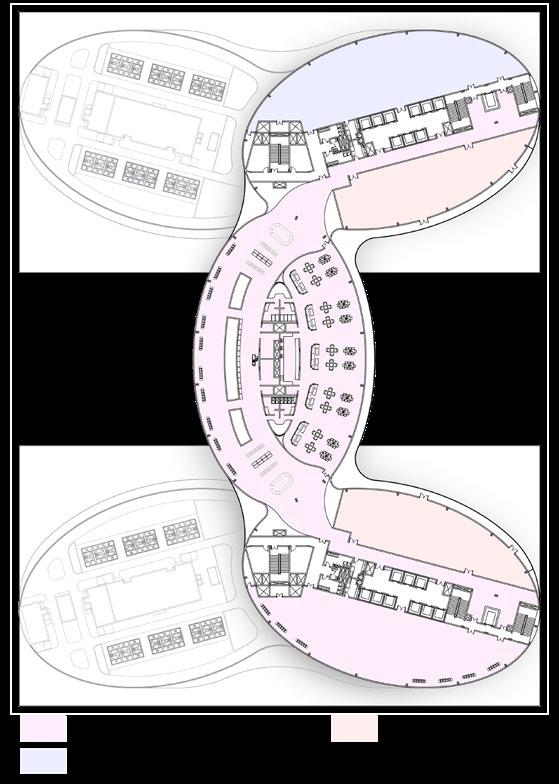

GROUND FLOOR PLAN (LANDSCAPE)

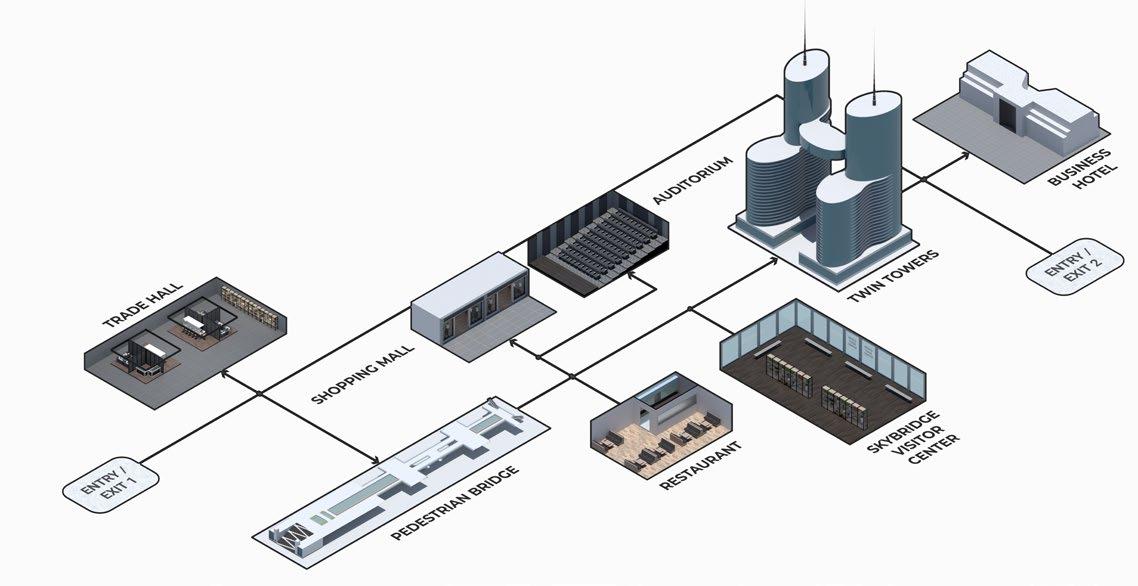

DESIGN FLOW DIAGRAM

DECK FLOORING DETAIL

HIGH MUSEUM OF ART

INTEGRATED BUILDING SYSTEMS II

Year - 2024, Spring Semester

Type - Software & Technology Studio (Individual & Teamwork)

Professors - Prof. James Case, Mahsa Hedayati

Location - Atlanta, Georgia, USA.

Collaborators (Team, Phase I & II) - Kai Wang, Matt T. Bean, Brian J. Lachnict

Architects in the modern age, driven by technological advancements and the capabilities of CAD, have continually pushed the boundaries of design and innovation. The High Museum of Art, a masterpiece by Renzo Piano, exemplifies this fusion of creativity and precision.

This project delves into the intricate building systems and structural elements of the High Museum of Art, unraveling the complex interplay of its components. By meticulously modeling the museum in Rhino, we sought to capture and present a comprehensive understanding of its architectural essence and operational dynamics, highlighting the seamless integration of form and function.

ABOUT THE SITE

Location - 1280 Peachtree Rd NE, Atlanta, GA, USA 30309

Architect - Renzo Piano Workshop (& Lord Aeck Sargent)

Area - 312,000 sq. ft Floor Levels - 7 + Basement Year - 1983-2005

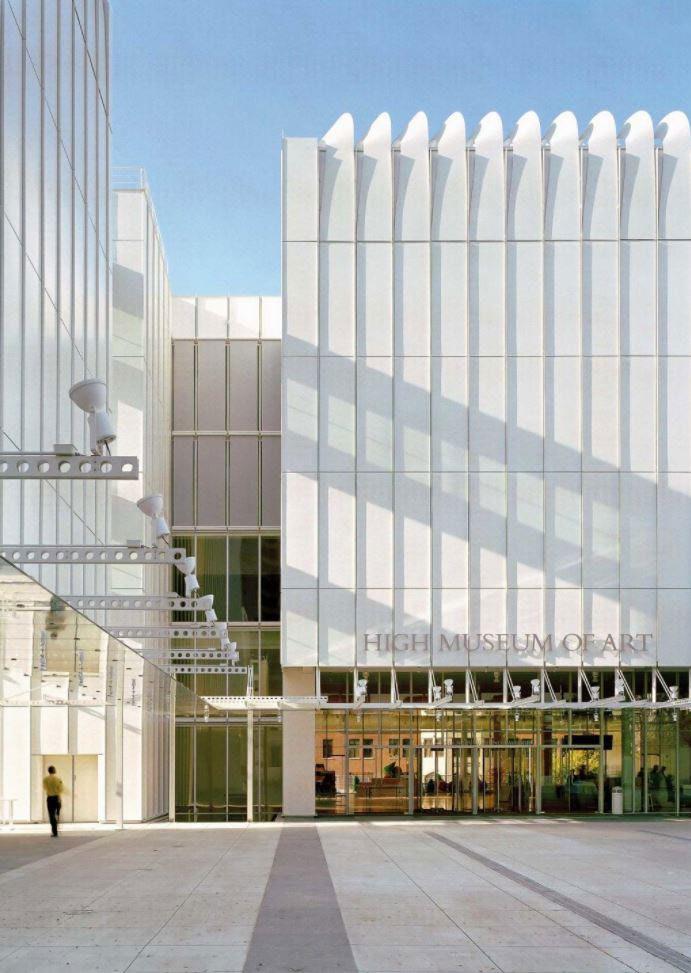

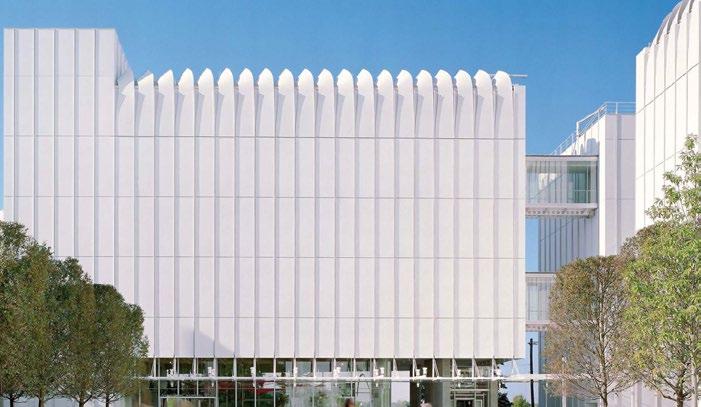

The High Museum of Art is one of the best art museums in the United States today. Constructed in 1983. by Richard Meier as the Woodruff Arts Center, the complex was expanded to accomodate the large amount of art exhibits in the community and the growing footfall. The expansion was design by Renzo Piano Workshop in 1999 and is composed of three new buildings: a main pavilion, a building for special collections, and a building for administrative offices. A public piazza links the different elements of the campus.

Since it was necessary to establish a dialogue between the existing buildings and the new additions, Renzo Piano covered all the buildings with 3.8’ x 12’ wide Aluminium Rain Screen, with more than a 1000 sail-like skylights.

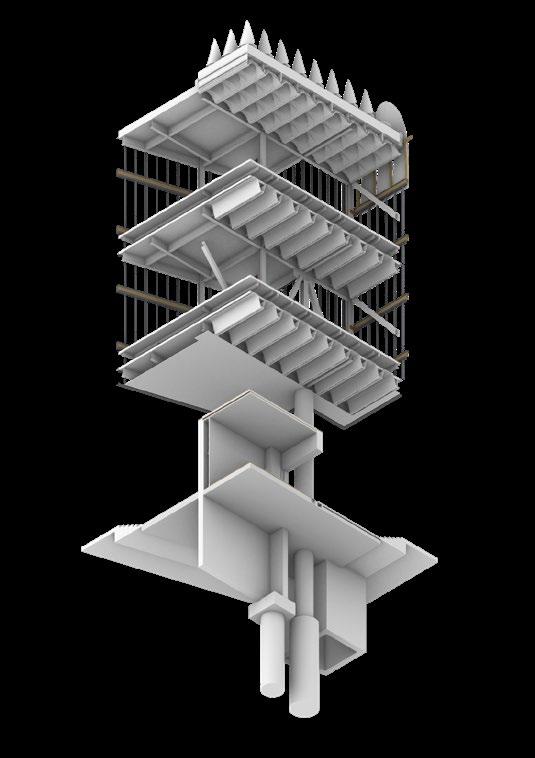

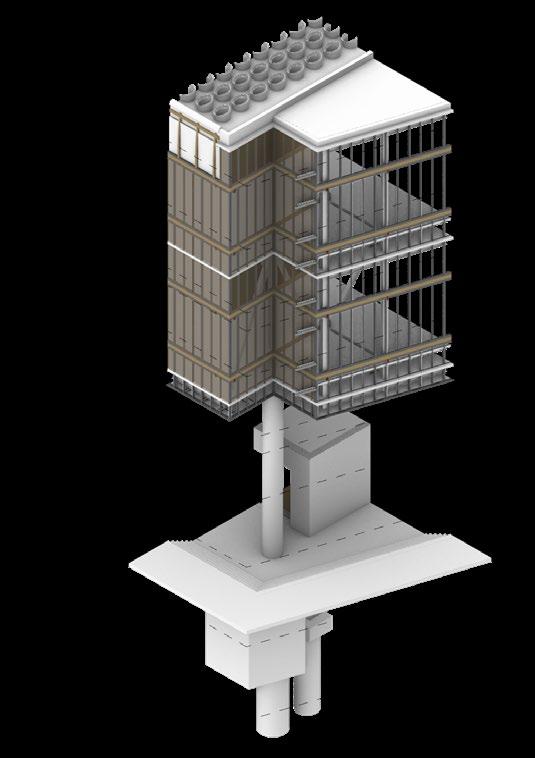

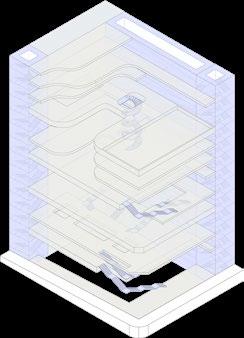

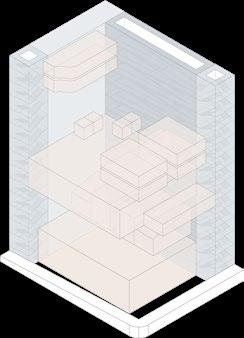

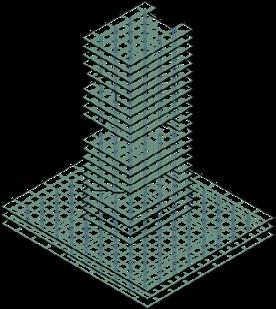

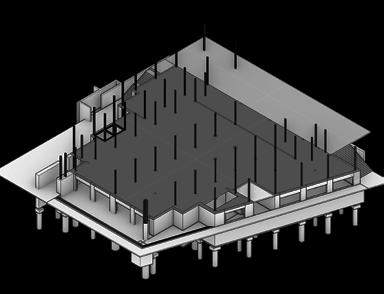

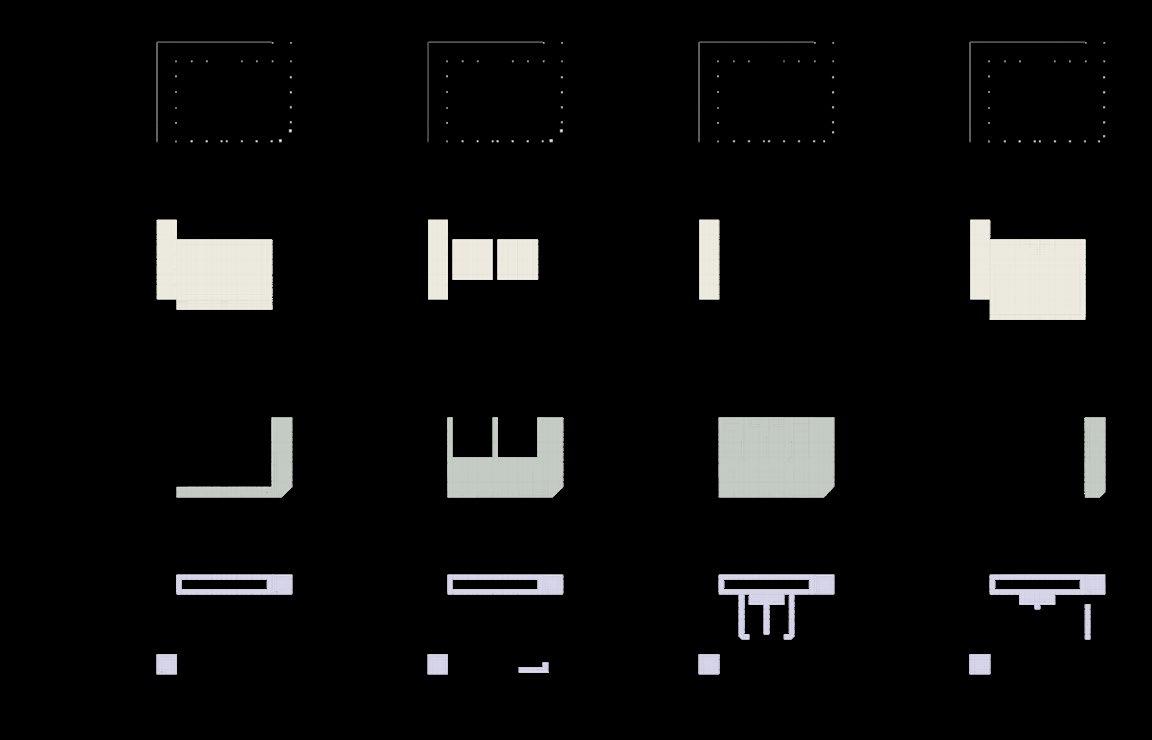

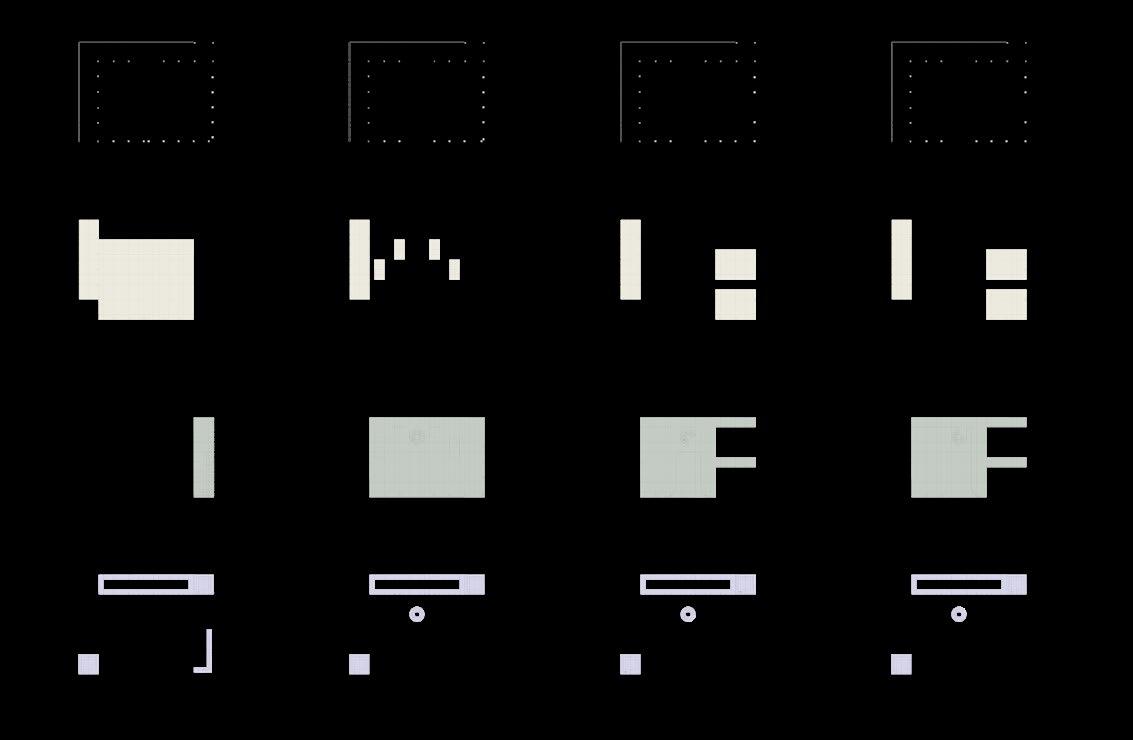

CONSTRUCTION SEQUENCE DIAGRAMS

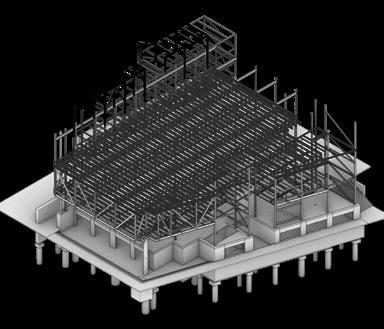

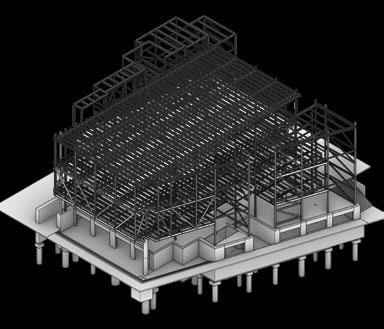

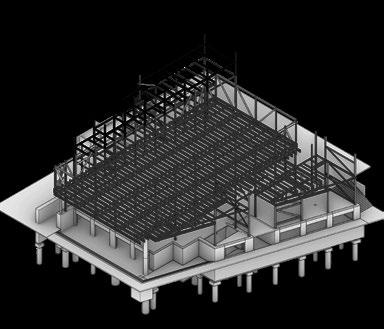

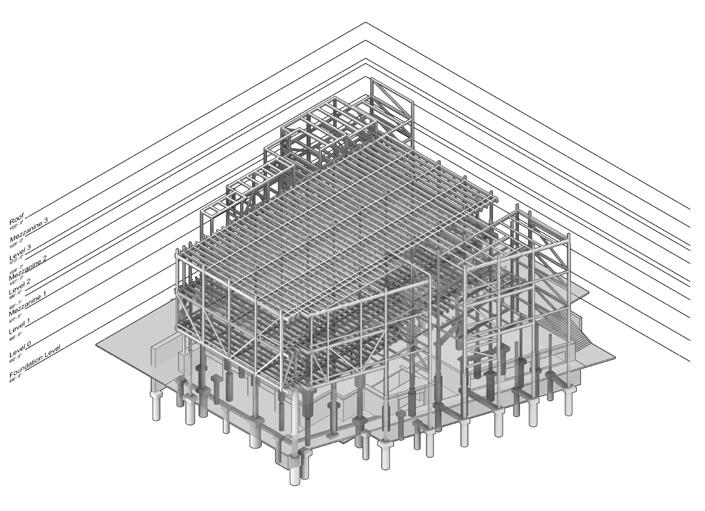

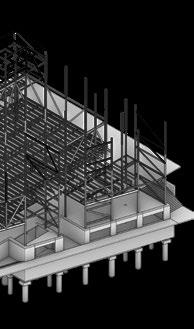

Building A Structural System

The Building A of the complex, that we’ve worked on comprises of 4 main floors, 2 of which serve as Permanent gallery floors. Apart from the concrete shear walls in basement, the whole super structure of the building is made of steel. Two bridges connect the building A to building B at second and third floor.

To incorporate an under-the floor diffusing air condition system, Renzo Piano Workshop designed the top gallery spaces with two floors slabs. A primary floor slab, which supported all the mechanical equipments, and a secondary floor slab that people walked on. The soffits are carefully designed to incorporate tracklights, sprinklers, etc.

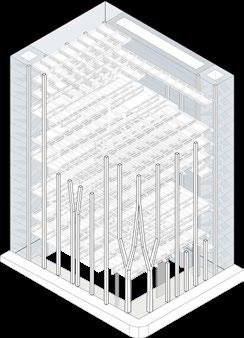

A meticulously designed connection of braced frames and trusses support the primary structure against lateral forces. An aluminum rainscreen facade, that is supported by a secondary structural system.

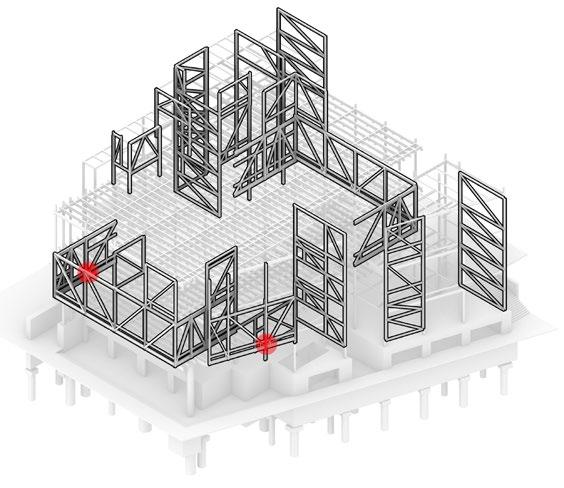

Braced Frames

Trusses

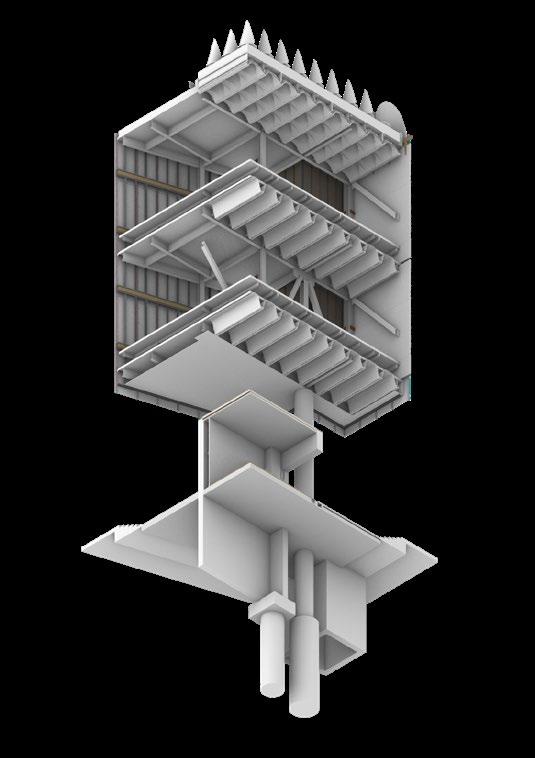

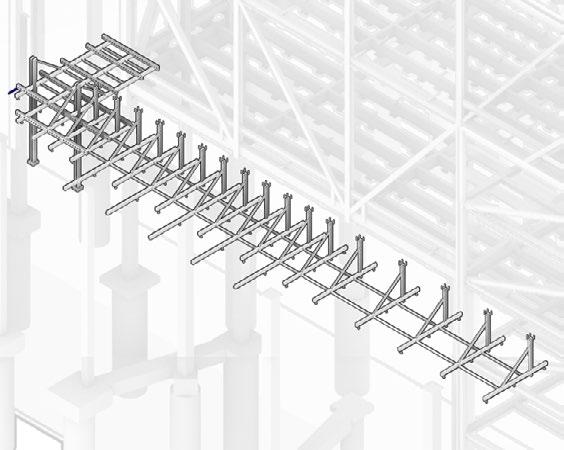

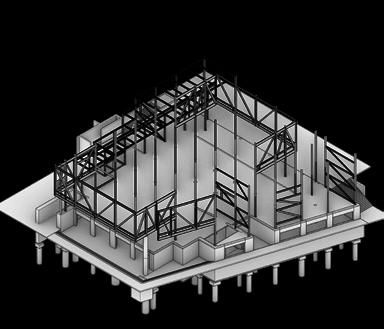

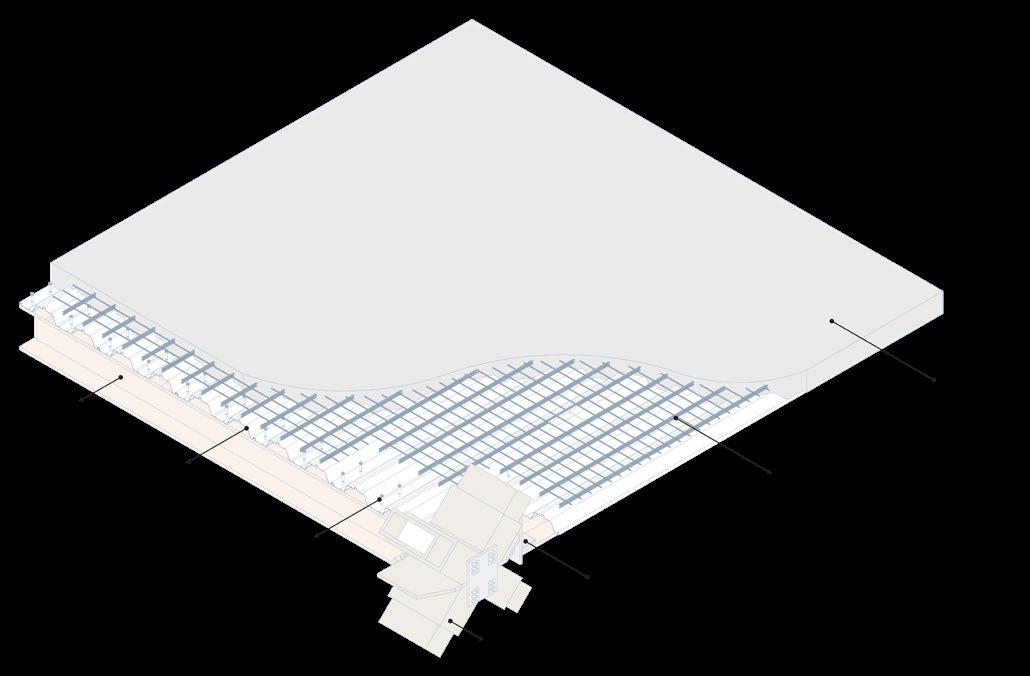

STRUCTURAL DETAILS

ENVELOPE SUBSTRUCTURE SYSTEM

Detail A

Detail B

Exterior Substructure w. Rainscreen

Exterior Substructure w/o Rainscreen

Lateral System

Detail C

Interior Substructure w. Rainscreen

Interior Substructure w/o Rainscreen

Detail D

Glass Canopy System

PARAMETRIC MODELLING

MEDIA

AND MODELLING II & III

Year - 2023-2024, Fall and Spring Semester

Type - Software & Technology Studio (Individual & Teamwork)

Professor - Prof. Emilio Hernandez

Location - Atlanta, Georgia, USA.

Collaborator (Team) - Prajit Gupte

In the modern day, architects have started employing parametric and generative design into their practices. These help in architects reduce time while modelling, try iterative design approaches faster, include mathematical algorithms, patterns and rhythms, and also perform data simulations on designs.

Grasshopper is one such visual scripting plugin that helps architects combine the power of algorithmic logic with artistic vision, pushing boundaries of architecture and design.

REPLICATION OF A PARAMETRIC BUILDING ASSIGNMENT (GROUP)

Over the semester, we dove into Grasshopper scripting, harnessing its power to create parametric and mathematically driven models and designs. The culminating project challenged us to leverage these newfound skills by recreating an existing parametric structure. We opted for the South Australian Health and Medical Research Institute, drawn to its unique triangulated dia-grid curved facade. This design element not only elevates the building’s aesthetics but also optimizes its energy efficiency in terms of heat gain, natural light, and overall energy consumption.

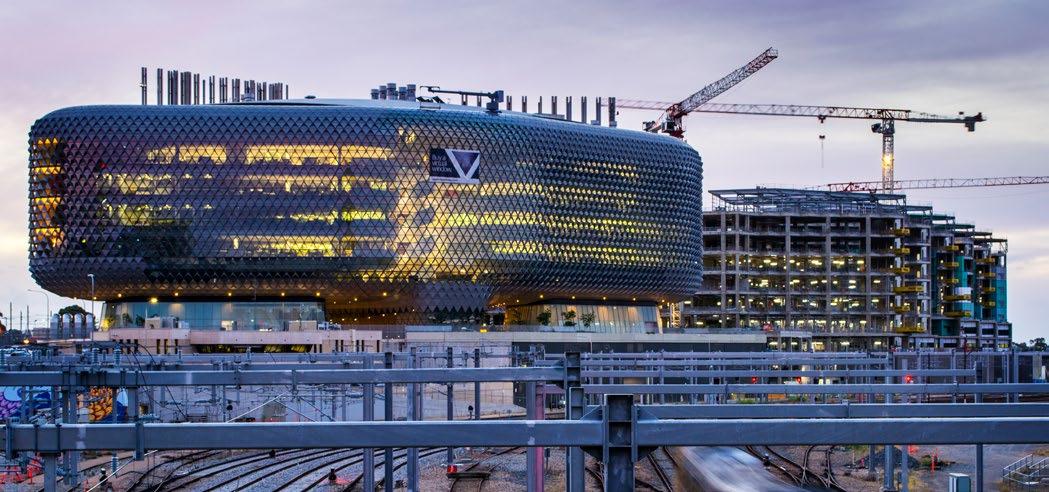

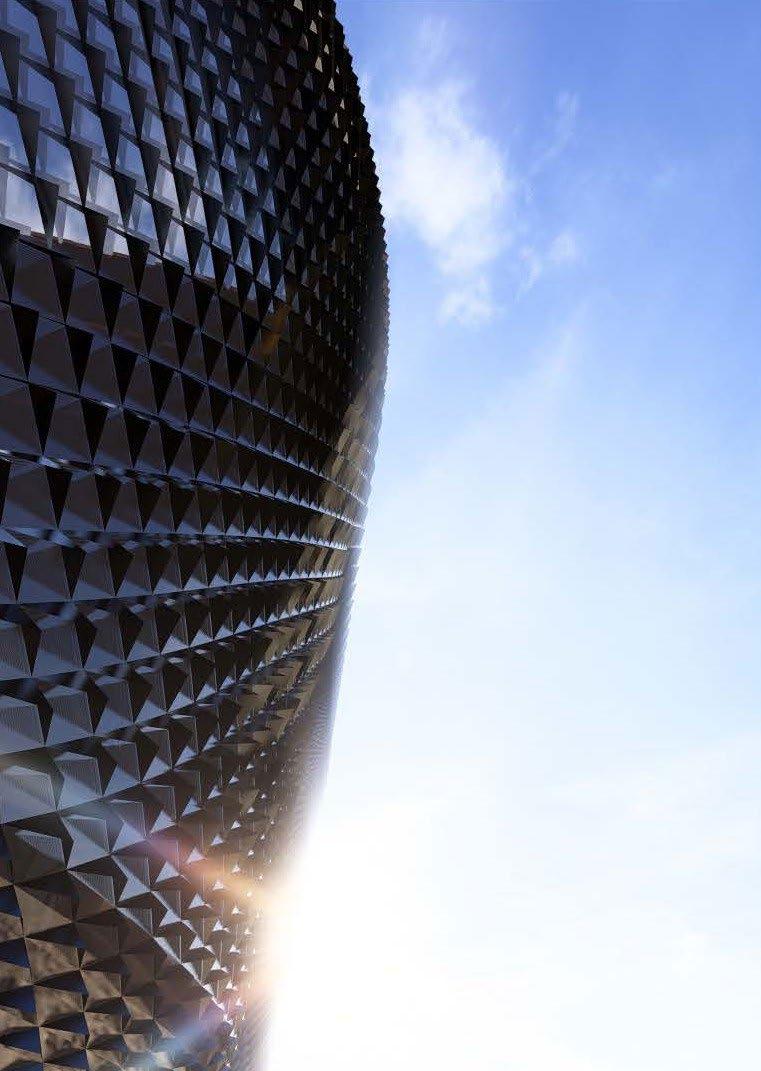

South Australian Health and Medical Research Institue (SAHMRI)

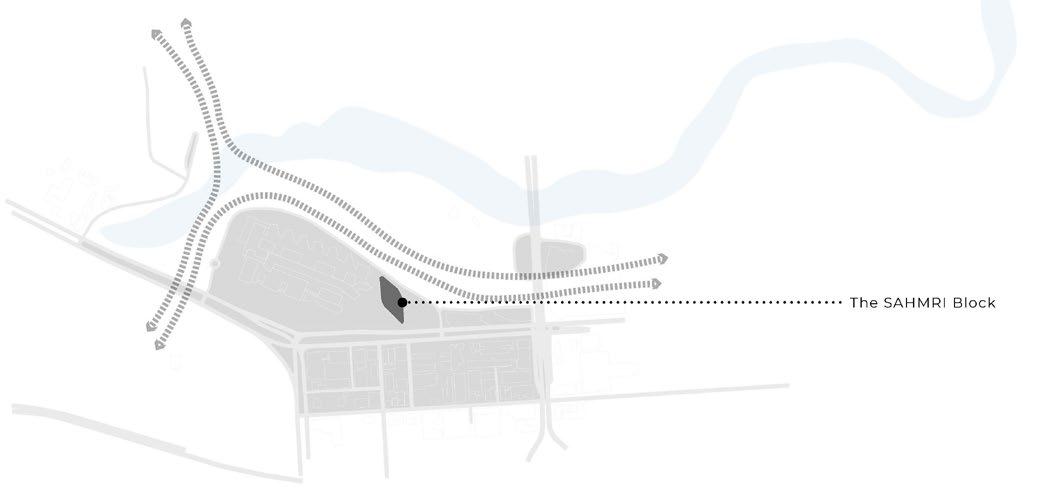

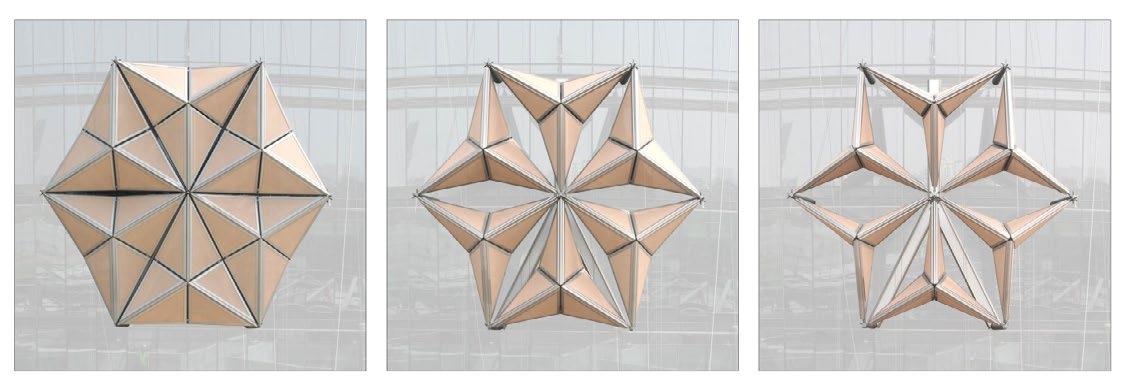

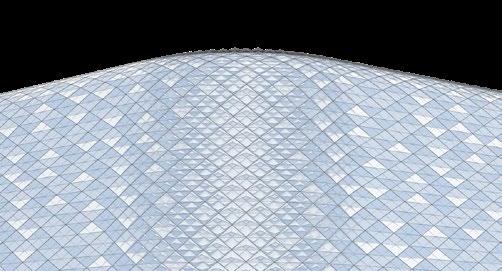

In Adelaide’s Mediterranean climate, the LEED Gold-rated SAHMRI building boasts a dynamic facade. Triangular glass panels, precisely positioned based on solar load and daylight needs, range from fully transparent to opaque or translucent. Dynamic metal fins, their depth determined by the same factors, act as shading devices, further optimizing energy efficiency and natural light penetration. This intelligent design balances aesthetics, sustainability, and functionality.

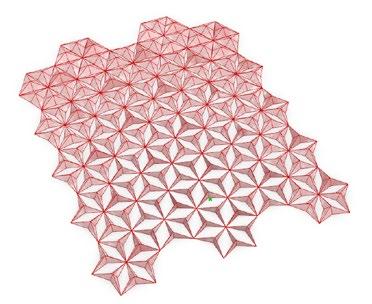

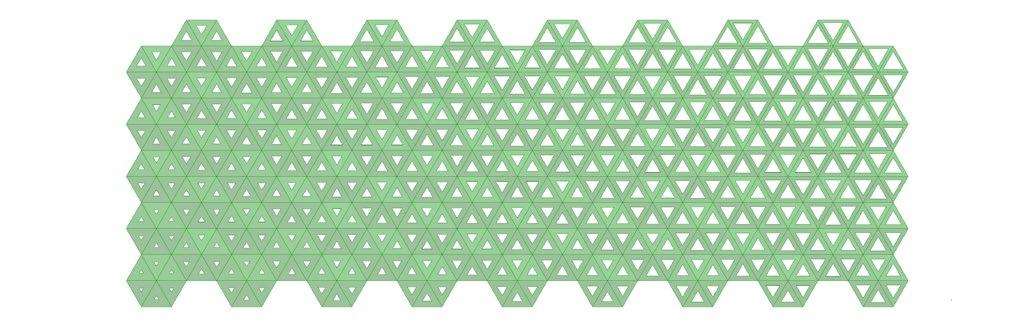

| Creating curves

| Lofting Curves

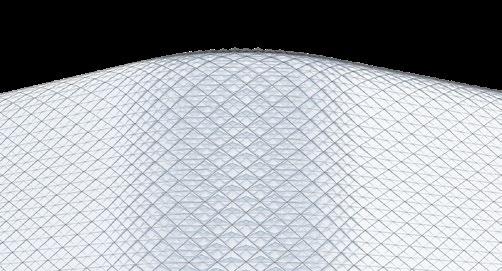

| Triangulating Mesh

| Separating Horizontal Curves

| Separating Alternate Curves

| Selecting Faces

| Extracting Points

Device

11 | Rotating the end point with axis of rotaton as the middle pint of line below

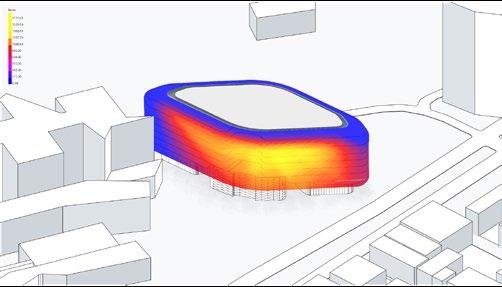

12 | Peforming Solar Radiation Analysis on the surface to identify which zones are responsible for most heat gain

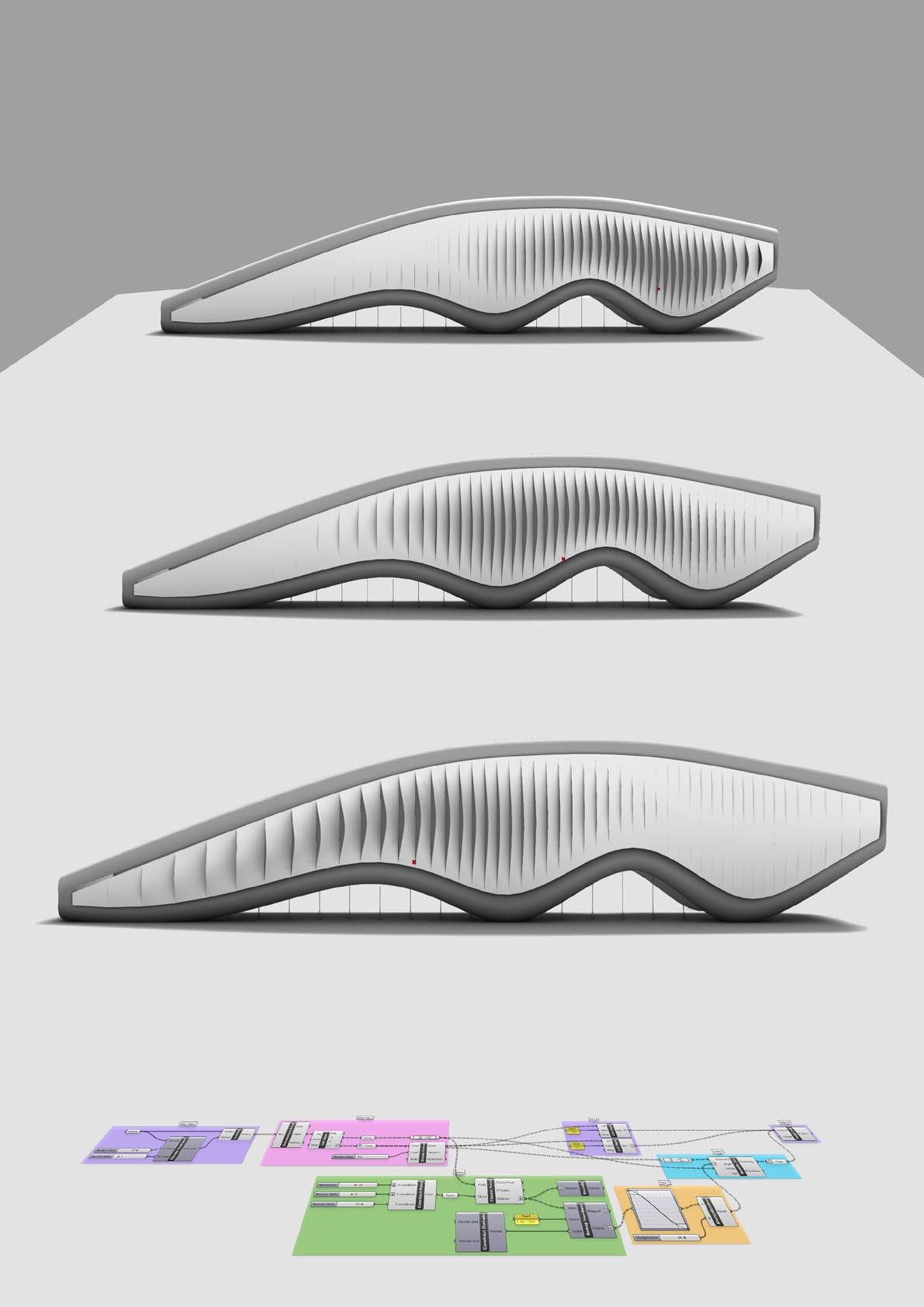

13 | Controlling the angle of shading device with different plane attractors to get the desired result

Variation 1 - Generating random patterns in glass panels that could increase visual interest.

Variation 2 - Subdividing the shading device shroud to create 3 smaller shrouds

SIMULATED ENGAGEMENT ASSIGNMENT (GROUP)

Over the second semester, we dove deeper into Rhino and Grasshopper, and explored their applications in exploring forms, documenting them and preparing them for fabrication. In this assignment, we devised a form-finding model for a pavilion-like design and devised another part of the script to document it in Revit and export parts for physical model fabrication.

SITE AND DESIGN

For the purpose of this assignment, we chose a site at the waterfront in San Diego, right next to the USS Midway Museum. The idea behind the pavilion design was to create a memorial for all the martyred pilots that served during the WWII. We accomplished this by creating a design that is modular in nature, and interactive.

CONCEPT

We derived our concept from the 80Hz pavilion designed by Thomas Wing-Evans Architects in Sydney, Australia. While their design places static panels on a black timber frame taking an organic shape, our intent was to keep them free and moving over a gateway, so it could be experienced both from the inside, and the outside.

SITE

SAN DIEGO, CA

USS MIDWAY MUSEUM

01 | Setting up a plane

04 | Using bouncy solver (Kangaroo) to get the desired mesh

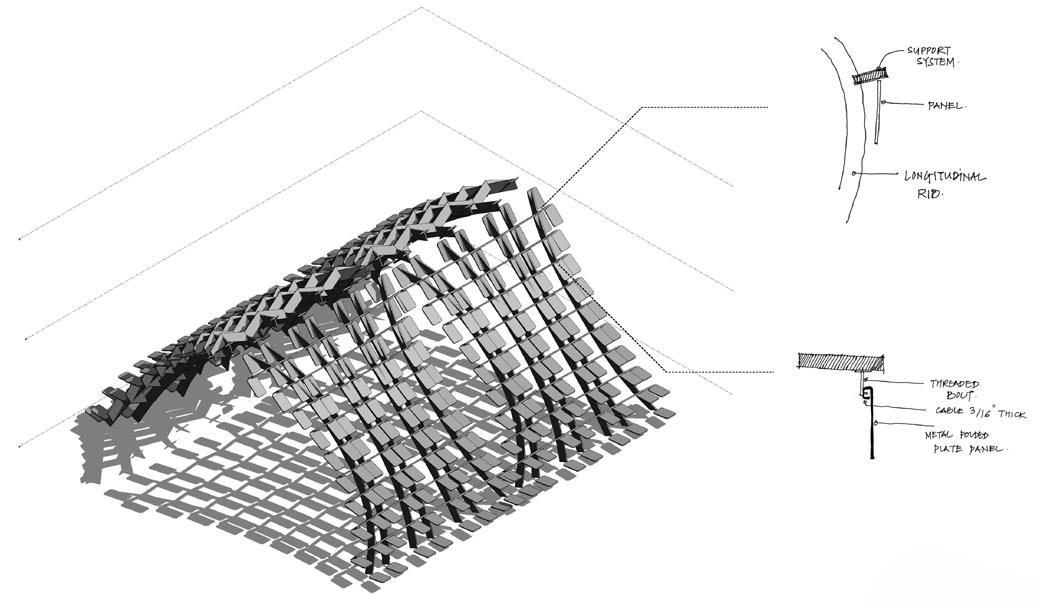

07 | Creating latitudinal ribs to bind longitudinal ribs together

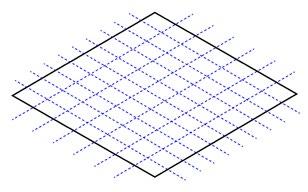

02 | Dividing it into grids for mesh

05 | Extracting longitudinal ribs for structure

08 | Projecting panels on vertices of latitudinal rib

03 | Segregating naked points for anchoring

06 | Offsetting alternate ribs

09 | Using point attractor to orient the panels and rotating the module

10 | Documenting the design in

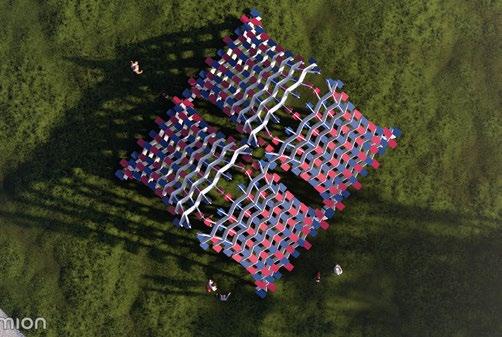

Top view render, showing the use of US’ flag colours

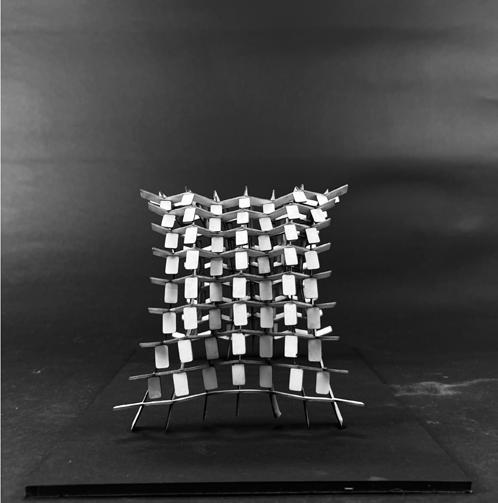

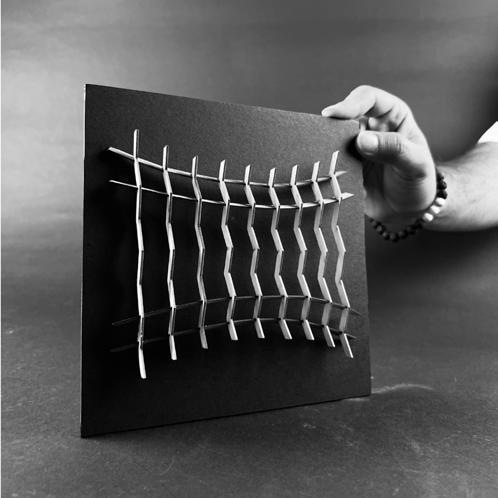

Fabricated structure of one module of the Pavilion

Fabricated one whole module of the Pavilion

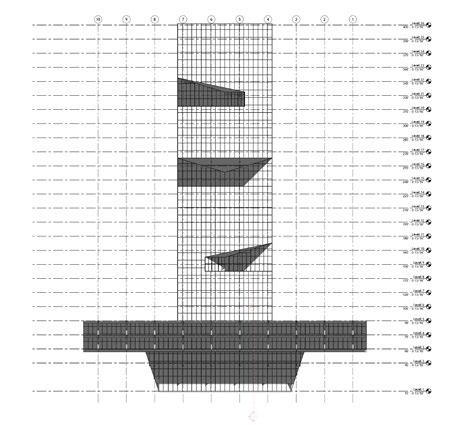

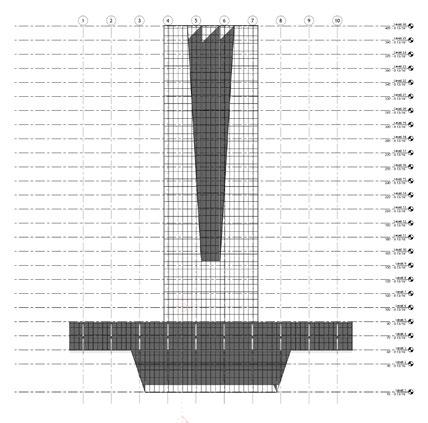

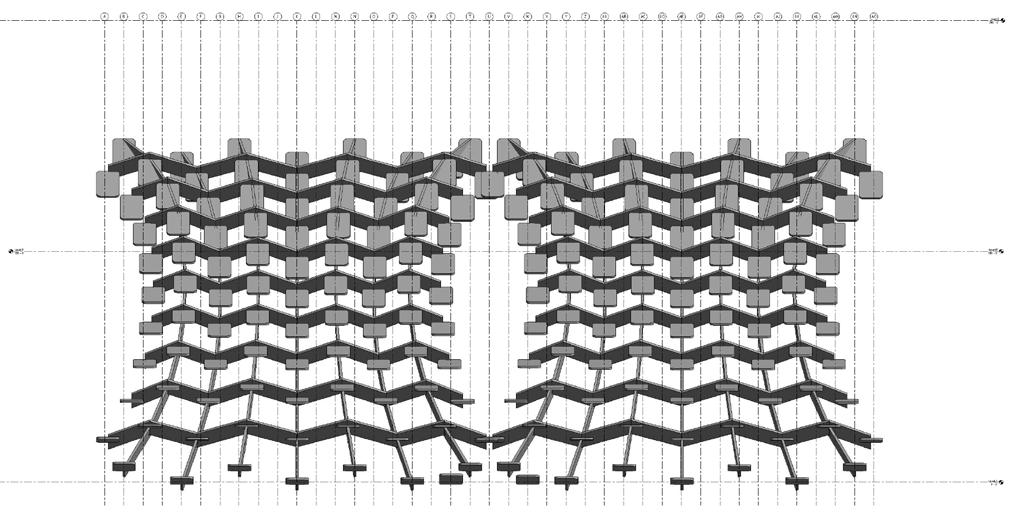

Elevation documented in Revit

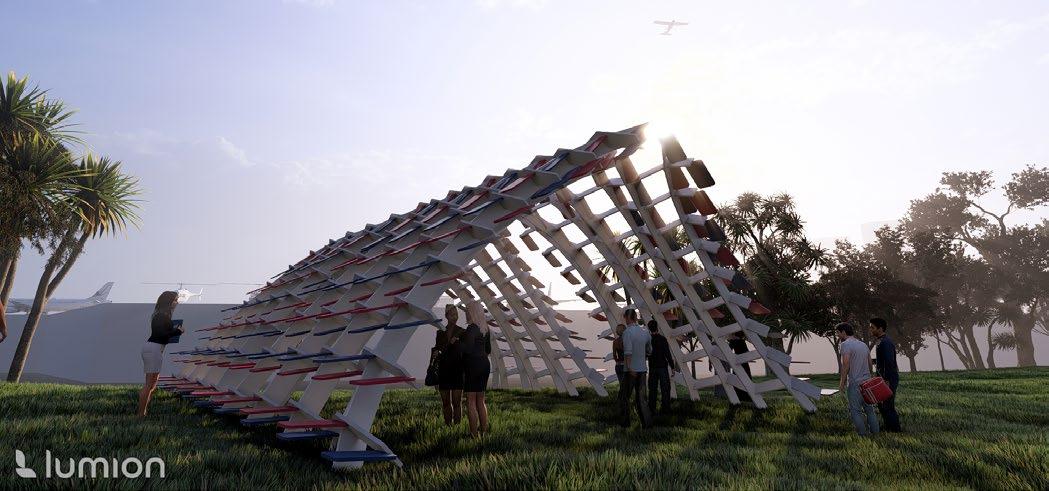

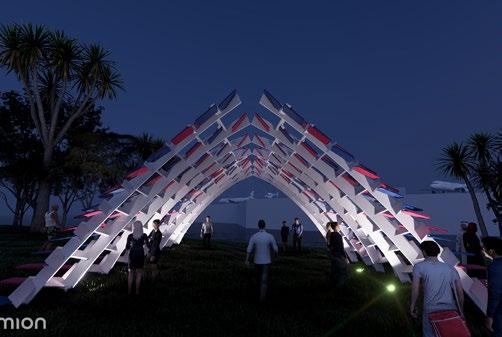

Night view render of the pavilion

FORM EXPLORATION ASSIGNMENT

Visual scripting software is frequently used for rapid design iteration, shape exploration, and interaction analysis. It also aids in simulating weather impacts on designs to optimize building envelopes.

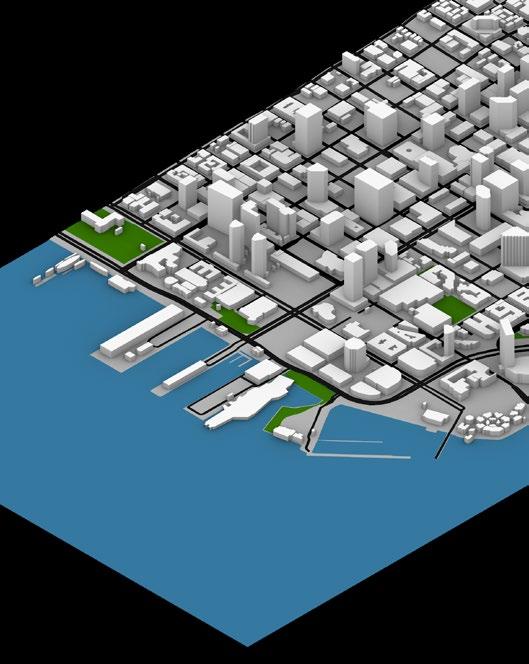

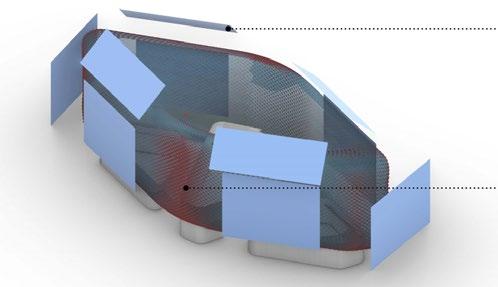

In this assignment, we developed a form for a site near the ocean in San Diego. We modeled the city using Elk and implemented a script to quickly generate columns and beams for representation. Additionally, we used the Rhino to Revit plugin to extract working drawings and 3D views of the design.

The site for this form exploration was chosen to be in San Diego, California, overlooking the pacific ocean.

01 | Typical Floor Plan

04 | East Elevation

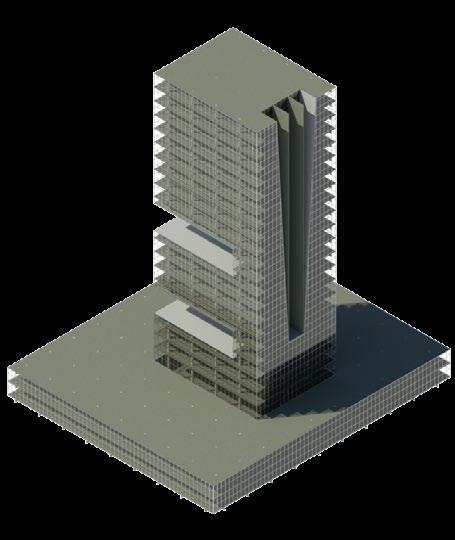

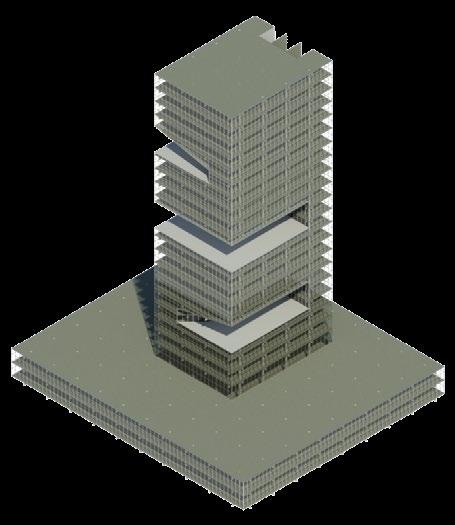

South-East Axonometric View

| South-West Axonometric View

05 | West Elevation

SMART SKINS & GENERATIVE ALGORITHMS DISSERTATION

Year - 2020, 7th Semester

Type - Research (Individual)

Guide - Ar. Anshuman Dubey Mentor - Ar. J.B. Khadkiwala

Our world has been undergoing a substantial climate change since the time we, the humans, reached the industrial revolution. With growing industries, manufacturing of different kinds of products increased and before anyone could study or observe the environmental impacts, we polluted the Earth.

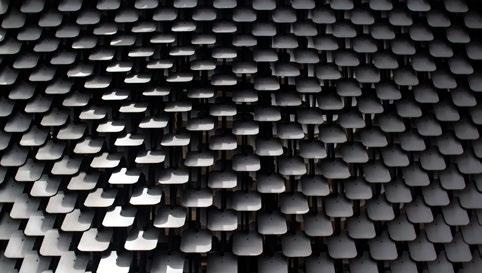

To counter this polluted state that we have reached, architects started aiming to achieve a sustainable building design, by including several elements that would help reducing the impact on environment. One such element is a bioclimatic responsive skin, also known as a smart skin.

ABSTRACT

This research focuses on learning about Smart Skins or Bioclimatic Responsive Skins from the basics. The literature study elaborates on different types of smart skins such as active or passive, and several other classifications such as biomimicry which includes animal based and botanical based. Various types of sensors that detect different types of stimuli are researched upon to establish a deeper understanding of how these stimuli can influence a change which can be beneficially utilised while designing a smart facade. Actuators and control systems are also explained in detail, as they also form the mechanism for any change in such a system.

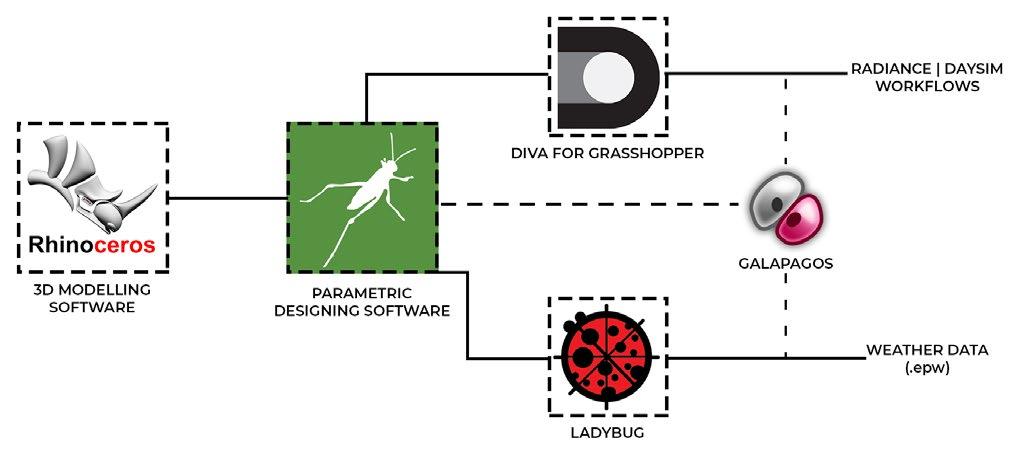

Furthermore, the research elaborates upon the need for smart skin and how to design a smart skin by an in-depth case study of three popular buildings – The Al Bahar Towers, The One Ocean Theme Pavilion, and The Southern Denmark University Campus Building. After researching on various different subheads such as design, concept, climate and energy, mechanical details and construction details, a step-by-step smart skin designing process has been derived, which provides a basic learning of how one can geometrically assess and create something in grasshopper. The step-by-step process is explained in layman terms so that the research is also easy to follow for any beginner using the softwares.

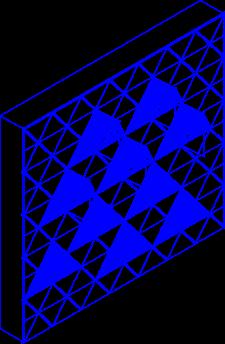

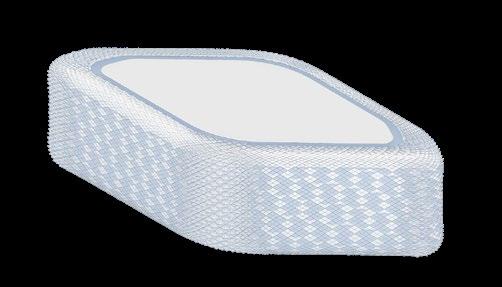

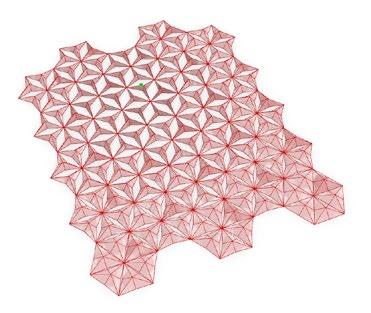

Lastly, a smart skin was designed in grasshopper using all the information and techniques learned from the previous sections of the research. The attractor point position was then replaced with the position of the sun according to Chicago’s weather data file. This smart skin is then wrapped around the John Hancock Centre, a skyscraper located in Chicago, and several solar radiation simulations were performed on it.

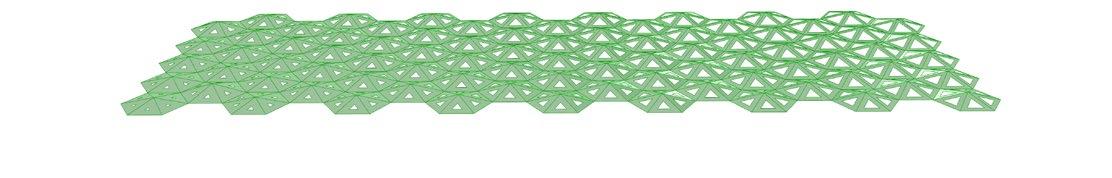

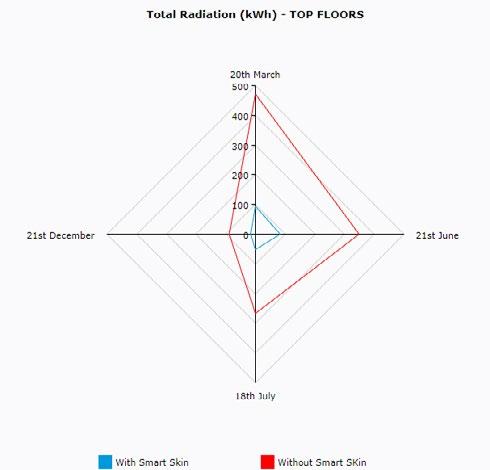

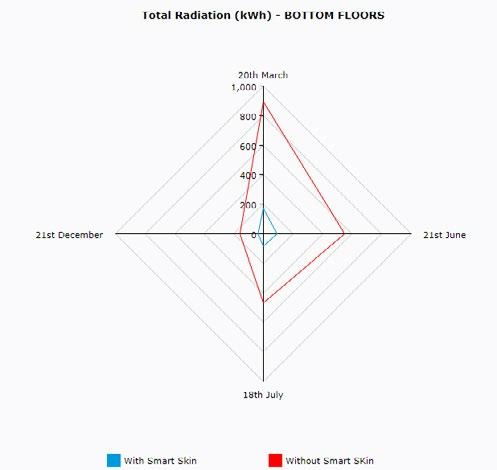

These simulations were performed at four different dates of analysis – 20th March (the equinox), 21st June (Summer Solstice), 18th July (Hottest day of Chicago in 2019) and 21st December (Winter Solstice), once with the smart skin wrapped around the building, and once without the smart skin wrapped around the building. The ladybug radiation analysis simulation was performed as the simulation and does not take into account the different specific material properties of the context geometry, which is a limitation of this research. The simulations resulted in two types of data for comparison – Radiation Graphs, and Total Radiation Value in kWh. A table was then prepared for the comparison of the results, and observations and inferences were penned down.

The conclusion sums up the findings of the research and talks about further ideas or areas related to the research that can be explored in the future.
