SELECTED PROJECTS 2021-2024

1. Upper West Side, New York, USA page 3

Town house refurbishment, Studio Rinaldi

2. Kensington, London, UK page 7

Terraced house refurbishment, Studio Rinaldi

3. Chiswick, London UK page 11

Semi-detached House refurbishment, Zulufish

© Studio Rinaldi

© Studio Rinaldi

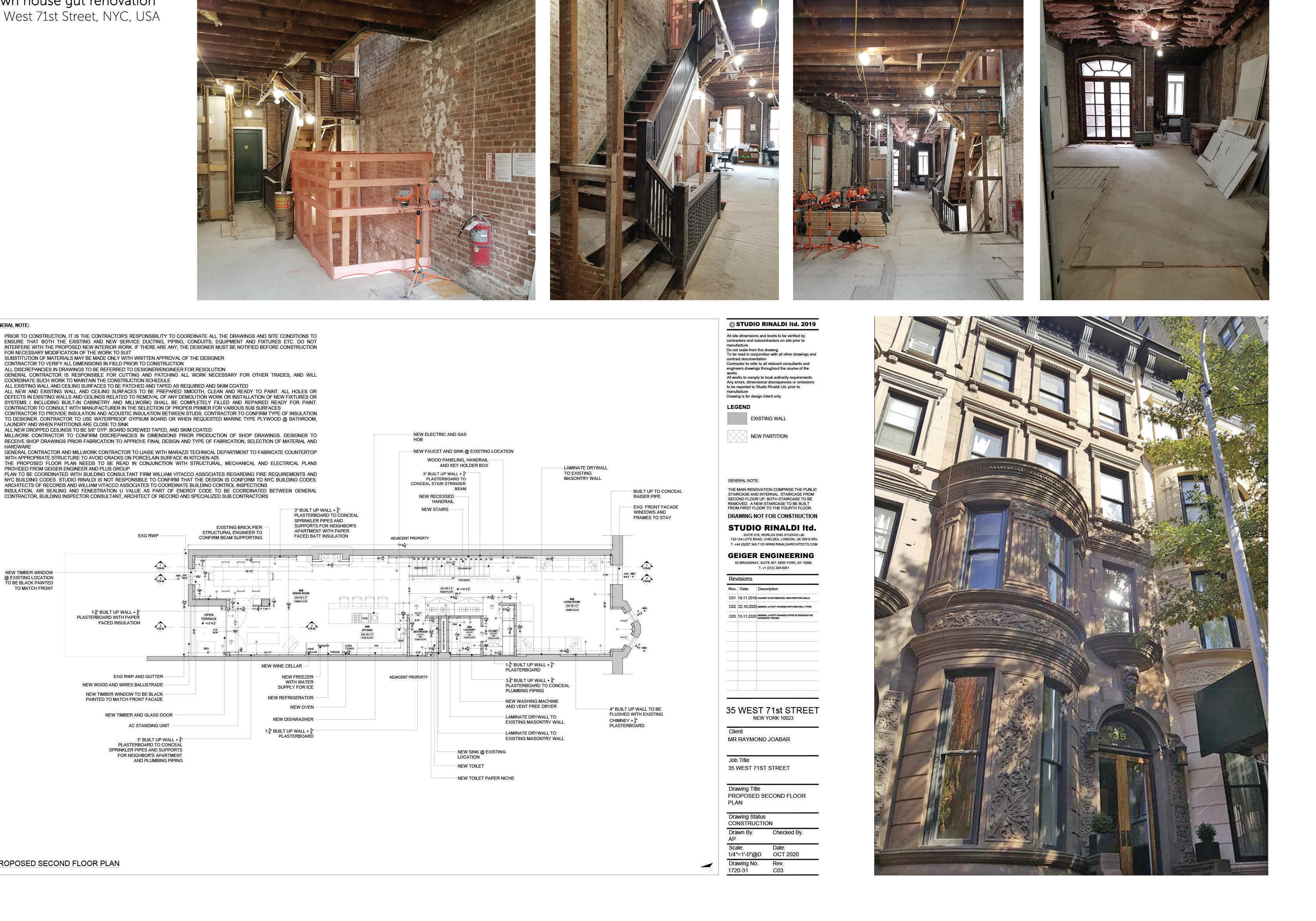

1. Upper West Side, New York, USA

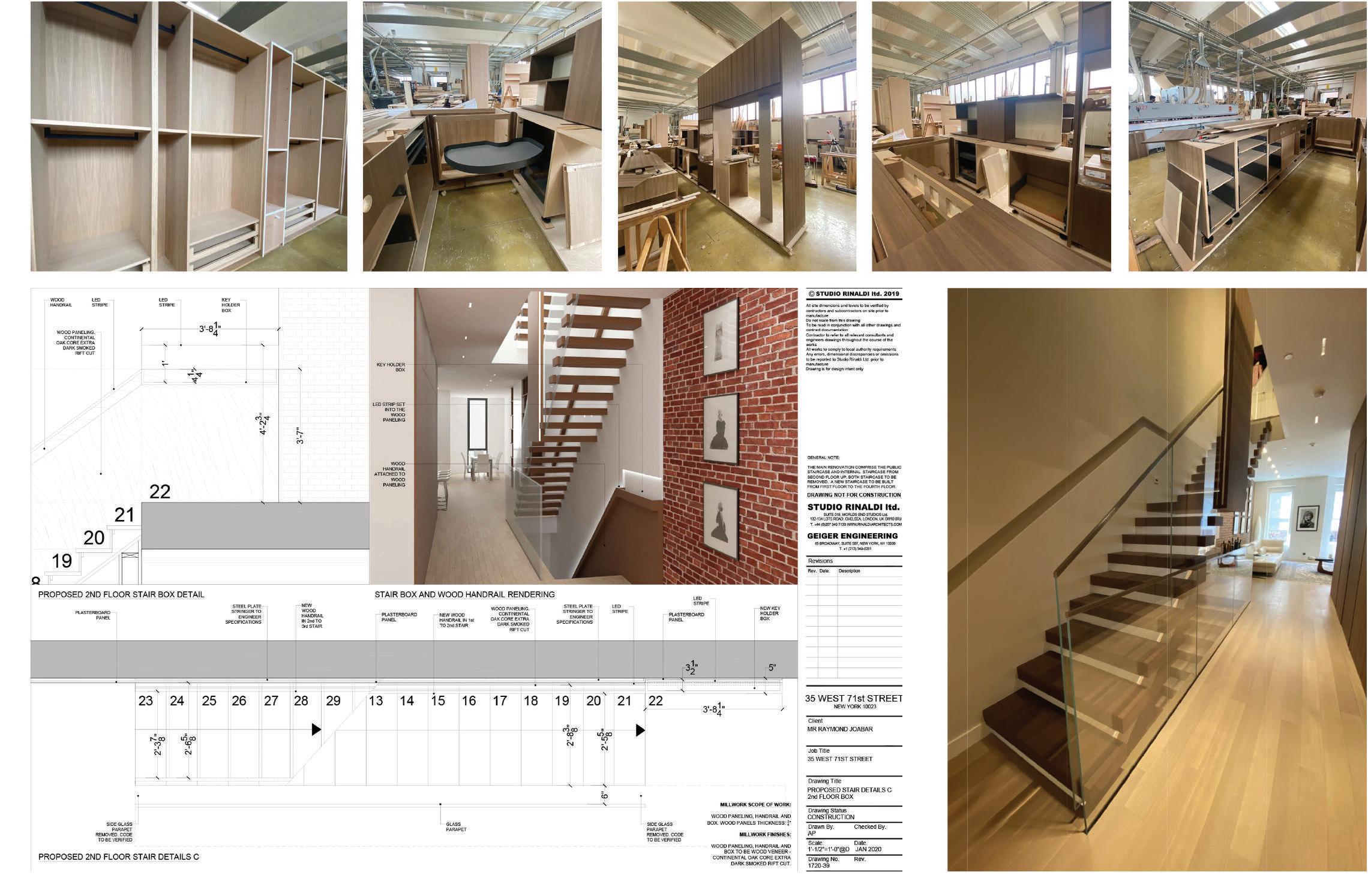

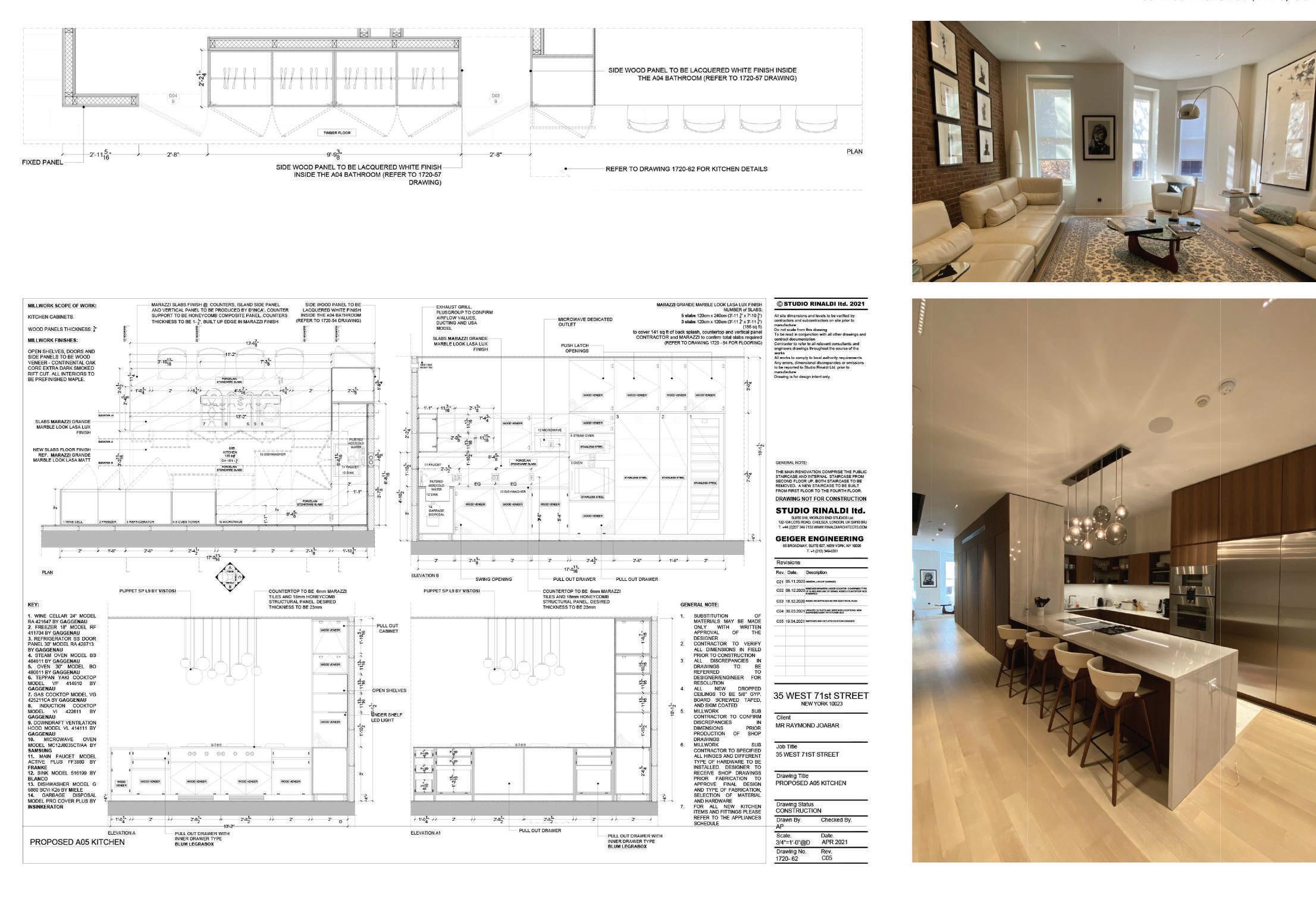

Bespoke joinery has been design throughout all levels of the town house.

All the party walls has been insultated with build ups that allowed us to create recessed niches and handrails at main staircase. The cantilevered stair has been installed using a stringer beam concealed in the build ups at party wall. All glass balustrade and timber vertical panels with LED have been properly designed ito garantee a perfect alignment and elements connection throughout staircase void from first floor to third floor. New Air Conditioning and sprinkler systems, affecting drop ceiling height at each level. Several floor slab detailed sections have been provided around the staricase void due to integration between structural layout and architectural elements. The entire project has been coordinated remotely during Covid-19 ensuring a proper logistic of all goods shipped from Europe (lighting fixtures, joinery, kitchen and timber floor).

All the party walls has been insultated with build ups that allowed us to create recessed niches and handrails at main staircase.

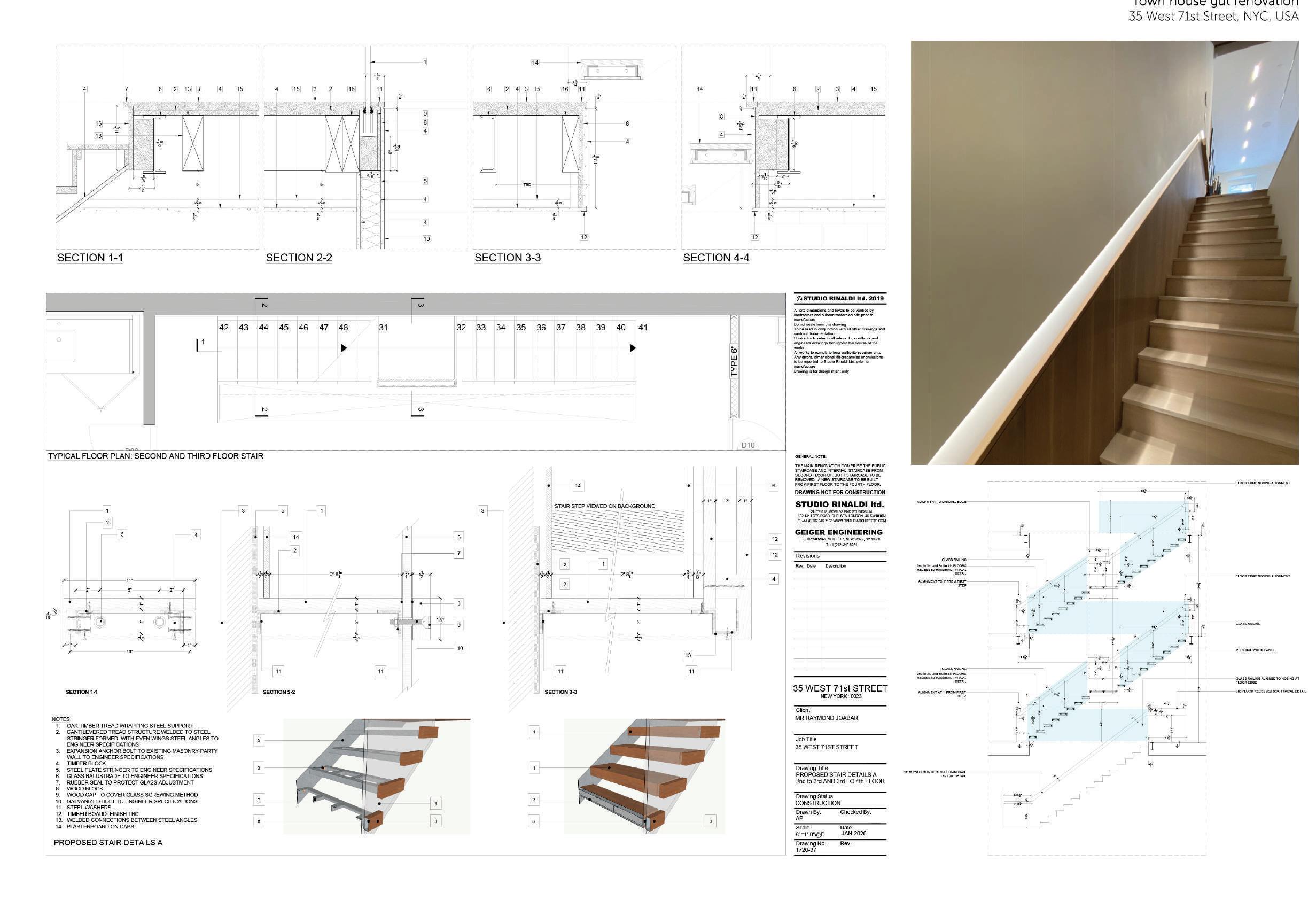

The cantilevered stair has been installed using a stringer beam concealed in the build ups at party wall. All glass balustrade and timber vertical panels with LED have been properly designed in details to garantee a perfect alignment at staircase void from first floor to third floor.

New Air Conditioning and sprinkler systems, forcing us to drop the ceiling at each level and to design proper details at ﬂoor slabs.

The entire project has been coordinated remotely during Covid-19 Bespoke joinery has been design throughout all levels of the town house.

© Studio Rinaldi

GARDEN OF OTHER PREMISES BELOW A06 DINING ROOM 10'-1 4 10'-8 5 6'-11 117 8 5'-11 SECTION 1-1 AND 2-2 NEW TIMBER AND GLASS DOOR @ NEW STRUCTURAL LAYOUT AS PER ENGINEER NEW ROOF SECTION 2-2 NEED TO DEFINE GUTTER WAY WOOD AND WIRES BALUSTRADE LED STRIP @ SIDES OF VERTICAL STAIR PANEL LED STRIP ALONG ALL WOOD PANELING NEW WOOD HANDRAILCONTINENTAL OAK CORE EXTRADARK SMOKED RIFT CUT CONSTRUCTION, IT IS CONTRACTOR'S TO THE SITE ENSURE THAT AND NEW PIPING, EQUIPMENT AND DO NOT THE INTERIOR ANY, THE NOTIFIED CONSTRUCTION FOR MODIFICATION OF MATERIALS ONLY WITH OF THE VERIFY ALL PRIOR TO DISCREPANCIES IN REFERRED TO FOR CONTRACTOR IS CUTTING WORK OTHER COORDINATE MAINTAIN THE SCHEDULE CEILING PATCHED AND AND SKIM EXISTING WALL SURFACES TO BE CLEAN PAINT. ALL EXISTING RELATED ANY OR NEW SYSTEMS CABINETRY SHALL BE AND FOR PAINT. CONSULT IN THE PRIMER SURFACES CEILINGS TO SCREWED COATED A02 A11 A13 OTHER PREMISES @ FIRST FLOOR AND LOWER GROUND FLOOR GARDEN OF OTHER PREMISES BELOW 6" BEAM 10" TALL 9'-8" TO BOTTOM 10" BEAM 9'-8" TO BOTTOM PLASTER TO COVER FIRST FLOOR ±0 +13' - 11" + 25' 7 " SECOND FLOOR THIRD FLOOR FOURTH FLOOR +49' 6 ROOFTOP -9'-7 1 2 LOWER GROUND FLOOR +36' - 5" W09 Fo W11 Fo W06 W02 S S01 R S03 R D05 D15 Fo 10" TALL BEAM TALL 83 82 63 62 64 81 65 61 71 74 66 70 73 76 69 77 75 79 78 80 67 68 72 1 5 6 7 9 10 11 12 13 14 15 16 17 18 19 20 21 22 29 36 31 34 37 44 58 52 25 23 27 30 38 40 41 28 51 46 24 26 35 33 39 32 57 42 43 45 47 48 49 50 56 53 54 55 59 60 LOBBY A01 DINING ROOM A06 LIVING ROOM DEN A07 GUEST STUDIO CLOSET MASTER BEDROOM A17 CELLAR TERRACE A12 OTHER PREMISES @ FIRST FLOOR AND LOWER GROUND FLOOR PLASTER DINING ROOM A06 PLASTER PLASTER PLASTER PLASTER PLASTER PLASTER PLASTER PLASTER PLASTER TIMBER EXPOSED BRICKS 36'-6" 3'-01 2 16'-5 2'-111 4 12'-11 57'-1 3 4 16'-4" 57'-51 2 19'-73 8 16'-43 4 20'-4" 6'-3 12'-7 3'-11 2'-8 5" 17' 33'-5 17' 36'-18 11'-9 10'-10 2 1'-0 12'-1 16 1 1 2 16 14'-7 12'-4 1'-01 4 10'-1 1 2 2 9 16 1'-216 15'-33 4 5" 32 2'-8" 16'-0 15'-1016 19'-11 TBD 18'-9" 17'-9" TBD 5" 5" 10'-1 1 8'-8" 9'-3" 6 11" 7 16 11" 11" 7 11'-3 5 16 9'-3" 3'-6" 3'-6" 2" 2" 2" 2" 2" 4" 4" 4" 1' 2'-11" 15'-1 1 2 11'-9" 10 1'-4" 1' 1'-4" 1' 5'-7" 5'-7" W1 R1 R1 2'-6" 2'-6" 2'-6" 2'-5 2'-7" 3'-05 8 A06 DINING ROOM D02 3'-6 8 6' 6'-111 11 5'-11 PROPOSED SECTION 1-1 AND 2-2 EXISTING WALL LEGEND Drawn By. Scale. Drawing No. Drawing Status Drawing Title Checked By. Rev. Date. 35 WEST 71st STREET Client Description Rev. Revisions Date. NEW YORK 10023 All site dimensions and levels to be verified by contractors and subcontractors on site prior to manufacture Do not scale from this drawing To be read in conjunction with all other drawings and contract documentation Contractor to refer to all relevant consultants and engineers drawings throughout the course of the works All works to comply to local authority requirements Any errors, dimensional discrepancies or omissions to be reported to Studio Rinaldi Ltd. prior to manufacture Drawing is for design intent only STUDIO RINALDI ltd. 2019 © STUDIO RINALDI ltd. SUITE 018, WORLDS END STUDIOS Ltd. 132-134 LOTS ROAD, CHELSEA, LONDON, UK SW10 0RJ T. +44 (0)207 349 7133 WWW.RINALDIARCHITECTS.COM GEIGER ENGINEERING 65 BROADWAY, SUITE 507, NEW YORK, NY 10006 T. +1 (212) 349-8281 GENERAL NOTE: THE MAIN RENOVATION COMPRISE THE PUBLIC STAIRCASE AND INTERNAL STAIRCASE FROM SECOND FLOOR UP. BOTH STAIRCASE TO BE REMOVED. A NEW STAIRCASE TO BE BUILT FROM FIRST FLOOR TO THE FOURTH FLOOR. MR RAYMOND JOABAR 35 WEST 71ST STREET Job Title CONSTRUCTION AP 1/4"=1'-0"@D DRAWING NOT FOR CONSTRUCTION 1720-35 NOV 2020 PROPOSED SECTION 1-1 AND 2-2 NEW PARTITION MASONRY WALL: EXPOSED BRICKS TIMBER VENEER NEW FLIGHTS OF STAIRS FROM FIRST TO FOURTH FLOOR. CONTINENTAL OAK CORE EXTRA DARK SMOKED RIFT CUT NEW SLAB NEW FIXED FLAT SKYLIGHTS @ EXISTING OPENING EXISTING TIMBER FRAME TO STAY EXISTING TIMBER FRAME TO STAY EXISTING TIMBER FRAME TO STAY NEW TIMBER AND GLASS DOOR @ NEW LOCATION SECTION 2-2 NEW STRUCTURAL LAYOUT AS PER ENGINEER NEW ROOF SECTION 2-2 NEW TIMBER WINDOW FRAME TO BE BLACK PAINTED TO MATCH FRONT FACADE EXPOSED BRICK WALL NEW DROP CEILING NEED TO DEFINE GUTTER WAY EXG GUTTER NEW WOOD AND WIRES BALUSTRADE EXG GUTTER NEW CANTILEVERED STAIRS. STEEL STRUCTURE AND TIMBER COVER. STRUCTURE AS PER ENGINEER OPENING SKYLIGHT TO CLOSE WOOD PANELING, HANDRAIL AND BOXCONTINENTAL OAK CORE EXTRA DARK SMOKED RIFT CUT LINE OF DIVISION WOOD VERTICAL STAIR PANEL. WOOD BOX (REFER TO 1720-39 DRAWING FOR ANY DETAIL) WITH LED STRIP MILLWORK SCOPE OF WORK: WOOD PANELING, WOOD PARAPET, HANDRAIL, BOX AND VERTICAL STAIR PANEL. WOOD PANELS THICKNESS: 3 4 MILLWORK FINISHES: WOOD PANELING, WOOD PARAPET, HANDRAIL, BOX AND VERTICAL STAIR PANEL TO BE WOOD VENEER - CONTINENTAL OAK CORE EXTRA DARK SMOKED RIFT CUT LED STRIP @ SIDES OF VERTICAL STAIR PANEL LED STRIP ALONG ALL WOOD PANELING iGUZZINI W1 WALL MOUNTED LIGHT iGUZZINI R1 WALL RECESSED LIGHT NEW WOOD HANDRAIL CONTINENTAL OAK CORE EXTRADARK SMOKED RIFT CUT ADDED NEW WOOD HANDRAIL C01 06.01.2020 C02 GENERAL NOTE: PRIOR TO CONSTRUCTION, IT IS THE CONTRACTOR'S RESPONSIBILITY TO COORDINATE ALL THE DRAWINGS AND SITE CONDITIONS TO ENSURE THAT BOTH THE EXISTING AND NEW SERVICE DUCTING, PIPING, CONDUITS, EQUIPMENT AND FIXTURES ETC. DO NOT INTERFERE WITH THE PROPOSED NEW INTERIOR WORK. IF THERE ARE ANY, THE DESIGNER MUST BE NOTIFIED BEFORE CONSTRUCTION FOR NECESSARY MODIFICATION OF THE WORK TO SUIT SUBSTITUTION OF MATERIALS MAY BE MADE ONLY WITH WRITTEN APPROVAL OF THE DESIGNER CONTRACTOR TO VERIFY ALL DIMENSIONS IN FIELD PRIOR TO CONSTRUCTION ALL DISCREPANCIES IN DRAWINGS TO BE REFERRED TO DESIGNER/ENGINEER FOR RESOLUTION GENERAL CONTRACTOR IS RESPONSIBLE FOR CUTTING AND PATCHING ALL WORK NECESSARY FOR OTHER TRADES, AND WILL COORDINATE SUCH WORK TO MAINTAIN THE CONSTRUCTION SCHEDULE ALL EXISTING WALL AND CEILING SURFACES TO BE PATCHED AND TAPED AS REQUIRED AND SKIM COATED ALL NEW AND EXISTING WALL AND CEILING SURFACES TO BE PREPARED SMOOTH, CLEAN AND READY TO PAINT. ALL HOLES OR DEFECTS IN EXISTING WALLS AND CEILINGS RELATED TO REMOVAL OF ANY DEMOLITION WORK OR INSTALLATION OF NEW FIXTURES OR SYSTEMS INCLUDING BUILT-IN CABINETRY AND MILLWORK) SHALL BE COMPLETELY FILLED AND REPAIRED READY FOR PAINT. CONTRACTOR TO CONSULT WITH MANUFACTURER IN THE SELECTION OF PROPER PRIMER FOR VARIOUS SUB SURFACES ALL NEW DROPPED CEILINGS TO BE 5/8" GYP. BOARD SCREWED TAPED, AND SKIM COATED GENERAL LAYOUT CHANGES C02 24.11.2020 REF REF DWG DWG 1720-39B REF DWG 1. Upper West Side, New York, USA © Studio Rinaldi

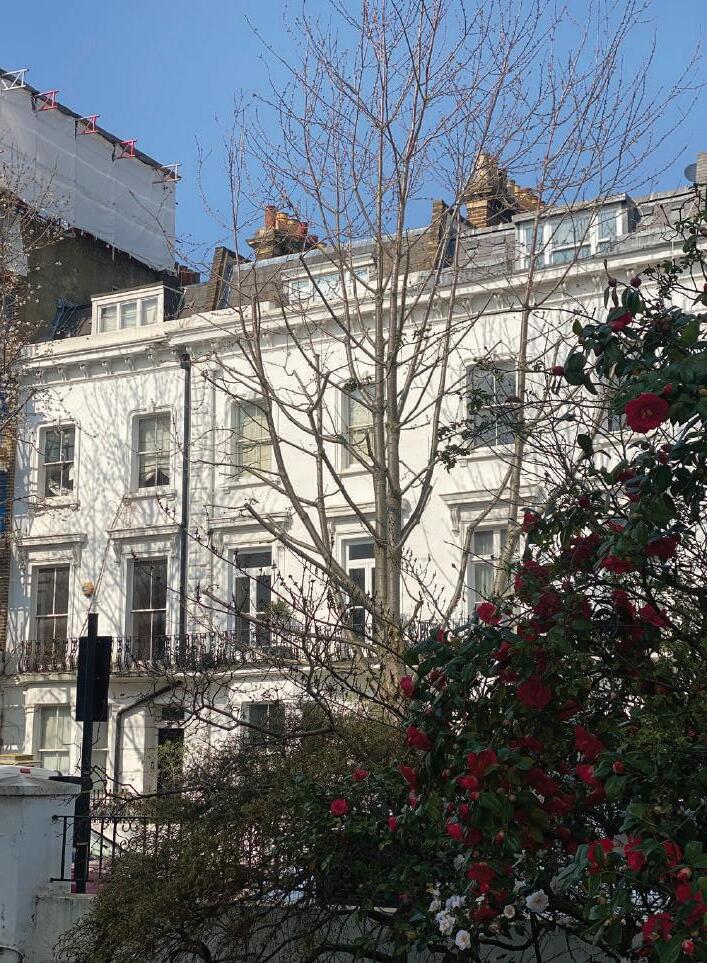

Terraced house refurbishment

Berkeley Gardens, Notting Hill, London, UK

Terraced house refurbishment

Full refurbishment of a 5-storeys

Terraced house refurbishment

Berkeley Gardens, Notting Hill, London, UK

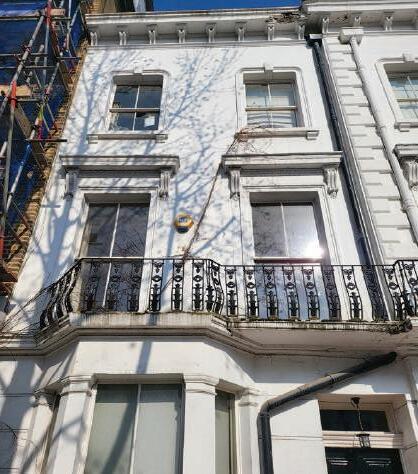

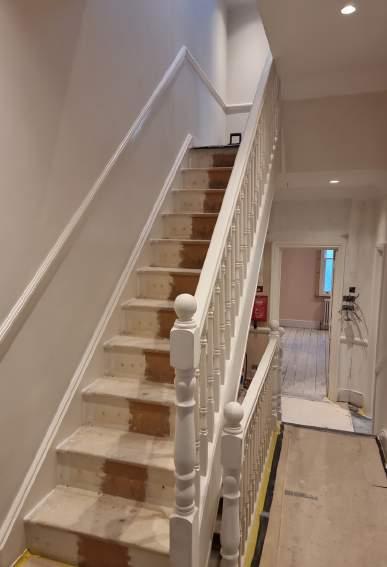

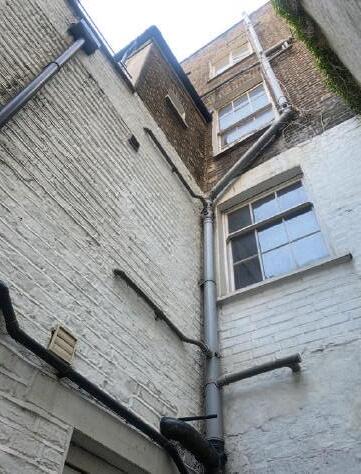

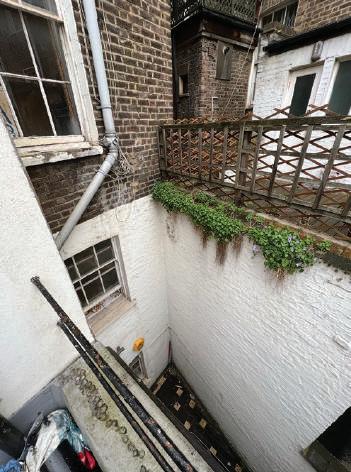

Victorian terraced house in Kensington Palace conservation area in RBKC. The works comprise a whole new steel structure and open plan layout, new extensions at rear facade and new mansard rooftop. Design coordination

Ongoin project. Gut refurbishment of a 5 storey Victorian Terraced house in Notting Hill comprising in complete new steel strucutre and open space layout, rear additions and new enlarged rooftop mansard. Design coordination from Stage 0 to Stage 4 for tendering phase. Management as principal designer of entire team, attending DTM and revising structural, MEP, AV layouts and Fire engineer/ Building control requirements.

RIBA stages 1-5, management as Project Lead of the whole design process attending DTM, reviewing MEP, structural layout, AV and fire engineer strategies for Building Control approvals.

2. Kensington, London,

BOILER HOT WATER CALORIFIER +0.00 COURTYARD A05 5.1 sqm +5.60 TERRACE A15 7.1 sqm +2.60 BEDROOM A20 11.8 sqm BEDROOM A23 12.2 sqm DOWN 1700 2850 3348 1054 3099 3993 800 3377 4494 1017 2335 2850 BATHROOM A22 2.3 sqm CH 2377 BATHROOM A21 3.0 sqm CH 2577 CH 2577 CH 2577 FD30 FD30 +12.60 CH 2377 HALLWAY A19 2.5 sqm 1668 +0.00 +0.00 BASEMENT LIGHTWELL A03 8.5 sqm FRONT ENTRANCE A11 8.7 sqm +2.94 LOWER ROOFTOP +8.30 LOWER ROOFTOP W22 W23 W24 600 D11 D12 D13 800 200 J16 J20 J19 600 738 400 700 D14 FR30 FR30 700 800 700 987 700 B 2230-48A B 2230-48A A 2230-48 A 2230-48 800 J18 J17 B 2230-68 B 2230-68 D 2230-68 G 2230-68 G 2230-68 H 2230-68 H 2230-68 CH 2377 2290 600 Drawn By. Scale. Drawing No. Drawing Status Drawing Title 8 BERKELEY GARDENS Client Job Title Rev. Revisions requirements Any errors, dimensional discrepancies or omissions to be reported to Studio Rinaldi Ltd. prior to manufacture Drawing is for design intent only STUDIO RINALDI ltd. TOBIAS PUNGA 8 BERKELEY GARDENS PROPOSED THIRD FLOOR PLAN TENDER AP 1:50 @ A2 2230-34 PROPOSED THIRD FLOOR PLAN 0m 1 2 N NEW STAIR NEW SVP LOCATION AT REAR FACADE NEW DOWNPIPE LOCATION NEW DOWNPIPE LOCATION AT FRONT FACADE NEW EXTENDED ROOF MANSARD STRUCTURE. REFER TO DRAWINGS 2230-67 AND 2230-67A FOR PROPOSED ROOFTOP DETAILS AND HRPR ASSOCIATES FOR STRUCTURAL DRAWINGS GENERAL NOTE: 1. PRIOR TO CONSTRUCTION, IT IS THE CONTRACTOR'S RESPONSIBILITY TO COORDINATE ALL THE DRAWINGS AND SITE CONDITIONS TO ENSURE THAT BOTH THE EXISTING AND NEW SERVICE DUCTING, PIPING, CONDUITS, EQUIPMENT AND FIXTURES ETC. DO NOT INTERFERE WITH THE PROPOSED NEW INTERIOR WORK. IF THERE ARE ANY, THE DESIGNER MUST BE NOTIFIED BEFORE CONSTRUCTION FOR NECESSARY MODIFICATION OF THE WORK TO SUIT 2. SUBSTITUTION OF MATERIALS MAY BE MADE ONLY WITH WRITTEN APPROVAL OF THE DESIGNER 3. CONTRACTOR TO VERIFY ALL DIMENSIONS IN FIELD PRIOR TO CONSTRUCTION 4. ALL DISCREPANCIES IN DRAWINGS TO BE REFERRED TO DESIGNER/ENGINEER FOR RESOLUTION 5. GENERAL CONTRACTOR IS RESPONSIBLE FOR CUTTING AND PATCHING ALL WORK NECESSARY FOR OTHER TRADES, AND WILL COORDINATE SUCH WORK TO MAINTAIN THE CONSTRUCTION SCHEDULE 6. ALL EXISTING WALL AND CEILING SURFACES TO BE PATCHED AND TAPED AS REQUIRED AND SKIM COATED 7. ALL NEW AND EXISTING WALL AND CEILING SURFACES TO BE PREPARED SMOOTH, CLEAN AND READY TO PAINT. ALL HOLES OR DEFECTS IN EXISTING WALLS AND CEILINGS RELATED TO REMOVAL OF ANY DEMOLITION WORK OR INSTALLATION OF NEW FIXTURES OR SYSTEMS INCLUDING BUILT-IN CABINETRY AND JOINERY) SHALL BE COMPLETELY FILLED AND REPAIRED READY FOR PAINT. CONTRACTOR TO CONSULT WITH MANUFACTURER IN THE SELECTION OF PROPER PRIMER FOR VARIOUS SUB SURFACES 8. CONTRACTOR TO PROVIDE INSULATION AND ACOUSTIC INSULATION BETWEEN STUDS. CONTRACTOR TO CONFIRM TYPE OF INSULATION TO DESIGNER. CONTRACTOR TO USE WATERPROOF GYPSUM BOARD OR WHEN REQUESTED MARINE TYPE PLYWOOD @ BATHROOMS AND WHEN PARTITIONS ARE CLOSE TO SINK 9. JOINERY CONTRACTOR TO CONFIRM DISCREPANCIES IN DIMENSIONS PRIOR PRODUCTION OF SHOP DRAWINGS. DESIGNER TO RECEIVE SHOP DRAWINGS PRIOR FABRICATION TO APPROVE FINAL DESIGN AND TYPE OF FABRICATION, SELECTION OF MATERIAL AND HARDWARE 10. THE PROPOSED FLOOR PLAN NEEDS TO BE READ IN CONJUNCTION WITH STRUCTURAL, MECHANICAL AND ELECTRICAL PLANS PROVIDED BY HRPR ASSOCIATES AND INGINE M&E KEY NEW TIMBER DOUBLE OPENING SASH WINDOWS BY TIMBER WINDOWS OR SIMILAR NEW FIXED TIMBER SASH WINDOWS BY TIMBER WINDOWS OR SIMILAR NEW TIMBER SASH WINDOWS BY TIMBER WINDOWS OR SIMILAR NEW INSULATED PLASTERBOARD ALONG PARTY WALLS BY FERMACELL OR SIMILAR NEW INSULATED PLASTERBOARD ALONG PARTY WALLS BY FERMACELL OR SIMILAR HOT WATER CALORIFIER AND BOILER TO BE CONCEALED IN THE CABINETS. REFER TO INGINE M&E FOR CORRECT LAYOUT PROPOSED ELECTRIC OPERABLE SKYLIGHT W27 AT ROOFTOP BY GLAZING VISION OR SIMILAR SUITABLE FOR SMOKE & HEAT EXHAUST VENTILATION PROVIDING sqm OF MEASURED FREE AREA NEW EXTENDED ROOF MANSARD STRUCTURE. REFER TO DRAWINGS 2230-67 AND 2230-67A FOR PROPOSED ROOFTOP DETAILS AND HRPR ASSOCIATES FOR STRUCTURAL DRAWINGS LINE OF DROP CEILING FROM 2577 mm TO 2377 mm LINE OF DROP CEILING FROM 2577 mm TO 2377 mm

HOT WATER CALORIFIER +0.00 COURTYARD A05 5.1 sqm +5.60 TERRACE A15 7.1 sqm +2.60 BEDROOM A20 11.8 sqm BEDROOM A23 12.2 sqm DOWN 1700 2850 3348 1054 3099 3993 800 3377 4494 1017 2335 2850 BATHROOM A22 2.3 sqm CH 2377 BATHROOM A21 3.0 sqm CH 2577 CH 2577 CH 2577 FD30 FD30 +12.60 CH 2377 HALLWAY A19 2.5 sqm 1668 +0.00 +0.00 BASEMENT LIGHTWELL A03 8.5 sqm FRONT ENTRANCE A11 8.7 sqm +2.94 LOWER ROOFTOP +8.30 LOWER ROOFTOP W22 W23 W24 600 D11 D12 D13 800 200 J16 J20 J19 600 738 400 700 D14 FR30 700 800 700 987 700 B 2230-48A B 2230-48A A 2230-48 A 2230-48 800 J18 J17 B 2230-68 B 2230-68 D 2230-68 G 2230-68 G 2230-68 H 2230-68 H 2230-68 CH 2377 2290 600 Drawn By. Scale. Drawing No. Drawing Status Drawing Title 8 BERKELEY GARDENS Client Job Title Rev. Revisions Date. prior to manufacture Drawing is for design intent only STUDIO RINALDI ltd. 132-134 LOTS ROAD, CHELSEA, LONDON, UK SW10 0RJ T. +44 (0)207 349 7133 WWW.RINALDIARCHITECTS.COM TOBIAS PUNGA 8 BERKELEY GARDENS PROPOSED THIRD FLOOR PLAN TENDER AP 1:50 @ A2 2230-34 PROPOSED THIRD FLOOR PLAN 0m 2 5 N NEW STAIR NEW SVP LOCATION AT REAR FACADE NEW DOWNPIPE LOCATION NEW DOWNPIPE LOCATION AT FRONT FACADE NEW EXTENDED ROOF MANSARD STRUCTURE. REFER TO DRAWINGS 2230-67 AND 2230-67A FOR PROPOSED ROOFTOP DETAILS AND HRPR ASSOCIATES FOR STRUCTURAL DRAWINGS GENERAL NOTE: 1. PRIOR TO CONSTRUCTION, IT IS THE CONTRACTOR'S RESPONSIBILITY TO COORDINATE ALL THE DRAWINGS AND SITE CONDITIONS TO ENSURE THAT BOTH THE EXISTING AND NEW SERVICE DUCTING, PIPING, CONDUITS, EQUIPMENT AND FIXTURES ETC. DO NOT INTERFERE WITH THE PROPOSED NEW INTERIOR WORK. IF THERE ARE ANY, THE DESIGNER MUST BE NOTIFIED BEFORE CONSTRUCTION FOR NECESSARY MODIFICATION OF THE WORK TO SUIT 2. SUBSTITUTION OF MATERIALS MAY BE MADE ONLY WITH WRITTEN APPROVAL OF THE DESIGNER 3. CONTRACTOR TO VERIFY ALL DIMENSIONS IN FIELD PRIOR TO CONSTRUCTION 4. ALL DISCREPANCIES IN DRAWINGS TO BE REFERRED TO DESIGNER/ENGINEER FOR RESOLUTION 5. GENERAL CONTRACTOR IS RESPONSIBLE FOR CUTTING AND PATCHING ALL WORK NECESSARY FOR OTHER TRADES, AND WILL COORDINATE SUCH WORK TO MAINTAIN THE CONSTRUCTION SCHEDULE 6. ALL EXISTING WALL AND CEILING SURFACES TO BE PATCHED AND TAPED AS REQUIRED AND SKIM COATED 7. ALL NEW AND EXISTING WALL AND CEILING SURFACES TO BE PREPARED SMOOTH, CLEAN AND READY TO PAINT. ALL HOLES OR DEFECTS IN EXISTING WALLS AND CEILINGS RELATED TO REMOVAL OF ANY DEMOLITION WORK OR INSTALLATION OF NEW FIXTURES OR SYSTEMS INCLUDING BUILT-IN CABINETRY AND JOINERY) SHALL BE COMPLETELY FILLED AND REPAIRED READY FOR PAINT. CONTRACTOR TO CONSULT WITH MANUFACTURER IN THE SELECTION OF PROPER PRIMER FOR VARIOUS SUB SURFACES 8. CONTRACTOR TO PROVIDE INSULATION AND ACOUSTIC INSULATION BETWEEN STUDS. CONTRACTOR TO CONFIRM TYPE OF INSULATION TO DESIGNER. CONTRACTOR TO USE WATERPROOF GYPSUM BOARD OR WHEN REQUESTED MARINE TYPE PLYWOOD @ BATHROOMS AND WHEN PARTITIONS ARE CLOSE TO SINK 9. JOINERY CONTRACTOR TO CONFIRM DISCREPANCIES IN DIMENSIONS PRIOR PRODUCTION OF SHOP DRAWINGS. DESIGNER TO RECEIVE SHOP DRAWINGS PRIOR FABRICATION TO APPROVE FINAL DESIGN AND TYPE OF FABRICATION, SELECTION OF MATERIAL AND HARDWARE 10. THE PROPOSED FLOOR PLAN NEEDS TO BE READ IN CONJUNCTION WITH STRUCTURAL, MECHANICAL AND ELECTRICAL PLANS PROVIDED BY HRPR ASSOCIATES AND INGINE M&E KEY NEW TIMBER DOUBLE OPENING SASH WINDOWS BY TIMBER WINDOWS OR SIMILAR NEW FIXED TIMBER SASH WINDOWS BY TIMBER WINDOWS OR SIMILAR NEW TIMBER SASH WINDOWS BY TIMBER WINDOWS OR SIMILAR NEW INSULATED PLASTERBOARD ALONG PARTY WALLS BY FERMACELL OR SIMILAR NEW INSULATED PLASTERBOARD ALONG PARTY WALLS BY FERMACELL OR SIMILAR HOT WATER CALORIFIER AND BOILER TO BE CONCEALED IN THE CABINETS. REFER TO INGINE M&E FOR CORRECT LAYOUT PROPOSED ELECTRIC OPERABLE SKYLIGHT W27 AT ROOFTOP BY GLAZING VISION OR SIMILAR SUITABLE FOR SMOKE & HEAT EXHAUST VENTILATION PROVIDING 1 sqm OF MEASURED FREE AREA NEW EXTENDED ROOF MANSARD STRUCTURE. REFER TO DRAWINGS 2230-67 AND 2230-67A FOR PROPOSED ROOFTOP DETAILS AND HRPR ASSOCIATES FOR STRUCTURAL DRAWINGS LINE OF DROP CEILING FROM 2577 mm TO 2377 mm LINE OF DROP CEILING FROM 2577 mm TO 2377 mm

+0.00 COURTYARD A05 5.1 sqm +5.60 TERRACE A15 7.1 sqm +2.60 BEDROOM A20 11.8 sqm BEDROOM A23 12.2 sqm DOWN 1700 2850 3348 1054 3099 3993 800 3377 4494 1017 2335 2850 BATHROOM A22 2.3 sqm CH 2377 BATHROOM A21 sqm CH 2577 CH 2577 CH 2577 FD30 FD30 +12.60 CH 2377 HALLWAY A19 2.5 sqm 1668 +0.00 +0.00 BASEMENT LIGHTWELL A03 8.5 sqm FRONT ENTRANCE A11 8.7 sqm +2.94 LOWER ROOFTOP +8.30 LOWER ROOFTOP W22 W23 W24 600 D11 D12 D13 800 200 J16 J20 J19 600 738 400 700 D14 FR30 FR30 700 800 700 987 700 B 2230-48A B 2230-48A A 2230-48 A 2230-48 800 J18 J17 B 2230-68 B 2230-68 D 2230-68 G 2230-68 G 2230-68 H 2230-68 H 2230-68 CH 2377 2290 600 Drawn By. Scale. Drawing No. Drawing Status Drawing Title Checked By. Rev. Date. 8 BERKELEY GARDENS Client Job Title Description Rev. Revisions Date. LONDON W8 4AP All works to comply to local authority requirements Any errors, dimensional discrepancies or omissions to be reported to Studio Rinaldi Ltd. prior to manufacture Drawing is for design intent only STUDIO RINALDI ltd. SUITE 230, WORLDS END STUDIOS Ltd. 132-134 LOTS ROAD, CHELSEA, LONDON, UK SW10 0RJ T. +44 (0)207 349 7133 WWW.RINALDIARCHITECTS.COM TOBIAS PUNGA 8 BERKELEY GARDENS PROPOSED THIRD FLOOR PLAN TENDER AP 1:50 @ A2 2230-34 AP PROPOSED THIRD FLOOR PLAN 0m 1 2 5 N NEW STAIR NEW SVP LOCATION AT REAR FACADE NEW DOWNPIPE LOCATION NEW DOWNPIPE LOCATION AT FRONT FACADE NEW EXTENDED ROOF MANSARD STRUCTURE. REFER TO DRAWINGS 2230-67 AND 2230-67A FOR PROPOSED ROOFTOP DETAILS AND HRPR ASSOCIATES FOR STRUCTURAL DRAWINGS GENERAL NOTE: 1. PRIOR TO CONSTRUCTION, IT IS THE CONTRACTOR'S RESPONSIBILITY TO COORDINATE ALL THE DRAWINGS AND SITE CONDITIONS TO ENSURE THAT BOTH THE EXISTING AND NEW SERVICE DUCTING, PIPING, CONDUITS, EQUIPMENT AND FIXTURES ETC. DO NOT INTERFERE WITH THE PROPOSED NEW INTERIOR WORK. IF THERE ARE ANY, THE DESIGNER MUST BE NOTIFIED BEFORE CONSTRUCTION FOR NECESSARY MODIFICATION OF THE WORK TO SUIT 2. SUBSTITUTION OF MATERIALS MAY BE MADE ONLY WITH WRITTEN APPROVAL OF THE DESIGNER 3. CONTRACTOR TO VERIFY ALL DIMENSIONS IN FIELD PRIOR TO CONSTRUCTION 4. ALL DISCREPANCIES IN DRAWINGS TO BE REFERRED TO DESIGNER/ENGINEER FOR RESOLUTION 5. GENERAL CONTRACTOR IS RESPONSIBLE FOR CUTTING AND PATCHING ALL WORK NECESSARY FOR OTHER TRADES, AND WILL COORDINATE SUCH WORK TO MAINTAIN THE CONSTRUCTION SCHEDULE 6. ALL EXISTING WALL AND CEILING SURFACES TO BE PATCHED AND TAPED AS REQUIRED AND SKIM COATED 7. ALL NEW AND EXISTING WALL AND CEILING SURFACES TO BE PREPARED SMOOTH, CLEAN AND READY TO PAINT. ALL HOLES OR DEFECTS IN EXISTING WALLS AND CEILINGS RELATED TO REMOVAL OF ANY DEMOLITION WORK OR INSTALLATION OF NEW FIXTURES OR SYSTEMS INCLUDING BUILT-IN CABINETRY AND JOINERY) SHALL BE COMPLETELY FILLED AND REPAIRED READY FOR PAINT. CONTRACTOR TO CONSULT WITH MANUFACTURER IN THE SELECTION OF PROPER PRIMER FOR VARIOUS SUB SURFACES 8. CONTRACTOR TO PROVIDE INSULATION AND ACOUSTIC INSULATION BETWEEN STUDS. CONTRACTOR TO CONFIRM TYPE OF INSULATION TO DESIGNER. CONTRACTOR TO USE WATERPROOF GYPSUM BOARD OR WHEN REQUESTED MARINE TYPE PLYWOOD @ BATHROOMS AND WHEN PARTITIONS ARE CLOSE TO SINK 9. JOINERY CONTRACTOR TO CONFIRM DISCREPANCIES IN DIMENSIONS PRIOR PRODUCTION OF SHOP DRAWINGS. DESIGNER TO RECEIVE SHOP DRAWINGS PRIOR FABRICATION TO APPROVE FINAL DESIGN AND TYPE OF FABRICATION, SELECTION OF MATERIAL AND HARDWARE 10. THE PROPOSED FLOOR PLAN NEEDS TO BE READ IN CONJUNCTION WITH STRUCTURAL, MECHANICAL AND ELECTRICAL PLANS PROVIDED BY HRPR ASSOCIATES AND INGINE M&E NEW WALLS EXISTING KEY NEW TIMBER DOUBLE OPENING SASH WINDOWS BY TIMBER WINDOWS OR SIMILAR NEW FIXED TIMBER SASH WINDOWS BY TIMBER WINDOWS OR SIMILAR NEW TIMBER SASH WINDOWS BY TIMBER WINDOWS OR SIMILAR NEW INSULATED PLASTERBOARD ALONG PARTY WALLS BY FERMACELL OR SIMILAR NEW INSULATED PLASTERBOARD ALONG PARTY WALLS BY FERMACELL OR SIMILAR MAR 2023 HOT WATER CALORIFIER AND BOILER TO BE CONCEALED IN THE CABINETS. REFER TO INGINE M&E FOR CORRECT LAYOUT PROPOSED ELECTRIC OPERABLE SKYLIGHT W27 AT ROOFTOP BY GLAZING VISION OR SIMILAR SUITABLE FOR SMOKE & HEAT EXHAUST VENTILATION PROVIDING 1 sqm OF MEASURED FREE AREA NEW EXTENDED ROOF MANSARD STRUCTURE. REFER TO DRAWINGS 2230-67 AND 2230-67A FOR PROPOSED ROOFTOP DETAILS AND HRPR ASSOCIATES FOR STRUCTURAL DRAWINGS LINE OF DROP CEILING FROM 2577 mm TO 2377 mm LINE OF DROP CEILING FROM 2577 mm TO 2377 mm

Above the rooftop detail.

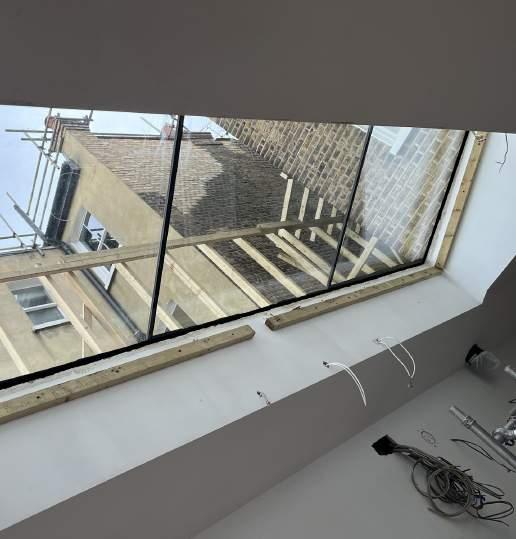

The refurbishment required also to insulate the existing brickwork masonry walls adding a build-up with thin thermal insulation in order to avoid heat loss and to guarantee an efficient thermal comfort all throughout. For fire safety regulations an AOV skylight with smoke detection has been added at rooftop at open staircase location. Also downstands from the ceiling at ground and first floor help to reduce the smoke spillage during a potential fire. The self-contained flat at lower ground floor has been designed with separate access via restored spiral staircase at front entrance.

The refurbishment required also to insulate the existing brickwork masonry walls adding a build-up with thin thermal insulation in order to avoid heat loss e to garantee an efficient thermal comfort throughout the new under floor heating system. For fire safety regulations an AOV skylight with smoke detection has been added at rooftop at open staircase location. Also downstands from the ceiling at ground and first floor help to reduce the smoke spillage during a fire. The separate flat at lower ground floor has separate access via spiral staircase at front entrance which has been retained and restored.

9 2. Kensington, London, UK Terraced house refurbishment Berkeley Gardens, Notting Hill, London, UK FD30 D03 J06 W12 CH 3120 TERRACE A15 7.1 sqm LIVING ROOM A12 36.2 sqm W28 W27 A 2230-68 CH 2814 MASTER BEDROOM A17 20.1 sqm D 2230-68 A 2230-68 G 2230-68 E 2230-68 2313 3100 3120 2814 2577 2313 2423 2614 2377 2377 2577 D01 W01 2 BEDROOM FLAT 68.3 sqm LIVING ROOM/KITCHEN A01 29.0 sqm CH 2313 BEDROOM A06 17.7 sqm CH 2313 W06 BEDROOM A04 12.0 sqm CH 2313 CH 3100 DINING ROOM A09 29.0 sqm W05 W07 W11 W13 W03 W09 G 2230-68 J 2230-68 W16 W14 J11 250 250 A 2230-68 W20 W18 CH 2614 MASTER BATHROOM A18 12.0 sqm G 2230-68 A 2230-68 G 2230-68 1 2230-68 H 2230-68 G 2230-68 1 2230-67A D 2230-68 6 2230-67A W23 2 2230-67A 3 2230-67A 5 2230-67A J12 J13 J16 J18 Drawn By. Scale. Drawing No. Drawing Status Drawing Title Checked By. Rev. Date. 8 BERKELEY GARDENS Client Job Title Description Rev. Revisions Date. LONDON W8 4AP All site dimensions and levels to be verified by contractors and subcontractors on site prior to manufacture Do not scale from this drawing To be read in conjunction with all other drawings and contract documentation Contractor to refer to all relevant consultants and engineers drawings throughout the course of the works All works to comply to local authority requirements Any errors, dimensional discrepancies or omissions to be reported to Studio Rinaldi Ltd. prior to manufacture Drawing is for design intent only STUDIO RINALDI ltd. 2022 © STUDIO RINALDI ltd. SUITE 230, WORLDS END STUDIOS Ltd. 132-134 LOTS ROAD, CHELSEA, LONDON, UK SW10 0RJ T. +44 (0)207 349 7133 WWW.RINALDIARCHITECTS.COM TOBIAS PUNGA 8 BERKELEY GARDENS PROPOSED SECTION BB TENDER AP 1:50/1:5@ A2 2230-49 AP MAR 2023 PROPOSED SECTION BB 0m 1 2 5 GENERAL NOTE: 1. PRIOR TO CONSTRUCTION, IT IS THE CONTRACTOR'S RESPONSIBILITY TO COORDINATE ALL THE DRAWINGS AND SITE CONDITIONS TO ENSURE THAT BOTH THE EXISTING AND NEW SERVICE DUCTING, PIPING, CONDUITS, EQUIPMENT AND FIXTURES ETC. DO NOT INTERFERE WITH THE PROPOSED NEW INTERIOR WORK. IF THERE ARE ANY, THE DESIGNER MUST BE NOTIFIED BEFORE CONSTRUCTION FOR NECESSARY MODIFICATION OF THE WORK TO SUIT 2. SUBSTITUTION OF MATERIALS MAY BE MADE ONLY WITH WRITTEN APPROVAL OF THE DESIGNER 3. CONTRACTOR TO VERIFY ALL DIMENSIONS IN FIELD PRIOR TO CONSTRUCTION 4. ALL DISCREPANCIES IN DRAWINGS TO BE REFERRED TO DESIGNER/ENGINEER FOR RESOLUTION 5. GENERAL CONTRACTOR IS RESPONSIBLE FOR CUTTING AND PATCHING ALL WORK NECESSARY FOR OTHER TRADES, AND WILL COORDINATE SUCH WORK TO MAINTAIN THE CONSTRUCTION SCHEDULE 6. ALL EXISTING WALL AND CEILING SURFACES TO BE PATCHED AND TAPED AS REQUIRED AND SKIM COATED 7. ALL NEW AND EXISTING WALL AND CEILING SURFACES TO BE PREPARED SMOOTH, CLEAN AND READY TO PAINT. ALL HOLES OR DEFECTS IN EXISTING WALLS AND CEILINGS RELATED TO REMOVAL OF ANY DEMOLITION WORK OR INSTALLATION OF NEW FIXTURES OR SYSTEMS INCLUDING BUILT-IN CABINETRY AND JOINERY) SHALL BE COMPLETELY FILLED AND REPAIRED READY FOR PAINT. CONTRACTOR TO CONSULT WITH MANUFACTURER IN THE SELECTION OF PROPER PRIMER FOR VARIOUS SUB SURFACES 8. CONTRACTOR TO PROVIDE INSULATION AND ACOUSTIC INSULATION BETWEEN STUDS. CONTRACTOR TO CONFIRM TYPE OF INSULATION TO DESIGNER. CONTRACTOR TO USE WATERPROOF GYPSUM BOARD OR WHEN REQUESTED MARINE TYPE PLYWOOD @ BATHROOMS AND WHEN PARTITIONS ARE CLOSE TO SINK 9. JOINERY CONTRACTOR TO CONFIRM DISCREPANCIES IN DIMENSIONS PRIOR PRODUCTION OF SHOP DRAWINGS. DESIGNER TO RECEIVE SHOP DRAWINGS PRIOR FABRICATION TO APPROVE FINAL DESIGN AND TYPE OF FABRICATION, SELECTION OF MATERIAL AND HARDWARE 10. THE PROPOSED FLOOR PLAN NEEDS TO BE READ IN CONJUNCTION WITH STRUCTURAL, MECHANICAL AND ELECTRICAL PLANS PROVIDED BY HRPR ASSOCIATES AND INGINE M&E NEW WALLS EXISTING KEY REFER TO INGINE M&E MECHANICAL DRAWINGS NEW OPERABLE SKYLIGHTS BY GLAZING VISION OR SIMILAR NEW WHITE PAINTED FINISH OPERABLE TIMBER SASH WINDOW BY TIMBER WINDOWS OR SIMILAR NEW WHITE PAINTED FINISH OPERABLE FRENCH DOOR BY TIMBER WINDOWS OR SIMILAR REFER TO 2230-58 PROPOSED LIVING ROOM A12 BUILD-UP FLOOR HEIGHT AT LOWER GROUND FLOOR TBC REFER TO 2230-55 PROPOSED STAIR DETAILS INSTALLATION OF A MIN. 250mm IMPERFORATE SMOKE-CONTAINING AT GROUND FLOOR CEILING LEVEL ADJACENT TO THE STAIR TO DELAY SMOKE SPILLAGE REFER TO INGINE M&E MECHANICAL DRAWINGS INSTALLATION OF A MIN. 250mm IMPERFORATE SMOKE-CONTAINING AT GROUND FLOOR CEILING LEVEL ADJACENT TO THE STAIR TO DELAY SMOKE SPILLAGE MAKE GOOD OF EXISTING BALCONY CONDITIONS. APPLY WATERPROOF MEMBRANE EVALON BY ALWITRA OR SIMILAR. NEW FINISH TBC REFER TO DRAWING 2230-71 PROPOSED PLANTERS AND OUTDOOR MINOR WORKS NEW FROSTED OR SAND BLASTED COURTYARD GLAZING BY ALCO GLASS NEW COURTYARD GLAZING AND JULIET BALCONY BY ALCO GLASS REFER TO DRAWING 2230-60 PROPOSED TERRACE A15 REFER TO HRPR STRUCTURAL DRAWINGS FOR ALL STEELWORK NEW AOV SKYLIGHT BY GLAZING VISION OR SIMILAR REFER TO HRPR STRUCTURAL DRAWINGS FOR NEW MANSARD ROOFTOP STRUCTURE REFER TO 2230-52 PROPOSED COURTYARD A05 NEW FIXED FLUSH GLAZED SKYLIGHT BY GLAZING VISION OR SIMILAR REFER TO DRAWING 2230-62 PROPOSED MASTER BATHROOM A18 TYPICAL WINDOW SILL DETAIL 1:5 OUT IN WINDOW SILL FINISH TO MATCH EXISTING SEALANT EPDM LAYER WOOD BLOCKING FOR WINDOW FRAME FIXING WHITE PAINT FINISH PLASTERBOARD TO MATCH WALL 5X5mm SHADOW GAP WHITE PAINTED FINISH WINDOW SILL REFER TO 2230-68 FOR BUILD-UP WALL DETAILS

1 2 3 4 5 11 7 6 9 12 10 13 1 2 3 4 5 7 6 16 5 15 4 3 2 1 14 50 100 12,5 12,5 TBC 100 50 18 50 100 12,5 EXT INT INT EXT EXT INT 1 2 3 4 17 5 14 16 18 18 15 15 14 18 1 1 10 2 3 4 5 16 15 1 10 2 3 4 5 13 8 19 12,5 TBC 100 50 18 50 100 12,5 18 18 refer to Glazing Vision upstands height requirements. 100 mm upstand min thickness for all skylights except W28 which has to be built as per this drawing 100 50 18 TBC Drawn By. Scale. Drawing No. Drawing Status Drawing Title Checked By. Rev. Date. 8 BERKELEY GARDENS Client Job Title Description Rev. Revisions Date. LONDON W8 4AP All site dimensions and levels to be verified contractors and subcontractors on site prior manufacture Do not scale from this drawing To be read in conjunction with all other drawings and contract documentation Contractor to refer to all relevant consultants and engineers drawings throughout the course of the works All works to comply to local authority requirements Any errors, dimensional discrepancies or omissions to be reported to Studio Rinaldi prior to manufacture Drawing is for design intent only STUDIO RINALDI ltd. 2022 © STUDIO RINALDI ltd. SUITE 230, WORLDS END STUDIOS Ltd. 132-134 LOTS ROAD, CHELSEA, LONDON, UK SW10 T. +44 (0)207 349 7133 WWW.RINALDIARCHITECTS.COM TOBIAS PUNGA 8 BERKELEY GARDENS PROPOSED ROOFTOP DETAILS TENDER AP 1:5 @ A2 2230-67A AP MAR 2023 GENERAL NOTE: 1. PRIOR TO CONSTRUCTION, IT IS THE CONTRACTOR'S RESPONSIBILITY TO COORDINATE ALL THE DRAWINGS AND SITE CONDITIONS TO ENSURE THAT BOTH THE EXISTING AND NEW SERVICE DUCTING, PIPING, CONDUITS, EQUIPMENT AND FIXTURES ETC. DO NOT INTERFERE WITH THE PROPOSED NEW INTERIOR WORK. IF THERE ARE ANY, THE DESIGNER MUST BE NOTIFIED BEFORE CONSTRUCTION FOR NECESSARY MODIFICATION OF THE WORK TO SUIT 2. SUBSTITUTION OF MATERIALS MAY BE MADE ONLY WITH WRITTEN APPROVAL OF THE DESIGNER 3. CONTRACTOR TO VERIFY ALL DIMENSIONS IN FIELD PRIOR TO CONSTRUCTION 4. ALL DISCREPANCIES IN DRAWINGS TO BE REFERRED TO DESIGNER/ENGINEER FOR RESOLUTION 5. GENERAL CONTRACTOR IS RESPONSIBLE FOR CUTTING AND PATCHING ALL WORK NECESSARY FOR OTHER TRADES, AND WILL COORDINATE SUCH WORK TO MAINTAIN THE CONSTRUCTION SCHEDULE 6. ALL EXISTING WALL AND CEILING SURFACES TO BE PATCHED AND TAPED AS REQUIRED AND SKIM COATED 7. ALL NEW AND EXISTING WALL AND CEILING SURFACES TO BE PREPARED SMOOTH, CLEAN AND READY TO PAINT. ALL HOLES OR DEFECTS IN EXISTING WALLS AND CEILINGS RELATED TO REMOVAL OF ANY DEMOLITION WORK OR INSTALLATION OF NEW FIXTURES OR SYSTEMS INCLUDING BUILT-IN CABINETRY AND JOINERY) SHALL BE COMPLETELY FILLED AND REPAIRED READY FOR PAINT. CONTRACTOR TO CONSULT WITH MANUFACTURER IN THE SELECTION OF PROPER PRIMER FOR VARIOUS SUB SURFACES 8. CONTRACTOR TO PROVIDE INSULATION AND ACOUSTIC INSULATION BETWEEN STUDS. CONTRACTOR TO CONFIRM TYPE OF INSULATION TO DESIGNER. CONTRACTOR TO USE WATERPROOF GYPSUM BOARD OR WHEN REQUESTED MARINE TYPE PLYWOOD @ BATHROOMS AND WHEN PARTITIONS ARE CLOSE TO SINK 9. JOINERY CONTRACTOR TO CONFIRM DISCREPANCIES IN DIMENSIONS PRIOR PRODUCTION OF SHOP DRAWINGS. DESIGNER TO RECEIVE SHOP DRAWINGS PRIOR FABRICATION TO APPROVE FINAL DESIGN AND TYPE OF FABRICATION, SELECTION OF MATERIAL AND HARDWARE 10. THE PROPOSED FLOOR PLAN NEEDS TO BE READ IN CONJUNCTION WITH STRUCTURAL, MECHANICAL AND ELECTRICAL PLANS PROVIDED BY HRPR ASSOCIATES AND INGINE M&E PROPOSED ROOFTOP DETAILS DETAIL 1 DETAIL 2 DETAIL 3 DETAIL 4 DETAIL 5 DETAIL 6 KEY: 1. 12.5 mm PLASTERBOARD 2. VAPOUR CONTROL LAYER 3. 100 mm SR/PR INSULATION BOARD BETWEEN RAFTERS/STUDS 4. 50 mm SR/PR INSULATION BOARD OVER RAFTERS/STUDS 5. BREATHER MEMBRANE - EPDM LAYER 6. NATURAL SLATES AT ROOFTOP TO MATCH EXISTING AS PER GRANTED PERMISSION CONDITIONS 7. BATTENS AND COUNTER BATTENS 8. WINDOW SILL WITH INTEGRATED DRIP CHANNEL AND SLOPING TOP SURFACE. MATERIAL TBC 9. ALUMINUM ROOFTOP GUTTER AT FRONT AND REAR FACADES 10. WOOD BLOCKING 11. AIR CAVITY 12. EXISTING BRICK MASONRY STRUCTURE 13. LEAD FLASHING TO SEAL BETWEEN ALUMINUM GUTTER AND BRICK MASONRY. LEAD FLASHING BETWEEN ROOFTOP STRUCTURE AND EXISTING BRICK MASONRY STRUCTURE TO SEAL ENTIRE PERIMETER WITH PARTY WALLS AND FRONT AND REAR FACADES 14. EXISTING AND NEW TIMBER JOISTS. REFER TO HRPR ASSOCIATES DRAWINGS AND DETAILS 15. 18 mm MARINE PLYWOOD 16. ROOFTOP FINISH TO MATCH EXISTING. CONTRACTOR TO BUILD ADEQUATE SLOPE FOR MINIMUM FALLS OF 1:40 TO ENSURE A FINISHED FALL OF 1:80 CAN BE ACHIEVED. THIS APPLIES TO ROOF AREA ALONG WITH ALL GUTTERS 17. GLAZING VISION SKYLIGHTS FRAMES. REFER TO GLAZING VISION SPECIFICATIONS AND TECHNICAL DETAILS FOR UPSTANDS HEIGHT AND THICKNESS REQUIREMENTS 18. DROP CEILING 19. STEEL BEAM. REFER TO HRPR ASSOCIATES DRAWINGS AND DETAILS

© Studio Rinaldi

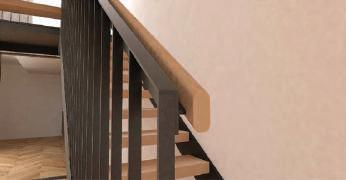

25 x 50 mm TIMBER HANDRAIL. FINISH TBC

VERTICALS BLACK PAINT FINISH. MAXIMUM DISTANCE BETWEEN VERTICALS 100 mm. VERTICALS TO BE INSTALLED AT TOP SIDE OF STEEL STRINGER WELDED CAST IRON PROFILES. CONTRACTOR TO CONFIRM THICKNESS AND CONSTRUCTION DETAILS

HORIZONTAL PROFILE TO BE INSERTED IN TIMBER HANDRAIL AND MECHANICALLY FIXED WITH SCREWS FROM THE BOTTOM. SCREWS

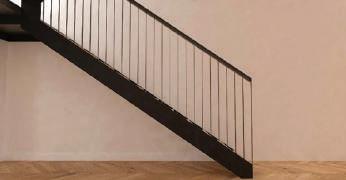

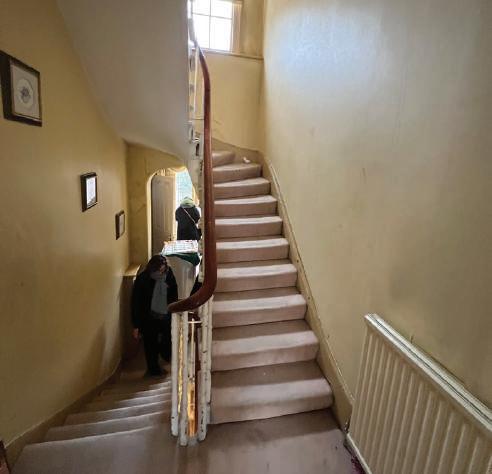

Completely new open staircase has been design to garantee a continuity in the ground and first floor layout. The entire project is based on two different materials: black powder coated steel and timber. All the chimney breasts will be removed to increase sqm available and the new steel structure comprises new RC foundations at lower ground floor until new steel beams at new mansard rooftop to support the remaining part of chimneys on top.

Below the rear terrace design with new wood benches, planters and integrated speakers

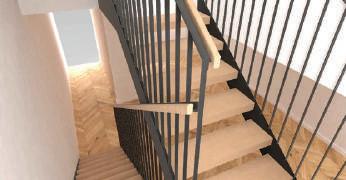

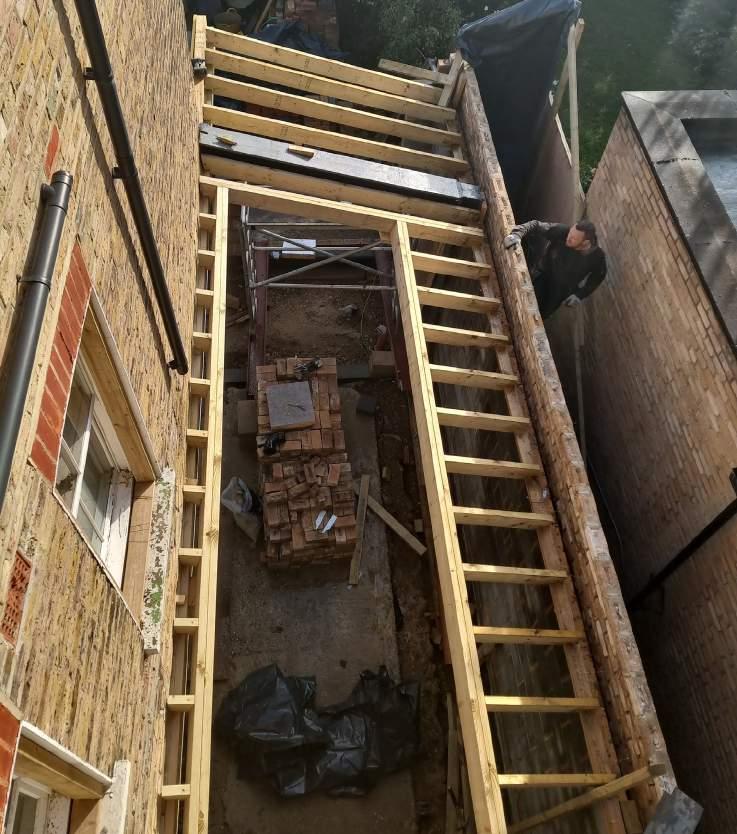

Completely new open staircase has been designed to guarantee a consistency at ground and first floor open plan layouts. The entire project is based on black powder coat steel and oak wood finishes. All the chimney breasts have been removed to increase sqm available. New structure comprises Party Walls support for underpinning at lower ground floor, new RC foundations for installation of steel structure layout to allow demolition of rear facade boundary wall. Below the terrace design at rear facade with integrated joinery. ©

Terraced house refurbishment Berkeley Gardens, Notting Hill, London, UK GROUND FLOOR +2.73 FIRST FLOOR MEZZANINE +5.44 FIRST FLOOR +6.12 LOWER ROOFTOP LEVEL (SECOND FLOOR MEZZANINE) +8.30 SECOND FLOOR +9.51 100 100 100 1100 1100 1100 1100 1100 100 100 70 70 250 250 50 50 1983 2267 1100 25 20 25 50 (perpendicular distance) 5 5 5 R5 50 (perpendicular distance) Drawn By. Scale. Drawing No. Drawing Status Drawing Title Checked By. Rev. Date. 8 BERKELEY GARDENS Client Job Title Description Rev. Revisions Date. LONDON W8 4AP All site dimensions and levels to be verified by contractors and subcontractors on site prior to manufacture Do not scale from this drawing To be read in conjunction with all other drawings and contract documentation Contractor to refer to all relevant consultants and engineers drawings throughout the course of the works All works to comply to local authority requirements Any errors, dimensional discrepancies or omissions to be reported to Studio Rinaldi Ltd. prior to manufacture Drawing is for design intent only STUDIO RINALDI ltd. 2022 © STUDIO RINALDI ltd. SUITE 230, WORLDS END STUDIOS Ltd. 132-134 LOTS ROAD, CHELSEA, LONDON, UK SW10 0RJ T. +44 (0)207 349 7133 WWW.RINALDIARCHITECTS.COM TOBIAS PUNGA 8 BERKELEY GARDENS PROPOSED STAIRCASE DETAILS TENDER AP 1:20/1:2 @ A2 2230-55 AP MAR 2023 PROPOSED STAIRCASE DETAILS GENERAL NOTE: 1. PRIOR TO CONSTRUCTION, IT IS THE CONTRACTOR'S RESPONSIBILITY TO COORDINATE ALL THE DRAWINGS AND SITE CONDITIONS TO ENSURE THAT BOTH THE EXISTING AND NEW SERVICE DUCTING, PIPING, CONDUITS, EQUIPMENT AND FIXTURES ETC. DO NOT INTERFERE WITH THE PROPOSED NEW INTERIOR WORK. IF THERE ARE ANY, THE DESIGNER MUST BE NOTIFIED BEFORE CONSTRUCTION FOR NECESSARY MODIFICATION OF THE WORK TO SUIT 2. SUBSTITUTION OF MATERIALS MAY BE MADE ONLY WITH WRITTEN APPROVAL OF THE DESIGNER 3. CONTRACTOR TO VERIFY ALL DIMENSIONS IN FIELD PRIOR TO CONSTRUCTION 4. ALL DISCREPANCIES IN DRAWINGS TO BE REFERRED TO DESIGNER/ENGINEER FOR RESOLUTION 5. GENERAL CONTRACTOR IS RESPONSIBLE FOR CUTTING AND PATCHING ALL WORK NECESSARY FOR OTHER TRADES, AND WILL COORDINATE SUCH WORK TO MAINTAIN THE CONSTRUCTION SCHEDULE 6. ALL EXISTING WALL AND CEILING SURFACES TO BE PATCHED AND TAPED AS REQUIRED AND SKIM COATED 7. ALL NEW AND EXISTING WALL AND CEILING SURFACES TO BE PREPARED SMOOTH, CLEAN AND READY TO PAINT. ALL HOLES OR DEFECTS IN EXISTING WALLS AND CEILINGS RELATED TO REMOVAL OF ANY DEMOLITION WORK OR INSTALLATION OF NEW FIXTURES OR SYSTEMS INCLUDING BUILT-IN CABINETRY AND JOINERY) SHALL BE COMPLETELY FILLED AND REPAIRED READY FOR PAINT. CONTRACTOR TO CONSULT WITH MANUFACTURER IN THE SELECTION OF PROPER PRIMER FOR VARIOUS SUB SURFACES 8. CONTRACTOR TO PROVIDE INSULATION AND ACOUSTIC INSULATION BETWEEN STUDS. CONTRACTOR TO CONFIRM TYPE OF INSULATION TO DESIGNER. CONTRACTOR TO USE WATERPROOF GYPSUM BOARD OR WHEN REQUESTED MARINE TYPE PLYWOOD @ BATHROOMS AND WHEN PARTITIONS ARE CLOSE TO SINK 9. JOINERY CONTRACTOR TO CONFIRM DISCREPANCIES IN DIMENSIONS PRIOR PRODUCTION OF SHOP DRAWINGS. DESIGNER TO RECEIVE SHOP DRAWINGS PRIOR FABRICATION TO APPROVE FINAL DESIGN AND TYPE OF FABRICATION, SELECTION OF MATERIAL AND HARDWARE 10. THE PROPOSED FLOOR PLAN NEEDS TO BE READ IN CONJUNCTION WITH STRUCTURAL, MECHANICAL AND ELECTRICAL PLANS PROVIDED BY HRPR ASSOCIATES AND INGINE M&E NEW WALLS EXISTING KEY STEEL STRINGER FOR TREADS SUPPORT. STRUCTURE. DRAWINGS TO BE READ IN CONJUNCTION WITH HRPR ASSOCIATES STRUCTURAL DRAWINGS STAIRCASE RENDER 3 STAIRCASE RENDER 2 STAIRCASE RENDER 1 0m 1 2 CAST IRON VERTICALS BLACK PAINT FINISH. MAXIMUM DISTANCE BETWEEN VERTICALS 100 mm. VERTICALS TO BE INSTALLED AT TOP SIDE OF STEEL STRINGER EXISTING FLOOR SLAB. JOISTS SIZE AND STRUCTURE TBC EXISTING FLOOR SLAB. JOISTS SIZE AND STRUCTURE TBC STEEL STRINGER FOR TREADS SUPPORT. STRUCTURE. DRAWINGS TO BE READ IN CONJUNCTION WITH HRPR ASSOCIATES STRUCTURAL DRAWINGS UC 203x203x60mm STEEL BEAM. REFER TO HRPR ASSOCIATES FOR DRAWINGS AND DETAILS UC 203x203x60mm STEEL BEAM. REFER TO HRPR ASSOCIATES FOR DRAWINGS AND DETAILS UC 203x203x60mm STEEL BEAM PROPOSED HANDRAIL DETAIL 1:2 CAST IRON

2. Kensington, London, UK

TO BE WITH TIMBER CAPS TO MATCH HANDRAIL FINISH TIMBER CAPS AT SCREWS TO MATCH HANDRAIL FINISH H1 LED STRIPLIGHT BY LINEALIGHT. LINEALIGHT TO CONFIRM DETAILS WOOD BLOCKING

+5.30 TERRACE A15 7.1 sqm 2408 351 2448 311 20 900 900 600 600 100 1000 1100 100 100 50 50 100 25 50 100 +5.30 TERRACE A15 7.1 sqm 1724 400 50 400 150 50 600 600 1408 1724 400 1808 150 824 EQ EQ 400 100 400 300 400 400 1. PRIOR TO CONSTRUCTION, IT IS THE CONTRACTOR'S RESPONSIBILITY CONDITIONS TO ENSURE THAT BOTH THE EXISTING AND NEW SERVICE FIXTURES ETC. DO NOT INTERFERE WITH THE PROPOSED NEW MUST BE NOTIFIED BEFORE CONSTRUCTION FOR NECESSARY MODIFICATION 2. SUBSTITUTION OF MATERIALS MAY BE MADE ONLY WITH WRITTEN 3. CONTRACTOR TO VERIFY ALL DIMENSIONS IN FIELD PRIOR TO CONSTRUCTION 4. ALL DISCREPANCIES IN DRAWINGS TO BE REFERRED TO DESIGNER/ENGINEER 5. GENERAL CONTRACTOR IS RESPONSIBLE FOR CUTTING AND PATCHING AND WILL COORDINATE SUCH WORK TO MAINTAIN THE CONSTRUCTION 6. ALL EXISTING WALL AND CEILING SURFACES TO BE PATCHED AND 7. ALL NEW AND EXISTING WALL AND CEILING SURFACES TO BE PREPARED HOLES OR DEFECTS IN EXISTING WALLS AND CEILINGS RELATED INSTALLATION OF NEW FIXTURES OR SYSTEMS INCLUDING PROPOSED FLOOR PLAN - 1:20 TILING LAYOUT REFER TO DETAIL 1 AT DRAWING 2230-68 REFER TO DETAIL TYPE AT DRAWING 2230-68 SUSPENDED FLOOR STRUCTURE OUTDOOR PAVEMENT BY LONDON STONE. SAWN CONTEMPORARY SANDSTONE, COLOUR GREY DOVE 900x600x20 mm UPSTANDS CAPPING IN SAWN CONTEMPORARY SANDSTONE, COLOUR GREY DOVE 900x600x20 mm BY LONDON STONE PLATES FOR CAST IRON RAILING FIXING AT UPSTAND CAPPING HANDRAIL SECTION TO BE 50x50 mm METAL FLASHING AT UPSTAND INNER SIDE AS PER DETAIL 1 AT DRAWING FOLLOW JOINT TILES SHOWN AS PER PROPOSED FLOOR PLAN FOR TILES INSTALLATION MAXIMUM 100 mm VOID BETWEEN VERTICALS CAST IRON RAILING AT TERRACE A15 BY CONTRACTOR OUTDOOR PAVEMENT BY LONDON STONE. SAWN CONTEMPORARY SANDSTONE, COLOUR GREY DOVE 900x600x20 mm PLATES FOR CAST IRON RAILING FIXING AT UPSTAND CAPPING PROPOSED FLOOR PLAN - 1:20 FURNITURE LAYOUT 150 x 1724 600 mm PLANTER WITH AUTOMATIC IRRIGATION SYSTEM WOOD TRELLIS TO BE 1100 mm HIGH OVER BENCH LEVEL BUILT-IN BENCH AS PER DETAIL WOOD TRELLIS TO BE 1100 mm HIGH OVER BENCH LEVEL 600 600 600 mm PLANTER WITH AUTOMATIC IRRIGATION SYSTEM BUILT-IN DOWNPIPE BUILT-IN BENCH AS PER DETAIL PROVIDE ADEQUATE SLOPE FOR DRAINAGE PROPOSED DETAIL 1 - 1:10 WALL MOUNTED LIGHTING FIXTURE. SPECS AND LOCATION BY LINEALIGHT WEATHERPROOF OUTDOOR SPEAKERS. SPECS AND LOCATION BY INSPIRED DWELLINGS LED STRIP LIGHT BY LINEALIGHT WOOD TRELLIS TO BE 1100 mm HIGH OVER BENCH LEVEL 150 1724 mm PLANTER LED STRIP LIGHT BY WEATHERPROOF OUTDOOR SPEAKERS. SPECS AND LOCATION BY INSPIRED DWELLINGS PLANTERS, BENCH AND TRELLIS FINISHES TO BE CONFIRMED PLANTERS, BENCH AND TRELLIS FINISHES TO BE CONFIRMED BUILT-IN TABLE 600 mm HIGH 150 1808 x 600 mm PLANTER WITH AUTOMATIC IRRIGATION SYSTEM BUILT-IN BENCH AS PER DETAIL

Studio Rinaldi

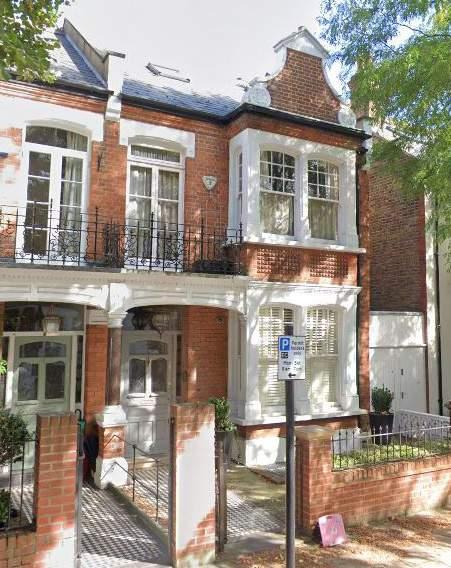

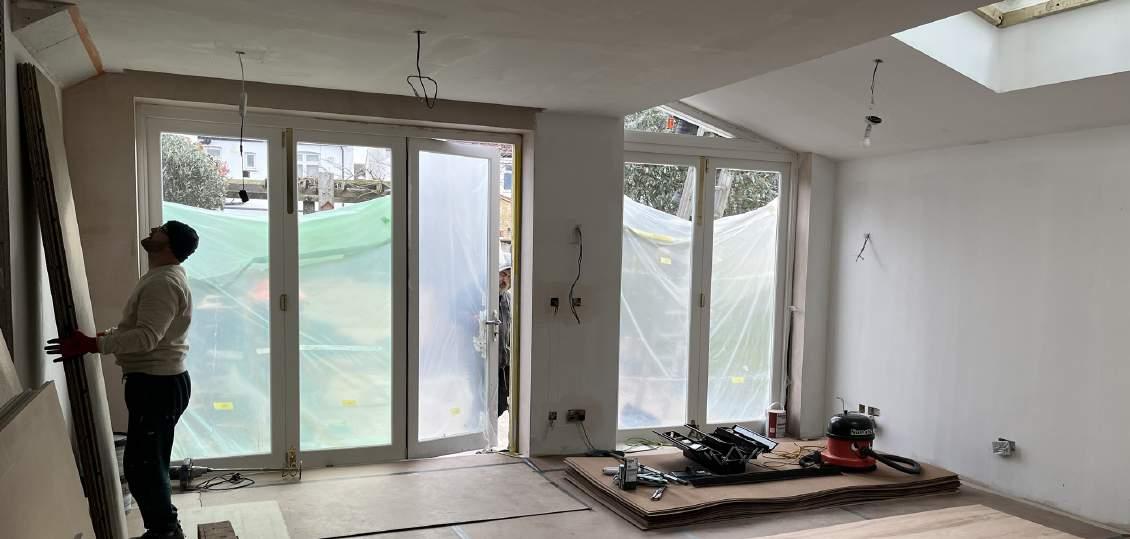

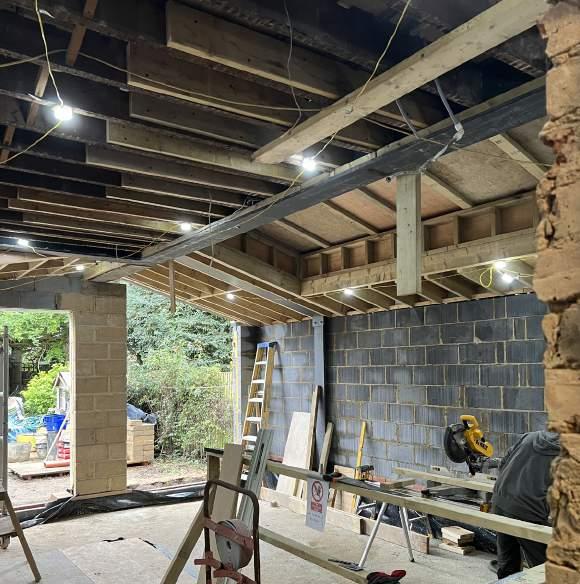

The full interior refurbishment of a semi-detached house in Chiswick, London, UK, is a comprehensive project aimed at enhancing both the aesthetic appeal and functional aspects of the property. The scope of work encompasses various aspects, including a rear extension, replacement of windows, redesign of interior finishes, and the implementation of a new reflected ceiling plan. Rear extension with a massive rooflight expands the living space and the new steelwork has been integrated with the existing structure ensuring seamless flow and continuity.

UK © Zulufish EXISTING PAVING PROPOSED STONE PAVING TO REPLACE EXISTING PAVING Proposed new double glazed timber window Repair to glazing in existing entrance door to match existing Remove radiator joinery Allow for new ip65 external double sockets New car charging point Retain existing timber secure gate allow to make good Existing double door opening retain. Allow to replace existing doors with new french doors and make existing opening higher. Refer to Door Schedule_REF Proposed timber door Refer to External door Schedule for details Proposed double-glazed windows design to match existing Proposed timber glazed bi-fold doors New rear extension brick facing wall for brick bond refer to elevation. Proposed new external tiled patio 2.5 from rear extension EWT-3 Protect existing Victorian tiles through construction Retain existing external tap New solid timber pocket door to family room. Refer to Internal door Schedule REF Proposed new location for existing boiler & flue tbc by MEP Proposed location for UFH manifold under boiler Allow for a cat passage opening within the new joinery & partition between mudroom & kitchen coordinate with HUX at low level form new platform in front of the new side door inclusing of a step and allow for 1 step by the door. Allow for gypliner system to ensure steel is boxed in without protrusion A A B B C C D D E E SH 700 OH 2309 OW 2093 SH 700 OH 2309 OW 469 SH 700 OH 2309 OW 469 SH TBC OH 2309 OW 420 Existing Joinery retain Proposed Joinery Proposed Joinery Proposed Joinery Proposed Joinery 2093 927 927 852 903 1318 100 1660 1313 100 4291 4504 431 5276 1816 2691 3730 909 835 1959 3572 70 107 1007 4494 2544 1751 9362 717 303 467 2710 204 Existing Joinery retain Boiler Proposed Joinery F F G G 1840 655 1877 680 2710 910 720 395 New cat flap at low level 200x240mm within masonry wall New aco slot channel to allow for level threshold between doorframes and tiles 3.009 ch: GF02 LIVING ROOM 3.011 ch: GF01 HALLWAY 2.837 ch: 3.015 ch: GF04 FAMILY ROOM A S U M E B O U N D A R Y A S S U M E D O U N D A R Y A S U M E D B O U N A R Y A S U M D B O U N D A R Y A S S U M E D B O U N D A R Y NO.75 AIREDALE AVENUE NO.79 AIREDALE AVENUE A S S U M E D B O U N D A R ch:min 2.7: 3.009 ch: GF03 BOOT ROOM GD_02 N FD 30 GD_01 GD_04 N GD_03 N FD 30 GD_05 N FD 30 GD_07 GD_06 ch:min 2.7: PROPOSED ROOFLIGHT OVERHEAD 4725 sloped ceiling Allow for rain water pipe installation close to steel pier box. Access panel to be provided at joinery by HUX Allow for rain water pipe installation close to steel pier box. Access panel to be provided at joinery by HUX DET-03 DET-04 DET-05.1 DET-05.2 DET-05.3 DET-06 4390 5839 3962 4 3 2 1 A B C D DET-09 D E F G New bespoke glazed french Hall to basement to ensure there is 1000mm wide corridor box frame To SE details and specifications 4390 5839 3962 A B C D FLOOR PLAN

3. Chiswick, London,

Removal of existing windows and installation of new, energy-efficient windows throughout the property. Selection of high-quality window frames and glazing to improve insulation and soundproofing. Complete re-design of interior finishes to create a cohesive and visually appealing space. Selection of premium materials for flooring, wall treatments, and cabinetry to elevate the overall look and feel of the interior.

Attention to detail in every aspect of the interior design, including fixtures, fittings, and furnishings.

12 3. Chiswick, London, UK © Zulufish NO 79 AIREDALE AVENUE NO 79 AIREDALE AVENUE NO 75 AIREDALE AVENUE NO 79 AIREDALE AVENUE Proposed brick elevation in pale yellow stock brick to match original in running bond Cast stone capping with concealed gutter behind External doors refer to Door Schedule Concealed downpipe expels rainwater at low-level into slot drain Replace existing windows with double-glazed windows design to match existing Cast stone decorative lintel over doors Retain existing sash window SW1 & Sw3 as already double glazed BF-R -3.141 ch -0.716 GF REAR -0.302 FF-R 2.997 SF-R 5.865 ch 2.721 ch 5.598 ch 7.872 2007 2601 3011 2413 GF FRONT 0.000 Proposed cat flap GD 07 (N) FW_04 (New) SW_01 (existing) SW_03 (New) RFSW_01 (existing) FW_07 (new) 833 833 834 2710 656 910 833 374 346 fixed glass stone triangular lintel GD 06 (N) 833 1840 3244 Line of internal walls and ceiling DET-18 3.0M 3.0M 3.244M 2.700M 3.85M GF FFL 0.000 2.700M Proposed brick elevation in pale yellow stock brick to match original in vertical running bond

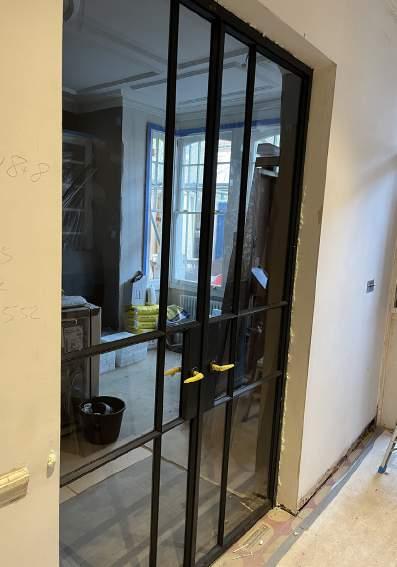

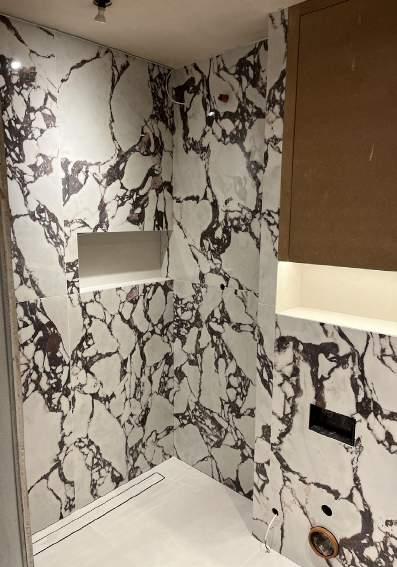

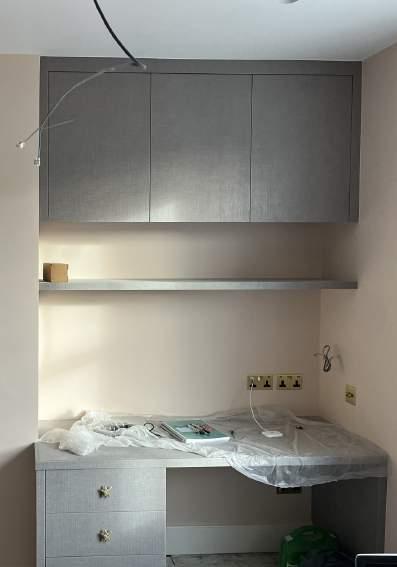

The design included bespoke joinery all throughout, make good of all existing elements of the areas, installation of Crittall doors and detailed design of all bathrooms. The goal is to transform the semi-detached house into a stylish, comfortable, and functional residence that meets the needs and preferences of its occupants while adding value to the property in the sought-after neighborhood of Chiswick, London. Throughout the refurbishment process, strict adherence to building regulations and safety standards is ensured, especially to guarantee compliance with fire safety regulations.

13 3. Chiswick, London, UK © Zulufish BF-F -3.141 ch -0.489 FF-F 3.317 SF-F 6.624 ch 3.015 ch 6.245 ch 8.825 2201 2928 3015 2652 GF-F 0.000 FRONT BF02 PLAYROOM BF01 HALL SF05 BEDROOM BF 05- UTILITY ROOM GF01 HALLWAY FF02 MASTER BEDROOM FF01 HALLWAY FF04 BEDROOM SF02 BEDROOM SF01 HALLWAY Proposed brick elevation Proposed glazed bifold doors frame and specificaton tbc Refer to Door Schedule for details Proposed Joinery Proposed Joinery Proposed Joinery For joinery details& layout refer to hux drawings For joinery details refer to hux drawings Proposed Joinery Proposed Joinery Proposed Joinery Proposed Joinery Replace existing windows with double-glazed windows design to match existing triangular stone decortive lintel fixed as slip/brickslip above bifold door. for support refer to SE details Concealed boxed press gutter For joinery details& layout refer to hux drawings SD 04 Re-hung existing Bed02 door to new formed partition Proposed Joinery proposed strip foundations allow for 600mm wide mass concrete strip footing to 1050mm min. Floor to ceiling height to be verified after steel frames installation 2732 2732 Upgrade existing floor built up. Allow for new UFH through Ground floor. Refer to MEP dwgs for location and specifications. Refer to SE for details of existing floor structure and refer to details for built up. DET-07 DET-08 DET-09 DET-10 2502 2652 Proposed Joinery Drop ceiling detail for recessed roller blind installation by client NO 75 AIREDALE AVENUE NO 79 AIREDALE AVENUE GF04 KITCHEN FF04 BEDROOM 01 SF02 BEDROOM 02 Proposed Joinery Proposed Joinery Proposed Joinery Proposed Joinery For joinery details refer to hux drawings New boundary wall formed by cavity wall brick facing to neighbor side. replace existing windows with double-glazed windows design to match existing BF-R -3.141 ch -0.716 GF REAR -0.302 FF-R 2.997 SF-R 5.865 ch 2.721 ch 5.598 ch 7.872 GF FRONT 0.000 REAR proposed zinc roof refer to construction schedule for details Protect existing posts to n.79 Airedale Avenue. Allow to re-instate fence following new cavity wall construction Section to be read in conjunction with SE details and drawings For floor built up refer to dwg Proposed UC to SE details and specifications. UC 203x203x60 GW_04 DET-11 DET-12 DET-13 DET-14 Pitched ceiling to be hidden within proposed bespoke joinery BF 05- UTILITY ROOM Proposed Joinery Proposed Joinery 2040 C Scale: 1:50 @ A1 PROPOSED SECTION BB 1 Scale: 1:50 @ A1 PROPOSED SECTION DD 2 3

Bespoke joinery design Full internal refurbishment Crittall doors design Bathrooms detailed design
