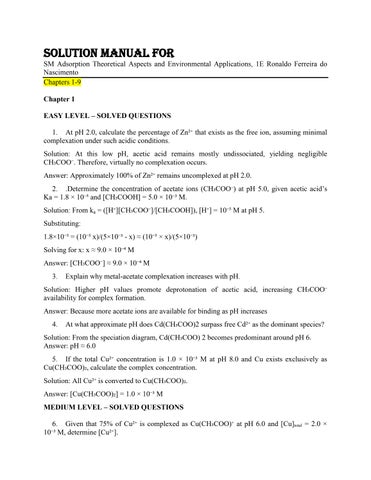

Solution Manual For Adsorption Theoretical Aspects and Environmental Applications, 1E Ronaldo Ferrei

Solution Manual For SM Adsorption Theoretical Aspects and Environmental Applications, 1E Ronaldo Ferreira do Nascimento Chapters 1-9 Chapter 1 EASY LEVEL – SOLVED QUESTIONS 1. At pH 2.0, calculate the percentage of Zn²⁺ that exists as the free ion, assuming minimal complexation under such acidic conditions.

Solution: At this low pH, acetic acid remains mostly undissociated, yielding negligible CH₃COO⁻. Therefore, virtually no complexation occurs.

Answer: Approximately 100% of Zn²⁺ remains uncomplexed at pH 2.0.

2. .Determine the concentration of acetate ions (CH₃COO⁻) at pH 5.0, given acetic acid‘s Ka = 1.8 × 10⁻⁵ and [CH₃COOH] = 5.0 × 10⁻³ M. Solution: From ka = ([H⁺][CH₃COO⁻]/[CH₃COOH]), [H⁺] = 10⁻⁵ M at pH 5.

Substituting: 1.8×10⁻⁵ = (10⁻⁵ x)/(5×10⁻³ - x) ≈ (10⁻⁵ × x)/(5×10⁻³) Solving for x: x ≈ 9.0 × 10⁻⁴ M Answer: [CH₃COO⁻] ≈ 9.0 × 10⁻⁴ M 3.

Explain why metal-acetate complexation increases with pH.

Solution: Higher pH values promote deprotonation of acetic acid, increasing CH₃COO⁻ availability for complex formation.

Answer: Because more acetate ions are available for binding as pH increases 4.

At what approximate pH does Cd(CH₃COO)2 surpass free Cd²⁺ as the dominant species?

Solution: From the speciation diagram, Cd(CH₃COO) 2 becomes predominant around pH 6.

Answer: pH ≈ 6.0 5. If the total Cu²⁺ concentration is 1.0 × 10⁻³ M at pH 8.0 and Cu exists exclusively as Cu(CH₃COO)₂, calculate the complex concentration.

Solution: All Cu²⁺ is converted to Cu(CH₃COO)₂.

Answer: [Cu(CH₃COO)₂] = 1.0 × 10⁻³ M MEDIUM LEVEL – SOLVED QUESTIONS 6. Given that 75% of Cu²⁺ is complexed as Cu(CH₃COO)⁺ at pH 6.0 and [Cu]ₜₒₜₐₗ = 2.0 × 10⁻³ M, determine [Cu²⁺].

Solution: Free Cu²⁺ = 25% × 2.0 × 10⁻³ = 5.0 × 10⁻⁴ M Answer: 5.0 × 10⁻⁴ M 7. Using K₁ = 10³ for Zn²⁺ + CH₃COO⁻ ⇌ Zn(CH₃COO)⁺, calculate [Zn(CH₃COO)⁺] if [Zn²⁺] = 5.0×10⁻⁴ M and [CH₃COO⁻] = 1.0×10⁻³ M. Solution:[Zn(CH₃COO)⁺] = K₁ × [Zn²⁺] × [CH₃COO⁻] = 10³ × 5.0×10⁻⁴ × 1.0×10⁻³ = 5.0 × 10⁻⁴ M Answer:5.0 × 10⁻⁴ M 8. Provide a chemical explanation for why Zn(CH₃COO)₂ forms at lower pH than Cu(CH₃COO)₂.

Solution: Zn²⁺ has a higher affinity for acetate than Cu²⁺, resulting in earlier complex formation.

Answer: Stronger interaction between Zn²⁺ and acetate allows complexation at lower pH. 9. Estimate the amount of acetate needed to fully complex 1.5×10⁻³ M Cu²⁺ into Cu(CH₃COO)₂ at pH 10.

Solution: 1 mole of Cu(CH₃COO)₂ consumes 2 moles of acetate: Required acetate = 2 × 1.5×10⁻³ = 3.0 × 10⁻³ M Answer:3.0 × 10⁻³ M 10. Describe the trend in metal-acetate complex formation from pH 3 to 9.

Solution: With increasing pH, acetate concentration increases, favoring formation of mono- and di-acetate complexes.

Answer: Complexation increases in both quantity and coordination number as pH rises.

DIFFICULT LEVEL – SOLVED QUESTIONS 11. With K₁ = 10².⁸ and K₂ = 10².⁵ for Cd²⁺ complexation, calculate [Cd(CH₃COO)₂] from 1×10⁻³ M Cd²⁺ and 1×10⁻³ M CH₃COO⁻.

Solution: First: [Cd(CH₃COO)⁺] = K₁ × [Cd²⁺] × [CH₃COO⁻] = 10².⁸ × 10⁻³ × 10⁻³ = 6.3×10⁻⁴ M Then: [Cd(CH₃COO)₂] = K₂ × [Cd(CH₃COO)⁺] × [CH₃COO⁻] = 10².⁵ × 6.3×10⁻⁴ × 10⁻³ ≈ 2.0 × 10⁻⁴ M Answer:2.0 × 10⁻⁴ M 12. At pH 7.5, if 20% of Cd²⁺ remains uncomplexed from a 1×10⁻³ M solution, identify the dominant complexed species.

Solution: Complexed fraction = 80% = 8×10⁻⁴ M Given the pH and graph, Cd(CH₃COO)₂ predominates.

Answer: Major species: Cd(CH₃COO)₂ 13. Derive the total metal concentration expression (Mₜ) in terms of stepwise formation constants β₁ and β₂ and [CH₃COO⁻].

Solution: Mₜ = [M²⁺] + β₁[L][M²⁺] + β₁β₂[L]²[M²⁺]

Answer: Mₜ = [M²⁺](1 + β₁[L] + β₁β₂[L]²) 14. Explain mathematically how [M²⁺] varies with increasing pH, assuming constant acetate concentration.

Solution: As pH rises, additional CH₃COO⁻ forms, increasing complexation.Thus, [M²⁺] decreases due to equilibrium shift.

Answer: [M²⁺] ∝ 1 / (1 + β₁[L] + β₁β₂[L]²); it decreases with pH. 15. If total Cu²⁺ = 10⁻³ M and β₁ = 10³, β₂ = 10², calculate the concentrations of Cu²⁺, Cu(CH₃COO)⁺, and Cu(CH₃COO)₂ at [CH₃COO⁻] = 1.0×10⁻³ M. Solution: Let x = [Cu²⁺] Then: Cu(CH₃COO)⁺ = β₁ × x × [L] Cu(CH₃COO)₂ = β₁β₂ × x × [L]² Total Cu = x + β₁x[L] + β₁β₂x[L]² = x(1 + β₁[L] + β₁β₂[L]²) Solving for x: x = 10⁻³ / (1 + 10³×10⁻³ + 10³×10²×10⁻⁶) = 10⁻³ / (1 + 1 + 0.1) =4.76×10−4

LEARNING EXERCISES EASY LEVEL 1. At 25 °C, determine the hydrogen ion concentration in a 0.01 mol/L acetic acid solution, given Ka = 1.8 × 10⁻⁵.

Solution: CH₃COOH ⇌ CH₃COO⁻ + H⁺ Ka = [H⁺]² / [CH₃COOH] ≈ x² / 0.01 x² = 1.8 × 10⁻⁵ × 0.01 = 1.8 × 10⁻⁷ x = √(1.8 × 10⁻⁷) ≈ 1.34 × 10⁻⁴ mol/L Answer: [H⁺] = 1.34 × 10⁻⁴ mol/L 2. If the total concentration of Zn²⁺ is 2.0 × 10⁻³ mol/L and no complexation occurs at pH 3, determine the concentration of free Zn²⁺.

Solution: Since no complexation takes place, the total concentration is equal to the free ion concentration.

Answer: [Zn²⁺] = 2.0 × 10⁻³ mol/L INTERMEDIATE LEVEL 3. A solution contains 1.0 × 10⁻³ mol/L of Cu²⁺ at pH 7, and 80% is complexed as Cu(CH₃COO)⁺. Calculate the concentration of free Cu²⁺.

Solution: 20% remains free → 0.20 × 1.0 × 10⁻³ = 2.0 × 10⁻⁴ mol/L Answer: [Cu²⁺] = 2.0 × 10⁻⁴ mol/L 4. Given Kf = 10⁴ for Zn²⁺ + CH₃COO⁻ ⇌ Zn(CH₃COO)⁺, calculate [Zn(CH₃COO)⁺] if [Zn²⁺] = 1.0 × 10⁻³ mol/L and [CH₃COO⁻] = 2.0 × 10⁻³ mol/L. Solution: [Zn(CH₃COO)⁺] = Kf × [Zn²⁺] × [CH₃COO⁻] = 10⁴ × 1.0 × 10⁻³ × 2.0 × 10⁻³ = 2.0 × 10⁻² mol/L Answer: [Zn(CH₃COO)⁺] = 2.0 × 10⁻² mol/L ADVANCED LEVEL 5. . Consider the reactions: Cd²⁺ + CH₃COO⁻ ⇌ Cd(CH₃COO)⁺ K₁ = 10².⁶ Cd(CH₃COO)⁺ + CH₃COO⁻ ⇌ Cd(CH₃COO)₂ K₂ = 10².² If [Cd²⁺] = 5.0 × 10⁻⁴ mol/L and [CH₃COO⁻] = 1.0 × 10⁻³ mol/L, calculate [Cd(CH₃COO)₂].

Solution: [Cd(CH₃COO)⁺] = K₁ × [Cd²⁺] × [CH₃COO⁻] = 10².⁶ × 5.0 × 10⁻⁴ × 1.0 × 10⁻³ ≈ 2.0 × 10⁻⁴ mol/L [Cd(CH₃COO)₂] = K₂ × [Cd(CH₃COO)⁺] × [CH₃COO⁻] = 10².² × 2.0 × 10⁻⁴ × 1.0 × 10⁻³ ≈ 3.2 × 10⁻⁵ mol/L Answer: [Cd(CH₃COO)₂] ≈ 3.2 × 10⁻⁵ mol/L 6. Derive the expression for the total concentration of metal M considering the following species: M²⁺, M(CH₃COO)⁺, M(CH₃COO)₂ and the cumulative formation constants β₁ and β₂.

Solution: Mtotal = [M²⁺] + β₁[L][M²⁺] + β₂[L]²[M²⁺] = [M²⁺](1 + β₁[L] + β₂[L]²) Answer: Mtotal = [M²⁺](1 + β₁[L] + β₂[L]²)

Applied Questions The point of zero charge (PZC) is a fundamental parameter in surface chemistry, representing the pH at which the net surface charge of an adsorbent is zero. At this condition, the number of positive and negative charges on the material's surface is balanced, resulting in no electrostatic attraction or repulsion toward charged species in solution.

In environmental remediation, especially for the removal of ionic contaminants, the PZC serves as a guiding reference for optimizing pH conditions. When the solution pH is lower than the PZC, the adsorbent surface becomes positively charged, favoring the removal of anions.

Conversely, at pH values above the PZC, the surface acquires a negative charge, enhancing the

adsorption of cationic species. This relationship allows researchers and engineers to tailor operational conditions for maximum adsorption efficiency based on the nature of the target contaminant.

Furthermore, the understanding of PZC is essential in selecting appropriate materials for specific environmental applications, such as wastewater treatment and soil decontamination. It enables the prediction and control of surface–adsorbate interactions, contributing to more efficient and sustainable remediation strategies. Thus, PZC is not merely a theoretical concept, but a critical tool in the design and optimization of environmentally relevant adsorption processes.

Application-Based Questions: Adsorption and PZC Based on the PZC graph provided, here are five formal, application-based questions related to the removal of cationic adsorbates using the point of zero charge (PZC):

According to the graph, what is the approximate PZC of the adsorbent, and how does this value influence its interaction with cationic species at varying pH levels?

1. When the solution pH is below the PZC, the adsorbent surface tends to be positively charged.

Discuss how this surface condition may affect the adsorption efficiency for cationic contaminants.

Answer: The approximate point of zero charge (PZC) of the adsorbent is around pH 5, as indicated by the intersection of the ΔpH curve with the x-axis. This value signifies the pH at which the surface has no net charge. Below this pH, the surface becomes positively charged, repelling cationic species. Above it, the surface acquires a negative charge, thereby enhancing electrostatic attraction and facilitating cationic adsorption.

2. In an adsorption experiment targeting cationic species, how would adjusting the solution pH above the PZC alter the electrostatic interactions, and what implications would this have for adsorption performance?

Answer: When the solution pH is below the PZC, the surface of the adsorbent exhibits a net positive charge. This condition induces electrostatic repulsion between the surface and cationic contaminants, which may significantly reduce the adsorption efficiency. Consequently, the uptake of cationic species under such conditions is typically unfavorable without additional driving forces such as ligand exchange or chemical affinity.

3. The ΔpH data suggest shifts in the acid–base behavior of the adsorbent surface. How can such changes be interpreted in the context of optimizing pH conditions for cationic and anionic species removal?

Shifts observed in the ΔpH data reflect changes in the protonation and deprotonation behavior of functional groups present on the adsorbent surface. A positive ΔpH indicates net proton uptake, suggesting surface protonation and the development of a positively charged surface. Conversely, a negative ΔpH implies net proton release, corresponding to surface deprotonation and the emergence of a negative surface charge.

In practical terms, these acid–base surface shifts offer direct insight into the electrostatic character of the adsorbent at various pH levels. For cationic species removal, optimal adsorption occurs at pH values where ΔpH is negative—typically above the point of zero charge (PZC)—as the surface is negatively charged and can effectively attract positively charged ions.

In contrast, anionic species are more effectively removed at pH values where ΔpH is positive— below the PZC—because the surface is then positively charged, enhancing attraction toward negatively charged ions.

Thus, interpreting ΔpH trends allows for the fine-tuning of pH conditions to selectively enhance the adsorption of either cationic or anionic contaminants, contributing to greater efficiency in environmental remediation processes.

4. Considering the provided PZC profile, propose an ideal pH range for maximizing the uptake of a divalent cationic adsorbate, and justify your selection using evidence from the graph.

Answer: The observed ΔpH profile reveals changes in the acid–base behavior of the adsorbent surface with increasing pH, transitioning from protonation to deprotonation. These shifts indicate the dissociation of surface hydroxyl or functional groups, leading to a more negatively charged surface. Interpreting these changes is essential for determining the optimal pH range for maximizing cationic species adsorption, which occurs when the surface carries a net negative charge.

5. Using the PZC profile, propose a suitable pH range for maximizing the adsorption of a divalent cationic contaminant and justify your recommendation based on surface charge considerations.

Answer: Based on the PZC profile, an ideal pH range for maximizing the adsorption of a divalent cationic species would be between pH 6 and pH 8. In this interval, the ΔpH values are negative, implying a negatively charged adsorbent surface. This electrostatic environment enhances the interaction with cationic species, thereby increasing adsorption efficiency.

Furthermore, operating within this pH window avoids metal precipitation while preserving the integrity of the adsorbent's active sites.

Exercises Multiple-Choice Questions 1.

What is a characteristic of chemical adsorption?

(a) It is non-specific and occurs on all solid surfaces. (b) Only molecules capable of binding to the active site can be adsorbed.

Chemical adsorption, or chemisorption, involves the formation of strong chemical bonds between the adsorbate and the adsorbent. Unlike physical adsorption, it is highly specific and requires active sites on the surface of the adsorbent where molecules can bind through electron exchange or sharing. (c) All molecules present in the fluid are chemically adsorbed. (d) It does not require active sites to occur.

2.

Why can't all solid surfaces carry out chemical adsorption?

(a) Because chemical adsorption requires specific active sites.

Chemical adsorption, or chemisorption, is highly selective and occurs only on surfaces that have specific active sites capable of forming strong chemical bonds with the adsorbate. Not all solid surfaces possess these active sites, which is why chemisorption does not occur universally.

(b) Because chemical adsorption is non-specific. (c) Because all solid surfaces have active sites. (d) Because there are no suitable solid surfaces for chemical adsorption.

3.

What is the main difference between physical adsorption and chemical adsorption?

(a) Both are highly specific. (b) Chemical adsorption is non-specific, while physical adsorption is specific. (c) Physical adsorption is non-specific, while chemical adsorption is highly specific.

Physical adsorption relies on weak van der Waals forces, allowing a broad range of molecules to be adsorbed without specificity. In contrast, chemical adsorption involves strong chemical bonds, requiring specific active sites where molecules selectively bind (d) Both occur without the need for active sites.

4.

What is required for a molecule to be chemically adsorbed?

(a) Any molecule can be adsorbed. (b) The molecule must be capable of binding to the solid surface‘s active site.

Chemical adsorption, or chemisorption, occurs when a molecule forms strong chemical bonds with the adsorbent at specific active sites. Unlike physical adsorption, which relies on weaker van der Waals forces, chemisorption requires molecular interaction through electron exchange or sharing (c) The molecule must be in a different physical state. (d) There is no need to bind to the active site.

5.

Why doesn’t chemical adsorption occur with all molecules present in the fluid?

(a) Because not all molecules can bind to the active sites.

Chemical adsorption, or chemisorption, is highly selective and depends on the presence of active sites on the adsorbent's surface. Only molecules with the appropriate characteristics—such as electronic structure and bonding capacity—can interact with these sites to form strong chemical bonds. (b) Because chemical adsorption occurs only in the liquid state. (c) Because all molecules are capable of physical adsorption. (d) Because larger molecules are always excluded.

Questions on Adsorption Thermodynamics 6.

What is the typical range for standard Gibbs free energy change (ΔG◦) in physisorption?

(a) 0 to −20 kJ/mol Physisorption is characterized by weak van der Waals forces, resulting in relatively low Gibbs free energy changes. Unlike chemisorption, which involves stronger chemical bonding, physisorption typically falls within this energy range due to its reversible nature and lack of significant electronic interactions (b) −80 to −400 kJ/mol (c) −20 to −80 kJ/mol (d) −400 to −800 kJ/mol 7.

What is the main thermodynamic property that sets chemisorption apart from physisorption?

(a) Temperature range (b) Standard enthalpy change (ΔH◦)

Chemisorption is distinguished from physisorption by its significantly higher enthalpy change.

While physisorption involves weak van der Waals interactions with relatively low energy (typically below -20 kJ/mol), chemisorption involves strong chemical bonds, resulting in much higher enthalpy changes (often exceeding -80 kJ/mol).

(c) Specific heat capacity (d) Molecular weight of adsorbates 8.

Why is physisorption considered non-specific?

(a) Because it happens with big enthalpy changes (b) Because it doesn‘t need active sites Physisorption is non-specific because it relies on weak van der Waals forces rather than selective chemical bonding. Unlike chemisorption, which requires specific active sites on the adsorbent's surface for molecular interaction, physisorption occurs more generally on solid surfaces, allowing a wide range of molecules to adsorb without selectivity.

(c) Because it involves highly specific chemical reactions (d) Because it requires energy input to occur 9.

What is the typical range for standard enthalpy change (ΔH◦) in chemisorption?

(a) −2.1 to −20.9 kJ/mol (b) −80 to −200 kJ/mol Chemisorption involves the formation of strong chemical bonds between the adsorbate and the adsorbent, leading to significantly higher enthalpy changes compared to physisorption. This

energy range reflects the strength of these interactions, which are much greater than the weak van der Waals forces governing physical adsorption.

(c) 0 to −20 kJ/mol (d) −20 to −80 kJ/mol 10. Which process usually involves larger energy changes? (a) Physisorption (b) Chemisorption Chemisorption involves the formation of strong chemical bonds between the adsorbate and the adsorbent, resulting in significantly larger energy changes compared to physisorption. While physisorption is governed by weak van der Waals forces with relatively low enthalpy changes (typically below 20 kJ/mol), chemisorption requires much higher energy, often exceeding 80 kJ/mol, due to the exchange or sharing of electrons (c) Both involve the same energy changes (d) None of the above SUBJECTIVE QUESTIONS ON THERMODYNAMICS OF ADSORPTION 1. What is the primary thermodynamic distinction between physisorption and chemisorption?

The fundamental thermodynamic difference between physisorption and chemisorption lies in the nature of the intermolecular forces involved. Physisorption is characterized by weak van der Waals forces, which result in low enthalpy changes (typically below 20 kJ/mol) and a reversible process. In contrast, chemisorption involves the formation of strong chemical bonds between the adsorbate and the adsorbent, leading to significantly

higher enthalpy changes (ranging from 80 to 400 kJ/mol) and an often irreversible adsorption process.

2.

Why does chemisorption exhibit a significantly broader range of Gibbs free energy change (ΔG◦) compared to physisorption?

Chemisorption involves electron transfer or sharing between the adsorbate and adsorbent, leading to more complex and variable energetic interactions. As a result, the Gibbs free energy change (ΔG◦) for chemisorption can vary widely, typically between −80 and −400 kJ.mol-1. Physisorption, by contrast, is governed by weak van der Waals forces, resulting in a narrower ΔG◦ range from −20 to 0 kJ.mol-1. The strong binding of chemisorption accounts for its greater variation in energy change.

3. Why are enthalpy changes (ΔH◦) significant in distinguishing adsorption mechanisms?

Enthalpy changes provide insight into the strength and type of interactions between the adsorbate and the adsorbent. Low ΔH◦ values suggest weak, non-specific interactions characteristic of physisorption, whereas high ΔH◦ values indicate stronger, more specific chemical interactions, characteristic of chemisorption. This distinction is crucial in industrial applications, where adsorption efficiency and reversibility play essential roles.

4. How does adsorption specificity impact its applications in materials science?

Adsorption specificity determines the suitability of different adsorbents for particular applications. Chemisorption, which involves strong, selective interactions, is essential for catalysis, semiconductor fabrication, and sensor technology. Physisorption, being nonspecific, is widely used in processes such as gas storage, filtration, and environmental remediation. The ability to tailor adsorption mechanisms enhances the design of functional materials for various industrial sectors.

5. How do the energy requirements of physisorption and chemisorption compare?

Physisorption requires minimal activation energy and can occur spontaneously at low temperatures. Chemisorption, however, often requires an energy input to overcome activation barriers and initiate bond formation, making it more temperature-dependent.

This difference is relevant in applications such as catalytic reactions, where chemisorption enhances efficiency despite its higher energy demands.

6. How do molecular interactions dictate whether physisorption or chemisorption occurs?

The type of adsorption depends on the nature of the molecular interactions between the adsorbate and adsorbent. If only weak van der Waals forces are present, physisorption occurs. If chemical bonding (such as covalent, ionic, or metallic interactions) is feasible, chemisorption takes place. Factors such as molecular polarity, charge distribution, and the presence of functional groups on the adsorbent surface influence this determination.

7. Can you provide an example where physisorption is preferable to chemisorption, and explain why?

An example is the use of activated carbon in air purification systems. Physisorption enables reversible trapping of pollutants such as volatile organic compounds (VOCs) through weak intermolecular forces. This allows easy regeneration of the adsorbent, making physisorption preferable for applications requiring repeated adsorption cycles without permanent surface modifications.

8. What makes chemisorption valuable in catalytic processes?

Chemisorption plays a critical role in catalysis by facilitating reactant bonding to the catalyst surface, thereby lowering activation energy and enhancing reaction rates. For example, in heterogeneous catalysis, chemisorption enables adsorption of reactants onto

metal surfaces, ensuring optimal interaction and conversion efficiency. The specificity and strength of chemisorption make it essential for numerous industrial catalytic applications.

9. What factors influence the enthalpy values associated with physisorption and chemisorption?

Several factors affect enthalpy values, including adsorbent surface properties (porosity, surface area, functional groups), adsorbate molecular characteristics (polarity, charge, size), temperature, pressure, and solvent effects. Additionally, surface modifications or chemical treatments can enhance or reduce adsorption efficiency by altering the binding energy between adsorbates and adsorbents.

10. Why are adsorption mechanisms crucial for environmental applications?

Adsorption mechanisms are fundamental to pollution control, water purification, and air filtration. Physisorption allows reversible capture of pollutants, making it useful for gas separation and filtration systems. Chemisorption is applied in processes such as catalytic converters in automobiles, where harmful pollutants are chemically transformed into less toxic compounds. Understanding adsorption mechanisms facilitates the development of sustainable technologies for environmental protection.

SUBJECTIVE QUESTIONS ON ADSORBENT AND ADSORBATE PROPERTIES 1. How do the physical and chemical properties of an adsorbent influence adsorption capacity and rate?

The physical and chemical properties of an adsorbent play a crucial role in determining its adsorption capacity and rate. Physically, factors such as surface area,

porosity, and particle size directly influence the extent of adsorption. A higher surface area provides more active sites for adsorption, while a well-developed pore structure enhances accessibility for adsorbate molecules. Additionally, smaller particle sizes reduce diffusion resistance, increasing adsorption kinetics.

Chemically, the nature of the functional groups present on the adsorbent surface significantly affects interaction with adsorbates. Functional groups such as hydroxyl, carboxyl, and amine groups contribute to adsorption through electrostatic interactions, hydrogen bonding, or complexation. The polarity and charge of the adsorbent also determine its affinity for different adsorbates, impacting selectivity. Moreover, hydrophobicity and hydrophilicity influence the adsorption behavior, with hydrophobic surfaces favoring non-polar compounds and hydrophilic surfaces enhancing adsorption of polar substances.

Overall, optimizing both physical and chemical properties enhances adsorption efficiency, making adsorbents more effective in applications such as water purification, gas separation, and pollutant removal.

2. How does particle size impact molecular diffusion and transport mechanisms during adsorption?

Particle size plays a crucial role in molecular diffusion and transport mechanisms during adsorption by influencing surface accessibility, diffusion resistance, and adsorption kinetics.

Smaller particle sizes generally enhance adsorption efficiency by increasing the available surface area and reducing the diffusion path length. This allows adsorbate molecules to reach adsorption sites more quickly, minimizing mass transfer limitations.

Additionally, smaller particles exhibit lower intraparticle diffusion resistance, facilitating faster transport within porous structures and improving adsorption kinetics.

Conversely, larger particles may present diffusion limitations due to their reduced surface area-to-volume ratio and longer diffusion pathways. In porous adsorbents, this can result in slower molecular transport, as adsorbate molecules must traverse deeper

into the material to reach active sites. In such cases, adsorption is often governed by intraparticle diffusion, which can become the rate-limiting step.

The impact of particle size is particularly significant in environmental and industrial applications, such as wastewater treatment and gas adsorption, where optimizing adsorption efficiency is critical. By tailoring particle size distribution, researchers and engineers can enhance adsorption performance and optimize material design for specific applications.

3. How does the polarity of an adsorbate affect its affinity for solvents and adsorbents? Can you provide examples?

The polarity of an adsorbate plays a fundamental role in determining its interaction with both solvents and adsorbents, influencing adsorption efficiency, selectivity, and mechanism.

Influence on Solvent Affinity: Polar adsorbates tend to dissolve more readily in polar solvents due to intermolecular forces such as hydrogen bonding and dipole-dipole interactions.

Conversely, nonpolar adsorbates exhibit higher solubility in nonpolar solvents due to London dispersion forces. This principle, commonly referred to as "like dissolves like," dictates solubility behavior and impacts adsorption equilibrium when adsorption occurs from solution.

Influence on Adsorbent Affinity: Adsorbents can exhibit varying degrees of polarity, affecting their interaction with adsorbates. Hydrophilic adsorbents, such as silica or activated alumina, preferentially adsorb polar molecules due to strong electrostatic or hydrogen bonding interactions.

Hydrophobic adsorbents, including activated carbon and polymeric resins, demonstrate higher affinity for nonpolar adsorbates via van der Waals forces. The presence of functional groups on the adsorbent surface further modifies adsorption behavior by enhancing specific interactions, such as ion exchange or complexation.

Examples:

- Adsorption of Water Vapor on Silica Gel: Due to its high polarity, water molecules form hydrogen bonds with the hydroxyl groups present on silica gel, resulting in effective adsorption under humid conditions.

- Removal of Organic Pollutants Using Activated Carbon: Nonpolar organic compounds, such as benzene and toluene, are efficiently adsorbed onto activated carbon due to strong dispersion interactions, making this material highly effective for air and water purification.

-Heavy Metal Adsorption by Functionalized Adsorbents: Adsorbents containing carboxyl or amine groups selectively adsorb polar metal ions (e.g., Pb²⁺ and Cu²⁺) via complexation and electrostatic attraction, aiding in wastewater treatment applications.

Understanding the role of polarity in adsorption processes enables the strategic selection of adsorbents for environmental remediation, industrial separation, and chemical purification applications 4. Why do functional groups such as hydroxyl and carboxyl groups enhance metal adsorption?

Functional groups such as hydroxyl (-OH) and carboxyl (-COOH) play a crucial role in enhancing metal adsorption by facilitating specific interactions between the adsorbent and metal ions. Their effectiveness stems from several key mechanisms: - Electrostatic Attraction: Hydroxyl and carboxyl groups often carry negative charges at suitable pH levels, making them highly effective in binding positively charged metal cations (e.g., Pb²⁺, Cu²⁺, and Zn²⁺) through electrostatic interactions. This increases the affinity of the adsorbent surface for metal ions.

- Complexation and Chelation: These functional groups can act as ligands, forming stable coordination complexes with metal ions. Carboxyl groups, for example, can donate electron pairs to metal centers, leading to strong metal-ligand interactions that enhance adsorption capacity.

- Hydrogen Bonding and Dipole Interactions: Hydroxyl groups contribute to adsorption via hydrogen bonding, which stabilizes metal ions on the adsorbent surface.

These secondary interactions improve metal retention and adsorption efficiency.

- Surface Modification and Hydrophilicity: The presence of hydroxyl and carboxyl groups increases the hydrophilic nature of the adsorbent, allowing enhanced interaction with aqueous metal solutions. This property is particularly beneficial in water treatment applications.

- pH-Dependent Adsorption Behavior: The ionization state of hydroxyl and carboxyl groups depends on pH, influencing metal uptake. At lower pH levels, carboxyl groups may remain protonated, reducing their binding potential. At higher pH levels, deprotonation increases metal adsorption efficiency.

Due to these advantages, adsorbents functionalized with hydroxyl and carboxyl groups are widely employed in environmental applications, such as heavy metal removal from wastewater and soil remediation 5. How do lignocellulosic materials interact with metals during adsorption, and what factors contribute to strengthening this process?

Lignocellulosic materials interact with metals during adsorption primarily through their inherent structural and chemical properties, which facilitate metal binding via various mechanisms. These materials, derived from plant biomass, contain cellulose, hemicellulose, and lignin, all of which possess functional groups that enhance metal adsorption.

Mechanisms of Metal Adsorption - Electrostatic Interactions: Many lignocellulosic materials contain negatively charged functional groups, such as hydroxyl (-OH) and carboxyl (-COOH), which facilitate electrostatic attraction between the material and positively charged metal ions (e.g., Pb²⁺, Cu²⁺, Zn²⁺).

- Complexation and Chelation: The presence of oxygen-containing groups enables strong coordination with metal ions, forming stable metal-ligand complexes that enhance retention and adsorption efficiency.

- Ion Exchange: Some lignocellulosic materials can exchange their intrinsic cations (e.g., Na⁺, K⁺) for metal ions present in solution, improving adsorption capacity.

- Hydrogen Bonding and π-Interactions: Lignin, rich in aromatic structures, contributes to adsorption through π-electron interactions with metal ions, increasing binding strength.

- Porosity and Surface Area: The microstructure of lignocellulosic materials, characterized by high porosity and large surface area, enhances metal accessibility to active sites, improving overall adsorption performance.

Factors Strengthening Metal Adsorption - Surface Modification: Chemical treatments, such as oxidation or functionalization with acids or bases, can introduce additional active sites or enhance existing functional groups to improve metal retention.

- pH Adjustment: The ionization state of functional groups on lignocellulosic materials depends on the pH of the solution, influencing metal binding efficiency.

Optimal pH conditions maximize electrostatic interactions and complexation.

- Temperature Effects: Higher temperatures may enhance metal mobility and diffusion onto adsorption sites, although excessive temperatures can lead to structural degradation of the lignocellulosic material.

- Presence of Competing Ions: The adsorption process can be influenced by the presence of other ions in solution, which may compete for adsorption sites or facilitate cooperative adsorption depending on their nature.

Lignocellulosic materials are widely used in environmental applications, such as wastewater treatment, due to their sustainability, cost-effectiveness, and high adsorption capacity for heavy metals. Understanding their adsorption mechanisms and optimizing influencing factors can significantly improve their efficiency in metal removal processes.

OBJECTIVE QUESTIONS ON PH AND POINT OF ZERO CHARGE 1.

How does pH change adsorption?

(a) By messing with the temperature. (b) By deciding which chemical species are around.

pH plays a crucial role in adsorption by influencing the chemical environment, particularly the ionization state of both the adsorbent and the adsorbate. Changes in pH can alter the charge of the adsorbent’s surface, affecting electrostatic interactions between the adsorbent and the adsorbate. Additionally, pH determines the speciation of certain solutes in solution, meaning that different chemical forms of the adsorbate will be present under different pH conditions. (c) By taking away active sites on the adsorbent. (d) By altering the adsorbent's physical structure.

2.

Why is pHPZC matter for surface charge?

(a) It defines how porous the adsorbent is. (b) It‘s the pH where the adsorbent has no net charge.

The point of zero charge (pHPZC) is a critical property of adsorbents that determines their surface charge as a function of pH. At pHPZC, the adsorbent carries an equal number of positive and negative charges, meaning it has a net neutral charge. If the pH of the solution is lower than the pHPZC, the surface tends to be positively charged, while at higher pH levels, the surface becomes negatively charged. This characteristic directly affects adsorption, as electrostatic interactions between the adsorbent and adsorbate are influenced by the surface charge. (c) It controls the adsorbate‘s chemical polarity. (d) It shows the adsorbent‘s max adsorption ability.

3.

Why does the surface charge become positive below the pHPZC?

(a) Because the adsorbent grabs H+ ions.

Below the point of zero charge (pHPZC), the surface of the adsorbent tends to acquire a positive charge due to the adsorption of protons (H⁺ ions) from the surrounding solution. This occurs because, at lower pH levels, the concentration of H⁺ ions is higher, leading to increased protonation of functional groups on the adsorbent's surface. As a result, electrostatic attraction between the adsorbent and negatively charged species in the solution is enhanced. (b) Because the adsorbent loses H+ ions. (c) Because the adsorbent picks up OH− ions. (d) Because the adsorbent breaks up active sites.

4.

What happens to the surface charge when pH is above pHPZC?

(a) It turns positive, making it easier for anions to stick. (b) It stays neutral, so adsorption doesn‘t really happen. (c) It becomes negative, which helps cations get adsorbed.

When the pH of a solution exceeds the point of zero charge (pHPZC), the surface of the adsorbent acquires a negative charge due to the deprotonation of functional groups. This negatively charged surface facilitates the adsorption of positively charged species (cations) through electrostatic attraction. As a result, adsorption behavior is strongly influenced by pH, particularly when dealing with metal ions, dyes, and other charged adsorbates. (d) It doesn‘t change, no matter what kind of adsorbate is around.

5.

How does pH regulate electrostatic interactions in adsorption?

(a) By adjusting how porous the adsorbent is. (b) By deciding the charge of both the adsorbent and the adsorbate.

pH significantly influences electrostatic interactions in adsorption by determining the surface charge of the adsorbent as well as the ionization state of the adsorbate. Changes in pH alter the adsorbent's charge based on its point of zero charge (pHPZC), affecting its attraction to positively or negatively charged species. Similarly, the adsorbate's charge varies depending on its chemical properties, leading to stronger or weaker electrostatic interactions with the adsorbent. This dynamic control enables selective adsorption in various systems, such as wastewater treatment and heavy metal removal. (c) By changing the physical state of the adsorbent. (d) By stripping away functional groups from the adsorbent.

OBJECTIVE QUESTIONS: METAL SPECIATION Refer to Figure 1.2 to answer the questions.

1 At which pH level does Zn²⁺ exhibit the highest speciation? (a) pH 2 Explanation: Zn²⁺ is the dominant species at low pH because the acidic environment prevents complex formation with cyanide ions. (b) pH 5 (c) pH 7 (d) pH 10 2 Which zinc cyanide complex has the highest speciation at pH 7? (a) Zn²⁺ (b) Zn(CN)₂ (c) Zn(CN)₃⁻ At pH 7, Zn(CN)₃⁻ is the predominant species, as cyanide interactions favor this complex under neutral conditions. (d) Zn(CN)₄²⁻

3 How does the speciation of Zn(CN)₄²⁻ change as the pH increases from 2 to 10? (a) It remains constant throughout the pH range (b) It gradually increases, becoming dominant at higher pH Zn(CN)₄²⁻ formation is favored at higher pH values because excess cyanide ions stabilize the complex. (c) It decreases steadily as pH rises (d) It peaks at pH 5 and then declines 4 At approximately what pH does Zn(CN)₂ reach its maximum speciation? (a) pH 3 (b) pH 5.5 Zn(CN)₂ appears most prominent around pH 5.5. (c) pH 7 (d) pH 9 5 How does the speciation of Zn(CN)₃⁻ compare to Zn(CN)₄²⁻ at pH 8? (a) Zn(CN)₃⁻ is more dominant than Zn(CN)₄²⁻ (b) Zn(CN)₄²⁻ has a higher speciation than Zn(CN)₃⁻ At pH 8, Zn(CN)₄²⁻ becomes the predominant species due to stronger complexation with excess cyanide ions. (c) Both species exhibit equal speciation (d) Neither species is present at pH 8 Refer to Figure 1.2 to answer the questions.

1. When does the [Cu(H2O)6]2+ complex start seriously dropping?

2. Which metal complex is the predominant species at pH 7?

3. At pH 12, which species has the lowest concentration?

4. Between pH 4 and 6, which complex becomes more prevalent?

5. - Approximately how much of [Zn(H₂O)₆]²⁺ remains at pH 3?

Answers 1- Around pH 5.

2- [Zn(H2O)6]2+.

3- [Cu(H2O)6]2+.

4- [CuR(H2O)5]+.

5- Roughly 90%.

Exercises Multiple-Choice Questions 11. What is a characteristic of chemical adsorption? (a) It is non-specific and occurs on all solid surfaces. (b) Only molecules capable of binding to the active site can be adsorbed.

Chemical adsorption, or chemisorption, involves the formation of strong chemical bonds between the adsorbate and the adsorbent. Unlike physical adsorption, it is highly specific and requires active sites on the surface of the adsorbent where molecules can bind through electron exchange or sharing. (c) All molecules present in the fluid are chemically adsorbed. (d) It does not require active sites to occur.

12. Why can't all solid surfaces carry out chemical adsorption? (a) Because chemical adsorption requires specific active sites.

Chemical adsorption, or chemisorption, is highly selective and occurs only on surfaces that have specific active sites capable of forming strong chemical bonds with the adsorbate. Not all solid surfaces possess these active sites, which is why chemisorption does not occur universally. (b) Because chemical adsorption is non-specific. (c) Because all solid surfaces have active sites. (d) Because there are no suitable solid surfaces for chemical adsorption.

13. What is the main difference between physical adsorption and chemical adsorption? (a) Both are highly specific.

(b) Chemical adsorption is non-specific, while physical adsorption is specific. (c) Physical adsorption is non-specific, while chemical adsorption is highly specific.

Physical adsorption relies on weak van der Waals forces, allowing a broad range of molecules to be adsorbed without specificity. In contrast, chemical adsorption involves strong chemical bonds, requiring specific active sites where molecules selectively bind (d) Both occur without the need for active sites.

14. What is required for a molecule to be chemically adsorbed? (a) Any molecule can be adsorbed. (b) The molecule must be capable of binding to the solid surface‘s active site.

Chemical adsorption, or chemisorption, occurs when a molecule forms strong chemical bonds with the adsorbent at specific active sites. Unlike physical adsorption, which relies on weaker van der Waals forces, chemisorption requires molecular interaction through electron exchange or sharing (c) The molecule must be in a different physical state. (d) There is no need to bind to the active site.

15. Why doesn’t chemical adsorption occur with all molecules present in the fluid? (a) Because not all molecules can bind to the active sites.

Chemical adsorption, or chemisorption, is highly selective and depends on the presence of active sites on the adsorbent's surface. Only molecules with the appropriate characteristics—such as electronic structure and bonding capacity—can interact with these sites to form strong chemical bonds. (b) Because chemical adsorption occurs only in the liquid state.

(c) Because all molecules are capable of physical adsorption. (d) Because larger molecules are always excluded.

Questions on Adsorption Thermodynamics 16. What is the typical range for standard Gibbs free energy change (ΔG◦) in physisorption? (a) 0 to −20 kJ/mol Physisorption is characterized by weak van der Waals forces, resulting in relatively low Gibbs free energy changes. Unlike chemisorption, which involves stronger chemical bonding, physisorption typically falls within this energy range due to its reversible nature and lack of significant electronic interactions (b) −80 to −400 kJ/mol (c) −20 to −80 kJ/mol (d) −400 to −800 kJ/mol 17. What is the main thermodynamic property that sets chemisorption apart from physisorption? (a) Temperature range (b) Standard enthalpy change (ΔH◦) Chemisorption is distinguished from physisorption by its significantly higher enthalpy change.

While physisorption involves weak van der Waals interactions with relatively low energy (typically below -20 kJ/mol), chemisorption involves strong chemical bonds, resulting in much higher enthalpy changes (often exceeding -80 kJ/mol).

(c) Specific heat capacity (d) Molecular weight of adsorbates

18. Why is physisorption considered non-specific? (a) Because it happens with big enthalpy changes (b) Because it doesn‘t need active sites Physisorption is non-specific because it relies on weak van der Waals forces rather than selective chemical bonding. Unlike chemisorption, which requires specific active sites on the adsorbent's surface for molecular interaction, physisorption occurs more generally on solid surfaces, allowing a wide range of molecules to adsorb without selectivity.

(c) Because it involves highly specific chemical reactions (d) Because it requires energy input to occur 19. What is the typical range for standard enthalpy change (ΔH◦) in chemisorption? (a) −2.1 to −20.9 kJ/mol (b) −80 to −200 kJ/mol Chemisorption involves the formation of strong chemical bonds between the adsorbate and the adsorbent, leading to significantly higher enthalpy changes compared to physisorption. This energy range reflects the strength of these interactions, which are much greater than the weak van der Waals forces governing physical adsorption.

(c) 0 to −20 kJ/mol (d) −20 to −80 kJ/mol 20. Which process usually involves larger energy changes? (a) Physisorption (b) Chemisorption

Chemisorption involves the formation of strong chemical bonds between the adsorbate and the adsorbent, resulting in significantly larger energy changes compared to physisorption. While physisorption is governed by weak van der Waals forces with relatively low enthalpy changes (typically below 20 kJ/mol), chemisorption requires much higher energy, often exceeding 80 kJ/mol, due to the exchange or sharing of electrons (c) Both involve the same energy changes (d) None of the above SUBJECTIVE QUESTIONS ON THERMODYNAMICS OF ADSORPTION 11. What is the primary thermodynamic distinction between physisorption and chemisorption?

The fundamental thermodynamic difference between physisorption and chemisorption lies in the nature of the intermolecular forces involved. Physisorption is characterized by weak van der Waals forces, which result in low enthalpy changes (typically below 20 kJ/mol) and a reversible process. In contrast, chemisorption involves the formation of strong chemical bonds between the adsorbate and the adsorbent, leading to significantly higher enthalpy changes (ranging from 80 to 400 kJ/mol) and an often irreversible adsorption process.

12. Why does chemisorption exhibit a significantly broader range of Gibbs free energy change (ΔG◦) compared to physisorption?

Chemisorption involves electron transfer or sharing between the adsorbate and adsorbent, leading to more complex and variable energetic interactions. As a result, the Gibbs free energy change (ΔG◦) for chemisorption can vary widely, typically between −80 and −400 kJ.mol-1. Physisorption, by contrast, is governed by weak van der Waals forces, resulting

in a narrower ΔG◦ range from −20 to 0 kJ.mol-1. The strong binding of chemisorption accounts for its greater variation in energy change.

13. Why are enthalpy changes (ΔH◦) significant in distinguishing adsorption mechanisms?

Enthalpy changes provide insight into the strength and type of interactions between the adsorbate and the adsorbent. Low ΔH◦ values suggest weak, non-specific interactions characteristic of physisorption, whereas high ΔH◦ values indicate stronger, more specific chemical interactions, characteristic of chemisorption. This distinction is crucial in industrial applications, where adsorption efficiency and reversibility play essential roles.

14. How does adsorption specificity impact its applications in materials science?

Adsorption specificity determines the suitability of different adsorbents for particular applications. Chemisorption, which involves strong, selective interactions, is essential for catalysis, semiconductor fabrication, and sensor technology. Physisorption, being nonspecific, is widely used in processes such as gas storage, filtration, and environmental remediation. The ability to tailor adsorption mechanisms enhances the design of functional materials for various industrial sectors.

15. How do the energy requirements of physisorption and chemisorption compare?

Physisorption requires minimal activation energy and can occur spontaneously at low temperatures. Chemisorption, however, often requires an energy input to overcome activation barriers and initiate bond formation, making it more temperature-dependent.

This difference is relevant in applications such as catalytic reactions, where chemisorption enhances efficiency despite its higher energy demands.

16. How do molecular interactions dictate whether physisorption or chemisorption occurs?

The type of adsorption depends on the nature of the molecular interactions between the adsorbate and adsorbent. If only weak van der Waals forces are present, physisorption occurs. If chemical bonding (such as covalent, ionic, or metallic interactions) is feasible, chemisorption takes place. Factors such as molecular polarity, charge distribution, and the presence of functional groups on the adsorbent surface influence this determination.

17. Can you provide an example where physisorption is preferable to chemisorption, and explain why?

An example is the use of activated carbon in air purification systems. Physisorption enables reversible trapping of pollutants such as volatile organic compounds (VOCs) through weak intermolecular forces. This allows easy regeneration of the adsorbent, making physisorption preferable for applications requiring repeated adsorption cycles without permanent surface modifications.

18. What makes chemisorption valuable in catalytic processes?

Chemisorption plays a critical role in catalysis by facilitating reactant bonding to the catalyst surface, thereby lowering activation energy and enhancing reaction rates. For example, in heterogeneous catalysis, chemisorption enables adsorption of reactants onto metal surfaces, ensuring optimal interaction and conversion efficiency. The specificity and strength of chemisorption make it essential for numerous industrial catalytic applications.

19. What factors influence the enthalpy values associated with physisorption and chemisorption?

Several factors affect enthalpy values, including adsorbent surface properties (porosity, surface area, functional groups), adsorbate molecular characteristics (polarity, charge, size), temperature, pressure, and solvent effects. Additionally, surface modifications or

chemical treatments can enhance or reduce adsorption efficiency by altering the binding energy between adsorbates and adsorbents.

20. Why are adsorption mechanisms crucial for environmental applications?

Adsorption mechanisms are fundamental to pollution control, water purification, and air filtration. Physisorption allows reversible capture of pollutants, making it useful for gas separation and filtration systems. Chemisorption is applied in processes such as catalytic converters in automobiles, where harmful pollutants are chemically transformed into less toxic compounds. Understanding adsorption mechanisms facilitates the development of sustainable technologies for environmental protection.

SUBJECTIVE QUESTIONS ON ADSORBENT AND ADSORBATE PROPERTIES 6. How do the physical and chemical properties of an adsorbent influence adsorption capacity and rate?

The physical and chemical properties of an adsorbent play a crucial role in determining its adsorption capacity and rate. Physically, factors such as surface area, porosity, and particle size directly influence the extent of adsorption. A higher surface area provides more active sites for adsorption, while a well-developed pore structure enhances accessibility for adsorbate molecules. Additionally, smaller particle sizes reduce diffusion resistance, increasing adsorption kinetics.

Chemically, the nature of the functional groups present on the adsorbent surface significantly affects interaction with adsorbates. Functional groups such as hydroxyl, carboxyl, and amine groups contribute to adsorption through electrostatic interactions, hydrogen bonding, or complexation. The polarity and charge of the adsorbent also determine its affinity for different adsorbates, impacting selectivity. Moreover, hydrophobicity and hydrophilicity influence the adsorption behavior, with hydrophobic

surfaces favoring non-polar compounds and hydrophilic surfaces enhancing adsorption of polar substances.

Overall, optimizing both physical and chemical properties enhances adsorption efficiency, making adsorbents more effective in applications such as water purification, gas separation, and pollutant removal.

7. How does particle size impact molecular diffusion and transport mechanisms during adsorption?

Particle size plays a crucial role in molecular diffusion and transport mechanisms during adsorption by influencing surface accessibility, diffusion resistance, and adsorption kinetics.

Smaller particle sizes generally enhance adsorption efficiency by increasing the available surface area and reducing the diffusion path length. This allows adsorbate molecules to reach adsorption sites more quickly, minimizing mass transfer limitations.

Additionally, smaller particles exhibit lower intraparticle diffusion resistance, facilitating faster transport within porous structures and improving adsorption kinetics.

Conversely, larger particles may present diffusion limitations due to their reduced surface area-to-volume ratio and longer diffusion pathways. In porous adsorbents, this can result in slower molecular transport, as adsorbate molecules must traverse deeper into the material to reach active sites. In such cases, adsorption is often governed by intraparticle diffusion, which can become the rate-limiting step.

The impact of particle size is particularly significant in environmental and industrial applications, such as wastewater treatment and gas adsorption, where optimizing adsorption efficiency is critical. By tailoring particle size distribution, researchers and engineers can enhance adsorption performance and optimize material design for specific applications.

8. How does the polarity of an adsorbate affect its affinity for solvents and adsorbents? Can you provide examples?

The polarity of an adsorbate plays a fundamental role in determining its interaction with both solvents and adsorbents, influencing adsorption efficiency, selectivity, and mechanism.

Influence on Solvent Affinity: Polar adsorbates tend to dissolve more readily in polar solvents due to intermolecular forces such as hydrogen bonding and dipole-dipole interactions.

Conversely, nonpolar adsorbates exhibit higher solubility in nonpolar solvents due to London dispersion forces. This principle, commonly referred to as "like dissolves like," dictates solubility behavior and impacts adsorption equilibrium when adsorption occurs from solution.

Influence on Adsorbent Affinity: Adsorbents can exhibit varying degrees of polarity, affecting their interaction with adsorbates. Hydrophilic adsorbents, such as silica or activated alumina, preferentially adsorb polar molecules due to strong electrostatic or hydrogen bonding interactions.

Hydrophobic adsorbents, including activated carbon and polymeric resins, demonstrate higher affinity for nonpolar adsorbates via van der Waals forces. The presence of functional groups on the adsorbent surface further modifies adsorption behavior by enhancing specific interactions, such as ion exchange or complexation.

Examples: - Adsorption of Water Vapor on Silica Gel: Due to its high polarity, water molecules form hydrogen bonds with the hydroxyl groups present on silica gel, resulting in effective adsorption under humid conditions.

- Removal of Organic Pollutants Using Activated Carbon: Nonpolar organic compounds, such as benzene and toluene, are efficiently adsorbed onto activated carbon due to strong dispersion interactions, making this material highly effective for air and water purification.

-Heavy Metal Adsorption by Functionalized Adsorbents: Adsorbents containing carboxyl or amine groups selectively adsorb polar metal ions (e.g., Pb²⁺ and Cu²⁺) via complexation and electrostatic attraction, aiding in wastewater treatment applications.

Understanding the role of polarity in adsorption processes enables the strategic selection of adsorbents for environmental remediation, industrial separation, and chemical purification applications 9. Why do functional groups such as hydroxyl and carboxyl groups enhance metal adsorption?

Functional groups such as hydroxyl (-OH) and carboxyl (-COOH) play a crucial role in enhancing metal adsorption by facilitating specific interactions between the adsorbent and metal ions. Their effectiveness stems from several key mechanisms: - Electrostatic Attraction: Hydroxyl and carboxyl groups often carry negative charges at suitable pH levels, making them highly effective in binding positively charged metal cations (e.g., Pb²⁺, Cu²⁺, and Zn²⁺) through electrostatic interactions. This increases the affinity of the adsorbent surface for metal ions.

- Complexation and Chelation: These functional groups can act as ligands, forming stable coordination complexes with metal ions. Carboxyl groups, for example, can donate electron pairs to metal centers, leading to strong metal-ligand interactions that enhance adsorption capacity.

- Hydrogen Bonding and Dipole Interactions: Hydroxyl groups contribute to adsorption via hydrogen bonding, which stabilizes metal ions on the adsorbent surface.

These secondary interactions improve metal retention and adsorption efficiency.

- Surface Modification and Hydrophilicity: The presence of hydroxyl and carboxyl groups increases the hydrophilic nature of the adsorbent, allowing enhanced interaction with aqueous metal solutions. This property is particularly beneficial in water treatment applications.

- pH-Dependent Adsorption Behavior: The ionization state of hydroxyl and carboxyl groups depends on pH, influencing metal uptake. At lower pH levels, carboxyl groups may remain protonated, reducing their binding potential. At higher pH levels, deprotonation increases metal adsorption efficiency.

Due to these advantages, adsorbents functionalized with hydroxyl and carboxyl groups are widely employed in environmental applications, such as heavy metal removal from wastewater and soil remediation

10. How do lignocellulosic materials interact with metals during adsorption, and what factors contribute to strengthening this process?

Lignocellulosic materials interact with metals during adsorption primarily through their inherent structural and chemical properties, which facilitate metal binding via various mechanisms. These materials, derived from plant biomass, contain cellulose, hemicellulose, and lignin, all of which possess functional groups that enhance metal adsorption.

Mechanisms of Metal Adsorption - Electrostatic Interactions: Many lignocellulosic materials contain negatively charged functional groups, such as hydroxyl (-OH) and carboxyl (-COOH), which facilitate electrostatic attraction between the material and positively charged metal ions (e.g., Pb²⁺, Cu²⁺, Zn²⁺).

- Complexation and Chelation: The presence of oxygen-containing groups enables strong coordination with metal ions, forming stable metal-ligand complexes that enhance retention and adsorption efficiency.

- Ion Exchange: Some lignocellulosic materials can exchange their intrinsic cations (e.g., Na⁺, K⁺) for metal ions present in solution, improving adsorption capacity.

- Hydrogen Bonding and π-Interactions: Lignin, rich in aromatic structures, contributes to adsorption through π-electron interactions with metal ions, increasing binding strength.

- Porosity and Surface Area: The microstructure of lignocellulosic materials, characterized by high porosity and large surface area, enhances metal accessibility to active sites, improving overall adsorption performance.

Factors Strengthening Metal Adsorption - Surface Modification: Chemical treatments, such as oxidation or functionalization with acids or bases, can introduce additional active sites or enhance existing functional groups to improve metal retention.

- pH Adjustment: The ionization state of functional groups on lignocellulosic materials depends on the pH of the solution, influencing metal binding efficiency.

Optimal pH conditions maximize electrostatic interactions and complexation.

- Temperature Effects: Higher temperatures may enhance metal mobility and diffusion onto adsorption sites, although excessive temperatures can lead to structural degradation of the lignocellulosic material.

- Presence of Competing Ions: The adsorption process can be influenced by the presence of other ions in solution, which may compete for adsorption sites or facilitate cooperative adsorption depending on their nature.

Lignocellulosic materials are widely used in environmental applications, such as wastewater treatment, due to their sustainability, cost-effectiveness, and high adsorption capacity for heavy metals. Understanding their adsorption mechanisms and optimizing influencing factors can significantly improve their efficiency in metal removal processes.

OBJECTIVE QUESTIONS ON PH AND POINT OF ZERO CHARGE 6.

How does pH change adsorption?

(a) By messing with the temperature. (b) By deciding which chemical species are around. pH plays a crucial role in adsorption by influencing the chemical environment, particularly the ionization state of both the adsorbent and the adsorbate. Changes in pH can alter the charge of the adsorbent’s surface, affecting electrostatic interactions between the adsorbent and the adsorbate. Additionally, pH determines the speciation of certain solutes in solution, meaning that different chemical forms of the adsorbate will be present under different pH conditions. (c) By taking away active sites on the adsorbent. (d) By altering the adsorbent's physical structure.

7.

Why is pHPZC matter for surface charge?

(a) It defines how porous the adsorbent is. (b) It‘s the pH where the adsorbent has no net charge.

The point of zero charge (pHPZC) is a critical property of adsorbents that determines their surface charge as a function of pH. At pHPZC, the adsorbent carries an equal number of positive and negative charges, meaning it has a net neutral charge. If the pH of the solution is lower than the pHPZC, the surface tends to be positively charged, while at higher pH levels, the surface becomes negatively charged. This characteristic directly affects adsorption, as electrostatic interactions between the adsorbent and adsorbate are influenced by the surface charge. (c) It controls the adsorbate‘s chemical polarity. (d) It shows the adsorbent‘s max adsorption ability.

8.

Why does the surface charge become positive below the pHPZC?

(a) Because the adsorbent grabs H+ ions.

Below the point of zero charge (pHPZC), the surface of the adsorbent tends to acquire a positive charge due to the adsorption of protons (H⁺ ions) from the surrounding solution. This occurs because, at lower pH levels, the concentration of H⁺ ions is higher, leading to increased protonation of functional groups on the adsorbent's surface. As a result, electrostatic attraction between the adsorbent and negatively charged species in the solution is enhanced. (b) Because the adsorbent loses H+ ions. (c) Because the adsorbent picks up OH− ions.

(d) Because the adsorbent breaks up active sites.

9.

What happens to the surface charge when pH is above pHPZC?

(a) It turns positive, making it easier for anions to stick. (b) It stays neutral, so adsorption doesn‘t really happen. (c) It becomes negative, which helps cations get adsorbed.

When the pH of a solution exceeds the point of zero charge (pHPZC), the surface of the adsorbent acquires a negative charge due to the deprotonation of functional groups. This negatively charged surface facilitates the adsorption of positively charged species (cations) through electrostatic attraction. As a result, adsorption behavior is strongly influenced by pH, particularly when dealing with metal ions, dyes, and other charged adsorbates. (d) It doesn‘t change, no matter what kind of adsorbate is around.

10. How does pH regulate electrostatic interactions in adsorption? (a) By adjusting how porous the adsorbent is. (b) By deciding the charge of both the adsorbent and the adsorbate. pH significantly influences electrostatic interactions in adsorption by determining the surface charge of the adsorbent as well as the ionization state of the adsorbate. Changes in pH alter the adsorbent's charge based on its point of zero charge (pHPZC), affecting its attraction to positively or negatively charged species. Similarly, the adsorbate's charge varies depending on its chemical properties, leading to stronger or weaker electrostatic interactions with the adsorbent. This dynamic control enables selective adsorption in various systems, such as wastewater treatment and heavy metal removal. (c) By changing the physical state of the adsorbent. (d) By stripping away functional groups from the adsorbent.

OBJECTIVE QUESTIONS: METAL SPECIATION Refer to Figure 1.2 to answer the questions.

1 At which pH level does Zn²⁺ exhibit the highest speciation? (a) pH 2 Explanation: Zn²⁺ is the dominant species at low pH because the acidic environment prevents complex formation with cyanide ions. (b) pH 5 (c) pH 7 (d) pH 10 2 Which zinc cyanide complex has the highest speciation at pH 7? (a) Zn²⁺ (b) Zn(CN)₂ (c) Zn(CN)₃⁻ At pH 7, Zn(CN)₃⁻ is the predominant species, as cyanide interactions favor this complex under neutral conditions. (d) Zn(CN)₄²⁻ 3 How does the speciation of Zn(CN)₄²⁻ change as the pH increases from 2 to 10? (a) It remains constant throughout the pH range (b) It gradually increases, becoming dominant at higher pH Zn(CN)₄²⁻ formation is favored at higher pH values because excess cyanide ions stabilize the complex. (c) It decreases steadily as pH rises (d) It peaks at pH 5 and then declines 4 At approximately what pH does Zn(CN)₂ reach its maximum speciation? (a) pH 3

(b) pH 5.5 Zn(CN)₂ appears most prominent around pH 5.5. (c) pH 7 (d) pH 9 5 How does the speciation of Zn(CN)₃⁻ compare to Zn(CN)₄²⁻ at pH 8? (a) Zn(CN)₃⁻ is more dominant than Zn(CN)₄²⁻ (b) Zn(CN)₄²⁻ has a higher speciation than Zn(CN)₃⁻ At pH 8, Zn(CN)₄²⁻ becomes the predominant species due to stronger complexation with excess cyanide ions. (c) Both species exhibit equal speciation (d) Neither species is present at pH 8 Refer to Figure 1.2 to answer the questions.

6. When does the [Cu(H2O)6]2+ complex start seriously dropping?

7. Which metal complex is the predominant species at pH 7?

8. At pH 12, which species has the lowest concentration?

9. Between pH 4 and 6, which complex becomes more prevalent?

10. - Approximately how much of [Zn(H₂O)₆]²⁺ remains at pH 3?

Answers 1- Around pH 5.

2- [Zn(H2O)6]2+.

3- [Cu(H2O)6]2+.

4- [CuR(H2O)5]+.

5- Roughly 90%.

Chapter 2 Exercises List - Answer Key and Responses Applied Questions The Importance of Controlling Heavy Metal Discharge in Aquatic Ecosystems PostTreatment

Effective regulation of heavy metal concentrations released into natural water sources following wastewater treatment is crucial for safeguarding environmental integrity and public health.

Although many treatment facilities are equipped to reduce pollutant loads, residual levels of heavy metals such as lead, cadmium, mercury, and chromium often persist and are subsequently discharged into aquatic ecosystems. These metals are not biodegradable and tend to accumulate in sludge and biomass within biological treatment systems, thereby disrupting microbial communities essential to the efficient degradation of organic matter. Over time, toxicity can compromise biological reactor performance, reduce treatment efficiency, and lead to system failure.

Furthermore, once discharged into receiving waters, heavy metals bioaccumulate in aquatic organisms, triggering toxic effects such as reproductive failure, impaired growth, neurological damage, and mortality. Trophic transfer through food chains may pose broader ecological threats and increase human exposure through consumption of contaminated fish and water. Thus, stringent monitoring and regulatory enforcement are indispensable to mitigate these persistent risks, preserve water quality, and maintain the functionality of biological treatment processes and aquatic biodiversity.

1. A study on pollutant removal at a metal plating factory was conducted under two different pH conditions. The data in the table refer to the adsorption of nickel at pH 3 and pH 5 at 28 °C. Based on this information, answer the following questions.

pH=5.3 Ce(mg.L-1) 0.0 3.0 20.3 32.1 62.5 90.1 100.0 120.2

qe(mg.g )

pH=3.3 Ce(mg.L-1)

qe(mg.g-1)

0 11 30 36 42 44 44.5 44,3

0 2,8 22 30 60 92 98 121

0 18.2 25.3 30.1 33.0 36.5 36.0 35.4

-1

a) Obtain the Langmuir isotherms and the linear equations that describe the phenomenon at both pH levels. Which pH condition is more suitable, and why? Determine the Langmuir parameters.

Langmuir parameter: The student may utilize one of the linear forms of the Langmuir equation b) Plot the graphs comparing the experimental and theoretical data.

In light of the application of the Langmuir Linear Form Type II, it is possible to determine that the theoretical adsorption capacity is given by the equation:

Where a and b represent the slope and intercept coefficients of the linear equation, respectively and x represents the equilibrium Ni(II) concentration ( Ce ).

Health Risks of Nitrate Contamination for Infants Nitrate is a widespread contaminant that often enters drinking water supplies due to agricultural practices, including the excessive use of fertilizers and the improper disposal of animal waste. Once in the water system, nitrates can pose a serious health threat—especially to infants. When ingested by infants under six months of age, nitrates can be converted by intestinal bacteria into nitrites, which interfere with the normal oxygen-carrying capacity of hemoglobin by forming methemoglobin. This condition, known as methemoglobinemia or ―blue baby syndrome,‖ reduces oxygen delivery to tissues and may lead to cyanosis, fatigue, difficulty breathing, and in extreme cases, death. Because of these risks, regulatory agencies

have set strict limits on nitrate concentrations in drinking water. Infants are particularly sensitive due to their underdeveloped enzyme systems, making nitrate exposure during this stage of life exceptionally dangerous. Safe water practices and regular water quality monitoring are essential to prevent such exposure and protect infant health.

2. The table below presents experimental data collected during a nitrate removal study involving a groundwater well at a rural household where an incident of infant methemoglobinemia (―blue baby syndrome‖) was reported. The study used an adsorbent material with a particle size between 80 and 100 mesh and a point of zero charge (PZC) of 6.8.

Ce (mg/L) q (mg/g) 0.0 4.7 19.4 41.2 64.1 89.4 107.1

0.00 46.43 93.37 115.31 123.47 127.55 128.57

Answer the following questions based on the data and background provided: a) Explain the significance of the PZC value in selecting the pH for the adsorption experiment.

Answer: The point of zero charge (PZC) is a critical parameter in selecting the pH for adsorption experiments because it defines the pH at which the surface of the adsorbent is electrically neutral. When the solution pH is below the PZC (i.e., pH < 6.8), the adsorbent surface acquires a net positive charge. This condition is favorable for the adsorption of anionic species such as nitrate, due to electrostatic attraction between the positively charged surface and the negatively charged nitrate ions. Conversely, at pH levels above the PZC, the surface becomes negatively charged, which may lead to electrostatic repulsion and reduced adsorption efficiency for anions. Therefore, in this experiment, selecting a pH below 6.8 enhances nitrate removal by promoting favorable surface-adsorbate interactions driven by charge complementarity. b) Estimate the nitrate removal capacity of the adsorbent based on the data.

The student may utilize one of the linear forms of the Langmuir equation. In this problem, we have selected the equation referred to as Langmuir Linear Form Type II, as illustrated in the graph below. The adsorption capacity can be calculated by taking the reciprocal of the slope (a) of the linear equation; thus, the inverse 1/0.0072 yields 139 mg·g⁻¹.

c) Identify and justify the most suitable pH range for efficient nitrate adsorption in this system.

Answer: The most suitable pH range for efficient nitrate adsorption in this system is below the point of zero charge (PZC), specifically at pH values lower than 6.5. At acidic conditions (pH < 6.8), the surface of the adsorbent becomes positively charged, which enhances electrostatic attraction toward negatively charged nitrate ions (NO₃⁻). This results in improved adsorption efficiency. In contrast, at pH levels above the PZC, the surface acquires a negative charge, leading to electrostatic repulsion and diminished nitrate uptake. d) Discuss how the adsorbent‘s particle size might influence the adsorption efficiency.

Answer: The particle size of the adsorbent, within the range of 80 to 100 mesh, significantly influences adsorption efficiency by increasing surface area and reducing diffusion path lengths.

Finer particles provide a larger surface-to-volume ratio, allowing more active sites to be exposed for adsorption. Additionally, smaller particles can enhance mass transfer rates, enabling faster attainment of equilibrium. However, excessively fine particles may also cause filtration difficulties and pressure drop in continuous systems, necessitating a balance between efficiency and operational feasibility e) Reflect on the relevance of this study for preventing nitrate-induced health risks in rural communities.

This study is highly relevant for addressing nitrate-related health risks in rural communities, particularly where groundwater is the primary drinking water source. Elevated nitrate levels are associated with methemoglobinemia in infants, a life-threatening condition. Demonstrating effective adsorption-based treatment using a suitable adsorbent and optimized pH conditions contributes to developing low-cost, accessible water purification methods. Such interventions are vital for preventing nitrate contamination and ensuring the safety and well-being of vulnerable populations in under-resourced areas.

Objective Questions on Adsorption Equilibrium 1. What is the correct definition of adsorption equilibrium? (a) The state where the adsorbate concentration in the liquid phase continuously changes. (b) The state where the adsorbate molecules stop interacting with the adsorbent. (c) The state where the adsorbate concentration in the liquid phase (Ce) remains constant. (d) The state where the adsorbent dissolves in the liquid phase.

Answer: (c) The state where the adsorbate concentration in the liquid phase (Ce) remains constant.

2. What technique is commonly used to separate the adsorbent from the solution after equilibrium is reached? (a) Thermal decomposition (b) Membrane filtration, filter paper, or centrifugation (c) Electrolysis (d) Crystallization Answer: (b) Membrane filtration, filter paper, or centrifugation.

3. Which factor can lead to incorrect adsorption capacity measurements? (a) Achieving adsorption equilibrium (b) Using a known mass of adsorbent (c) Non-equilibrium conditions (d) Performing a mass balance

Answer: (c) Non-equilibrium conditions.

4. What type of graph is commonly used to analyze adsorption equilibrium experimentally? (a) Adsorption capacity (q) vs equilibrium concentration (Ce) (b) Adsorption capacity (q) vs solution pH (c) Adsorption capacity (q) vs reaction time (d) Equilibrium concentration (Ce) vs adsorbent mass Answer: (a) Adsorption capacity (q) vs equilibrium concentration (Ce).

5. Which analytical technique can be used to determine the residual adsorbate concentration (Ce)? (a) X-ray diffraction (b) Mass spectrometry (c) Gas chromatography or ultraviolet-visible spectrometry (d) Polymerization analysis Answer: (c) Gas chromatography or ultraviolet-visible spectrometry.

Objective Questions on the Separation Factor RL Question 1: What does the separation factor (RL) indicate in adsorption studies? (a) The amount of adsorbent required for equilibrium. (b) The nature of adsorption (favorable, unfavorable, linear, or irreversible). (c) The adsorption rate in a fixed-bed column. (d) The molecular interaction between the adsorbate and adsorbent.

Answer: (b) The nature of adsorption (favorable, unfavorable, linear, or irreversible).

Question 2: If RL = 0, what does it imply? (a) Adsorption is irreversible. (b) Adsorption follows Henry‘s law.

(c) Adsorption is unfavorable. (d) Adsorption does not reach equilibrium.

Answer: (a) Adsorption is irreversible.

Question 3: What happens to the Langmuir adsorption isotherm at high concentrations? (a) It forms a plateau due to saturation. (b) Adsorption ceases completely. (c) The separation factor increases beyond 1. (d) The adsorbent dissolves into the solution.

Answer: (a) It forms a plateau due to saturation.

Question 4: What parameter determines the adsorption energy in Langmuir’s equation? (a) C0 (Initial concentration) (b)

(Langmuir constant)

(c) (Adsorption capacity) (d) Henry‘s constant Answer: (b)

(Langmuir constant).

Question 5: Why is a narrow

range desirable in adsorption studies?

(a). It indicates a higher adsorption performance. (b). It signifies that adsorption is unfavorable. (c). It means that equilibrium is impossible to achieve. (d) It suggests that adsorption will not follow Langmuir‘s model.

Answer: (a) It indicates a higher adsorption performance.

Subjective Questions on the Separation Factor Question 1: Explain the significance of the separation factor (

) in adsorption studies.

Answer: The separation factor (

) is a crucial parameter in adsorption studies as it defines the

nature of adsorption. Depending on its value, adsorption can be classified as unfavorable (RL >1), linear (

=1), favorable (0 <

< 1), or irreversible (

= 0). This parameter helps

researchers assess whether a specific adsorption process is viable for industrial applications.

Question 2: Discuss how non-equilibrium conditions affect adsorption measurements.

Answer: Non-equilibrium conditions can significantly distort adsorption measurements because the adsorbate may not have enough time to fully interact with the adsorbent. This results in lower observed adsorption capacities,leading to misleading interpretations of adsorption efficiency. Ensuring equilibrium is reached is critical for accurate analysis and modeling.

Question 3: How does Langmuir’s adsorption isotherm behave at different concentration levels?

Answer: At low concentrations, Langmuir’s adsorption isotherm follows Henry’s law, meaning adsorption is proportional to concentration. As concentration increases, the isotherm approaches a plateau, indicating adsorption saturation where no further adsorption occurs. This transition helps determine the maximum adsorption capacity of an adsorbent.

Question 4: What role does the Langmuir constant ( Answer: The Langmuir constant (

) play in adsorption modeling?

) represents the adsorption energy and is crucial for

determining the strength of adsorbate-adsorbent interactions. A higher

value indicates

stronger adsorption affinity, whereas a lower value suggests weaker interactions. This constant is essential for accurately modeling adsorption isotherms and predicting adsorbent efficiency.

Question 5: Why is the analysis of adsorption curves important for fixed-bed column dynamics?

Answer: Adsorption curves provide insights into breakthrough dynamics in fixed-bed columns, helping researchers optimize column efficiency and adsorbent selection. Understanding how

adsorption behavior changes under different conditions allows engineers to design effective adsorption-based separation processes for industrial applications.

Objective Questions on the Dimensionless Langmuir Equation Question 1: What is the primary advantage of using the dimensionless form of the Langmuir equation? (a) It eliminates the need for equilibrium concentration calculations. (b) It facilitates graphical analysis of adsorption behavior. (c) It increases the adsorption capacity of the adsorbent. (d) It disregards the Langmuir constant in adsorption calculations.

Answer: (b) It facilitates graphical analysis of adsorption behavior.

Question 2: What role does Cref play in the dimensionless Langmuir equation? (a) It determines the irreversible adsorption threshold. (b) It is the Langmuir constant related to adsorption energy. (c) It represents the reference concentration corresponding to the highest equilibrium concentration. (d) It describes the separation factor of the adsorption process.

Answer: (c) It represents the reference concentration corresponding to the highest equilibrium concentration.

Question 3: How is the adsorption equilibrium curve experimentally verified? (a) By measuring the separation factor (RL) and plotting the adsorption curve. (b) By increasing the adsorbate concentration beyond equilibrium levels. (c) By modifying the adsorbent structure during adsorption. (d) By disregarding non-equilibrium adsorption states.

Answer: (a) By measuring the separation factor (RL) and plotting the adsorption curve.

Question 4: Why is a narrower separation factor range desirable in adsorption studies? (a) It ensures higher adsorption efficiency. (b) It limits the adsorption of solutes in solution. (c) It prevents the adsorption equilibrium from being reached. (d) It simplifies the Langmuir equation calculations.

Answer: (a) It ensures higher adsorption efficiency.

Question 5: What does the equation

represent? (a) The simplified Langmuir equation accounting for RL. (b) The mass balance equation for adsorption equilibrium. (c) The equation for irreversible adsorption conditions. (d) The correlation between adsorbate concentration and solution pH. Answer: (a) The simplified Langmuir equation accounting for RL. Subjective Questions on the Dimensionless Langmuir Equation Question 1: Explain the significance of the dimensionless form of the Langmuir equation in adsorption studies.

Answer: The dimensionless Langmuir equation allows researchers to analyze adsorption performance more effectively by eliminating unit dependencies. By expressing adsorption parameters in a dimensionless form, it facilitates comparisons between different systems while enabling graphical interpretation of adsorption behavior.

This approach is particularly useful when evaluating equilibrium conditions.

Question 2: Describe the impact of the separation factor (RL) on adsorption behavior.

Answer: The separation factor (RL) determines whether adsorption is favorable, linear, or irreversible. If RL > 1, adsorption is unfavorable. If 0 < RL < 1, adsorption is considered favorable. When RL = 0, adsorption becomes irreversible, meaning that the adsorbate cannot be removed from the adsorbent. This parameter helps researchers assess adsorption feasibility.

Question 3: How does Cref influence the dimensionless Langmuir equation?

Answer: Cref is the highest equilibrium concentration assigned during adsorption experiments. It serves as a reference for normalizing adsorption data, making it easier to analyze trends and compare adsorption performance under different conditions. This approach simplifies calculations and allows direct comparisons of adsorption efficiency.

Question 4: Why is experimental verification of adsorption equilibrium curves essential?

Answer: Experimental verification ensures that adsorption models accurately reflect realworld conditions. By plotting adsorption equilibrium curves and analyzing the separation factor range, researchers can evaluate whether an adsorbent performs effectively under equilibrium conditions. A reliable adsorption curve aids in optimizing adsorbent materials and predicting adsorption behavior.

Question 5: How does the modification of adsorbents affect the separation factor curve?

Answer: Modifying adsorbents can shift the separation factor curve, potentially improving adsorption efficiency.

A lower RL value indicates enhanced adsorbate-adsorbent interactions, leading to better adsorption performance. Adsorbent modifications aim to narrow the separation factor range and improve equilibrium adsorption conditions, making them more suitable for industrial applications.

Objective and Subjective Questions on the Freundlich Adsorption Model Question 1: According to the Freundlich adsorption model, what assumption is made about the nature of the adsorbent surface?

(a) It is homogeneous with identical adsorption sites. (b) It is heterogeneous with varying adsorption energies. (c) It strictly follows the Langmuir model. (d) It only applies to monolayer adsorption.

Answer: (b) It is heterogeneous with varying adsorption energies.

Question 2: What is the primary limitation of the Freundlich adsorption model when describing adsorption at high concentrations of adsorbate? (a) It assumes adsorption reaches saturation. (b) It predicts continuous adsorption increase, which is physically unrealistic. (c) It does not account for surface heterogeneity. (d) It requires specific temperature conditions to remain valid.

Answer: (b) It predicts continuous adsorption increase, which is physically unrealistic.

Question 3: In the linearized form of the Freundlich isotherm equation, what does the slope of the graph represent? (a) The adsorption capacity constant (KF). (b) The equilibrium concentration of the adsorbate (Ce). (c) The inverse of the surface heterogeneity constant (1/n). (d) The maximum adsorption capacity of the adsorbent (qmax).

Answer: (c) The inverse of the surface heterogeneity constant (1/n).

Subjective Questions with Sample Responses Question 4: The Freundlich adsorption model is often used for non-ideal adsorption systems. How does its empirical nature make it suitable for describing adsorption on heterogeneous surfaces?

Response: The Freundlich model does not assume a uniform surface with identical adsorption sites. Instead, it accounts for variations in adsorption energy across different sites, making it ideal for heterogeneous surfaces where multiple adsorption layers can form. This

empirical approach allows for better characterization of complex adsorption behaviors in realworld systems, such as contaminated soils or industrial wastewater treatment.

Question 5: Unlike the Langmuir model, the Freundlich isotherm does not impose a monolayer adsorption limit. Discuss the implications of this in practical adsorption studies, particularly for systems with high concentrations of adsorbate.

Response: The ability of the Freundlich model to predict continuous adsorption increase as concentration rises suggests that adsorbents can theoretically accommodate higher pollutant levels indefinitely. However, in practical settings, saturation occurs when adsorption sites are fully occupied. This discrepancy makes the Freundlich model unsuitable for extremely high concentrations, necessitating alternative models like the Langmuir isotherm for precise adsorption predictions in saturated systems.

Question 6: Considering that the Freundlich model does not account for saturation effects, how can researchers determine the validity range of the model when analyzing experimental adsorption data?

Response: Researchers can analyze adsorption trends by plotting log(qe) versus log(Ce). If the relationship remains linear across varying concentrations, the Freundlich model remains applicable. Deviations from linearity, especially at high concentrations, indicate the need for alternative models. Additionally, comparing Freundlich predictions with experimental adsorption capacity measurements can validate its suitability within a defined concentration range.

Question 7: The Freundlich equation incorporates an adsorption capacity constant (kF) and a heterogeneityconstant (1/n). What do these parameters reveal about the adsorption efficiency and surface properties of the adsorbent material?

Response: kF reflects the adsorption capacity of the adsorbent, indicating its ability to retain contaminants. A higher kF value suggests stronger adsorption potential. The heterogeneity constant (1/n) describes the variability of adsorption site energies; lower values indicate greater surface heterogeneity, meaning adsorption occurs across a broader range of energy sites.

Together, these parameters help characterize the effectiveness of adsorption and determine the suitability of specific materials for environmental remediation applications.

Question 8: The model suggests an exponential distribution of adsorption sites with different adsorption energies. In your opinion, how does this assumption affect the accuracy and predictive power of adsorption models used in environmental applications?

Response: The assumption of an exponential distribution of adsorption energies improves the accuracy of adsorption predictions in heterogeneous systems, where adsorption sites vary in strength and accessibility. However, this approach does not account for saturation or site exhaustion, which can reduce its reliability at high concentrations.

In environmental applications, combining Freundlich-based predictions with kinetic models or hybrid adsorption isotherms can enhance the precision of pollutant removal strategies.

Objective and Subjective Questions on the Temkin Adsorption Model Question 1: The Temkin adsorption model assumes that the adsorption heat of molecules in the layer decreases in which manner as the adsorbent coverage increases? (a) Logarithmically. (b) Linearly. (c) Exponentially. (d) Quadratically.

Answer: (b) Linearly.

Question 2: What is the primary purpose of introducing the dimensionless quantity θ into the Temkin equation? (a) To account for variations in equilibrium adsorption. (b) To align the equation with dimensional analysis principles. (c) To improve the accuracy of adsorption kinetics predictions.

(d) To eliminate the dependence on temperature in adsorption calculations.

Answer: (b) To align the equation with dimensional analysis principles.

Question 3: According to Zhou et al. (2016), what correction is necessary for the widely used Temkin equation to conform to dimensional analysis? (a) Changing the units of kT and Ce from L.g−1 and g.L−1 to L.mg−1 and mg.L−1. (b) Removing the universal gas constant (R) from the equation. (c) Introducing an additional adsorption equilibrium term. (d) Modifying the adsorption heat constant (b) to a temperature-dependent variable.

Answer: (a) Changing the units of kT and Ce from L.g−1 and g.L−1 to L.mg−1 and mg.L−1.

Question 4: The Temkin isotherm equation was originally developed to describe the adsorption of which element onto platinum electrodes? (a) Hydrogen. (b) Oxygen. (c) Carbon. (d) Iron.

Answer: (a) Hydrogen.

Question 5: What is the role of the Temkin constant (b) in adsorption processes? (a) It represents the equilibrium concentration of the adsorbate. (b) It describes the sorption heat involved in adsorption. (c) It defines the maximum adsorption capacity. (d) It indicates the adsorbent‘s surface heterogeneity.

Answer: (b) It describes the sorption heat involved in adsorption.

Subjective Questions with Sample Responses

Question 6: Discuss the significance of the Temkin isotherm equation in adsorption studies, particularly in liquid-phase environmental applications. How does it compare to other adsorption models, such as the Langmuir and Freundlich isotherms?

Response: The Temkin isotherm equation plays a significant role in adsorption studies, particularly in liquid-phase environmental applications such as wastewater treatment and heavy metal removal. Unlike the Langmuir model, which assumes monolayer adsorption and identical adsorption sites, and the Freundlich model, which describes adsorption on heterogeneous surfaces with multilayer formation, the Temkin model accounts for adsorbate-adsorbent interactions and assumes a linear decrease in adsorption heat as surface coverage increases.

This assumption makes the Temkin model useful in situations where adsorption energy varies, providing a more realistic approach for industrial and environmental remediation processes.

Question 7: Dimensional analysis is fundamental in physics to ensure equation consistency.

Based on Zhou et al. (2016), what are the consequences of using an equation that fails to comply with dimensional analysis, and how does the correction in Equation 2.19 resolve this issue?

Response: Equations that fail to comply with dimensional analysis violate a fundamental principle in physics—dimensional consistency across all terms. If an adsorption equation lacks dimensional correctness, its predictions can be misleading, leading to improper experimental interpretations or incorrect parameter estimations. Zhou et al. (2016) identified a dimensional inconsistency in the commonly used Temkin equation and proposed corrections by modifying the units of kT and Ce and introducing θ to align the equation with the original Temkin model. This correction ensures that adsorption calculations remain physically meaningful and applicable to practical adsorption studies.

Question 8: Considering the experimental applications discussed in the text—such as the adsorption of heavy metals and organic pollutants onto biosorbents—how does the

incorporation of θ improve the predictive accuracy of the Temkin model for real-world adsorption processes?

Response: The inclusion of θ in the Temkin equation is essential for improving predictive accuracy in real world adsorption applications, such as the removal of heavy metals and organic contaminants using biosorbents. θ represents the fraction of the adsorbent surface covered by the adsorbate, allowing for a more precise calculation of adsorption trends. By incorporating this parameter, researchers can better model adsorption behavior in dynamic environmental conditions, ensuring that adsorption predictions align with actual laboratory and industrialscale experiments. This adjustment enhances the robustness of the Temkin model, making it more reliable in designing efficient adsorption-based pollutant removal systems.

Objective and Subjective Questions on the Redlich-Peterson Adsorption Model Objective Questions with Answer Key Question 1: What is the correct unit designation for the Redlich-Peterson parameter

?

(a) L.mg−1. (b) L.g−1. (c) mg.g−1. (d) mmol.L−1.

Answer: (b) L.g−1.

Question 2: What constraint does dimensional homogeneity impose on the units of the parameter in the Redlich-Peterson model? (a)

should have units of (L·mg−1)-.

(b)

should be dimensionless.

(c)

should have units of mg.L−1.

(d)

should have the same units as Ce.

Answer: (a) (L·mg−1)-.

Question 3: Which of the following issues regarding R–P parameters has been frequently misreported in the literature? (a) The incorrect assignment of units for (b) The incorrect assumption that

as L.mg−1 instead of L.g−1.

is dimensionless.

(c) The failure to distinguish between solid-phase and liquid-phase concentration units. (d) The omission of equilibrium conditions in R–P calculations.

Answer: (a) The incorrect assignment of units for

as L.mg−1 instead of L.g−1.

Subjective Questions with Sample Responses Question 4: The determination of units for R–P parameters has been a subject of ambiguity in adsorption studies. Discuss why dimensional homogeneity is essential in adsorption modeling and how incorrect unit assignments can lead to methodological errors.

Response: Dimensional homogeneity ensures that all terms in an equation share consistent units, preserving physical meaning and mathematical correctness. In adsorption modeling, incorrect unit assignments for parameters like

and

can lead to inaccurate predictions,

affecting the reliability of adsorption isotherms in water treatment applications. Errors in unit consistency may cause misinterpretations in adsorption capacity calculations, reducing the validity of comparative studies across different adsorbent materials.

Question 5: The Redlich-Peterson model combines characteristics of both the Langmuir and Freundlich isotherms. How does its semi-empirical nature contribute to adsorption modeling, and what are its advantages and limitations in real-world applications?

Response: The Redlich-Peterson model bridges the gap between the Langmuir isotherm (which assumes monolayer adsorption on homogeneous surfaces) and the Freundlich isotherm (which describes multilayer adsorption on heterogeneous surfaces). This flexibility makes it suitable for various adsorption systems, allowing adjustments based on the degree of surface heterogeneity. However, its complexity requires precise parameter determination, and deviations in experimental data due to incorrect unit assignments can compromise adsorption predictions.

Chapter 2 Exercises List - Answer Key Exercises Objective Questions on Adsorption Equilibrium 1. What is the correct definition of adsorption equilibrium? (a) The state where the adsorbate concentration in the liquid phase continuously changes. (b) The state where the adsorbate molecules stop interacting with the adsorbent. (c) The state where the adsorbate concentration in the liquid phase (Ce) remains constant. (d) The state where the adsorbent dissolves in the liquid phase.

Answer: (c) The state where the adsorbate concentration in the liquid phase (Ce) remains constant.

2. What technique is commonly used to separate the adsorbent from the solution after equilibrium is reached? (a) Thermal decomposition (b) Membrane filtration, filter paper, or centrifugation (c) Electrolysis (d) Crystallization Answer: (b) Membrane filtration, filter paper, or centrifugation.

3. Which factor can lead to incorrect adsorption capacity measurements? (a) Achieving adsorption equilibrium (b) Using a known mass of adsorbent (c) Non-equilibrium conditions (d) Performing a mass balance

Answer: (c) Non-equilibrium conditions.

4. What type of graph is commonly used to analyze adsorption equilibrium experimentally? (a) Adsorption capacity (q) vs equilibrium concentration (Ce) (b) Adsorption capacity (q) vs solution pH (c) Adsorption capacity (q) vs reaction time (d) Equilibrium concentration (Ce) vs adsorbent mass Answer: (a) Adsorption capacity (q) vs equilibrium concentration (Ce).

5. Which analytical technique can be used to determine the residual adsorbate concentration (Ce)? (a) X-ray diffraction (b) Mass spectrometry (c) Gas chromatography or ultraviolet-visible spectrometry (d) Polymerization analysis Answer: (c) Gas chromatography or ultraviolet-visible spectrometry.

Objective Questions on the Separation Factor RL Question 1: What does the separation factor (RL) indicate in adsorption studies? (a) The amount of adsorbent required for equilibrium. (b) The nature of adsorption (favorable, unfavorable, linear, or irreversible). (c) The adsorption rate in a fixed-bed column. (d) The molecular interaction between the adsorbate and adsorbent.

Answer: (b) The nature of adsorption (favorable, unfavorable, linear, or irreversible).

Question 2: If RL = 0, what does it imply? (a) Adsorption is irreversible. (b) Adsorption follows Henry‘s law.

(c) Adsorption is unfavorable. (d) Adsorption does not reach equilibrium.

Answer: (a) Adsorption is irreversible.

Question 3: What happens to the Langmuir adsorption isotherm at high concentrations? (a) It forms a plateau due to saturation. (b) Adsorption ceases completely. (c) The separation factor increases beyond 1. (d) The adsorbent dissolves into the solution.

Answer: (a) It forms a plateau due to saturation.

Question 4: What parameter determines the adsorption energy in Langmuir’s equation? (a) C0 (Initial concentration) (b)

(Langmuir constant)

(c) (Adsorption capacity) (d) Henry‘s constant Answer: (b)

(Langmuir constant).

Question 5: Why is a narrow

range desirable in adsorption studies?

(a). It indicates a higher adsorption performance. (b). It signifies that adsorption is unfavorable. (c). It means that equilibrium is impossible to achieve. (d) It suggests that adsorption will not follow Langmuir‘s model.

Answer: (a) It indicates a higher adsorption performance.

Subjective Questions on the Separation Factor Question 1: Explain the significance of the separation factor (

) in adsorption studies.

Answer: The separation factor (

) is a crucial parameter in adsorption studies as it defines the

nature of adsorption. Depending on its value, adsorption can be classified as unfavorable (RL >1), linear (

=1), favorable (0 <

< 1), or irreversible (

= 0). This parameter helps

researchers assess whether a specific adsorption process is viable for industrial applications.

Question 2: Discuss how non-equilibrium conditions affect adsorption measurements.

Answer: Non-equilibrium conditions can significantly distort adsorption measurements because the adsorbate may not have enough time to fully interact with the adsorbent. This results in lower observed adsorption capacities,leading to misleading interpretations of adsorption efficiency. Ensuring equilibrium is reached is critical for accurate analysis and modeling.

Question 3: How does Langmuir’s adsorption isotherm behave at different concentration levels?

Answer: At low concentrations, Langmuir’s adsorption isotherm follows Henry’s law, meaning adsorption is proportional to concentration. As concentration increases, the isotherm approaches a plateau, indicating adsorption saturation where no further adsorption occurs. This transition helps determine the maximum adsorption capacity of an adsorbent.

Question 4: What role does the Langmuir constant ( Answer: The Langmuir constant (

) play in adsorption modeling?

) represents the adsorption energy and is crucial for

determining the strength of adsorbate-adsorbent interactions. A higher

value indicates

stronger adsorption affinity, whereas a lower value suggests weaker interactions. This constant is essential for accurately modeling adsorption isotherms and predicting adsorbent efficiency.

Question 5: Why is the analysis of adsorption curves important for fixed-bed column dynamics?

Answer: Adsorption curves provide insights into breakthrough dynamics in fixed-bed columns, helping researchers optimize column efficiency and adsorbent selection. Understanding how

adsorption behavior changes under different conditions allows engineers to design effective adsorption-based separation processes for industrial applications.

Objective Questions on the Dimensionless Langmuir Equation Question 1: What is the primary advantage of using the dimensionless form of the Langmuir equation? (a) It eliminates the need for equilibrium concentration calculations. (b) It facilitates graphical analysis of adsorption behavior. (c) It increases the adsorption capacity of the adsorbent. (d) It disregards the Langmuir constant in adsorption calculations.

Answer: (b) It facilitates graphical analysis of adsorption behavior.

Question 2: What role does Cref play in the dimensionless Langmuir equation? (a) It determines the irreversible adsorption threshold. (b) It is the Langmuir constant related to adsorption energy. (c) It represents the reference concentration corresponding to the highest equilibrium concentration. (d) It describes the separation factor of the adsorption process.

Answer: (c) It represents the reference concentration corresponding to the highest equilibrium concentration.

Question 3: How is the adsorption equilibrium curve experimentally verified? (a) By measuring the separation factor (RL) and plotting the adsorption curve. (b) By increasing the adsorbate concentration beyond equilibrium levels. (c) By modifying the adsorbent structure during adsorption. (d) By disregarding non-equilibrium adsorption states.

Answer: (a) By measuring the separation factor (RL) and plotting the adsorption curve.

Question 4: Why is a narrower separation factor range desirable in adsorption studies? (a) It ensures higher adsorption efficiency. (b) It limits the adsorption of solutes in solution. (c) It prevents the adsorption equilibrium from being reached. (d) It simplifies the Langmuir equation calculations.

Answer: (a) It ensures higher adsorption efficiency.

Question 5: What does the equation

represent? (a) The simplified Langmuir equation accounting for RL. (b) The mass balance equation for adsorption equilibrium. (c) The equation for irreversible adsorption conditions. (d) The correlation between adsorbate concentration and solution pH. Answer: (a) The simplified Langmuir equation accounting for RL. Subjective Questions on the Dimensionless Langmuir Equation Question 1: Explain the significance of the dimensionless form of the Langmuir equation in adsorption studies.

Answer: The dimensionless Langmuir equation allows researchers to analyze adsorption performance more effectively by eliminating unit dependencies. By expressing adsorption parameters in a dimensionless form, it facilitates comparisons between different systems while enabling graphical interpretation of adsorption behavior.

This approach is particularly useful when evaluating equilibrium conditions.

Question 2: Describe the impact of the separation factor (RL) on adsorption behavior.

Answer: The separation factor (RL) determines whether adsorption is favorable, linear, or irreversible. If RL > 1, adsorption is unfavorable. If 0 < RL < 1, adsorption is considered favorable. When RL = 0, adsorption becomes irreversible, meaning that the adsorbate cannot be removed from the adsorbent. This parameter helps researchers assess adsorption feasibility.

Question 3: How does Cref influence the dimensionless Langmuir equation?

Answer: Cref is the highest equilibrium concentration assigned during adsorption experiments. It serves as a reference for normalizing adsorption data, making it easier to analyze trends and compare adsorption performance under different conditions. This approach simplifies calculations and allows direct comparisons of adsorption efficiency.

Question 4: Why is experimental verification of adsorption equilibrium curves essential?

Answer: Experimental verification ensures that adsorption models accurately reflect realworld conditions. By plotting adsorption equilibrium curves and analyzing the separation factor range, researchers can evaluate whether an adsorbent performs effectively under equilibrium conditions. A reliable adsorption curve aids in optimizing adsorbent materials and predicting adsorption behavior.

Question 5: How does the modification of adsorbents affect the separation factor curve?

Answer: Modifying adsorbents can shift the separation factor curve, potentially improving adsorption efficiency.

A lower RL value indicates enhanced adsorbate-adsorbent interactions, leading to better adsorption performance. Adsorbent modifications aim to narrow the separation factor range and improve equilibrium adsorption conditions, making them more suitable for industrial applications.

Objective and Subjective Questions on the Freundlich Adsorption Model Question 1: According to the Freundlich adsorption model, what assumption is made about the nature of the adsorbent surface?

(a) It is homogeneous with identical adsorption sites. (b) It is heterogeneous with varying adsorption energies. (c) It strictly follows the Langmuir model. (d) It only applies to monolayer adsorption.

Answer: (b) It is heterogeneous with varying adsorption energies.

Question 2: What is the primary limitation of the Freundlich adsorption model when describing adsorption at high concentrations of adsorbate? (a) It assumes adsorption reaches saturation. (b) It predicts continuous adsorption increase, which is physically unrealistic. (c) It does not account for surface heterogeneity. (d) It requires specific temperature conditions to remain valid.

Answer: (b) It predicts continuous adsorption increase, which is physically unrealistic.

Question 3: In the linearized form of the Freundlich isotherm equation, what does the slope of the graph represent? (a) The adsorption capacity constant (KF). (b) The equilibrium concentration of the adsorbate (Ce). (c) The inverse of the surface heterogeneity constant (1/n). (d) The maximum adsorption capacity of the adsorbent (qmax).

Answer: (c) The inverse of the surface heterogeneity constant (1/n).

Subjective Questions with Sample Responses Question 4: The Freundlich adsorption model is often used for non-ideal adsorption systems. How does its empirical nature make it suitable for describing adsorption on heterogeneous surfaces?

Response: The Freundlich model does not assume a uniform surface with identical adsorption sites. Instead, it accounts for variations in adsorption energy across different sites, making it ideal for heterogeneous surfaces where multiple adsorption layers can form. This

empirical approach allows for better characterization of complex adsorption behaviors in realworld systems, such as contaminated soils or industrial wastewater treatment.

Question 5: Unlike the Langmuir model, the Freundlich isotherm does not impose a monolayer adsorption limit. Discuss the implications of this in practical adsorption studies, particularly for systems with high concentrations of adsorbate.

Response: The ability of the Freundlich model to predict continuous adsorption increase as concentration rises suggests that adsorbents can theoretically accommodate higher pollutant levels indefinitely. However, in practical settings, saturation occurs when adsorption sites are fully occupied. This discrepancy makes the Freundlich model unsuitable for extremely high concentrations, necessitating alternative models like the Langmuir isotherm for precise adsorption predictions in saturated systems.

Question 6: Considering that the Freundlich model does not account for saturation effects, how can researchers determine the validity range of the model when analyzing experimental adsorption data?

Response: Researchers can analyze adsorption trends by plotting log(qe) versus log(Ce). If the relationship remains linear across varying concentrations, the Freundlich model remains applicable. Deviations from linearity, especially at high concentrations, indicate the need for alternative models. Additionally, comparing Freundlich predictions with experimental adsorption capacity measurements can validate its suitability within a defined concentration range.

Question 7: The Freundlich equation incorporates an adsorption capacity constant (kF) and a heterogeneityconstant (1/n). What do these parameters reveal about the adsorption efficiency and surface properties of the adsorbent material?

Response: kF reflects the adsorption capacity of the adsorbent, indicating its ability to retain contaminants. A higher kF value suggests stronger adsorption potential. The heterogeneity constant (1/n) describes the variability of adsorption site energies; lower values indicate greater surface heterogeneity, meaning adsorption occurs across a broader range of energy sites.

Together, these parameters help characterize the effectiveness of adsorption and determine the suitability of specific materials for environmental remediation applications.

Question 8: The model suggests an exponential distribution of adsorption sites with different adsorption energies. In your opinion, how does this assumption affect the accuracy and predictive power of adsorption models used in environmental applications?

Response: The assumption of an exponential distribution of adsorption energies improves the accuracy of adsorption predictions in heterogeneous systems, where adsorption sites vary in strength and accessibility. However, this approach does not account for saturation or site exhaustion, which can reduce its reliability at high concentrations.

In environmental applications, combining Freundlich-based predictions with kinetic models or hybrid adsorption isotherms can enhance the precision of pollutant removal strategies.

Objective and Subjective Questions on the Temkin Adsorption Model Question 1: The Temkin adsorption model assumes that the adsorption heat of molecules in the layer decreases in which manner as the adsorbent coverage increases? (a) Logarithmically. (b) Linearly. (c) Exponentially. (d) Quadratically.

Answer: (b) Linearly.

Question 2: What is the primary purpose of introducing the dimensionless quantity θ into the Temkin equation? (a) To account for variations in equilibrium adsorption. (b) To align the equation with dimensional analysis principles. (c) To improve the accuracy of adsorption kinetics predictions.

(d) To eliminate the dependence on temperature in adsorption calculations.

Answer: (b) To align the equation with dimensional analysis principles.

Question 3: According to Zhou et al. (2016), what correction is necessary for the widely used Temkin equation to conform to dimensional analysis? (a) Changing the units of kT and Ce from L.g−1 and g.L−1 to L.mg−1 and mg.L−1. (b) Removing the universal gas constant (R) from the equation. (c) Introducing an additional adsorption equilibrium term. (d) Modifying the adsorption heat constant (b) to a temperature-dependent variable.

Answer: (a) Changing the units of kT and Ce from L.g−1 and g.L−1 to L.mg−1 and mg.L−1.

Question 4: The Temkin isotherm equation was originally developed to describe the adsorption of which element onto platinum electrodes? (a) Hydrogen. (b) Oxygen. (c) Carbon. (d) Iron.

Answer: (a) Hydrogen.

Question 5: What is the role of the Temkin constant (b) in adsorption processes? (a) It represents the equilibrium concentration of the adsorbate. (b) It describes the sorption heat involved in adsorption. (c) It defines the maximum adsorption capacity. (d) It indicates the adsorbent‘s surface heterogeneity.

Answer: (b) It describes the sorption heat involved in adsorption.

Subjective Questions with Sample Responses

Question 6: Discuss the significance of the Temkin isotherm equation in adsorption studies, particularly in liquid-phase environmental applications. How does it compare to other adsorption models, such as the Langmuir and Freundlich isotherms?

Response: The Temkin isotherm equation plays a significant role in adsorption studies, particularly in liquid-phase environmental applications such as wastewater treatment and heavy metal removal. Unlike the Langmuir model, which assumes monolayer adsorption and identical adsorption sites, and the Freundlich model, which describes adsorption on heterogeneous surfaces with multilayer formation, the Temkin model accounts for adsorbate-adsorbent interactions and assumes a linear decrease in adsorption heat as surface coverage increases.

This assumption makes the Temkin model useful in situations where adsorption energy varies, providing a more realistic approach for industrial and environmental remediation processes.

Question 7: Dimensional analysis is fundamental in physics to ensure equation consistency.

Based on Zhou et al. (2016), what are the consequences of using an equation that fails to comply with dimensional analysis, and how does the correction in Equation 2.19 resolve this issue?

Response: Equations that fail to comply with dimensional analysis violate a fundamental principle in physics—dimensional consistency across all terms. If an adsorption equation lacks dimensional correctness, its predictions can be misleading, leading to improper experimental interpretations or incorrect parameter estimations. Zhou et al. (2016) identified a dimensional inconsistency in the commonly used Temkin equation and proposed corrections by modifying the units of kT and Ce and introducing θ to align the equation with the original Temkin model. This correction ensures that adsorption calculations remain physically meaningful and applicable to practical adsorption studies.

Question 8: Considering the experimental applications discussed in the text—such as the adsorption of heavy metals and organic pollutants onto biosorbents—how does the

incorporation of θ improve the predictive accuracy of the Temkin model for real-world adsorption processes?

Response: The inclusion of θ in the Temkin equation is essential for improving predictive accuracy in real world adsorption applications, such as the removal of heavy metals and organic contaminants using biosorbents. θ represents the fraction of the adsorbent surface covered by the adsorbate, allowing for a more precise calculation of adsorption trends. By incorporating this parameter, researchers can better model adsorption behavior in dynamic environmental conditions, ensuring that adsorption predictions align with actual laboratory and industrialscale experiments. This adjustment enhances the robustness of the Temkin model, making it more reliable in designing efficient adsorption-based pollutant removal systems.

Objective and Subjective Questions on the Redlich-Peterson Adsorption Model Objective Questions with Answer Key Question 1: What is the correct unit designation for the Redlich-Peterson parameter

?

(a) L.mg−1. (b) L.g−1. (c) mg.g−1. (d) mmol.L−1.

Answer: (b) L.g−1.

Question 2: What constraint does dimensional homogeneity impose on the units of the parameter in the Redlich-Peterson model? (a)

should have units of (L·mg−1)-.

(b)

should be dimensionless.

(c)

should have units of mg.L−1.

(d)

should have the same units as Ce.

Answer: (a) (L·mg−1)-.

Question 3: Which of the following issues regarding R–P parameters has been frequently misreported in the literature? (a) The incorrect assignment of units for (b) The incorrect assumption that

as L.mg−1 instead of L.g−1.

is dimensionless.

(c) The failure to distinguish between solid-phase and liquid-phase concentration units. (d) The omission of equilibrium conditions in R–P calculations.

Answer: (a) The incorrect assignment of units for

as L.mg−1 instead of L.g−1.

Subjective Questions with Sample Responses Question 4: The determination of units for R–P parameters has been a subject of ambiguity in adsorption studies. Discuss why dimensional homogeneity is essential in adsorption modeling and how incorrect unit assignments can lead to methodological errors.

Response: Dimensional homogeneity ensures that all terms in an equation share consistent units, preserving physical meaning and mathematical correctness. In adsorption modeling, incorrect unit assignments for parameters like

and

can lead to inaccurate predictions,

affecting the reliability of adsorption isotherms in water treatment applications. Errors in unit consistency may cause misinterpretations in adsorption capacity calculations, reducing the validity of comparative studies across different adsorbent materials.

Question 5: The Redlich-Peterson model combines characteristics of both the Langmuir and Freundlich isotherms. How does its semi-empirical nature contribute to adsorption modeling, and what are its advantages and limitations in real-world applications?

Response: The Redlich-Peterson model bridges the gap between the Langmuir isotherm (which assumes monolayer adsorption on homogeneous surfaces) and the Freundlich isotherm (which describes multilayer adsorption on heterogeneous surfaces). This flexibility makes it suitable for various adsorption systems, allowing adjustments based on the degree of surface heterogeneity. However, its complexity requires precise parameter determination, and deviations in experimental data due to incorrect unit assignments can compromise adsorption predictions.

Chapter 3 Exercises List - Answer Key OBJECTIVE QUESTIONS ON ADSORPTION KINETICS 1. What is the primary role of macropores in bidisperse porous materials? (a) To store adsorbate molecules permanently (b) To facilitate the transport of adsorbate molecules into the particle's interior Macropores act as primary conduits that allow adsorbate molecules to move into the inner matrix of bidisperse porous materials. (c) To restrict the movement of adsorbate molecules (d) To promote chemical bonding between adsorbent and adsorbate

2. What distinguishes ion exchange from adsorption? (a) Ion exchange follows a stoichiometric principle due to electroneutrality requirements

Unlike adsorption, ion exchange involves a balanced exchange of ions between the solid and liquid phases to maintain electroneutrality. (b) Adsorption involves permanent bonding, while ion exchange does not (c) Adsorption is irreversible, whereas ion exchange can only occur in gases (d) Ion exchange depends solely on surface diffusion 3. Which mechanism dominates mass transfer in macropores? (a) External mass transfer (b) Surface diffusion (c) Pore diffusion Molecular and Knudsen diffusion typically dominate mass transfer within macropores. (d) Chemical reaction kinetics 4. How is adsorption kinetics commonly expressed? (a) As the total amount of adsorbate present in the fluid phase (b) As the molecular weight of the adsorbate (c) As the chemical reactivity of the adsorbent material (d) As the rate of adsorbate removal from the fluid phase over time Adsorption kinetics quantifies how quickly adsorbate molecules are transferred from the fluid phase into the adsorbent.

5. What does external mass transfer refer to in adsorption kinetics? (a) Adsorbate movement between micropores and macropores (b) The transport of molecules from the fluid phase to the outer surface of the adsorbent particle

External mass transfer occurs as molecules move from the surrounding fluid layer onto the outermost surface of the adsorbent. (c) The interaction of adsorbate molecules with the innermost regions of the adsorbent (d) The conversion of adsorbate molecules into gaseous compounds SUBJECTIVE QUESTIONS: CONTACT TIME Refer to Figure 3.2 to answer the questions.

1. What conclusions can be drawn about the efficiency of the adsorption process over time?

Answer: The adsorption process is initially highly efficient, as indicated by the rapid increase in adsorption capacity within the first 40 minutes. However, its effectiveness decreases over time, stabilizing after 40 minutes, which suggests that equilibrium has been reached.

2. How does the rapid decline in removal percentage impact the interpretation of the system’s performance?

Answer: The rapid decline in removal percentage implies that the system is most effective during the initial minutes of the process. As time progresses, the diminishing removal rate suggests that the material’s ability to adsorb additional substances becomes increasingly limited.

3. What factors might explain the stabilization of adsorption capacity after 40 minutes?

Answer: The stabilization of adsorption capacity may be attributed to the saturation of the adsorbent surface, where all available sites are occupied. Additionally, desorption effects or equilibrium between adsorption and desorption may play a role in maintaining a stable adsorption capacity.

4. Considering the trend observed, how could this process be optimized for higher adsorption efficiency?

Answer: Optimization could involve modifying the adsorbent properties, increasing surface area, enhancing interaction mechanisms, or adjusting environmental conditions such as pH and temperature. Ensuring a continuous supply of fresh adsorbent material might also improve efficiency.

5. What practical applications could these findings have in industrial or environmental settings?

Answer: These findings could be applied to wastewater treatment, air purification, and chemical separation processes. Understanding the adsorption behavior can help design effective filtration systems and optimize material selection for maximum pollutant removal.

Subjective Questions: Homogeneous particle diffusion model 1. Explain the homogeneous particle diffusion model used by Vidal et al. (2013) for the adsorption of BTEX onto hydrophobically modified zeolite.

Answer: The homogeneous particle diffusion model assumes that the diffusion of compounds occurs uniformly within the adsorbent particles. It was applied to determine the effective diffusion coefficients of BTEX compounds, considering the established initial and boundary conditions.

2. What is the significance of the effective diffusion coefficients (D_eff) of BTEX compounds presented in the figure, and how do they influence adsorption?

Answer: The effective diffusion coefficients indicate the rate at which compounds diffuse within the modified zeolite. Lower values suggest slower diffusion, which can affect the efficiency of the adsorption process.

3. Describe the phases of the adsorption process observed by Vidal et al. (2013) and their implications for BTEX removal.

Answer: Adsorption occurs in two phases: an initial rapid phase, where compounds are adsorbed on the adsorbent surface, followed by a slower phase characterized by intraparticle adsorption. These phases determine the reaction equilibrium time, which was six hours.

4. What factors may influence the rate of BTEX adsorption onto hydrophobically modified zeolite?

Answer: Factors include the adsorbent's structure, the size and polarity of BTEX compounds, the system's temperature, and the initial concentration of the compounds in the medium.

5. How can the findings of Vidal et al. (2013) contribute to the treatment of water contaminated with BTEX? Answer: The results provide insights into the efficiency of BTEX adsorption onto modified zeolites, enabling the optimization of water treatment processes and enhancing the removal of these pollutants.

Objective Questions 1.

What was the adsorption reaction equilibrium time observed by Vidal et al. (2013)? (a) 4 hours (b) 6 hours (c) 8 hours (d) 10 hours Answer: (b) 6 hours

2.

Which of the following adsorption steps occurs first, as described by Vidal et al.

(2013)? (a) Intraparticle diffusion (b) Chemical equilibrium (c) Surface adsorption (d) Complex formation Answer: (c) Surface adsorption

3.

Which compound exhibited the highest effective diffusion coefficient (D_eff) in the hydrophobically modified zeolite? (a) Toluene (b) m-p-Xylene (c) Benzene

(d) o-Xylene Answer: (c) Benzene 4.

The model used by Vidal et al. (2013) to determine the diffusion coefficients of BTEX was: (a) Freundlich surface model (b) Homogeneous particle diffusion model (c) Langmuir-Hinshelwood model (d) Convective flow model Answer: (b) Homogeneous particle diffusion model

5.

Intraparticle adsorption of BTEX compounds occurs: (a) Rapidly, like surface adsorption (b) Slowly, after the initial adsorption phase (c) Simultaneously with surface adsorption (d) Only at high temperatures Answer: (b) Slowly, after the initial adsorption phase

Objective Questions: Boyd model 1. According to Boyd et al. (1947), what was the primary purpose of their theoretical models? (a) To analyze equilibrium conditions (b) To simulate ion exchange kinetics (c) To determine adsorption efficiency (d) To study surface diffusion mechanisms Correct Answer: (b) To simulate ion exchange kinetics

2. What condition must be met for the Boyd plot to confirm that intraparticle diffusion is the rate-limiting step? (a) The plot must be nonlinear b) The plot must pass through the origin (c) The plot must have a negative slope (d) The plot must show exponential growth Correct Answer: b) The plot must pass through the origin 3. In Equation 3.17, what does the term qt represent? a) The Boyd constant b) The diffusion coefficient c) The quantity of adsorbate adsorbed at time t d) The mean particle diameter Correct Answer: c) The quantity of adsorbate adsorbed at time t What mathematical function is used to determine Bt when F > 0.85? a) Bt = -0.4977 - ln(1 - F) b) Bt = (√

√

)

c) Bt = π²D/d² d) Bt = 6/π² ∑(1/n²)exp(-π²Bt) Correct Answer: a) Bt = -0.4977 - ln(1 - F) 4. What role do macropores play in adsorption kinetics according to the provided figure? a) They serve as primary conduits for adsorbate transport b) They limit the adsorption rate c) They prevent surface diffusion

d) They increase the Boyd constant Correct Answer: A) They serve as primary conduits for adsorbate transport Subjective Questions 1. How does the Boyd Diffusion Model contribute to understanding adsorption kinetics in porous materials?

Answer: The Boyd Diffusion Model helps determine whether intraparticle diffusion is the rate-limiting step in adsorption processes. By analyzing the Boyd plot, researchers can assess the effectiveness of pore diffusion and optimize adsorption systems accordingly.

2. What implications does the distinction between ion exchange and adsorption have for industrial applications?

Answer: Ion exchange involves stoichiometric replacement of ions, whereas adsorption relies on diffusional mass transfer. This distinction is crucial for designing efficient separation technologies, particularly in wastewater treatment and chemical purification.

3. Considering the provided figure, what conclusions can be drawn about the adsorption process over time?

Answer: The figure suggests a two-step adsorption process, with an initial rapid adsorption phase followed by a slower diffusion-controlled phase. The transition at 20 minutes indicates equilibrium conditions where intraparticle diffusion dominates.

4. What challenges arise when applying the Boyd Diffusion Model to real-world adsorption systems?

Answer: Challenges include accurately determining diffusion coefficients, ensuring experimental conditions align with theoretical assumptions, and accounting for variations in adsorbent properties that may affect mass transfer rates.

Questions: Elovich equation 1.

What is the main difference between the nonlinear and linear forms of the Elovich equation in adsorption kinetics modeling?

Answer: The nonlinear form expresses the relationship between the amount adsorbed and time in an exponential manner, whereas the linear form allows for the determination of the parameters α and β through linear regression, facilitating the analysis of experimental data.

2.

How can the parameters α (initial adsorption rate) and β (desorption constant) be determined from the graph of the Elovich equation?

Answer: The parameters can be obtained from the straight line generated by the plot of q versus ln(t), where the slope of the line corresponds to 1/β, and the intercept allows for the calculation of α.

3.

How does the differential equation of Elovich (Eq. 3.22) describe the adsorption rate over time?

Answer: The differential equation indicates that the adsorption rate decreases exponentially as the amount adsorbed increases, reflecting a process where initial adsorption is rapid and slows down over time.

4.

What does the fit of the Elovich equation to experimental data indicate about the adsorption mechanism of the metal onto biomass?

Answer: It indicates that the adsorption process occurs on a heterogeneous surface and that the initial adsorption rate is high, followed by a gradual reduction due to the saturation of active sites.

Based on Figure 3.6, answer the following questions.

Figure 3.6: Elovich model: adsorption of bichromate and arsenate anions by bentonite and modified iron (III) and aluminum polyhydroxocations by bentonite-based sorbents: (a) bichromate–anion (b) arsenate anion. Figure adapted, reproduced with permission from Kussainova, Molecules, 29(15), 3709. This article is an open access article distributed under the terms and conditions of the Creative Commons Attribution (CC BY) license (https://creativecommons.org/licenses/by/4.0/).

1.

Based on the linear regression equations provided in Figure 3.6, determine the alpha (α) and beta (β) parameters for the Elovich equation regarding the adsorption of bichromate anions using the mod.1 sorbent.

Answer: Determination of α and β for the adsorption of bichromate anions using the mod.1 sorbent: The β parameter can be obtained from the slope of the linear regression equation in Figure 9, which corresponds to 1/β.

The α parameter is derived from the intercept of the equation, using the relationship ln(αβ) = intercept × β.

α = (e(intercept × β)) / β.

2.

Analyze the linear regression equations in Figure 3.6 and calculate the alpha (α) and beta (β) parameters for the Elovich equation in the adsorption of arsenate anions using the mod.1 Fe-5-c sorbent.

Calculation of α and β for the adsorption of arsenate anions using the mod.1 Fe-5-c sorbent: The slope of the linear regression equation provides 1/β, allowing for the determination of β.

The intercept is used to calculate α, following the equation α = (e(intercept × β)) / β.

3.

Using the data presented in Figure 3.6, derive the alpha (α) and beta (β) parameters for the Elovich equation applied to the adsorption of bichromate anions using the mod.1Al-5-c sorbent.

Derivation of α and β for the adsorption of bichromate anions using the mod.1-Al-5-c sorbent: The β value is obtained from the inverse of the slope of the linear regression equation.

The α value is determined using the intercept and the equation α = e(intercept × β) / β.

4.

Examine the linear regression equations in Figure 3.6 and determine the alpha (α) and beta (β) parameters for the Elovich equation associated with the adsorption of arsenate anions using the mod.1 sorbent.

Determination of α and β for the adsorption of arsenate anions using the mod.1 sorbent: The β parameter is calculated from the slope of the linear regression equation.

The α parameter is derived from the intercept using the logarithmic relationship ln(αβ) = e(intercept × β) α = e(intercept × β) / β..

Chapter 3 Exercises List - Answer Key OBJECTIVE QUESTIONS ON ADSORPTION KINETICS 6. What is the primary role of macropores in bidisperse porous materials? (a) To store adsorbate molecules permanently (b) To facilitate the transport of adsorbate molecules into the particle's interior Macropores act as primary conduits that allow adsorbate molecules to move into the inner matrix of bidisperse porous materials.

(c) To restrict the movement of adsorbate molecules (d) To promote chemical bonding between adsorbent and adsorbate

7. What distinguishes ion exchange from adsorption? (a) Ion exchange follows a stoichiometric principle due to electroneutrality requirements Unlike adsorption, ion exchange involves a balanced exchange of ions between the solid and liquid phases to maintain electroneutrality. (b) Adsorption involves permanent bonding, while ion exchange does not (c) Adsorption is irreversible, whereas ion exchange can only occur in gases (d) Ion exchange depends solely on surface diffusion 8. Which mechanism dominates mass transfer in macropores? (a) External mass transfer (b) Surface diffusion (c) Pore diffusion Molecular and Knudsen diffusion typically dominate mass transfer within macropores. (d) Chemical reaction kinetics 9. How is adsorption kinetics commonly expressed? (a) As the total amount of adsorbate present in the fluid phase (b) As the molecular weight of the adsorbate (c) As the chemical reactivity of the adsorbent material (d) As the rate of adsorbate removal from the fluid phase over time Adsorption kinetics quantifies how quickly adsorbate molecules are transferred from the fluid phase into the adsorbent.

10. What does external mass transfer refer to in adsorption kinetics?

(a) Adsorbate movement between micropores and macropores (b) The transport of molecules from the fluid phase to the outer surface of the adsorbent particle External mass transfer occurs as molecules move from the surrounding fluid layer onto the outermost surface of the adsorbent. (c) The interaction of adsorbate molecules with the innermost regions of the adsorbent (d) The conversion of adsorbate molecules into gaseous compounds SUBJECTIVE QUESTIONS: CONTACT TIME Refer to Figure 3.2 to answer the questions.

6. What conclusions can be drawn about the efficiency of the adsorption process over time?

Answer: The adsorption process is initially highly efficient, as indicated by the rapid increase in adsorption capacity within the first 40 minutes. However, its effectiveness decreases over time, stabilizing after 40 minutes, which suggests that equilibrium has been reached.

7. How does the rapid decline in removal percentage impact the interpretation of the system’s performance?

Answer: The rapid decline in removal percentage implies that the system is most effective during the initial minutes of the process. As time progresses, the diminishing removal rate suggests that the material’s ability to adsorb additional substances becomes increasingly limited.

8. What factors might explain the stabilization of adsorption capacity after 40 minutes?

Answer: The stabilization of adsorption capacity may be attributed to the saturation of the adsorbent surface, where all available sites are occupied. Additionally, desorption effects or equilibrium between adsorption and desorption may play a role in maintaining a stable adsorption capacity.

9. Considering the trend observed, how could this process be optimized for higher adsorption efficiency?

Answer: Optimization could involve modifying the adsorbent properties, increasing surface area, enhancing interaction mechanisms, or adjusting environmental conditions such as pH and temperature. Ensuring a continuous supply of fresh adsorbent material might also improve efficiency.

10. What practical applications could these findings have in industrial or environmental settings?

Answer: These findings could be applied to wastewater treatment, air purification, and chemical separation processes. Understanding the adsorption behavior can help design effective filtration systems and optimize material selection for maximum pollutant removal.

Subjective Questions: Homogeneous particle diffusion model 6. Explain the homogeneous particle diffusion model used by Vidal et al. (2013) for the adsorption of BTEX onto hydrophobically modified zeolite.

Answer: The homogeneous particle diffusion model assumes that the diffusion of compounds occurs uniformly within the adsorbent particles. It was applied to determine the effective diffusion coefficients of BTEX compounds, considering the established initial and boundary conditions.

7. What is the significance of the effective diffusion coefficients (D_eff) of BTEX compounds presented in the figure, and how do they influence adsorption?

Answer: The effective diffusion coefficients indicate the rate at which compounds diffuse within the modified zeolite. Lower values suggest slower diffusion, which can affect the efficiency of the adsorption process.

8. Describe the phases of the adsorption process observed by Vidal et al. (2013) and their implications for BTEX removal.

Answer: Adsorption occurs in two phases: an initial rapid phase, where compounds are adsorbed on the adsorbent surface, followed by a slower phase characterized by intraparticle adsorption. These phases determine the reaction equilibrium time, which was six hours.

9. What factors may influence the rate of BTEX adsorption onto hydrophobically modified zeolite?

Answer: Factors include the adsorbent's structure, the size and polarity of BTEX compounds, the system's temperature, and the initial concentration of the compounds in the medium.

10.

How can the findings of Vidal et al. (2013) contribute to the treatment of water contaminated with BTEX? Answer: The results provide insights into the efficiency of BTEX adsorption onto modified zeolites, enabling the optimization of water treatment processes and enhancing the removal of these pollutants.

Objective Questions 6.

What was the adsorption reaction equilibrium time observed by Vidal et al. (2013)? (a) 4 hours (b) 6 hours (c) 8 hours (d) 10 hours Answer: (b) 6 hours

7.

Which of the following adsorption steps occurs first, as described by Vidal et al.

(2013)? (a) Intraparticle diffusion (b) Chemical equilibrium (c) Surface adsorption (d) Complex formation Answer: (c) Surface adsorption

8.

Which compound exhibited the highest effective diffusion coefficient (D_eff) in the hydrophobically modified zeolite? (a) Toluene (b) m-p-Xylene

(c) Benzene (d) o-Xylene Answer: (c) Benzene 9.

The model used by Vidal et al. (2013) to determine the diffusion coefficients of BTEX was: (a) Freundlich surface model (b) Homogeneous particle diffusion model (c) Langmuir-Hinshelwood model (d) Convective flow model Answer: (b) Homogeneous particle diffusion model

10. Intraparticle adsorption of BTEX compounds occurs: (a) Rapidly, like surface adsorption (b) Slowly, after the initial adsorption phase (c) Simultaneously with surface adsorption (d) Only at high temperatures Answer: (b) Slowly, after the initial adsorption phase

Objective Questions: Boyd model 5. According to Boyd et al. (1947), what was the primary purpose of their theoretical models? (a) To analyze equilibrium conditions (b) To simulate ion exchange kinetics (c) To determine adsorption efficiency (d) To study surface diffusion mechanisms Correct Answer: (b) To simulate ion exchange kinetics

6. What condition must be met for the Boyd plot to confirm that intraparticle diffusion is the rate-limiting step? (a) The plot must be nonlinear b) The plot must pass through the origin (c) The plot must have a negative slope (d) The plot must show exponential growth Correct Answer: b) The plot must pass through the origin 7. In Equation 3.17, what does the term qt represent? a) The Boyd constant b) The diffusion coefficient c) The quantity of adsorbate adsorbed at time t d) The mean particle diameter Correct Answer: c) The quantity of adsorbate adsorbed at time t What mathematical function is used to determine Bt when F > 0.85? a) Bt = -0.4977 - ln(1 - F) b) Bt = (√

√

)

c) Bt = π²D/d² d) Bt = 6/π² ∑(1/n²)exp(-π²Bt) Correct Answer: a) Bt = -0.4977 - ln(1 - F) What role do macropores play in adsorption kinetics according to the provided figure? a) They serve as primary conduits for adsorbate transport b) They limit the adsorption rate c) They prevent surface diffusion

d) They increase the Boyd constant Correct Answer: A) They serve as primary conduits for adsorbate transport Subjective Questions 1. How does the Boyd Diffusion Model contribute to understanding adsorption kinetics in porous materials?

Answer: The Boyd Diffusion Model helps determine whether intraparticle diffusion is the rate-limiting step in adsorption processes. By analyzing the Boyd plot, researchers can assess the effectiveness of pore diffusion and optimize adsorption systems accordingly.

2. What implications does the distinction between ion exchange and adsorption have for industrial applications?

Answer: Ion exchange involves stoichiometric replacement of ions, whereas adsorption relies on diffusional mass transfer. This distinction is crucial for designing efficient separation technologies, particularly in wastewater treatment and chemical purification.

3. Considering the provided figure, what conclusions can be drawn about the adsorption process over time?

Answer: The figure suggests a two-step adsorption process, with an initial rapid adsorption phase followed by a slower diffusion-controlled phase. The transition at 20 minutes indicates equilibrium conditions where intraparticle diffusion dominates.

4. What challenges arise when applying the Boyd Diffusion Model to real-world adsorption systems?

Answer: Challenges include accurately determining diffusion coefficients, ensuring experimental conditions align with theoretical assumptions, and accounting for variations in adsorbent properties that may affect mass transfer rates.

Questions: Elovich equation 5.

What is the main difference between the nonlinear and linear forms of the Elovich equation in adsorption kinetics modeling?

Answer: The nonlinear form expresses the relationship between the amount adsorbed and time in an exponential manner, whereas the linear form allows for the determination of the parameters α and β through linear regression, facilitating the analysis of experimental data.

6.

How can the parameters α (initial adsorption rate) and β (desorption constant) be determined from the graph of the Elovich equation?

Answer: The parameters can be obtained from the straight line generated by the plot of q versus ln(t), where the slope of the line corresponds to 1/β, and the intercept allows for the calculation of α.

7.

How does the differential equation of Elovich (Eq. 3.22) describe the adsorption rate over time?

Answer: The differential equation indicates that the adsorption rate decreases exponentially as the amount adsorbed increases, reflecting a process where initial adsorption is rapid and slows down over time.

8.

What does the fit of the Elovich equation to experimental data indicate about the adsorption mechanism of the metal onto biomass?

Answer: It indicates that the adsorption process occurs on a heterogeneous surface and that the initial adsorption rate is high, followed by a gradual reduction due to the saturation of active sites.

Based on Figure 3.6, answer the following questions.

Figure 3.6: Elovich model: adsorption of bichromate and arsenate anions by bentonite and modified iron (III) and aluminum polyhydroxocations by bentonite-based sorbents: (a) bichromate–anion (b) arsenate anion. Figure adapted, reproduced with permission from Kussainova, Molecules, 29(15), 3709. This article is an open access article distributed under the terms and conditions of the Creative Commons Attribution (CC BY) license (https://creativecommons.org/licenses/by/4.0/).

5.

Based on the linear regression equations provided in Figure 3.6, determine the alpha (α) and beta (β) parameters for the Elovich equation regarding the adsorption of bichromate anions using the mod.1 sorbent.

Answer: Determination of α and β for the adsorption of bichromate anions using the mod.1 sorbent: The β parameter can be obtained from the slope of the linear regression equation in Figure 9, which corresponds to 1/β.

The α parameter is derived from the intercept of the equation, using the relationship ln(αβ) = intercept × β. α = (e(intercept × β)) / β.

6.

Analyze the linear regression equations in Figure 3.6 and calculate the alpha (α) and beta (β) parameters for the Elovich equation in the adsorption of arsenate anions using the mod.1 Fe-5-c sorbent.

Calculation of α and β for the adsorption of arsenate anions using the mod.1 Fe-5-c sorbent: The slope of the linear regression equation provides 1/β, allowing for the determination of β.

The intercept is used to calculate α, following the equation α = (e(intercept × β)) / β.

7.

Using the data presented in Figure 3.6, derive the alpha (α) and beta (β) parameters for the Elovich equation applied to the adsorption of bichromate anions using the mod.1Al-5-c sorbent.

Derivation of α and β for the adsorption of bichromate anions using the mod.1-Al-5-c sorbent: The β value is obtained from the inverse of the slope of the linear regression equation.

The α value is determined using the intercept and the equation α = e(intercept × β) / β.

8.

Examine the linear regression equations in Figure 9 and determine the alpha (α) and beta (β) parameters for the Elovich equation associated with the adsorption of arsenate anions using the mod.1 sorbent.

Determination of α and β for the adsorption of arsenate anions using the mod.1 sorbent: The β parameter is calculated from the slope of the linear regression equation.

The α parameter is derived from the intercept using the logarithmic relationship ln(αβ) = e(intercept × β) α = e(intercept × β) / β..

ANSWERS TO PROPOSED PROBLEMS

4.1.

(spontaneous and physisorption).

4.2.

System A

System B

(spontaneous and entropically driven) (spontaneous enthalpically driven)

and

4.3. a) (273 K)

(373 K)

The system is spontaneous at both temperatures. However, as the temperature increases, Gº becomes less negative.

The thermodynamic parameters values are in the typical range for physisorption.

b) (273 K)

(373)

Increasing temperature increases the spontaneity of the system B. For an endothermic process to be spontaneous, the entropic term must be sufficiently negative the positive Hº.

Therefore, the increase in entropy is the main driving force for spontaneity in this system.

4.4. a)

Ci mg/L 10 20 30 40 50 60 70 80 90 100

Ce mg/L 1.2 4 8 13 19 25.5 33 40.5 48.5 57

qe mg/g 17.6 32 44 54 62 69 74 79 83 86

30

50

b) 90 80 70

qe (mg/g)

60 50 40 30 20 10 0

10

20

Ce (mg/L)

40

60

c) Langmuir 0.7

0.6

0.5

Ce/qe

0.4

0.3

0.2

0.1

0.0 0

10

20

30

40

50

60

Ce (mg/L)

Langmuir Parameters Slope =

0.0103

intercept =

0.0918

R2 =

0.9962

2

R ajs =

0.9914

KL =

0.125 L mg-1

qmax =

96.8 mg g-1

Freundlich 4.6 4.4 4.2 4.0

lnqe

3.8 3.6 3.4 3.2 3.0 2.8 0.0

0.5

1.0

1.5

2.0

2.5

3.0

3.5

4.0

4.5

lnCe

Freundlich Parameters Slope =

0.0408

intercept =

2.8785

2

R =

0.9886

R2ajs =

0.9872

KF =

17.79 (mg g-1)/(mg L-‗)1/n

4.5. a) Kads = KL×55.5 = 2.3 × 55.5 = 127.65 b) ΔGº = −RTln Kads = −(8.314)(298)ln127.65 = − (2477.57)(4.85) ≈ −12.022 kJ/mol c) The process is spontaneous since ΔGº < 0.

4.6. a) A higher KF value generally indicates a greater adsorption capacity. While not

directly quantitative, a higher adsorption capacities implies a more favorable adsorption process (Gº more negative). The value of n (or 1/n) reflects the adsorption intensity and surface heterogeneity. Values of n > 1 (or 1/n < 1) suggest a favorable adsorption process, implying a spontaneous process. b) No, the Freundlich constants cannot be directly used in Van‘t Hoff calculations. There are units inconsistency and the Freundlich isotherms is an empirical model, meaning it describes experimental data, but its constants are not derived directly from thermodynamic principles or specific adsorption mechanisms.

4.7.

1.8

1.6

1.4

lnCe

1.2

1.0

0.8

0.6 0.00315

0.00320

0.00325

0.00330

-1

1/T (K )

Slope = 4839.0875 Hx = - 8.314 (4839.0875) Hx = - 40.23 kJmol-1

0.00335

4.8.

1.0

0.9

lnKads

0.8

0.7

0.6

0.5

0.4 0.00310

0.00315

0.00320

0.00325

0.00330

0.00335

0.00340

-1

1/T (K )

Slope= -2671.73 Intercept = 9.3804 R2 = 0.9990 Hº = 22.2 kJ mol-1 Sº = 78.0 J mol-1 K-1 Gº = - 1.04 kJ mol-1 4.9. a) The curvature suggests that Hº and Sº are not constant over the temperature range studied. This temperature dependence is often attributed to: surface heterogeneity, multiple binding sites, structural changes, and changes in adsorption mechanism. b) The condition C  0 in the equation lnKads = A +BT-1 + CT-2, implies non-

linearity in the Van‘t Hoff plot.

4.10. a)

Yes, the process is spontaneous at 298 K, since Gºads < 0. b) Desorption is the reverse process, so:

Hºdes = + 55 kJ mol-1; Sºdes = – 120 J mol-1 K-1.

They are numerically equal and opposite in sign to the adsorption values, what means that if adsorption is exothermic, desorption is endothermic (requires energy input),

and if adsorption leads to a decrease in system disorder, desorption leads to an increase in system disorder. c) Since adsorption is exothermic (Hºads < 0), increasing temperature shifts the

equilibrium toward desorption, reducing the number of adsorbed species at equilibrium (Le Chatelier‘s principles)

ANSWERS TO PROPOSED PROBLEMS 5.1. Kf = 0.652 mmol/g (L/mmol)1/n; n = 2.59; R2 = 0.965; SSE = 0.0230 5.2. logq_e=logKf+1/n logC_e; logq_e vs logC_e; Slope = 1/n and Intercept = logKf 5.3. Kf = 0.669 mmol/g (L/mmol)1/n; n = 1.95; R2 = 0.940; SSE = 0.0661 5.4. The non-linear model showed: Lower SSE and higher R². Therefore, the non-linear model better fitted the adsorption data.

5.5. The non-linear model remains the best even after correction for small samples.

Model SSE

AICc

Non-linear

0.0230 –55.02

Linear 0.0661 –44.48 5.6. PAnon-linear = 0.995; PAlinear = 0.005; E.R = 199. Consequently, the non-linear model is considerably more appropriate for the modelling of experimental data 199 times than the linear model.

5.7. The incorporation of (0,0) has been demonstrated to result in a reduction of R² and an augmentation of SSE in linear models. It is important to note that KL values can become negative.

5.8. The data reveals two linear segments, the first and second pertaining to film control and pore diffusion, respectively.

Parameters Kd1 (mg g-1 min-1/2)

C1

(mg g-1)

Kd2

R2

(mg g-1 min-1/2) (mg g-1)

R2

C2

First stage

Second stage

3.25

0.98

9.29

0.67

23.08 0.94

5.9. R² exclusively measures the proportion of variance explained by the model, without accounting for model complexity or overfitting. It is important to note that high R² values can be deceptive, particularly when comparing models with differing numbers of parameters.

Furthermore, R² does not penalize the inclusion of superfluous terms that may artificially improve fit without improving predictive accuracy. Consequently, reliance on R² alone may result in the favored models being those that are statistically overfitted and do not accurately represent the adsorption mechanism.

5.10. Despite the Sips model presenting a higher R² and lower SSE, the Redlich–Peterson model should be considered superior due to its lower AICc value. AICc accounts not only for the goodness of fit but also for the number of parameters and the sample size, thereby preventing overfitting and rewarding model simplicity. In model selection, especially in the context of small datasets commonly found in adsorption studies, AICc provides a more reliable metric by penalizing model complexity. Hence, the Redlich–Peterson model is statistically more robust and likely offers a better balance between accuracy and generalizability.

Chapter 5: Problems 5.1. Utilize the nonlinear equation a of the Freundlich isotherm model below to adjust the data in Table 5.2 (qe and Ce) nonlinearly and calculate the constants KF and n. Demonstrate the R2 and SSE of the regression. ⁄

5.2. Use the non-linear equation provided above to derive the linear equation of the Freundlich isotherm model. Provide the structure of the equation's plot and the methodology for calculating the constants.

5.3. Utilize the Freundlich linear model and the data presented in Table 5.2 (qe and Ce) to construct a graph and calculate the model parameters KF and n. The R2 and SSE of the curve should be presented.

5.4. Based on the results obtained from the previous questions, which model most effectively adjusted the adsorption data for Pb2+?

5.5. Calculate the Akaike Information Criterion (AIC) and the Akaike Information Criterion with a correction for small samples (AICc) of the two models and compare the values. According to these values, does the best-fit model remain unchanged from the previous question?

5.6. Calculate the Akaike probability (PA) and the Evidence ratio between the linear and nonlinear models of the Freundlich isotherm and justify determining which model is more appropriate for modelling experimental data.

5.7. Employing the data provided below concerning Cd2+ adsorption, analyzing the impact of the inclusion and exclusion of the point (0,0) in the linear fit of the Type I Langmuir model. The R 2, SSE and parameter values obtained should be used to justify.

Ce (mg/L) 0.45 0.26 0.39 0.71 0.68 2.35 52.80

qt (mg/g) 2.058 5.453 6.372 11.029 23.375 41.453 91.174

5.8. Analyze the data presented below using the Weber-Morris model interpretation. This analysis should include identifying, explaining and calculating the Kd value for each stage. t (min)

qt (mg/g)

2.2 3.0 4.1 5.1 6.2 8.2 10.3 12.3

15.5 19.8 23.5 26.5 28.5 30.5 31.8 33.0

5.9. Why can the exclusive use of R2 lead to the selection of incorrect models in adsorption studies?

5.10. A study compared four isotherm models: Langmuir, Freundlich, Sips and Redlich-Peterson.

The Sips model had a higher R² and a lower SSE, but the Redlich–Peterson model had a lower AICc. Which model should be considered superior? Justify your answer.

Chapter 5: Answers 5.1. Kf = 0.652 mmol/g (L/mmol)1/n; n = 2.59; R2 = 0.965; SSE = 0.0230 5.2.

;

vs

; Slope = and Intercept =

5.3. Kf = 0.669 mmol/g (L/mmol)1/n; n = 1.95; R2 = 0.940; SSE = 0.0661 5.4. The non-linear model showed: Lower SSE and higher R². Therefore, the non-linear model better fitted the adsorption data.

5.5. The non-linear model remains the best even after correction for small samples.

M

S A ICc No 0 – n-linear .0230 55.02 Li 0 – near .0661 44.48 odel

SE

5.6. PAnon-linear = 0.995; PAlinear = 0.005; E.R = 199. Consequently, the non-linear model is considerably more appropriate for the modelling of experimental data 199 times than the linear model.

5.7. The incorporation of (0,0) has been demonstrated to result in a reduction of R² and an augmentation of SSE in linear models. It is important to note that K L values can become negative.

5.8. The data reveals two linear segments, the first and second pertaining to film control and pore diffusion, respectively.

Parameters Kd1 (mg g-1 min-1/2)

C1 (mg g-1)

First stage

R2

Kd2 (mg g-1 min-1/2)

C2 (mg g-1)

Second stage

R2

3.25

9.29

0.98

0.67

23.08

0.94

5.9. R² exclusively measures the proportion of variance explained by the model, without accounting for model complexity or overfitting. It is important to note that high R² values can be deceptive, particularly when comparing models with differing numbers of parameters.

Furthermore, R² does not penalize the inclusion of superfluous terms that may artificially improve fit without improving predictive accuracy. Consequently, reliance on R² alone may result in the favored models being those that are statistically overfitted and do not accurately represent the adsorption mechanism.

5.10. Despite the Sips model presenting a higher R² and lower SSE, the Redlich–Peterson model should be considered superior due to its lower AICc value. AICc accounts not only for the goodness of fit but also for the number of parameters and the sample size, thereby preventing overfitting and rewarding model simplicity. In model selection, especially in the context of small datasets commonly found in adsorption studies, AICc provides a more reliable metric by penalizing model complexity. Hence, the Redlich–Peterson model is statistically more robust and likely offers a better balance between accuracy and generalizability.

ANSWERS TO PROPOSED PROBLEMS 6.1) 6.1a) The C/C₀ vs. time curve shows the typical sigmoidal behavior of the adsorbent saturation.

This curve has a typical sigmoid shape

6.1b) The breaking point occurs around 20 min and the saturation (C/C₀ ≈ 1) is reached around 80 min.

Application of Thomas model

6.1c) Since that R2 is 0.9915, there an excellent linear correlation with the experimental data

6.1d) kTh=−0.9272 mL/min mg (the negative sign comes from the slope of the curve, but the absolute value is used for interpretation) •6.1e) q0=8.51 mg/g

Application of Yoon-Nelson Model 6.1f) The plot of ln (C / (C₀ - C)) vs. time also shows a very good linear fit, validating the Yoon-Nelson model with R2=0.9915→ excellent fit

6.1g) kYN=0.0927 1/min 6.1h) τ=42.53min → time in which 50% of the adsorbent is saturated 6.1i) qtotal=8.64 mg/g

Parameters Summary Parameters

Thomas model

Yoon-Nelson Model

Estimated value

q0 R2

0.9272 mL/min·mg 8.51 mg/g 0,9915

kYN

0.0927 1/min

τ R2 qo

42.53 min 0.9915 8.64 mg/g

kTh

6.2) Resolution: Thomas model: C/C₀ = 1 / [1 + exp(kTh (q₀-m/Q - C₀-t))] At half-breakthrough (C/C₀ = 0.5), the exponent is set to zero: t = (q₀-m)/(C₀-Q) = (40×20000)/(180×1000) = 4.44 min.

Answer: 4.44 minutes.

6.3) Resolution: Yoon-Nelson model: C/C₀ = 1 / [1 + exp(kYN (τ - t))] C/C₀ = 1 / [1 + exp(-1)] = 1 / (1 + 0.3679) ≈ 0.731 Answer: 73.1% of the input concentration.

6.4) Resolution:

CO2 Volume: 0.001 × 800 = 0.8 m³/h → mols (n) = 0.8 / 0.024 = 33.33 mol/h → CO2 removal 0.85 × 33.33 = 28.33 mol/h Toluene: Volume = 0.0005 × 800 = 0.4 m³/h → mols (n) = 0.4 / 0.024 = 16.67 mol/h → Removal = 0.95 × 16.67 = 15.83 mol/h Answer: 28.33 mol/h of CO₂ and 15.83 mol/h of toluene

6.5) Resolution: a) Dye: 0.85 × 150 × 2 = 255 mg/h Cu²⁺: 0.9 × 80 × 2 = 144 mg/h b) n = 144 / 63.5 = 2.27 mmol Adsorbent mass = 2.27 / 1.8 ≈ 1.26 g Answer (a) 255 mg/h (dye), 144 mg/h (Cu²⁺) (b) 1.26 g of adsorbent

6.6) Resolution: Total volume = 1.5 × 150 = 225 L Useful volume = (80+150)/2 × 1.5 = 172.5 L CO₂ volume = 0.10 × 172.5 = 17.25 L CO₂ moles = 17.25 / 22.4 = 0.77 mol CO₂ mass = 0.77 × 44 = 33. 88 g = 33,880 mg Capacity = 33,880 / 20 = 1,694 mg/g

6.7. Resolution: a)

Convert ppmv to mole fraction of NO: 200ppmv x 10-6=0.0002 Volume of NO VNO=0.0002 ×2000 = 0.4 m³/h Quantity of moles of NO n = 0.4/ 0.024 = 16.67 mol/h Mass of NO (30.0 g/mol) m = 16.67 x 30 = 500 g/h NO removal 0.85 × 500 = 425 g/h Idem for Benzene (78.11 g/mol): Volume = 0.00015 × 2000 = 0.3 m³/h →mols (n) = 12.5 mol/h → mass (m)= 976.38 g/h → removal = 878.74 g/h b) total load removed Total: 425 + 878.74 = 1303.74 g/h Answer: 425 g/h (NO), 878.74 g/h (benzene), total = 1303.74 g/h.

6.8. Resolution: The capacity after n cycles is: qn=q0×(0.9)n We want

<100

qn = 500 × (0.9)n < 100 → (0.9)n < 0.2 n > log(0.2)/log(0.9) ≈ 15.27 → n = 16 Answer: 16 cycles

6.9. Resolution: Capacity: 5000×50 = 250000 mg = 250 g Input rate: 300×500 = 150000 mg/min = 150 g/min

t = 250 / 150 = 1.67 min Answer: 1.67 minutes

6.10) Solution: 1. Amount of CO₂ present in the incoming gas stream Volume of CO₂ =(2000m³/h)×(12/100) =240m³/h 2. Mols of CO₂ =Volume of CO₂ /Molar volume Mols of CO₂ = (240 m³/h)/ (0.02445 m³/mol) = 9815.6 mol/h 3. Amount of CO₂ to be captured (80%) CO₂ to be captured=0.8×9815.6 mol/h = 7852.6 mol/h 4. Mass of adsorbent required to capture CO₂ Adsorption capacity = 3.0 mmol/g=2.5×10-3 mol/g 5. Mass of adsorbent=CO₂ to be captured / Adsorption capacity Mass of adsorbent= (7852.6 mol/h) / (3,0×10-3 mol/g) =2.617,49 g= 2617.5 kg 6. Final Result: Amount of CO₂ in the incoming gas stream: 240 m³/h Amount of CO₂ to be captured (80%): 7852.48 mol/h Mass of adsorbent needed to capture 80% of the CO₂ : 2617.5 kg

ANSWERS TO PROPOSED PROBLEMS 7.1. Resolution: ΔC = 100 - 25 = 75 mg/L qₑ = 75 / 5 = 15 mg/g Answer: (a) 75 mg/L (b) qₑ = 15 mg/g 7.2. Resolution: CO2 Volume: 0.001 × 800 = 0.8 m³/h → mols (n) = 0.8 / 0.024 = 33.33 mol/h → CO2 removal 0.85 × 33.33 = 28.33 mol/h

Toluene: Volume = 0.0005 × 800 = 0.4 m³/h → mols (n) = 0.4 / 0.024 = 16.67 mol/h → Removal = 0.95 × 16.67 = 15.83 mol/h Answer: 28.33 mol/h of CO₂ and 15.83 mol/h of toluene

7.3. Resolution: NH₄⁺: 0.70 × 120 = 84 mg/L Pb²⁺: 0.90 × 60 = 54 mg/L Dye: 0.80 × 30 = 24 mg/L Total = 84 + 54 + 24 = 162 mg/L qₑ = 162 / 10 = 16.2 mg/g Answer: 16.2 mg/g 7.4. Resolution: Adsorptive capacity (mg/g) = 0.0012 mol/g × 44 g/mol × 1000 mg/g = 52.8 mg/g

7.5. Fitting the Langmuir Isotherm Resolution: Linear fit of the equation 1/q = (1/qmax) + (1/(q_max.K))-(1/P) results in: - a ≈ 0,008 - b ≈ 0.015 Therefore: qmax = 1/0.015 = 66.7 mg/g K = 1 / (66.7 × 0.008) ≈ 1.88 atm-¹ Answer: qmax = 66.7 mg/g and K = 1.88 atm-¹

7.6. Modeling with the Freundlich Isotherm. Resolution: qe = 5×√10 ≈ 15.81 mg/g Answer: 15.81 mg/g

7.7. Resolution: Total volume = 1.5 × 150 = 225 L Useful volume = (80+150)/2 × 1.5 = 172.5 L CO₂ volume = 0.10 × 172.5 = 17.25 L CO₂ moles = 17.25 / 22.4 = 0.77 mol CO₂ mass = 0.77 × 44 = 33. 88 g = 33,880 mg Capacity = 33,880 / 20 = 1,694 mg/g 7.8. Resolution: ΔC = 80 - 20 = 60 mg/L Volume = 0.1 L → Mass adsorbed = 60 × 0.1 = 6 mg qₑ = 6 mg / 1 g = 6 mg/g Answer: (a) 6 mg b) qₑ = 6 mg/g

7.9. Resolution: Efficiency = (150 - 30)/150 × 100% = 80% Answer: 80% removal 7.10. Resolution: Convert ppmv to mole fraction of H₂S: 200ppmv x 10-6=0.0002 Volume of H₂S VH₂S = 0.0002 × 500 = 0.1 m³/h

Chapter 7- Figures and Legends

Figure 7.1. Types of batch test: magnetic stirrer test (a), stirred thermostatic bath test (b), jacketed batch reactor test (c).

.

Figure 7.2. Schematic of batch adsorption tests

(a )

(b )

(c)

.

Figure 7.3. Scheme 2 of adsorption kinetics experiments.

(d )

C9 C8

C10

C5 C4

qe (mg/g)

C7 C6

C3 C2

C1

Ce (mg/L)

Figure 7.4 – Adsorption isotherm test scheme.

Figure 7.5. Adsorbent dosage test scheme.

Figure 7.6 - Schematic of a downflow and upflow adsorption column.

Figure 7.7 – Diagram of a breakthrough curve.

Figure 7.8 – Column study scheme: (a) bed height and (b) flow rate.

Exercises Multiple-Choice Questions 1. Which of the following is a crucial application of thermogravimetric techniques?

(a) Monitoring synthesis processes involving calcination (b) Determining the viscosity of liquids (c) Analyzing electrical conductivity in metals (d) Measuring pH variations in solutions Answer: (a) Monitoring synthesis processes involving calcination 2. What is the primary reason for removing surfactants during the synthesis of zeolites? (a) To enhance thermal conductivity (b) To prevent excessive moisture absorption (c) To unblock the pores of the material (d) To improve the mechanical strength of zeolites Answer: (c) To unblock the pores of the material 3. According to Lima et al. (2012), what type of process occurs between 200–300°C during the thermal analysis of lignocellulosic material? (a) Endothermic evaporation (b) Exothermic surfactant and lignocellulosic material loss (c) Physical adsorption of gases (d) Crystallization of silicon oxides Answer: (b) Exothermic surfactant and lignocellulosic material loss 4. Which infrared region is most commonly used for the characterization of adsorbents? (a) Near-infrared (NIR) (b) Mid-infrared (MIR) (c) Far-infrared (FIR) (d) Ultraviolet (UV) Answer: (b) Mid-infrared (MIR) 5. Which functional groups correspond to the infrared bands at 3448 and 3415 cm⁻¹ in the spectrum of green coconut husk powder? (a) Aldehydes and ketones (b) Amines and amides (c) Axial O-H stretching of alcohols or phenols (d) C-N and C-O groups Answer: (c) Axial O-H stretching of alcohols or phenols

6. What is the primary function of infrared spectroscopy in adsorption studies? (a) To measure adsorption equilibrium constants (b) To identify functional groups acting as adsorption sites (c) To determine the surface area of adsorbents (d) To quantify the concentration of metal ions in solution Answer: (b) To identify functional groups acting as adsorption sites

7. How does X-ray diffraction (XRD) contribute to the characterization of crystalline materials, and what advantages does it offer compared to neutron and electron diffraction techniques?

Answer: X-ray diffraction (XRD) is essential for characterizing crystalline materials as it provides information about their atomic structure, phase composition, and particle size. Compared to neutron diffraction, XRD is more sensitive to electron density, making it effective for identifying crystalline phases. Electron diffraction, such as LEED, is more suited for surface analysis, whereas XRD can evaluate bulk material properties.

8. Explain the significance of the Scherrer equation in determining average particle size. What parameters influence its accuracy?

Answer: The Scherrer equation is used to estimate the average particle size from X-ray diffraction data.

The accuracy of this calculation depends on several factors, including the X-ray wavelength (λ), the Bragg angle (θ), and the full width at half maximum (β) of the diffraction peak. Additionally, assumptions about crystallite shape and symmetry affect precision.

9. Describe the role of the Williamson-Hall plot in evaluating microstrain and particle size. How does its linear behavior indicate material homogeneity?

Answer: The Williamson-Hall plot helps in evaluating microstrain and particle size by plotting βcos(θ)/λ versus sin(θ). A linear behavior in the plot indicates homogeneity in the material, while deviations suggest lattice distortions. A positive slope reflects lattice expansion, whereas a negative slope signifies contraction.

10. How does the refinement process using the DBWS program enhance the accuracy of crystallographic parameter determination?

Answer: The refinement process using the DBWS program improves crystallographic parameter accuracy by optimizing lattice parameters, density, and unit cell volume. This process involves comparing observed and calculated diffraction patterns and refining structural data using statistical convergence parameters such as R-P, R-WP, and R-Expected.

11. Discuss the importance of X-ray diffraction in assessing the crystallinity of materials with low crystalline order. What challenges arise in phase identification?

Answer: X-ray diffraction is critical for assessing crystallinity in materials with low crystalline order.

However, the presence of broad diffraction peaks can complicate phase identification. In these cases, additional techniques, such as infrared spectroscopy and calorimetry, may be required to supplement structural analysis.

12. How does Raman spectroscopy contribute to the study of two-dimensional materials, and what structural characteristics can it reveal?

Answer: Raman spectroscopy is fundamental for the analysis of two-dimensional materials as it enables the differentiation of layer numbers, structural coupling, and stacking arrangements. This characterization technique allows researchers to assess the vibrational properties of layered materials, providing insights into their composition, defects, and electronic interactions.

13. What is the distinction between Rayleigh scattering and Raman scattering, and how do Stokes and anti-Stokes lines differ in a Raman spectrum?

Answer: Rayleigh scattering occurs when the scattered radiation maintains the same frequency as the incident radiation. In contrast, Raman scattering involves a frequency shift due to inelastic interactions with vibrating molecules. Stokes lines appear when the scattered radiation has a lower frequency than the incident radiation, while anti-Stokes lines emerge when the scattered radiation has a higher frequency.

Stokes lines are typically more intense and are used in conventional Raman spectroscopy, whereas antiStokes lines are measured in fluorescent sample analysis.

14. Why is Raman spectroscopy considered a versatile method for qualitative and quantitative analysis, and what advantages does it have over other spectroscopic techniques?

Answer: Raman spectroscopy is versatile because it can analyze a wide range of samples, overcoming limitations of other spectroscopic techniques. Qualitative analysis is performed by measuring scattered radiation frequency to identify compounds, while quantitative analysis relies on measuring scattered radiation intensity to determine analyte concentration. Its advantages include minimal sample preparation, non-destructive analysis, and high specificity in detecting molecular vibrations, making it ideal for complex material characterization.

Exercises Multiple-Choice Questions 15. Which of the following is a crucial application of thermogravimetric techniques? (a) Monitoring synthesis processes involving calcination (b) Determining the viscosity of liquids (c) Analyzing electrical conductivity in metals (d) Measuring pH variations in solutions Answer: (a) Monitoring synthesis processes involving calcination 16. What is the primary reason for removing surfactants during the synthesis of zeolites? (a) To enhance thermal conductivity (b) To prevent excessive moisture absorption

(c) To unblock the pores of the material (d) To improve the mechanical strength of zeolites Answer: (c) To unblock the pores of the material 17. According to Lima et al. (2012), what type of process occurs between 200–300°C during the thermal analysis of lignocellulosic material? (a) Endothermic evaporation (b) Exothermic surfactant and lignocellulosic material loss (c) Physical adsorption of gases (d) Crystallization of silicon oxides Answer: (b) Exothermic surfactant and lignocellulosic material loss 18. Which infrared region is most commonly used for the characterization of adsorbents? (a) Near-infrared (NIR) (b) Mid-infrared (MIR) (c) Far-infrared (FIR) (d) Ultraviolet (UV) Answer: (b) Mid-infrared (MIR) 19. Which functional groups correspond to the infrared bands at 3448 and 3415 cm⁻¹ in the spectrum of green coconut husk powder? (a) Aldehydes and ketones (b) Amines and amides (c) Axial O-H stretching of alcohols or phenols (d) C-N and C-O groups Answer: (c) Axial O-H stretching of alcohols or phenols 20. What is the primary function of infrared spectroscopy in adsorption studies? (a) To measure adsorption equilibrium constants (b) To identify functional groups acting as adsorption sites (c) To determine the surface area of adsorbents (d) To quantify the concentration of metal ions in solution Answer: (b) To identify functional groups acting as adsorption sites

21. How does X-ray diffraction (XRD) contribute to the characterization of crystalline materials, and what advantages does it offer compared to neutron and electron diffraction techniques?

Answer: X-ray diffraction (XRD) is essential for characterizing crystalline materials as it provides information about their atomic structure, phase composition, and particle size. Compared to neutron diffraction, XRD is more sensitive to electron density, making it effective for identifying crystalline phases. Electron diffraction, such as LEED, is more suited for surface analysis, whereas XRD can evaluate bulk material properties.

22. Explain the significance of the Scherrer equation in determining average particle size. What parameters influence its accuracy?

Answer: The Scherrer equation is used to estimate the average particle size from X-ray diffraction data.

The accuracy of this calculation depends on several factors, including the X-ray wavelength (λ), the Bragg angle (θ), and the full width at half maximum (β) of the diffraction peak. Additionally, assumptions about crystallite shape and symmetry affect precision.

23. Describe the role of the Williamson-Hall plot in evaluating microstrain and particle size. How does its linear behavior indicate material homogeneity?

Answer: The Williamson-Hall plot helps in evaluating microstrain and particle size by plotting βcos(θ)/λ versus sin(θ). A linear behavior in the plot indicates homogeneity in the material, while deviations suggest lattice distortions. A positive slope reflects lattice expansion, whereas a negative slope signifies contraction.

24. How does the refinement process using the DBWS program enhance the accuracy of crystallographic parameter determination?

Answer: The refinement process using the DBWS program improves crystallographic parameter accuracy by optimizing lattice parameters, density, and unit cell volume. This process involves comparing observed and calculated diffraction patterns and refining structural data using statistical convergence parameters such as R-P, R-WP, and R-Expected.

25. Discuss the importance of X-ray diffraction in assessing the crystallinity of materials with low crystalline order. What challenges arise in phase identification?

Answer: X-ray diffraction is critical for assessing crystallinity in materials with low crystalline order.

However, the presence of broad diffraction peaks can complicate phase identification. In these cases, additional techniques, such as infrared spectroscopy and calorimetry, may be required to supplement structural analysis.

26. How does Raman spectroscopy contribute to the study of two-dimensional materials, and what structural characteristics can it reveal?

Answer: Raman spectroscopy is fundamental for the analysis of two-dimensional materials as it enables the differentiation of layer numbers, structural coupling, and stacking arrangements. This characterization technique allows researchers to assess the vibrational properties of layered materials, providing insights into their composition, defects, and electronic interactions.

27. What is the distinction between Rayleigh scattering and Raman scattering, and how do Stokes and anti-Stokes lines differ in a Raman spectrum?

Answer: Rayleigh scattering occurs when the scattered radiation maintains the same frequency as the incident radiation. In contrast, Raman scattering involves a frequency shift due to inelastic interactions with vibrating molecules. Stokes lines appear when the scattered radiation has a lower frequency than the incident radiation, while anti-Stokes lines emerge when the scattered radiation has a higher frequency.

Stokes lines are typically more intense and are used in conventional Raman spectroscopy, whereas antiStokes lines are measured in fluorescent sample analysis.

28. Why is Raman spectroscopy considered a versatile method for qualitative and quantitative analysis, and what advantages does it have over other spectroscopic techniques?

Answer: Raman spectroscopy is versatile because it can analyze a wide range of samples, overcoming limitations of other spectroscopic techniques. Qualitative analysis is performed by measuring scattered radiation frequency to identify compounds, while quantitative analysis relies on measuring scattered radiation intensity to determine analyte concentration. Its advantages include minimal sample preparation, non-destructive analysis, and high specificity in detecting molecular vibrations, making it ideal for complex material characterization.
