Innovative, intrinsically motivated, and creative designer offering a unique outlook regarding the relationship between the built environment and human psyche. Eager to acquire a position at a high-end residential design firm to create interiors that balance the human psyche by reflecting the cognitive needs of individuals. Aiming to provide design solutions that foster productivity and emotional wellness, increasing quality of life.

We shape our homes AND THEN our homes shape us -Winston Churchill

01 Luthier Luxe

About

Objective

This Graphics II project challenged students to design a studio for a randomly assigned artist or artisan. My client was a luthier, a craftsman who builds or repairs stringed musical instruments. The space must reflect the needs and aesthetics of the luthier, providing them with a space that is comfortable for both leisure and work.

The Space

Location: Whitefish, Montana

1,000 Square Feet

OUTDOOR WORKSTATION

MAIN WORKSTATION

Workstation

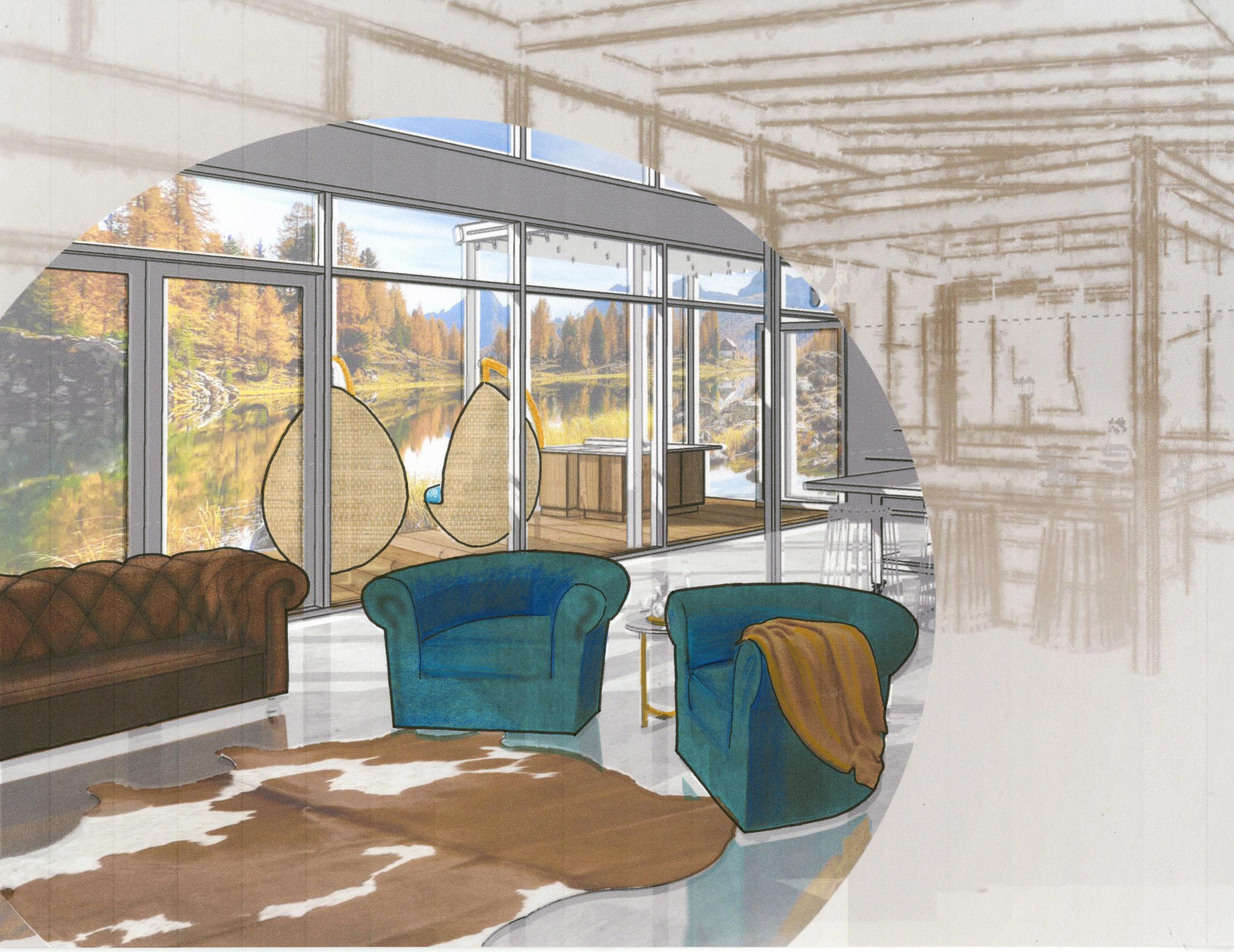

Central workstation with guest seating allows the luthier to enjoy company or provide demonstrations.

Luthier Lounge

Lounge seating for the luthier and their guests to enjoy during breaks or small performances.

Luthier Lounge

Lounge seating for the luthier and their guests to enjoy during breaks or small performances.

02 Embracing the Grey

About

The Client

Retired couple Mr. and Mrs. Williams desire a suburban chic residence that is supportive of aging in place. The Williamses request that their residence permits them to host large gatherings and provide space for extended family to stay with them for long weekends.

The Space

The Goal

Location: Grant Park, Atlanta, Georgia

1,960 Square Feet

The design pays close attention to universal design principles and accessibility standards while still reflecting the aesthetic preferences of the clients.

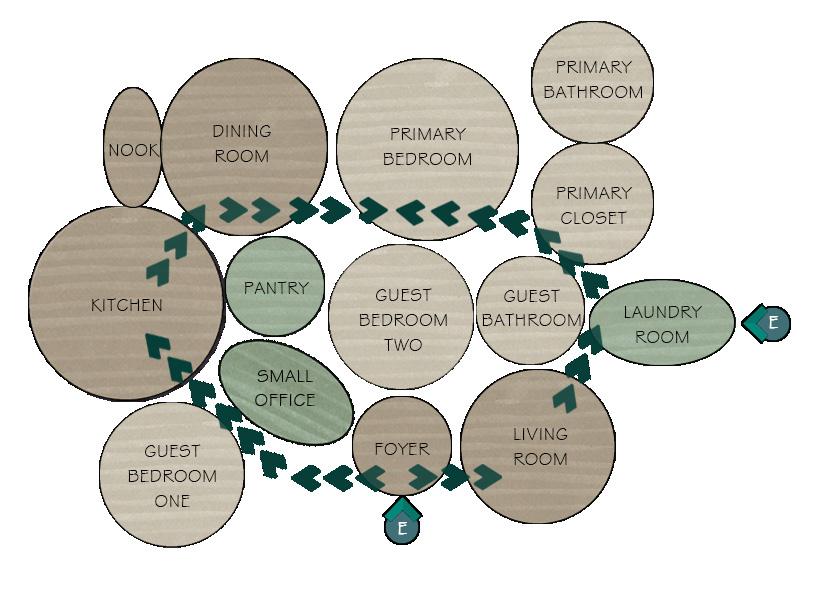

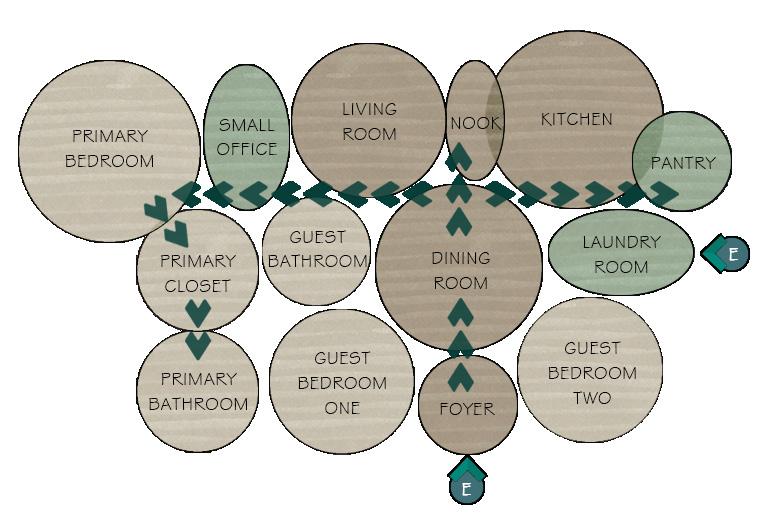

Space Planning Bubble Diagrams

The residence utilizes an open plan that meshes public spaces together, providing a central, unobstructed path from the foyer to the back patio. Private spaces trace the perimeter of the home, providing separation from public spaces to support both rest and productivity. Entertainment spaces are directly adjacent to the back patio, permitting the Williamses to host large parties and gatherings to their

Adjacency Matrix

Blocking Diagrams

02 Embracing the Grey

The Concept

The design for the Williams residence is inspired and informed by the concept of ease. Successfully designing a home that accommodates aging in place is largely dependent on planning for the possibility of future ailments. The design uses both curvilinear and linear lines to reflect the concept of ease by creating visual interest and gradual movement throughout the interior. Contrast between light and dark materials and colors assists with depth perception and delineation of elements. The Williams residence successfully fosters feelings of comfort, tranquility, and ease, providing the clients with components that make aging in place easy and convenient.

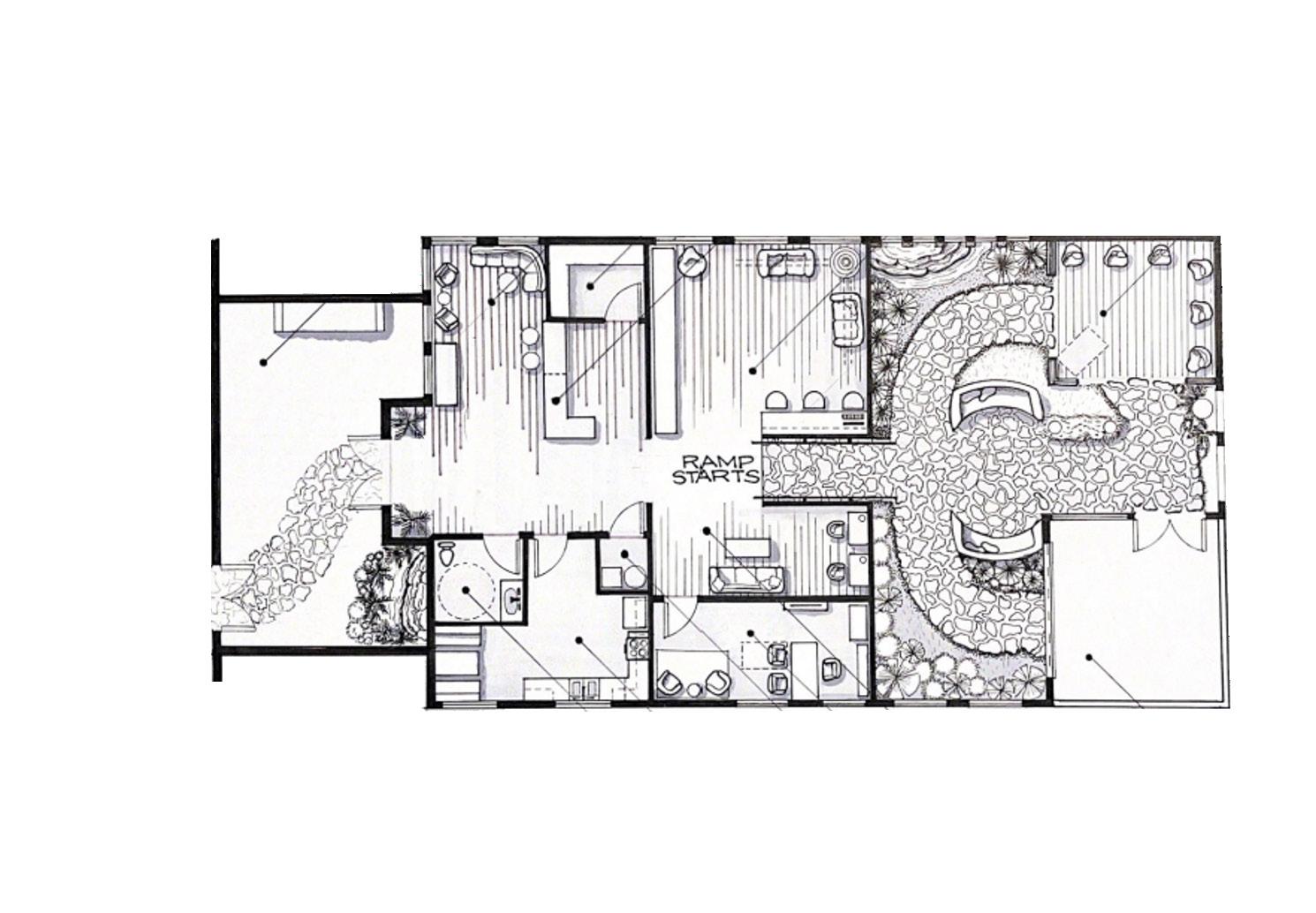

FinishedFloorplan

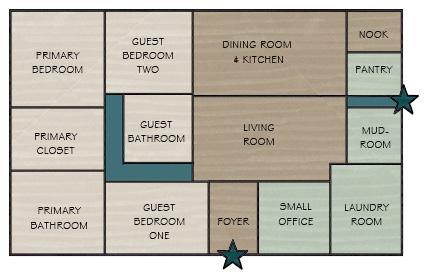

The floorplan for the Williams residence features an open plan with centralized public spaces. The foyer connects the the dining room, living room, and kitchen to provide an unobstructed path to the back patio, providing ease in wayfinding. The private and semi-private spaces flank the perimeter of the home, the separation between private and public spaces acts to support both rest and productivity. All hallways and doorways are at least 36” wide to provide flexibility and ease of use. Strategically placed windows allow natural light to illuminate the interior, nurturing a sense of connectedness between the built environment and natural world.

PRIMARY BATHROOM

GUEST BEDROOM ONE GUEST BATHROOM

FOYER

MAIN ENTRY & FRONT PORCH

GUEST BEDROOM TWO LAUNDRY

PRIMARY BEDROOM

SMALL OFFICE LIVING DINING

KITCHEN & BREAKFAST NOOK PANTRY

CAR PORT ENTRY

Embracing the Grey

ADA Accessible Primary Bathroom

The design for the primary bathroom prioritizes accessibility and adaptability, planning for the possibility of mobility and cognitive issues as the clients age. The shower is fully accessible, equiped with a folding bench, multiple grab bars, a zero barrier entry, and a handheld showerhead.

HANDHELD SHOWERHEAD

24” GRAB BAR

FOLDING SHOWER BENCH

48” GRAB BAR

KOHLER WALK-IN BATH

ADA PIVOT MIRROR

ZERO BARRIER ENTRY

NON-SLIP

HANDS-FREE FAUCET

ADA ACCESSIBLE SINK

ADA Accessible Kitchen

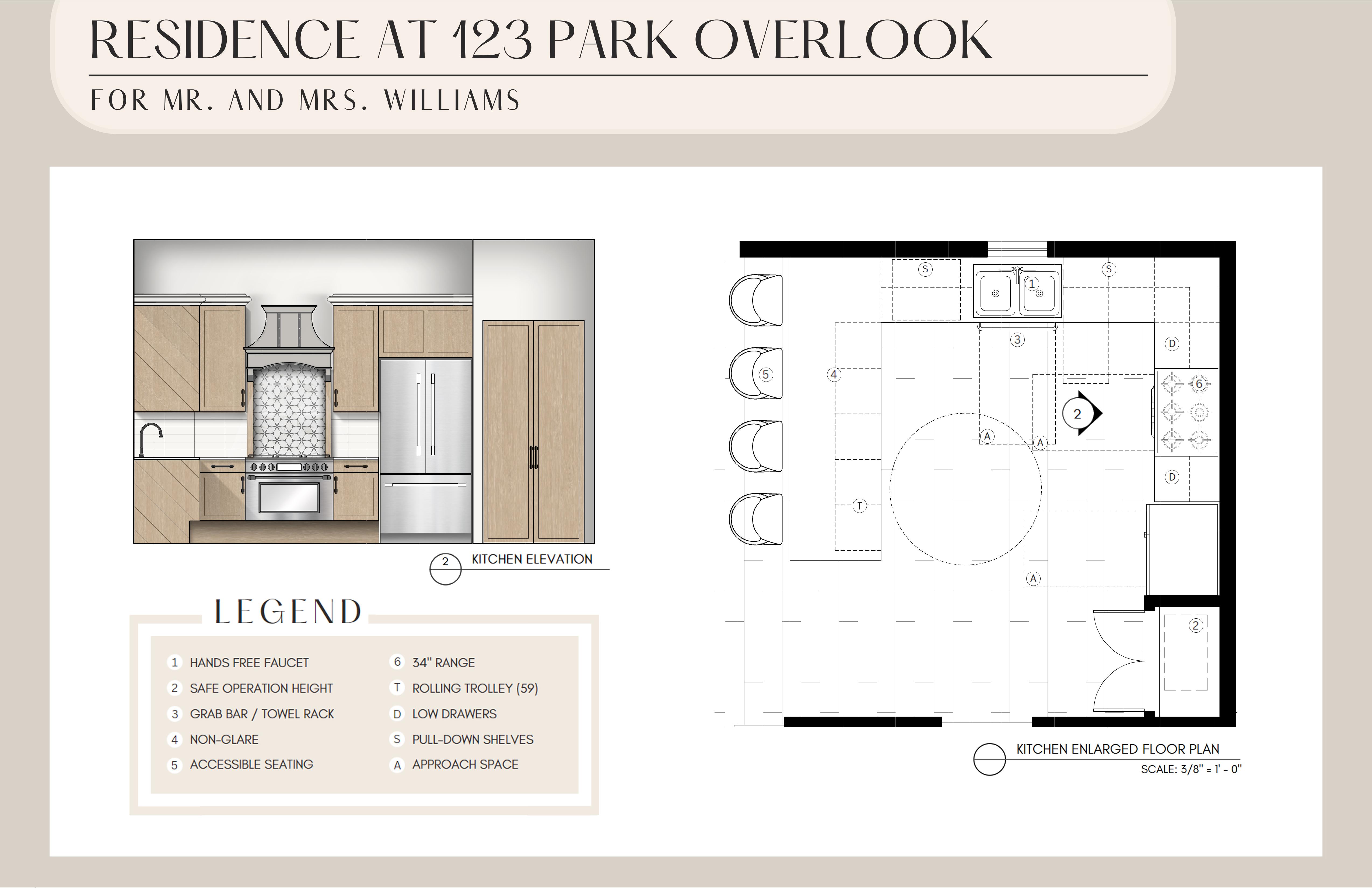

The thoughtfully designed kitchen recognizes that aging is accompanied by sensory and mobility loss. The design prioritizes accessibility, incorporating elements that permit ease of use and longevity. High contrast and non-glare surfaces are used to assist aging eyes in navigation and depth perception while 9” toe kicks and an accessible sink prepare for the possibility of wheelchair use.

HANDS FREE FAUCET

SAFE OPERATION HEIGHT

GRAB BAR/ TOWEL RACK

NON-GLARE

ACCESSIBLE SEATING

34” RANGE

ROLLING TROLLEY

LOW DRAWERS

PULL-DOWN SHELVES

Dining Room

02 Embracing the Grey

The Client

Retired couple Mr. and Mrs. Williams desire a suburban chic patio that is an extension of their home’s design, remaining supportive of aging in place.

The Space

The Goal

Bubble Diagram

WATER FEATURE

MAIN PATH OF TRAVEL

FUNCTIONAL SPACE

SOCIAL SPACE

RELAXATION SPACE

* When hosting large gatherings & parties Mr. Williams enjoys playing live music with his church band. The stagelike feature provides special lighting and seating to amplify the experience.

OUTDOOR KITCHEN & BAR OUTDOOR

DINING

FIREPIT & SEATING STAGE* FEATURE & SEATING

LOUNGE & WATER FEATURE

Location: Grant Park, Atlanta, Georgia

954 Square Feet

The patio design must provide an open plan with minimal obstructions and universal design aspects that make aging in place convenient. The kitchen and dining areas must be directly adjacent to the back patio to support the Williamses’ request to host gatherings and parties of up to ten people. The design should accommodate the Williamses’ children and grandchildren who often stay with them for extended visits. The patio should provide the Williamses with an accessible environment supportive of aging in place.

Blocking Diagram

FIREPIT

WATER FEATURE

MAIN PATH OF TRAVEL

COVERED FUNCTIONAL SPACE

SOCIAL SPACE

STAGE FEATURE

RELAXATION SPACE

OUTDOOR KITCHEN & BAR

DINING

FIREPIT & SEATING

STAGE* FEATURE AND SEATING

LOUNGE & WATER FEATURE

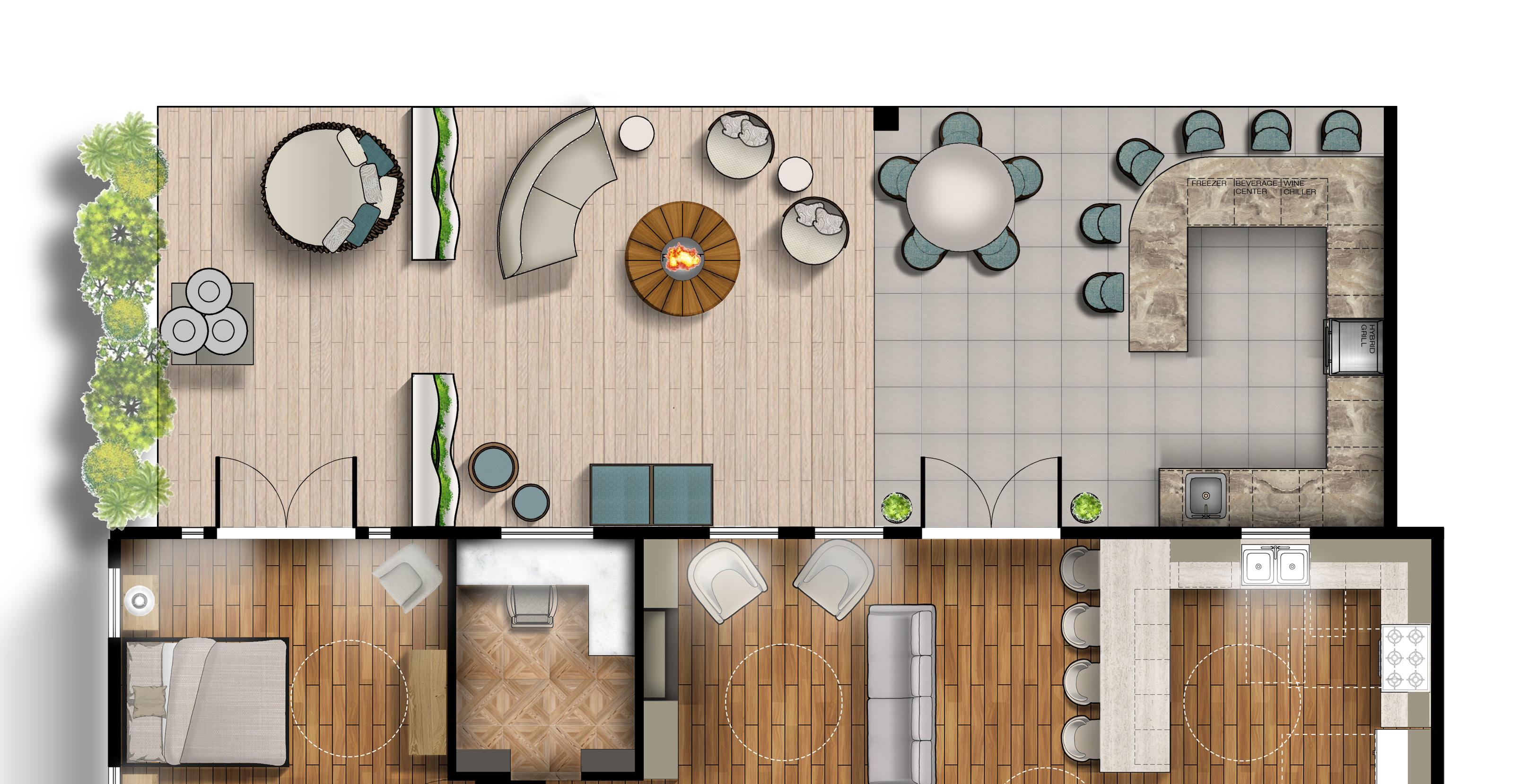

Patio Finished Floorplan

The patio design is a continuation of the interior of the home, using universal design principles and accessibility standards to support aging in place. The design incorporates biophilic elements and local materials that embody Atlanta’s character. The patio design aims to form a connection with the natural world, complementing its beauty rather than distracting from it.

OUTDOOR KITCHEN AND BAR

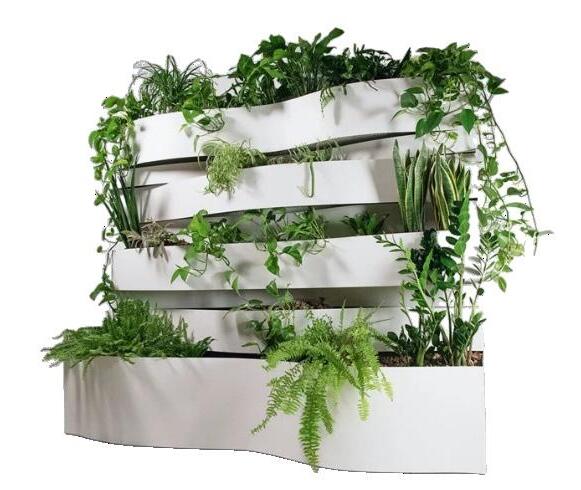

02 Embracing the Grey Biophilic Design

Wellness

elements that maximize occcupant wellbeing

Biomorphic Forms & Patterns

Visual Connection with Nature

Material Connection with Nature

Non-Visual Connection with Nature

represent natural forms in an abstract manner, relying on patter, texture, and line to draw connections to nature visual access to natural elements, processes, or living systems use of natural materials in the built environment creating a positive reference to nature through auditory, haptic, gustatory, or olfactory stimuli

Patio Bar & Outdoor Kitchen

03 Heightened Harmony

The Client The Space The Goal

Rastafari followers desire a space where they can embark on a spiritual experience that reflects both their values and way of life. Rasta followers aim to achieve perfect love and unity of all people and with God through living in harmony with the natural world and with those who inhabit it.

Location: Statue of Liberty Complex, New York, New York 3,440 Square Feet

The design aims to provide a spiritual experience that is inspired and informed by values of natural and pure love provided by the earth and Jah. The design will acknowledge the history, culture, and worship practices of Rasta. The design will embody the Rasta goal to live in harmony with nature and those who inhabit it by incorporating natural elements and materials throughout the space.

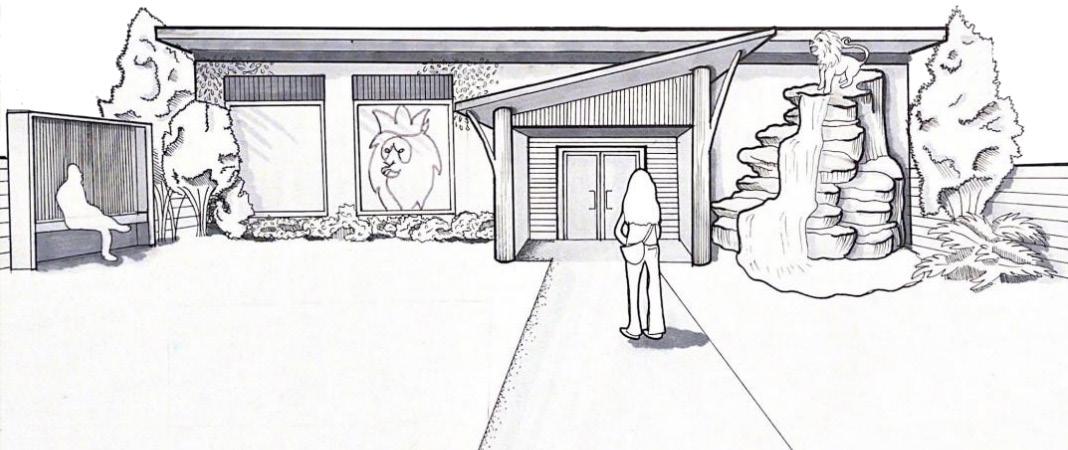

Exterior Facade

The Concept

The design for the Rastafarian Spiritual Shrine is inspired and informed by the characteristics of a marijuana leaf, an element that allows believers to reach a higher state of mind during religious practices. Rastas believe that the Tree of Life in the Bible is a marijuana plant and that other passages promote its use. Rastas use marijuana in a highly ritualized manner to promote unity and foster feelings of tranquility. To achieve perfect love and unity, Rastas must live in harmony with the natural world, making the marijuana leaf an ideal concept to guide the design of the shrine’s interior.

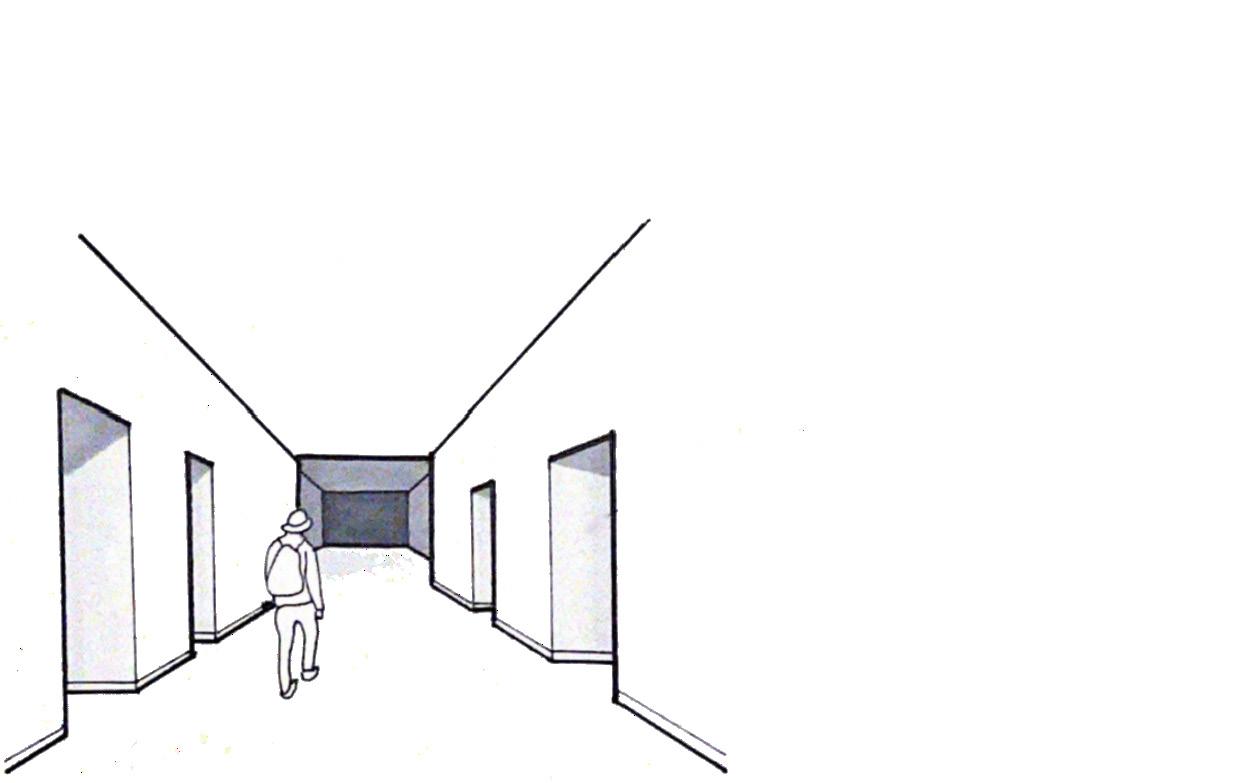

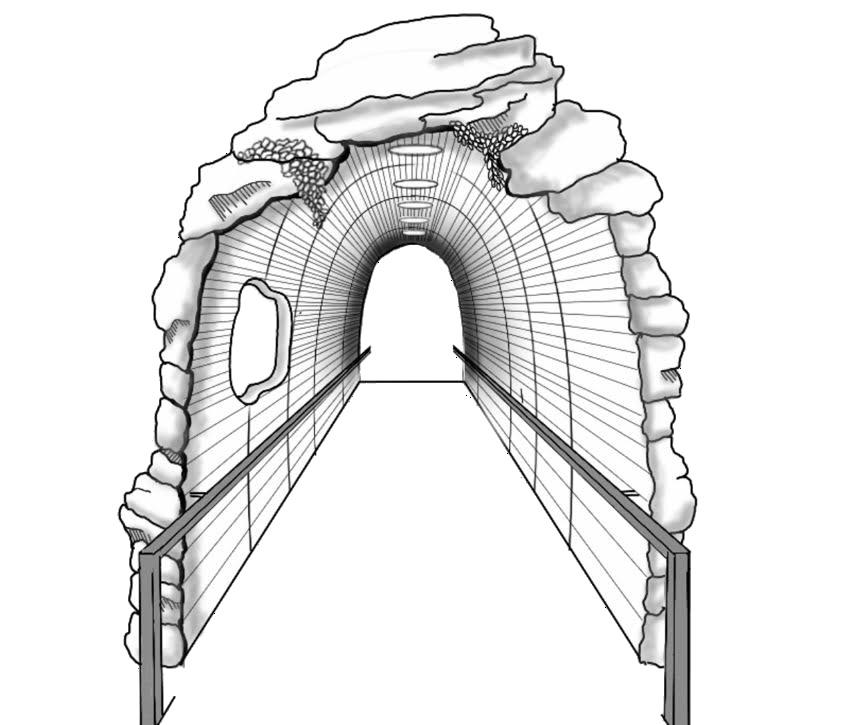

Process Work sketch depicting the path of travel getting more intense as the individual approaches the spiritual space. Both pass-by and pass-through spaces are present, although the central path stands alone to emphasize the importance of the final destination.

LEAST INTENSE

MOST INTENSE

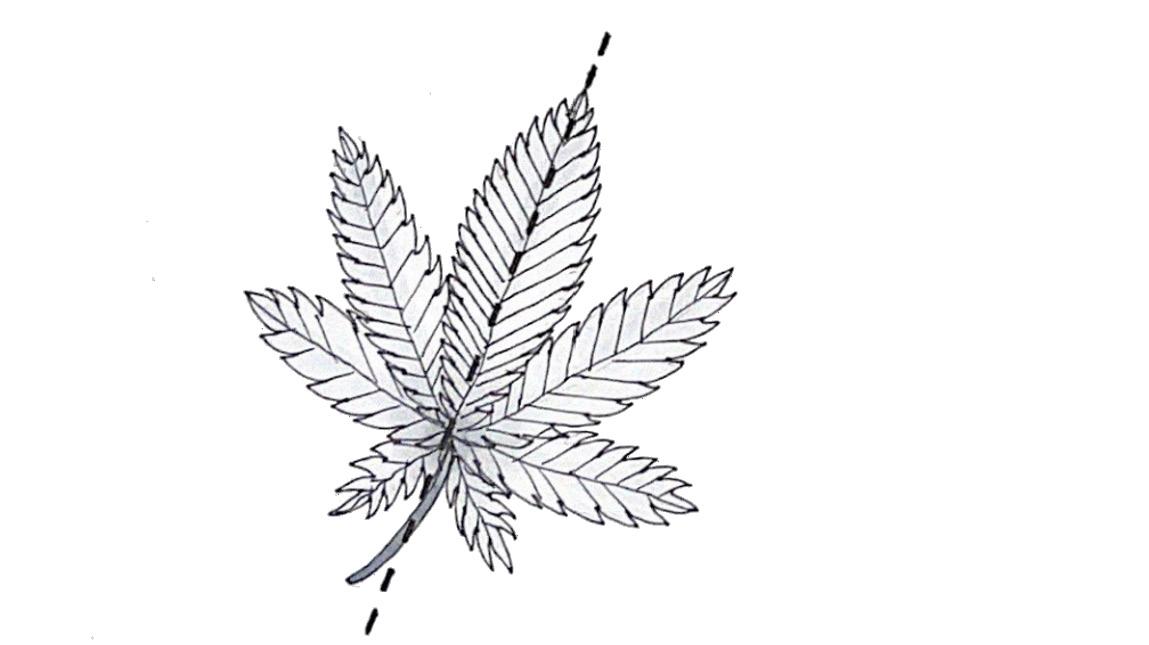

Marijuana leaves are symmetrical leaves that possess anywhere from 7-13 leaflets per leaf. The leaflets possess a linear pattern that terminates in a serrated edge. The arrangement of the leaflets appears to form a coherent whole, thus creating a sense of harmony. The radial growth of the leaves creates a sense of movement, guiding the eye from one leaflet to the next.

Rasta LibraryTree 03 ReligiousShrine

Landmarks

Landmarks are physical objects within the built environment that aid in navigation. Landmarks are placed throughout the design to indicate direction and foster a sense of familiarity as users navigate the space. The distinct landmarks are designed to be memorable, providing a navigational point of reference.

Portal to Spiritual Space

Experiential Parti

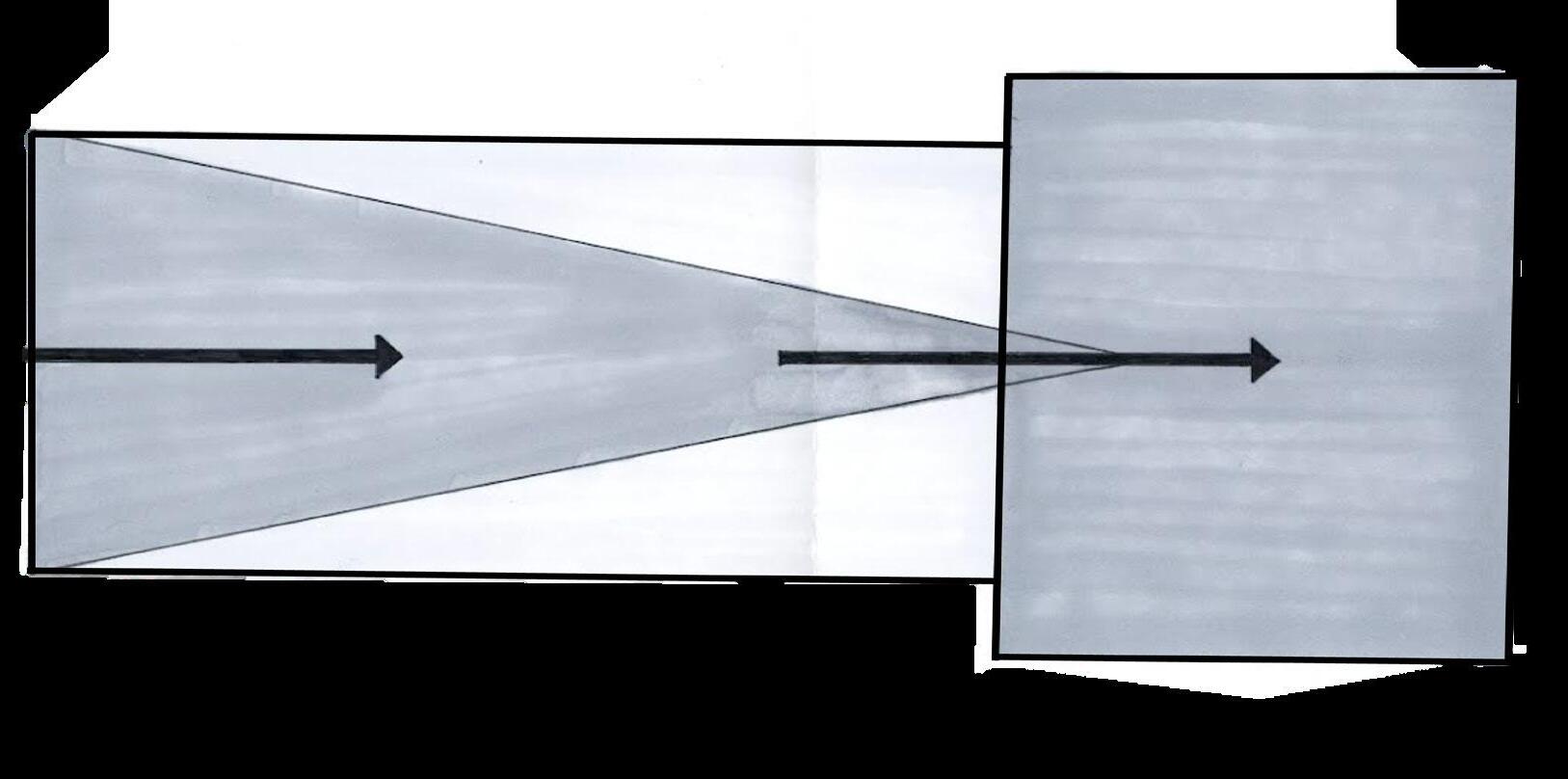

Rastafarians believe that they should be in a higher state of mind during worship practices, the linear, upward progression reflects this idea in both a literal and figurative manner. The figurative reflection is a result of the progressive high users’ experience as they make their way to the spiritual space.

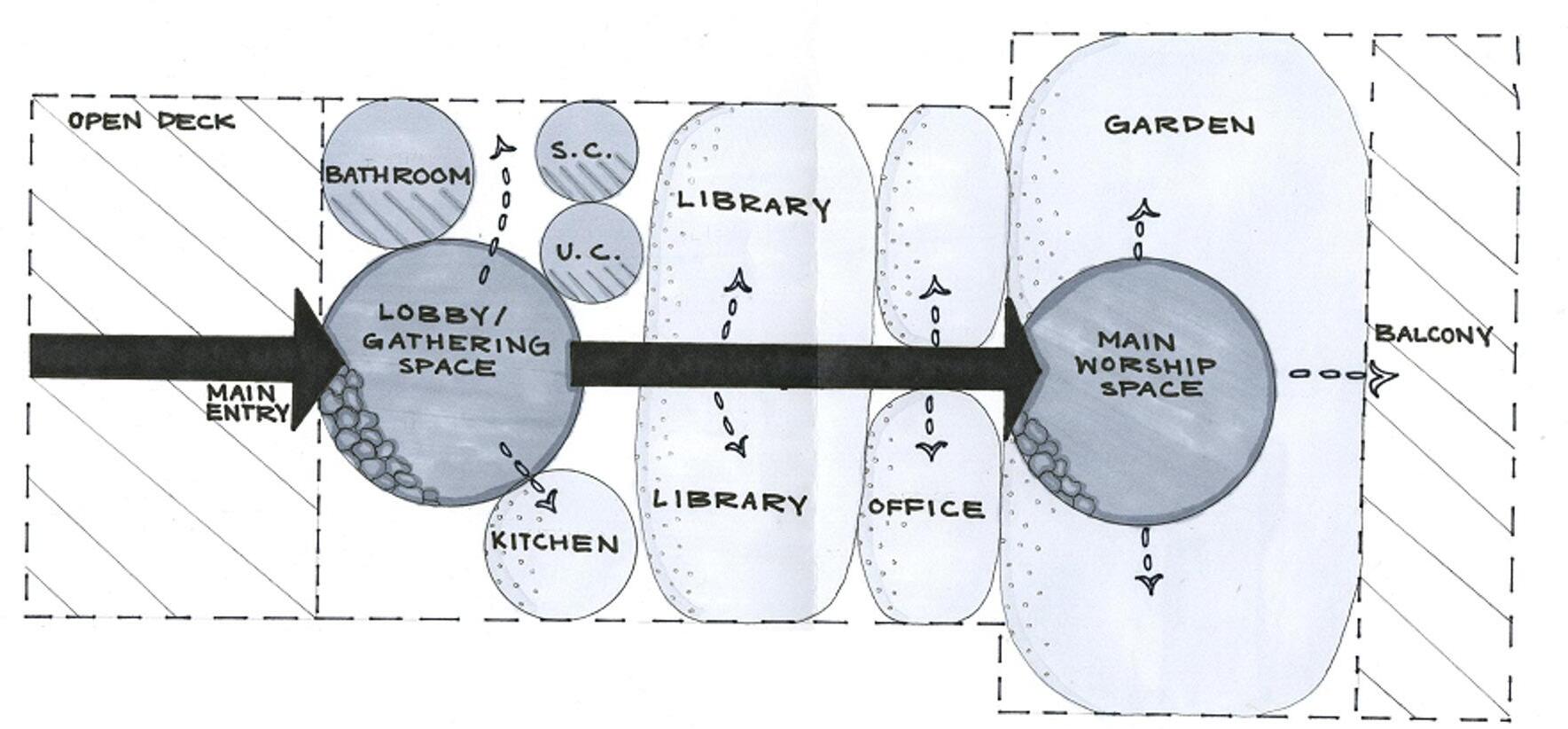

Bubble Diagram

PUBLIC SPACE

SEMI-PUBLIC SPACE

PRIVATE SPACE

MAJOR PATH

MINOR PATH

Blocking Diagram

PUBLIC SPACE

SEMI-PUBLIC SPACE

PRIVATE SPACE

MAJOR PATH

MINOR PATH

03 Religious Floor Plan

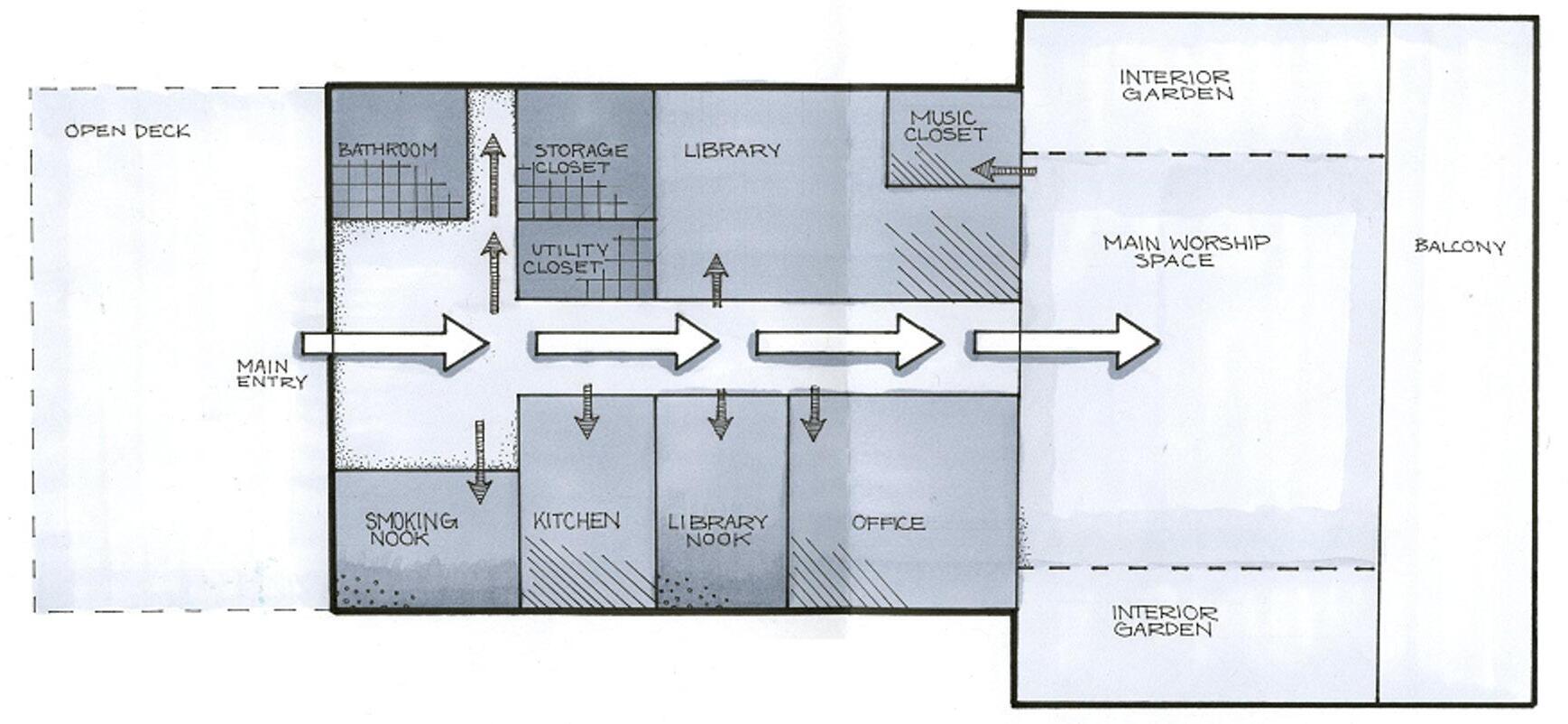

The floor plan emphasizes the central upward path to the spiritual space, reflecting the concept by figuratively and literally reaching a higher state. Rasta followers will embark on a journey as soon as they step into the shrine, stopping at the smoking nook to partake in the Tree of Life, feeling its progressive effects

SMOKING NOOK STORAGE CLOSET LIBRARY SPIRITUAL SPACE RECEPTION

MAIN ENTRY & FRONT PORCH

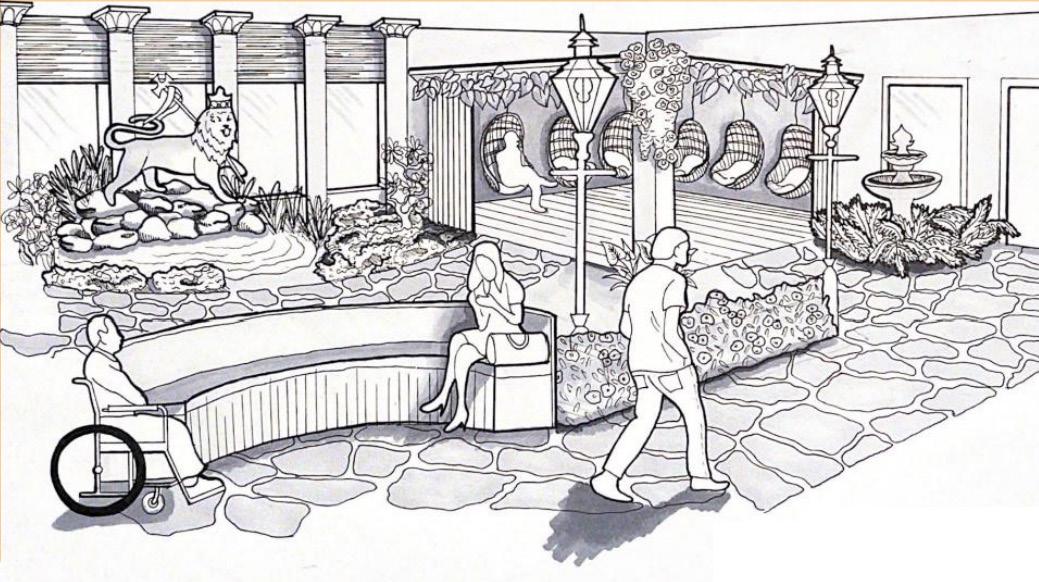

Spiritual Worship Space

Rasta ideals of love, unity, and connection with each other and nature are at the core of the spiritual space. The space meshes the built environment and the natural world, creating a peaceful and harmonious connection that is familiar to the followers. Spaces for private and communal worship are present, ensuring that all individuals feel comfortable in the space. The benching central to the spiritual space allows followers to partake in Nyabingi Sessions, where they form a circle and play music to deepen their spiritual connection with Jah.

04 Paris Apartment

The Client The Space

Clients Mr. and Mrs. Pierre just purchased a second-story flat in Paris, France where they need some design assistance with their main living

The Goal

The bedrooms and private spaces of Mr. and Mrs. Pierre’s flat are complete, but the three main living spaces require revamping. Reflect the historic architectural features from Haussman-Era Parisian apartments in your design through mixed media hand-rendering

Living Room

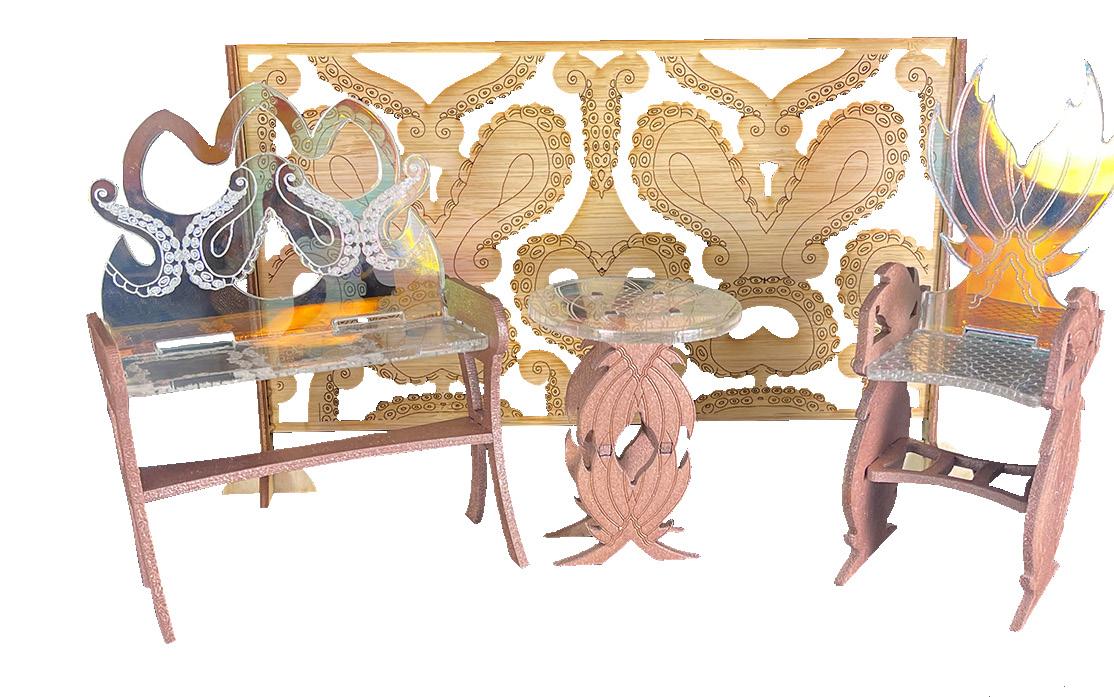

Furniture Design

Project Scope

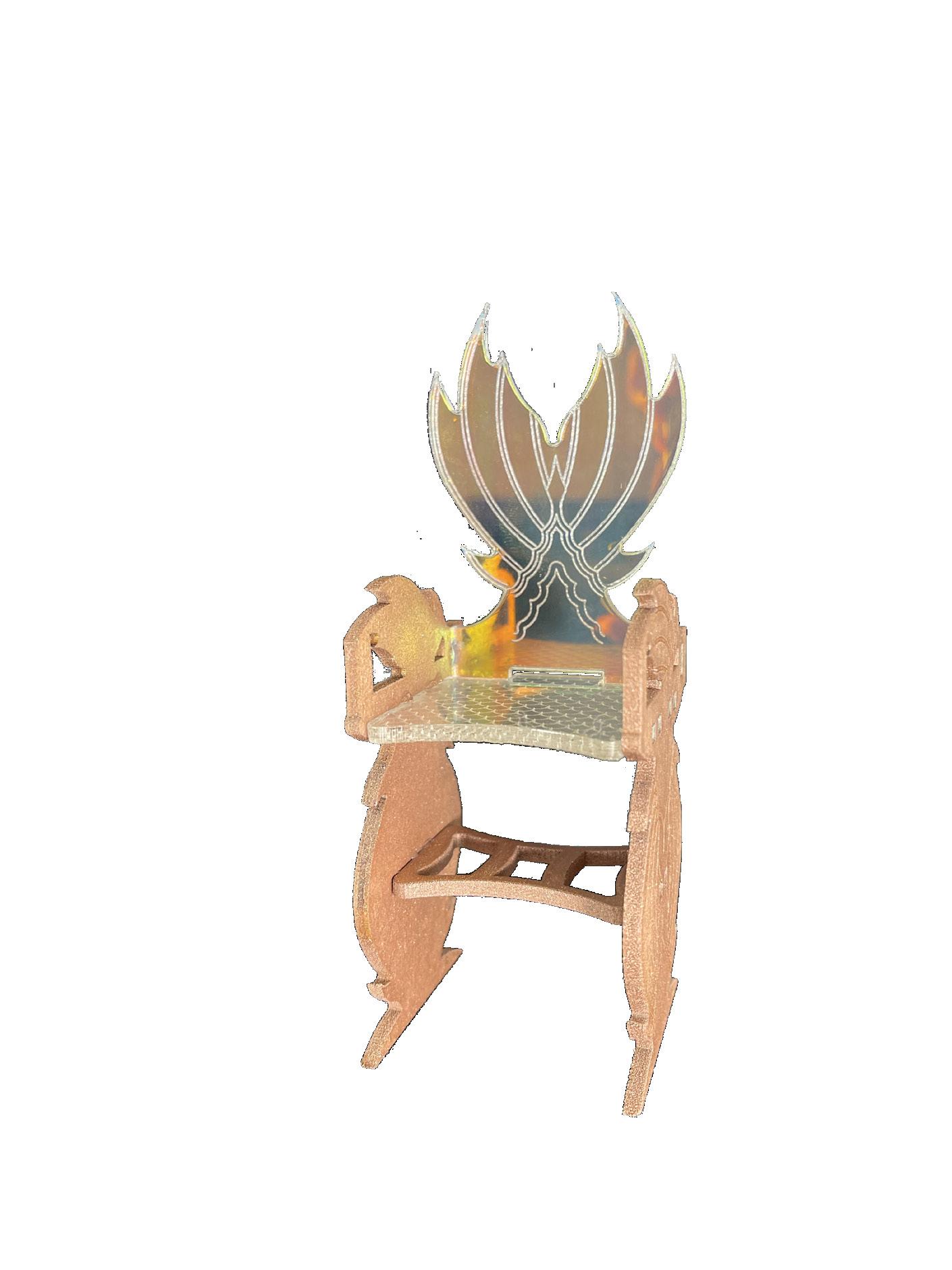

This project asked students to select a character from a movie, TV show, or book and create furniture designs that reflect that character in a literal or figurative manner. Develop an understanding of your character in terms of personality, behavior, and needs and translate these factors into elements and principles of design within your furniture design.

Character & Film Overview

The film Aquamarine follows a mermaid on her feminine quest for love. Aquamarine was being forced into an arranged marriage by her father and the only way to avoid the engagement from happening was to prove that true love existed. Aquamarine was attempting to escape the arranged marriage when a strong storm carried her from the ocean to a community pool where two girls discovered her. Aquamarine finally feels a sense of hope in finding love when she sees Raymond, a human boy. Aquamarine has a very bubbly personality, once she befriends two young girls she truly comes out of her shell. Despite the playful nature of the film, it also explores modern topics such as body image, friendship, trauma, bullying, and the development of romantic feelings.

Proxemics

Aquamarine is outgoing but tends to feel overwhelmed in large public settings. Aquamarine is most vulnerable in public spaces; she must be extremely cautious, so she doesn’t reveal her secret. For this reason, the public space was not included in the proxemics study. She keeps her two best friends close, trusting them with her biggest secret. Aquamarine was raised in the ocean, a vast, open environment. Overall, the space should feel spacious, providing ample space to avoid feelings of restraint.

AutoCad Drawing

Fincal Model

Students were instructed to select four pieces of residential furniture from a magazine or manufacturer’s website and produce scaled drawings of each piece’s elevation and plan in AutoCAD. The drawings must be done with technical accuracy and detail to ensure the scale is accurate.

MADE BY: MERCURY ROW

Wayfair (2022). Perdue Square Arm Sleeper. Retrieved from https://www.wayfair.com/furniture/ pdp/mercury-row-perdue-815-velvet-square-arm-convertible-sleeper-w009315804.html

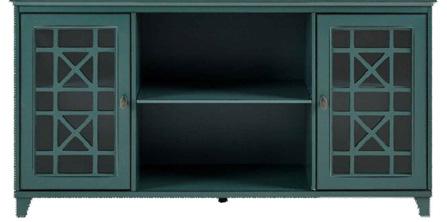

CHARNEY SIDEBOARD

MADE BY: THREE POSTS

Wayfair (2022). Charney 60” Wide Sideboard. Retrieved from https://www.wayfair.com/ furniture/pdp/three-posts-charney-60-wide-sideboard-w005039376.html

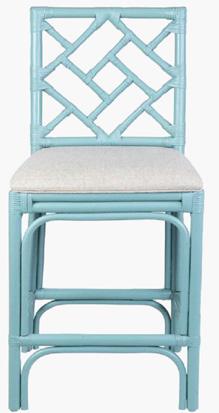

WREN COUNTER STOOL

MADE BY: BIRCH LANE

Wayfair (2022). Wren Bar & Counter Stool. Retrieved from https://www.wayfair.com/furniture/ pdp/birch-lane-wren-bar-counter-stool-w004697601.html

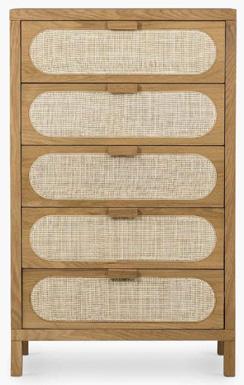

ALLIE COASTAL 5 DRAWER DRESSER

MADE BY: KATHY KUO HOME

Kathy Kuo Home (2022). Allie Coastal Brown Oak Light Wood Beige Cane 5 Drawer Dresser. Retrieved from https://www.kathykuohome.com/Product/Detail/69581-Allie-Coastal-BrownOak-Light-Wood-Beige-Cane-Drawer-Dresser

PERDUE

CHARNEY SIDEBOARD: OVERALL DIMENSIONS 31” H X 60” W X 16” D

WREN

SQUARE ARM SLEEPER: OVERALL DIMENSIONS 34” H X 81.5” W X 34” D ALLIE COASTAL 5 DRAWER DRESSER: OVERALL DIMENSIONS 51” H X 31” W X 18” D

Cad Drawings OVERALL 34" H SEAT: ARM ELEVATION

ELEVATION

PLAN ELEVATION

DATE: MANUFACTURER: PRODUCT: INTERIOR DESIGNER: THREE POSTS CHARNEY SIDEBOARD ANSLEY WEIDLE 3/7/2022

PLAN ELEVATION

SHOSHANA COUNTER OVERALL DIMENSIONS: 40.9" H 19.7" W 20.9" D SEAT: 19.7" W 20" D SEAT BACK: 14" H 19.75" W

PLAN ALLIE DATE: MANUFACTURER: PRODUCT: KATHY KUO HOME ALLIE DRESSER 3/7/2022

PLAN DATE: MANUFACTURER: PRODUCT: INTERIOR DESIGNER: SCALE: PROJECT SAND & STABLE SHOSHANA STOOL ANSLEY WEIDLE 1" = 1'-0" 22-002 3/7/2022

OVERALL 51"

Campus Door

FSU’s campus is embellished with Jacobean Revival and Gothic Revival historic doors. For this project, we took a tour around campus, taking pictures, notes, and measurements of the doors. We were then asked to draw the entryway of our choice in AutoCAD, relying on our limited measurements to produce a scaled drawing.
