ELEMENTAL HEALTH
Outpatient Chemotherapy Center
CAPSTONE PROJECT | CIAR 6500 | Studio 5 | Anna Helsel
Reason why...

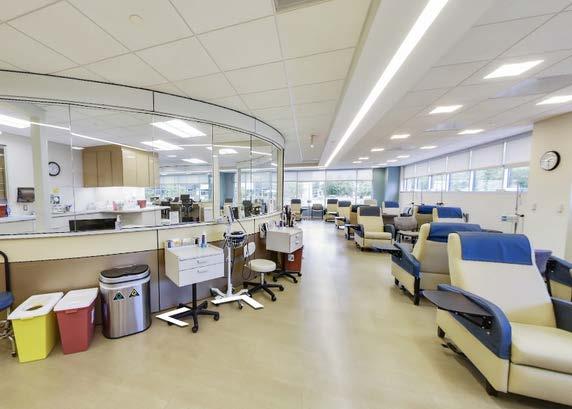

“This place is making me sicker,” is what my dad used to say when I tookhimtogethischemotherapytreatment.AlthoughIdidn’tknow anything about interior design at that time, I understood what he meant because the facility was depressing. It had no natural light and the clinical blue chairs gave a cold and unwelcoming feeling. The space was designed with only delivery of medical service and treatmentinmind;nothowthespacewouldimpactpatients.
Fortunately, I now know that design can affect how people feel and that nature-inspired design can positively impact a patient’s outcome. With this knowledge in mind, I want to create an outpatient chemotherapy infusion center where all patients feel comfortableandcalm.
Reason why...
Lifetime Chance of Getting Cancer in America: Cancer Treatment Options & Chemotherapy:
1 in 2 for men
Hormone Therapy Bone Marrow Transplantation Radiation
Targeted Immunotherapy Surgery
39.9% in US
1 in 5 people before 75
CHEMOTHERAPY
Most common and most well-known type of cancer treatment
Uses drugs to kill cancer by targeting any rapid growing cells
Medication is delivered through IV, injection (shots), or as pills
Kills both cancerous and healthy cells
Data from American Cancer Society
3
1 in
for women
STATEMENT OF INQUIRY
Elemental Health
Outpatient Chemotherapy Center
In healthcare, it is especially important to create an environment that feels safe, protected, and fosters comfort and calmness. The proposed Elemental Health Outpatient Chemotherapy Center will incorporate clean, soothing colors, and flexible design with WELL Certification standards that emphasize human health to create a comfortable and relaxing environment forallusersofthespace.
RESULT + CONCLUSION
IMPROVEPATIENTOUTCOMESWITHDESIGNbycreatingasoothingenvironmentforpatientsandcaregiverstolowerstressanddiscomfort!
Biophilic Design
Maximizedtheuseofbuildingcurtainwallandwindowstoaccessnaturallight
Createdandviewtonature(greenroof&healinggarden)
Usedbiophilicandnatureinspiredmaterialsandfinishes
Human-Centered
Provided control of space (controlled lights, adjustable furniture, and privacy)
Created diverse range of space
Created intuitive space with an effective way-finding and easy of circulation
*Postive distraction space
Evidence Based
Built environment can influence people's feeling and health
Positively affect patient outcomes with evidence-based design and research
Integrating biophilic elements can lower stress, promote patient wellness and increase caregiver's productivity
Utilized WELL Standards into desing

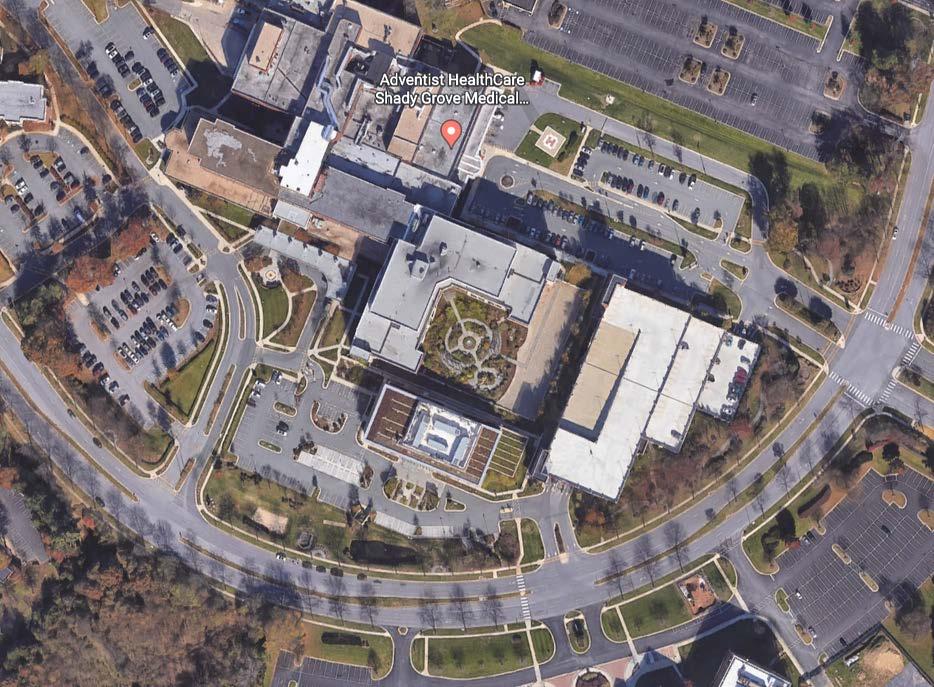

SITE ANALYSIS 9905 Medical Center Dr. Rockville, MD 20850
MedicalCenterDr.Office Children'sNationalHealthSystem Maryland Rockville Population Health Health Care Spending Montgomery County

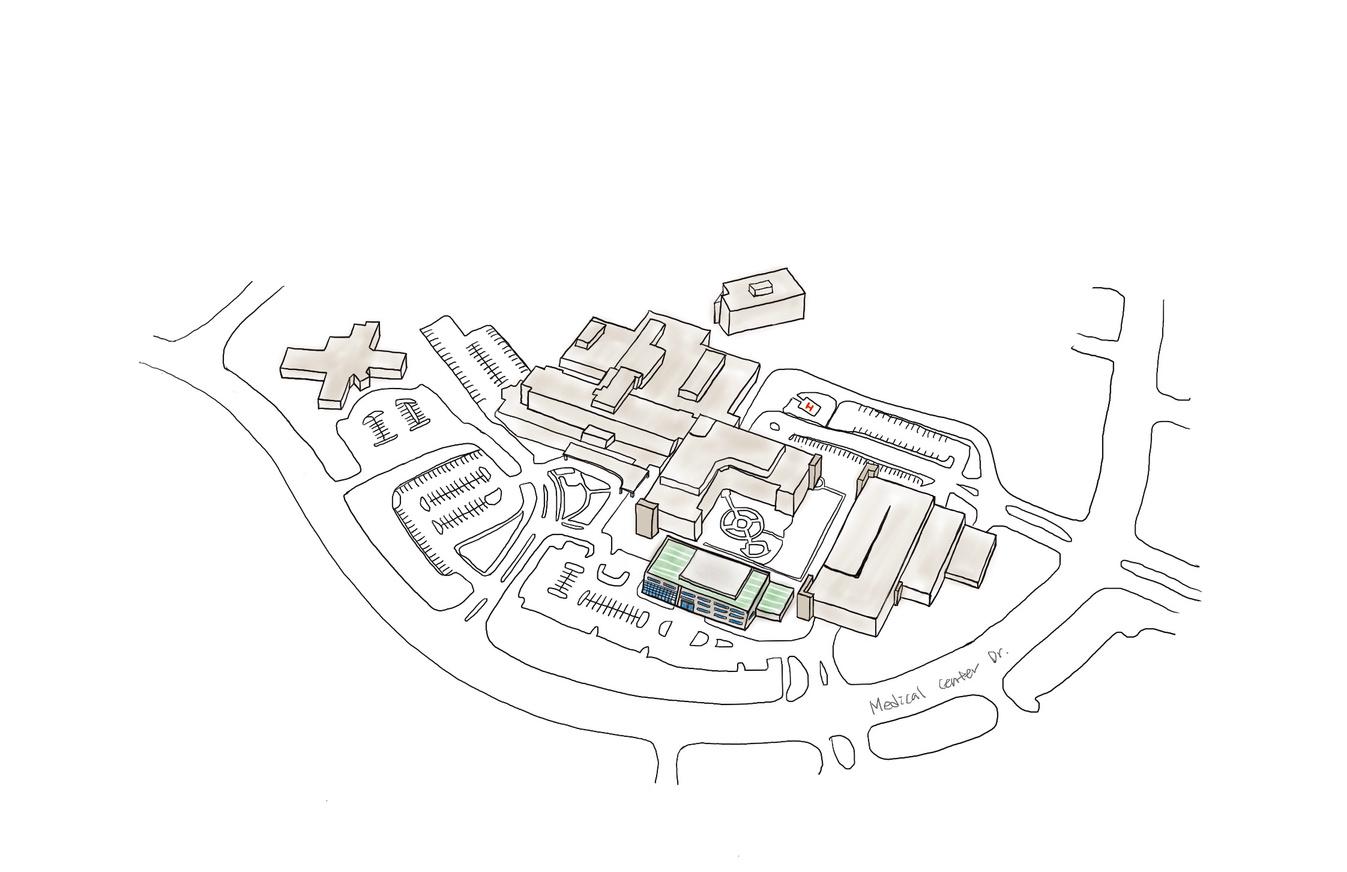

MODEL
on Adventist Healthcare's Rockville Campus,
to Adventist Healthcare Shady Grove Medical Center
Montgomery County, Maryland. Site(AquilinoCancerCenter) CenterforAdvancedWoundHealing andHyperbaricMedicine AdventistHealthcare Rehabilitation AdventistHealthcareShadyGrove MedicalCenter Emergency AdvancedPathology Associations,Inc ParkingGarage Adventist HealthCare Campus Map N 68,155 $8,602/ capita Patient to clinician: 723 to 1:
SITE
Located
adjacent
in

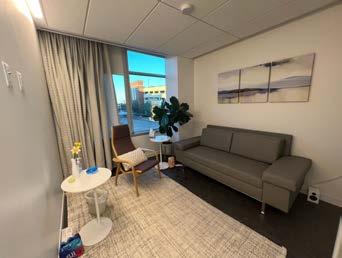

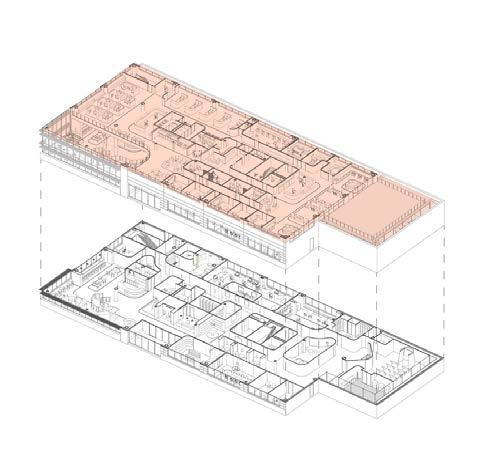

THE BUILDING
CURRENTUSE: AQUILINOCANCERCENTER PROPOSEDUSE: ELEMENTALHEALTHOutpatientChemotherpyCenter Radiation Oncology Medical Oncology Oncology Clinic & Support 20,800 SF 14,500 SF 16,200 SF 1st FLOOR 2nd FLOOR 3rd FLOOR

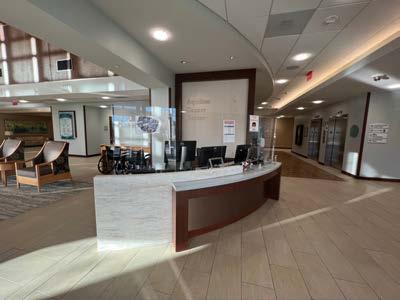

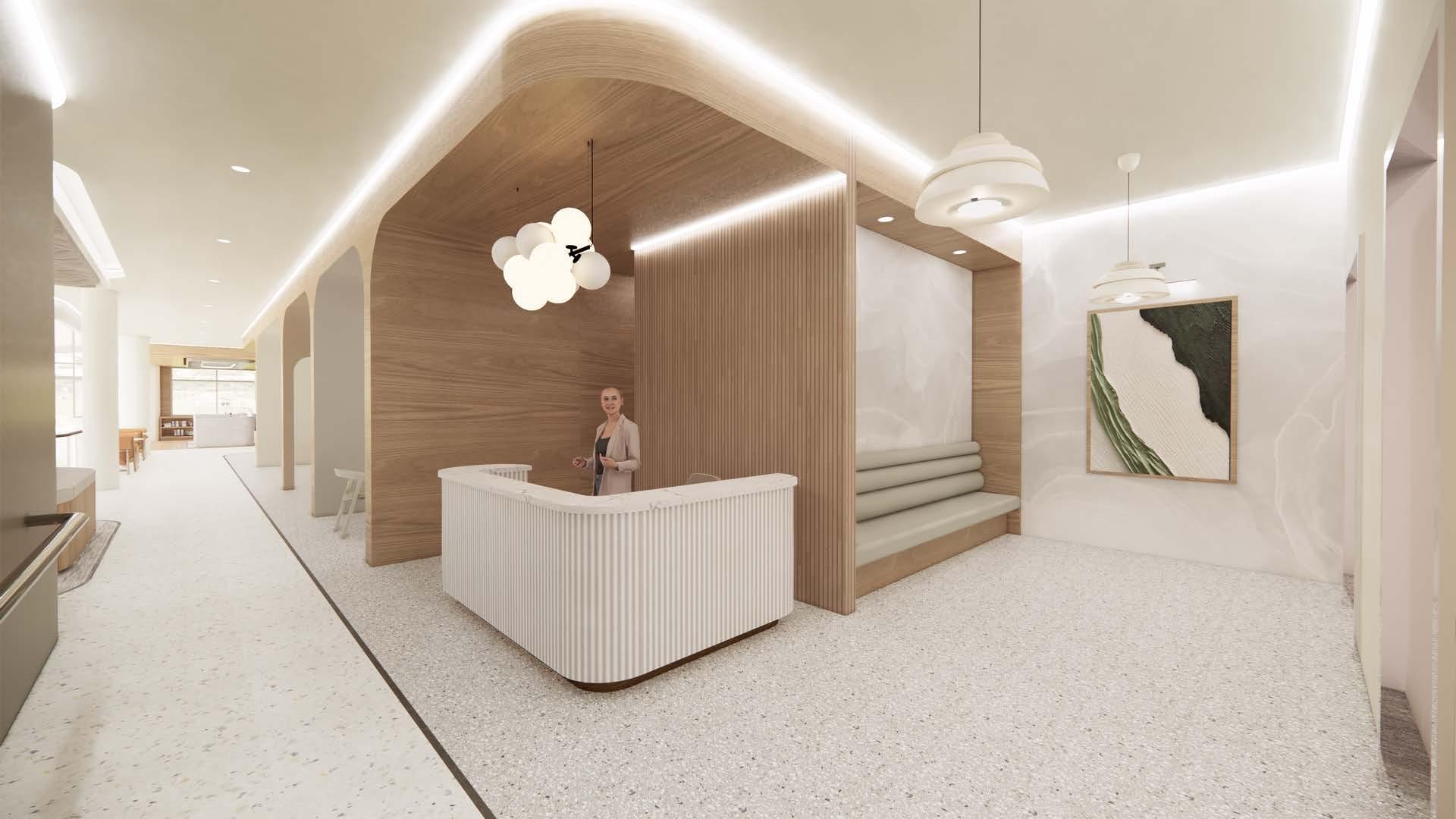

View from Entrance (Reception)
Meditation Room Therapy Room Oncology Lab & Support Chemotherapy TOTAL 35,300 SF

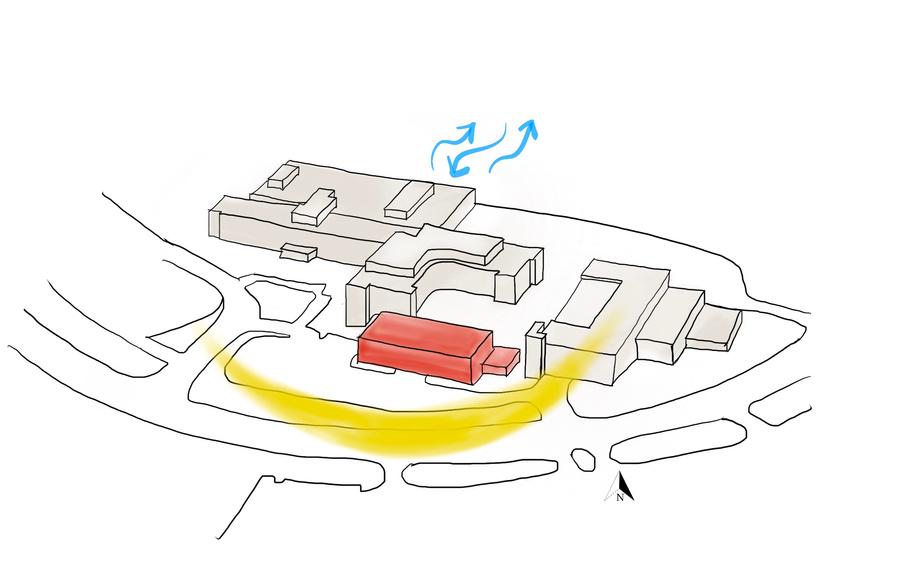

Infusion Area 20,800 SF 14,500 SF 1st FLOOR 2nd FLOOR SUN STUDY
The building is facing SW with glass partition walls on the right corner. During the Summer Solstice, the building will receive the most natural light from 12:40 - 5:00 PM
During the Winter Solstice, the building will receive the most natural light from 10:20 AM to sunset at 4:49 PM
N

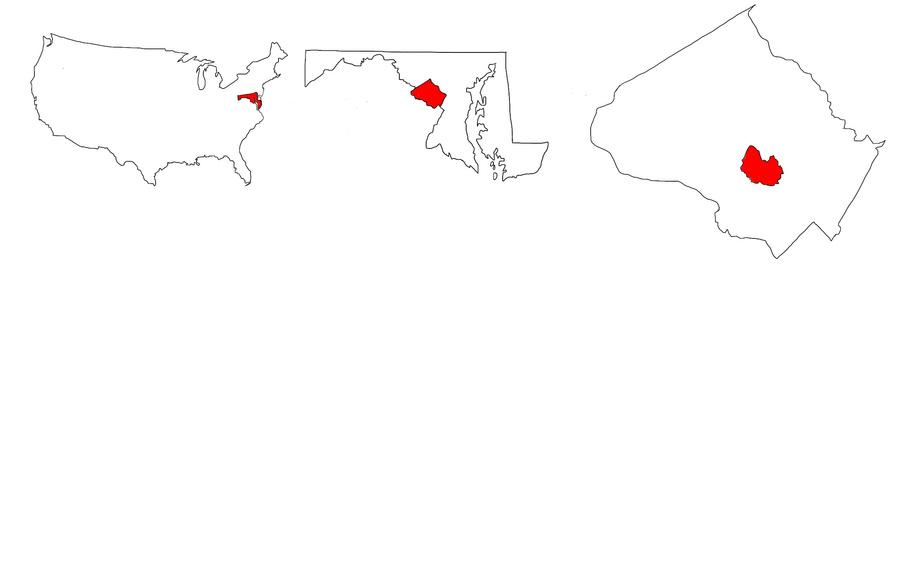

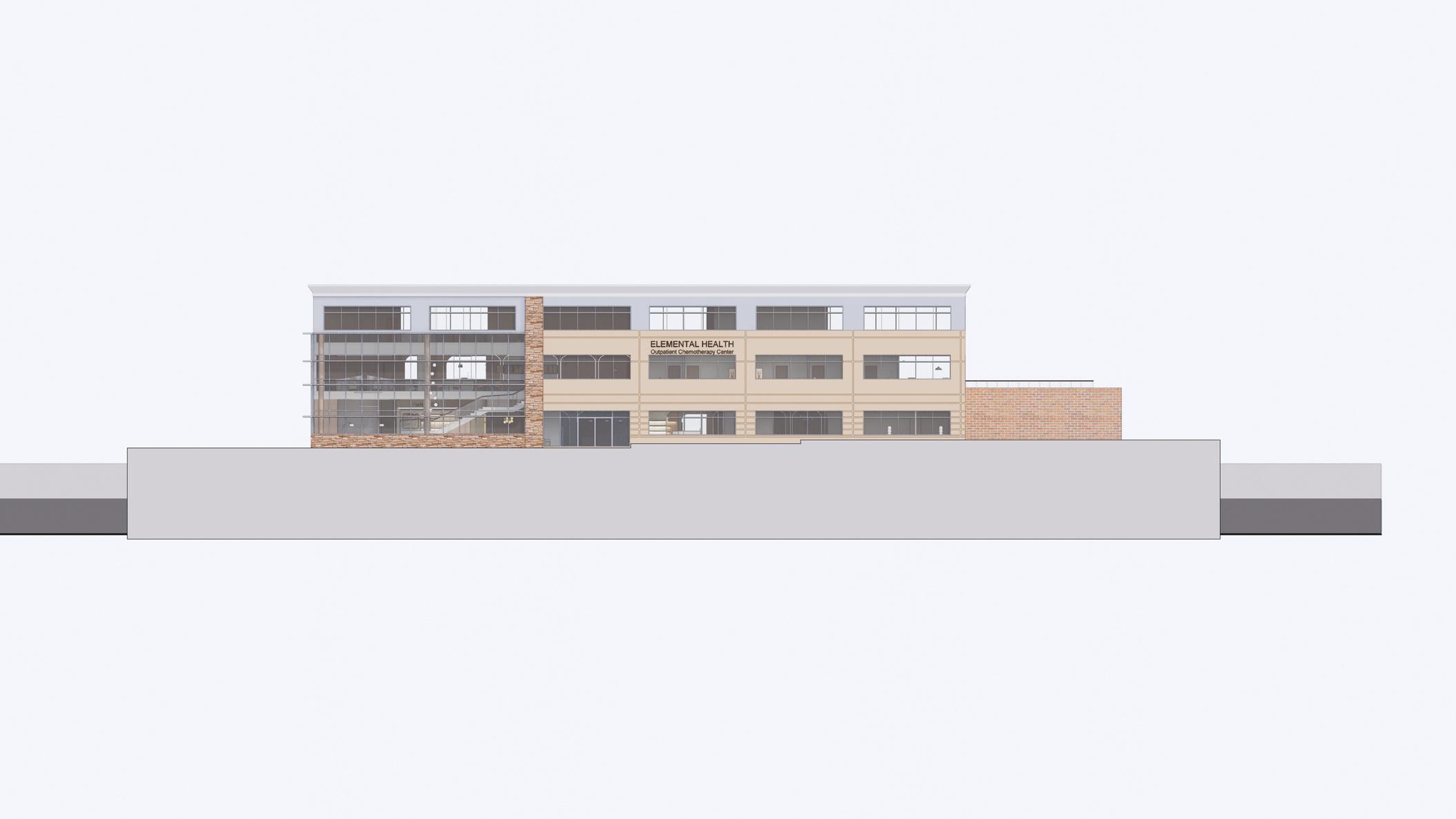

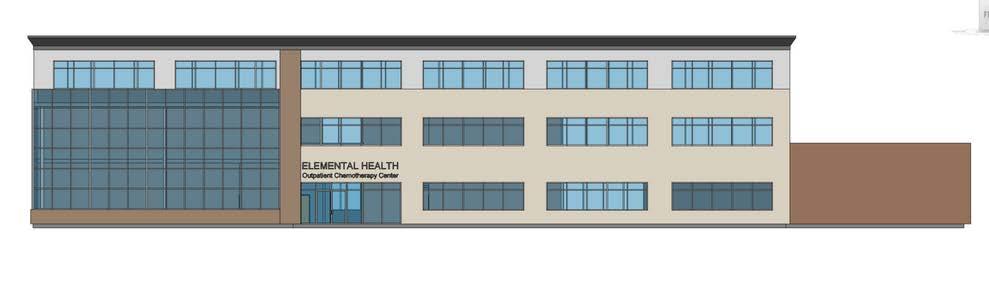

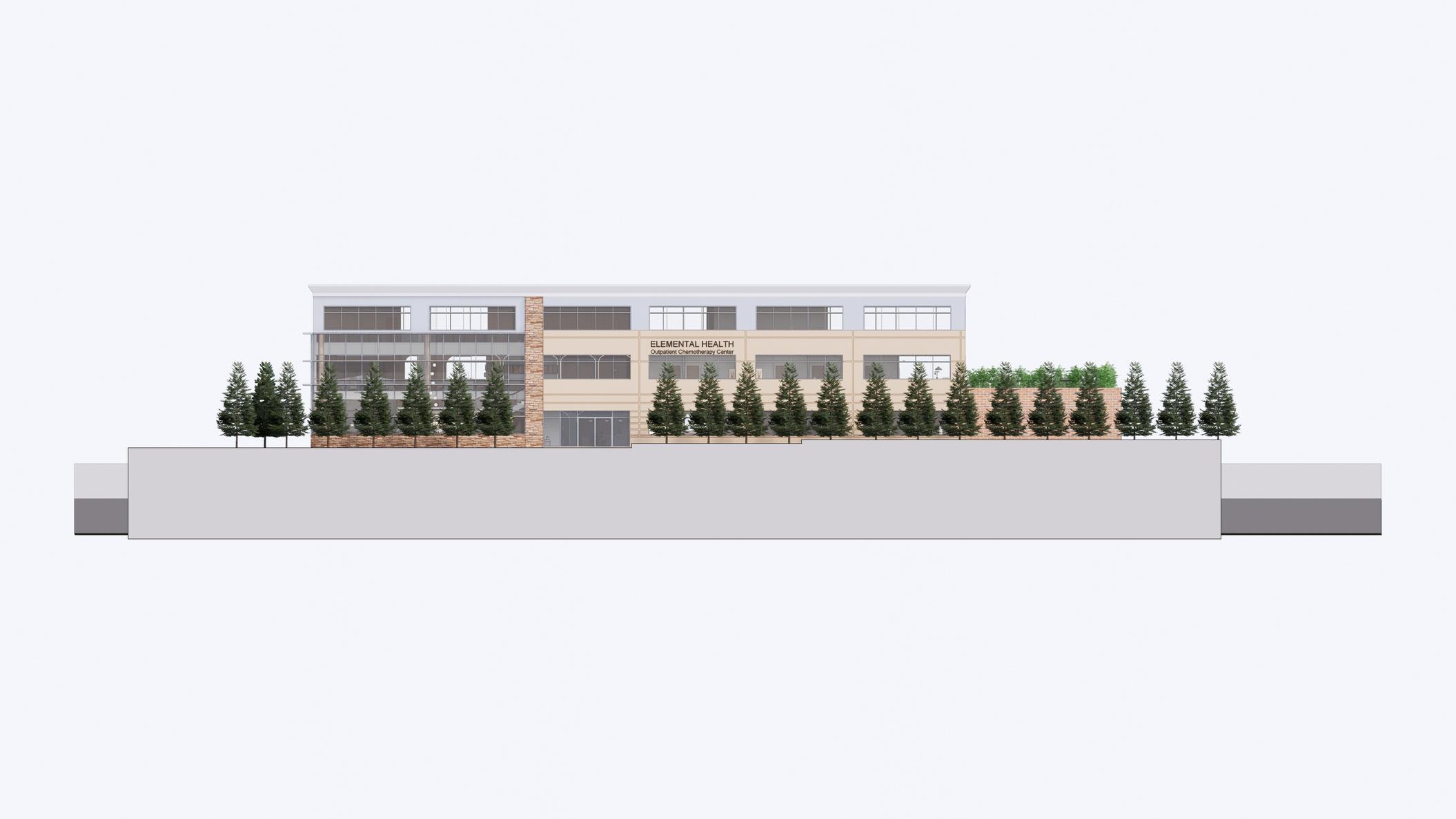

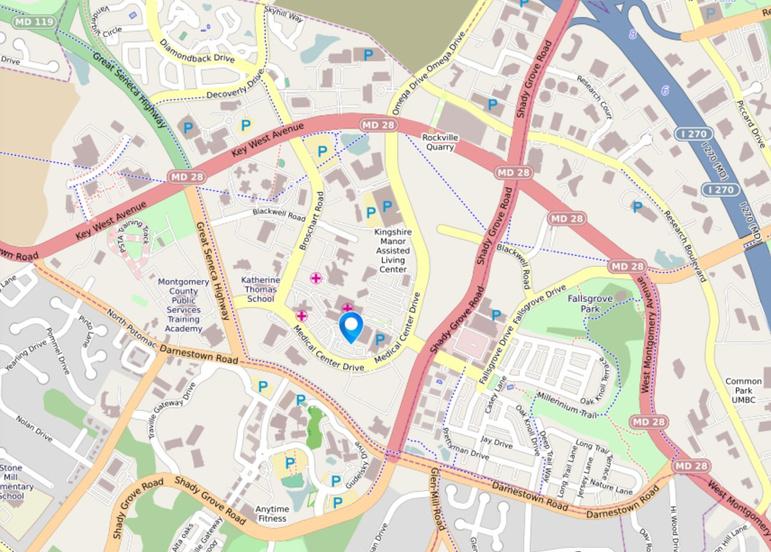

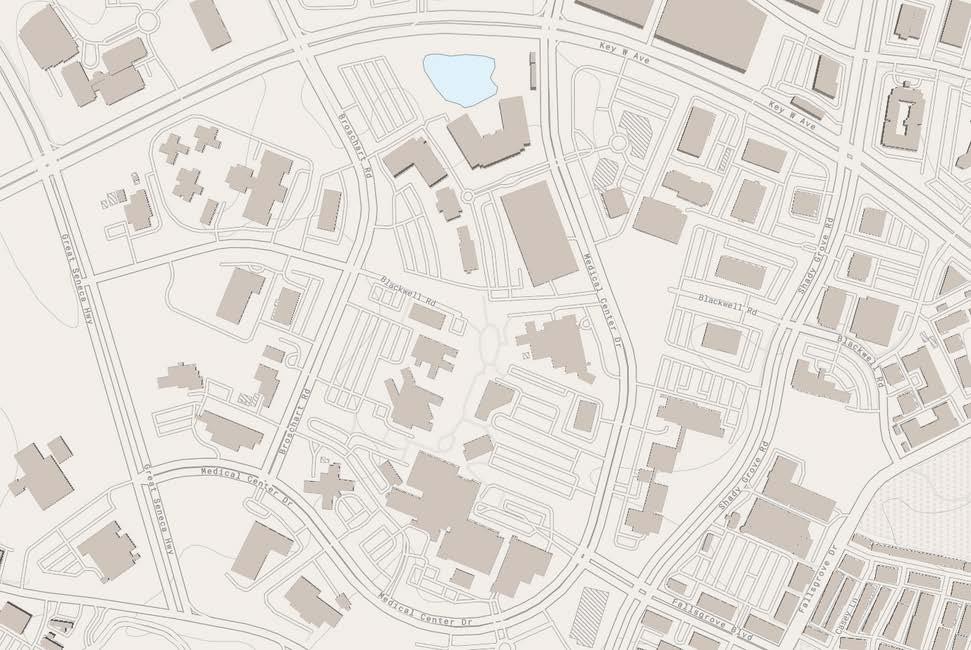

Location Map SITE ELEVATION PROPOSED SITE ELEVATION Vicinity Map Site Location Plan

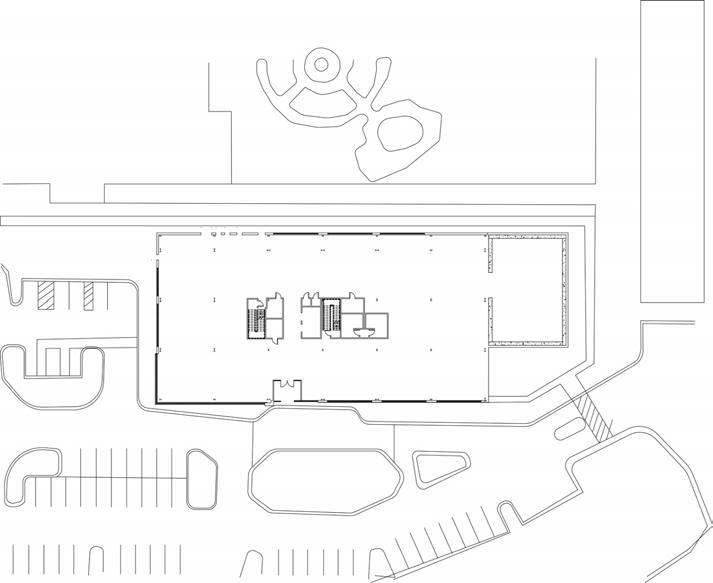

SITE MAP SITE ELEVATION

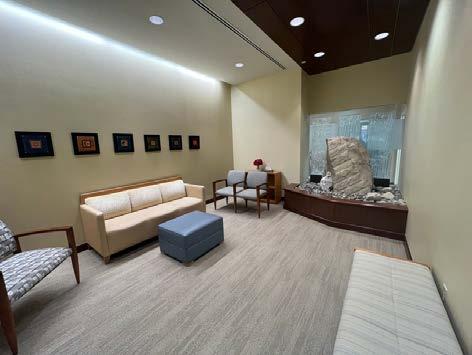

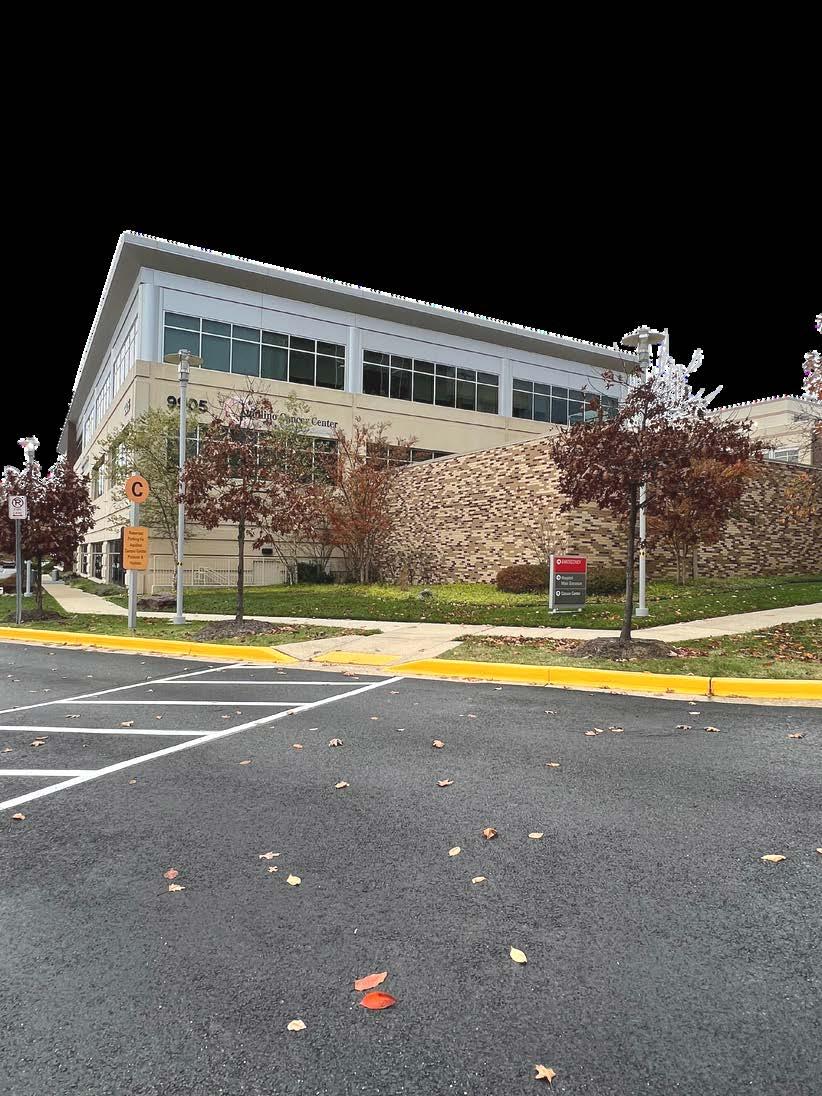

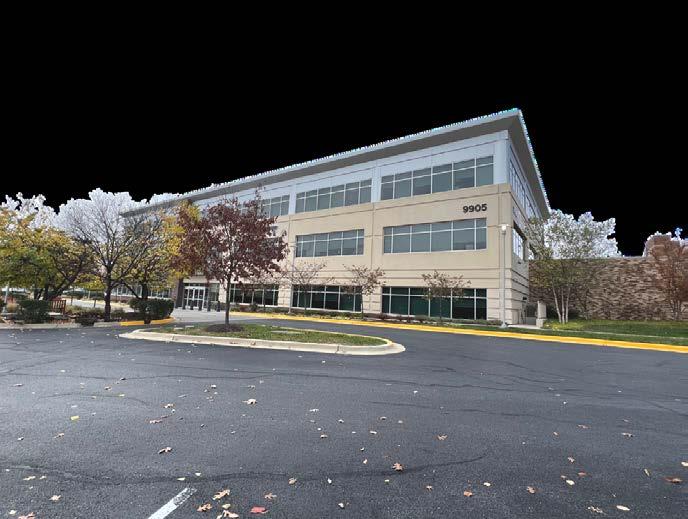

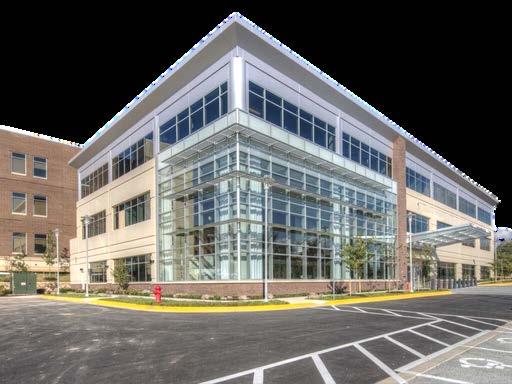

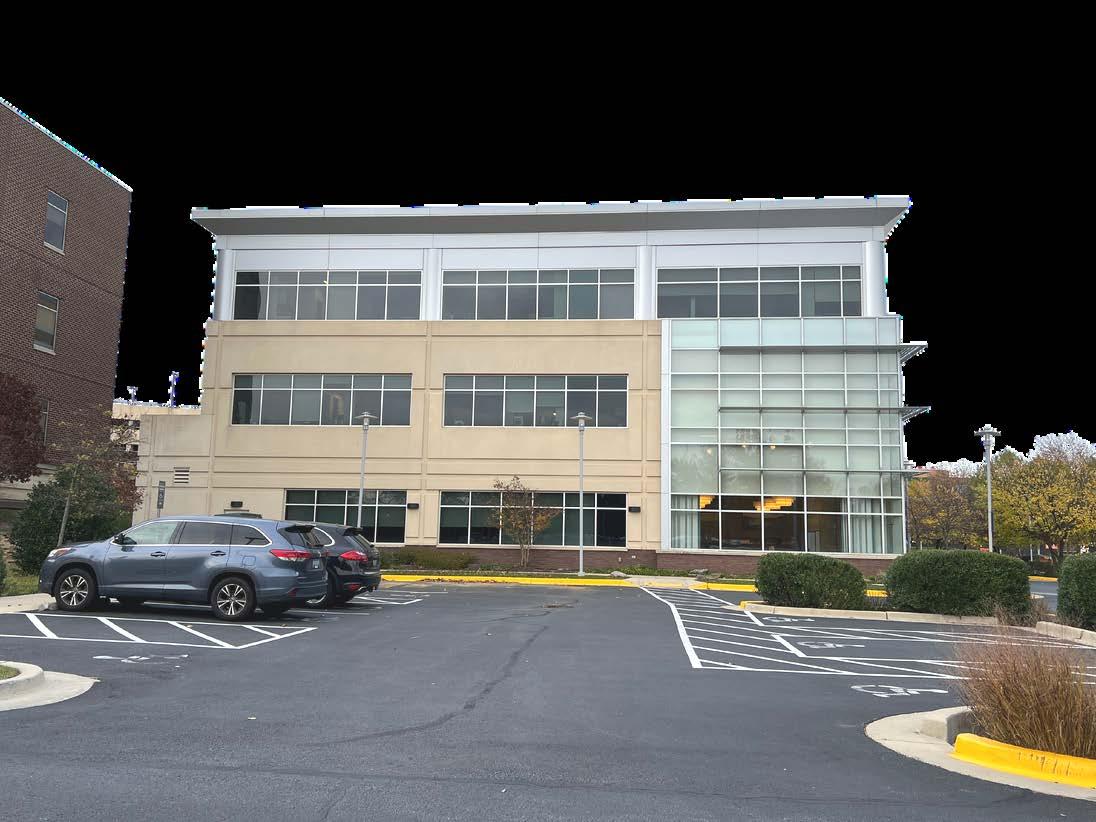

BUILDING PHOTOS
1 2 5 3 6 6 4 3 4 5 2 1

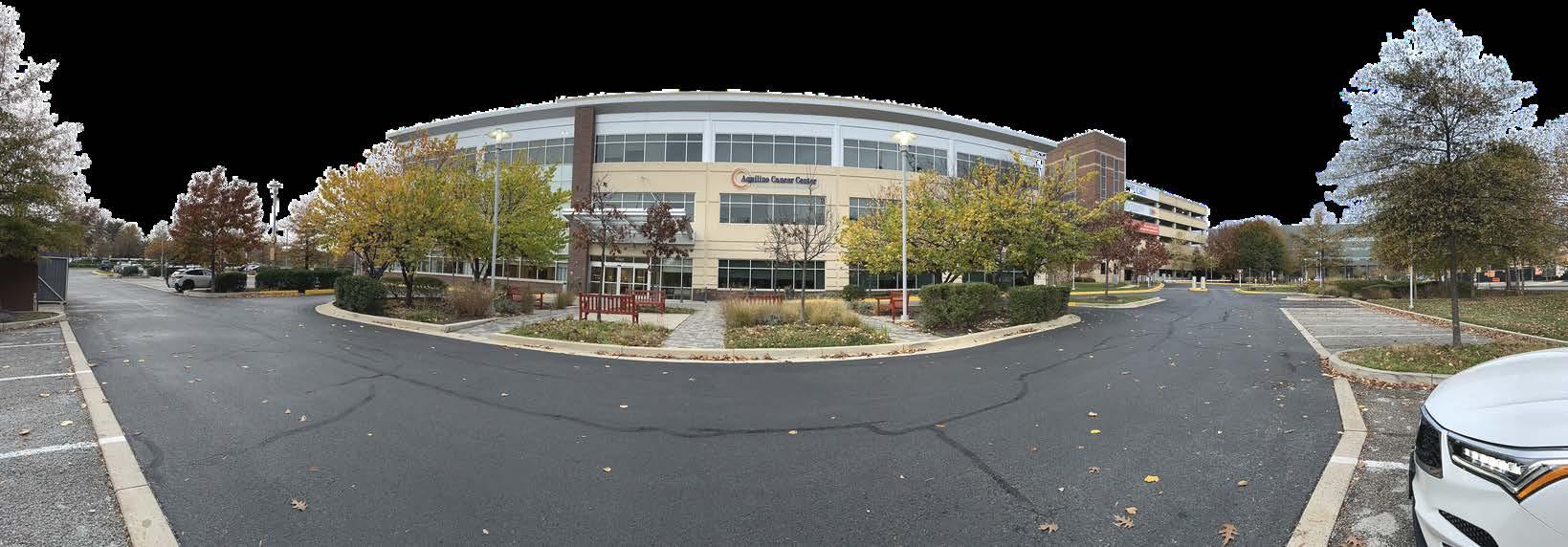

Paronamic view of the building
View from the right side of the building
Back side of the building
Glass curtain wall (right corner)
Left side of the building with attached radiation room
View from the right corner of the building
MODELS

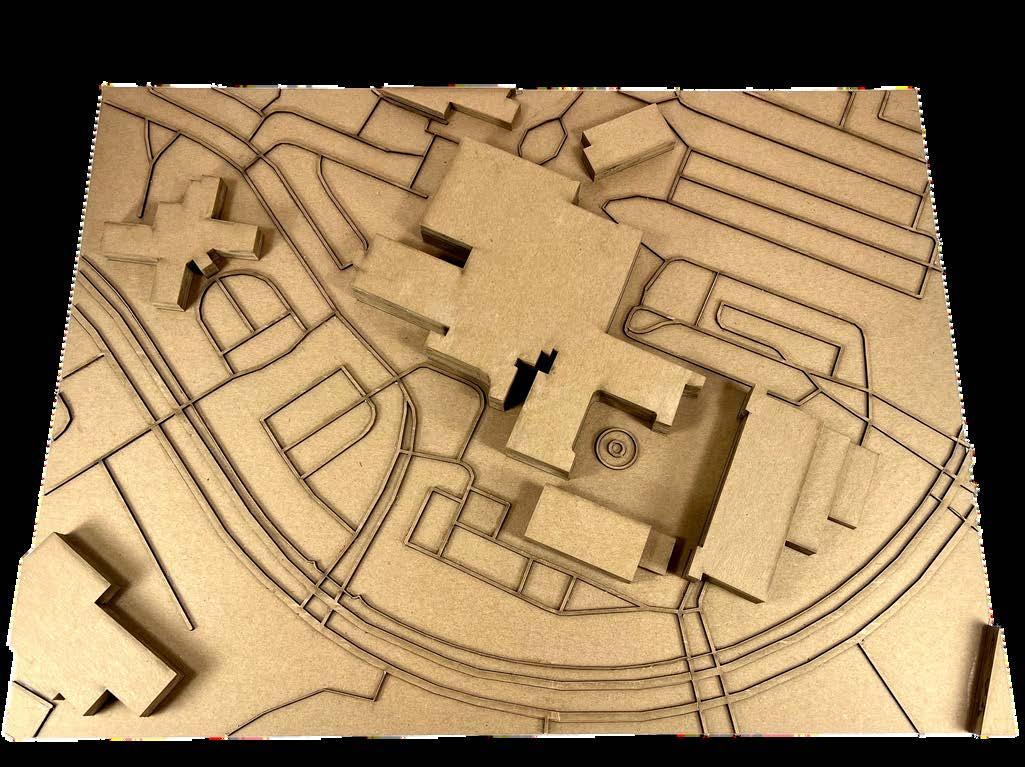

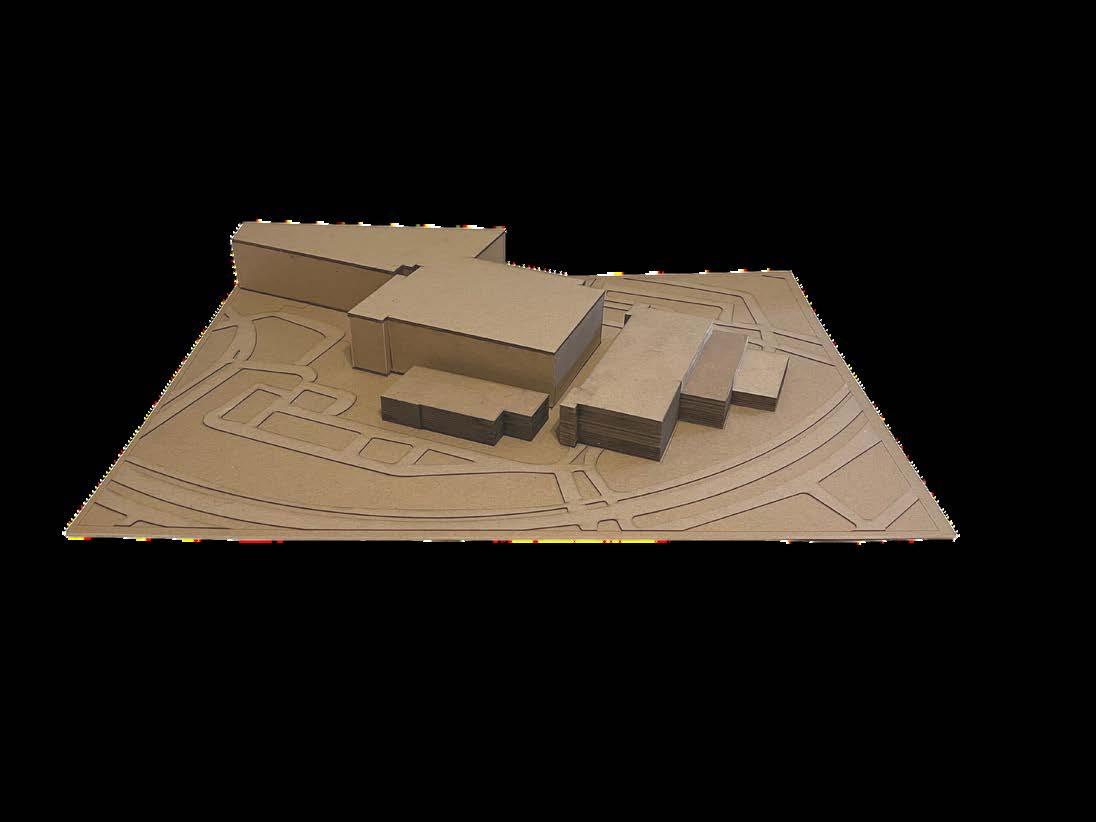

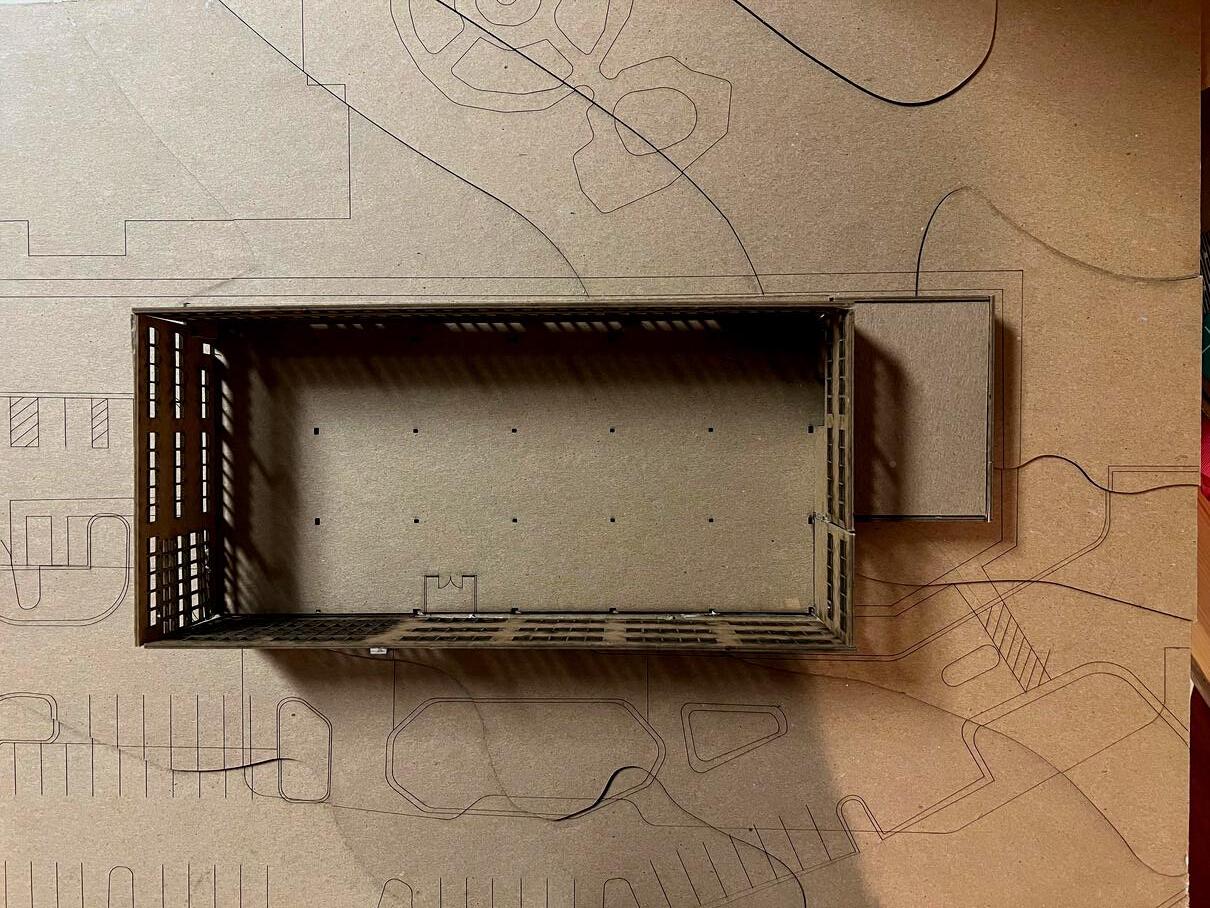

Site Model
Site Model with Topology

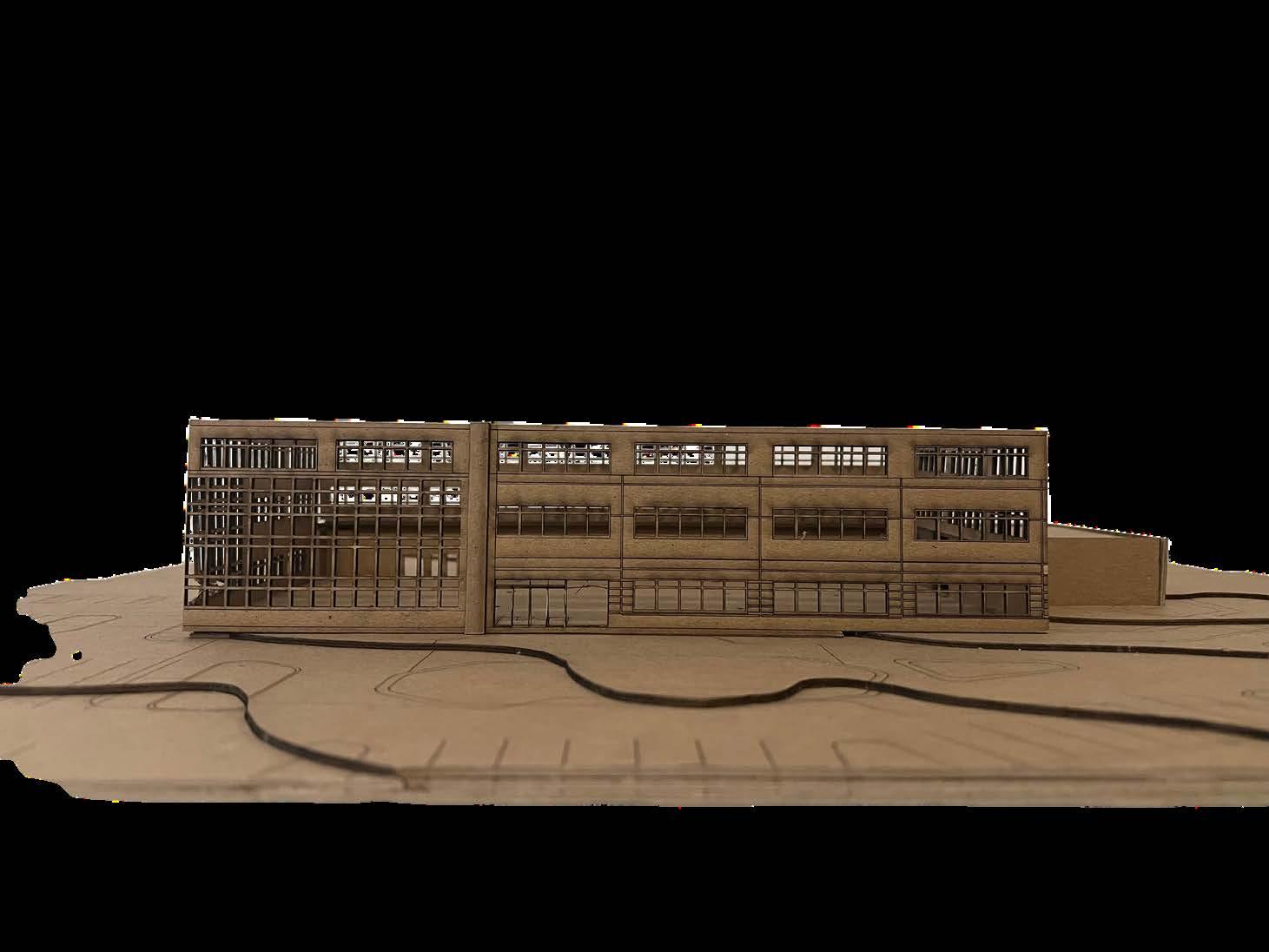

Building Front

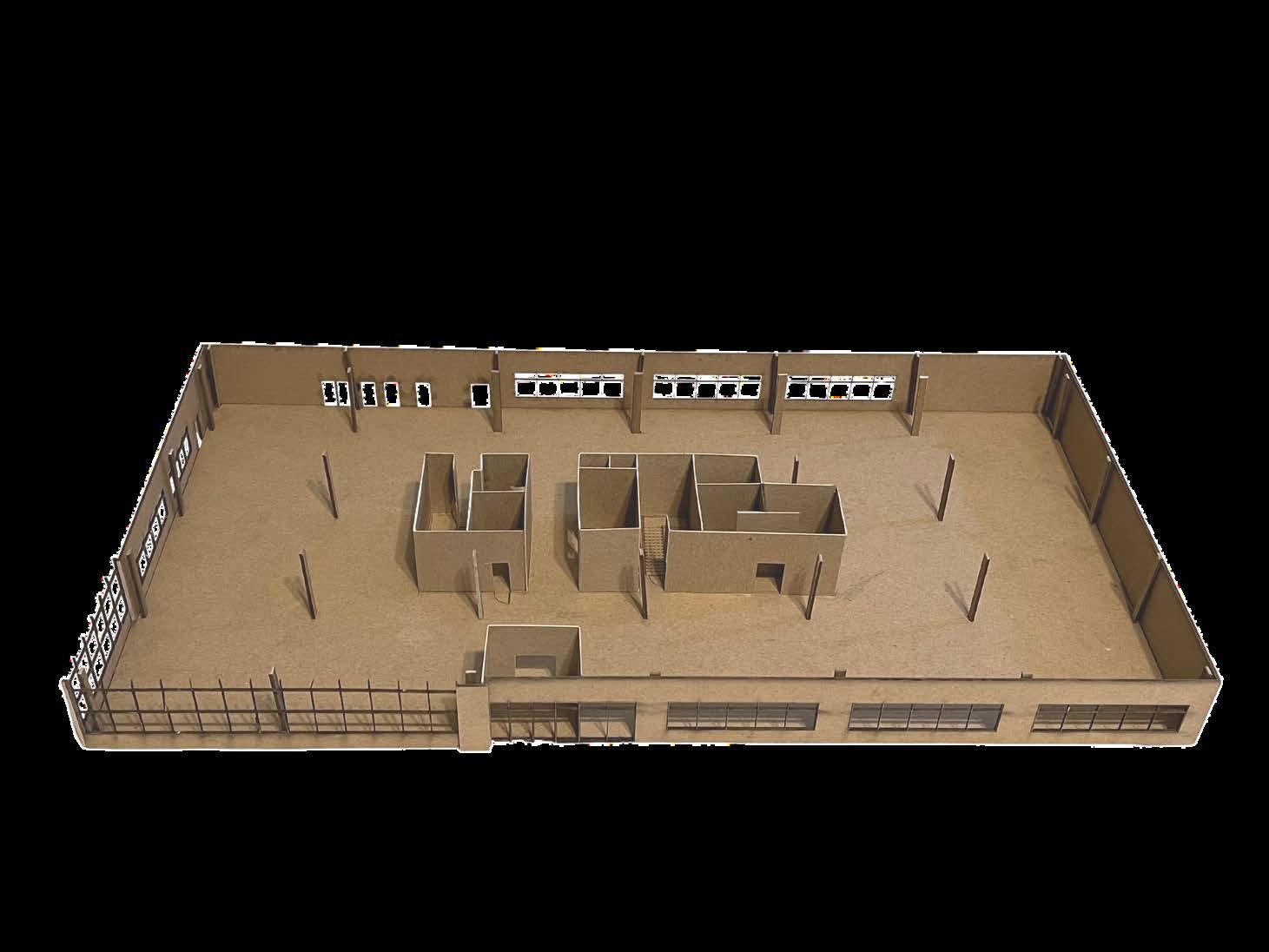

Original Building_Level 1

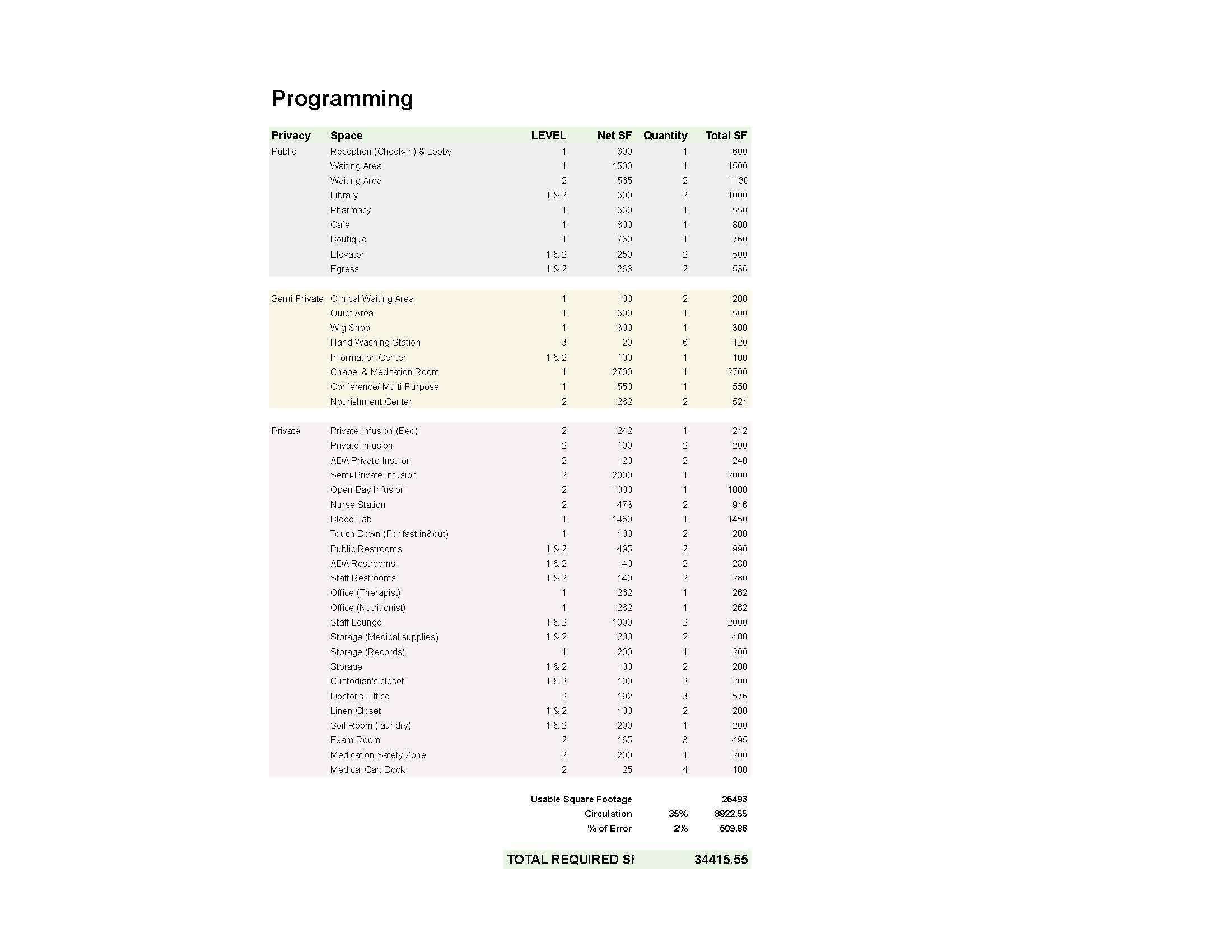

PATIENT JOURNEY MAP
POSITIVE DISTRACTION
Enters the building Cafe Pharmacy Boutique Lounge Check-in Waiting Area Phlebotomy Waiting Area *Positive Distraction (Avg. wait time 1 hr.) Discharge Sent to Infusion *Positive Distraction (30 min. to 8 hours) Sent Home Positive Lab Result Negative Lab Result *Positive Distraction Space Ideas: Cafe Library Lounge Pharmacy Enclaves Business Center Quiet Corner Boutique shop Chapel Meditation Room Multi-purpose Nourishment
CONCEPT DEVELOPMENT
PROBLEM:
Chemotherapy isn’t something that excites or makes people happy. How can interiors of the space help people feel comfortable? Protected? Give them control?

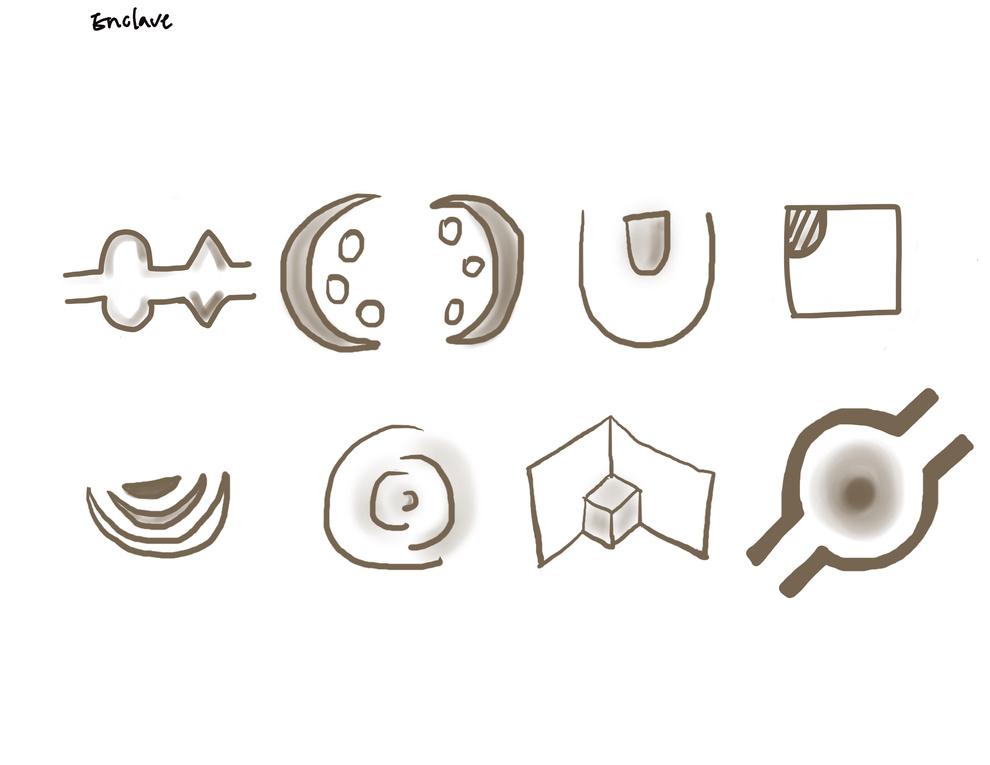

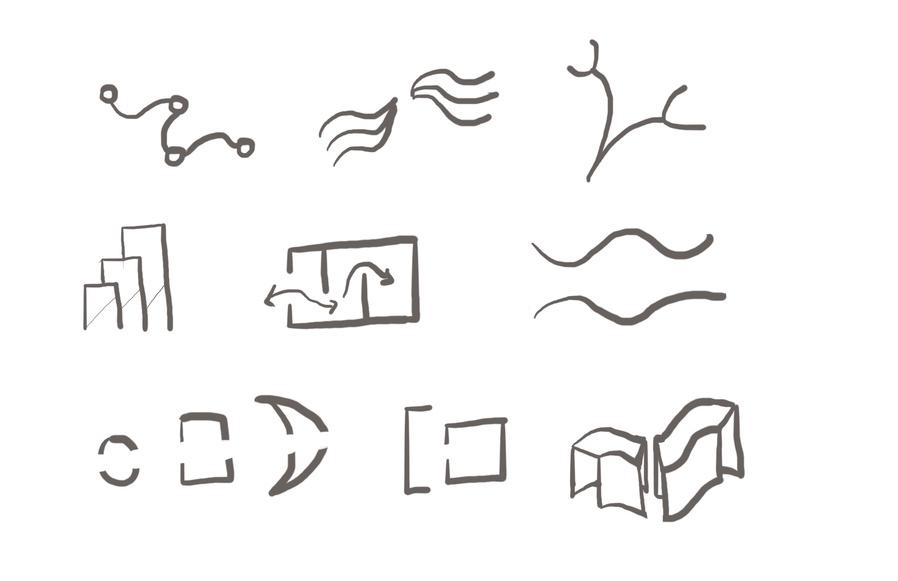

CONCEPT ITERATIONS:

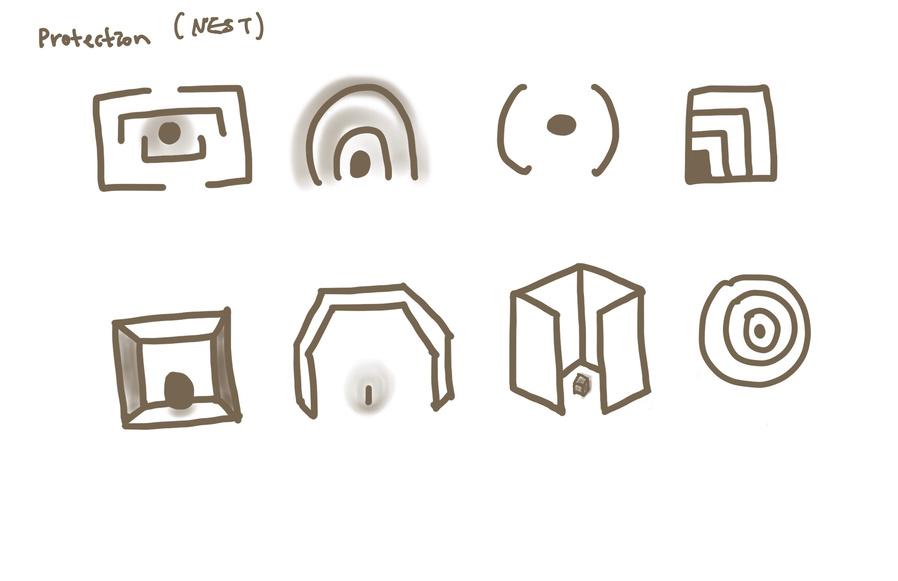

Nested Enclaves:

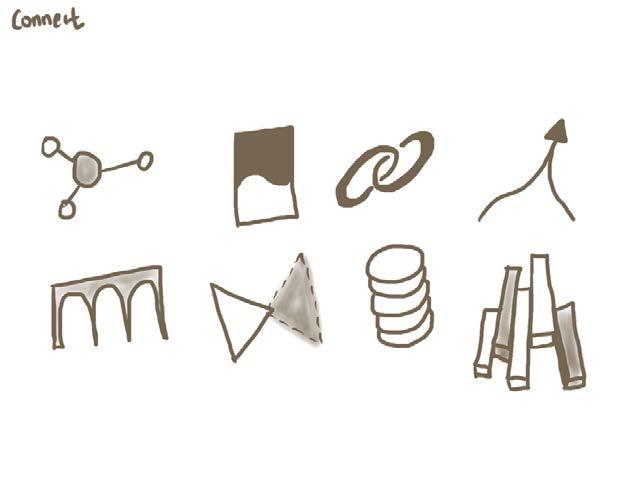

Connection
Thresholds
SOLUTION:
Nested enclaves will accommodate a patient’s privacy preference and make each patient feel at home based on that individual preference and give them the control in their enclosed space.

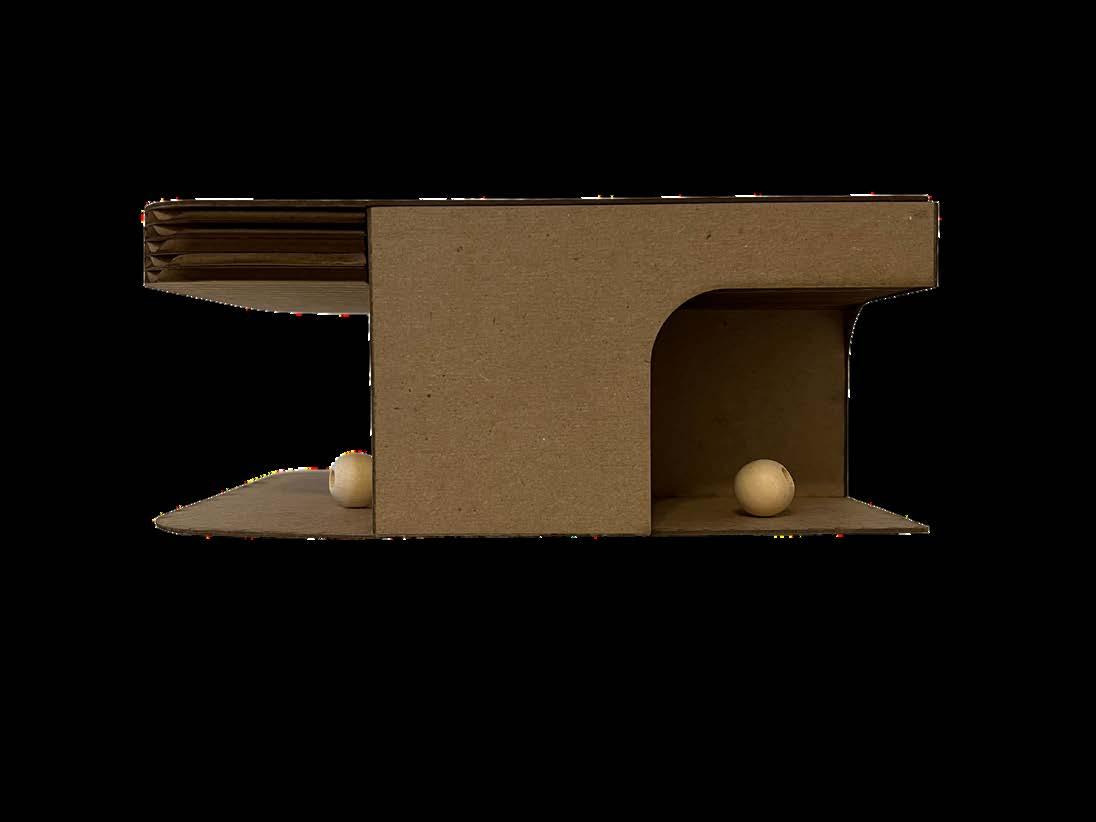

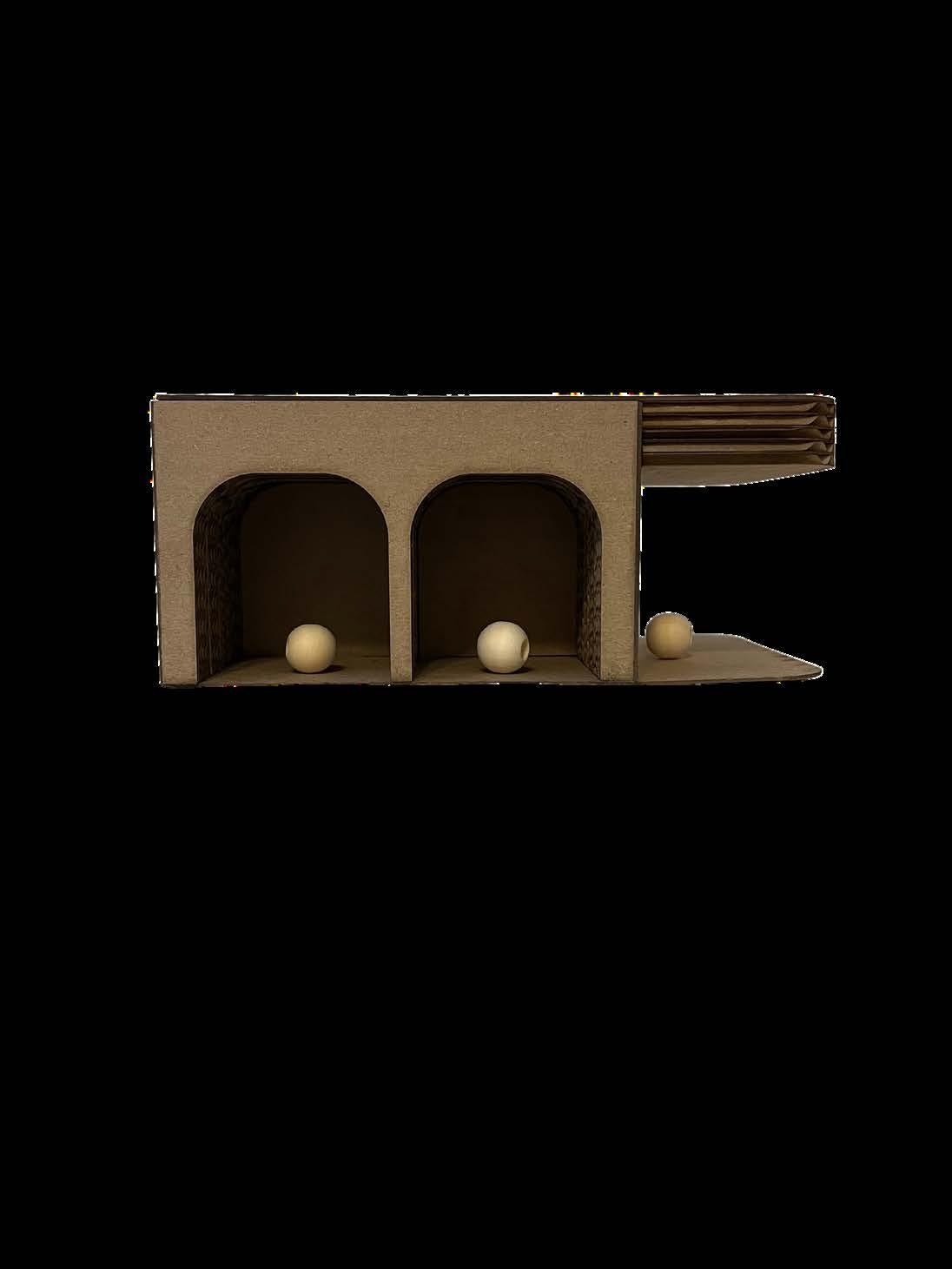

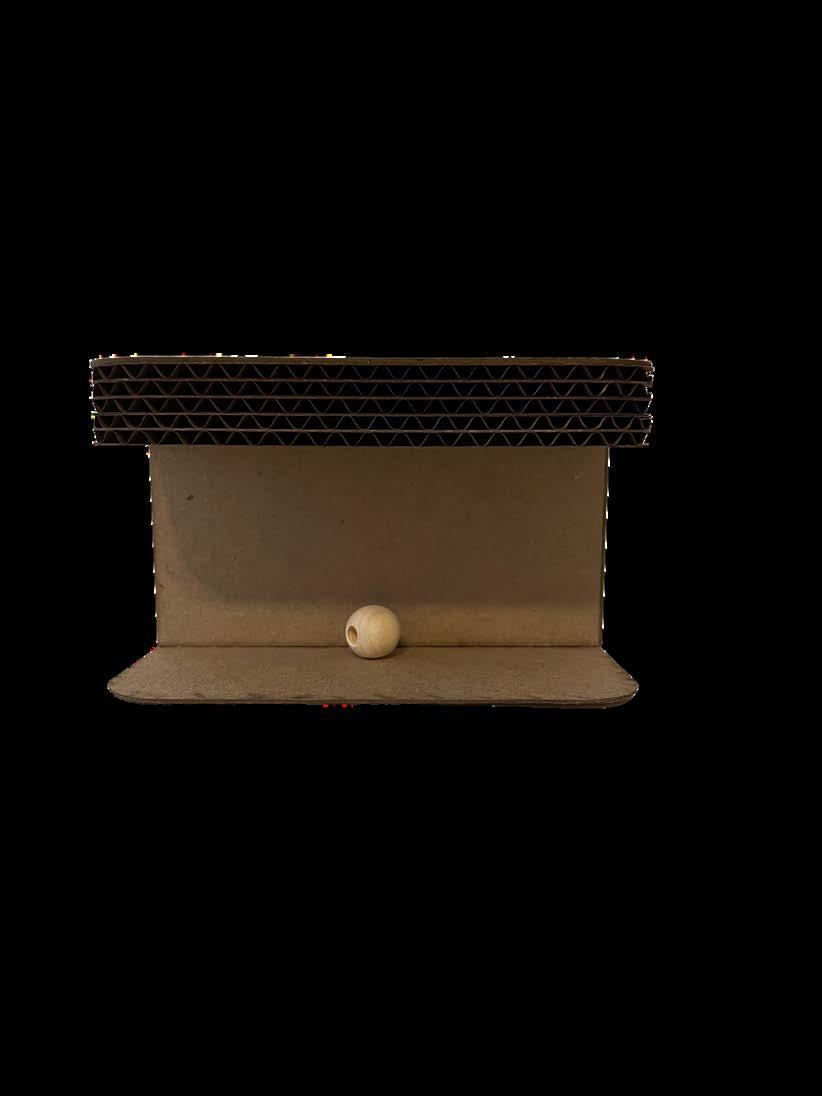

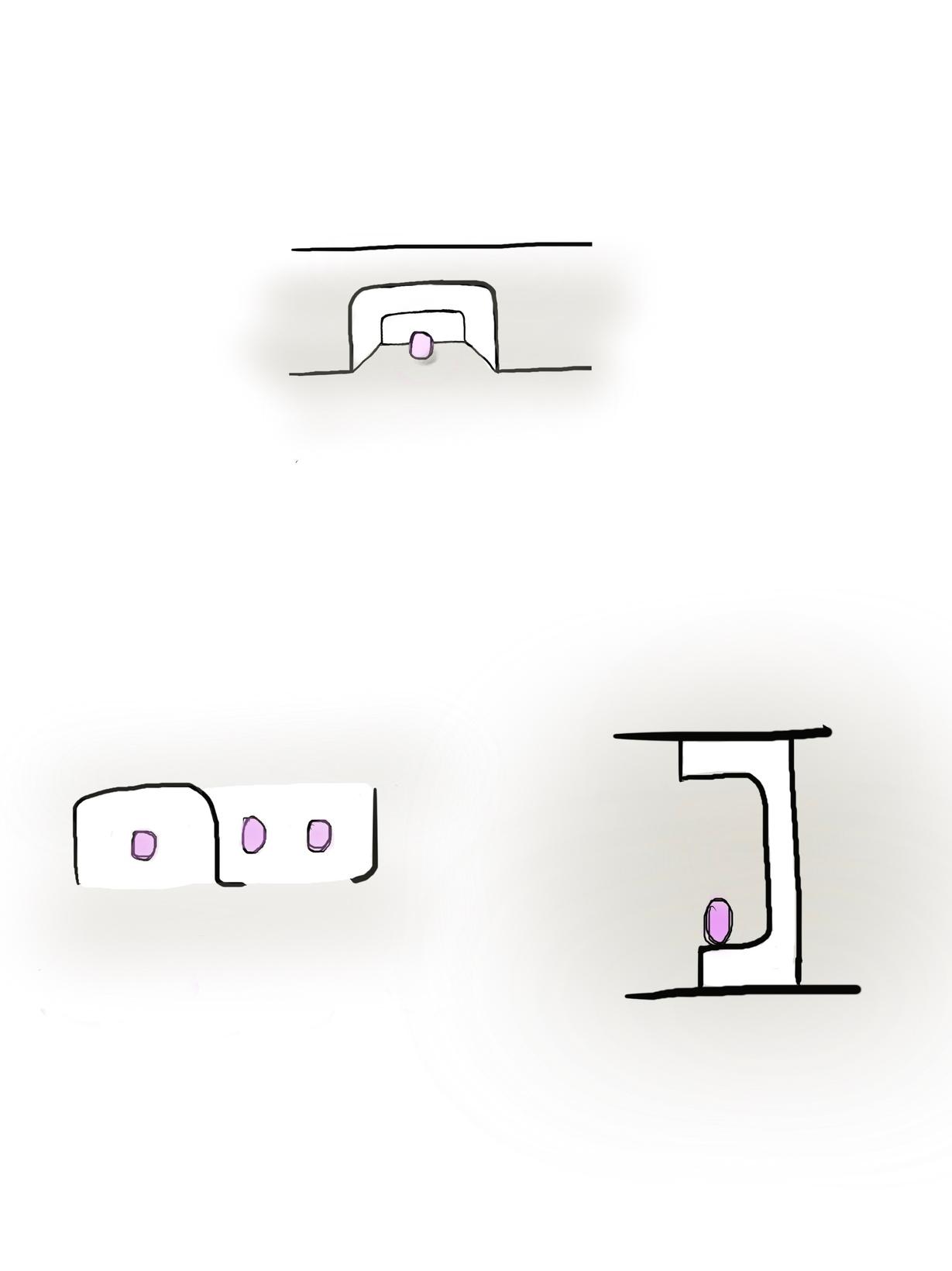

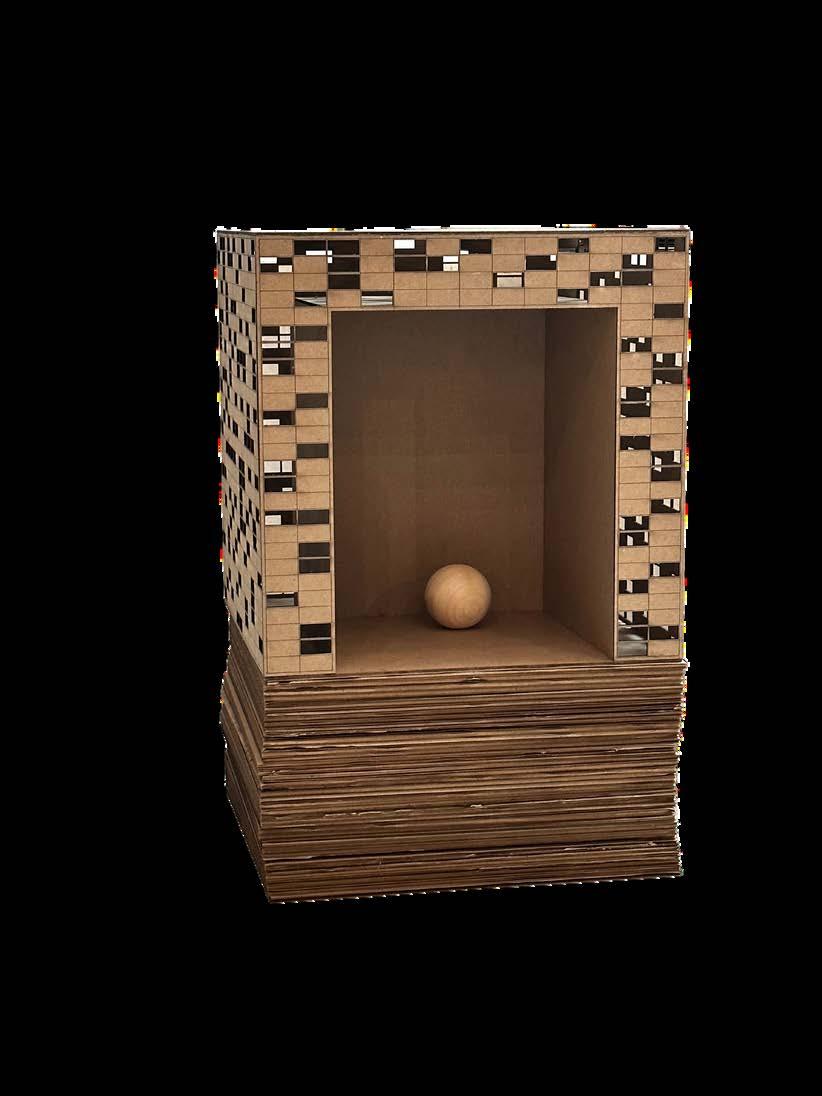

Plan Elevation Section NESTED ENCLAVES
FINAL CONCEPT DEVELOPMENT
PROTECTION THROUGH ENCLAVES
Architectural Photo Collage
CONCEPT
ENCLAVE
"aseparatespaceorgroupwithinalargerone"
Empathizedbyemotionaldistressandvulnerabilityofpatientsandtheir families,enclavespaceswillprovideasenseofprotectionandacontrol.
Enclaveswillalsoaccommodateusers'privacyandofferadiverserange ofspaceforitsusers.

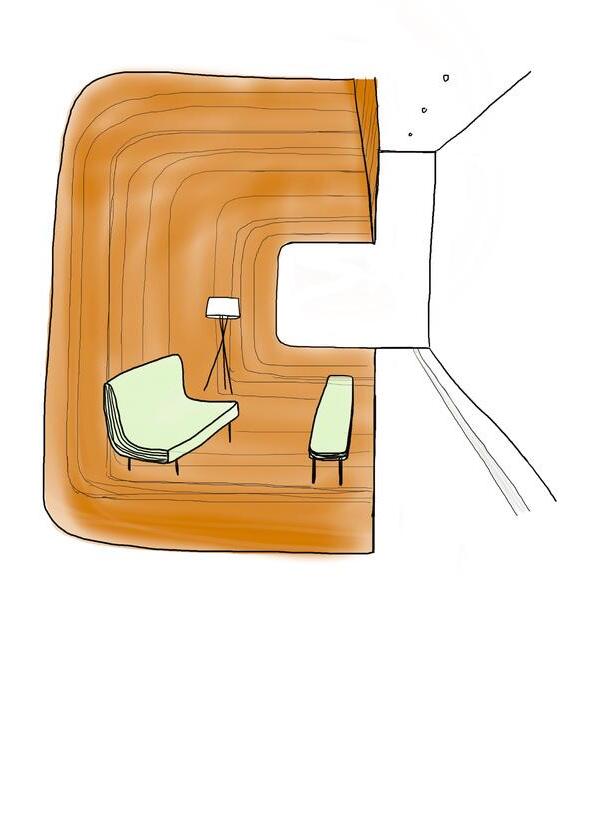

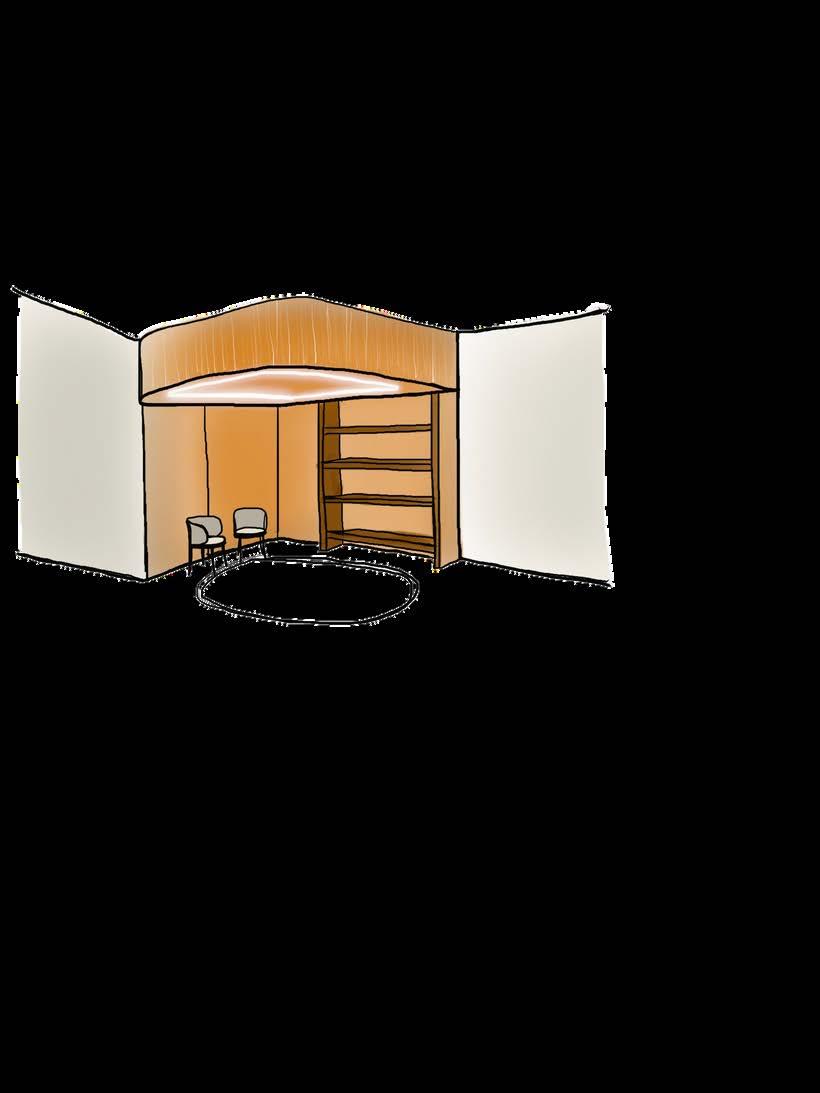

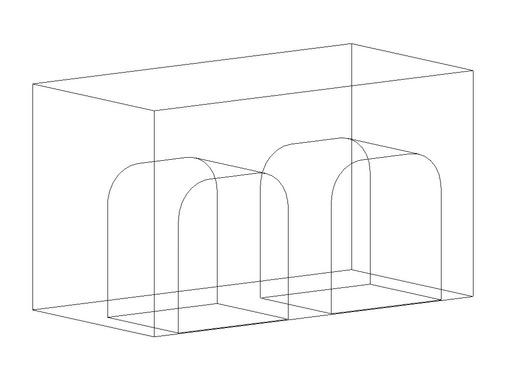

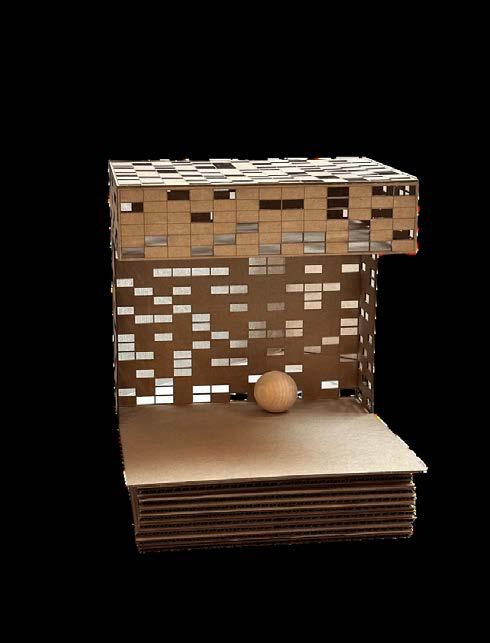

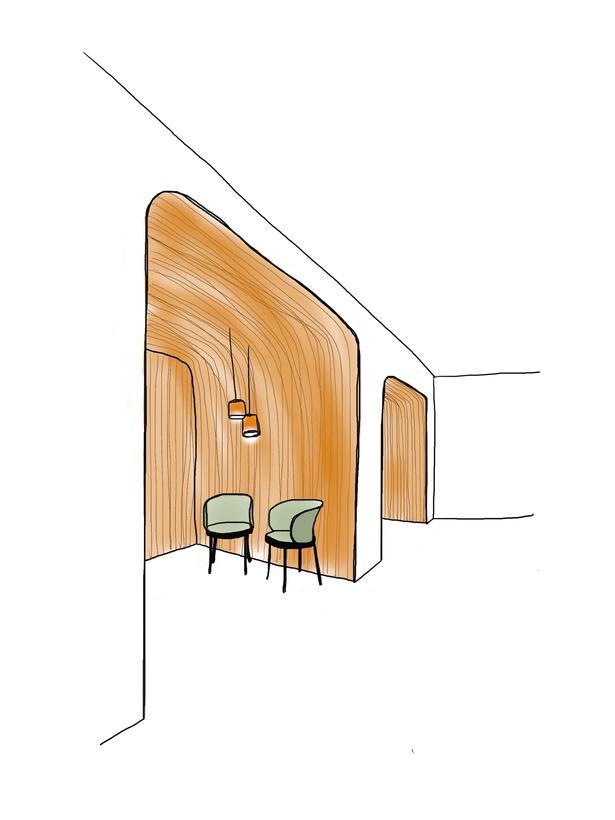

Corner Enclaves Corridor Enclaves (carved) Enclave with materials and ceiling

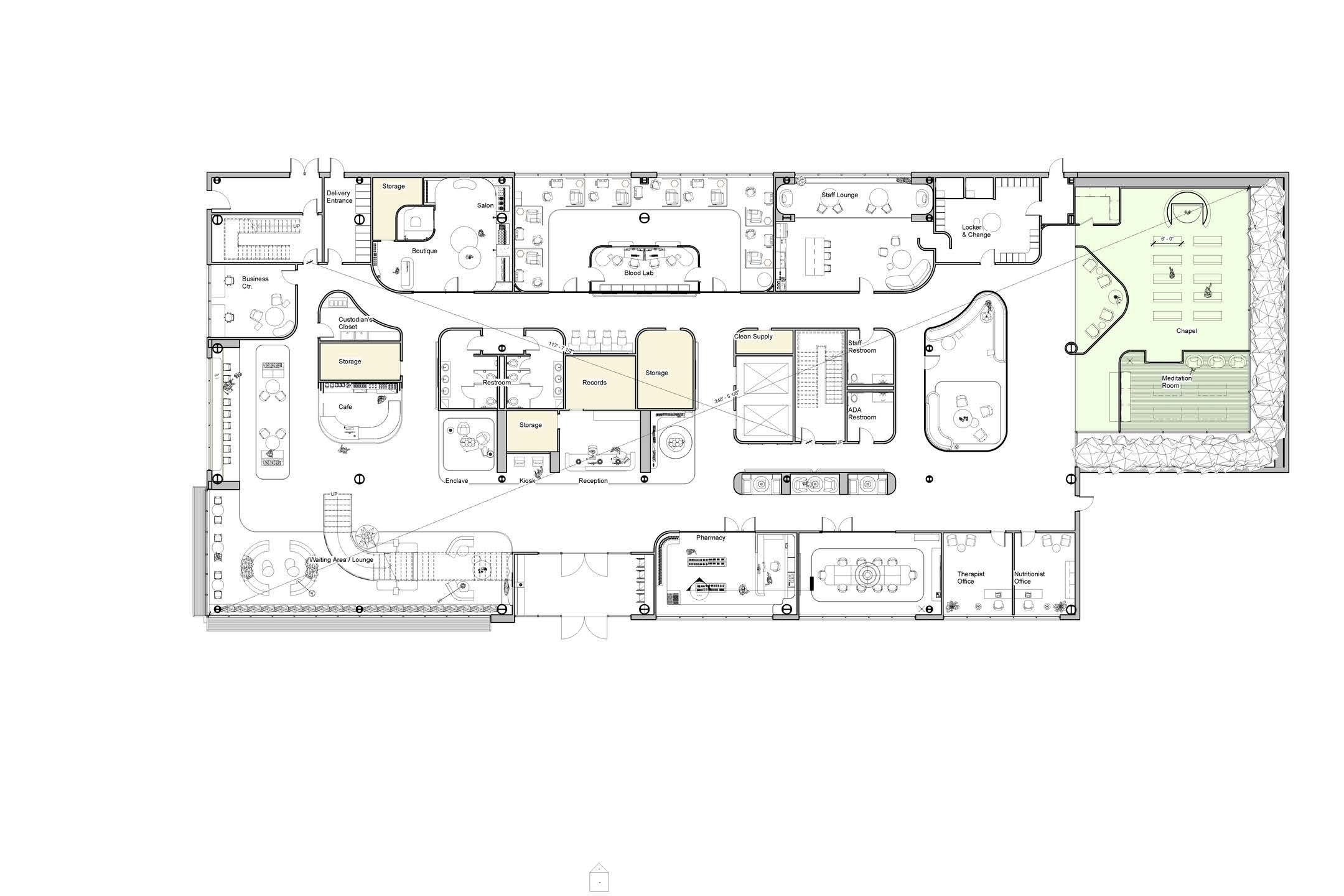

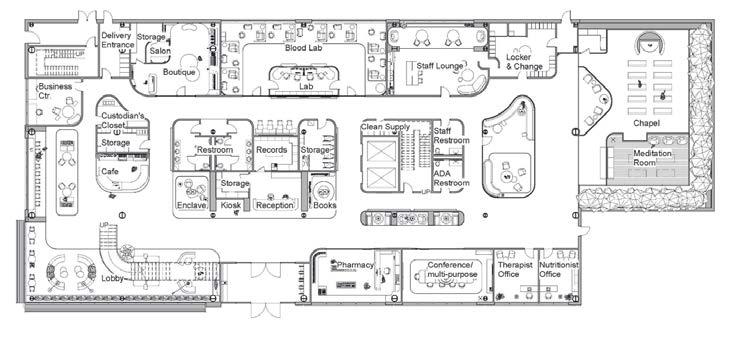

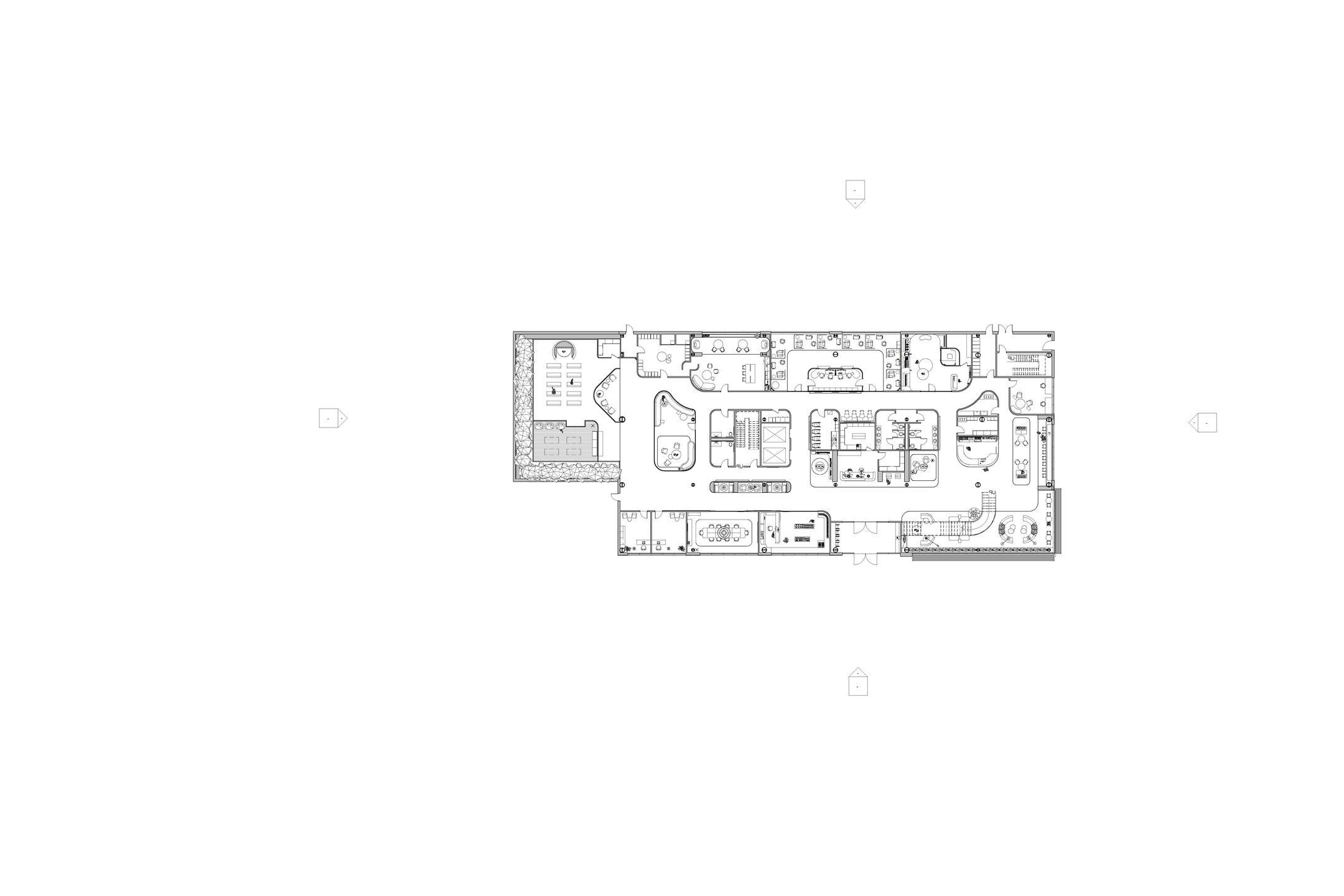

RENDERED FLOOR PLAN_Level 1
Level 1 KEY: 1 2 3 4 5 6 7 Lobby Cafe Seating Business Center Delivery Entrance Custodian's Closet Storage Cafe Corner Enclave Restrooms Boutique Self Check-in Reception Records Waiting Area Lab Blood Lab Storage Books Pharmacy Elevators Corridor Enclaves Conference ADA Restroom Staff Restroom Staff Lounge Locker Room Quiet Area Therapist Office Nutritionist Office Chapel Seating Chapel Storage Chapel Meditation 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 ENTRANCE 12 18 17 20 16 15 10 4 5 6 7 3 2 1 8 9 11 19 13 14 22 28 29 21 23 24 25 26 31 30 33 32 27 N 0 10 20 30

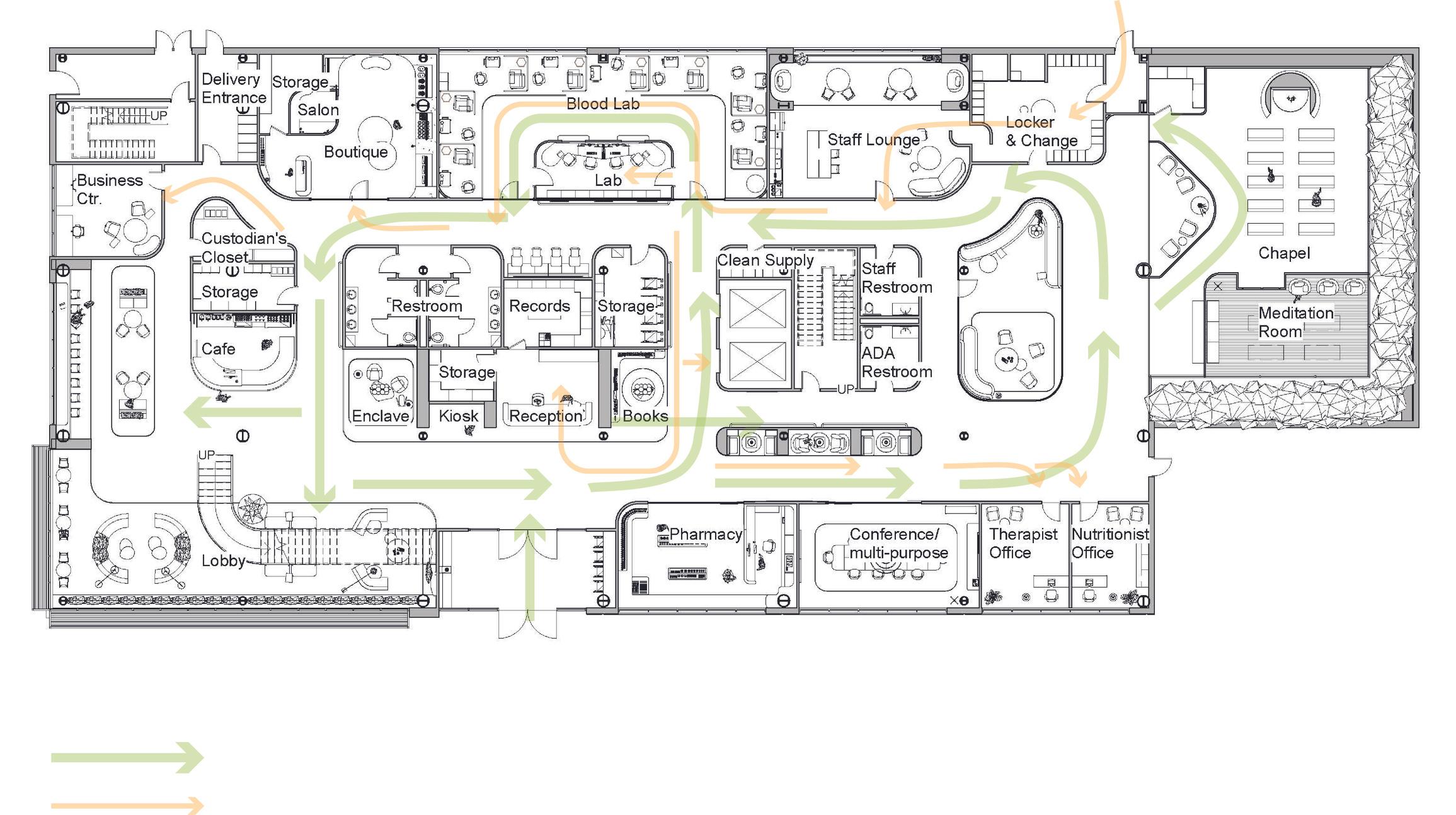

LEVEL 1 CIRCULATION
Patient Staff 0 10 20 30 50 FT N
N
0 10 20 30 50 FT

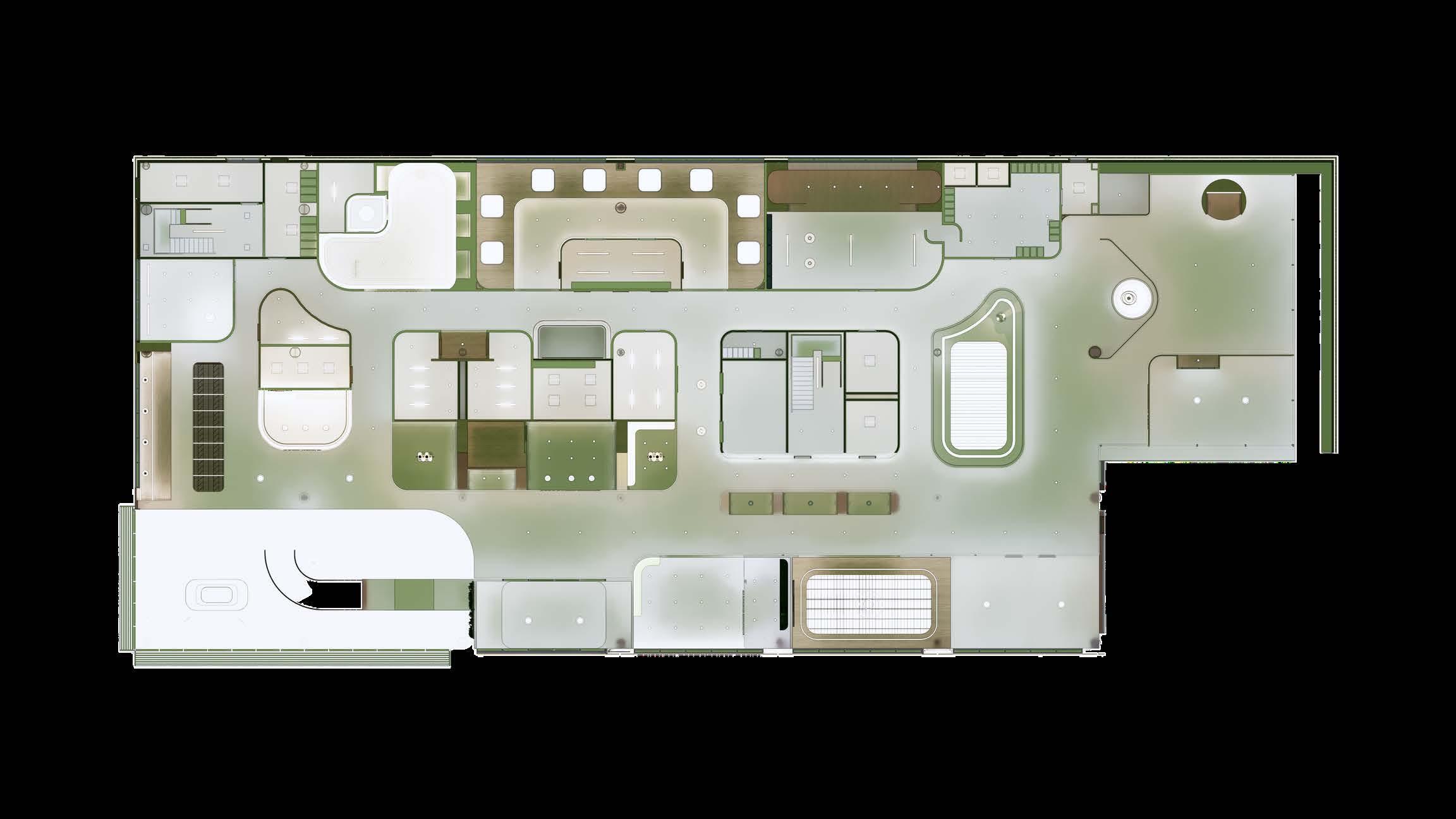

RCP_Level 1 Level 1 Reflective Ceiling Plan
MarsetIlluminacion Discoco Pendant

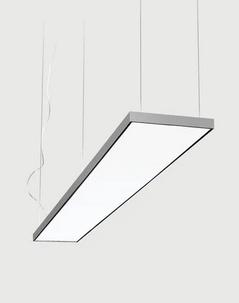

Lumenwerx RIM Multiple Pendant

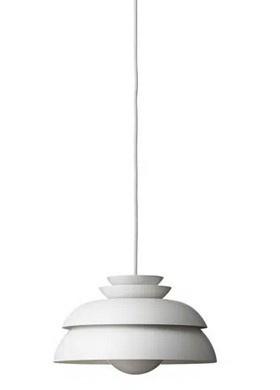

4"&6"RecessedLED FritzHansen Concert Pendant Moooi Valentine Pendant

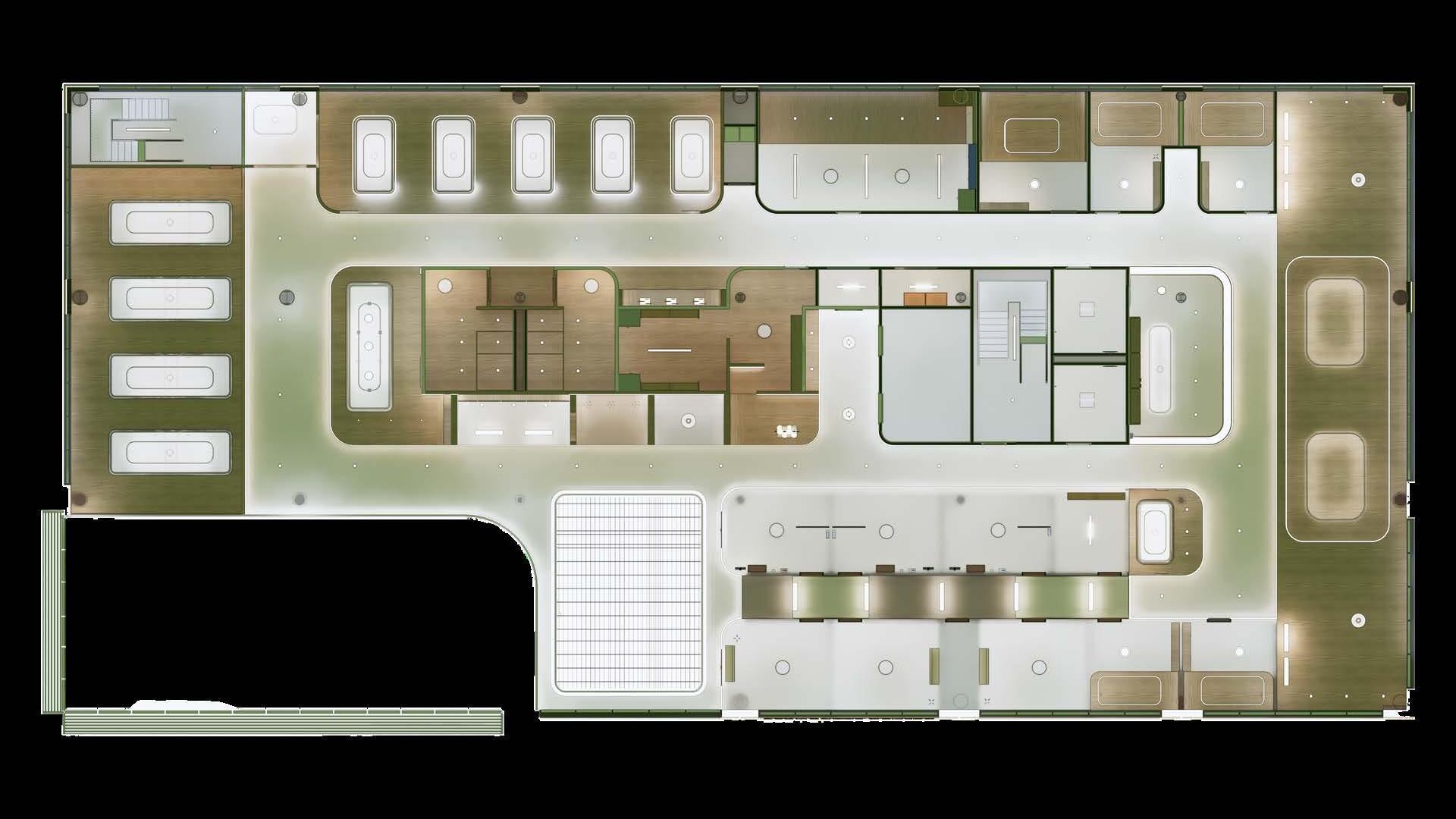

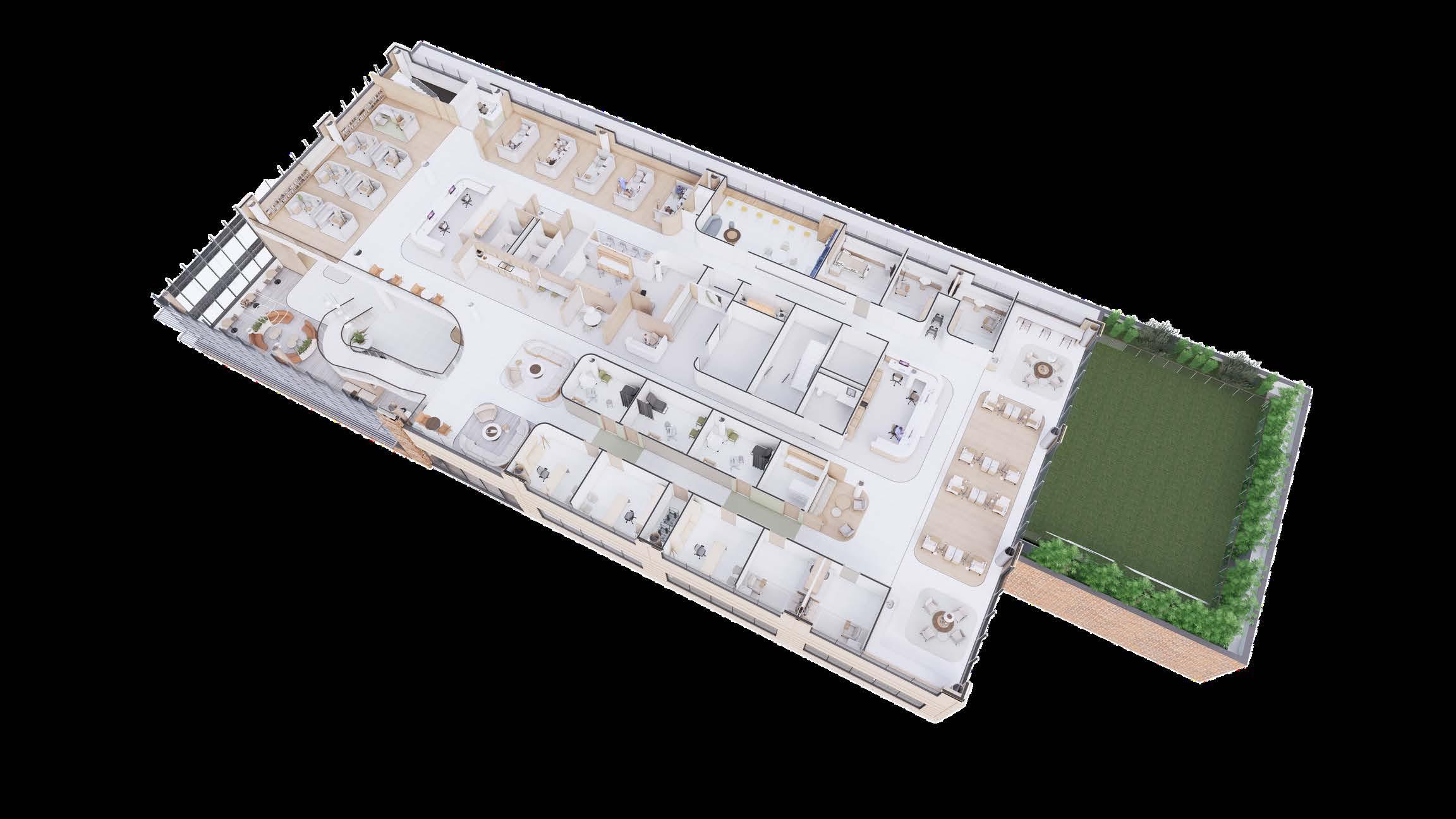

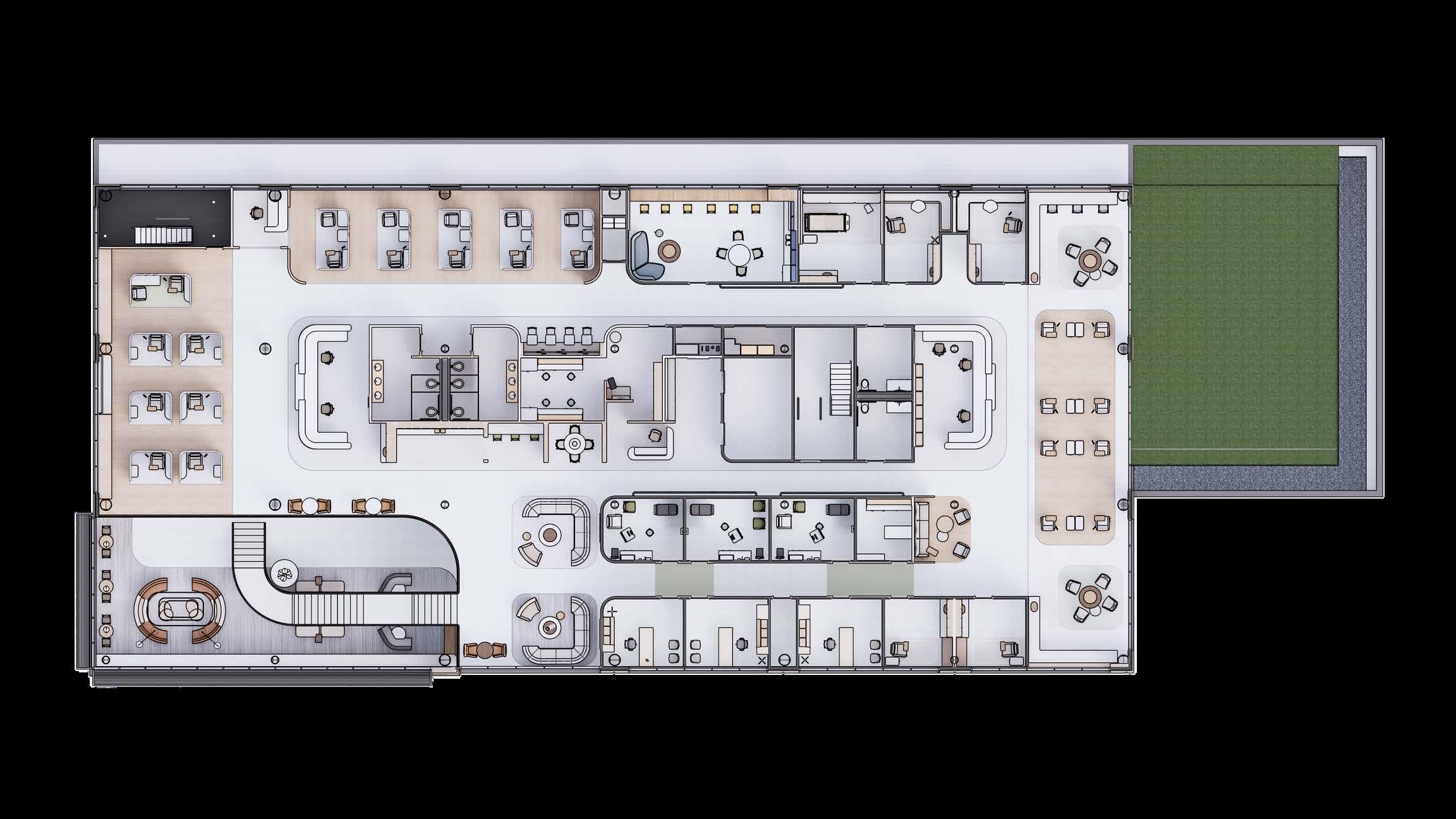

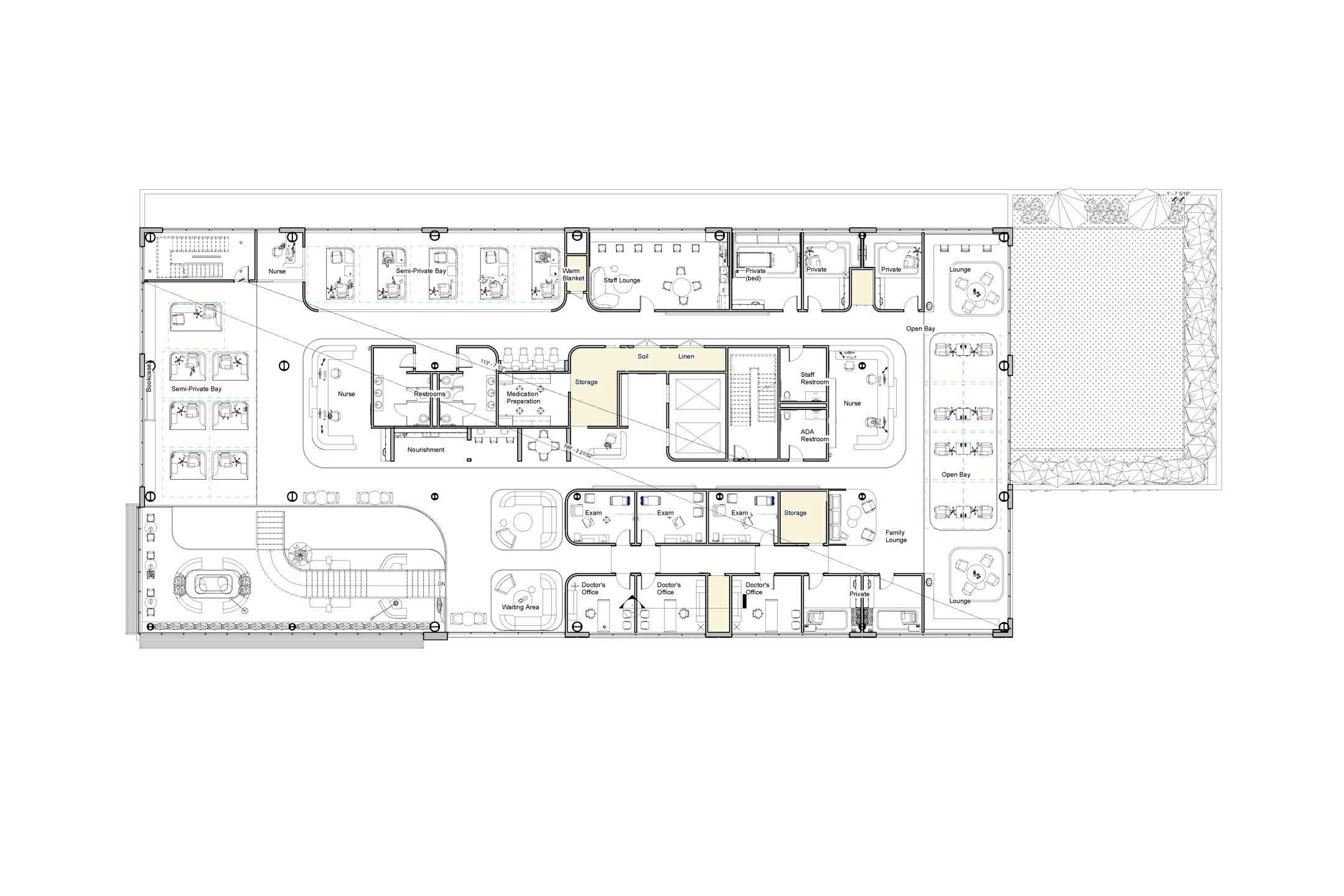

RENDERED FLOOR PLANS_Level 2
N
OPEN TO BELOW Level 2 KEY: 1 2 3 4 5 6 7 Semi-Private (Single) Library Hybrid Nurse Nurse Station Semi-Private Restrooms Nourishment Bar seating Table seating Medication Prep. Enclave Seatings Medical Storage Reception Waiting Area Exam Room Doctor's Office Elevator Lobby Soil Linen Staff Lounge Infusion (Bed) Infusion (Lounge) Wheelchair Parking Staff Restroom ADA Restroom Storage ADA Infusion Family Lounge Hand wash & Lounge Open Bay Infusion Green Roof 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 17 1 2 4 6 10 12 13 9 8 7 5 3 14 15 15 15 16 16 16 26 28 27 27 29 30 31 3 24 25 29 22 22 23 21 20 11 18 19 0 10 20 30
Patient 80 120 100 CLEAR FLOOR SPACE (FT) Open Bay Semi-Private_Small FGI Required: 70SF FGI Required: 80 FGI Required: 80 Semi-Private_Large Staff 0 10 20 30 50 FT N

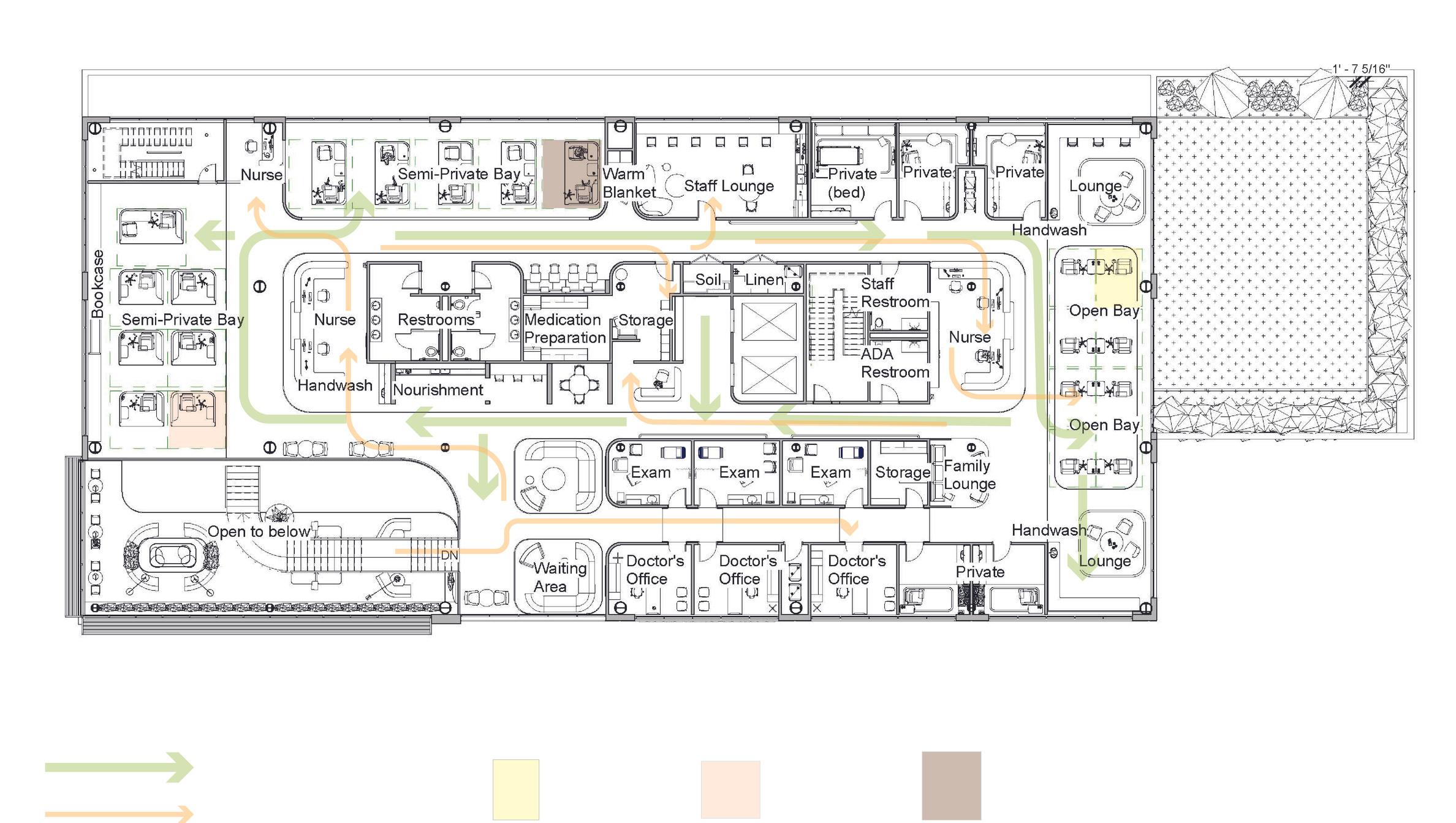

LEVEL 2 CIRCULATION
RCP_Level 2
OPEN TO BELOW
0 10 20 30 50 FT
Level 2 Reflective Ceiling Plan
Lumenwerx RIM Rounded Pendant
FaroBarceelona LED Ceiling Lamp
FritzHansen Concert Pendant FritzHansen Concert Pendant
4"&6"RecessedLED
Bulbsquare Modern Atom Mickey Head Bubble Glass Ball
1

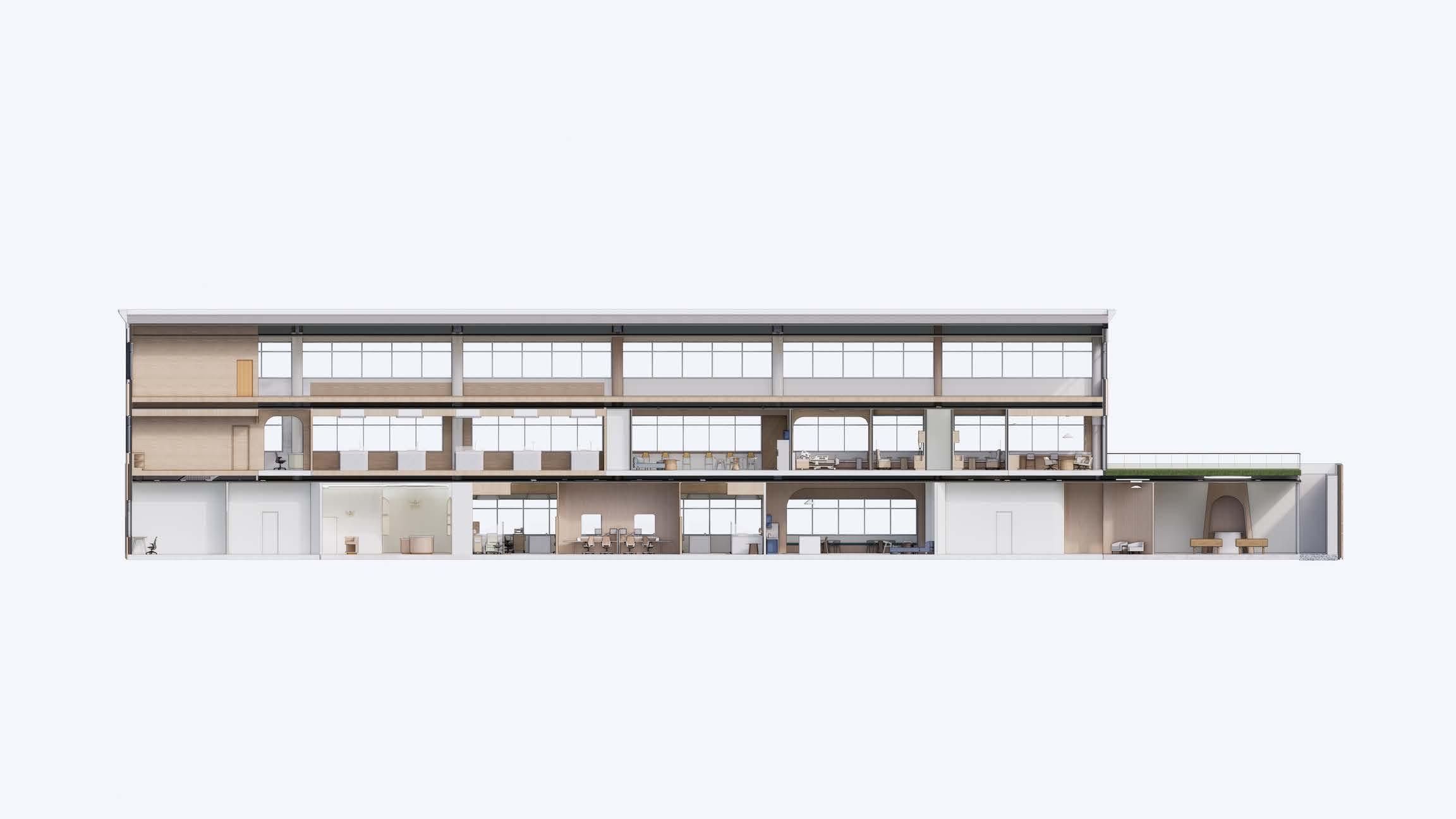

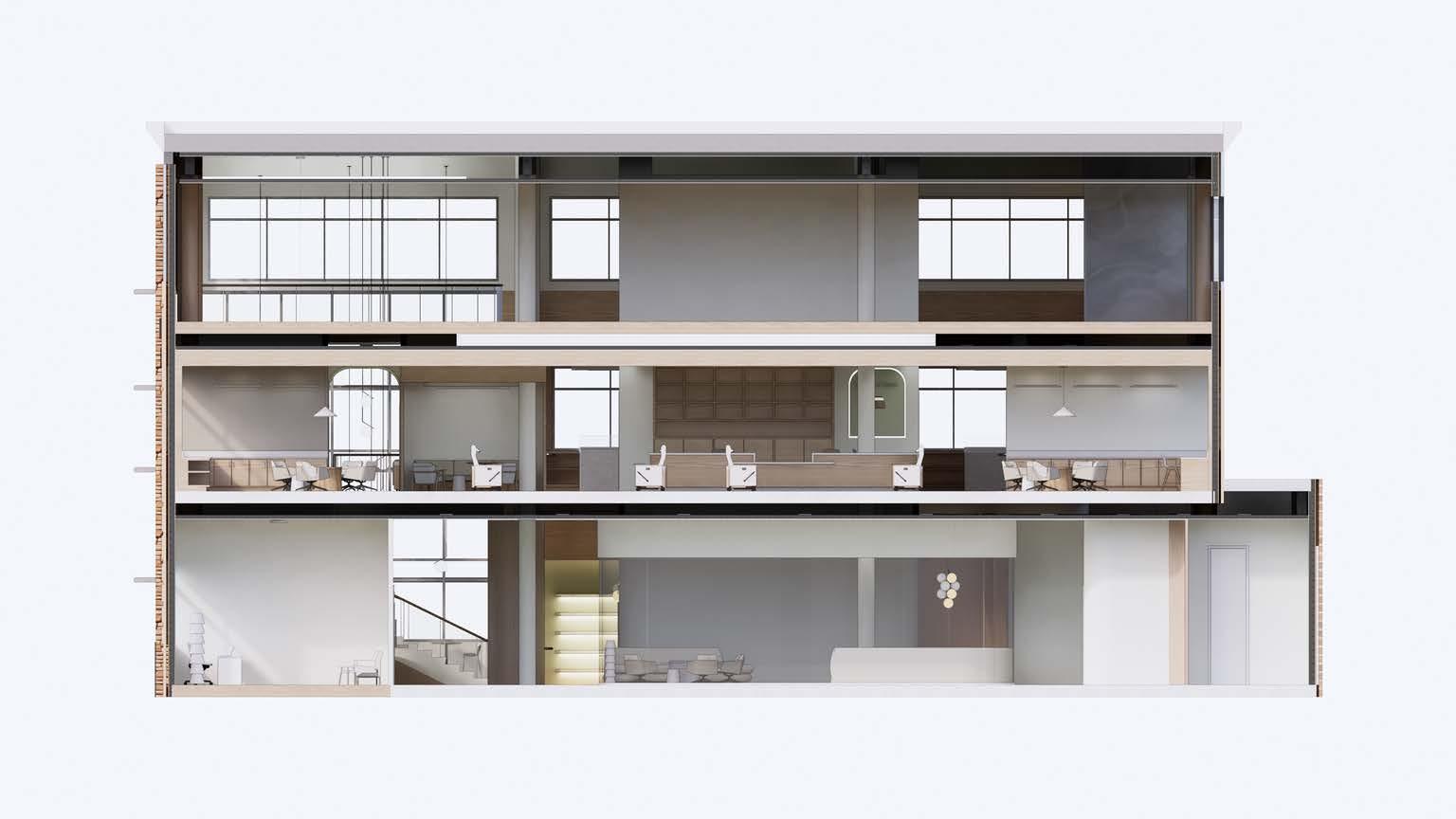

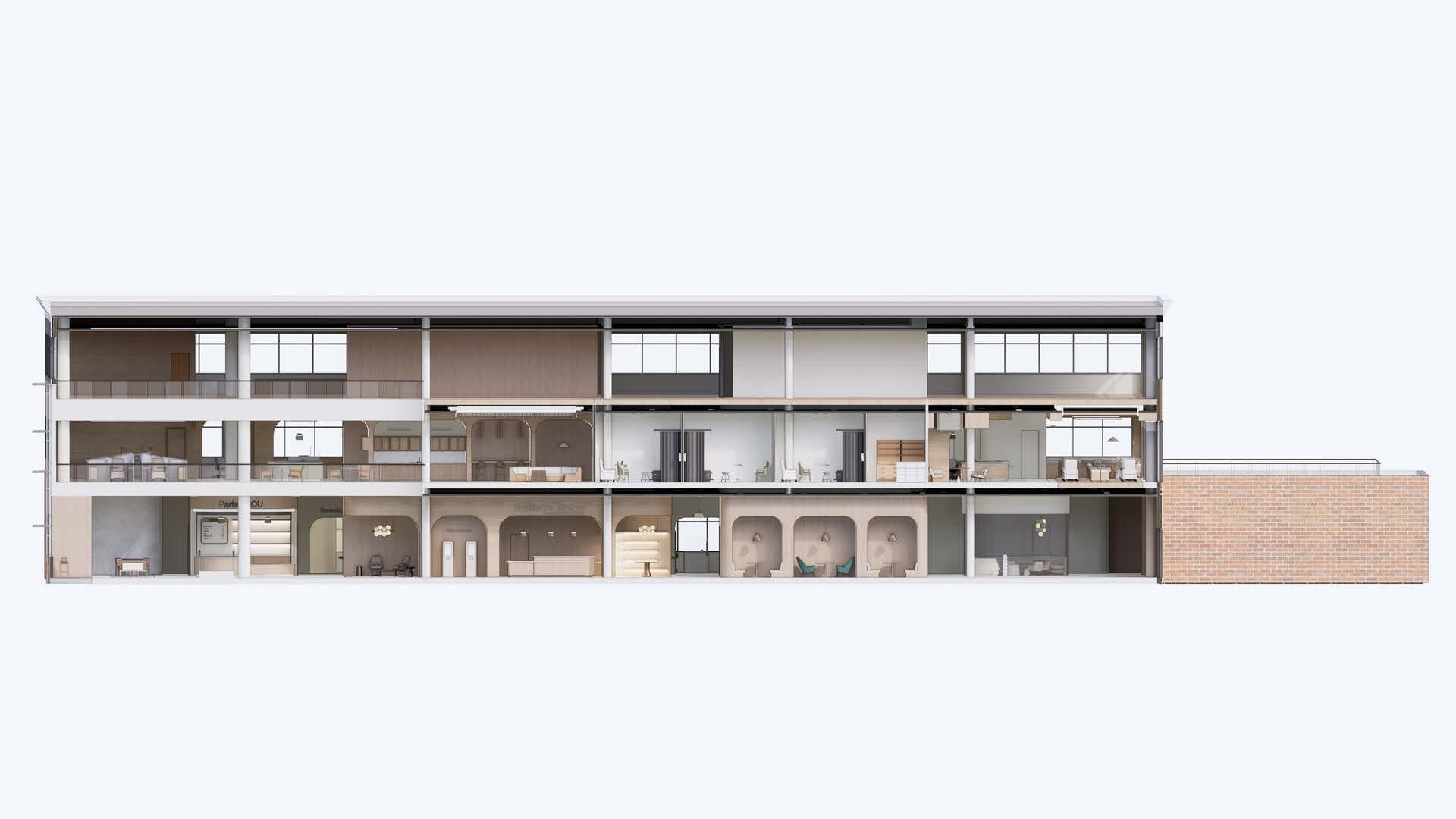

1 Long Section (Main corridor Enclaves
2 SECTIONS 3
2 Long Section (Lab & Infusion Areas)

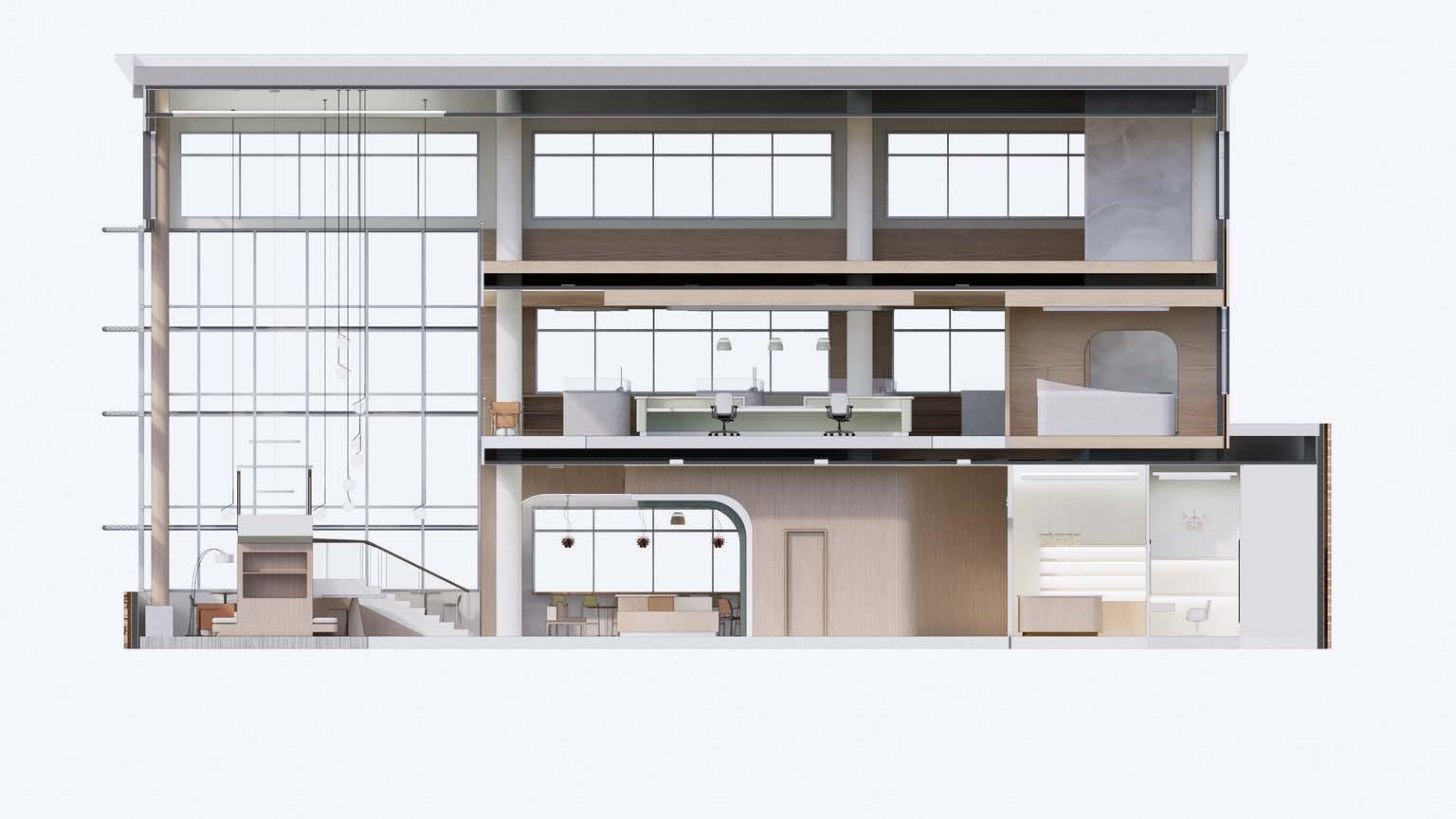

SECTIONS
2 Short Section (Curtain Wall & Cafe)

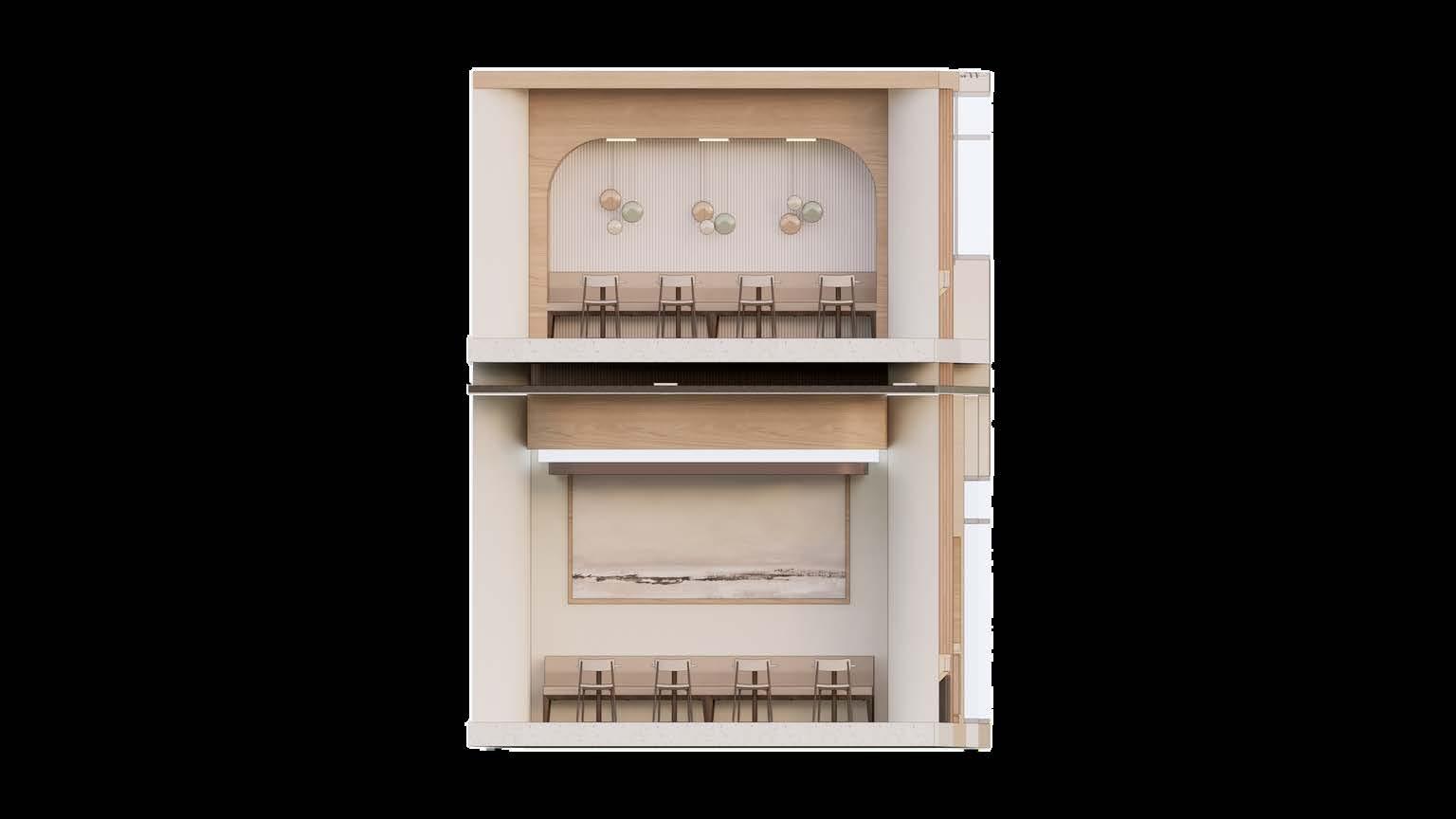

1 Section Callout (1 Fl & 2Fl Waiting enclaves)
3 2

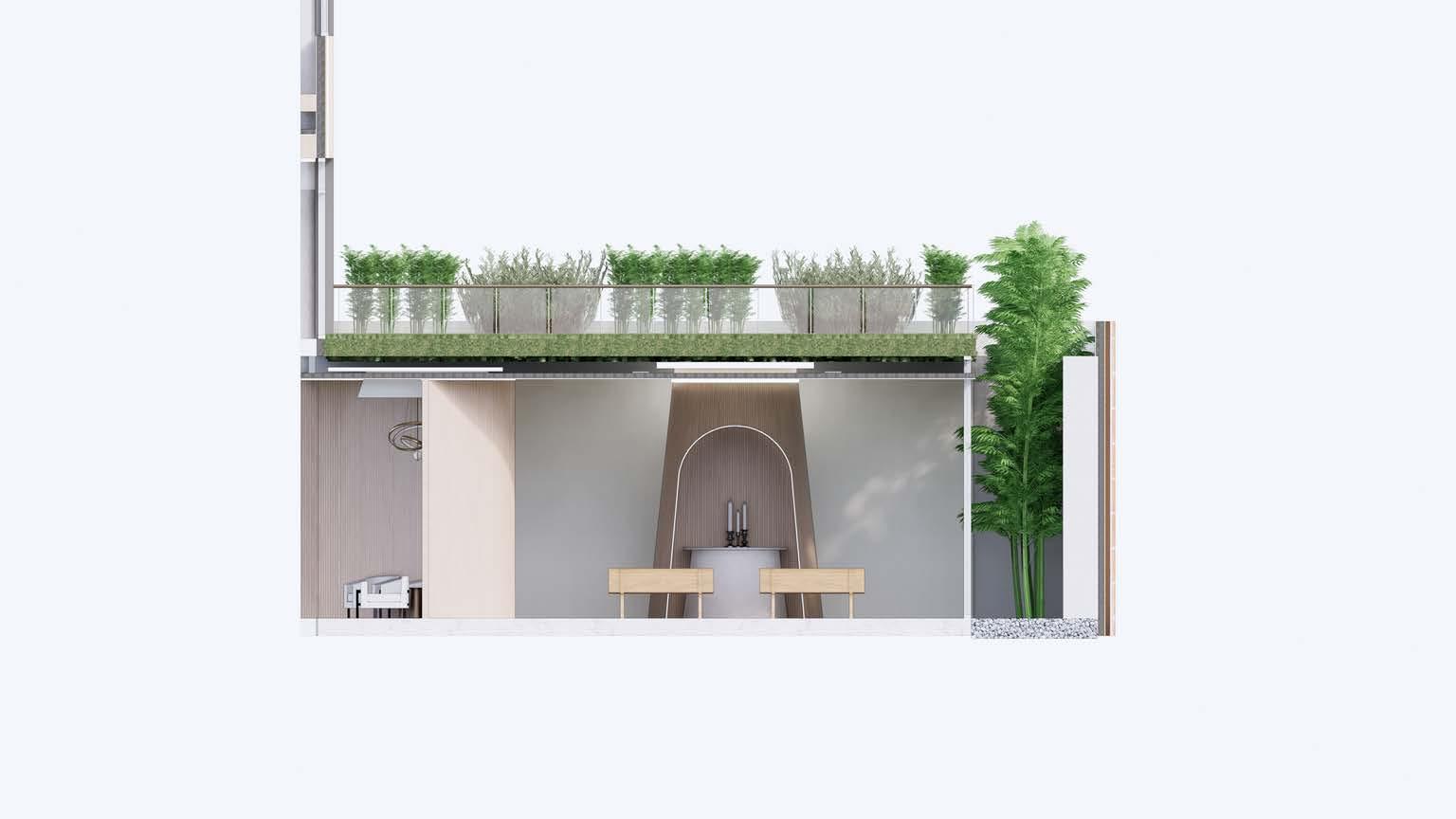

3 Short Section (Quiet Space & Nurse Station)
ENTRANCE
RENDERED PERSPECTIVE (Patient Journey)

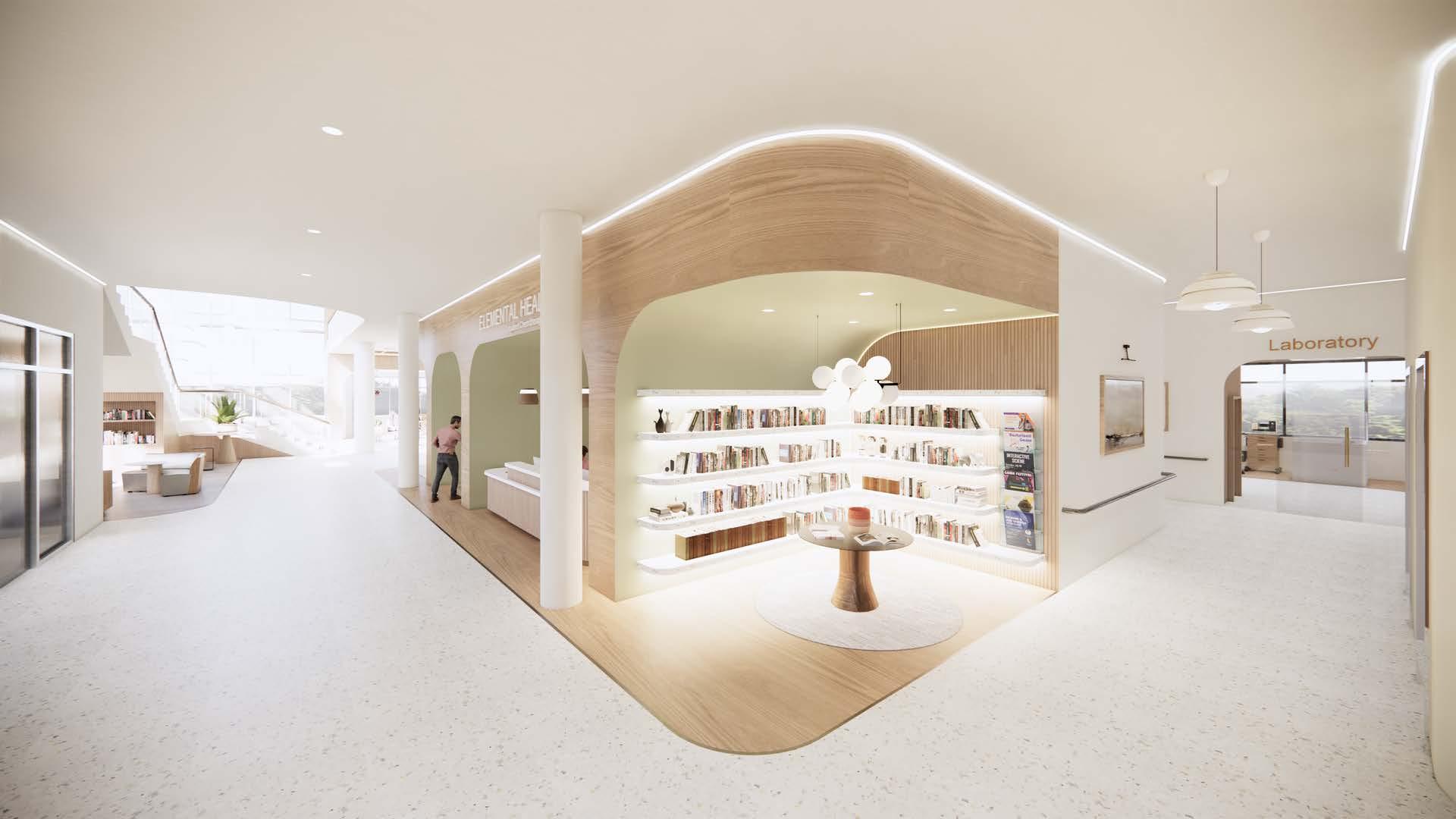

GRAB - A - BOOK *Positive Distraction
AXON_Blood Lab
Entrance Exit

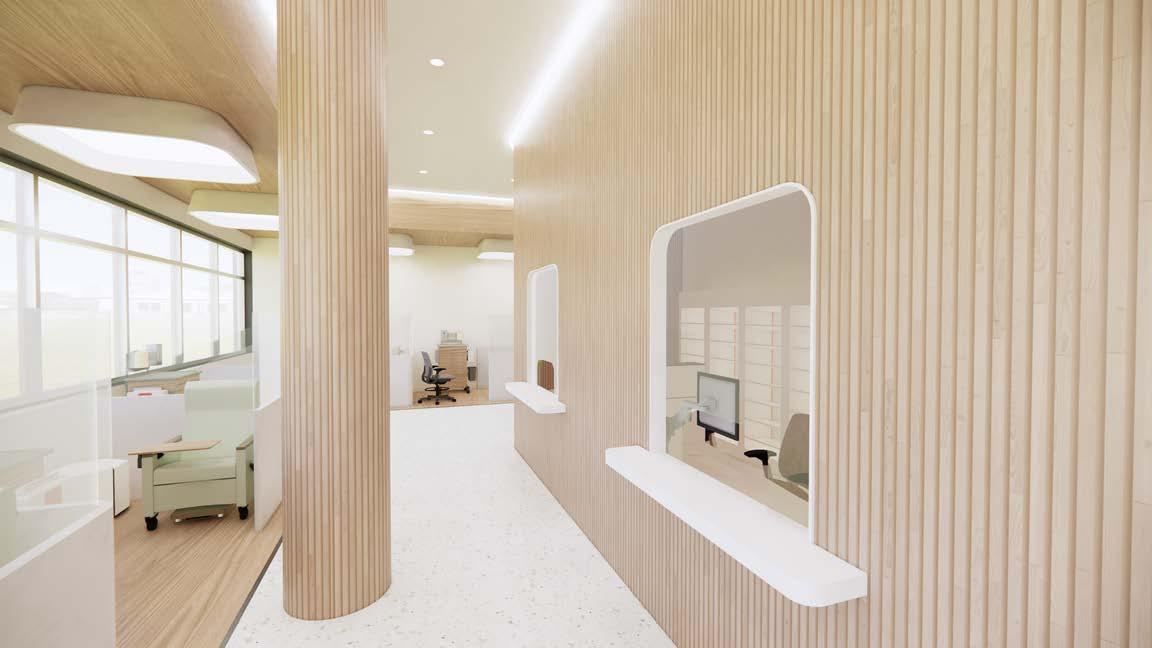

BLOOD LAB
One-way circulation

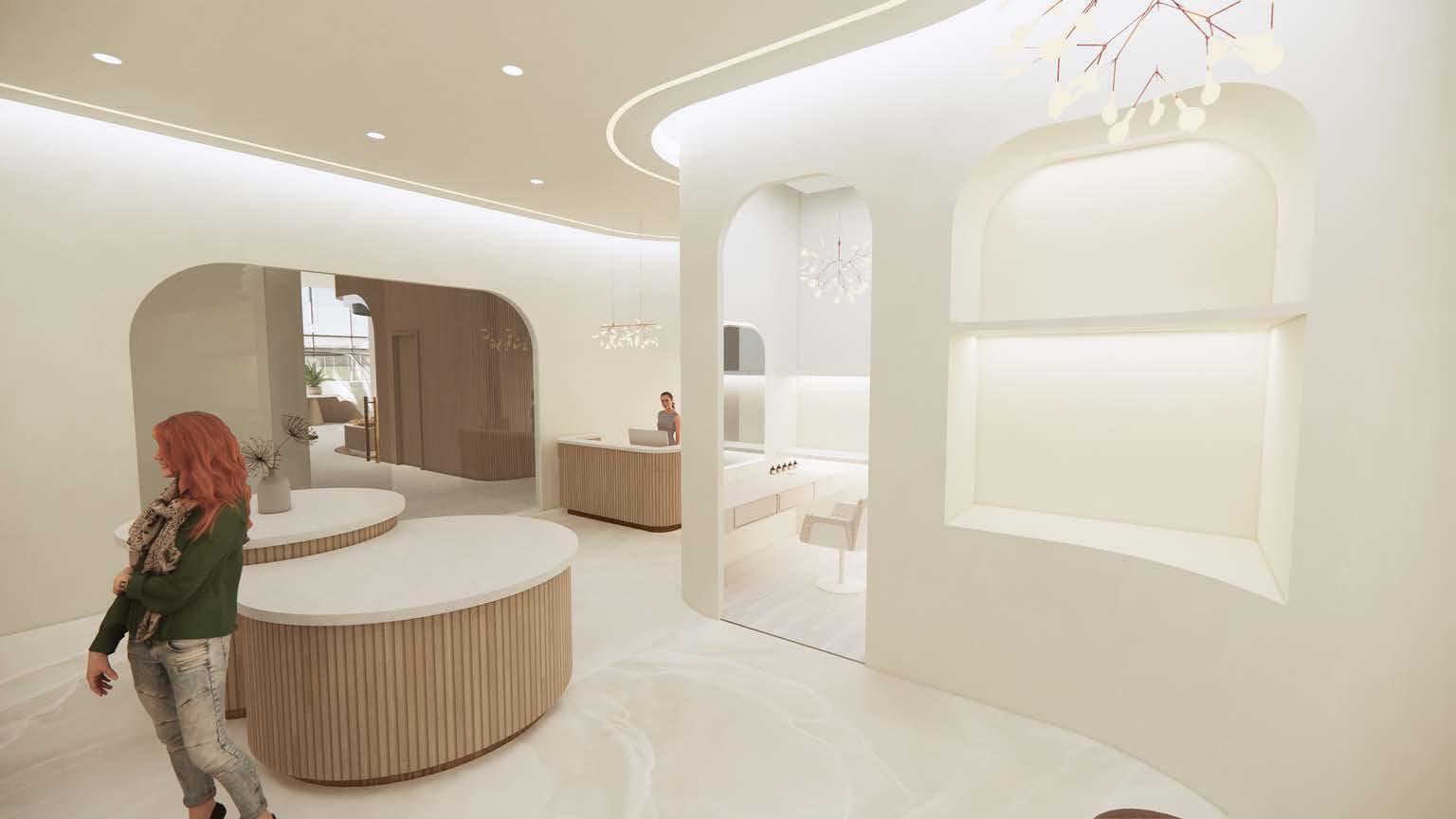

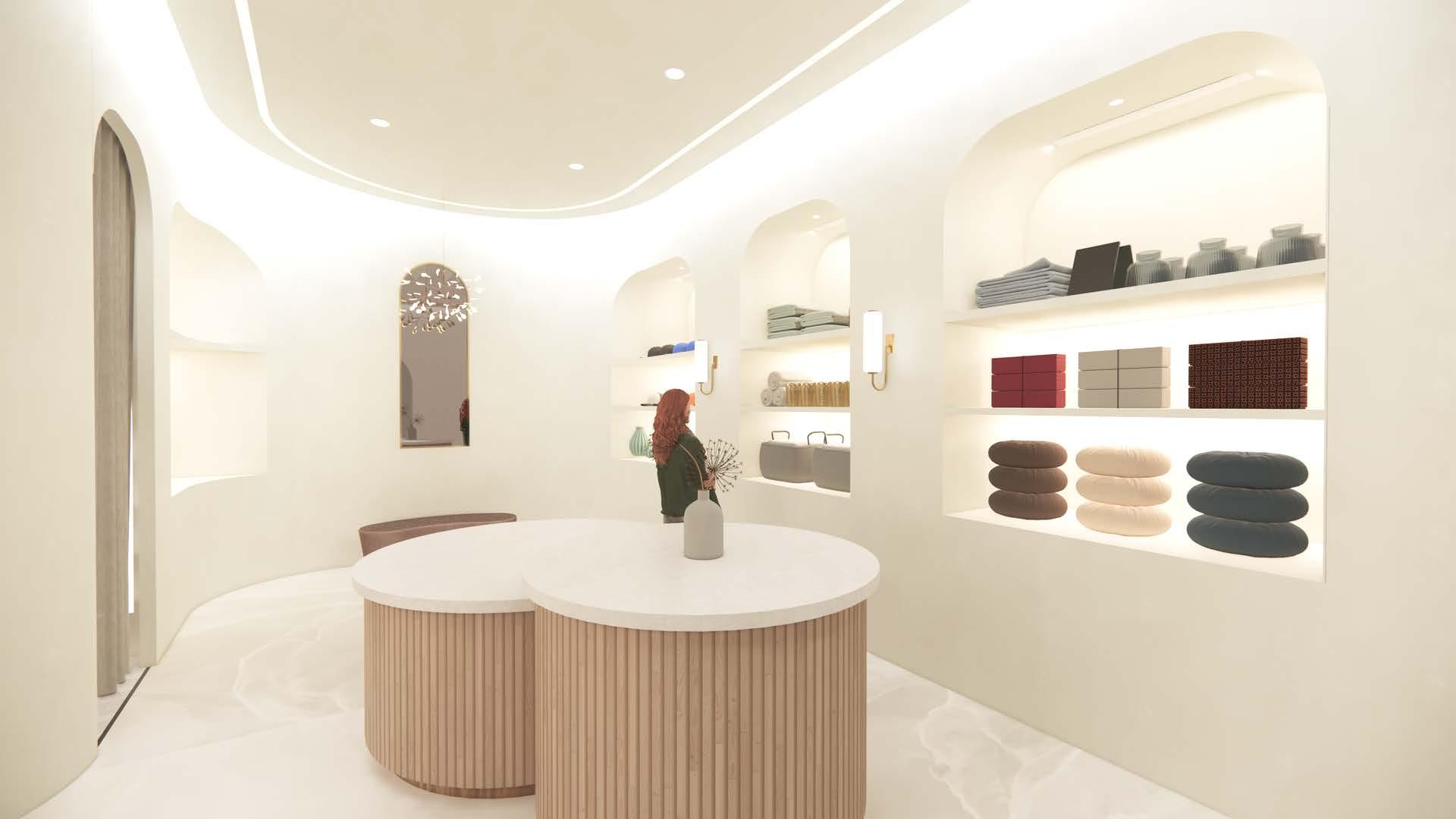

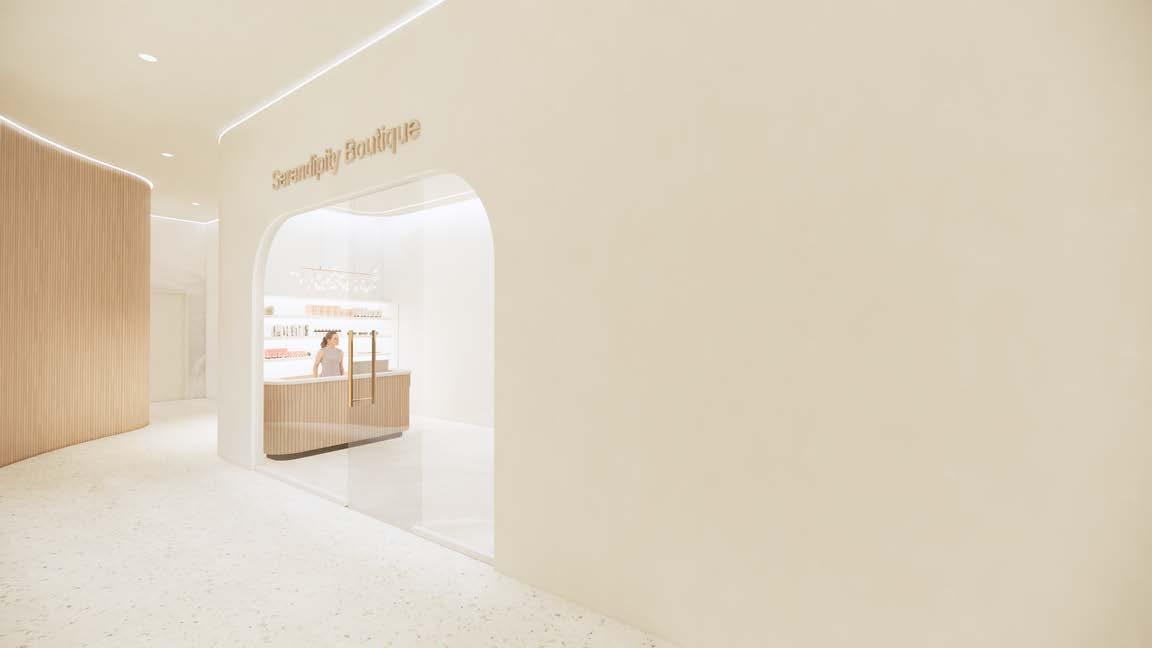

SERENDIPITY BOUTIQUE
*Positive Distraction
Boutique Entrance Try-on Room

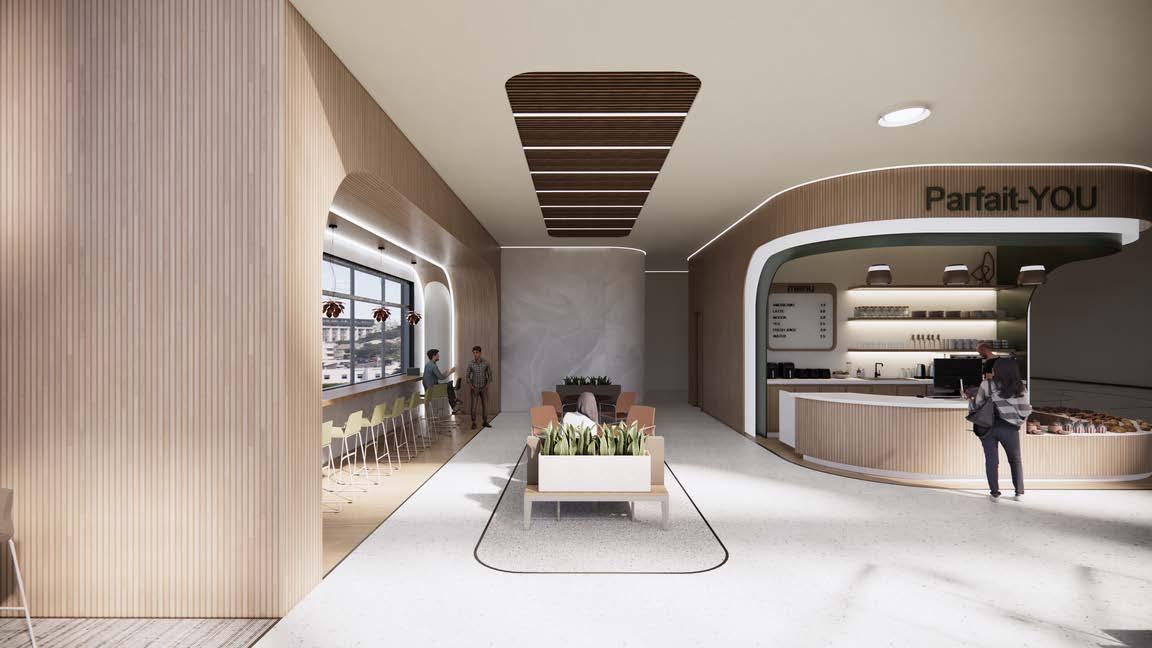

View to Parfait-You Cafe

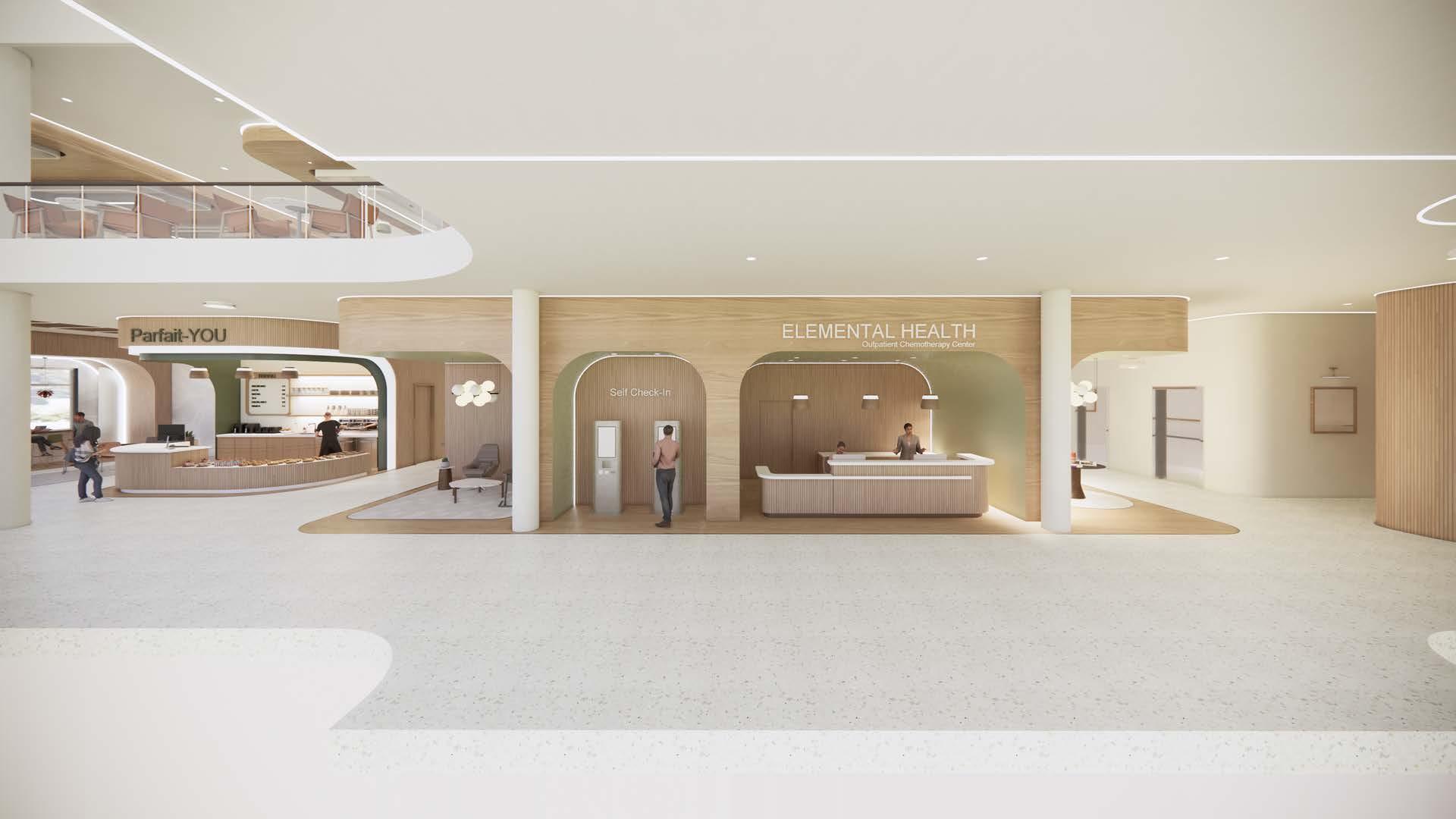

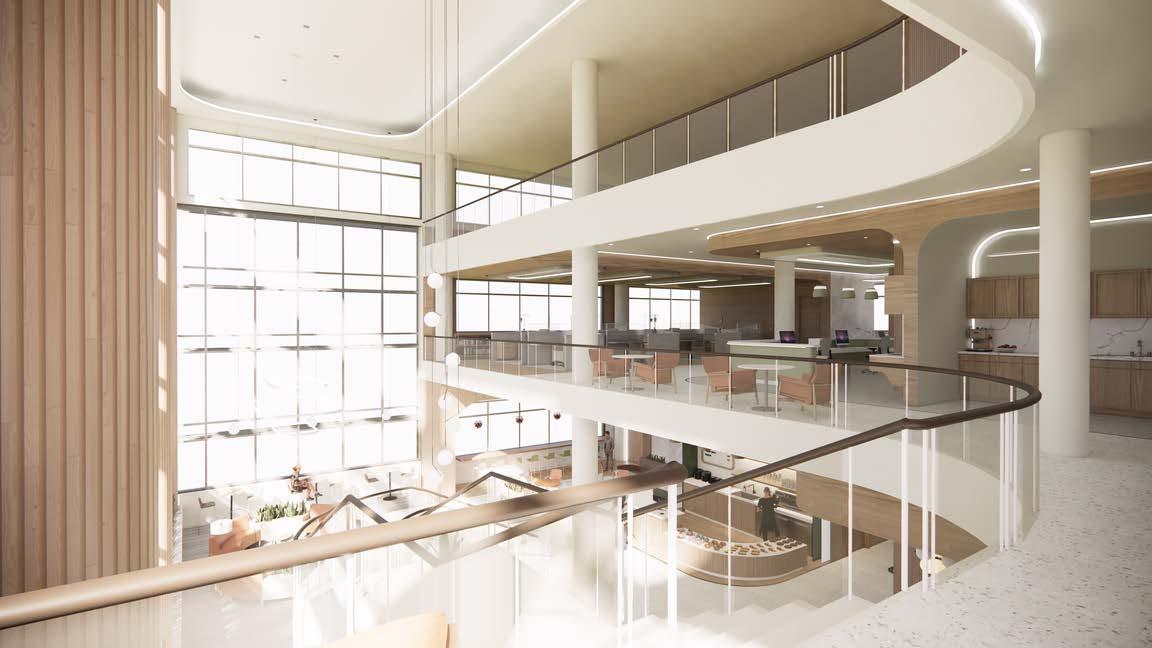

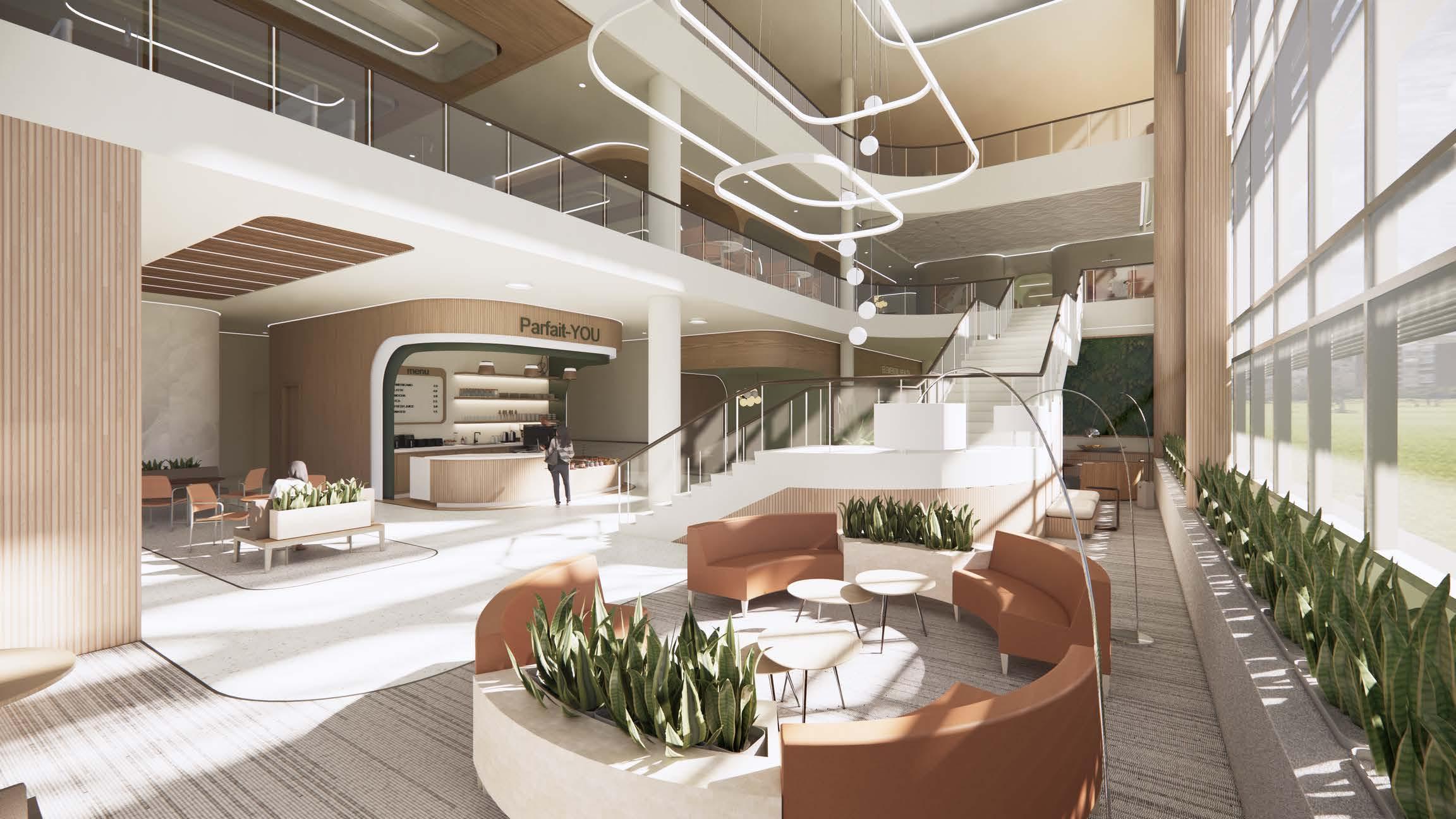

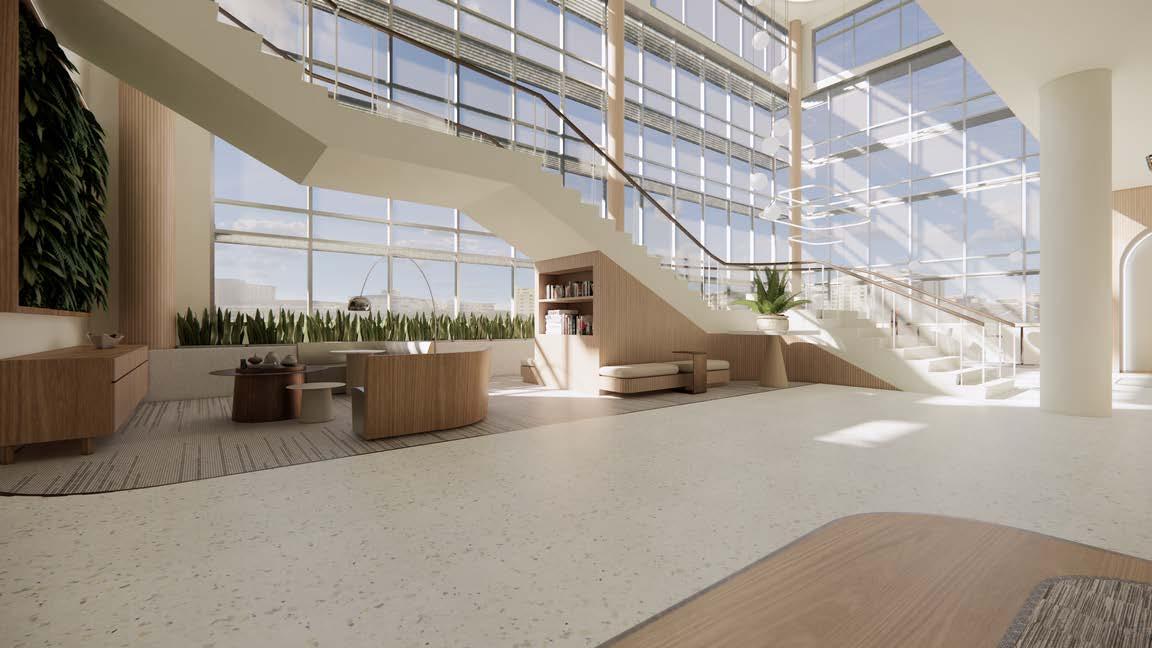

LOBBY

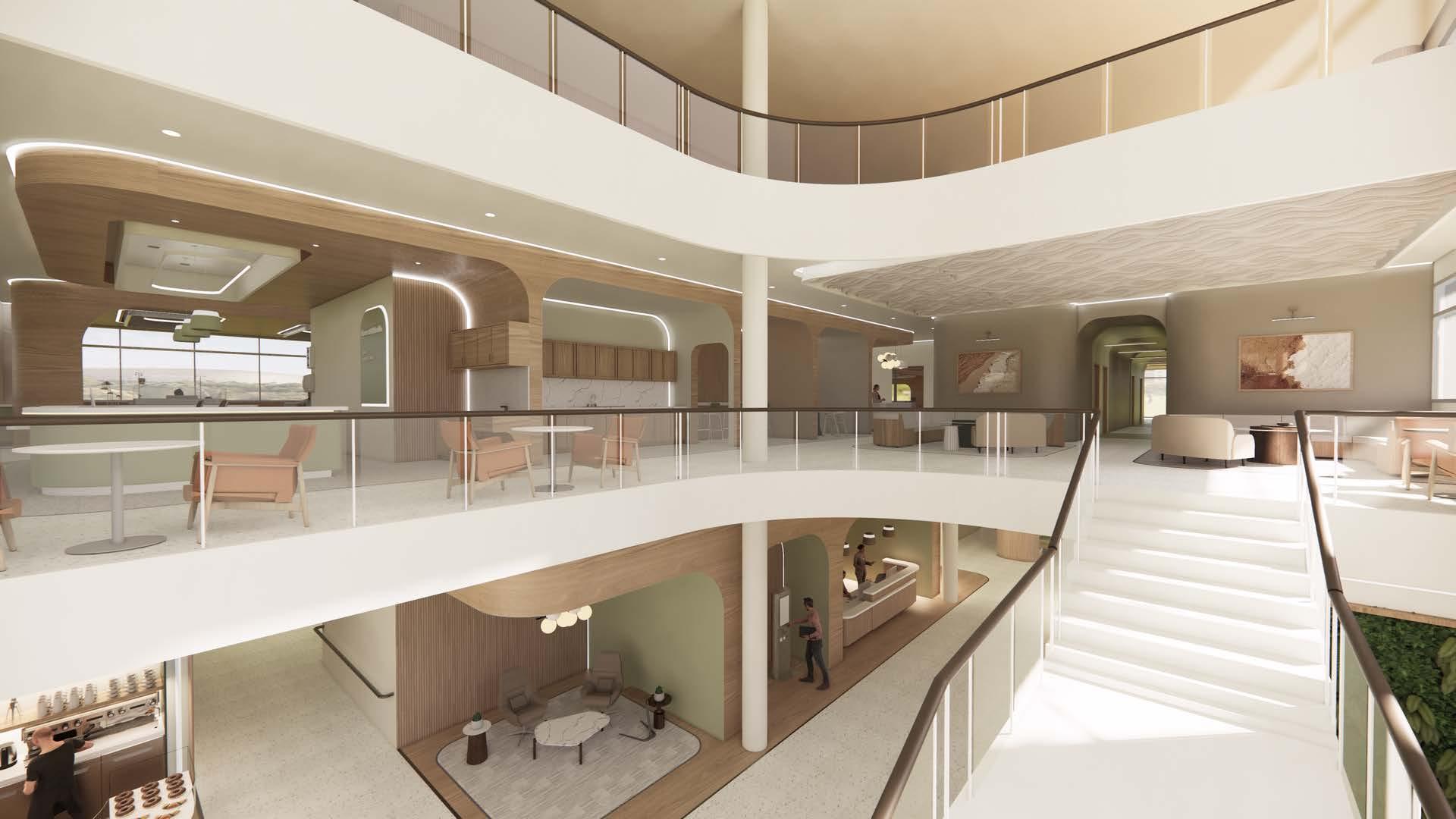

*Bird's Eye View to see the space as a whole
LOBBY

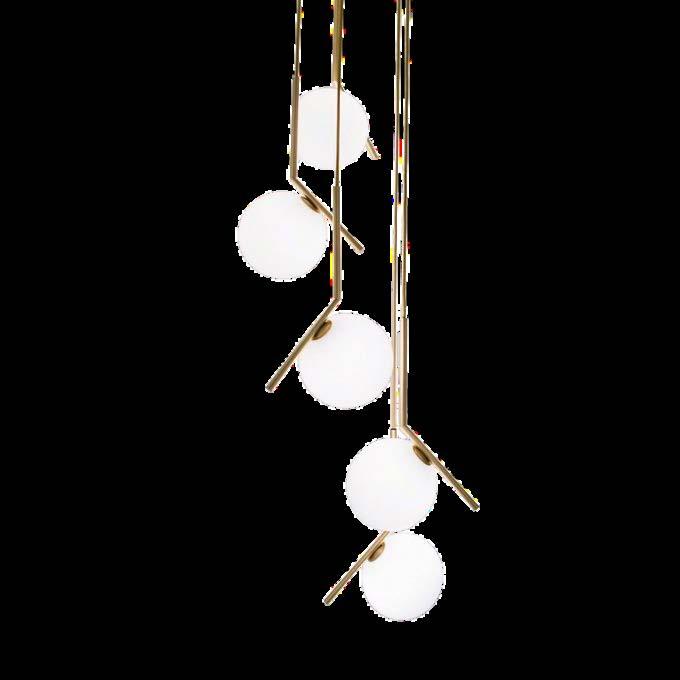

Flos
IC Pendant Lights

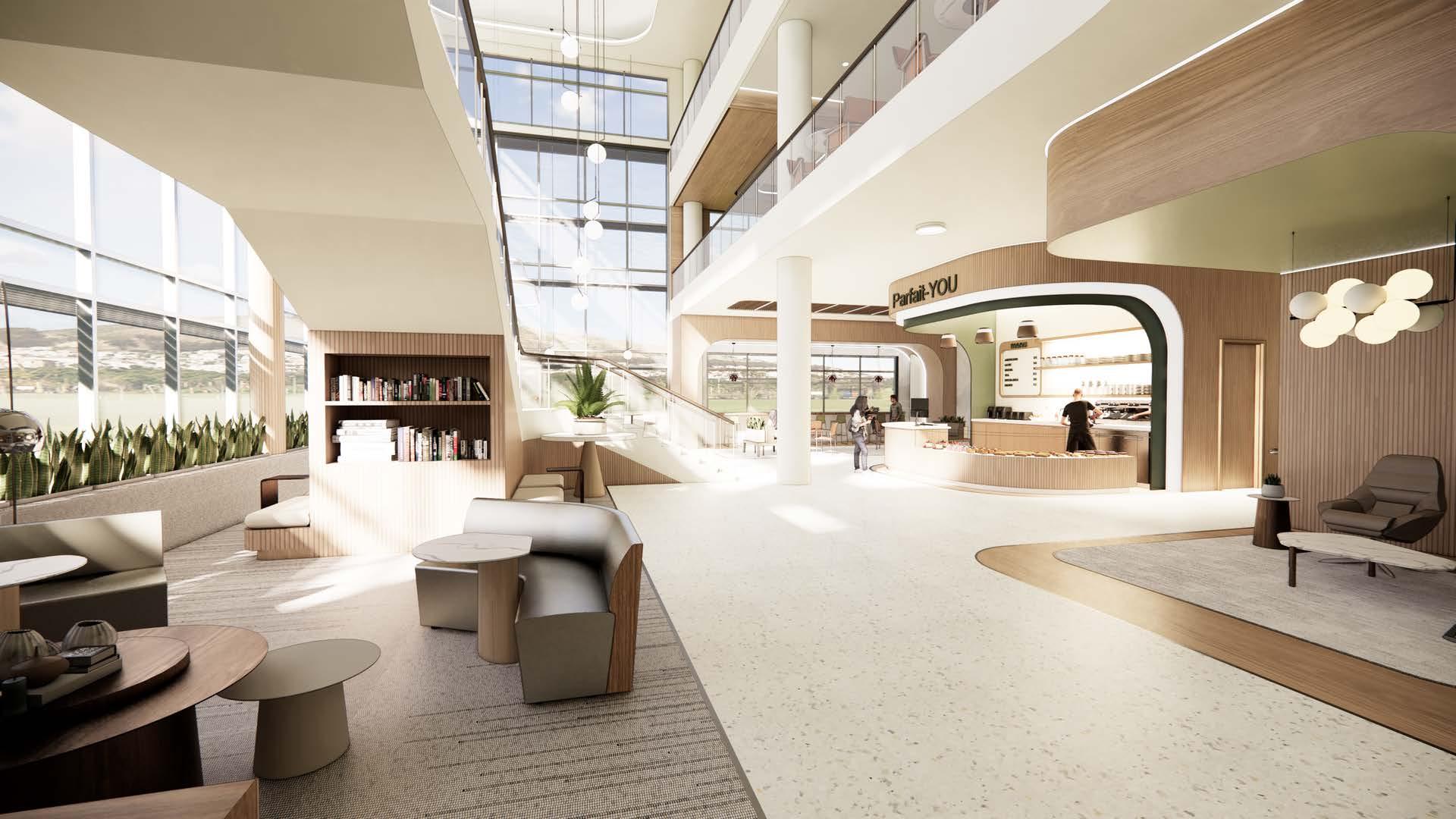

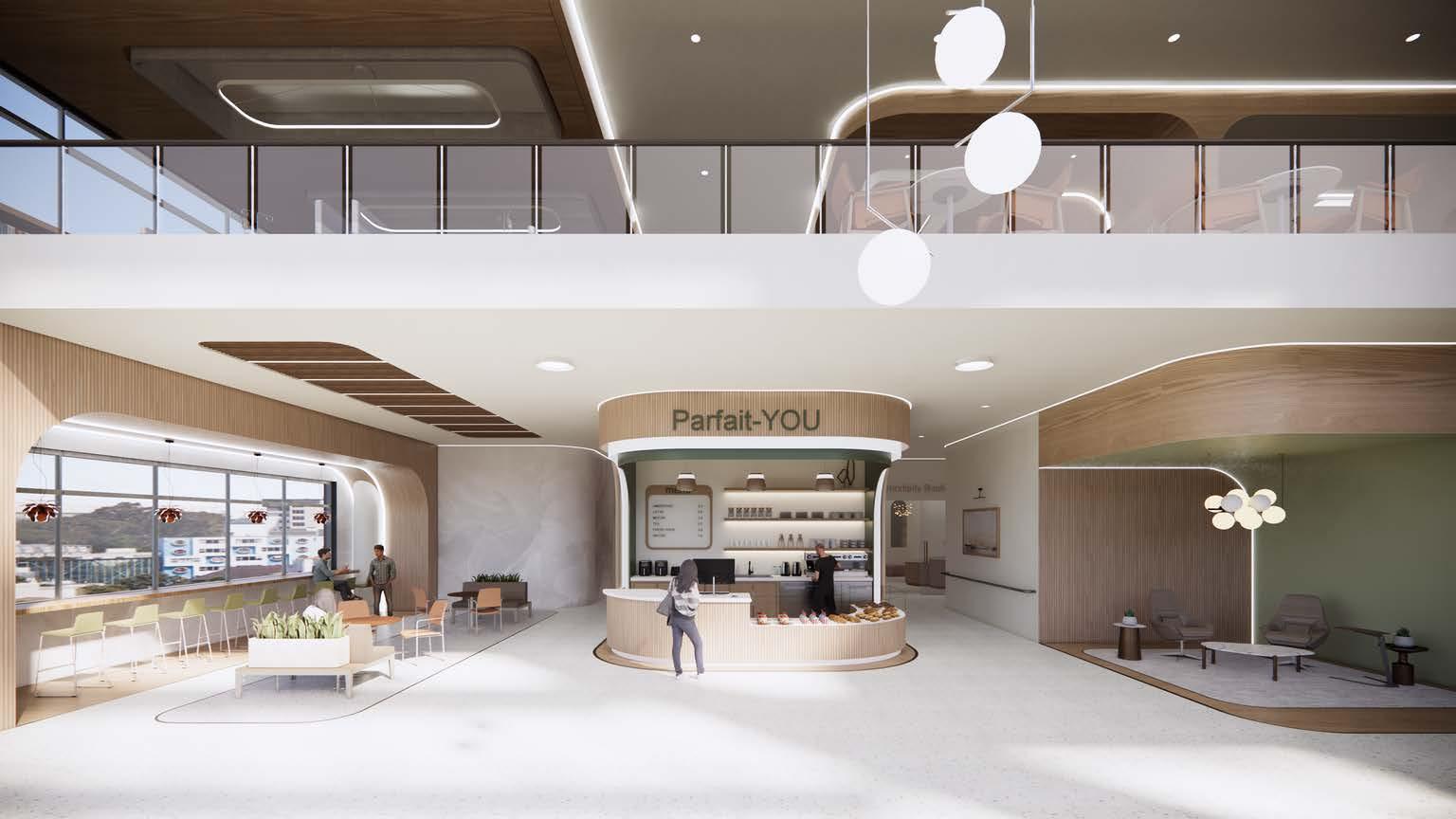

WAITING AREA & CAFE
Blu Dot Circula Side Table & Bolia Saga Arm Chair
View from Corner Enclave
View from main corridor
Abstracta Holly Acoustic Pendant
*Positive Distraction

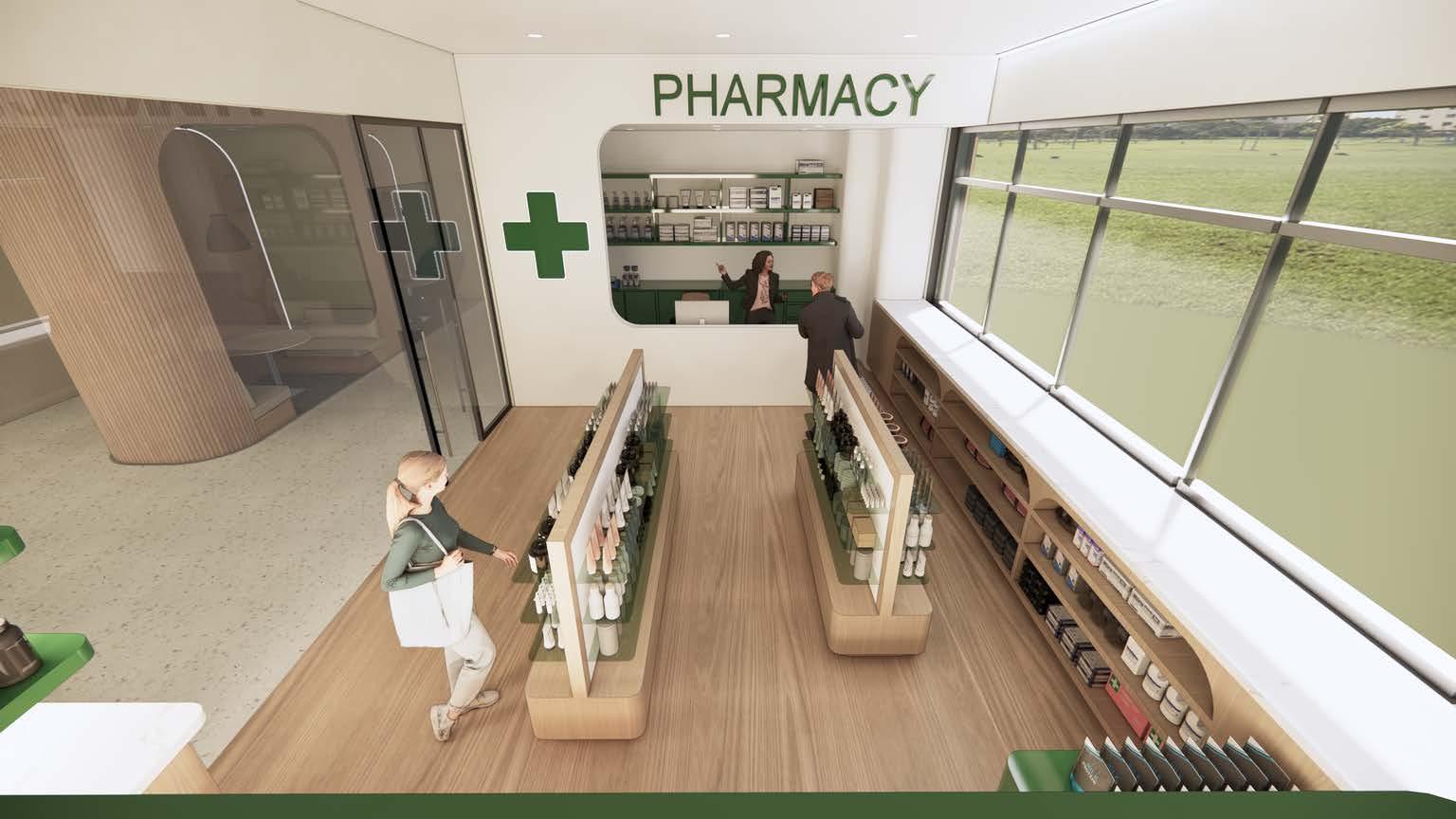

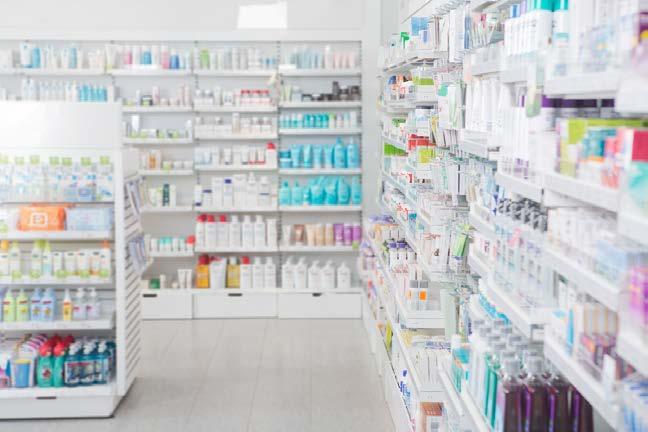

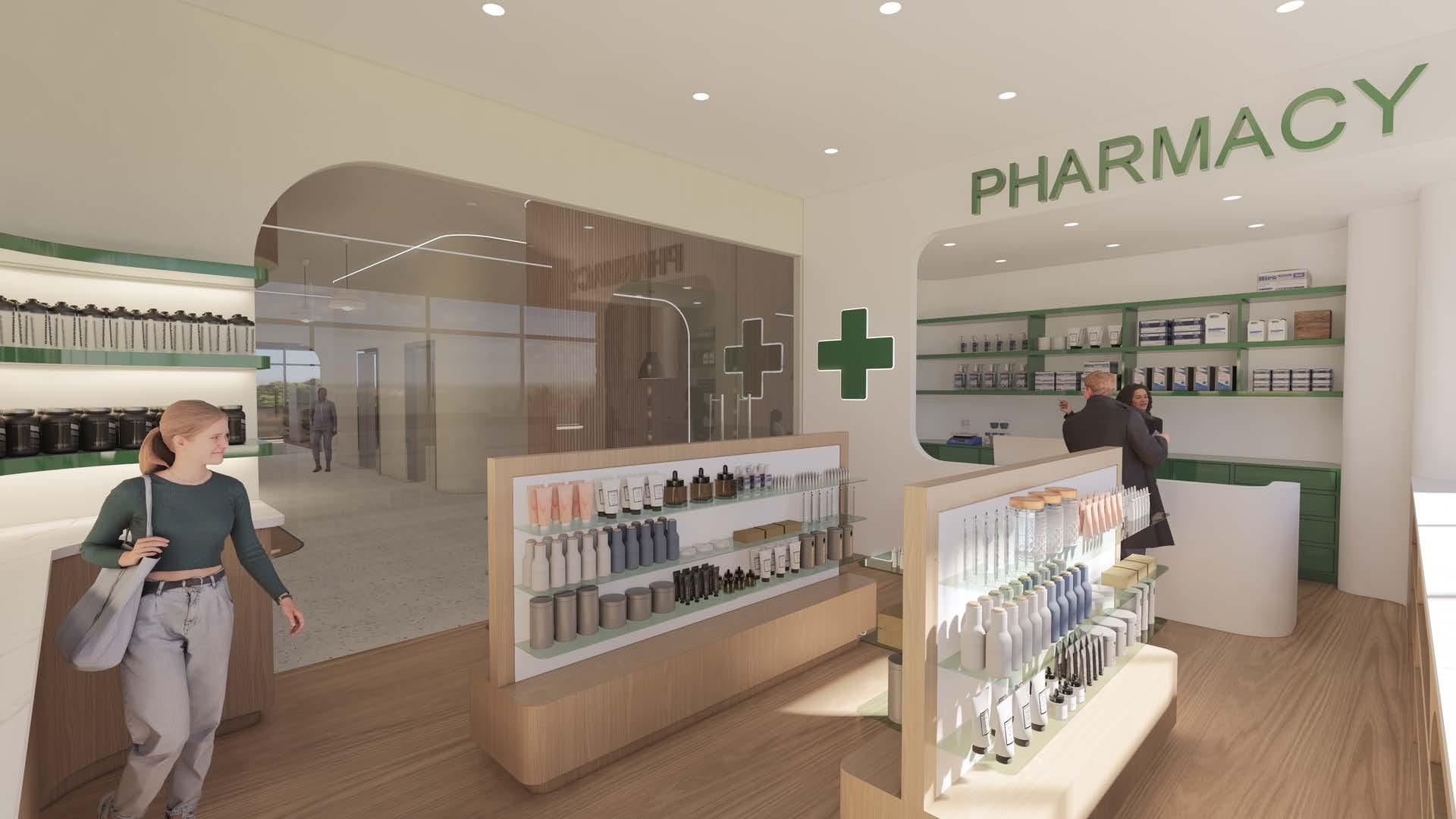

PHARMACY

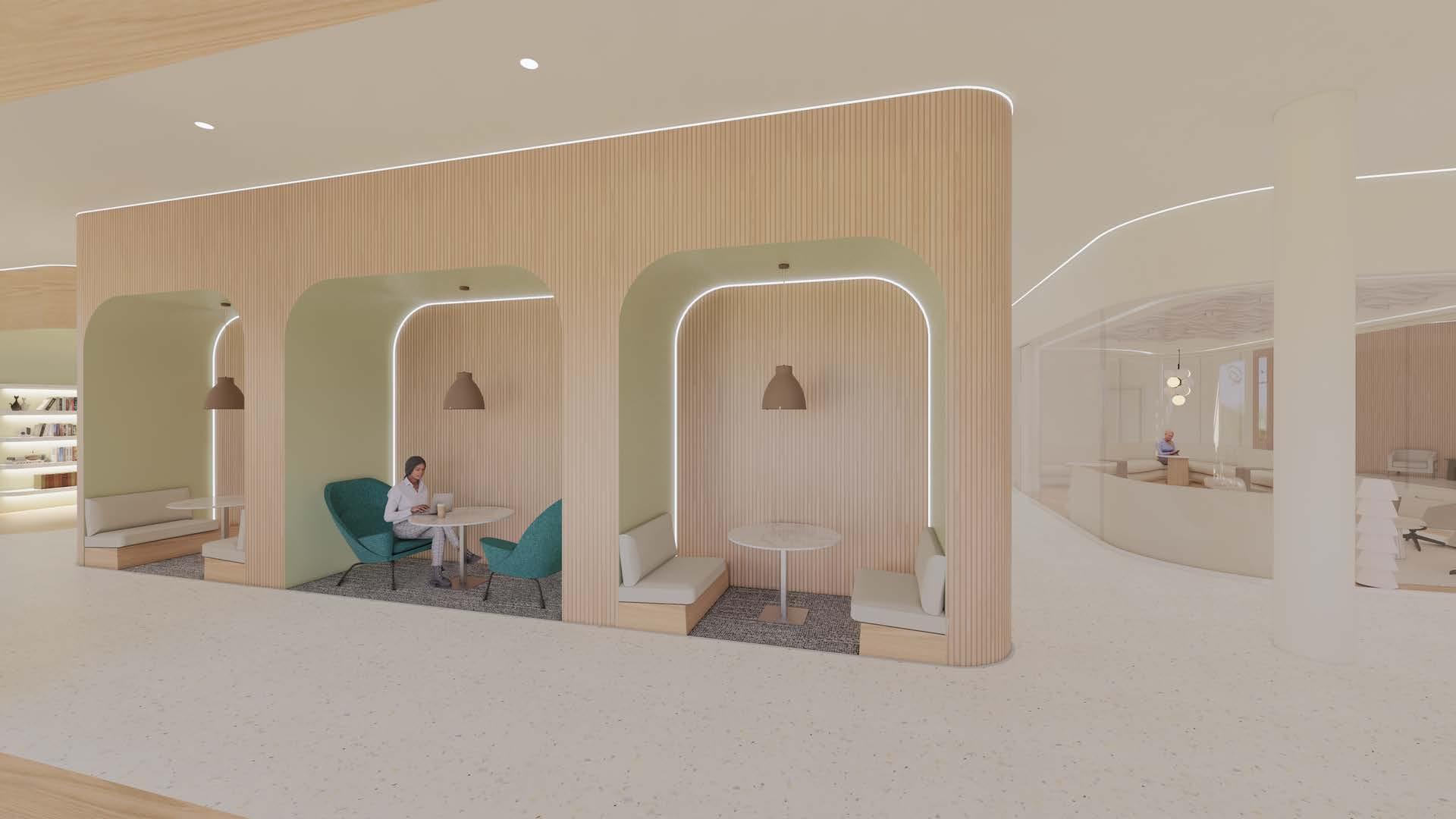

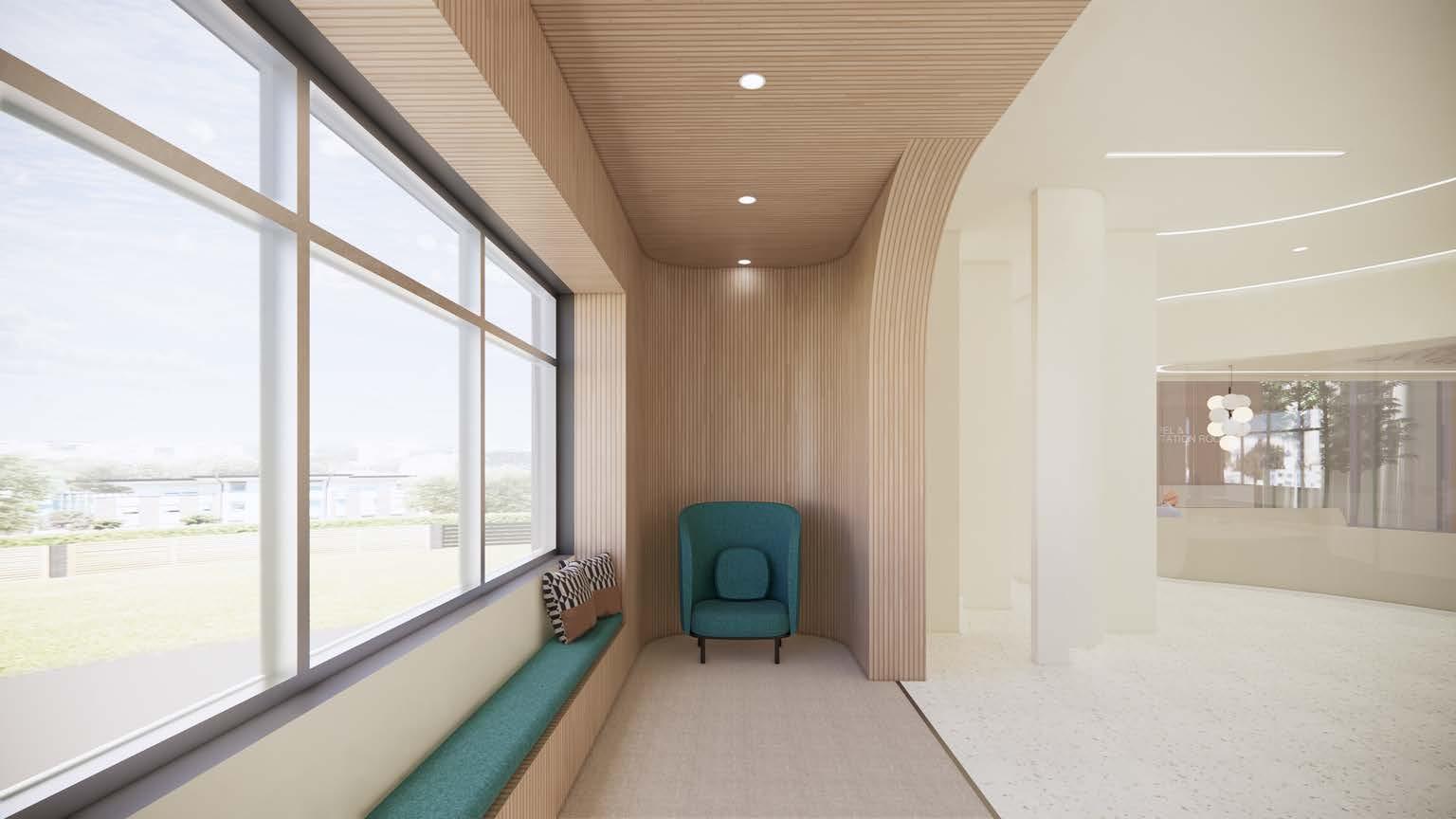

CORRIDOR ENCLAVES
Provides privacy and control

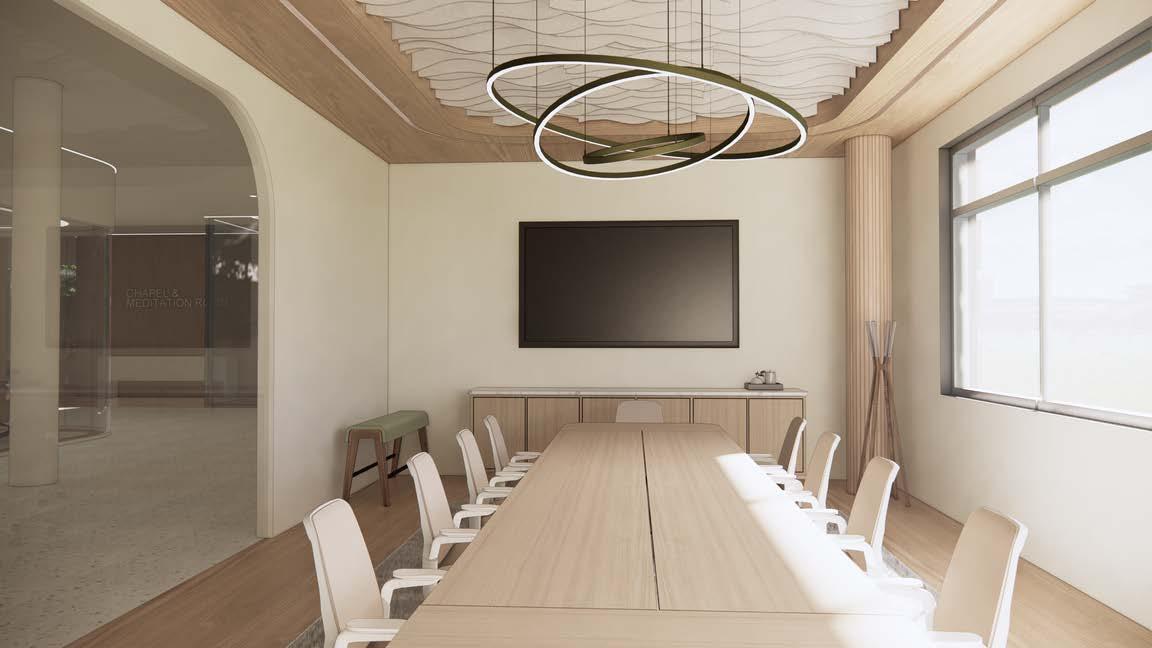

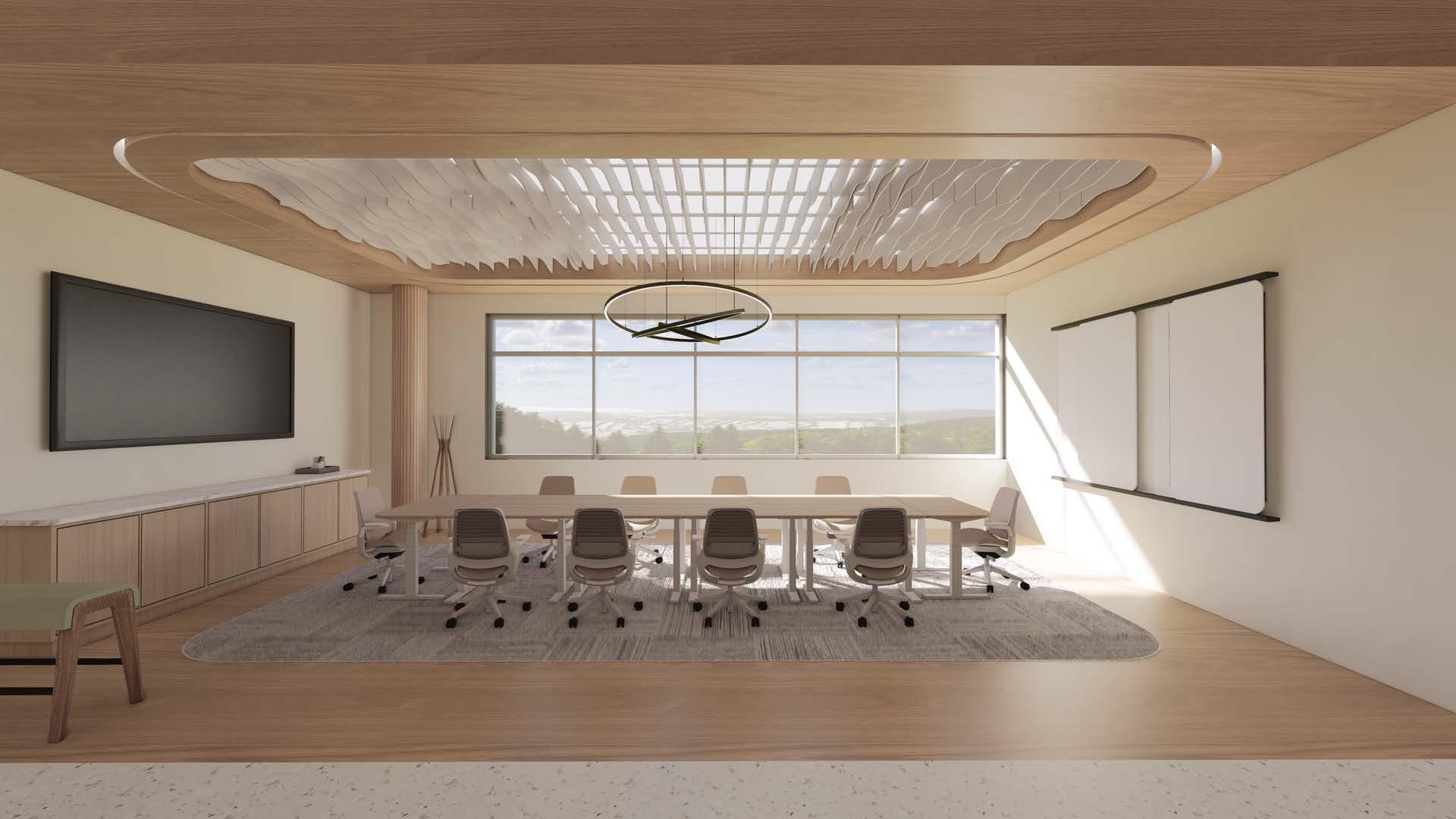

CONFERENCE & MULTI-PURPOSE ROOM
Adaptable space with adjustable furniture

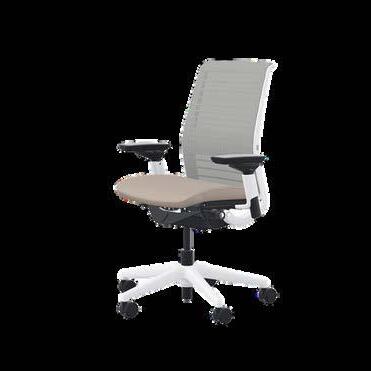

Steelcase
Solo Adjustable Standing Desk & Think Chair
QUIET ROOM
*Positive Distraction
Abstracta Holly Acoustic Lighting

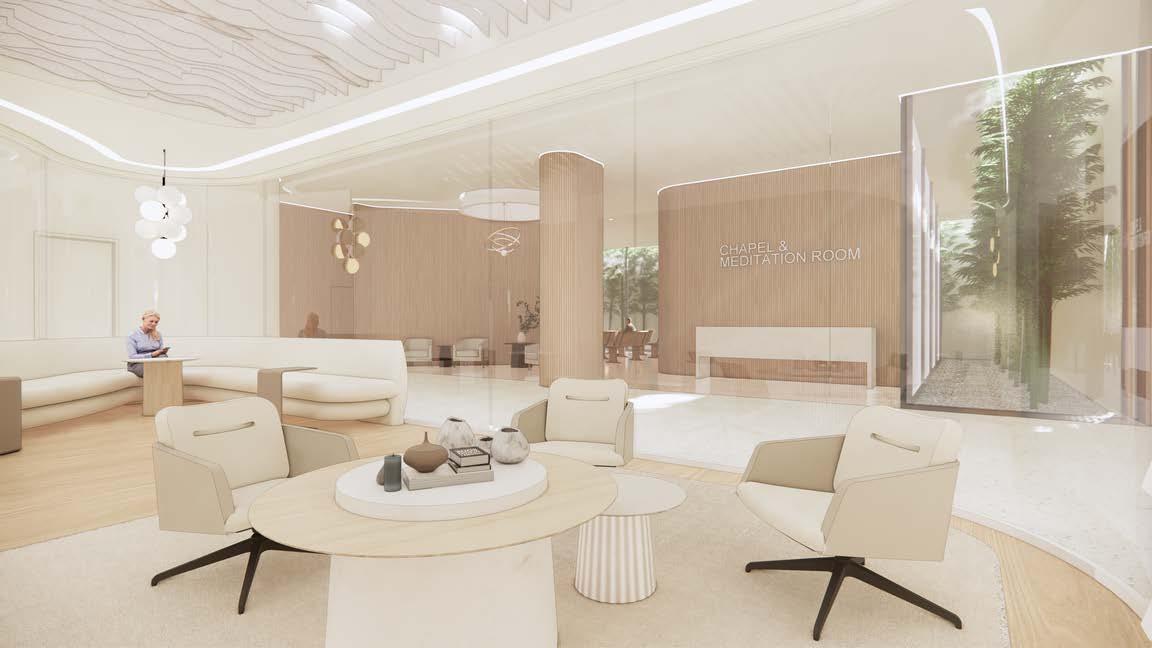

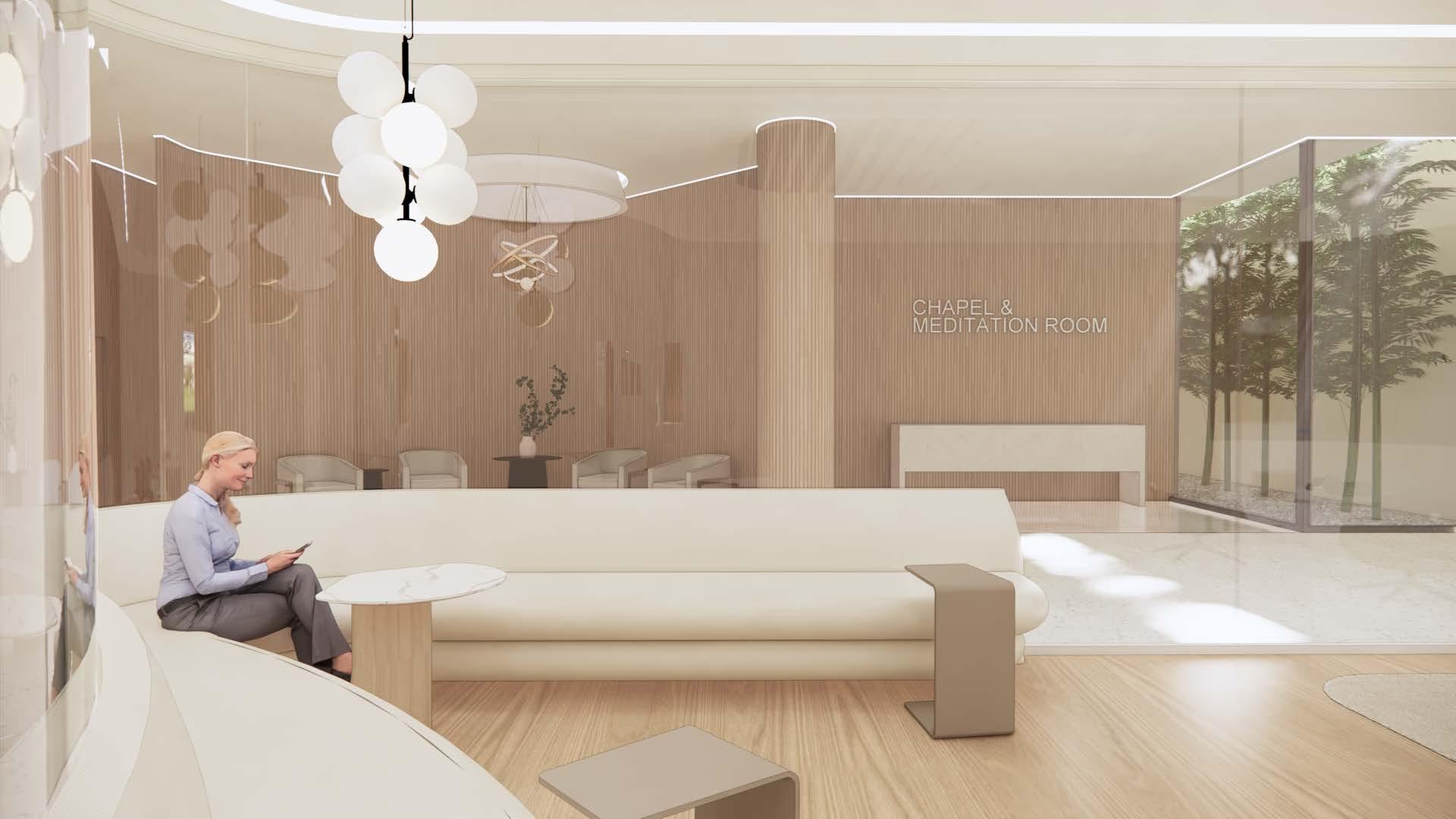

CHAPEL Multi-Faith Chapel

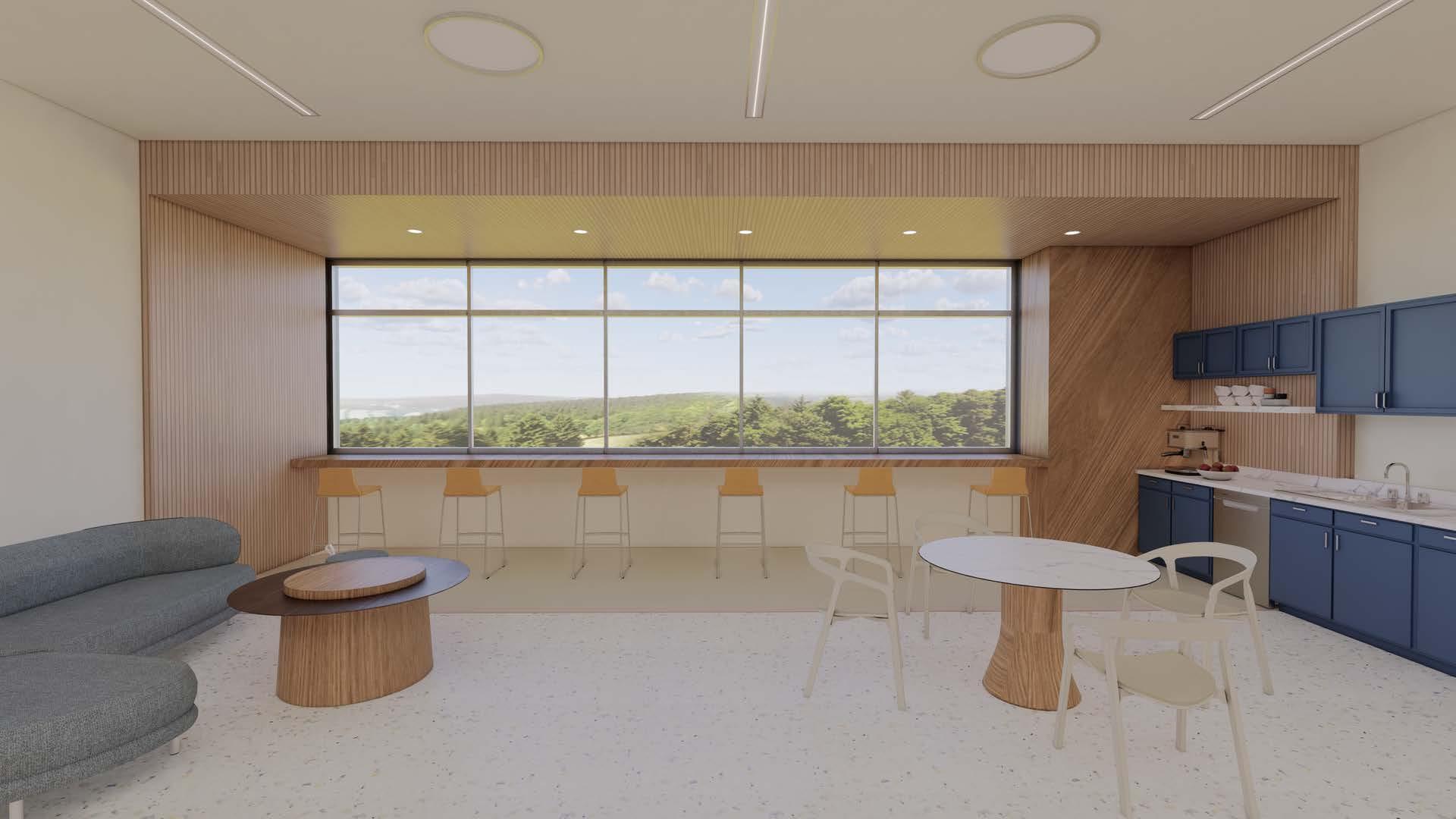

STAFF LOUNGE

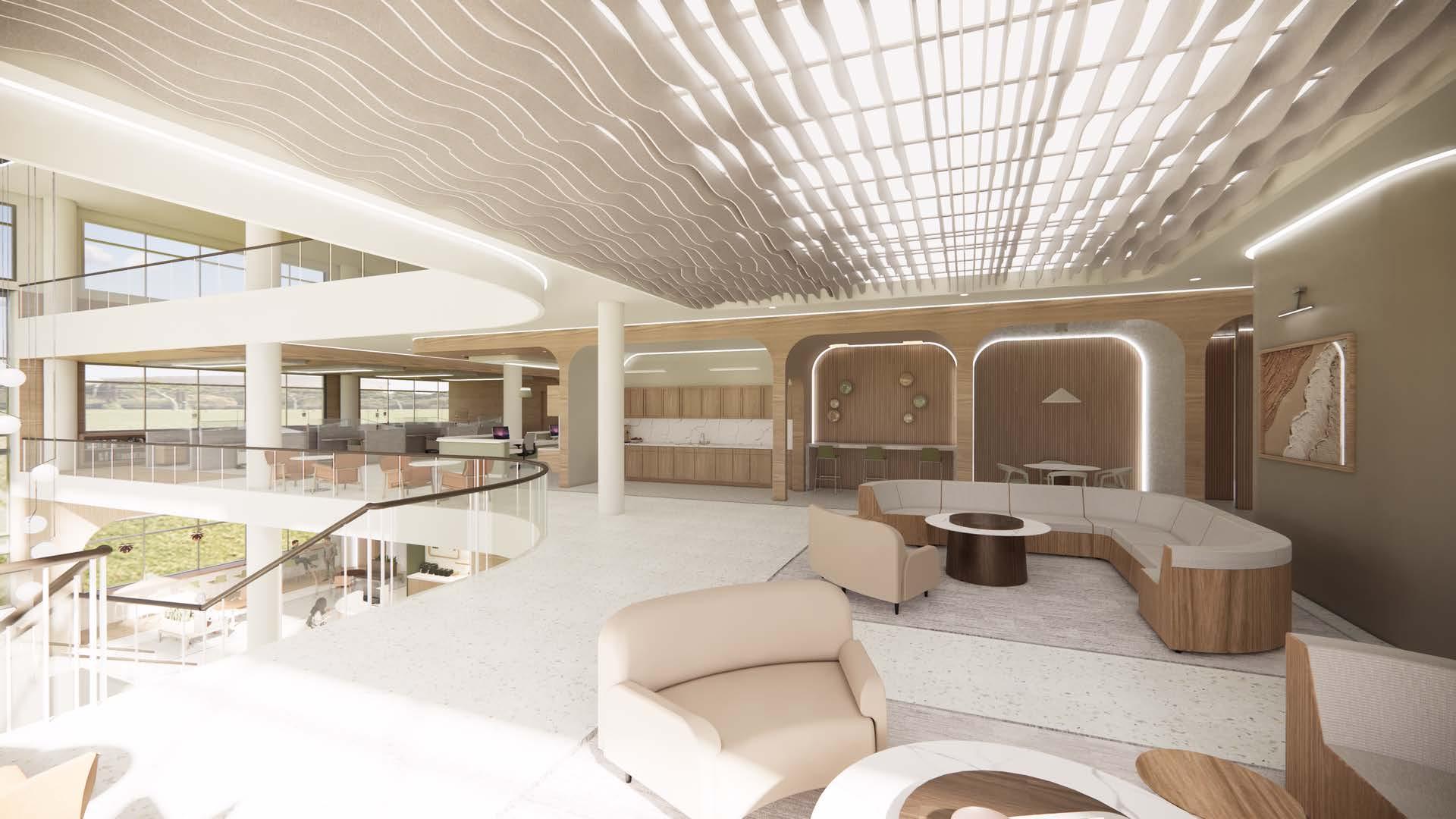

2FL RENDERED PERSPECTIVES (Patient Experience)
ELEVATOR CORRIDOR
View to west side of the building
VIEW FROM STAIRCASE
Stairs in public area to encourage movement (WELL)
2nd FL WAITING AREA
View to main corridor and downstaris

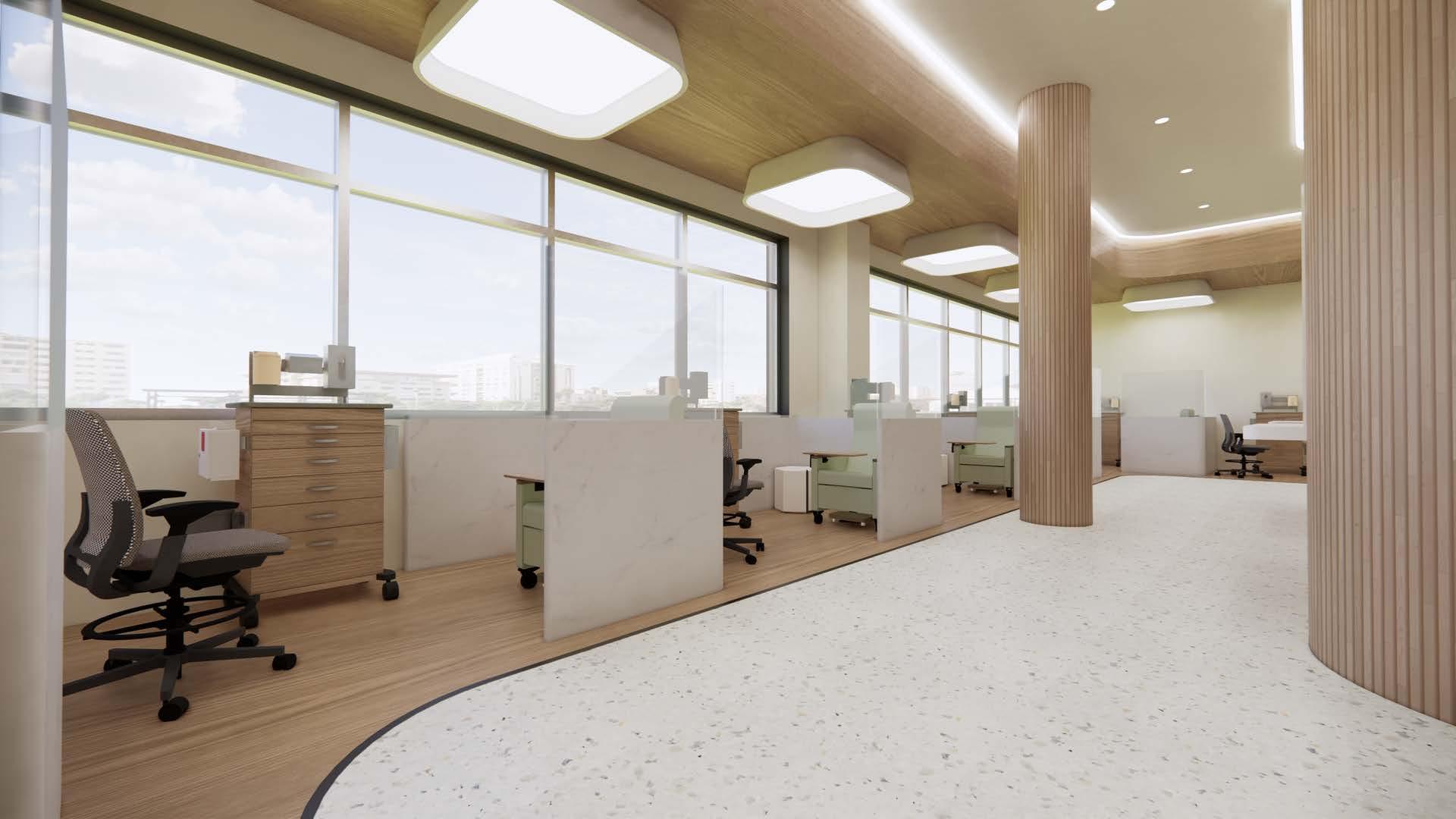

NURSE STATION & SEMI-PRIVATE CUBICALS

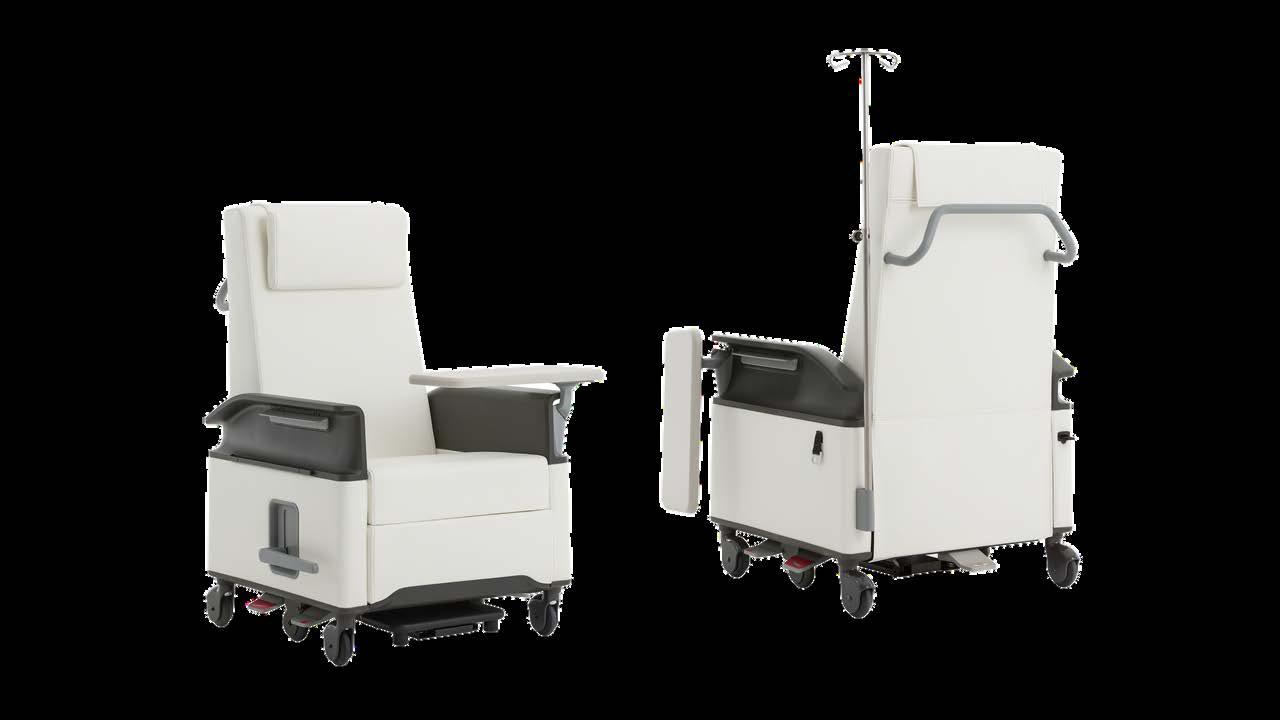

Steelcase
Empath Medical Recliner Chair
SEMI-PRIVATE CUBICALS
From hybrid-nurse stand
2nd FL Corridor Waiting Enclaves

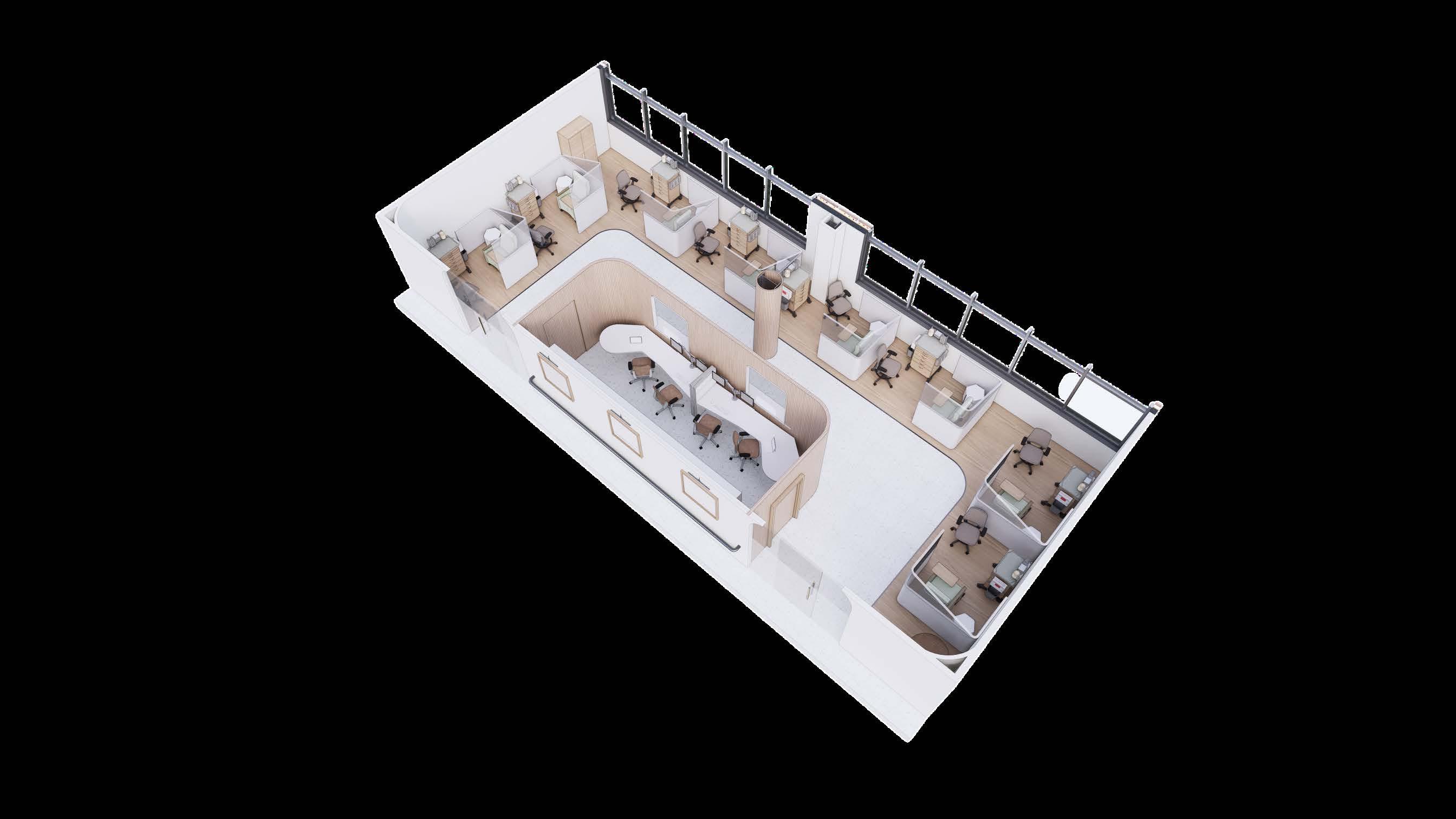

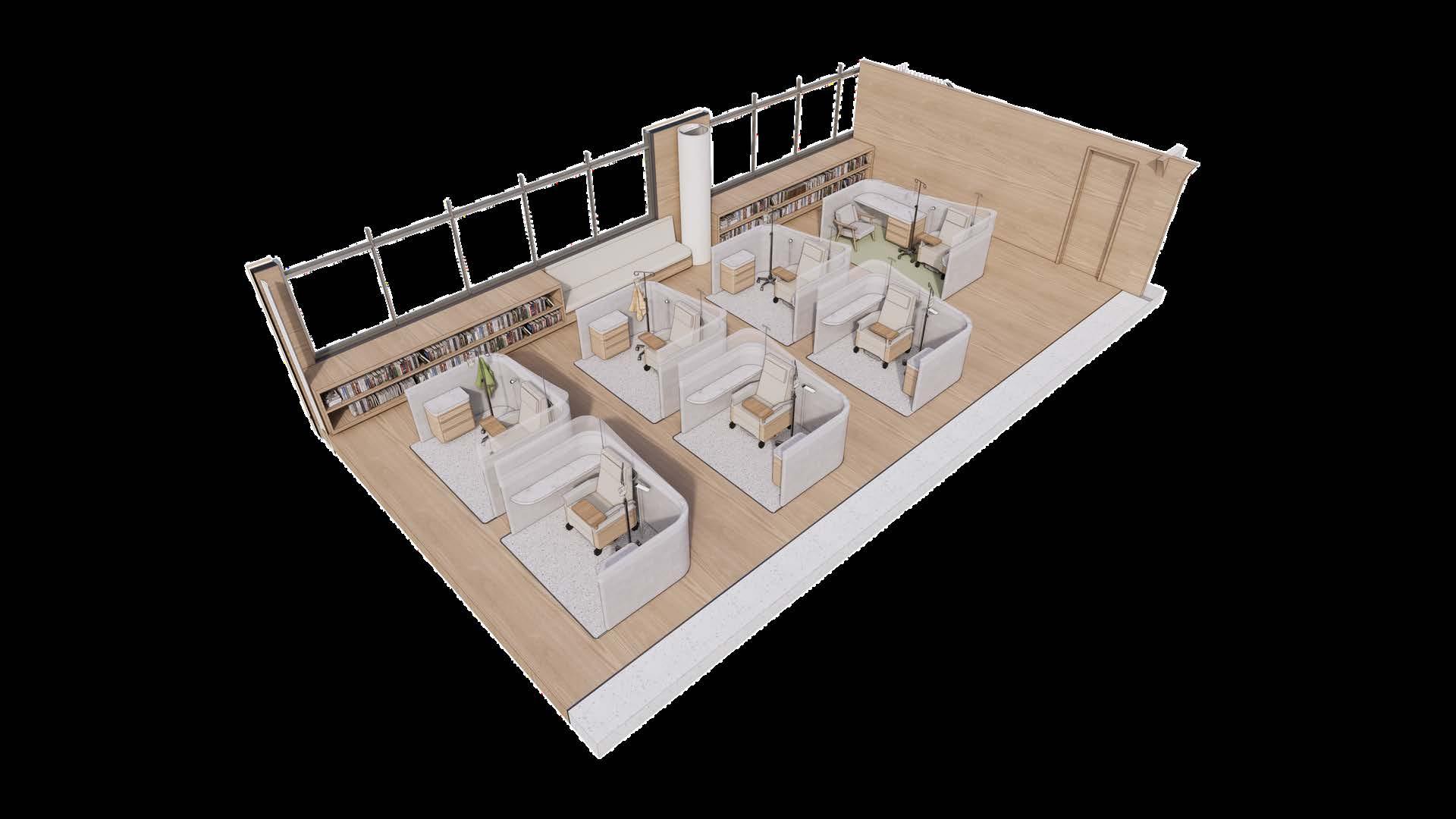

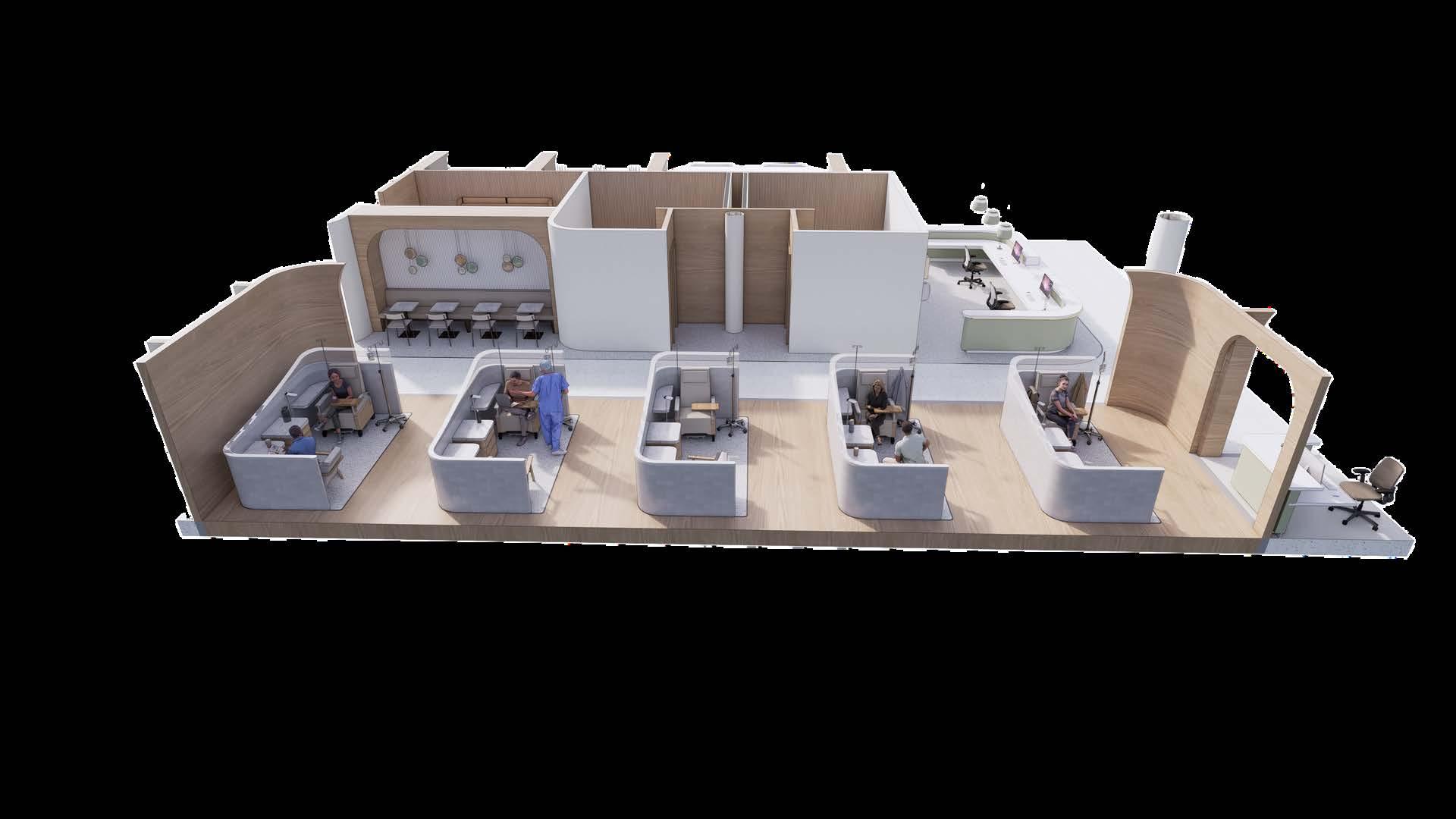

Axon_ Semi-Private Cubicals
Vibia
COSMOS 2510

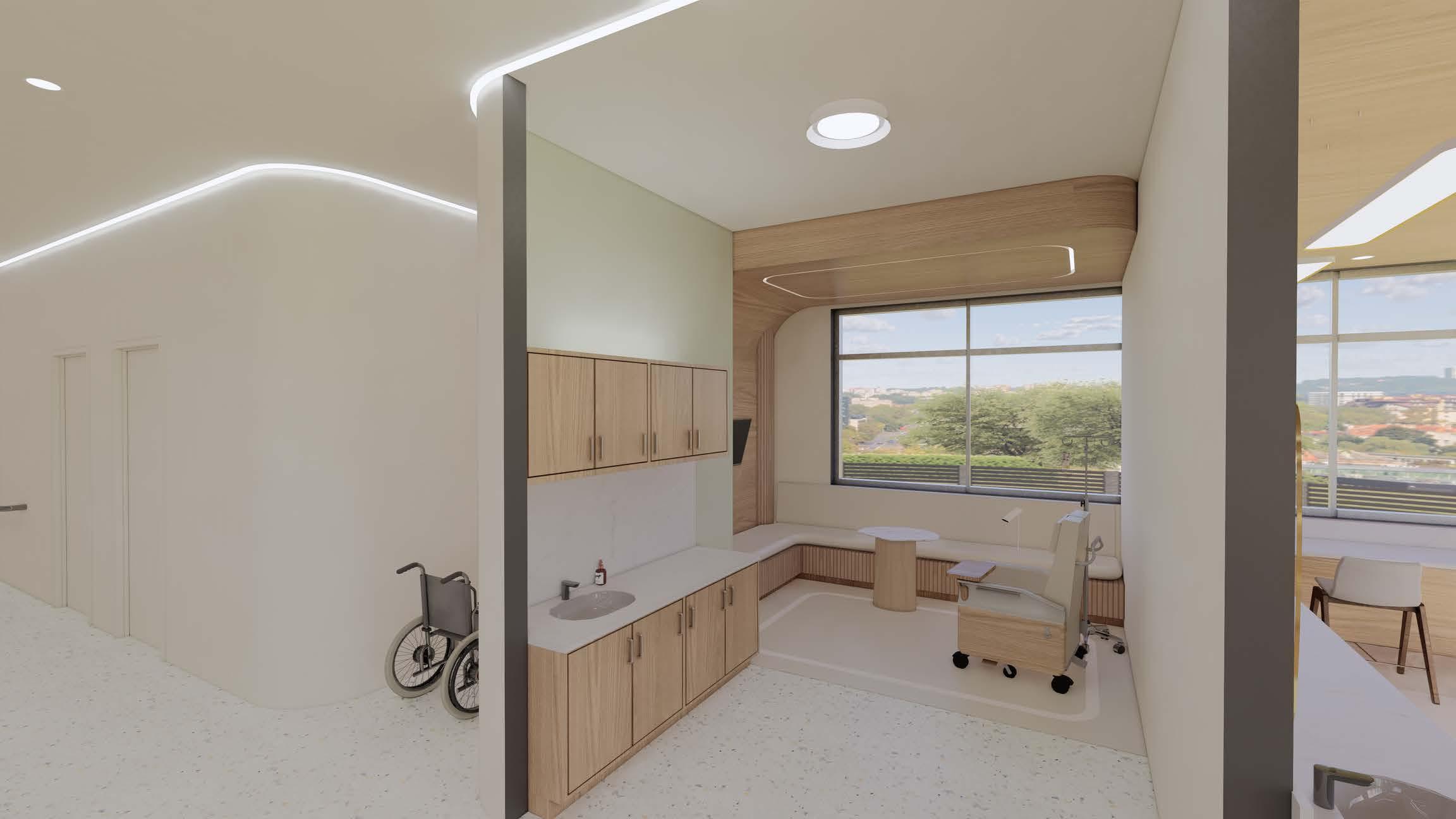

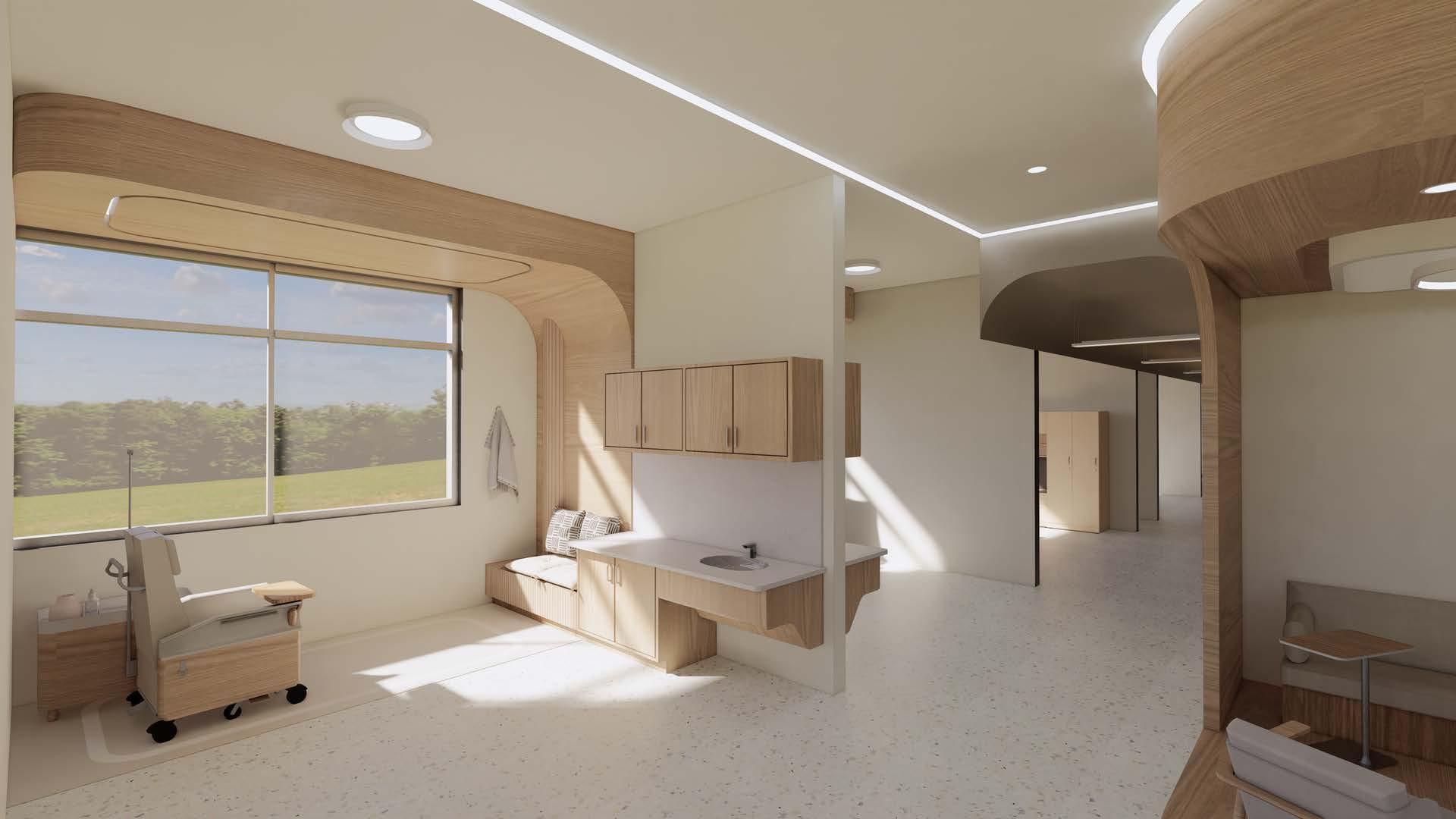

PRIVATE ROOMS
Requirement for Private Room Area: 100 SF
Lounge Chair Private Room: 150 SF
ADA Lounge Chair Private Room: 180 SF *FGI

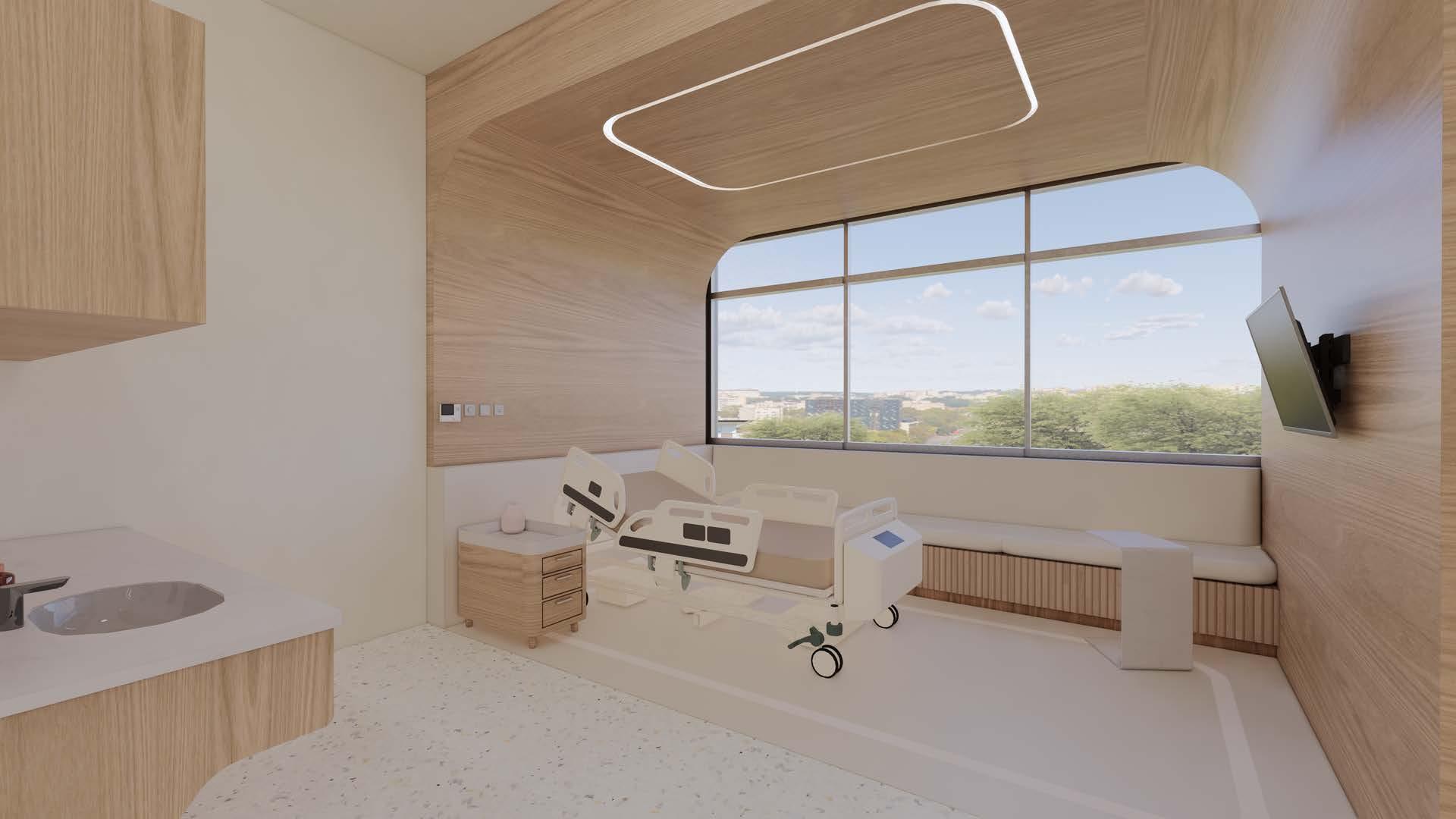

PRIVATE ROOM WITH BED
Total Square Footage: 246 SF

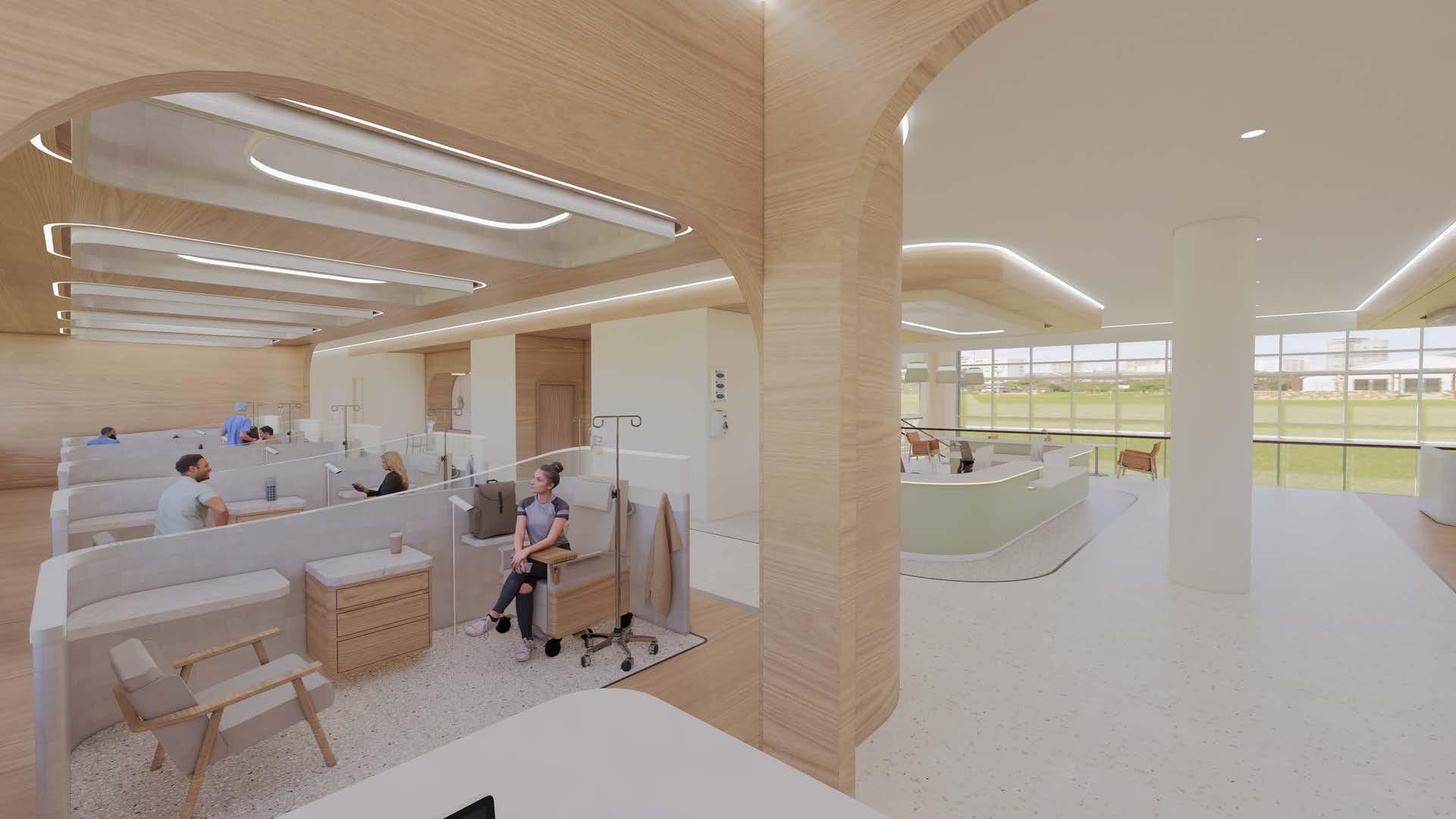

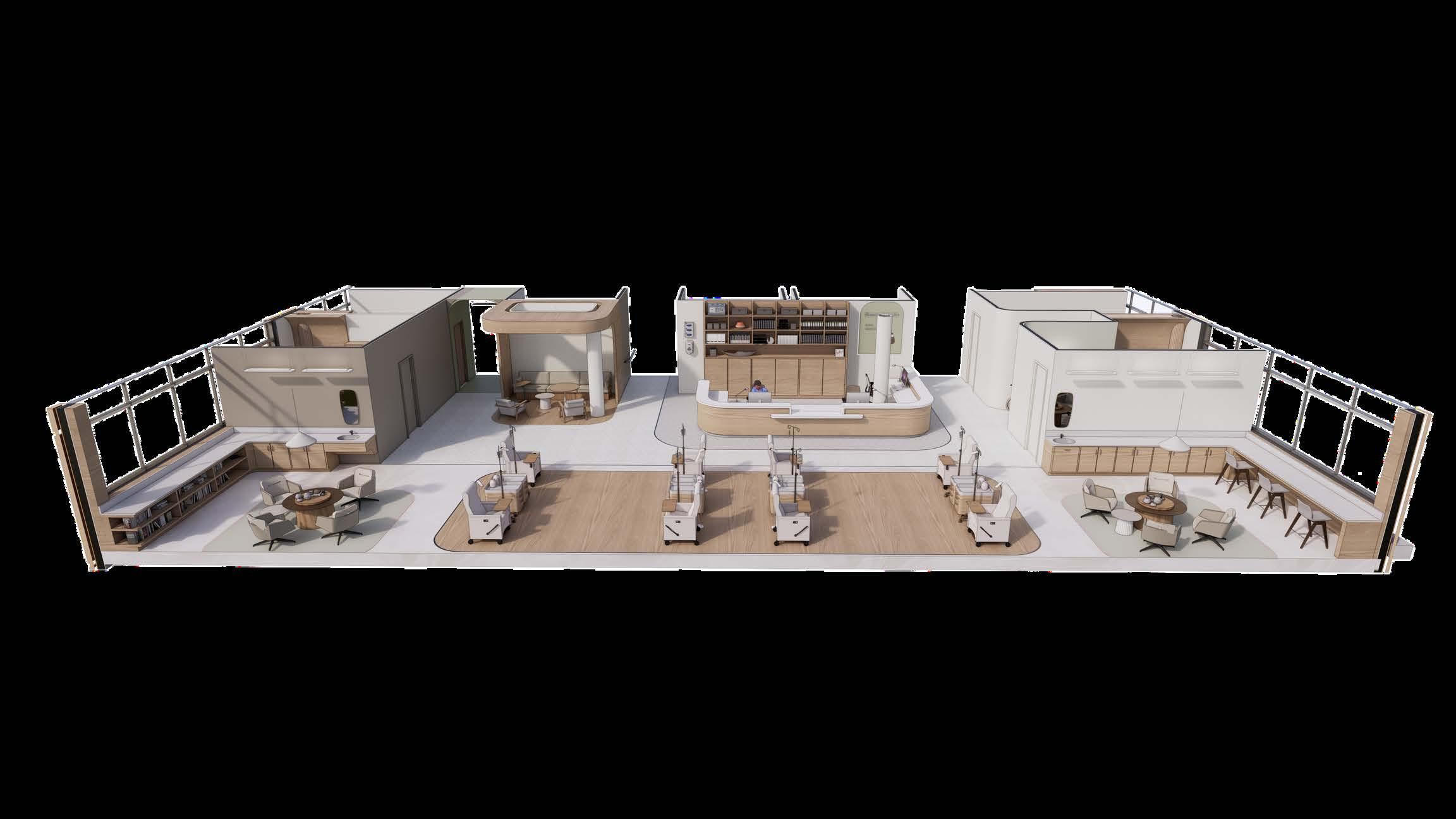

OPEN BAY & NURSE STATION

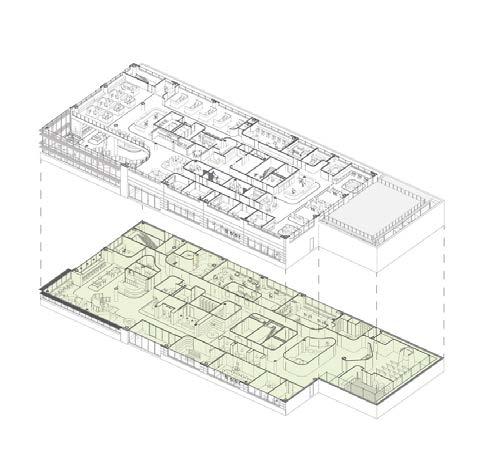

Axon & Rendered Perspective
2nd FL STAFF LOUNGE
80 120 100
FLOOR SPACE (FT) Open Bay Semi-Private_Small FGI Required: 70SF FGI Required: 80 FGI Required: 80 Semi-Private_Large
CLEAR
CODES
OSHA REGULATION FOR MEANS OF EGRESS
In every building or structure exits shall be so arranged and maintained as to provide free and unobstructed egress from all parts of the building or structure at all times when it is occupied.
BUILDING CODE ANALYSIS
EXISTING BUILDING TYPE
2017 District of Columbia Building Code Type II - Non Combustible Construction
2013 District of Columbia Fire Code Sprinkled
OCCUPANCY INFORMATION
LEVEL 1 LEVEL 2
Business: 18105.65 SF / 100
Storage: 760.35 SF / 300
Assembly: 1935 SF Bench Type_1 person/ 18"
TOTAL: 20,800 SF O.L: 194
Business: 13981.15SF / 100
Storage: 518.85 SF / 300
TOTAL: 14,500 SF O.L: 142
LEVEL 2
Building Diagonal: 199' 2 21/32"
Exit Separation: 113' 7 1/2"
Means of Egress (Building Diagonal x 1/3): 66.41 FT
*Complies with Code
LEVEL 1
Building Diagonal: 240' 5 1/8"
Exit Separation: 113' 7 1/2"
Means of Egress (Building Diagonal x 1/3): 80.14 FT
*Complies with Code
2
1 0 10 20 30 50FT N
CODES LEVEL
LEVEL
THANKYOU!
ANNAHELSEL
Semi-Private Lobby
Open Bay
