Portfolio.

1 RESUME Professional Summary

2 37 + ALPINE (CAPSTONE) 4th Semester - Mid-rise Mixed-Use Building

3 THE BOWNESS 3rd Semester - Low- rise Commercial Building

4 221, WEST HILLHURST APARTMENTS 2nd Semester Low-rise Mixed-Use Building

5 2514, CAPITOL HILL RESIDENCE Contextual Single Detached Dwelling Unit

"Creativity meets precision in the collaboration of architecture and civil engineering."

ANKUSH SHARMA

CONTACT INFORMATION

Address : Calgary, AB

Phone : (825) 733 - 3996

E-mail : ankush sharma7175@gmail com

Linkedin profile URL : Anksuh Sharma

ABOUT MYSELF :

A dedicated professional with a rich background in construction and design, my journey began in 2016 with a 3-year Diploma in Civil Engineering .

In 2022, I seized the opportunity to pursue further education by enrolling in a Diploma in Architectural Technologies. This decision stemmed from my deep-rooted fascination with design and technical intricacies Throughout the program, I immersed myself in the study of architectural design, while also honing my skills in technical detailing a facet of the profession that truly resonates with me

My enthusiasm for the finer details, especially in building envelopes, has been a consistent theme throughout my academic and professional journey I derive immense satisfaction from unraveling the complexities behind these structures and translating them into meticulously crafted drawings and plans

Choosing to specialize as an Architectural Technologist felt like a natural progression, given my affinity for the technical aspects of architecture I appreciate the field's emphasis on precision and technical expertise, qualities that distinguish it from more traditional architectural roles

The collaborative and dynamic nature of this field excites me, offering endless opportunities for growth and innovation Armed with a solid educational foundation and an unwavering passion for my craft, eager to embark on a career dedicated to making a meaningful impact in the industry

EDUCATION

ARCHITECTURAL TECHNOLOGIES - DIPLOMA

Southern Alberta Institute of Technologies 2023 -2024

Achieved a 3 91 G P A (Cumulative)

Contextual Single detached Dwelling Unit

Mixed-use Building Project

Commercial-Use Building Project

Capstone Group Project (Ongoing)

CIVIL ENGINEERING - DIPLOMA

Pt JR Govt Polytechnic College, India - 2016 - 2019

Achieved a 3.7 G.P.A. (Cumulative)

Hand drafting Civil drawings

Reinforced Concrete Design

Steel Structure Design

Quantity Surveying & valuation

Surveying

Estimating

COMPETITVE SKILLS

VALUEABLE SKILLS

REVIT

Auto CAD

Bluebeam

Twinmotion

Lumion

MS -Office

Drafting

Details

Renderings

Working Drawings

LANGUAGE PROFICIENCY

English Hindi Punjabi

Building Regulations

Building Envelope

Land use Bylaw

CO-CURRICULAR

INTERNAL DEVELOPMENT DIRECTOR

ATSA (Architectural Technologies Student Association) - SAIT - May 2023 - April 2024

Fostering robust connections with members, class representatives, tutors, and volunteers

Facilitating seamless and efficient communication among stakeholders

Cultivating a cohesive team through volunteer recruitment efforts

Coordinating effective tutoring sessions.

Personally engaging with all cohorts to establish in-person connections

Raising awareness about volunteer opportunities through targeted email communications

WORK EXPERIENCE

SALES AND CONFERENCE ADMINISTRATOR

Residence & Conference center - May 2024-Present

Provided key support between hotel guests and residence operations

Executed sales contracts and handled accounts payable

Acted as a liaison between the Residence, sales manager, and hotel guests.

Assisted the Sales & Conference Manager with various tasks

Performed general administrative duties as assigned

CAPSTONE APPRENTICESHIP

Dialog Design, Calgary - Jan 2024 - Apr 2024

Gained hands-on experience and mentorship in architectural design and construction processes

Learned about land use bylaws, building codes, and regulations.

Contributed to collaborative projects and team discussions

Acquired practical skills in building envelope design and detailing

Demonstrated commitment to precision and technical expertise in design work and project coordination

RESIDENT ADVISOR

SAIT Residence - Aug 2023- Apr 2024

Facilitated community-building activities to create a positive living environment

Managed crises and supported residents during emergencies

Mediated conflicts and advised residents.

Enforced residence hall policies and regulations

Handled administrative tasks, including record-keeping, filing reports, and coordinating room assignments

Served as a Leader, upholding institutional values and promoting inclusivity

Planned and executed social events

1 37+ALPINE

Project Description:

My capstone project represents a collaborative team effort situated in SW Calgary at the intersection of Alpine Ave. and 37th St , guided by our mentor, "DIALOG Design " Situated on Block 19 within the Direct Control and MU-1 District zoning, the project forms part of a larger development plan encompassing Blocks 19, 20, and 21

At its core, the project focuses on the development of a mid-rise mixed-use residential building, designed to meet the diverse needs of the community Featuring two underground parkades and a main floor housing a grocery and liquor store, the remaining five floors offer a total of 27 units per floor, accommodating a mix of 1-bedroom and 2-bedroom configurations

The design ethos places a strong emphasis on enhancing the quality of life for both tenants and residents through indoor and outdoor amenities Hybrid construction approach has been adopted, with a concrete podium supporting the main floor and light wood frame construction utilized for the subsequent floors

WARD-13

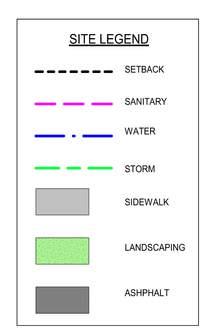

SITE PLAN

02 EAST VIEW (5)
03 NORTH VIEW (2)
01 SOUTH VIEW (7)

MAIN FLOOR

SECOND FLOOR

THIRD TO FISTH FLOOR TYPICAL

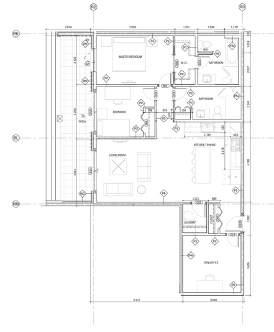

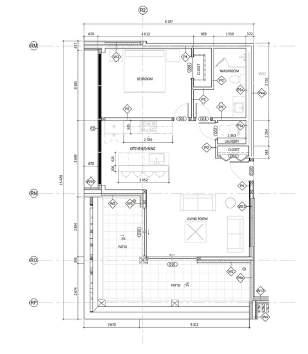

UNIT PLANS

INTERIOR RENDER

BUILDING SECTION 1

BUILDING SECTION 2

PARKADE SECTION 1
WEST ELEVATION
PARKADE SECTION 2

SITE DETAILS

2 THE BOWNESS

Project Description:

My third-semester project, located in NW Calgary at 4703 Bowness Road within the Montgomery area, is a significant addition to the local landscape The project encompasses a two-storey commercial building situated within the MU-2 land use district

The ground floor of the building is dedicated to a vibrant café and retail space, complemented by a central lobby providing access to the second floor via elevator and stairwell The second floor is designated for office space, featuring shared bathroom facilities for added convenience

Constructed primarily of steel, the building boasts a robust and durable structure The exterior design incorporates various cladding materials, including metal panels, wood, and stone, resulting in a visually appealing aesthetic. Additionally, the building features a curtain wall adorned with wooden louvers, further enhancing its architectural appeal and providing a striking visual presence

ASSEMBLIES

SECOND FLOOR

RENDER

EAST ELEVATION

WEST ELEVATION

NORTH ELEVATION

SOUTH ELEVATION

BUILDING SECTION 2-1

BUILDING SECTION 2-2

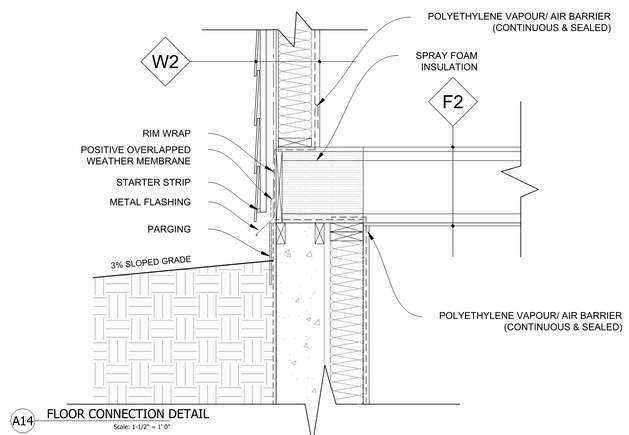

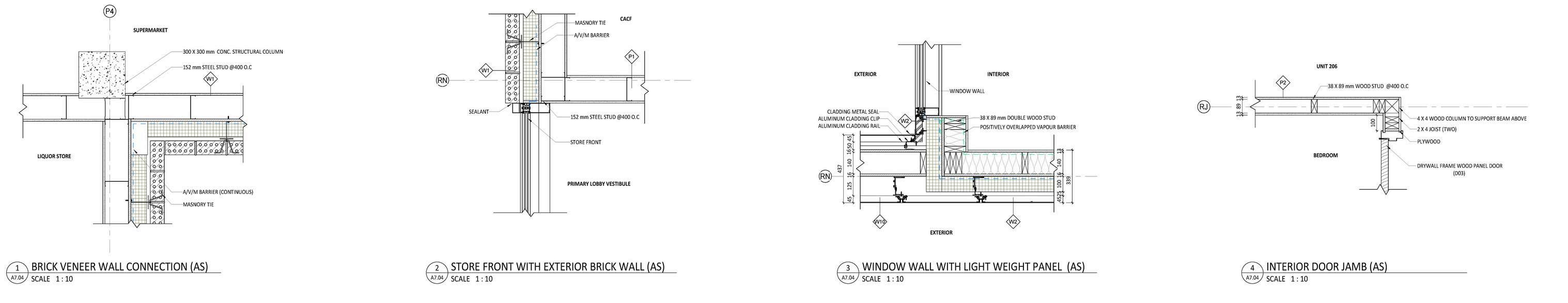

SECTIONS DETAILS

3 221,WEST HILLHURST APARTMENTS

Project Description:

Situated at the intersection of 2nd Avenue and 19th Street in West Hillhurst, NW Calgary, this project comprises a threestorey mixed-use residential building spanning an area of 563.23m² . Constructed under part 9 of the National Building Code, within the CN-1 land use designation

The main floor of the building houses a grocery store, providing convenient access to essentials for both residents and the surrounding community. The second and third floors each contain two units of one-bedroom apartments, offering modern living spaces designed for optimal comfort and functionality

The building features a light wood frame construction, ensuring structural integrity and cost-effectiveness The cladding material predominantly consists of wood ,lap siding fiber cement, with curtain wall adding to the aesthetic appeal of the building

SITE CONTEXT

NW VIEW
NEVIEW
EAST VIEW
WEST VIEW

FIRE SEPERARTION STUDY

MAIN FLOOR

THIRD FLOOR

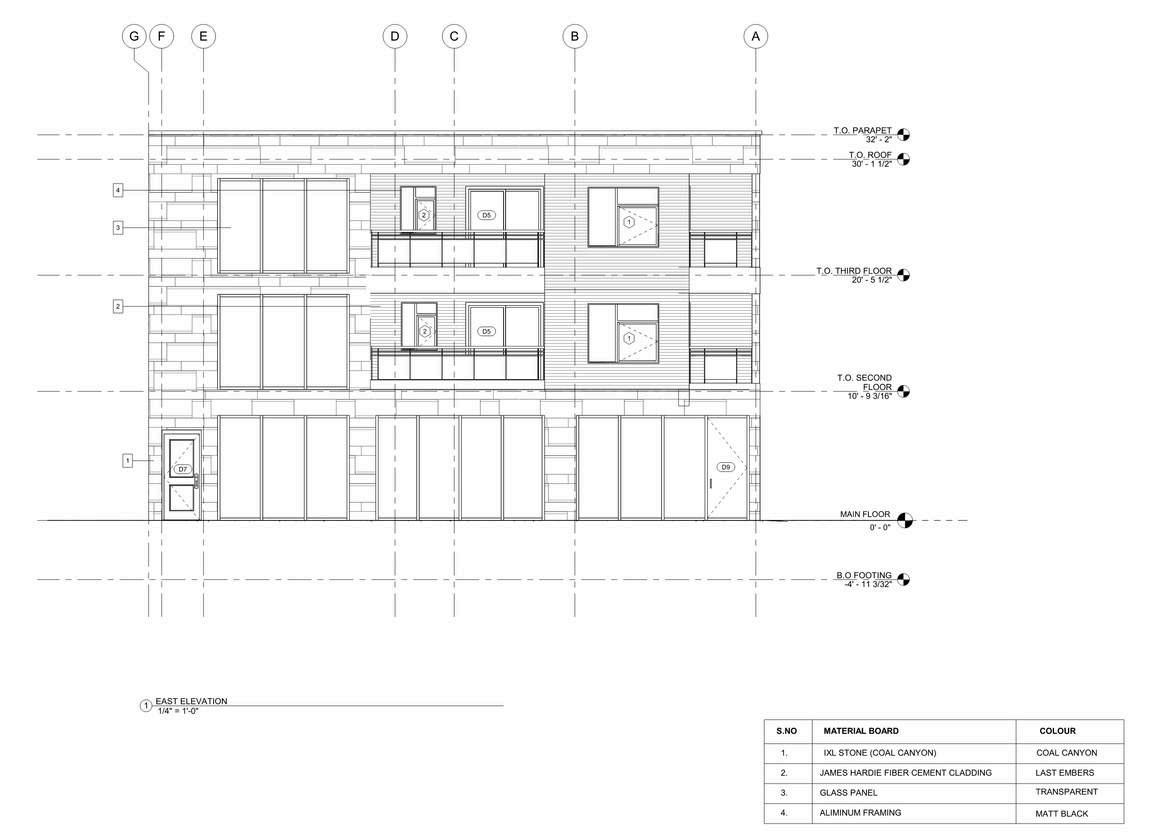

EAST ELEVATION

NORTH ELEVATION

STAIR DETAILS

4 2514,CAPITOL HILL RESIDENCE

Project Description:

Nestled in the heart of Capitol Hill, NW Calgary, this charming bungalow stands as a testament to modern living Situated on 16th St NW, the property spans an area of 471.05 m ² and is designated under the RC-2 land use designation.

The bungalow offers a well-designed layout, featuring one master bedroom with an attached full bathroom, along with an additional bedroom and den on the main floor, each with its own attached full bath Additionally, a half bath adds convenience for guests. The main floor also boasts a spacious dining area and living area, providing ample space for relaxation and entertainment The basement remains unfinished, offering the opportunity for future expansion or customization according to the homeowner's preferences

The bungalow's architectural highlight is its split rafter roof concept, accentuated by clerestory windows that flood the interiors with natural light, creating an airy and inviting atmosphere The building is constructed with light wood frame construction and features fiber cement cladding, combining durability with modern aesthetics

This project was developed in Auto CAD.

SITE PLAN

MAIN FLOOR

BUILDING SECTION 1

BUILDING SECTION 2

N K U S H S H A R M A

ANKUSH SHARMA7175@GMAIL COM +1-(857) 733 - 3996
