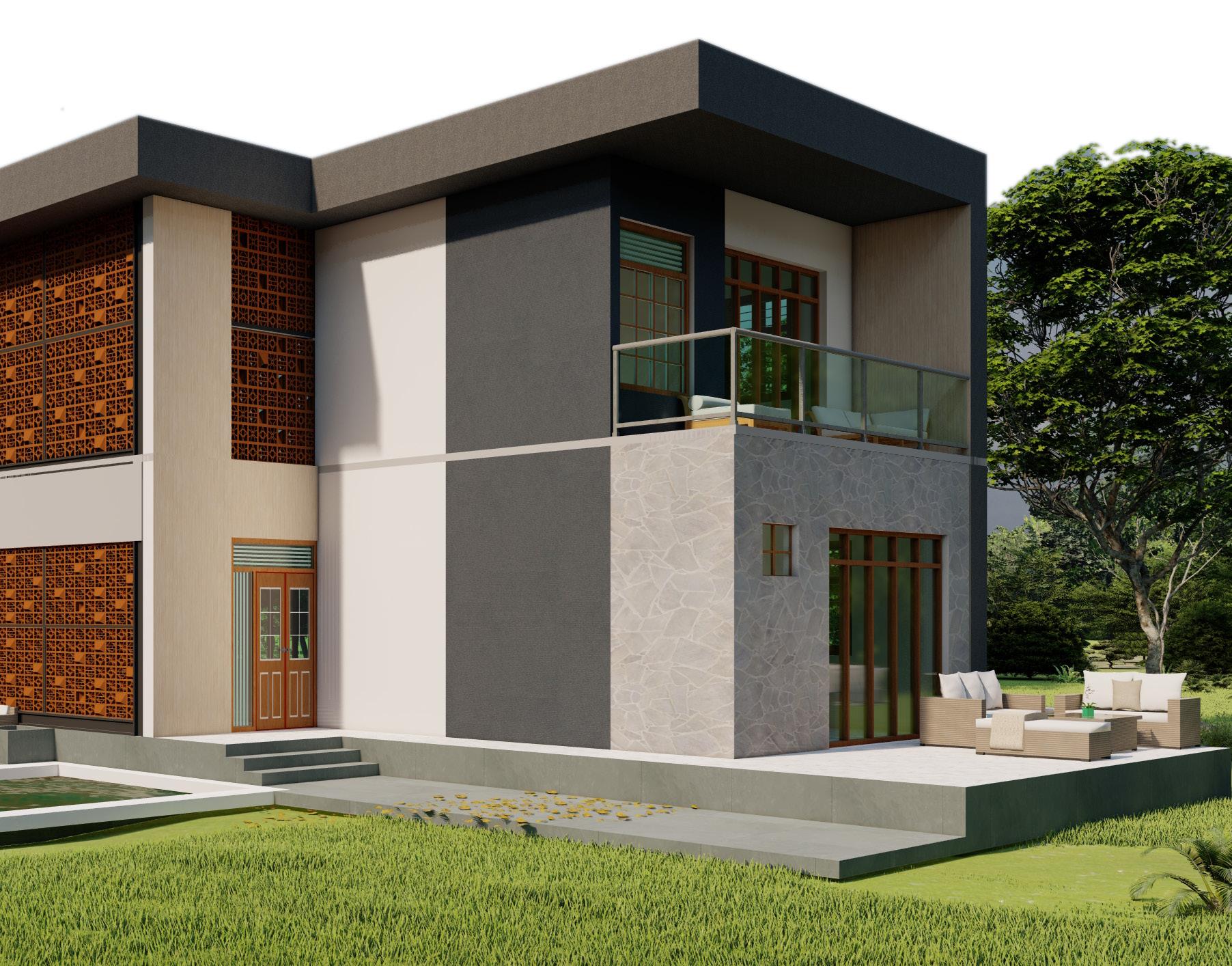

THE TRANQUIL ABODE

Semster 3 | Project Type : RESIDENTIAL

Location : Mannanam | Kerala

Tranquil Abode is a residential project designed for young married couples with discerning tastes who want to spend their holidays in luxury and style. The project is situated in a serene and peaceful location, away from the chaos of the city, and provides a harmonious blend of modern architecture and natural elements.

CONCEPT

The concept behind the design of “Tranquil Adobe” is to create a serene and peaceful living space that blends seamlessly with its natural surroundings. The adobe style of architecture is chosen for its earthy and grounded character that harmonizes well with the landscape. The focus of the design is on simplicity, functionality, and sustainability.

The living spaces are designed to be open, airy, and filled with natural light. Large windows and skylights are used to allow maximum daylight to enter the space. The use of natural materials such as wood, stone, and adobe bricks add warmth and texture to the interior spaces. The colors used are muted and natural to create a calm and soothing environment.

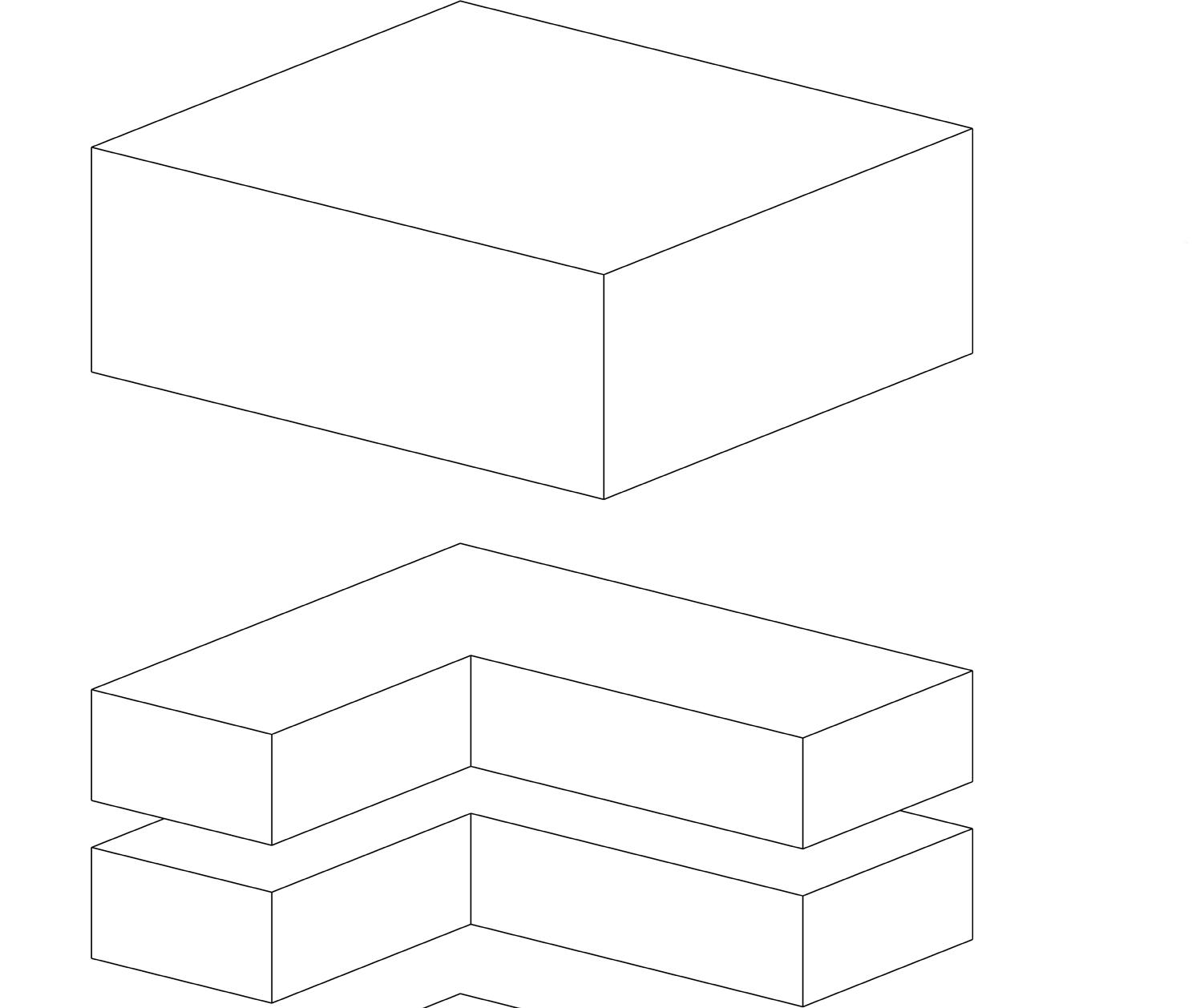

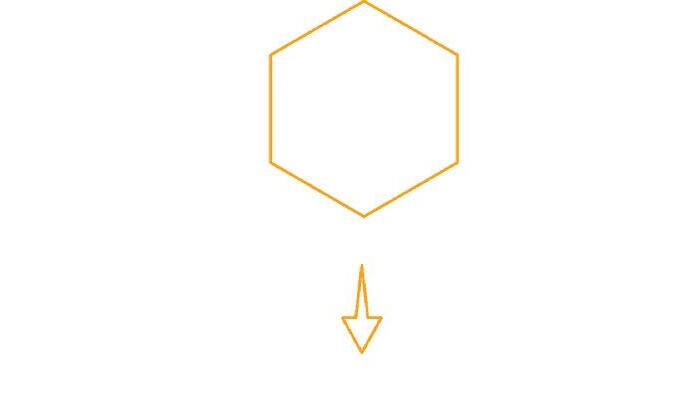

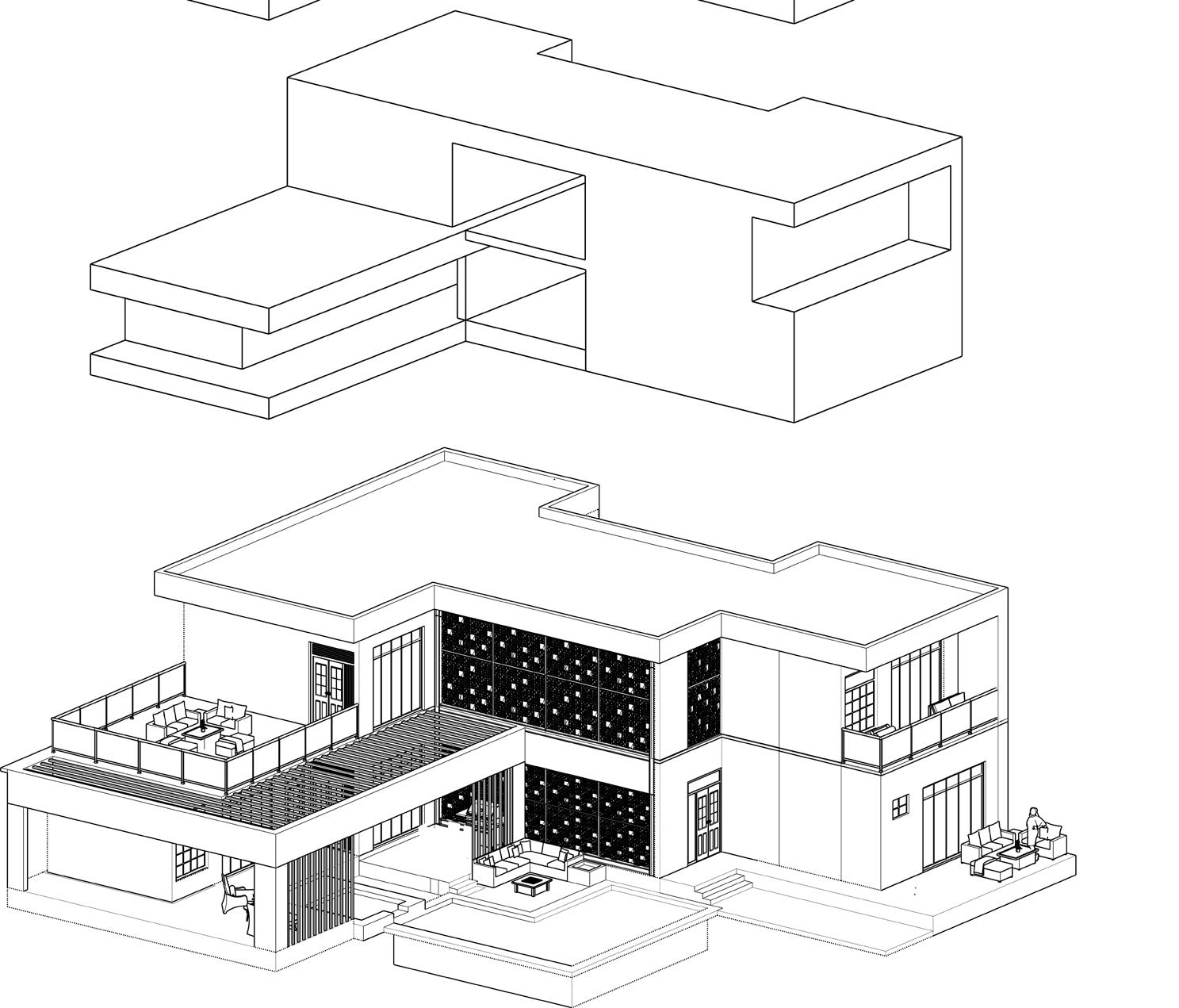

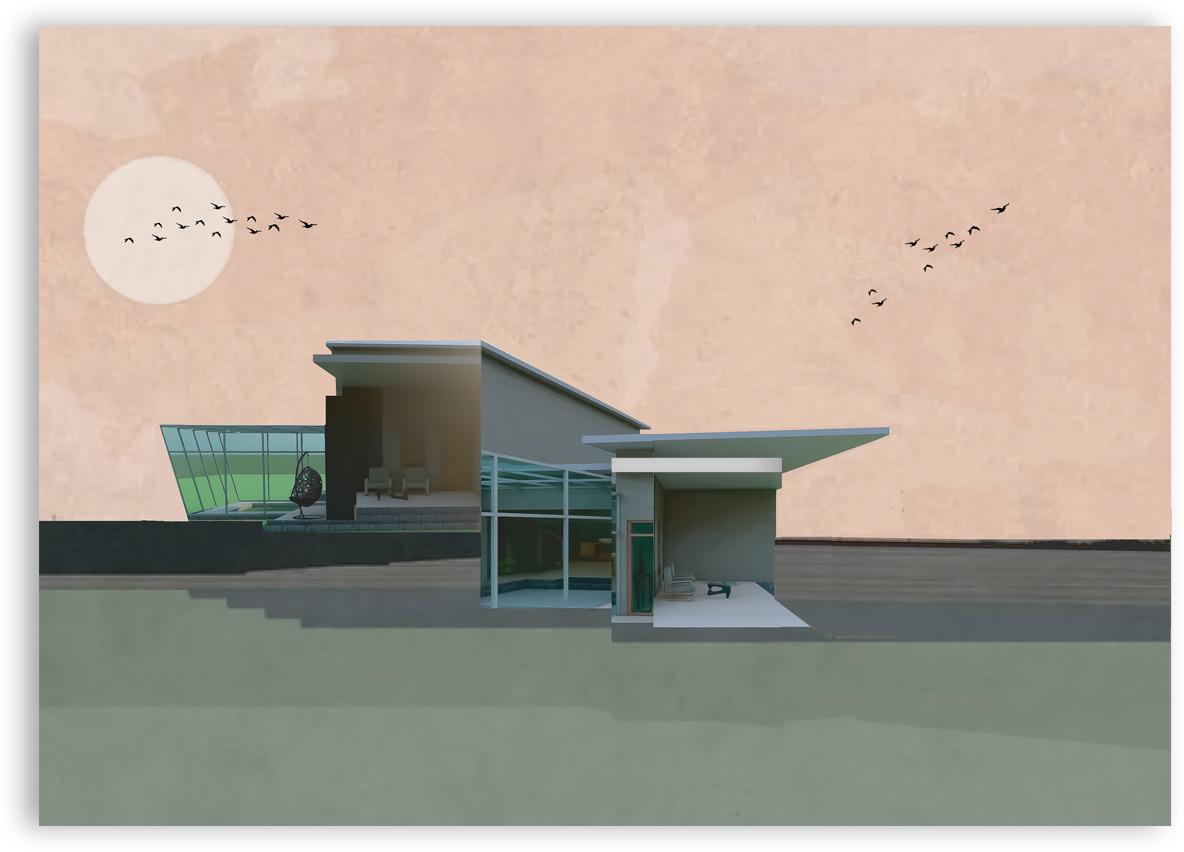

FORM DEVELOPMENT

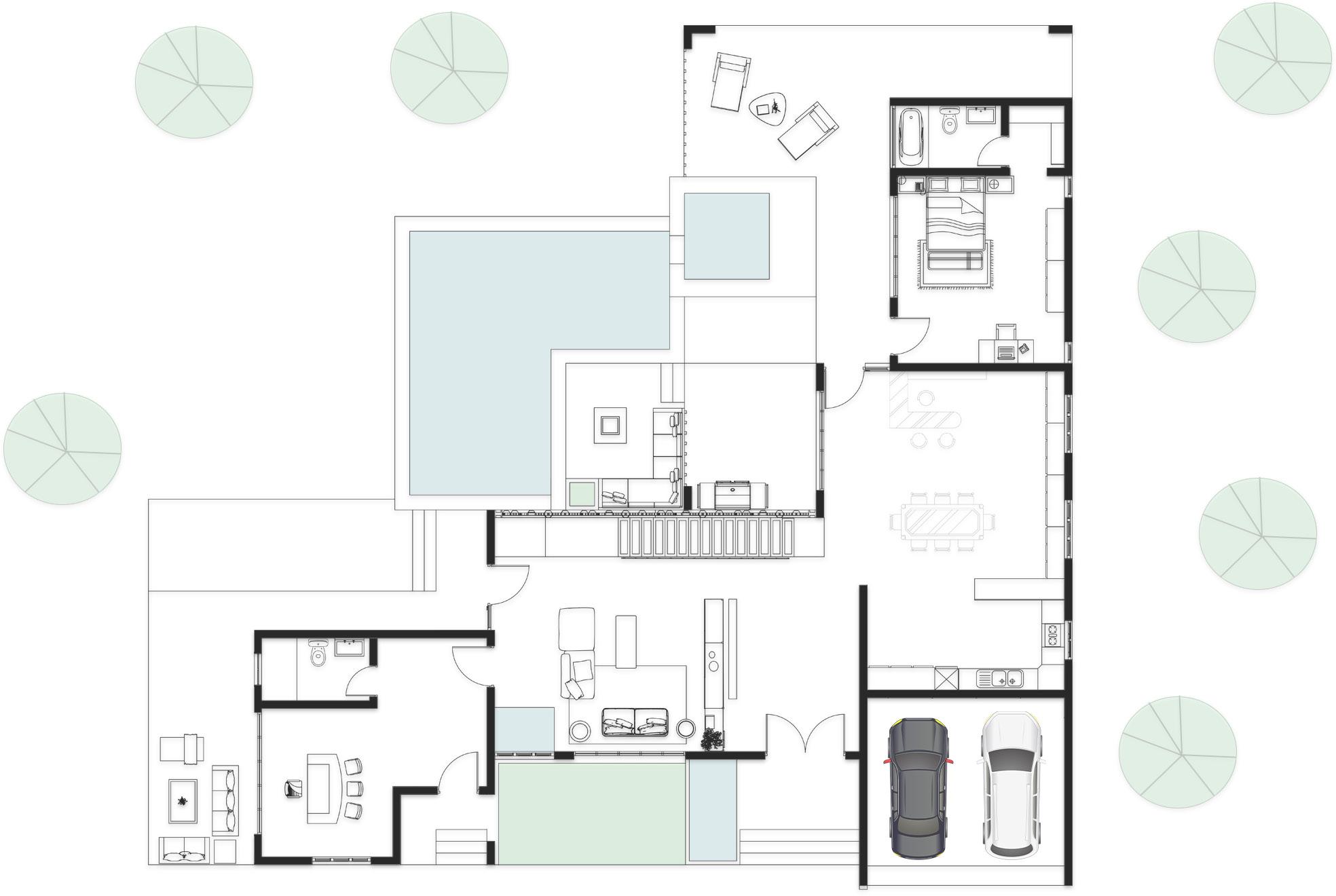

GROUND FLOOR PLAN

1. GARAGE

2. LIVING ROOM

3. OPEN KITCHEN

4. DINNING ROOM

5. HOME BAR

6. BEDROOM

7. PATIO

8. JACUZZI

9. POOLSIDE BAR AND GRILL

10. SWIMING POOL

11. OFFICE ROOM

12. DECK SPACE

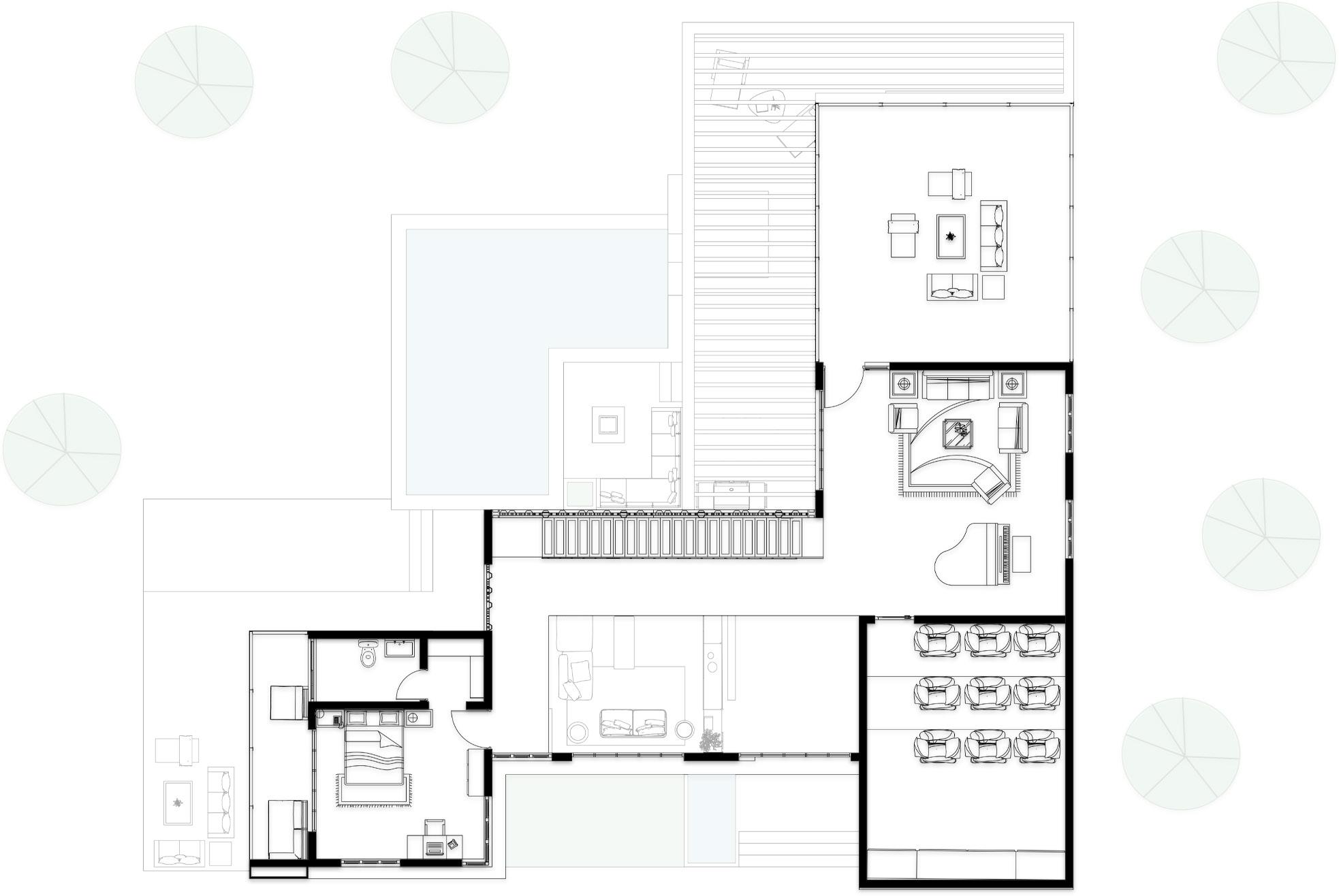

FIRST FLOOR PLAN

1. HOME THEATER

2. PIANO SPACE

3. FAMILY LIVING

4. DRAWING ROOM

5. COMMON BALCONY

6. DOUBLE HIEGHT SPACE

7. BEDROOM

8. BEDROOM BALCONY

9. TOILET

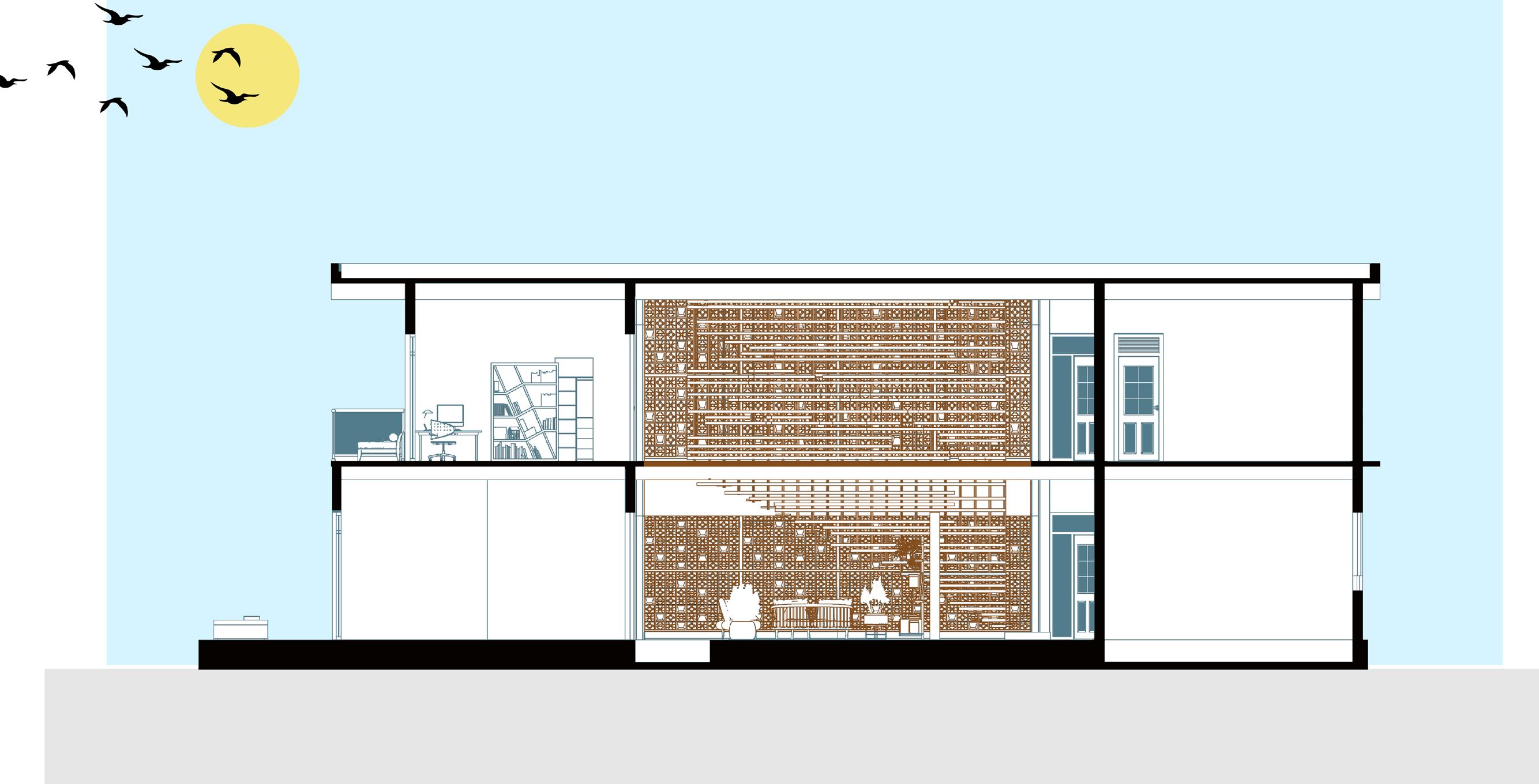

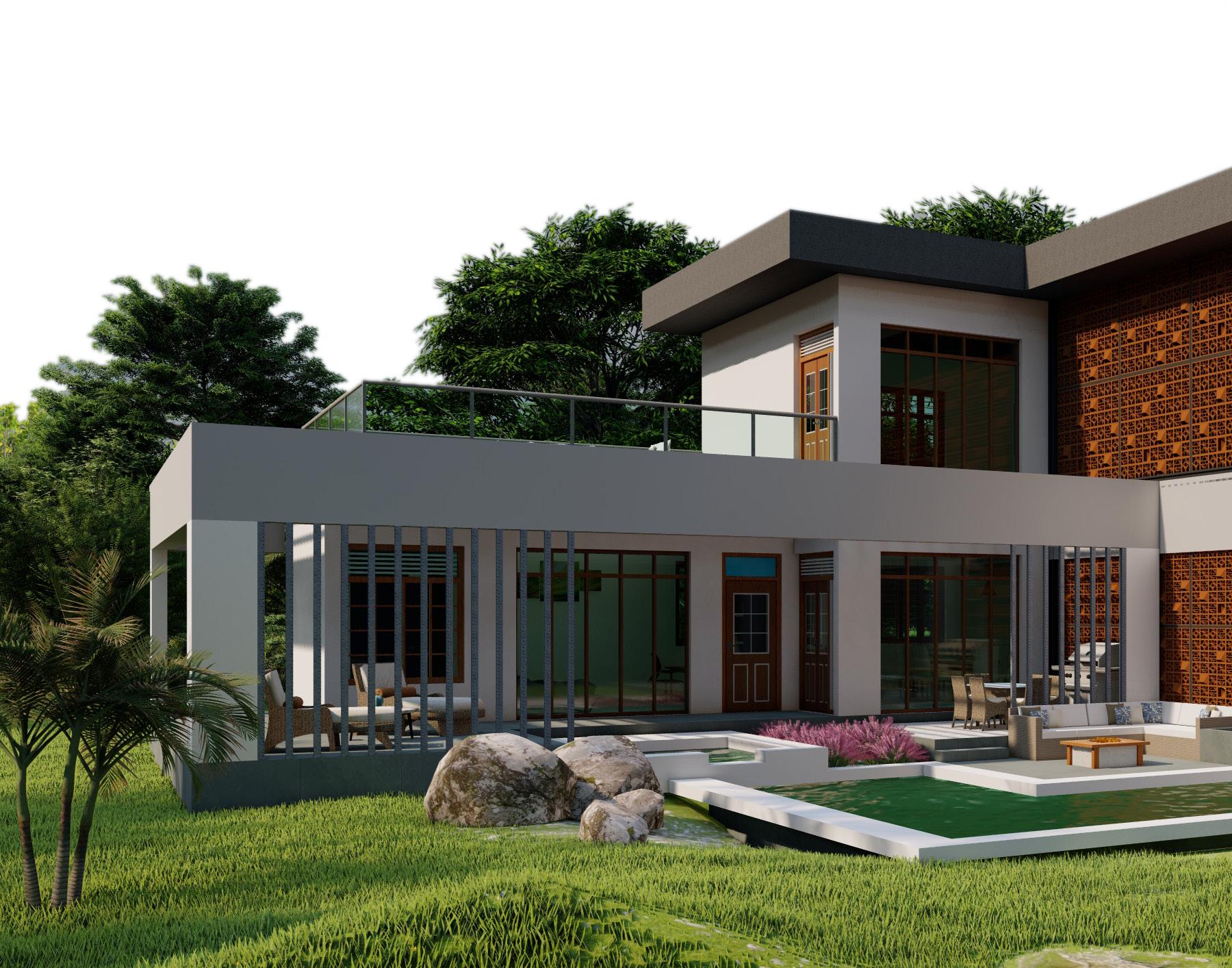

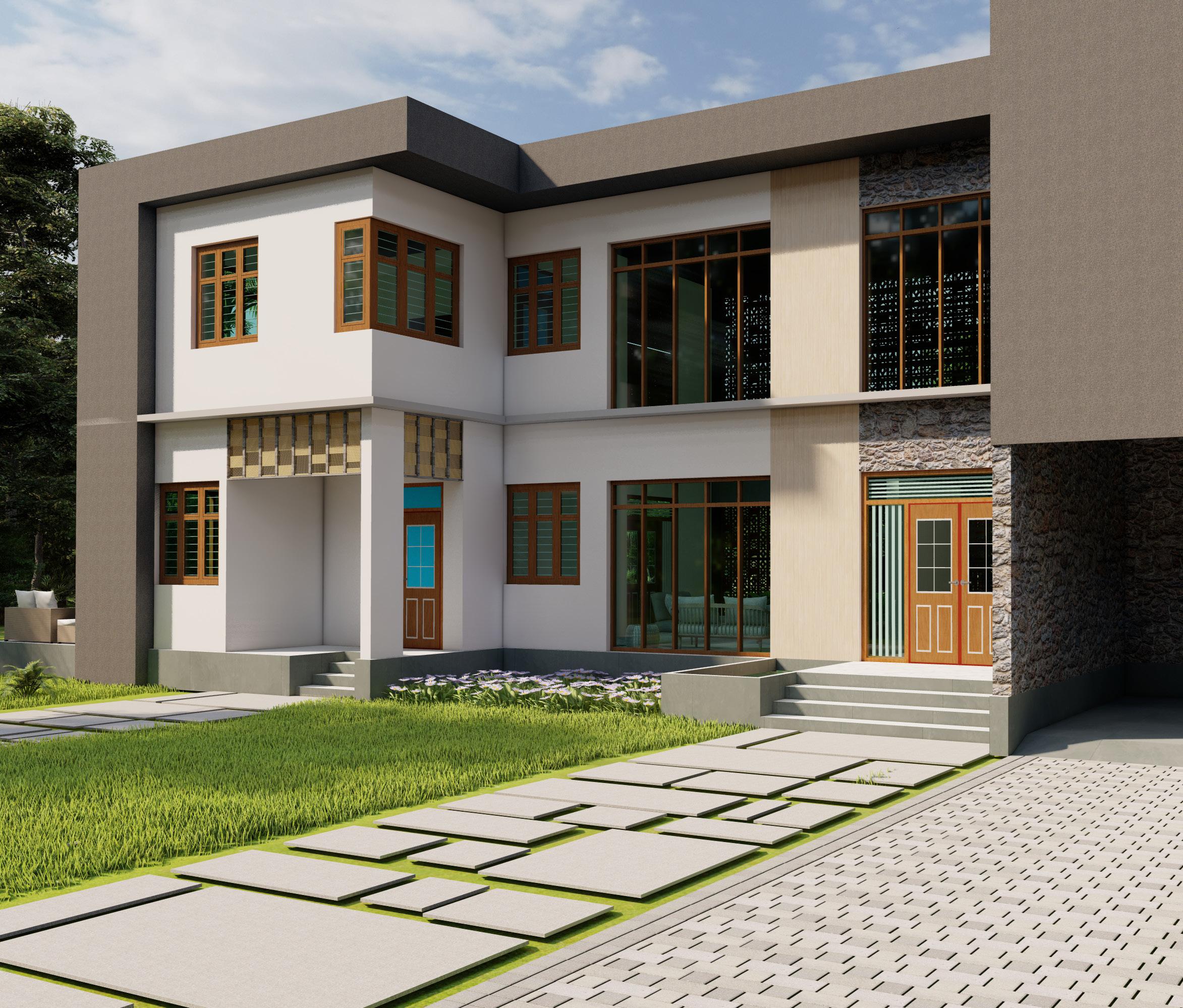

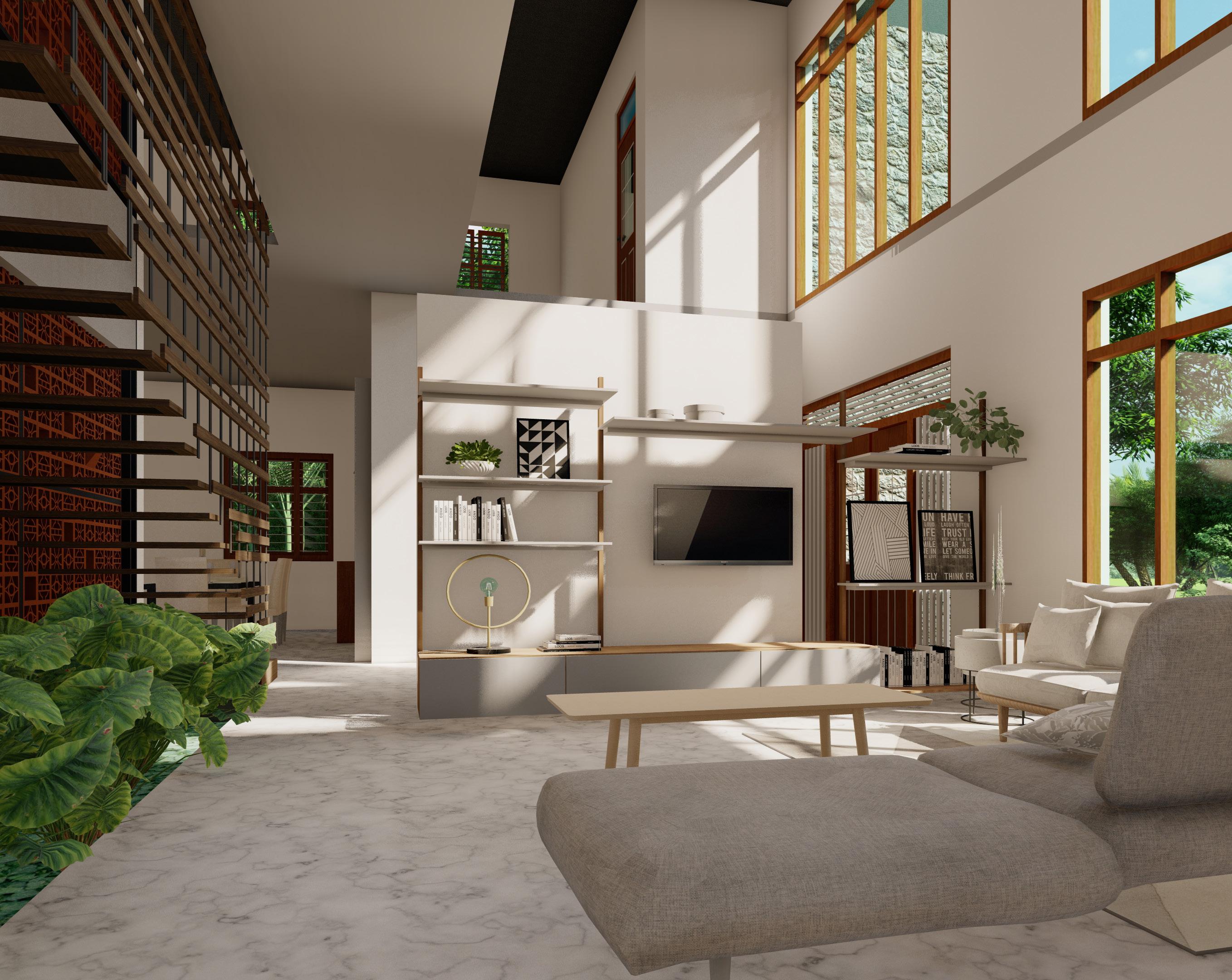

The Tranquil Abode is spacious and designed to provide a comfortable living experience. The interiors are finished with high-quality materials, such as marble countertops, hardwood floors, and premium appliances, and are designed to be both functional and aesthetically pleasing. The large windows provide ample natural light and stunning views of the surrounding landscape.

THE APEX TOWER

Semster 5 | Project Type : HIGHRISE

Location : Ettumanoor | Kerala

The Apex Tower is a modern and sophisticated service apartment building designed to cater to the needs of the working class and students in the prime location of the city. The building has evolved to reflect the changing needs and lifestyles of its users, with a focus on functionality, convenience, and budget.

In addition to the apartments, The Apex Tower also boasts a top-of-the-line conference hall, restaurant, and banquet hall providing residents with a variety of dining and entertainment options without ever having to leave the building. providing residents with a variety of dining and entertainment options without ever having to leave the building. The restaurant features a wide selection of cuisine, from local delicacies to international favorites. The banquet hall is available for private events, making it the perfect venue for weddings, parties, and corporate gatherings.

CONCEPT

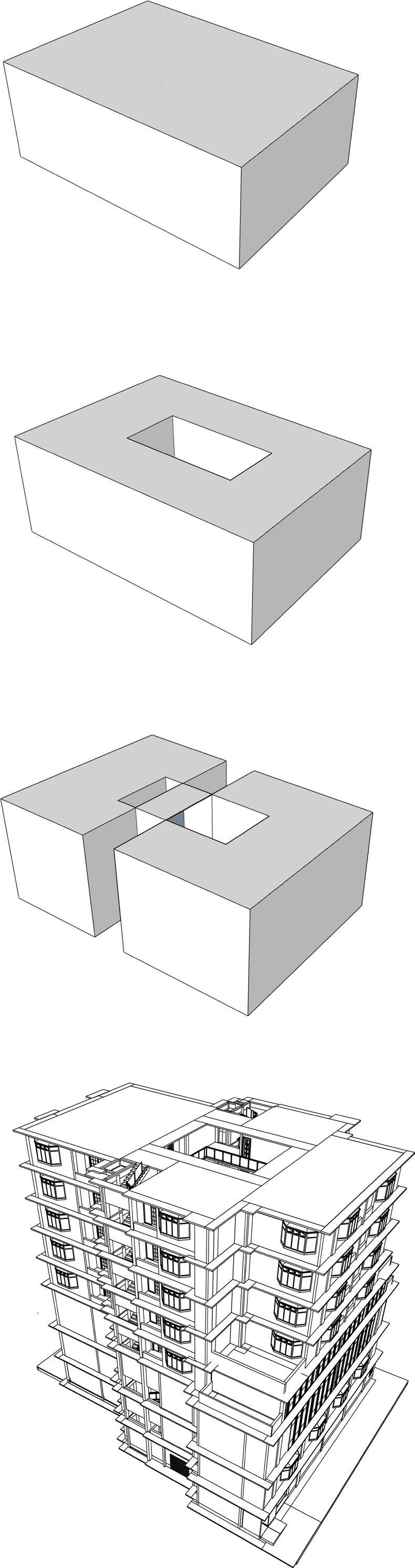

The Apex Tower is designed to be an iconic landmark that reflects the city’s spirit of progress and growth. The tower’s concept is based on a futuristic and dynamic form, which symbolizes the city’s continuous upward momentum.

The Apex Tower is also designed to provide a seamless experience for its occupants. The building is designed with state-of-theart amenities and services, including advanced security systems, high-speed elevators, and a dedicated concierge service. The tower’s public spaces are designed to be inviting and welcoming, featuring comfortable seating areas, natural lighting, and lush greenery

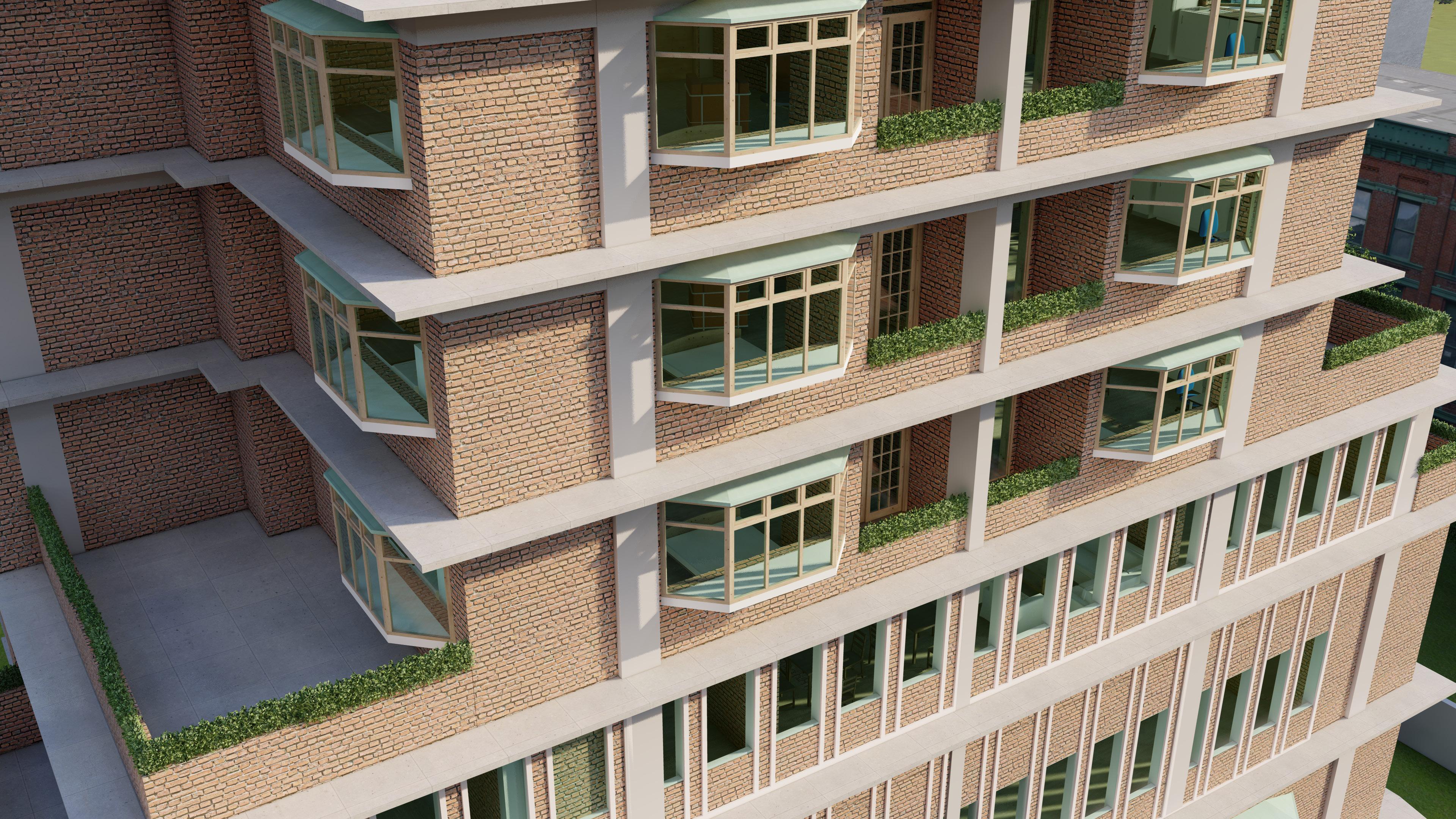

The design of the Apex Tower is focused on sustainability and efficiency. The tower is oriented towards the sun, maximizing natural light and reducing the need for artificial lighting. The facade is designed with shading elements to reduce solar heat gain and optimize energy performance. The tower’s mechanical systems are designed to be highly efficient, reducing energy consumption and minimizing the carbon footprint.

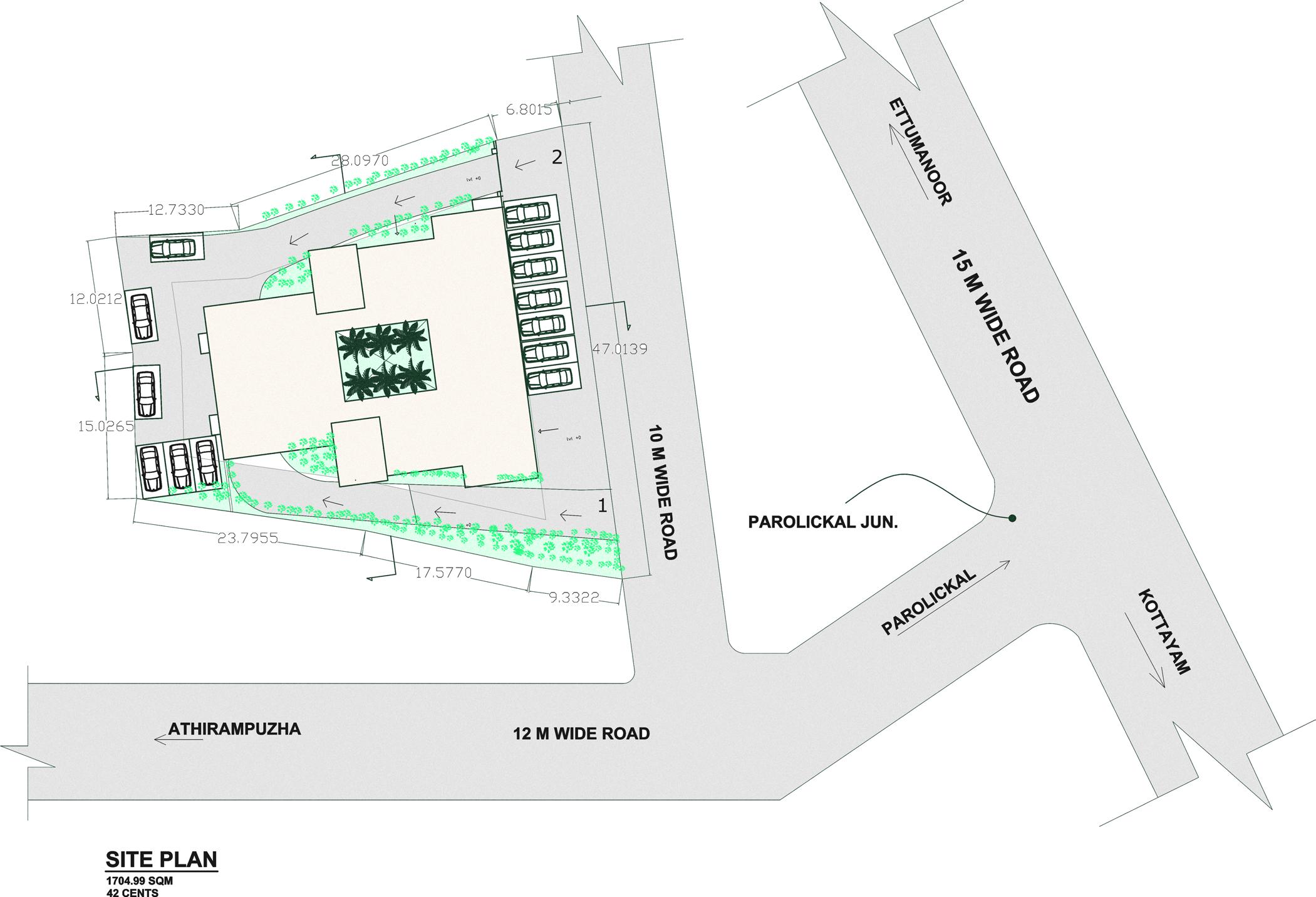

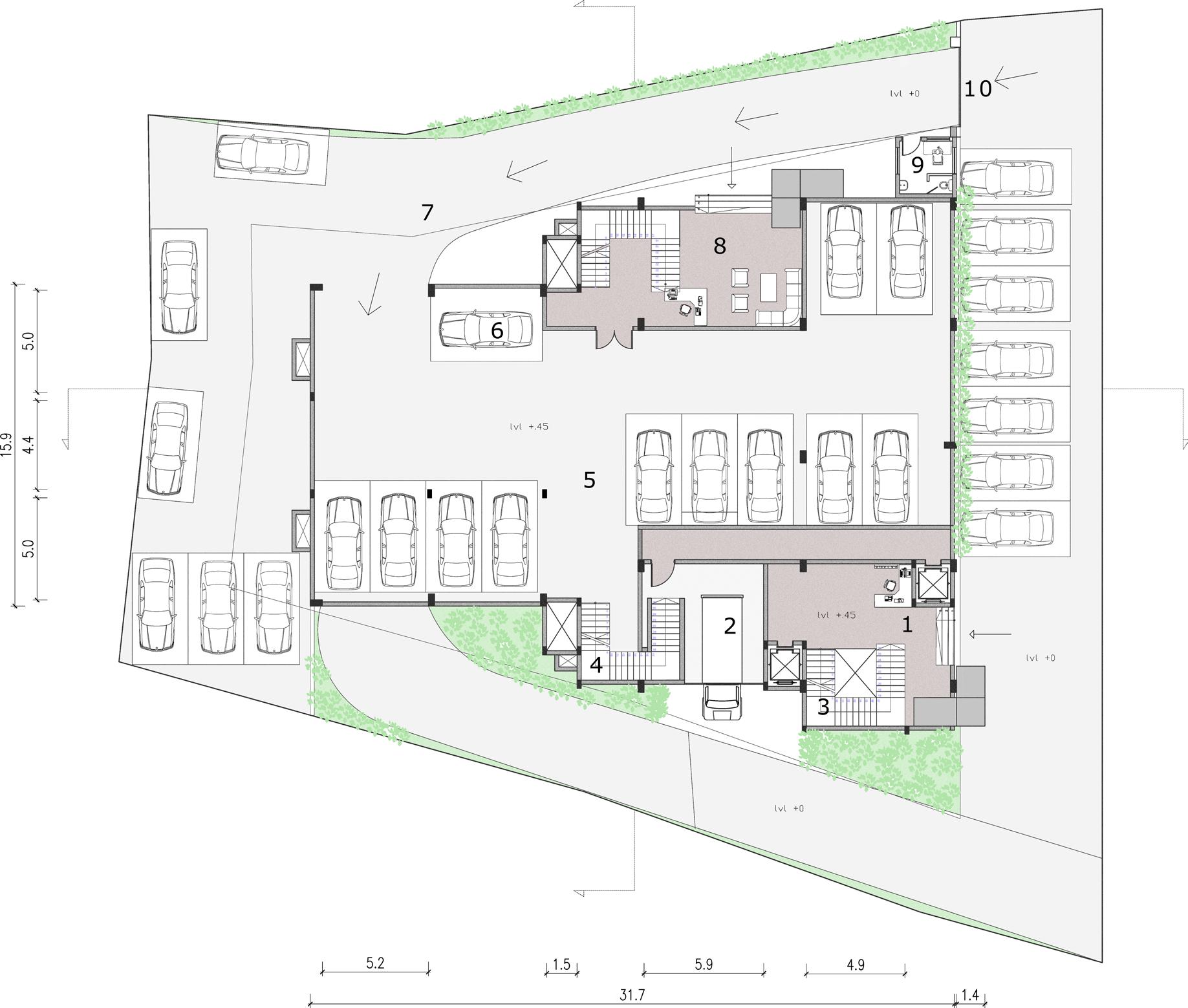

GROUND FLOOR PLAN

1. COMMON LOBBY

2. SERVICE ENTRY

3. COMMON STAIRS

4. APARTMENT STAIRS

5. CAR PARKING

6. DISABLED PARKING

7. DRIVEWAY

8. APARTMENT LOBBY

9. SECURITY CABIN

10. APARTMENT ENTRY

GROUND FLOOOR AREA : 654 SQ.M

CAR PARKING AREA : 450 SQ.M

COMMON LOBBY : 64 SQ.M

APARTMENT LOBBY : 62 SQ.M

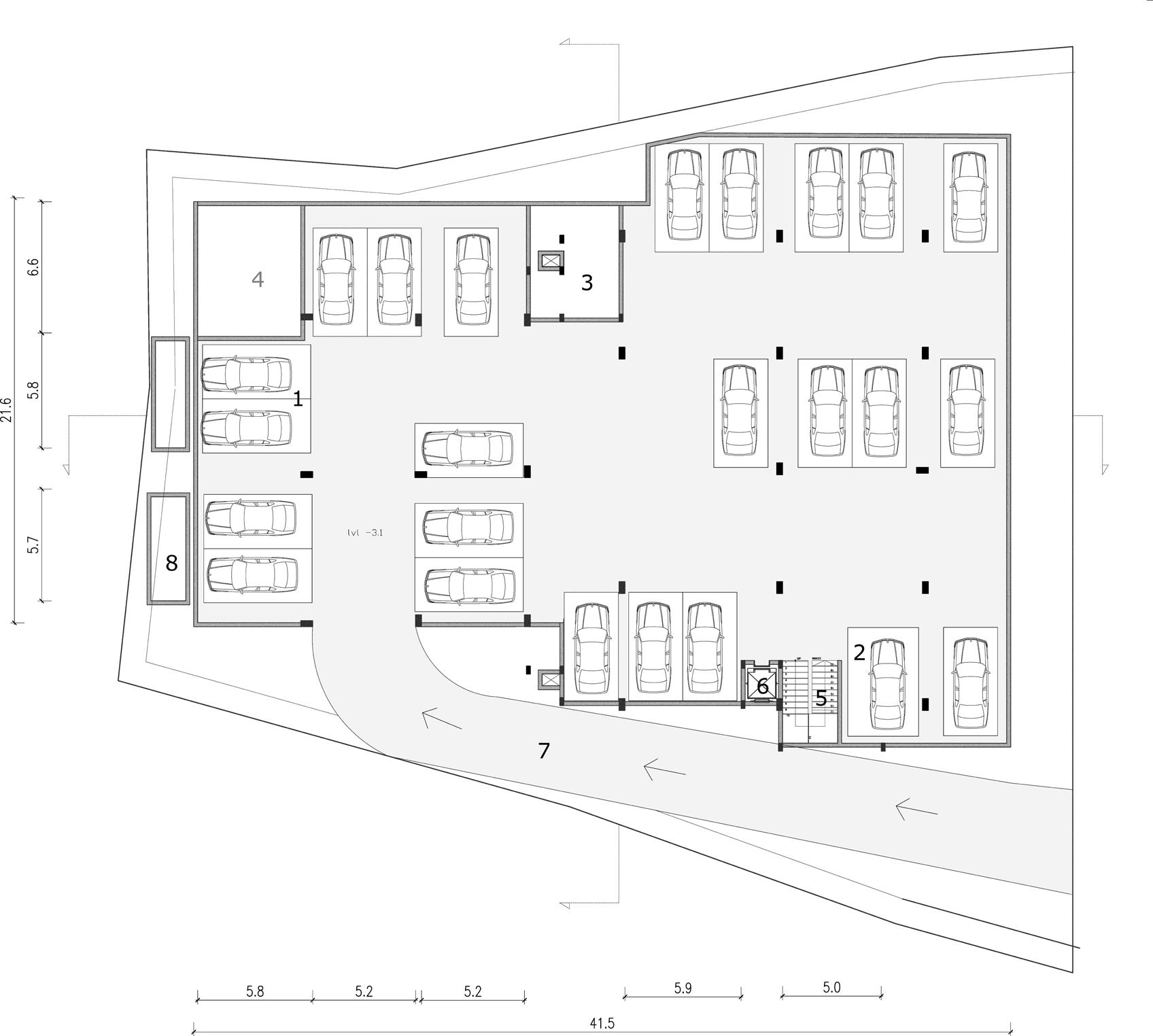

BASEMENT FLOOR PLAN

1. CAR PARKING

2. DISABLED PARKING

3. ELECTRICAL ROOM

4. GENERATOR ROOM

5. STAIRCASE

6. LIFTS

7. DRIVEWAY

8. SEPTIC TANK

BASEMENT AREA : 1045 SQ.M

CAR PARKING : 2.75* 5.5 SQ.M

DIFFERENTLY ABLED PARKING : 3.6* 5.5 SQ.M

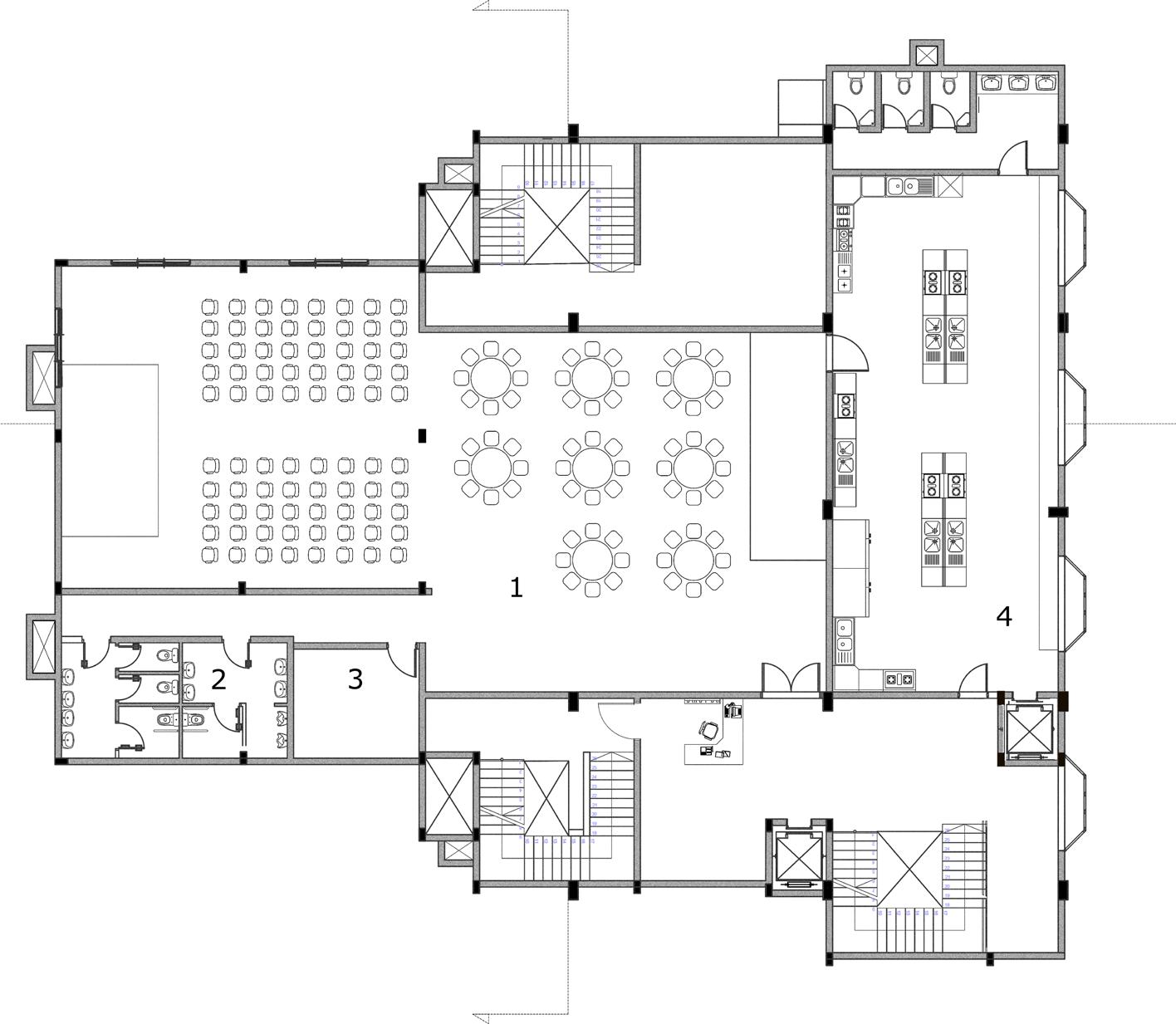

FIRST FLOOR PLAN

1. BANQUET HALL (317 SQ.M)

2. BANQUET HALL TOILET

3. GREEN ROOM

4. KITCHEN (115 SQ.M)

5. KITCHEN TOILET

SECOND FLOOR PLAN

1. BANQUET HALL (317 SQ.M)

2. BANQUET HALL TOILET

3. GREEN ROOM

4. KITCHEN (115 SQ.M)

5. KITCHEN TOILET

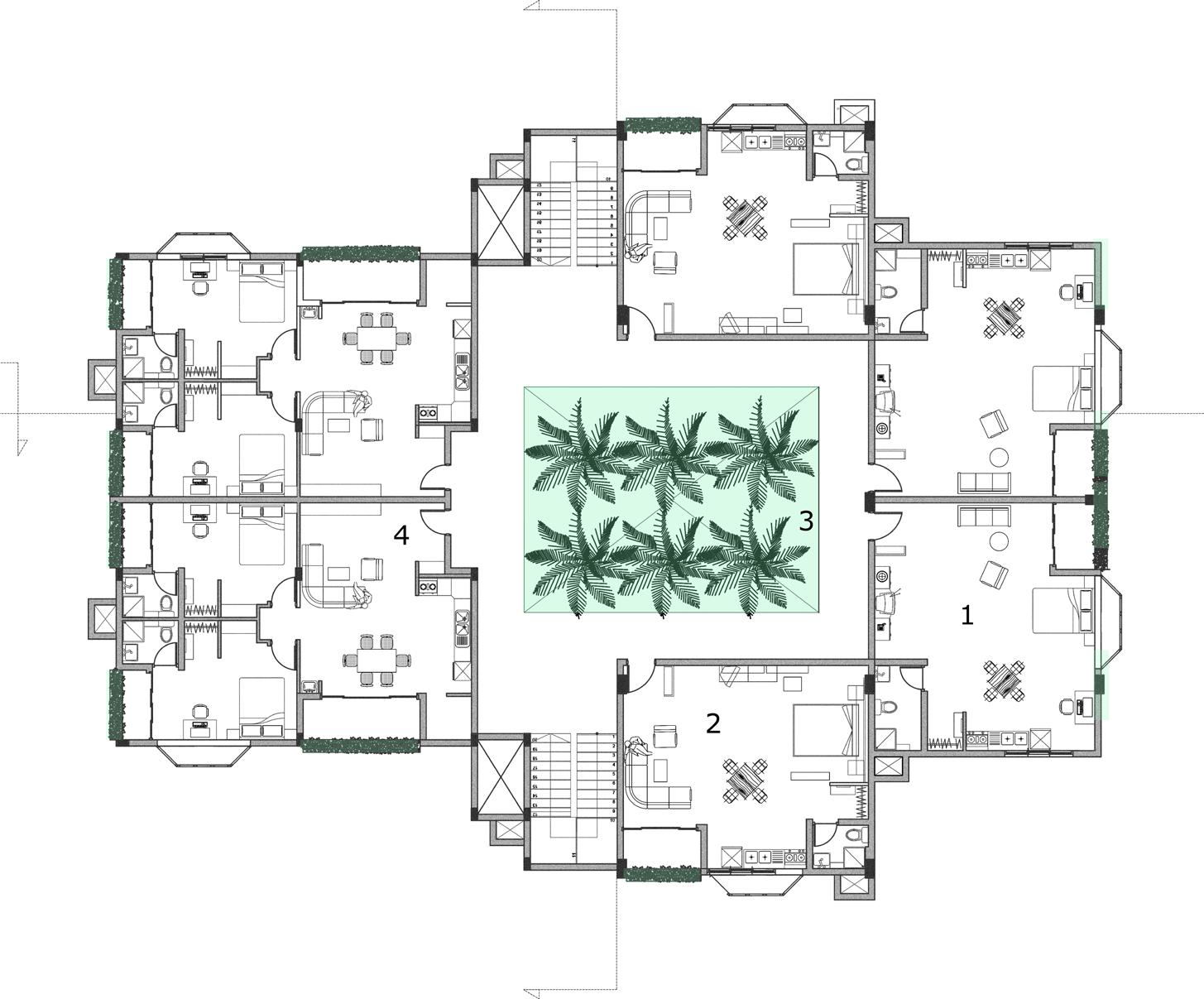

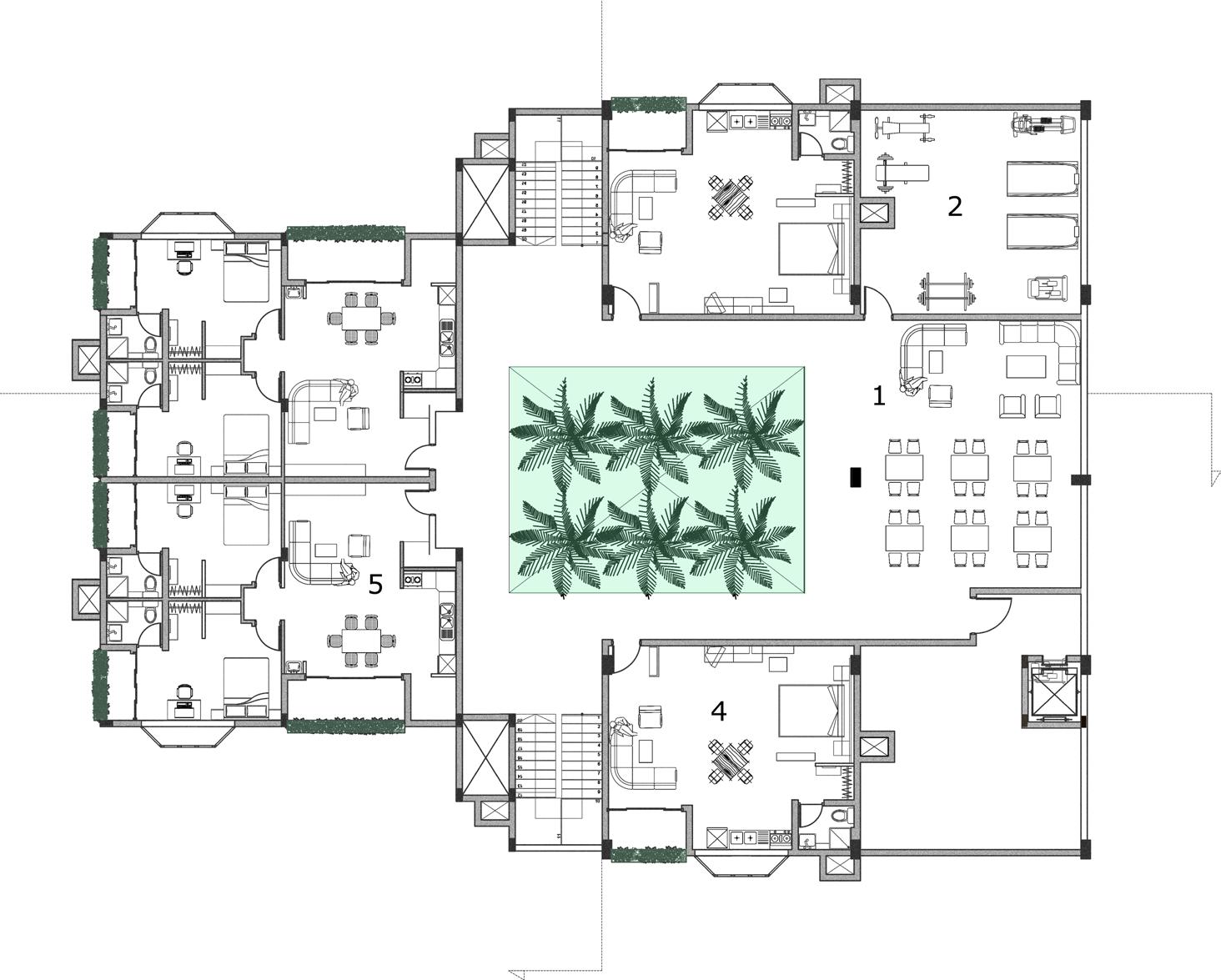

TYPICAL FLOOR PLAN

1. STUDIO APARTMENT(TYPE 2)

2. STUDIO APARTMENT(TYPE 2)

THIRD FLOOR PLAN

1. RECREATIONAL SPACE

3. SERVICE AREA

The apartments are designed to maximize space utilization, with the use of convertible furniture and storage solutions. Additionally, the common spaces like the restaurant and banquet hall can be designed with flexible layouts that can be easily adapted to different events and functions.

3. CENTRAL COURTYARD

4. 2 BHK

2. GYM

4. STUDIO APARTMENT

5. 2 BHK

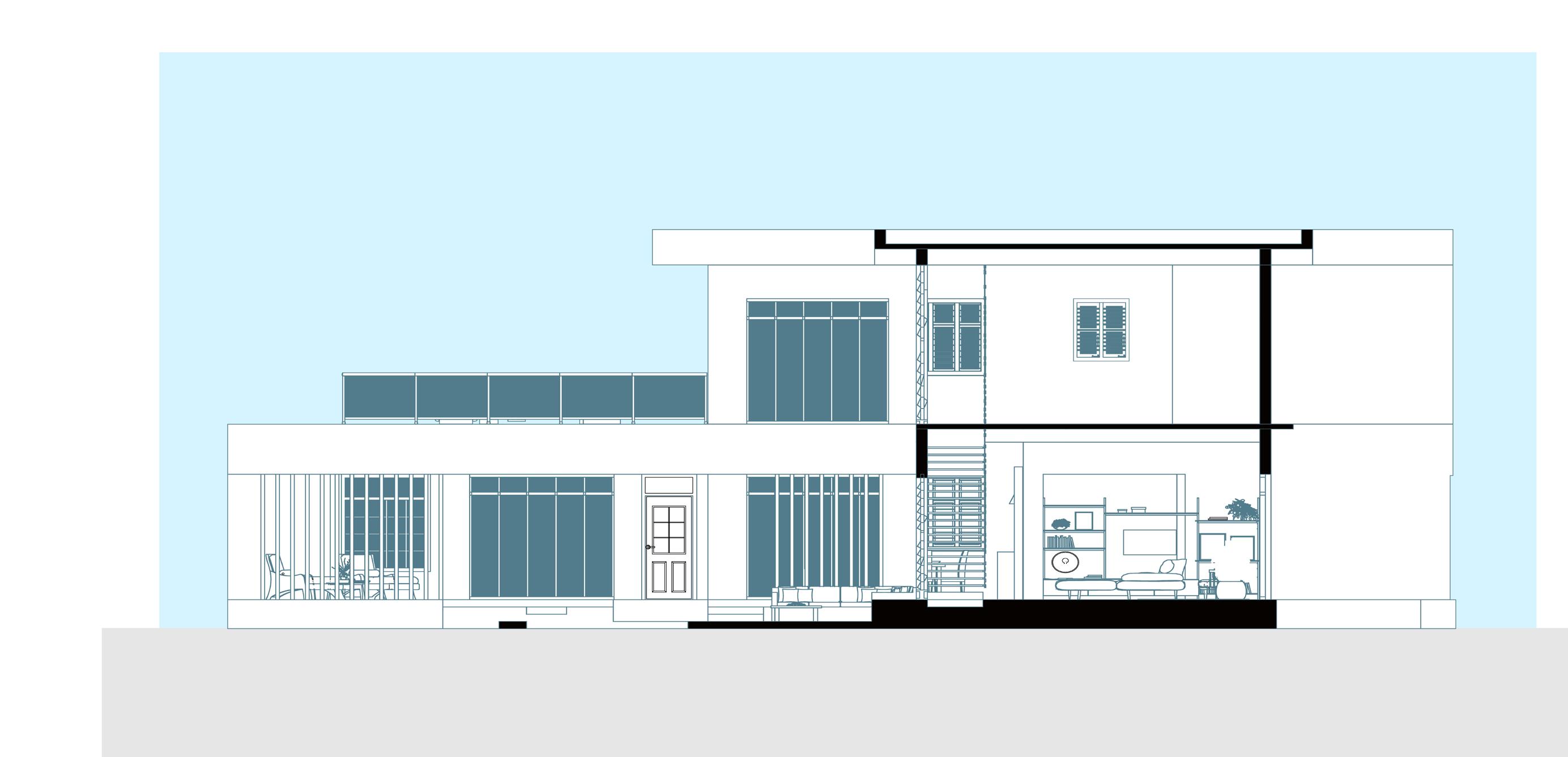

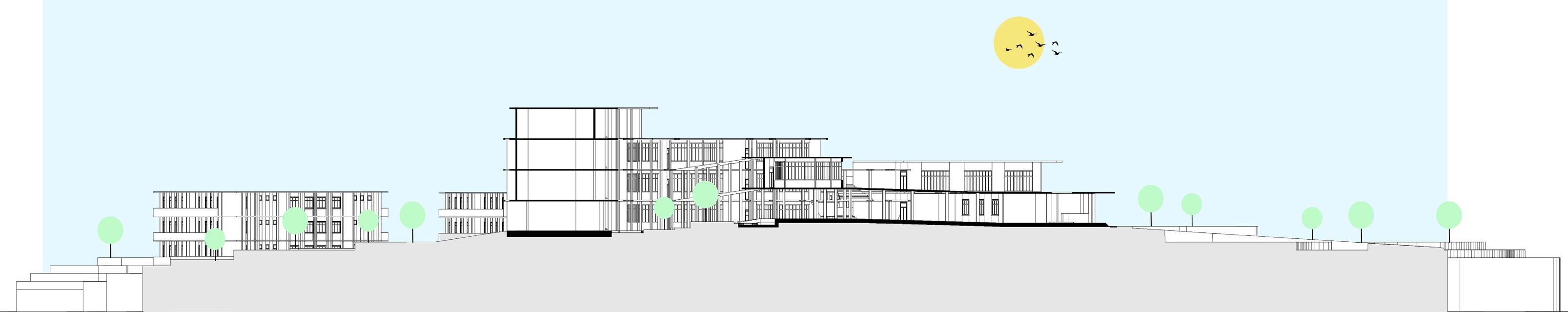

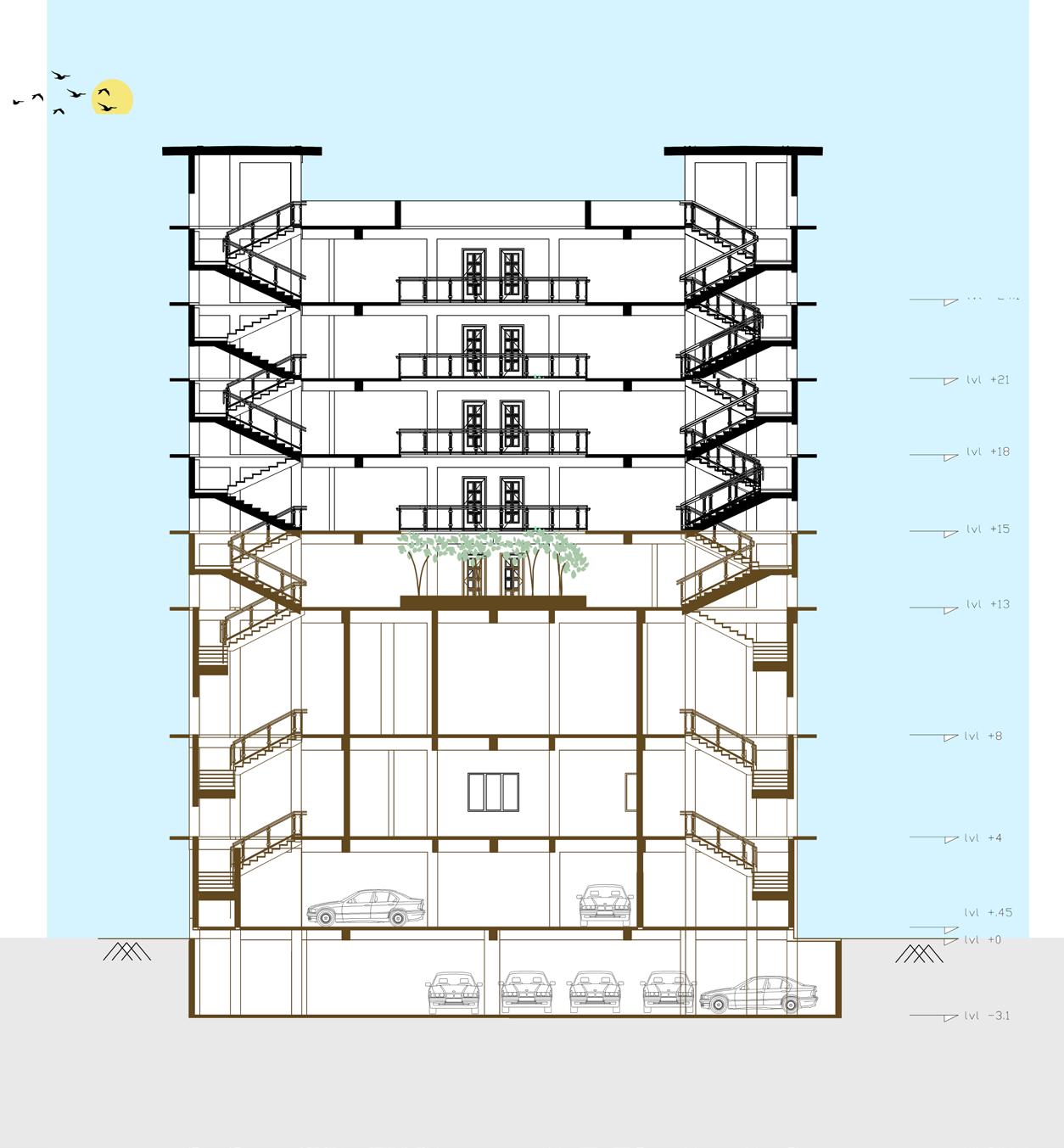

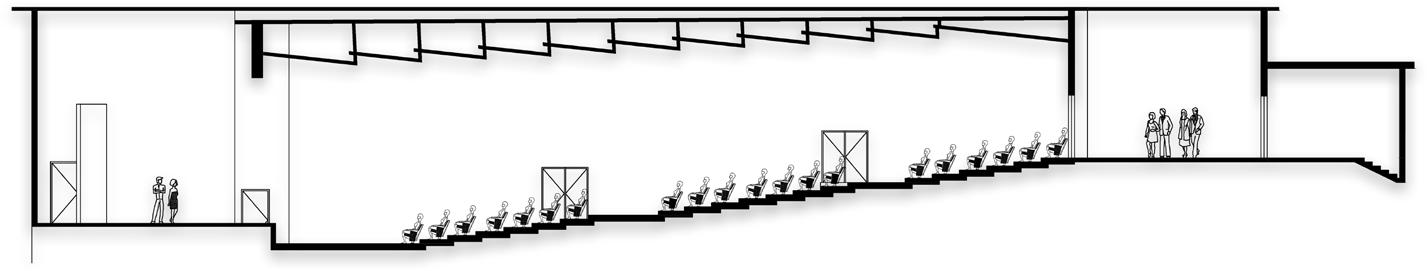

SECTION A

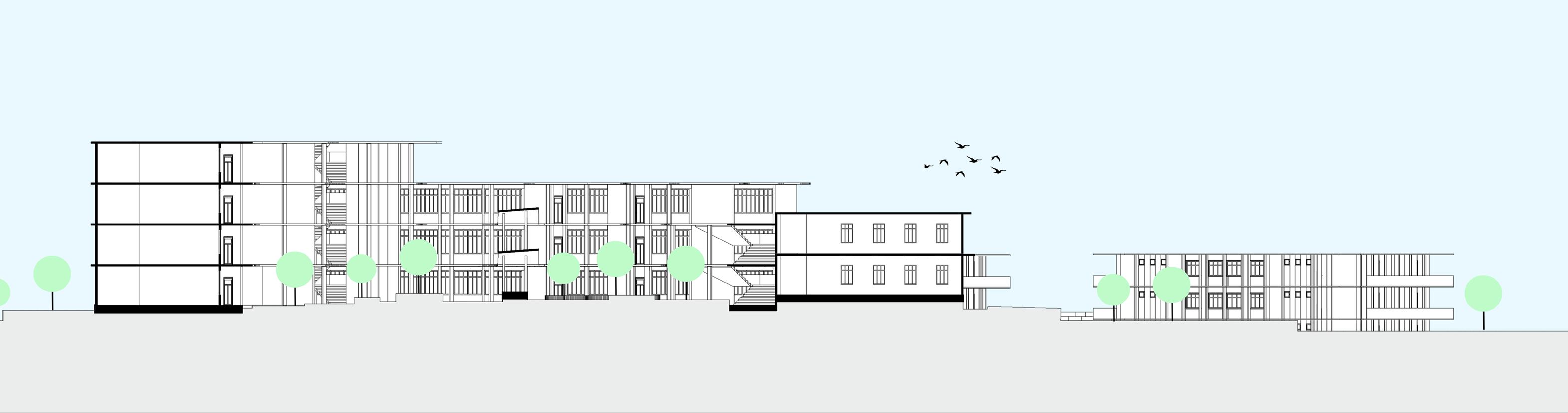

SECTION B

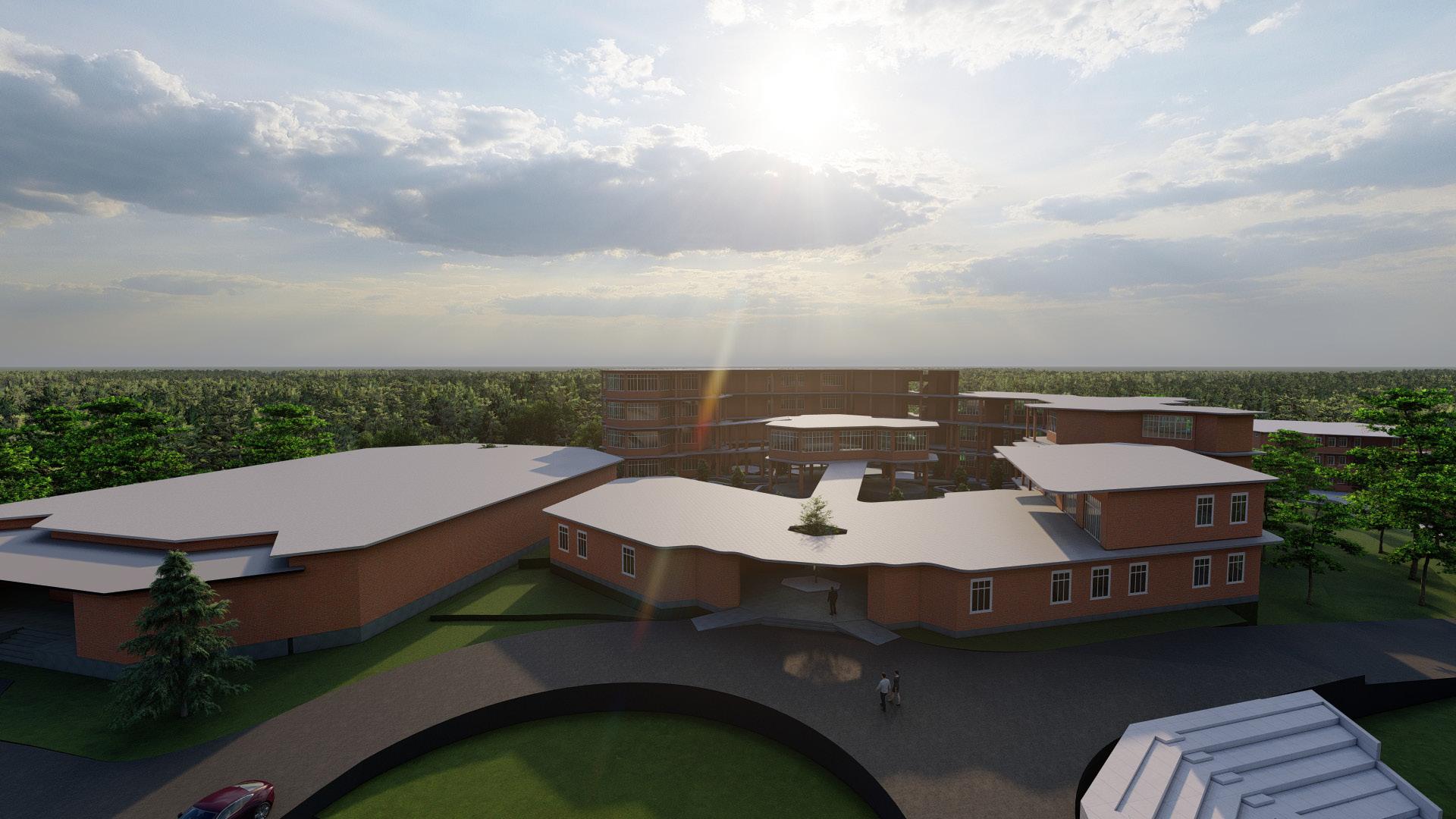

ArtHex School of Fine Arts

Semster 5 | Project Type : INSTITUTIONAL

Location : Kuttikanam | Kerala

The ArtHex (This name incorporates both the hexagonal shape of the building and the word “Art,” while the term “Hex” also implies a sense of community and bonding) is an educational campus designed to cater to the needs of aspiring artists and creative minds. The campus consists of one Faculty: Fine Arts. The institution aims to offer quality education in Fine Arts and help students develop their artistic skills to their fullest potential.

The Fine Arts College is affiliated with the All India Council for Technical Education (AICTE) and offers a one-year graduate program (BFA) and a two-year post-graduate program in Fine Arts. The college has an intake of 60 students per year for the BFA program and 30 students per year for the post-graduate program.

CONCEPT

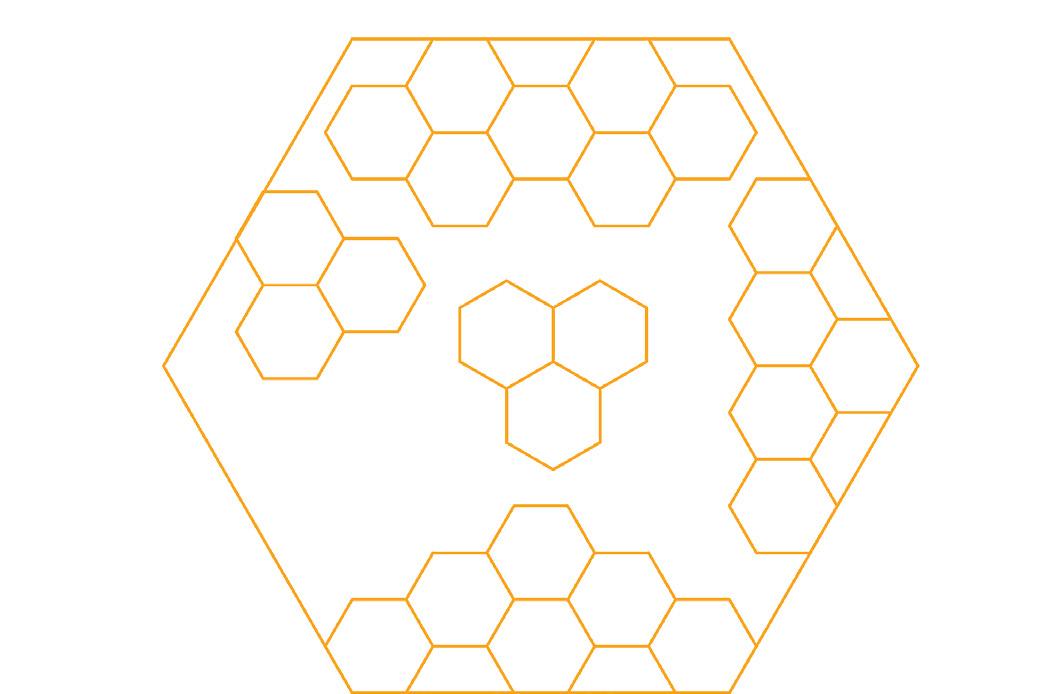

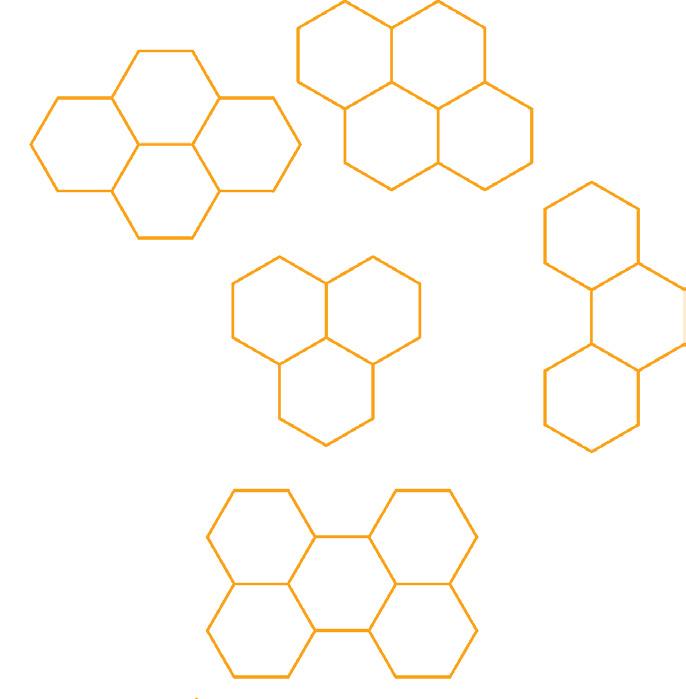

The building’s design emphasizes a hexagonal bonding plan, which creates a visually stunning and unique environment. With a focus on light and flexibility, ArtHex provides an inspiring and functional space for the pursuit of fine arts education.

The zoning of the campus has been divided into three areas: public, semi-public, and private. The administrative area is public, with commonly used spaces like the library, canteen, and labs categorized as semi-public. Classrooms and studios are categorized as private, and are situated accordingly.

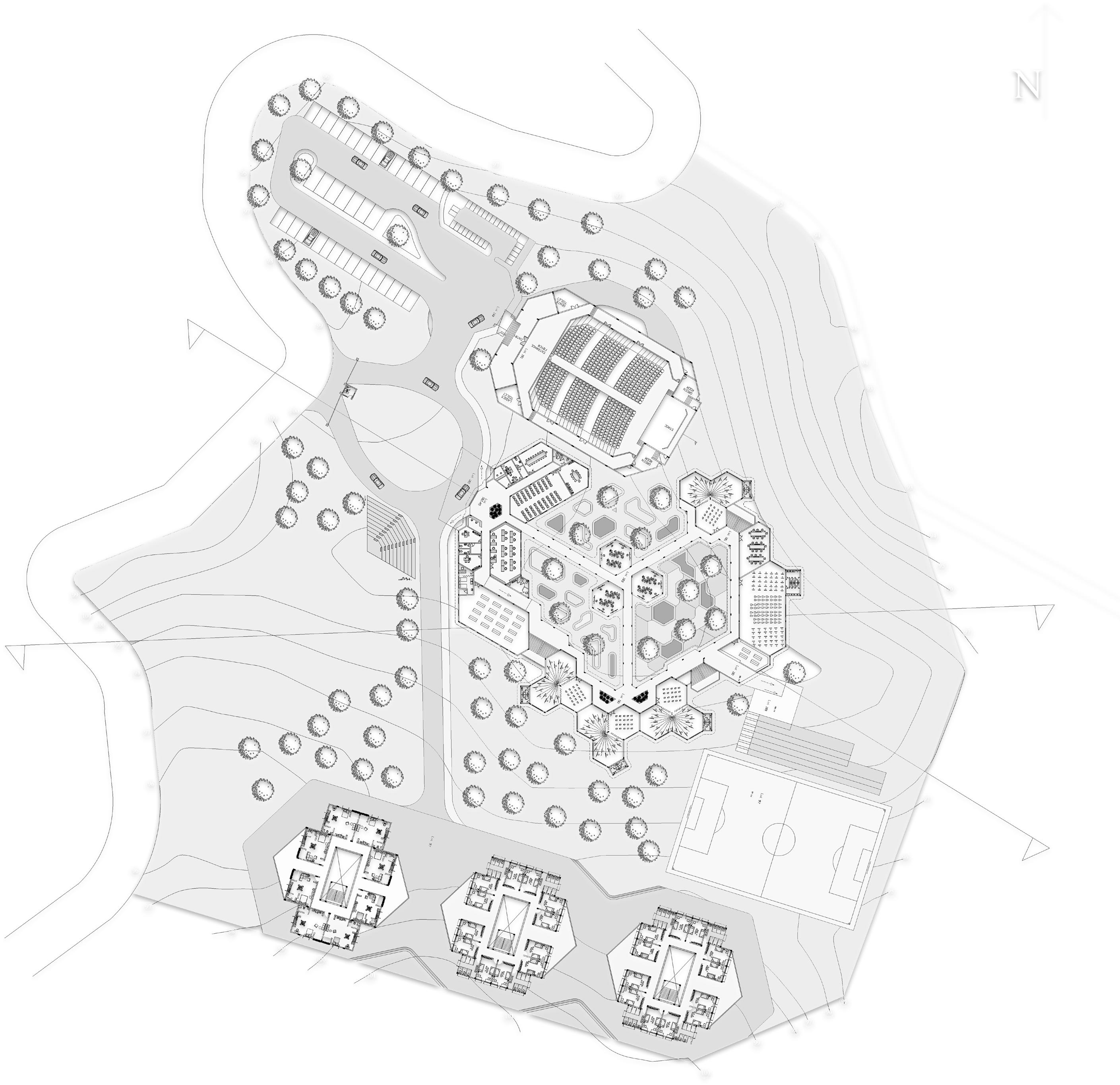

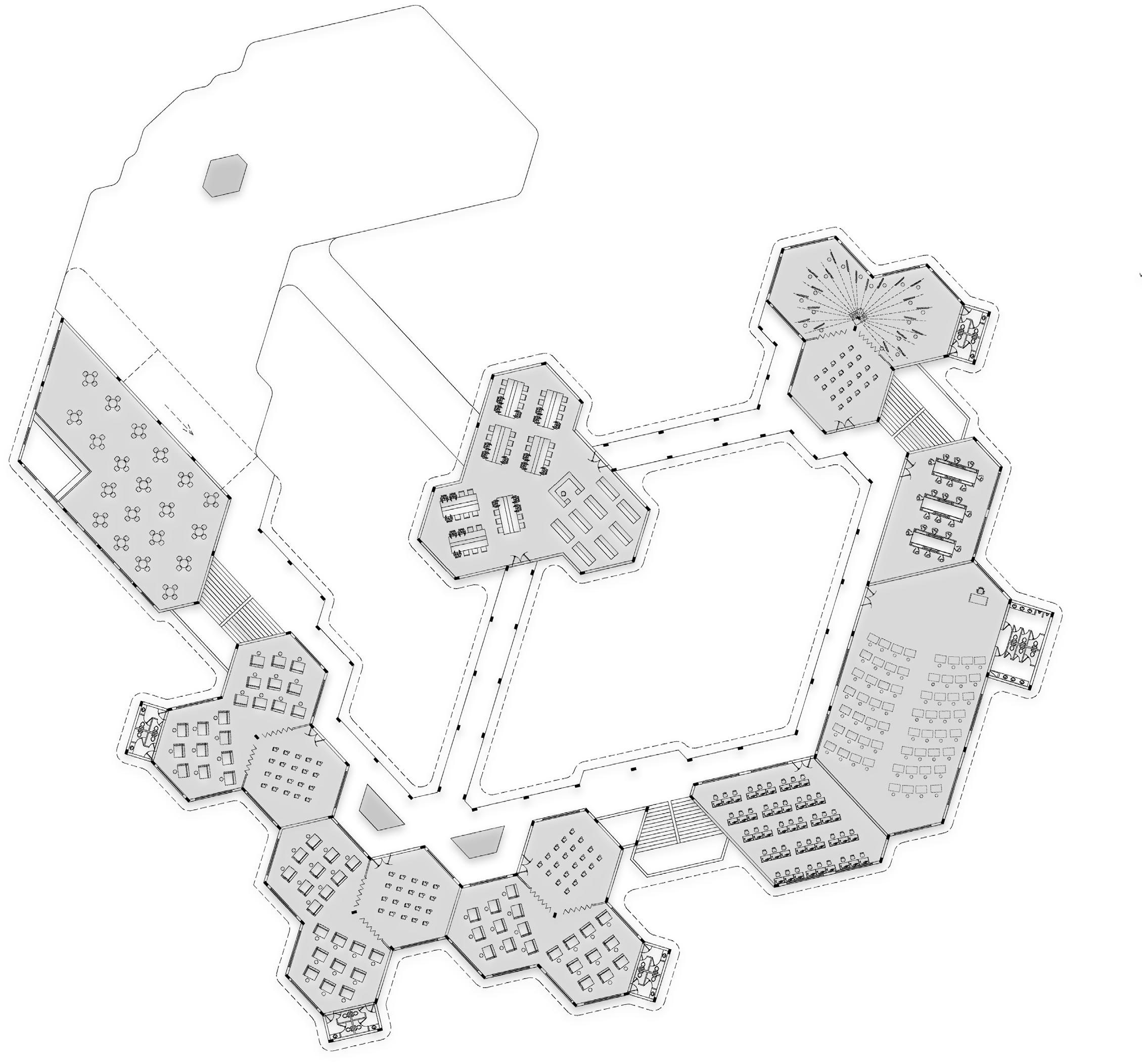

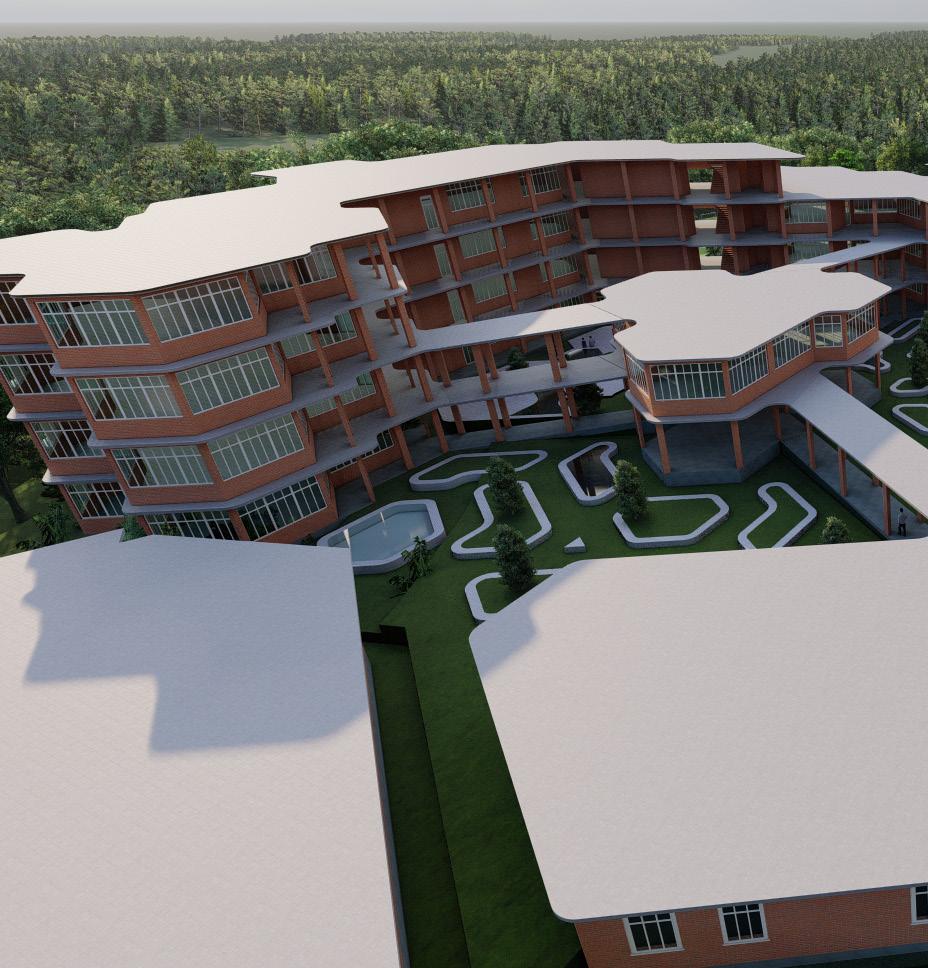

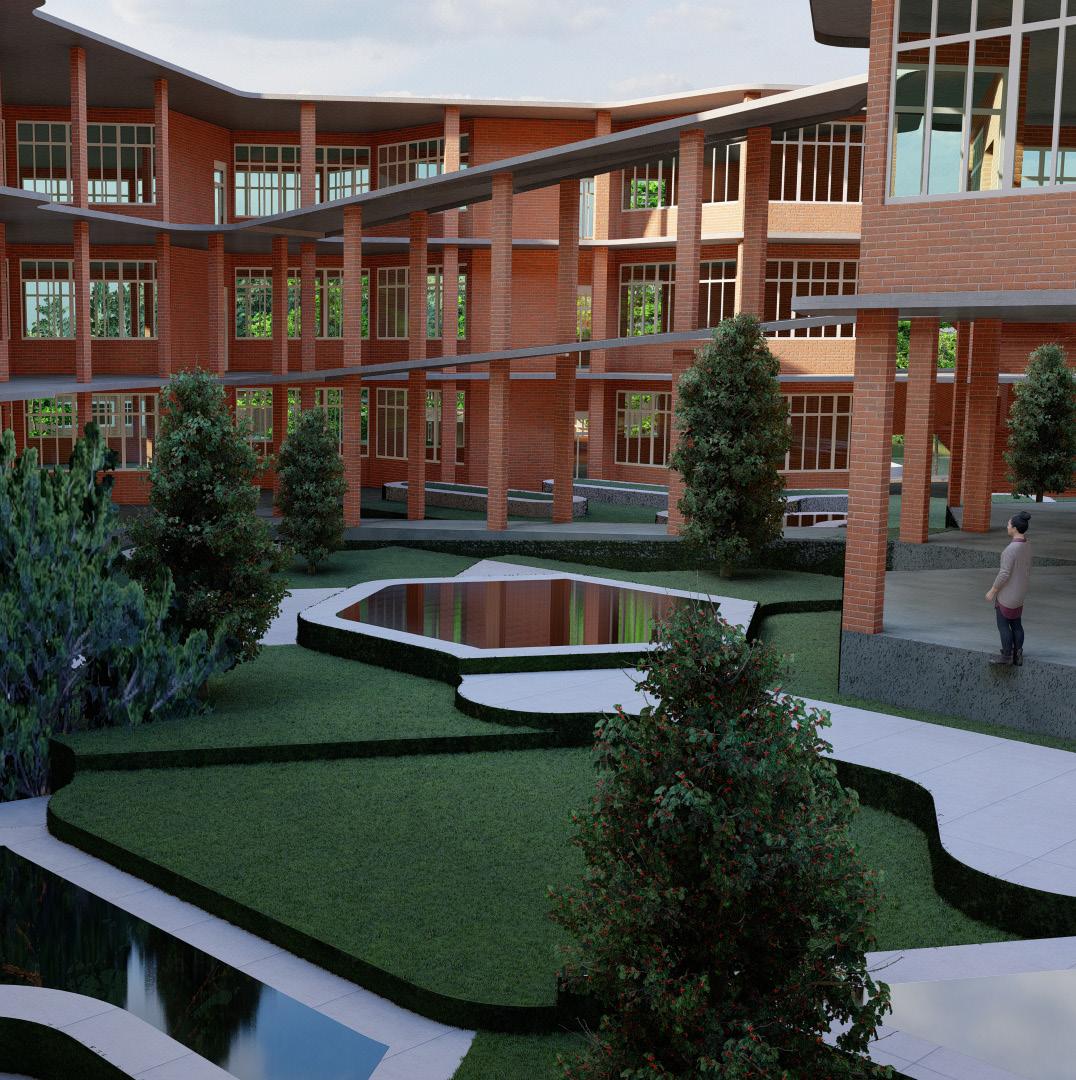

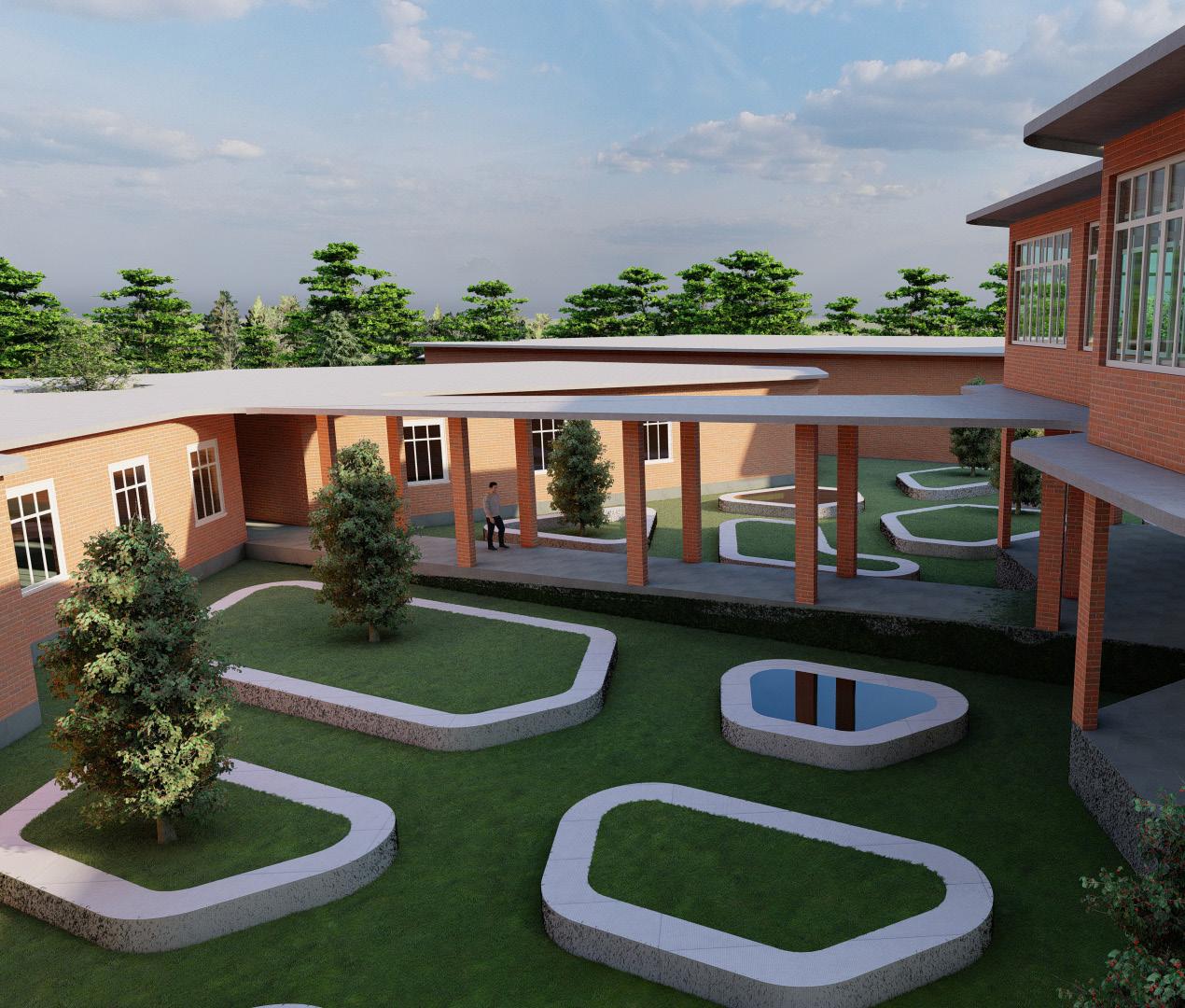

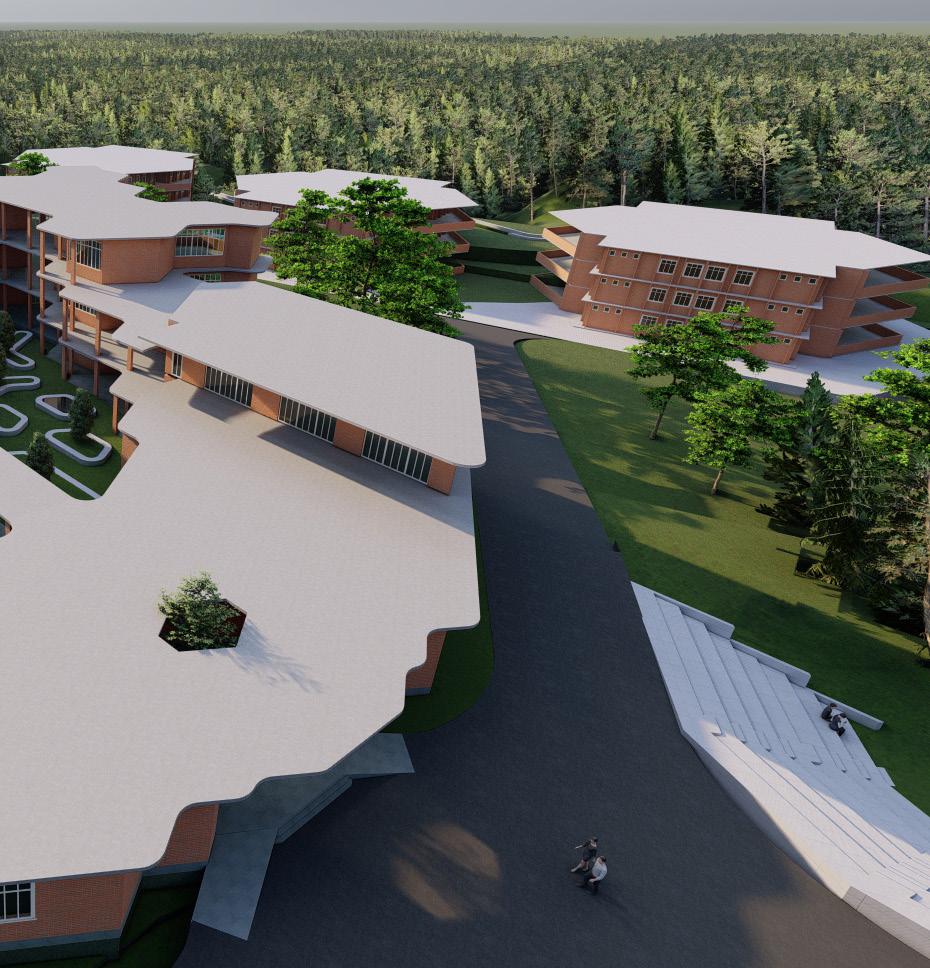

ArtHex is a fine arts college that has been designed with a focus on light and flexibility, providing a universal design that is easily accessible for all. The hexagonal planning of the classrooms allows for ample natural lighting while also creating a strong sense of connectivity among each classroom. The building has been strategically placed on the contours of the site and has been meticulously classified and planned.

5

AUDITORIUM

PARKING

DROP OFF POINT

AMPHITHEATER

MENS HOSTEL

WOMENS HOSTEL

1 : ENTRY LOBBY

2 : RECEPTION

3 : OFFICE+ACCOUNT SECTION

4 : CONFERNECE ROOM

6 NON TEACHING STAFFS ROOM

7 LECTURE HALL

8 STAFF ROOM

9 STAFF TOILET

10 : PRINCIPAL ROOM

11 : DIRECTOR ROOM

12 : EXHIBITION HALL

13 : PAINTING [4TH YEARS]

14 : PAINTING [3RD YEARS]

15 : PAINTING [2ND YEARS]

PLAY GROUND

FACULTY HOSTEL

16 : STORE

17 : FIRST YEAR STUDIO

18 : WORKSHOP PAINTING

19 : MFA [PAINTING]

20 : GALLERY

: NON TEACHING STAFF TOILET

1 : CANTEEN

2 : APPLIED ART [4TH YEARS]

3 : APPLIED ART [3RD YEARS]

4 : APPLIED ART [2ND YEARS]

5 : LIFT 6 WORKSHOP

7 : ADVERTISMENT CLASSROOM

8 : MFA [APPLIED ART]

9 : STORE ROOM

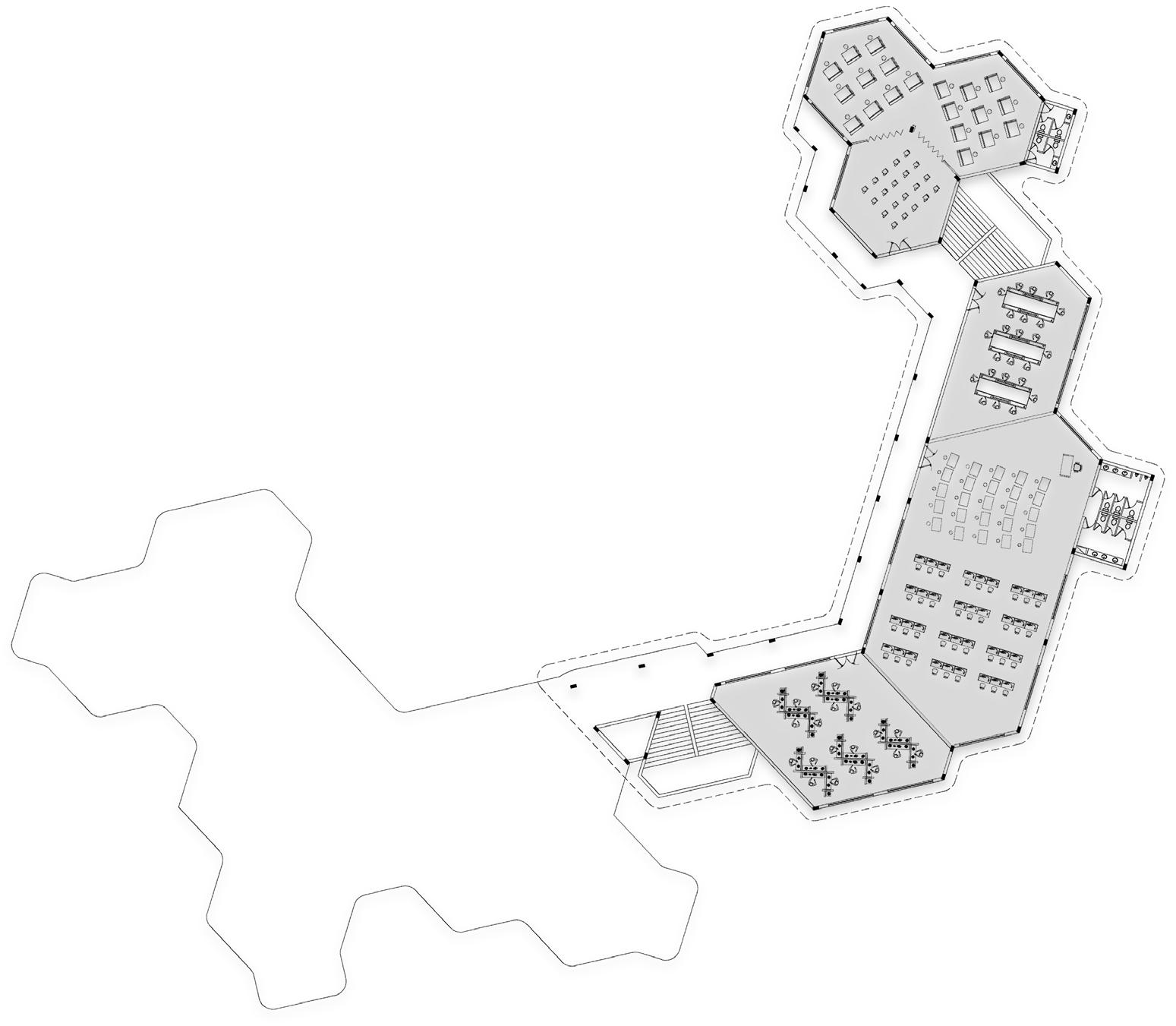

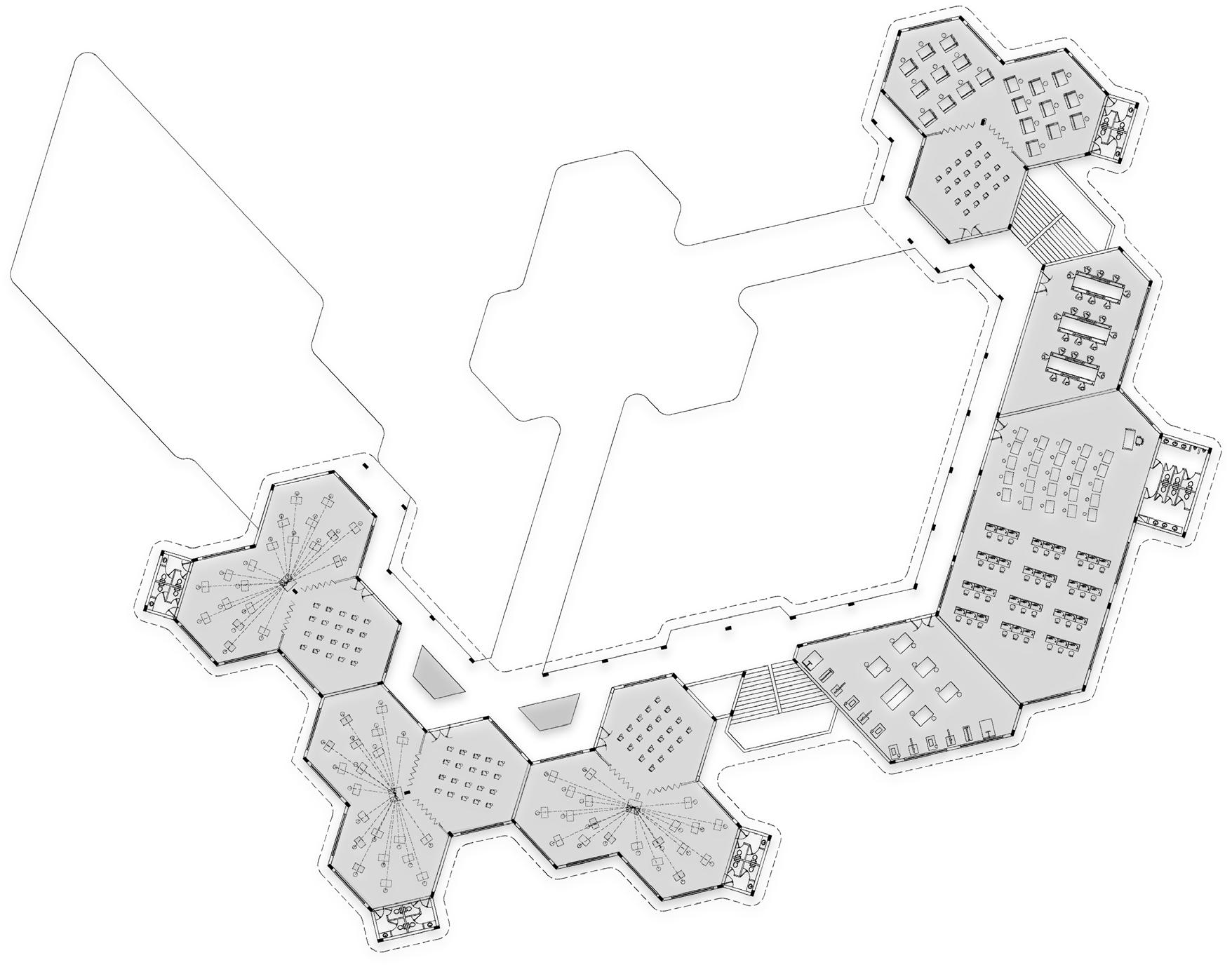

FIRST FLOOR PLAN

SECTION A

1 : SCULPTURE [4TH YEARS]

2 : SCULPTURE [3RD YEARS]

3 : SCULPTURE [2ND YEARS]

4 : LIFT5 : WORKSHOP

6 : ADVERTISMENT CLASSROOM

7 : MFA [APPLIED ART]

8 : STORE ROOM

SECOND FLOOR PLAN

1 : LIFT

2 : ADVERTISMENT CLASSROOM

3 : ADVERTISMENT CLASSROOM

4 : WORKSHOP

5 : MFA [APPLIED ART]

SECOND FLOOR PLAN

HOSTEL BLOCKS

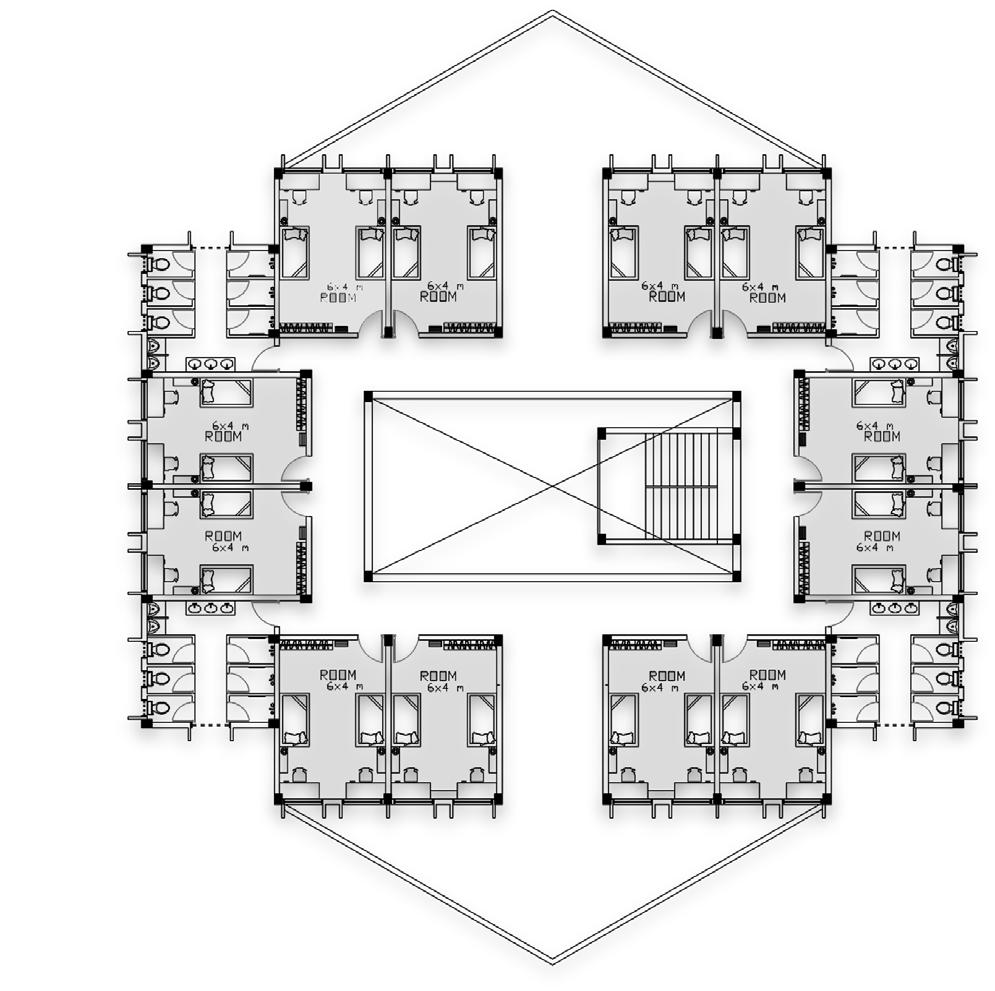

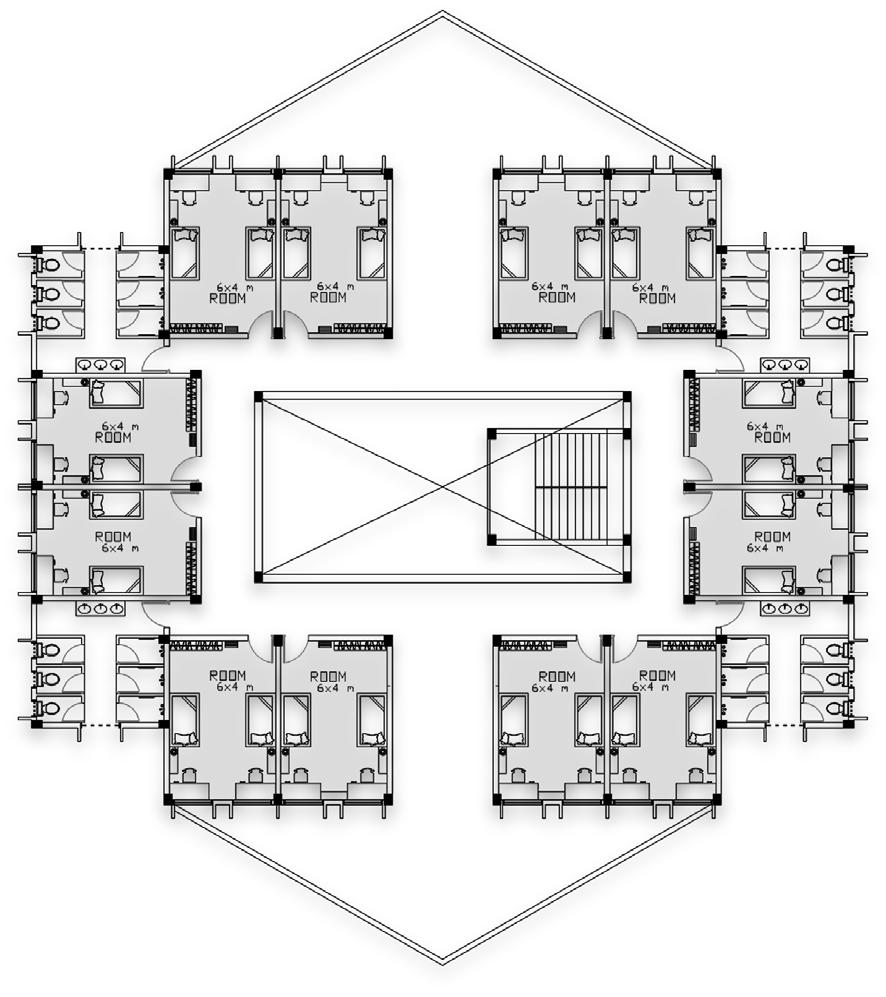

WOMENS HOSTEL FLOOR PLAN

ROOMS IN ONE FLOOR : 12 NO OF OCCUPANTS : 72 NO OF FLOORS : 3

MENS HOSTEL FLOOR PLAN

ROOMS IN ONE FLOOR : 12 NO OF OCCUPANTS : 72 NO OF FLOORS : 3

FACULITY HOSTEL FLOOR PLAN

ROOMS IN ONE FLOOR : 6 NO OF OCCUPANTS : 18 NO OF FLOORS : 3

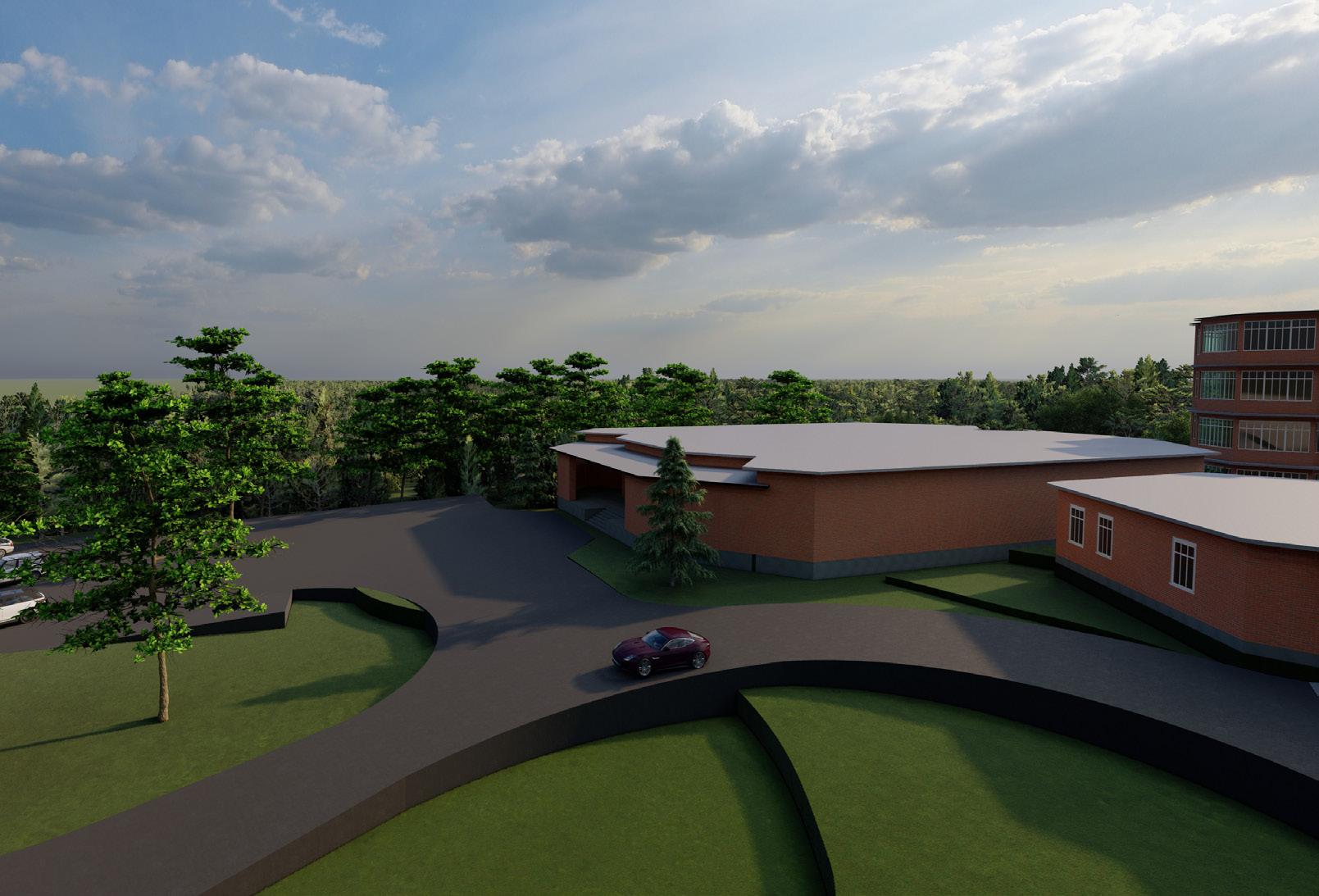

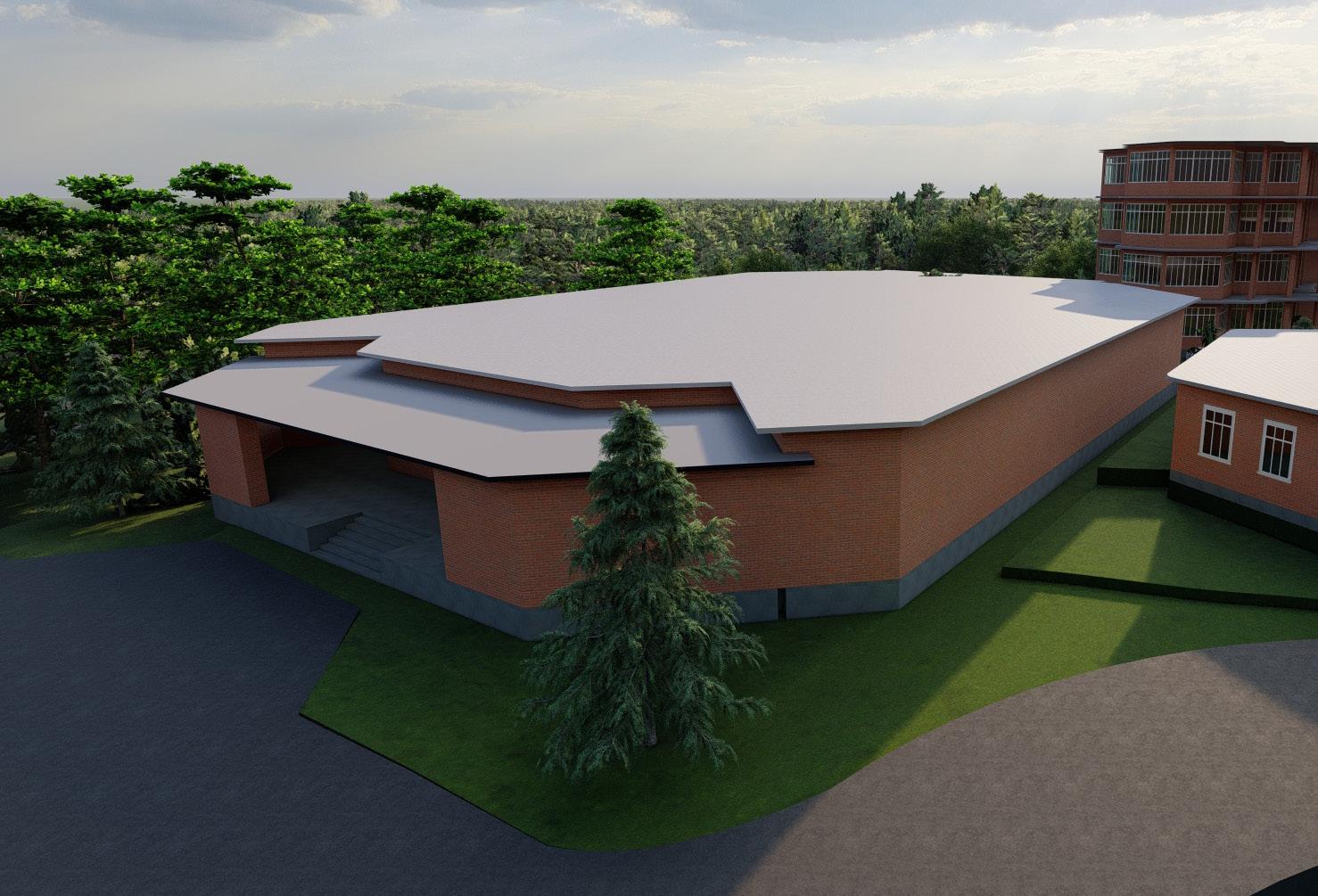

6. SEATING SPACE

7. ELECTRICAL ROOM

8. GREEN ROOM

9. SERVICE ROOM

10. STAGE

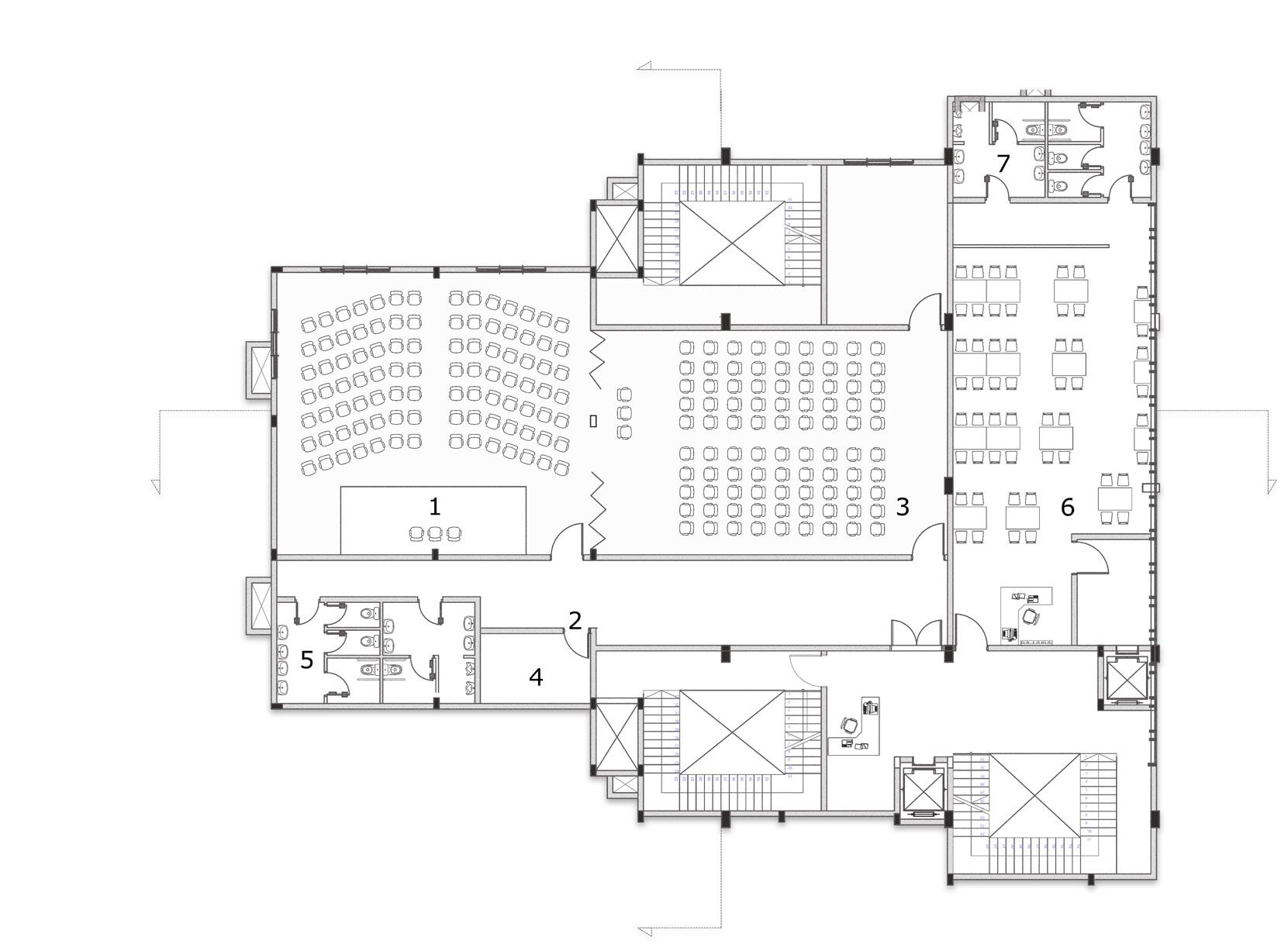

NO. OF SEATS AVAILABLE : 500

1. ENTRANCE

2. LOBBY

3. ENTRANCE FOYER

4. WOMENS TOILET

5. MENS TOILET

INTERIOR DESIGN

LINK CAFÉ

PROJECT : CAFE DESIGN

Location : Ettumanoor | Kerala

The Link Cafe is a space designed to provide students with a comfortable and inviting environment to socialize, study, and recharge. The cafe is located within the college campus and is meant to serve as a central hub for students to come together and connect with each other.

GROUND FLOOR PLAN

MEZZANINE FLOOR PLAN

The present space has two openings on opposite sides and is triple-height. It is currently being used as a storage space. There is a common toilet attached to this space. The proposed space is located beneath the connecting bridges.

ANALYSIS APPROACH

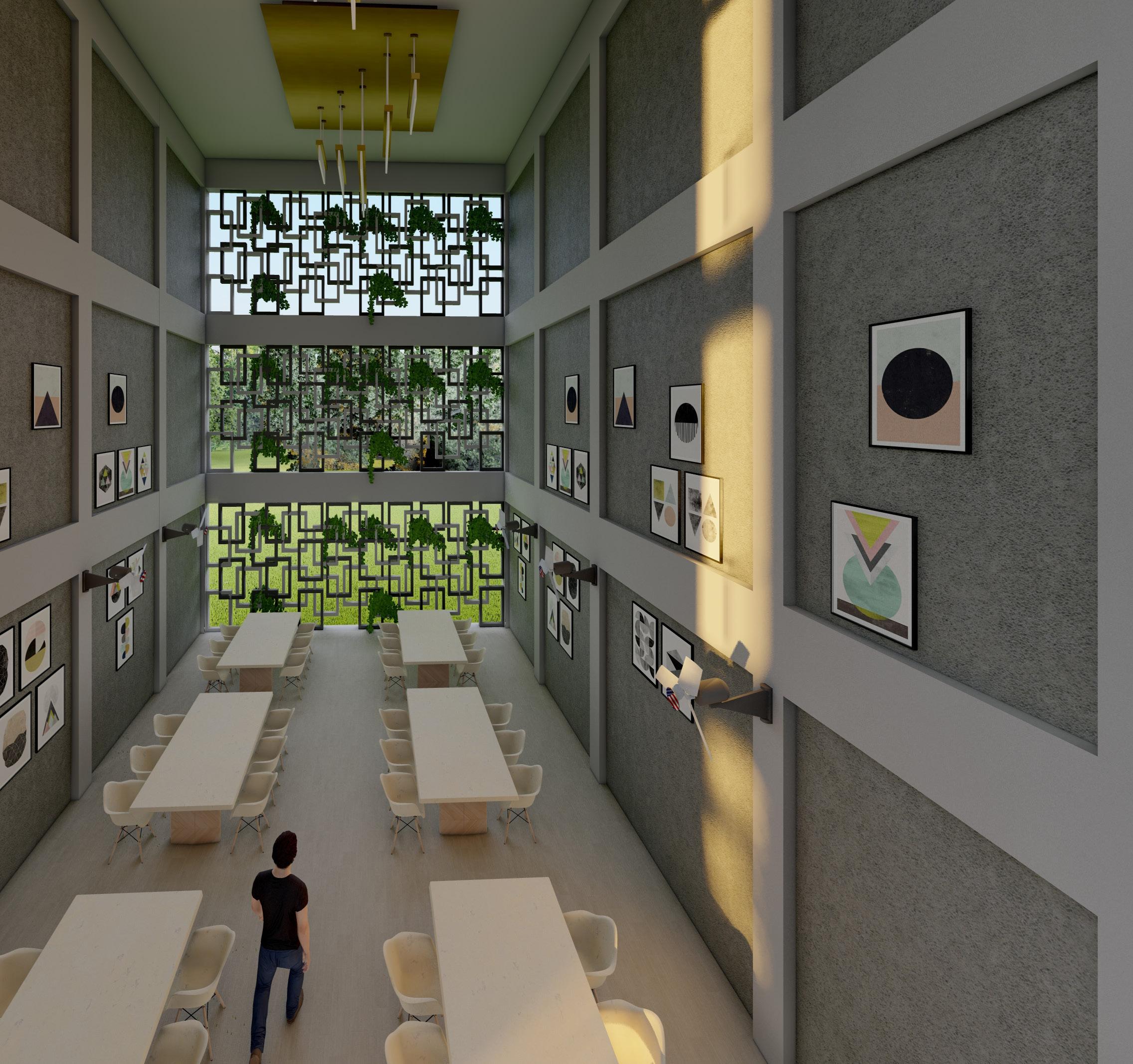

Vertical gardens have been incorporated in both openings to prevent direct sunlight from entering the space. Additionally, a mezzanine floor has been added to provide more seating space. The seating area has been designed to be flexible and multipurpose. The overall design approach is minimalistic and simple.

05

MISCELLANEOUS WORK

POSTER DESIGN
