BITS SCHOOL OF MANAGEMENT

kalyan, Mumbai.

Institutional Large scale Project.

With about 60 acres of Total land Parcels in Kamba, Kalyan, the BITSoM Consists of BUA of approx 17.5 Lakhs Sq.ft. with well Designed Master Plan which houses Varied facility blocks, Placed and Oriented strategically to meet sustainablity and Design standards.

The project aims to be on a road map to 1st Carbon Neutral campus in India. Thus is designed with key parameters such as Intergrated Master planning , Environment Friendly Complex, Dedicated zones for Academic / Faculty Housing & Student Housing / sports, Optimizing use of land, Low rise building, Pedestrian friendly campus, Courtyard formations, Shading devices & solar panels, Integration of water streams with water bodies, all facilities for students.

Roles & Responsiblities:

-Master Planning, Coordination with Mep And alndscape Consultants for Civil Infra GFC’s.

-Entrusted with overall handling of Hostel Blocks - H01, H02, H03, H04, H05, H06, H07 and was responsible for Design & construction documentation.

-Managed Multiple Aspects of team & project Coordination with Quality assurance for each submission.

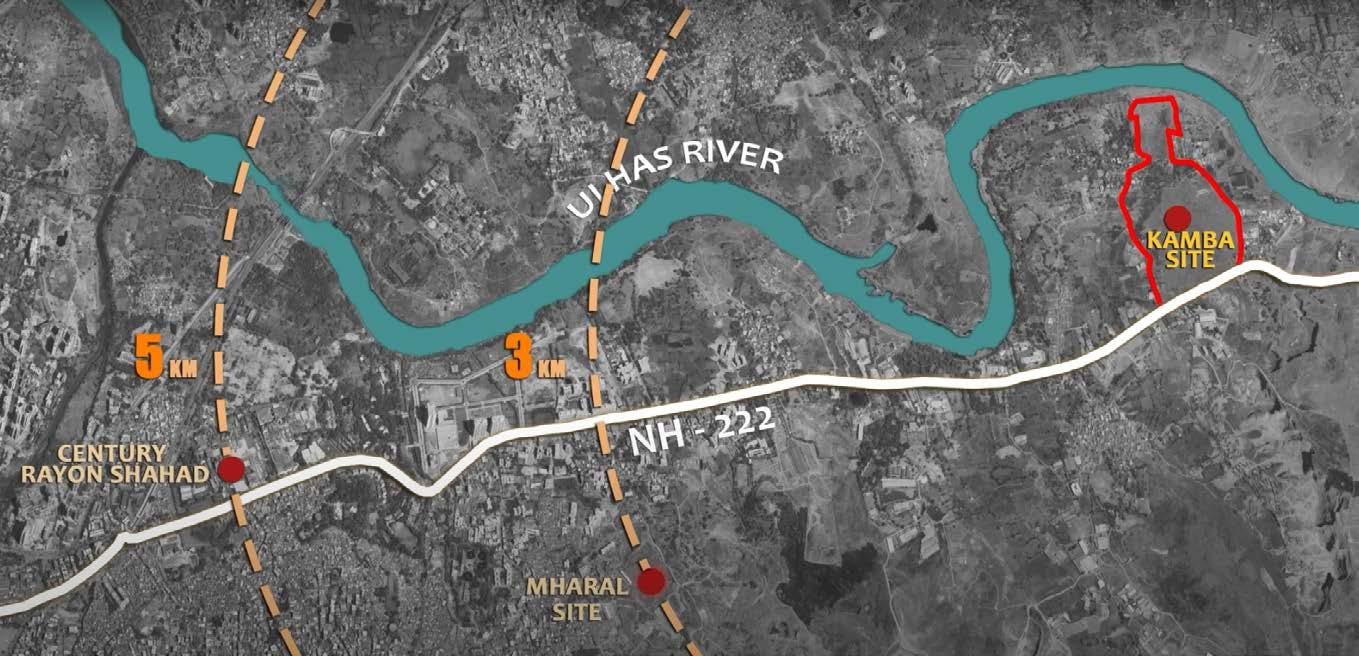

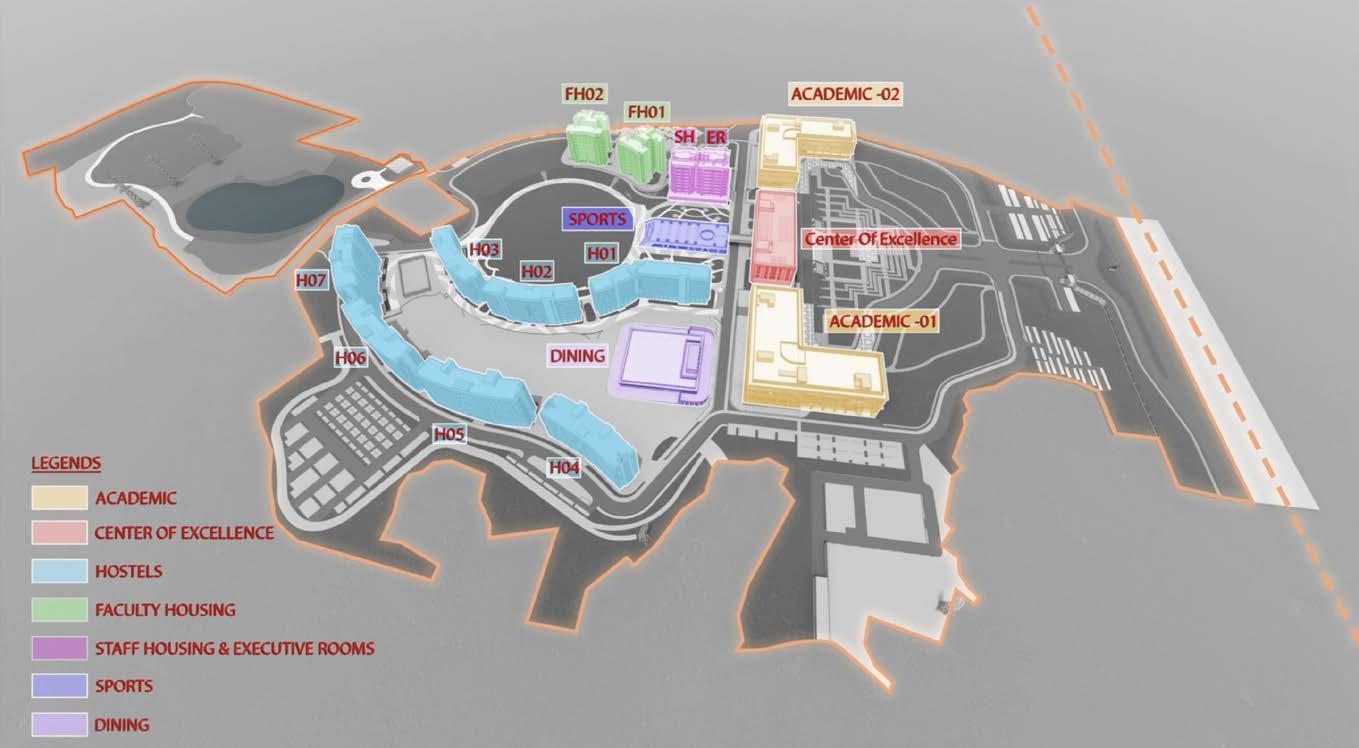

Site context and background showing Site accessiblity and its interdependencies of Mharal site ( Future Expansion )

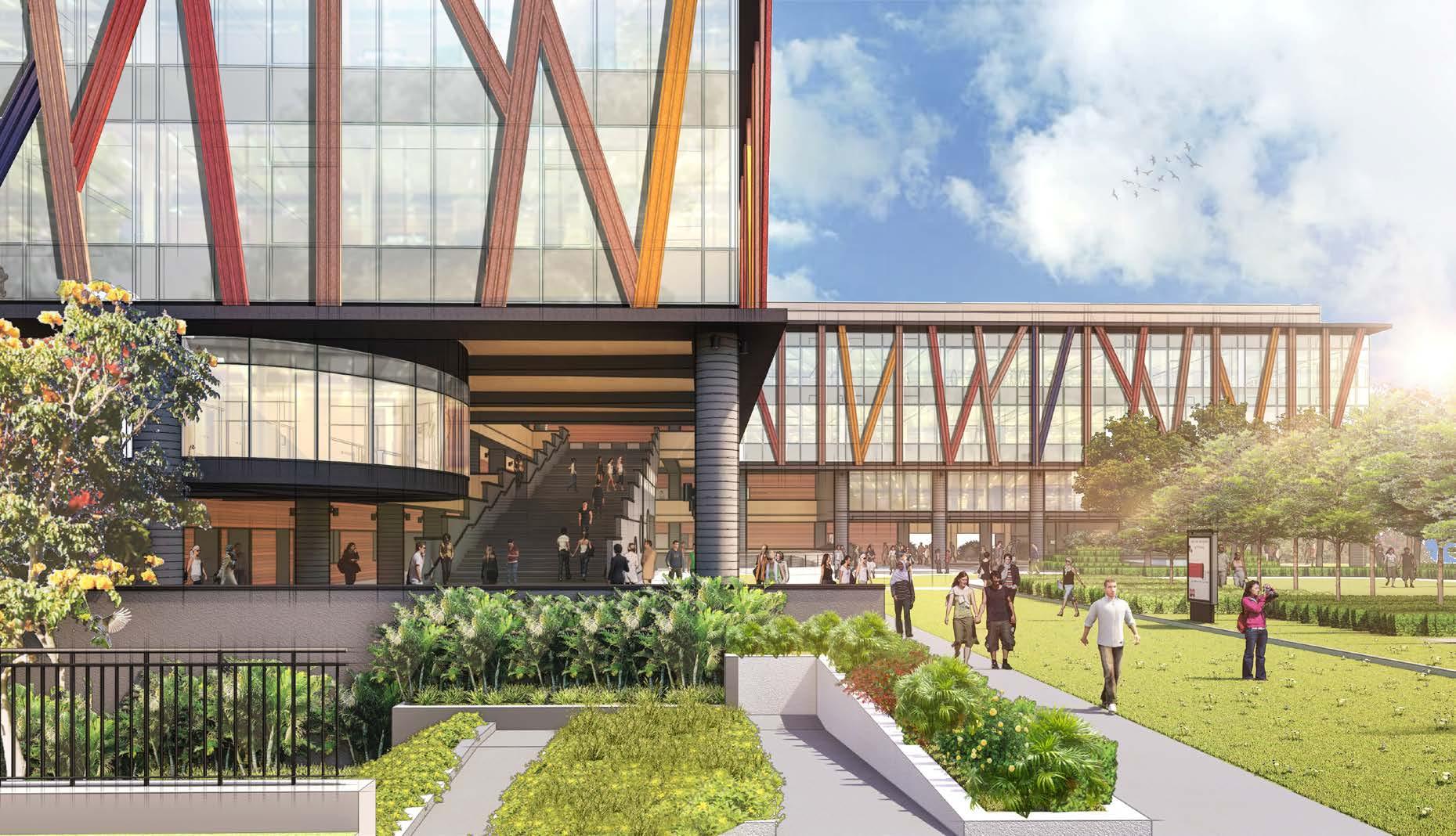

Overview of Architectural Language of Project BITSoM - Academic Block

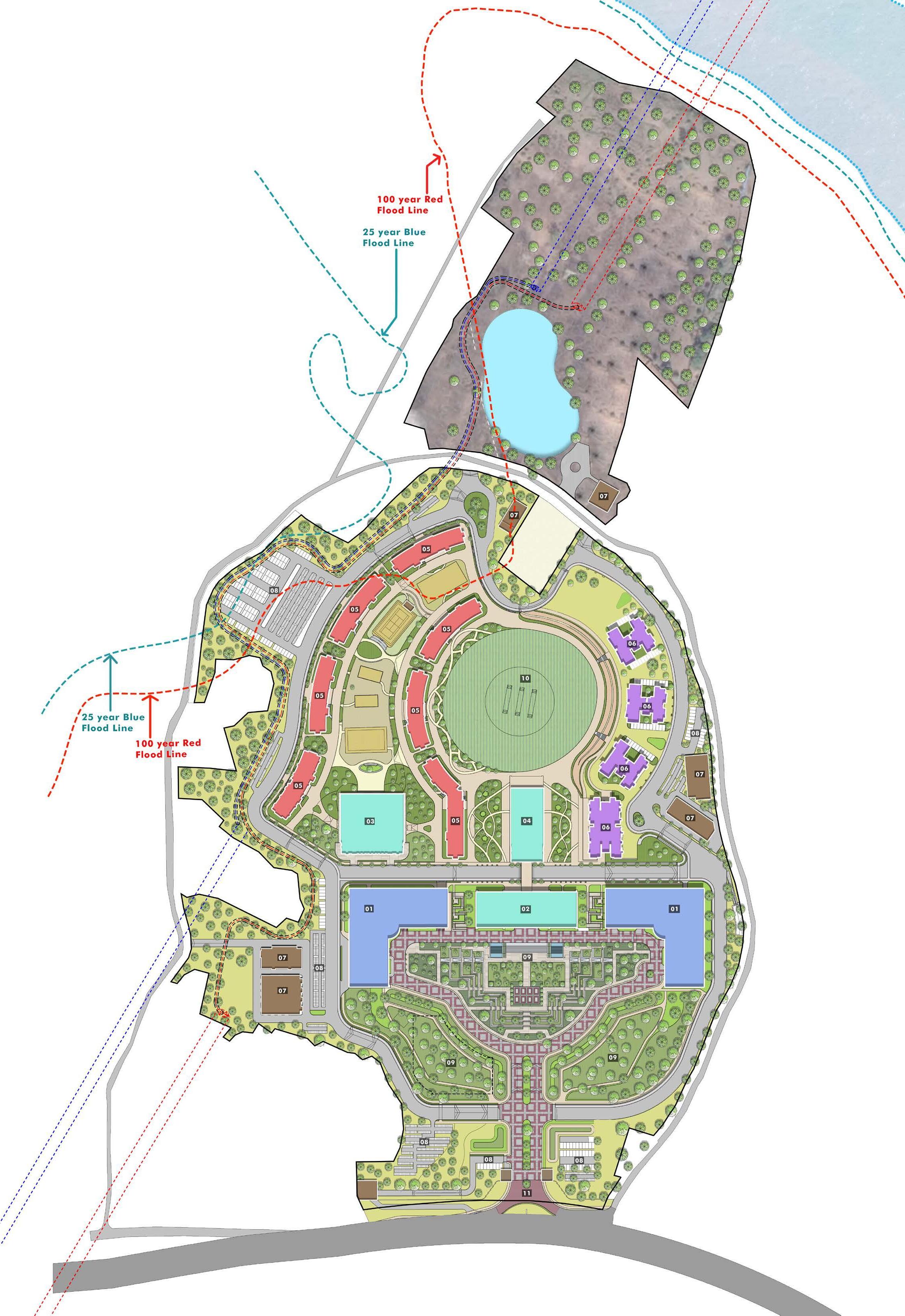

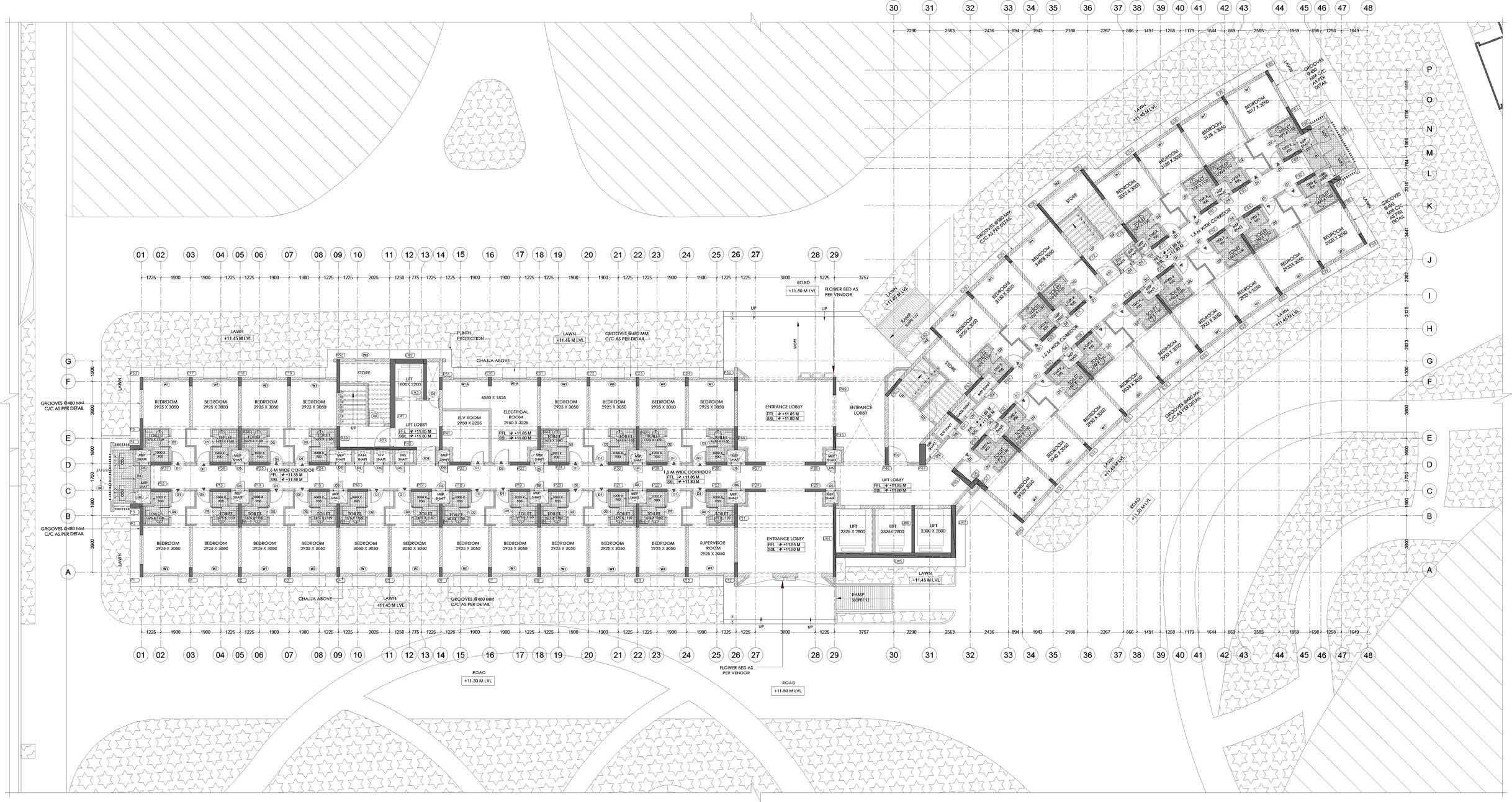

Aligned to the cental sports arena and outermost Vehicular Road is the 7 blocks of Student Housing with Same architectural language with respect to Elevation but varies in form and Planning as per the Requirement and site. All Hostel blocks are well connected with the landscaped areas, outdoor sports zones, and Dinning Block. Ground Floor Plan of Student Housing H01 ( Detailed Drawings & Documentation For Technical Coordination & Construction)

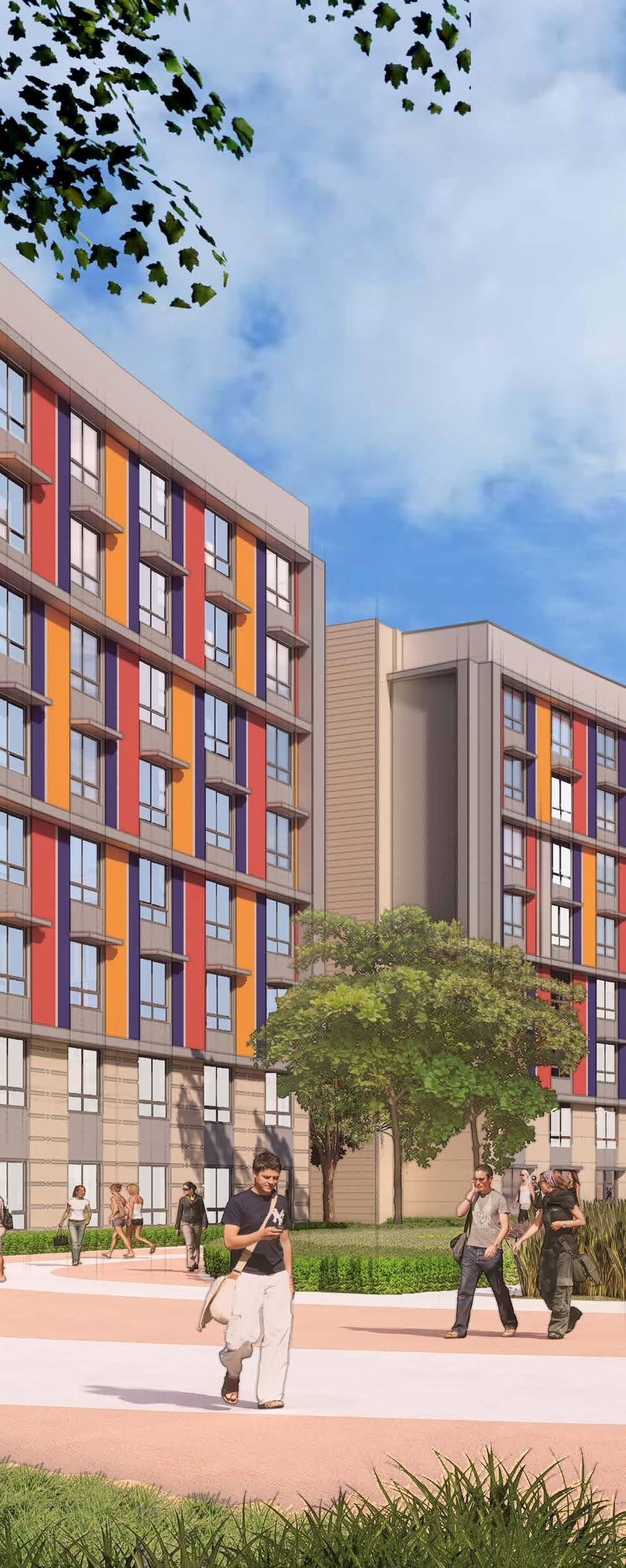

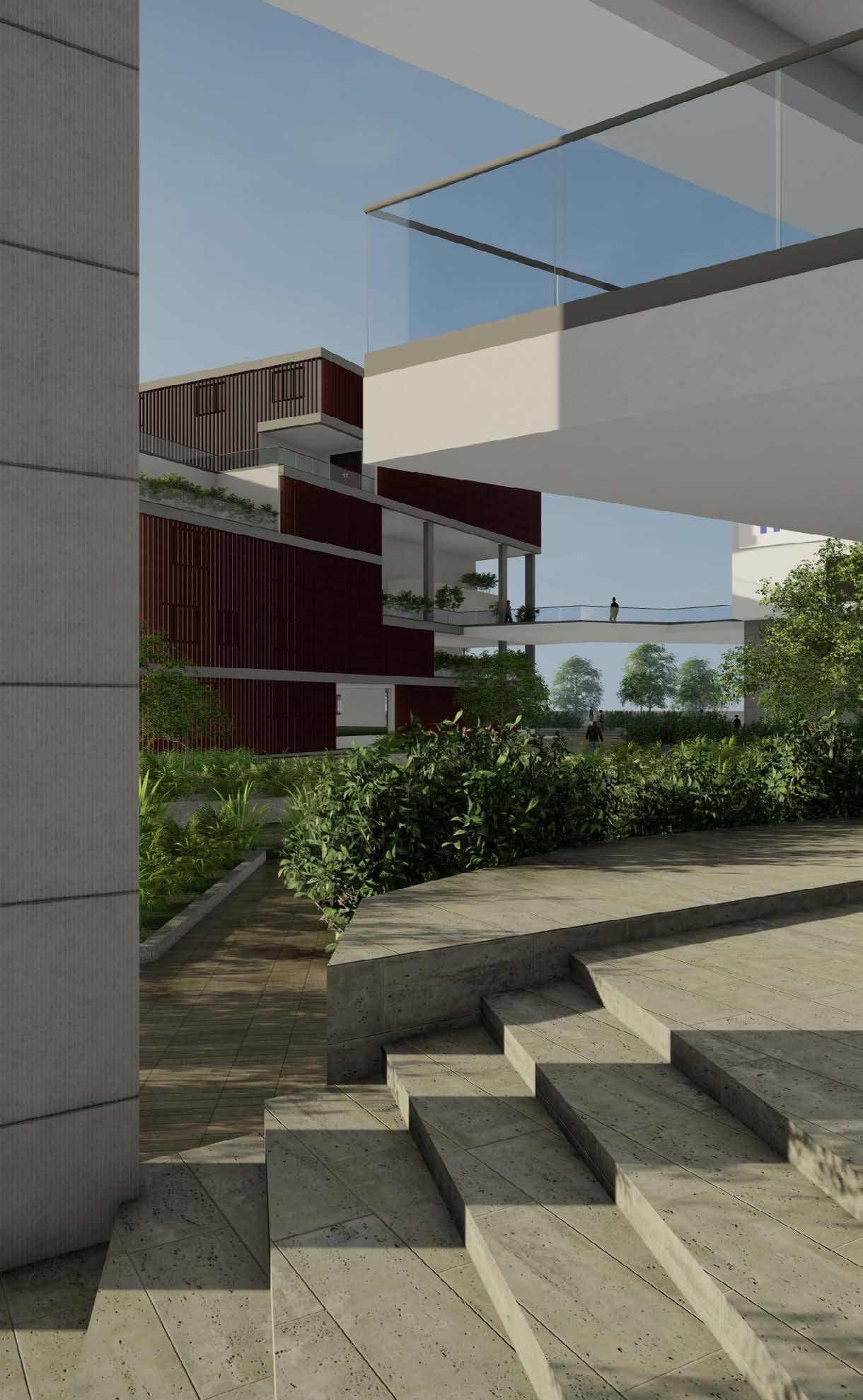

View From Walkways towards Hostel Blocks Partsection’s of Alternative Chajjas & Facade

PROJECT ATHENA

Indiranagar, Bangalore. Residential - Mass Housing

Mass Housing Development in the prime location (Indiranagar) within the Outer Ring limits in East Bangalore has about 15 Blocks with 300 Units & G+4 storey scheme.

The Scope of Project was to Enhance Master Plan & design facade and clubhouse with Key Stratergies like Low height Township, View of central Greens, with vastu compliance & Pedestrian Friendly Development.

The Facade treatment of mass Housing is inspired by Italian Romanesque/ Palazzo Style housing. Intent being creation of Classical and Elegant form with Modern Touch & Simplicity , also being Construction friendly Architectural Facade.

The Product Mix of Group Housing consists of Premium 3.5 BHK, 3 BHK & 2 BHK flats with Rera Carpet Area Ranging from 1002 sqft to 1493 sqft.

Roles & Responsiblities:

-Master Planning & Facade Details

-Conceptual Design, Presentation Drawings and Design Iterations as per Breif and Context.

-Producing RERA and Sales Plan & Technical Calculations & Documentations.

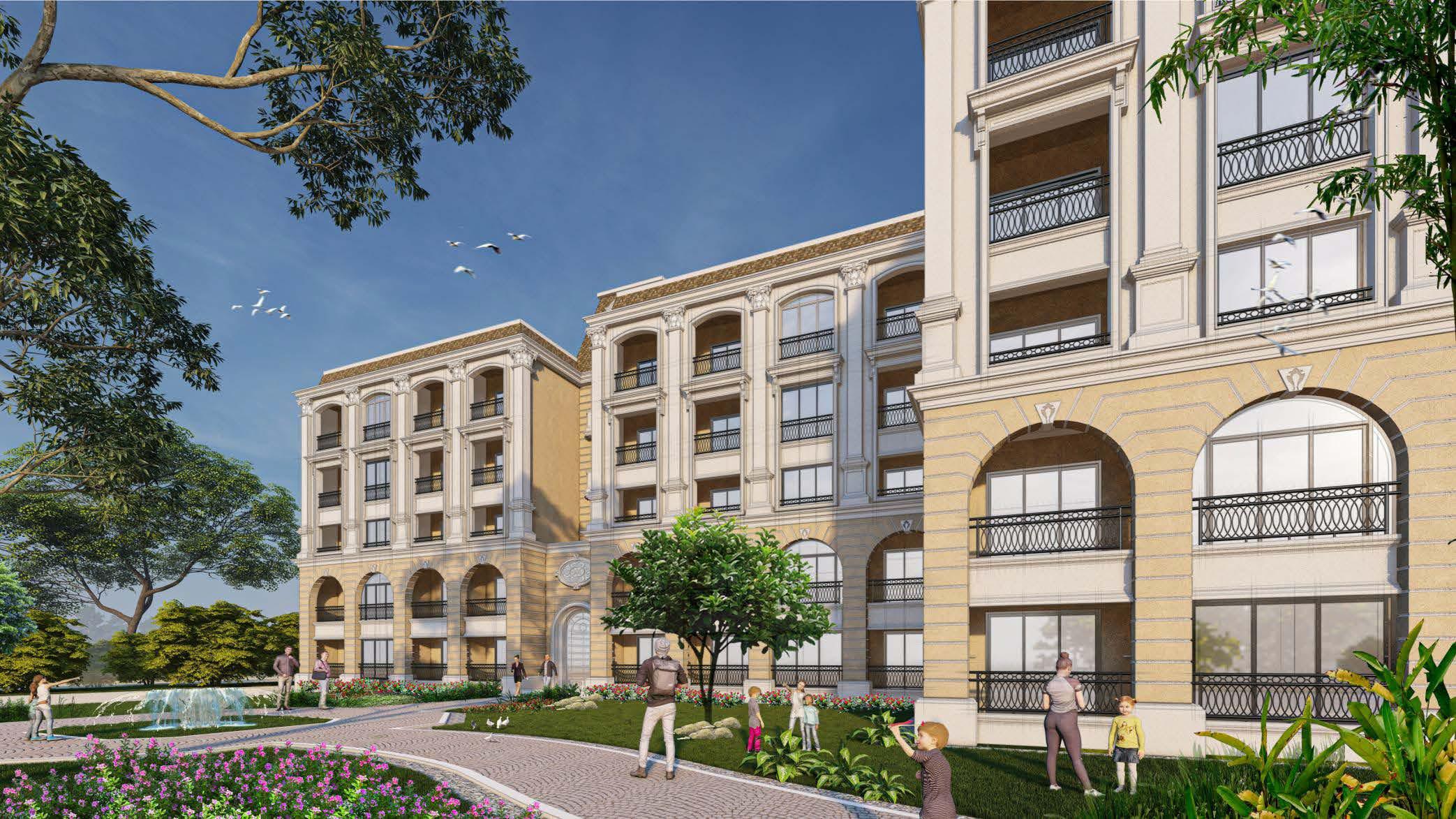

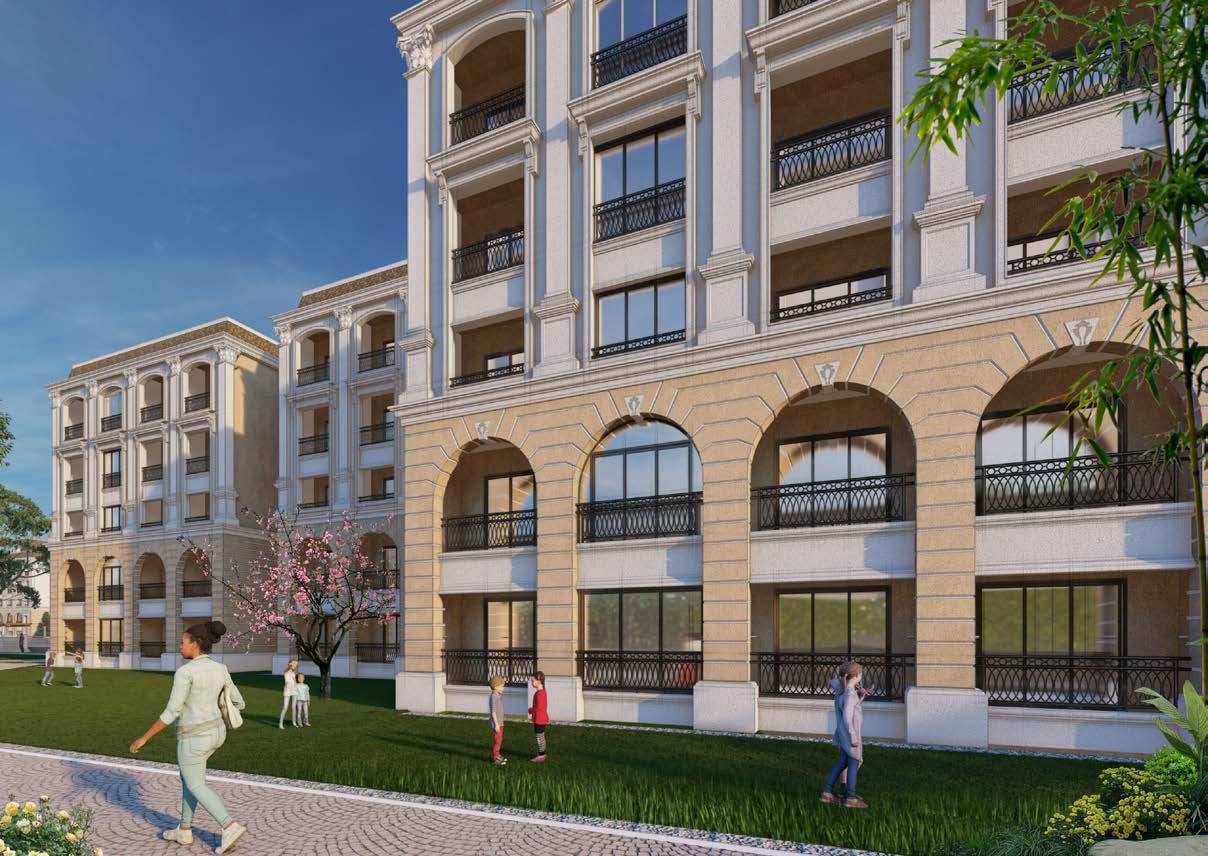

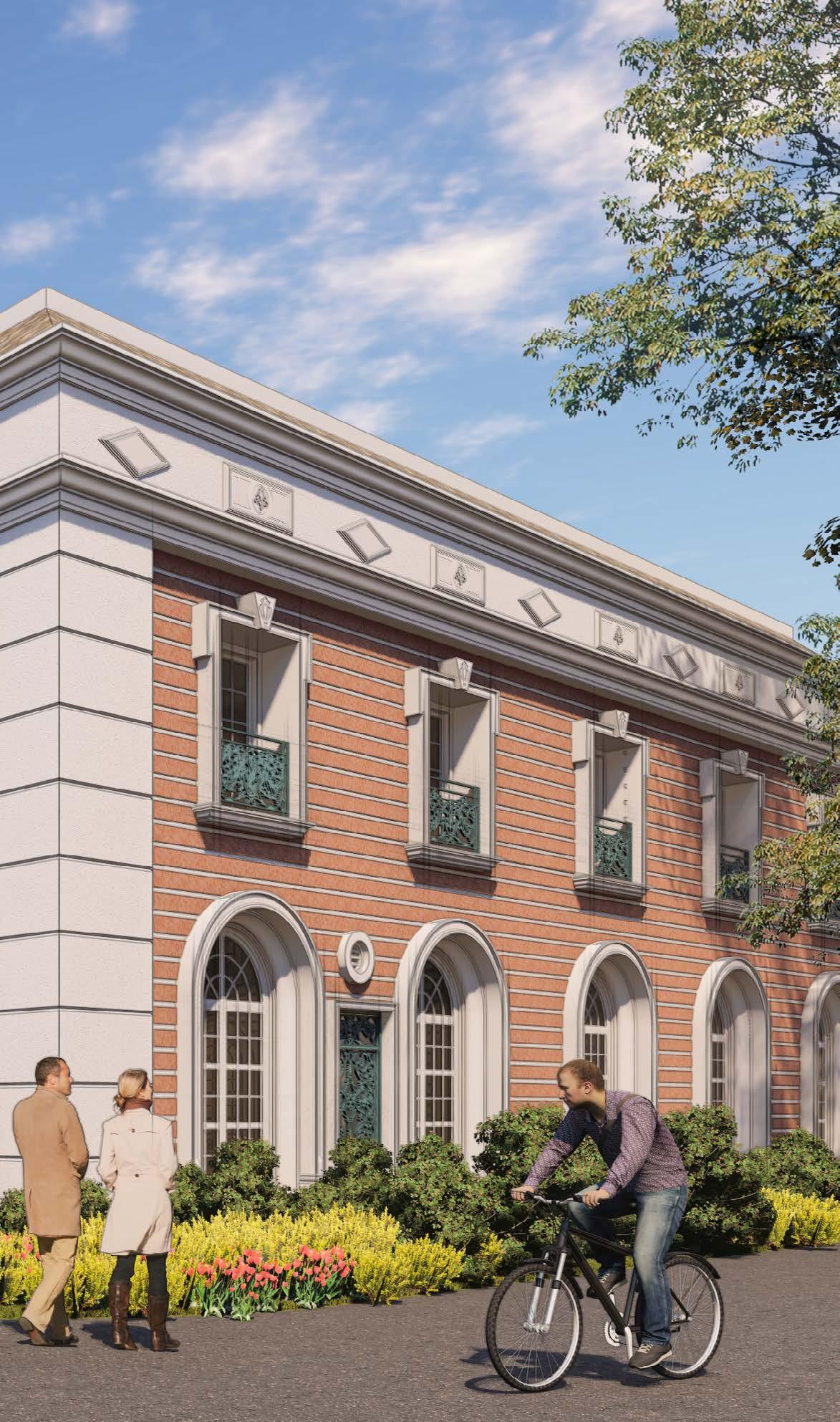

Facade Elevations of Towers with dedicated Entrance Porches well connected via central avenues

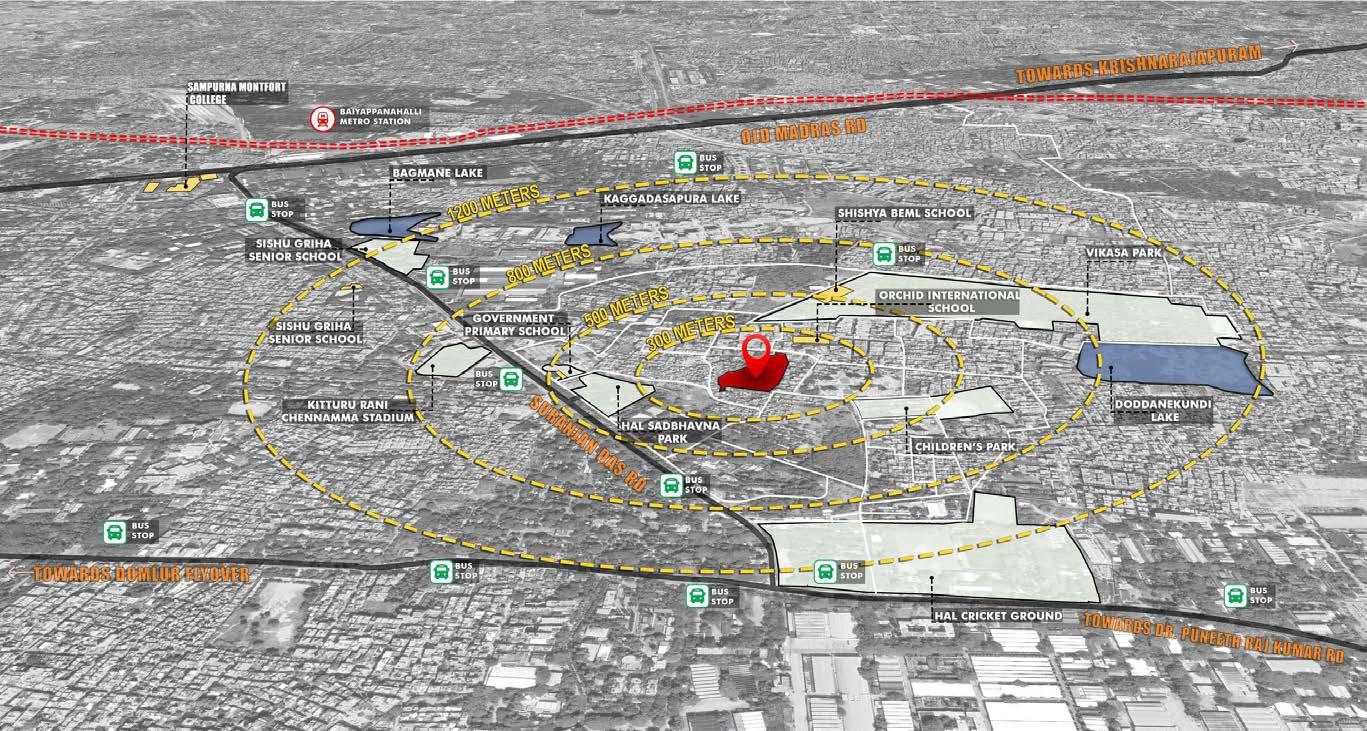

Site Location and Proximity map showing the Site potential & Accessiblity within 1200 M Radius.

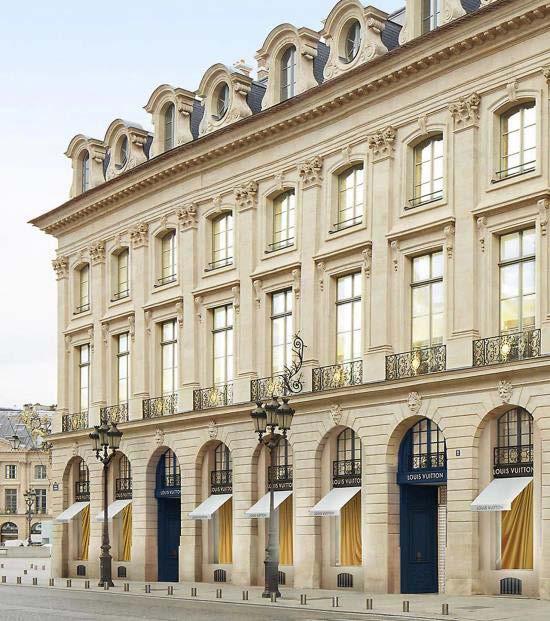

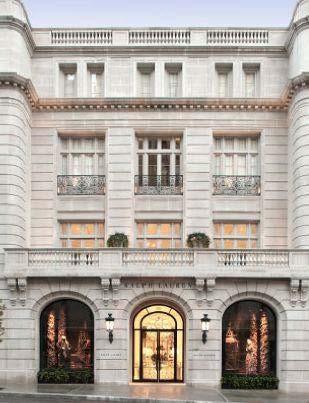

Facade Inspiration From Italian Romanesque Architectural Style.

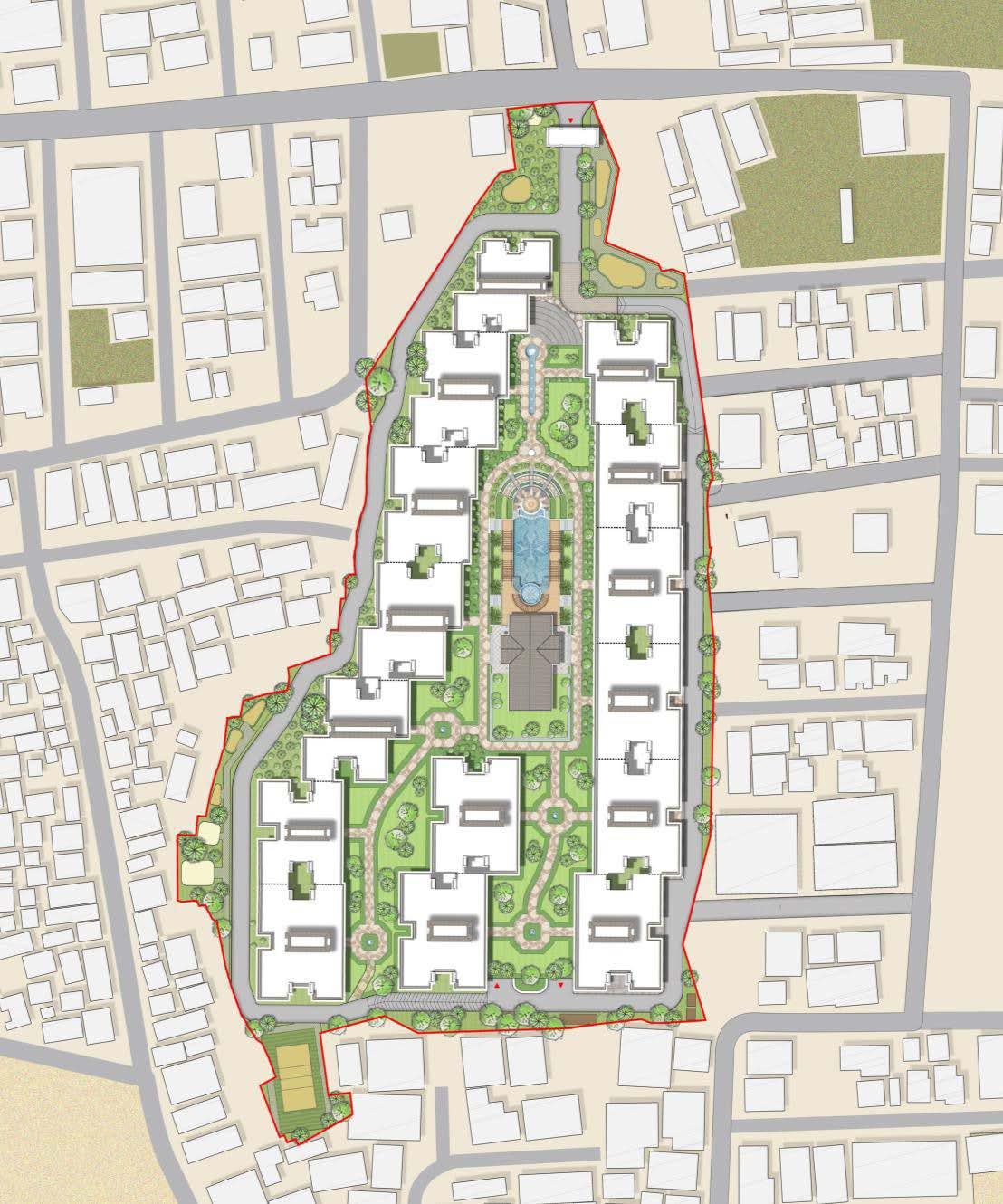

Master Plan of Godrej Athena at Indiranagar, Bangalore.

• roo F/e ntaBlature

• dormer Windo W

• CorniCes

• CorniCes For Windo W

• Pilaster

/Co rinthian order

BraCk ets

Jaali

• Bands / sho ulde red surround For Windo Ws

• arCades

k eystone

• CorniCe

• arCh itraves

Conceptual Elevational Scheme with Part Plan Showing Key Architectural Elements, Cornices & Classical Forms.

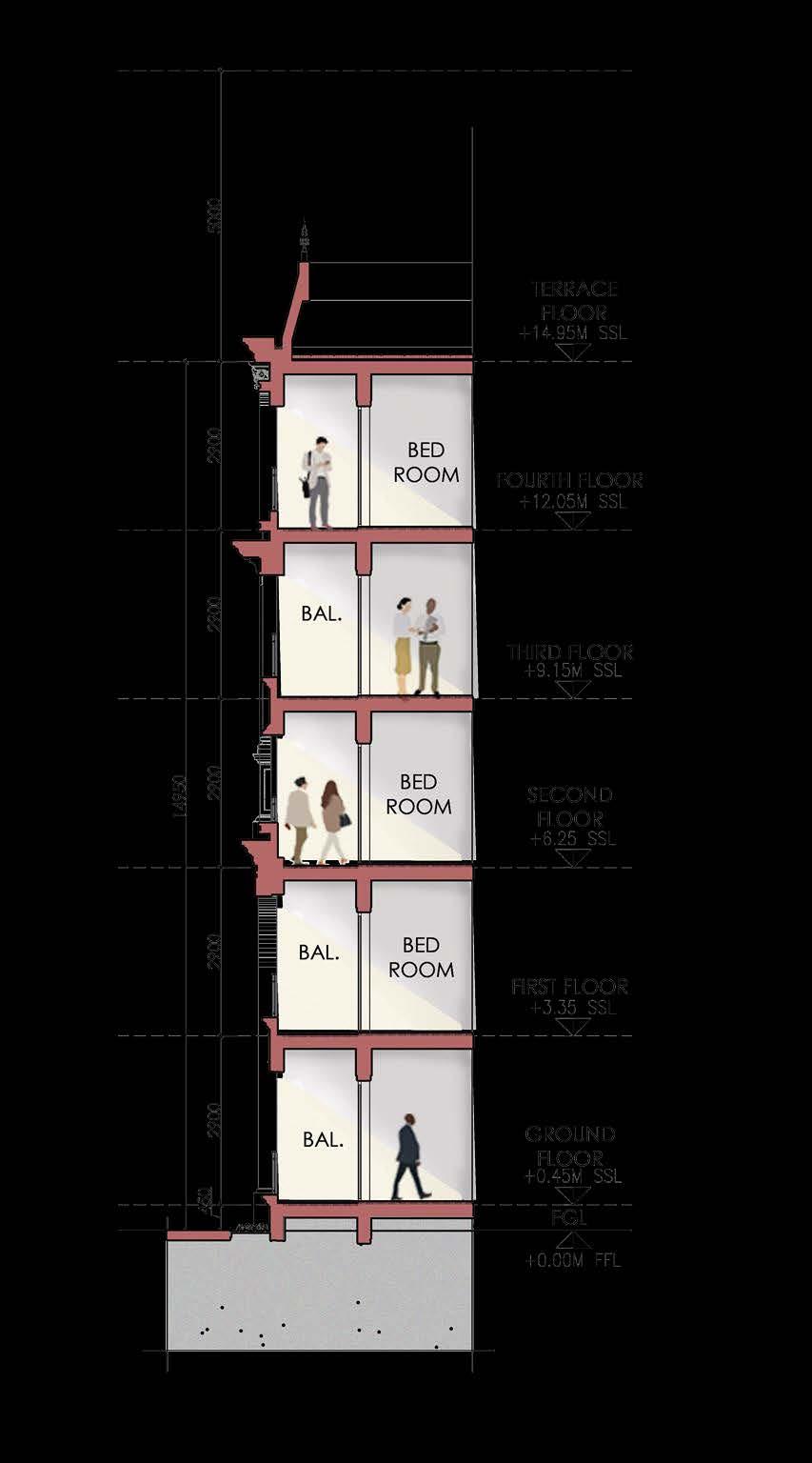

Typical Facade Section

Typical Level Plan with Classical Facade Elements

LODHA ANJUR - CLUBHOUSE Thane.

Commercial - Gated Community

The project is 20 Acres of land Parcels with Gated Community Development hosting Villas & plots, clubhouse Ranging in sizes from 250 - 600 Sq.Yard in Anjur, Thane.

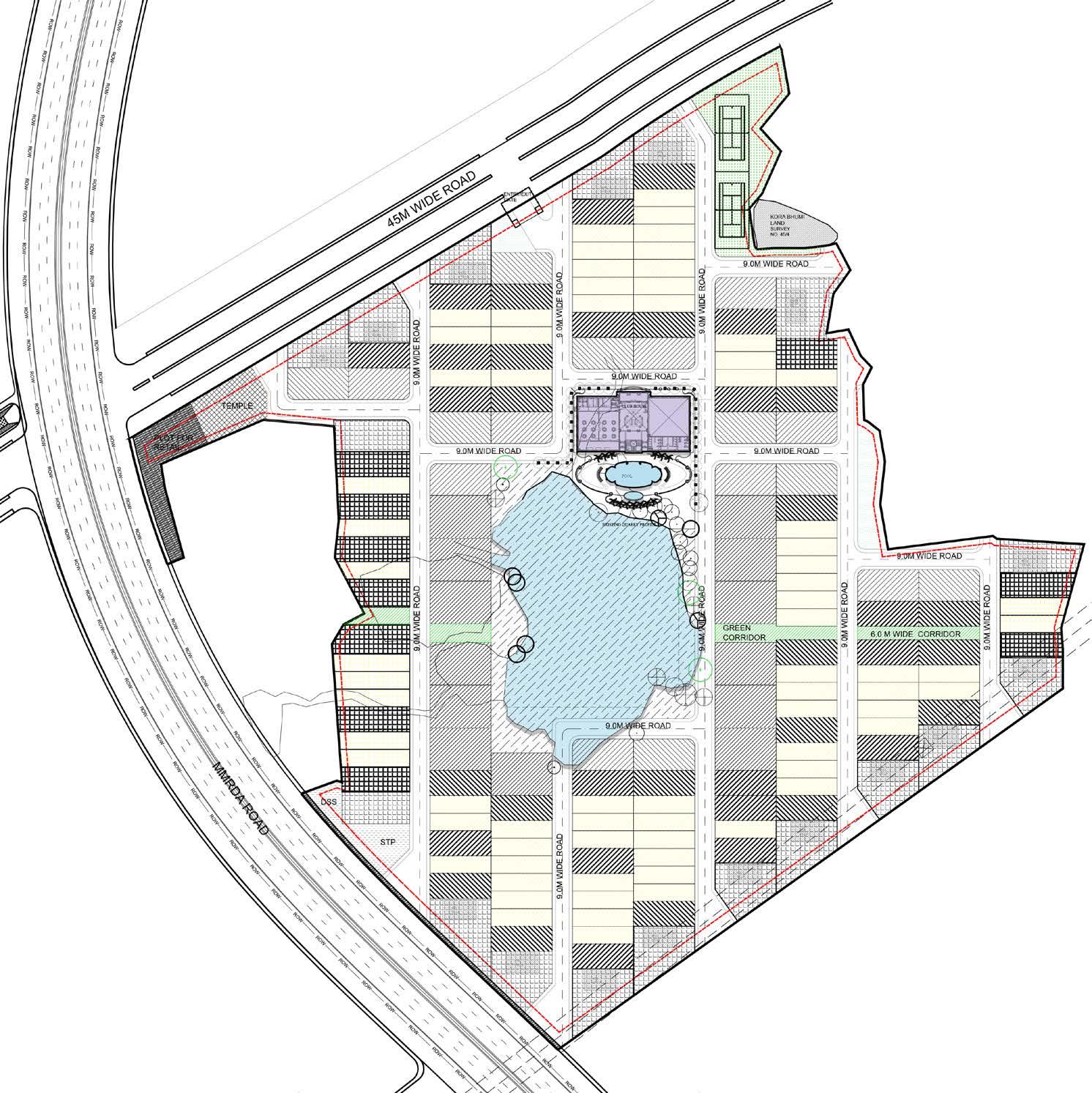

The Master Plan with Concept of Classical Villas Ranging in sizes, Orientations and Zonning of Plots as per site context. The Grand Clubhouse is situated at the central area of Plot with built up area of 18690 Sqft Approximately with Varied Indoor Amenities and Outdoor Swimming Pool .

Immense Detailed Profiles and Classical forms were experimented and Detailed out for Desired Facade Elevations.

The project Scope also was to Stratergically Design Internal Functions & coordinate with technical Construction details as per breif & Concept.

Roles & Responsiblities:

-Production of Plans, Sections, Elevations & Facade

Details

-Finishing Drawings & GFC package with Technical Calculations and Documentations.

-Coordination with Varied Consultants and Weekly Meetings to Meet Project Success.

-Quality Check

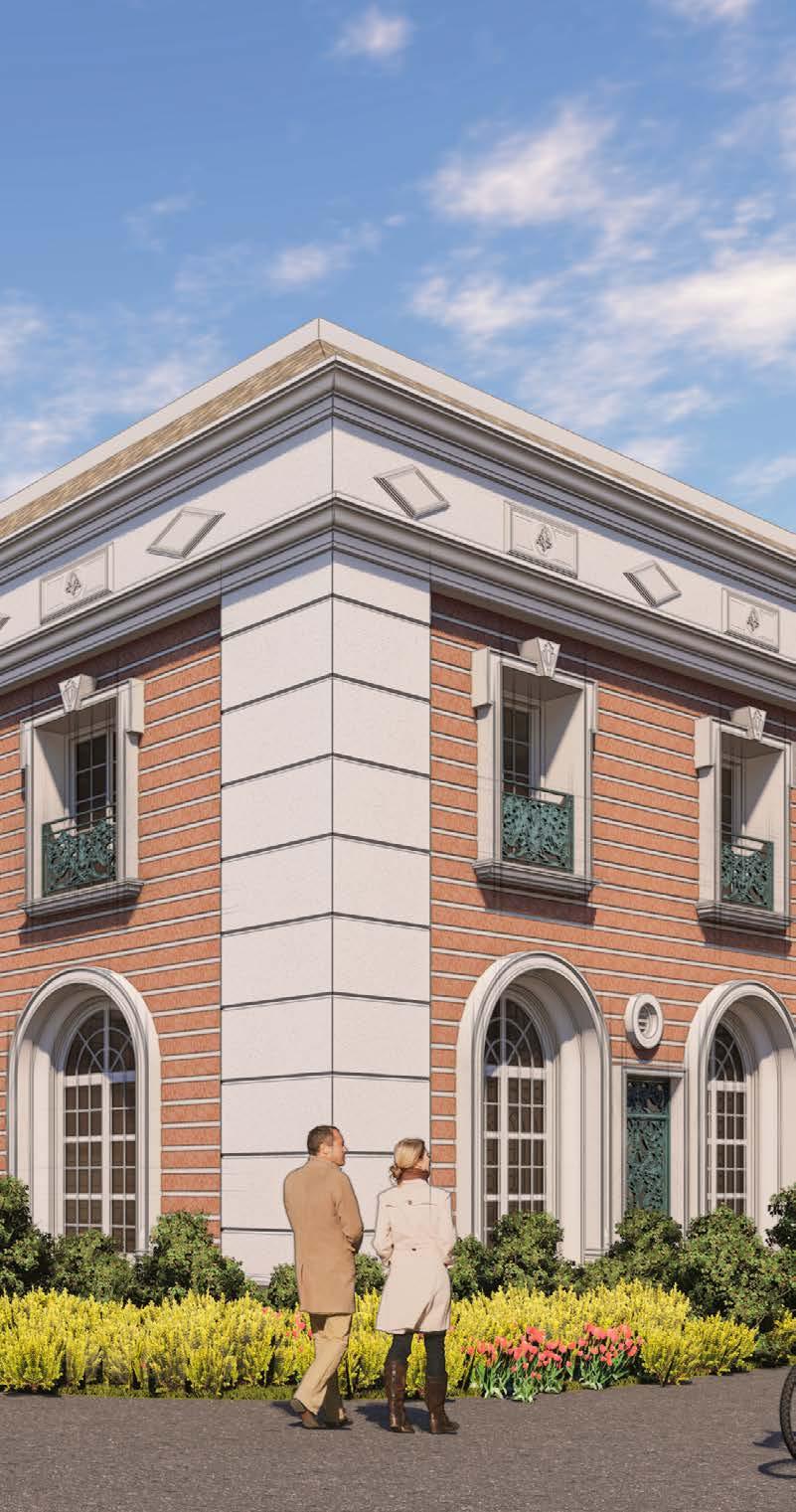

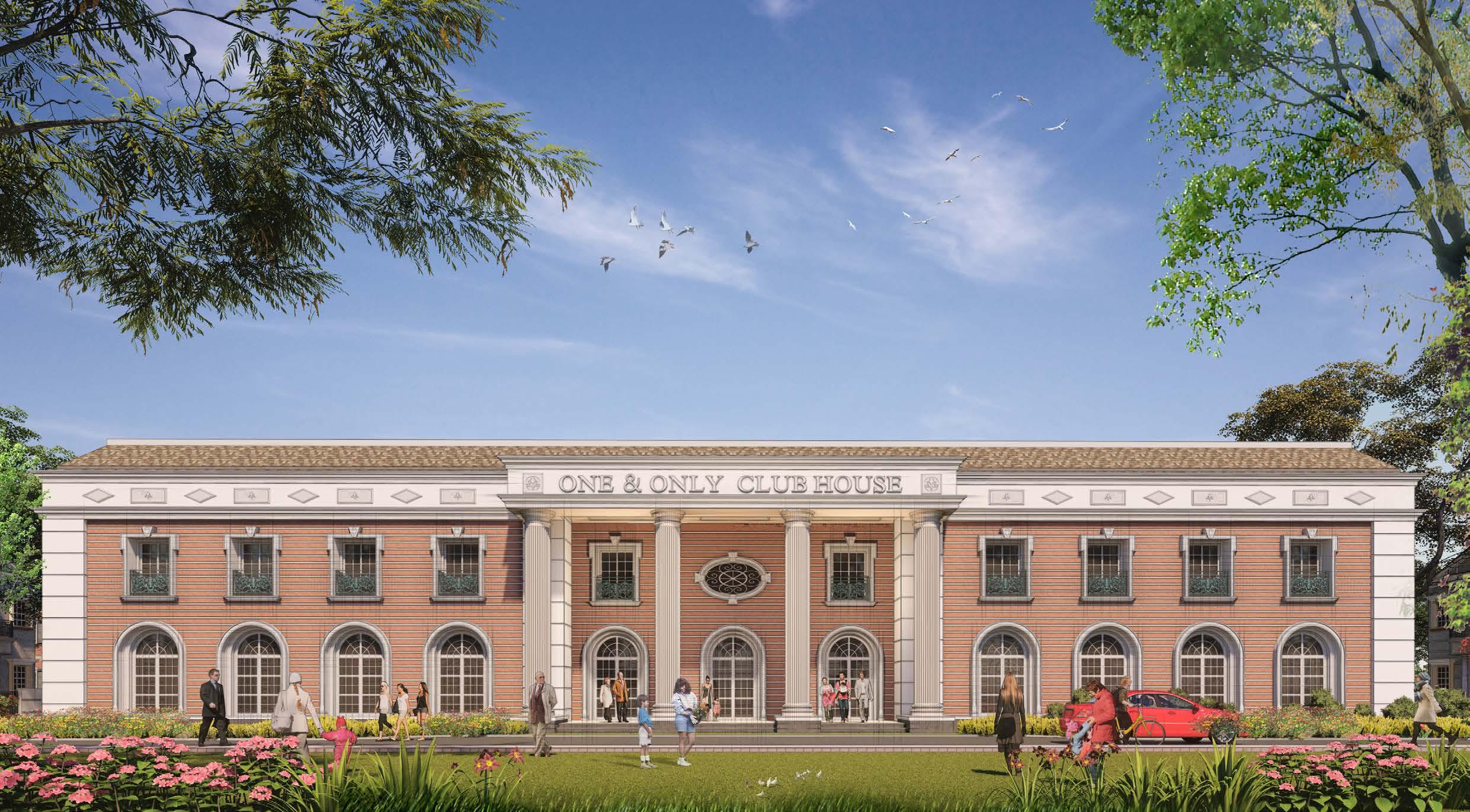

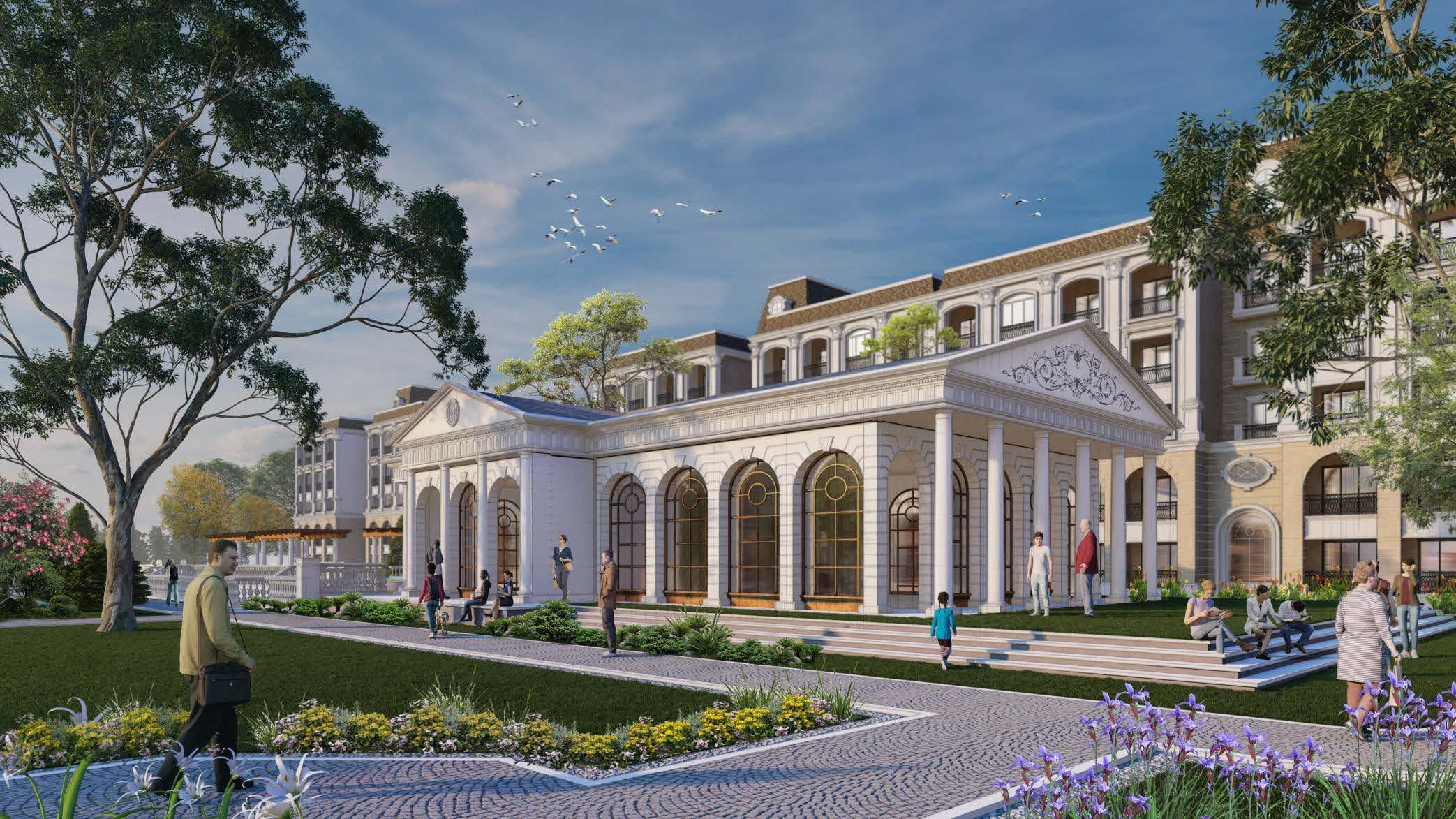

Front view of lodha One and Only Clubhouse with Classical Architectural Style & Indoor Amenities

North

Facade Partsection with Detailed Elements, Cornices & Classical Elevation Views

Ground Floor Plan of Lodha One & Only Clubhouse - BUA 1736 Sq.m

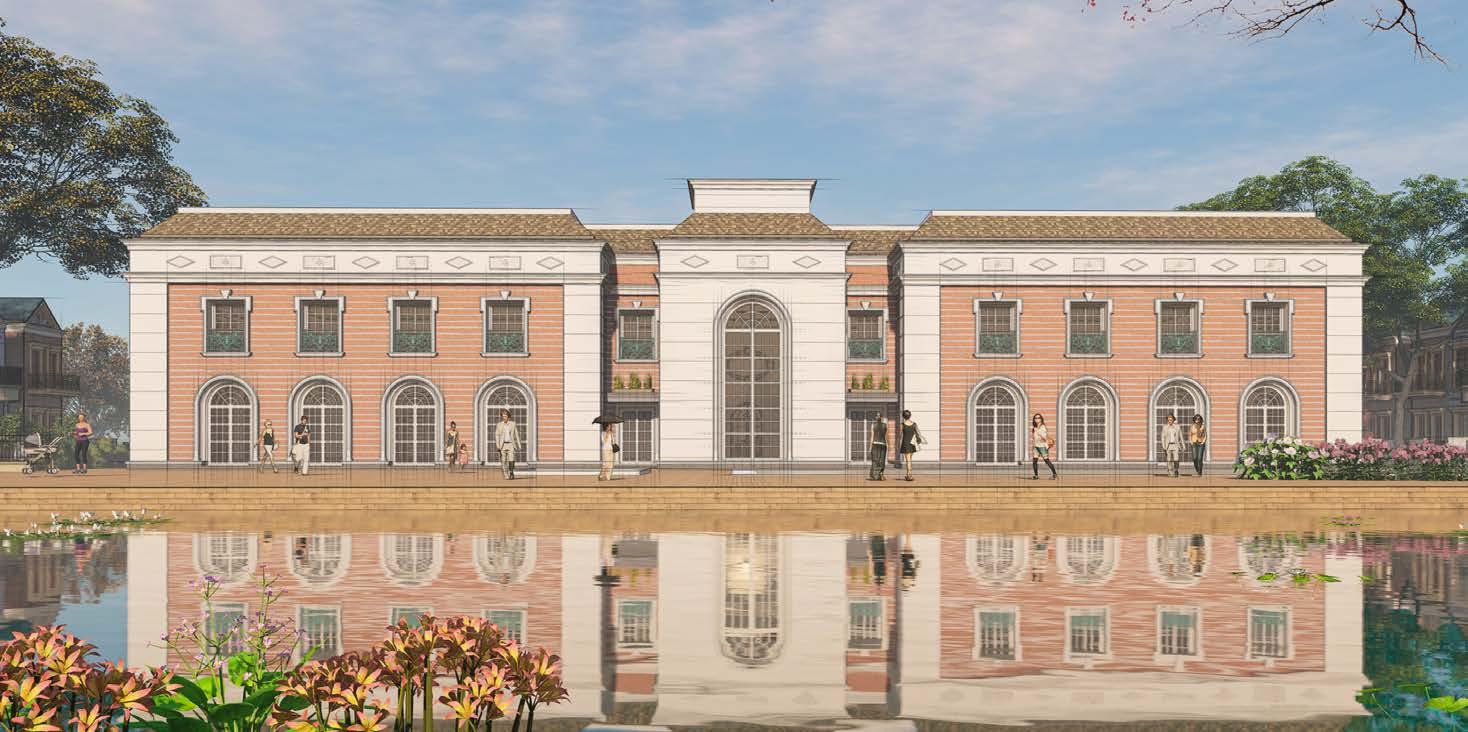

Rear Side Elevation of Lodha

Detailed Sections Showing Varied Classical Elements and Facade Detailings

HIGH-END RESIDENTIAL Cuff Parade, Mumbai.

Project Name : Goel’s Residence

Client : Private Investor - Mr. Anil Goel

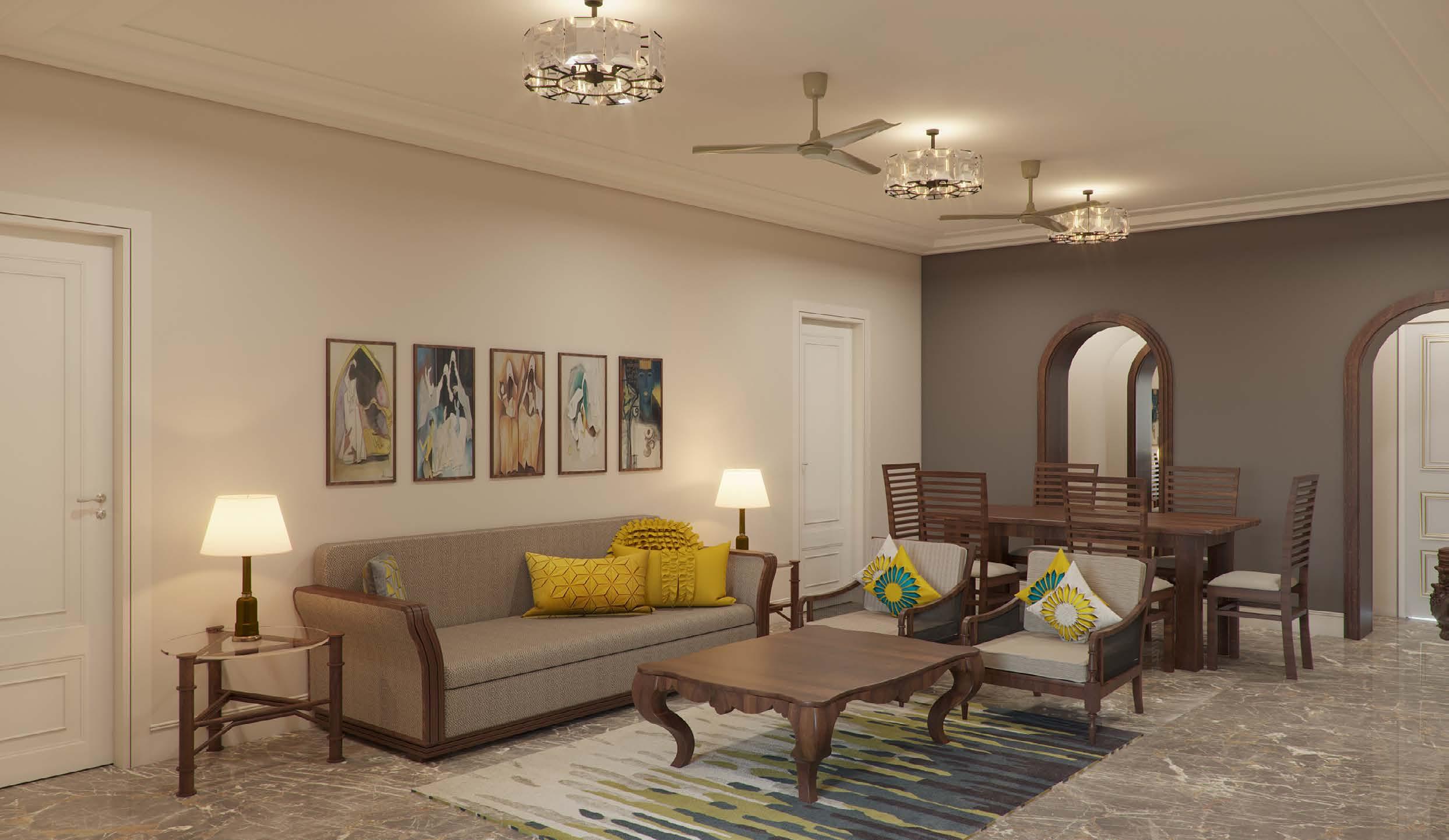

The High-End interior project for Mr Goel at cuff parade - Mumbai is End product with one of a kind look where every aspect perfectly fits together to create a dream space for client and his visions.

Produced the Detailed sets of drawings for the design excecution and released the details as well as working drawing of the project to the site and made sure the smooth coordination between the firm, client, vendors, contractor and site coordinator.

PLAN - FURNITURE

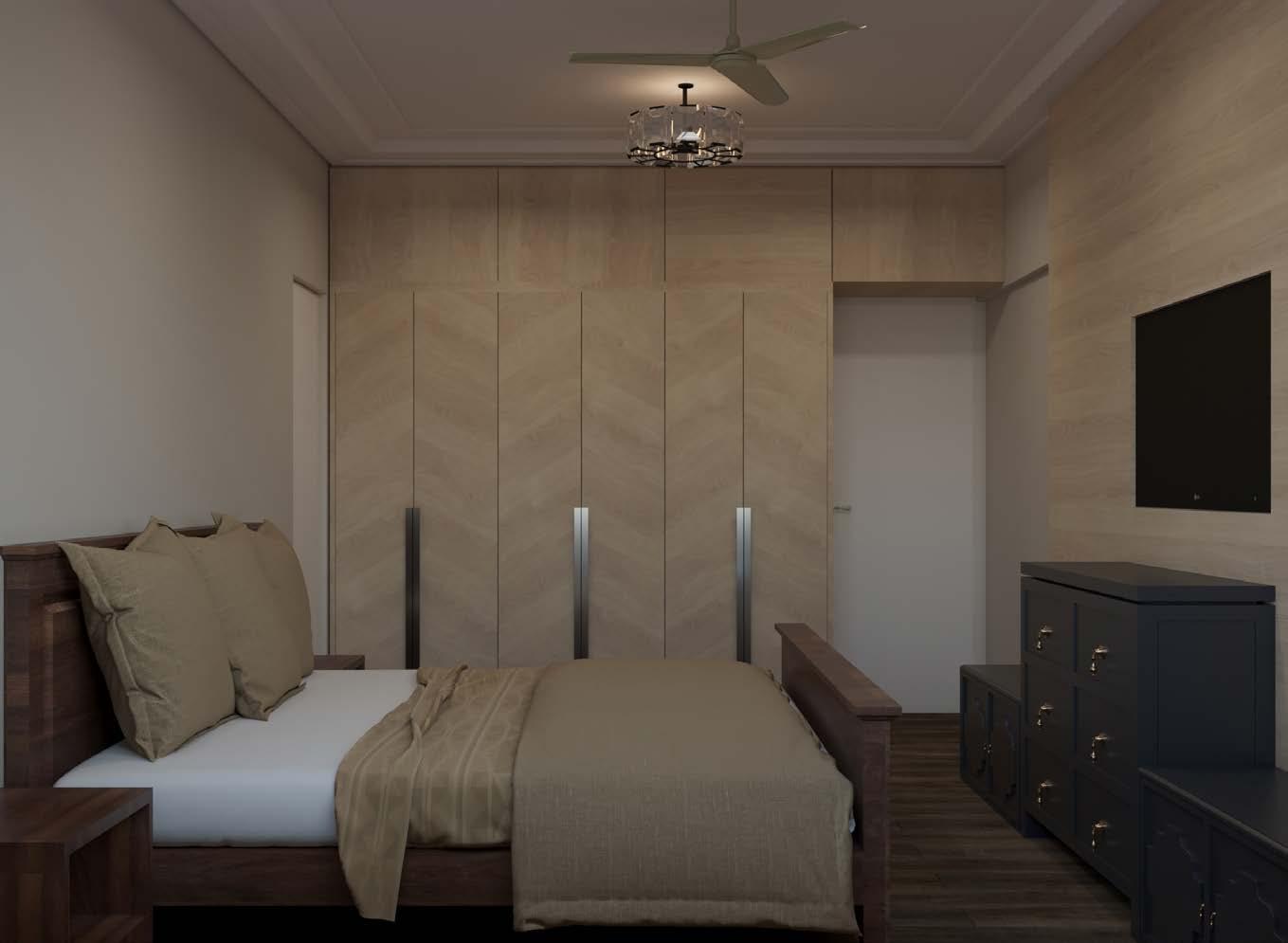

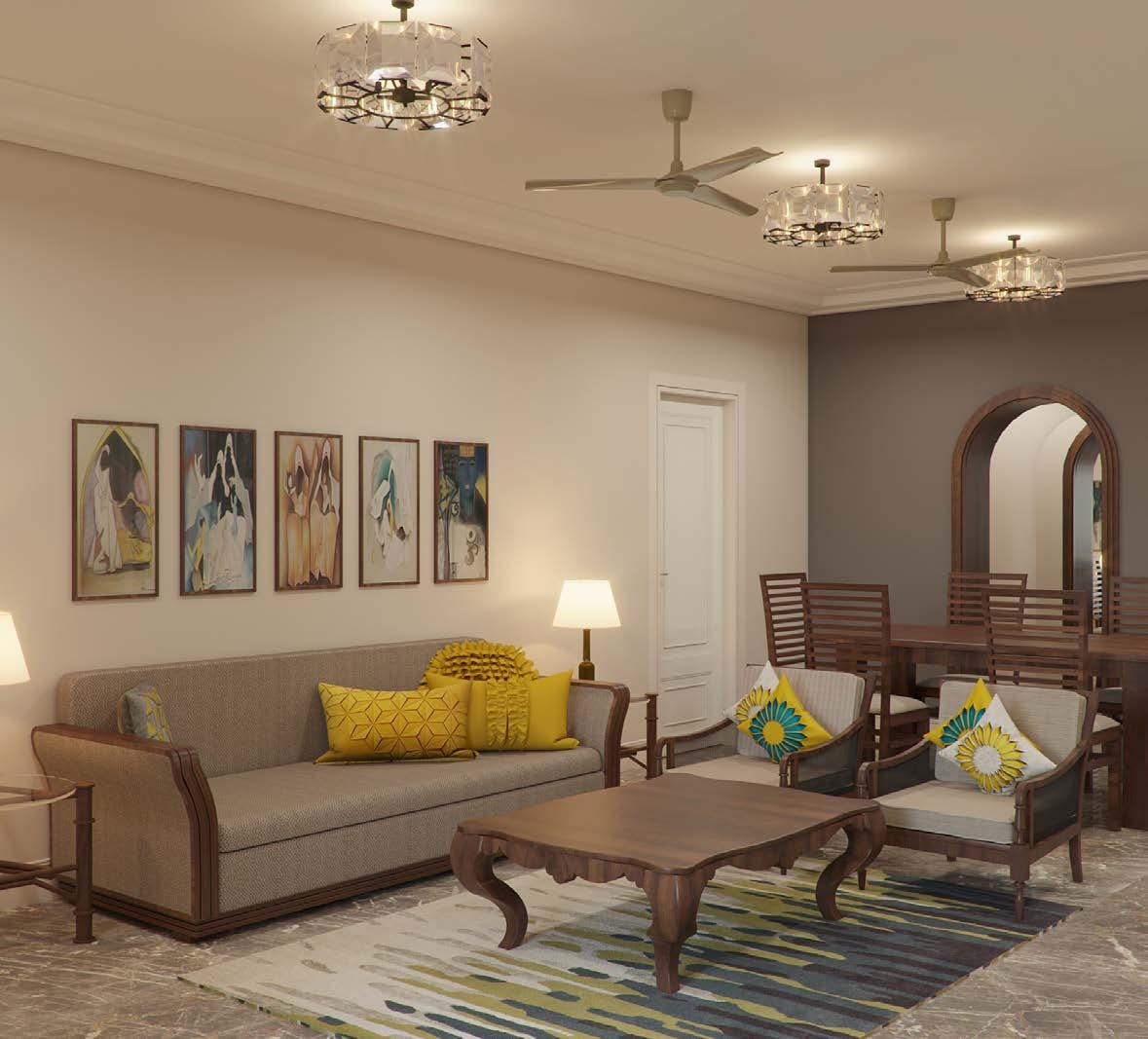

Interior Design Project Master Bedroom render Showing Choice of Material & Finishes

Roles & Responsiblities:

-Working Drawing

-Detailed Finishing drawings, -Delineation & Releasing of drawings to Site co-ordinator and contractor, Client interaction, Coordination with Vendors and Material suppliers

1:4

NOTE:

1. All dimensions are in millimeters.

2. All levels are in millimeters

3. This drawing is a copyright and property of the PDC, is not to be produced, copied, handed over to third party or used for any other purpose other than for which it is intended.

4. This drawing is to be read and not to be scaled.

5. ALL DIMENSIONS SHALL BE VERIFIED ON SITE PRIOR TO START OF WORK ANY DISCREPANCY SHALL BE BROUGHT TO THE NOTICE OF THE PDC.

6. The Contractor / Project Manager must check all dimensions and details and be responsible for the same. Any discrepancy shall be notice of the PDC.

7. This drawing shall be read in conjunction with all relevant architectural, structural and services drawings. Any discrepancy noticed shall be brought to the attention of the consultants and resolved as soon as possible, but always prior to procurement / execution of works.

8. All the services ducts / cut-outs are to be covered after services provisions.

9. Drawing approval is for the conformity with outline design intent and does not relieve the contractor/ subcontractor from full responsibility for the accuracy, integration and fitness for purpose of design.

10. Construction Manager/Project Manager to revert back within 7 working days of receiving the drawings on coordination and buildability issues. If otherwise it would be deemed that they have understood and accepted the drawing/design and own full responsibility for the works carried out accordingly.

PROJECT:

SITE:

CLIENT: MEP CONSULTANT

PRINCIPAL DESIGN CONSULTANT K STUDIO

THE COURTYARD HOUSE

Vavoshi, Ransai Village, Maharashtra. Residential Project - Weekend House

The farmhouse at vavoshi is designed for the group of friends investing together in a place which acts as a get-away space from the hustle and bustle of city. The design tries to build a soulful dialogue between the ‘built’ and ‘unbuilt’ through verandahs and courtyards. The main aim of the design was to bring inside out and provide spaces which be moulded into various chill out areas for the client.

Courtyard space being the focal point of the design, invites in light and ventilation.

All the spaces Inside the house is connected by verandahs sky lit through semi - open courtyard at the centre.

Landscape spaces and amenities added to the site are strategically placed and designed as per client’s desire and vision.

LEGENDS

1. Main Entrance - Site

2. Landscape Areas

3. Swimming Pool

4. Common Toilet

5. Pump Room

6. Fire Place

7. Multipurpose Court

8. Secondary Entrance

9. Outdoor Dinning Space

10. Landscaped Walkways

11. Entrance Foyer - House

12. Verandahs

13. Courtyard

14. Bedrooms

15. Kitchen

16. Dinning Area

17. Living Area

18. Stairs to Terrace

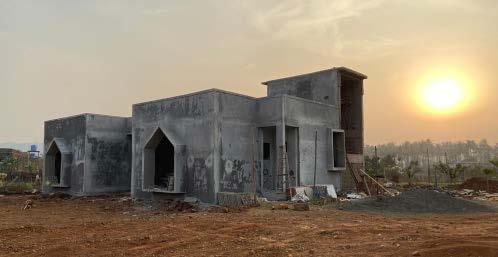

site photos of Farmhouse at Vavoshi at construction stage

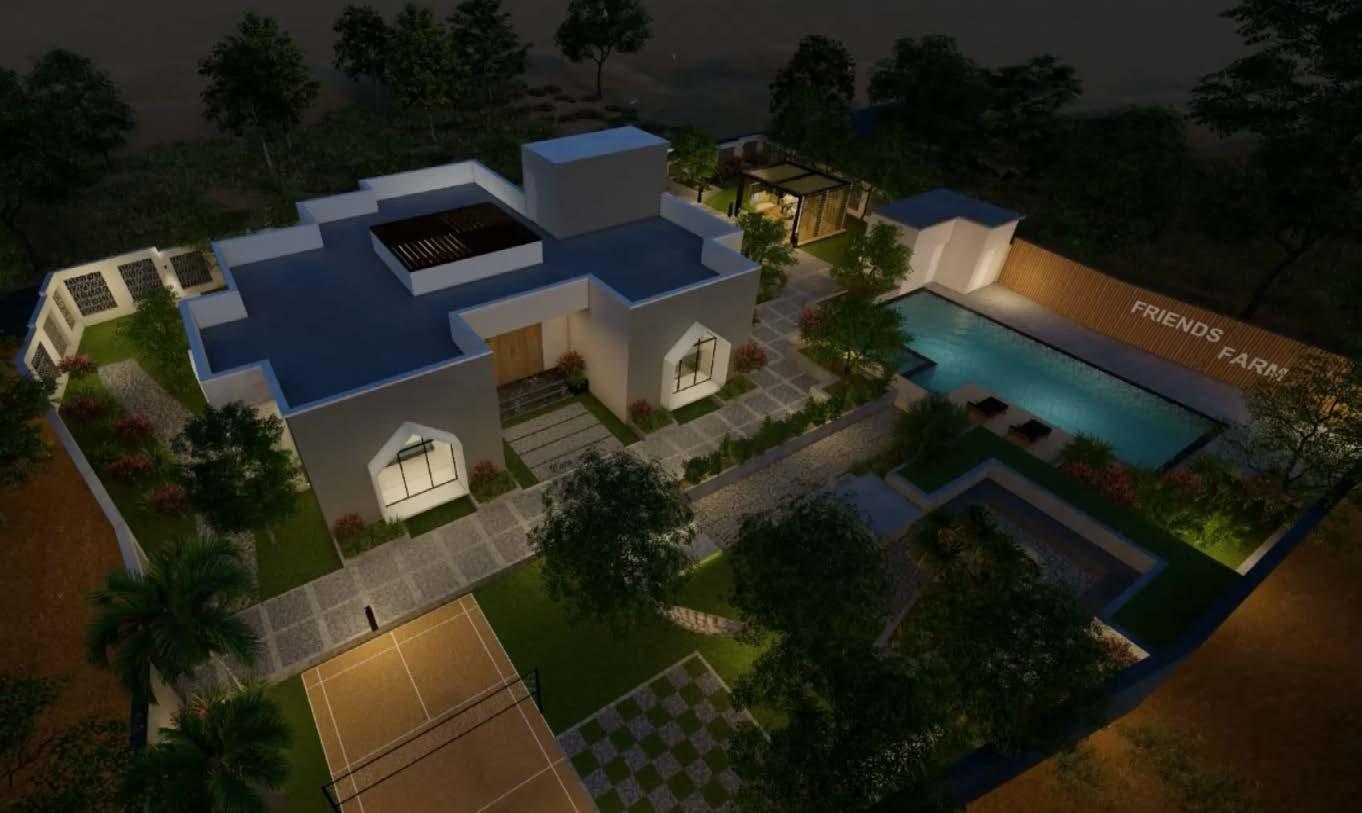

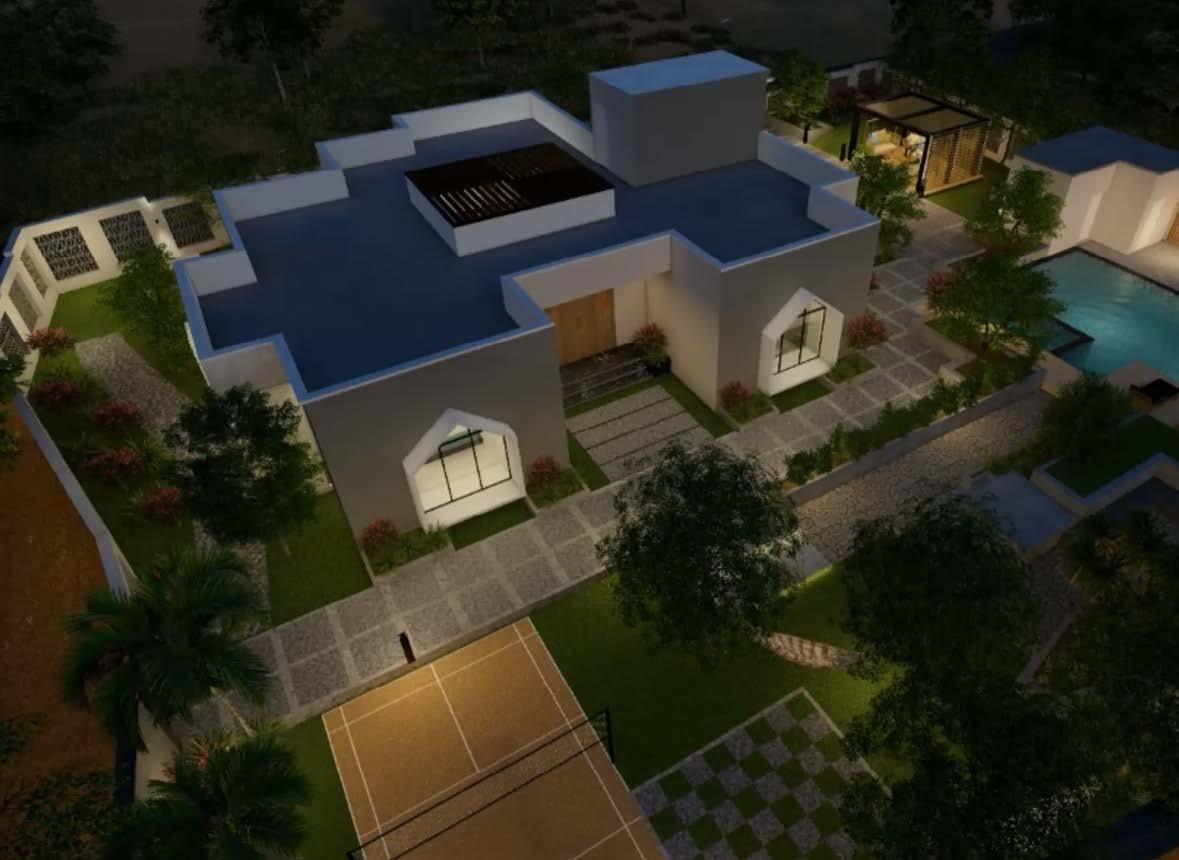

Courtyard house with outdoor activites and Landscape areas

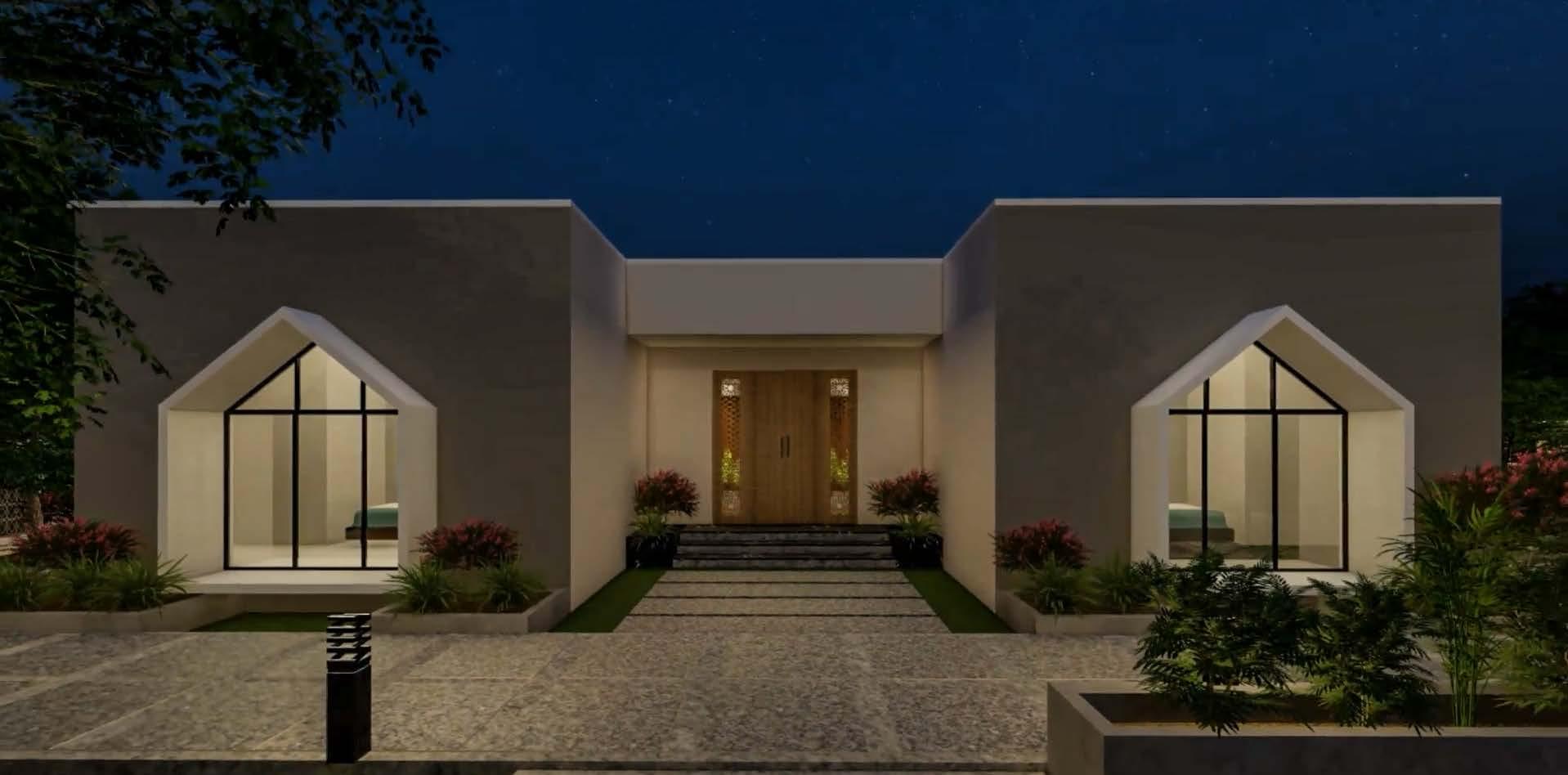

Front View of the Courtyard House - View from the landcape spaces of Courtyard House

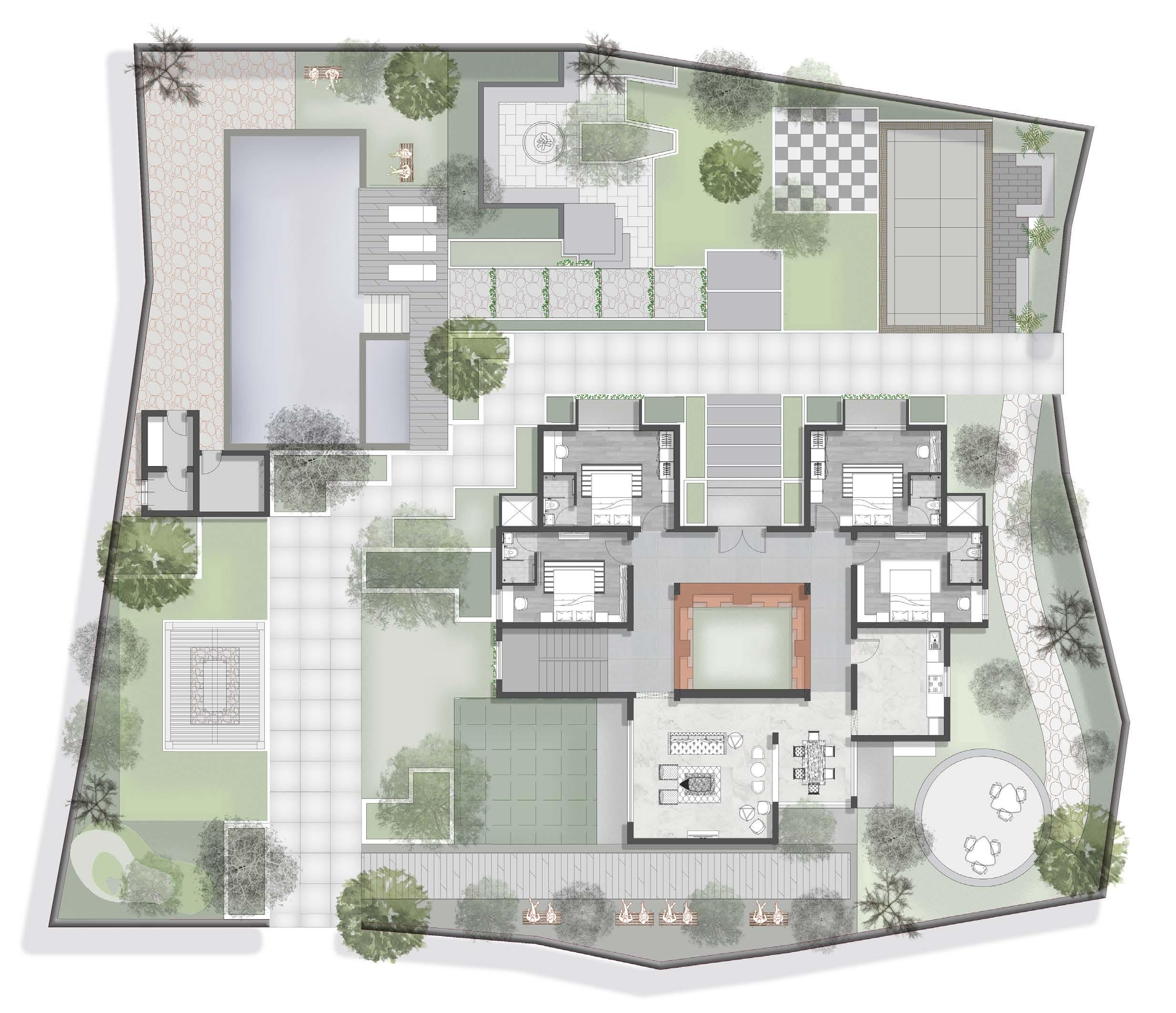

Site & Floor Plan of Farmhouse at Vavoshi Built up area = 2500 sq.ft.

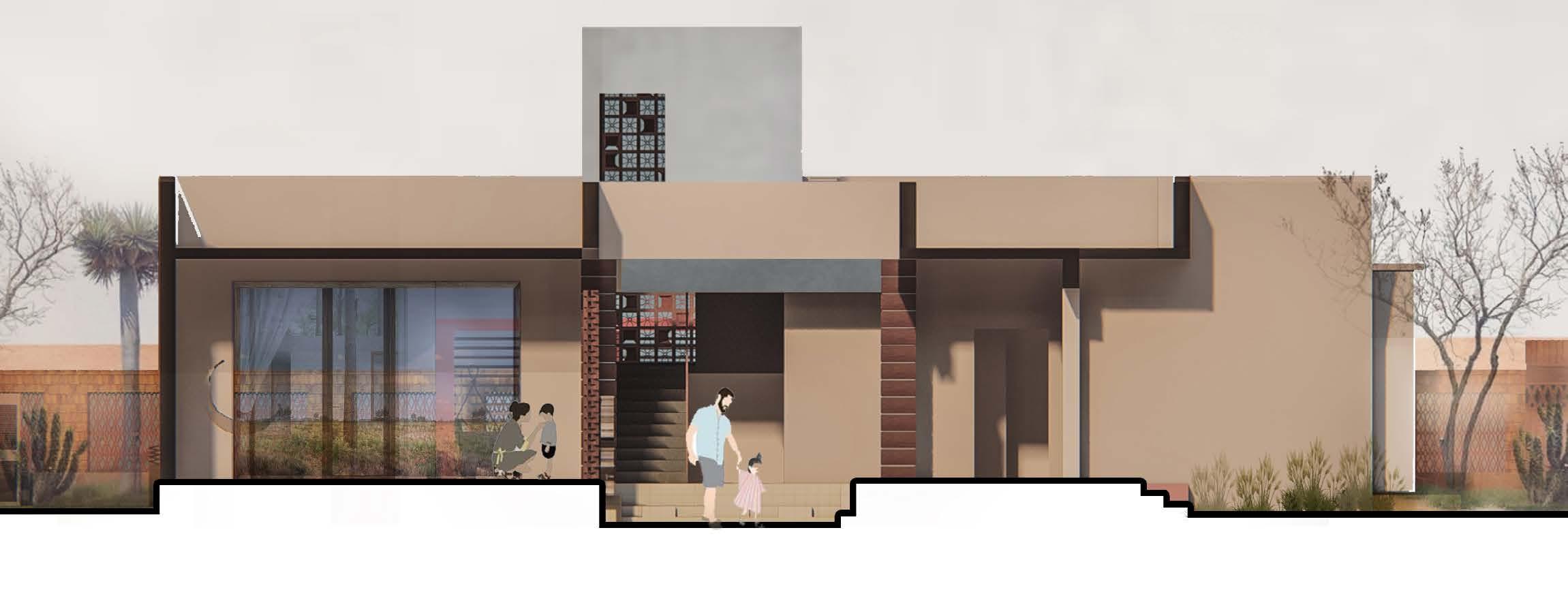

Section Of Courtyard House at Vavoshi , Ransai Village

A SOCIAL SPACE

Navi Mumbai, India

Academic Thesis 2021 CITY CENTER - COMBATING SOCIAL ISOLATION THROUGH DESIGN

The project intends to appraise and accept the effect of technological growth on the urban fabric of city. Due to Fast paced & privatised life style , the public spaces and social life are lost, this Proposal is an approach combating this issue through design with contextual program as per selected city.

The concept of Social Space is to design an active public realm, with a major focus to the Linking spaces that leads to different typology of built forms. These Linking Space called Urban Square consists of various type of activity centered spaces that brings about life and interactive environment.

DESIGN STRATERGIES

• The orientation of Northeast-Southwest has been adopted to minimize heat gain within the building.

• Connecting spaces and pathways designed as a street view and style

• Fragmented green terraces and open spaces.

• Strategic placement of waterbody as per wind flow direction -cooling effect.

• Building height at south is reduced gradually creating self shading masses

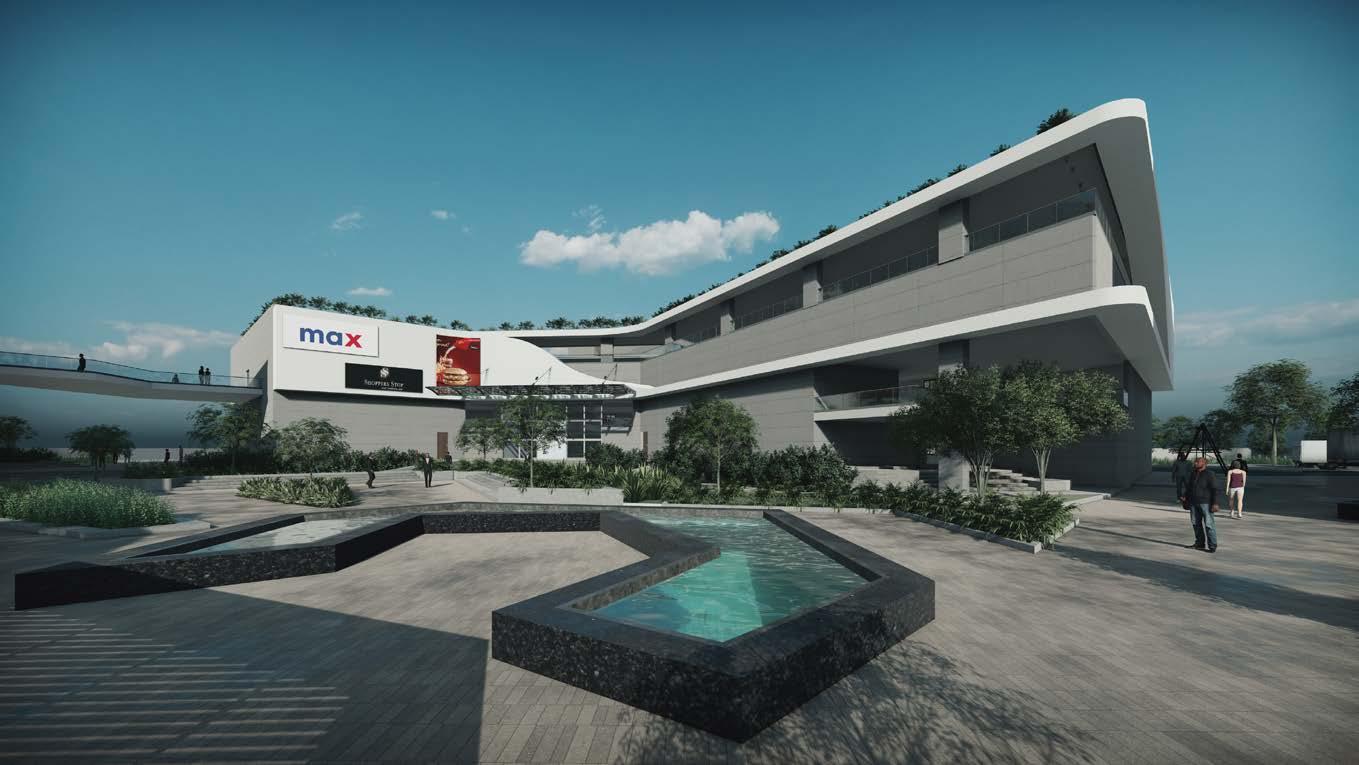

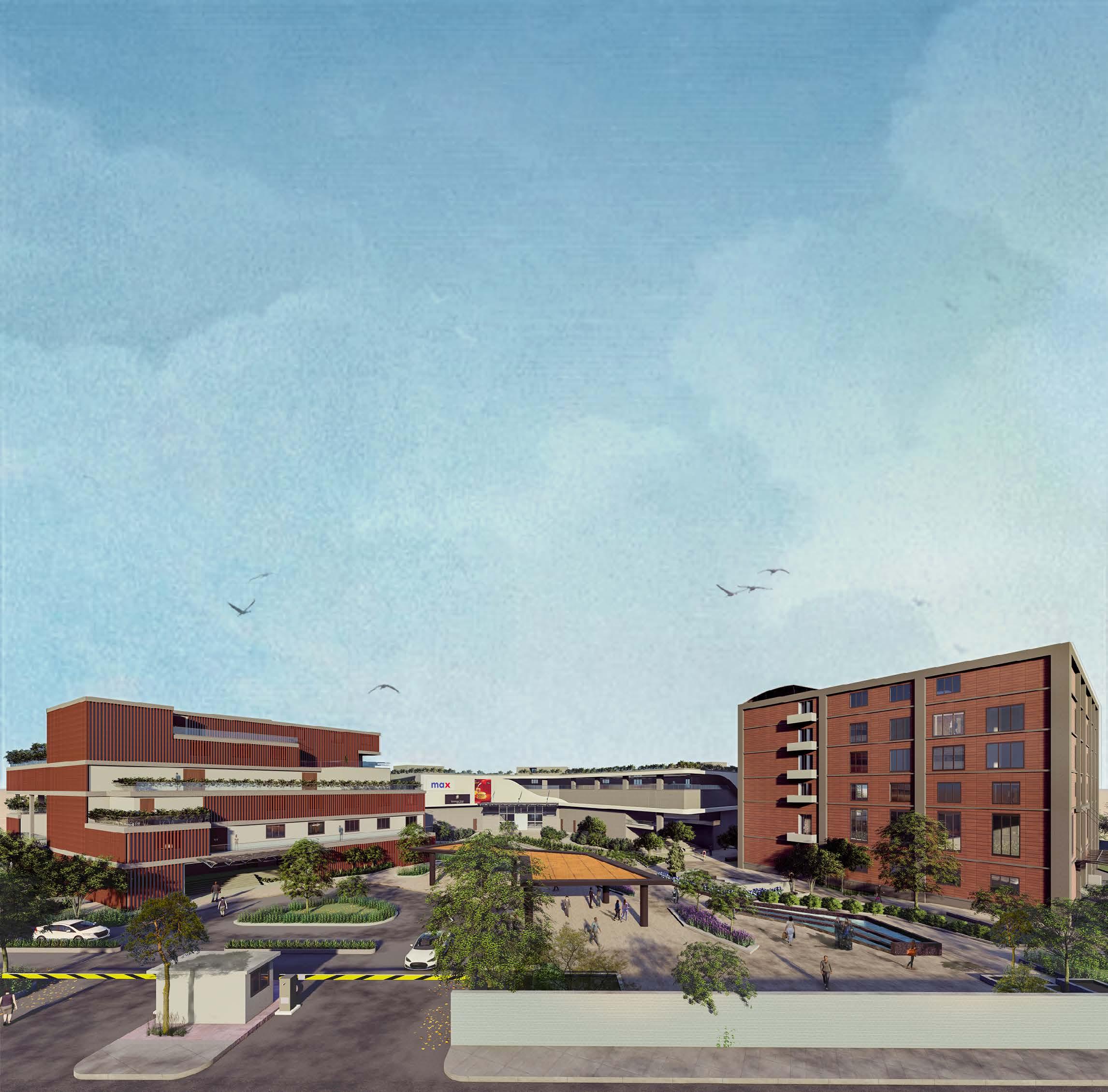

Urban square interlinking Hotel, Office and Retail (public building) with each other.

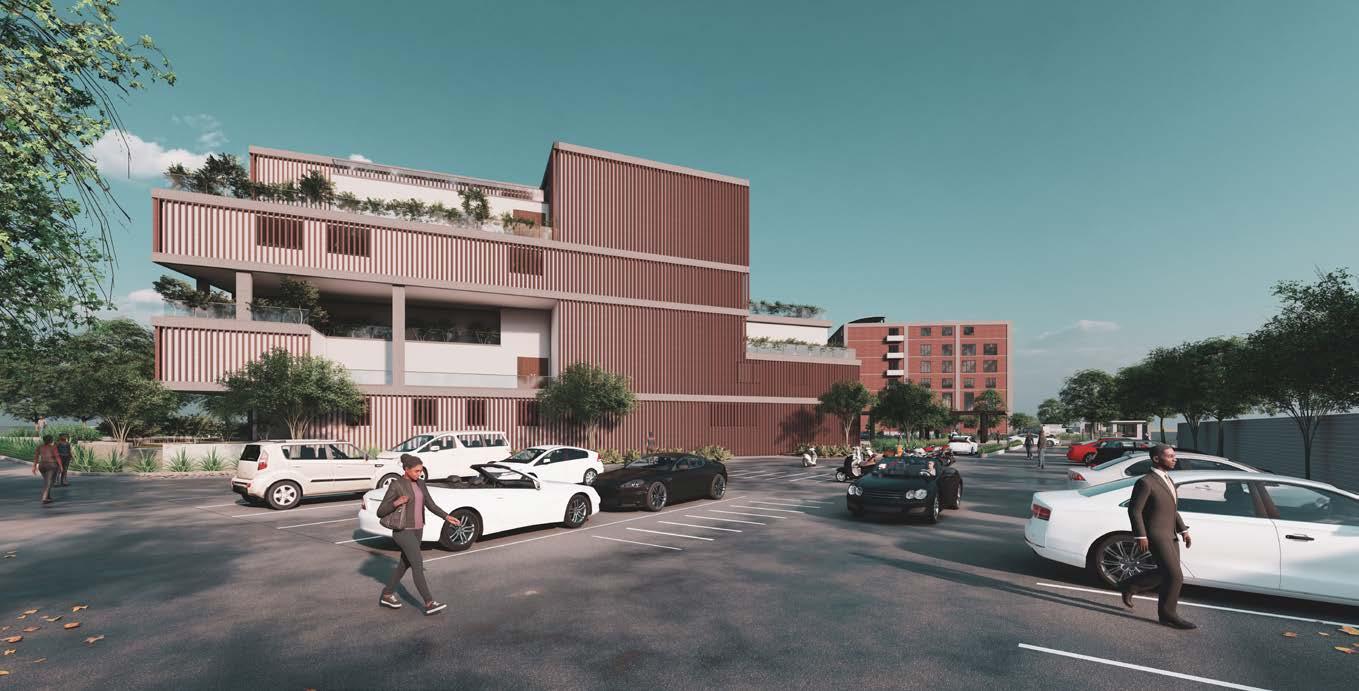

View from outdoor Parking Space (Office & Hotel)

Urban square interlinking Hotel, Office and Retail (public building) with each other

Site Area = 22,648 Sq.M. location= sector 2, kharghar.

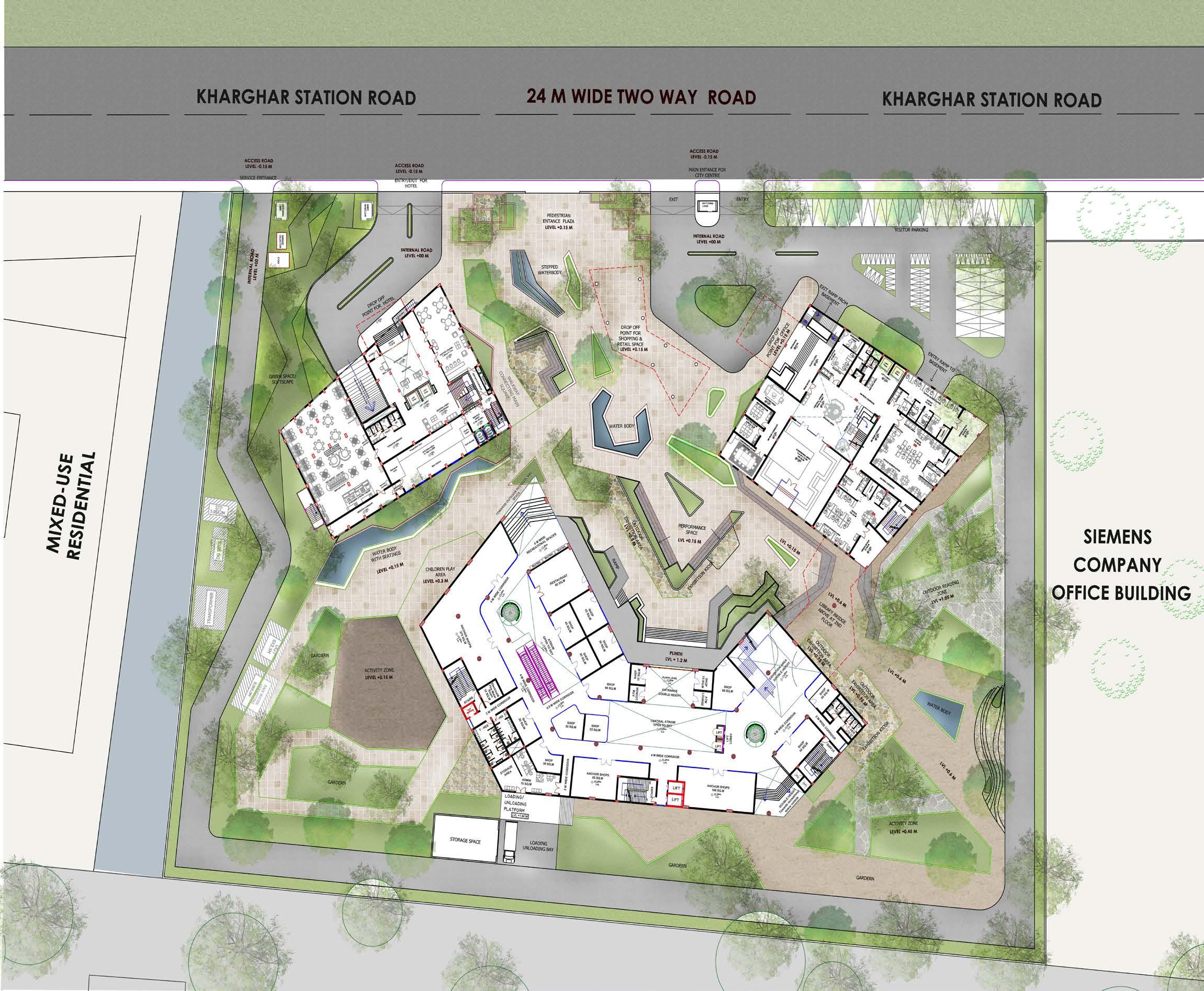

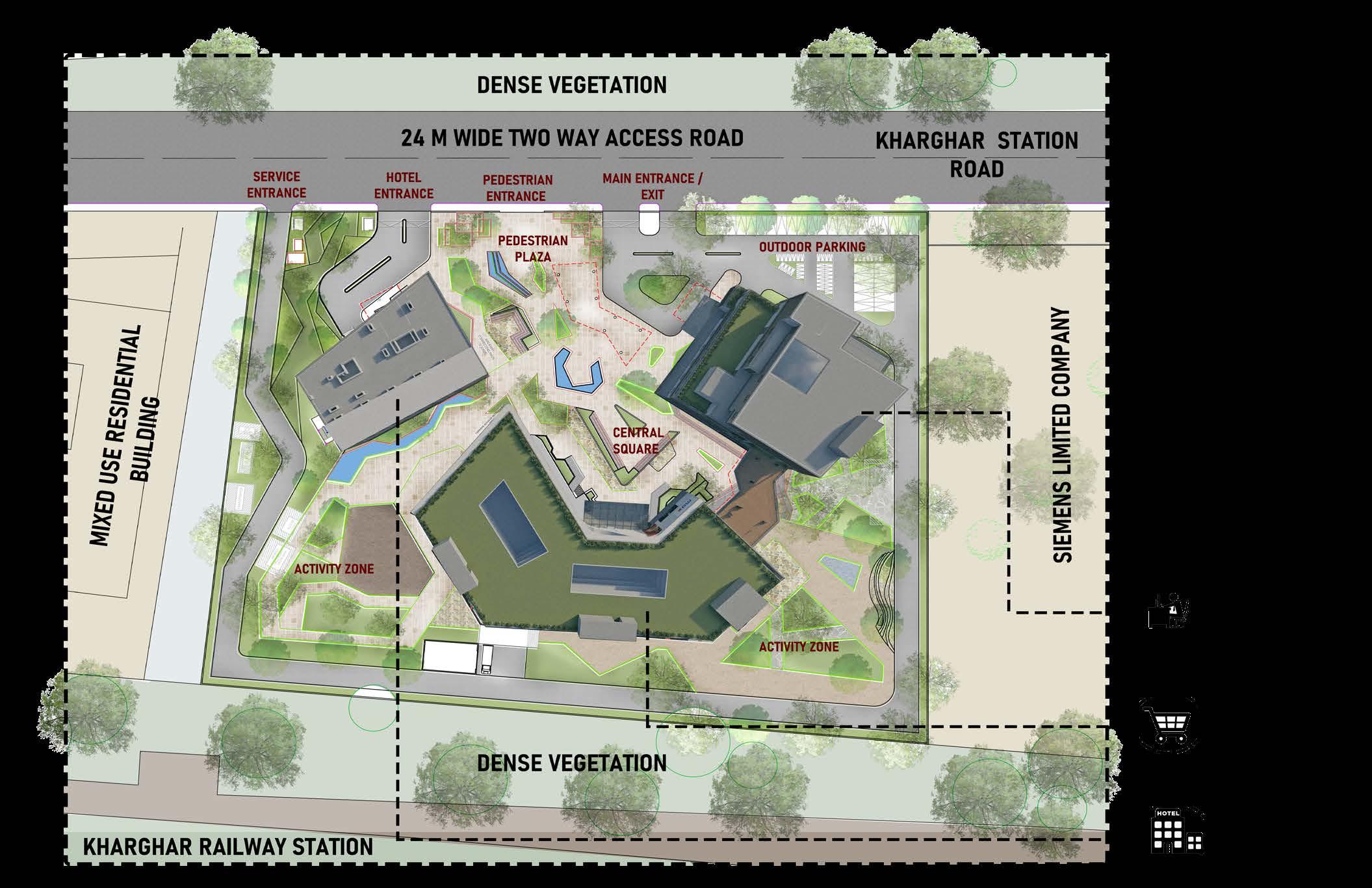

Site Plan at Cill Level Total Ground Coverage of the Site=5147 Sq.M.

Built mass in site are dividing the site with various pockets which are developed into landscape spaces for social interaction & activities. Office block, Retail and Hotel space are connected through large central square/plaza acting as a gathering space. Whole landscape plaza is purposely planed out in centre & the roads in the periperry of the site, such that street walk experience in lanscape plaza is not disturbed.

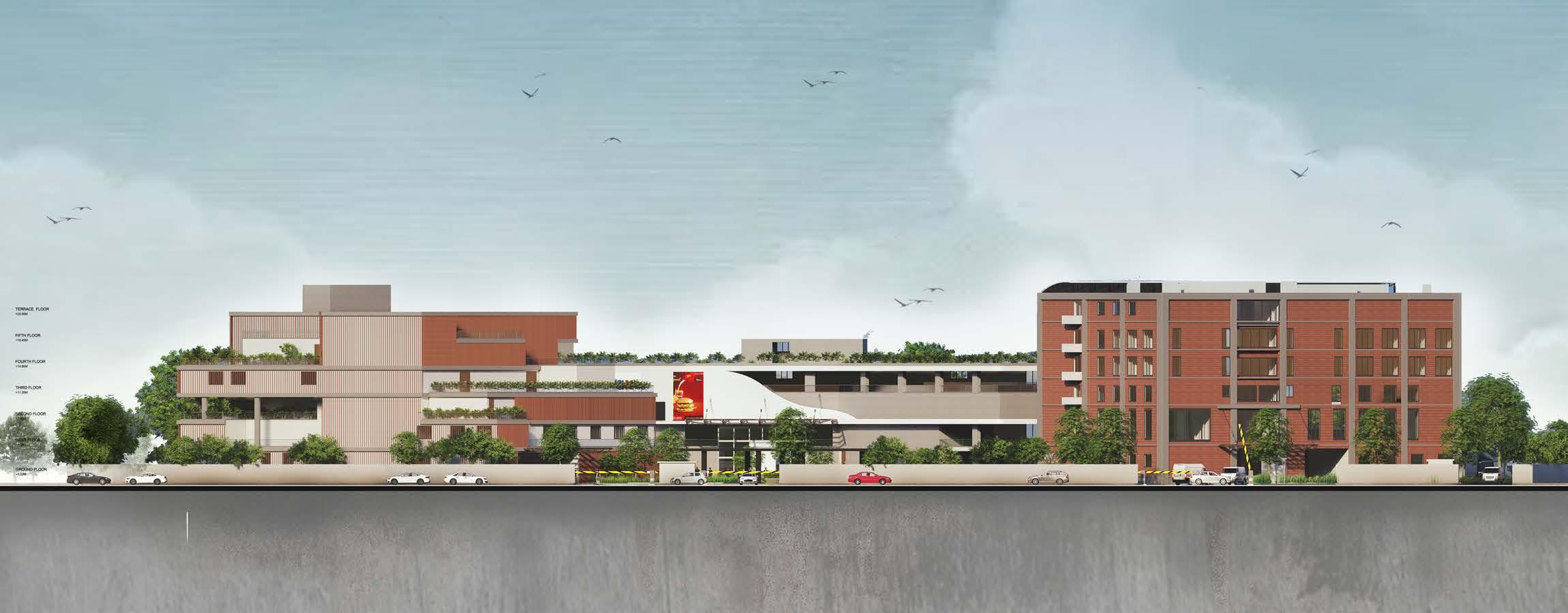

Front Elevation: City Centre at Kharghar

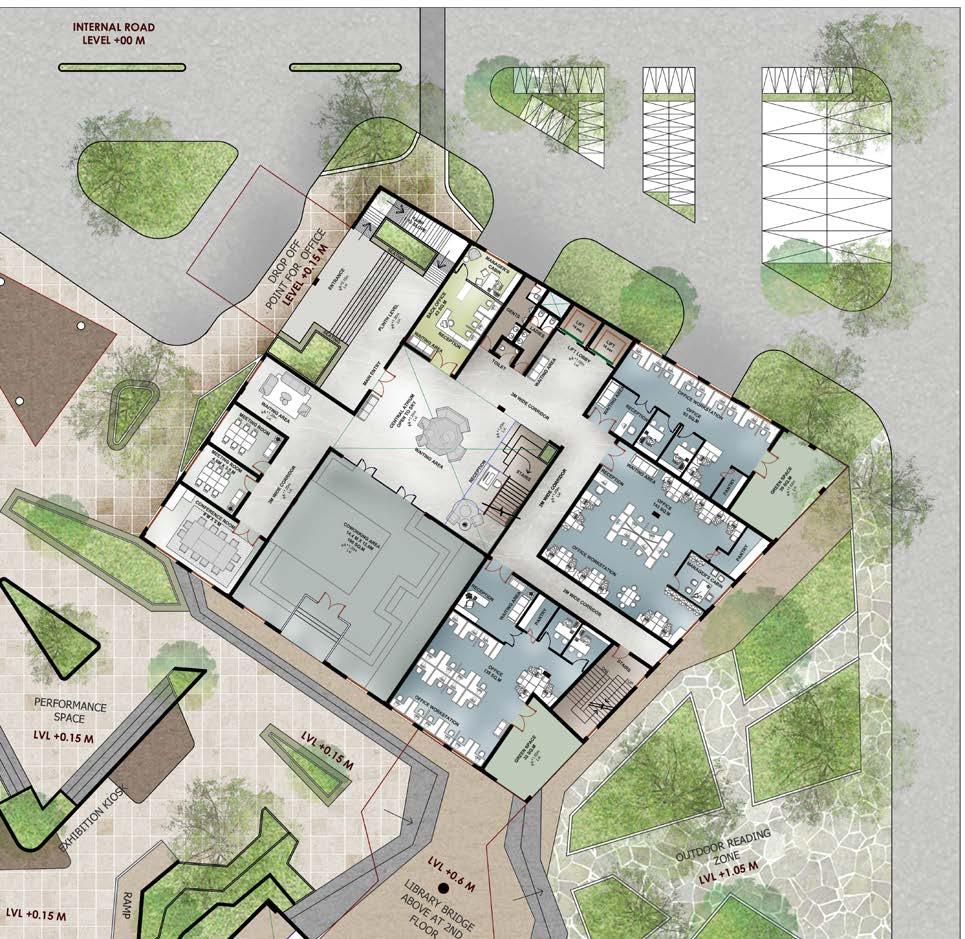

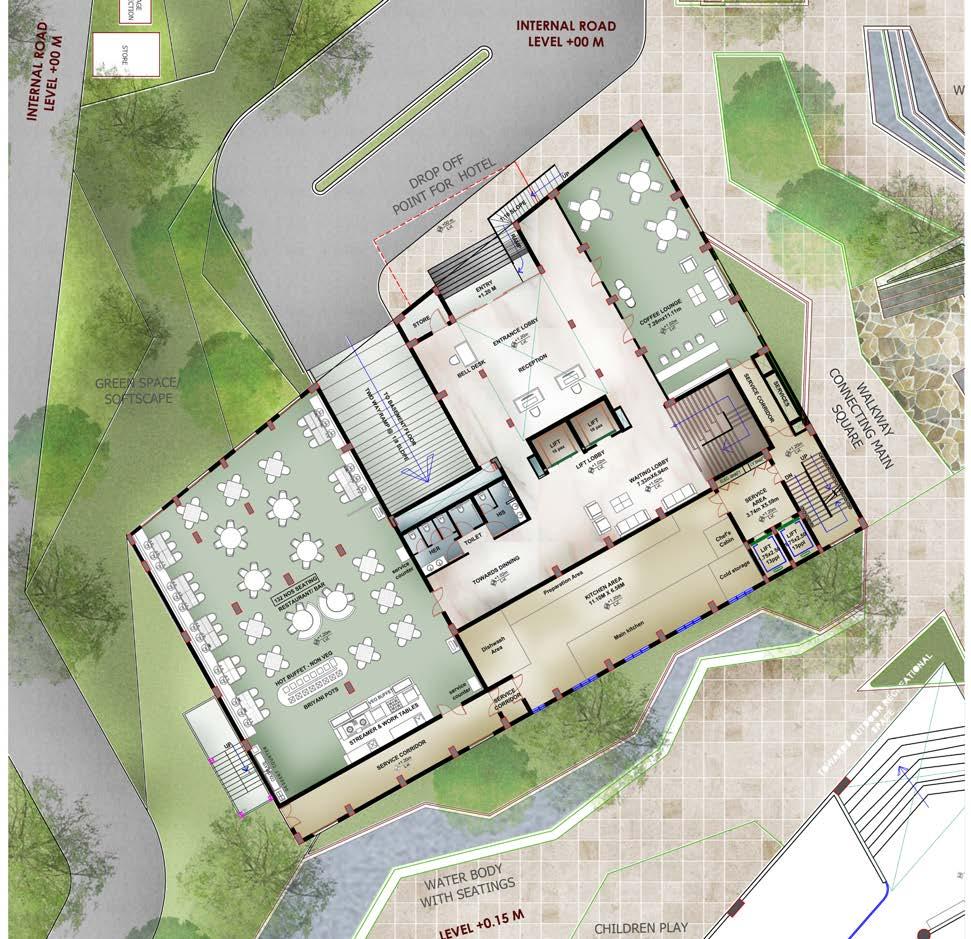

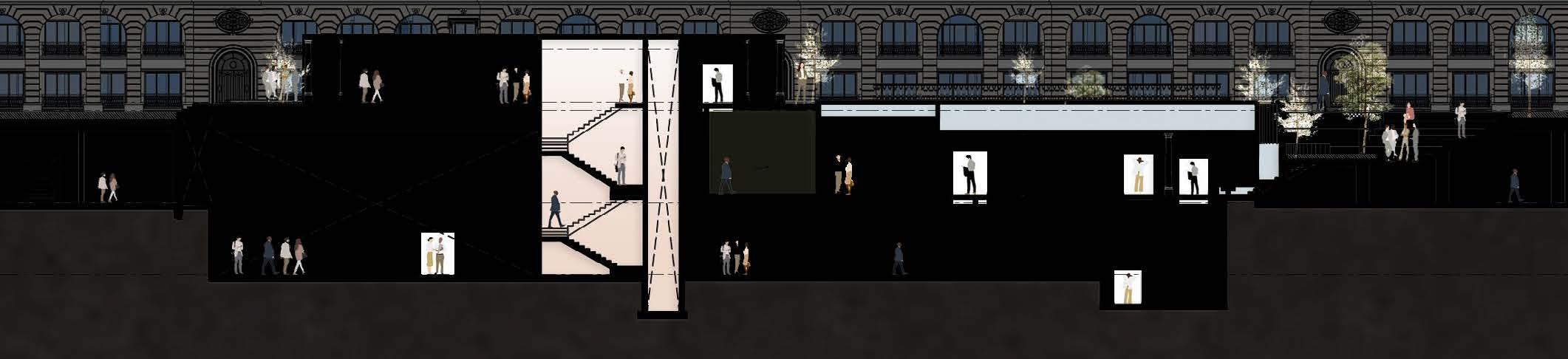

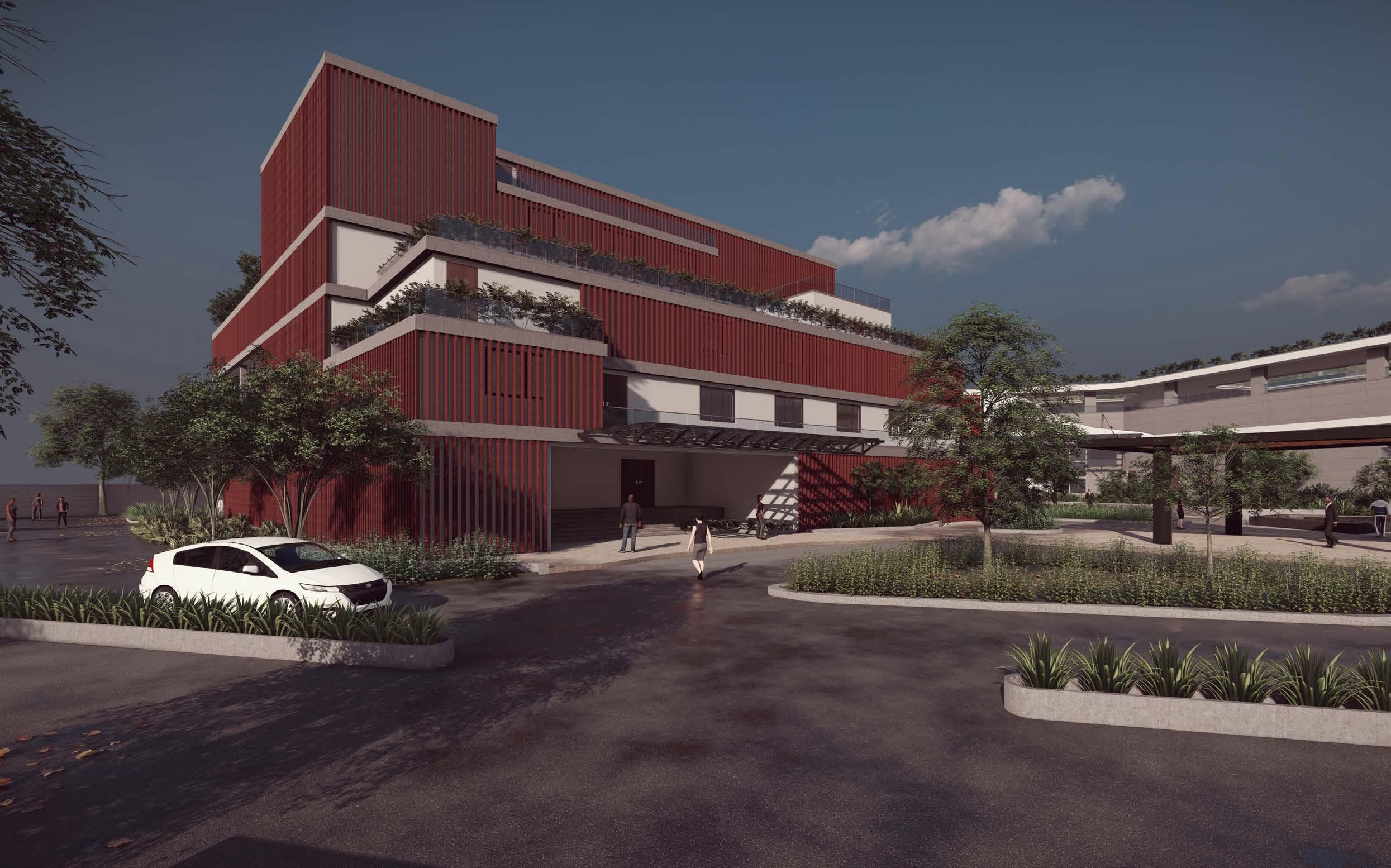

The hotel block is designed in such a way that all the common spaces and recreational zones are planned in ground, first and fifth floor where as the 2nd 3rd nd 4th floor has overall 50 no.s of guest rooms.

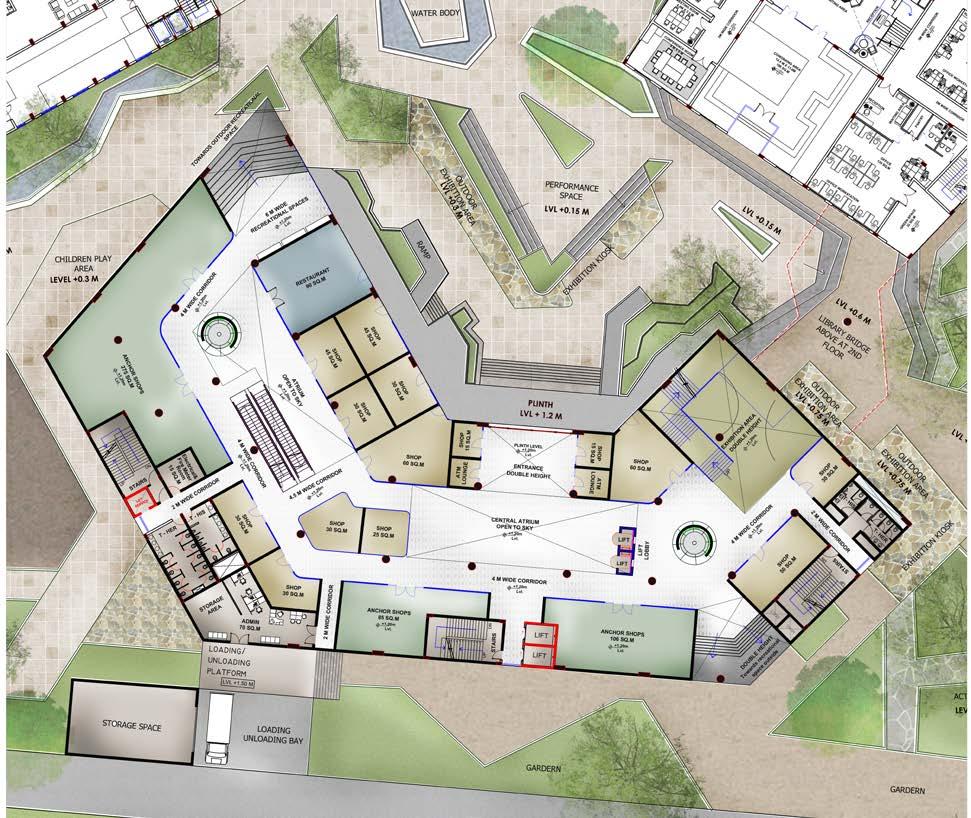

Retail block has shops, restaurant and a Public library connecting the office building via bridge to terrace / break out areas. The exhibition stairway act as a informal seating space for the Readers.

Office block is designed in a such a way that all the services is placed at the periphery & open atrium at centre providing visual connections within each floor levels. Main ideology was to design the indoor spaces in harmony with the outdoor landscape and activity spaces.
