PORTFOLIO ANISH SHETH SELECTED WORKS 2020 - 2024
LOCATION - PUNE, MAHARASHTA
GMAIL - anishvsheth@gmail.com
CONACT - +91 8806236628
ANISH RAKESH SHETH
Hello, I am Anish Sheth, an undergraduate student from Smef’s Brick School of Architecture, Pune.
I’m a passionate and dedicated student of architecture actively seeking an internship to complement my academic pursuits. With a solid foundation in design principles, spatial planning. I bring a creative approach to problem-solving and a keen eye for detail. My academic journey has equipped me with proficiency in software and the ability to translate concepts into tangible designs. Eager to contribute my skills to a dynamic architectural firm, I am committed to learning and growing within a collaborative environment.
I am confident that my enthusiasm and academic background make me a valuable candidate for an internship in your esteemed organization.
Education :
Carmel Convent High School, Badlapur 2006 - 2018
Seth Hirahand Mutha College, Kalyan 2018-2020
SMEF’s Brick School of Architecture, Pune 2020 - Current (4th Year)
Technical Skills :
Advanced :
AutoCAD
Sketchup
Photoshop
Lumion
Google Earth Pro
Climate Consultant
Lightroom
Indesign
PowerPoint
Begineer :
Design Builder
Rhinoceros
Grasshopper
Revit
Edge
Premier Pro
Filmora
Core Design 3D Physical Design Construction Manual Drating Sketching Model Painting
Soft Poblem Critical Team Organization Time-Management Co-curricular Photography Architectural Clay Bicycling
CURRICULUM VITAE
Soft Strength :
Poblem Solving
Critical Thinking
Team Work
Organization
Time-Management
Core Strength :
Design Conceptualization
3D Vislulation
Physical Modelling
Design Presentation
Construction Drawings
Manual Skills :
Drating
Sketching
Model Making
Painting
Co-curricular Activities :
Photography Workshop
Architectural Photoshoots
Clay Workshop
Bicycling
Achivements :
2022 - Selected in Brick 12 on 12 Event
2022 - Design work displayed during COA Inspection
2022-23 - 6 months Internship at Volume 8 Studios, Pune
2022-23 - Photography Club Head
Completed 20 Interior / Architectural Phootshoots since 2022
2023 - Highest CGPA in Sem VI
2023 - Design work selected for Edge
2023 - RIA I, II work selected for Documentation
Workshops & Co curricular Activities :
2021 - Pottery Workshop
2022 - 64th ANC Nasa Convention, Banglore
2022 - 3D Printing Workshop
2022 - Ferrocement Workshop
2022 - Facade Design (Facade Elective I)
2022 - Student Friendly Streets, Pune Workshop
2023 - Photography Workshop
2023 - Kinetic Verse (Facade Elective II)
Competitions :
2021 - NASA ANDC Throphy
2023 - BSOA’s School of Film and Design Challenge (Invite only)
2023 - IESCOA (Partcipated)
2023 - PMC’s Pet’s Park Near Katraj (BRADCL)
CONTENTS
THE ABODE
THE BLUE
FOCUS ESCAPE
WORCATION
MASS HOUSING
HOTEL DESIGN
ESCAPE
SCHOOL OF FILM & DESIGN
PHASE TWO OF BRICK CAMPUS
WORKING DRAWINGS
MISCELLANEOUS
ARCH. PHOTOGRAPHY
WORCATION
A THE BODE
LOCATION - PUNE
Welcome to a prime housing site ‘THE ABODE‘ nestled in the heart of Pune (Swargate). Site was strategically positioned within a Transit-Oriented Development (TOD) zone. This dynamic locale caters to the diverse needs of both students and corporate professionals, offering a seamless blend of convenience and connectivity. With a vision to create a vibrant affordable living space, this site embraces the essence of TOD planning, ensuring easy access to public transportation hubs and amenities. Designed to accommodate the bustling lifestyles of students and corporate individuals alike, it promises a harmonious blend of modern living and strategic location, making it an ideal choice for those seeking a dynamic and well-connected abode.
CONTOUR UNDERSTANDING
ZONNING
SITE ANALYSIS
According to sunpath analysis, we could see that building towards the south side should have less height than building towards north, eitherwise building towrds north will constanly be in shadow region.
SECTION AA’
MASTER PLAN A’ A
FORM DEVELOPMENT
9. SWIMMING POOL
10. GENERATOR & PUMP ROOM
11. 4 WHEELER’S PARKING
12. SKYLIGHTS FOR PODIUM
13. RECERATIONAL SPACE
14. EXIT GATE
15. YOUTH HOUSING
16. FAMILY HOUSING
1 2 3 4 5 6 7 8 9 11 12 10 12 12 13 3 12 11 14
1. ENTRANCE GATE
2. SECURITYCABIN
3. AREA RESERVED FOR S.T.P & TRANSFORMER
4. TWO WHEELER’S PARKING FOR TENETS
5. JOGGING TRACK
6. CHILDREN’S PLAY AREA
7. MULTIPURPOSE GROUND
8. CLUB HOUSE (INDOOR GAMES, GYM)
MASTER PLAN LAYOUT 15 16 INDEX
FSI CALCULATION - (TOWER 2)
NO OF FLATS PER FLOOR = 8
2BHK = 4 PER FLOOR = 140
3BHK = 4 PER FLOOR = 140
NO. OF 2BHK FLATS= 140 AREA = 80Q.M.
TOTAL AREA = 11200Q.M
NO OF TYPE 3 BHK FLATS = 140, AREA = 100 SQ.M, TOTAL AREA = 14000 SQ.M
TOTAL RESIDENTIAL AREA OF TOWER T2 = 11200 + 14000 = 25,200 SQ.M
CIRCULATION + WALL THICKNESS (22%) = 25200 + 5544 = 30,744 SQ.M
TOTAL FSI CONSUMED BY TOWER T2 = 65% OF TOTAL BUILTUP AREA.
FSI CALCULATION - (TOWER 1)
NO OF FLATS PER FLOOR = 11 2 ROOMS FLAT = 4 PER FLOOR = 4 1 ROOM FLAT = 7 PER FLOOR = 7
NO. OF 2 ROOMS FLATS= 80 AREA = 50Q.M.
TOTAL AREA = 4000Q.M
NO. OF TYPE 1 ROOMS FLATS = 140, AREA = 30 SQ.M, TOTAL AREA = 4200 SQ.M
TOTAL RESIDENTIAL AREA OF TOWER T1 = 4000 + 4200 = 8200 SQ.M
CIRCULATION + WALL THICKNESS (22%) = 8200 + 1800 = 10,000 SQ.M
TOTAL FSI CONSUMED BY TOWER T2 = 25% OF TOTAL BUILTUP AREA
DETAIL OF VERTICAL INTERACTION BY USING BALCONY & REFUGE AREA WHICH CAN BE ALSO USED AS RECREATIONAL SPACE.
RESIDENTIAL HOUSING YOUTH HOUSING ZONNING
BTHE LUE
LOCATION - AHMEDBAD
Welcome to a luxurious oasis ‘THE BLUE‘ in the heart of Ahmedabad, where elegance meets tranquility at our 5-star hotel nestled opposite the picturesque Sabarmati river and a clear view of Atal Bridge. Our hotel is a haven for leisure travelers seeking a rejuvenating escape and corporate professionals hosting impactful meetings. With world-class amenities, stunning river views, and impeccable service, we invite you to indulge in a seamless blend of comfort and sophistication. Experience the epitome of hospitality at our exquisite destination, ensuring your stay is nothing short of extraordinary.
The intent of the study was to study the high rise structures, basement and advance Services. Site for given project is in Ahmedbad and intend is to build a multi functionci hotel which serves for business trips it should include all the amenities and services.
SITE ANALYSIS LOCATION : AHMEDBAD FORM DEVELOPMENT
SABARMATI RIVER
SABARMATI RIVER
9. BASEMENT ENTRY
10. BASEMENT EXIT
11. BANQUET HALL
12. WAITING AREA
13. RESTAURANT 1
14. HOTEL ENTRANCE
15. SERVICE ENTRY / EXIT
16. EXIT GATE
MASTER PLAN
1. ENTRANCE GATE
2. SECURITYCABIN
3. AREA RESERVED FOR S.T.P & TRANSFORMER
4. SURFACE PARKING
5. JOGGING TRACK
6. MULTIPURPOSE GROUND
7. PLANTATION
8. CANOPY
INDEX 2 1 3 3 5 4 6 7 8 9 10 11 12 13 16 15 14
WEST SIDE ELEVATION FACADE DETAILS MATERIAL SPECIFICATION WEST SIDE SECTION +81.3 M +81.3 M +61.3 M +61.3 M +41.3 M +41.3 M +21.3 M +21.3 M
TERRACE FLOOR PLAN STANDARD ROOM PLAN AMINITIES FLOOR PLAN GROUND FLOOR PLAN
ROOM PLANS PLANS
E SCAPE FOCUS
LOCATION - HIMACHAL PRADESH
The FOCUS ESCAPE recreational habitat envisioned for this project is a holiday home, serving as a haven for one’s favorite role model, be it an artist or a sports person. Spanning an area between 300 sq.m. to 500 sq.m., the design theme revolves around seamlessly blending indoor and outdoor spaces. Bridging the first and second year design studio exercises, it aims to advance the understanding of ‘Design as a Process’. This project emphasizes module-based learning, delving into various aspects that stimulate the holistic design process.
A ROLE MODEL AS TO BE SELECTED FROM WHOM A BUNGLOW IS TO BE DESIGNED. MY ROLE MODEL WAS SAURAV SINHA AS IS A PROFFESSIONAL PHOTOGRAPHER, AND MY HOBBY IS PHOTOGRAPHY WHICH WAS INSPIRED FROM HIM,HE CURRENTLY STAYS IN MUMBAI.
SITE SELECTION
THE SITE CHOSEN IS KULLU, HIMACHAL HE HAS CHOSEN KULLU BECAUSE, HE SAID THE TYPE OF CONTENT WHICH HE CREATES CAN BE CREATED IN BETTER WAY IN KULLU, HE CAN EXPLORE MORE PLACES FOR MAKING VIDEOS AND TAKING PHOTOGRAPHS AND ATMOSPHERE IS GOOD AND THE CLIMATE IS COOL USUALLY.
FAMILY STRUCTURE -
1. SAURAV
2. SAURAV’S WIFE
3. SAURAV’S FATHER
4. SAURAV’S MOTHER
5. SAURAV’S GRANDFATHER
6. SAURAV’S GRAND MOTHER
7. CARE TAKER
BRIEF SITE ANALYSIS LOCATION : HIMACHAL PRADESH
1. ENTRANCE GATE
2. PARKING
3. CARE TAKER’S HOUSE
4. PLANTATION AREA
5. WATER BODY
6. LAWN
7. GAZEBO
8. PEBBLED PATHWAY 9. WATCH TOWER
10. WATERBODY
11. WALKING EXHIBITION
MASTER PLAN INDEX 1 2 3 4 5 6 7 8 9 10 11 12
12. PLANTATION AREA
ROOF PLAN
FIRST FLOOR PLAN
GROUND FLOOR PLAN
FLOOR PLANS ELEVATIONS AND
SECTIONS VIEWS
FILM INSTITUTE THE BRICK’S
LOCATION - PUNE
Phase two of the brick campus transformation into a school of film institute introduces specialized facilities and infrastructure tailored to the unique needs of film education. This expansion encompasses state-of-theart soundstages, editing suites, screening rooms, and production workshops, seamlessly integrated within the existing architectural framework. With a focus on enhancing student engagement and professional development, phase two aims to establish the campus as a premier destination for aspiring filmmakers to hone their craft.
A NETWORK OF STAIRCASES GOES ALONG THE CENTRAL OPEN SPACE CONNECTING THE CAPMPUS VISUALLY AND MAKING IT ACCESSIBLE VERTICALLY PHASE TWO OF BRICK CAMPUS FOR FILM INSITUTE, PUNE MAHARASHTRA
THE FLOOR PLATES ARE STAGGERED INTERNALLY AND EXTERNALLY, WITH OVERHANGS EXTENDING ON THE SOUTH FOR SHADING AND PROJECTIONS ON THE NORTH TO GAIN THE NORTH LIGHT, RESULTING IN FORMATION OF A DYNAMIC CENTRAL ATRIUM.
THE CHANGING TERED VERTICALLY ED ON THE SOUTH AT THE SAME TIME
EXISTING CAMPUS
SITE ANALYSIS & CONCEPT FORM DEVELOPMENT ISOMETRIC VIEW OF FILM INSTITUTE
PROPOSED CAMPUS
FLOORPLATES ARE ARRANGED ALONG THE LIBRARY AND ARE SCATVERTICALLY AND HORIZONTALLY IN SUCH A WAY THAT OVERHANGS ARE CREAT SOUTH SIDE PROVIDING A MUCH NEEDED SHADING ON THE FLOORS BELOW. TIME PROJECTIONS ON THE NORTH HELP IN BRINGING IN THE NORTH LIGHT.
DEVELOPMENT & FLOOR PLATE ELEVATION & SECTION
ELEVATION
GROUND FLOOR PLAN MATERIAL PALATE
SECTION
A ROHANAM
LOCATION - JEJURI, PUNE
The AROHANAM multipurpose hall proposed in JEJURI, Pune, situated within a school ground, is envisioned as a versatile space crafted with a focus on affordability without compromising quality. With careful consideration of low-cost materials, the design aims to provide a functional and aesthetically pleasing facility. Emphasizing durability and sustainability, the hall serves as a hub for various school activities such as sports events, assemblies, and community gatherings. Its design integrates seamlessly with the surrounding environment while prioritizing the needs of the users and ensuring a conducive atmosphere for learning and recreation.
SOUTH SIDE ELEVATION NORTH
GROUND FLOOR PLAN DRAINAGE
SECTION AA’
NORTH SIDE ELEVATION
SECTION BB’

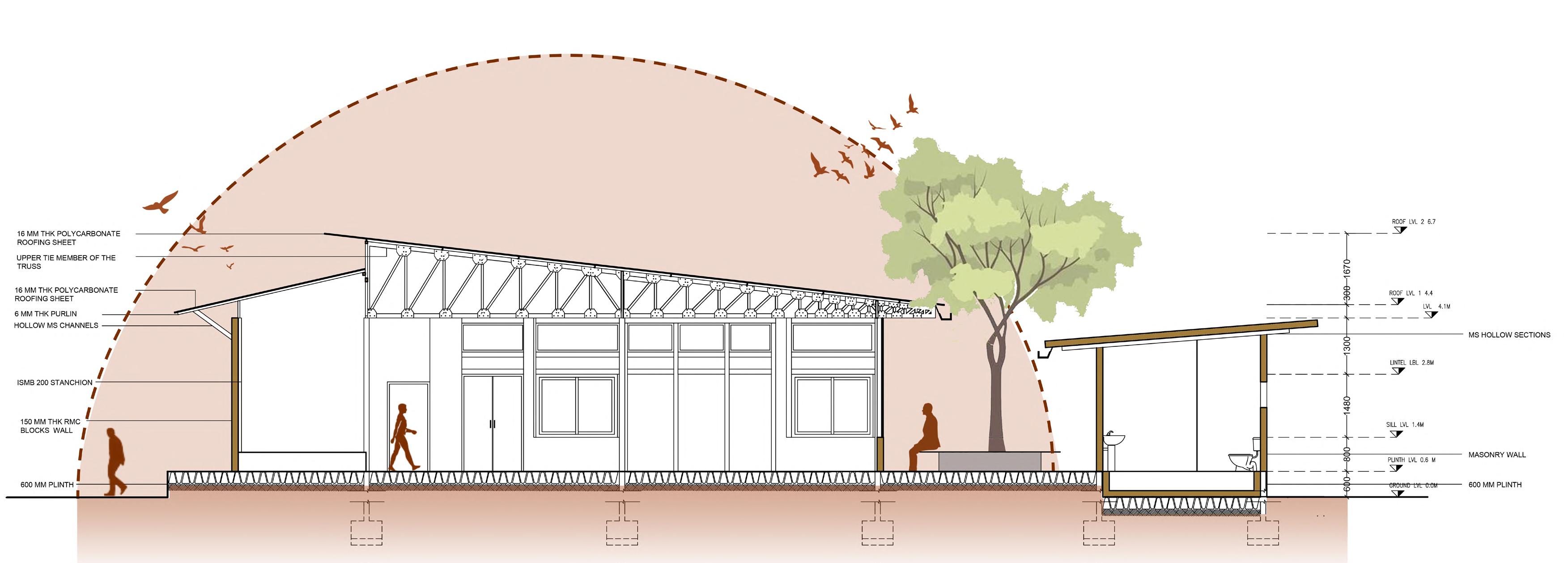

EXPLODED VIEW OF STRUCTURAL SYSTEM

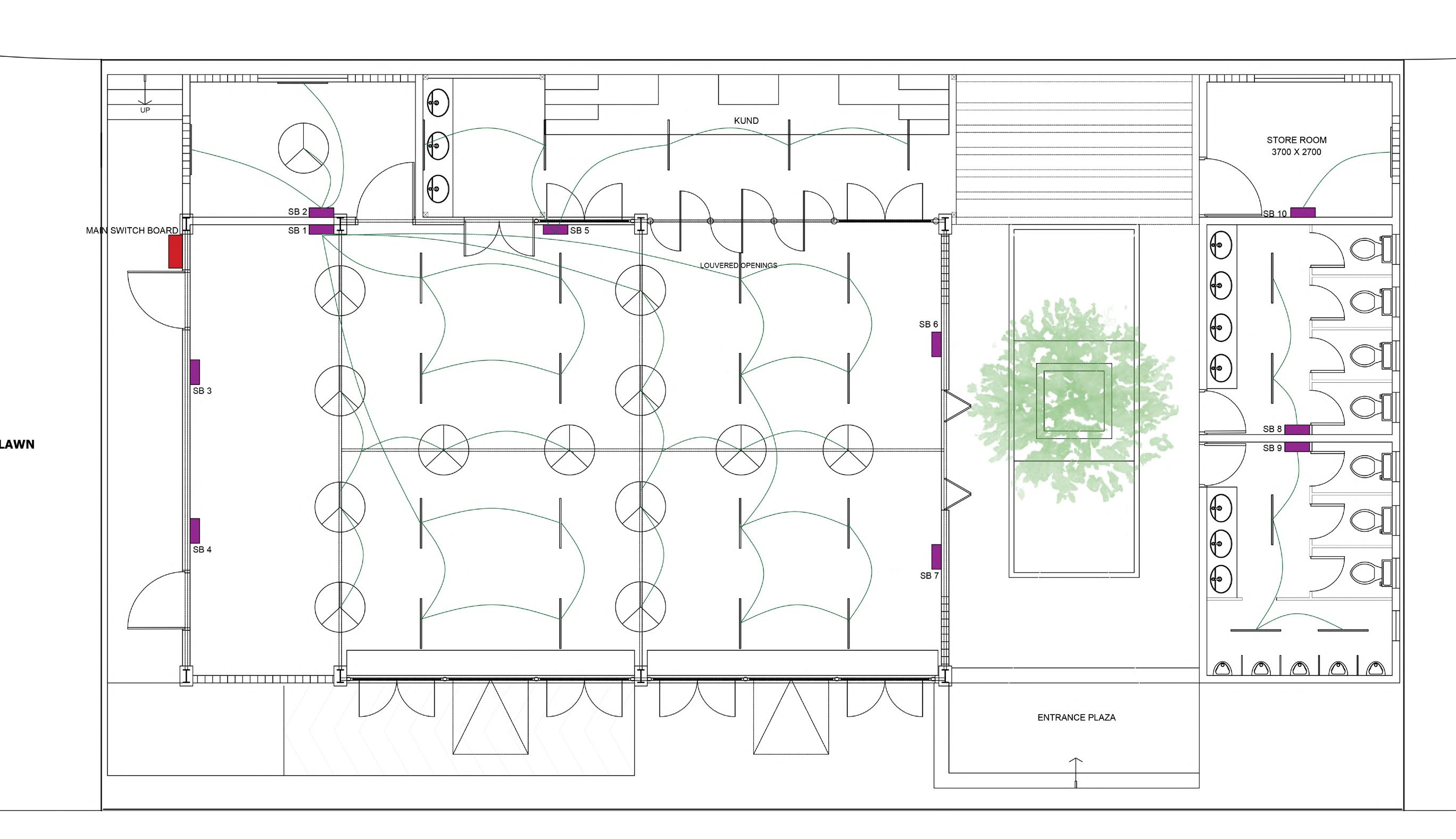

DRAINAGE LAYOUT ELECTRICAL LAYOUT
JOINERY DETAILS
ISMB 250 STANCHION
STIFFNER
20MM THK BASE PLATE
20 MM DIA BOLTS
CONCRETE PEDESTAL
CONCRETE PEDESTAL
20
ISMB 250 STANCHION
20 MM DIA BOLTS STIFFNER
STANCHION TO BASE PLATE DETAIL
GUTTER DETAIL
STANCHION TO TRUSS DETAIL
20MM THK BASE PLATE ISMB 250 STANCHION STIFFNER 20MM THK BASE PLATE
MM DIA
BOLTS
ISMB 250 STANCHION END PLATE GUSSET PLATE STRUT UPPER TIE ARRANGEMENT BOTTOM TIE MEMBER UPPER TIE ARRANGEMENT BOTTOM TIE MEMBER STRUT 16 MM THK POLYCARBONATE ROOFING SHEET 6MM THK PURLIN
MM THK POLYCARBONATE ROOFING SHEET STRUT 5 MM THK MS CHANNEL
MM THK C CHANNEL FOR GUTTER BOTTOM TIE MEMBER 6MM THK PURLIN 6MM THK PURLIN ISMB 250 STANCHION 20 MM DIA BOLTS STIFFNER PLATE MS BOX SECTION END PLATE OM WHICH BOX SECTION IS WELDED 20 MM DIA BOLTS
CONCRETE PEDESTAL STIFFNER
16
3
PURLIN DETAIL
PURLIN OVERHANG DETAIL
VIEWS
DRG. NO.: ISSUED FOR: APPROVED BY: DATE: SCALE: PLOTTED ON: KEY IN: DRG. TITLE: PROJECT: PLOT: AREA: REV. PROJECT NO. CHECKED BY: ANISH SHETH A-102 A AS25 CONSTRUCTION ANISH SHETH GROUND FLOOR PLAN COSMETIC RESEARCH CENTER YEAR III TERM II RED BATCH NUMBER PUNE 1:50 xx/xx/xx 04/05/23 ANISH SHETH NORTH SMEF's BRICK SCHOOL of ARCHITECTURE G-04 F W C G-01 F W C G-02 F W C G-03 F W C G-05 F W C T-01 F W C T-01 F W C A A-201 A A-201 A A A A-102 GROUND FLOOR PLAN SCALE 1:50 DOOR SCHEDULE No. Width Height Lintel Material/Remarks Quantity WINDOW SCHEDULE Height Cill No. Width Material/Remarks Quantity OPENING SCHEDULE Height Cill Width Material/Remarks Quantity No. FINISHES SCHEDULE No. No. No. 1. Tiling 1. Plastering 1. Plaster Enamal Acrylic Paint 5. Tile 6. WPC Flooring ARCHITECT ANISH SHETH 1 ALL DIMENSIONS ARE IN MM 3 THIS DRAWING IS TO BE READ IN CONJUNCTION WITH ARCHITECTURAL AND STRUCTURAL DRAWINGS 2 DO NOT SCALE THIS DRAWING 4 THE CONTRACTOR SHOULD CHECK AND VERIFY ALL AND DIMENSIONS ON SITE BEFORE STARTING WORKS 5 ANY DISCREPANCY TO BE BROUGHT TO THE NOTICE ARCHITECT IMMEDIATELY IN WRITING 6 FOR DRAINAGE, PLUMBING ELECTRICAL AND LANDSCAPE PLEASE REFER CONSULTANTS' DRAWINGS 7 MODIFICATIONS/DEVIATIONS MADE ON SITE WITHOUT THE ARCHITECT WILL BE AT THE TOTAL RESPONSIBILITY NOTES OF THE CONTRACTOR YEAR III TERM II RED BATCH SMEF's BRICK SCHOOL of ARCHITECTURE A A-201 SECTION BB' SCALE 1:50 DOOR SCHEDULE No. Width Height Lintel Material/Remarks Quantity WINDOW SCHEDULE Height Cill No. Width Material/Remarks Quantity OPENING SCHEDULE Height Cill Width Material/Remarks Quantity No. F-01 W C F-05 W C A A-201 SINGLE STEP DETAIL 1 SCALE 1: 5
DRG. NO.: ISSUED FOR: APPROVED BY: DATE: SCALE: PLOTTED ON: KEY IN: DRAWN BY: DRG. TITLE: PROJECT: PLOT: AREA: REV. PROJECT NO. CHECKED BY: ARCHITECT ANISH SHETH A-103 A AS25 CONSTRUCTION ANISH SHETH FIRST FLOOR PLAN COSMETIC RESEARCH CENTER YEAR III TERM RED BATCH NUMBER PUNE 1:50 xx/xx/xx 04/05/23 ANISH SHETH NORTH SMEF's BRICK SCHOOL of ARCHITECTURE F-02 F W C F-03 F W C T-01 F W C F-04 F W C A A-201 A A-201 A A-201 A A-103 FIRST FLOOR PLAN SCALE 1:50 DOOR SCHEDULE Height Quantity WINDOW SCHEDULE Height Cill No. Width Material/Remarks Quantity OPENING SCHEDULE Height Cill Width Material/Remarks Quantity FINISHES SCHEDULE WALL CEILING FLOOR No. No. No. 1. Tiling 1. Plastering 1. Plaster Dado 2. Plasterboard 2. Mossac 2. Paint 3. Paint 3. Texture Paint 4. Enamal Acrylic Paint 5. Tile 6. 3. Granite WPC Flooring 4. DRG. NO.: ISSUED FOR: APPROVED BY: DATE: SCALE: PLOTTED ON: DRAWN BY: PROJECT: PLOT: AREA: REV. CHECKED BY: 1 ALL DIMENSIONS ARE IN MM 3 THIS DRAWING IS TO BE READ IN CONJUNCTION WITH RELEVANT ARCHITECTURAL AND STRUCTURAL DRAWINGS 2 DO NOT SCALE THIS DRAWING 6 FOR DRAINAGE, PLUMBING ELECTRICAL AND LANDSCAPE DETAILS PLEASE REFER CONSULTANTS' DRAWINGS 7 MODIFICATIONS/DEVIATIONS MADE ON SITE WITHOUT CONSULTING THE ARCHITECT WILL BE AT THE TOTAL RESPONSIBILITY NOTES OF THE CONTRACTOR A-401 0 AS25 CONSTRUCTION ANISH SHETH STAIRCASE DETAILS SECTIONS COSMETIC RESEARCH INSTITUTE 25 PUNE 1:25 xx/xx/xx 04/05/23 ANISH SHETH No. Width DOOR SCHEDULE Height Lintel Material/Remarks Quantity WINDOW SCHEDULE Height Quantity SMEF's BRICK SCHOOL of ARCHITECTURE ANISH SHETH YEAR III TERM 1 A-403 A A-401 SECTION AA SCALE 1:25 01 1800 2100 3 TIMBER DOUBLE PANEL 02 2100 1000 2100 2100 6 TIMBER DOUBLE PANEL 03 1800 2000 3 ALUMINUM SLIDING W 05 1800 1200 1 FIXED WINDOW D WORKING RAWINGS
10 9 8 7 6 5 4 3 2 1 11 12 13 14 15 16 17 18 19 20 21 22 10 9 8 7 27 26 25 24 23 11 12 13 14 15 16 17 18 19 20 21 22
A-400
A-400
SCALE
A
GROUND FLOOR PLAN
SCALE 1:25 A
FIRST FLOOR PLAN
1:25
RISER - 150MM TRADE - 300MM
STAIRCASE WORKING DRAWING
RISER - 150MM TRADE - 300MM
ISSUED FOR: APPROVED BY: DATE: SCALE: PLOTTED ON: KEY IN: DRAWN BY: DRG. TITLE: PROJECT: PLOT: AREA: CHECKED BY: ARCHITECT 1 ALL DIMENSIONS ARE IN MM 3 THIS DRAWING IS TO BE READ IN CONJUNCTION WITH RELEVANT ARCHITECTURAL AND STRUCTURAL DRAWINGS 2 DO NOT SCALE THIS DRAWING 4 THE CONTRACTOR SHOULD CHECK AND VERIFY ALL DRAWINGS AND DIMENSIONS ON SITE BEFORE STARTING WORKS 5 ANY DISCREPANCY TO BE BROUGHT TO THE NOTICE OF THE ARCHITECT IMMEDIATELY IN WRITING 6 FOR DRAINAGE, PLUMBING ELECTRICAL AND LANDSCAPE DETAILS PLEASE REFER CONSULTANTS' DRAWINGS 7 MODIFICATIONS/DEVIATIONS MADE ON SITE WITHOUT CONSULTING THE ARCHITECT WILL BE AT THE TOTAL RESPONSIBILITY NOTES OF THE CONTRACTOR AS25 CONSTRUCTION ANISH SHETH STAIRCASE DETAILS - PLAN COSMETIC RESEARCH INSTITUTE 25 PUNE 1:25 xx/xx/xx 04/05/23 ANISH SHETH No. Width DOOR SCHEDULE Height Lintel Material/Remarks Quantity WINDOW SCHEDULE Height Cill No. Width NORTH Material/Remarks Quantity SMEF's BRICK SCHOOL of ARCHITECTURE ANISH SHETH YEAR III TERM II BATCH - RED 27 26 25 24 23 33 32 31 30 29 28 35 34 36 37 38 42 43 44 39 40 41 A A-400 ROOF FLOOR PLAN SCALE 1:25 01 1800 2100 3 TIMBER DOUBLE PANEL 02 2100 1000 2100 2100 6 TIMBER DOUBLE PANEL 05 1800 2000 3 ALUMINUM SLIDING W RISER - 150MM TRADE - 300MM A A-402 MALE TOILET PLAN SCALE 1:25 A A A-404 A-404 C C A-404 A-404 B A-404 B A-404 D A-404 D A-404 A A-403 SECTION AA SCALE 1:25 A A-403 SECTION CC' SCALE 1:25 TOILET WORKING DRAWING CC CC CC CC’
PLACE FOR HANGING CLOTHES PLACE FOR HANGING CLOTHES DRAWER DRAWER DRAWER DRAWER FOLDED CLOTHES FOLDED CLOTHES FOLDED CLOTHES FOLDED CLOTHES FOLDED CLOTHES FOLDED CLOTHES FOLDED CLOTHES FOLDED CLOTHES SHELF SHELF SHELF SHELF SHELF SHELF SHELF SHELF SHELF 6' 1'3" 3'8" 7' 6" 6" equal equal 1'3" 6' 20" 6' 1'6" 1'6" 1'6" 1'6" 4'6" 2'6" 2'6" Hidden storage SHELF SHELF SHELF 1' 1' 1' MASTER BEDROOM N NOTES: 1. ALL DIMENSIONS ARE IN 'MM' AND ARE UNFINISHED DIMENSIONS UNLESS OTHER WISE SPECIFIED. 2. ALL LEVELS ARE IN 'M' AND ARE UNFINISHED LEVELS UNLESS OTHERWISE SPECIFIED. 3. DO NOT SCALE DRAWINGS ONLY WRITTEN DIMENSIONS SHOULD BE FOLLOWED AND DISCRIPANCIES NOTED SHALL BE BROUGHT TO NOTICE OF THE ARCHITECT PRIOR TO EXECUTION. 4. FOR DETAIL SUCH AS DOORS,WINDOWS, GRILLS, GATES, TOILET, SKYLIGHT, STAIRECASE, HANDRAIL, RAILING, FLOWER BED ETC REFER RELEVANT ARCHITECTURAL DETAIL DRAWINGS. 5. THESE DRAWINGS SHALL BE COREALATED AND READ IN CONJUNCTION WITH THE RELEVANT RCC CONSULTANTS APPROVED DRAWINGS FOR SYTRUCTURAL MEMBERS. 6. SERVICES SUCH ASPLUMBING SANITORY, ELECTRICAL, AIR CONDITIONING ANY DISCREPANCIES NOTED SHALL BEBROUGHT TO NOTICE OF THE ARCHITECT PRIOR TO EXECUTION. PROJECT NAME MR. BHANDARI'S MAHARSHINAGAR SHEET NAME DESIGNED BY AR. SHUBHANKAR P. AMBIKE D:\Volume 8 projects\2022\44-Mr.Mukesh Bhandari\views\mb 1.jpg D:\Volume 8 projects\2022\44-Mr.Mukesh Bhandari\views\mb 3.jpg WARDROBE ELEVATION WARDROBE ELEVATION showing interior partitions SHELF SHELF SHELF 6'3" 2'8" 8" 3'6" 1'4" 6'3" 4' 2'8" 8" 3'6" 1'4" 1'2" 7' 9" 3'3" Grove for profile light STORAGE UNIT showing details D:\Volume 8 projects\2022\44-Mr.Mukesh Bhandari\views\mb t.jpg STORAGE UNIT / DRESSER ELEVATION showing details D:\Volume 8 projects\2022\44-Mr.Mukesh Bhandari\views\mb 1'1" 9'6" 1'1" 8'5" 1'8" 1'8" 8'1" 8'19" 7'04" 7" 1'1" 7" 1'8" 1'8" 1'9" 1'9" 18'6" 2'1" 7" 7" 2'5" 2"7" Round Panel Lights Round Panel Lights BEDROOM BEDROOM 1'3" 1'3" SPACE FOR AC SB 10 SB 7 SB 4'5" 9'6" 8'5" 1'8" 1'1" 12'1" 9'8" 2' 7'8" 7'04" 8'19" 7'04" 7" 1'1" 4'9" 9'1" 1'4" 1'4" 1'4" 1'4" 7" 1'8" 1'8" 3'8" 2'4" 4'9" 2'4" 1'9" 1'9" 18'6" 4'5" 2'1" 2'1" 2'1" 2'1" 7" 2'5" 16'3" 7" 7" 7" 7" 1'3" 1'3" 9" 9" 2' 1'5" 1'5" 1'5" 4' 5'7" 5'7" 5'7" 3" 1'4" 1'4" 1'4" 1'4" 8'8" 7'8" 2'3" 3'5" 3'5" 3'5" Profile Light Color Day White LED Strip Color Day White Spot Lights Watt Round Panel Lights 15 Watt Round Panel Lights BEDROOM 11' 14'2" BEDROOM 10' 12'10" 2.7m 5.7m 19' 18'10" LIVING ROOM 3.0m 5.0m 6'2" 1'3" 1'3" TERRACE 9' 6'10" ELECTRIC LAYOUT N NOTES: 1. ALL DIMENSIONS ARE IN 'MM' AND ARE UNFINISHED DIMENSIONS UNLESS OTHER WISE SPECIFIED. 2. ALL LEVELS ARE IN 'M' AND ARE UNFINISHED LEVELS UNLESS OTHERWISE SPECIFIED. 3. DO NOT SCALE DRAWINGS ONLY WRITTEN DIMENSIONS SHOULD BE FOLLOWED AND DISCRIPANCIES NOTED SHALL BE BROUGHT TO NOTICE OF THE ARCHITECT PRIOR TO EXECUTION. 4. FOR DETAIL SUCH AS DOORS,WINDOWS, GRILLS, GATES, TOILET, SKYLIGHT, STAIRECASE, HANDRAIL, RAILING, FLOWER BED ETC REFER RELEVANT ARCHITECTURAL DETAIL DRAWINGS. 5. THESE DRAWINGS SHALL BE COREALATED AND READ IN CONJUNCTION WITH THE RELEVANT RCC CONSULTANTS APPROVED DRAWINGS FOR SYTRUCTURAL MEMBERS. 6. SERVICES SUCH ASPLUMBING SANITORY, ELECTRICAL, AIR CONDITIONING ANY DISCREPANCIES NOTED SHALL BEBROUGHT TO NOTICE OF THE ARCHITECT PRIOR TO EXECUTION. PROJECT NAME MR. BHANDARI'S MAHARSHINAGAR SHEET NAME DESIGNED BY AR. SHUBHANKAR P. AMBIKE WORKING DRAWINGS AT ELECTRICAL MASTER BEDROOM INVERTED
WARDROBE DRAWINGS
CEILING LAYOUT
DRAWER SHELF SHELF SHELF SHELF SHELF SHELF SHELF SHELF SHELF DRAWER GLASS SHELF GLASS SHELF GLASS SHELF GLASS SHELF GLASS SHELF STORAGE 6'3" 6'3" 4' 1'2" 7' 10" 10" 10" 10" 10" 10" MASTER BEDROOM N NOTES: 1. ALL DIMENSIONS ARE IN 'MM' AND ARE UNFINISHED DIMENSIONS UNLESS OTHER WISE SPECIFIED. 2. ALL LEVELS ARE IN 'M' AND ARE UNFINISHED LEVELS UNLESS OTHERWISE SPECIFIED. 3. DO NOT SCALE DRAWINGS ONLY WRITTEN DIMENSIONS SHOULD BE FOLLOWED AND DISCRIPANCIES NOTED SHALL BE BROUGHT TO NOTICE OF THE ARCHITECT PRIOR TO EXECUTION. 4. FOR DETAIL SUCH AS DOORS,WINDOWS, GRILLS, GATES, TOILET, SKYLIGHT, STAIRECASE, HANDRAIL, RAILING, FLOWER BED ETC REFER RELEVANT ARCHITECTURAL DETAIL DRAWINGS. 5. THESE DRAWINGS SHALL BE COREALATED AND READ IN CONJUNCTION WITH THE RELEVANT RCC CONSULTANTS APPROVED DRAWINGS FOR SYTRUCTURAL MEMBERS. 6. SERVICES SUCH ASPLUMBING SANITORY, ELECTRICAL, AIR CONDITIONING ANY DISCREPANCIES NOTED SHALL BEBROUGHT TO NOTICE OF THE ARCHITECT PRIOR TO EXECUTION. PROJECT NAME MR. BHANDARI'S MAHARSHINAGAR SHEET NAME DESIGNED BY AR. SHUBHANKAR P. AMBIKE DRESSER ELEVATION Bhandari\views\mb 2.jpg 4'5" 8'8" 3'7" 3'7" 3'7" 3'7" 4'5" 2'1" 2'1" 7" 7" 16'3" 10' 7" 7" 7" 1'3" 1'3" 9" 2' 1'5" 1'5" 1'5" 4' 5'7" 10'3" 1'4" 1'4" 1'4" 8'8" 3'5" Spot Lights Point for Hanging Light 2.7m 5.7m 19' 18'10" LIVING ROOM 3.0m 5.0m 6'2" 1'3" 1'3" 6'2" TERRACE 6'10" SPACE FOR AC POINT FOR TV UNIT SB SB ELECTRIC LAYOUT N NOTES: 1. ALL DIMENSIONS ARE IN 'MM' AND ARE UNFINISHED DIMENSIONS UNLESS OTHER WISE SPECIFIED. 2. ALL LEVELS ARE IN 'M' AND ARE UNFINISHED LEVELS UNLESS OTHERWISE SPECIFIED. 3. DO NOT SCALE DRAWINGS ONLY WRITTEN DIMENSIONS SHOULD BE FOLLOWED AND DISCRIPANCIES NOTED SHALL BE BROUGHT TO NOTICE OF THE ARCHITECT PRIOR TO EXECUTION. 4. FOR DETAIL SUCH AS DOORS,WINDOWS, GRILLS, GATES, TOILET, SKYLIGHT, STAIRECASE, HANDRAIL, RAILING, FLOWER BED ETC REFER RELEVANT ARCHITECTURAL DETAIL DRAWINGS. 5. THESE DRAWINGS SHALL BE COREALATED AND READ IN CONJUNCTION WITH THE RELEVANT RCC CONSULTANTS APPROVED DRAWINGS FOR SYTRUCTURAL MEMBERS. 6. SERVICES SUCH ASPLUMBING SANITORY, ELECTRICAL, AIR CONDITIONING ANY DISCREPANCIES NOTED SHALL BEBROUGHT TO NOTICE OF THE ARCHITECT PRIOR TO EXECUTION. PROJECT NAME MR. BHANDARI'S MAHARSHINAGAR SHEET NAME DESIGNED BY AR. SHUBHANKAR P. AMBIKE FLOORING CHANGE 380 SQ.FT ADD SHOWER COMMODE TO INDIAN STYLE PAN ADD TOPS TO PARAPET WALL 5 SQ.FT ADD TOPS TO PARAPET WALL 8 SQ.FT ADD METAL SHADE 70 SQ.FT DOOR SHIFT TO ONE SIDE PLACE FOR SITTINGMASTER BEDROOM N NOTES: 1. ALL DIMENSIONS ARE IN 'MM' AND ARE UNFINISHED DIMENSIONS UNLESS OTHER WISE SPECIFIED. 2. ALL LEVELS ARE IN 'M' AND ARE UNFINISHED LEVELS UNLESS OTHERWISE SPECIFIED. 3. DO NOT SCALE DRAWINGS ONLY WRITTEN DIMENSIONS SHOULD BE FOLLOWED AND DISCRIPANCIES NOTED SHALL BE BROUGHT TO NOTICE OF THE ARCHITECT PRIOR TO EXECUTION. 4. FOR DETAIL SUCH AS DOORS,WINDOWS, GRILLS, GATES, TOILET, SKYLIGHT, STAIRECASE, HANDRAIL, RAILING, FLOWER BED ETC REFER RELEVANT ARCHITECTURAL DETAIL DRAWINGS. 5. THESE DRAWINGS SHALL BE COREALATED AND READ IN CONJUNCTION WITH THE RELEVANT RCC CONSULTANTS APPROVED DRAWINGS FOR SYTRUCTURAL MEMBERS. 6. SERVICES SUCH ASPLUMBING SANITORY, ELECTRICAL, AIR CONDITIONING ANY DISCREPANCIES NOTED SHALL BEBROUGHT TO NOTICE OF THE ARCHITECT PRIOR TO EXECUTION. PROJECT NAME MR. BHANDARI'S MAHARSHINAGAR SHEET NAME DESIGNED BY AR. SHUBHANKAR P. AMBIKE D:\Volume 8 projects\2022\44-Mr.Mukesh Bhandari\views\mb t.jpg D:\Volume 8 projects\2022\44-Mr.Mukesh Bhandari\views\mb 2.jpg 10' 2' 1'2" 6' 2' 1'2" 1'2" 6'3" Hydraulic storage below side table drawers bed back panelling DRAWER DRAWER DRAWER DRAWER 10' 2' 1'2" 6' 2' 1'2" 5'4" 8" 6" 3' 1'4" 6' 1' 4' 1'6" bed back panelling Dressing mirror with storage inside depth 6" Bedback cushioning Side table drawers MASTER BEDROOM N NOTES: 1. ALL DIMENSIONS ARE IN 'MM' AND ARE UNFINISHED DIMENSIONS UNLESS OTHER WISE SPECIFIED. 2. ALL LEVELS ARE IN 'M' AND ARE UNFINISHED LEVELS UNLESS OTHERWISE SPECIFIED. 3. DO NOT SCALE DRAWINGS ONLY WRITTEN DIMENSIONS SHOULD BE FOLLOWED AND DISCRIPANCIES NOTED SHALL BE BROUGHT TO NOTICE OF THE ARCHITECT PRIOR TO EXECUTION. 4. FOR DETAIL SUCH AS DOORS,WINDOWS, GRILLS, GATES, TOILET, SKYLIGHT, STAIRECASE, HANDRAIL, RAILING, FLOWER BED ETC REFER RELEVANT ARCHITECTURAL DETAIL DRAWINGS. 5. THESE DRAWINGS SHALL BE COREALATED AND READ IN CONJUNCTION WITH THE RELEVANT RCC CONSULTANTS APPROVED DRAWINGS FOR SYTRUCTURAL MEMBERS. 6. SERVICES SUCH ASPLUMBING SANITORY, ELECTRICAL, AIR CONDITIONING ANY DISCREPANCIES NOTED SHALL BEBROUGHT TO NOTICE OF THE ARCHITECT PRIOR TO EXECUTION. PROJECT NAME MR. BHANDARI'S MAHARSHINAGAR SHEET NAME DESIGNED BY AR. SHUBHANKAR P. AMBIKE BED PLAN BED ELEVATION showing details D:\Volume 8 projects\2022\44-Mr.Mukesh Bhandari\views\mb b.jpg D:\Volume 8 projects\2022\44-Mr.Mukesh Bhandari\views\mb 4.jpg VOLUME 8 STUDIOS, PUNE ELECTRICAL LAYOUT BEDROOM TV PANEL CIVIL CHANGES DEMARCATION MASTER-ROOM BED LAYOUT
OTHER
WORKS
ARCHITECTURAL AND INTERIOR PHOTOGRAPHY
PHOTOGRAPHY AND MODEL MAKING
