Portafolio de Arquitectura/Architecture Portfolio 2021 + Andrés Chun

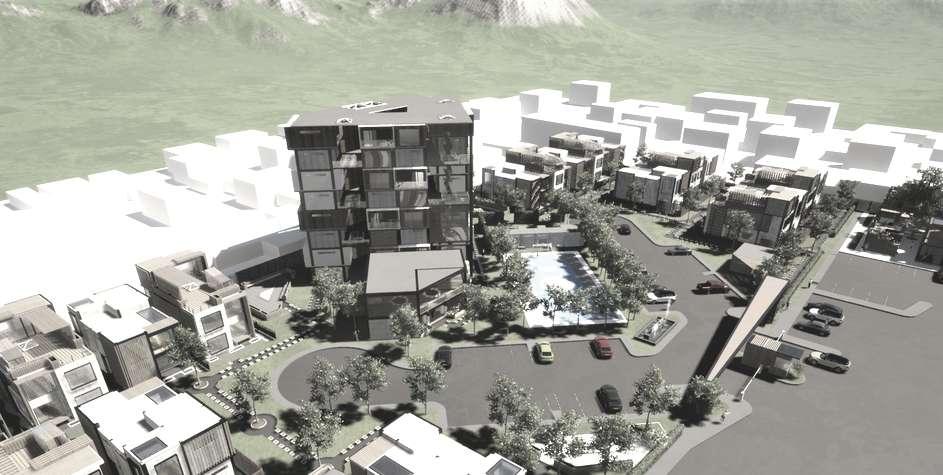

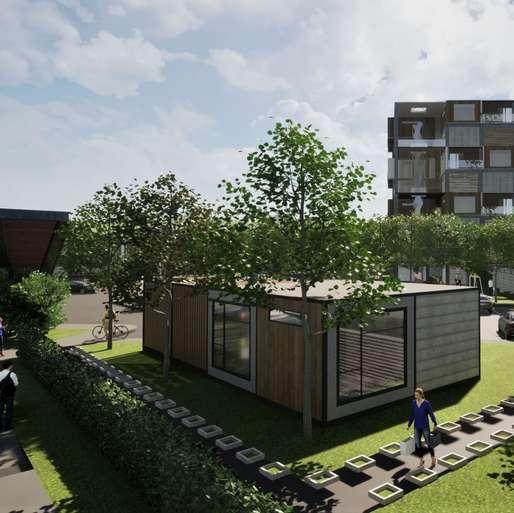

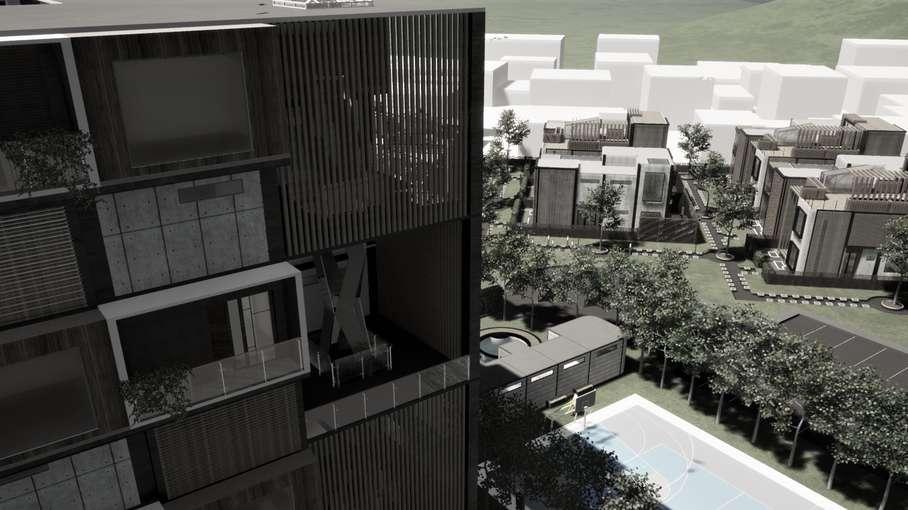

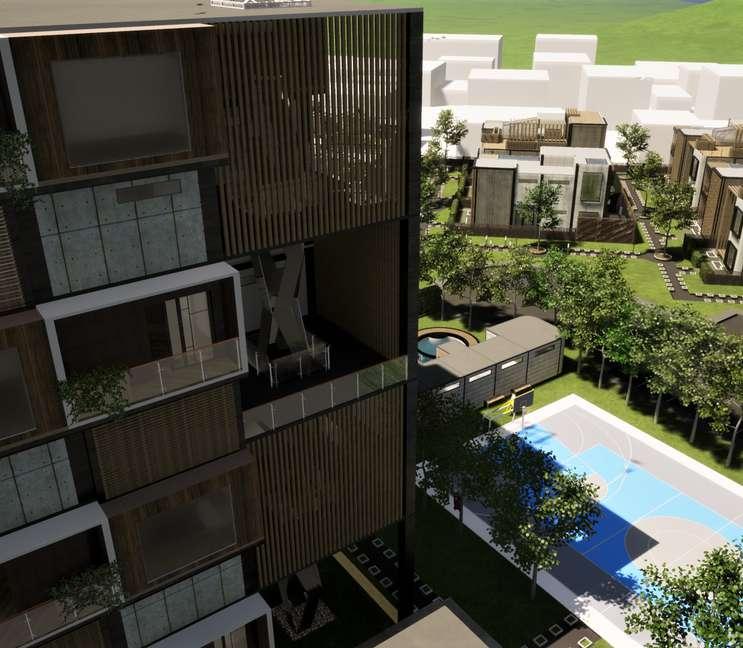

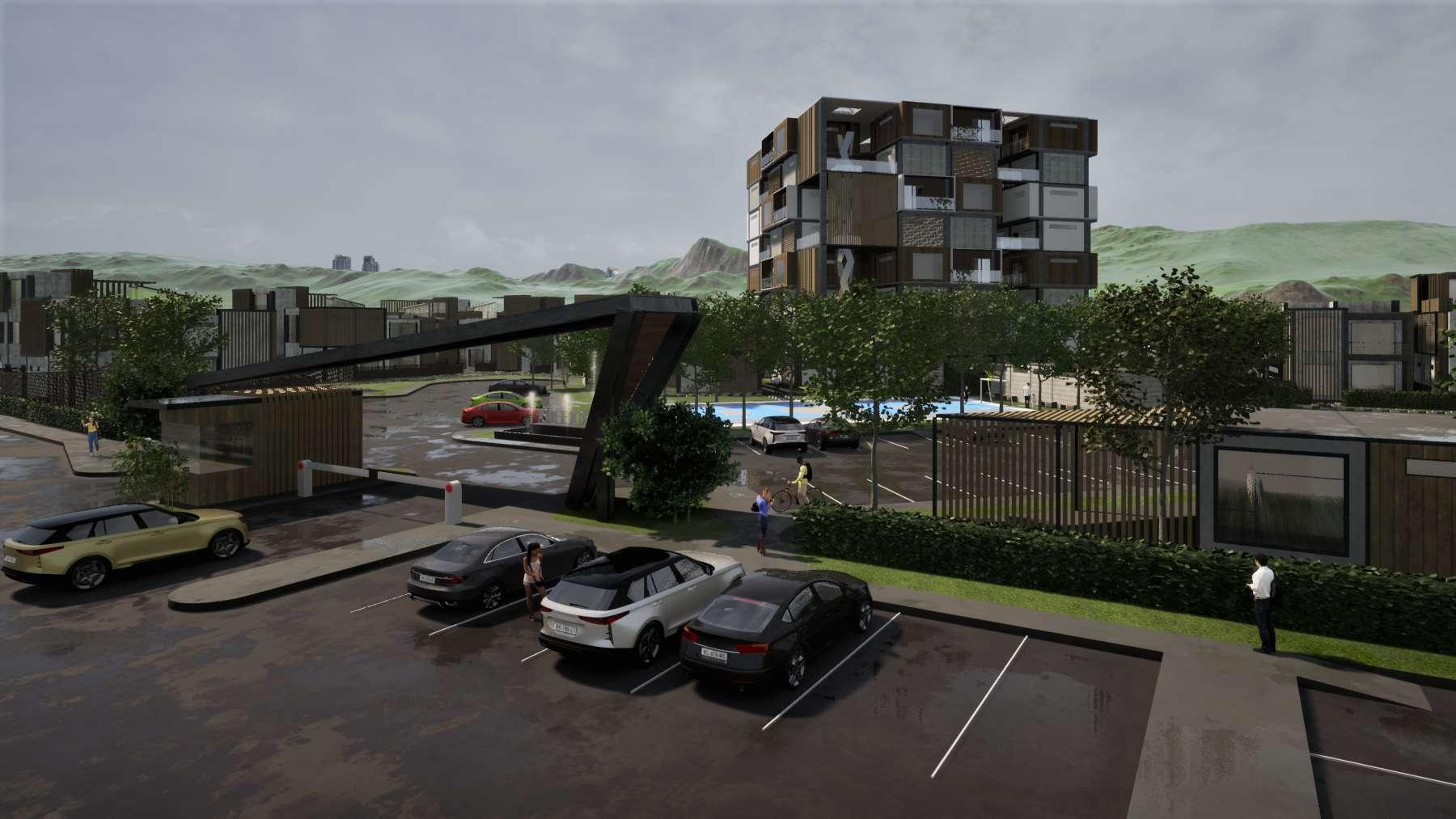

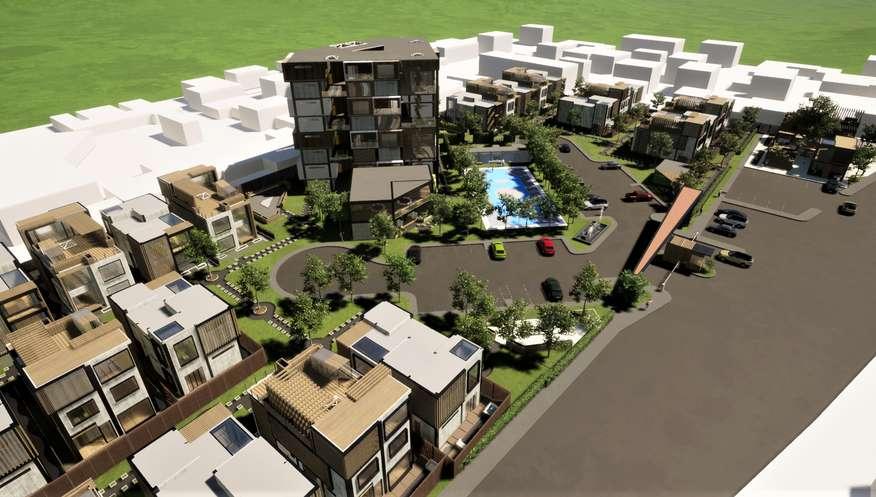

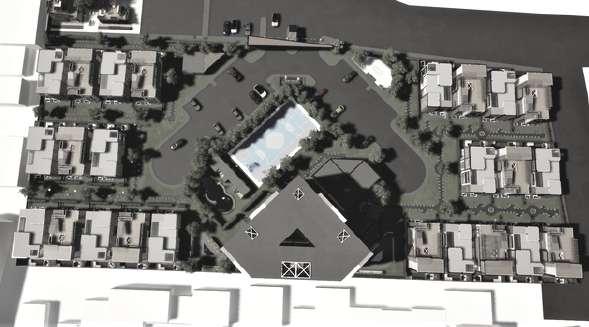

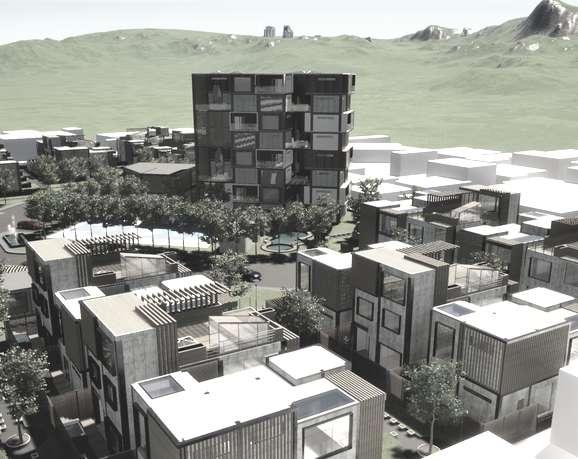

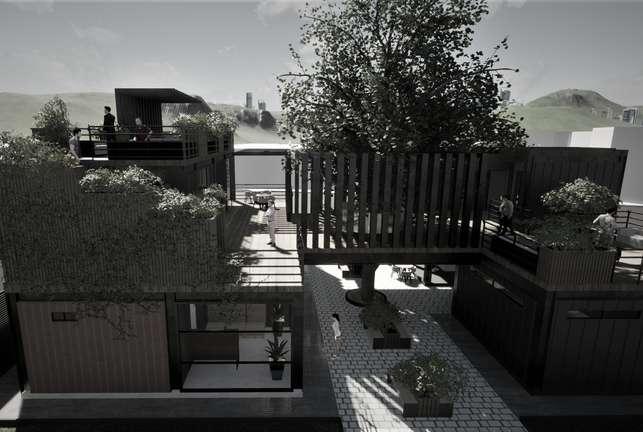

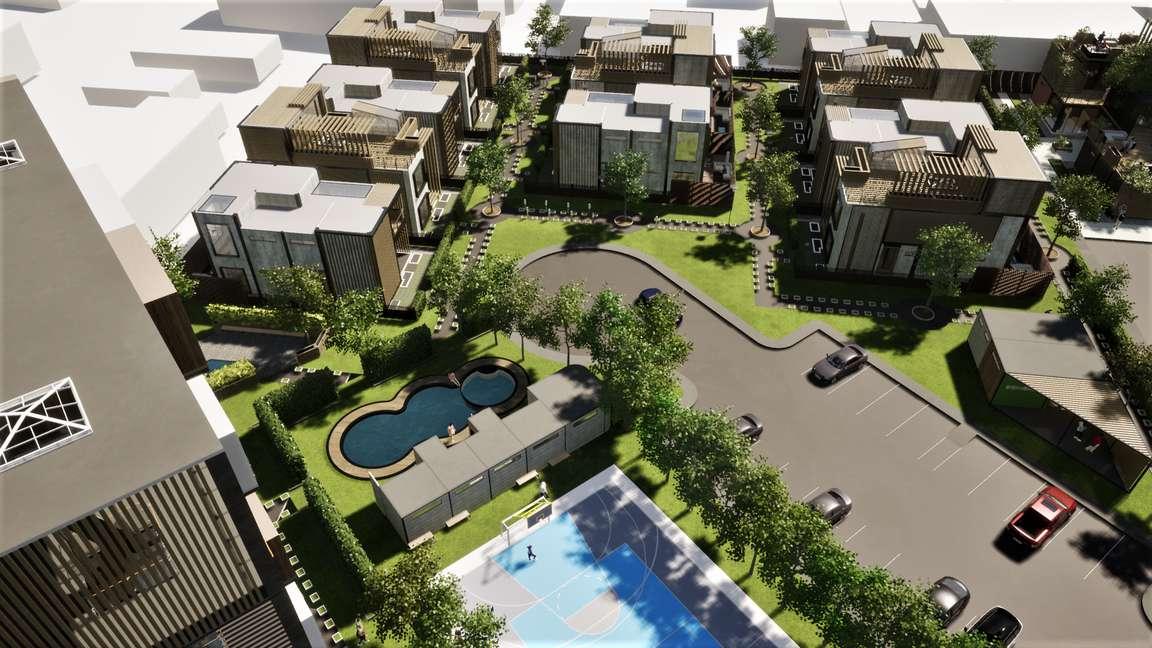

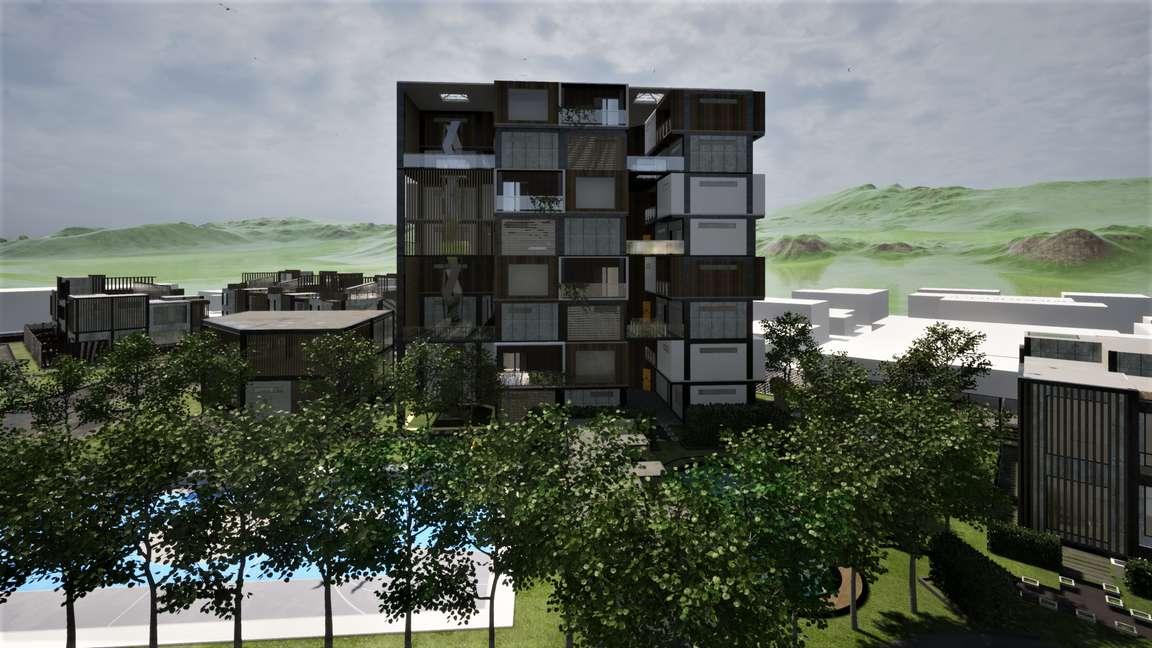

KONOMA HOUSING COMPLEX

TOOLS:

AUTOCAD - SKETCHUP - TWINMOTION - V-RAY - PHOTOSHOP

KONOMA, FROM THE JAPANESE KANJI "AMONG TREES", IS THE PROPOSAL FOR THIS HOUSING DEVELOPMENT THAT AROSE DUE TO THE HIGH HOUSING DEFICIT IN ECUADOR.

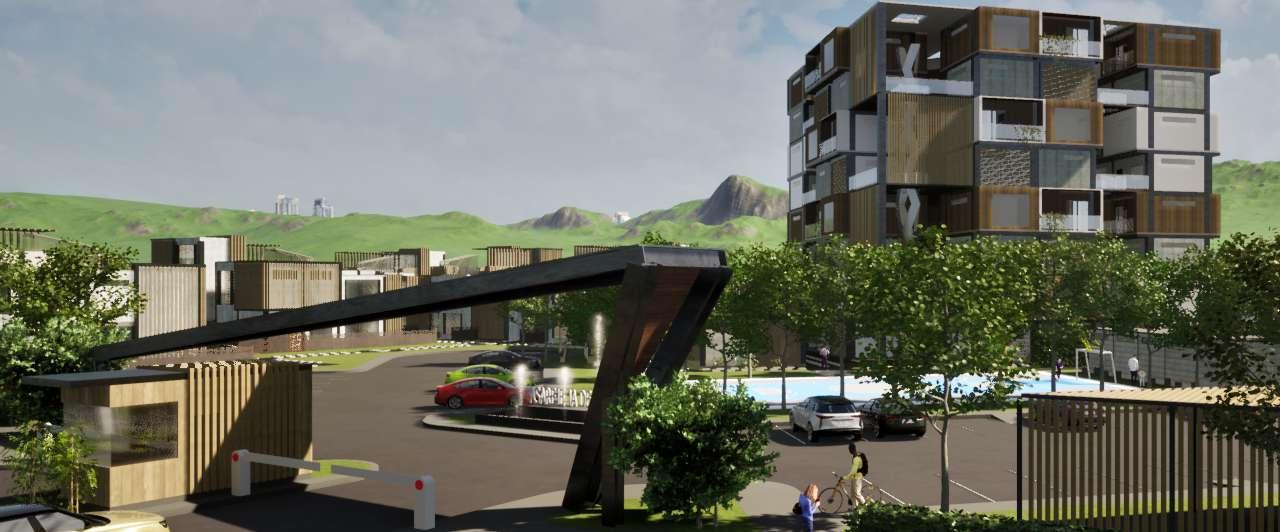

THE RESIDENTIAL COMPLEX OF YOUR DREAMS

KONOMA HOUSING COMPLEX PORTOVIEJO BACKGROUND

52 MILLION INHABITANTS DO NOT HAVE A HOME, THE POPULATION INCREASES IN NEWHOUSEHOLDS THAT SEE THE NEEDTO DEMANDHOUSING.

31% HOUSINGSHORTAGEINECUADOR

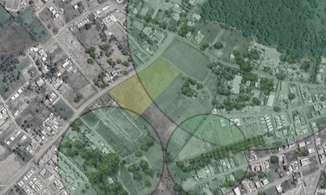

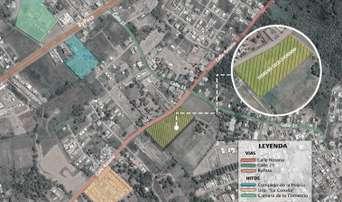

SOIL ANALYSIS LOCATION

IT IS LOCATED IN THE PROVINCE OF MANABÍ, CANTON PORTOVIEJO, ECUADOR, BETWEEN 21ST AND ROTARIA STREETS, HAVING AS REFERENCE THE POLICE COMPLEX, THE CHAMBER OF COMMERCE TO THE NORTHWEST AND THE URBANIZATION "LA CORUÑA" TO THE SOUTHWEST.

HAS A DIMENSION OF 14 095M2 THE SUN RISES FROM ITS BACK SIDE (NORTHEAST) MOST OF THE NOISE COMES FROM THE ROTARIA STREET AND ITS WINDS COME FROM THE WEST.

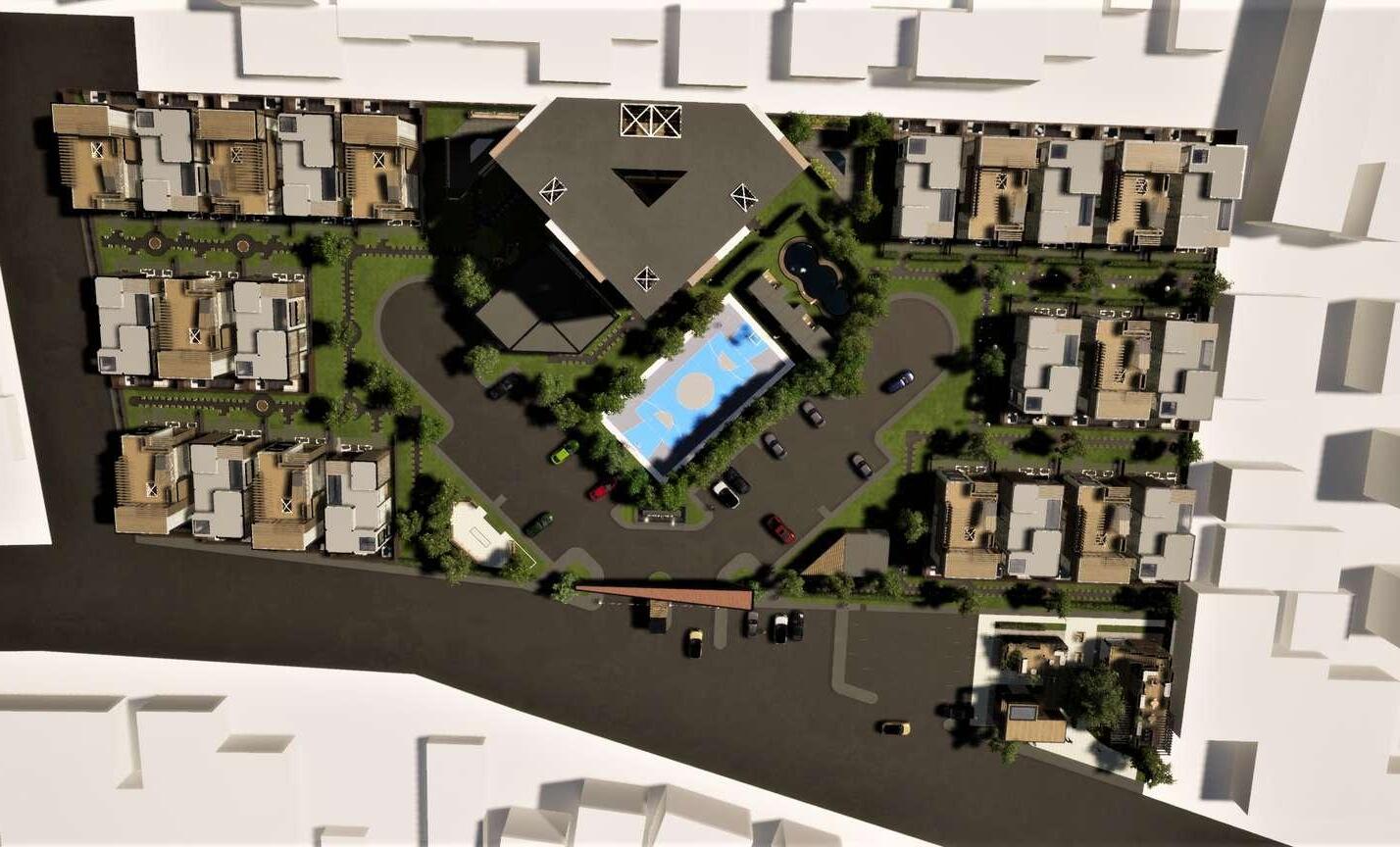

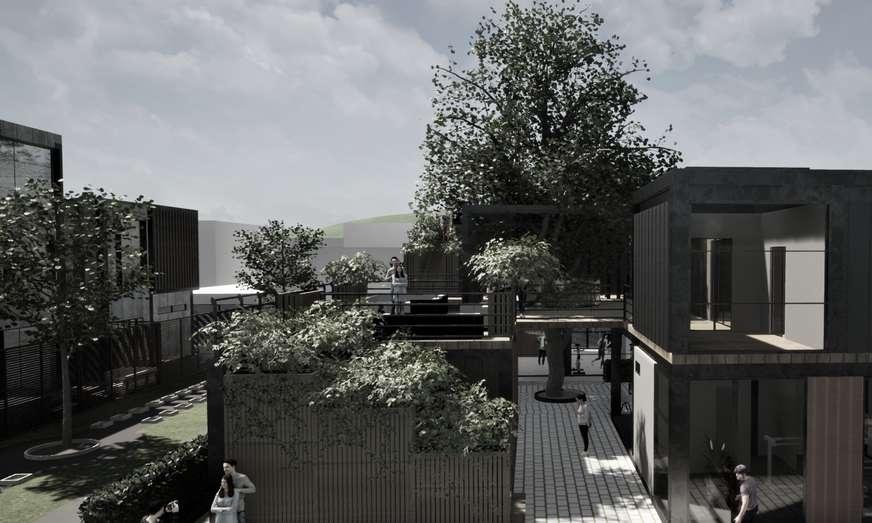

INTERACTION BETWEEN ARCHITECTURAL OBJECT AND ENVIRONMENT

MOST OF IT IS SURROUNDED BY VEGETATION, URBANIZATION AND MEDIUM-DENSITY HOUSING.

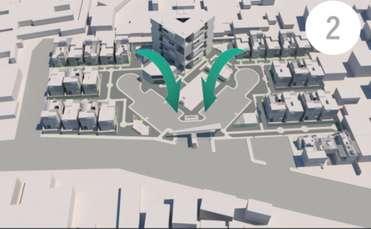

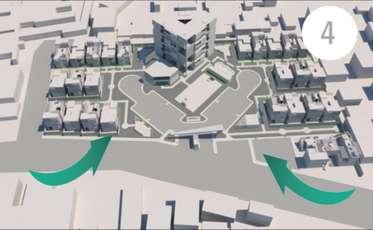

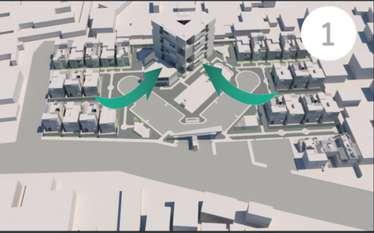

FIRST, THERE ARE ELEMENTS THAT SURROUND ONE OF THE PIECES TO EMPHASIZE ITS VALUE AND RELATIONSHIP WITH THE URBAN TREATMENT. SECOND, CONNECTION BETWEEN THE ARCHITECTURAL OBJECT, COMMUNAL AND RECREATIONAL AREAS PARALLEL TO THE ACCESS, ALL CONTAINED ON AN AXIAL AXIS THAT STARTS FROM THE MULTIFAMILY BUILDING THIRD, RELATIONSHIP BETWEEN THE ARCHITECTURAL OBJECT AND THE CONTEXT THROUGH AN AXIS THAT STARTS FROM AND TOWARDS THE CITY. FOURTH, THE BLOCKS MANAGE THE LANDSCAPING IN A CENTRIPETAL WAY ENHANCING THE ACTIVITY AND LEADING THE PEDESTRIAN TOWARDS IT

¿WHAT TO EXPECT?

DETERMINING THE FEASIBILITY OF THE PROJECT, AND RESPONDING TO THE PROBLEMS OF THESE FAMILIES, WE PROCEED TO DEVELOP THE ORGANIZATIONAL ASPECT OF THE COMPLEX, THE DEPARTMENTAL AND FUNCTIONAL STRUCTURE OF THE DWELLINGS, TAKING INTO ACCOUNT THE NEEDS OF THE PEOPLE AND LEAVING ASIDE THE HOUSING COMPLEX BUILT TO SATISFY THE DEMAND WITHOUT ANALYZING THE NEEDS IN DEPTH.

URBAN CONSOLIDATION

WE ADHERE TO THE STANDARD AND MAINTAIN ITS

URBANANDENVIRONMENTALCHARACTERISTICS.

REMOVAL OF ANTHROPIC RISK IN THIS PERIPHERY OF THE URBAN AREA

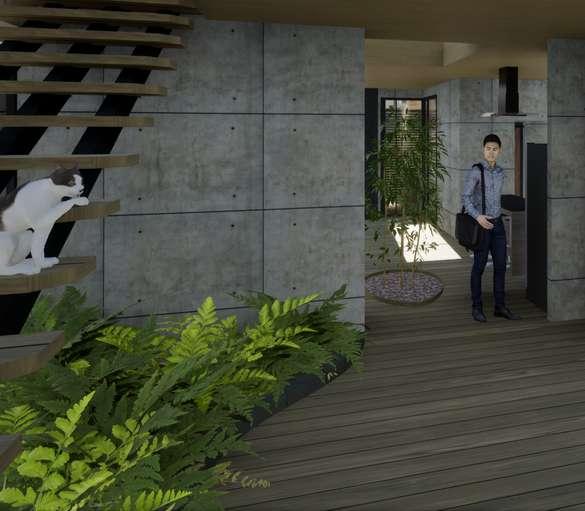

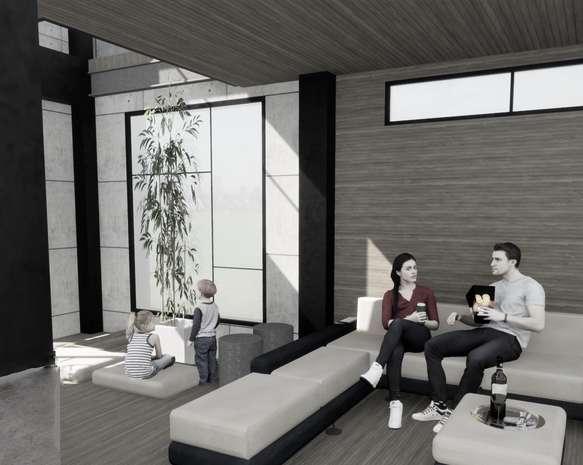

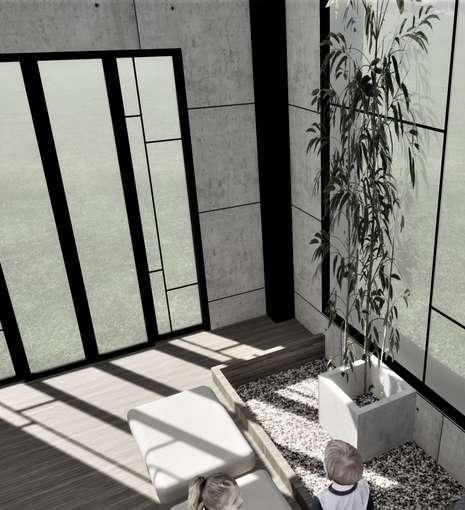

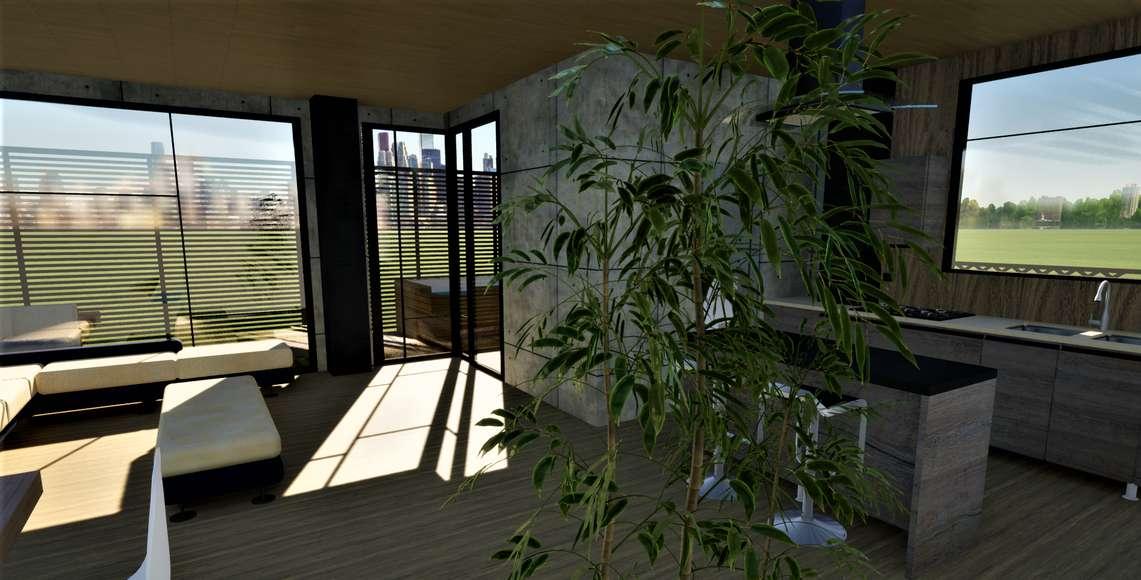

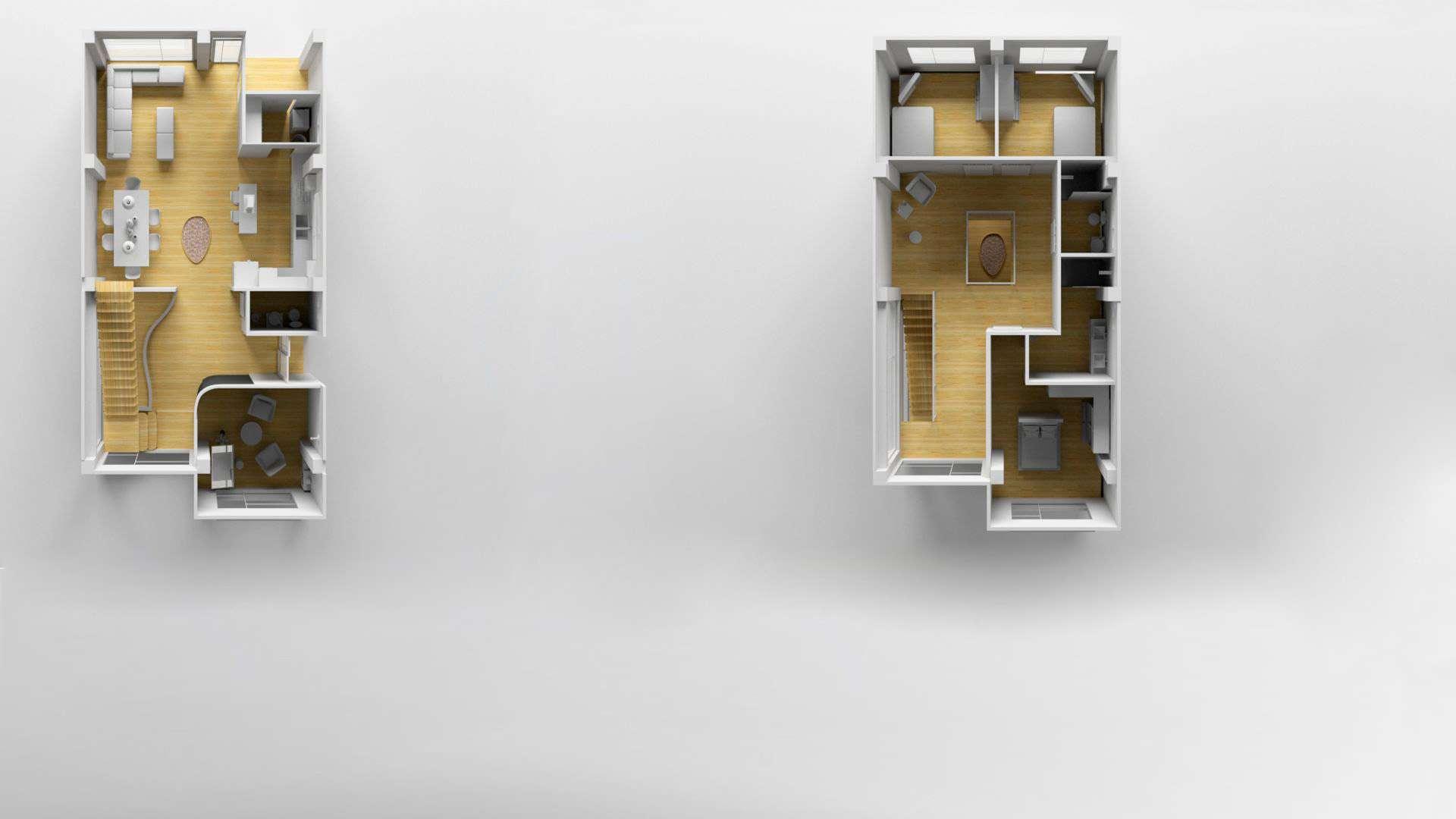

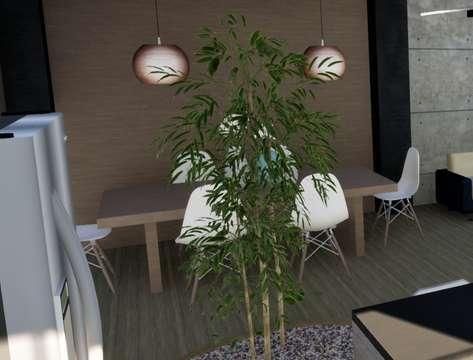

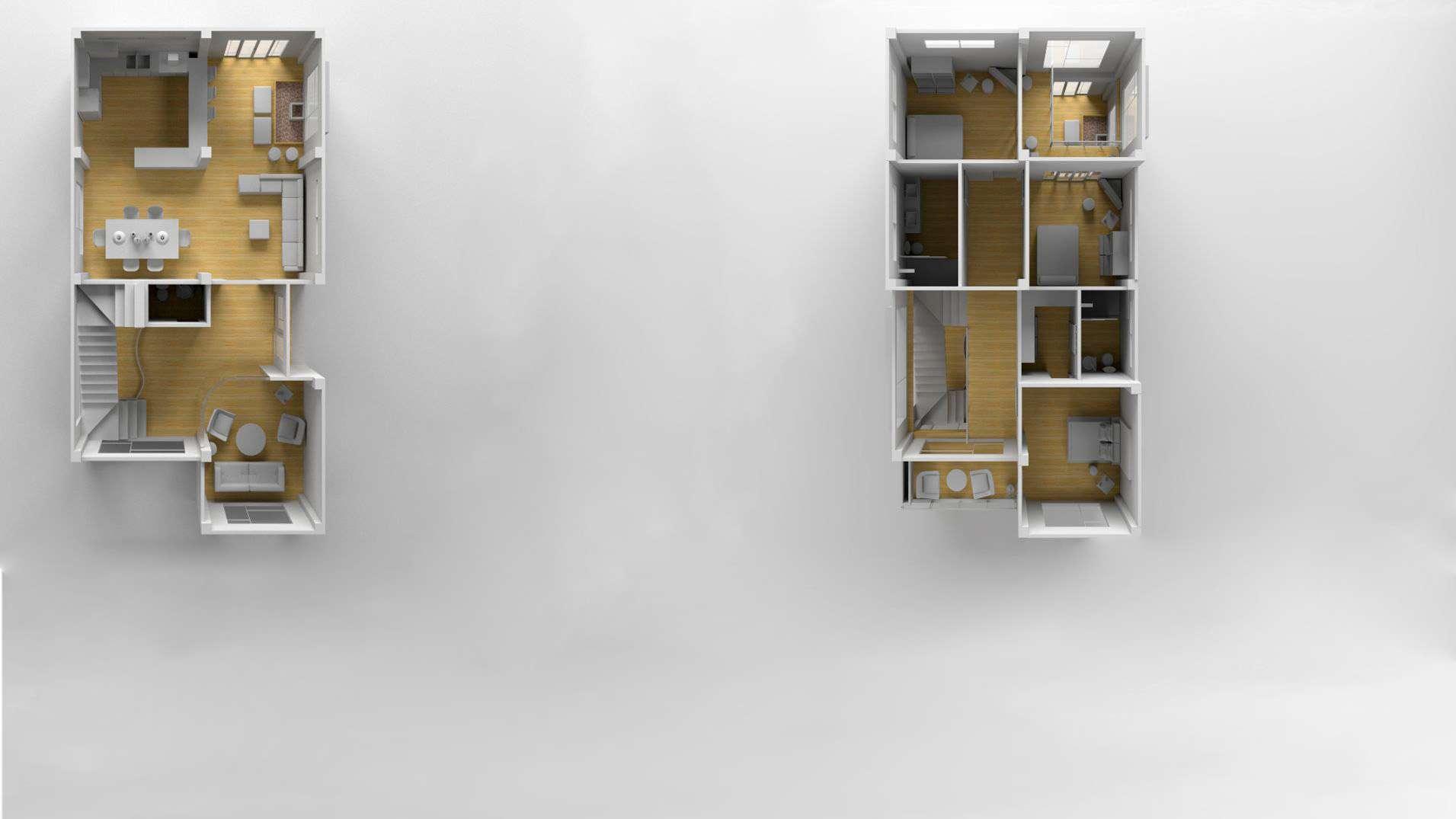

INDOORS

GROUND FLOOR

KITCHEN, DINING ROOM, LAUNDRY ROOM, LIVING ROOM, SOCIAL BATHROOM, OFFICE

TOP FLOOR

MASTER BEDROOM, SOCIAL BATHROOM, 2 BEDROOMS

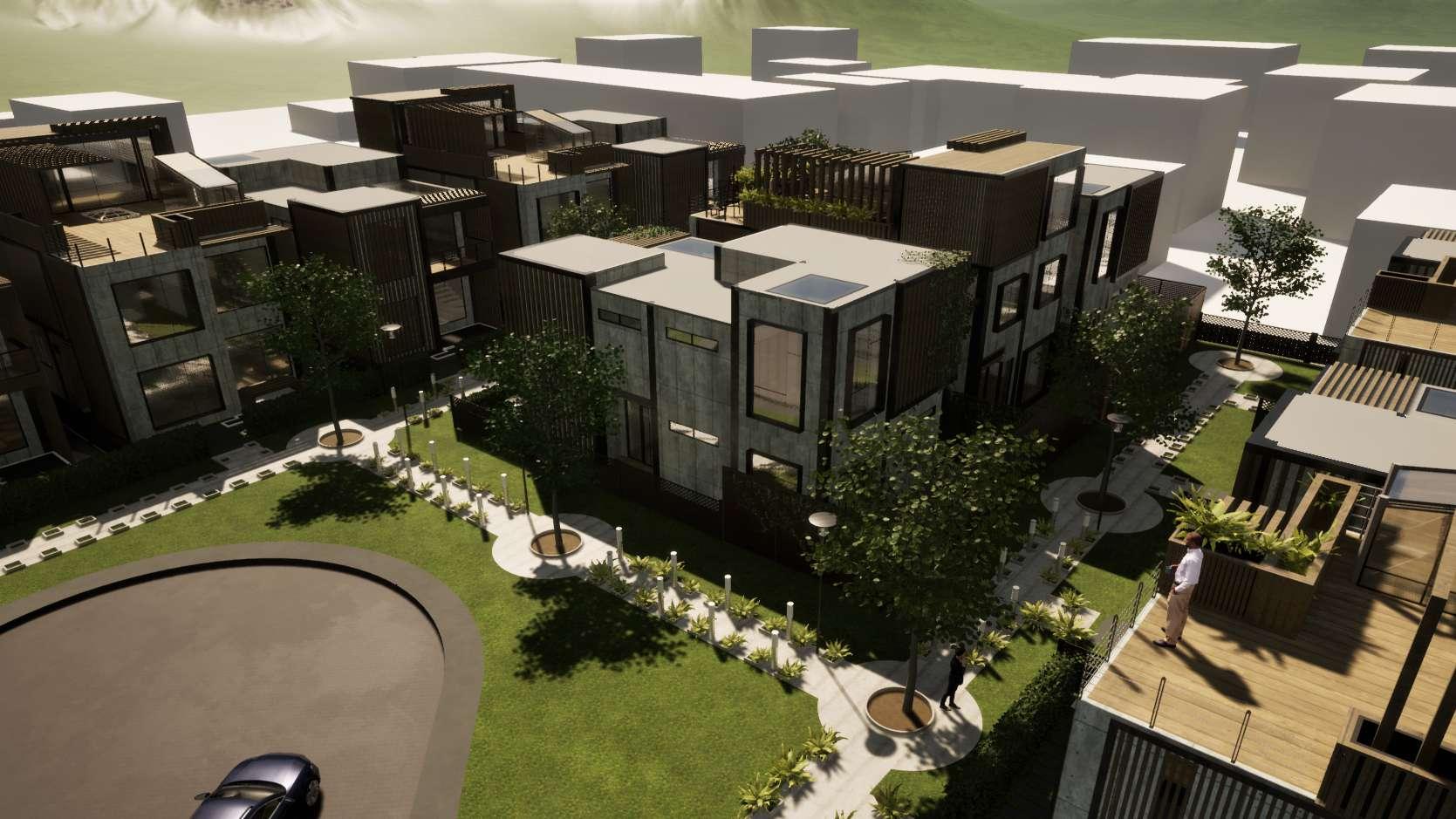

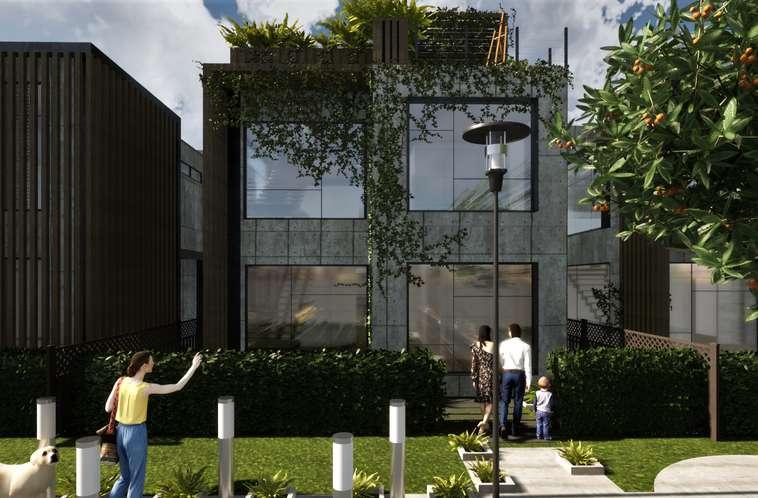

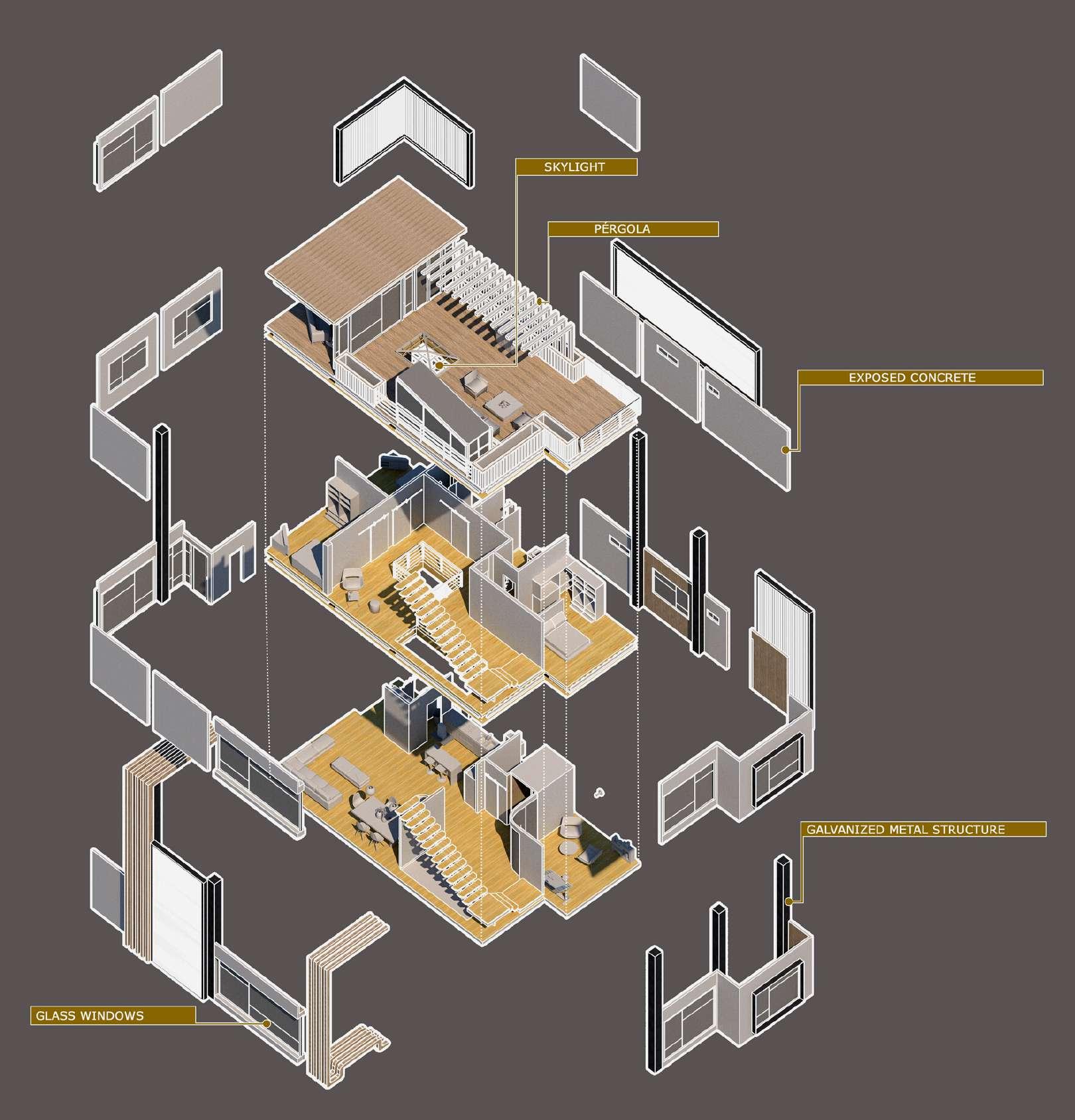

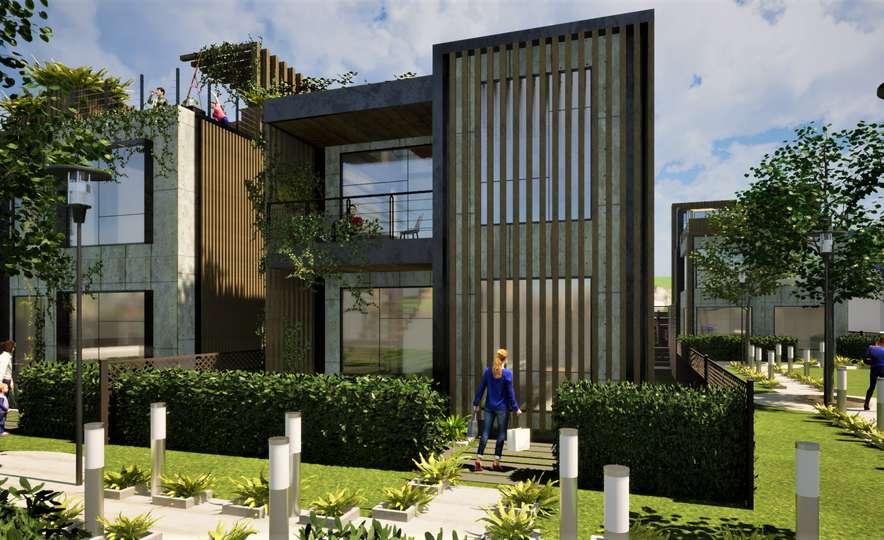

MATERIALS AND SUSTAINABILITY CRITERIA - HOUSING TYPE 1

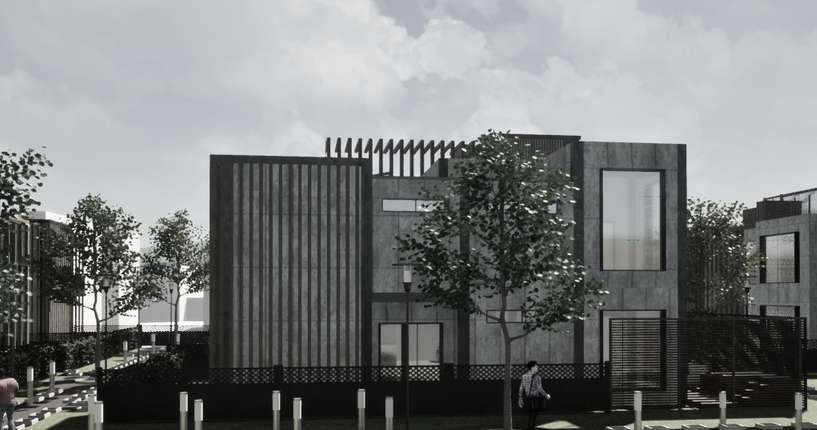

FRONTELEVATION

ORIENTATION

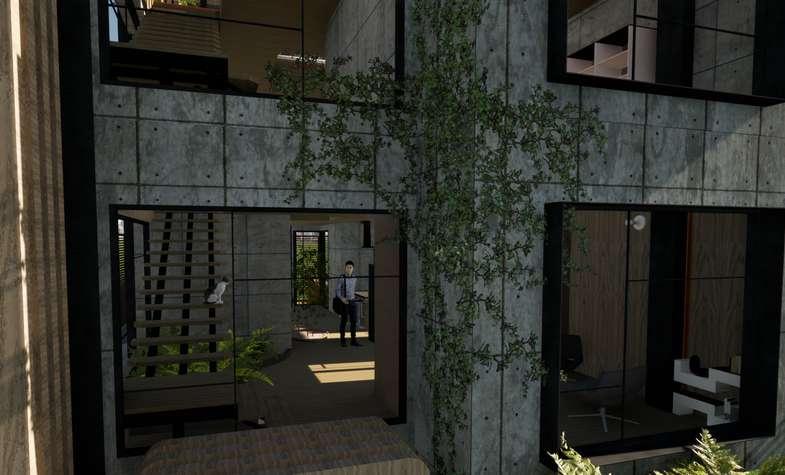

EXPOSED CONCRETE

GALVANIZED STEEL COLUMNS COATED WITH PAINT FOR NEW NON-FERROUS SURFACES

LEFTSIDEELEVATION

NOVADECK

SYNTHETIC WOOD VENEER FOR DETAIL

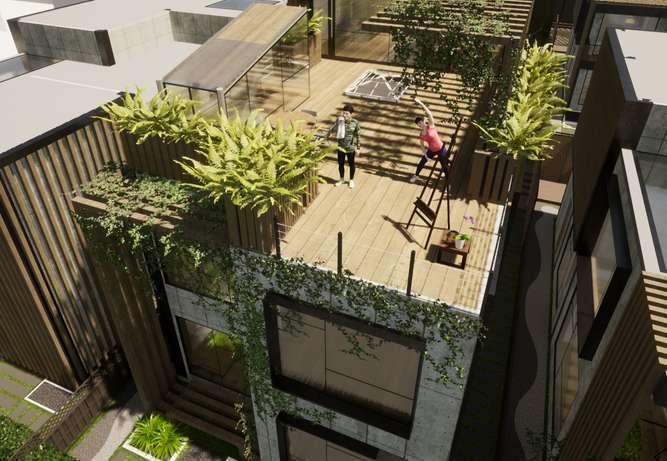

VEGETATION COVER MICROCLIMATE VENTILATION

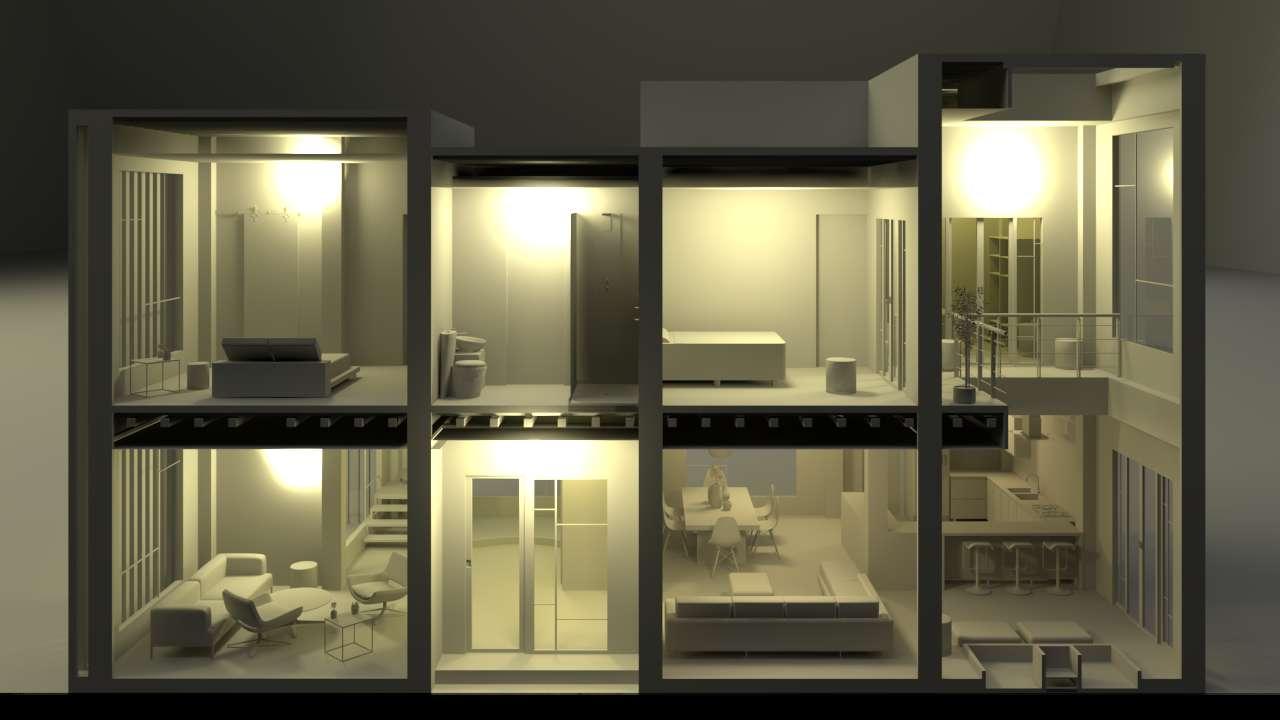

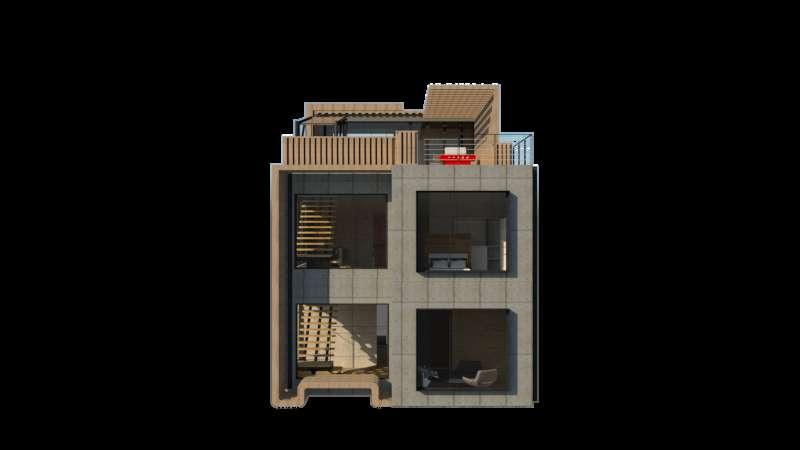

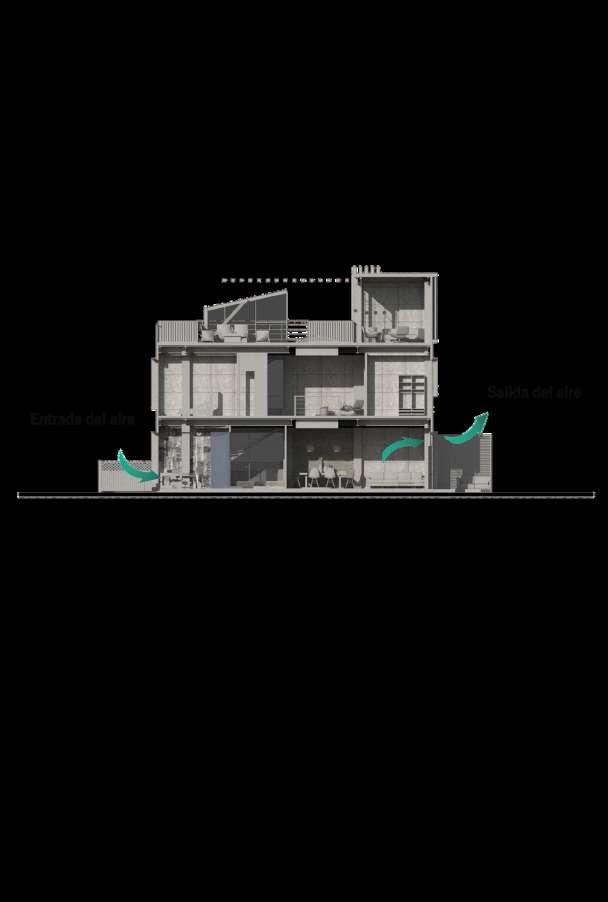

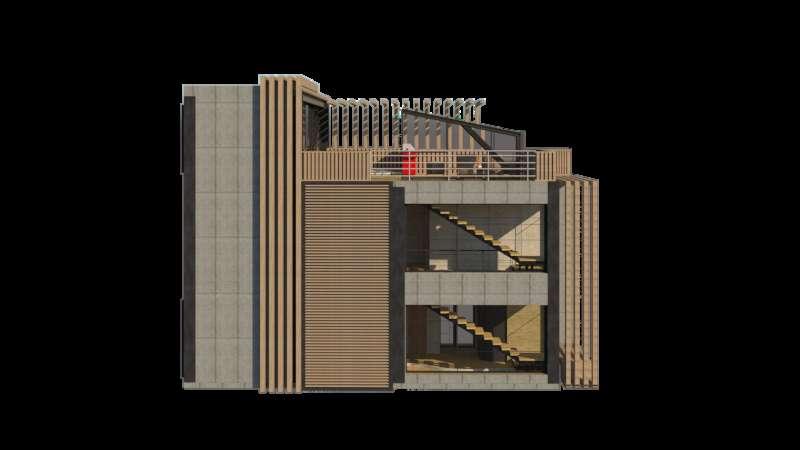

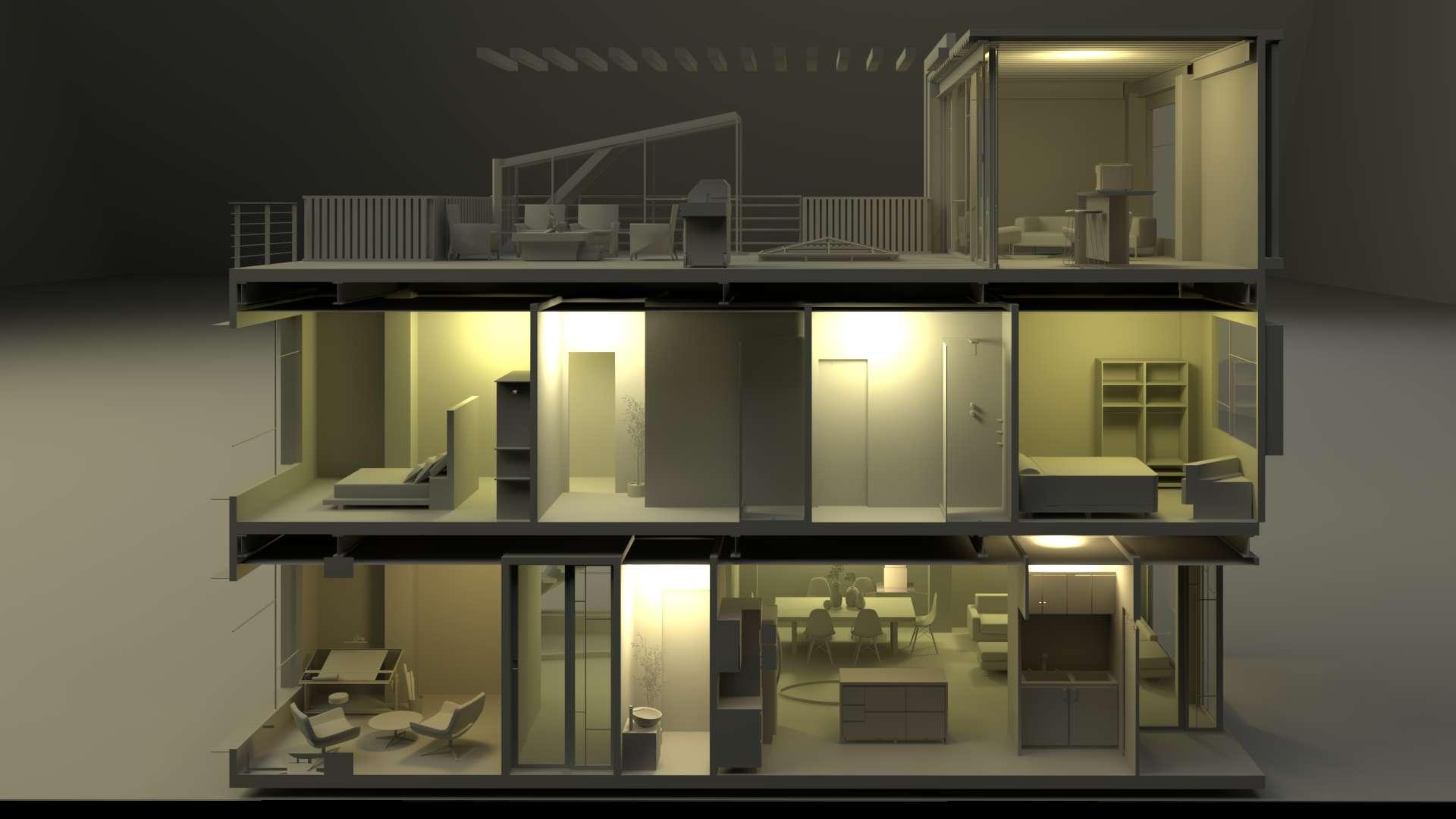

HOUSING SECTION TYPE 1

GROUND FLOOR

KITCHEN, DINING ROOM, LIVING ROOM, SOCIAL BATHROOM, LOUNGE AREA

TOP FLOOR

MASTER BEDROOM, SOCIAL BATHROOM, 2 BEDROOMS

HOUSING SECTION TYPE 2

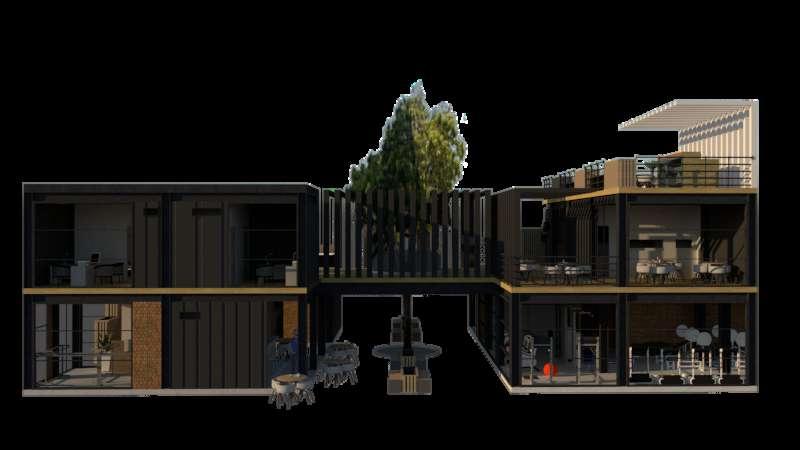

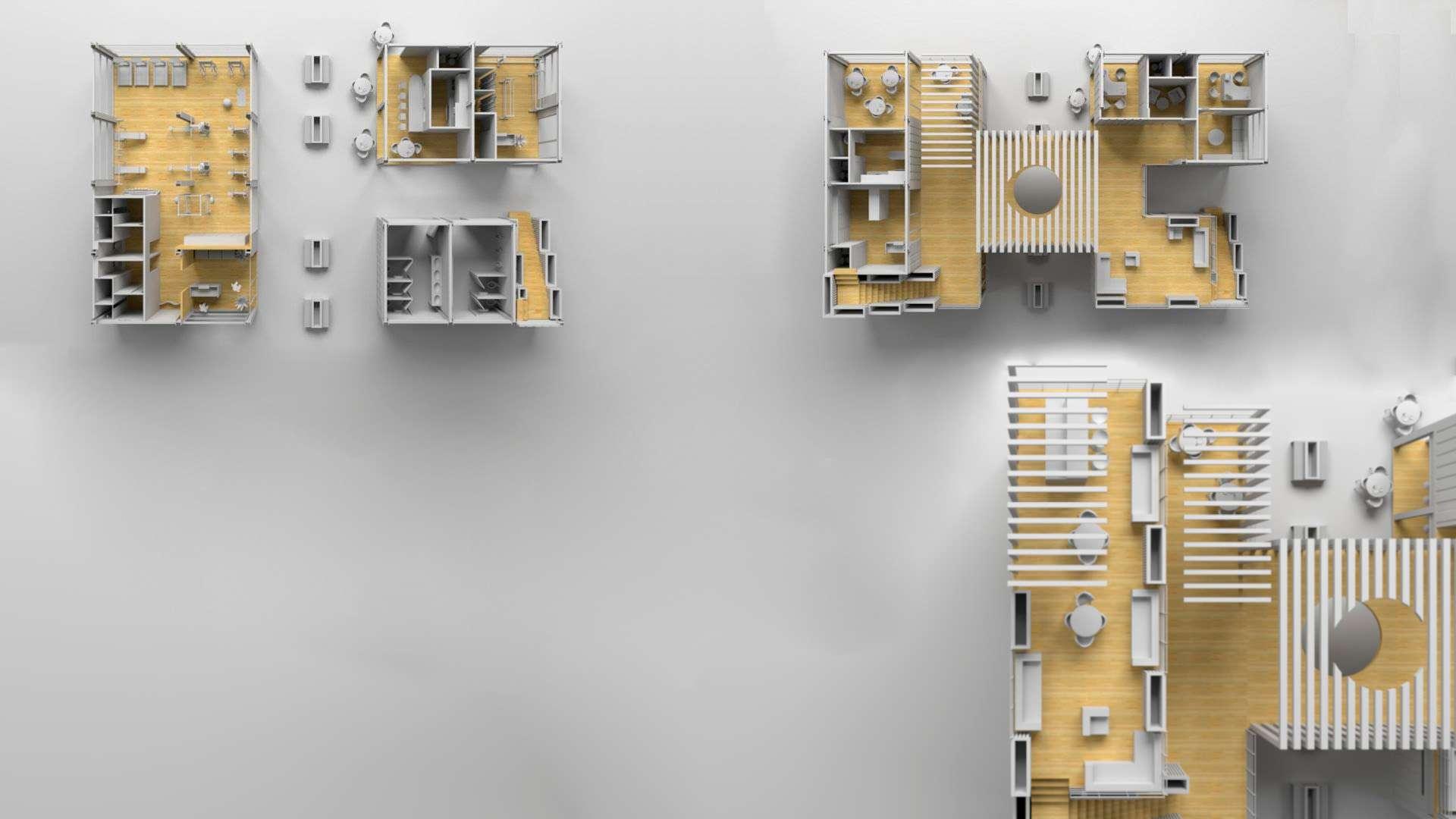

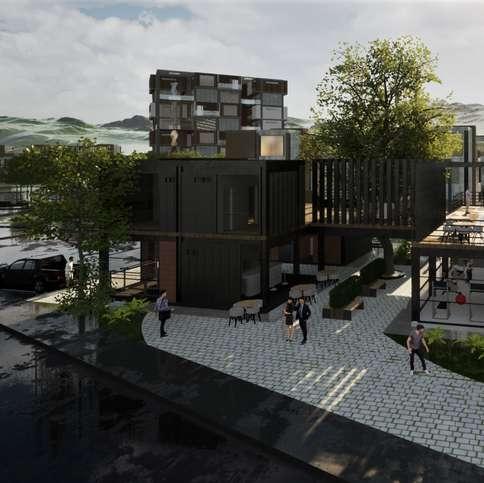

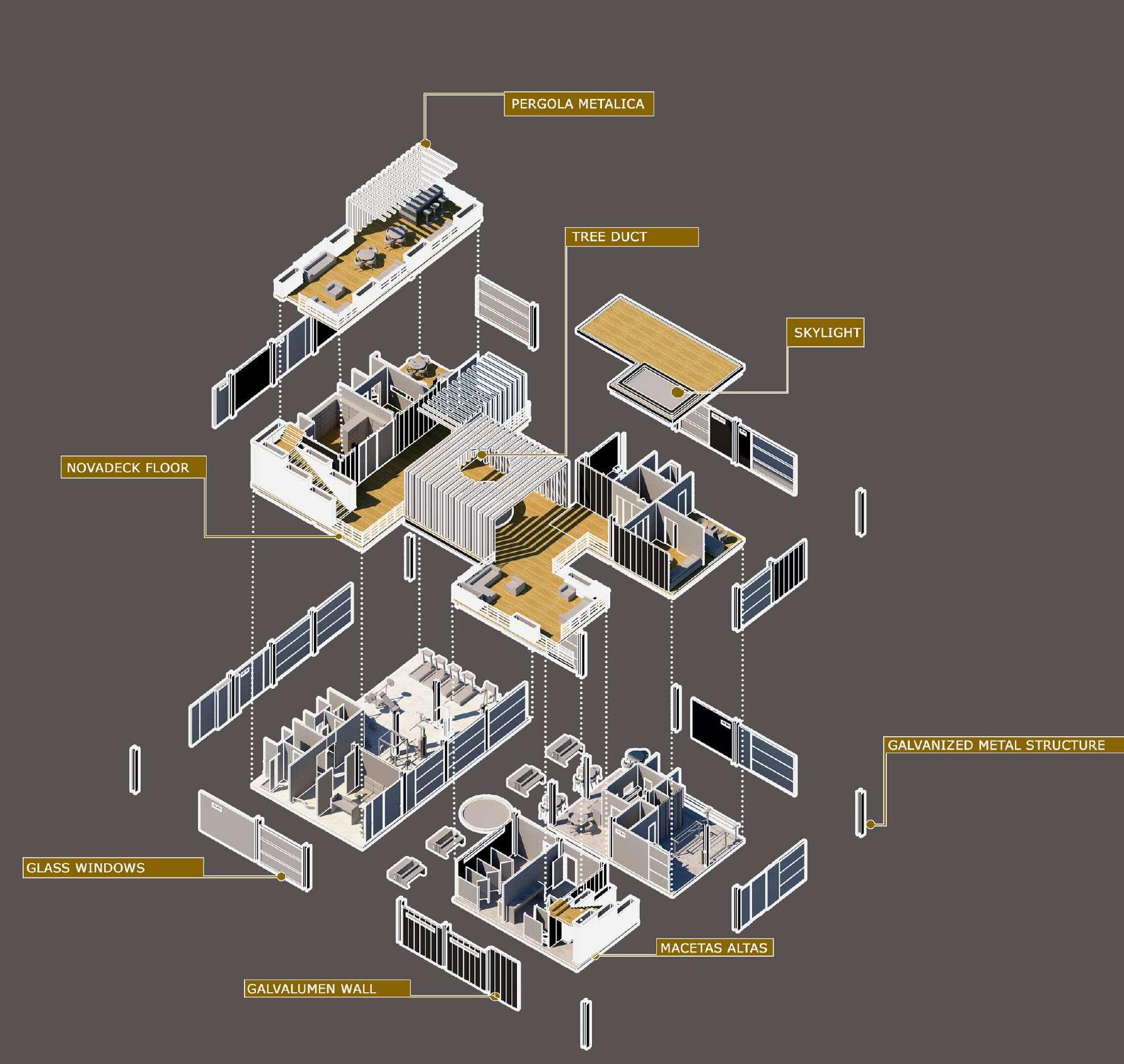

AXONOMETRY OF THE COMMERCIAL PLAZA

GROUND FLOOR

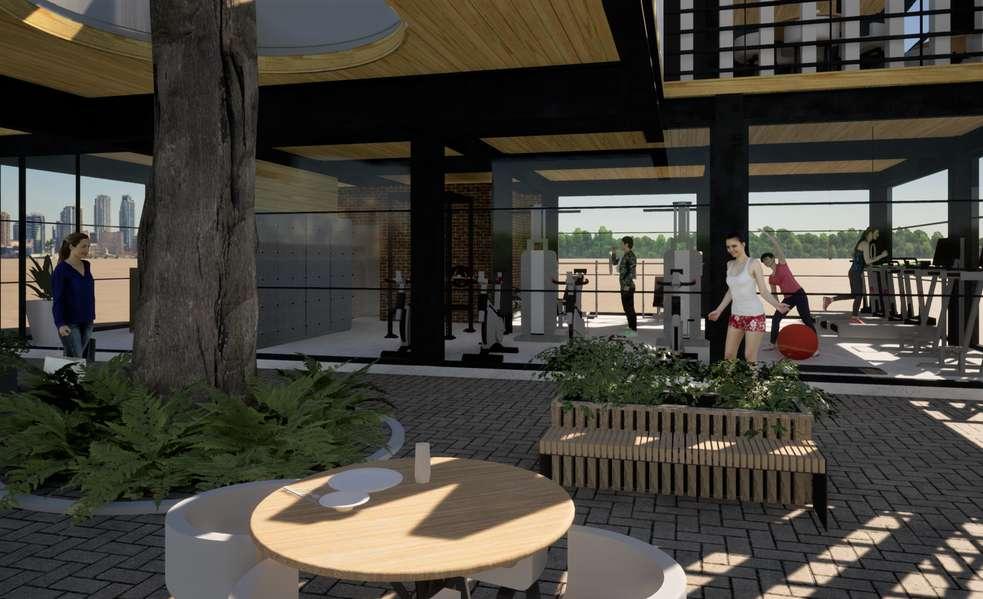

RESTROOM, GIMNASIUM, CLOTHING STORE

TOP FLOOR

BOOKSTORE, RESTAURANT, OFFICES

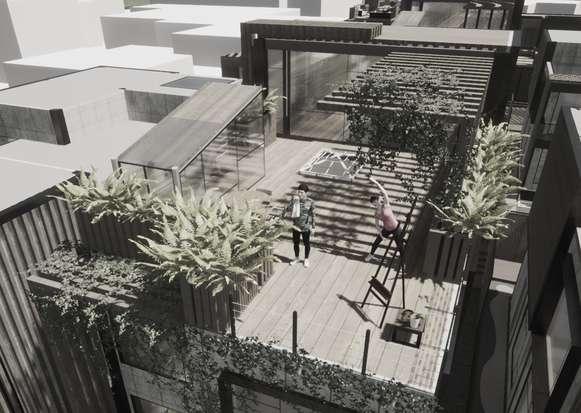

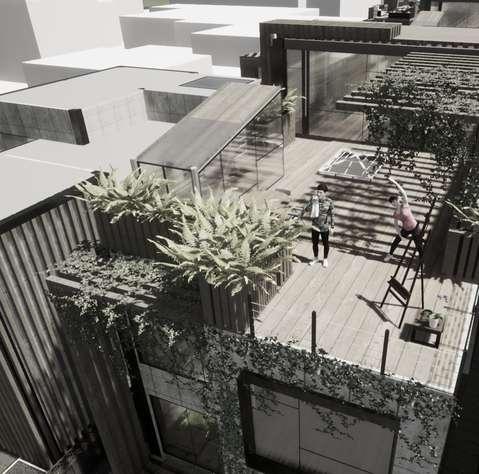

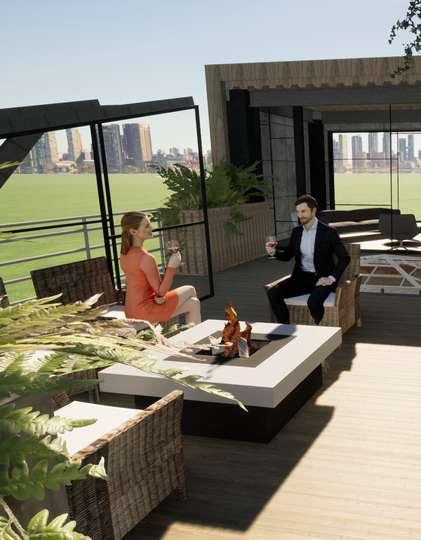

ROOFTOP

GALVANIZED STEEL COLUMNS COATED WITH PAINT FOR NEW NON-FERROUS SURFACES

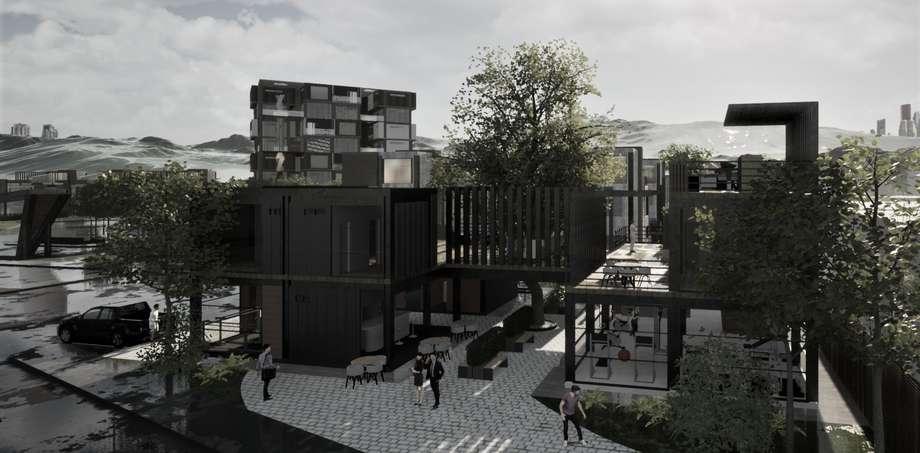

CRITERIA IN COMMERCIAL PLAZA

ANODIZED ALUMINUM

MICROCLIMATE

FRONTELEVATION LEFTSIDEELEVATION

DOUBLE-GLAZED WINDOWS

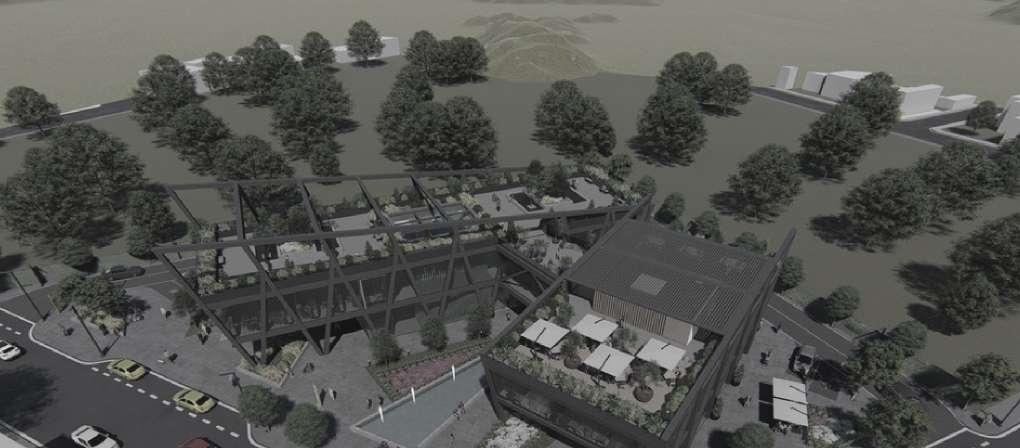

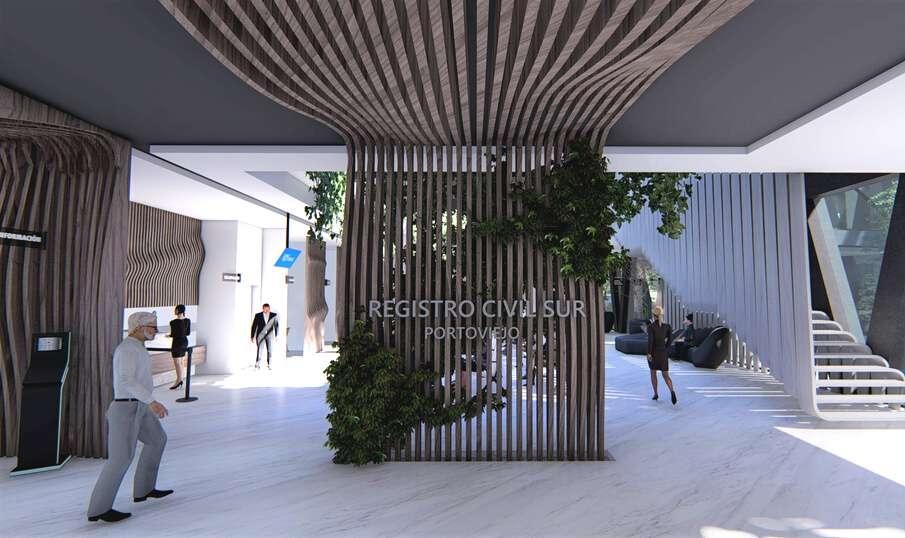

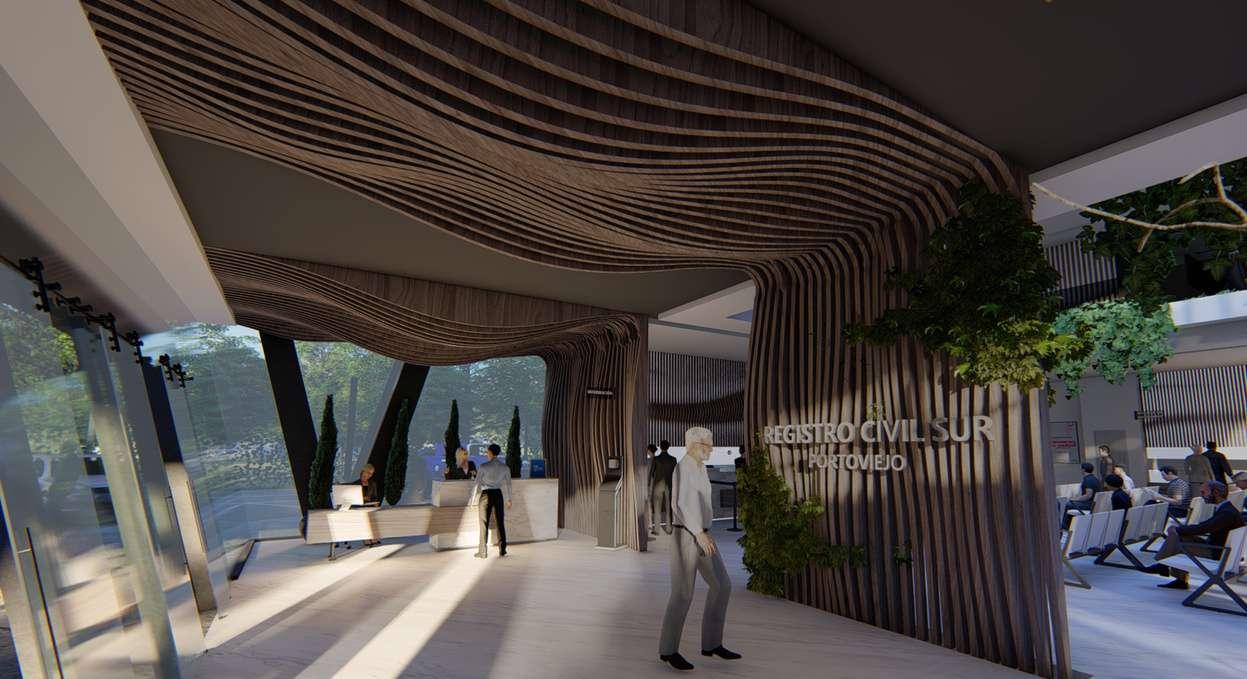

Registro Civil Sur Portoviejo

TOOLS: AUTOCAD - SKETCHUP - TWINMOTION - V-RAY - PHOTOSHOP

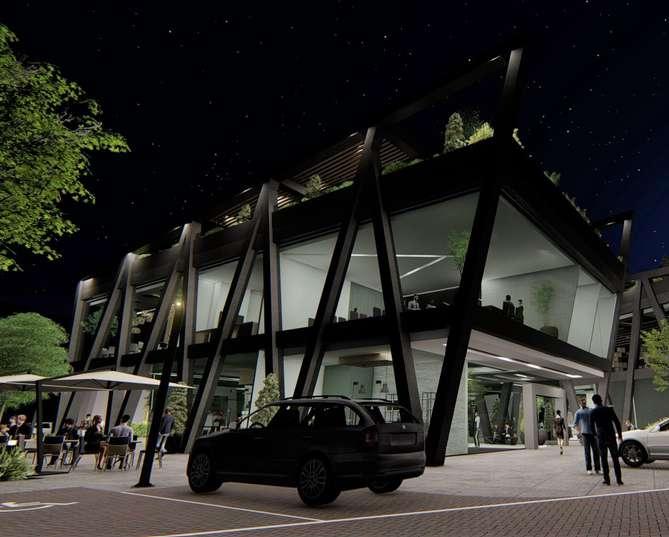

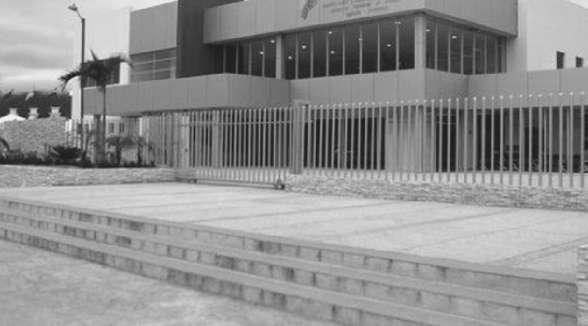

IN ECUADOR AND OTHER COUNTRIES IT IS DIFFICULT, IF NOT IMPOSSIBLE TO POINT OUT A MORE IMPORTANT SERVICE THAN THE CIVIL REGISTRY FOR THE CUSTODY OF THE COUNTRY'S IDENTITY AND THE DIGNITY OF THE PEOPLE.

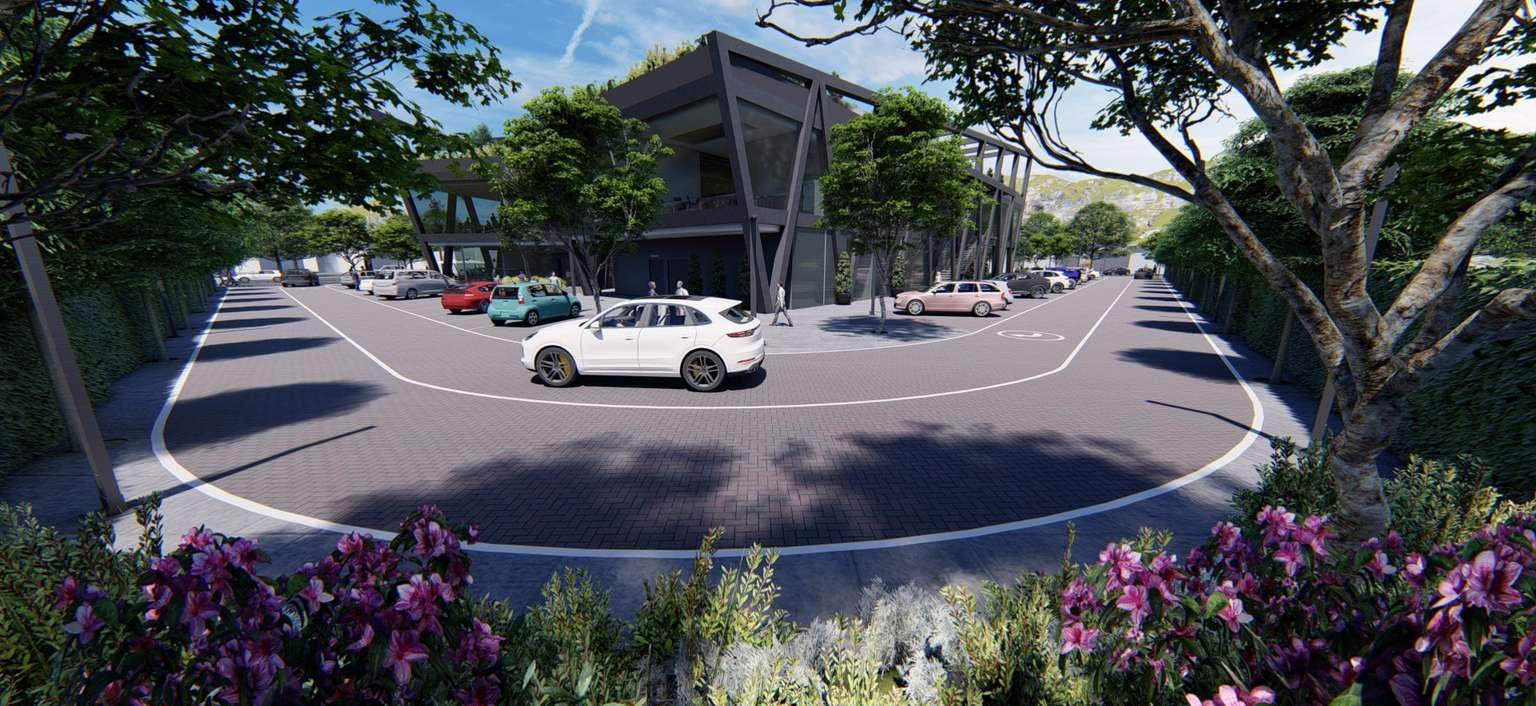

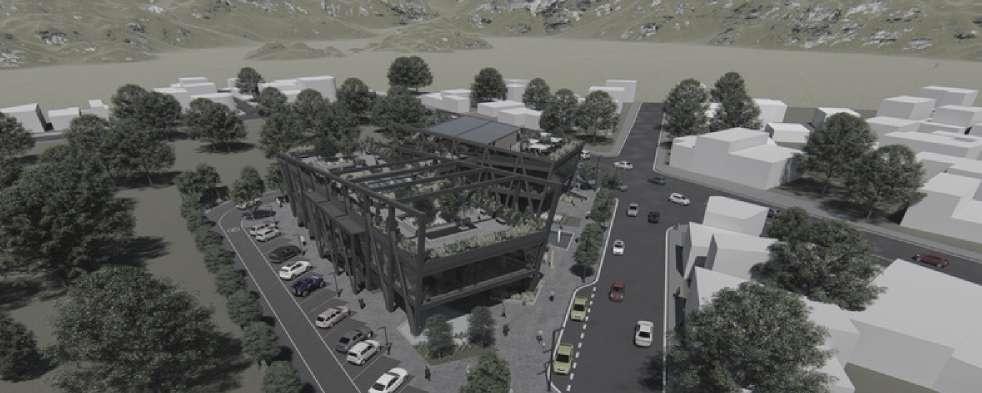

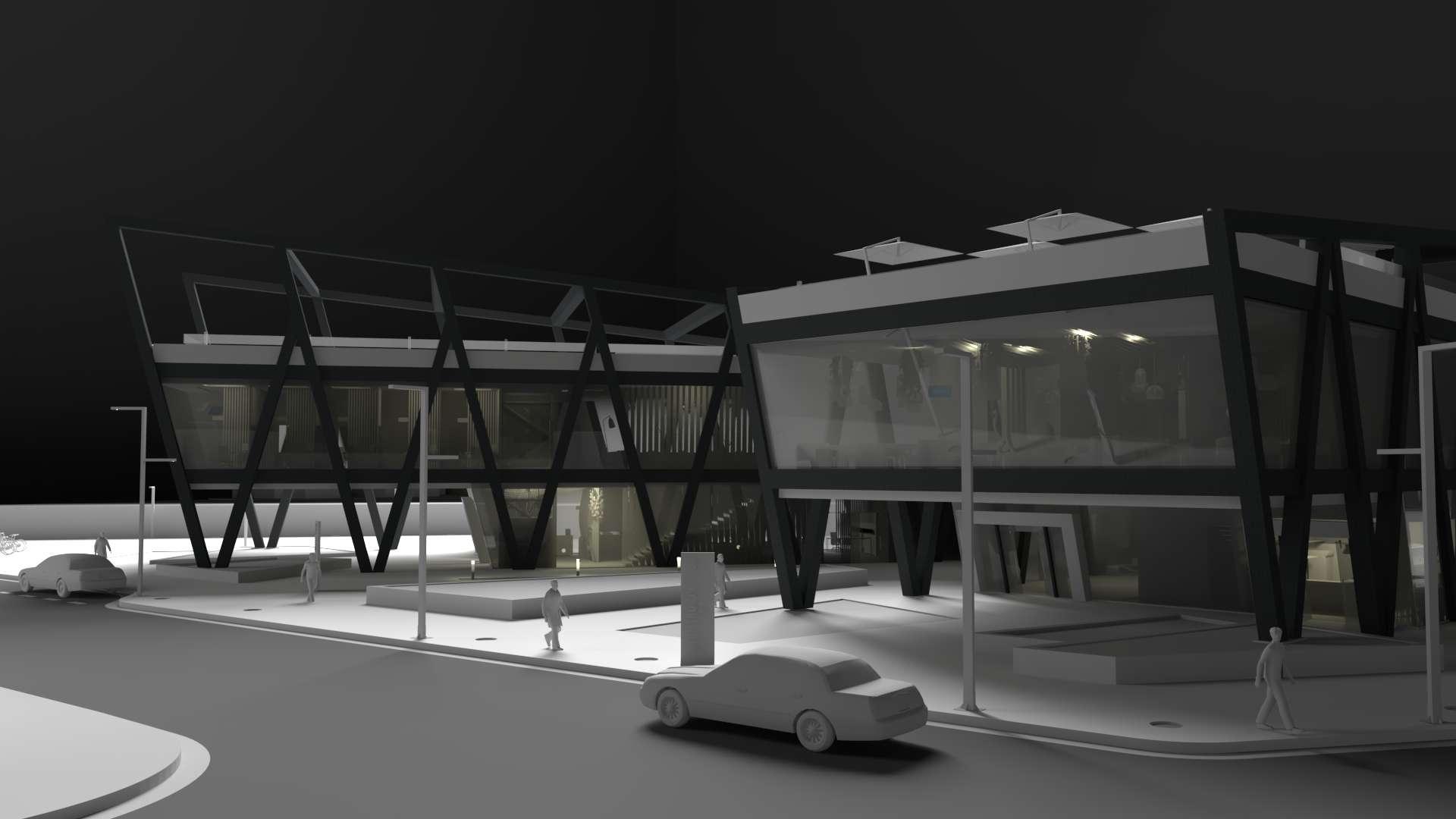

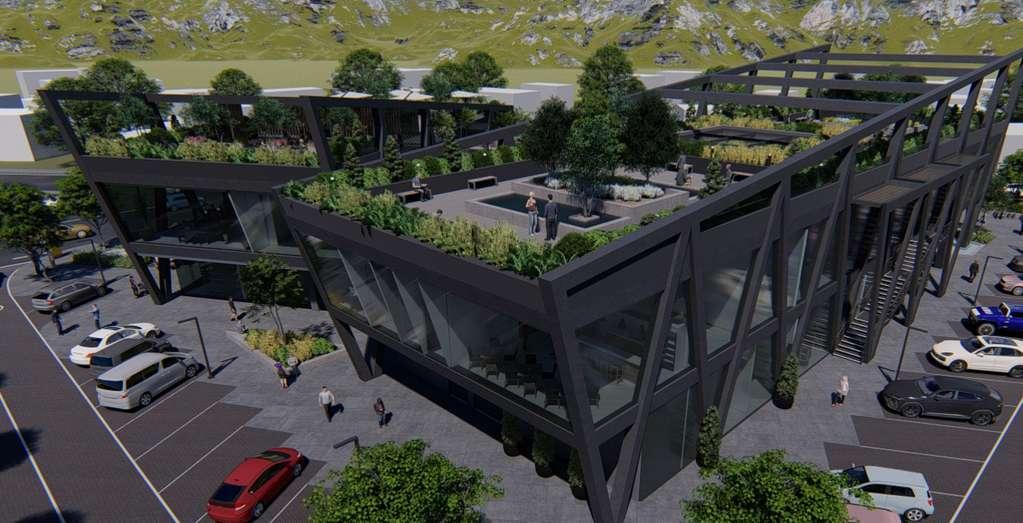

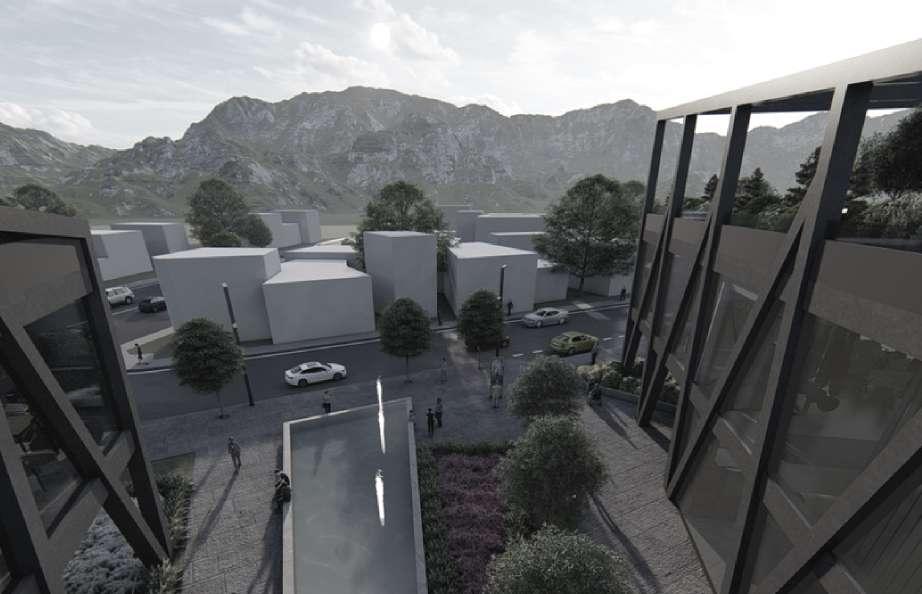

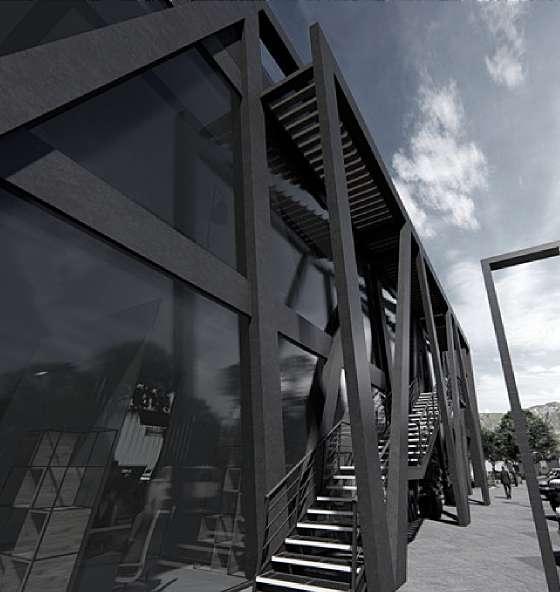

REGISTRO CIVIL SUR PORTOVIEJO

URBAN CONSOLIDATION LOCATION

BACKGROUND

IN 1852, GENERAL JOSE MARIA URBINA ISSUEDTHEDECREEFORTHEMANUMISSION OF BLACK SLAVES. THE 1964 AGRARIAN REFORM LAW, WHICH, LIKE OTHER SOCIAL TRANSFORMATIONS, WAS BROUGHT ABOUT BY A MILITARY DICTATORSHIP, AND THE 1978 CONSTITUTION, WHICH RECOGNIZED THE RIGHT OF ILLITERATE PEOPLE TO VOTE AND OBLIGED POLITICIANS TO TAKE THEM INTO ACCOUNT, MARKED TWO STEPS TOWARDS THEFREEDOMOFTHEINDIGENOUS

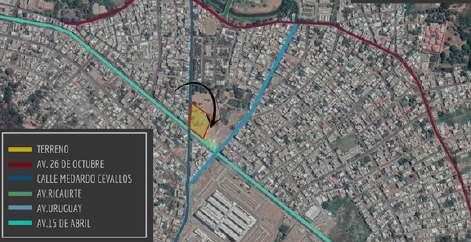

THIS PROJECT IS LOCATED IN THE PROVINCE OF MANABÍ, CANTON PORTOVIEJO, IN THE PARISH OF ANDRÉS DE VERA; ON 15 DE ABRIL AVENUE AND MEDARDO CEVALLOS STREET, HAVING AS A REFERENCE THE HOSPITAL OF SPECIALTIES OF PORTOVIEJO, THE FOUNDATION DR. OSWALDO LOOR FOUNDATION, AND THE MAMA ANGELA CLINIC.

THE AIM IS TO INTEGRATE THE PROJECT WITH THE EXTERIOR, AS A STRATEGY OF INTERACTION AND SOCIAL COHESION TO PROMOTE RECREATION AND TO MAKE THE PROJECT SUITABLE FOR OTHER PURPOSES IN ADDITION TO THE FUNCTIONS OF THE CIVIL REGISTRY.

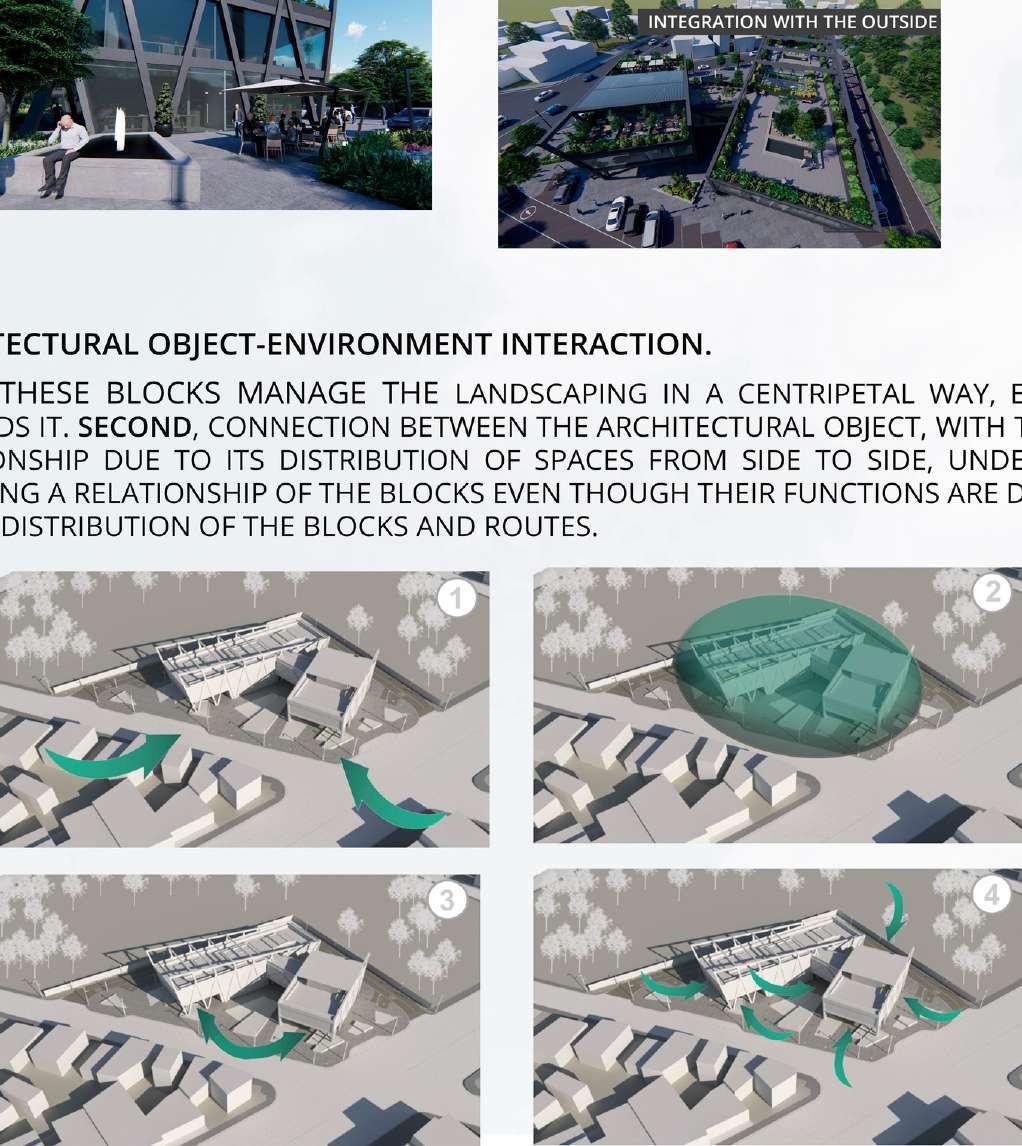

INTERACTION BETWEEN ARCHITECTURAL OBJECT AND ENVIRONMENT

FIRST, THESE BLOCKS MANAGE THE LANDSCAPING IN A CENTRIPETAL WAY, ENHANCING THE ACTIVITY AND LEADING THE PEDESTRIAN TOWARDS IT. SECOND, CONNECTION BETWEEN THE ARCHITECTURAL OBJECT, WITH THE AREAS OF LEISURE AND RECREATION THIRD, THERE IS A RELATIONSHIP DUE TO ITS DISTRIBUTION OF SPACES FROM SIDE TO SIDE, UNDERSTOOD AS A CIRCULATION BETWEEN TWO PIECES THUS ALLOWING A RELATIONSHIP OF THE BLOCKS EVEN THOUGH THEIR FUNCTIONS ARE DIFFERENT. FOURTH, PERMEABILITY OF THE TERRAIN THANKS TO THE DISTRIBUTION OF THE BLOCKS AND ROUTES

MICROCLIMATE SUSTAINABILITY CRITERIA ECONOMY

VEGETATION COVER: THE PLANTERS AND PLANT SPECIES PROPOSED ARE ADAPTED TO THE BUILDING AND THE CLIMATE OF THE SITE, GENERATING A COOLER SPACE. ALSO IN A CERTAIN WAY THE PROJECT RECOVERS THE SPACE OCCUPIED BY THE BUILDING.

THE BLOCKS BECOME A FILTER THAT SELECTS THE PASSAGE FROM THE OUTSIDE TO THE INSIDE TO ACHIEVE A MICROCLIMATE THAT ALLOWS THE VISITOR TO WALK AROUND COMFORTABLY.

ORIENTATION

THE LOCATION OF THE CIVIL REGISTRY PLUS ITS DESIGN ALLOWS TO TAKE BETTER ADVANTAGE OF NATURAL ENERGY AND TO STAY ILLUMINATED; IN ADDITION, THE FLOOR-TO-CEILING WINDOWS ALLOWACOMPLETEVIEWOFTHEEXTERIORS ACHIEVINGANATURAL ILLUMINATIONOFTHESPACES

BY PROPOSING DURABLE MATERIALS THAT LAST OVER TIME, THEY PROVIDE SAVINGS IN THEIR MAINTENANCE, ARE EASY TO ACQUIRE AND CAN BE OBTAINED LOCALLY, AND ALSO GENERATE ECONOMIC INCOME IN THE COMMERCIAL PREMISES PRESENT IN THE CIVIL REGISTRY.

WHAT TO EXPECT?

GENERAL IDEA OF PROPOSAL

AS AN ARCHITECT UNDERSTANDING THAT THE CIVIL REGISTRY IS OF FUNDAMENTAL IMPORTANCE. SINCE THIS IS THE WAY TO ACHIEVE TRUE EFFECTIVENESS WHEN CLAIMING RIGHTS AND FULFILLING DUTIES. FOR THIS REASON, A PROPOSAL WAS DESIGNED THAT CONSTITUTES AN ORGANIZATION OF THE EVENTS THAT OCCUR IN THE LIFE OF A PERSON, IN WHICH ALL THE NECESSARY AREAS ARE IDENTIFIED IN THE PROCEDURES REQUIRED OF THAT PERSON.

BLOCK 2

BLOCK 1

MEDARDO CEVALLOS

BLOCK 1: RECREATION SPACE

BLOCK 2: BAR, VERTICAL CIRCULATION, RECREATION SPACE

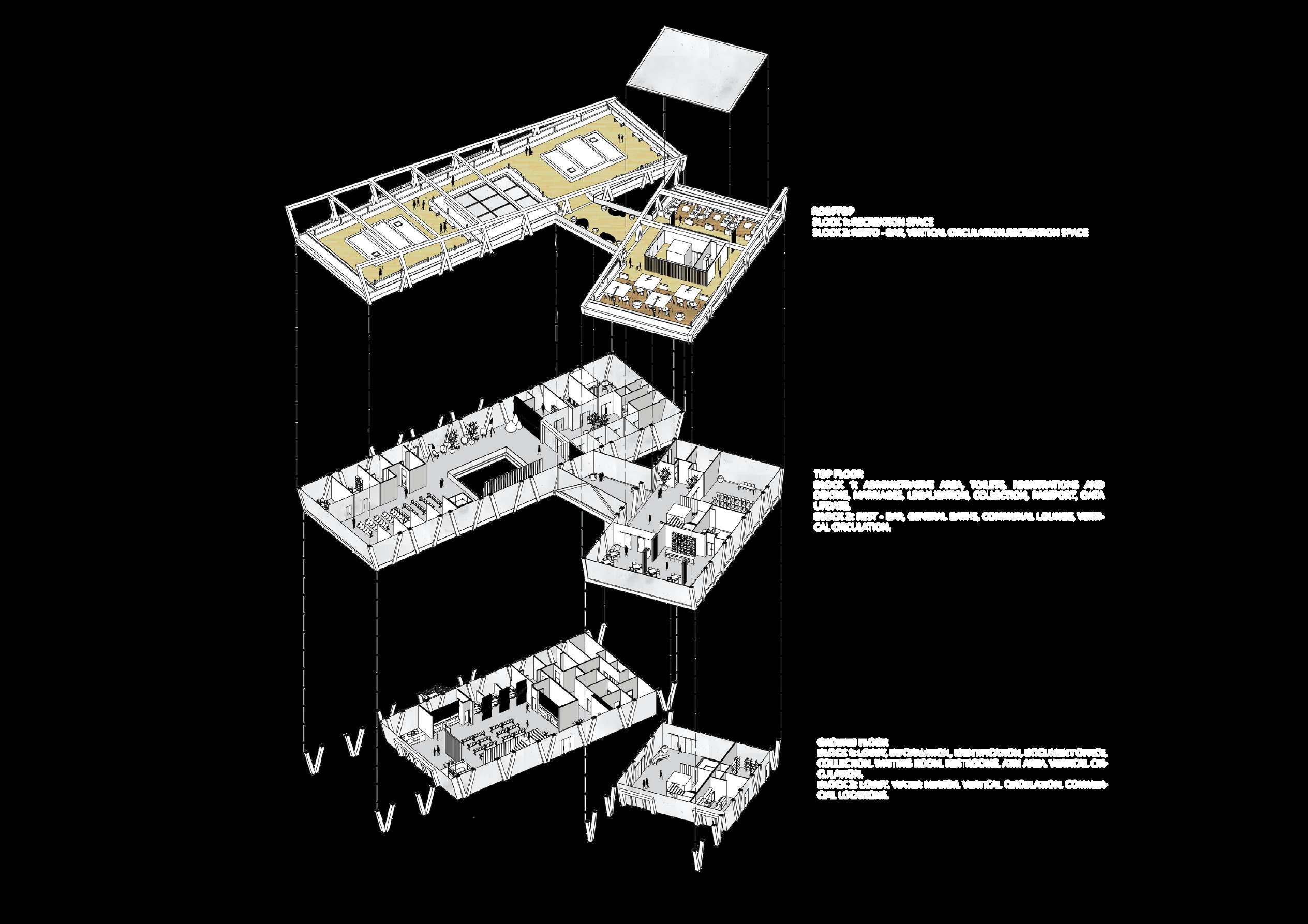

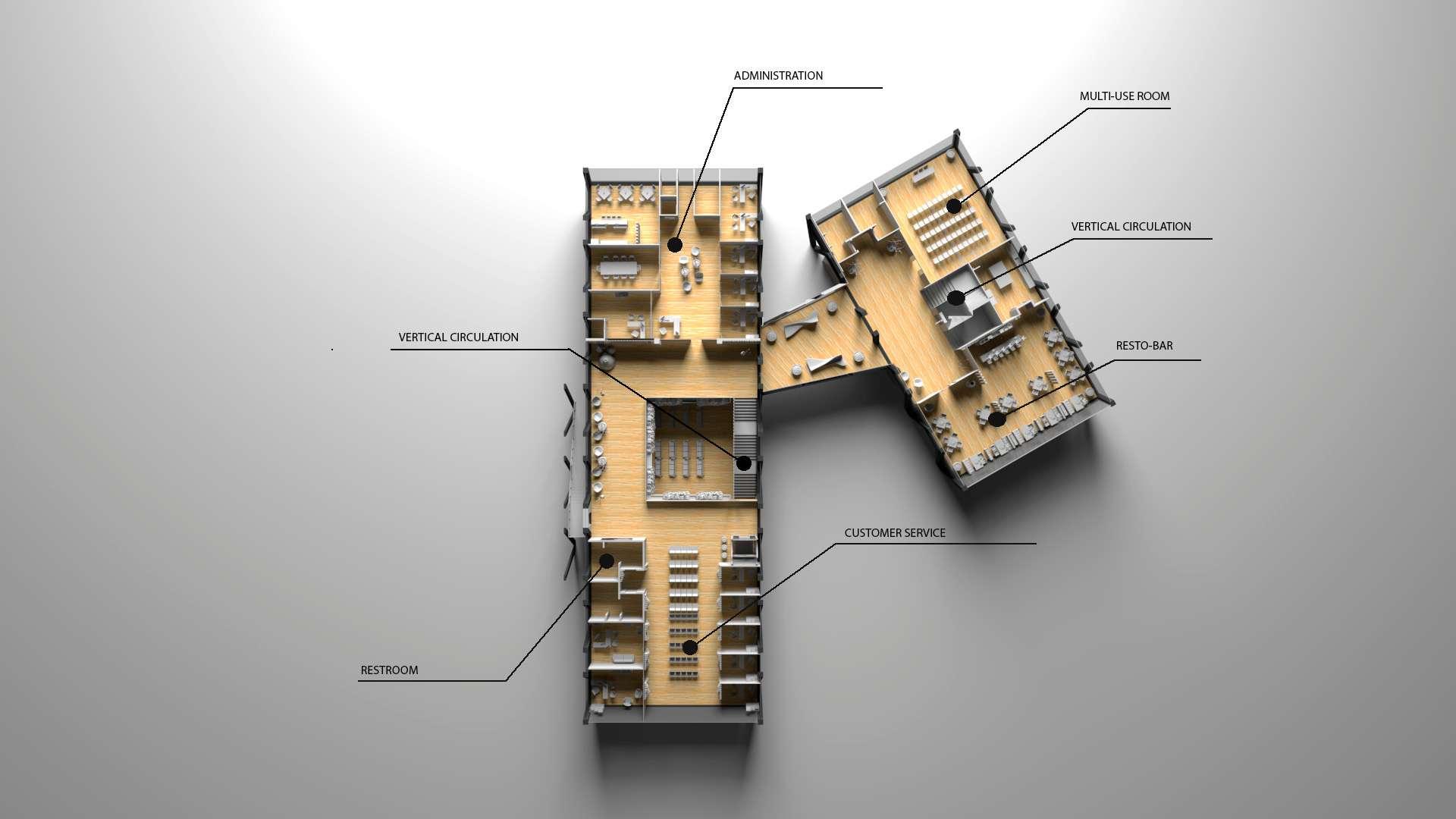

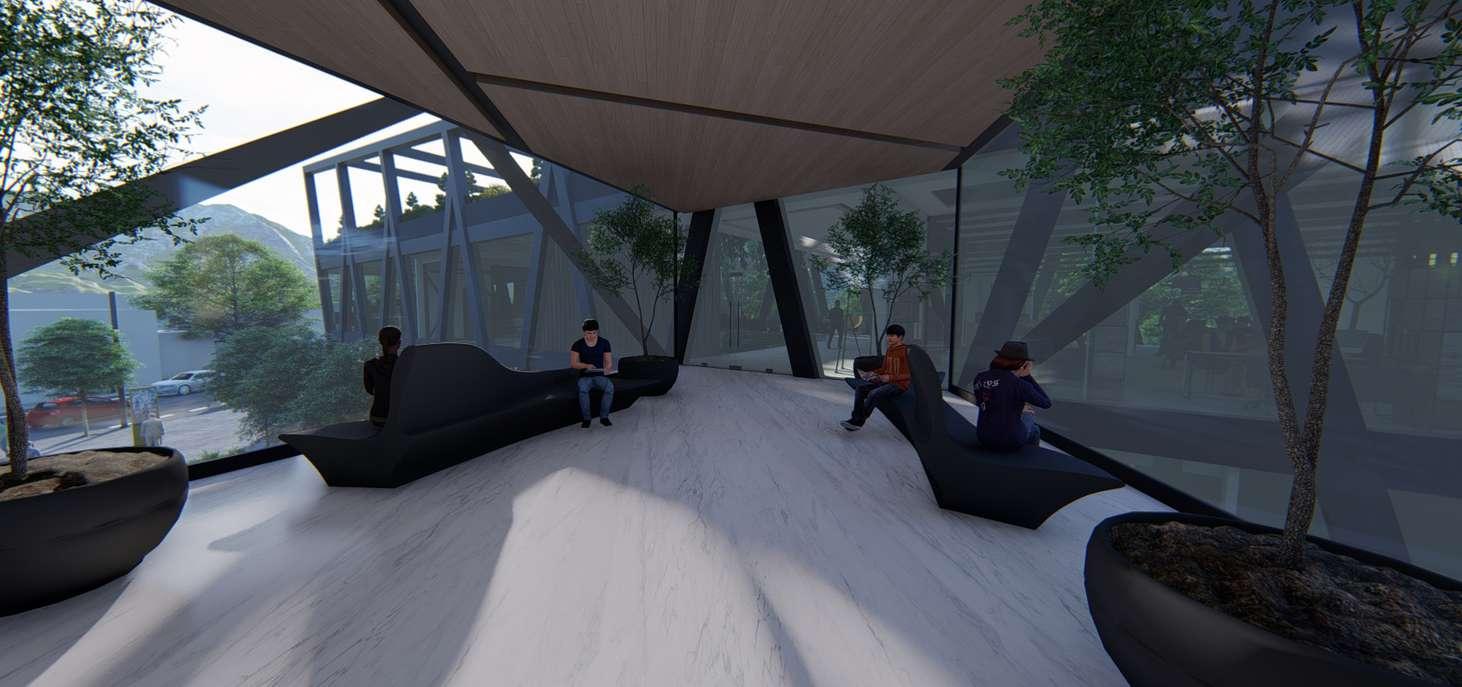

ROOFTOP TOP FLOOR

BLOCK 1: ADMINISTRATIVE AREA, TOILETS, REGISTRATIONS AND DEATHS, MARRIAGES, LEGALIZATION, COLLECTION, PASSPORT, DATA UPDATE

BLOCK 2: REST-BAR, GENERAL BATHS, COMMUNAL LOUNGE, VERTICAL CIRCULATION

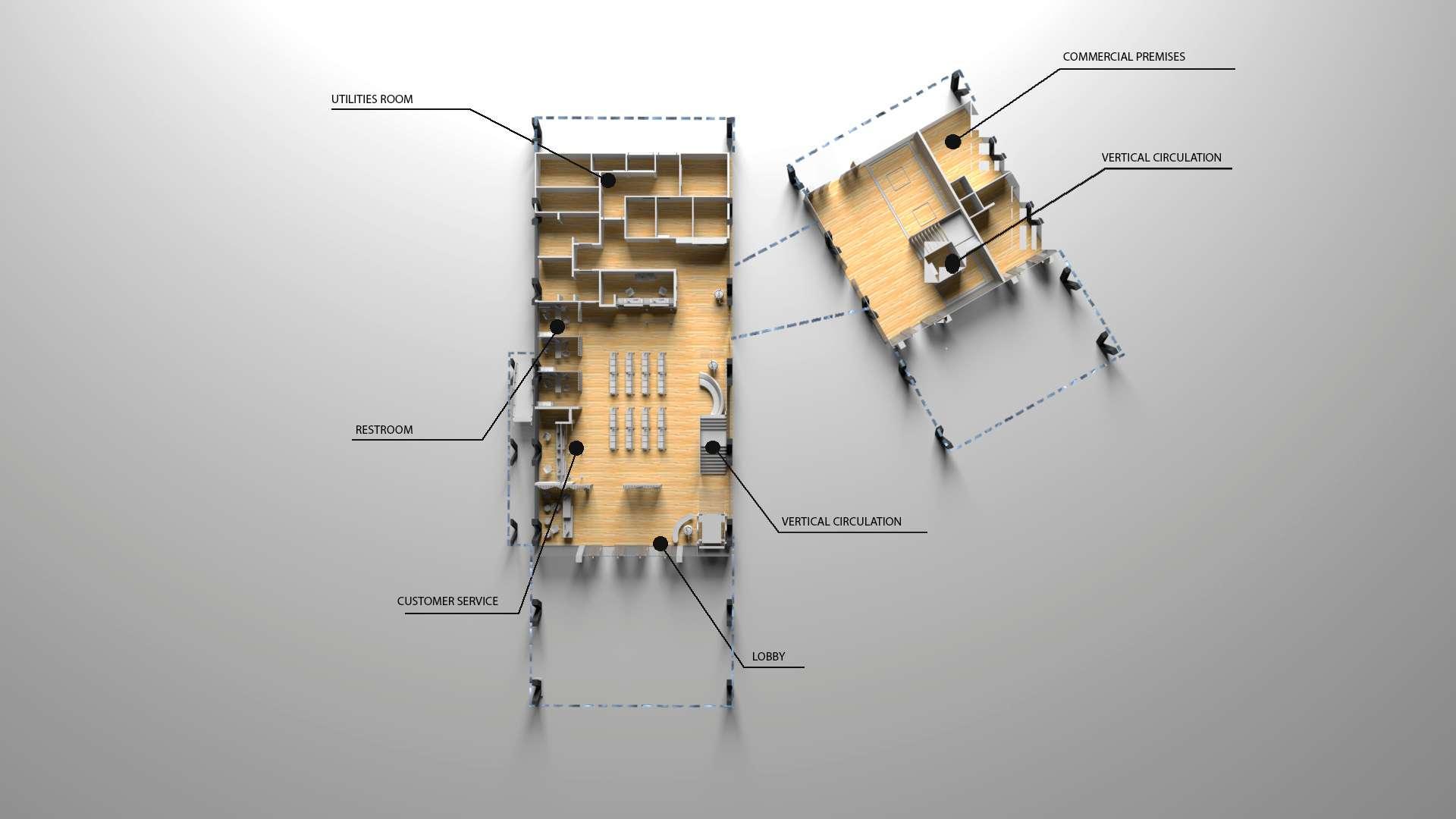

GROUND FLOOR

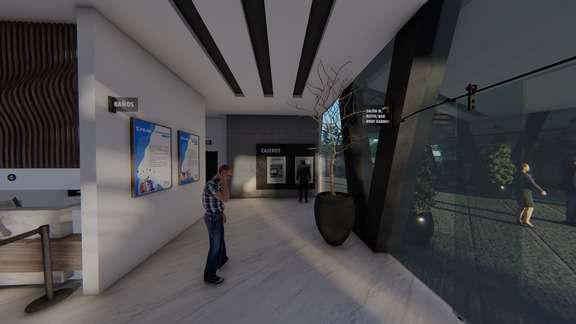

BLOCK 1: LOBBY, INFORMATION, IDENTIFICATION, DOCUMENT OFFICE, COLLECTION, WAITING ROOM, RESTROOMS, ATM AREA, VERTICAL CIRCULATION

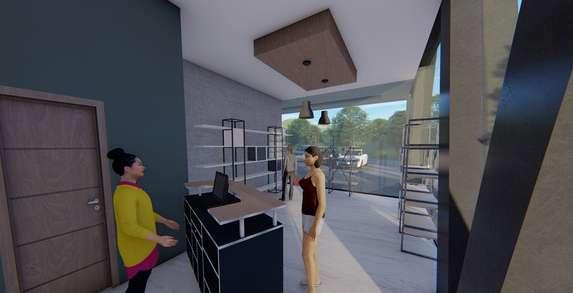

BLOCK 2: LOBBY, WATER MIRROR, VERTICAL CIRCULATION, COMMERCIAL PREMISES

GROUND FLOOR

FIRST FLOOR

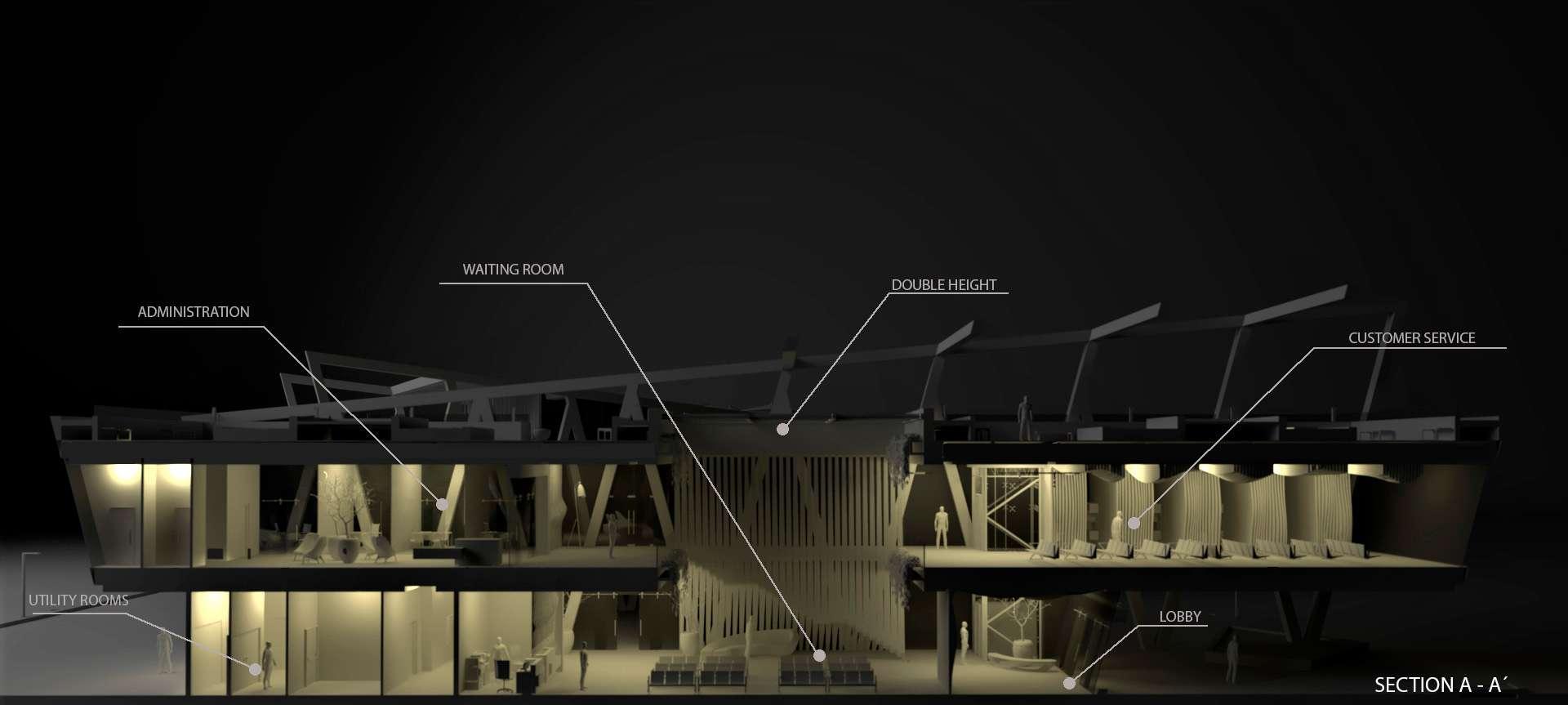

SECTION A-A"

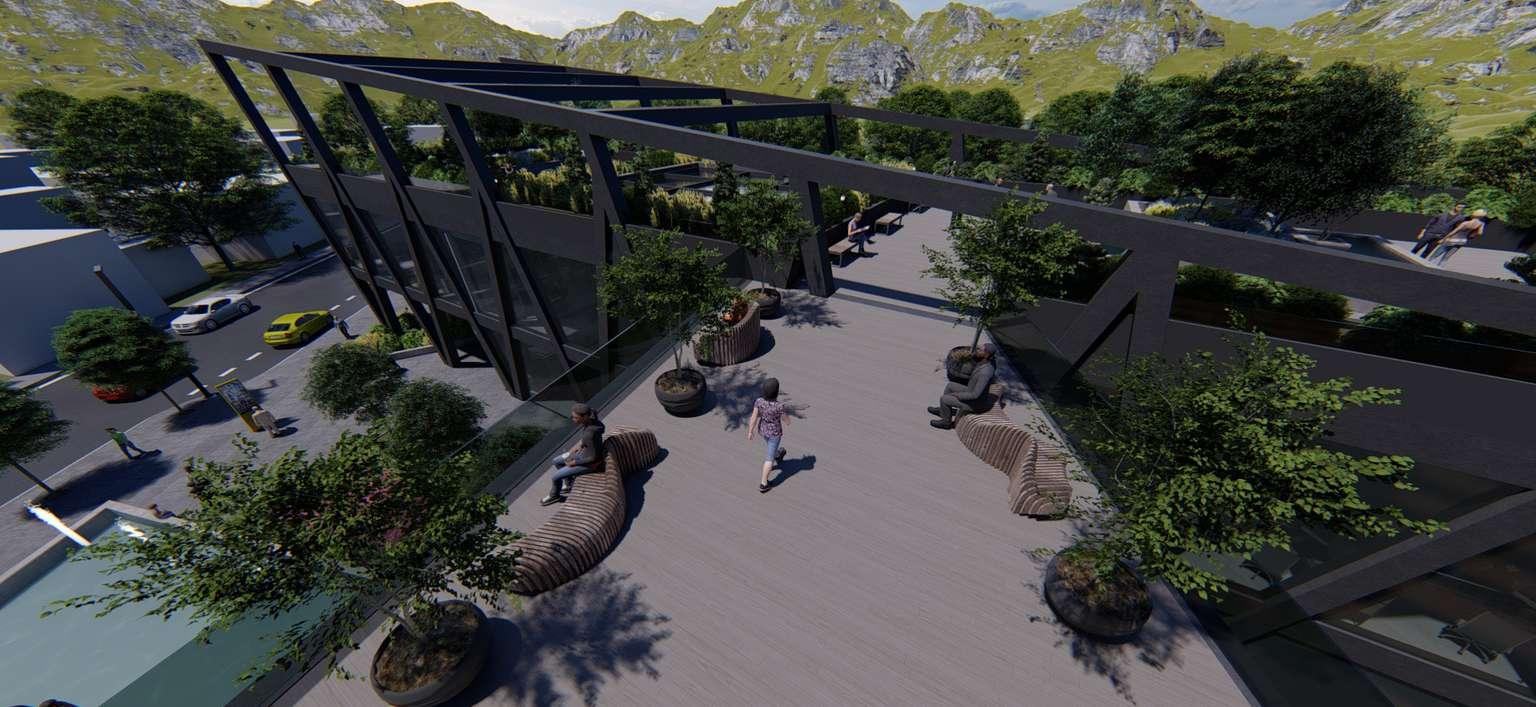

COMMERCIAL PREMISES ROOFGARDEN

URBAN CONSOLIDATION

WE CARRY OUT A CONSOLIDATION TREATMENT, THE FUNCTION OF WHICH IS TO ORIENTATE THE CONSOLIDATION AND MAINTENANCE OF THE URBAN STRUCTURES OF THE CITY.

CONSISTENCY BETWEEN LAND USE INTENSITY AND PUBLIC SPACE SYSTEM IS ENSURED.

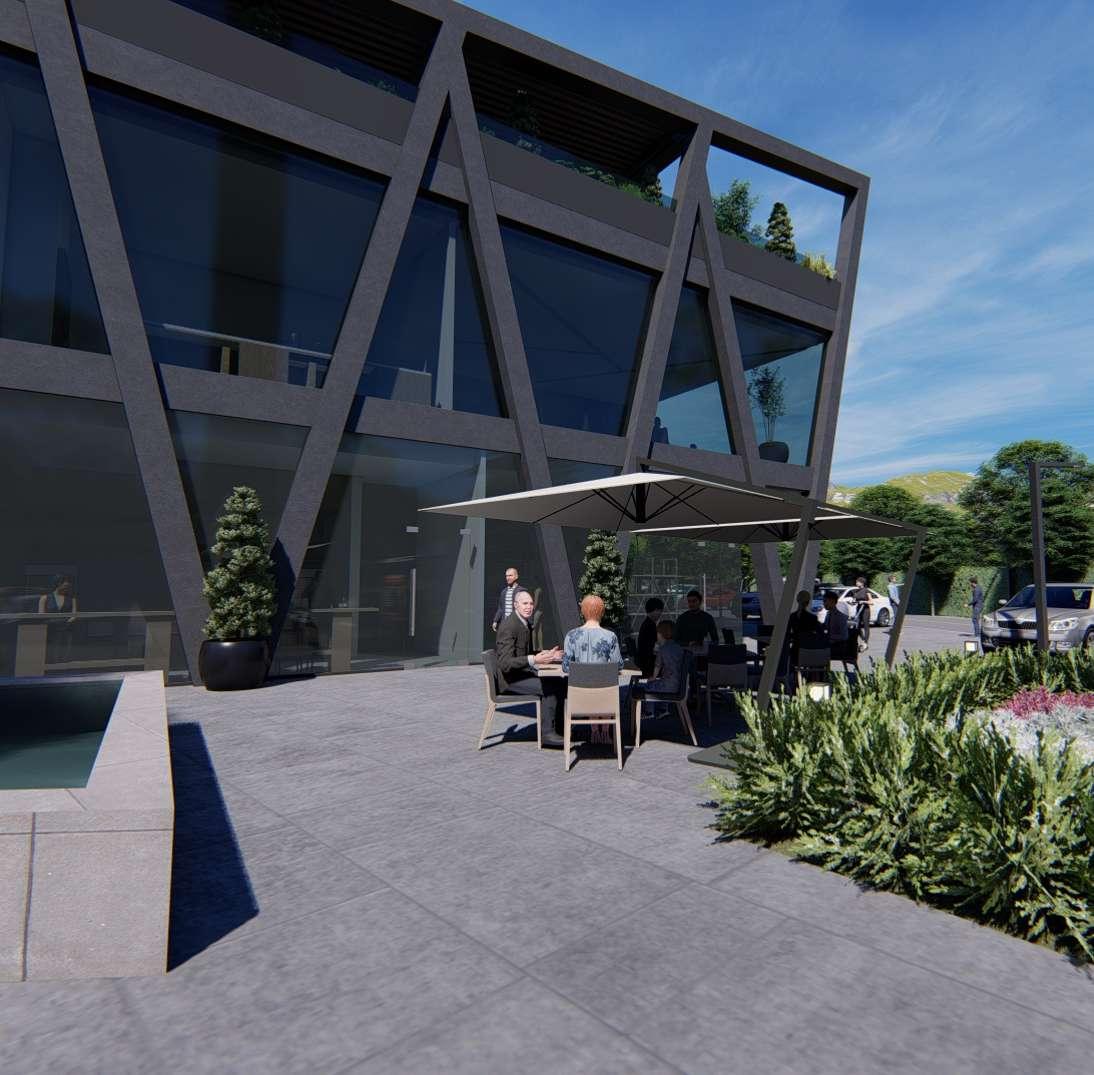

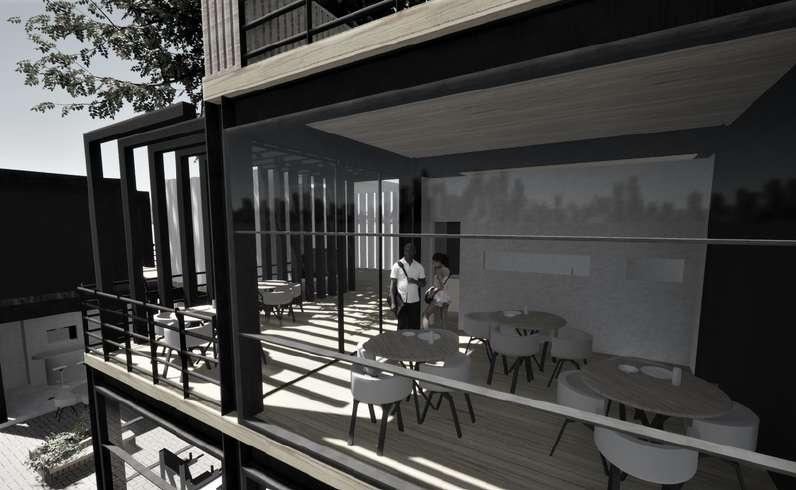

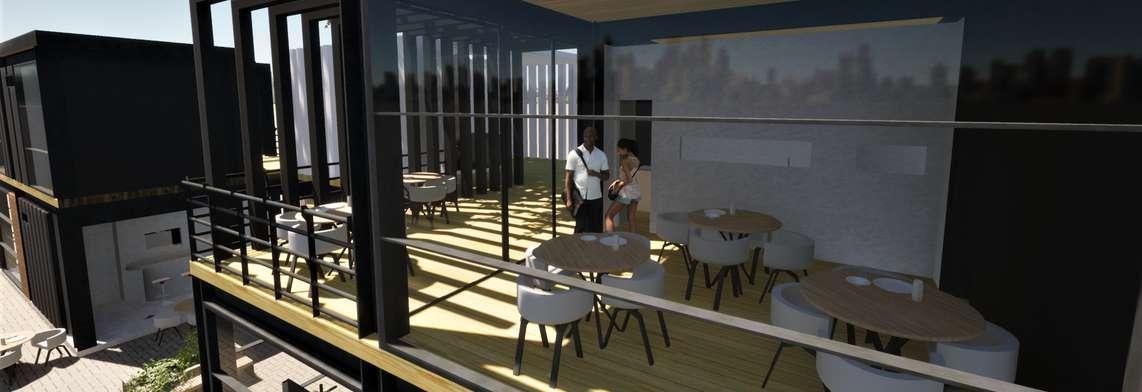

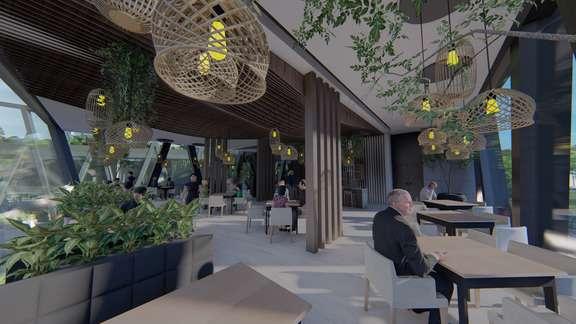

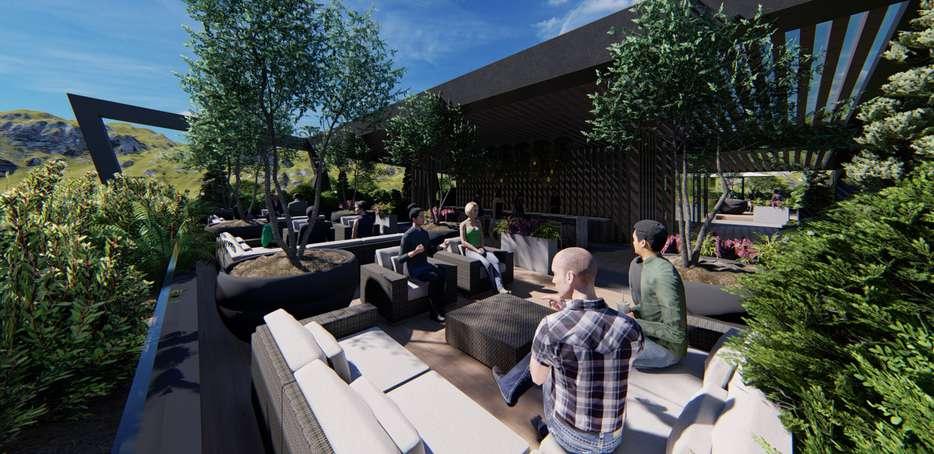

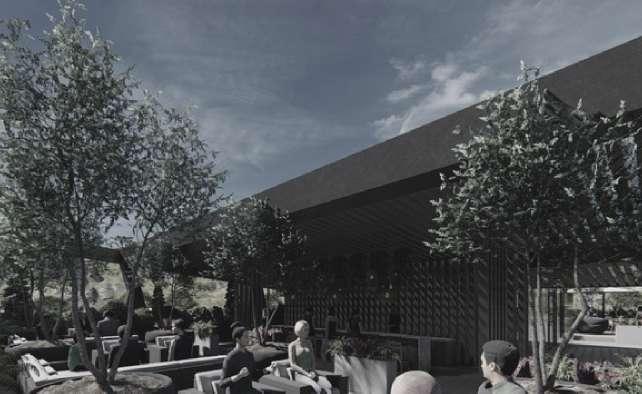

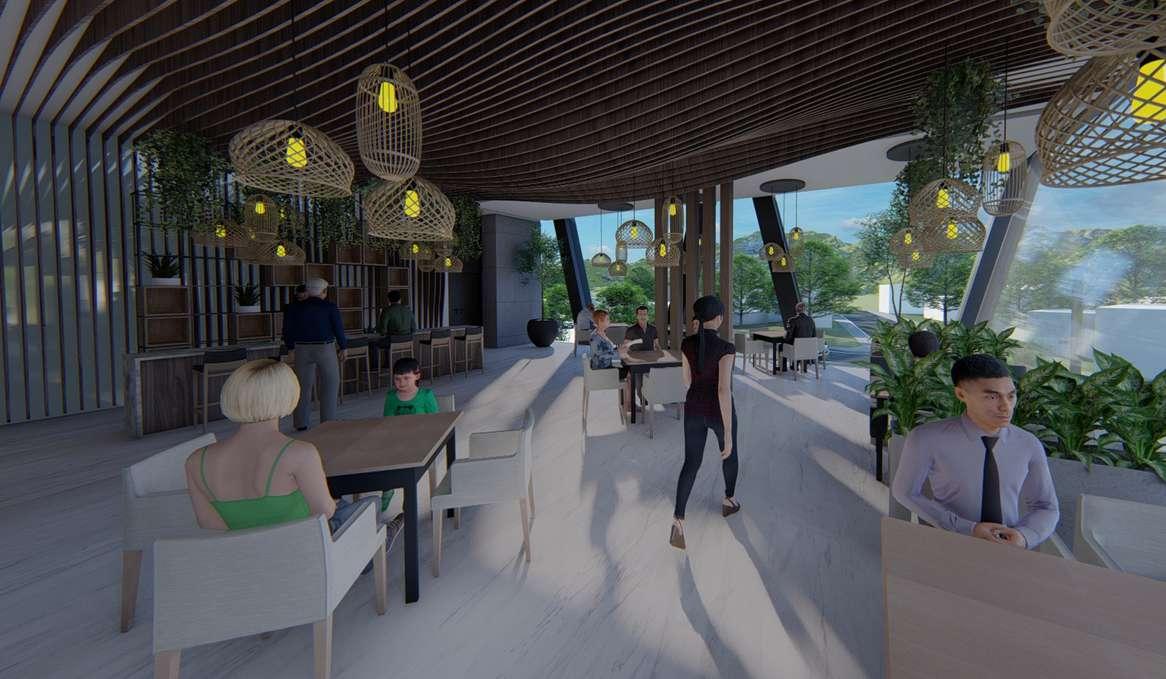

RESTO - BAR

DOUBLE CHAMBER GLASS

MATERIALS AND SUSTAINABILITY CRITERIA

ACOUSTIC INSULATION SAFETY HUMIDITY REDUCTION SAVING

COST REDUCTION

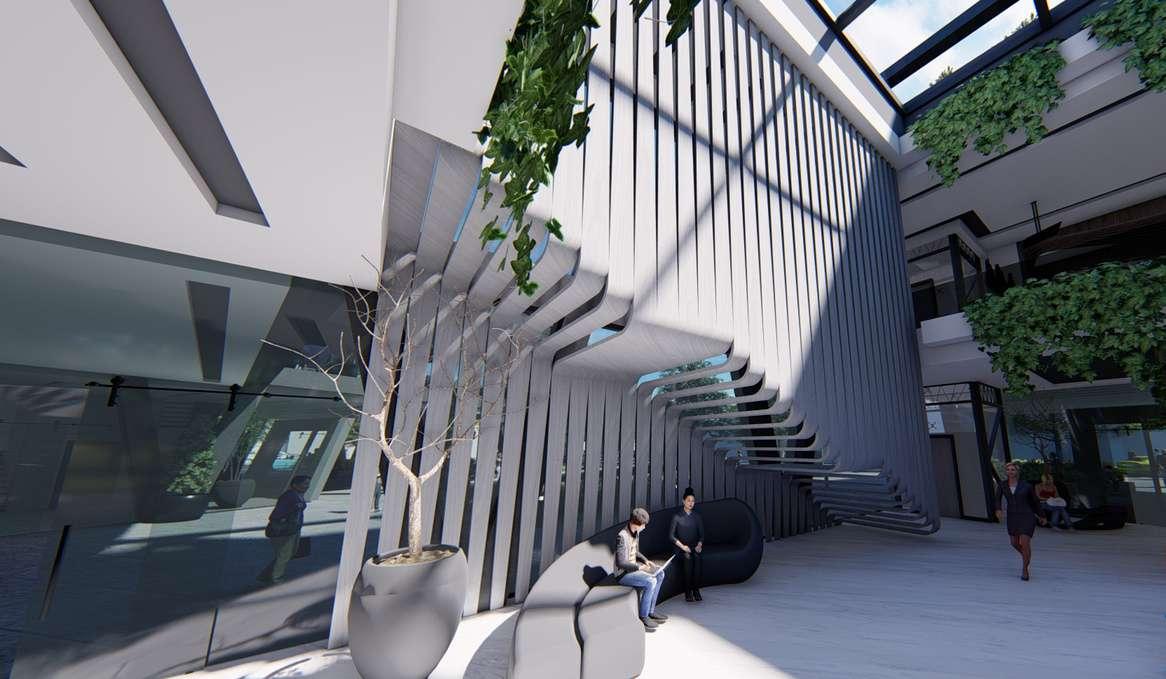

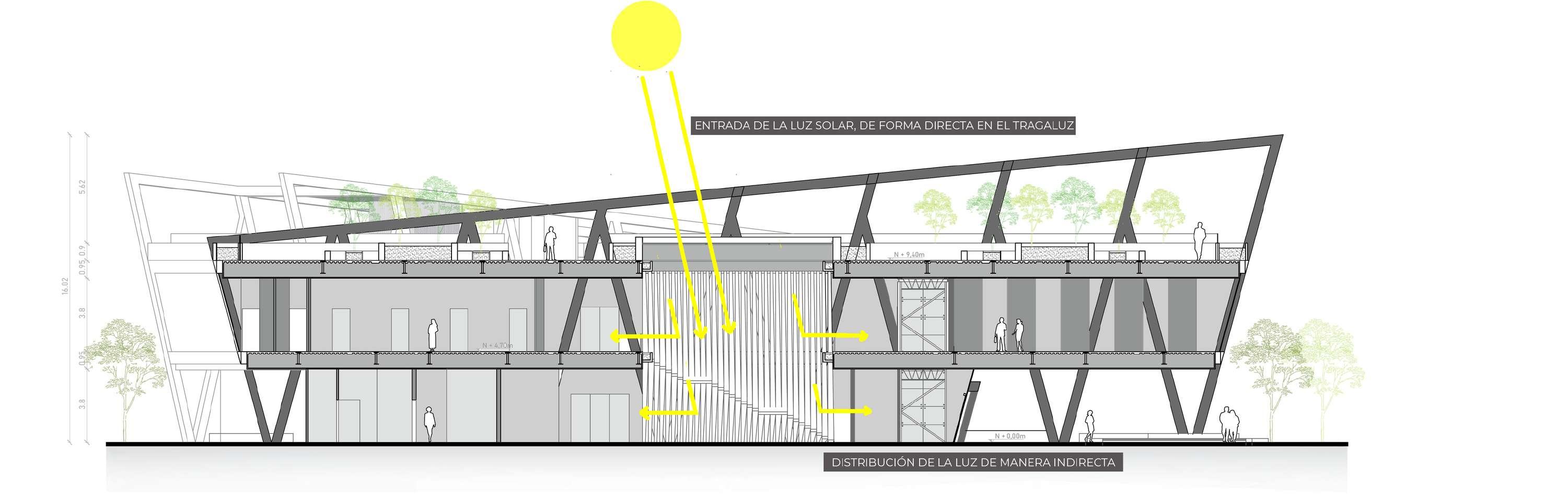

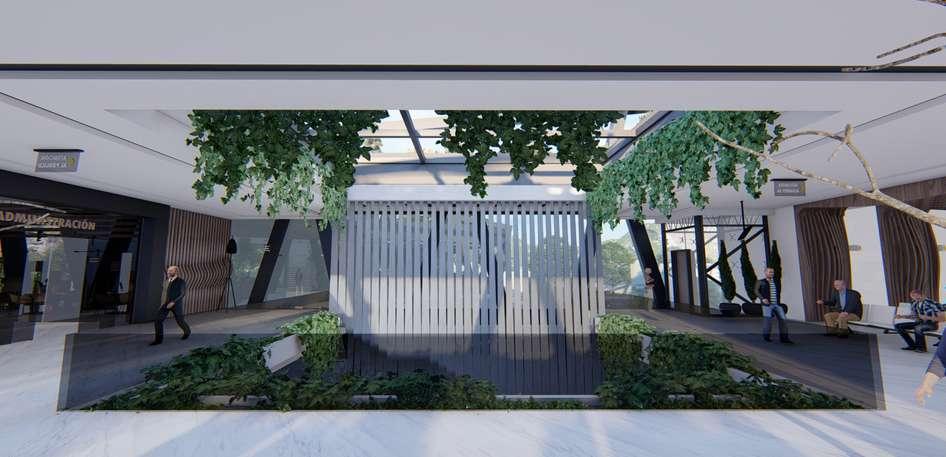

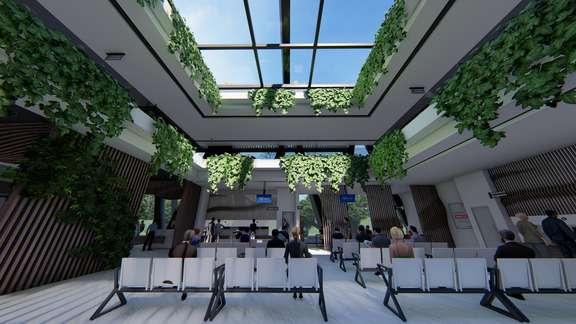

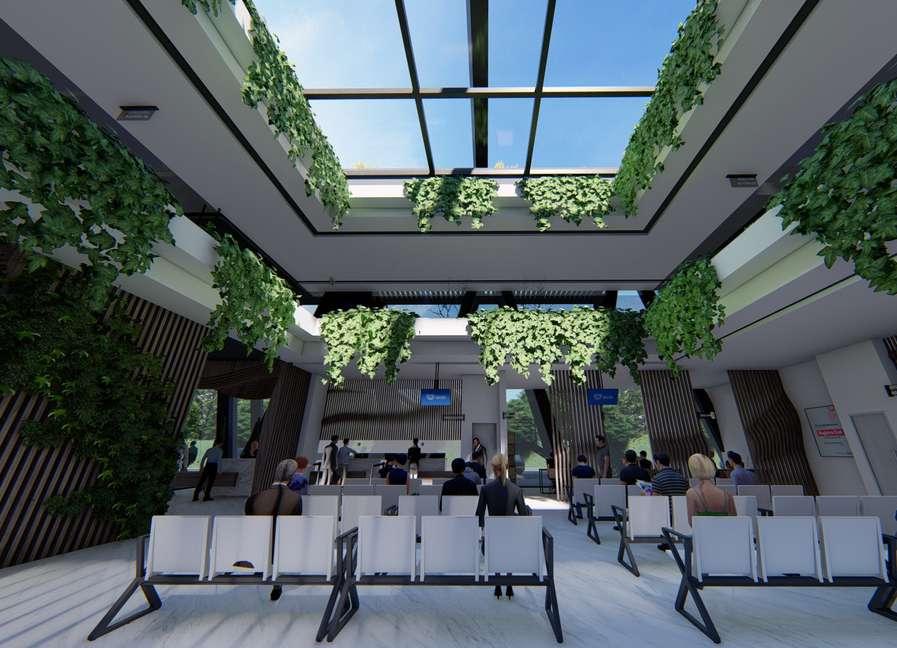

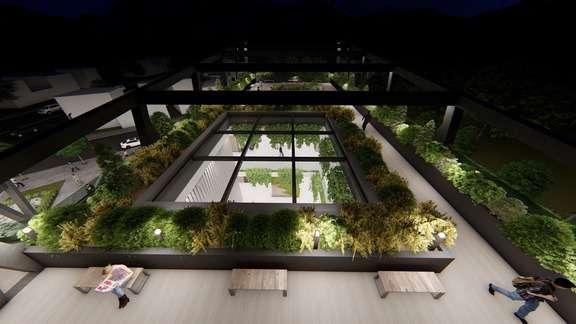

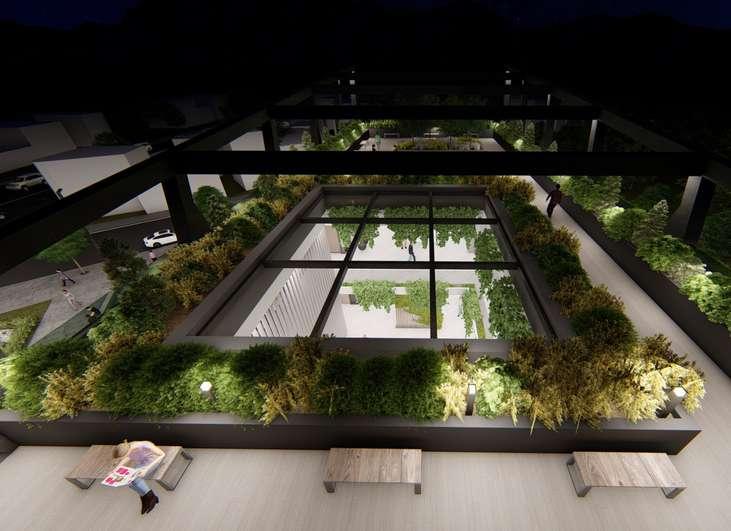

A SKYLIGHT WITH A FILTER IN THE CENTER, IN WHICH THE GLASS DOES ITS JOB BY LETTING ONLY ITS LIGHT PASS THROUGH AND, FROM THIS CENTER, IT IS DISTRIBUTED INDIRECTLY TO THE CUSTOMER SERVICE AND ADMINISTRATIVE AREAS. ALL THIS REPRESENTS A REDUCTION OF COSTS, A USE OF INDIRECT LIGHT, AN IMPROVEMENT OF THE MOOD AMONG OTHER BENEFITS

ENERGY SAVINGS

BENEFITS ON THE PSYCHE

THERMAL COMFORT

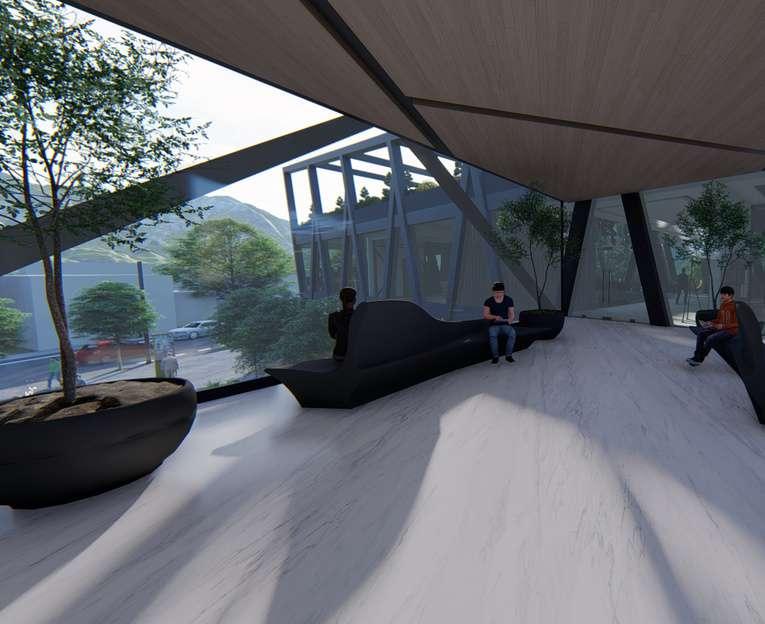

INNOVATIVE AND AUTHENTIC SPACES

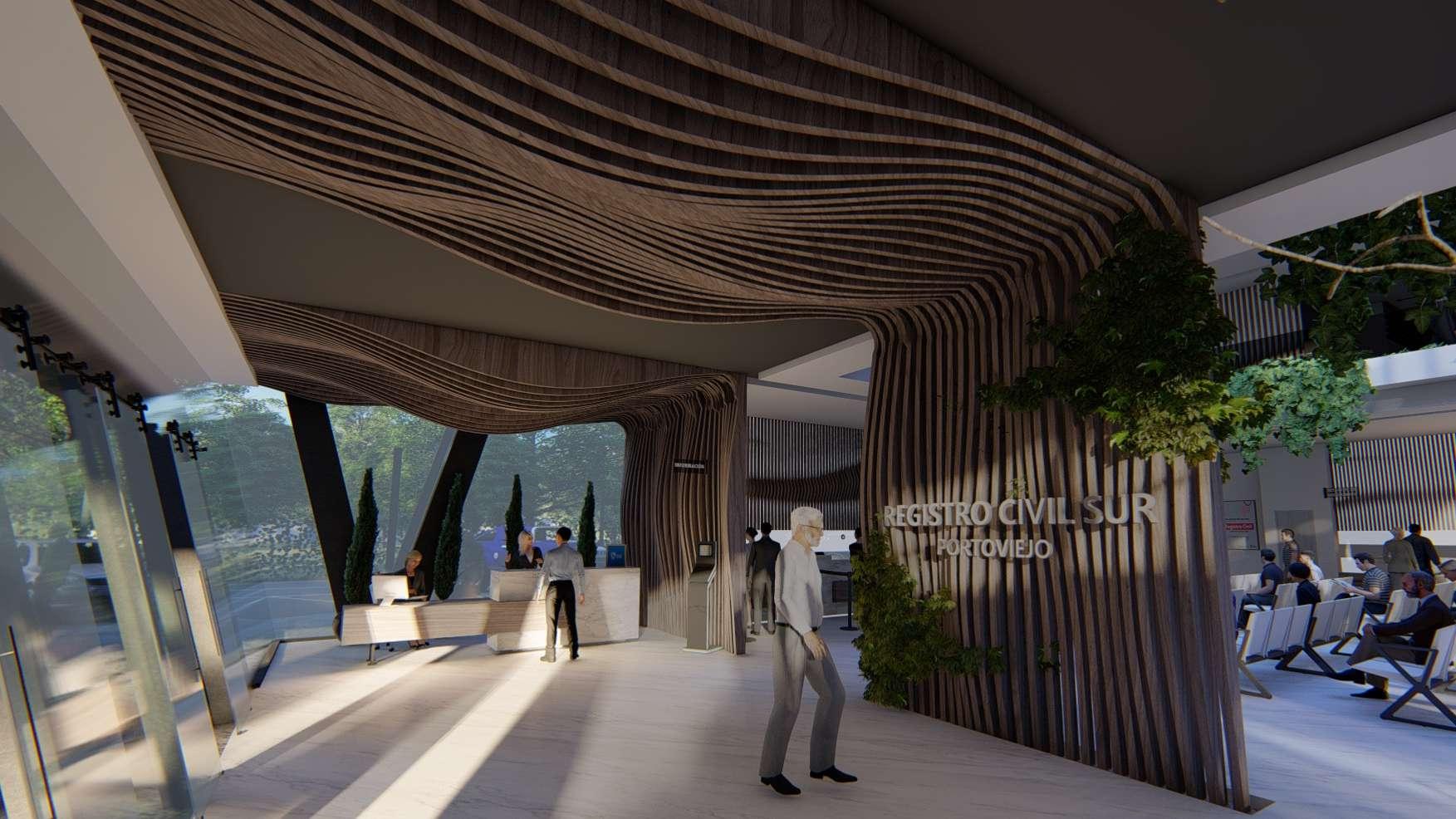

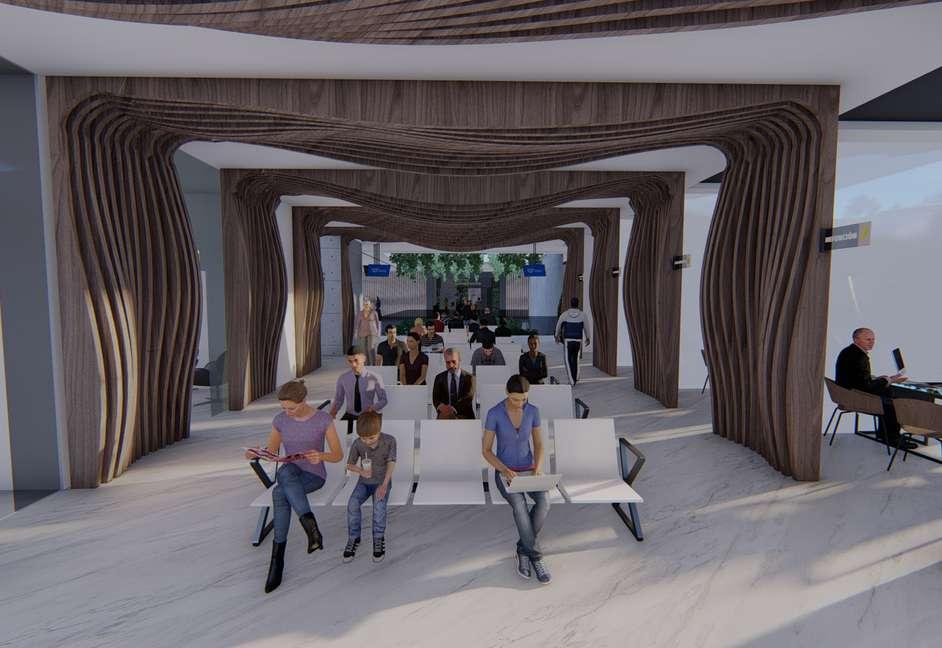

PARAMETRIC DESIGN FORMAL

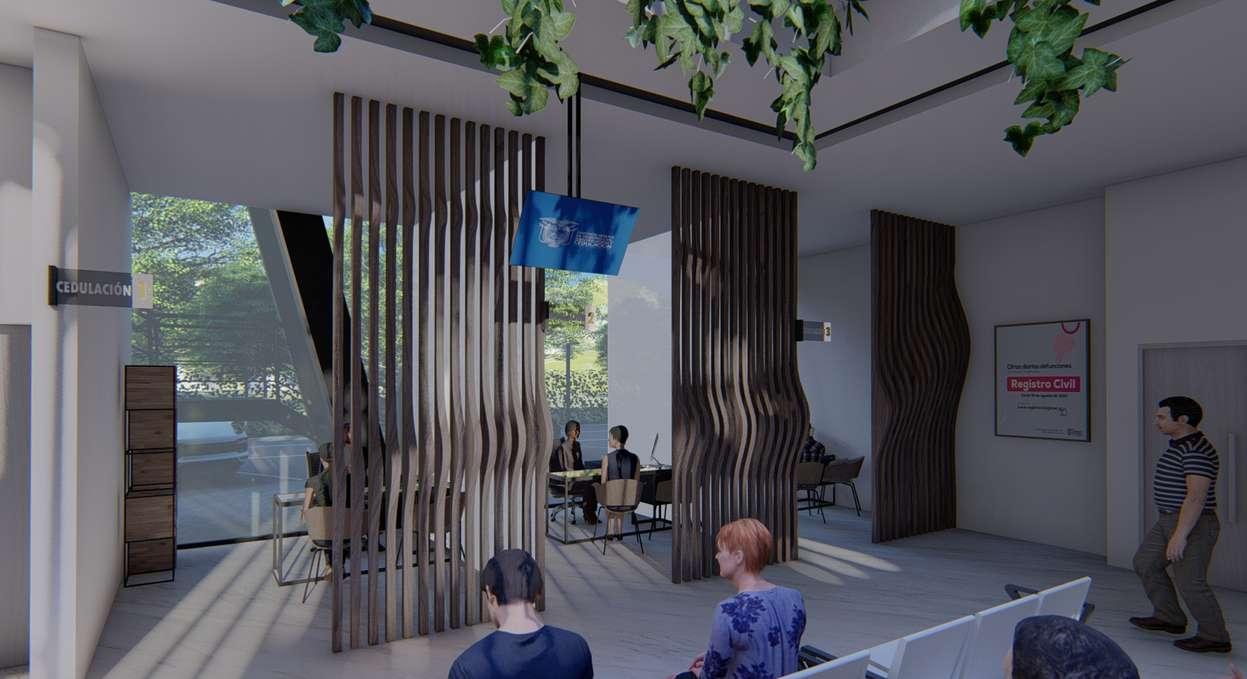

TRANSMITS MOVEMENT AND FLUIDITY, THIS HAS HELPED TO LEAVE BEHIND THE TYPICAL GEOMETRIC SHAPES CREATING ORGANIC, CONTINUOUS AND HARMONIC CONFIGURATIONS

GREATER ARCHITECTURAL FREEDOM

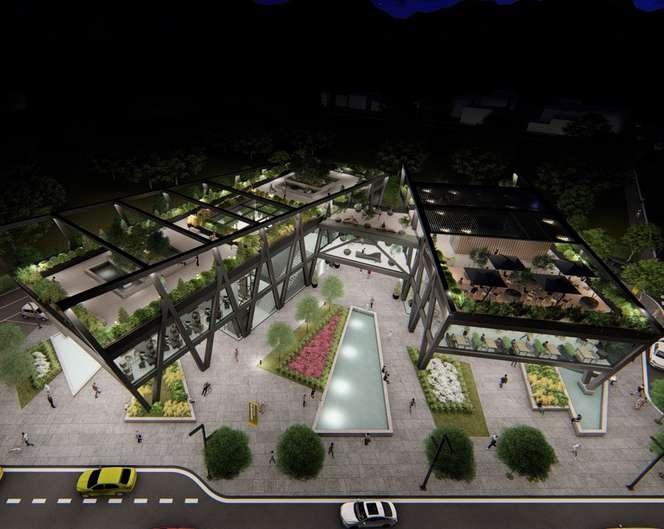

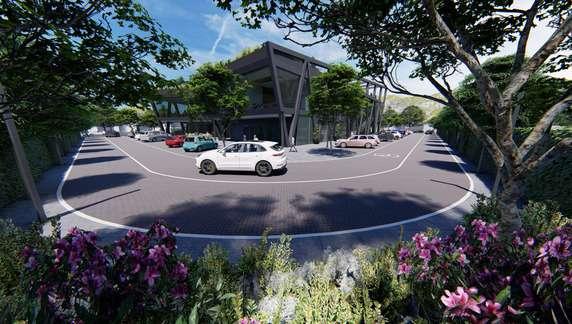

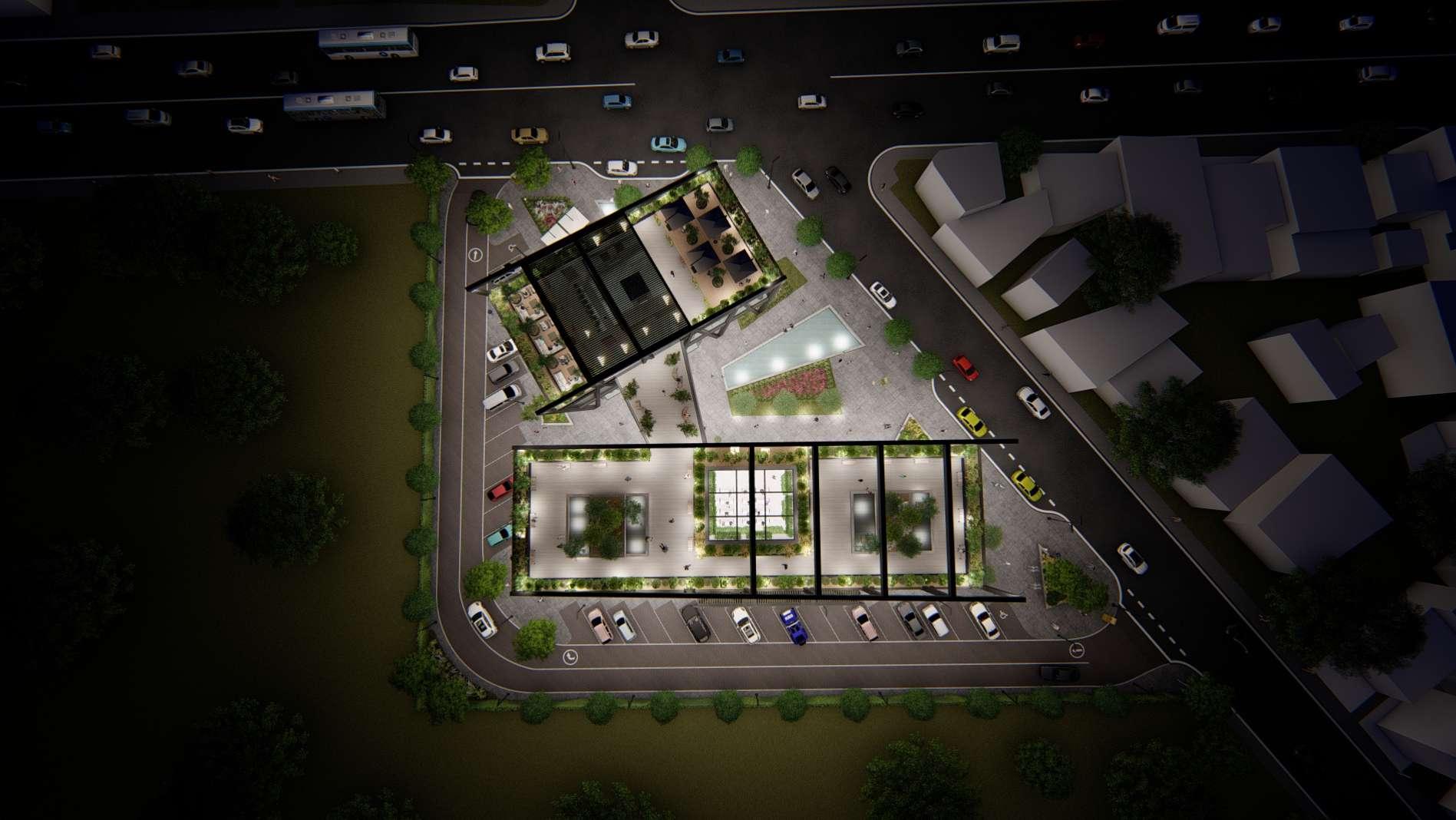

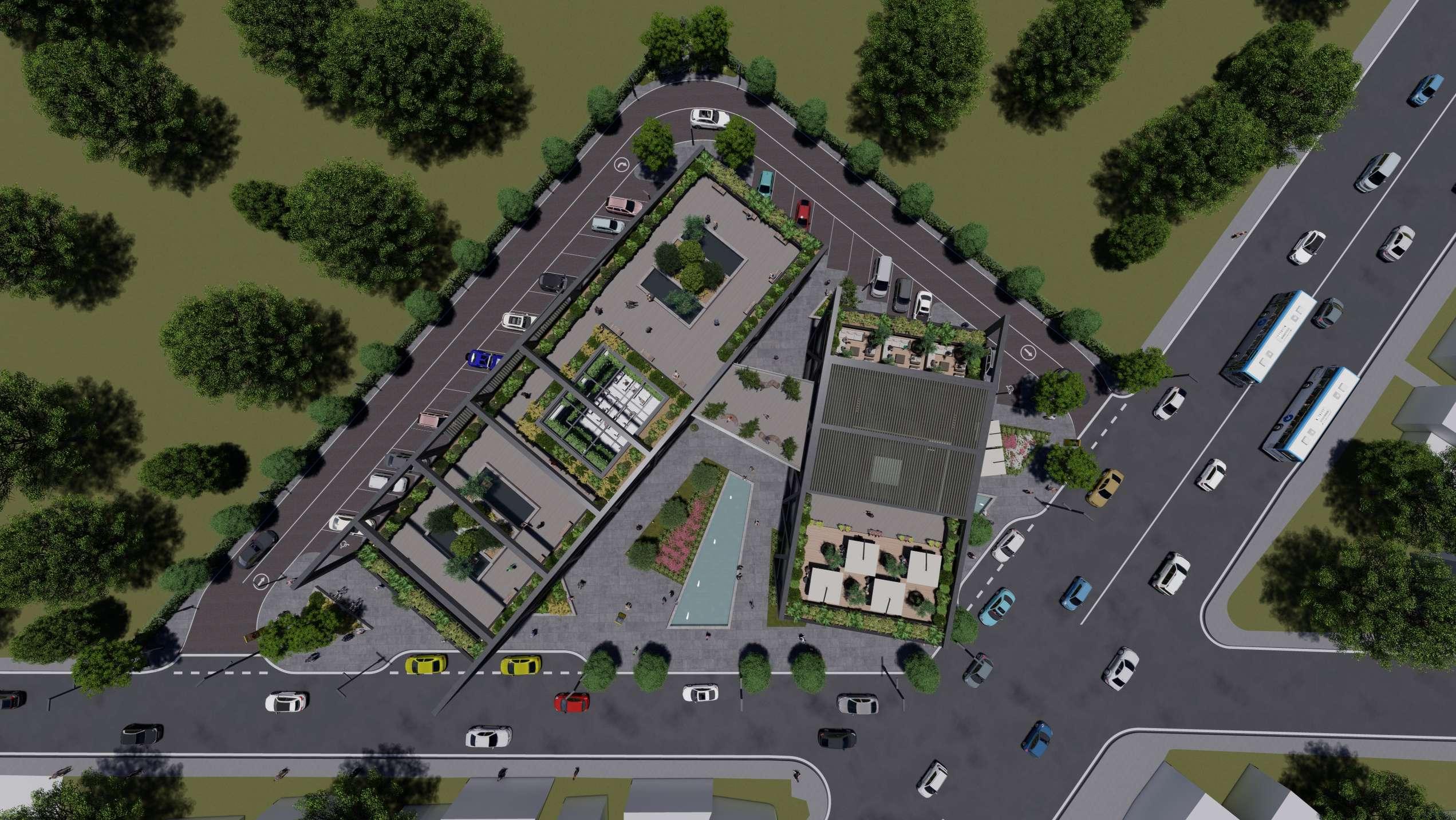

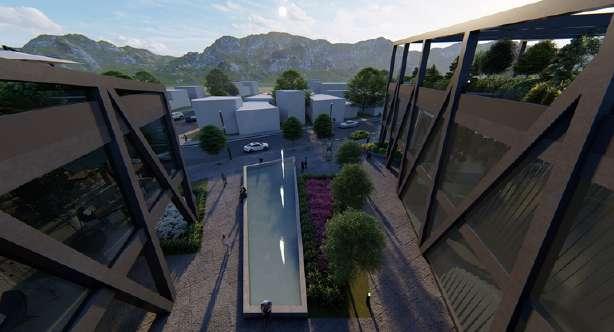

IT HAS WATER MIRRORS, GREEN AREAS AND TREES AROUND THE PERIMETER. ONE BLOCK IS ARRANGED PARALLEL TO ONE OF THE LINES OF THE LAND

WHILE THE OTHER BREAKS WITH THE PARALLEL, THUS PLAYING WITH ALL THE FACADES OF THE REGISTRY. AND HAVING A NICE VIEW OF IT FROM THE ACCESSIBLE ROADS.

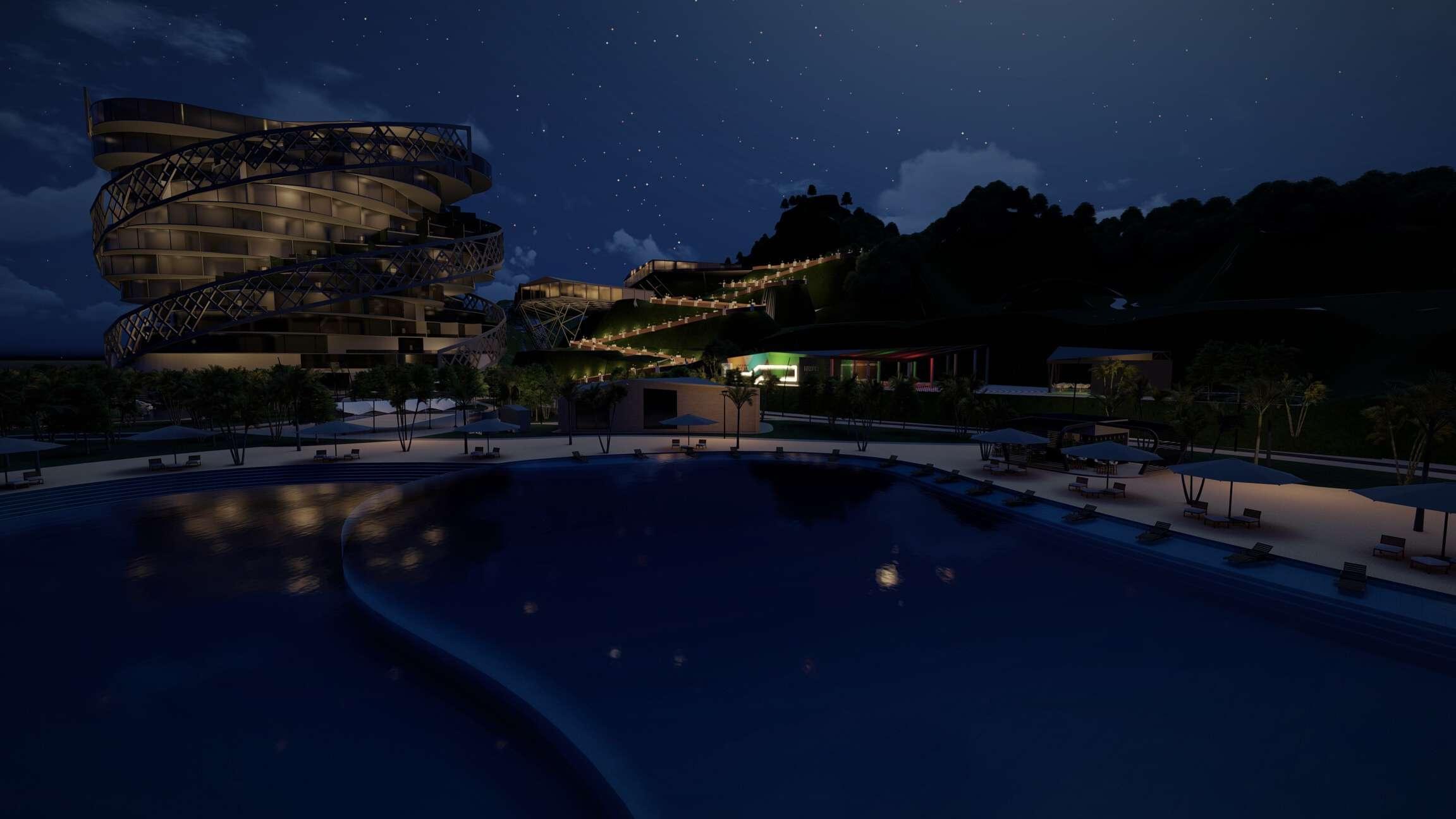

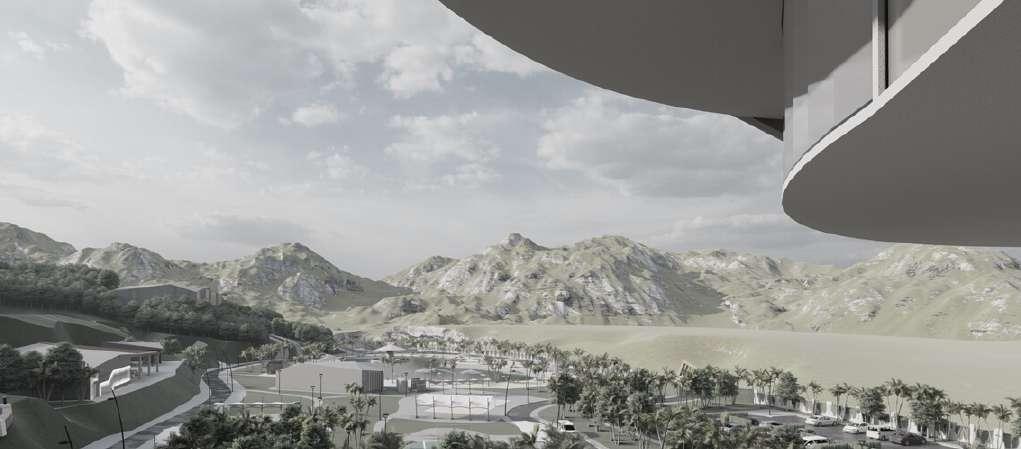

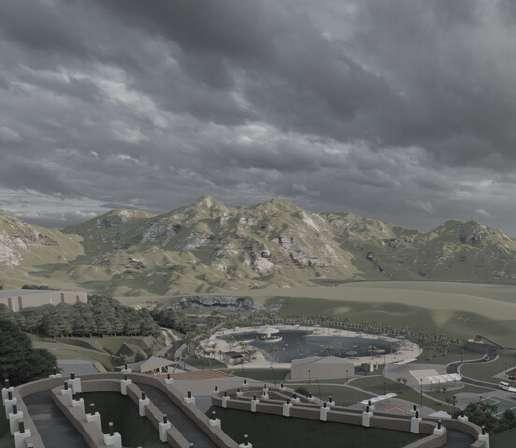

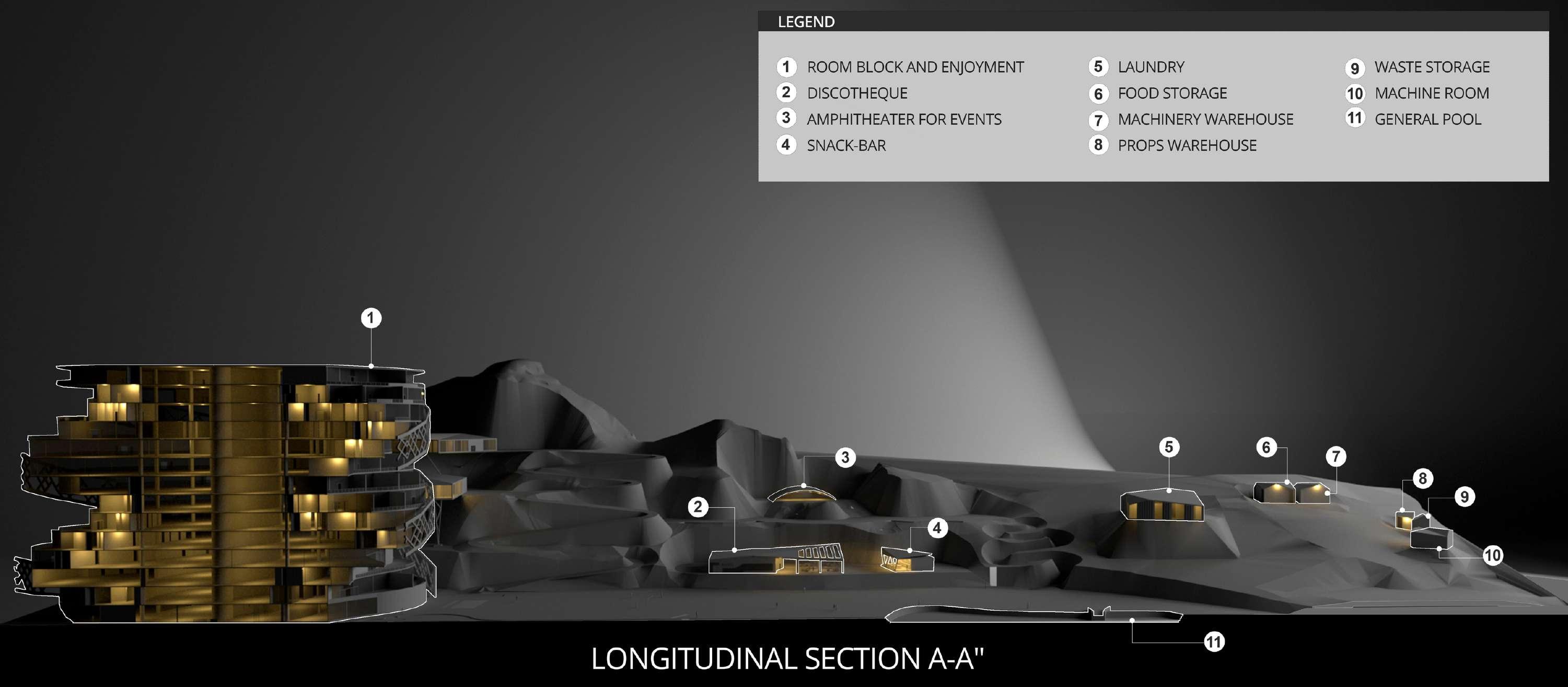

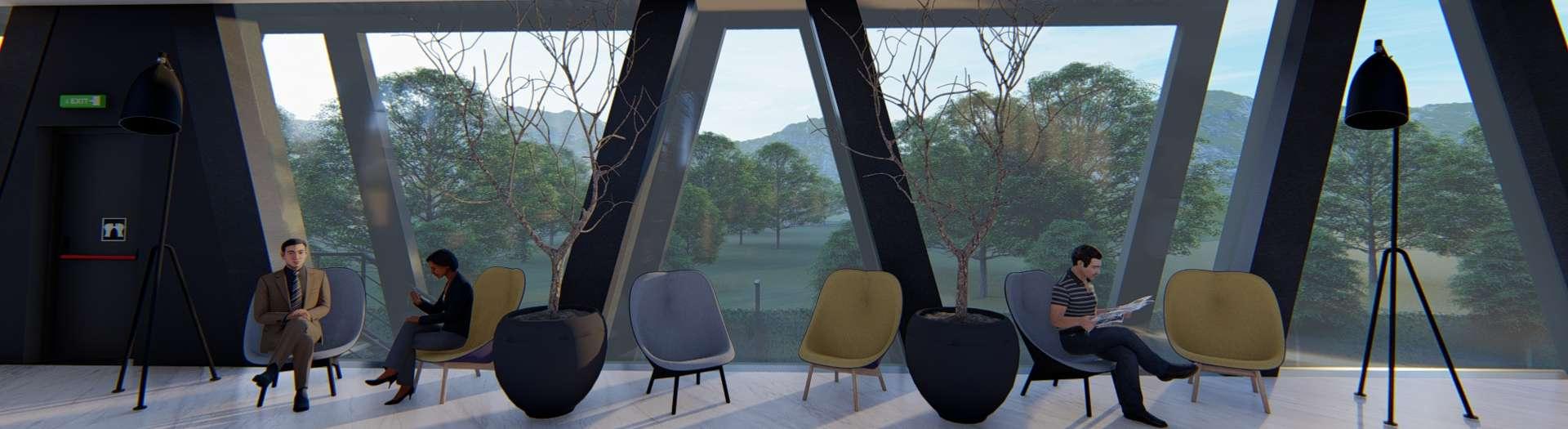

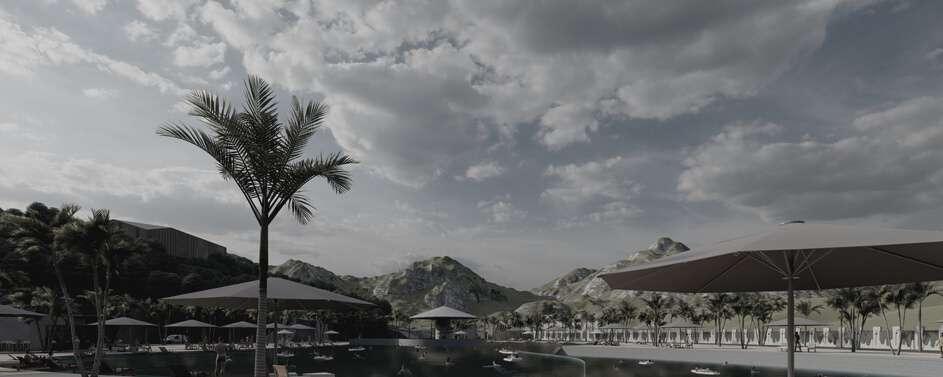

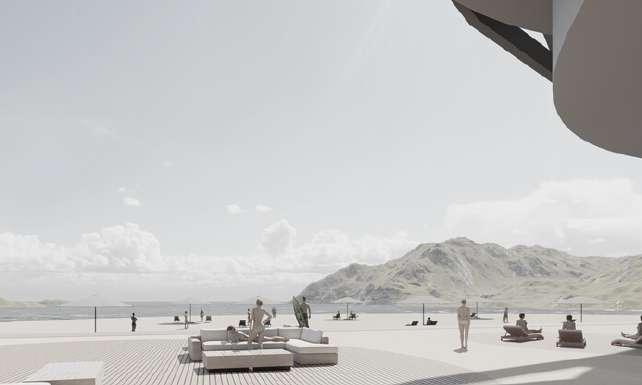

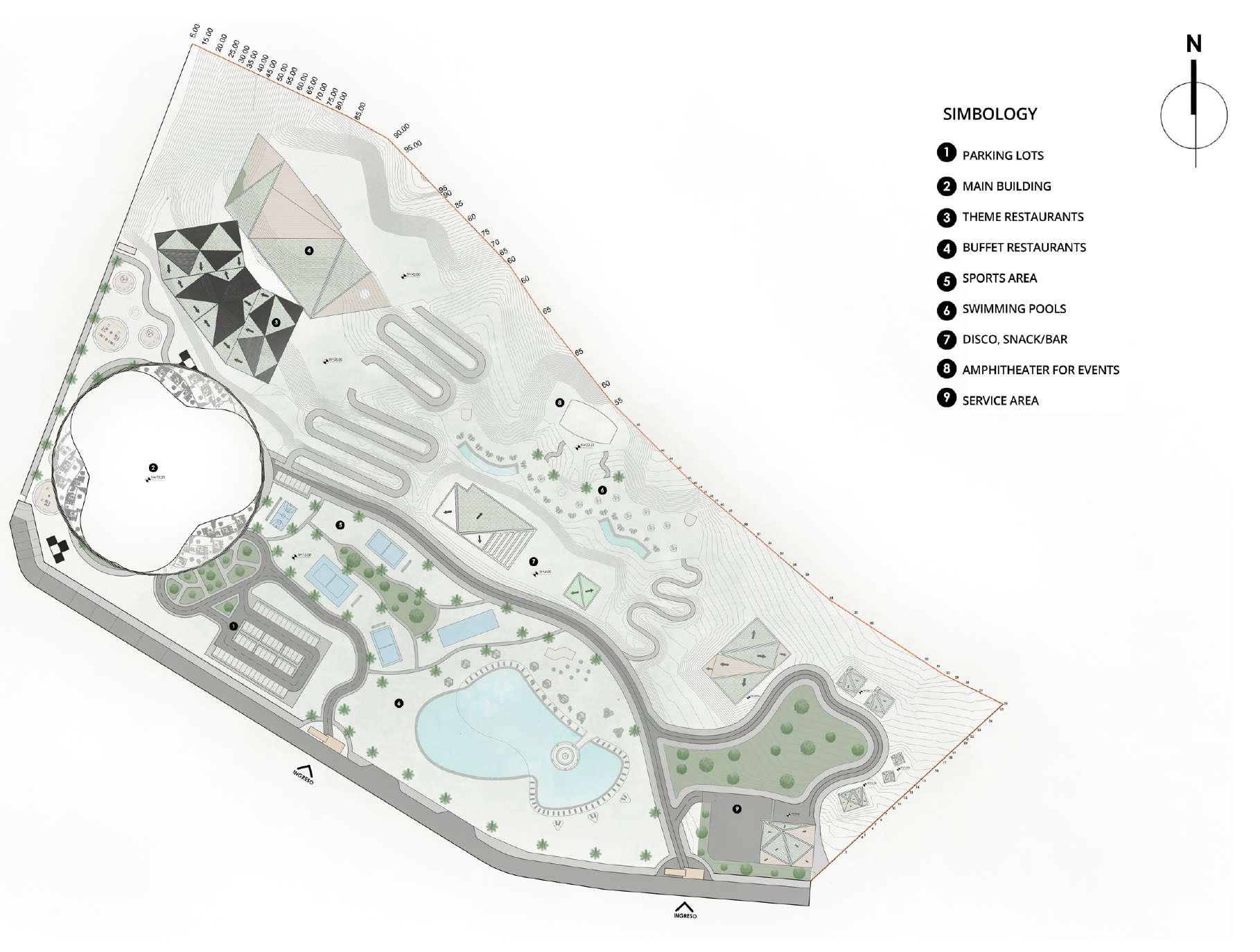

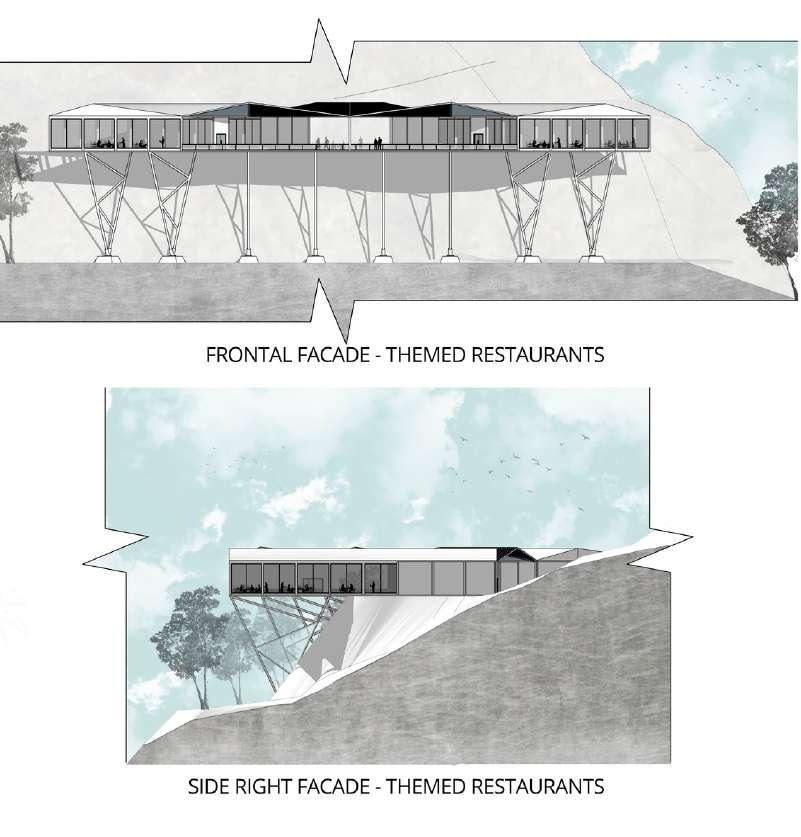

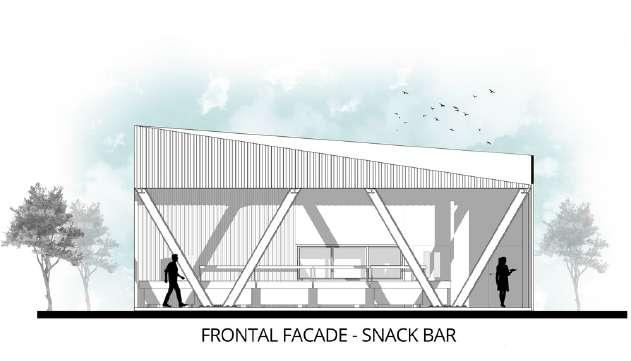

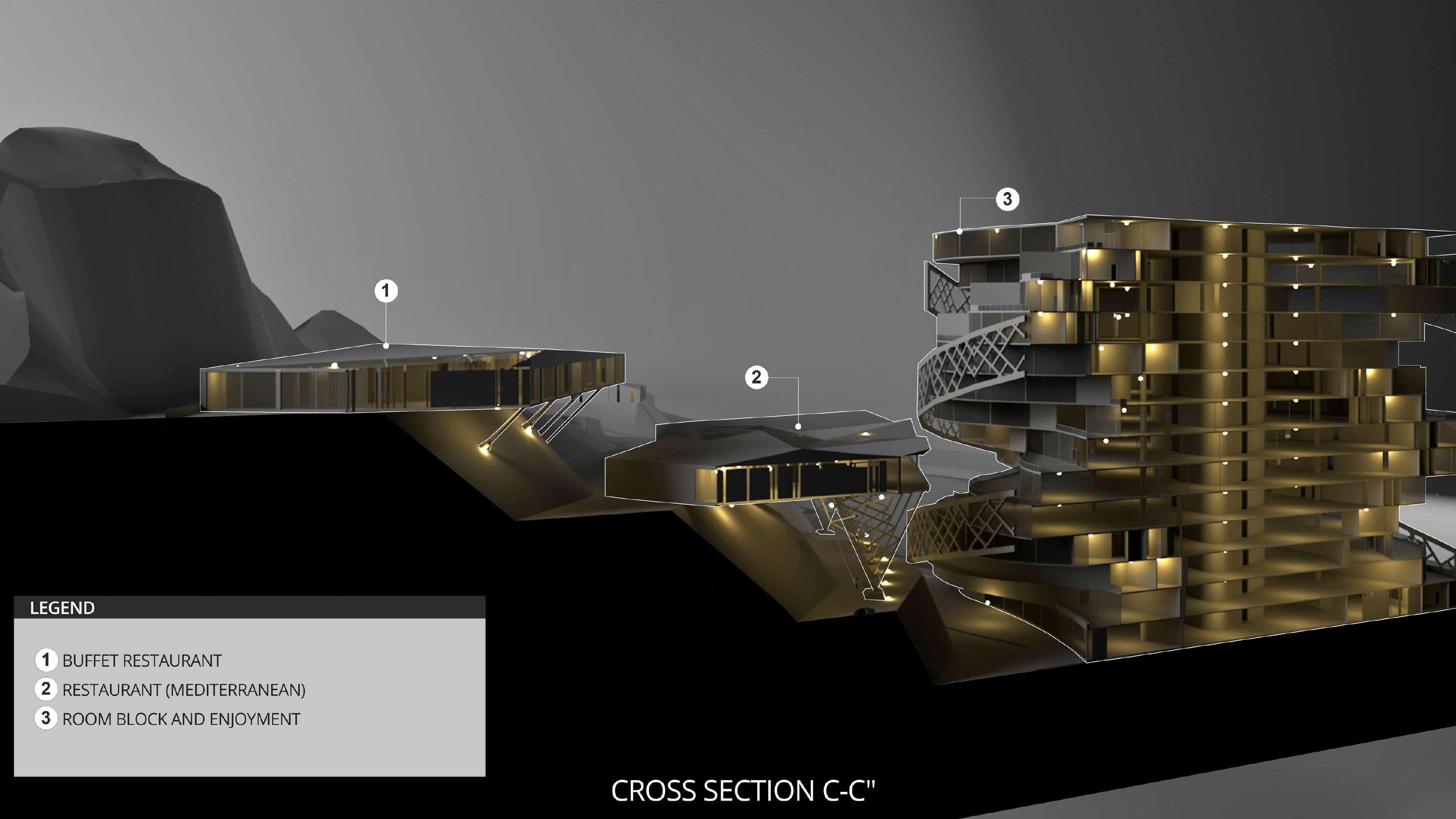

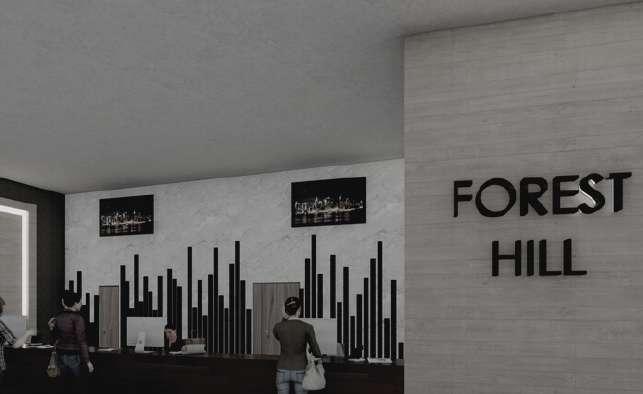

Forest Hill Resort

TOOLS:

AUTOCAD - SKETCHUP - LUMION

- V-RAY - PHOTOSHOP

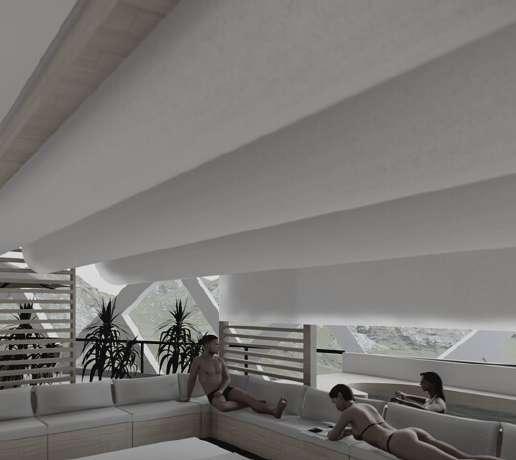

IN THE DEVELOPMENT OF THE RESORT WE TOOK THE GUEST AS THE MAIN ACTOR, CONTRIBUTING TO THE PERSONAL SATISFACTION OF THE VISITOR.

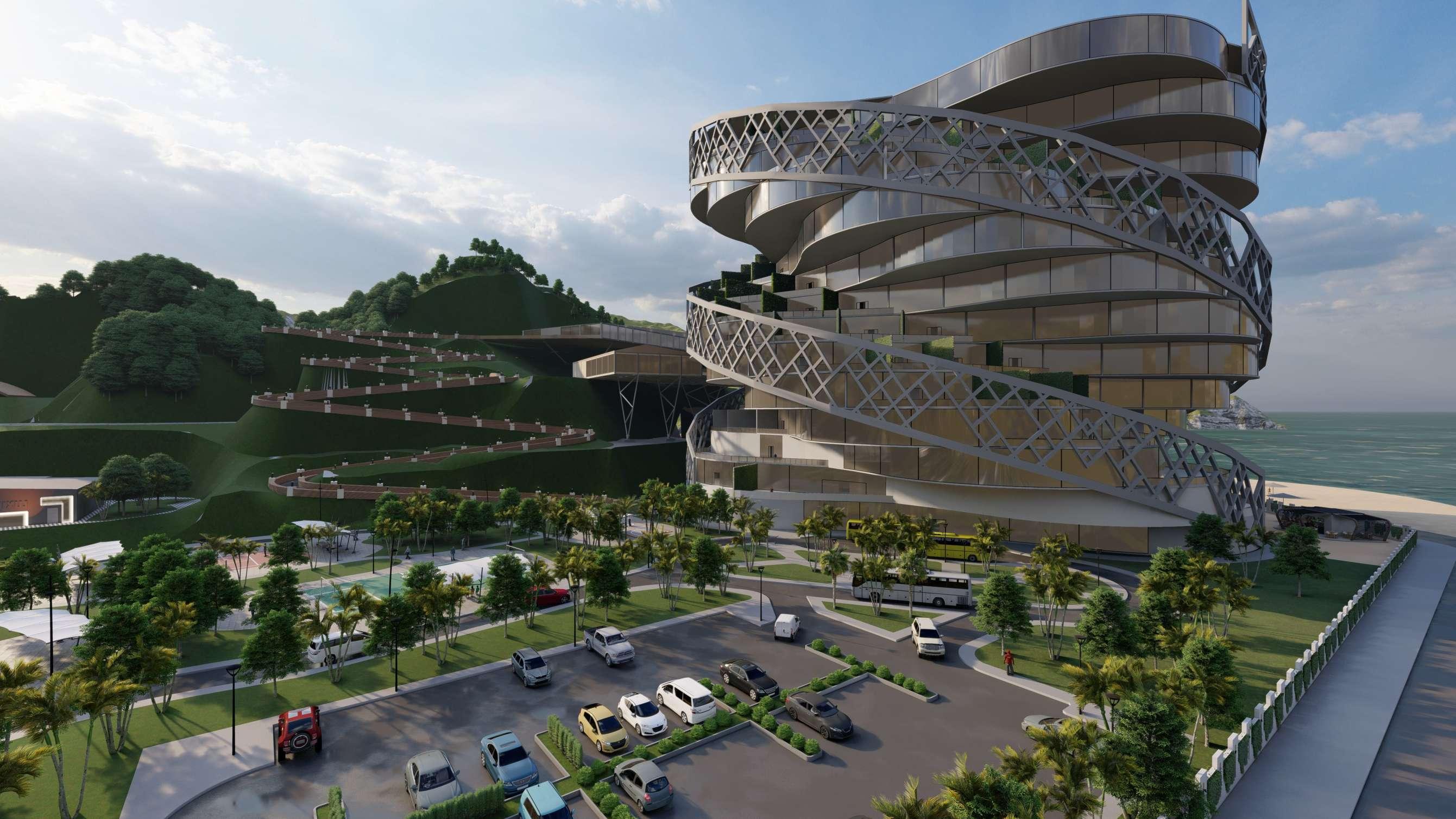

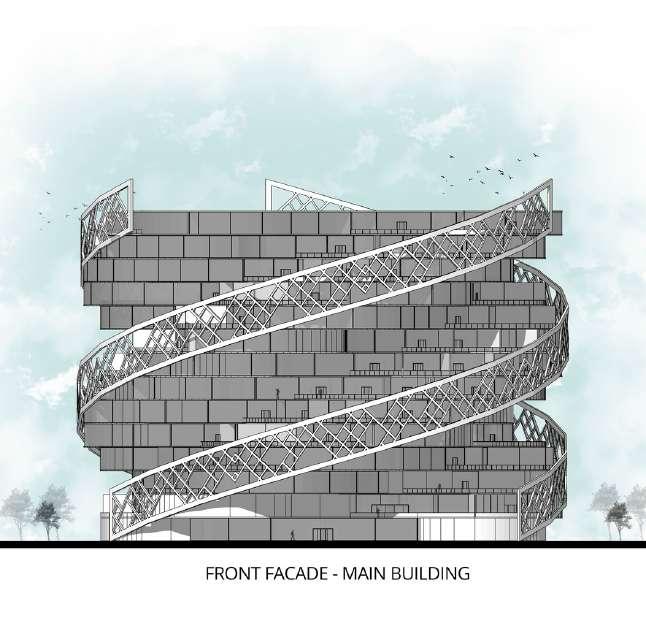

FOR THE MAIN BLOCK WE TOOK AS A REFERENCE THE SHAPE OF A BOOMERANG, IN WHICH ITS FLOORS ARE ROTATING 15 DEGREES ON THEIR AXIS.

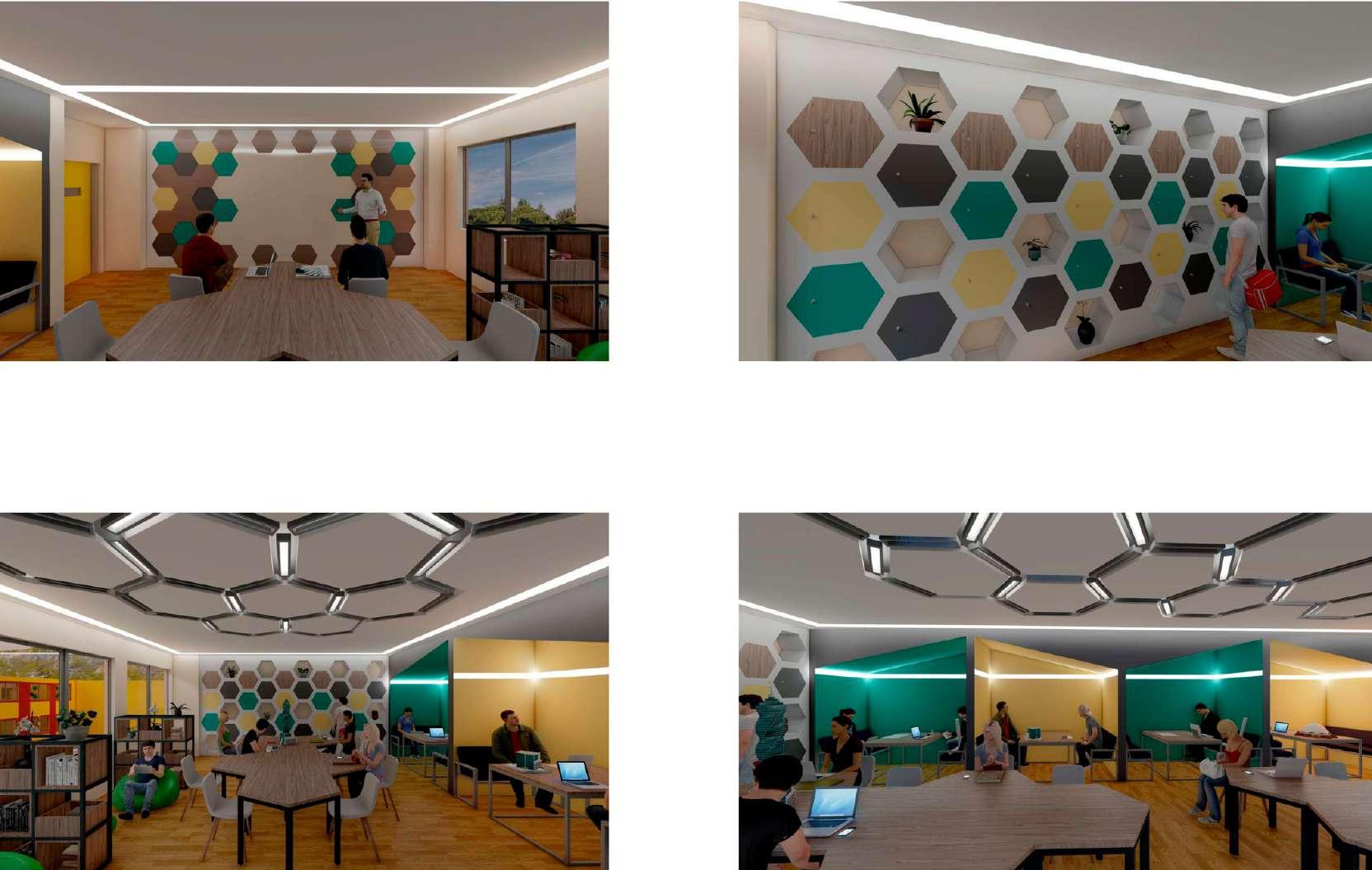

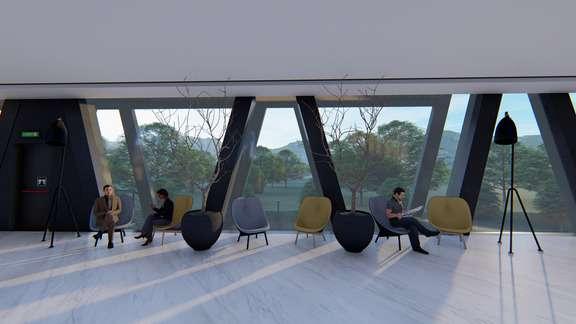

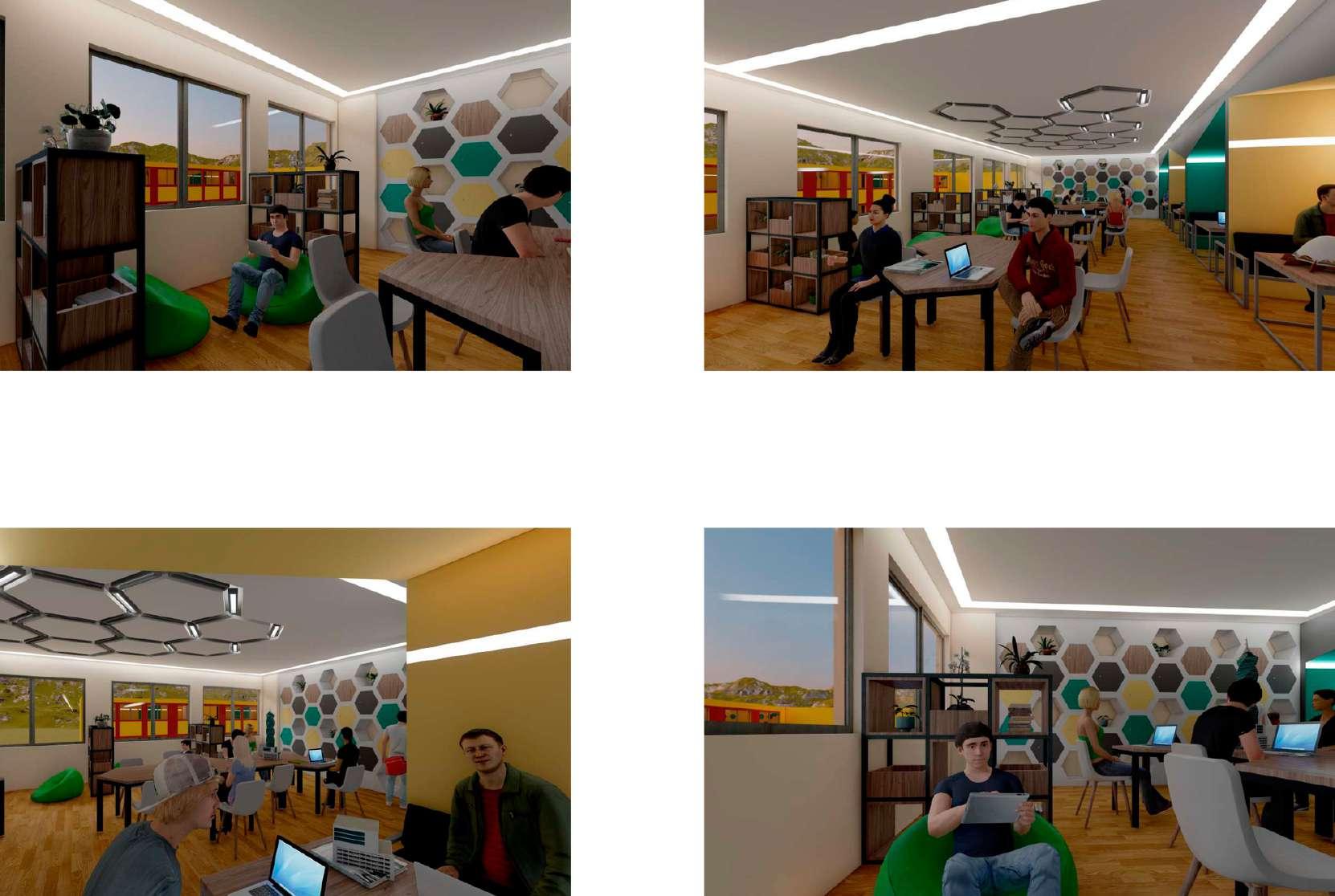

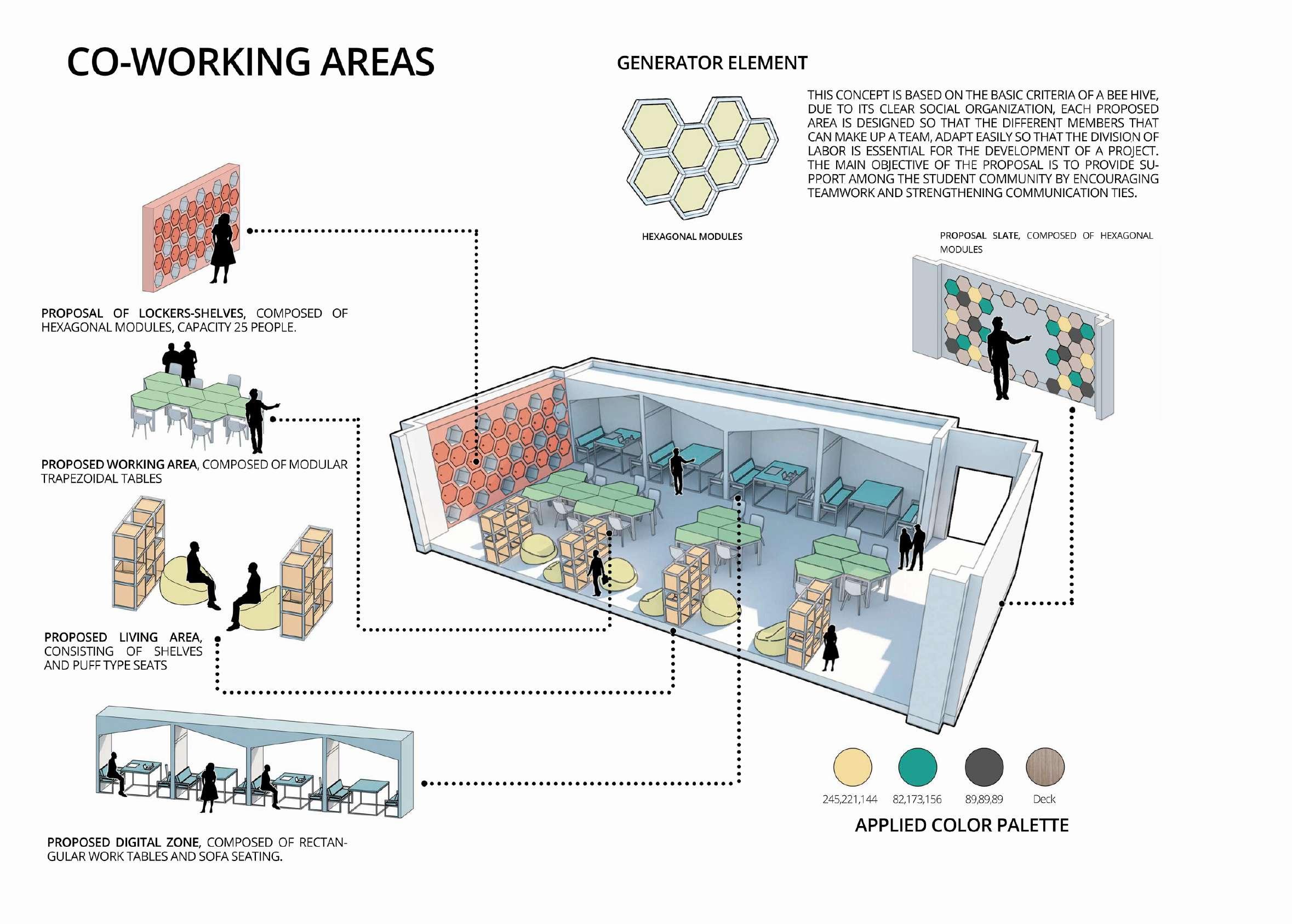

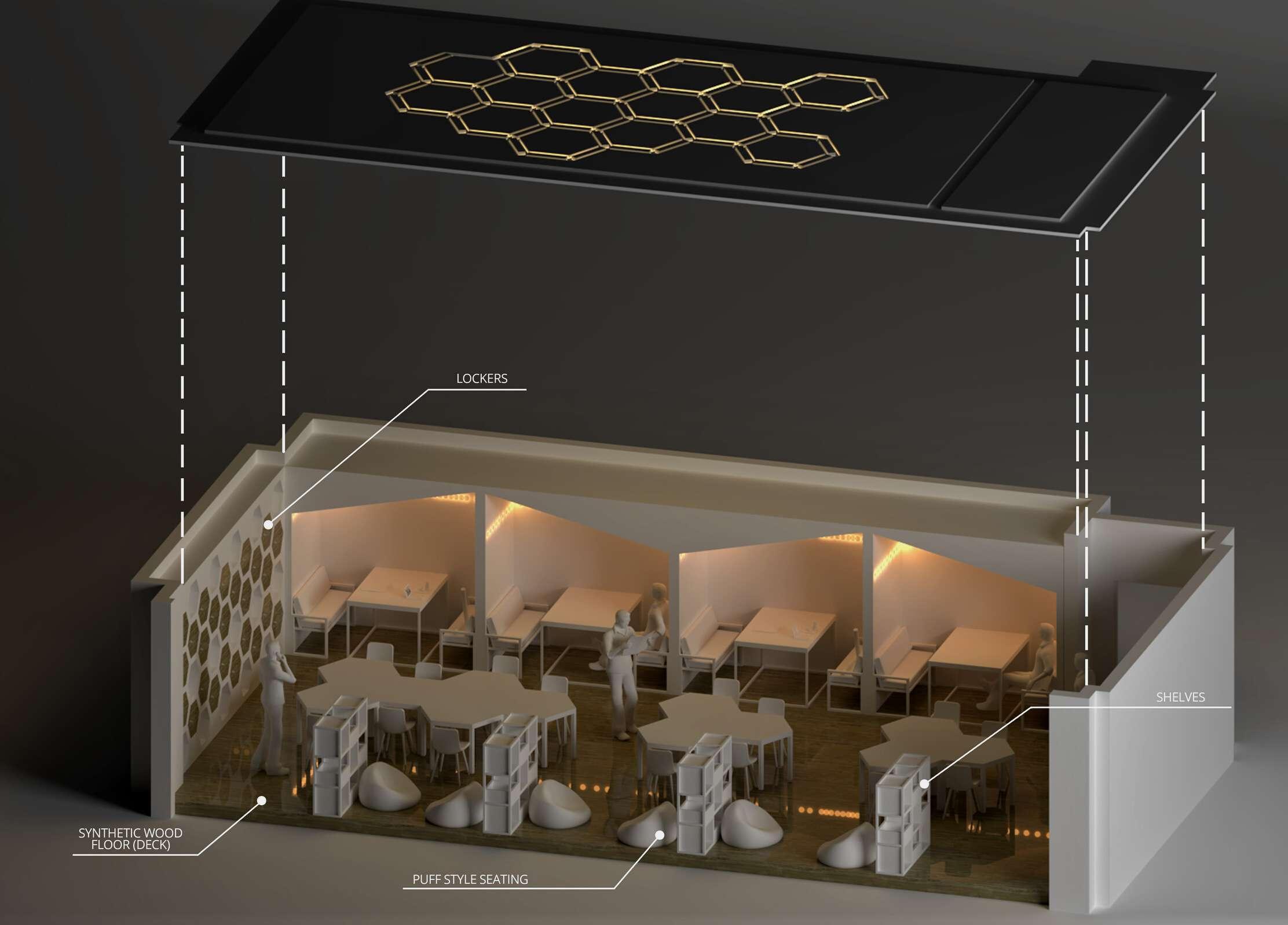

CO-WORKING AREA

TOOLS: AUTOCAD - SKETCHUP - TWINMOTIONADOBE PS

PROPOSAL FOR THE DESIGN OF A COWORKING AREA FOR THE UNIVERSITY SAN GREGORIO DE PORTOVIEJO IN ORDER TO MAKE GROUP LEARNING MORE ENJOYABLE.

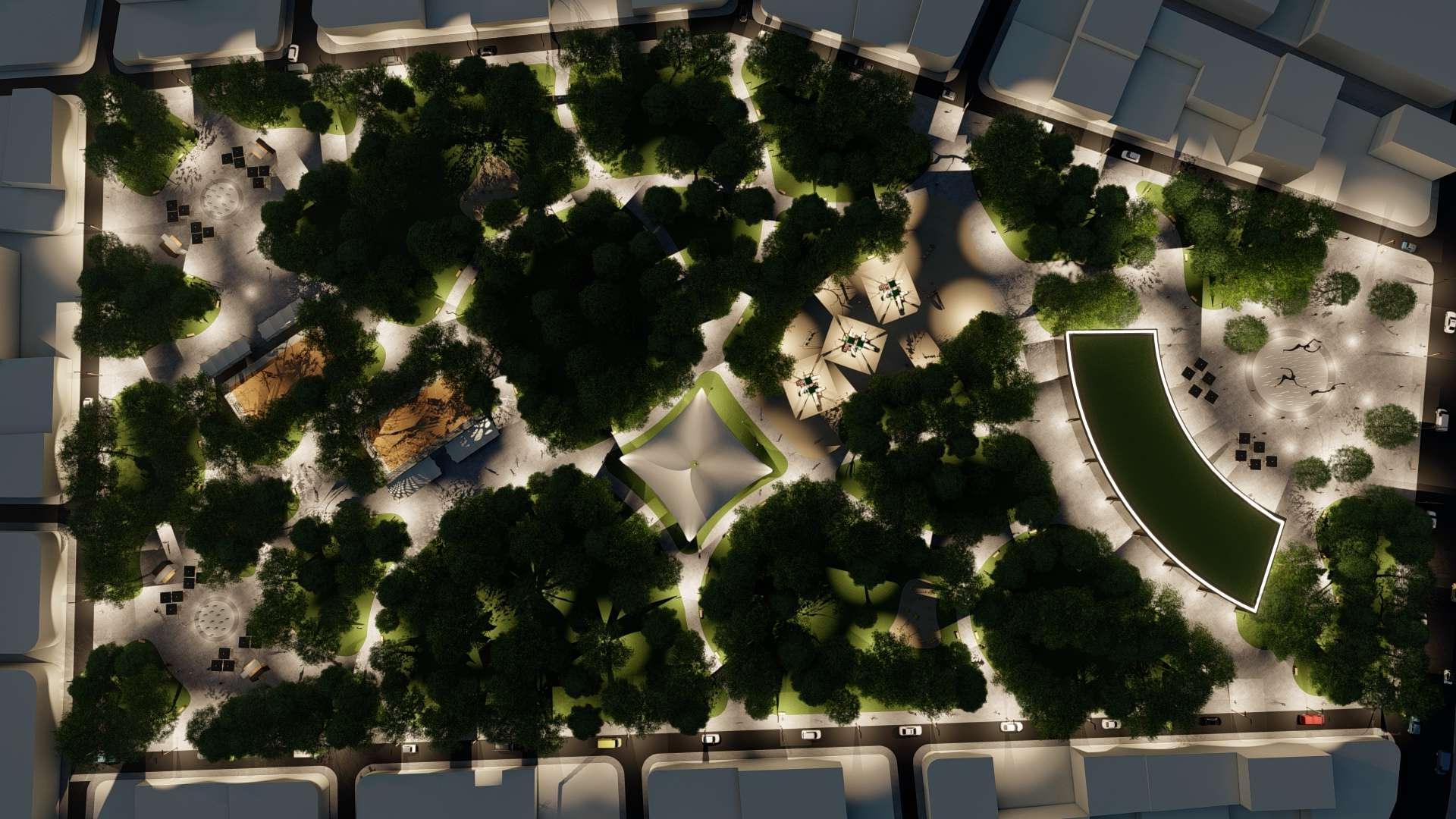

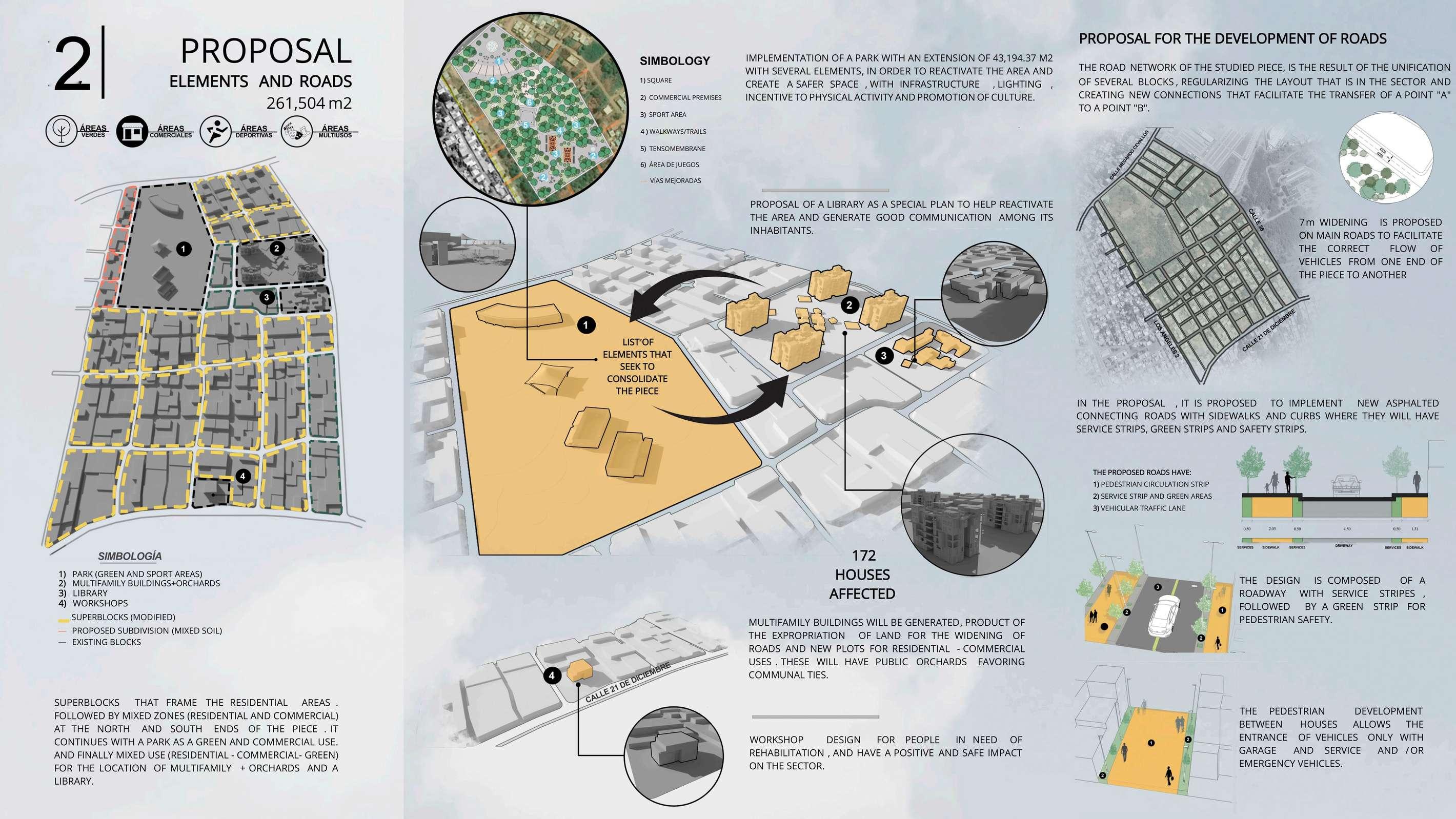

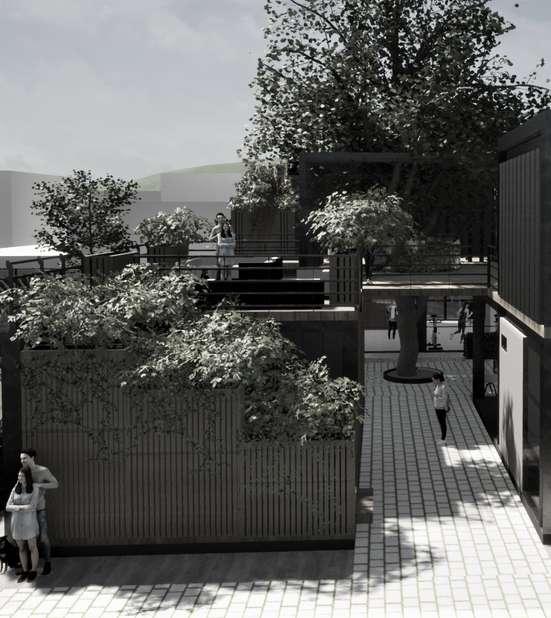

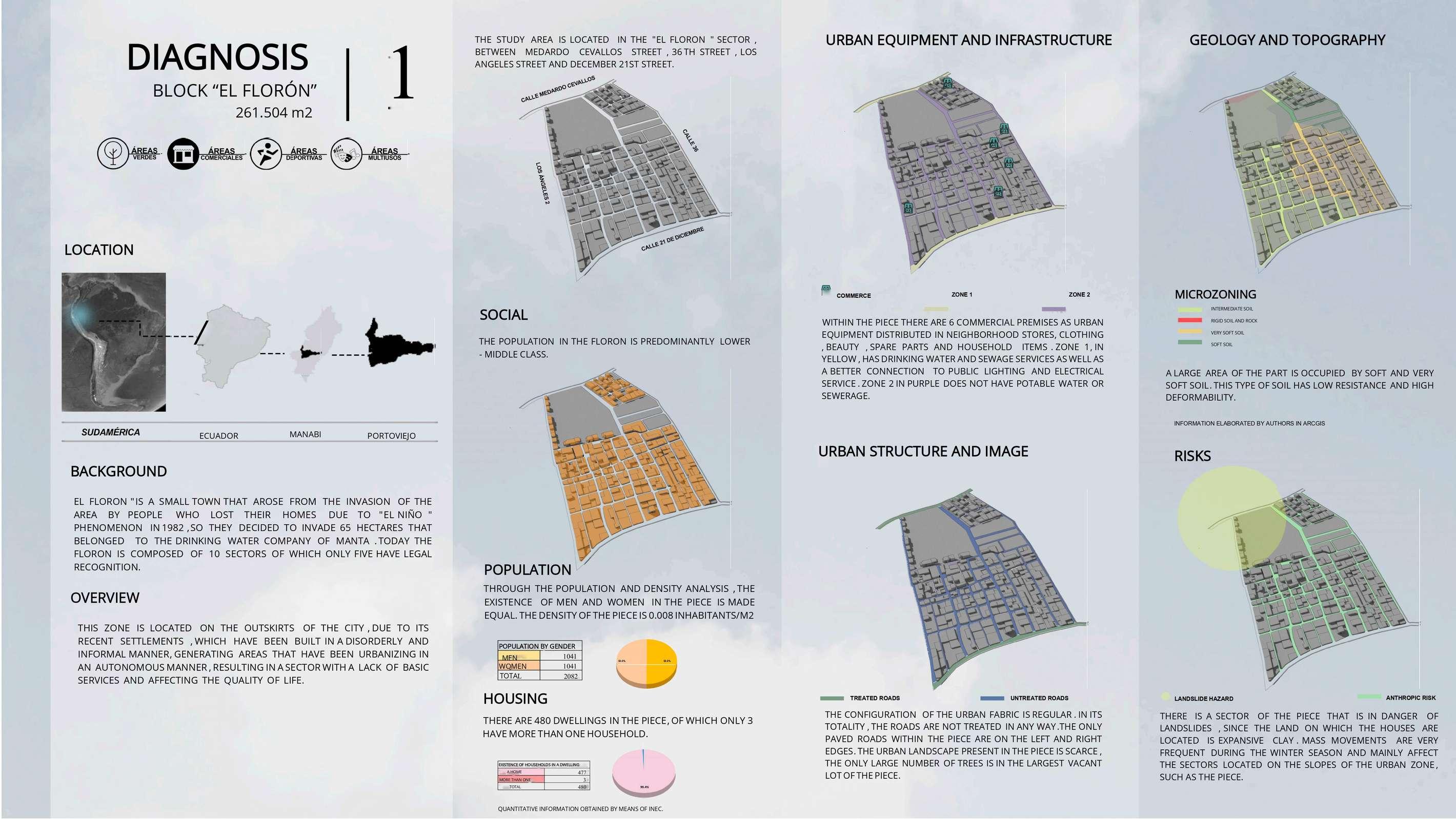

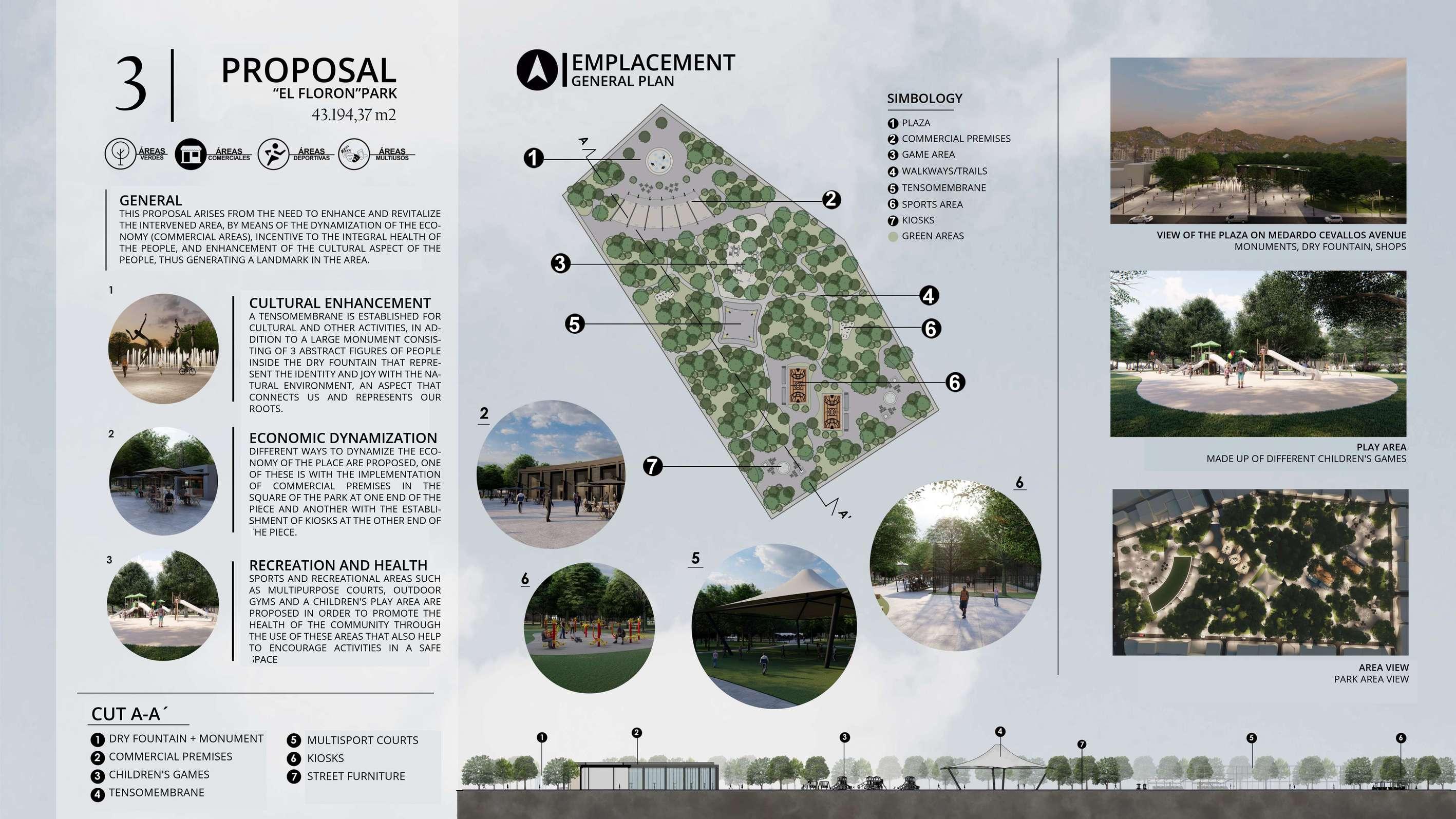

REHABILITATION OF BLOCKS IN "EL FLORON"

TOOLS:

AUTOCAD - SKETCHUP - TWINMOTION

LUMION - V RAY - ADOBE PS

PROPOSAL IN RESPONSE TO THE COMPLAINTS OF RESIDENTS WHO INDICATE THE NEED FOR BASIC SERVICES, THE LACK OF INFRASTRUCTURE AND ADEQUATE EQUIPMENT, CREATING A FRAGMENTATION OF SPACES IN THE CITY THAT CONTRASTS WITH OTHER MORE AFFLUENT AREAS AND WHERE THE NOTIONS OF SOCIAL SPACE AND ALL THOSE VARIABLES THAT STRUCTURE THE URBAN EXPERIENCE OF THE INDIVIDUAL ARE ALSO FRAGMENTED.

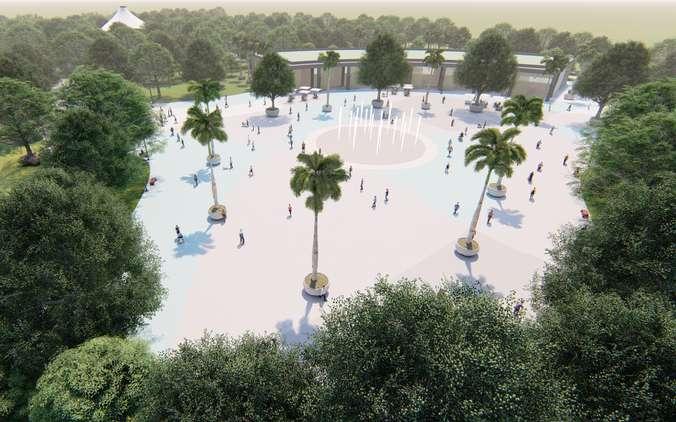

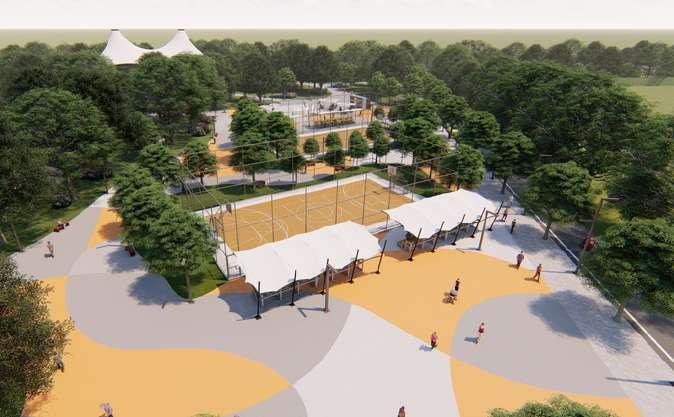

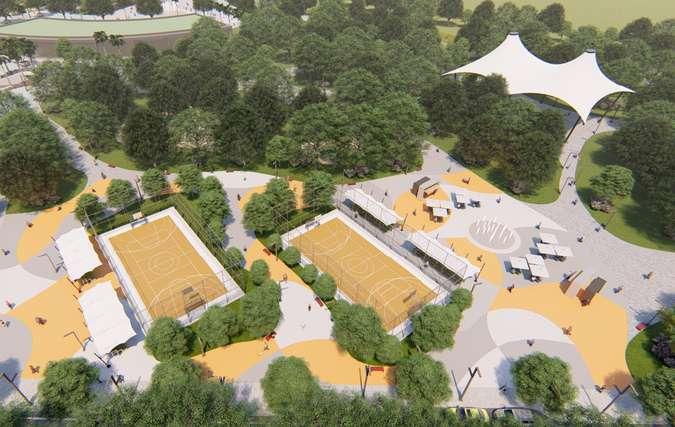

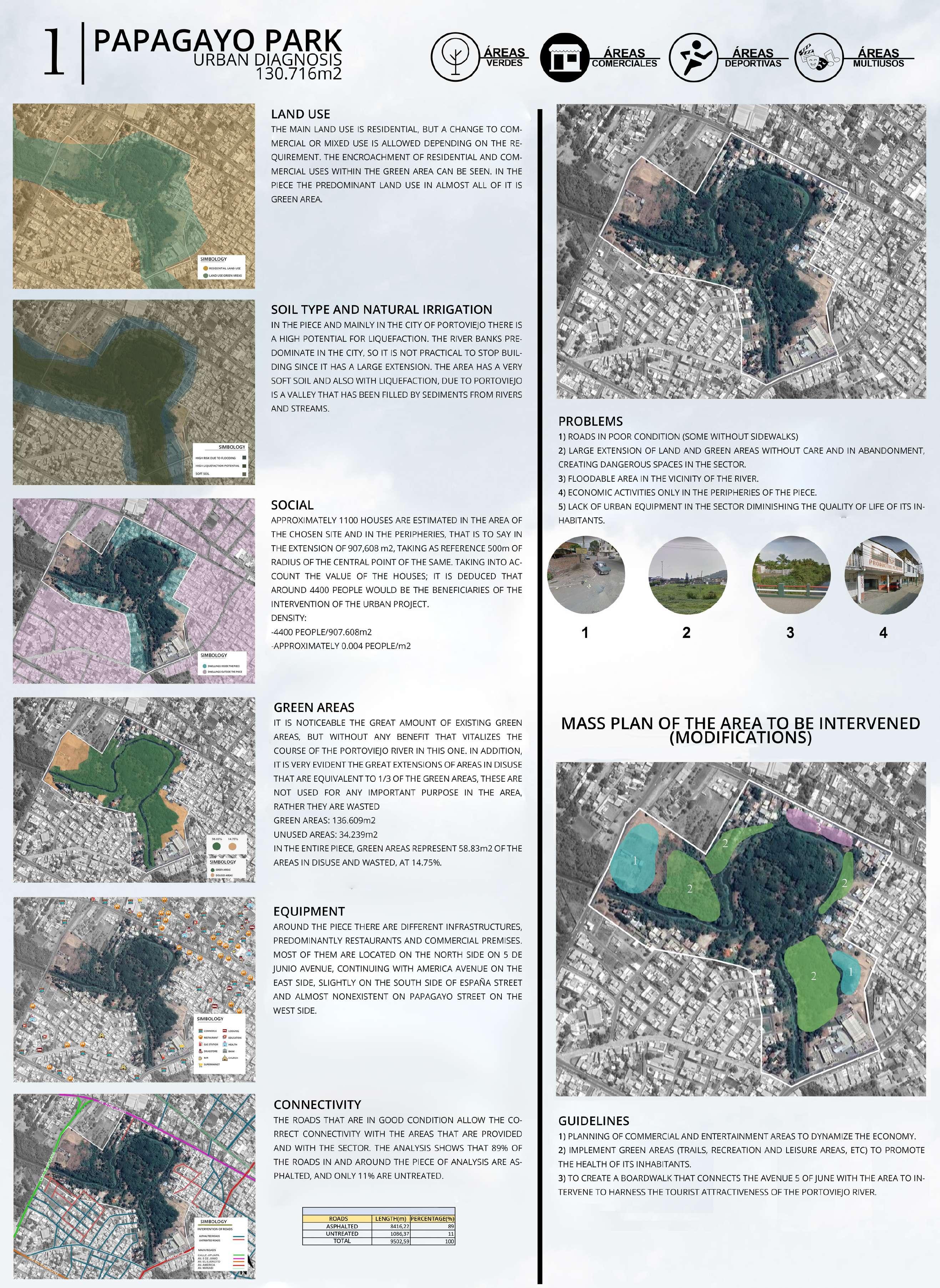

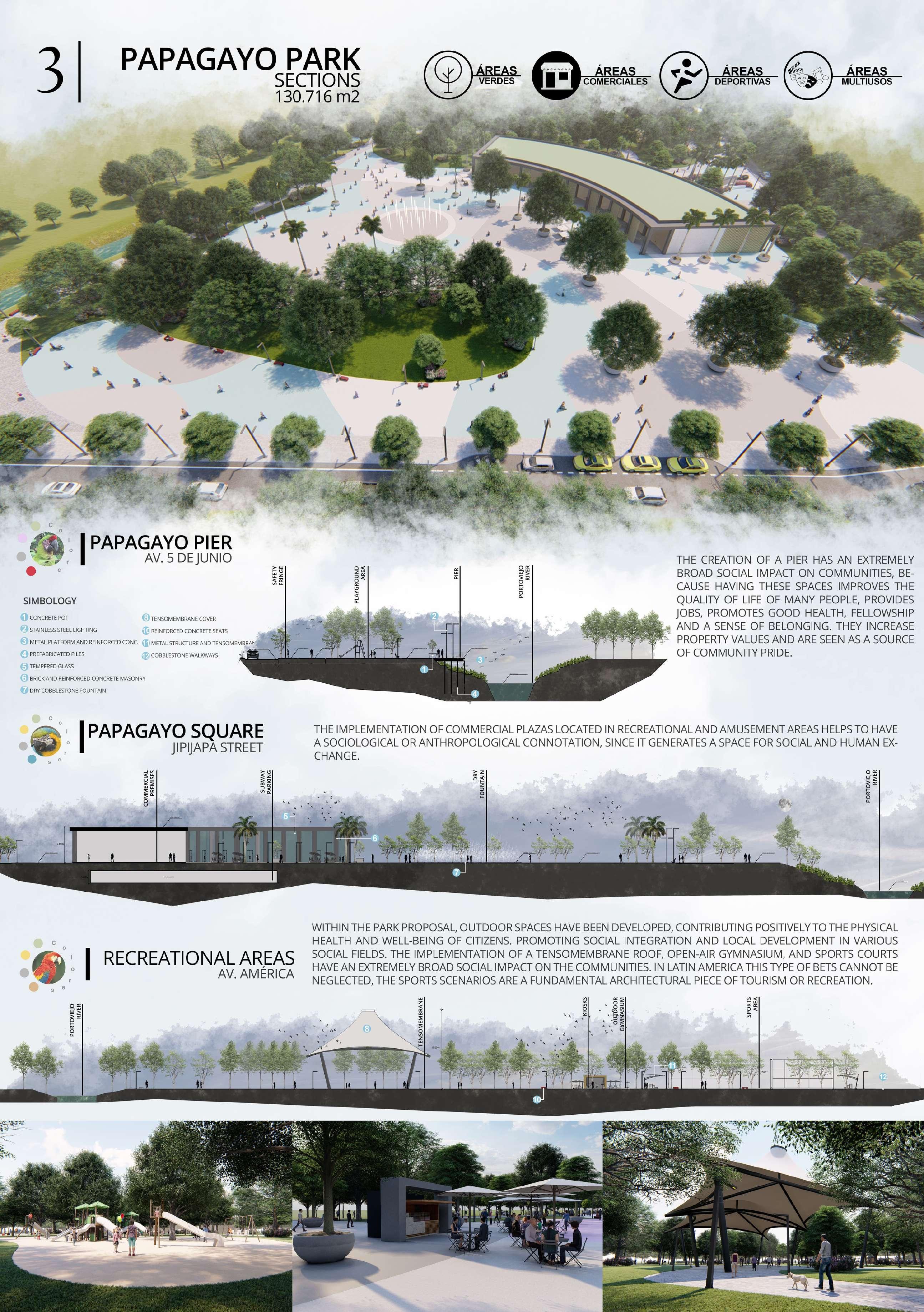

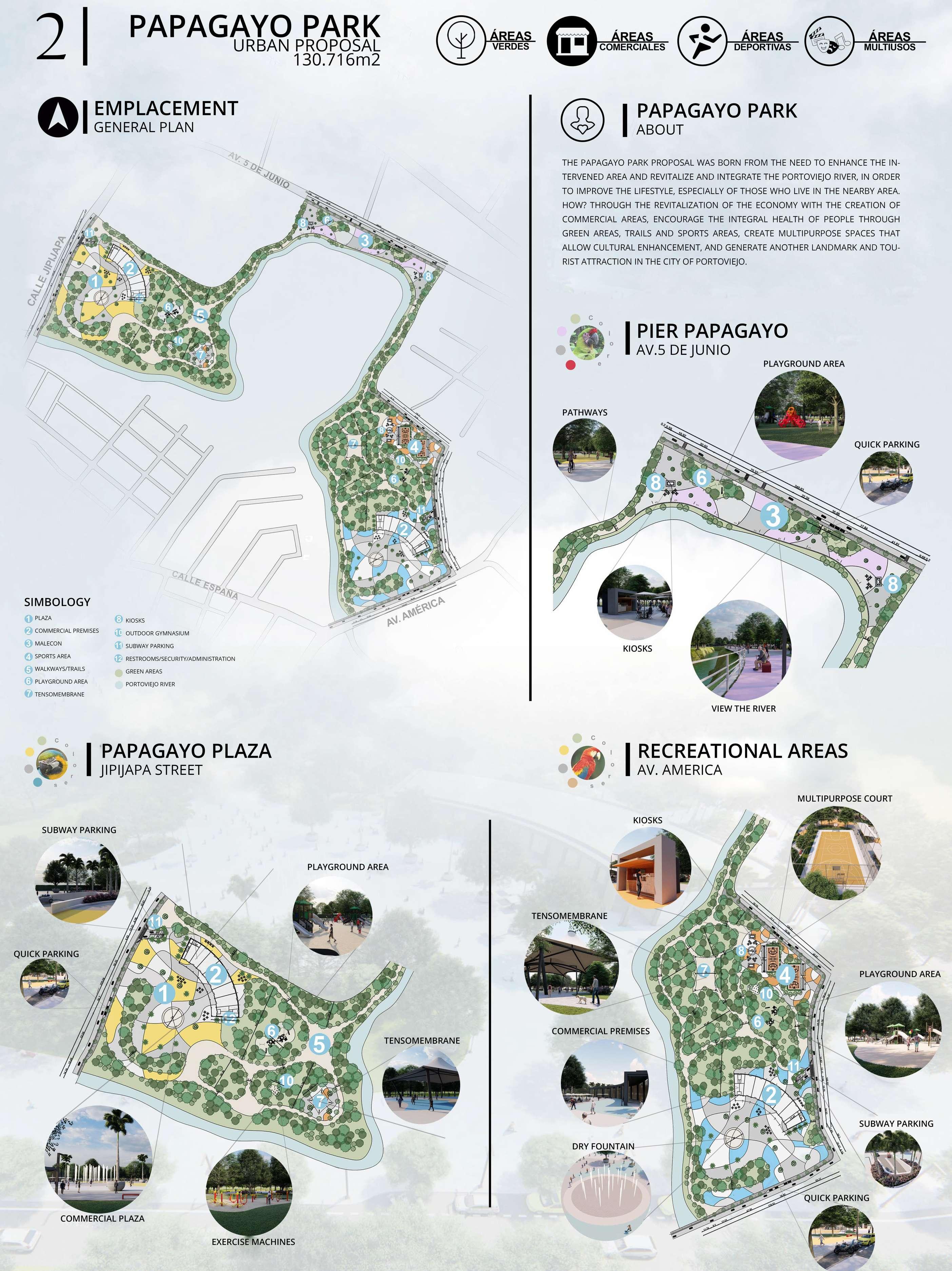

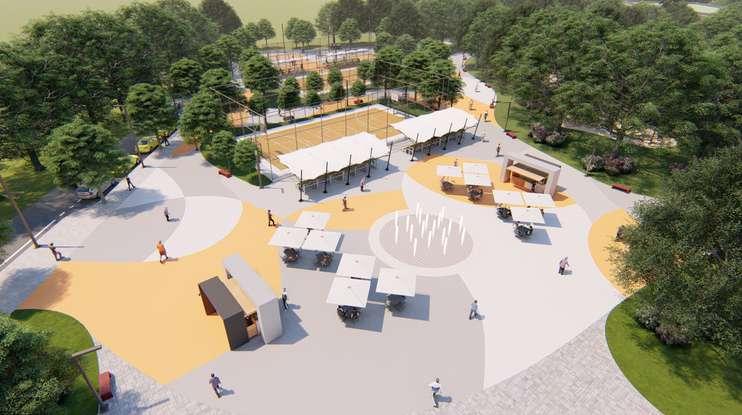

INTERVENTION IN URBAN PIECE "PAPAGAYO" PROJECT

TOOLS:

AUTOCAD - SKETCHUP - LUMION - VRAY - ADOBE PS

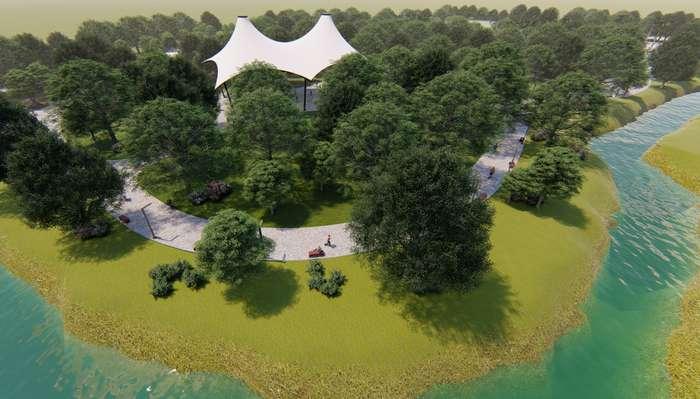

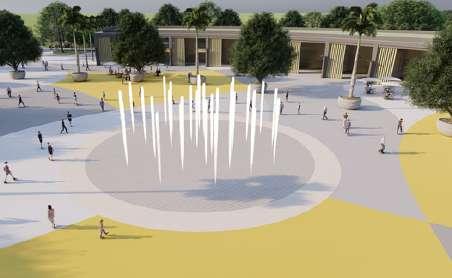

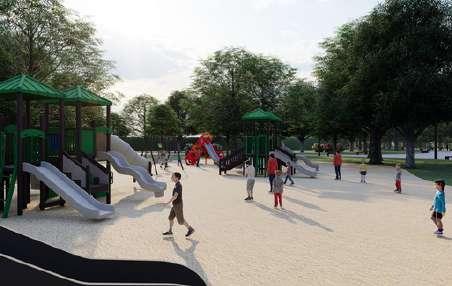

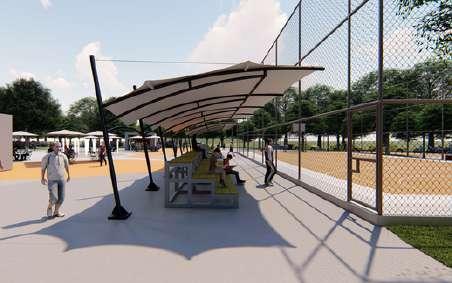

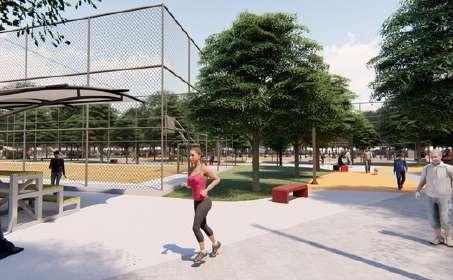

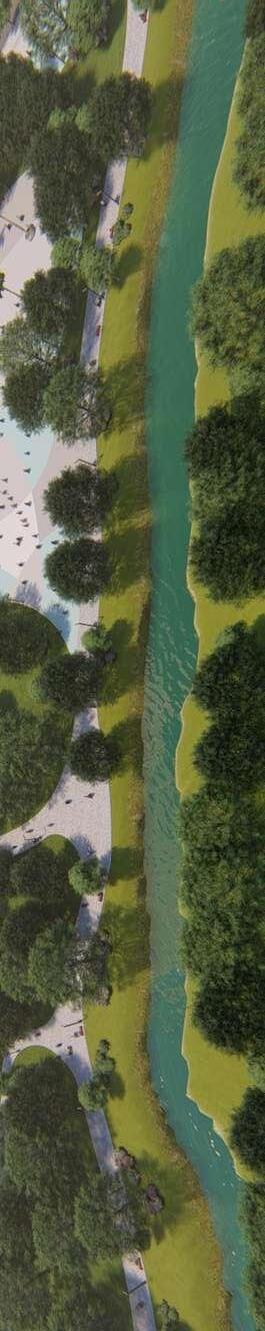

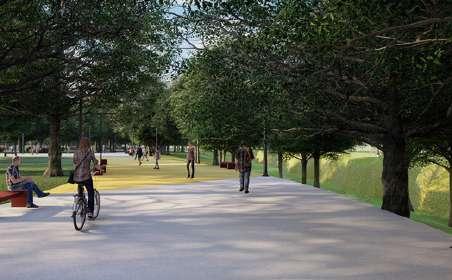

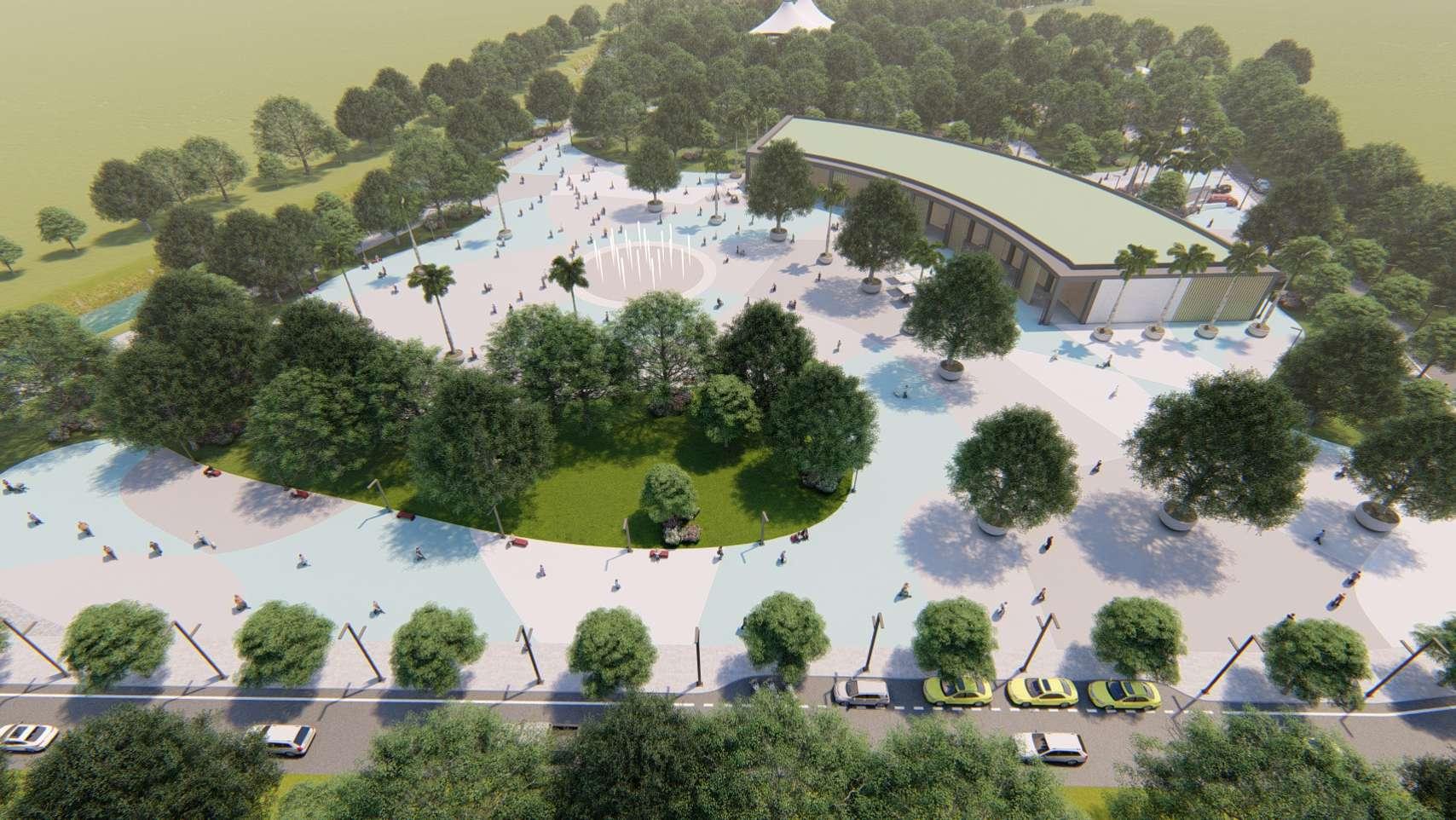

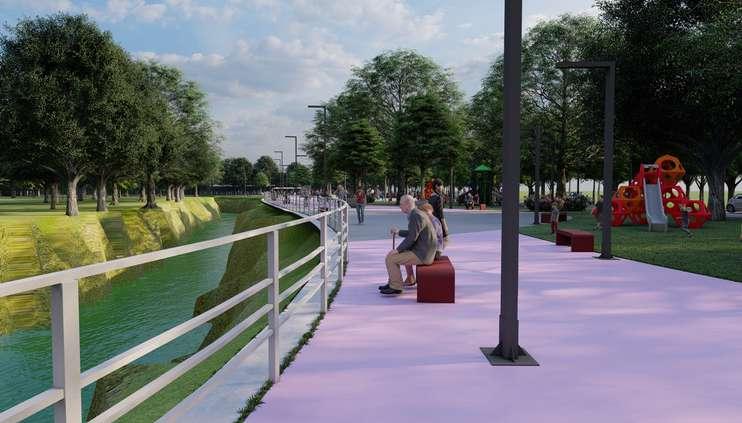

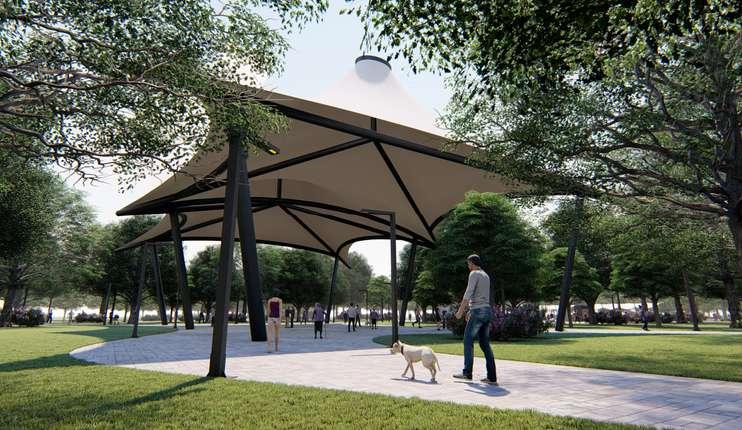

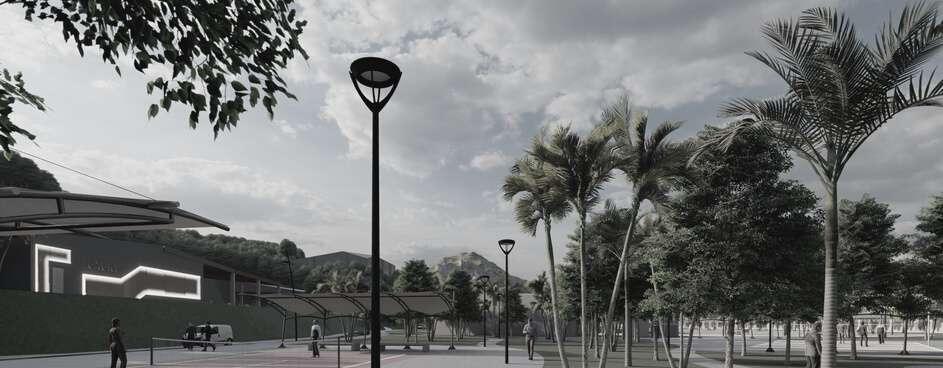

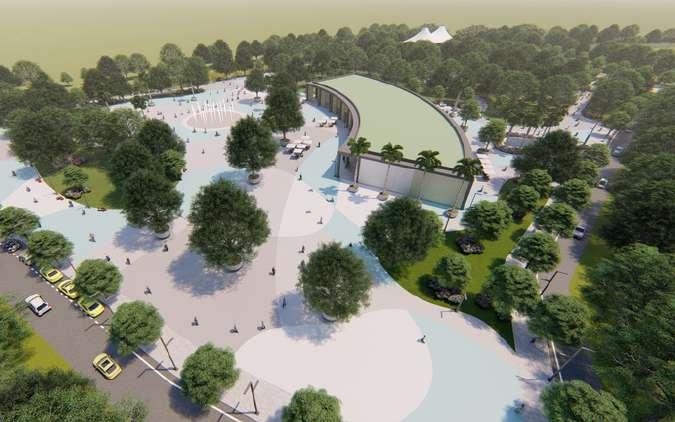

THIS PROPOSAL SEEKS THE INTEGRATION AND USE OF THE PORTOVIEJO RIVER THROUGH THE IMPLEMENTATION OF A BOULEVARD, AND THE DESIGN AND CONSTRUCTION OF PUBLIC RECREATIONAL AREAS. TO PROMOTE THE ECONOMY, DUE TO THE TOURIST INCENTIVE OF THE BOULEVARD. TO PROMOTE THE HEALTH OF ITS INHABITANTS BY PROVIDING THEM WITH A BETTER QUALITY OF LIFE AND ENTERTAINMENT.
