Architecture Portfolio

Andrew Kin Yeung HO

Profile

Running to the Future

Prototypes for future cities: King’s Cross 2050, United Kingdom Design Studio 6, Oxford Brookes University

Three-dimensional Mosaic Architecture

Pet Hostel in Oxford, United Kingdom Advanced Architectural Design, Oxford Brookes University

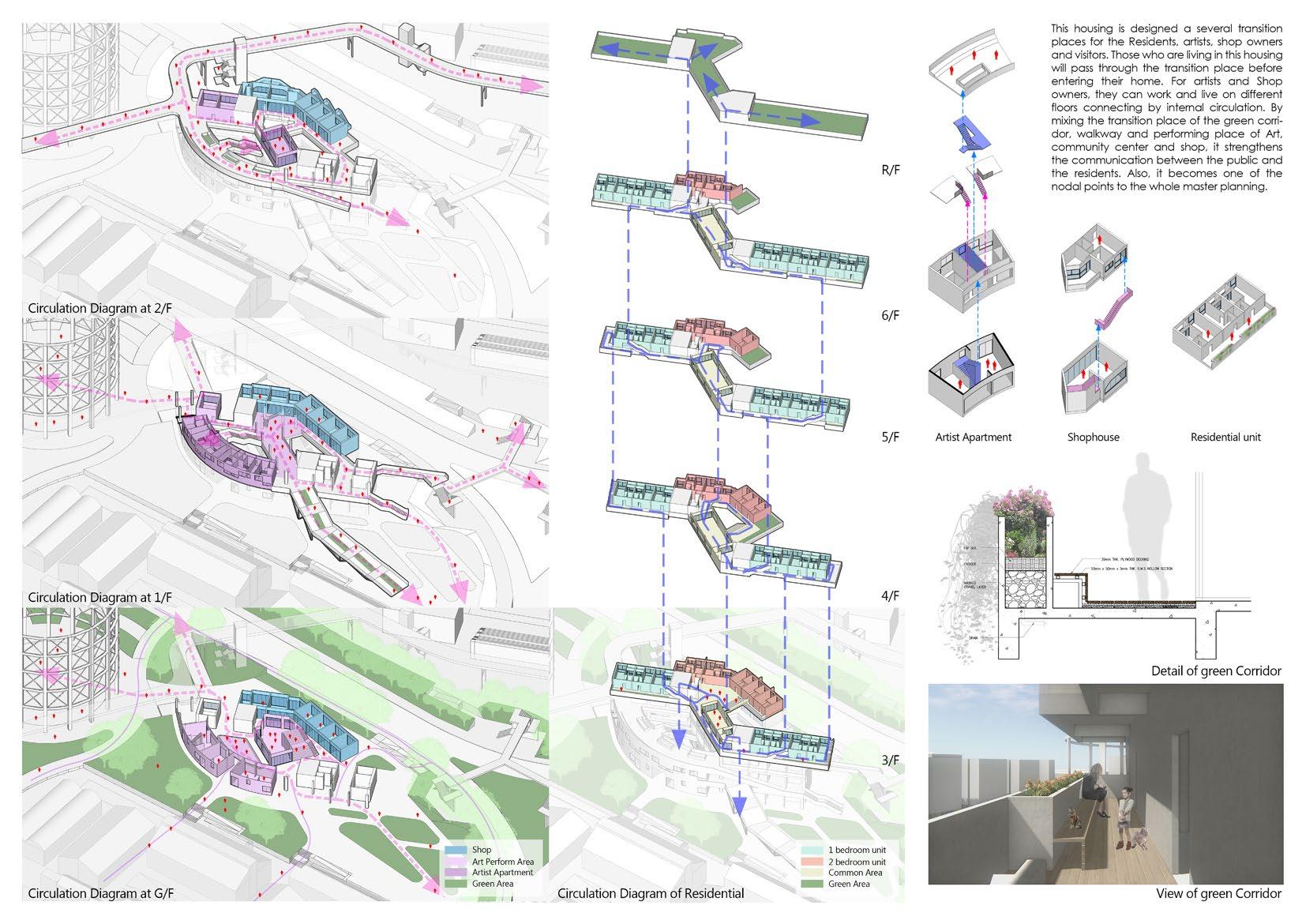

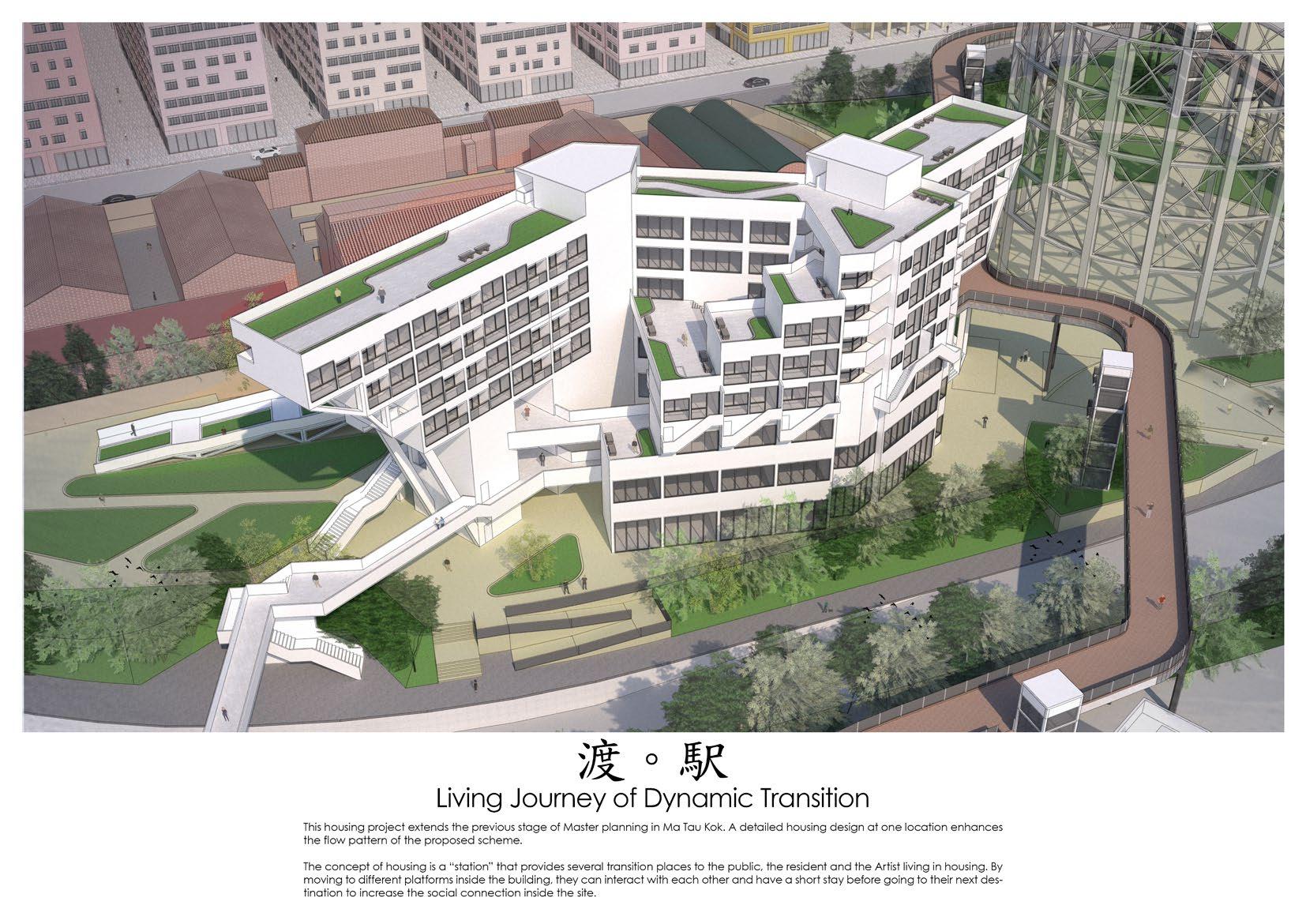

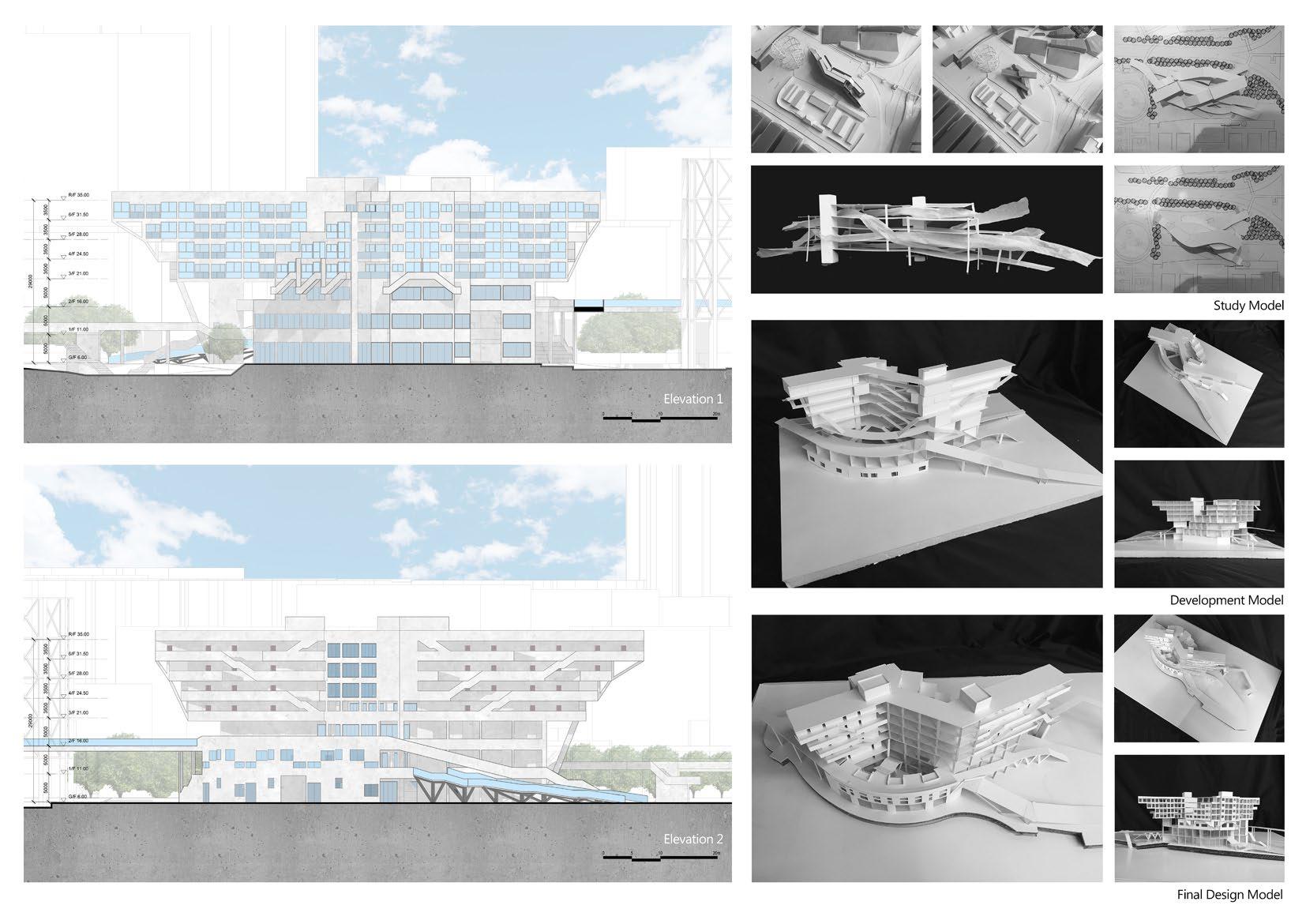

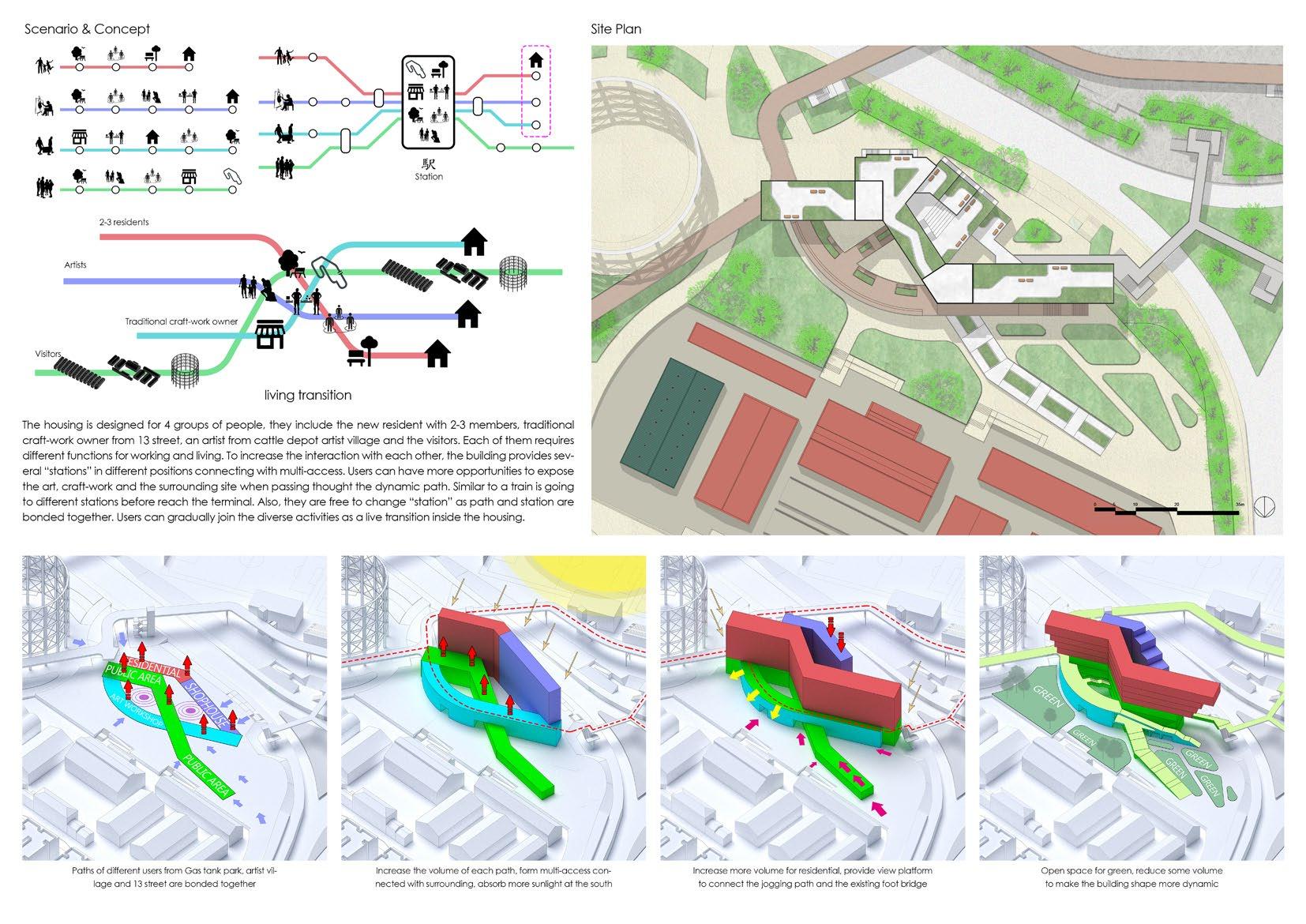

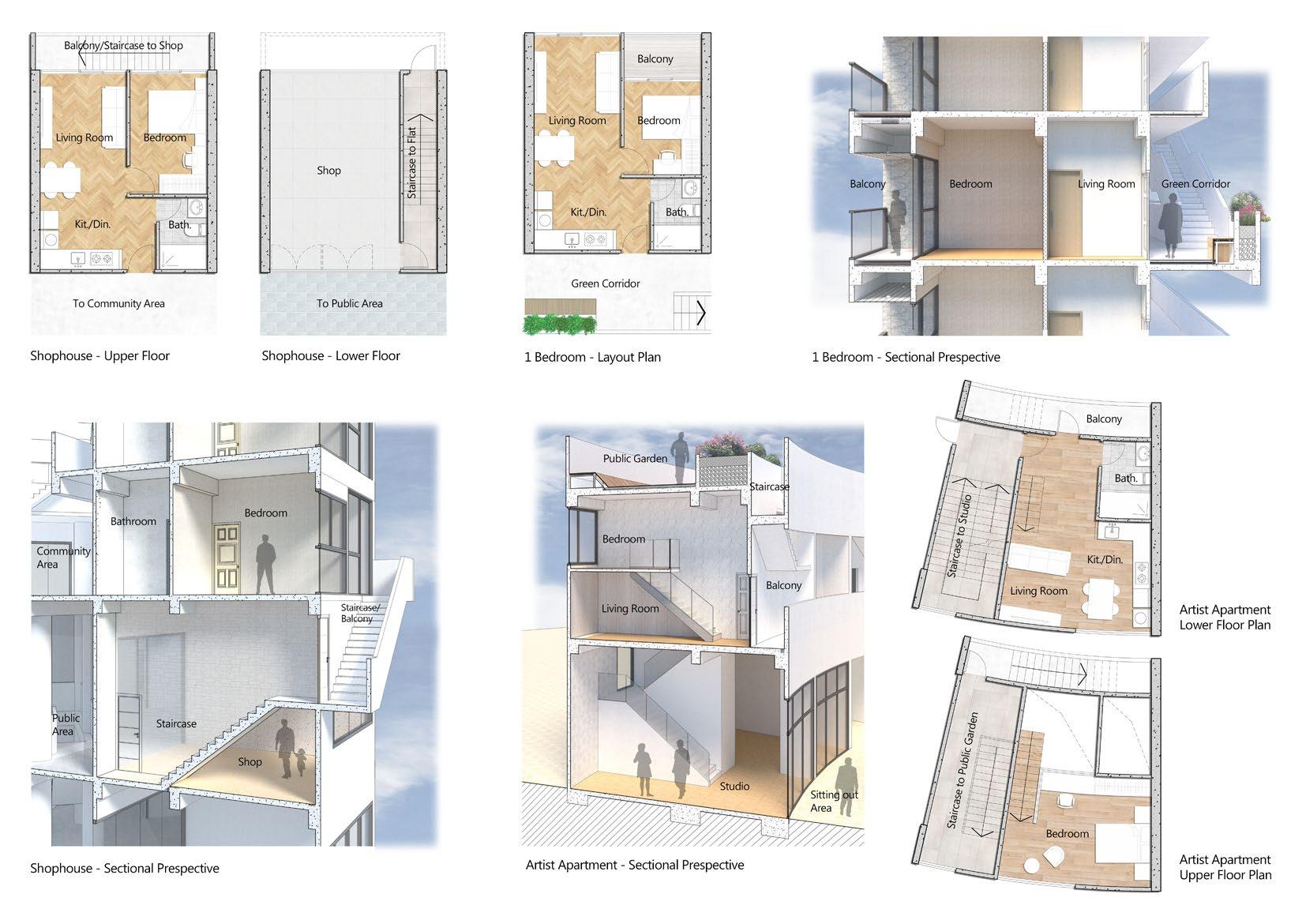

Living Journey of Dynamic Transition

Housing in Ma Tau Kok, Hong Kong Final Year Design studio, Curtin University

Professional Practice

Works

MarchD Final Year Project (2022)

MarchD Fourth-year project (2021)

BAS(AS) Final Year Project (2017)

Andrew Kin Yeung Ho

An architectural graduate since 2022. Interested in community connection projects, and with some experience in running high-rise building projects.

Contact

2019-2020 Project Coordinator

(Hong Kong) Ronald Lu & Partners. Ltd.

Intermediate Architect

(Hong Kong) BC&D International Ltd.

Education

Architectural work experience Skill

2017-2019 2015-2017

2014-2017 2012-2014 2006-2012

Architectural Assistant

(Hong Kong) Ho & Partner Architects Ltd. 2020-2022

Applied Design in Architecture (MarchD)

(United Kingdom) Oxford Brookes University (Australia) Curtin University

Bachelor of Applied Science (Architectural Science)

High Diploma in Architectural Studies

(Hong Kong) HKU School of Professional and Continuing Education (Hong Kong) Kwun Tong Maryknoll College

Hong Kong Diploma Secondary Education (HKDSE)

Computer skill: Proficiency in AutoCAD, Adobe Photoshop, Sketchup and MS office applications. Basic knowledge in the application of Rhino, Adobe Indesign, Adobe Premiere,Escape and Twinmotion.

Language skill: Fluency in written and spoken Cantonese, Mandarin and English.

Running to the Future

Prototypes for future cities: King’s Cross 2050

The project aims to bring a healthy lifestyle to people in the future. Using running dominate sport to generate a new typology of sports and recreation hub for the local community, encouraging people in King’s Cross, Camden, London, and the UK, to participate in physical exercise to maintain physical and mental health in 2050.

King’s Cross Future Development

Inequalities

A lasting new place

A place with a distinctive identity

Improve Accessibility

Engage and inspire

vibrant mix of

development

and community development

Sport and Physical Activity Facilities

health

being

Health well being

health well being

development

experience

Change

King’s Cross has been one of the prosperous redevelopment areas in London since 2001. It aims to develop a sustainable city for the people to live, work and entertain. However, with the population growth up to 11 million and the increasing demand for Green Infra structure in 2050, a healthy lifestyle and recreational facilities need to be addressed to satisfy the needs. Therefore, the future King’s Cross prototype needs to build up a healthy city image to improve the physical and mental health of the people living in King’s Cross, London and the UK.

Design a place for the public to actively participate in sport and physical activity as well as recreation to build up a health well-being lifestyle.

Create a new experience for the people and enhance the interest in doing sport, physical activities and leisure activities.

Break down the boundary between different places to increase the accessibility in King’s Cross, Borough of Camden and Islington on foot.

London, United Kingdom

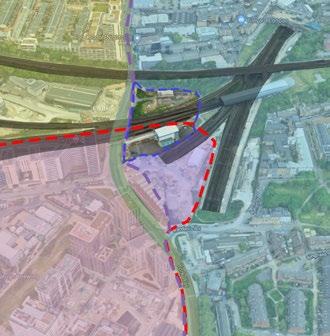

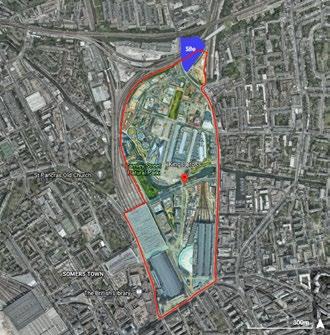

King’s Cross, Borough of Camden Site Location - York Way

Design manifesto - Dynamic King’s Cross 2050

Borough of Camden

York Way

York Way Borough of Islington

Site KX Development Area

Running Led sport and recreational hub

The project’s ambition is to encourage people to do more sports and physical exercise to improve human physical health and mental health in 2050. It uses the simple sportRunning as the primary sport to generate new experiences in doing physical exercise and leisure activities. It also increases the accessibility of the surrounding environment in King’s Cross and promotes sustainable development in the future.

Running, jogging and walking can do on a street, park, square or running track facilities. They enhance the usage of the pedestrian. Providing a running track for this sport means establishing more walkways for the environment, which benefits the city by increasing pedestrian connectivity. Also, encourage people to visit the site on foot instead of taking transport.

Several traffic roads and the railway divide the site. Therefore, the promotion of running as a leading sports programme for the project helps increase the accessibility to the surrounding and encourage people to walk and do sport to improve personal health. Moreover, running on the site brings the sports culture to the surrounding environment, thus, increasing the healthy image of the city and attracting more locals and visitors to become physically active, from staying to moving, from standing to running.

Running is not just horizontal but can happen in three dimensions. So the project includes parkour, skateboarding and wall climbing as other sports facilities to let runners and other sports users explore each different sport, together with leisure space and gardening to form a community to achieve physical activities together.

Yorkway

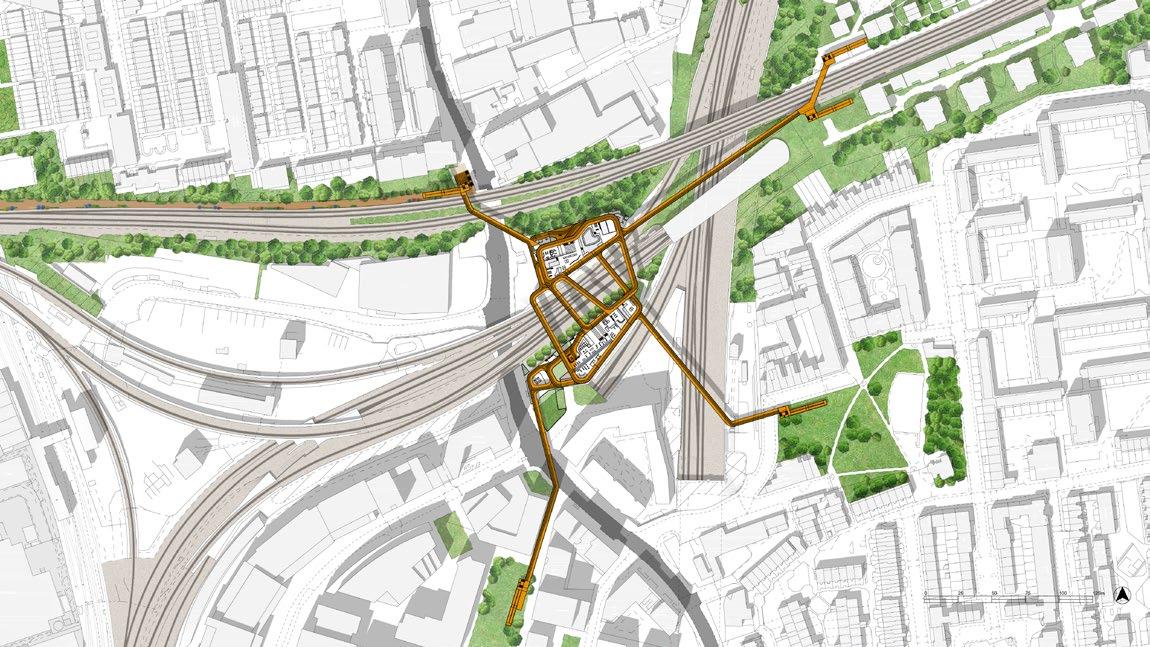

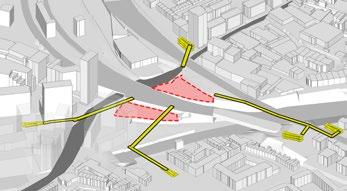

Project Location Plan

Concept Collage of the project programme Target User

Camden Highline

North-Eastern Housing Group Eastern Housing Group

King’s Cross Area

Railway Railway YorkWay

Railway UpperlevelsiteLower

site

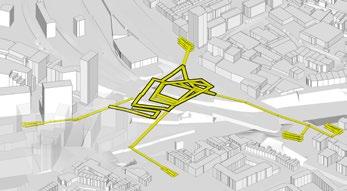

Aerial View of Running Track Hub

The idea of the project is to design different types of running tracks to connect the surrounding area and for runners to choose to run. Other sports users are not just limited by their sport but also can switch to the other sports facilities from the running track to enjoy doing sport and relaxing area inside the building.

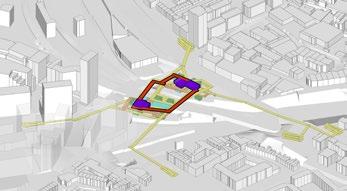

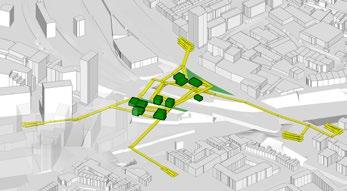

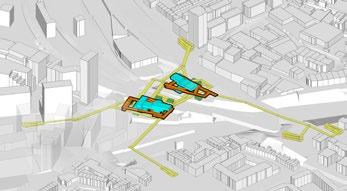

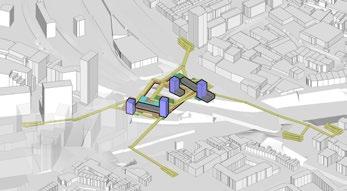

The massing study is testing the connection between the surroundings and the building and creating different running tracks, outdoor and indoor sports and recreational spaces inside the building.

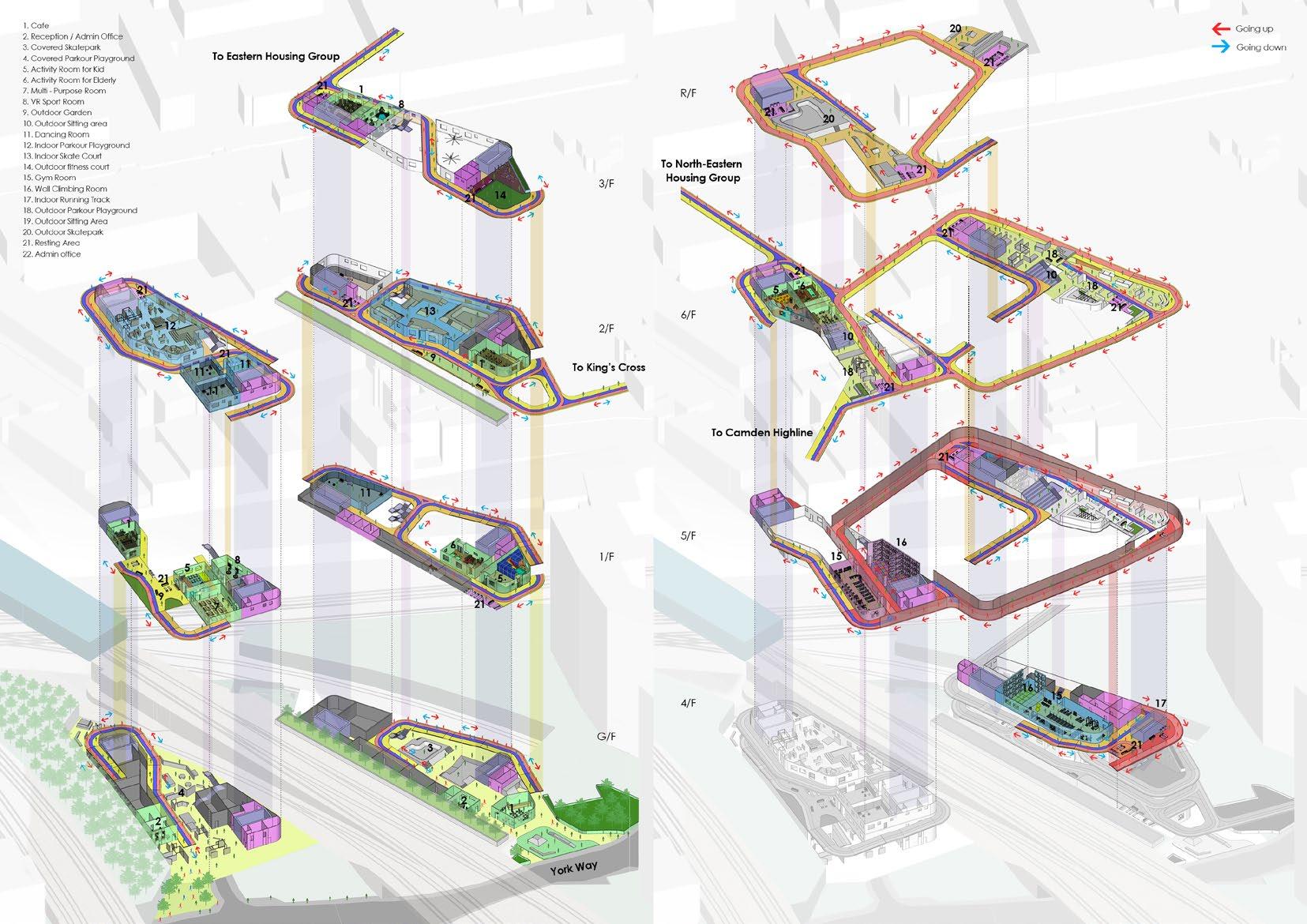

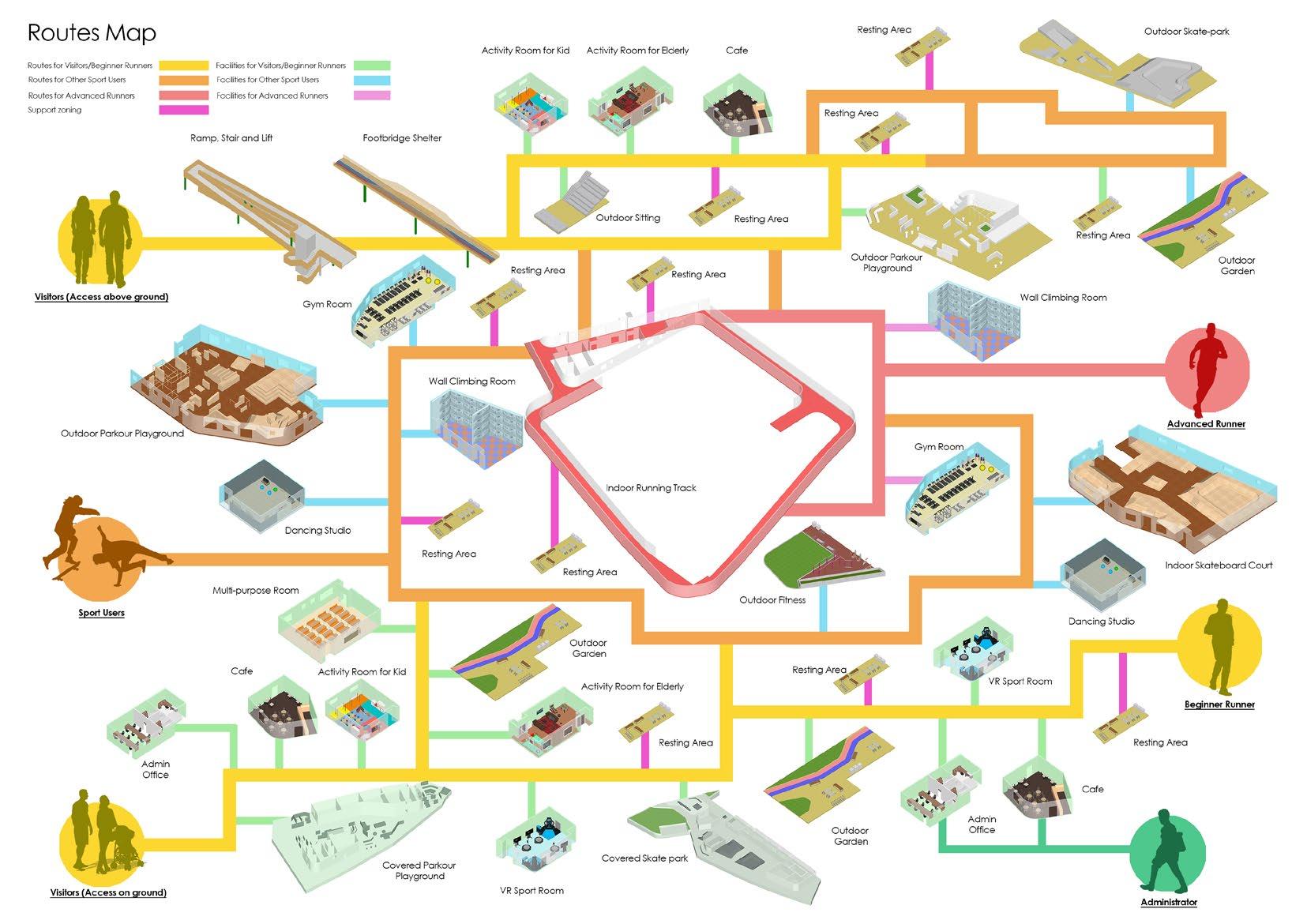

There are three types of running tracks inside the building, first is the walking/jogging track for the public to enjoy strolling, slow running and relaxing physical activities. More additional facilities are available for the tracks.

Second is the slow running track for the runner to do slow running. Some indoor sports courts are attached to the route to provide indoor sports such as indoor parkour, skateboarding, gym, and wall climbing. Other sports users and runners can switch to indoor sports spaces and running tracks on the same level. The route is two way, and less turning angle on the track so that runners can run smoothly.

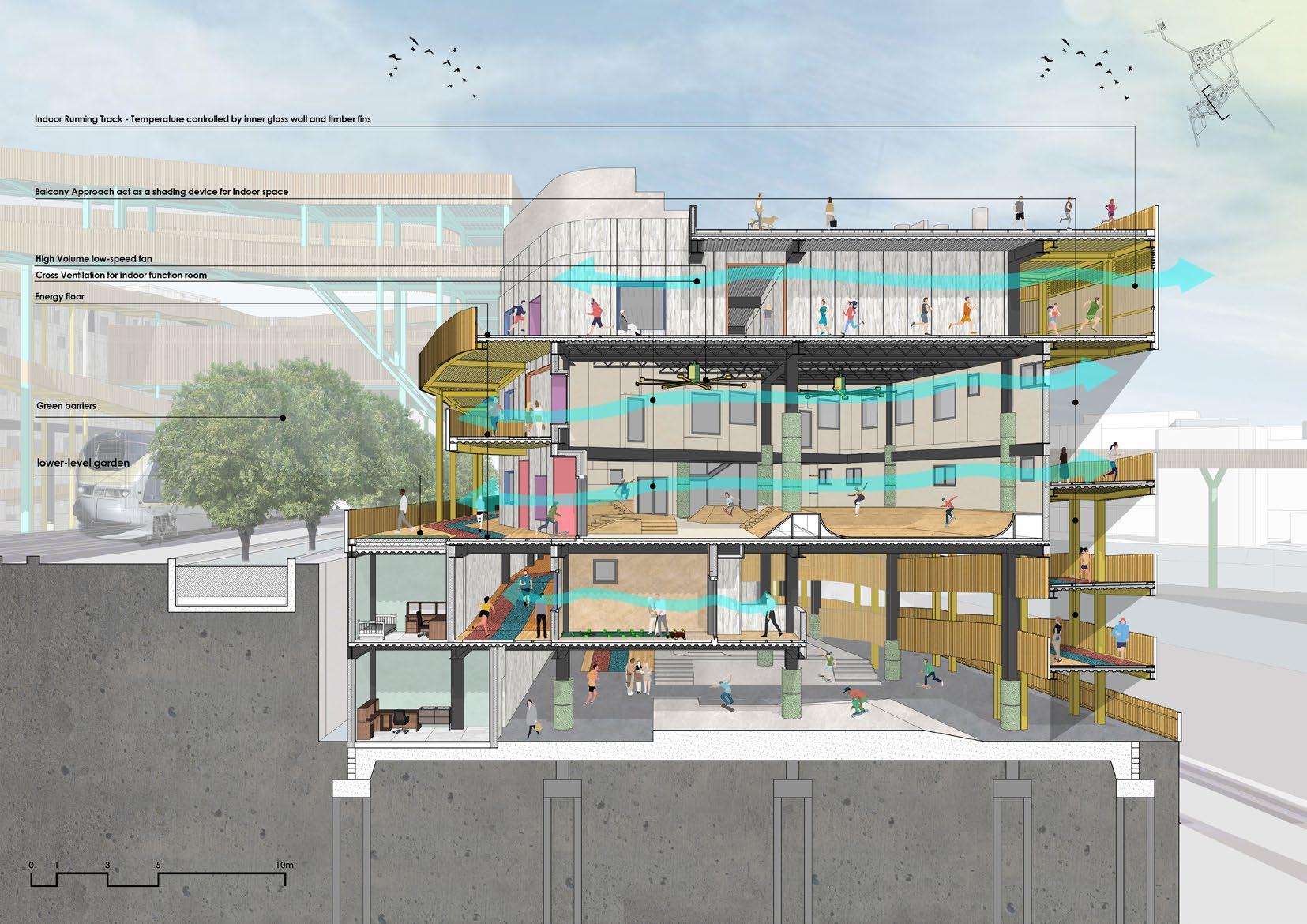

Finally is the indoor running route for advanced runners and other sports users. Less indoor function space at this level, and the path is straightforward and suitable for runners to do fast running. Also, an indoor running track provides a comfortable indoor space in a hot or cold climate. It is a one-way route to avoid interruption between runners running in the same area in different directions.

Camden Highline

Eastern Housing Group

Jogging Track

Housing Group

Development Area

Existing Greenery

Proposed Green BarrierRecreational facilities

Monochrome window frame on the inside to reduce distraction

planters to

Open space for the entrance above ground

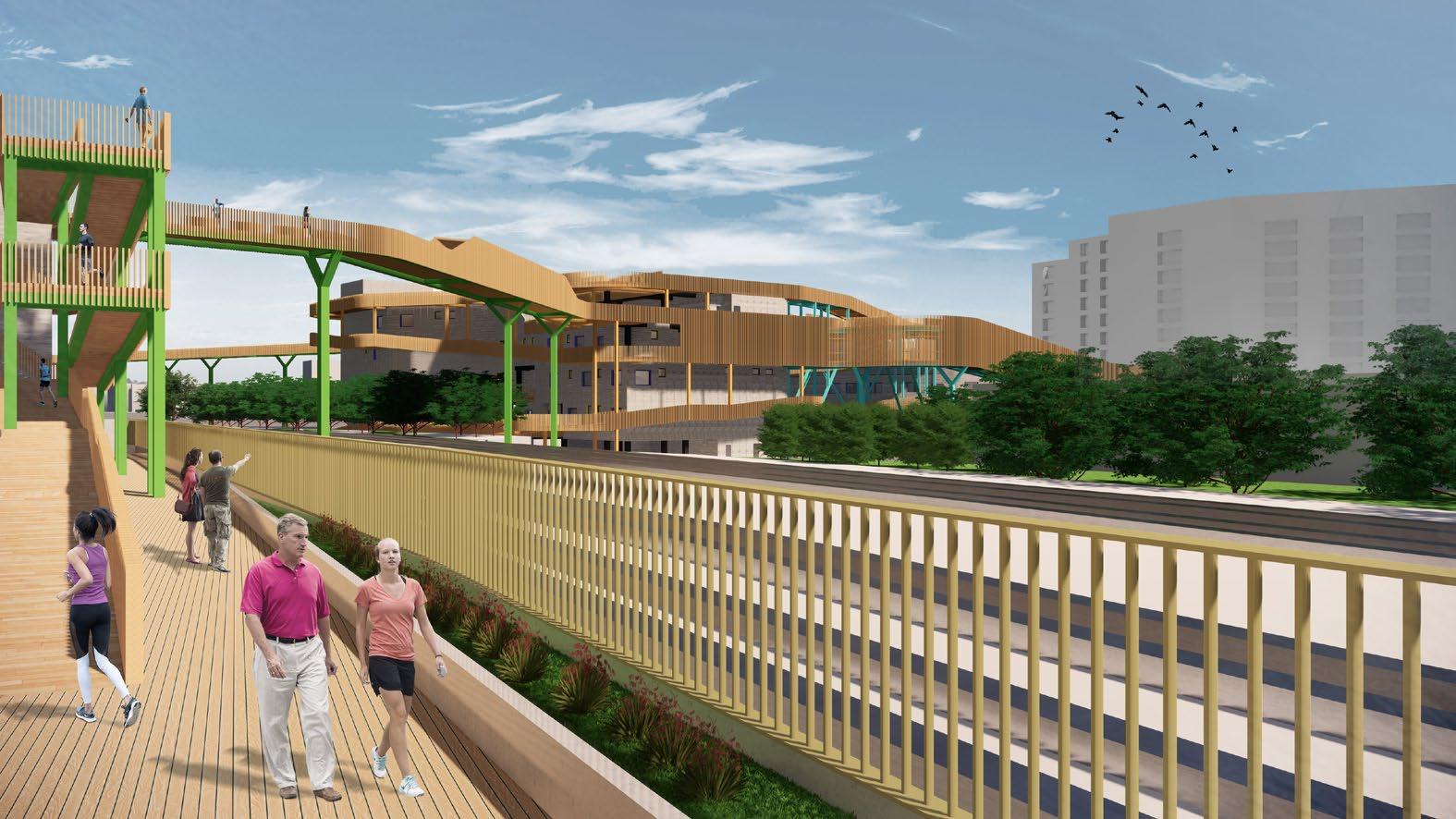

View

View

View

View

View

View

View

Three-dimensional Mosaic Architecture

The theme of Advanced Architectural Design explores the quality of confection by using architecture as a chef to invade the new typology of architecture. Every image of the confection gathers and develops a series of the atmosphere inside the project. I’m collecting different “ingredients” to design a “recipe” for the honeybee hostel in the end.

Three-dimensional Mosaic Architecture was inspired by the study of honeybees. They are the social insert living together in one beehive, and each of the honeybees has to serve the swarm. Moreover, the honeybee’s compound eye vision is pixelated and has a contrast colour eyesight that helps find the food and catch motion efficiently.

With the research and study of sprinkled, tumble and thrown the confection in previous studies, the project starts with multiple units as a recipe to develop architecture. The mosaic sight vision from the honeybee contains a large number of pixels. Although each pixel is small and has a pure colour, it creates different colours and pictures when more pixels have joined together. Pixel is a two-dimension measurement for images. The project aims to build a bee hostel for the youth and show how the “pixel” in the bee vision can form a three-dimension mosaic pattern in architecture to make the building stand out from the surrounding. Besides, UV light vision from bee eyesight creates contrast colour between the food and the neighbour content, which helps them find their food quickly. Using a few types of “pixels” to create different functions for the people and honeybees to indicate where they are and increase the attraction inside the architecture makes these pixelated images into a three-dimensional world.

Red grass Blond hair

Development 1 - Fancy Wall

Avalanche Paper roll Development 2 - Roll Wall

Tank footprint Raindrop Development 3 - Dropping Wall

Sunbathing Crack bowl Development 4 - Unfair Face Wall

Fire and ice Moth Development 5 - Wall for the Plant

series of confection qualities

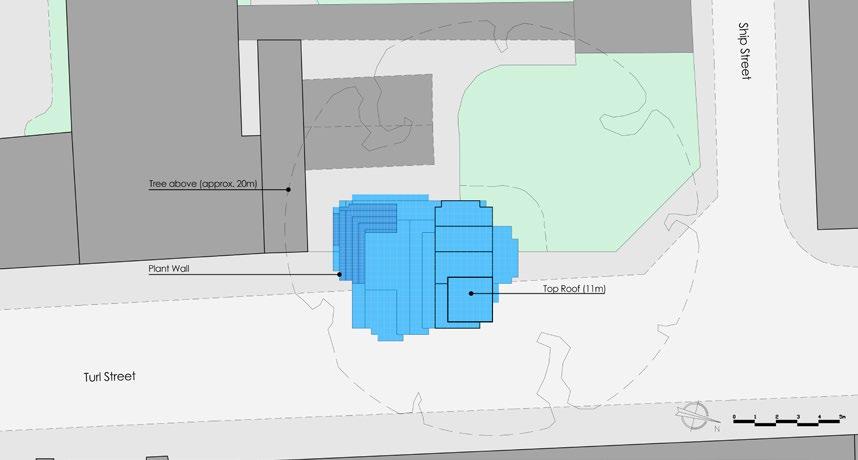

Site Location Plan

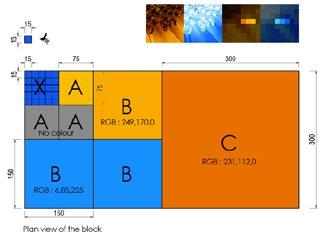

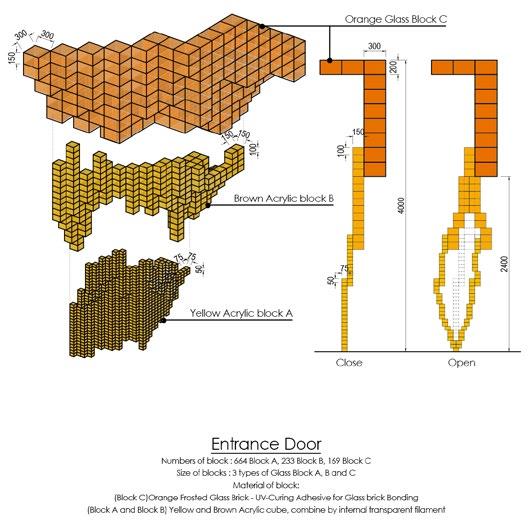

The size of the honeybee is approx. 15mm long and 5mm high, it is designed as one “pixel”. And the pixel enlarges and forms into three different sizes - 15x15x10mm as a base block X, 75x75x50mm as block A, 150x150x100mm as Block B and 300x300x200mm as Block C.

Block X mainly forms a beehive entrance, confection and the epiphyte display frame, while Block A forms a ceiling and entrance door. Block B creates a wall, window and stair, and Block C does for floor slab, external wall, seat and table.

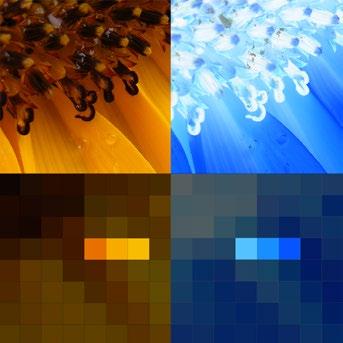

Pixel and colour study

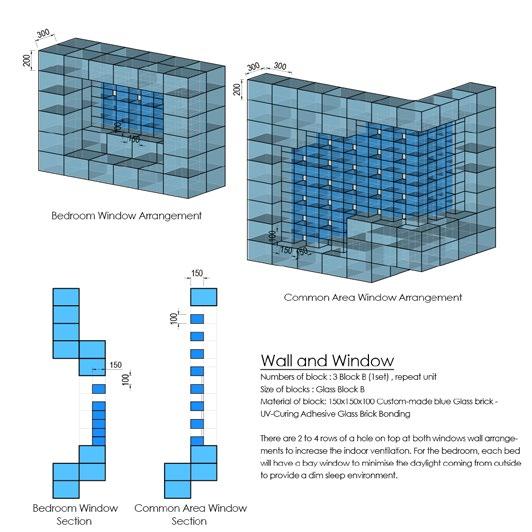

The arrangement of these blocks is a stack bond. Every Block aligns with each other based on the grid to show a mosaic pattern. Because of the property of the honeybee’s vision, every object reveals an intense contrast colour. The exterior facade colour applies the primary colour of sunflower - Yellow, and its contrast colour - Blue, to highlight every function of the bee hostel.

The surface of the Block is coloured transparent material. They illustrate the focus point when lots of blocks are stacked together. The materials of these blocks are included glass brick, hollow glass panel boxes, and acrylic sheets, depending on different functions.

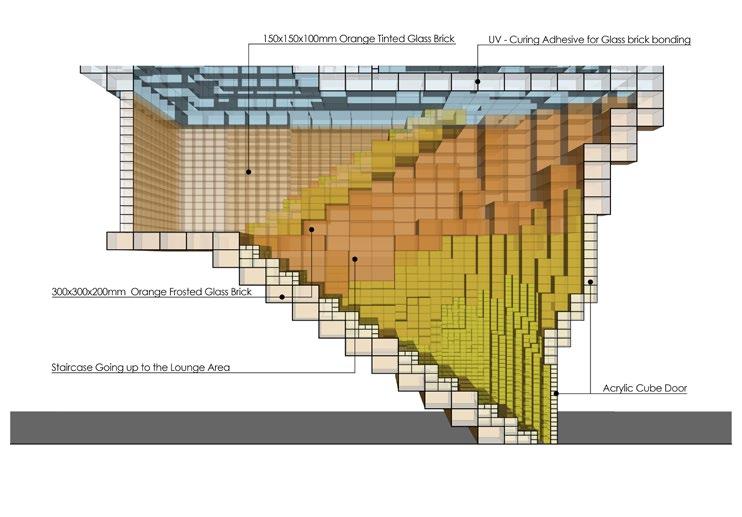

Concept of swarm entrance

Concept of pet shop 1

Concept of pet shop 2

Plans and Section

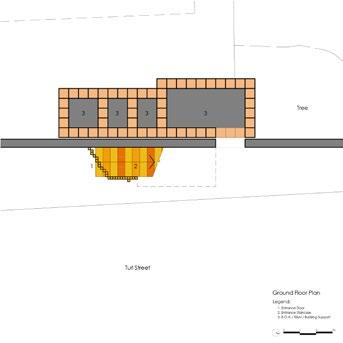

Ground Floor Plan

Mezzanine Floor Plan

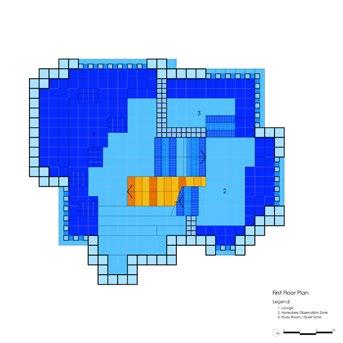

First Floor Plan

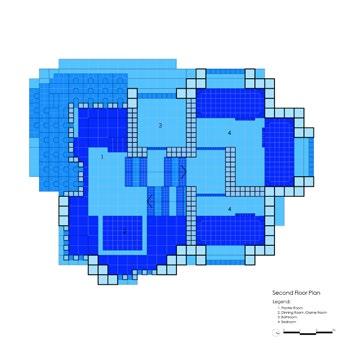

Second Floor Plan

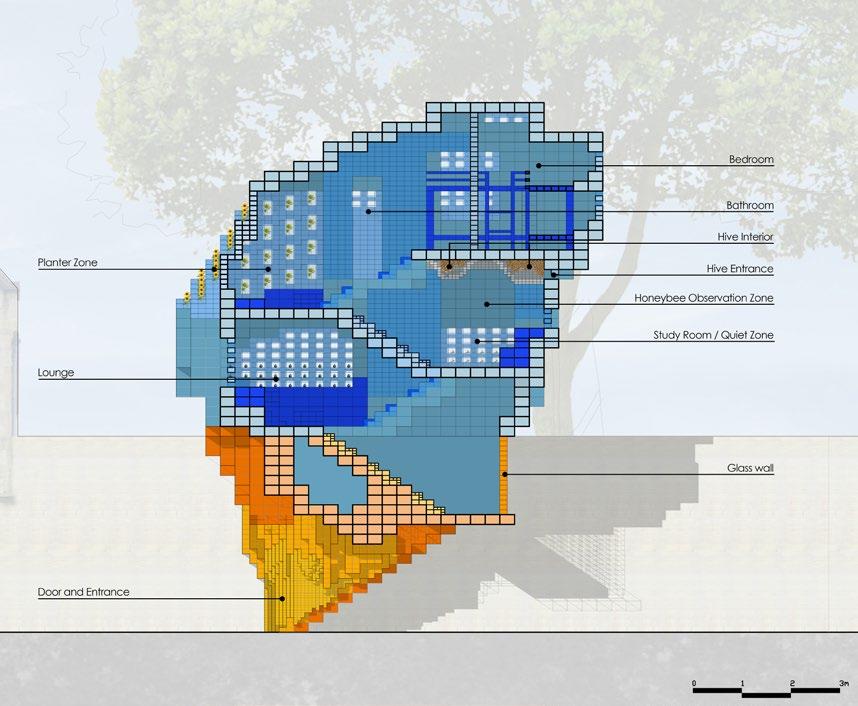

Section - Main entrance

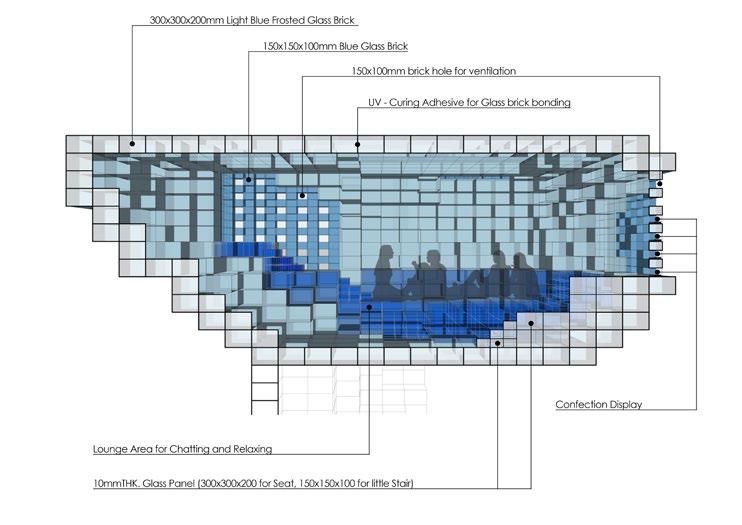

Section - Lounge

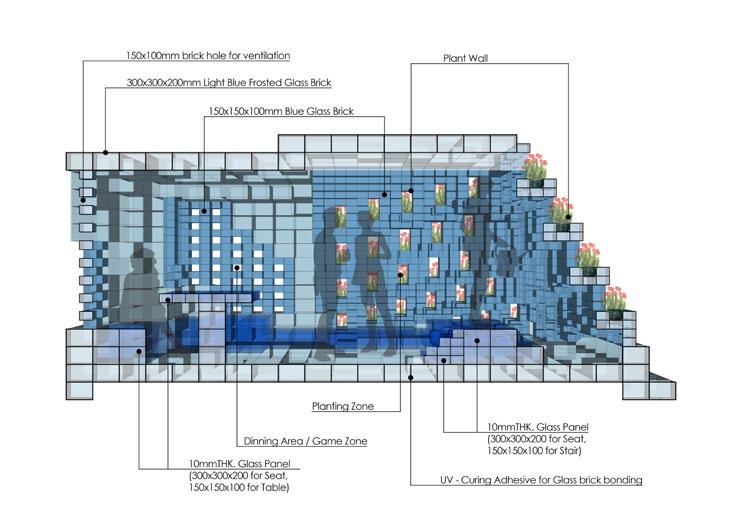

Section - planter room and game room

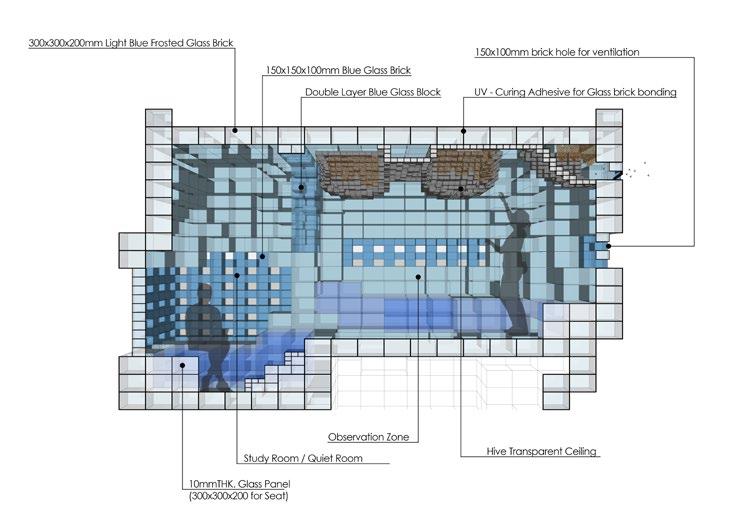

Section - Study room and Honeybee Observation room

Ready to be pixelated Hidden in day time

Guiding by wall

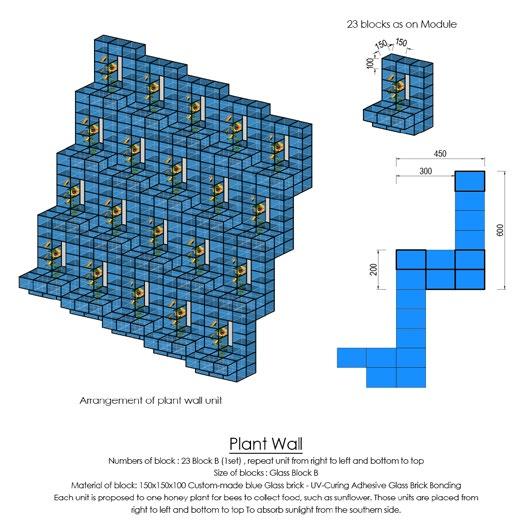

External plant wall detail

Internal plant wall detail

Thin pixels illustrate the entrance

Light from a dim dot at bedroom

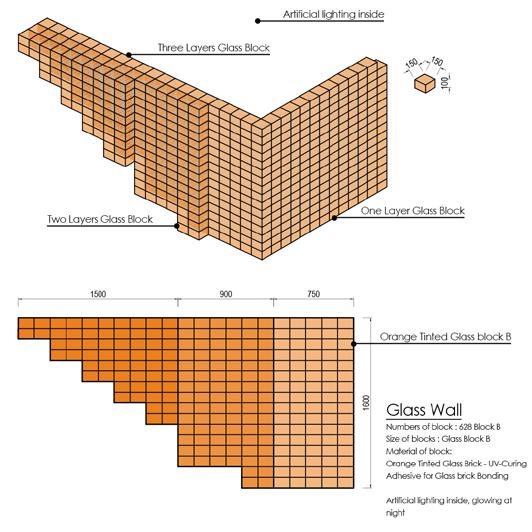

Light wall Highlight

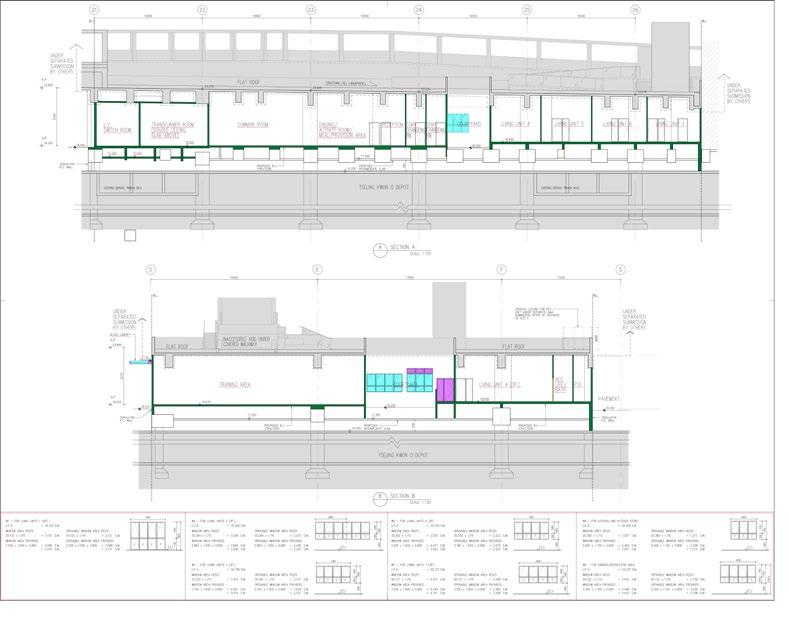

Proposed

Accommodation, Lohas

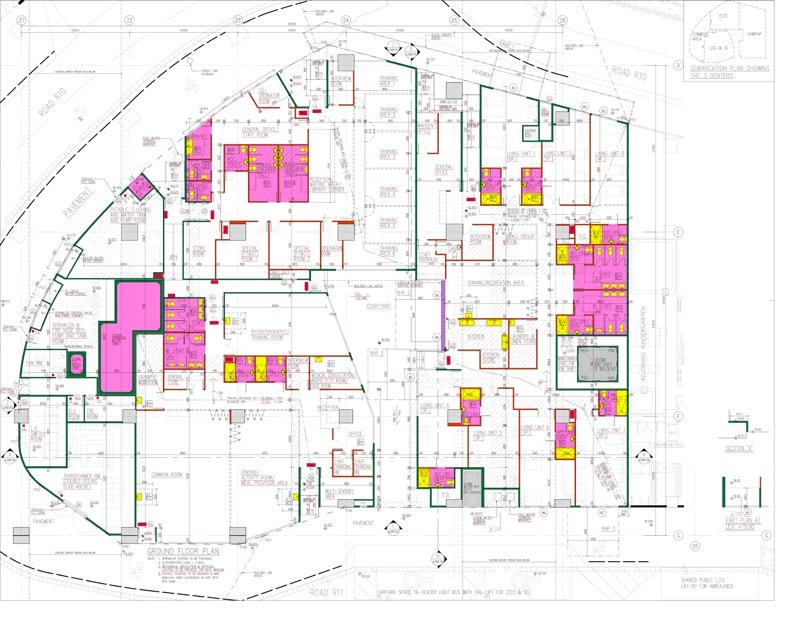

Submission ground floor plan

Year: 2020 Project Reference from:

Lu

Partners

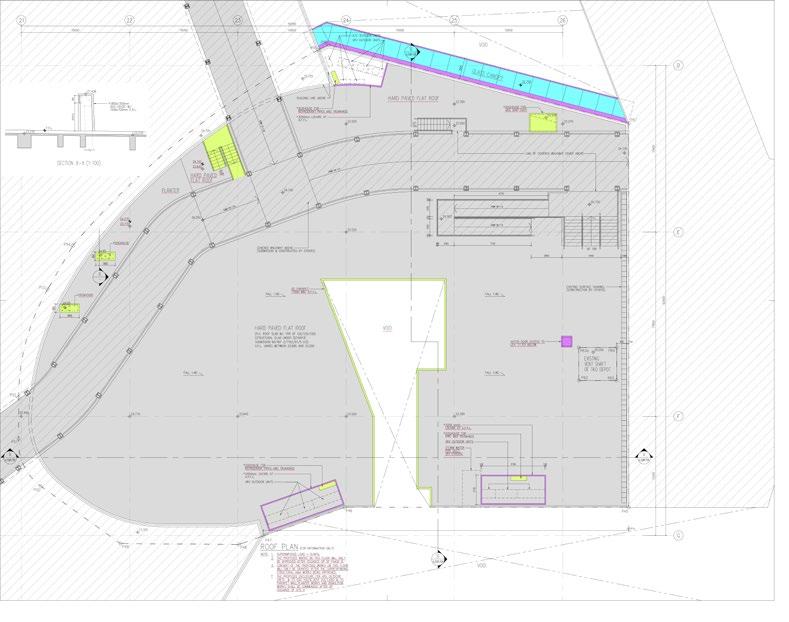

roof floor plan

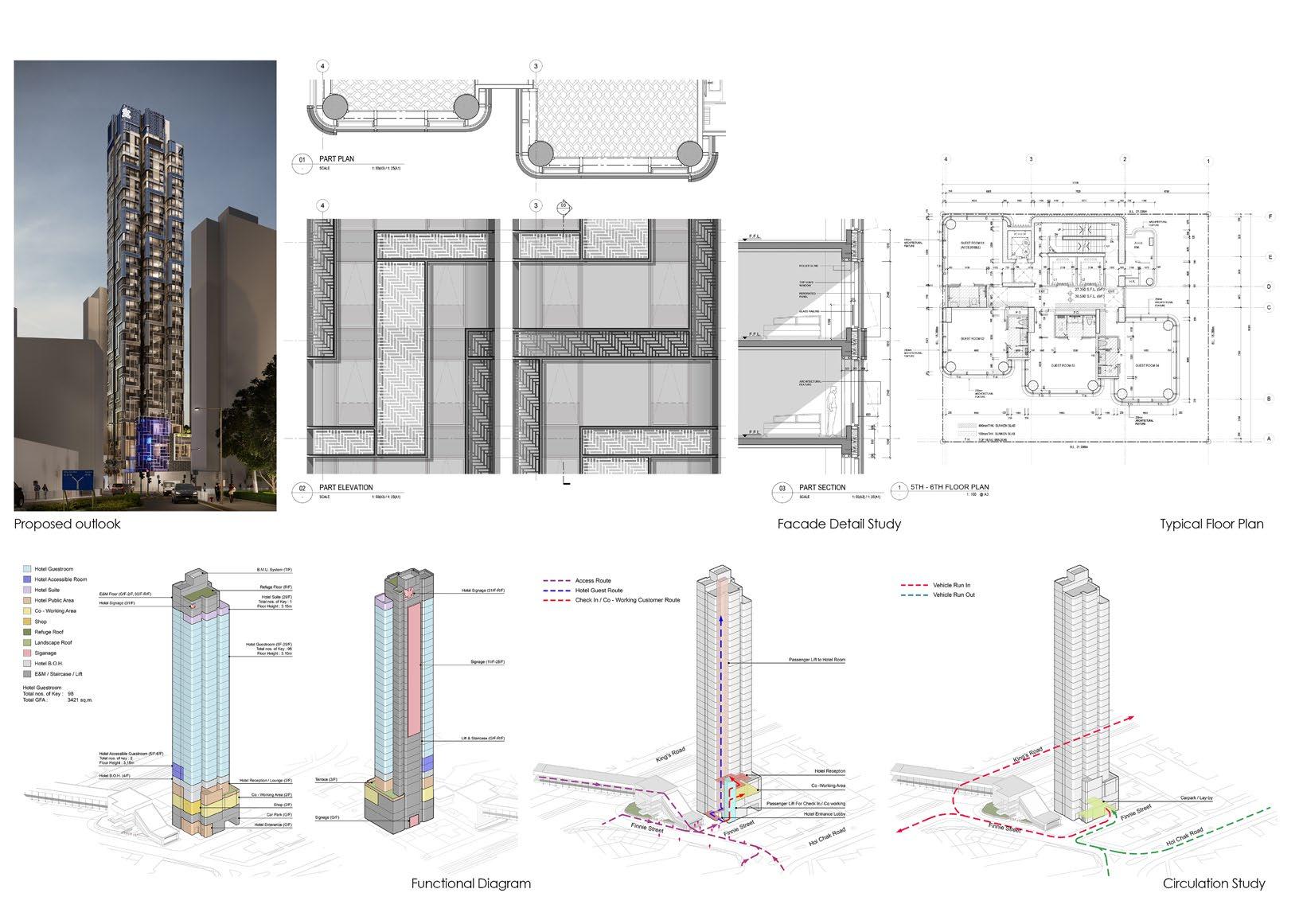

Hotel

Project

from:

Proposed Commercial Development, Hanoi, Vietnam Project Year: 2019 Project Reference from: BC&D International LTD.

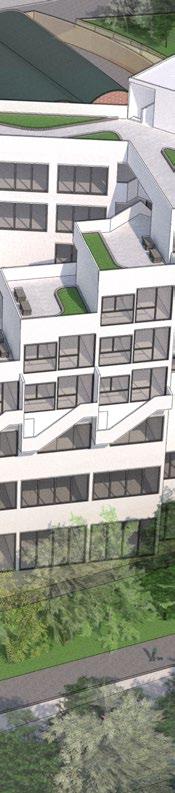

Hotel Development, Tung Chung Town, Hong Kong Project Year: 2014 Project Reference from: Ho&Partner Architects LTD.

Residential Development, Tung Chung Town, Hong Kong Project Year: 2014 Project Reference from: Ho&Partner Architects LTD.
