ANDREW BAWTINHIMER | Portfolio 2024

ANDREW BAWTINHIMER ARCHITECTURE PORTFOLIO

CONTENTS

1 2 pg. 4

3

MOBIUS TOWER Pratt GAUD | 2017

pg. 14

pg. 24

2

PATHWAYS OF DECAY Pratt GAUD | 2019

MAHOUT Pratt GAUD | 2018

4 5

NID CABINET AB Design | 2023

pg. 34

6

STRAITS VIEW Mia Todd Studio | 2022

pg. 42

SANDPIPER Mia Todd Studio | 2023

pg. 52

3

2019 Pratt Institute School of Architecture Graduate Architecture Program

Softwares Utilized Rhinoceros AutoCAD Keyshot Photoshop Illustrator

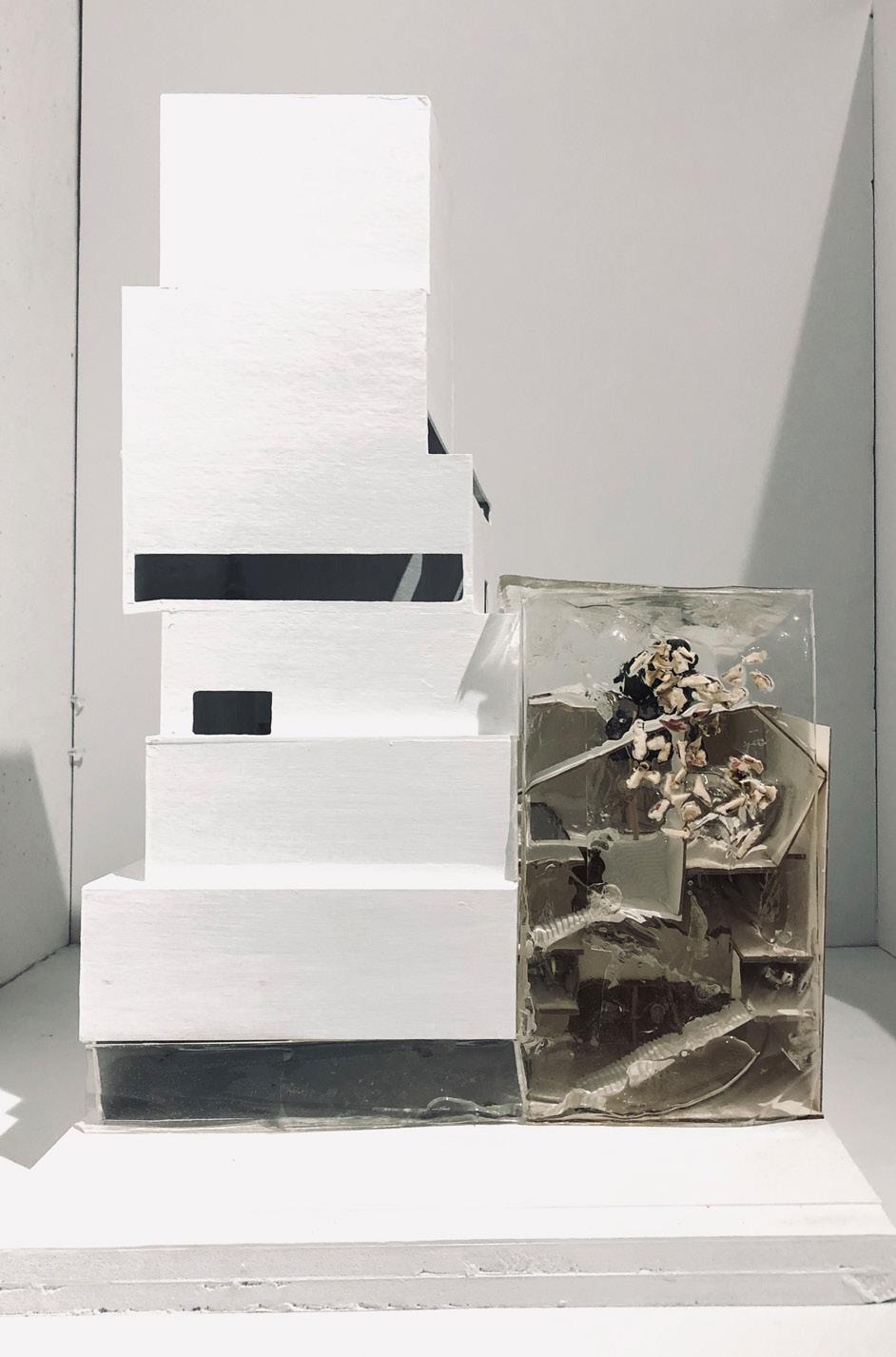

PATHWAYS OF DECAY A proposed addition to the New Museum This project is all about speed. The speed of light through glass, the speed of movement through space, the speed of growth of the city, the speed of decay.

Here speed is characterized by shifts between the flows of interior and exterior, growth and decay, existing and new. It is fast where the new intervention punctures the façade of the New Museum, through shifts of the existing windows, enlarging the apertures and projecting the contents and movements of the museum out to the public. The punctures lead to areas of both partial decay and preservation of the museum. These punctures flow outward to reorganize and densify in the new addition on the south side.

4

Selected Works

5

PATHWAYS OF DECAY

6

Project Location New Museum New York, NY

Selected Works

Structural analysis Exploded axonometric

7

Andrew Bawtinhimer

Ground floor plan

8

Selected Works

Floor plans Floor 1

Roof

9

Andrew Bawtinhimer

PROCESS EXPERIMENTS

10

Selected Works

11

12

13

2017 Pratt Institute School of Architecture Graduate Architecture Program

Softwares Utilized Rhinoceros AutoCAD Revit Keyshot Photoshop Illustrator

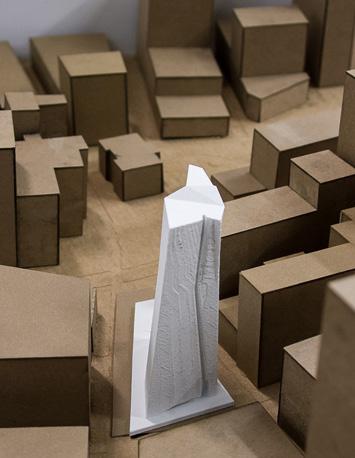

MOBIUS TOWER A Downtown Brooklyn residential skyscraper This project is all about movement. Its focus is the movement within the home, the movement between private and public spaces, the movement of a building directing your perspectival perception of the city. It sits in a location centered at the hub of several neighborhoods and their respective landmarks, institutions, and transportation routes. My intention with this tower is to create something that feels like it is in motion through twists, pulls, tapering and shifting of the floors. The result is a form derived by these motions and the limitations of the site. It is pushing the typical residential tower layout to break from the norm and become something more dynamic.

14

Selected Works

15

Andrew Bawtinhimer

MOBIUS TOWER

16

Project Location 435 Fulton Street Brooklyn, NY

Selected Works

Site Analysis Infrastructure + Landmarks

17

Andrew Bawtinhimer

18

Selected Works

Project Development Cross section

19

Andrew Bawtinhimer

20

Selected Works

Project Development Chunk Model + Section Perspective

21

22

23

2018 Pratt Institute School of Architecture Graduate Architecture Program Designed in collaboration with Jonah Cohen

Softwares Utilized Rhinoceros AutoCAD Revit Keyshot Photoshop Illustrator

MAHOUT A Berlin nightclub / WTE plant This project combines two unlikely programs, a Waste-to-Energy incinerator and three tiered nightclub. We dissected and reassembled the plant’s components, allowing the club to respond to three moments in the incinerator. One is nested on the top and is pierced by the stack, one hangs, and one is seated on the ground between the loading area and refuse chute. The incinerator shells, made of tinted concrete, silhouette the machinery and support the club’s configurations of panelized copper and channel glass, blurring the acitivities of the club goers to the exterior. They opperate as three independent clubs but are connected by exterior zones in which you pass through the clubs in the reverse direction of the incinerator line.

24

Selected Works

25

Andrew Bawtinhimer

MAHOUT

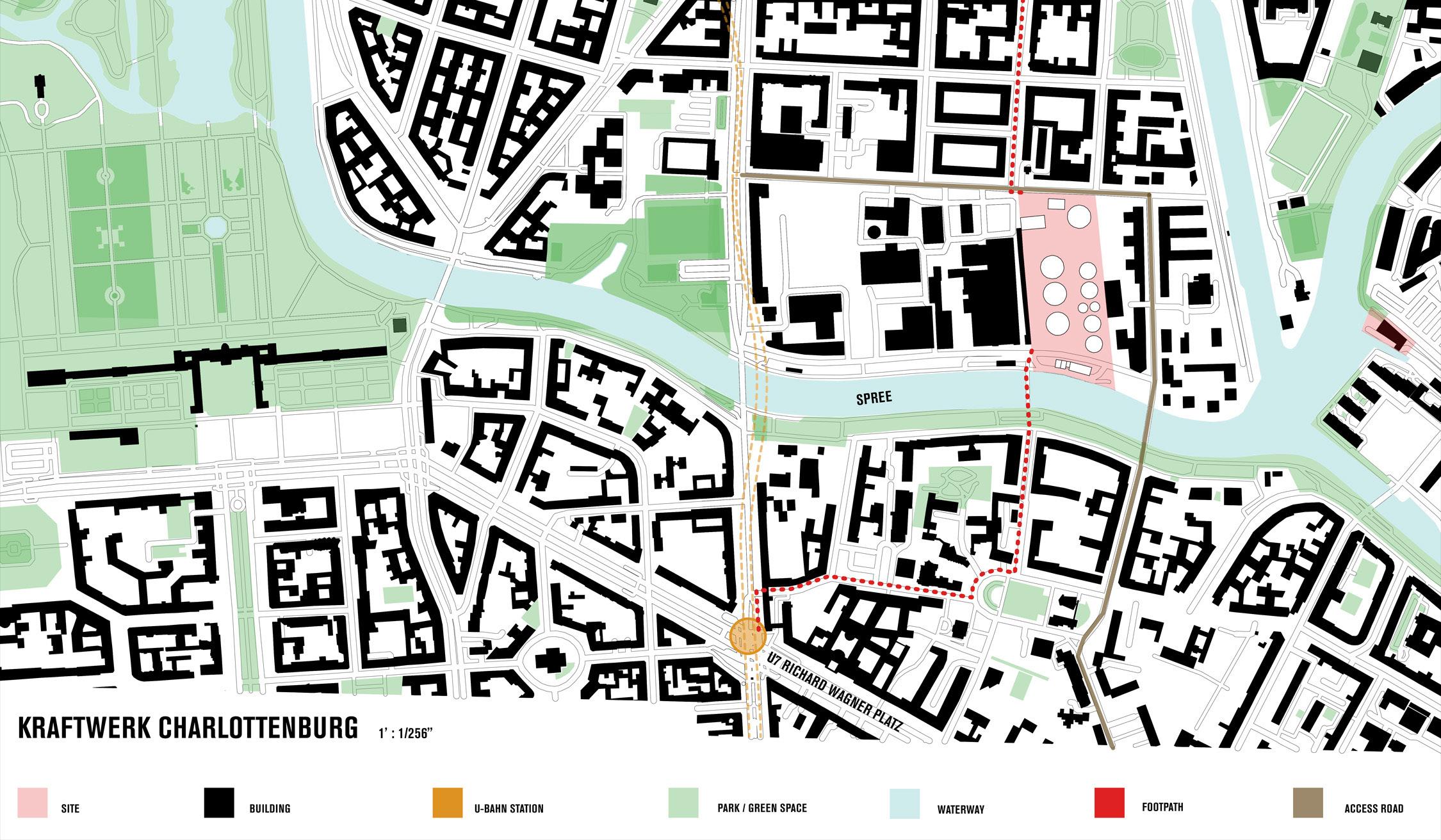

Project Location Am Spreebord 1 Berlin, Germany

Geometric Studies Pinch, bend + wrap

26

Selected Works

27

Andrew Bawtinhimer

at Level 3

28

Selected Works

Project Development Massing study CLUB ZONE 1 Site plan (opposite page)

CLUB ZONE 2

CLUB ZONE 3 + RECORDING STUDIO AIR FILRATION + SMOKE STACK

BURNERS, BOILER, + TURBINE REFUSE PIT

BARGE DELIVERY

29

PROGRAM MASSING

Andrew Bawtinhimer

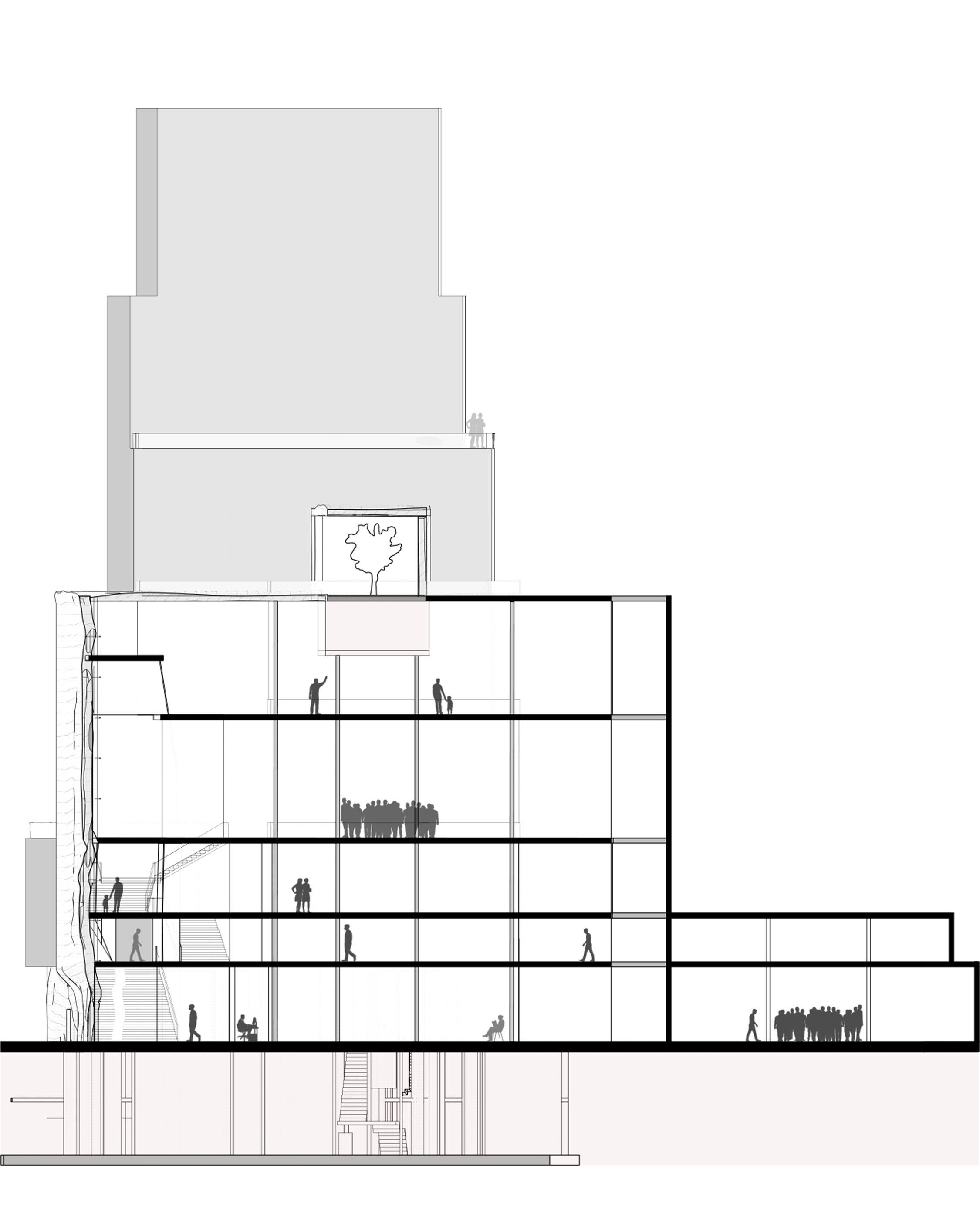

LONGITUDINAL SECTION

30

Selected Works

CROSS SECTION

31

32

33

2023 Andrew Bawtinhimer Design Built in collaboration with Josh Baker

Softwares Utilized Rhinoceros AutoCAD Keyshot Illustrator

NID CABINET An unassuming display cabinet This project is was born from the desire to create something for myself. Not in the sense of needing a piece of furniture for my home, but rather the need to make something soley for the simple act of doing it. This project came during a period in my career when I was starting to growing tired of some of the work I was doing and I wanted to make something of my own design. Something that was based on my own influences and ideas, essentially making myself the client for the first time. It plays with the idea of dichotomy, being both minimal and complex. Static and dyanmic. Insulated and inviting. My friend I enlisted to help me build this affectionately nicknamed it “the safe.” I like the safe.

34

Selected Works

35

Andrew Bawtinhimer

NID CABINET

Project Location Jersey City, NJ

Beginning with studying the Jean-Michel Frank nesting table (1). I was drawn to the idea of furniture that was customizable in how it was used by its owner. Its simplicity and utility change with the user’s needs. I thought this form could be pushed to be more complex. Drawing further inspiration from Lissitzky’s prouns (2) and Albers paintings (3), I thought the form should include two inner boxes to express more of the play with openness and enclosure. The cabinet should function more as a home to display objects, or simply to exist as is and be itself an object that displays a concept. In the finishing stages of fabrication I thought of making the exterior purely black lacquer, referencing to the chromatic black paintings by Ad Reinhardt (4), which force the observer to stare in and allow the color to appear.

36

Ad Reinhardt Abstract Painting No. 5

Josef Albers Homage to the Square

El Lissitzky About Two Squares

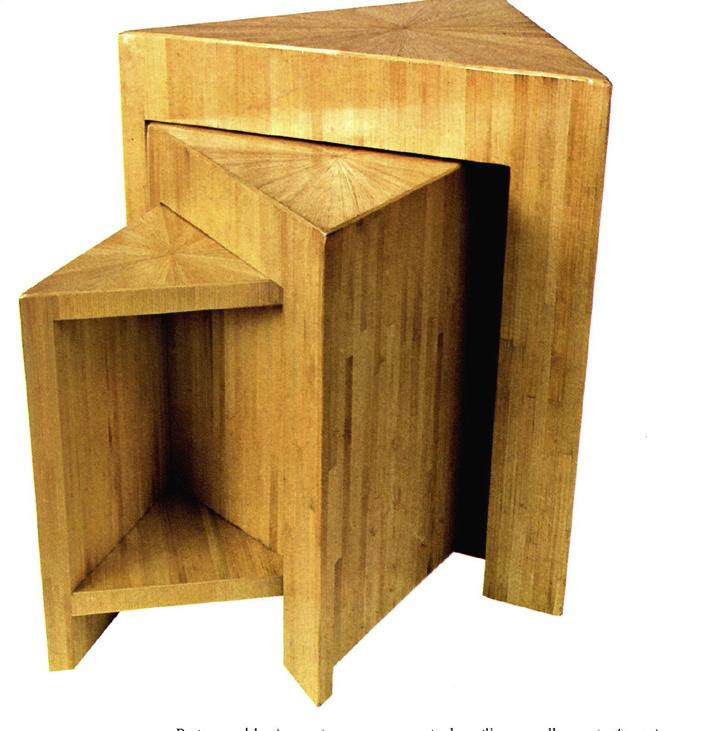

Jean-Michel Frank Straw veneered nesting table

Selected Works

1 2

3 4

37

Andrew Bawtinhimer

FRONT ELEVATION

PLAN

SIDE ELEVATION

FRONT ELEVATION

PLAN

SIDE ELEVATION

v

PROJECT:

WTINHIMER GN

E AVE, #4F

CONSULTANTS:

REVISIONS: #

NID TABLE

DATE:

DATE:

DRAWING TITLE: NOTES:

OVERALL

DWG No:

MARCH 22, 2021 SCALE:

1-1/2"= 1'-0"

Y 11221

FABRICATION PROCESS

38

A-

Selected Works

Project Assembly Axonometric study

39

40

41

2022 Mia Todd Studio Designed in collaboration with Mia Todd, Bailey Wentzler and Sutton + Suzuki

Softwares Utilized Rhinoceros AutoCAD Keyshot Photoshop

Photos: Giulio Ghirardi

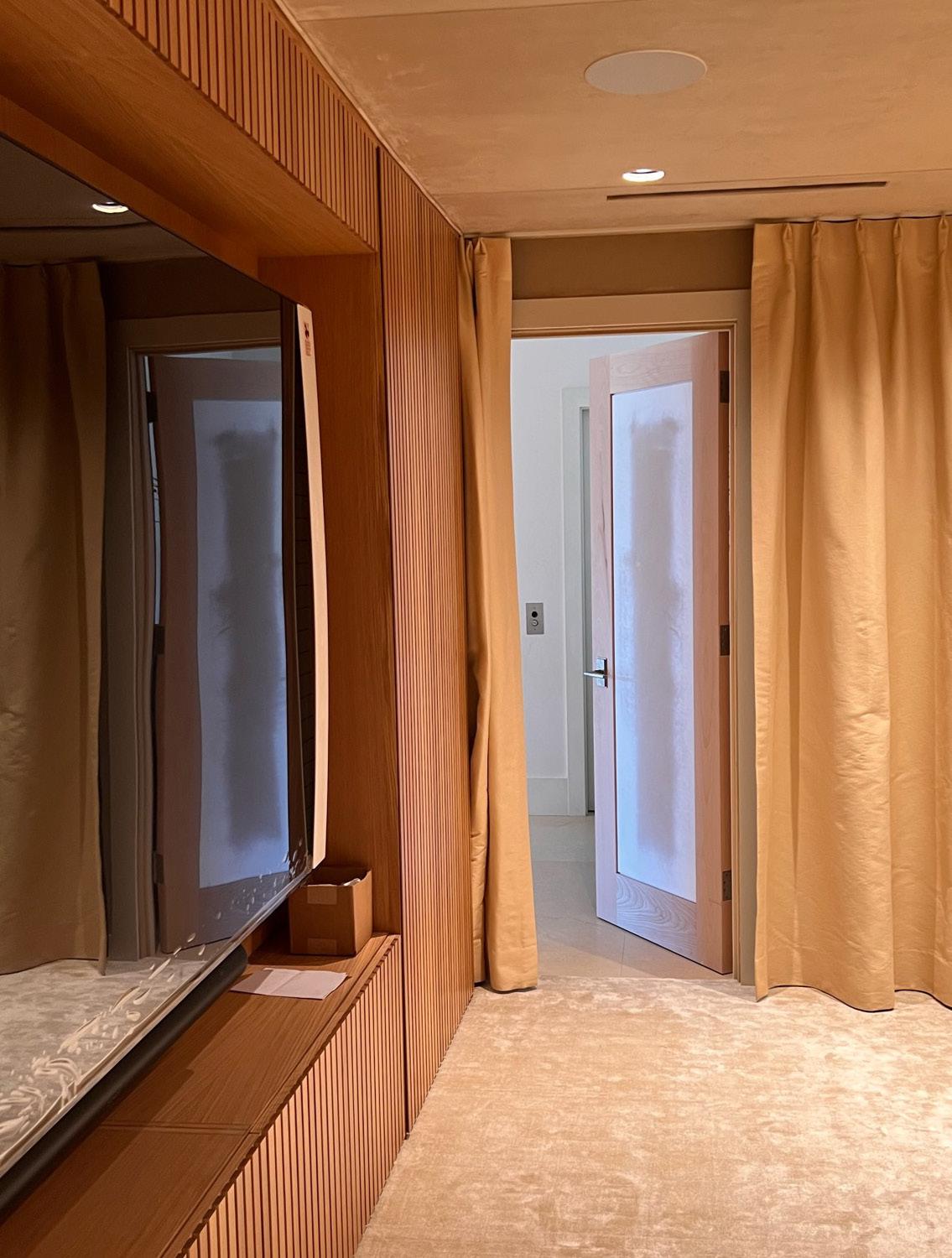

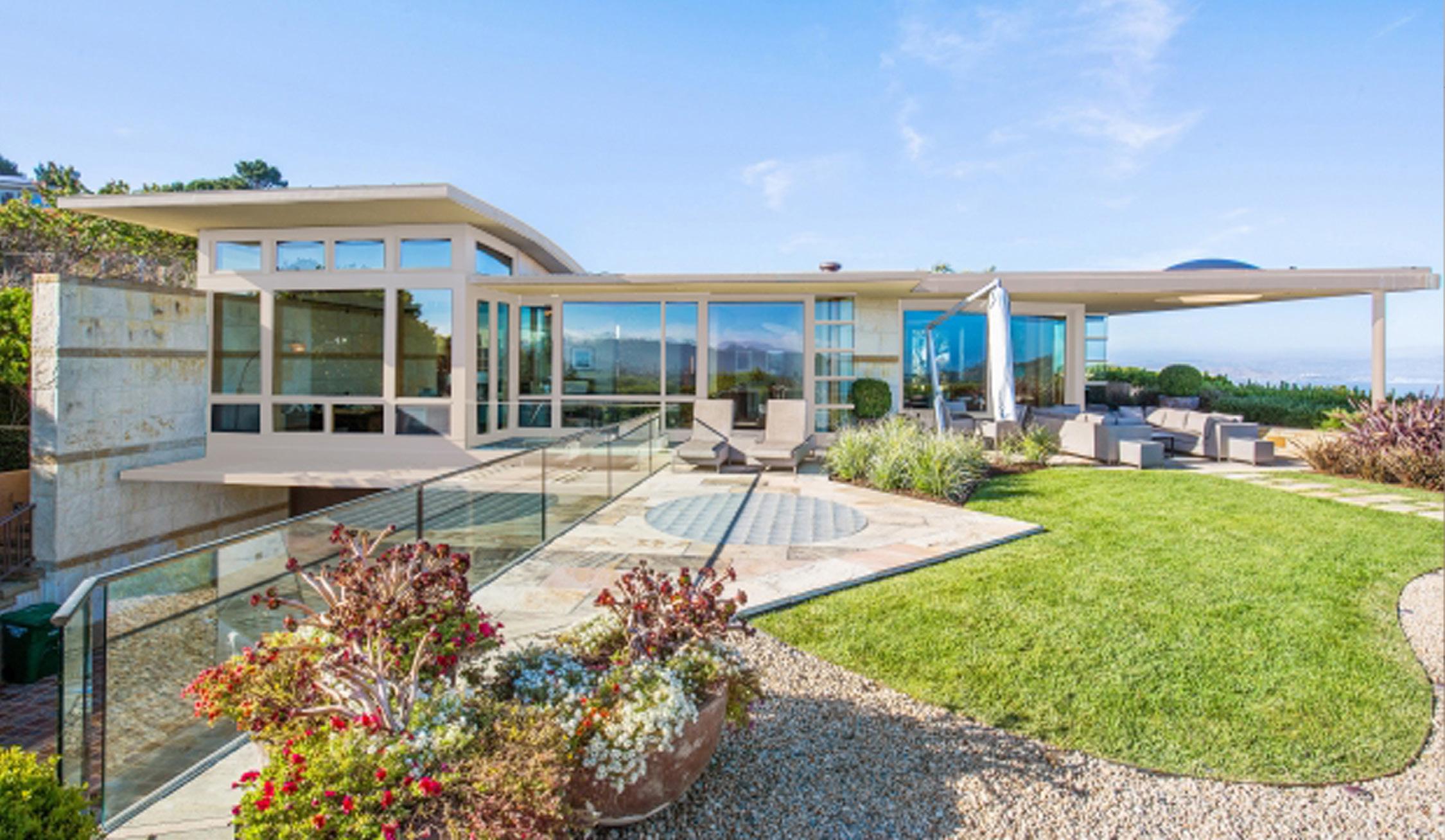

STRAITS VIEW A residential interior renovation This is the first project I worked on in my professional career that was published (Architectural Digest | France, Jan. 2024). Originally designed by Sutton + Suzuki in 2009, we were tasked with remodeling this 4.5 bedroom home to meet the needs of the clients and their young children. This included primarily interior cosmetic renovations, like wall and window treatments, a full kitchen remodel, a new fireplace design, three bathroom remodels, a home theater, a new fireplace, and several pieces of custom furniture. Working from Sutton + Suzuki’s original plans, we developed a chic minimal theme for the redesign, tying into the beautiful tones in the existing stone walls and flooring so that the new elements felt as though they had always been there and didn’t distract from the views of the San Francisco Bay. 42

Selected Works

43

Andrew Bawtinhimer

STRAITS VIEW

44

Project Location Tiburon, CA

Selected Works

Project Development Paint sample study + furniture plan

45

3'-1 5/8"

5'-5 7/8"

3'-1 3/4"

41 /2"

2'-10 3/4"

Andrew Bawtinhimer

11'-9 1/2"

PROJECT:

MIA DALTON STUDIO

46

1'-10 1/8"

CONSULTANTS:

REVISIONS: #

NAIMI RESIDENCE

DATE:

10'-0"

3'-8 1/8"

2'-0"

11'-9 1/2"

10"

10"

10"

2'-0"

3'-11 3/4"

9 5/8"

10'-0"

3'-8 1/8"

4'-5 3/4"

9 5/8"

2'-8 1/8"

3'-1 3/4"

4'-5 3/4"

5'-5 7/8"

2'-8 1/8"

3'-1 5/8"

5"

DATE:

DRAWING TITLE: NOTES:

FIREPLACE

SCALE:

DWG No:

A-100

O

Selected Works

Custom Furniture Dining room Family room (opposite page) 11'-0"

2'-6"

2" 1/4"

10'-9"

10 1/2"

3'-10 3/4"

10 1/2"

2'-8 1/4"

10 1/2"

3'-10 3/4"

10 1/2"

2'-8 1/4"

1'-10 1/2" 3'-7 3/4"

CONSULTANTS:

REVISIONS: #

DATE:

NAIMI RESIDENCE

1'-6"

DATE:

DRAWING TITLE:

A-007

SCALE:

1'-6"

2'-9" 1'-4"

1'-6"

1'-9 3/4"

2'-9"

DINING TABLE

1'-6"

1'-9 3/4"

1'-6"

PROJECT:

CONSULTANTS:

REVISIONS: #

DATE:

DRAWING TITLE:

DATE:

DW

NOTES:

NAIMI RESIDENCE

DINING CHAIRS TYPE A

SCALE:

1'-4"

1'-6"

2'-9" 1'-4"

1'-6"

2'-9"

MIA DALTON STUDIO

DWG No:

NOTES:

1'-4"

PROJECT:

1'-9 3/4"

1'-6"

CONSULTANTS:

REVISIONS: #

NAIMI RESIDENCE

3'-7 3/4"

11'-0"

MIA DALTON STUDIO

PROJECT:

3'-6 3/4"

1'-9 3/4"

2'-6"

1'-10 1/2"

2 1/4"

2'-8 1/4"

DATE:

DRAWING TITLE:

DATE:

NOTES:

DINING CHAIRS TYPE A

SCALE:

DWG No:

A-006

47

Andrew Bawtinhimer

10'-3 3/4" 3'-5 1/4"

Custom Furniture Home theater

3'-5 1/4"

16'-0"

3'-2 3/8"

3'-2 3/8"

3'-2 3/8"

3'-2 3/8"

3'-5 1/4"

ELECTRICAL / POWER LEGEND S

SWITCH CEILING MOUNTED FIXTURE (BY DESIGNER)

3'-2 3/8"

3.5" RECESSED FIXTURE A

AUTOMATIC FIXTURE WALL MOUNTED FIXTURE (BY DESIGNER) LED STRIP

PROJECT:

CONSULTANTS:

REVISIONS: #

DATE:

DATE:

DRAWING TITLE:

DWG No:

A-016

NOTES:

NAIMI RESIDENCE

SCALE:

4'-11 7/8"

9'-6"

THEATER PLAN

EQ

EQ

4'-0 1/4"

4'-0 1/4"

9'-6"

1/8" 3/4" 1/8"

48

9'-6"

1/8"

1/8" 7/8"

7/8"

16'-0"

10'-2 3/4"

10'-2 3/4"

10'-4 1/8"

10'-4 1/8"

Selected Works

49

50

51

2023 Mia Todd Studio Designed in collaboration with Mia Todd, Chad Schram + Jonathan Deans

Softwares Utilized Rhinoceros AutoCAD Keyshot Photoshop

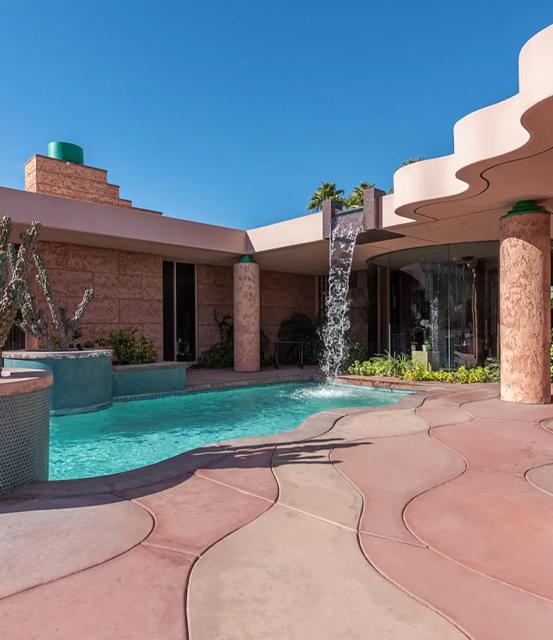

SANDPIPER A desert oasis gut renovation This is the largest scale project I’ve worked on in my professional career. The home was built by Rancho Mirage architect in 1996, our clients found this 4,700 sq. ft. post-modernist home too dated for their tastes. We were fortunate enough for our clients to trust us completely with free reign with our design concept. We pursued a more minimal approach, simplifying the architectural details while keeping the flowing and inviting feel of it alive. This stripping of ornament allows for a better expression of movement. The largest undertakings of this can be found at the core of the home, the hearth, where all movement throughout the home converges with the outdoor space. A meeting of living and entertaining spaces both interior and exterior.

52

Selected Works

53

Andrew Bawtinhimer

SANDPIPER

54

Project Location Indian Wells, CA

Selected Works

55

Andrew Bawtinhimer

Project Development Drawing set in collaboration with Chad Schram

56

Selected Works

57

Andrew Bawtinhimer

Kitchen

Theater

58

Selected Works

Guest Bathroom

Main Bedroom

59

60

61
