Departamento María Carrillo Entrega
Andrés Cedano
Arquitecto amante de la ciencia, tecnología, música y fotografía. Mi objetivo es fusionar estos elementos en el campo de la arquitectura y el uso en el diseño, con la visión de promover un impacto visual y educativo a los usuarios, además; Interpreto mis proyectos a partir de una selección de fenómenos científicos.
Andrés Cedano
Anteproyecto
Dirección: María Antonieta Carrillo
Av. República de Chile 699 Colonia Cuauhtémoc Nte 21200.
Mexicali, Baja California. 14 de marzo del 2025.
Atención al cliente:
Mexicali, Baja California. Email: arqandrescedano@gmail.com
Tel: (686)242-96-95.
María Carrillo
1 Introducción Anteproyecto
Bienvenida y explicación del proyecto a realizar.

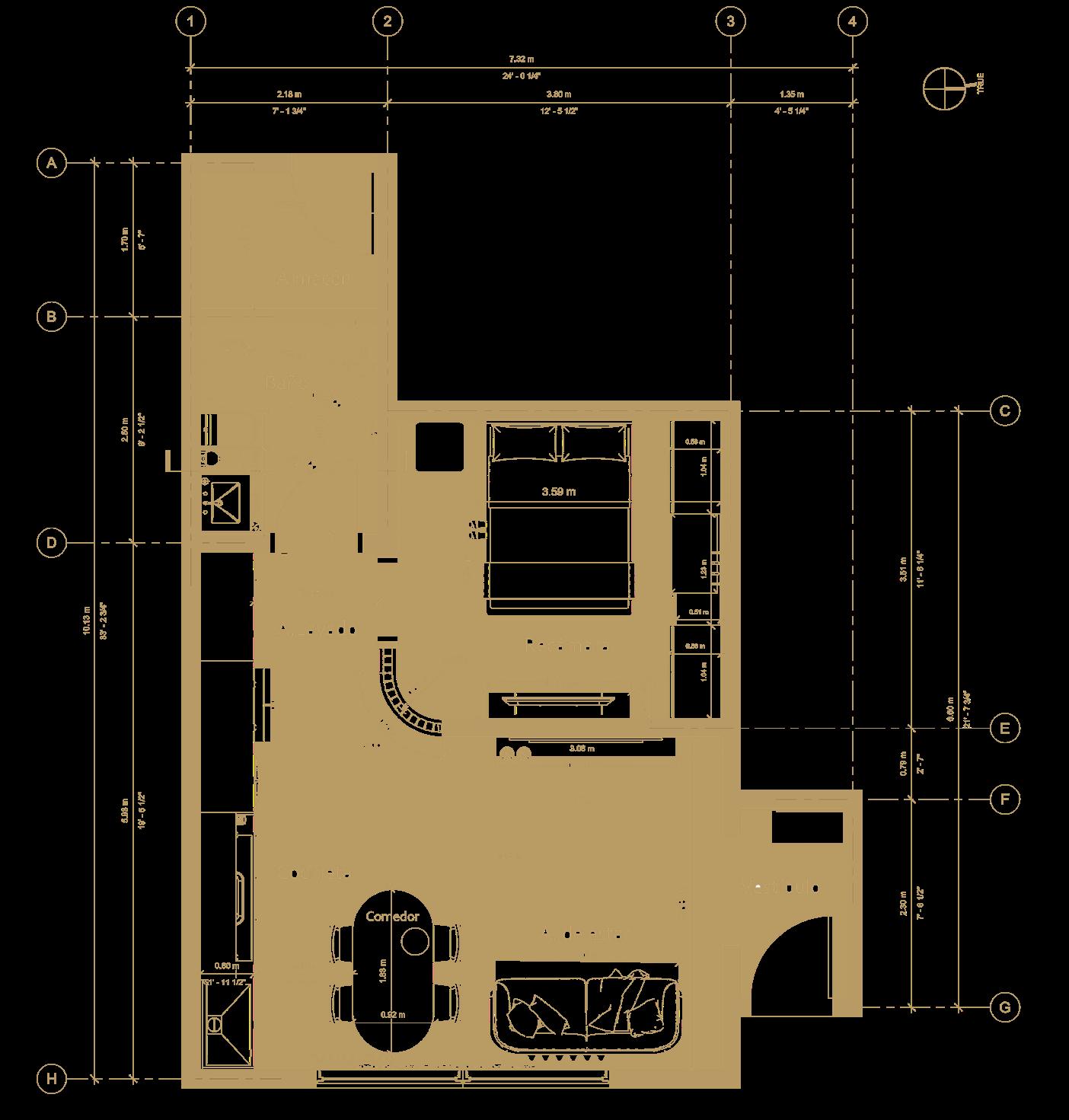

Planos Arquitectónicos
Representación de planos arquitectónicos propuestos.
Mobiliario 3
Representación de planos de mobiliario propuestos.
Luminaria 4
Tabla de contenido 2 5
Representación de luminaria propuesta.
Renders
Imágenes en perspectivas
María Carrillo
Introducción - Departamento
Temática: Distribución de espacios
El proyecto consiste en el diseño de un departamento temporal en la colonia Cuauhtémoc
Nte en Mexicali, Baja California, con un estilo que combina lo vintage, industrial y contemporáneo. La propuesta busca optimizar la funcionalidad del espacio, incorporando un baño completo, una recámara, sala de estar, cocineta, comedor y área de lavado.
El diseño integra elementos curvos en muros y puertas, manteniendo coherencia con los arcos originales del inmueble. Se seleccionaron materiales y acabados que resaltan la estética industrial y vintage, mientras que la iluminación tenue y cálida refuerza la atmósfera acogedora del espacio.
María Carrillo
María Carrillo
Andrés Roberto Cedano Avendaño Escala Dibujó Fecha Cliente
María Antonieta Carrillo
Proyecto
Ninguna observación
Mueble Cocina
Mueble Cocina
Mueble Recámara
Mobiliario Baño l Departamento
Duravit No.1 Toilet close-coupled # 218209..002 / 218209..68 / 218209..002 / 218209..68
Toilet close-coupled close-coupled
Flush water quantity: 6/3 l, Washdown model, Flushing rim:
Rimless, Outlet drain: horizontal, Incl. cistern: No, Flush
principle: washdown model, For bowl mounted cistern, Incl
mounting material, Unified Water Label (UWL) Class: 2
HEWI Waste bin
477.05B300
Similar picture
Properties
Range 477 Waste bin
cylindrical container with hinged lid
removable waste container
Dimensions in mm
lid is opened by applying slight pressure to container with the knee or hand integrated compartment for standard hygienic bags with self-adhesive label with instructions for knee operation only suitable for wall mounting capacity approx. 6 litres
340 mm high and 210 mm deep and 180 mm in diameter made of high-quality matt polyamide in HEWI colours 99 (pure white), 98 (signal white), 97 (light grey), 95 (stone grey) and 92 (anthracite grey)
María Carrillo
Features
• Coordinates with other products in the Rill collection
Material
• Premium metal construction for durability and reliability
• KOHLER® finishes resist corrosion and tarnishing
Installation
• Easy installation – no special tools required
Recommended Products/Accessories
K-23723 Faucet cleaner
Codes/Standards
None Applicable
KOHLER® Faucet Lifetime Limited
Warranty
See website for detailed warranty information.
Available Colors/Finishes
Color tiles intended for reference only.
Color Code Description
BN Vibrant® Brushed Nickel
2MB Vibrant® Brushed Moderne Brass
Features
• Coordinates with other products in the Kumin® collection.
• Pivoting holder makes changing toilet tissue quick and simple.
Material
• Premium metal construction for durability and reliability.
• KOHLER finishes resist corrosion and tarnishing.
Installation
• Mounting hardware and installation template included.
Recommended Products/Accessories
K-23723 Faucet cleaner
Toilet paper holder
K-24546
Codes/Standards
None Applicable
KOHLER® Faucet Lifetime Limited
Warranty
See website for detailed warranty information.
Available Colors/Finishes
Color tiles intended for reference only.
Description Code Color
Polished Chrome CP
Vibrant® Brushed Nickel BN
Matte Black BL
Features
• Frameless design emphasizes glass and creates a sleek, minimalist look
• Dual sliding barn door style
• Innovative roller design with stainless steel bearings simplifies installation and provides out-of-plumb adjustability while glass is installed
• Cushioned center guide provides smooth, quiet sliding action
• Smooth, easy-to-clean wall jambs
• Vertical handles accentuate the contemporary style
• CleanCoat®+ glass coating creates a hydrophobic barrier that repels water, soap scum, and residue, saving time and protecting shower doors 10 times longer than original CleanCoat. (Based on 2021 internal wear/abrasion testing using a microfiber cloth.)
• Tempered glass ensures enhanced safety and durability
Material
• Frameless, heavy 5/16" (8 mm) thick Crystal Clear tempered glass
• Anodized aluminum prevents rust and corrosion
Installation
• Fits opening widths 56-5/8" – 59-5/8" (1438 –1514 mm)
• 77-9/16" (1970 mm) high, with 71-9/16" (1818 mm) minimum head clearance
• Out-of-plumb adjustability simplifies installation
• Door can be installed to open to the left or right to suit your bathroom layout
• Not for use in hospitality
• For residential use only
Tellin®
Frameless sliding shower door K-RC701582-L
Codes/Standards
ANSI Z97.1
CAN/CGSB-12.1
CPSC 16CFR 1201
KOHLER® Bath and Shower Doors
Ten-Year Limited Warranty
See website for detailed warranty information.
Available Colors/Finishes
Color tiles intended for reference only.
Color Code Description
BNK Anodized Brushed Nickel
Available Glass Options
Code Description
L Crystal Clear
María Carrillo
This classic towel rail with its refined, fluid lines, embodies the essence of the collection's unique forms. An essential component in any bathroom space, it fits seamlessly with any Baia bathroom suite
Available in three finishes:
Greige, a balance between grey and beige, is a leitmotif in Giorgio Armani’s creations and is considered by many to be the ideal shade in interior design. Brushed Steel adds a discreet, sophisticated feel in an elegant twist on an industrial ambience
Chrome finish enhances the fresh, classic look in any bathroom space, and each piece has been treated with Roca's exclusive Ever shine® to ensure permanent shine.
The Greige and Brushed Steel finishes have been hand-crafted to enhance the bespoke feel of the piece and add a discreet, contemporary quality to the bathroom suite
400 mm towel rail Ref A817272
Asola
Specchio ovale | Oval mirror
Descrizione prodotto | Product description
Specchio Asola con cornice in metallo verniciato in Nero. Installazione orizzontale o verticale, senza illuminazione.
en. Asola mirror with a Nero painted metal frame. Can be hung horizontally or vertically. Without lighting.
Dimensioni | Dimensions
| Finishes
Malin™ by Studio McGee
24" bathroom vanity cabinet with sink and quartz top K-35018
Features
• Designed in collaboration with Studio McGee
• Set includes cabinet, precut quartz vanity top, backsplash, sink, cabinet hardware
• Full-extension 17" (432 mm) drawers with soft-close undermount slides
• Removable dividers in top drawers to personalize drawer organization
• Three-way adjustable slow-close door hinges for easy cabinet access
• 20-7/16" (519 mm) cabinet interior provides ample storage space
• Finish-matched cabinet interior offers generous clearance for plumbing
• Vanity top has single faucet hole; requires deck-mount faucet (sold separately)
• Vibrant® Brushed Moderne Brass hardware is included on White Oak vanities and Vibrant Polished Nickel hardware on White vanities. Additional hardware finishes are available (sold separately)
Material
• Quartz vanity top adds beauty and long-lasting durability
• Vitreous china sink
• Solid and composite wood
• Wood is a living material, and its beauty is enhanced by natural variations in grain, color, and pattern. No two pieces of wood are exactly the same, and the color will change with age, temperature, and exposure to light
Installation
• Easy installation – no special tools required
• Sink preinstalled on vanity top to simplify installation
Codes/Standards
ASME A112.19.2/CSA B45.1
KOHLER® One-Year Limited Warranty
See website for detailed warranty information.
Available Colors/Finishes
Color tiles intended for reference only.
Color Code Description
0 White
SWK White Oak
24-5/8" (625 mm)
12-1/2" (318 mm)
100° 25" (635 mm)
Malin™ by Studio McGee
24" bathroom vanity cabinet with sink and quartz top K-35018
2-1/2" (64 mm)
20-9/16" (522 mm)
8-11/16" (221 mm) 4" (102 mm)
General Rough-In Area
17-3/4" (451 mm)
11-9/16" (294 mm)
22-7/16" (570 mm)
1-3/16" (30 mm)
8-11/16" (221 mm)
39-11/16" (1008 mm) 5" (127 mm)
22-5/16" (567 mm)
Technical Information
All product dimensions are nominal.
19-7/16" (494 mm)
Notes
Install this product according to the installation instructions.
Select the type of fastener based upon the wall material. Two 250 lb (113.4 kg) minimum load bearing fasteners are recommended with a lag bolt of length to clear obstacles in the wall and 5/16" washers. Calculate the proper lag bolt length by adding the 1-1/2" (38 mm) backing material, plus the wallboard thickness, plus the back rail thickness.
María Carrillo
María Carrillo
María Carrillo
María Carrillo
María Carrillo
María Carrillo
María Carrillo
¡Gracias!
Andrés Cedano
