Architecture Portfolio

Page 1

An Nguyen

Architecture Portfolio

Contact

Email: anhongnguyen10@gmail.com

Phone: 256.224.3868

LinkedIn:

Software

3+ Years of Experience

Photoshop

AutoCAD

Revit

Rhino

Illustrator

Hand Sketching

InDesign

Laser Cutter

1+ Years of Experience

Twinmotion

Grasshopper

Physical Modeling

0-1 Years of Experience

SketchUp

After Effect

Adobe Premiere

3D Printing

Language

Vietnamese English Japanese

An Nguyen ]

Experience

Barista Sept. 2018 - Present

Ding Tea | Duluth, GA

Maintaining a friendly and clean work environment for customers and coworkers

Opening/closing store, stocking supplies, and making drinks

Summer Internship June - Aug 2023

Dwell Design Studio

Gained experiences in creating construction documents, including drafting and detailing walls, roofs, foundations details, and other important architectural components.

Assisted with redlining markup

Participated in team meetings and brainstorming sessions.

Communicated and collaborated effectively with team members to contribute to project success.

Participated in site visits to observe construction progress

Design Intern May - Aug. 2021

Kennesaw State University Food Forest | Kennesaw, GA

Collaborated with Food Forest Development Team and Architecture Department Chairman in creating conceptual designs for their new buildings

Worked on research team that oversaw materiality, energy composition of the building, and potential cost of construction

Tasked to create graphics, construction details, and renderings for the final proposal

Summer Internship June - Aug 2019

Hill Foley Rossi & Associates LLC

Used SketchUp to create mock ups designs

Assisted with field dimensions and site observation

Provided graphics and designs support

Education

Kennesaw State University

Expected May 2024

Bachelor of Architecture

KSU Food Forest

Maxwell High School of Technology

May 2019

Architectural Drawing & Design Program

Skill USA

Parkview High School

May 2019

Awards & Achievements

Pride by Design- 2023

Integrated Studio Competition 2022- Finalist

Precast Parking Garage Competition 2022

Architecture Vertical Charrette 2019- Finalist

SkillsUSA Architecture State Championship 2019- Finalist

Revit Certification Exam 2019

[
Table of Contents The Shard Bit and Pieces KSU Tiny House Additional Drawings Additional Works 3 9 17 27 29
3

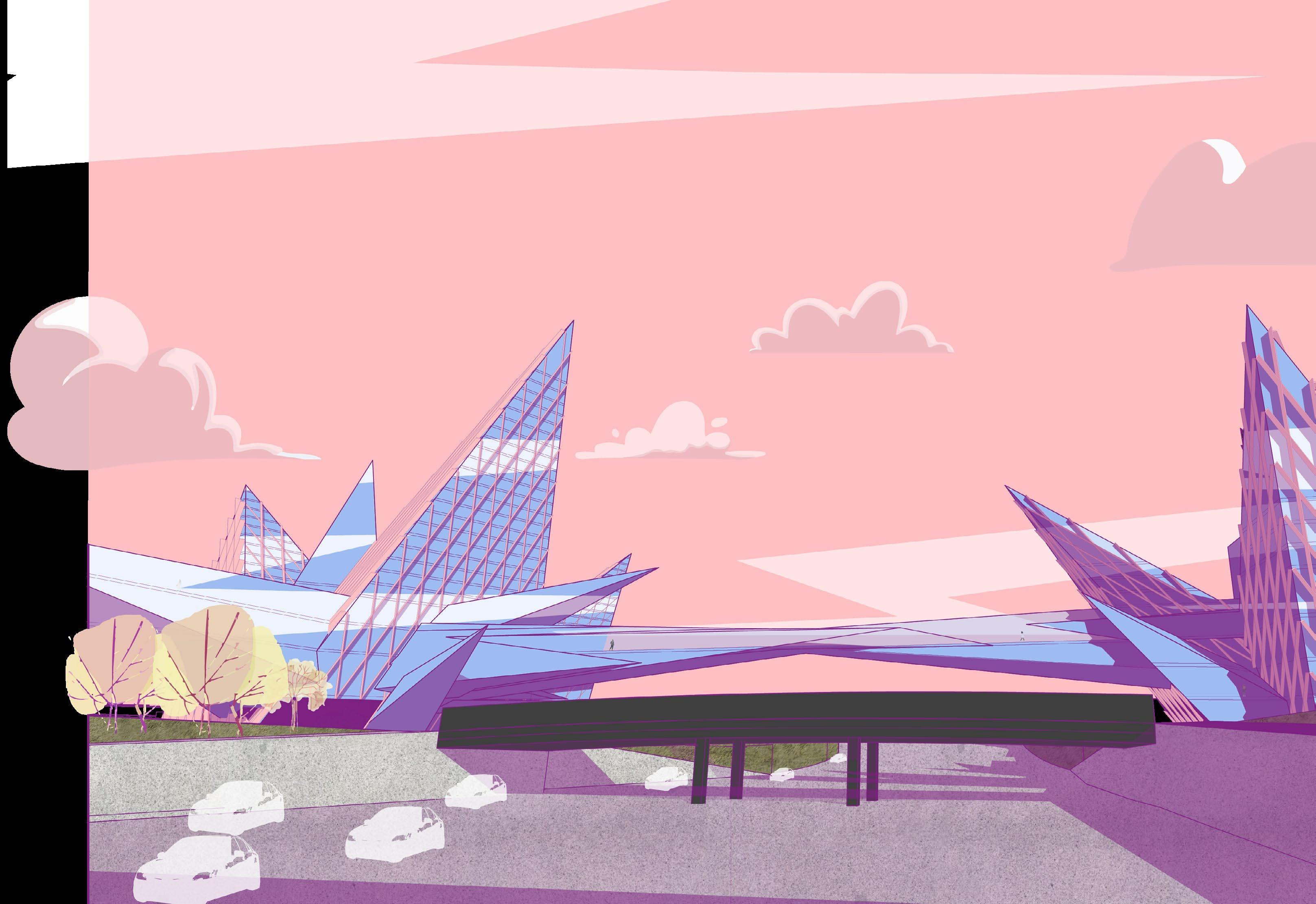

The Shard

location: 14 th Street Northwest, Atlanta, GA

Project Type: Mix Used ( Crystal Arena and Midtown School of Film)

Year: 2022

Group Project Contribution: Design Process, Digital Model, Elevation,

Section Cut, Exterior and Interior Render.

Description:

This project focuses on crystalline growth in the urban condition. With the Crystal Arena on the West and the Midtown School of Film on the East, the structures serve as portals that encourage new densities throughout the program. The program seeks to connect various communities by creating a bridge between the dense morphology of Midtown with the less dense Georgia Tech and Home Park neighborhoods.

4

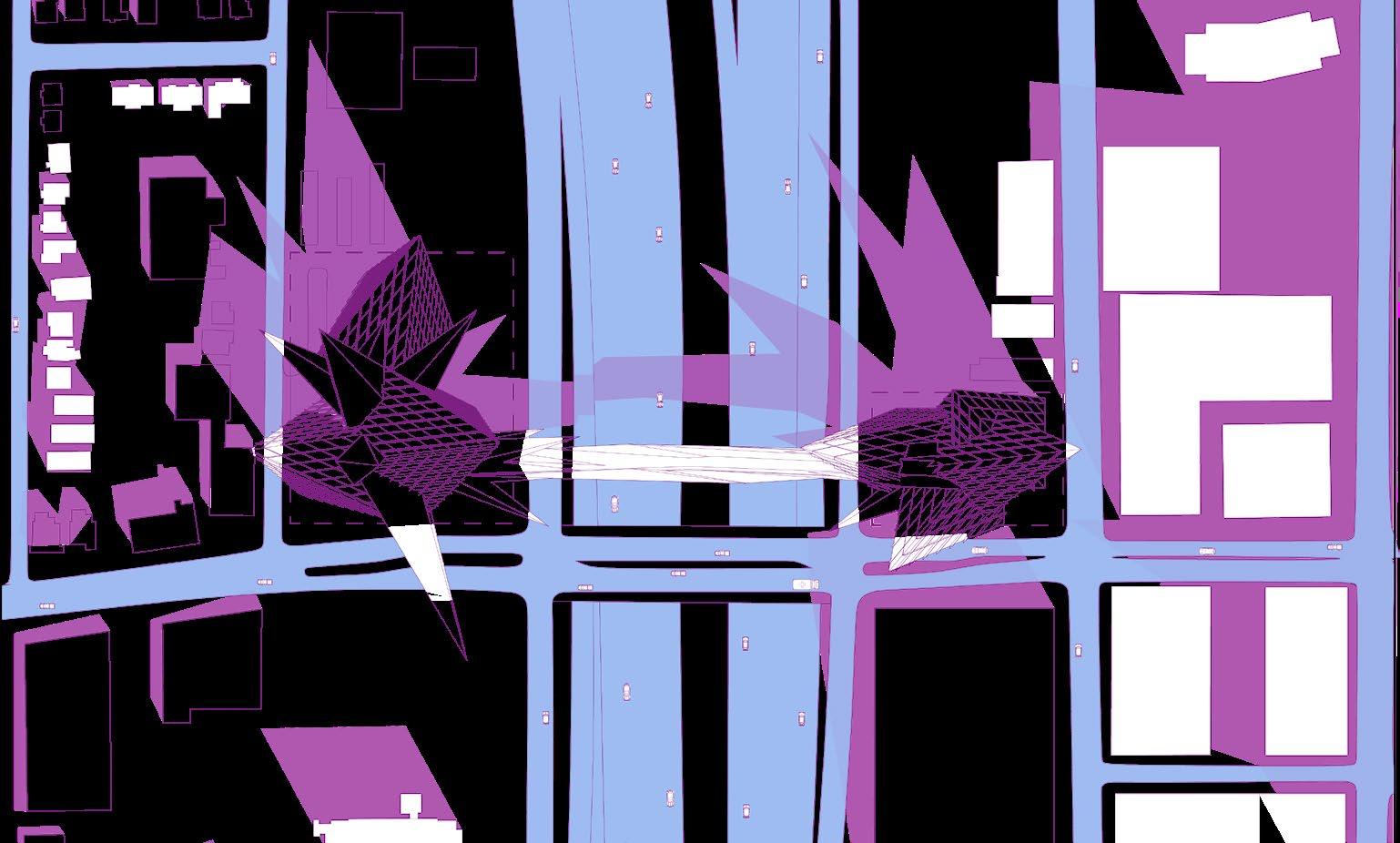

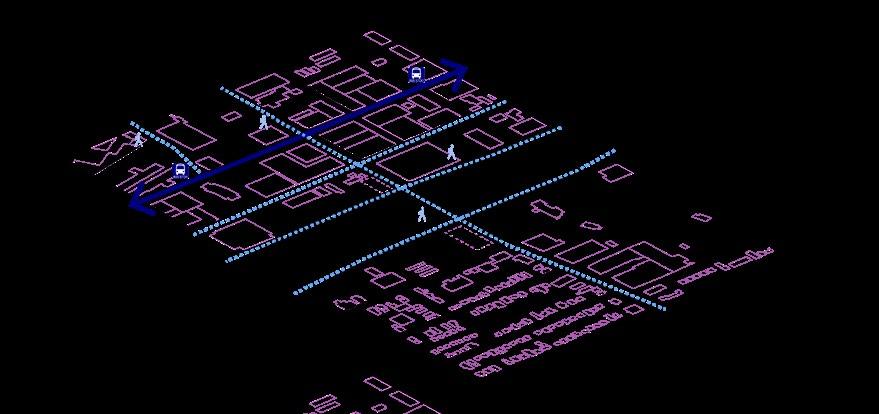

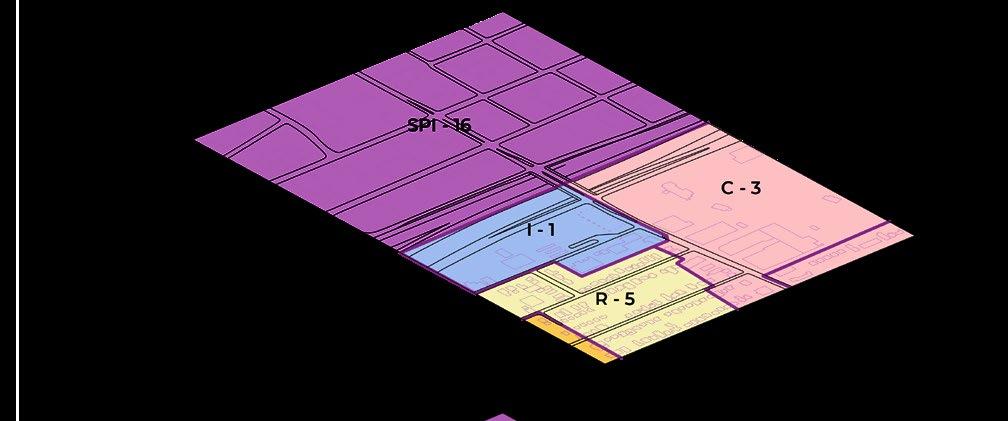

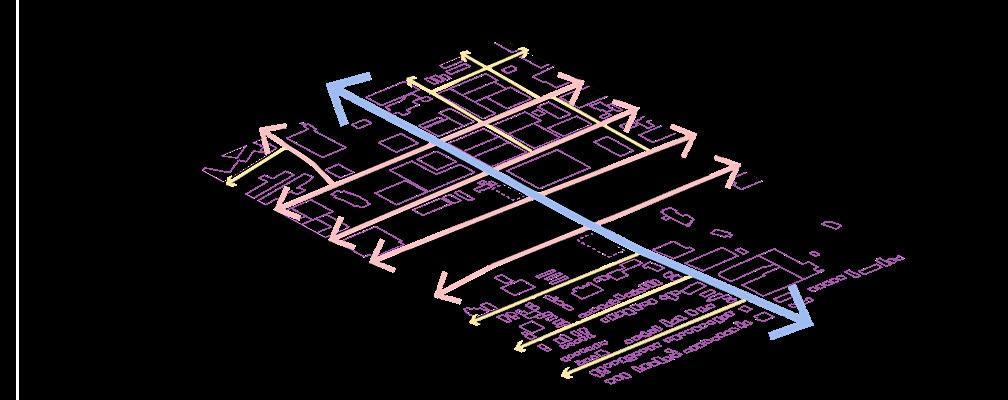

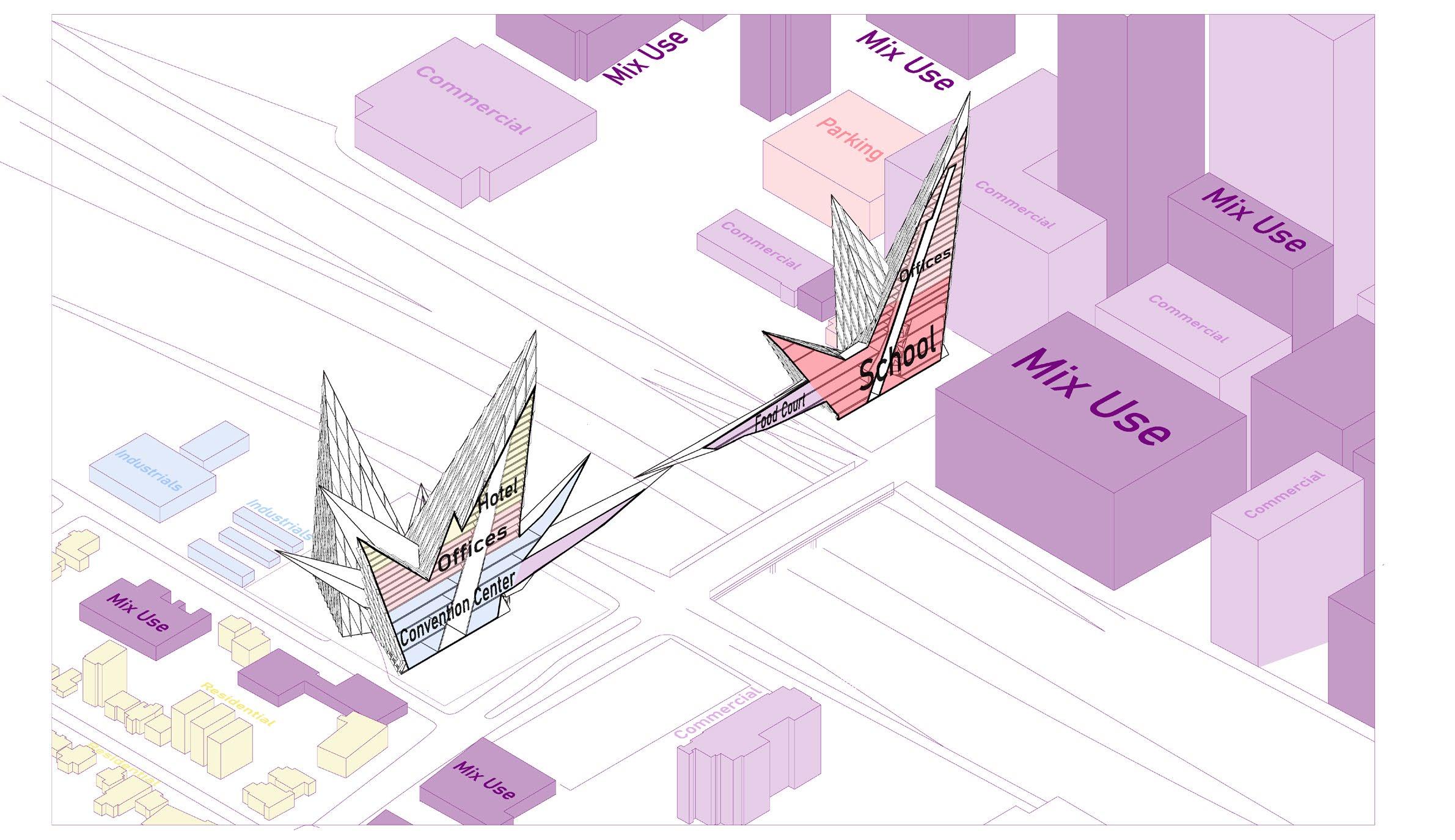

Transportation Roads City Zoning Site Main SPI Secondary Commercial Residential Tertiary Industrial 5

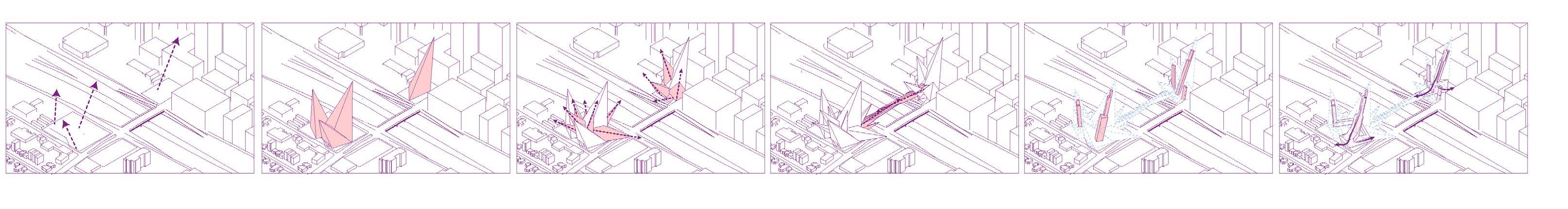

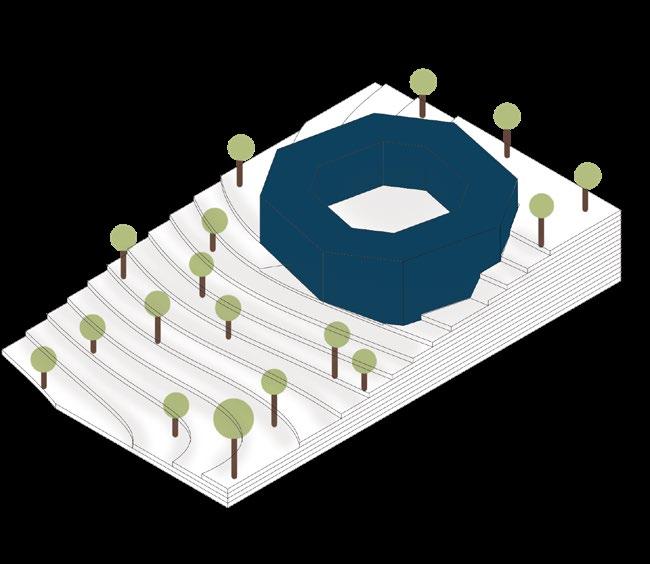

Extrude Massing Extrude Connect Core Circulation 6
Perspective Section Cut of Film School

Curtain Wall

Mullion

Steel Bolted Plates

Steel Webbing

Nodes

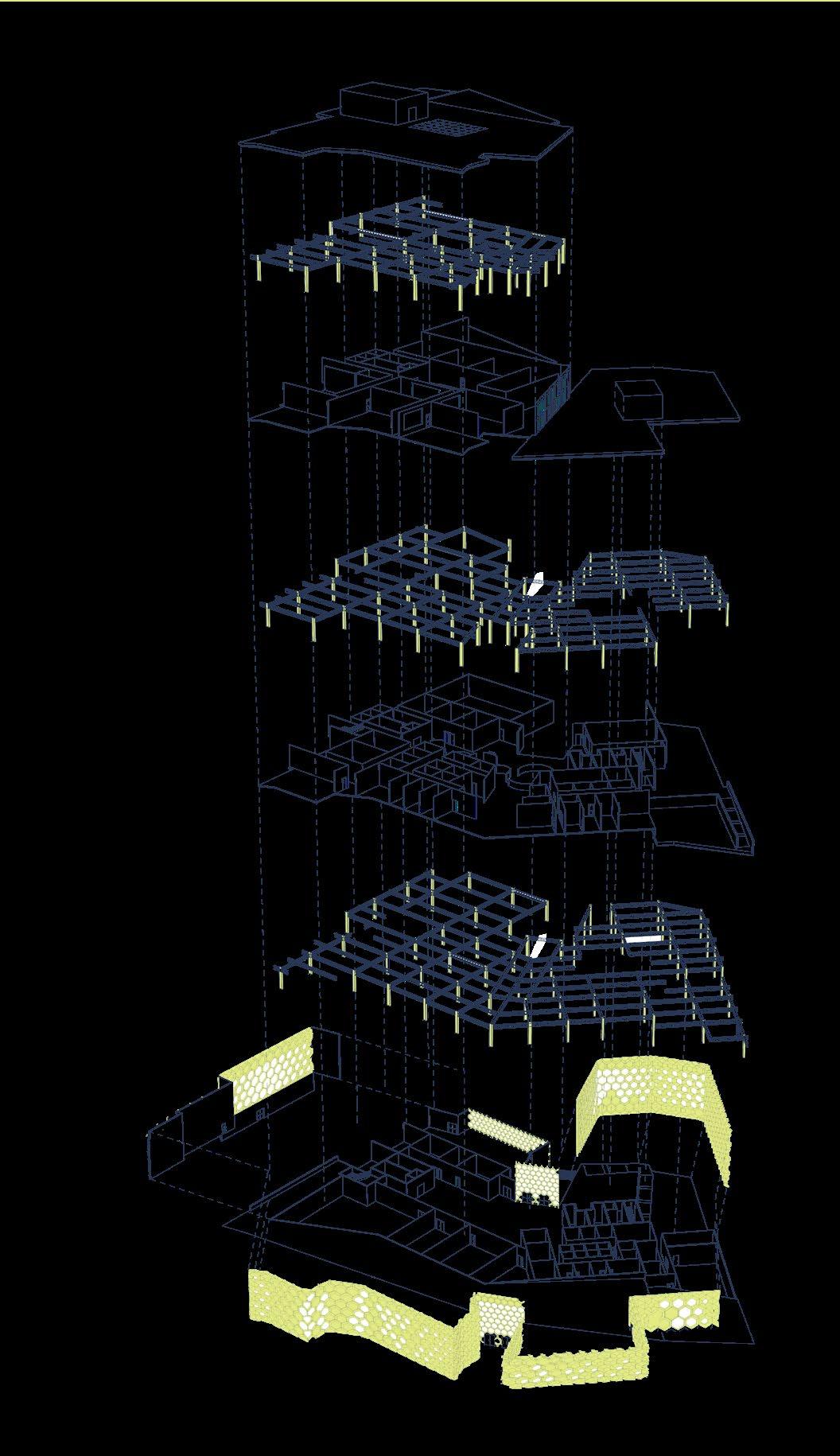

Steel Diagrids

Diagrid Section Detail

Elevation
West
South Elevation 7

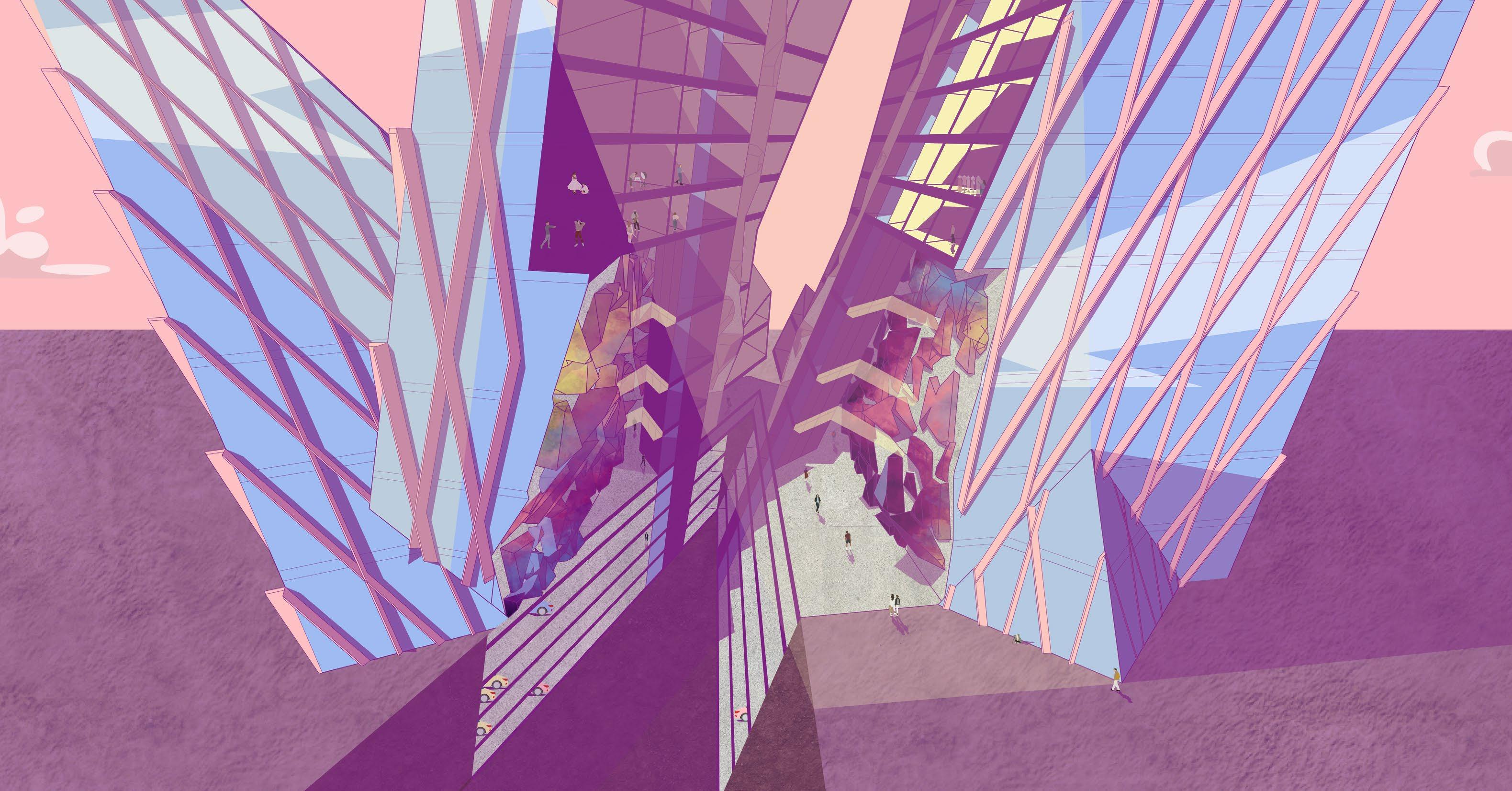

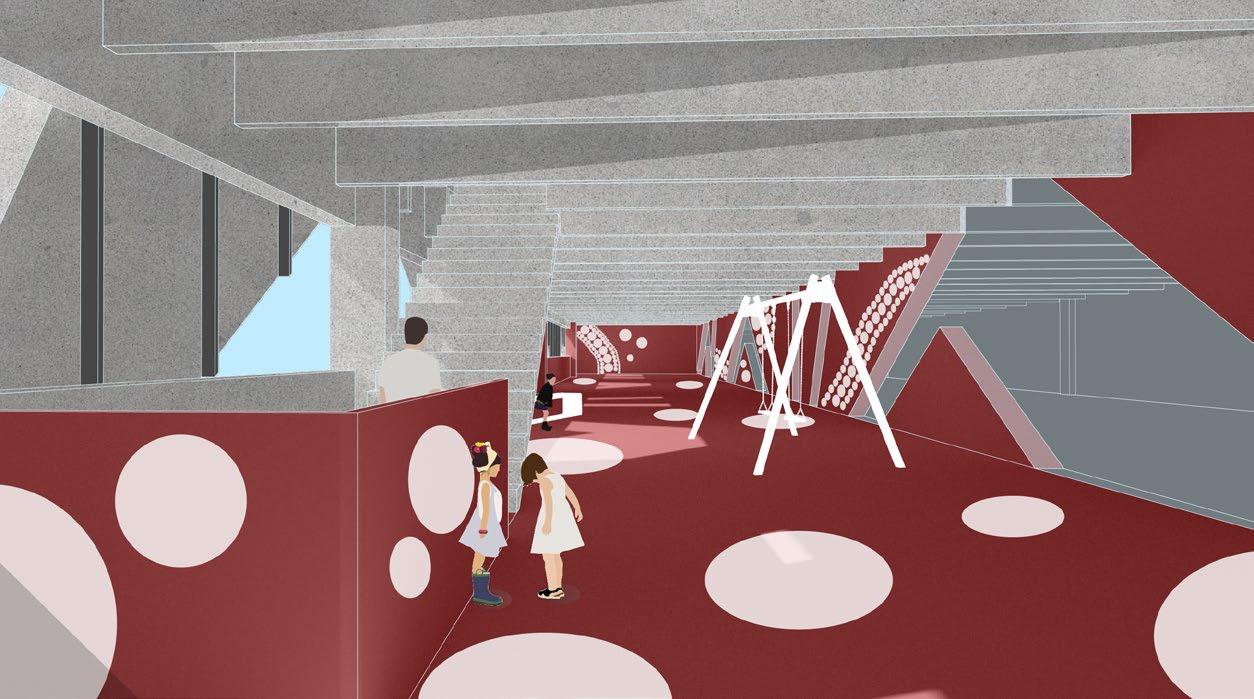

Midtown School of Film Lobby 8
9

Bit and Pieces

Location: Kennesaw State University

Project: LGBTQIA+ Center

Year: 2023

Description:

Queer space often inhabits the scraps of a city, creating a torn identity the spreads out into pockets and isolated gay-borhoods sprinkled throughout the urban fabric. And LGBTQIA+ Center is the opposite of that, a centralized hub of queerness that celebrates this mix of identity and diversity in one location, not as pieces thrown to the urban winds. Our exploration of queerness began with gathering these scraps of identity from across Atlanta, and creating a collage that begins to overlap these unique identities and force them to share the same space, on paper at least. Using this collage to influence our building form, we pulled shapes and mass from the images created and pieced them together to create a complex and unique building form.

10
11

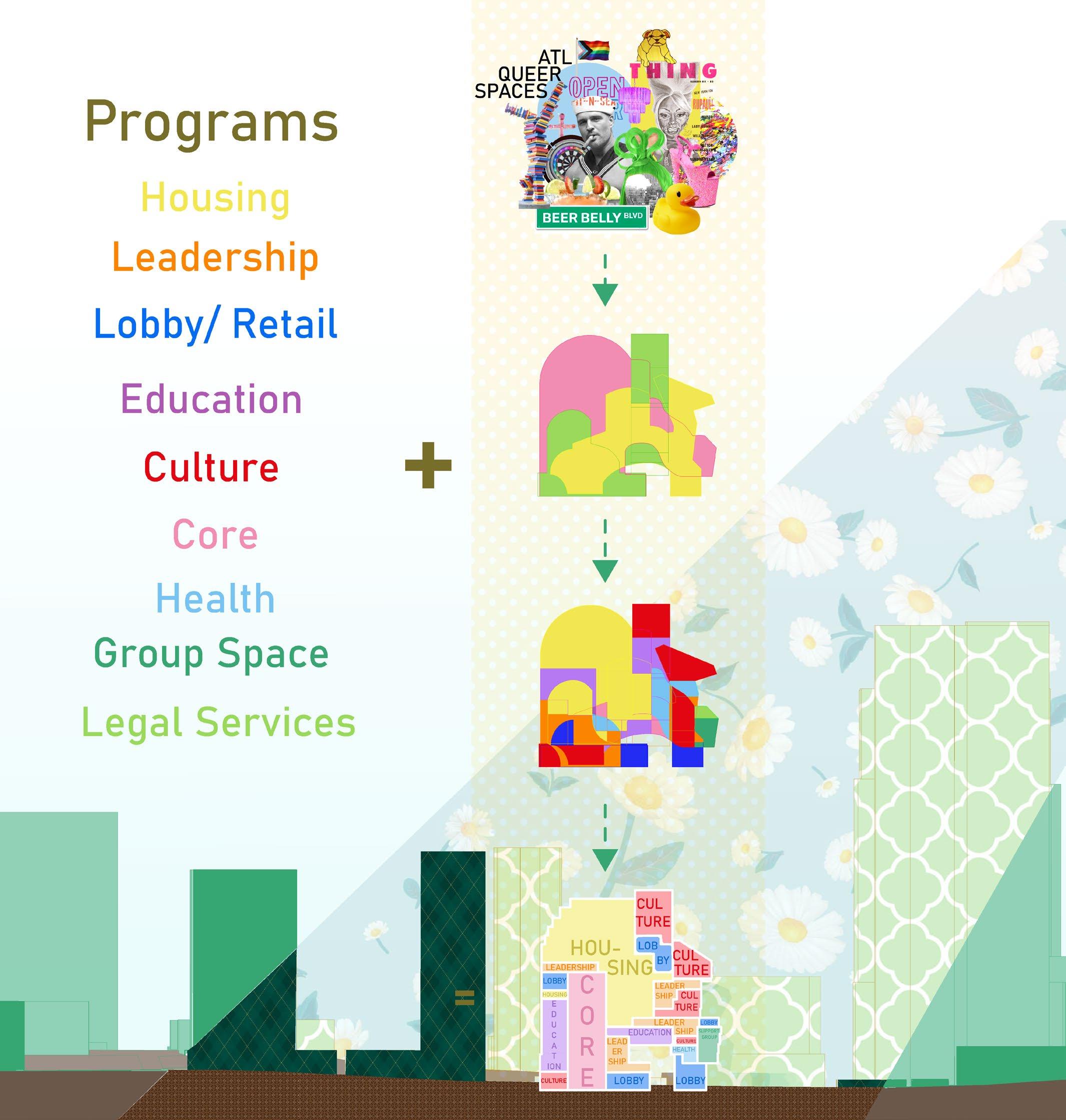

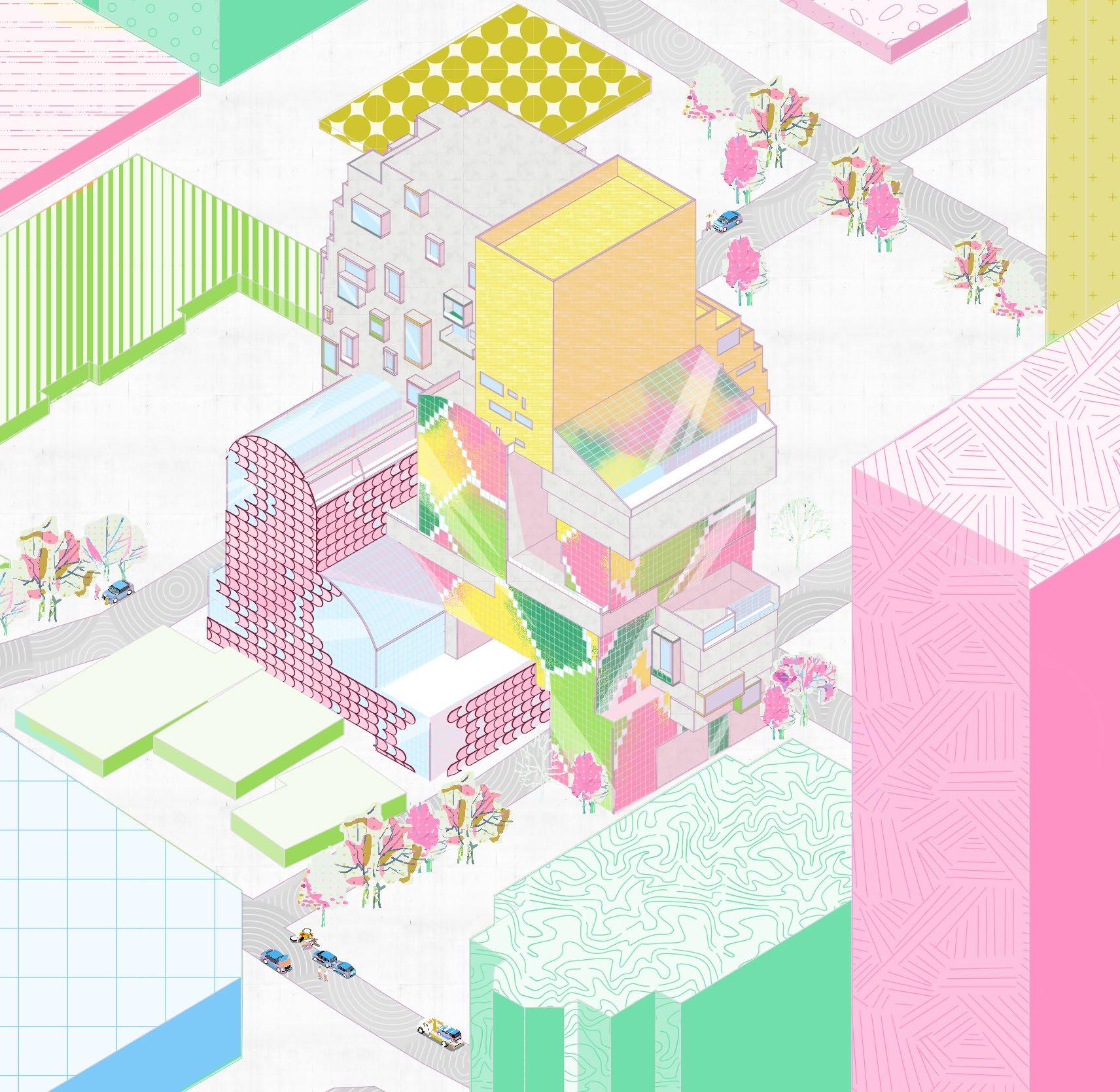

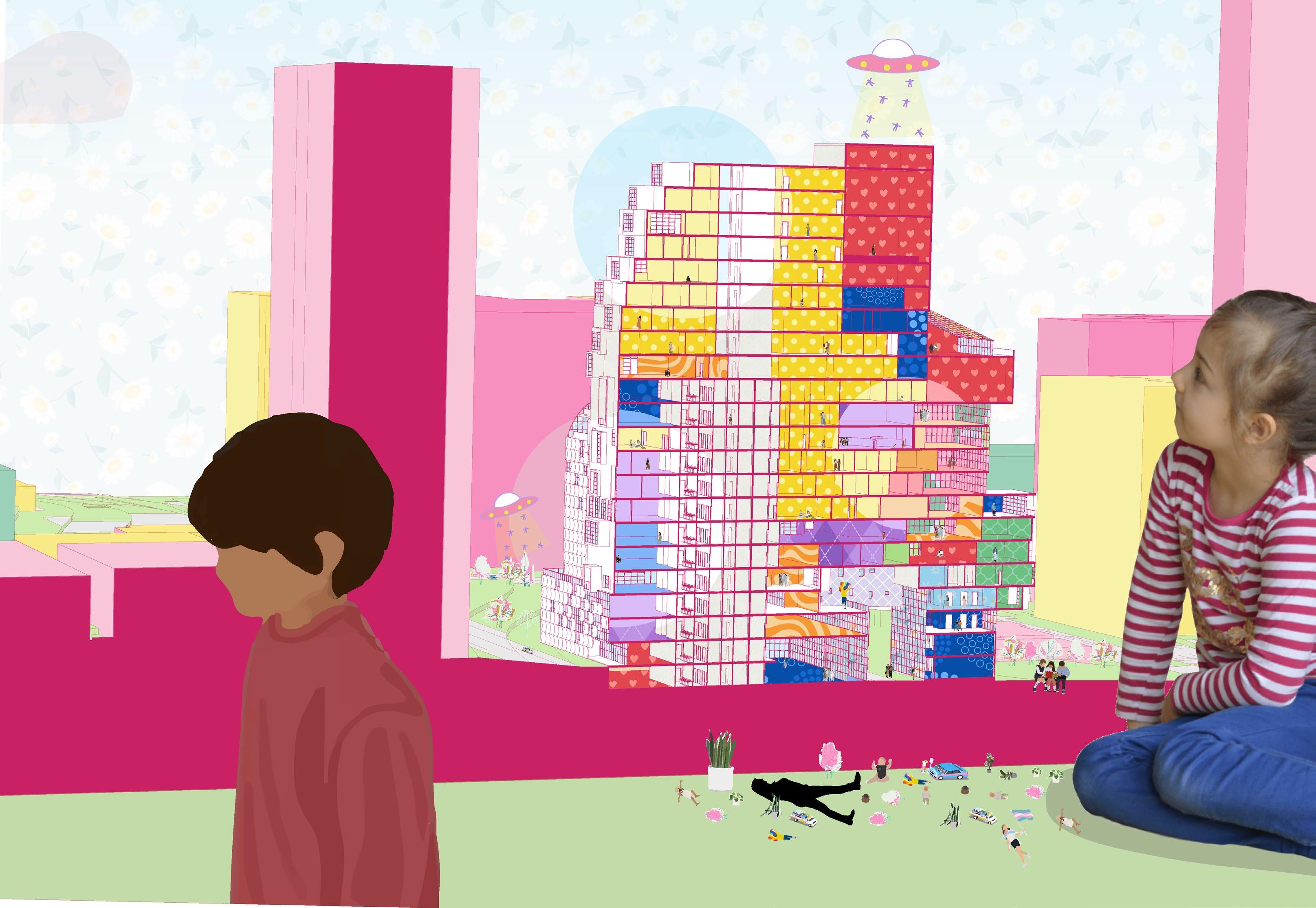

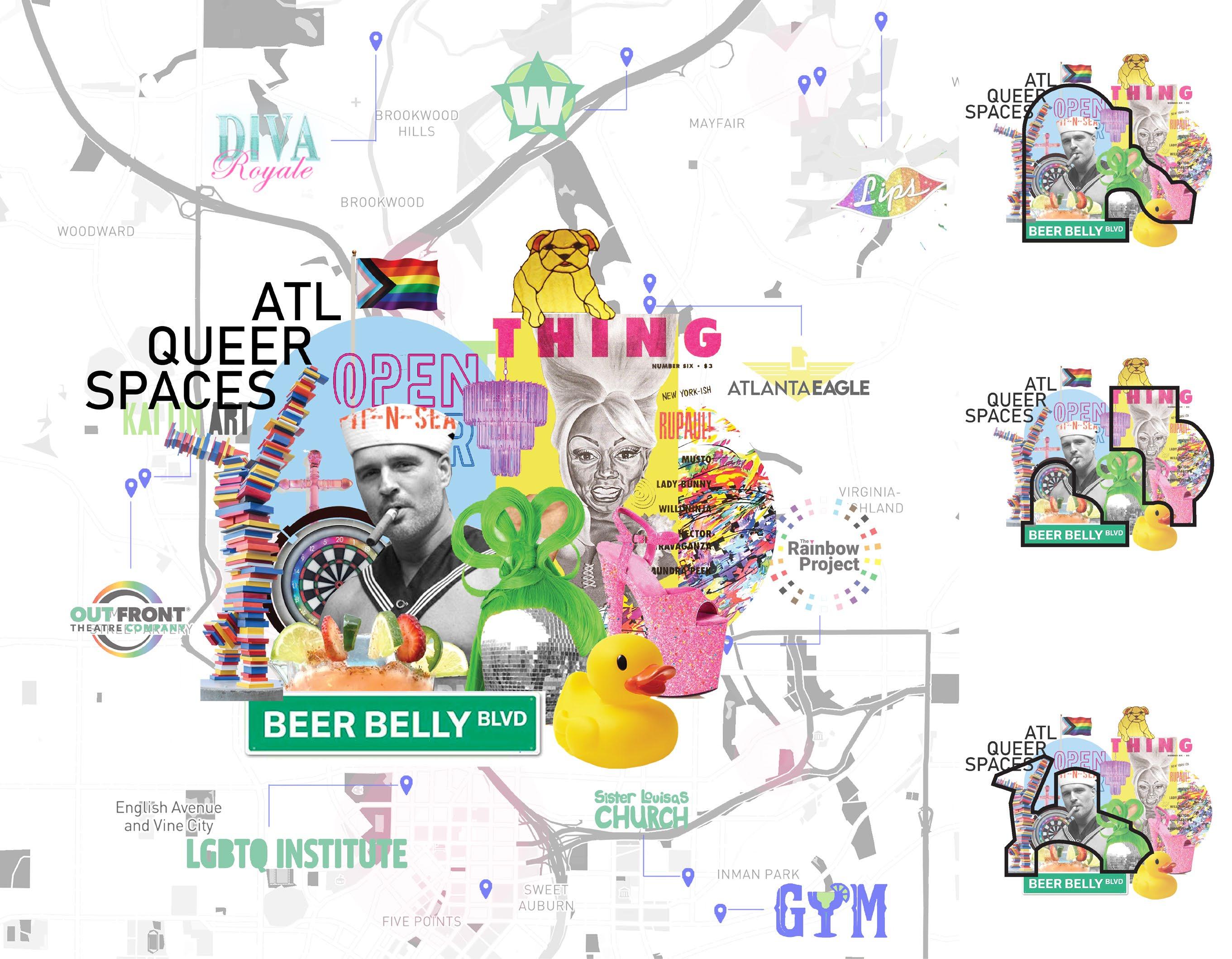

Collage Shapes Programs

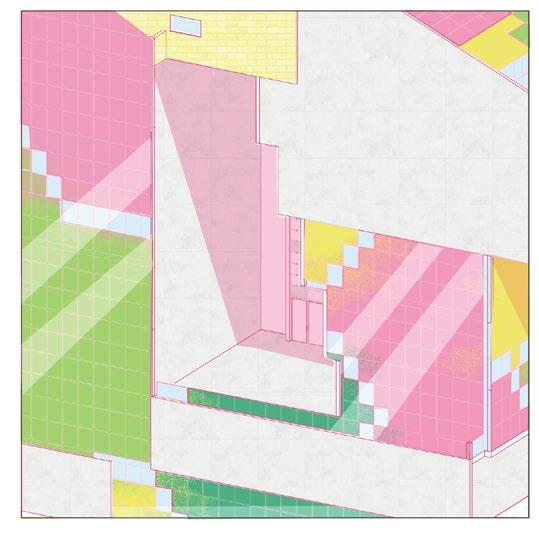

Section Cut

12
13

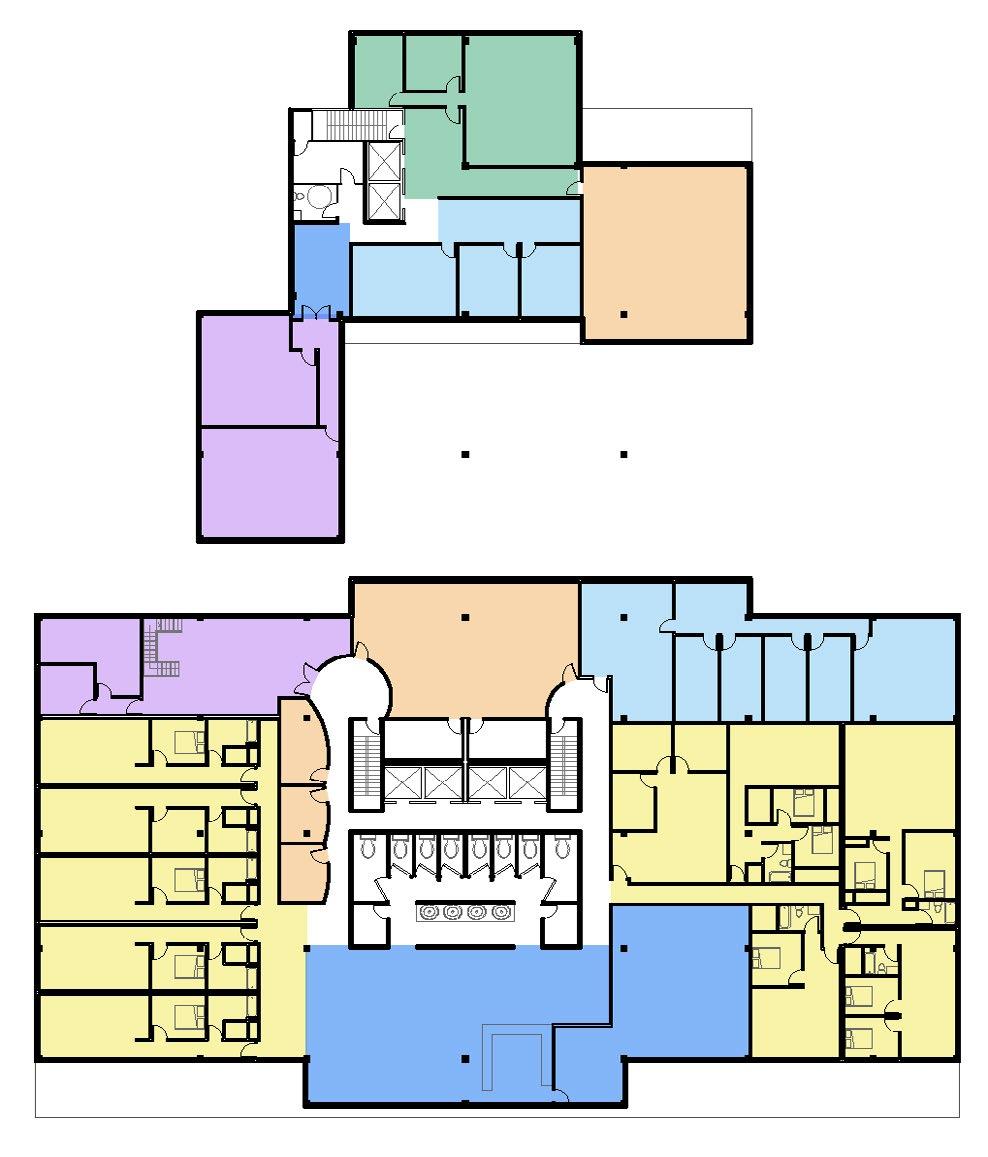

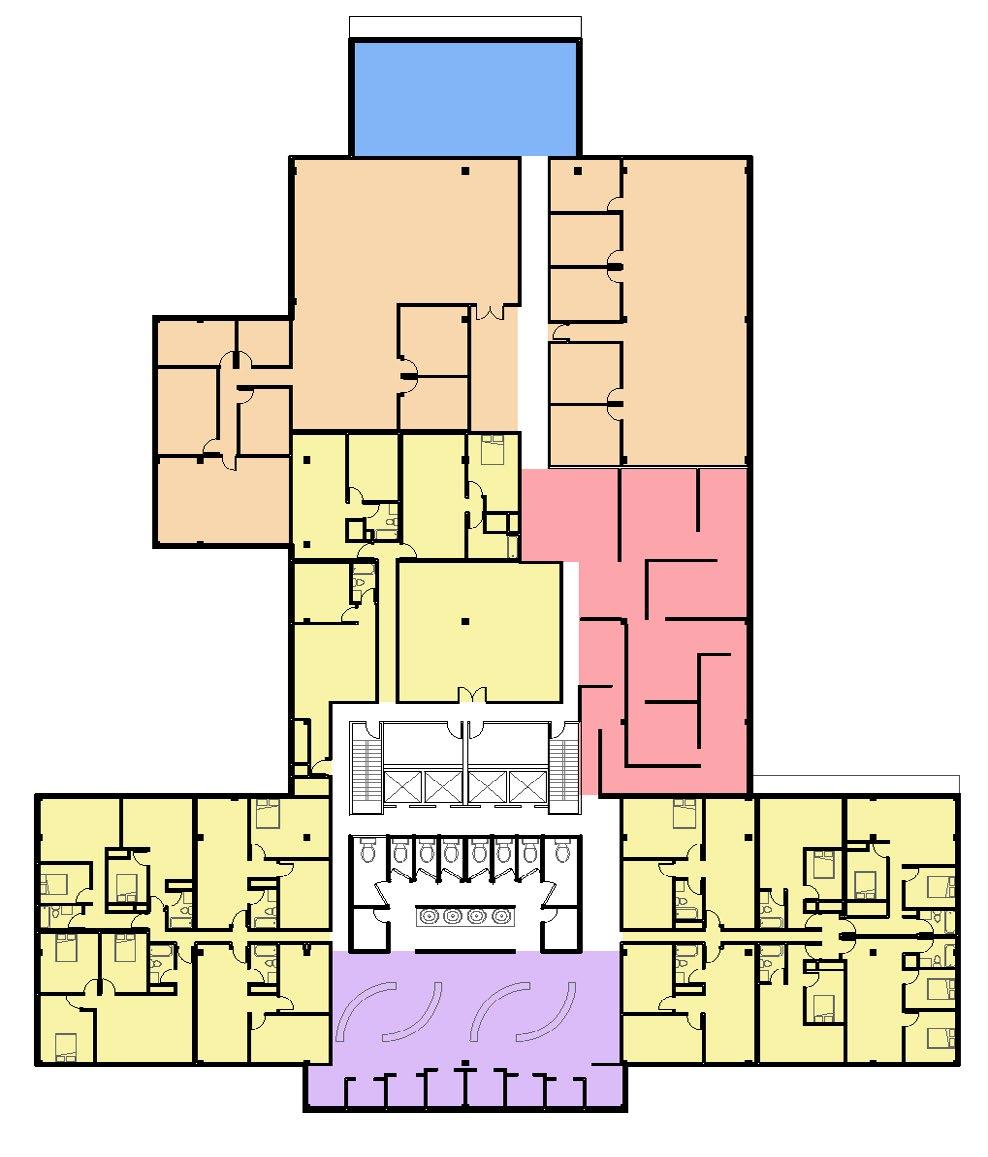

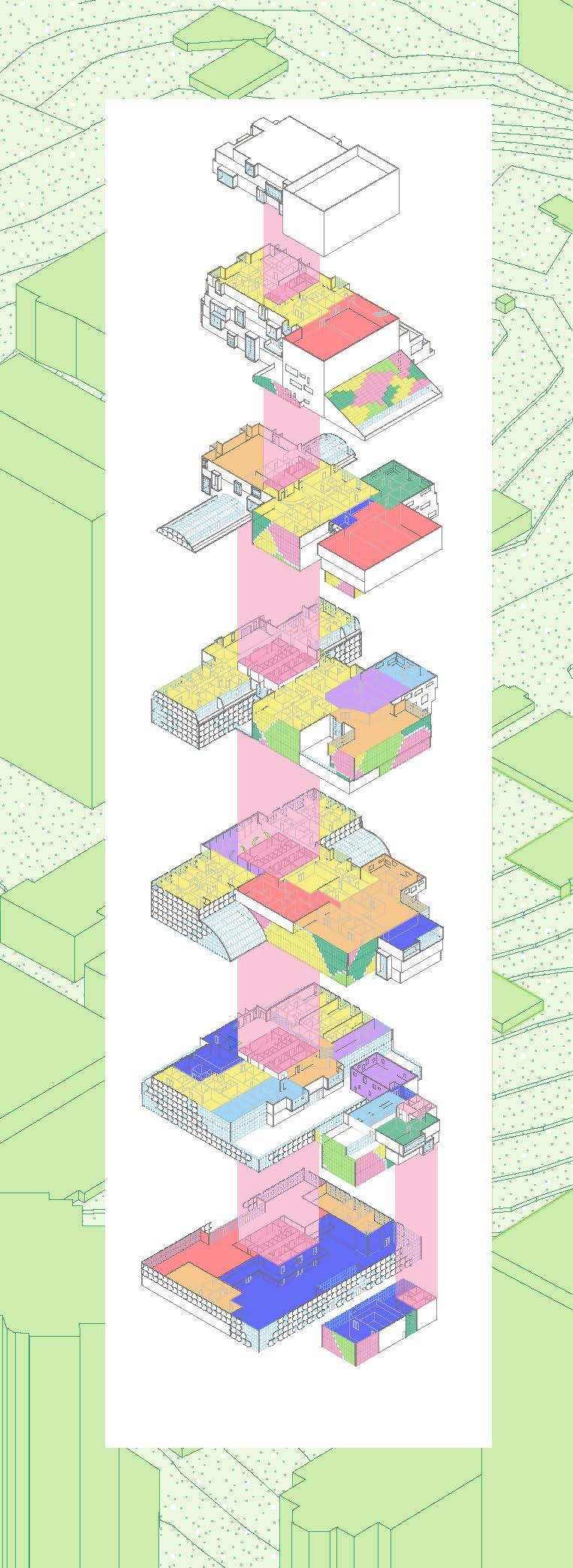

space Classrooms Retail Retail Support space LVL 5 LVL 8 Gallery Office space
space Health service
Housing 14
Office
Creative
Housing

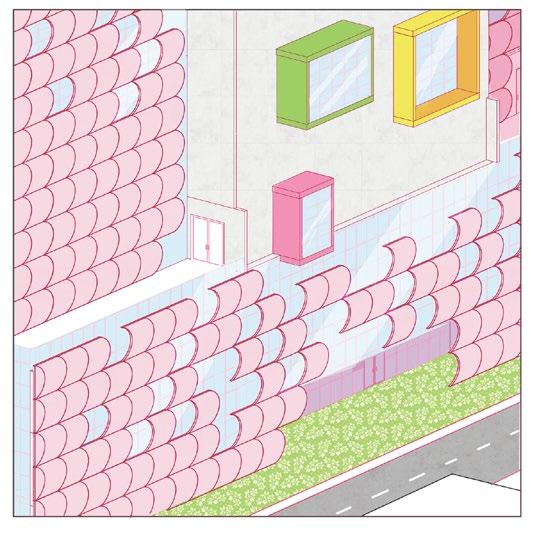

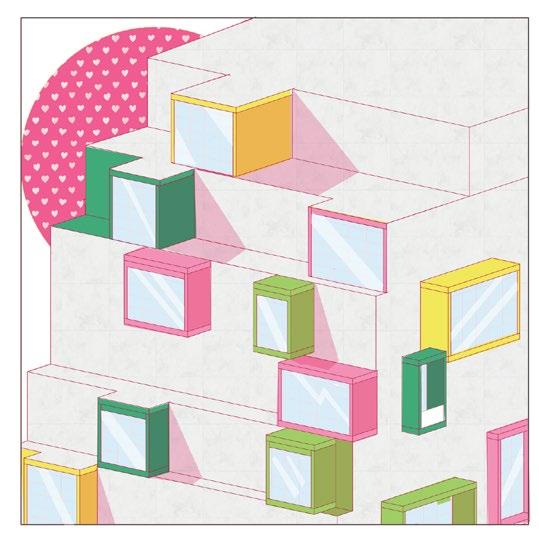

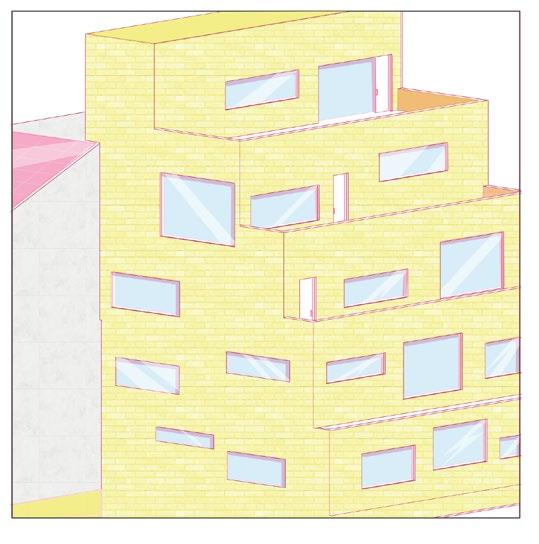

Yellow Brick Facade Mosaic Curtain Wall Scallops Metal Facade
15
Color Block Concrete
16

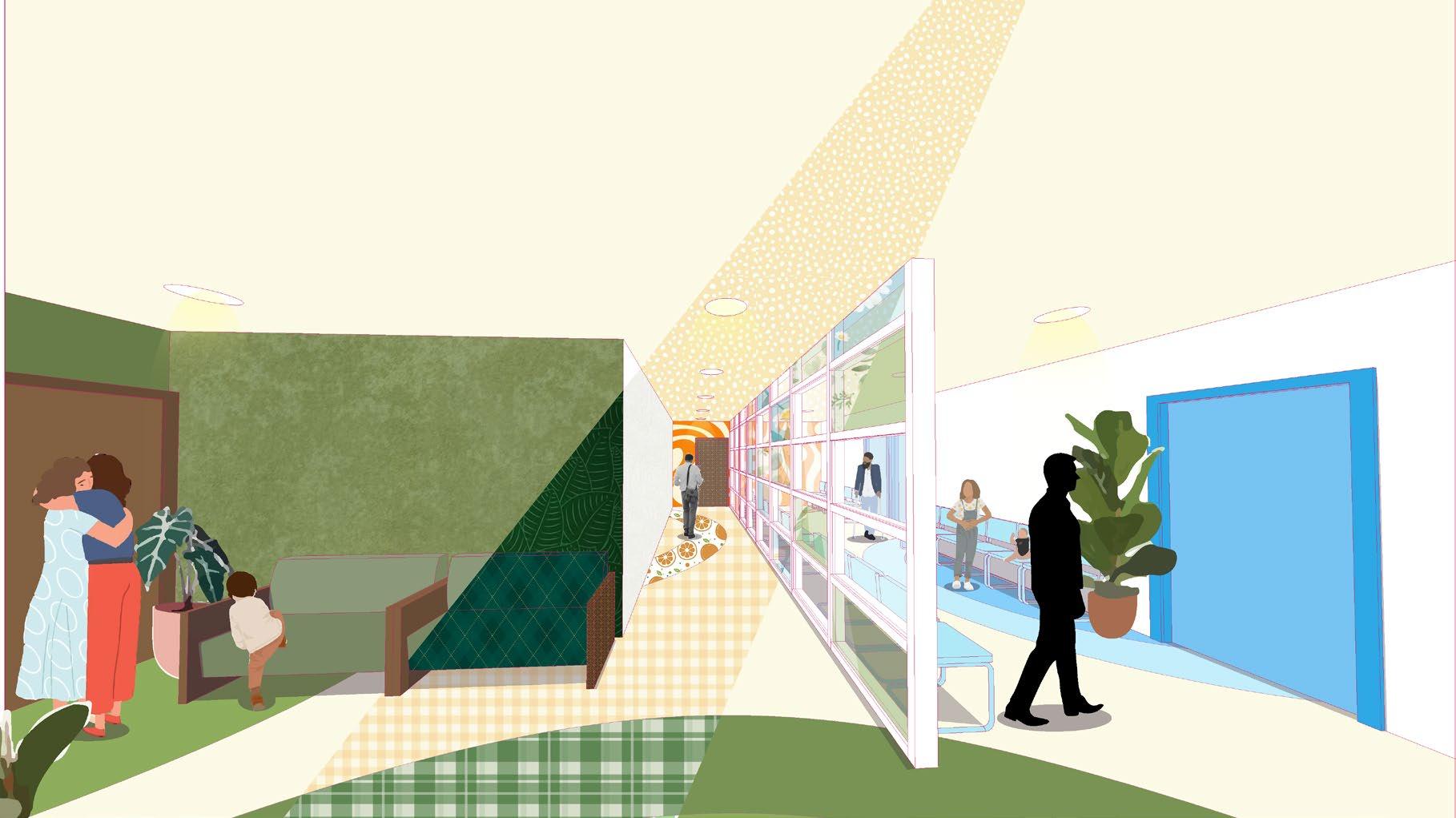

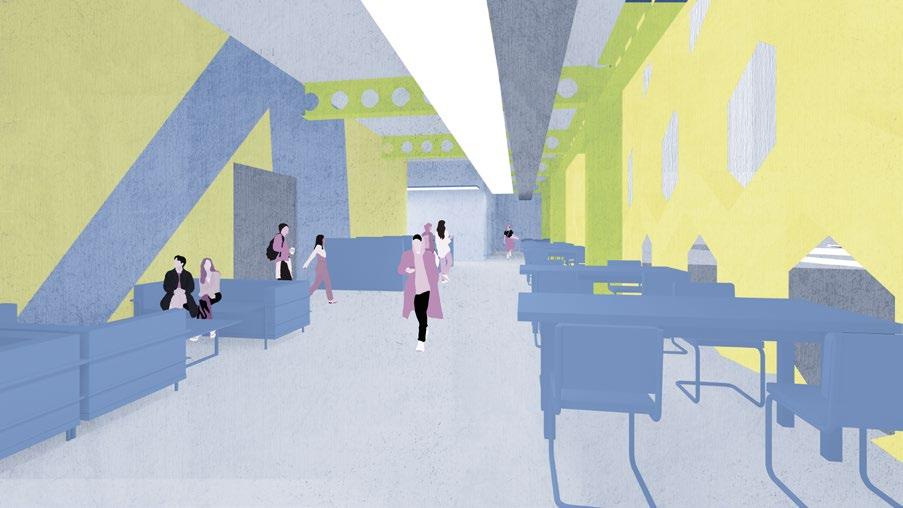

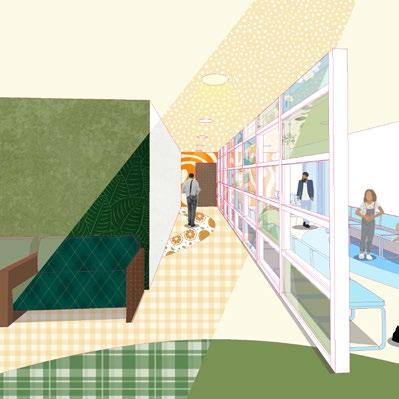

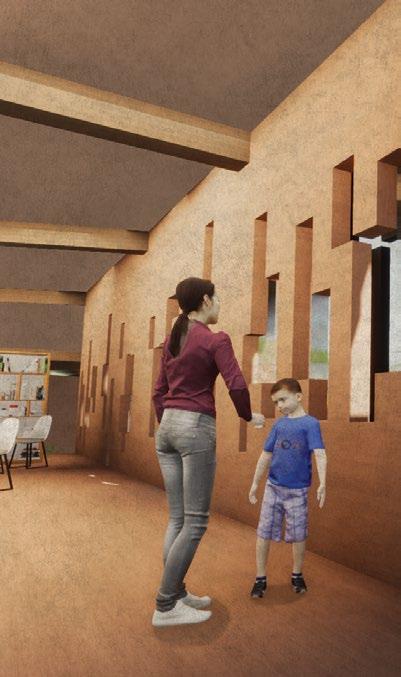

Hallway
17

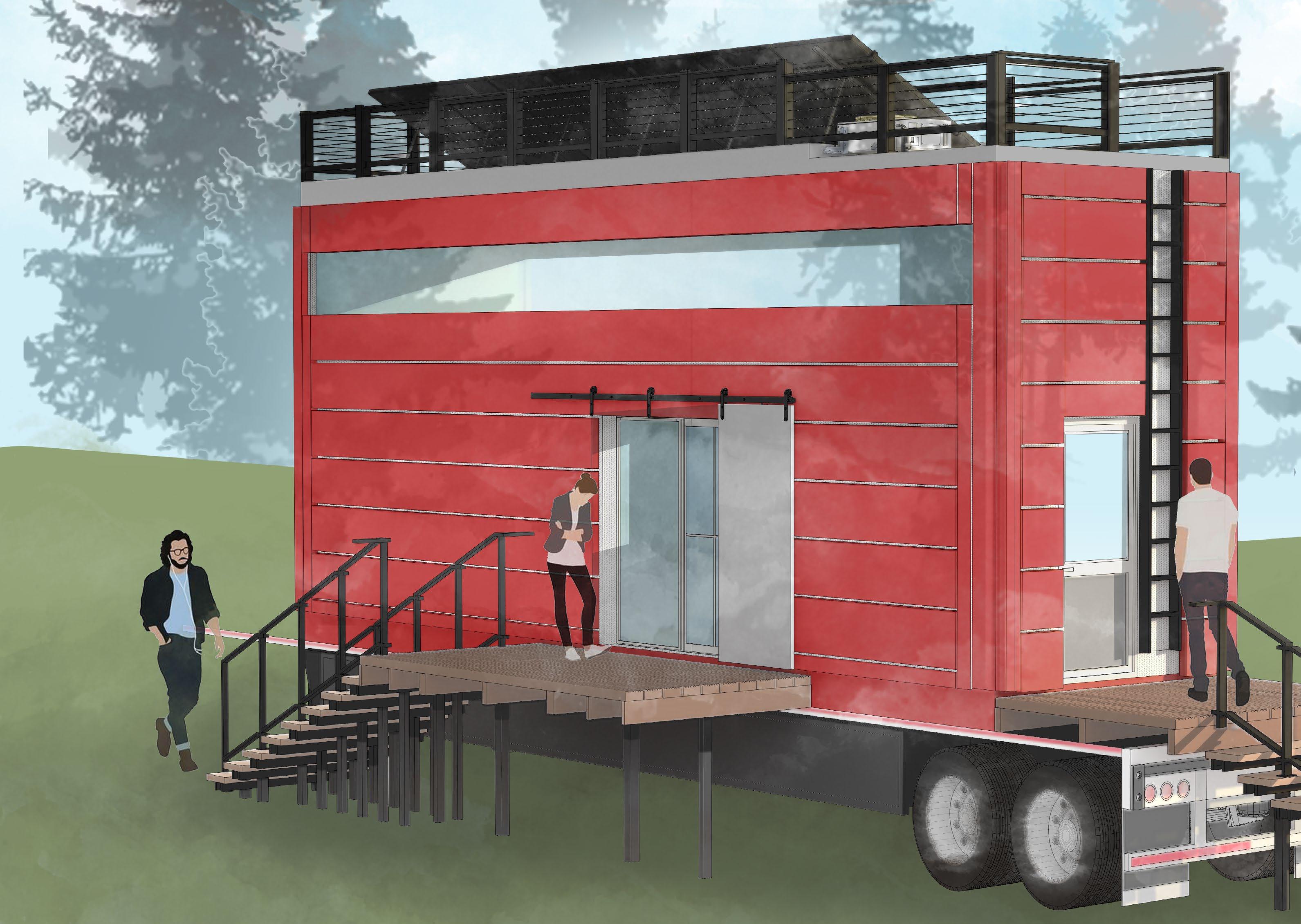

KSU Tiny House

Location: Kennesaw, GA

Project Type: Tiny House

Year: 2021

Group Project Contribution: Design Process, Digital Model, Axon, Elevations, Exterior and Interior Render

Description:

North of the Kennesaw State University is a farm rented from the Georgia Department of Transportation. This site is used to do research, hold classes, and grow food for the local community and KSU students. Our task is to create a portable building to replace the current trailer office on the site. The building must accommodate the workers during every season and be adaptable to social settings. The building should have efficient appliances and sustainable features to match sustainable practices on site. The building is design to be completely off-grid.

18

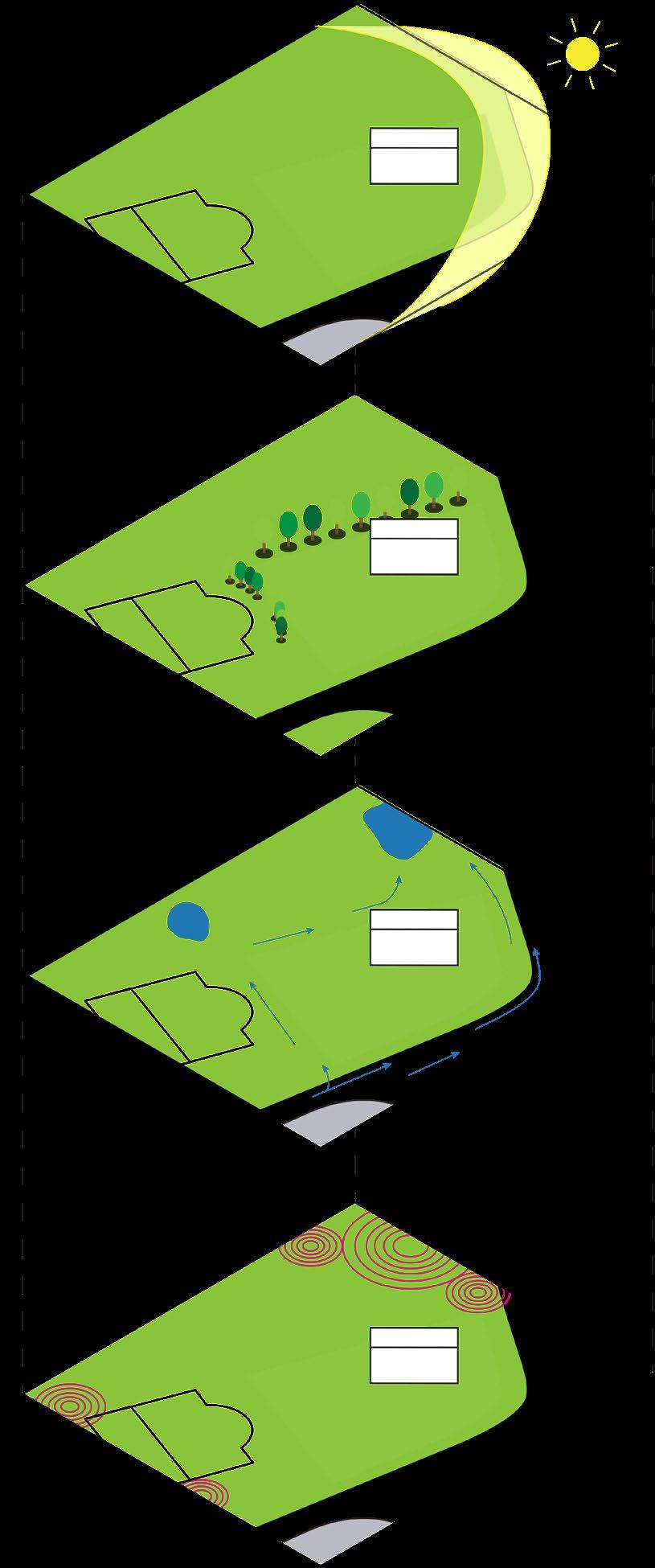

Sunpath

Vegetation

Water

Noise

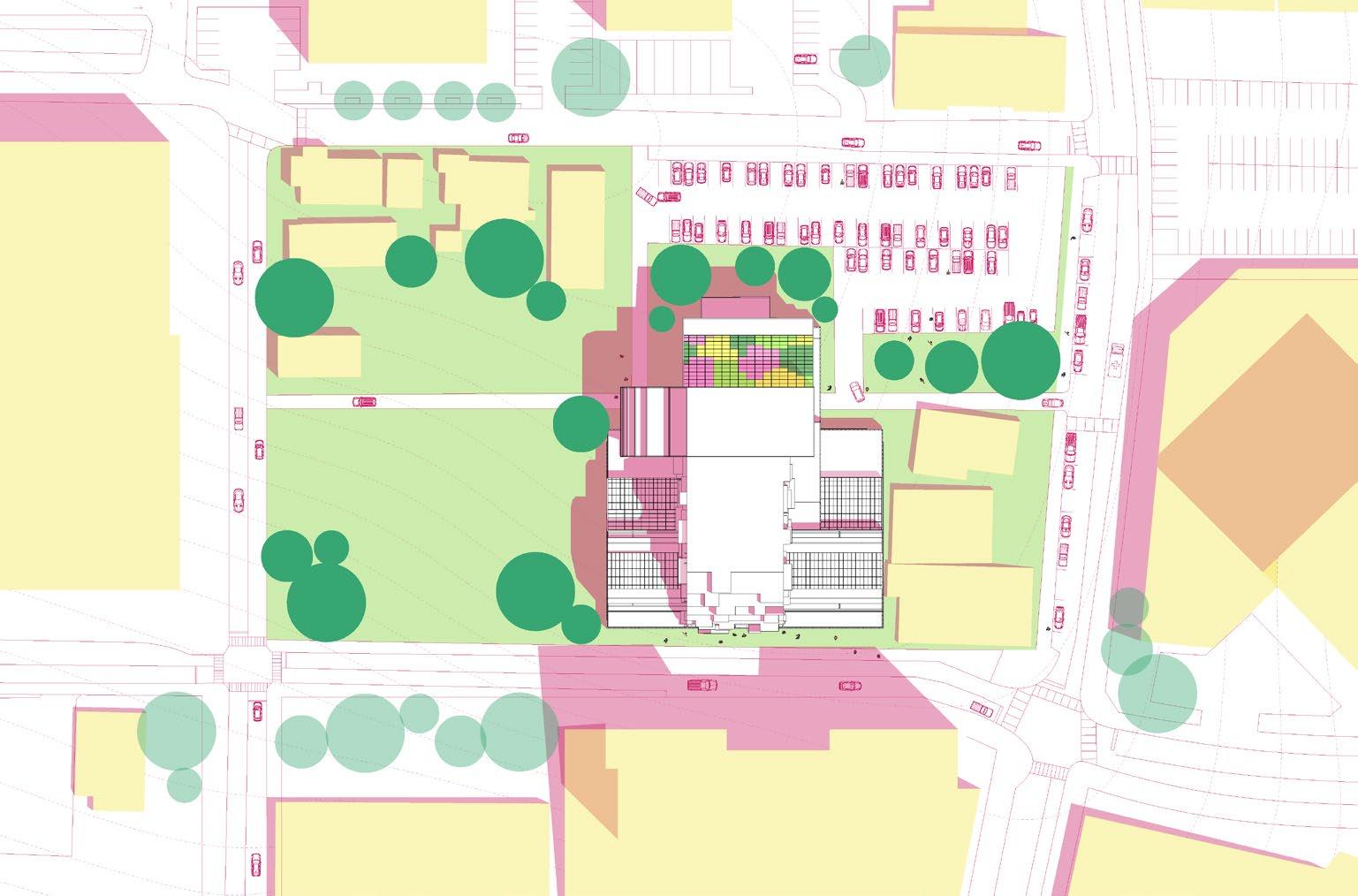

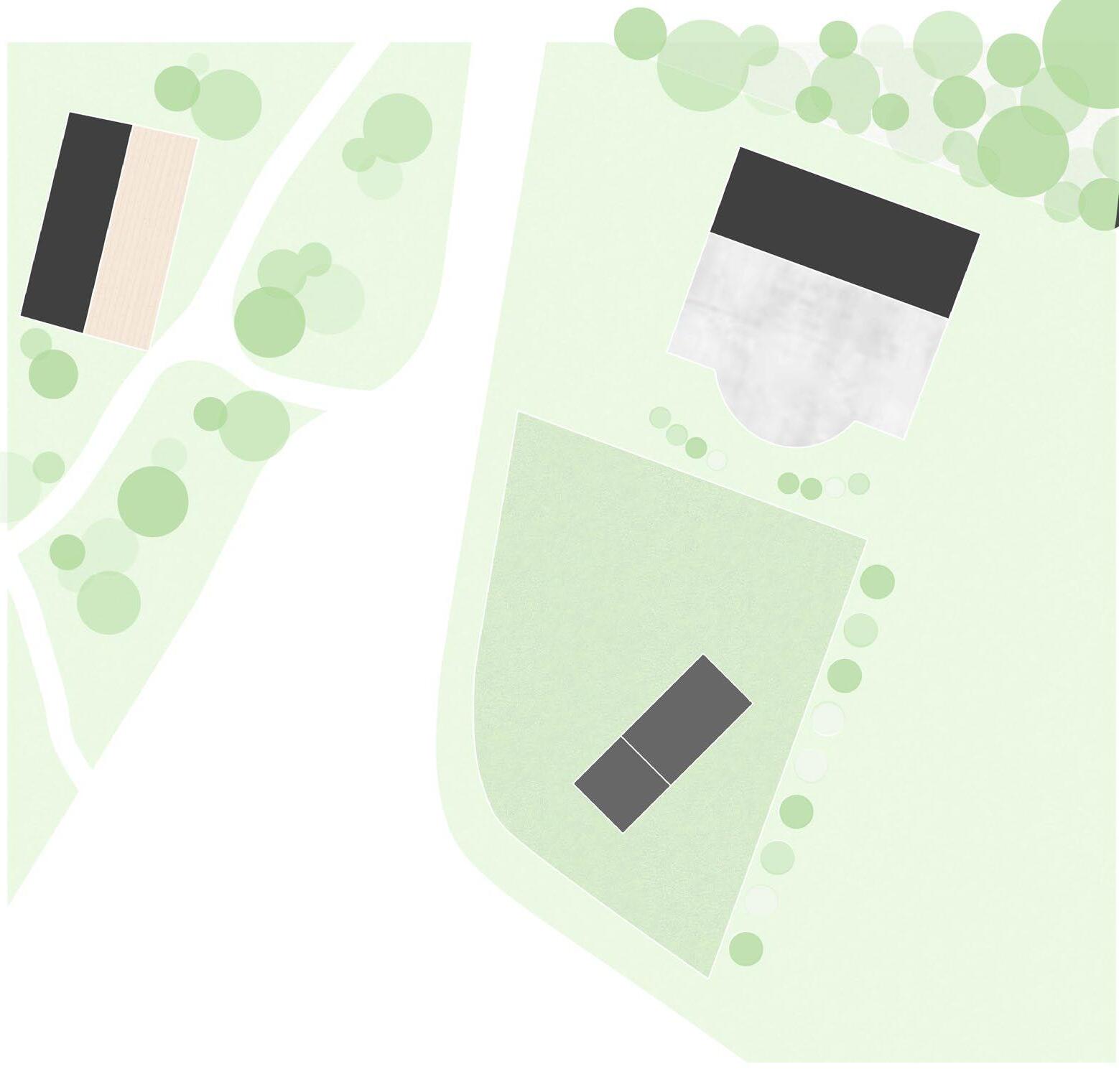

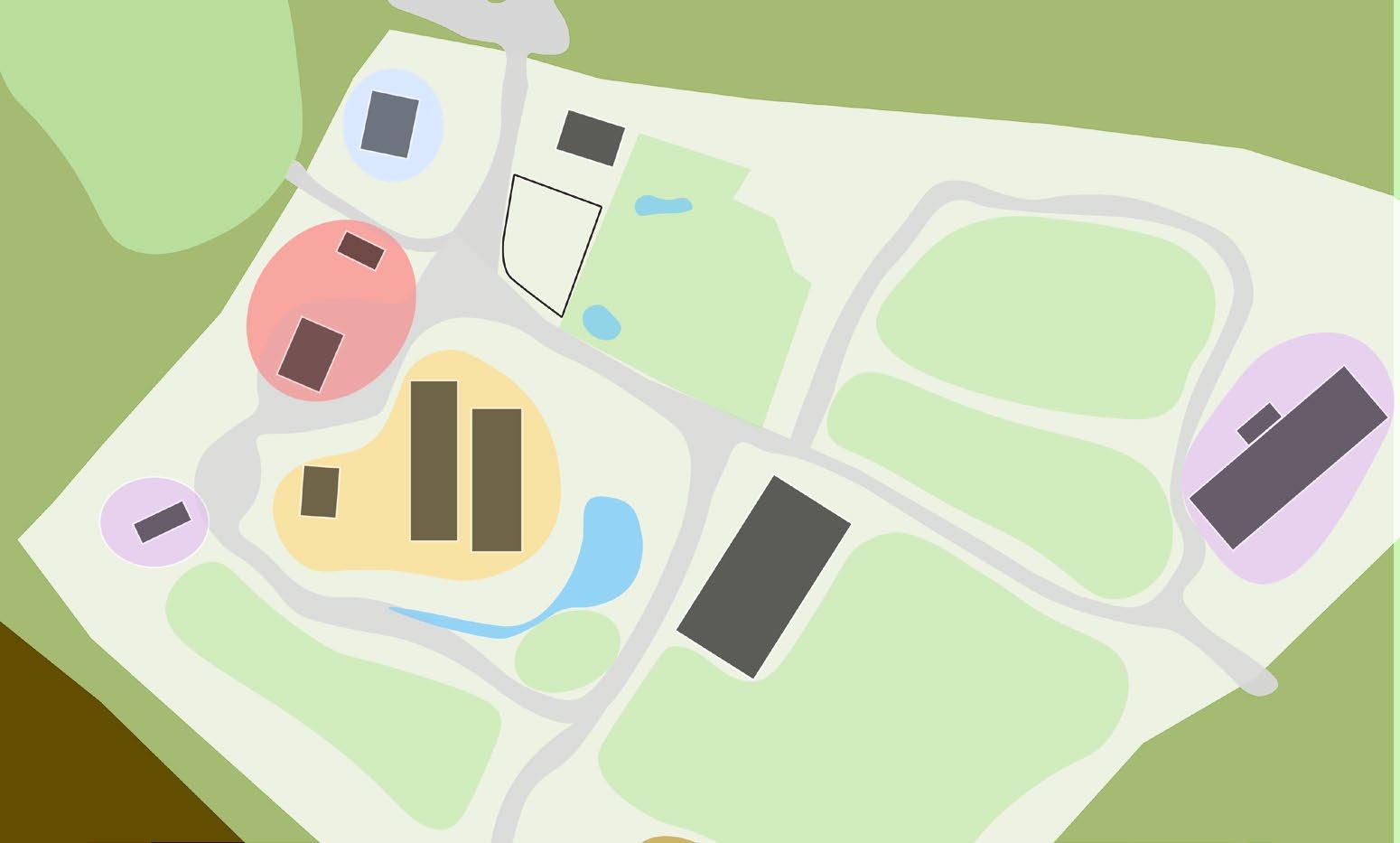

Site Plan
19
Floor Plan 1. Front Entrance 2. Kitchen 3. Bath 4. Office 5. IBC Totes 6. Back Door 7. Side Door 1 2 4 6 5 3 7 20

Railing Wood Deck Stud

Gutter Beam Stud

Plywood

Water Barrier

Truss

Insulation

Rain Screen

Clerestory Window

Plywood

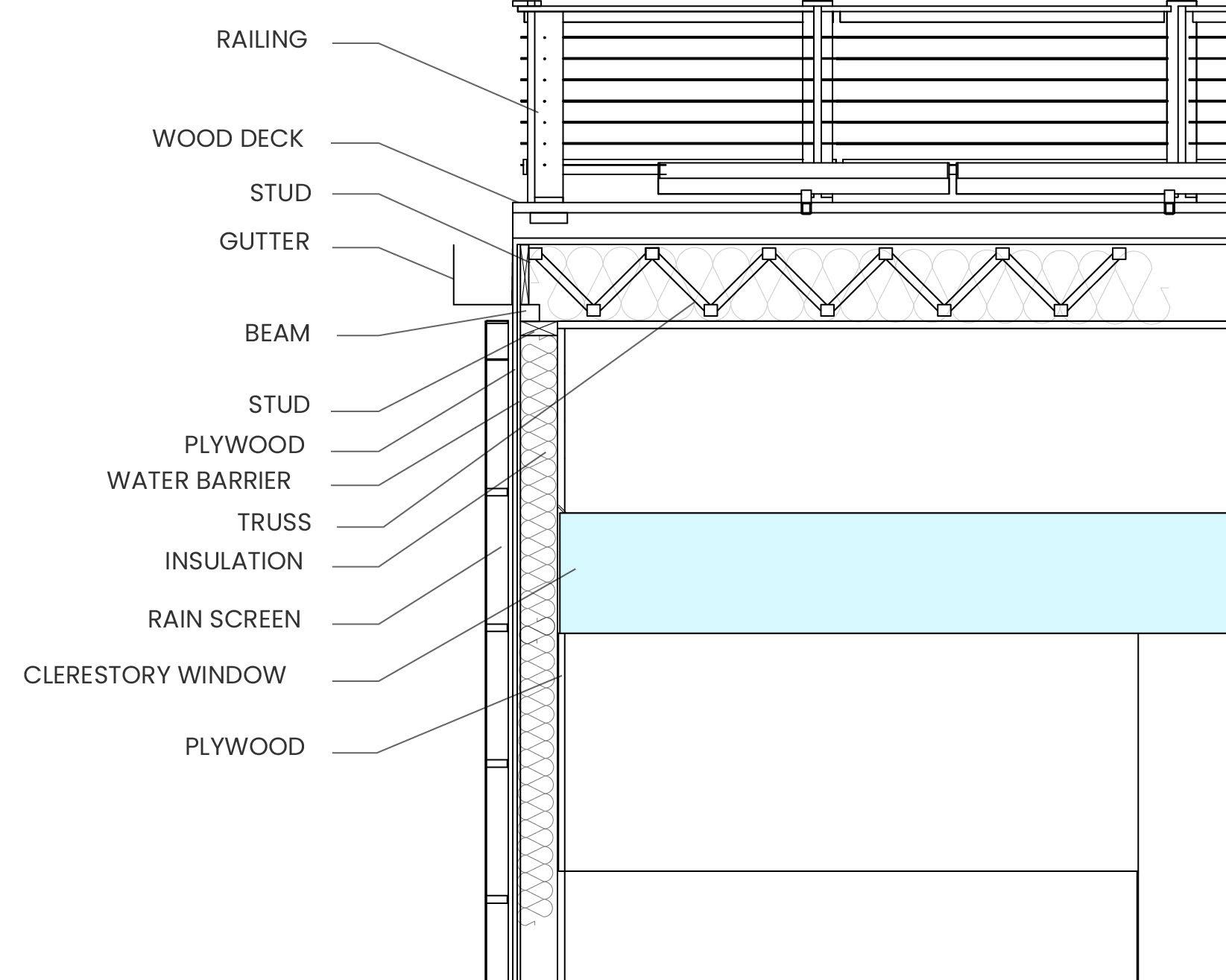

Section Cut Detail
23
Tank
Tank
Flow Diagram High Efficient Toilet Bosch Electric 4 Gal. Mini Tank IBC Tote Water Pump Black Water Tank 24
Freshwater
Wastewater
Water
25

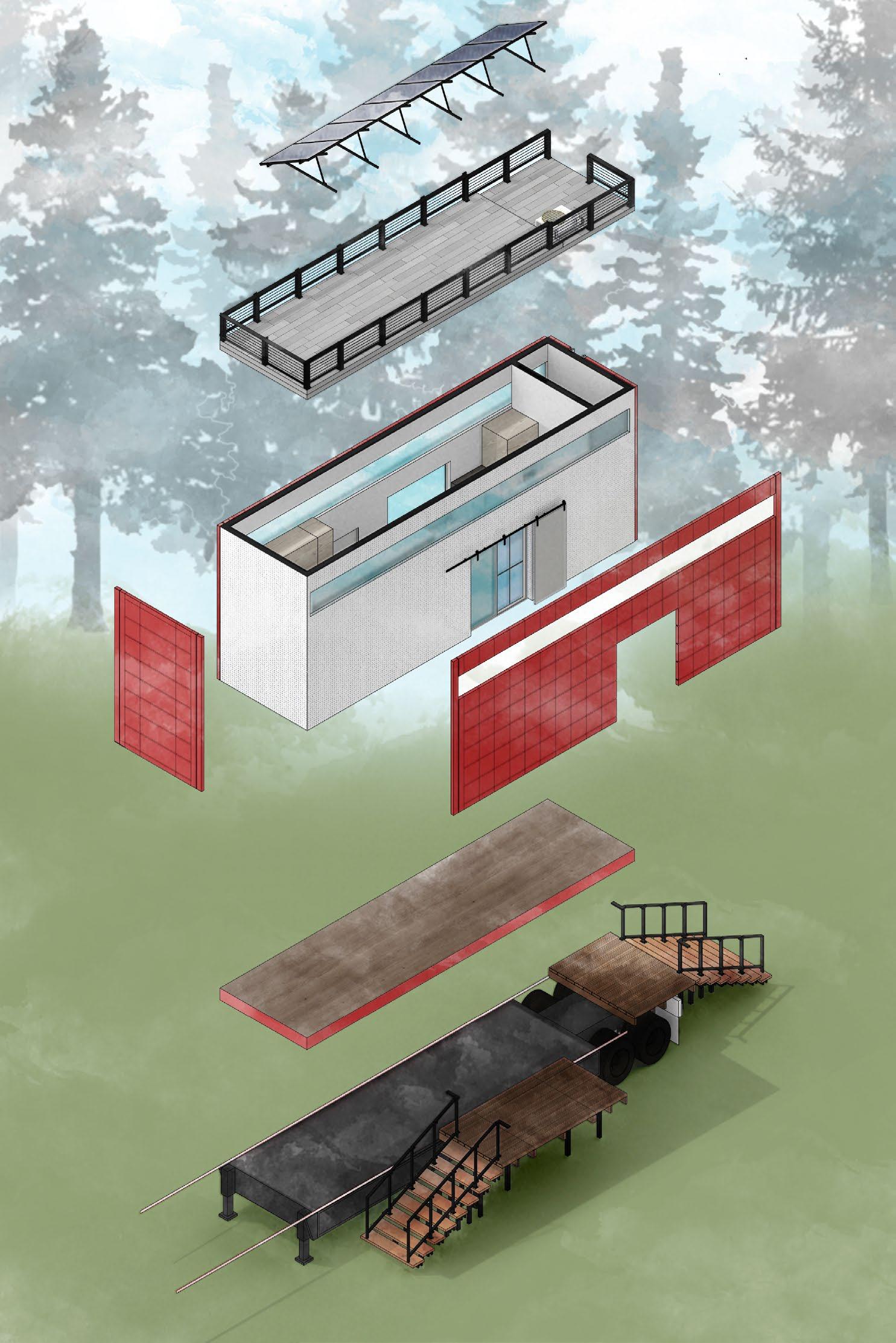

Drawing
Axonometric

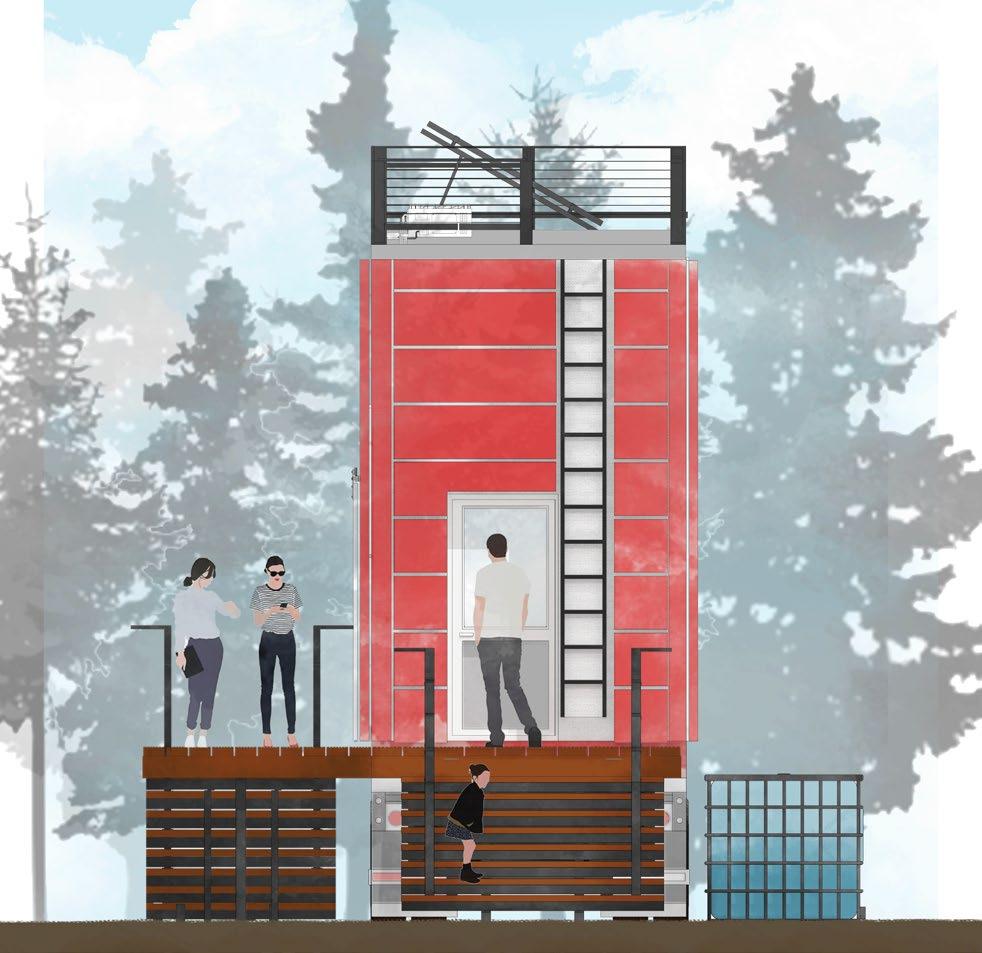

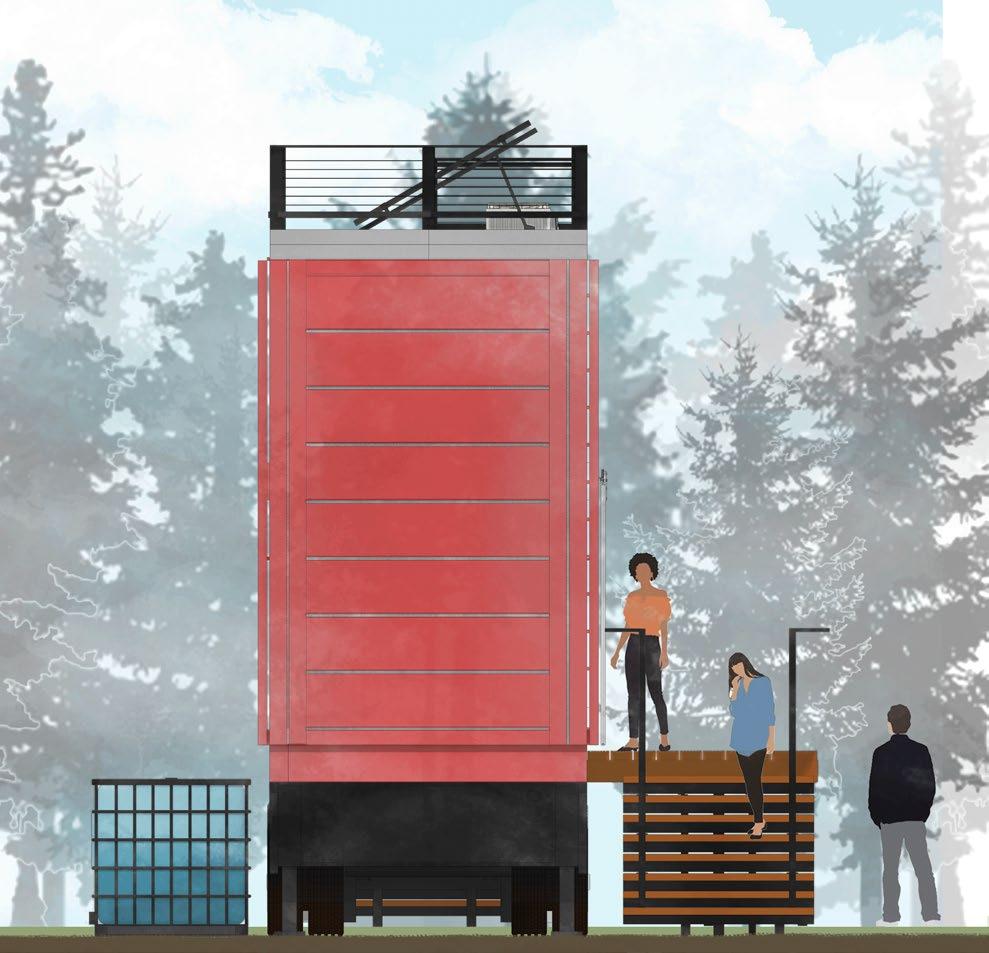

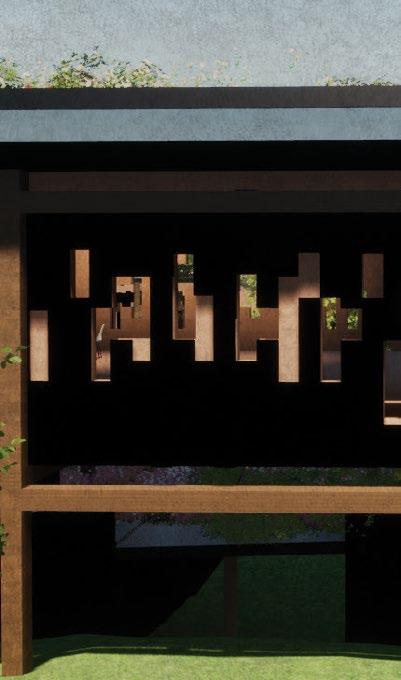

Left Elevation Right Elevation
26

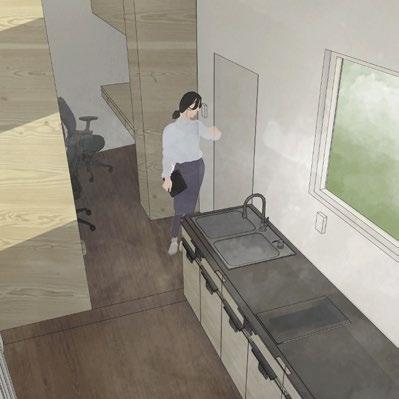

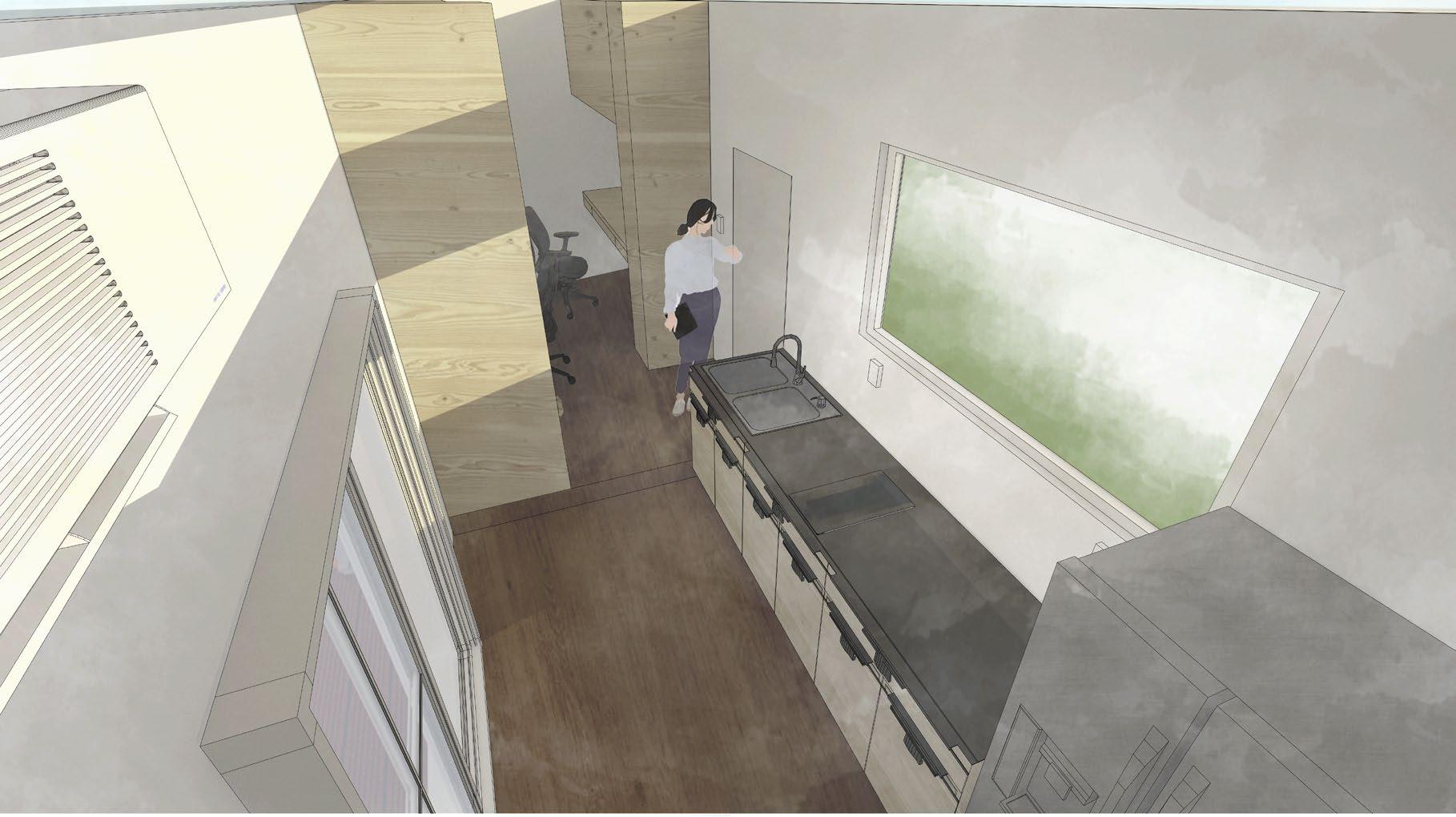

Interior Space

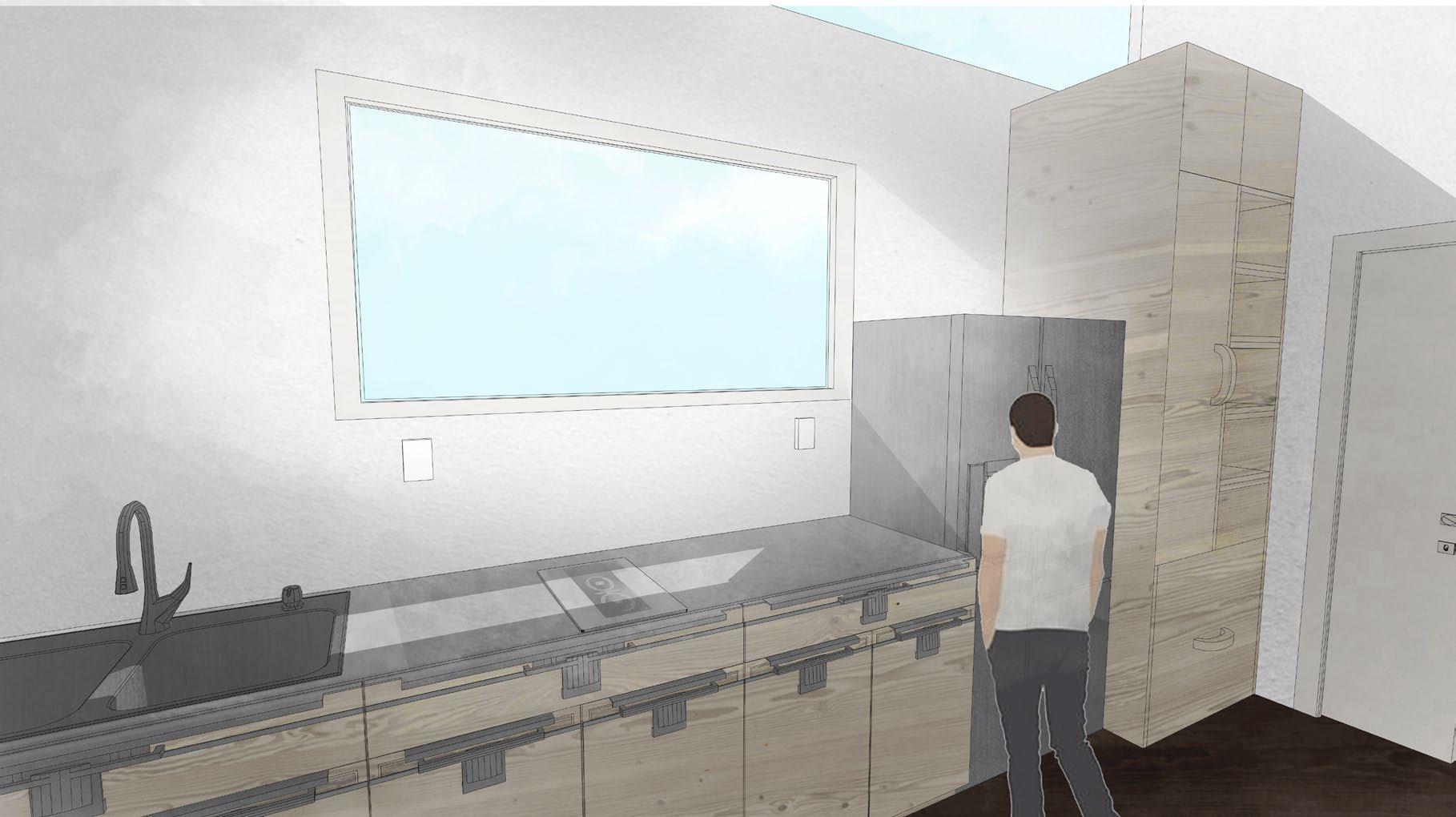

Kitchen Area

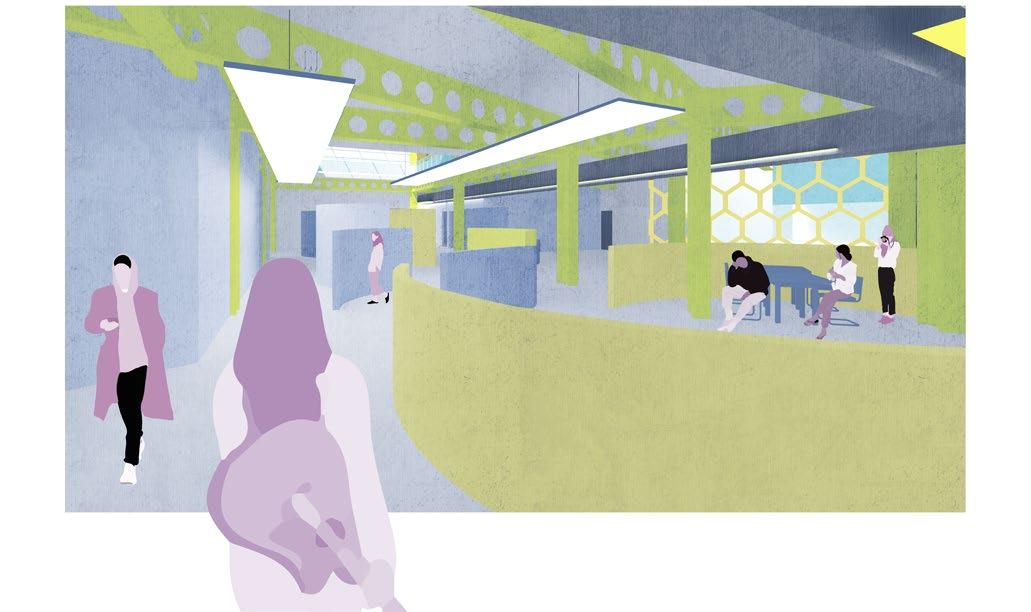

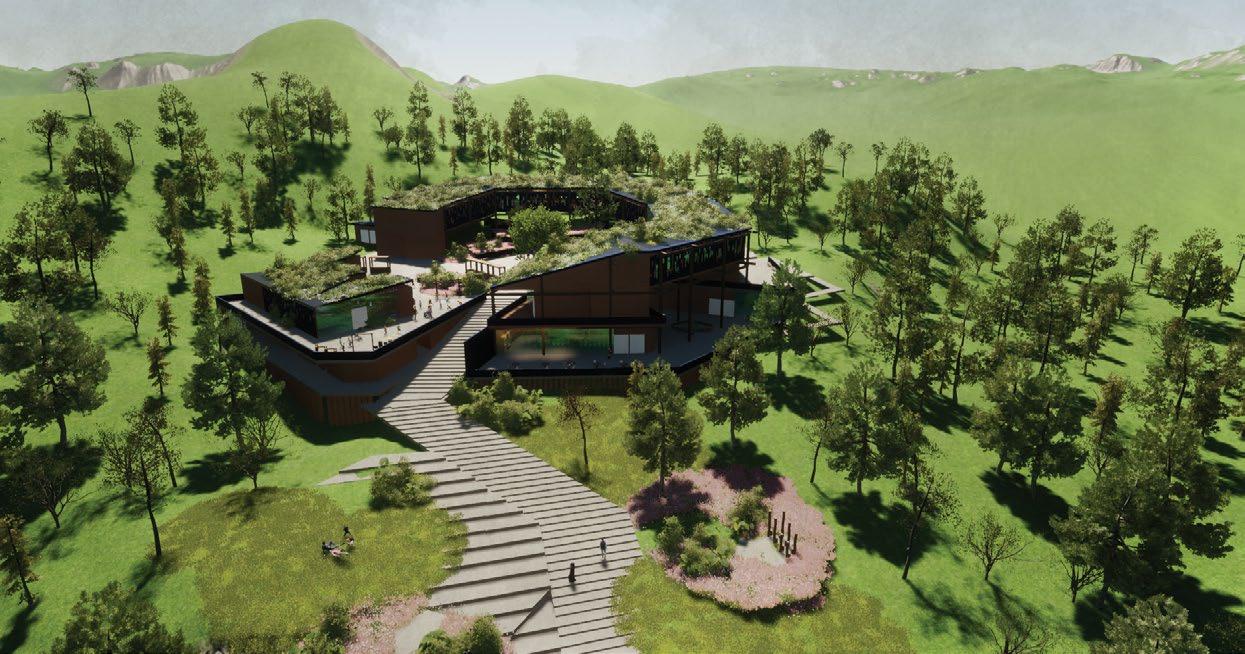

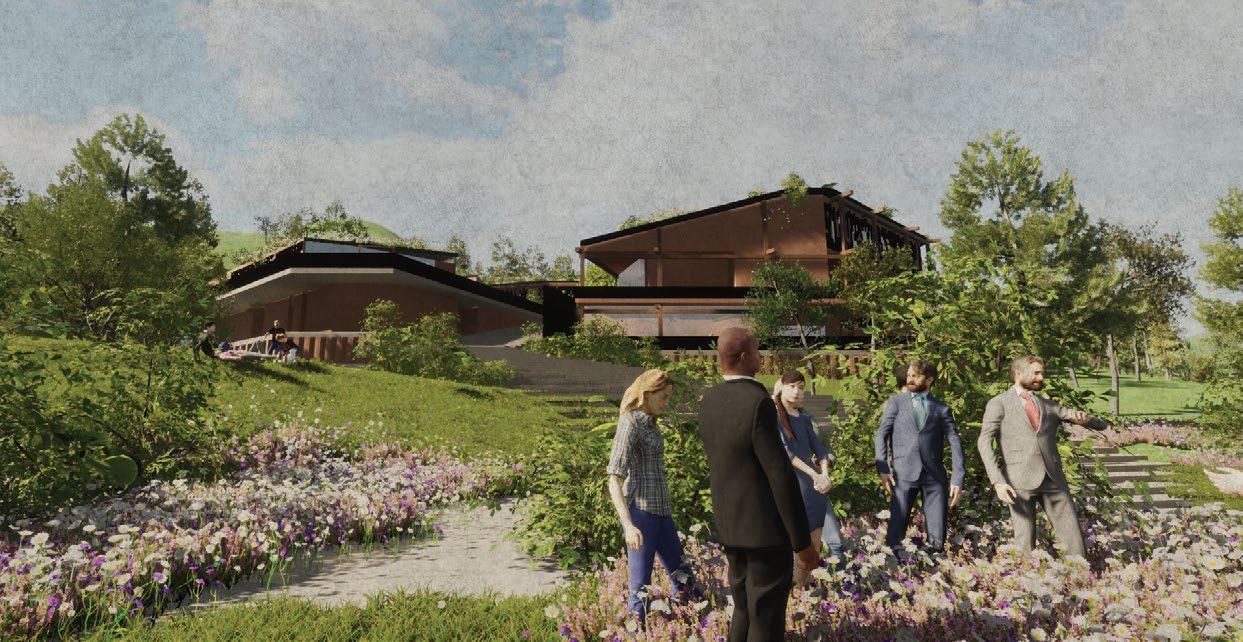

The Hive

27

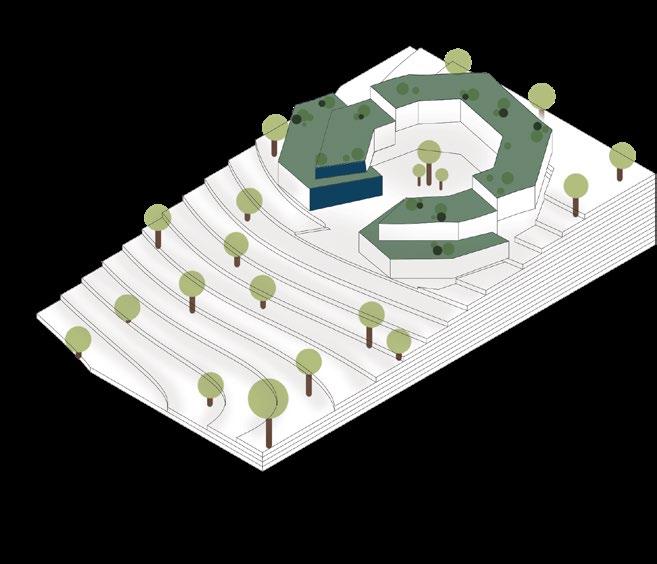

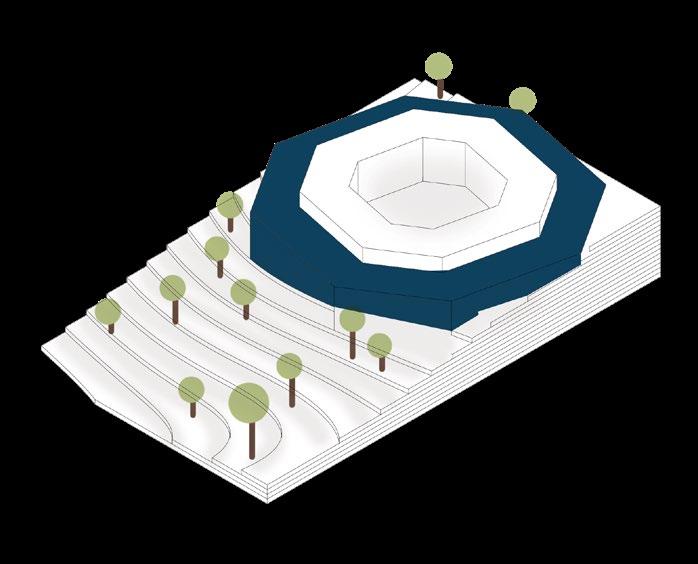

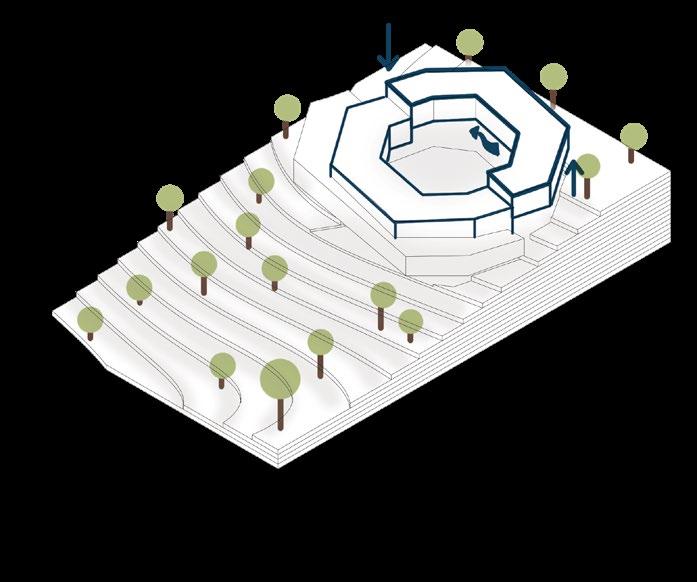

Extruding

August 21, 70 degree

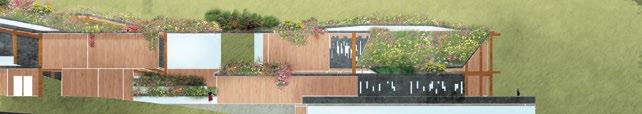

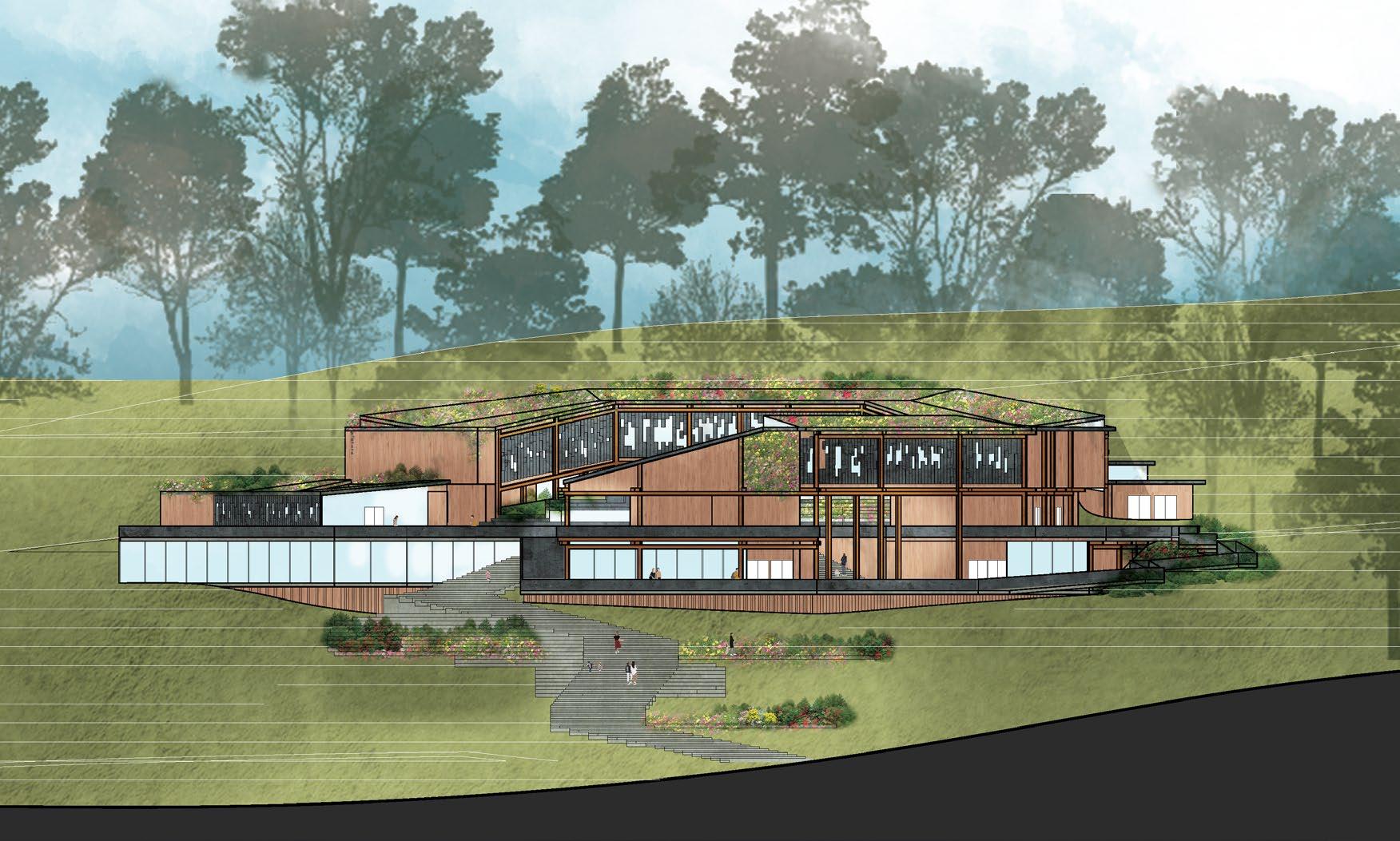

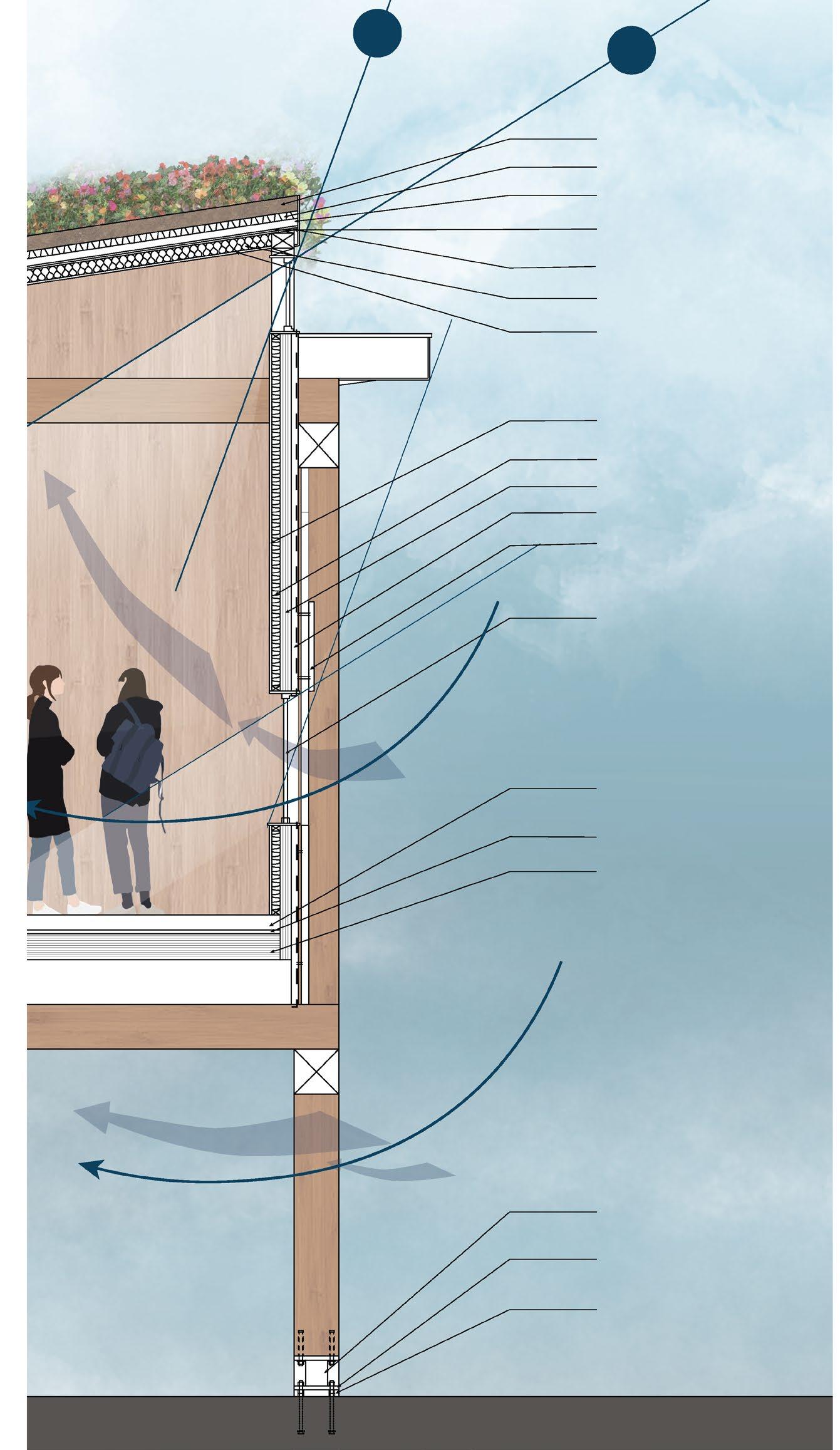

Environmental Center

Green Roof

December 21, 32 degree

Engineered Soil with planting

Drainage Layer

Thermal Insulation

Waterproof Membrane

Roof Barrier

Insulation

Ceiling

Gypsum Wall

Insulation

CLT Wall Panel

Wood Fiber Insulation

Zinc Panel

Tinted Glazing

Floor Finish

Acoustic-mat

CLT Panel

Steel

Steel Plate

Leveling Nuts

Molding Offsetting
28
29
Additional Drawings
30
