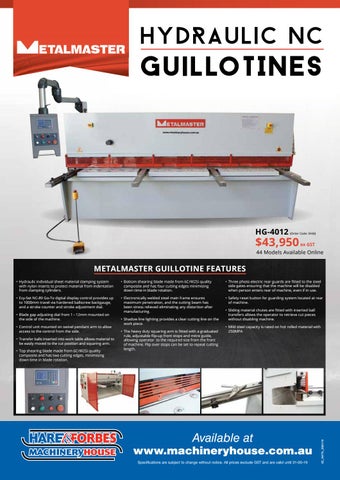

hydRauliC NC
GuilloTINES
HG-4012
(Order Code: S948)
$43,950
ex GST
44 Models Available Online
METALMASTER GUILLOTINE FEATURES • Hydraulic individual sheet material clamping system with nylon inserts to protect material from indentation from clamping cylinders.
• Bottom shearing blade made from 6CrW2Si quality composite and has four cutting edges minimising down time in blade rotation.
• Three photo electric rear guards are fitted to the steel side gates ensuring that the machine will be disabled when person enters rear of machine, even if in use.
• Ezy-Set NC-89 Go-To digital display control provides up to 1000mm travel via hardened ballscrew backgauge, and a stroke counter and stroke adjustment dial.
• Electronically welded steel main frame ensures maximum penetration, and the cutting beam has been stress relieved eliminating any distortion after manufacturing.
• Safety reset button for guarding system located at rear of machine.
• Control unit mounted on swivel pendant arm to allow access to the control from the side. • Transfer balls inserted into work table allows material to be easily moved to the cut position and squaring arm. • Top shearing blade made from 6CrW2Si quality composite and has two cutting edges, minimising down time in blade rotation.
• Shadow line lighting provides a clear cutting line on the work piece. • The heavy duty squaring arm is fitted with a graduated rule, adjustable flip-up front stops and mitre guide, allowing operator to the required size from the front of machine. Flip over stops can be set to repeat cutting length.
• Sliding material chutes are fitted with inserted ball transfers allows the operator to retrieve cut pieces without disabling machine. • Mild steel capacity is rated on hot rolled material with 250MPA
Available at
www.machineryhouse.com.au Specifications are subject to change without notice. All prices exclude GST and are valid until 31-05-19
02_AMTIL_050419
• Blade gap adjusting dial from 1 - 12mm mounted on the side of the machine.
