TRIBUNE TOWER RESIDENCES
OWNER / DEVELOPER:
LOCATION:
PROJECT TYPE:
AREA:
CIM GROUP / GOLUB & COMPANY
CHICAGO, ILLINOIS ADAPTIVE RE-USE, RESIDENTIAL
892,094 SF 581,918 SF (RESIDENTIAL) 55,000 SF (AMENITY)
HEIGHT / STORIES:
UNIT COUNT:
456’ / 36 STORIES 162 UNITS (72.4% EFFICIENCY)
The Neo-Gothic tower by John Mead Howells and Raymond Hood, originally envisioned in 1922 via competition hosted by the Chicago Tribune in honor of their 75th anniversary, underwent extensive inspection, surveying, preservation, demolition, and rehabilitation, beginning in 2016, to turn the nearly century old, historic landmark into a contemporary, crown jewel in the City of Chicago. A nearly complete gut rehabilitation of the four overall buildings of the Tribune Tower complex (Printing Plant Building - 1920, Tribune Tower - 1925, WGN Radio Building - 1935, North TV Building - 1950), resulted in 50+ unit types and 162 total units, each with their own unique attributes.
In order for the SCB-led project team to turn the Tribune Tower complex from offices for the Chicago Tribune newspaper into luxury condominiums, four north-south structural bays by seven east-west structural bays were removed to create a “courtyard in the sky” and maximize residential unit planning efficiency of the existing column configuration. Structural design efforts were led by TGRWA to carve the 12,000sf courtyard located on Level 03, that was envisioned by The OLIN Studio and brought to life by Walsh Group, serving as General Contractor.
At the base of the building, a new, private lobby was created to serve the residents of the North Wing (originally the North TV Building) and the new four-story addition, both working harmoniously with Tower’s esteemed architecture. The Gettys Group orchestrated the design and connection of the new North Lobby to the existing Historic Michigan Avenue Lobby and Elevators, meticulously preserved through the consultation of Vinci Hamp Architects, creating a secure pathway between the main Tower and the North Wing, providing residential support spaces including lounges, mail and package rooms, and on-site building management offices.
The canopy structure of the North Lobby entry on Illinois Street was designed to appear as if suspended in mid-air, projecting from the recess in the facade. Careful attention to proportion and alignment of the canopy within the storefront was crucial in coordination of the final outcome of the interior design of the lobby. The canopy was also fabricated with integral lighting and heat lamps, for continued pedestrian comfort throughout all times of day and seasons.

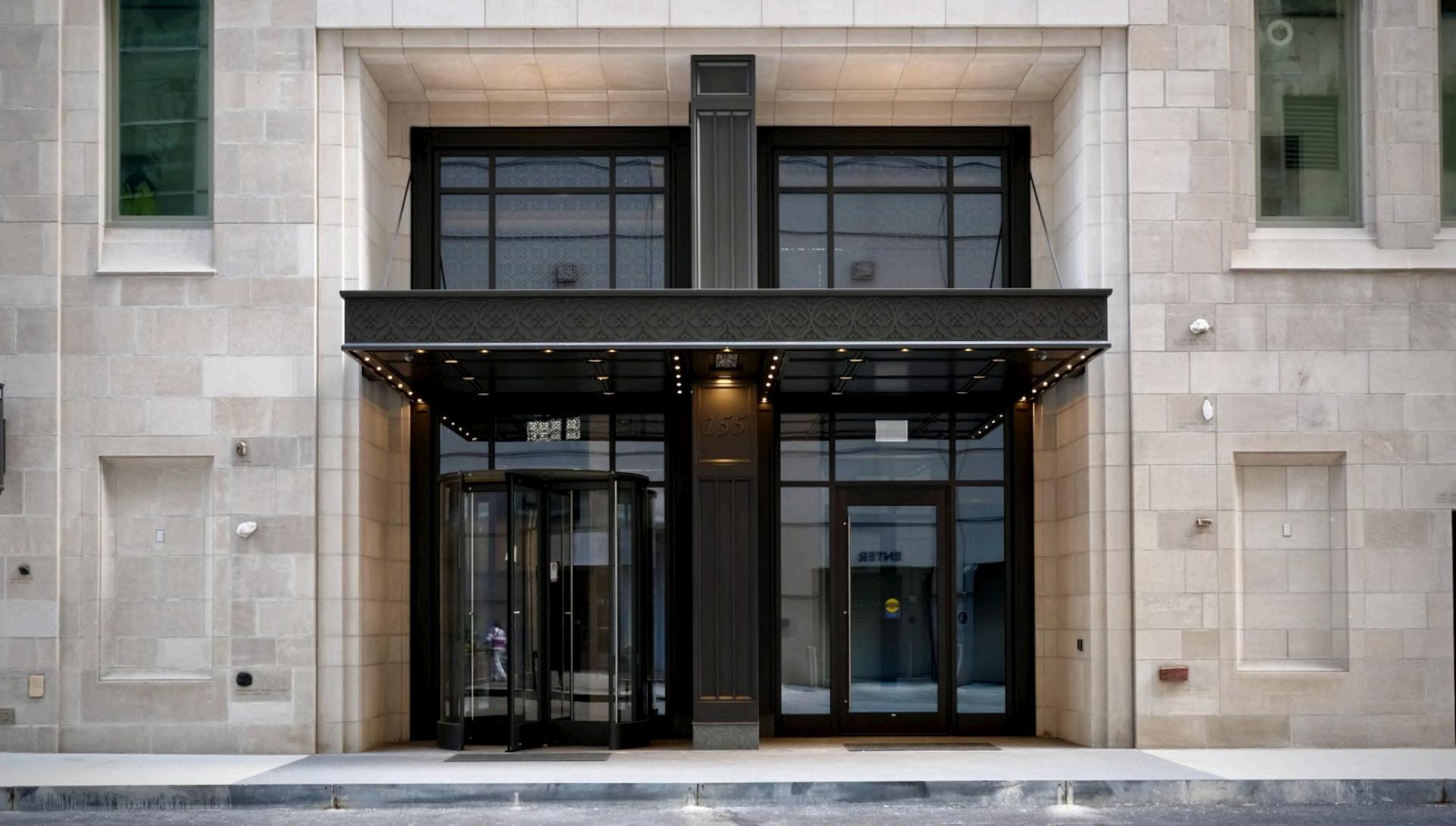

Top: North Lobby entry on Illinois Street (YIMBY/Jack Crawford)
Bottom: Canopy section detail (SCB)
New retail components were added throughout the ground floor, providing tenant spaces for flagship retail build-outs, small shops, restaurants, and most recently a museum dedicated to ice cream. The South Wing (formerly the Printing Plant Building) received seven new retail storefront openings, creating taller openings within existing architectural bays. A series of elevation types were developed to provide prospective tenants with entry types (swing door, double door, revolving door, or fixed panel)
Top: South building elevation (SCB) Right: Masonry slab edge section detail above retail storefront (SCB)
Level 03’s Amenity space plays host to numerous spaces for entertainment, relaxation, lounging, and working, while maintaining a level of ambiance fitting for the historic building. The Game Lounge and Co-Working Lounge, both residing within the footprint of the Tower, were the absolute culmination of coordination between nearly all project disciplines.
In order to achieve the ceiling layout proposed by the Interior Design team, a series of innovative structural, mechanical, and carpentry details were required, working in tandem with the behind-the-scenes coordination above the ceiling plane. Existing structural steel support bracing throughout the area required modification to accommodate mechanical duct routing to the exterior wall, yet still maintain its required capacity to support the Tower and translate building loads beyond the famous “Hall of Inscriptions” lobby below.
Limited space available in the ceiling cavity led to challenges in obtaining return air through traditional methods. Turning the cavities above the Game Lounge and the Co-Working Lounge into plenum ceilings allowed for the removal of return air ductwork. Using a calculated dimension between the crown molding and the plane of the raised ceilings, return air slots were created resulting in an almost invisible solution.
7.REFERA700SERIESFORREFLECTEDCEILINGPLANS&HEIGHTS. 8.EXISTINGBUILDINGANDWALLSARESHOWNASSHADED.
DIMENSIONS.SEEA400SERIESFOREXTERIORENCLOSURE 10.ALLINTERIORDIMENSIONSAREMEASUREDFROMTHEFACE OFTHEGYPSUMBOARD,FACEOFTHEGLASS,FACEOFTHECMU UNLESSNOTEDOTHERWISE. 11.REFERMEPFDRAWINGSFOREQUIPMENTDETAILS&SIZES. 12.VERIFYALLEXISTINGCONDITIONS,SLABELEVATIONSINFIELD. 13.PROVIDE2"THK.(MIN.)SPRAYFOAMINSULATIONATALL EXISTINGEXTERIORWALLS. 14.PROVIDEHANDRAILSATALLRAMPSSTEEPERTHAN1:20PER DETAILSONA5.23,U.N.O.
15.EXTERIORDIMENSIONSTAKENTOFACEOFGLASS,EDGEOF METALPANEL,FACEOFSTONE,CENTERLINEOFMULLION,OR 16.REFERTOIDDRAWINGSFORINT.FINISHESANDELEVATIONS. 17.PROVIDEULRATEDFIREEXTINGUISHERCABINETS.LOCATIONS
Top: Level 03 Game Lounge floor plan (SCB)
Middle: Level 03 Game Lounge reflected ceiling plan (SCB)
Bottom: Game Lounge at Level 03 main level (Tribune Tower Residences)
1234 WEST RANDOLPH
OWNER / DEVELOPER:
LOCATION:
PROJECT TYPE:
AREA:
AZUR / GOLUB & COMPANY
CHICAGO, ILLINOIS
MIXED-USE RESIDENTIAL, HIGH-RISE
463,553 SF 358,650 SF (RESIDENTIAL) 12,829 SF (AMENITY)
HEIGHT / STORIES:
UNIT COUNT:
435’ / 42 STORIES 395 UNITS (80.3% EFFICIENCY)
Located in the bustling and quickly developing Fulton Market neighborhood, 1234 W Randolph pays homage to the buildings that once stood in the area long before, yet provides an elegant tower that will stand the test of time. Adhering to the design guidelines of the Fulton Market neighborhood, the proposed tower gives way to a design unlike any other in the City of Chicago.
A contextual podium fronting Randolph Street houses four levels of parking, providing space for 110 vehicles, plus bike parking. Due to the site being located in an inner-block building lot, building frontage hosts the residential lobby and 1,100sf of retail space. Parking, loading, and building support access are located on the building’s north elevation via alleyway.

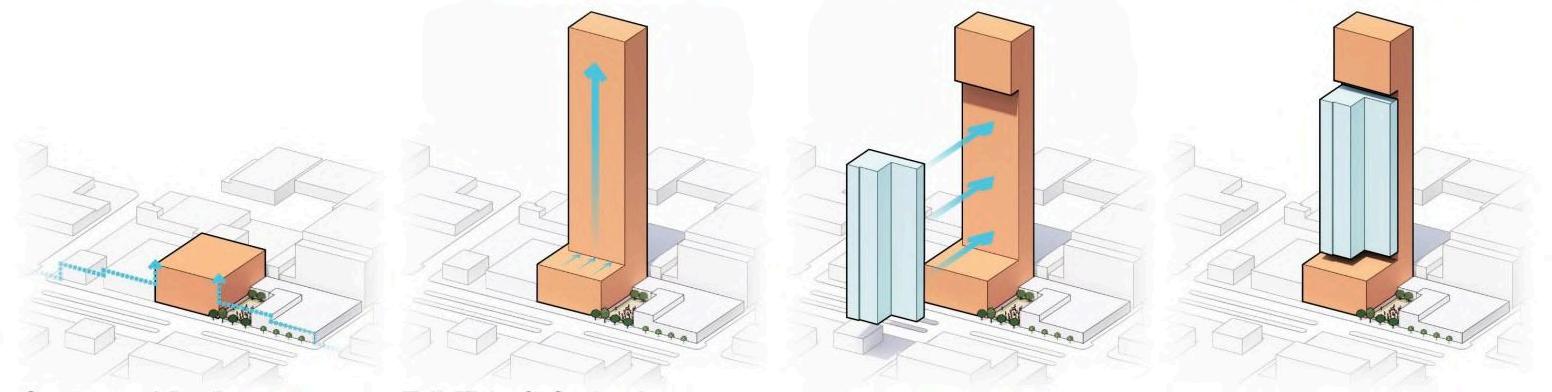

Atop the podium sits a tall, thin tower, setback from Randolph Street to preserve site lines, reduce shadows, and make way for one of two exterior, residential amenity spaces (located on Level 05 & Level 33). A glass “jewel” of an exterior enclosure is inserted into the thin tower to create an interlocking mass, appropriately sizing the floor plate for residential unit layout while maintaining a sense of verticality and height.
Top: Streetscape rendering at dusk (SCB)
Bottom Left: Plan detail at terra cotta cladding at podium corner (SCB)
Bottom Right: Section detail at terra cotta cladding at podium parapet (SCB)
The 10,409sf typical residential floor plate consists of 13 residential units, ranging from 590sf studio units to 1240sf two-bedroom units, occupying Levels 06 through 26. Transitioning up the tower, unit layouts are categorized into four tiers, combining unit areas or delicately reshuffling spaces to provide optimal efficiency, Diligent attention in unit layout occurred when considering tier changes to minimize the overall dimension of transfers for mechanical, electrical, plumbing, and fire protection elements.
Bottom: Typical Level 06-26 floor plan (SCB)
Top Left: Exterior Enclosure type A axonometric view (SCB)
Top Right: Exterior Enclosure type B axonometric view (SCB)
Bottom Left: Tower rendering of typical tower (SCB)
Bottom Right: Slab edge section detail at ogee metal panel profile and slab edge section detail at spandrel glass (SCB)
BISCAYNE BAY
OWNER / DEVELOPER:
LOCATION:
PROJECT TYPE: AREA:
HEIGHT / STORIES: UNIT COUNT:
GOLUB & COMPANY NORTH MIAMI, FLORIDA
MIXED-USE, HIGH-RISE RESIDENTIAL
820,300 SF
502,655 SF (RESIDENTIAL)
12,855 SF (AMENITY)
203’ / 20 STORIES 450 UNITS (85.6% EFFICIENCY)
Situated on a parcel of land formerly owned by Johnson & Wales University, located in the Biscayne Bay district of North Miami, this tower is characteristically referred to as a “groundscraper” due to its unique form. The 203ft tall tower reaches lengths of over 400ft, dimensions quite similar to the high-rise towers built in the surrounding cities (Miami, Hollywood, and Fort Lauderdale), yet laid on its side.
The main twenty-story tower of the complex sits above the residential lobby and first location of residential amenity spaces, where the southwest nine-story tower sits above a retail component. Retail access is provided along a raised pedestrian thoroughfare, replacing an existing pedestrian roadway due to increased flood plain levels set by FEMA and to integrate into future development to the parcel to the west (currently in use as a parking lot). Retail and residential parking access, as well as building support access, is located on the south elevation of the building, leading to 36 retail parking stalls and 649 residential parking stalls.
Sitting atop of the parking podium resides 12,500sf of outdoor amenity spaces, including private lounges nestled within native plantings, grilling stations and dining areas, and a 3,300sf free form pool, providing residents with a tranquil paradise just steps from their front door. Further up the tower presents the third amenity space, a three-story 115ft-wide opening through the building. The opening creates an additional outdoor terrace, with amenity support spaces featuring a kitchen and dining space, while also forming the building’s defining feature.
Left: Tower rendering from northeast corner (SCB)
Bottom: North overall elevation (SCB)
Due to the shear overall length of the project and the proposed plan layouts, a split core configuration proved to be the most optimal situation for structural integrity of the tower and enhancement of the residential experience traversing to unit entry.
Not to be outdone, the balconies encapsulating the entirety of the north and south facades of the main tower, and east and west facades of the southeast tower, work together to invoke the wave pattern of the tidal Atlantic Coast while serving as a shading device to protect from the Florida sunshine.
The pattern is created seemingly at random, but in reality thoroughly studied to maximize the efficiency of balcony access points and provide each residential unit with at least one balcony of substantial length. Two curve modules were created and located in plan in a manner to best relate with the correlating unit, creating a total of five levels of unique balcony organization, allowing for a true “randomized” appearance.
REFERTOFLOORPLANFOR DEMISINGPARTITIONTYPEAND LOCATION
Left Top: Level 06-09 floor plan (SCB)
Left Bottom: Typical balcony plan (SCB)
Top: Balcony curve modules and typical slab edge section details (SCB)
Right: Partial enlarged north elevation at portal (SCB) Bottom: Typical portal plan detail (SCB)
FURRINGREQUIREMENTSAT
EDGEOFBALCONYSLAB
PROVIDEALLOWANCEFORLEDLIGHTINGELEMENT INTEGRATEDINTOMETALPANELWALLENCLOSURE, TOBEUSEDATALLPORTALDETAILS (REFERTODETAILFORPROPOSEDDESIGNINTENT) B2010.04 METALPLATEPANELWALLWITH STUDBACK-UP WOODLOOKPLANK
(REFERTOFLOORPLANFOR PANELTYPE)
REFERTOGEOMETRYPLANSFOR BALCONYTYPEANDLOCATION
E-RAIL-01(REFERTOTYPICALBALCONY DETAILSFORRAILINGLOCATION)
DEERFIELD SQUARE APARTMENTS
OWNER / DEVELOPER:
LOCATION:
PROJECT TYPE: AREA: HEIGHT / STORIES: UNIT COUNT:
CRM PROPERTIES DEERFIELD, ILLINOIS LOW-RISE RESIDENTIAL
52,540 SF 48,984 SF (RESIDENTIAL) 831 SF (AMENITY)
61’ / 5 STORIES 40 UNITS (89.5% EFFICIENCY)
Located in Chicago’s North Shore suburbs, Deerfield Square Apartments presented distinct challenges for a relatively unbecoming Type V-A over I-A construction type project. Situated along a commuter and freight rail line, located within 75ft to its nearest point, extensive vibration isolation components were recommended by the project’s Vibration Consultant, Thornton Tomasett, and coordinated with global manufacturers.
WEBSTER SQUARE CONDOMINIUMS
OWNER / DEVELOPER:
LOCATION:
PROJECT TYPE: AREA:
SANDZ DEVELOPMENT COMPANY
CHICAGO, ILLINOIS
ADAPTIVE RE-USE, RESIDENTIAL
273,506 SF 206,937 SF (RESIDENTIAL)
5,588 SF (AMENITY)
HEIGHT / STORIES: UNIT COUNT:
154’ / 12 STORIES 90 UNITS
Formerly known as Grant Hospital in Chicago’s Lincoln Park, Webster Square condominiums are the product of a complete gut rehabilitation, down to the concrete columns and floor slabs, to create a luxury condominium building in one of the most sought after neighborhoods of the City. Concrete infill slabs were used to transform the bay windows of old into the result of an efficient, rectilinear form of today’s era, maximizing final footprint to achieve optimal unit plan layouts.
Units from 840sf one-bedroom condos to 2,930sf four-bedrooms condos complete the typical 12,750sf floor plate, captured by a standard modular brick to compliment the surrounding buildings. This project provides homes in a storied building to the area, preserving the history of the area, while maintaining the context of the neighborhood around.
Left: Webster Square Condominiums from southwest streetscape
