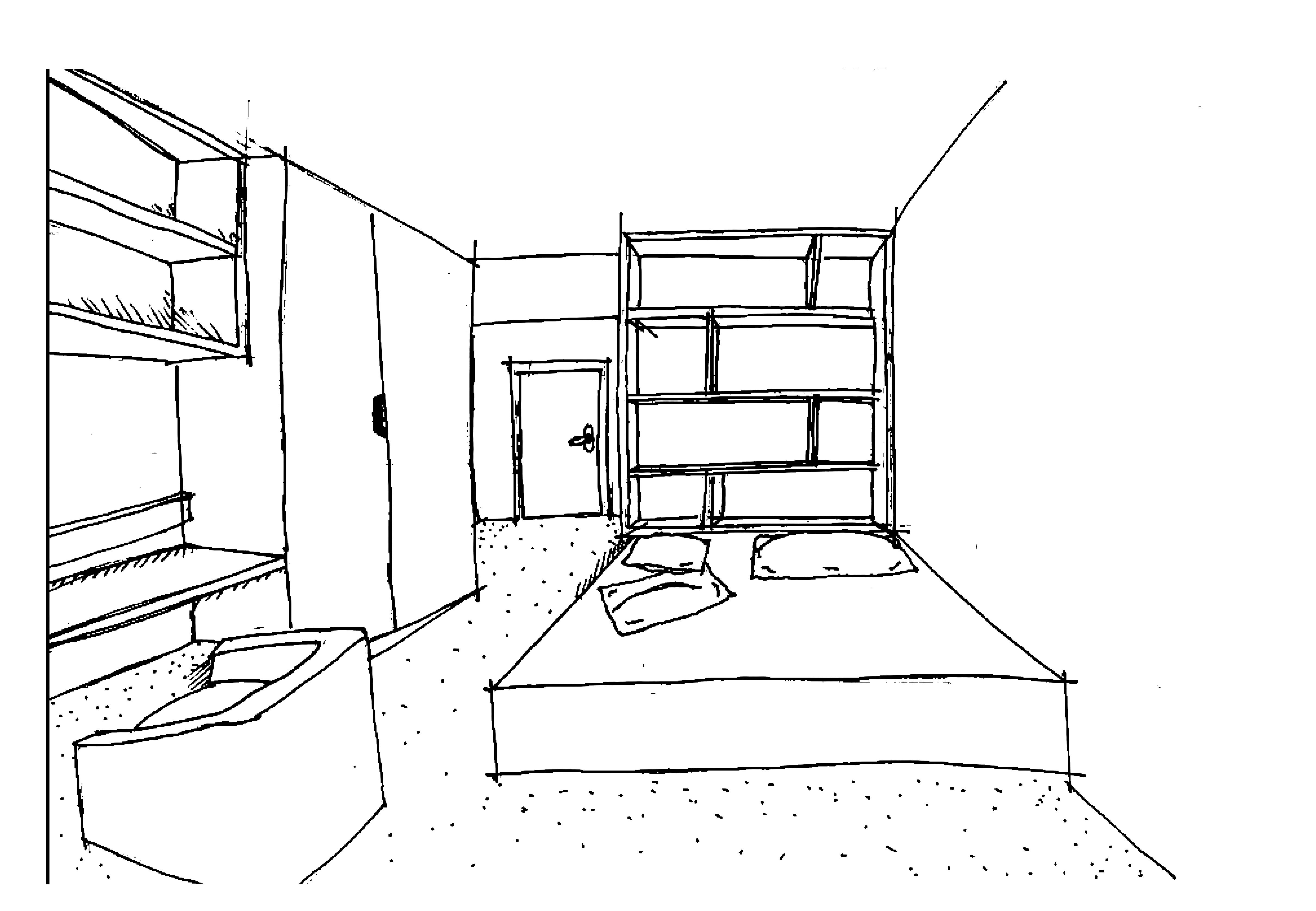

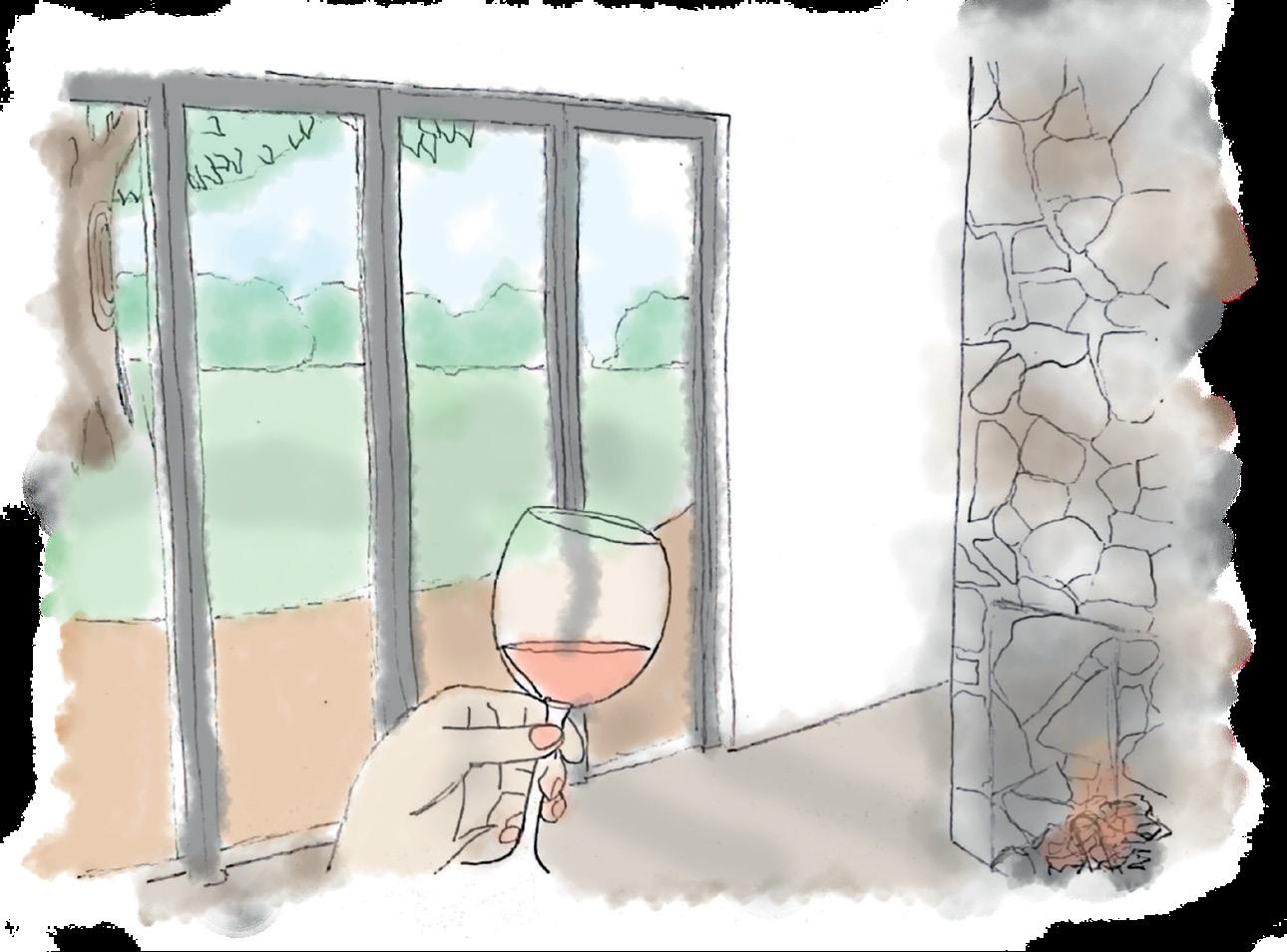

Interior Sketch
My current room of residency.
Lemniscate 3-6
Studio Project
Re imagining a visitors centre in the Peak District. Creating a place teaching the disagreements of the past to be taken into the debates of today.
Healing 7-8
Studio Project
Creating a house and studio for an Apothecarist. Focusing on user centred design, tailoring the spaces to their requirements.
Showcase 9-10
Group Module Hand in
Fostering a relationship and communication with a school and the children to collaboratively create an innovative technology classroom, based on conversations had.
Stacked 11-12
Group Module Hand in
Proposing an extension and new facade system to the original architecture building at Loughborough University. Devising plans on RevIt and visualisations on Enscape.
Contents
Lemniscate Visitors Centre
In historic Hayfield, advocacy thrives, spurred by the Right to Roam Act. The Lemniscate Visitors Centre embodies this legacy, shaping young minds to cherish and steward the land.
Here, the past echoes, teaching the art of responsible land care through dialogue and debate. This narrative cultivates a generation poised to uphold Hayfield’s enduring legacy, bridging the past struggles with future desires.
Future
- Layout: Cafe (refuel).
- Materiality: Aluminium kinetic facade (Represents the ever-changing future).
- Views: Up towards the sky.
Present
- Layout: Preservation classroom and exterior education space; Debate room.
- Materiality: Oak (Matches surrounding trees).
- Views: Horizontal onto the current landscape.
Past
- Layout: Kinder Mass Trespass exhibition.
- Materiality: Sandstone facade.
- Views: Down onto the land fought for.

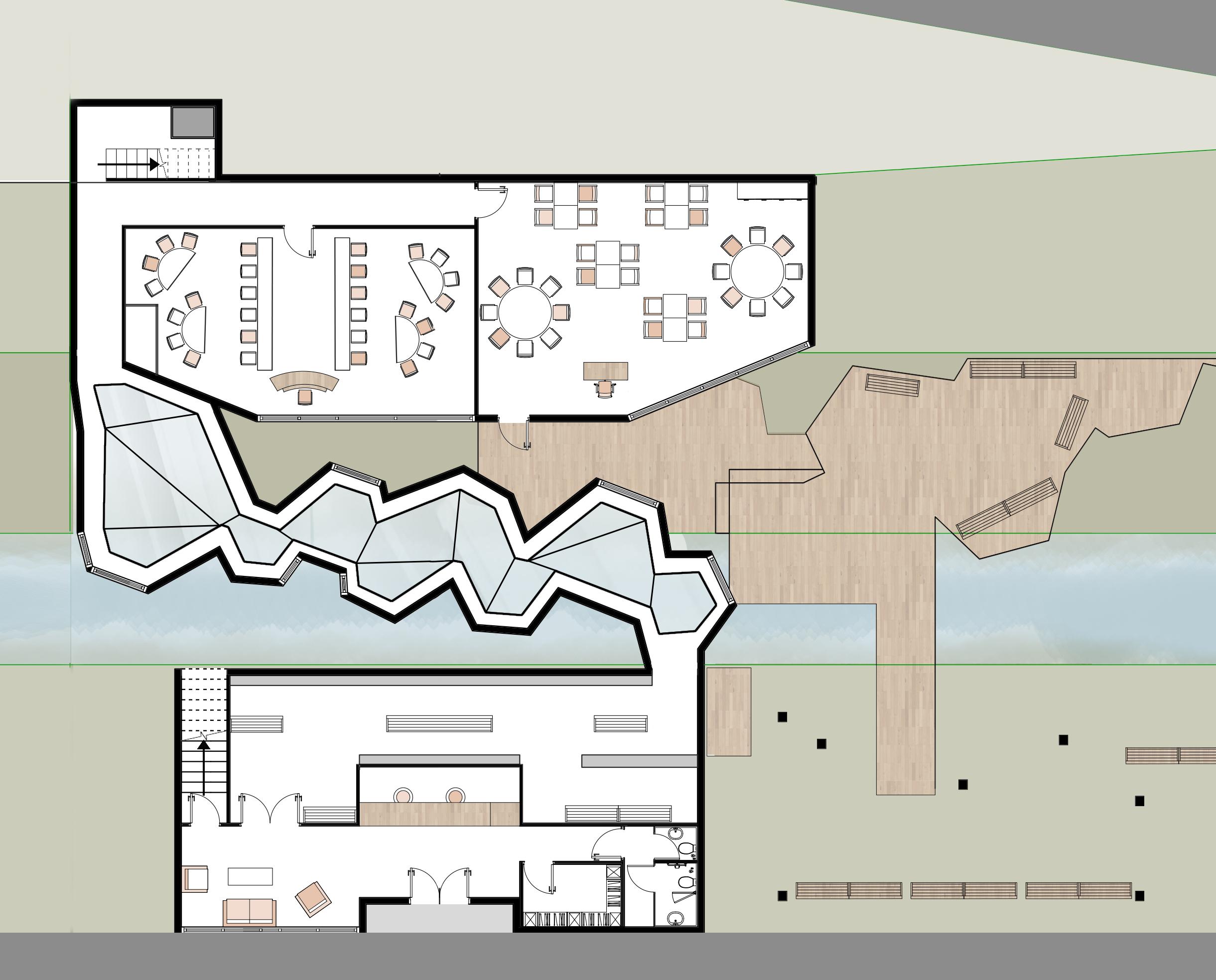

Ground Floor Plan
Utilising the unusual landscape by creating an elevated corridor with views out and bridging the 2 sides of the river.
Activities Sketches
Of activities taking place in the visitors centre.
Interior Views
Debate room, classroom and cafe.
Flow Diagram
Show the lemniscate shaped rout through illustrating activities taking place along the way.

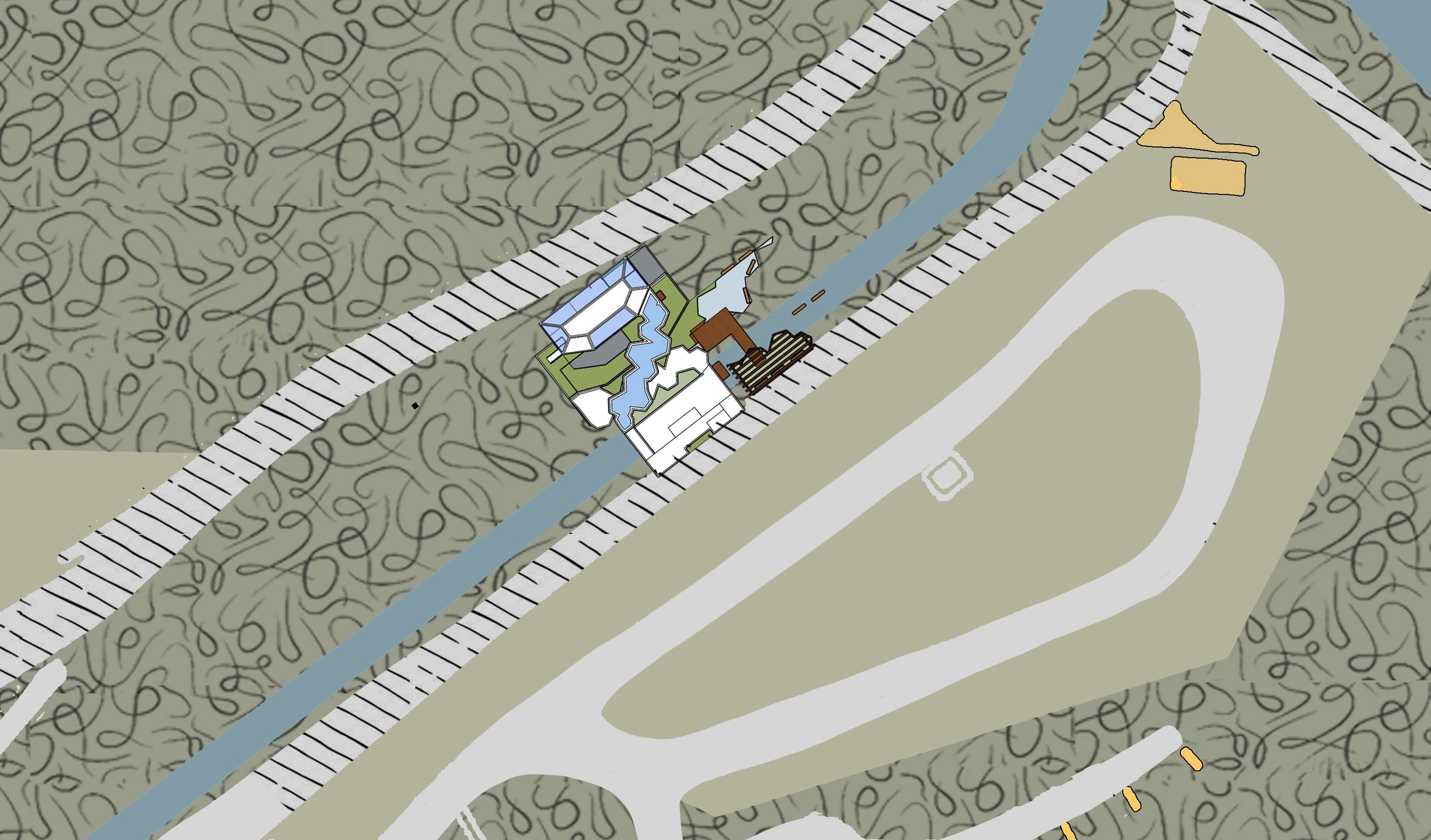

Site Plan

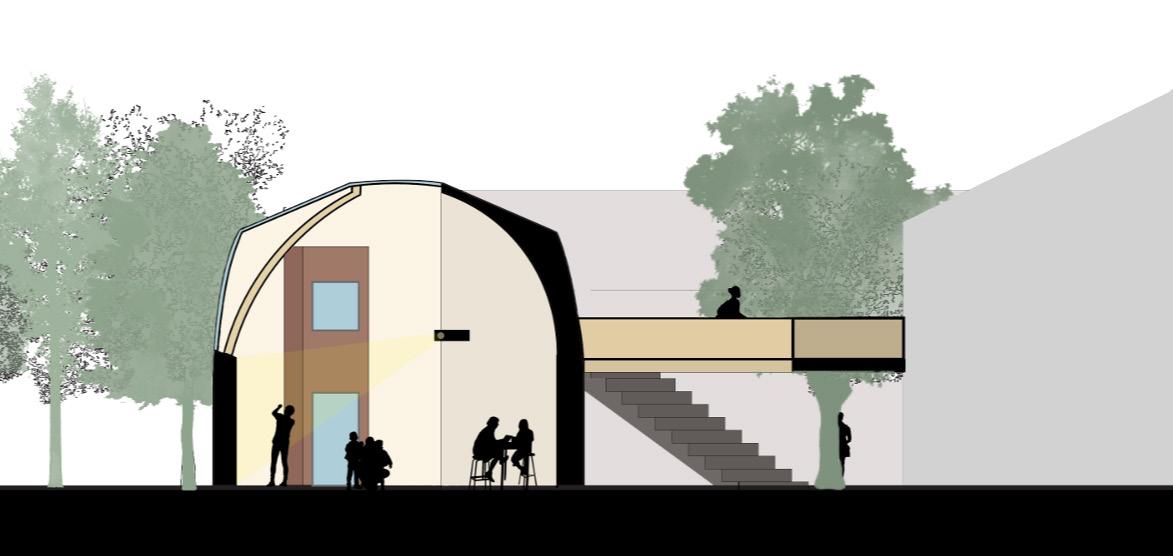

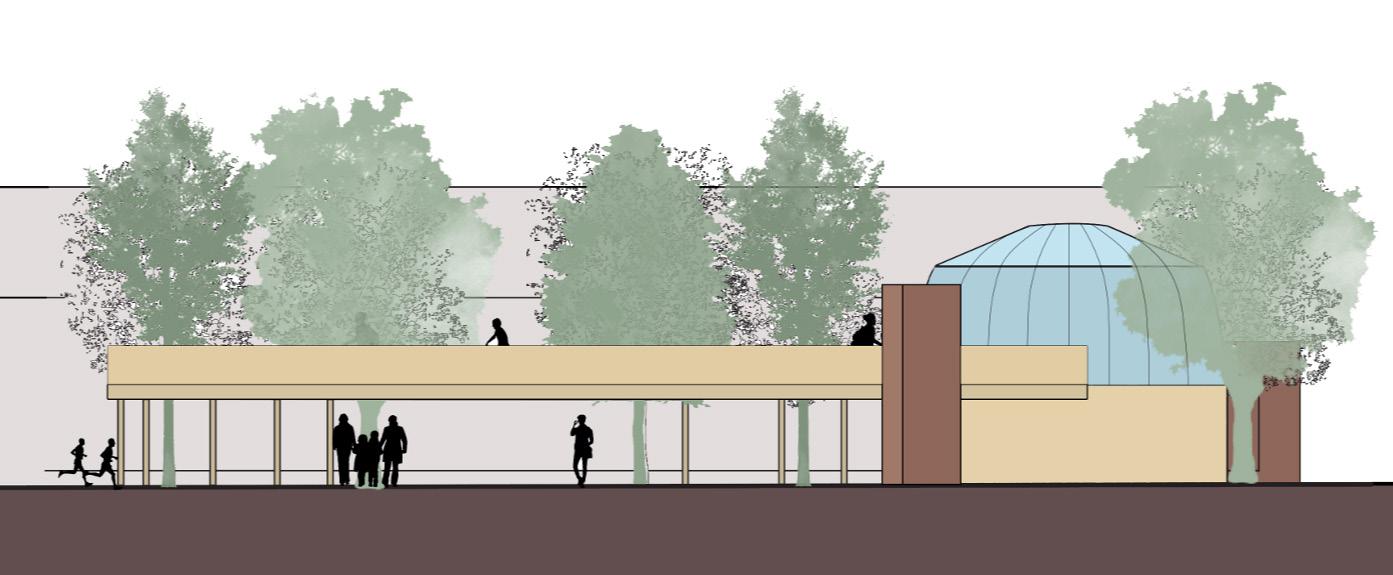

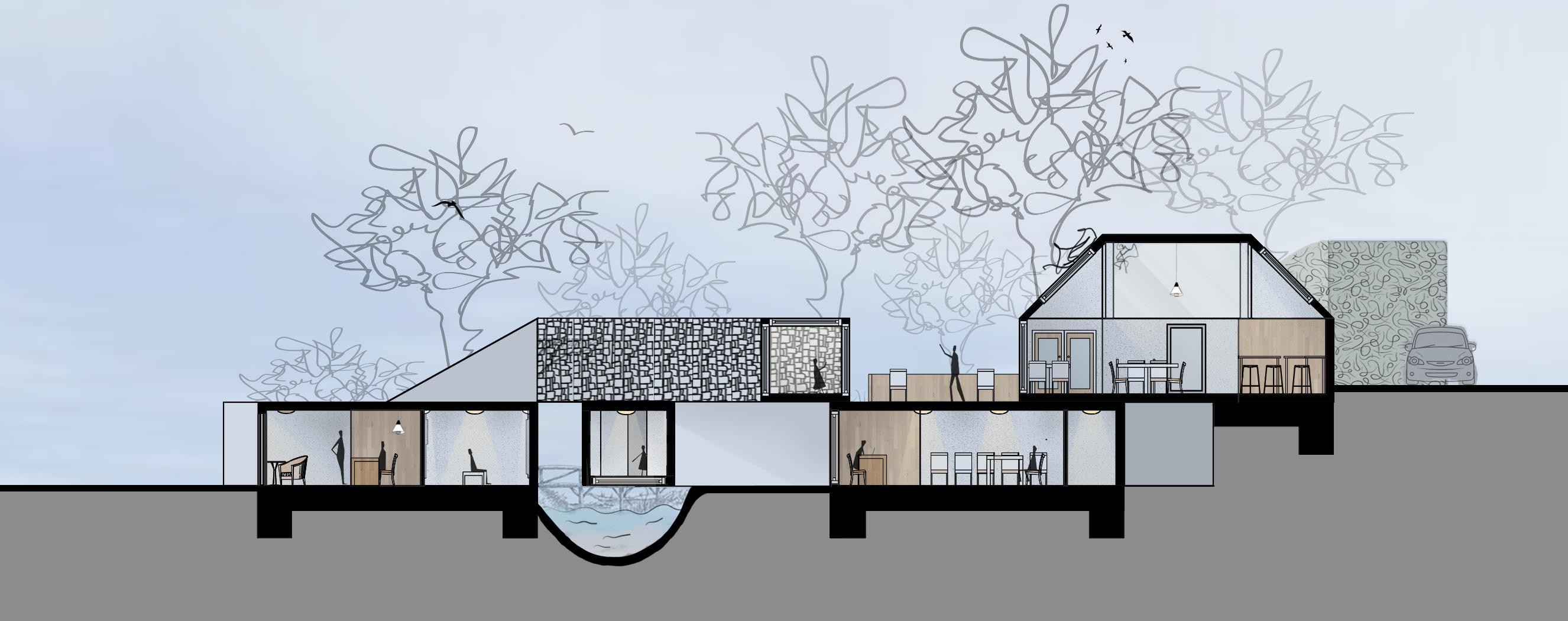

Section
Showcasing the kinetic facade and the materiality.

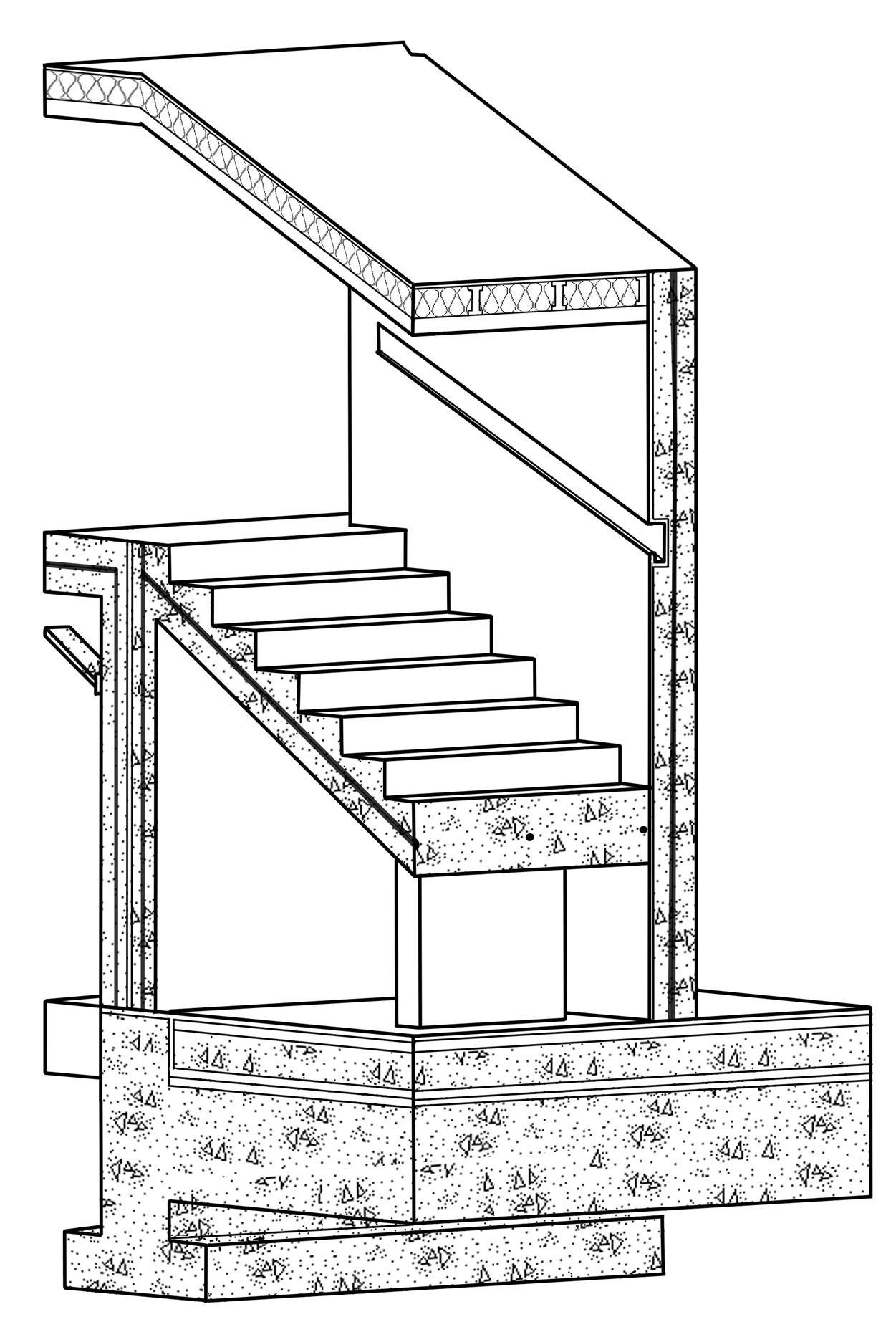

Section Detail
Minimising impact on the surrounding environment.
Cork Insulation Steel Bracket Plaster Board Steel Rebar Earth Insitu Concrete Pre-cast Concrete

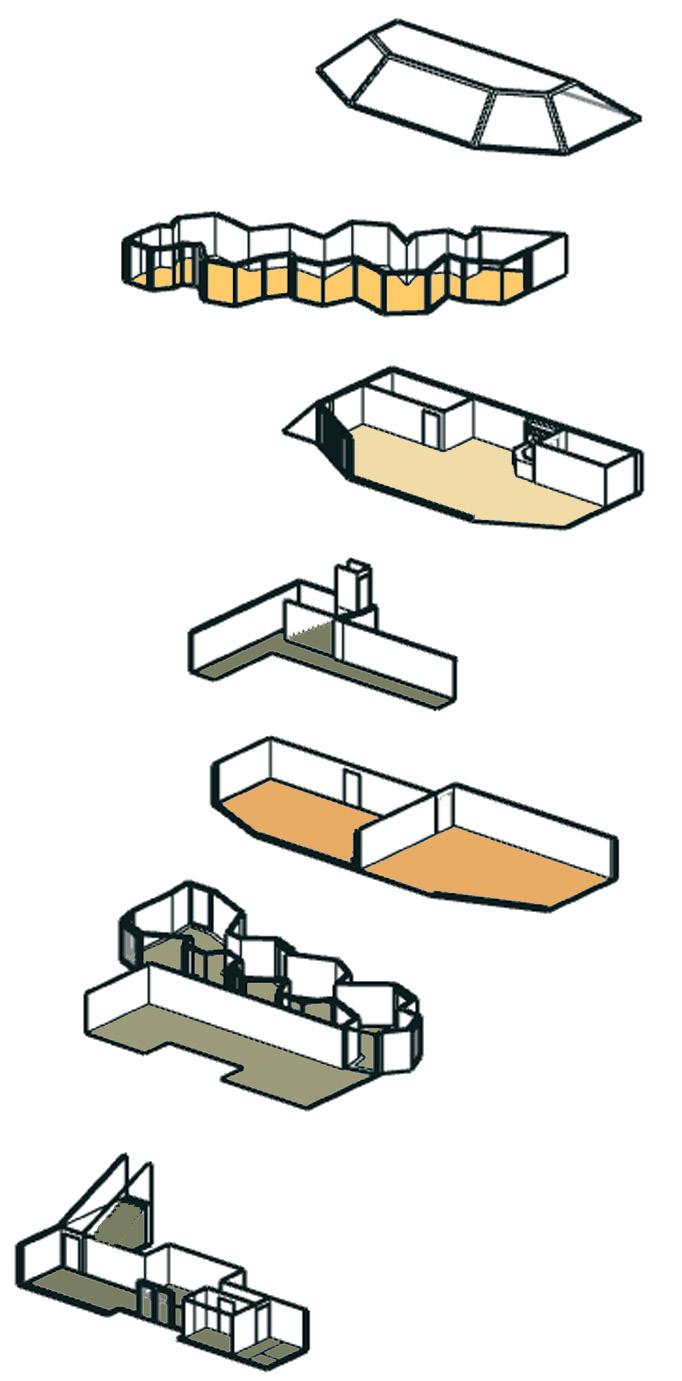

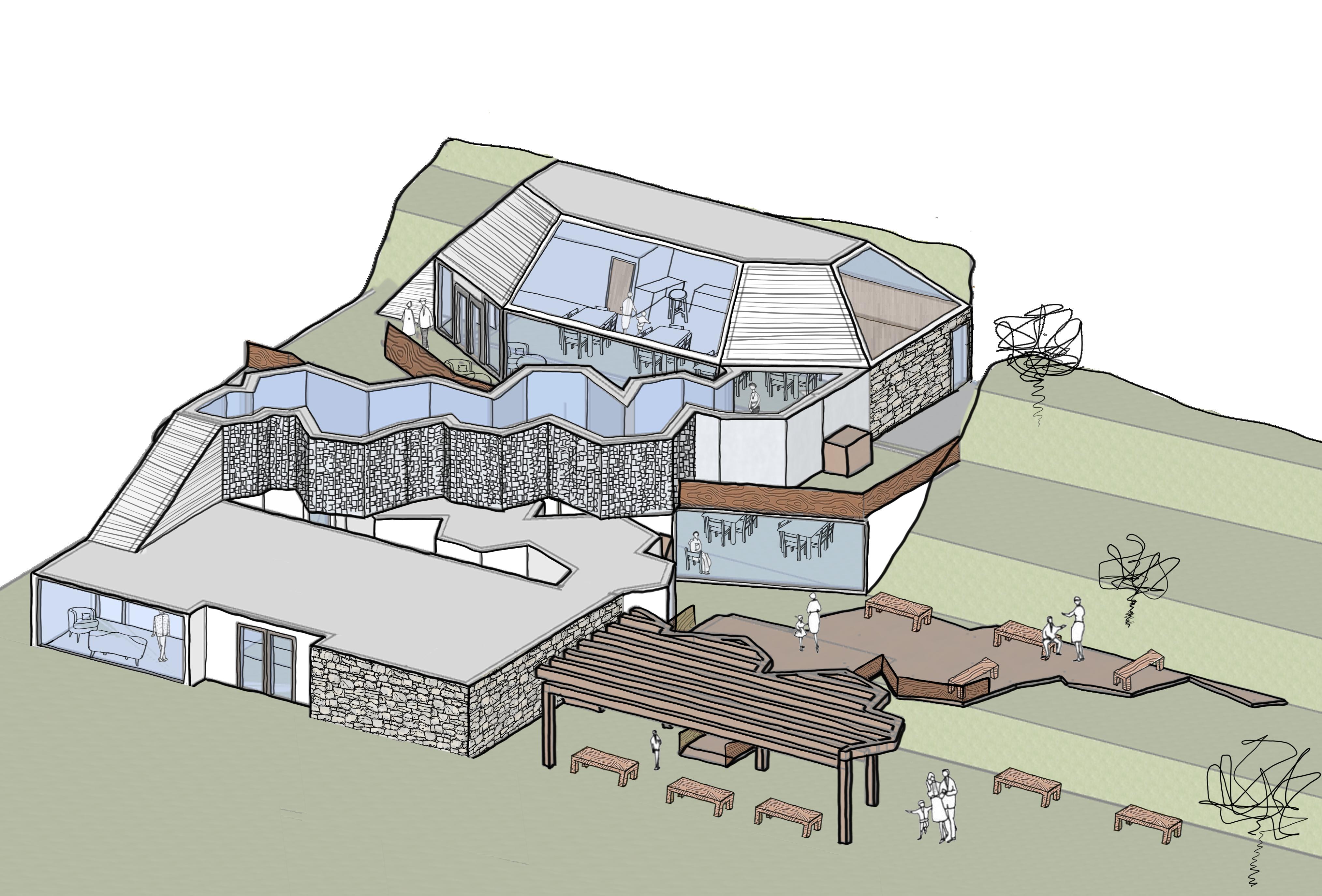

Final Axonametric Illustrating material changes.

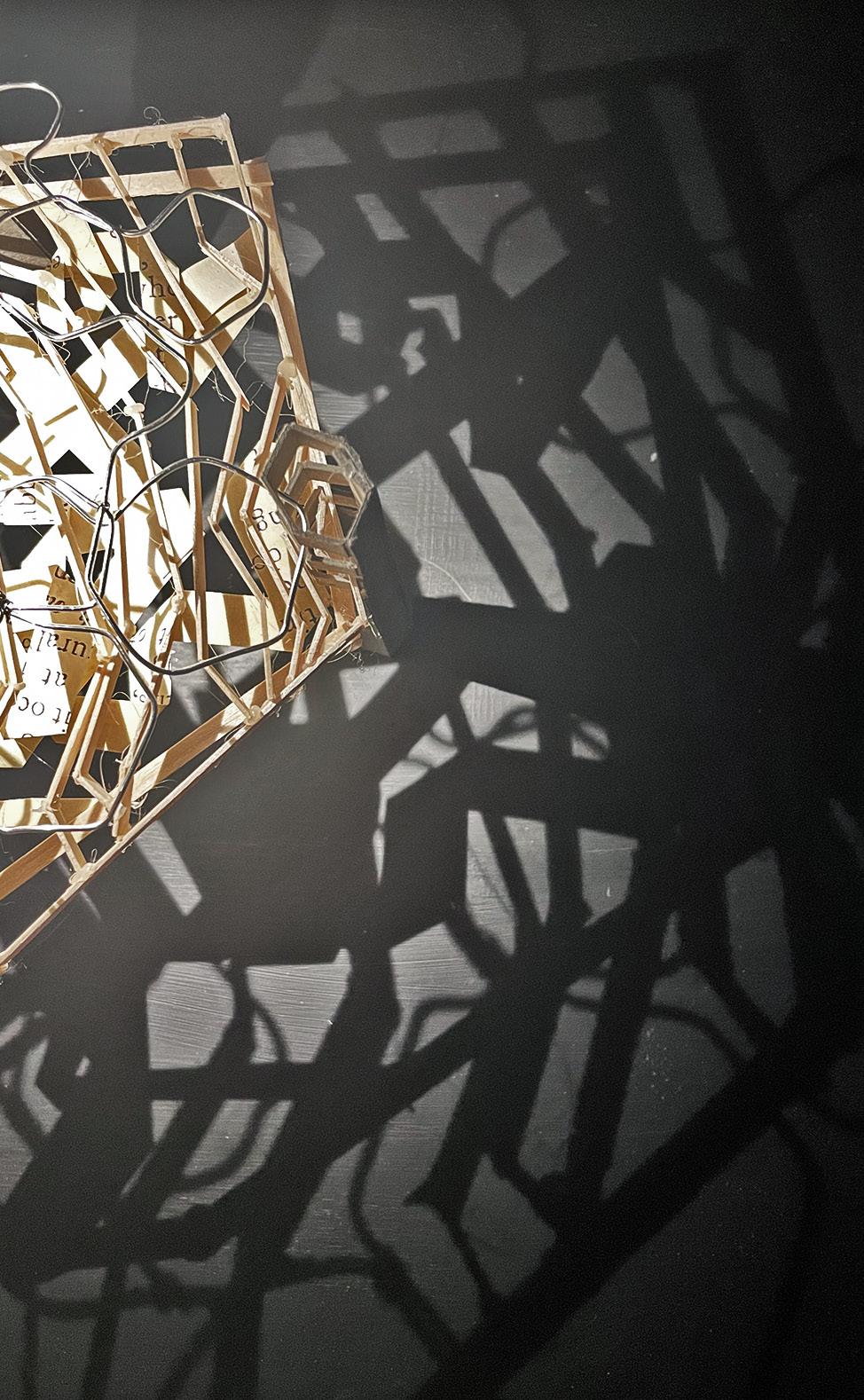

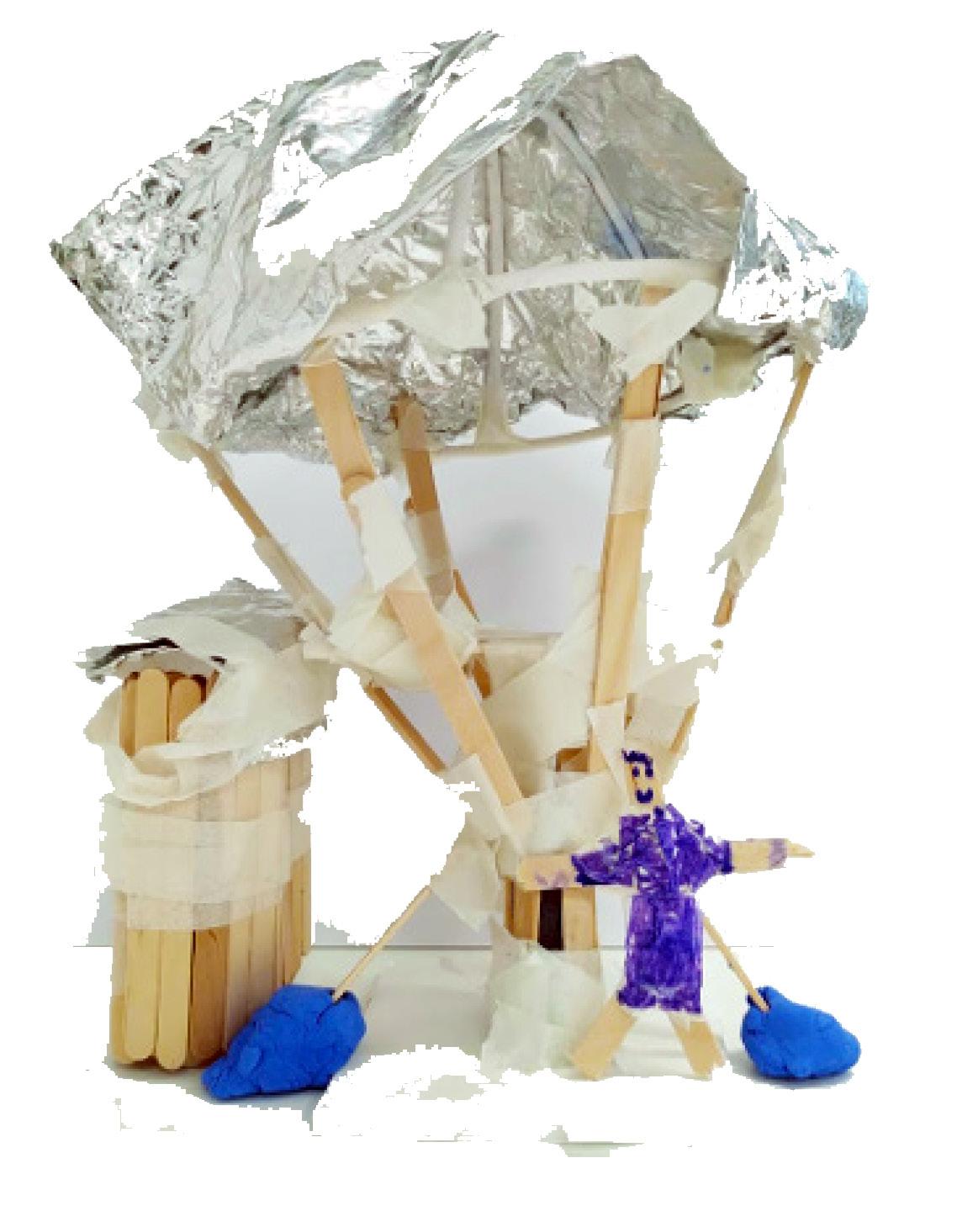

Concept Model
Represents shadows of the past, present and future over lapping.
Interior View
Taken from the top corridor.

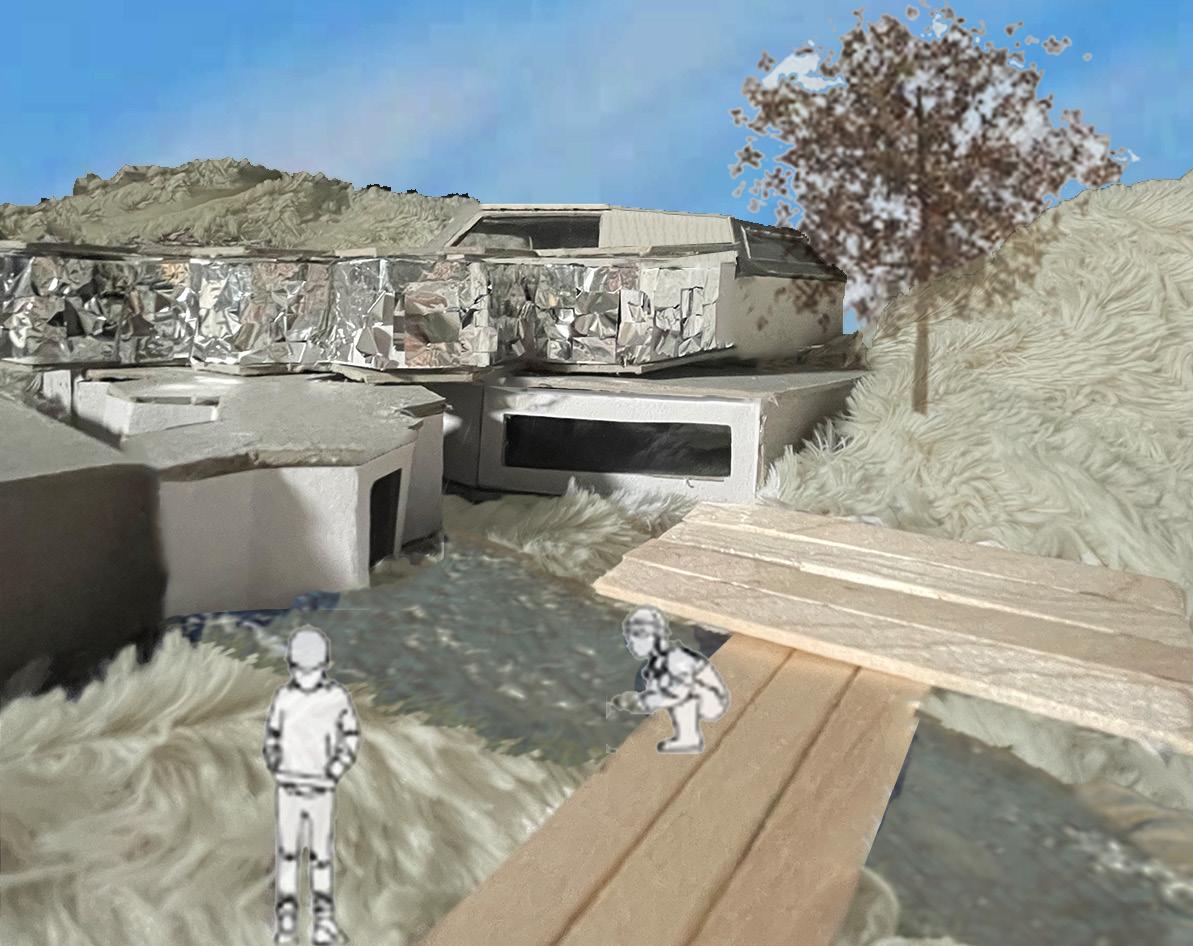

Model image edited on Photoshop.
Model image edited on Photoshop.

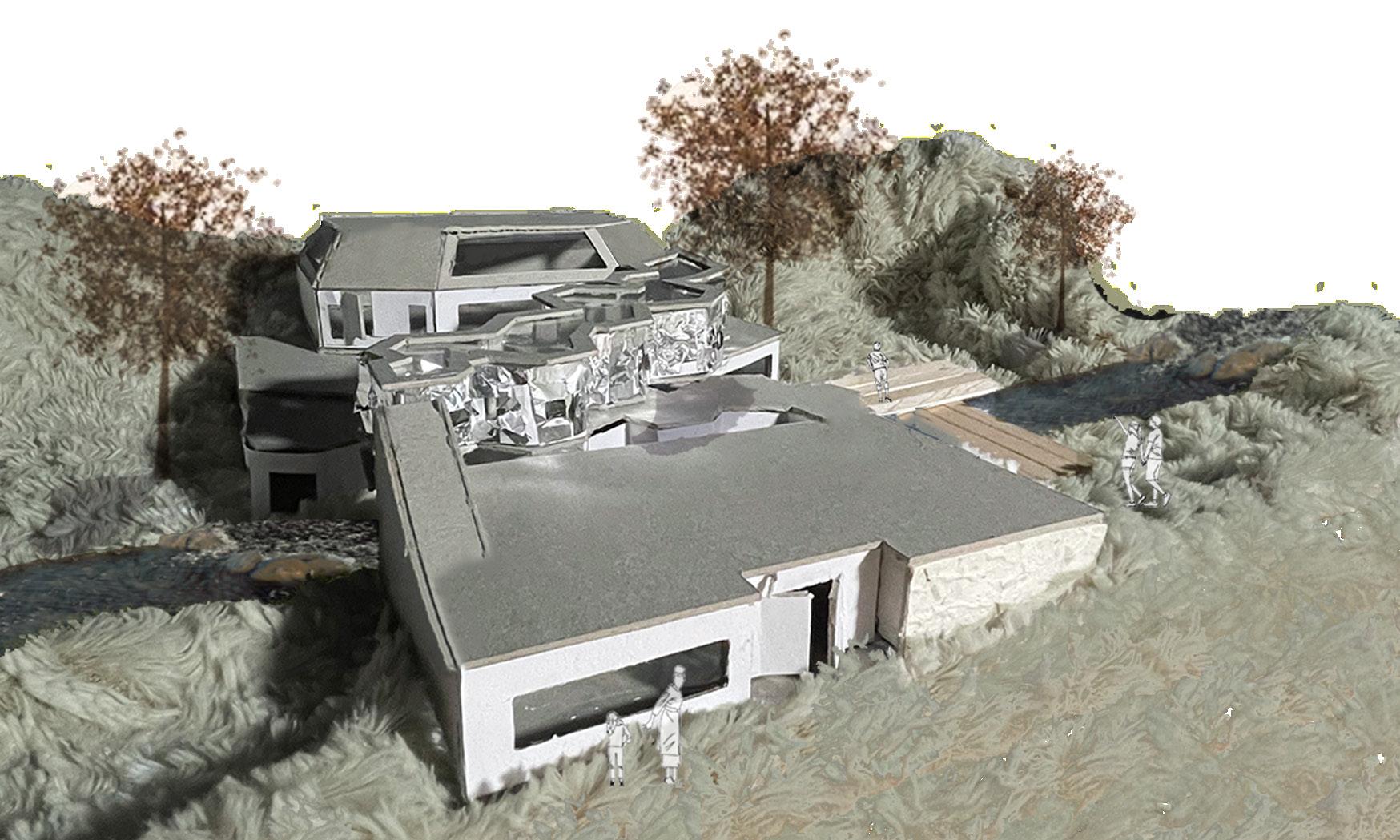

Exterior View

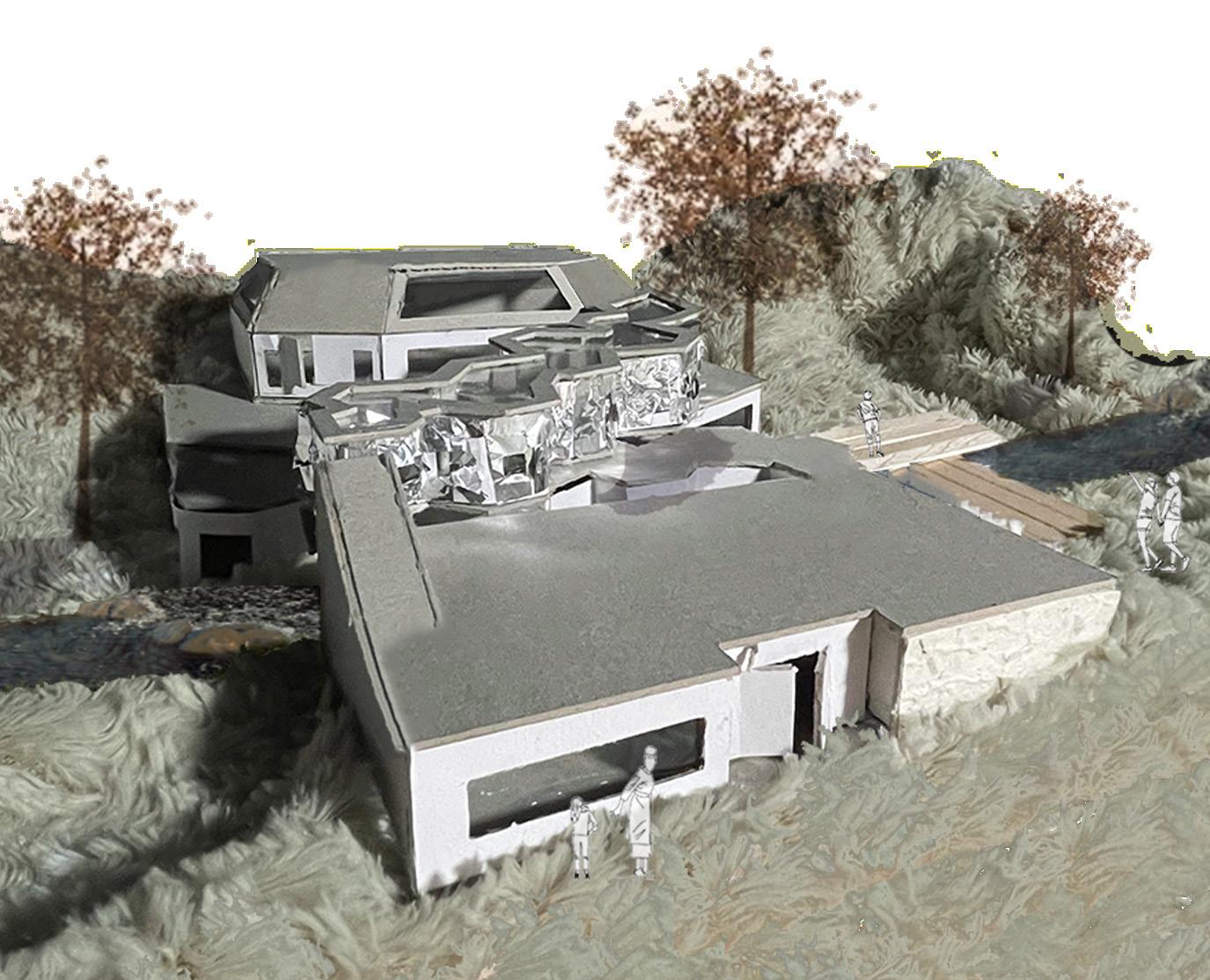

Axonometric of Final Model Edited on Photoshop.
Maintain exhisting trees
Cafe
Kinettic facade Reception
Exterior court yard Utilising the river
Views upward
Healing Apothecarist House and Studio
Behind the Church of St. Michaels in Laxton hosts a user-centred project featuring a house, guest house, and studio for an Apothecarist and assistant.
Set within a meditation labyrinth, this space becomes a focal point for the community, offering essential healing services and fostering connections for vulnerable members. Providing a singular path to town-wide recovery.

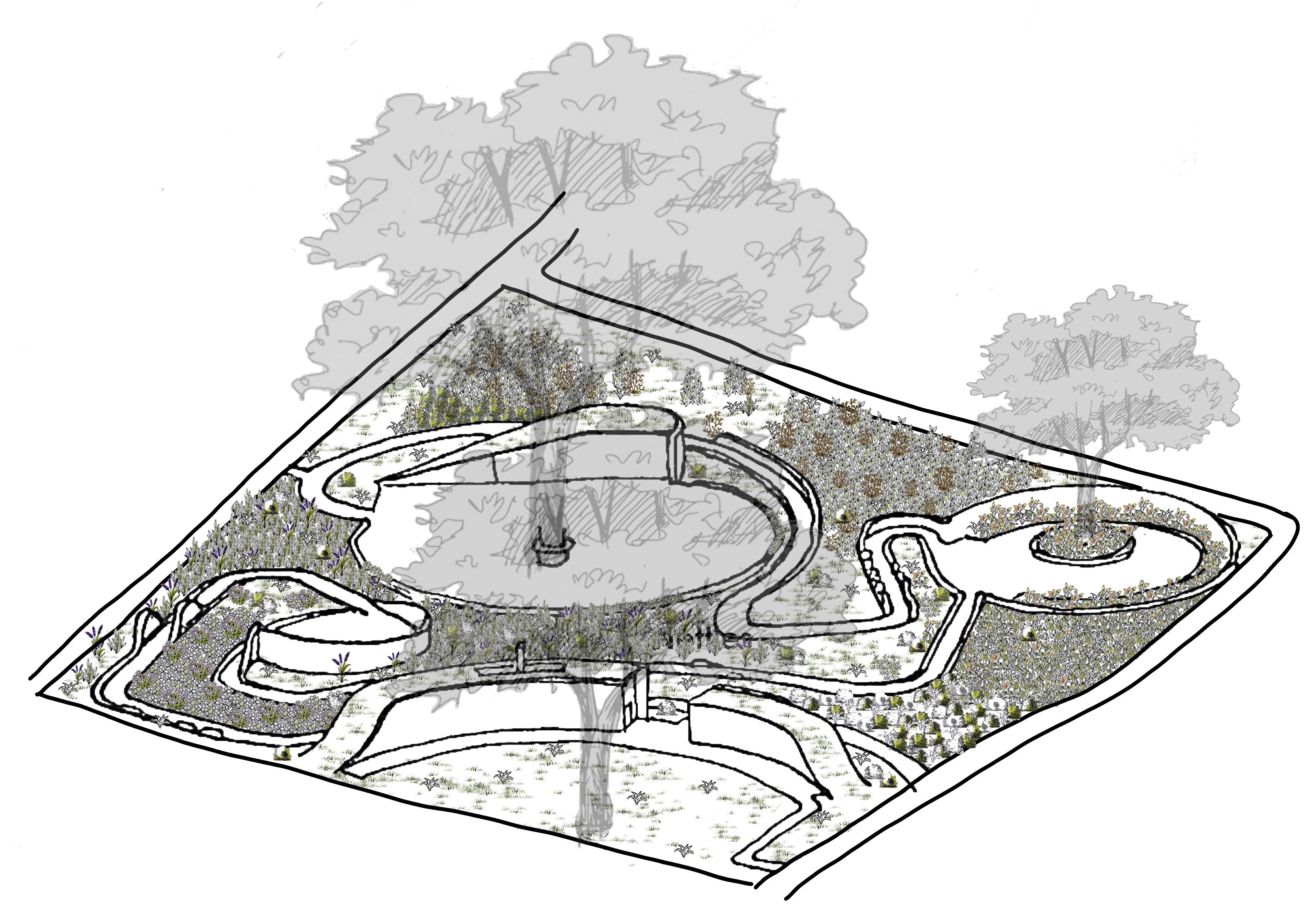

Final Landscaping Plan
By integrating the labyrinth into the design, the project seeks to enhance Laxton’s physical, meditative and communal well-being. Also achieved by flora choice to stimulate senses.

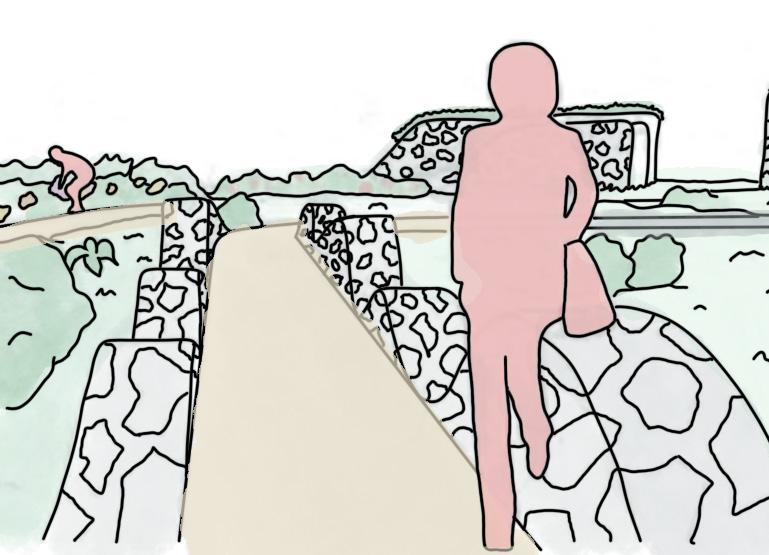

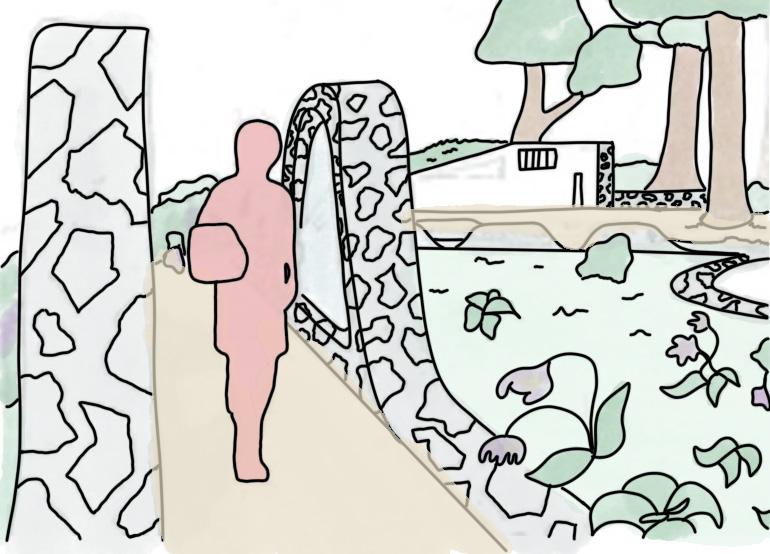

View approaching the house.
View approaching the studio.

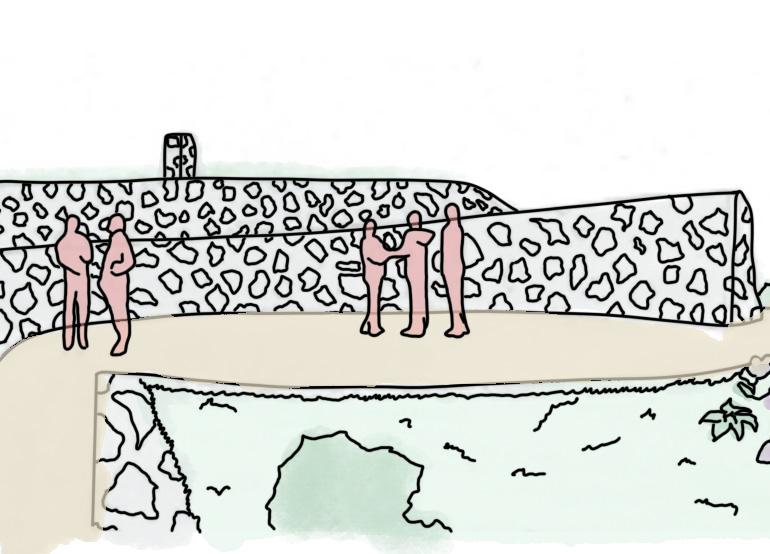

Social gathering area in the labyrinth.
Render of House Hand render.
Interior view from living room.
Sunken in tailor made craft detail.

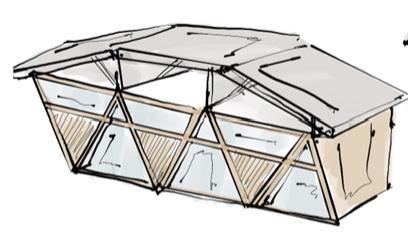

Showcase 360 Projection Classroom
In this innovative educational space, classrooms break free from tradition by immersing children in a 360-degree projection environment.
The focus shifts from individual screens to collective engagement, promoting collaboration and interactivity. This represents a bold step in redefining how children interact with educational content, fostering hands-on learning within a visually stimulating and technologically advanced environment. Section
Elevation
Stakeholders Interacted With
This project required constant interaction with our real life clients. Ranging from school children to parents and teachers.

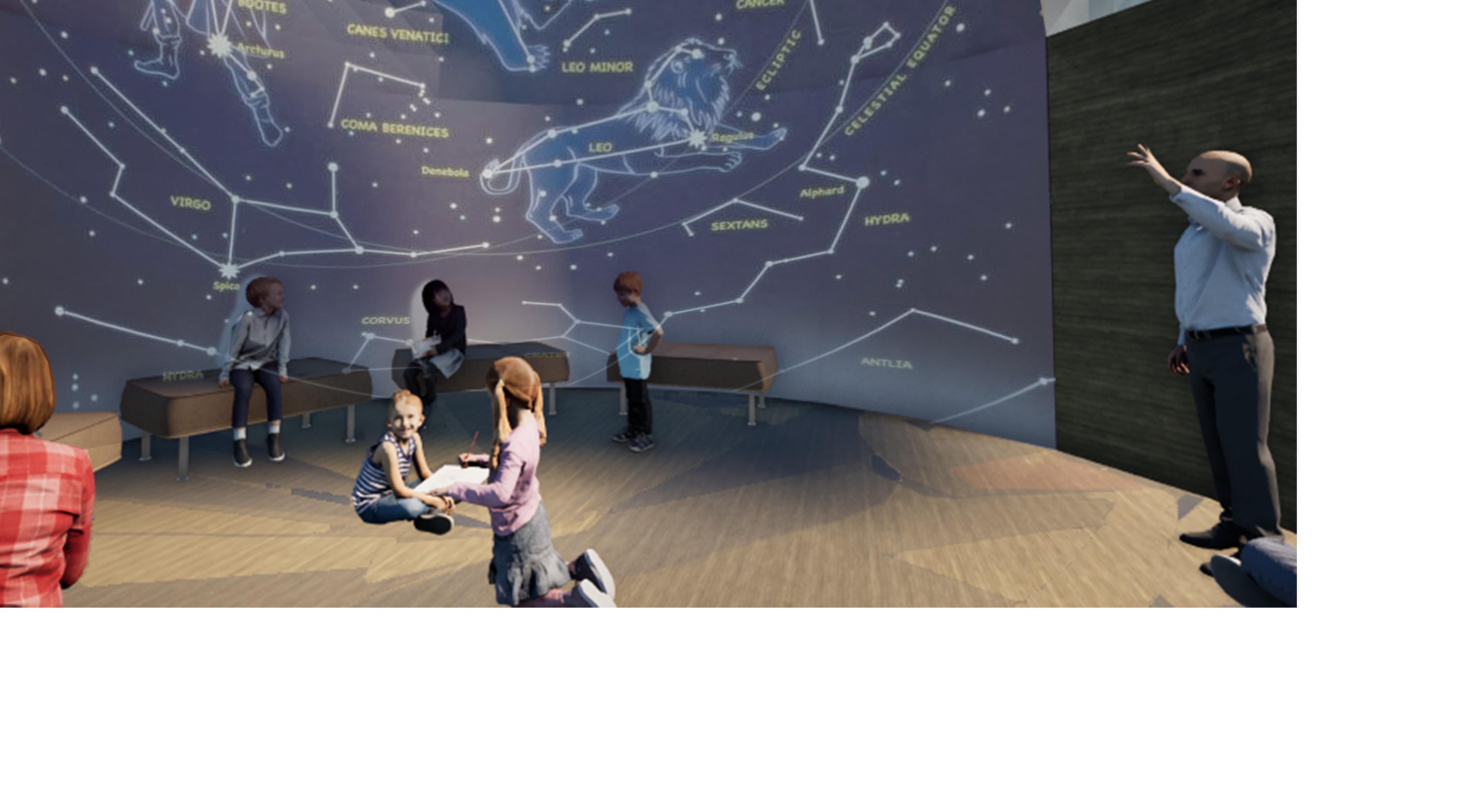

Interior View
Taken from inside the 360 projection classroom. Cutting-edge technology frees minds from screens, engaging directly with learning. Interactive displays blend physical and digital realms for immersive lessons.

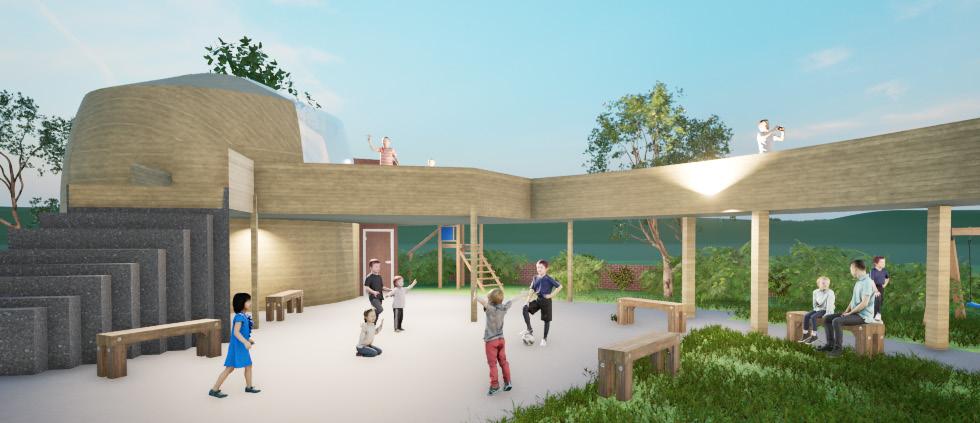

Exterior Render
Stacked Architecture Studio Extension
Our extension project for Loughborough University aims to house all three years of architecture students in an open and inclusive environment, fostering collaboration and embracing the “architect maker” ethos.
Inspired by the concept of joints, the design features interconnected spaces and flexible areas to promote cross-collaboration and innovation. By emphasizing transparency and fluidity, the extension encourages continuous interaction and knowledge sharing among students, reflecting Loughborough’s commitment to versatility and community-driven learning.
4th
UP UP A113 A114 Office 96 Office 97 8.623 m² 92.8 SF Office 98 25.239 m² 271.7 SF Staff Room 99 Office 100 Office 101 Office 102 9.596 103.3 SF Office 103 8.588 m² 92.4 SF Office 106 9.045 m² 97.4 SF Office 107 Office 108 9.680 m² 104.2 SF Office 109 Office 110 9.334 Office 111 80.8 Office 112 104.3 SF Office 113 450.822 m² 4852.6 SF Comunal Space 114 159.470 1716.5 SF Lecture Hall 115 Computer Room 116 Event Space 117 By Room Name Legend Computer Room Comunal Space Event Space Lecture Hall Office Staff Room --A115 www.autodesk.com/revit CHECKED BY TITLE CLIENT PROJECT STATUS PURPOSE OF ISSUE CODE SUITABILITY DESCRIPTION 2nd Floor Plan Sir Frank Gibb Extention Yang Yu Katie Level mm Level 4420 mm Level 7500 mm Level 15660 mm Level 20740 mm Level 10580 mm Level 3.5 13120 mm Level 4.5 18200 mm Level 5.5 23280 mm Roof 27403 mm www.autodesk.com/revit SCALE (@ A1) CHECKED BY TITLE PROJECT NUMBER CLIENT PROJECT DRAWING NUMBER REV DRAWN BY DATE STATUS PURPOSE OF ISSUE CODE SUITABILITY DESCRIPTION 100 16/03/2024 15:53:59 Horrizontal Section n/a Sir Frank Gibb Extention Yang Yu Katie S A114 Amelia C 16/03/24 1 100 Section 2 1
Completed
Section Completed on Revit.
Floor Plan
on Revit.

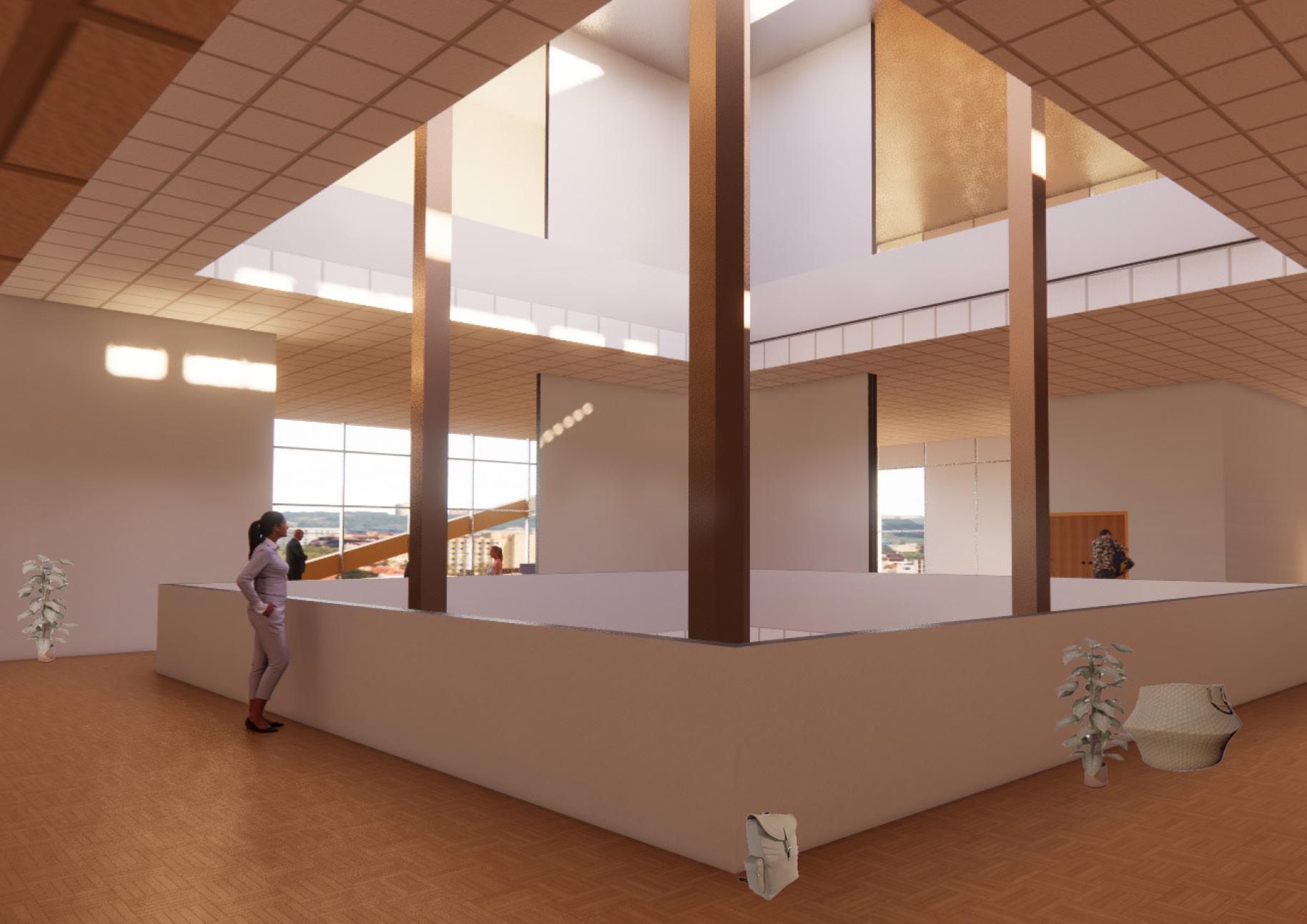

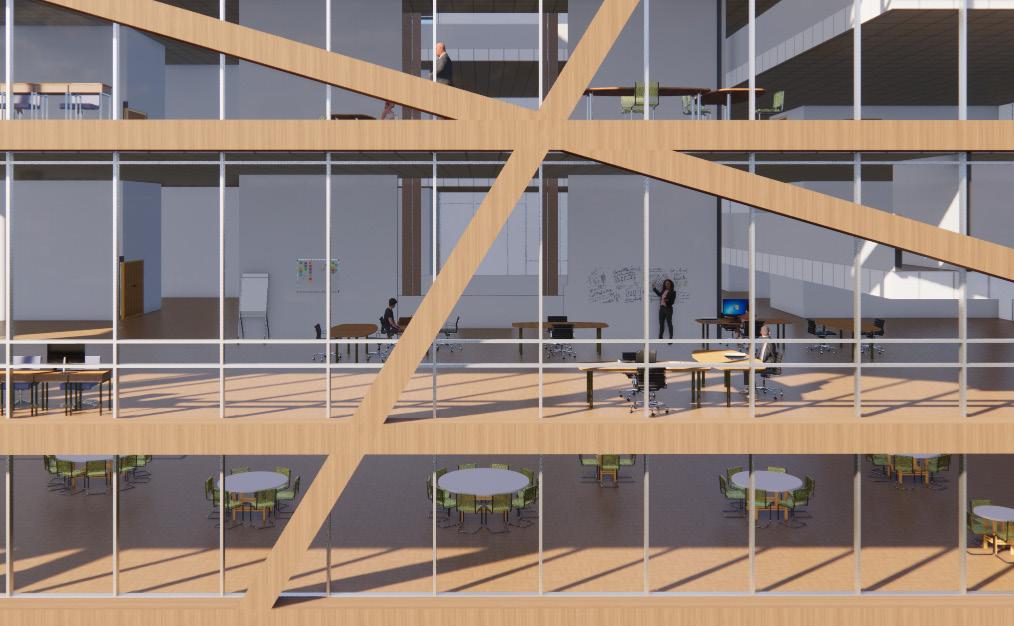

Interior Render Central atrium space, including the lighting-well.

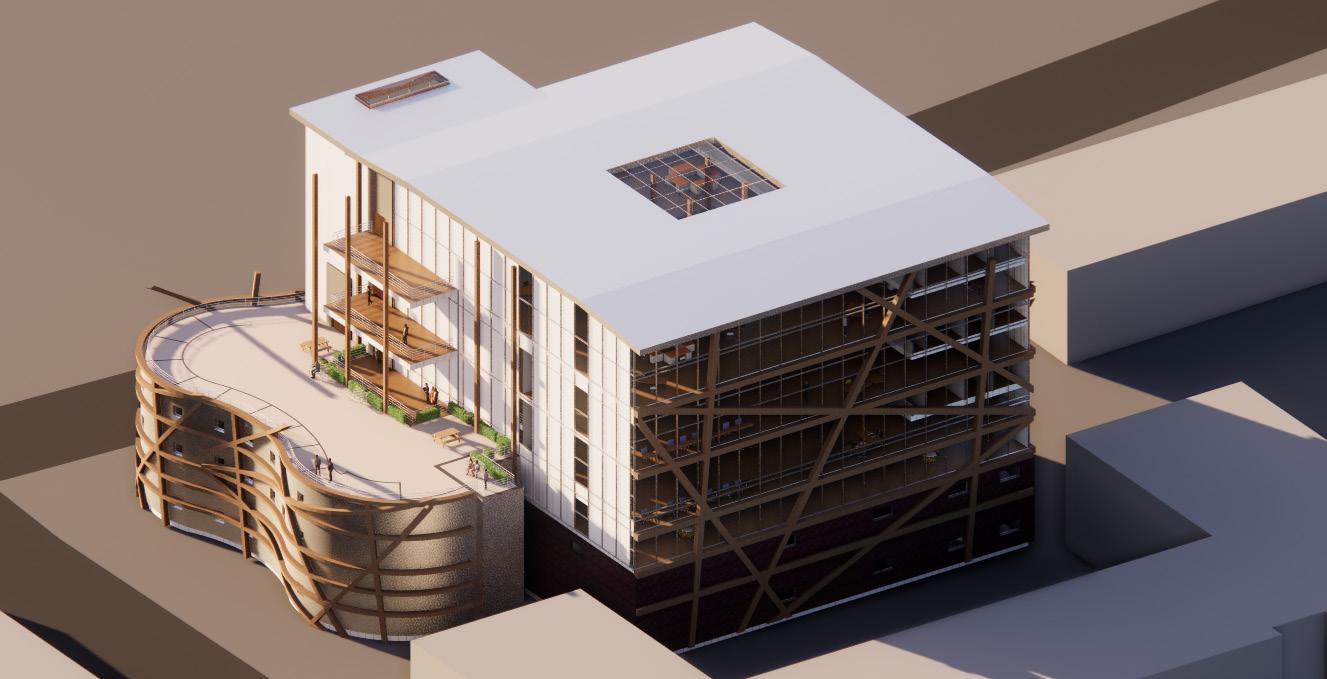

Render of Final Building
Lead on Revit and Visuals
