ARCHITECTURE PORTFOLIO

ARCHITECTURAL PORTFOLIO ALYA ALBADAAI

2019-2023

PROFILE

ARCHITECTURAL ENGINEER AND CREATIVE SEEKER. A GOOD TEAM PLAYER WHO CAN EASILY LEAD A GROUP TO IMPROVE DIFFERENT IDEAS AND DESIGN AND DEVELOP CONCEPTS. I HAVE AN EYE FOR DETAIL, A HIGHLY ORGANIZED AND EFFICIENT INDIVIDUAL, WHOSE WILLING TO GO ABOVE AND BEYOND. I HAVE ALSO PARTICIPATED IN DIFFERENT ARCHITECTURAL AND SCIENTIFIC COMPETITIONS, WHICH HELP ME TO SHARPEN MY SKILLS AND THINK OUT OF THE BOX.

EDUCATION

2015-2021

B.Eng. in Architectural Engineering (College of Engineering), Sultan Qaboos University.

2015 ACTIVITIES & ACHIEVEMENTS

Certificate for General Education Diploma, Hail Al Awamir School, Muscat.

SKILLS

An organizer at the Civil & Architectural Engineering exhibition

Participation in a one-day challenge by Roca

Participation in Smart Edutainment Center competition by OOCEP

Participation in SQU Innovation & Technology Center by SQU

Participation & win in MANAFA’A PROGRAM for biodiversity by OAPGRC

Participation & win first prize in Al Duqm Research, Innovation & Community Service Complex competition

WORK EXPERIENCE

Training in Omran Group company – Business Development dep. (architecture)-3 months

Working in ZAHI Architecture, interior services +Instagram content creator- manger

Training in Golden goals company architecture design -HVAC

Summer training in SQU in Zero Energy Building using Design Builder software

Training in Mashhad company for architecture design

Surveying training by Sultan Qaboos University

LANGUAGES

CONTENTS

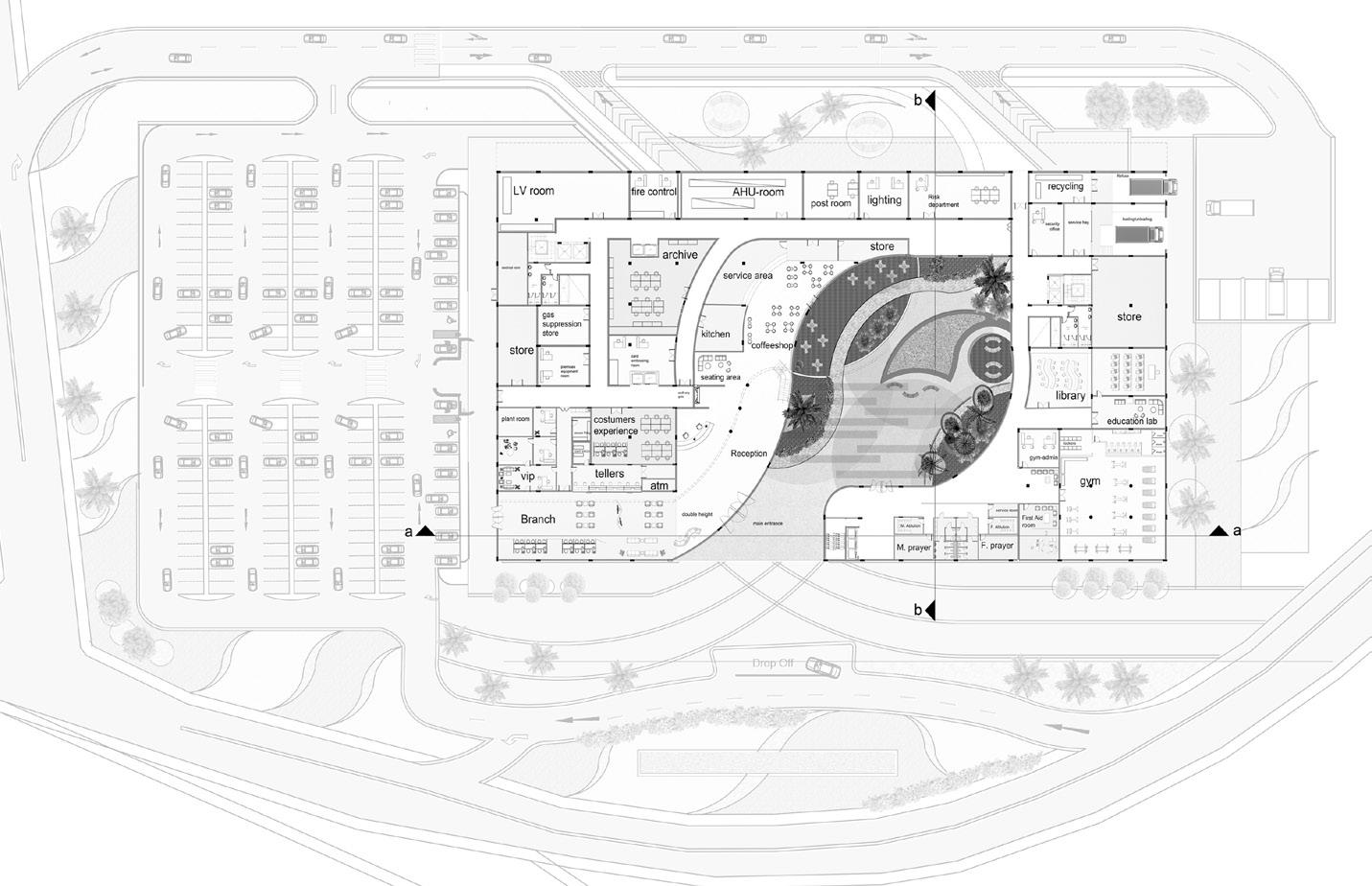

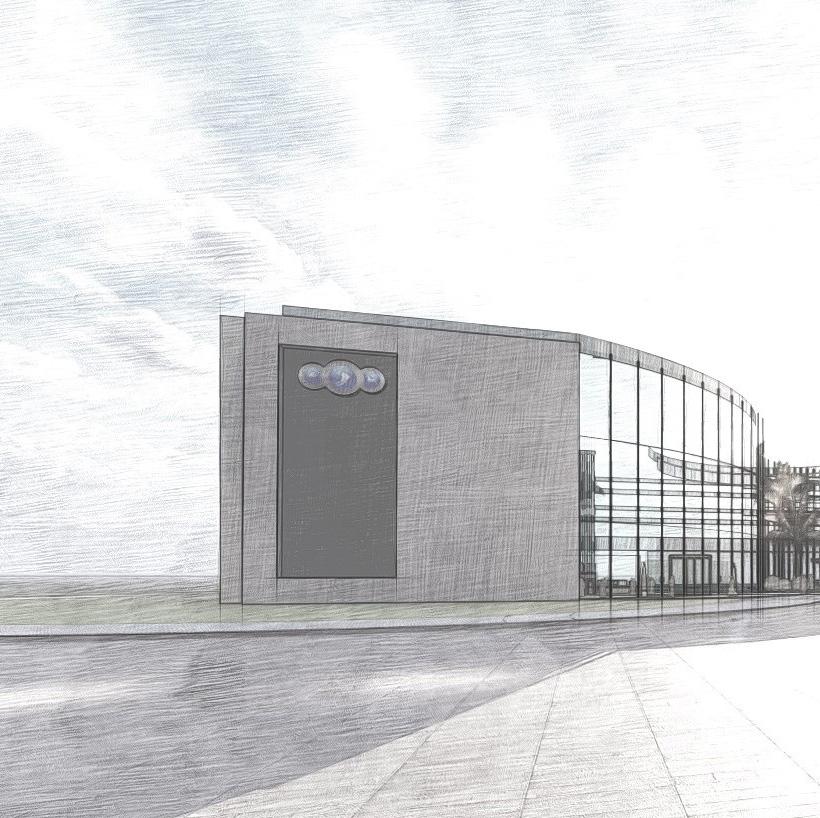

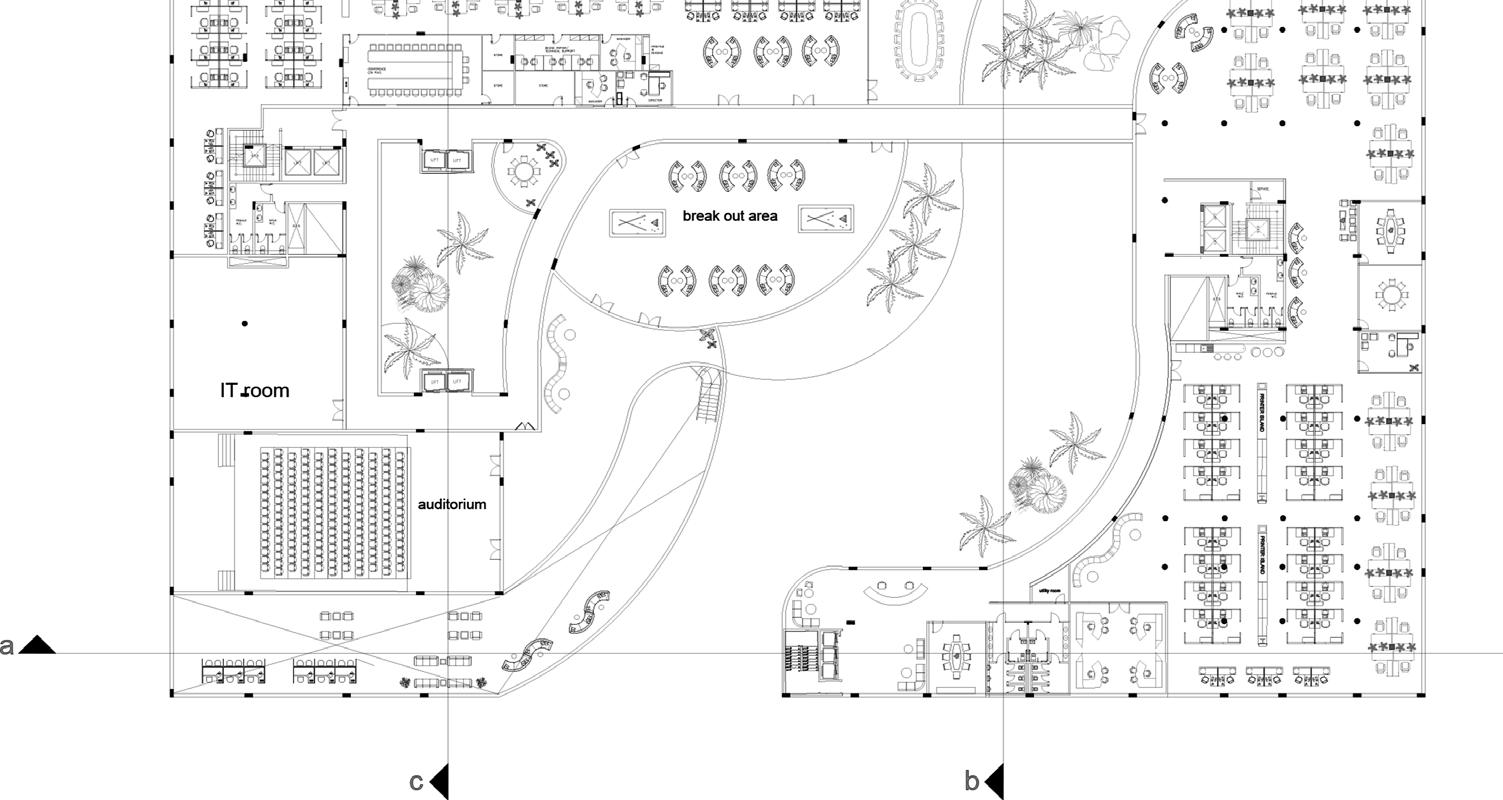

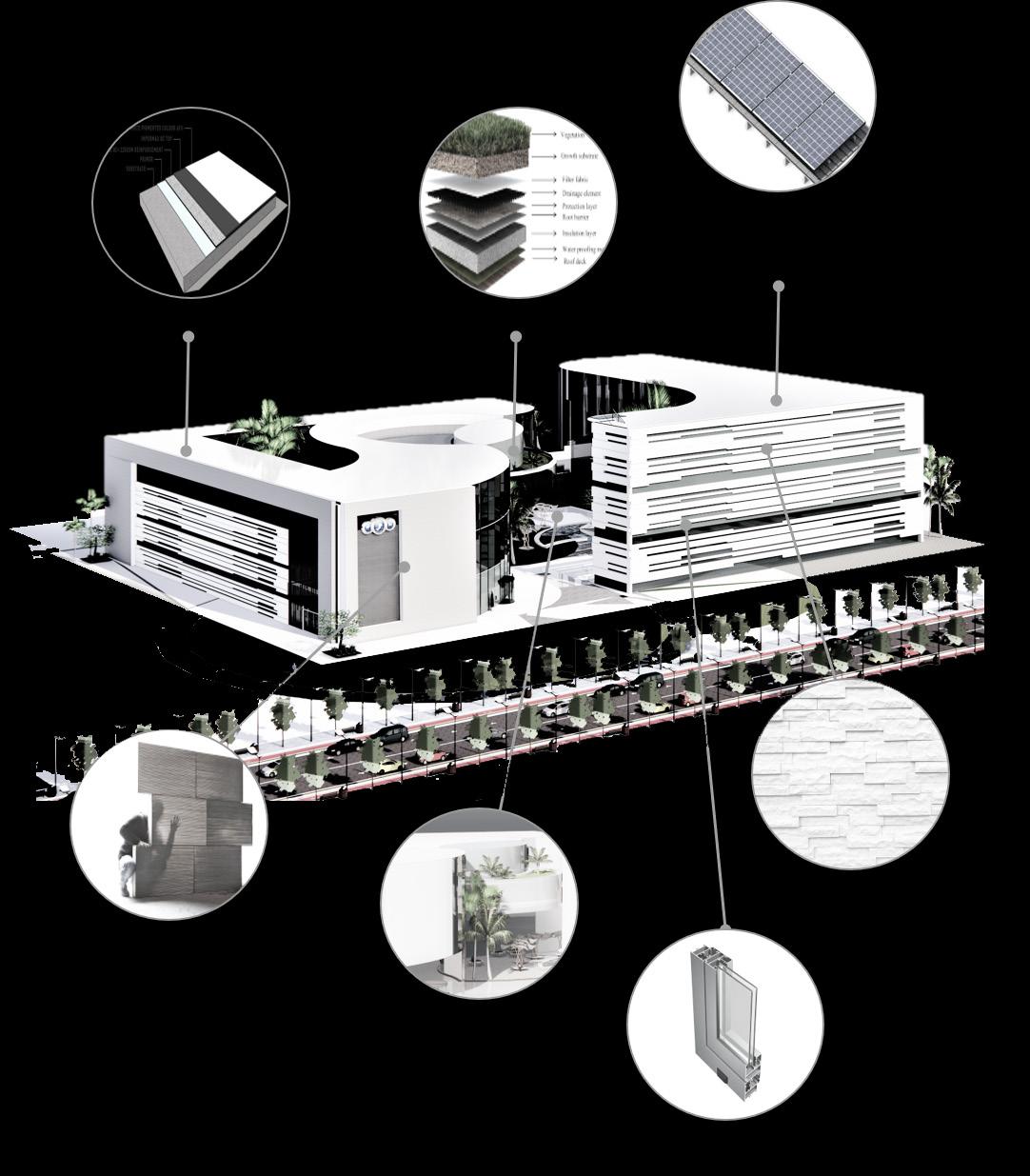

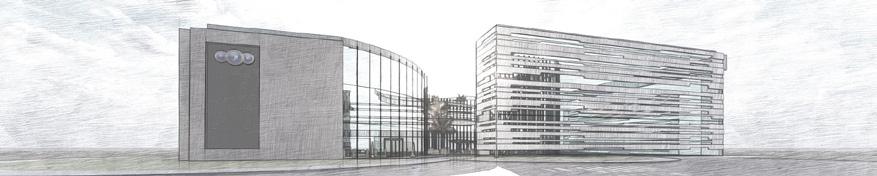

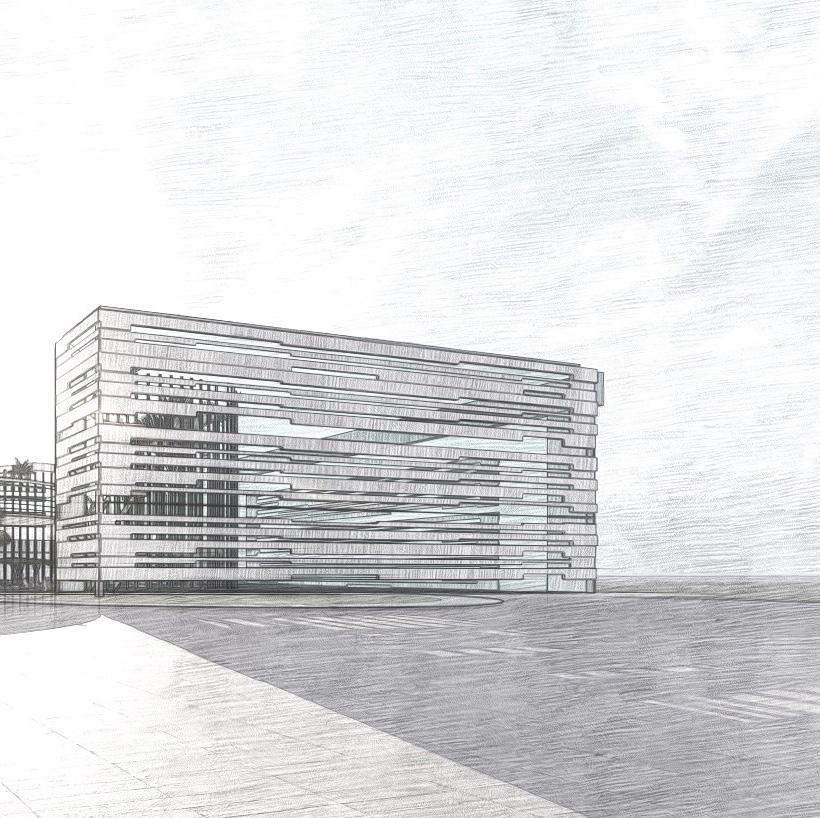

HQ BANK

OVERVIEW

TO PROVIDE AN OPTIMUM AND MODERN BUILDING THAT COMPETES WITH INTERNATIONAL BANKS WHILE COMBINES LOCAL ARCHITECTURE WITH MODERNITY TO BE SUITABLE WITH THE CURRENT ERA.

CONCEPT

THE ARCHITECTURAL CONCEPT IS INSPIRED FROM OMAN GEOLOGY IN GENERAL, AND OMAN CAVE IN SPECIFIC. -CREATING AN OUTDOOR SOCIAL SPACE INSIDE THE BUILDING, REFLECTS THE LIFE IN THE CAVE.

FORM DEVELOPMENT

INITITIAL FORM STARTING FROM CUBIC FORM TO REPRESENT STRENGTH, RESILIENCE AND STABILITY OF BANK BUILDINGS

SITE FORCES

EVOLVE 3-CIRCLES FROM THE BANK LOGO

SUBTRACT

1 THE BUILDING HAVE A VOID ACCORDING TO THE WIND DIRECTION TO REDUCE THE HEATE AND PROVIDE VENTILATION, ALSO TO PROVIDE A COMFARTABLE PLACE FOR SEATING IN THE BREAK TIME, CREATING A HEALTHY ENVIRONMENT FOR WORKING.

2 REDDUCE THE OPENING IN THE SOUTH DIRECTION.

3 THE BUILDING IS HIGHER FROM EAST SOUTH DIRECTION TO SHADE THE CENTRAL COURTYARD , AND THE MAIN ENTRANCE.

4 THE HORIZONTAL SHADING IS MORE EFFECTIVE FOR THE SOUTH DIRECTION.

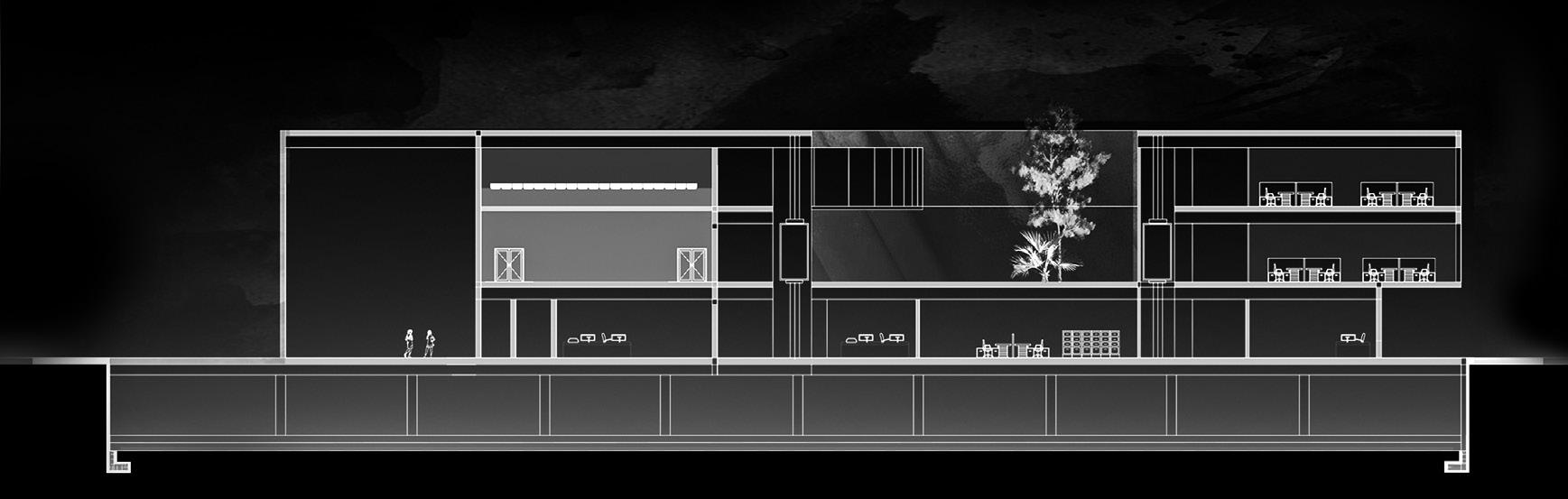

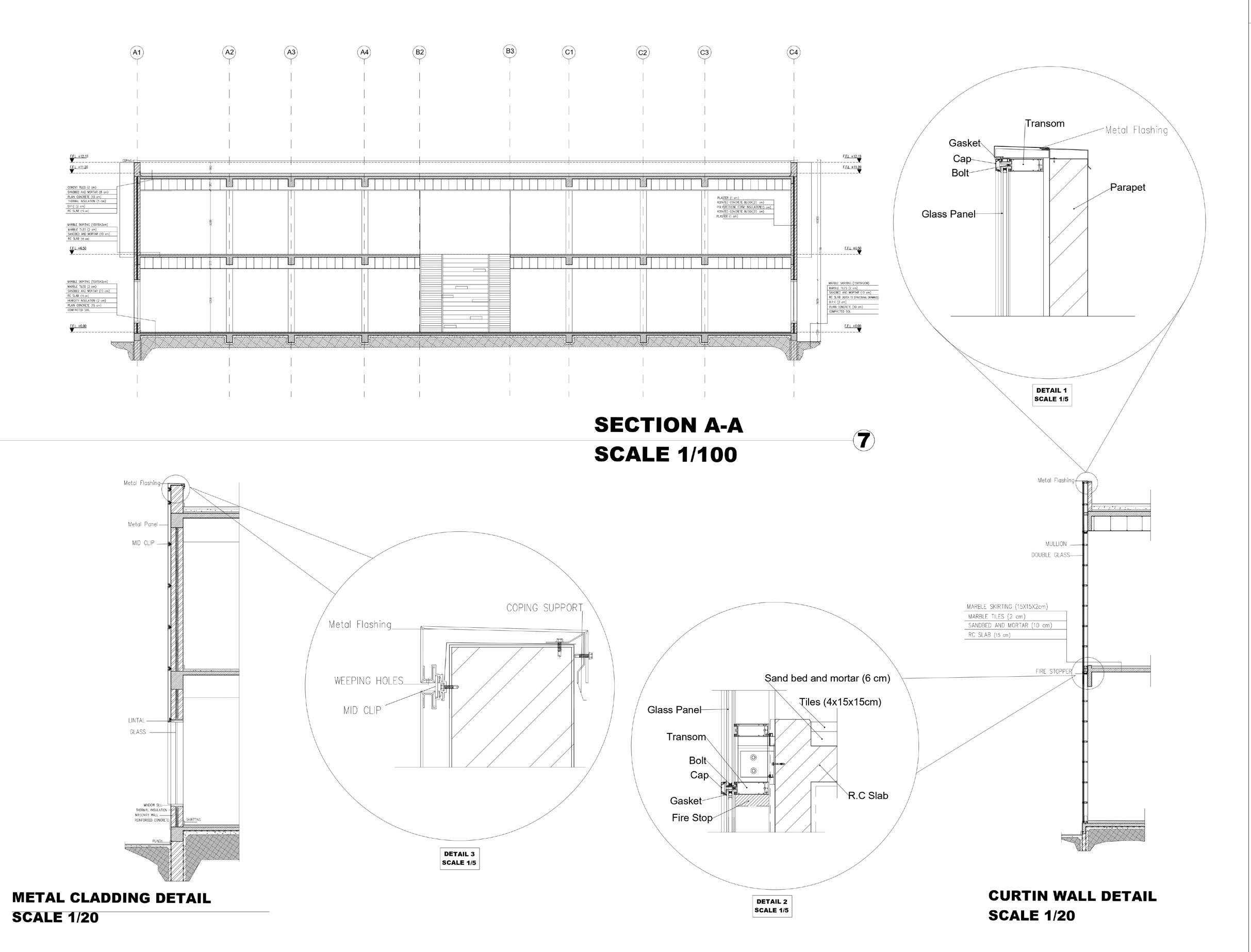

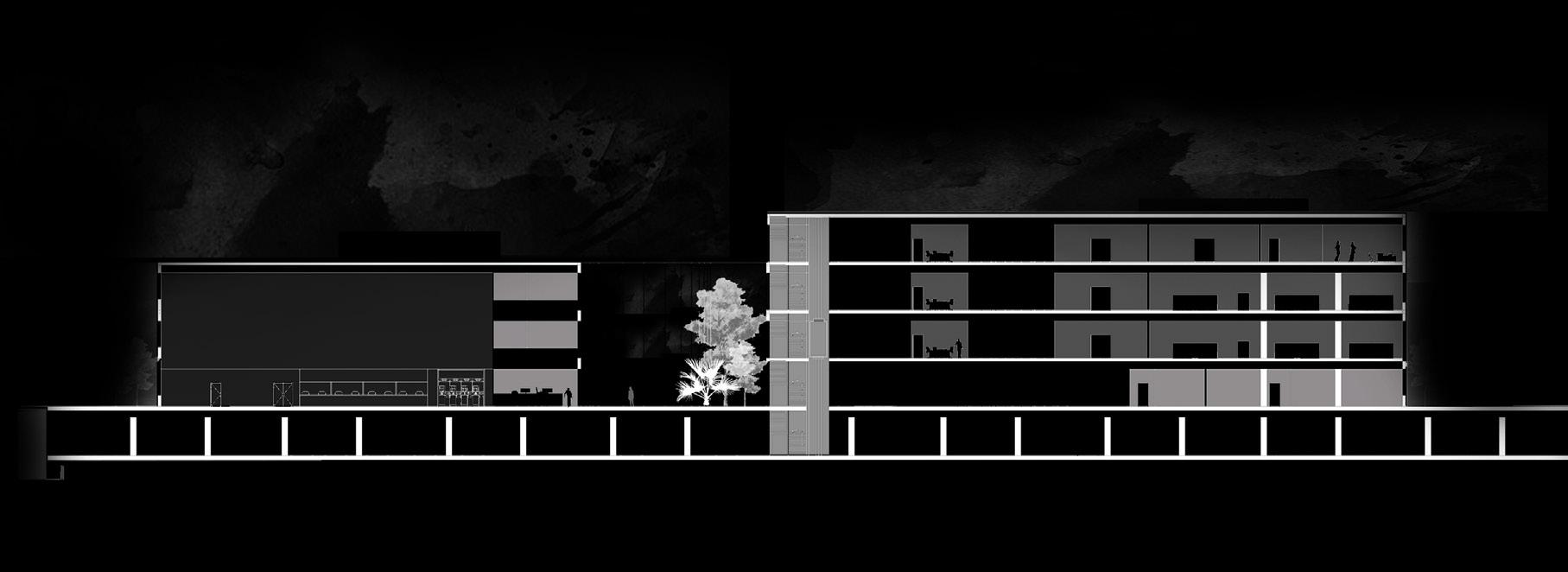

SECTION B-B

SECTION A-A

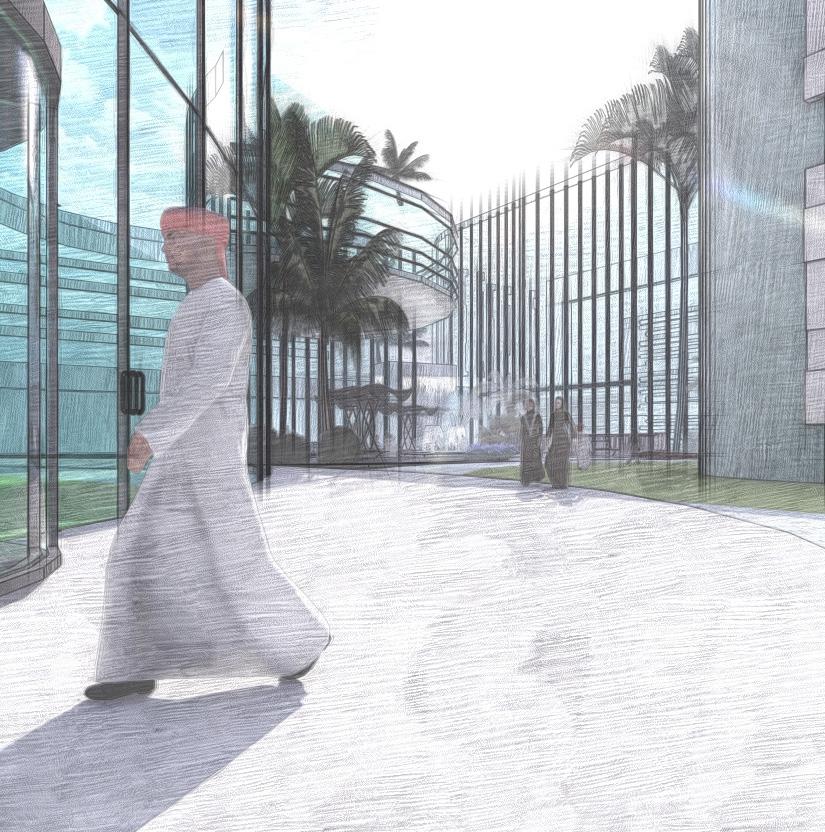

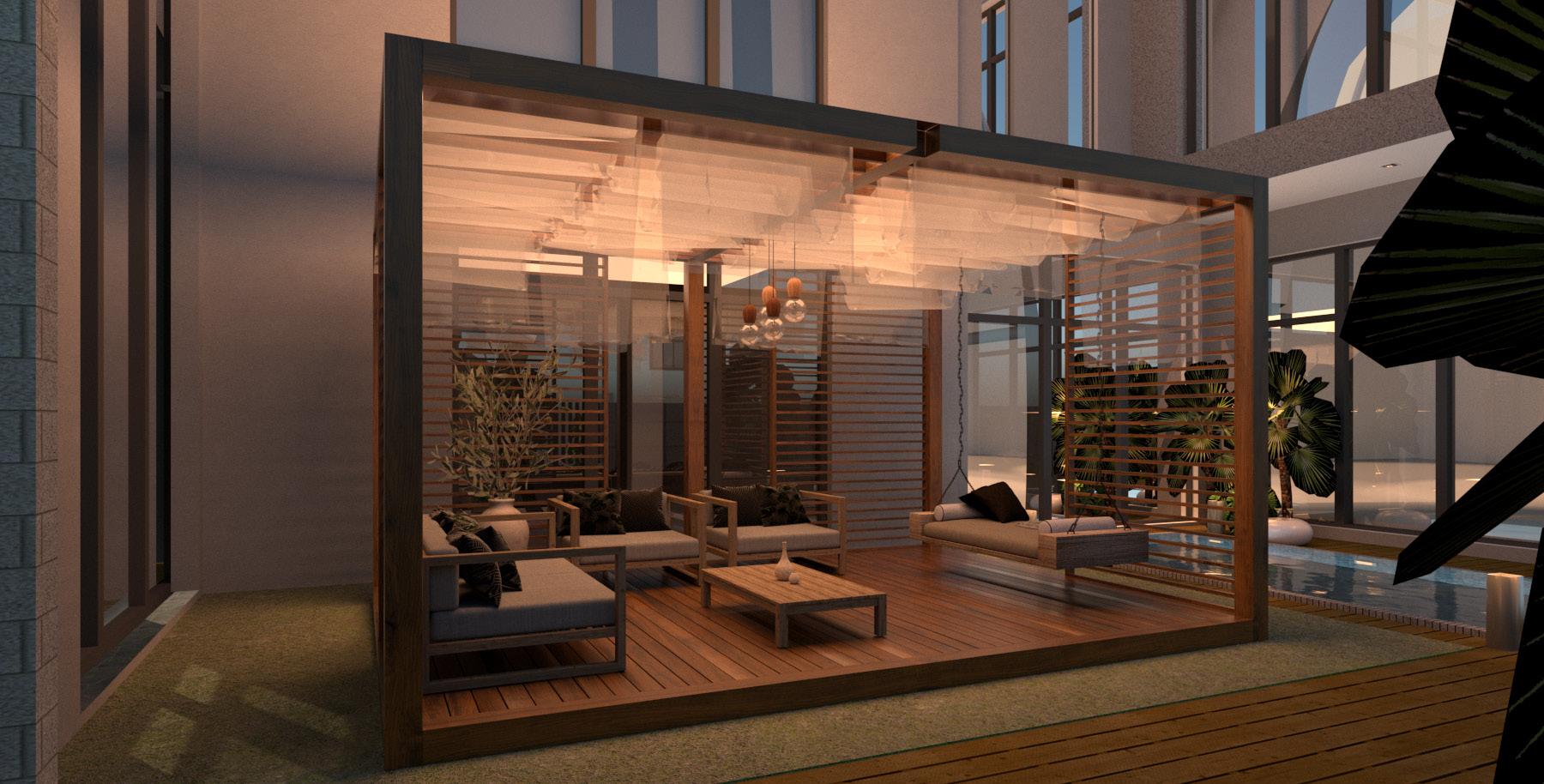

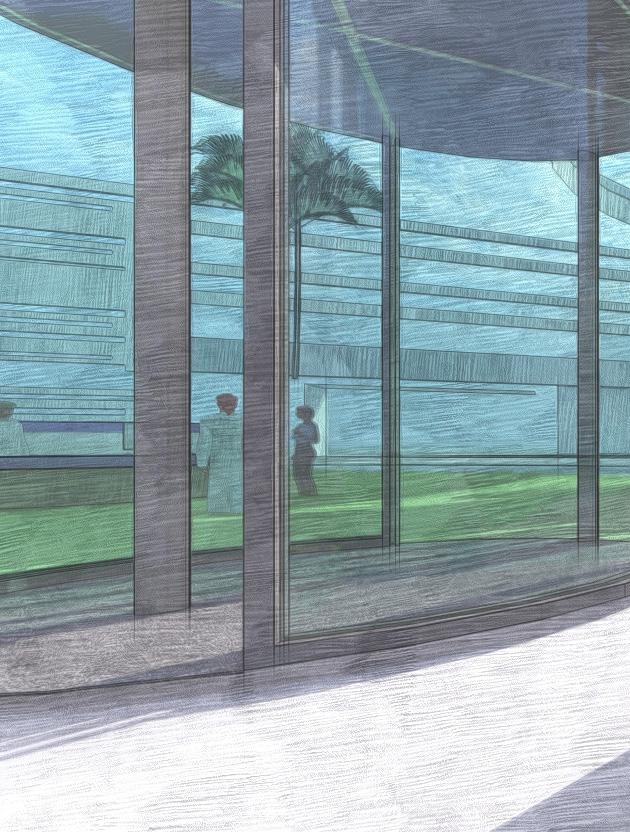

THE 3D SHOT SHOWING THE MAIN ENTRANCE AND THE CENTRAL COURTYARD - THE BUILDING HAVE A VOID ACCORDING TO THE WIND DIRECTION TO REDUCE THE HEATE AND PROVIDE VENTILATION, ALSO TO PROVIDE A COMFARTABLE PLACE FOR SEATING IN THE BREAK TIME, CREATING A HEALTHY ENVIRONMENT FOR WORKING.

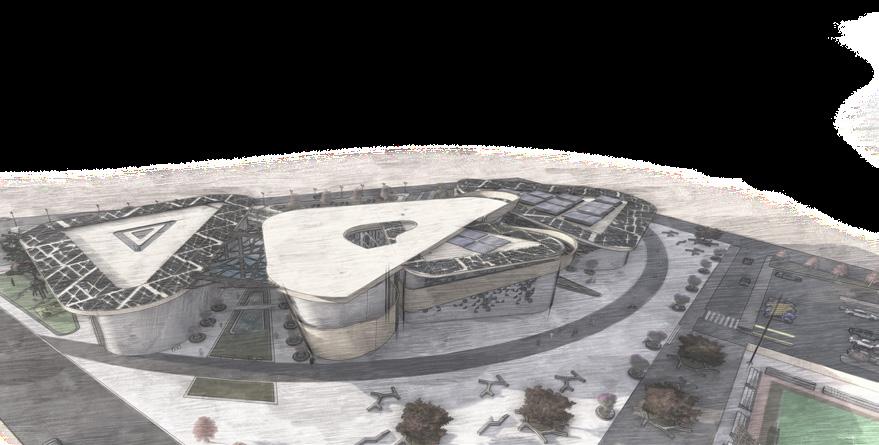

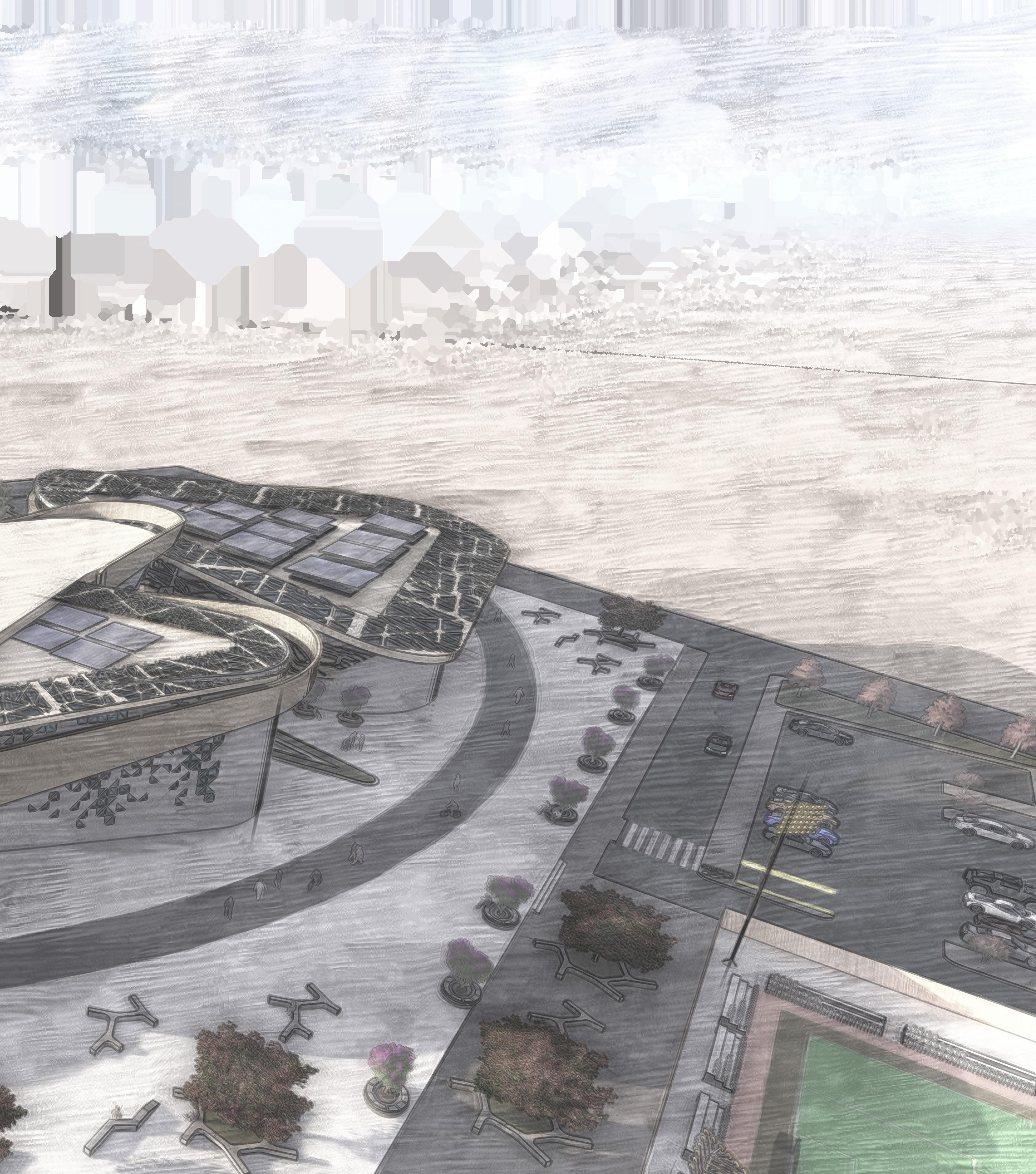

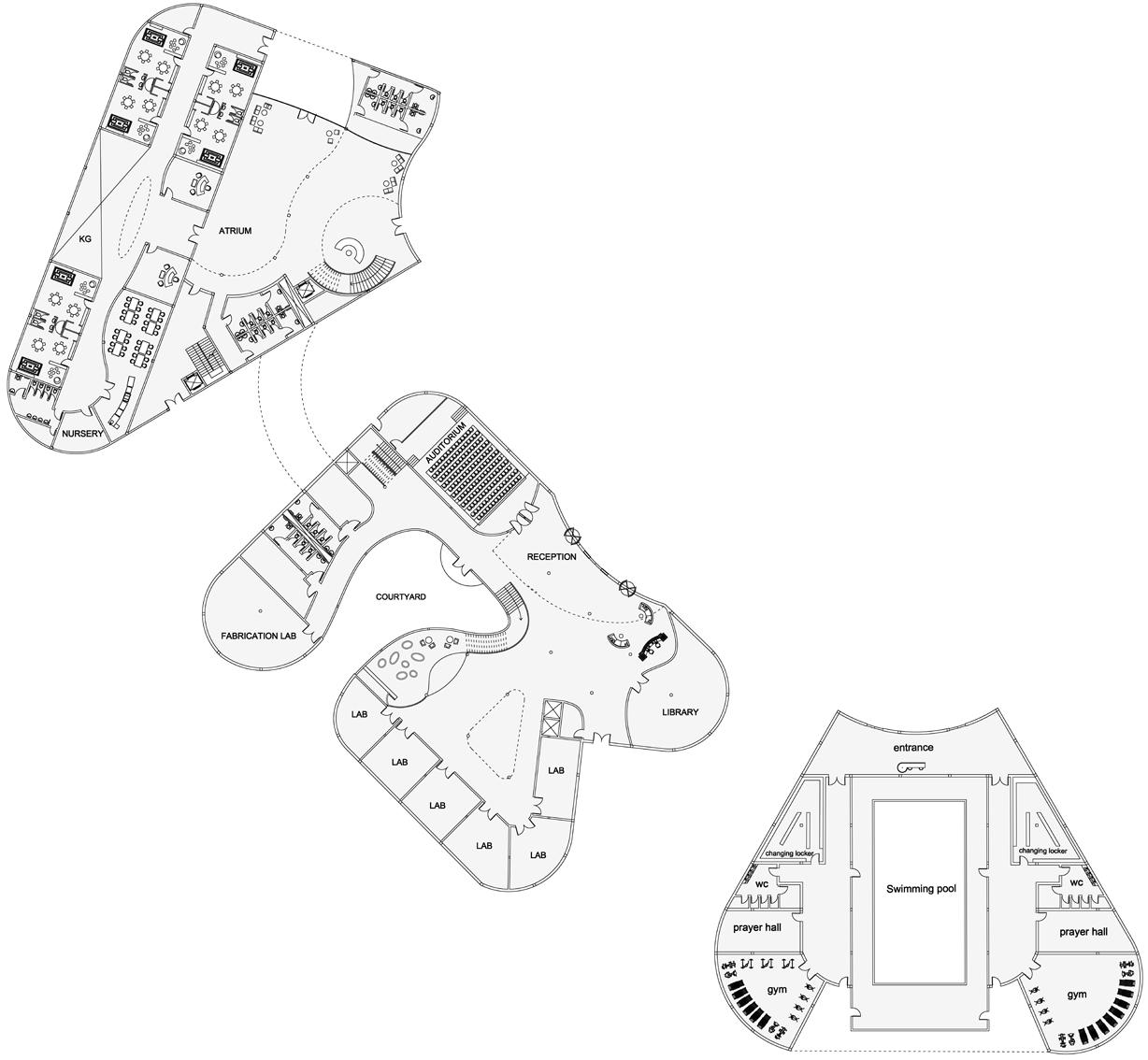

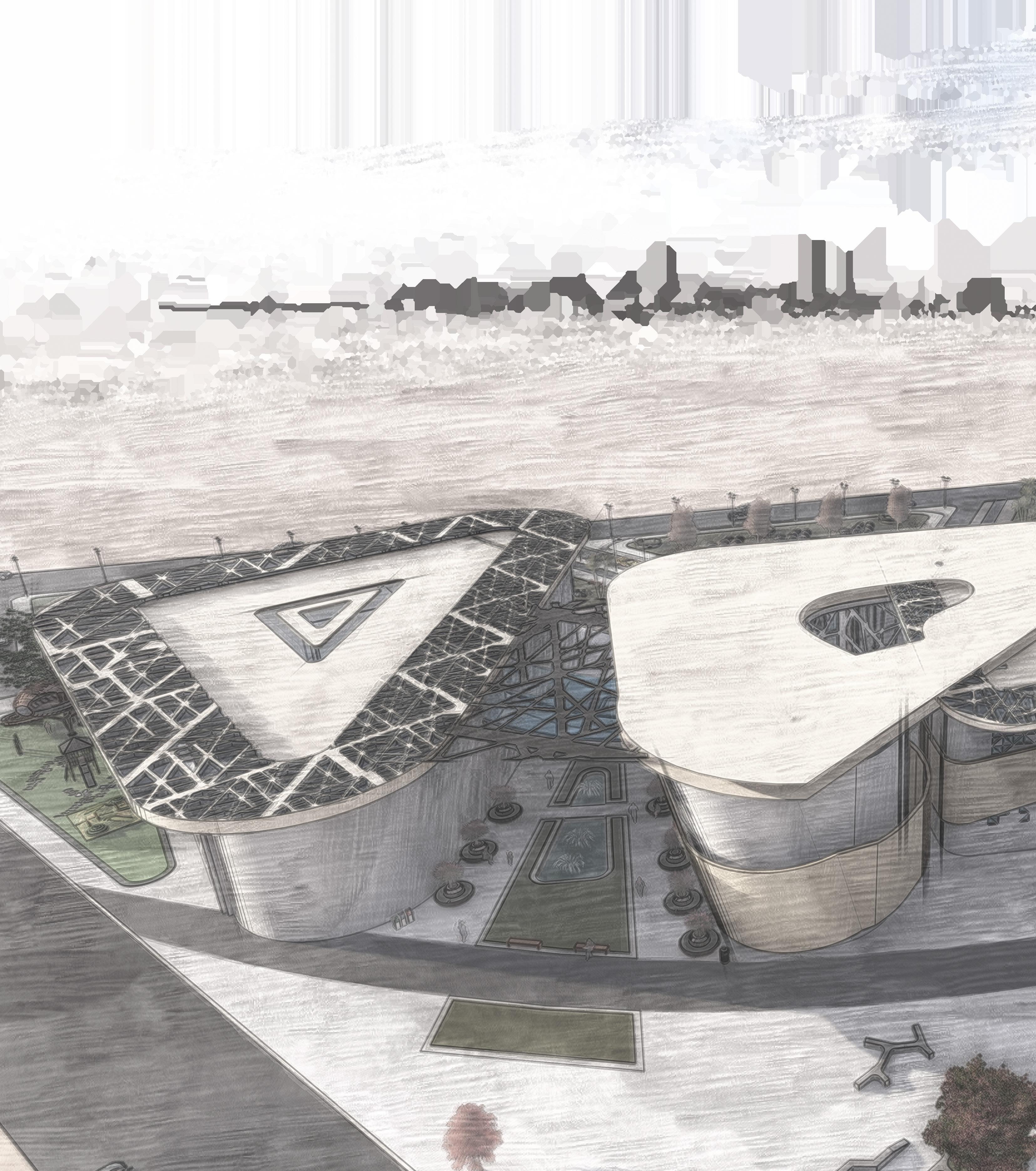

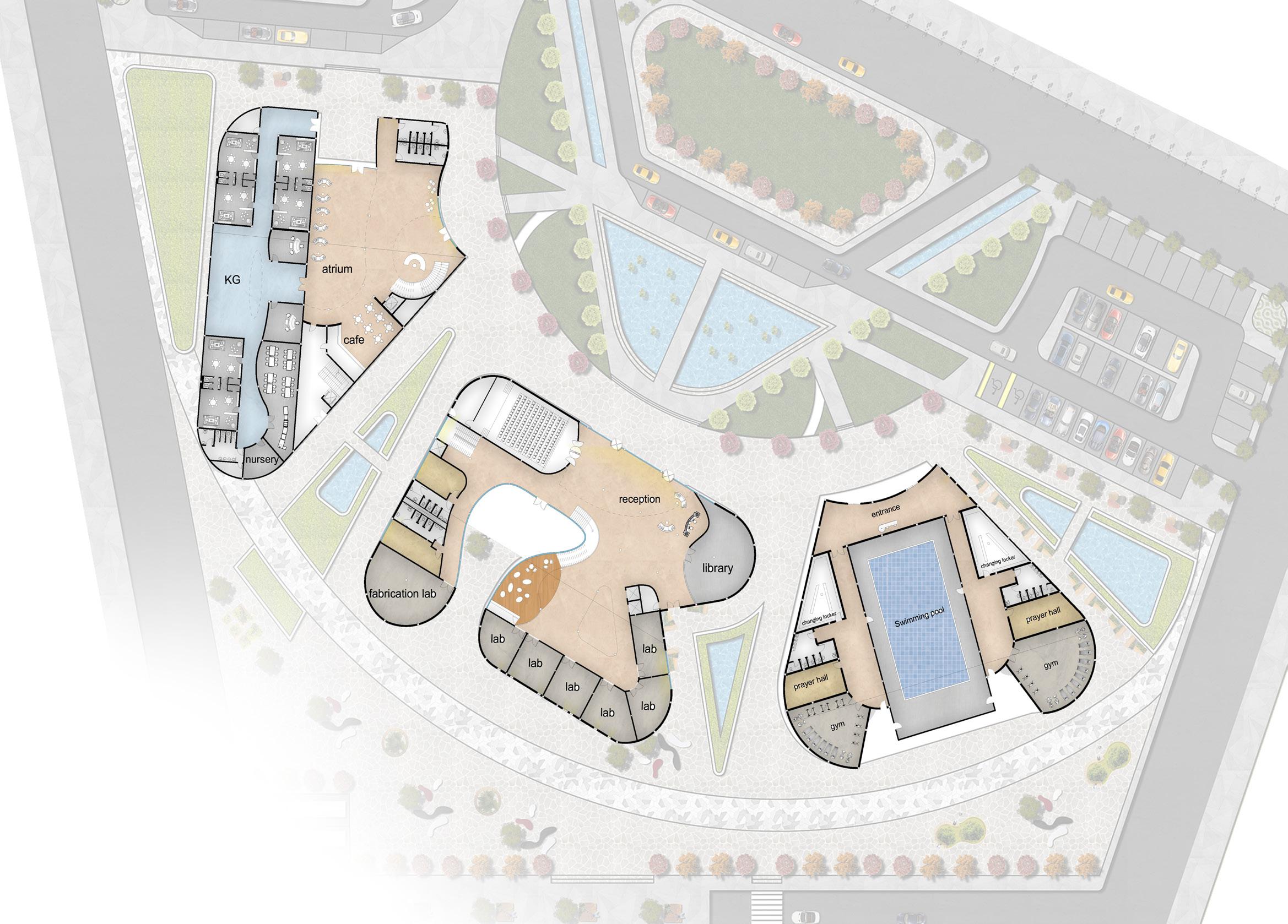

AL DUQM RESEARCH, INNOVATION

&COMMUNITY SERVICE CENTER

TYPE LOCATION YEAR

COMMUNITY SERVICE CENTER MUSCAT, OM 2020

FIRST PRIZE IN AL DUQUM RESEARCH CENTER COMPETIOTION

ARCHITECTURAL CONCEPT

THE PROJECT CONCEPT IS INSPIRED FROM THE ROCKS THAT IS A FEATURE FROM AL DUQOM GEOLOGY. THE PROJECT REFLECTS THE

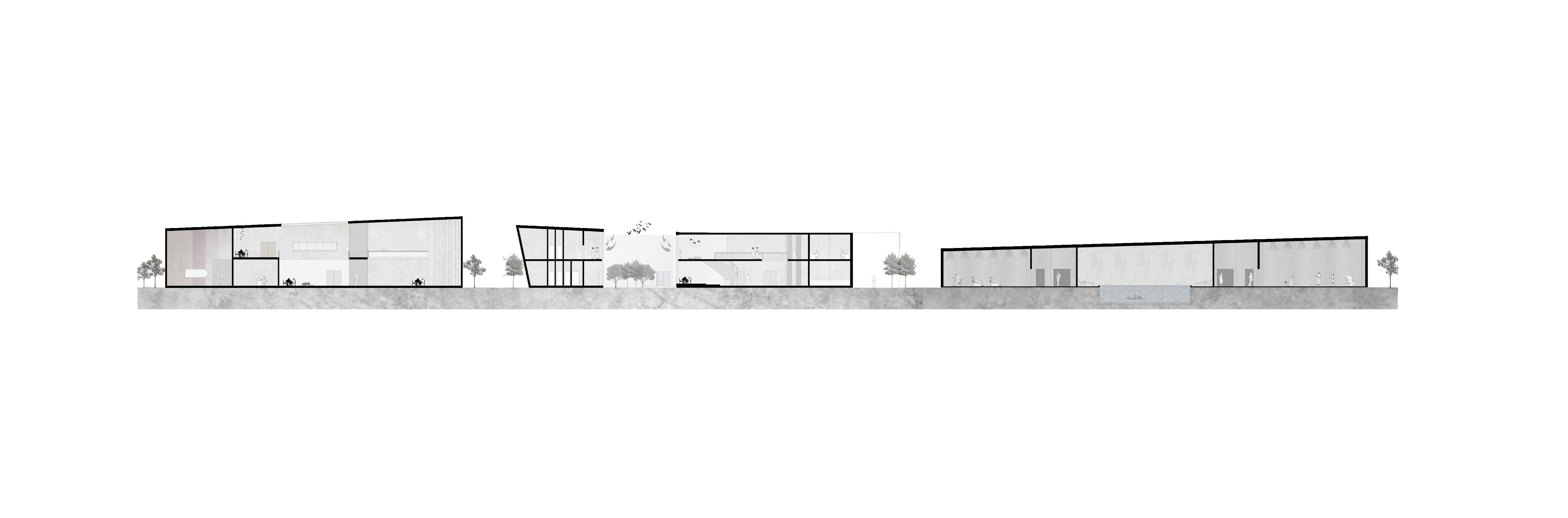

SECTIONS

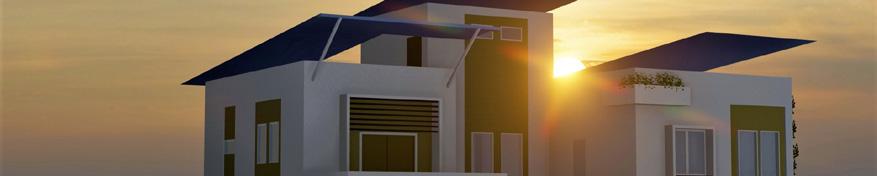

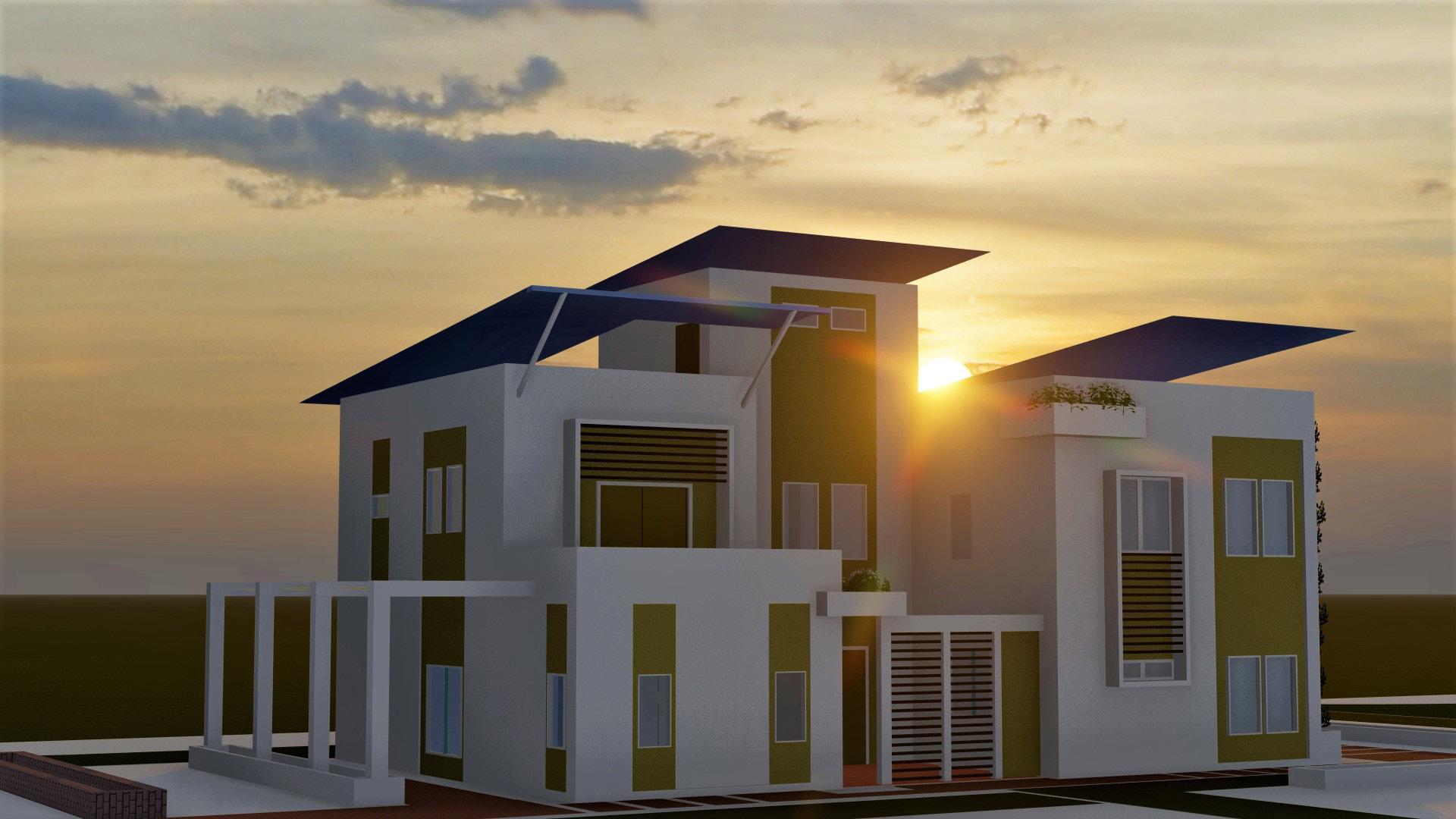

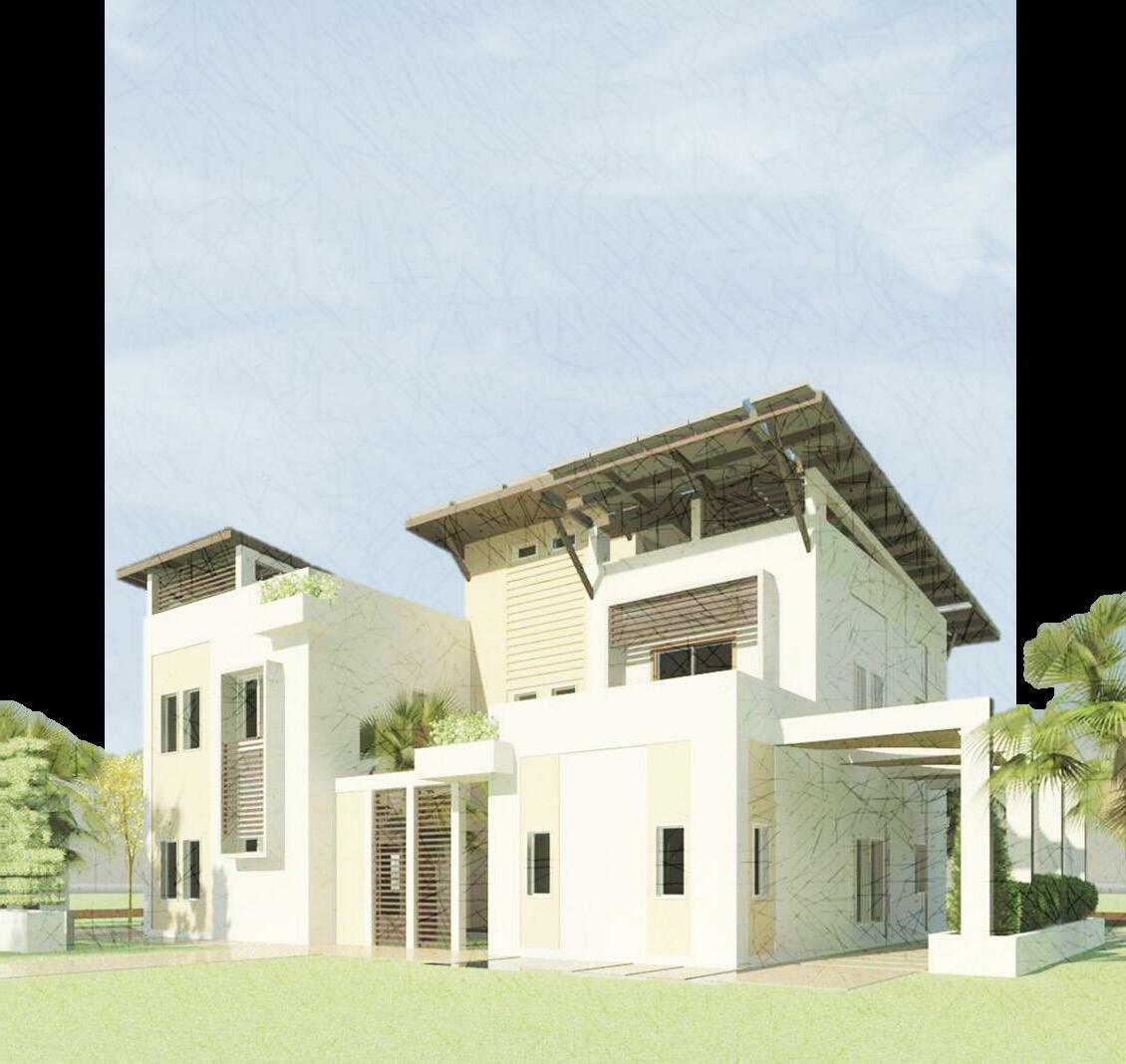

HCT ECO-HOUSE

ENERGY MODELING OF NET-ZERO ENERGY BUILDINGS IN OMAN

TYPE LOCATION YEAR

ENERGY MODELING

MUSCAT, OM 2020

ZERO ENERGY BUILDING OR ZEB IS A BUILDING WITH ZERO NET ENERGY CONSUMPTION, MEANING THE TOTAL AMOUNT OF ENERGY USED BY THE BUILDING ON AN ANNUAL BASIS IS EQUAL TO THE AMOUNT OF RENEWABLE ENERGY CREATED ON THE SITE.

THE RESEARCH WAS CONDUCTED TO MODEL THE ENERGY OF ZERO NET ENERGY BUILDINGS IN OMAN AND THIS REPORT PRESENTS HCT ECO-HOUSE. THE FIRST PART IS A BRIEF ABOUT THE HCT ECO HOUSE INCLUDES THE HOUSE AREAS, ZONES, CLIMATE AND FORM CONCEPT, WHILE THE SECOND PART INVOLVE A STUDY FOR THE KEY FEATURES CHARACTERIZING THE ENERGY EFFICIENCY IN THE BUILDING INCLUDES THE BUILDING ENVELOPE, BUILDING SHAPE, ORIENTATION, MATERIALS, GLAZING, INSULATION, SHADING, NATURAL VENTILATION, DAYLIGHT AND THE APPLICATION OF RENEWABLES.

ALL MATERIALS AND SYSTEMS APPLIED IN THE BUILDING WERE STUDIED THROUGH DESIGNBUILDER SOFTWARE AND THE FACTORS THAT LEAD TO INCREASED ENERGY CONSUMPTION HAVE BEEN IDENTIFIED. THE RESULTS WERE COMPARED WITH THE EXPERIMENTAL RESULTS.

RENEWABLE ENERGY SYSTEMS

ONE OF THE EFFECTIVE STRATEGIES IN REDUCING ENERGY COST IS RENEWABLE ENERGY SYSTEM. HCT ECO-HOUSE ELECTRICAL STRATEGY IS TO USE EQUIPMENT WITH GREEN TECHNOLOGY AND LIGHT EMITTING DIODE LIGHTING TECHNOLOGY THAT IS ENERGY-EFFICIENT AND HAS LONGER SERVICE LIFE THAN THE CONVENTIONAL APPLIANCES.

THE APPLICATIONS THAT USED IN THE HCT ECOHOUSE WERE THE SOLAR PANEL (PV) IS THE MAIN SOURCE OF SUSTAINABLE GREEN ENERGY AND SOLAR WATER HEATER. FOR THE SOLAR-POWERED WATER HEATER, THE SYSTEM STORAGE TANK IS HORIZONTALLY MOUNTED ABOVE THE SOLAR COLLECTORS SITUATED ON THE ROOF, WITHOUT PUMPING REQUIRED AS HOT WATER NATURALLY RISES INTO THE TANK THROUGH THER MOSIPHON FLOW.

MANY STRATEGIES WERE APPLIED TO DECREASE AIR POLLUTION:

1) REMOVE THE OFFENDER

REMOVING THE OFFENDING SOURCE IS THE BEST STRATEGY AND THE MOST EFFECTIVE. FOR EXAMPLE, ITS USED TO DETECT EXCESSIVE RADON LEVELS IN HOUSES. IT BRINGS RADON LEVELS WITHIN ACCEPTABLE LIMITS BY SETTING UP AN APPROPRIATE RADON MITIGATION SYSTEM.

2) IMPROVE VENTILATION

IMPROVING THE AIR QUALITY AND VENTILATION WAS DONE BY ADDING OPENING WINDOWS AND ALLOW THE AIR TO EXCHANGE WITH OUTDOOR AIR.

3) CLEAN THE AIR

HEPA FILTERS ARE HIGH EFFICIENCY FILTERS THAT TYPICALLY CAPTURE OVER 99.5% OF ALL PARTICULATE POLLUTION. THEY’RE MADE FROM EITHER PLASTIC (PP+PET) OR FIBERGLASS, AND CAN CAPTURE THINGS LIKE POLLEN, VIRUSES, BACTERIA, MOLD AND PM2.5.

4) PLANTATION

INDOOR PLANTS HAVE MORE ADVANTAGES RATHER THAN AESTHETIC ADVANTAGE, PROVIDING PLANTS IN THE HOUSE WILL IMPROVE THE INDOOR AIR QUALITY.

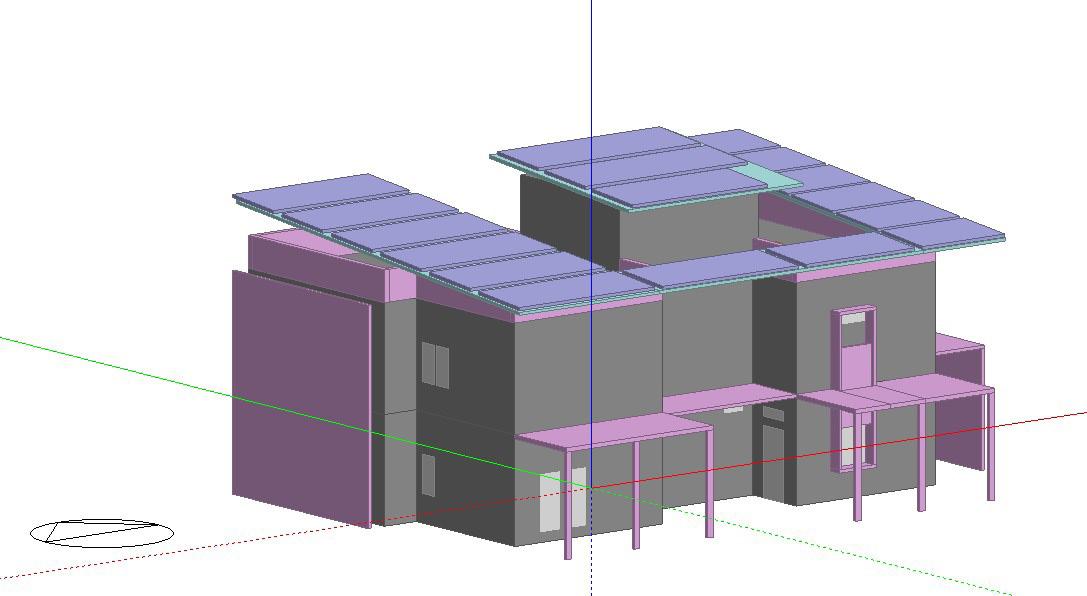

ENERGY SIMULATION MODEL

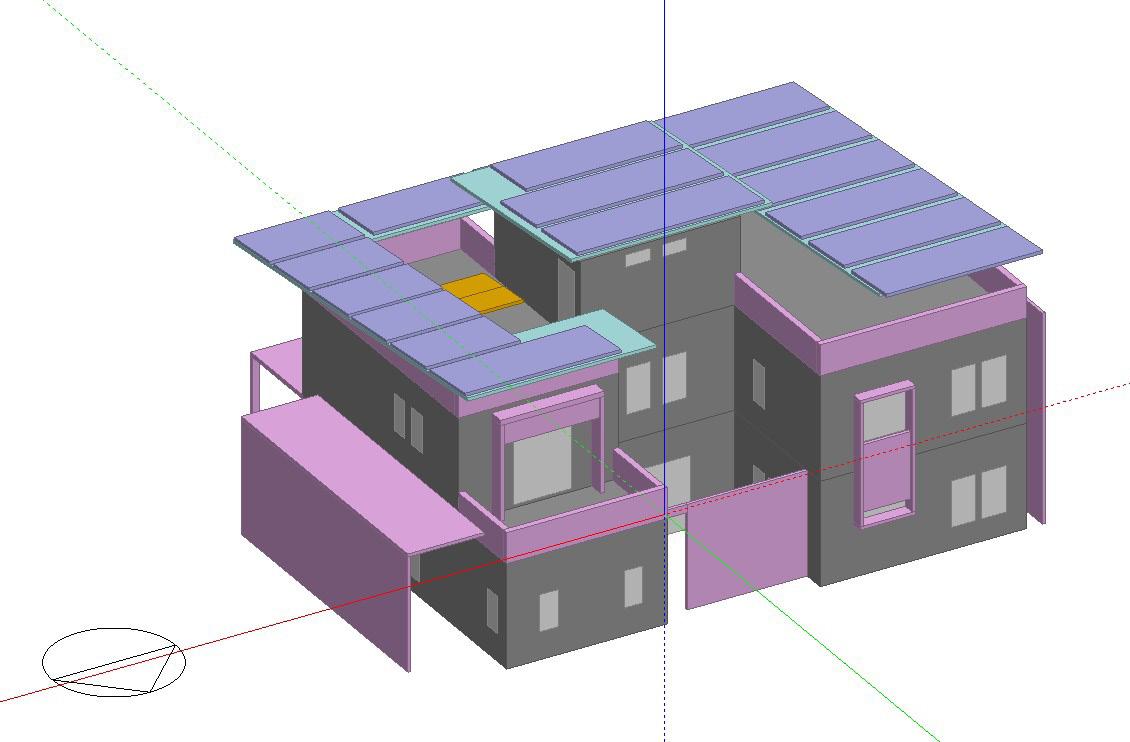

3D models from the DesignBuilder software

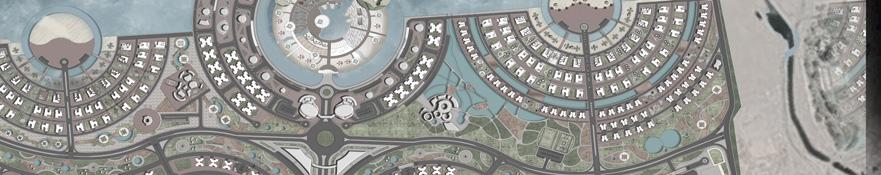

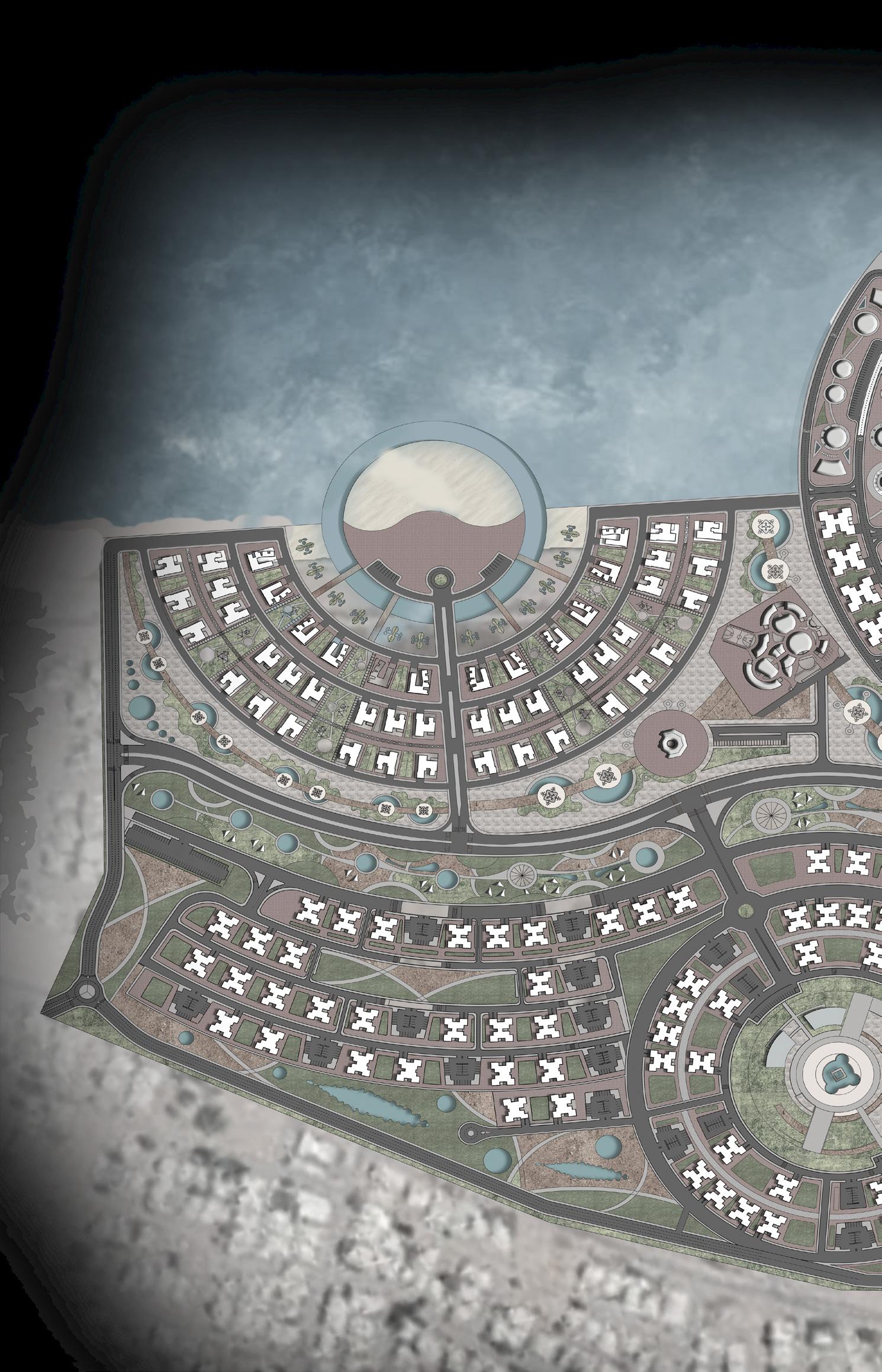

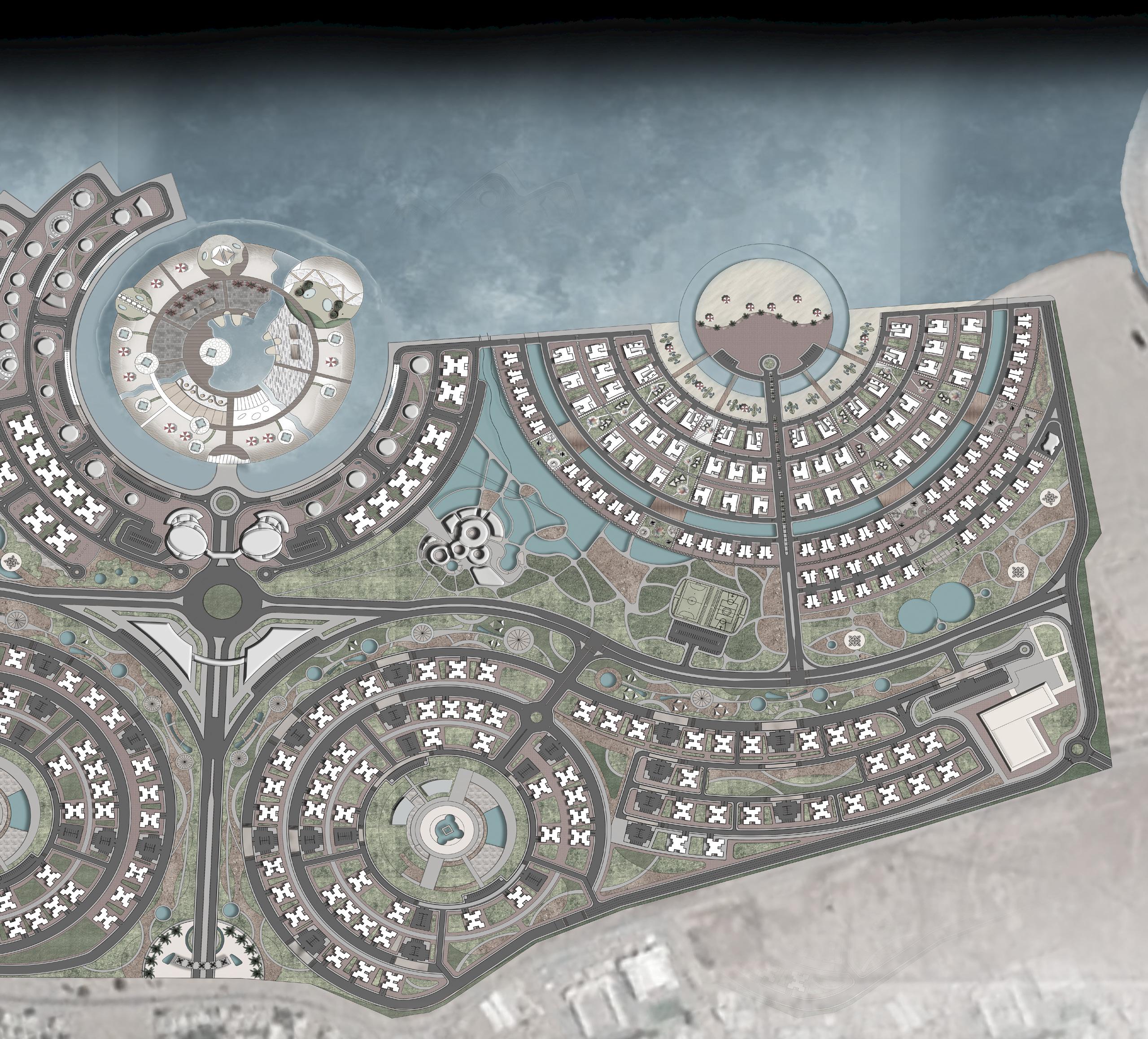

THE PEARL MUSCAT

OVERVIEW

TO CREATE A HIGH LEVEL ENVIRONMENT TO LIVE IN. TO CREATE A LIFE STYLE SUITABLE FOR ALL NATIONALITIES. TO ADD AN ECONOMIC VALUE TO OMAN. TO ATTRACT TOURISM IN OMAN. TO DELIVER A SUPERIOR QUALITY EXPERIENCE FOR RESIDENTS, VISITORS, TOURISTS AND BUSINESS TO CONNECT AND THRIVE IN A WELL-BALANCED COMMUNITY THAT IS POSITIVELY INTEGRATED WITH ITS FACILITIES IN A SUSTAINABLE ENVIRONMENT.

CONCEPT

THE PAERL -THINKING OF PRECIOUS ELEMENT LOCATED IN OMAN SEA.

SEEB, MUSCAT - OM

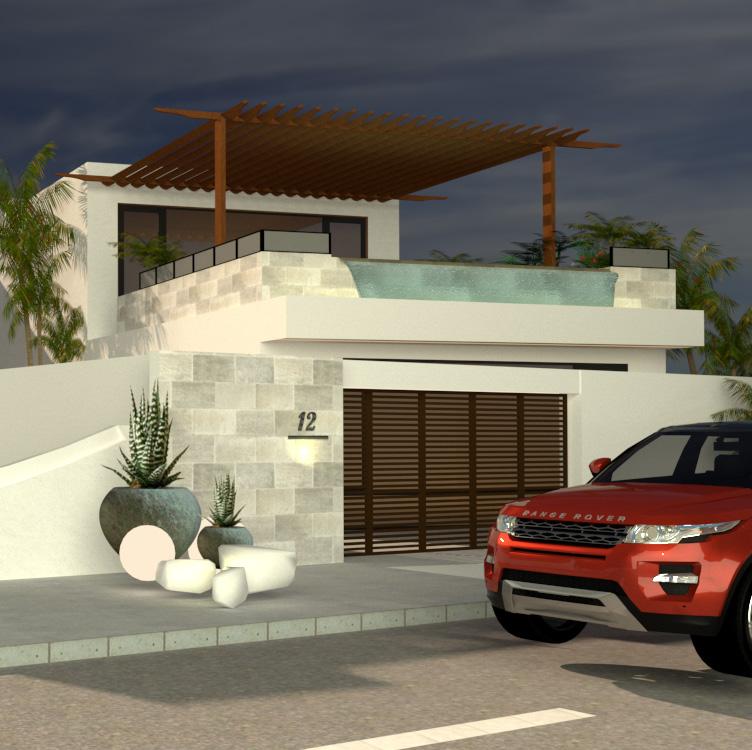

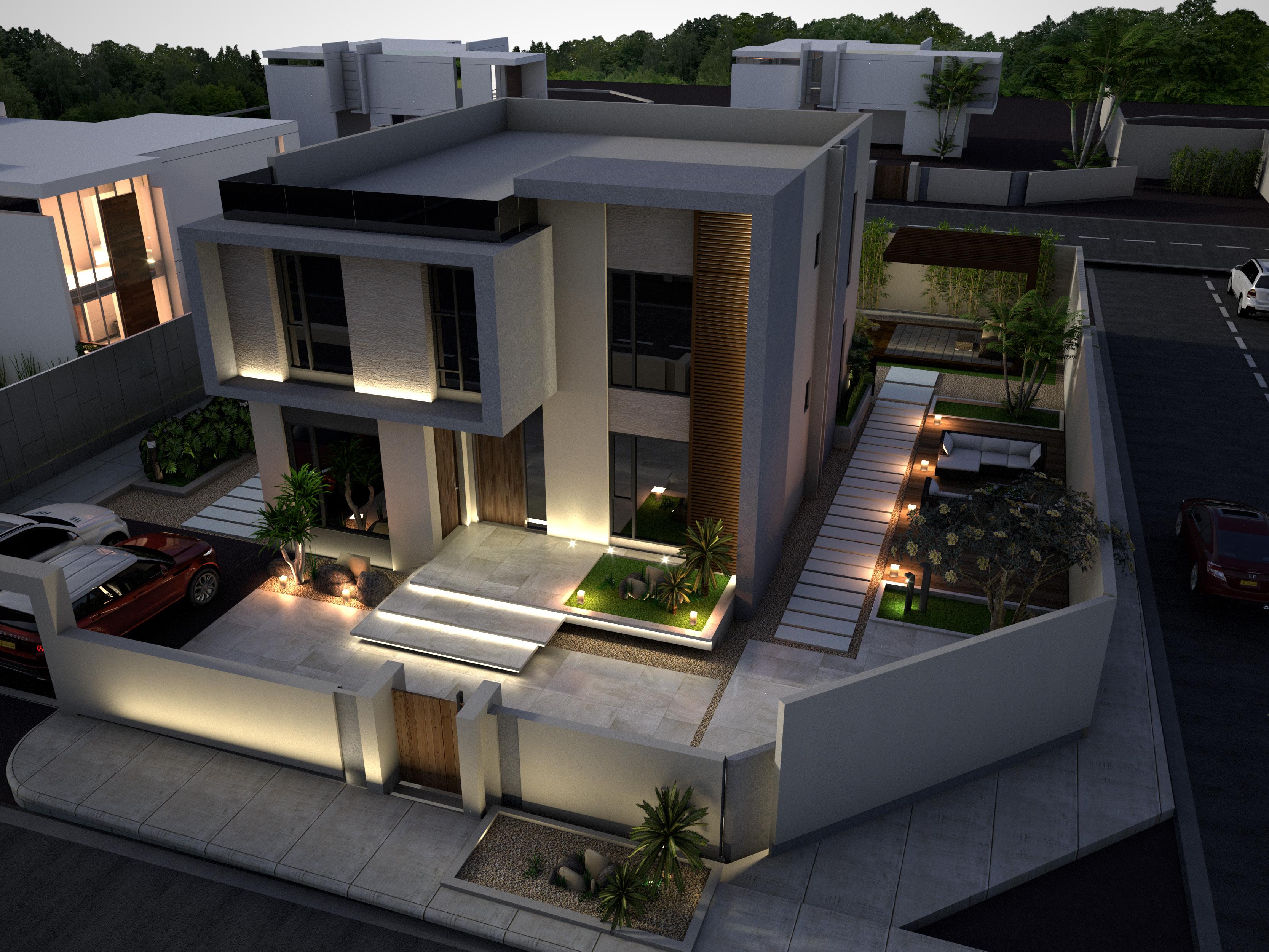

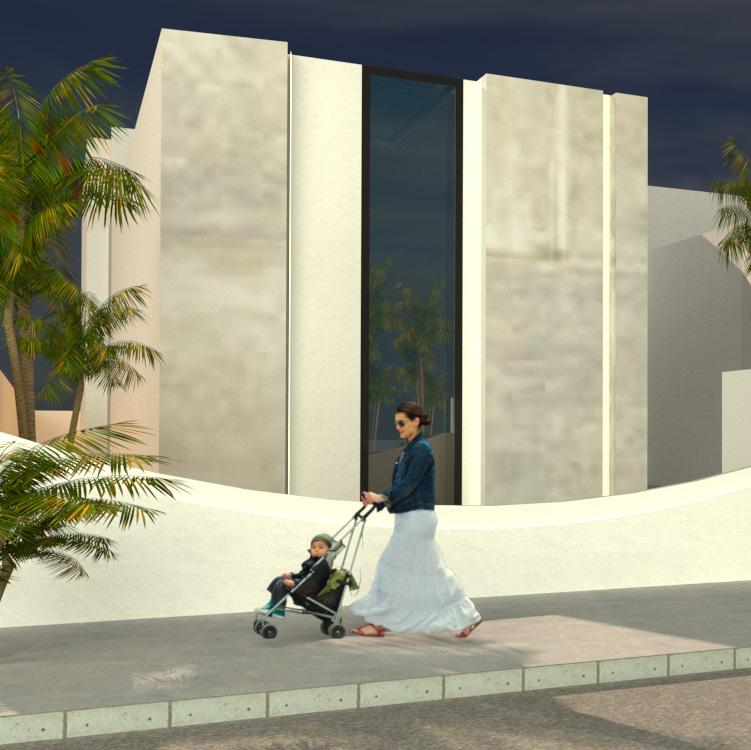

VIP PRIVATE VILLA

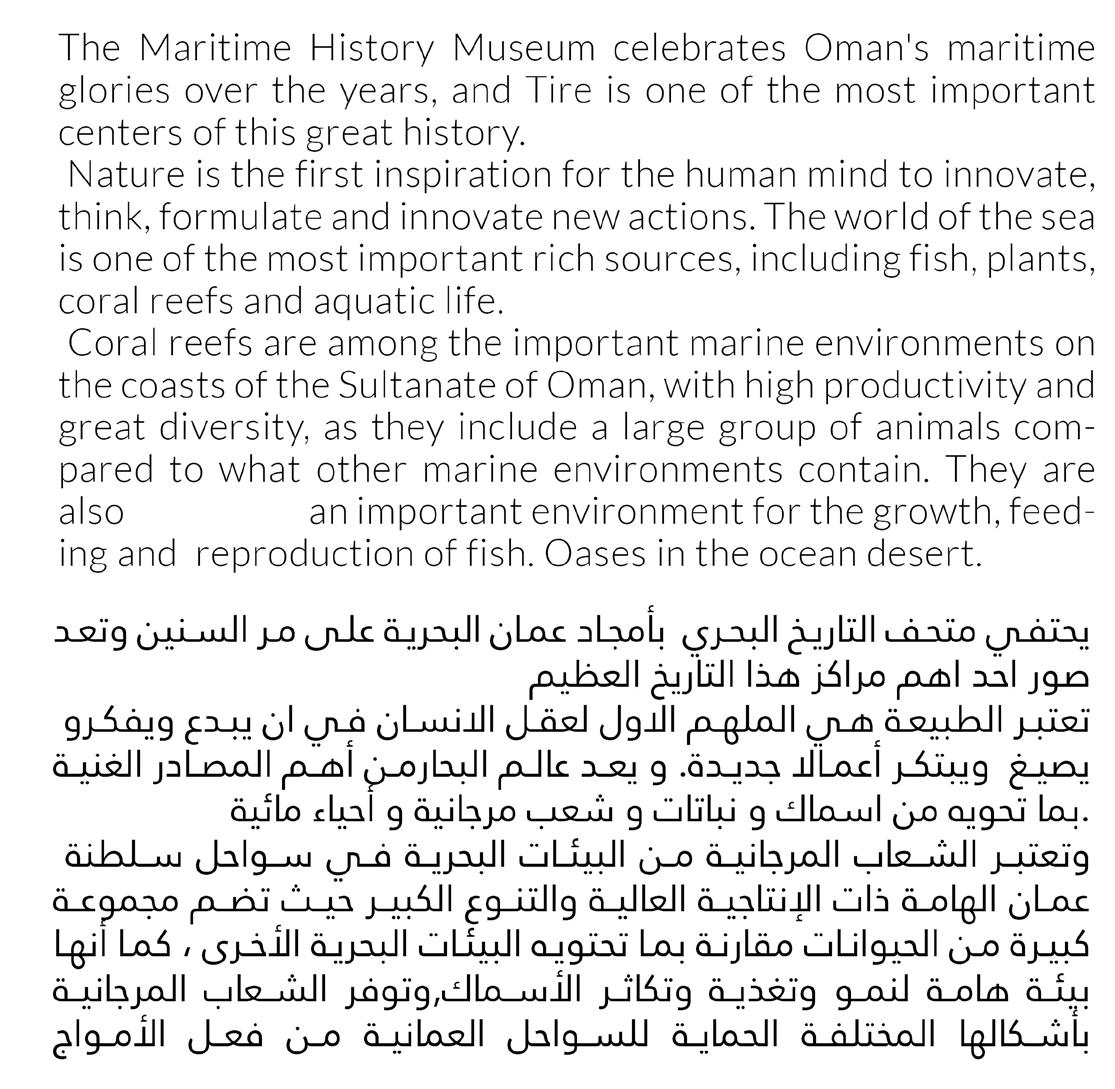

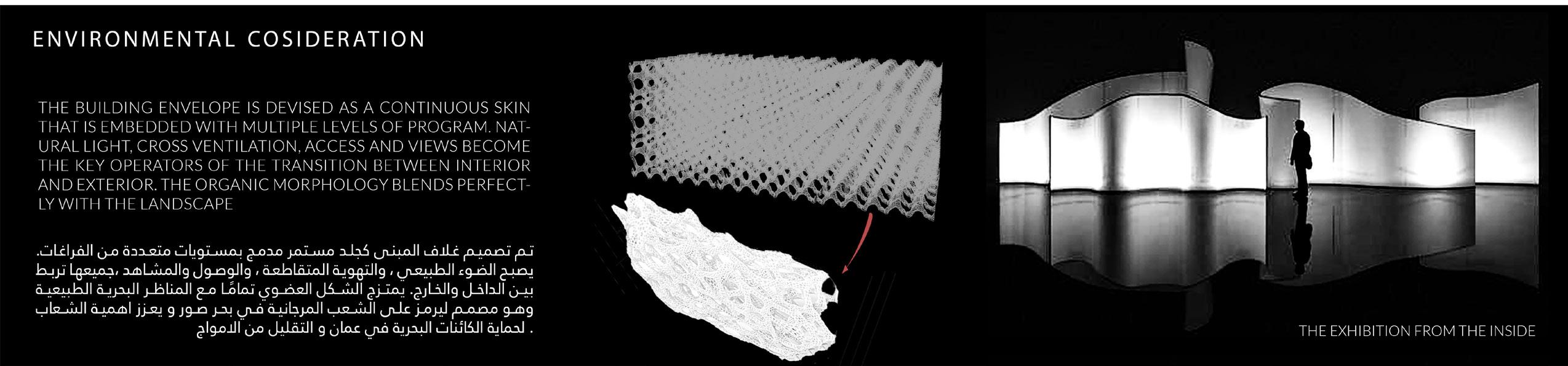

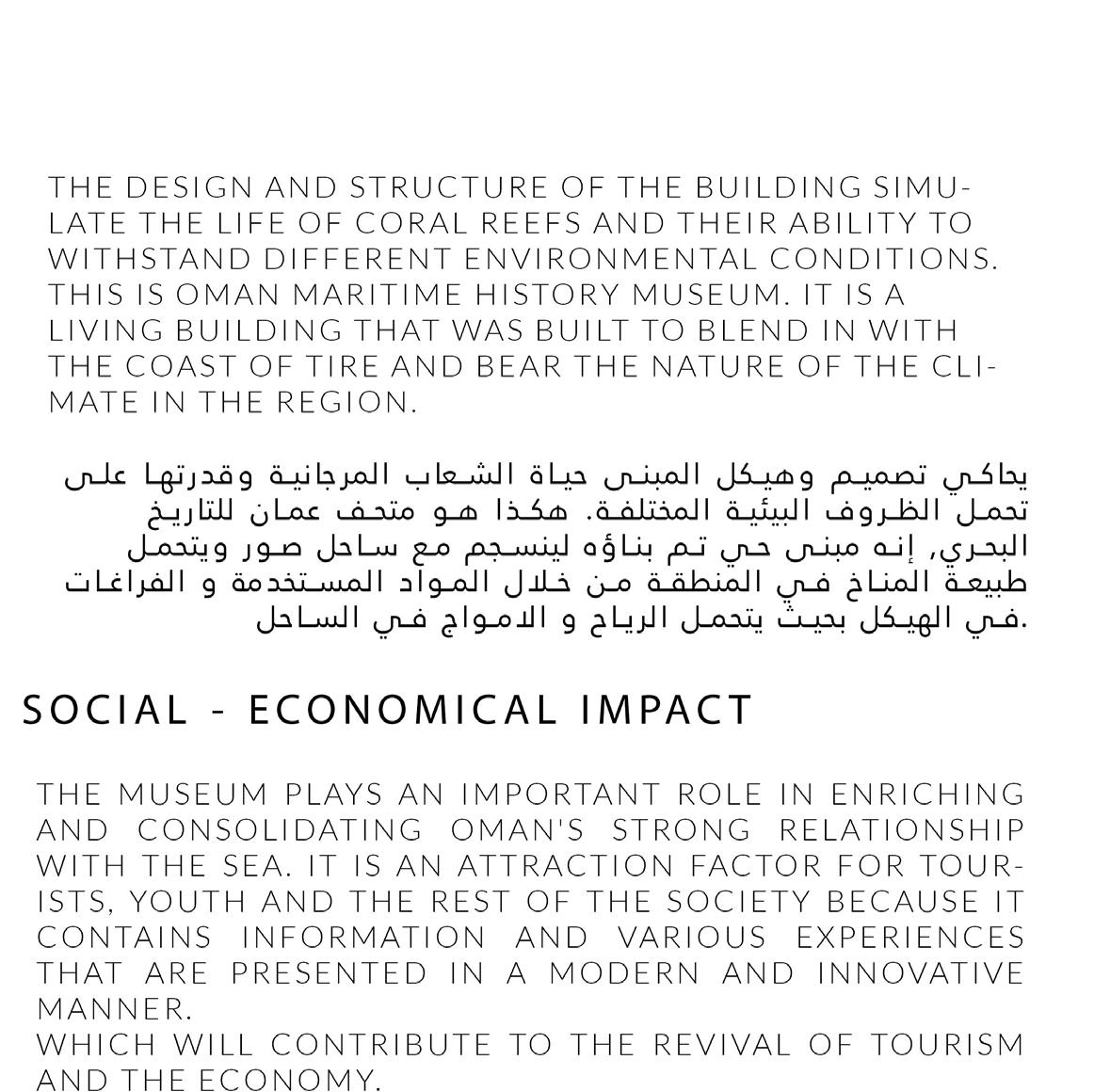

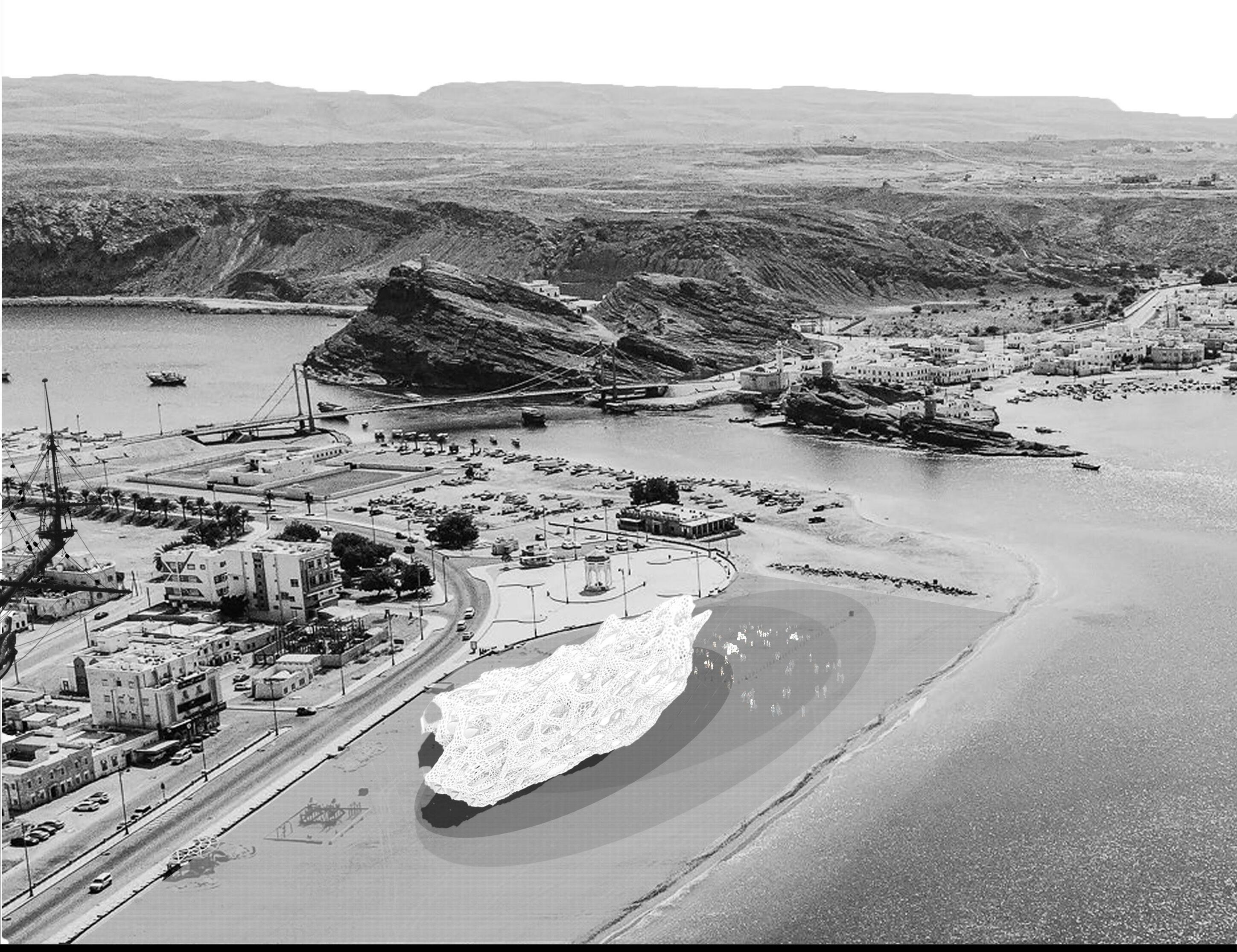

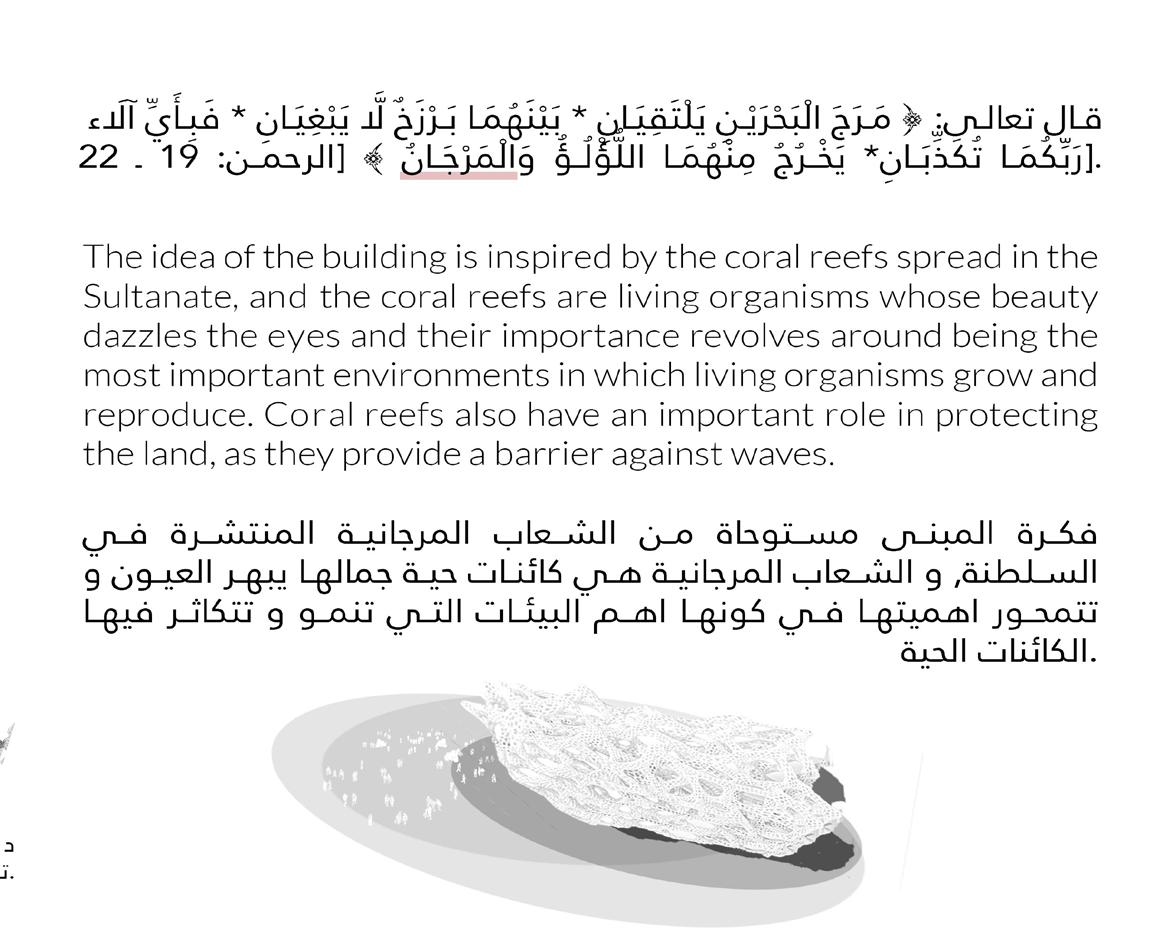

OMAN MARITIME HISTORY MUSEUM

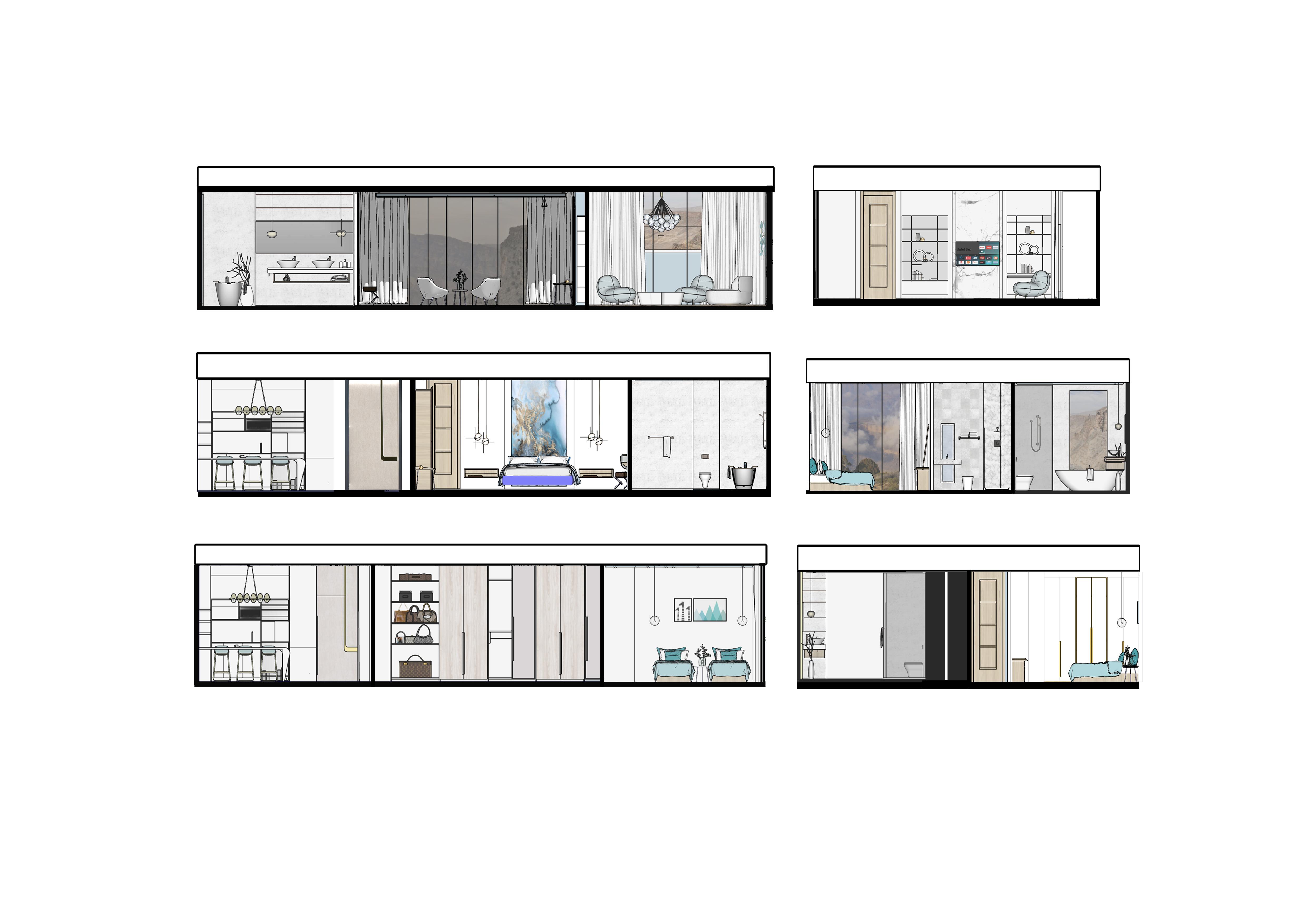

SAHAB SUIT

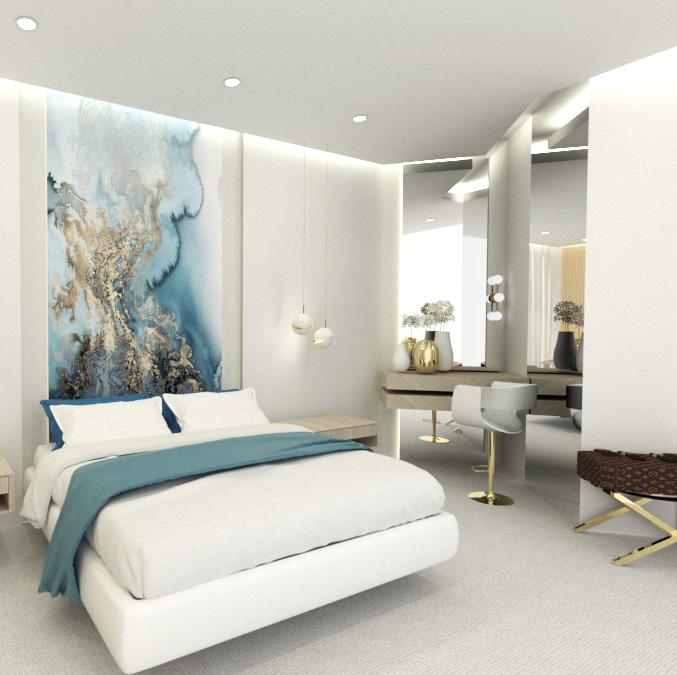

TYPE LOCATION YEAR

INTERIOR AL JABAL AL AKHDHAR, OM 2020

OVERVIEW

TO PROVIDE RELAXITION, LUXURY AND COMFORTABLE SPACE IN JABEL SHAMS TERRACES, TO FEEL FLYING CROSS SKY WITH GREAT CLOUDS VIEW .

CONCEPT

THE CLOUDS MEANS SOFTNESS, BRIGHTNESS, RELEXATION, CLEAR, FLYING, MOVEMENT, WEIGHTLESS, THESE ALL REFLRCTED BY THE GEOMETRY REPITITION, BRIGHT COLORS, SOFT FABRICS, FLOATING FURNITURE, AND SUSPENDED LIGHTS .

STYLE

CONTEMPERARY, THAT REFLECTS THE SIMPLICITY (CLOUD WEIGHTLESS), LUXURY AND COMFORTABILITY .

WITH NEUTRAL COLORS BACKGROUND AND PUNCH COLOR: GOLD &

MONOCHROMATIC COLOR :BLUE COLOR SCHEME COLOR PALLET

COLORS ARE PURE AND LIMITED.

THE COLORS WERE CAREFULLY CHOSEN TO MAKE THE GUEST FEELS AS HE FLIES THROW THE SKY AND GIVE HIM A SOFT AND SMOOTH FEELING THAT HELPS TO ENJOY THE NATURAL VIEW AND RELAX.

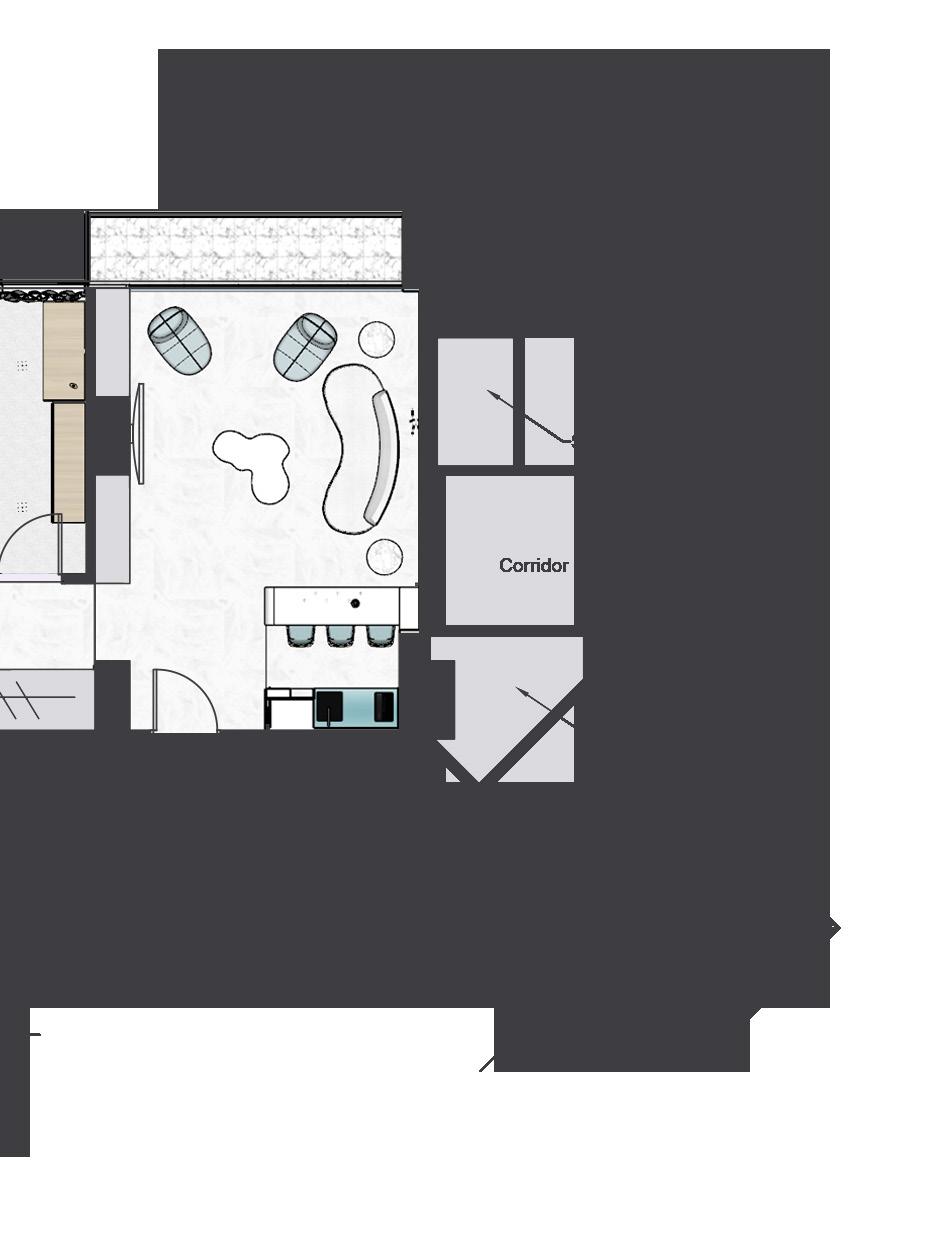

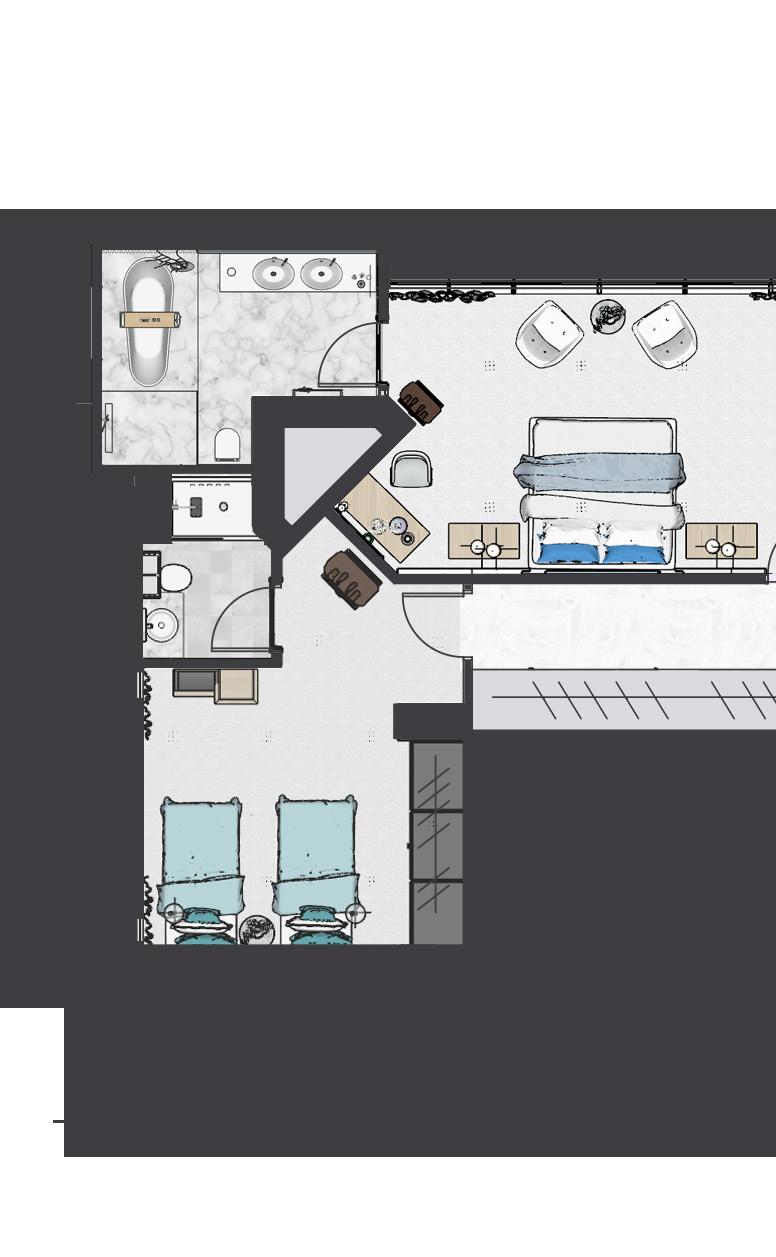

FLOOR PLAN

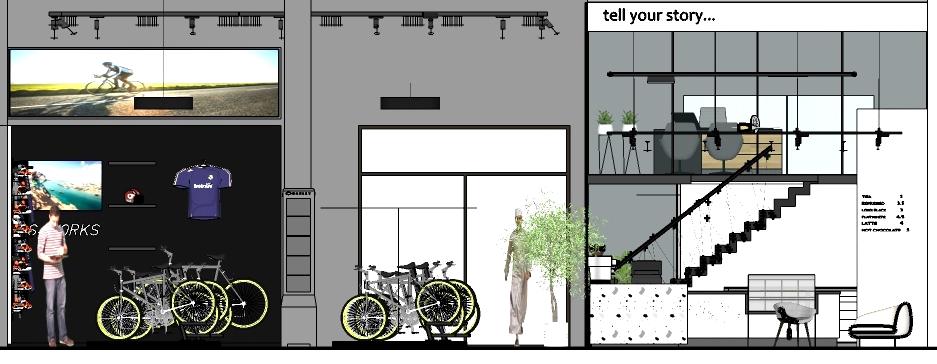

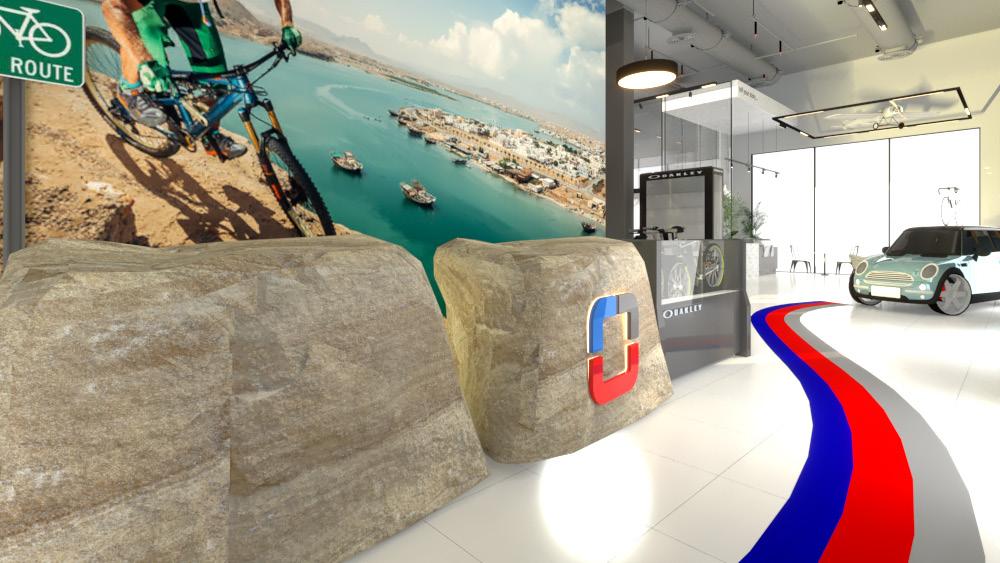

ADVENTURE BOX

COMFYSPOT

OVERVIEW

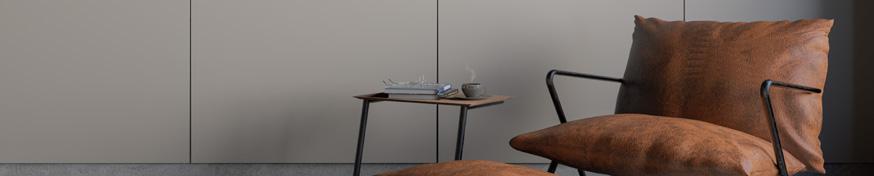

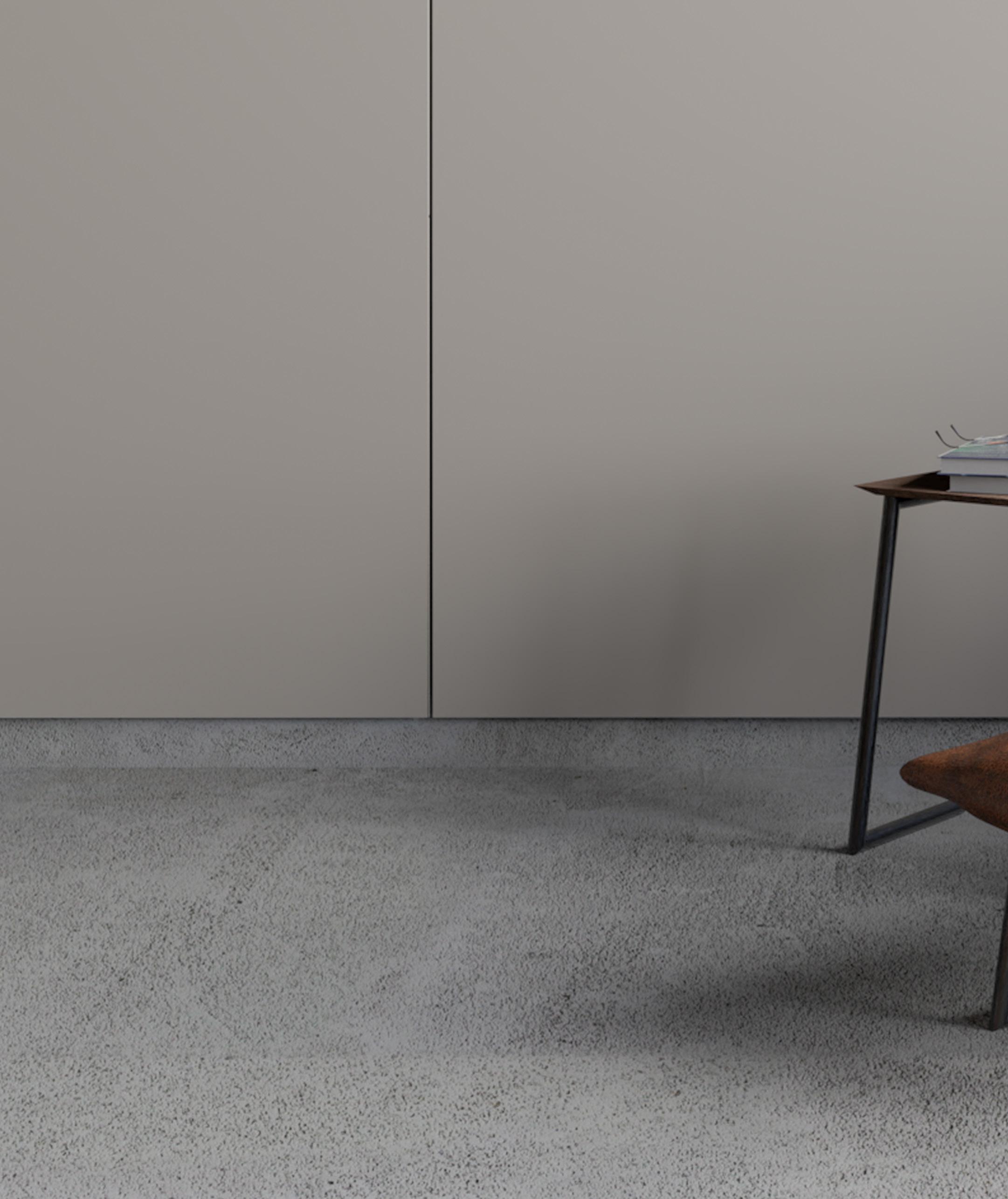

ELEGANCE, SIMPLICITY, COMFORT, WERE THE KEYWORDS OF THE COMFYSPOT CHAIR. WITH THREE PILLOWS AND THIN ARMS RESTS. IT WAS AIMED TO HIGHLIGHT THE COMFY SIT EXPERIENCE BY EMPHASIS THE COMFATABLE PILLOWS AND HIDE THE THIN BLACK LEGS.

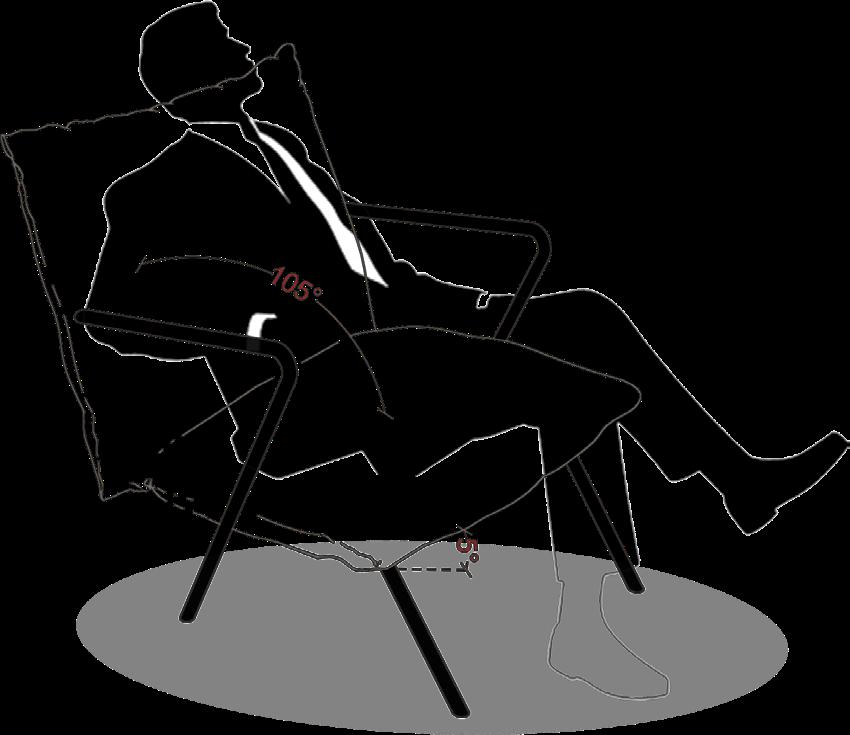

ERGONOMICS

DESIGNING A RELAXING PIECE OF FURNITURE, WHICH CAN BE SUITABLE FOR THE LIVING ROOM OR BEDROOM CORNER.

WITH THE DETERMINATION OF THE MAINFRAME TOGETHER, FOCUS ON THE STRUCTURAL AND PROPORTIONAL HARMONY OF THE PARTS WITH EACH OTHER. DESIGNING THE LEGS AND FINDING THE RIGHT SITTING ANGLE WAS ONE OF THE MOST IMPORTANT PART.

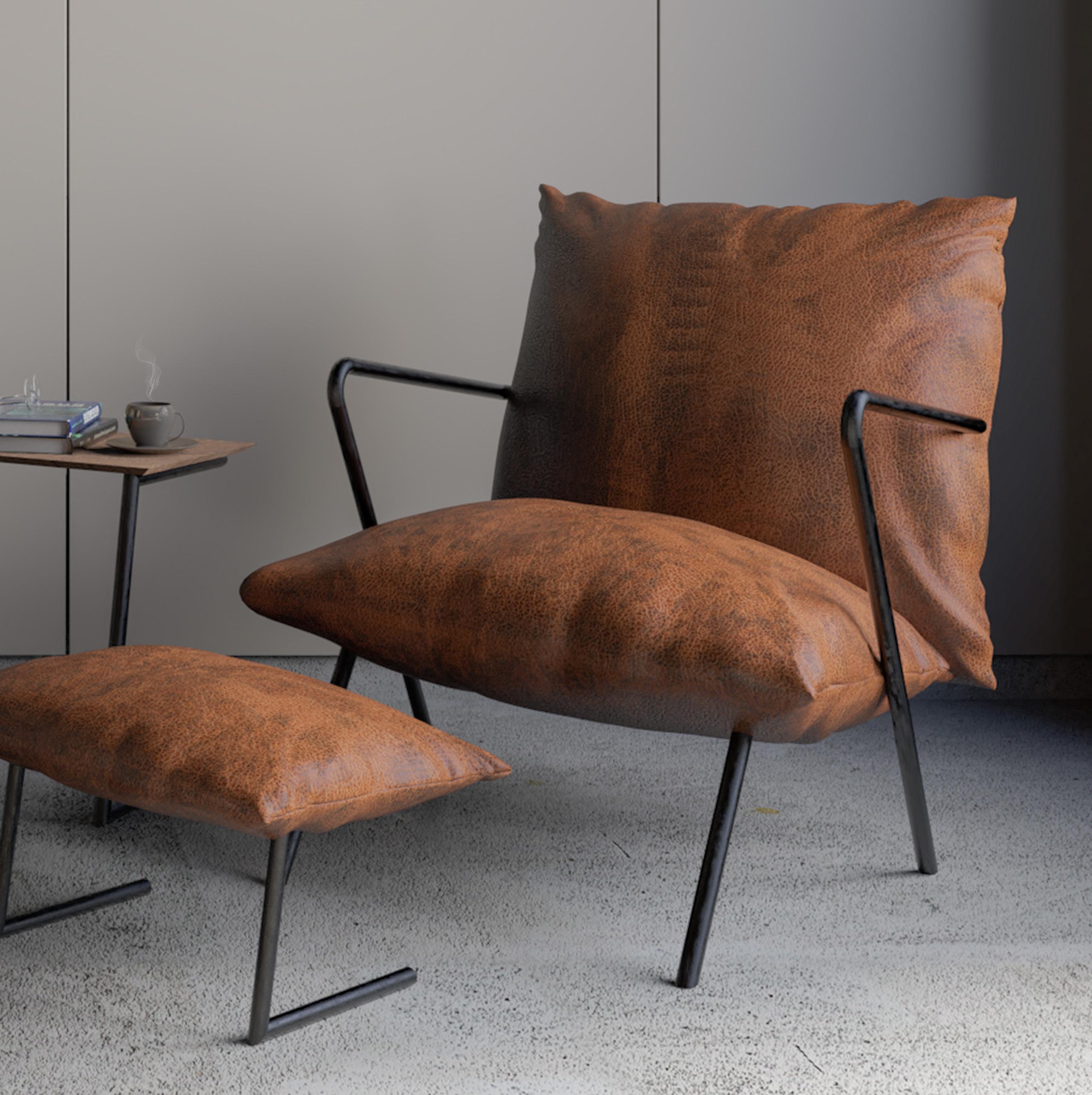

COMFYSPOT COLLECTION

TO MAKE THE EXPERIENCE COMPLETE AND COMFORTABLE, WE DESIGNED AN OTTOMAN AND A TABLE THAT WORK PRACTICALLY WITH THE CHAIR.

MATERIALS

LUXURIOUS AND ANTIQUE LEATHER FOR THE SEATING AND MATTE-BLACK METAL FOR THE HAND-REST & LEGS.

ANTIQUE LEATHER

MATTE-BLACK METAL

COMFYSPOT FURNITURE DESIGN

ASSEMBLY

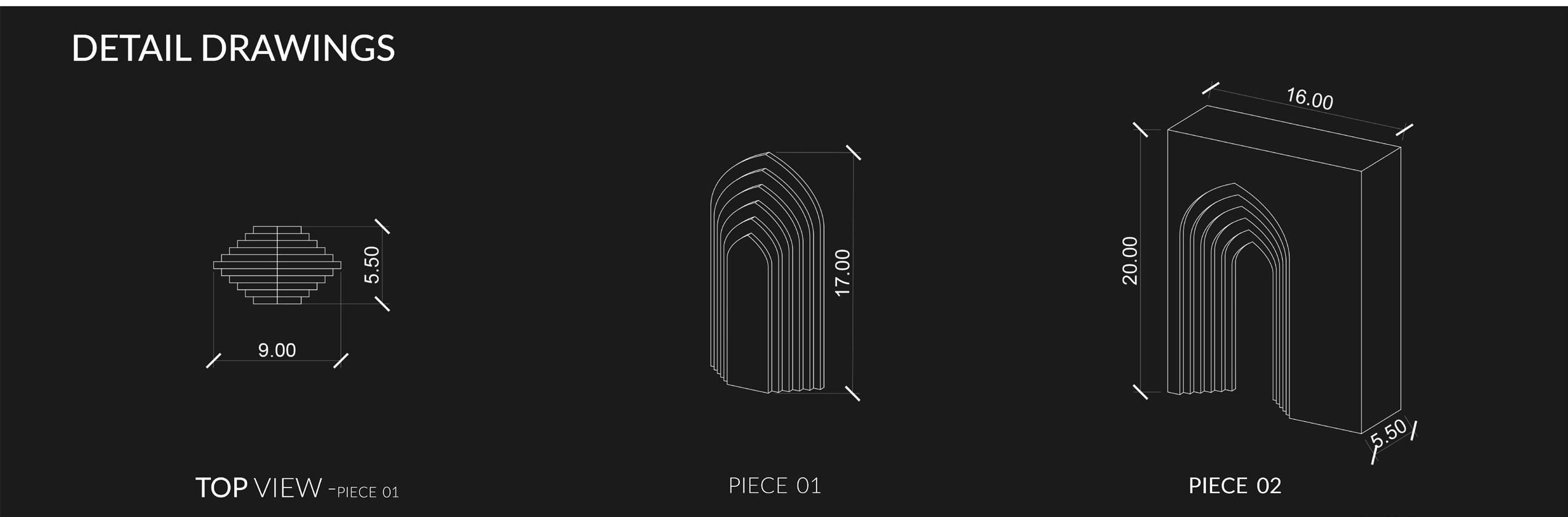

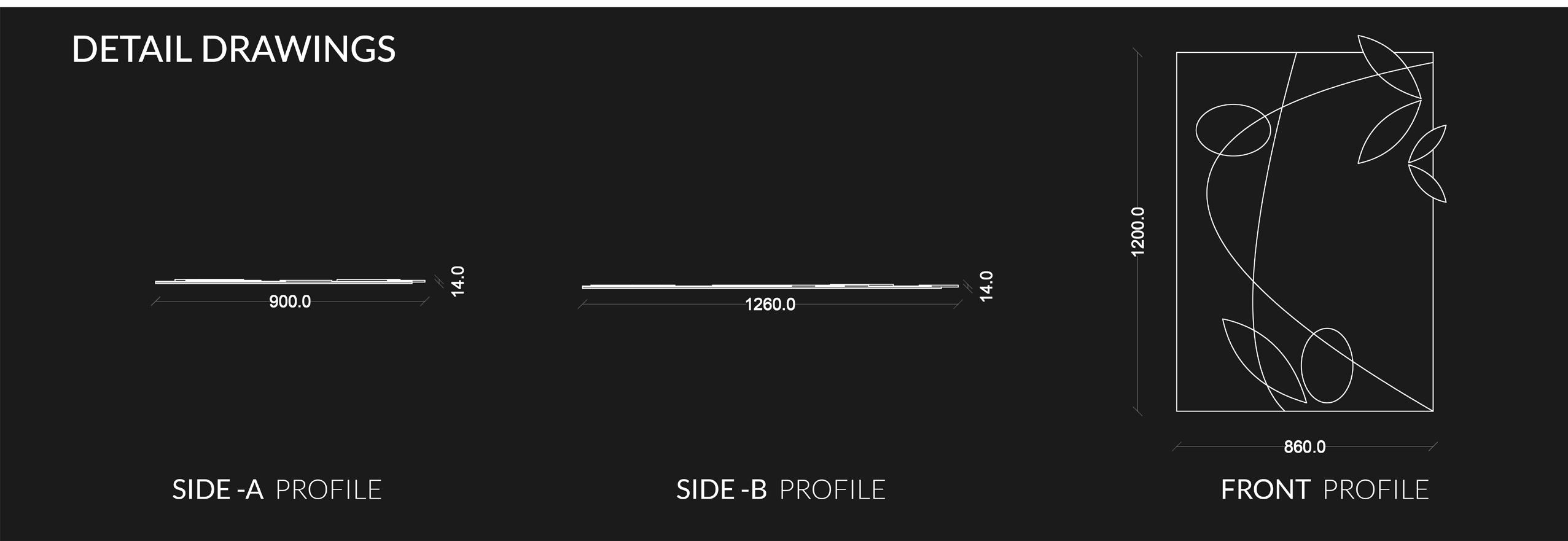

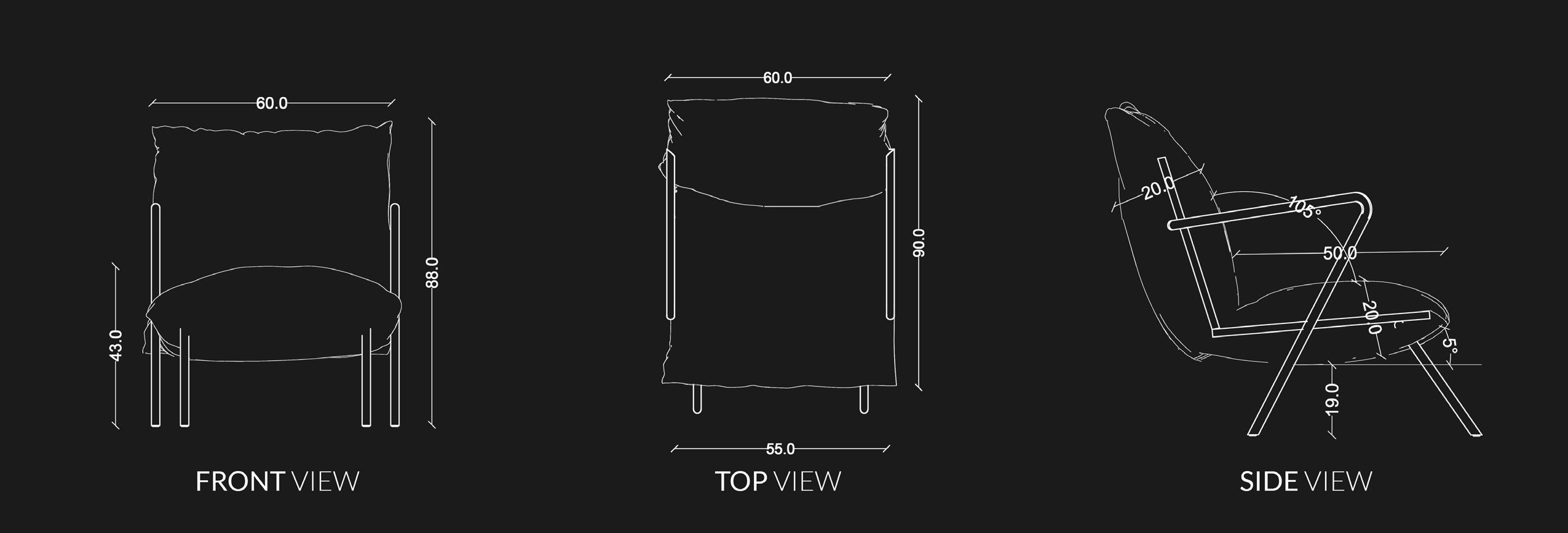

DETAIL DRAWINGS

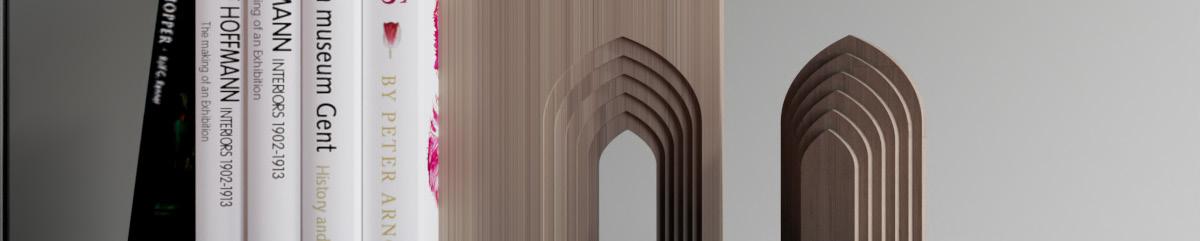

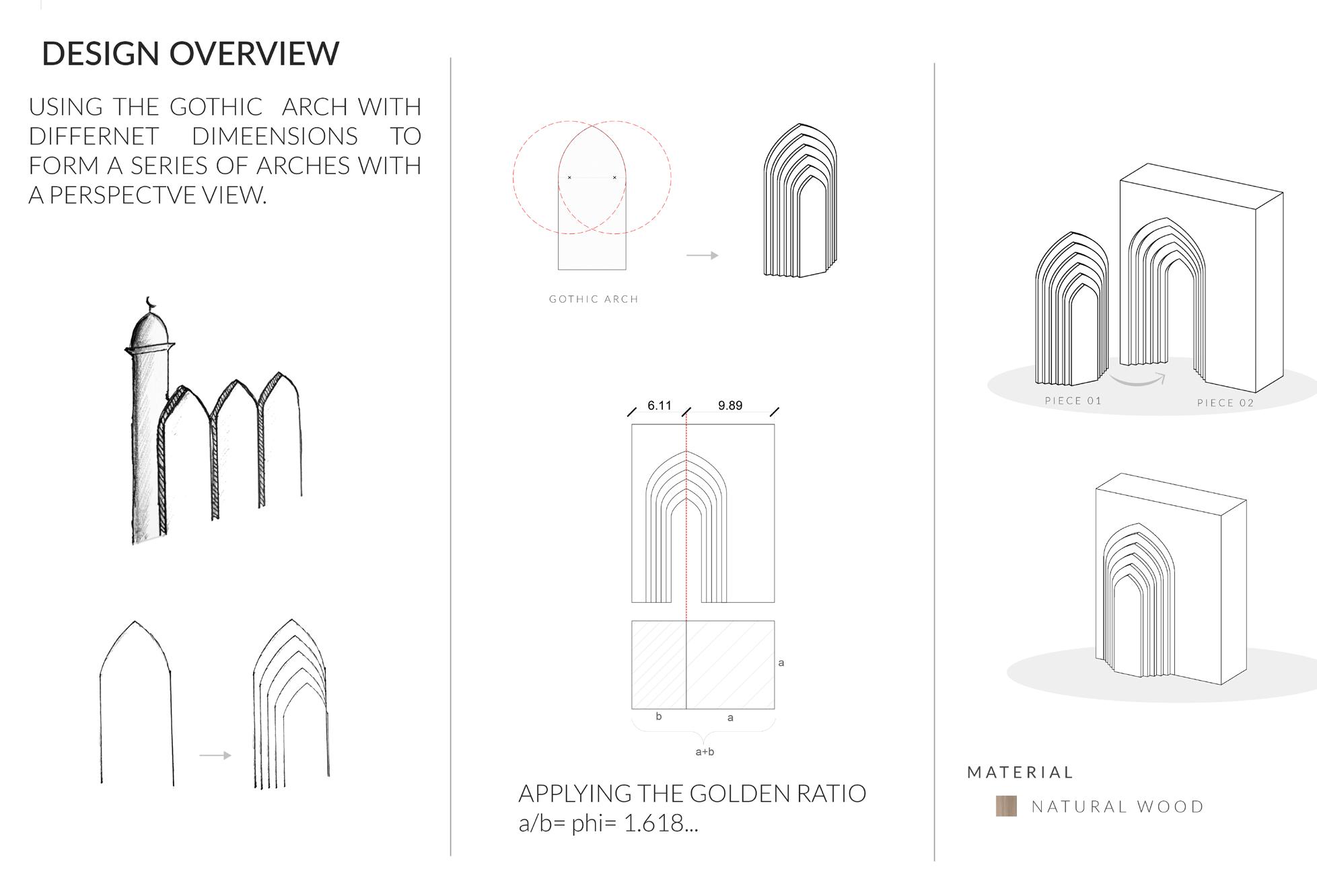

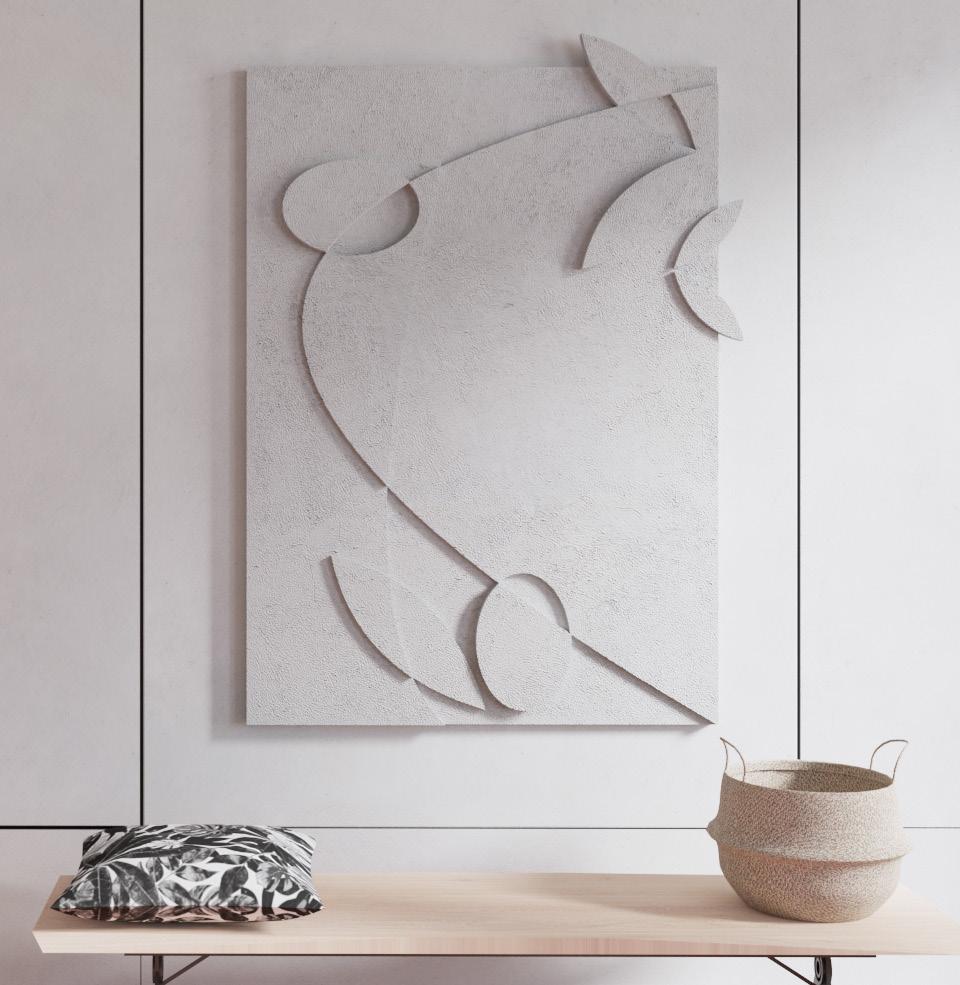

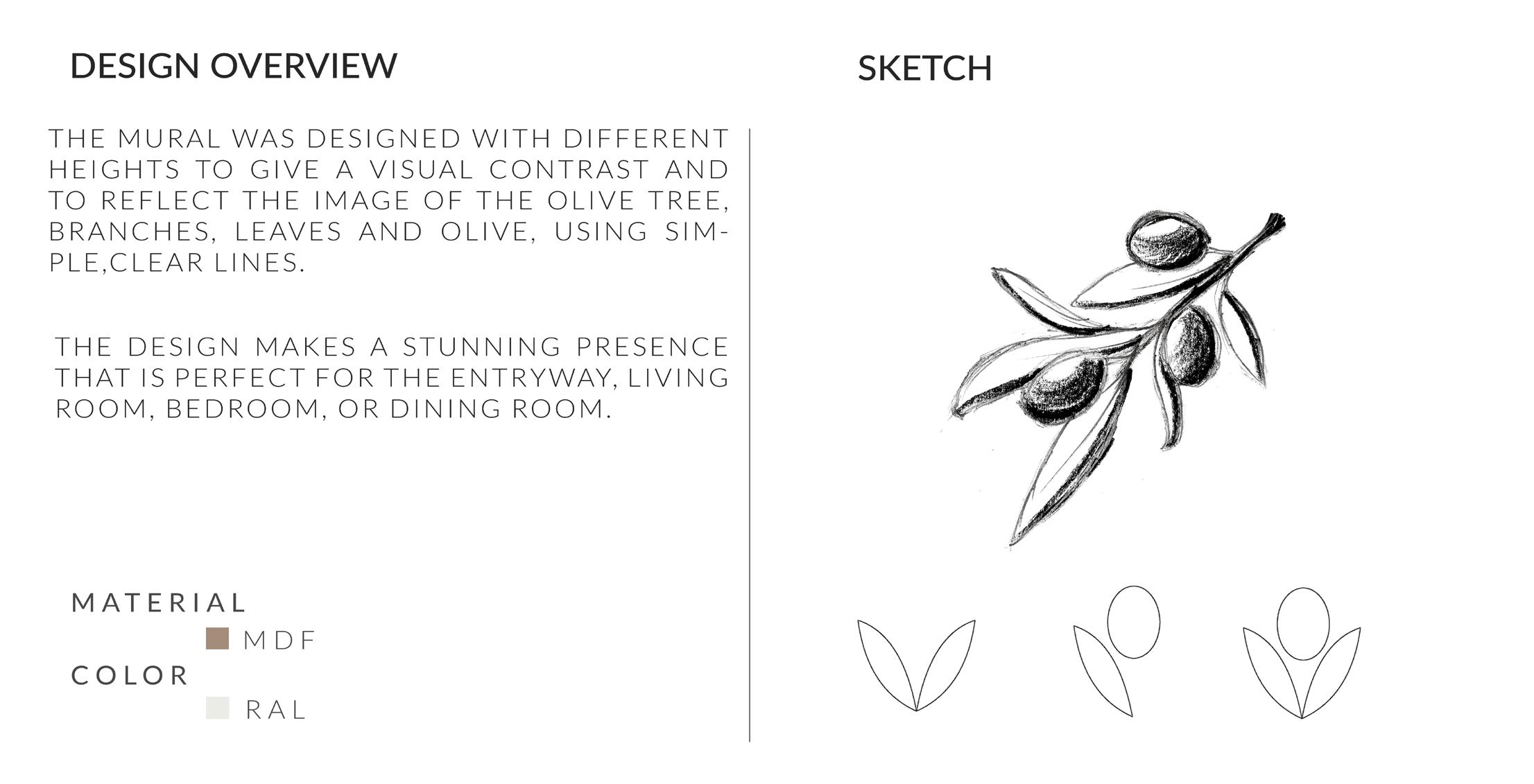

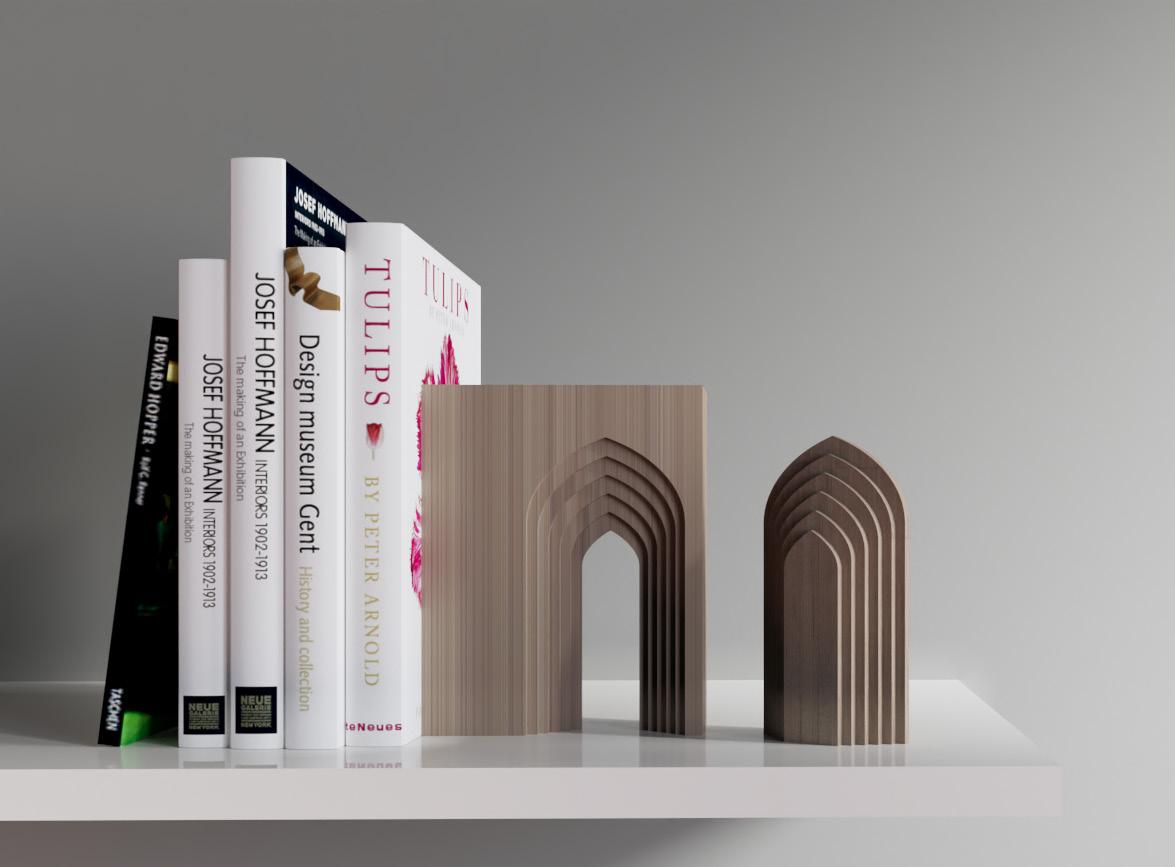

DECORATIVE PIECES

DETAILED DRAWING

DETAILED DRAWING MUSCAT, OM -

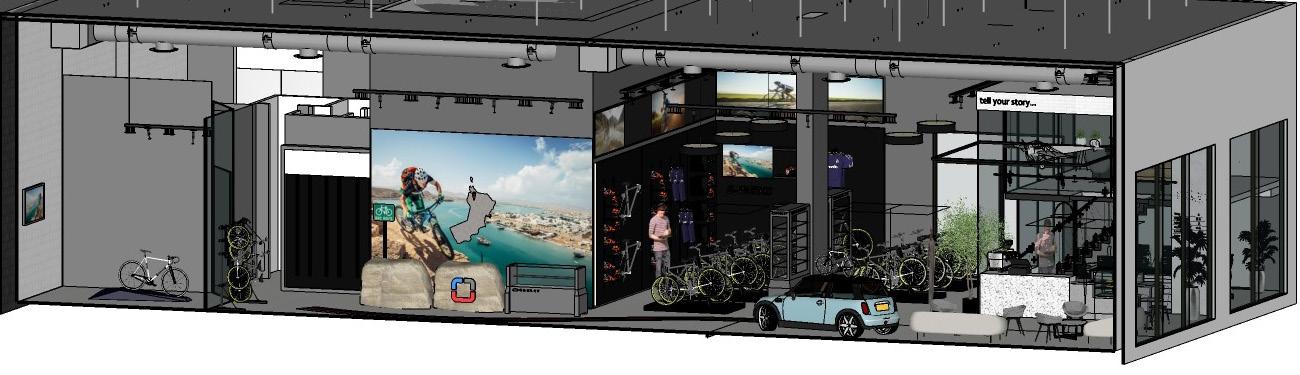

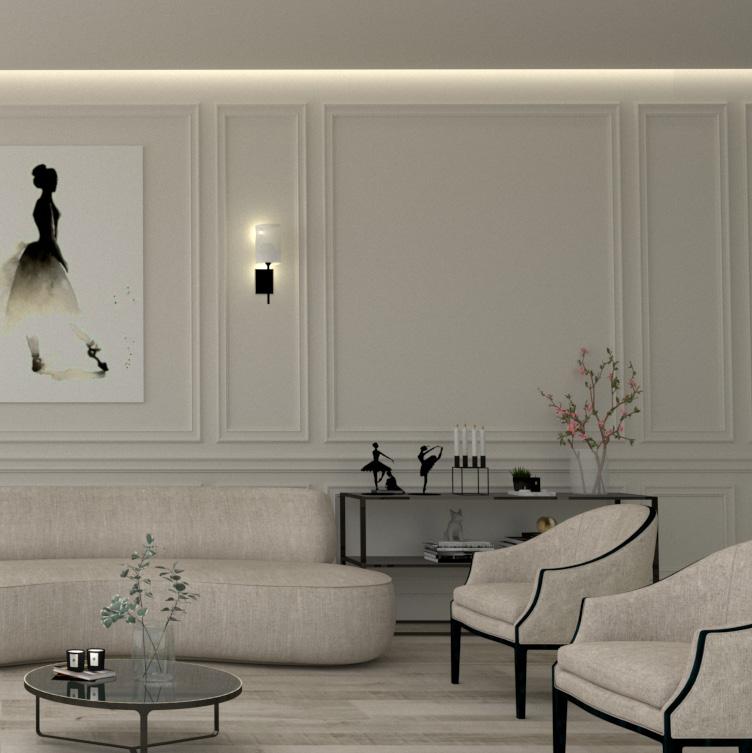

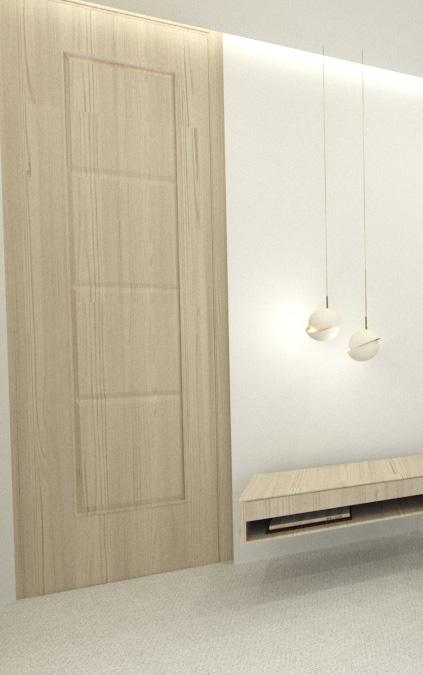

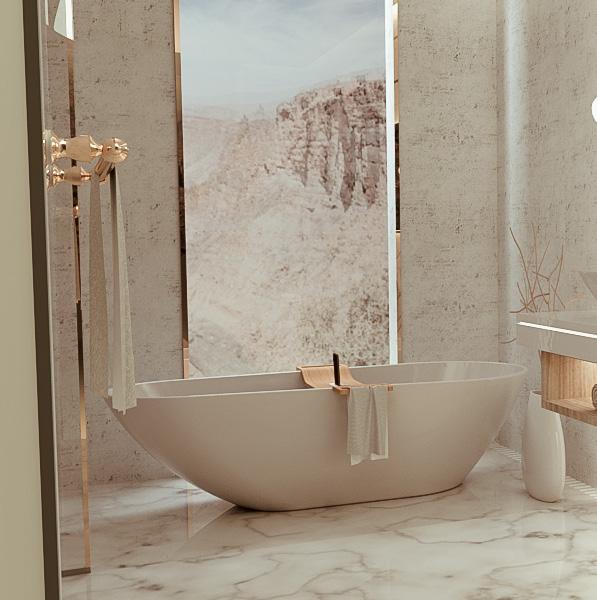

RENDER SKILLS

RENDER SKILLS

‘‘ARCHITECTURE SHOULD REFLECT OUR PAST, SHOW OUR PRESENT, AND INSPIRE OUR FUTURE ’’

-ALYA AL BADAAI
