PANEL CONFIGURATION SECTION DETAILS
THEIA Doors

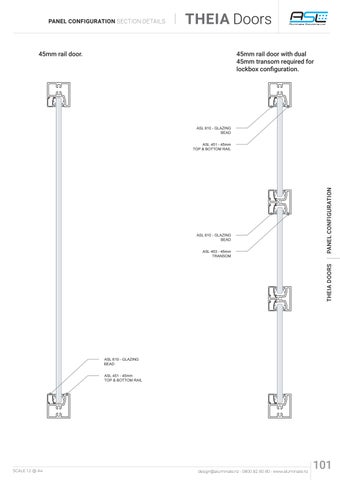

45mm rail door.
45mm rail door with dual 45mm transom required for lockbox configuration.
ASL 610 - GLAZING BEAD
ASL 610 - GLAZING BEAD
THEIA DOORS
ASL 453 - 45mm TRANSOM
PANEL CONFIGURATION
ASL 451 - 45mm TOP & BOTTOM RAIL
ASL 610 - GLAZING BEAD ASL 451 - 45mm TOP & BOTTOM RAIL
SCALE 1:2 @ A4
