Gatic Coex Technical Brochure DRAINAGE & ACCESS COVERS
Rain to drain solutions that set the standard for urban water management
Alumasc is a UK-based supplier of premium building products. The majority of the group’s business is in the area of sustainable building products which enable customers to manage energy and water use in the built environment.
Alumasc Water Management Solutions provide ‘Rain to Drain’ solutions, that set the standard for urban water management. They include: Skyline Fascias, Soffit & Copings; Alumasc Rainwater Gutters & Downpipes; Harmer Building Drainage; Wade Building Drainage and Gatic Drainage & Engineered Access Covers.
Under the AWMS banner, customers benefit from rainwater and drainage products that capture, retain and control the flow of rainwater in the most effective way inside and outside buildings.
www.alumascwms.co.uk ARCHITECTURAL ALUMINIUM BUILDING DRAINAGE WA DE DRAINAGE & ACCESS COVERS
2 Contents Introduction Loading Class C250 Single Covers and Frames Duct and Trench Covers and Frames Multispan Covers and Frames Loading Class D400 Single Covers and Frames Duct and Trench Covers and Frames Multispan Covers and Frames 4 6 7 8-11 12 13 14-17
DRAINAGE & ACCESS COVERS
Gatic COEX is a comprehensive system of single, duct and multi span access covers and frames for use in slow moving traffic situations, where chequer plate, deep steel recessed or concrete slabs might otherwise be installed and a sealing facility is not required. COEX offers the versatility of a galvanised steel frame combined with the rigidity and durability of ductile iron covers. This enables shallower covers to be used which are therefore lighter than deep steel or concrete slabs. Thus offering a competitively priced long-term solution to protecting cables, pipes and underground equipment.
Cover types
Covers are recessed for concrete infill or solid top according to specifier preference.

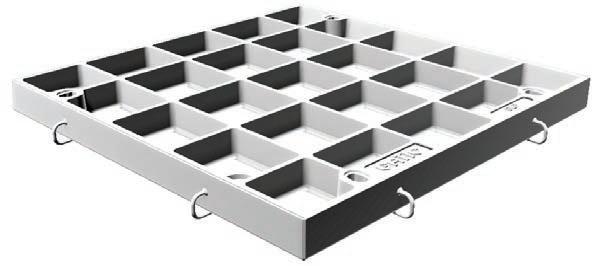

Concrete infill recessed covers
Recessed covers are designed for filling with concrete as specified in BS EN 124 - C45 - 45 N/mm2 for a test cube of 150mm, or a 40N/mm2 for a test cylinder 150mm diameter x 300mm high, using a 10mm coarse aggregate.
Anti-slip surface covers
Concrete infill covers provide a non-slip surface similar to the surrounding areas. Solid top covers incorporate a raised lozenge pattern on the surface.
Materials
The components of COEX covers are manufactured from the following materials:
Ductile iron components to BS EN 1563
Side frames and structural steel sections (removable beams) to BS EN10365
Non-rocking
Correctly installed, COEX covers will be non-rocking under slow moving traffic.
Easy removal/replacement
The machined underside seating face of COEX covers allows the sliding out of covers for easy removal or replacement.
Operator control
Jack screw operating keys locate positively and securely into COEX, allowing the operator maximum control during operation.
Ventilation
Ventilation can be provided by fitting four 25mm diameter ventilation tubes in recessed covers.
Closed keyways
COEX cover keyways are closed and fitted with plastic plugs to prevent the ingress of dirt.
Loadings
All COEX covers will withstand test load and maximum permanent set criteria specified in BS EN 124 for each loading category. Recessed covers are tested in their as service condition.
Secure support
The clear opening width between supporting frames are at least 7mm greater than the pit/chamber design to allow for minor deviations in pit construction dimensions.
Beam wallbox
Supporting beams in COEX Multispan units are easily removed with appropriate lifting equipment for access to the total chamber area. Beam wallboxes do not project into the chamber opening.
Finishes
Covers are coated with a black bituminous solution that acts as a temporary protection during transit, Removable supporting steelwork and side frames are galvanised to BS EN ISO 1461
Installation
Consignments of COEX units are accompanied by comprehensive installation instructions.
Environmental
commitment
Responsibility towards the environment is our primary concern. Our customers often now demand products that are made from recycled and recyclable materials, supplied by companies with robust environmental policies to reduce the environmental impact of their projects for future generations.
Gatic services
Gatic offers a full support service to specifiers and contractors, including Computer Aided Design. AutoCAD compatible details of all Gatic products are available. Please consult our technical department for assistance.
In view of our commitment to product improvement, we reserve the right to alter designs without notice. Design changes will not adversely affect the performance or loading capability of our products.
(0)1787 475151
6 7 Loading Group | C250 Single Covers and Frames Suitable for 5 tonne slow moving pneumatic wheel load. Cover test load - 250kN FOR ROADS CARRYING RELATIVELY SLOW-MOVING TRAFFIC – EG, MINOR RESIDENTIAL ROADS, CUL-DE-SACS, PEDESTRIAN PRECINCTS, YARDS, ETC Medium Duty Pit clear opening sizes L x S Cover type 750 x 300 CDLF 600 x 450 CRRF 750 x 450 CRRF 600 x 600 CDLF 750 x 600 CDLF 900 x 600 CDLF 750 x 750 CDLF 900 x 750 CDLF 900 x 900 CDLF 600 x 1050 CDM 750 x 1050 CDM 1000 x 1050 CDM 600 x 1200 CDM 750 x 1200 CDM Pit clear opening sizes L x S Cover type 600 x 600 CDLS 750 x 600 CDLS 900 x 600 CDLS 750 x 750 CDLS 900 x 750 CDLS 900 x 900 CDLS 600 x 1200 CRSD 750 x 1200 CRSD 1000 x 1000 CRSD Recessed Top Covers Recessed Top Cover Type CDM, CDLF or CRRF Type CDLF Type CDLS Type CRSD Type CDM Solid Top Cover Type CDLS, CRSD Solid Top Covers Duct
Trench
and Frames Suitable for 5 tonne slow moving pneumatic wheel load. Cover test load - 250kN Pit clear opening spans Cover type 300 CDLF 450 CDLF 600 CDLF 750 CDLF 900 CDLF 1050 CDM 1200 CDM 1500 CDM/F Pit clear opening spans Cover type 600 CDLS 750 CDLS 900 CDLS 1200 CRSD Recessed Top Covers Recessed Covers Recessed covers can be supplied to cover ducts or trenches as straight runs or as complex layouts. Solid Top Covers Solid top covers are usually supplied in straight runs. Recessed Top Covers Type CDLF / CDM or CDM/F *Indicates standard sizes not available - The number shown indicates the quantity of cover parts - Other standard sizes may be available, refer to our technical department. Solid Top Covers Type CDLS or CRSD Solid Top Covers Pit clear opening spans Cover type Standard Pit clear opening length 1300 1450 1600 1750 1900 2000 2150 2300 2450 2600 2700 2750 600 CDLS 2 2 2 2 2 3 3 3 3 3 4 3 750 CDLS 2 2 2 2 2 3 3 3 3 3 4 3 900 CDLS 2 2 2 2 2 3 3 3 3 3 4 3 1200 CRSD 2 2 2 * * 3 3 3 3 * 4 * Loading Group | C250 Type CRRD & CRRF Pit clear opening spans Cover type Standard Pit clear opening length 1300 1450 1600 1750 1900 2000 2150 2300 2450 2600 2700 2750 300 CDLF * * 2 * * * * * 3 * * * 450 CRRF 2 2 2 * * 3 3 3 3 * 4 * 600 CRRD 2 2 2 2 2 3 3 3 3 3 4 3 750 CRRD 2 2 2 2 2 3 3 3 3 3 4 3 900 CRRD 2 2 2 2 2 3 3 3 3 3 4 3 1050 CDM 2 2 2 * * 3 3 3 3 * 4 * 1200 CDM 2 2 2 * * 3 3 3 3 * 4 * 1500 CDM/F 2 2 2 * * 3 3 3 3 * 4 *
Tel: +44
Website: www.alumascwms.co.uk Email: info@gatic.com
&
Covers
Multispan covers and frames
Suitable for 5 tonne slow moving pneumatic wheel load. Cover test load - 250kN
Specification
Below is sample specification information and notes for Multispan recessed or Solid Top covers and frames.
Loading group Gatic C250
5 tonne wheel load – test load 250 kN.
Materials
Covers: Ductile iron components to BS EN 1563.
Structural steel removable beams to BS EN10365.
Frame bars mild steel to BS EN 10025
Finishes
Covers coated with black bituminous solution for protection during transit.
Removable supporting steelwork and side frames galvanised to BS EN ISO 1461.
Infill and surround concrete by customer
Concrete strength, using 10mm coarse aggregate, to be: 45N/mm2 for a test cube of 150mm or 40N/mm2 for a test cylinder of 150mm diameter x 300mm high.
Installation
In accordance with instructions supplied by Gatic.
To specify use size and description format as follows:
COEX Multispan Recessed covers and frames Cover type CDLF recessed
Multiple access covers recessed for concrete infill with removable beams.
.... in no. .... (length) x .... (span) mm pit clear opening multi span cover and frame.
COEX Type CDLF Ductile Iron Recessed Cover in .... parts complete with .... in no. .... x .... mm galvanised removable support beam spanning the .... (length) mm way.
Suitable for Loading Group C250 – Medium Duty 5 Tonnes Wheel Load (pneumatic tyre).
COEX Multispan Solid Top covers and frames Cover type CDLS solid top
Multiple solid top access covers with removable beams.
.... in no. .... (length) x .... (span) mm pit clear opening multi span cover and frame.
COEX Type CDLS Ductile Iron Solid Top Cover in .... parts complete with .... in no. .... x .... mm galvanised removable support beam spanning the .... (length) mm way.
Suitable for Loading Group C250 – Medium Duty 5 Tonnes Wheel Load (pneumatic tyre).
Standard pit clear opening sizes are shown on Page 7.
Beam sizes and other dimensions are shown on Pages 8 and 9.
Type CDLF recessed
Type CDLS solid top
Tel: +44 (0)1787 475151 Website: www.alumascwms.co.uk Email: info@gatic.com
8
9
Loading Group | C250
Refer to the table to identify which cover and beam configuration you require against pit clear opening length (L) and pit clear opening span (S). All dimensions are in millimetres. 1370 1520 1670 1820 1970 2140 2290 2440 2590 2740 2890 3040 3510 3060 2910 3360 3510 3660 3810 3960 4110 685 835 835 985 985 685 685 835 835 835 985 985 835 835 835 985 985 985 985 685 685 835 835 985 770 920 770 920 1070 920 1070 770 920 920 920 920 1070 1070 685 685 835 835 835 985 985 770 920 920 920 920 1070 1070 835 835 770 770 685 685 770 770 685 685 835 835 985 835 985 120 0 135 0 150 0 165 0 180 0 190 0 2050 220 0 235 0 250 0 290 0 275 0 260 0 305 0 320 0 335 0 350 0 365 0 380 0 Pit clear opening length (L) mm Beam centres mm Pit clear opening span (S) mm 4 parts 3 beams 3 parts 2 beams 2 parts 1 beam 2 parts 3 parts 4 parts AB CD E 265 0 280 0 6 part (2x3) multispan cover with 2 removable support beams 9 part (3x3) multispan cover with 2 removable support beams 12 part (4x3) multispan cover with 2 removable support beams 8 part (2x4) multispan cover with 3 removable support beams 12 part (3x4) multispan cover with 3 removable support beams 16 part (4x4) multispan cover with 3 removable support beams L A S B L A S B L A S B L A S B C L A S B C L A C S B L A S B C D L A S B C D L A C D S B 3980 3830 3680 4130 4280 4430 4580 4730 4880 5030 5180 685 835 835 835 985 985 985 920 920 920 920 920 920 1070 920 770 920 1070 920 1070 920 920 835 770 770 770 685 770 920 770 685 770 770 770 920 920 920 920 920 985 1070 1070 1070 1070 685 835 685 685 835 835 835 985 985 985 985 5 parts 4 beams 10 part (2x5) multispan cover with 4 removable support beams 15 part (3x5) multispan cover with 4 removable support beams 20 part (4x5) multispan cover with 4 removable support beams L A S B C D L A S B C D L A C D E E E S B 4 part (2x2) multispan cover with 1 removable support beam 6 part (3x2) multispan cover with 1 removable support beam 8 part (4x2) multispan cover with 1 removable support beam Note: For other pit clear opening sizes please refer to our technical department Loading Group | C250 FOR ROADS CARRYING RELATIVELY SLOW-MOVING TRAFFIC – EG, MINOR RESIDENTIAL ROADS, CUL-DE-SACS, PEDESTRIAN PRECINCTS, YARDS, ETC Medium Duty
Multispan covers and frames Product Selection
Medium Duty
Multispan covers and frames
Covers recessed for concrete infill or solid top
Cover types: CDLF (recessed) CDLS (solid top)

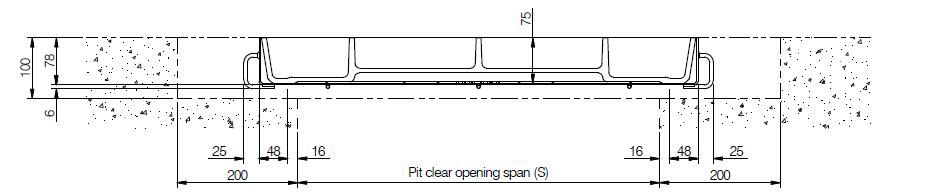

The details below show plan and sections of a typical recessed/solid top unit.
Multispan covers and frames
Beam Size
The required beam size for Multispan covers is dependent on the pit clear opening length and the loading group.
The table shows maximum beam length against beam size. The removable support beams are supplied by Gatic.
The table also indicates dimensions of the beam wallbox and rebate to suit different beam sizes. See also the accompanying section details.
Tel: +44 (0)1787 475151 Website: www.alumascwms.co.uk Email: info@gatic.com
10 11
Type CDLF recessed Type CDLS solid top Type CDLF recessed Loading Group | C250
Removable support beam size Max pit clear opening length (L) Beam wallbox dimensions V W X 152 x 152 x 37kg/m UC 2500 219 229 260 203 x 203 x 54kg/m UC 3200 260 270 300 305 x 165 x 54kg/m UB 3650 368 378 410 356 x 171 x 67kg/m UB 3800 421 431 470 Support beam size chart Loading Group | C250 FOR ROADS CARRYING RELATIVELY SLOW-MOVING TRAFFIC – EG, MINOR RESIDENTIAL ROADS, CUL-DE-SACS, PEDESTRIAN PRECINCTS, YARDS, ETC
Type CDLS solid top
+44 (0)1787 475151 Website: www.alumascwms.co.uk
12 13 Loading Group | D400
Covers and Frames Suitable for 11.5 tonne slow moving pneumatic wheel load. Cover test load - 400kN POWER STATIONS, SUB STATIONS, PUMPING STATIONS, PARKING AREAS FOR ALL TYPES OF VEHICLE Pit clear opening sizes L x S Cover type 750 x 300 CDLF 600 x 450 CRRF 750 x 450 CRRF 600 x 600 CRRD 750 x 600 CRRD 900 x 600 CRRD 750 x 750 CRRD 900 x 750 CRRD 900 x 900 CRRD 600 x 1050 CDM 750 x 1050 CDM 1000 x 1050 CDM 600 x 1200 CDM 750 x 1200 CDM Pit clear opening sizes L x S Cover type 600 x 600 CRSD 750 x 600 CRSD 900 x 600 CRSD 750 x 750 CRSD 900 x 750 CRSD 900 x 900 CRSD 600 x 1200 CRSD 750 x 1200 CRSD 1000 x 1000 CRSD Recessed Top Covers Recessed Top Covers Type CDLF, CRRF, CRRD, CDM Solid Top Covers Type and CRSD Solid Top Covers Type CDLF Type CDMR Type CRSD Type CDM Type CRRD & CRRF Duct
Trench
and Frames Suitable for 11.5 tonne slow moving pneumatic wheel load. Cover test load - 400kN Pit clear opening spans Cover type 300 CDLF 450 CRRD 750 CRRD 600 CRRD 900 CRRD 1050 CDM 1200 CDM 1500 CDM/F Pit clear opening spans Cover type 600 CRSD 750 CRSD 900 CRSD 1200 CRSD Recessed Top Covers Recessed Covers Recessed covers can be supplied to cover ducts or trenches as straight runs or as complex layouts. Solid Top Covers Solid top covers are usually supplied in straight runs. Recessed Top Covers Type CDLF / CDM / CDM/F / CRRD / CRRF / CDMR *Indicates standard sizes not available - The number shown indicates the quantity of cover parts - Other standard sizes may be available, refer to our technical department. Solid Top Covers Type CRSD Solid Top Covers Pit clear opening spans Cover type Standard Pit clear opening length 1300 1450 1600 1750 1900 2000 2150 2300 2450 2600 2700 2750 300 CDLF * * 2 * * * * * 3 * * * 450 CRRF 2 2 2 * * 3 3 3 3 * 4 * 600 CRRD 2 2 2 2 2 3 3 3 3 3 4 3 750 CRRD 2 2 2 2 2 3 3 3 3 3 4 3 900 CRRD 2 2 2 2 2 3 3 3 3 3 4 3 1050 CDM 2 2 2 * * 3 3 3 3 * 4 * 1200 CDM 2 2 2 * * 3 3 3 3 * 4 * 1500 CDM/F 2 2 2 * * 3 3 3 3 * 4 * Pit clear opening spans Cover type Standard Pit clear opening length 1300 1450 1600 1750 1900 2000 2150 2300 2450 2600 2700 2750 600 CRSD 2 2 2 2 2 3 3 3 3 3 4 3 750 CRSD 2 2 2 2 2 3 3 3 3 3 4 3 900 CRSD 2 2 2 2 2 3 3 3 3 3 4 3 1200 CRSD 2 2 2 * * 3 3 3 3 * 4 * Loading Group | D400 Heavy Duty
Tel:
Email: info@gatic.com
Single
&
Covers
Multispan covers and frames
Product Selection
Specification
Below is sample specification information and notes for Multispan recessed covers and frames.
Loading group Gatic D400
11.5 tonne slow moving pneumatic wheel load – test load 400 kN.
Materials
Covers: Ductile iron components to BS EN 1563.
Structural steel removable beams to BS EN10365.
Frame bars mild steel to BS EN 10025
Finishes
Covers coated with black bitumous solution for protection during transit.
Removable supporting steelwork and side frames galvanised to BS EN ISO 1461.
Infill and surround concrete by customer
Concrete strength, using 10mm coarse aggregate, to be: 45N/mm2 for a test cube of 150mm or 40N/mm2 for a test cylinder of 150mm diameter x 300mm high.
Installation
In accordance with instructions supplied by Gatic.
To specify use size and description format as follows:
COEX Multispan Recessed covers and frames Cover type CRRD recessed
Multiple access covers recessed for concrete infill with removable beams.
.... in no. .... (length) x .... (span) mm pit clear opening multi span cover and frame.
COEX Type CRRD Ductile Iron Recessed Cover in .... parts complete with .... in no. .... x .... mm galvanised removable support beam spanning the .... (length) mm way.
Suitable for Loading Group D400 – 11.5 Tonnes Slow Moving Wheel Load (pneumatic tyre).
COEX Multispan Solid Top covers and frames Cover type CRSD solid top
Multiple solid top access covers with removable beams.
.... in no. .... (length) x .... (span) mm pit clear opening multi span cover and frame.
COEX Type CRSD Ductile Iron Solid Top Cover in .... parts complete with .... in no. .... x .... mm galvanised removable support beam spanning the .... (length) mm way.
Suitable for Loading Group D400 – 11.5 Tonnes Slow Moving Wheel Load (pneumatic tyre).
Standard pit clear opening sizes are shown on Page 13.
Beam sizes and other dimensions are shown on Pages 14 and 15.
Tel: +44 (0)1787 475151 Website: www.alumascwms.co.uk Email: info@gatic.com
14
15
Type CRRD recessed Type CRSD solid top Loading Group | D400
Refer to the table to identify which cover and beam configuration you require against pit clear opening length (L) and pit clear opening span (S). All dimensions are in millimetres. 1370 1520 1670 1820 1970 2140 2290 2440 2590 2740 2890 3040 685 835 835 985 985 685 685 835 835 835 985 985 835 835 835 985 985 985 985 685 685 835 835 985 770 920 770 920 1070 920 1070 770 920 920 920 920 1070 1070 685 685 835 835 835 985 985 770 920 920 920 920 1070 1070 835 835 770 770 685 685 770 770 685 685 835 835 985 835 985 120 0 135 0 150 0 165 0 180 0 190 0 2050 220 0 235 0 250 0 290 0 275 0 260 0 305 0 320 0 335 0 350 0 365 0 380 0 Pit clear opening length (L) mm Beam centres mm Pit clear opening span (S) mm 4 parts 3 beams 3 parts 2 beams 2 parts 1 beam 2 parts 3 parts 4 parts AB CD E 265 0 280 0 6 part (2x3) multispan cover with 2 removable support beams 9 part (3x3) multispan cover with 2 removable support beams 12 part (4x3) multispan cover with 2 removable support beams 8 part (2x4) multispan cover with 3 removable support beams 12 part (3x4) multispan cover with 3 removable support beams 16 part (4x4) multispan cover with 3 removable support beams L A S B L A S B L A S B L A S B C L A S B C L A C S B L A S B C D L A S B C D L A C D S B 3980 3830 3680 4130 4280 4430 4580 4730 4880 5030 5180 685 835 835 835 985 985 985 920 920 920 920 920 920 1070 920 770 920 1070 920 1070 920 920 835 770 770 770 685 770 920 770 685 770 770 770 920 920 920 920 920 985 1070 1070 1070 1070 685 835 685 685 835 835 835 985 985 985 985 5 parts 4 beams 10 part (2x5) multispan cover with 4 removable support beams 15 part (3x5) multispan cover with 4 removable support beams 20 part (4x5) multispan cover with 4 removable support beams L A S B C D L A S B C D L A C D E E E S B 4 part (2x2) multispan cover with 1 removable support beam 6 part (3x2) multispan cover with 1 removable support beam 8 part (4x2) multispan cover with 1 removable support beam 3510 3060 2910 3360 3510 3660 3810 3960 4110 Note: For other pit clear opening sizes please refer to our technical department Loading Group | D400 POWER STATIONS, SUB STATIONS, PUMPING STATIONS, PARKING AREAS FOR ALL TYPES OF VEHICLE Multispan Covers and Frames Suitable for 11.5 tonne slow moving pneumatic wheel load. Cover test load - 400kN Heavy Duty
o he adequac o he des gn p ov ded by GAT C he Des gne espons b y o ensu e ha he da a has been co ec y n e p e ed GAT C acc p s no ab y o nad qua e o naccu a e des gns based on m ed o a se n o ma on supp ed by he Des gne o m n e p e a on o he da a supp ed Fo he avo dance o doub des gn p ov d d by GAT C p o o an o de be ng p aced a e o u a e pu poses on y and shou d no be e ed upon sa e o a he Des gne s own r sk D aw ng s ued by GAT C n respec o an o de a e ha o de has been p aced sha be o he pu pos o wh ch was c ea ed
Multispan covers and frames
Beam Size
The required beam size for Multispan covers is dependent on the pit clear opening length and the loading group.
The table shows maximum beam length against beam size. The removable support beams are supplied by Gatic.
The table also indicates dimensions of the beam wallbox and rebate to suit different beam sizes. See also the accompanying section details.
16 17 Loading Group | D400
or
Tel: +44 (0)1787 475151 Website: www.alumascwms.co.uk Email: info@gatic.com
Covers recessed for concrete infill
solid top Cover types: CRRD (recessed) CRSD (solid top)
POWER STATIONS, SUB STATIONS, PUMPING STATIONS, PARKING AREAS FOR ALL TYPES OF VEHICLE Type CRRD recessed Type CRSD solid top Type CRRD recessed Diagram to come
The details below show plan and sections of a typical recessed/solid top unit.
Type CRSD solid top Removable support beam size Max pit clear opening length (L) Beam wallbox dimensions V W X Y 152 x 152 x 37kg/m UC 1650 237 251 280 200 203 x 203 x 52 kg/m UC 2350 281 295 325 200 305 x 165 x 54kg/m UB 2750 385 399 430 200 356 x 171 x 67kg/m UB 3200 438 452 485 300 457 x 152 x 82kg/m UB 3500 541 555 580 300 533 x 210 x 122kg/m UB 3800 620 634 660 300 Support beam size chart Section D - D Section B -B Loading Group | D400 Multispan Covers and Frames Heavy Duty SECTION A - A SECT ON B - B SECTION C - C SECT ON D - D A A B B C C D D Ch c d b D c e Pro ec T e Draw ng Numbe DO NOT SCALE 3 d e u Ha a E s CO9 2SX En n T ph n + 8 75 5 F + 4 0 7 47 5 E M n o@g c com W w w a om A s o A UMA C BU LD NG PRODUC S Th s d aw ng and any n o ma on o desc p e ma e se ou he eon a e con den a and he cop gh o GAT C and are no o be d sc osed oaned cop ed or used or manu a u ng or ende ng o o an o he pu po e w hou pe m s on © 2021 D s gn rs nc ud ng bu no m ted o Eng nee s and A ch ec s mus sa s hem e ves n espec
D awn b Rev COEX CR COEX CR MULT PLE BROCHURE ASSEMBLY EG/4990 A P M 6 06 202 1 6 P S N A a N A1 e R n D A F R T SSU 1 6 2 1 M So d Top Co e Recessed Cove 1 0 0 W X 30 83 25 Y P c ea open ng eng h L 62 65 200 7 8 6 V Sugge ed eba e o beam wa bo D REC ON FO S NG OUT CO ER 78 6 100 1 6 2 0 0 4 8 2 5 P c e a r o p e n n g s p a n ( S ) 1 6 4 8 2 5 2 0 0 3 5 0 X Max 130 75 A B Sugges ed eba e o s de rame 1 0 0 W X V 30 83 25 Y P ea open ng eng h L D RECT ON OR S D NG OUT OV R Sugges ed reba e o beam wa box Removab e suppor beam upp ed by Ga c Remo ab e uppo beam supp ed by Ga c 16 48 25 200 A P c ea open ng span (S B 7 8 6 1 0 0 X 350 Cove s & eba es o be ed w h 45 cube or 40 cy nder concre e du ng ns a a on us ng 10mm coa se agg ega e SECTION A - A SECTION B - B SECT ON D - D A A B B C D Che ked b D Pro ec T e 3 d Ave ue Ha e d E s x CO9 2SX Eng and Te ep one + 4 0) 17 7 75 51 Fa +44 1 87 47 57 E M n o@ga c com Web www ga c om A d on o ALUMASC BU LD NG PRODUCTS L d Th s d aw ng and any n o ma on or desc p ve ma er se ou he eon a e con den a and he copyr gh o GAT C and a e no to be d sc osed oaned cop ed or used o manufac ur ng or ende ng or fo any o he pu pose w hou perm ss on © 2021 Des gne s nc ud ng bu no m ed o Eng neers and A ch ec s mus sa s y hemse ves n respec o the adequacy o the des gn p ov ded by GAT C t s he Des gne s espons b ty to ensu e ha he data has been co rec y n erp eted GAT C accep s no ab y or nadequa e or naccura e des gns based on m ed o a se n o ma on supp ed by he Des gne o m s n e p e at on o the da a supp ed For he avo dance of doub des gns p ov ded by GAT C p or o an order be ng p aced are or ustra ve pu poses on y and shou d no be re ed upon save or a he Des gner s own sk Draw ngs ssued by GAT C n espec o an order a er ha o de has been p aced sha be o he purpose o wh ch was crea ed D awn by COEX CR COEX CR MULT PLE BROCHURE P M 16 06 2021 P S Rev R v s n Da S g A F RST SSUE 6 06 2 21 P M So d Top Cove Recessed Cove 1 0 0 W X 30 83 25 Y P c ea open ng ength L) 62 65 200 7 8 6 V Sugges ed eba e o beam wa box D RECT ON FOR SL D NG OUT COVER 78 6 100 1 6 2 0 0 4 8 2 5 P t c l e a r o p e n n g s p a n ( S ) 1 6 4 8 2 5 2 0 0 3 5 0 X Max 130 75 A B 1 0 0 W X V 30 83 25 Y P t c ea open ng eng h (L D RECT ON FOR SL D NG OU CO ER Suggested rebate or beam wa box Removab e support beam supp ed by Gat c) Removab e suppo beam (supp ed by Ga c 16 48 25 200 A P c ear open ng span (S) B 7 8 6 1 0 0 X 350 Covers & reba es o be ed w h 45 cube o 40 cy nde conc e e dur ng ns a at on us ng 10mm coa se agg ega e SECT ON A - A SECT ON D - D A C D
ng but no m ted o Eng neers and Arch ects, must sa s y hemse ves n espec of he adequacy of he des gn p ov ded by GAT C s he Des gner s respons b y o ensu e tha the da a has been correc y n erpre ed GAT C accep s no ab y o nadequa e or naccu a e des gns based on m ed o fa se n ormat on supp ed by he Des gner o m s n e p e a on of he da a supp ed Fo he avo dance o doub des gns p ov ded by GAT C pr o o an order be ng p aced are or us a ve pu poses on y and shou d not be re ed upon save or a he Des gne s own r sk Draw ngs ssued by GAT C n espec o an o der a er hat o de has been p aced sha be fo he purpose or wh ch was crea ed R v Re on Da e S g A F RST SSUE 16 0 2021 P M So d Top Cove 1 0 0 W X 30 83 25 Y P c ea open ng eng h L) 62 65 200 7 8 6 V Sugges ed eba e fo beam wa box D RECT ON FOR S D NG OU COVER 78 6 100 1 6 2 0 0 4 8 2 5 o p e n n g s p a n ( S ) 3 5 0 Max 130 B 1 0 0 W X V D RECT ON FOR S D NG OUT COVER Removab e suppor beam supp ed by Ga c Removab e suppo t beam supp ed by Ga c) 16 48 25 200 A P c ea open ng span S) B 7 8 6 1 0 0 X 350 Covers & eba es o be f ed w th 45 cube o 40 cy nder conc ete dur ng nsta a on us ng 10mm coarse agg ega e
Th s d aw ng and any nfo ma on o desc pt ve ma te set ou he eon a e conf den a and he copy ght o GAT C and are not o be d sc osed oaned cop ed or used or manu ac u ng o ender ng or or any othe pu pose w hou pe m ss on © 2021 Des gne s nc ud
