Loading Group up to F900

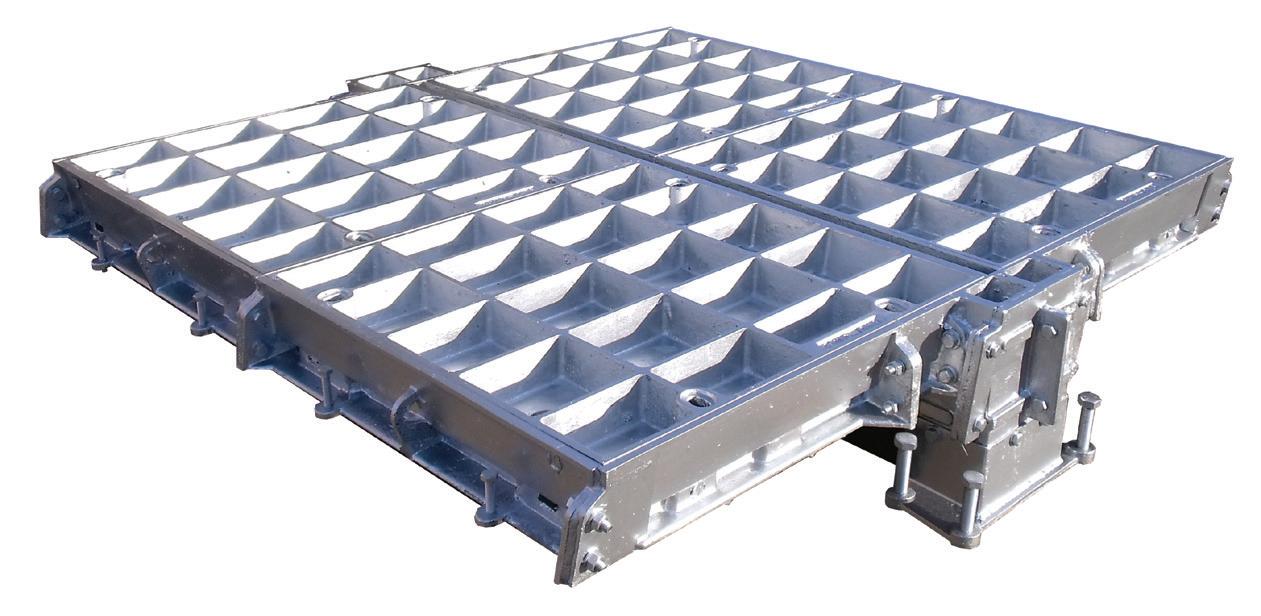

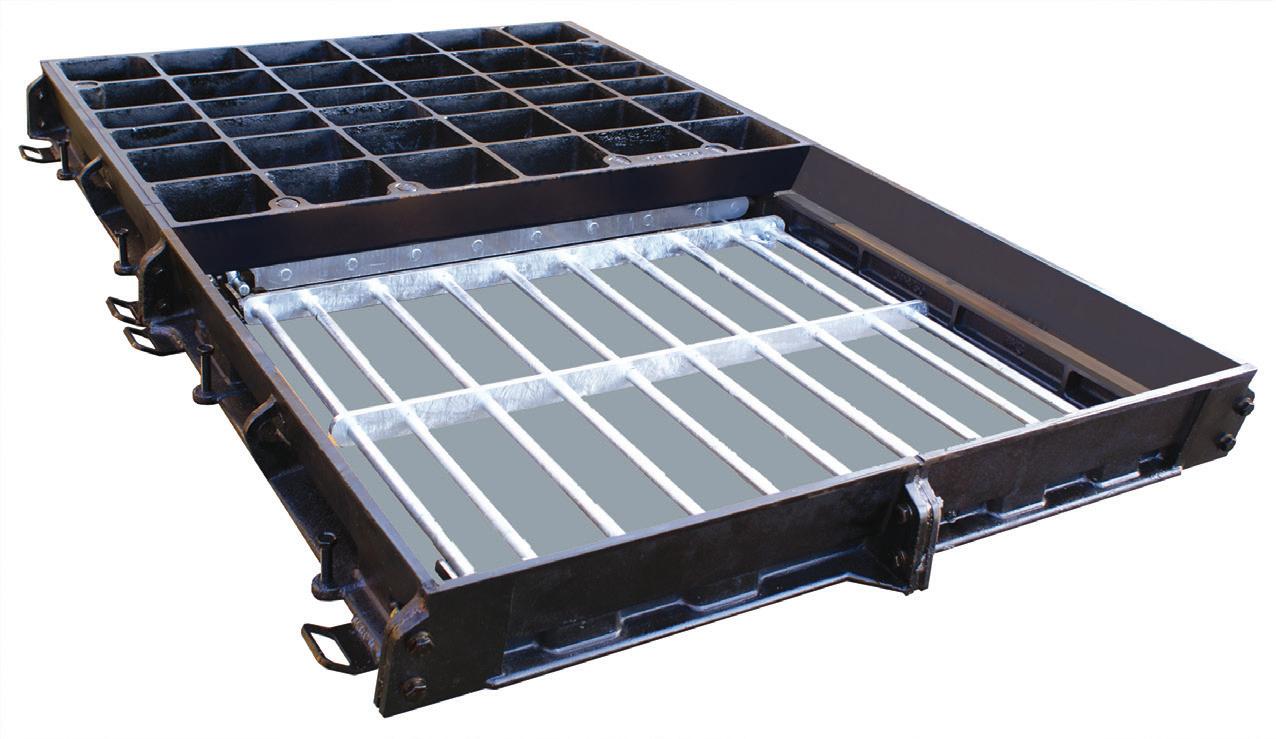

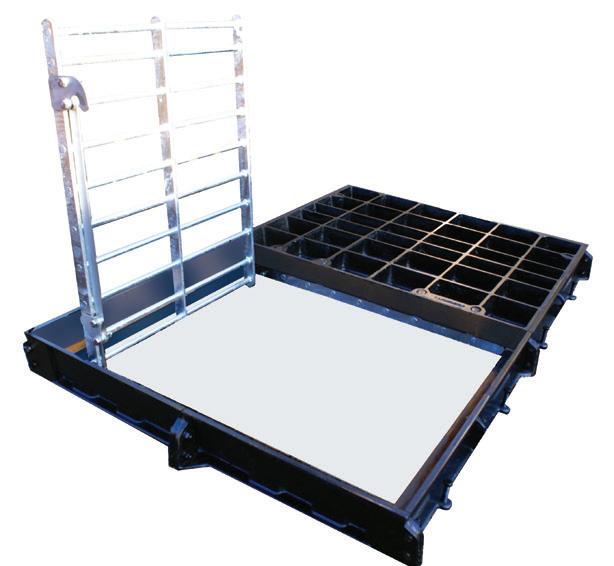

Hinged security grids
Gatic covers can be supplied with mild steel galvanised security grids when required. Once the cover is removed, the security grid can be hinged to the vertical position where it will lock safely in place. Security grids can be locked in a closed position by using customer-supplied padlocks.
Hinged security grills can be fitted to all gatic units from single covers to multispan.
Alternative finish galvanised covers and gratings
Gatic covers and gratings are supplied painted with black bituminous paint as standard. This acts as temporary protection during transit. Where additional protection is required, Gatic ductile iron covers can be supplied galvanised to BS EN ISO 1461. Refer to Gatic technical department for more information.

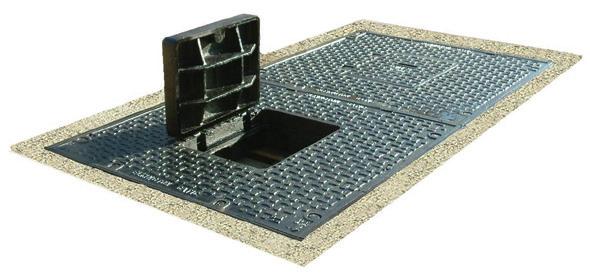

Hinged hydrant covers
Hydrant lids can be supplied as single covers or set into a larger cover. This provides localised access without removing the larger cover. Hydrants fitted within larger covers are 400 x 300 clear opening, centrally positioned. Can be incorporated into Multi-part Cover Systems.

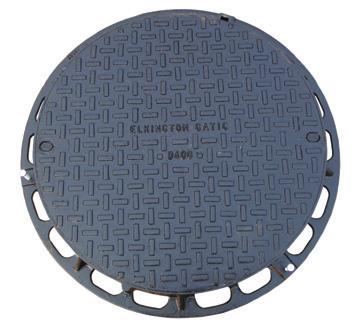

Solid top circular covers
Suitable for up to F900 loading.
To specify state: 1. Loading group 2. Pit clear opening size 3. Cover type
