Introduction

This section includes Gatic covers and frames designed for Loading Group B125.

3 tonne wheel load, test load 125kN – Suitable for:

• Footways

• Pedestrian areas

• Car parks

• Driveways

• Internal floors

Range

B125 assemblies are available with a choice of cover designs – recessed or solid top.

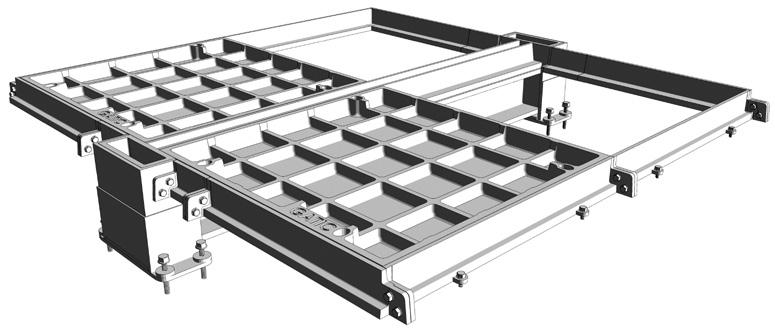

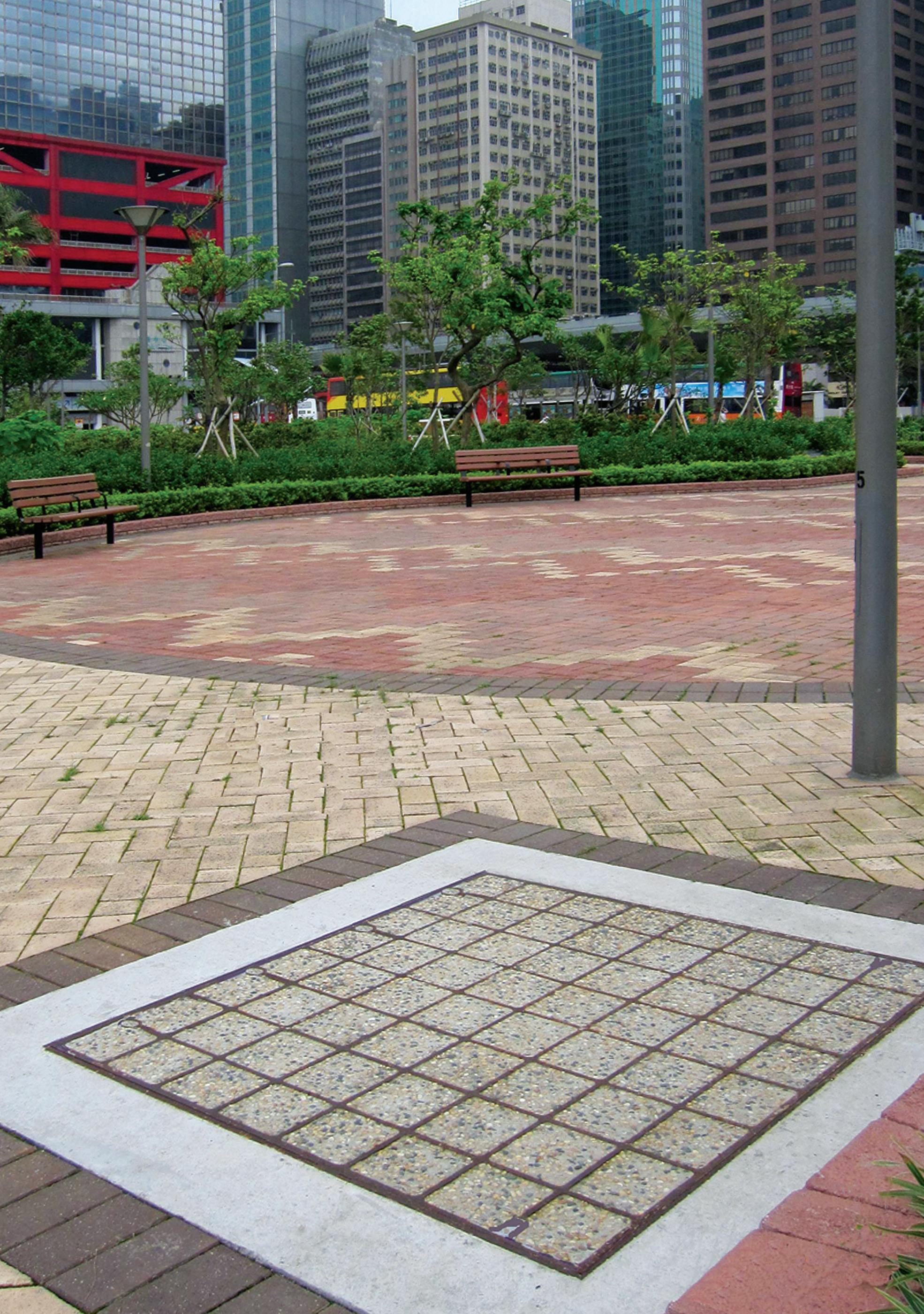

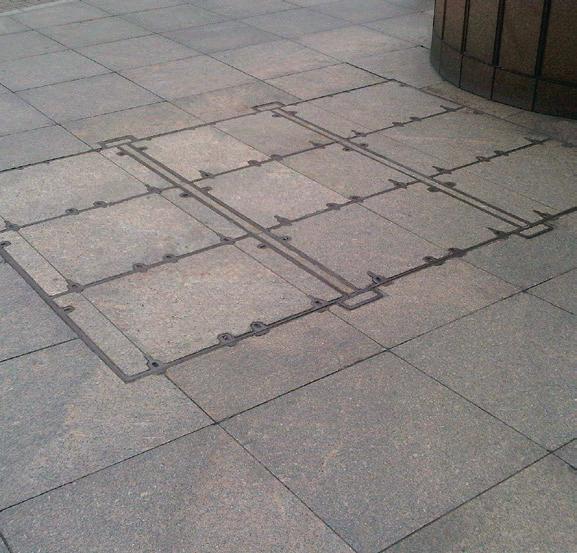

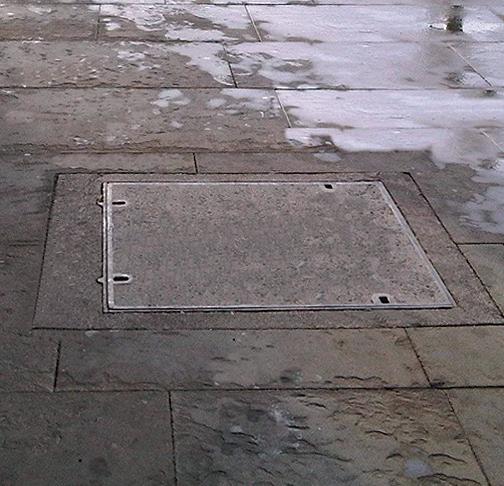

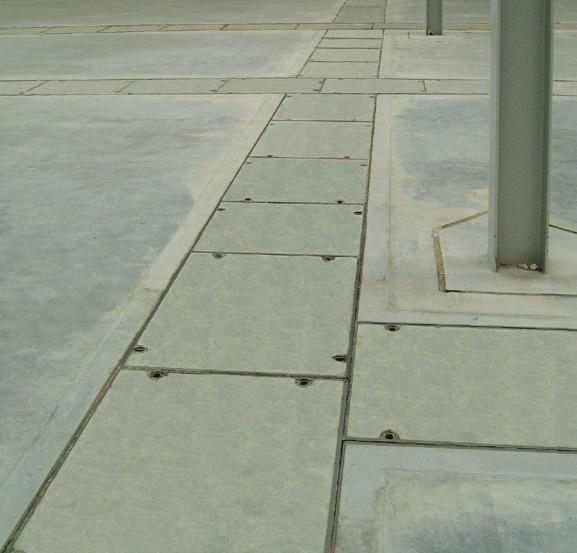

Recessed for concrete infill

Recessed covers are available in a choice of designs designated by a ‘Type’ reference. B125 recessed covers are available as Type DL, DLF and DM/F. Section drawings of the different recessed cover types are shown on the following pages.

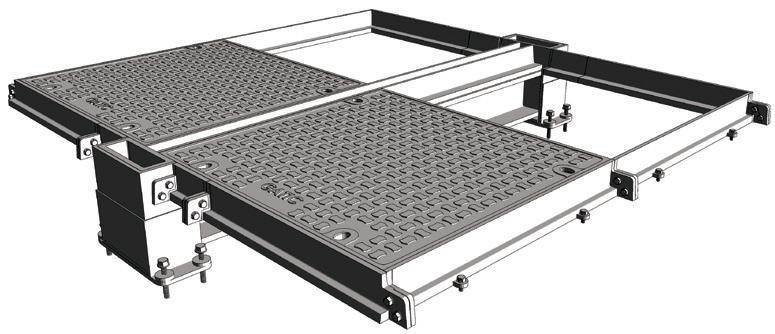

Solid top

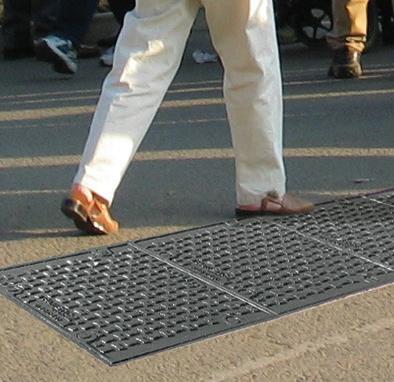

Solid top cover types are lighter in weight than recessed covers, and feature an anti-slip surface. Solid top covers are denoted by the code Type DLS and RSD depicted in section on the following pages.

If you are uncertain as to the adequacy of covers conforming to a particular loading, we recommend specifying covers in a higher loading group. For example, if in doubt about covers in Loading Group B125, we recommend you specify covers in Loading Group C250.
