WPP Toronto Campus Toronto, Canada

202,714 sq. ft.

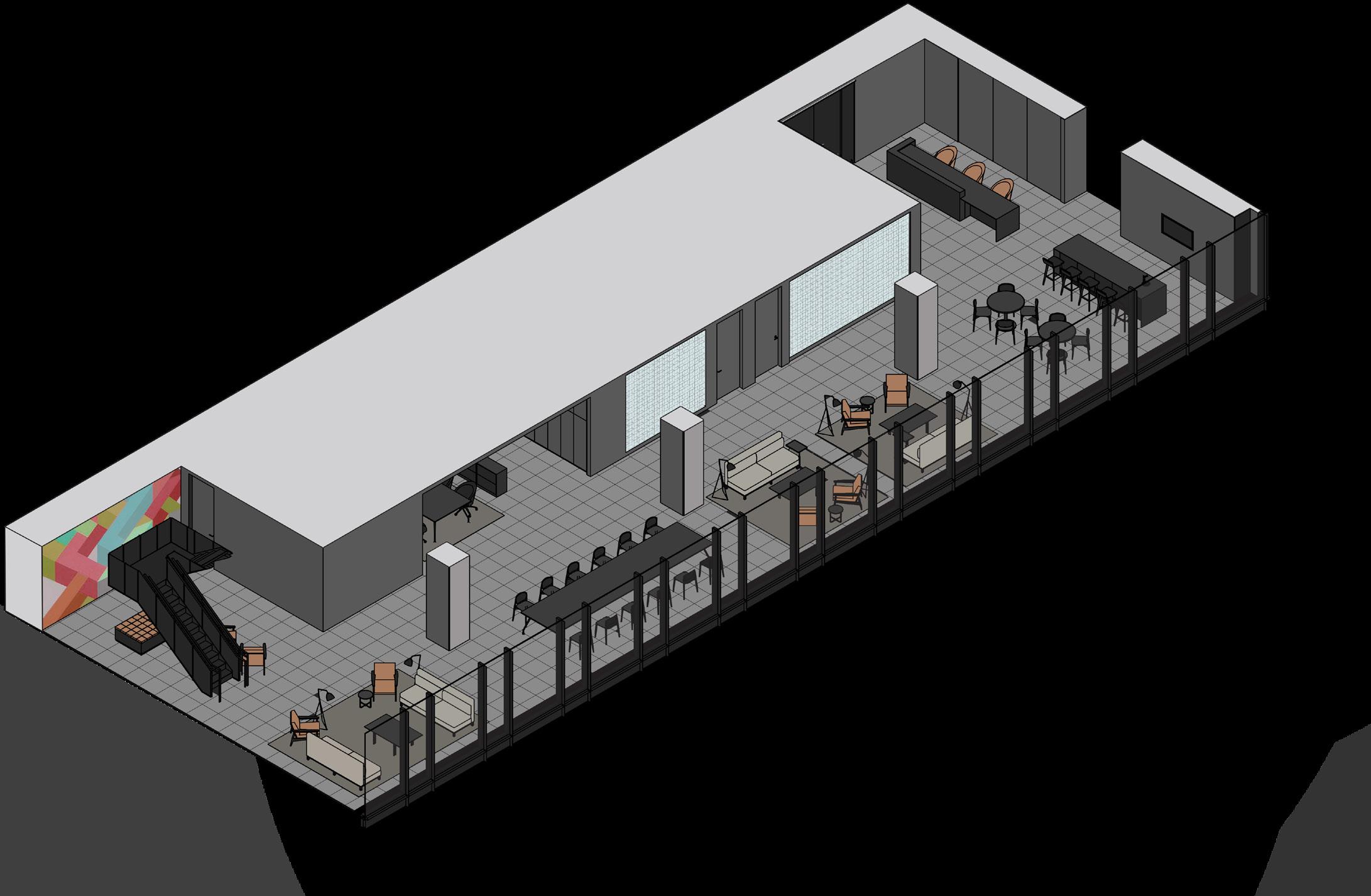

A multi level creative campus housing 25+ operating companies. The approach to the design begins by purposefully revealing the existing building fabric, pushing the base build finishes and potential for inter-connectivity as far as possible.

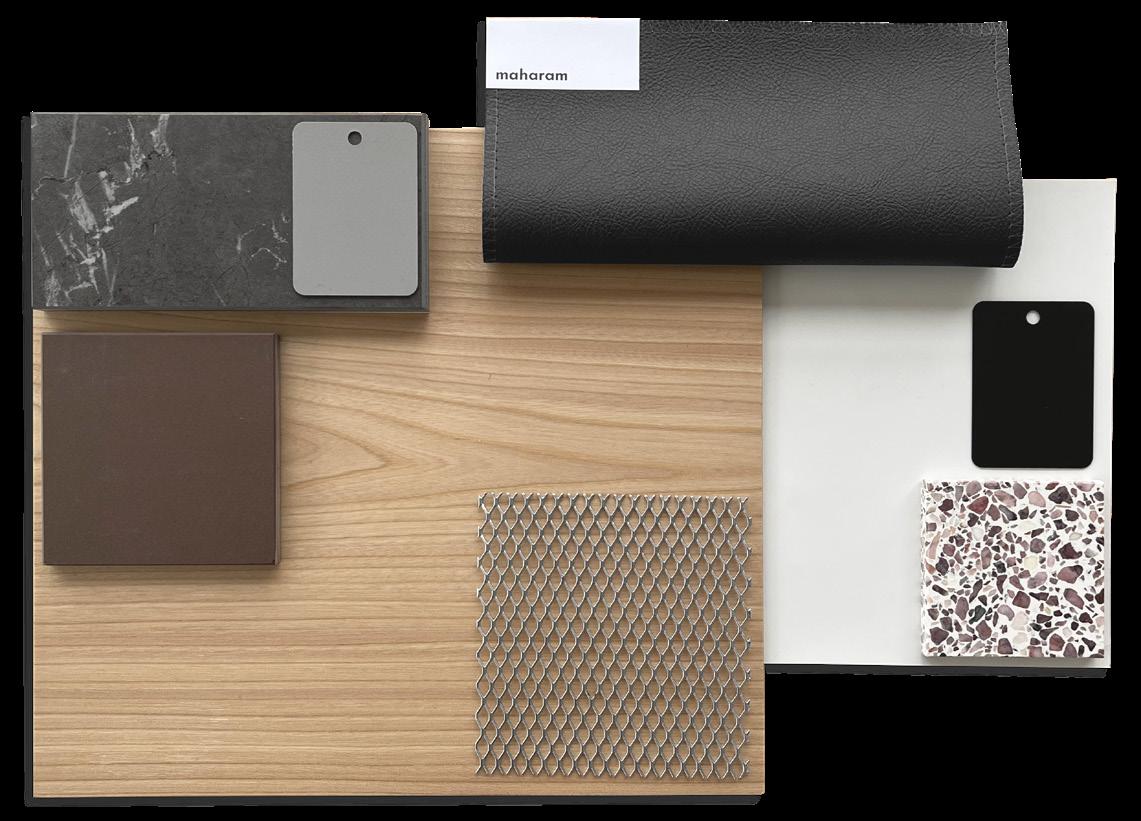

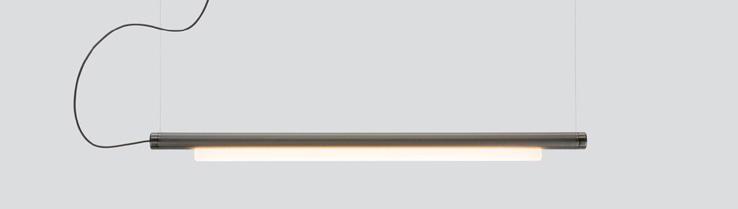

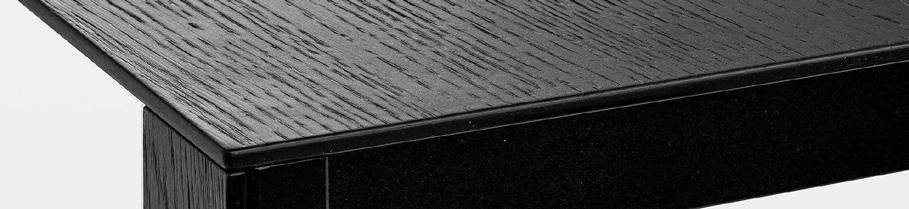

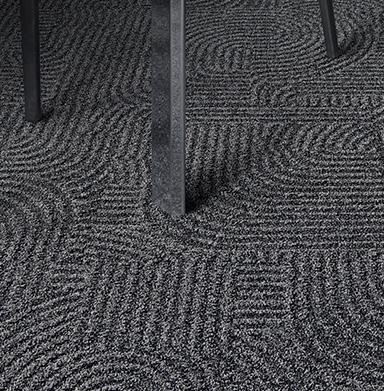

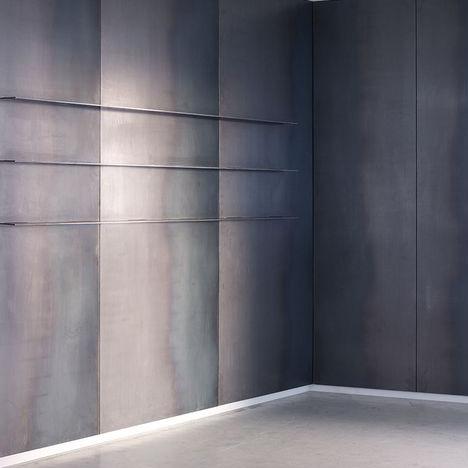

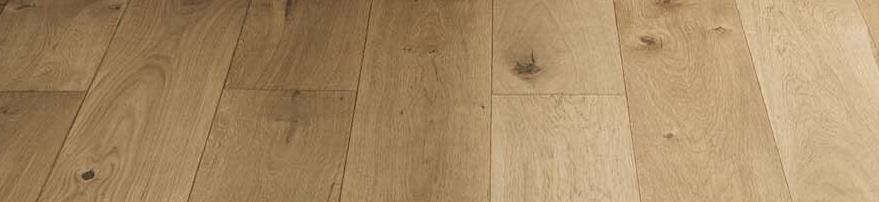

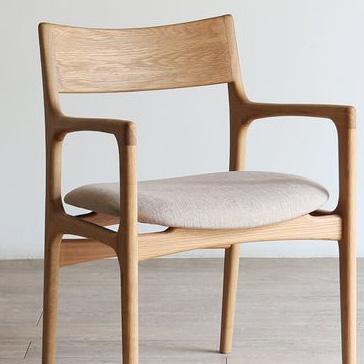

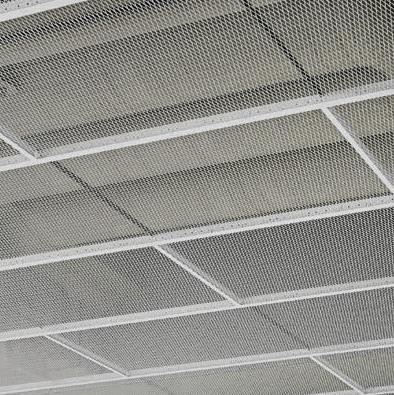

Finish Palette & Distribution

The project’s beach front location emerged as a defining element for the design. The contrast between nature and industry at the site provides potential for a simple architectural palette that can be applied to define the program and a variety of spaces within the campus.

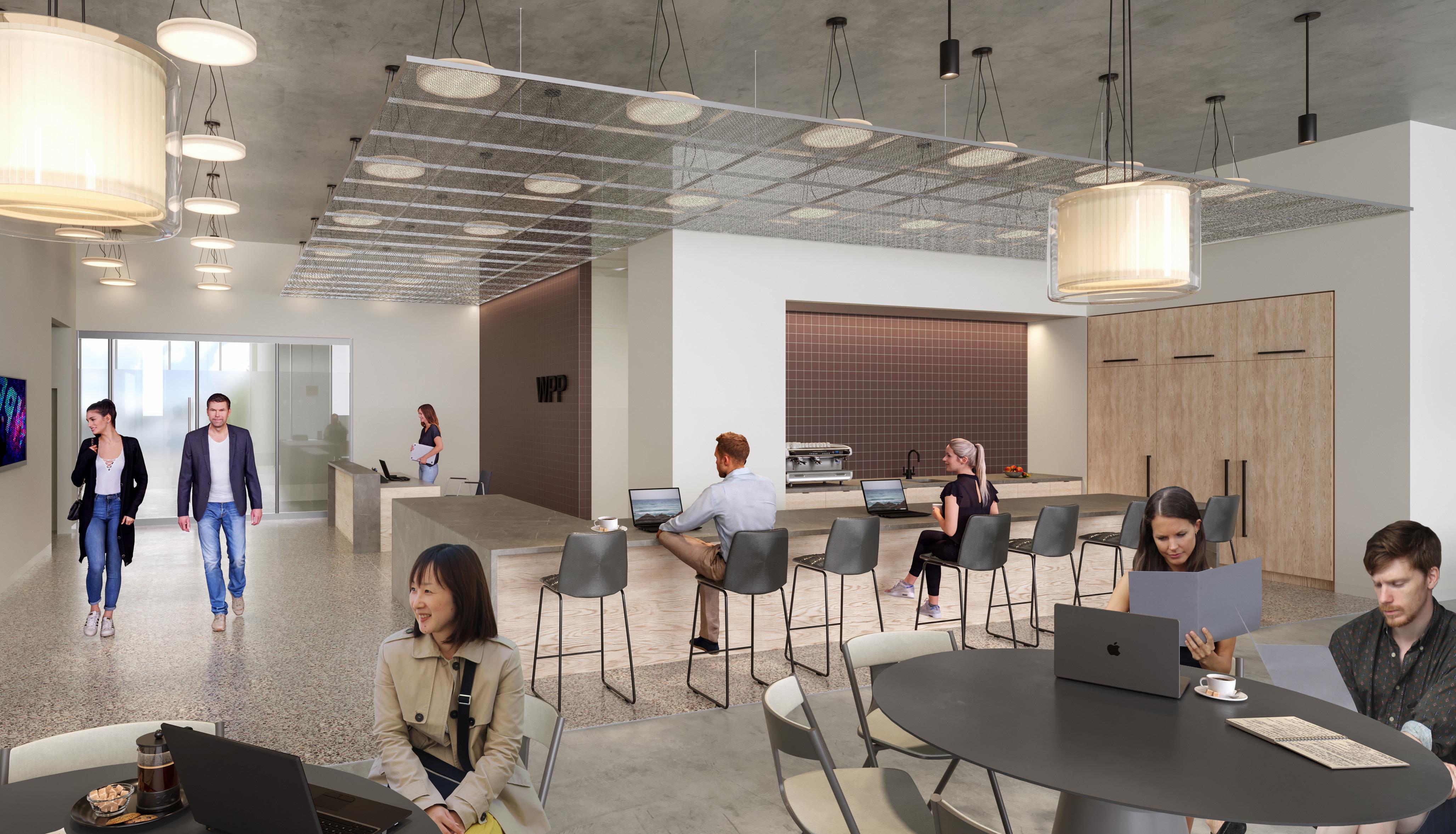

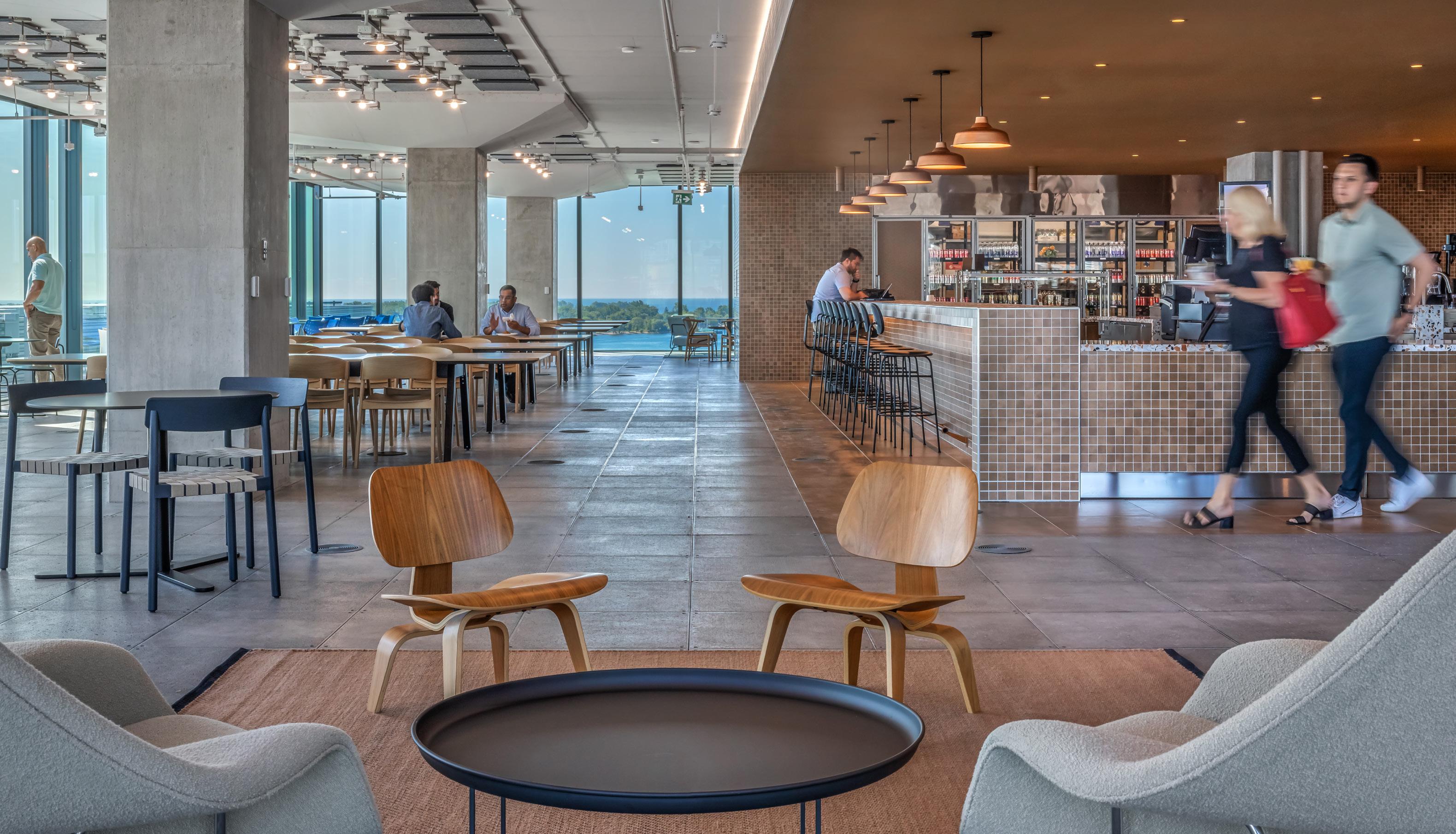

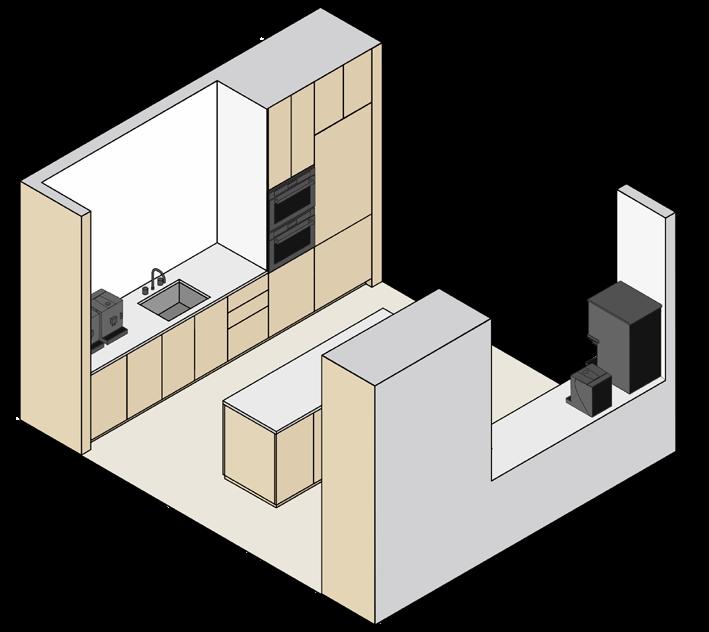

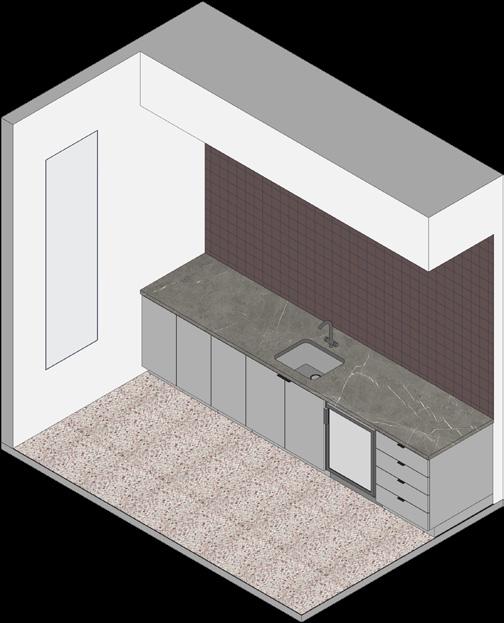

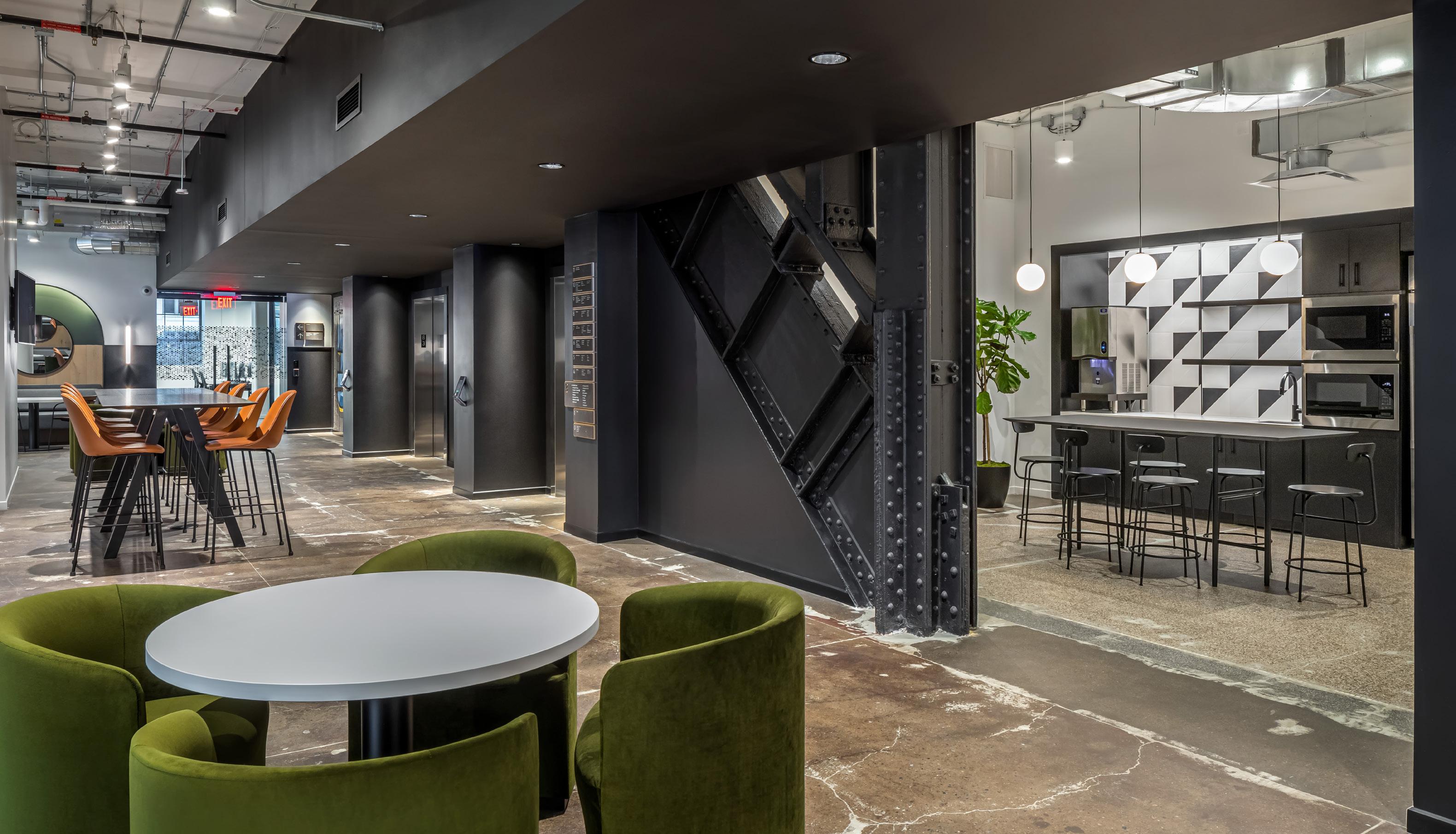

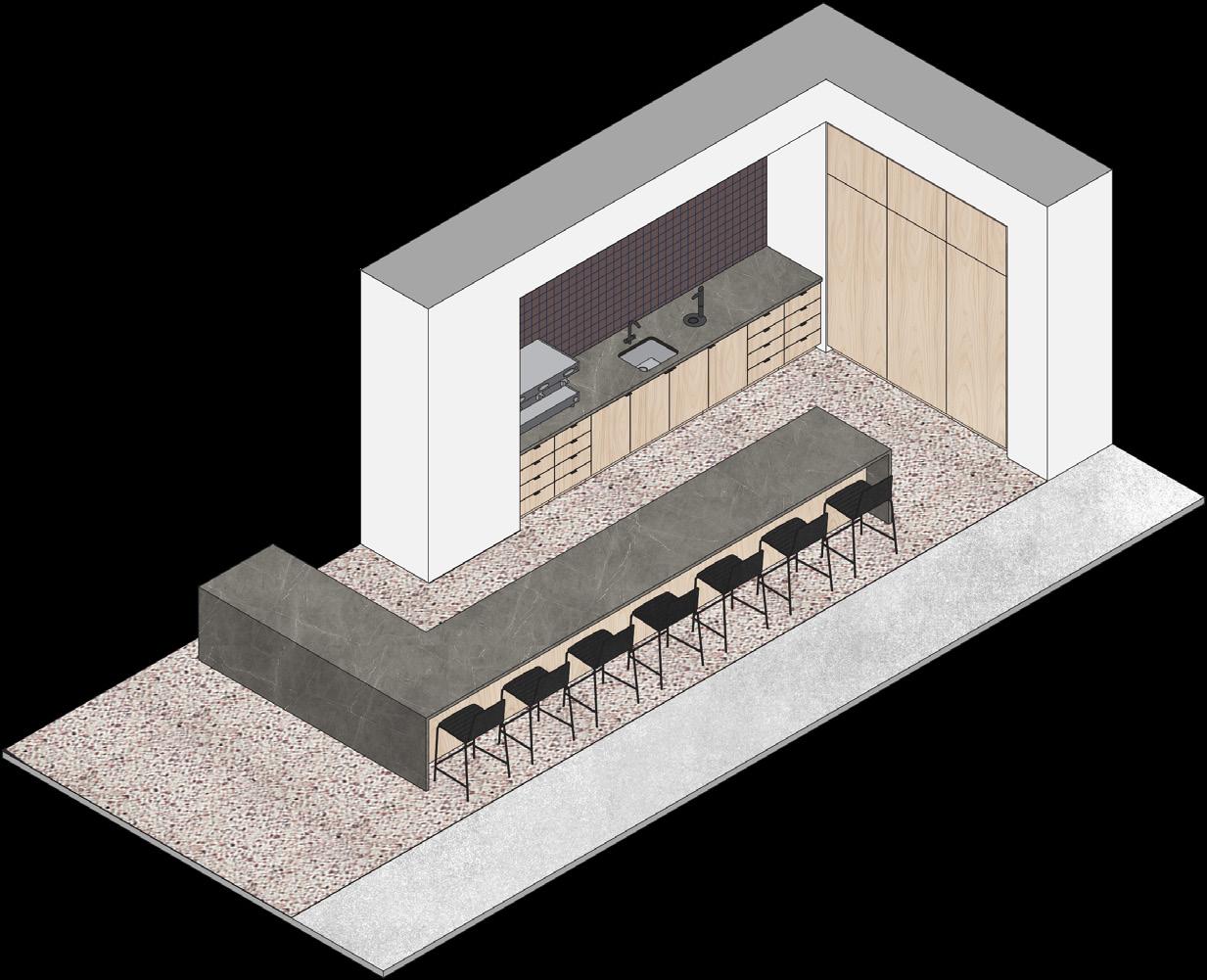

Pantry

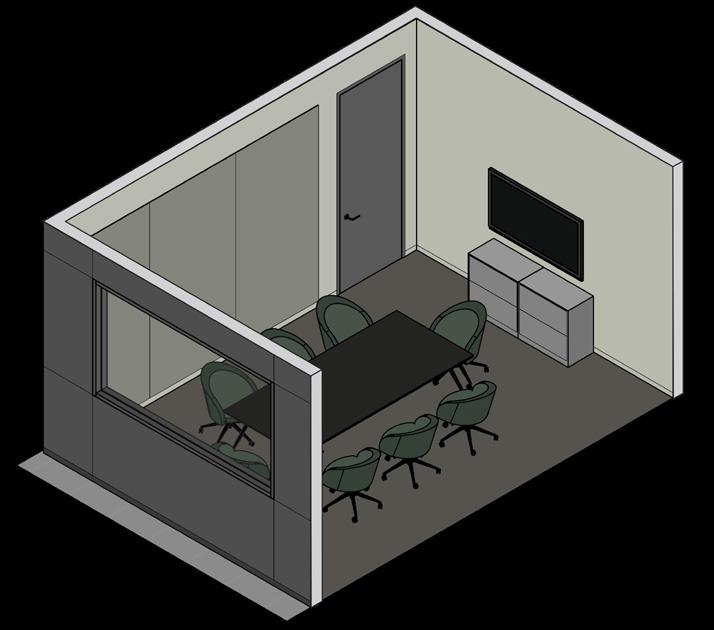

Meeting Room - Natural

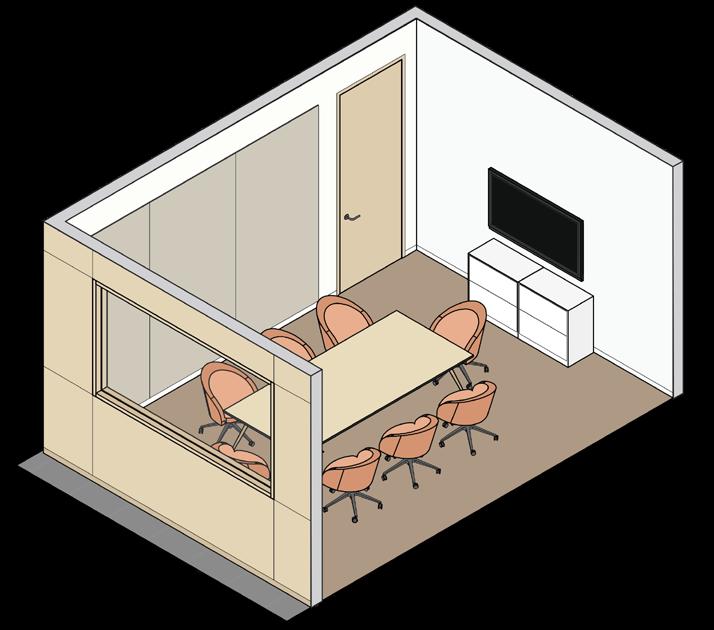

Meeting Room - Industrial

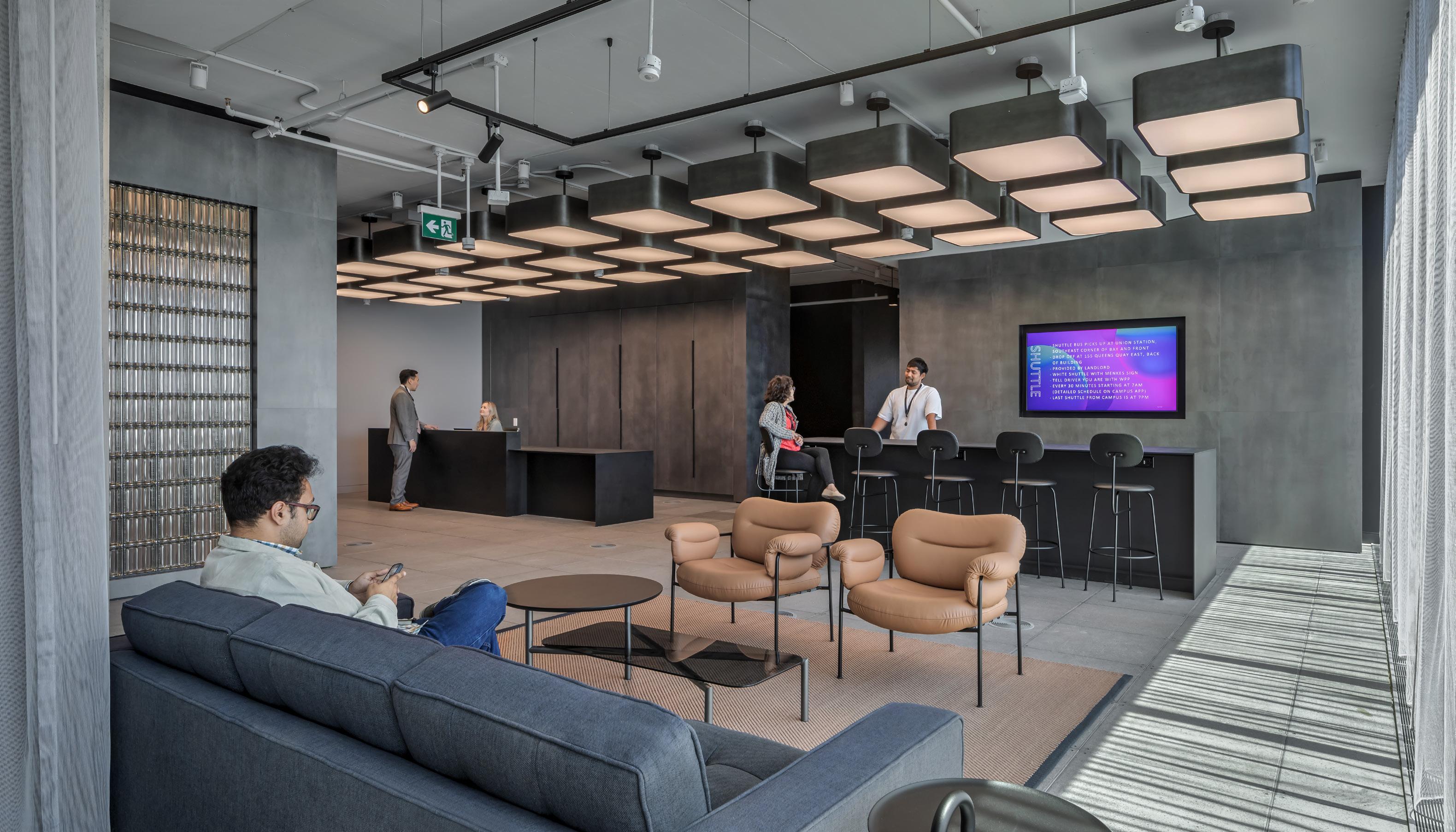

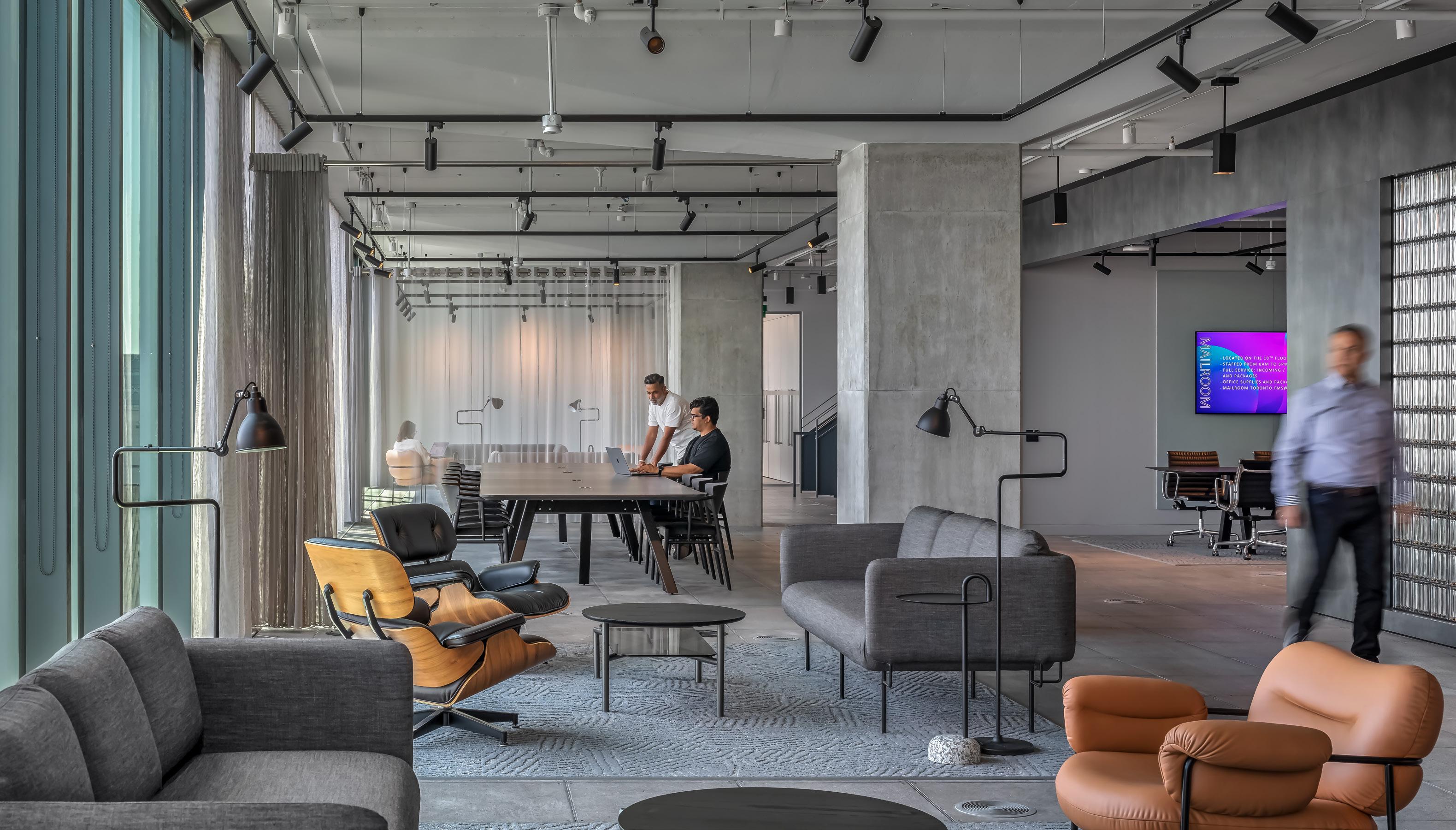

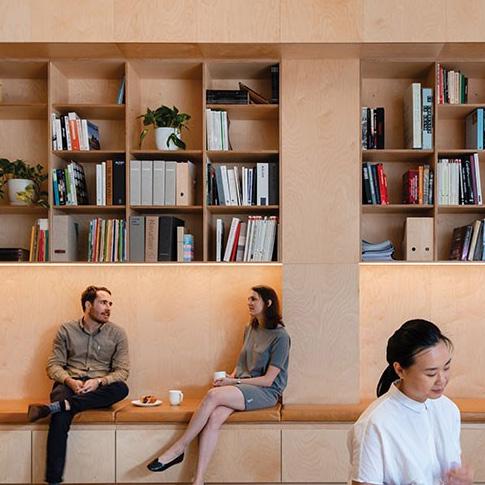

Reception & Client Lounge

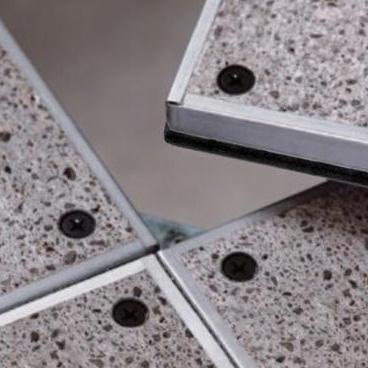

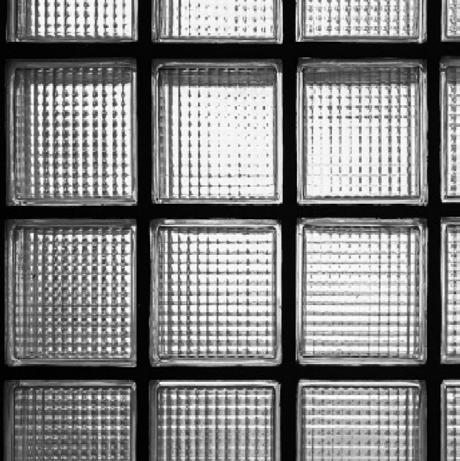

Glass Block Partition Detail

steel angle - fixed to slab

cove light - ref. lighting consultant

metal stud - additional acoustics

plywood panel w metal sheet fixed to face

plywood panel fixed via z-clip

mitered edge to plywood panel & metal sheet

vertical metal plate at various intervals throughout elevation

support required below raised access floor

+ 96’’ FFL + 130’’ FFL FFL

LEGO

Boston, USA

99,110 sq. ft.

An office space for a well-known toy manufacturer, that reflects the brand and its playful identity.

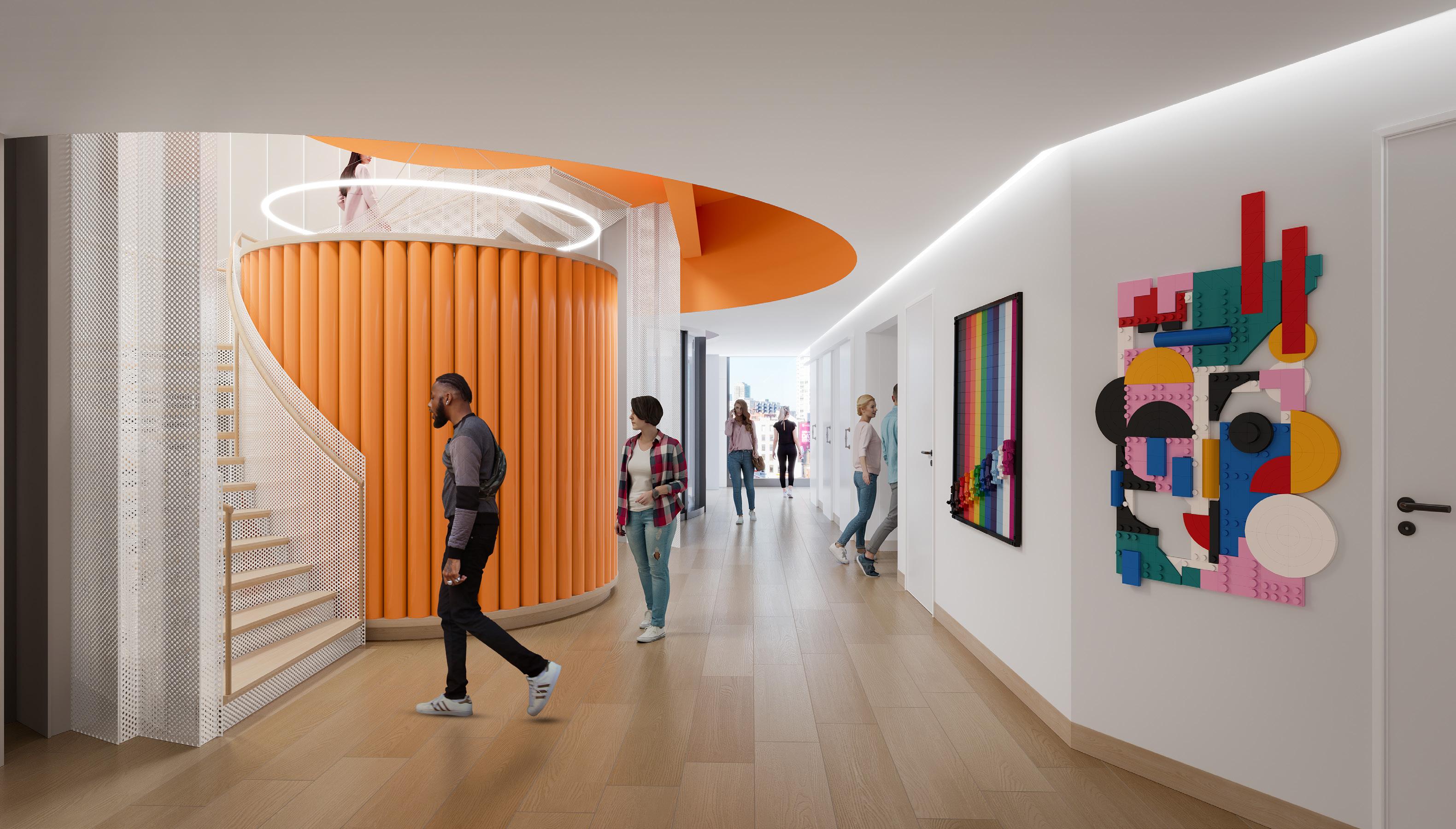

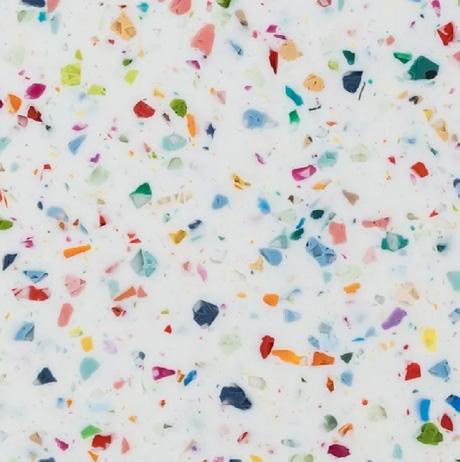

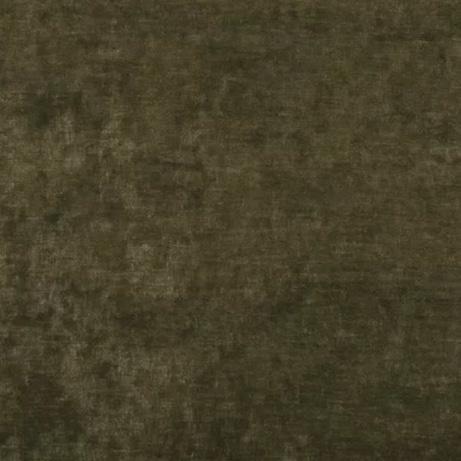

Finish Palette

The design references the brand’s bright and colorful product, while also paying homage to its history through the inclusion of natural elements.

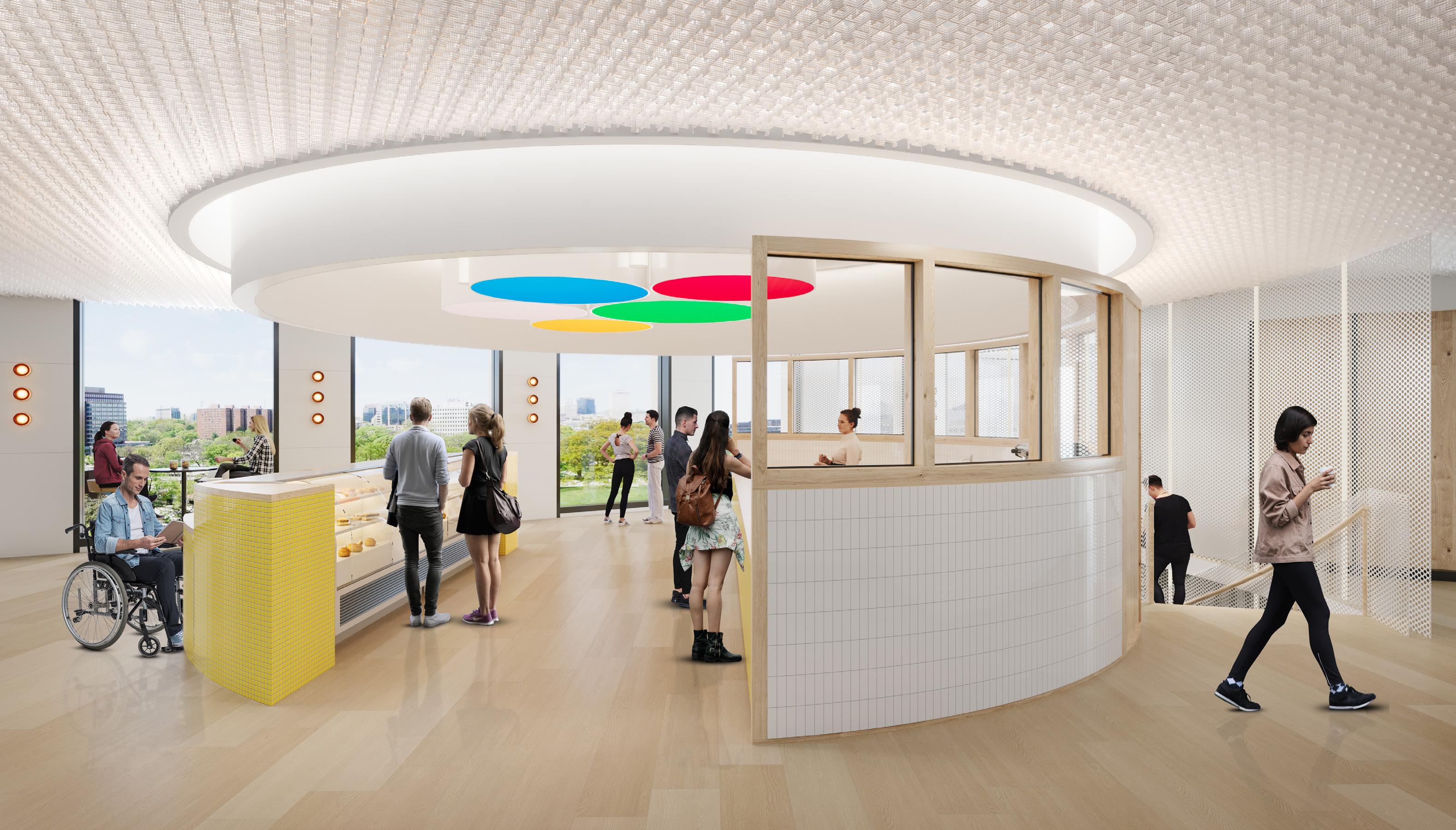

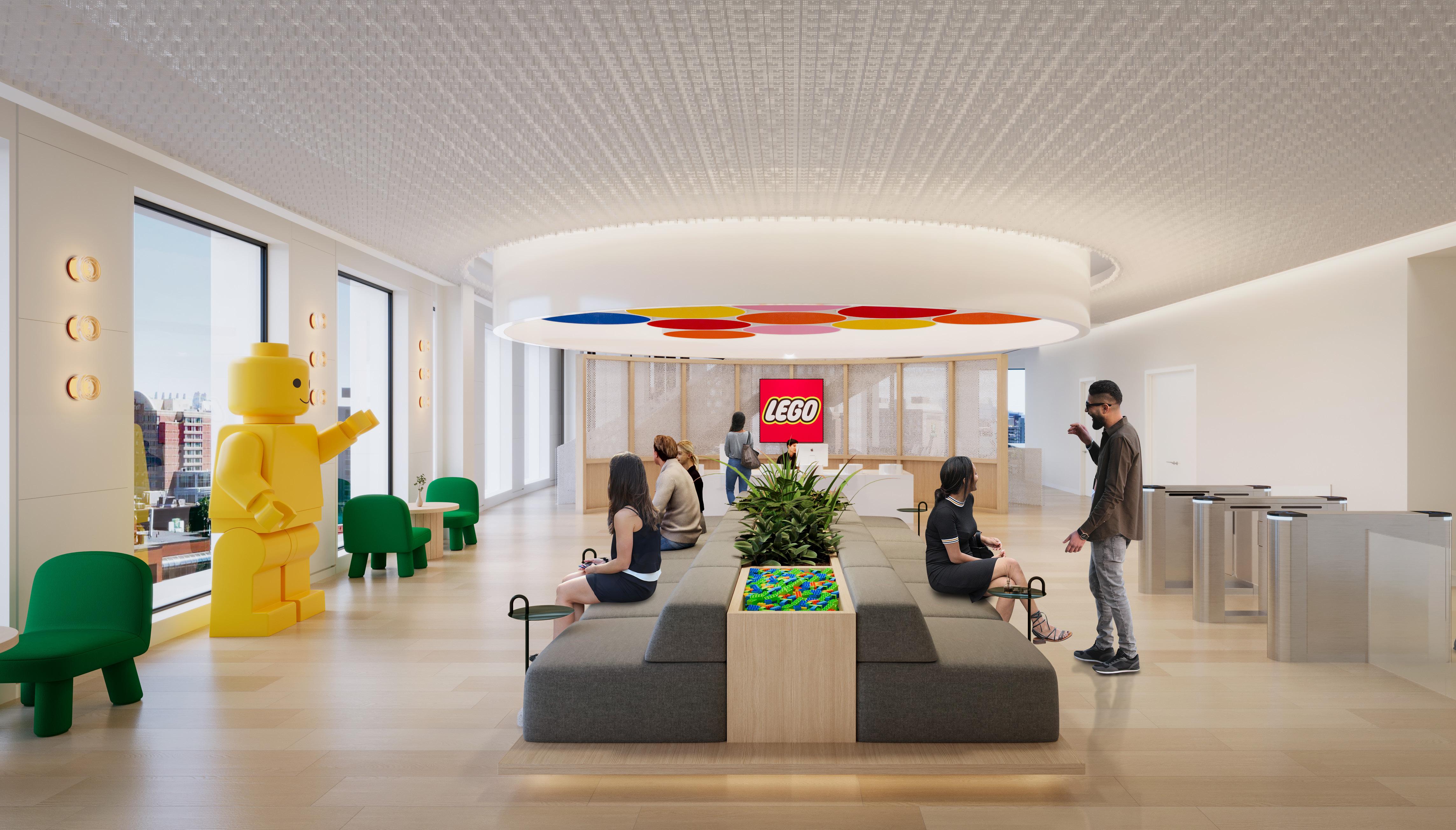

Reception Desk

RECEPTION DESK ETCHED SOLID SURFACE SECTION

PROVIDE (2) GROMMETS: MOCKETT YG3 - 3-1/2" FLIP-TOP COLOR: WHITE

PLYWOOD SUBSTRATE

SCHEDULED OUTLET, WHERE OCCURS. PROVIDE WIRE MANAGEMENT TROUGH BY HUMANSCALE: 24'' NEATLINKS COLOR: GRAY

DRAWER SLIDER

CABINET PULL

SCHEDULED 1/2'' SOLID SURFACE W/ MITER CORNER, TYP.

LAMINATED PLYWOOD

FRAMING, BLOCKING AS REQ'D.

1/4'' SHADOW GAP, TYP.

IN DRAWER USB A/C RECEPTACLE W/ USB-A, USB-C

SCHEDULED OUTLET PANIC BUTTON AND DOOR RELEASE

SCHEDULED FINISH ON 3/4'' SUBSTRATE, FINISH ON ALL SIDES.

MELAMINE INTERIOR

CL CL PAINT CEILING FEATURE, REFER TO RCP PAINT EQEQ EQ EQ MILLWORK LEGO SEE 5 LEVEL 08 RECEPTION DESK AXON 1/2" =

4 LEVEL 08 RECEPTION SEATING -ELEVATION 2

SHADOW

TYP.

1'-0"

1/4''

GAP,

SCHEDULED BASE 3" 4 S E E E L E V A T I O N 1 1 / 2 FRAMING, BLOCKING AS REQ'D. PLYWOOD SUBSTRATE SCHEDULED 1/2'' SOLID SURFACE W. MITERED CORNER, TYP.

1' 7" 9 3 / 4 " 4 A-971

1' 7" 2' - 8" 1' 7" 3/4'' ALL BEYOND NOTE: Dimensions Contractors Construction discrepancies manufacturing items. Full Seal Rev © Copyright 2024 BDG Design Title: Scale: Drawn Project Key As DETAILS SW CONSTRUCTION 1

1 RECEPTION

1 1

2 RECEPTION

12"

004/19/2024ISSUED

1/2" = 1'-0"

DESK SECTION

1/2" = 1'-0"

DESK SECTION 2

= 1'-0"

D U U U C A U U U D D D G G G G G G G D D ALIGN ALIGN A-711 4 A 712 A-712 3 A-712 4 1 A-975 EQ-01 R 145 " EQ-01 P-1/P-2 EQ-01 P-11 EQ-04 EQ-03 EQ-05R A-712 1 PANTRY 8-S10 HOLD 2 - 0 HOLD 2 - 0" 3 - 0" 2HOLD -0 3 -0 HOLD 20 2EQA ± 8 - 11 4 3EQA 26 " 50 " 6 '11 " 31 2' 0" 1' 11" A-976 © Copyright 2024 BDG Design 1/2" = 1'-0" LEVEL 08 PANTRY -ENLARGED PLAN 2 LEVEL 08 PANTRY -AXONOMETRIC Pantry D D U U U U C U U U PT (F)A D D D G G G D G G G G D D D CL ALIGN ALIGN A-711 4 A-712 2 A-712 5 A-712 3 A-712 4 1 A-975 EQ-01 R 145 EQ-01 P-1/P-2 EQ-01 P-11 EQ-04 EQ-03 EQ-05R EQ-05R EQ-05L A-712 1 PANTRY 8-S10 HOLD 2 - 0 HOLD 2 - 0 3 - 0" 2HOLD -0 " 3 -0 HOLD 20 " 2EQA ± 8 - 11 1/4 3EQA 26 " 5 '0 611 611 31 31 R18 - 11 2' 0" 1' 0" 1' 11" A-976 4 1 1/2" 2'6 1/2" 4" CUSTOM MILLWORK. REFER TO DETAIL DWG. GCL-03C 9' -0" OPC-02 CIRCULAR CEILING FASCIA (INTERIOR EXTERIOR) & BOTTOM EDGE TO BE PAINTED TO MATCH GCL CEILING TYPE HIGH-GLOSS FINISH HIGH-GLOSS FINISH FASCIA PAITNED TO MATCH OPC-02 7 A-941 TEL: E-mail: TEL: E-mail: TEL: E-mail: TEL: E-mail: TEL: E-mail: TEL: E-mail: TEL: E-mail: TEL: E-mail: TEL: E-mail: NOTE: Dimensions are not to be scaled from Contractors must verify all dimensions Construction coordination the responsibility discrepancies to be reported BDG manufacturing drawings are to be provided items. This drawing is the property of Full terms & conditions are available Seal Drawing No. Communications Design Wayland MA, 01778 (339) 502-6551 AUDIO VISUAL 321 Commonwealth Road, mgoldman@cdaconsultants.com SYSKA HENNESSY GROUP BOSTON MA, 02109 (617) 577-9900 MEP/FP/IT/SECURITY 10 Post Office Square, info@syska.com LEGO ENFIELD CT, 06082 (800) 838-9647 CLIENT 100 Print Shop Rd, Rev Date © Copyright 2024 BDG Design and MOA, All Rights Title: Scale: Drawn By: Project Phase: Key Plan: LUX Collaborative, LLC BROOKLYN NY, 11201 (929) 628-6777 LIGHTING 195 Plymouth Street, kyle@luxcollaborative.com MOBILE OFFICE ARCHITECTS, SEATTLE WA, 98146 (206) 999-2659 ARCHITECT 11534 28th Ave SW info@mo-arch.com BDG DESIGN LLC BROOKLYN NY, 11201 (646) 747-0000 DESIGNER 20 Jay St, Suite 1105 YatinPatel@bdg McNamara Salvia BOSTON MA, 02110 (617) 737-0040 STRUCTURAL ENGINEER 101 Federal Street, Suite bhilton@mcsal.com TRUEPHONIC NEW YORK NY, 10003 (646) 250-5376 ACOUSTICS 228 Park Ave S #89339 ssockey@truephonic.com RedGate BOSTON MA, 02110 (206) 999-2659 PROJECT MANAGER 265 Franklin Street, 6th mark.andrews@redgate 1/2" = 1'-0" A-711 ENLARGED AREA PANTRY SW CONSTRUCTION 1/2" = 1'-0" 1 LEVEL 08 PANTRY -ENLARGED PLAN 2 LEVEL 08 PANTRY -AXONOMETRIC 1/2" = 1'-0" 4 LEVEL 08 PANTRY ISLAND -UNROLLED / PROJECTED ELEVATION 1/2" = 1'-0" 3 LEVEL 08 PANTRY -ENLARGED CEILING PLAN 004/19/2024ISSUED FOR

TDRAWERINTERIOR OMATCHSEXTERIOR CHEDULEDFINISH

REFERTOELEVATION

TDRAWERINTERIOR OMATCHSEXTERIOR CHEDULEDFINISH

LC C L CL C L CL 5 30° 1 -4 1 -4" 1 -4 TYP3/4"

30° NOTE: INTERIOR PORTION OF ISLAND ON CASTORS. TO FIT WITHIN ISLAND NICHE 1/4'' BACK PANEL DASH LINE INDICATES COUNTERTOP ABOVE. HAFELE MATRIX DOUBLE WASTE BIN PULL OUT ITEM NO: 503.15.724 1/4'' BACK PANEL PULL OUT WASTE DRAWERS STRUCTURAL FRAMING; PROVIDE WOOD BLOCKING AS REQ'D. STRUCTURAL FRAMING; PROVIDE WOOD BLOCKING AS REQ'D. SCHEDULED FINISH ON 3/4'' SUBSTRATE OPEN SHELVING DASH LINE INDICATES COUNTERTOP ABOVE POKE THRU 1 A-976 2 A-976 3 A-976 TYP 3 4"

1/2'' END PANEL 1 1 2 1 1 / 2 1 1/2" = 1'-0" 3 LEVEL 08 PANTRY ISLAND PLAN SECTION

Island

(5)EQUALSECTIONS

Pantry

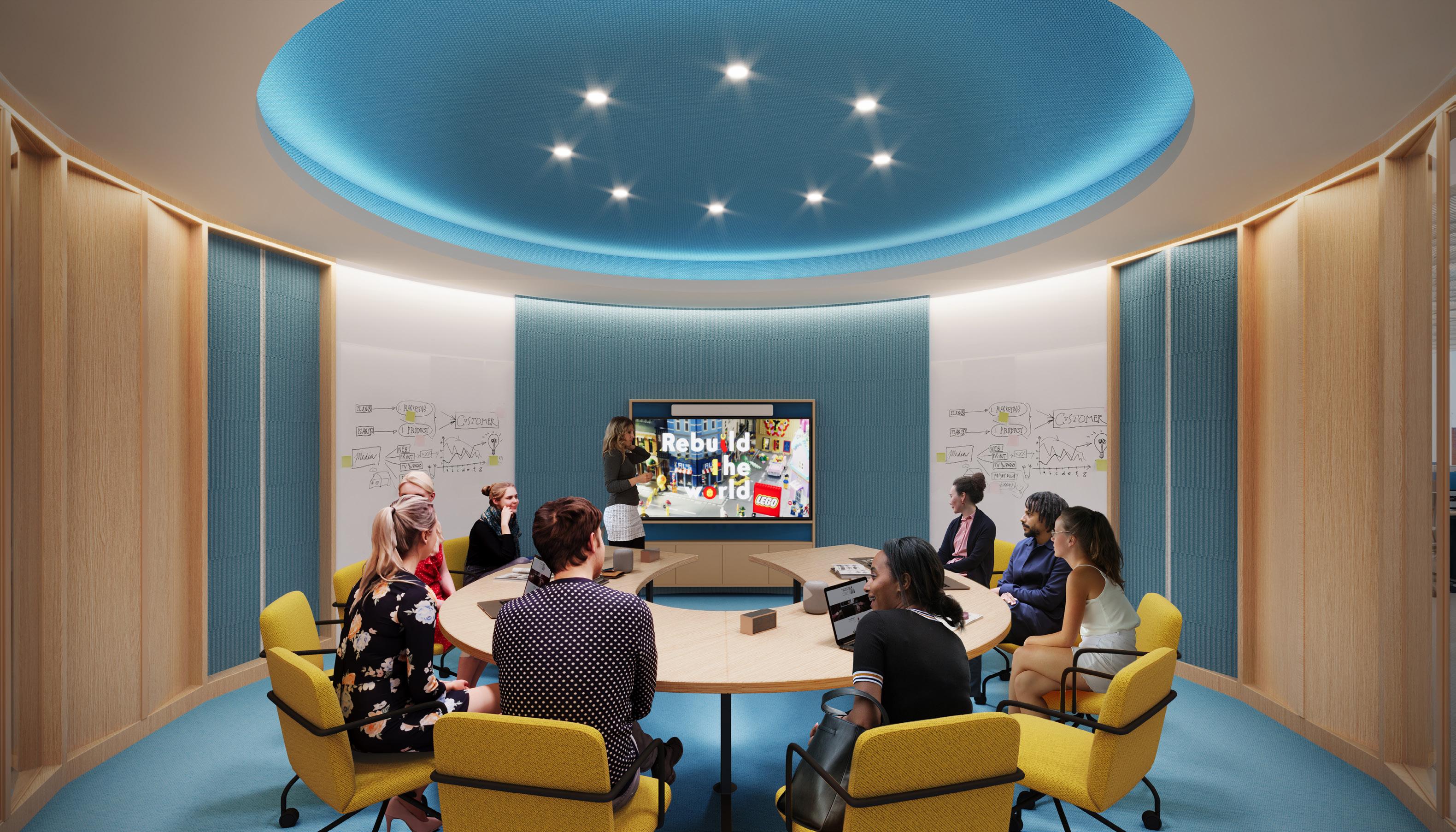

Circular Conference Room

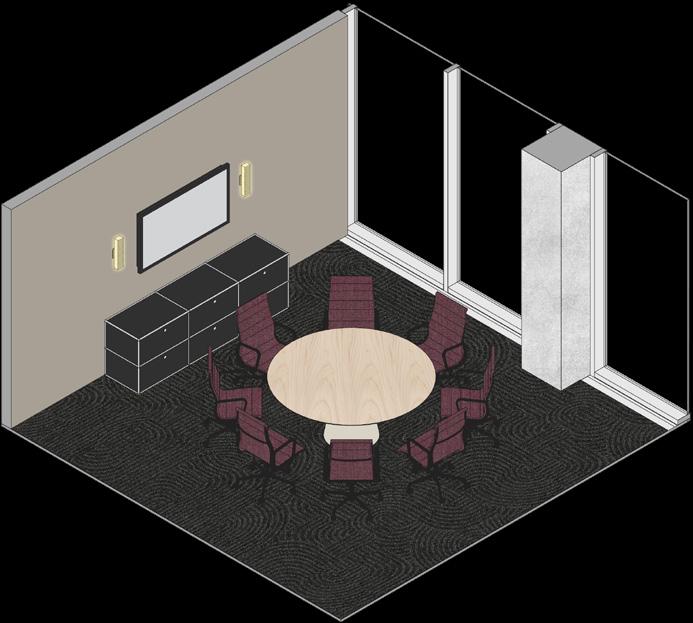

MEDIUM ROUND MEETING ROOM AXON

ALIGN W/ BRICK TROUGH L U LEGO BASEPLATE PANEL WRITABLE PAINT TRACK FABRIC SYSTEM EQ EQ BASE EQ EQ C O O R D 2" MIN. A-950 4 (2) LEGO BASEPLATE 3" 3" A-978 ALIGN W/ SWITCHES & STROBE TYP. DEMOUNTABLE 6 MEDIUM ROUND MEETING ROOM AXON 1/2" = 1'-0" MEDIUM ROUND MEETING ROOM A-ELEVATION 1 REFER TO PLAN FOR DP DIMENSIONS REFER TO PLAN FOR DP DIMENSIONS CL CL CL ALIGN CL TRACK FABRIC SYSTEM WOOD SCREEN NICHE W/ BRICK TROUGH BASE H O L D 8 C O O R D W / A V E Q U I P 38 H O L D 5 " 2" MIN. 2" MIN. M I N 2 C O O R D W / A V E Q U I P 4 '3 " EQ EQ COORD W/ AV QEUIP 5' 0" EQ EQ DEMOUNTABLE PARTITION TYP. 8" R E F E R T O R C P 4 ( 1 0 ) L E G O B A S E P L A T E H I G H (2) LEGO BASEPLATE WIDE LEGO BASEPLATE PANEL 8 A-978 WRITABLE PAINT ALIGN W/ SWITCHES & STROBE 3" 3" 6

1/2" = 1'-0" 4 MEDIUM ROUND MEETING ROOM A-ELEVATION 1 REFER TO PLAN FOR DP DIMENSIONS

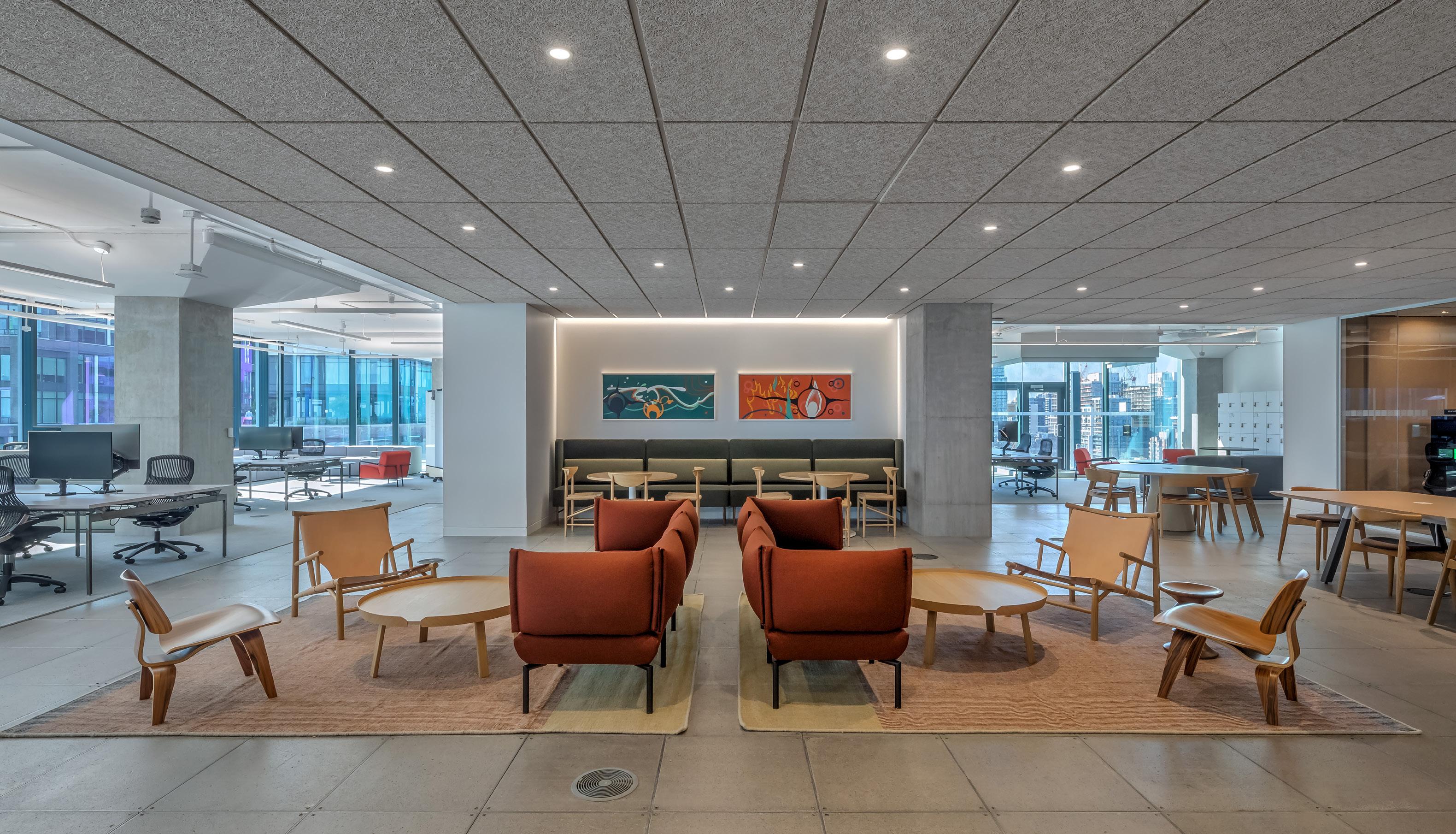

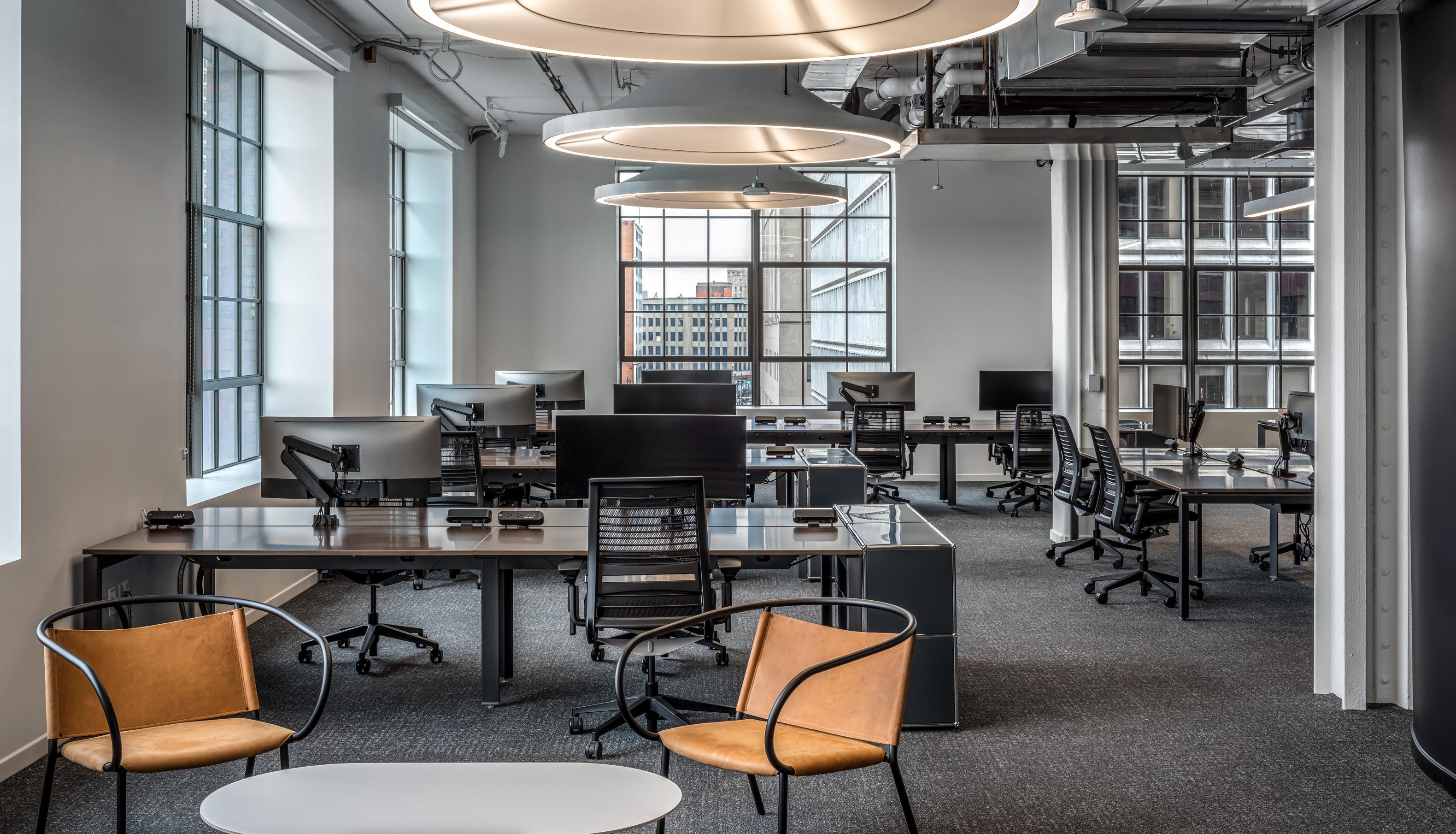

WPP Cincinnati Campus Cincinnati, USA

44,095 sq. ft.

A flexible and connected workspace for several ad agencies.

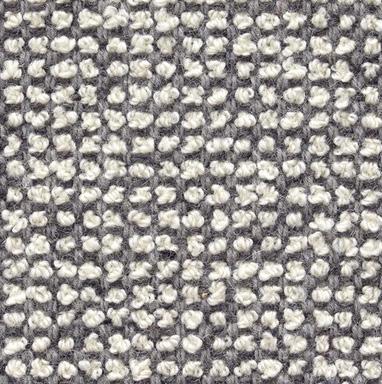

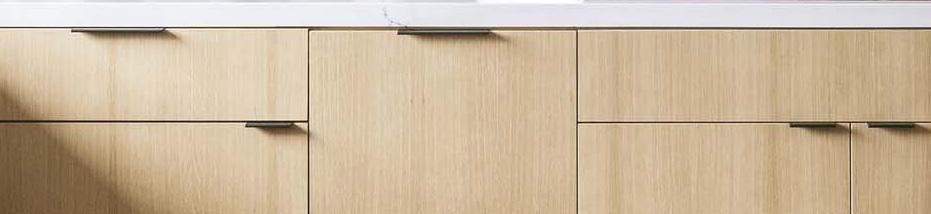

Finish Palette

The project’s finishes celebrate the city’s unique character and architectural history.

Pantry

Wellness Suite

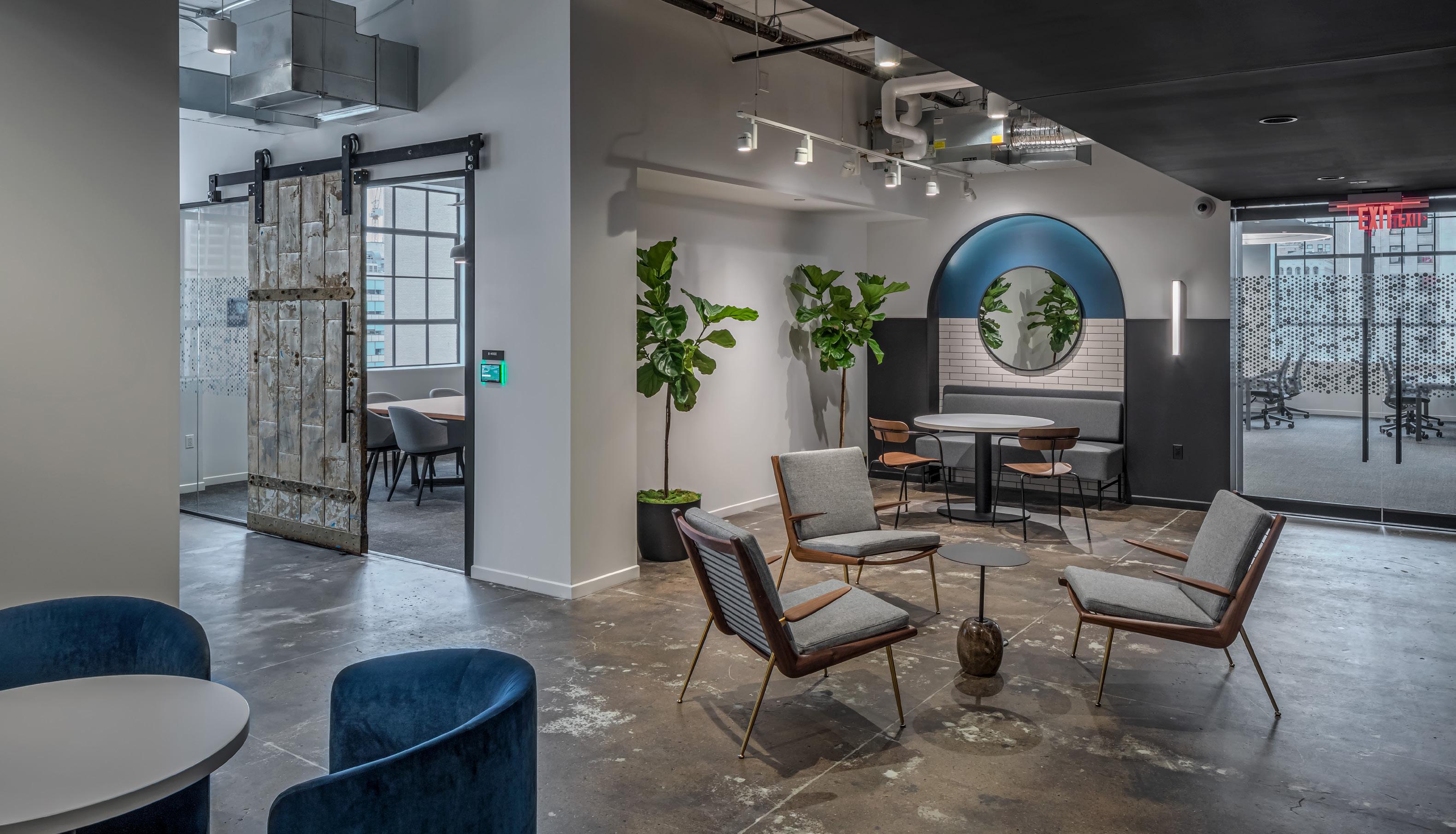

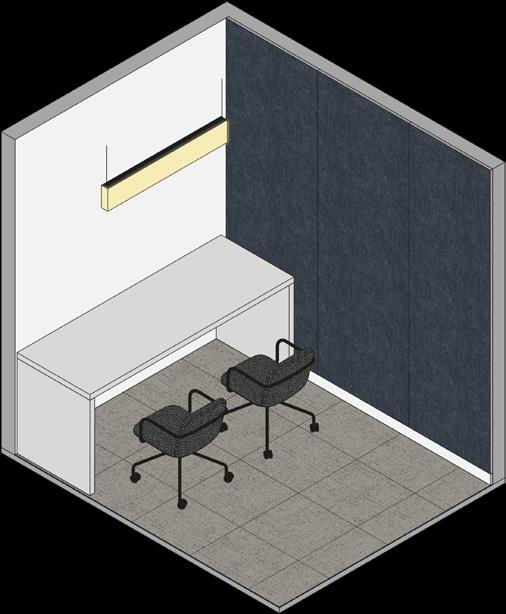

Client Facing Conference Room Focus Room

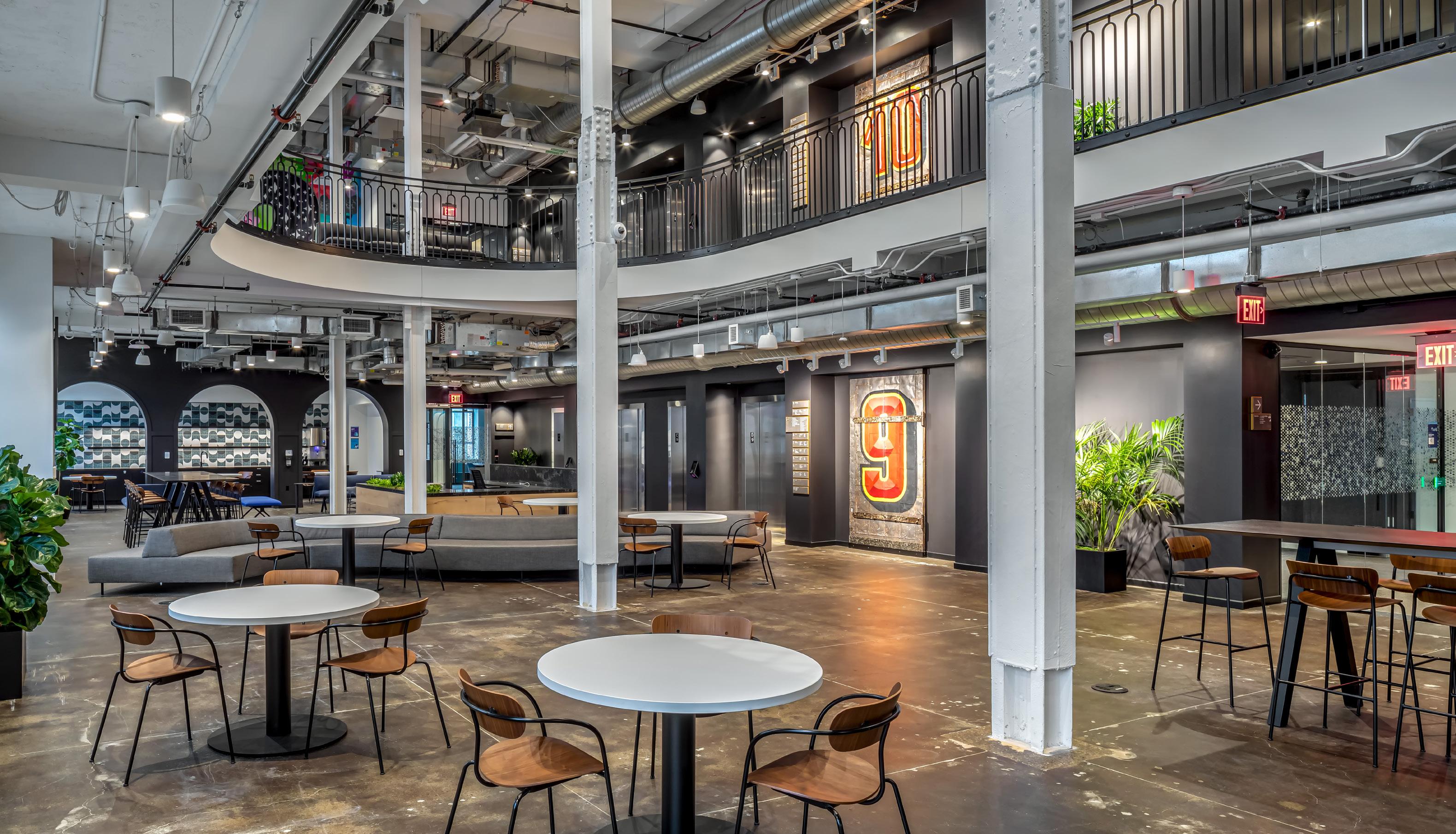

WPP Detroit Campus

Detroit, USA

115,000 sq. ft.

A campus in a building of historic significance. The project is a key part of the city’s economic and cultural revitalization, and serves as a hub for creative thinkers.
