COMPANY
Alexandria Moulding is a leading manufacturer and distributor of wood and wood composite moldings in North America. In over 75 years of business, Alexandria has expanded to five facilities that include both domestic manufacturing & large-scale distribution centers. To support domestic manufacturing, Alexandria partners with other manufacturers around the world to import commodity items. This helps facilitate a diverse mix of moldings, boards and other millwork related items.
• Alexandria Pacific Northwest U.S. & CANADA
Manufacturing & Distribution (Pacific Northwest, U.S. & British Columbia, Canada)
• Alexandria Calgary CANADA Distribution (Praries and British Columbia Interior, Canada)
• Alexandria East CANADA
Manufacturing & Distribution (East Coast, Canada)
• Alexandria Mid-West U.S.
Manufacturing & Distribution (Mid-West, U.S.)
• Alexandria North East U.S. Distribution (North East, U.S.)
In October of 2018, Alexandria Moulding was acquired by U.S. LUMBER, which has allowed Alexandria to enhance their product offering and expand service areas. The continued commitment to serving customers cost-effective, quality products, on time with a 100% fill rate, drives operations and allows Alexandria to continue being best in class.
Operating Brands
2
3
3
5
DOOR CONSTRUCTION
PRIMED STILE & RAIL DOORS
The Advantages of Choosing SBP Primed
Stile & Rail Doors
Unmatched Availability, Reliable Consistency, and Exceptional Value.
Stile & Rail Construction
The stiles and rails use a solid engineered core and dowel pins for added strength, stability and reduced sound transmission.
Paint-Ready Surface
With a tough MDF veneer bonded to the core, it resists wear and tear while providing a superior surface for painting.
Sharp Details
A true 90-degree shaker style sticking with crisp shadow lines providing greater definition.
Architecturally Correct Profiles
Crafted with precision, ensuring each stile, rail and panel is in perfect harmony for a visually balanced and aesthetically pleasing appearance.
Available with Glass Options
Clear or Fit glass offer a distinctive look not possible with Molded doors
Choosing SBP Products Delivers the Following Advantages:
Unmatched Availability
With SBP’s vast distribution network, trusted partners, and diversified global supply chain, rest assured you’ll get the volume you need when you need it.
Reliable Consistency
Rigorous manufacturing controls and adherence to standardized specifications ensure that all products are always consistent and of high quality.
Exceptional Value
Our commitment to quality at a competitive price point maximizes your investment.
DOOR CONSTRUCTION
PRIMED STILE & RAIL DOORS

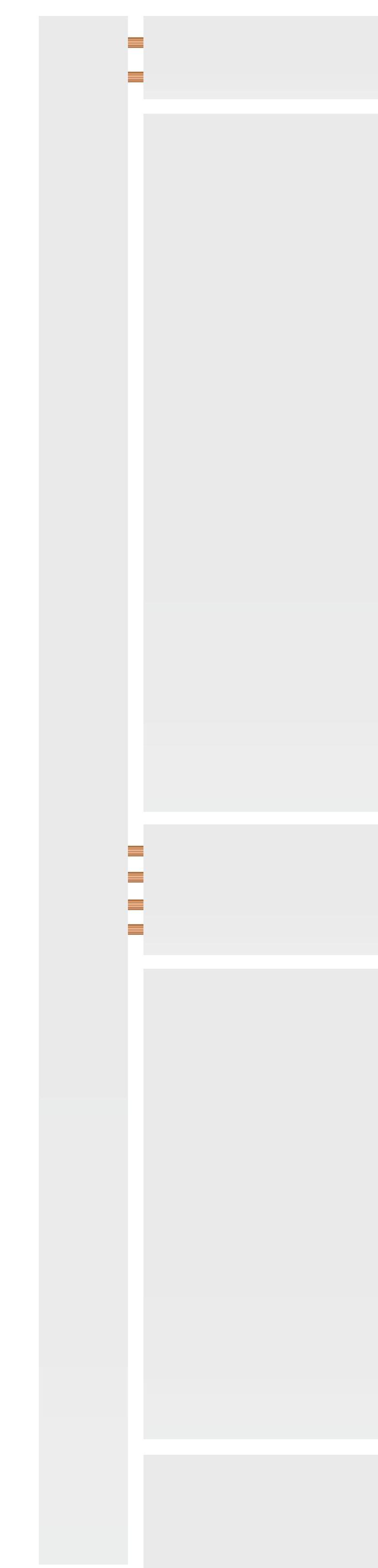

Primed stile and rail doors are wood components joined together with dowel pins. The stiles and rails have an engineered wood core covered with an MDF veneer creating an excellent surface for painting. Constructing a door with different components brings definition that cannot be replicated by a molded door.
Stile: The stiles have a solid wood engineered core for added strength, stability, and reduced sound transmission.
Rail: The rails also include a solid wood engineered core.
Panel: Flat and Raised Panels are made with MDF for a smooth paint finish, stability, and

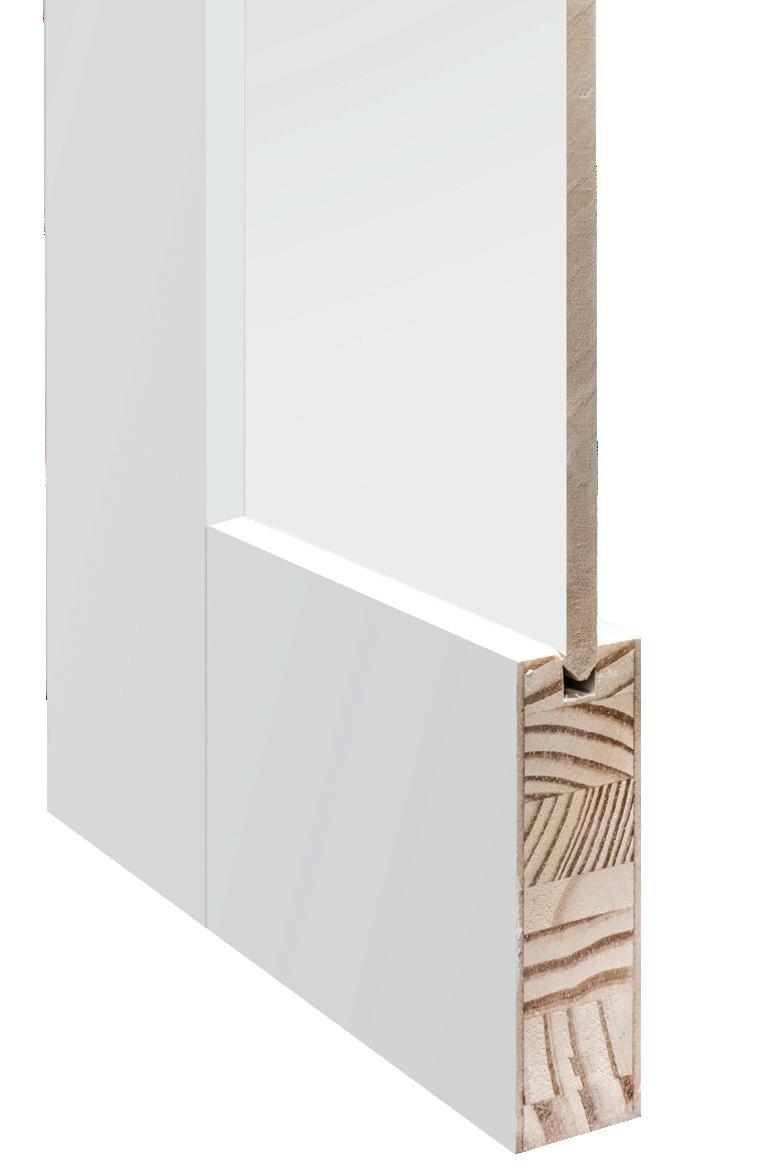

Stiles, Rails & Veneer
The stiles and rails have a solid wood engineered core for added strength, stability, and reduced sound transmission.
An MDF veneer is permanently bonded to the core resisting dents, dings, and gouges. The veneer when compared to other imitation products makes for a superior and smooth painting surface.
Architecturally Correct
Each door is made with perfectly proportioned stiles, rails and panels that are created individually to ensure that every door is architecturally correct.
SOLID WOOD ENGINEERED CORE

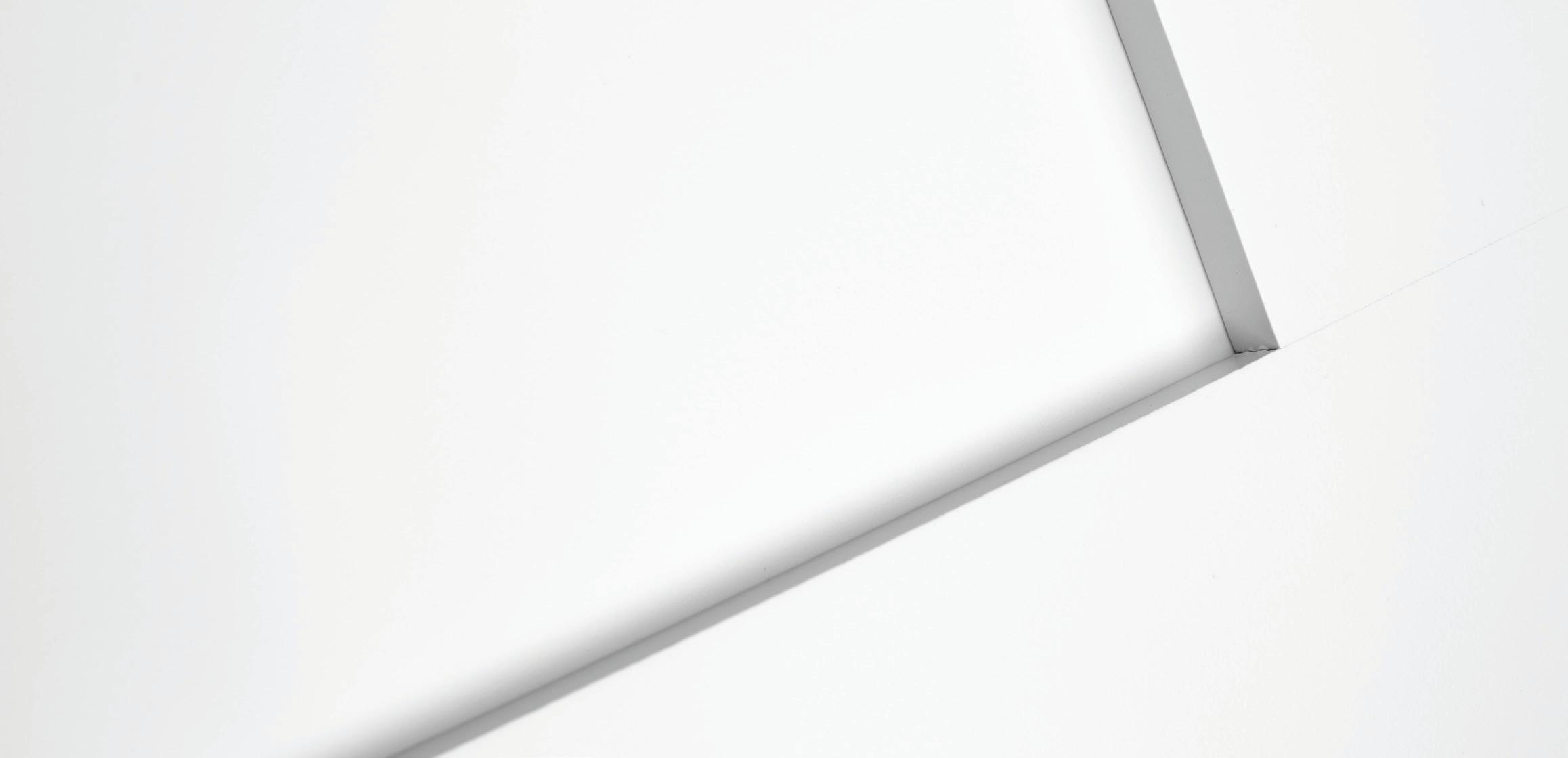

Sharp Details
Primed stile and rail doors join components together to create sharp shadow lines with a 90 degree Shaker sticking.
True 90 degree angle provides sharp detail.
DOOR CONSTRUCTION
Molded (Hollow Core)
DOORS BY DESIGN
DO YOU KNOW YOUR DESIGN STYLE?
Doors by Design by Alexandria defines a design style in to the Modern, Traditional, Vintage and Eclectic catergory. Doors by Design will help guide you when selecting doors for your latest project.
Doors and molding profiles are available through Alexandria Moulding Pacific Northwest, Moxee. For further information on any of the products you see in this brochure, please speak to your local sales representative.
Create your own door and molding pairings!
Scan to View!
View our entire Molding Catalog and create your own combinations!
DOOR LAYOUTS
Look for these icons!
Look for our Doors by Design icons throughout the catalog to help you achieve your desired look.
Elegance
PRIMED MDF FLAT PANEL DOORS
1-3/8” AND 1-3/4” MDF FLAT PANEL
1-3/8” AND 1-3/4” MDF
FLAT PANEL

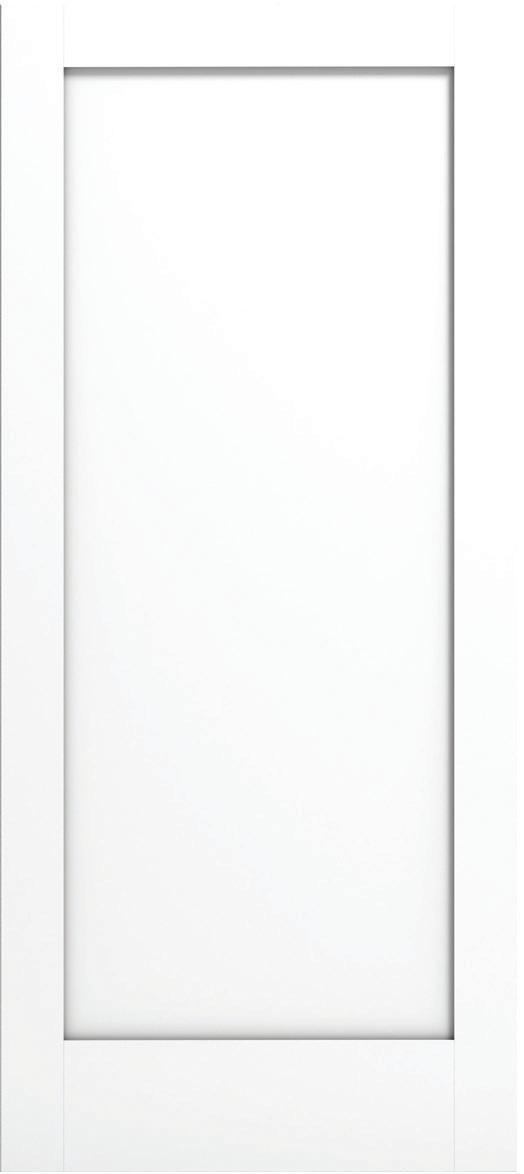

1 PANEL SHAKER PRIMED 1 PANEL SHAKER
DOOR HEIGHT 6/8
1 PANEL SHAKER
1-3/8” MDF FLAT PANEL
TRADITIONAL
DOOR HEIGHT 6/8
1 PANEL OVOLO
2 PANEL SHAKER
PRIMED 2 PANEL SHAKER
1-3/8” AND 1-3/4” MDF
FLAT PANEL
DOOR HEIGHT 6/8
2
2
DOOR HEIGHT 7/0
2 PANEL SHAKER
HEIGHT 8/0
2
2
2
1-3/8” MDF FLAT PANEL
TRADITIONAL
2
2
2
DOOR HEIGHT 6/8
2 PANEL OVOLO
3 PANEL SHAKER
PRIMED 3 PANEL SHAKER
1-3/8” AND 1-3/4” MDF
FLAT PANEL
3
DOOR HEIGHT 6/8
3 PANEL SHAKER
DOOR HEIGHT 8/0
3
3 Panel
1-3/8” AND 1-3/4” MDF FLAT PANEL
DOOR HEIGHT 6/8
PRIMED 5 PANEL SHAKER
1-3/8” AND 1-3/4” MDF
FLAT PANEL
5
DOOR HEIGHT 6/8
MDF FLAT PANEL
5
5
5 PANEL SHAKER
DOOR HEIGHT 8/0
5
PRIMED LITE PANEL DOORS
1-3/8” CLEAR AND FROSTED
1 LITE CLEAR SHAKER
PRIMED 1 LITE CLEAR SHAKER
1-3/8” CLEAR GLASS
DOOR HEIGHT 6/8
DOOR HEIGHT 8/0
1 LITE CLEAR SHAKER
TRADITIONAL
DOOR HEIGHT 6/8
1 Lite PR26681LOS8 2/6 6/8 1-3/8"
DOOR HEIGHT 8/0
1 LITE CLEAR OVOLO
1 LITE FRIT SHAKER
PRIMED 1 LITE FRIT SHAKER
1-3/8” FROSTED GLASS
MODERN
DOOR HEIGHT
DOOR HEIGHT
8/0 1-3/8” 1 LITE FROSTED
1 LITE FRIT SHAKER
DOOR HEIGHT 8/0
DOOR HEIGHT 6/8
DOOR HEIGHT 8/0
BIFOLDS SHAKER
PRIMED BIFOLDS SHAKER
1-3/8” BIFOLDS
MODERN
DOOR HEIGHT 6/8
BIFOLDS SHAKER
DOOR HEIGHT 6/8
DOOR HEIGHT 6/8
DOOR SHOP JAMBS
00697-51100
00697-93084
0203V-23084
0203V-43084C
0203V-86084C FLAT JAMB 11/16 X 4-9/16 X 7
0203V-8C084
0203V-8C084EG
0203V-8C100
0207G-8C084EG DOUBLE RABBET JAMB 1-3/16 X 4-9/16 X 7 PC HEM
03210-MH084C FLAT JAMB 5/8 X 4-9/16 X 7 PC MO
03438-20084C SINGLE RABBET JAMB 1-1/4 X 4-9/16 X 7 PC SP
03438-93084C SINGLE RABBET JAMB 1-1/4 X 4-9/16 X 7 PC PFJP
03438-93084EL SINGLE RABBET JAMB 1-1/4 X 4-9/16 X 7 PC PFJP
03438-93084ER SINGLE RABBET JAMB 1-1/4 X 4-9/16 X 7 PC PFJP
03443-93084C SINGLE RABBET JAMB 1-1/4 X 6-9/16 X 7 PC PFJP
03444-93084C SINGLE RABBET JAMB 1-1/4 X 6-9/16 X 7 PC PFJP
03444-93084EL SINGLE RABBET JAMB 1-1/4 X 6-9/16 X 7 PC PFJP
03444-9308ER SINGLE RABBET JAMB 1-1/4 X 6-9/16 X 7 PC PFJP
0413D-80084 DOUBLE RABBET JAMB 1-1/4 X 4-3/16 X 7 PC PFJP 0413D-93084 DOUBLE RABBET JAMB 1-1/4 X 4-3/16 X 7 PC PFJP
0413D-9S084EG DOUBLE RABBET JAMB 1-1/4 X 4-3/16 X 7 PC PFJP
0498D-80084 DOUBLE RABBET JAMB 1-1/4 X 4-9/16 X 7 PC HEM
0498D-80084EG DOUBLE RABBET JAMB 1-1/4 X 4-9/16 X 7 PC HEM
0498D-F3084EG DOUBLE RABBET JAMB 1-1/4 X 4-9/16 X 7 PC DECO
0499D-80084 DOUBLE RABBET JAMB 1-1/4 X 6-9/16 X 7 PC HEM
0499D-93084 DOUBLE RABBET JAMB 1-1/4 X 6-9/16 X 7 PC PFJP
0513D-80084 DOUBLE RABBET JAMB 1-1/4 X 5-1/4 X 7 PC HEM
0513D-93084 DOUBLE RABBET JAMB 1-1/4 X 5-1/4 X 7 PC PFJP
0697V-8C084 FLAT JAMB 11/16 X 6-9/16 X 7 PC HV
0697V-8C084EG FLAT JAMB 11/16 X 6-9/16 X 7 PC HV
JAMB SPECIES
DecoSmart DECO
Embossed Alpine Oak AO Embossed Strand Oak STO Embossed Golden Oak GO Embossed Newport Cherry CH Embossed Maple EMAP Embossed Spiced Ash EASH Hemlock HEM Hemlock Veneer HV
Knotty Alder KA Maple Veneer MV Marquis Oak MO Oak Veneer OV
Primed LDF PLDF PFJ Pine PFJP Pine Veneer PV Solid Pine SP
1207G-B3084E DOUBLE RABBET JAMB 1-1/8 X 4-9/16 X 7
1207G-D3084E DOUBLE RABBET JAMB 1-1/8 X 4-9/16 X 7
1207G-G3084E DOUBLE RABBET JAMB 1-1/8 X 4-9/16 X 7 PC GO
1207G-N3084E DOUBLE RABBET JAMB 1-1/8 X 4-9/16 X 7 PC CH
1207G-Y3084E DOUBLE RABBET JAMB 1-1/8 X 4-9/16 X 7 PC EMAP
1498D-93084 DOUBLE RABBET JAMB 1-3/16 X 4-9/16 X 7 PC PFJP
1498D-93084EG DOUBLE RABBET JAMB 1-3/16 X 4-9/16 X 7 PC PFJP
1498D-93100 DOUBLE RABBET JAMB 1-3/16 X 4-9/16 X 8.4 PC PFJP
3439N-93084C SINGLE RABBET JAMB 1-1/4 X 4-9/16 X 7 PC PFJP
4137V-8C084 FLAT JAMB 11/16 X 4-13/16 X 7 PC HV
4137V-8C084EG FLAT JAMB 11/16 X 4-13/16 X 7 PC HV
90203-96084C FLAT JAMB 11/16 X 4-9/16 X 7 PC PLDF
90697-96084 FLAT JAMB 11/16 X 6-9/16 X 7 PC PLDF
9413D-96084EG DOUBLE RABBET JAMB 1-3/16 X 4-13/16 X 7 PC PLDF
9498D-96084EG DOUBLE RABBET JAMB 1-1/4 X 4-9/16 X 7 PC PLDF
JAMBS AVAILABLE WITH ALEXANDRIA MOULDING
Speak to your sales representative about adding jambs to your door order. View our entire selection of door jambs in our Molding Catalog Scan to View!
STILE & RAIL DIMENSIONS
STILE AND RAIL DIMENSIONS
13 7/0
13 6/8 4-3/8"
13 8/0 4-3/8" 4-5/16" N/A 9-3/16" 3/8" SBP PR26681PFOS8 15 6/8 4-5/8" 4-9/16" N/A 9-3/16" 5/8" SBP
PRIMED STILE & RAIL DOORS
STILE & RAIL DIMENSIONS
17 8/0 4-5/8" 4-9/16" 7-5/8" 9-3/16" 3/8" SBP
19 6/8 4-5/8" 4-9/16" 7-5/8" 9-3/16" 3/8" SBP PR18682PFSHS8 17 6/8 4-3/8" 4-5/16" 7-7/16" 9-3/16" 3/8" SBP
19 6/8 4-5/8" 4-9/16" 7-5/8" 9-3/16" 3/8" SBP PR20682PFSHS8 17 6/8 4-3/8" 4-5/16" 7-7/16" 9-3/16" 3/8" SBP PR20702PFSHS8 17 7/0 4-3/8" 6-1/8" 7-7/16" 10-11/16" 3/8" SBP
STILE & RAIL DIMENSIONS
STILE AND RAIL DIMENSIONS
21 6/8 4-3/8" 4-5/16" N/A 9-3/16" 13/16" SBP PR30683PFSHS8 21 6/8 4-3/8" 4-5/16" N/A 9-3/16" 3/8" SBP
PRIMED STILE & RAIL DOORS
