DOORS BY DESIGN

8 Inspirational pages to flip through!

COMPANY

Alexandria Moulding is a leading manufacturer and distributor of wood and wood composite mouldings in North America. In over 75 years of business, Alexandria has expanded to five facilities that include both domestic manufacturing & large-scale distribution centers. To support domestic manufacturing, Alexandria partners with other manufacturers around the world to meet market demands. This helps facilitate a diverse mix of mouldings, boards and other millwork related items.

• Alexandria West CANADA

Distribution (Prairies and British Columbia, Canada)

• Alexandria East CANADA

Manufacturing & Distribution (Eastern, Canada)

• Alexandria Pacific Northwest U.S. & CANADA Manufacturing & Distribution (Pacific Northwest, U.S. & British Columbia, Canada)

• Alexandria Mid-West U.S. Manufacturing & Distribution (Mid-West, U.S.)

• Alexandria North East U.S. Distribution (North East, U.S.)

We’re proud to be an SBP Brand!

Specialty Building Products (SBP) combines six distinct brands across the U.S. and Canada, each with a local presence and legacy. As one company, SBP has the inventory, in-person support, and distribution solutions to meet the building industry’s demands.

Operating Brands

Construction

1 Panel Shaker Madison™

2

2

3

3 Panel

6

DOOR STYLES & APPLICATIONS

We’ve got you covered.

And now we’ve got doors!

Alexandria West Canada offers a wide variety of moulded door designs to replicate the look and feel of a traditional wood door at an affordable price.

With layout options from modern, traditional to vintage and eclectic, moulded interior doors are a popular option in both residential and light commercial applications.

DOOR STYLES

See pages 10-14 for more information on moulded door construction.

Moulded Doors

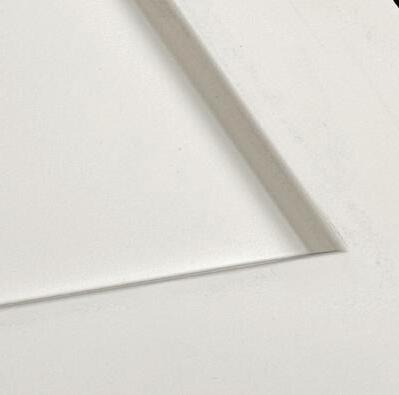

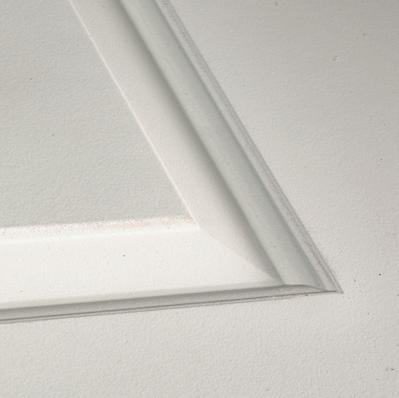

Moulded doors are constructed when a series of panels or a design is stamped by a mould into a hardboard fiber material to create the door face. They are manufactured to resemble the look of an interior stile and rail wood door. Solid Particle Core moulded doors are available in a variety of designs and can replicate the heavy weight and feel of a real wood door while providing the benefit of noise reduction for a peaceful environment.

Finishing

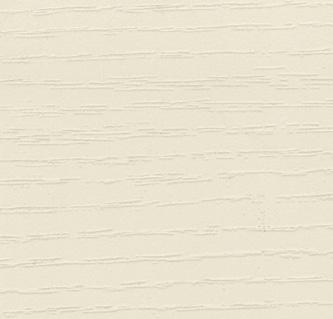

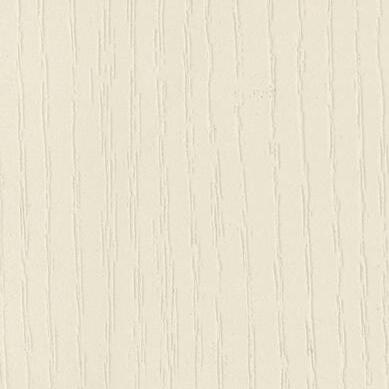

Moulded doors are available in smooth or textured surfaces. They arrive primed and ready for painting after a light sanding and minor preparation. Because of the materials used in their construction, staining is not an option. Always finish all six sides of a door.

See pages 14-15 for more information on flush door construction.

Flush Doors

Flush doors are constructed using a mixture of wood and wood-fiber components and feature a completely flat surface for a simple and economical design option.

Finishing

Flush doors are available in primed hardboard options. Primed flush doors require only a light sanding and cleaning before applying a base coat.

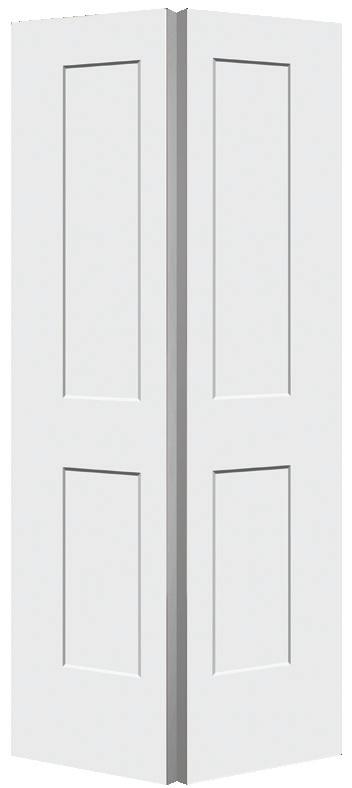

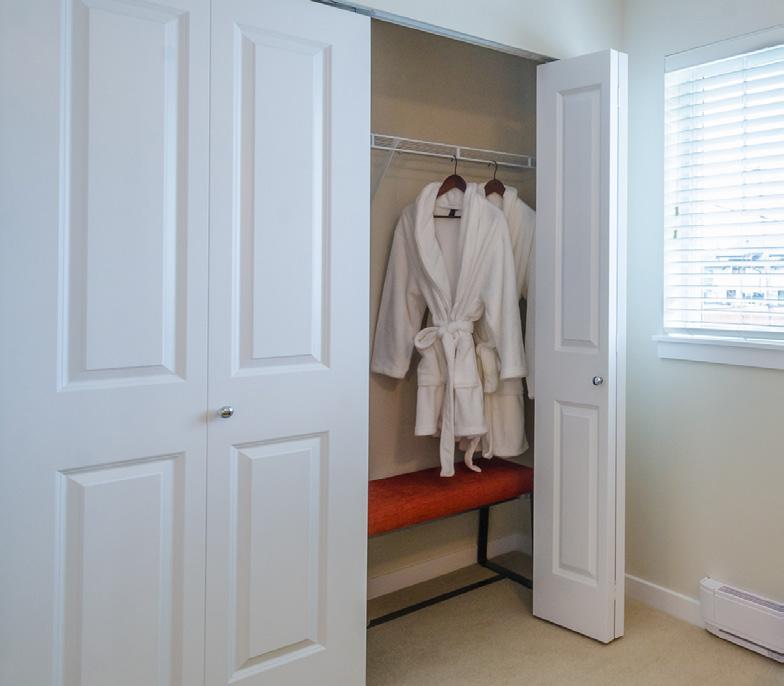

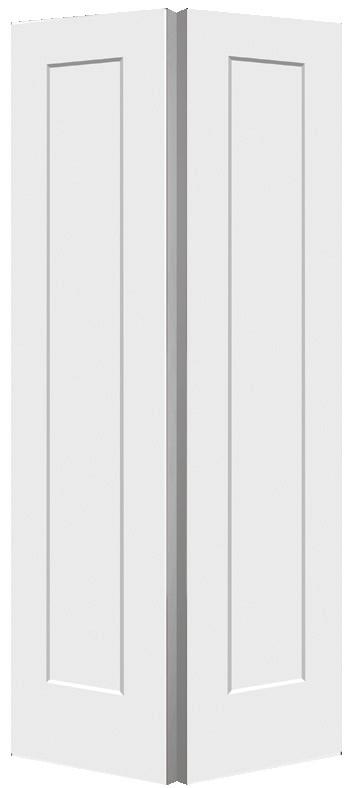

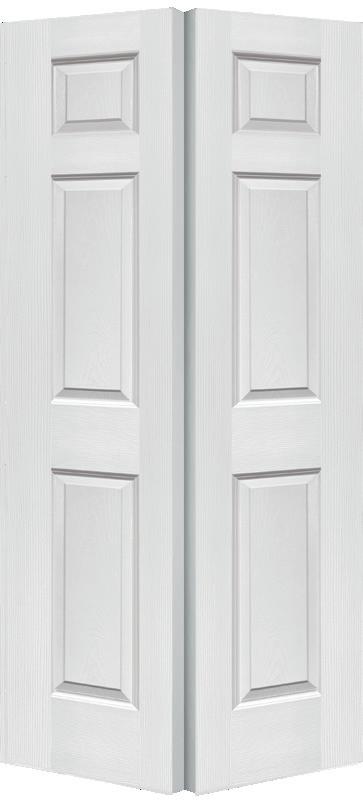

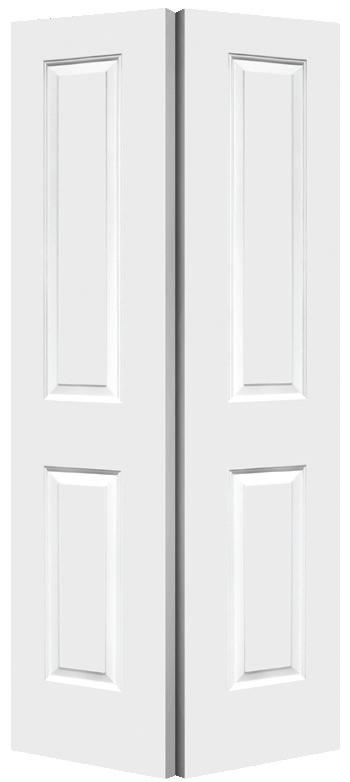

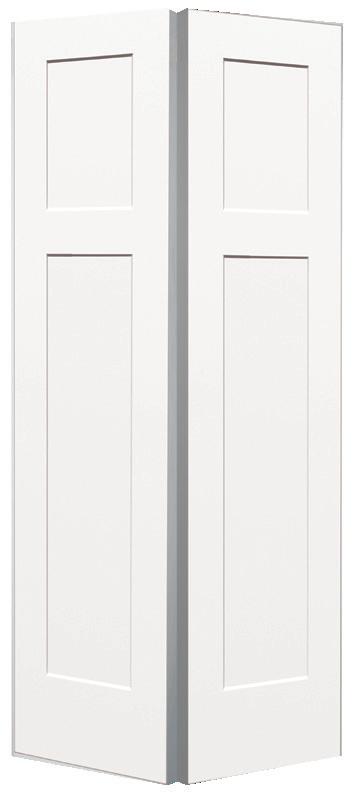

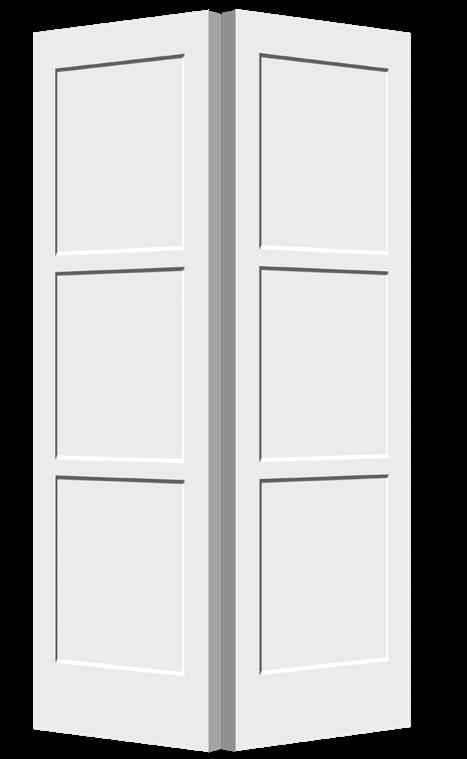

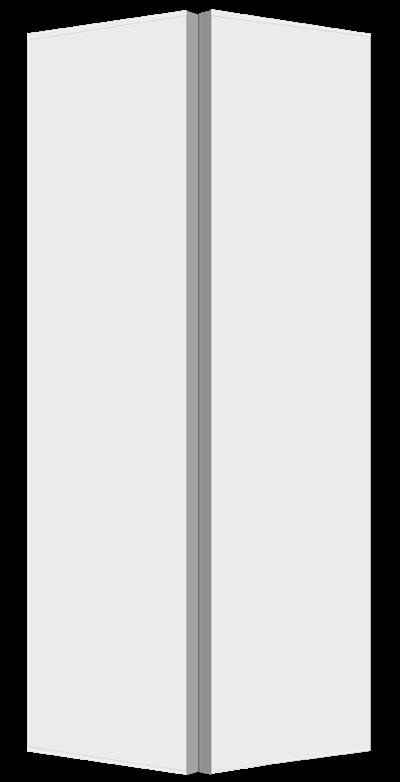

Bifold Doors

Bifold doors are a popular option for saving room in closet areas or other tight spaces throughout your home. These doors provide better access to small areas and take up minimal space. All moulded bifold doors feature panels on both sides.

Bifolds doors are constructed with medium density fiberboard (MDF) stiles and rails.

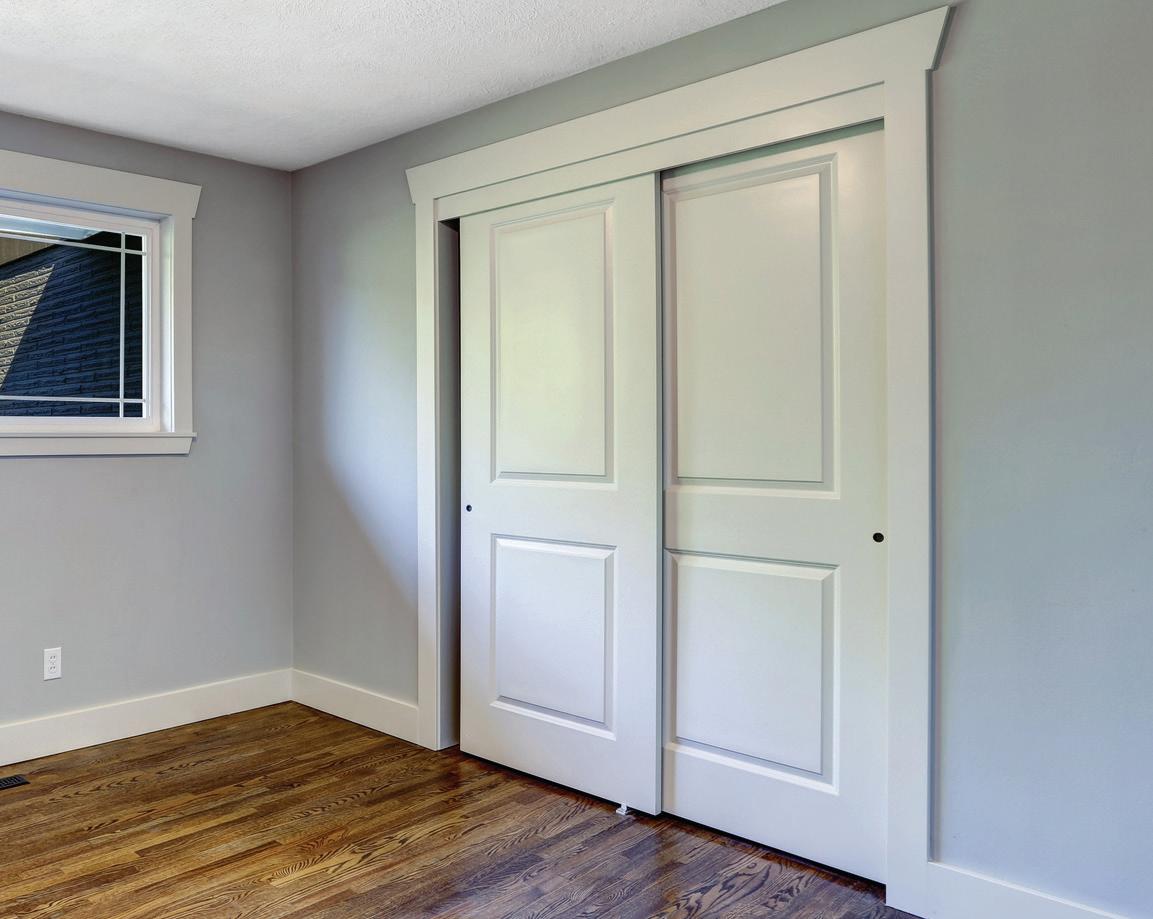

Sliding Bypass Doors

Sliding bypass doors are configured by hanging two or more interior doors mounted to a track. They do not swing and are typically useful in areas with little available floor space.

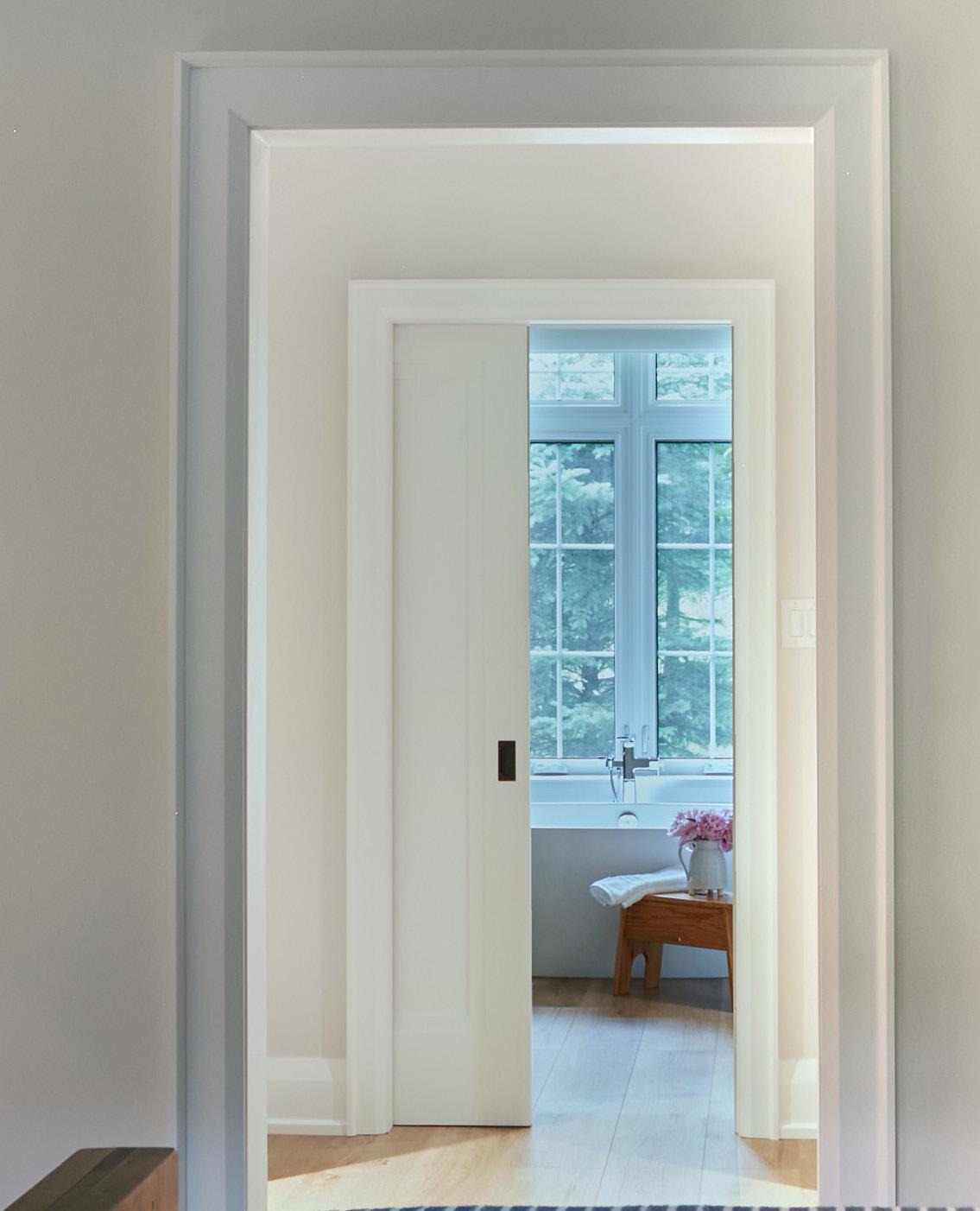

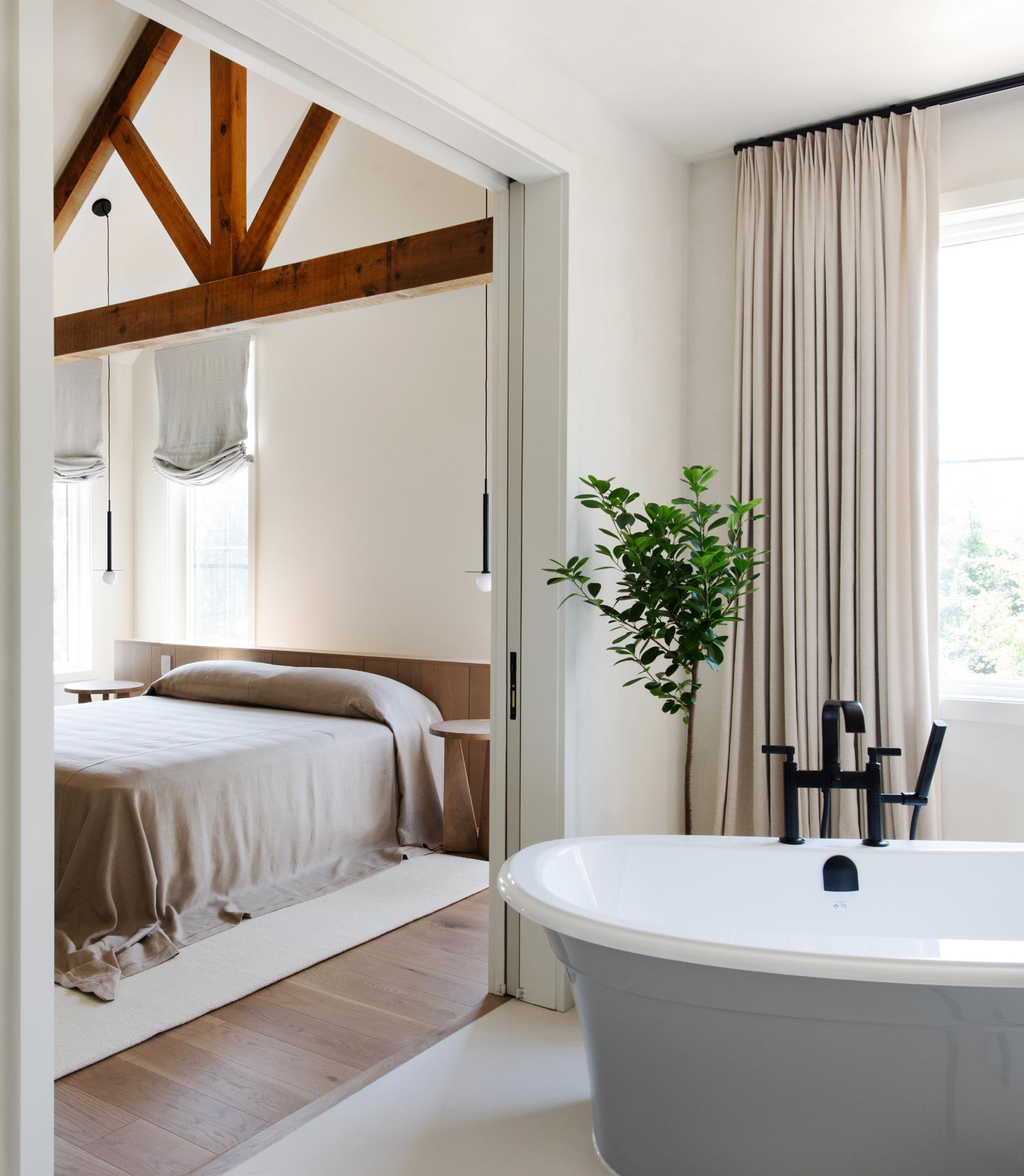

Pocket Doors

Pocket doors slide similarly to bypass doors, but are generally a single door mounted to an overhead track that slides into the wall, hiding the components and saving space.

Visit alexmo.com for more info on our pocket door frames!

DOOR APPLICATIONS

SLAB OR PRE-HUNG UNITS

Slab or Pre-Hung Units

Speak with your sales representative if you are interested in the availability of pre-hung units.

Alexandria Moulding's door program is focused on door slabs (no frame) and offers a variety of sizes and styles.

Door Slabs

Door slabs are available without any hardware, hinges, or framing components. They are used in applications where the frame is already in place or when a custom installation is required. Door slabs come in a wide range of materials, including wood, MDF, and moulded composites, and are available in various styles such as panel and flush. This makes them a versatile option for both new construction and remodeling projects.

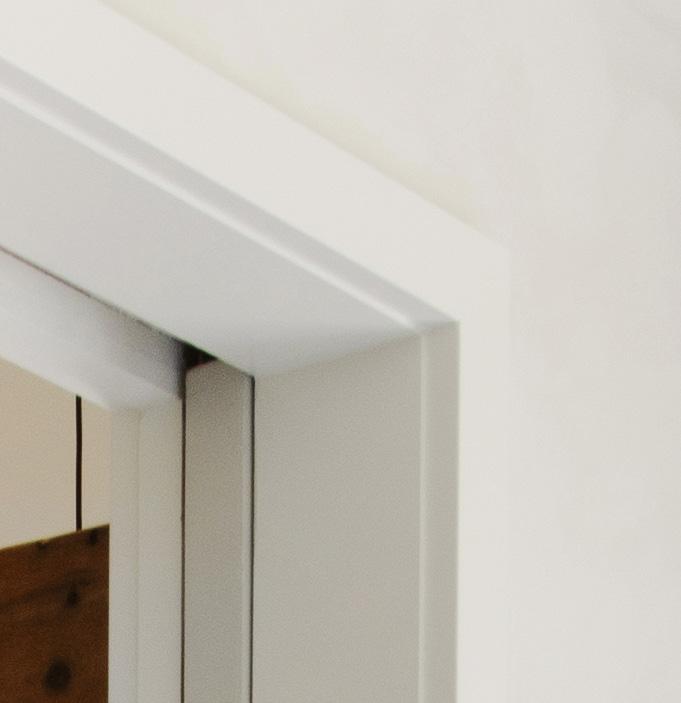

Pre-Hung Units

In a pre-hung unit, the door comes mounted in a frame with hinges already attached to a door jamb.

Alexandria Moulding stocks several paint-grade jamb options to complement the door. See page 36 for our list of door jambs available.

Full and Square Edges

Typically used for replacements, these doors feature a 90 degree angle on all edges, allowing the door to be field-trimmed if necessary.

Door Slab (No Frame)
Pre-Hung Unit (Fully Assembled)

Solid Particle Core (PC)

See pages 10-11 for more information on Solid Particle Core construction.

• Weight and feel of a wood door

• Reduces sound transmission

• Solid Particle Core doors are constructed with finger-joint (FJ) pine wood stiles and medium density fiberboard (MDF) rails for additional screw holding power

• Great for residential and light commercial applications

• Can be fire-rated with certified frames and hardware

 Bedrooms

 Laundry Rooms

 Bathrooms

 Games Room

 Home Office

See pages 12-13 for more information on Hollow Core construction. Perfect choice for :

Hollow Core (HC)

• Standard offering includes finger-joint (FJ) pine wood stiles and medium density fiberboard (MDF) rails

• Commonly used in residential applications where sound transmission and durability is not a primary concern

• Ideal for budget-conscious projects

Great choice for :

 Spare Bedrooms

 Closets

 Storage Space

 Pantry Rooms

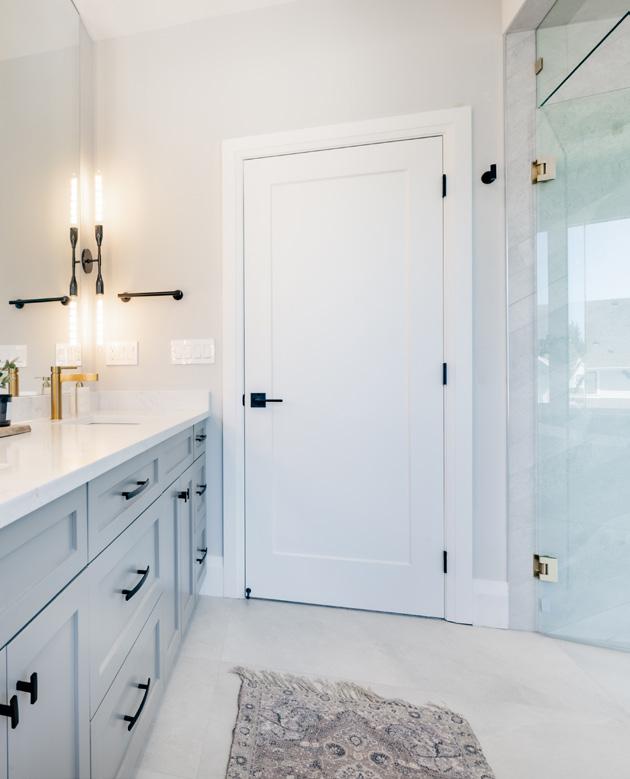

Use Solid Particle Core in a bathroom for added privacy.
Use Hollow Core for a closet space.

SOLID PARTICLE CORE

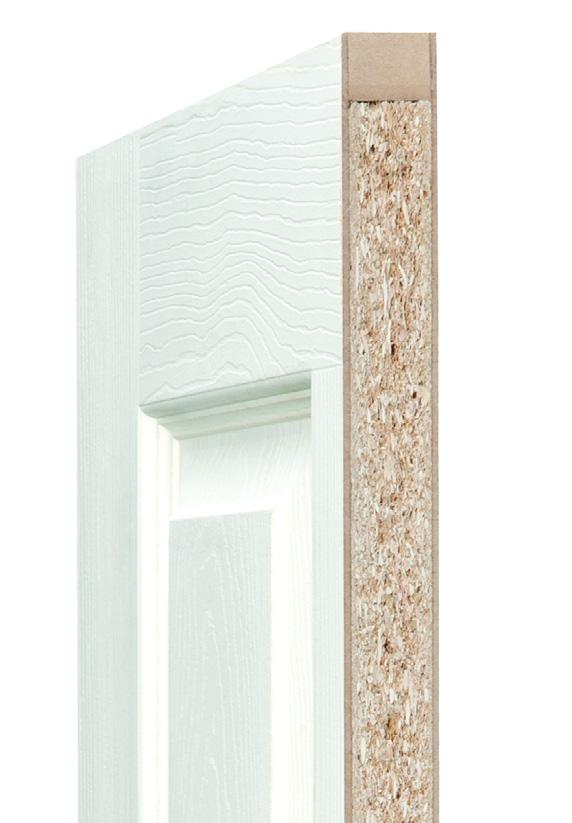

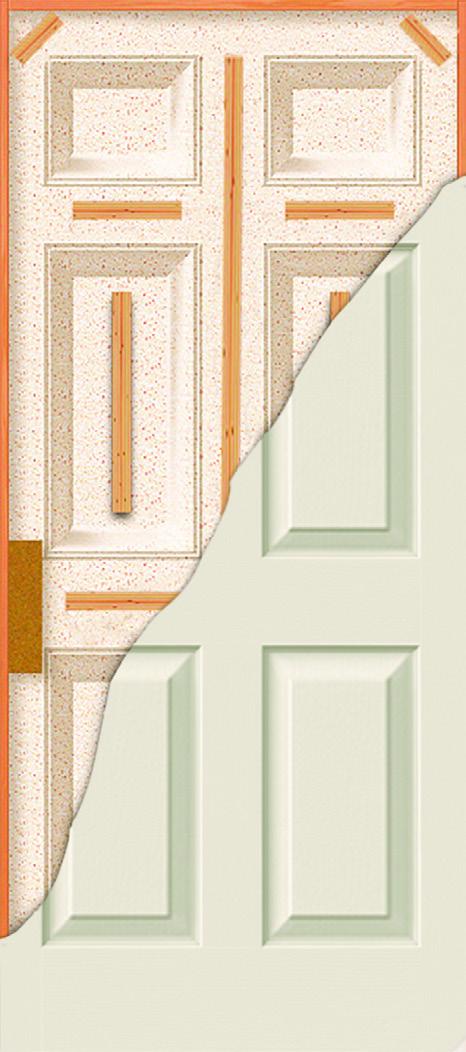

Solid Particle Core Construction (PC)

Solid Particle Core moulded doors are used in a variety of residential and light commercial interior applications. The advantages of solid particle core construction include added security, reduced sound transmission, and heavier weight and feel of a wood stile and rail door. Alexandria Moulding offers a wide variety of designs with smooth or textured surfaces.

Construction

Stiles & Rails: Stiles are made of finger-joint (FJ) pine wood. Rails are made of medium density fiberboard (MDF) for extra screw holding power

Face: 1/8" moulded hardboard skin available in smooth or textured paintable surface

Core: Solid particle board core routed to match moulded skin design

Thickness: Available in 1-3/8" & 1-3/4"

Height: Available in 80", 84" & 96"

Rail (80" height, 1-3/8" thickness doors): 1" top and bottom rail.

Rail (80" height, 1-3/4" thickness doors): 1" top rail and 2" bottom rail, allowing the door to be field-trimmed up to 1".

Rail (84" & 96" height): All doors in 84" and 96" height have a 1" top rail and a 1” bottom rail.

SOLID PARTICLE CORE (PC)

HOLLOW CORE

Flat Panel

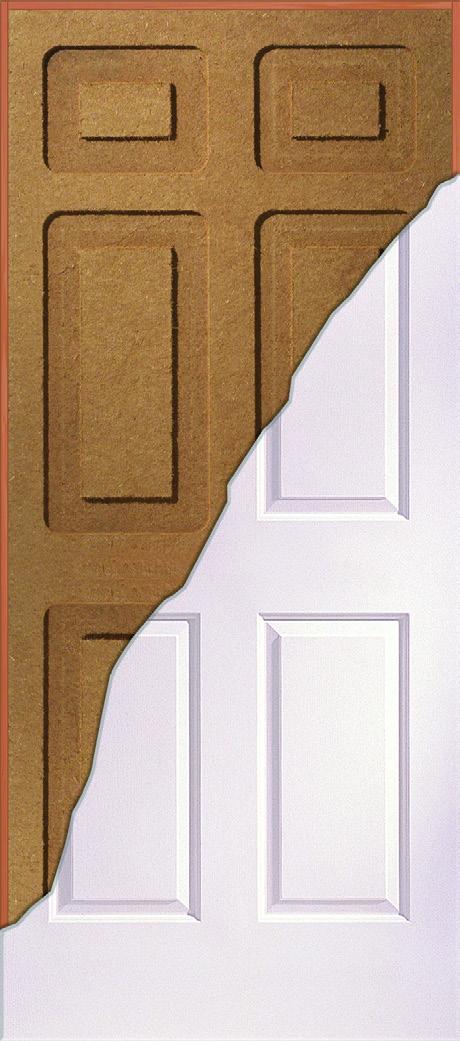

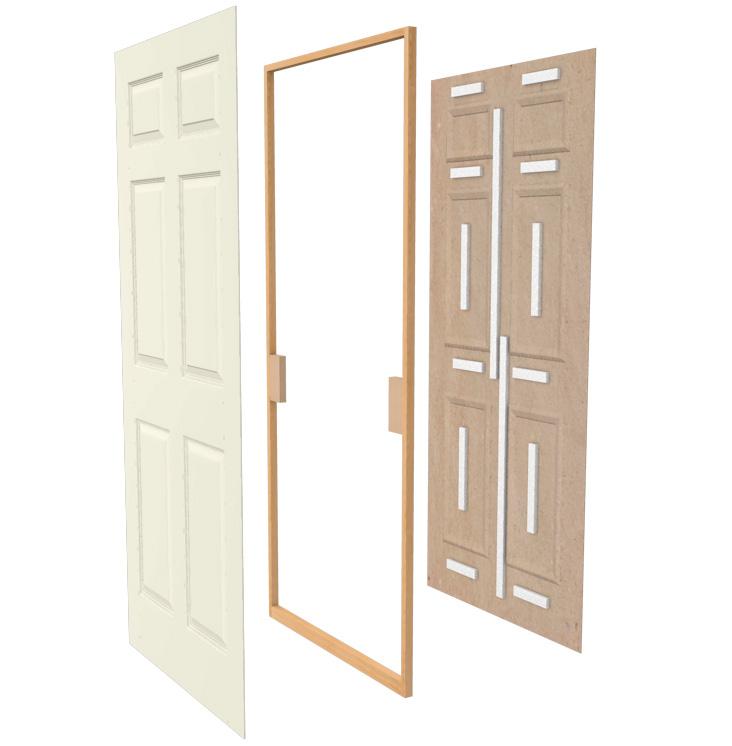

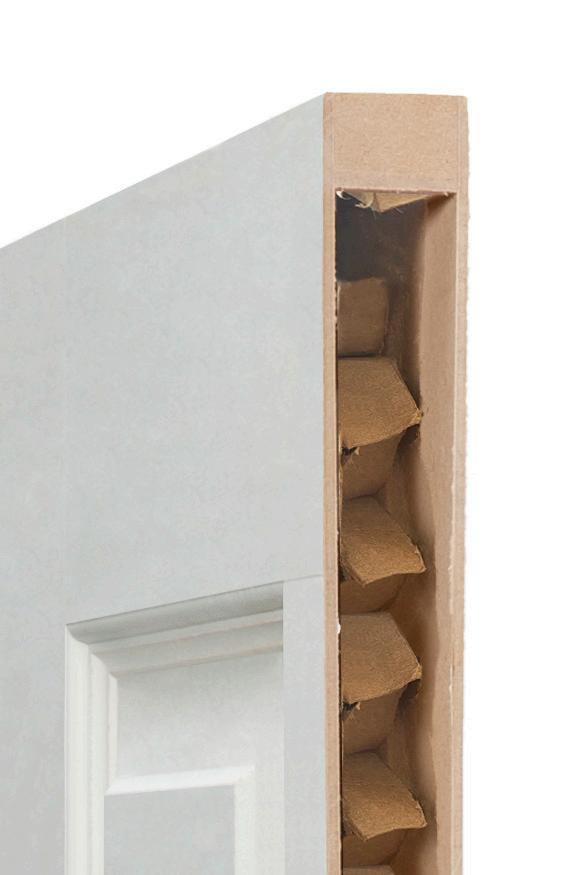

Hollow Core Construction (HC)

Hollow Core moulded doors offer a lighter-weight, economic alternative to wood stile and rail interior doors. Alexandria Moulding offers a wide variety of designs with smooth or textured surfaces.

Construction

Stiles & Rails: Stiles are made of finger-joint (FJ) pine wood. Rails are made of medium density fiberboard (MDF) for extra screw holding power

Blocking: Provides support for door faces

Face: 1/8" moulded hardboard skin available in smooth or textured paintable surface

Core: Hollow core is comprised of corrugated board and foam

Thickness: Available in 1-3/8" Only

Height: Available in 80", 84" & 96"

Rail: (80" Height, 1-3/8" thickness doors): 1” MDF Fiber top and bottom rail. Cannot be field-trimmed without reblocking.

Stile: (80" Height, 1-3/8" thickness doors): FJ Pine wood Stile

Stile: (84" & 96" Height, 1-3/8" thickness doors): FJ Pine wood Stile

HOLLOW CORE (HC)

FLUSH HARDBOARD

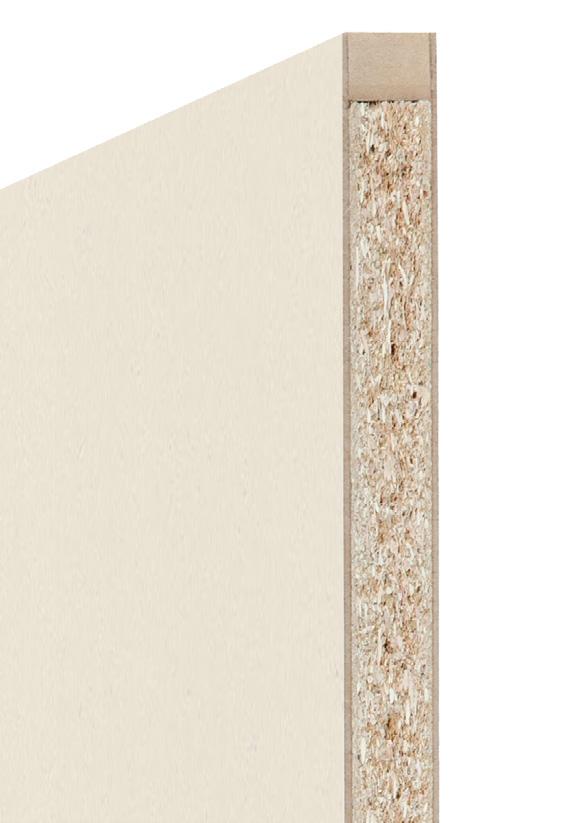

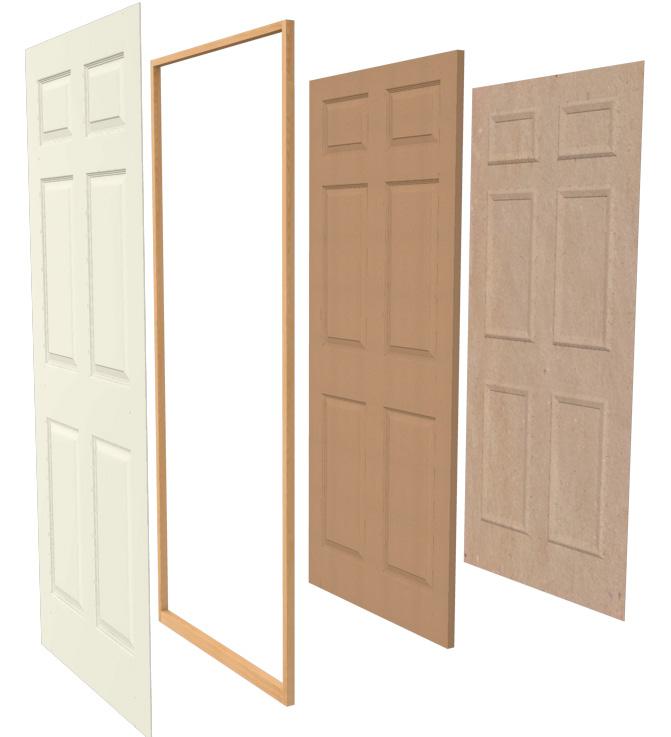

Flush Hardboard Construction (PC)

As part of our solid particle core construction, Alexandria Moulding offers Flush Hardboard (PC) doors. These flush doors feature flat, smooth surfaces on both sides and are available in a wide variety of sizes.

Construction

Stiles & Rails: Stiles are made of finger-joint (FJ) pine wood. Rails are made of medium density fiberboard (MDF) for extra screw holding power

Face: 1/8" moulded hardboard skin available with a smooth surface

Core: Solid particle board core

Thickness: Available in 1-3/8" & 1-3/4"

Height: Available in 80", 84" & 96"

Rail (80" height, 1-3/8" thickness doors): 1" top and bottom rail.

Rail (80" height, 1-3/4" thickness doors): 1" top rail and 2" bottom rail, allowing the door to be field-trimmed up to 1".

Rail (84" & 96" height): All doors in 84" and 96" height have a 1" top rail and a 1” bottom rail.

Panel Options Surface Options

FLUSH HARDBOARD (PC)

DOORS BY DESIGN

DO YOU KNOW YOUR DESIGN STYLE?

Doors by Design catergorizes styles in to the Modern, Traditional, Vintage and Eclectic category helping guide you in selecting the perfect doors for your latest project.

Looking for Inspiration?

Flip through the next eight pages of trends, where doors and mouldings have been conveniently paired.

The doors and moulding profiles in this brochure are available through Alexandria Moulding West Canada. For further information on any of the products you see in this brochure, please speak to your local Alexandria Moulding representative.

Create your own door and moulding pairings!

Scan to View!

View our Moulding Catalogue and create your own combinations!

Look for these icons!

Look for our Doors by Design icons throughout the catalogue to help you achieve your desired look.

DOORS BY DESIGN

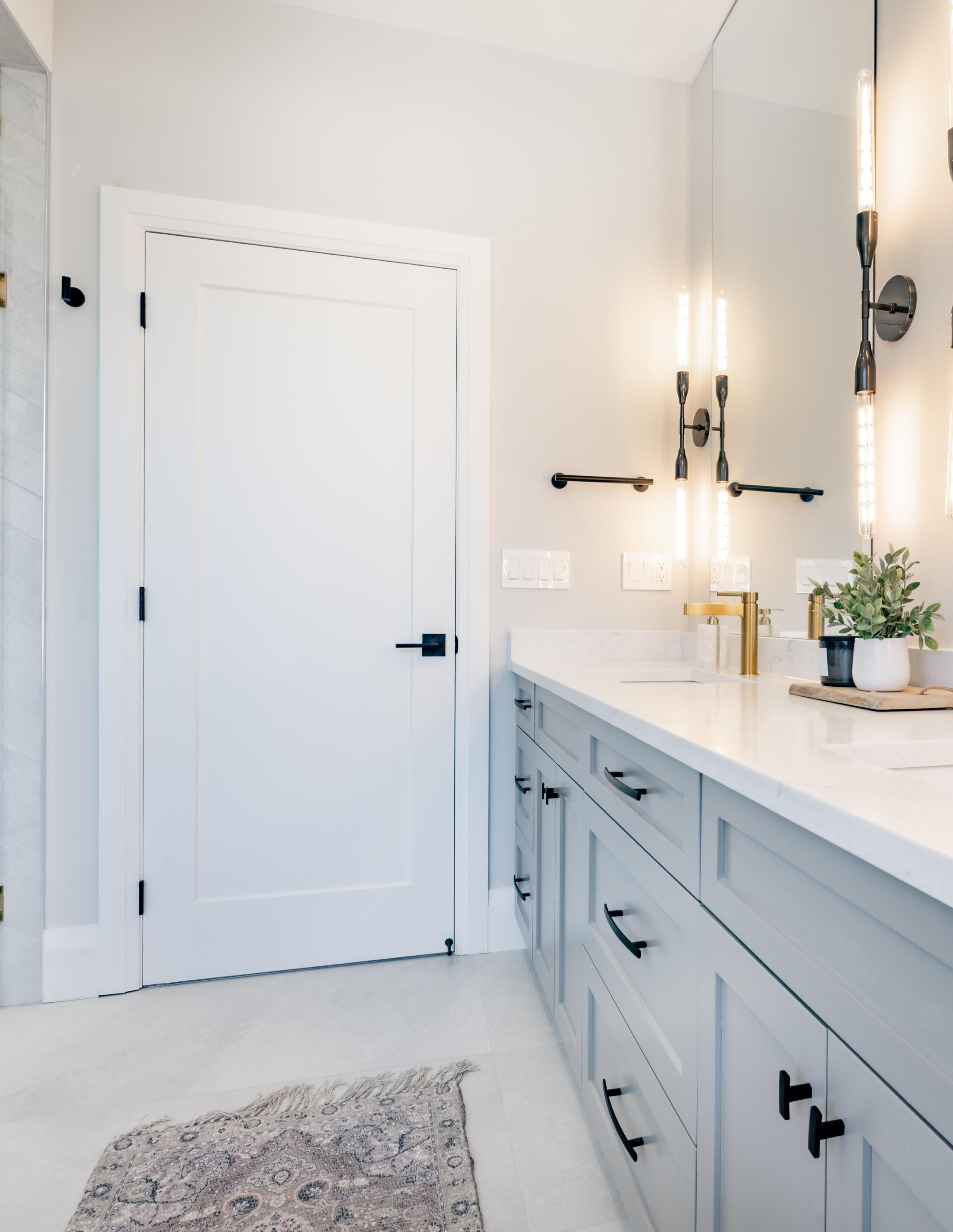

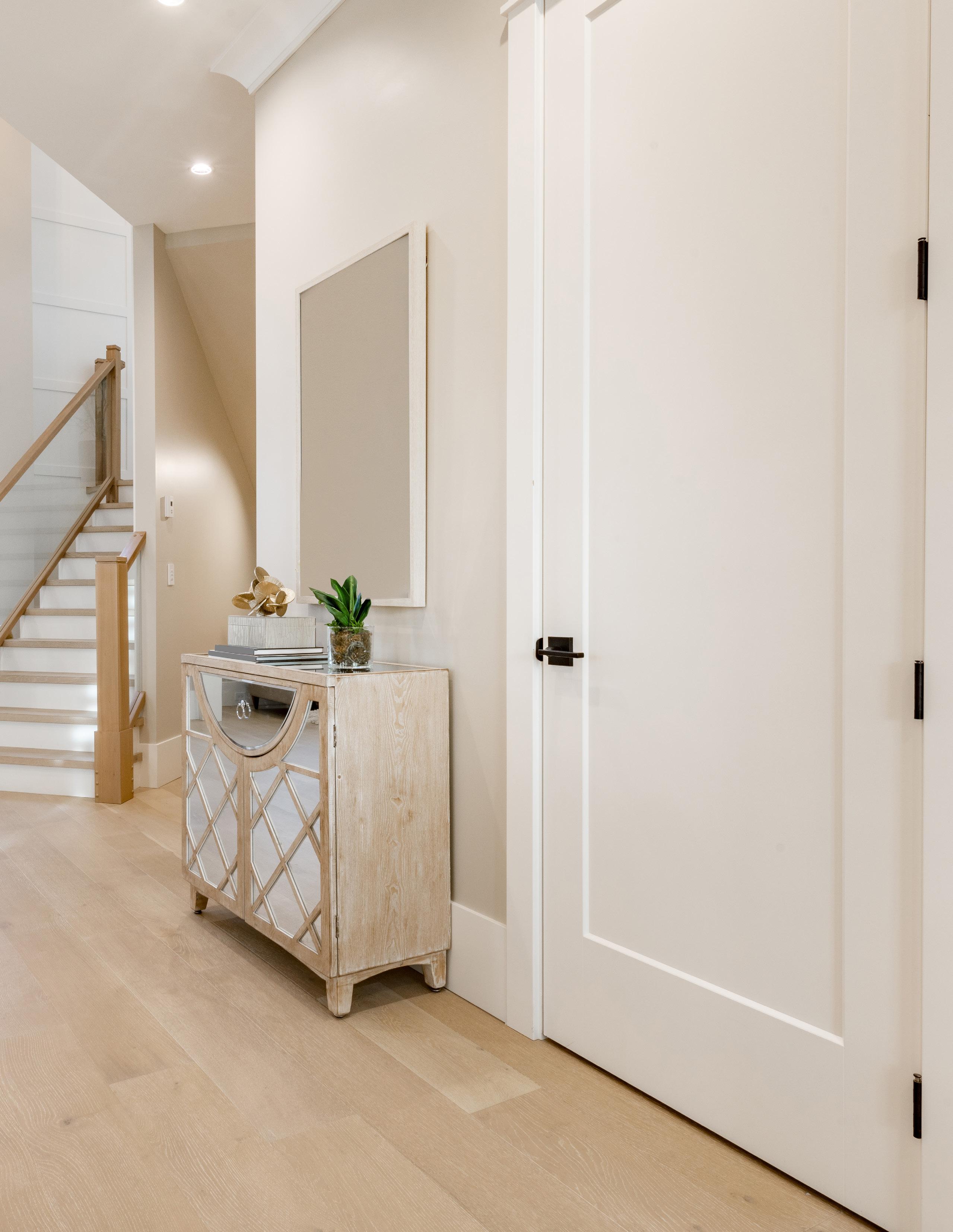

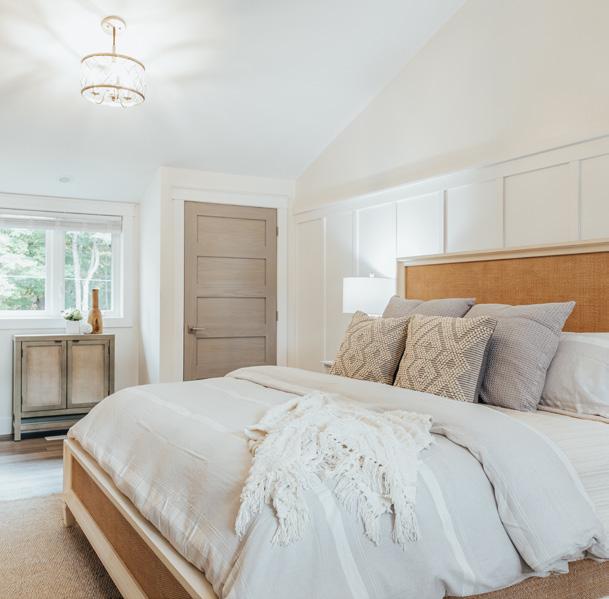

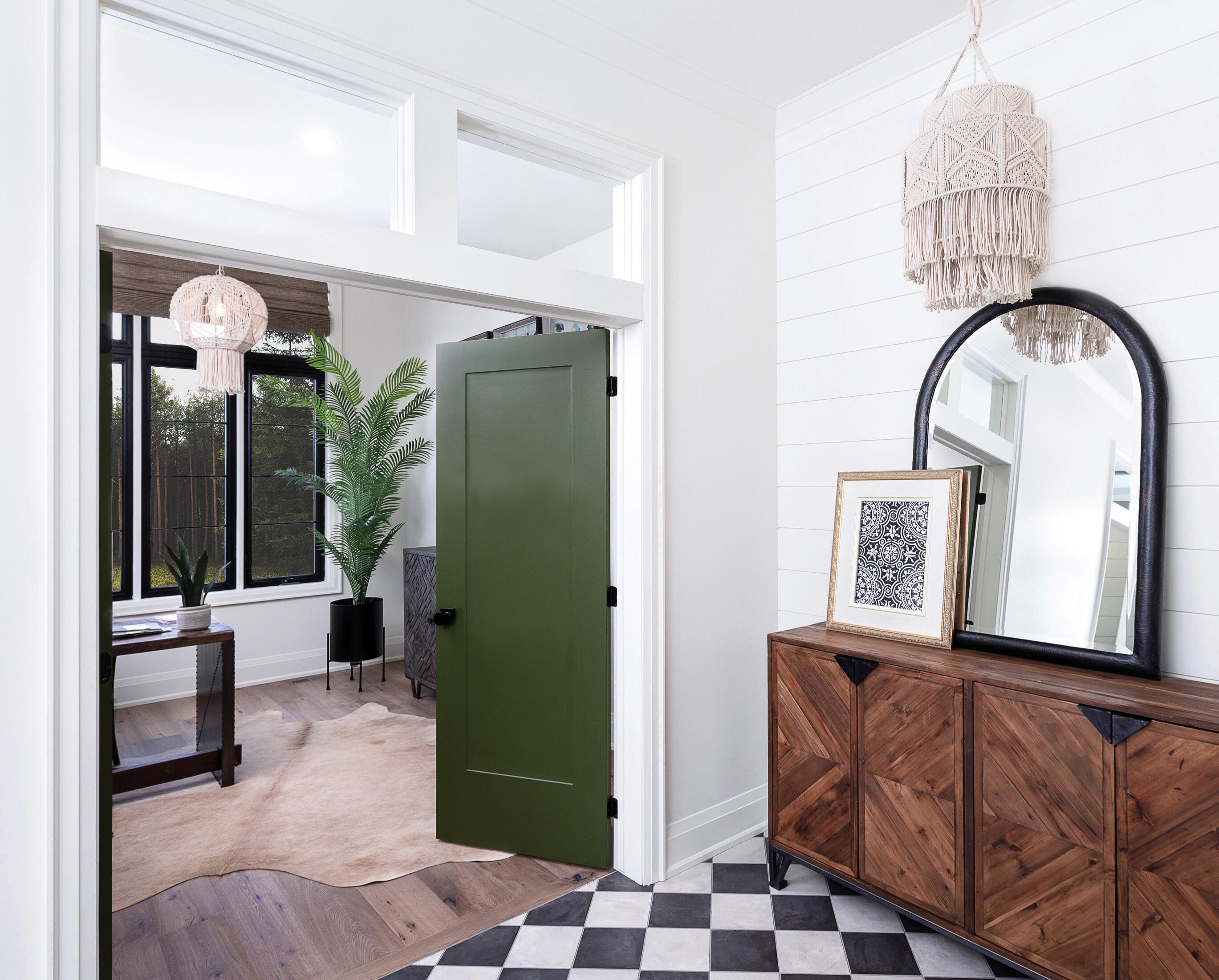

Modern Simplicity

Highlighting the use of clean, straight lines, this collection is for the urban at heart.

Door Style:

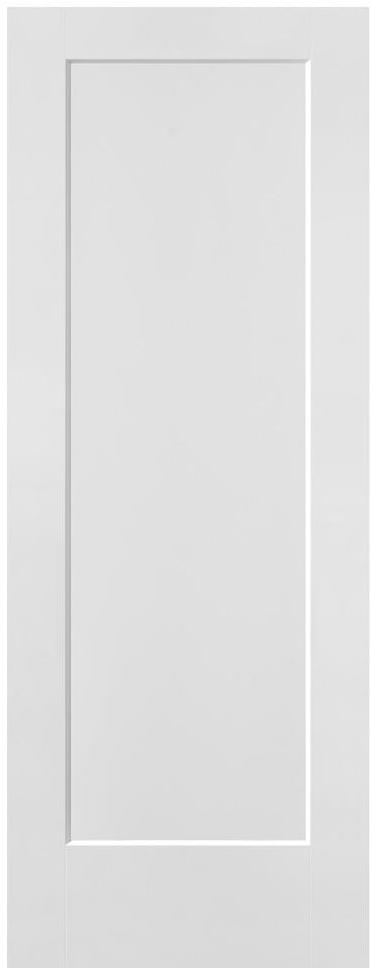

1 Panel Shaker Madison™

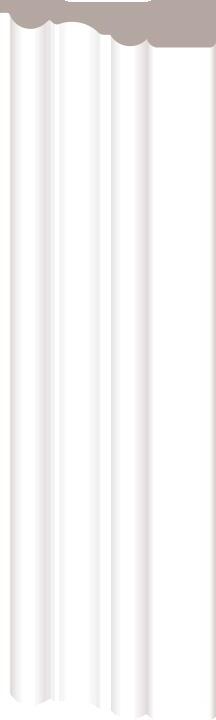

Moulding Combinations:

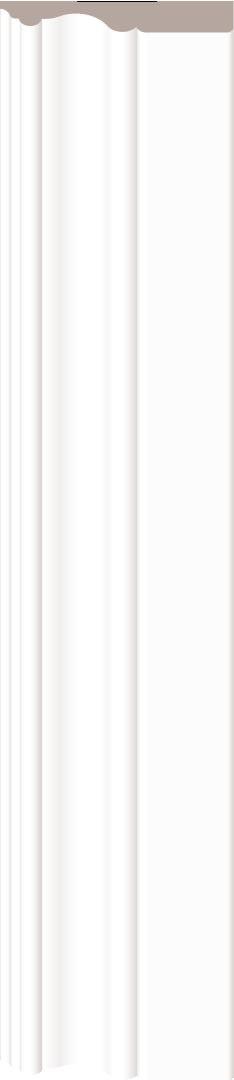

CASING 3534B

Size: 11/16 x 3-1/2

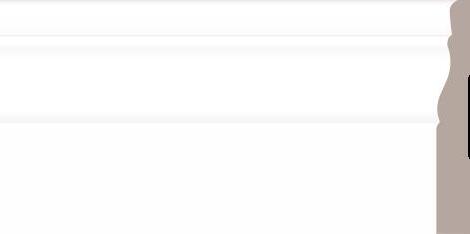

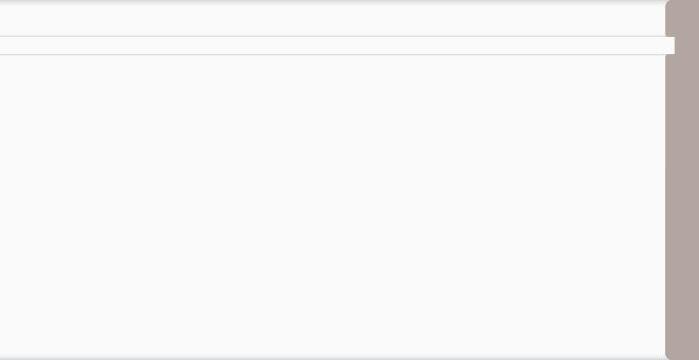

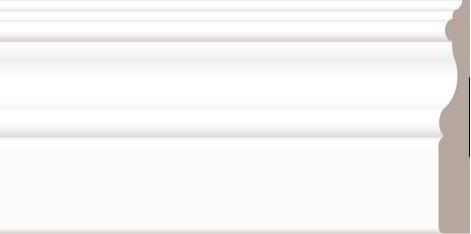

BASEBOARD 03533

Size: 5/8 x 5-1/2

CASING 04691

Size: 5/8 x 3

BASEBOARD 09290

Size: 1/2 x 5

Design tip:

ARCHITRAVE 2193B

Size: 1 x 4-1/2

DOORS BY DESIGN

DOORS BY DESIGN

Moulding Combinations:

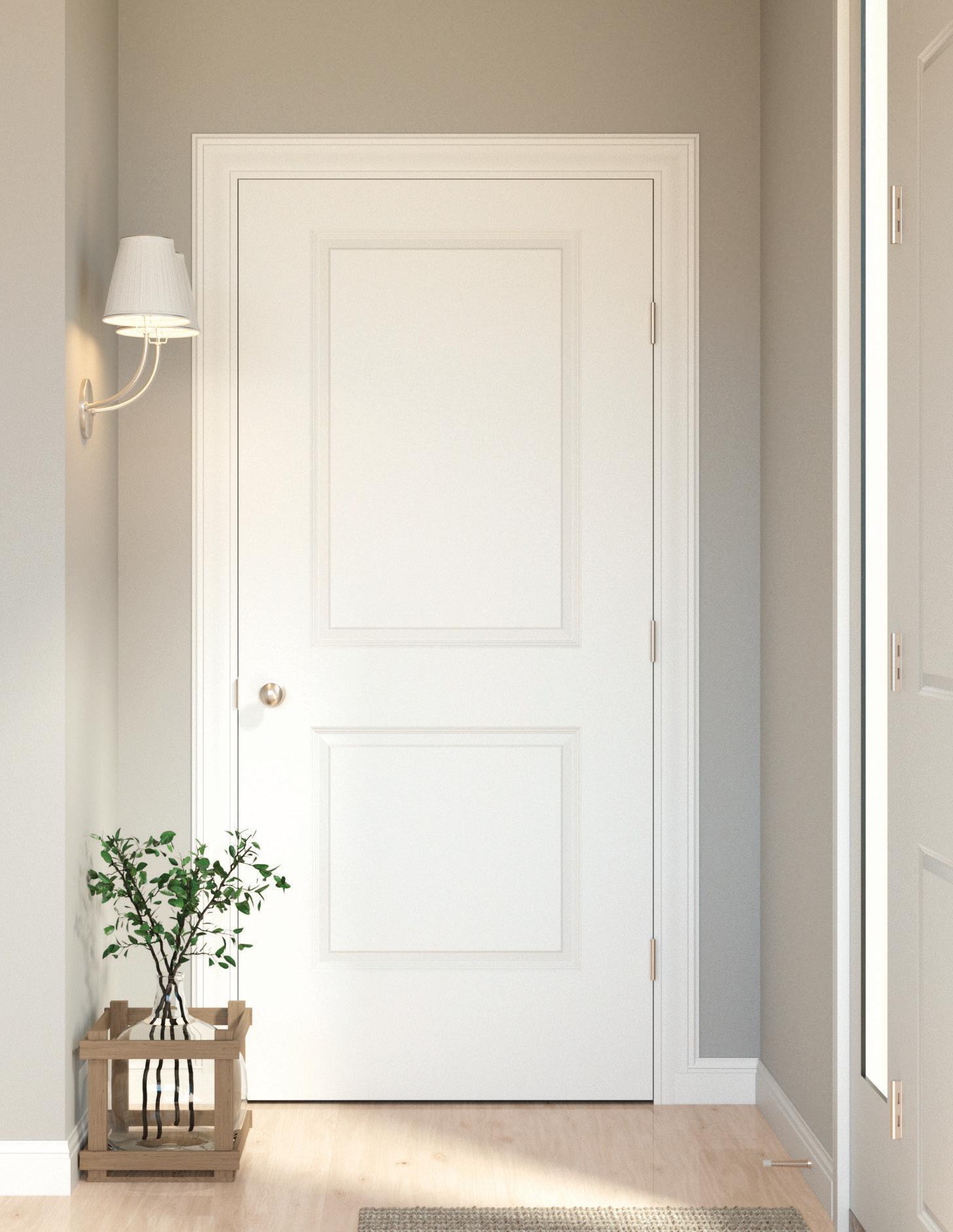

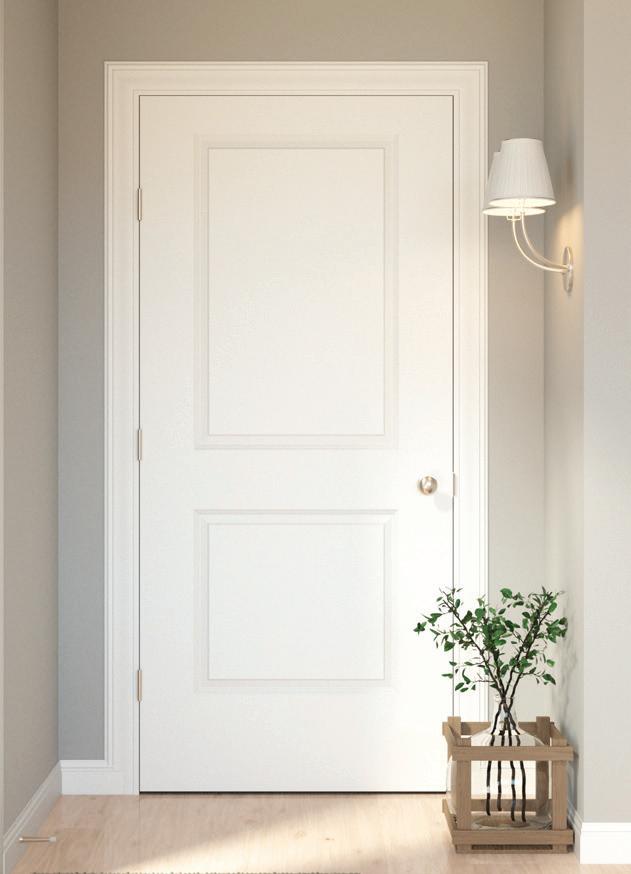

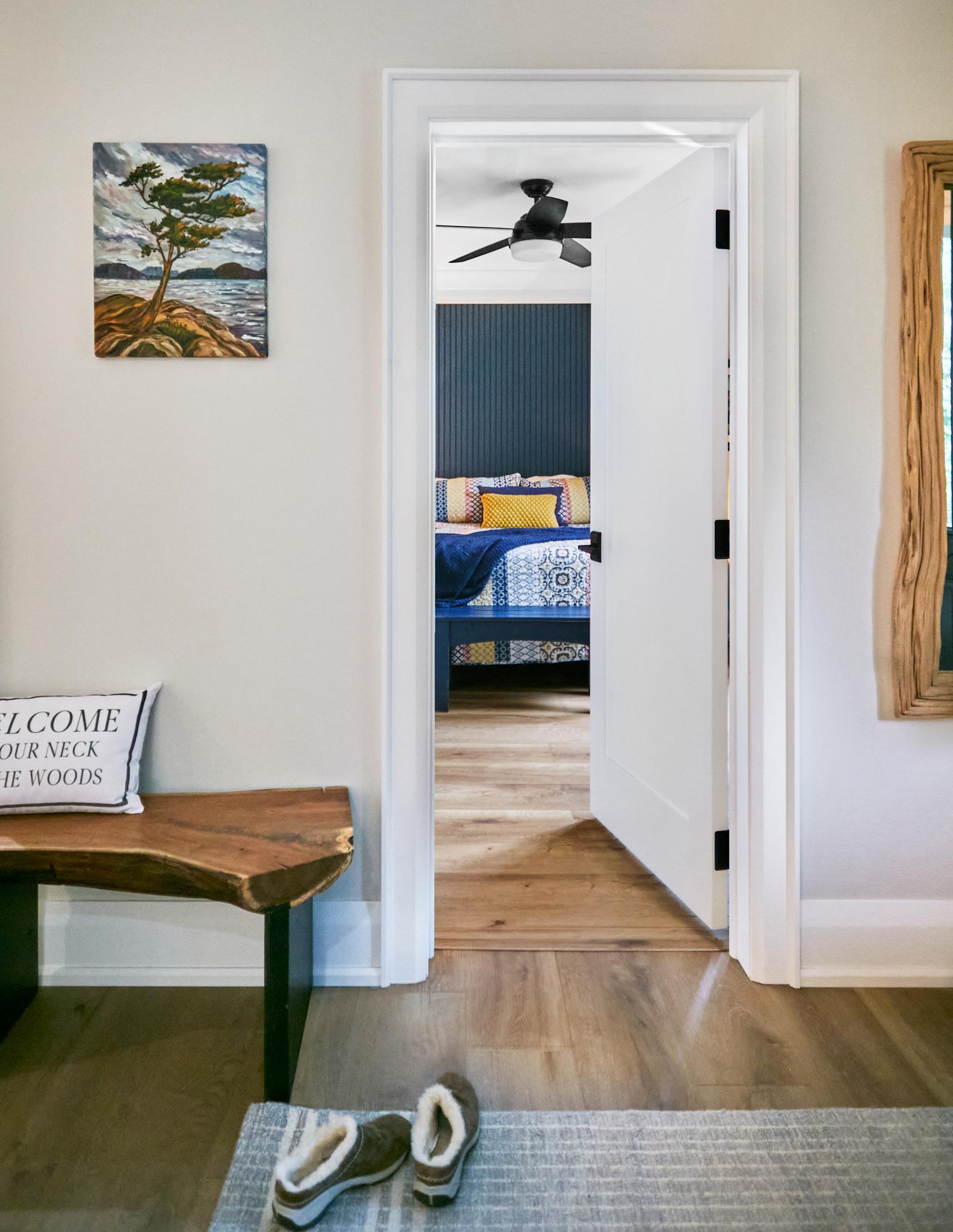

Traditional Elegance

Trademarks of detailed woodwork and graceful lines with classic styling, creates a calm and comfortable décor.

Door Style:

2

CASING 05208

BASEBOARD 90093

Size: 5/8 x 3-1/4

CASING 90093

Size: 5/8 x 3-1/4

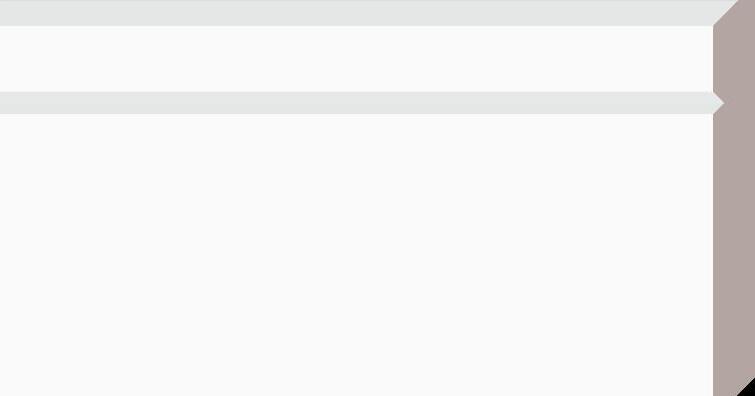

BASEBOARD 10673

Size: 9/16 x 5-3/16

Design tip:

Size: 5/8 x 2-1/2 Add an architrave

ARCHITRAVE 95010

Size: 1-3/16 x 3-3/4

DOORS BY DESIGN

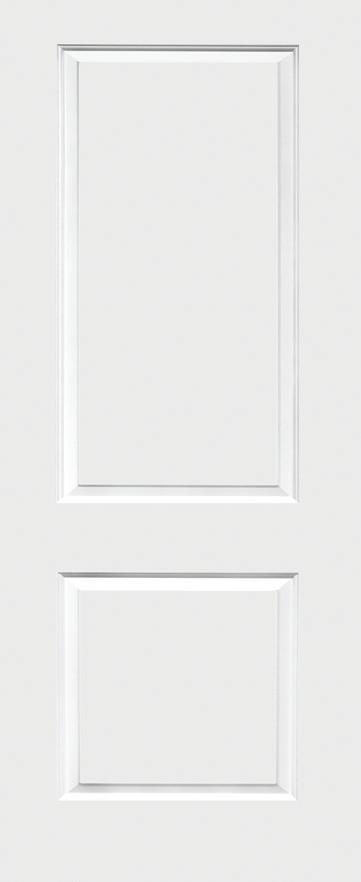

Panel Smooth Carrara®

DOORS BY DESIGN

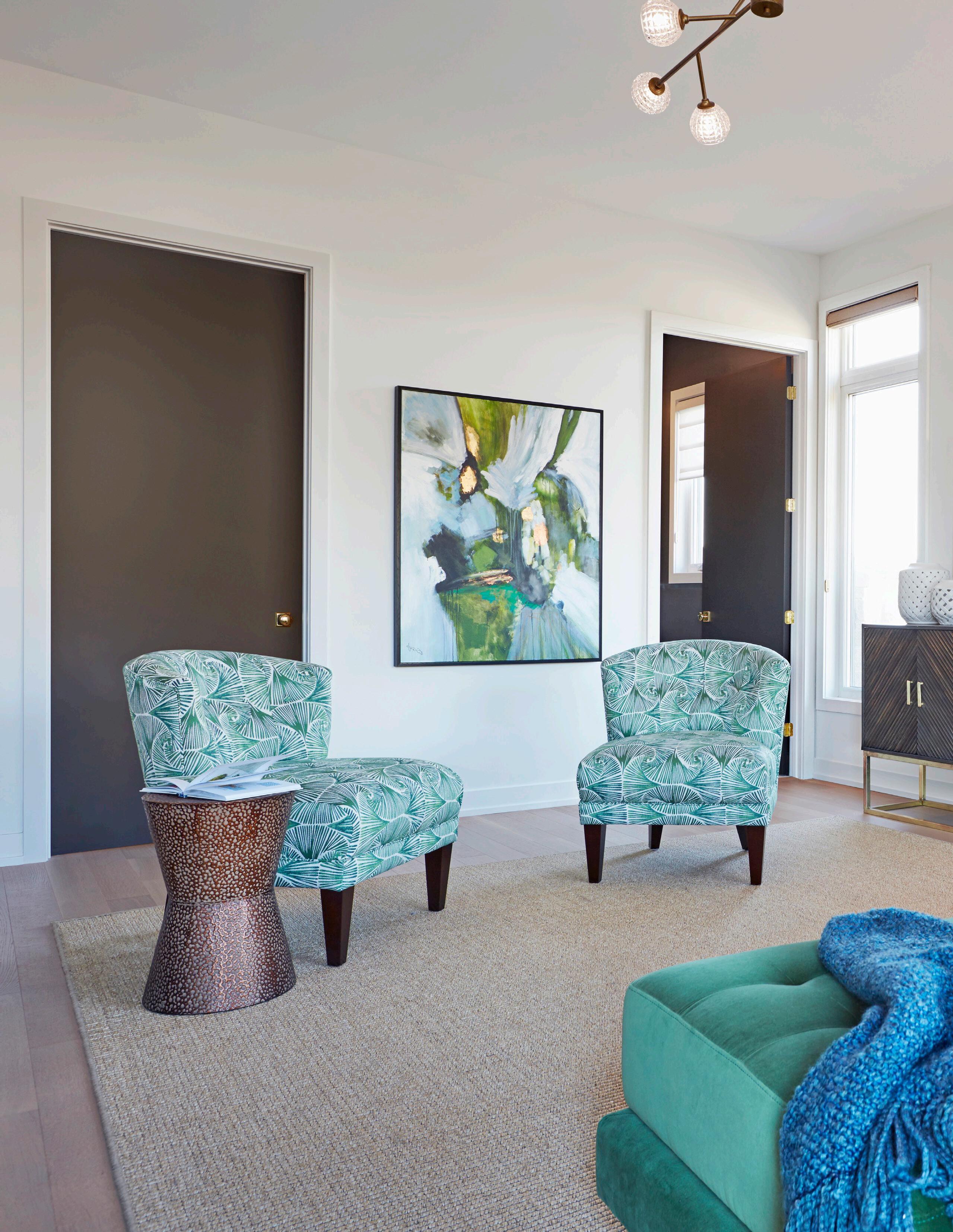

Antique inspired, luxurious elements provide a romantic ambiance while complementing the home’s architecture.

Door Style:

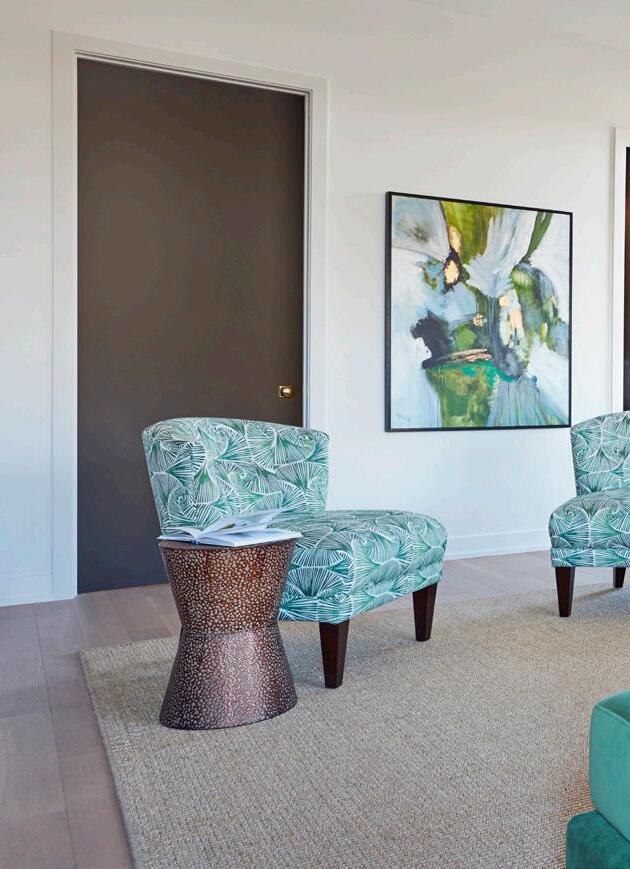

Flush Hardboard Flush

Moulding Combinations:

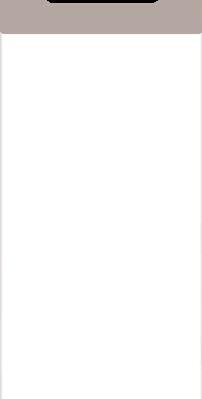

CASING 9356A

Size: 3/8 x 2-1/4

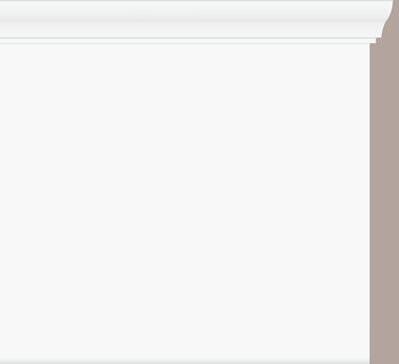

BASEBOARD 93140

Size: 3/8 x 3-1/4

CASING 90411

Size: 11/16 x 3

BASEBOARD 90412

Size: 5/8 x 4-1/2

Design tip:

CROWN 05869

Size: 1 x 4-1/2

Add a crown

DOORS BY DESIGN

DOORS BY DESIGN

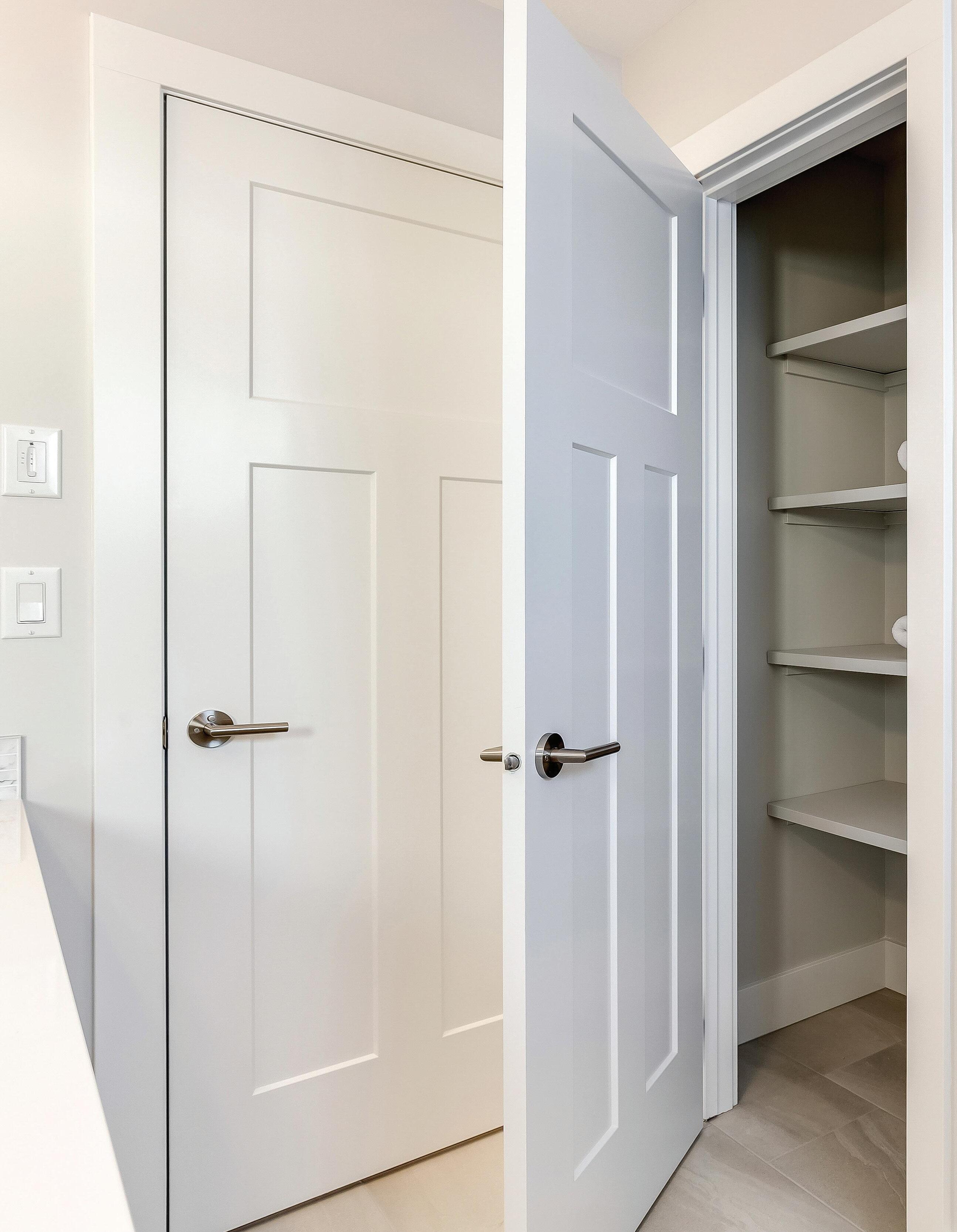

Eclectic Harmony

Integrating elements from multiple styles, creating limitless options for design.

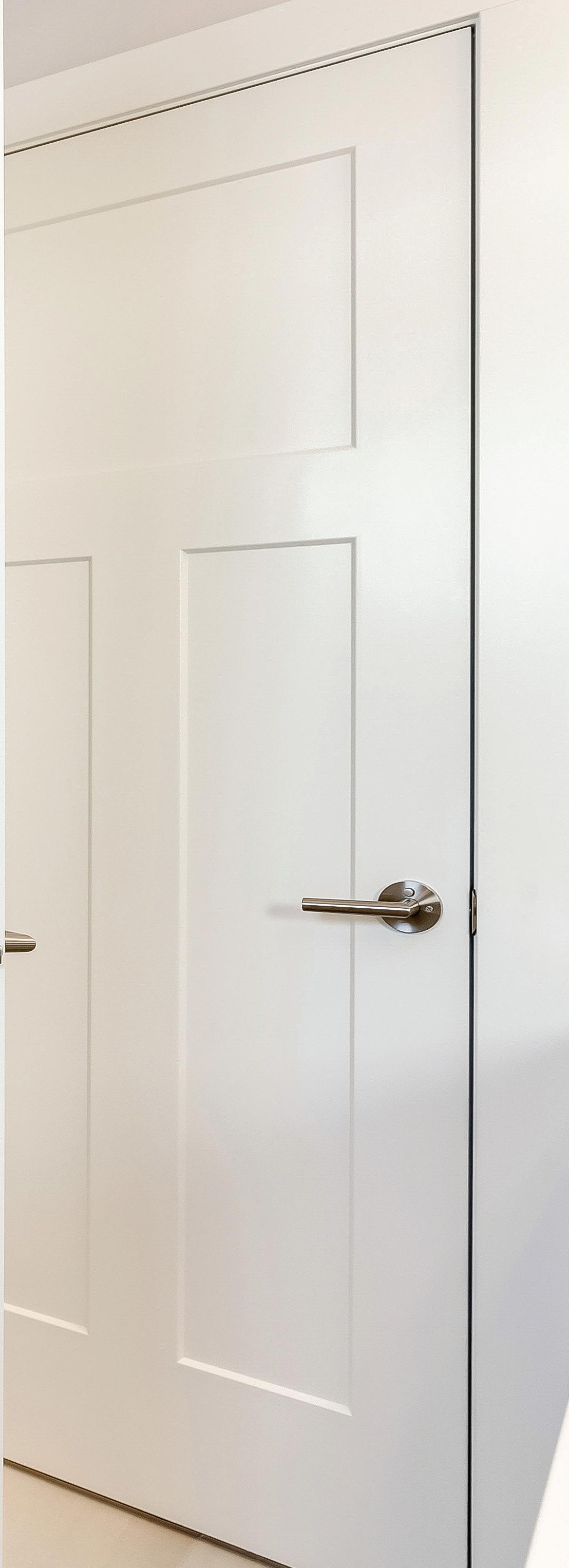

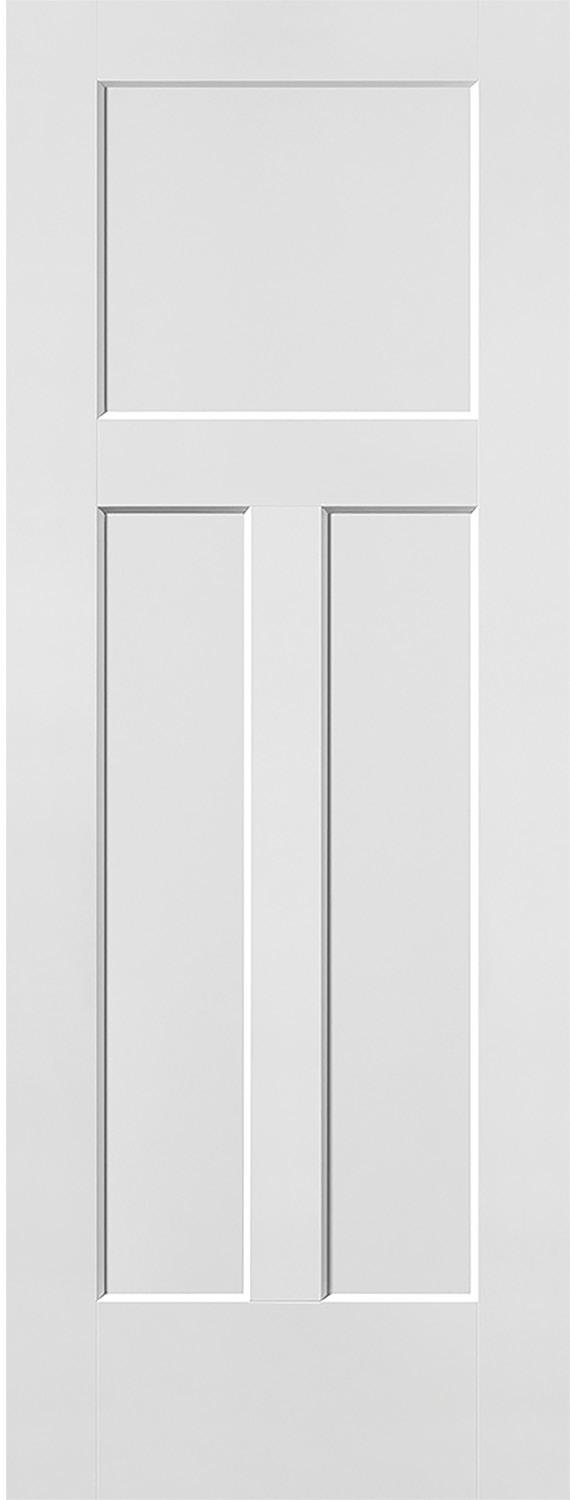

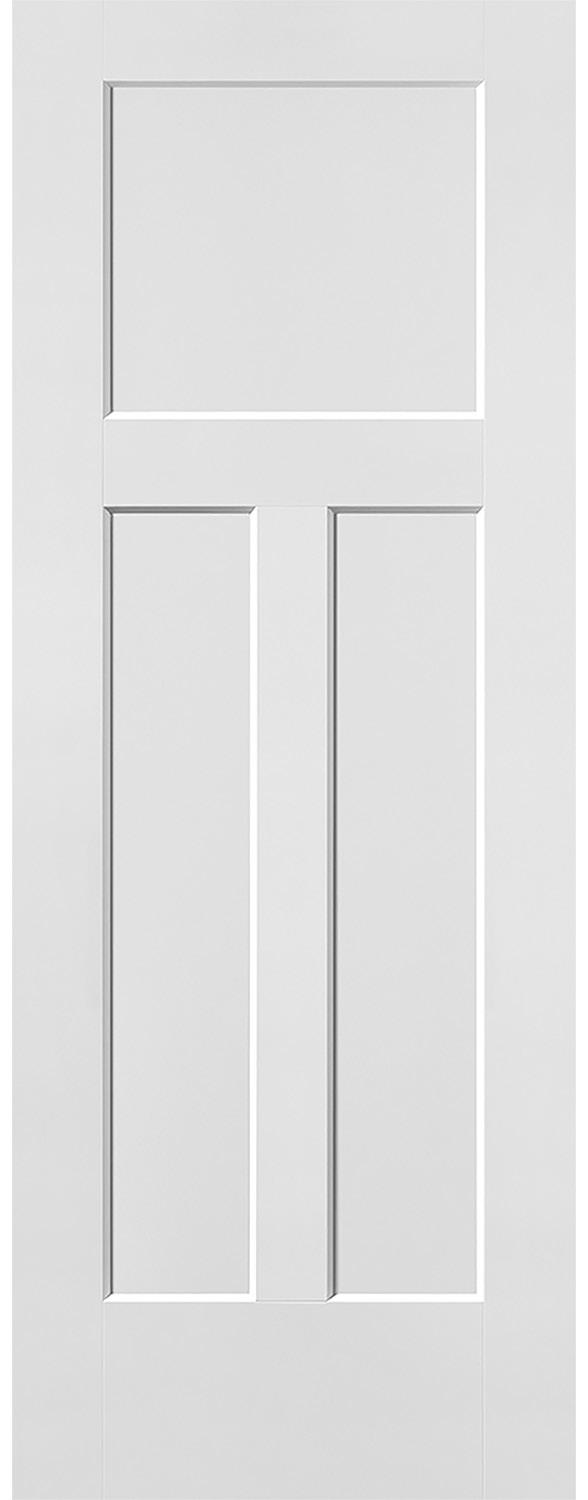

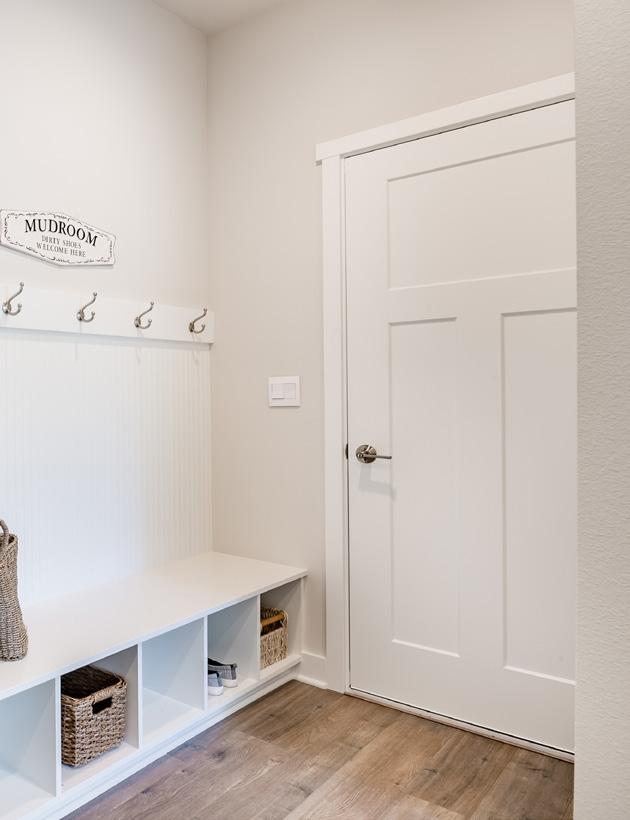

3 Panel Craftsman III™

Moulding Combinations:

CASING 0M37E

Size: 5/8 x 3-1/2

BASEBOARD 0L130

Size: 5/8 x 7-1/4

Door Style: DOORS BY

CASING 03748

Size: 11/16 x 3-1/2

BASEBOARD 03749

Size: 5/8 x 5-1/2

Design tip: ARCHITRAVE 52020

Size: 1 x 4-1/2

IN-STOCK OPTIONS

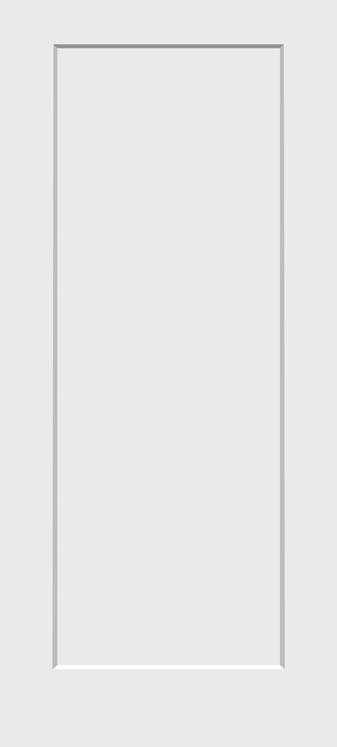

MADISON™ 1 PANEL SHAKER

Representatitive

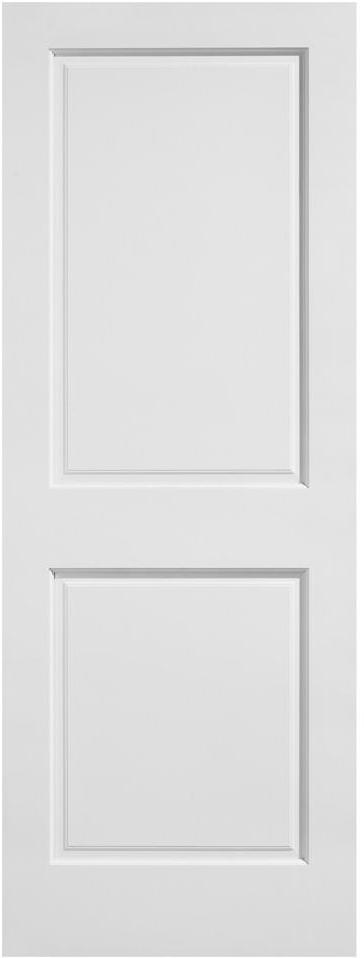

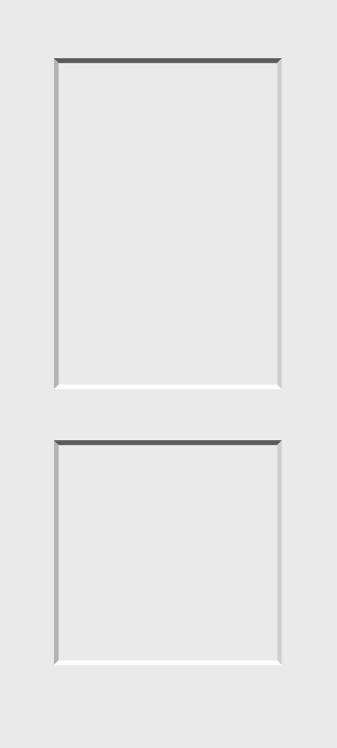

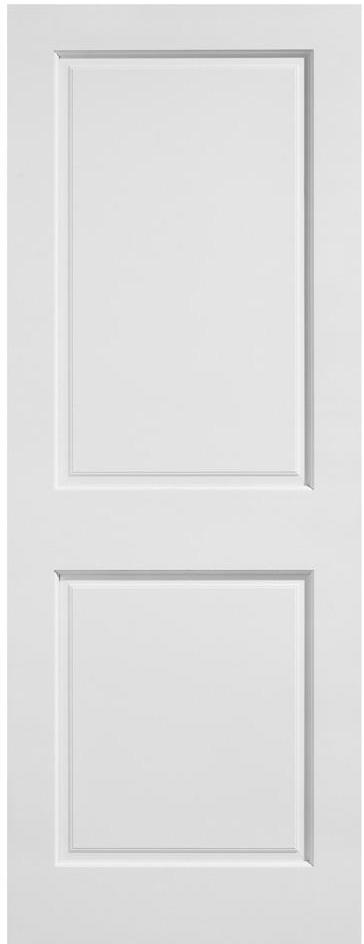

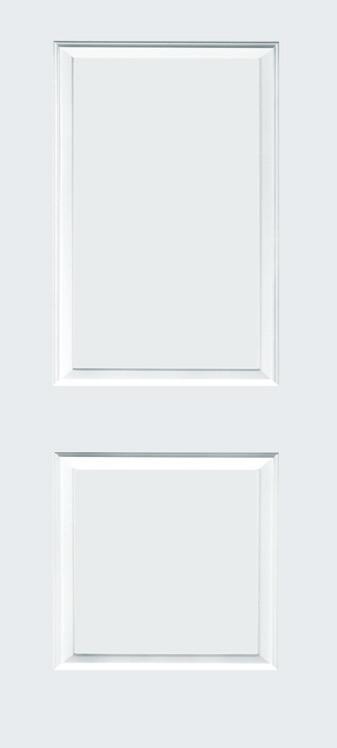

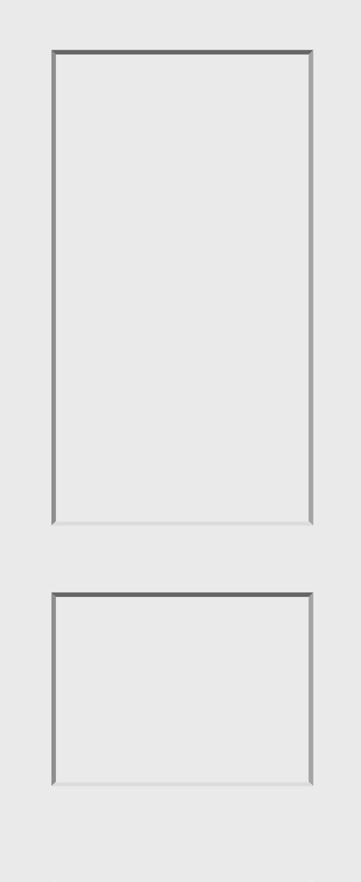

2 PANEL SHAKER

Sales Representatitive

CARRARA® 2 PANEL SMOOTH

3 PANEL CRAFTSMAN III™

= Not Available for Special Order Speak with your Sales Representatitive on sizes

Flat Panel Doors Not Available in Thickness:

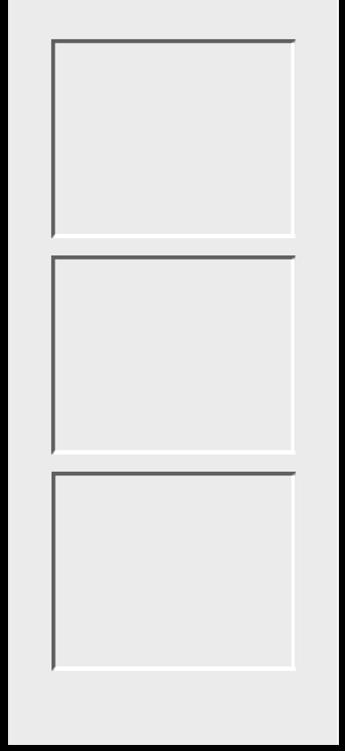

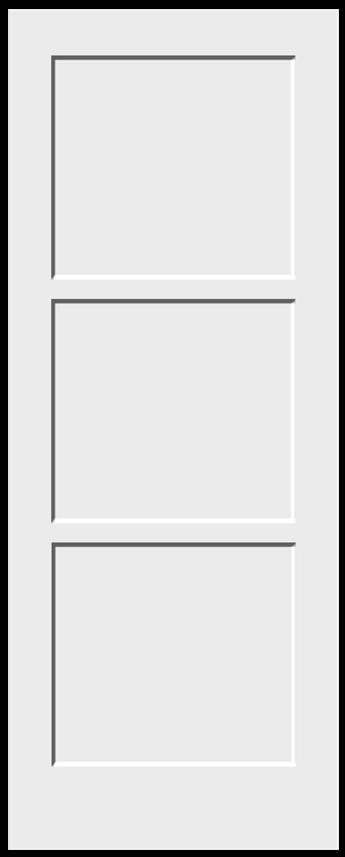

BIRKDALE™ 3 PANEL EQUAL

Speak with your Sales Representatitive

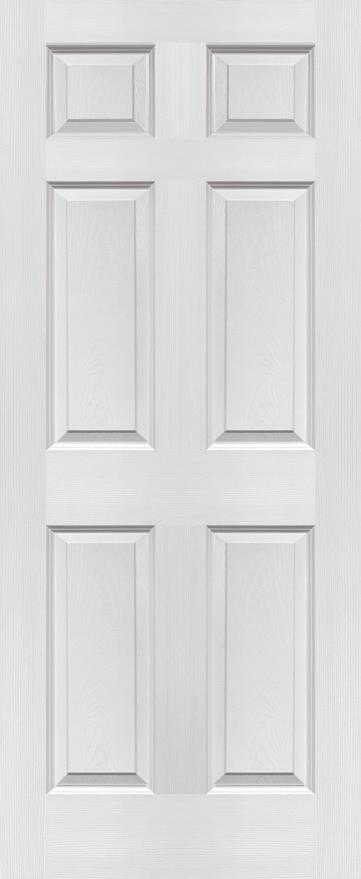

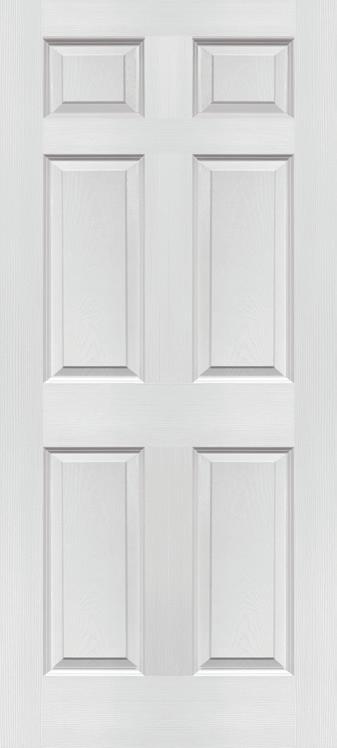

6 PANEL TEXTURED COLONIST®

Speak with your Sales Representatitive

FLUSH HARDBOARD

FLUSH PRIMED HARDBOARD

DOOR SHOP JAMBS

DOOR SHOP JAMBS

0203V FLAT JAMB 11/16 X 4.9/16

7', 8.4' KA • PFJP 0697V * FLAT JAMB 11/16 X 6.9/16

JAMB 11/16 X 4.9/16

* DR JAMB 1.1/4 X 6.9/16

7' HEM

DR JAMB 1.3/16 X 4.9/16 INTERIOR 7', 8.4' PFJP 0413D DR JAMB 1.1/4 X 4.13/16 INTERIOR 7' PFJP 0499D * DR JAMB 1.1/4 X 6.9/16 INTERIOR 7' PFJP

LEGEND

JAMB SPECIES

Embossed Maple

Embossed Spiced Ash

Embossed Golden Oak

Hemlock

Hemlock Veneer

Knotty Alder

Marquis Oak

Oak Veneer Primed MDF PFJ Pine Solid Pine

Embossed Strand Oak

Wood Plastic Composite - Smooth Wood Plastic Composite - Woodgrain

DOOR SHOP JAMBS

CANADIAN WARRANTIES: JELD-WEN® Doors

JELD-WEN Products are designed to create lasting value for your home and offer some of the most comprehensive warranties in the industry. Your satisfaction is important to us and as such we provide several options for obtaining after sales service and warranty work.

Visit jeld-wen.ca for more information on interior door warranties.

• Doors offered in widths from 12" to 36" (305 mm to 914 mm)

• Standard door heights 6'8", 7'0" and 8'0" (2032 mm, 2134 mm and 2438 mm)

• All JELD-WEN® interior moulded doors come with an industry leading, five-year limited warranty

• JELD-WEN reserves the right to change product specifications without notice.

• Bifold, sound dampening (ProCore) and fire rated options available

PERFORMANCE AND RELIABILITY IN EVERY DOOR.

• All our moulded interior doors are available with ProCore The Quiet Door® construction

• Compared to hollow-core options, solid-core construction creates quiet and peaceful indoor spaces by reducing sound transmission by up to 50% and they are more resistant to dings and impact damage, making them ideal for high-traffic areas. Solid particleboard and mineral core doors offer durability, security and soundproofing with fire ratings of 20 or 45-minutes when paired with certified frames and hardware.

• Flat panel moulded interior doors only available with 20-minute fire rating.
