L AW R E N C E E A S T T R A N S I T O R I E N T E D C O M M U N I T Y | 2 0 2 4 - 2 0 2 5

Visuals done by WW+P’s Visualization Team

01

L AW R E N C E E A S T TRANSIT ORIENTED COMMUNITY Software: Revit, Rhino, Sketch-up, Vray, Adobe Illustrator, Adobe Photoshop, Adobe InDesign Year: 2024-2025 Type: Transit Oritented Development Location: Toronto, ON Recognition: World Architecture Festival 2025 Shortlisted The Lawrence East Transit-Oriented Community (TOC) will transform the area at Lawrence Avenue and McCowan Road, part of the Scarborough Subway Extension (SSE) into a vibrant, mixed-use hub directly connected to rapid transit. Guided by the Province’s TOC Program, the project integrates housing, retail, and community amenities within a walkable environment, creating a complete community centered around sustainable mobility.

6

Architecturally, the design balances density and livability through terraced podiums, green roofs, and active ground-floor uses that foster street-level vibrancy. Public realm improvements and connections to surrounding neighborhoods ensure the community feels integrated and accessible.

Together, these elements position Lawrence East as a sustainable, inclusive, and resilient urban destination, supporting the broader vision of complete transit-oriented communities.

L AW R E N C E E A S T T R A N S I T O R I E N T E D C O M M U N I T Y | 2 0 2 4 - 2 0 2 5

Site Plan

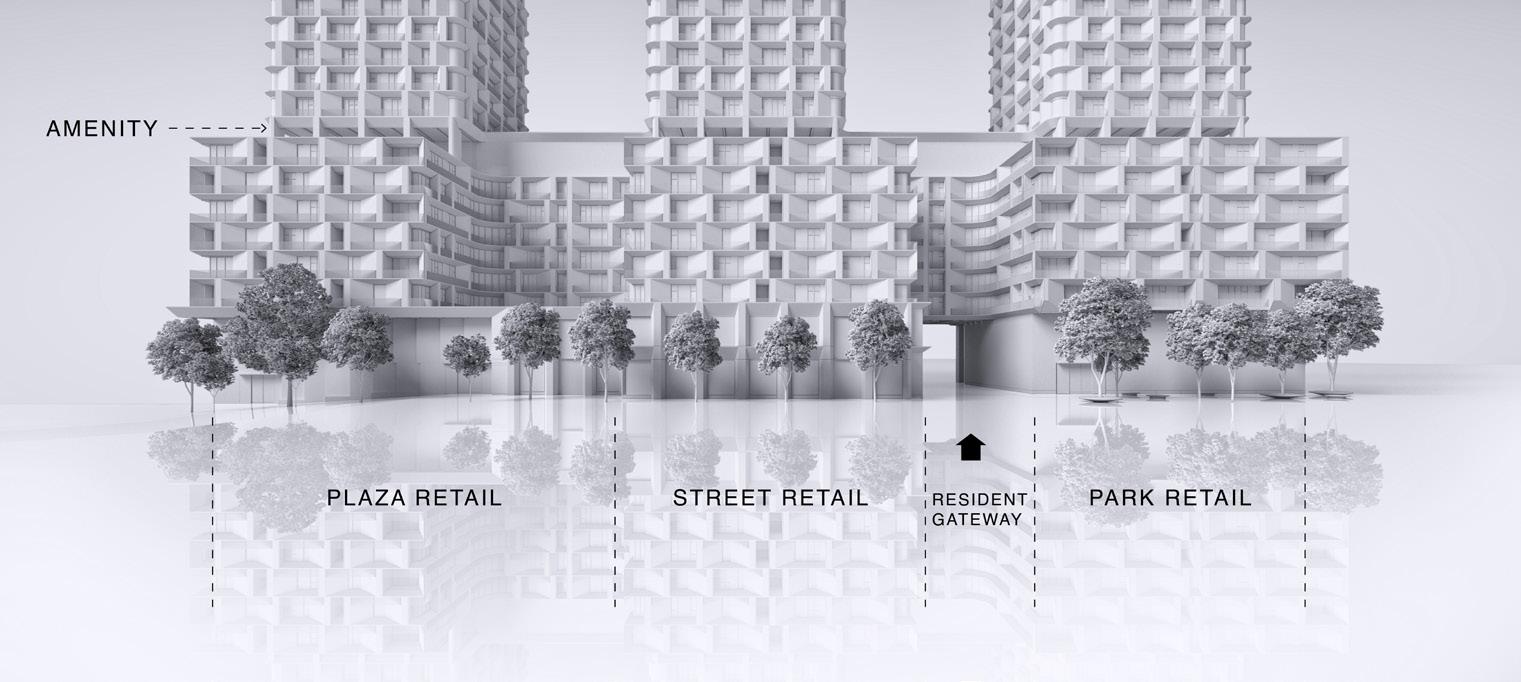

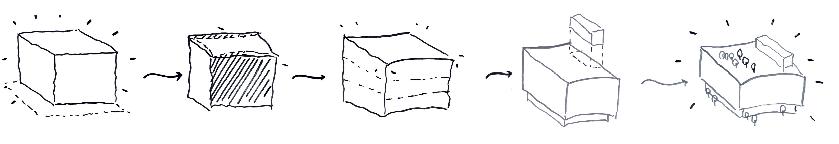

Conceptual Massing

7

L AW R E N C E E A S T T R A N S I T O R I E N T E D C O M M U N I T Y | 2 0 2 4 - 2 0 2 5

Visuals done by WW+P’s Visualization Team 08

8

The proposal introduces a significant increase in housing supply, including affordable housing options, while supporting new jobs and retail opportunities. Residents and visitors will benefit from community-oriented amenities such as local shops, green spaces, and recreational facilities located just steps from the future transit station 09

9

L AW R E N C E E A S T T R A N S I T O R I E N T E D C O M M U N I T Y | 2 0 2 4 - 2 0 2 5 MC COWAN RD

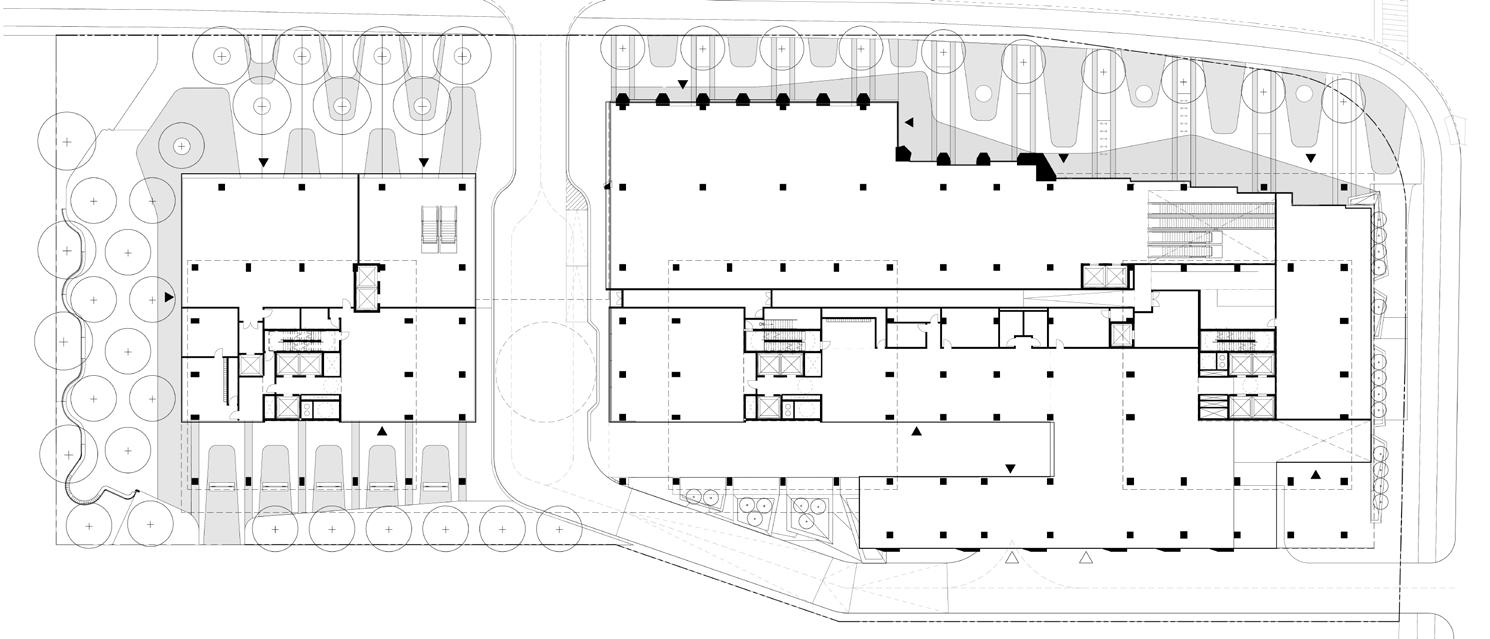

LAWRENCE EAST AVE Ground Floor Plan

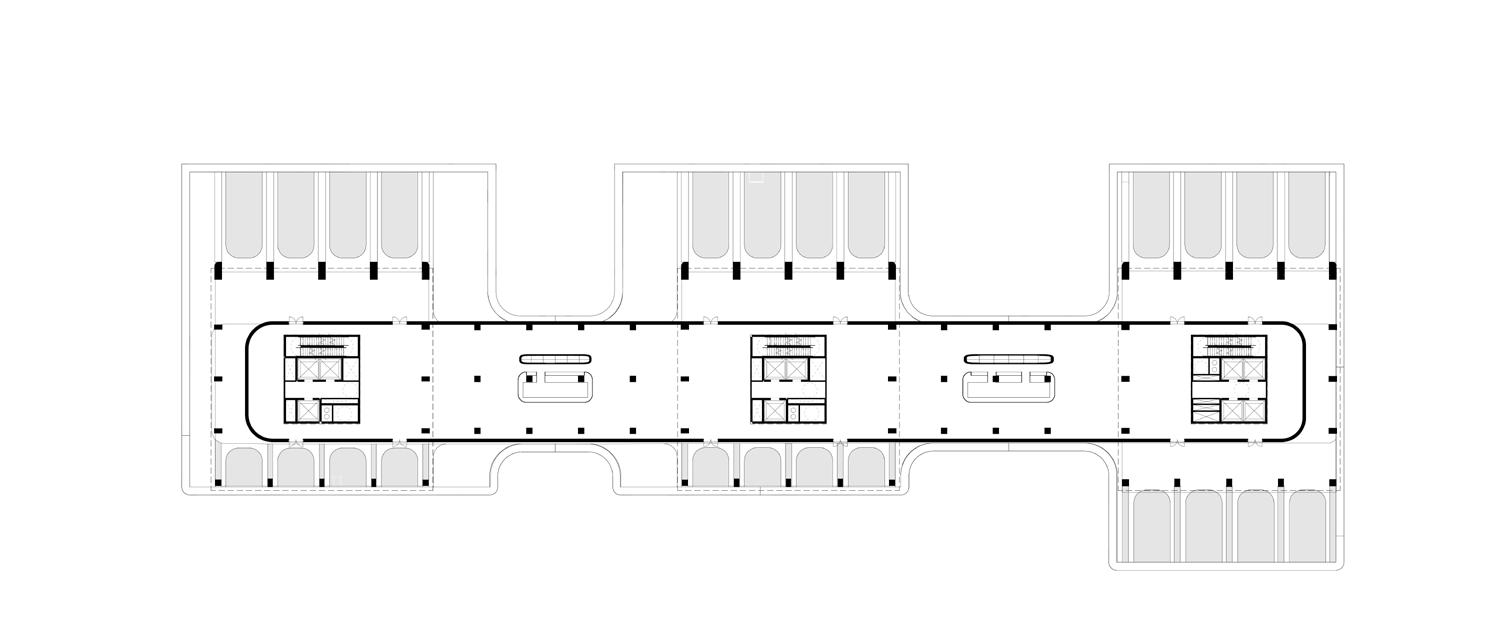

Typical Podium Amenity Floor Plan

Typical Tower Floor Plan

10

>

L AW R E N C E E A S T T R A N S I T O R I E N T E D C O M M U N I T Y | 2 0 2 4 - 2 0 2 5

>

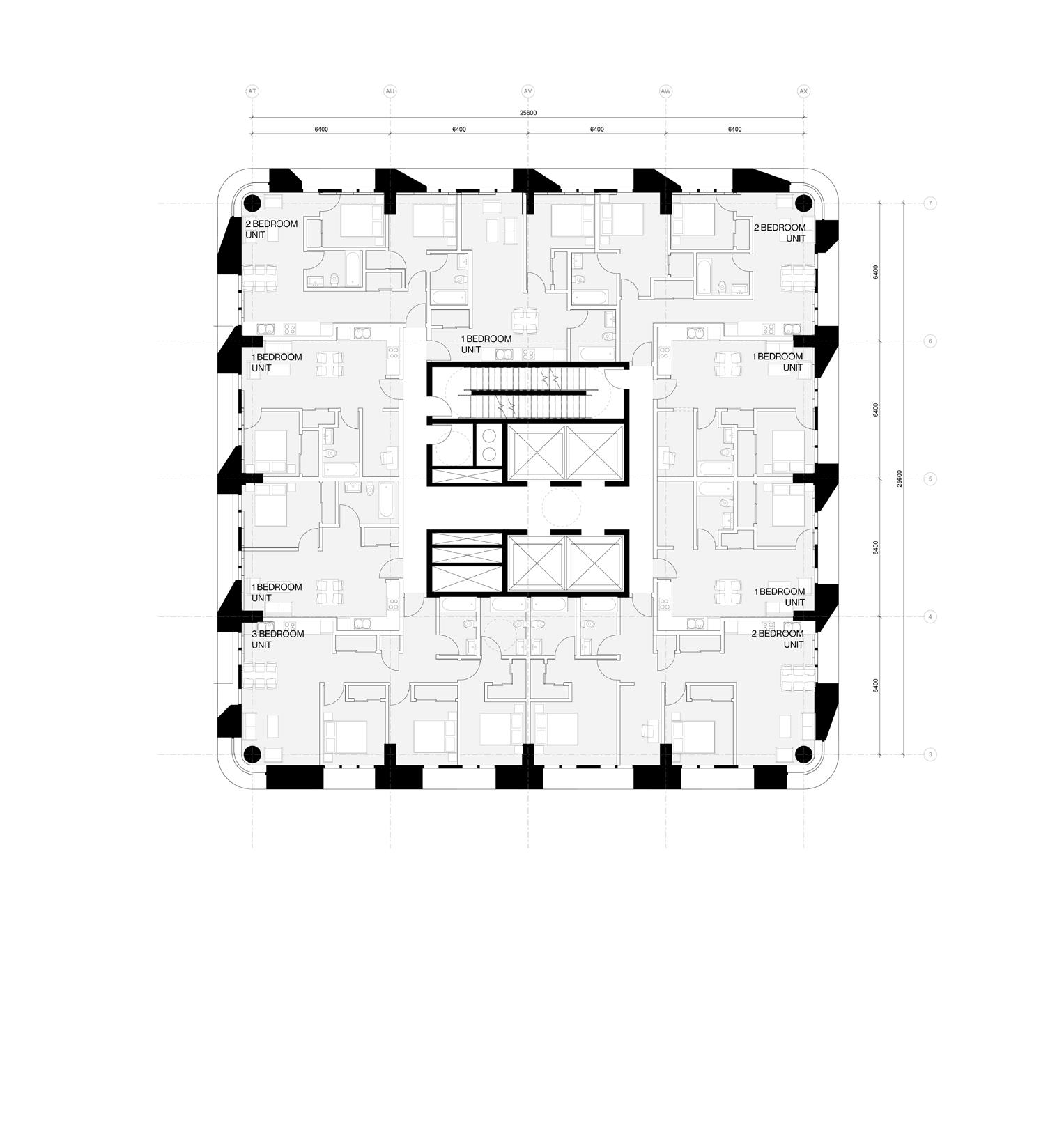

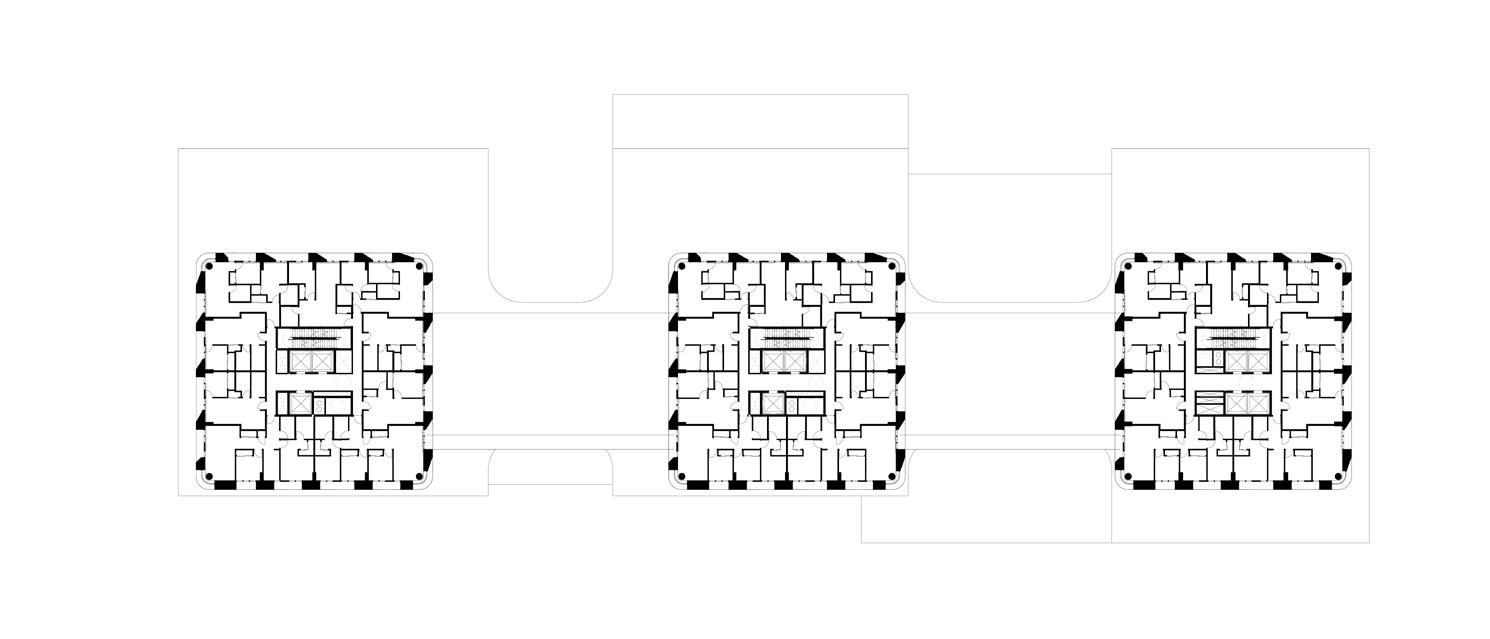

Enlarge Tower Plan

11

L AW R E N C E E A S T T R A N S I T O R I E N T E D C O M M U N I T Y | 2 0 2 4 - 2 0 2 5

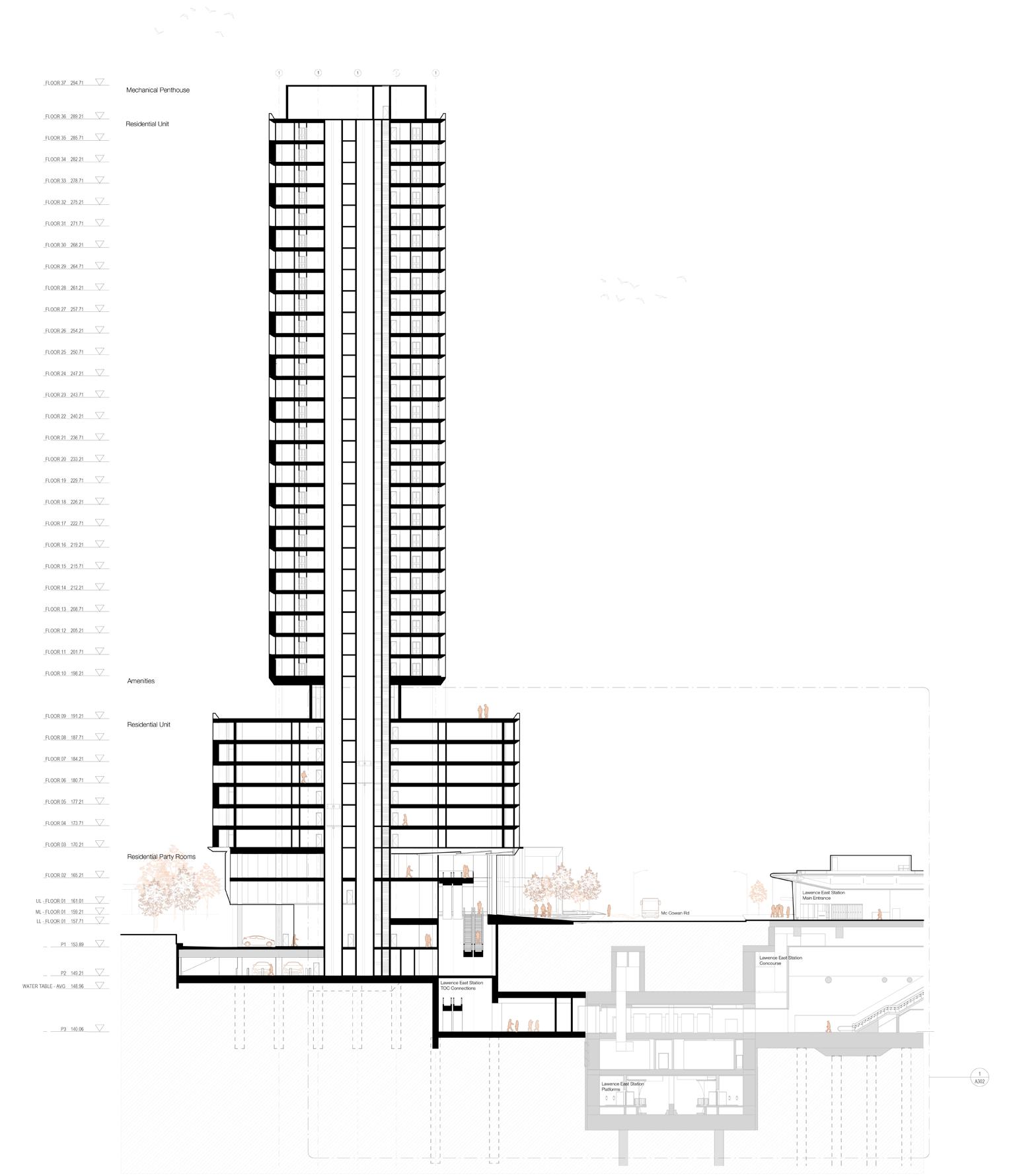

Overall Interface Section

12

L AW R E N C E E A S T T R A N S I T O R I E N T E D C O M M U N I T Y | 2 0 2 4 - 2 0 2 5

By combining housing, jobs, amenities, and open spaces within a short walk of rapid transit, the Lawrence East Transit-Oriented Community exemplifies the Province’s vision of building complete, sustainable communities that are economically resilient and socially inclusive.

Visuals done by WW+P’s Visualization Team

13 13

MAIN SQUARE COMMUNITY CENTRE | 2023

02

MAINSQUARE COMMUNITY CENTRE Software: Revit, Rhino, Vray, Adobe Illustrator, Adobe Photoshop, Adobe InDesign Year: 2023-2024 Type: Community Recreational Location: Toronto, ON Supervisor: Garth Norbraten, Michelle Grant Design Lead - Alex T. - Techincal Coordination - Tina Z. The concept is An approach to reference the rich tapestry of history with the dynamic present, establishing an unique Motif that harmonizes tradition and innovation. The Motif creates a new community center as an Assemble of Typologies and arts, a diverse and inclusive hub where people unite as a Village, uniting in the shared production of Arts, Sports, and Culinary experiences.

14

This visionary space transcends the ordinary, becoming a nexus for creativity, athleticism, and culinary delights.

It is a place where the past and the contemporary converge, fostering a unique blend of identities in both space and expression. In doing so, the proposal strives to breathe life into a community that is as diverse as it is dynamic, celebrating the vitality of human connection and the ever-evolving spirit of the East Village.

NEW PUBLIC ROAD

MAIN SQUARE COMMUNTIY CENTRE | 2023

3208

APPROVED DEVELOPMENT

APPROVED DEVELOPMENT

2326

PARKING

MAIN ST

1421

896

370

IN EXISTING GO TRA PLATFORMS

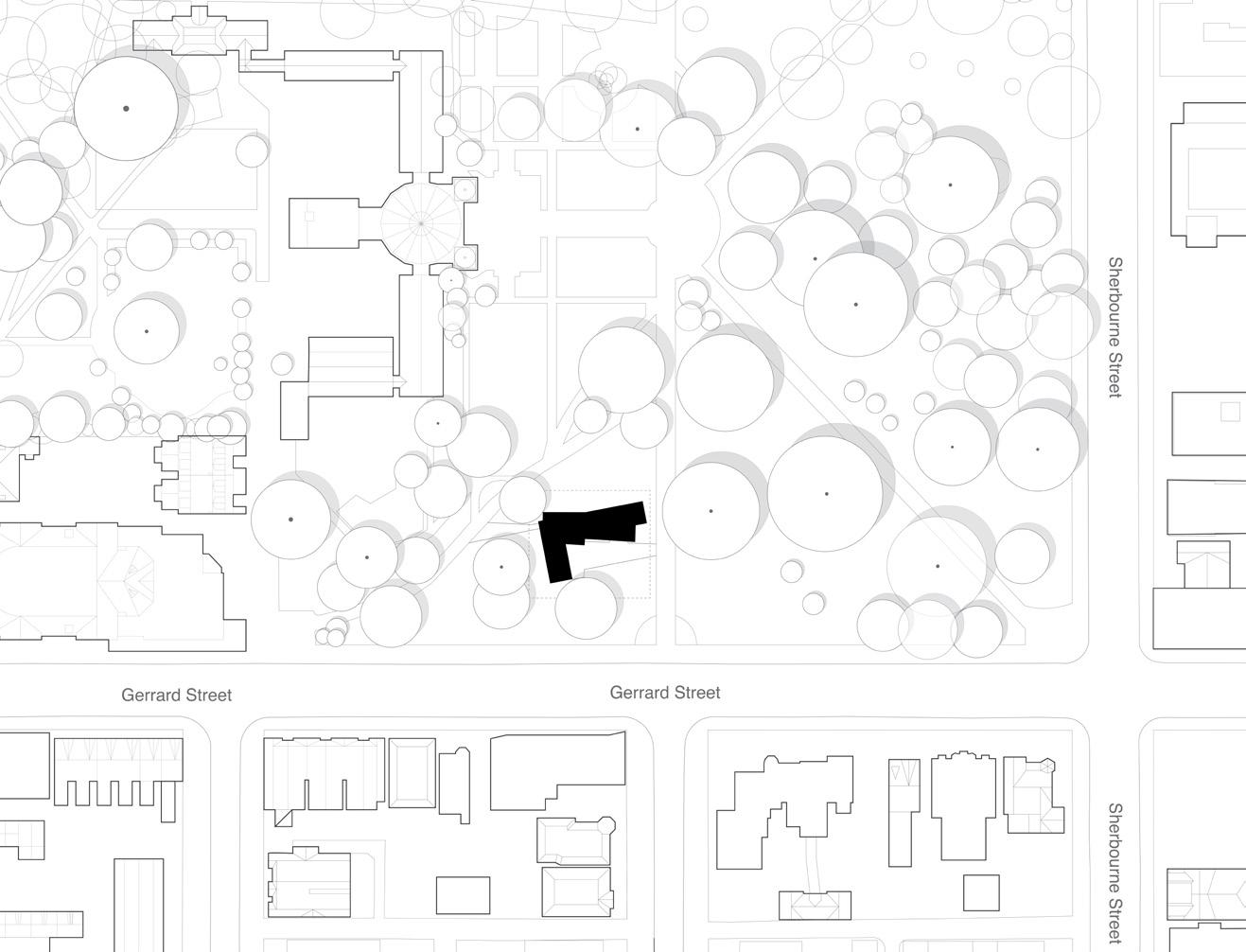

Site Plan

>

1 : 250

Site Plan

Two primary factors heavily influence the design of our community hub.

Firstly, Art is very critical in terms of architecture expression and bring people together. therefore, we draw inspiration from Canadian landscape artists, particularly Kim, whose work resonates with us. This abstraction embodies our vision for a community hub that harmonizes color, architecture, and landscape, much like Kim’s paintings.

Secondly, we prioritize contextual impact.

Beyond the forms, we delve deeper into the site’s unique characteristics. In addition to the abstract forms, we incorporate elements inspired by the surrounding fragments, such as mimicking roof lines.

15

1 A108

A

DN UP DN

UP

B

1

2

UP

A108

2

4

0 f1 4 3 t 1 0 4 2 3 9 0 5 6 9

1. Lobby and Multipurpose Passageway 2. Staff offices 3. Communal Kitchen/Workshop 4. Auditorium 5. Artcscape Studios 6. Change and Shower Rooms 7. Swimming Pool 8. Yoga Club 9. Mutipurpose Room 10. Loading 11. New Danforth GO Station

3 A 11

G

3236

DN

Ground Floor Schematic 2354

1 : 200

1449

DN

1

924

DN

397

UP

1. Exhibition Space 2. Artscape Studios 3. Green roof and Outdoor Lounge

16

10 5

6

DN

7

UP

UP

B

9

8

Ground Floor Plan

2 2

DN

DN

3

Second Floor Plan

17

18

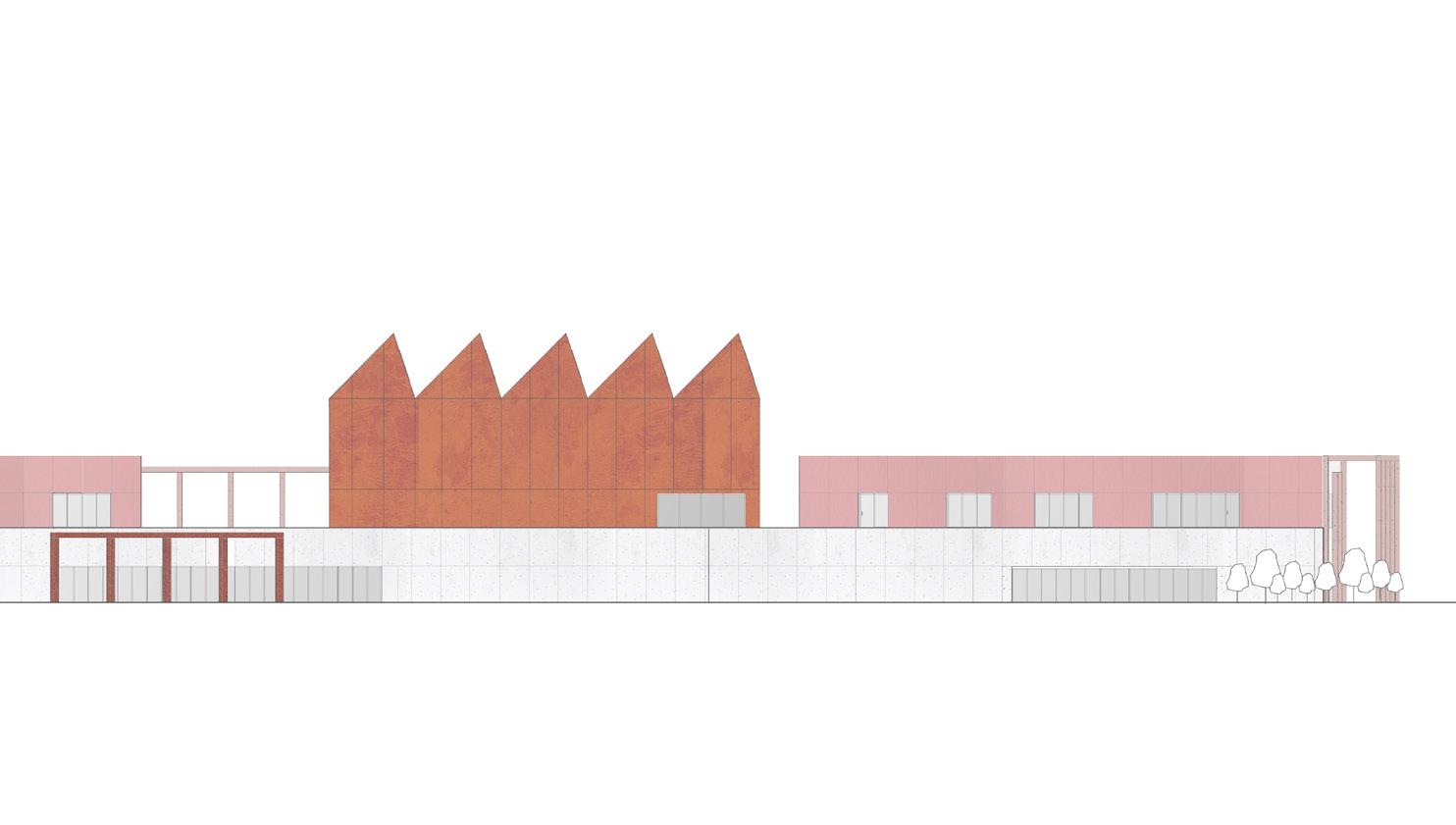

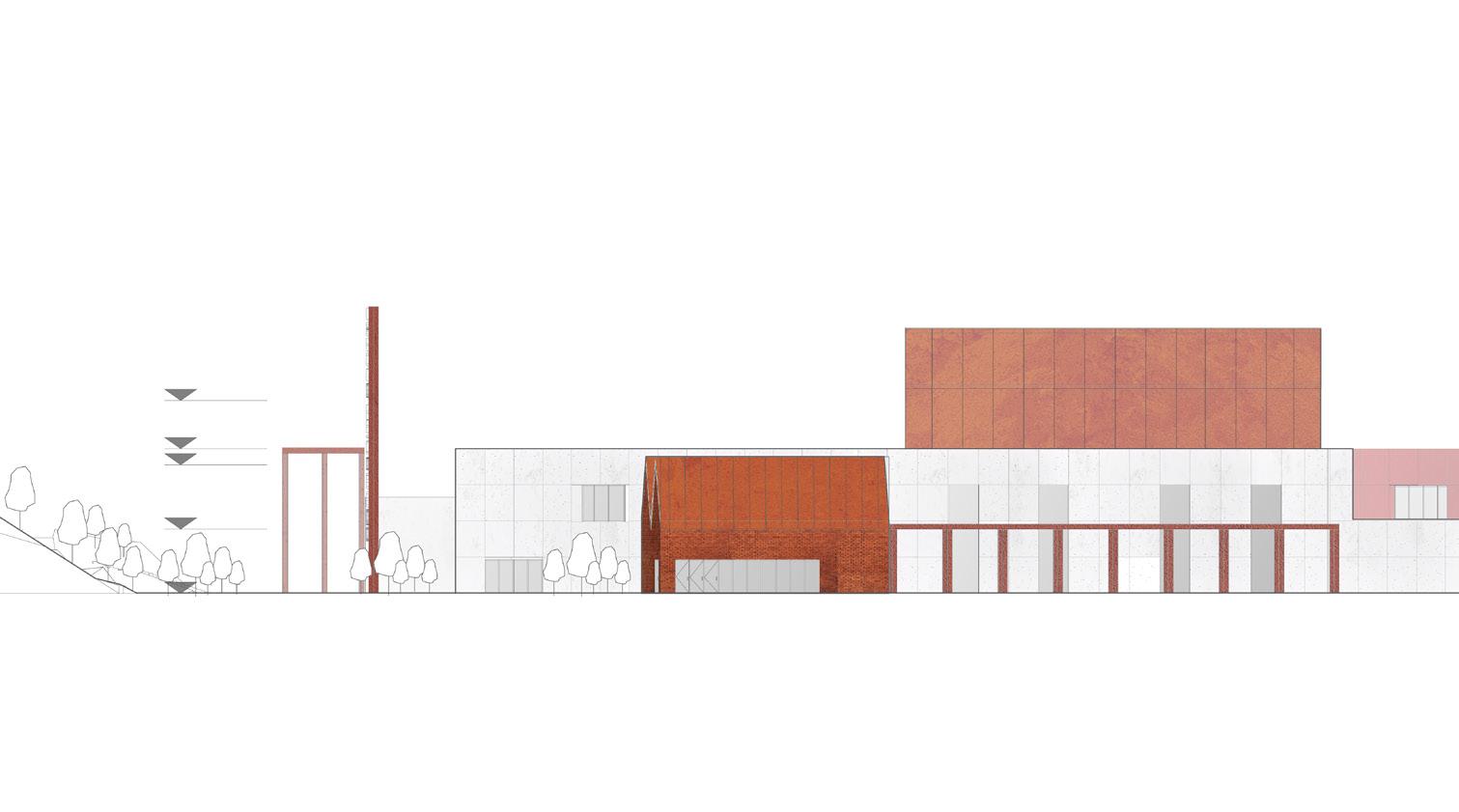

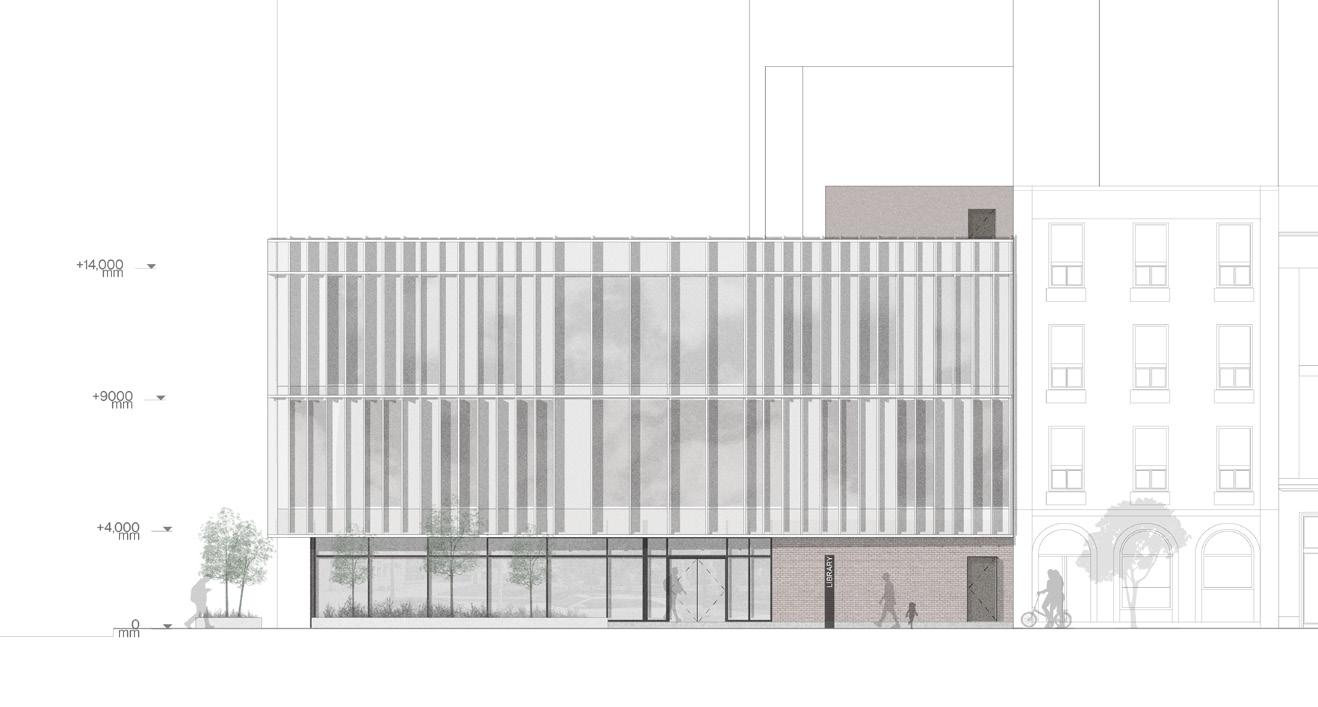

South Elevation

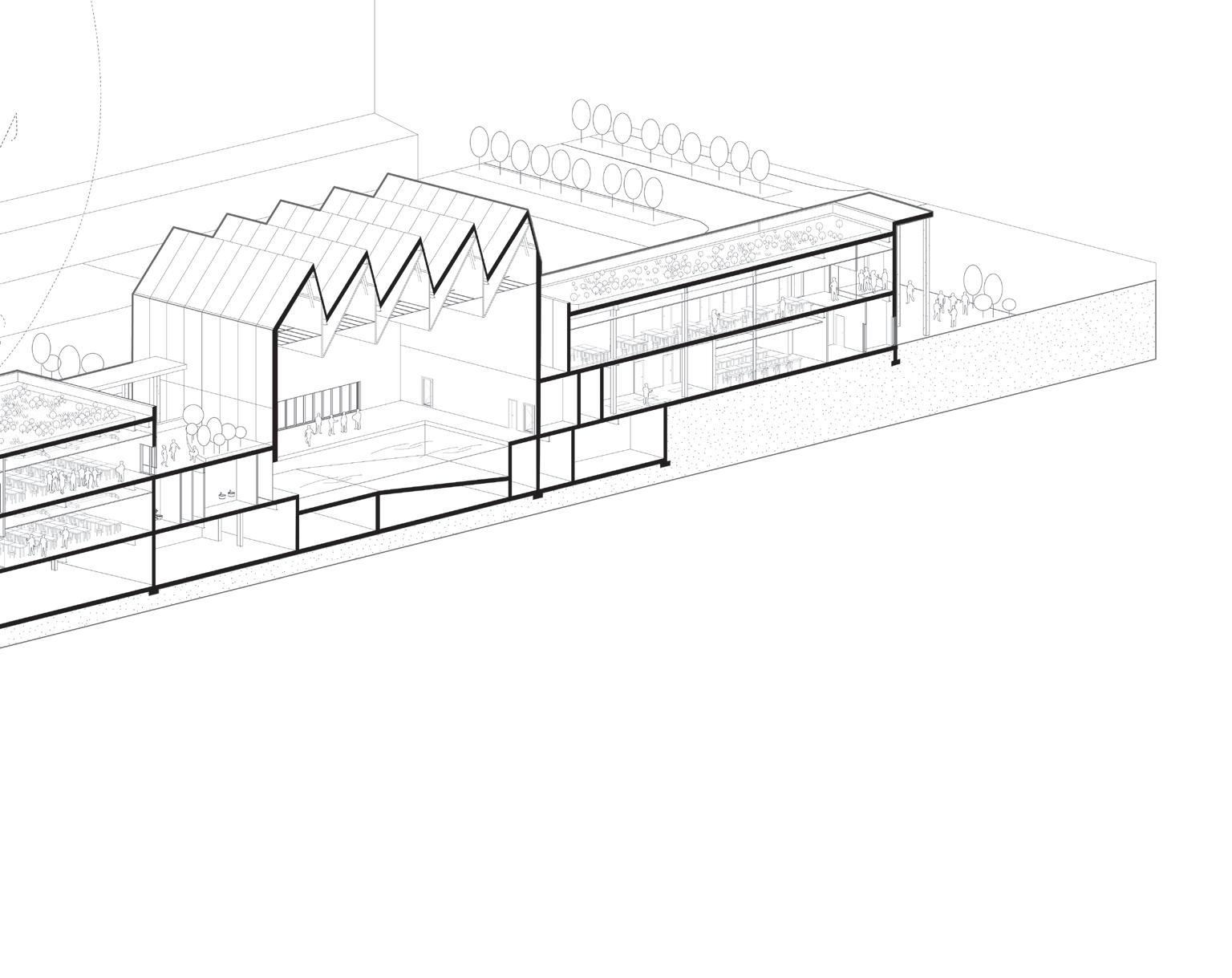

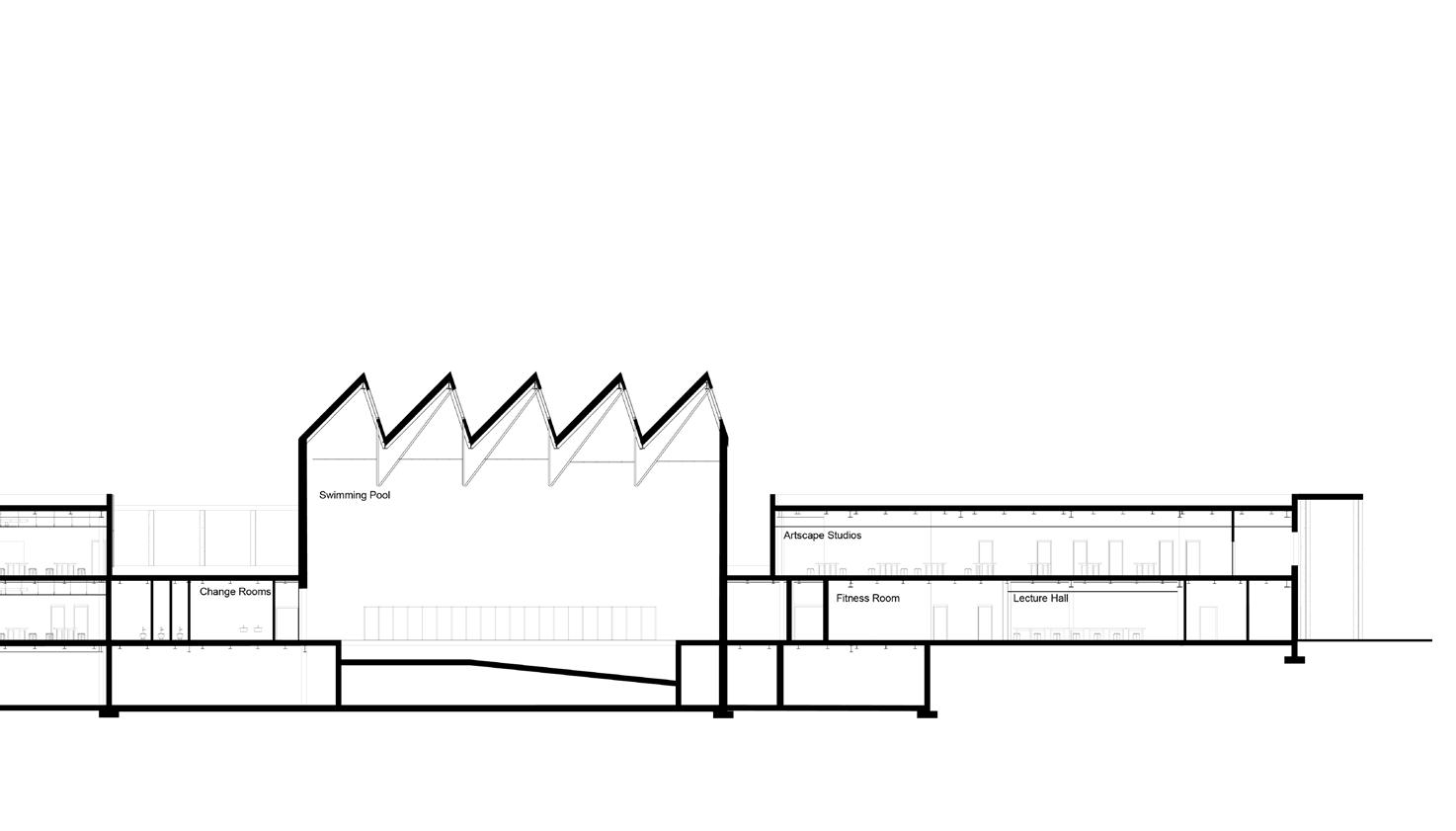

Section

19

Exterior Rendering

Exterior Rendering

20

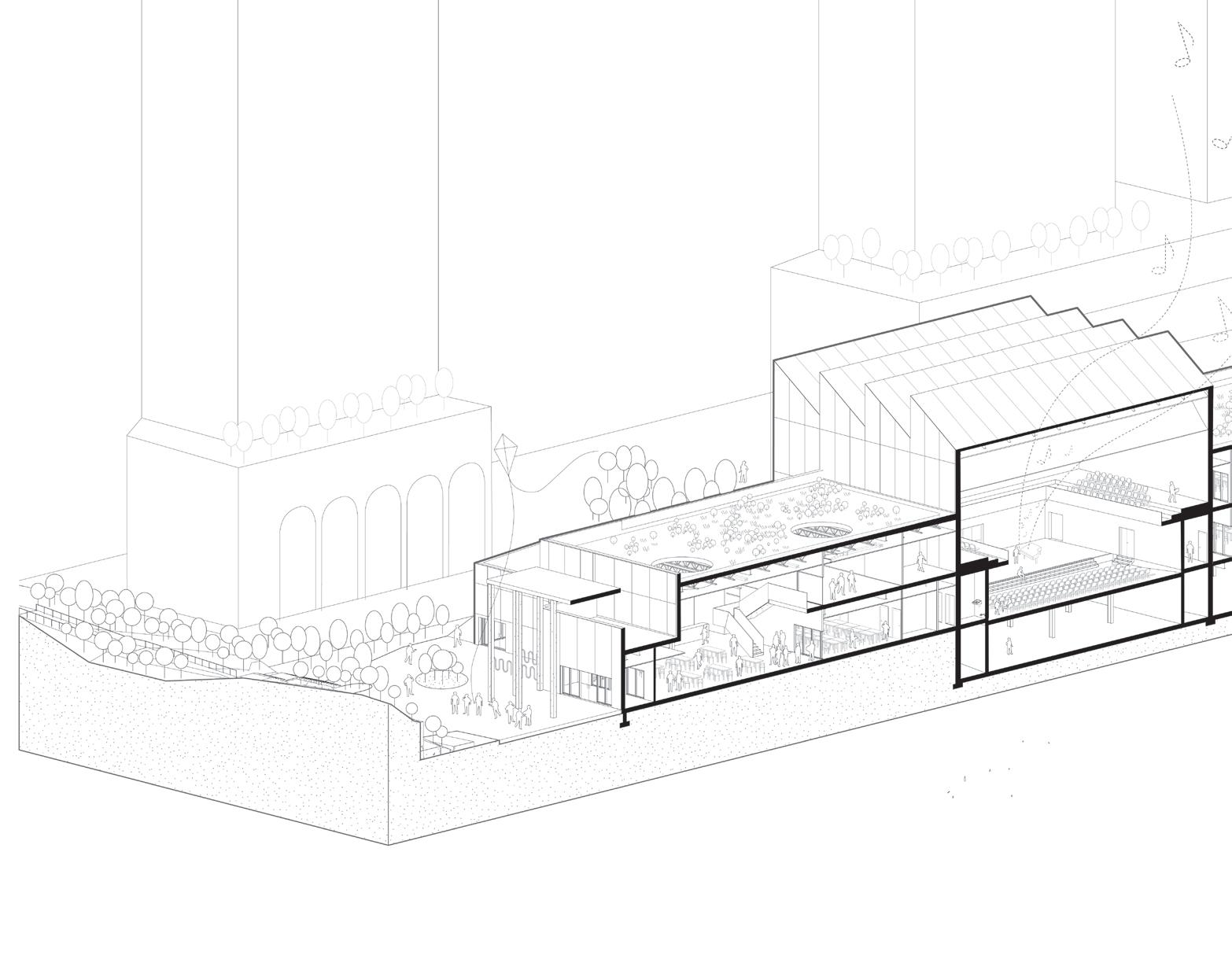

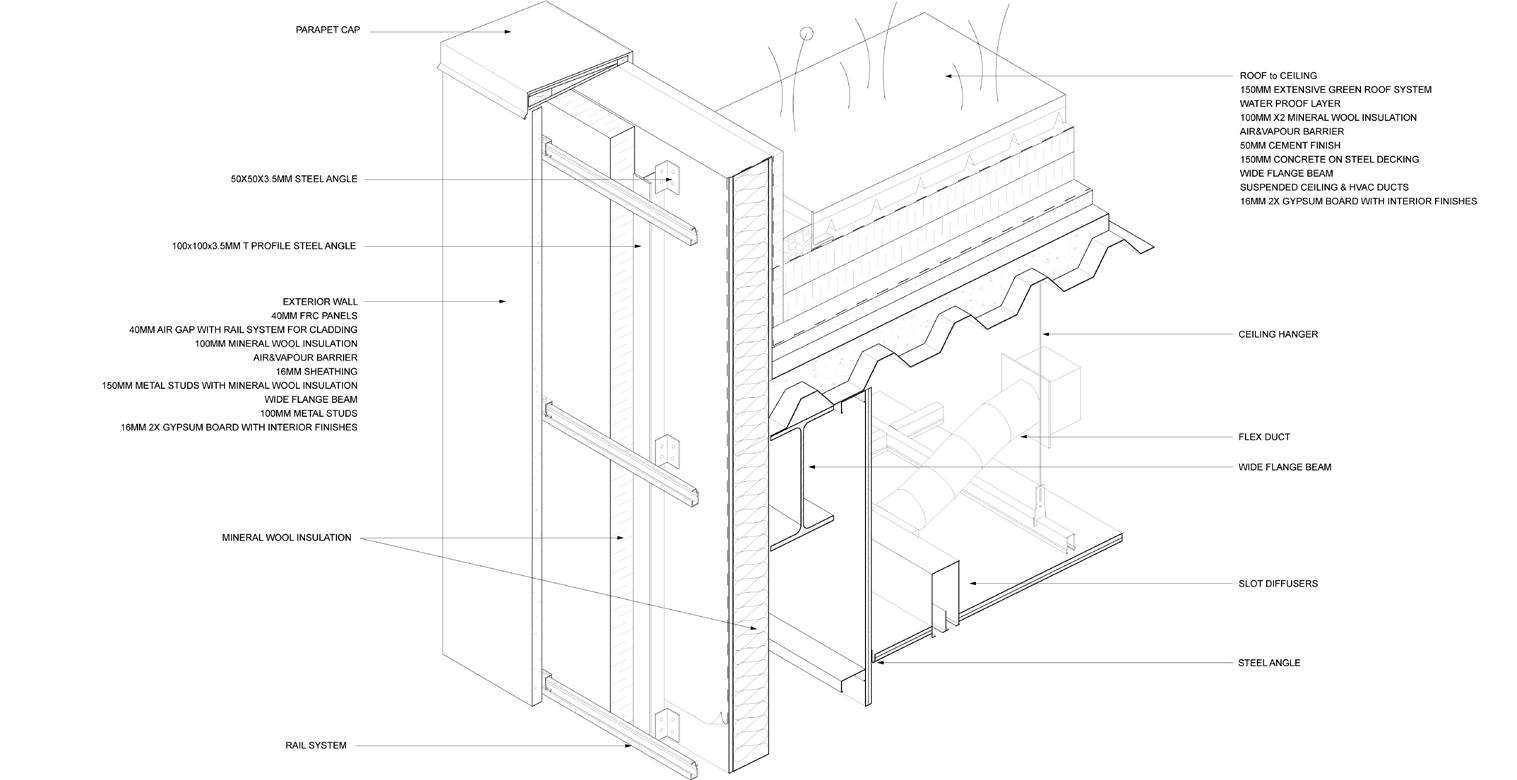

Sectional Details

21

MAIN SQUARE COMMUNITY CENTRE | 2023

Performance Hall

Entrance Hall & Communal Lounge

22

Administrative Office

MAIN SQUARE COMMUNTIY CENTRE | 2023

Swimming Pool

Artscape Studios

Underground Mechanical Room & Ultilities

Artscape Studios N.2

23

MAIN SQUARE COMMUNITY CENTRE | 2023

Performance Hall

Exterior Rendering

24

MAIN SQUARE COMMUNTIY CENTRE | 2023

04.16.2024

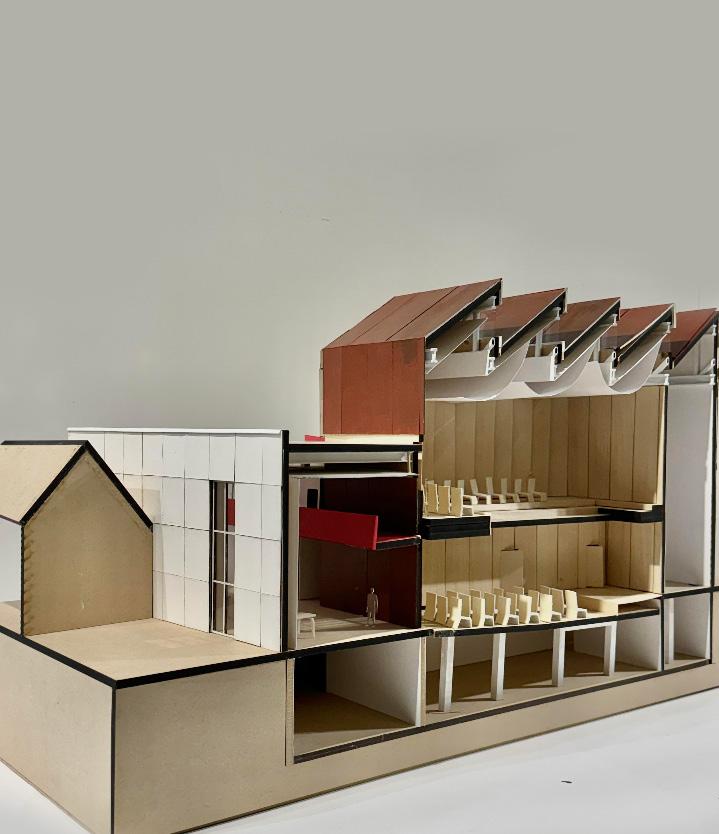

Fragment Model 1:50 In Collaboration with Tina Zhang

25

V I N E YA R D H O U S E | 2 0 2 3

03

V I N E YA R D H O U S E Software: Revit, Rhino, Vray, Adobe Illustrator, Adobe Photoshop, Adobe InDesign Year: 2023 Type: Residential Location: Toronto, ON Supervisor: Fan Zhang

Home is something that should provide comfort and make you feel better. However, with the current developments around Toronto, there needs to be more potential to build more green spaces and bigger units. People are forced to live in tight condo units with a row of glazing for commercials at the bottom; this ultimately causes many negative impacts on well-being.

26

Thus, VINEYARD HOUSE focuses on human comfort and creates opportunities for green spaces; townhouses make it a collection of a lively community. The main focus is healthier living; addition- al green spaces and vertical and rooftop garden allows a cycle of harvest and use, emphasizing the sense of sustainability and urban farming in the city. The natural ventilation and the green facade ultimately control the temperature, allowing people to feel more comfortable physically and mentally throughout the seasons.

V I N E YA R D H O U S E | 2 0 2 3 MEEGWETCH LANE

Site Plan

ADELAIDE ST W

ST ARA NIAG

AV NUT WAL E

STANLEY TER

STANLEY AVE

KING ST W

Concepts

Extruding the site

Apply setbacks and 45 degreeangular plane to allow more green spaces and enhance public realms

Final forms with additional green spaces, green facade with vertical gardens and roof top gardens

Vegetables from the rooftop garden and the vertical vines at the South will be transported down to daycare centre, restaurant and wine production to produce food and wine

Residents from the townhouses also get acess to all the amenites spaces throughout the building by an internal corridor and elevators

The building will embrace the continous green pattern to Stanley Park

27

NIAG

V I N E YA R D H O U S E | 2 0 2 3

ARA

STANLEY AVE

B

ST

Ground Floor Plan

Daycare 131m2

2100

UP

Residential Townhouse 57m2

Residential Townhouse 57m2

Residential Townhouse 57m2

Residential Townhouse 57m2

Residential Townhouse 57m2

Residential Townhouse 57m2

Townhouse 001

Townhouse 002

Townhouse 003

Townhouse 004

Townhouse 005

Townhouse 006

2000

MOVE IN - CORRIDOR

NUT WAL

Bulk Garbage Drop off

Commercial and Daycare Storage 25m2

UP

A Bike Storage 100m2

Security

Mail 20m2

Restaurant and Wine Shop 100m2

Loading 100m2

Mechanical 35m2 and Fire Elevator Access

Garbage 46m2

UP

Electrical Room 17m2

Landscape Storage 10m2 Staff 17m2

CACF

Residential Lobby

DN

UP

UP

AVE Mezzanine Floor Plan

Daycare Mezzanine

Residential Townhouse 57m2

Residential Townhouse 57m2

Residential Townhouse 57m2

Residential Townhouse 57m2

Residential Townhouse 57m2

Residential Townhouse 57m2

Townhouse 001

Townhouse 002

Townhouse 003

Townhouse 004

Townhouse 005

Townhouse 006

Wine Production Party Room 86m2

DN

UP DN

UP

3rd Floor Plan

Indoor Amenities 124m2 Outdoor Amenities

28

Unit 301 1BD 60m2

Unit 302 1BD 56m2

Unit 303 2BD 112m2

Unit 304 1BD 54m2

Unit 305 1BD 56m2

Residential Unit 306 2BD+DEN 124m2

V I N E YA R D H O U S E | 2 0 2 3

Section AA

22m

19m

16m

12m

9m

6m

3m

WALNUT AVENUE

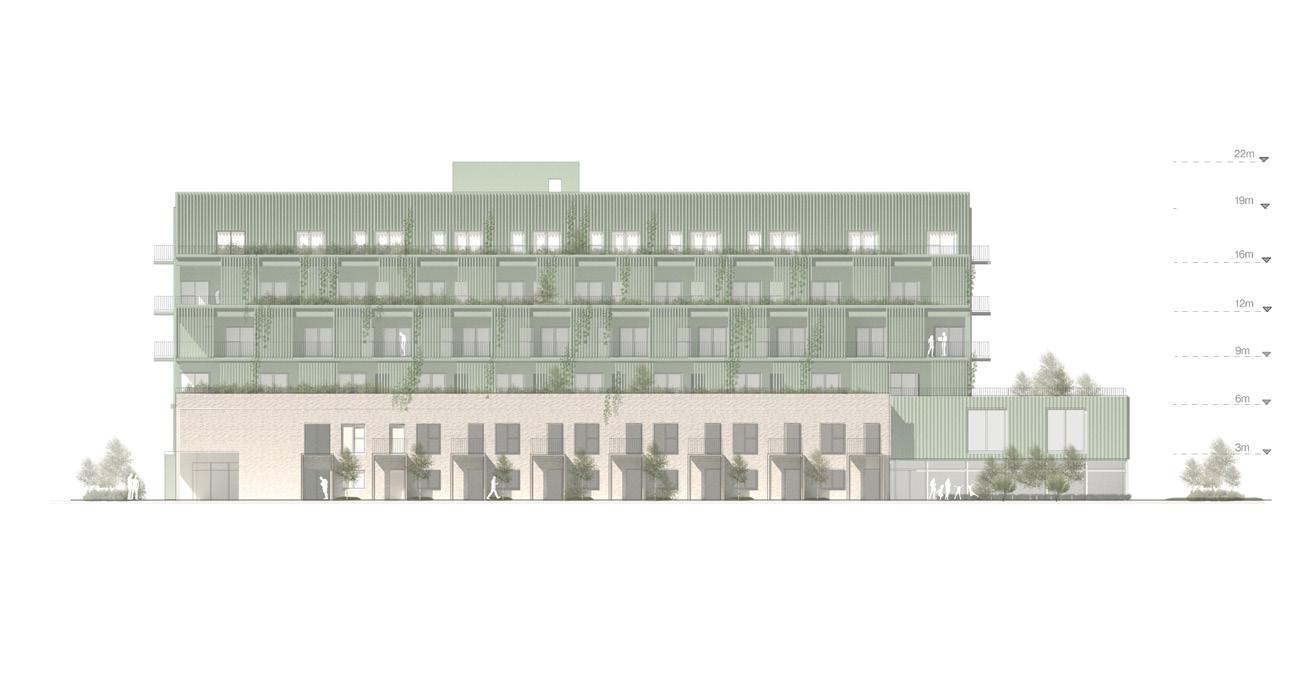

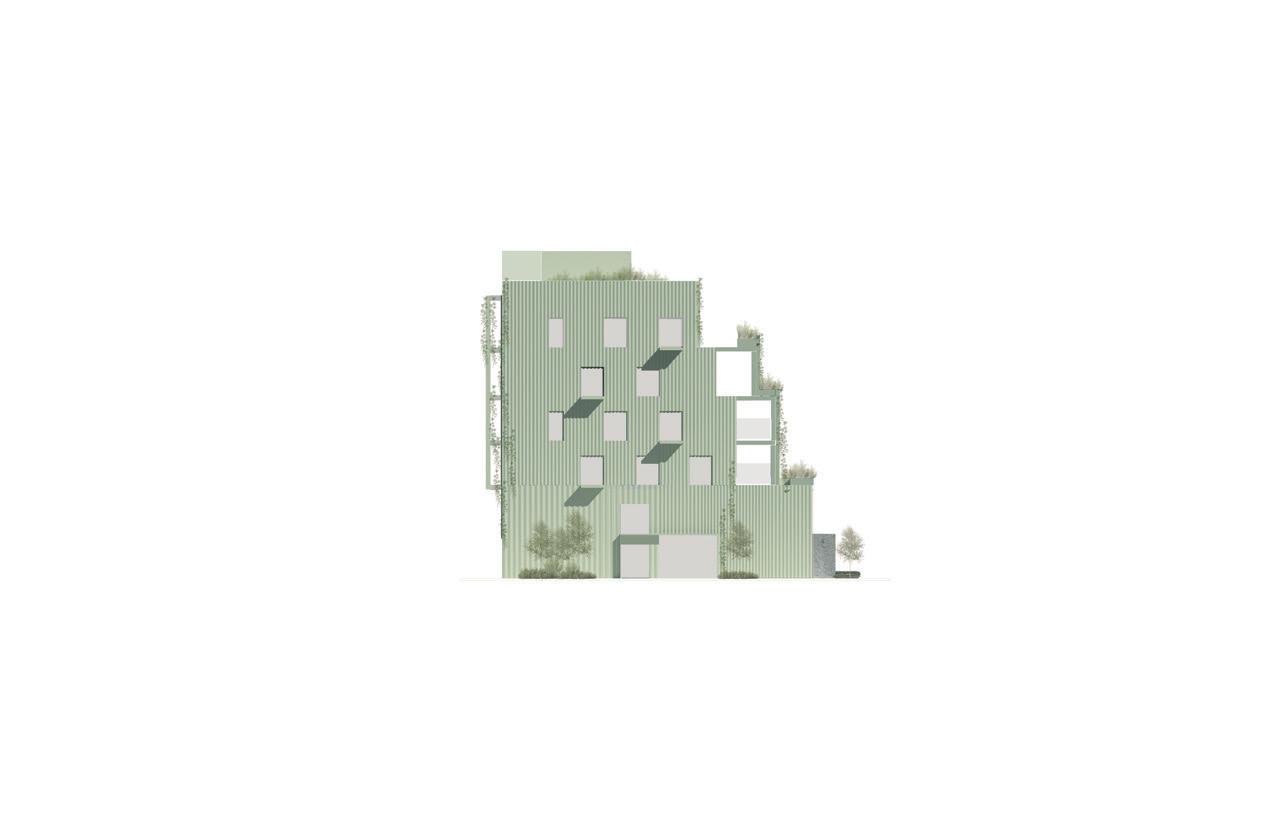

North Elevation

Section BB & East Elevation

22m

19m

16m

12m

9m

6m

217

3m

FUTURE DEVELOPMENT

FUTURE DEVELOPMENT STANLEY AVENUE

29

V I N E YA R D H O U S E | 2 0 2 3

Townhouse Unit Plans

UP

DW

STORAGE REF W/D

DN

DW

REF

W/D

1BD Unit Plan

2BD+DEN Unit Plan

DW

30

REF

PANTRY

W/D

V I N E YA R D H O U S E | 2 0 2 3

Interior View Accessible Unit

31

S TA N L E Y D U P L E X | 2 0 2 3

MEEGW

ETCH LA

NE

ADELAID

E ST W

AVE WALNUT

Y T ER

AN AVE

STANLE

STRACH

STANLEY AV

E

KING ST

W

D ST

STAFFO R

CANNIF

F ST

AN AVE

STRACH

Key Plan

WELLING

TON ST

04

W

S TA N L E Y D U P L E X Software: Revit, Rhino, Vray, Adobe Illustrator, Adobe Photoshop, Adobe InDesign Year: 2023 Type: Residential Location: Toronto, ON Supervisor: Fan Zhang

The project focuses on contextual and human experiences; rather than create an entirely new architectural language, this project is inspired by observations and fiding around the West of Queen West area. The project is based on a contextual approach where mansard roofs, dormers and punched windows are utilized. Also, with the heaviness of brick and metal, the project creates a harmonious dialogue between the old and the new and a modern interpretation of housing typologies surrounding the area. The spaces enhance the experience of open spaces and small spaces. The tight hallway leads to an open-space concept that allows the journey of affairs for the inhabitants. Additionally, the contrast between the brick and heavily corrugated metal cladding allows the attractiveness and an invitation to the duplex—the duplex is not only a shelter but also a space of sharing memories, creativities and growth

32

S TA N L E Y D U P L E X | 2 0 2 3

First Unit Plan OTB

OTB

DW

DN REF

W/D MEC

UP

UP

OTB

Second Unit Plan

DW

DN

DN REF W/D

MEC

UP

33

S TA N L E Y D U P L E X | 2 0 2 3

Interior Rendering Kitchen

34

S TA N L E Y D U P L E X | 2 0 2 3

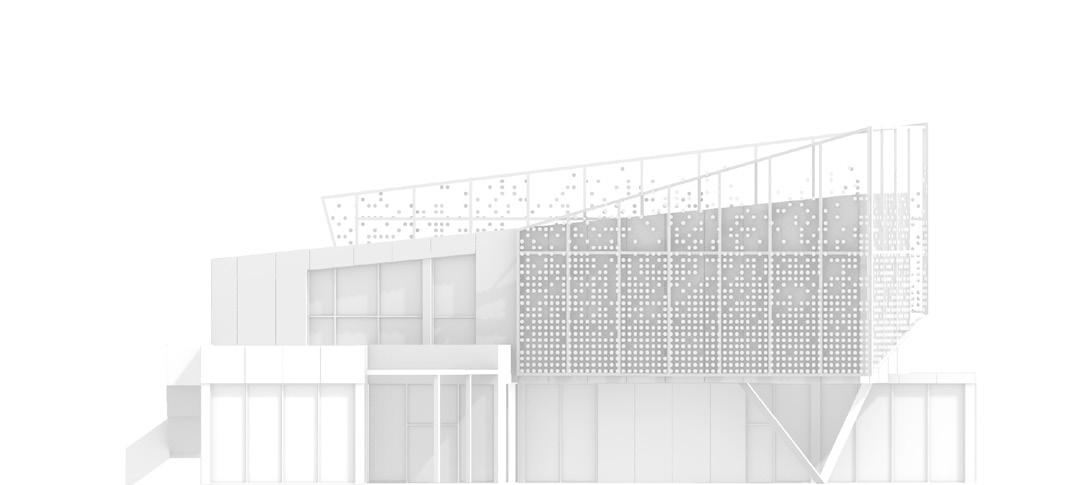

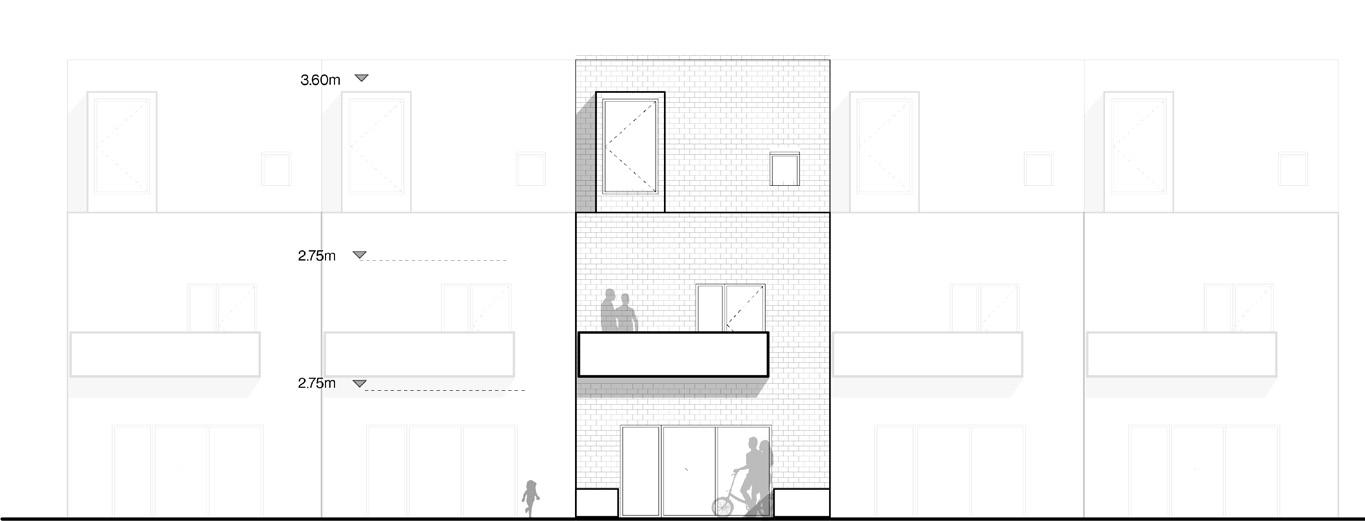

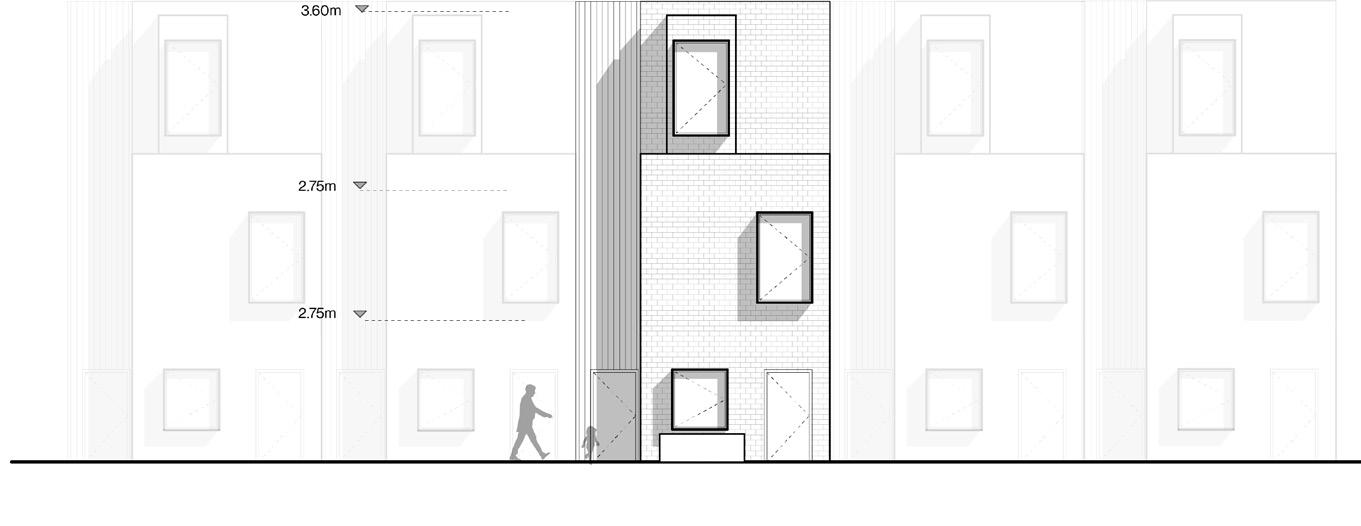

East Elevation

West Elevation

7.5m

10m

1.5m

45°

10m

Stanley Terr

Site Section

35

THE LIBRARY | 2022

Exterior View North West

05

C H U R C H /C O U RT L I B R A RY Software: AutoCAD, Rhino, Vray, Adobe Illustrator, Adobe Photoshop, Adobe InDesign Year: 2022 Type: Institutional Location: Toronto, ON Supervisor: Maria Faraone

Light and shadow always have a critical connection to archi tecture; light can appear as waves and particles. Light also reveals the atmosphere and generates the feeling of the space. It also reveals moments of the phenomenon, a phenomenological in architecture, since it allows people to see and vision is the most critical channel for experiencing this moment. Lights allow people to explore the phenomenon of light in various spaces, and it is a journey of a pattern of light and shadows. The light shines and allows inhabitants to live and grow. It is something that is truly magical.

36

THE LIBRARY | 2022

Site Plan

A ADEL

RCH

T RT S

CHU ST

COU

TE IDE S

KING

ST E

Concepts

The library is not only a place for people to borrow books, hang out, learn and explore different activities but is a space to immerse including “quality of space, light and shadow” as well as celebrating the essence of horticulture learning.

37

THE LIBRARY | 2022

Ground Floor Plan

9

1. Information desk 2. Books Dropoff 3. Waiting Area 4. Loading 5. Staff Lounge and Kitchen 6. Admin 7. Water filling station 8. Children zone 9. Washrooms 10. Self Checkout 11. Coat room

4 11

9

9

2

3 1

10

5 7

8 6

6

Second Floor Plan

1. Information desk 2. Studying/Reading 3. Computer Zone 4. Special Collection 5. Bookshelves 6. Washrooms

6

2

6

4

5

2

1

5 2 Open to below

3 5

38

THE LIBRARY | 2022

Interior Study and Reading Space

39

THE LIBRARY | 2022 East Elevation

SECTION BB B

B

40

Section BB

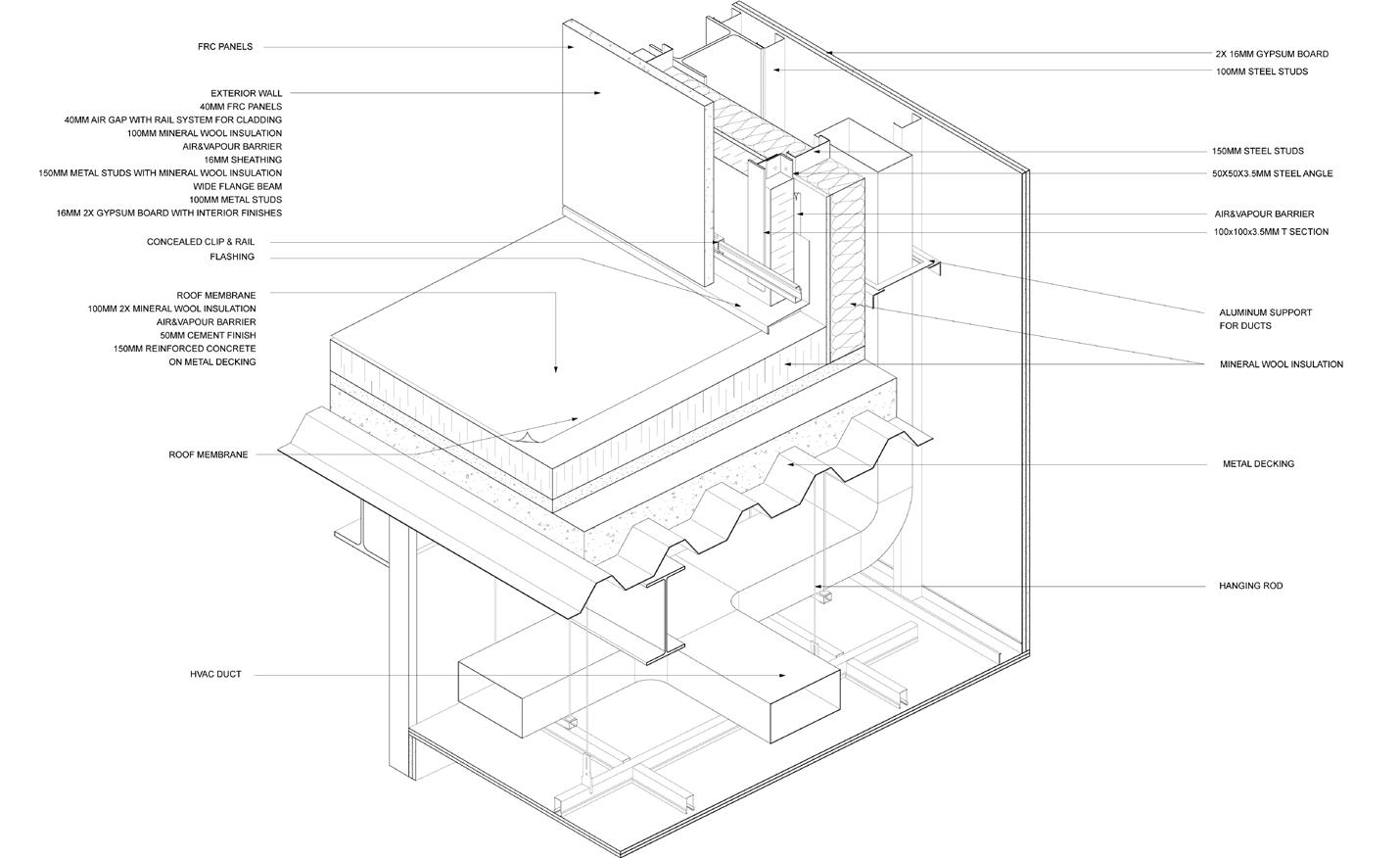

THE LIBRARY | 2022 Detail Section

41

STO R I E S T E L L I N G C E NT R E | 2 0 2 2

06

STO RY T E L L I N G C E NT R E Software: AutoCAD, Rhino, Vray, Adobe Illustrator, Adobe Photoshop, Adobe InDesign

Year: 2022 Type: Recreational Location: Toronto, ON Supervisor: Maziar Asefi Recognition: DAS Year End Show 2022 In the architectural vision, the buiding is a hub where entertainment and commerce converge, fostering community inclusivity. Here, barriers fade, and all find solace. A café, office, and versatile performance space unite to serve diverse needs. Neutral colors and materials cocoon the interior, cocreating a welcoming haven. The rectilinear form, adorned with elegant hues, celebrates minimalism’s beauty, creating open spaces. In this 100-word manifesto, we pledge to sculpt a space where comfort knows no bounds, offering solace to every inhabitant, and where aesthetics serve the unity of purpose and the elevation of human connection.

42

STO R I E S T E L L I N G C E NT R E | 2 0 2 2 Key Plan

Concepts

43

STO R I E S T E L L I N G C E NT R E | 2 0 2 2

Section BB

Section BB 0

1

2

3

4

5m

Scale 1:100

South Elevation

South Elevation 0

1

2

3

4

5m

Scale 1:100

East Elevation

44

STO R I E S T E L L I N G C E NT R E | 2 0 2 2

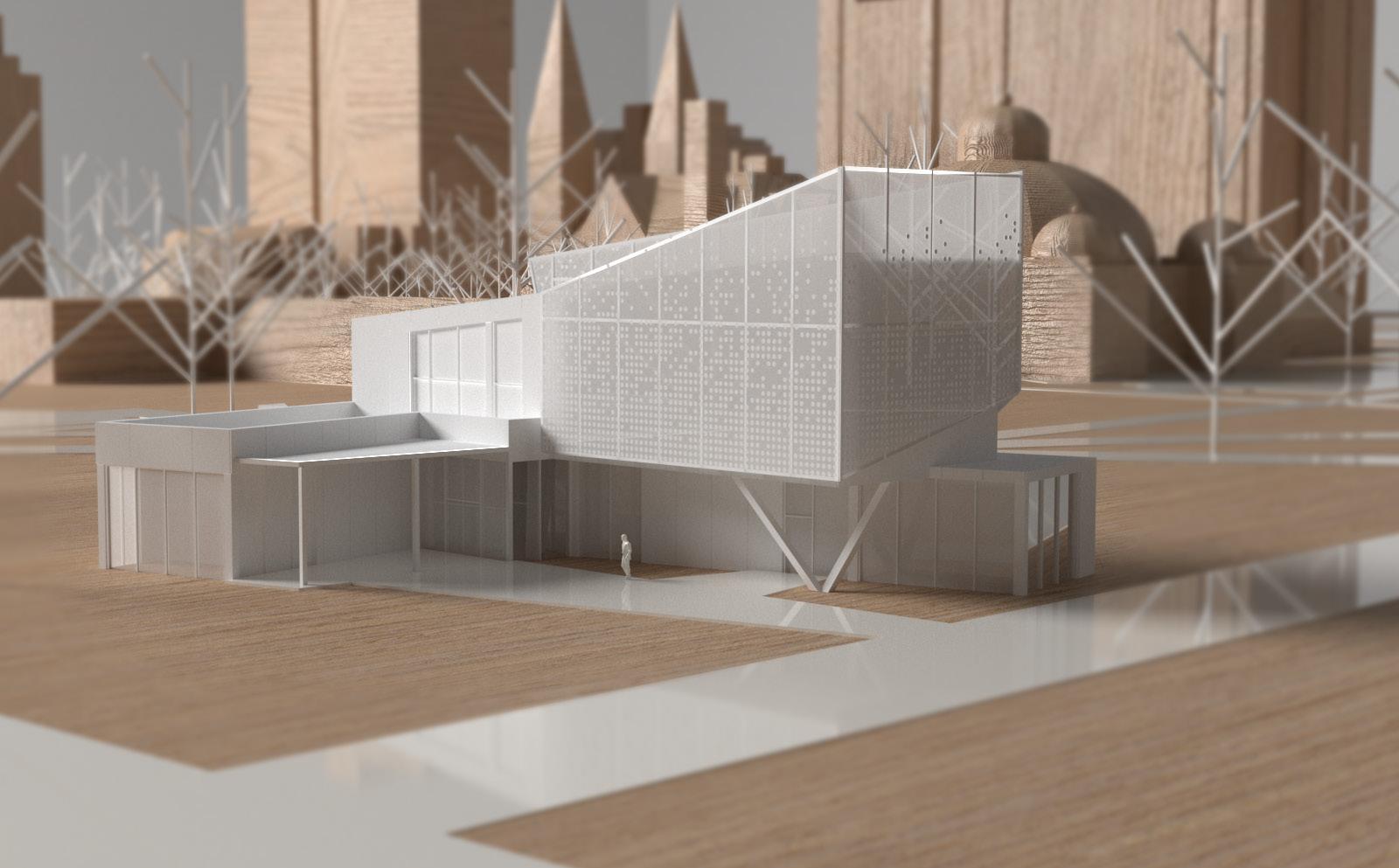

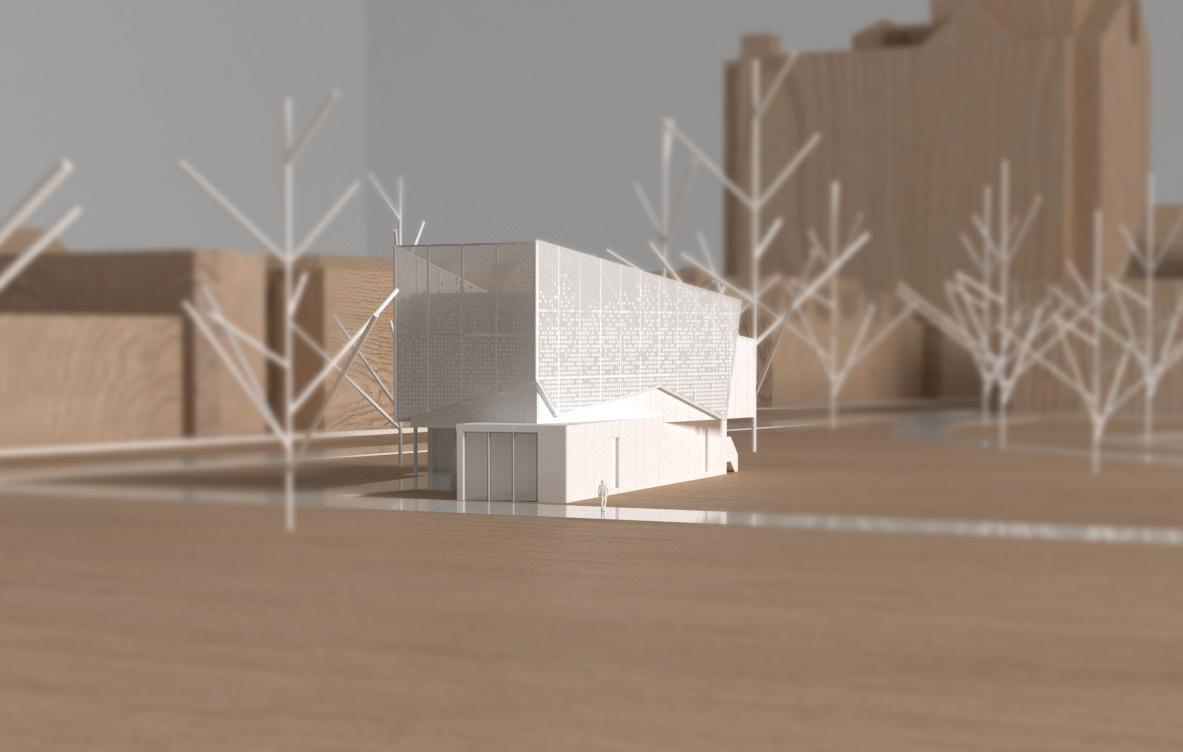

Rendered Model

Rendered Model

45
