Architectural Portfolio

INDEX RURAL HOUSE ARCHITECTURE COLLEGE WORKING DRAWINGS DEN(C)ITY-DIALOGUE WITH STAIRS COMPLEXITY IN ARCHITECTURE PAINTINGS 0-6 7-14 15-20 21-32 33-42 43-44

RURAL HOUSE

BALUMALLUPALLY,SIRICILLA,TELANAGANA

SEMESTER-3 (AUGUST-DECEMBER 2019)

Upon study within the context of Balumallupally village, an insight was gained into the rustic and rural lifestyle of the village’s residents, their agrarian culture and their community dynamic. The predominant elements of Architecture in this context included mud walls, courtyards and streets lined with rubble masonry walls, along with a few examples of contemporary concrete construction. The design program, therefore, aimed at catering to the lifestyle and daily activities of a single rural family. For the working men of the household, a shop- open to the exterior was designed; for the elderly, a veranda to sit and chat with neighbours; and a shaded place for house women to attend to their daily household chores. As for the form, a contemporary design,donning a cool blue stucco finish in order to familiarize itself within the context, and a pergola providing a dynamic pattern over the bare walls, was adopted.

1

SITE PLAN

2

1. LIVING ROOM 2. PUJA ROOM 3. KITCHEN AREA 4. BED ROOM 5. STORAGE ROOM 6. SHOP 7. BATHROOM

3

SECTION -AA’

4 BUILT FORM EVENING VIEW

MORNING VIEW NEAR SEATING AREA

5

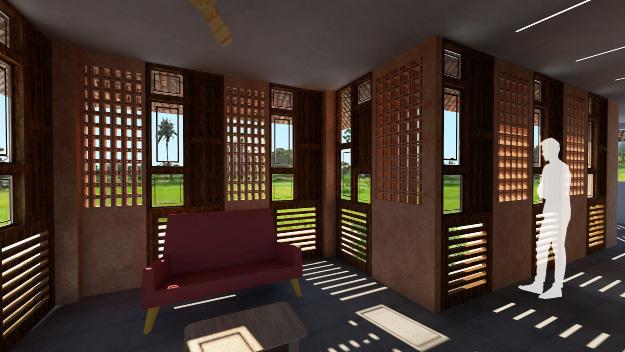

JALLI AND GLASS WINDOWS PATTERN ON WALL IN THE EVENING

6

VISTAS

THE VIEW FROM THE WINDOWS BIG TWO WINDOWS AT CORNER OF THE ROOM

ARCHITECTURE SCHOOL

DONTHANPALLY, SHANKARPALLY ROAD, HYDERABAD

SEMESTER-5(AUGUST 2020 - JANUARY 2021)

7

On the IFHE College campus, we were given the chance to design the architecture college we’ve always wanted while including everything we wanted to experience as an architecture student. Include a huge interaction room in which students can engage in multiple activities, and connect the studios so that students can explore different personalities and give a touch of tradition with brick cladding and jalli.

8

1.ADMINISTRATION OFFICE

2.LOBBY

3.MEETING ROOM

4.PRINCIPAL OFFICE

5.EXAM CELL

6.EXHIBITION

7.MATERIAL MUSEUM

8.MODEL MAKING WORKSHOP

9.FABRICATION WORKSHOP

10.SURVEYING LAB

11.REPROGRAPHY & STATIONARY SHOP

12.BOYS WASHROOM

13.GIRLS WASHROOM

14.CANTEEN

15.INTERACTION SPACE

9

SITE PLAN

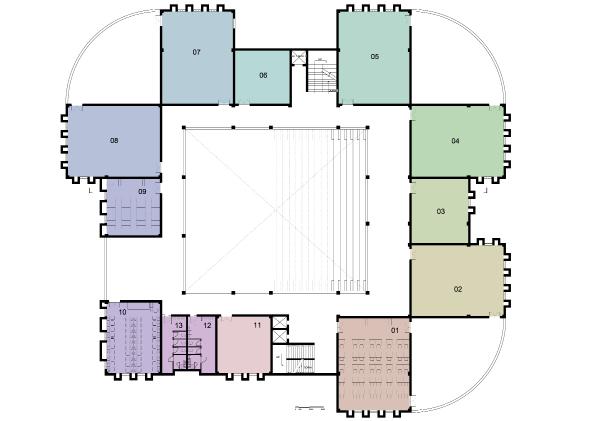

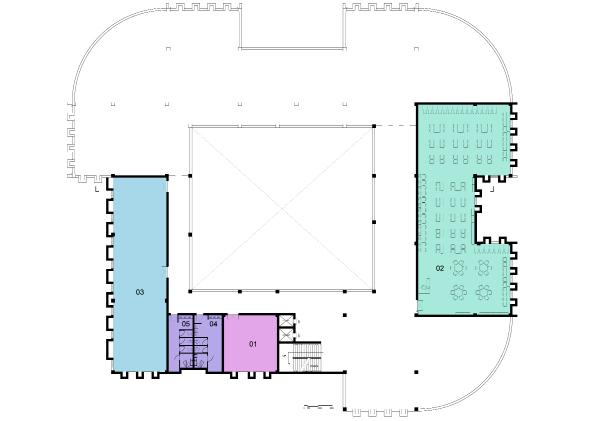

FIRST FLOOR PLAN

SECOND FLOOR PLAN

1.STORAGE ROOM

2.LIBRARY

3.CLIMATOLOGY LAB

4.BOYS WASHROOM

5.GIRLS WASHROOM

THIRD FLOOR PLAN

10

ROOM 4.STUDIO-3 5.STUDIO-4 6.LECTURE ROOM 7.STUDIO-5 8.STUDIO-6 9.LECTURE ROOM 10.COMPUTER LAB 11.STUDENT COMMON ROOM 12.BOYS WASHROOM 13.GIRLS WASHROOM

1.STUDIO-1 2.STUDIO-2 3.LECTURE

LOUNGE 4.STORAGE SPACE FOR STUDENTS SUBMISSIONS 5.STUDIO-7 6.STUDIO-8 7.LECTURE ROOM 8.STUDIO-9 9.STUDIO-10 10.STAFF ROOMS 11.STUDENT COMMON ROOM-2 12.BOYS WASHROOM

WASHROOM

1.STAFF CABINS 2.STAFF CABINS 3.STAFF

13.GIRLS

11

12

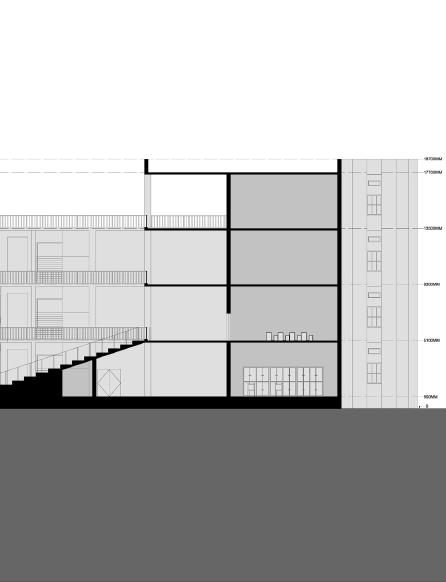

SECTION - AA’

COLLEGE CANTEEN SEATING AREA

ENTRANCE TO THE COLLEGE

13

INTERACTION SPACE

With the outdoor seating near the canteen, students can enjoy the greenery around the campus.

14

15

WORKING DRAWINGS

SEMESTER-5(AUGUST-2020 - JANUARY -2021)

16

17

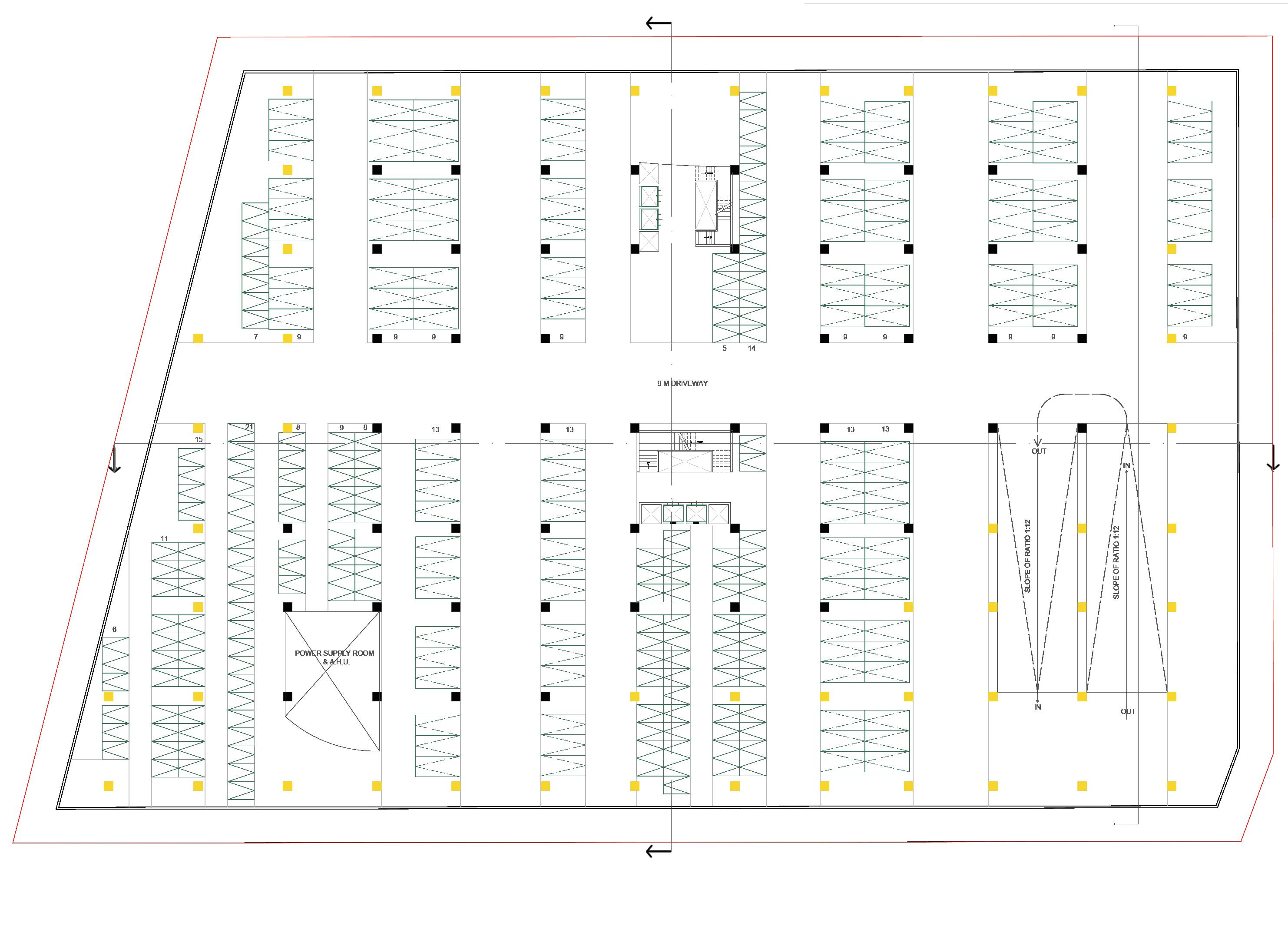

18 FLOOR PLAN

19 STAIRCASE

20 WALL SECTION

DEN(C)ITY -DIALOGUE WITH STAIRS

VELIMELA, HYDERABAD, TELANAGANA. SEMESTER-6(FEBRUARY-JUNE 2021)

21

Creating a community between villages of Pati & Ghanpur with a dense scale and giving the experience of togetherness.

22

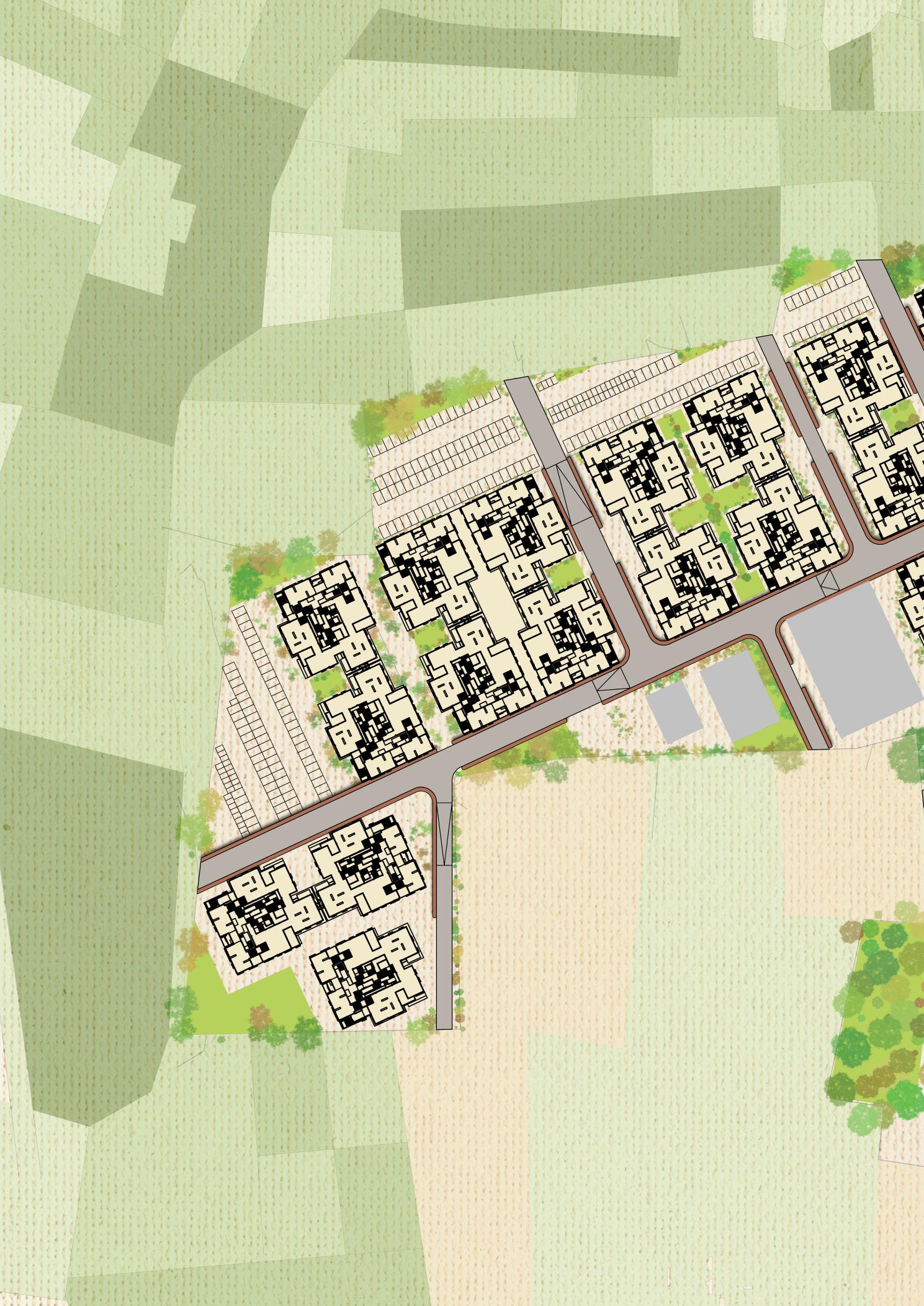

23 FARM

LANDS AMENITIES

PARKING

ENTRANCE TO THE SITE

24

Each area of the block provides space for different types of families and the connection between the blocks in different directions allows the community to interact and communicate more.

25

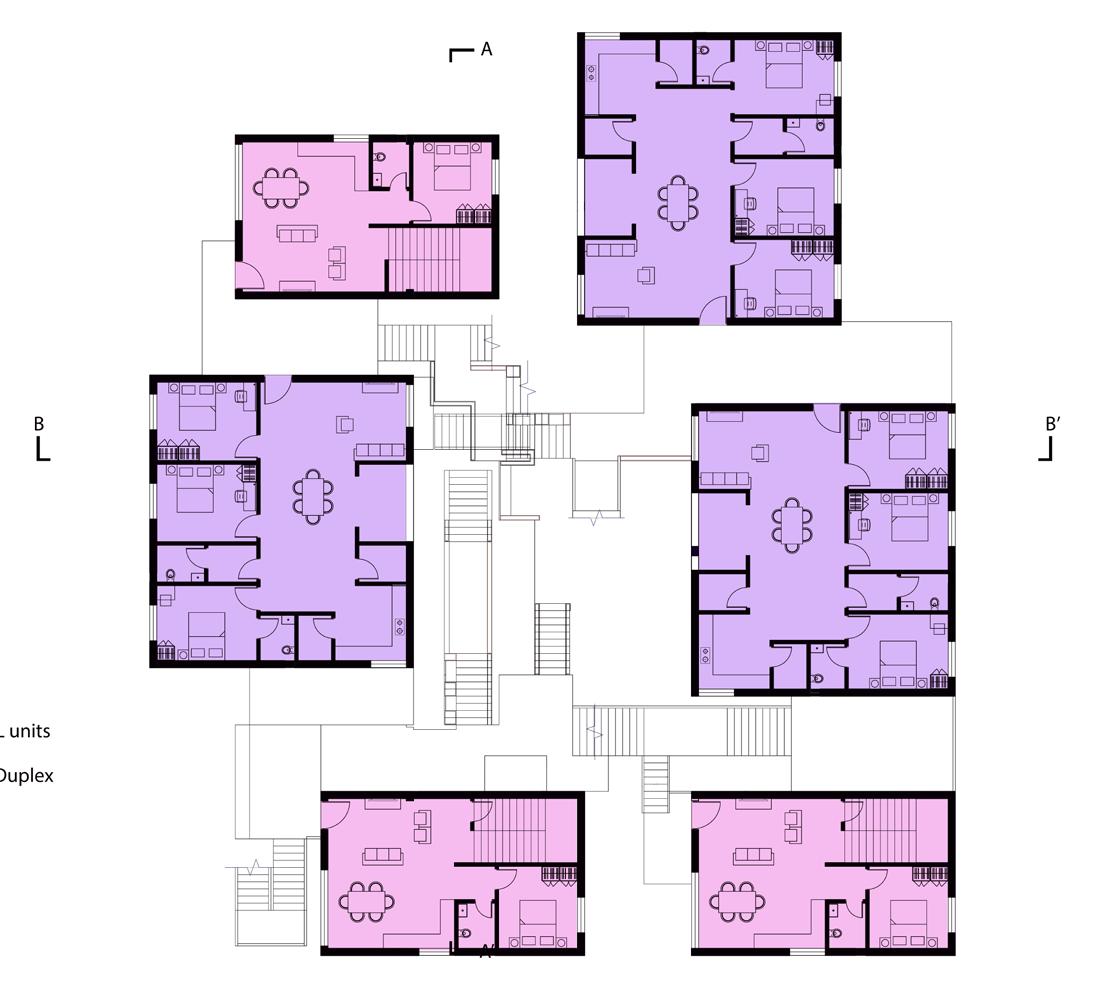

Ground floor plan

First floor plan

SPACES IN L LIVING ROOM

MASTER BEDROOM

BEDROOM-2

KITCHEN

DINNING AREA

BATHROOM

Second floor plan

SPACES IN M LIVING ROOM

MASTER BEDROOM

BEDROOM

KITCHEN

DINNING AREA

BATHROOM

SPACES IN S

Third floor plan

LIVING ROOM

BEDROOM

BATHROOM

KITCHEN AREA

SPACES IN DUPLEX LIVING ROOM

KITCHEN

DINNING AREA

MASTER BEDROOM

BEDROOM-2

BATHROOM

26

27

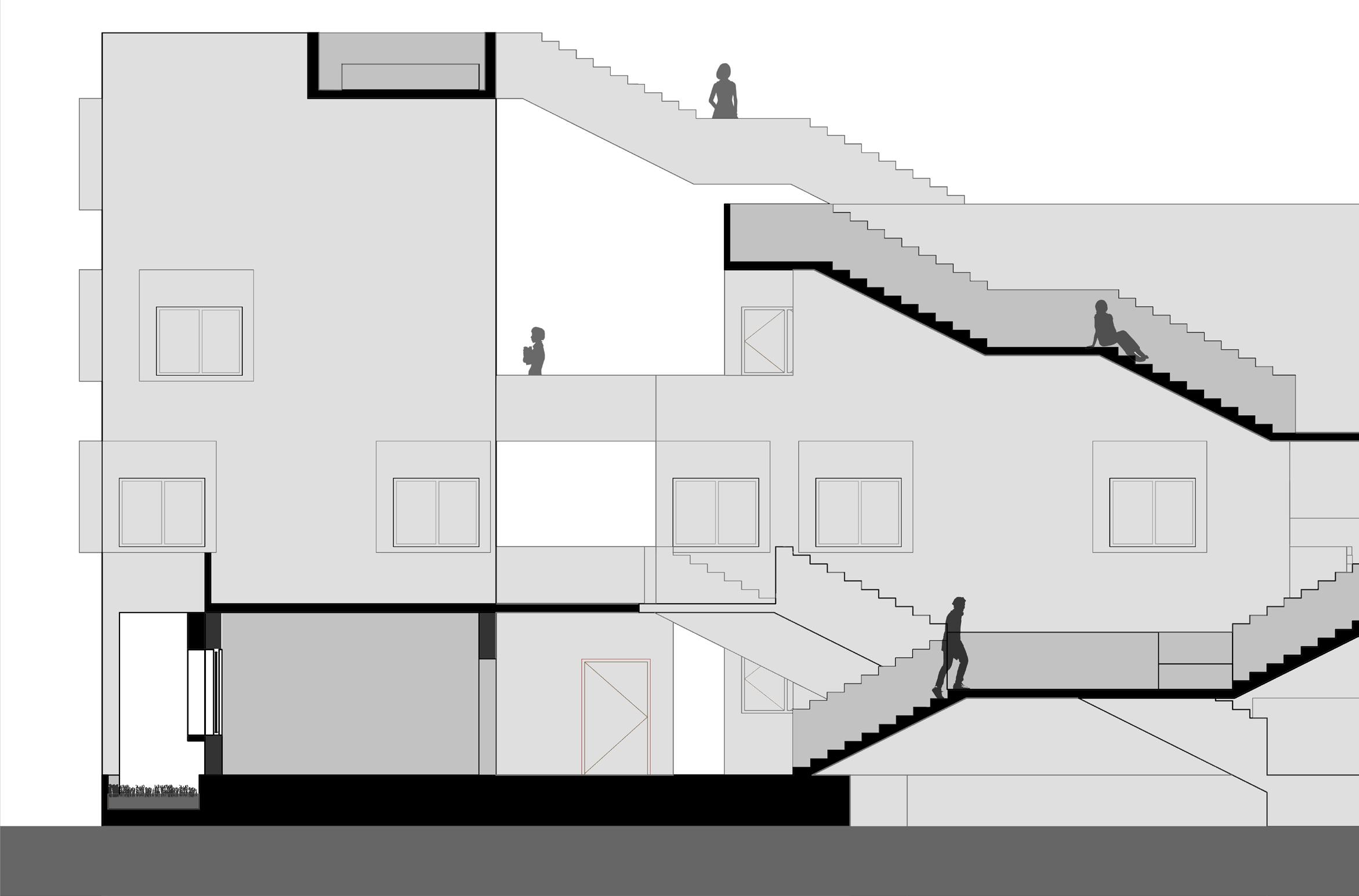

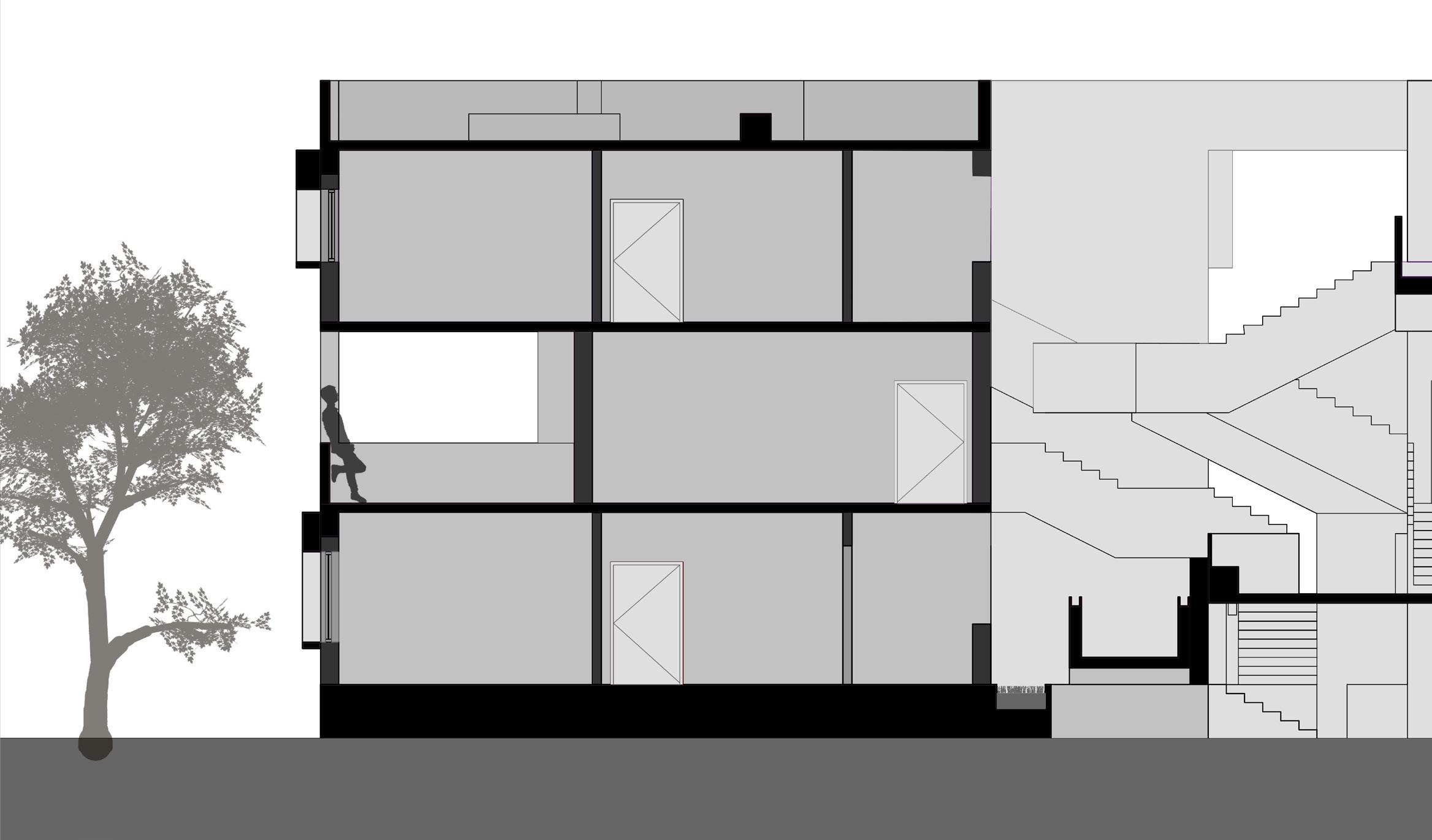

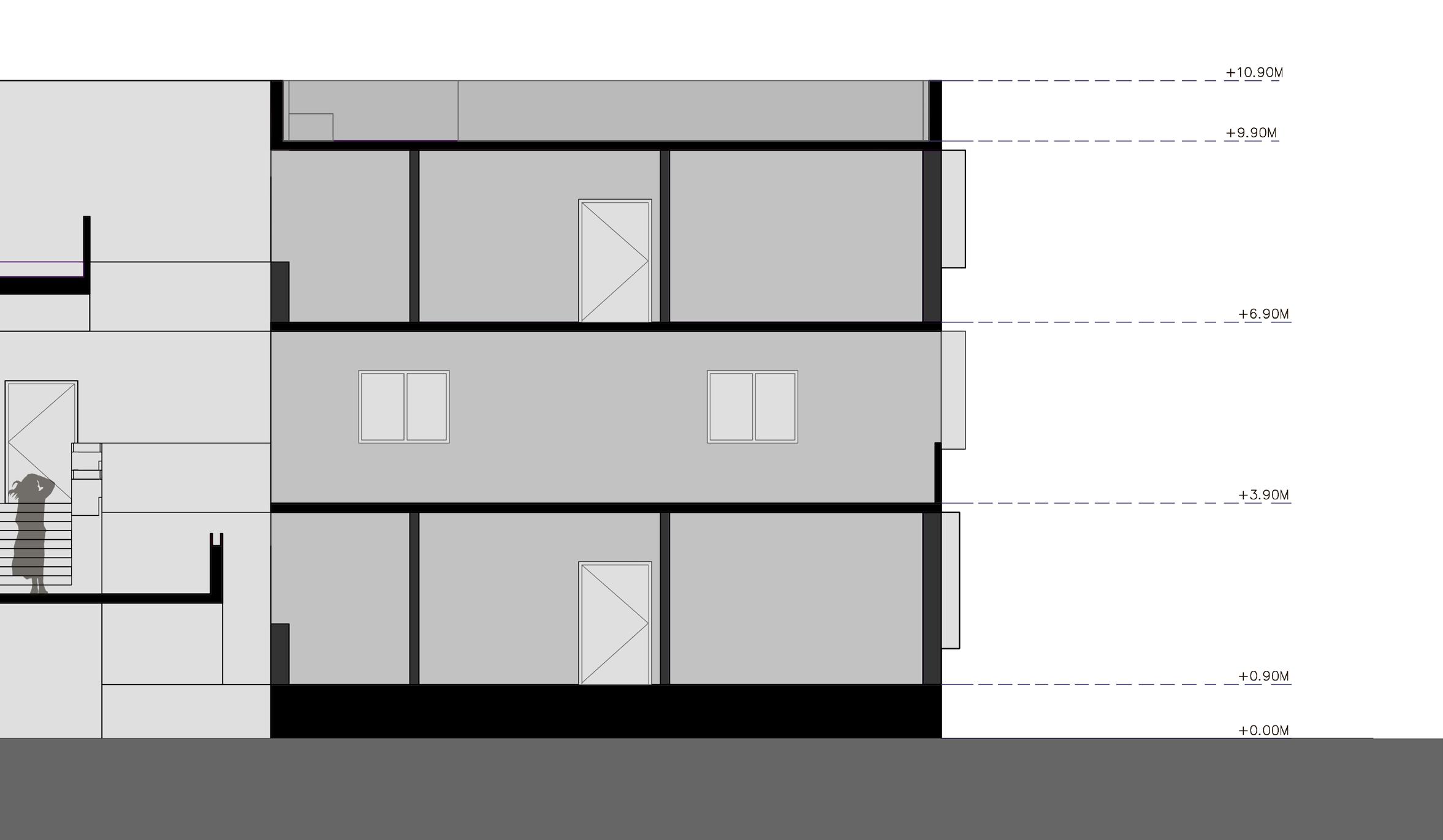

28 SECTION-AA’ SECTION-BB’

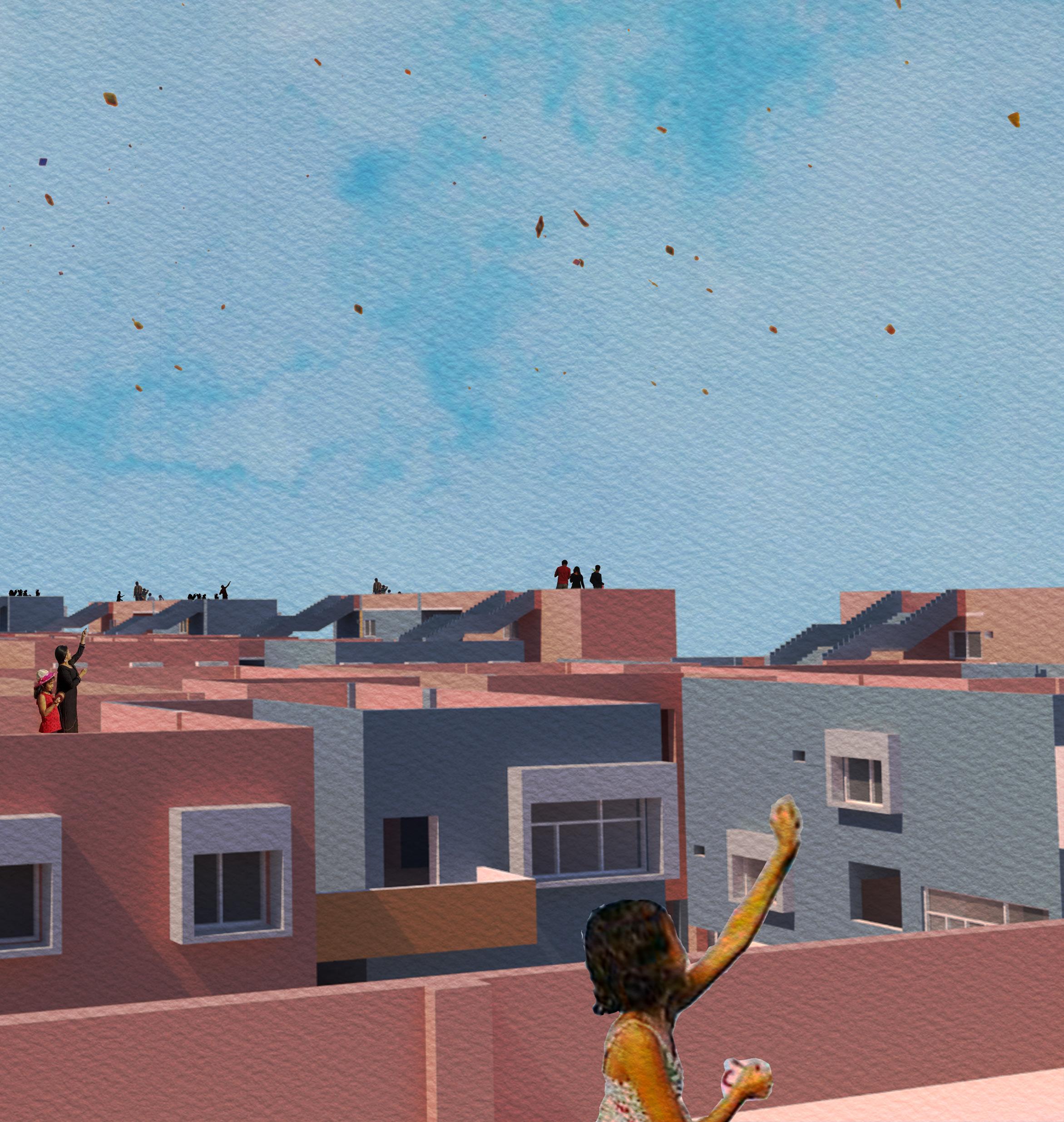

The top level, creating a happy place during festivals for an entire community.

29

30

ENGAGE WITH STAIRS

31

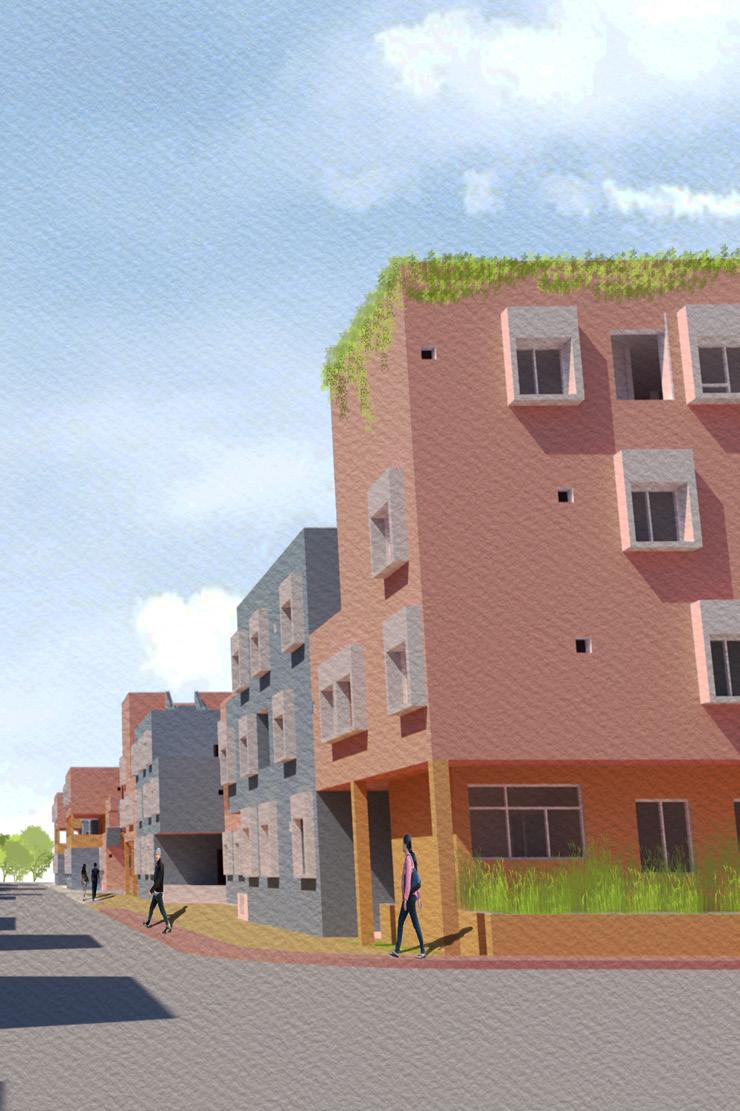

LEVEL DIFFERENCE STREET VIEW

AMENITIES

The staircases play an important role in the lives of the people living here, contributing to their interaction, providing a place for privacy or companionship between the railings, which brings people together.

32

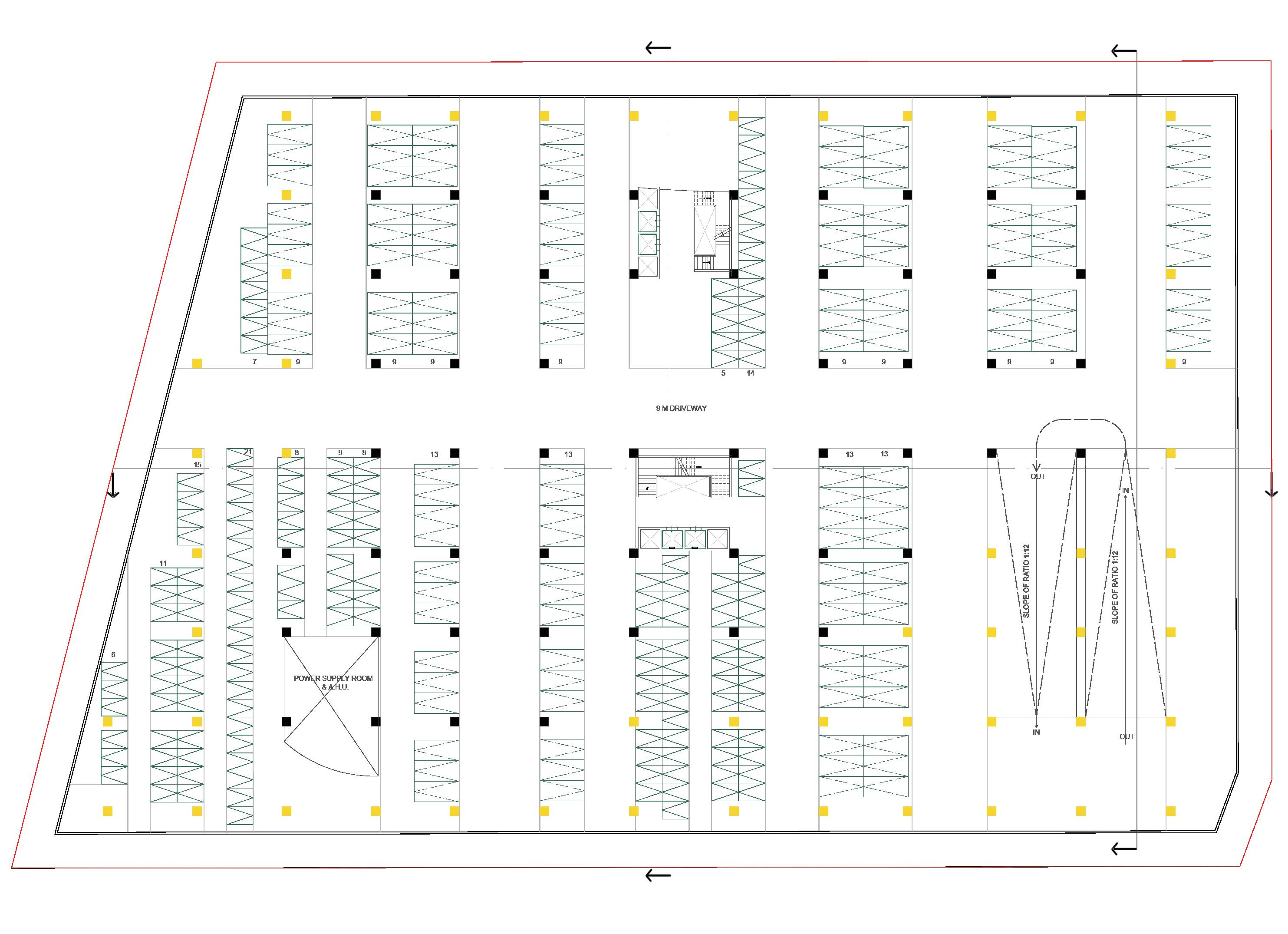

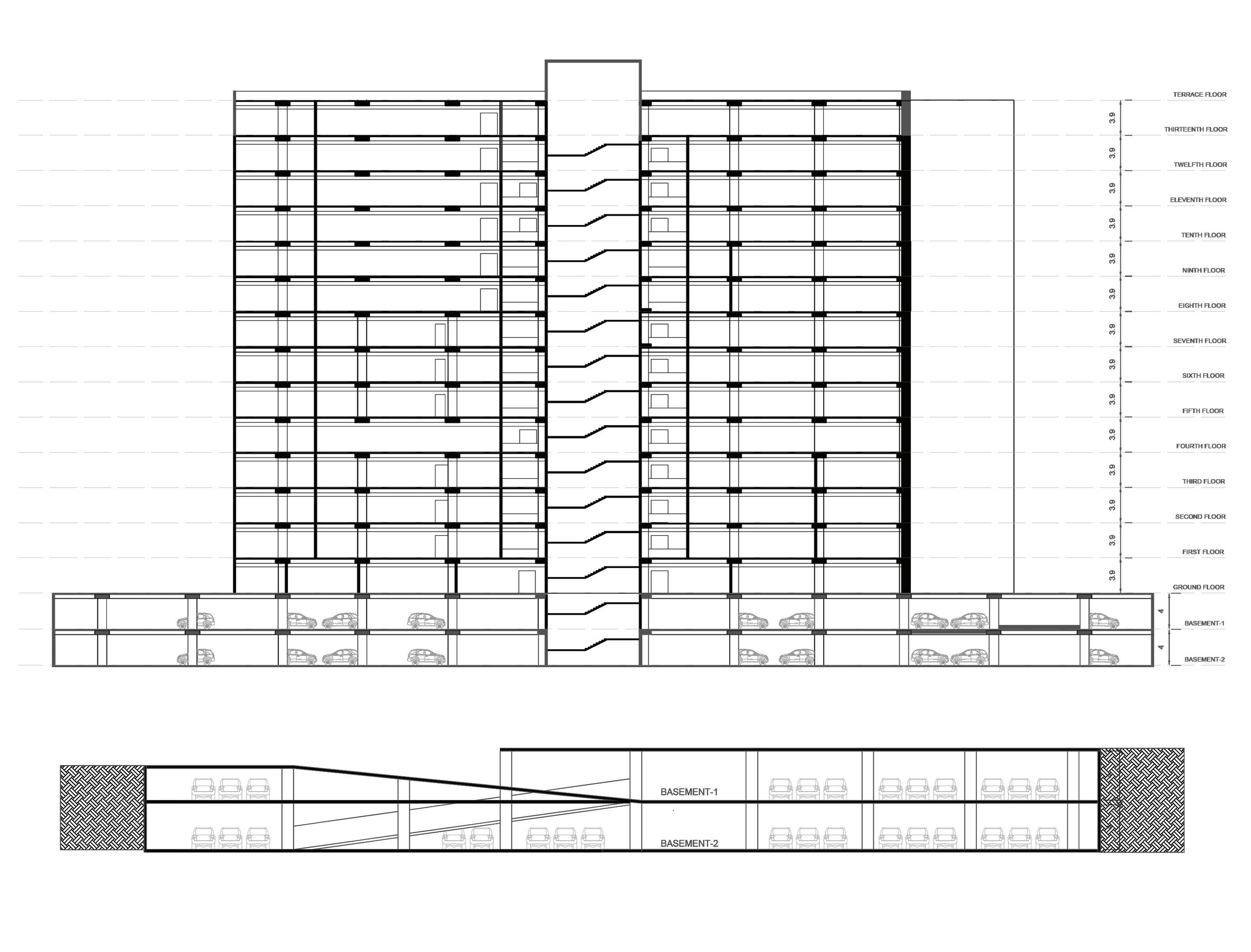

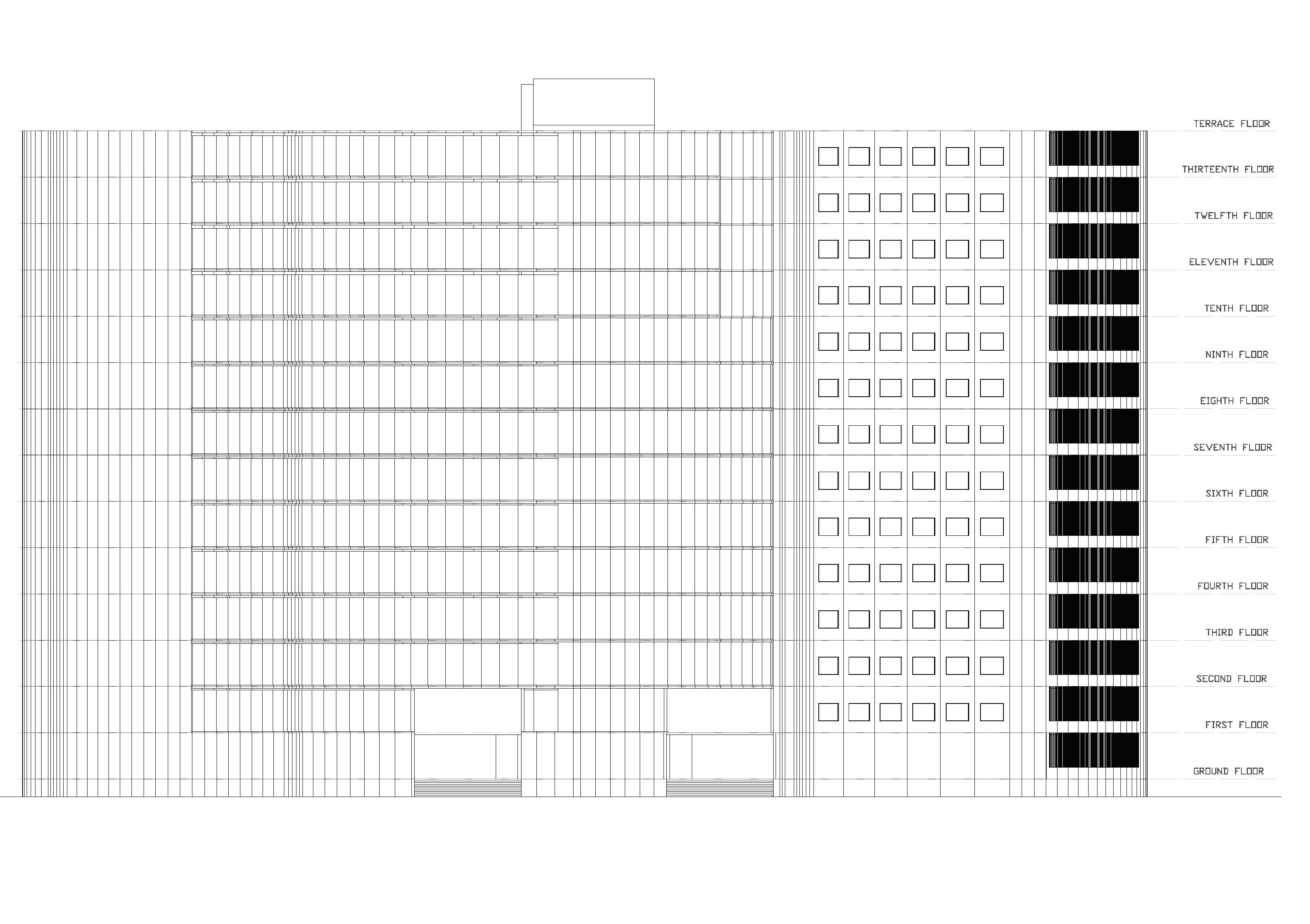

COMPLEXITY IN ARCHITECTURE

FINANCIAL DISTRIC, HYDERABAD, TELANAGANA. SEMESTER-9(SEPTEMBER-DECEMBER 2022)

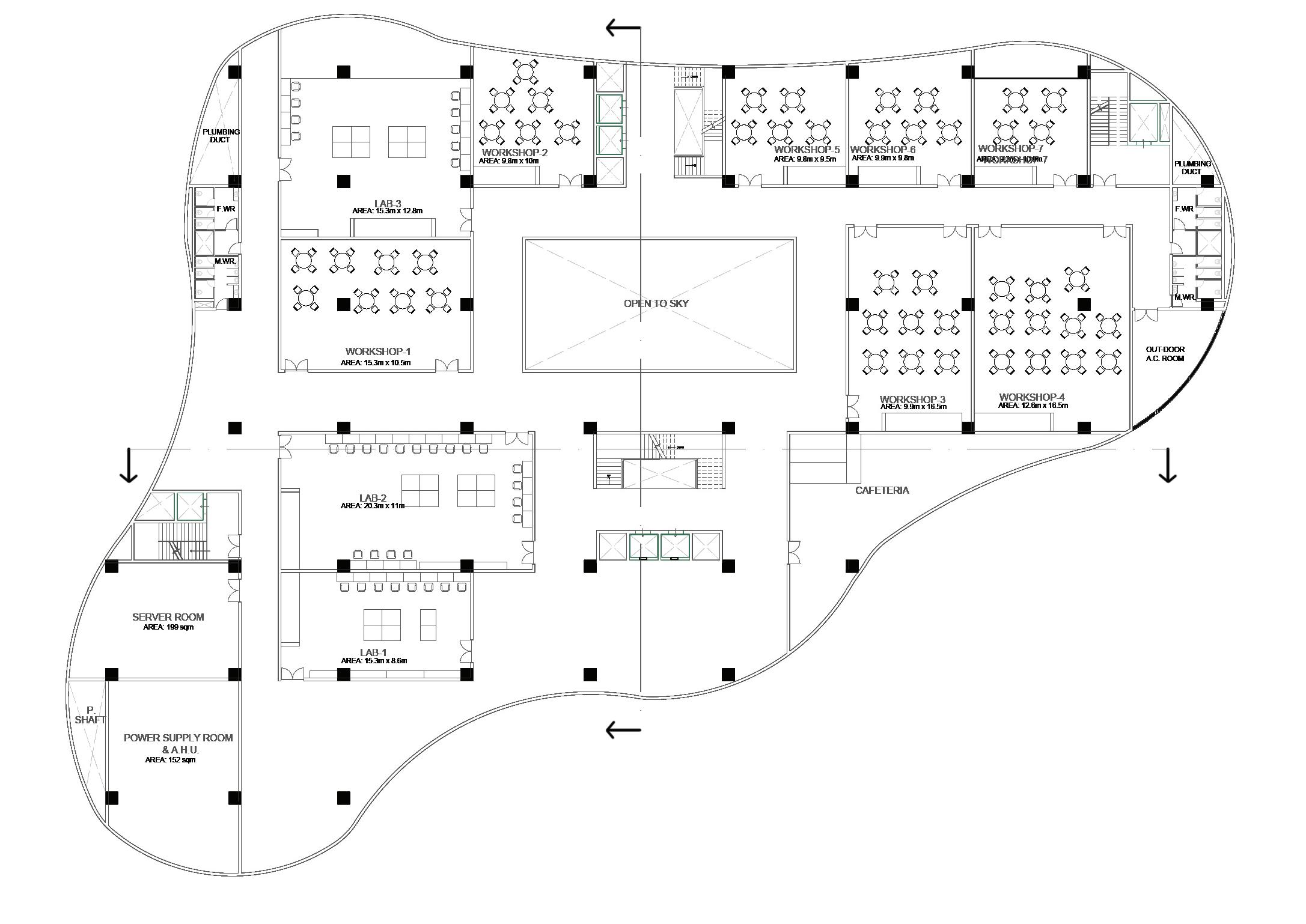

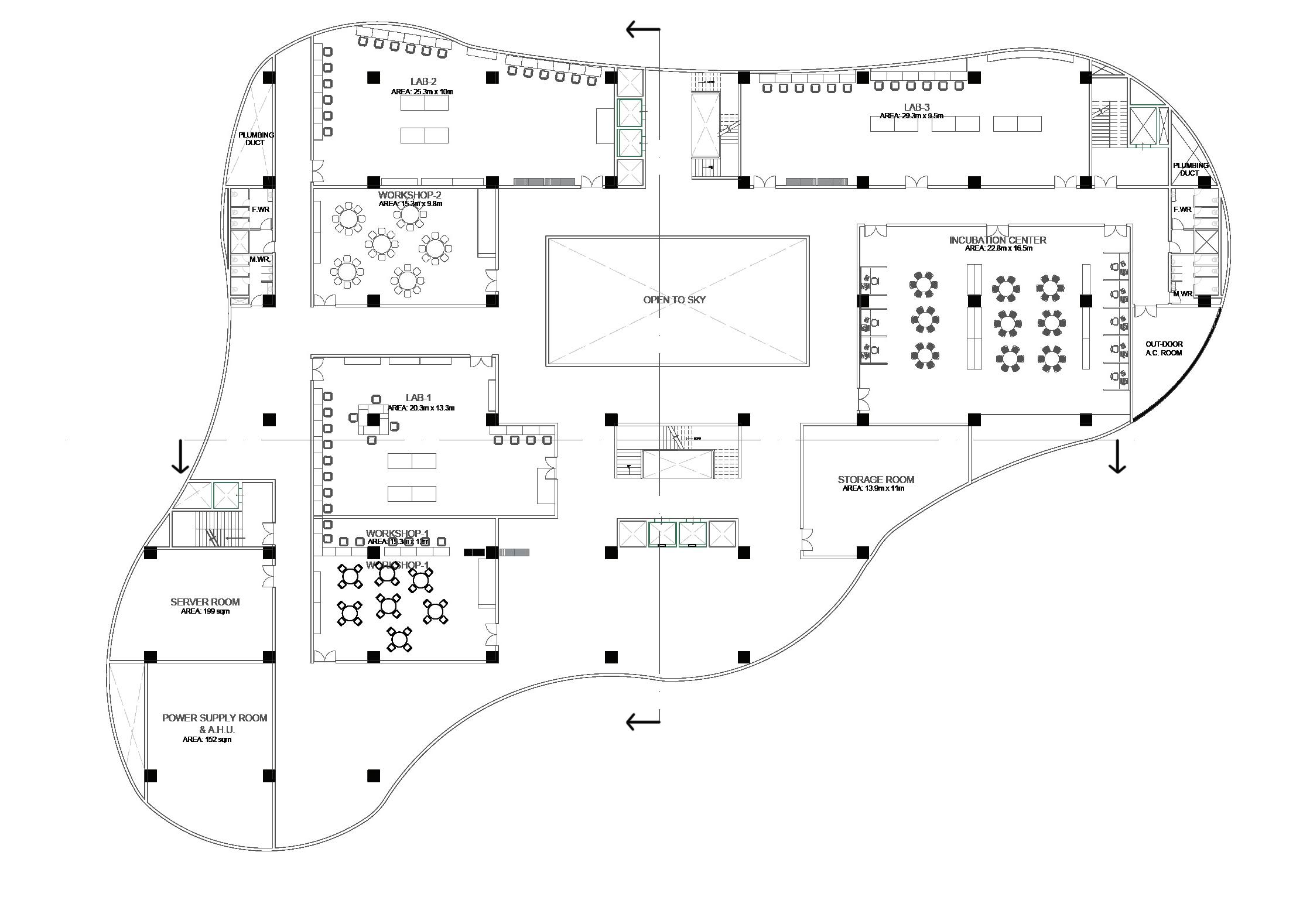

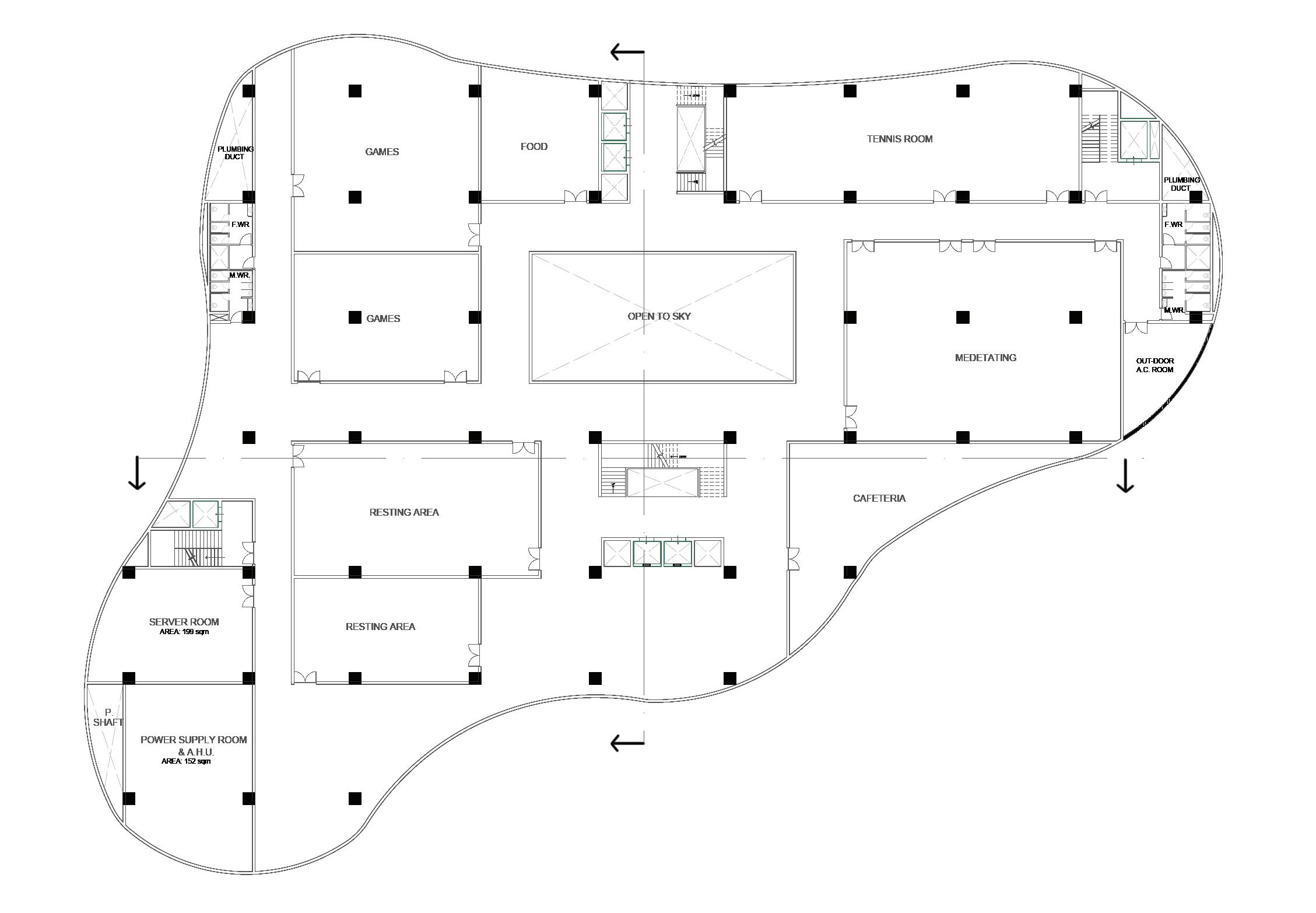

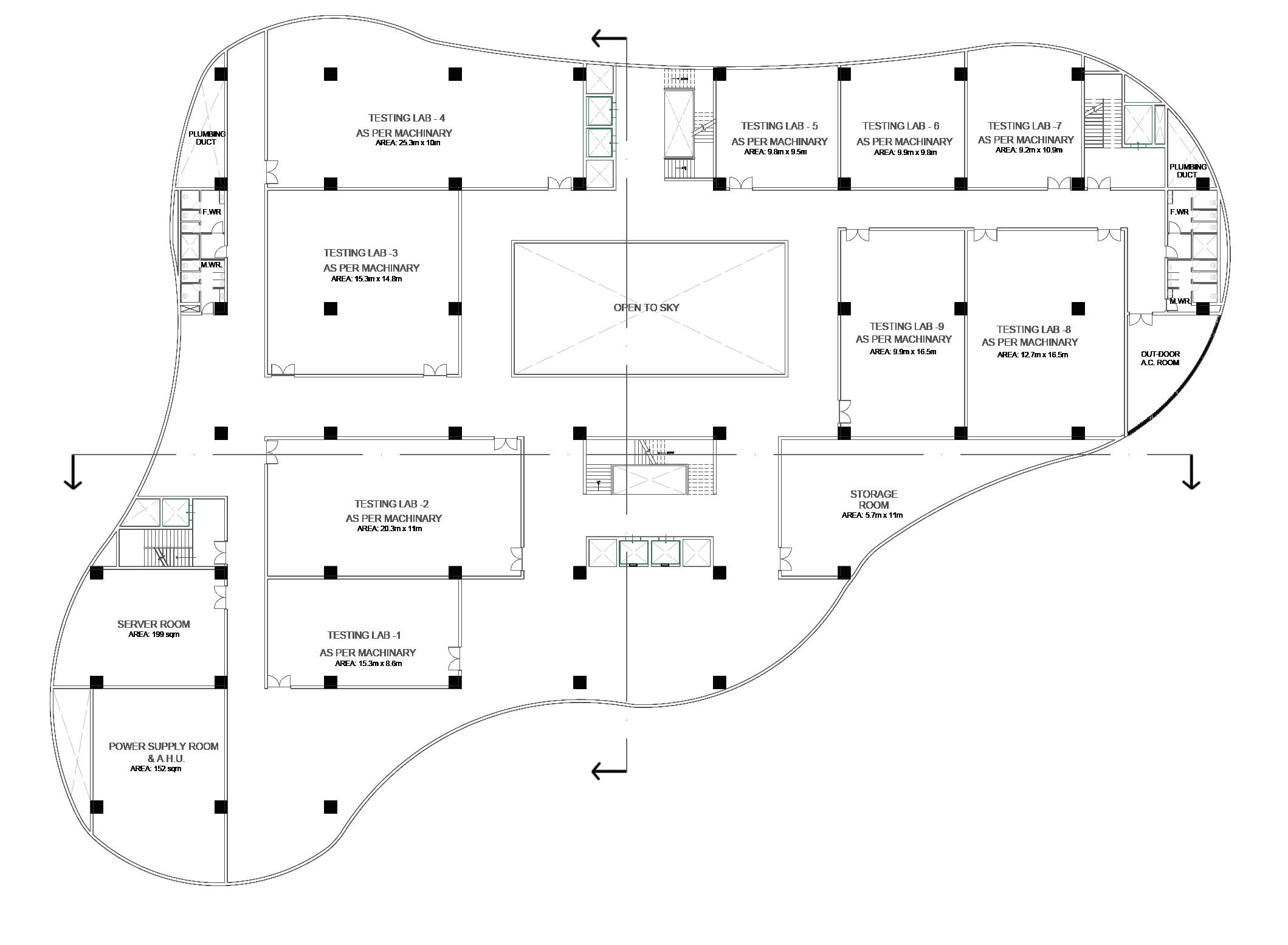

Complexity is an aspect ingrained in the discipline of Architecture, owing to considerations to be made in multiple aspects during pre-design, design and the execution phases of a project. Designed with aspects including a multi-planar design approach, encompassing aspects of context, regulations and utility in terms of function and services.
