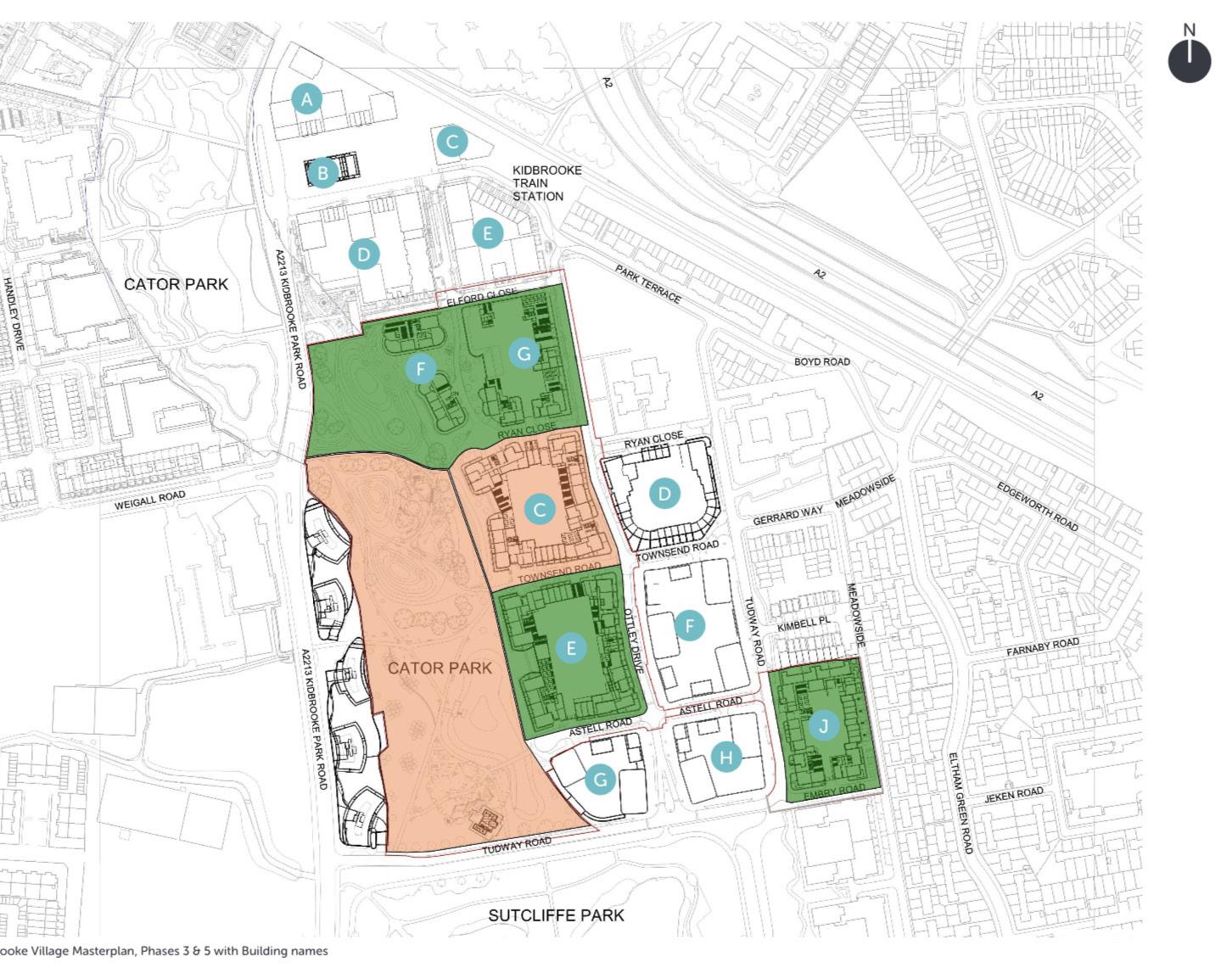

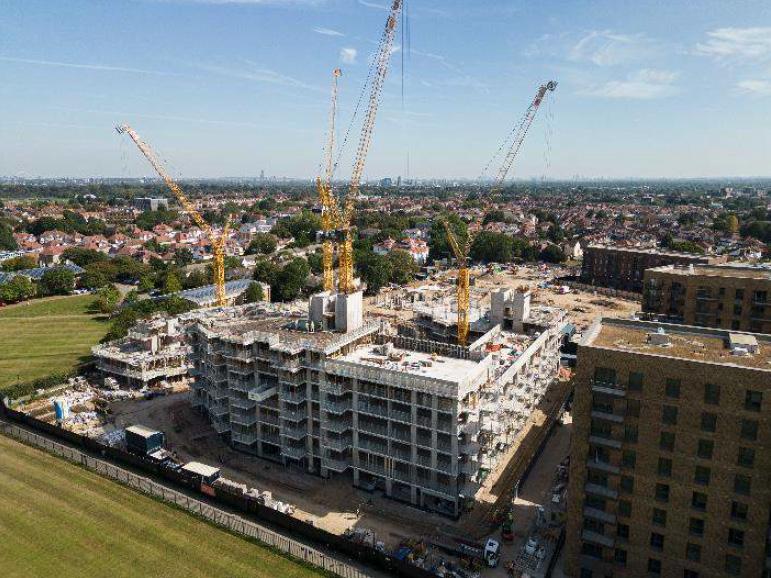

Project 03 are large scale residential projects that I have worked so far as part of my year out at BPTW. Project 04 is designed using incremental design to help provide facilites that would benefit the local community in Stonehouse, Plymouth. This project was part of a collaboration with a live client Nudge Community Builders, an organisation that aims to improve the community and reinvigorate underused spaces.

CREEKSIDE UPCYCLING MUSEUM AND FACTORY CREEKSIDE UPCYCLING MUSEUM AND FACTORY Programme

From trash to treasure Upcycling Part

Research Part

Cultural Part

Impacts Society - Reduces costs to rehabilitate the environment.

- Reduces disposal and other costs of managing waste.

- Circular economy and provide more jobs to te community.

Environment

THE CONCEPT

- Preserves raw materials and natural resources.

- Reduces the amount of waste that requires disposal.

The project addresses the question of “What Really Happens To Your Recycling?” by preventing the collected plastic wastes from entering landfills and oceans by finding new uses for them.

- Preserves and keep the habitats in the creek going.

Goals

- Educate and interest the community in understanding the ecology of Depftord Creek.

- Provide to visitors a clear idea about the history and uses of recycling and explore how it is done.

- Make more researches regarding waste management studies and sustainability.

Take

01

Creekside Discovery Centre

Workshop/Factory

Archive Museum

Find new discoveries

Recycle and turn waste into something new

Display the findings on the creek to raise awareness

Environmental strategy @A0

CONCEPTUAL COLLAGE Created initially by hand skecthes and later on refined using Photoshop.

er

n

su

mm

er

su

n

ACADEMIC WORK - FINAL PROJECT

nt Wi

Creekside Upcycling Museum and factory

Su

Make Ensure biodiversity on site and maintain existing habitats.

Quality learning spaces.

Provide walking and bike friendly access.

Allow natural daylight to reduce energy demands for heating and cooling.

Flexible spaces for future use and functions.

Non- heated spaces.

Modular/ pre fab construction for low cost.

MIXED - USE CENTRE FEB - MAY 2023 4

3

5

The proposal aims to address the issue of plastic pollution impacting the Thames and Deptford Creek, carrying out litter surveys, collecting, identification and repurposing the plastics.

1

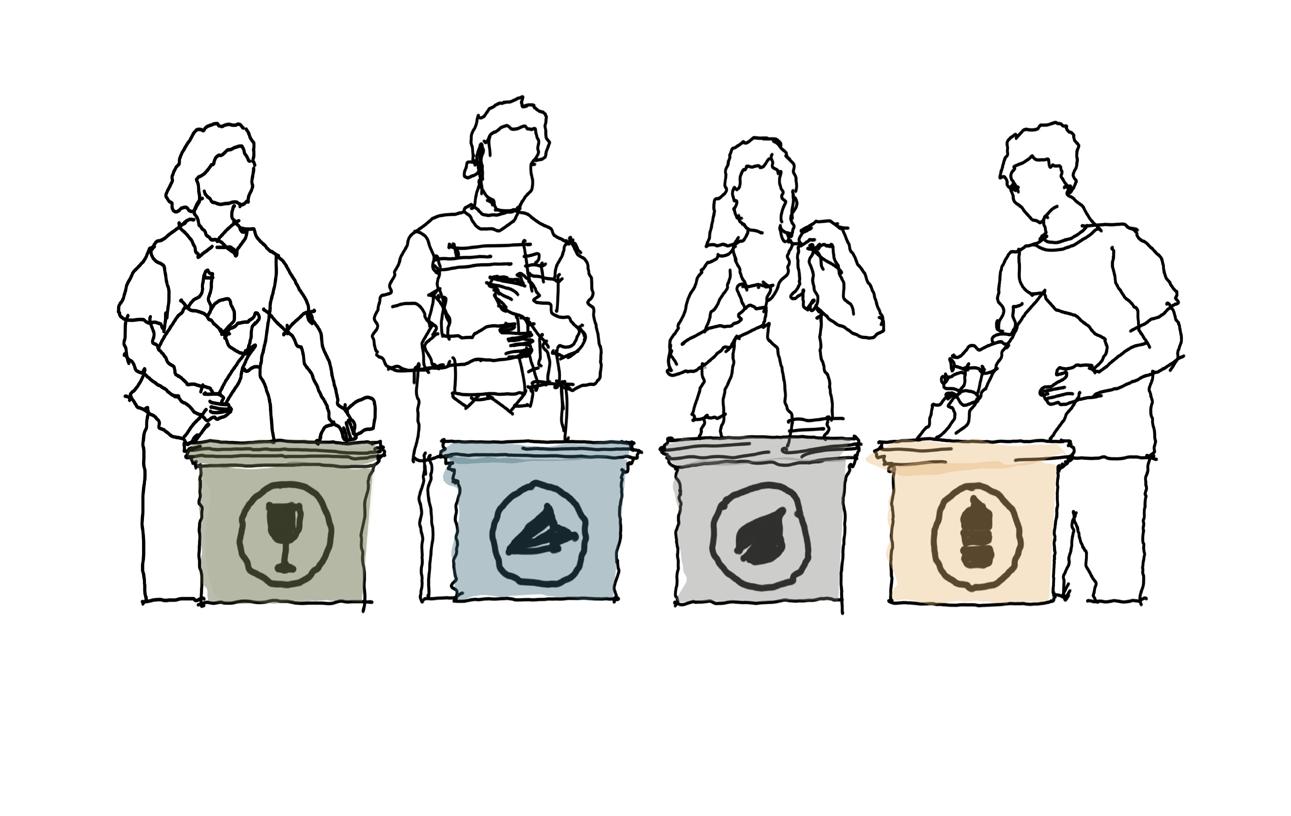

Recycle

Consume

The data will be used to help inform local government, industries, and the wider community on the most appropriate measures to reduce waste plastic in the local environment.

Community clean up to reduce the pollution and preserve the biosphere of the creek.

Recycled plastic facade.

Spaces for waste recycling to build a sustainable community.

Natural cross ventilation. The lobby acts as the centre point and gateway to the

Ensure plastic waste is recycled to eeduce disposal and other costs of managing waste.

Green area integration.

Reused construction material.

Curate a community destination and active flow.

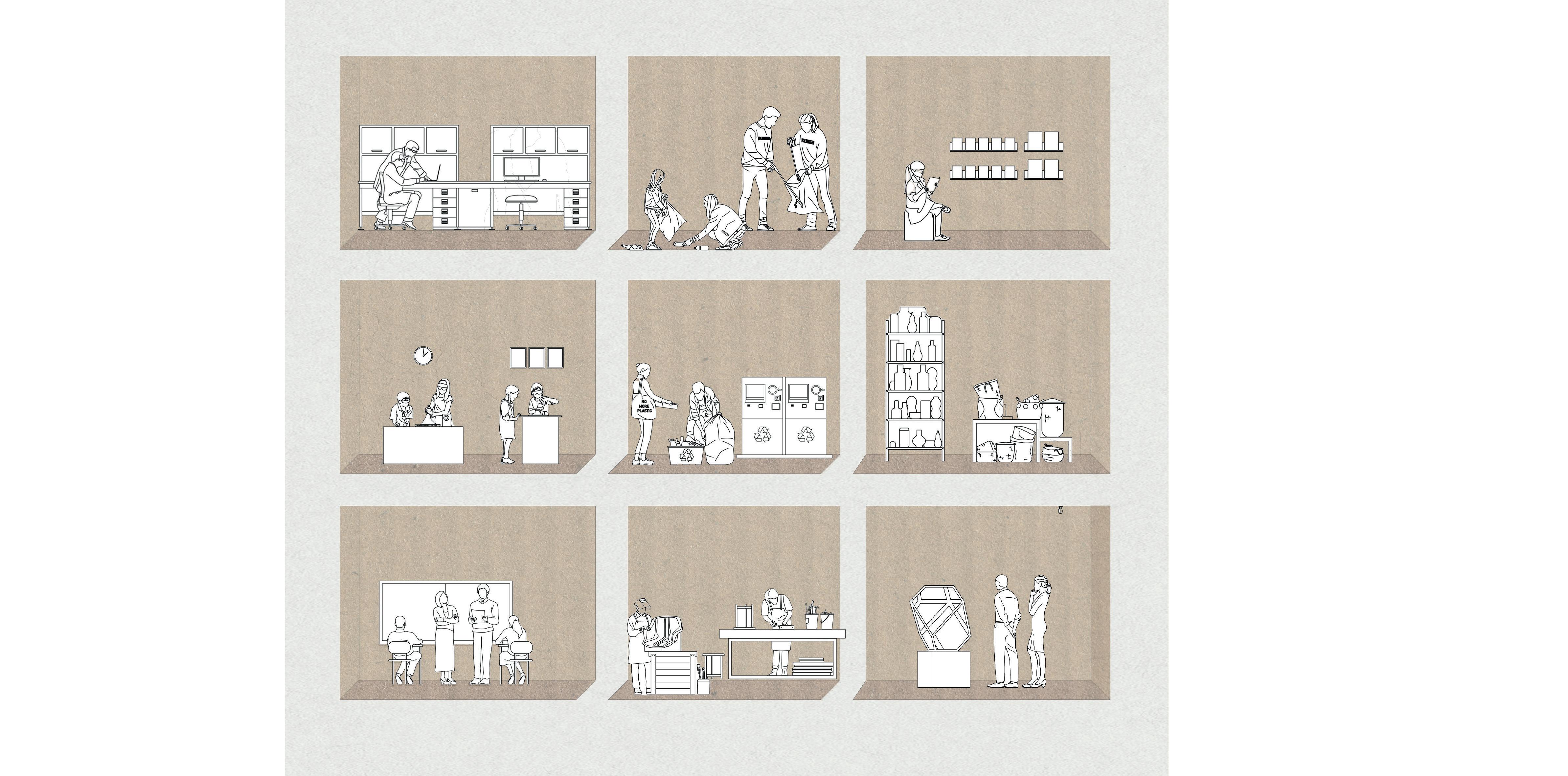

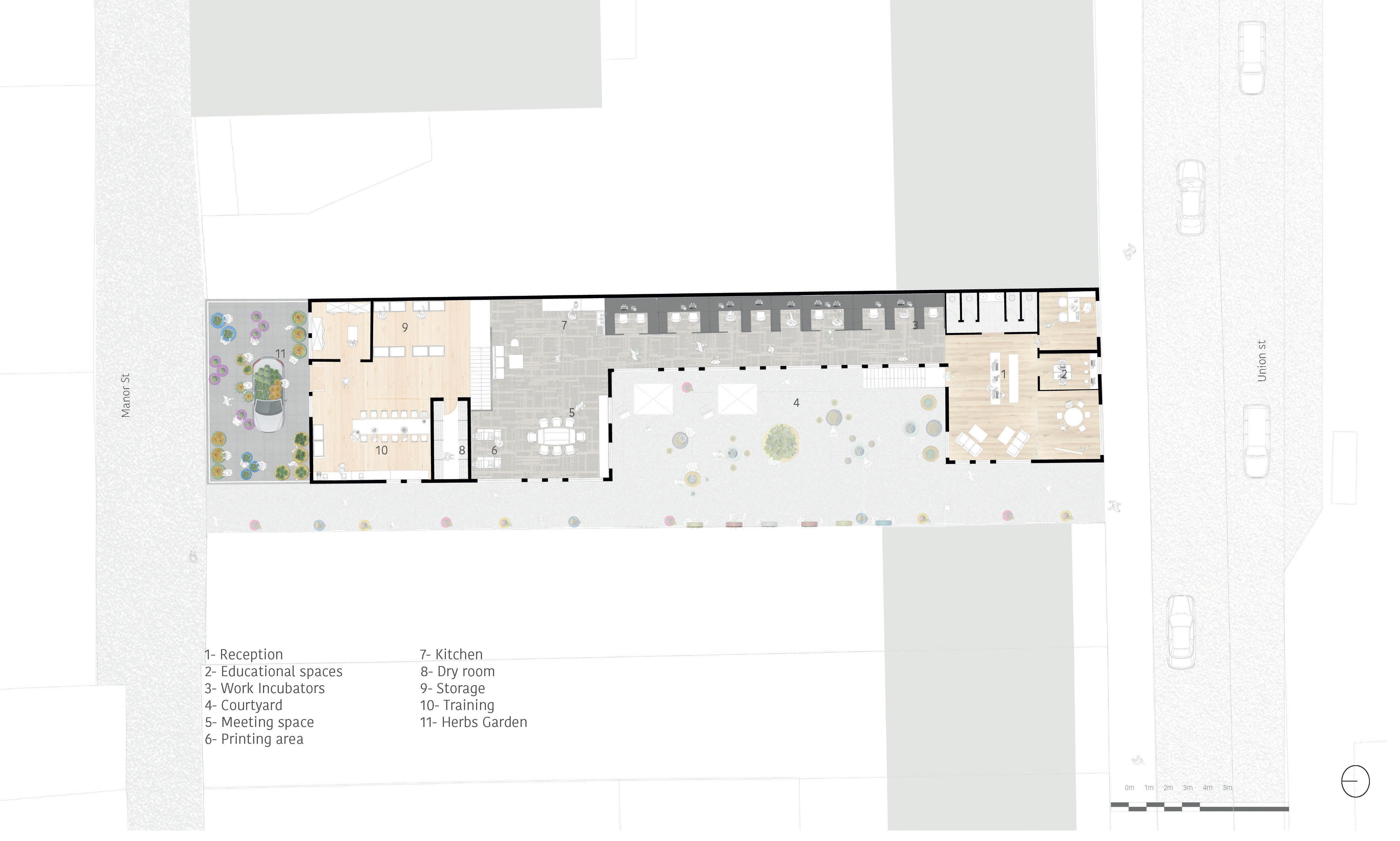

The facilities in the centre include a plastic workshop, archive and educational spaces.

Archive

CLIENT: CREEKSIDE DISCOVERT CENTRE LOCATION: DEPTFORD CREEK, LONDON

1

Creek

4

3

Reuse

Repair

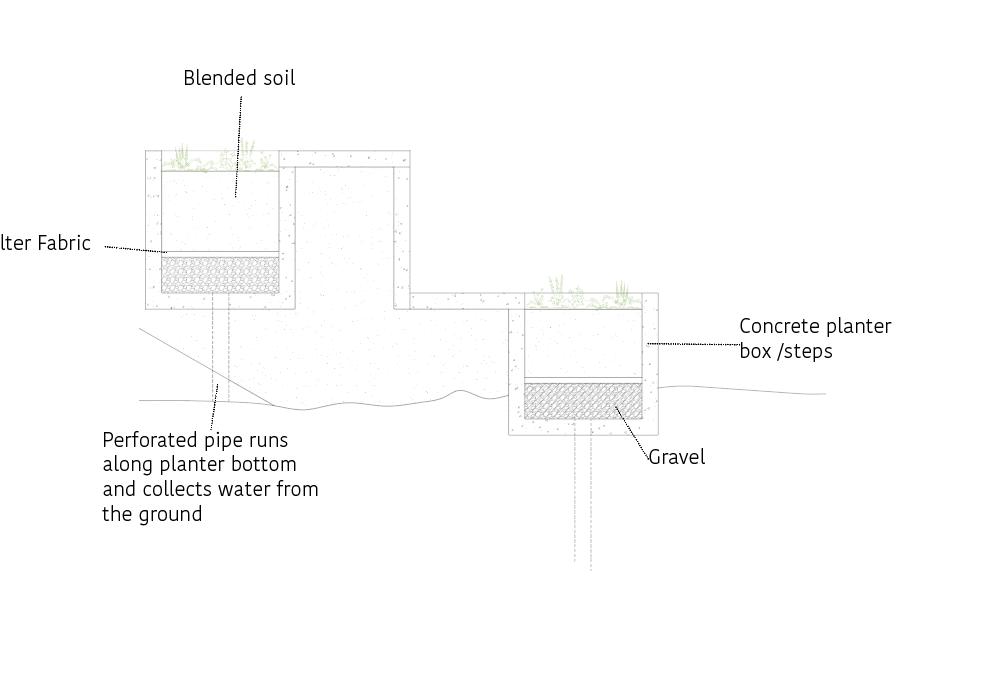

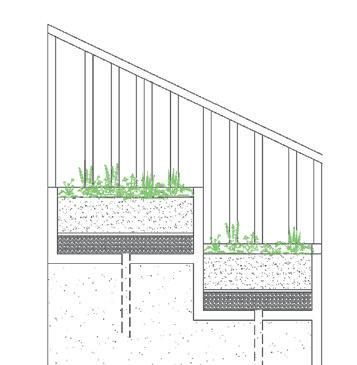

Plants prevent flooding and take excess water water into drains.

TYPE: PERMANENT

Learning journey

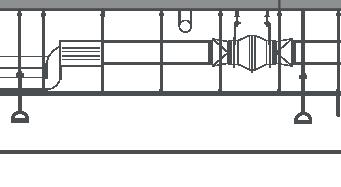

Ducting above suspended ceiling.

Rainwater collection for irrigation of the garden.

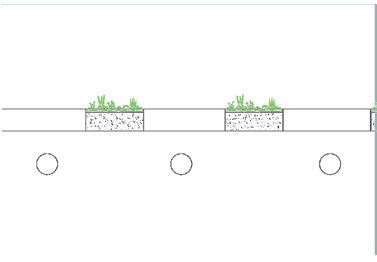

5 Stepped garden reduces carbon on site.

ENVIRONMENTAL STRATEGY [Original scale 1:50]

ADALGISA CASSUENDE

ARCHITECTURE PORTFOLIO

CREEKSIDE UPCYCLING MUSEUM AND FACTORY

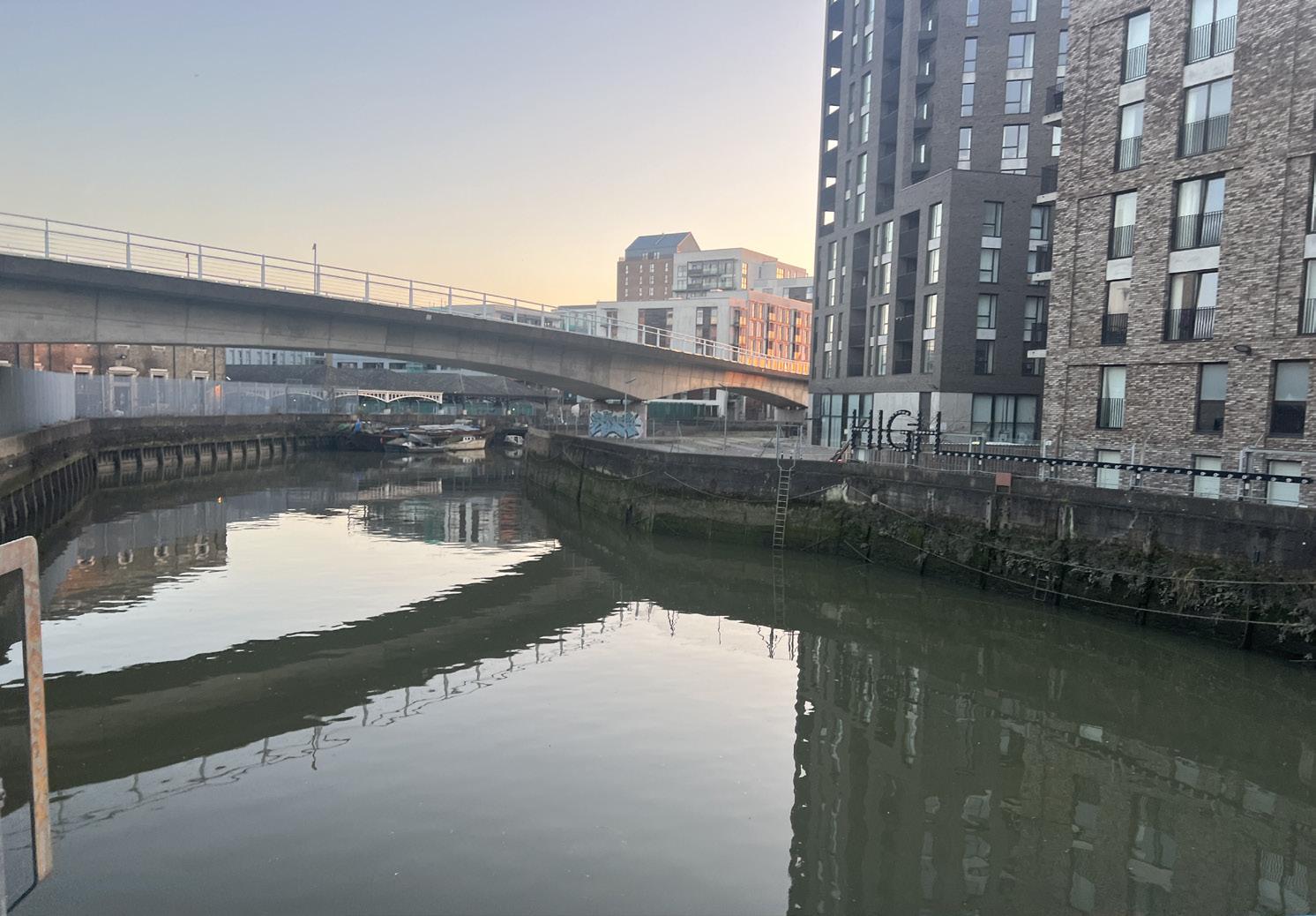

Site analysis Constraints/ Issues

Analysis N

No

rm

an

Rd

Because humans keep building on the river, the challenge for the future is to keep London dry.

Deptford

Creek

is

Creekside Rd has been the main way in which the community engage with the site via car and foot.

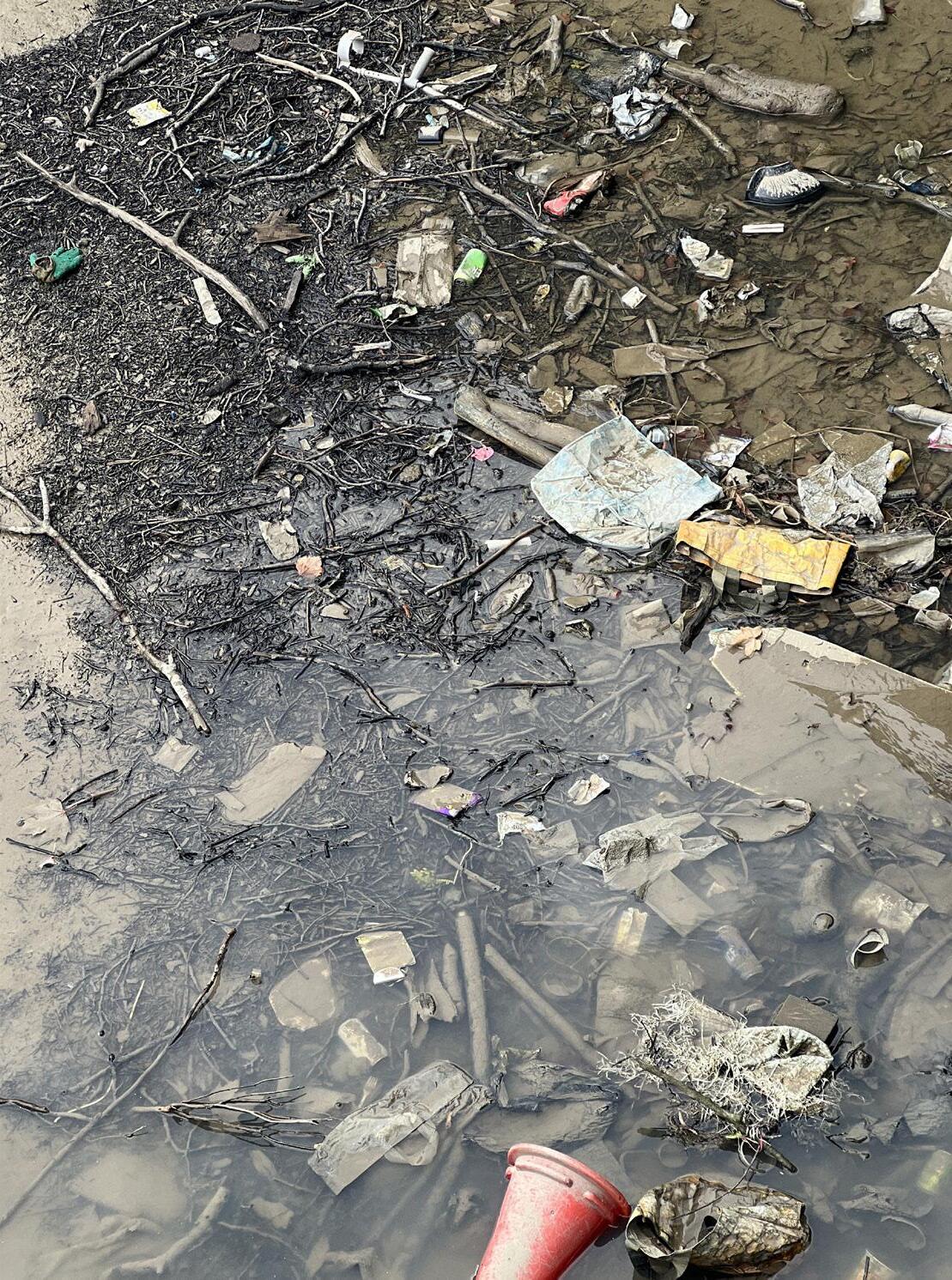

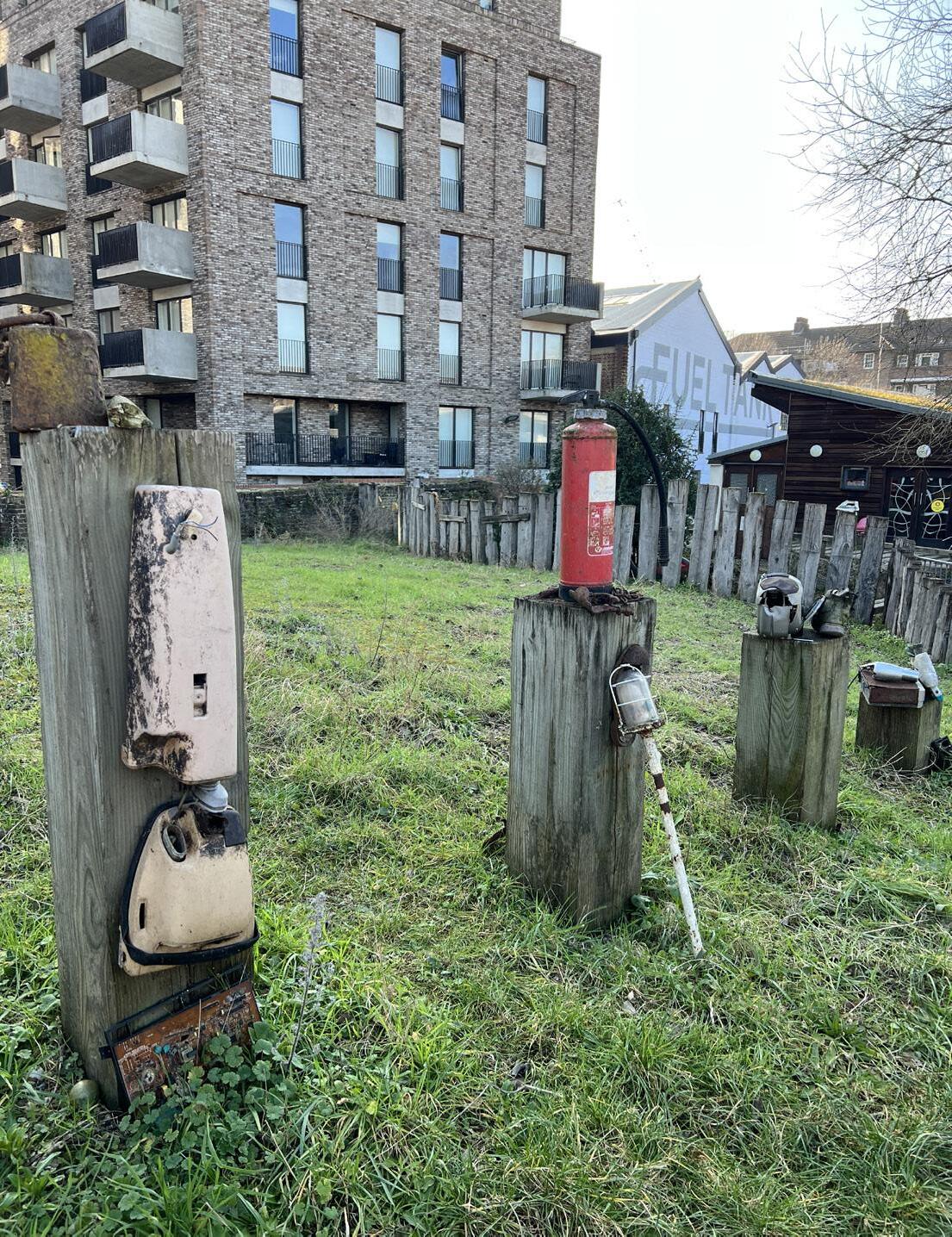

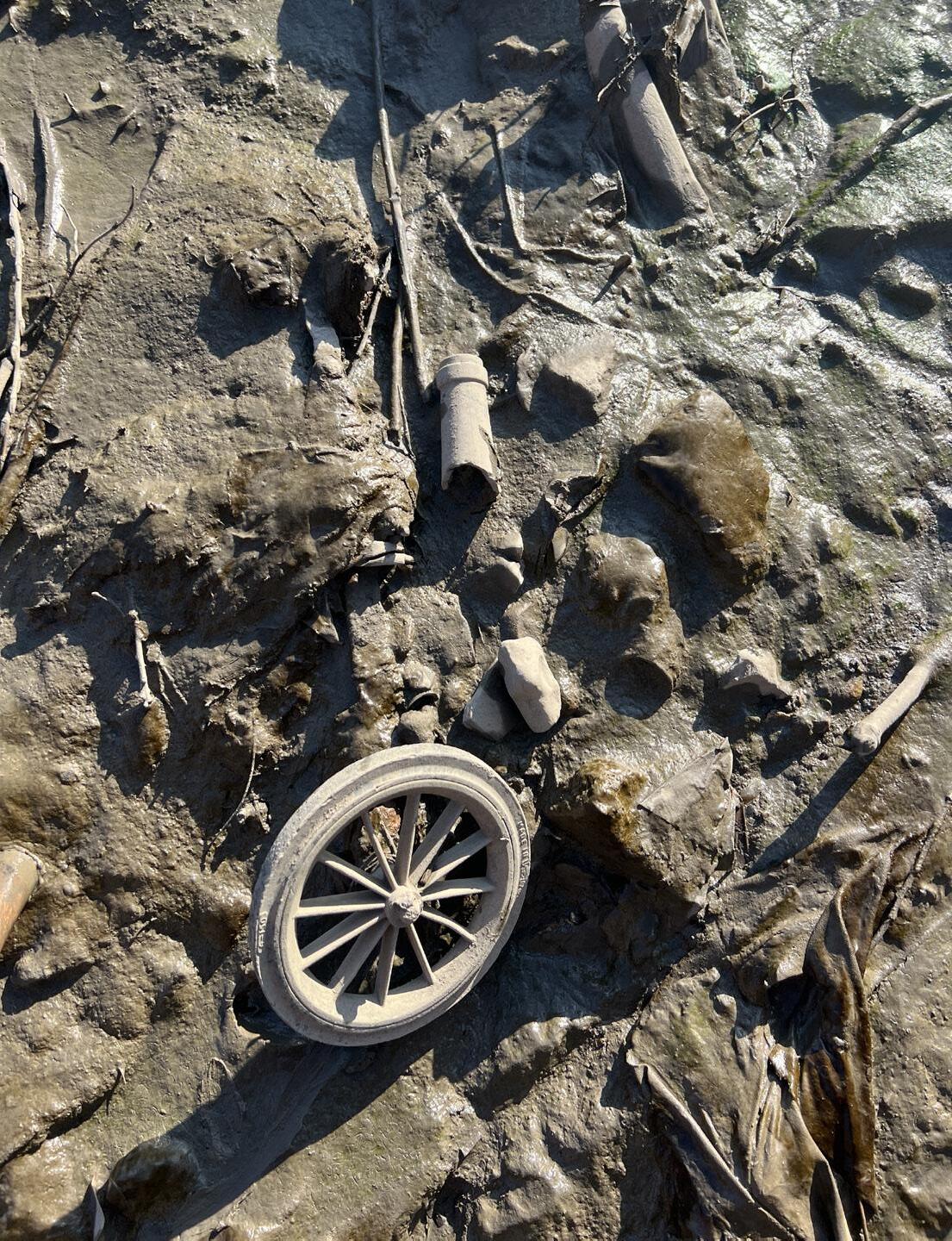

What can be found on the creek

d

eR

sid

ek

Cre

Prevailling wind

Noise pollution

Low user’s flow

Flood risk zone

High user’s flow

Existing client’s site

Main walking friendly access to the site

Plastic pollution

Brief development Creekside ( the client) has on site an informal cabinet of curiosity and outdoor exhibition space, aiming to bring awareness of the pollution on the creek. This has inspired the creation of this brief project aiming to tackle a problem that has been affecting not only Deptford creek but the rivers in the world.

ADALGISA CASSUENDE

ARCHITECTURE PORTFOLIO

quite

polluted

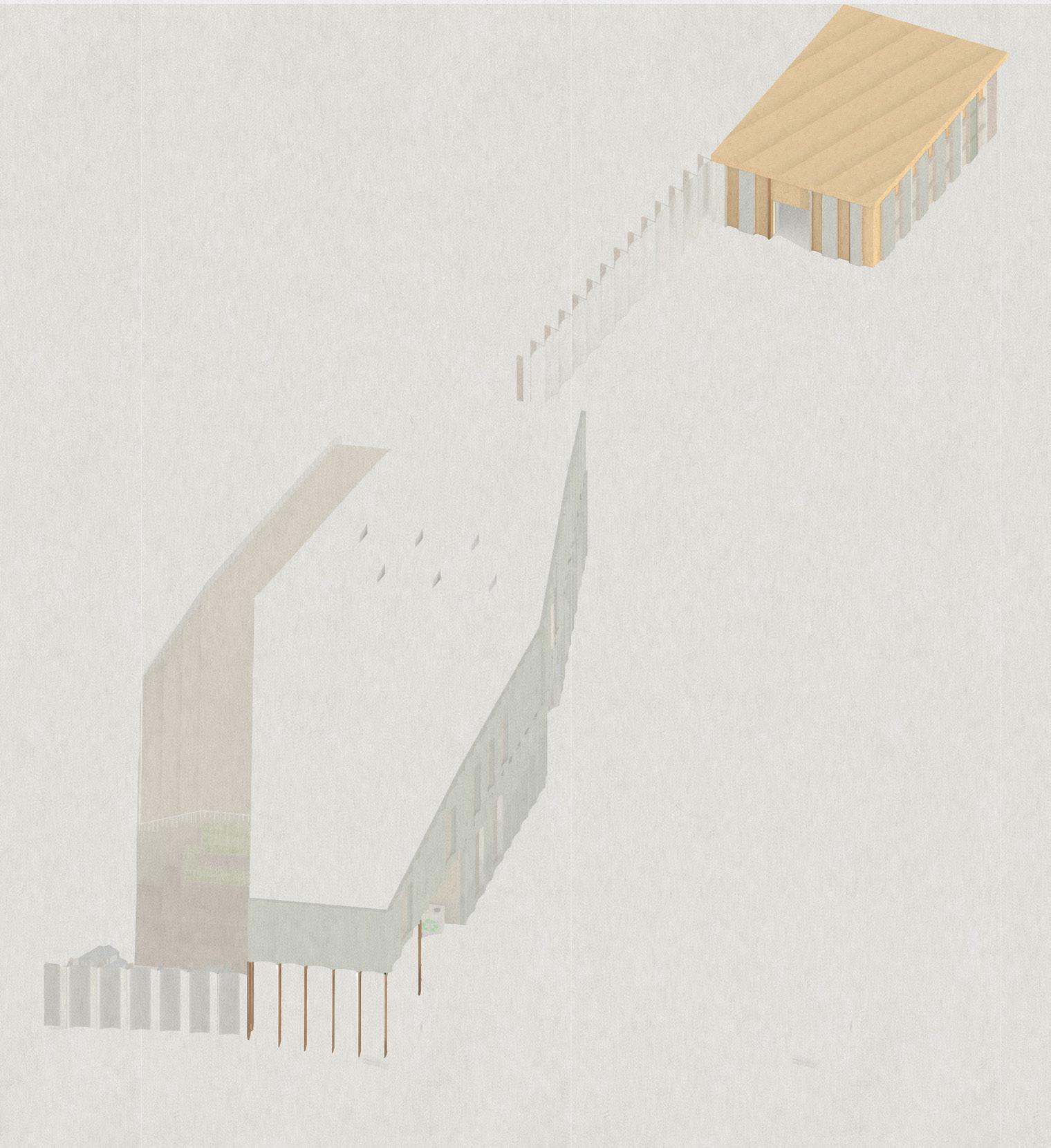

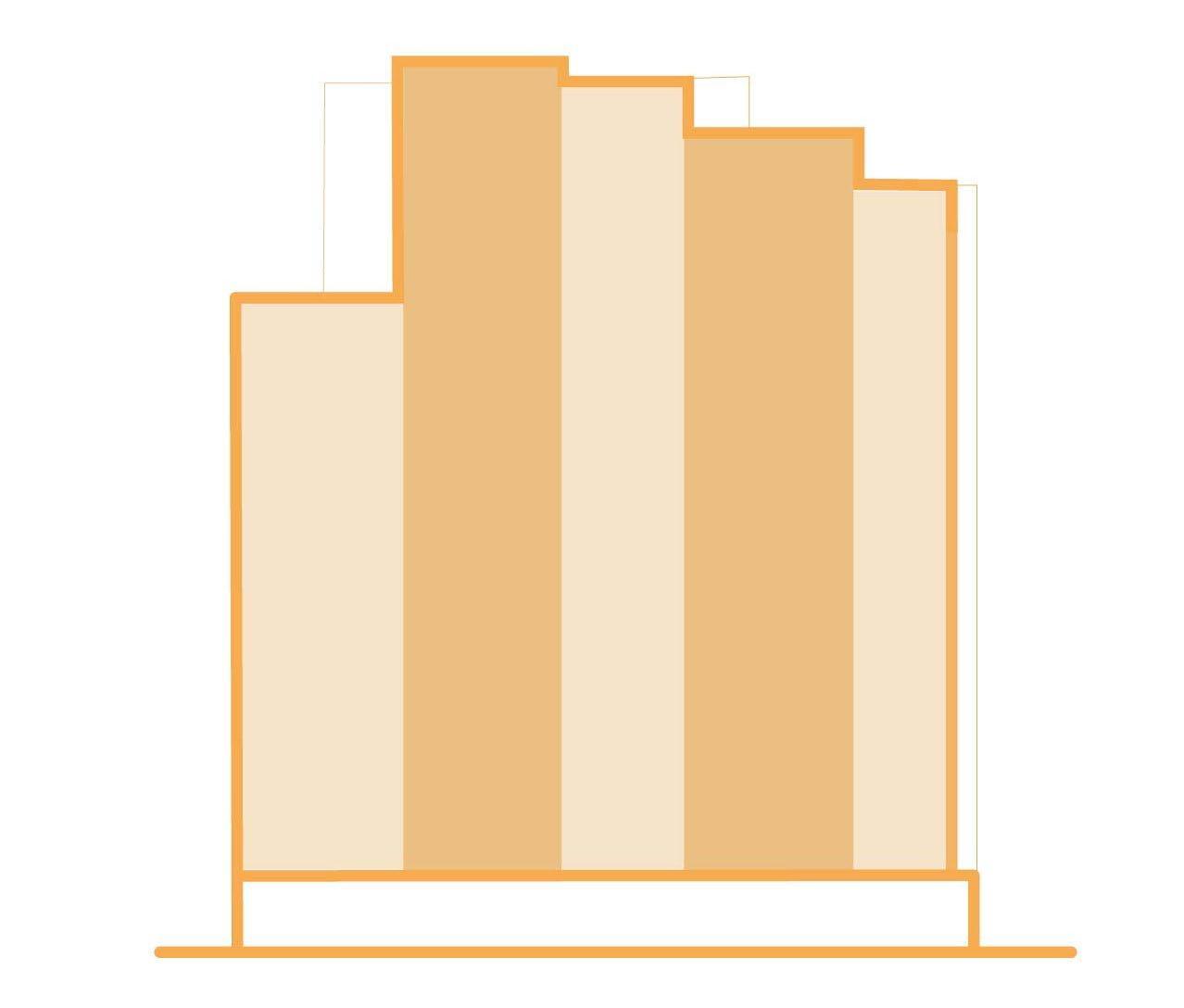

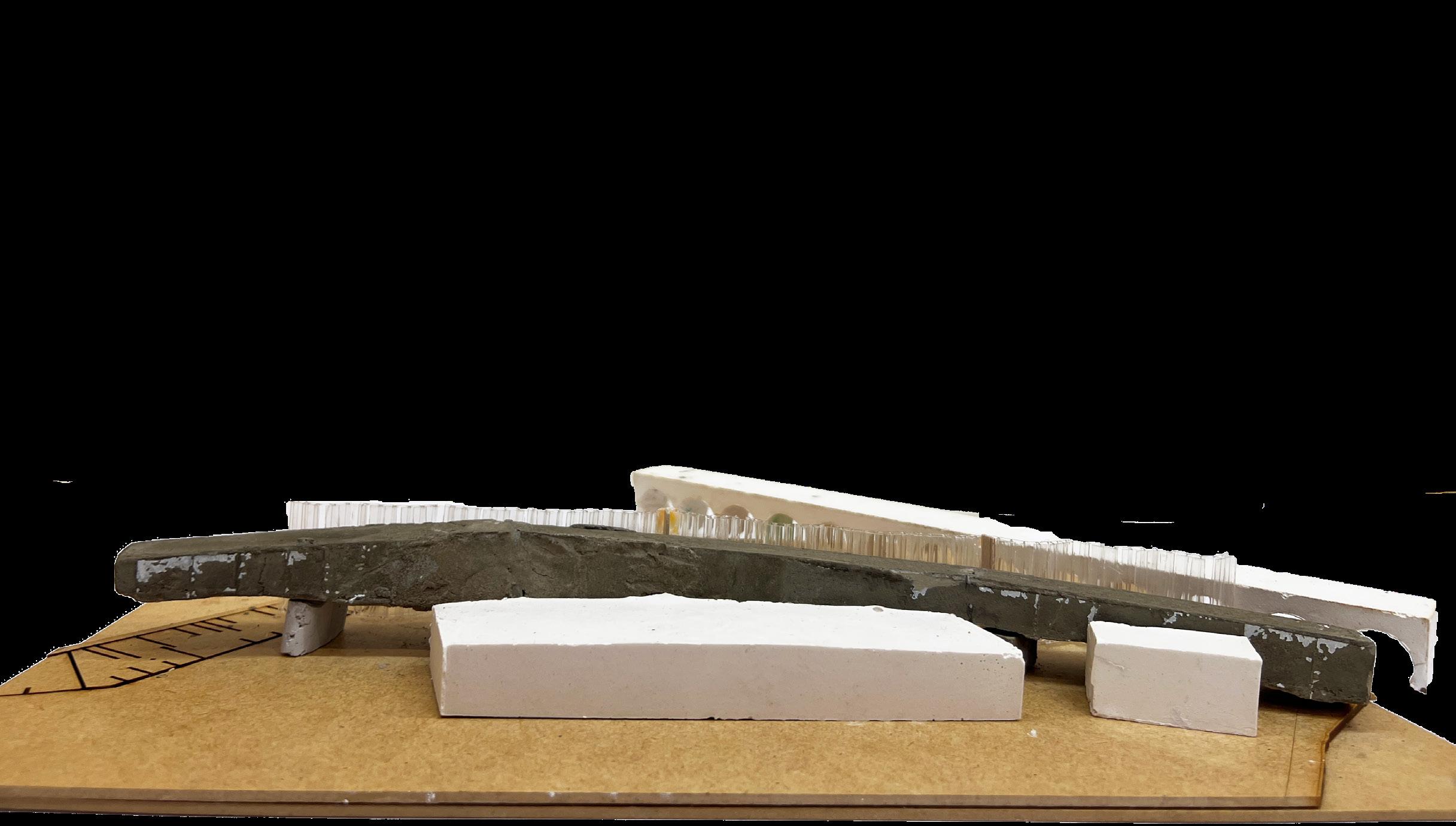

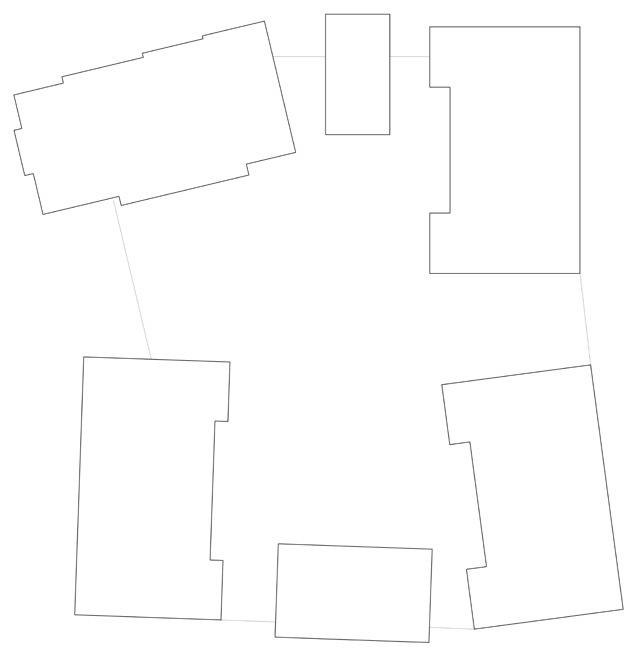

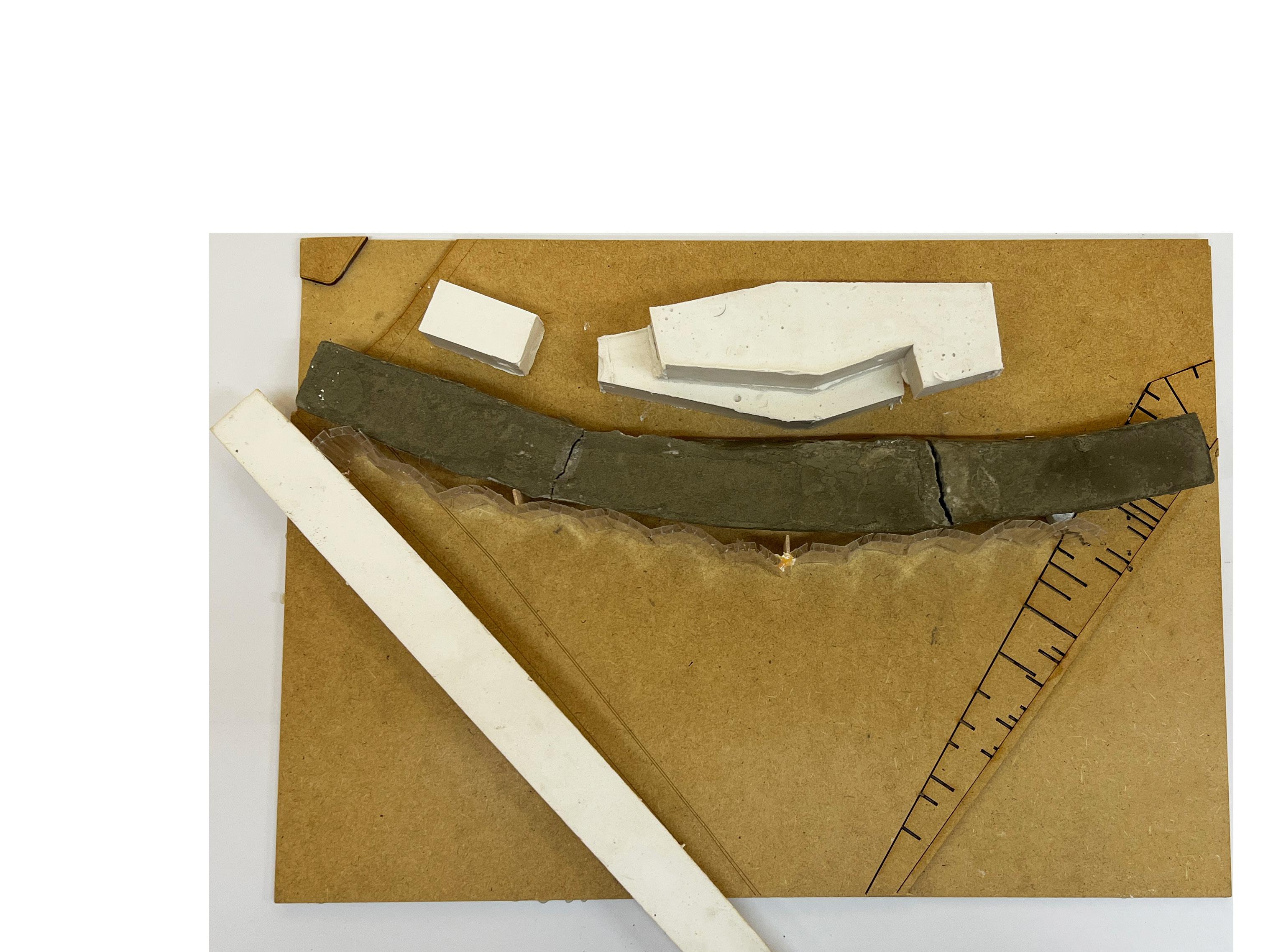

INITIAL MASSING

CREEKSIDE UPCYCLING MUSEUM AND FACTORY

Shape the building form around the site to promote a sense of community and belonging to the site.

1. Dividing the buildinng into two areas to activate Norman rd, having the exhibition space under the viaduct as the connecter.

2. Breaking down the form and challenging the shape of the site, inspired by The Cremer Street - Witherford Watson Mann

Creating a wayfinding and visibility in form of streetscape.

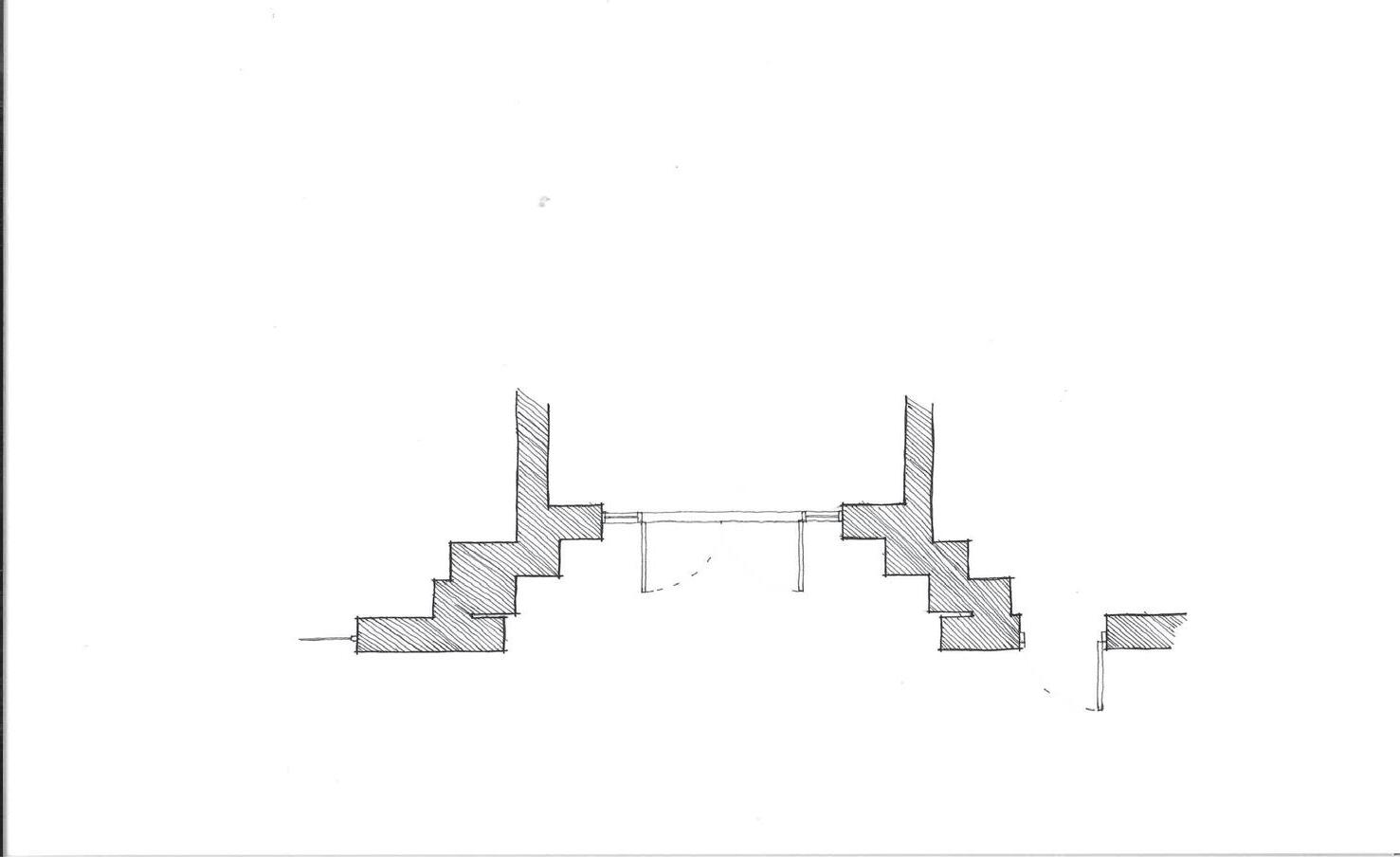

3. Adding steps to the building resembling the steps on the river from phase 1 and adding into the journey around the building.

The steps connect the users on the ground to the passangers on tthe train.

ADALGISA CASSUENDE

ARCHITECTURE PORTFOLIO

The idea is to create a journey through the site, immersing the users in these exhibition space full of of sculptures made out of recycled waste collected from the creek

CREEKSIDE UPCYCLING MUSEUM AND FACTORY

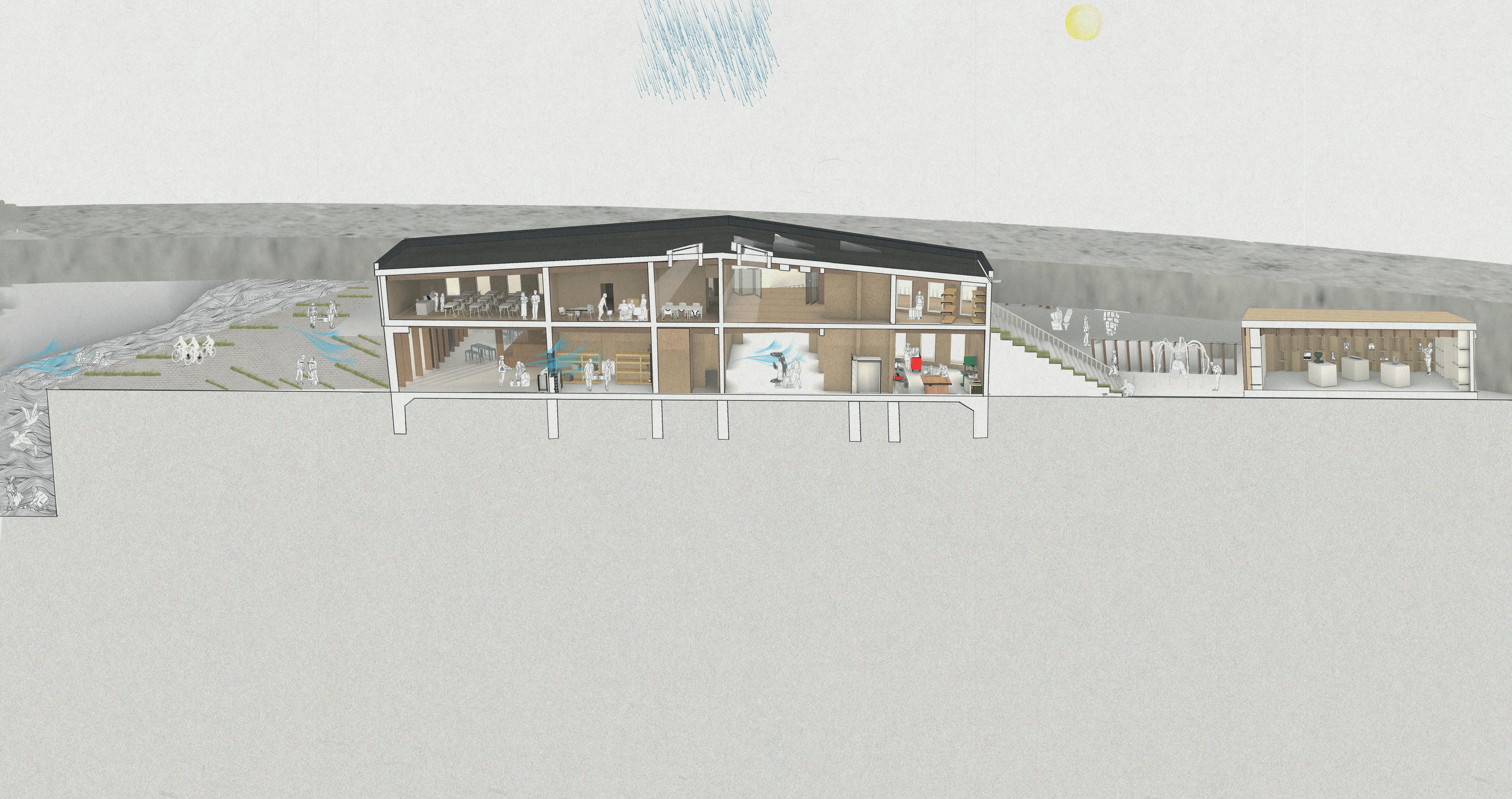

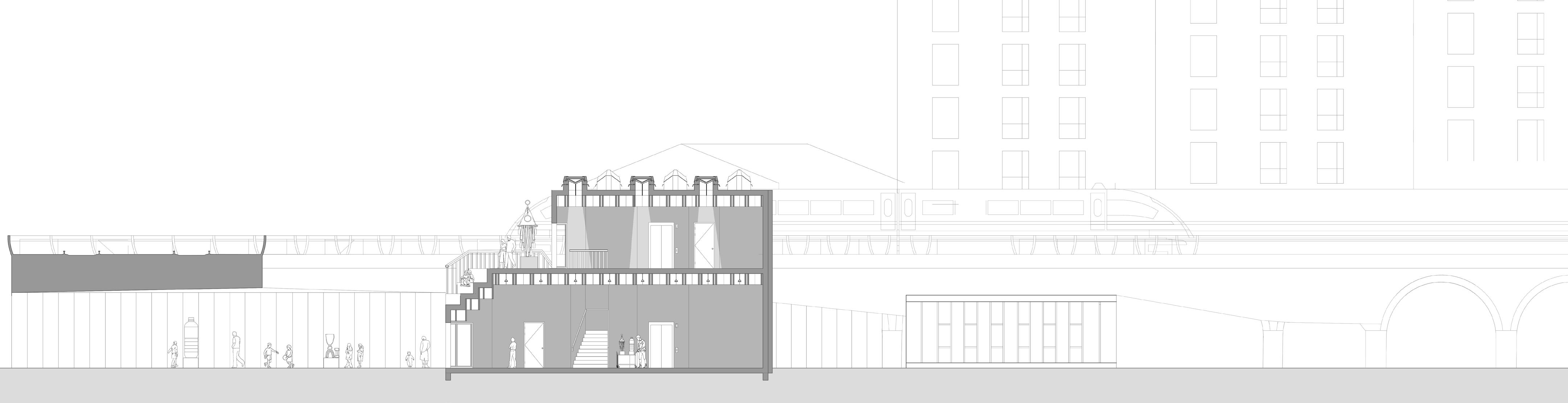

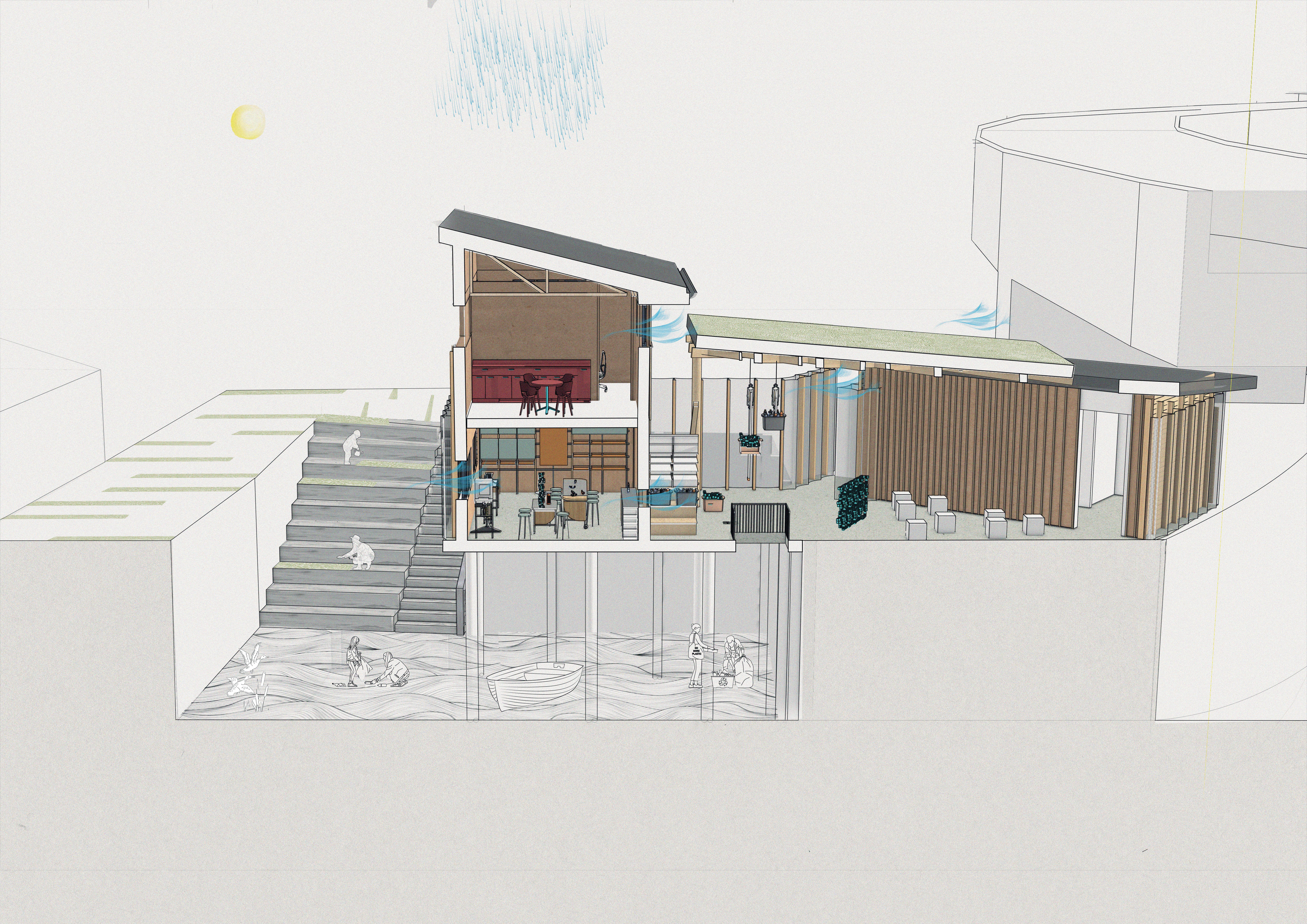

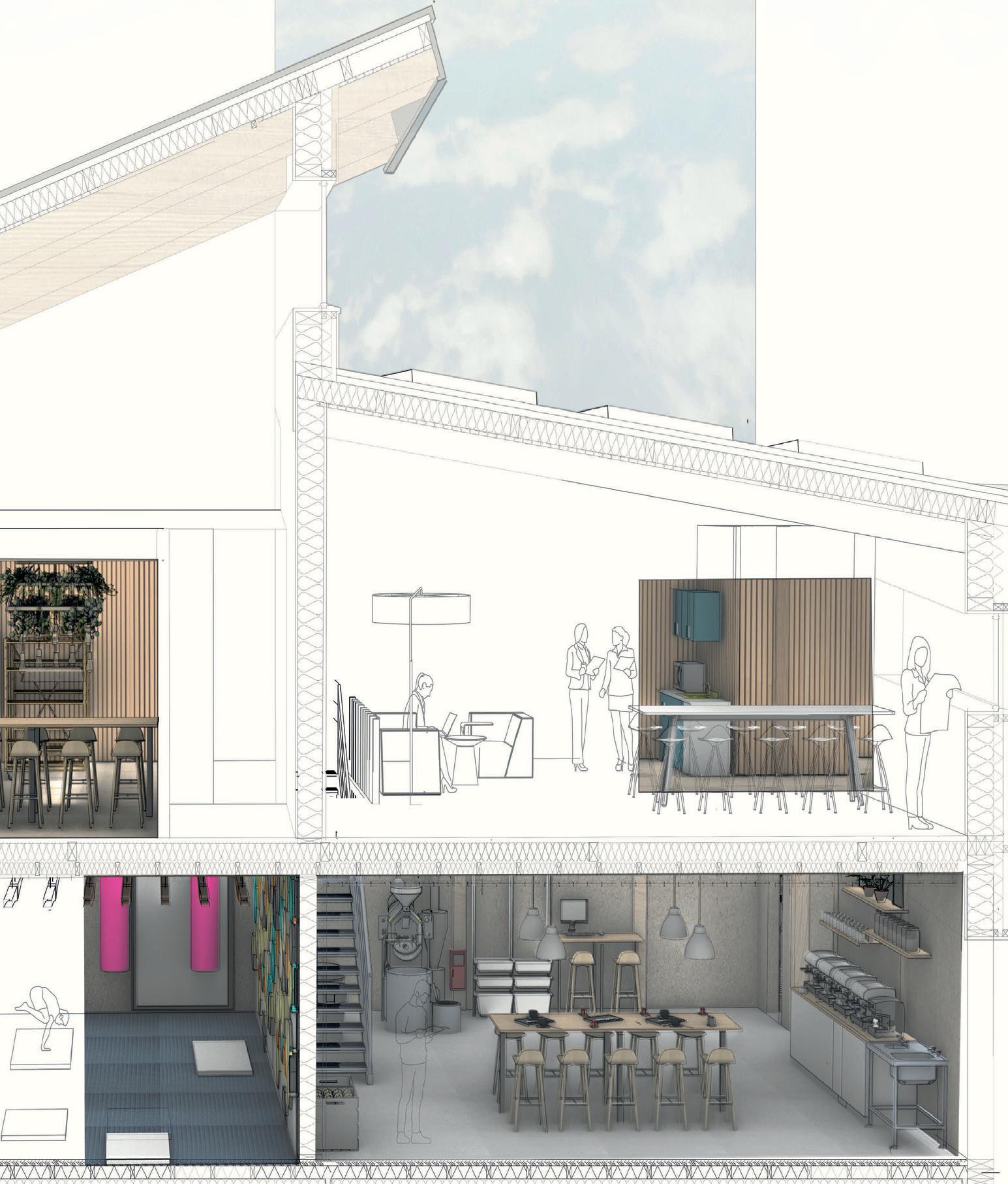

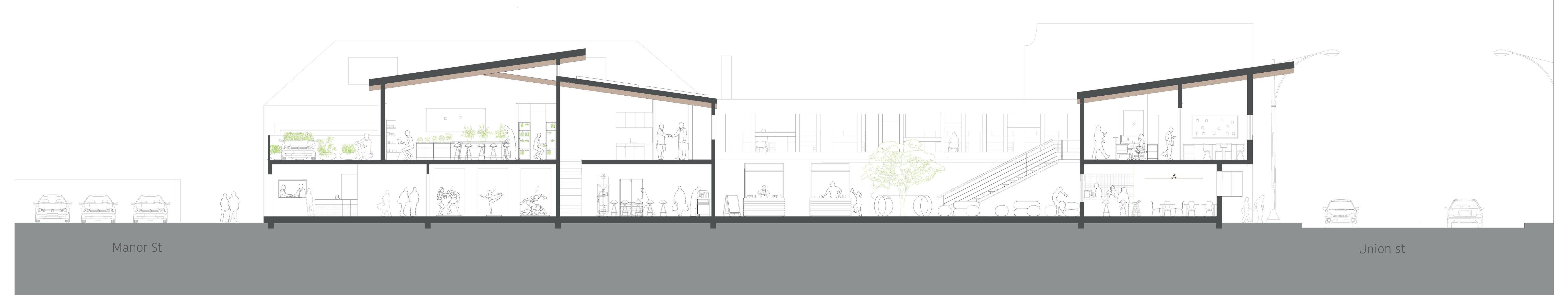

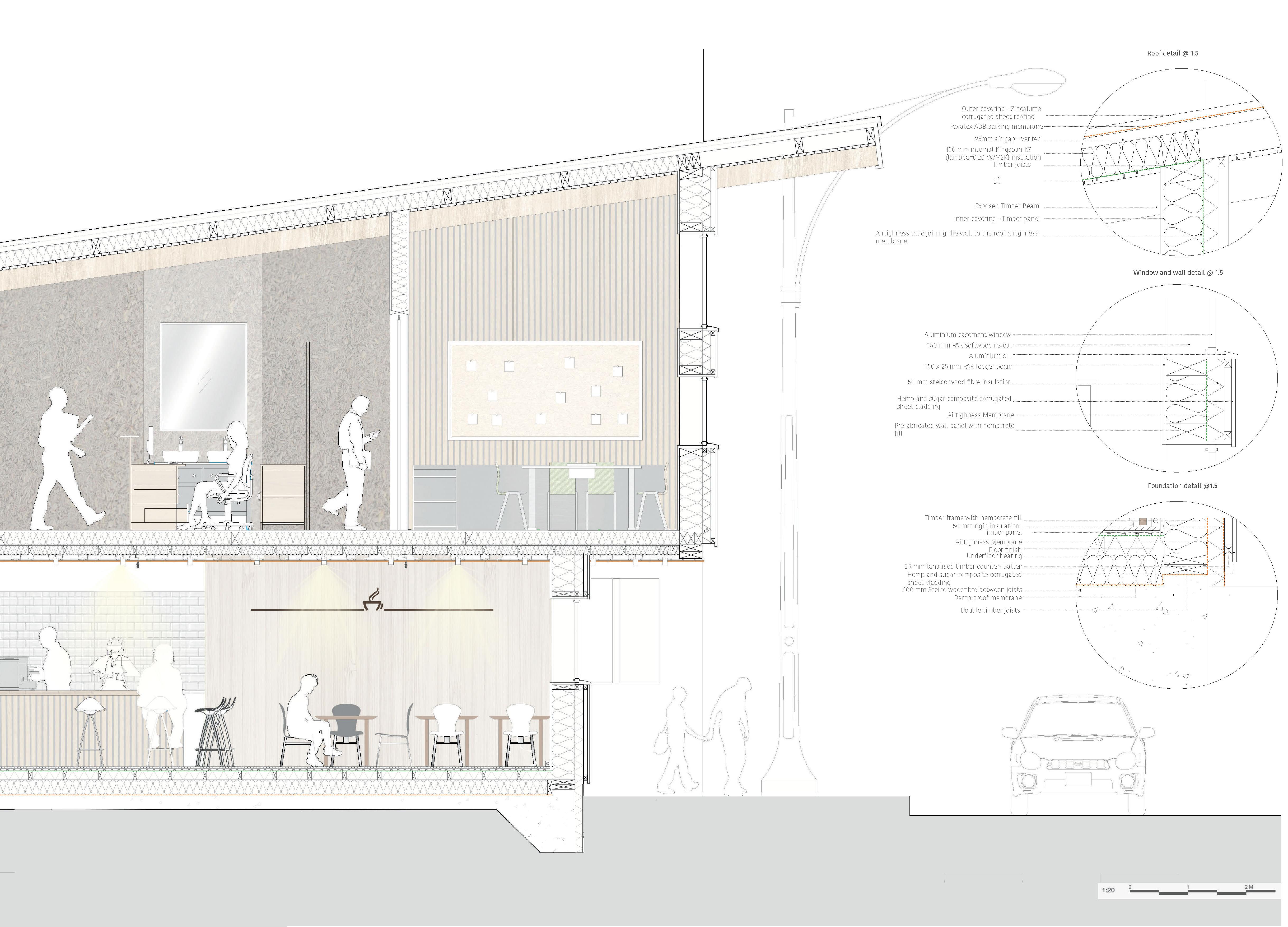

SECTION AA [Original scale 1:100]

A A

N

GROUND FLOOR PLAN [Original scale 1:100] Using CAD

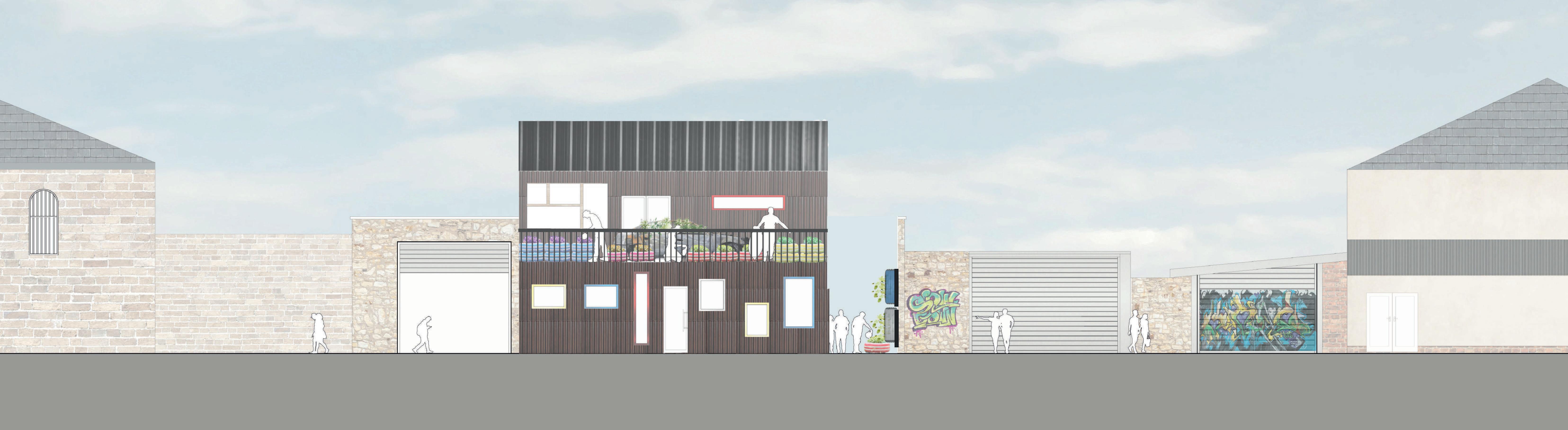

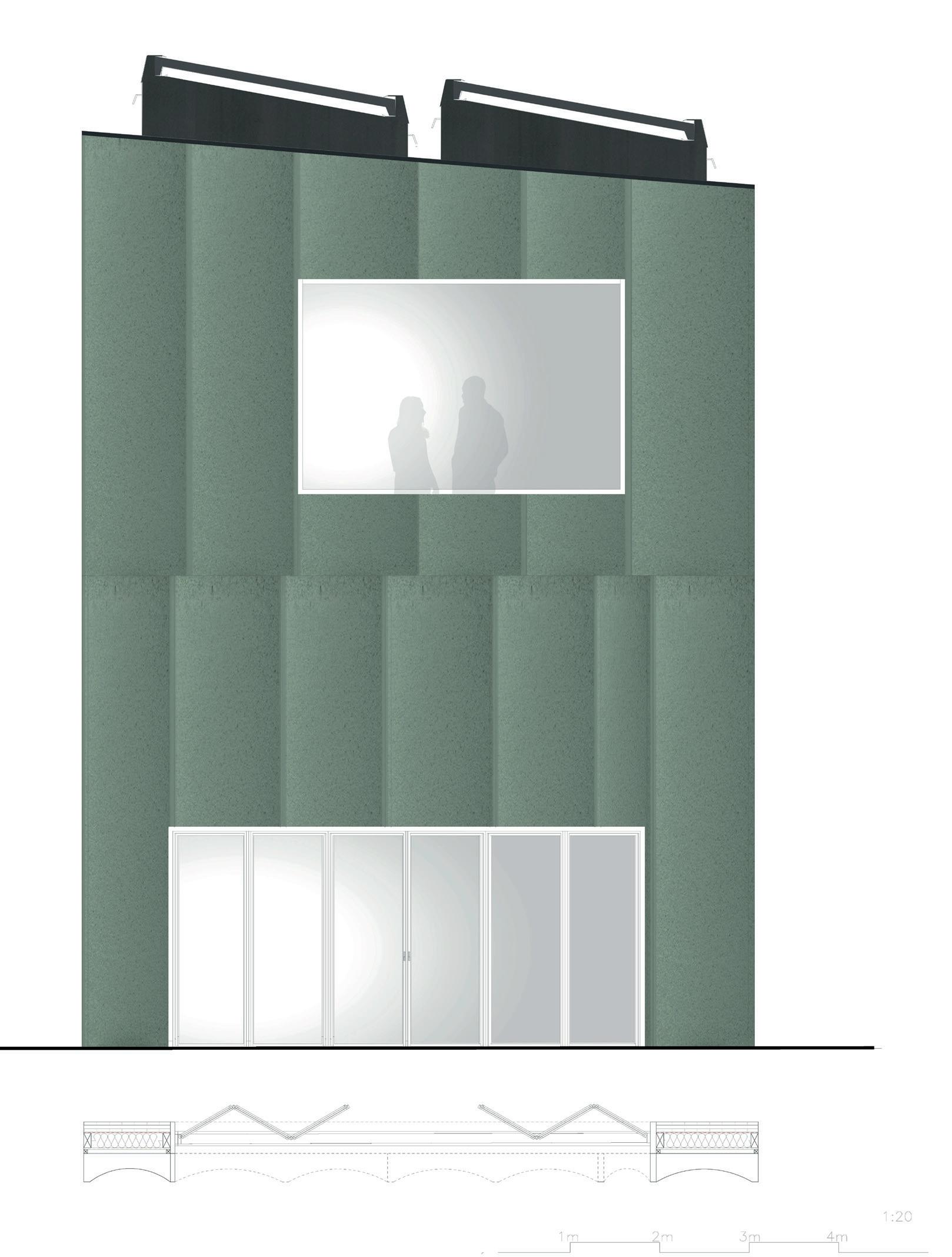

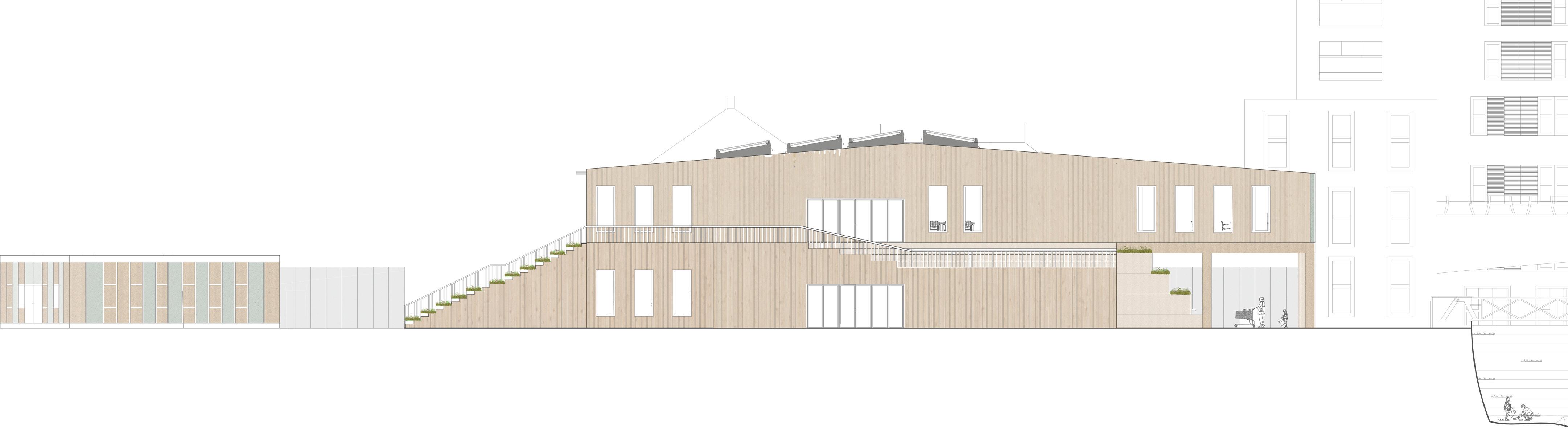

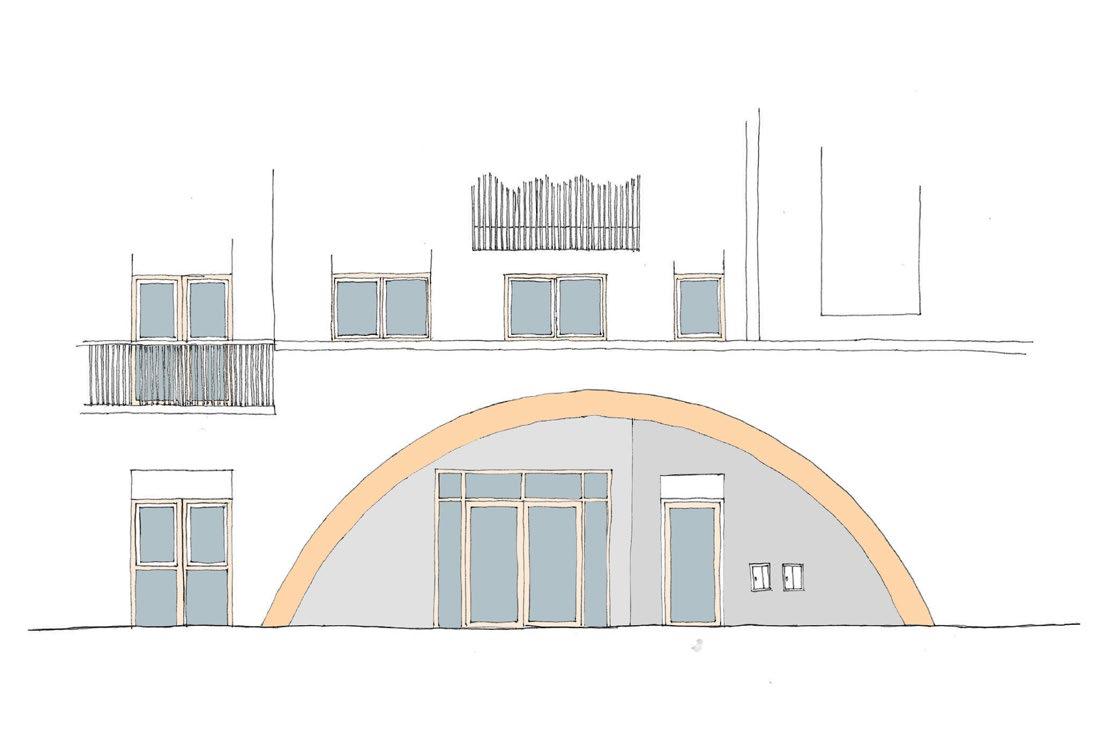

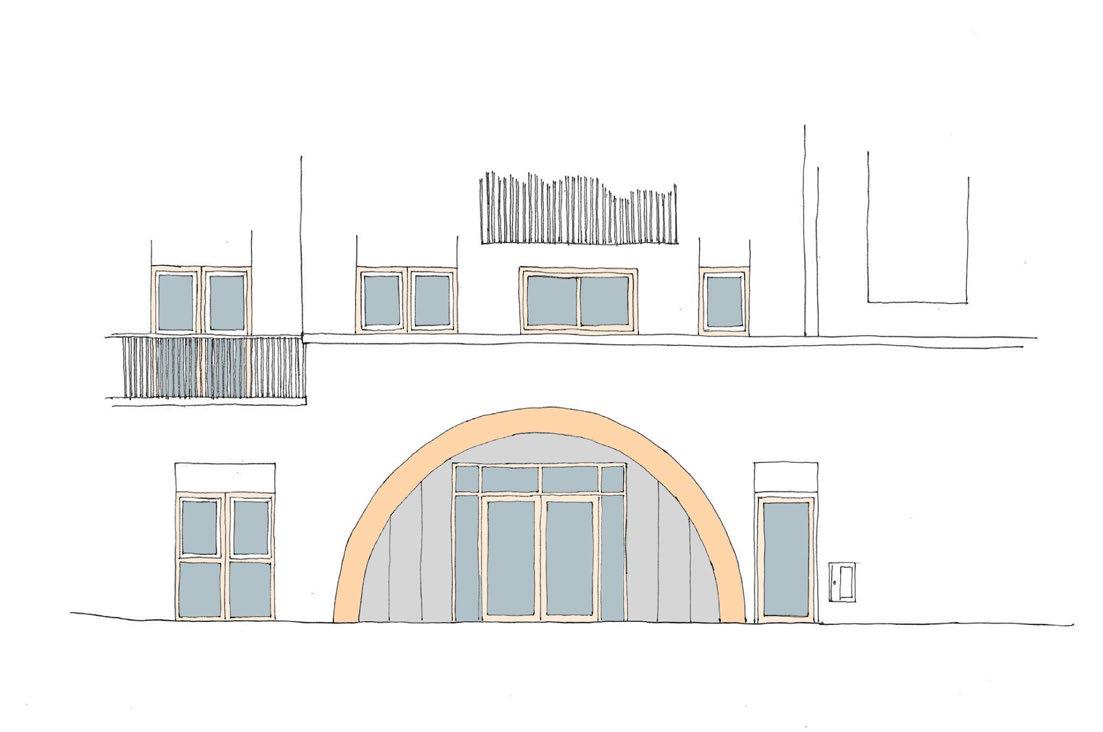

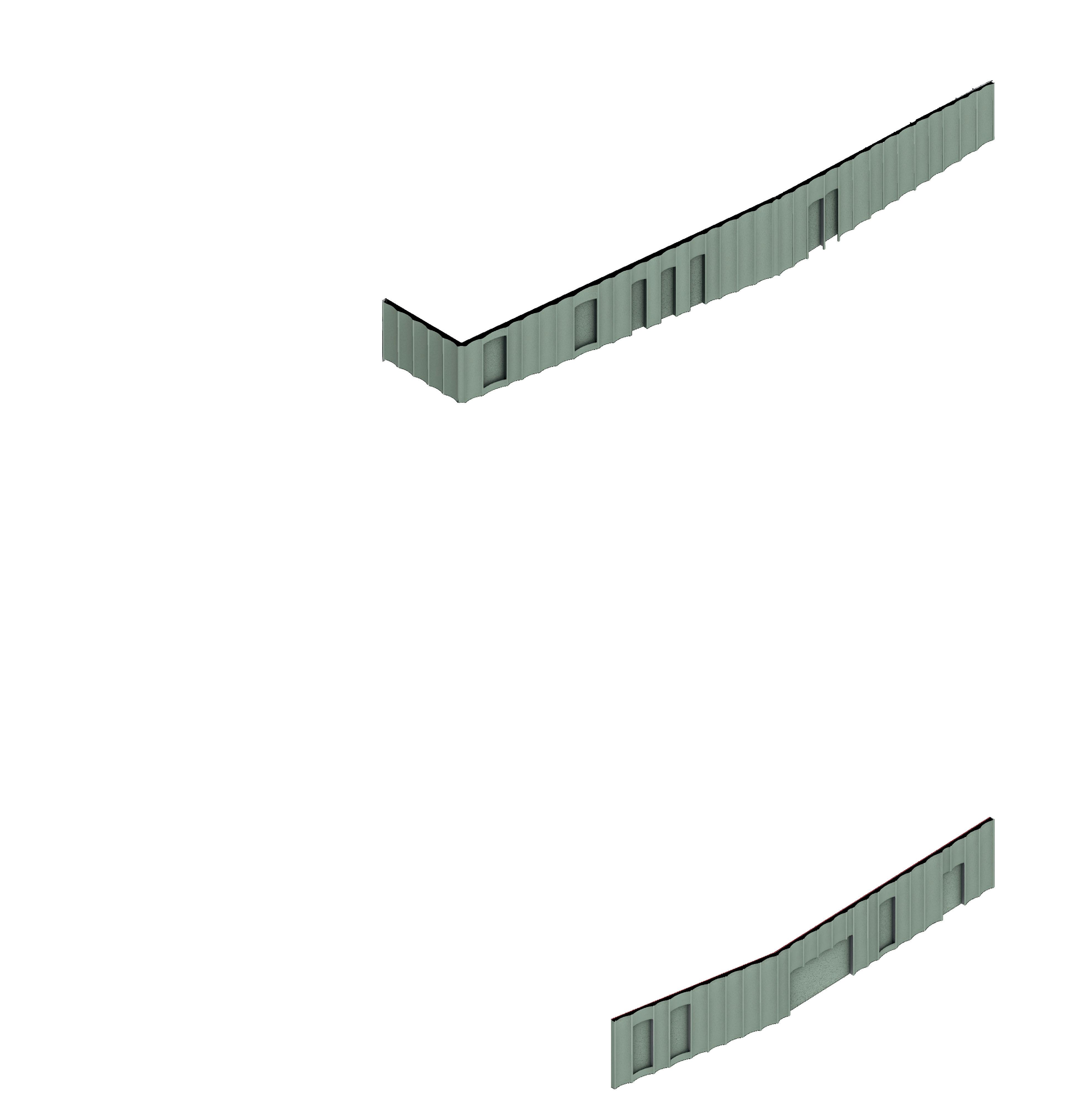

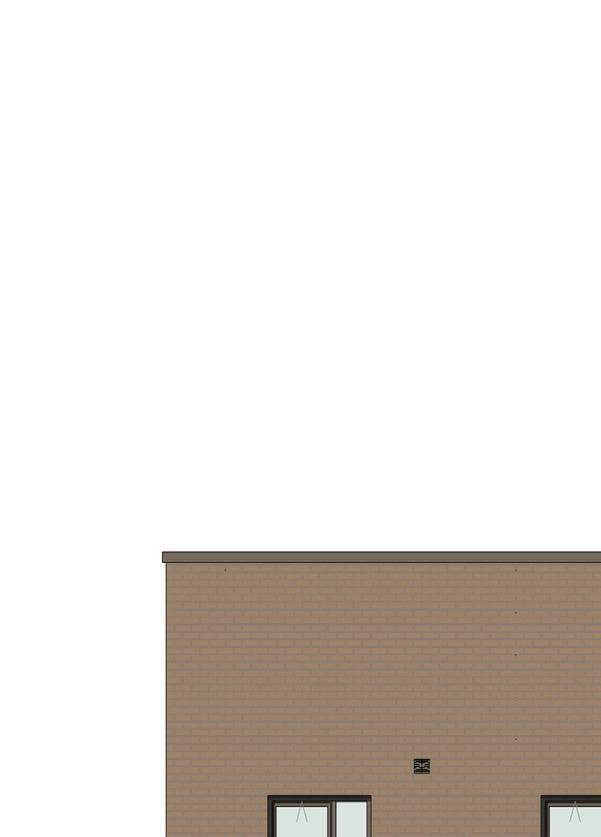

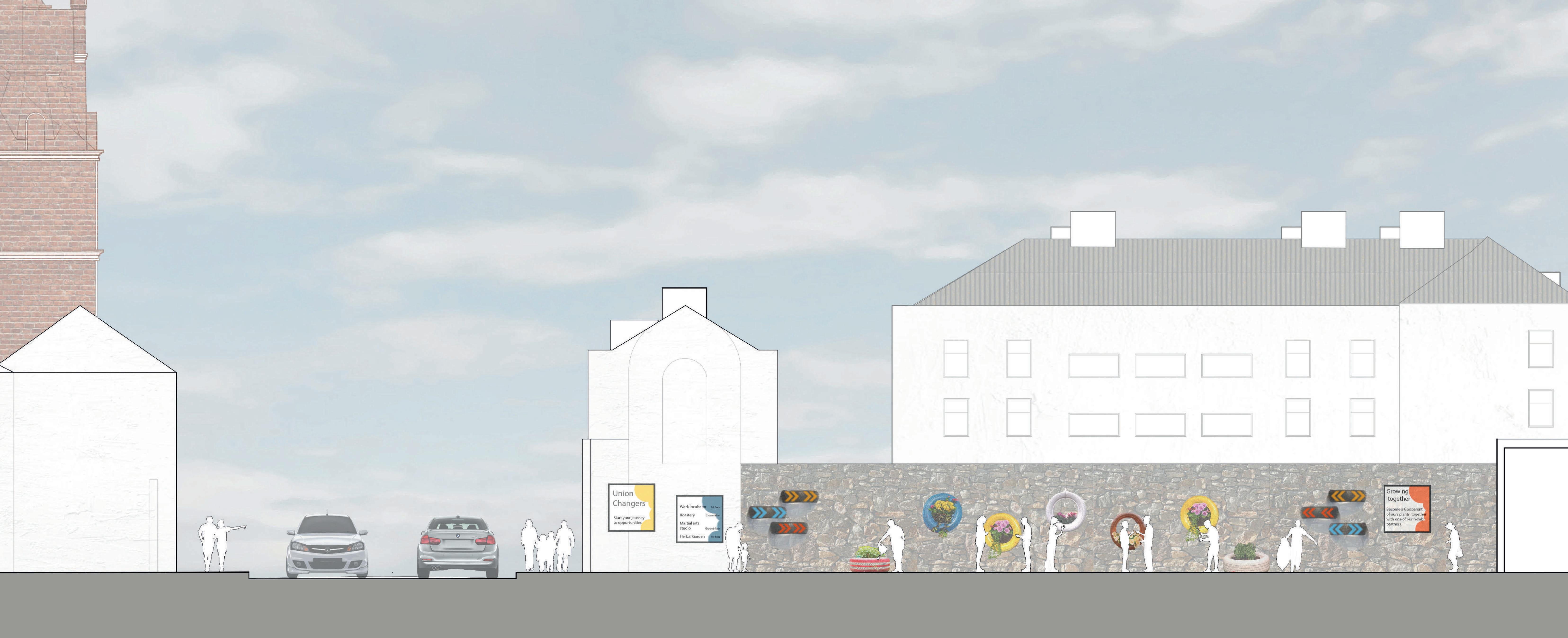

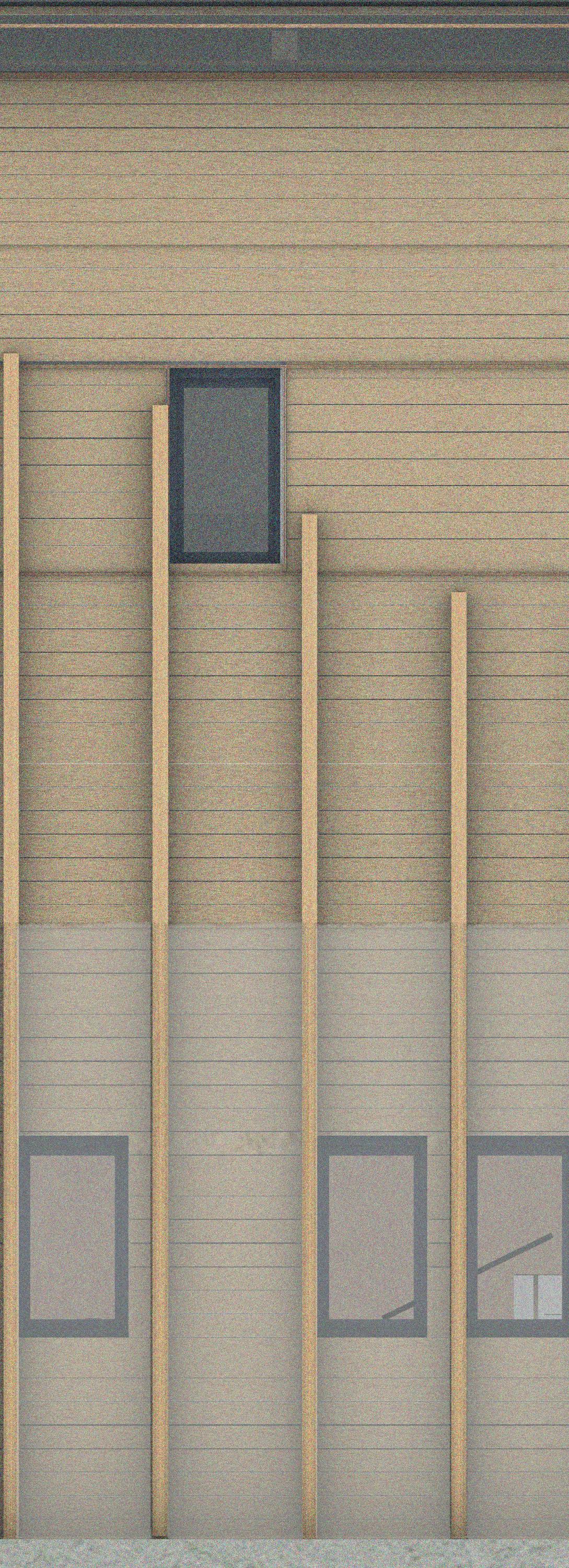

ELEVATION SOUTH [Original scale 1:100] Using CAD and Photoshop

B

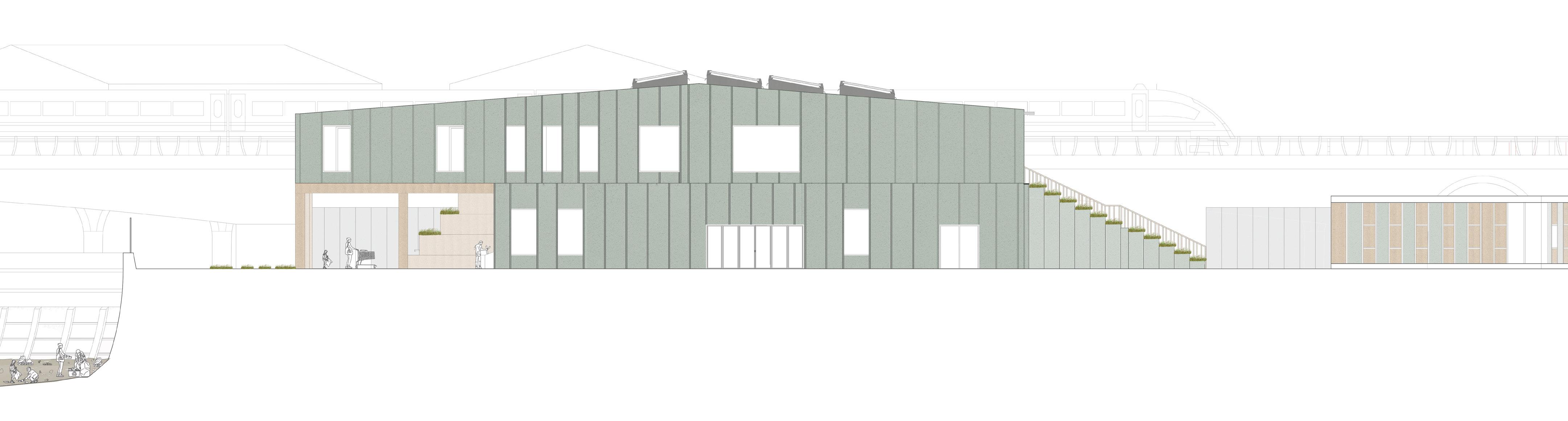

ELEVATION NORTH [Original scale 1:100] Using CAD and Photoshop

B

N

FIRST FLOOR PLAN [Original scale 1:100]

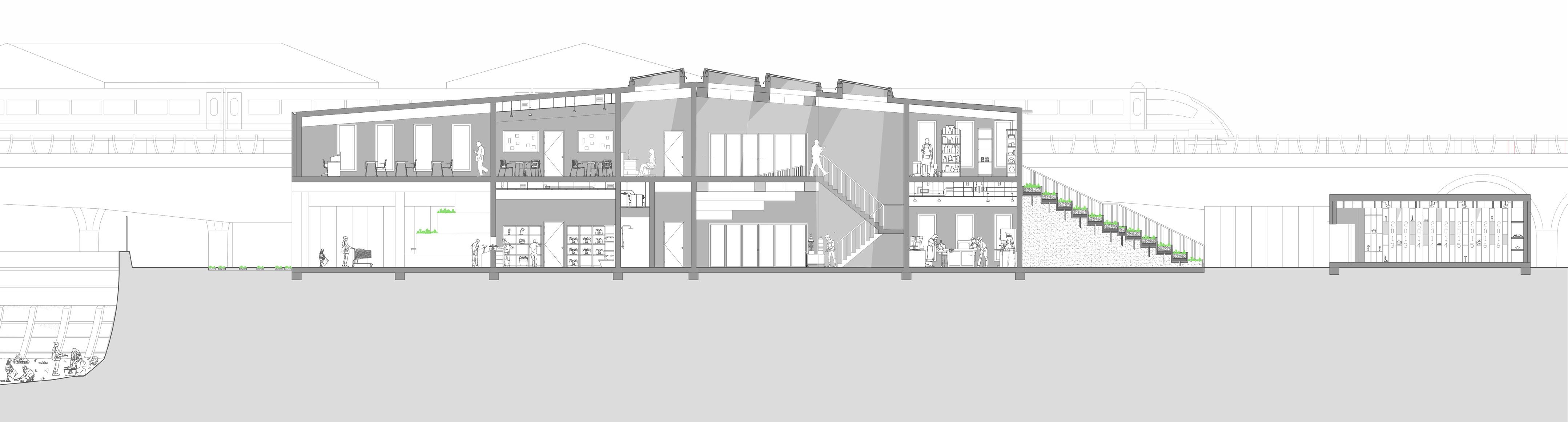

SECTION BB [Original scale 1:100]

assembly

PROJECT LIFECYCLE

CREEKSIDE UPCYCLING MUSEUM AND FACTORY

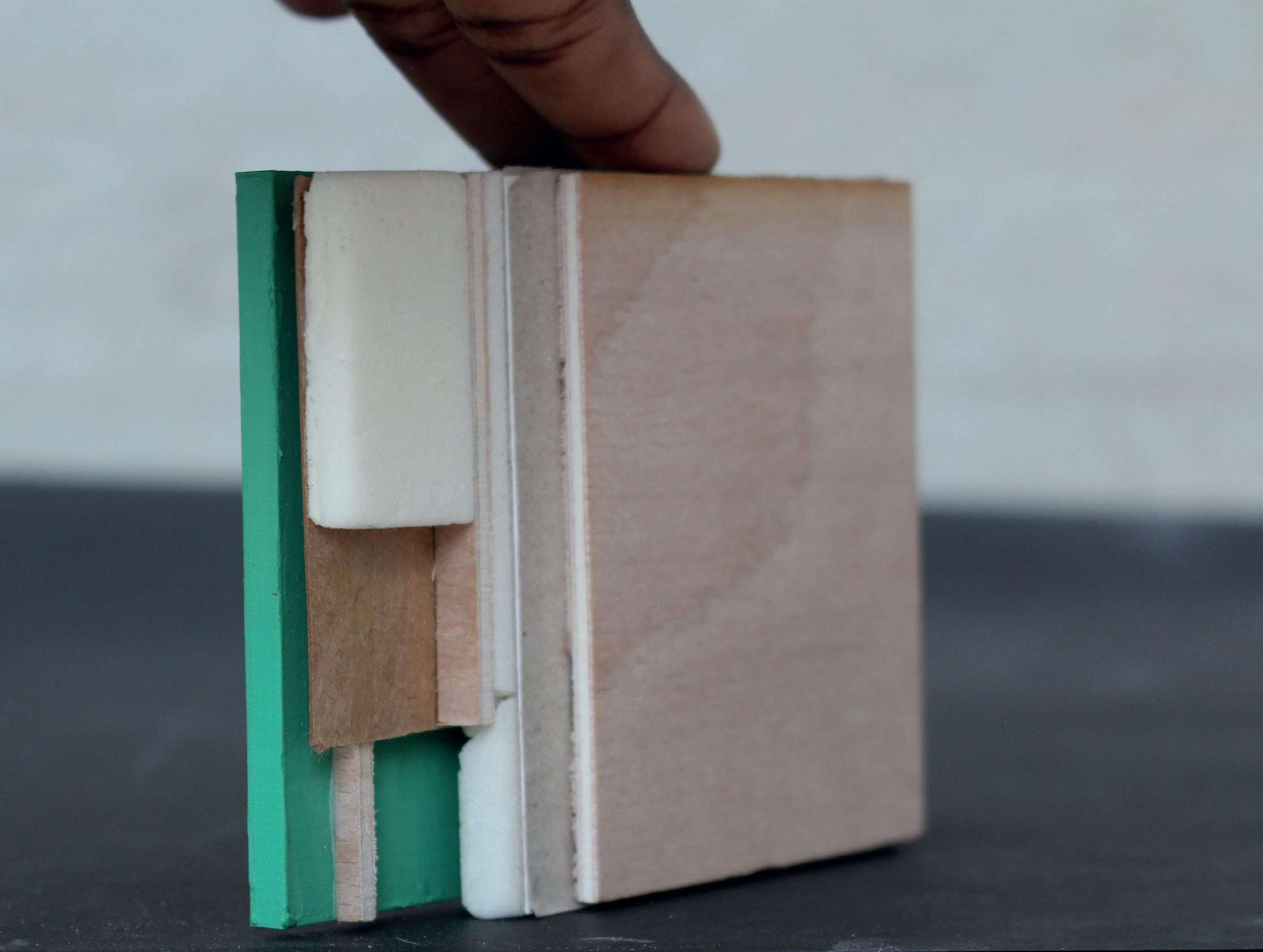

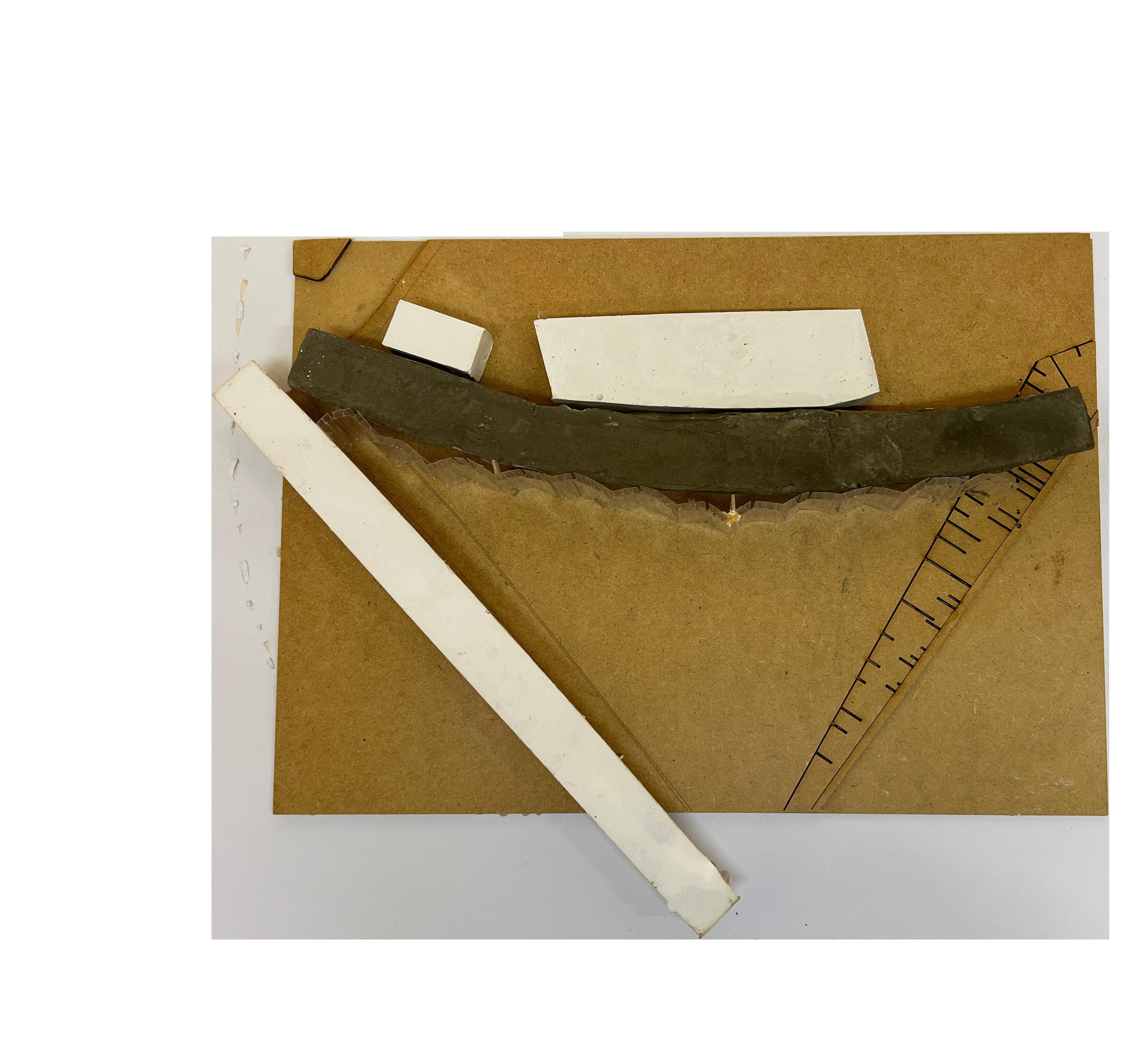

Structural model

Secondary Structure LVL panels elements.

ceiling

PROJECT LIFECYCLE

Primary Structure

Structural model

LVL panels supporting the pitched roof.

Recycled plastic facade structure

Secondary Structure

Exposed CLT on the inside Fire rate inside Primary Structure

Airtight

LVL panels supporting 30/30/30 the pitched roof.

Insulation between timber frame

as

Tension

LVL panels elements.

Exposed CLT on the inside

as

ceiling

Fire rate inside 30/30/30

Compression

Load bearing

Vapour membrane

Tertiary Structure

Tension

RECYCLED FROM PROJECT 1

Compression

Load bearing

Timber battens for the assembly of the facade.

Primary Structure Understanding the assembly of Nottingham Comtemporary facade.

Fire rate outside 60/60/60

Understanding the assembly of Nottingham Comtemporary facade.

Tertiary Structure

RECYCLED FROM THE PREVIOUS BUILDING

Primary Structure

Secondary Structure @1:50

@1:50

Primary Structure LVL panels supporting the stepped ceiling.

Secondary Structure Laminated (LVL)

veneer

lumber

For the exposed beams running along the ceiling.

Primary Structure

An ideal solution for the strength and RECYCLED dimensional stablity that is needed PLASTIC CONSTRUCTION MATERIAL for the ceiling whilst allowing slim, elegant construction/aesthetic.

LVL panels supporting the stepped ceiling.

Laminated (LVL)

veneer

lumber

For the exposed beams running along the ceiling.

An ideal solution for the strength and dimensional stablity that is needed for the ceiling whilst allowing slim, elegant construction/aesthetic.

Primary Structure

m

m 00

20

00

mm

2

m

18 m 00 00 0 mm Each panel up to 2000 mm long, 2

m

00

20

2

m

m

0 00

A 50 cm of the module is 3.3kg of collected material.

m

This facade module will be applied only to one side of the building.

This facade module will be applied only to one side of the building.

Cross laminated timber (CLT)

having some of them shorter to fit the building grid.

m

0 00

2

For the structural walls and floor.

Because it is a prefabricated panel, CLT is a fast method of construction and environmentally sustainable, being able to provide 15-26% reduction in global warming potential, depending on the building design.

Primary Structure

m

m

Cross laminated timber (CLT)

m

0 00

Elevation

Elevation

18

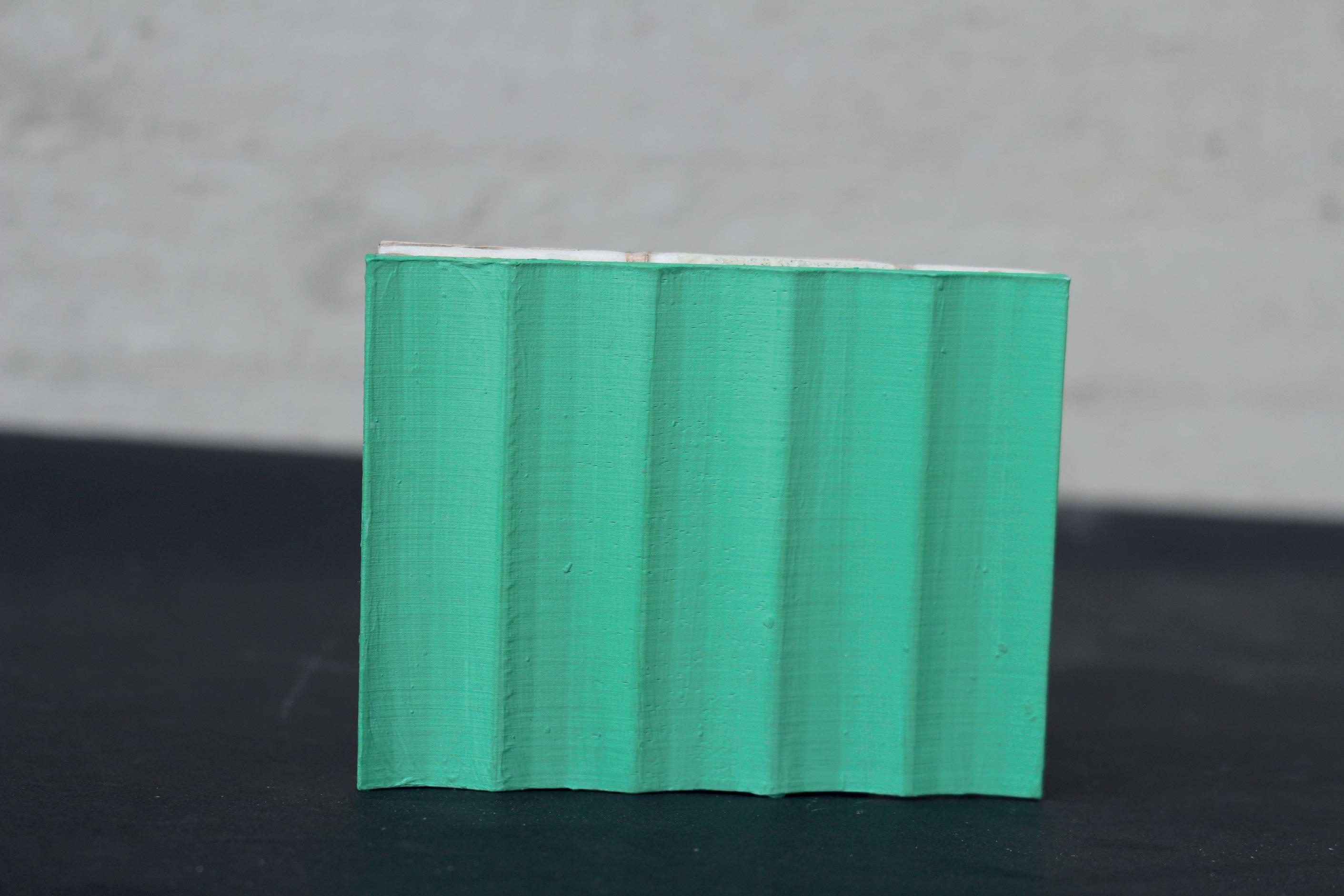

RECYCLED PLASTIC CONSTRUCTION MATERIAL

Secondary Structure

Each panel up to 2000 mm long, having some of them shorter to fit the building grid.

For the structural walls and floor.

Because it is a prefabricated Fire resistance panel, CLT is a fast method of construction and environmentally CLT structure could more sustainable, being ablewithstand to provide thanreduction 90 minutes burning before it 15-26% in of global warming collapsed. potential, depending on the building design.

Fire resistance

The recycled plastic waste is melted and poured into a mould.

Secondary Structure

ADALGISA CASSUENDE

ARCHITECTURE PORTFOLIO

WHAT CAN BE REUSED

CLT structure could withstand more than 90 minutes of burning before it collapsed.

WHAT CAN BE REUSED

CREEKSIDE UPCYCLING MUSEUM AND FACTORY

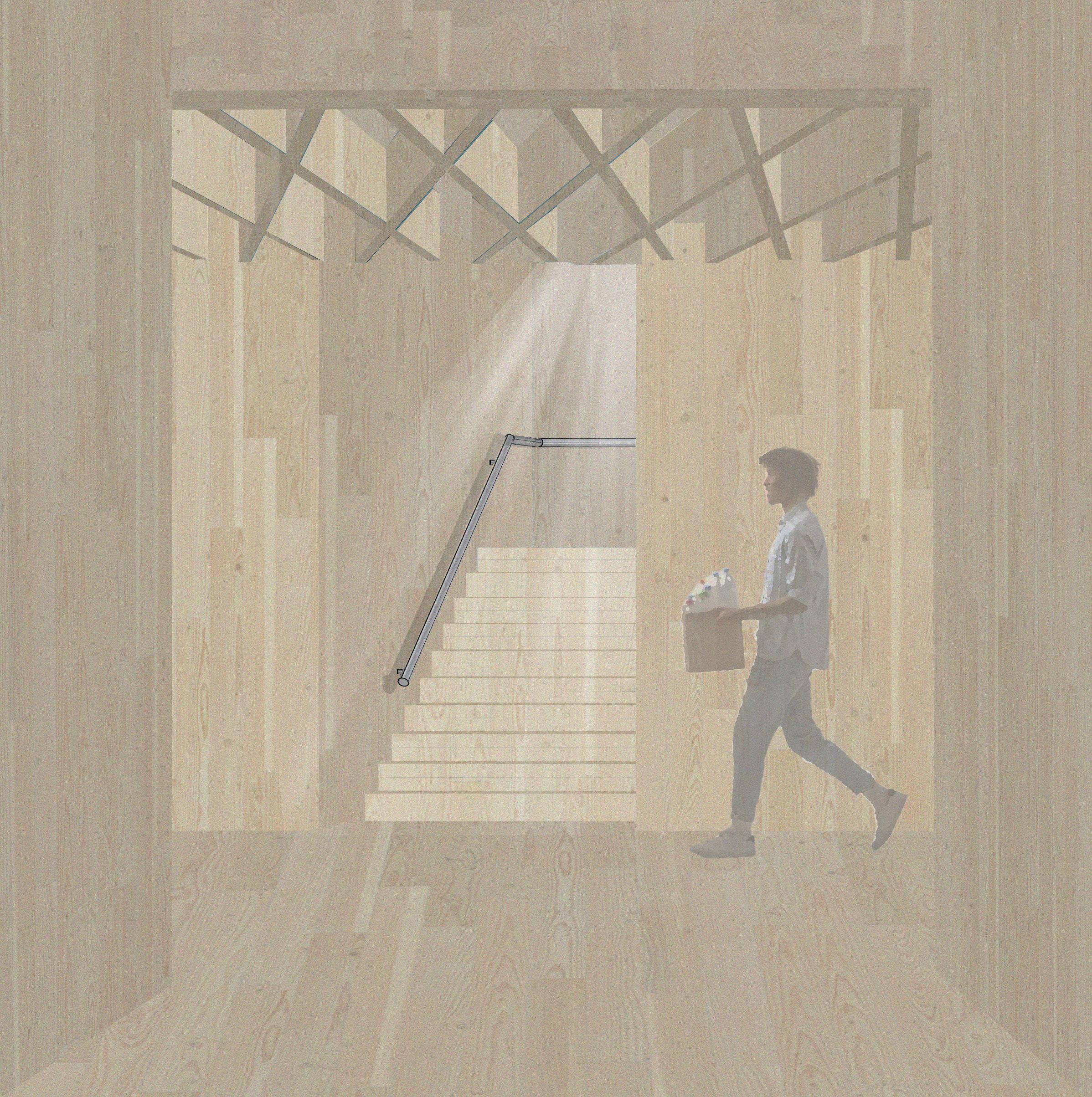

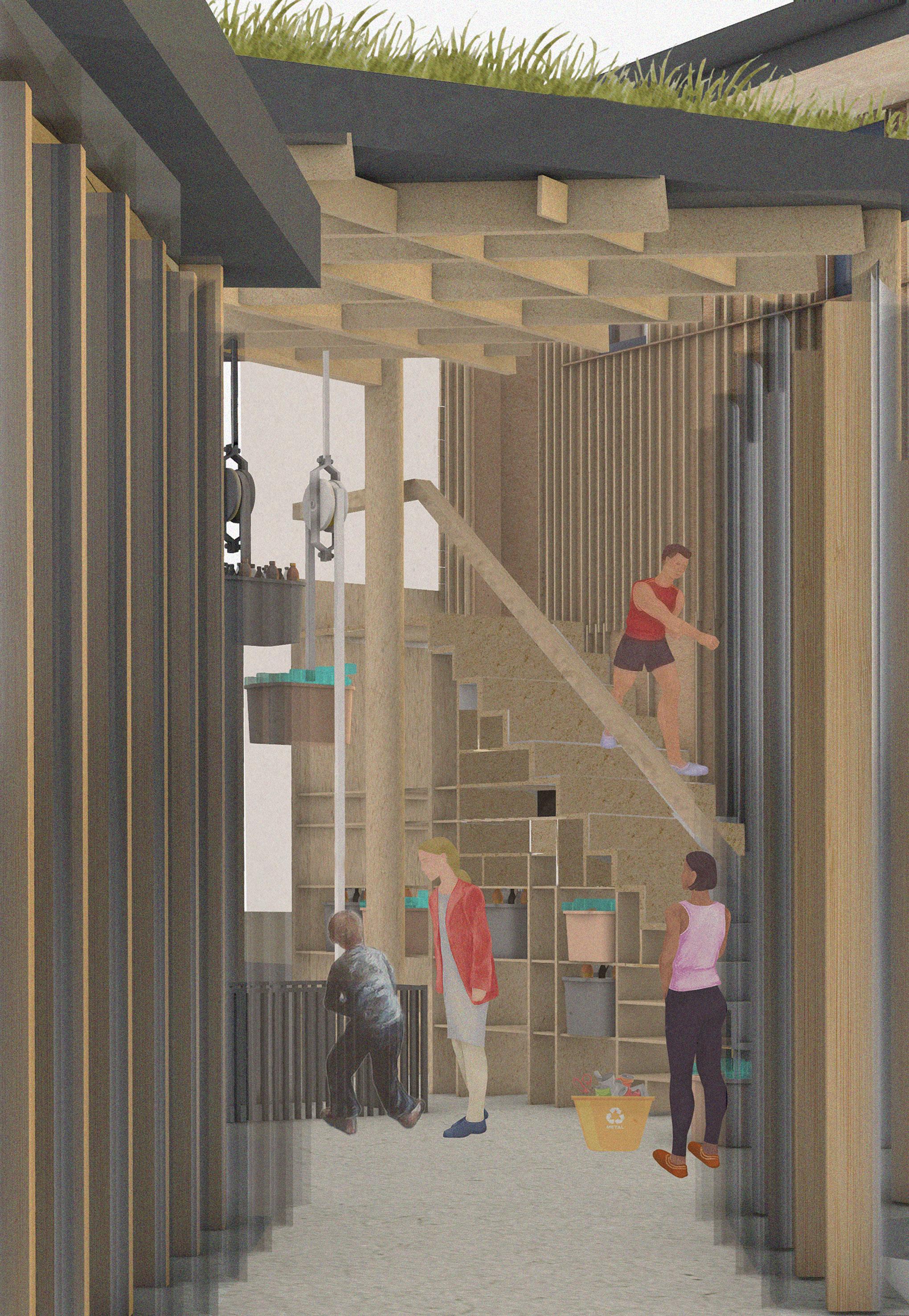

VIEW OF THE CORRIDOR LOOKING TOWARDS THE STAIRS

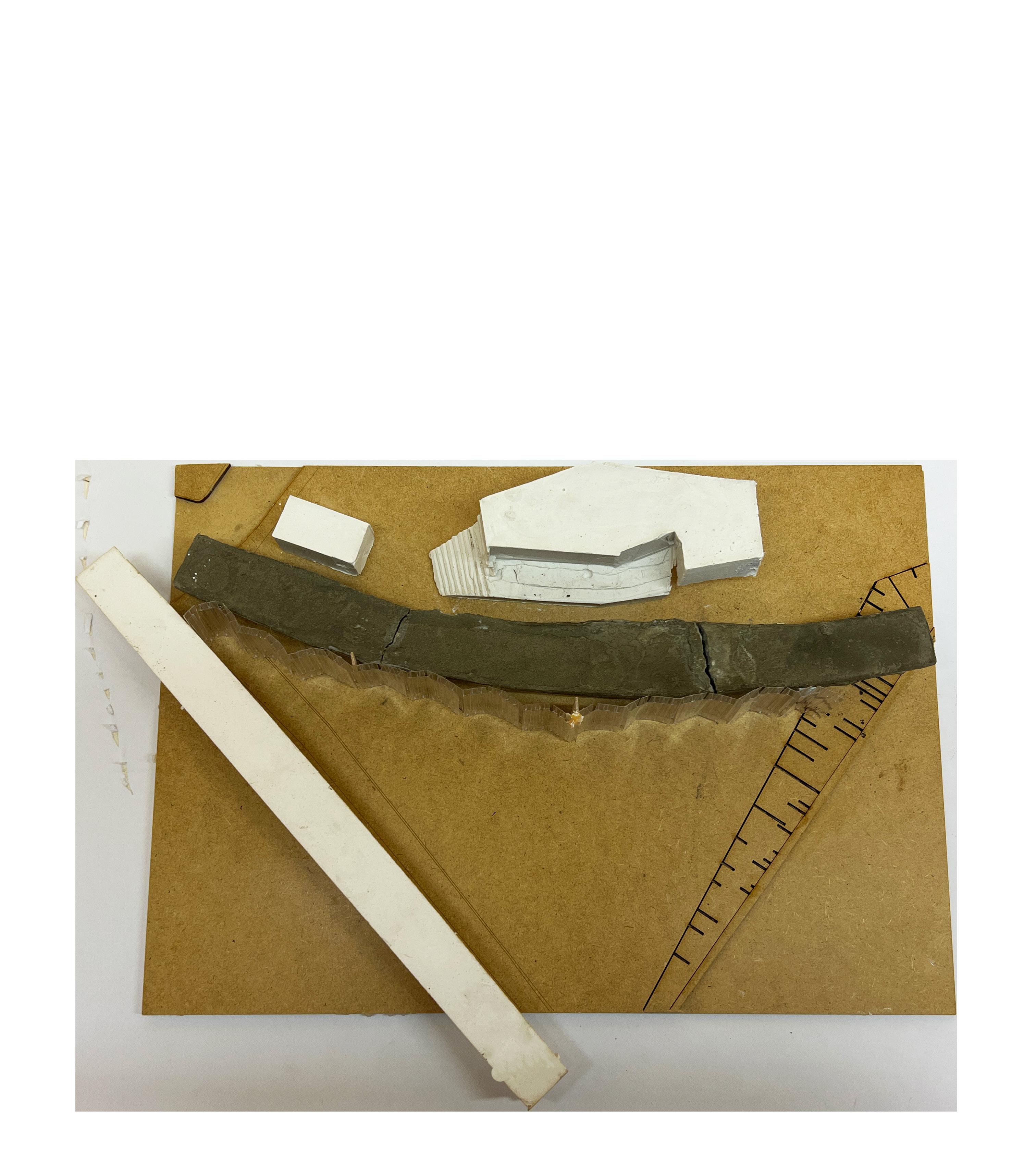

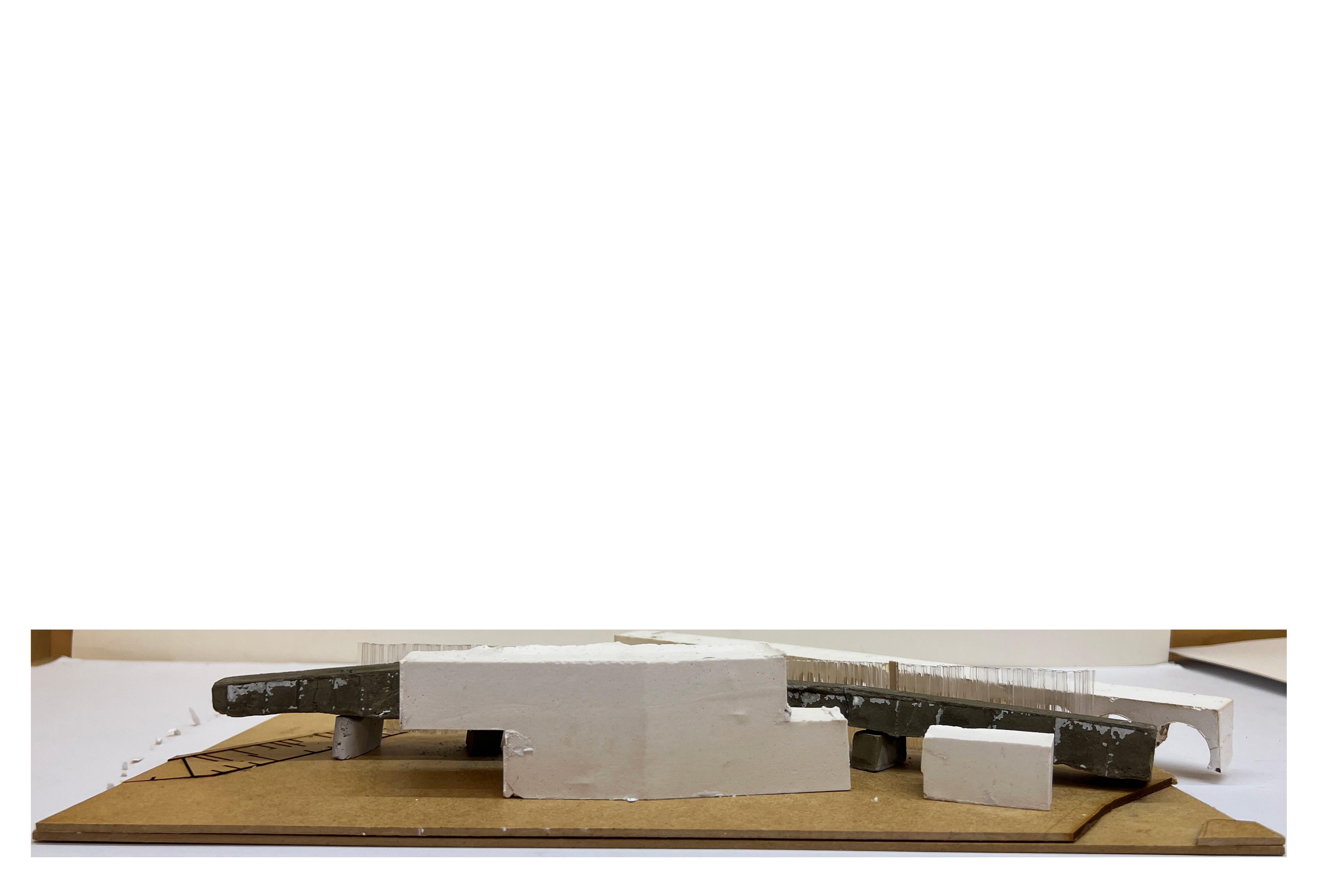

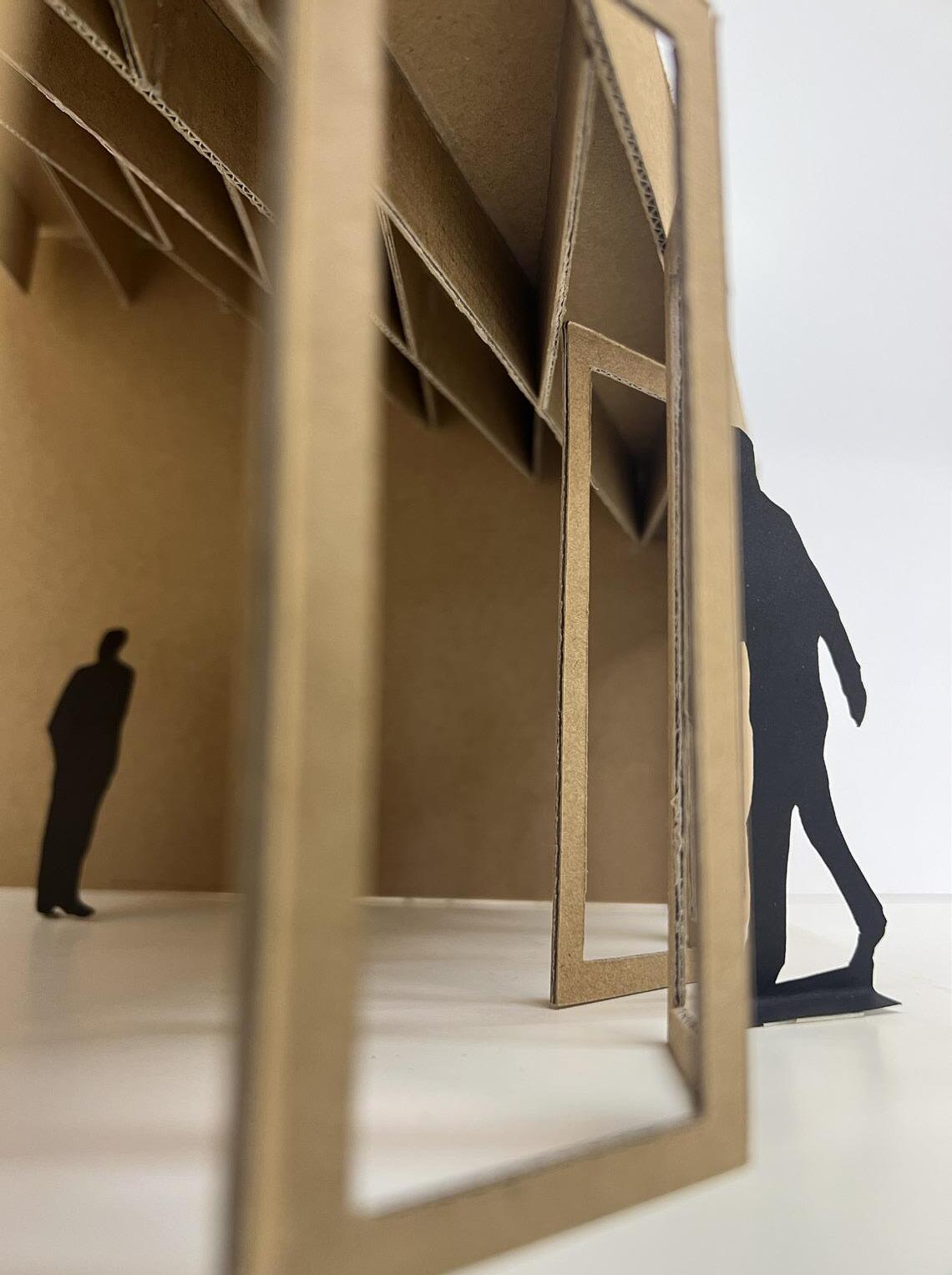

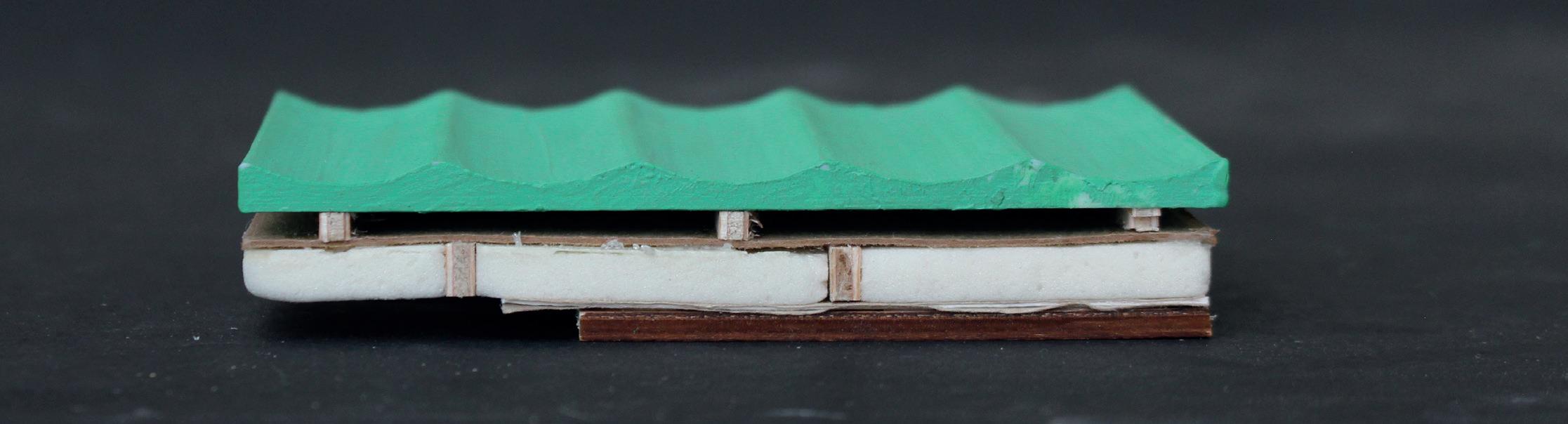

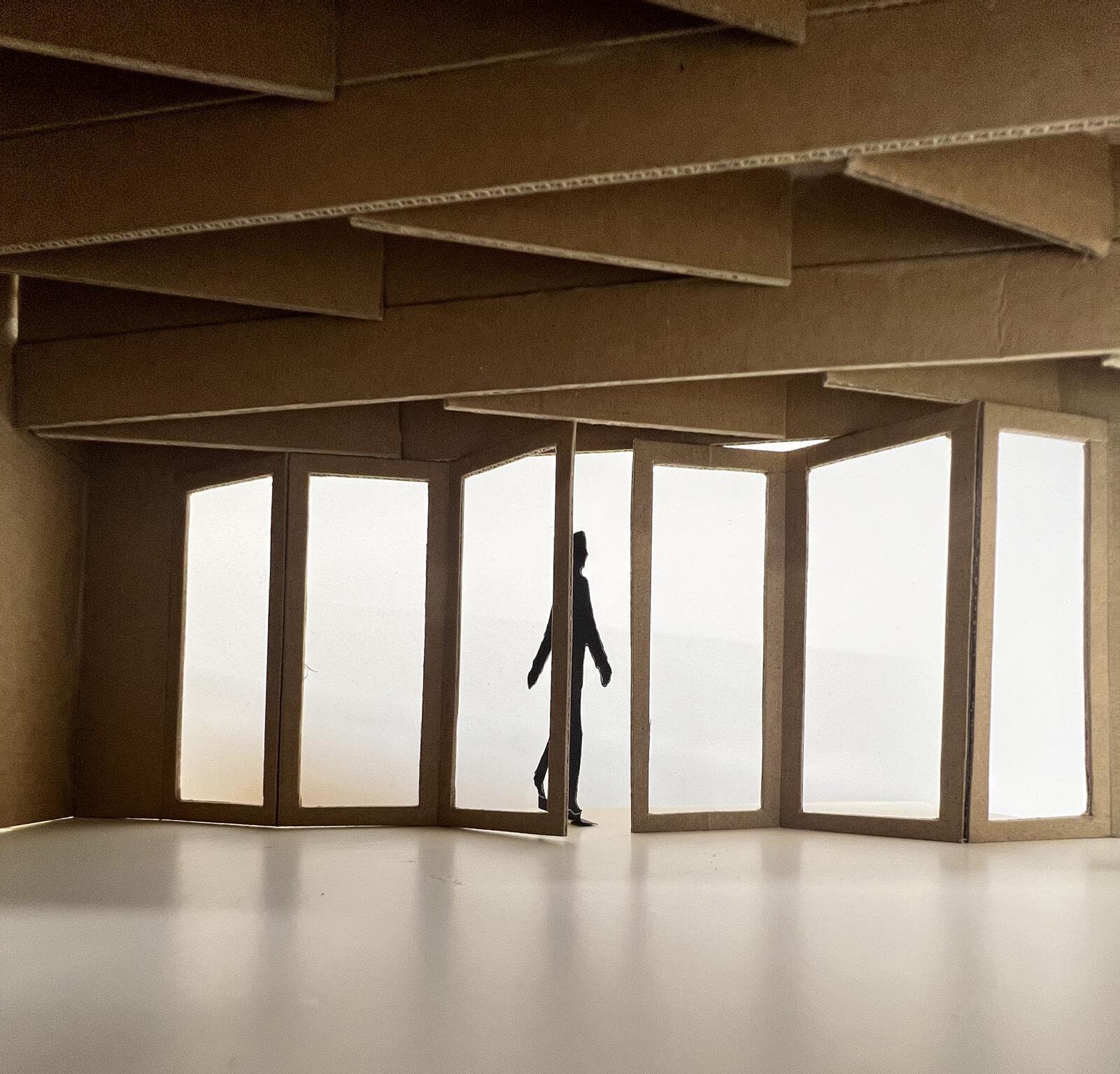

@1.20 MODEL TESTING CEILING ELEMENTS ON THE STEPPED CEILING

ADALGISA CASSUENDE

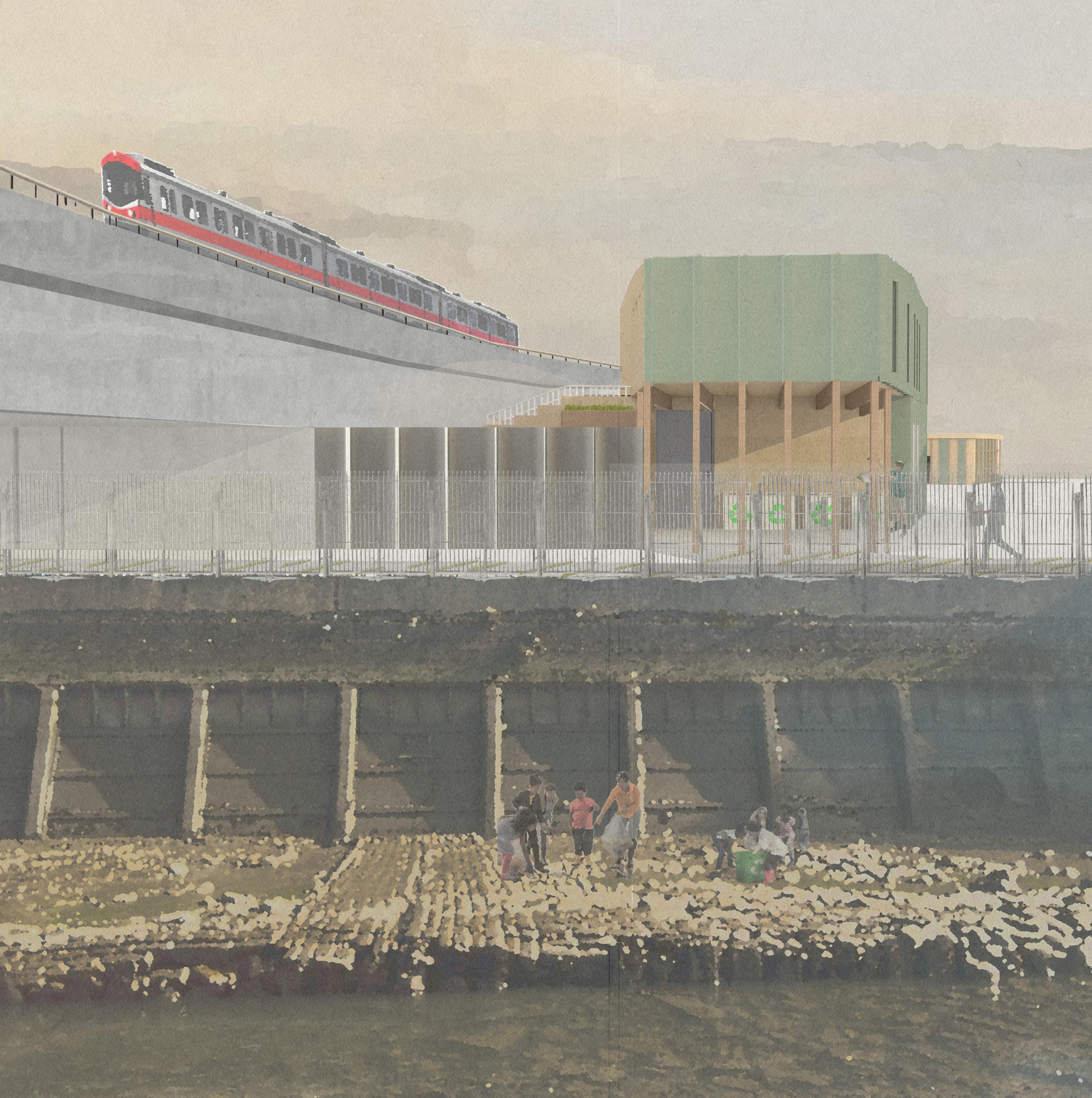

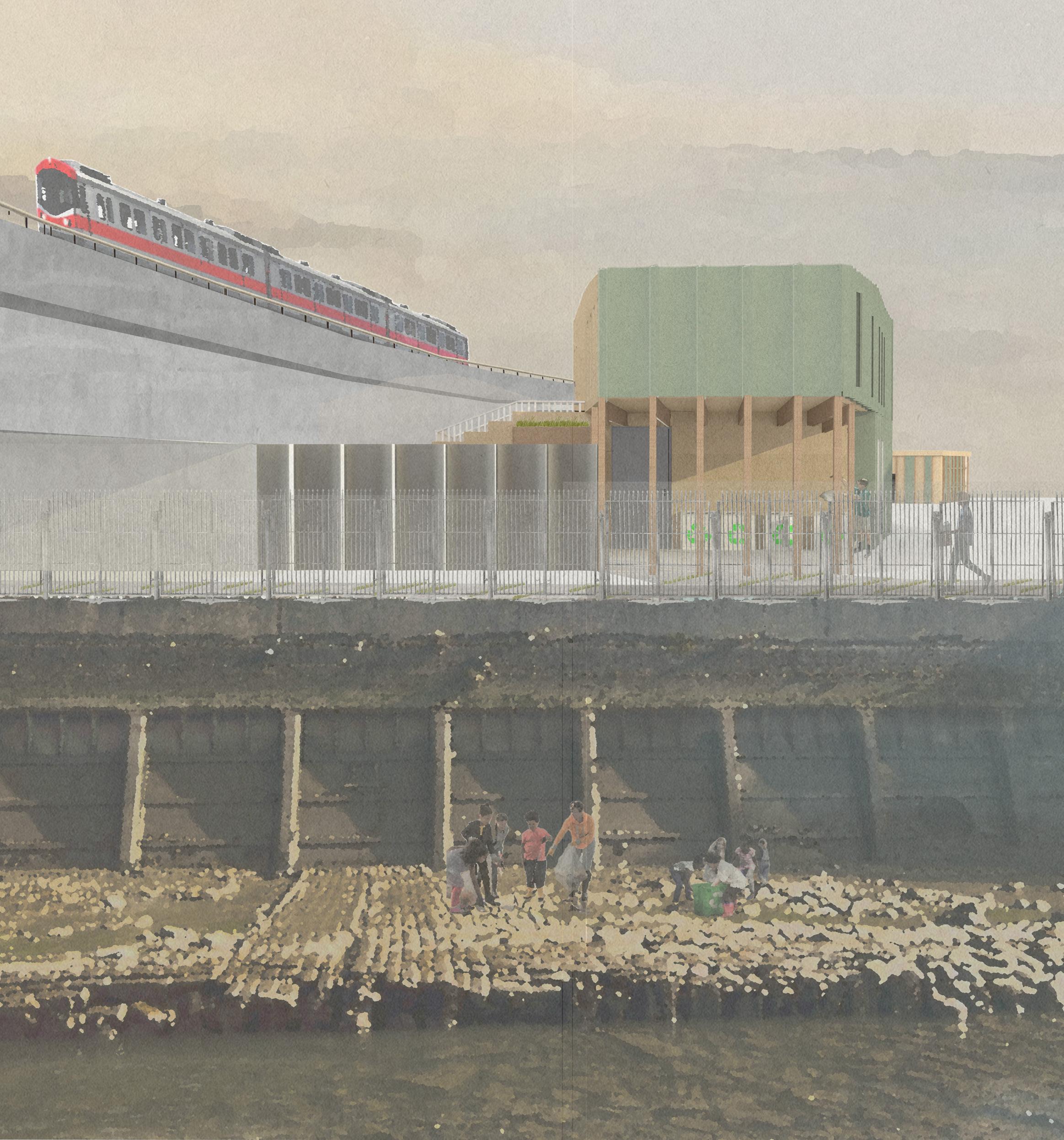

VIEW OF THE PROPOSAL FROM THE CREEK USED RHINO AND PHOTOSHOP

ARCHITECTURE PORTFOLIO

CREEKSIDE UPCYCLING MUSEUM AND FACTORY

CLT Stepped ceiling assembly: ext > int

CLT Wall assembly: int > ext

CLT Roof assembly: top > bot

100 mm CLT structural wall panel with exposed internal finish Bitumen impregnated wood fibre insulating board, 18mm ( airtight) 150 mm Rigid insulation Wood-based panel (vapour-tight), 12mm 40 x 300mm Lvl panel forming waffle ceiling Double height Lvl panel

100 mm CLT structural wall panel with exposed internal finish Wood-based panel (vapour-tight), 12mm Insulation between frame: stud, 75 x 150 mm Bitumen impregnated wood fibre insulating board, 18mm ( airtight) Vertical timber counter battens, ventilation cavity, 40mm Horizontal timber battens 25mm x 50mm Vertical timber cladding

PVC roof light with rigid insulation Double trocal roofing Roof batterns on counterbattens 3-ply waterproofing ( breather layer, waterproofing plus uv protection layer 150 mm Insulation Bitumen impregnated wood fibre insulating board, 18mm ( airtight) 150mm CLT structural roof panel 40 x 300mm Lvl panel forming waffle ceiling

R - value 3.4 30\30\30 fire rating inside 90\90\90 outside

R- value 5.9 60\60\60 fire rating

CLT Ceiling assembly: top > bot

CLT Foundation assembly: top > bot

CLT Wall assembly: int > ext

15 mm Timber 55mm Screed Wood-based panel (vapour-tight), 12mm 25 mm Acoustic insulation Bitumen impregnated wood fibre insulating board, 18mm ( airtight) 150 mm CLT structural floor plan Suspended ceiling for service ( fire sprinkler and lighting) 40 x 300mm Lvl panel forming waffle ceiling

15 mm Timber Underfloor heating Wood-based panel (vapour-tight), 12mm Insulation between bottom frame, 75 x 150 mm Bitumen impregnated wood fibre insulating board, 18mm ( airtight) Concrete foundation slab with base insulating 225 mm deep pre-cast concrete threshold wrapped in

100 mm CLT structural wall panel with exposed internal finish Wood-based panel (vapour-tight), 12mm Insulation between frame: stud, 75 x 150 mm Bitumen impregnated wood fibre insulating board, 18mm ( airtight) Vertical timber battens, ventilation cavity, 40mm Recycled plastic facade structure

ADALGISA CASSUENDE

dpc Vented drainage channel Paving

ARCHITECTURE PORTFOLIO

R - value 3.4 30\30\30 fire rating inside 90\90\90 outside

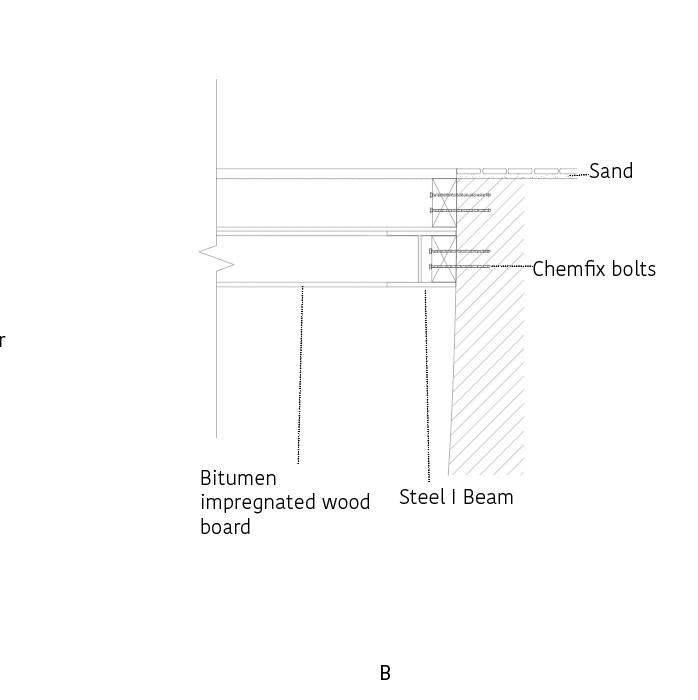

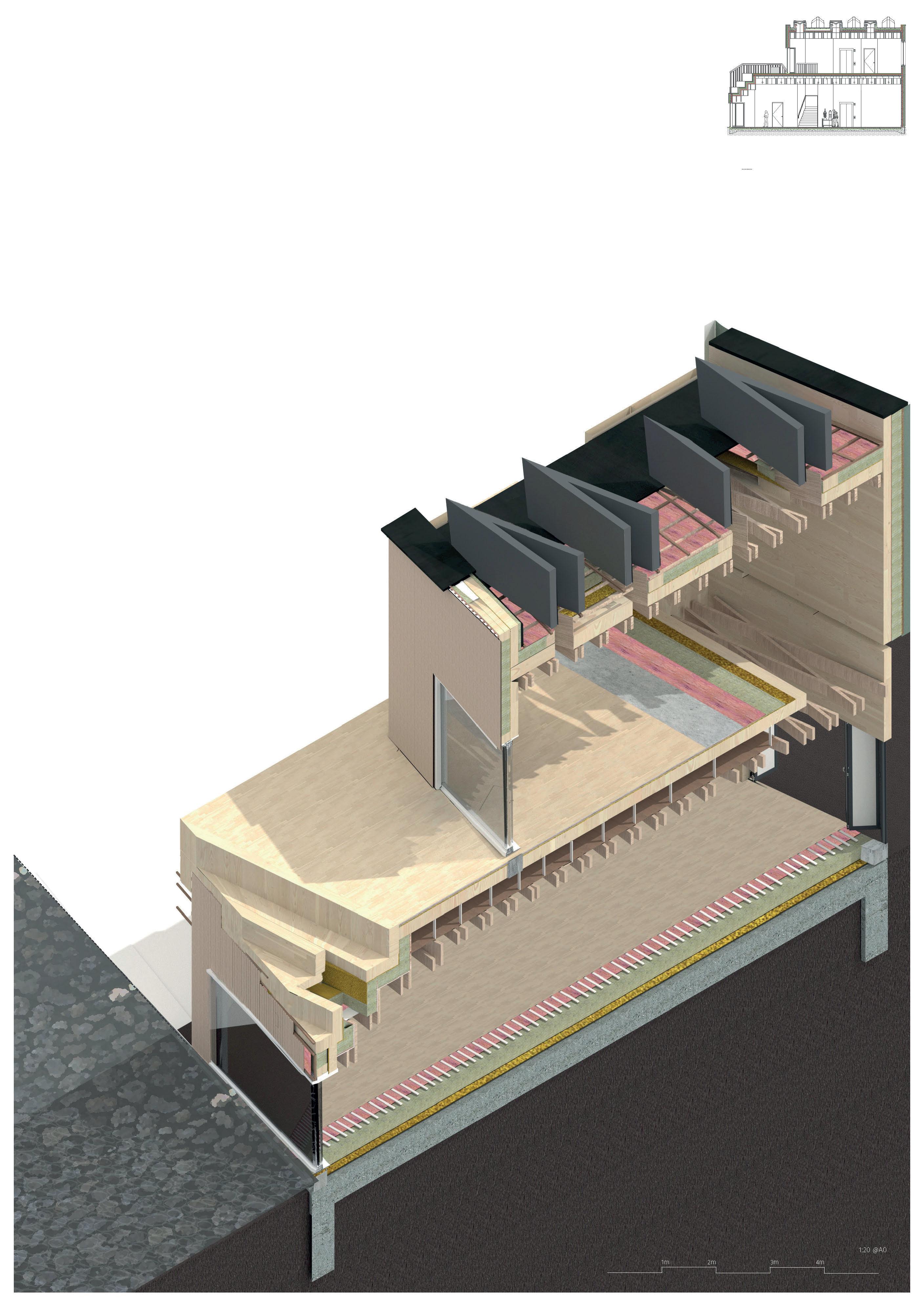

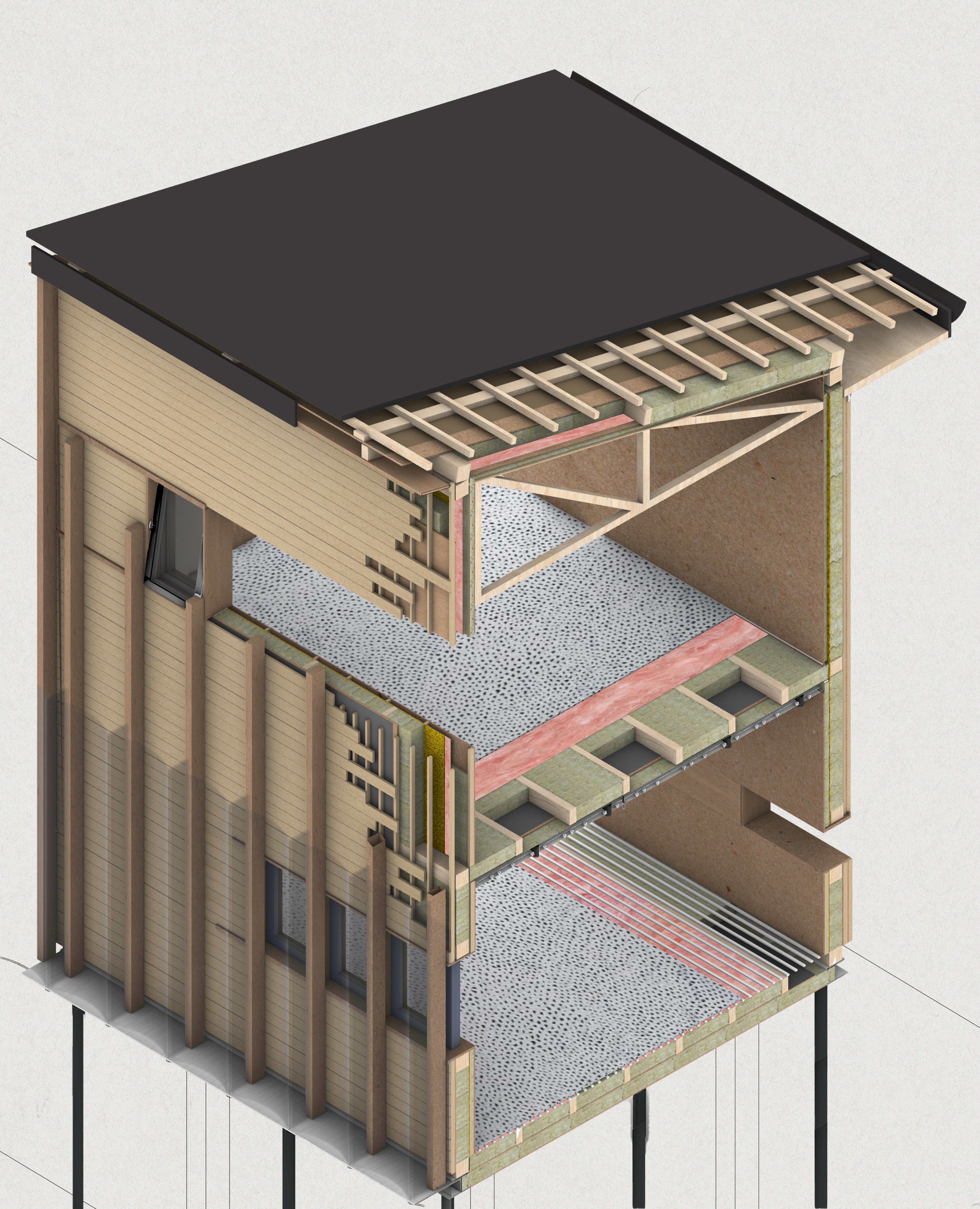

CONSTRUCTION DETAIL [Original scale 1:20]

CREEKSIDE UPCYCLING MUSEUM AND FACTORY

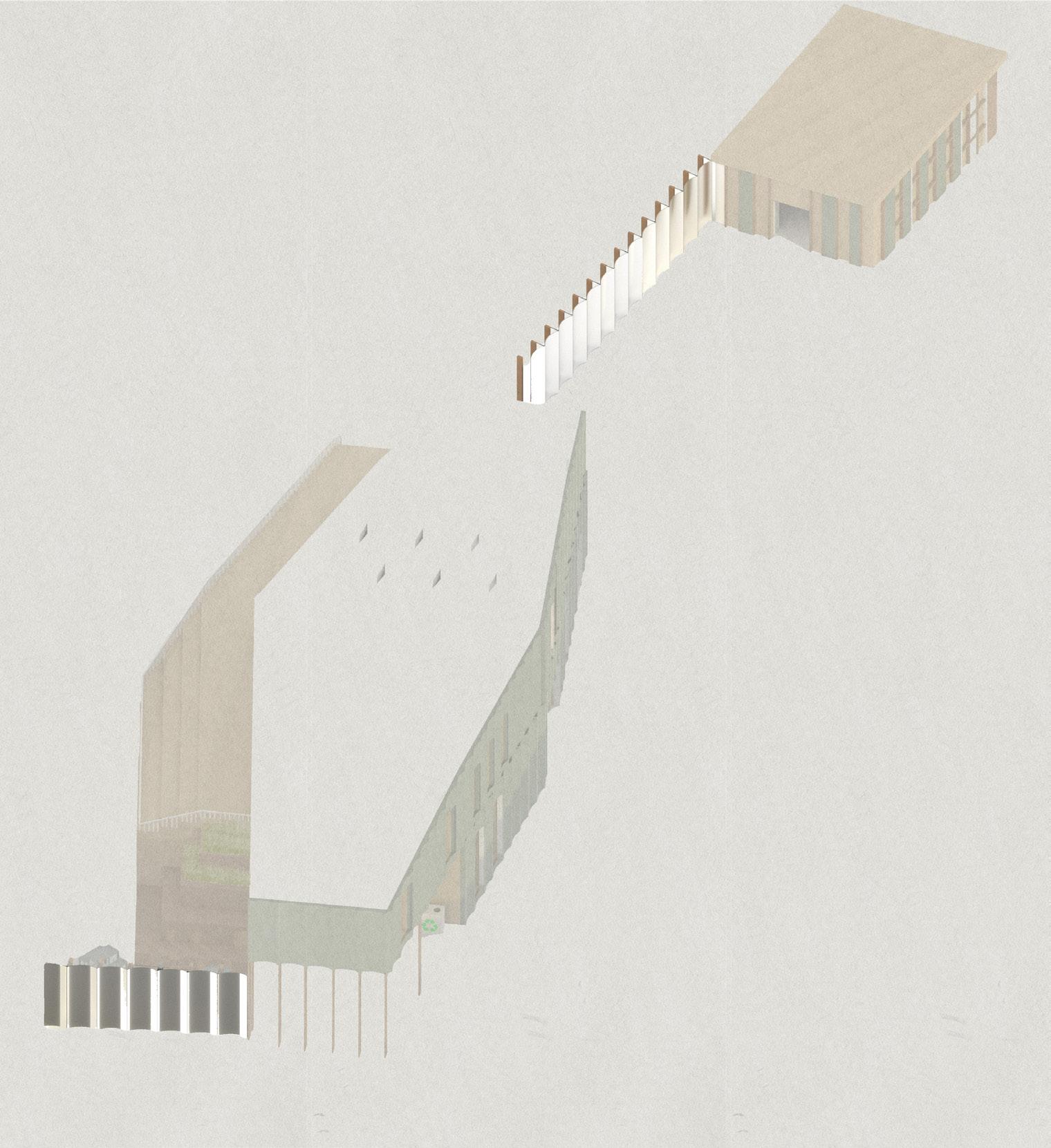

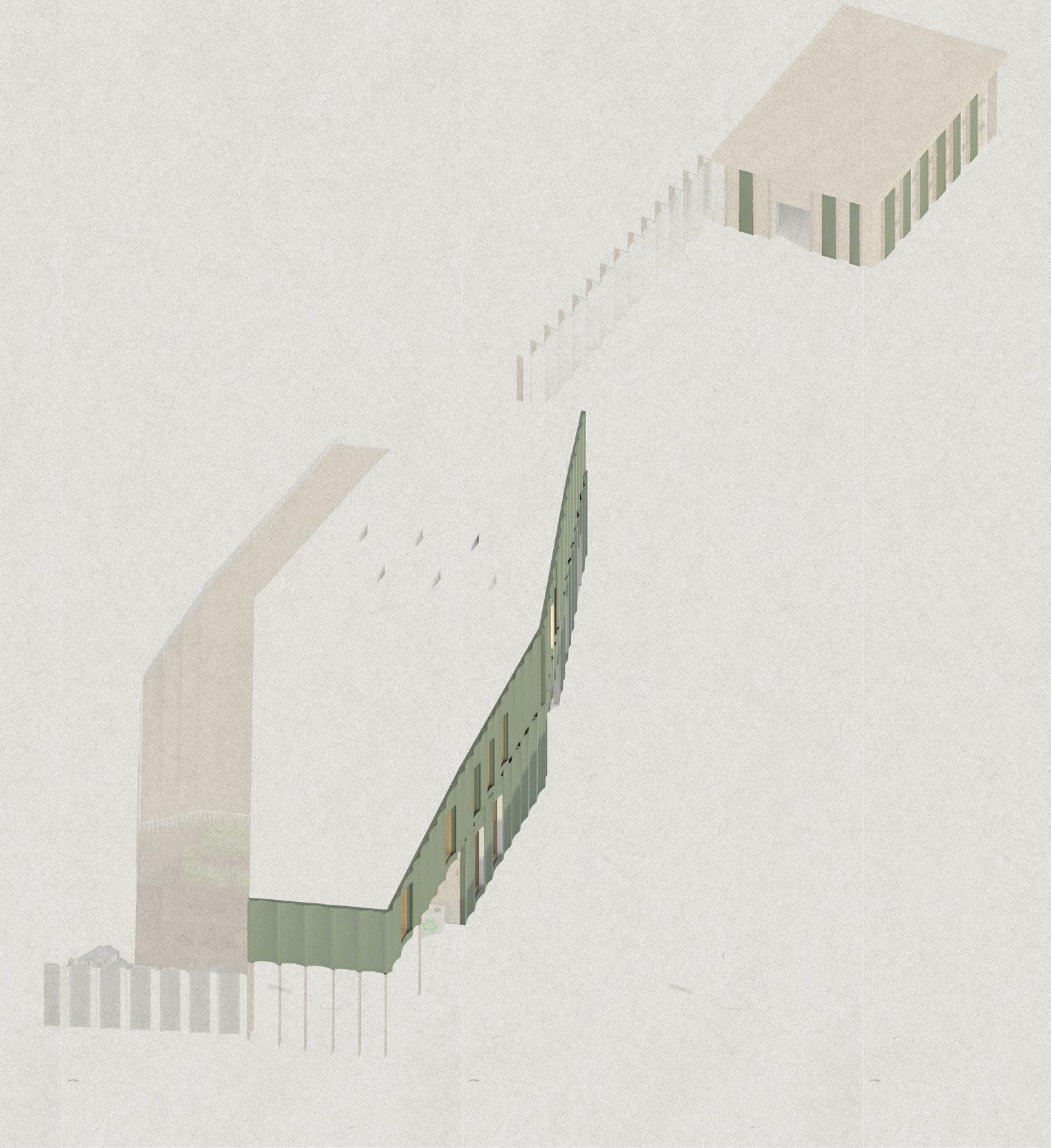

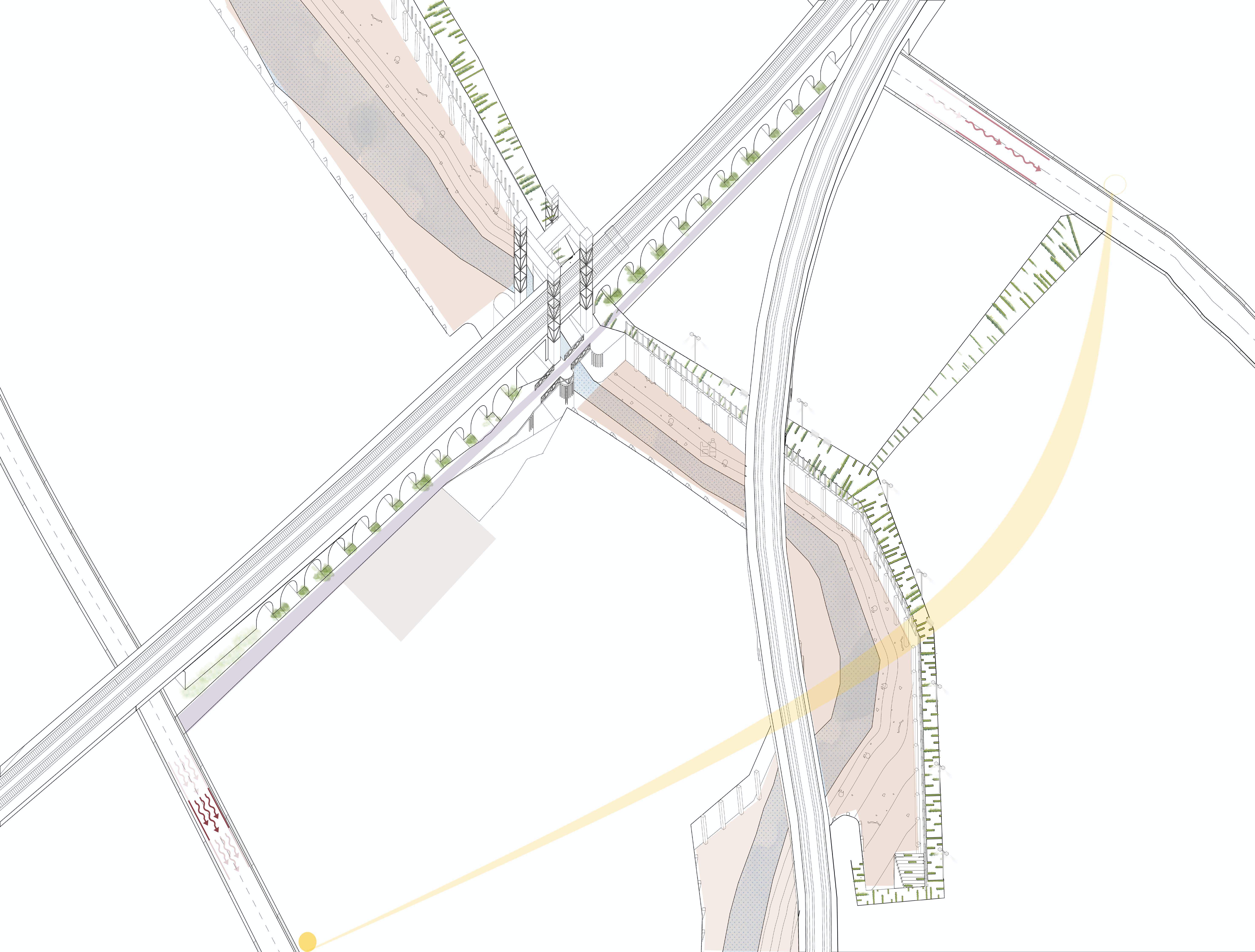

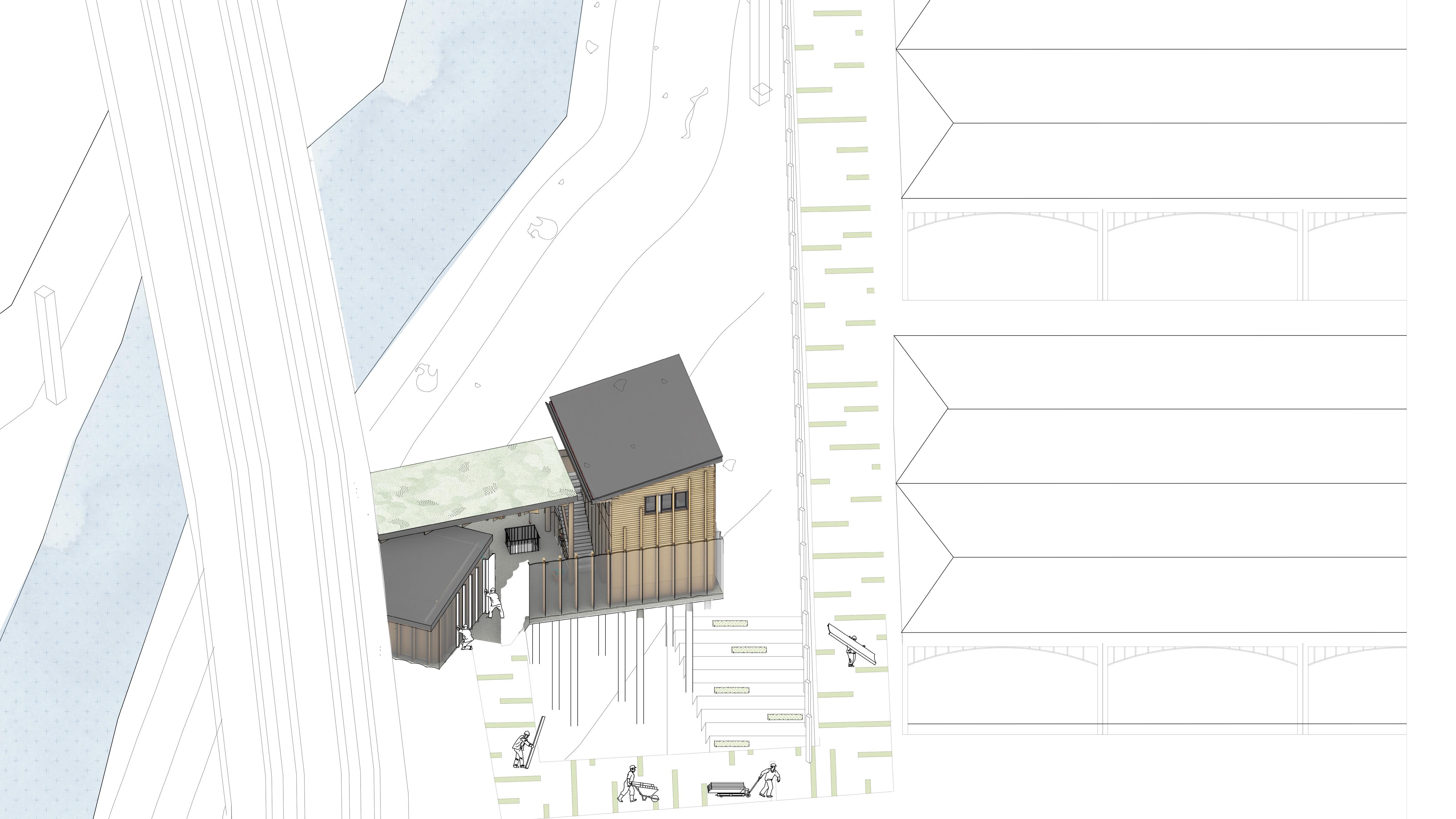

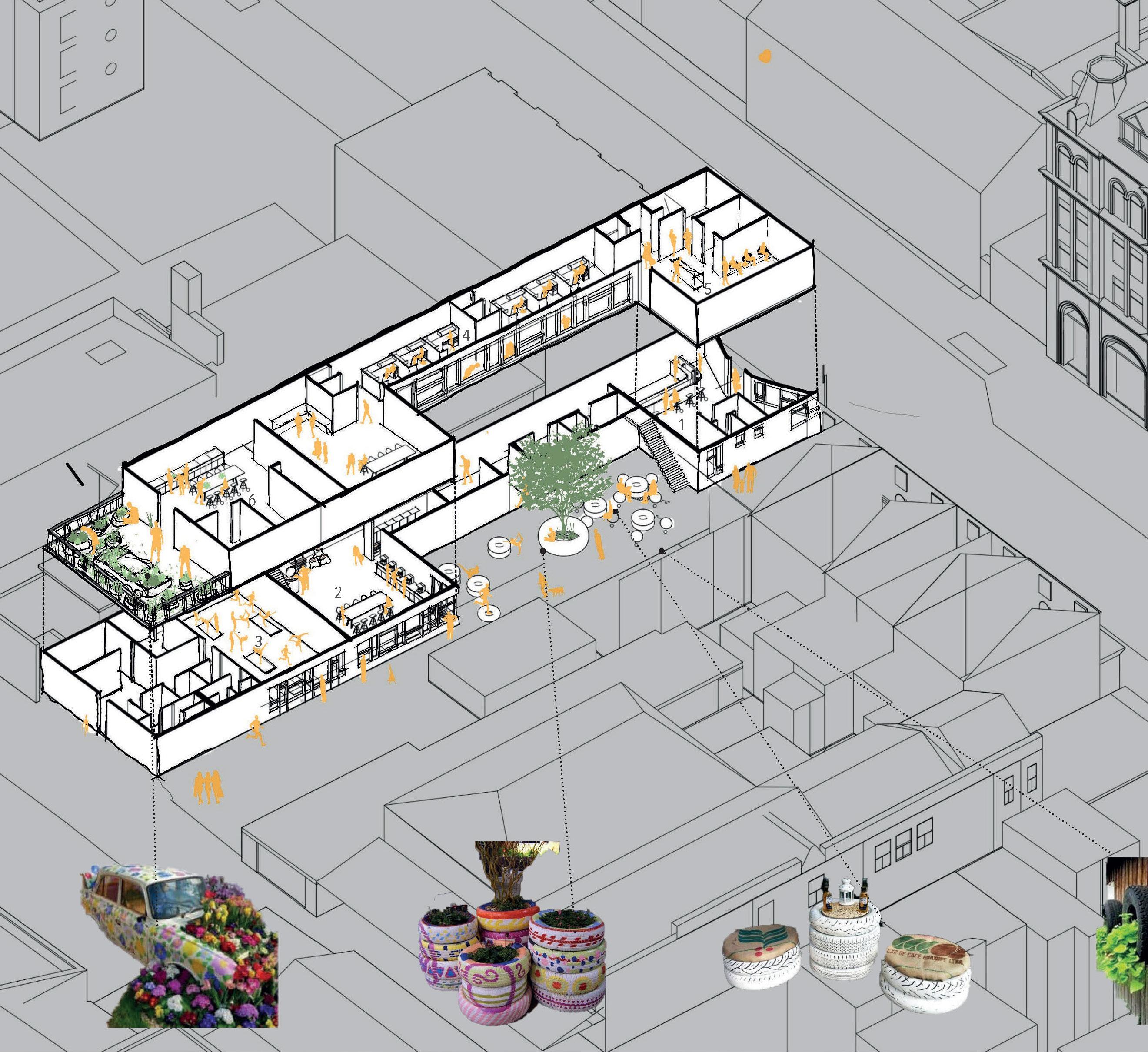

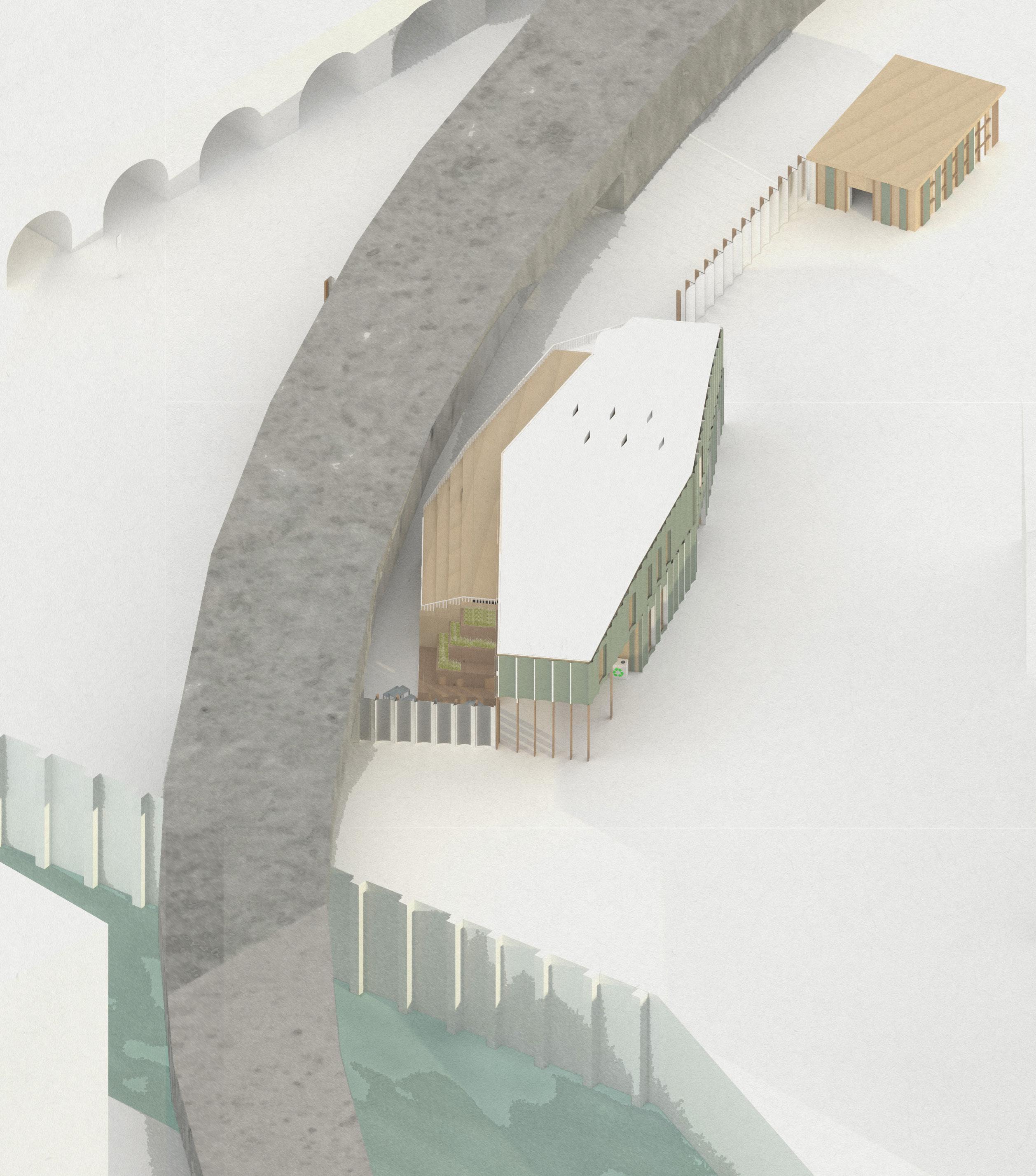

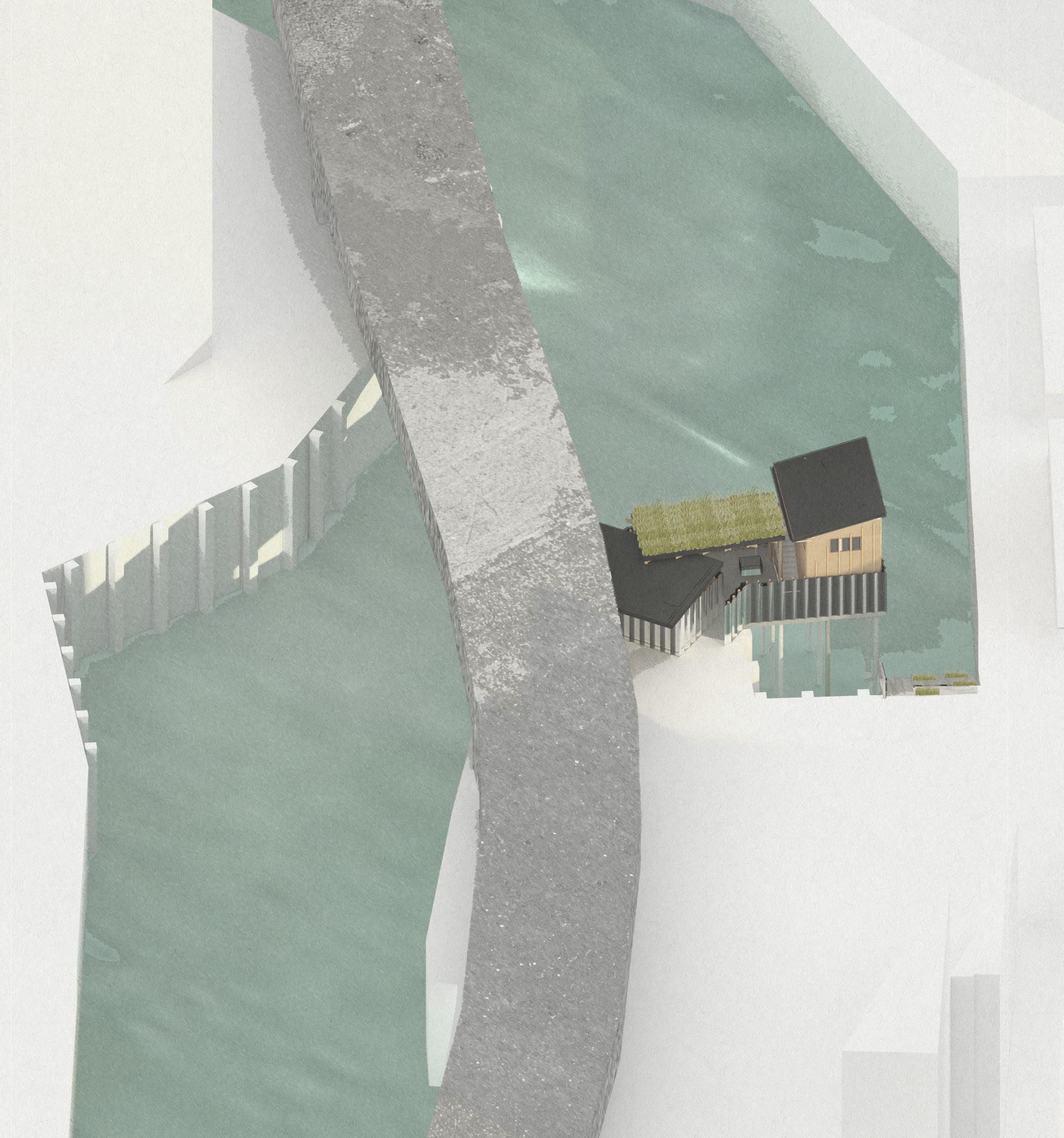

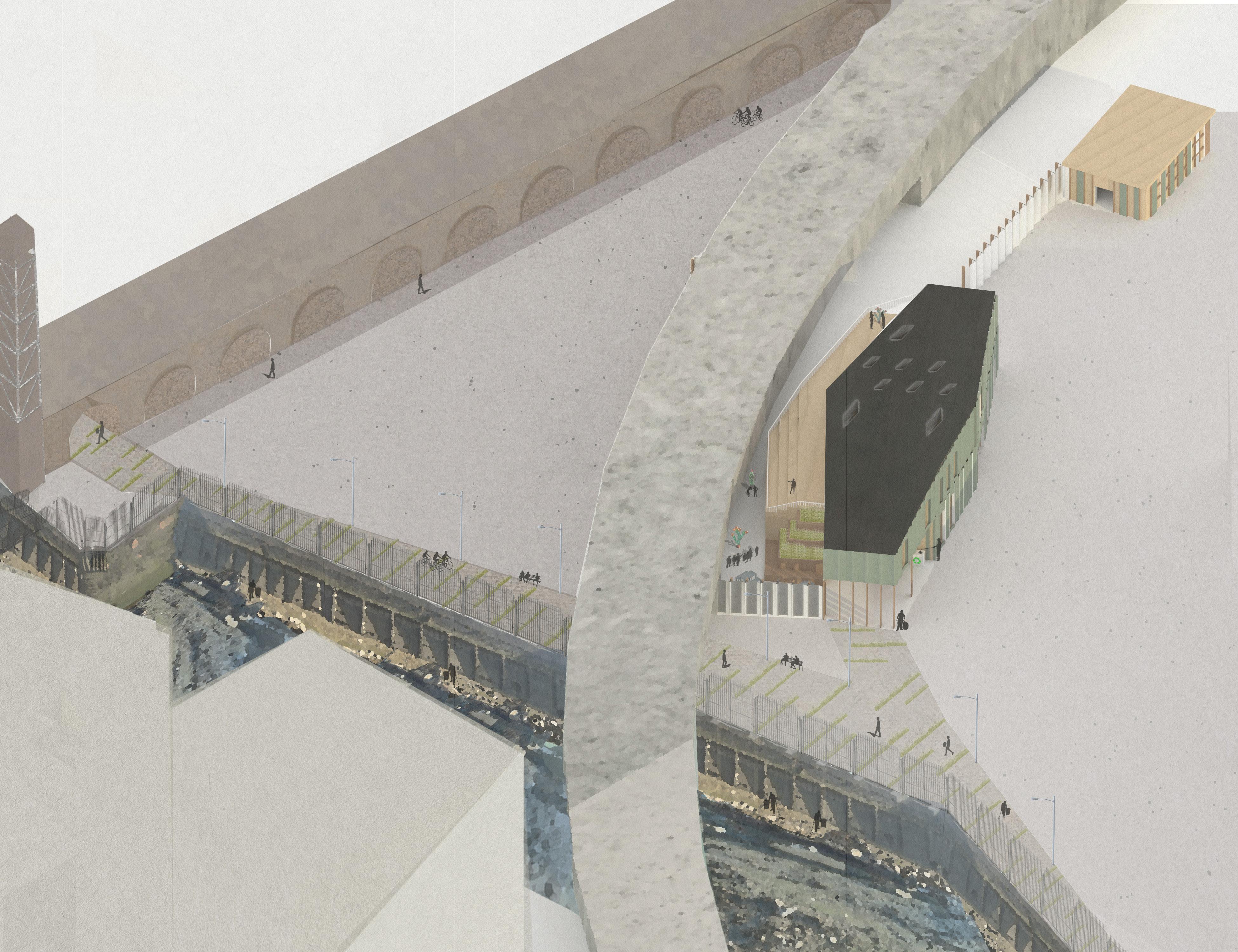

AXONOMETRIC OF THE PROPOSAL ON SITE ADALGISA CASSUENDE

ARCHITECTURE PORTFOLIO

CREEKSIDE UPCYCLING CENTRE GROUND FLOOR PLAN

5

4

2

3

1

PROGRAMME

01 Academic Work - Undergraduate Project

1- Plastic Workshop 2- Collection Point 3- Storage

4- Waiting Area 5- Changing Room/ Toilets

GROUND FLOOR PLAN [Original scale 1:100]

Low tide walks

GROUND FLOOR PLAN [Original scale 1:100]

Creekside Upcycling Centre COMMUNITY CENTRE OCT - DEC 2022

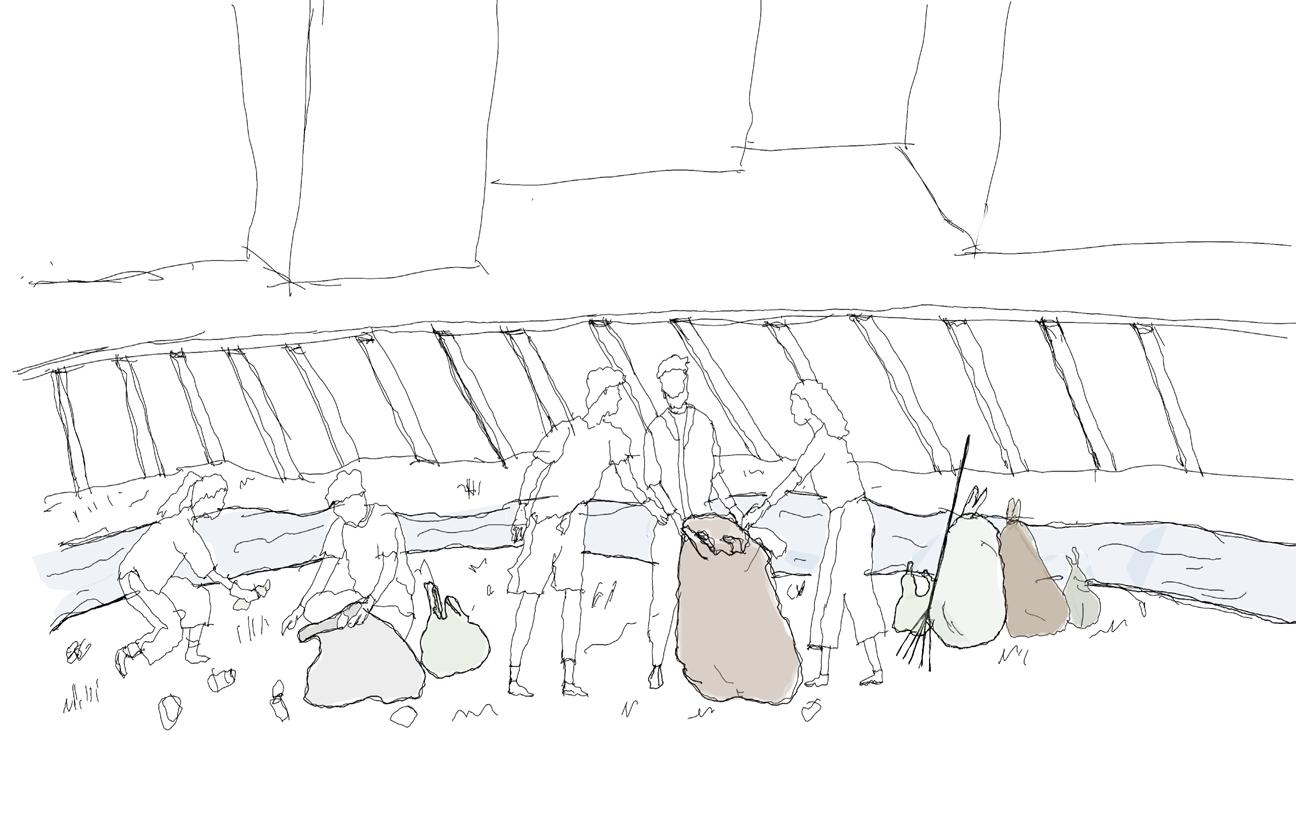

Clean up the creek

A temporary centre for the charity Creekside Discovery Centre whilst a new one is being built, for them to be able to attract new visitors.

The temporary centre will run a series of low tide walks, talks, hands on learning activities and a plastic workshop aimed at schools and the local community.

As well as, a community clean up to reduce the pollution in the creek, preserve the biosphere of the creek and protect endangered species.

Collect plastic waste found in the creek

CLIENT: CREEKSIDE DISCOVERT CENTRE LOCATION: DEPTFORD CREEK, LONDON CONSTRUCTION AXONOMETRIC OF THE PROPOSAL Hands on learning workshops, DIY, to turn rubbish into something valuable.

CREEKSIDE UPCYCLING CENTRE

A

B

C

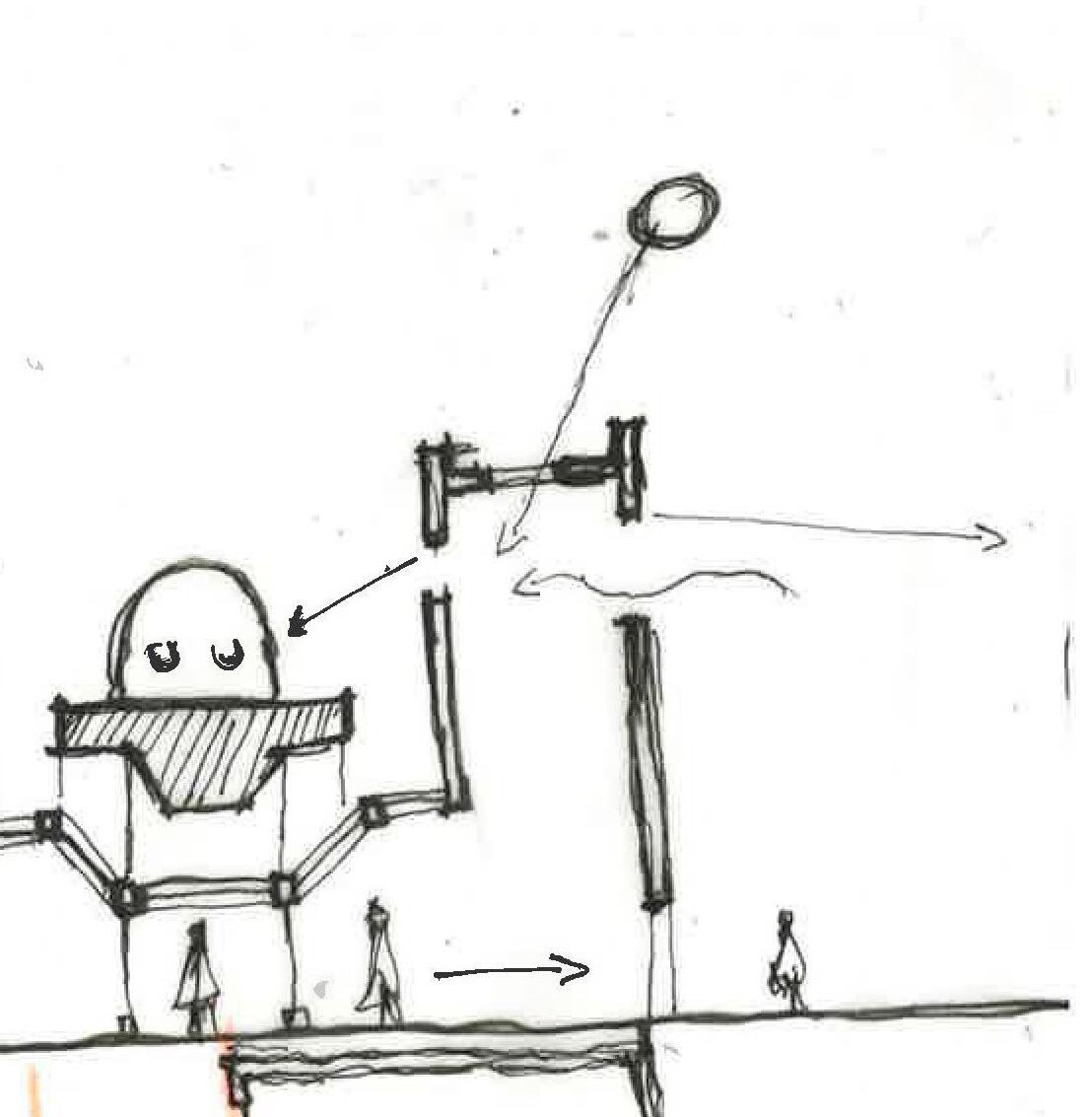

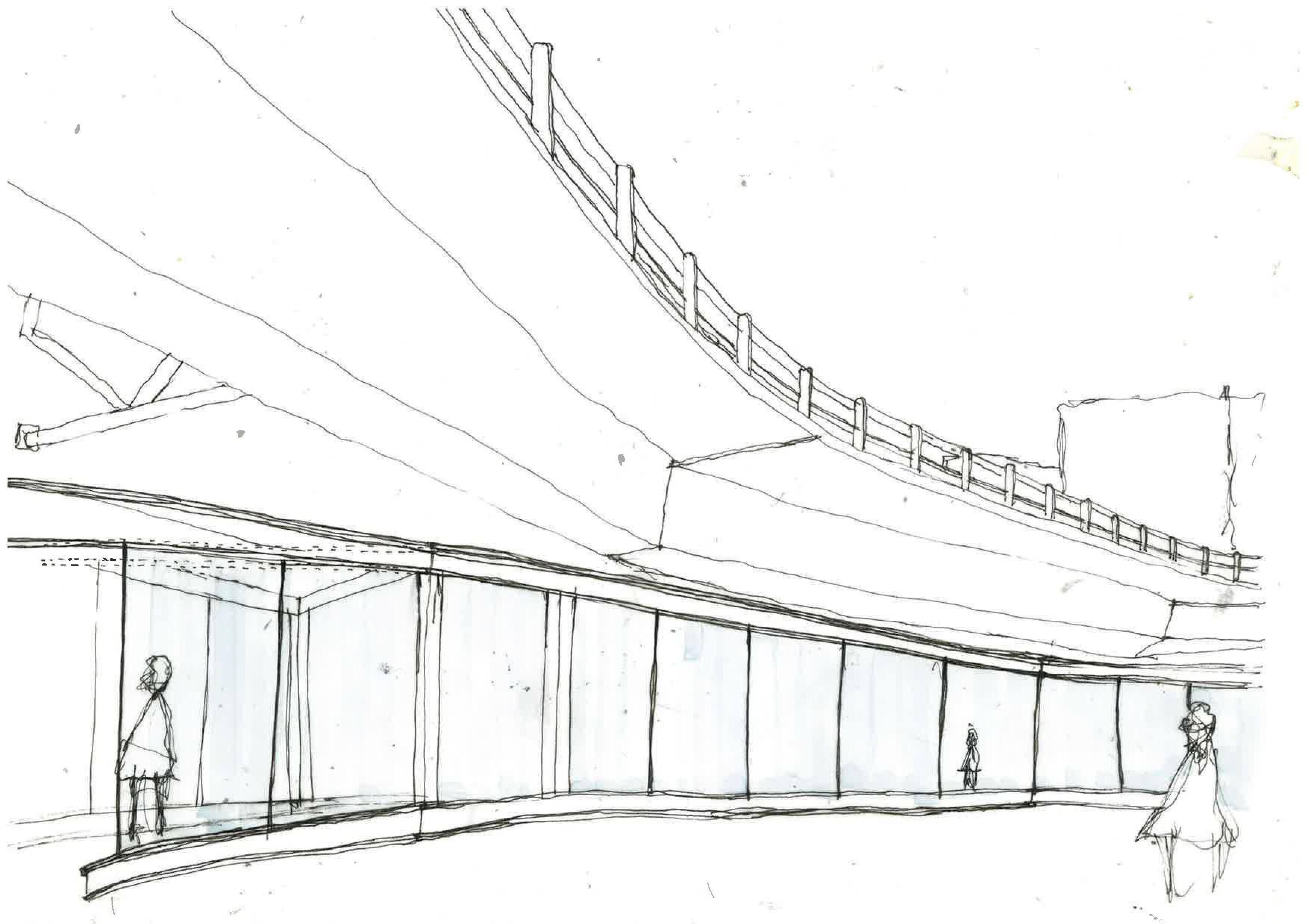

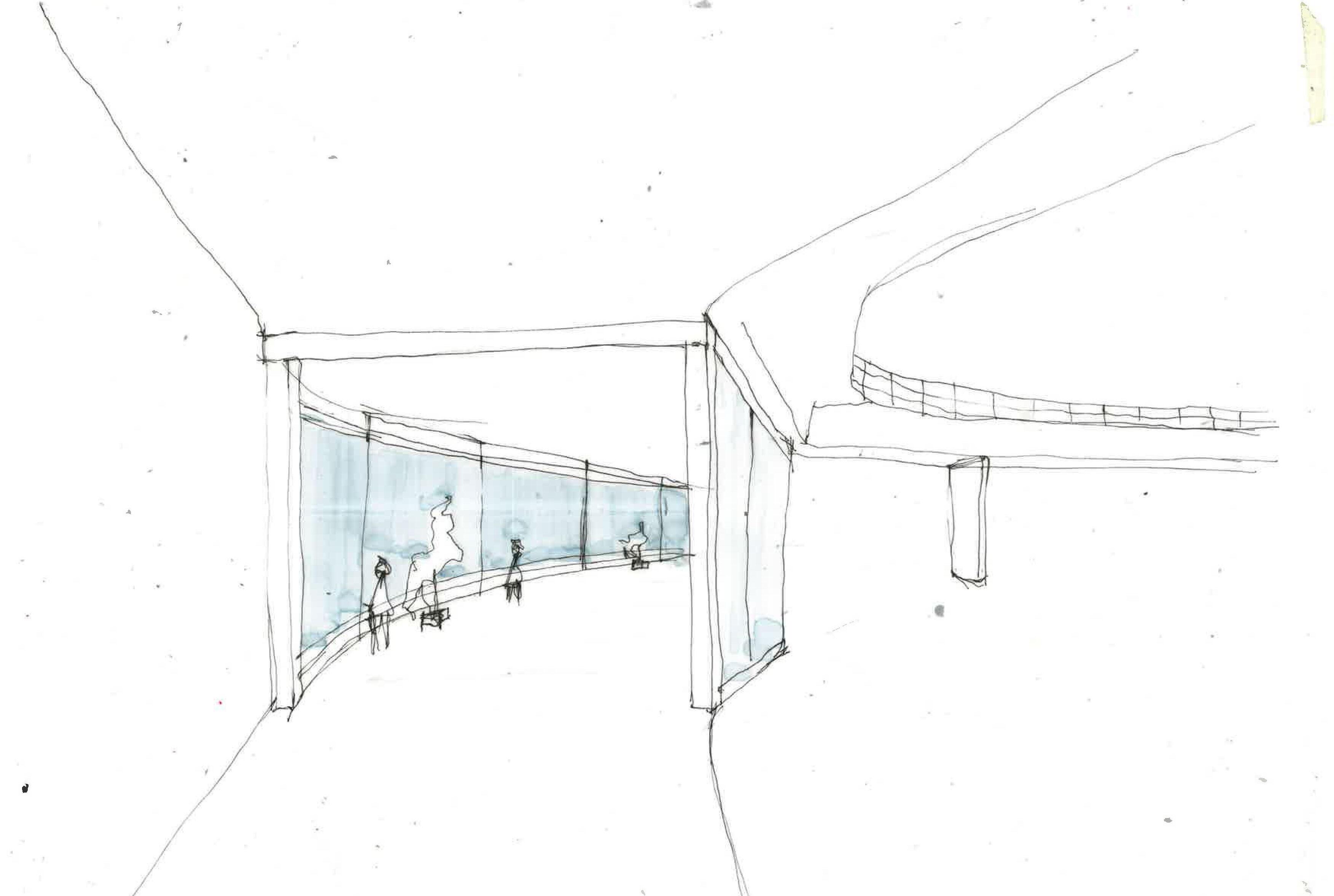

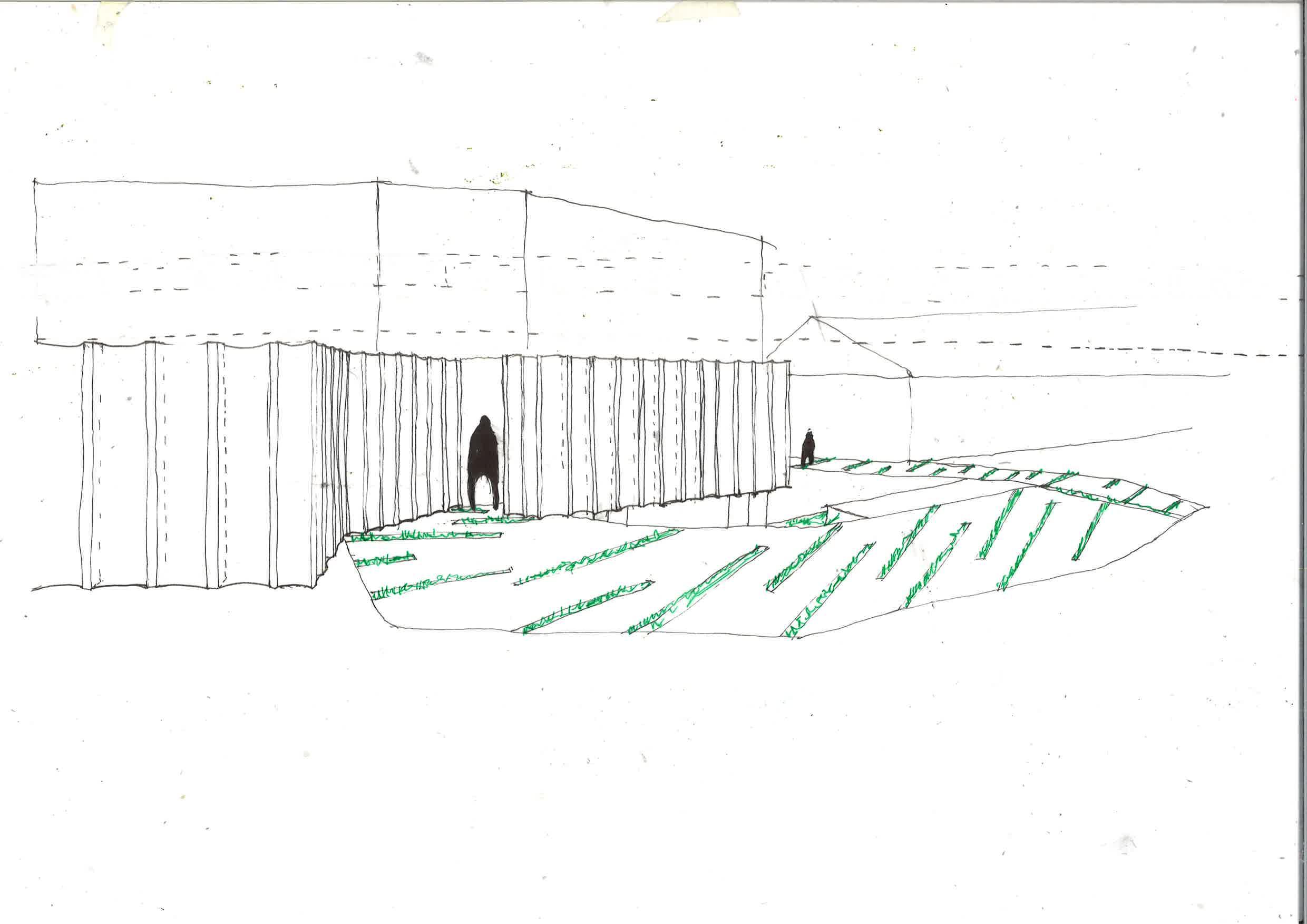

INITIAL SKETCH

A

B

c

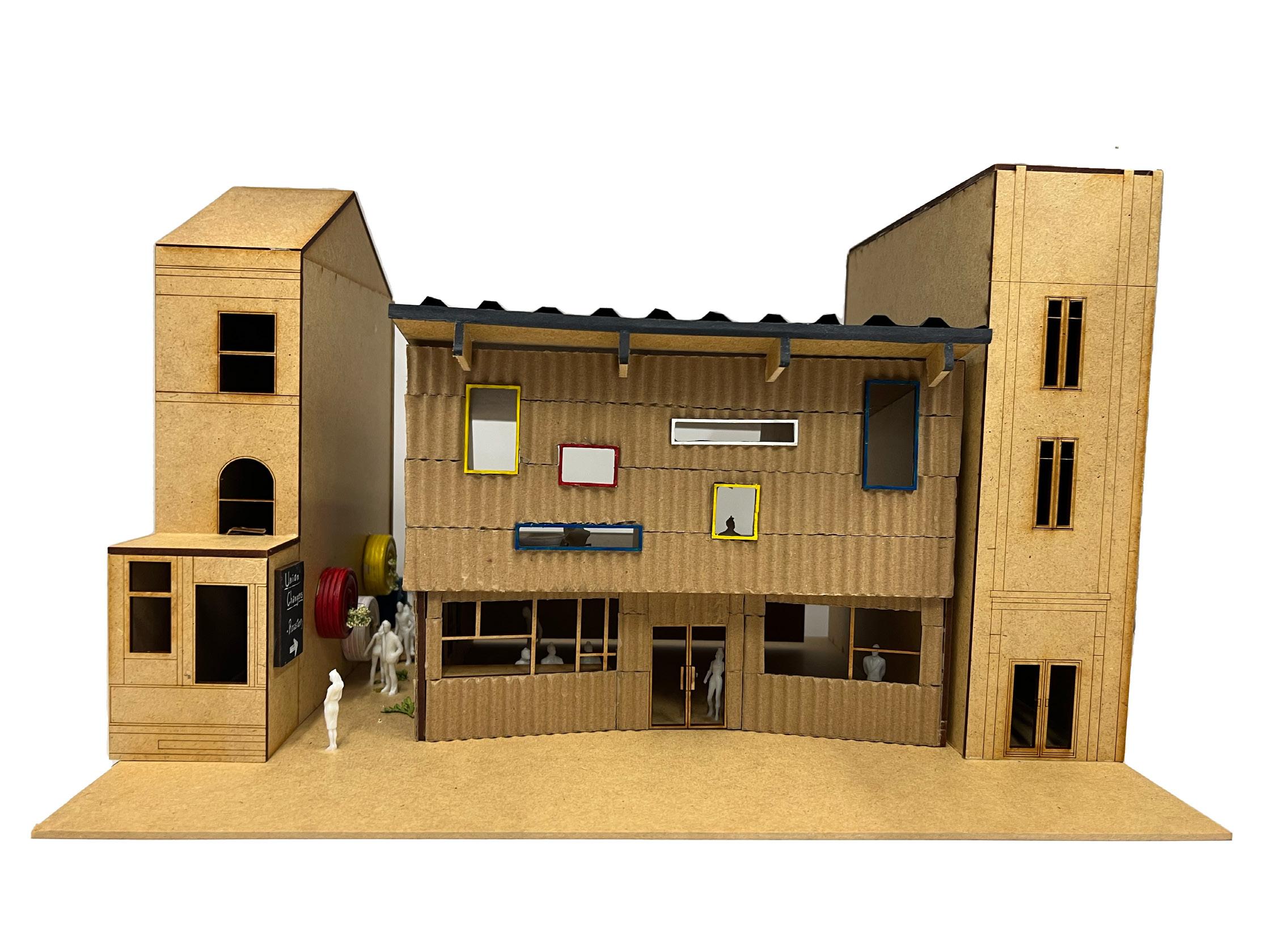

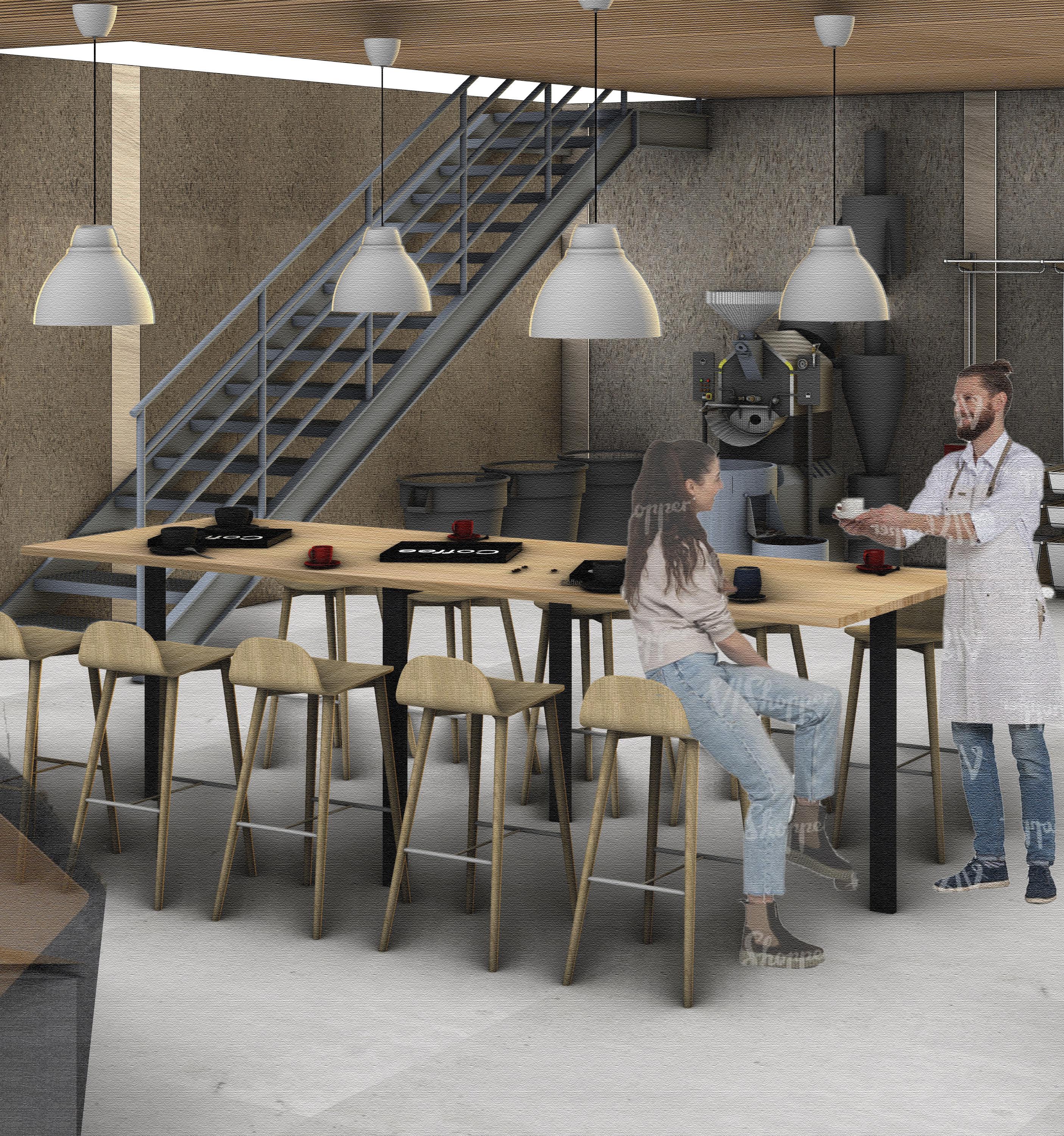

VIEW FROM THE ENTRANCE LOOKING INSIDE THE BUILDING

CREEKSIDE UPCYCLING CENTRE

CONSTRUCTION CONSTRUCTION DETAIL DETAIL

Roof:

Roof:

CONSTRUCTION DETAIL

- Outer covering, zinc - Outer sheetcovering, roofing zinc sheet roofing - Roof batterns on -counterbattens Roof batterns on counterbattens

Roof:

- 3-ply waterproofing - 3-ply ( breather waterproofing layer, waterproofing ( breather layer, pluswaterproofing uv uv zinc sheet roofing - Outerplus covering, protection layer protection layer - Roof batterns on counterbattens

- 150 mm Insulation- 150 mm Insulation

- 3-ply waterproofing ( breather layer, waterproofing plus uv protection layer

- Bitumen impregnated - Bitumen woodimpregnated fibre insulating wood board, fibre18mm insulating ( airtight) board, 18mm ( airtight) - 150 mm Insulation - 25 mm Insulation-(25 service) mm Insulation ( service)

- Bitumen impregnated wood fibre insulating board, 18mm ( airtight) - 25 mm Insulation ( service)

Window and wall: Window and wall:

Window and wall:

- Aluminium casement - Aluminium window casement window

- Aluminium casement window

- Frame: head binder, - Frame: 75 x 150mm head binder, 75 x 150mm

- Frame: head binder, 75 x 150mm - Internal lining, 12mm

- Internal lining, 12mm - Internal lining, 12mm

- Vertical battens (service), 50mm

- Vertical battens (service), - Vertical50mm battens (service), 50mm

- Wood-based panel (vapour-tight), 12mm

- Wood-based panel - Wood-based (vapour-tight), panel 12mm (vapour-tight), 12mm - Insulation between - Insulation frame: stud, between 75 x 150 frame: mm stud, 75 x 150 mm

- Insulation between frame: stud, 75 x 150 mm - Bitumen impregnated wood fibre insulating board, 18mm ( airtight) - Vertical battens, ventilation cavity, 40mm - Horizontal sheating

- Bitumen impregnated - Bitumen woodimpregnated fibre insulating wood board, fibre18mm insulating ( airtight) board, 18mm ( airtight) - Facade structure

- Vertical battens, ventilation - Vertical battens, cavity, 40mm ventilation cavity, 40mm - Horizontal sheating - Horizontal sheating - Facade structure - Facade structure Floor:

Floor:

- Floor finish

- Floor finish

- Underfloor heating - Underfloor heating - Wood-based panel - Wood-based (vapour-tight), panel 12mm (vapour-tight), 12mm - Insulation between - Insulation bottom frame, between 75 xbottom 150 mmframe, 75 x 150 mm

Floor: - Floor finish - Underfloor heating - Wood-based panel (vapour-tight), 12mm - Insulation between bottom frame, 75 x 150 mm - Bitumen impregnated wood fibre insulating board, 18mm ( airtight) - Steel plate ( Facade structure support) - Steel I Beam - Screw pile - Insulation between timber beam - Bitumen impregnated wood board

- Bitumen impregnated - Bitumen woodimpregnated fibre insulating wood board, fibre18mm insulating ( airtight) board, 18mm ( airtight)

0

1:10

500mm

- Steel plate ( Facade - Steel structure plate support) ( Facade structure support) - Steel I Beam

- Steel I Beam

- Screw pile

- Screw pile

- Insulation between - Insulation timber beam between timber beam - Bitumen impregnated - Bitumen woodimpregnated board wood board 0

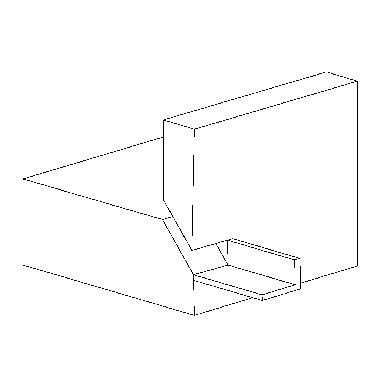

3D CONSTRUCTION DETAIL [Original scale 1:20] 3D Model created on Rhino

1:10

500mm 0

1:10

500mm

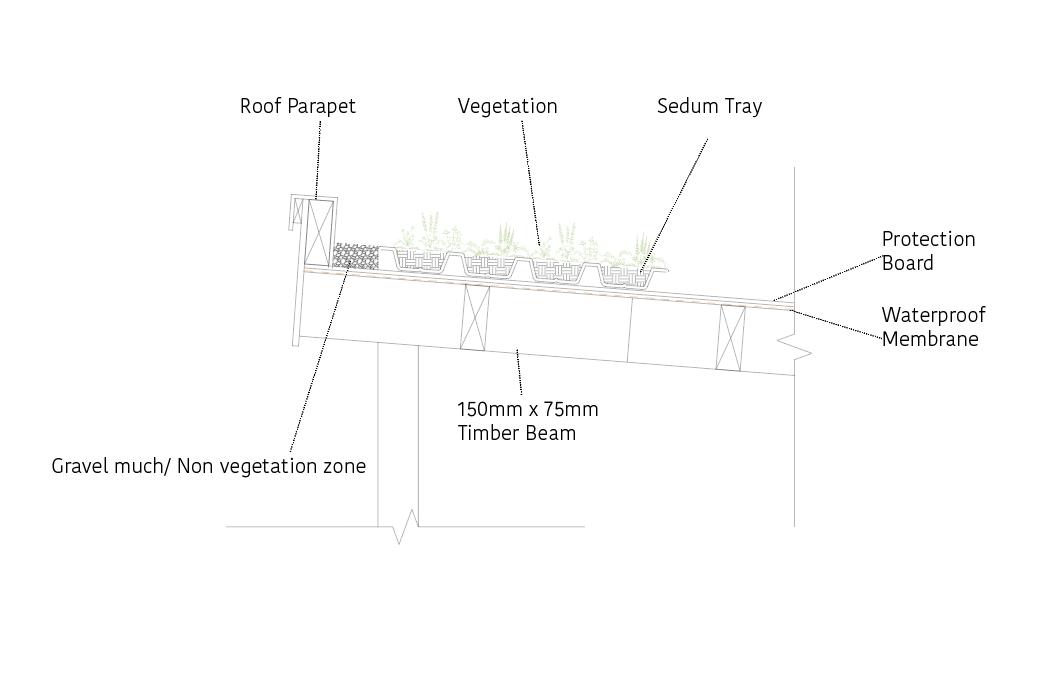

CONSTRUCTION DETAIL [Original scale 1:20]

CREEKSIDE UPCYCLING CENTRE

9

14

13 9

12

5 11

7 10

16

8

6

15

1

4 2

3 12

1- Ensure biodiversity on site and maintain existing habitats.

2- Building on stilts to adapt to flooding.

3- Designed for reintegration of existing human occupants.

4- Community clean up to reduce the pollution ,preserve the biosphere of the creek as well as protect endangered species.

5- Double facade for thermal efficiency.

6- Spaces for gardening.

7- Spaces for waste recycling to build a sustainable community.

8- Flexible spaces for future use and functions.

9- Natural ventilation and daylight to reduce energy demand for heating and cooling.

10- Non-heated spaces.

11- Designed for reusing materials, particularly for the outer skin.

12-Timber-frame and screw pile foundation to ensure demountable construction.

13- Green roof to reduce urban heat island 14- Rain water collection for irrigation and flushing toilets.

15- Provide access to nature.

16- Provide access to the building and ensure walking friendly.

12

ADALGISA CASSUENDE

ARCHITECTURE PORTFOLIO

ENVIRONMENTAL STRATEGY [Original scale 1:50]

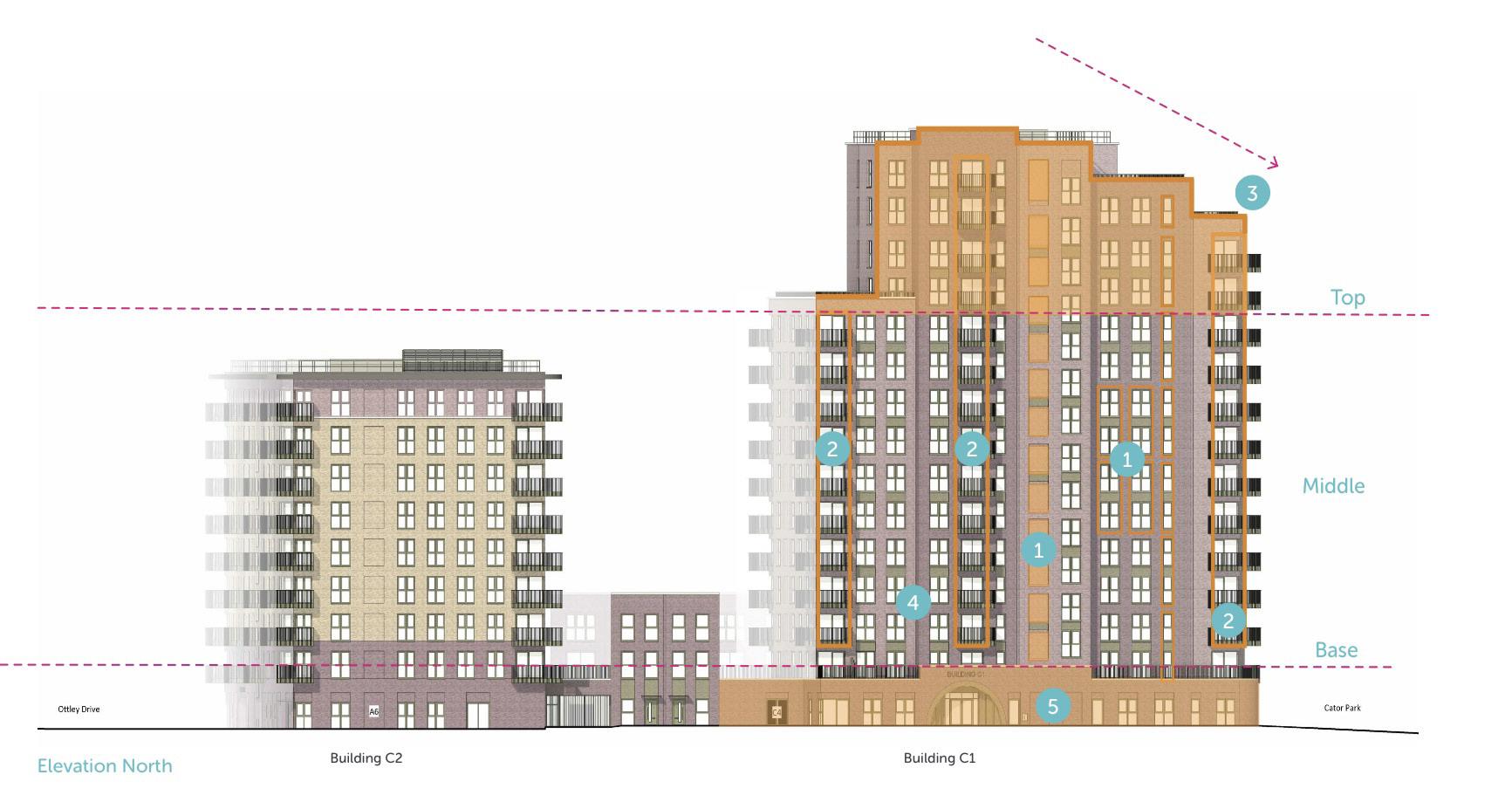

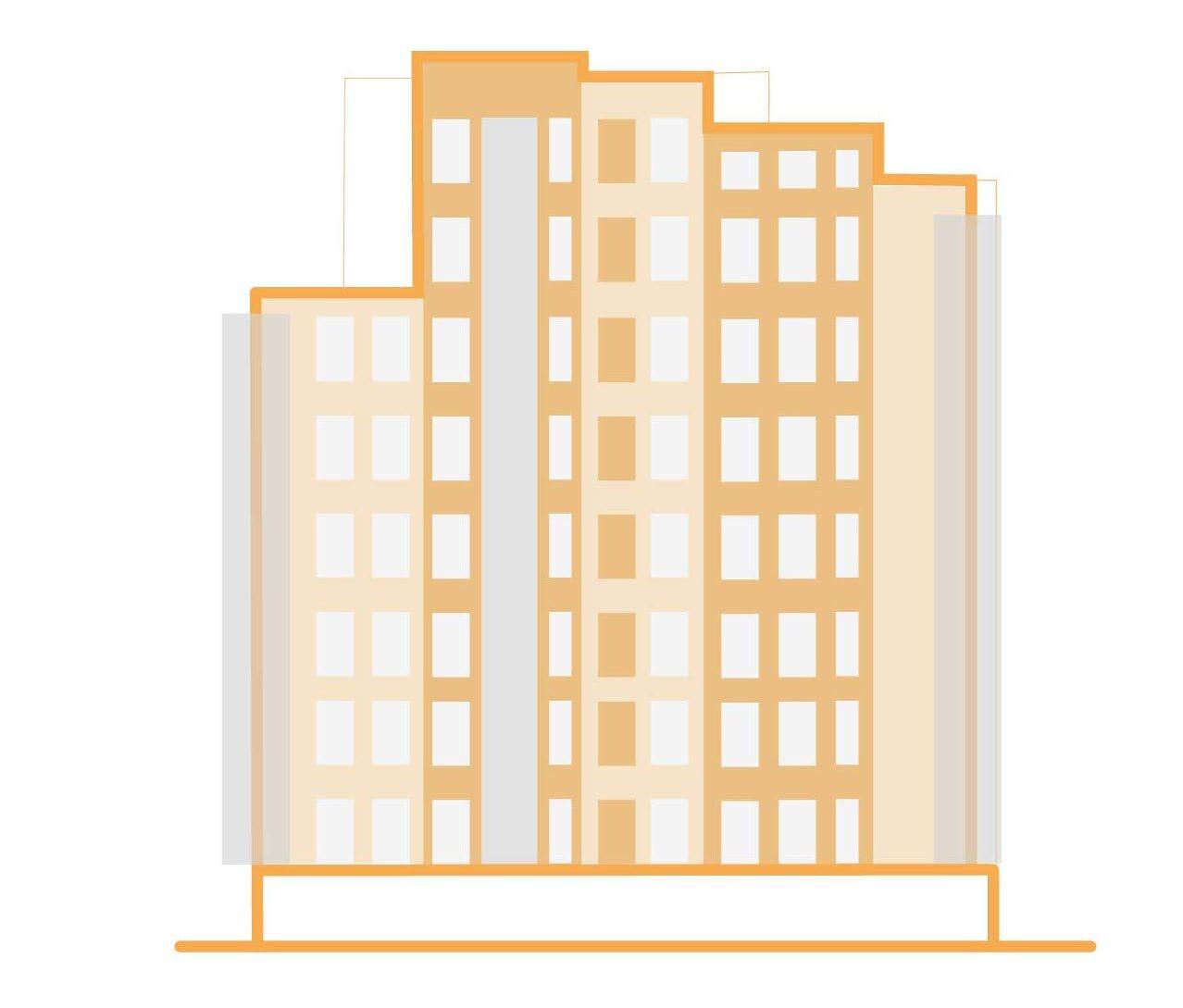

5.13 Elevation Development - Building C1 Building North ElevationDevelopment - Building C1 5.13C1Elevation UNION ST, CENTRE OF ENTREPRENEURSHIP

Building C1 North Elevation Elevation North Elevation North

Test 01

Test 02

The hierarchy of the facade is examined by employing both light andTest dark brick.

01

Windows are used to break up the strong architectural composition Test 02of the building by creating voids.

The hierarchy of the facade is examined by employing both light and dark brick.

Building C2

Windows are used to break up the strong architectural composition of the building by creating voids.

Building C1

Building C2

Building C1

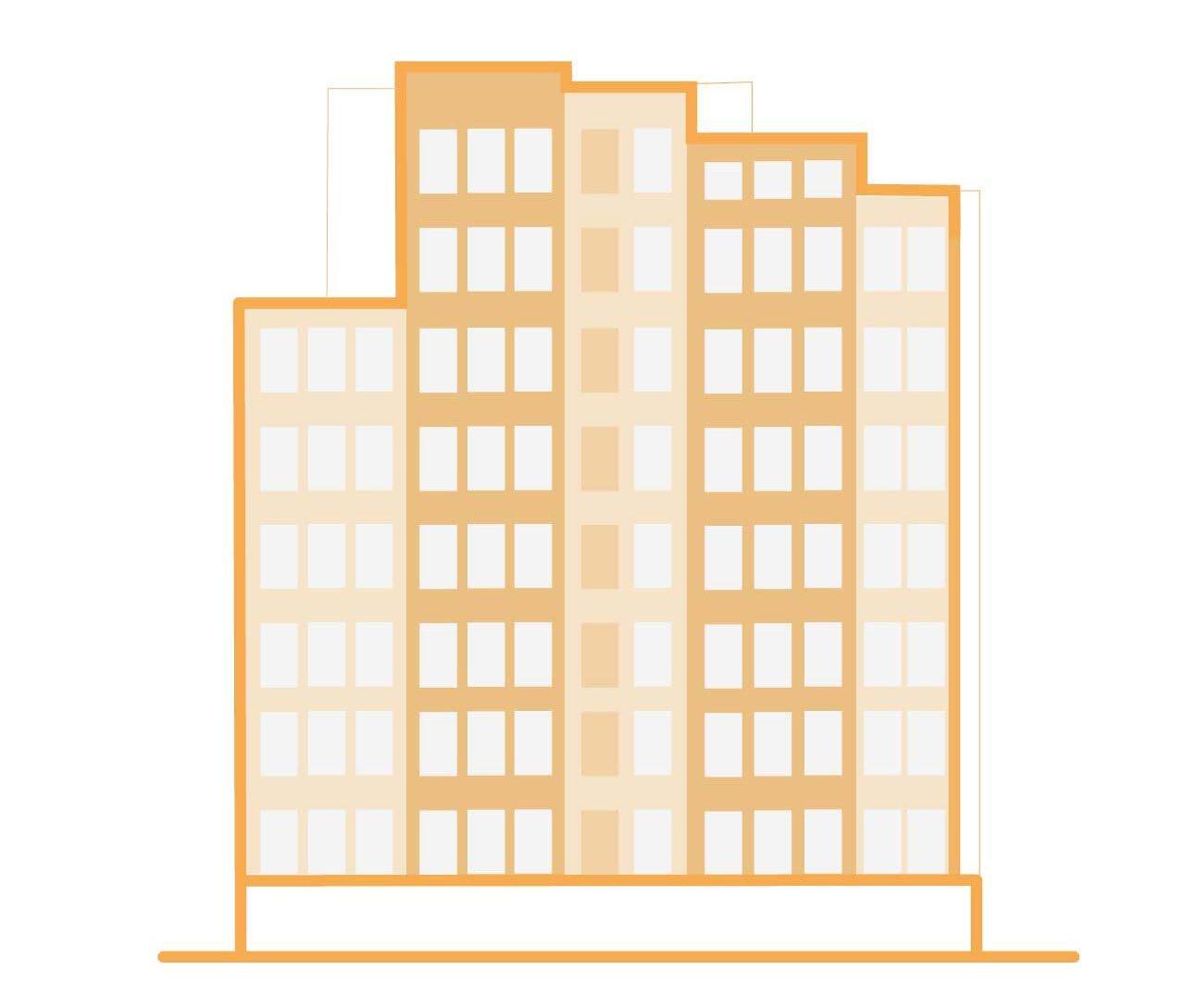

Top Top Key

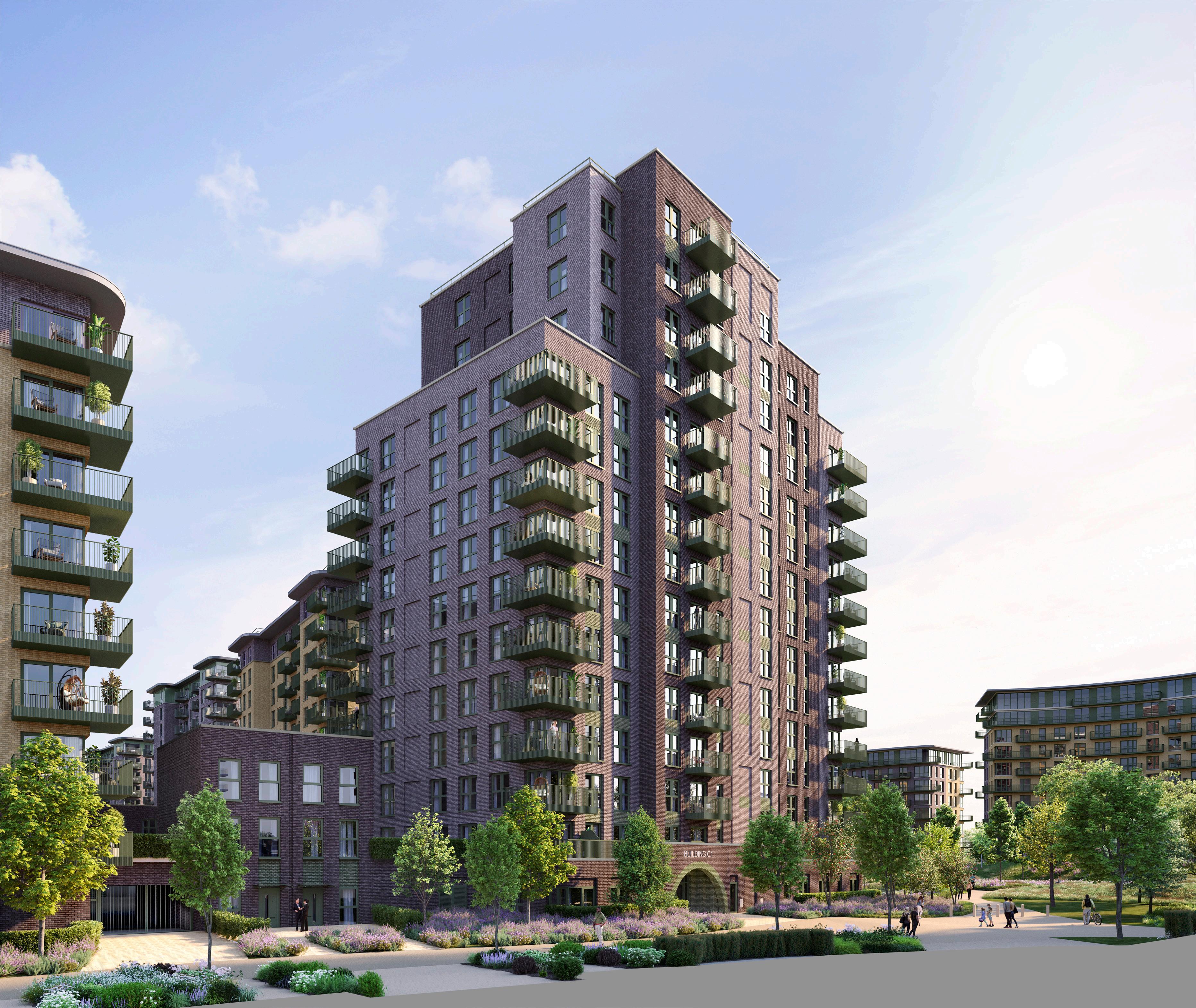

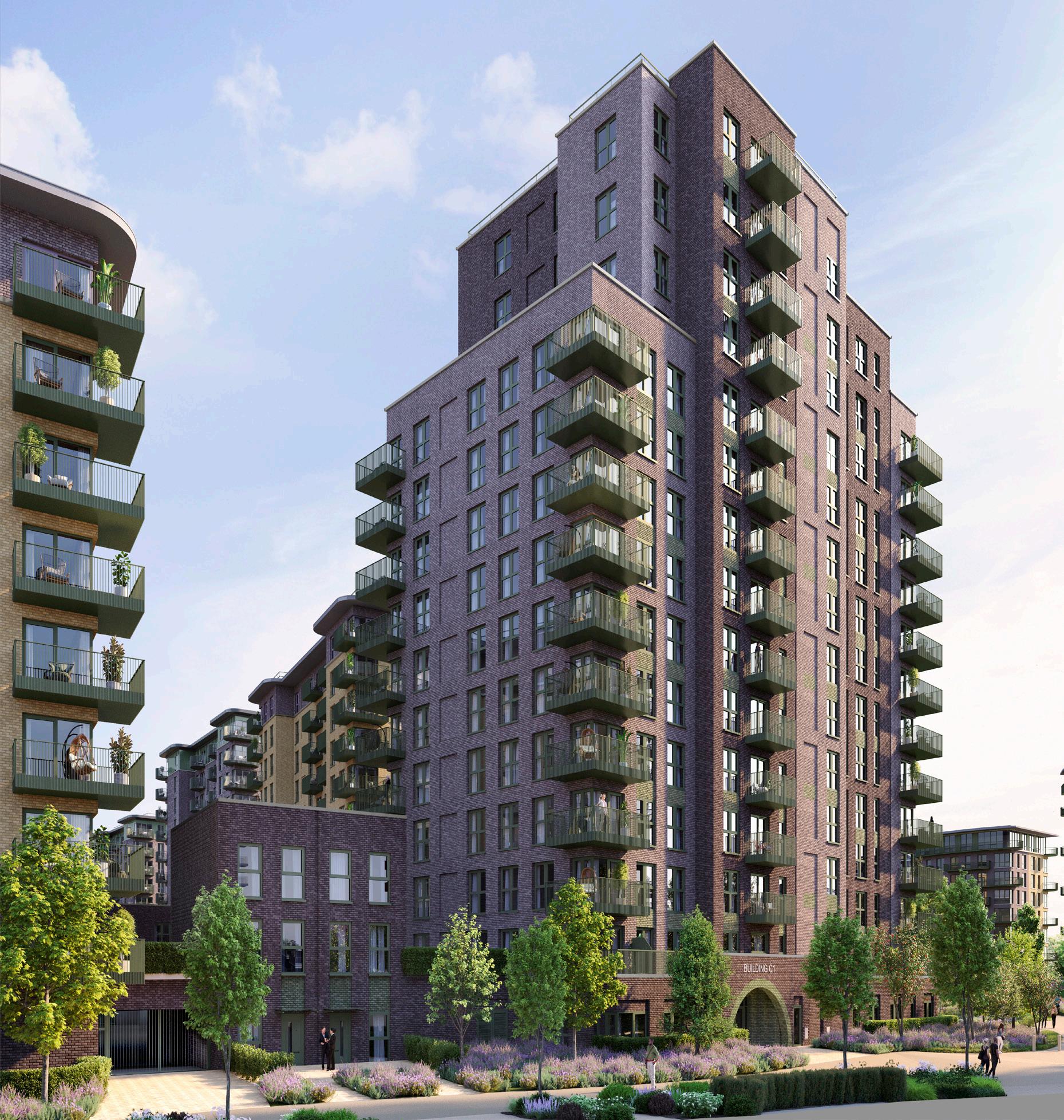

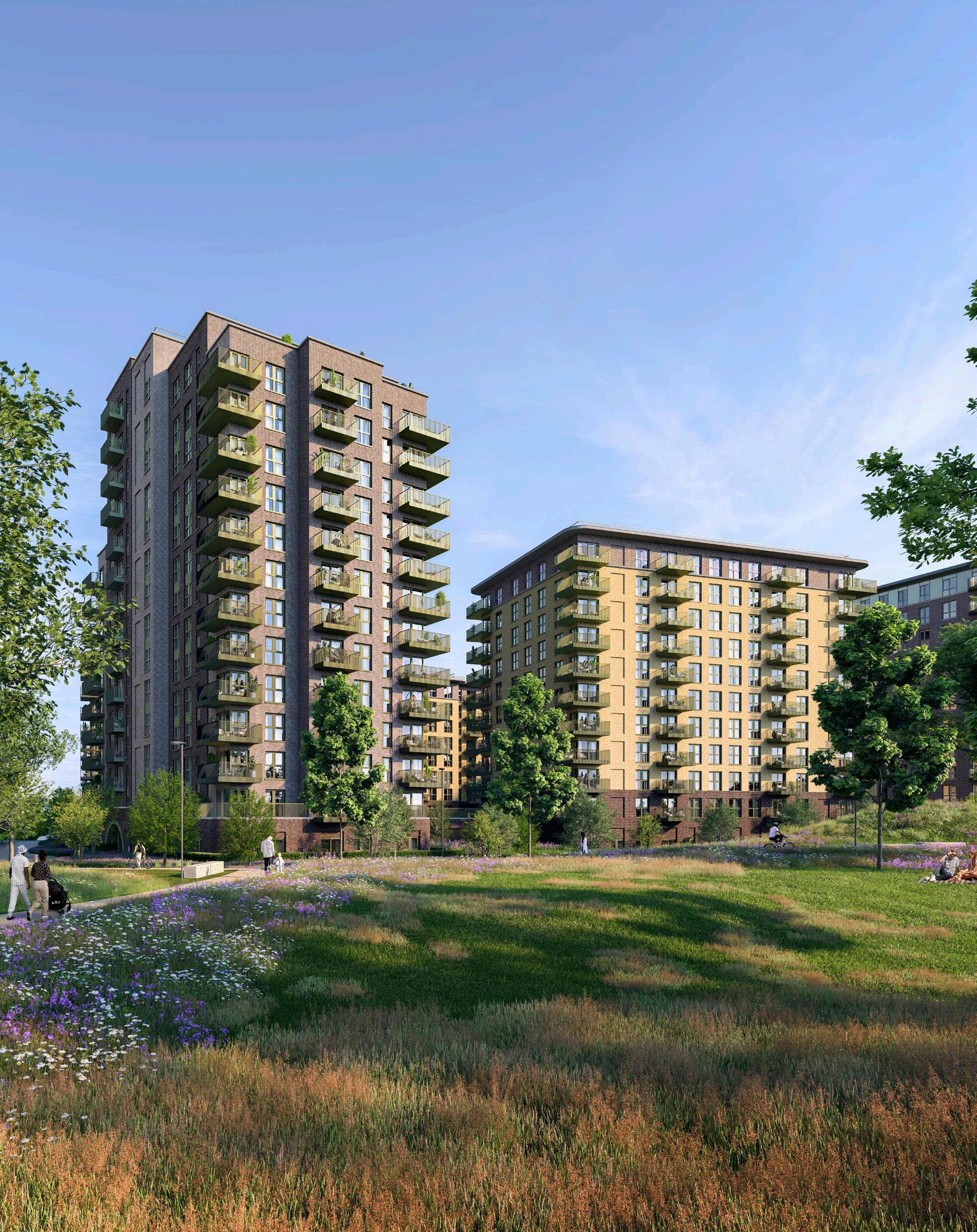

CGI CREATED BY EXTERNAL CONSULTANT

02

NORTH ELEVATION

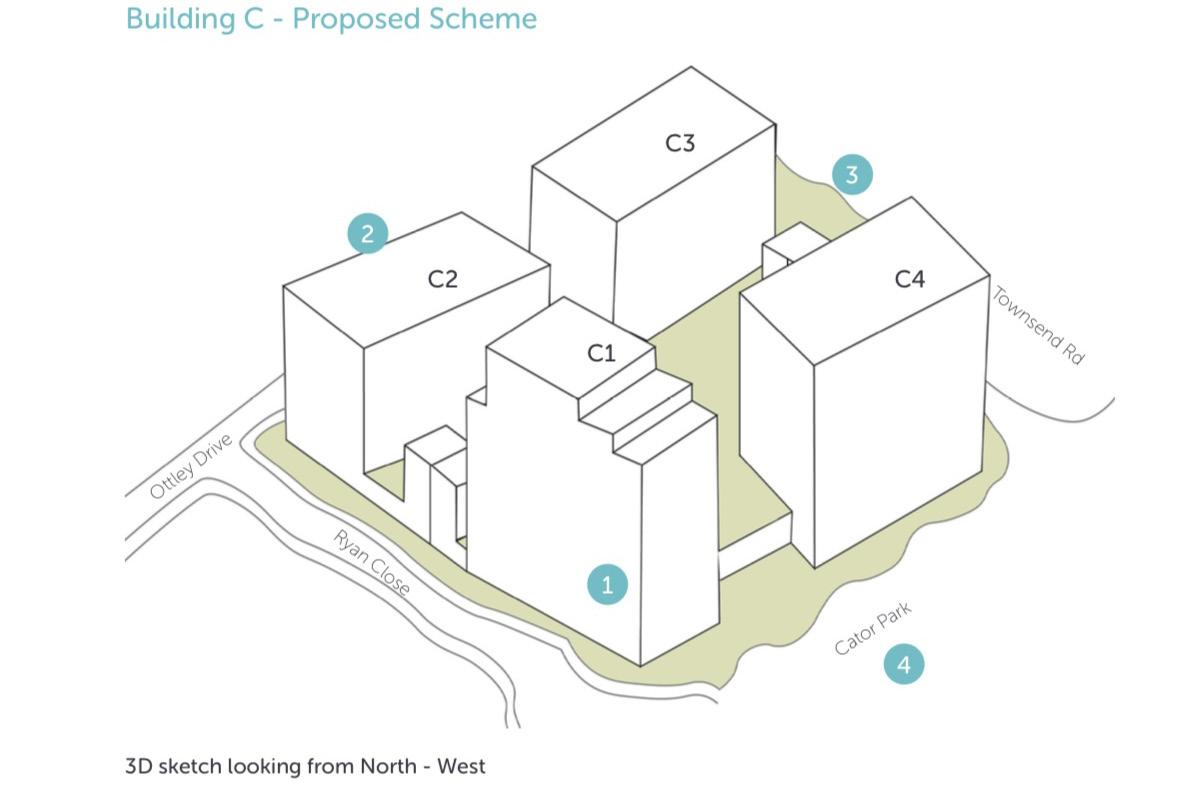

Kidbrooke Village Phase 5 Building C is a residential building that sits within phase 5 NORTH ELEVATION KeyKidbrooke Village of the wider masterplan in Kidbrooke, London.

C1

C1

C4

PRACTICE EXPERIENCE - YEAR 0UT

C4

Middle Middle

C2

Base

C2

C3 C3

Test 03

Test 04

Corner balconies have been incorporated as per the consented, as well as 03 balconies introduced to the middle of the building.

Test

The use of light and dark brick alongside the paired windows creates Testa vertical 04 language that responds to the steps in the plan.

The base grounds the building. The top responds to vertical language onofthe elevation and steps down towards thewindows park.

The use light and dark brick alongside the paired creates a vertical language that responds to the steps in the plan.

The base grounds the building. The top responds to vertical language on the elevation and steps down towards the park.

Corner balconies have been incorporated as per the consented, as well as balconies introduced to the middle of the building.

Base

Kidbrooke Village Phase 5

RESIDENTIAL PROJECT JUL - DEC 2023

I developed a thorough 114-pages Design and Access Statement Kidbrooke Village 37 //for BPTWthe // KV5C - Design and Access Statement Phase 5 project’s planning application. Integrated Adobe Illustrator diagrams to narrate the story of 37 // BPTW // KV5C - Design Access Statement how the design proposal aligns with its site, demonstrating the evolution of and each Block and adaptation to the local context.

The appointment with Berkeley Homes East Thames (BHET) is for the re-design to incorporate fire safety amendments, subsequent planning application and technical delivery of 319 homes.

The building consists of a first-floor podium with 4no. flat blocks ranging from 8 to 14 storeys with 2no. terraces of 3-storey townhouses. The combination of 1, 2 and 3 bedroom apartments are across 2 tenures - Private and Shared Ownership.

CLIENT: BERKELEY HOMES EAST THAMES LOCATION: KIDBROOKE VILLAGE, KIDBROOKE LONDON SERVICE: ARCHITECTURE - PRE PLANNING

CONFIDENTIAL

5.24 Entrance Development - Building C1 Entrance Design The architectural language of the entrance to Building C1 has been developed making reference to the consented scheme.

Test 01

Test 02

Proposed

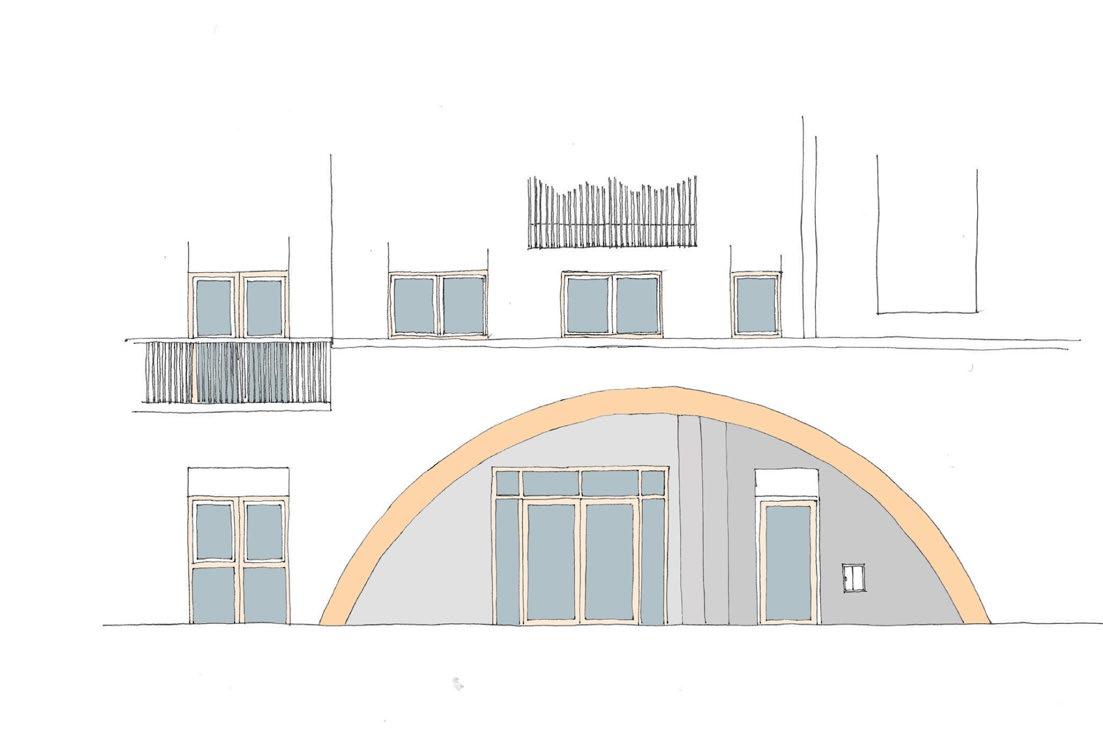

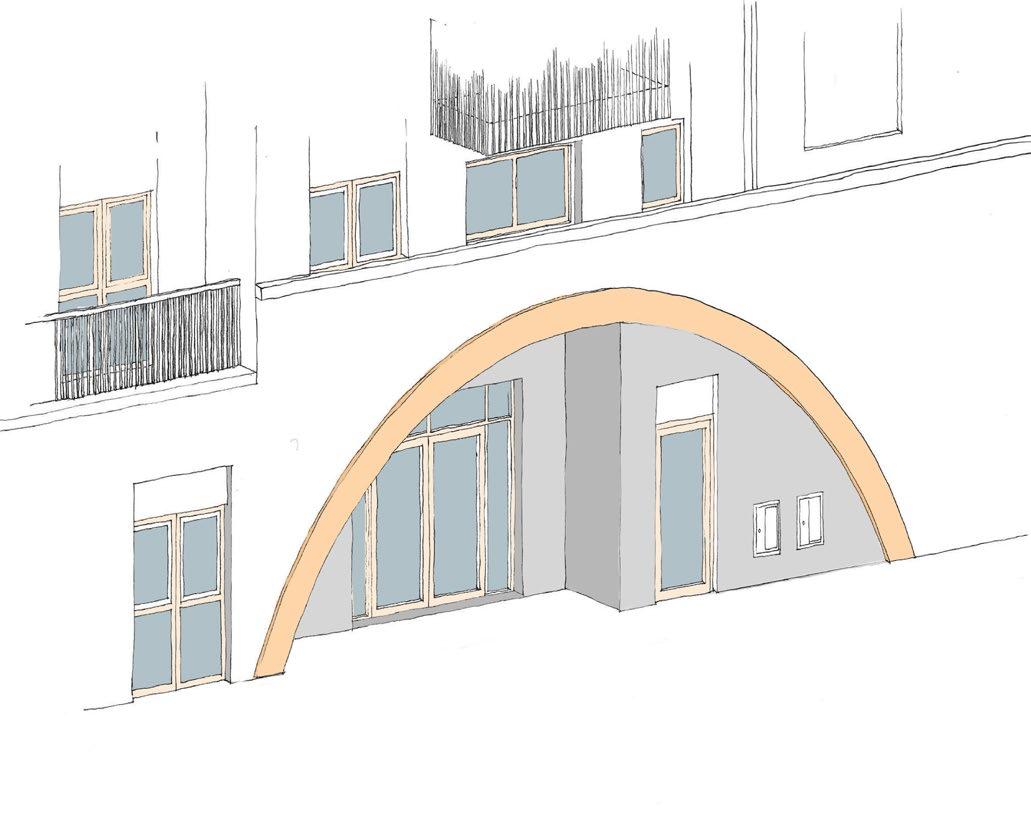

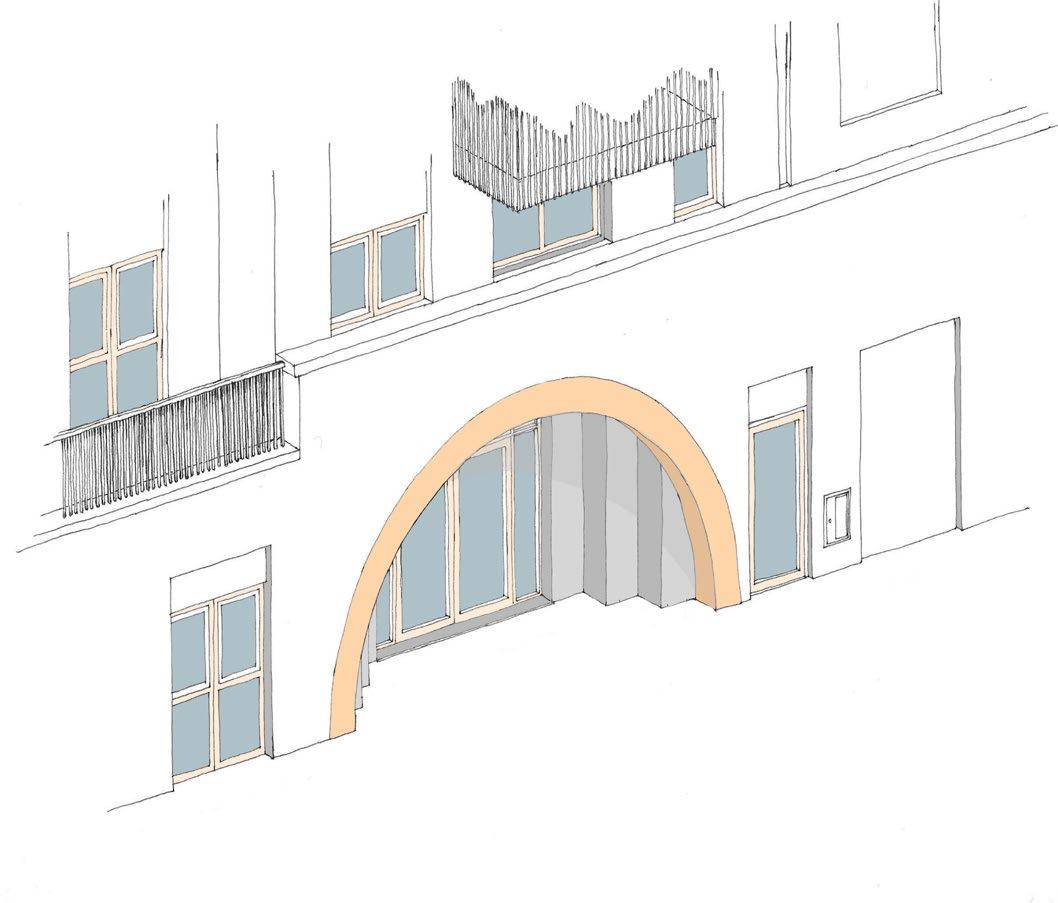

The arched entrance, present in the consented design, has been developed to include an integrated canopy as required by AD Part M. To achieve this the entrance door has been pushed back as a recess within the arch.

Steps were introduced to soften the recess that sits within the arch. The steps lead residents towards the entrance doors. This test retained the fire escape door within the arch, which suggest this could be part of the main entrance which we want to avoid to have a clear and legible main entrance to the building.

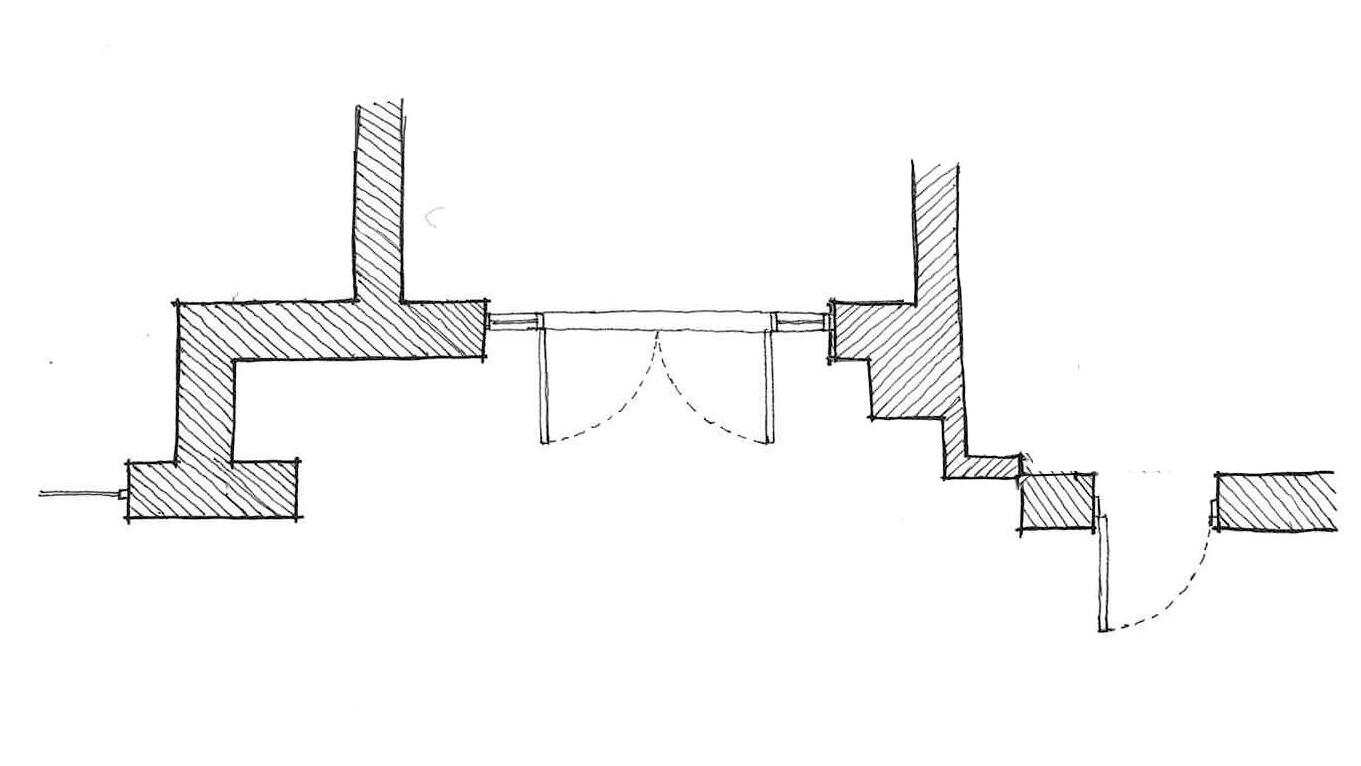

The arch has been repositioned to have the fire escape door sitting outside of it. This creates a clearly defined and balanced entrance to the building with a door that sits central within the arch with steps on either side.

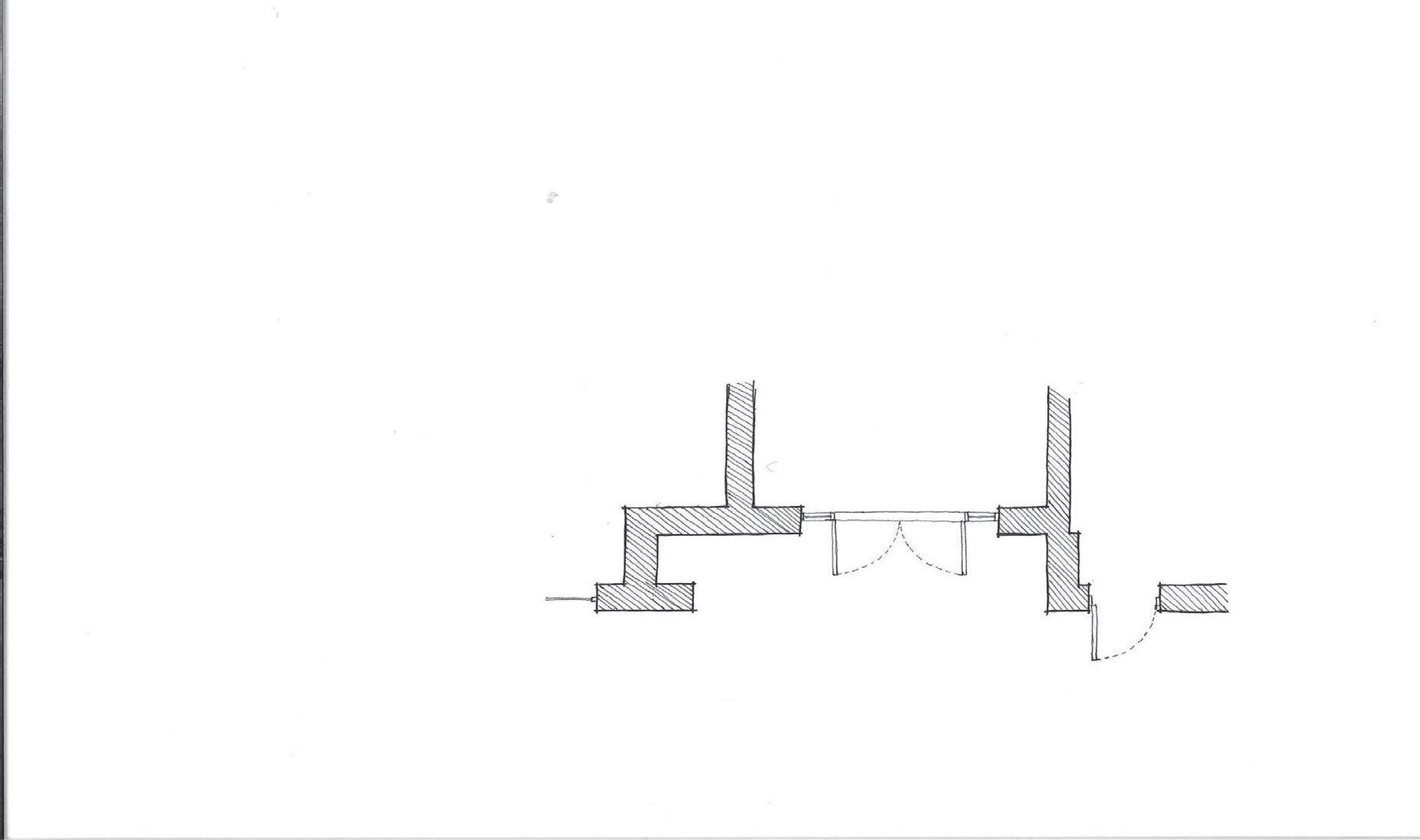

Produced sketches documenting tests for the design of the building’s entrance , balancing client’s architectural preferences with compliance to AD Part M and Fire Safety standards. Ensured the preservation of the initial architectural language while meeting essential safety requirements.

CGI CREATED BY EXTERNAL CONSULTANT

Dwelling

Test 01

Lobby

Escape

Dwelling

Test 02

Lobby

Escape

Dwelling

Lobby

Escape

Test 03

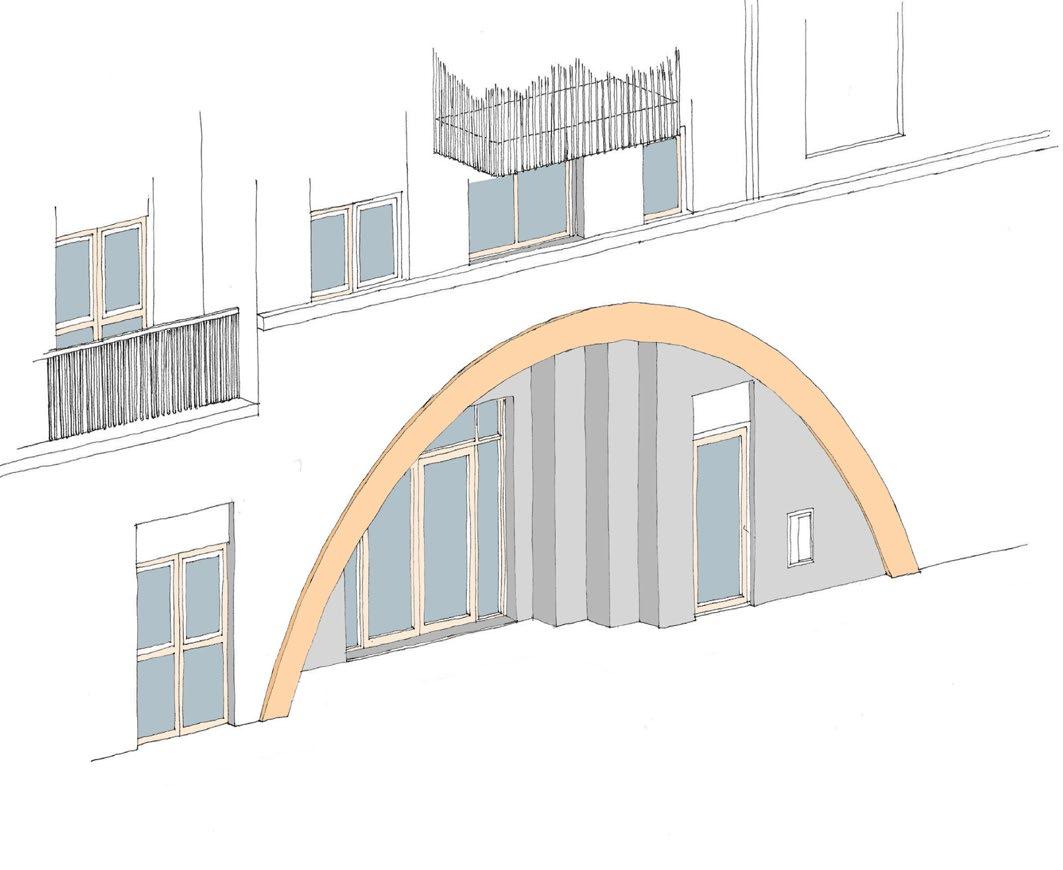

Visualisation of proposed C1 entrance (Test 03) DEVELOPED THE HAND SKETCHES AND USED TO PHOTOSHOP FOR COLOURING

49 // BPTW // KV5C - Design and Access Statement

CONFIDENTIAL

DWELLING INFORMATION

Type Reference:

Size:

1B2P

Size:

2B4P

Tenure:

Private

Tenure:

Shared Ownership

Approved Document M:

M4(2)

3

Number795 of Bed Spaces (persons):

5

MIN. 850

6 600

MIN. 750

MIN. 850 23.0 m²

MIN. 1500

MIN. 1050

MIN. 1050

810

600 MIN. 600

5180

MIN. 750

600

Plot Number

2

1

Utility

2095

Nationally Described Space Standard (NDSS) Compliance: Number of Bedrooms:3.4 m²

3 5

Gross Intern

1 storey

Net Internal

Number of Bed Spaces (persons):

GIA & NIA me

86.0 m²

Achieved Gross Internal Area (GIA):

110.7 m²

Minimum Built-in Storage:

2.5 m²

Achieved Built-in Storage:

3.2 m²

Nationally D

Number of B

Number of B

Dwelling Con

Minimum Gr

MIN. 750

Achieved Gr

Minimum Bu

Achieved Bu

Areas measur

Roof Terrace to plot C1.11.02 - Refer to GA Plans for location.

Drn Chkd AC

81 // BPTW // KV5CBD- Design and Access Statement

Bedroom 1

Notes: Do not sc This draw informat prior to f with all r provider

Revisions Rev Stat P01 S3 P02 S3

3

P03

15.2 m²

S3

MIN.

MIN. 750

Client:

S4

2750 MIN. 2750mm REQ.

Client:

MIN. 750

1:50 @ A3

Client Name:

Berkeley Homes (East Thames) Ltd.

3223

MAX. 600 Project Name:

Client Na

Drawing Name:

Project N

B

Kidbrooke Village Phase 5 Building C Flat Type Plan FT-09

MIN. 900

MIN. 600mm REQ.

650

TBC

Revisions: Rev Status Date Description P03 S3 06.10.23 Drawings updated to address comments from BHET (28.09.2023), RGB 0T (19.09.2023) & DBA (18.09.2023).

P04 S4 NYI Wheelchair Storage and Store relocated to opposite side of Hallway.

FED relocated and overall storage increased.

Status:

MIN. 900

1:50m

TBC

Notes: Do not scale. All dimensions are in millimetres unless otherwise stated.

This drawing should be read in conjunction with all relevant project information and contract documentation. All dimensions to be checked prior to fabrication and or commencement of works. All works to comply with all relevant legal standards, building regulations and warranty provider requirements. Report any discrepancies, if in doubt ask.

PRELIMINARY - FOR COMMENT

MIN. 1650

Net Internal Area (NIA):

Store Area Minimum Gross Internal Area (GIA):

MIN. 1100

Kitchen/Living/Dining 5630

MIN. 1300

Height Adjustable Section

AC

Scale:

1191.6 ft²

Dwelling Configuration:

111 // BPTW // KV5C - Design and Access Statement

Kidbroo

2

Drawing Number:

Z477-BPT01-C1-ZZ-SK-A-005-409

Project No:

23-051

Balcony 5m²

RIBA Stage:

3

Drawn By:

AC

Rev:

P04

Scale:

Drawing

Status:

Flat Typ

S4

Drawing

Z477-B

1:50 @ A3

Project N

PRELIMINARY - FOR COMMENT

KEY:

111 // BPTW // KV5C - Design and Access Statement Maneuvering Space

MIN. 850

150 150 MIN. 750

MIN. 1100

MIN. 750

2400 650

600 2200

3

Drawn By:

4.3 m²

2478

MIN. 600mm REQ.

P04

110.7 m²

Tenure:

Approved D

Areas measured in accordance with Nationally Described Space Standard (NDSS) March 2015.

1

Rev:

Gross Internal Area (GIA):

Size:

All apartments have an entrance hallway with 2.3 m² easy access toMIN.utility and stores.

1050

MIN. 1200

Kitchen/Living/Dining Flat Type Plan FT-09

4405

DWELLING I

Type Refere

MIN. 775

8.5 m²

4.3 m²

MIN. 1300

600

Hallway

MIN. 900

Bedroom 3

MIN. 2400mm REQ.

BD

Bathroom

505

5630

MIN. 1300

M4(3) Adaptable

GIA & NIA measured in accordance with RICS Code of Measuring Practice, 6th edition (May 2015).

3000

MIN. 1000

Drn Chkd AC

Kidbrooke Village Phase 5 Building C

MIN. 900

MIN. 600mm REQ.

MIN. 3000mm REQ.

3160

208 MIN. 850

Revisions: Rev Status Date Description P03 S3 06.10.23 Drawings updated to address comments from BHET (28.09.2023), 405 RGB 0T (19.09.2023) & DBA (18.09.2023).

P04 S4 NYI Wheelchair Storage and Store relocated to opposite side of Hallway.

Store FED relocated and overall storage Store 0.5 m² 1375 increased.

1375

Private

Internal Layouts and Elevations have been 1600 designed so2033 that no Bathroom or Kitchen is 0 positioned in front of windows.

5

Notes: Storage Do not scale. All dimensions are in millimetres unless otherwise stated.

This drawing should be read in conjunction with all relevant project MIN. 1200 information and contract documentation. All dimensions to be checked prior to fabrication and or commencement of works. All works to comply with all relevant legal standards, building regulations and warranty Utility requirements. Report any discrepancies, if in doubt ask.

2.8provider m²

Project Name:

5

3B5P

Tenure:

TBC

Berkeley Homes (East Thames) Ltd.

2

FT - 09

Size:

3.2 m²

Client Name:

MIN. 1500

650

MIN. 750

MIN. 600 600

MIN. 3000mm REQ.

KEY: Nationally Described Space Standard (NDSS) 2Areas measured in accordance with 5 March 2015.

MIN. 1200

MIN. 850

2000 1240

MIN. 1000

MIN. 1200

3073

2.5 m² 1:50m

RIBA Stage:

MIN. 600

DWELLING INFORMATION Type Reference:

Plot Numbers:

Z477-BPT01-C1-ZZ-SK-A-005-409

600

S3

Approved Document M:

Maneuvering Space

MIN. 2150 REQ.

MIN.1:50 850@ A3

MIN. 1000

Balcony 9.4m²

Drawing Name:

Wheelchair accessible bathroom that provides KEY: USED REVIT FORaTHE CREATIONclear OF THESE DRAWINGS 1500mm turning circle, and comply with the provisions of M4(3) clauses 3.36 60 3.43.

They are all constructed as a wet rooms with a bathroom installed and is showed 0within the 1 example.

MIN. 2550mm REQ.

5 m2

110.7 m²

23-051

2150

2.7 m2

5 m2

Achieved Gross Internal Area (GIA):

Project No:

2650

MIN. 600mm REQ.

86.0 m²

Drawing Number:

Bedroom 3

Scale:

AC

ADDITIONAL KITCHEN WORKTOP ADAPTATION

All double bedrooms are a minimum of 3m wide, and every single1375 bedroom are a minimum of 2.4m wide. With all rooms meeting or exceeding the minimum floor area requirements.

MIN. 750

Achieved

650

Minimum Gross Internal Area (GIA):

32.4 m²

1200

12.5 2 m² 52.2 m

1 storey

1.7 m²

200

Bedroom 2

Dwelling Configuration:

MIN. 7430mm WORKTOP LENGTH REQ.

Height Adjustable Section

Drawn By:

Client: 1145

All bedrooms are wheelchair accessible, providing a 1200mm by 1200mm manoeuvring space inside the doorway and a 1000mm wide clear access zone around the bed and furniture with a 1200mm manoeuvring space on bothMIN. 900 sides of the bed.

2200

3

Status:

P03

32.4 m²

>

Storage

Rev:

MIN. 1200

800

MIN. 750

1.7 m²

PRELIMINARY - FOR COMMENT

Achieved Built-in Storage:

505

>

RIBA Stage:

13.6 m²

Number of Bedrooms:

Store

Store

MIN. 775

600

1.5 m2

Balcony/ Terrace MIN. 1500

TBC

0.9 m²Built-in Storage: Minimum

All apartments have dedicated desk space in 4 Bedrooms.

There is a minimum 1500mm clear access zone MIN. 850

23-051 TBC Bedroom 2

6

10.4 m²

Flat Type Plan FT-23

Project 1191.6 ft² No:

110.7 m²

MIN. 1200

5

Drawing Name:

GIA & NIA measured in accordance with RICS Code of Measuring Practice, 6th edition (May 2015).

ADDITIONAL KITCHEN WORKTOP ADAPTATION

600

17.9 m²

10.3 m²

50 m2

Internal Storage Area

Z477-BPT01-ZZ-ZZ-SK-A-005-423

Hallway

Hallway

Minimum

Project Name: MIN. MIN.1500 1200 Kidbrooke Village Phase 5 Building C

Nationally Described Space Standard (NDSS) Compliance:

1

2245

MIN. 2750mm REQ.

M4(3) Adaptable

Plot Numbers:

Net Internal Area (NIA):

All apartments have been designed with private Store the The kitchenStore work top length meets 31375 the m4(3) table 0.5 m² Bedroom 3 or terrace) 600 amenity (balcony in line with 1.7 m²of external requirements 3.3, including 8.5a m² 2.2m height adjustable section, allocated London Planwith standards.

MIN. 1650

3390

MAX. 600

MIN. 1490

MIN. 1000

Kitchen/Living/Dining m² Berkeley Homes (East28.6 Thames) Ltd. MIN. 1000

Approved Document M:

MIN. 1300

2049

Client Name:

Private

Kitchen/Living/Dining Bedrooms and Bathrooms

>

MIN. 850 208

3B5P

Gross Internal Area (GIA):

2.6 m²

1350

200

Apartment NIA 1200

Drawing Number:

Wheelchair Storage

4.3 m²

MIN. 775

MIN. 900

MIN. 850

MIN. 1200

FT - 09

6.5 m² Tenure:

MIN. 1700

1.8 m²

MIN. 750

MIN. 850

Type Reference:

MIN. 850

MIN. 850

MIN. 1100

MIN. 1000

3000

MIN. 1200

MIN. 850

MIN. 1700

3.1 m²

Client:

176

DWELLING INFORMATION

0

in front of all kitchen units and appliance that is shown in the example.

Achieved Built-in Storage:

En-suite

space for additional work top lengths to meet 1145 the requirements for an accessible kitchen. >

2.0 m²

MIN. 1200

1315 MIN. 1200

MIN. 1200

4.3 m²

MIN. 1700

>

The overall Kitchen/Living/Dining area is the same or greater than the required405combined area with the m4(3) table 3.2.

MIN. 850

5

1:50 @ A3

MIN. 850

1:50m

Key

Future kitchen worktop adaptation

Scale:

Utility

3.7 m²

En-suite

Bedroom 1 Proposed Example 1 Bed 2 Person Apartment

MIN. 1800

MIN. 1200 Built-in storage meets the requirements PRELIMINARY - FOR highlighted in COMMENT the M4(3) clause 3.26, excluding Utility 2.8 m² the space required for the utility.

4405

All double bedrooms are a minimum of 3m wide, and every single bedroom are a minimum of 2.4m wide. With all rooms meeting or exceeding the minimum floor area requirements.

Storage

AC

MIN. 7430mm WORKTOP LENGTH REQ.

Storage

All bedrooms are wheelchair accessible, providing a 1200mm by 1200mm manoeuvring gs to habitable rooms provide space inside the doorway and a 1000mm wide tilation toaccess the spaces withthe views clear zone around bed and furniture with a 1200mm manoeuvring space on both sides of the bed.

Maneuvering space

Drawn By:

1240

>

>

Wheelchair accessible bathroom that provides a 1500mm clear turning circle, and comply with the provisions of M4(3) clauses 3.36 60 3.43.

They are all constructed as a wet rooms with a bathroom installed and is showed within the example.

3

2000

>

RIBA Stage:

76.1 m²

Revisions: MIN. 1000 Rev Status Date Description Drn Chkd 16.2 m² P01 S3 01.09.23 FIRST ISSUE AC P02 S3 15.09.23 Drawings updated to address BD comments from BHET (24.08.2023) and Design Team.

P03 S3 06.10.23 Drawings updated to address AC MIN. 1200 comments from BHET (28.09.2023), RGB 0T (19.09.2023) & DBA (18.09.2023).

En-suite

4.3 m²

Shower Room

7.16 Residential Quality - Apa

TBC

MIN. 2400mm REQ.

23-051

70.0 m²

Notes: Do not scale. All dimensions are in millimetres unless otherwise stated.

This drawing should be read in conjunction with all relevant project information and contract documentation. All dimensions to be checked prior to fabrication and or commencement of works. All works to comply with all relevant legal standards, building regulations and warranty provider requirements. Report any discrepancies, if in doubt ask.

1445

MIN. 850

Status:

4 1 storey

1200

Bathroom Size:

208

Project No:

1.6 m² 1.1 m² 2000

MIN. 1200

Rev:

2

Minimum Built-in Storage:

600

MIN. 1000

13.6 m²

Achieved Gross Internal Area (GIA):

Utility Store Area

MIN. 1200

Storage and LivingP03Areas S3

Z477-BPT01-C1-ZZ-SK-A-005-401

en, Living & Dining room with Bedrooms and Bathrooms e amenity.

Apartment Building

>

800

Drawing Number:

KEY:

>

MIN. 850

MIN. 1100

Flat Type Plan FT-01

Minimum Gross Internal Area (GIA):

MIN. 900

795 a minimum Doors must have 850mm clear 3073 14.5 m² opening onto a corridor that is at MIN. 3000mm REQ. Berkeley Homeswidth, (East Thames) MIN. 750 Ltd. MIN. 750 Wheelchair Store least 1200mm wide to have a clear width for Project Name: 4 Storage Kidbrooke Village Phase 5 Building C 0.9 m² 2.6 m² wheelchair users.

Drawing Name:

The kitchen work top length meets the requirements of the m4(3) table 3.3, including a 2.2m height adjustable section, with allocated space for additional work top lengths to meet the requirements for an accessible kitchen.

There is a minimum 1500mm clear access zone in front of all kitchen units and1 appliance that is 2 0 showndesigned in the example. ave been to offer an

Bedroom 1

Client Name:

The overall Kitchen/Living/Dining area is the same or greater than the required combined area with the m4(3) table 3.2.

>

MIN. 1700

>

MAX. 600

2

>

Client:

Bedroom 1TBC

Areas measured in accordance with Nationally Described Space Standard (NDSS) March 2015.

ø 1500

>

Built-in storage meets the requirements highlighted in the M4(3) clause 3.26, excluding the space required for the utility.

MIN. 750

>

MIN. 2750mm REQ.

MIN. 2750 mm REQ.

2750

A storage space for a wheelchair to be stored and transferred between outdoor and indoor MIN. 750 wheelchair, must be a Hallway minimum 1100mm 17.9 m² deep, 1700mm wide, and close to the Bedroom principal 2 13.6 m² entrance to comply.

2750

MIN. 850

Storage and Living Areas

29.0 m²

AC

MIN. 1500

>

MIN. 750

MIN. 1200

15.2 m²

at the entrance.

Kitchen/Living/Dining MIN. 1200

Dwelling Configuration:

MIN. 750

least 1200mm wide to have a clear width for wheelchair users.

Bedroom 1

Drn Chkd AC BDMIN. 1490

MIN. 1100

3390

MIN. 750

ø 1500

Revisions: Rev Status Date Description P01 S3 01.09.23 FIRST ISSUE P02 S3 15.09.23 Drawings updated to address comments from BHET (24.08.2023) and MIN. Design850 Team.

1920 P03 S3 06.10.23 Drawings updated to address MIN. 1500mm REQ. comments from BHET (28.09.2023), RGB 0T (19.09.2023) & DBA MIN. 1800(18.09.2023).

MIN. 1200

MIN. 850

MIN. 1300

208

MIN. 850

Notes: Do not scale. All dimensions are in millimetres unless otherwise stated.

This drawing should be read in conjunction with all relevant project information and contract documentation. All dimensions to be checked prior to fabrication and or commencement of works. All works to comply with all relevant legal standards, building regulations and warranty Balcony provider requirements.

Report any discrepancies, if in doubt ask.

7m²

MIN. 1000

Roof Terrace to plot C1.11.02 - Refer to GA Plans for location.

MIN. 1200

MIN. 775

1200March 2015.

Areas measured in accordance with Nationally Described Space Standard (NDSS)

MIN. 850

2.7 m²

4.6 m²

1350

Achieved Built-in Storage:

MIN 750 819.1 ft²

TBC

Number of Bed Spaces (persons):

800

1.5 m²

Hallway

MIN. 1500

Minimum Built-in Storage:

Net Internal Area (NIA):

Number of Bedrooms:

1260

52.2 m²

650

50.0 m²

Achieved Gross Internal Area (GIA):

76.1 m²

Nationally Described Space Standard (NDSS) Compliance:

200

Minimum Gross Internal Area (GIA):

MIN. 1200

MIN. 750

1 storey

MIN. 1000

2

Dwelling Configuration:

16.2 m²

Gross Internal Area (GIA):

Store Area 1.3 m²

GIA & NIA measured in accordance with RICS Code of Measuring Practice, 6th edition (May 2015).

BedroomMIN. 1 750 MIN. 1000

MIN. 750

MIN. 750

Number of Bed Spaces (persons):

200

9.9 Accessibility Strategy

1

MIN. 850

Nationally Described Space Standard (NDSS) Compliance:

MIN. 1050

>

MIN. 750

GIA & NIA measured in accordance with RICS Code of Measuring Practice, 6th edition (May 2015).

Number of Bedrooms:

MIN. 1300

TBC

800

MIN. 750

3.7 m²

MIN. 3000mm REQ.

TBC

Shower Room

1.6 m²

3160

Net Internal Area (NIA):

12.8 m²

561.9 ft²

M4(2)

TBC

Store

MIN. 1200

52.2 m²

Approved Document M:

MIN. 600mm REQ.

Gross Internal Area (GIA):

2650

3.4 m²

4.3 m²

Store Area 2.3 m²

>

MIN. 750

FT - 23

Plot Numbers:

Bedroom 2 Designed 36 flat type plans for A minimum 1500mm turning circle insides the entrance as well assubmission an 1800mm length the areas, planning package, clearance zone for the nib. So, a compliance MIN. 1000 meticulously aligning with Building En-suite zone of 1500mm by 1800mm has been created 4.3 m² Regulations at the entrance. Part M4(3) , M4(3) NDSS and MIN. 1200 London Plan standards.

Collaborated A storage space for a wheelchair to be stored M4(3) Wheelchair Accessible Layout (Building C1 - 3B5P) and betweenwith outdoorfire and indoor intransferred meetings engineers, wheelchair, must be a minimum 1100mm sustainability consultants, and sunlight/ Entrance, Corridor & Doors deep, 1700mm wide, and close to the principal daylight experts to ensure the highest entrance to comply. > A minimum 1500mm turning circle insides the 176 MIN. length 850 entrance areas, as well as an 1800mm design quality and comprehensive 1200 Doors must have a minimum 850mm clear clearance zone for the nib. So, a compliance Bathroom compliance. opening width, onto a corridor that is at 6.5 m² 3 zone of 1500mm by 1800mm has been created

Hallway

2095

>

Utility

MAX. 600

TBC

Entrance, Corridor & Doors

1200

600

1200

Plot Numbers:

MIN. 600

1600

FT - 01

MIN. 2550mm REQ.

2033

MIN. 900

MIN. 750

Building C1 - 3B5P)

DWELLING INFORMATION

Type Reference:

MIN. 1200

egy

KEY:

23-05

CONFIDENTIAL KEY:

1:50m

PR

Clovelly Road Civic Street Daines Avenue Northam Avenue Civic Corner Clarke Avenue ROAD NAME TBC AT LATER DATE

BUILDING NAME KEY: BUILDING NAME (CORE OR BLOCK CODE) LOCATION OF COMMUNAL ENTRANCE FROM STREET LOCATION OF CONCIERGE ENTRANCE FROM STREET

BLOCK E

DWELLING ACCESSIBLE DIRECTLY FROM STREET, REFER TO BELOW TABLE FOR PLOT NUMBERS

X

CLOVELLY ROA D

BLOCK B BRAUNTON COURT B3 B4 B5 B6 B7 B8

BLOCK D (WEST)

HOUSE

BLOCK D (EAST)

Lampton Park

BLOCK C EAST C1 C2 C3 C4 C5 C6

FUTURE PHASE 2.2

DAINES AVENUE FUTURE PHASE 2.3

BLOCK C (WEST)

CHATHAM COURT (CORE G.2)

G4

G9

STR

AV EN UE

EET

G10

BRECON COURT G1 G2 G3 G4

(CORE G.1) - PLOT G.1.00.04 - PLOT G.1.00.03 - PLOT G.1.00.02 - PLOT G.1.00.01

CHATHAM COURT G5 G6 G7 G8

(CORE G.2) - PLOT G.2.00.01 - PLOT G.2.00.02 - PLOT G.2.00.03 - PLOT G.2.00.04

READE COURT G9 G10 G11 G12

(CORE G.3) - PLOT G.3.00.01 - PLOT G.3.00.02 - PLOT G.3.00.03 - PLOT G.3.00.04

WARDOUR COURT G13 G14 G15 G16 G17 G18

(CORE G.4) - PLOT G.4.00.05 - PLOT G.4.00.04 - PLOT G.4.00.03 - PLOT G.4.00.02 - PLOT G.4.00.01 - PLOT G.4.02.01

G13

C5

HOUSE (B.3)

Revisions: Rev Status Date

SVP SS RWP

Description

L

Drn Chkd

CO RN ER

Client:

CIV IC

0

RIBA Stage:

4

Drawn By:

AC

Rev:

BRICKWORK WALLS

Status:

P03

S3

1:500 @ A1

5

25

As a Part 1 architectural assistant, I’ve been actively involved in the technical stage for 5 blocks, meticulously coordinating elements such as MVHRs, pipes (SVP, RWP, SS), movement joints, fire barriers, and both horizontal and vertical movement joints on the elevations.

My focus has been on ensuring the practicality and buildability of the building design.

MJ - BRICKWORK MOVEMENT JOINTS REFER TO ELEVATION

W-AB-CW1-08-13

L W-AB-CW1-07-13

787.5

L

CWest.1.00.04

CWest.1.00.05

Primary Switch Room

VFB.CW3.04.25

HFB.CW3.04.41

HFB.CW3.01.43

2362.5

2362.5

8

7

W-CU-CW1-00-43

L

W-DV-CW1-00-42

HFB.CW3.01.42

W-DV-CW1-00-41

W-CU-CW1-00-40

W-CU-CW3-00-39

CWest.1.00.06

CWest.1.00.07

HFB.CW3.04.40

W-AA-CW3-02-66

W-AA-CW3-02-65

Revisions: HFB.CW3.02.58 Rev Status Date

L W-DV-CW3-00-38

CWest.3.00.08

W-AA-CW3-02-64

2715.5

W-AA-CW3-02-67

HFB.CW3.02.59

W-AA-CW3-02-63 BALCONY TYPE E

Description

HFB.CW3.02.57

Drn Chkd

AC/SJ C01 A4 26.01.24 CONTRACT ISSUE - General /DL coordination between GA packages W-AA-CW3-01-77 W-AA-CW3-01-76 W-AA-CW3-01-75 W-AA-CW3-01-74 W-AA-CW3-01-73 W-AA-CW3-01-72 for consistency.

Movements joints updated in line with principles agreed with MHT on 12.12.23. Fire barriers updated in line with 3 7 principles agreed with AFF on 7 1 L 8 L L 8 W-CU-CW3-00-36 W-CU-CW3-00-35 W-CU-CW3-00-32 07.12.23.W-DV-CW3-00-33 JSW Drainage model added W-DV-CW3-00-37 W-DV-CW3-00-34 (received 11.01.24). Updated as per 4 6 Hill's review package 133 08.01.24.

Airbrick location update.

3600

HFB.CW3.01.40

HFB.CW3.01.39

CWest.3.00.07

8545

3080.5

VFB.CW3.01.36

HFB.CW3.01.41

1116

1579

L

7

W-AA-CW3-04-44

Do not scale. All dimensions are in millimetres unless otherwise stated.

This drawing should be read in conjunction with all relevant 3 project information and contractW-AA-CW3-03-69 documentation.

All dimensions to W-AA-CW3-03-71 W-AA-CW3-03-70 W-AA-CW3-03-68 be checked prior to fabrication and or commencement of works. All works to comply with all relevant legal standards, building regulations6970 and warranty provider requirements. Report any 3370 discrepancies, if in doubt ask. 5175

HFB.CW3.01.38

VFB.CW3.00.26

HFB.CW1.01.44

3370

3

W-AA-CW3-04-45

BALCONY TYPE E

HFB.CW3.04.42

VFB.CW3.02.35

VFB.CW1.03.11

W-AA-CW3-01-79 W-AA-CW3-01-78

HFB.CW1.01.45

1

4

Smoke Room

13

VFB.CW3.00.27

L ED-AG-CW1-00-45 ED-AF-CW1-00-44

HFB.CW1.01.48

W-AC-CW3-04-46

VFB.CW3.03.32

VFB.CW1.04.09

VFB.CW3.01.37

HFB.CW1.01.46

W-AA-CW1-01-18 W-AA-CW1-01-17

VFB.CW3.00.29

W-DV-CW1-00-47 VFB.CW1.00.40

W-DV-CW1-00-48

W-CU-CW1-00-46

HFB.CW1.01.49

VFB.CW1.00.36

L

VFB.CW1.00.37

L

VFB.CW1.00.38

8

VFB.CW1.00.39

7

W-CU-CW1-00-49

HFB.CW1.01.47

HFB.CW1.01.51

HFB.CW1.01.53

W-AA-CW3-02-68

BALCONY TYPE D

HFB.CW1.01.50

VFB.CW1.00.41

5

W-AA-CW1-01-19

VFB.CW3.00.30

HFB.CW1.01.54

W-AB-CW3-02-69

HFB.CW3.02.60

3080.5

HFB.CW1.01.55

L

VFB.CW3.00.28

13

W-AA-CW1-01-20

HFB.CW3.05.24

BALCONY TYPE E

3712.5

VFB.CW1.01.15

W-AB-CW1-01-21

1

782.5

HFB.CW3.03.40

BALCONY TYPE E

VFB.CW3.00.31

W-AA-CW1-01-22

L

W-AA-CW3-03-72

W-AB-CW3-04-47

Notes:

3375

BALCONY TYPE E

HFB.CW3.02.61

VFB.CW1.00.32

W-AA-CW1-01-23

W-AA-CW3-03-73

5175 VFB.CW1.01.16

W-AA-CW1-01-24

4162.5

HFB.CW1.02.14

W-AB-CW3-03-74

HFB.CW3.03.41

W-AB-CW1-02-17

VFB.CW1.00.33

W-AA-CW1-01-25

3487.5

HFB.CW1.02.15

VFB.CW1.00.34

7

3600

HFB.CW1.02.16

7

L

BALCONY TYPE E

BALCONY TYPE E

HFB.CW1.02.17

HFB.CW3.04.43

HFB.CW1.03.11

L W-AA-CW1-02-18

BALCONY TYPE E HFB.CW1.02.18

VFB.CW1.01.17

675

8545

BALCONY TYPE E

W-AB-CW1-02-19

BALCONY TYPE E

HFB.CW1.02.19 HFB.CW1.02.20

BALCONY TYPE E

L

VFB.CW1.00.35

13

W-AA-CW1-02-20

2715.5

W-AB-CW1-02-21

3080.5

W-AA-CW1-02-22

W-AB-CW1-03-17

HFB.CW1.03.12

VFB.CW1.02.13

VFB.CW1.02.14

2715.5

W-AA-CW1-02-23

1237.5

L

L W-AA-CW1-03-18

VFB.CW1.02.11

W-AB-CW1-03-19

VFB.CW1.03.12

L

W-AA-CW1-03-20 13

8437.5

HFB.CW1.02.21

MJ

3300 FFL - FFL

7

HFB.CW1.04.10

2220

34

02 3451

HFB.CW1.04.11

HFB.CW1.03.13

3600

W-AA-CW1-02-24

MJ

1

3100

BALCONY TYPE E

600mm TRANSFER BEAM BALCONY TYPE E

2

W-AB-CW1-03-21

L

12

VFB.CW1.02.12

L W-AA-CW1-03-22

HFB.CW1.04.12

HFB.CW3.05.25

11705

3485

VFB.CW1.03.13

HFB.CW1.04.13

6412.5

12

W-AB-CW1-04-13 BALCONY TYPE E

HFB.CW1.04.14

W-AA-CW1-03-23

W-AC-CW1-04-14

VFB.CW1.04.10

W-AA-CW1-04-15

11817.5

3375

12

HFB.CW3.05.25

W-AA-CW1-04-16

4000 2035

3600

2065

BALCONY TYPE E

HFB.CW1.01.56

FFL 23.150 m 00-Ground Floor

3595

NOTES:

W-AB-CW1-05-13

L

CW.AT

CWest.3.00.06

HFB.CW3.01.37

HFB.CW3.01.36

VFB.CW3.00.24

W-AC-CW1-05-14

4000

VFB.CW3.04.24

W-AB-CW1-06-13 BALCONY TYPE E

W-AA-CW1-05-15

4000

GENERAL ARRANGMENT: 0100 SERIES - SITE PLANS 15515 1000 SERIES - GA PLANS 1700 SERIES - FLAT PLANS 2000 SERIES - ELEVATIONS 2200 SERIES - SECTIONS 2300 SERIES - HEIGHT RODS

SCHEDULES: 0200 SERIES - WINDOW SCHEDULE 0300 SERIES - INTERNAL DOOR SCHEDULES 0400 SERIES - COMMUNAL DOOR SCHEDULES 0500 SERIES - EXTERNAL DOOR SCHEDULE

L

W-AC-CW1-06-14

4000

CW.AS

VFB.CW3.01.35

VFB.CW1.06.07

W-AA-CW1-06-15

2

TYPE: TEMPORARY

4000

13

W-AC-CW1-07-14

CW.AR

VFB.CW3.00.25

VFB.CW1.09.04

W-AC-CW1-08-14

CW.AQ

DETAILS: 3000 SERIES - EXTERNAL WALL DETAILS 3200 SERIES - INTERNAL WALL DETAILS 3400 SERIES - FLOOR DETAILS 3600 SERIES - ROOF DETAILS 3700 SERIES - BALCONY DETAILS 3800 SERIES - CANOPY DETAILS 3900 SERIES - WINDOW DETAILS 4100 SERIES - DOOR DETAILS 4300 SERIES - STAIR/ LIFT/ CORE DETAILS 4800 SERIES - KITCHEN DRAWINGS 4900 SERIES - BATHROOM DRAWINGS

HFB.CW1.01.52

ED-AF-CW1-00-44

4000

L

BALCONY TYPE E

W-AA-CW1-03-24

W-DV-CW1-00-42

CW.AP

DRAWING REFERENCES:

3785

HFB.CW1.03.14

FFL 26.600 m 01-First Floor

4000

CW.AN

BALCONY TYPE E

3370

EW-01

VFB.CW1.07.07

W-AA-CW1-07-15

240

W-CU-CW1-00-43

4000

WINDOW NUMBER WITHIN FLOOR

BLOCK

HFB.CW1.09.12

BALCONY TYPE E

FFL 29.900 m 02-Second Floor

4000

CW.AM

FLOOR

W-XX-XX-XX-X

BALCONY TYPE E

BALCONY TYPE E

FFL 32.975 m 03-Third Floor

VFB.CW1.08.07

W-AA-CW1-08-15

VFB.CW1.05.07

2715.5 2715.5 2715.5

W-AA-CW1-05-16

322

5840

4000

CW.AL

WINDOW TYPE

782.5

VFB.CW1.01.18

FFL 36.050 m 04-Fourth Floor

4000

CW.AJ

WINDOW REFERENCING

3600

VFB.CW1.04.11

25.0 m²

3150

HFB.CW1.09.13

VFB.CW1.03.14

Kitchen/Living/Dining CW2 Parapet T.O.C.

PW-01

2715.5

37.625 m

2715.5

3075 FFL - FFL

W-AA-CW1-06-16 BALCONY TYPE E

HFB.CW1.09.14

VFB.CW1.01.19

Please note: Externally visible blockwork at the back of Smoke Room to have render finish as indicated.

BALCONY TYPE E

PLOT CWest.1.00.06 CWD16 FLAT Private TENURE 3B4P TYPE AREA 93.2 m²

4000

CW.AH

FLOOR

29935 3600

2

W-AA-CW1-07-16

3075 FFL - FFL

FFL 42.200 m 06-Sixth Floor

FFL 39.125 m 05-Fifth Floor

7.2 m² Road,Hounslow Hill personal has secured the development for young peoplefortoNHG. become leaders and develop 1540 2505 100 move 352 with Notting Genesis and are keen 140Hill lifelong skills, habits and confidence to to thrive. the development forward which will involved the demolition of the old Council Planning offices.

3375

Refer to: LAM-BPT-CWCW-00-D-A-1114

500mm BEAM

3825

2715.5

RWP 07

4000

CW.AG

DOOR NUMBER WITHIN FLOOR

CD-X-XX-XX

12

WC

6885

SVP 016

CW.AF

15515 782.5

BALCONY TYPE E

2.8 m²

CW.AE

4000

1000

W-AA-CW1-08-16

RWP 07 F/A

CW.AD

4000

3370

FFL 48.350 m 08-Eighth Floor

CW.AC

4000

600mm TRANSFER BEAM

FFL 45.275 m 07-Seventh Floor

Primary Switch Delivery newwhich homesaim as is part Phase 2 Lampton Roomof 780 A temporary centre to of create opportunities

EW-02

MJ

DOOR TYPE

VFB.CW3.05.14

100

SS 15

3075 FFL - FFL

3462

CW.AB

CW.AA

7

FFL 22.925 m

1046 ED-AG-CW1-00-45

MJ - BLOCKWORK MOVEMENT JOINTS REFER TO GAs

COMMUNAL DOOR REFERENCING

352

02

RESIDENTIAL PROJECT SSL 22.925 m DEC 2023 - PRESENT

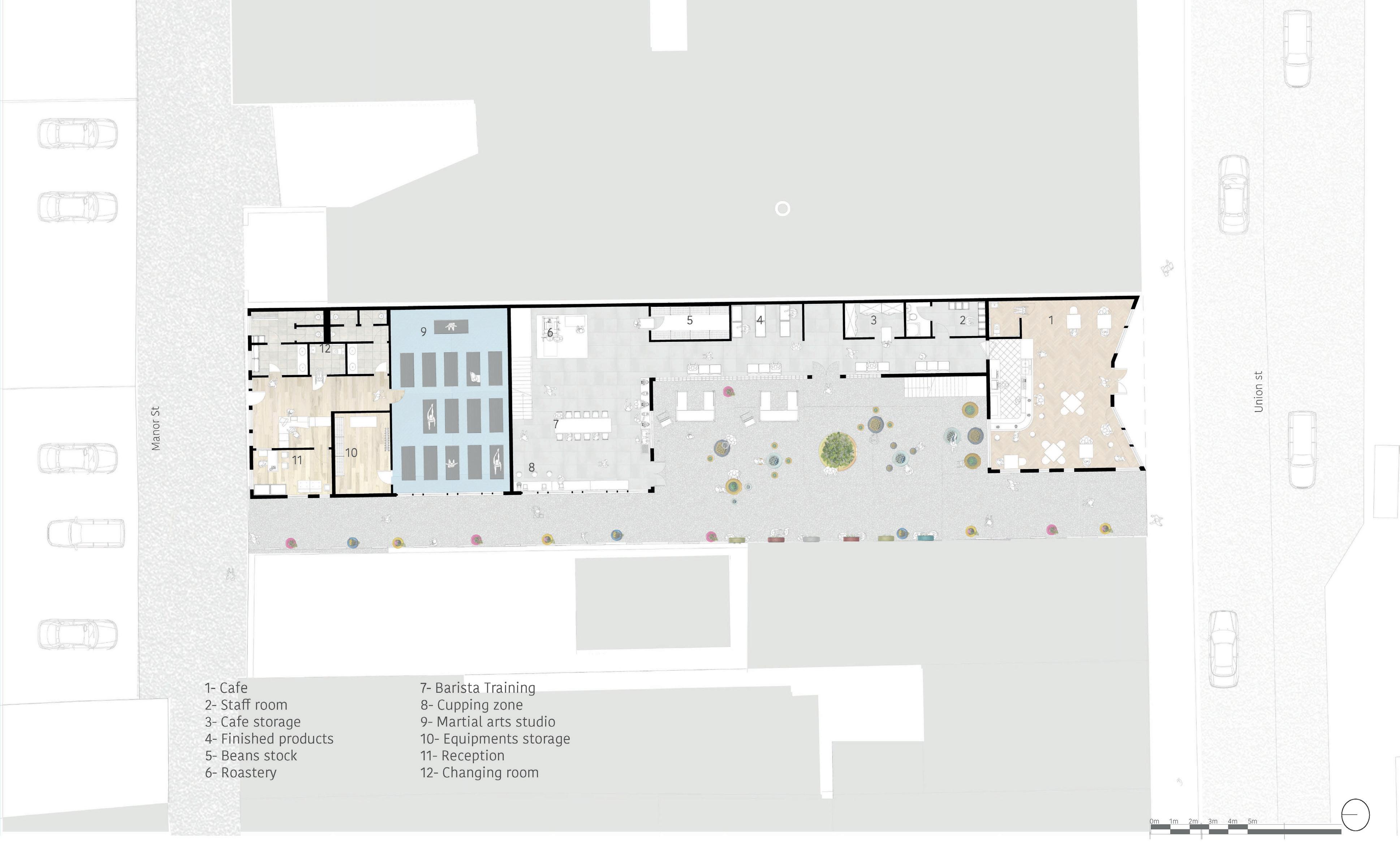

SERVICE: - POST PLANNING LOCATION:ARCHITECTURE UNION STREET, PLYMOUTH

MJ

50

MJ

4.1 m²

SVP 015 F/A

SVP 016 F/A

MJ

CB - CAVITY BARRIERS

MVHR OUTLET/INLET

Scale:

RWP P22

Utility/Store

PW-20

LOCATION: LAMPTON ROAD, HOUNSLOW CLIENT: NUDGE COMMUNITY BUILDERS

FLOOR GULLEY

DOOR & WINDOW REFERENCE TAGS:

CLIENT: HILL & NHG MJ

FB - FIRE BARRIERS

PRELIMINARY - FOR COMMENT

N

NEIGHBOURHOOD FACILITY Smoke Room 12.3 m² OCT - DEC 2021

MJ

RWP PIPE

Hill & NHG

L

140

BRICK SPECIALS

LAMPTON ROAD PHASE 2

L

1200

SUB-STACK

1:500m

140

100

TRANSFER SLAB

Project Name:

19-282

3075 FFL - FFL

7.9 m²

SOIL VENT PIPE

BALCONY LIGHT

MVHR

Client Name:

3075 FFL - FFL

Fire Service Access

- 3241 - SACRIFICIAL LINING

P01 S3 09.07.21 FOR COMMENT & APPROVAL AC P02 S3 28.07.21 Daines Way updated to Daines Avenue AC & Clarke Avenue updated to Northam Avenue, as per Hill comments received 23.07.21. Drawing corrected to show C6 street accessed dwelling reference as per Hill markup 27.07.21 P03 S3 28.07.21 Drawing corrected to show Clarke AC Avenue in Phase 1.

LAM-BPTW-ZZ-00-DR-A-0103

PW-05

PW-20

L-04

STREET & BUILDING NAMING - SITE

Lampton Road Phase 2.2 &2.3

SVP 014 B F/A

L-04

Notes:

Project No:

Union St, PRACTICE Centre of EXPERIENCE Entrepreneurship

TRA 600mm NSF ER B EAM

- 3241 - SVP/SS/RWP BOXING

Do not scale. All dimensions are in millimetres unless otherwise stated. This drawing should be read in conjunction with all relevant project information and contract documentation. All dimensions to be checked prior to fabrication and or commencement of works. All works to comply with all relevant legal standards, building regulations and warranty provider requirements. Report any discrepancies, if in doubt ask.

Drawing Number:

3075 FFL - FFL

1132

L-03

PHASE 1A & 1B SITE BOUNDARY (COMPLETED)

CLA RK EA VE NU E

G14

B5 B4

G15

3450 FFL - FFL

140

MJ

L-03

Drawing Name:

140

1608

Smoke Control Panel Room 1.5 m²

1310

RWP 08 F/A

CD-L- CW1- 00-06

240

140

EW-08

PW-20

SVP 014 A F/A

ED-K-CW1-00-64

- 3241 - SACRIFICIAL LINING

C6

B6

G16

PHASES 1A & 1B COMPLETE

ED-AG-CW1-00-98

SVP 014

L-02

PHASE 2 SITE BOUNDARY (ENCOMPASSING SUB-PHASES 2.1, 2.2 & 2.3)

PHASE 2.3

Lampton Park

SVP 015

200

L-02

SYMBOL KEY:

EW-06

500mm COLUMN HEAD

- 3241 - PLASTER ON DABS

SITE BOUNDARY

B7

MJ

260

L-01

- PLOT CEAST.1.00.06 - PLOT CEAST.1.00.05 - PLOT CEAST.1.00.04 - PLOT CEAST.1.00.03 - PLOT CEAST.1.00.02 - PLOT CEAST.1.00.01

Phase 2.2 and 2.3 comprises 5 blocks which are: Block E, Block F, Block D West, Block C West and Block D East.

RWP 08

L-01

B3

G12 G18G17

IN-02 - 3232 - TIMBER STUD WALL

READ IN CONJUNCTION WITH BPTW ACOMMODATION SCHEDULE & PLOT TO POSTAL ADDRESS SCHEDULE

BLOCK 1C FUTURE

B1

WARDOUR COURT (CORE G.4) G1

IN-02

NAMES FOR BUILDINGS IN PHASES 2.2 & 2.3 TO BE CONFIRMED AT LATER DATE

BARNSTAPLE COURT (CORE B.2)

2526

RWP P20

G2

RWP P21 F/A

BRAUNTON COURT (CORE B.1)

G11

IN-01 - 3231 - STD. 30 MINUTE FIRE RATED PARTITION

B2

BLOCK CWEST - HEIGHT ROD 5 REFER TO: LAM-BPT-CWCW-ZZ-D-A-2305

RWP P20 F/A

READE COURT (CORE G.3)

BLOCK G

BRECON COURT (CORE G.1)

CLOVELLY ROA D

G3

GRIMSHAW COURT (BLOCK C EAST)

C4

CIV IC

NO RT HA M

G8

C3

G7

C2

C1

FUTURE PHASE 2.2 G6

IN-01

BLOCK G

BLOCK F

G5

(CORE B.1) - PLOT B.1.00.06 - PLOT B.1.00.05 - PLOT B.1.00.04 - PLOT B.1.00.03 - PLOT B.1.00.02 - PLOT B.1.00.01 (CORE B.3) - PLOT B.3.00.01

B9

FUTURE PHASE 2.2

PW-25 - 3225 - COM. PARTITION 60 MIN.

Note: Wall types are based on those from Phase 2.1 and they have been updated to reflect the design and requirements specific to Phase 2.2.

Greyed out naming represent the wall types from Phase 2.1 that are not beeing used in Phase 2.2 and 2.3

STREET NAME KEY:

FUTURE PHASE 2.3

PW-25

CWest.3.00.05

Client:

BLOCK CW1 & CW3 - SOUTH ELEVATION 1 : 100

4040

1135

327.5

2147.5

1565

2485

890

112.5

1135

112.5

890

112.5

CONFIDENTIAL

DS

405 400 395 390 385 380 375 370 365 360 355 350 345 340 335 330 325 320 315 310 305 300 295 290 285 280 275 270 265 260 255 250 245 240 235 230 225 220 215 210 205 200 195 190 185 180 175 170 165 160 155 150 145 140 135 130 125 120 115 110 105 100 95 90 85 80 75 70 65 60 55 50 45 40 35 30 25 20 15 10 5 0 -5

2585

2035

4000 1227.5 2485 2485 4000 1002.5 2485 4000 1340

112.5 4940

4000

1575 4000

4000

1810

140

225 890

112.5 1135

4000

PW-20

1002.5 112.5 1360

W-CJ-CW3-00-28

600mm TRANSFER BEAM

1340

4000 1360

W-CJ-CW3-00-29

969 350

600mm TRANSFER BEAM

4000

5277.5

PW-20

100

ED-F-CW3-00-30

1360

6629

MJ

MVHR

SVP 022 B F/A SVP 022 A F/A

SVP 022

CW.3

5390

100 4.3 m²

EW-01

SS 26

2.1 m²

32.0 m²

PLOT CWest.3.00.05 CWD10 FLAT S/O TENURE 2B4P TYPE AREA 83.2 m² 7176

240

1340

675

L

3451 01

L

600mm TRANSFER BEAM

MVHR

L

MVHR

675

L

MVHR

MVHR

MVHR

L 675

W-CG-CW3-00-38

W-CU-CW3-00-36

MJ

02 3451

MJ

W-CU-CW3-00-35

W-CG-CW3-00-34

MJ

MJ

W-CU-CW3-00-32

MJ

W-CG-CW3-00-33

CW.1

02 3062

°

1000

2465

2485

4000

CW.AA

1002.5

112.5 1135

4000

CW.AB

112.5 890

112.5

1135

112.5 1002.5

2485

4000

CW.AC

2577.5

1022.5

4000

CW.AD

440

1135

327.5

2147.5

4000

CW.AE

1565

2485

4000

CW.AF

890

112.5

1135

112.5

890

112.51135 112.5

4000

CW.AG

665

2485

4000

2240

2485

4000

CW.AH

CW.AJ

665

112.5 1135 112.5

4000

CW.AL

890 112.5

1135

112.5

665

2485

4000

CW.AM

3365

2485

4000

CW.AN

1002.5

4000

CW.AP

112.5 1135 112.5

890

112.5 1135 112.5

1002.5

4000

CW.AQ

2485

2465

4000

CW.AR

90.0

90.0

°

34

02 3451

MJ

W-CG-CW3-00-37

1000

W-CU-CW3-00-39

MJ

EW-01

MJ

EW-01

W-CU-CW1-00-40

30

W-CG-CW1-00-41

MJ

W-CG-CW1-00-42

34

W-CU-CW1-00-43

EW-01

EW-02

MJ

ED-AF-CW1-00-44

34

ED-AH-CW1-00-45

EW-01

EW-01

4000

34

600mm TRANSFER BEAM

MJ

MJ

2035 4000

CW.AS

PW

CW.21 100

01

EW

6

0-5

MJ

00

+0.5

5 MJ

ED0-6

340

1-0 J-CW 7

153 6

235 -0 W1 Y-C

ED0-6 6

4

mm D 500 N HEA M

U COL

Wa

ste ast

e

PW-06 - 3206 - COMMUNAL COMPARTMENTATION

PW-07

PW-07 - 3207 - COMMUNAL TO LIFT SHAFT

PW-08

PW-08 - 3208 - LIFT SHAFT / M&E RISER

PW-09

PW-09 - 3209 - FLAT/COMMUNAL

PW-10

PW-10 - 3210 - RISER SHAFT WALL

PW-11

PW-11 - 3211 - POSTBOX LINING

PW-12

PW-12 - 3212 - DUPLEX METAL TWIN FRAME PTY. WALL (N/A)

PW-13

PW-13 - 3213 - FLAT/MAOV SHAFT

PW-14

PW-14 - 3214 - FLAT TO UNHEATED SPACES

ss Gla

PW-06

Floor Gulley

PW-05

PW-17 - 3217 - RISER SHAFT WALL

PW-18

PW-18 - 3218 - MAOV RISER SHAFT WALL 60 MIN.

PW-19

PW-19 - 3219 - MAOV RISER SHAFT WALL

PW-20

PW-20 - 3220 - BLOCK & SFS FRAMING

PW-21

PW-21 - 3221 - CONC. & SFS FRAMING

PW-22

PW-22 - 3222 - HOUSE PARTY WALL

PW-23

PW-23 - 3223 - METAL TWIN-FRAME.

PW-24

PW-24 - 3224 - BLOCK & BLOCK

ste Wa

3930 352 L

BLOCK CWEST - HEIGHT ROD 1 REFER TO: LAM-BPT-CWCW-ZZ-D-A-2301

SVP 010 C F/A

140

7210

140

MJ

SVP 011 SS 09

SS 011 B F/A

MVHR

Utility/Store

Utility/Store

10.5 m²

4.1 m²

SVP 011 A F/A

L-01

- 3241 - PLASTER ON DABS

L-02

L-02

- 3241 - SACRIFICIAL LINING

SVP 012 F/A

L-03

L-03

- 3241 - SVP/SS/RWP BOXING

L-04

L-04

- 3241 - SACRIFICIAL LINING

WC

FB - FIRE BARRIERS

FLOOR GULLEY

CB - CAVITY BARRIERS MJ

MJ - BLOCKWORK MOVEMENT JOINTS REFER TO GAs

MJ

MJ - BRICKWORK MOVEMENT JOINTS REFER TO ELEVATION

1115

SS 13

2.1 m²

SVP 014 B F/A

Kitchen/Living/Dining

140

1132

MJ

600mm TRANSFER BEA

PW-20 SVP 016 F/A

RWP 07 F/A

PLOT CWest.1.00.04 CWD04 FLAT Private TENURE 2B4P TYPE AREA 83.2 m²

Smoke Room 12.3 m²

Fire Service Access 7.9 m²

7176

352

100

1200

SVP 016

FFL 22.925 m SSL 22.925 m

RWP 07

Primary Switch Room

Kitchen/Living/Dinin 25.0 m²

7.2 m²

140

1540

2505

140

100

352

5840

140

240

PLOT CWest.1.00.05 CWD05 FLAT Private TENURE 2B4P TYPE AREA 83.2 m²

TRA 600mm NSF ER B EAM

PW-20

25.9 m²

6157

W-AN-CW1-00-50

2260 4000

RWP PIPE

Smoke Control Panel Room 1.5 m²

ED-K-CW1-00-64

600mm TRANSFER BEAM

600mm TRANSFER BEAM

Please note: Externally visible blockwork at the back of Smoke Room to have render finish as indicated.

MJ

MJ

W-CU-CW1-00-49

MJ

W-DV-CW1-00-48

W-DV-CW1-00-47

MJ

ED-AG-CW1-00-45

MJ

W-CU-CW1-00-43

ED-AF-CW1-00-44

02 3451

02 3451

W-CU-CW1-00-46

MJ

1000

As part of my responsibilities, I’ve contributed to the creation of a comprehensive drawing set, encompassing electrical components in addition to other elements. I’ve been meticulous in coordinating various elements, such as MVHRs, pipes (SVP, RWP, SS), movement joints, fire barriers, and both horizontal and vertical movement joints on the GAs plans for the 5 blocks. Throughout, my focus has been on ensuring the practical and effective execution of the building design on site.

0°

BRICK SPECIALS

RWP 08 F/A

SVP 015 F/A

200

.

90

SUB-STACK

SS 11

PW-01

EW-01

CW.1

TRANSFER SLAB

500mm COLUMN HEAD

1608

Half-height wall

7176

MJ

Note: Wall types are based on those from Phase 2.1 and they have been updated to reflect the design and requirements specific to Phase 2.2.

Greyed out naming represent the wall types from Phase 2.1 that are not beeing used in Phase 2.2 and 2.3

SVP 013 B F/A

WC

2.1 m²

CW.2

SOIL VENT PIPE

SVP 012

26.1 m²

CW.16

RWP 08

PW-05 SS 08

0

L-01

ED-AG-CW1-00-98

SVP 014 A F/A SVP 013 A F/A

SVP 10

400

IN-02 - 3232 - TIMBER STUD WALL

SVP 015

SVP 013SS 12

SVP 011 C F/A

Kitchen/Living/Dining

IN-02

EW-06

680 EW-08

Half-height wall

IN-01 - 3231 - STD. 30 MINUTE FIRE RATED PARTITION

140

PW-05

MVHR

IN-01

1810

SVP 014

500mm COLUMN HEAD

RWP P21 F/A

MJ

260

4725

4000

CW.17

PW-25 - 3225 - COM. PARTITION 60 MIN.

MVHR OUTLET/INLET

RWP P20

dbo

EW-02

EW-01

PW-25

SYMBOL KEY:

FFL 22.925 m SSL 22.925 m

Car

Glass

PW-17

11.7 m²

SVP 010 B F/A

4430

3071

8

PW-16 - 3216 - REFUSE / FLAT

Floor Gulley

MJ

25.0°

PW-16

50.0 m²

MJ

General Waste

0

256

400

3 2 -AOD T R -ZZ-D H G I W - HE -CWC ST T WE M-BP C CK LA BLO R TO: E F 30 E R

MJ

PW-15 - 3215 - CONCIERGE WALLS

Secondary Switch Room

Cycle Store 01

ard

4000

5

158

303

CW.18

CW.3

PW-15

DOOR & WINDOW REFERENCE TAGS:

4

PW-05 - 3205 - BLOCKWORK SEPERATING WALL

BRICKWORK WALLS

m 600m BEAM R E SF TRAN

SVP 010 A F/A General Waste

PW-05

MVHR

Plastic Waste

PW-04 - 3204 - RISER SHAFT WALL

-51

PW-04

02

-00

PW-03 - 3203 - FLAT/SUBSTATION

BALCONY LIGHT

SVP 009

RWP P20 F/A

W1

PW-03

L

ED-K-CW1-00-65

P-C 34 3 345

PW-02 - 3202 - FLAT/UNHEATED SPACES

RWP

SVP 007

355

ED-

CW.4

PW-02

SS

Tins/Cans Waste

0

49.9 m²

PW-01 - 3201 - FLAT/DUPLEX METAL TWIN FRAME PTY. WALL

PW-01

CT DU TE BY U LOB RE RO V LOU

Bin Store A

P SV 8 00

PIB

2.5

370

400

INTERNAL WALL TYPE KEY:

3

345

-02

EW

01

MJ

SVP 009 F/A

122

EW-16 - 3016 - BRICK EXT. & CONCRETE INT.

CW.19

11.9 m²

140

EW-16

4

610

C

34

P SV F/A 008

EW-15 - 3015 - BRICK EXT. & BLOCK INT.

Floor Gulley

-06 PW

EW-15

P SV B F/A 007

P RW F/A P14

Car Park Lobby

140

P SV A F/A 007

mm D 500 N HEA M OLU

EQ.

EW-14 - 3014 - BRICK EXT. & SFS FRAMING.

iser

EW-14

al R

EW-13 - 3013 - BRICK & SFS FRAMING.

0

EW-13

451

EW-12 - 3012 - BRICK EXT. & SFS INT.

W

155°

EW-12

e ast

0

479

-04

mm M 600 R BEA E F NS TRA

e

140

DR

0-0

EW-12 - 3012 - BRICK EXT. & SFS INT.

stic

Pla

-08

EW

PW

1- 0 - CW

EW-11

dbo

Car

PW

ast

W ard

6

337

D CD-

EW-10 - 3010 - BRICK EXT. & ZINC. INT.

l

0

EW-10

-06

186

EW-09 - 3009 - BRICK EXT. & CONCRETE INT.

ste

Wa

era

140

EW-09

425

EW-08 - 3008 - SINGLE LEAF BLOCK

l era

Gen

P SV C F/A ste 007 Wa Gen

DR

EW-08

5 157

-02 EW

EW-07 - 3007 - BRICK EXT. & BLOCK INT.

ND STA WN

EW-07

DO

EW-06 - 3006 - BLOCK EXT. & SFS FRAMING

-08 EW

mm

EW-06

SVP

-11 PW

815

EW-05 - 3005 - BLOCK EXT. & BLOCK INT.

5

EW-05

157

EW-04 - 3004 - BLOCK EXT. & CONCRETE INT.

5

EW-04

203

EW-03 - 3003 - BRICK EXT. & CONCRETE INT.

EW

0

EW-03

CW.20

XES

BO

T POS

-01

400

EW-02 - 3002 - BRICK EXT. & BLOCK INT.

c 3 ctri m² Ele 1.9 1- 00-0 W H- C CD-

640

01

EXTERNAL WALL TYPE KEY: EW-02

E

EQ.

354

5 3

303

EW-01 - 3001 - BRICK & SFS FRAMING

-CW D-J

350

2

0-0

1-0

5

2

453

156 30

EW-01

P RW 3 P1

0-0

5

156

00

+0.0

140

15.5 m²

300 O4 ER T TAIR F E R ES S I SER WING DRA

-0 W1 C- C CD-

0

1

345

-01

Communal Lobby

-0 W1 L-C W-B

400

34

-20 PW

0

226

HR

MV

P SV F/A 006

-01

- 00

1 - CW

A

CD-

CORE CW1

CW.AT

N BLOCK KEY PLAN

-06

352

1000

W-CG-CW1-00-47

3

02 3451

W-CU-CW1-00-46

MJ

W-CG-CW1-00-48

240

7176

240

MJ

600mm TRANSFER BEAM

L

L

675

MJ

MJ

W-CU-CW1-00-49

MJ

MVHR

600mm TRANSFER BEAM

L 675

1115

Please note: Externally visible blockwork at the back of Smoke Room to have render finish as indicated.

1046

4000

600mm TRANSFER BEAM

MJ

EW-01

CW.1

C

P SV 6 00

140

5950

CW.2

3462

PLOT CWest.3.00.06 CWD05h FLAT Private TENURE 2B4P TYPE AREA 83.4 m²

240

Half-height wall

Kitchen/Living/Dining

PW-01

25.9 m²

1046

Kitchen/Living/Dining

EW-02

5840

240

Utility/Store

WC

2.1 m² Half-height wall

PW-20

5840

240

SVP 25

WC

SVP 019

PW-01

EW-01

SVP 020 RWP 03

6487

5840

SVP 025 A F/A

SVP 021

SVP 24

MVHR

25.2 m²

PW-20

SS 23

PW-20

10.5 m²

L

SVP 025

SVP 025 B F/A

Utility/Store

352

MJ

SVP 024 F/A

100

1382

SVP 024 MJ

SVP 019 B F/A

Kitchen/Living/Dining

PLOT CWest.3.00.07 CWD13 FLAT Private TENURE 3B4P TYPE AREA 95.1 m²

L 675

RWP 03 F/A

WC

3.1 m²

PW-01

PLOT CWest.3.00.08 CWD06 FLAT Private TENURE 3B4P TYPE AREA 93.3 m²

500mm BEAM

352

WC

2.8 m²

25.2 m²

PW-01

L

6885 100

SS 27

SVP 020 B F/A SVP 020 A F/A

SVP 019 A F/A RWP 04 F/A

Kitchen/Living/Dining

25.2 m²

RWP P12

FFL 23.150 m SSL 22.925 m

675

2505

140

2.2 m²

Floor Gulley

600mm TRANSFER SLAB

SS 20

RWP 04

SVP 018 B F/A

Kitchen/Living/Dining

PW-22

1540

SS 19

SVP 018 A F/A

SVP 023 F/A

4.4 m²

4.1 m²

RWP 05 F/A

SVP 017 B F/A

WC

Utility/Store

Utility/Store

SVP 017 A F/A

4.1 m²

SS 16

2.8 m²

PLOT CWest.1.00.07 CWD06h FLAT Private TENURE 3B4P TYPE AREA 93.3 m² 322

19.4 m²

2

831

PW-20

140

6629

ED-Y-CW3-00-62

4000

EW-06

352

100

Utility/Store

PW-01

PLOT CWest.1.00.06 CWD16 FLAT Private TENURE 3B4P TYPE AREA 93.2 m²

100

1200

25.0 m²

4000

WC

Kitchen/Living/Dining

2260

RWP 07 F/A

RWP 07

W-AN-CW3-00-31

SVP 016 F/A

SVP 016

7.2 m²

mm D 500 N HEA M OLU

34

100

34 3453 02

6039

352

36.6 m²

140

7176

Cycle Store 04 5515

150

Cleaner's Cupboard

SVP 023

500mm BEAM

SS 15

600mm TRANSFER BEAM

MJ

PW-20

12.3 m²

FFL 22.925 m SSL 22.925 m

Primary Switch Room

7.9 m²

SVP 025 C F/A

440

02

0-5

240

Fire Service Access

PW-05

Floor Gulley

SVP 025 D F/A

352

240

4.1 m²

SVP 015 F/A

200 ED-K-CW1-00-64

Smoke Room

REFER TO: 2305

600mm TRANSFE R BEAM

PW-20

46.4 m²

MJ

SS 21

RWP 05

Utility/Store

1132

2.8 m²

SVP 014 B F/A

3462

Glass

4000

6157

Smoke Control Panel Room 1.5 m²

140

PW-05 Section: BLOCK CWEST - HEIGHT ROD 5 SS 13

Half-height wall

7176

RWP 08 F/A

1608

140

500mm BEAM

SVP 013 B F/A

25.9 m²

CW.4

1000

2465

2485

4000

1002.5

112.5 1135

4000

112.5 890

112.5

1135

112.5 1002.5

2485

4000

4040 4000

1135

327.5

2147.5

4000

1565

2485

4000

CONFIDENTIAL CW.AA

CW.AB

CW.AC

CW.AD

CW.AE

CW.AF

CW.AG

34

1135

112.5 1340 4000 1585

ED-P-CW3-00-25 DR

PW-11

EW-02

815mm DOWN STAND

425

2647 SVP 014 A F/A

SVP 013 A F/A

Kitchen/Living/Dining

Cycle Store 03 6700

140

6039

SVP 013SS 12

SS 11

PLOT CWest.1.00.05 CWD05 FLAT Private TENURE 2B4P TYPE AREA 83.2 m²

MJ

SVP 018

500mm BEAM

10.5 m²

SVP 012

WC

2.1 m² PW-01

26.1 m²

PLOT CWest.1.00.04 CWD04 FLAT Private TENURE 2B4P TYPE AREA 83.2 m²

500mm BEAM

RWP 08

500mm COLUMN HEAD

SVP 014

Utility/Store

SVP 012 F/A

WC

2.1 m²

Kitchen/Living/Dining

SVP 017

7560

ED-AH-CW1-00-98

PW-20

PW-20

EW-08

MJ

4.1 m²

SVP 011 A F/A

3453 01

ED-K-CW3-00-63 SVP 015

CW.BB

Utility/Store

SVP 011 C F/A

MJ

EW-06

100

MJ

720

EW-06

680

Refer to: LAM-BPT-CWCW-00-D-A-1114

140

RWP P24

RWP P23

352

1810

MJ

EW-02

Floor Gulley

EW-01

5720

PIB 160

CD-C- CW3- 00-05

18859

W-CG-CW3-00-27

PW-06

W-BL-CW3-00-26

PW-06

EQ. 1.8 m²

CD-H- CW3- 00-07

EQ. ED-J-CW3-00-60 400

303

PW-06

140 ED-S-CW3-00-61

4836 140

1 345

MJ

CD-L- CW1- 00-06

1135 665 1135 1340

225

4000

770

W-CU-CW3-00-23 W-CG-CW3-00-24

352

PW-20

5946

200

EQ.

EW-08

773

1.9 m² CD-H- CW3- 00-03

CD-D- CW3- 00-04

Electrical Riser

75

ED-K-CW3-00-59

140

L

CW.5

EW-01 MVHR

MJ

EW-08

W-CU-CW3-00-19

4000 890 225 W-CG-CW3-00-20

PW-01

L L 815mm DOWN STAND

240

600mm TRANSFER BEAM

W-CG-CW3-00-21

W-CU-CW3-00-22 240

PW-01

PW-20

800mm TRANSFER BEAM

Water Riser

EQ.

13.5 m²

140

EW-09

EW-02

500mm TRANSFER BEAM

Refer to: LAM-BPT-CWCW-00-D-A-1111

1255 EW-08

6487

Glass

34

Bedroom 1

4.4 m²

SVP 026 SVP 026 F/A

RWP P23 F/A

2526 2526

RWP P22

Refer to: LAM-BPT-CWCW-00-D-A-1112

Waste

3930 Food Waste

352

100

140

EW-08

Waste Paper

Food Waste

PW-22

34 3451 02

6452

Bathroom

MJ

RWP P24 F/A RWP P22 F/A

MJ

7210

CW.BC

140

Paper

Cardboard

RWP P20

1310

Waste Food Waste

PW-20

BLOCK CWEST - HEIGHT ROD 5 REFER TO: LAM-BPT-CWCW-ZZ-D-A-2305

Tins/Cans

Waste

11.7 m²

FFL 22.925 m SSL 22.925 m

CD-L- CW1- 00-07

Waste

4000

MVHR SS 28

100

Floor Gulley

F/

Evacuation Lift Lobby

3.7 m²

6

L

RWP P21 F/A

REFER TO: 2305

550mm TRANSFER BEAM

General Waste

4000

1.4 m²

PW-20

25.3 m²

5239

CW.AM

EW-08

Section: BLOCK CWEST - HEIGHT ROD 5

RWP P20 F/A

SVP 010 B F/A SVP 010 C F/A

SVP 10

4725

100

Waste

Paper

Waste Food Paper

Floor Gulley

Half-height wall

2260

CW.AL

Water Riser

0-0

50.0 m²

SS 08

W-AN-CW1-00-50

General Waste Glass

CW.AJ

665

General Waste

Cycle Store 01 MJ

MVHR

CW.16

General Waste

Plastic Waste

25.0°

SS 09

CW.AH

500mmHEAD N COLUM

Tins/Cans Waste

155°

2568

SS 011 B F/A

CW.BA

CW.AG

Secondary Switch Room

PW-05

SVP 011

500mm COLUMN HEAD MVHR

Glass

PW-06

1224

00-04

CW.AF

204 500mm COLUMN HEAD

MJ

EW-01

CW.6

Utility

SVP 029 F/A

Heat Substation

140

352

1-00-66

ED-Y-CW

CW1-

140

CD-D-

51 W1-00-

4000

500mm COLUMN HEAD EW-02

BLOCK CWEST - HEIGHT ROD 1 REFER TO: LAM-BPT-CWCW-ZZ-D-A-2301

CW.17

SVP 028

SVP 027

CW.BF

PW-05

140

CW.2

SS 29

MJ

MJ

CW.AE

ED-K-CW1-00-65

CW.BE

4430

SVP 029

500mm COLUMN HEAD

34

MJ

CW.3

1220

355

CW.AD 600mmBEAM

TRANSFER

ED-P-C 3 -2303 -ZZ-D-A

30

13.9 m²

CW.5

SVP 009 F/A

CW.BD

3071

Food Waste

CW.16

235

SVPF/A 008

1860

PIB - HEIGHT T-CWCW

CWEST LAM-BP BLOCK TO: REFER

3034 01

-0 W1 C-C W-B

340

1536

1-00-67

SVP 008

EQ.

4510

ED-J-CW

140

DR

ROD

Section: BLOCK CWEST - HR3 - 1OF3 REFER TO: 2303

Plastic Waste

CW1-

425

EW-02

STAND

1585

CW.18

Paper Waste

CD-H-

Riser icalm² Electr 1.9 00-03

DOWN

EW-08

RWP P19 F/A

RWP F/A P14

11.9 m²

CW.AC

SVP 009

SVP 010 A F/A

Floor Gulley

Tins/Cans Waste Tins/Cans Waste

EQ.

640

PW-11

815mm

3702.5

4000

02

PLOT CWest.3.00.04 CWF01 FLAT S/O TENURE 1B2P TYPE AREA 51.8 m²

SVP 028 B F/A SVP 028 A F/A

Refer to: LAM-BPT-CWCW-00-D-A-1114

Car Park Lobby

MJ

EW-08

-0 W1 H- C CD-

00-05

3545

1575

3453

30

6

CW1-

52 W1-00-

4000

MJ

L

27.2 m²

586

CD-C-

W-BL-C

2035

49.9 m²

34

CW.6

HR

MV

CW.7

MJ

3376

140 4790

Car Park Lobby

Refer to: LAM-BPT-CWCW-00-D-A-1112

SVP 007

30 3033 01

MJ

225

100

PW-20

4000

CW.AB

DUCT LOBBY ROUTE LOUVRE

Bin Store A

CW.4

RWP P15 F/A

EW-08 DR

PW-04

500mmBEAM ER

TRANSF

140

SVPA F/A 007

6104

4763

P RW13 P A

140

MJ

P SV F/A 005

25.5 m²

5

00-06

352

1565

PW-06

SVPB F/A 007

113

DR

CW1-

53 W1-00-

2260

4000

CW.17

.5

Waste

500mm TRANSFER BEAM

335 140

CD-H-

W-BC-C

4000

665

Waste

General

Floor Gulley

CW.AA

16.5 m²

LOBBY DUCT LOUVRE ROUTE

SVP 030

Kitchen/Living/Dining

00-01

Kitchen/Dining

CW.8

3110

Communal Lobby

140

MJ

SVP 030 F/A

PW-20

4300 TO REFER STAIR SERIES DRAWING

General

SVPC F/A 007 Waste

Waste

Waste

EW-02

5720

Refer to: LAM-BPT-CWCW-00-D-A-1113

EW-08

2239

5866

225

CW1-

112

EW-08

3300

00-03

Cardboard

CW2-

r Riser EQ. Wate0.9 m²

CD-H-

Waste

EQ.

800mmBEAM ER TRANSF

800mmBEAM ER

TRANSF

140

EW-08

54 W1-00-

1135

CD-A-

RWP 02

RWP P18 F/A

Cardboard

Plastic

500mmHEAD N

LIFT CW3 - A MIN. 8 PERSON

CD-D- CW3- 00-06

RWP 1

4

140

Tins/Cans

Waste

2090

00-01

90.0°

Cardboard

140

CW2-

EW-08 156

4076

PW-01

W-CG-C

112.5

XES POSTBO

1575

COLUM

3453

EVACUATION LIFT CW3 - B MIN. 8 PERSON RWP P12

POSTBOXES

EW-01

PW-06 MJ

150

FFL 23.150 m SSL 22.925 m

SVP 031

140

SVP 031 F/A

CORE CW3

FFL 23.150 m SSL 22.925 m

Floor Gulley

MJ

EW-08 1511

140

CD-D- CW3- 00-02

8087

Evacuation Lift Lobby 15.3 m²

00-02

MJ

EW-01

CD-A- CW3- 00-01

140

PW-06

RWP P13

CW1-

01

01

REFER TO 4300 SERIES STAIR DRAWING

FFL 23.150 m SSL 22.925 m

43

2800

CW.7

CW.18

F/A

LOBBY DUCT LOUVRE ROUTE

01 4308

RWP P16 RWP P11

RWP P12 F/A

RWP P13

19.4 m²

CD-D-

PW-04

CW.8 CW.BH

CW.BG

3835

CORE CW1 350

CW.19 34

34 3453 01

EW-02

Paper Waste

SVP 032 A F/A

RWP P19 F/A

0- 5

EW-08

CD-A-

100

140

800mmBEAM ER TRANSF

240

3477.5

4000

30 3033

815mm DOWN STAND

CW.20

CW.9

Food Waste

Refer to: LAM-BPT-CWCW-00-D-A-1113

RWP P11 F/A

CW.BJ

CW.10

44.1 m²

CW.BK

6918

352

100

PW-20

BEAM

2260

140

4536

MJ

34

6348

01

A 1CW RSON T F I E L P ING .8 T MIN EFIGH FIR LIFT

SS 07

P SV 5 00

675

General Waste

3453 02

Bin Store D

140

SVP 032 B F/A

RWP F/A

P04 REFER TO: 2304

Evacuation Lift Lobby

PW-06

15.5 m²

Cardboard Waste

Floor Gulley

RWP P17 F/A

8312

SVPF/A 006

Communal Lobby

Cardboard Waste

EW-08

2352

140

Section: BLOCK CWEST - HEIGHT ROD 4

1150

3.7 m²

CW.21

1565

Plastic Waste

Primary Switch Room 14.0 m²

535

4353

140

Water Riser

COLUM

EW-01

L

EW-02

SVP 034 F/A

MJ

EW-08

43

8515

MVHR

1.4 m²

SS 30

SVP 033 F/A

MJ

SVPF/A 005

500mm N HEAD

MJ

Store 800mm TRANSFER EW-06 BEAM MJ

ED-S-CW

EW-01

3013

100

SVP 033

F/A

560

1-00-56

01

2.9 m²

PLOT CWest.3.00.03 CWD15 FLAT Aff. Rent TENURE 3B5P TYPE AREA 128.6 m²

CW.10

CW.BM

RWP P10 F/A

CW.BL

140

Floor Gulley

TION -B EVACUA CW1 LIFT 8 PERSON MIN.

-A CW1 LIFT 8 PERSON HTING MIN. FIREFIGLIFT

SS 07 RWP 1

34

CW.BN

MVHR

2.3 m²

RWP P16

8281

100 352

3451

156

Glass

EW-08

6010

500mm

49.9 m²

FFL 22.925 m SSL 22.925 m

WC

SVP 006

Utility/Store

MJ

3.5 m²

MVHR

352

535

RWP 07

RWP P05 F/A

RWP F/A P03

SS 06

SVP 005

SS 32

SS 31

SVP 034

1.1 m²

25.5 m²

MJ

MVHR

CW.11

F/A

Store

Kitchen/Dining

MJ

EW-01

SVP 032

Utility/Store

34

MVHR

25.2 m²

RWP P01

BEAM 500mm

PLOT CWest.1.00.03 CWD03 FLAT Aff. Rent TENURE 3B5P TYPE AREA 129.3 m²

25.1 m²

SVP 035 F/A

Kitchen/Dining

RWP P04

800mmBEAM ER TRANSF

EW-08

4

303

CW.12

Kitchen/Dining

SVP 036 F/A

SVP 035

CW.9

Water Tank Room & Commercial Sprinkler Valve Room

MJ

675

02

SVP 036

CW.19

CW.BQ

RWP P07 F/A

Section: BLOCK CWEST - HEIGHT ROD 4

30

CW.13

3451 02

CW.11

385

MJ

SVP 047

SVP 037

WC

RWP P03

SVP 003

1.9 m²

34

MJ

800mm TRANSFER BEAM

1350

2-00-58 ED-Y-CW

RWP 14

EW-06

352

Waste

L 675

6012

55 W1-00-

4000

W-BC-C

1340

SS 01

2.4 m²

3451

PW-04

ED-J-CW

SVP F/A 47

L

1000

Utility/Store

SVP 001

L

MJ

SVPA F/A 040

EW-08

REFER TO: 2304

675

EW-01 ht wall Half-heig

01

475 140

5.5 m²

RWP P01

SS 05

SVP 002 SS 02

MVHR

MJ

30

00-02

Car Park Lobby

2.4 m²

SS 04

SS 03

25.7 m²

3034

CW2-

DR

4300 TO REFER STAIR SERIES G DRAWIN

MJ Floor Gulley

Utility/Store

WC

Kitchen/Living/Dining

EW-01

CD-C-

SS 37

SVP 004

2.9 m²

CW.22

1.2 m²

2.0 m² SVP 043

PW-22

30 3035 01

MVHR

MJ

WC

2.9 m² SVPF/A 003

7176

MVHR

PLOT CWest.3.00.02 CWD09 FLAT Aff. Rent TENURE 3B5P TYPE AREA 128.3 m²

2.4 m²

SVP 33

RWP P11 F/A

16.6 m²

F/A

Half-heig

25.4 m²

PLOT CWest.1.00.02 CWD02 FLAT Aff. Rent TENURE 2B4P TYPE AREA 82.4 m²

PW-01

600mmBEAM ER

TRANSF

MJ

CW.23

1.4 m²

2.9 m²

CW.12

ht wall

Kitchen/Living/Dining

240

PLOT CWest.1.00.01 CWD01 FLAT Aff. Rent TENURE 2B4P TYPE AREA 82.8 m²

SVP 037 F/A

Store

WC

CW.20

Utility/Store

MJ

SS 39

wc

2.0 m²

Kitchen/Dining

Plastic

RWP P01

7175

02

RWP F/A 11

5804

W1-00-

W-CG-C

MJ

MJ

W1-00-

SVP 34

RWP P09

800mm TRANSFER BEAM

MJ

SVPF/A 045

Waste

REFER TO: 2302

W-CG-C

MJ

General

352

03

Section: BLOCK CWEST - HR2 - 1OF3

Store

wc

675

MJ

500mm BEAM

MJ

MJ

SVP 040

CW.BP

1.0 m²

Floor Gulley

-A-2302

SVPF/A 043

2.0 m²

17.3 m²

EW-01 PLOT CWest.3.00.01 CWD08 FLAT Aff. Rent TENURE 3B5P TYPE AREA 127.0 m²

1.4 m²

RWP P09 F/A

SS 38

wc

Kitchen/Dining

PW-05

SVPB F/A 040

3904

2-00-57

RWP F/A 12

SVP 041

MVHR

RWP 15

RWP 15 F/A

Store SS 35

PW-06

PW-01

Store

SVP 038 F/A

Utility/Store

WC

2.8 m²

800mm TRANSFER BEAM

CW.13

2690

FFL 23.150 m SSL 22.925 m

TION -A EVACUA CW2 LIFT 8 PERSON MIN.

SVP 045

450

2

17.3 m²

1.2 m²

5930

EW-02

01

100

W1-00-

W-CU-C 112.5

ROD

01

W1-00-

W-CU-C

MJ

49.9 m²

CW.14

SVP 038

2.3 m²

CW.21

140

PW-05

Podium Escape Staircase

XES

L

34

450

3453

EW-09

22.1 m²

04

112.5

1115

- HEIGHT CW-ZZ-D CWEST -BPT-CW BLOCK TO:LAM REFER

2352.5

Kitchen/Dining

Store

RWP 12

Section: BLOCK CWEST - HEIGHT ROD 6 REFER TO: 2306

RWP 11

112.5 1135 4000

2485

4000

1000

RWP F/A 13

240

1.2 m²

PLOT CWest.2.00.01 CWD14 FLAT Private TENURE 2B4P TYPE AREA 86.6 m²

PW-20

CW.BA

PW-01

PLOT CWest.2.00.02 CWD07 FLAT Private TENURE 2B4P TYPE AREA 87.7 m²

SVP 046

Utility

5676

352 100

Bin Store B

POSTBO

MVHR

MVHR 5676

MJ

06

W2-00W-AQ-C MJ

MJ

1-00-05 ED-P-CW

4530

MVHR

L

07

W2-00-

W-CG-C 1585

MJ

MJ

112.5

Cycle Store 02

MJ

10.1 m²

RWP 13

MVHR

1462.5 4000

1462.5

1135

PW-11

Evacuation Lift Lobby

1.3 m² PW-02

PLOT CWest.2.00.03 CWD07 FLAT Private TENURE 2B4P TYPE AREA 87.7 m²

240

1.3 m²

2015

4000

2485

1452.5

4000

890

SVPB F/A 041

Riser icalm² Electr 2.0

Utility

5684

SVP 044

Utility

20.3 m²

Glass

02

L

MJ

W-CG-C

08

W2-00-

Floor Gulley

SS 36

Food Waste

34

3451

REFER TO: 2306-BPT-CW CWEST BLOCK TO:LAM REFER

MJ

1340

CW.BE

CW.BD

CW.BC

CORE CW2

2-00-12 ED-R-CW

SVP 042

10

W2-00W-AQ-C

EW-02

EW-01 112.5

W2-00-

W-CG-C

112.5

6 -A-2306 ROD 09 Section: BLOCK CWEST CW-ZZ-D - HEIGHT ROD 6 W2-00- HEIGHT

W-AQ-C

CW.BB

665

01

112.5 665

112.5

112.5

Bin Store C

140 415

2015

4000

1247.5 665 1810

4000

W2-00-

W-DP-C

EW-08

Plastic Waste

1350

30

3034

11

1135

4000

1810

CW.BG

CW.BF

5397

13

1472.5 1227.5 1585

24.7 m²

Floor Gulley

RWP F/A P08

DUCT LOBBY ROUTE LOUVRE

112.5

500mmBEAM ER TRANSF

MJ

MJ

Kitchen/Dining

500mm TRANSFER BEAM

EW-02

458

140

DR PIB 112.5 112.5 1810

EW-01

34

01 3453

EW-02 General Waste

Tins/Cans

140 1335

3610

1135 777.5 4000

2015

MVHR

EW-06

Food Waste

675

01

4000 2352.5

4000

Waste

SVP 039 F/A

SVP 039

CW.14 Paper

Waste

ED-F-CW

CW.BK

CW.BJ

CW.BH

MJ

MJ

CW.22

RWP P08

Food Waste

01

34

3453

MJ

2-00-14

Food Waste

34

3453

ED-O-CW

4000

3252.5

3610

er W

1340

MJ

W-CU-CW3-00-18

2-00-15

1360

CW.BL

L

Pap

2485

MJ

e

8090

MJ

ast

1247.5

ED-C-CW3-00-17

er W

2352.5

MJ

5

383

BLOCK CWEST - HEIGHT ROD 5 REFER TO: LAM-BPT-CWCW-ZZ-D-A-2305

4000

CW.15

5072.5

Pap

4000

CW.15

1115

ED-P-CW2-00-16

ans

4000

°

1585

30 3073

s/C

4000

90.0

482.2

1247.5 225

Tin

4000

25.0°

CW.23 4000

1756.4 4000

1340

-0 W1 V-C W-D

CW.BP

CW.BM

1.9 m²

CW.AT

1310

CW.AS

e

CW.AR

ast

CW.AQ

CW.BN

4353

N TIO CUA 1 - B A V E CW ON LIFT 8 PERS .

N MI

Utility/Store

er W

CW.AP

43

Pap

CW.AN

CW.BQ

SS 06

mm M 800 R BEA E NSF TRA

L

MJ

E

PLOT CWest.1.00.03 CWD03 FLAT Aff. Rent TENURE 3B5P TYPE AREA 129.3 m²

PMLAM-APA-ZZ-00-DR-L-PP_dan.dwg

EW-08

15:05 27/04/2022 u.allison

UNION CHANGERS

CORE CONCEPTS

04

VIEW INSIDE THE ROASTERY

Academic Work - Undergraduate Project Connecting outdoor and indoor

Union Chaangers CIVIC CENTRES FEB - APR 2022

Visual Impact

A community centre that focus on the social reintegration of other members of our society.

A roastery, martial arts centre, co- working space and herbal garden provide the training and work opportunity that will be the catalyst of social change.

CLIENT: NUDGE COMMUNITY BUILDERS LOCATION: UNION STREET, PLYMOUTH TYPE: PERMANENT

Repurpose the cars parts of the existing garage ELEVATIONS [Original scale 1:100]

UNION CHANGERS

GROUND FLOOR PLAN [Original scale 1:100]

FIRST FLOOR PLAN [Original scale 1:100]

ADALGISA CASSUENDE

EXPLODED AXONOMETRIC HAND DRAWING

ARCHITECTURE PORTFOLIO

UNION CHANGERS

Presented live project in Plymouth, showcasing innovative ideas to the community for direct feedback, highlighting a commitment to engaging with the community in the design process.

CONSTRUCTION DETAIL [Original scale 1:20]

LONG SECTION[Original scale 1:100]
