5 PERFORMANCE HALL GRANGE PAVILLION MODULAR MARKET AQUATIC CENTRE 2021 - 2022 2022 2023 2020 2020 2021 06 16 24 32 42 46 BUILDING A COMMUNITY ST.LUCY’S CHURCH CONTENTS
AQUATIC CENTRE
TYPE: ACADEMIC - INDIVIDUAL
YEAR: FALL 2021 - WINTER 2022
SOFTWARE: ENSCAPE
ILLUSTRATOR
PHOTOSHOP
REVIT
RHINO
DESCRIPTION:

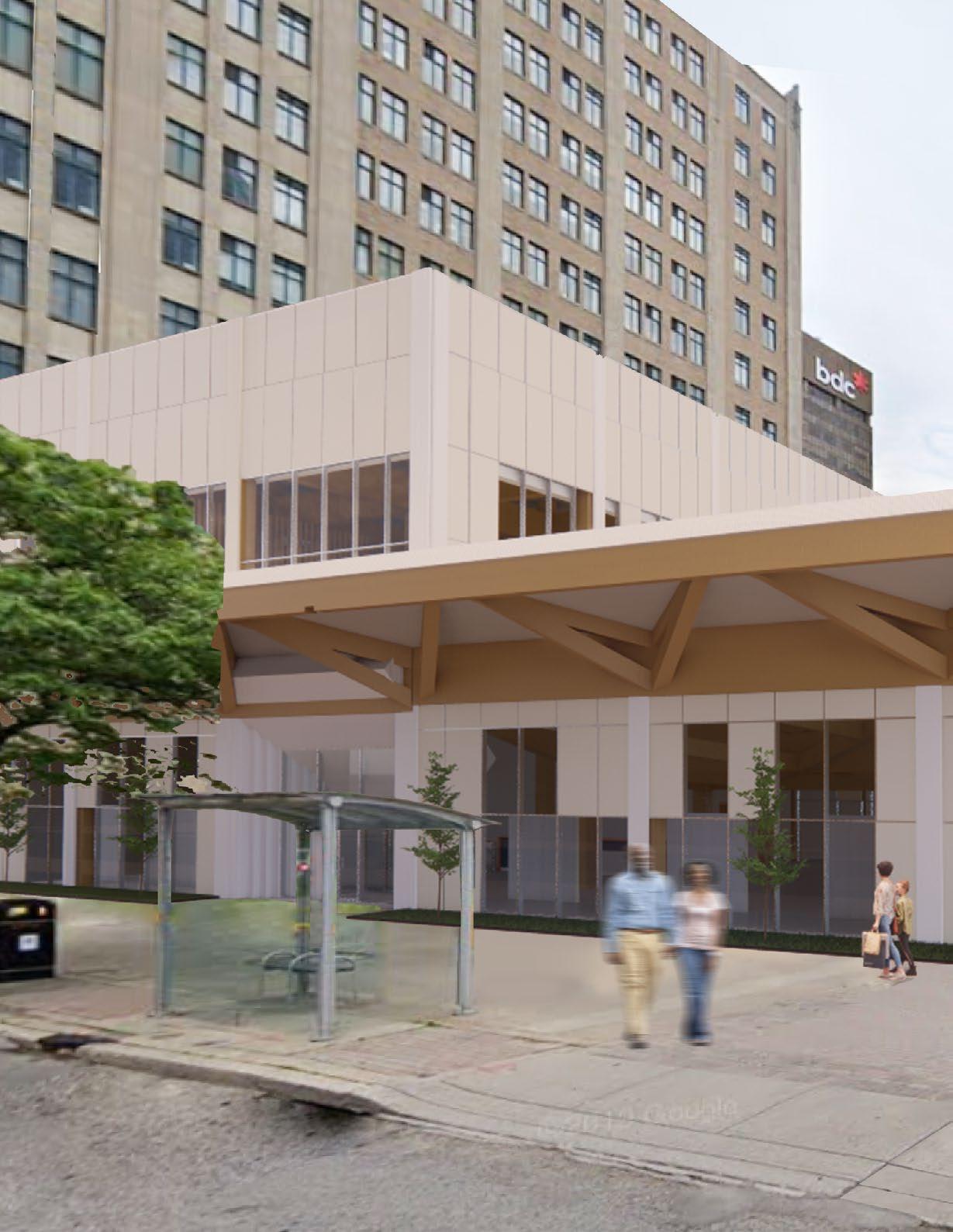

The proposed Aquatic center’s design proposal intends to beautify the surrounding streetscape and promote a healthy and active lifestyle in Hamilton’s downtown core. The design is a step forward in elevating the currently uninhabitable streetscape with pedestrian-friendly and accessible design interventions. This is realized through the aquatic center’s carefully programmed outdoor space. The space acts as an extension of the adjacent Gore Park. The Center’s park is shaded by an undulating timber canopy which will grab the interest of individuals passing by and invite them to explore the center’s activities. This canopy’s prominent appearance will identify the structure as a local landmark and set a precedent for future developments with its inviting communal space.
7
JANITOR’S
8
9. 10. 11. 12. 13. 14. 15. 16. 17. 18. 19. 20. 21. 22. 23. 24. 25. 26. 27. 28. FRONT DESK STAFF ROOM OPEN EVENT SPACE CAFE RETAIL GALLERY AREA POOL VIEWING COMPETITION POOL LEISURE POOL TOT POOL WARM THERAPY POOL HOT TUB COLD PLUNGE RELAX SPACE SAUNA STEAM ROOM POOL OFFICE
ROOM SHOWERS
CHANGEROOM
CHANGEROOM
1. 2. 3. 4. 5. 6. 7. 8.
MEETING
BATHROOM OPEN
PRIVATE
SHOE/MUDROOM LAUNDRY RECIEVING
STORAGE
GARBAGE SUPPLY
CLOSET
4. 5. 7. 8. 9. 10. 11. 12. 13. 14. 16. 17. 18. 19. 20. 27. 27. 27. 27. 27. 28. 21. 23. 22. 24. 25. 26. 27. 28. 15. 6. 6. PODIUM 0 5 10 20 40m

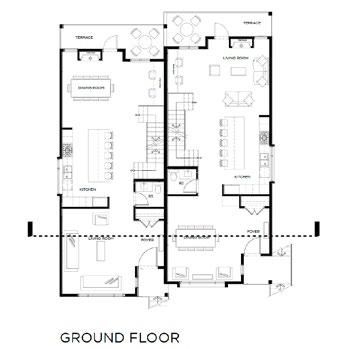

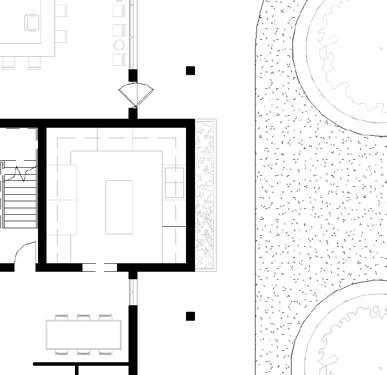

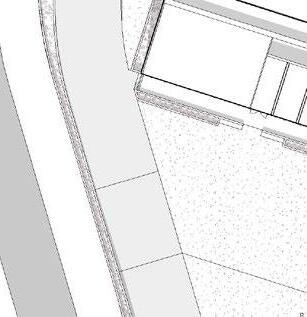

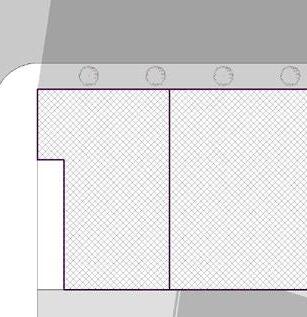

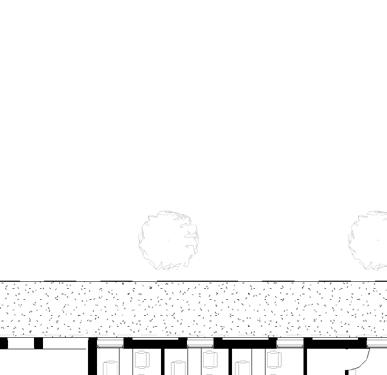

GROUND FLOOR 1. 2. 3.

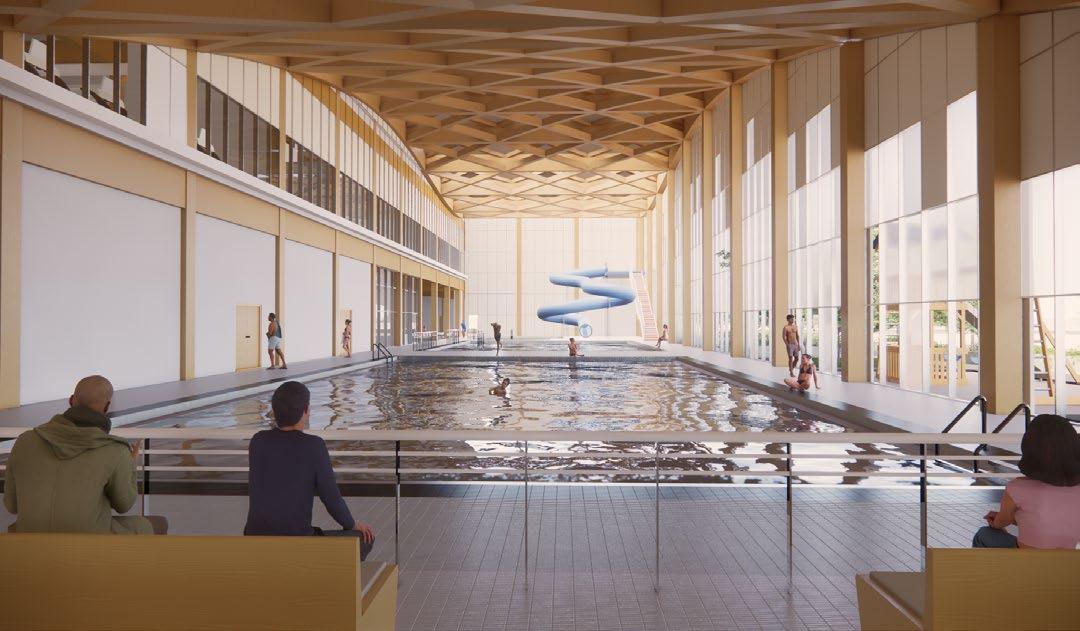

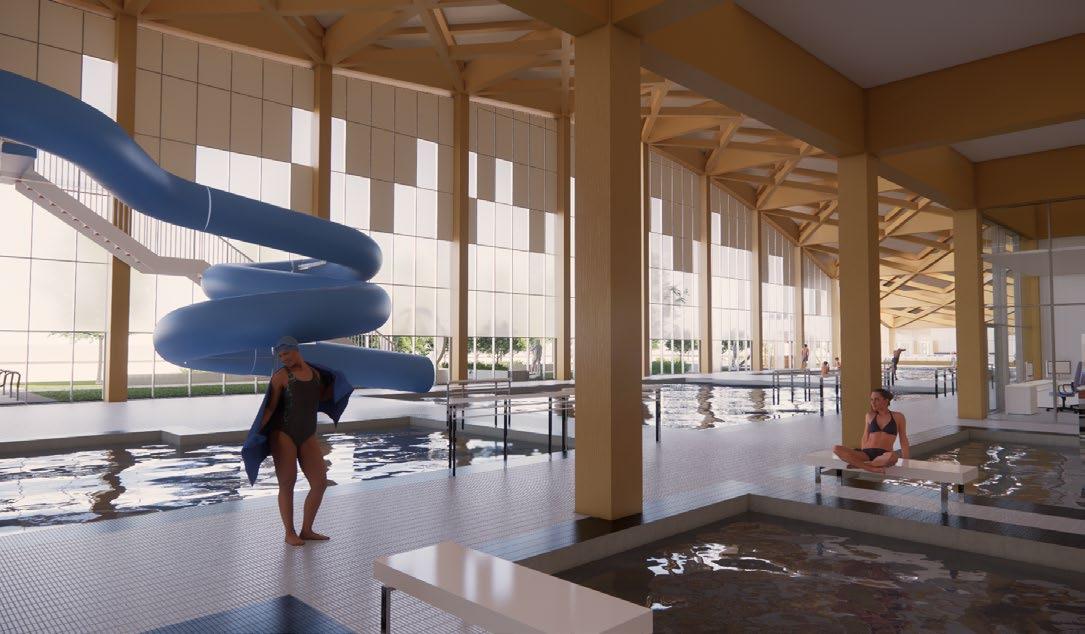

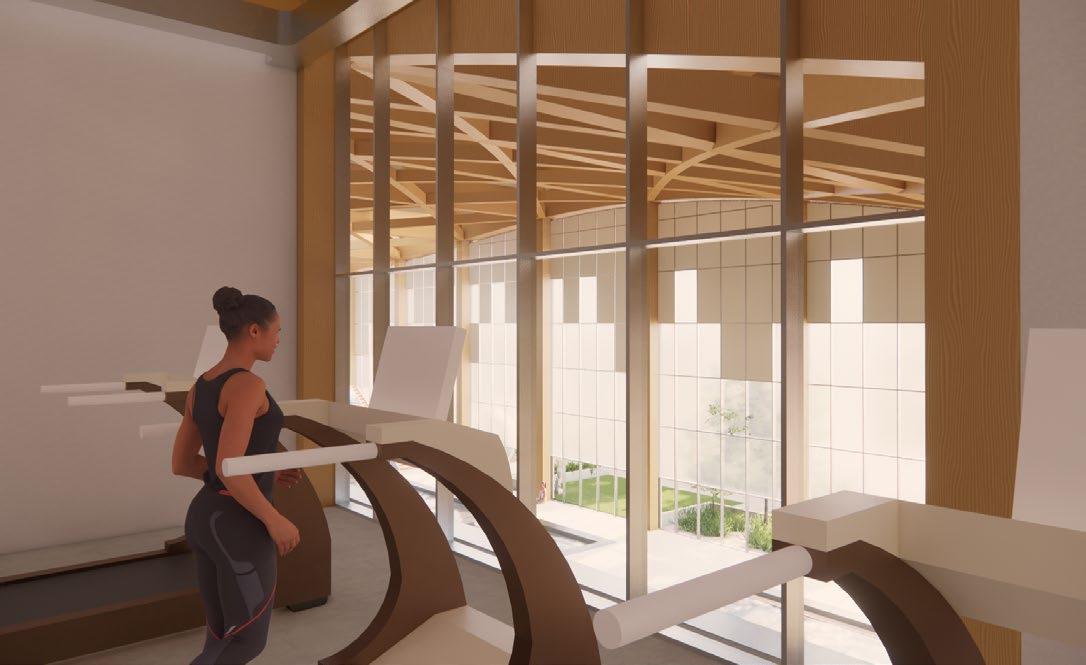

PERSPECTIVE FROM VIEWING AREA
9
SPA AREA

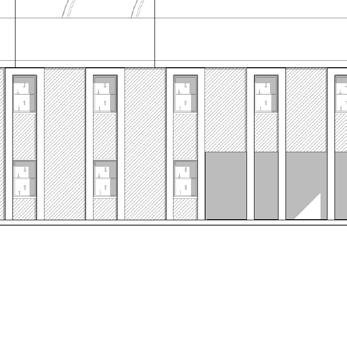

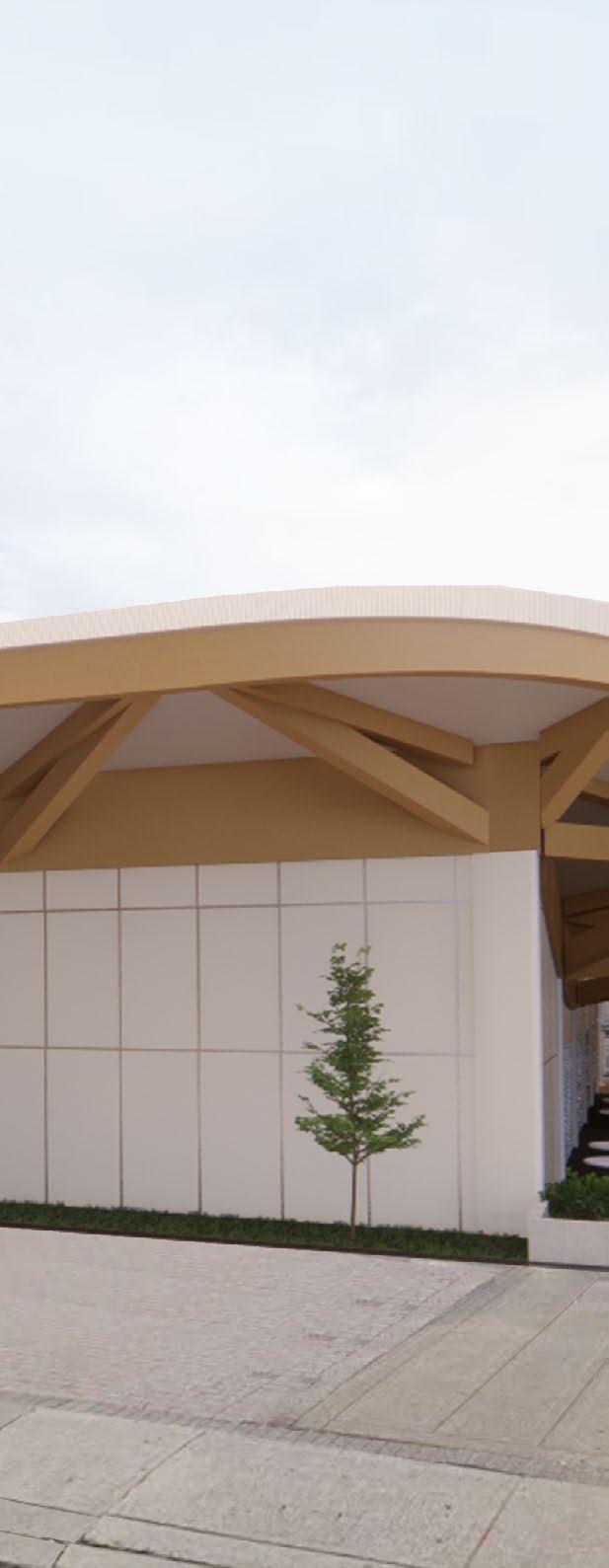

NORTH ELEVATION

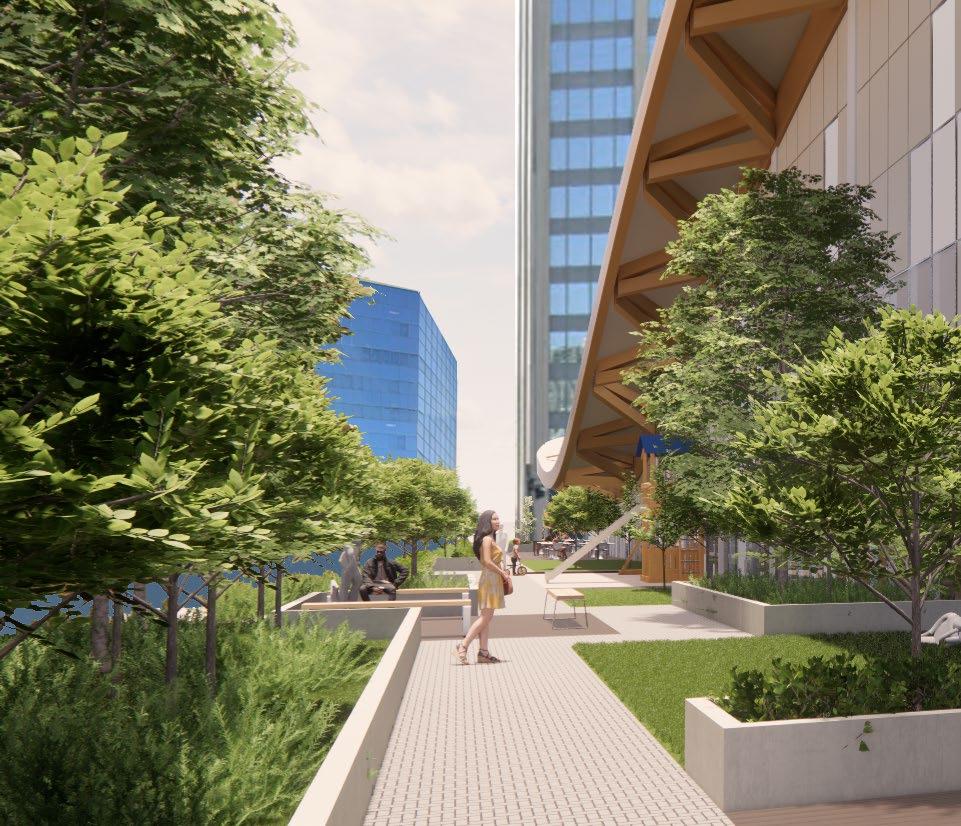

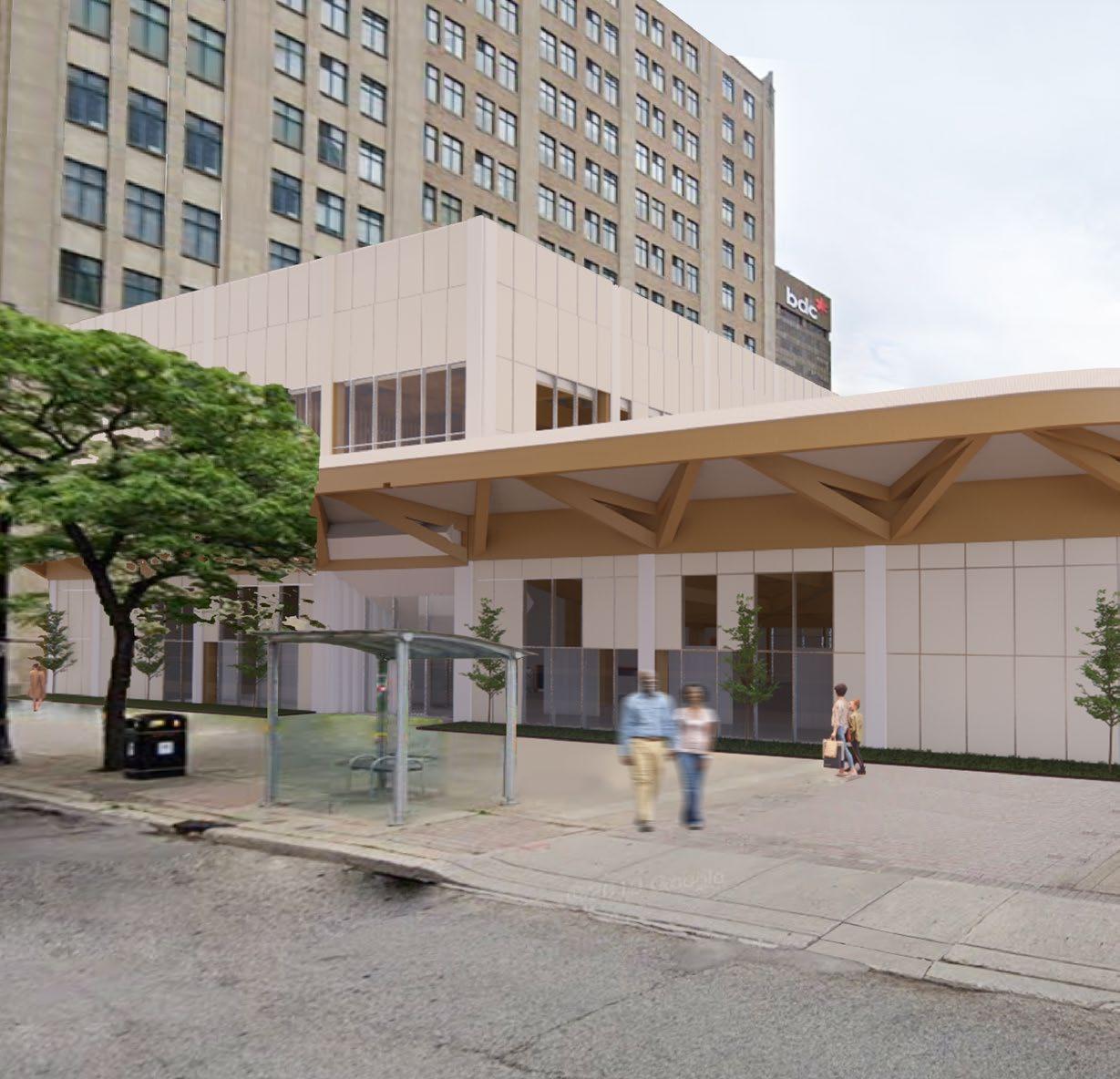

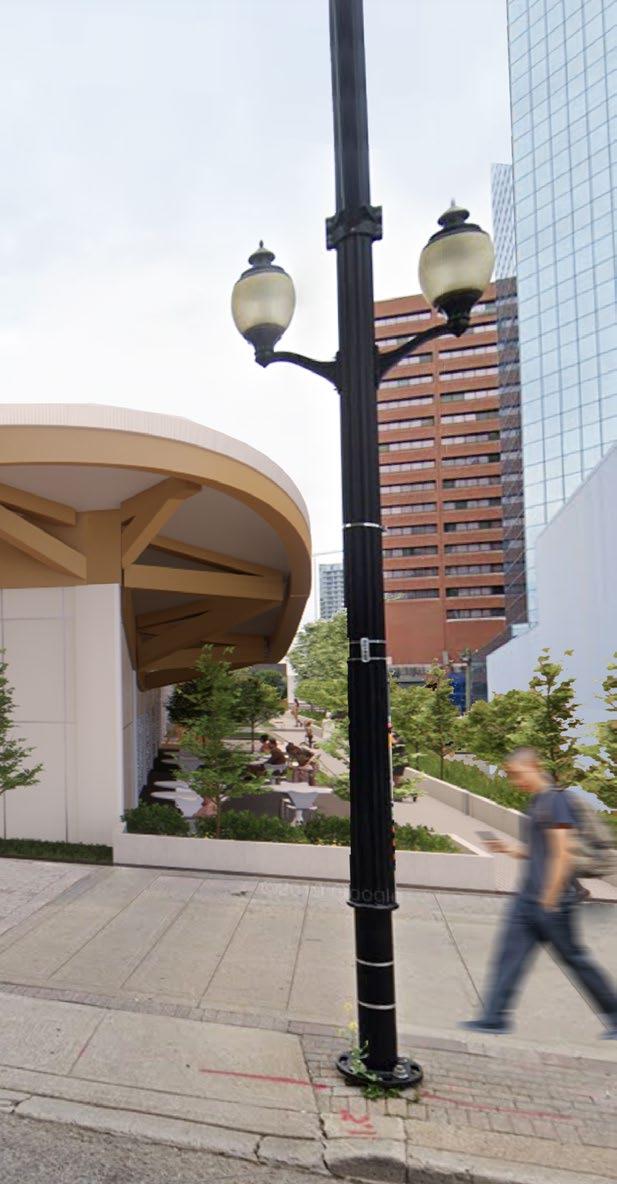

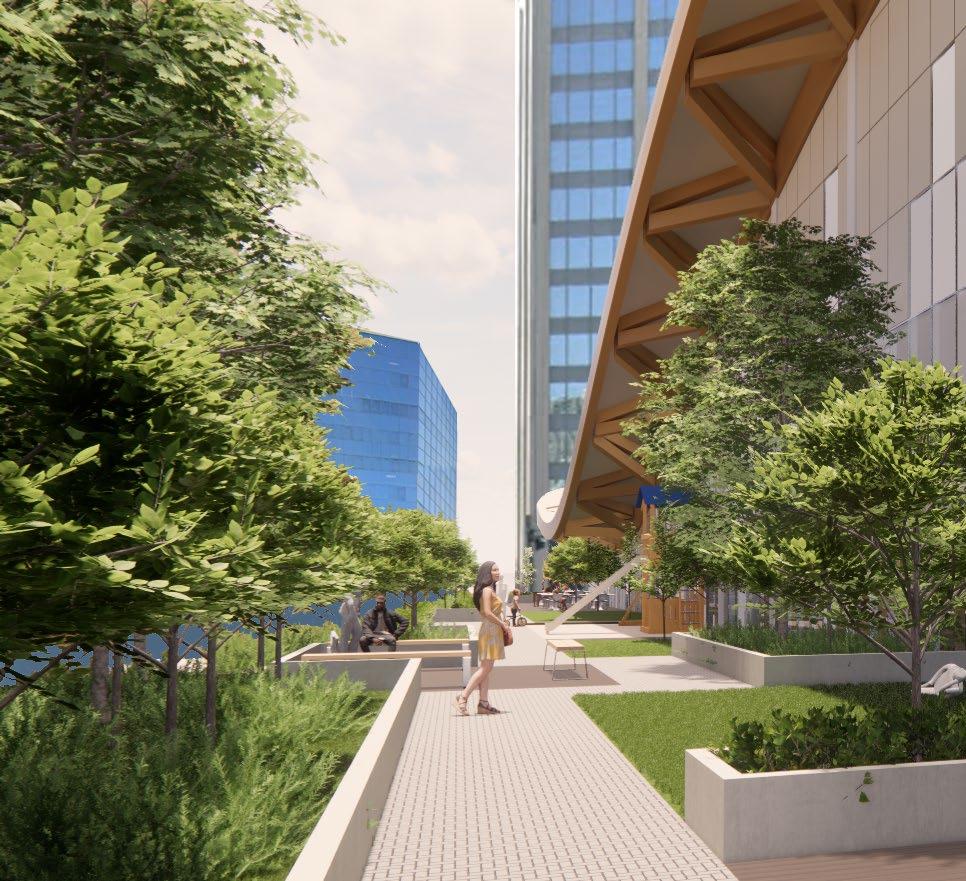

PARK PERSPECTIVE
LONGITUDINAL SECTION 0 5 10 20 40m
12
INTO POOL SPACE POOL CROSS SECTION 0 5 10 20 40m
VIEW
HORIZONTAL RAIL
COMPOSITE WOOD
MULLION
COMPOSITE WOOD
SPANDREL PANNEL PACKAGE
ALUMINUM PANNEL
AIR SPACE (50 mm)
CLT UPSTAND - 4 PLY (180 mm)
A/V MEMBRANE BARRIER
RIGID INSULATION (100 mm)
PLASTER BOARD (12.5 mm)
ALUMINUM PARAPET CAP
WOOD PLANK FRAME CAP INSULATION (50 X 100 mm)

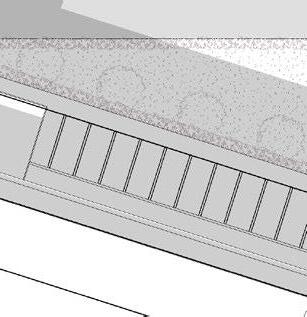

B. GREEN ROOF ASSEMBLY
7-PLY CLT ROOF (240 mm)
CONCRETE SCREED (50 mm)
ROOFING MEMBRANE
RIGID INSULATION
PROTECTIVE LAYER (20 mm)
DRAINAGE BOARD (20 mm)
FILTER FABRIC
GROWTH SUBSTRATE
GRAVEL PERIMETER
C. CURVED ROOF ASSEMBLY
SECONDARY ROOF BEAM
CLT ROOF - 4 PLY (180 mm)
A/V ROOF MEMBRANE BARRIER
RIGID INSULATION 2 LAYERS
METAL ROOFING PANNEL
SEMI-RIGID INSULATION (200mm) ALUMINUM BACK PAN (1500 mm X 400 mm) (180 mm) (15 mm)
STRUCTURAL ELEMENTS & MISC
GLULAM BEAM (700 X 350 mm)
HVAC VENT (BEYOND PARTITION)
GLULAM COLUMN (450 X 450 mm)
PRIMARY CURVING ROOF BEAM (ATTACHED TO COLUMN BEYOND)
SECONDARY ROOF BEAM

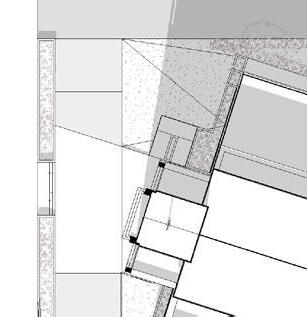

13 0 5 m 2 m 1 0. PG.# DETAILS 1:10-
A B C 1 2 3 4 4 5 5 B.1 A.1
DETAIL AT ROOF PLANES INTERSECTION A. PARAPET ASSEMBLY
A.1------------1. 2. 3. 4. 5.B.1
BEARING PLATE RODS
STRUCTURAL DIAGRAM
NON-CONTINUOUS MINOR BEAMS
400 X 400 mm
BOLTS
CONTINUOUS DIAGONAL MEMBER
400 X 400 mm
PERPENDICULAR GLULAM BEAM
CONNECTS TO PRIMARY BEAMS
METAL SLEEVE
CONNECTORS
14
MINOR BEAM SYSTEM SET BETWEEN MAJOR STRUCTURAL BEAMS (1500 X 400 mm) AS SEEN IN DETAIL
PRIMARY BEAMS OF CURVING ROOF (450 X 1500 mm)
GLULAM POST AND BEAM SYSTEM WITH CLT FLOOR PANNELS (BEAMS DIMENSION 450 X 700 mm)
GLULAM COLUMNS (450 X 450 mm)
CONCRETE SLAB ON GRADE SUPPORTED BY CONCRETE FOUNDATION
15
MODULAR MARKET
TYPE: ACADEMIC - INDIVIDUAL
YEAR: FALL 2022
SOFTWARE: ENSCAPE ILLUSTRATOR
PHOTOSHOP
REVIT
RHINO
DESCRIPTION:
The market of the future demands adaptability, versatility, and a commitment to sustainability, all of which are encompassed in this innovative design proposal. With its modular unit design, this market can evolve and reshape itself to meet changing needs and unforeseen circumstances, whether that means expanding to accommodate more vendors or contracting to create more space for community events. The use of prefabricated and repeatable modular structures streamlines the construction process, reducing waste and maximizing efficiency. The inclusion of an urban farm not only promotes sustainability but also provides a fresh and locally-sourced supply of produce for vendors and visitors. This design offers a glimpse into a more sustainable and flexible future for markets.
WHAT IS THE MARKET OF THE FUTURE
As the future is uncertain, a market of the future needs to be adaptable and versatile lead from an environmentally conscious point of view. This design proposal for the market of the future features a modular unit design. Essentially the market can expand or shink to meet any type of program and population. Since modular structures are repeatable and prefabricated their production is efficient struction. .
The future market also features an urban farm that contributes to the supply of greens portation and its associated pollution and expense.
17
MODULAR STRUCTURAL SYSTEMS URBAN
GREEN CULTIVATION
UNITS ARE ARRANGED ALONG CIRCULATION MODULES 1 3 4 15 15 15 15 15 15 15 15 11 12 17 17 16 16 13 AA 14 2 5 6 10 6 9 7 8 10. 11. 12. 13. 14. 15. 16. 17.
ENTERANCE
PATIO
MEAT
BAKERY KITCHEN ENTERANCE AREA PLANT NURSERY ART STUDIO COURTYARD STORAGE/LOADING GARBAGE STORAGE PLANTERS SEATING PROGRAM ARRANGED ALONG CIRCULATION GROUND FLOOR PLAN 0 5 10 20m AA
1. 2. 3. 4. 5. 6. 7. 8. 9.
AREA FLOWER VENDOR CAFE

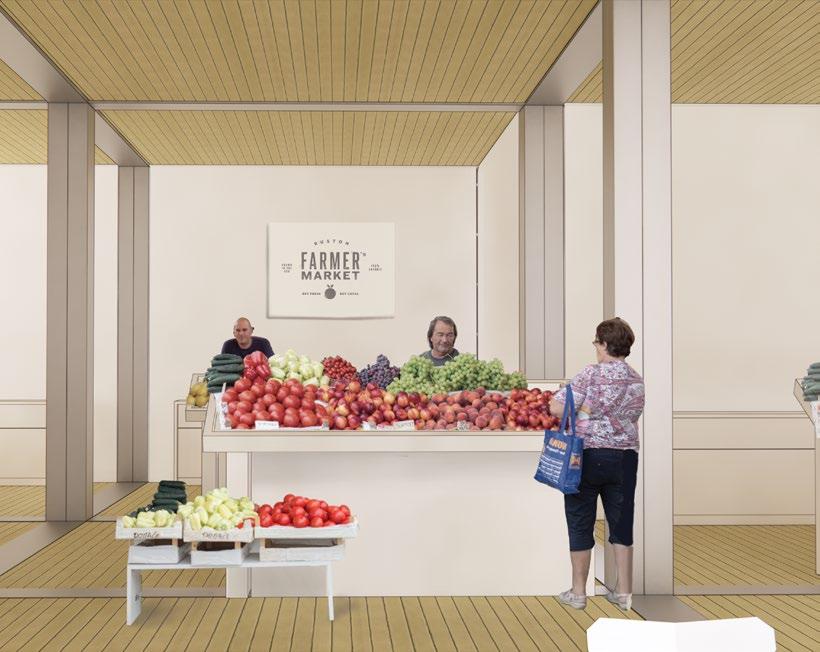

FRUIT & VEG. VENDOR
& FISH VENDOR
VERTICAL
BATHROOMS
LOADING/STORAGE

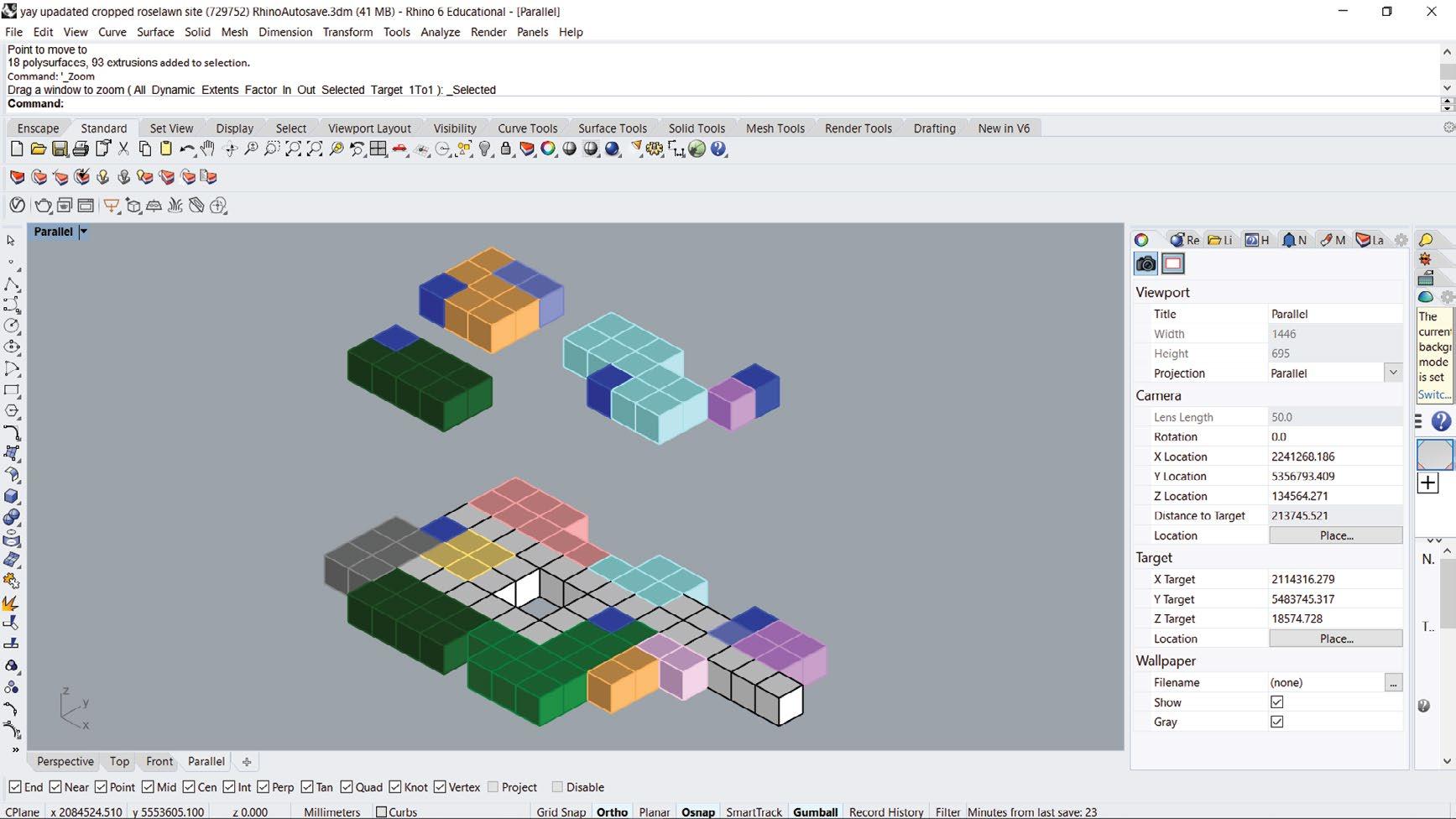

BAKERY - VERTICAL FARMING CIRCULATION / STORAGE ART STUDIO PROGRAM DISTRIBUTION UNITS ARE ARRANGED ALONG CIRCULATION MODULES BAKERY MEAT AND FISH VENDORS PROGRAM LEGEND DAIRY VENDORS ON SITE FARM - VERTICAL FARMING VERTICAL CIRCULATION BATHROOMS FRUIT & VEG VENDORS EMPLOYEE CHANGEROOMS CAFE CIRCULATION LOADING DOCK / STORAGE FLOWER SHOP ART STUDIO MEAT & FISH VENDOR DAIRY VENDOR
FRUIT & VEG VENDOR ON SITE FARM
STUDIO
CHANGEROOMS
BAKERY ART
CIRCULATION
CAFE FLOWER SHOP
VENDOR CAFE
CIRCULATION MODULE PROGRAM ARRAGEMENT VEGTABLE
20 m NORTH ELEVATION 1:200 EAST ELEVATION 1:200 10m m 40 m 20 1:200 0 10m m 0 4 m 0 2 NORTH ELEVATION 1:200 0 10m m 0 4 m 0 2 EAST ELEVATION 1:200 NORTH ELEVATION SECTION AA EAST ELEVATION 0 5 10 20 30m

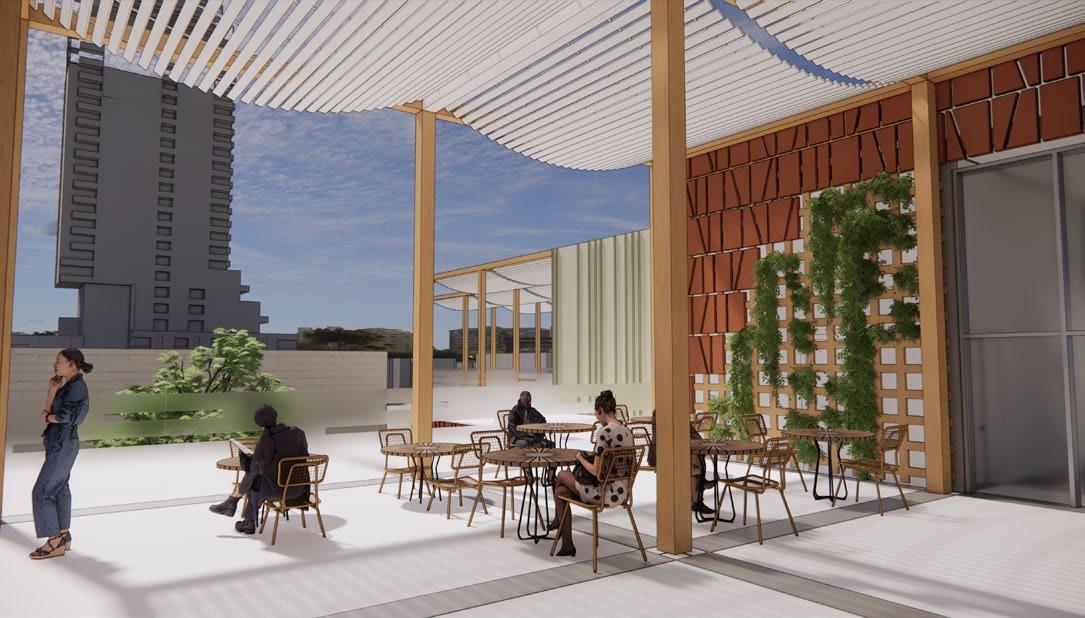

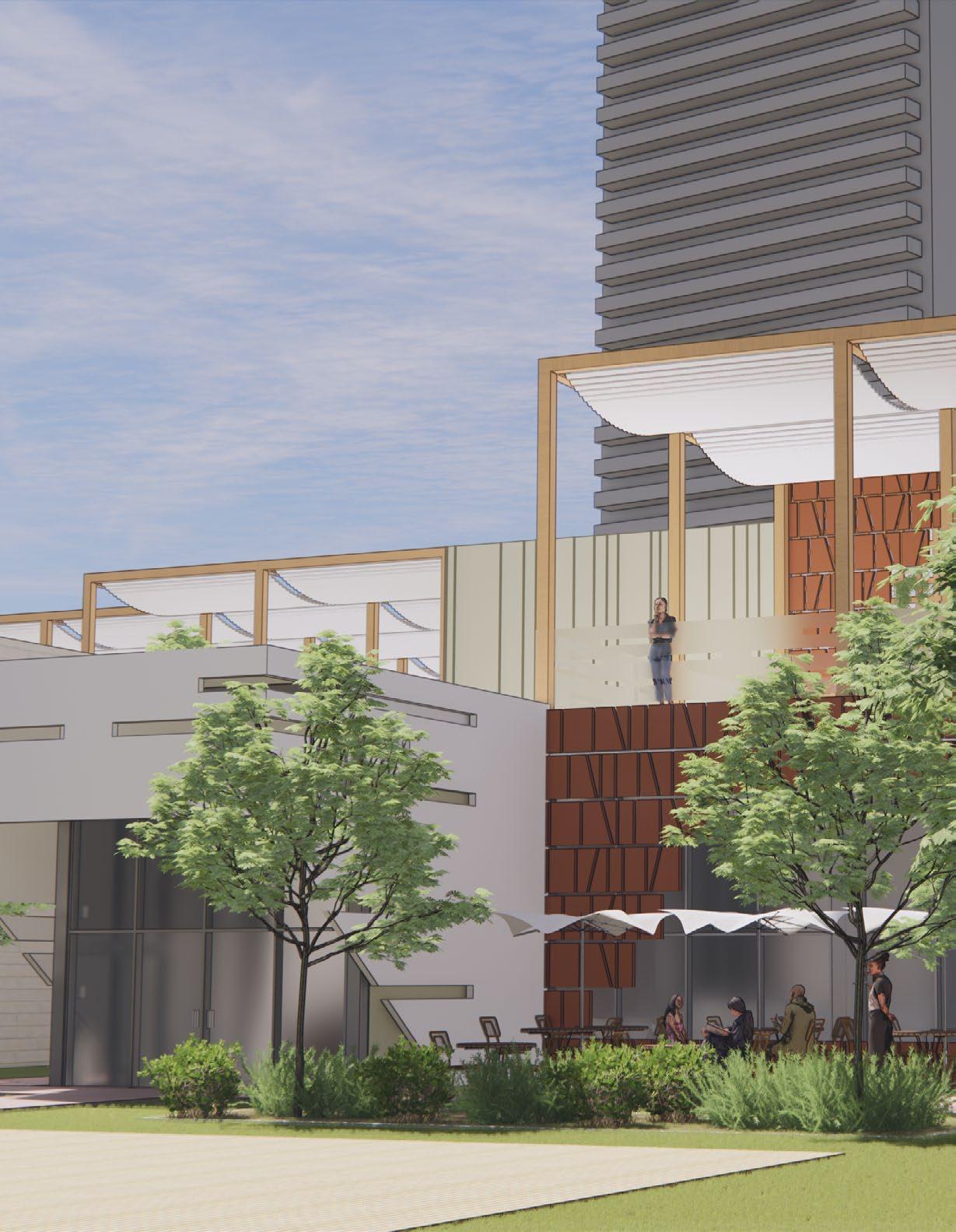

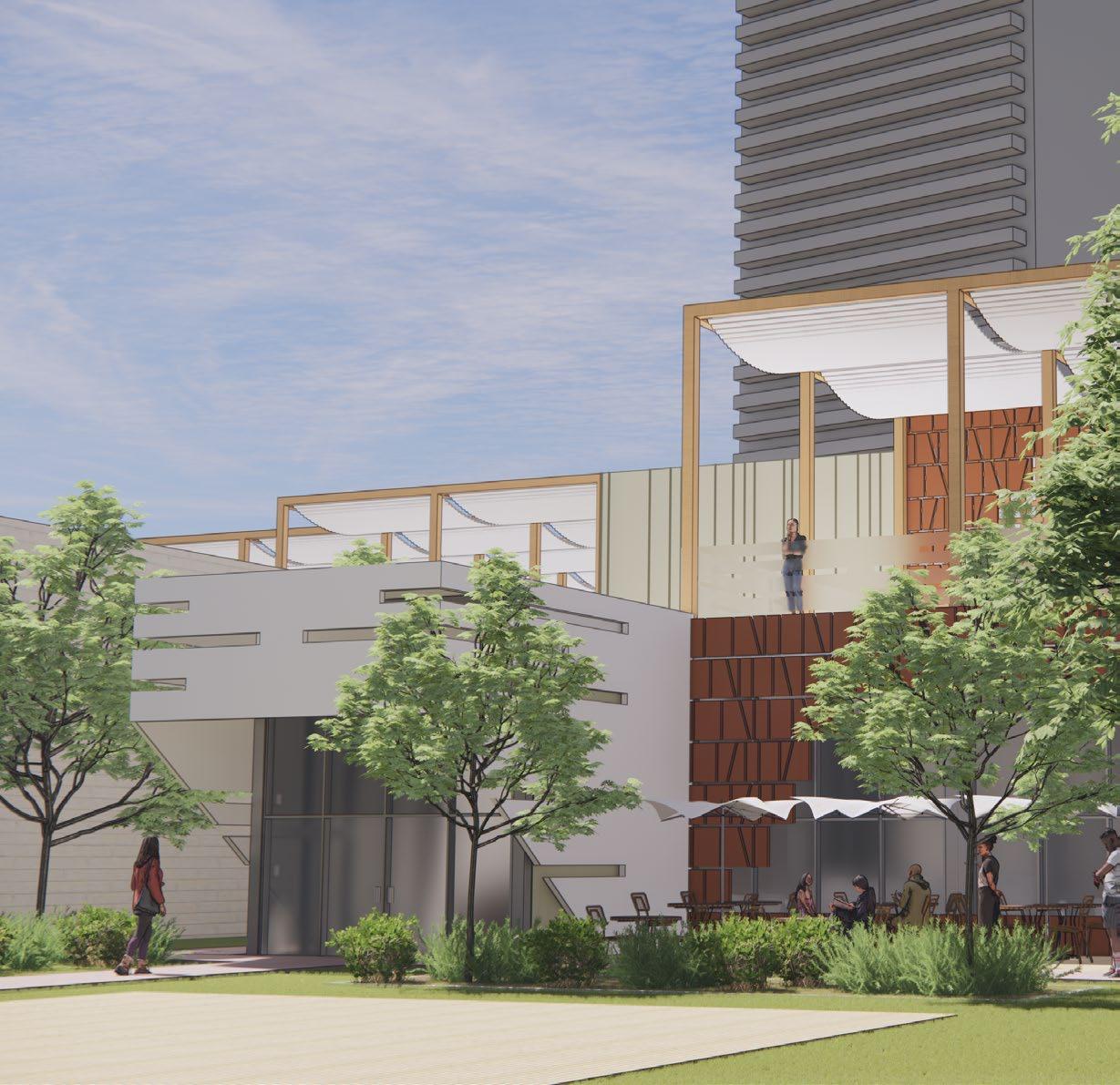

CAFE TERRACE

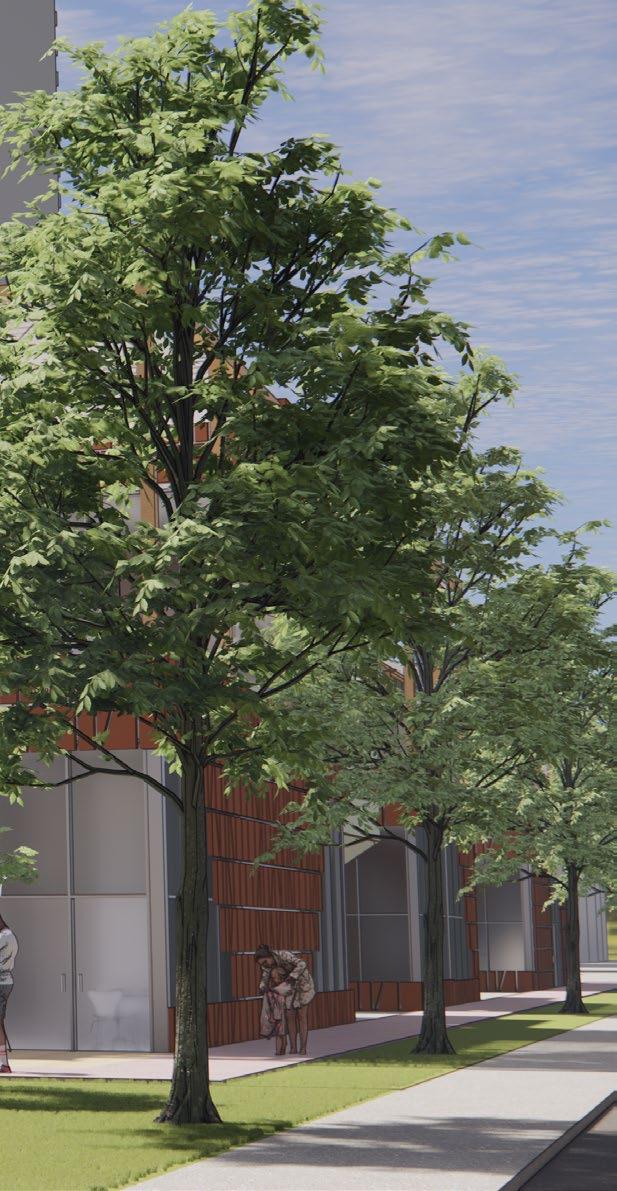

21 STREET VIEW

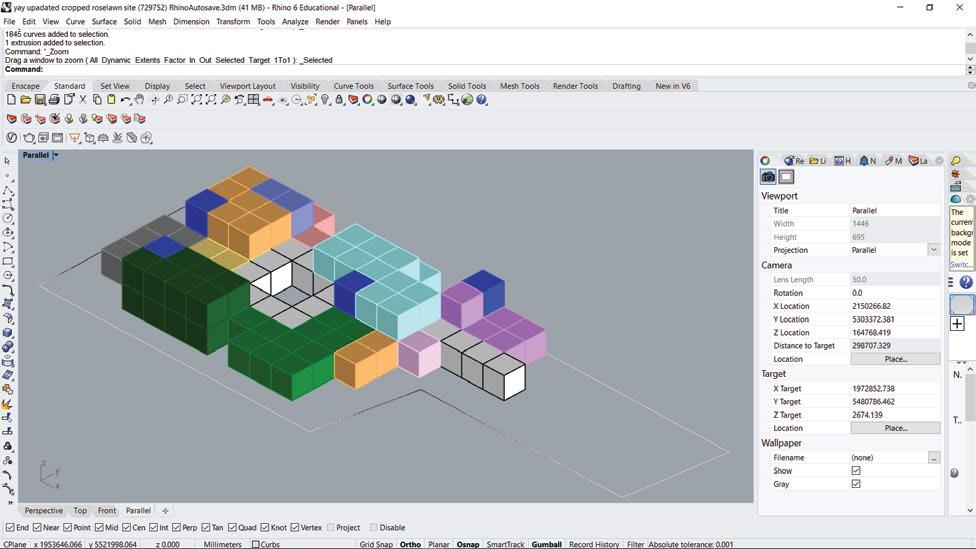

MODULE ASSEMBLY AXONOMETRIC

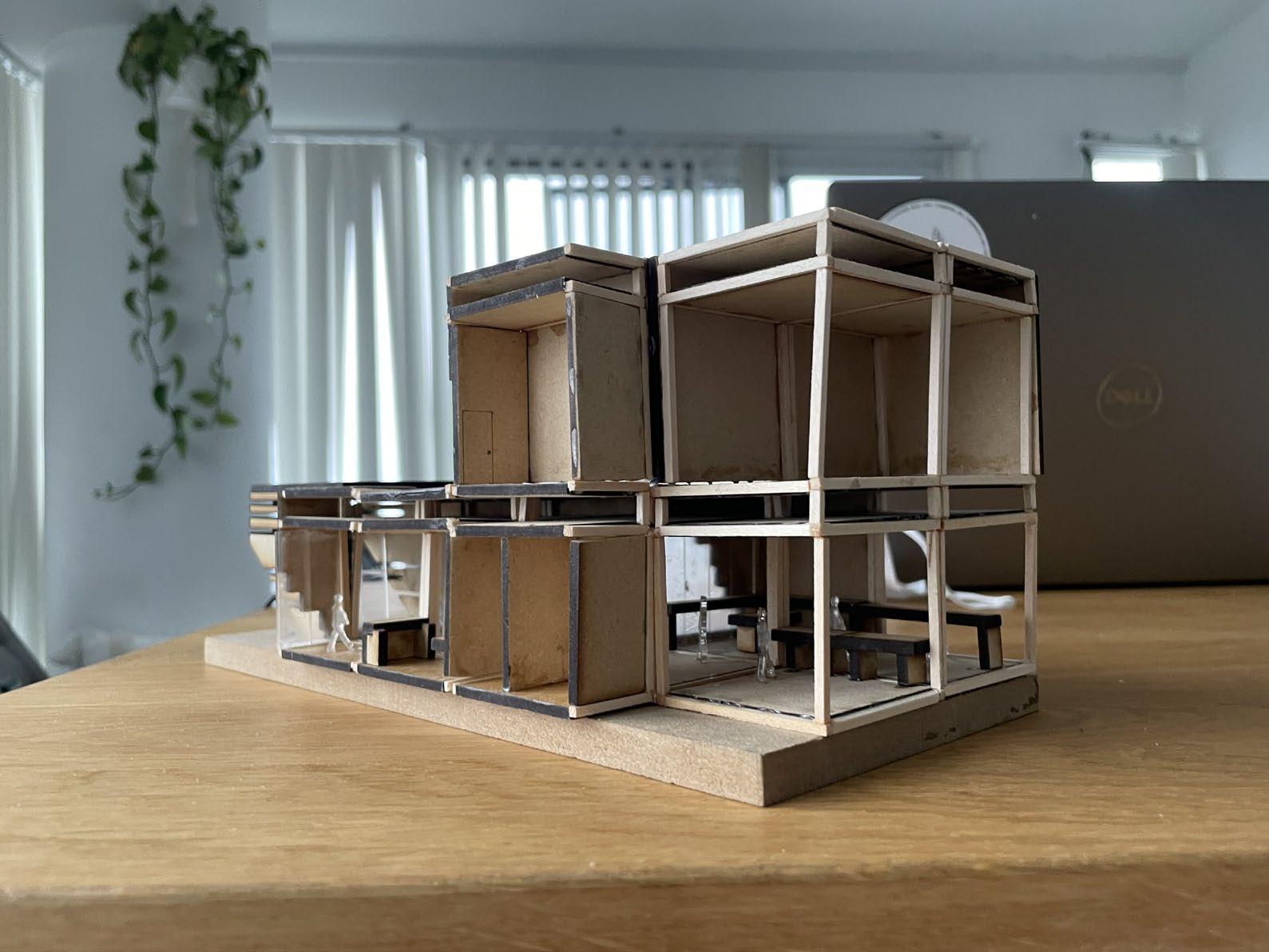

PHYSICAL MODEL
INTERIOR WOOD VENEER PANNEL *WITH VAPOUR BARRIER
RECYCLED STEEL CHANNELS (200 X 450 mm)
EXPANDED POLYSTYRENE INSULATION (75 mm)
FIREBOARD INSULATION (40mm)
HSS STRUCTURAL BEAM (200 X 200 mm)
HSS STRUCTURAL COLUMN (200 X 200 mm)
SPACE FOR HVAC & PIPES
CEILING
1. 2. 3.4. 6. 7. 8. 9. 10.
STEEL FURRING METAL PANNELING WINDOW WALL PANNEL FRAMEWORK TERRACOTTA PANNELS
11. 12. 13. 14.
PIECES ARE PREFABRICATED IN FACTORY ONSITE ASSEMBLY
PIECES ARE PREFABRICATED IN FACTORY ONSITE ASSEMBLY
FRAMEWORK AND CONNECTION JOINTS/ PLATES ARE PRE-FABRICATED IN FACTORY
THESE PIECES ARE THEN TRANSPORTED TOGETHER AND ASSEMBLED ON SITE
ASSEMBLY OF MODULES
ASSEMBLY OF MODULES
PERFORMANCE HALL
TYPE: ACADEMIC - INDIVIDUAL
YEAR: FALL 2O2O
SOFTWARE: AUTOCAD ENSCAPE
ILLUSTRATOR
PHOTOSHOP
RHINO
DESCRIPTION:
The performance hall stands as a vibrant central node within the local community, fostering connections and engagement through its materiality and diverse programming. Its glazed corner, oriented towards the bustling intersection, offers an inviting visual connection, allowing passersby to glimpse the dynamic activities unfolding across various levels. At the ground floor, a lively cafe, drawing visitors in for conversations and refreshments. The glazed corner reveals the philharmonic theater below, ready to showcase captivating performances and enriching cultural experiences. Ascending to the upper floor, a mezzanine adorned with spacious classrooms becomes a hub for learning and creativity, offering a nurturing environment for community members to explore and develop their skills.
PRIVATE PUBLIC PERFORMANCE AUDIENCE
25
FLOOR ENTERANCE VESTIBULE COATCHECK CAFE/BAR FOYER SEATING MECHANICAL ROOM LOADING GARBAGE STORAGE OUTDOOR SEATING GLASS FLOOR (ORCHESTRA SEEN BELOW) PARTITION 1. 2. 3. 4. 5. 6. 7. 8. 9. 10. 11. 12. 1 2 3 4 5 6 7 8 9 10 11 12 GROUND FLOOR PLAN
0 5 10 20 30m

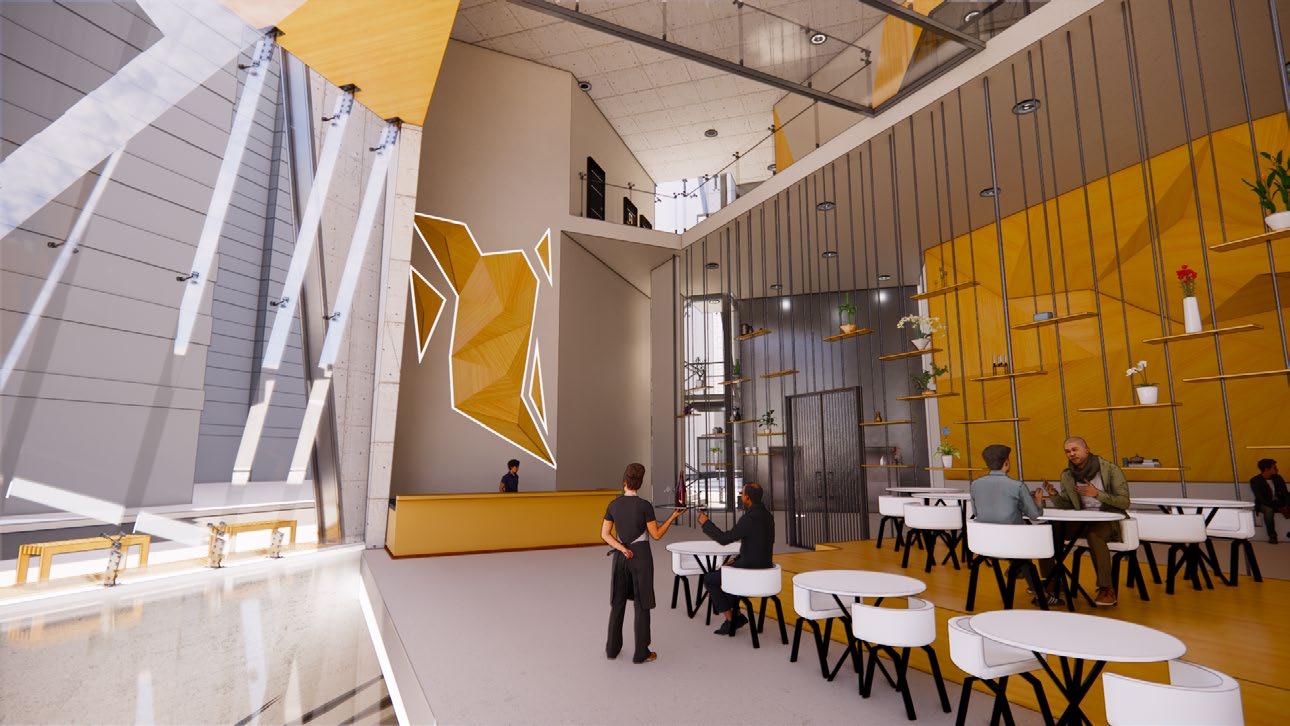

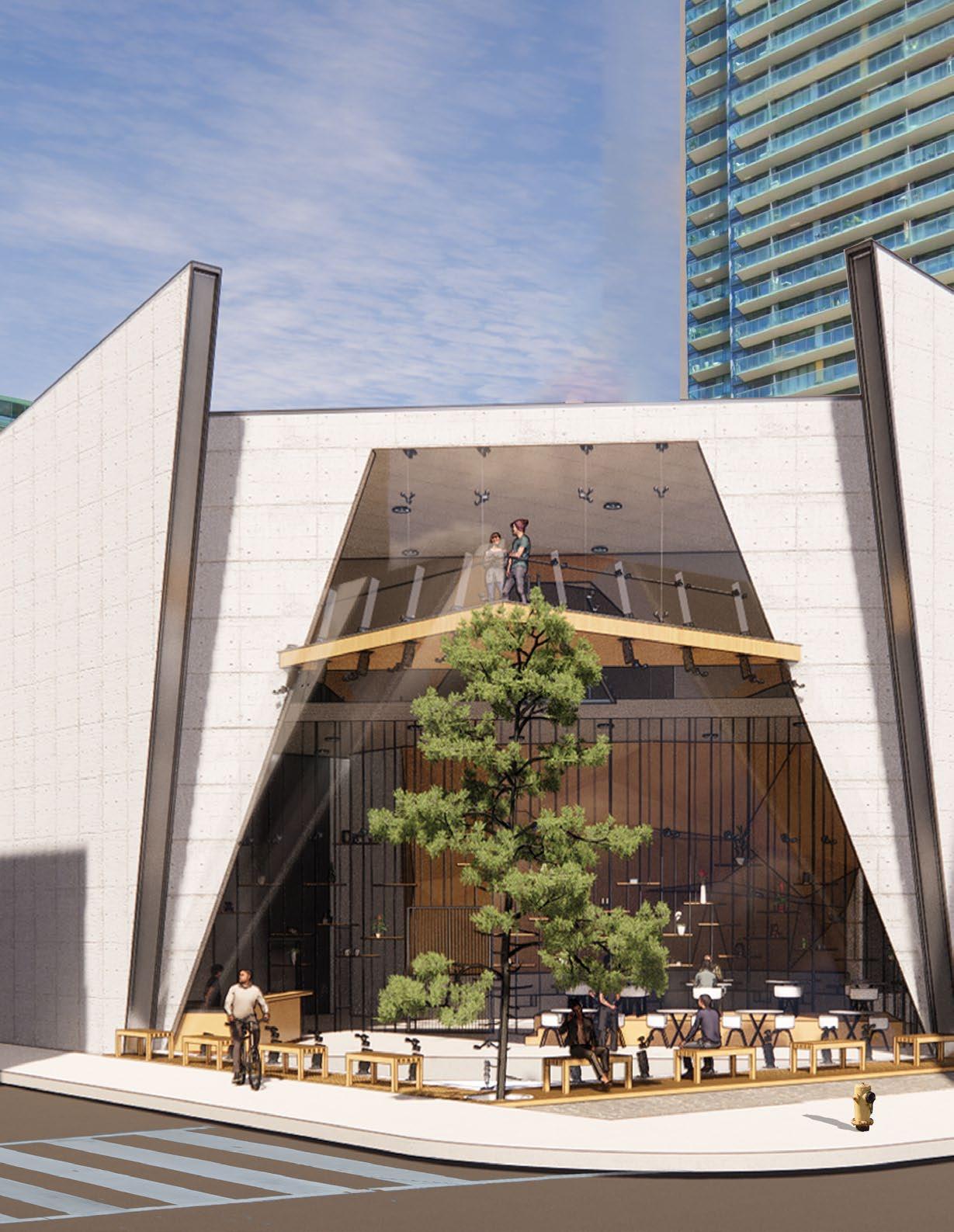

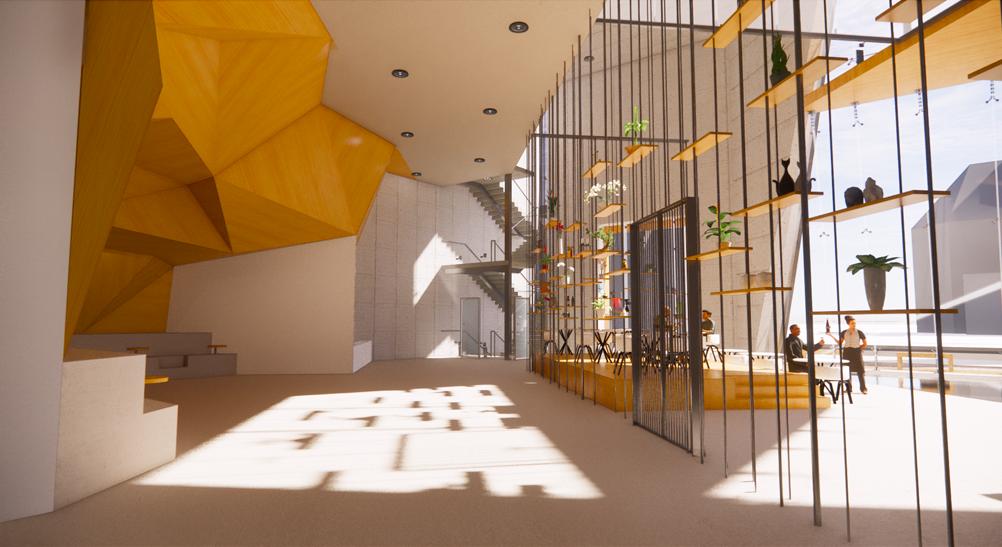

VIEW INTO MAIN FOYER

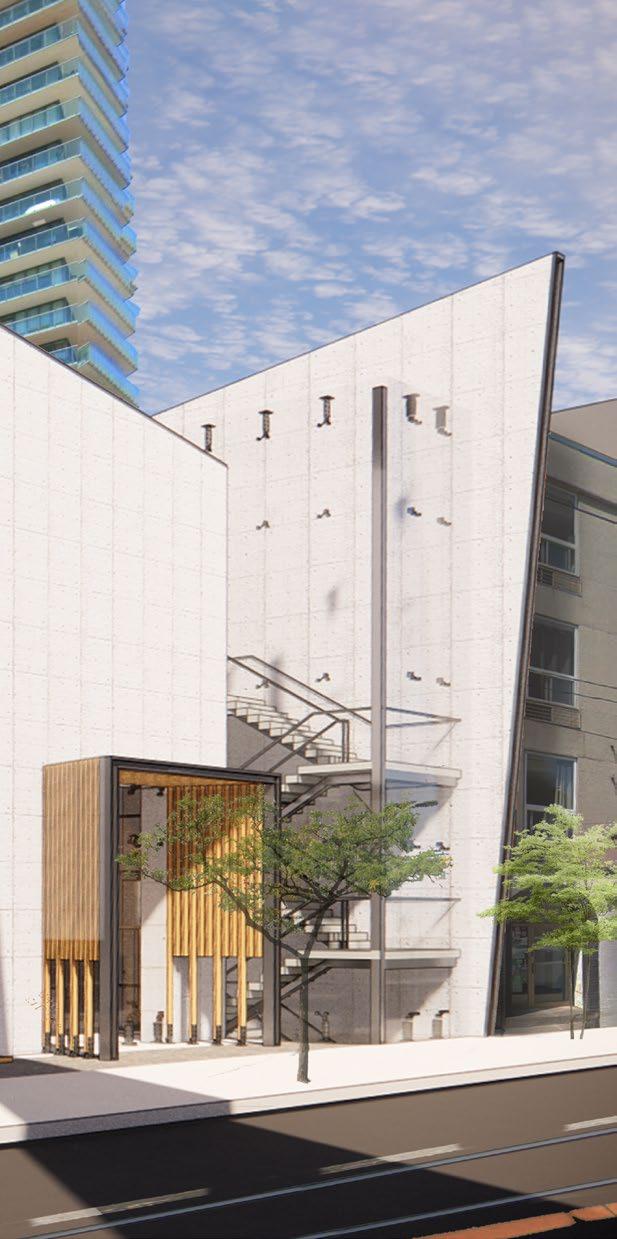

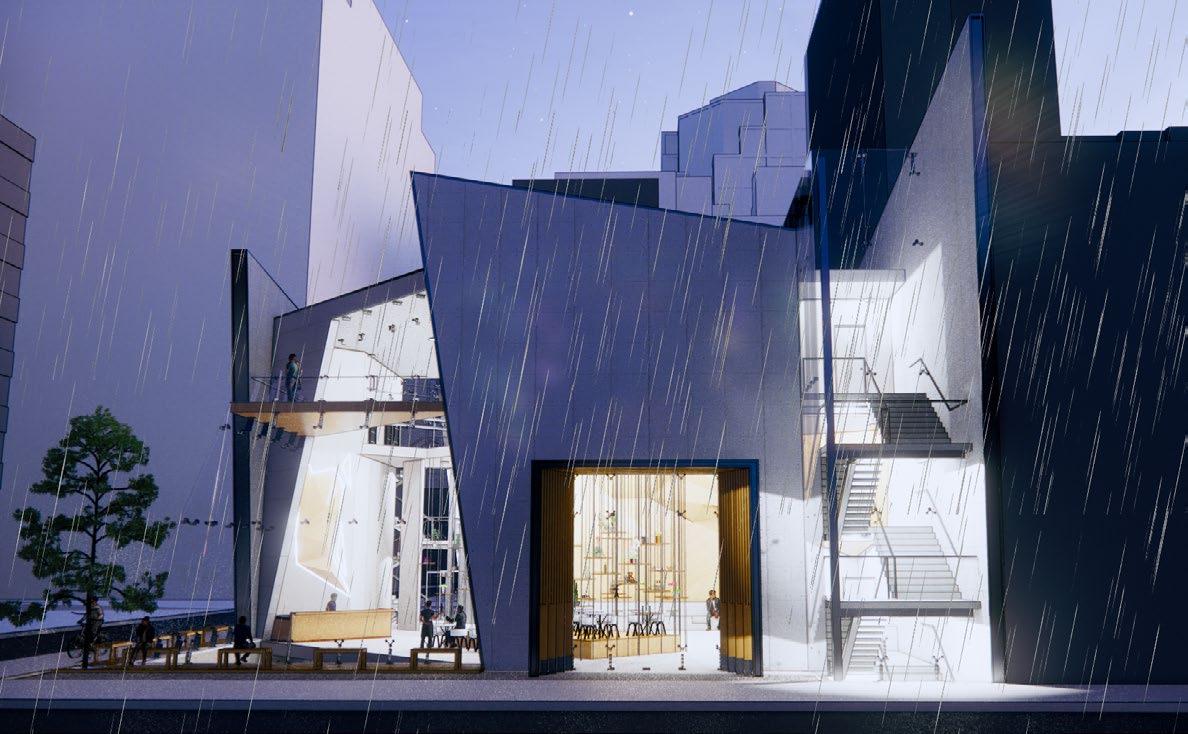

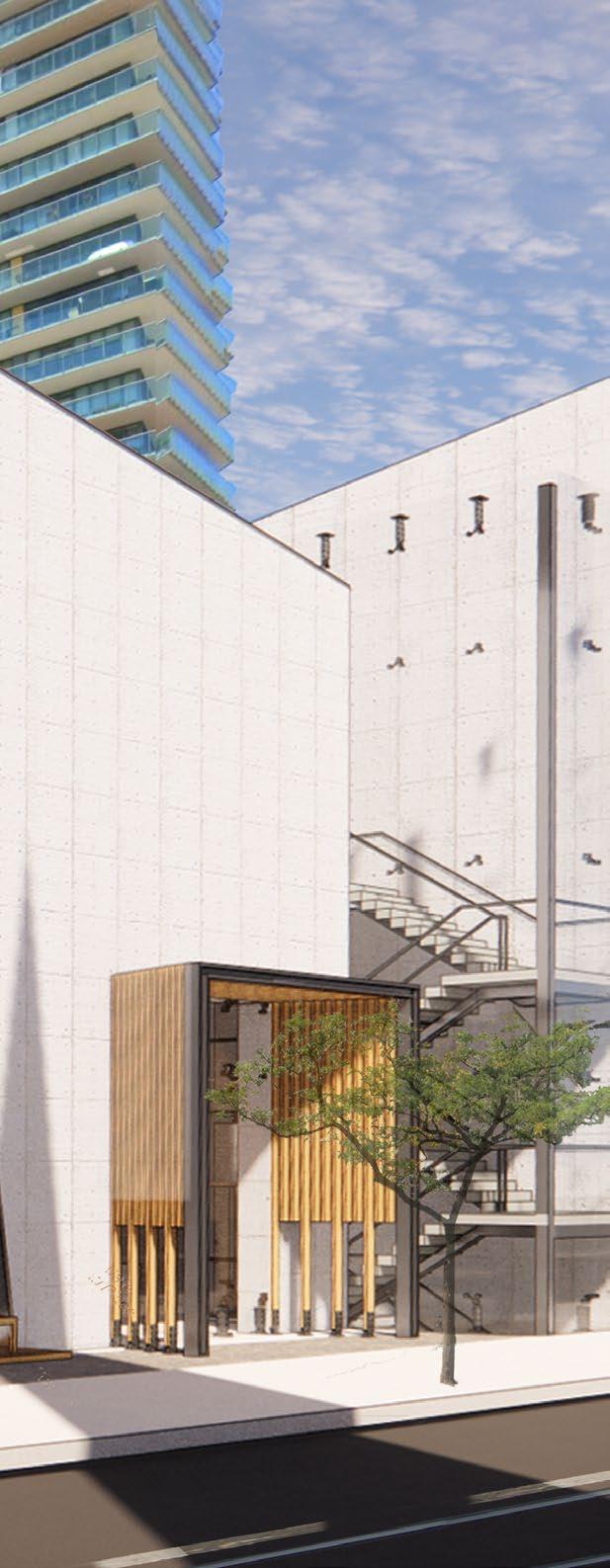

27 EXTERIOR IN RAINY WEATHER 0m 4m 8m 12 m East Elevation 1:150 COURT ST. 0 5 10 20m EAST ELEVATION
28 CAFE/BAR SEATING/INTERMISION AREA BALCONEY AUDIENCE SOUND AND LIGHTING BOOTH TRANSPARENT ACOUSTIC PANNELS O.T.B. 1 2 3 4 1. 2. 3. 4. UPPER THEATER LEVEL (-1) 0 5 10 20 30m

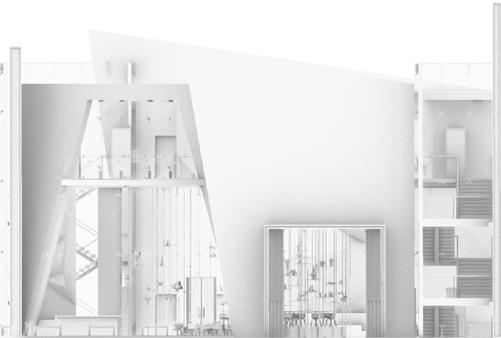

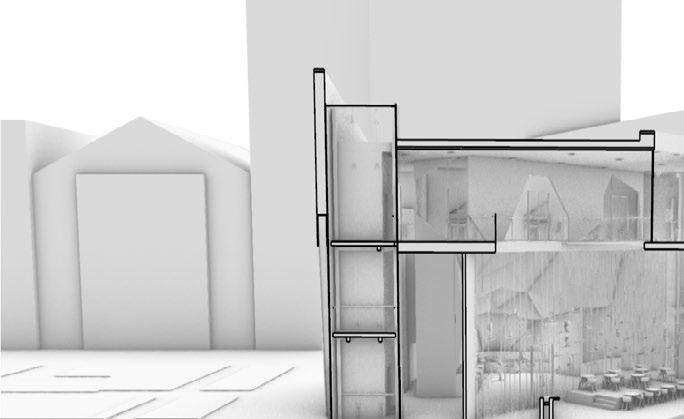

29 Section c - c (perspective section)
CAFE/BARPERSPECTIVE SECTION
CHURCHST.

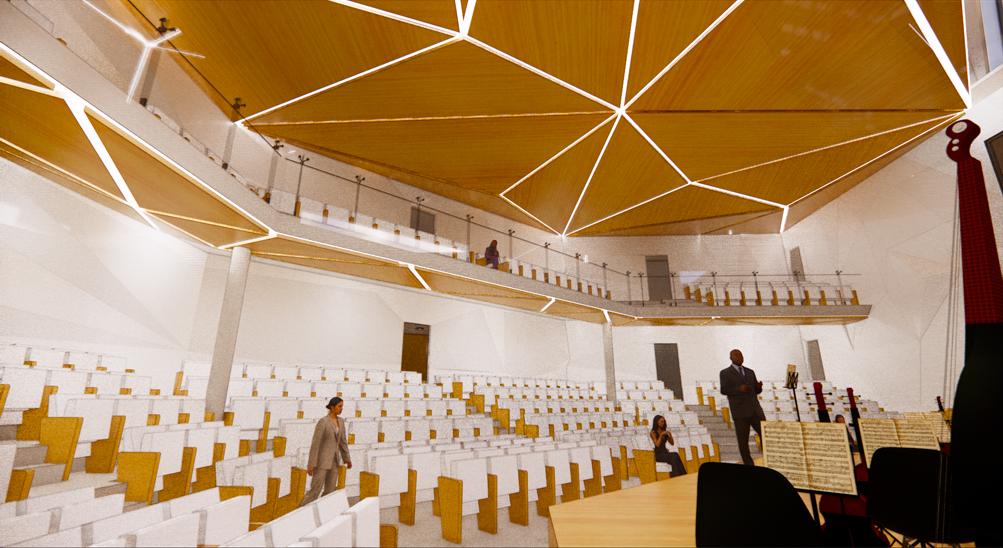

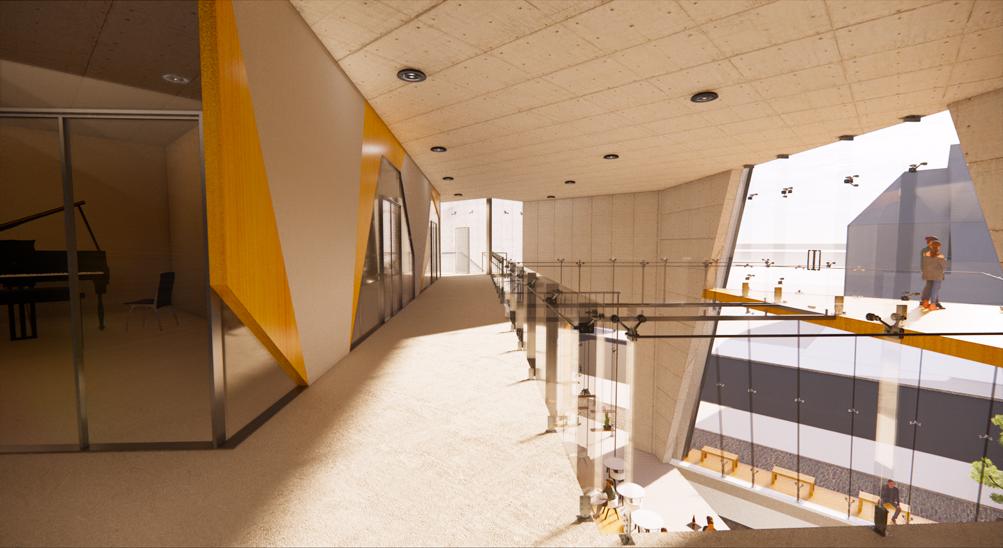

INTERIOR PERSPECTIVES
30

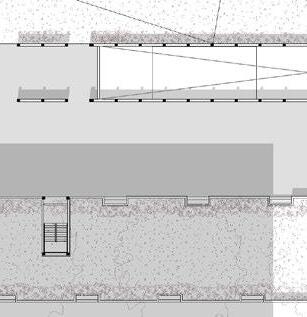

TOP FLOOR 1 1 2 3 4 5 6 1 1 O.T.B. O.T.B. PRIVATE CLASSROOMS COMMON ROOM (WITH LOCKERS) OFFICE GLASS WALKWAY TERRACE STORAGE 1. 2. 3. 4. 5. 6. UPPER FLOOR PLAN 0 5 10 20 30m

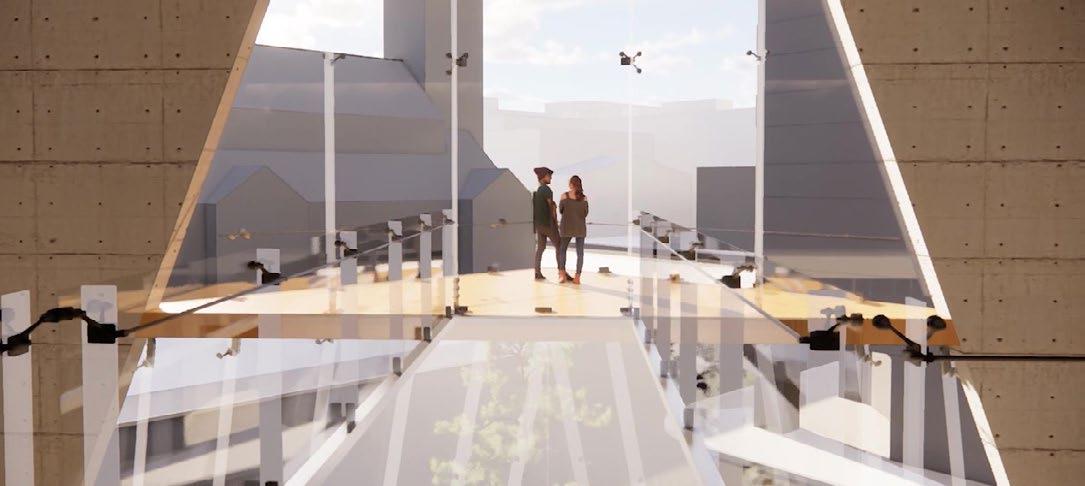

ASSEMBLY OF GLASS WALKWAY
2. MULLIONS
ANCHOR PLATE & BOLTS
HOLLOW STEEL BEAM (200 X 200mm)
STEEL BEAM (200 X 50mm)
3. ATTATCHING GLAZING
SPIDER CONNECTOR
STRUCTURAL GLASS DOUBLE PANED CURTAIN WALL
SPIDER FITTING
GLASS FIN MULLION
200 X 25 mm
STEEL MULLION
200 X 50 mm
4. RAILING & DOOR
50 cm RAILING
RAILING SUPPORTS
SPIDER FITTING
DOOR
31
1. STRUCTURAL FRAME
BUILDING A COMMUNITY
TYPE: ACADEMIC - INDIVIDUAL
YEAR: WINTER 2021
SOFTWARE: AUTOCAD ILLUSTRATOR
PHOTOSHOP
RHINO
DESCRIPTION:
Nestled in the charming town of Bancroft, this innovative project aims to create a warm and welcoming community, where nature, workspaces, shopping, and amenities are all just a short stroll away. This walkable 5-minute community provides ample opportunities for residents to connect with one another and the surrounding natural environment. The project’s unifying green space and community garden serve as a focal point for community events and gatherings, fostering a strong sense of belonging and togetherness. Whether taking a leisurely walk through the verdant surroundings or attending a local event, this project invites residents to embrace the vibrant and tight-knit community of Bancroft.

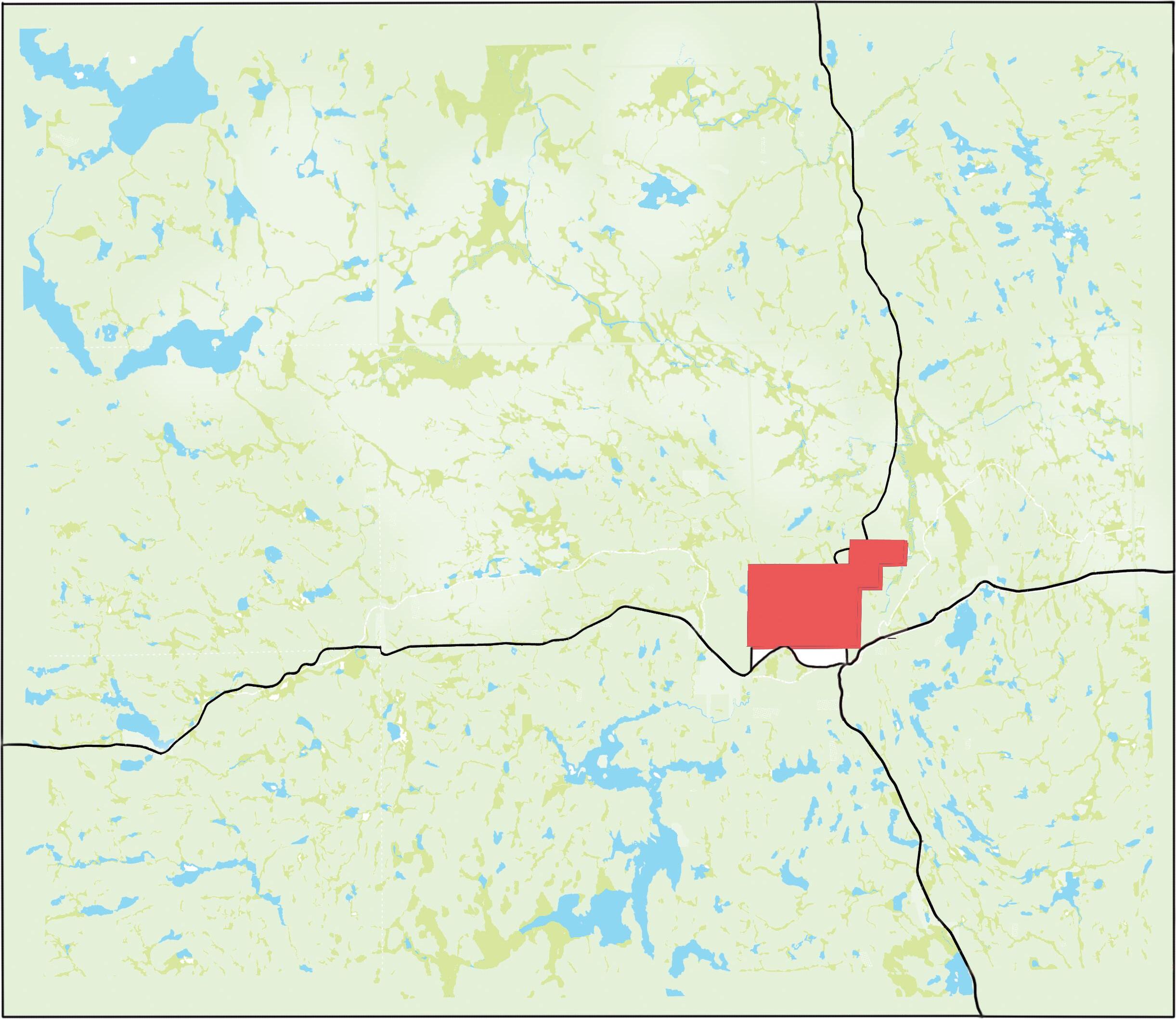

34 Alice St York River Station St. A A 0 10 20 50 100m COMMUNITY SITE PLAN SITE SECTION 5 10 20 50m 0
COMMUNITY GARDEN
The proposed shared space for this project is a community garden, supported by a neighbouring plant shop. This space is intended to increase interaction and community cooperation through collaboration and interaction with nature. This garden provides an opportunity for kids to learn more about nature and the environment. The flowers and vegetable plants produced by the gardens, beautify the neighbourhood and can potentially yield seasonal produce for the residents. The flower shop across the pedestrian street supports the garden by providing all necessary supplies and instruction as well as a plant nusery on the upper floor that directly sustains the plants in the garden by helping younger plants sprout.
NURSERY SHOP

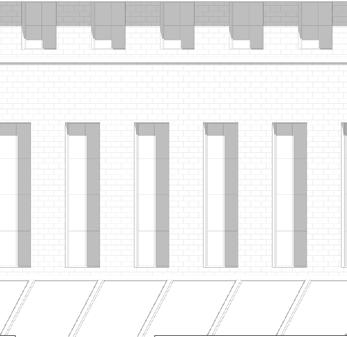

EAST UNIT - EAST ELEVATION
EAST UNIT - EAST ELEVATION
EAST UNIT - WEST ELEVATION
36 m 8m 4m 20 EAST UNIT - EAST ELEVATION
STATION ST
EAST UNIT - WEST ELEVATION STATION ST EAST ELEVATION
UNITS
ELEVATION WEST ELEVATION STATION ST 0 5 10 20m 0 5 10 20m
EAST
- STREET

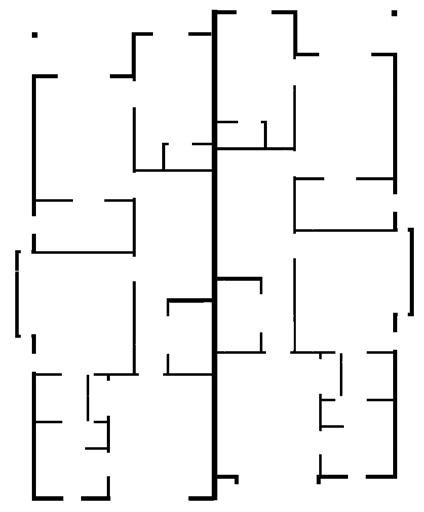

37 SECTION CC 1:50 4m 0m 2m 50 1. 2. 3. 4. 5. 6. 7. 8. 9. 10. 11. 12. 13. COMMERCIAL/WORK SPACE STUDIO SMALL LIBRARY DINING SPACE KITCHEN GARAGE BEDROOM BATHROOM LIVING ROOM TERRACE BALCONEY DEN/OFFICE CLOSET 1 3 4 5 6 8 8 5 7 9 8 9 10 11 12 7 7 7 2 GROUND FLOOR SECOND FLOOR THIRD FLOOR ACCESSIBLE UNIT OPTION SECTION 13 0 5 10m 0 5 10m 0 5m 2
38 EAST ELEVATION WEST ELEVATION ELEVATION ELEVATION WEST UNIT - EAST ELEVATION m 8m 4m 0m 20 WEST UNIT - WEST ELEVATION STATION ST. STATION ST. WEST ELEVATION EAST ELEVATION WEST UNITS - STREET ELEVATION 0 5 10 20m 0 5 10 20m
39 SECTION BB 1:50 SECTION 4m 0m 2m 1 : 50 0 5m 2 FOYER LIVING ROOM KITCHEN DINING ROOM WORKSPACE TERRACE 1 1 2 2 3 3 4 4 5 5 6 6 1. 2. 3. 4. 5. 6. 7. 8. 9. 10. 11. MAIN BEDROOM BEDROOM BATHROOM LAUNDRY / MECHANICAL ROOM CLOSET 7 9 9 9 9 8 10 11 11 10 8 8 8 7 GROUND FLOOR UNIT SECTION SECOND FLOOR 0 5 10m
AXONOMETRIC WALL SECTION - WEST UNIT
Steel Pergola
STEEL PERGOLA
150 x 150 mm spaced 2.9 m O.C.
6 inch. x 6inch. spaces
ROOF TOP FIREPLACE
Roof Top Fire-Place
ROOF TERRACE
COMPOSITE DECKING SYSTEM
Roof Terrace Composite decking system supported by wooden
SUPPORTED BY WOOD TRUSS
ACRYLIC STUCCO SYSTEM
Acrylic Stucco Exterior Acrylic stucco system supported by 2x6” Wood
STUCCO & MESH ON OSB SUPPORTED BY 2X6” STUDS
WOOD PLANK FLOOR
Wooden Floors wood plank finish supported by wooden
WOOD CLADDING
Exterior Wood cladding
Water treated ceder-wood
WATER TREATED CEDERWOOD
WINDOW
Window
DOUBLE GLAZED 1/8”
Double glazed 1/8” insulated argon
FLOOR
SLAB ON GRADE ON SUBGRADE WOOD PLANK FINISH
FOUNDATION
12” FROM GRADE
Ground floor Foundation 12” from grade
wood plank finish slab on grade over compacted
40
1:100 WEST UNIT - EAST ELEVATION 1:100
41 GARAGE GARAGE HW HVAC PLUMBING DRAIN HOT WATER COLD WATER WATER HEATER GARAGE GARAGE ELECRTICAL HVAC GARAGE ELECRTICAL HVAC ELECTRICAL HVAC
ELECTRICAL HVAC PLUMBING SYSTEMS HVAC PLUMBING HW ELECTRICAL HVAC ELECTRICAL HVAC PLUMBING HW DRAIN HOT WATER COLD WATER WATER HEATER UNIT SYSTEMS ELECTRICAL EAST UNITS WEST UNITS HVAC PLUMBING DRAIN HOT COLD HEATER OUTLET WALL LIGHT PENDANT POT LIGHT SWITCH THERMOSTAT FAN
SYSTEMS
GRANGE PAVILLION
TYPE: ACADEMIC - INDIVIDUAL
YEAR: FALL 2020
PROGRAMS: AUTOCAD
ENSCAPE
ILLUSTRATOR
PHOTOSHOP
RHINO
DESCRIPTION:
Nestled within the heart of Grange Park, the Pavilion serves to activate the previously unoccupied park area. This pavilion breathes life into the landscape, transforming it into a vibrant hub for performances and public presentations. With its acoustic shell design, the Pavilion enriches the auditory experience and provides a sheltered space for the audience. As the melodious notes resonate within the space, visitors find themselves immersed in a captivating atmosphere. The Pavilion stands as a testament to the power of design, activating the park and forging a communal space where art and nature converge.

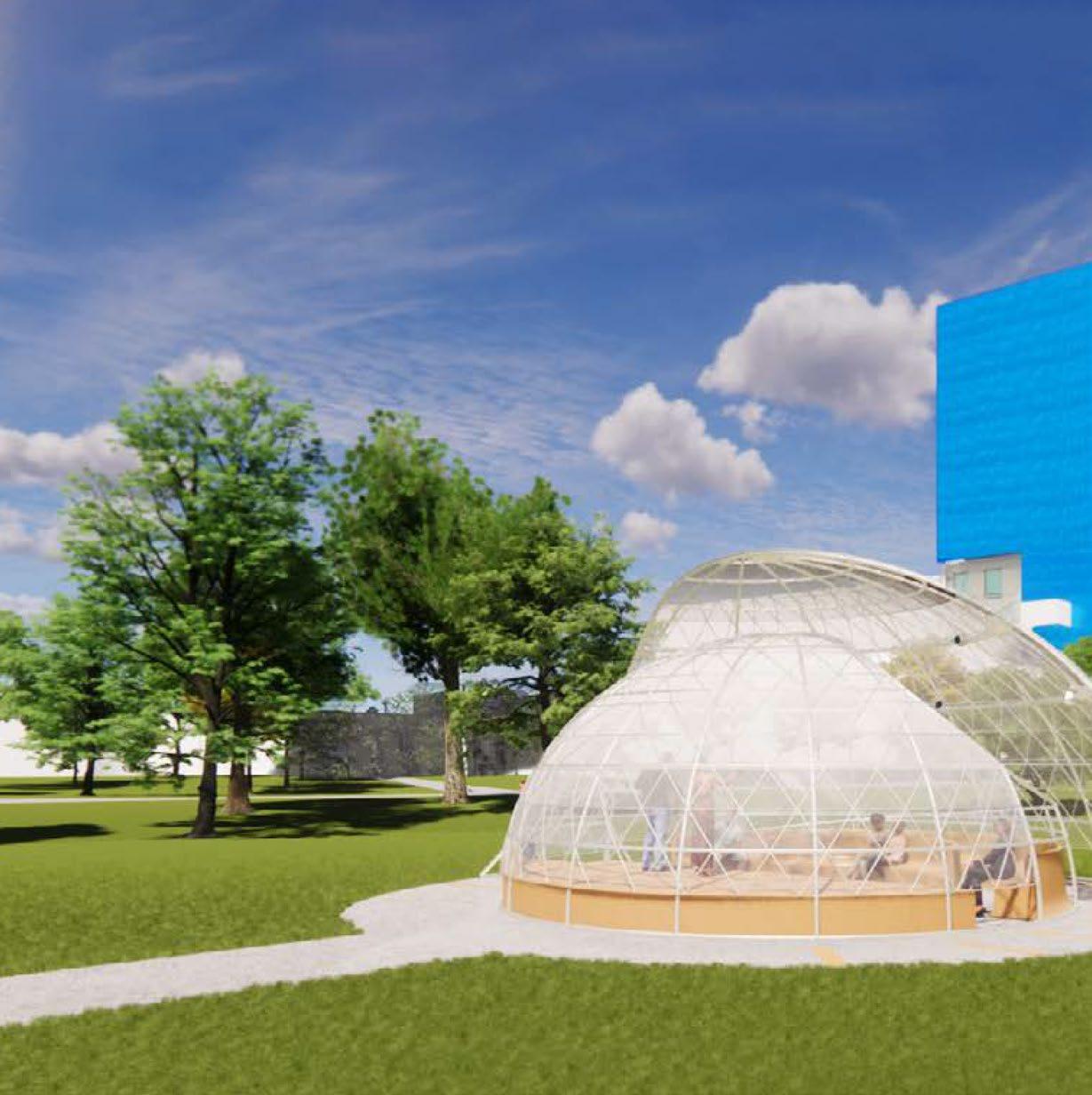

43
0 1 2 5m

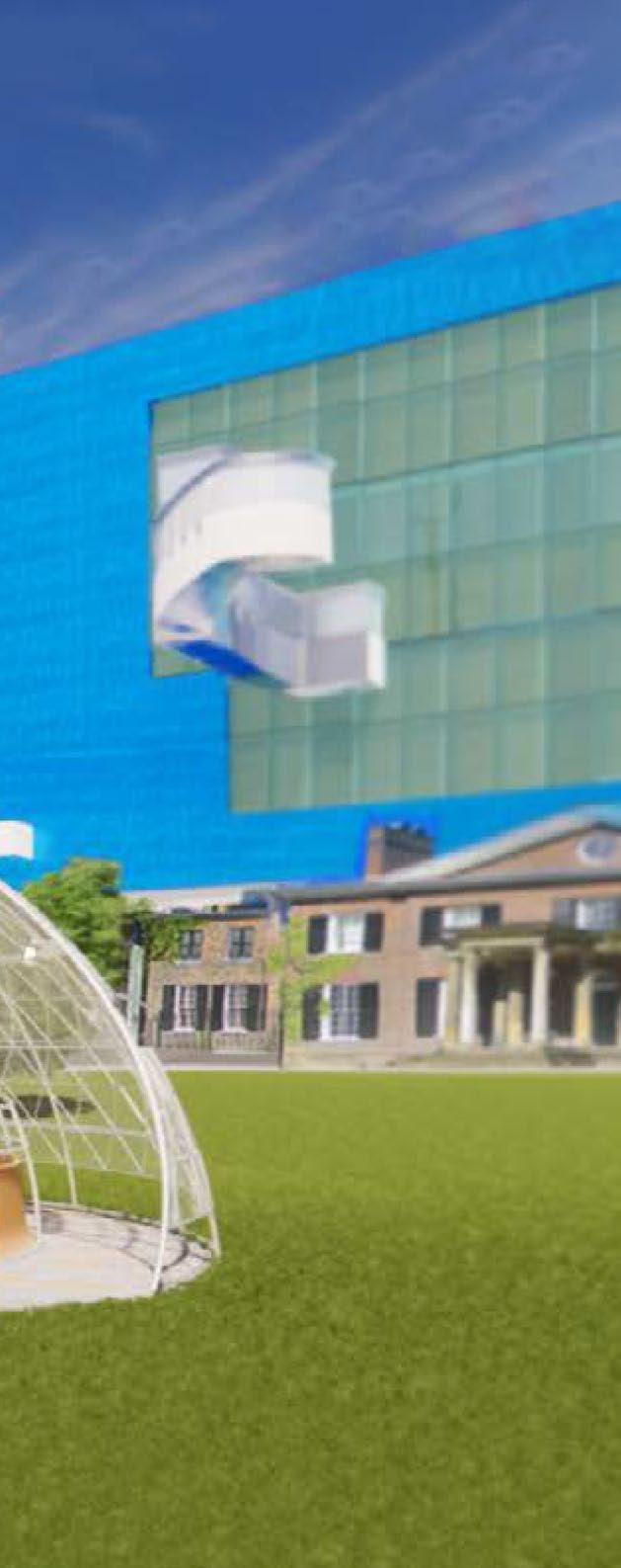

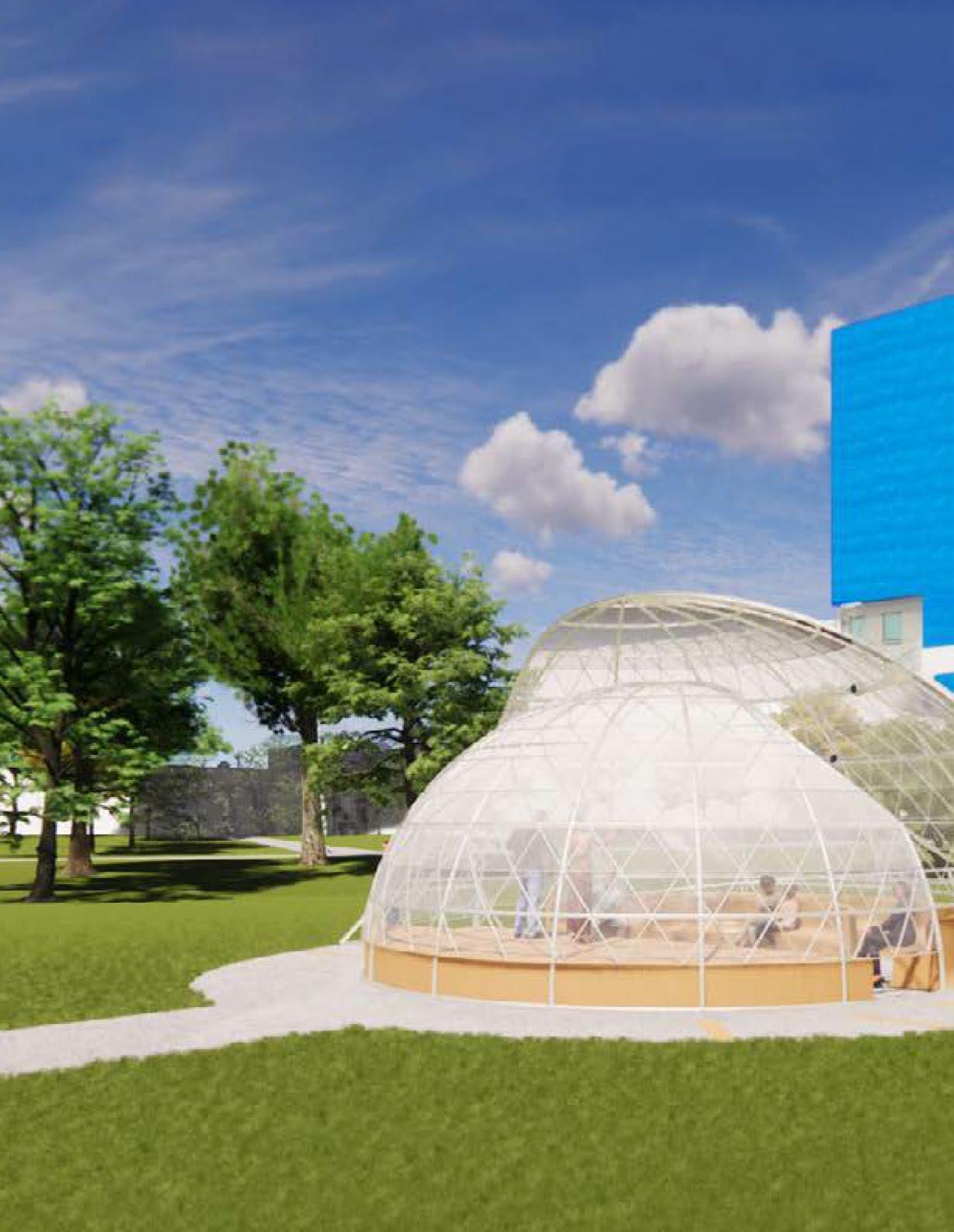

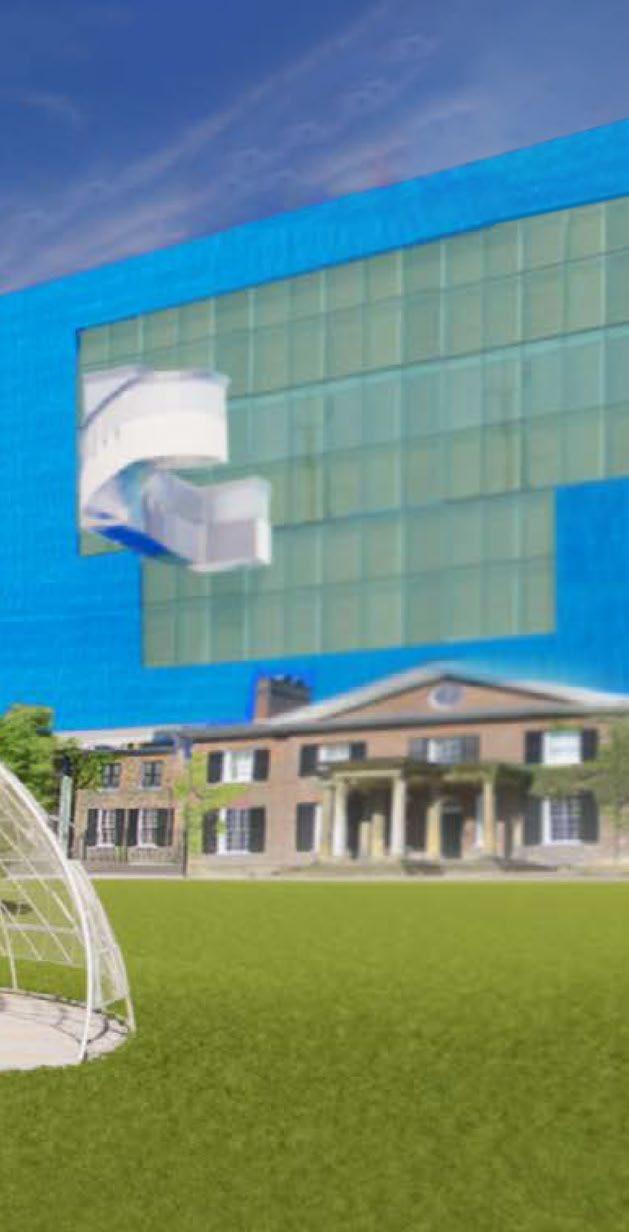

Perpective 0 2 5m

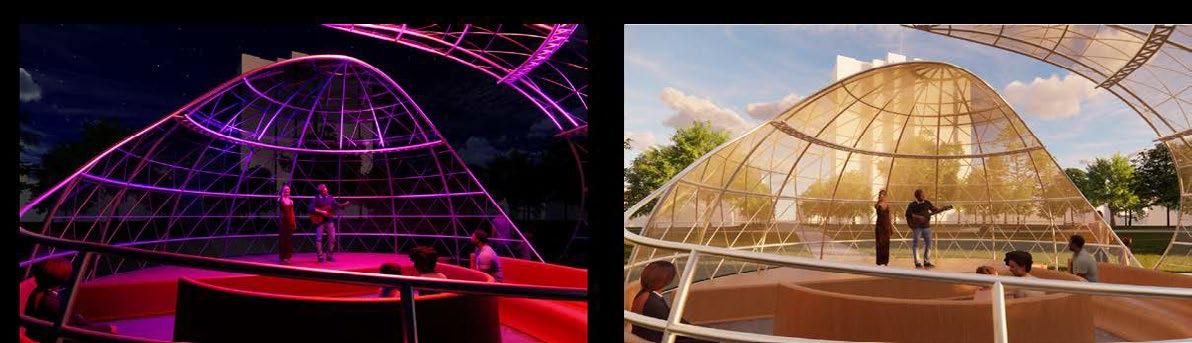

Interior

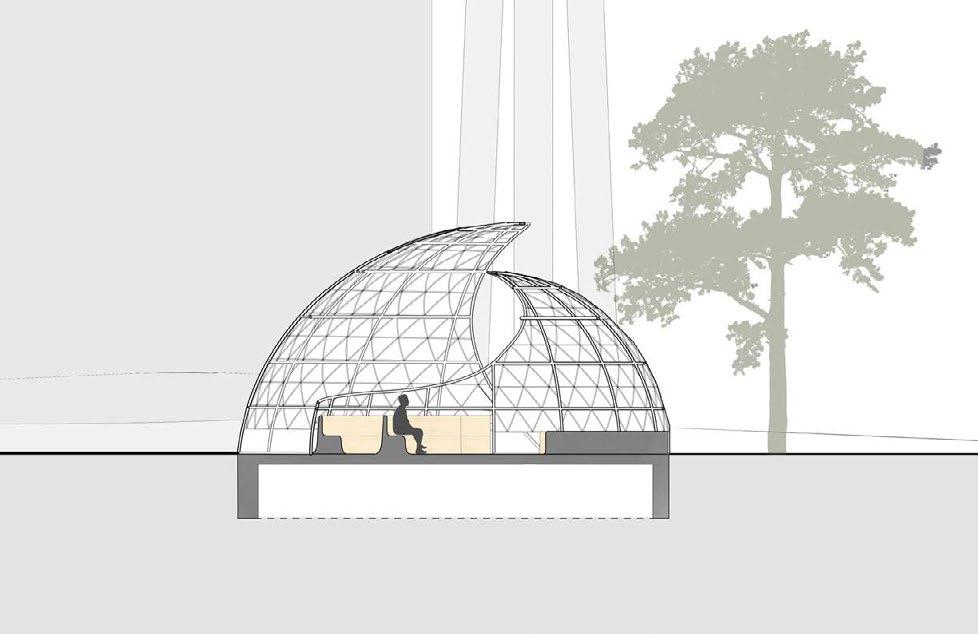

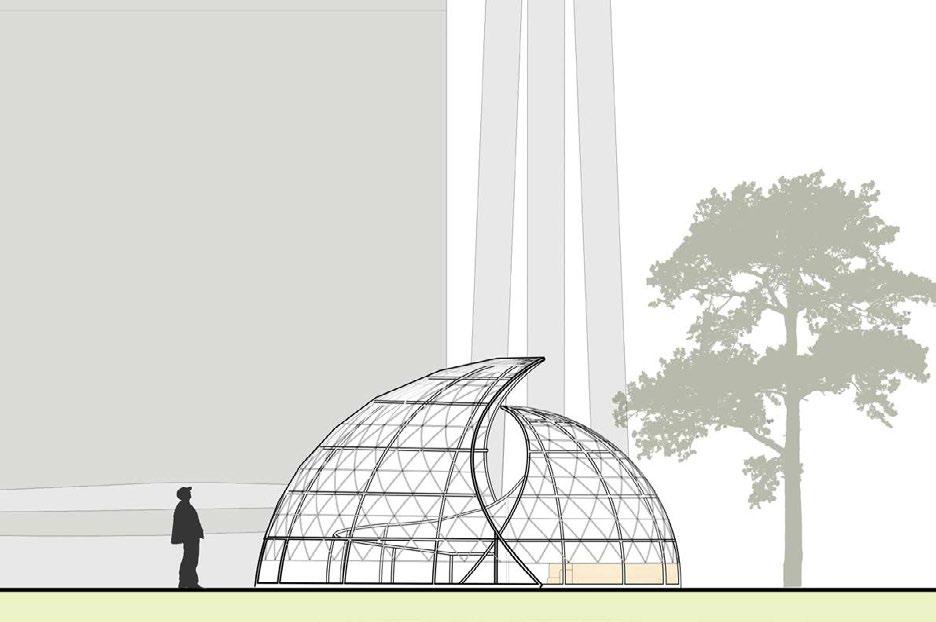

ELEVATION SECTION

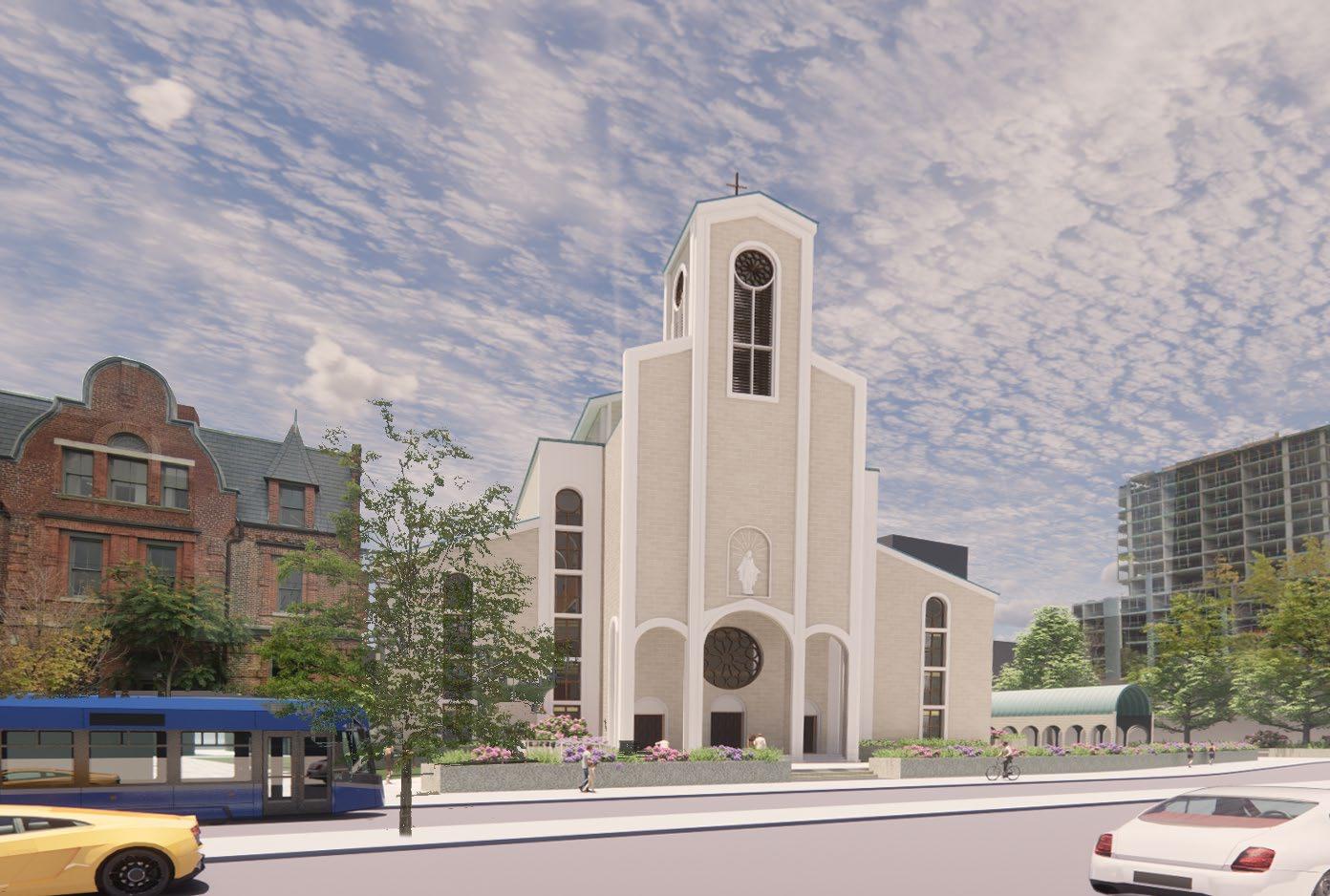

ST.LUCY’S CHURCH
TYPE: ACADEMIC - PARTNERSHIP
YEAR: WINTER 2023
SOFTWARE: ENSCAPE
ILLUSTRATOR
PHOTOSHOP
REVIT
RHINO
DESCRIPTION:
The creation of sacred space is a deeply meaningful and complex process, requiring a nuanced understanding of the traditions and values that shape it. This church design exemplifies this level of thoughtfulness, using the interplay of proportion, volume, and light to imbue the space with a sense of awe and reverence. The design also adheres to the traditional liturgical specifications of the traditional Catholic service, allowing worshippers to fully engage with their faith in a meaningful and familiar way. The church’s layout provides a range of spaces for prayer and contemplation, from more public areas to quiet, secluded nooks. With its carefully crafted design, this church serves as a powerful and inspiring place of worship for all who enter its doors.
47

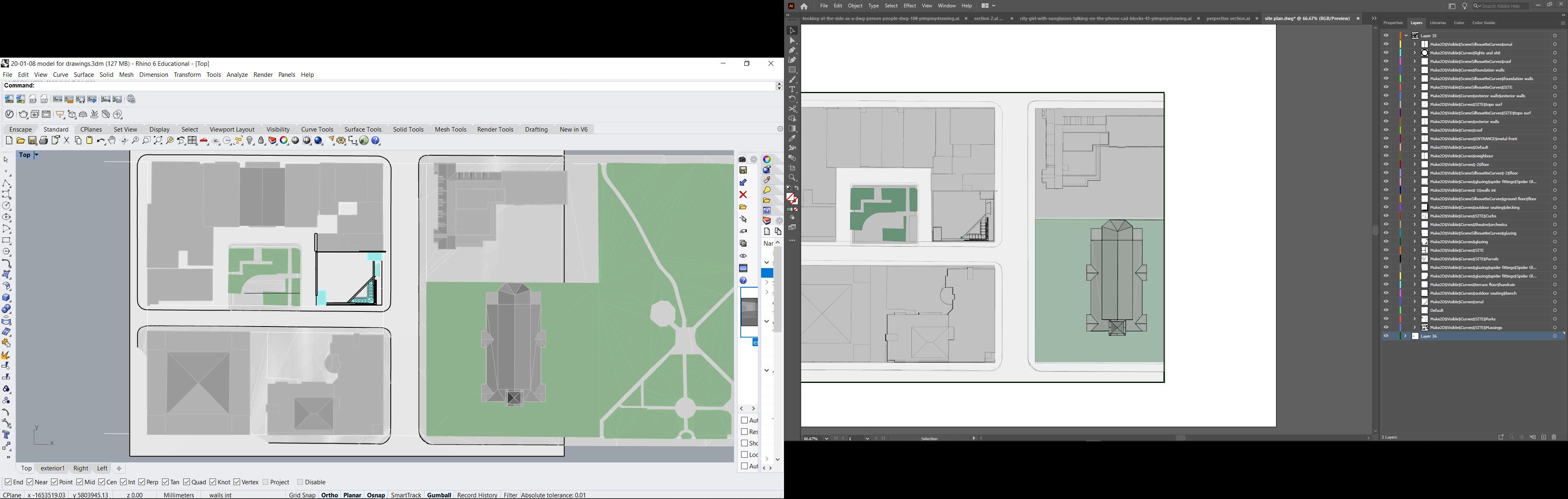

CH E RR Y ST R EE T FRONT STREET MILL STREET C OOPE R AGE ST R EE T SITE PLAN 0 10 20 50 100m

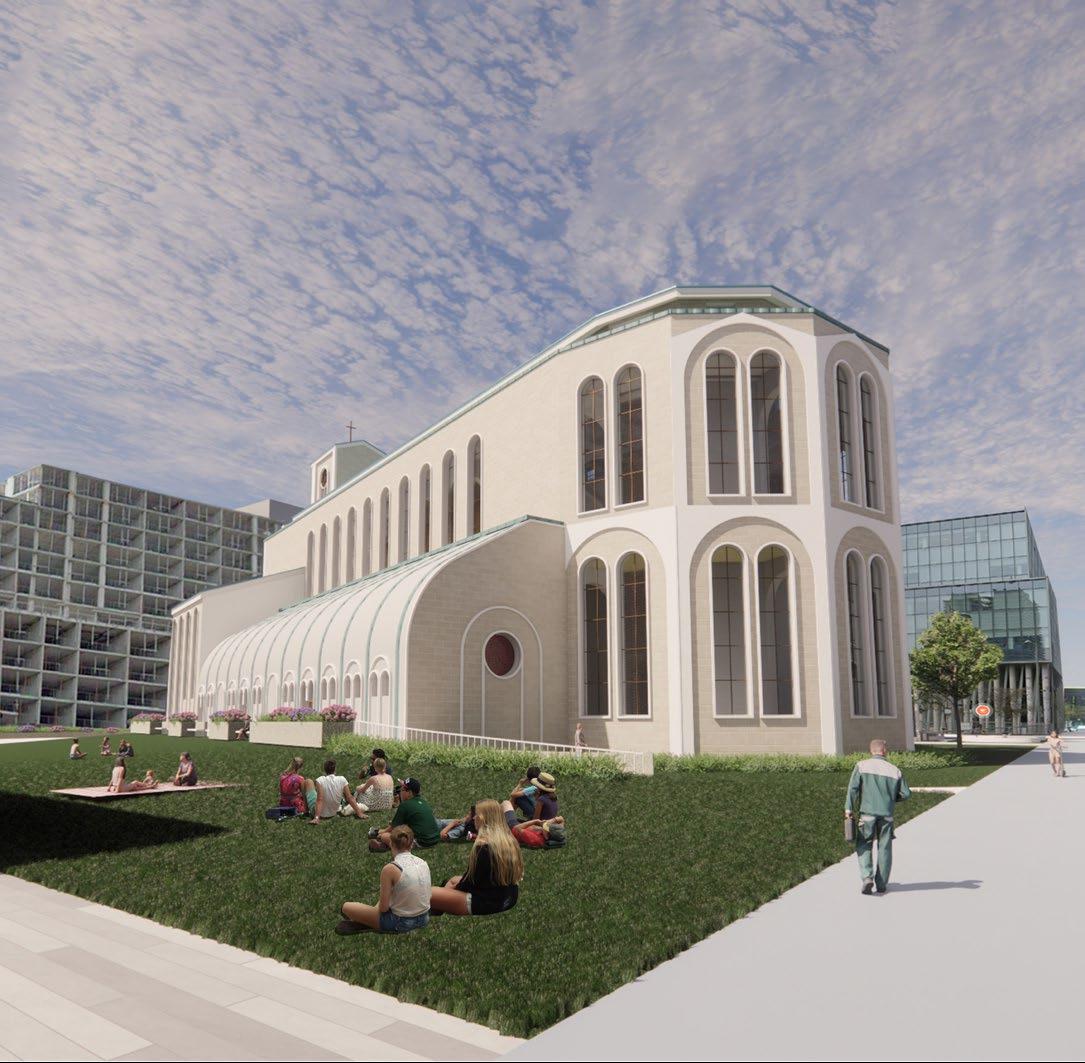

49 PARK PERSPECTIVE
50
1.
2.
10. 11.
NARTHEX NAVE ALTAR BABTISTRY CHAPEL SACRISTY STATIONS OF THE CROSS CANDLE TABLE CONFESSIONALS PULPIT WATER FOUNTAINS ELEVATOR GROUND FLOOR PLAN 1 2 3 10 4 6 6 6 9 9 7 7 5 5 5 5 11 12 0 5 10 20 30m
3. 4. 5. 6. 7. 8. 9.
12.

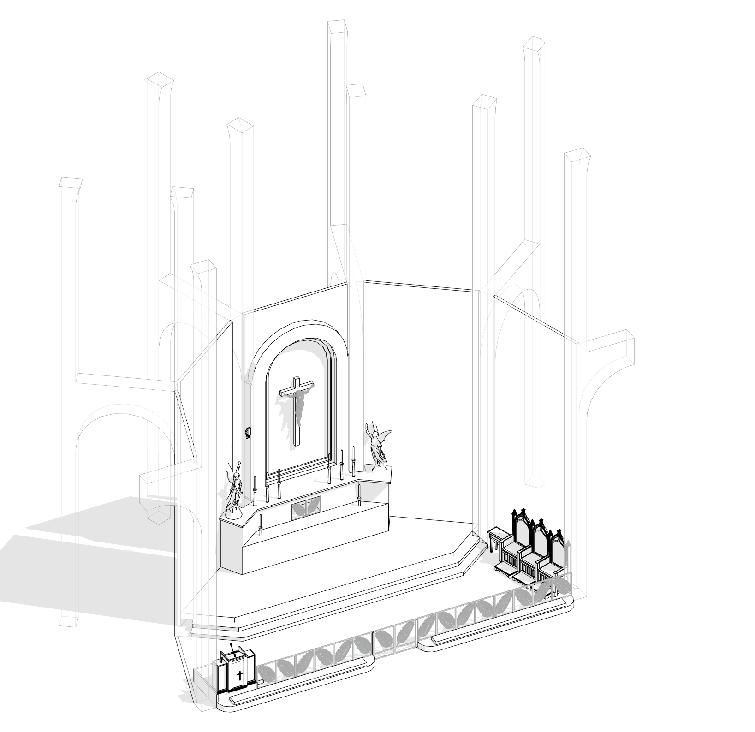

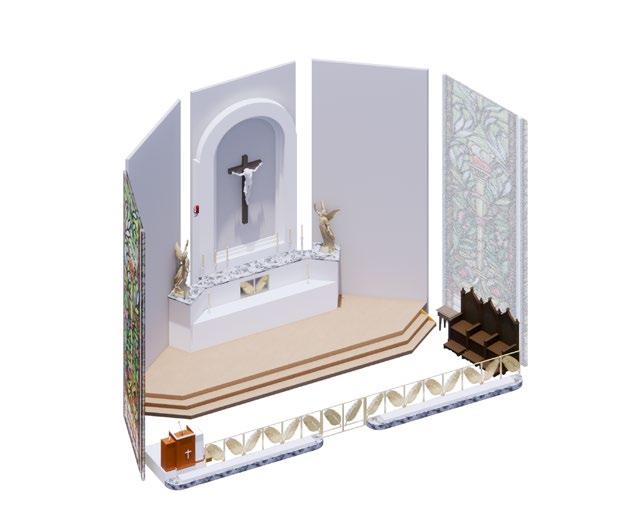

ALTAR AXONOMETRIC
ALTAR CROSS
ALTAR CROSS
SANCTUARY CANDLE
SANCTUARY CANDLE
ALTAR ANGEL
ALTAR ANGEL
TABERNACLE
PLATFORM
PULPIT
TABERNACLE PLATFORM PULPIT

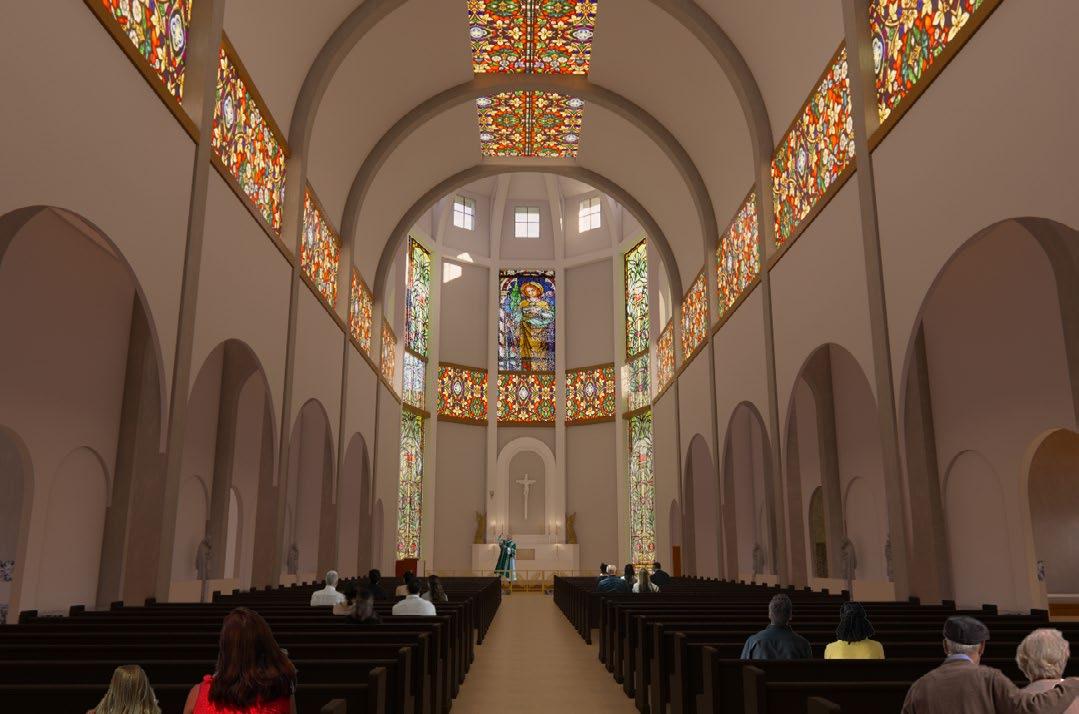

MAIN AISLE VIEW
51 CANDLE
STICKS
CREDENCE
SEDILA KNEELERS
TABLE
CANDLE
CREDENCE
SEDILA
STICKS
TABLE
KNEELERS

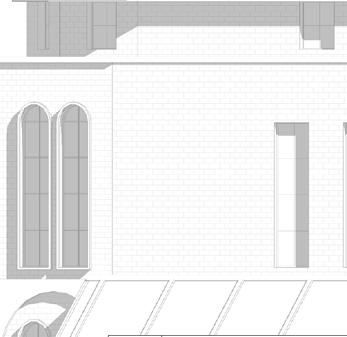

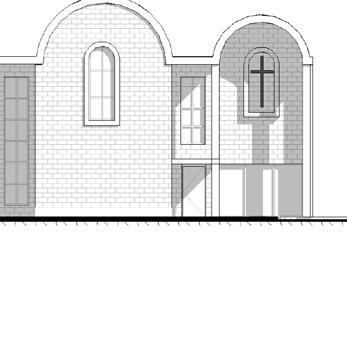

WEST ELEVATION
0 5 10 20 30m
NARTHEX CROSS SECTION
CROSS SECTION

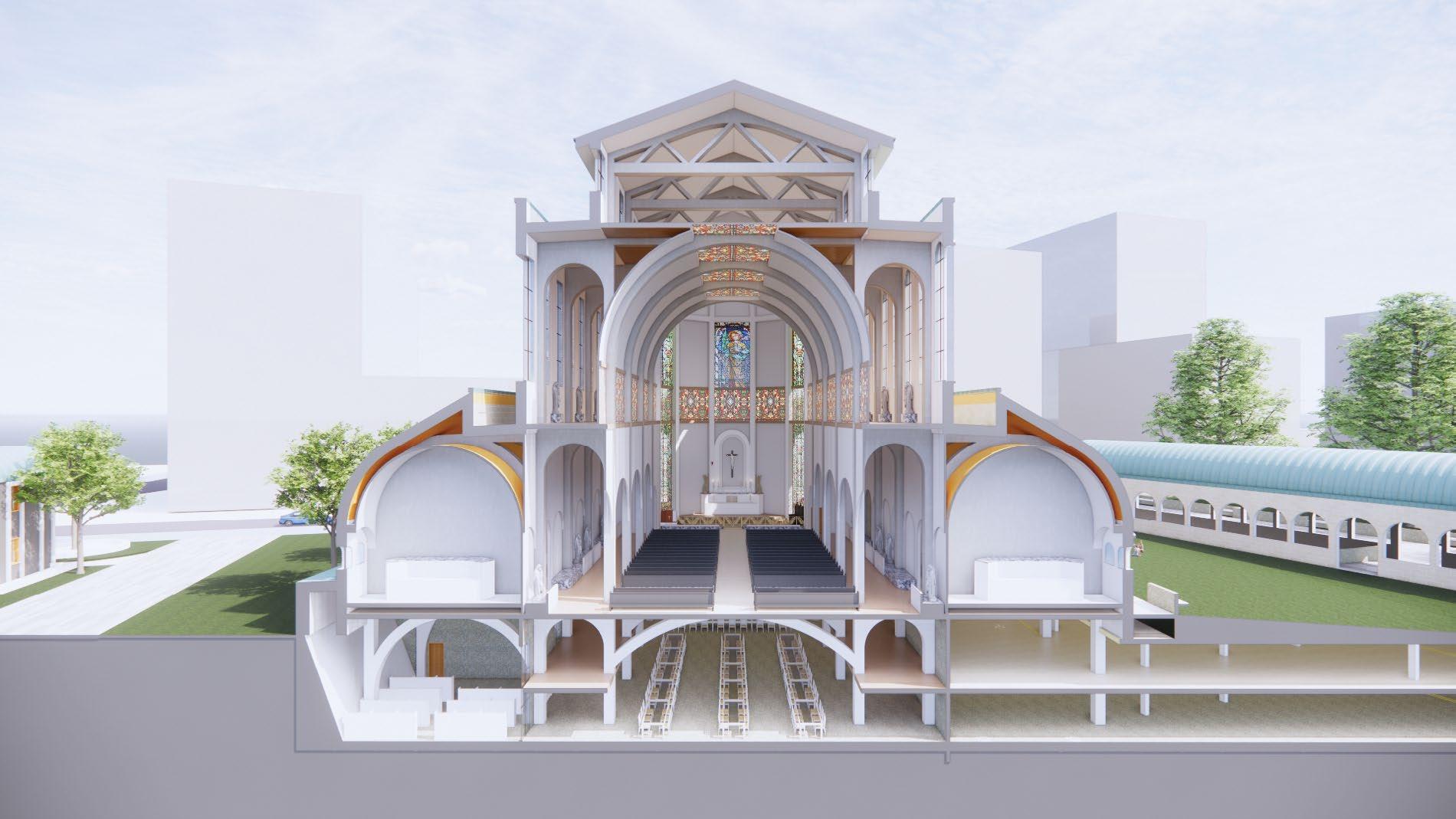

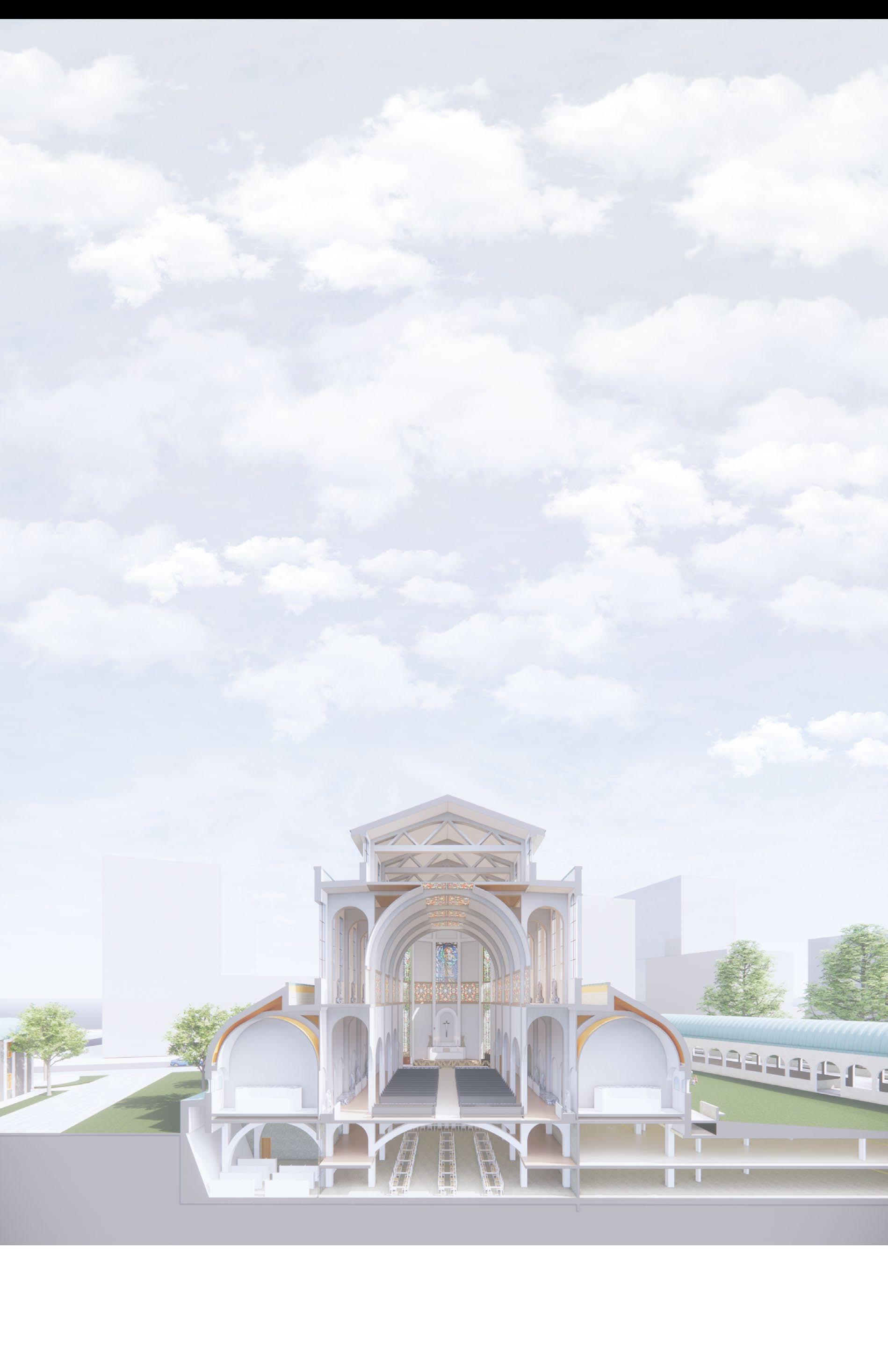

WEST ELEVATION NAVE- SECTIONAL PERSPECTIVE
0 10 20 50m
NARTHEX
SECTIONAL

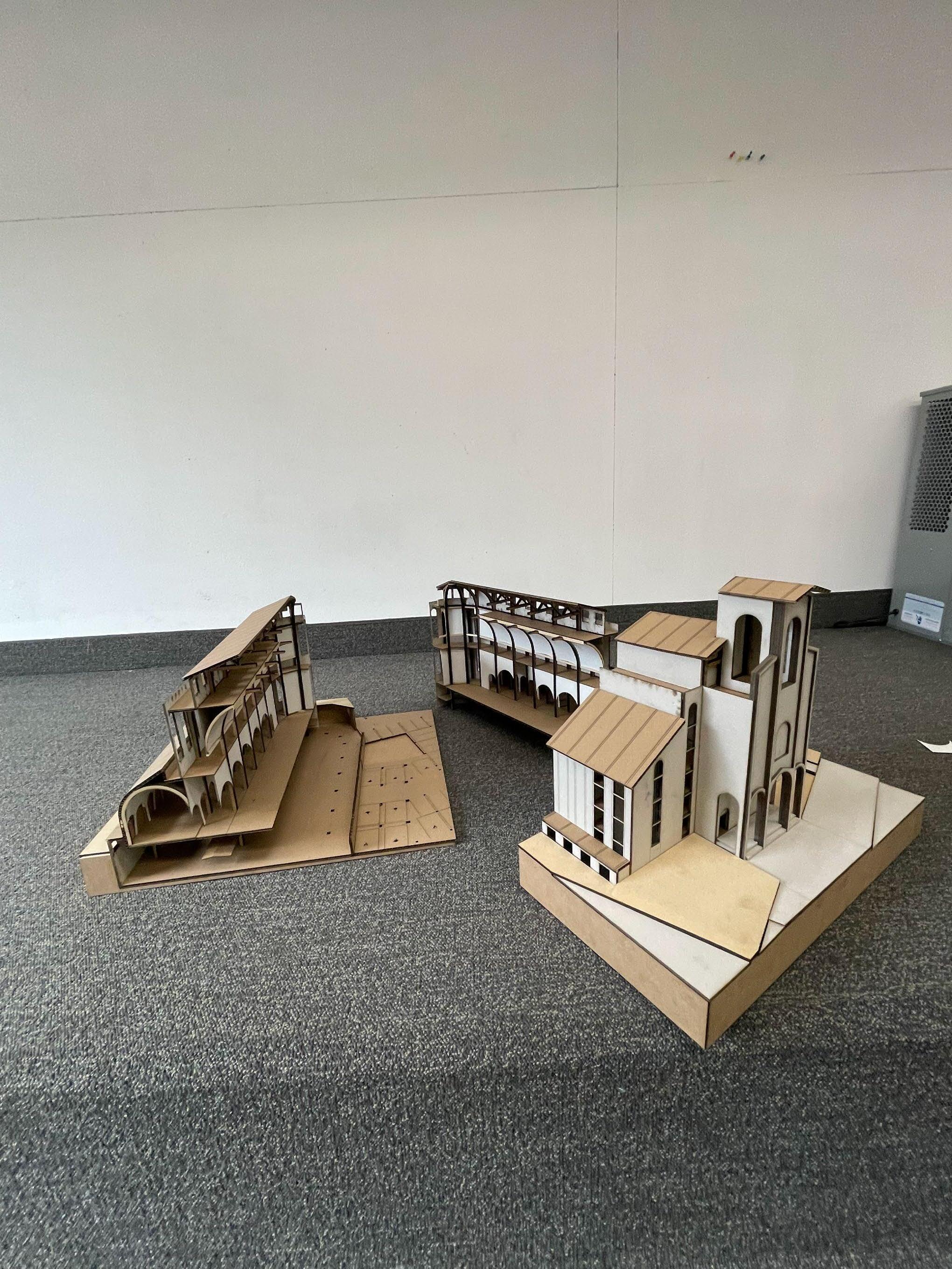

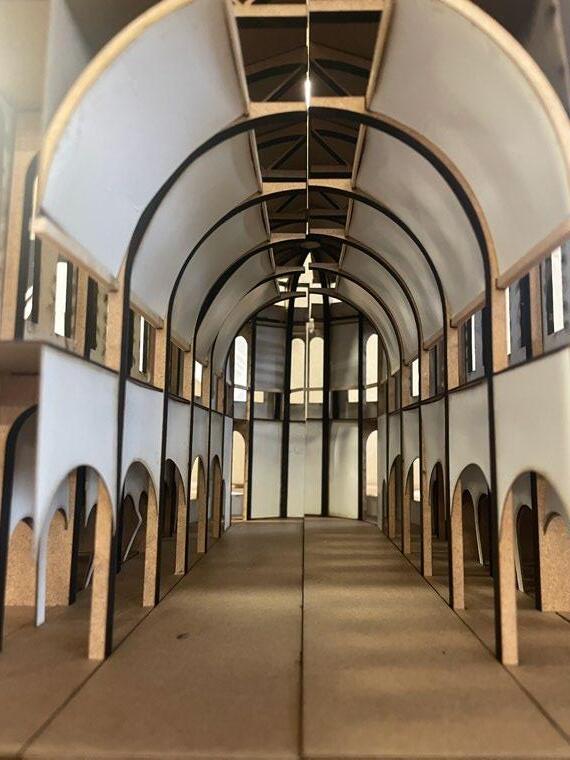

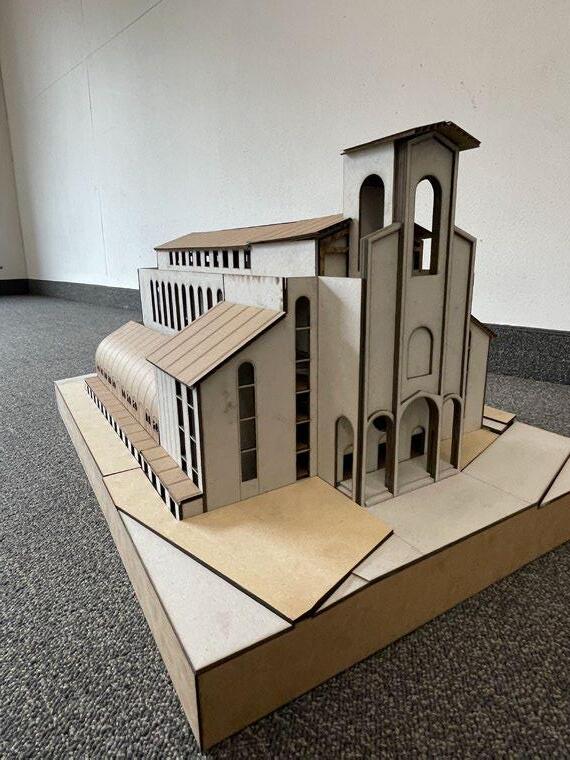

PHYSICAL
MODEL
55 ASSEMBLED INTERIOR

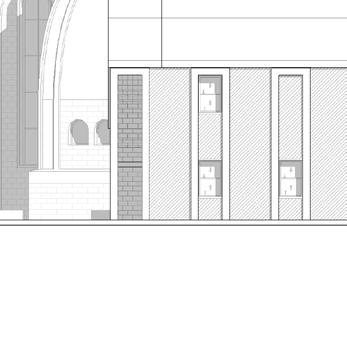

PRIORY EAST ELEVATION

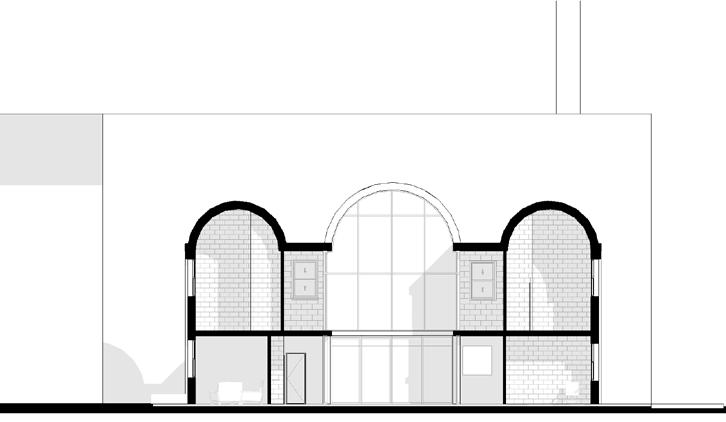

PRIORY SECTION
56 PRIORY EAST ELEVAT ION
PRIORY NO PRIORY NORTH ELEVATION
PRIORY SECTION
0 5 10 20m

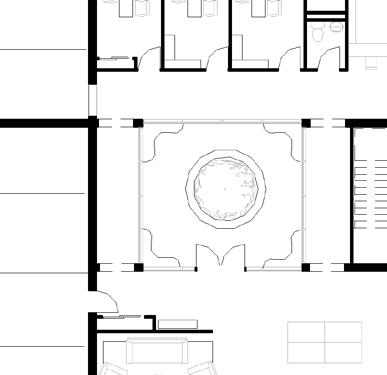

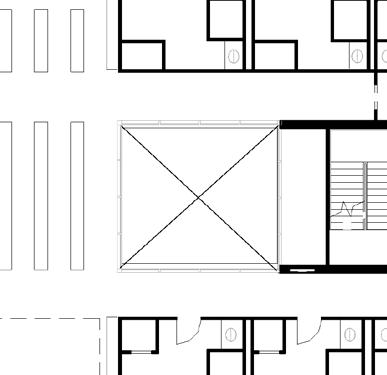

57 1 2 7 8 5 3 4 6 0 T B 1 2 3 3 3 3 3 3 3 PRIORY GROUND FLOOR PLAN
1.
2.
3.
4.
5.
9.
11.
DINING
KITCHEN
STORAGE INNTER ATRIUM LIBRARY READING AREA BEDROOMS 9 11 11 11 11 11 11 11 0 5 10 20m
6. 7. 8.
10.
MAIN OFFICE SMALLER OFFICES LIVING ROOM
AREA
GARAGE
