01 | School of Allied & Public Health Prairie View, TX | 2024

p. 4-11

02 | Mount Meru Space Center Houston, TX | 2024

p. 12-21

03 | The Bridge Preschool Prairie View, TX | 2022

p. 22-29

04 | Stone’s Throw Condominiums Grosse Pointe Shores, MI | 2022

p. 30-35

05 | Professional & Freelance Work Internship & Personal Ventures

p. 36-41

06 | Miscellaneous Work Creative Visualizations and Model-Making

p. 42-47

01

SCHOOL OF ALLIED & PUBLIC HEALTH PRAIRIE VIEW, TEXAS, USA | 2024

COLLEAGUES - Benjamin Thompson & Alexis Toure CONTRIBUTION - Project Lead | Floor Plans | Graphics | ModelMaking | Renders | Site Plan | Structure COURSE - ARCH 4645 | Architectural Design VII INSTRUCTOR - Huiyi Xu

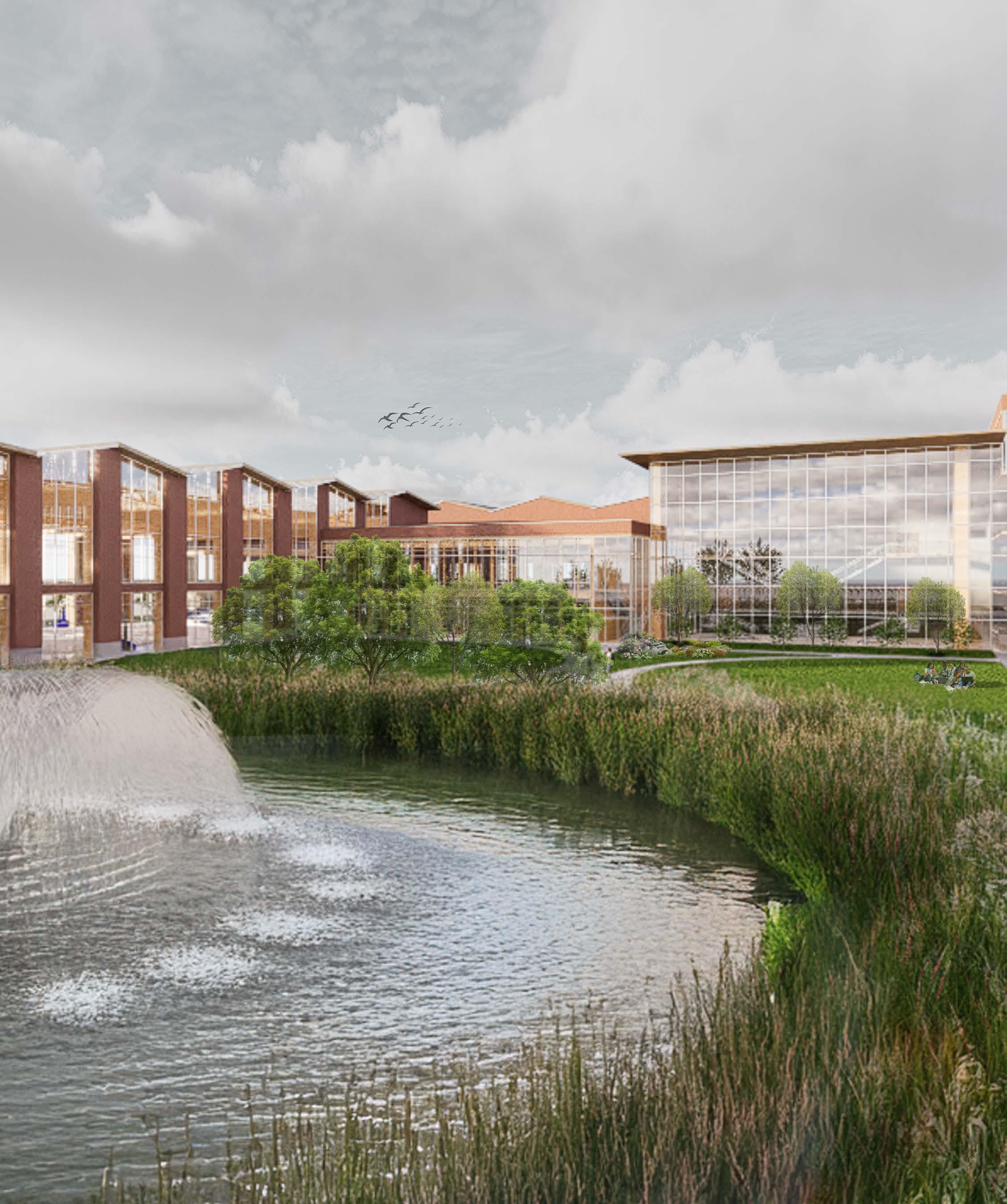

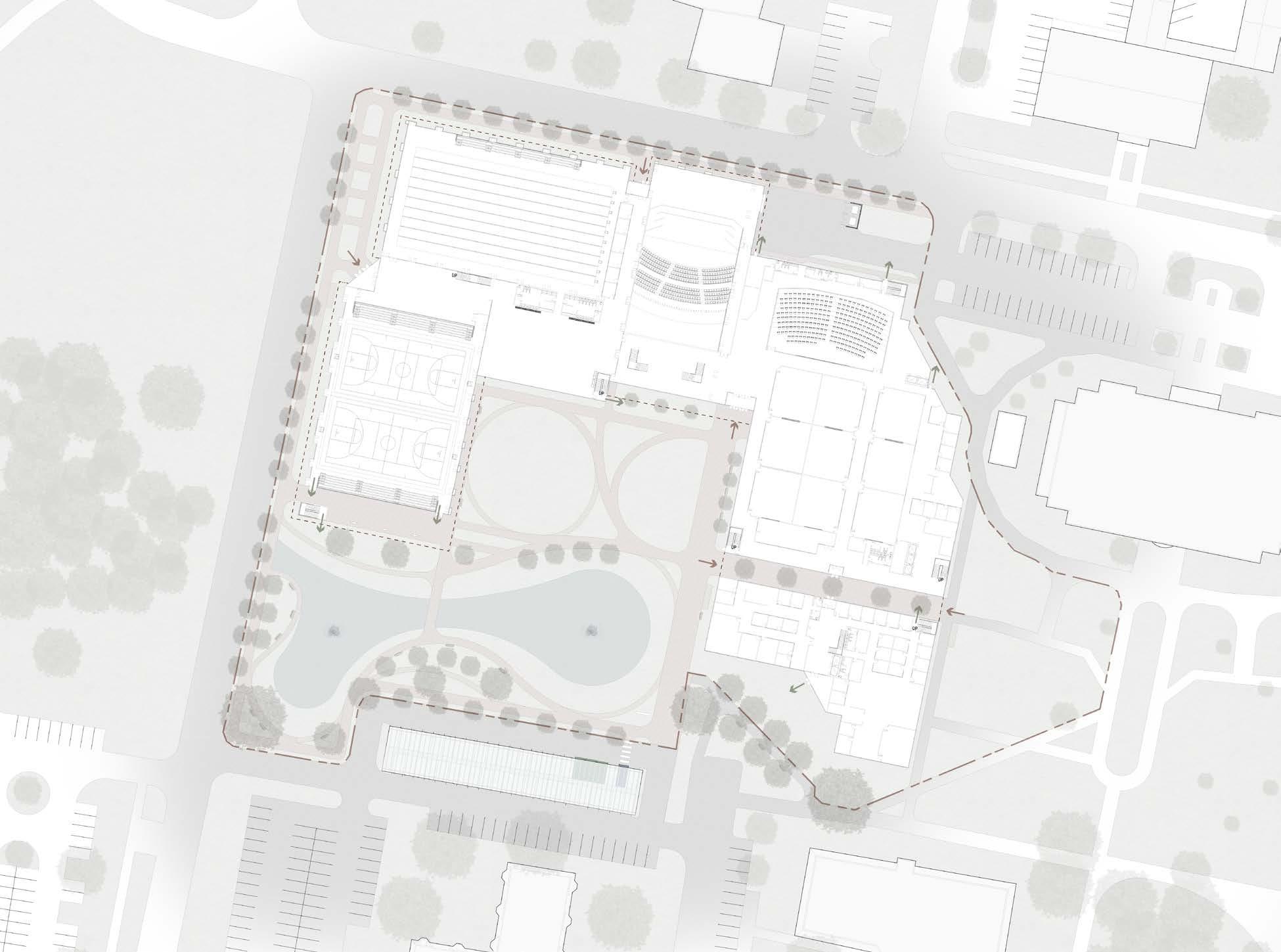

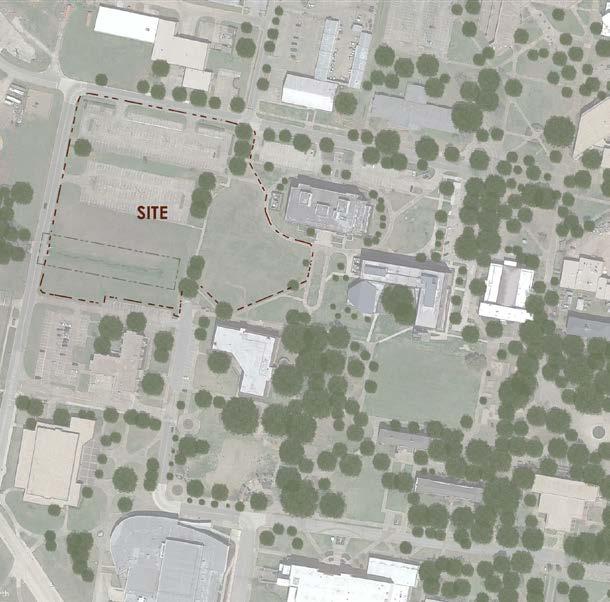

A community transformed holistically. Rooted in the Prairie View A&M master plan, the project emphasizes the creation of attractive communal spaces that promote physical activity such as walking and biking, as well as areas of respite, revitalizing the health of both users and the site. Responding to existing site conditions, the building’s mass timber structure fosters an indoor-outdoor connection while providing a sustainable framework. Its form dynamically transforms, ascending and descending like stair steps, reflecting the dynamic nature of physical activity and health sciences. Organized around expansive green spaces, the design ensures excellent outdoor views from nearly every part of the building, enhancing community engagement and well-being.

DESIGN

Add to existing communal spaces on campus to promote site engagement.

Create more tree cover at the site to promote walkability towards it.

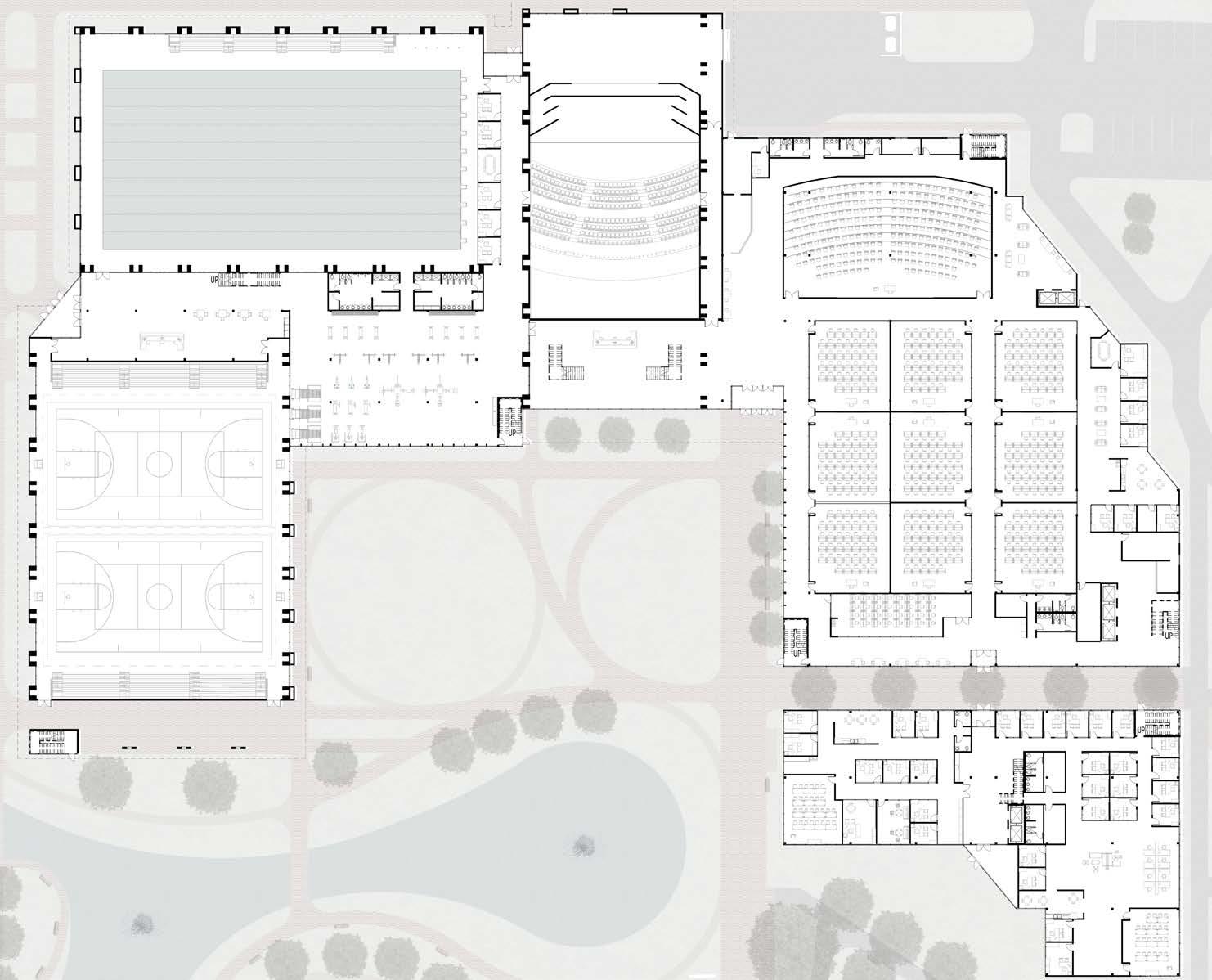

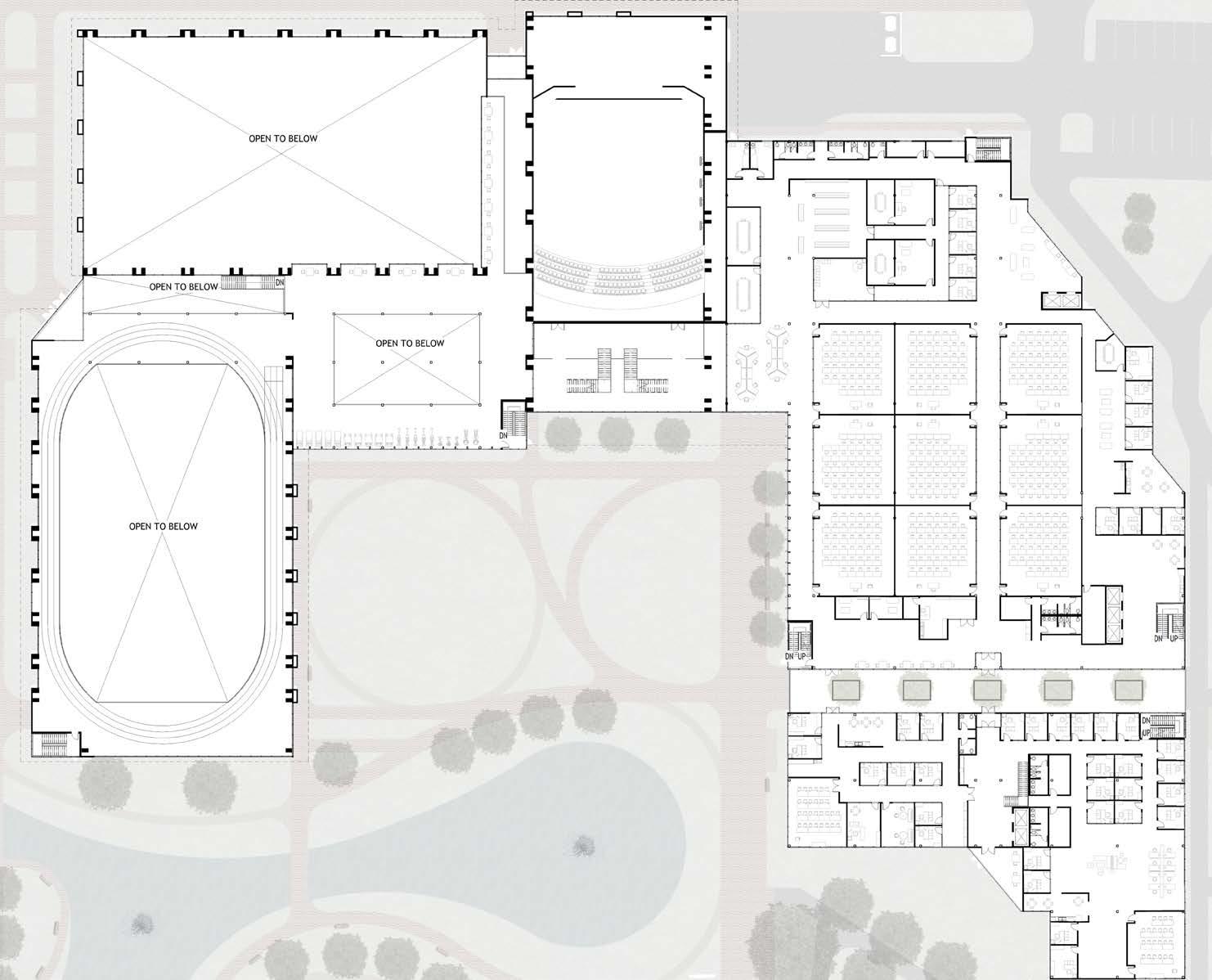

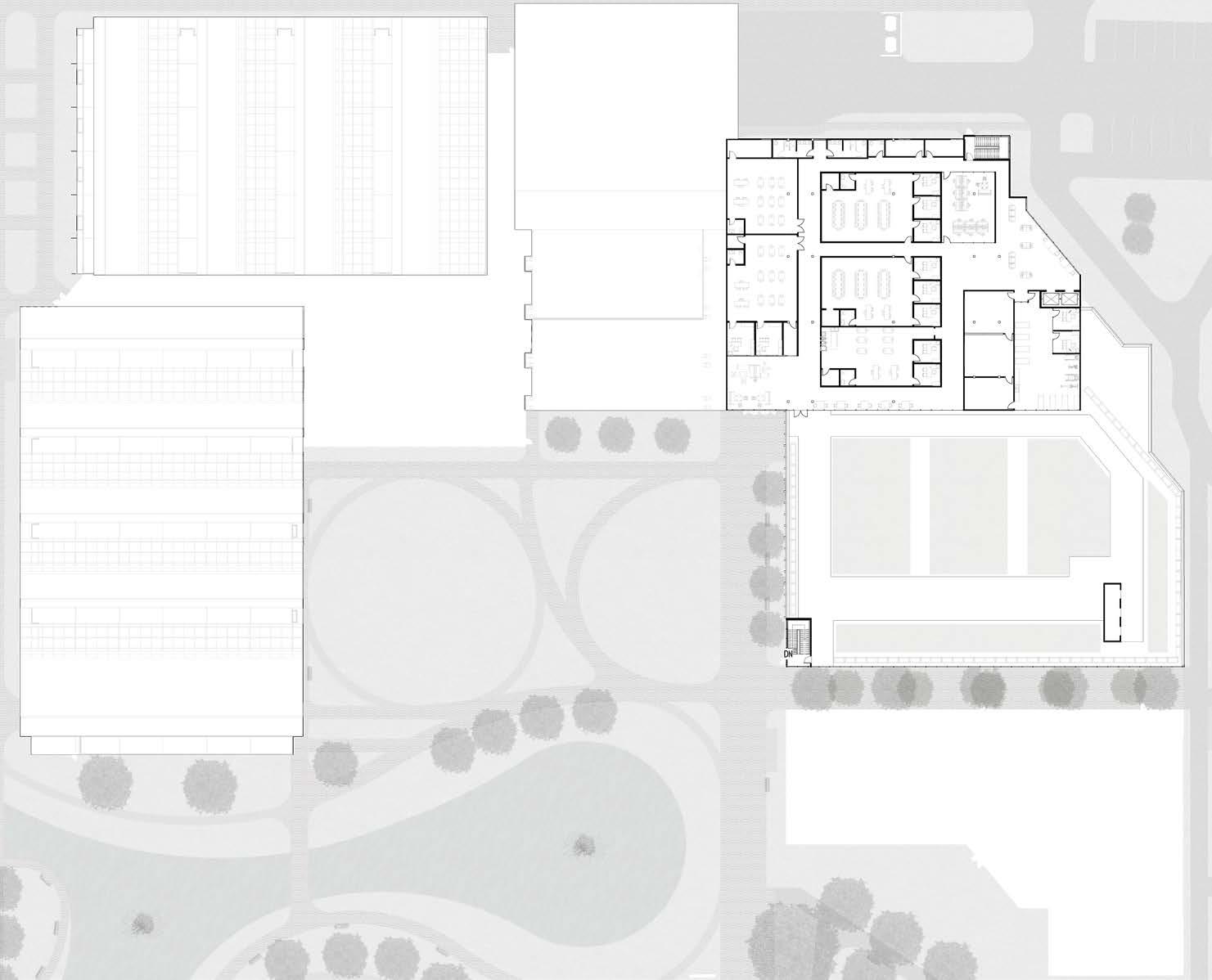

To create a spacious yet intimate communal area, the design process began with a centrally organized building layout. This approach emphasized key viewpoints and a sense of community whilst connecting the space to the rest of campus.

As the design evolved, key circulation points were strategically placed to promote interaction within the site and the building. To maintain a sense of openness to the surrounding campus, circulation pathways were thoughtfully integrated into both the interior and exterior spaces.

Extend existing bike paths through the project site where pedestrian travel is a major shortfall.

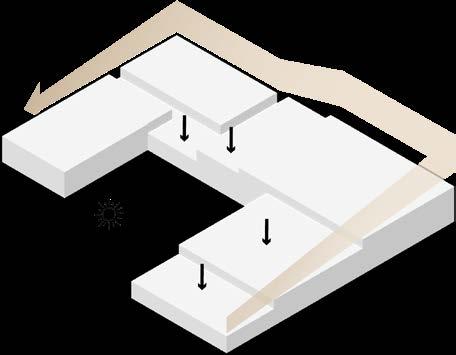

A terraced design was employed to align with the concept’s transformative nature, allowing the elevations to evoke a sense of ‘movement.’ This also maximized sunlight penetration throughout the building and created additional opportunities for dynamic viewpoints.

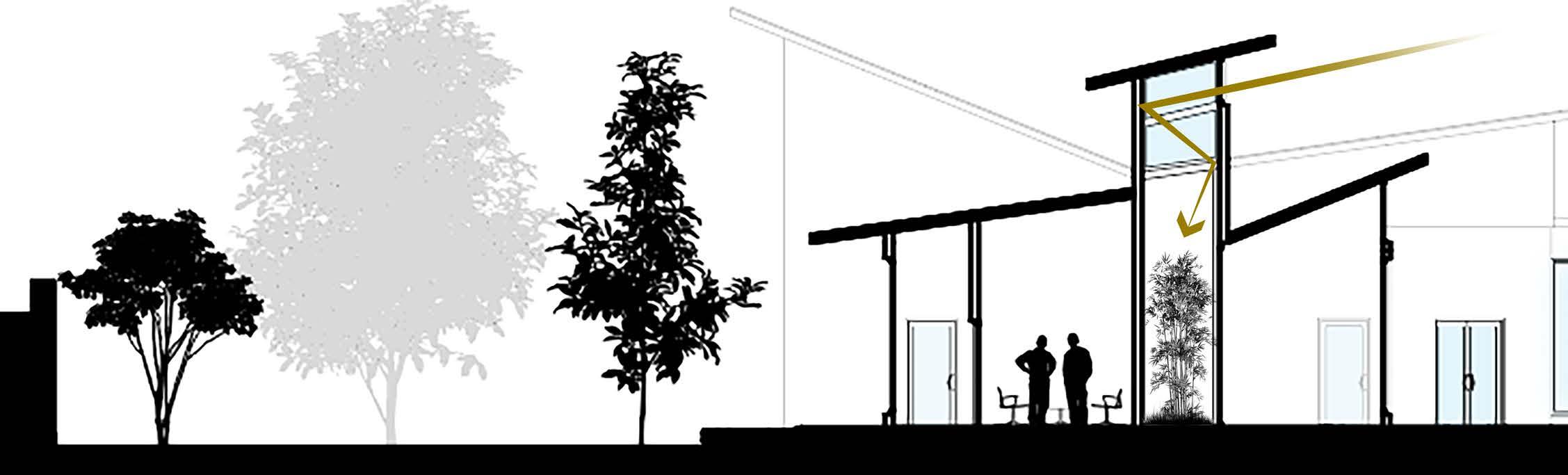

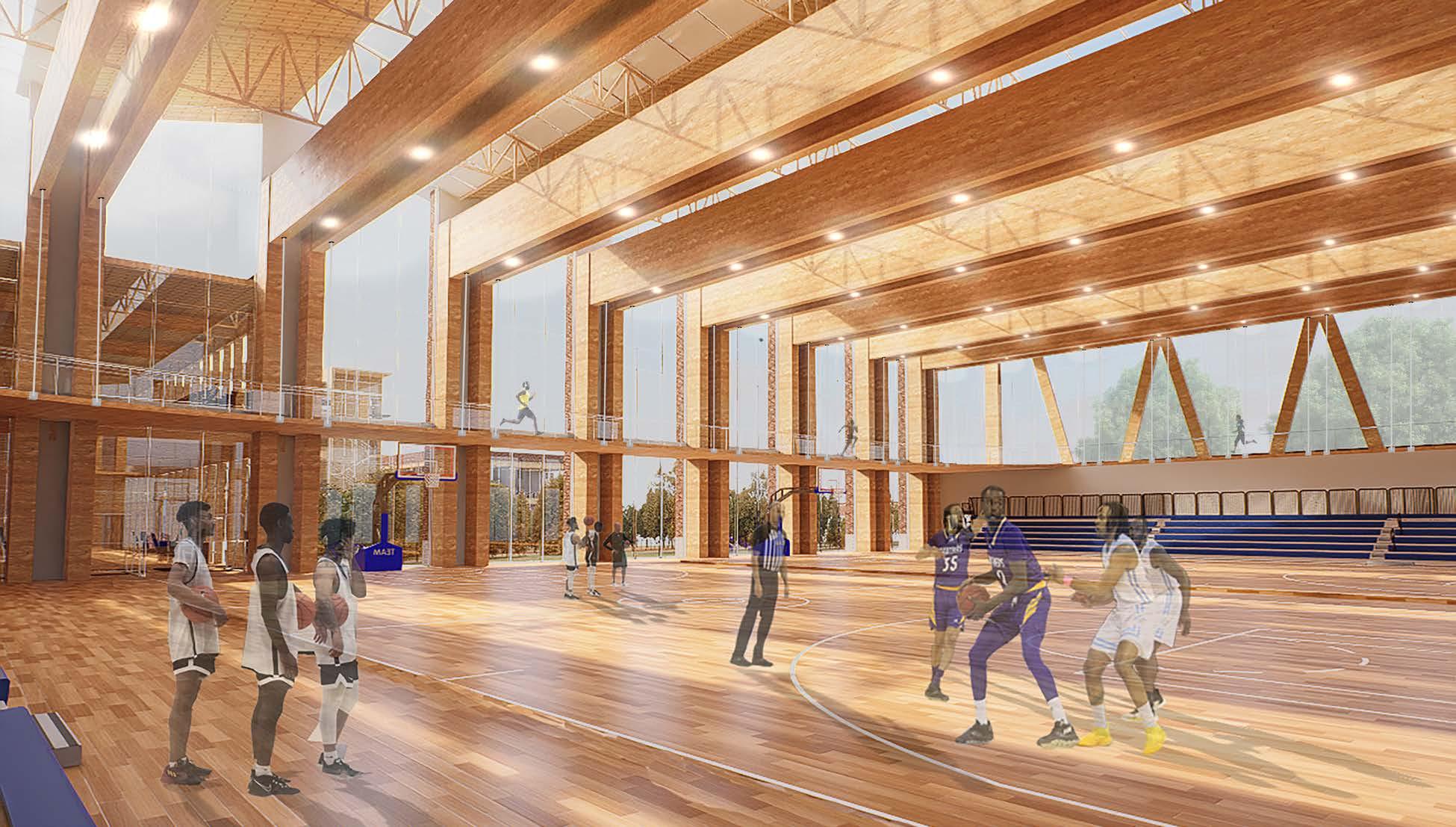

Integral to the project’s sustainable initiatives, the sawtooth roof was designed to optimize solar energy capture by aligning with the building’s orientation. Additionally, it enhanced interior visuals of both the basketball gym and natatorium.

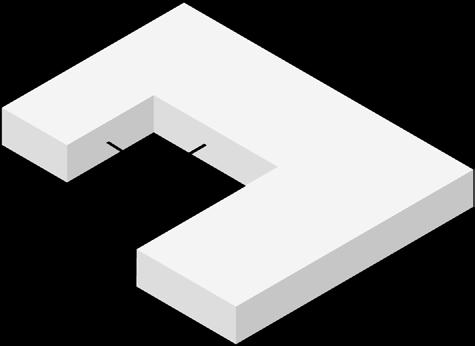

1. First Volume

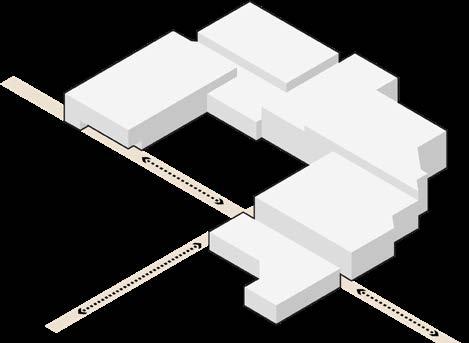

3. Circulatory Division

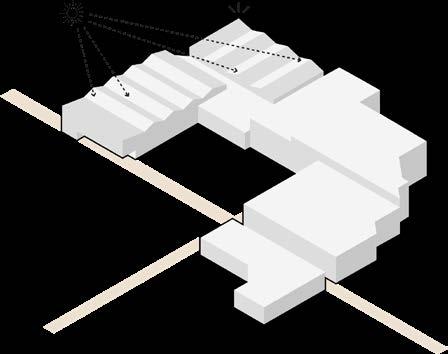

4. Saw-Tooth Solar Roof
2. Transforming Heights

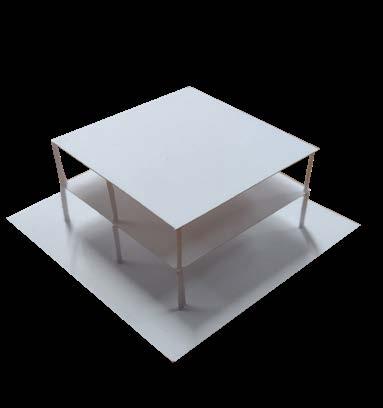

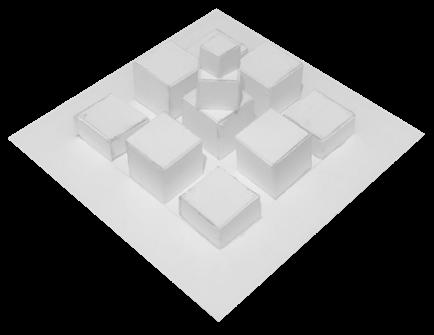

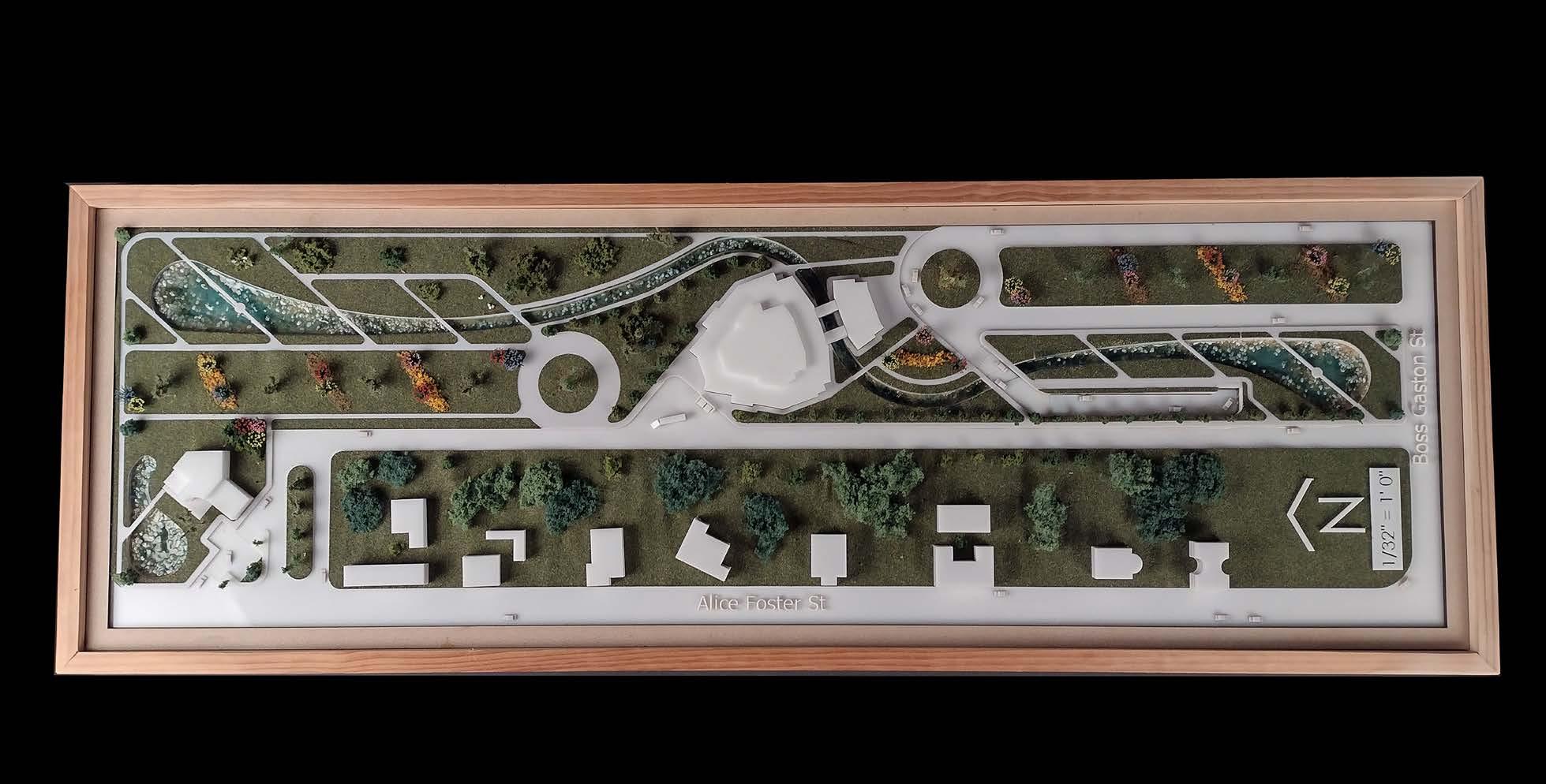

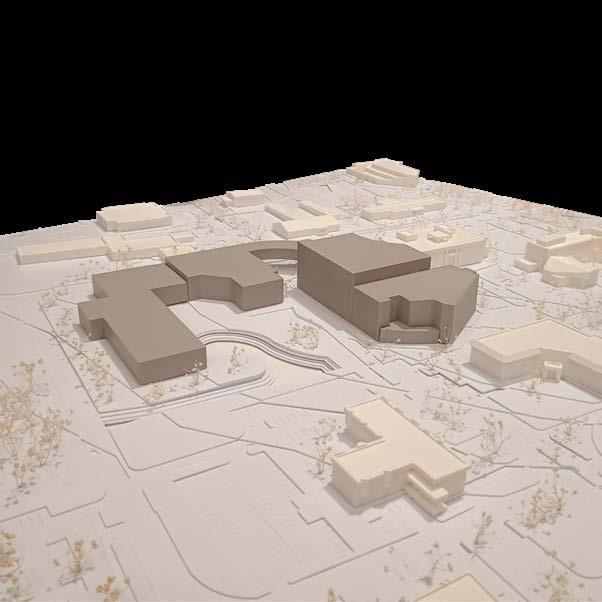

1ST ITERATION: CONCEPT MODEL

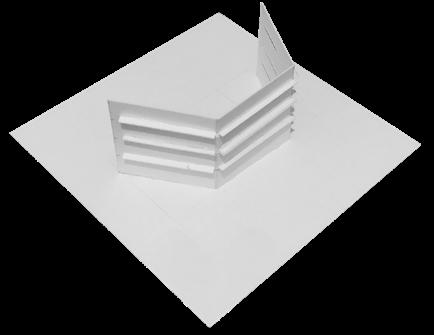

2ND ITERATION: MIDTERM MODEL

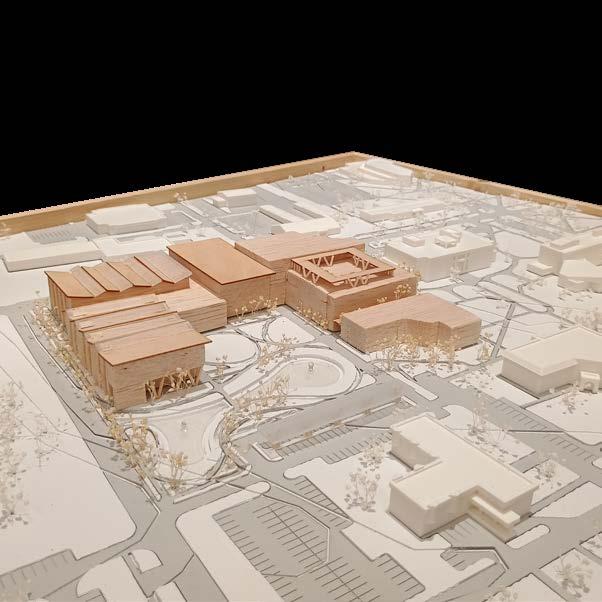

3RD ITERATION: FINAL MODEL

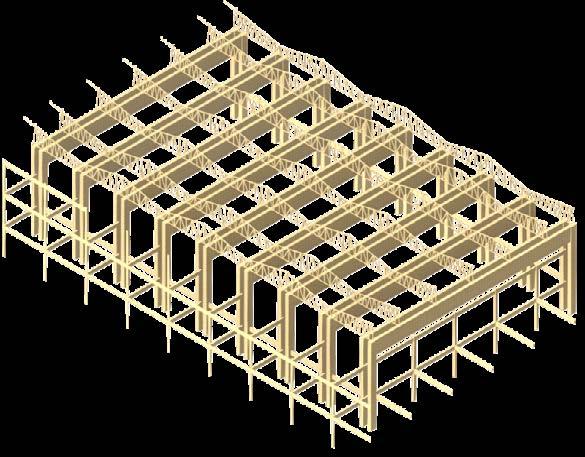

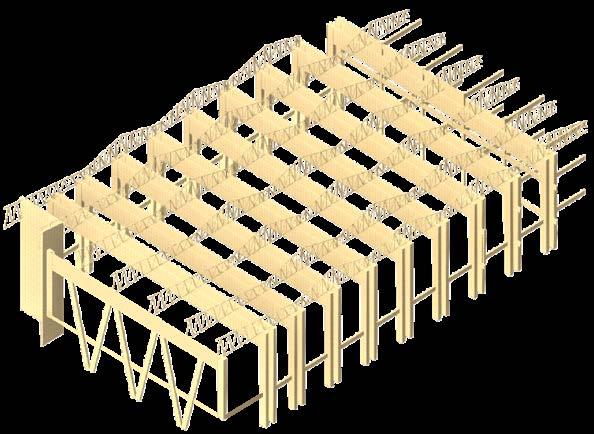

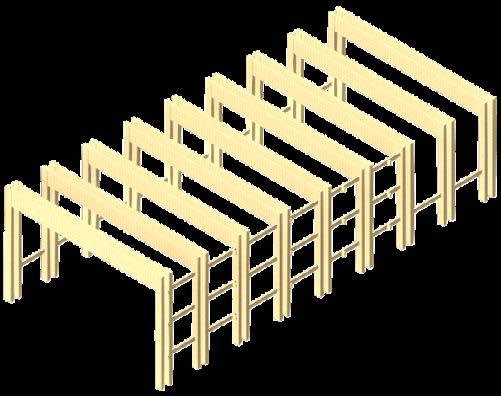

MASS TIMBER STRUCTURE

Typ. 7-ply CLT shear walls
Typ. 7ft. deep glulam beams
Typ. 6x22.5 glulam beams

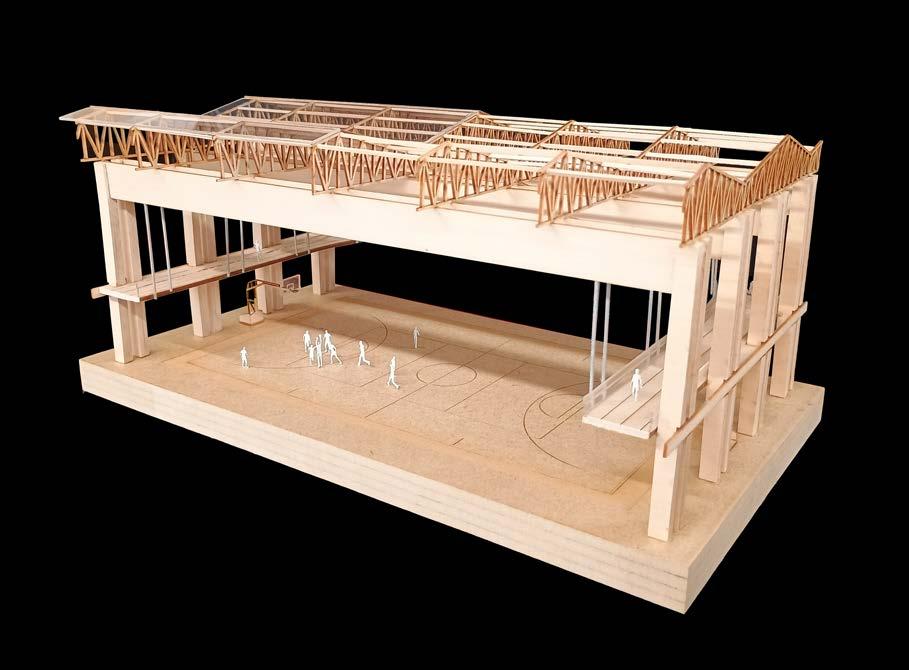

GYMNASIUM STRUCTURAL MODEL

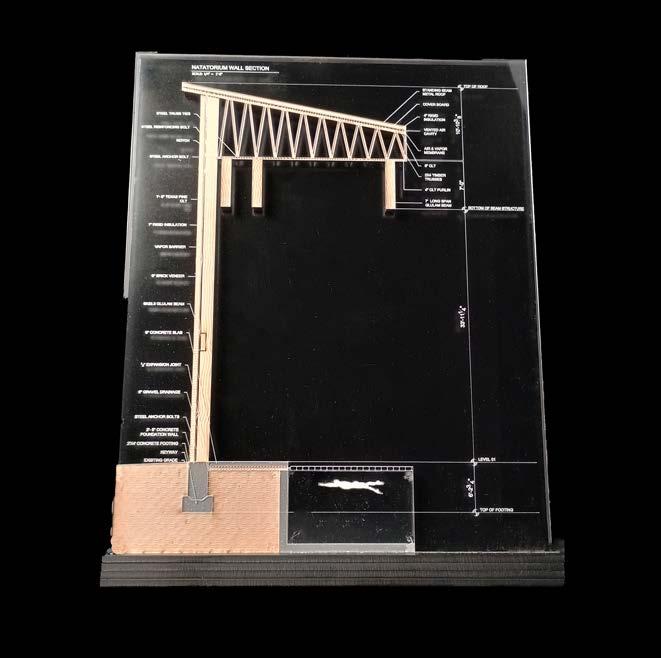

NATATORIUM WALL SECTION MODEL

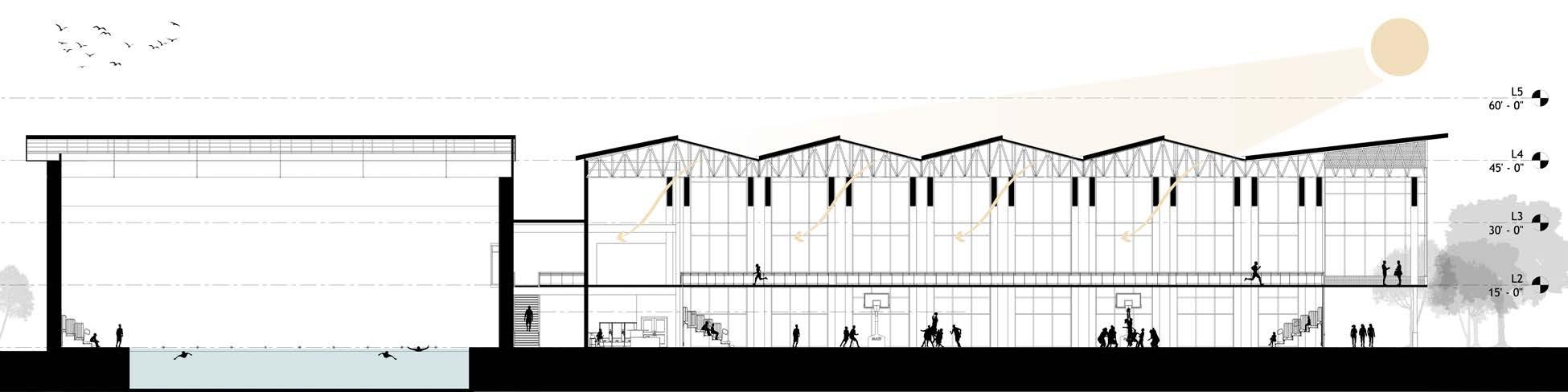

SECTION AA
Photovoltaic Smartglass

Embodying the Hindu cosmic axis with a tiered ascent from Earth to the universe. The Mount Meru Space Center is a 45,000-square-foot group A-3 facility dedicated to exploring the wonders of space. It features educational exhibits that trace humanity’s journey from the early history of space exploration to future innovations, while also providing research opportunities focused on space exploration and habitation. Inspired by the cosmic symbolism of Hindu temples, the design draws heavily on principles of Hindu architecture, seamlessly blending them with contemporary building techniques. A striking mass timber structure serves as the foundation, embodying a modern interpretation of traditional Hindu architectural ideals and bringing the vision of the Mount Meru Space Center to life. 02

MOUNT MERU SPACE CENTER HOUSTON, TEXAS, USA | 2024

COURSE - ARCH 3626 | Architectural Design VI

INSTRUCTOR - Dr. Rania Labib

RESEARCH

& SITE ANALYSIS

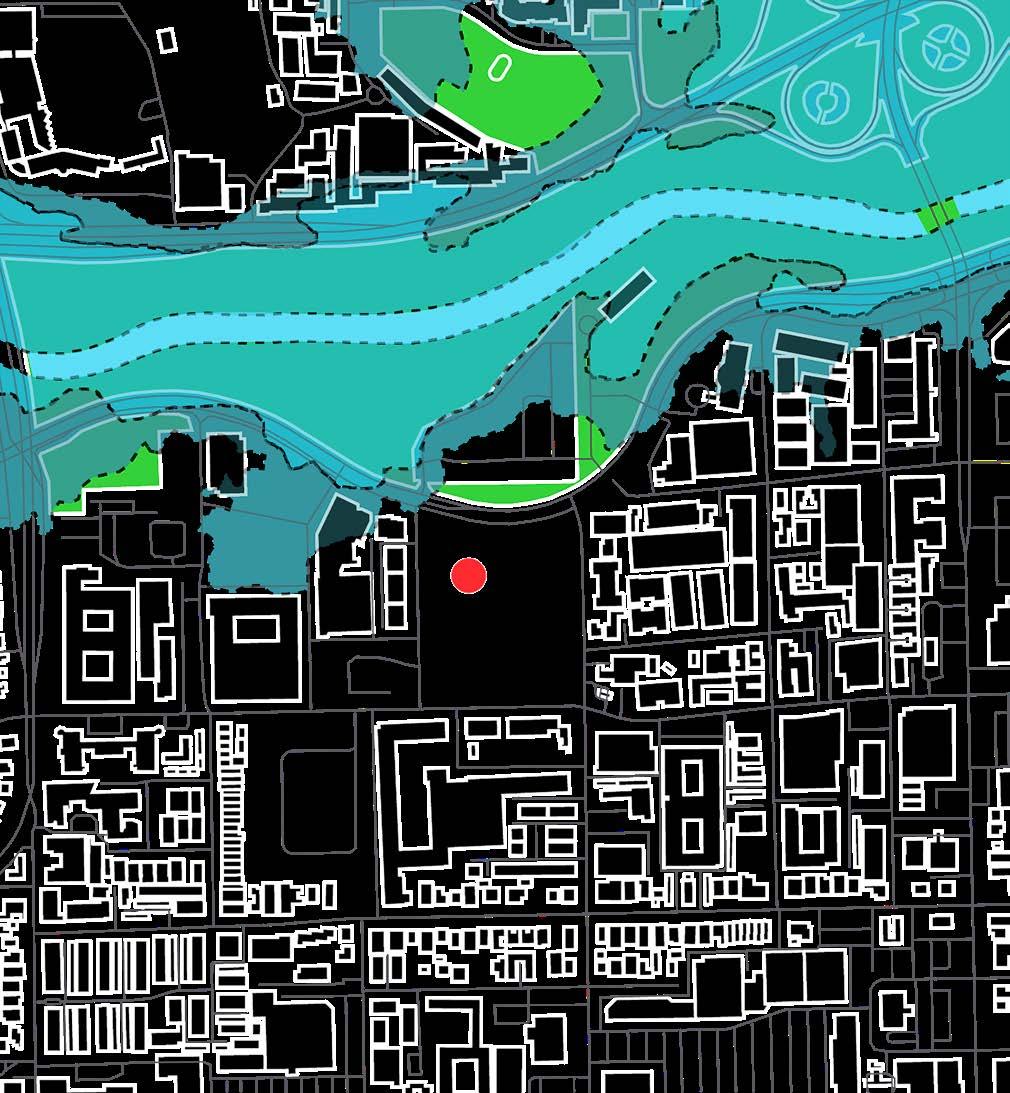

500 Year Floodplain

100 Year Floodplain

500m Radius Project Location

Being within close proximity of Houston’s Buffalo Bayou, flood mitigation took a high priority. As a highlighted point early in the process, it led to the proposed expansive bioswale that sits to the north of the project site.

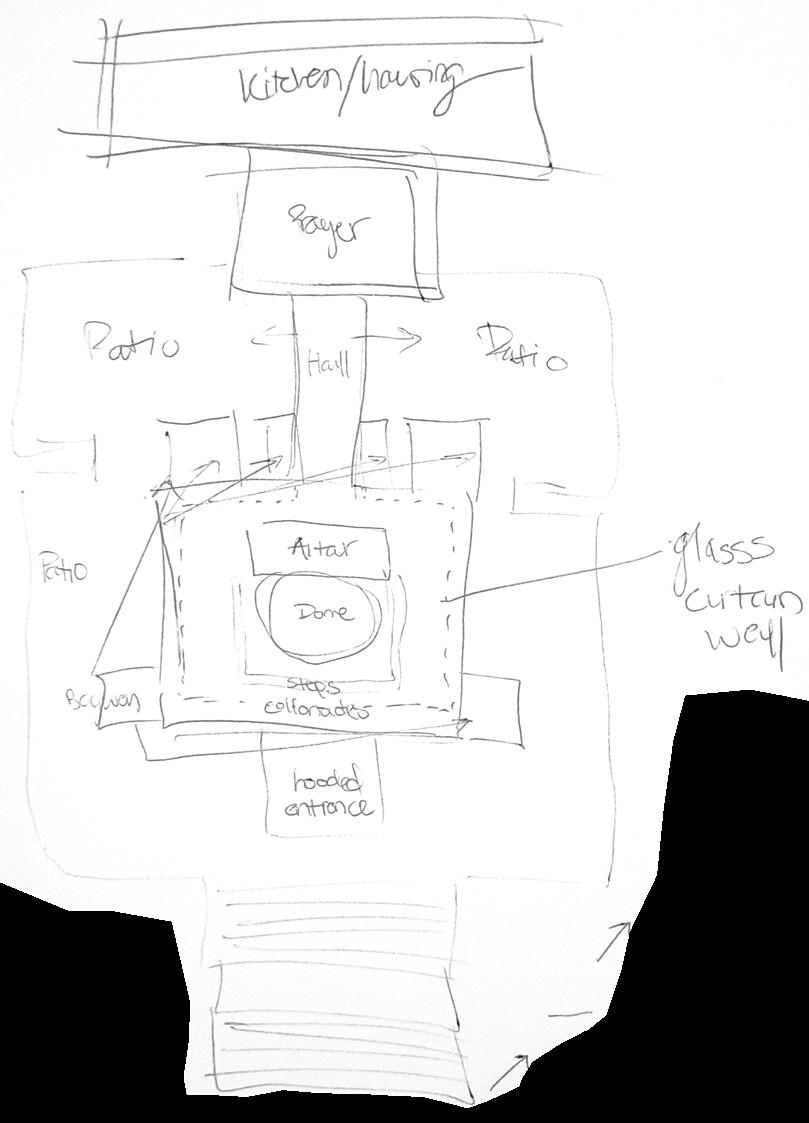

BAPS SHRI SWAMINARAYAN MANDIR, HOUSTON PLAN ROUGH SKETCH

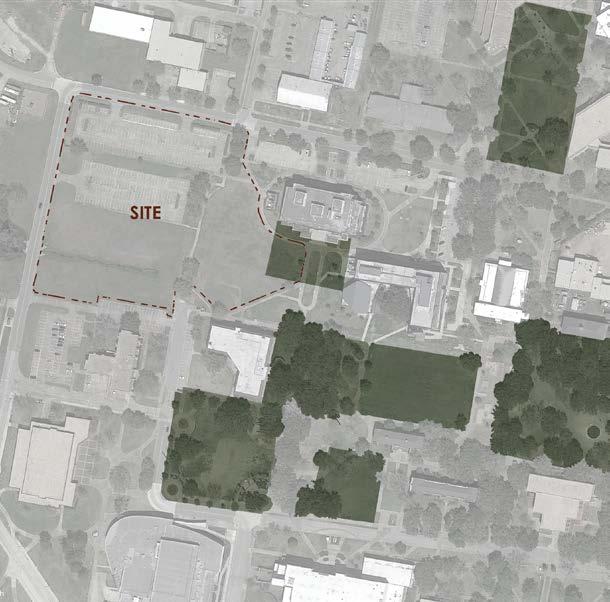

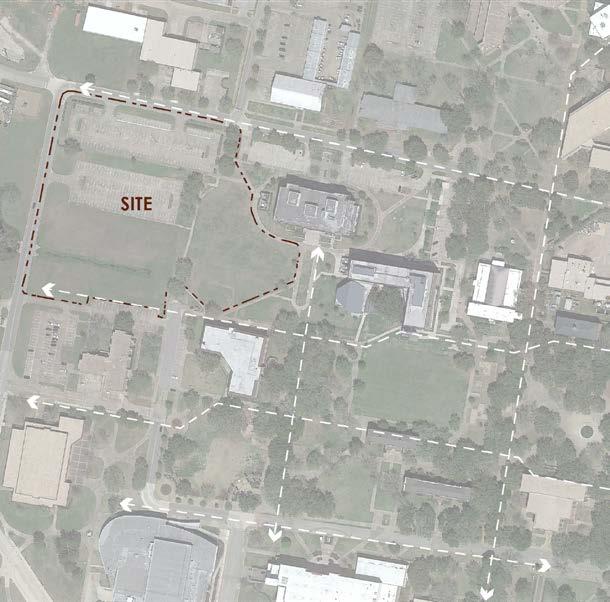

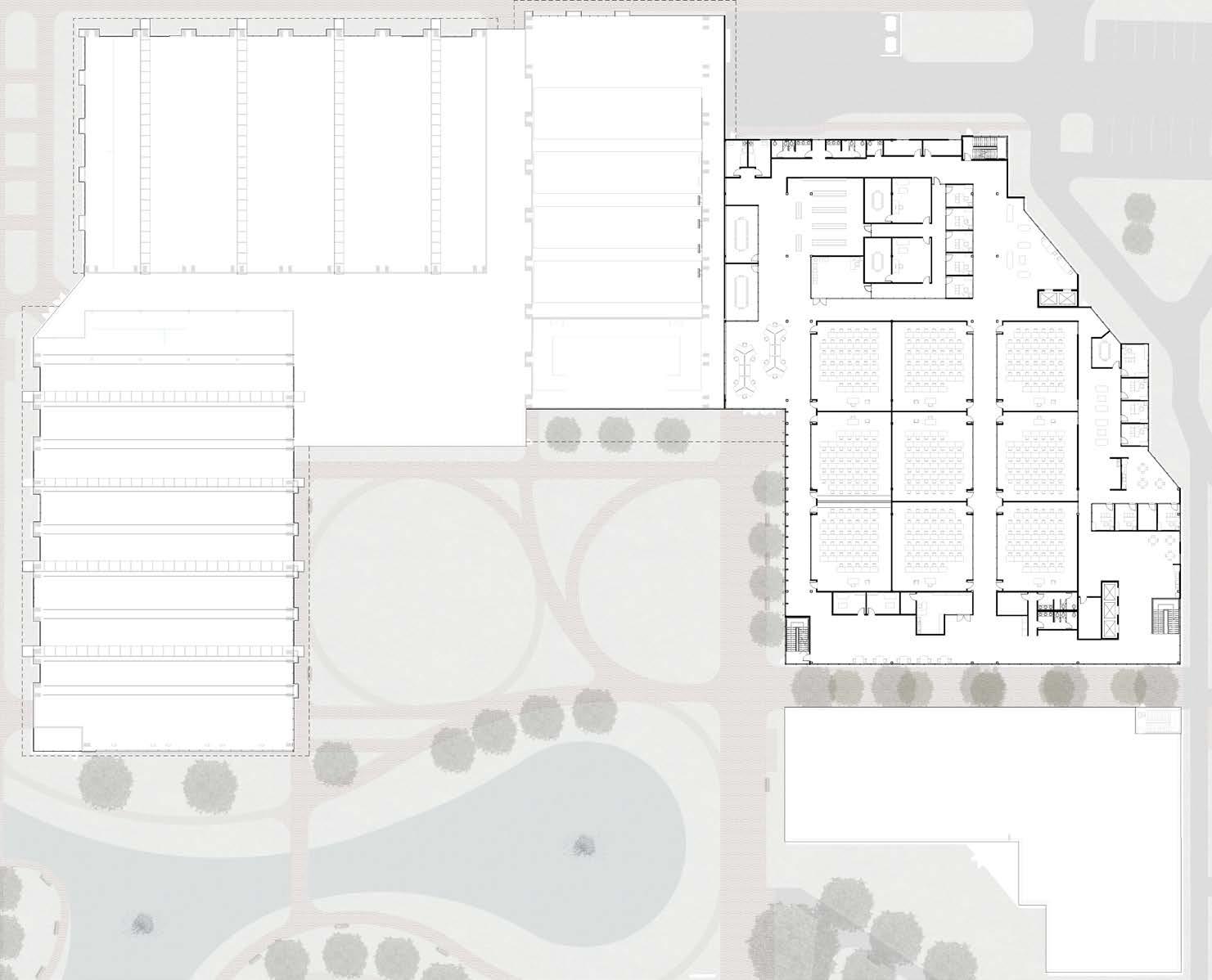

SITE ANALYSIS

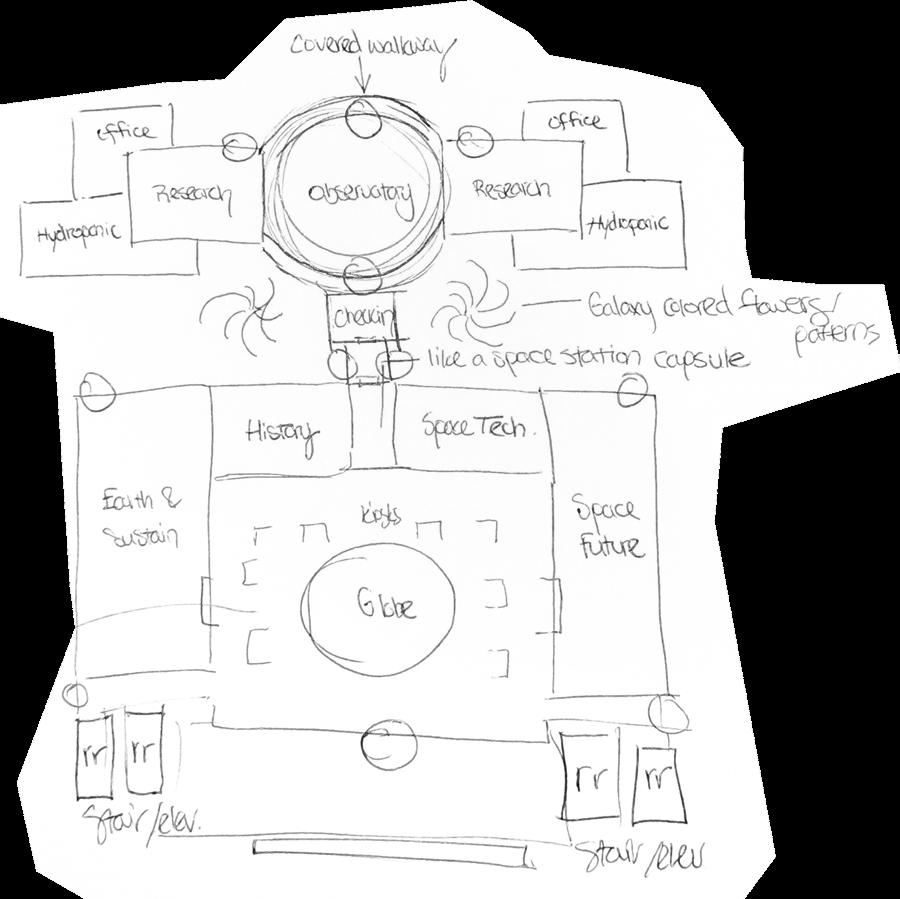

MOUNT MERU SPACE CENTER PLAN ROUGH SKETCH

BUFFALO BAYOU

DESIGN DEVELOPMENT

Lighting - The orientation of the project required mitigation of southern sunlight. The hierarchical shikhara, a prominent feature of Hindu temples, would simultaneously be used as a shading device with automated solar louvers.

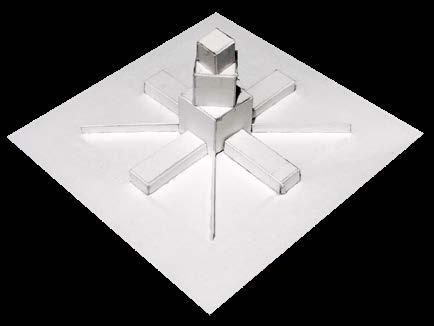

Circulation - Another staple of Hindu temples is circulation towards the cardinal directions. With the shikhara as the centralized feature, flow of traffic and circulation spans out in all directions.

Programming - Drawing inspiration from Angkor Wat, the layout features a centrally organized design with a prominent atrium at its heart. Exhibition spaces surround the atrium enabling a directional flow of traffic.

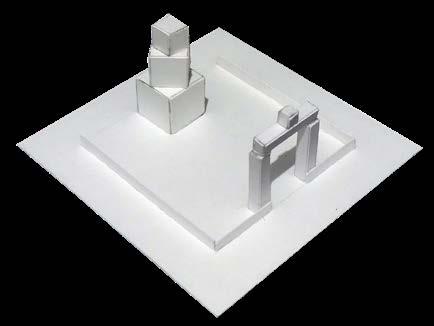

Form & Massing - Seeking to bridge the new with the old, the shikara’s tiered design draws inspiration from India’s Temple of Steps. Mirroring a Hindu temple, finding ways to seamlessly integrate into the Houston context was integral.

Approach - It is tradition in which Hindu temples have entryways facing the east, an auspicous direction. This can similarly be seen at BAPS Shri Swaminarayan Temple in Houston.

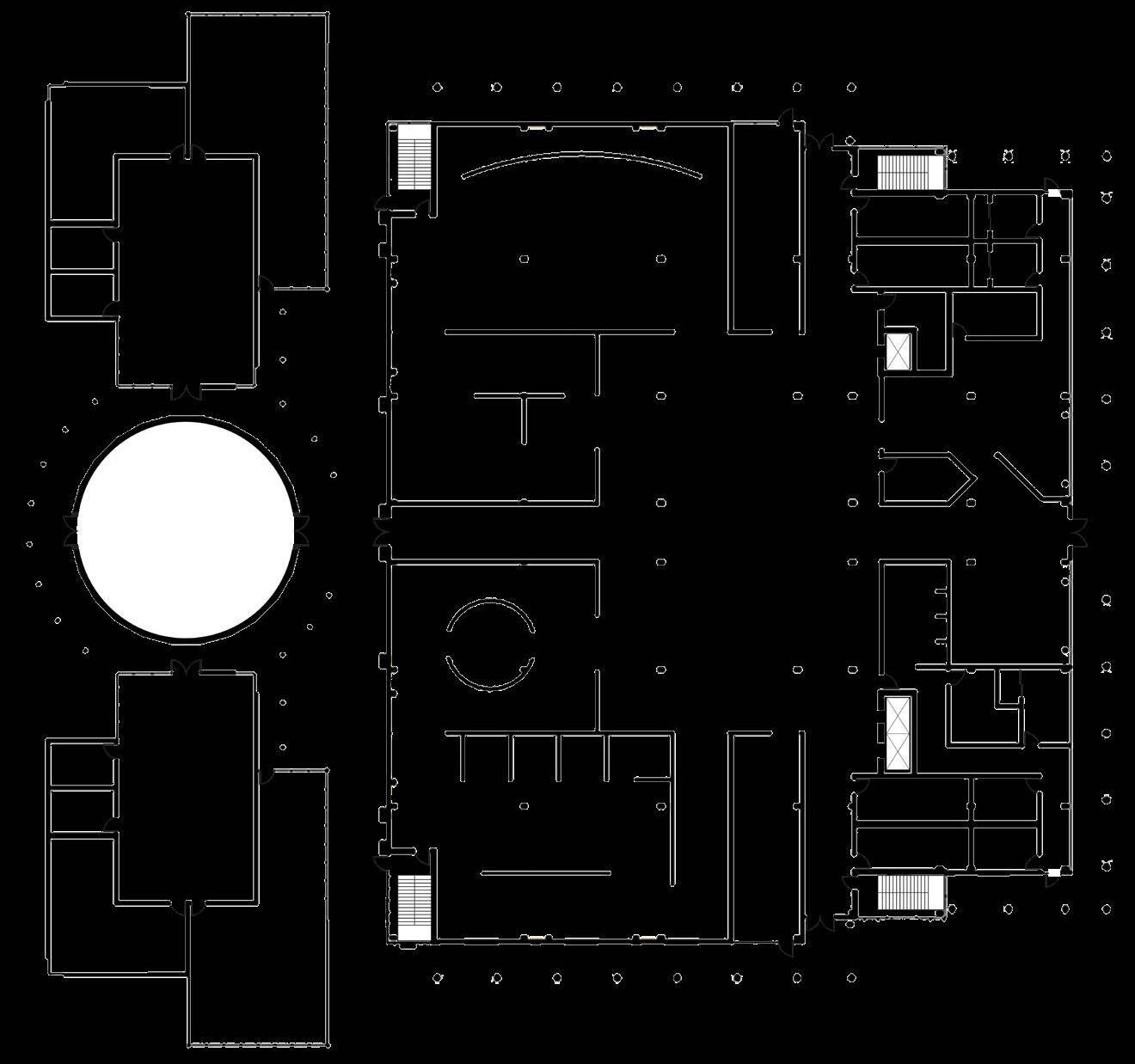

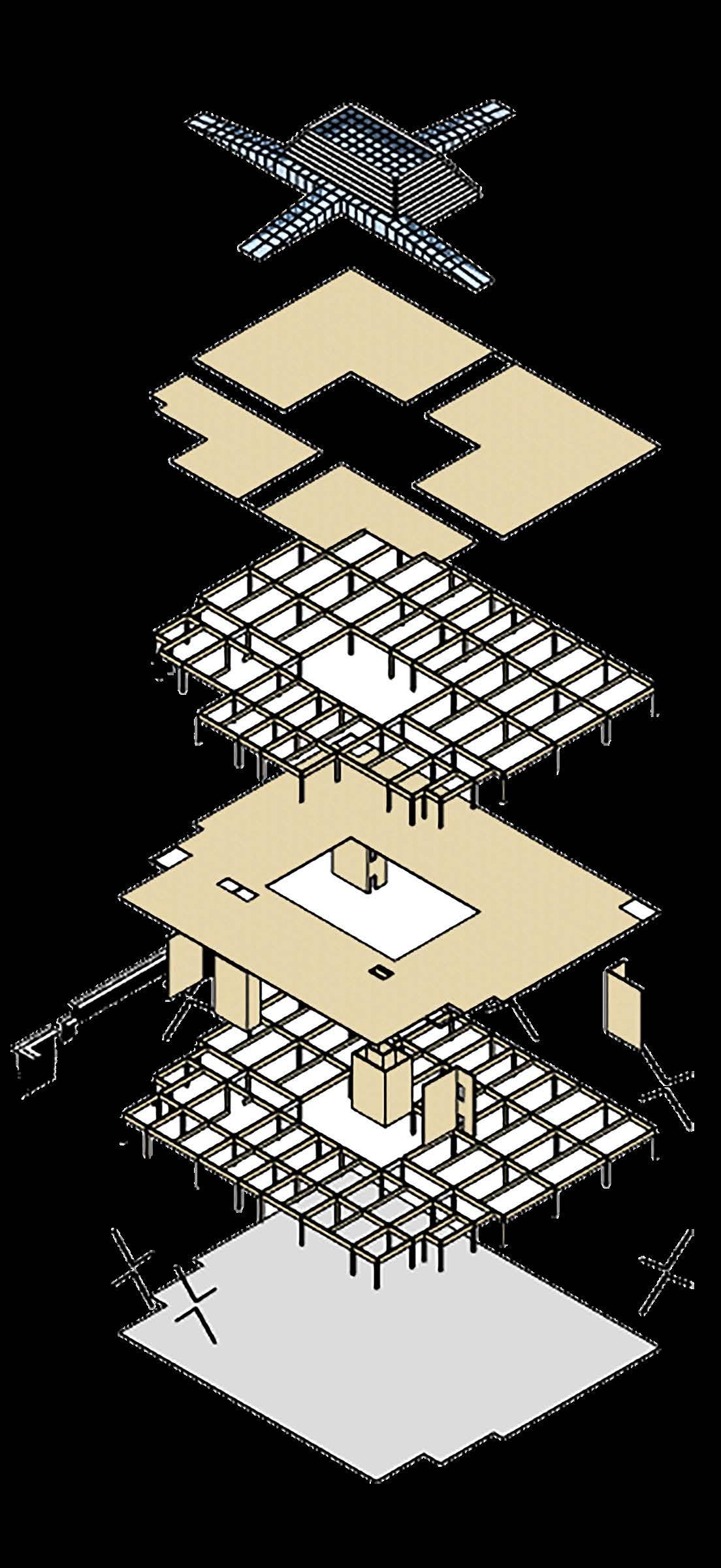

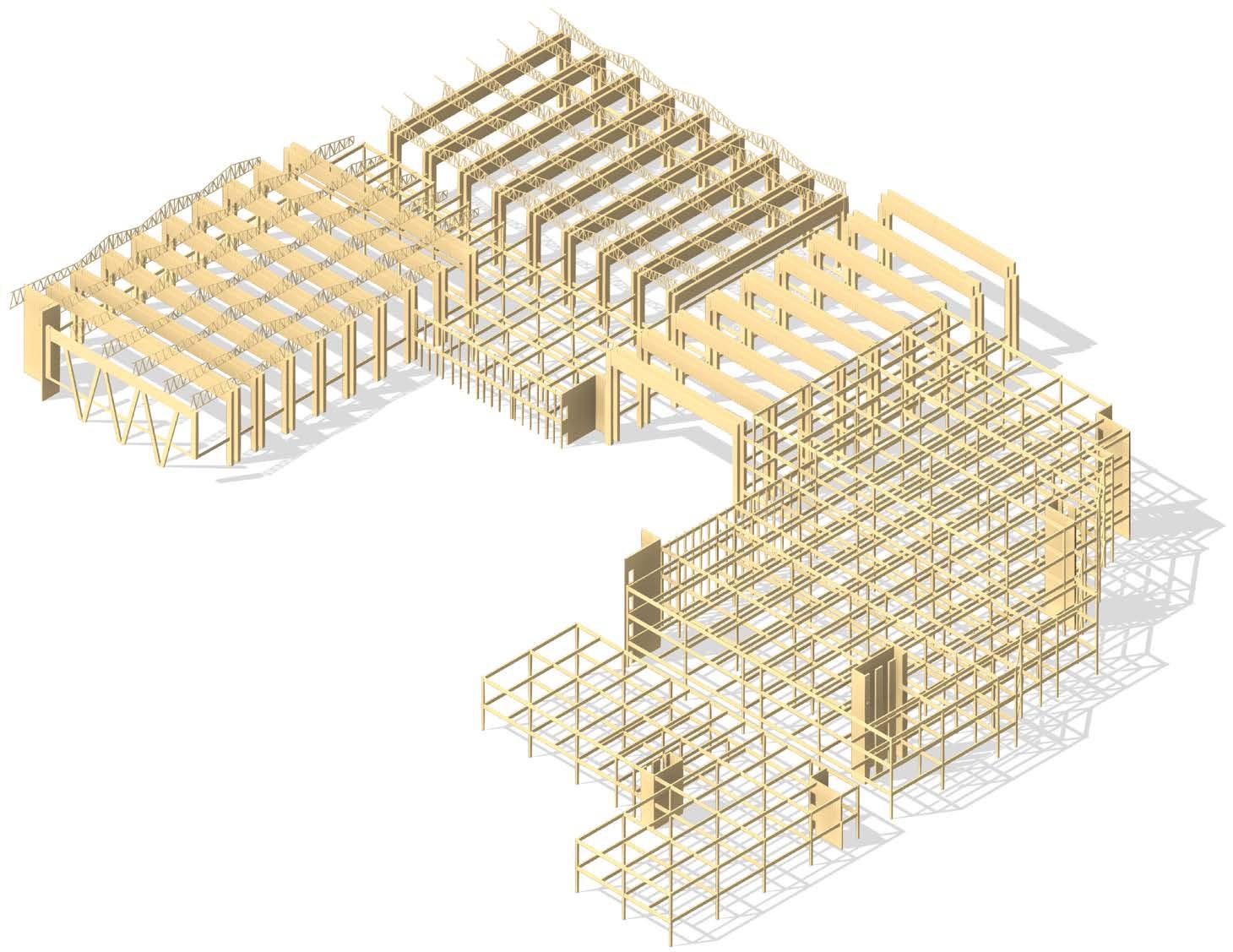

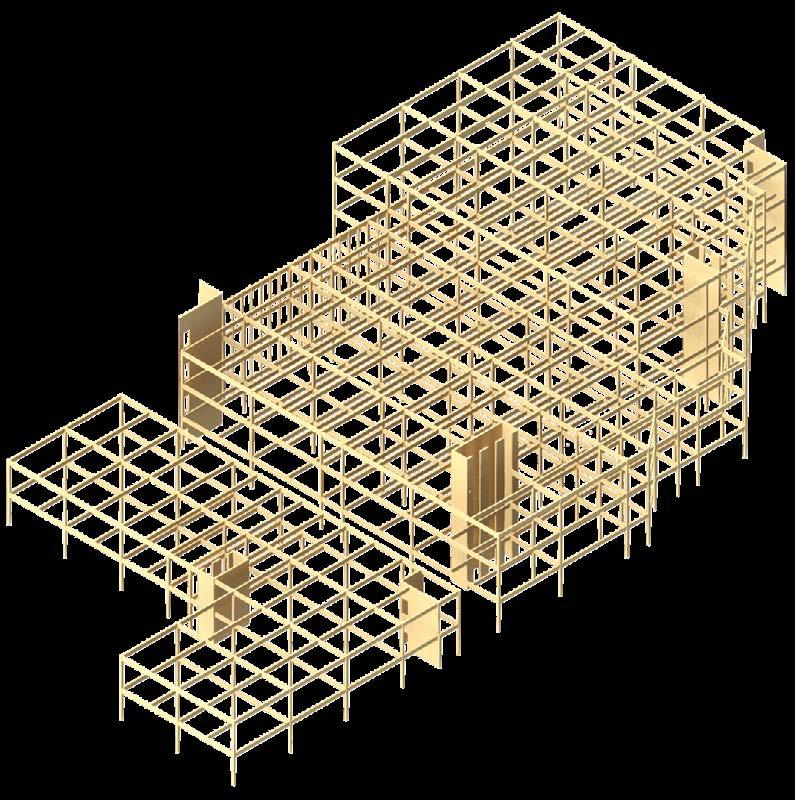

MASS TIMBER STRUCTURE

Solar Louvers

Atrium Roof (Shikhara)

5-Ply CLT Ceiling/Floor Panels

Level 02 Glulam Grid

5-Ply CLT Ceiling/Floor Panels

9-Ply CLT/2hr. Fire-Rated Shear Walls

Brie Soleil

Level 01 Glulam Grid

Cross-Bracing

Foundation

Southern Light Shelves Automated Solar Louvers Mass Timber Post & Beam Structure

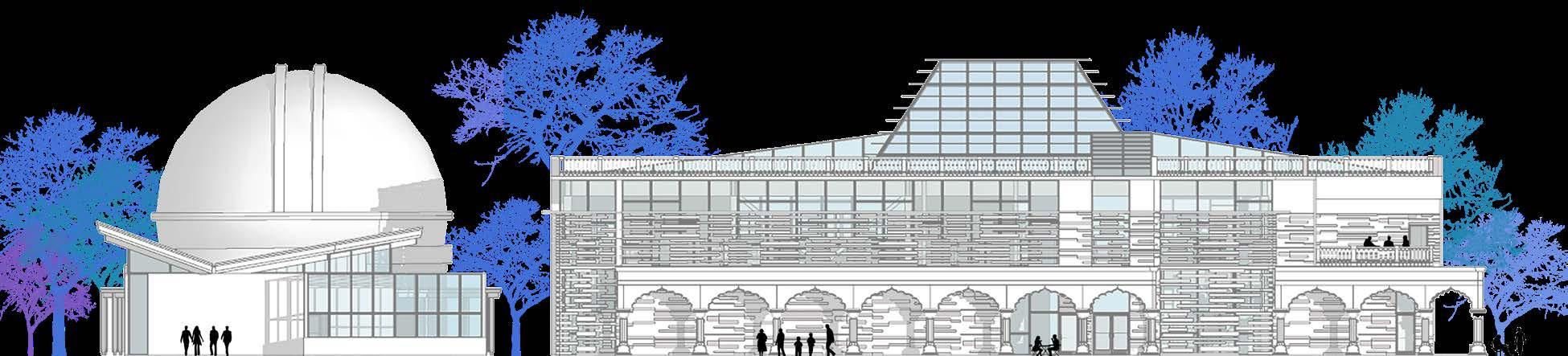

SOUTH ELEVATION

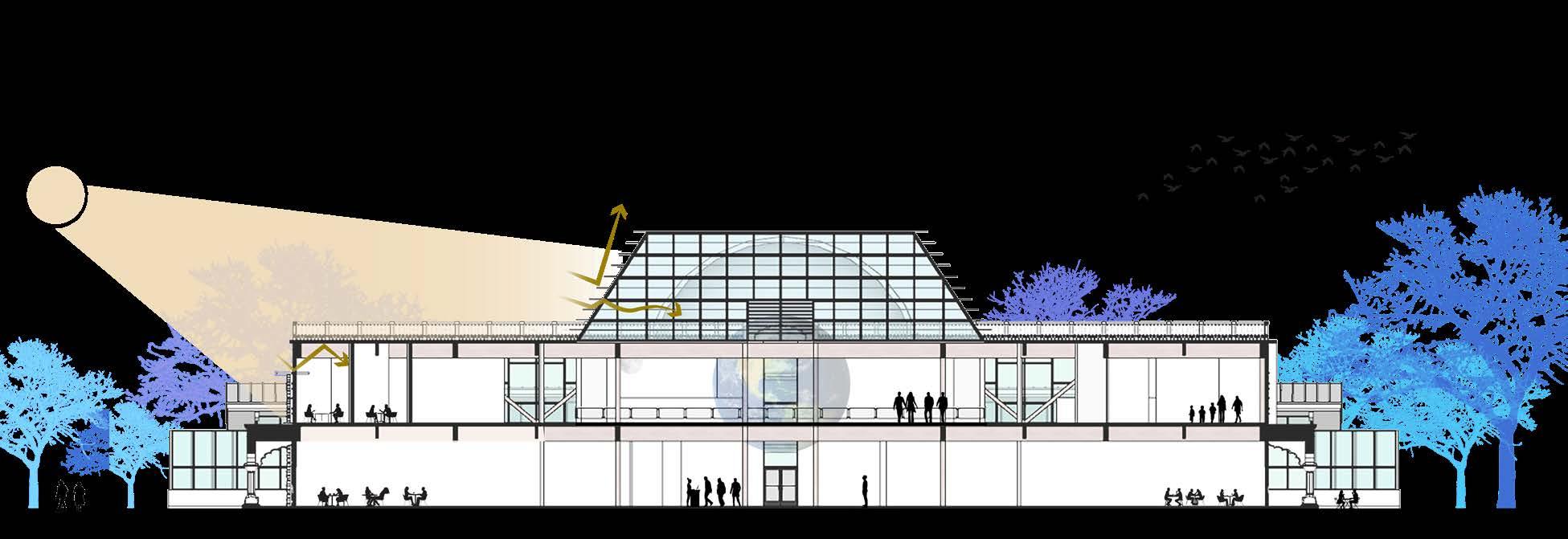

SECTION AA
SEMINAR ROOM

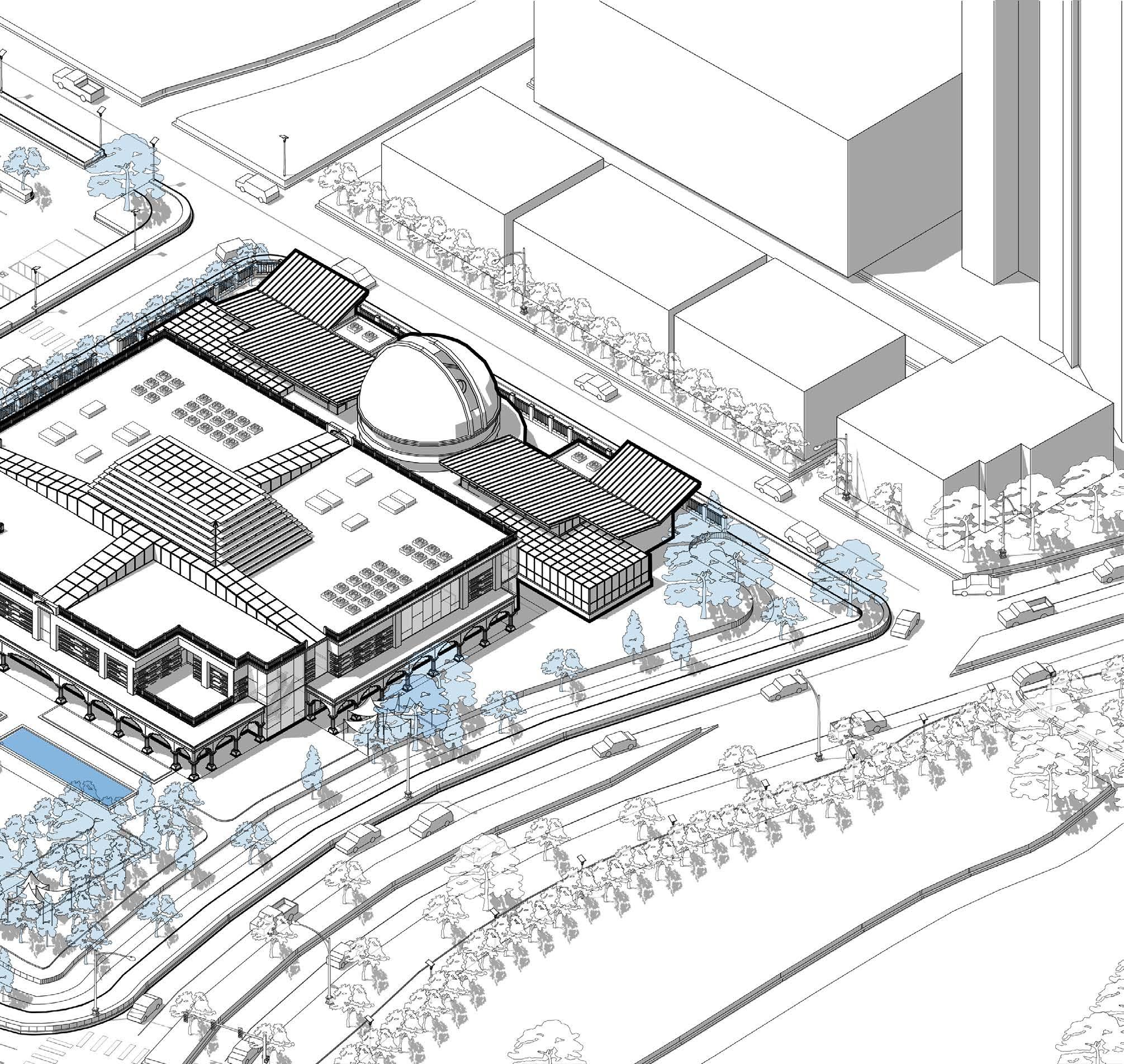

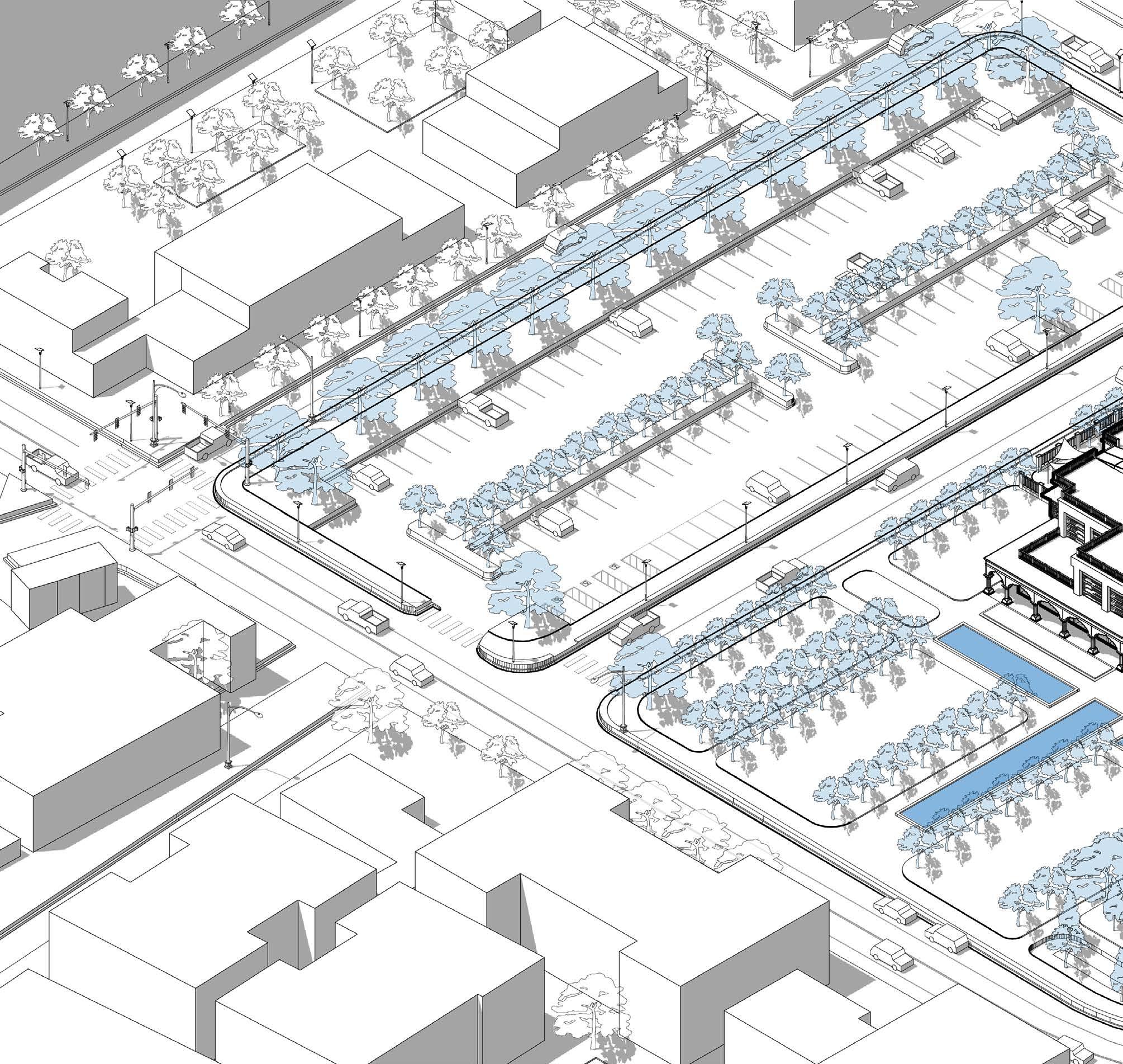

Proposed parking with added tree shading and 7 dedicated EV parking stations

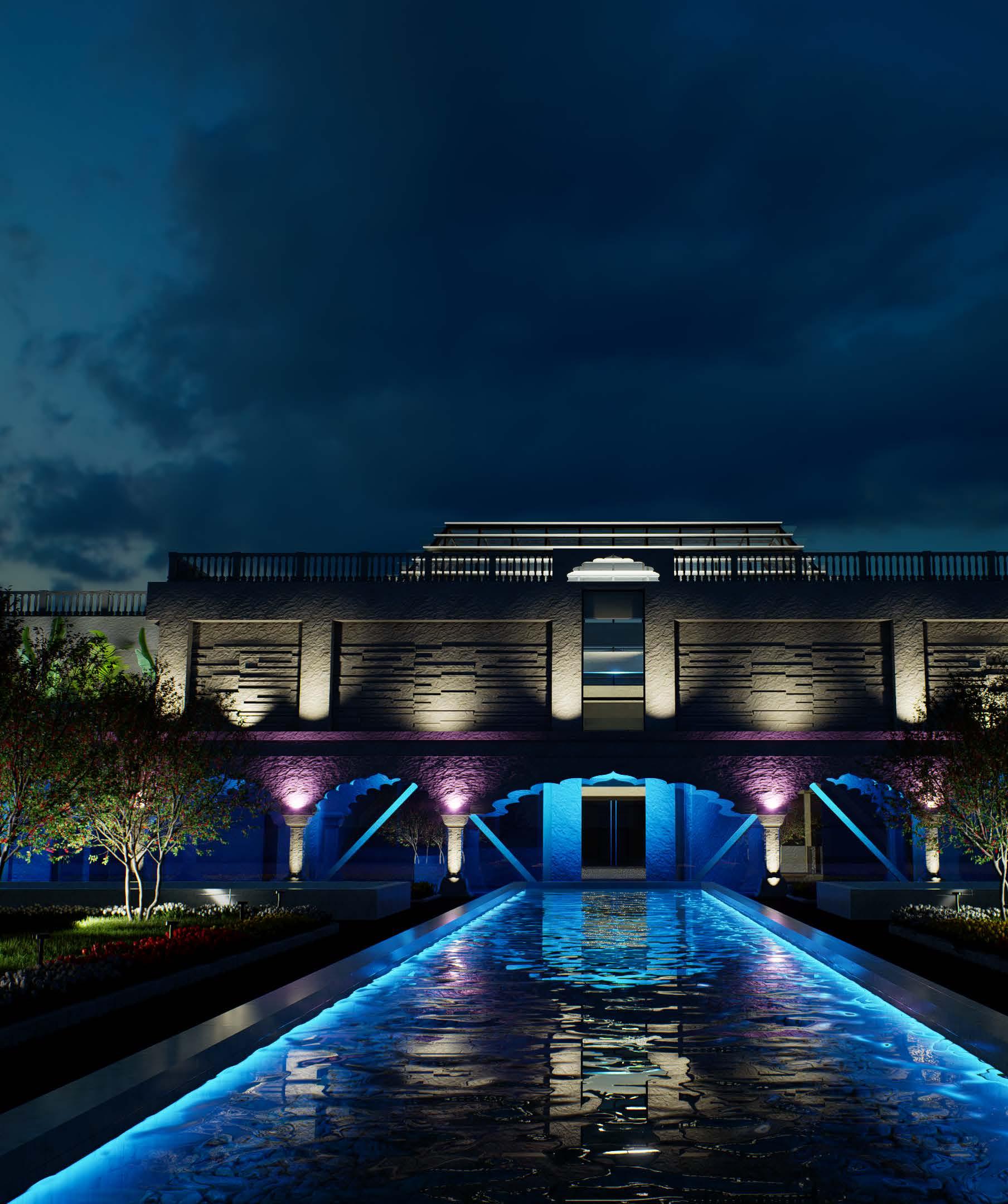

Entrance gardens and reflection ponds

Shrouded canopy and garden
Bioswale flood basin on the northern part of the site, closest to Buffalo Bayou
Outdoor eating areas

03

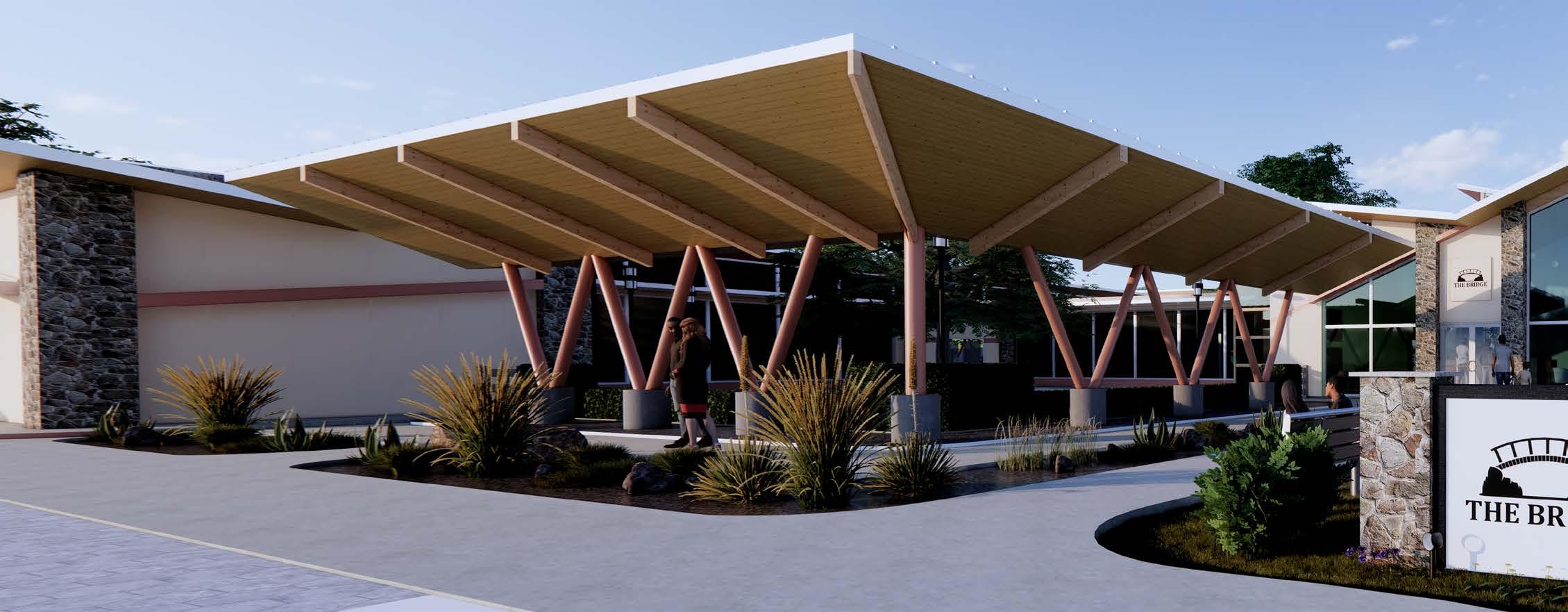

THE BRIDGE PRESCHOOL PRAIRIE VIEW, TEXAS, USA | 2022

COURSE - ARCH 2603 | Architectural Design III

INSTRUCTOR - Dr. Tareef Khan

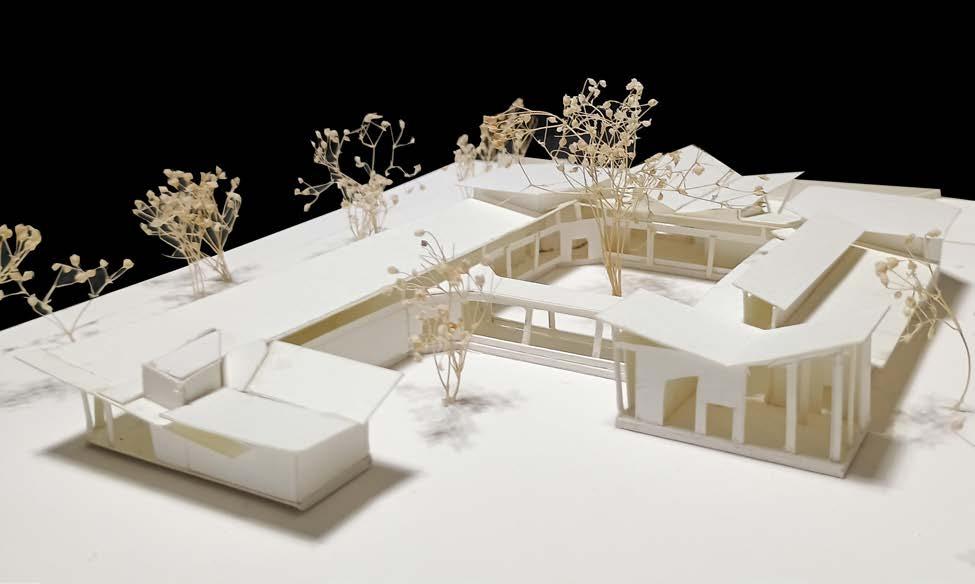

Bridging the gap between mankind and nature through our upcoming generations. Situated directly in front of Prairie View A&M University, this project draws deep contextual inspiration from Prairie Style architecture, biophilic design, and the Japanese concept of uchigawa-sotogawa (inside-outside). In an era where many children are increasingly disconnected from the beauty and harmony of nature, the school aims to bridge this divide. Nestled in a rural community, the design seeks to seamlessly integrate the outdoors with the indoors, creating natural connections throughout the building that benefit students and faculty alike.

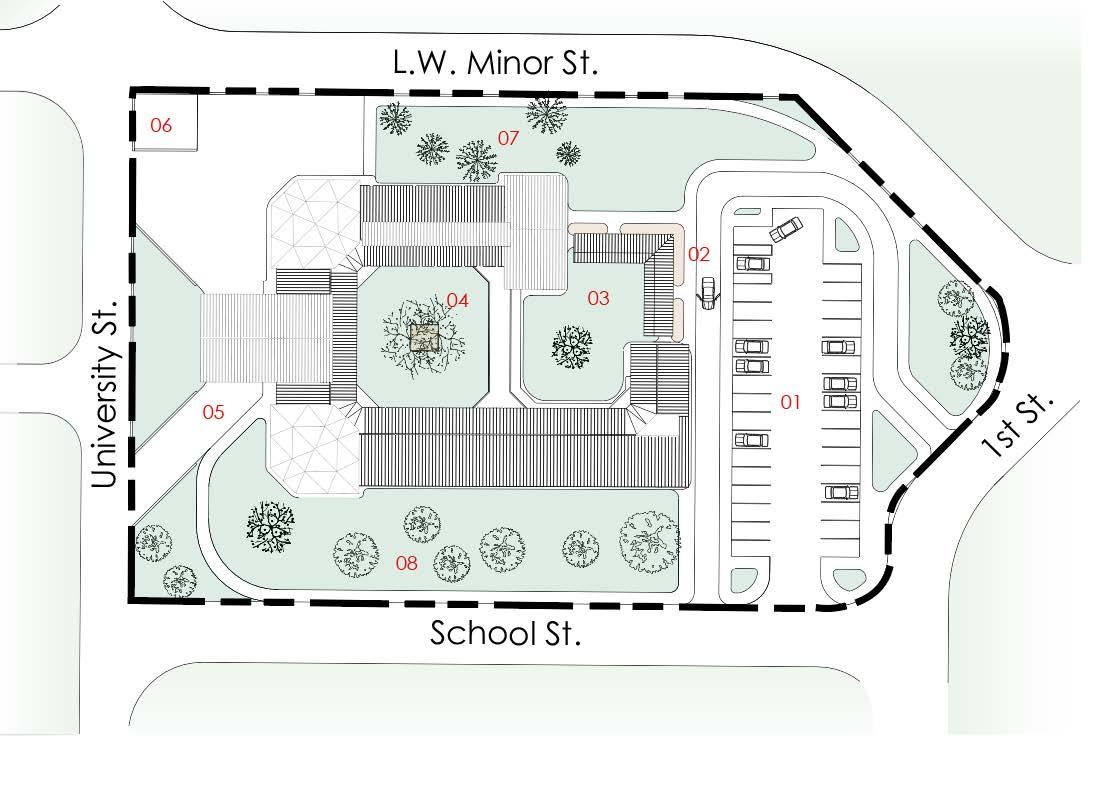

PROJECT SCOPE

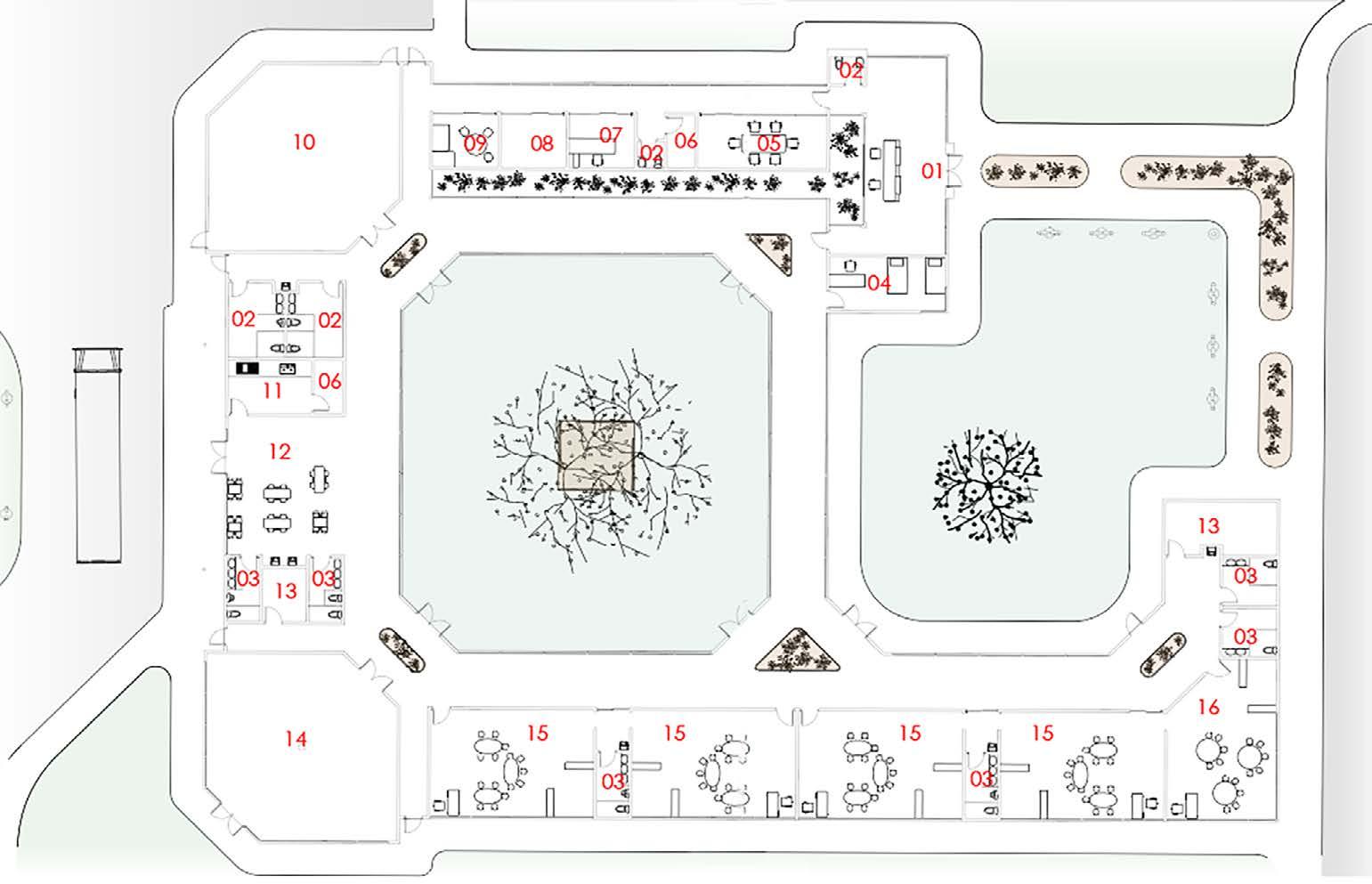

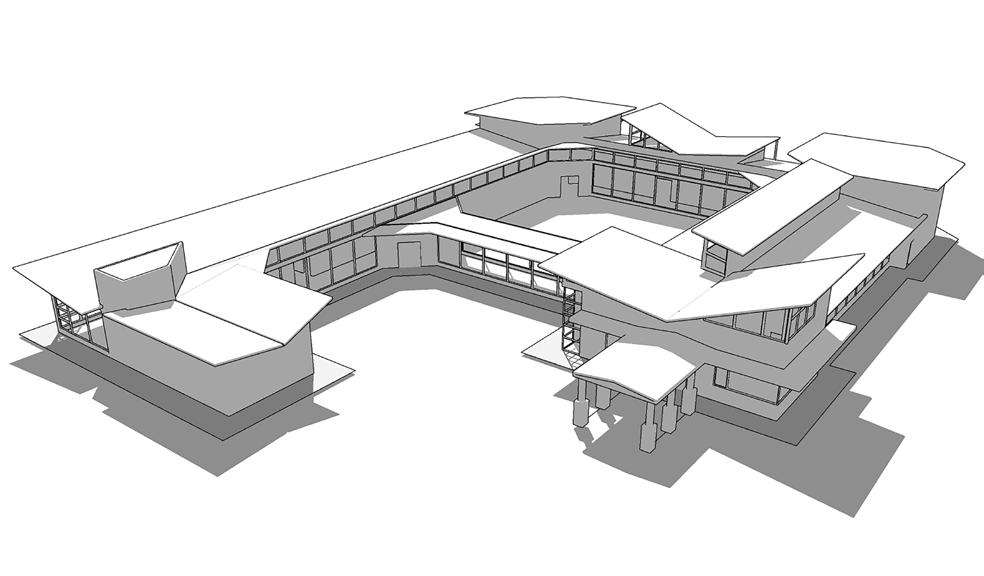

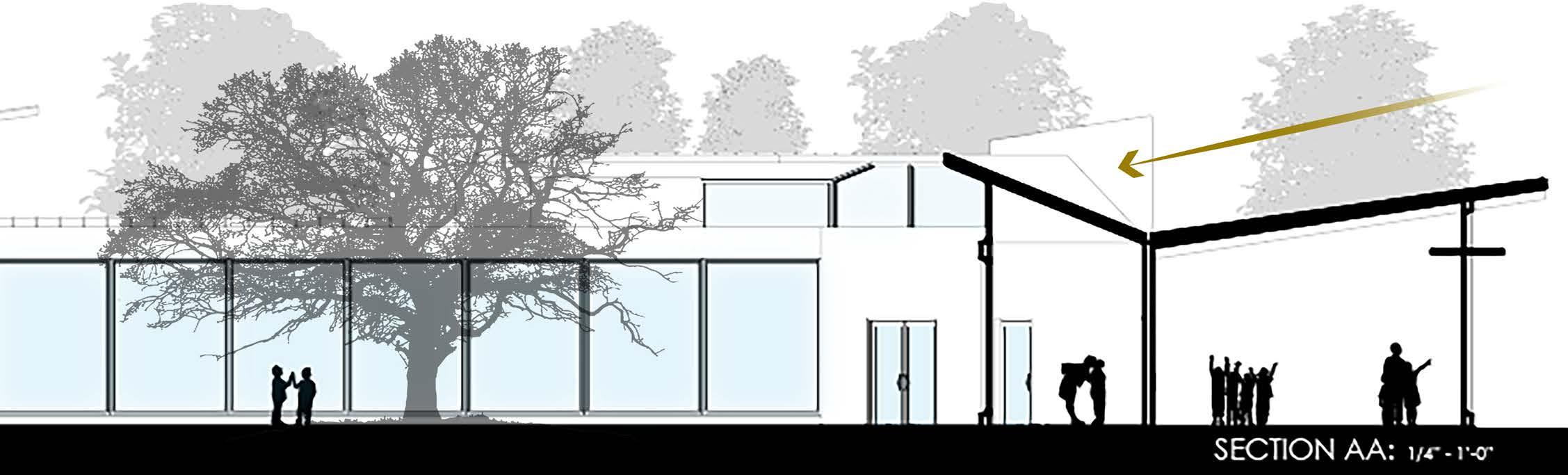

The design emphasizes a seamless interplay between indoor and outdoor architecture. Throughout the building, the use of natural materials and expansive views of serene green spaces were essential, fostering a constant connection with nature for both faculty and students.

Interior garden clerestory
Southern Light Shelves
Butterfly roofs for solar panels and rainwater collection

WEST ELEVATION

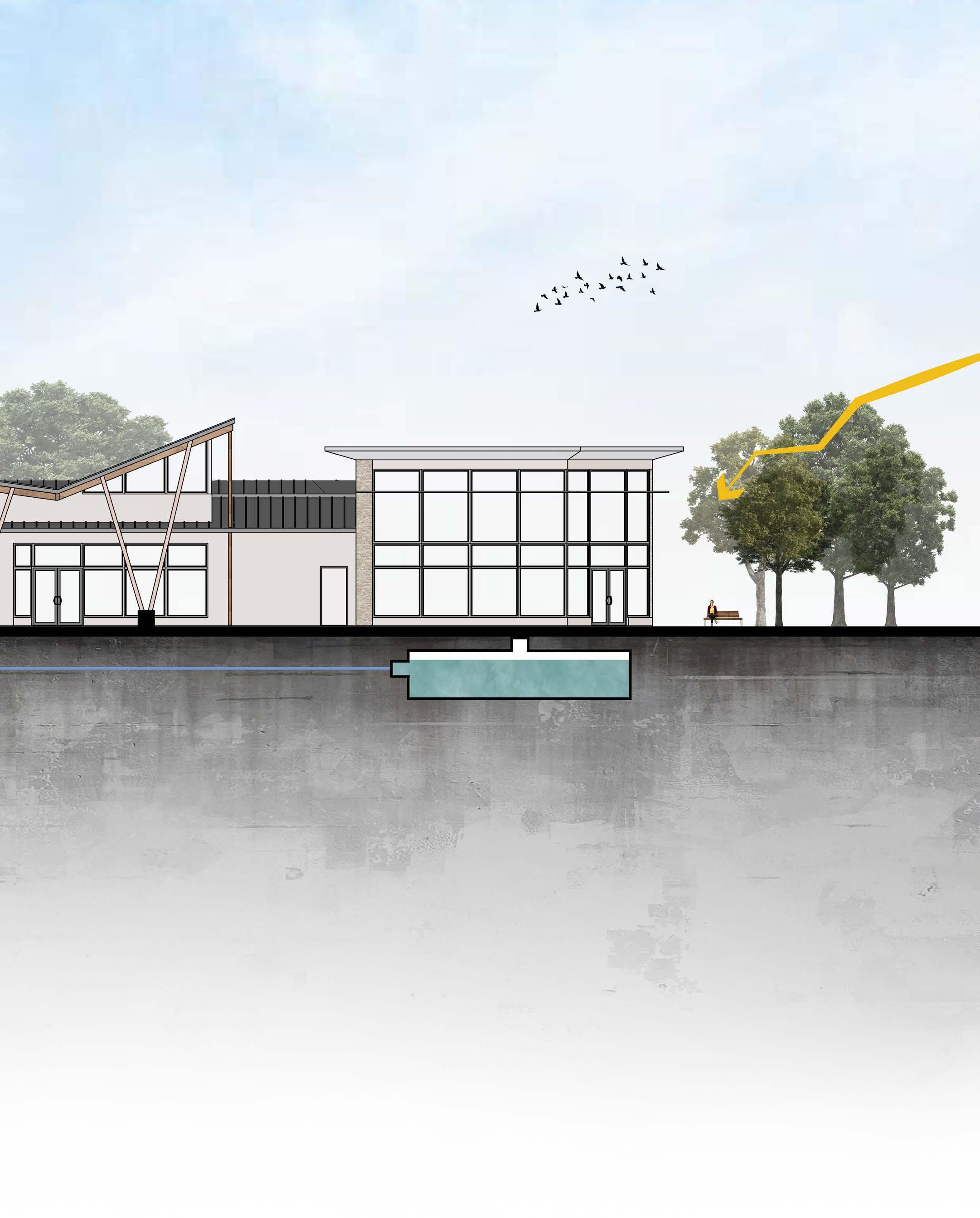

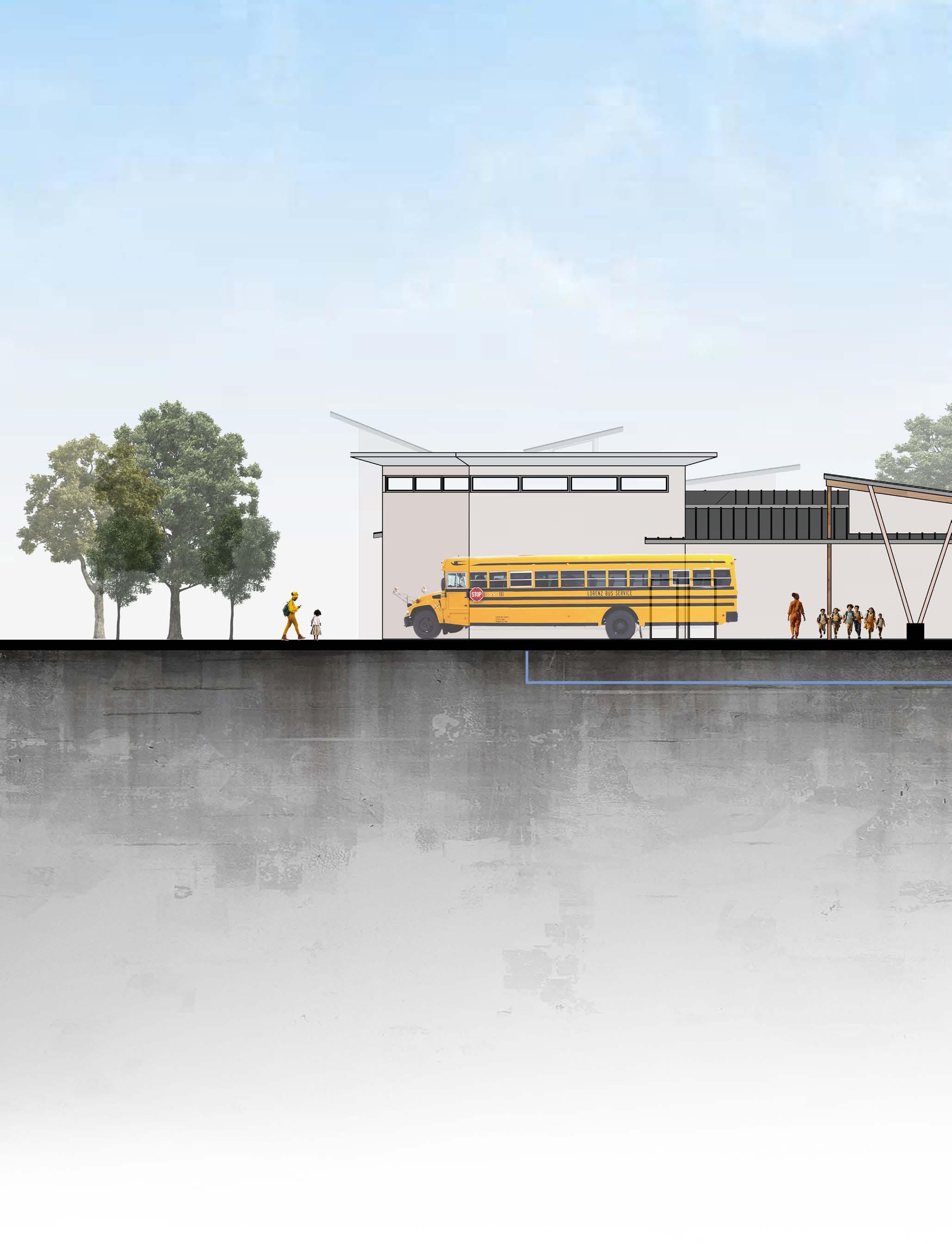

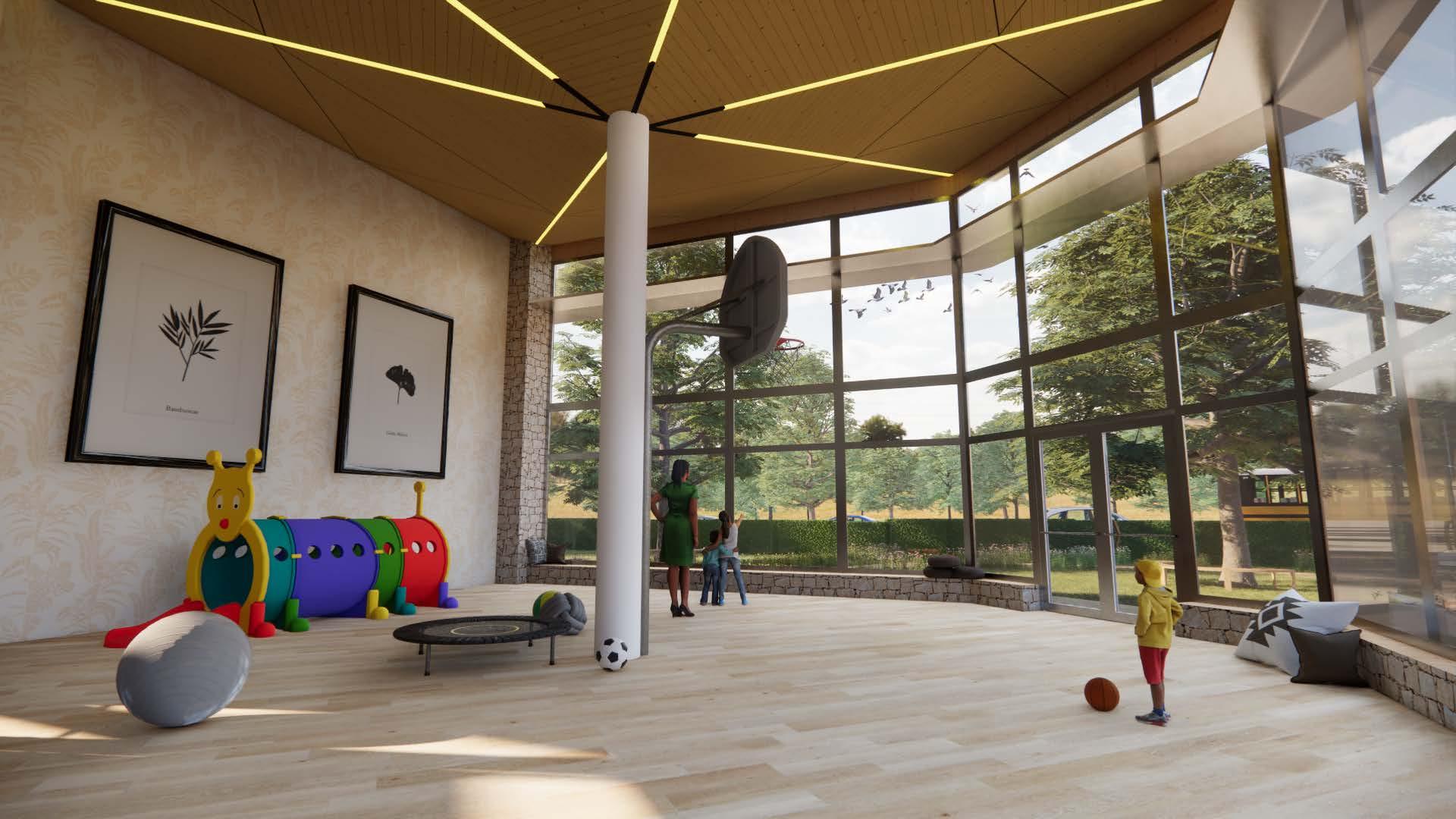

The multipurpose and indoor playrooms stand out with their distinctive basin-like roofs. These innovative designs channel rainwater into a central column within the spaces, efficiently directing it to an underground cistern for collection and storage.

Anodized Aluminum Panels
Beige Limestone Standing Seam Metal Roof
Red Iron Hollowed Structural Steel

The gardens on both the north and south sides of the preschool serve as peaceful retreats and scenic viewpoints. Positioned strategically on the south, these gardens also help mitigate excessive heat gain.

Hollowed Steel Timber River Rock Stone

04

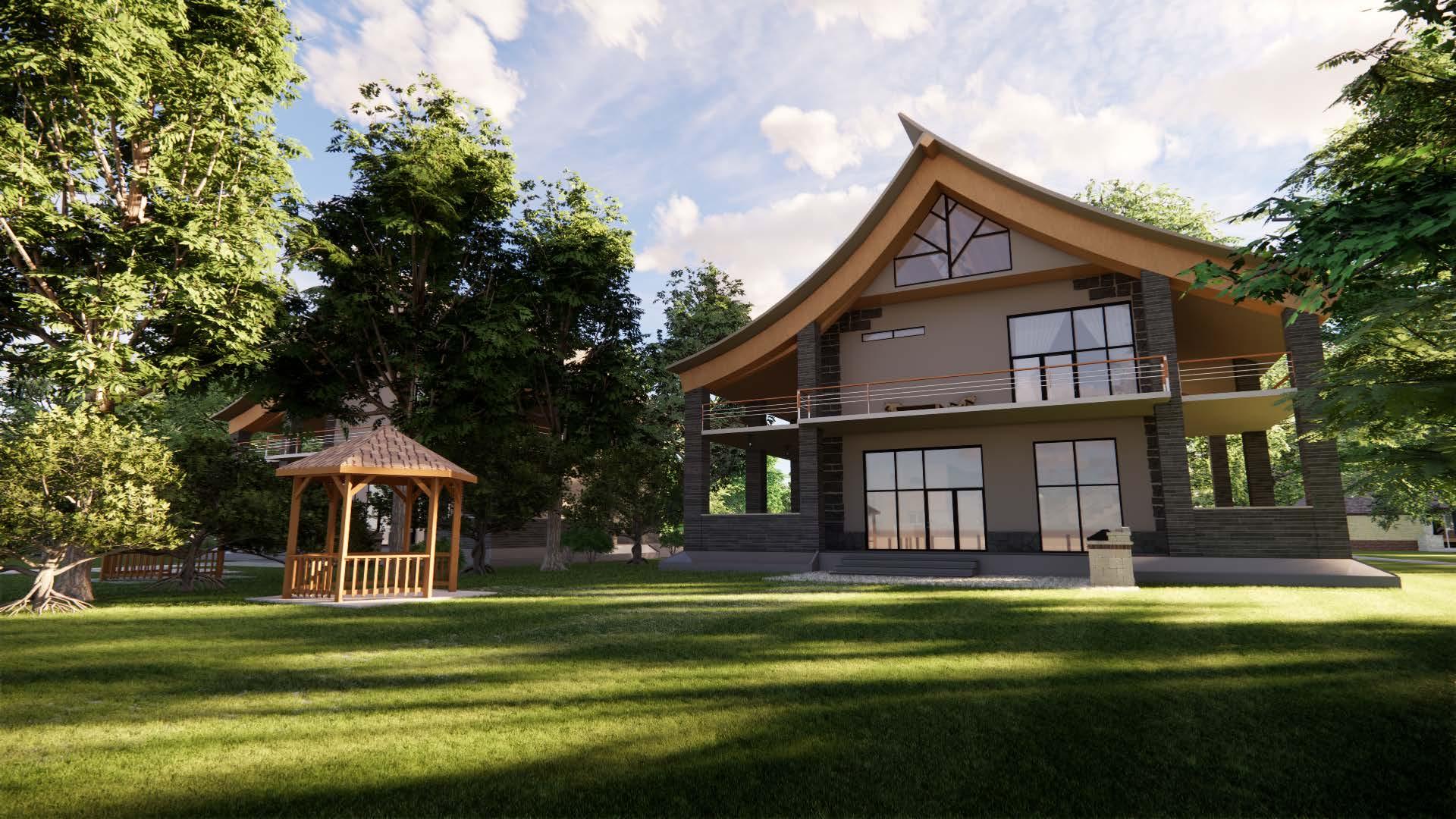

STONE’S THROW CONDOMINIUMS GROSSE POINTE SHORES, MICHIGAN, USA | 2022

COLLEAGUES - Kirban Keller Jr. & William McNeal

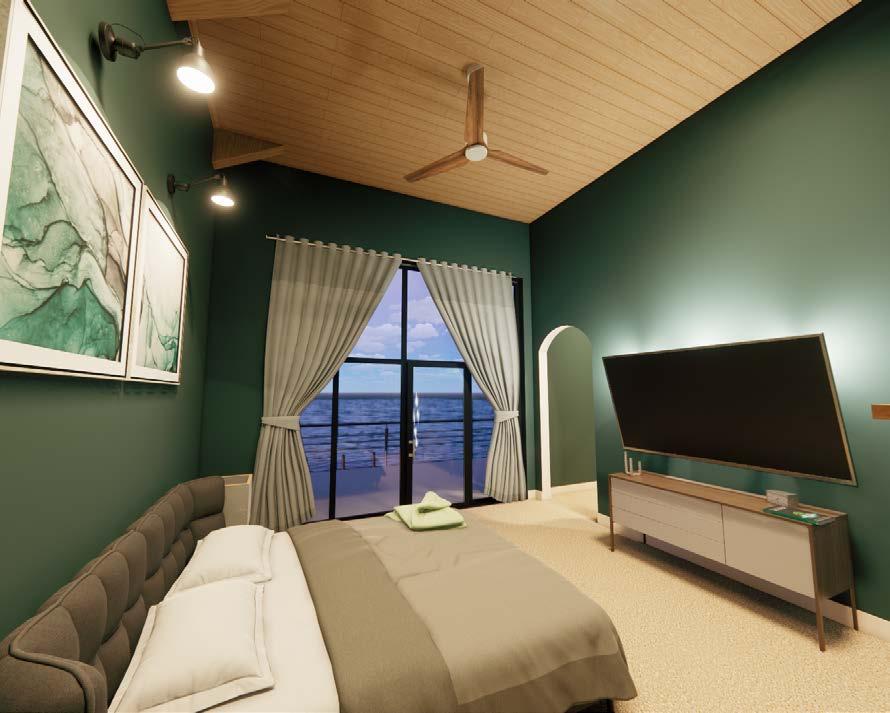

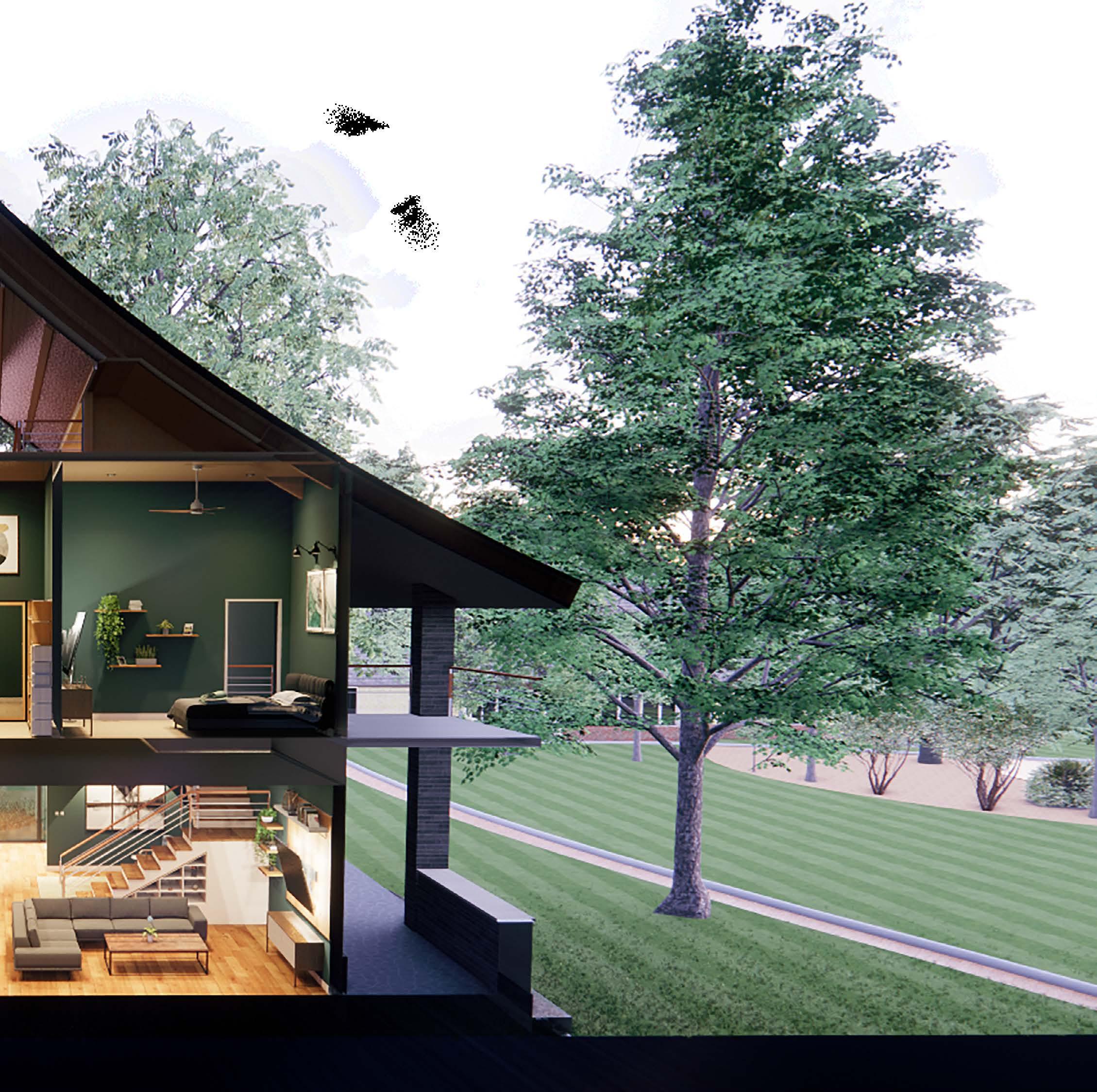

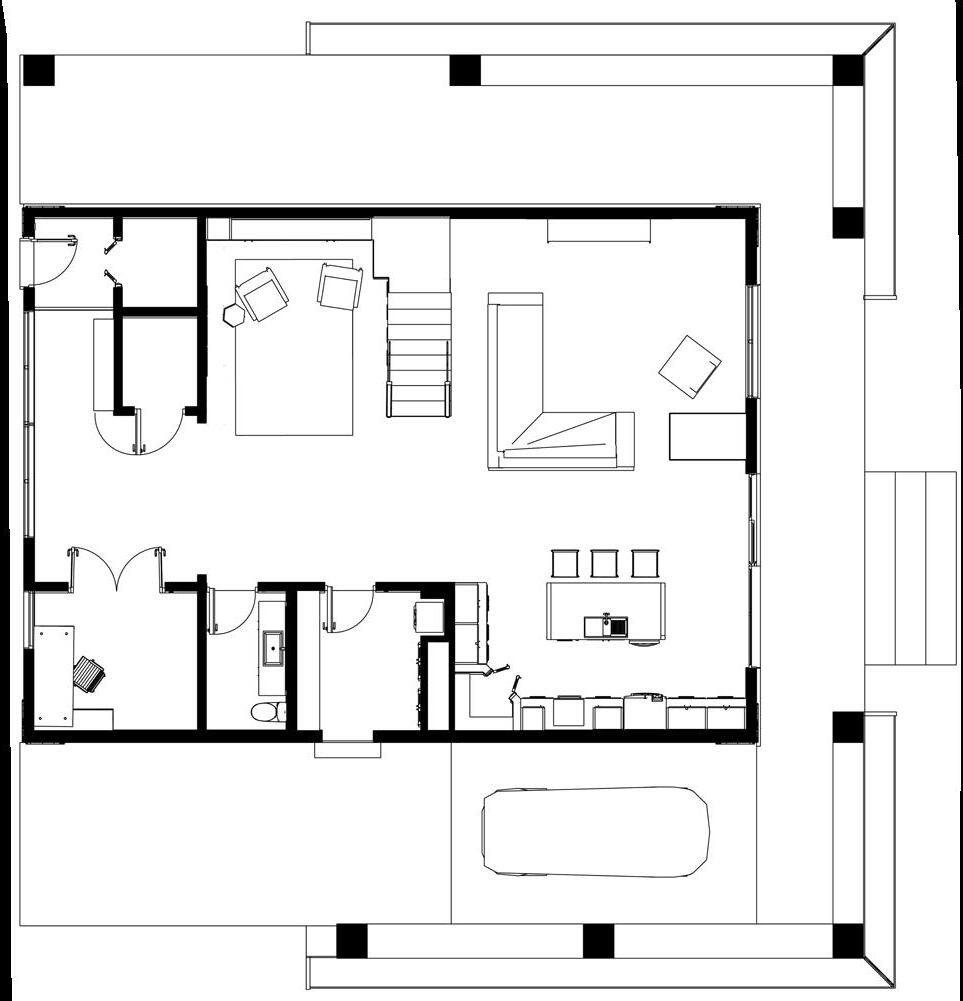

CONTRIBUTION - Concept | Floor Plans | Renders | Site Plan

PERSONAL PROJECT

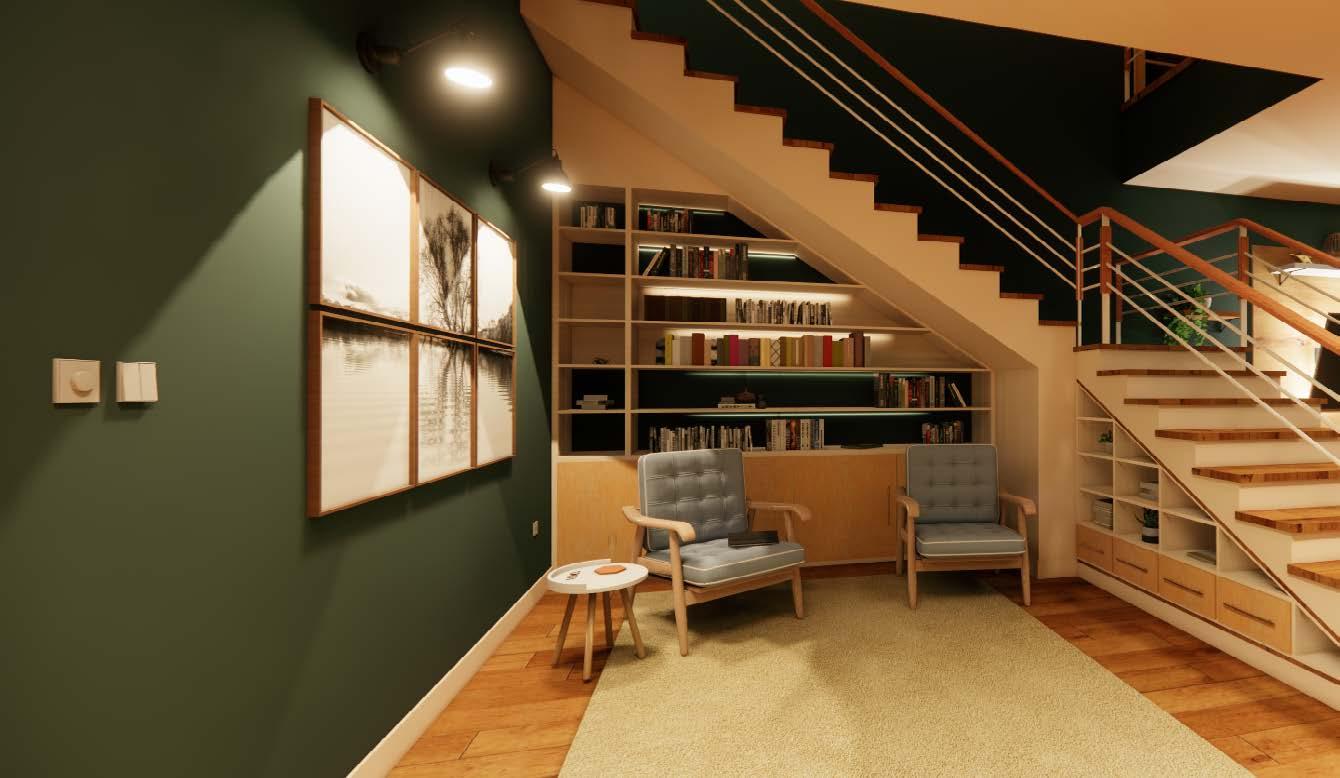

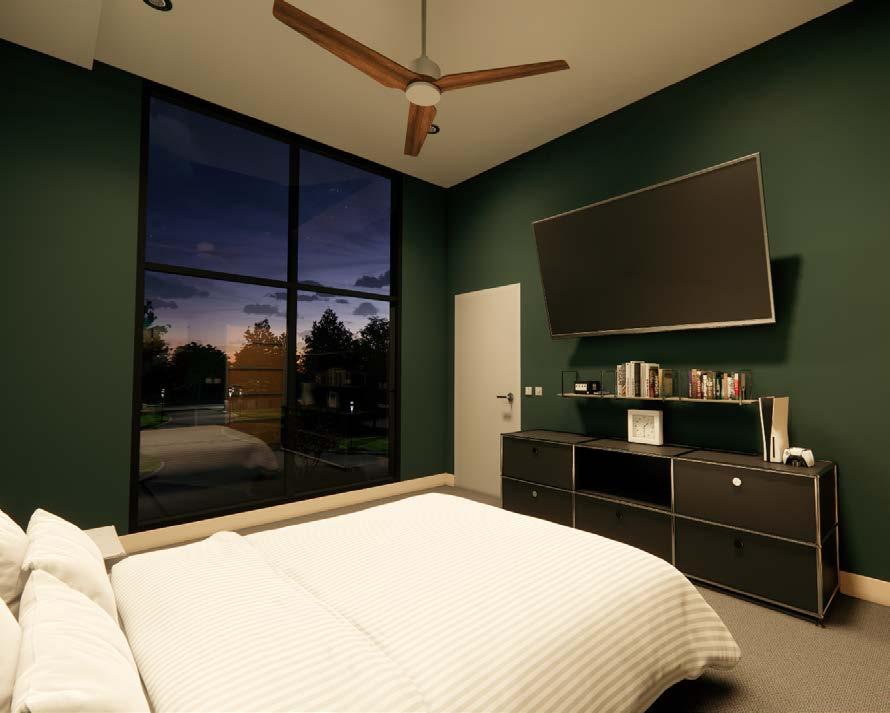

A stone’s throw from the harmony of nature. Stone’s Throw Condominiums was a passion project undertaken by me and two close friends during a winter break period. With William McNeal hailing from Detroit, Michigan, this project provided an exciting opportunity to explore a site in a vastly different environment. Situated along the Lake Saint Clair waterfront, the design embraced the unique context by adopting a nautical and forested theme. Given the limited square footage, our priority was to craft an open floor plan that maximized waterfront views while preserving an intimate and comfortable living experience.

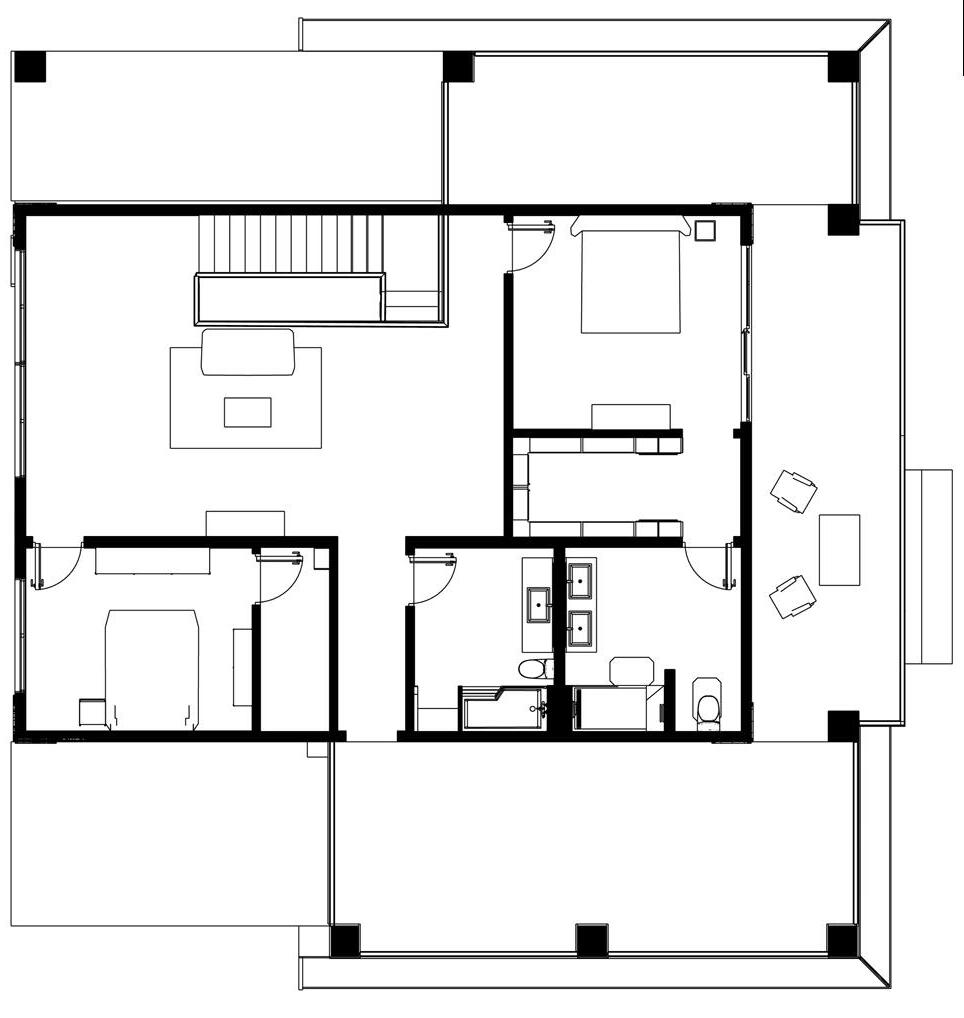

DESIGN DEVELOPMENT

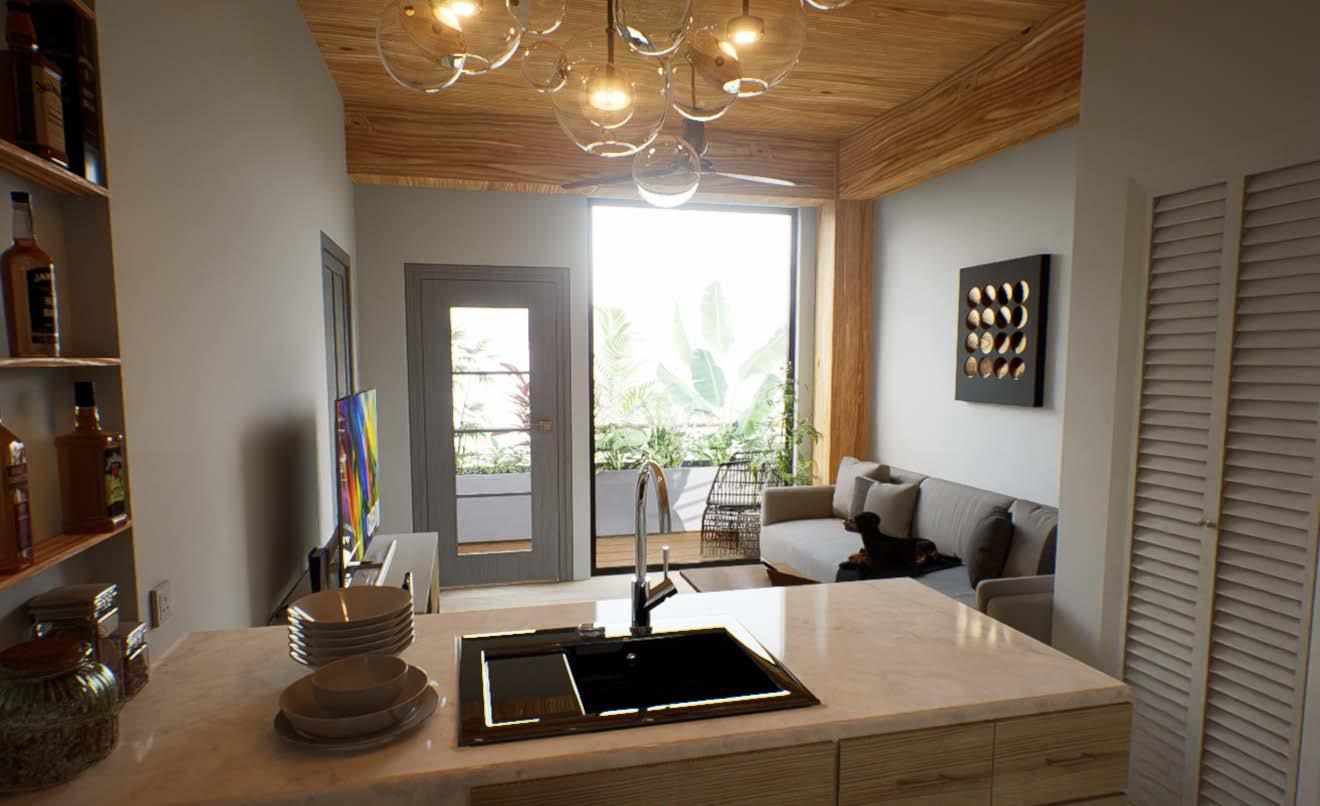

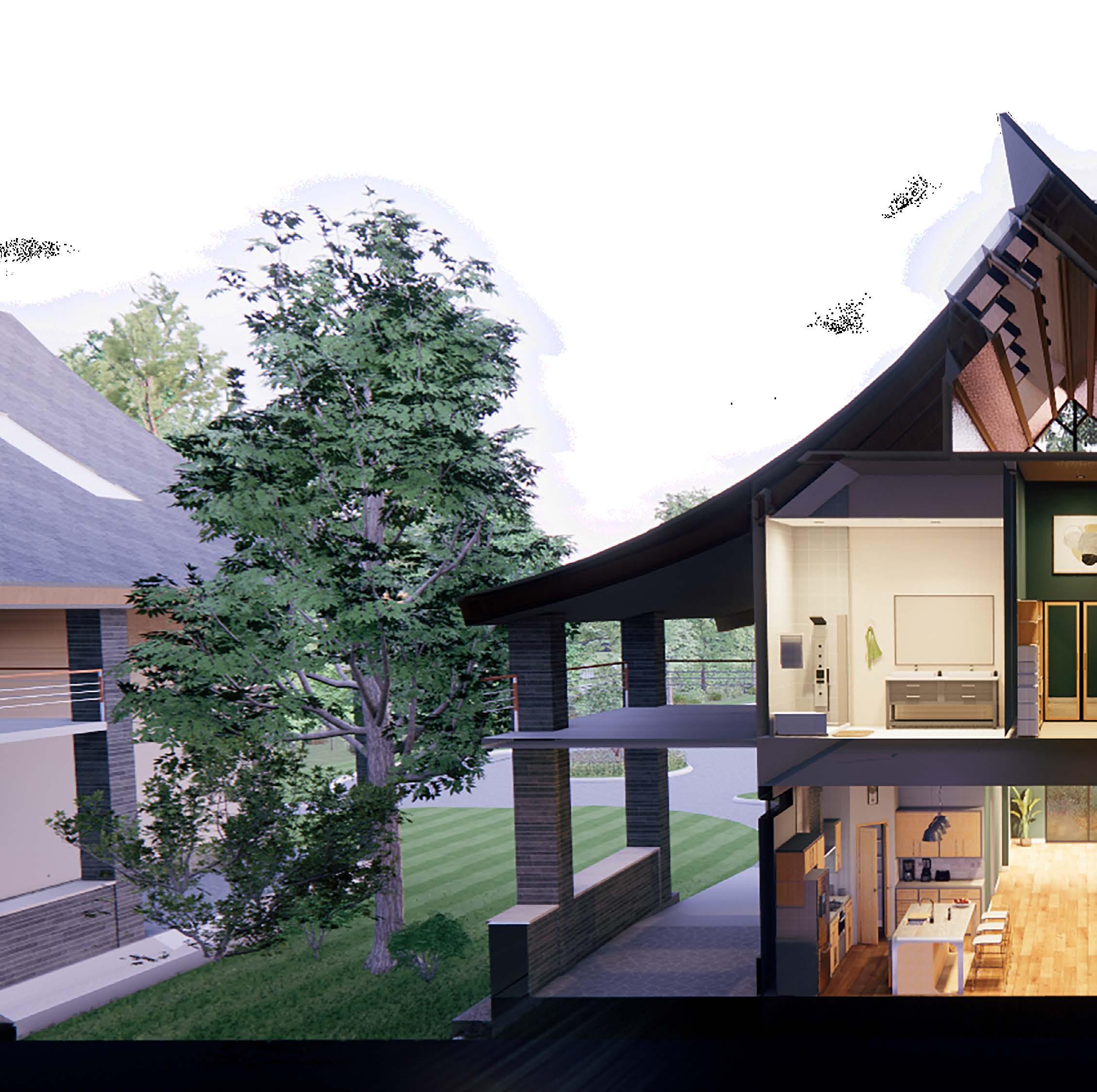

Situated directly on the waterfront of Lake Saint Clair, the design prioritized highlighting the nautical influences characteristic of the Grosse Pointe Shores community. The proximity of a neighboring yacht club further reinforced this theme. As reflected in the parti diagrams, the inspiration drawn from sailboats and the project’s namesake—skipping stones across water—ultimately shaped the building’s form.

Clerestory Lighting
Lodge Inspired Form
Stacked Structure
Sailboat Mast
Natural Materials
Skipping Stones/Waves

PROFESSIONAL & FREELANCE WORK INTERNSHIP & PERSONAL VENTURES

Professional and freelance projects: Contributions from internships and independent endeavors

PGAL: UH DOWNTOWN - GATOR EXPANSION

PROJECT - UH Downtown - Gator Expansion (SD phase)

COLLEAGUES - Jeanette Dicorcia | Ryan Horton | Ba Reum Son

CONTRIBUTION - Axonometrics | Elevations | Floor Plans | Modelling | Renderings YEAR - 2024

This project involved the renovation and expansion of UH Downtown’s Girard Street Building. Collaborating with RDLR Architects, the PGAL team focused on the 4th-floor expansion, featuring a prominent roof visible from I-10 inspired by the school’s mascot, the gator. The team worked extensively on interior programming while further refining the intricate design of the gator-shaped roof structure during the schematic design phase.

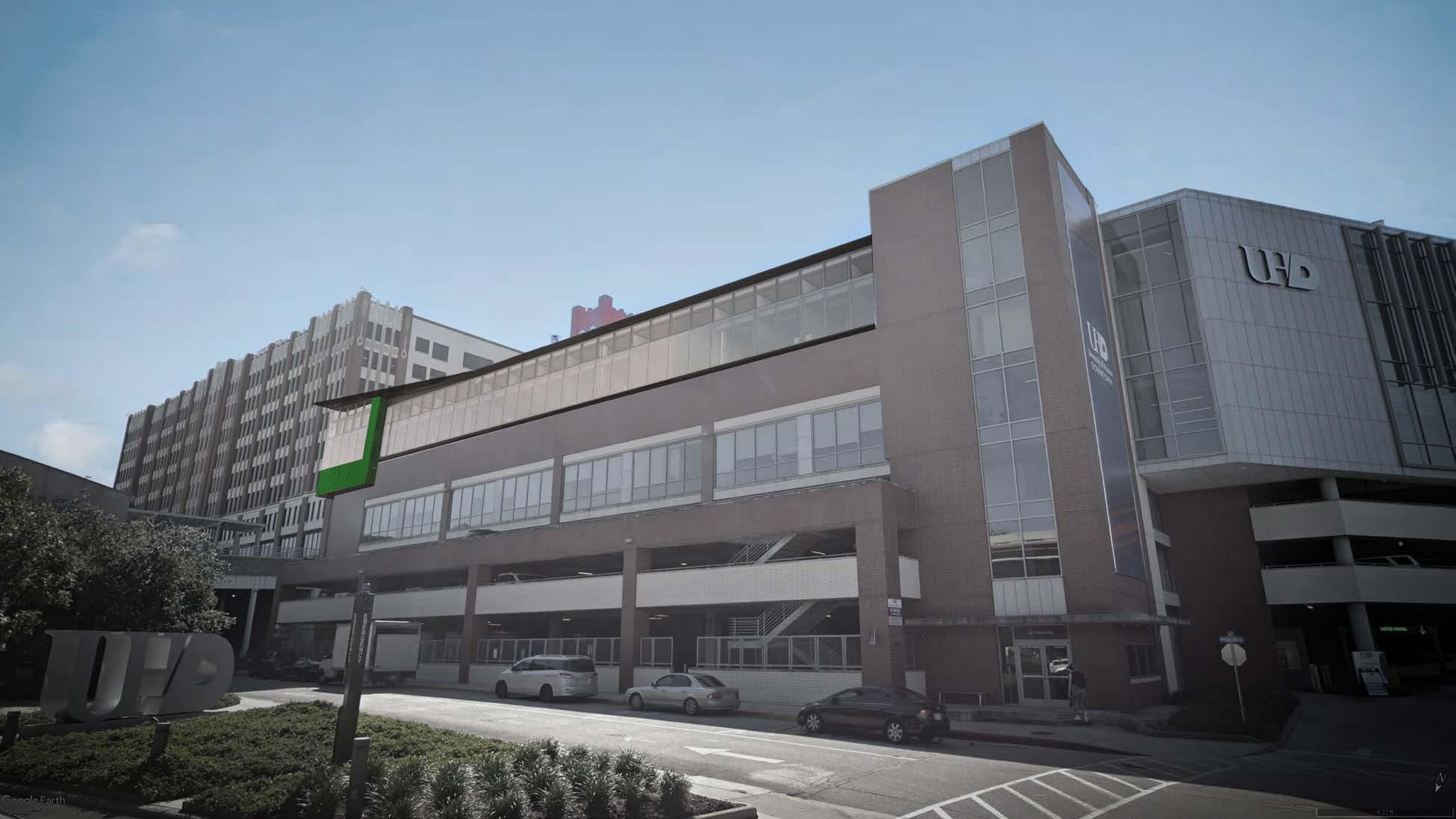

VIEW FROM GIRARD STREET

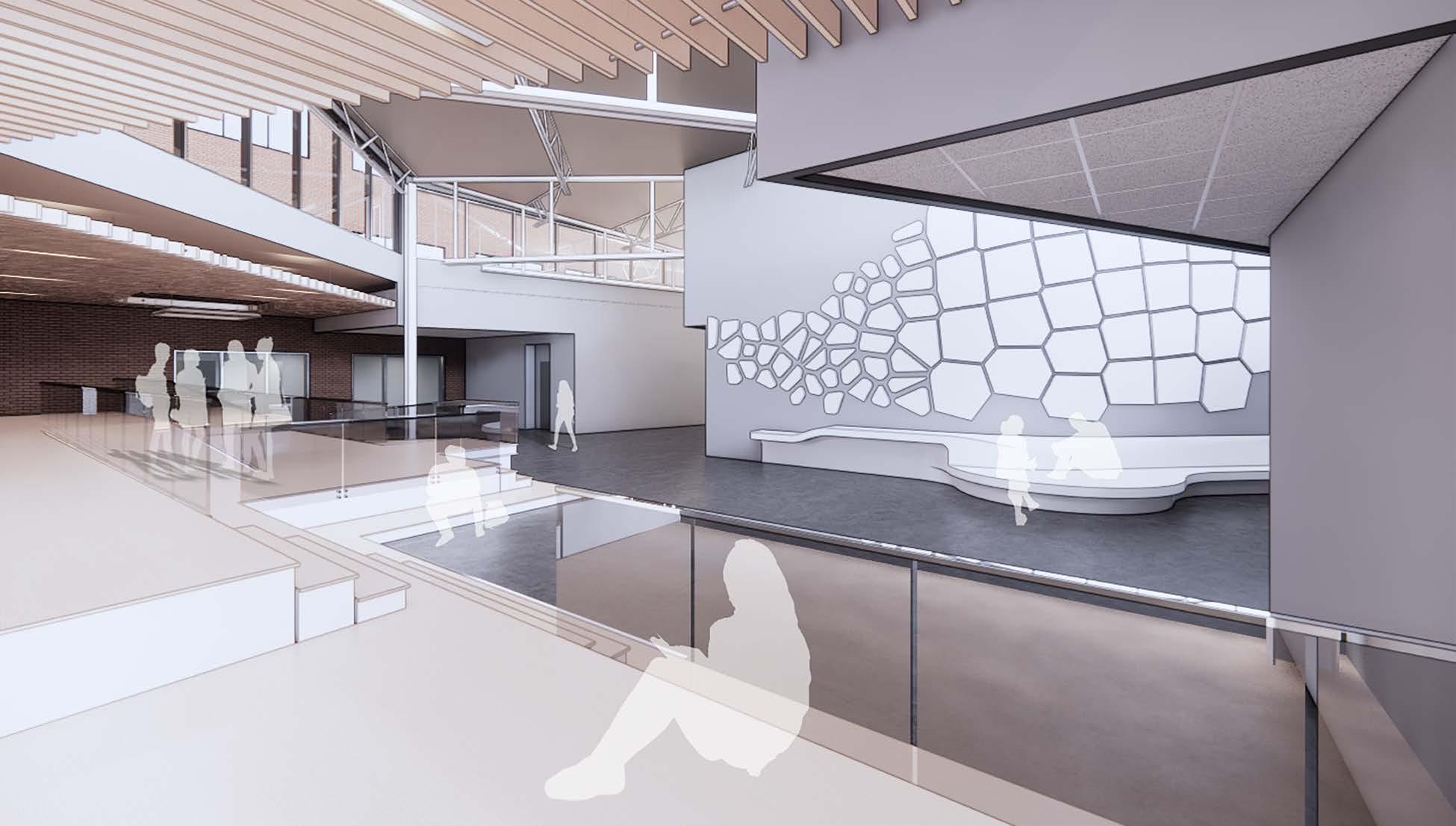

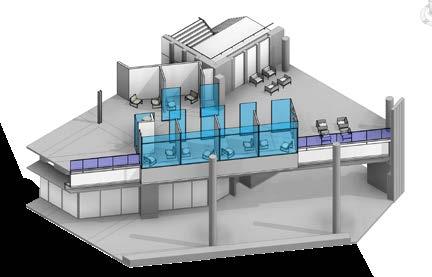

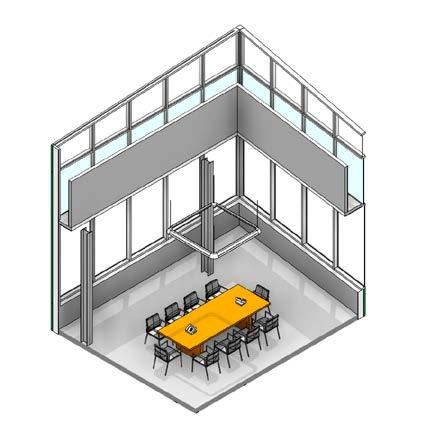

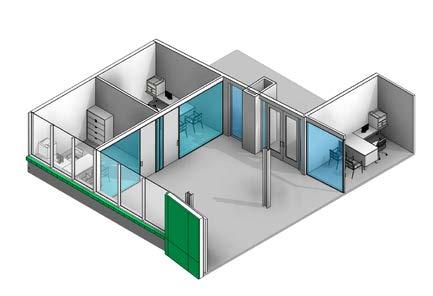

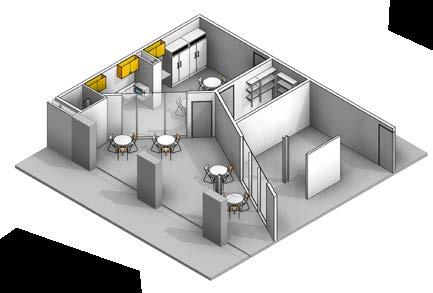

NE Conference Room 4th Floor Study Carrels South Lounge Office Huddle Space

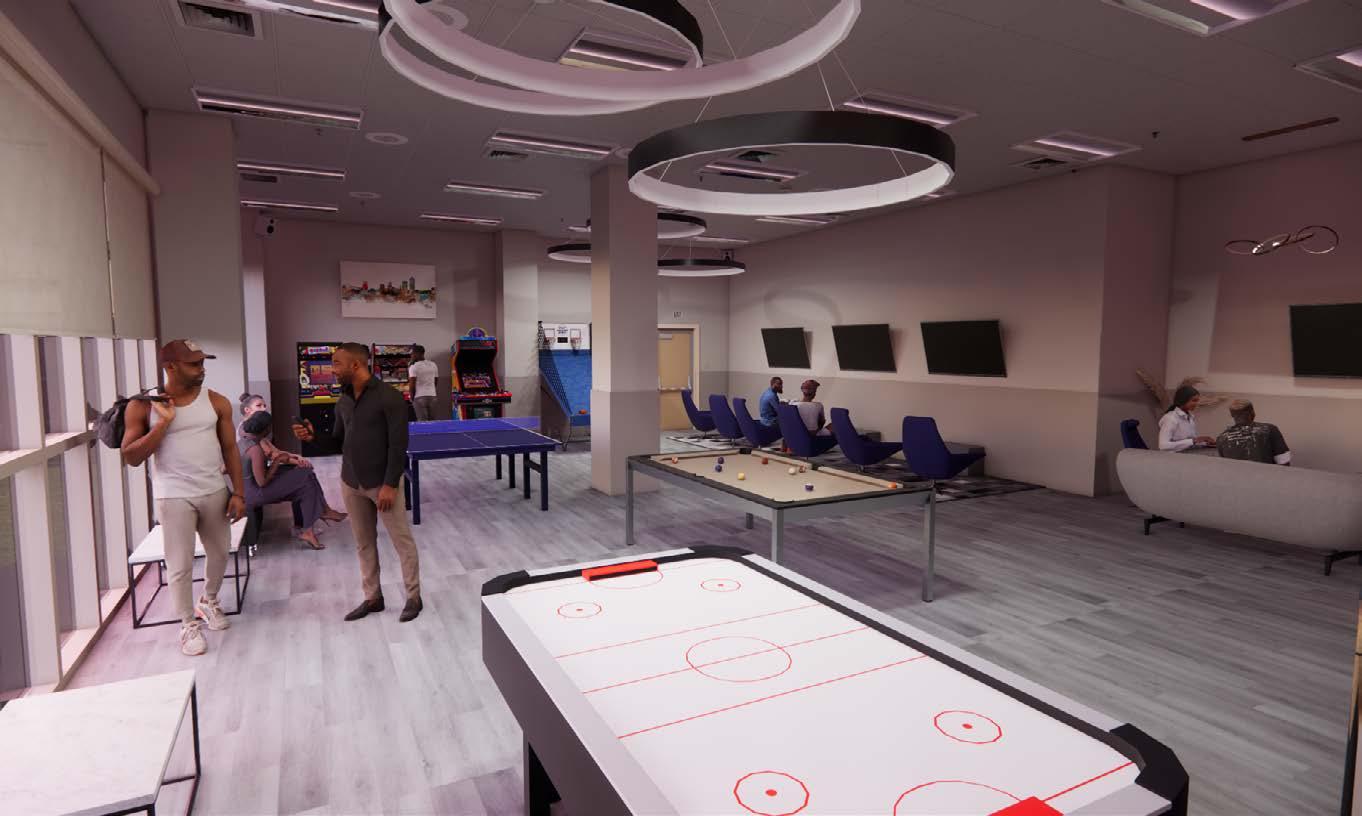

PROJECT - PVAMU Memorial Student Center Game Room Renovations

CONTRIBUTION - Interior Design & Rendering YEAR - 2021

PROJECT - Restaurant

CONTRIBUTION - Rendering YEAR - 2022

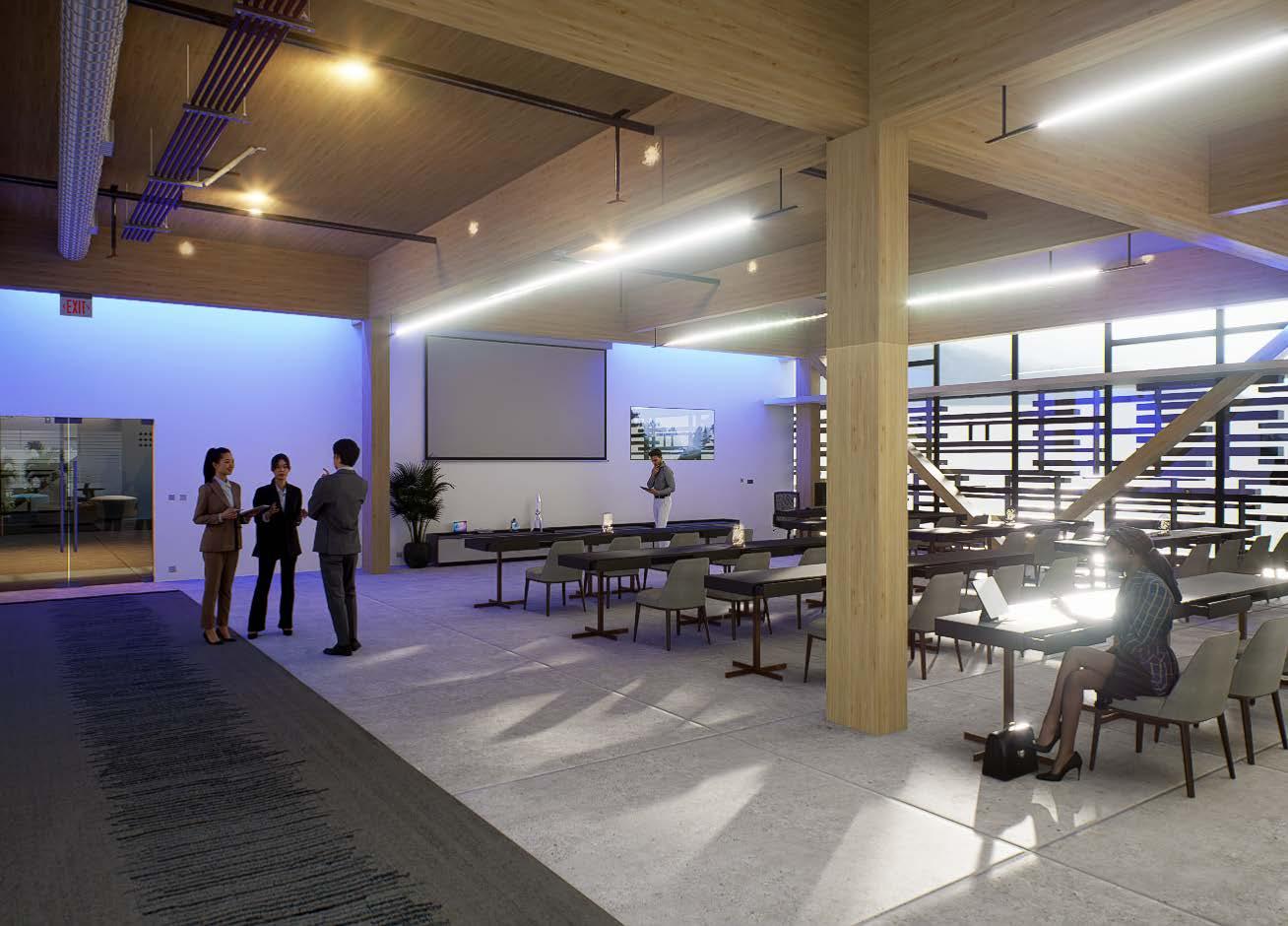

PROJECT - 2024 ACSA Mass Timber Competition

CONTRIBUTION - Interior Design | Modelling | Rendering YEAR - 2024

Exploring models and visual works: A collection from studio projects, coursework, and personal endeavors 06

MISCELLANEOUS WORK CREATIVE VISUALIZATIONS & MODEL-MAKING

DRAWINGS

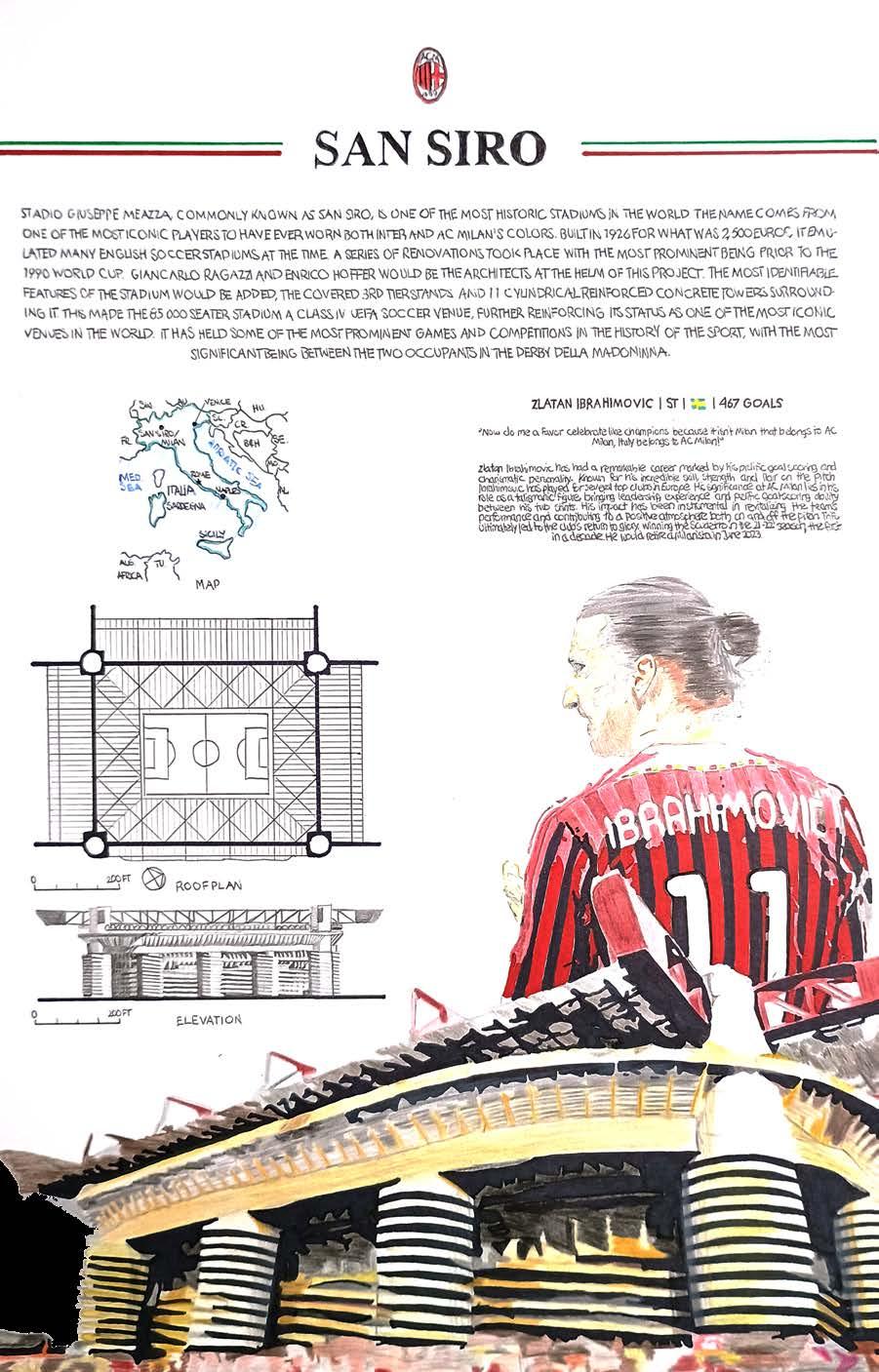

PROJECT - San Siro & Zlatan Ibrahimovic | Milan, Italy

YEAR - 2023

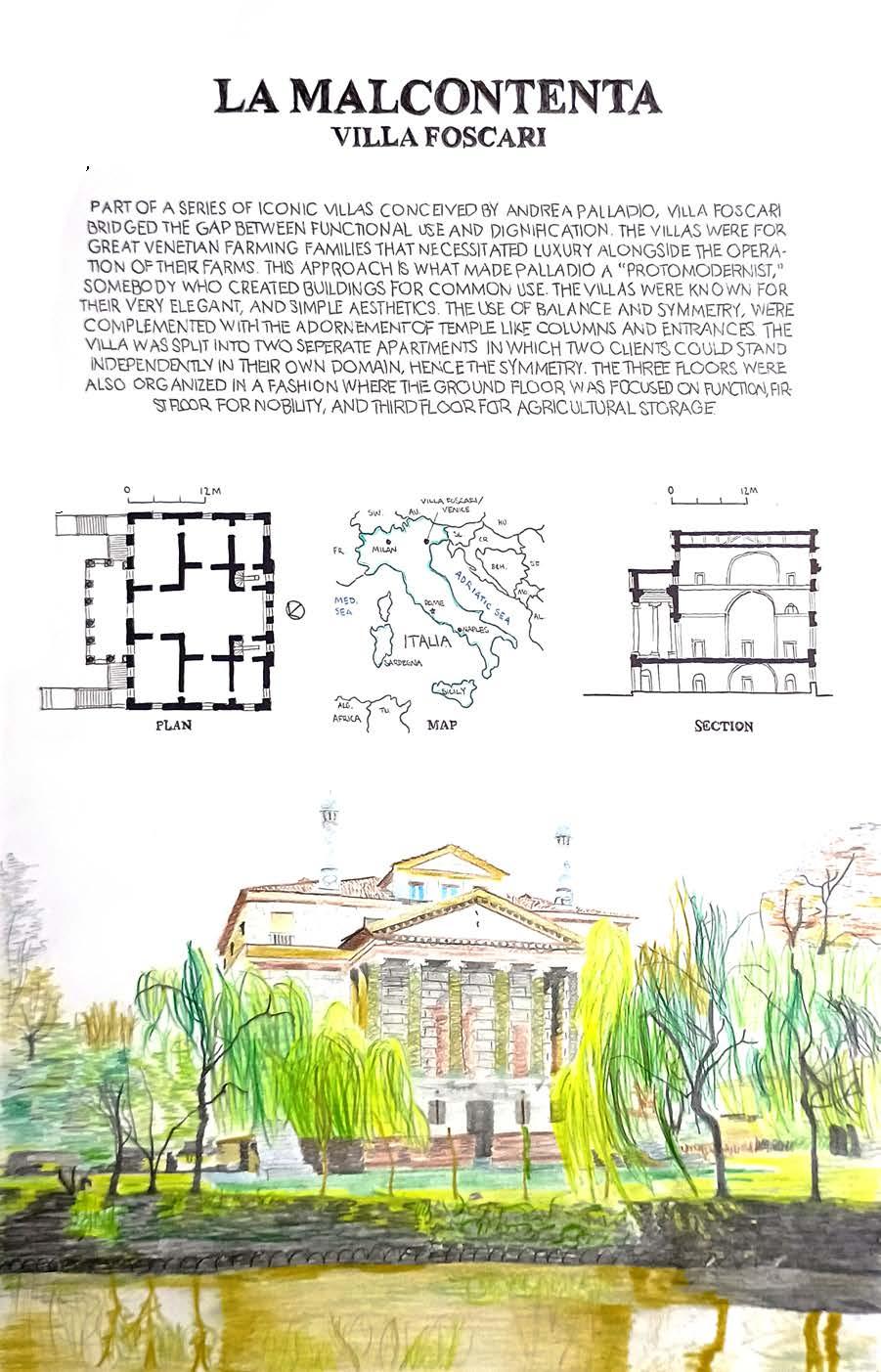

PROJECT - La Malcontenta | Venice, Italy

COURSE - ARCH 1302 | Architectural History II

INSTRUCTOR - William Batson YEAR - 2023

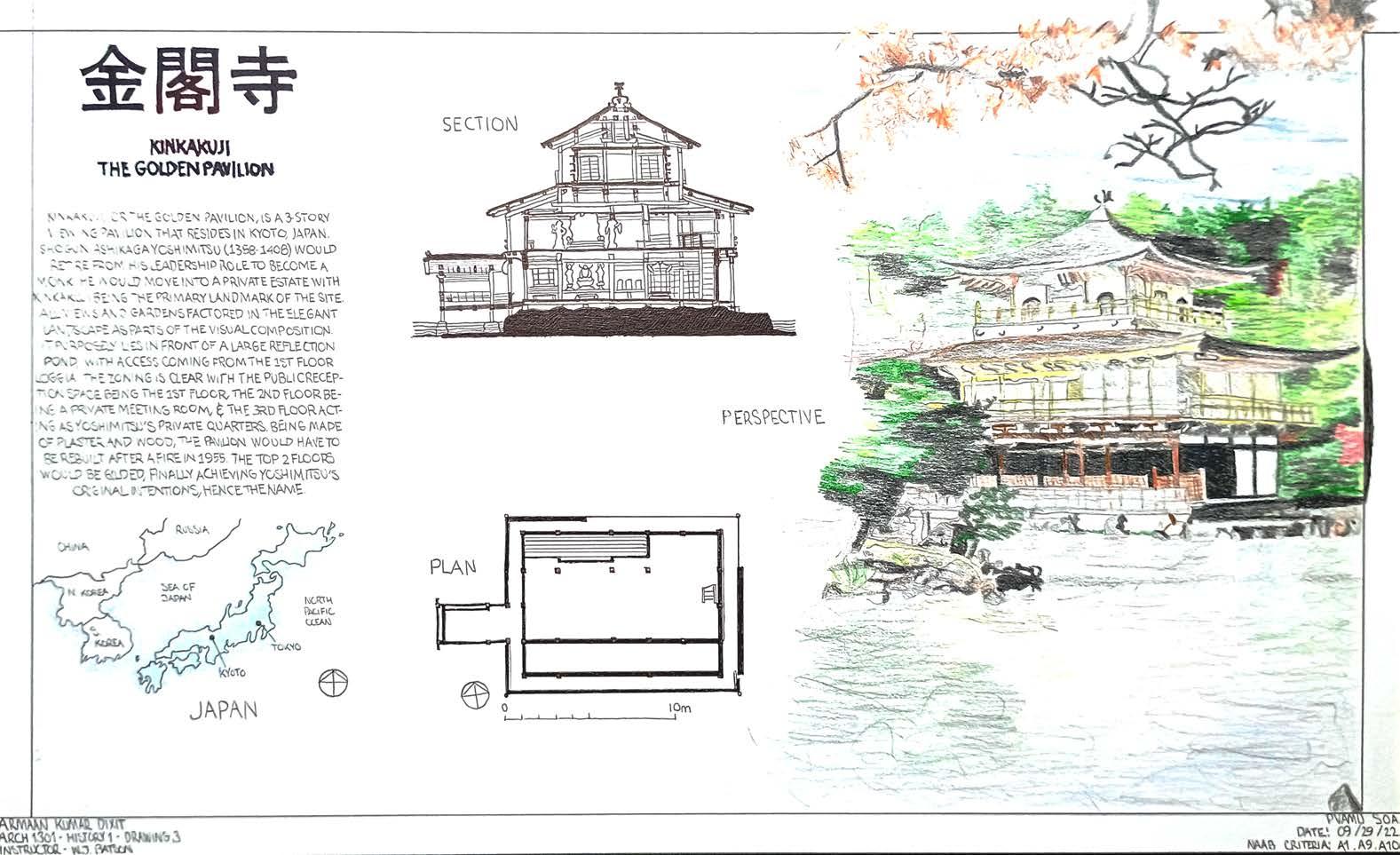

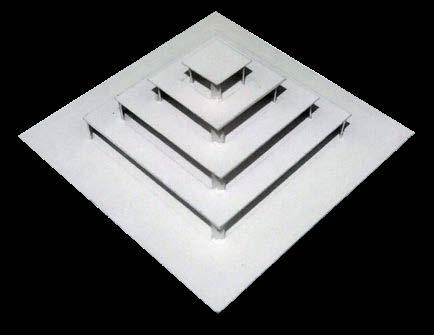

PROJECT - Kinkakuji | Kyoto, Japan

COURSE - ARCH 1301 | Architectural History I

INSTRUCTOR - William Batson

YEAR - 2022

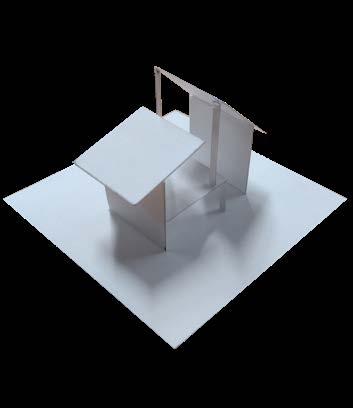

PROJECT - “Oak Tree in the Garden” Koan

COURSE - ARCH 1301 | Architectural History I

INSTRUCTOR - William Batson

YEAR - 2022

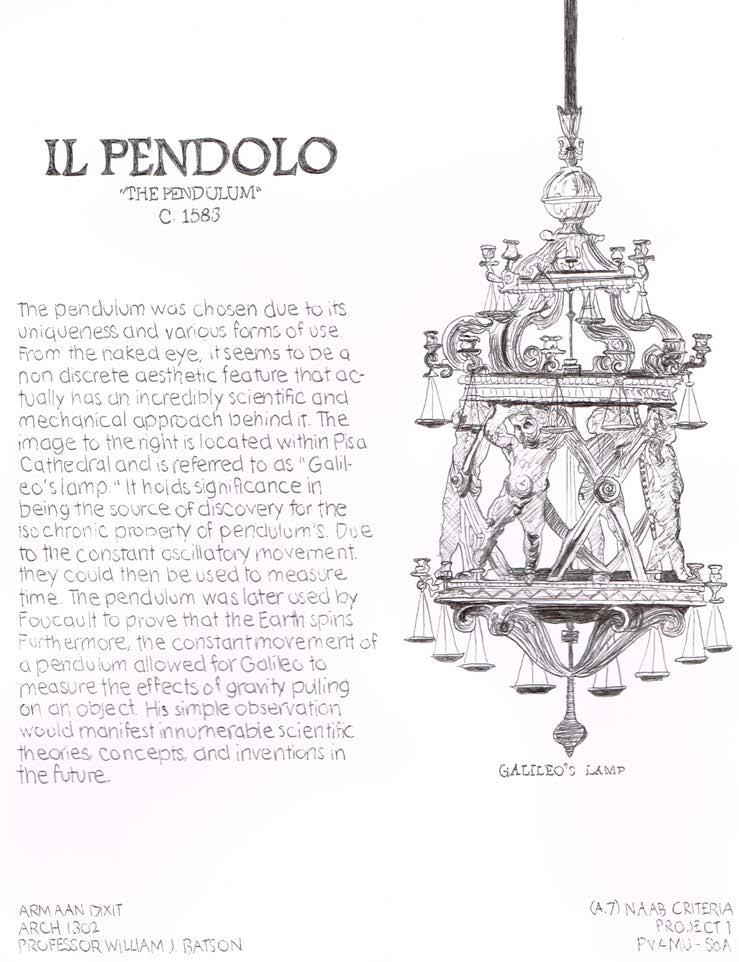

PROJECT - Historical Invention | The Pendelum COURSE - ARCH 1302 | Architectural History II

INSTRUCTOR - William Batson

YEAR - 2023

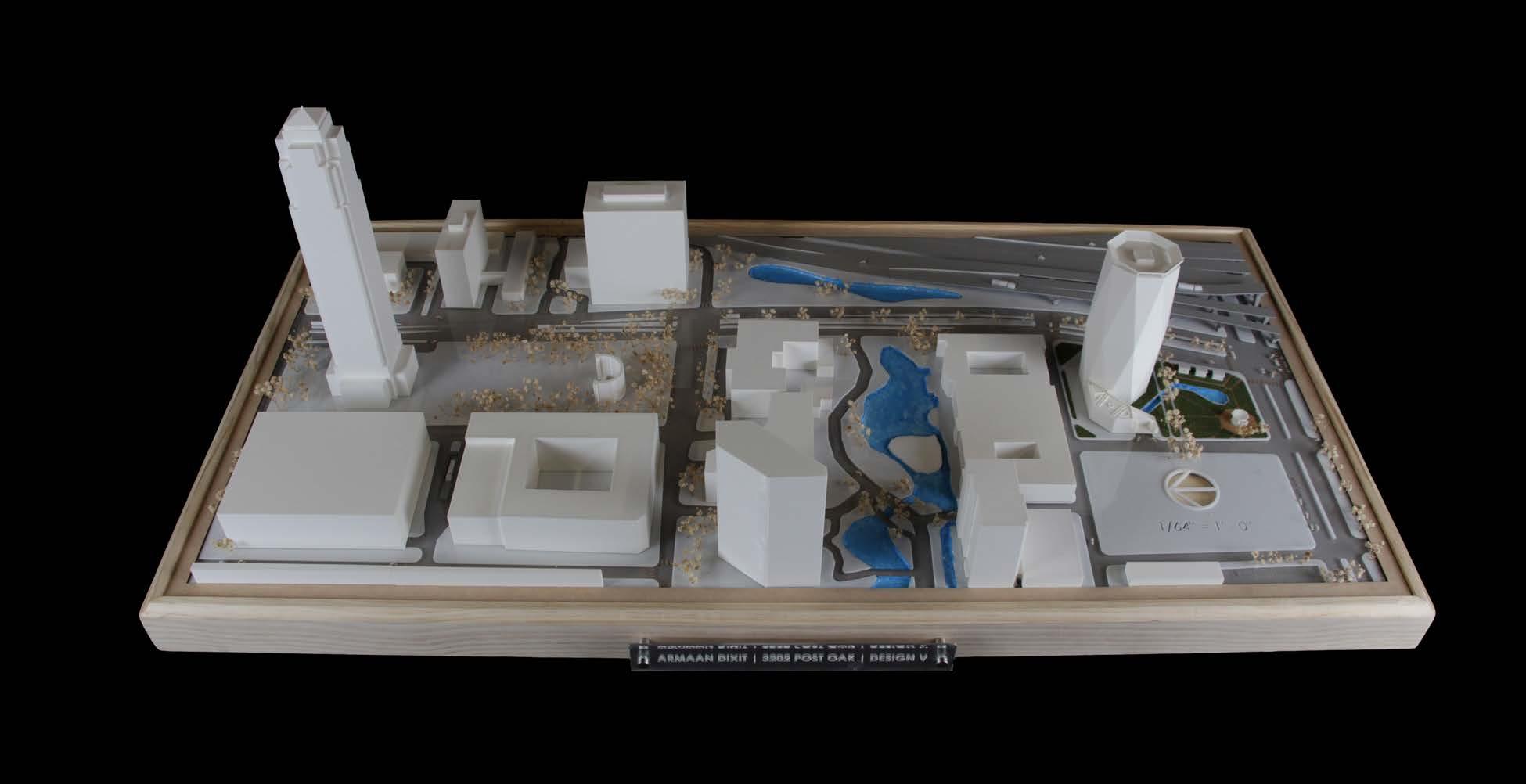

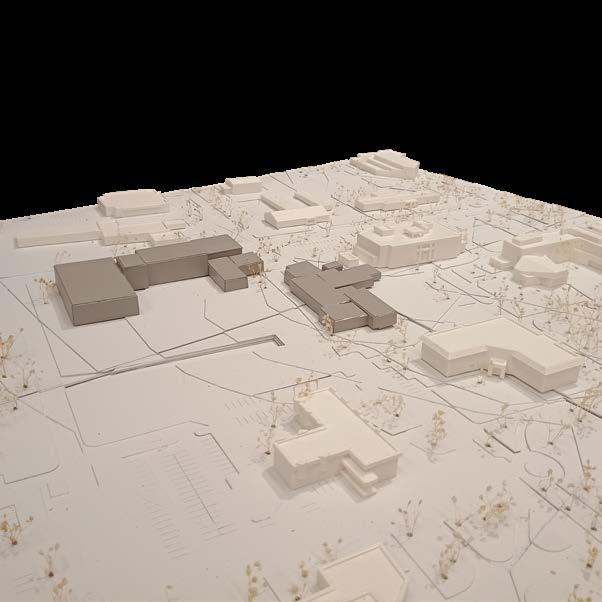

PROJECT - Nux Theater Master Plan (Site Model)

COURSE - ARCH 2604 | Architectural Design IV

INSTRUCTOR - Dr. Tareef Khan

YEAR - 2023

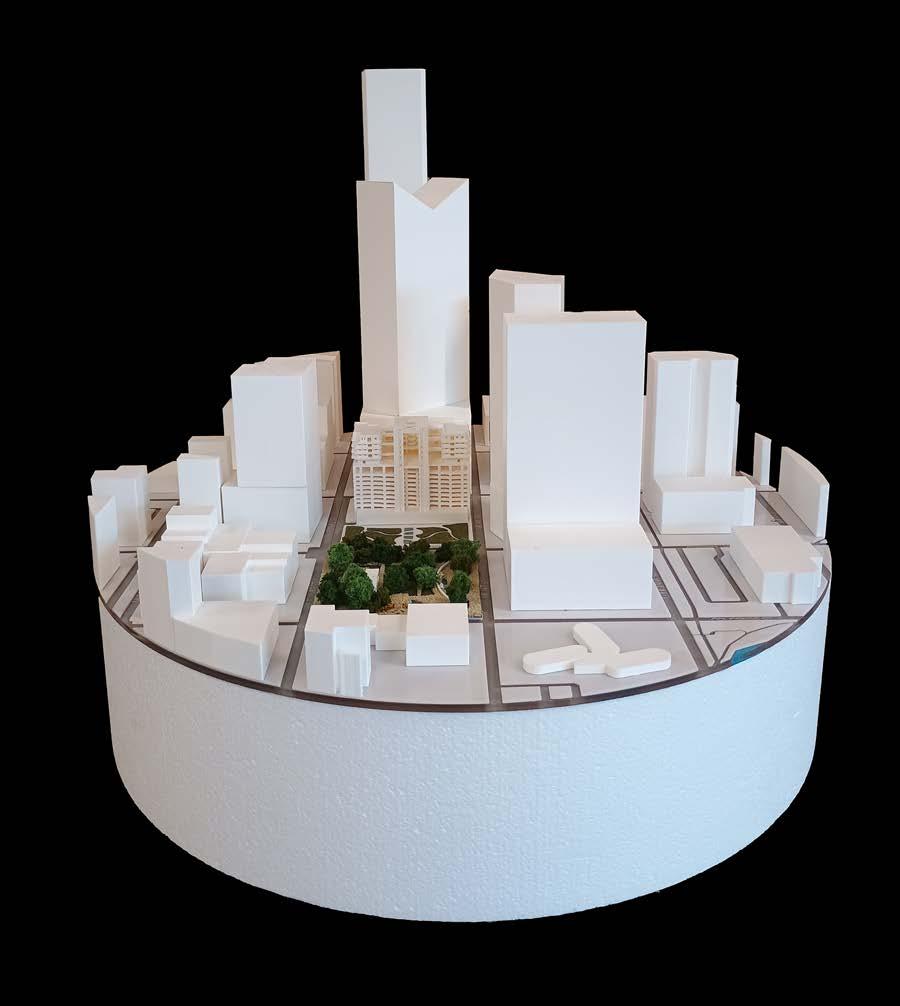

PROJECT - Multi-Use High Rise (Site Model)

COURSE - ARCH 3625 | Architectural Design V

INSTRUCTOR - Dr. Rania Labib

YEAR - 2023

PROJECT - 2024 ACSA Mass Timber Competition (Class Site Model)

YEAR - 2024

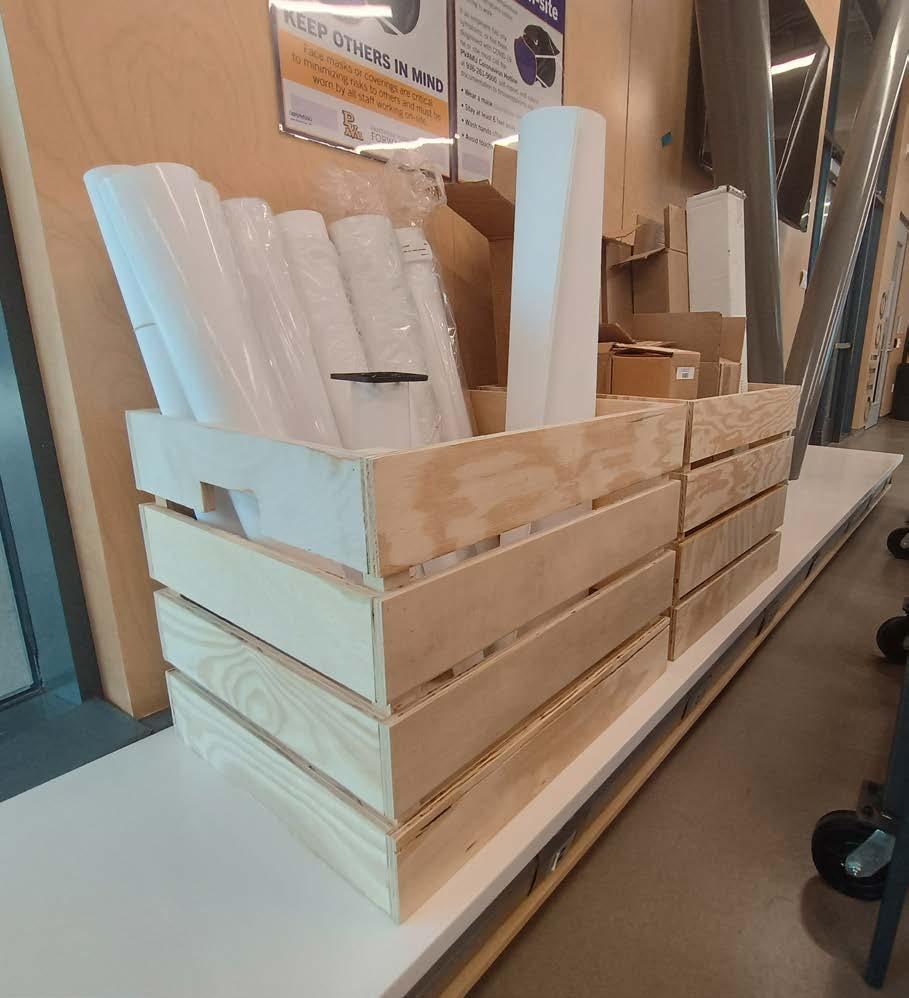

PROJECT - Fabrication Center Printer Roll Bin

COLLEAGUE - Michael Otekunrin

CONTRIBUTION - Inception & Construction

YEAR - 2025

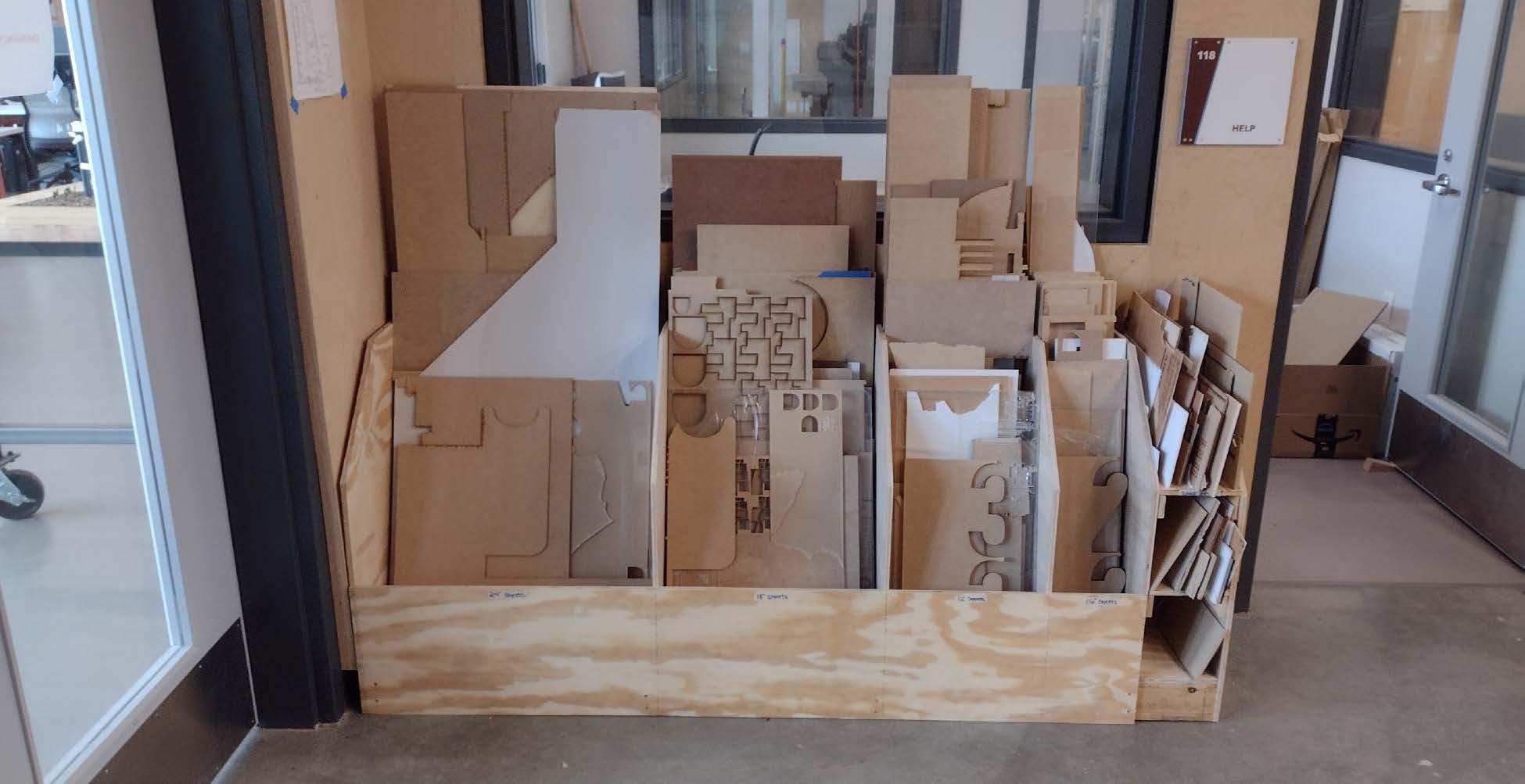

PROJECT - Laser Cutting Room Scrap Bin

COLLEAGUE - Michael Otekunrin

CONTRIBUTION - Inception | 3D Model | Construction

YEAR - 2024
