DEFECT ASSESSMENT
Any crack/damage identified during the visual inspection of the property is measured using a crack gauge and is described for each location as per the following table.
CRACKING/DAMAGE
mm
0 Hairline Fine cracks
not need repair.
but easily filled.
mm 1 Fine
2 Slight Crack can be repaired and possibly a small amount of wall/ paving will need to be replaced.
Extensive repair work involving breaking out and replacing sections of walls/paving. Walls lean or bulge noticeably. Some loss of bearing in beams. Realignment work may be required for paving.
mm to 15 mm, or several cracks > 3mm
<15 mm to 25 mm, depends on number of cracks
*Referred to in AS.2670: Residential slabs and footings - Construction, Table C1
Defects in this report are classified in two categories of Major and Minor:
MAJOR DEFECTS:
3 Moderate
4 Severe
According to AS 4349.0 clause 1.3.9, a major defect is defined as “A defect of sufficient magnitude where rectification has to be carried out in order to avoid unsafe conditions, loss of utility or further deterioration of the property”. Per AS 4349.1 clause 4.2.4.1, where a major defect is mentioned in the report, it should be clearly described; including a general statement as to any observed minor defects and an explanation given as to why it is a major defect, along with its specific locations. AusDilaps, in consideration of ‘Acceptance Criteria’ as defined by AS 4349.0 Clause 2.4, and its years of experience and professional knowledge of staff, identifies and describes the major defects at the time of inspections based on one of the following reasons:
Reason for Identifying Major Defect
Large area is affected by the defect
Defect has substantially affected the serviceability of element
Defect presents risks of harm to people or damage to propertie(s)
Pg # Description:
None noted at the time of inspection.
ADN23137A Page 6
CLASSIFICATIONS
<0.1
Hairline cracks.
that do
<1
Cracks
<5
noticeable
mm
<5
MINOR DEFECTS:
According to AS 4349.1, clause 4.2.4.2, minor defects are common to most properties and may include minor blemishes, corrosion, cracking, weathering, general deterioration, unevenness, and physical damage to materials and finishes. It is expected that defects of this type would be rectified as part of a normal ongoing maintenance.
Pg # Description:

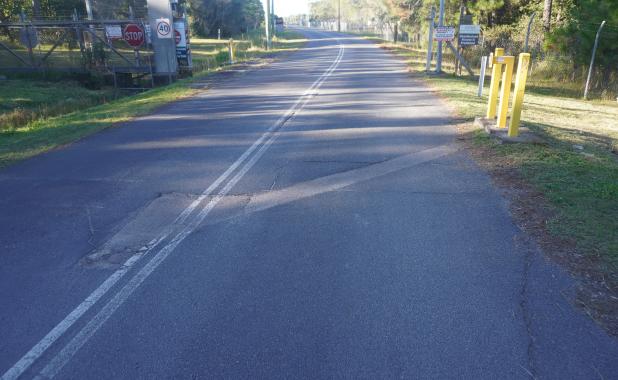

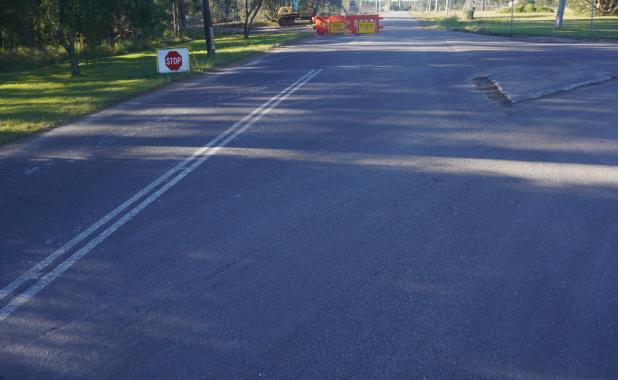

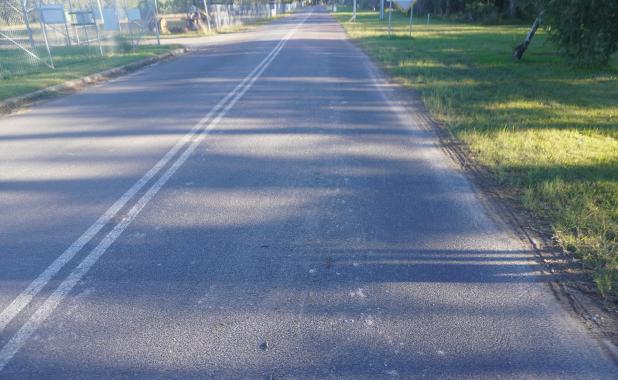

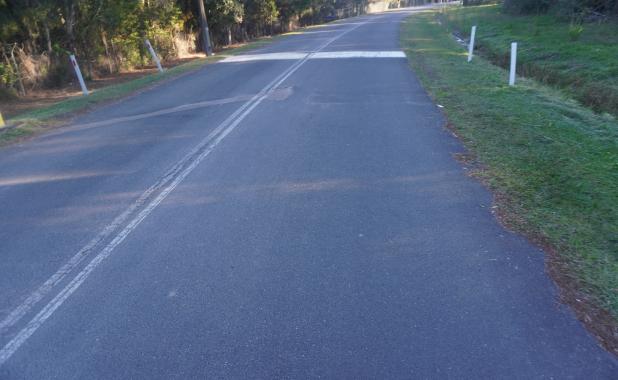

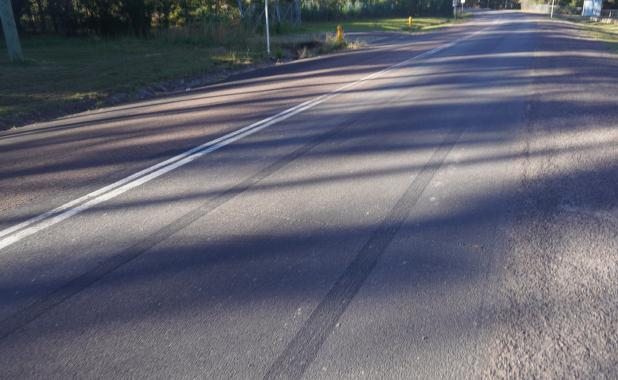

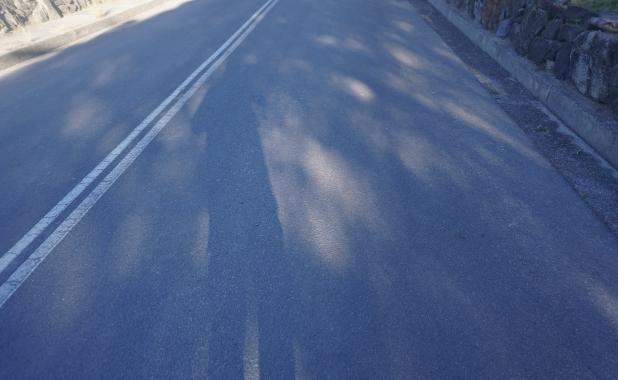

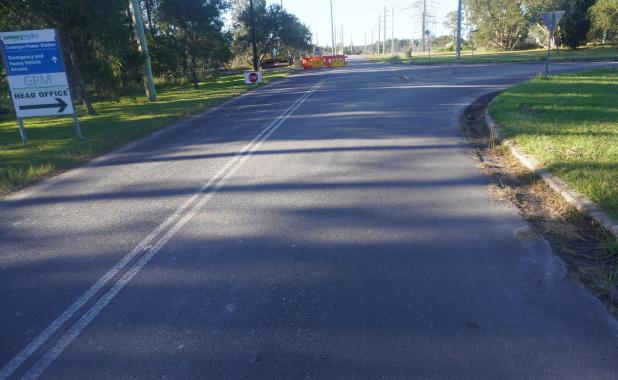

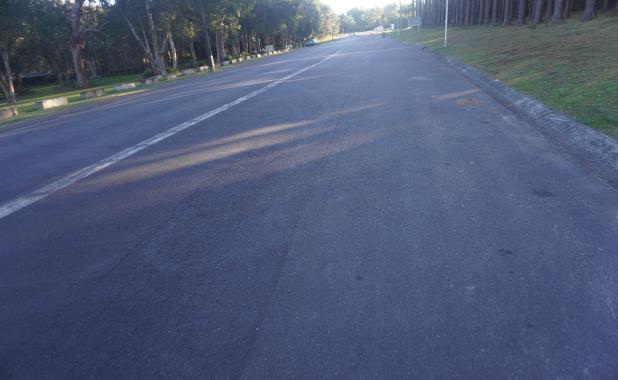

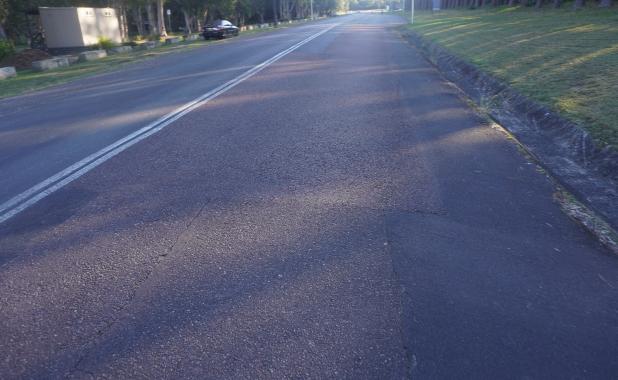

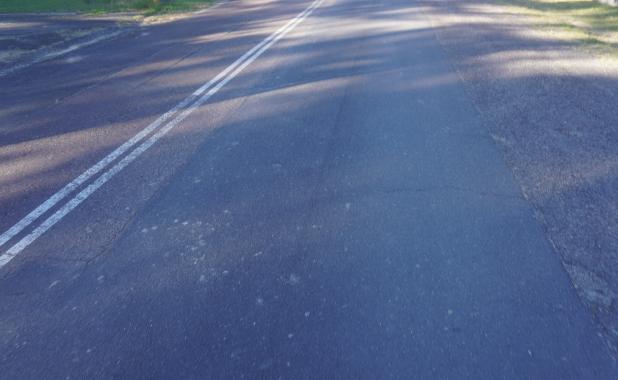

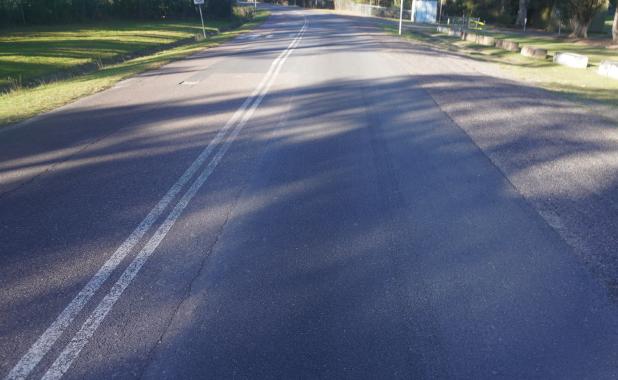

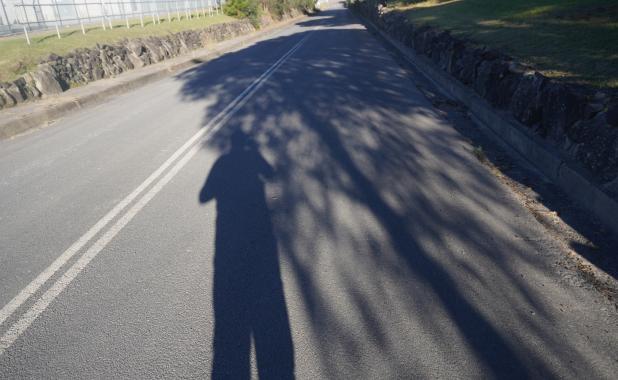

15 General view of the south side of the roadway at the intersection of Station Road and Scenic Drive. Showing severe cracking.

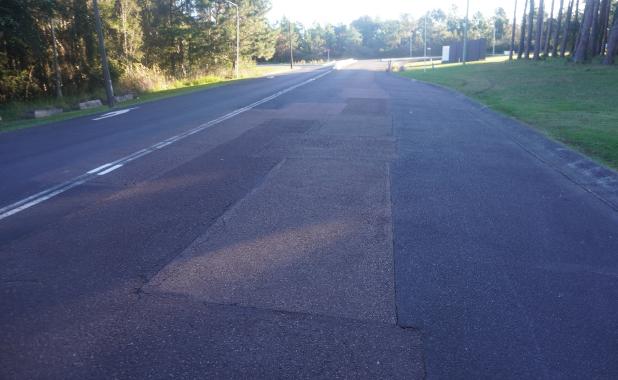

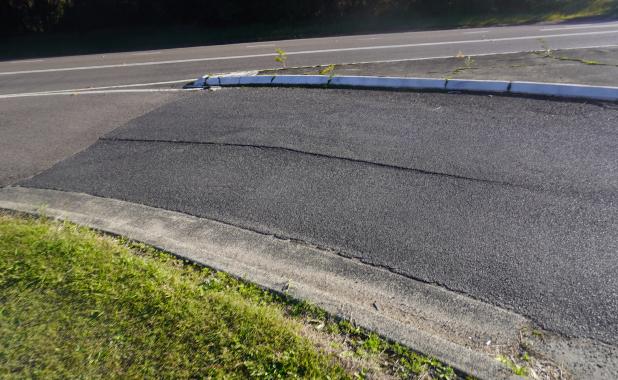

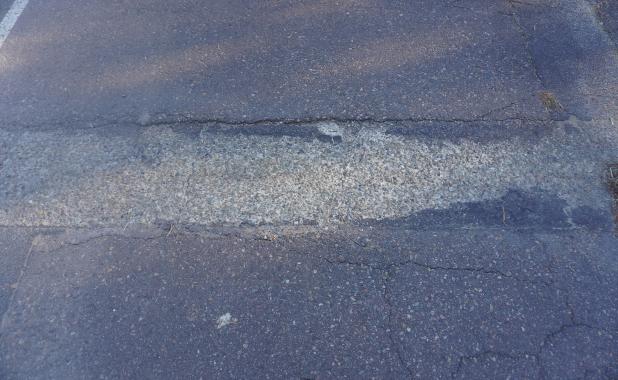

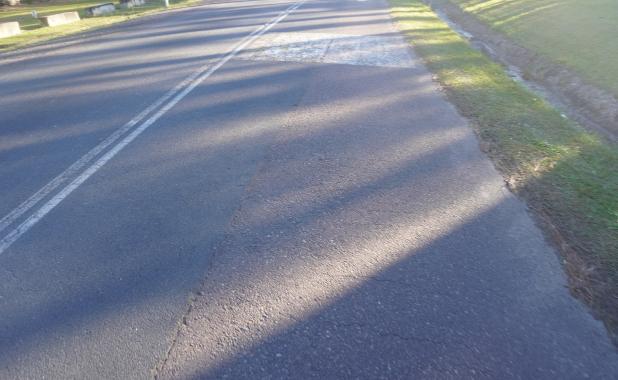

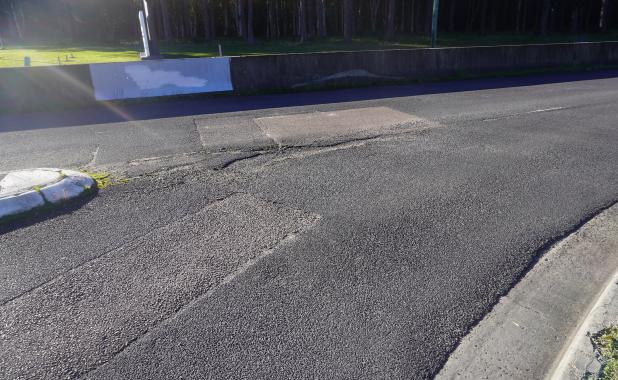

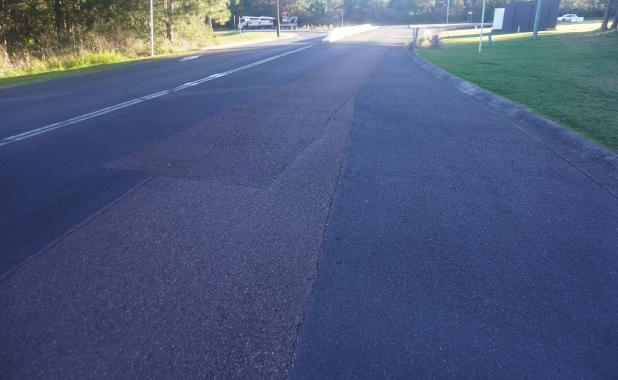

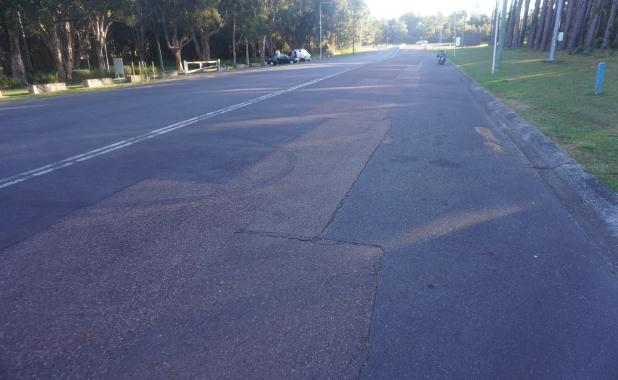

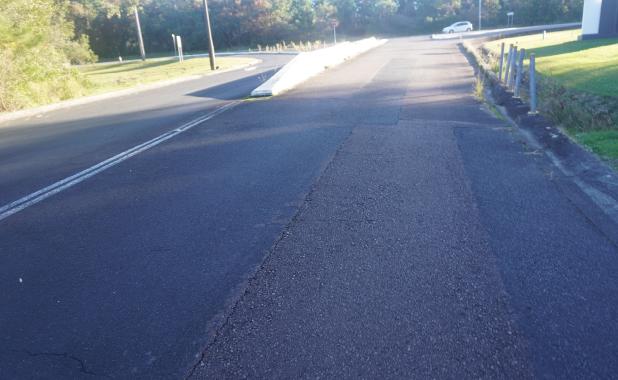

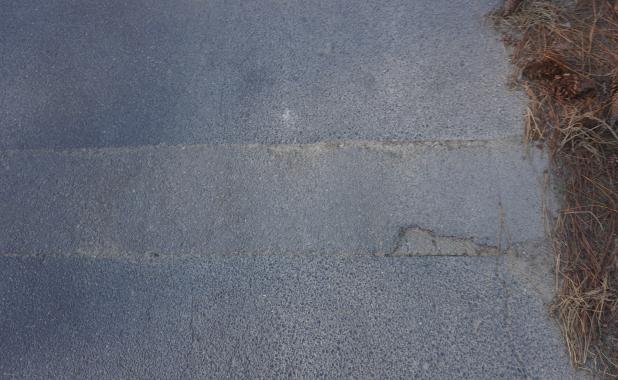

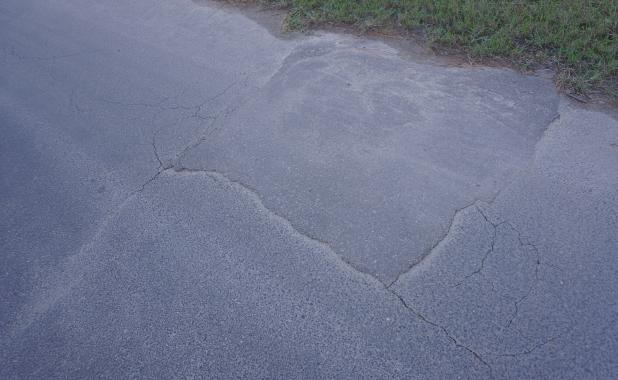

15 Patching in the south side of the roadway at the intersection of Station Road and Scenic Drive.
16

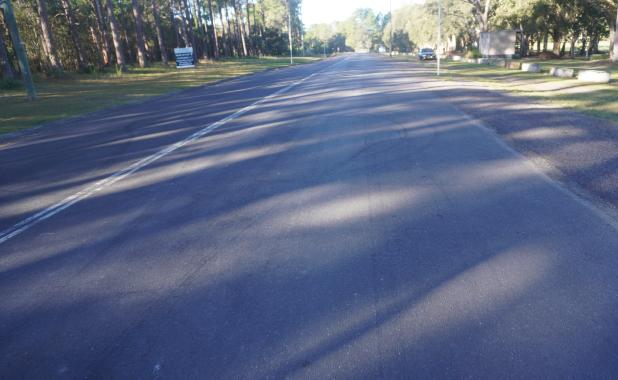

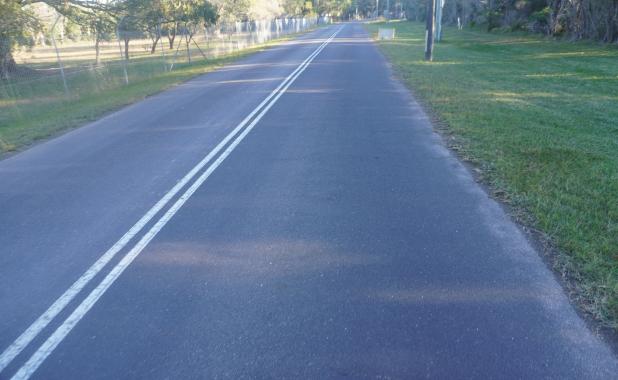

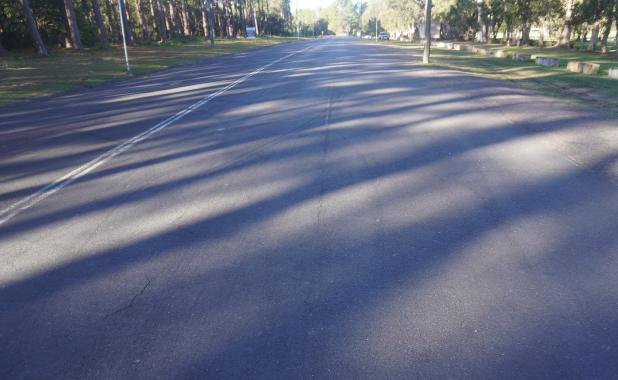

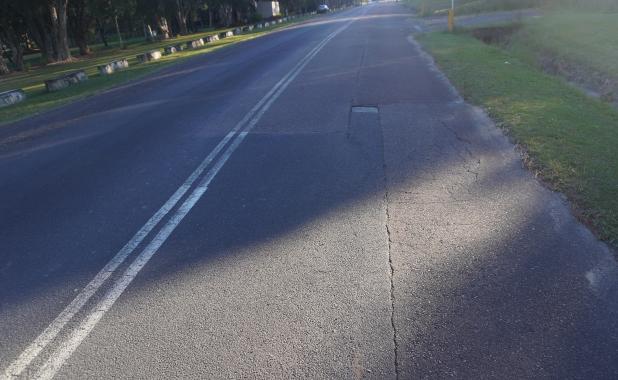

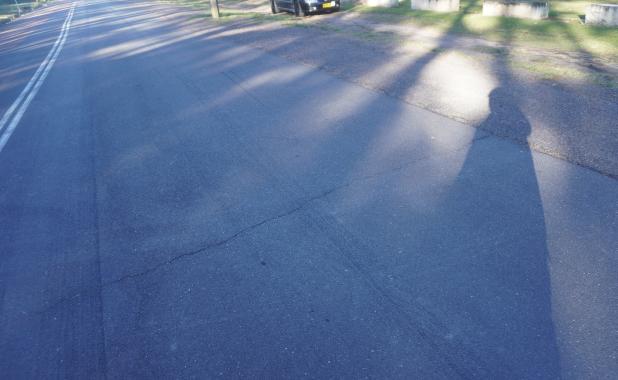

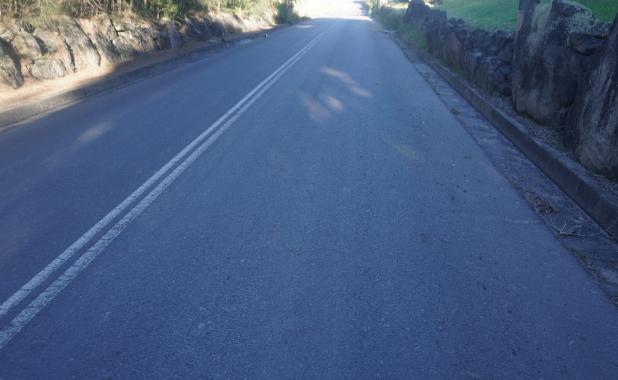

General view of the south side of the roadway at the intersection of Station Road and Scenic Drive. Showing patching.

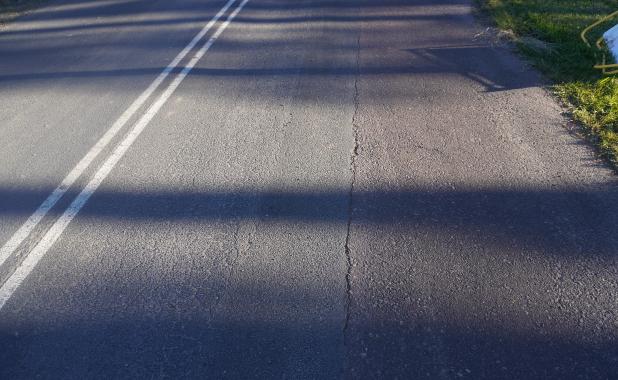

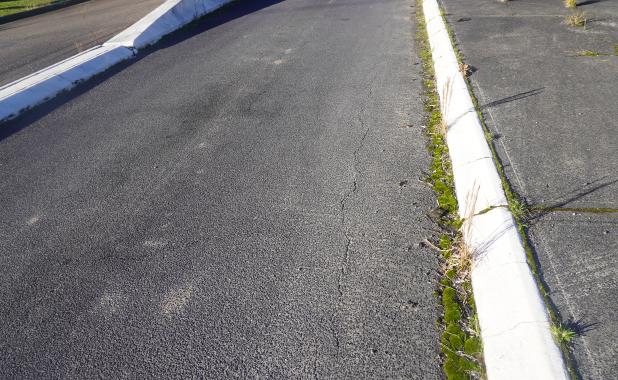

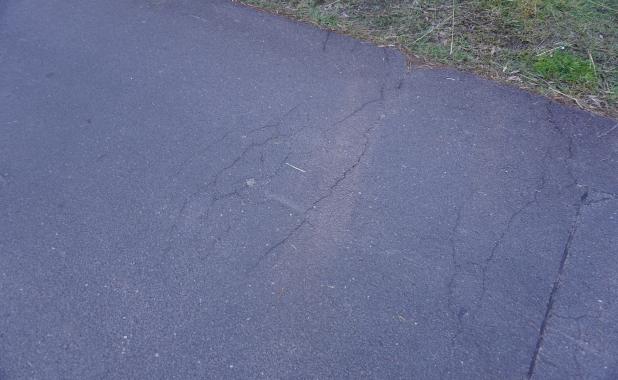

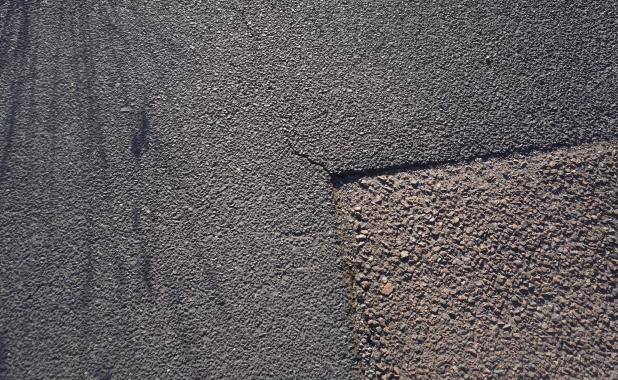

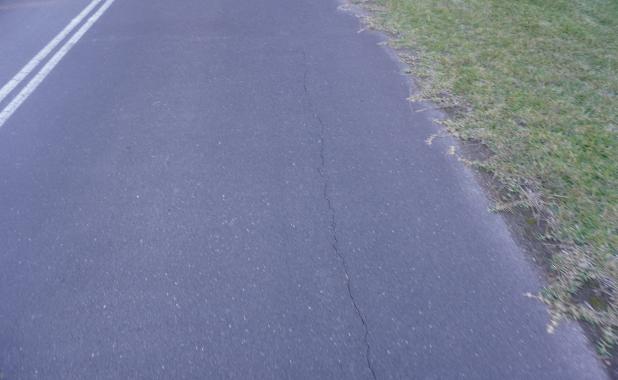

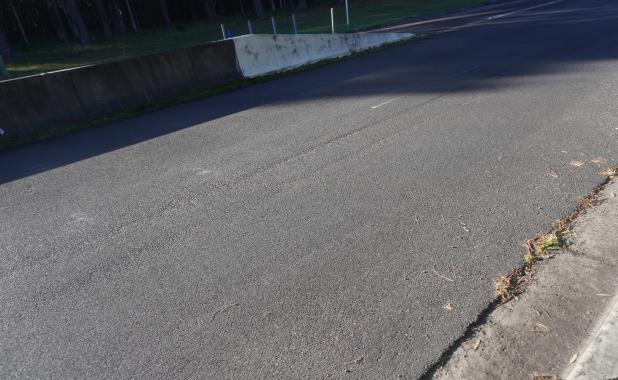

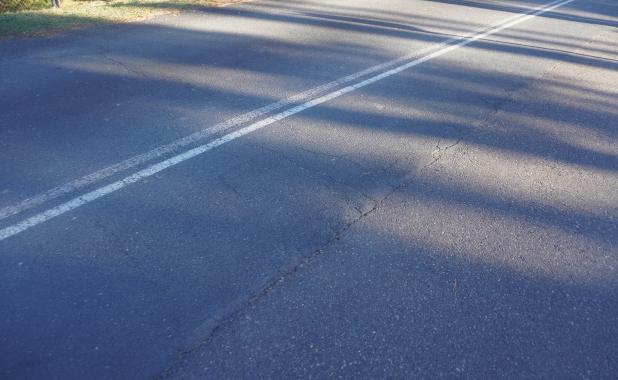

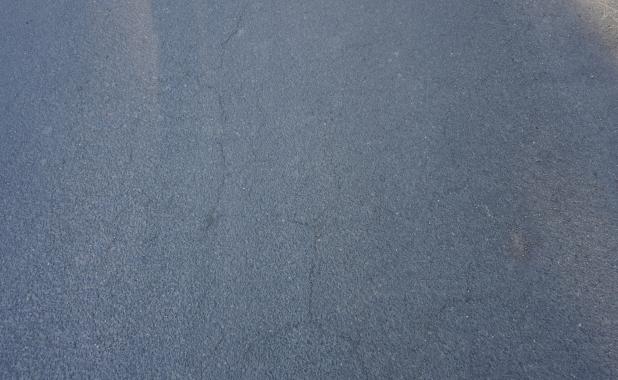

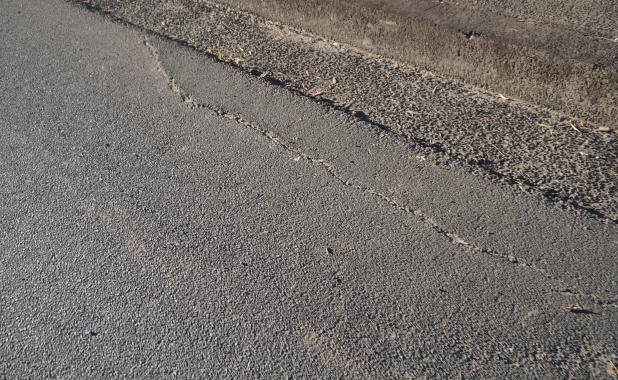

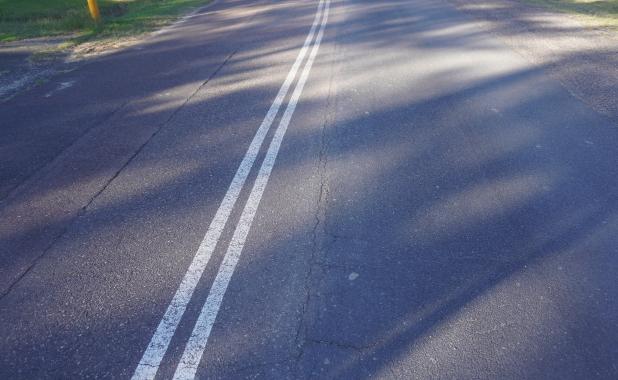

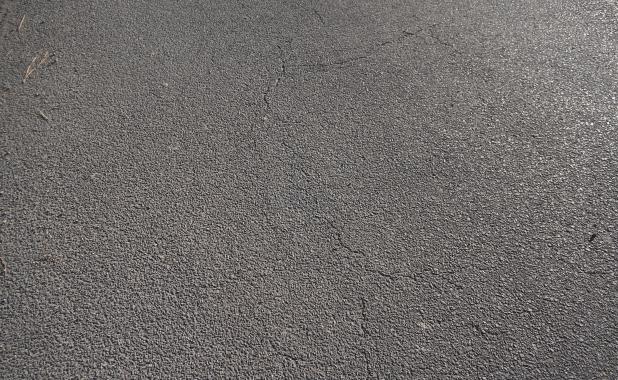

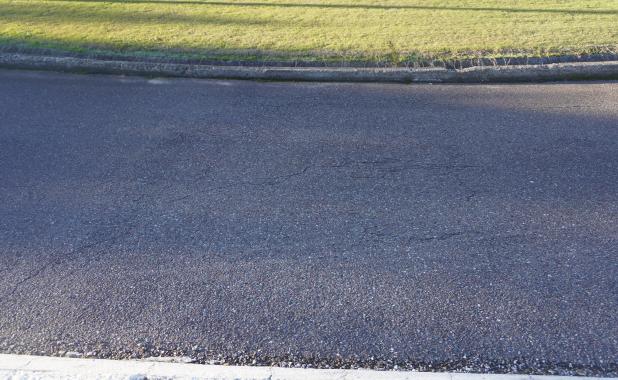

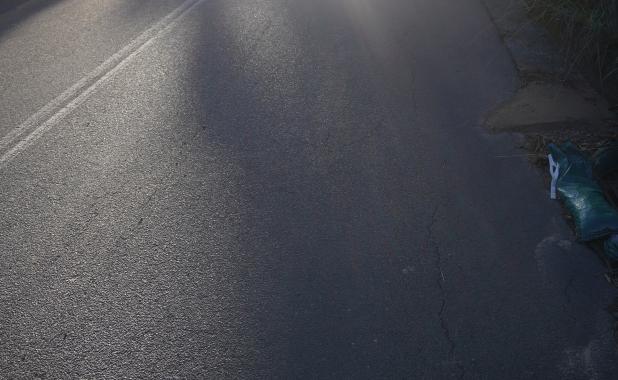

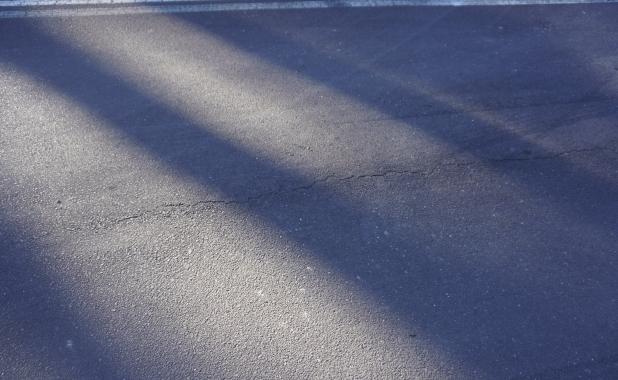

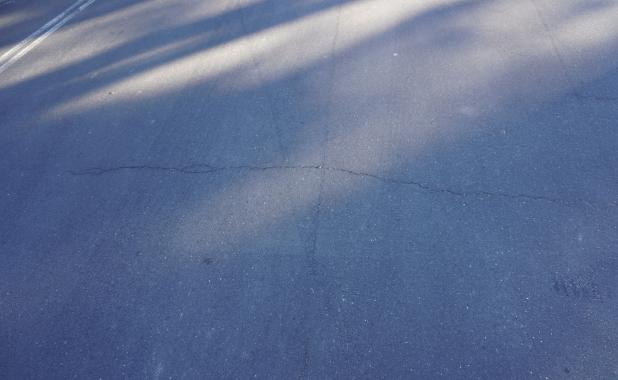

16 Fine cracking in the south side of the roadway at the intersection of Station Road and Scenic Drive.
17

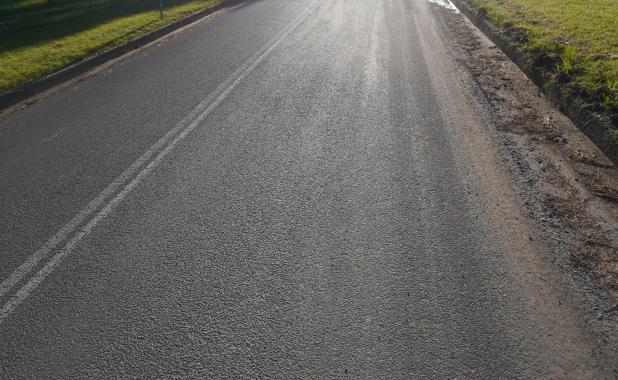

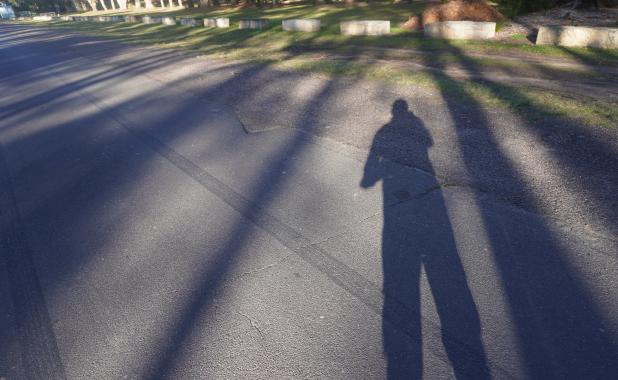

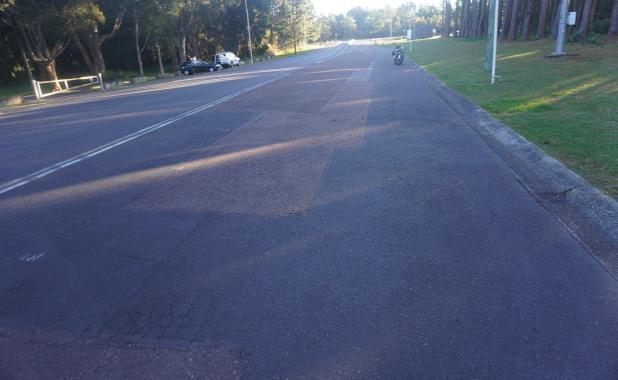

General view of the south side of the roadway at the intersection of Station Road and Scenic Drive. Showing slight cracking.

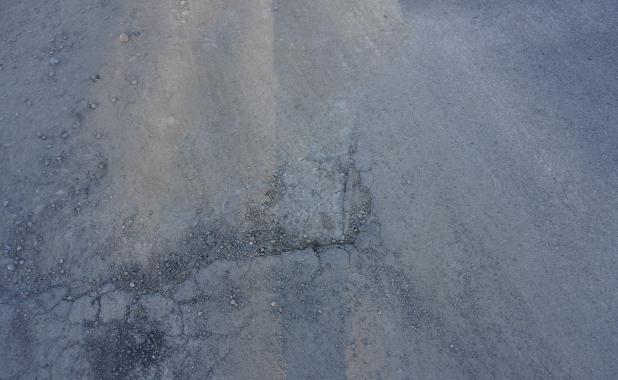

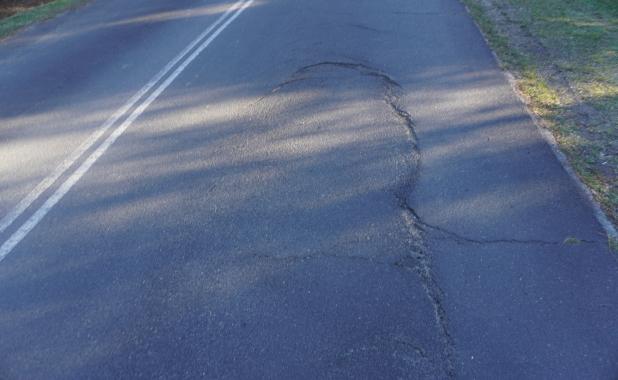

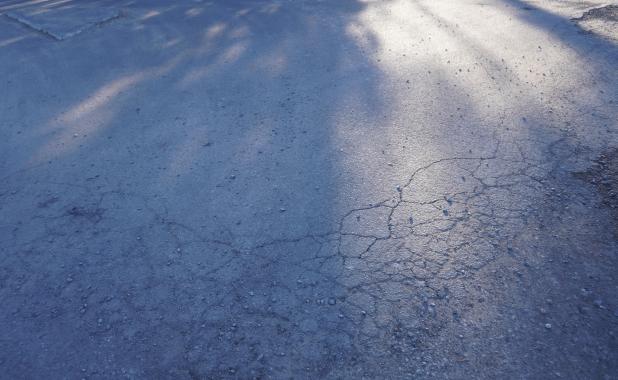

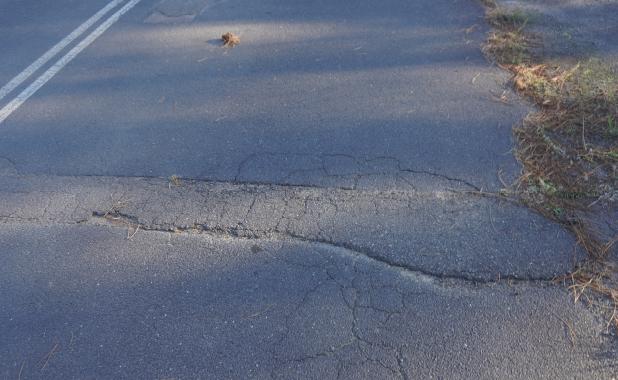

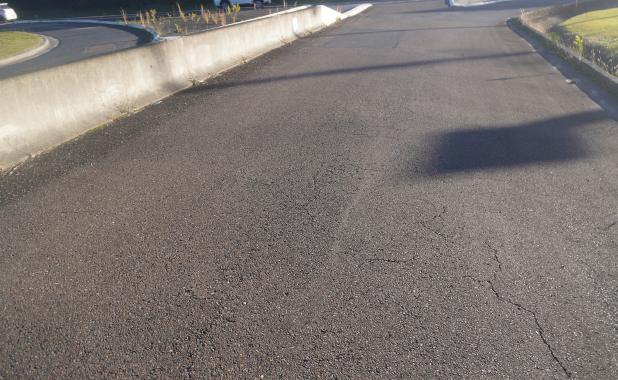

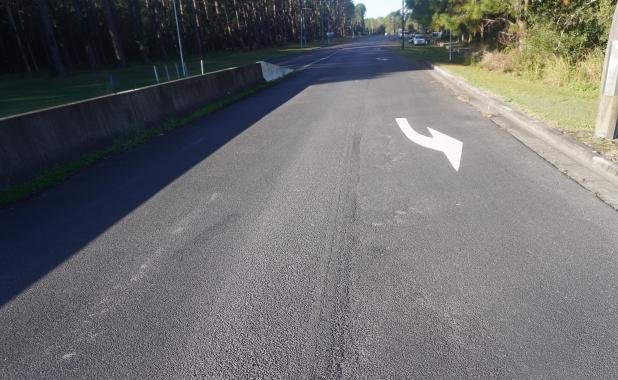

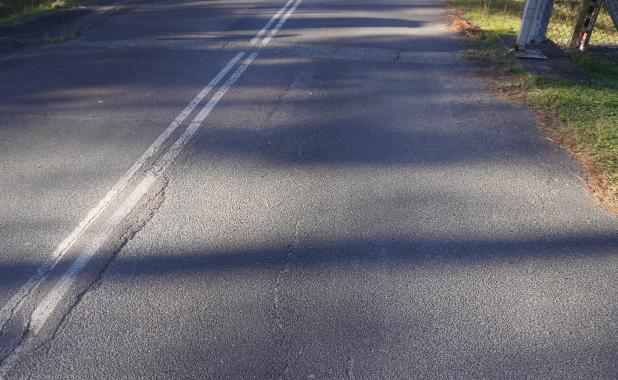

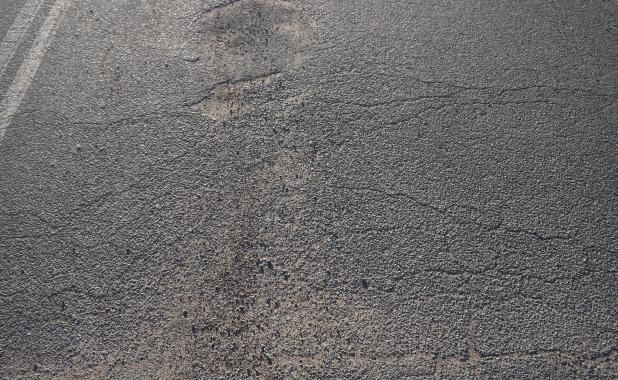

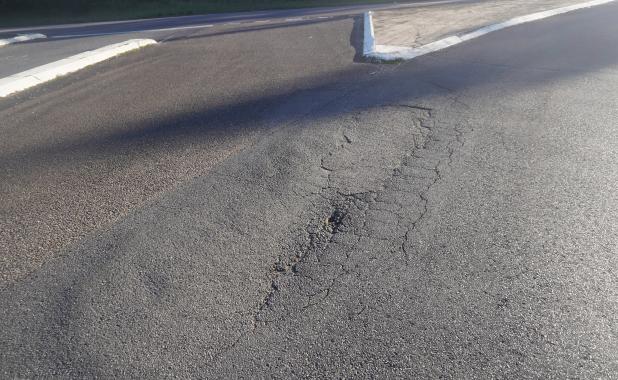

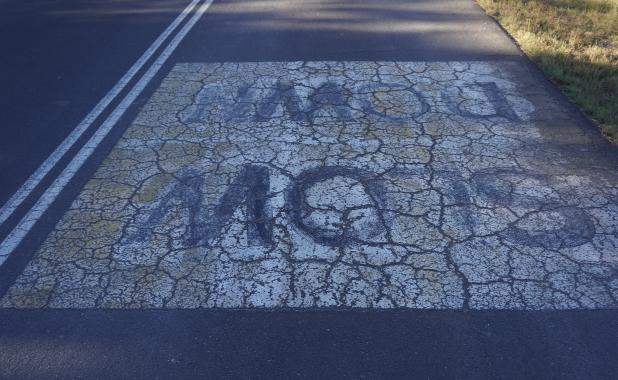

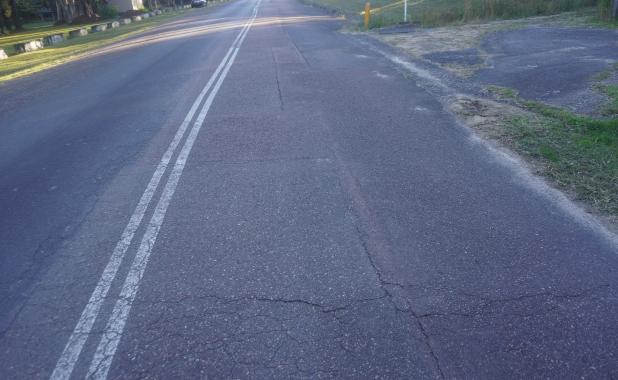

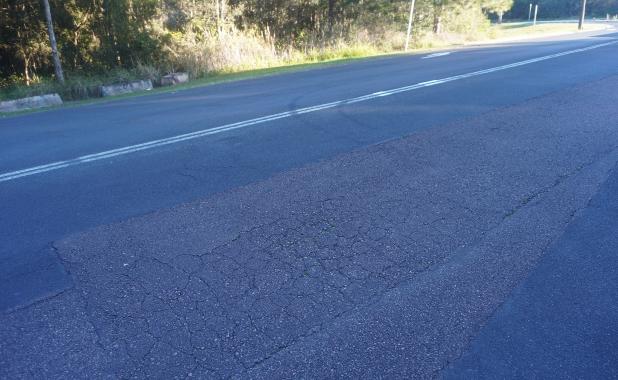

17 Alligator cracking in the south side of the roadway at the intersection of Station Road and Scenic Drive.
17

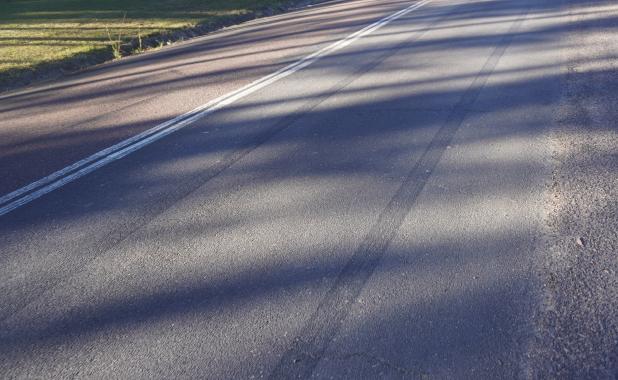

General view of the south side of the roadway at the intersection of Station Road and Scenic Drive. Showing slight cracking.

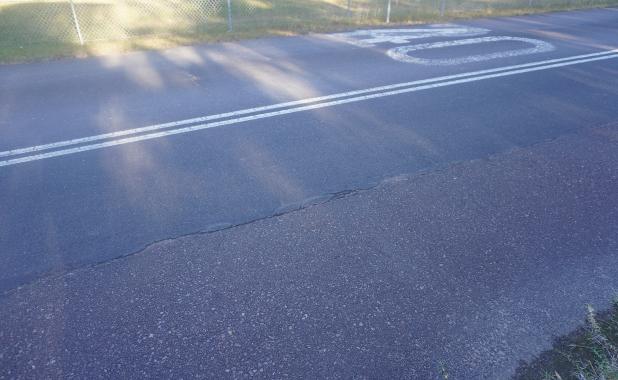

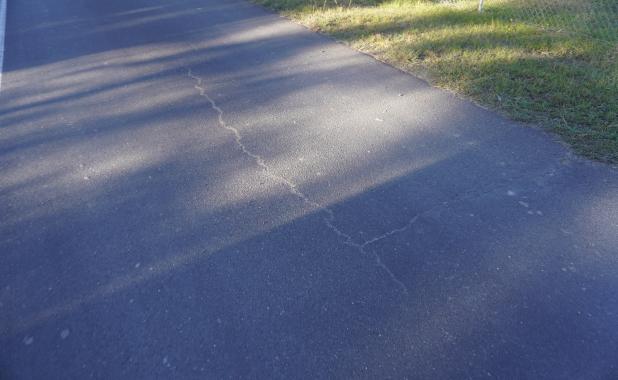

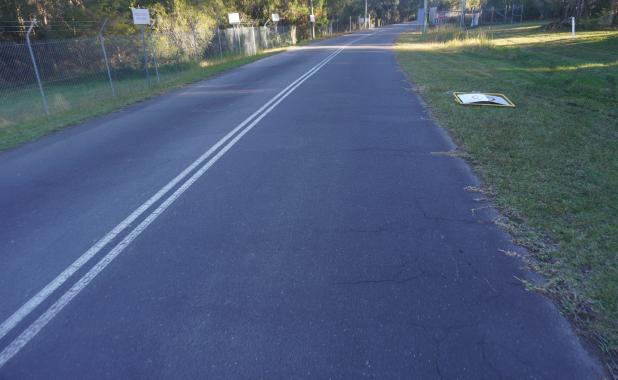

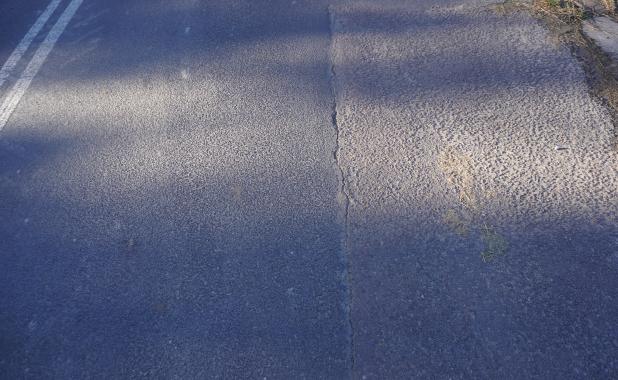

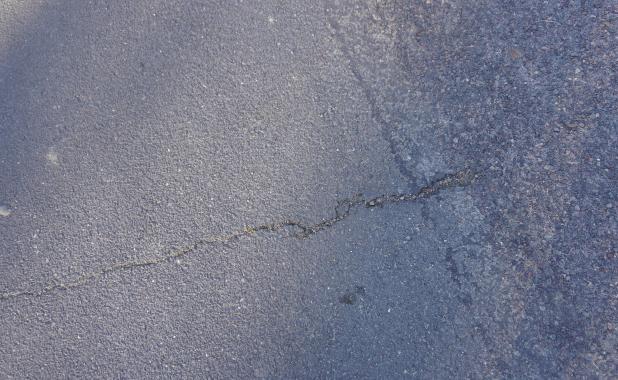

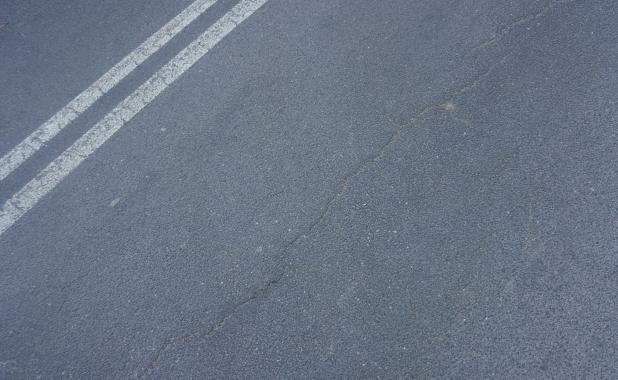

18 Slight cracking in the south side of the roadway at the intersection of Station Road and Scenic Drive.

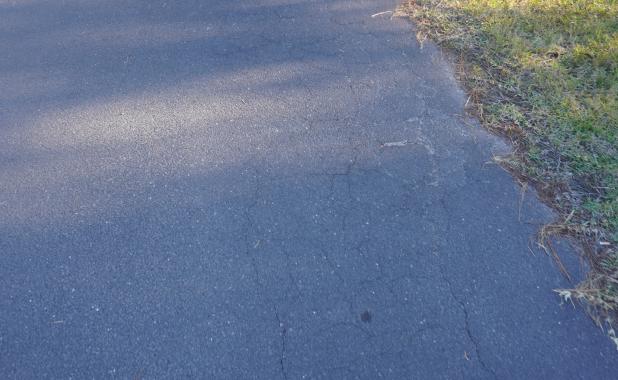

18 Alligator cracking in the south side of the roadway at the intersection of Station Road and Scenic Drive.
18
19

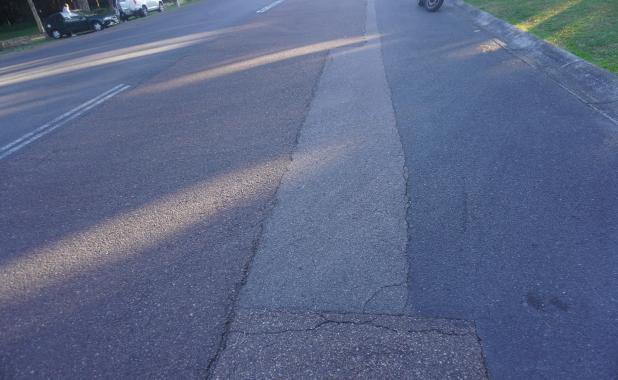

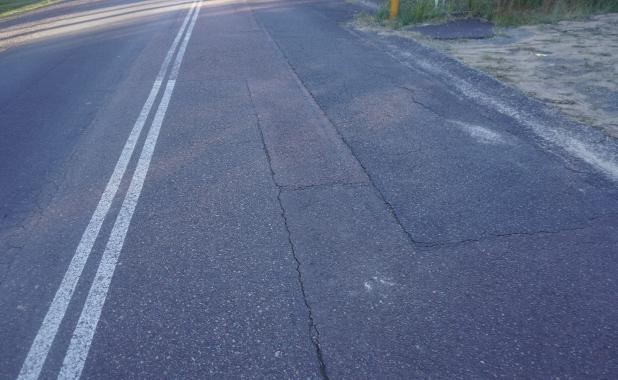

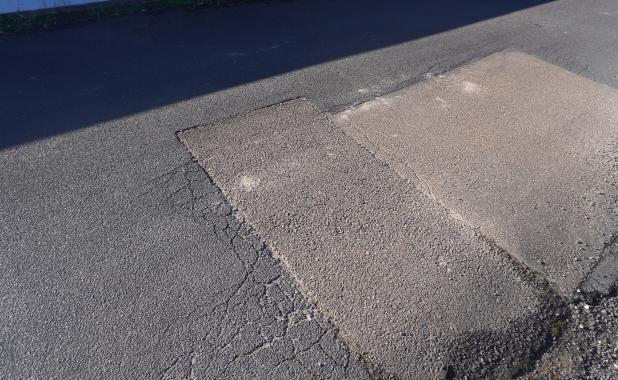

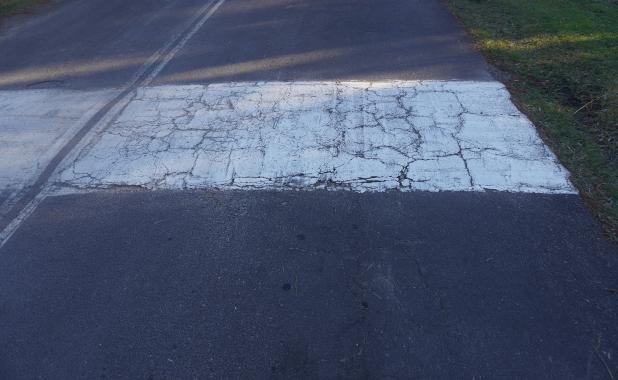

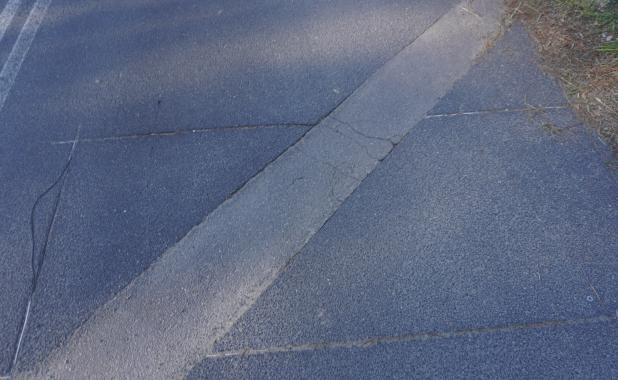

Alligator cracking and patching in the south side of the roadway at the intersection of Station Road and Scenic Drive.
Alligator cracking in the south side of the roadway at the intersection of Station Road and Scenic Drive.

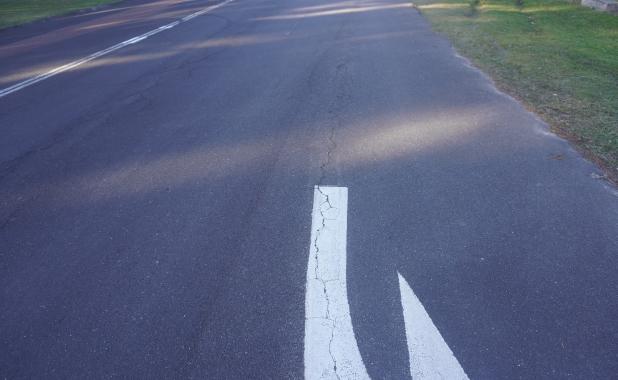

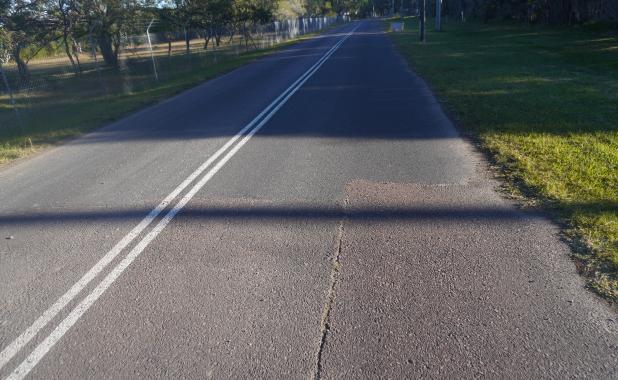

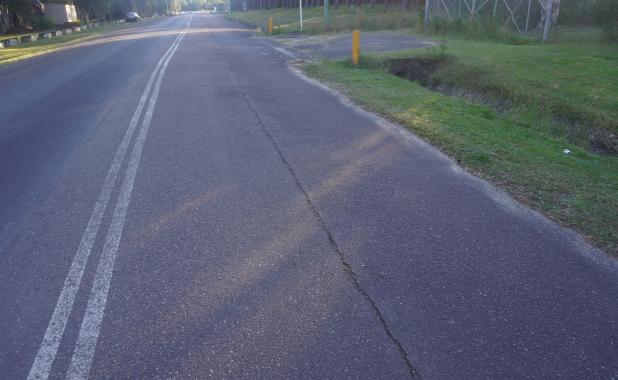

20 Slight cracking in the south side of the roadway on Station Road.
20
20
21

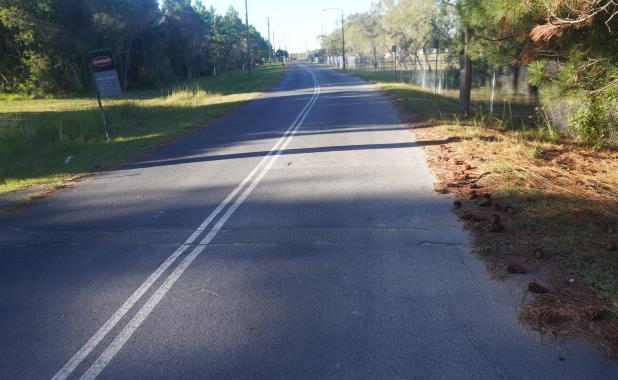

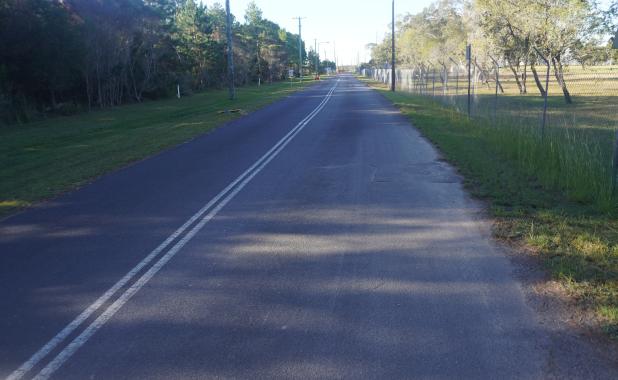

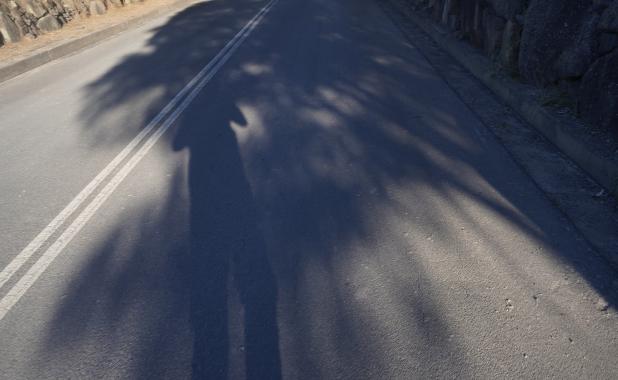

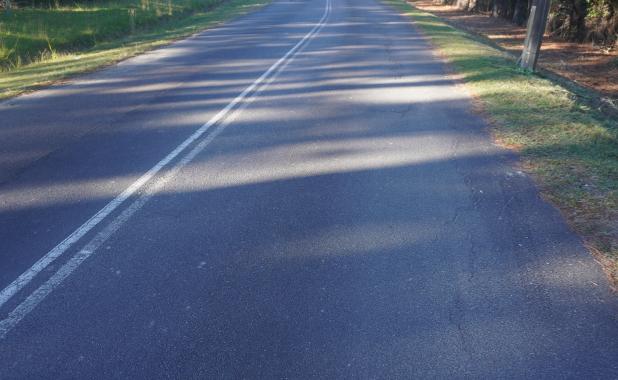

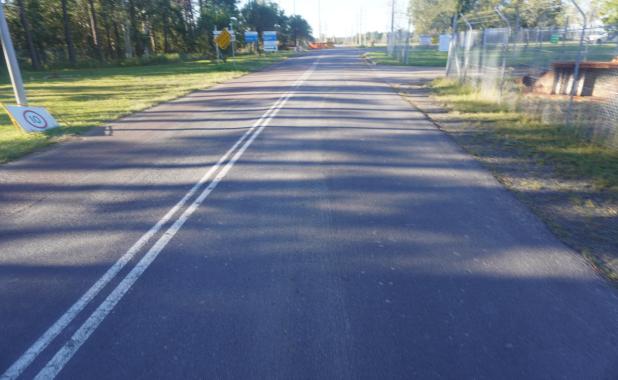

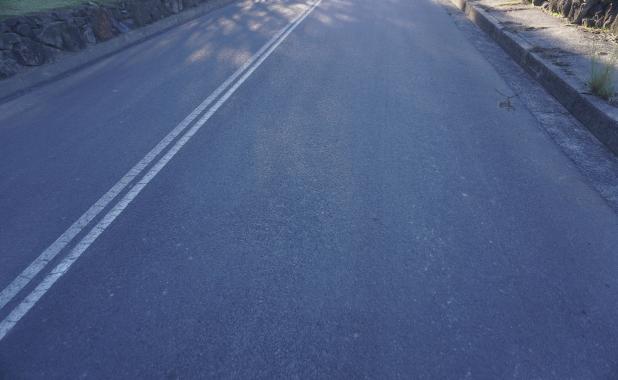

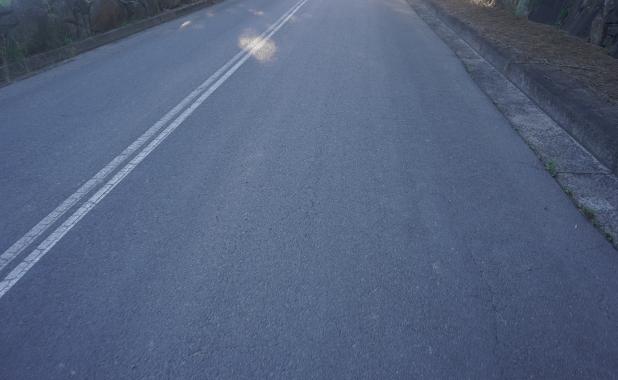

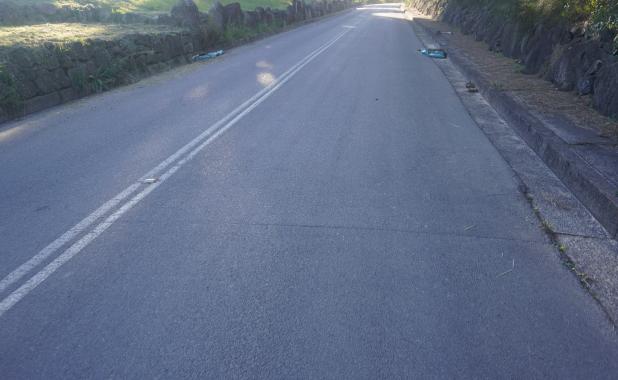

General view of the south side of the roadway on Station Road. Showing cracking.
General view of the south side of the roadway on Station Road. Showing slight cracking.
General view of the south side of the roadway on Station Road. Showing slight cracking.

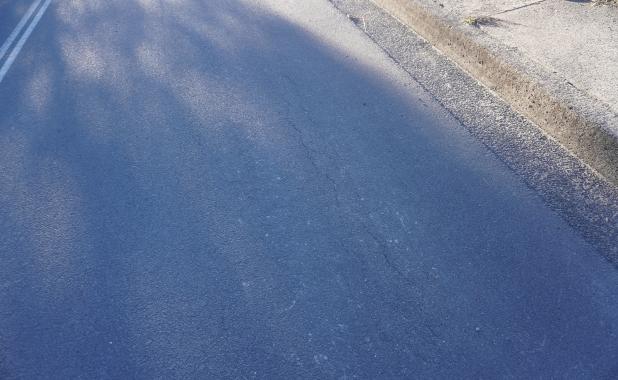

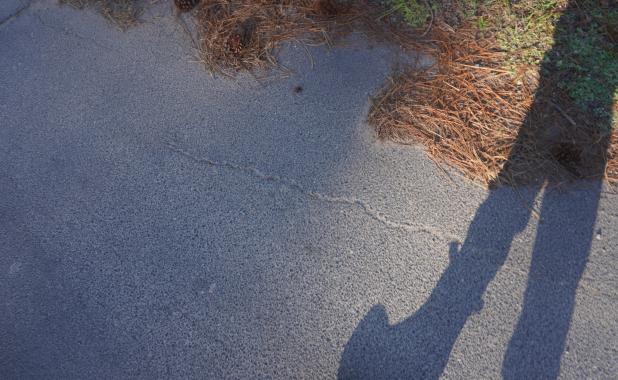

22 Slight cracking in the south side of the roadway on Station Road, at approximately 30 metres from the entrance to Koala Park Golf Course.
22
Slight cracking in the south side of the roadway on Station Road, outside Koala Park Golf Course.
23 Fine cracking in the south side of the roadway on Station Road, outside Koala Park Golf Course.
23 Slight cracking in the south side of the roadway on Station Road, outside Koala Park Golf Course.

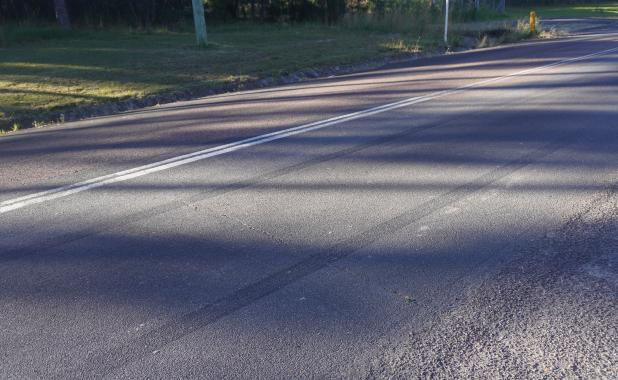

24 General view of the south side of the roadway on Station Road, outside Koala Park Golf Course. Showing slight cracking.
24 General view of the south side of the roadway on Station Road, outside Koala Park Golf Course. Showing slight cracking.
24
General view of the south side of the roadway on Station Road, outside Koala Park Golf Course. Showing slight cracking.
ADN23137A Page 7
25 Slight cracking in the south side of the roadway on Station Road, at approximately 50 metres from the fourth lamp post from the intersection of station Road and Scenic Drive.
26 Slight cracking in the south side of the roadway on Station Road, outside Koala Park Golf Course.
27 Slight cracking in the south side of the roadway on Station Road, outside Koala Park Golf Course.
27 Slight cracking in the south side of the roadway on Station Road, outside Koala Park Golf Course.
27 General view of the south side of the roadway on Station Road, outside Koala Park Golf Course. Showing slight cracking.
28 Slight cracking in the south side of the roadway on Station Road, at approximately 10 metres from the fourth lamp post from the intersection of Station Road and Scenic Drive.
28 Slight cracking in the south side of the roadway on Station Road, outside Koala Park Golf Course.
29 Moderate cracking in the south side of the roadway on Station Road, at approximately 15 metres from the fourth lamp post from the intersection of Station Road and Scenic Drive.
29 Moderate cracking in the south side of the roadway on Station Road, at approximately 15 metres from the fourth lamp post from the intersection of Station Road and Scenic Drive.
30 Slight cracking in the south side of the roadway on Station Road, at approximately 50 metres from the fourth lamp post from the intersection of Station Road and Scenic Drive.
31 Moderate cracking in the south side of the roadway on Station Road, outside Koala Park Golf Course.
32 Slight cracking in the south side of the roadway on Station Road, outside Koala Park Golf Course.
32 General view of the south side of the roadway on Station Road, outside Koala Park Golf Course. Showing slight cracking.
32 Slight cracking in the south side of the roadway on Station Road, outside Koala Park Golf Course.
34 Slight cracking in the south side of the roadway on Station Road, opposite the crossover to the rugby field.
35 Slight cracking in the south side of the roadway on Station Road, opposite the crossover to the rugby field.
36 Moderate cracking in the south side of the roadway on Station Road, at approximately 100 metres from the entrance gate.
36 Moderate cracking in the south side of the roadway on Station Road, at approximately 100 metres from the entrance gate.
36 Moderate cracking in the south side of the roadway on Station Road, at approximately 100 metres from the entrance gate.
37 General view of the south side of the roadway on Station Road, on the east side of Koala Park. Showing slight cracking.
37 General view of the south side of the roadway on Station Road, on the east side of Koala Park. Showing slight cracking.
37 General view of the south side of the roadway on Station Road, on the east side of Koala Park. Showing slight cracking.
38 Severe cracking in the south side of the roadway on Station Road, on the east side of Koala Park.
38 General view of the south side of the roadway on Station Road, on the east side of Koala Park. Showing patching.
ADN23137A Page 8
38 Fine cracking and patching in the south side of the roadway on Station Road, on the east side of Koala Park. Showing slight cracking.
39 Slight cracking in the south side of the roadway on Station Road, on the east side of the entrance gate.
40 Slight cracking in the south side of the roadway on Station Road, at approximately 10 meters from the fist lamp post on the east side of the entrance gate.
40 Patching and chipping in the south side of the roadway on Station Road, at approximately 10 meters from the fist lamp post on the east side of the entrance gate.
41 Slight cracking in the south side of the roadway on Station Road, at approximately 10 meters from the fist lamp post on the east side of the entrance gate.
41 General view of the south side of the roadway on Station Road, at approximately 10 meters from the fist lamp post on the east side of the entrance gate.
41 Slight cracking in the south side of the roadway on Station Road, at approximately 10 meters from the fist lamp post on the east side of the entrance gate.
42 Slight cracking in the south side of the roadway on Station Road, at approximately 10 meters from the fist lamp post on the east side of the entrance gate.
42 Patching and cracking in the south side of the roadway on Station Road, on the east side of the entrance gate.
43 Slight cracking in the south side of the roadway on Station Road, on the east side of the entrance gate.
44 Slight cracking in the south side of the roadway on Station Road, on the east side of the entrance gate.
44 Alligator cracking in the south side of the roadway on Station Road, on the east side of the entrance gate.
44 Fine cracking in the south side of the roadway on Station Road, on the east side of the entrance gate.
45 Slight cracking in the south side of the roadway on Station Road, on the east side of the entrance gate.
45 Slight cracking in the south side of the roadway on Station Road, on the east side of the entrance gate.
46 Slight cracking in the south side of the roadway on Station Road, on the east side of the entrance gate.
46 Slight cracking in the south side of the roadway on Station Road, on the east side of the entrance gate.

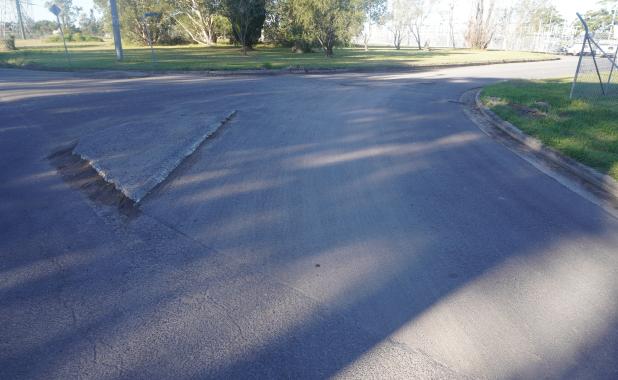

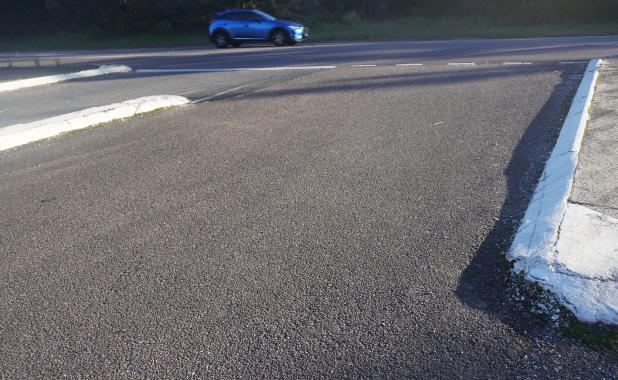

49 General view of the crossover on the east side of the roadway on Station Road, on the east side of the entrance gate. Showing patching.
49 General view of the south side of the roadway on Station Road, on the east side of the entrance gate. Showing slight cracking.
49 Slight cracking in the south side of the roadway on Station Road, on the east side of the entrance gate.
51 Slight cracking in the south side of the roadway on Station Road.
51 Chipping in the west side of the roadway on Station Road, opposite Munmorah Substation.
52 Moderate cracking and chipping in the west side of the roadway on Station Road, opposite Munmorah Substation.
52 Poor condition in the west side of the roadway on Station Road, opposite Munmorah Substation.
52 Poor condition in the west side of the roadway on Station Road, opposite Munmorah Substation.
ADN23137A Page 9
53 Alligator cracking in the west side of the roadway on Station Road, opposite Munmorah Substation.
54 Moderate cracking in the west side of the roadway on Station Road, at approximately 10 metres from the turning lane.
55 Alligator cracking in the west side of the roadway on Station Road, at approximately 20 metres from the turning lane.
58 Damage in the west side of the roadway on Station Road, opposite Munmorah Substation.
60 Slight cracking in the west side of the roadway on Station Road, at approximately 70 metres from the turning lane.
60 General view of the west side of the roadway on Station Road, at approximately 70 metres from the turning lane.
61 Slight cracking the west side of the roadway on Station Road, at approximately 50 metres from the canal.

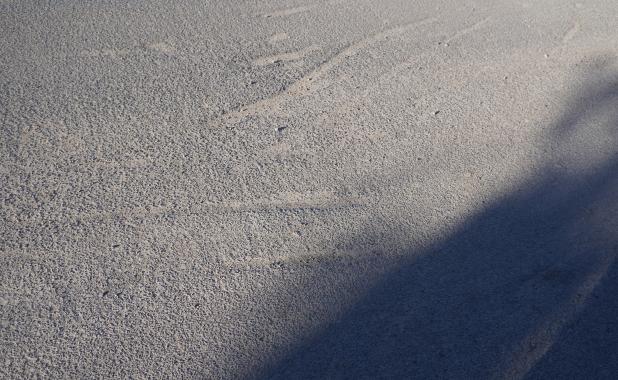

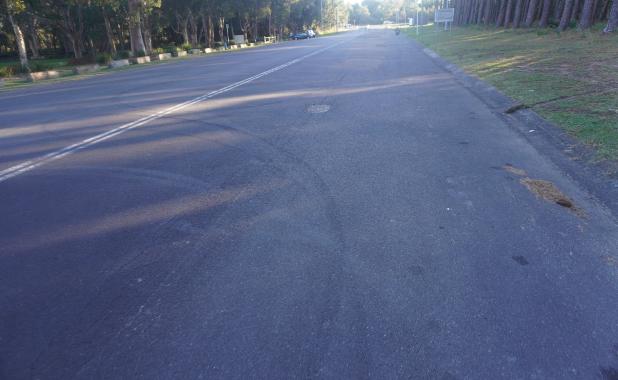

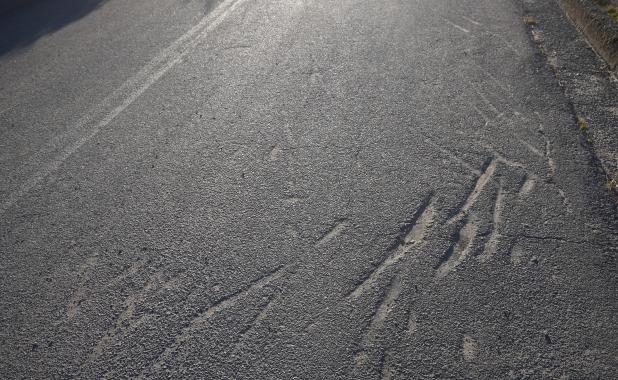

61 Scoring in the west side of the roadway on Station Road, at approximately 20 metres from the canal.
61 Scoring in the west side of the roadway on Station Road, opposite Munmorah Substation.
63 Moderate cracking in the east side of the roadway on Station Road, at approximately 10 metres from the canal.
63 Damage in the east side of the roadway on Station Road, at approximately 10 metres from the canal.
63 Scoring in the east side of the roadway on Station Road, outside the Munmorah Substation.
64 Alligator cracking in the east side of the roadway on Station Road, outside the Munmorah Substation.
64 Damage in the east side of the roadway on Station Road, outside the Munmorah Substation.
64 Scoring in the east side of the roadway on Station Road, outside the Munmorah Substation.
65 Cracking in the east side of the roadway on Station Road, outside the Munmorah Substation.
65 Cracking in the east side of the roadway on Station Road, outside the Munmorah Substation.
65 Alligator cracking in the east side of the roadway on Station Road, outside the Munmorah Substation.
66 Moderate cracking in the east side of the roadway on Station Road, outside the Munmorah Substation.
67 Moderate cracking in the east side of the roadway on Station Road, outside the Munmorah Substation.
67 Damage in the east side of the roadway on Station Road, outside the Munmorah Substation.
68
69 General view of the east side of the roadway on Station Road, outside the Munmorah Substation. Showing slight cracking.
69
71 Slight cracking in the east side of the roadway on Station Road, outside the Munmorah Substation.

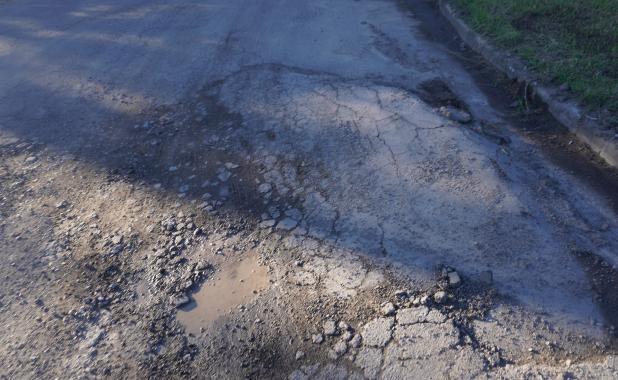

72 Alligator cracking and pothole in the east side of the roadway on Station Road, outside the Munmorah Substation.
73 Alligator cracking and pothole in the east side of the roadway on Station Road, outside the Munmorah Substation.
ADN23137A Page 10
Fine cracking in the east side of the roadway on Station Road, outside the Munmorah Substation.
Slight cracking in the east side of the roadway on Station Road, outside the Munmorah Substation.
73 Alligator cracking in the east side of the roadway on Station Road, outside the Munmorah Substation.
73 Alligator cracking and pothole in the east side of the roadway on Station Road, outside the Munmorah Substation.

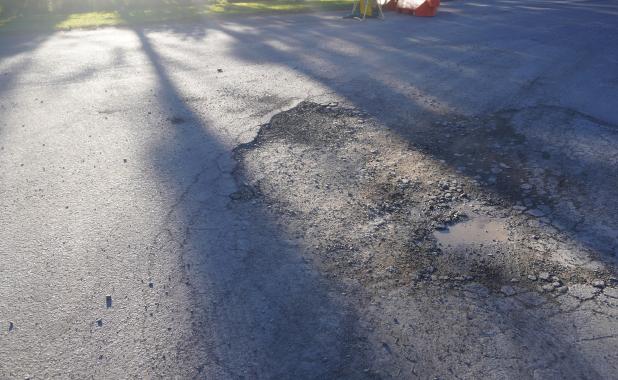

74 Pothole in the east side of the roadway on Station Road, outside the Munmorah Substation.
74 Pothole in the east side of the roadway on Station Road, outside the Munmorah Substation.
74 Poor condition in the east side of the roadway on Station Road, outside the Munmorah Substation.
75 Poor condition in the east side of the roadway on Station Road, outside the Munmorah Substation.
75 Poor condition in the east side of the roadway on Station Road, outside the Munmorah Substation.
76 Slight cracking in the north side of the roadway on Station Road, on the east side of the entrance gate.
76 Slight cracking in the north side of the roadway on Station Road, on the east side of the entrance gate.
78 Fine cracking in the north side of the roadway on Station Road, opposite the crossover.
78 Moderate cracking in the north side of the roadway on Station Road, on the east side of the entrance gate.
79 Slight cracking in the north side of the roadway on Station Road, on the east side of the entrance gate.
79 General view of the north side of the roadway on Station Road, on the east side of the entrance gate. Showing moderate cracking.
80 General view of the north side of the roadway on Station Road, on the east side of the entrance gate. Showing moderate cracking.
80 Slight cracking in the north side of the roadway on Station Road, adjacent to the first lamp post from the east.
81 Slight cracking in the north side of the roadway on Station Road, on the east side of the entrance gate.
82 Moderate cracking and patching in the north side of the roadway on Station Road, on the east side of the entrance gate.
82 Moderate cracking in the north side of the roadway on Station Road, on the east side of the entrance gate.
82 Moderate cracking in the north side of the roadway on Station Road, on the east side of the entrance gate.
83 Moderate cracking in the north side of the roadway on Station Road, on the east side of the entrance gate.
83 Moderate cracking in the north side of the roadway on Station Road, on the east side of the entrance gate.
83 General view of the north side of the roadway on Station Road, on the east side of the entrance gate. Showing slight cracking.
84 Slight cracking in the north side of the roadway on Station Road, adjacent to the second lamp post from the entrance gate.
84 General view of the north side of the roadway on Station Road, on the east side of the entrance gate. Showing slight cracking.
84 General view of the north side of the roadway on Station Road, on the east side of the entrance gate. Showing slight cracking.
ADN23137A Page 11
85 General view of the north side of the roadway on Station Road, on the east side of the entrance gate. Showing alligator cracking.
85 Alligator cracking in the north side of the roadway on Station Road, on the east side of the entrance gate.
85 General view of the north side of the roadway on Station Road, on the east side of the entrance gate. Showing alligator cracking.
86 Patching and alligator cracking in the north side of the roadway on Station Road, at approximately 20 metres from the entrance gate.
86 Patching and alligator cracking in the north side of the roadway on Station Road, at approximately 20 metres from the entrance gate.
87 Alligator cracking in the north side of the roadway on Station Road, on the east side of the entrance gate.
87 Patching and cracking in the north side of the roadway on Station Road, on the east side of the entrance gate.
88 Patching and cracking in the north side of the roadway on Station Road, on the west side of the entrance gate.
88 Alligator cracking in the north side of the roadway on Station Road, on the west side of the entrance gate.
88 Alligator cracking in the north side of the roadway on Station Road, on the west side of the entrance gate.
89 Damage in the north side of the roadway on Station Road, on the west side of the entrance gate.
90 General view of the north side of the roadway on Station Road, on the west side of the entrance gate. Showing moderate cracking.
90 Slight cracking in the north side of the roadway on Station Road, on the west side of the entrance gate.
91 Moderate cracking in the north side of the roadway on Station Road, on the west side of the entrance gate.
91 Alligator cracking in the north side of the roadway on Station Road, on the west side of the entrance gate.
92 Alligator cracking in the north side of the roadway on Station Road, opposite Koala Park.
93 Alligator cracking in the north side of the roadway on Station Road, opposite Koala Park.
93 Alligator cracking in the north side of the roadway on Station Road, opposite Koala Park.
93 Moderate cracking in the north side of the roadway on Station Road, opposite Koala Park.
94 Alligator cracking and patching in the north side of the roadway on Station Road, opposite Koala Park.
94 General view of the north side of the roadway on Station Road, opposite Koala Park. Showing moderate cracking.
94 General view of the north side of the roadway on Station Road, opposite Koala Park. Showing moderate cracking.
95 Patching and moderate cracking in the north side of the roadway on Station Road, opposite Koala Park.
95 General view of the north side of the roadway on Station Road, opposite Koala Park. Showing moderate cracking.
96 General view of the north side of the roadway on Station Road, opposite Koala Park. Showing alligator cracking.
97 General view of the north side of the roadway on Station Road, opposite Koala Park. Showing alligator cracking.
ADN23137A Page 12
99 Patching in the north side of the roadway on Station Road, opposite Koala Park.
99 Patching in the north side of the roadway on Station Road, opposite Koala Park.
99 Patching in the north side of the roadway on Station Road, opposite Koala Park.
100 Patching and slight cracking in the north side of the roadway on Station Road, opposite Koala Park.
100 Patching in the north side of the roadway on Station Road, opposite Koala Park.
101 General view of the north side of the roadway on Station Road, opposite Koala Park. Showing patching.
101 Alligator cracking and patching in the north side of the roadway on Station Road, opposite Koala Park.
102 Alligator cracking in the north side of the roadway on Station Road, opposite Koala Park.
102 General view of the north side of the roadway on Station Road, opposite Koala Park. Showing patching.
102 Patching and slight cracking in the north side of the roadway on Station Road, opposite Koala Park.
103 Alligator cracking in the north side of the roadway at the intersection of Station Road and Scenic Drive.
103 General view of the north side of the roadway at the intersection of Station Road and Scenic Drive. Showing alligator cracking.
103 Patching in the north side of the roadway at the intersection of Station Road and Scenic Drive.
104 Alligator cracking in the north side of the roadway at the intersection of Station Road and Scenic Drive.
104 Poor condition in the north side of the roadway at the intersection of Station Road and Scenic Drive.
105 General view of the north side of the roadway at the intersection of Station Road and Scenic Drive. Showing slight cracking.
105 Patching and slight cracking in the north side of the roadway at the intersection of Station Road and Scenic Drive.
ADN23137A Page 13
RESIDENT NOTED CONCERNS
Any noted conditions within this section of the report are raised by residents only and may not be able to be verified by AusDilaps with photographic evidence or may not qualify under our standard of defects.
• None noted at the time of the inspection.
EXPLANATION OF REVISIONS
• Not applicable
Yours faithfully
Michael Burford
AUSTRALIAN DILAPIDATIONS
Office: 1800 Dilaps (345 277)
Email: info@ausdilaps.com.au
ADN23137A Page 14
Figure: 0001
STATION ROAD, COLONGRA
COUNCIL ASSETS

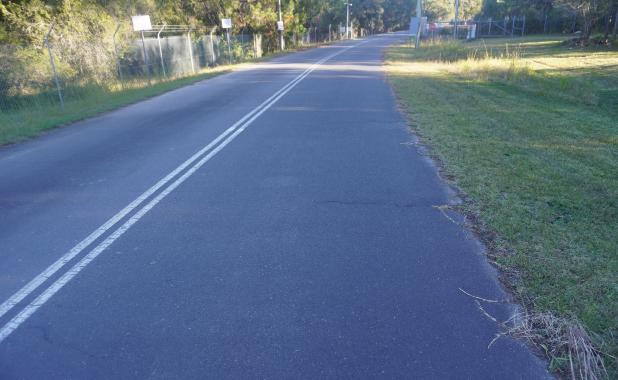

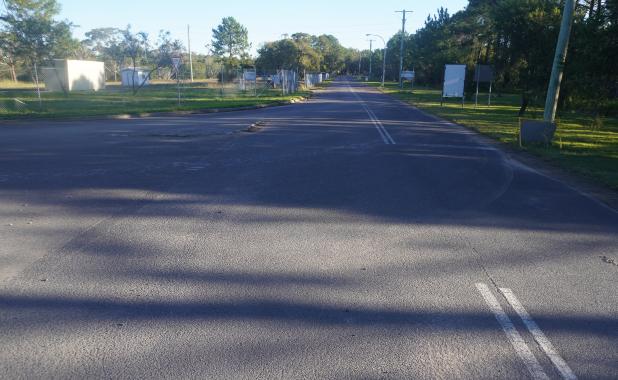

Figure: 0002

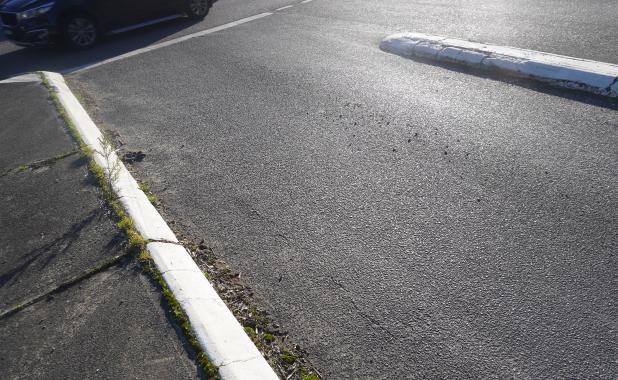

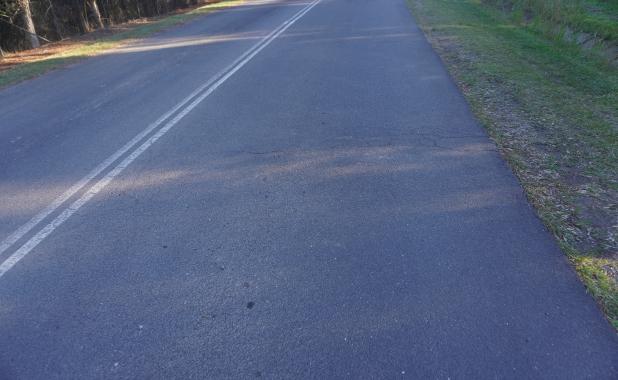

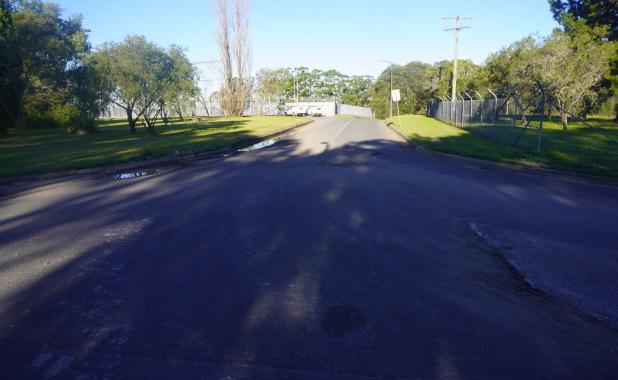

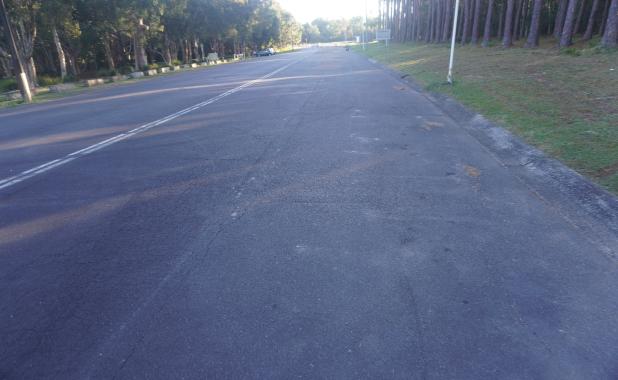

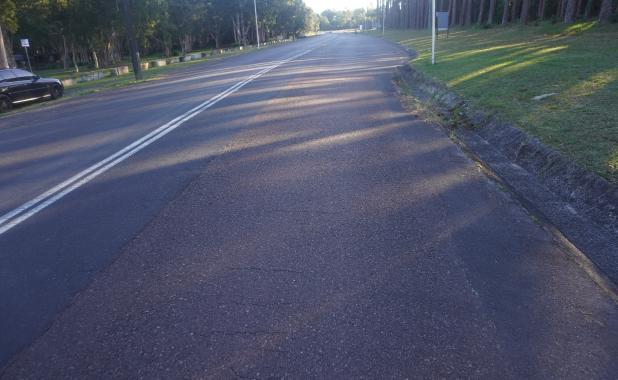

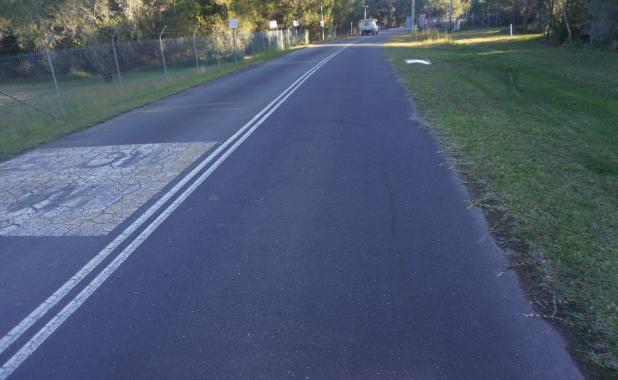

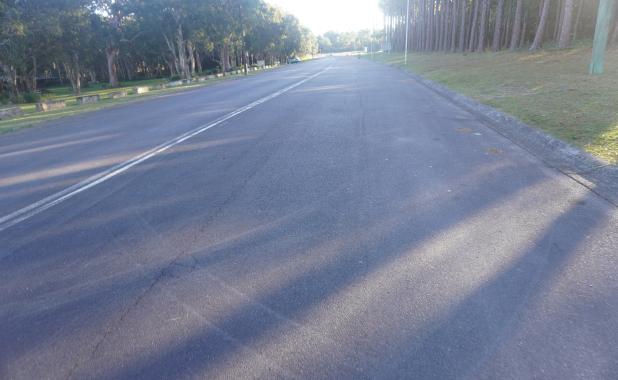

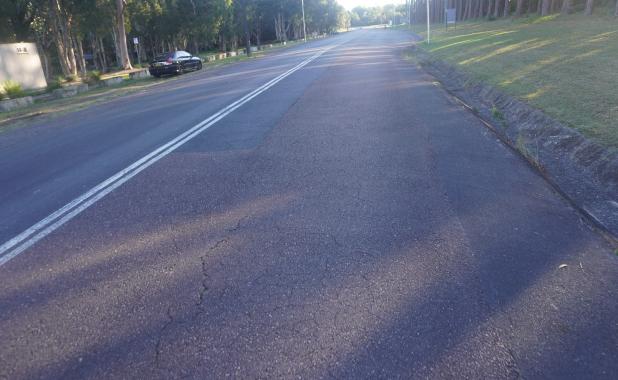

General view of the south side of the roadway at the intersection of Station Road and Scenic Drive. Showing severe cracking.

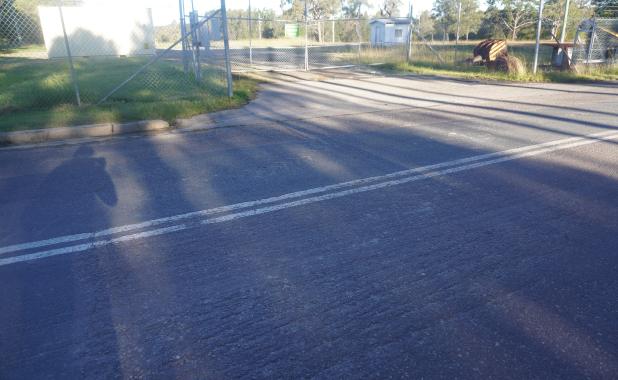

Figure: 0003

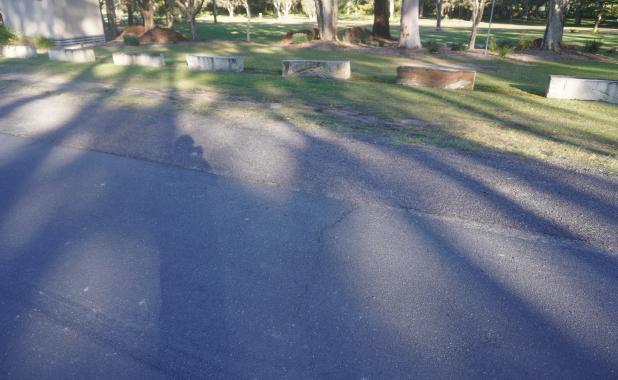

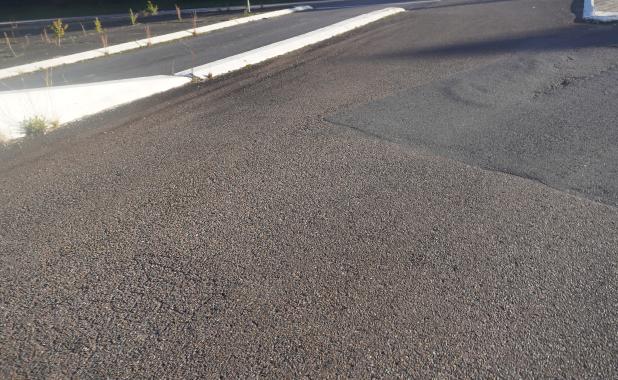

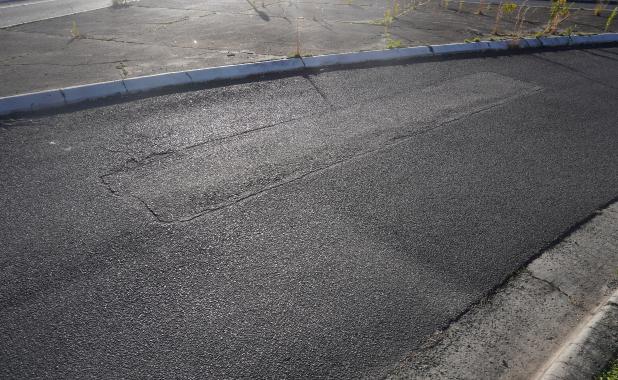

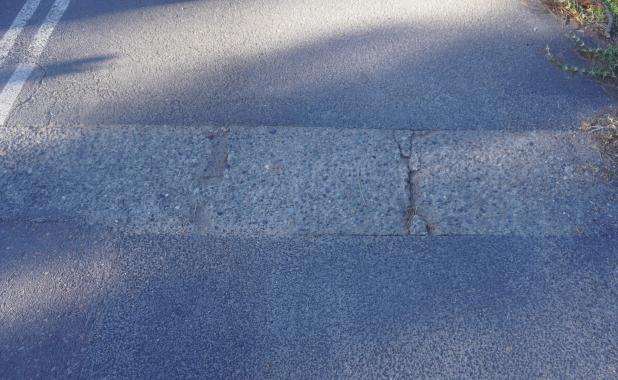

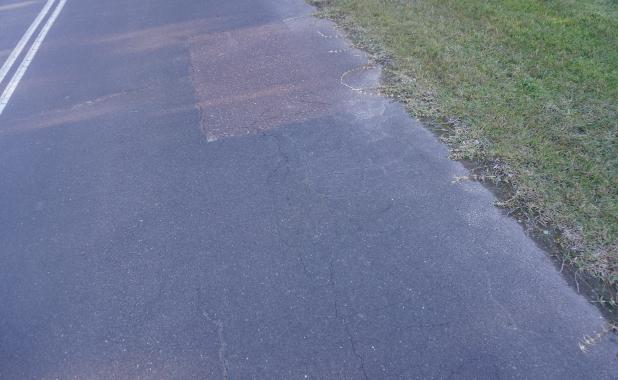

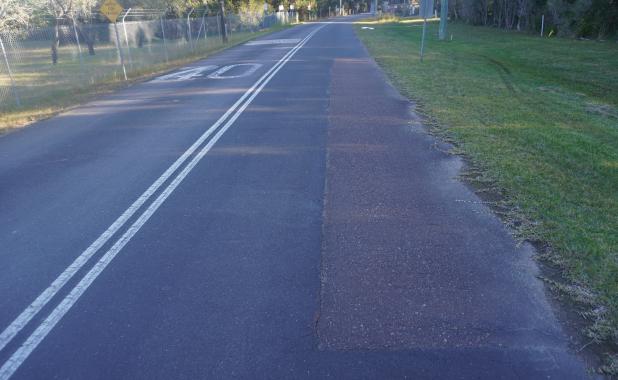

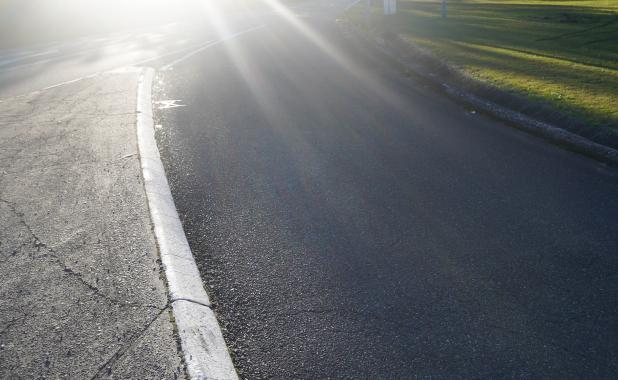

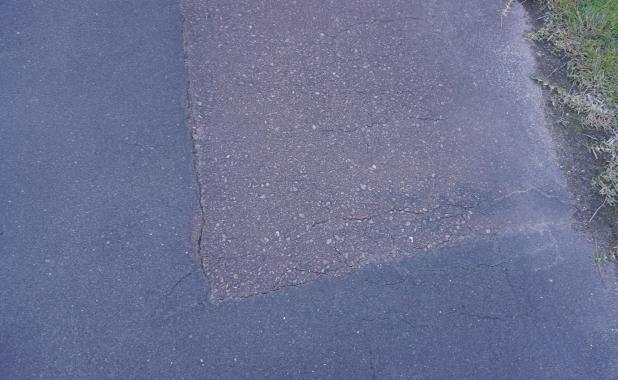

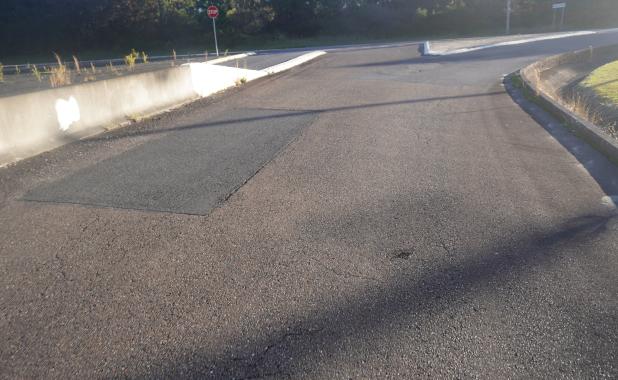

Patching in the south side of the roadway at the intersection of Station Road and Scenic Drive.
ADN23137A Page 15
Figure: 0004

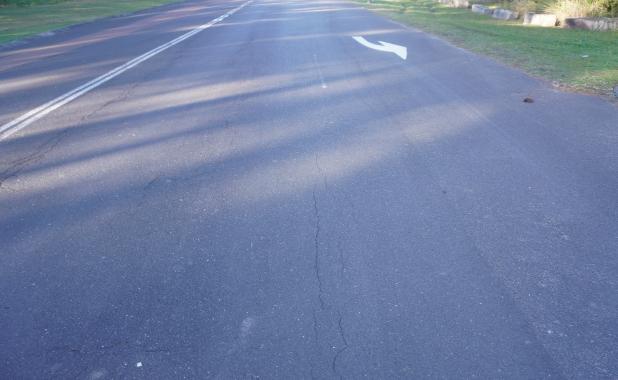

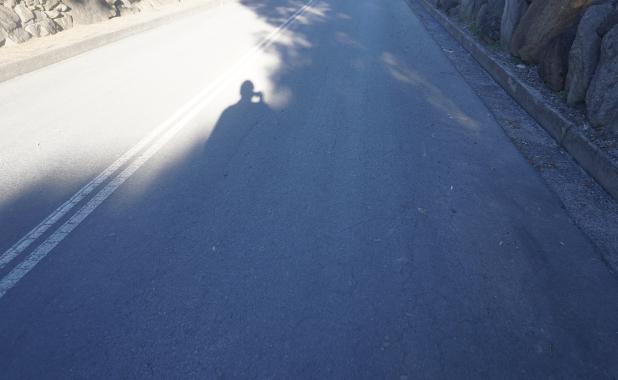

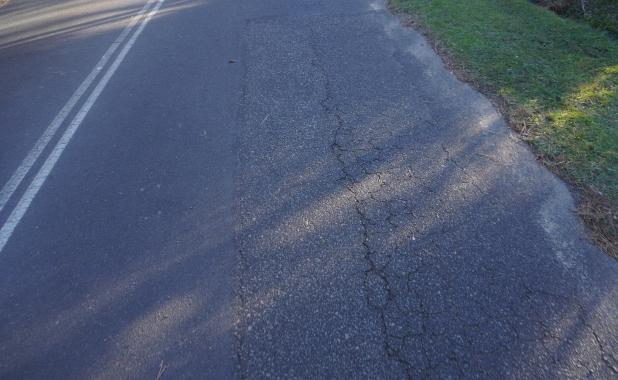

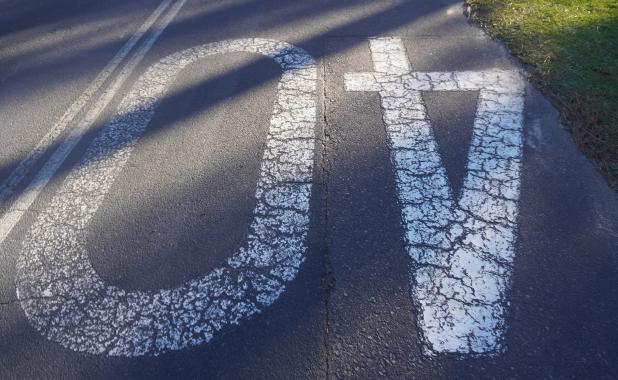

General view of the south side of the roadway at the intersection of Station Road and Scenic Drive.
Figure: 0005

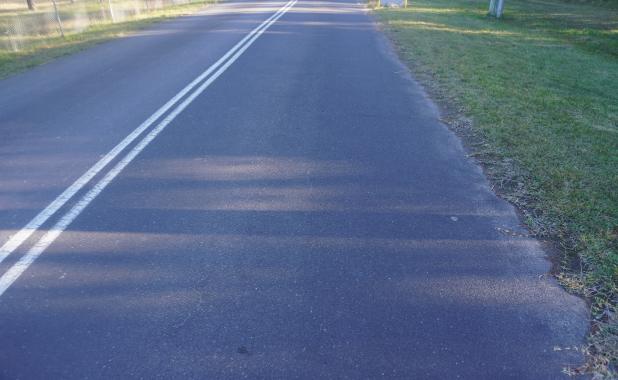

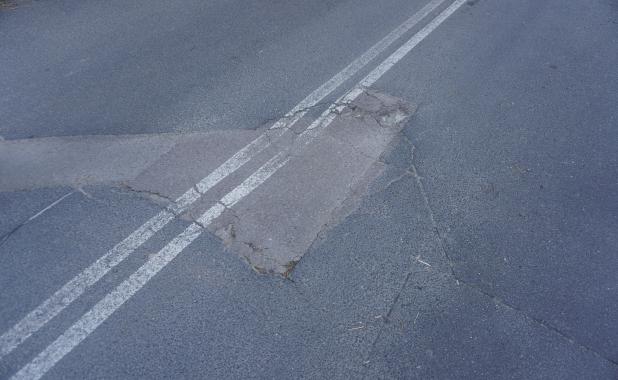

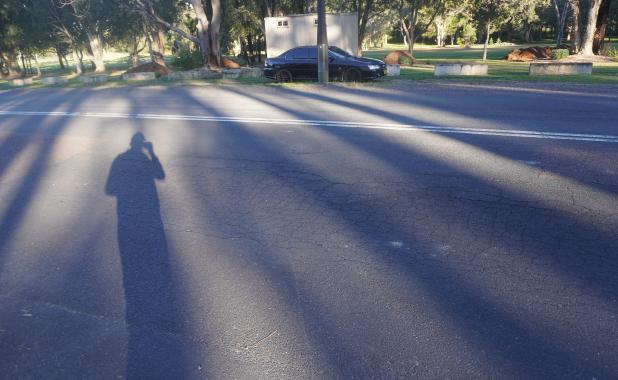

General view of the south side of the roadway at the intersection of Station Road and Scenic Drive. Showing patching.

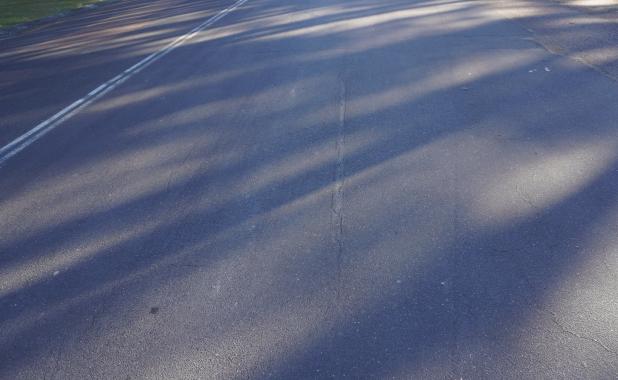

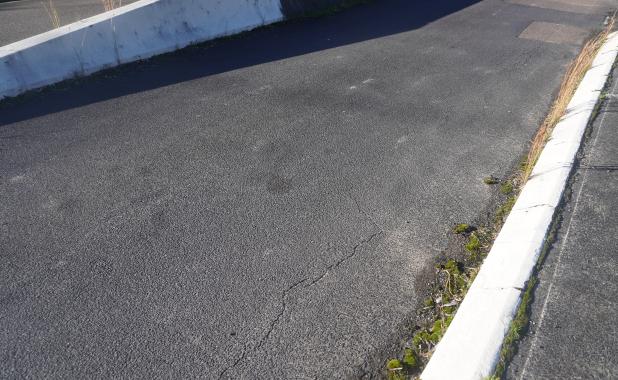

Figure: 0006

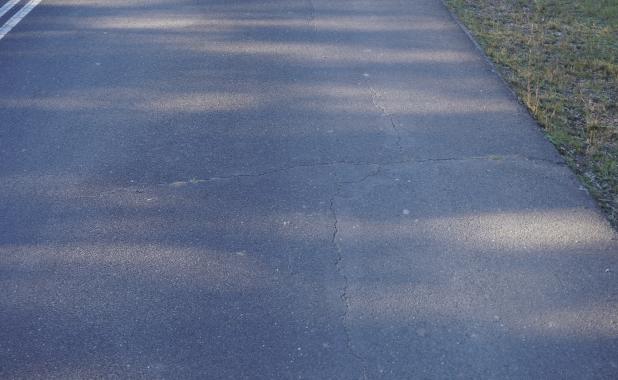

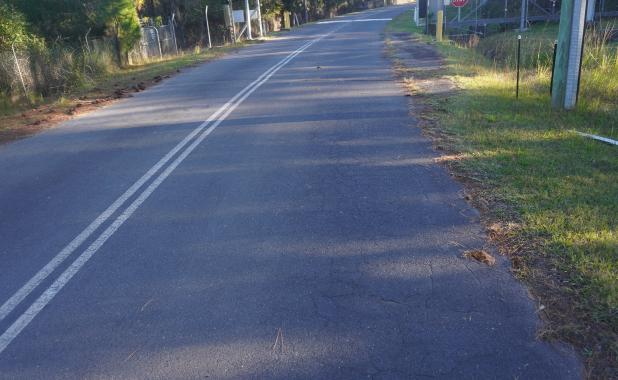

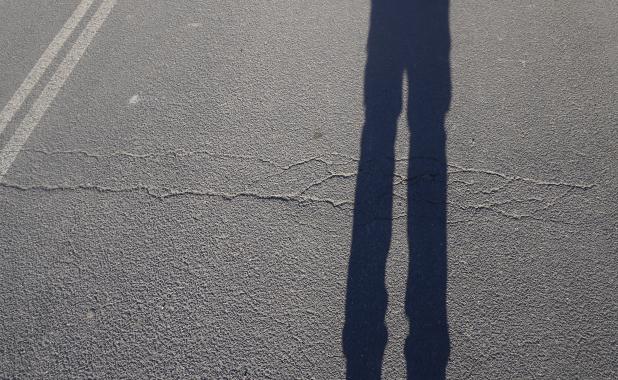

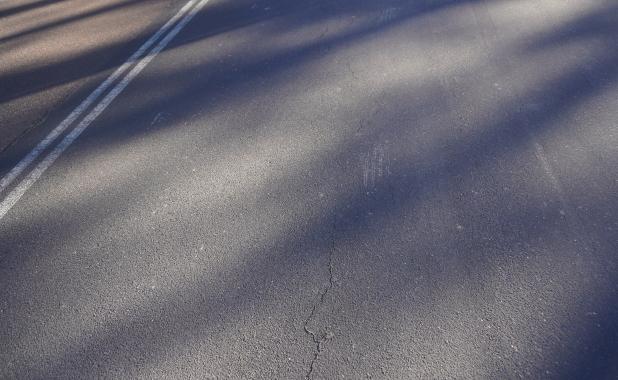

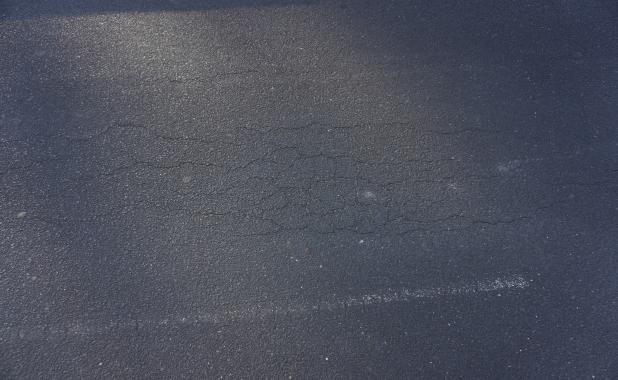

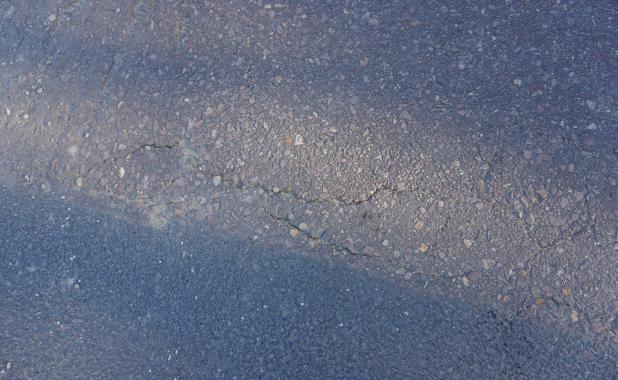

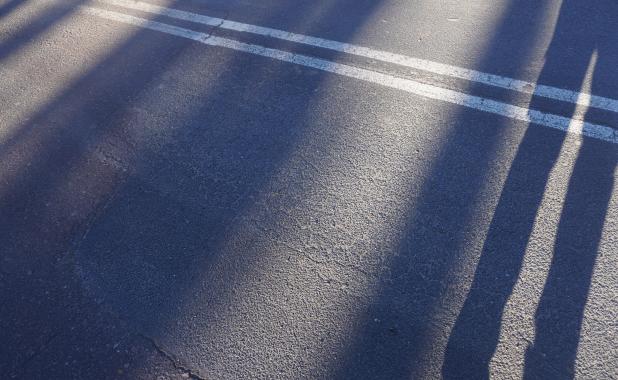

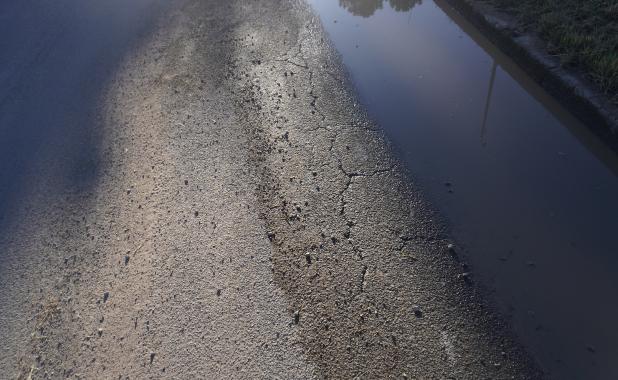

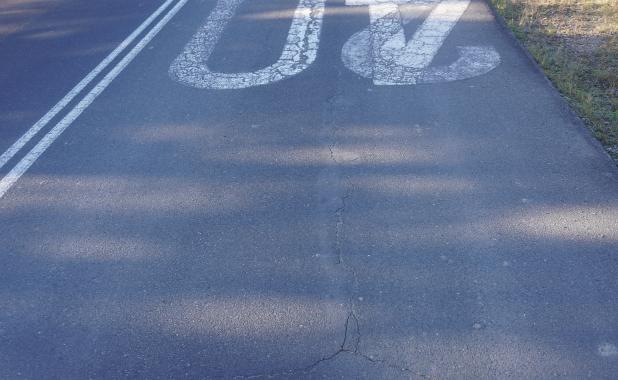

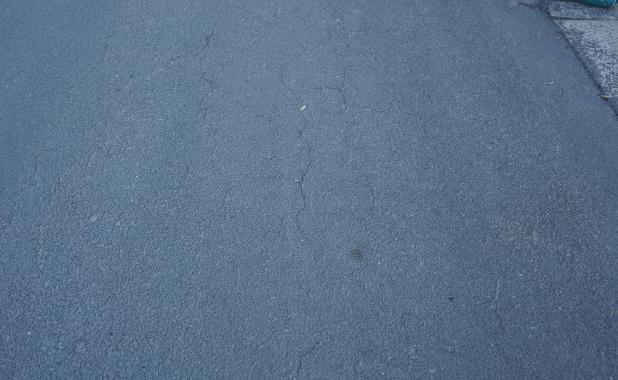

Fine cracking in the south side of the roadway at the intersection of Station Road and Scenic Drive.
ADN23137A Page 16
Figure: 0007

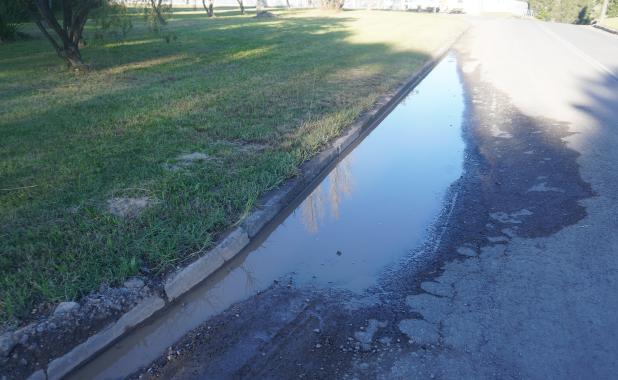

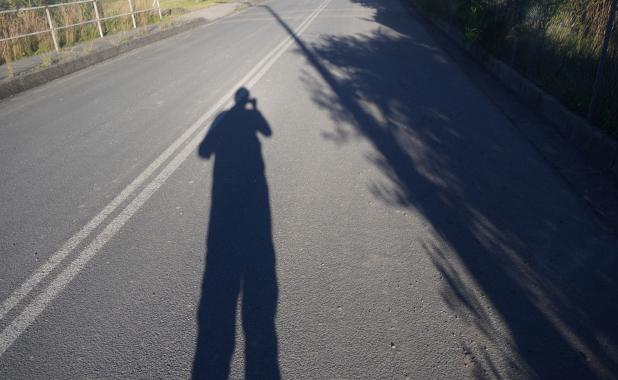

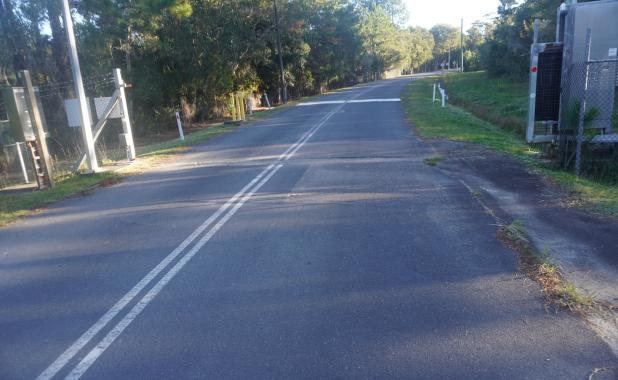

General view of the south side of the roadway at the intersection of Station Road and Scenic Drive. Showing slight cracking.

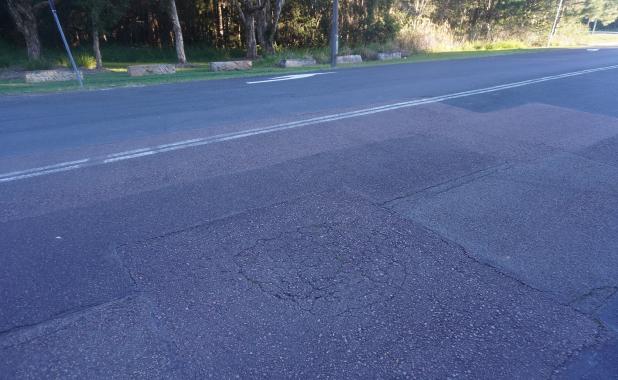

Figure: 0008

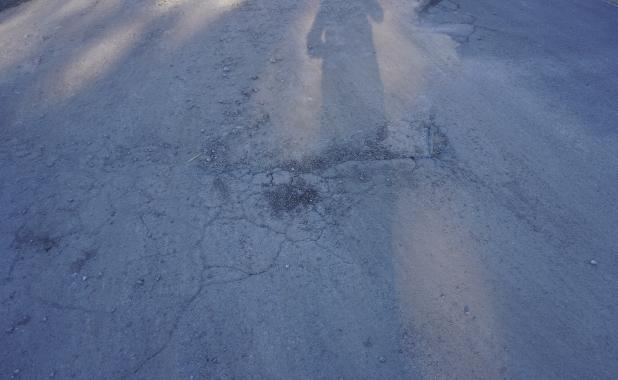

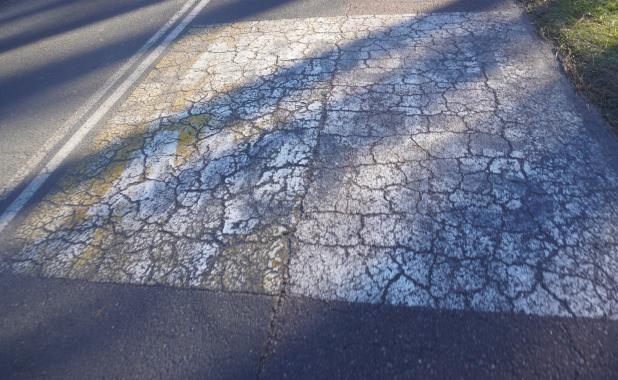

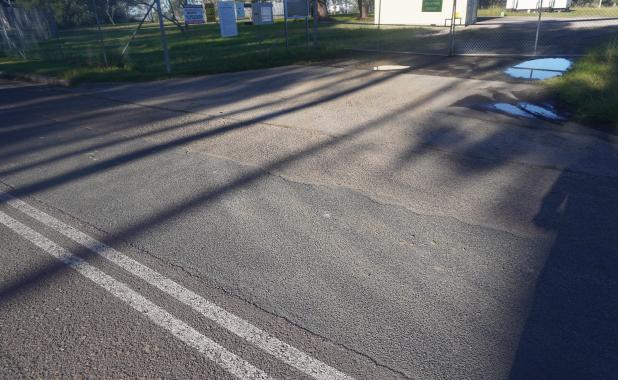

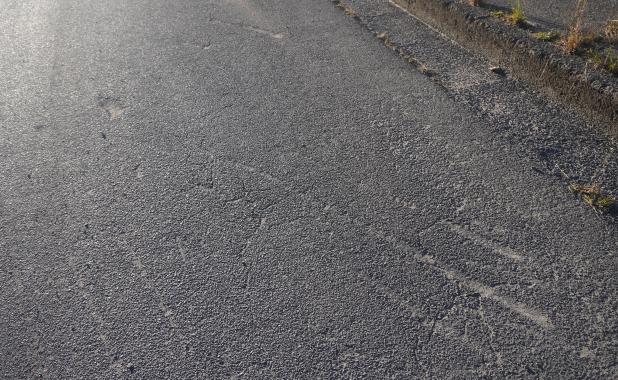

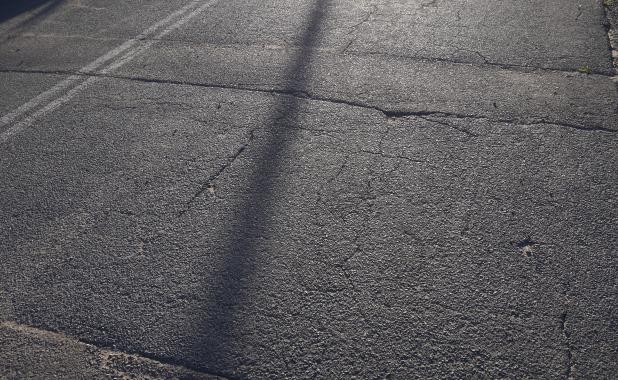

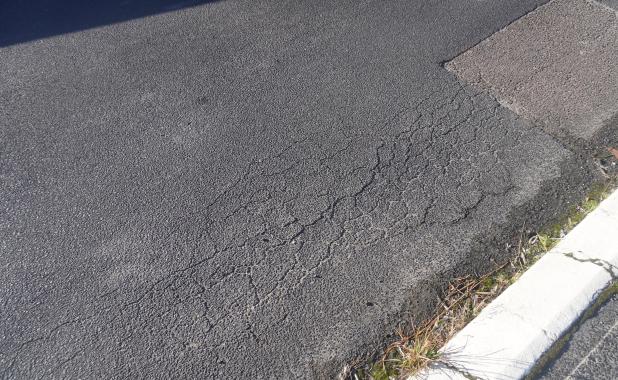

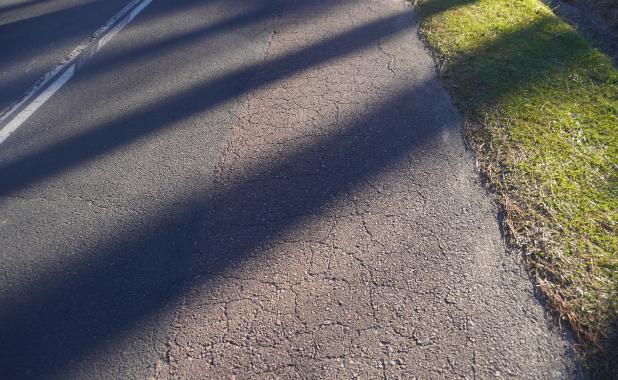

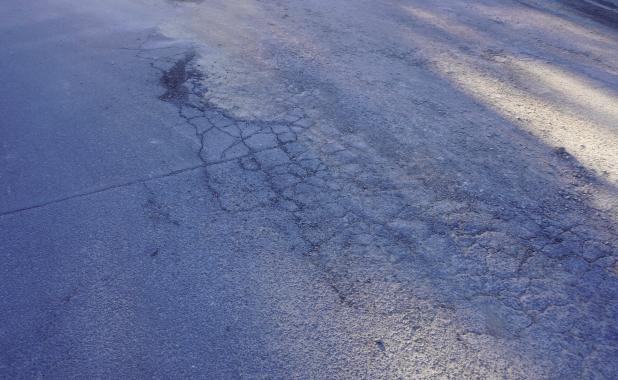

Alligator cracking in the south side of the roadway at the intersection of Station Road and Scenic Drive.

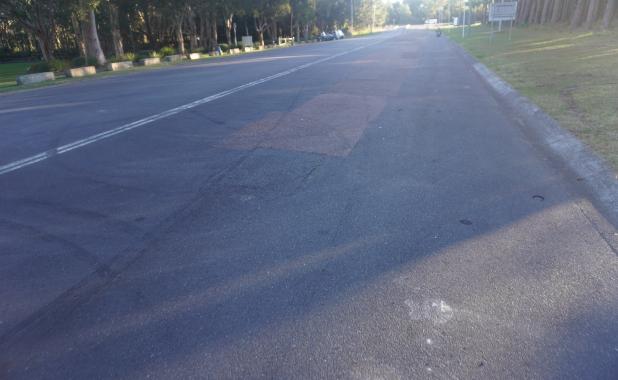

Figure: 0009
General view of the south side of the roadway at the intersection of Station Road and Scenic Drive. Showing slight cracking.
ADN23137A Page 17
Figure: 0010

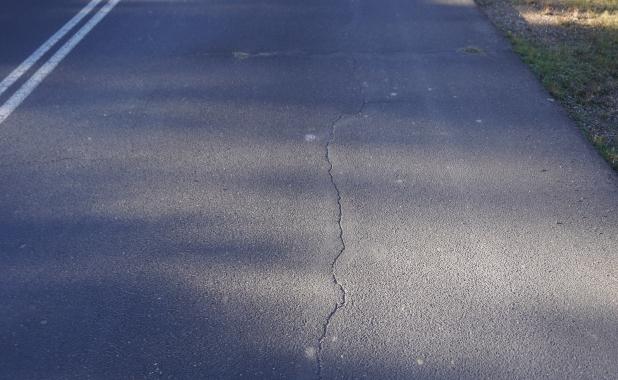

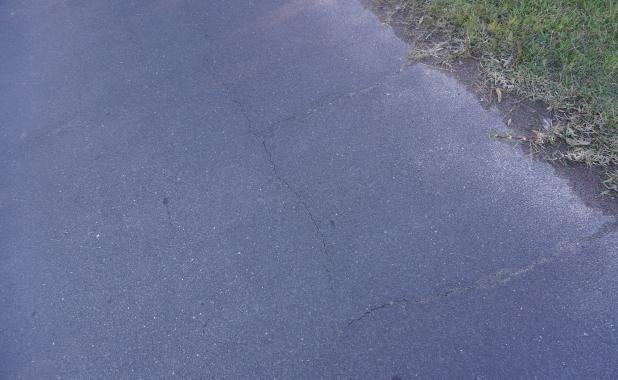

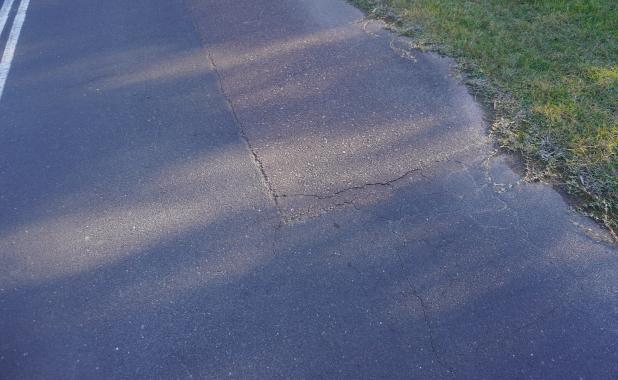

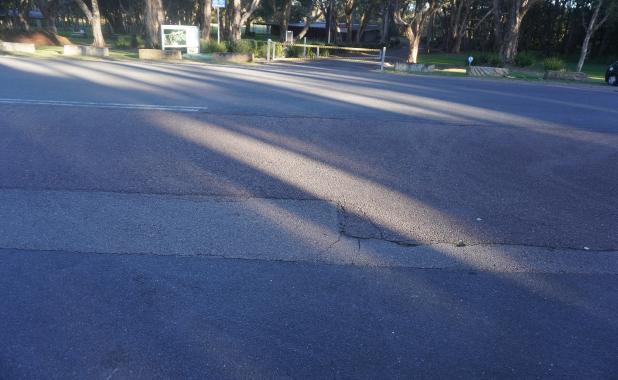

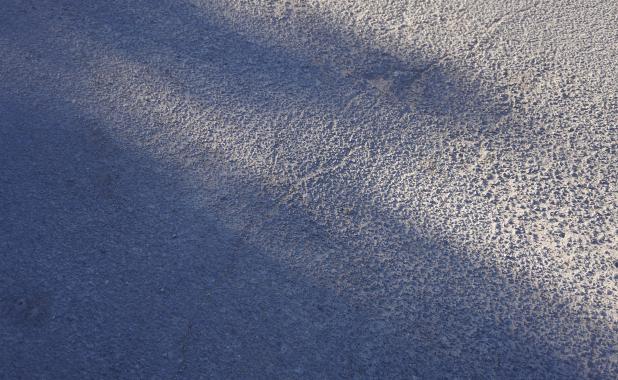

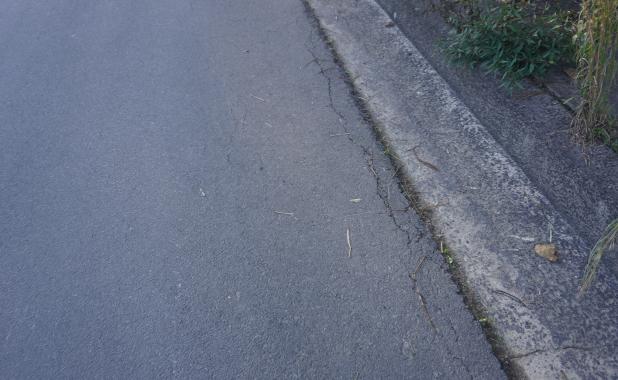

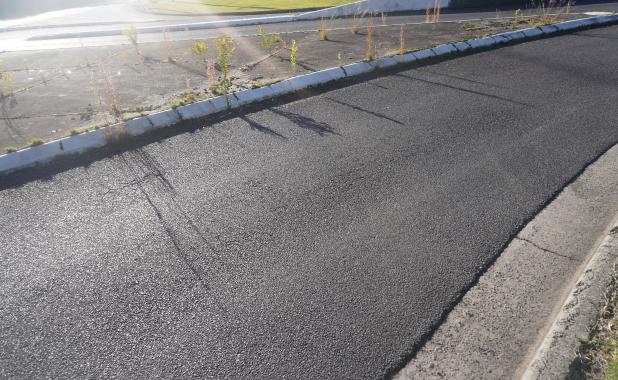

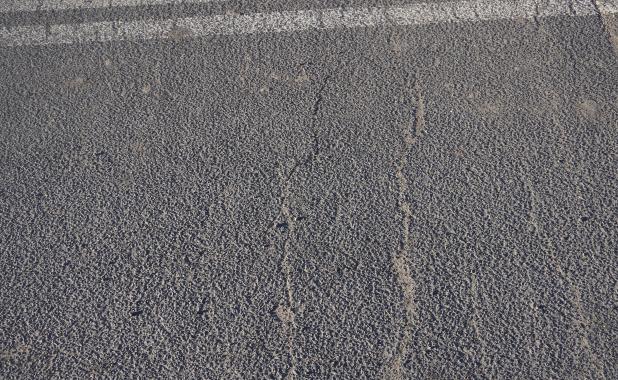

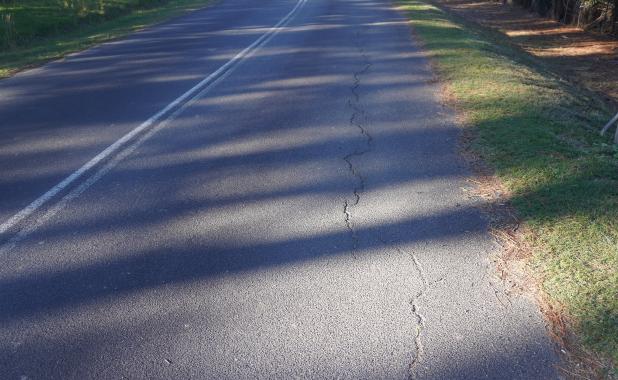

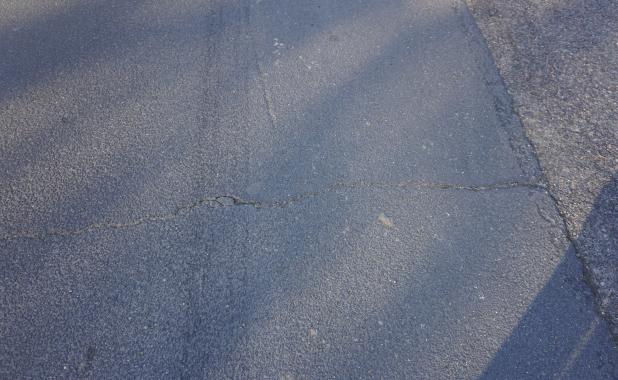

Slight cracking in the south side of the roadway at the intersection of Station Road and Scenic Drive.
Figure: 0011

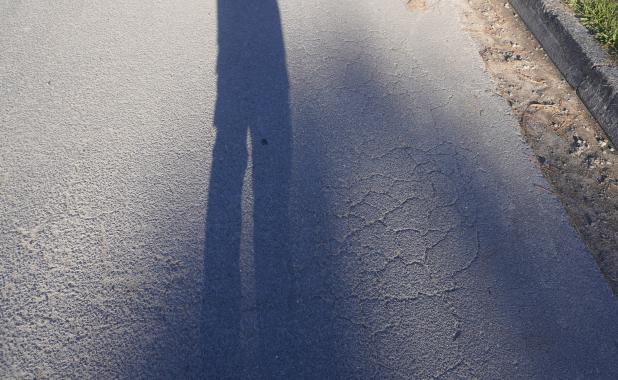

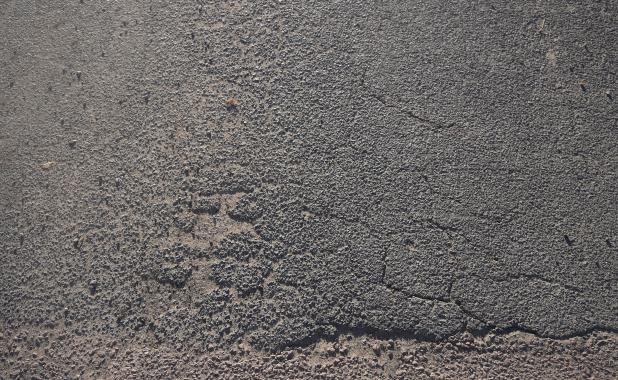

Alligator cracking in the south side of the roadway at the intersection of Station Road and Scenic Drive.

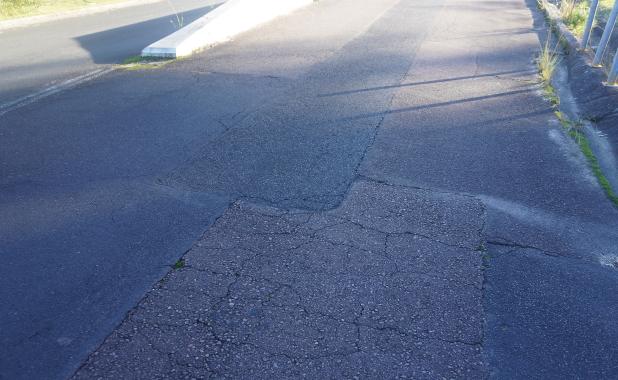

Figure: 0012

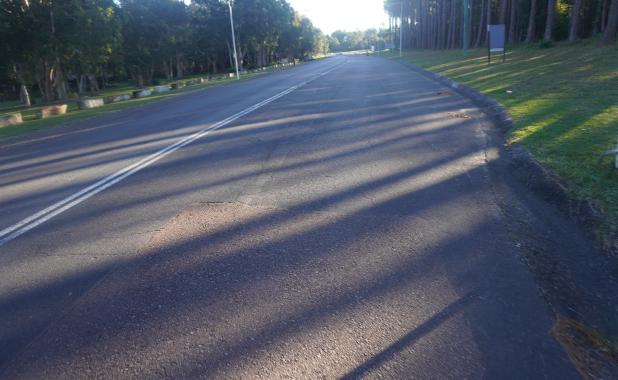

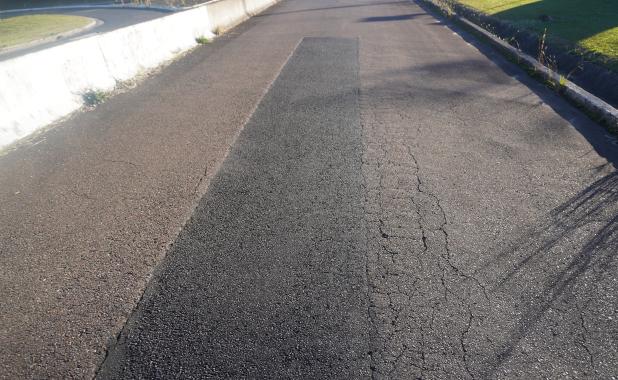

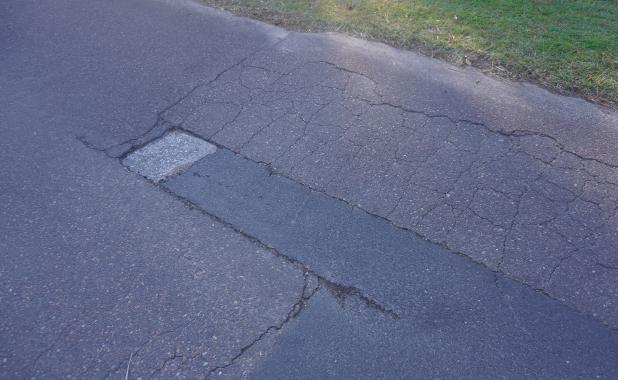

Alligator cracking and patching in the south side of the roadway at the intersection of Station Road and Scenic Drive.
ADN23137A Page 18

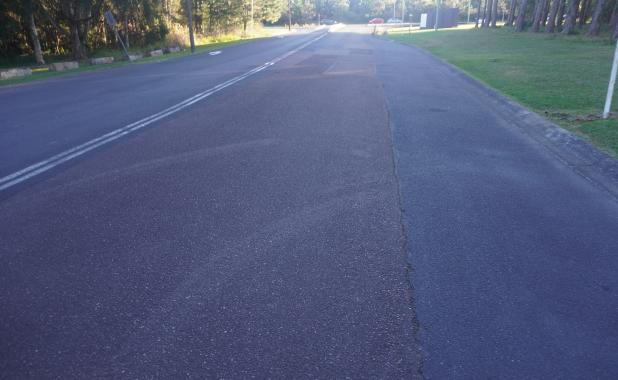

Figure: 0013

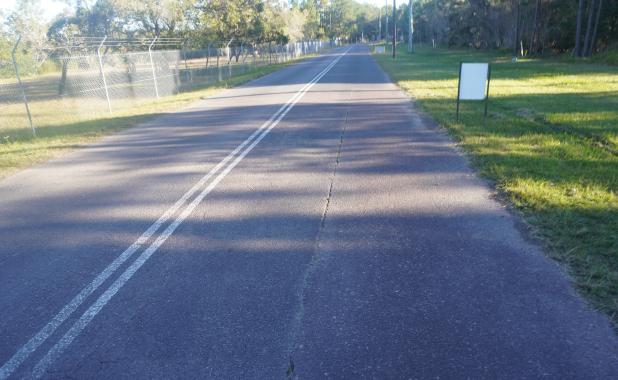

General view of the south side of the roadway at the intersection of Station Road and Scenic Drive.

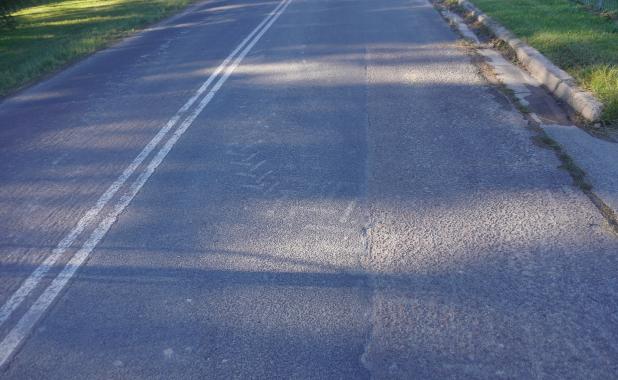

Figure: 0014
General view of the south side of the roadway at the intersection of Station Road and Scenic Drive.
Figure: 0015
Alligator cracking in the south side of the roadway at the intersection of Station Road and Scenic Drive.
ADN23137A Page 19
Figure: 0016

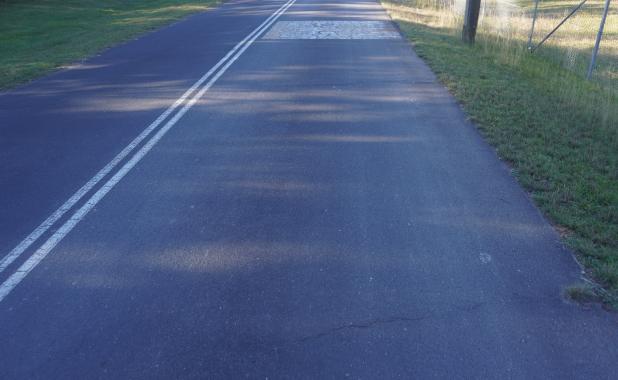

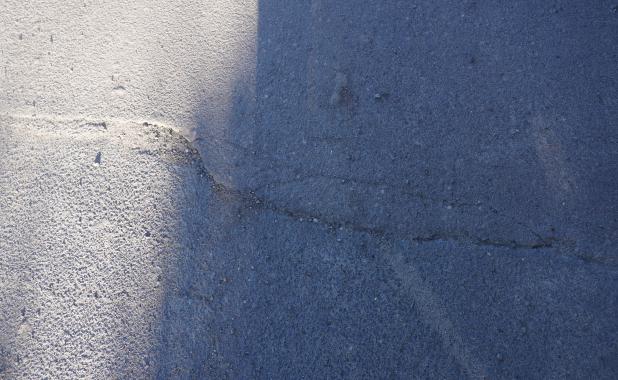

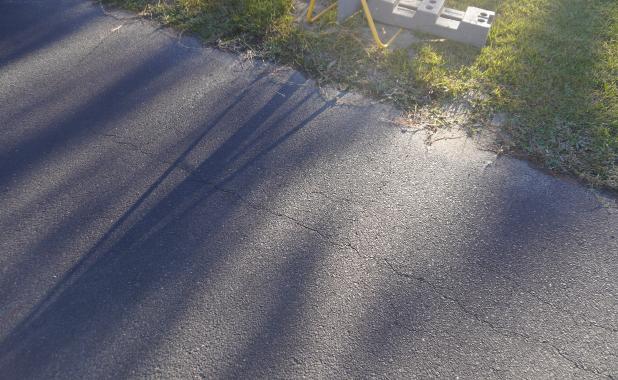

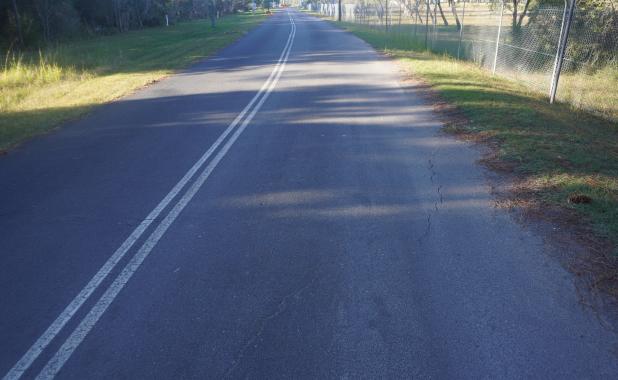

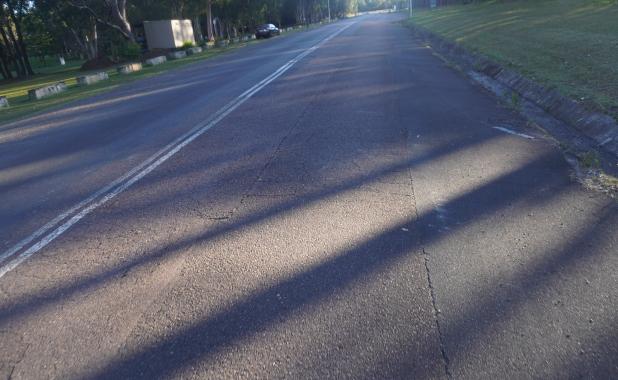

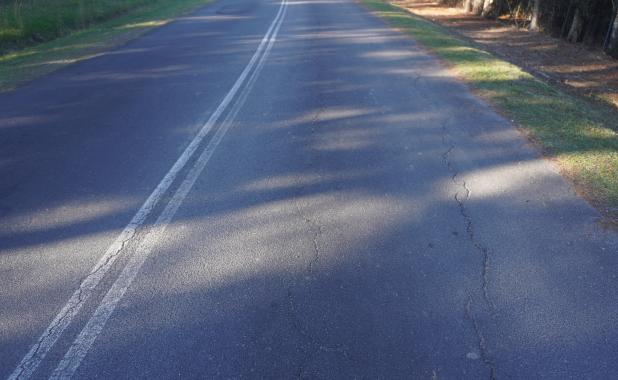

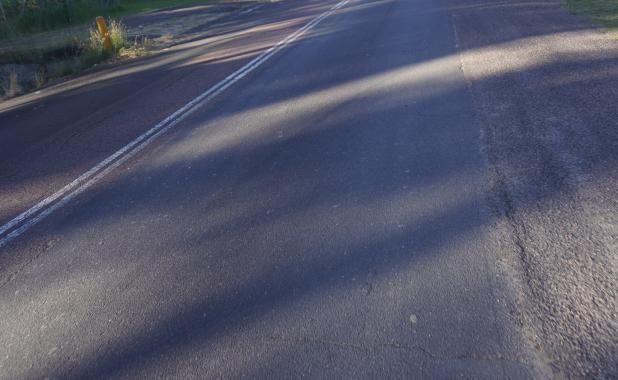

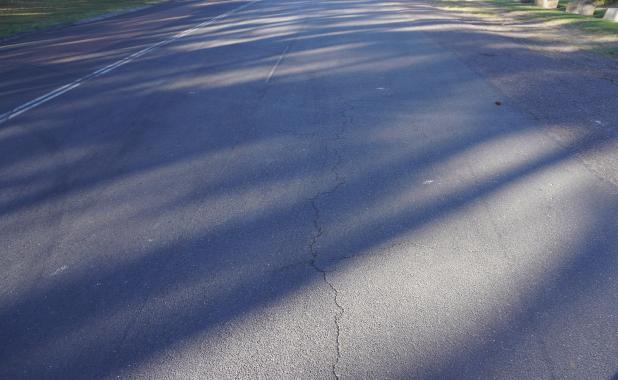

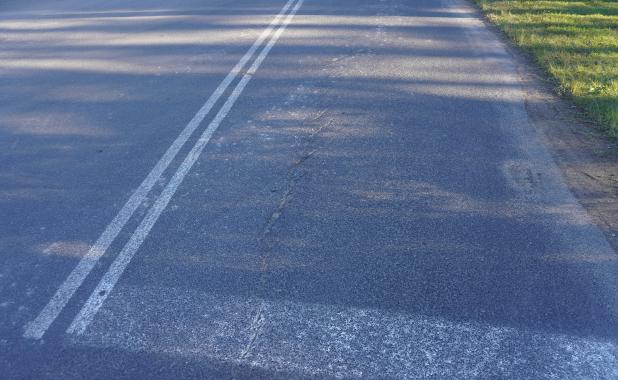

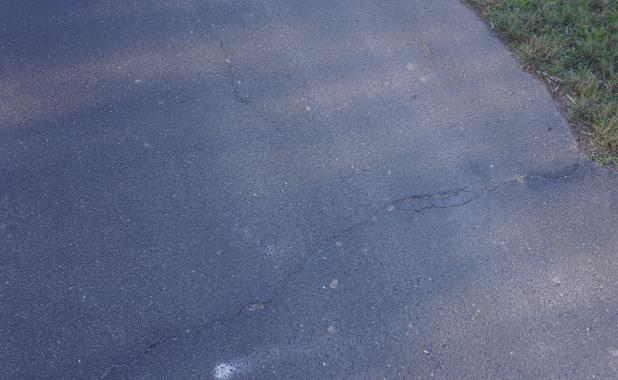

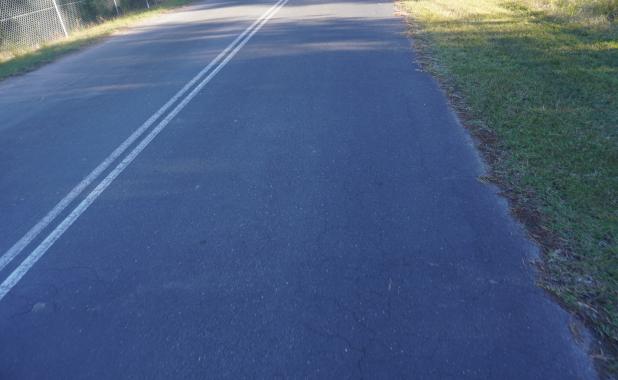

Slight cracking in the south side of the roadway on Station Road.

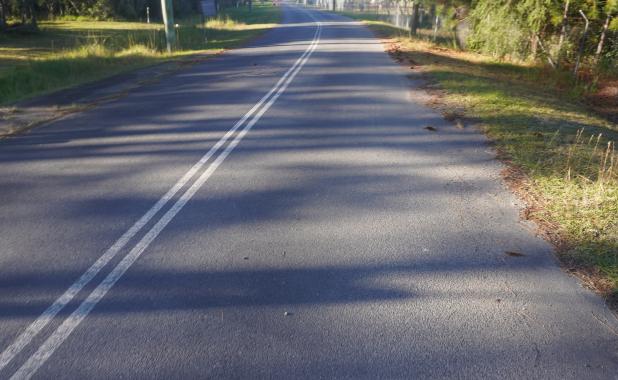

Figure: 0017

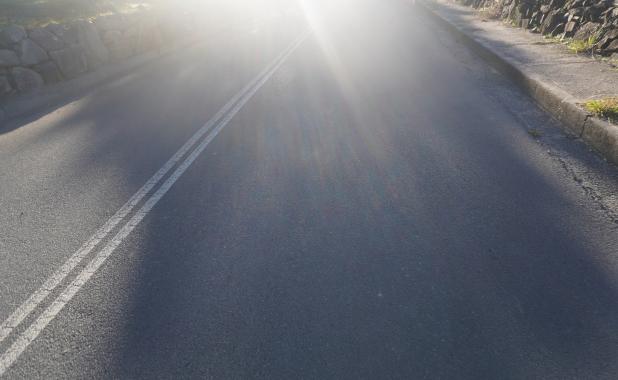

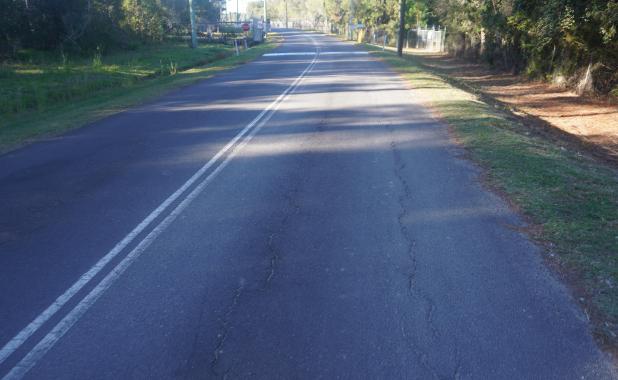

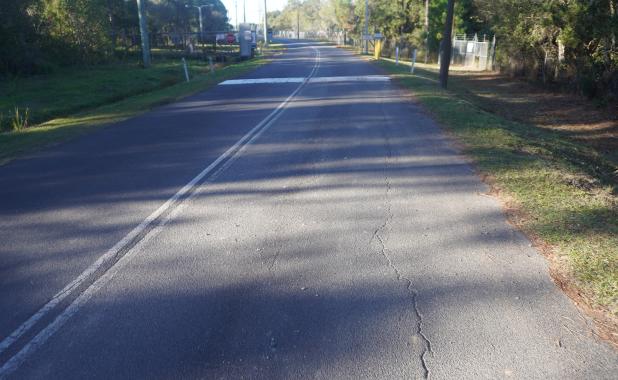

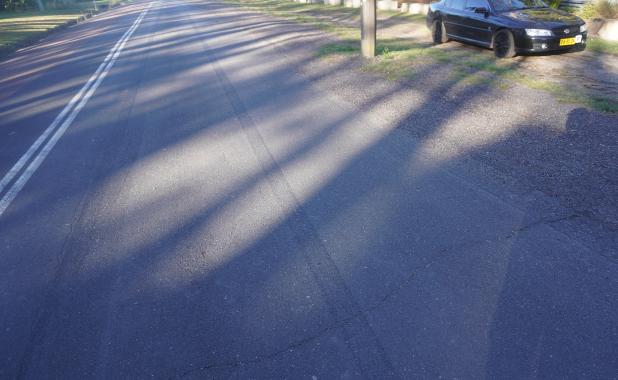

General view of the south side of the roadway on Station Road. Showing cracking.
Figure: 0018

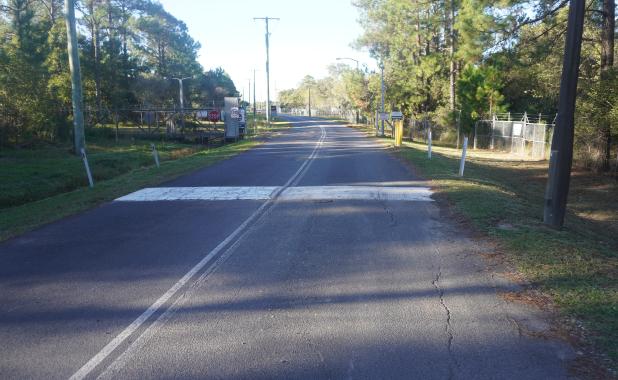

General view of the south side of the roadway on Station Road. Showing slight cracking.
ADN23137A Page 20
Figure: 0019
General view of the south side of the roadway on Station Road. Showing slight cracking.

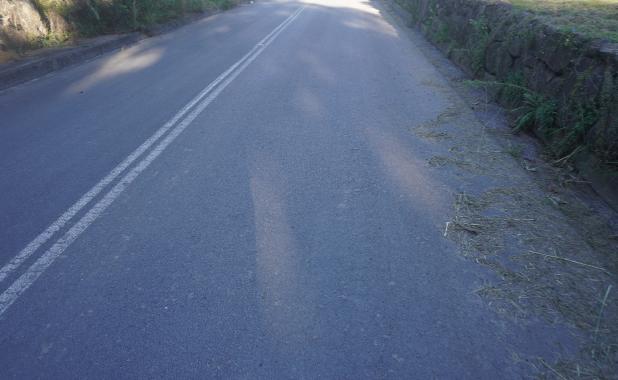

Figure: 0020

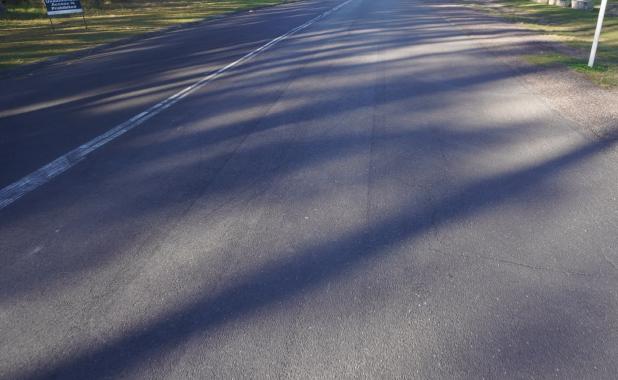

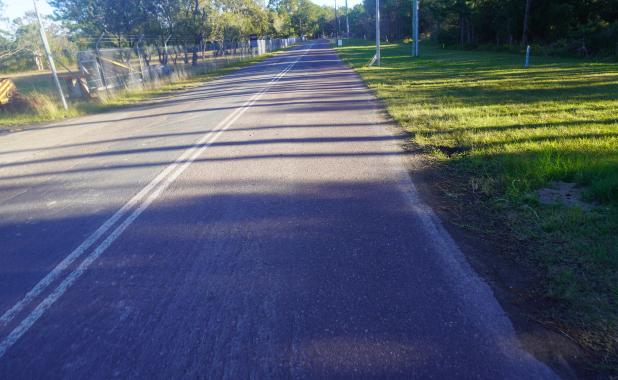

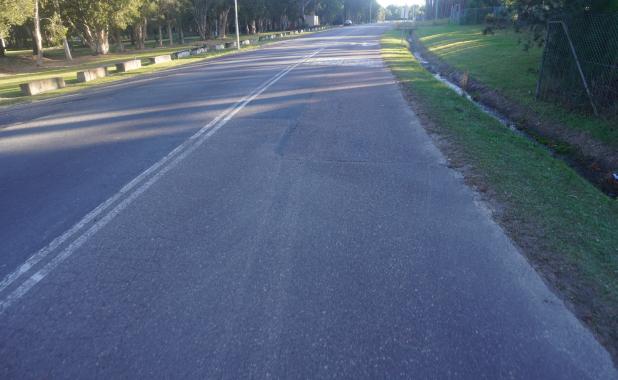

General view of the south side of the roadway on Station Road.
Figure: 0021
General view of the south side of the roadway on Station Road.
ADN23137A Page 21

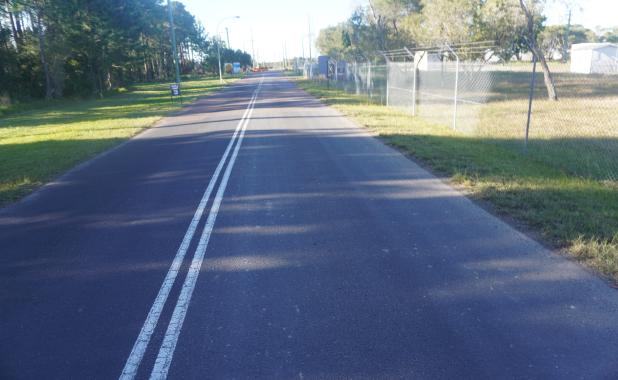

Figure: 0022
General view of the south side of the roadway on Station Road.
Figure: 0023

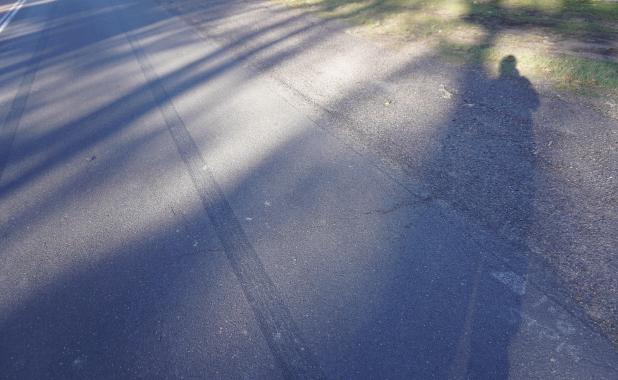

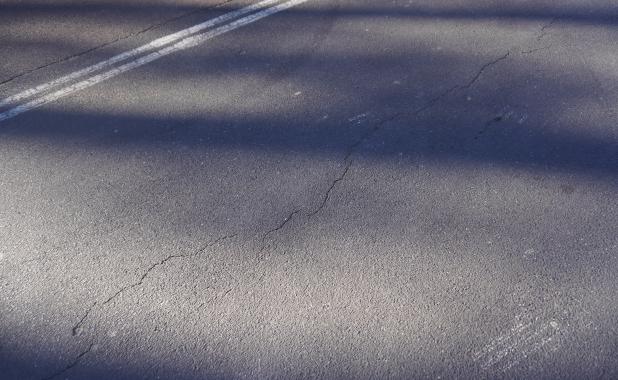

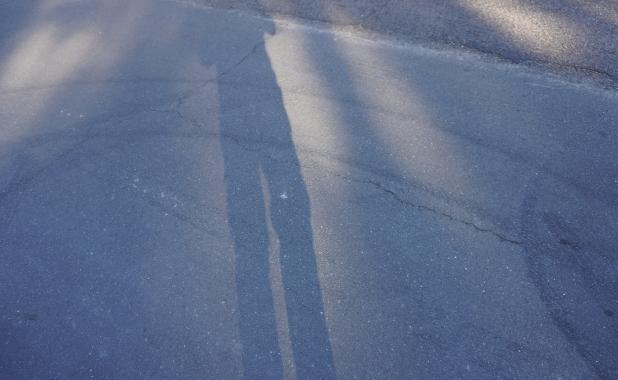

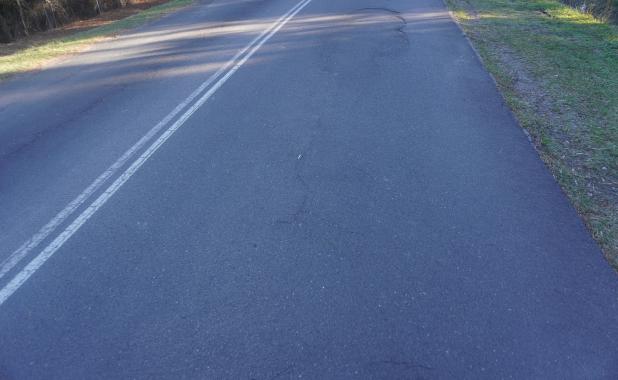

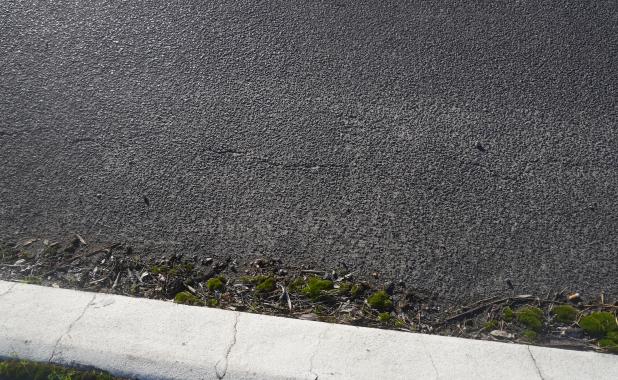

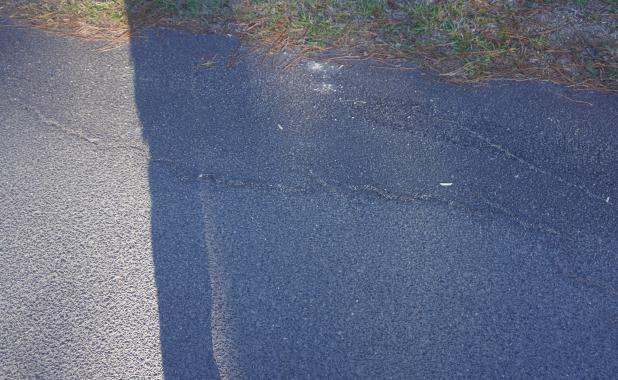

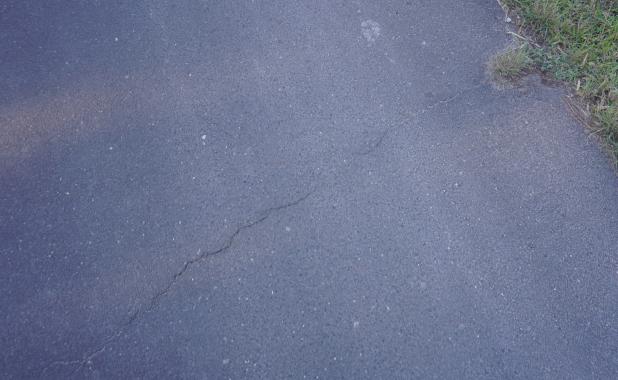

Slight cracking in the south side of the roadway on Station Road, at approximately 30 metres from the entrance to Koala Park Golf Course.
Figure: 0024

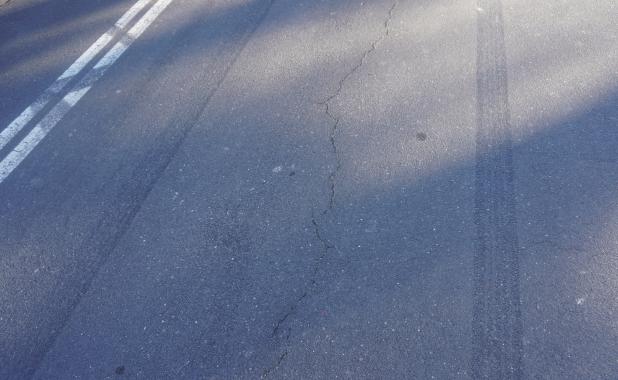

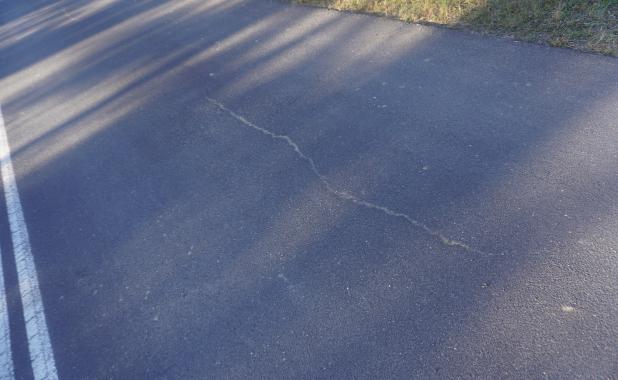

Slight cracking in the south side of the roadway on Station Road, outside Koala Park Golf Course.
ADN23137A Page 22
Figure: 0025

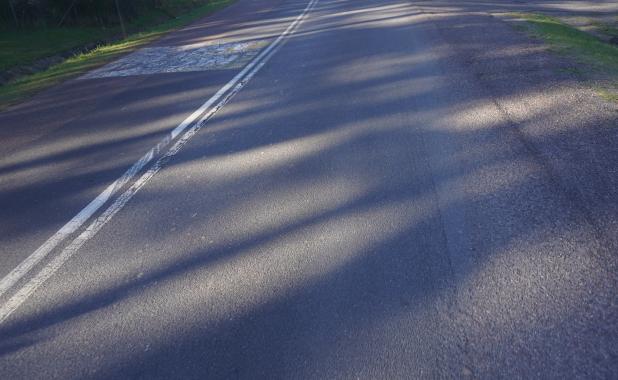

General view of the south side of the roadway on Station Road, outside Koala Park Golf Course.
Figure: 0026

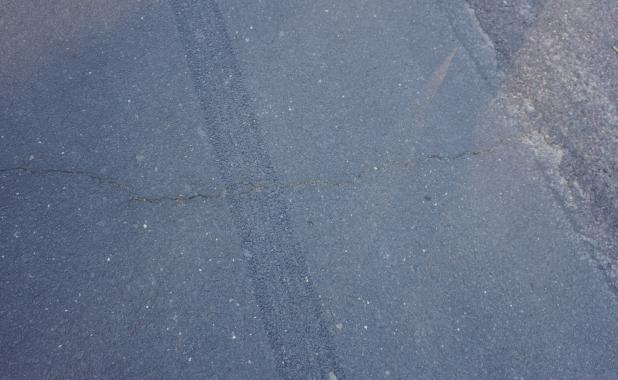

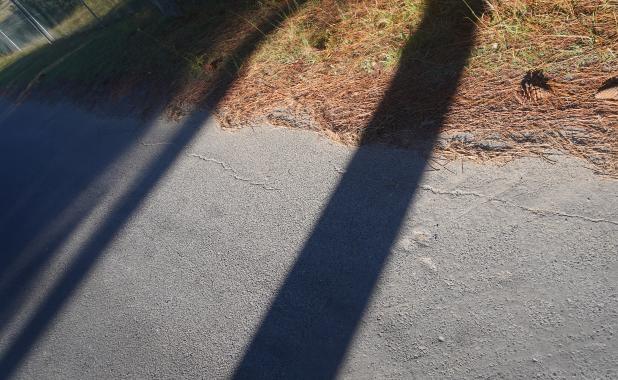

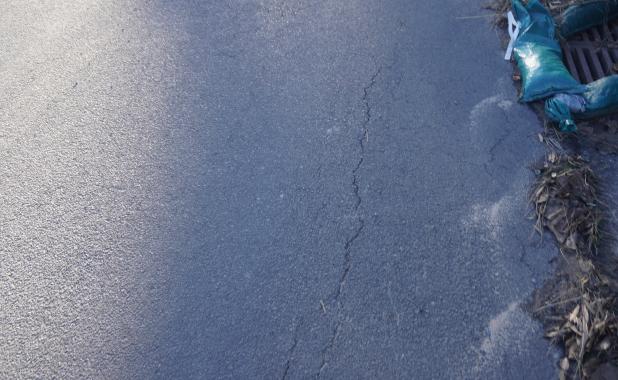

Fine cracking in the south side of the roadway on Station Road, outside Koala Park Golf Course.
Figure: 0027

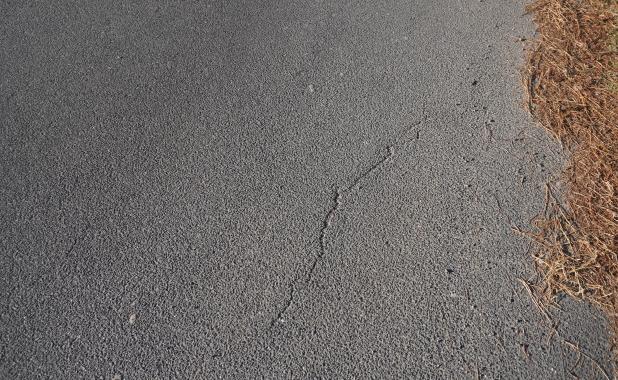

Slight cracking in the south side of the roadway on Station Road, outside Koala Park Golf Course.
ADN23137A Page 23
Figure: 0028
General view of the south side of the roadway on Station Road, outside Koala Park Golf Course. Showing slight cracking.
Figure: 0029
General view of the south side of the roadway on Station Road, outside Koala Park Golf Course. Showing slight cracking.
Figure: 0030
General view of the south side of the roadway on Station Road, outside Koala Park Golf Course. Showing slight cracking.
ADN23137A Page 24
Figure: 0031

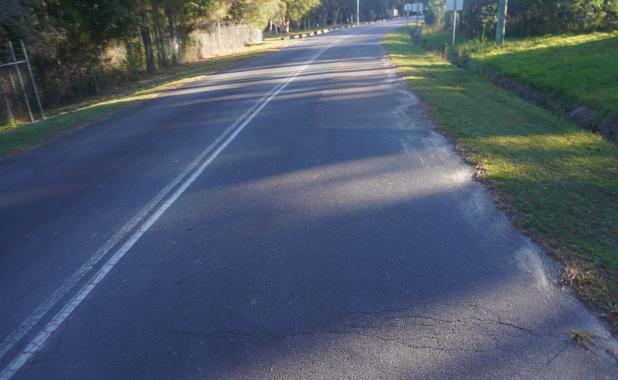

General view of the south side of the roadway on Station Road, outside Koala Park Golf Course.
Figure: 0032
General view of the south side of the roadway on Station Road, outside Koala Park Golf Course.
Figure: 0033
Slight cracking in the south side of the roadway on Station Road, at approximately 50 metres from the fourth lamp post from the intersection of station Road and Scenic Drive.
ADN23137A Page 25
Figure: 0034
General view of the south side of the roadway on Station Road, outside Koala Park Golf Course.
Figure: 0035
General view of the south side of the roadway on Station Road, outside Koala Park Golf Course.
Figure: 0036
Slight cracking in the south side of the roadway on Station Road, outside Koala Park Golf Course.
ADN23137A Page 26
Figure: 0037
Slight cracking in the south side of the roadway on Station Road, outside Koala Park Golf Course.
Figure: 0038
Slight cracking in the south side of the roadway on Station Road, outside Koala Park Golf Course.
Figure: 0039
General view of the south side of the roadway on Station Road, outside Koala Park Golf Course. Showing slight cracking.
ADN23137A Page 27
Figure: 0040
General view of the south side of the roadway on Station Road, outside Koala Park Golf Course.
Figure: 0041
Slight cracking in the south side of the roadway on Station Road, at approximately 10 metres from the fourth lamp post from the intersection of Station Road and Scenic Drive.
Figure: 0042
Slight cracking in the south side of the roadway on Station Road, outside Koala Park Golf Course.
ADN23137A Page 28
Figure: 0043

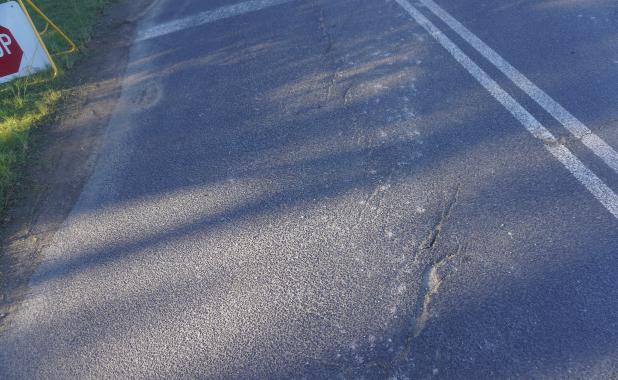

Moderate cracking in the south side of the roadway on Station Road, at approximately 15 metres from the fourth lamp post from the intersection of Station Road and Scenic Drive.
Figure: 0044
Moderate cracking in the south side of the roadway on Station Road, at approximately 15 metres from the fourth lamp post from the intersection of Station Road and Scenic Drive.
Figure: 0045
General view of the south side of the roadway on Station Road, outside Koala Park Golf Course.
ADN23137A Page 29
Figure: 0046
Slight cracking in the south side of the roadway on Station Road, at approximately 50 metres from the fourth lamp post from the intersection of Station Road and Scenic Drive.
Figure: 0047
General view of the south side of the roadway on Station Road, outside Koala Park Golf Course.
Figure: 0048
General view of the south side of the roadway on Station Road, outside Koala Park Golf Course.
ADN23137A Page 30
Figure: 0049
General view of the south side of the roadway on Station Road, outside Koala Park Golf Course.
Figure: 0050
General view of the south side of the roadway on Station Road, outside Koala Park Golf Course.
Figure: 0051
Moderate cracking in the south side of the roadway on Station Road, outside Koala Park Golf Course.
ADN23137A Page 31
Figure: 0052
Slight cracking in the south side of the roadway on Station Road, outside Koala Park Golf Course.
Figure: 0053
General view of the south side of the roadway on Station Road, outside Koala Park Golf Course. Showing slight cracking.
Figure: 0054
Slight cracking in the south side of the roadway on Station Road, outside Koala Park Golf Course.
ADN23137A Page 32
Figure: 0055
General view of the south side of the roadway on Station Road, outside Koala Park Golf Course.
Figure: 0056
General view of the south side of the roadway on Station Road, outside Koala Park Golf Course.
Figure: 0057
General view of the south side of the roadway on Station Road, outside Koala Park Golf Course.
ADN23137A Page 33
Figure: 0058
General view of the south side of the roadway on Station Road, outside Koala Park Golf Course.
Figure: 0059
General view of the south side of the roadway on Station Road, outside Koala Park Golf Course.
Figure: 0060
Slight cracking in the south side of the roadway on Station Road, opposite the crossover to the rugby field.
ADN23137A Page 34
Figure: 0061
Slight cracking in the south side of the roadway on Station Road, opposite the crossover to the rugby field.
Figure: 0062
General view of the south side of the roadway on Station Road, outside Koala Park Golf Course.
Figure: 0063
General view of the south side of the roadway on Station Road, outside Koala Park Golf Course.
ADN23137A Page 35
Figure: 0064
Moderate cracking in the south side of the roadway on Station Road, at approximately 100 metres from the entrance gate.
Figure: 0065
Moderate cracking in the south side of the roadway on Station Road, at approximately 100 metres from the entrance gate.
Figure: 0066
Moderate cracking in the south side of the roadway on Station Road, at approximately 100 metres from the entrance gate.
ADN23137A Page 36
Figure: 0067
General view of the south side of the roadway on Station Road, on the east side of Koala Park. Showing slight cracking.
Figure: 0068
General view of the south side of the roadway on Station Road, on the east side of Koala Park. Showing slight cracking.
Figure: 0069
General view of the south side of the roadway on Station Road, on the east side of Koala Park. Showing slight cracking.
ADN23137A Page 37
Figure: 0070
Severe cracking in the south side of the roadway on Station Road, on the east side of Koala Park.
Figure: 0071
General view of the south side of the roadway on Station Road, on the east side of Koala Park. Showing patching.
Figure: 0072
Fine cracking and patching in the south side of the roadway on Station Road, on the east side of Koala Park. Showing slight cracking.
ADN23137A Page 38
Figure: 0073
General view of the south side of the roadway on Station Road, on the east side of the entrance gate.
Figure: 0074
Slight cracking in the south side of the roadway on Station Road, on the east side of the entrance gate.
Figure: 0075
General view of the south side of the roadway on Station Road, on the east side of the entrance gate.
ADN23137A Page 39
Figure: 0076
General view of the south side of the roadway on Station Road, on the east side of the entrance gate.
Figure: 0077
Slight cracking in the south side of the roadway on Station Road, at approximately 10 meters from the fist lamp post on the east side of the entrance gate.
Figure: 0078

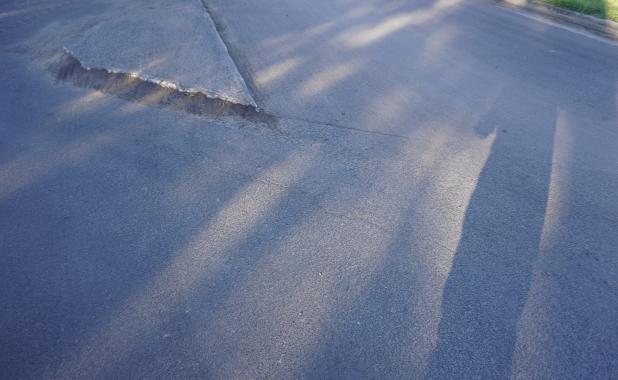

Patching and chipping in the south side of the roadway on Station Road, at approximately 10 meters from the fist lamp post on the east side of the entrance gate.
ADN23137A Page 40
Figure: 0079
Slight cracking in the south side of the roadway on Station Road, at approximately 10 meters from the fist lamp post on the east side of the entrance gate.
Figure: 0080
General view of the south side of the roadway on Station Road, at approximately 10 meters from the fist lamp post on the east side of the entrance gate.
Figure: 0081
Slight cracking in the south side of the roadway on Station Road, at approximately 10 meters from the fist lamp post on the east side of the entrance gate.
ADN23137A Page 41
Figure: 0082
Slight cracking in the south side of the roadway on Station Road, at approximately 10 meters from the fist lamp post on the east side of the entrance gate.
Figure: 0083
General view of the south side of the roadway on Station Road, on the east side of the entrance gate.
Figure: 0084
Patching and cracking in the south side of the roadway on Station Road, on the east side of the entrance gate.
ADN23137A Page 42
Figure: 0085
General view of the south side of the roadway on Station Road, on the east side of the entrance gate.
Figure: 0086
General view of the south side of the roadway on Station Road, on the east side of the entrance gate.
Figure: 0087
Slight cracking in the south side of the roadway on Station Road, on the east side of the entrance gate.
ADN23137A Page 43
Figure: 0088
Slight cracking in the south side of the roadway on Station Road, on the east side of the entrance gate.
Figure: 0089

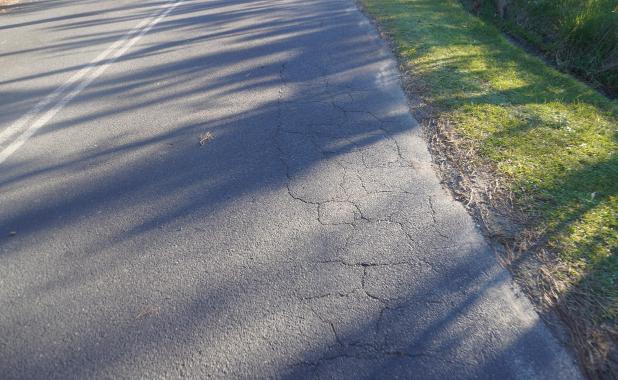

Alligator cracking in the south side of the roadway on Station Road, on the east side of the entrance gate.
Figure: 0090
Fine cracking in the south side of the roadway on Station Road, on the east side of the entrance gate.
ADN23137A Page 44
Figure: 0091
Slight cracking in the south side of the roadway on Station Road, on the east side of the entrance gate.
Figure: 0092
Slight cracking in the south side of the roadway on Station Road, on the east side of the entrance gate.
Figure: 0093
General view of the south side of the roadway on Station Road, on the east side of the entrance gate.
ADN23137A Page 45
Figure: 0094
General view of the south side of the roadway on Station Road, on the east side of the entrance gate.
Figure: 0095
Slight cracking in the south side of the roadway on Station Road, on the east side of the entrance gate.
Figure: 0096
Slight cracking in the south side of the roadway on Station Road, on the east side of the entrance gate.
ADN23137A Page 46
Figure: 0097
General view of the south side of the roadway on Station Road, on the east side of the entrance gate.
Figure: 0098
General view of the south side of the roadway on Station Road, on the east side of the entrance gate.
Figure: 0099
General view of the south side of the roadway on Station Road, on the east side of the entrance gate.
ADN23137A Page 47
Figure: 0100
General view of the south side of the roadway on Station Road, on the east side of the entrance gate.
Figure: 0101
General view of the south side of the roadway on Station Road, on the east side of the entrance gate.
Figure: 0102
General view of the south side of the roadway on Station Road, on the east side of the entrance gate.
ADN23137A Page 48
Figure: 0103
General view of the crossover on the east side of the roadway on Station Road, on the east side of the entrance gate. Showing patching.
Figure: 0104
General view of the south side of the roadway on Station Road, on the east side of the entrance gate. Showing slight cracking.
Figure: 0105
Slight cracking in the south side of the roadway on Station Road, on the east side of the entrance gate.
ADN23137A Page 49
Figure: 0106
General view of the south side of the roadway on Station Road, on the east side of the entrance gate.
Figure: 0107
General view of the south side of the roadway on Station Road, on the east side of the entrance gate.
Figure: 0108
General view of the turning lane on Station Road, on the east side of the entrance gate.
ADN23137A Page 50
Figure: 0109
Slight cracking in the south side of the roadway on Station Road.
Figure: 0110
General view of the west side of the roadway on Station Road, opposite Munmorah Substation.

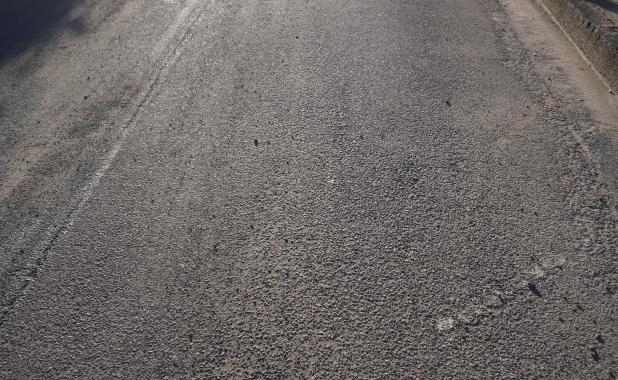

Figure: 0111
Chipping in the west side of the roadway on Station Road, opposite Munmorah Substation.
ADN23137A Page 51

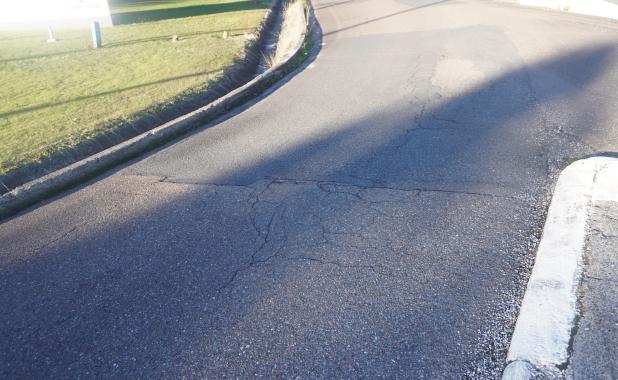

Figure: 0112
Moderate cracking and chipping in the west side of the roadway on Station Road, opposite Munmorah Substation.
Figure: 0113
Poor condition in the west side of the roadway on Station Road, opposite Munmorah Substation.
Figure: 0114
Poor condition in the west side of the roadway on Station Road, opposite Munmorah Substation.
ADN23137A Page 52
Figure: 0115
Alligator cracking in the west side of the roadway on Station Road, opposite Munmorah Substation.
Figure: 0116
General view of the west side of the roadway on Station Road, opposite Munmorah Substation.
Figure: 0117
General view of the west side of the roadway on Station Road, opposite Munmorah Substation.
ADN23137A Page 53
Figure: 0118
Moderate cracking in the west side of the roadway on Station Road, at approximately 10 metres from the turning lane.
Figure: 0119
General view of the west side of the roadway on Station Road, opposite Munmorah Substation.
Figure: 0120
General view of the west side of the roadway on Station Road, opposite Munmorah Substation.
ADN23137A Page 54
Figure: 0121
General view of the west side of the roadway on Station Road, opposite Munmorah Substation.
Figure: 0122
General view of the west side of the roadway on Station Road, opposite Munmorah Substation.
Figure: 0123
Alligator cracking in the west side of the roadway on Station Road, at approximately 20 metres from the turning lane.
ADN23137A Page 55
Figure: 0124
General view of the west side of the roadway on Station Road, opposite Munmorah Substation.
Figure: 0125
General view of the west side of the roadway on Station Road, opposite Munmorah Substation.
Figure: 0126
General view of the west side of the roadway on Station Road, opposite Munmorah Substation.
ADN23137A Page 56
Figure: 0127
General view of the west side of the roadway on Station Road, opposite Munmorah Substation.
Figure: 0128
General view of the west side of the roadway on Station Road, opposite Munmorah Substation.
Figure: 0129
General view of the west side of the roadway on Station Road, opposite Munmorah Substation.
ADN23137A Page 57
Figure: 0130
Damage in the west side of the roadway on Station Road, opposite Munmorah Substation.
Figure: 0131
General view of the west side of the roadway on Station Road, opposite Munmorah Substation.
Figure: 0132
General view of the west side of the roadway on Station Road, opposite Munmorah Substation.
ADN23137A Page 58
Figure: 0133
General view of the west side of the roadway on Station Road, opposite Munmorah Substation.
Figure: 0134
General view of the west side of the roadway on Station Road, opposite Munmorah Substation.
Figure: 0135
General view of the west side of the roadway on Station Road, opposite Munmorah Substation.
ADN23137A Page 59
Figure: 0136
Slight cracking in the west side of the roadway on Station Road, at approximately 70 metres from the turning lane.
Figure: 0137
General view of the west side of the roadway on Station Road, at approximately 70 metres from the turning lane.
Figure: 0138
General view of the west side of the roadway on Station Road, opposite Munmorah Substation.
ADN23137A Page 60
Figure: 0139
Slight cracking the west side of the roadway on Station Road, at approximately 50 metres from the canal.
Figure: 0140

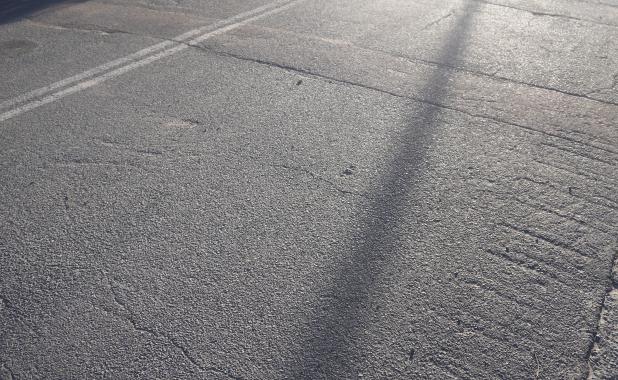

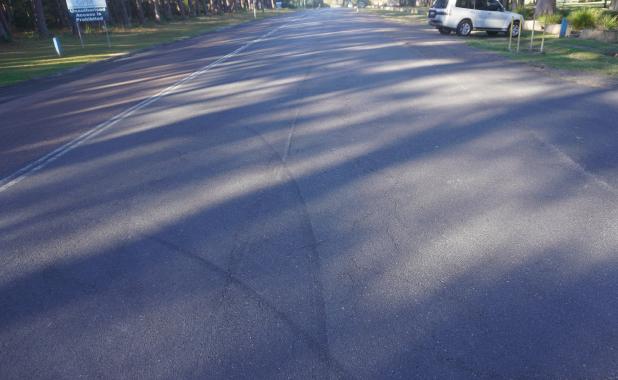

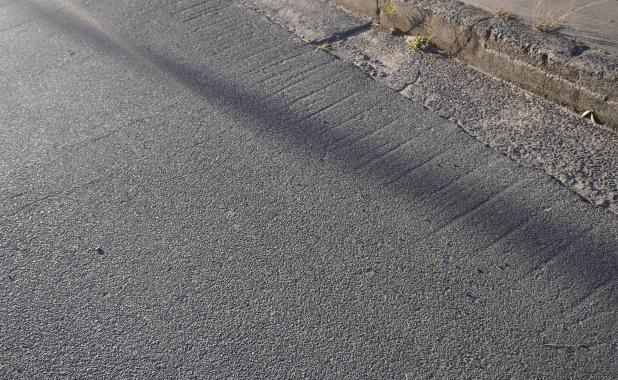

Scoring in the west side of the roadway on Station Road, at approximately 20 metres from the canal.
Figure: 0141
Scoring in the west side of the roadway on Station Road, opposite Munmorah Substation.
ADN23137A Page 61
Figure: 0142
General view of the west side of the roadway on Station Road, outside the site.
Figure: 0143

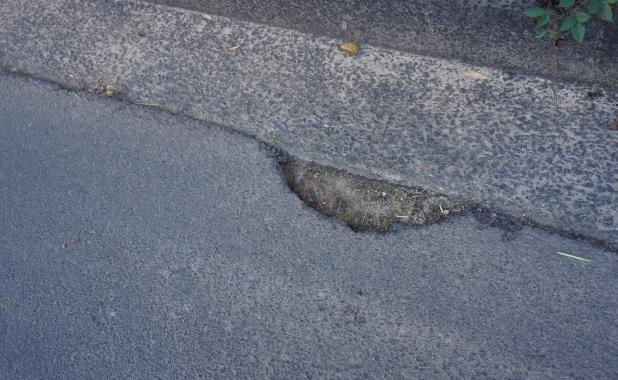

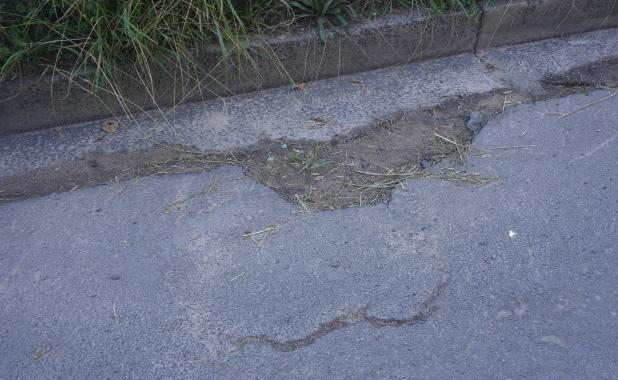

Damage in the west side of the roadway on Station Road, outside the site.
Figure: 0144
General view of the east side of the roadway on Station Road, outside the site.
ADN23137A Page 62
Figure: 0145
Moderate cracking in the east side of the roadway on Station Road, at approximately 10 metres from the canal.
Figure: 0146
Damage in the east side of the roadway on Station Road, at approximately 10 metres from the canal.
Figure: 0147
Scoring in the east side of the roadway on Station Road, outside the Munmorah Substation.
ADN23137A Page 63
Figure: 0148
Alligator cracking in the east side of the roadway on Station Road, outside the Munmorah Substation.
Figure: 0149
Damage in the east side of the roadway on Station Road, outside the Munmorah Substation.
Figure: 0150
Scoring in the east side of the roadway on Station Road, outside the Munmorah Substation.
ADN23137A Page 64
Figure: 0151
Cracking in the east side of the roadway on Station Road, outside the Munmorah Substation.
Figure: 0152
Cracking in the east side of the roadway on Station Road, outside the Munmorah Substation.
Figure: 0153
Alligator cracking in the east side of the roadway on Station Road, outside the Munmorah Substation.
ADN23137A Page 65
Figure: 0154
General view of the east side of the roadway on Station Road, outside the Munmorah Substation.
Figure: 0155
General view of the east side of the roadway on Station Road, outside the Munmorah Substation.
Figure: 0156
Moderate cracking in the east side of the roadway on Station Road, outside the Munmorah Substation.
ADN23137A Page 66
Figure: 0157
Moderate cracking in the east side of the roadway on Station Road, outside the Munmorah Substation.
Figure: 0158
General view of the east side of the roadway on Station Road, outside the Munmorah Substation.
Figure: 0159
Damage in the east side of the roadway on Station Road, outside the Munmorah Substation.
ADN23137A Page 67
Figure: 0160
General view of the east side of the roadway on Station Road, outside the Munmorah Substation.
Figure: 0161
Fine cracking in the east side of the roadway on Station Road, outside the Munmorah Substation.
Figure: 0162
General view of the east side of the roadway on Station Road, outside the Munmorah Substation.
ADN23137A Page 68
Figure: 0163
General view of the east side of the roadway on Station Road, outside the Munmorah Substation.
Figure: 0164
General view of the east side of the roadway on Station Road, outside the Munmorah Substation. Showing slight cracking.
Figure: 0165
Slight cracking in the east side of the roadway on Station Road, outside the Munmorah Substation.
ADN23137A Page 69
Figure: 0166
General view of the east side of the roadway on Station Road, outside the Munmorah Substation.
Figure: 0167
General view of the east side of the roadway on Station Road, outside the Munmorah Substation.
Figure: 0168
General view of the east side of the roadway on Station Road, outside the Munmorah Substation.
ADN23137A Page 70
Figure: 0169
Slight cracking in the east side of the roadway on Station Road, outside the Munmorah Substation.
Figure: 0170
General view of the east side of the roadway on Station Road, outside the Munmorah Substation.
Figure: 0171
General view of the east side of the roadway on Station Road, outside the Munmorah Substation.
ADN23137A Page 71
Figure: 0172
General view of the east side of the roadway on Station Road, outside the Munmorah Substation.
Figure: 0173
General view of the east side of the roadway on Station Road, outside the Munmorah Substation.
Figure: 0174
Alligator cracking and pothole in the east side of the roadway on Station Road, outside the Munmorah Substation.
ADN23137A Page 72
Figure: 0175
Alligator cracking and pothole in the east side of the roadway on Station Road, outside the Munmorah Substation.
Figure: 0176

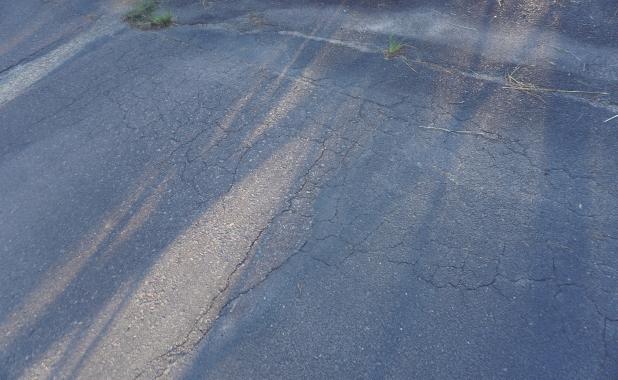

Alligator cracking in the east side of the roadway on Station Road, outside the Munmorah Substation.
Figure: 0177
Alligator cracking and pothole in the east side of the roadway on Station Road, outside the Munmorah Substation.
ADN23137A Page 73
Figure: 0178

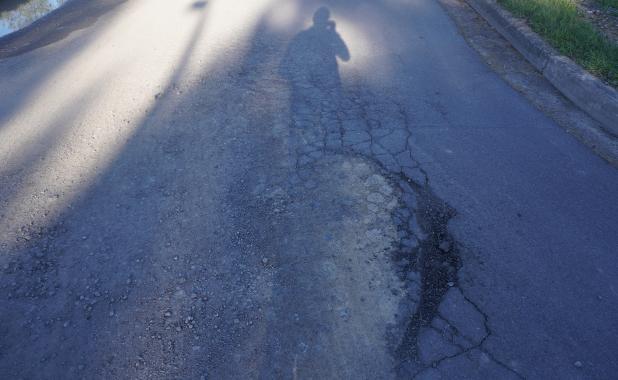

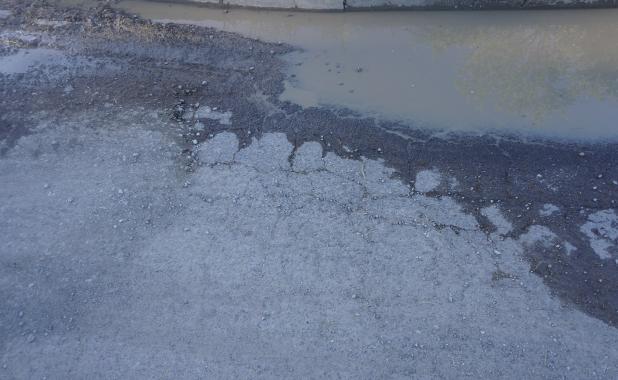

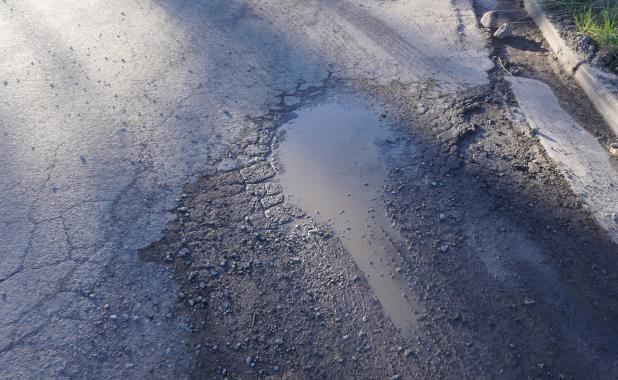

Pothole in the east side of the roadway on Station Road, outside the Munmorah Substation.
Figure: 0179

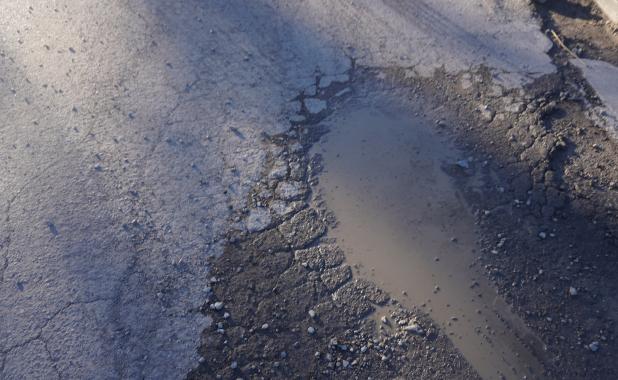

Pothole in the east side of the roadway on Station Road, outside the Munmorah Substation.
Figure: 0180
Poor condition in the east side of the roadway on Station Road, outside the Munmorah Substation.
ADN23137A Page 74
Figure: 0181
Poor condition in the east side of the roadway on Station Road, outside the Munmorah Substation.
Figure: 0182
Poor condition in the east side of the roadway on Station Road, outside the Munmorah Substation.
Figure: 0183
General view of the north side of the roadway on Station Road, on the east side of the entrance gate.
ADN23137A Page 75
Figure: 0184
Slight cracking in the north side of the roadway on Station Road, on the east side of the entrance gate.
Figure: 0185
Slight cracking in the north side of the roadway on Station Road, on the east side of the entrance gate.
Figure: 0186
General view of the north side of the roadway on Station Road, on the east side of the entrance gate.
ADN23137A Page 76
Figure: 0187
General view of the north side of the roadway on Station Road, on the east side of the entrance gate.
Figure: 0188
General view of the north side of the roadway on Station Road, on the east side of the entrance gate.
Figure: 0189
General view of the north side of the roadway on Station Road, opposite the crossover.
ADN23137A Page 77
Figure: 0190
Fine cracking in the north side of the roadway on Station Road, opposite the crossover.
Figure: 0191
General view of the north side of the roadway on Station Road, on the east side of the entrance gate.
Figure: 0192
Moderate cracking in the north side of the roadway on Station Road, on the east side of the entrance gate.
ADN23137A Page 78
Figure: 0193
Slight cracking in the north side of the roadway on Station Road, on the east side of the entrance gate.
Figure: 0194
General view of the north side of the roadway on Station Road, on the east side of the entrance gate.
Figure: 0195
General view of the north side of the roadway on Station Road, on the east side of the entrance gate. Showing moderate cracking.
ADN23137A Page 79
Figure: 0196
General view of the north side of the roadway on Station Road, on the east side of the entrance gate. Showing moderate cracking.
Figure: 0197
General view of the north side of the roadway on Station Road, on the east side of the entrance gate.
Figure: 0198
Slight cracking in the north side of the roadway on Station Road, adjacent to the first lamp post from the east.
ADN23137A Page 80
Figure: 0199
General view of the north side of the roadway on Station Road, on the east side of the entrance gate.
Figure: 0200
General view of the north side of the roadway on Station Road, on the east side of the entrance gate.
Figure: 0201
Slight cracking in the north side of the roadway on Station Road, on the east side of the entrance gate.
ADN23137A Page 81
Figure: 0202
Moderate cracking and patching in the north side of the roadway on Station Road, on the east side of the entrance gate.
Figure: 0203
Moderate cracking in the north side of the roadway on Station Road, on the east side of the entrance gate.
Figure: 0204
Moderate cracking in the north side of the roadway on Station Road, on the east side of the entrance gate.
ADN23137A Page 82
Figure: 0205
Moderate cracking in the north side of the roadway on Station Road, on the east side of the entrance gate.
Figure: 0206
Moderate cracking in the north side of the roadway on Station Road, on the east side of the entrance gate.
Figure: 0207
General view of the north side of the roadway on Station Road, on the east side of the entrance gate. Showing slight cracking.
ADN23137A Page 83
Figure: 0208
Slight cracking in the north side of the roadway on Station Road, adjacent to the second lamp post from the entrance gate.
Figure: 0209
General view of the north side of the roadway on Station Road, on the east side of the entrance gate. Showing slight cracking.
Figure: 0210
General view of the north side of the roadway on Station Road, on the east side of the entrance gate. Showing slight cracking.
ADN23137A Page 84
Figure: 0211
General view of the north side of the roadway on Station Road, on the east side of the entrance gate. Showing alligator cracking.
Figure: 0212
Alligator cracking in the north side of the roadway on Station Road, on the east side of the entrance gate.
Figure: 0213
General view of the north side of the roadway on Station Road, on the east side of the entrance gate. Showing alligator cracking.
ADN23137A Page 85
Figure: 0214
Patching and alligator cracking in the north side of the roadway on Station Road, at approximately 20 metres from the entrance gate.
Figure: 0215
Patching and alligator cracking in the north side of the roadway on Station Road, at approximately 20 metres from the entrance gate.
Figure: 0216
General view of the north side of the roadway on Station Road, on the east side of the entrance gate.
ADN23137A Page 86
Figure: 0217
Alligator cracking in the north side of the roadway on Station Road, on the east side of the entrance gate.
Figure: 0218
Patching and cracking in the north side of the roadway on Station Road, on the east side of the entrance gate.
Figure: 0219
General view of the north side of the roadway on Station Road, on the west side of the entrance gate.
ADN23137A Page 87
Figure: 0220
Patching and cracking in the north side of the roadway on Station Road, on the west side of the entrance gate.
Figure: 0221
Alligator cracking in the north side of the roadway on Station Road, on the west side of the entrance gate.
Figure: 0222
Alligator cracking in the north side of the roadway on Station Road, on the west side of the entrance gate.
ADN23137A Page 88
Figure: 0223
General view of the north side of the roadway on Station Road, on the west side of the entrance gate.
Figure: 0224
General view of the north side of the roadway on Station Road, on the west side of the entrance gate.
Figure: 0225
Damage in the north side of the roadway on Station Road, on the west side of the entrance gate.
ADN23137A Page 89
Figure: 0226
General view of the north side of the roadway on Station Road, on the west side of the entrance gate. Showing moderate cracking.
Figure: 0227
General view of the north side of the roadway on Station Road, on the west side of the entrance gate.
Figure: 0228
Slight cracking in the north side of the roadway on Station Road, on the west side of the entrance gate.
ADN23137A Page 90
Figure: 0229
Moderate cracking in the north side of the roadway on Station Road, on the west side of the entrance gate.
Figure: 0230
Alligator cracking in the north side of the roadway on Station Road, on the west side of the entrance gate.
Figure: 0231
General view of the north side of the roadway on Station Road, opposite Koala Park.
ADN23137A Page 91
Figure: 0232
General view of the north side of the roadway on Station Road, opposite Koala Park.
Figure: 0233
General view of the north side of the roadway on Station Road, opposite Koala Park.
Figure: 0234
Alligator cracking in the north side of the roadway on Station Road, opposite Koala Park.
ADN23137A Page 92
Figure: 0235
Alligator cracking in the north side of the roadway on Station Road, opposite Koala Park.
Figure: 0236
Alligator cracking in the north side of the roadway on Station Road, opposite Koala Park.
Figure: 0237
Moderate cracking in the north side of the roadway on Station Road, opposite Koala Park.
ADN23137A Page 93
Figure: 0238
Alligator cracking and patching in the north side of the roadway on Station Road, opposite Koala Park.
Figure: 0239
General view of the north side of the roadway on Station Road, opposite Koala Park. Showing moderate cracking.
Figure: 0240
General view of the north side of the roadway on Station Road, opposite Koala Park. Showing moderate cracking.
ADN23137A Page 94
Figure: 0241
Patching and moderate cracking in the north side of the roadway on Station Road, opposite Koala Park.
Figure: 0242
General view of the north side of the roadway on Station Road, opposite Koala Park. Showing moderate cracking.
Figure: 0243
General view of the north side of the roadway on Station Road, opposite Koala Park.
ADN23137A Page 95
Figure: 0244
General view of the north side of the roadway on Station Road, opposite Koala Park. Showing alligator cracking.
Figure: 0245
General view of the north side of the roadway on Station Road, opposite Koala Park.
Figure: 0246
General view of the north side of the roadway on Station Road, opposite Koala Park.
ADN23137A Page 96
Figure: 0247
General view of the north side of the roadway on Station Road, opposite Koala Park. Showing alligator cracking.
Figure: 0248
General view of the north side of the roadway on Station Road, opposite Koala Park.
Figure: 0249
General view of the north side of the roadway on Station Road, opposite Koala Park.
ADN23137A Page 97
Figure: 0250
General view of the north side of the roadway on Station Road, opposite Koala Park.
Figure: 0251
General view of the north side of the roadway on Station Road, opposite Koala Park.
Figure: 0252
General view of the north side of the roadway on Station Road, opposite Koala Park.
ADN23137A Page 98
Figure: 0253
Patching in the north side of the roadway on Station Road, opposite Koala Park.
Figure: 0254
Patching in the north side of the roadway on Station Road, opposite Koala Park.
Figure: 0255
Patching in the north side of the roadway on Station Road, opposite Koala Park.
ADN23137A Page 99
Figure: 0256
Patching and slight cracking in the north side of the roadway on Station Road, opposite Koala Park.
Figure: 0257
Patching in the north side of the roadway on Station Road, opposite Koala Park.
Figure: 0258
General view of the north side of the roadway on Station Road, opposite Koala Park.
ADN23137A Page 100
Figure: 0259
General view of the north side of the roadway on Station Road, opposite Koala Park. Showing patching.
Figure: 0260
Alligator cracking and patching in the north side of the roadway on Station Road, opposite Koala Park.
Figure: 0261
General view of the north side of the roadway on Station Road, opposite Koala Park.
ADN23137A Page 101
Figure: 0262
Alligator cracking in the north side of the roadway on Station Road, opposite Koala Park.
Figure: 0263
General view of the north side of the roadway on Station Road, opposite Koala Park. Showing patching.
Figure: 0264
Patching and slight cracking in the north side of the roadway on Station Road, opposite Koala Park.
ADN23137A Page 102
Figure: 0265
Alligator cracking in the north side of the roadway at the intersection of Station Road and Scenic Drive.
Figure: 0266
General view of the north side of the roadway at the intersection of Station Road and Scenic Drive. Showing alligator cracking.
Figure: 0267
Patching in the north side of the roadway at the intersection of Station Road and Scenic Drive.
ADN23137A Page 103
Figure: 0268
Alligator cracking in the north side of the roadway at the intersection of Station Road and Scenic Drive.
Figure: 0269
Poor condition in the north side of the roadway at the intersection of Station Road and Scenic Drive.
Figure: 0270
General view of the north side of the roadway at the intersection of Station Road and Scenic Drive.
ADN23137A Page 104
Figure: 0271
General view of the north side of the roadway at the intersection of Station Road and Scenic Drive.
Figure: 0272
General view of the north side of the roadway at the intersection of Station Road and Scenic Drive. Showing slight cracking.
Figure: 0273
Patching and slight cracking in the north side of the roadway at the intersection of Station Road and Scenic Drive.
ADN23137A Page 105
