PROFILE
AISHA OLORIEGBE ABOUT ME
As an aspiring architect, I am a dedicated visionary with a passion for innovation and a keen eye for captivating graphics. I thrive on pushing boundaries, constantly seeking unique design solutions that merge functionality with aesthetic appeal. Through my meticulous attention to detail and proficiennical expertise, demonstrating my commitment to advancing the field of architecture through groundbreaking design and compelling visual storytelling.
E-Link/ https://issuu.com/aishaoloriegbe/ docs/desi_500_ass_2_aisha_
+2348146293000
Ayeeshaabdulmajeed@gmail.com
Aisha (Oluwatosin) Oloriegbe/ www.linkedIn.com
Aisha Oloriegbe/ www.behance.com
Abuja, Nigeria
EDUCATION
Canadian University Dubai Bachelor of Architecture
WORK EXPERIENCE
Interface Project Ltd
Architectural Intern
Classic Home Interior Decoration L.L.C
Architectural Intern
Sazak Acres Biloque Company
Architectural Intern
Sazak Acres Biloque Company
Architectural Intern
WORKSHOPS
Architecture Post-production in Photoshop
Postproduction of Architectural Plans in Photoshop
Architectural illustration: Bring Design Concepts to life
Artistic Architectural Sketching with Procreate
CERTIFICATION
Advanced Computer Aided Design Using Revit
Architectural Visualisation using 3ds max and V-ray
Architectural Visualisation using 3ds max and Corona
TECHNICAL SKILLS
ADOBE PHOTOSHOP
ADOBE ILLUSTRATOR
ADOBE INDESIGN
September 2018 -March 2024
June-August 2021
July - August 2023
August - October 2023
January 2025-Present
3rd-7th January 2023
SOFT SKILLS
Collaboration
Presentation
Organizational skills
Brainstorming
Research
Adaptability
CONTENTS
The stage & The Canvas 10th Semester
Housing in the City 8th Semester
Al Sabkha 9th Semester
Semester
THE STAGE AND CANVAS
10TH SEMESTER: GRADUATION PROJECT
DUBAI ACADEMY OF FINE ARTS
ARCH 562 I Senior design Studio
Location: Al Sufouh , Dubai.
Instructor: Dr Serkan Gunay
Software: Revit , Rhino
CONCEPT “Interconnected Spaces”
The “Interconnected Spaces” concept aims to foster creativity, collaboration, and community, allowing students to fully engage in the visual and performing arts while developing a strong sense of identity and belonging.
The idea is to create a network of interconnected spaces throughout the school that promote collaboration, creativity, and community. Instead of a traditional layout of separate classrooms and studios, the school could be designed with open spaces, flexible work areas, and plenty of natural light to promote openness and creativity
This concept could have the following characteristics:
• An atrium and courtyard for student activities, performances, and exhibitions. • A network of corridors and walkways connecting various parts of the school and allowing movement and interaction between different programs and disciplines.
• Reconfigurable workspaces that can accommodate a variety of projects and collaborations.
• Outdoor spaces for performances, exhibitions, and outdoor learning opportunities, such as courtyards, gardens, or amphitheaters.
• Green roofs, rain gardens, and natural ventilation systems are among the features that emphasize sustainability and eco-friendliness.

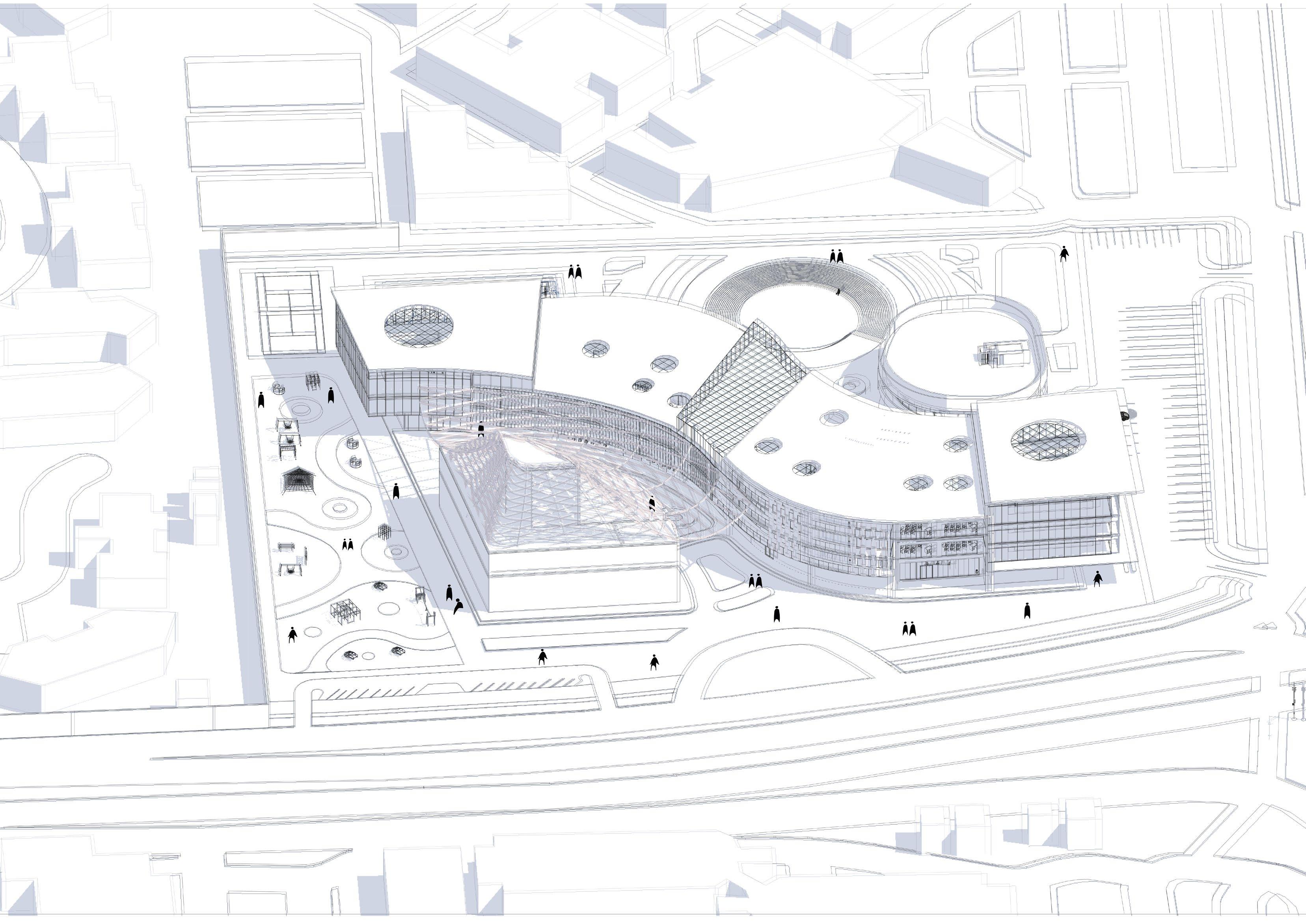

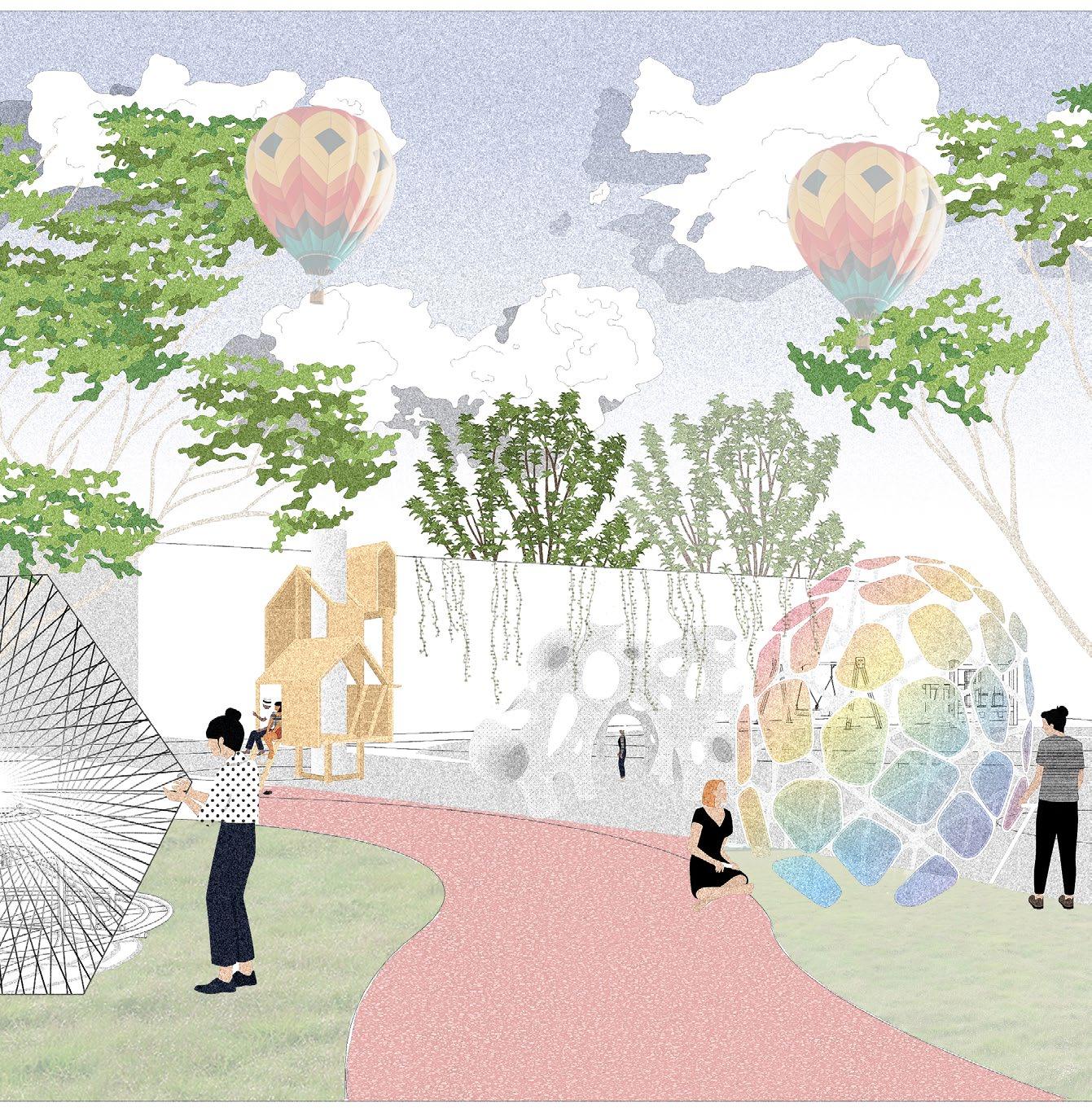

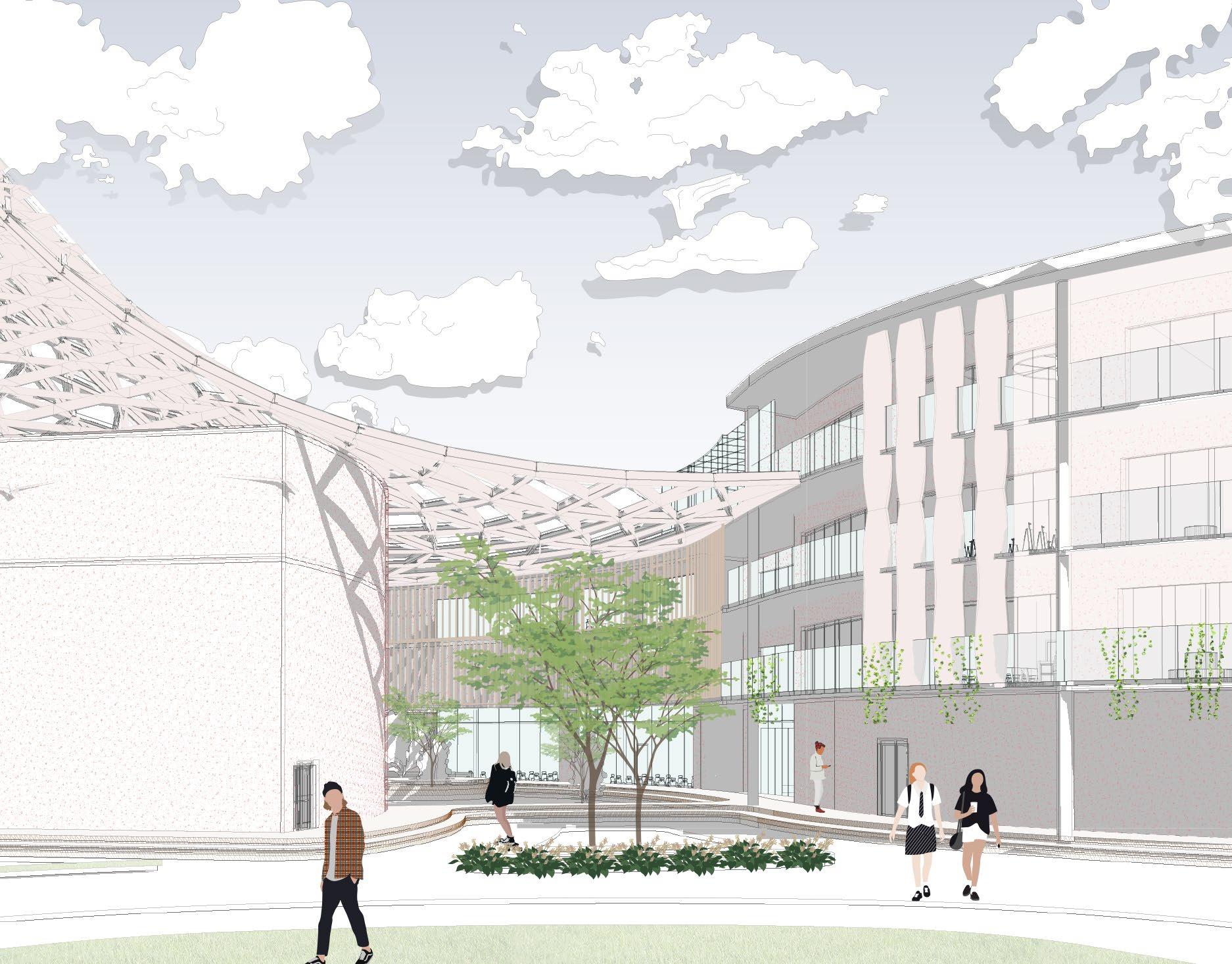

MAIN PERSPECTIVE

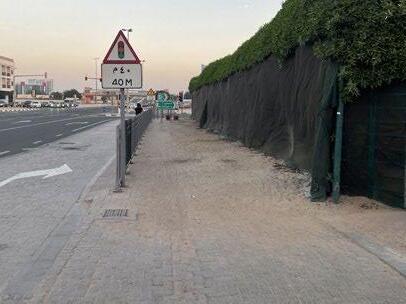

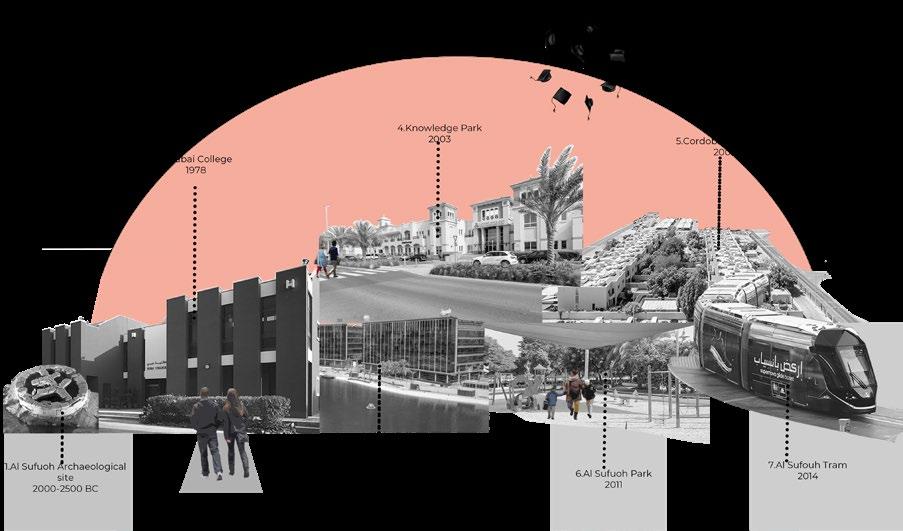

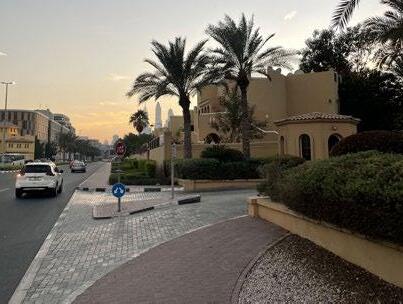

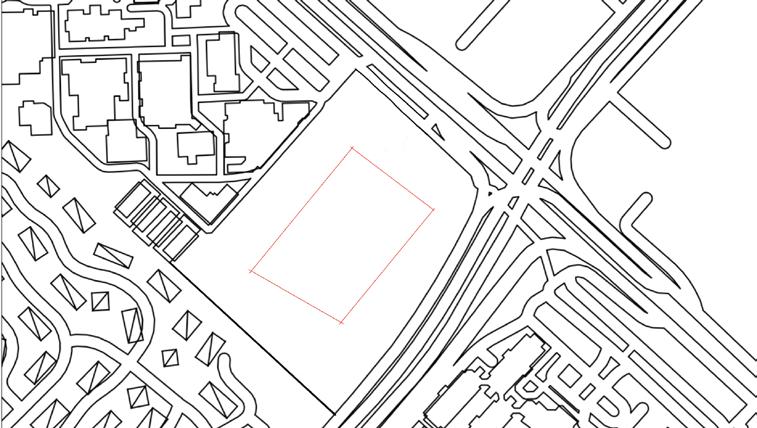

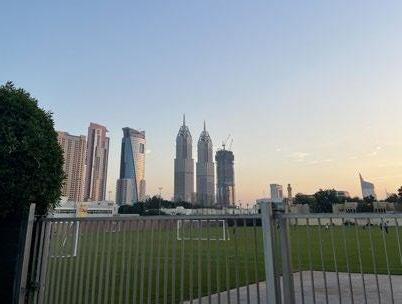

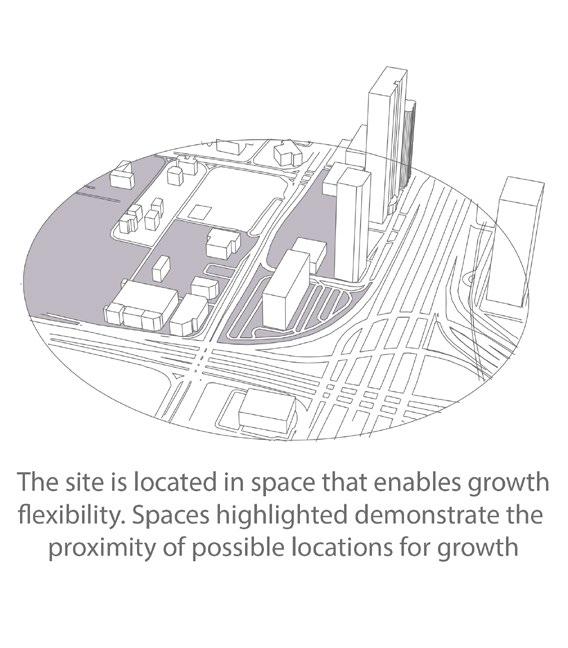

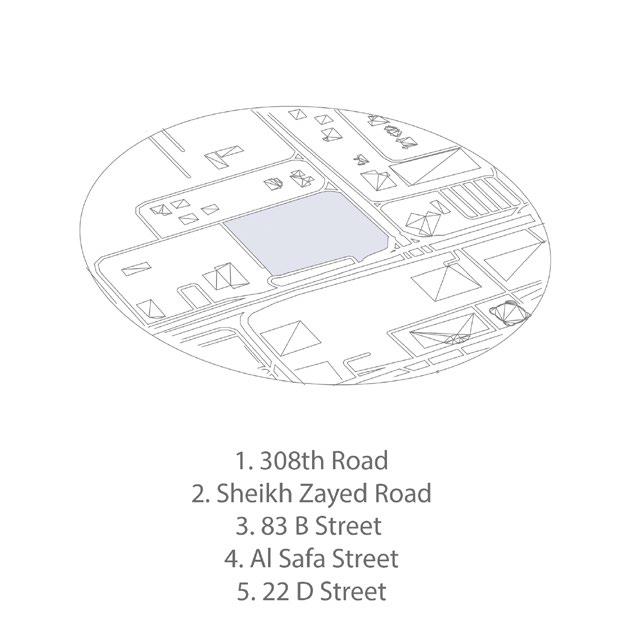

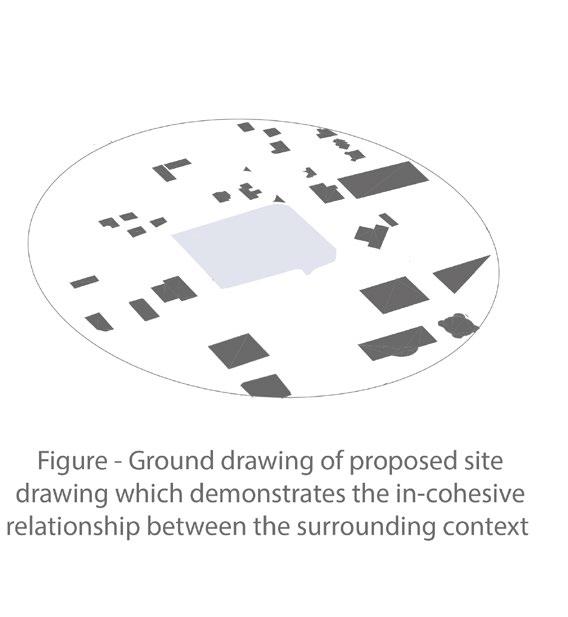

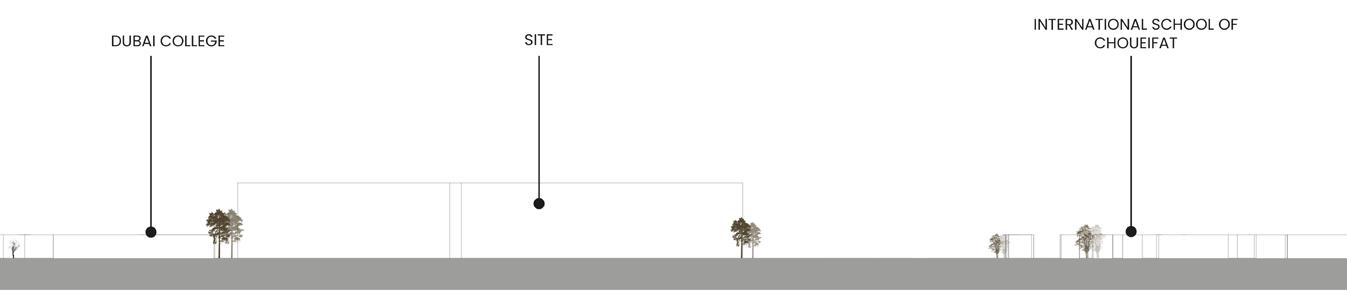

Site Photographs

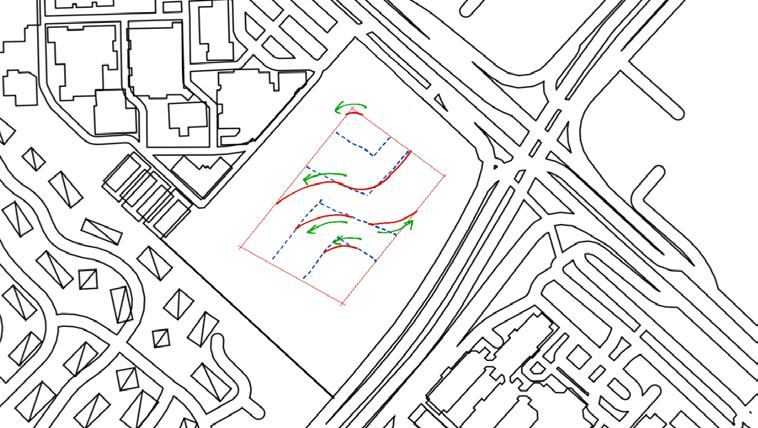

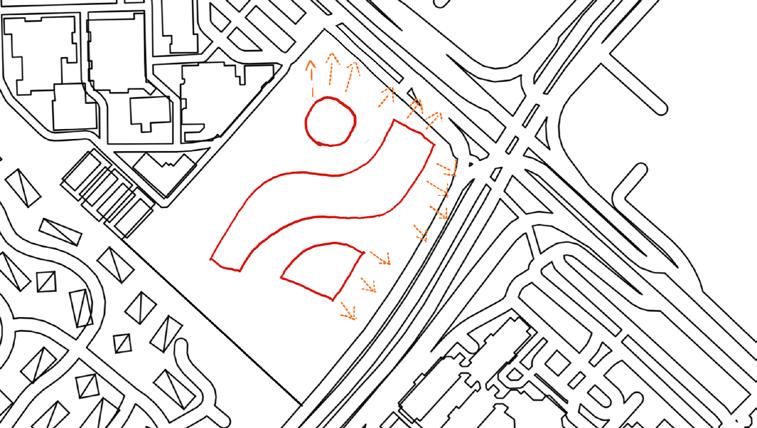

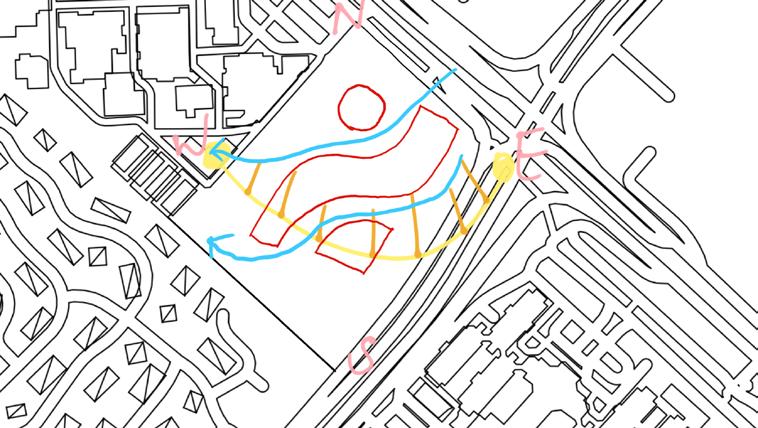

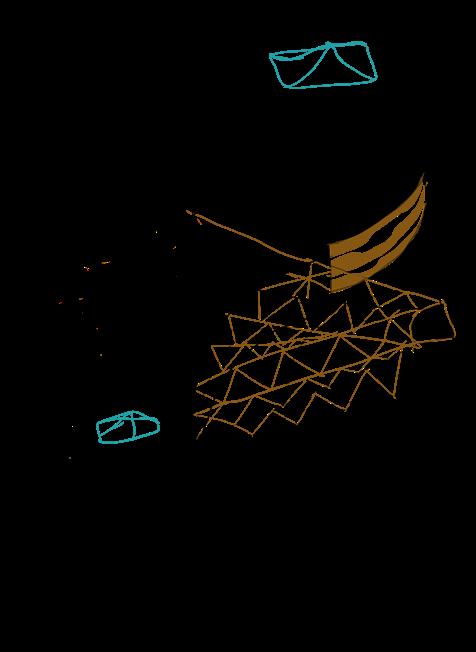

SKETCHES CONCEPT
2. Division of spaces according to functions.
1. Form
3. Filleting the edges
5. Final Result
6. Final View.
4. View and Climate

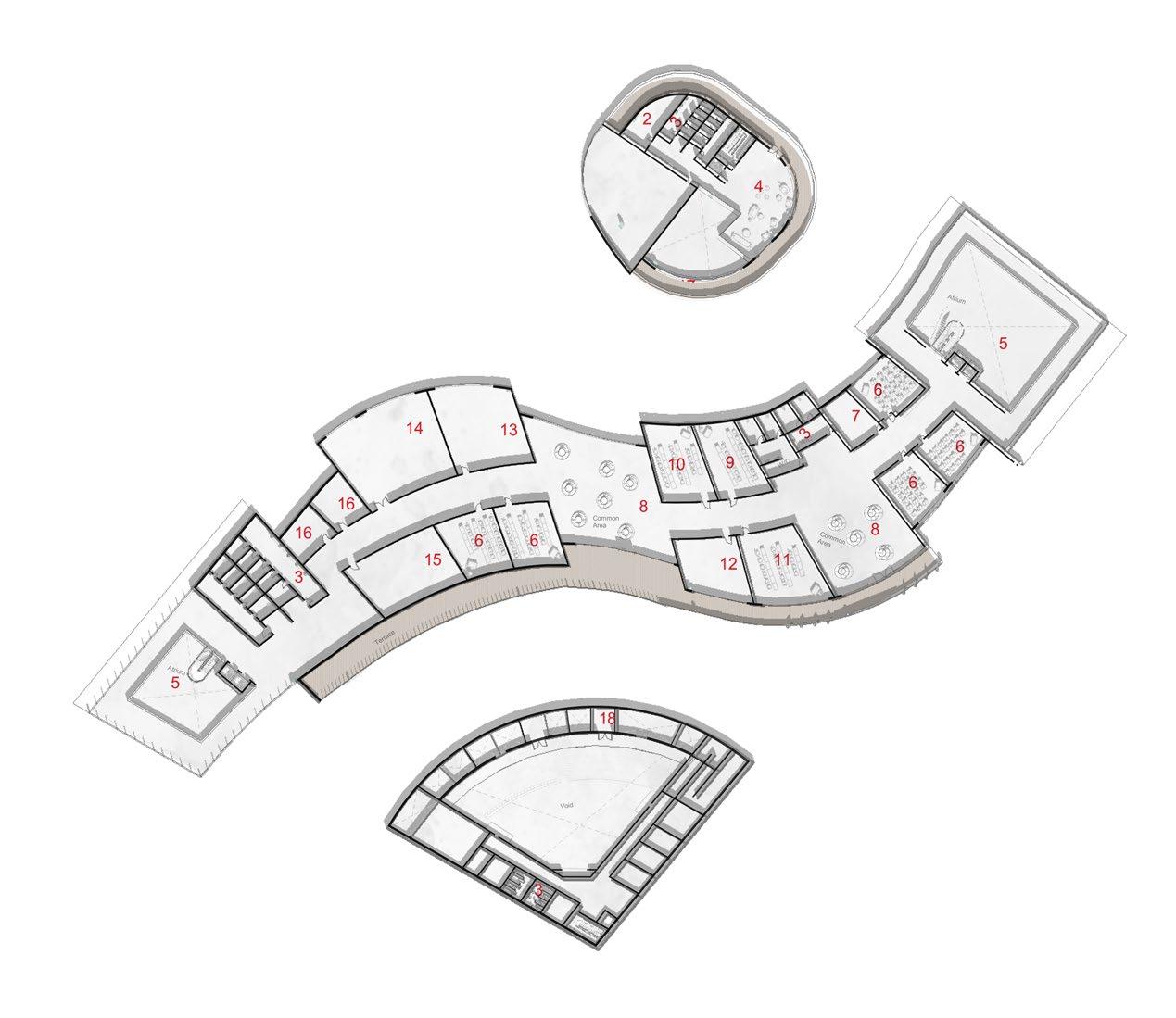

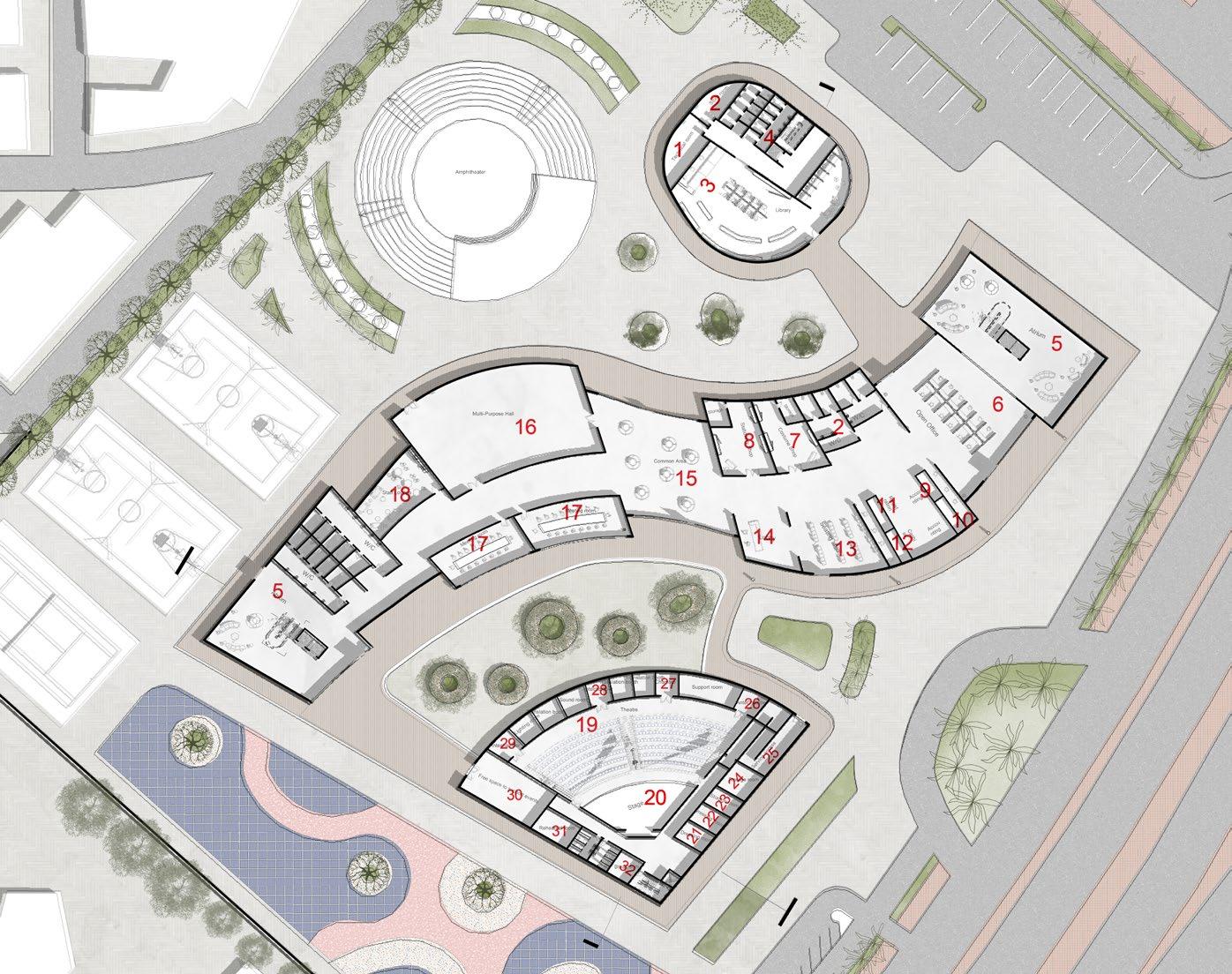

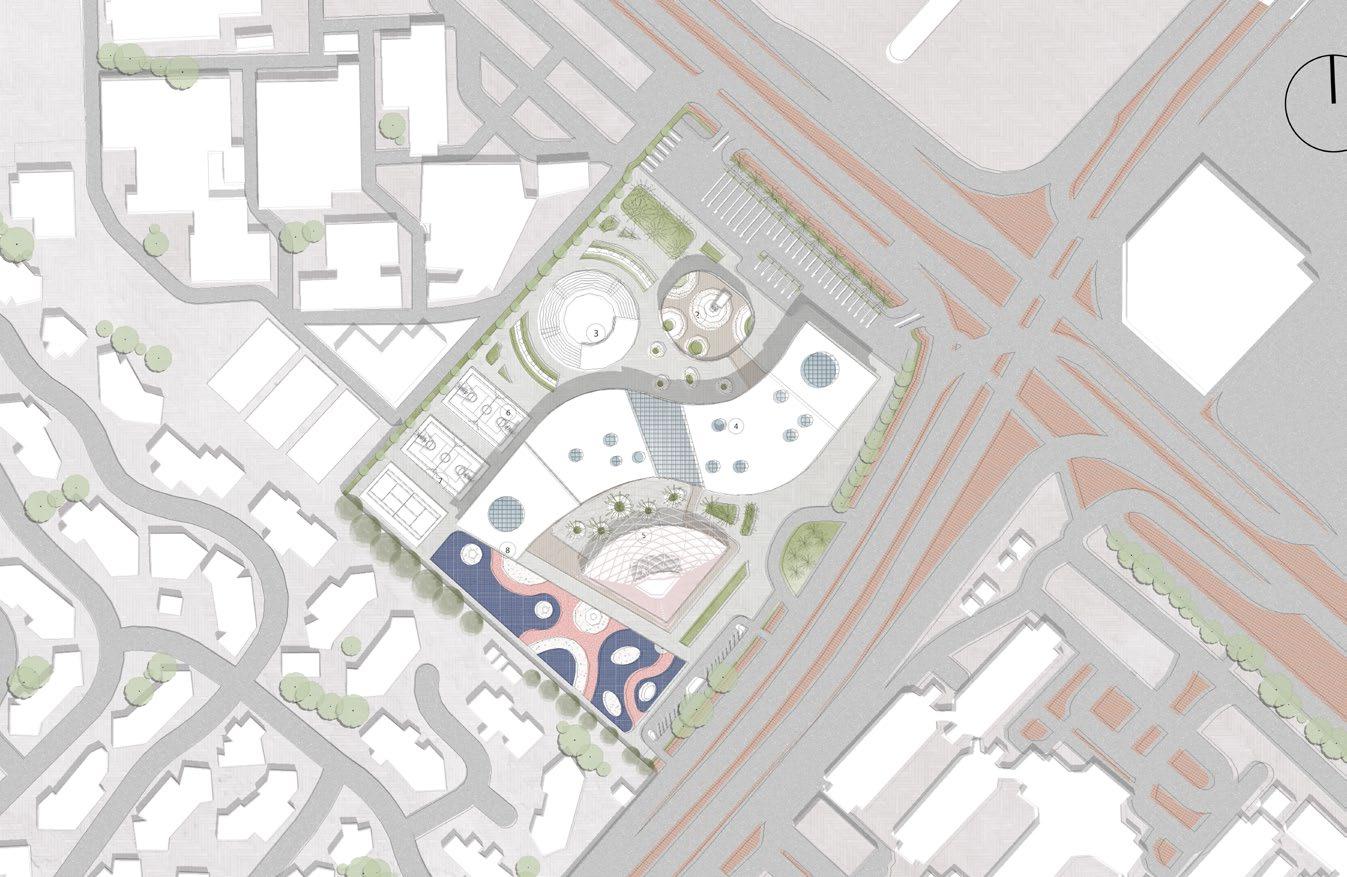

GROUND FLOOR
FIRST FLOOR

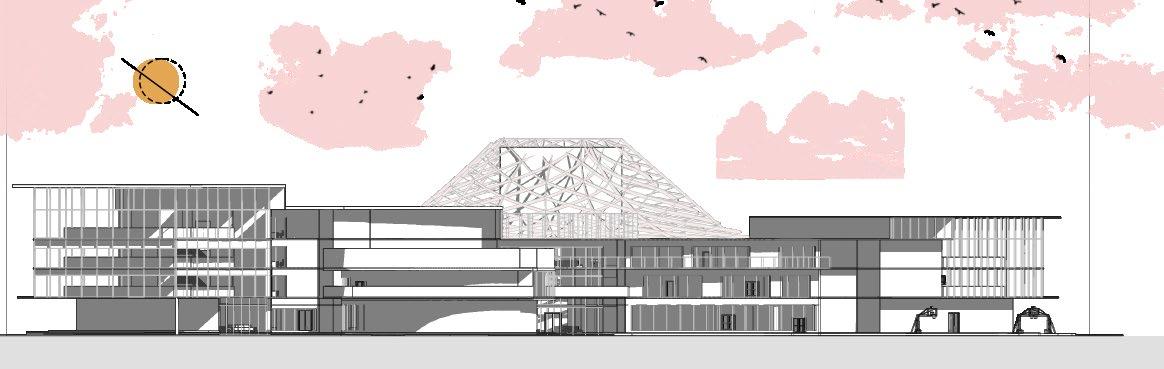

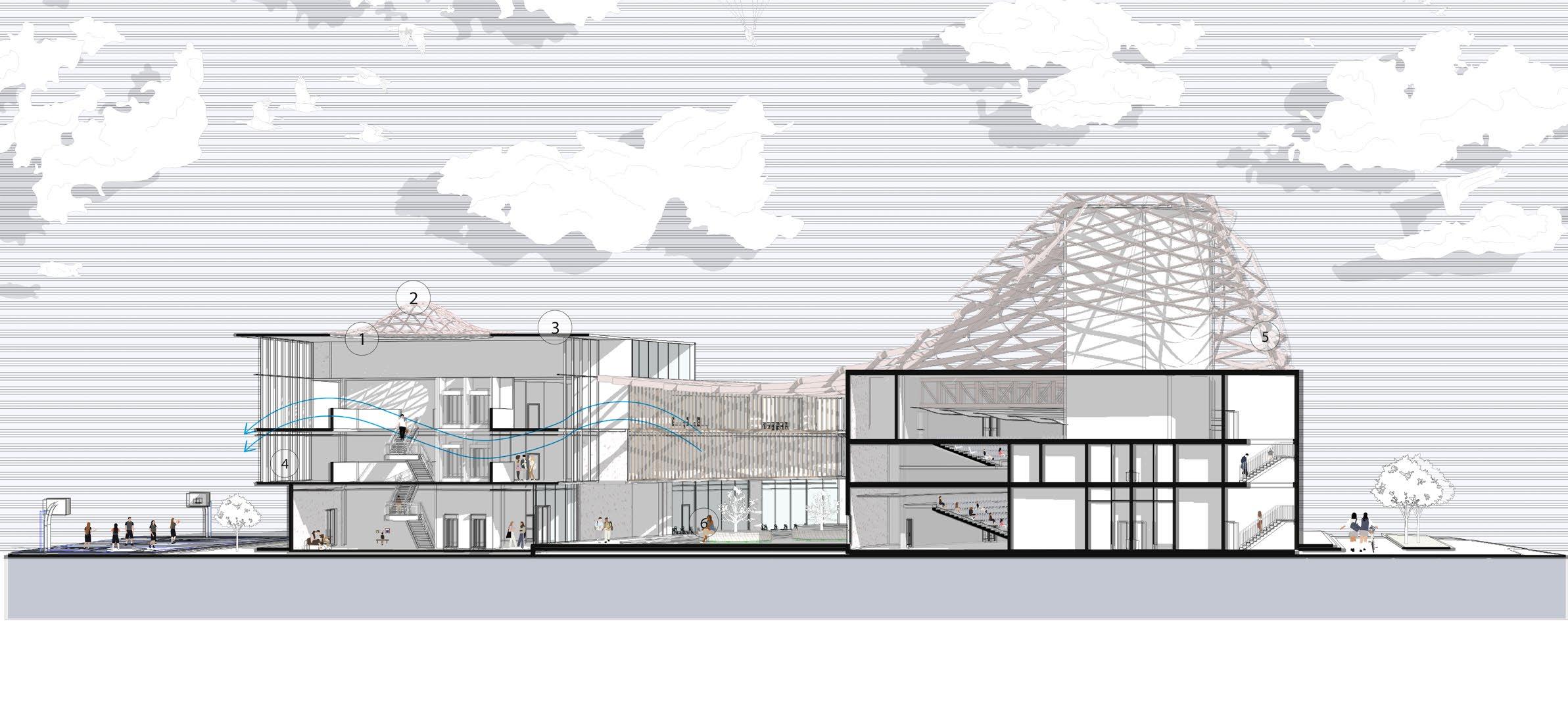

SECTIONAL PERSPECTIVE SECTION AA
1. Adding skylights to reduce the use of artificial light used during the day.
2. Shading device
3. The green roofs provide shade, remove heat from the air, and reduce tempatures of the roof surface and surrounding air.
4. The hot air comes out of the through the upper windows of the south facade.
5. Shading device for shading the court-yard.
6.Trees and thick vegetation produce shaded spaces and offset C02 emissions.

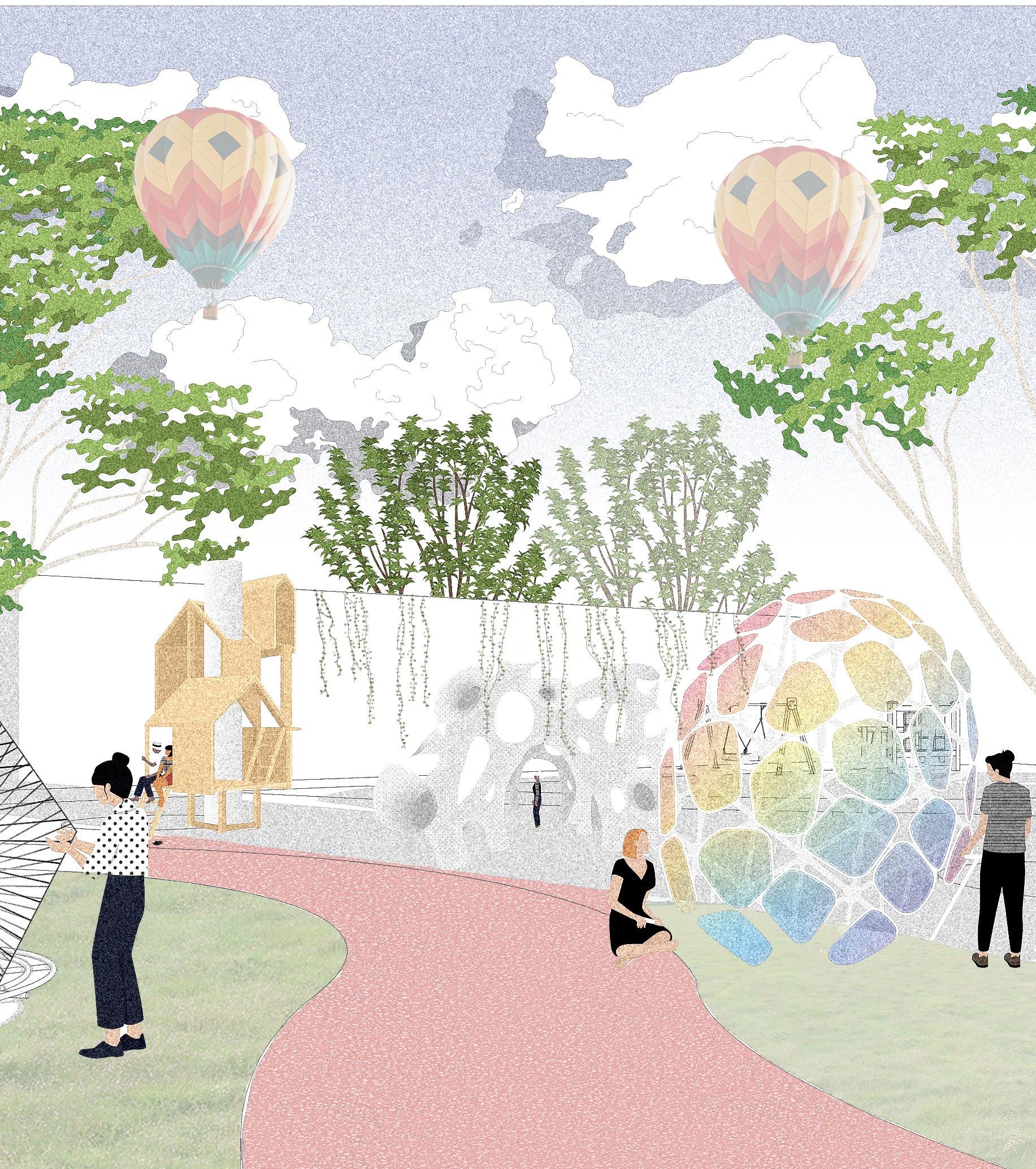

Towards the Playground

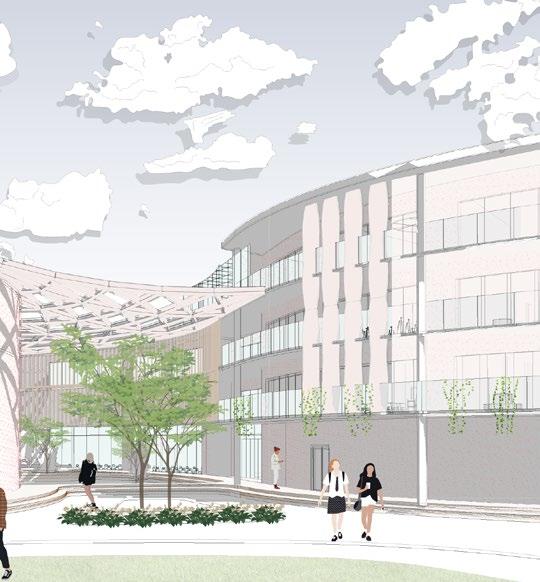

View of the courtyard

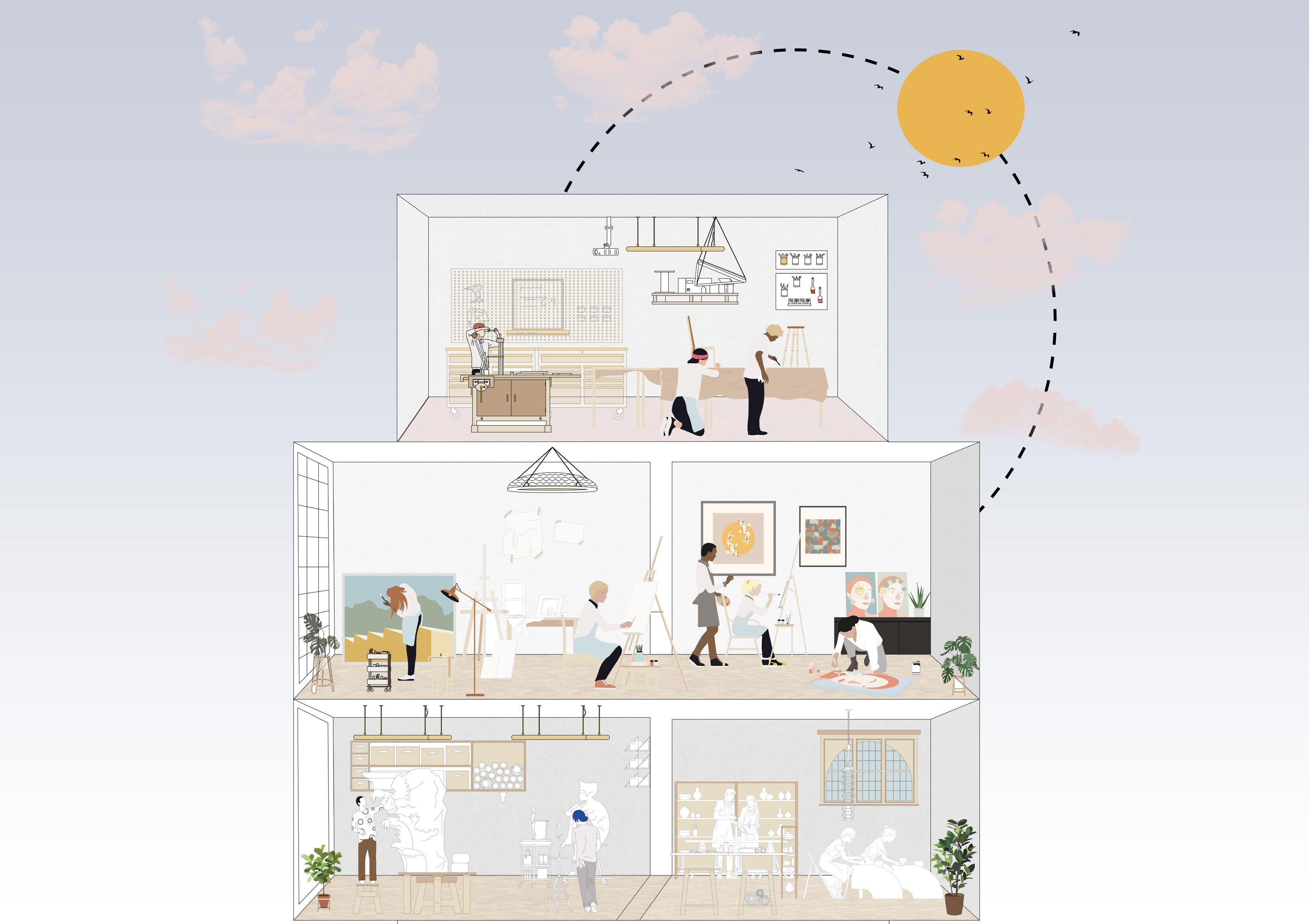

The isometric view of our fine art high school project offers a unique and comprehensive perspective. With this view, you can see the entire campus, including the main building, the outdoor theatre and the outdoor spaces. The three-dimensional representation highlights the interconnectivity of the different areas of the campus and showcases the artistic and architectural elements that make this school a truly inspiring place for young artists. The isometric view provides an accurate portrayal of the school’s layout and design, giving viewers a clear understanding of the project’s vision and potential impact.
ISOMETRIC VIEW
STORY BOARD
WOOD WORKSHOP ART STUDIO
SCULPTURE AND CERAMICS

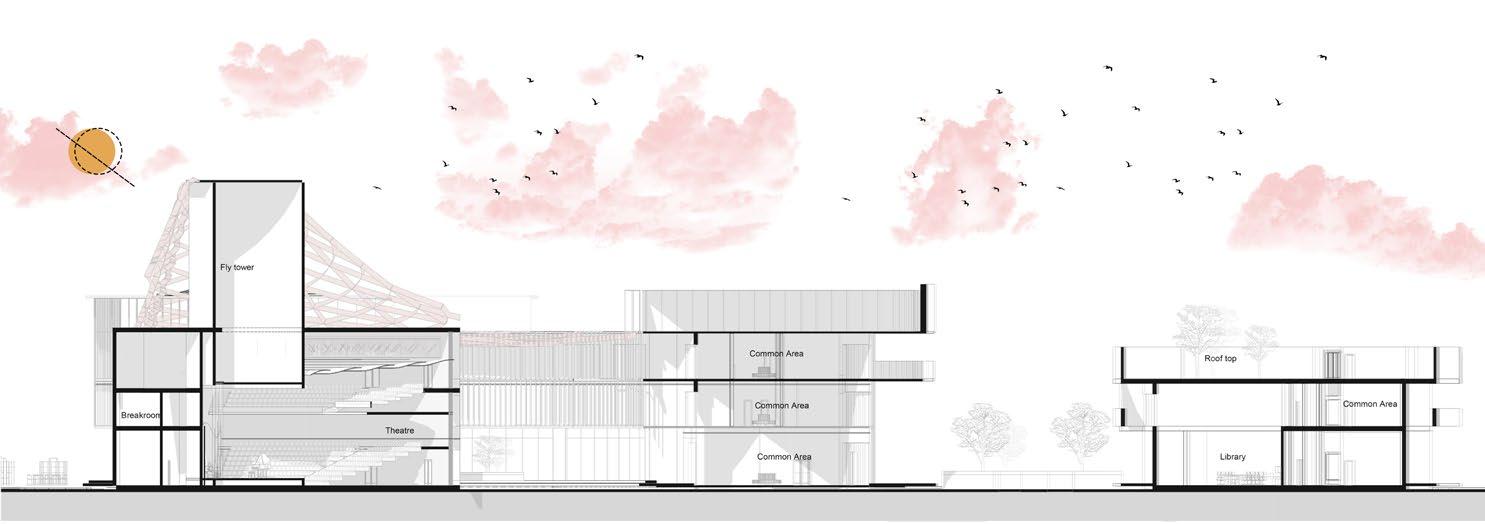

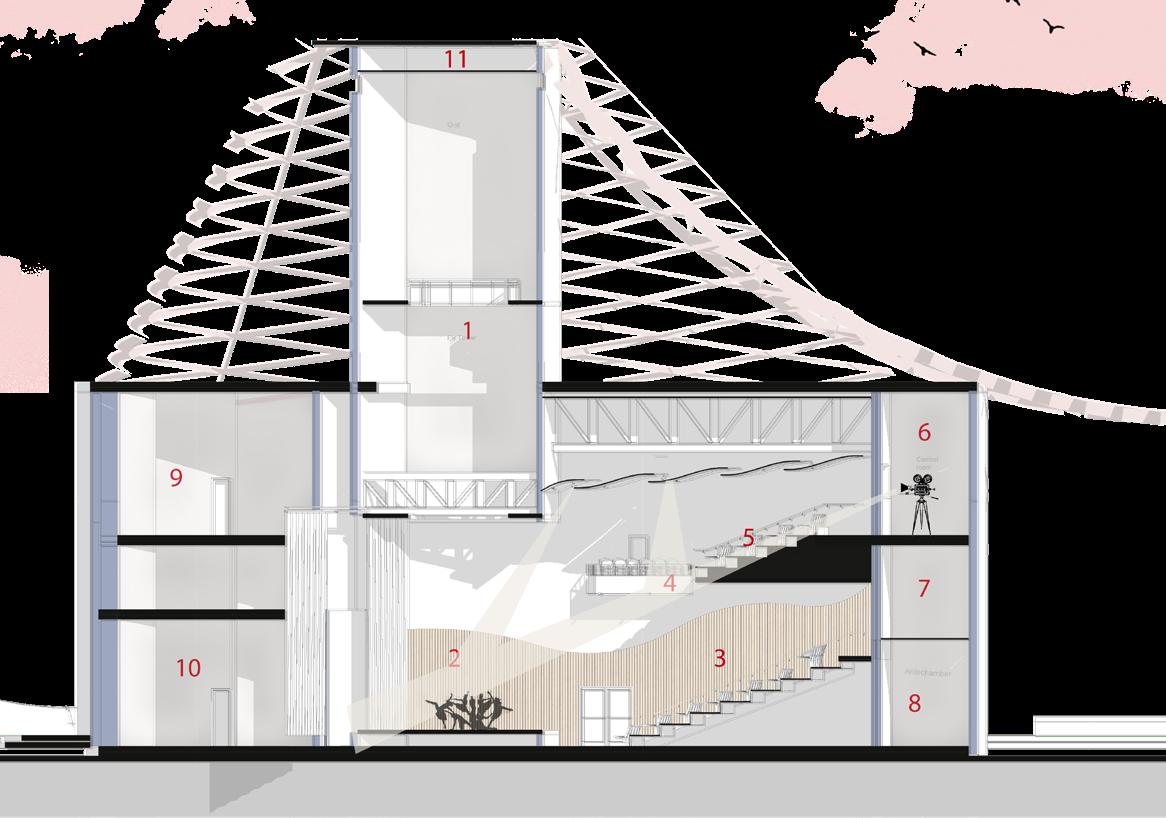

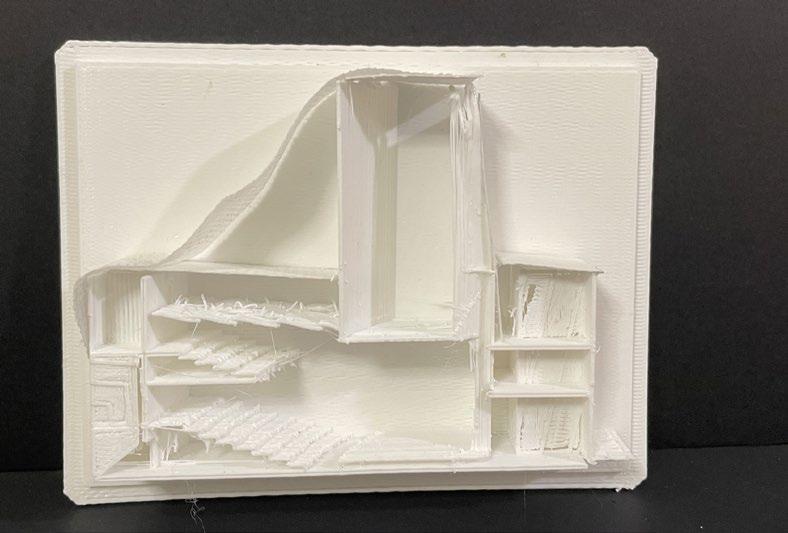

SECTION OF THE THEATRE

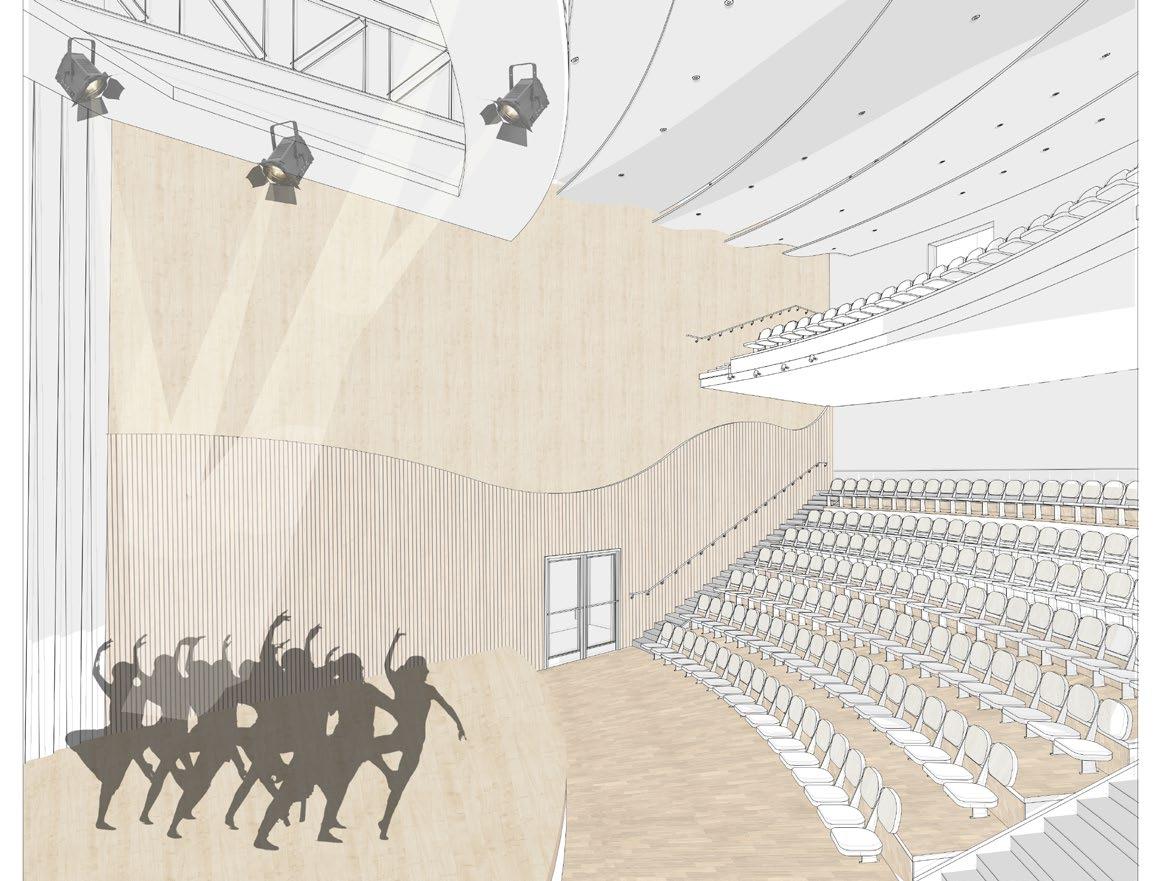

THEATRE VIEW
THEATRE CONSTRUCTION DETAIL
LEGEND
1. Conrete
2. Sand
3. Physical Material
4. Concrete
5. Air
6. Plywood , Sheathing grade
7. Insulation
8. Gypsum Wall Board
9. Structural framing 127x76x13UB
10.Track light
11. Profile 50/50/2 Painted Black (In Central Circula -
12. Fixing Screw
13. Concrete
14. Air
15. Insulation
16. Piece of Pine wood 12%
Humidity 45 x 45 mm.
17. Steel Profile Beam A-37-24-Es Rectangular 200/50/4.
18. Air Conditioning Inlet Van 30 mm.
19. Sam-Foam Sound Insulation
20. Structural Interiate
Plywood , Sheath grade
Insulation
Gypsum Wall Board
Structural framing
02 HOUSING IN THE CITY
8TH SEMESTER: Mixed-Use , Mixed income Housing
ARCH 462 I Housing Studio
Location: Al Satwa , Dubai.
Instructor: Dr Eyyad Ahmed Al-Khalaileh
Software: Revit , Autocad
INTRODUCTION
The proposed concept of this project is Linkage. The design concept revolves around the idea of creating connections between the buildings and developments as well as the surrounding area. To make the links work there needs to be connection between the open spaces as well as a clear and well-dened axis. This project also aims to create a post pandemic haven that puts the residents welfare on the forefront. The public realm of this area is conceived as a series of linked courtyards. This will create a series of sheltered spaces of different character.
LINKED OPEN SPACES
The open spaces are designed in such away that privacy is assured. The apartment buildings provide shade. The conguration of the open spaces maximises the amount of property as well as allowing views into the neighbourhood. The courtyard of each apartment is connecting to the public park in the middle of the site. The courtyard area would include water features, sitting areas, greenery to serve as shading. The final design decided upon shows the townhouses located in the same area throughout the process, we felt this was fitting as it created a seamless transition from the villas right behind the site. The walkway was scrapped as it made the context impermeable and could result in privacy issues. The concept of linkage was maintained by each individual building and the connections they form within themselves and thus, the inhabitants of the proposed building.

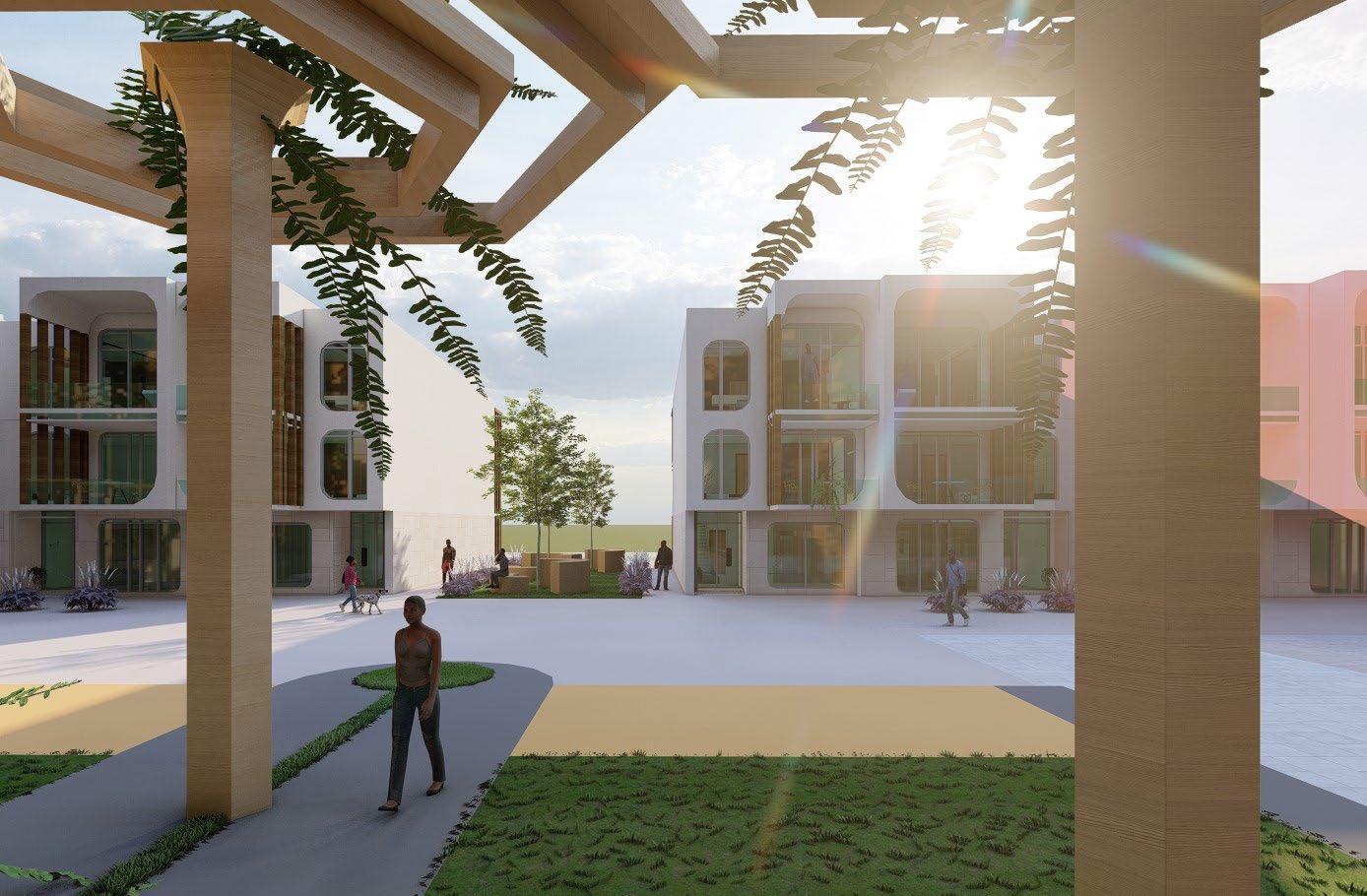

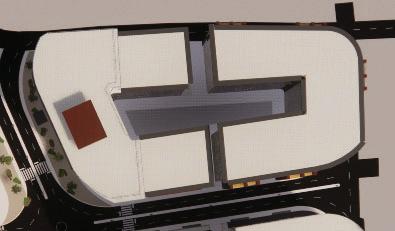

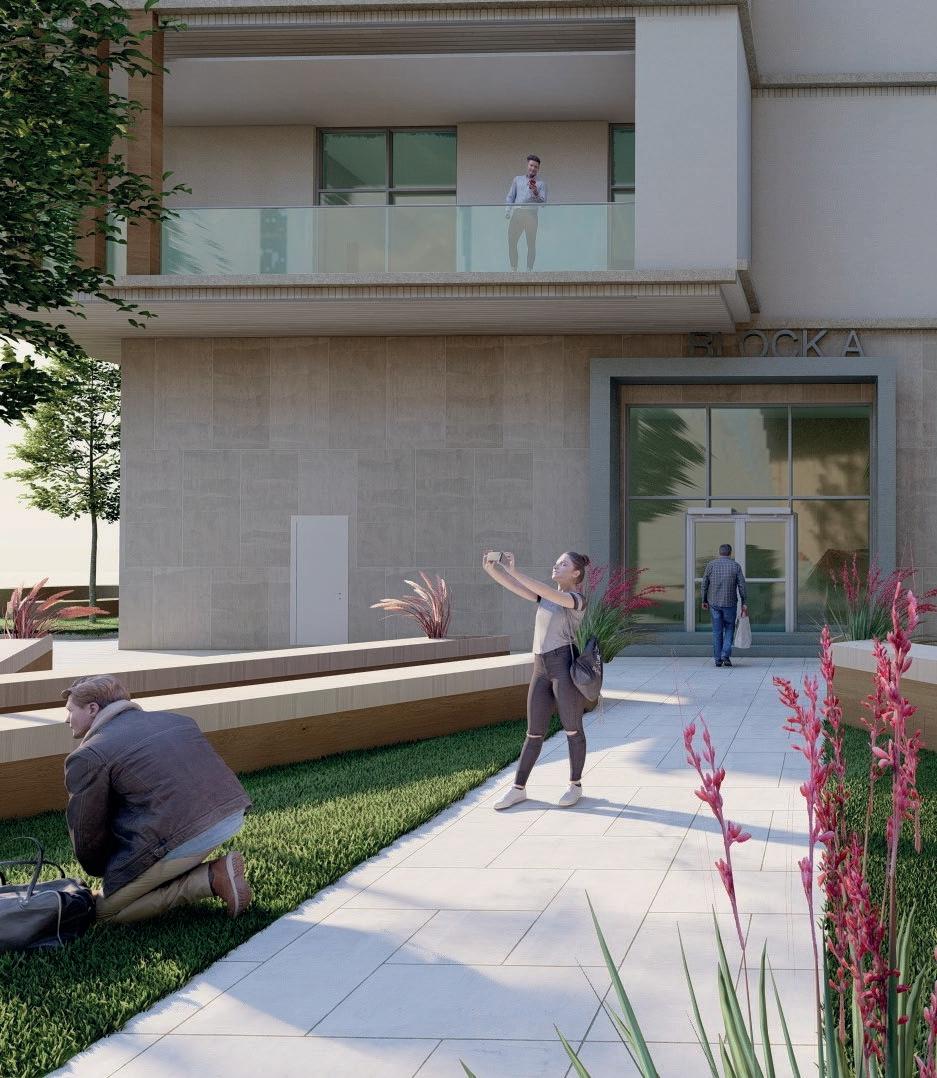

MAIN PERSPECTIVE

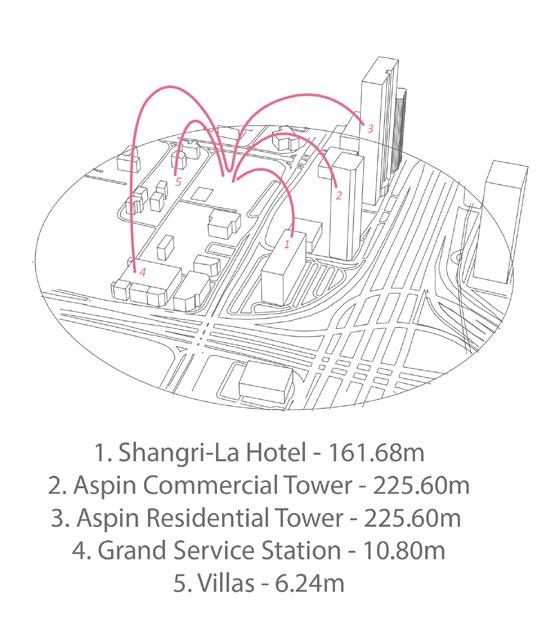

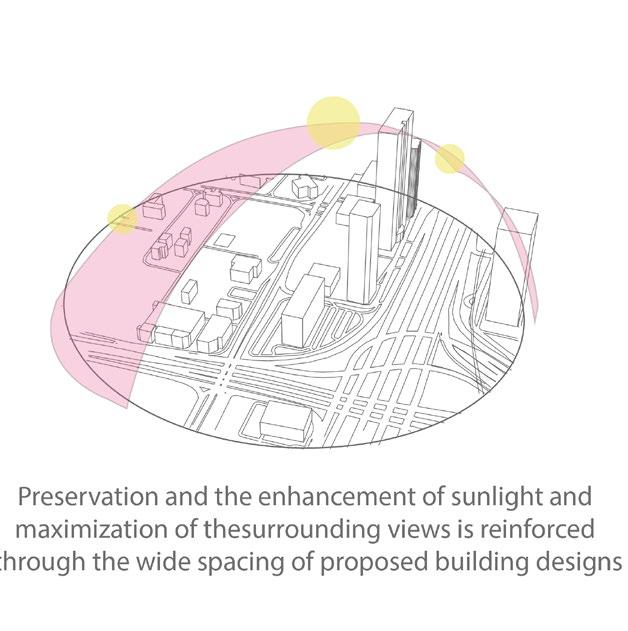

CONCEPT DIAGRAM

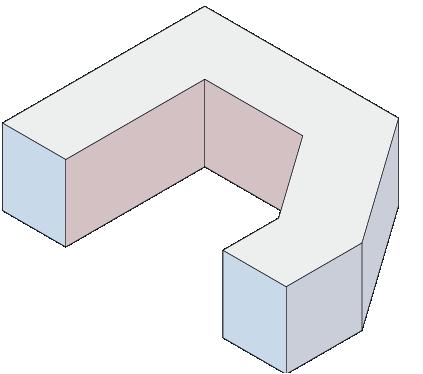

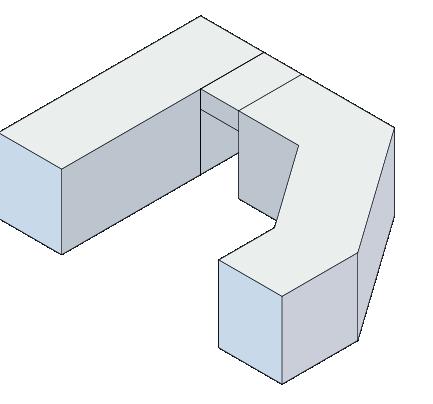

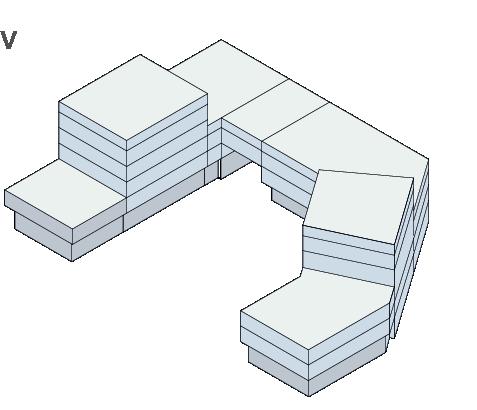

VOLUME RELATIONSHIP
VOLUME RELATIONSHIP
VOLUME RELATIONSHIP
VOLUME RELATIONSHIP
VOLUME RELATIONSHIP

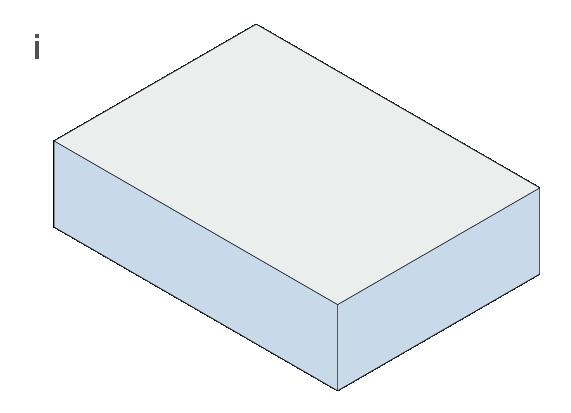

It starts as o a whole block. The volume relationship is directly related to the intention of maximizing views and privacy for the residents.
1. It starts as off a whole block. The volume relationship is directly related to the intention of maximizing views and privacy for the residents.
as o a whole block. The relationship is directly related to intention of maximizing views and for the residents.
v starts as o a whole block. The volume relationship is directly related to intention of maximizing views and privacy for the residents.
starts as o a whole block. The volume relationship is directly related to intention of maximizing views and privacy for the residents.
A volume is removed to create a courtyard and green area. This area has many functions including seating and also has a water feature. This outline is made in a way to optimise the site and the green spaces. This shape is also in a way that optimizes the sunlight and the wind direction.
iv starts as o a whole block. The volume relationship is directly related to the intention of maximizing views and privacy for the residents.
2. The outline is made in a way to optimise the site and the green spaces. The shape is also in a way that optimises sunlight and the wind direction.
iv v as o a whole block. The relationship is directly related to intention of maximizing views and for the residents.
iv v
This outline is made in a way to optimise the site and the green spaces. This shape is also in a way that optimizes the sunlight and the wind direction.
This outline is made in a way to optimise the site and the green spaces. This shape is also in a way that optimizes the sunlight and the wind direction.
This outline is made in a way to optimise the site and the green spaces. This shape is also in a way that optimizes the sunlight and the wind direction.
This outline is made in a way to optimise the site and the green spaces. This shape is also in a way that optimizes the sunlight and the wind direction.
is the rst look at what the buildoutline looks like but there is a the elevation for aesthetical and function purposes.
4. This is the first look at what the building outline looks like but there is a play the elevation for aesthetical and function purposes.
This is the rst look at what the building outline looks like but there is a play the elevation for aesthetical and function purposes.
5. This is the first look at what the building outline looks like but there is a play the elevation for aesthetical and function purposes.
A volume is removed to create a courtyard and green area. This area has many functions including seating and also has a water feature.
A volume is removed to create a courtyard and green area. This area has many functions including seating and also has a water feature.
A volume is removed to create a courtyard and green area. This area has many functions including seating and also has a water feature.
A volume is removed to create a courtyard and green area. This area has many functions including seating and also has a water feature.
3. A volume is removed to create a courtyard and green area. This area has many functions including seating and also has a water feature.
A volume is removed to create a courtyard and green area. This area has many functions including seating and also has a water feature.
the rst look at what the buildoutline looks like but there is a elevation for aesthetical and purposes. The two buildings are separate but linked together to outline the idea of linkage. The nal structure of the building. A U-shaped type of building is achieved.
The two buildings are separate but linked together to outline the idea of linkage.
The two buildings are separate but linked together to outline the idea of linkage.
6. The final structure of the building. A U-shaped type of building is achieved.
is the rst look at what the buildoutline looks like but there is a play the elevation for aesthetical and function purposes.
This outline is made in a way to optimise the site and the green spaces. This shape is also in a way that optimizes the sunlight and the wind direction. the rst look at what the buildoutline looks like but there is a elevation for aesthetical and The two buildings are separate The nal structure of the
The two buildings are separate but linked together to outline the idea of
The nal structure of the building. A U-shaped type of building is achieved.
is the rst look at what the buildoutline looks like but there is a the elevation for aesthetical and The two buildings are separate The nal structure of the
The nal structure of the building. A U-shaped type of building is achieved.
The nal structure of the building. A U-shaped type of building is achieved.

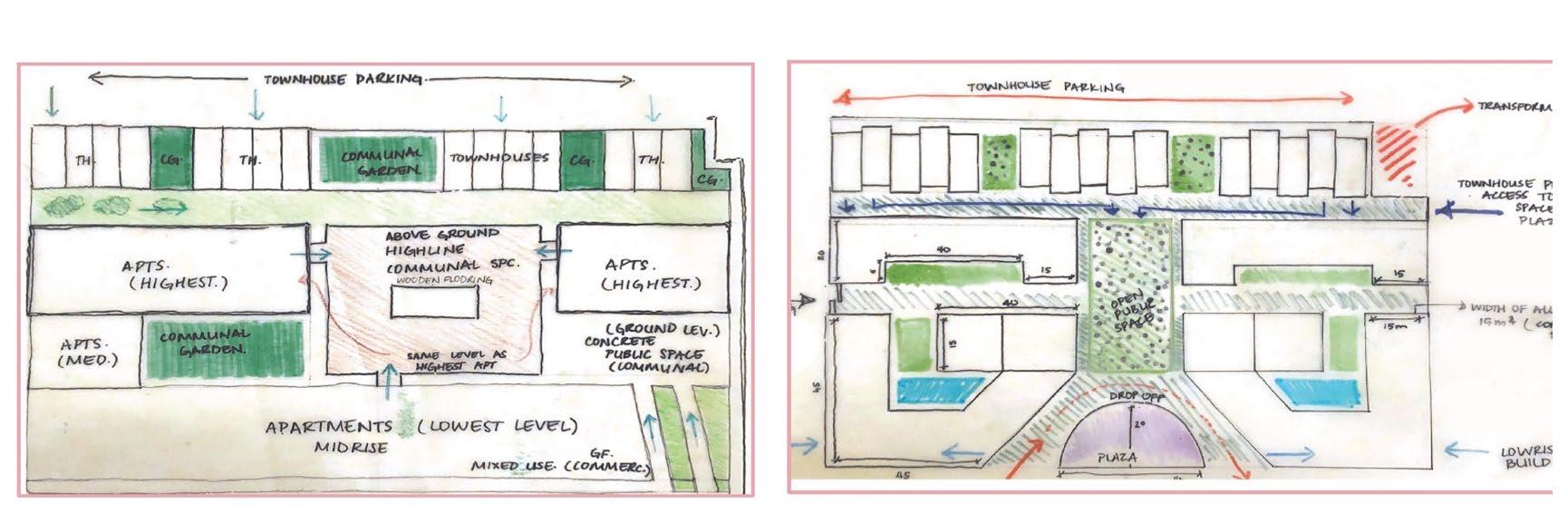

CONCEPTUAL SKETCHES

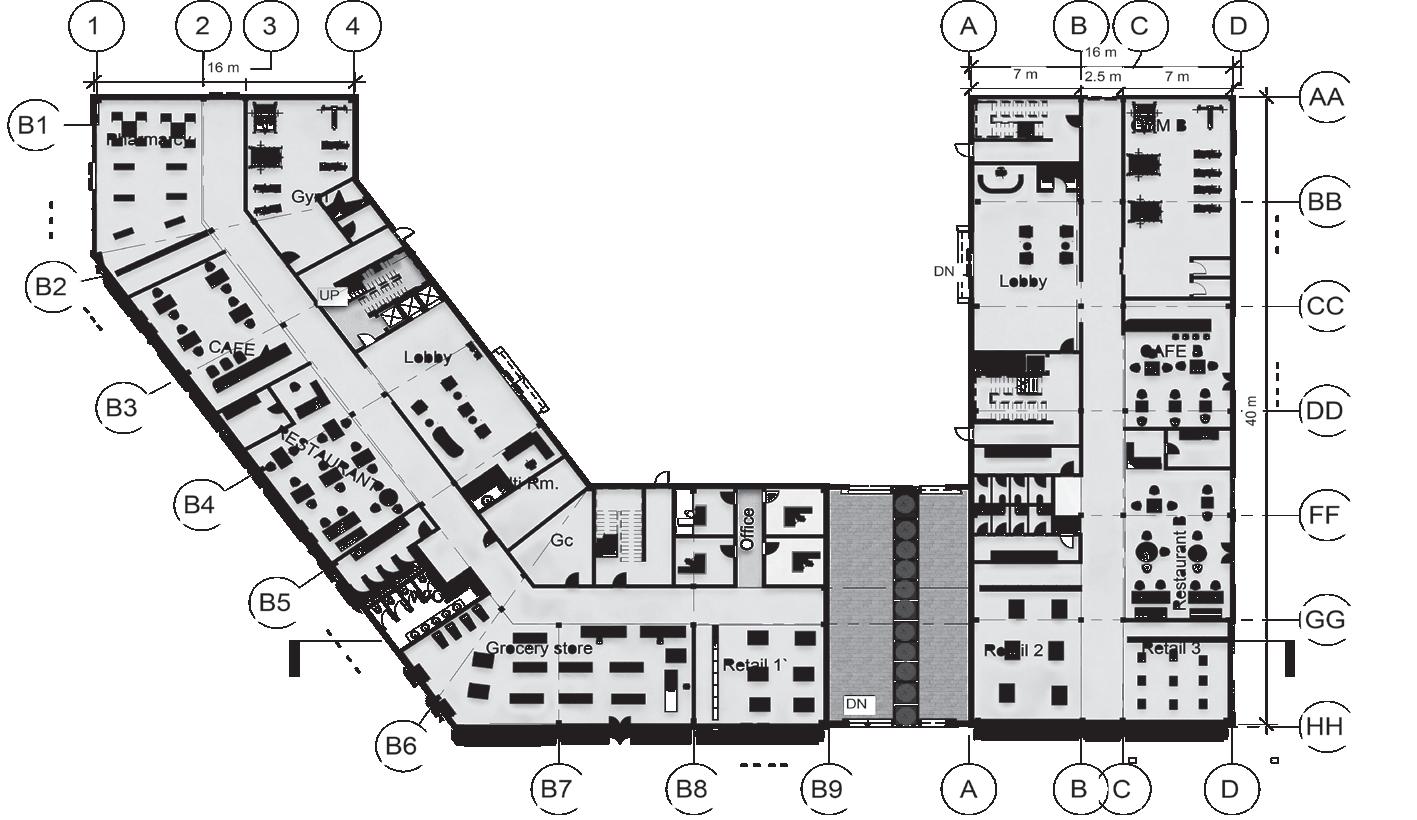

GROUND FLOOR

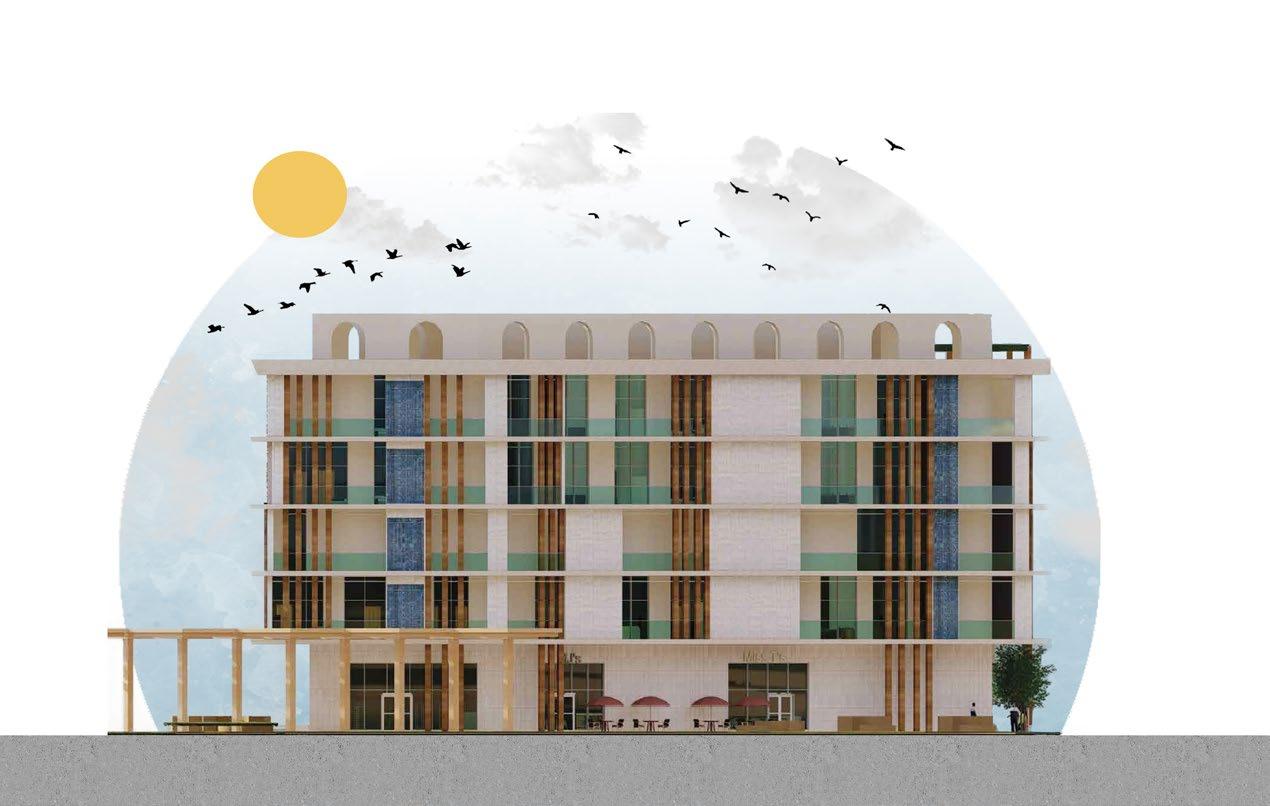

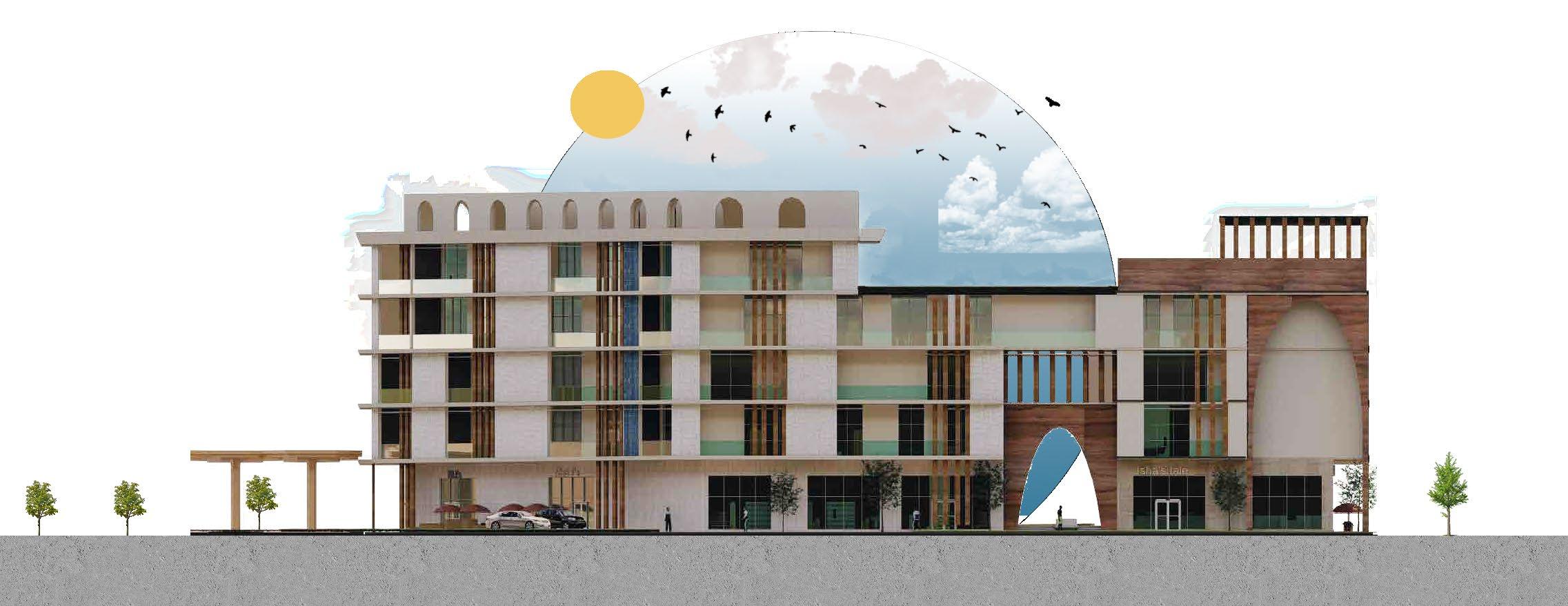

SOUTH ELEVATION

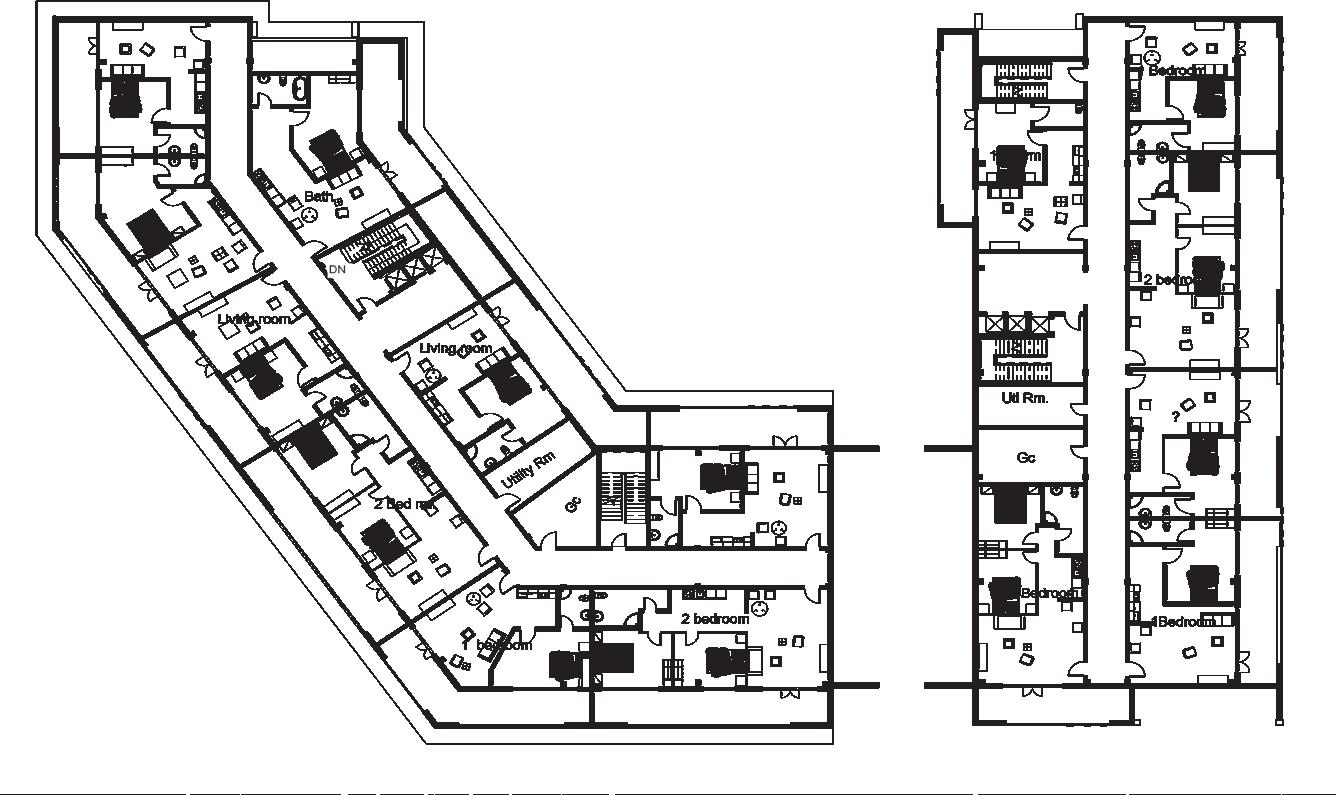

FIRST-SECOND FLOOR
EAST ELEVATION

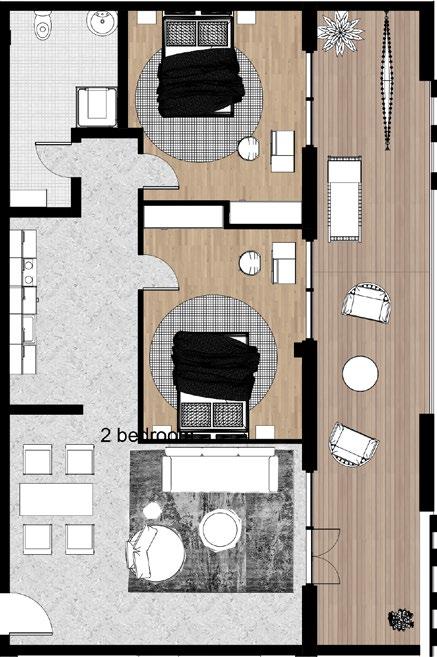

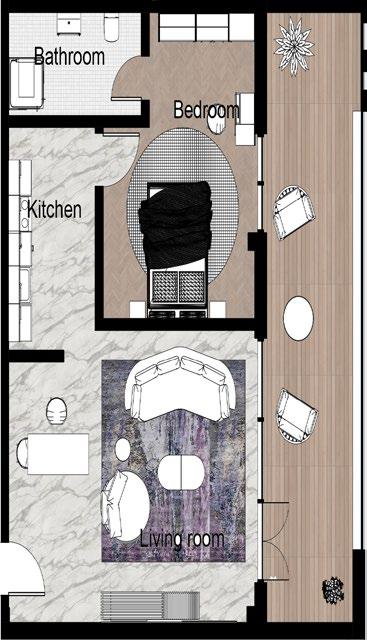

ONE BEDROOM-UNIT TWO BEDROOM UNIT

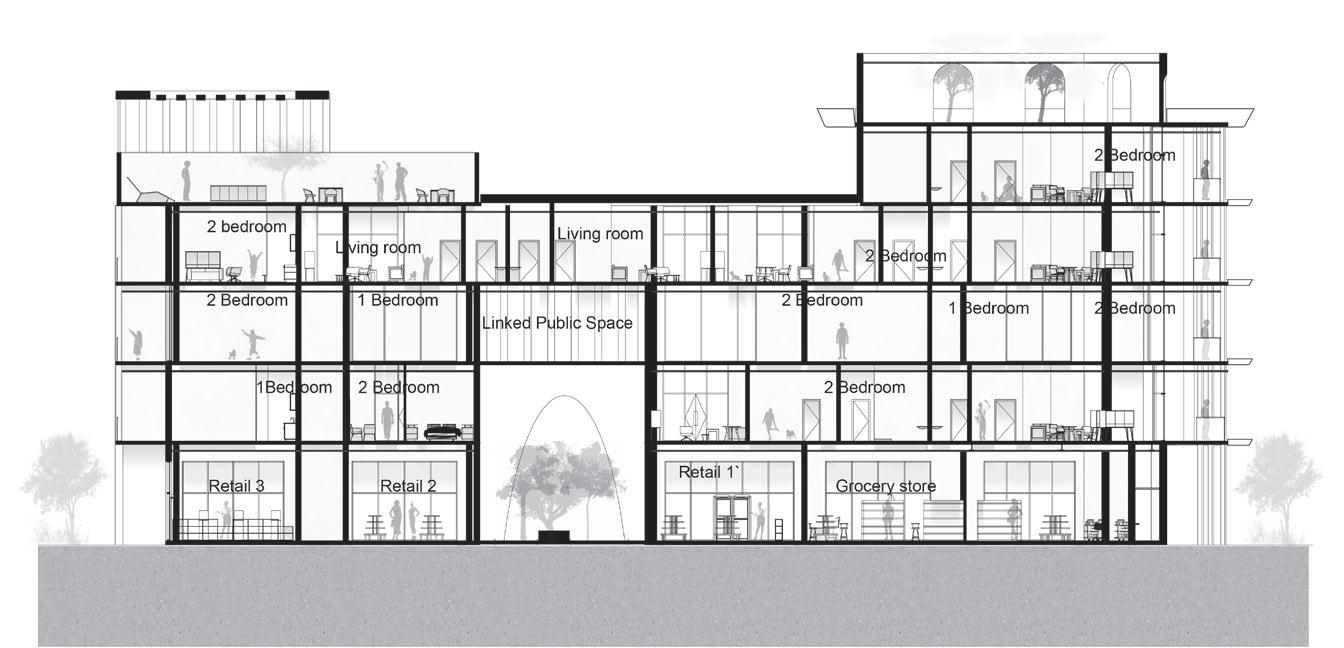

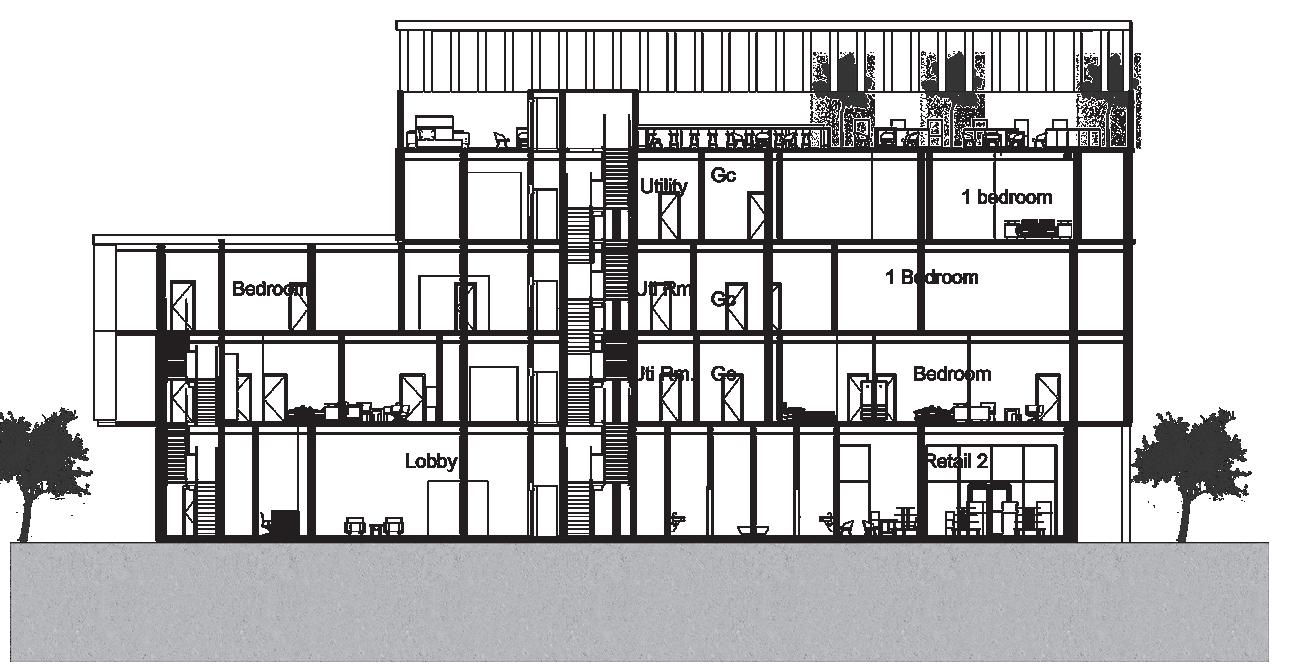

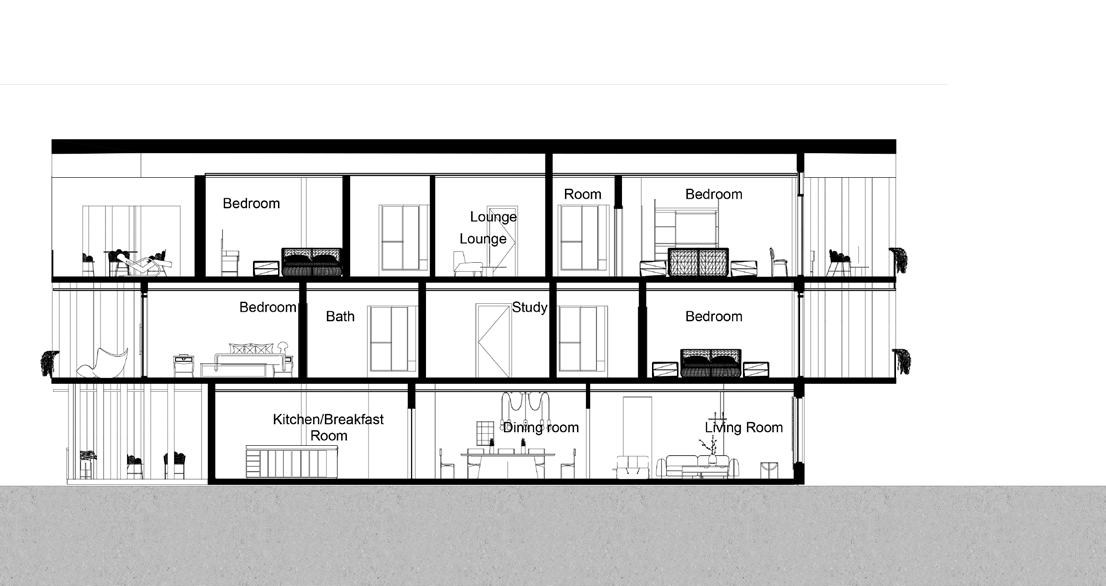

SECTION AA
SECTION BB
VIEW OF THE LIVING ROOM
TWNHSE GROUND FLOOR
TWNHSE FIRST FLOOR
SECTION AA SOUTH ELEVATION
VIEW TOWARDS THE TOWNHOUSES

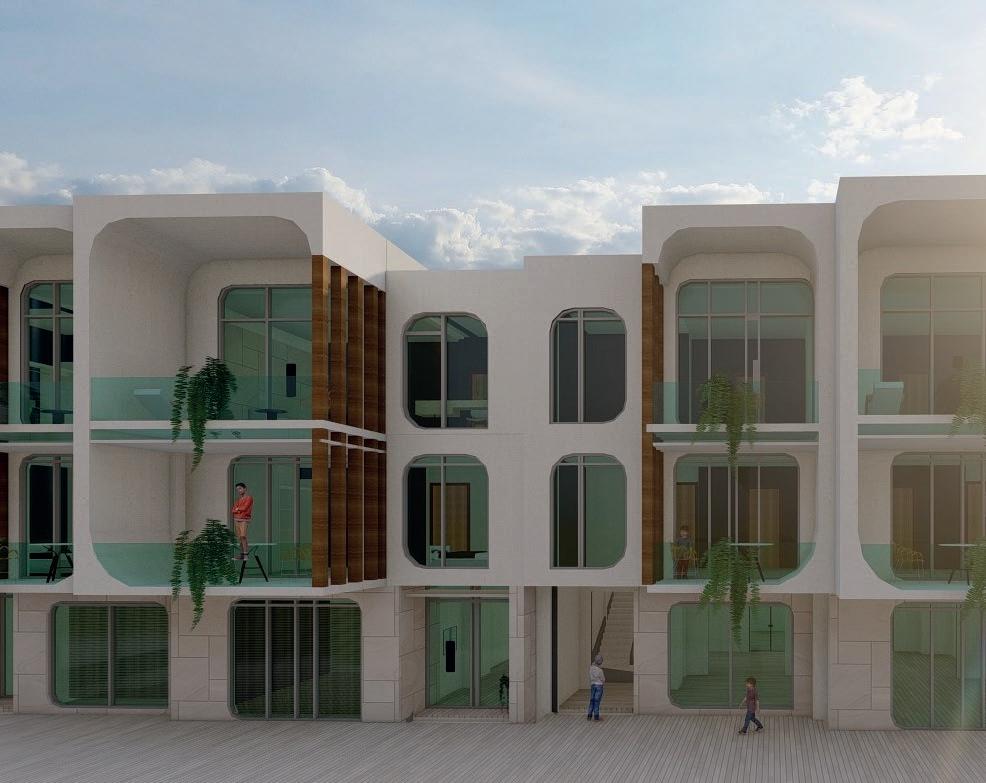

VIEW OF THE TOWNHOUSES

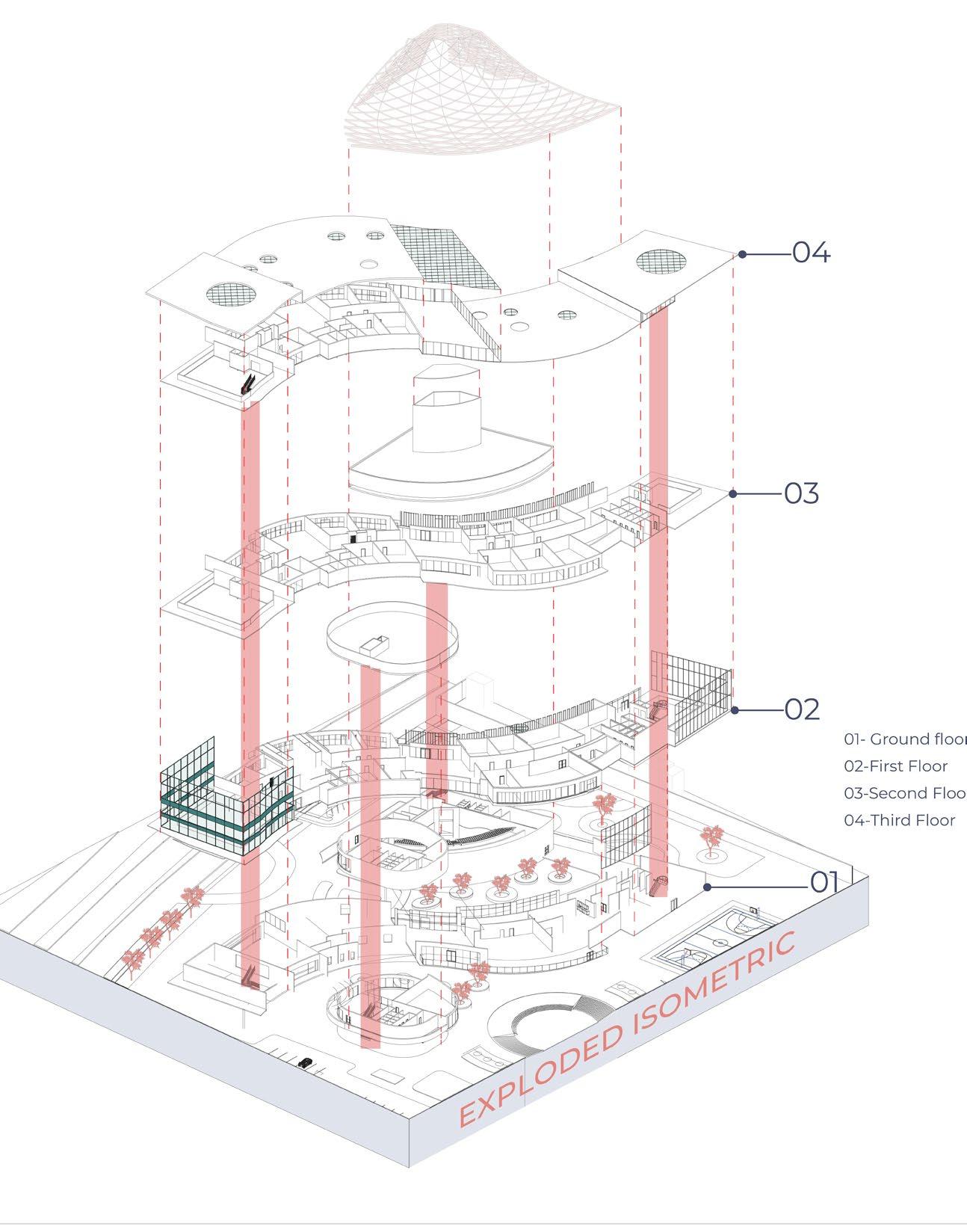

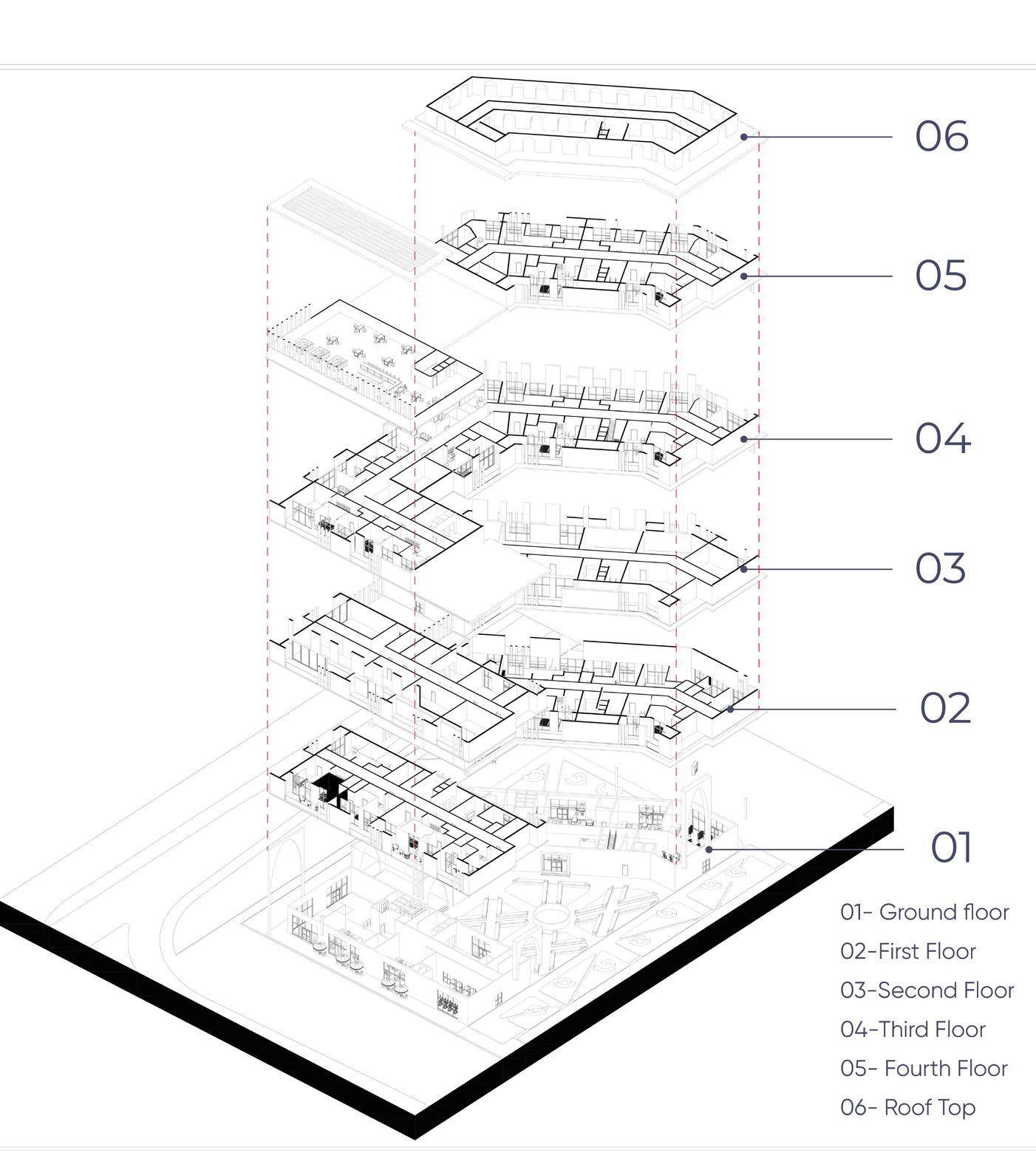

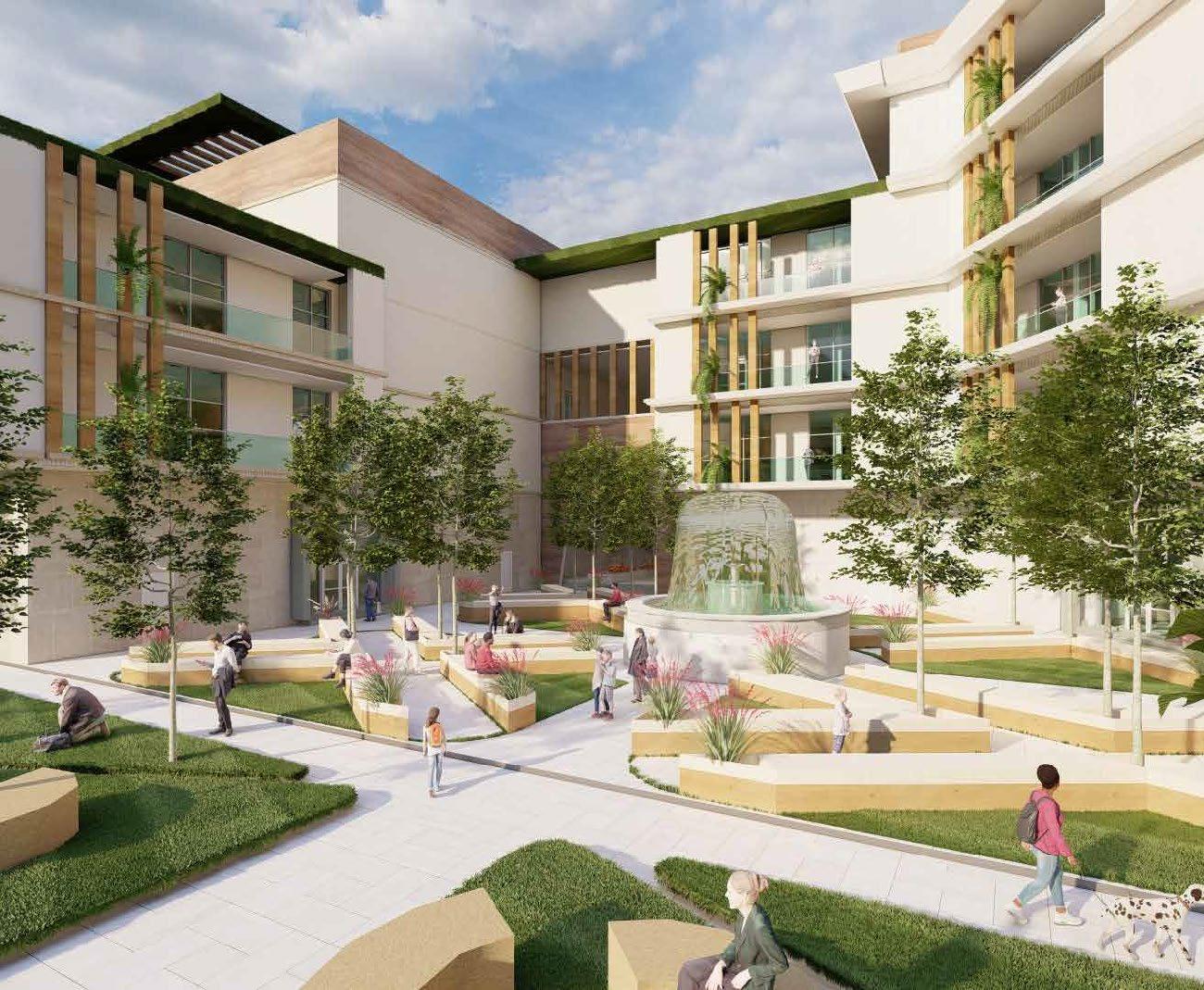

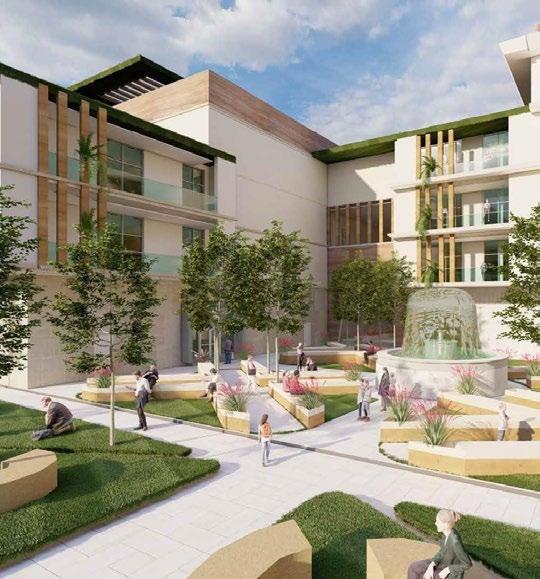

VIEW OF THE courtyard EXPLODED AXONOMETRIC
03 AL SABKHA: URBAN STUDY
9TH SEMESTER
ARCH 540I Urban Study
Location: Al Sabkha, Bur Dubai.
RE-DESIGNING AL SABKHA

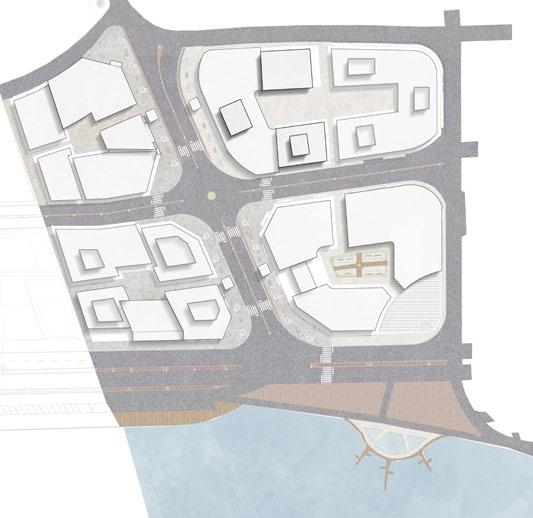

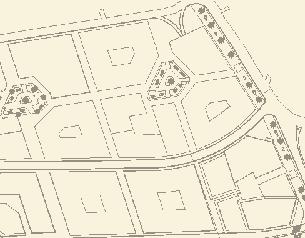

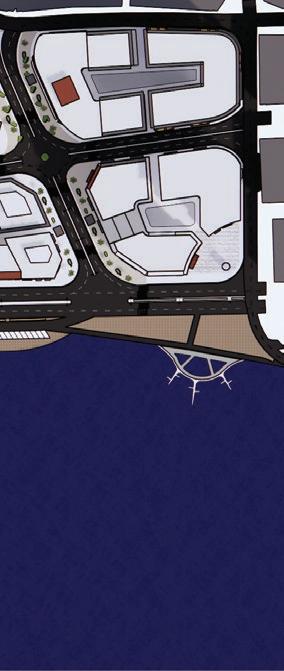

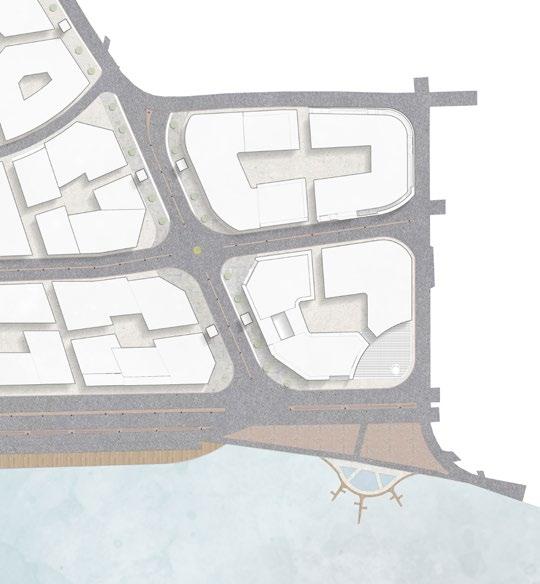

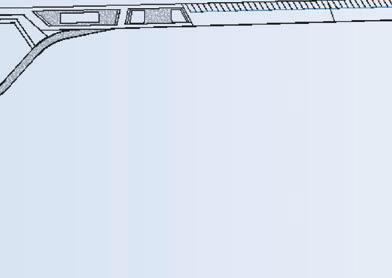

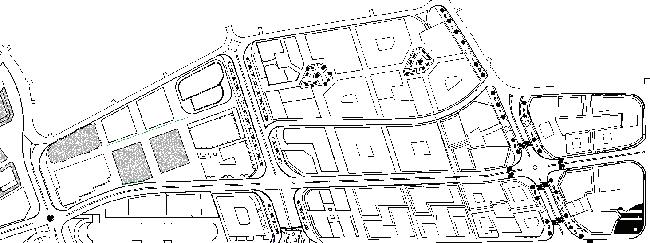

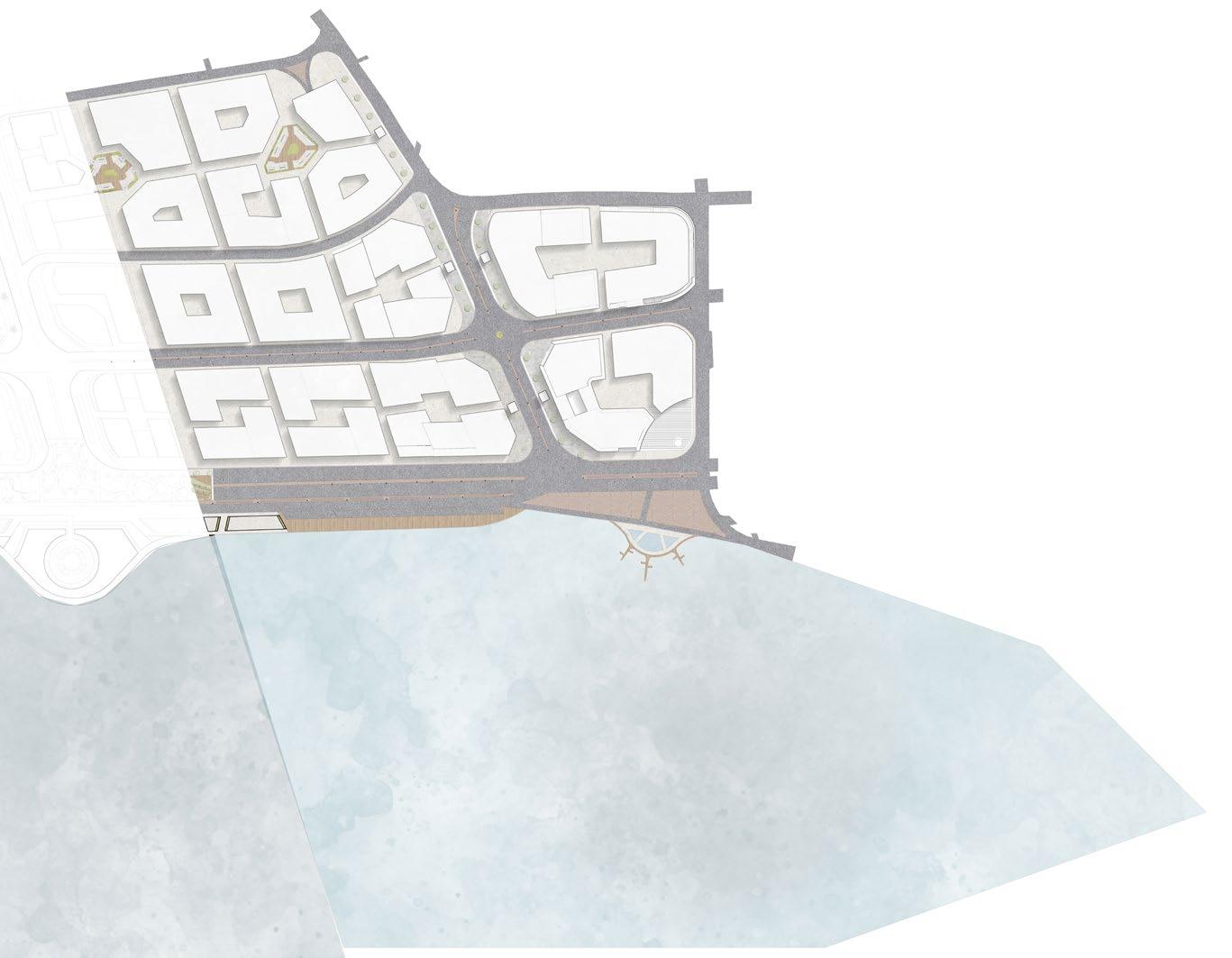

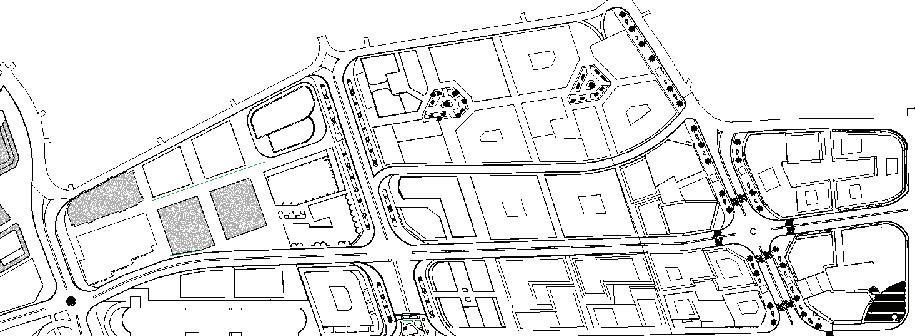

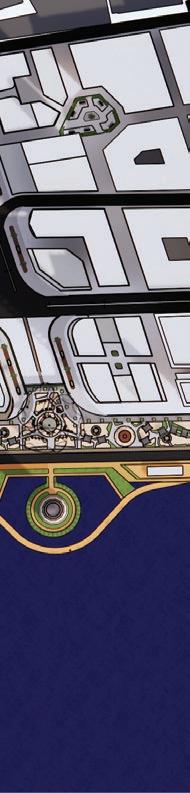

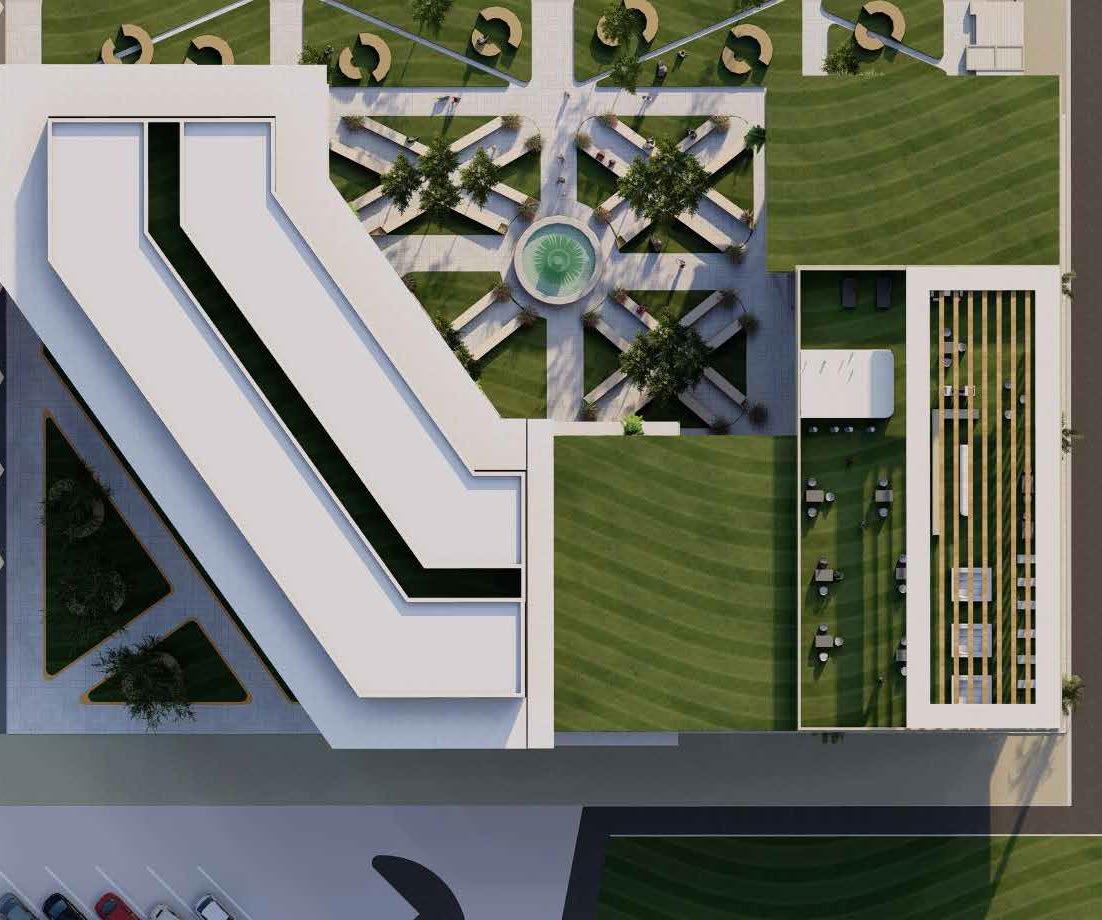

MASTERPLAN
Instructor: Dr Hamoud Dekkiche
SCALE 1:2000
Software: Revit , Autocad, Enscape, Lumion
VISION DECK

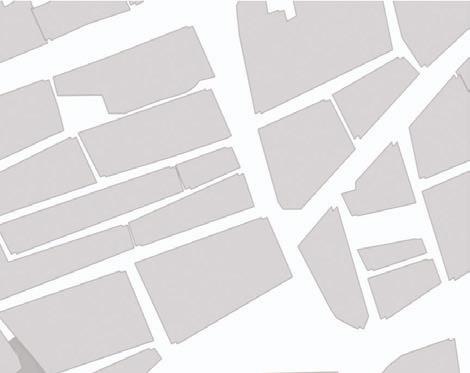

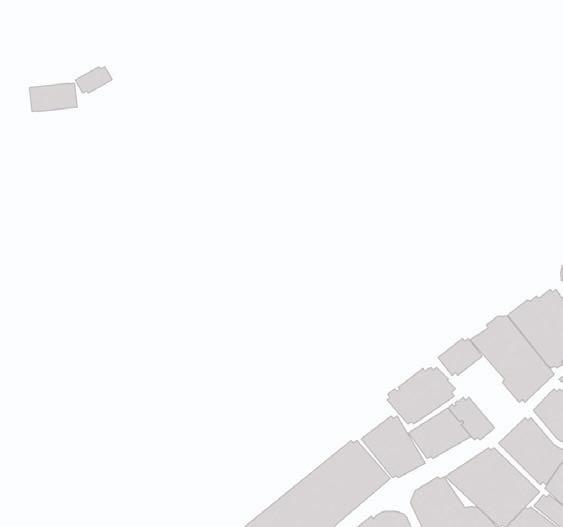

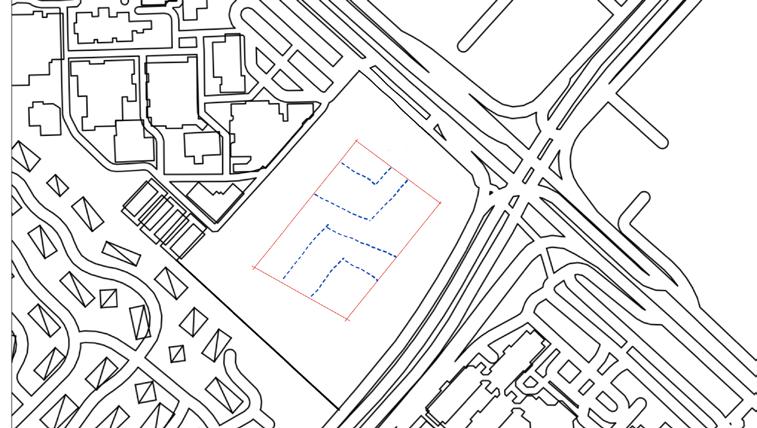

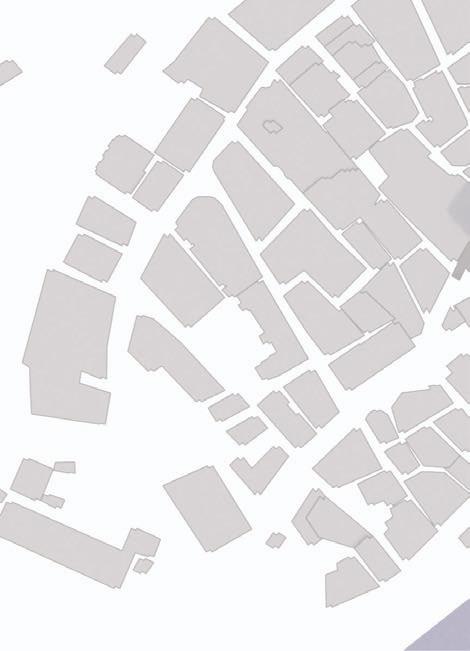

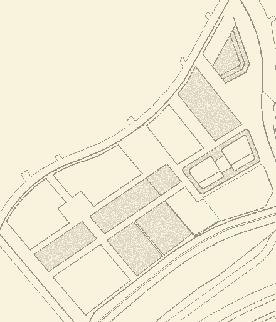

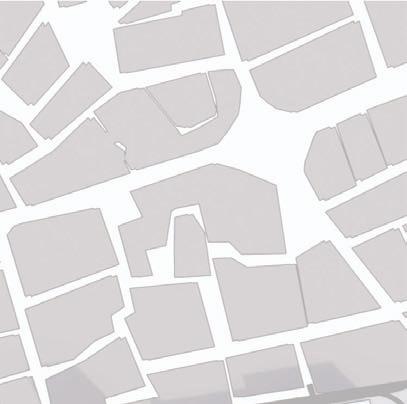

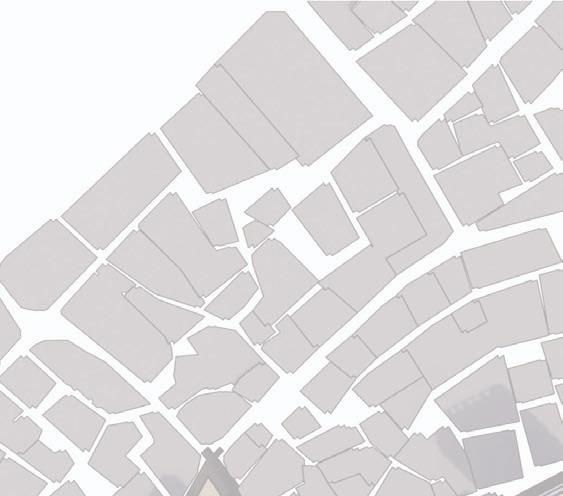

SITE MAP

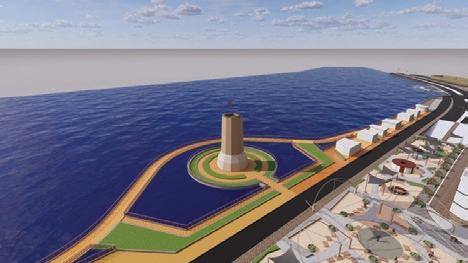

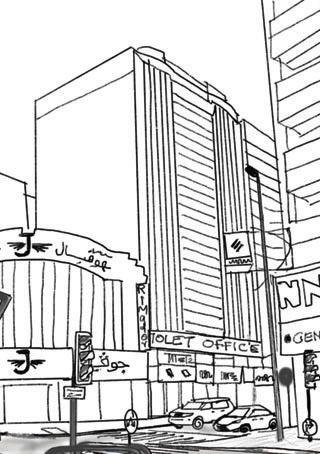

OLD ABRA STATION
A NEW VISION FOR AN ICONIC SITE
PLAZA AL SABHKA ABRA STATION
Located between Al Rigga and AlButeen, Al Sabkha is a 121,559 sqm wide site of great historical importance. Deira has served as the community’s historical trade route as well as one of Dubai’s oldest commercial hubs for decades.
This part of the site starts from the end of the administrative district and ends at Al Sabkha road. The Baniyas road which road through a substantial part of Deira o also runs through the site The use of this area of the site is mixed-use. Our aim is to integrate tradition and modernity to create a contemporary design that enhances the urban character of our site.
CONCEPT

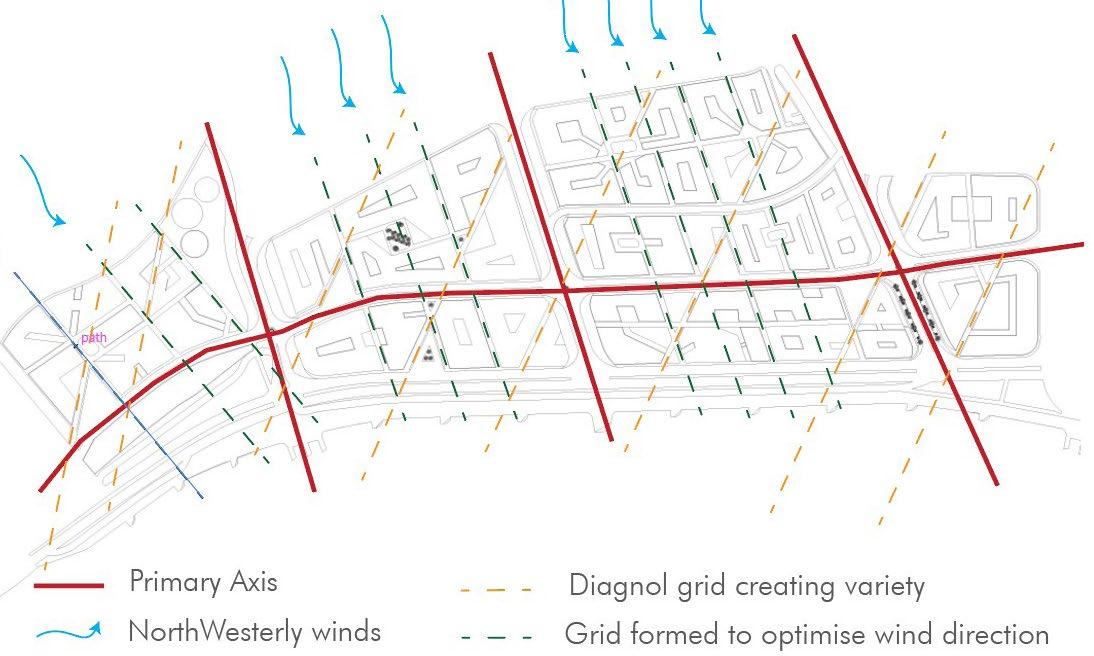

CONCEPT DEVELOPMENT

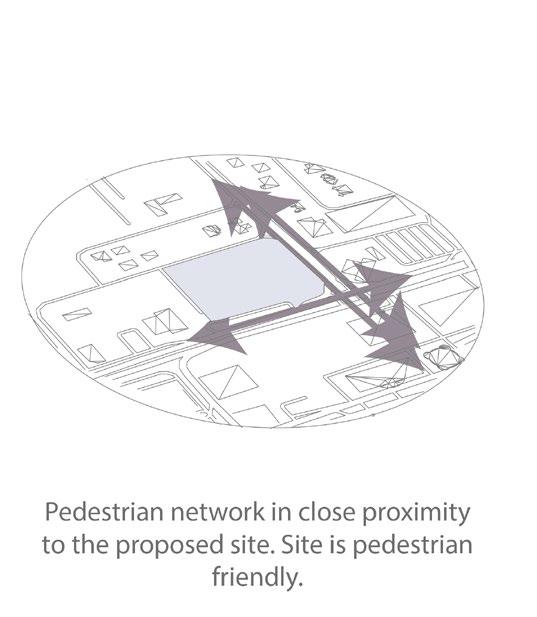

Clear connections inside the site area as well as on the outside, create a concept of a shared street as a main connection,through the site. Thus creating a comfortable space for pedestrians, cyclists and vehicle users.

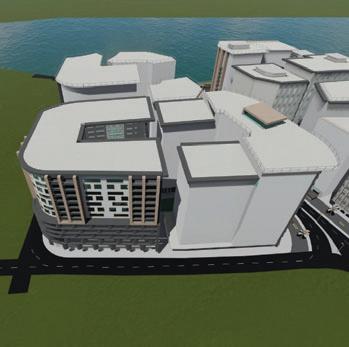

AXONOMETRIC OF THE RE DESIGN OF THE AL SABKHA DISTRICT
AXONOMETRIC OF THE RE DESIGN OF THE AL SABKHA DISTRICT
AXONOMETRIC OF THE RE DESIGN OF THE AL SABKHA DISTRICT
AXONOMETRIC OF THE RE-DESIGN OF THE AL SABKHA DISTRICT
SOUTH ELEVATION
Dubai Spice Souk
Spice Souk

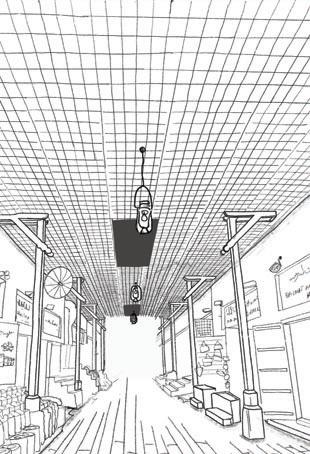

Dubai Spice Souk Narrow alley ways
The underpass provides a seamless transition between culture, history, art and modernity for the users of the site.
THE UNDERPASS
THE UNDER-PASS

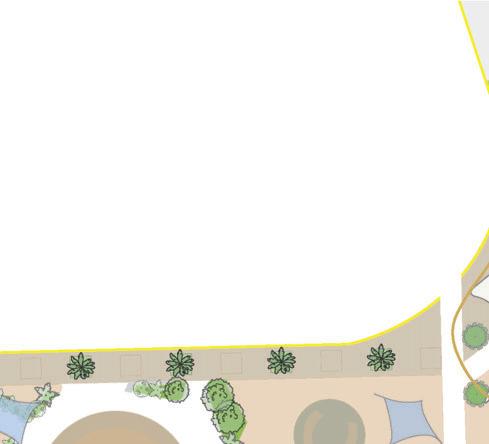

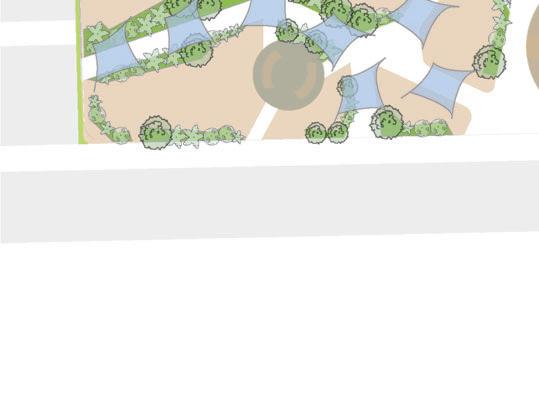

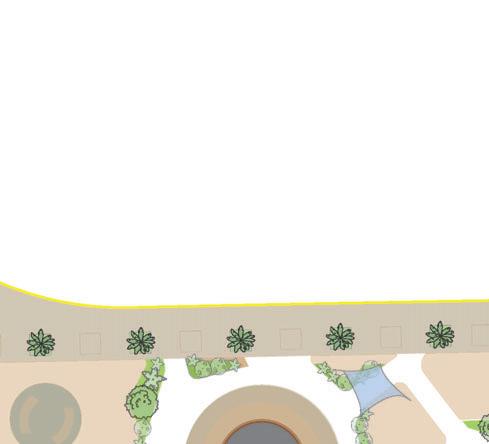

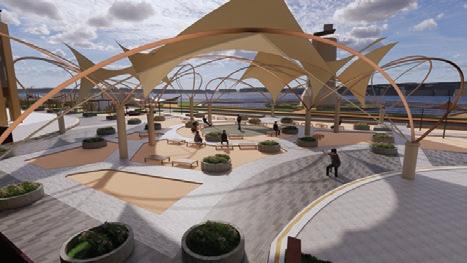

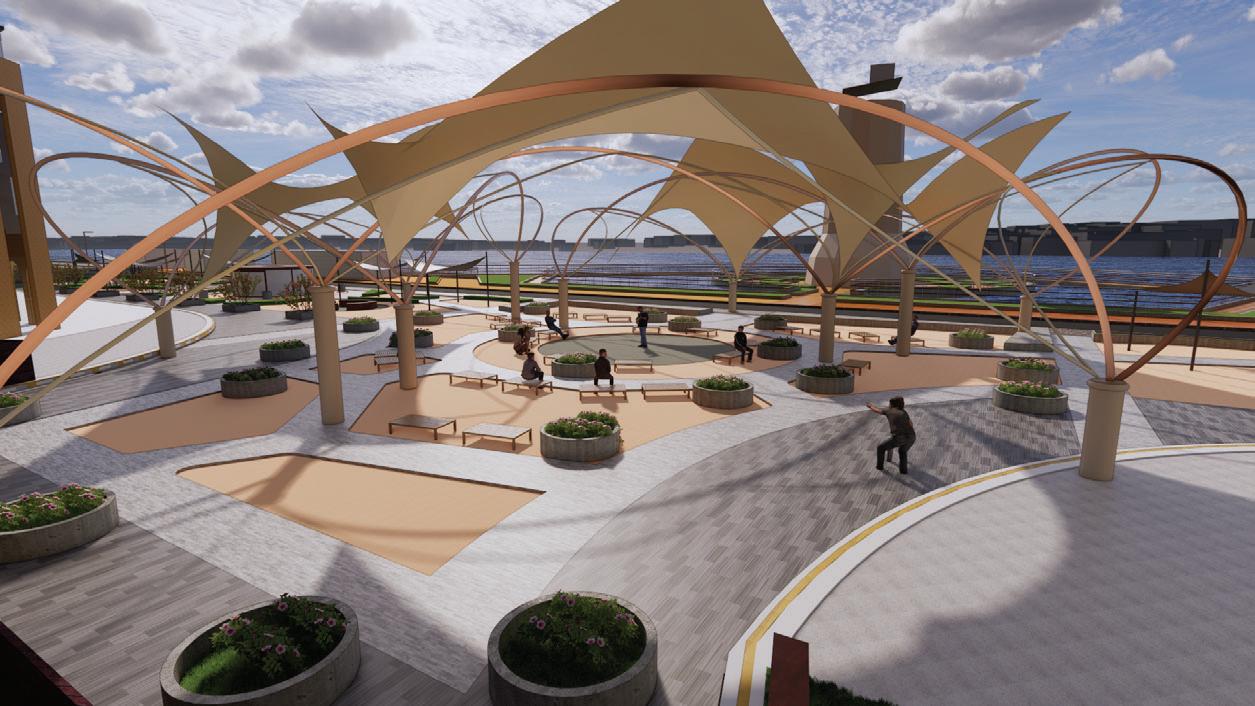

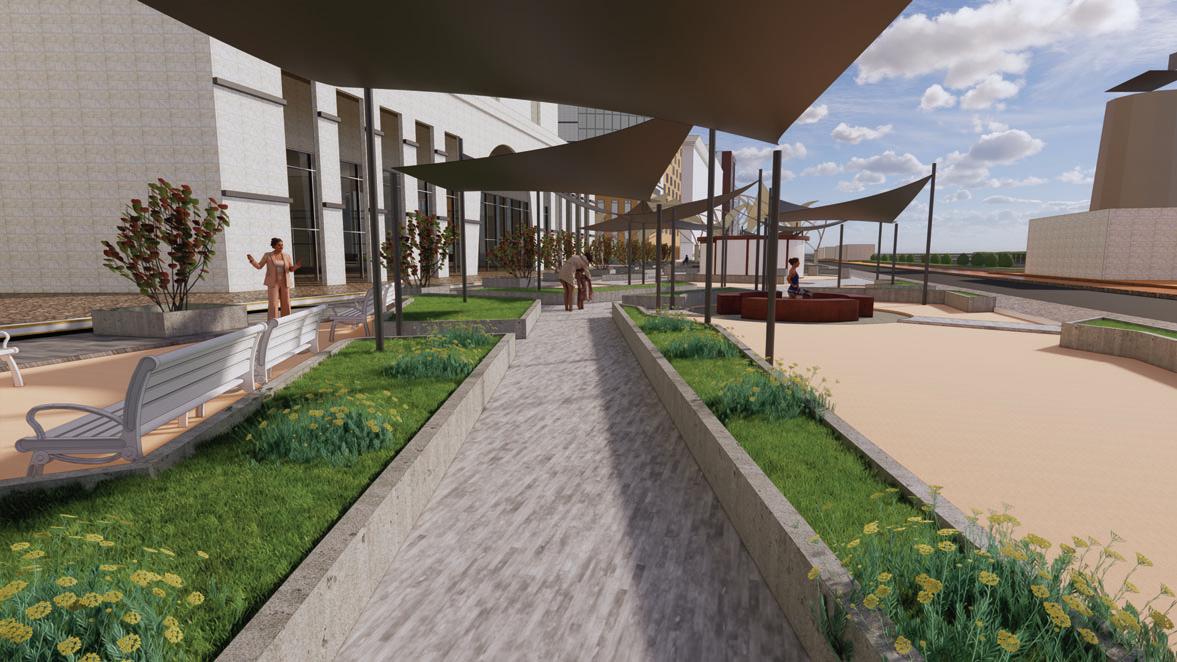

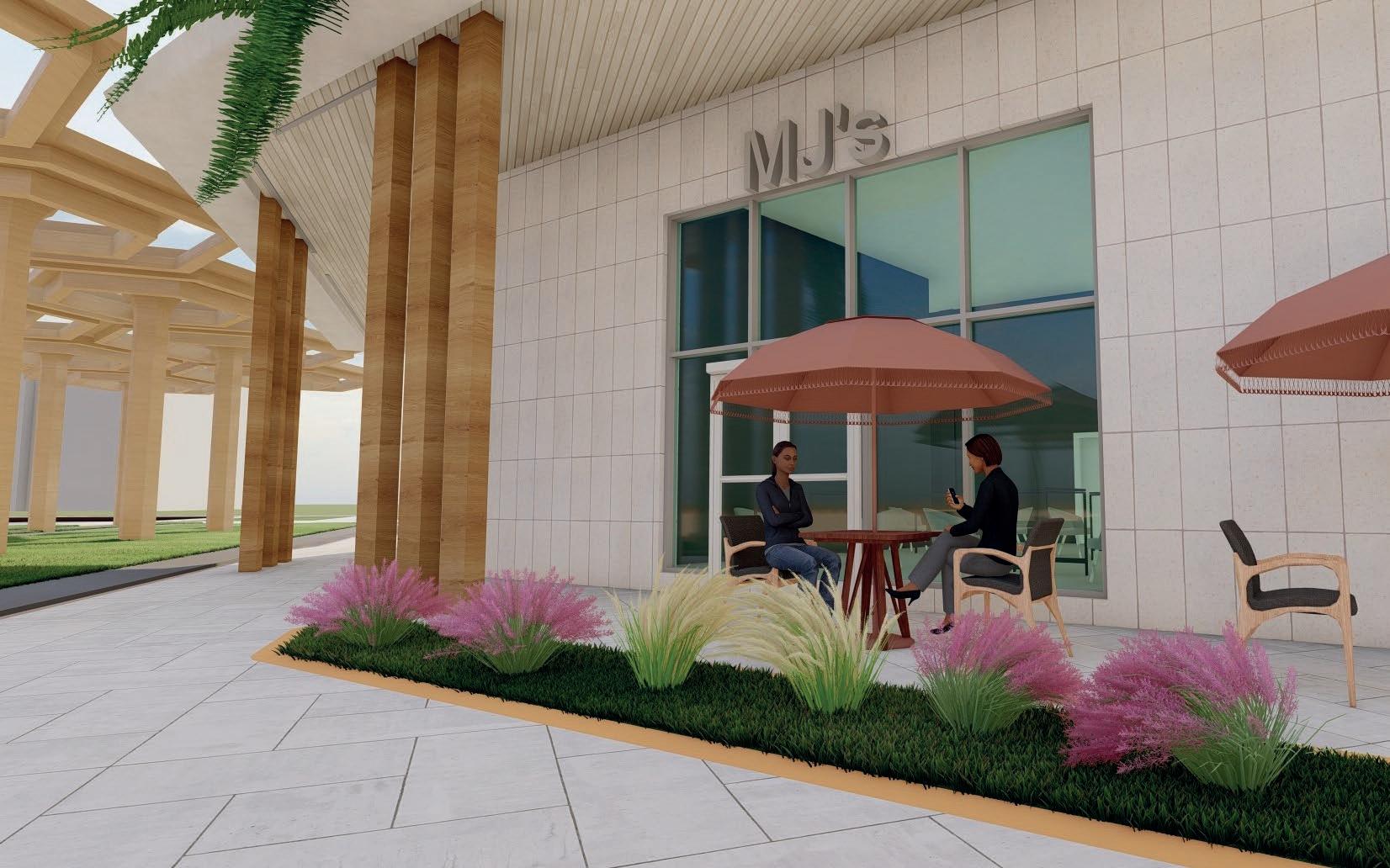

THE PLAZA
THE UNDERPASS
The underpass provides a seamless transition between culture, history, art and modernity for the users of the site.
SCALE 1:200
The underpass provides a seamless transition between culture, history, art and modernity for the users of the site.
The underpass provides a seamless transition between culture, history, art and modernity for the users of the site.
THE PLAZA
SCALE 1:200

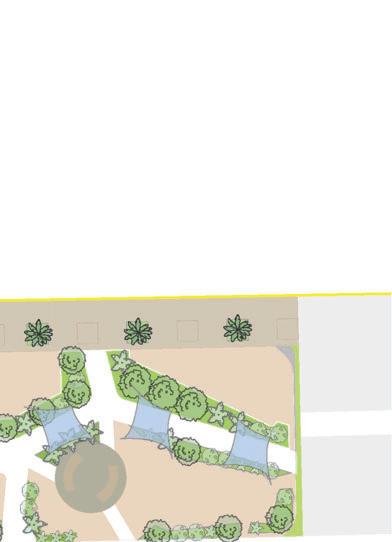

The Plaza above the underpass, functions to promote all forms of art, with the provision of a large perfomance area, international and local food kiosks, seating areas and temporary open theatre for entertaiment during the winter months.
THE PLAZA
SCALE 1:200
THE
PLAZA
SCALE 1:200
UNDERPASS
underpass provides a seamless tranbetween culture, history, art and for the users of the site.
u
u
THE PLAZA
SCALE 1:200
The Plaza above the underpass, functions to promote all forms of art, with the provision of a large perfomance area, international and local food kiosks, seating areas and temporary open theatre for entertaiment during the winter months.
The Plaza above the underpass, functions to promote all forms of art, with the provision of a large perfomance area, international and local food kiosks, seating areas and temporary open theatre for entertaiment during the winter months.
The Plaza above the underpass, functions to promote all forms of art, with the provision of a large perfomance area, international and local food kiosks, seating areas and temporary open theatre for entertaiment during the winter months.
The Plaza above the underpass, functions to promote all forms of art, with the provision of a large perfomance area, international and local food kiosks, seating areas and temporary open theatre for entertaiment during the winter months.
04 GRAPHIC DESIGN AND COLLAGE
6TH SEMESTER
DESI 348 I Graphic Design
Instructor: Dr Steve Denyer
Software: Illustrator, Photoshop
BOOKLET COVER BOOKLET PAGES
INTERIOR COLLAGE

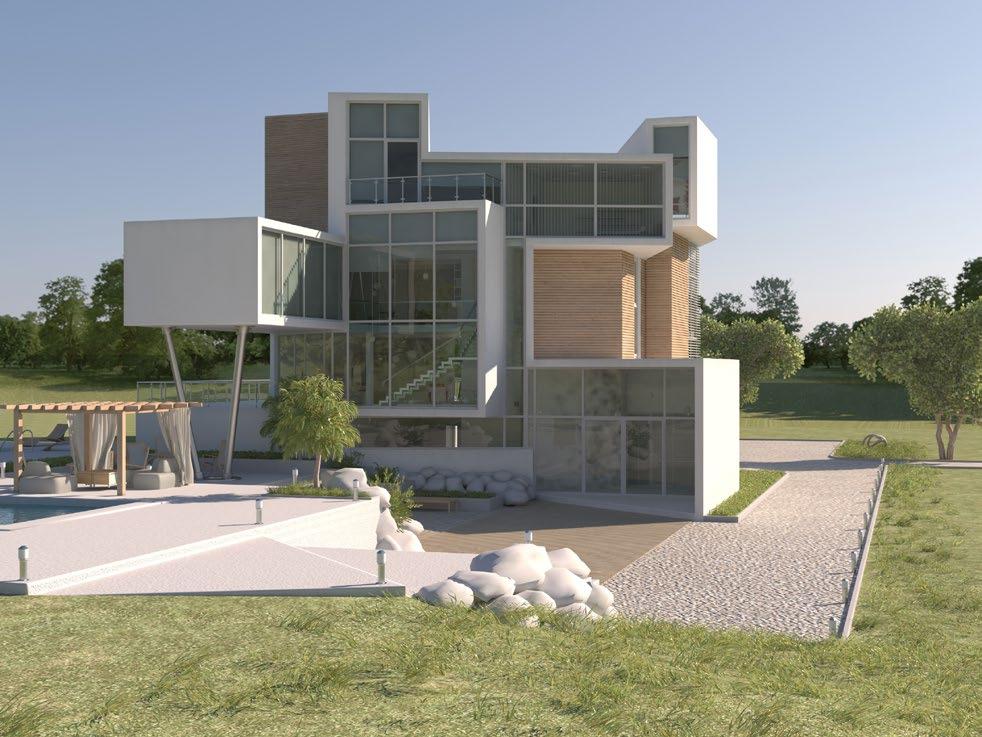

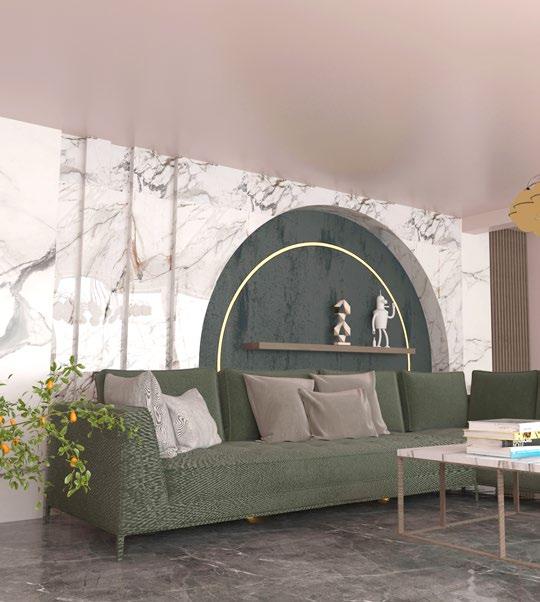

05 VISUALIZATION PROJECTS
7TH SEMESTER
DESI 456 I Visualization
Location: Al Sufouh , Dubai.
Instructor: Dr Raed Qaqesh
Software: 3D Max , Vray, Photoshop
A LIVING ROOM INTERIOR PROJECT
Software: 3D Max , Corona Render, Photoshop
This project is a creative reinterpretation of an existing interior design concept, thoughtfully reimagined to explore alternative spatial arrangements, materials, and lighting dynamics (https://www.instagram.com/p/Cvmx0b8t7RZ/?igsh=YnhvY3h3eXppd3dz).
This interior project captures the interplay of light, materiality, and spatial rhythm in a contemporary open-plan living and dining area. Designed as a multifunctional environment, the space combines modern minimalism with tactile warmth to foster both comfort and usability. A key focal point is the tiled dining table, supported by a cylindrical wood base that adds sculptural interest while grounding the design. Surrounding it, burnt orange upholstered chairs introduce a vibrant contrast that enlivens the warm, neutral palette and enhances the space’s inviting character. The herringbone-patterned wooden flooring contributes natural texture, while full-height curtains in layered neutrals filter soft daylight, creating a serene ambiance. Overhead, geometric pendant lights in black and white hover gracefully, reinforcing the clean lines and visual balance of the ceiling plane. A narrow strip of exposed brick and concrete adds a subtle industrial touch, counterbalancing the interior’s refined finishes. Developed using 3ds Max and Corona Renderer, both clay and photorealistic renders were produced to convey

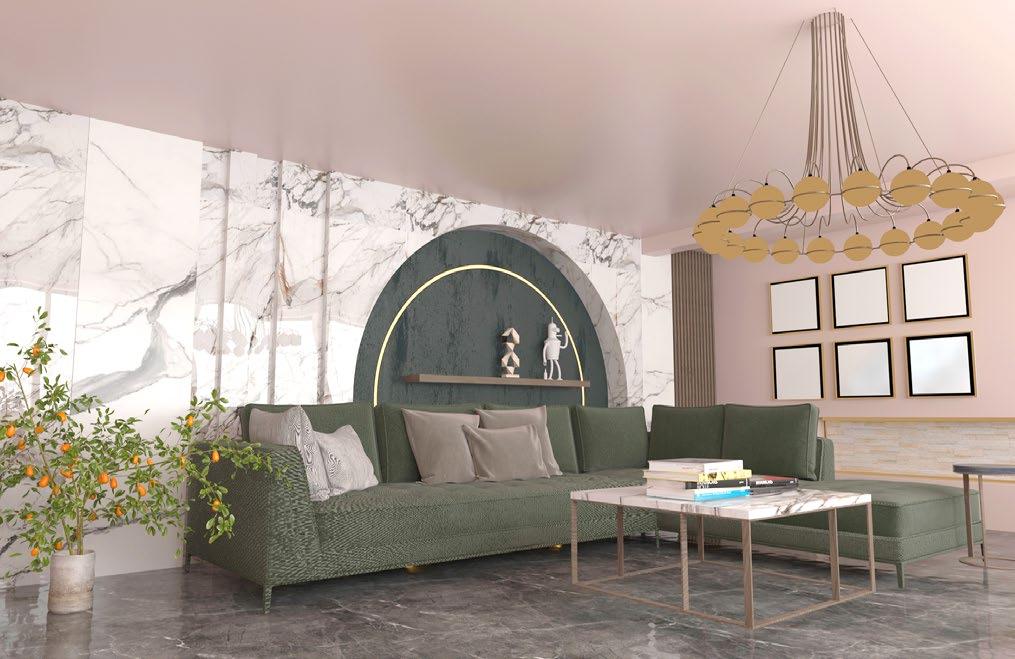

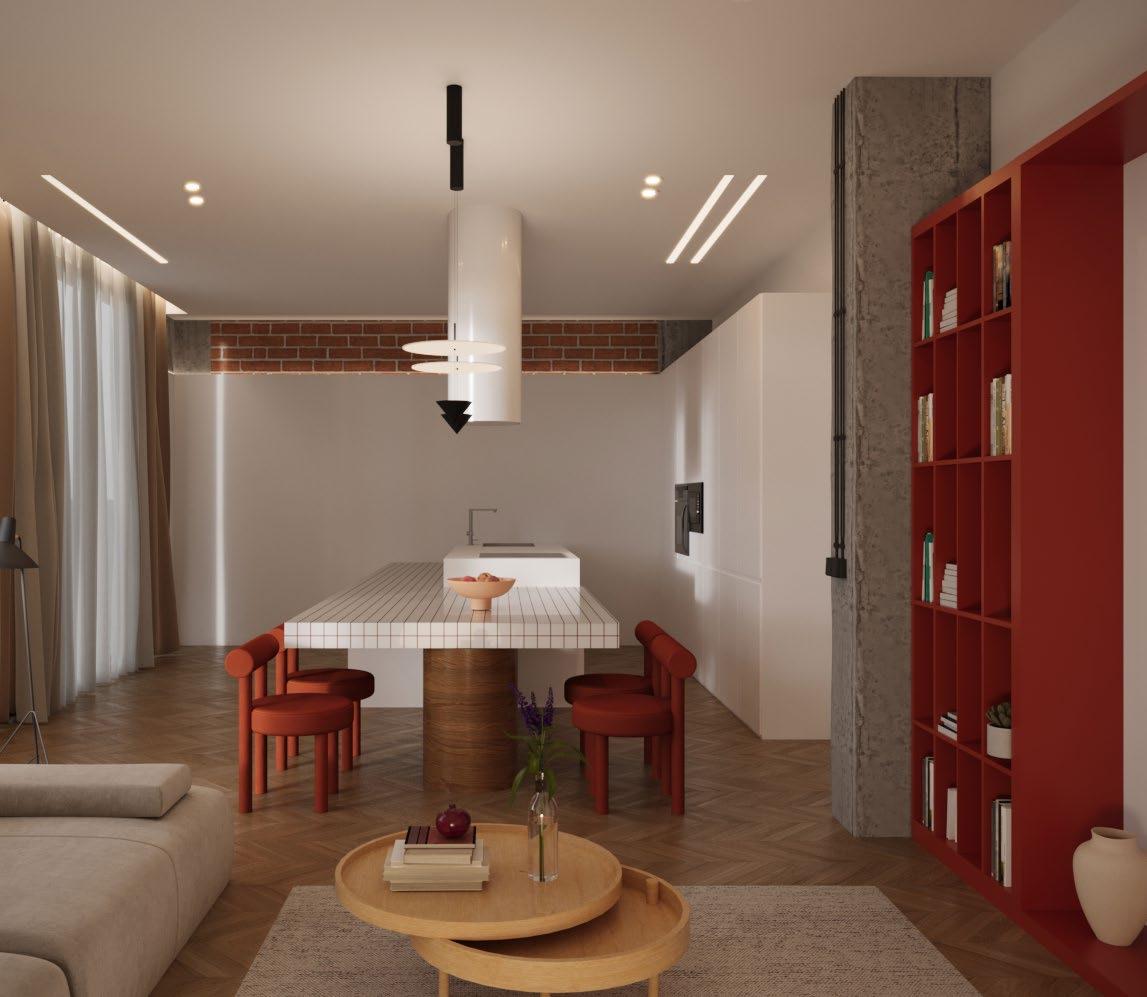

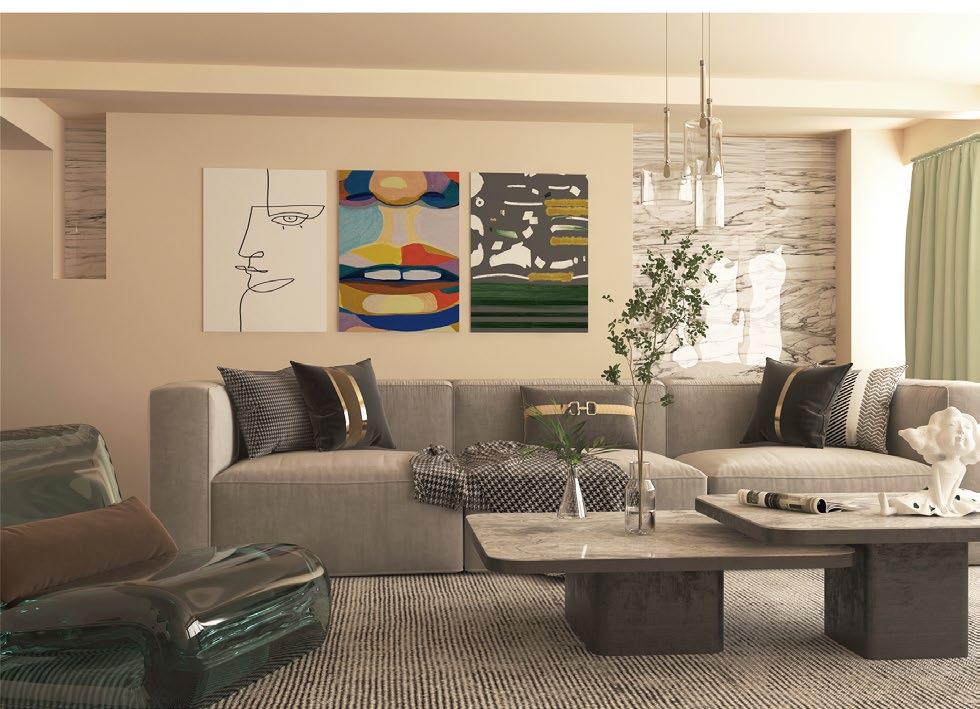

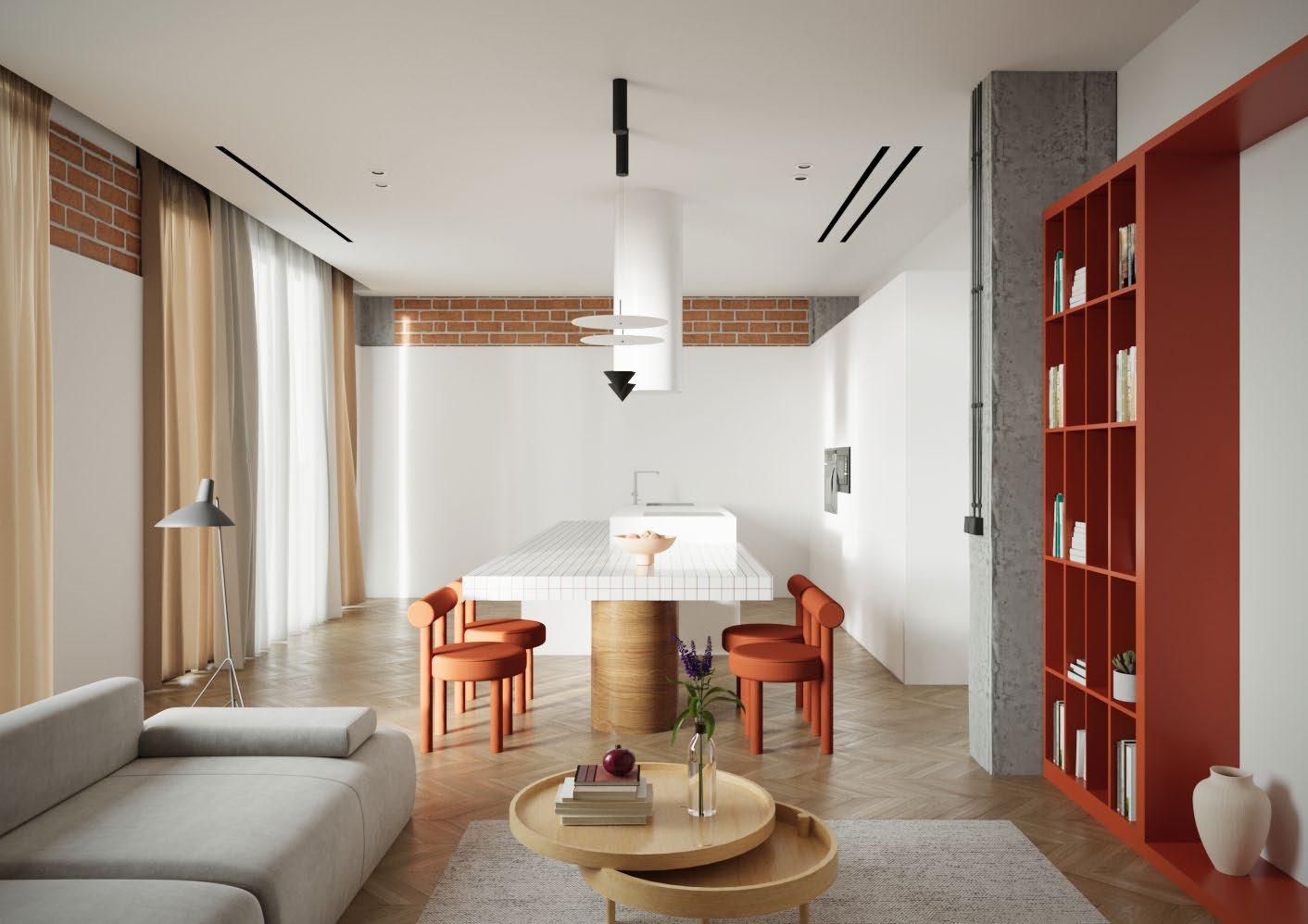

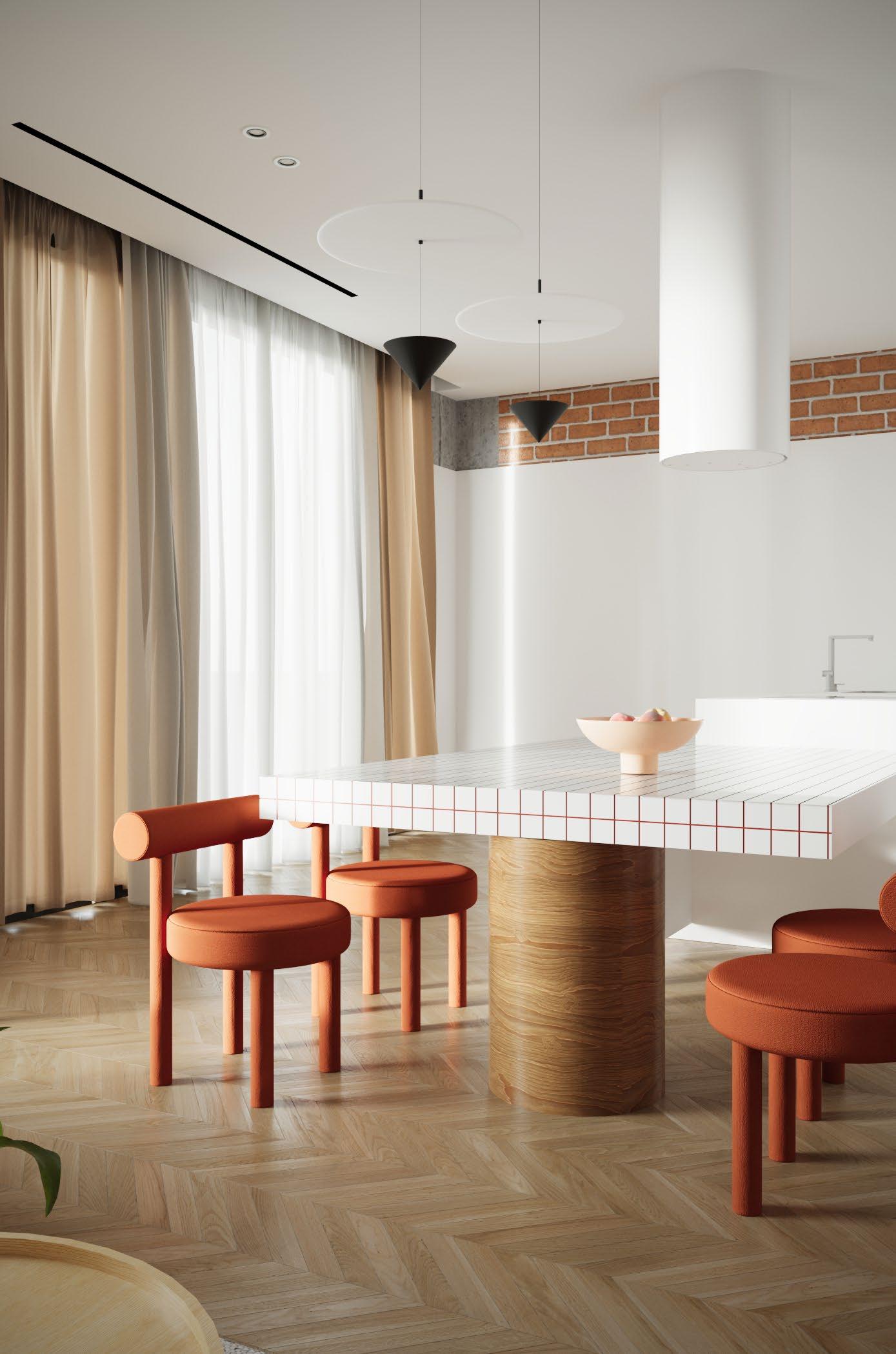

DAY LIGHT RENDER

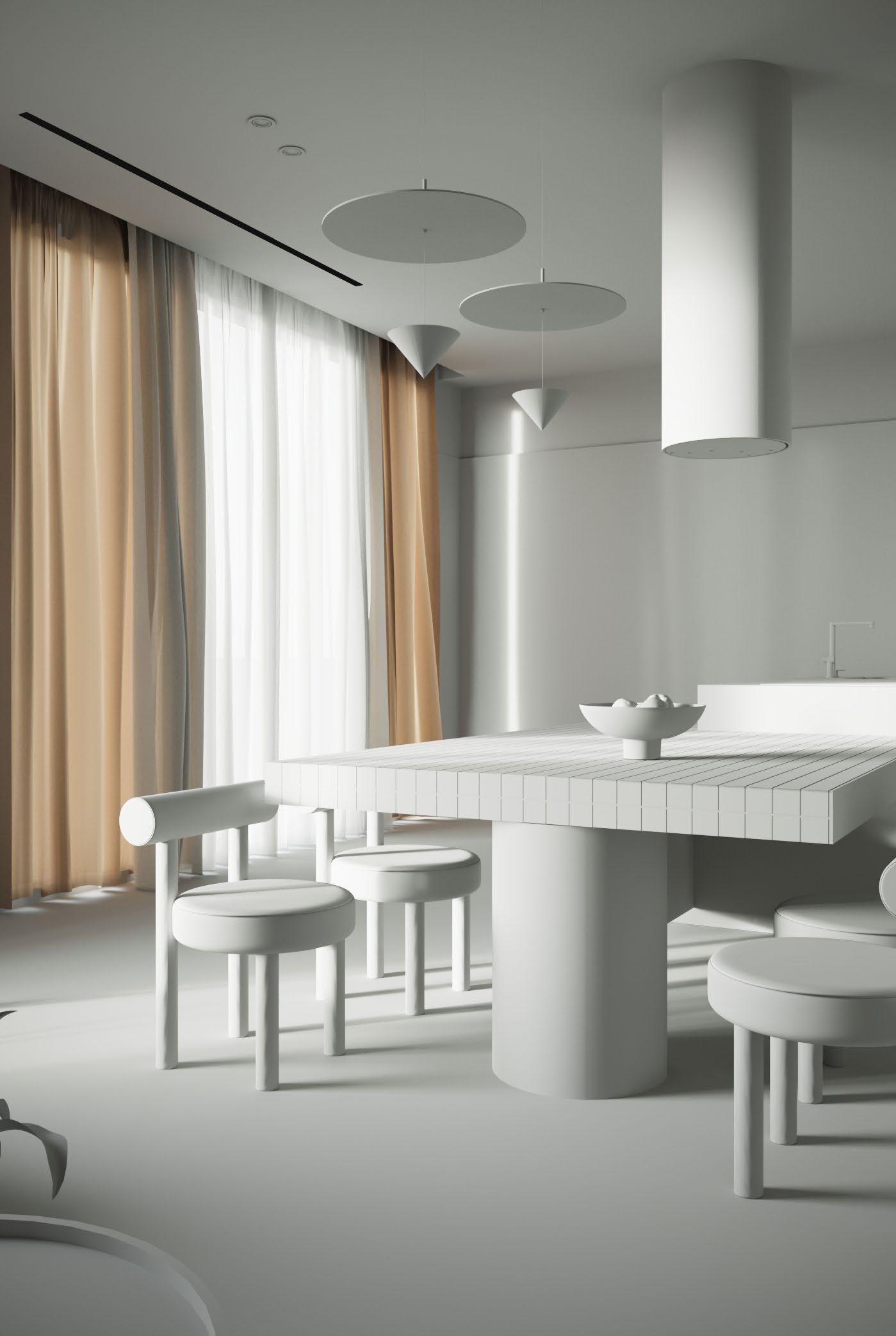

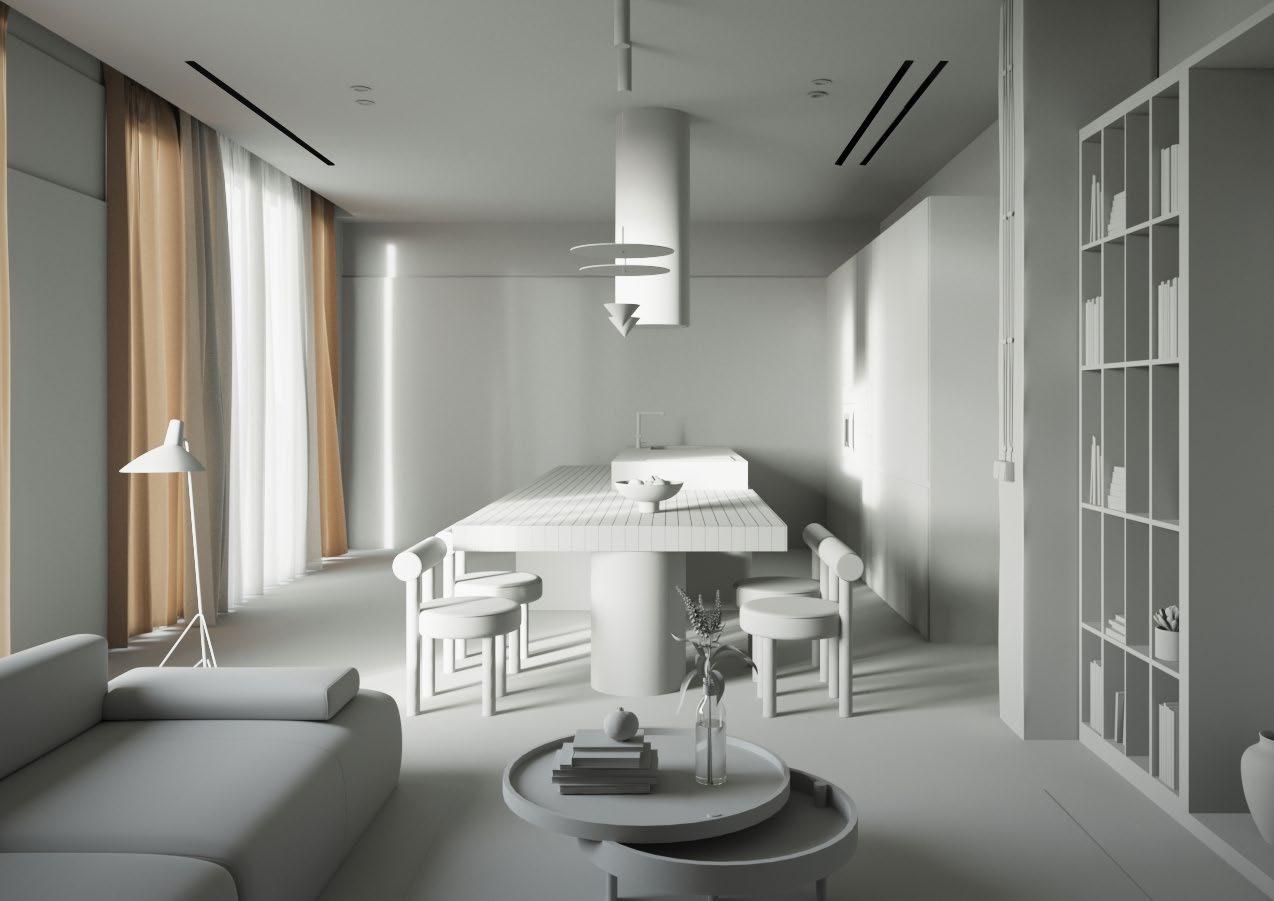

CLAY RENDER

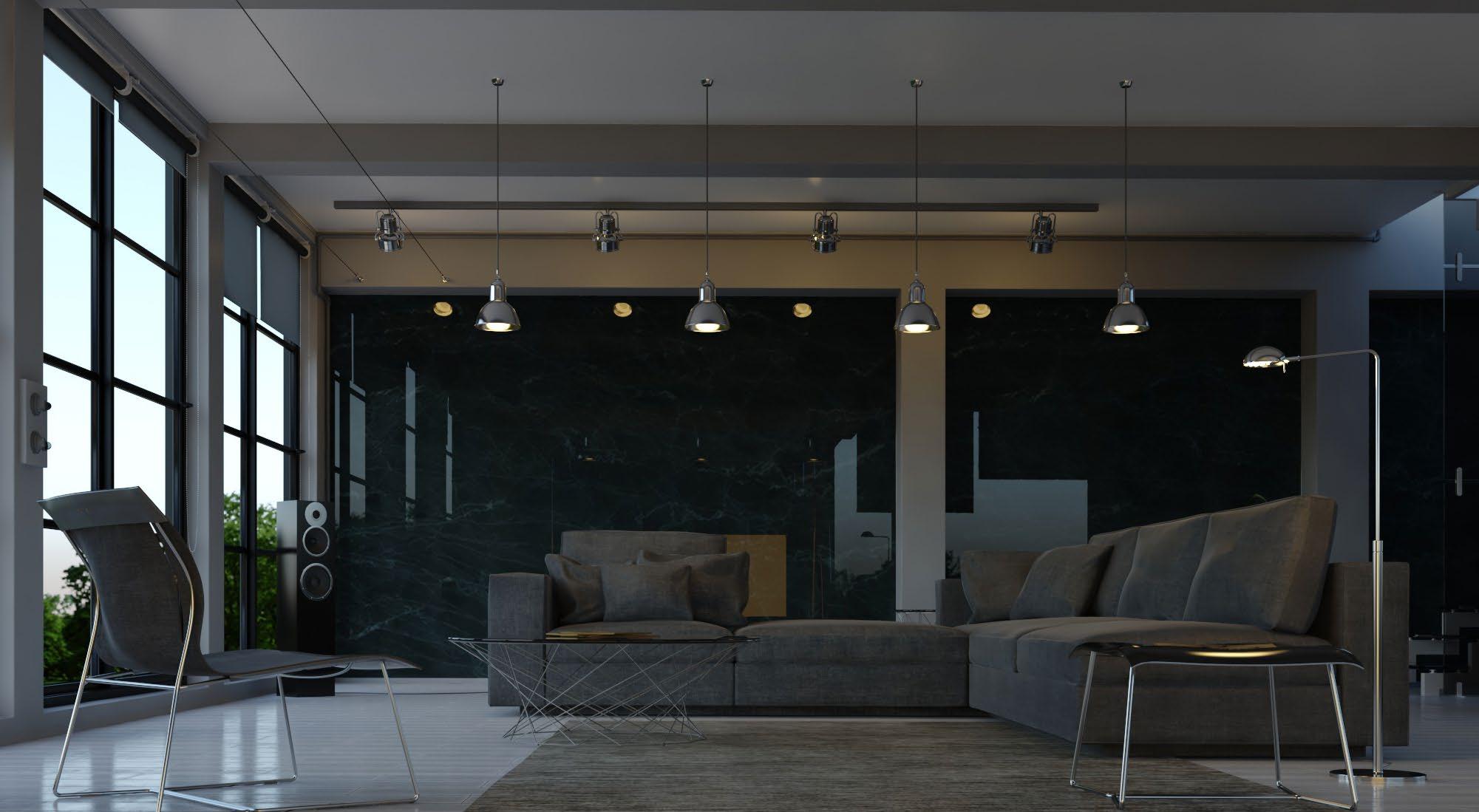

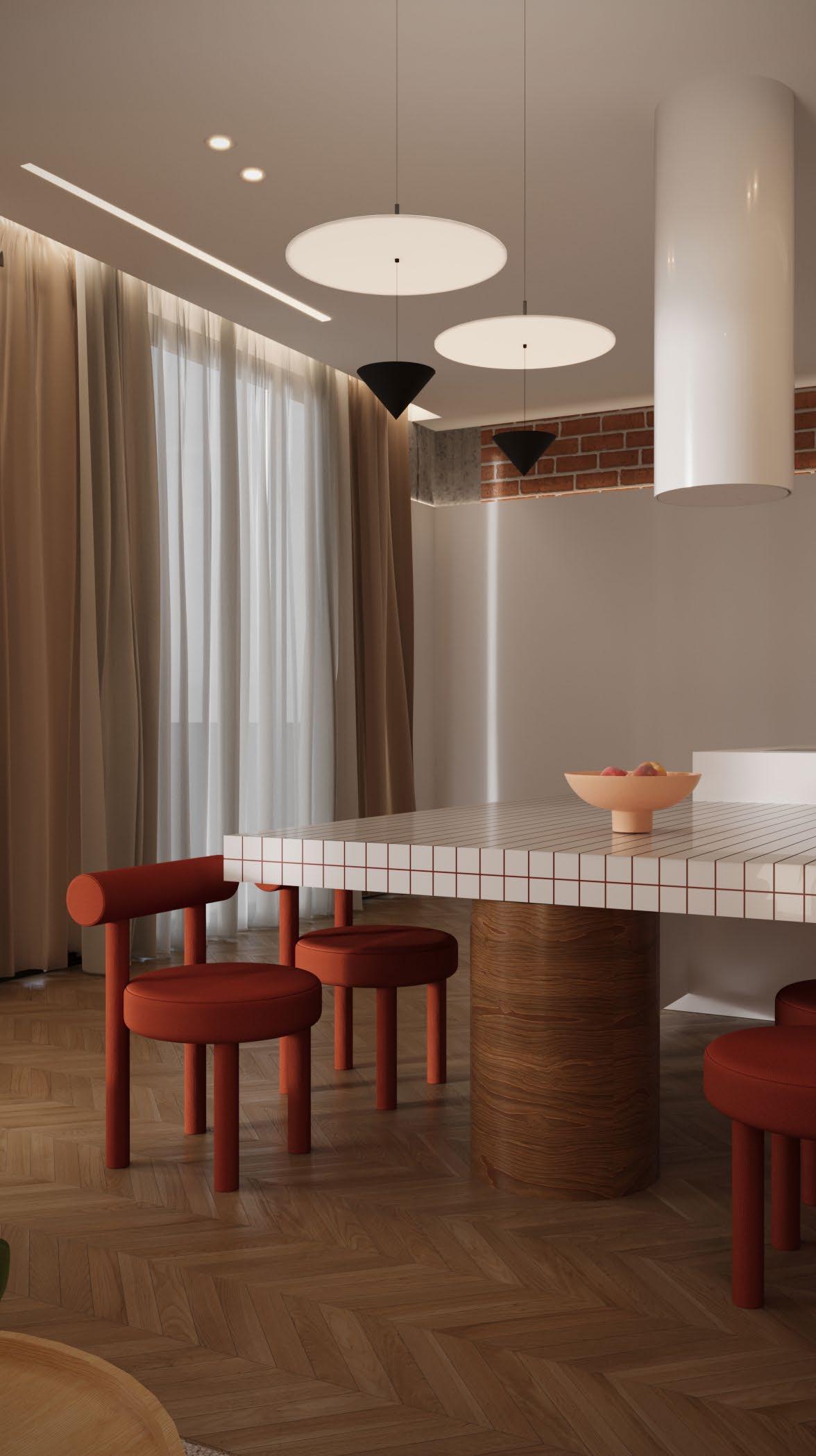

NIGHT SCENES
CLOSE UP SHOTS
06 WORKING DRAWING
6TH SEMESTER
DESI 348 I Working & Drawing
Instructor: Dr Seif Khiati
Software: Autocad
The project consists of two wall details and a cover page for a set of working drawings. The wall details are technical drawing s that show how certain aspects of the walls are constructed. They include information such as the materials used, dimensions, and any necessary installation instructions. The wal l details are an important part of the working drawing set, as they provide essential information to the builders or contractors who will be constructing the walls.
The cover page for the working drawing set is the first page of the set and serves as an introduction to the project. It typica lly includes the project title, the name of the architect or designer, the date, and any other pertinent information about the project. The cover page sets the tone for the entire drawing set and provides important context for the drawings that follow.

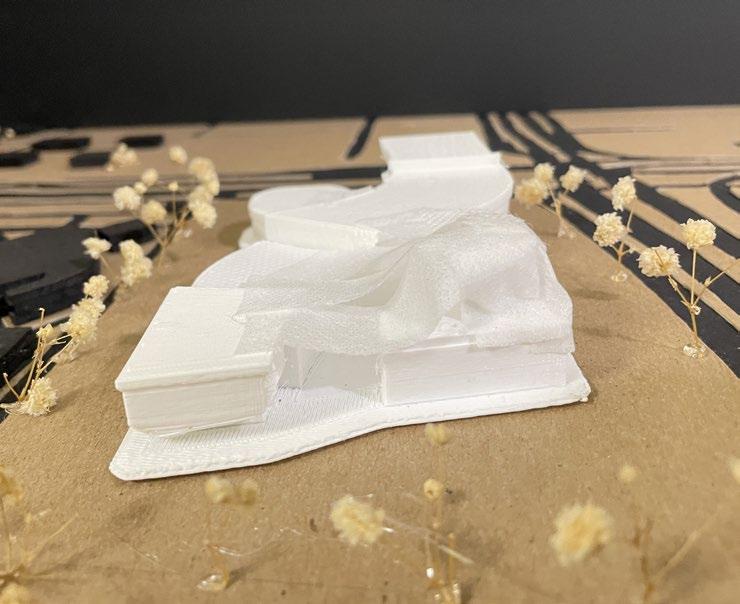

07 MODEL MAKING -GROUP WORK
3RD & 10TH SEMESTER
DESI 348 I Graphic Design
Instructor: Dr Luca Doner
Medium: Museum board, Acetate

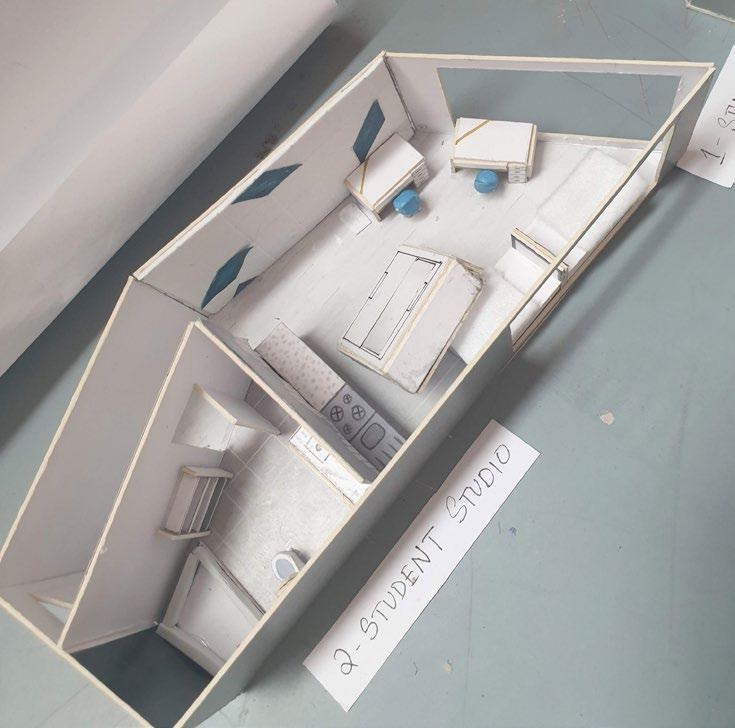

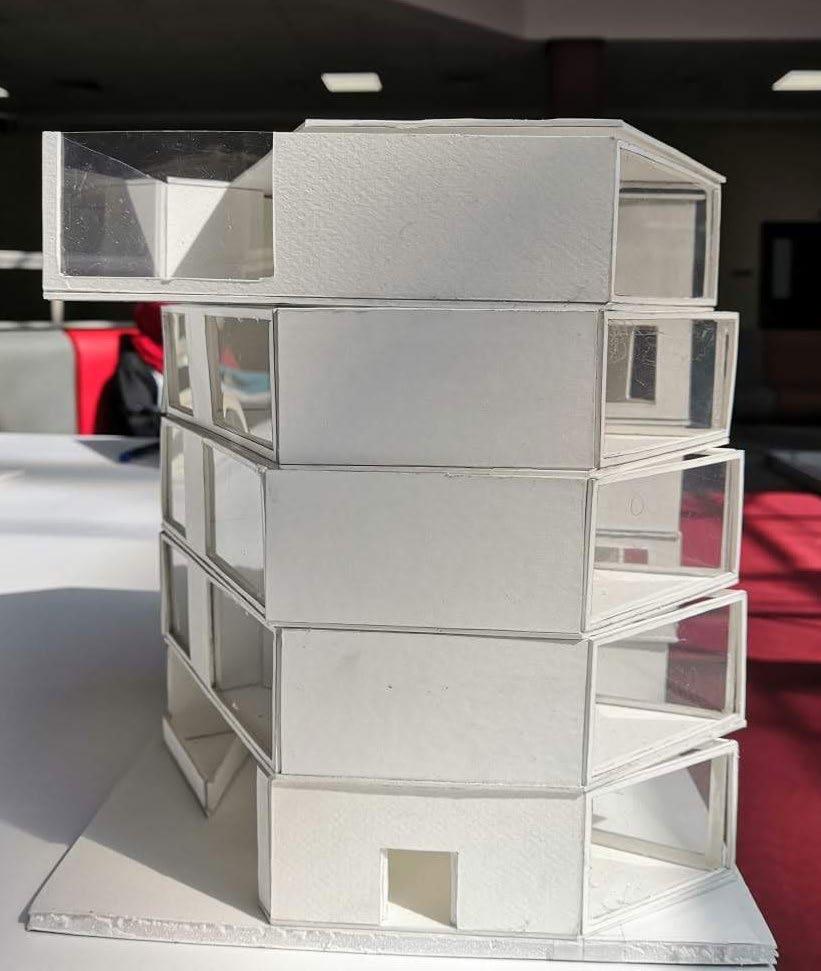

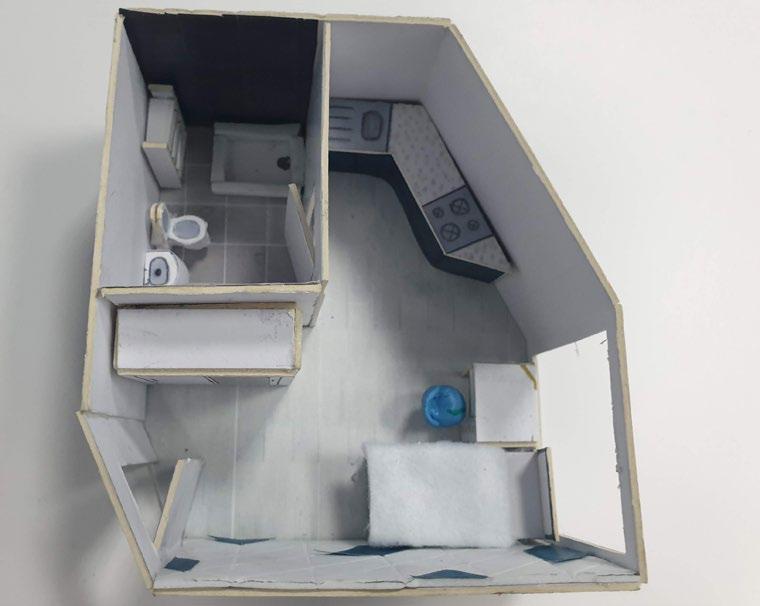

The project is a student accommodation for Canadian University Dubai, located in Al Satwa, Dubai. The building is a four-story structure that is designed to provide comfortable and modern living spaces for students studying at the university.
The building’s location in Al Satwa ensures that it is in close proximity to many amenities and attractions, making it an ideal place for students to live while attending university. The pictures below show the model of the building and the interior of a typical student room.
7TH SEMESTER
Instructor: Dr Serkan
Medium: Cardboard, Foam

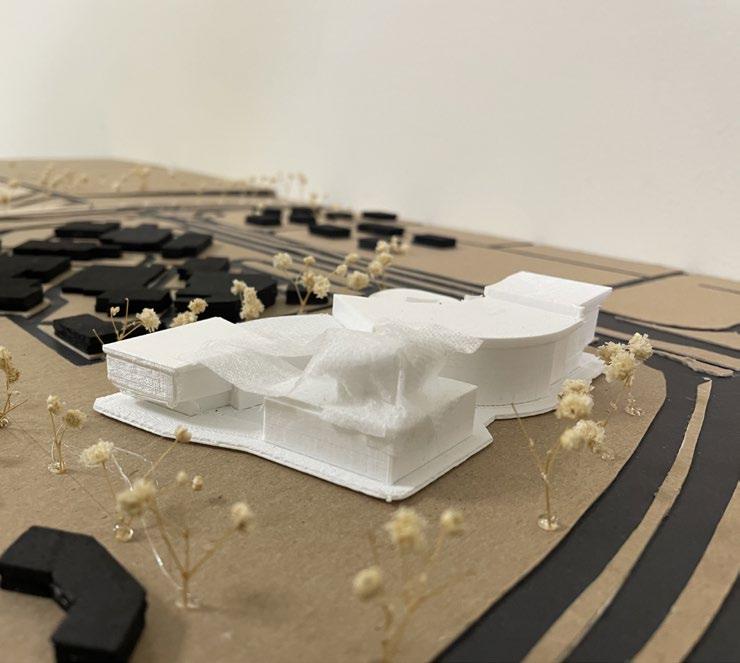

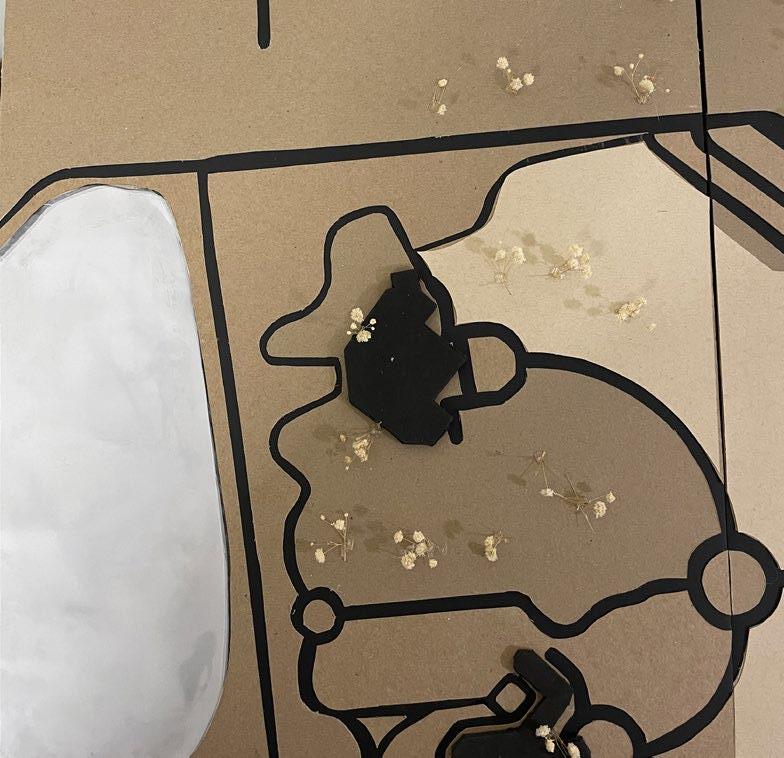

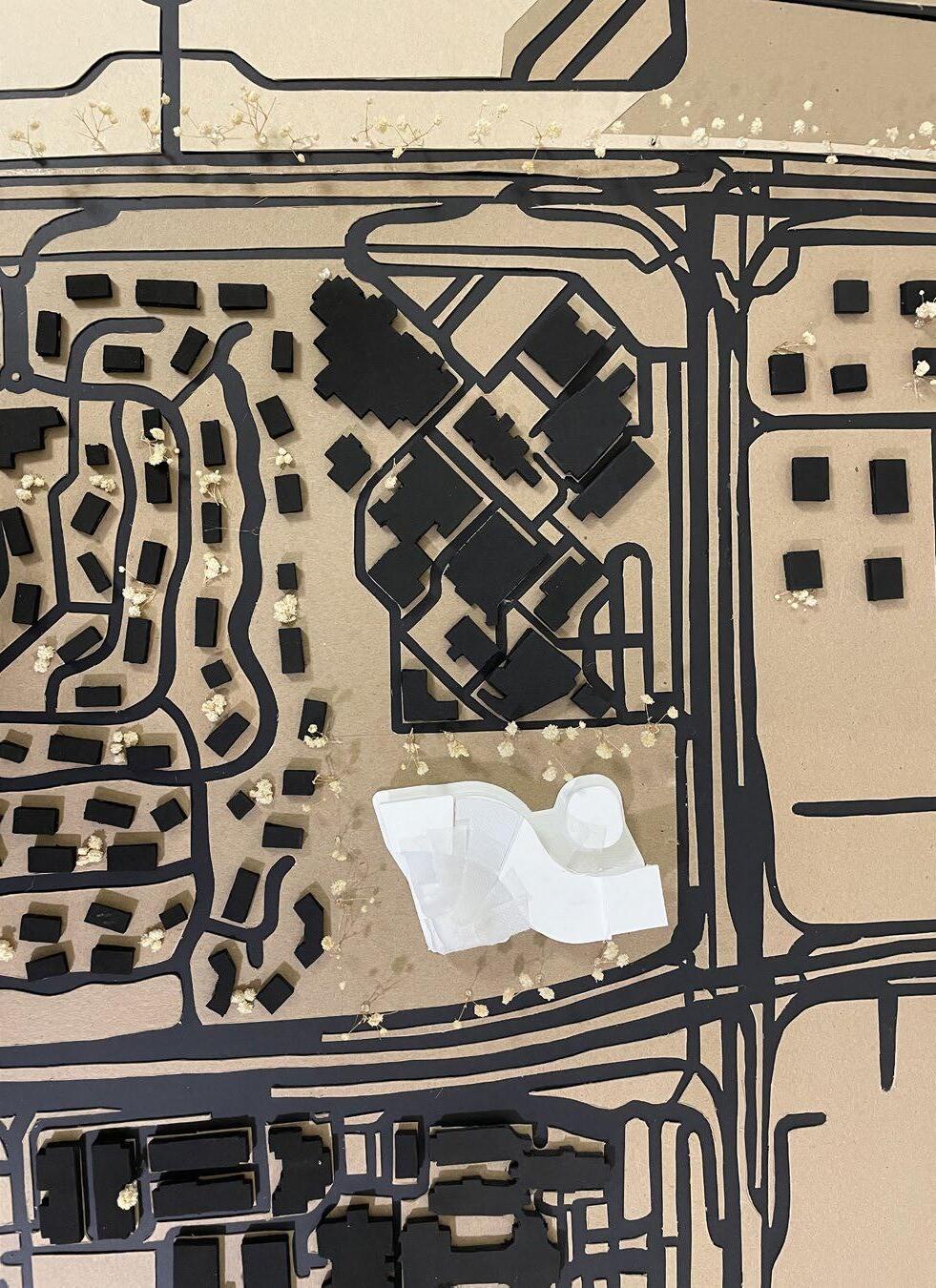

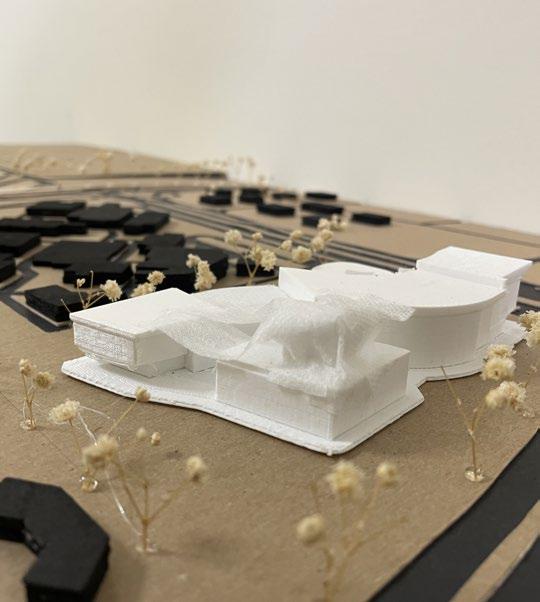

Below displays the a site model of Al Sufouh 1 and the context. It also displays the a study model in the scale of 1:1000. This model is used to show the context and scale.
DESI 456 I Senior Studio
Gunay
board
