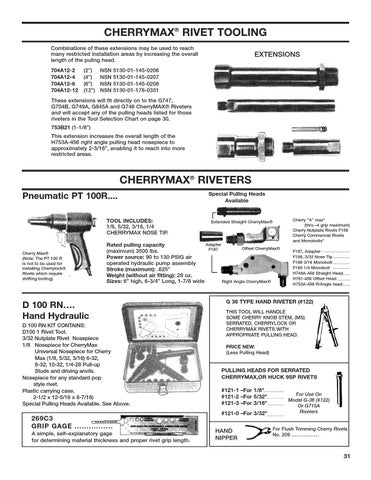

CHERRYMAX® RIVET TOOLING Combinations of these extensions may be used to reach many restricted installation areas by increasing the overall length of the puling head. 704A12-2 704A12-4 704A12-6 704A12-12
(2”) (4”) (6”) (12”)
NSN NSN NSN NSN
EXTENSIONS
5130-01-145-0206 5130-01-145-0207 5130-01-145-0208 5130-01-178-0331
These extensions will fit directly on to the G747, G704B, G749A, G845A and G746 CherryMAX® Riveters and will accept any of the pulling heads listed for those riveters in the Tool Selection Chart on page 30. 753B21 (1-1/8”) This extension increases the overall length of the H753A-456 right angle pulling head nosepiece to approximately 2-3/16”, enabling it to reach into more restricted areas.
CHERRYMAX® RIVETERS Pneumatic PT 100R.... TOOL INCLUDES: 1/8, 5/32, 3/16, 1/4 CHERRYMAX NOSE TIP.
Cherry Max® (Note: The PT 100 R is not to be used for installing Cherrylock® Rivets which require shifting tooling).
Special Pulling Heads Available
Extended Straight CherryMax®
Adapter Rated pulling capacity Offset CherryMax® F187 (maximum) 3500 lbs. Power source: 90 to 130 PSIG air operated hydraulic pump assembly Stroke (maximum): .625” Weight (without air fitting): 29 oz. Right Angle CherryMax® Sizes: 6” high, 6-3/4” Long, 1-7/8 wide
D 100 RN…. Hand Hydraulic D 100 RN KIT CONTAINS: D100 1 Rivet Tool. 3/32 Nutplate Rivet Nosepiece 1/8 Nosepiece for CherryMax Universal Nosepiece for Cherry Max (1/8, 5/32, 3/16) 6-32, 8-32, 10-32, 1/4-28 Pull-up Studs and driving anvils. Nosepiece for any standard pop style rivet. Plastic carrying case. 2-1/2 x 12-5/16 x 8-7/16) Special Pulling Heads Available. See Above.
269C3 GRIP GAGE . . . . . . . . . . . . . . . . A simple, self–explanatory gage for determining material thickness and proper rivet grip length.
Cherry “A” max® (thru –4 grip maximum) Cherry Nutplate Rivets F156 Cherry Commercial Rivets and Monobolts® F187, Adapter F156, 3/32 Nose Tip F168 3/16 Monobolt F169 1/4 Monobolt H749A-456 Straight Head H781-456 Offset Head H753A-456 R/Angle head
G 36 TYPE HAND RIVETER (#122) THIS TOOL WILL HANDLE SOME CHERRY KNOB STEM, (MS) SERRATED, CHERRYLOCK OR CHERRYMAX RIVETS WITH APPROPRIATE PULLING HEAD. PRICE NEW: (Less Pulling Head)
PULLING HEADS FOR SERRATED CHERRYMAX,OR HUCK 9SP RIVETS #121-1 –For 1/8” #121-2 –For 5/32” #121-3 –For 3/16” #121-0 –For 3/32”
HAND NIPPER
For Use On Model G-36 (#122) Or G715A Riveters
For Flush Trimming Cherry Rivets No. 209 . . . . . . . . . . . . . . . .
31
