WHY CHOOSE AELIUS LED

Unlock Your Plant’s True Genetic Potential


Let’s Get To Know Each Other Nice to meet you! We are the #AeliusFam! We aim to help cultivators worldwide realize the true genetic potential of their crops by providing results-driven LED fixtures designed to master commercial cultivation! At Aelius, your plants always come first. We are dedicated to guiding and learning from cultivators to nourish the indoor farming industry with the technology we are able to provide. We believe in an honest representation of an exceptional product and we look forward to hanging above your plants for years to come!

YOU CAN FIND US HERE

705.674.5242 1.844.472.3389

@AELIUSLED #AeliusFam

AELIUS HQ Sudbury, ON

AELIUSLED.COM sales@aeliusled.com


THE AELIUS DIFFERENCE In addition to our premium lighting, we also like to boast about the often overlooked, but equally important, attributes of being a grower-focused company in today's LED lighting industry.

GROWER Consultation

5

TRADE UP

Year Warranty

TRIALS & Spares MONEY Back Guarantee

CUSTOM LEDS Co-Branding FINANCING & Rebates

VOTED BEST LIGHTING SYSTEM 2022, 2023


REBATES & FINANCING Sustainability has always been a core value of our company. Energy Rebates allow you to make the switch to LED sooner; saving on valuable energy and extra expences. Our team will work with you to make sure you are taking advantage of any rebates available to you in your area.

How it works: LL STA N I R & ’s DE LED R O

TE AL BA ROV E R PP E-A R P

PRODUCT SELECTION

REB A AP FULLTE PR OV AL RECEIVE REBATE

MEET GROWREBATES

SAVE ON ENERGY!

RECIEVE REBATE & NEW LEDs

QUOTE

PRODUCT SELECTION

Our Partners In Rebates & Financing:


REBATES & FINANCING We want to help you get growing sooner, Aelius offers financing in-house for smaller projects and has partnered with EnPowered to offer financing on a commercial level that leaves you cash flow positive from DAY ONE!

How it works:

WORK WITH AELIUS LED TO OUTLINE YOUR PROJECT.

CHOOSE YOUR SAVINGS BY ADJUSTING TERM LENGTH.

FINALIZE AND SIGN YOUR AGREEMENT.

Our Partners In Rebates & Financing:

GET YOUR PROJECT STARTED WITH NO UP-FRONT COST.

START SAVING, AND RECEIVE MONTHLY STATEMENTS.


AUTHORIZED DISTRIBUTORS Aelius LED is dedicated to providing fast and efficient service to our customers worldwide! In order to achieve this, we have developed partnerships with various distributors around the globe. We are always looking to expand our reach so contact us if you would like to become an authorized Aelius LED Distributor.

Ask Us About Becoming A Distributor


TRADEUP PROGRAM The Aelius LED Trade-Up Program provides #AeliusFAM with a 25% credit on their new LEDs when trading in older models. This program serves a dual purpose; it allows you to always have the best tech while allowing us to focus on constantly providing the best equipment for your grow.

SAVINGS AMOUNT DETERMINED**

GET IN TOUCH

VALUE INSPECTION PROCESS*

ENJOY YOUR NEW LED

THE FINE PRINT *Fixtures must be in serviceable condition with all LED chips in working order and have no major deficiencies. Damaged fixtures shall be excluded from the Trade-Up Program. The trade-in rebate shall be in the form of a credit applied to future purchases. Shipping costs (if applicable) will be at the customer’s expense. Please contact sales@aeliusled.com or give us a call to take advantage of this program. Full inspection criteria can be found in Trade-Up documentation. **The maximum trade-in rebate available is 25% of your original purchase price. Trade-in value will be determined by the condition and age of your lights. The fixtures will be assessed based on criteria similar to that of our Fixture Warranty.


#AELIUSFAM SPOTLIGHTS RAMS HEAD CANNABIS GENETICS DRIVEN CANNABIS PRODUCER In Nov. 2022 Ramshead Cannabis started a trial of 32 Matrx REDD fixtures. They were immediately impressed with the results, but in our talks with them, we mentioned that we were planning to increase the efficacy of future models. We couldn’t supply them right away since they were still being built, however, we could outfit them with 192 M630F in Jan, 2023 while they waited for the updated Matrx REDDs. They were quite impressed by the Matrx 630F, but ultimately they wanted our 2023 lineup fixture, the Matrx REDD 3.4F. They traded up to the new Matrx REDD 3.4Fs in July this year!

LINDSAY, OK

HABITAT LIFE SCIENCES ORGANIC AQUAPONICS FARM Habitat Life is no stranger to indoor growing, their previous venture used HID lights for their operation. However, Schiebel recognized the value of investing in LED lights and decided to convert their lights with the launch of Habitat in 2018. The process began with trialing several varieties including Greenception, Fluence, Illumitex, and Aelius LED. They were drawn to Aelius for various factors including their product/industry knowledge, sales approach, and financial incentives. However, it was Aelius’ customer service that solidified their decision. Habitat Life is currently operating the Matrix REDD fixtures. Habitat has noted lower energy bills, a consistent growth rate, and improvement in both the plant quality and production.

CHASE, BC


#AELIUSFAM SPOTLIGHTS UNITED GREENERIES MEDICAL CANNABIS CULTIVATOR United Greeneries was founded with a strong desire to produce a natural, purer product that is grown sustainably and responsibly for the betterment of people and the planet. In May 2022, they reached out to us for a small trial using only four Matrx 630 LEDs. After completing the trial, they were impressed with the results and decided to purchase an additional 99 Matrx 630F fixtures to replace 1000W HPS Fixtures. You can find them on the shelves under various premium brands including 18twelve, Captains Choice, and Royal Co.

DUNCAN, BC

STONE GROVE CANNABIS EXCLUSIVE SMALL BATCH CANNABIS CULTIVATOR Stone Grove is a micro cultivator that holds itself to the Golden Standard of craft cannabis production. They focus on small-batch, single-strain, highest-quality flower grown locally. Stone Grove is committed to cultivation with a minimal environmental footprint, so Aelius LED became a natural choice. They are currently using the Aelius Matrx420s and Matrx REDDs.

GOLDEN, BC


#AELIUSFAM SPOTLIGHTS WAIAHOLE GREENS ORGANIC MICROGREENS PRODUCER Waiahole Greens are new to the #AeliusFam and are loving it so far. They are located in Waiahole, Oahu, and supply microgreens, exotic plants, and more to locals! After a trial, they now grow their microgreens under 36 of our Aelius 20W LED Tubes. We love to watch our Aelius Fam expand around the globe!

WAIAHOLE, OAHU

VERTICAL ROOTS CANADA VERTICAL INDOOR FARMING FRANCHISE We reached out to Mike and the Vertical Roots team first, when we sent him a box of 20w tube lights to try out over his plants. He contacted us and said he's looking for something a little more powerful. He was using 2-3 different models in his farm at the time, but wasn't quite happy with them. That's when he took advantage of our Customized Light Program. Together, we developed a dimmable 60w tube light with the option of 2 different spectrums, trialed it, tweaked it, and are now producing it for the rest of the world to enjoy!

EDMONTON, AB


#AELIUSFAM SPOTLIGHTS REMO BRANDS CANNABIS INFLUENCER & LIFETIME ACHIEVEME AWARD WINNER For the past 20 years, Remo “Urban Remo” Colasanti has been a prominent figure in the world of growing techniques. He has taught thousands of people how to maximize their garden's potential. Aelius LED first developed a relationship with Remo in early 2020 when we upgraded their LEDs to Aelius REDDs. We have developed a lifelong relationship with Remo and look forward to him trading up to a newer Aelius model soon!

MAPLE RIDGE, BC

BLOOM HOUSE CANNABIS CO. #AELIUSFAM SINCE 2019 Bloom House Cannabis Co. is a world-class cannabis cultivation facility located in Sudbury, ON. They started off with our pilot fixture, the Aelius 300, and have since expanded their fixture library to include Aelius REDDs and Clone Bars. We love watching Bloom House achieve its vision of becoming Canada’s most trusted cannabis producer.

SUDBURY, ON


THE AELIUS LED


FIXTURE LINEUP

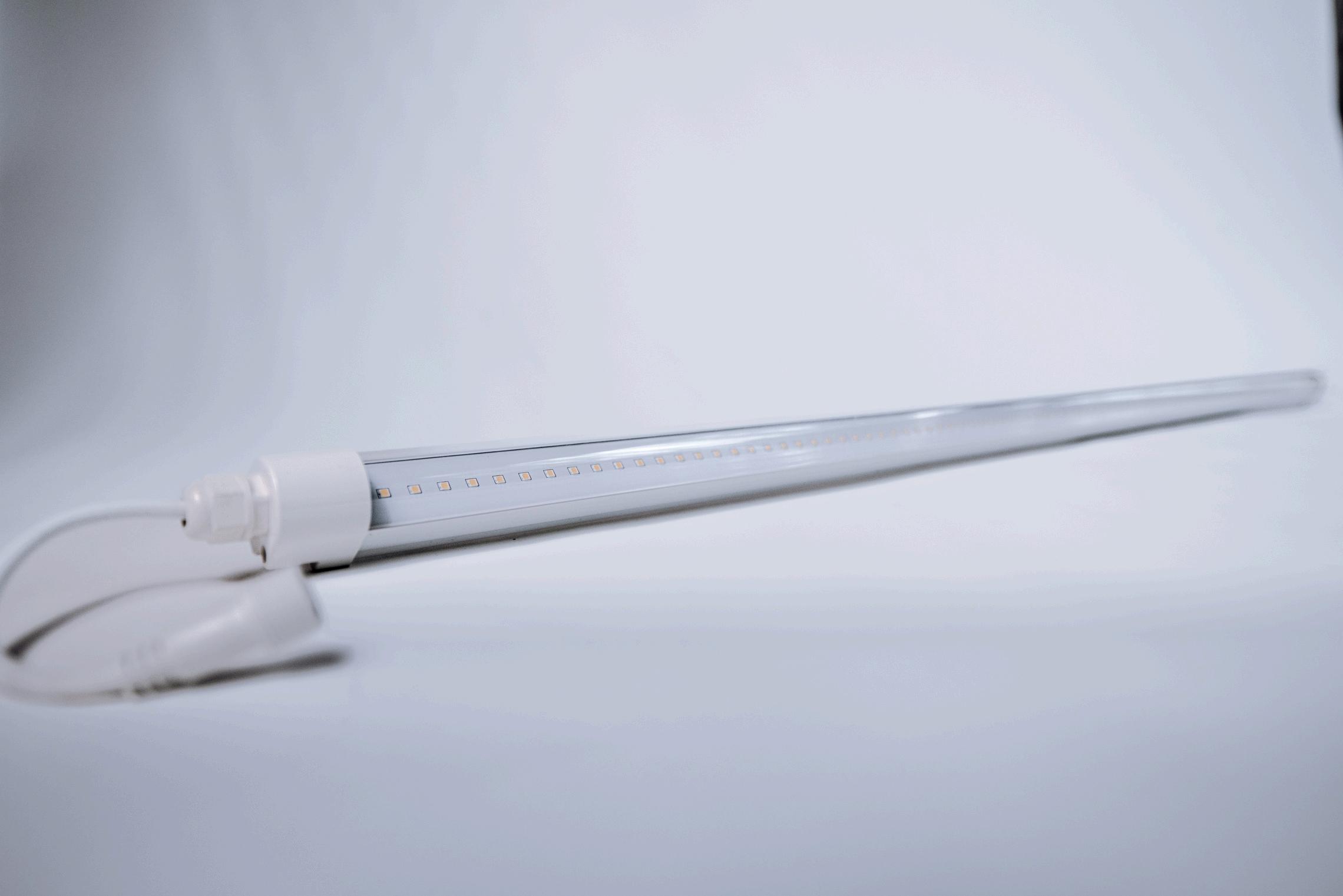

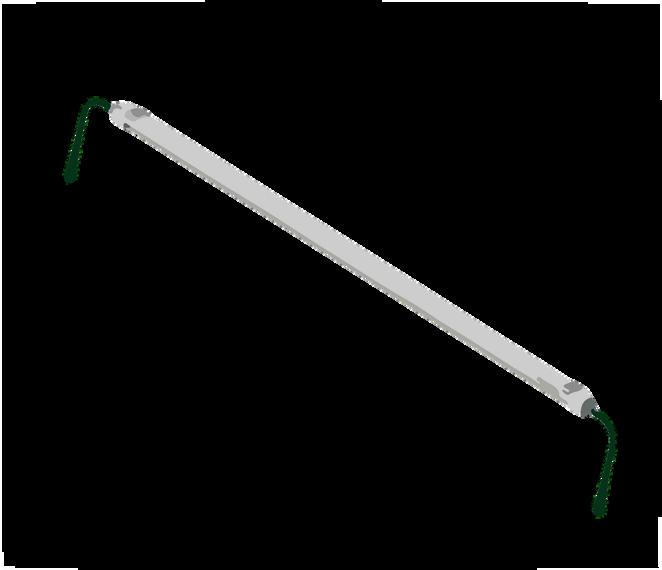

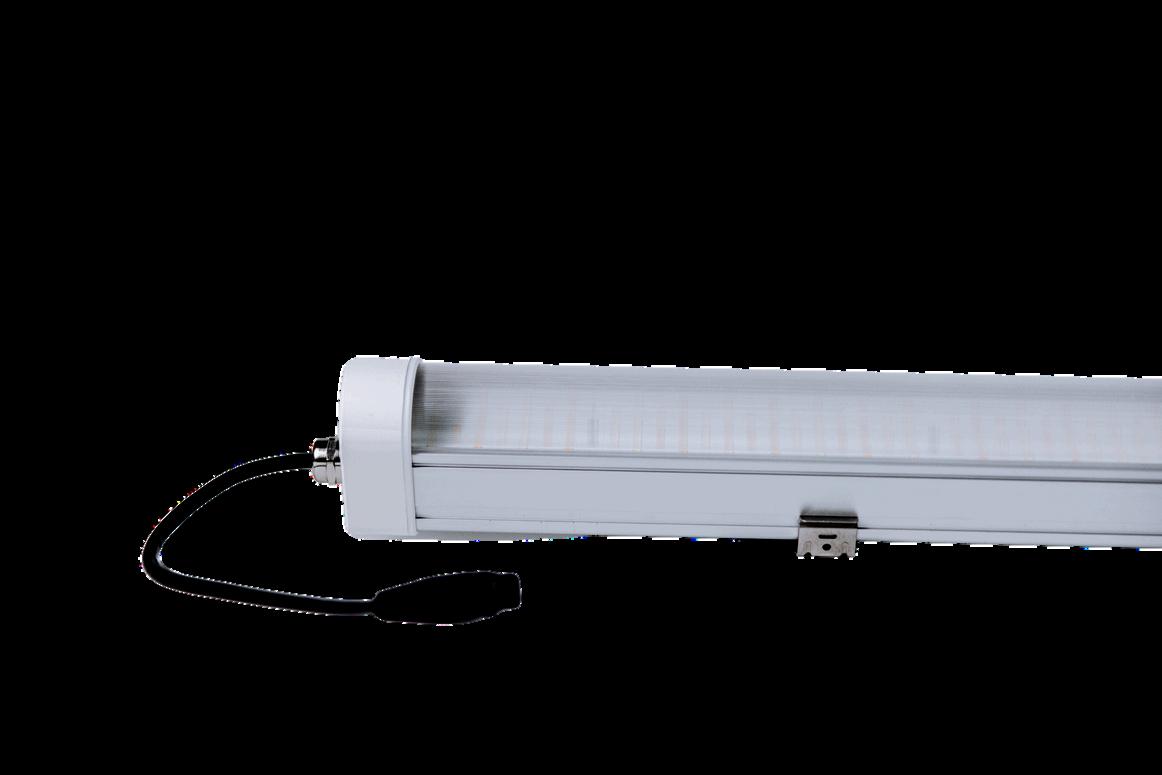

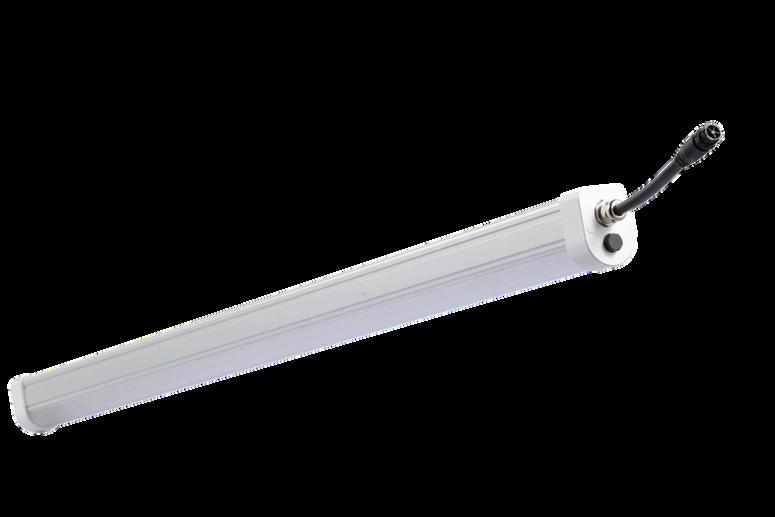

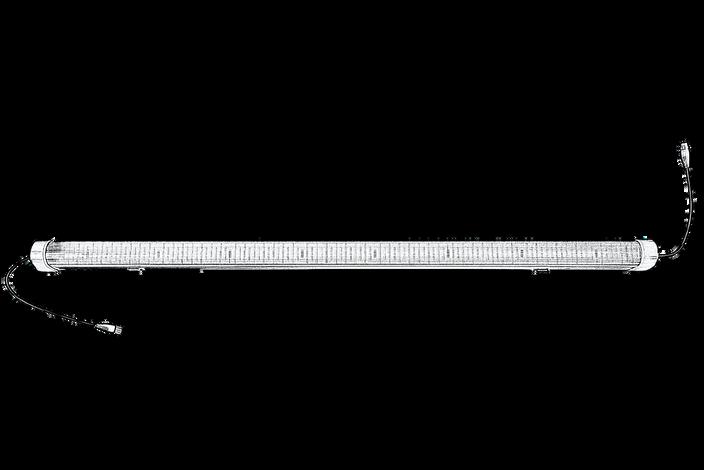

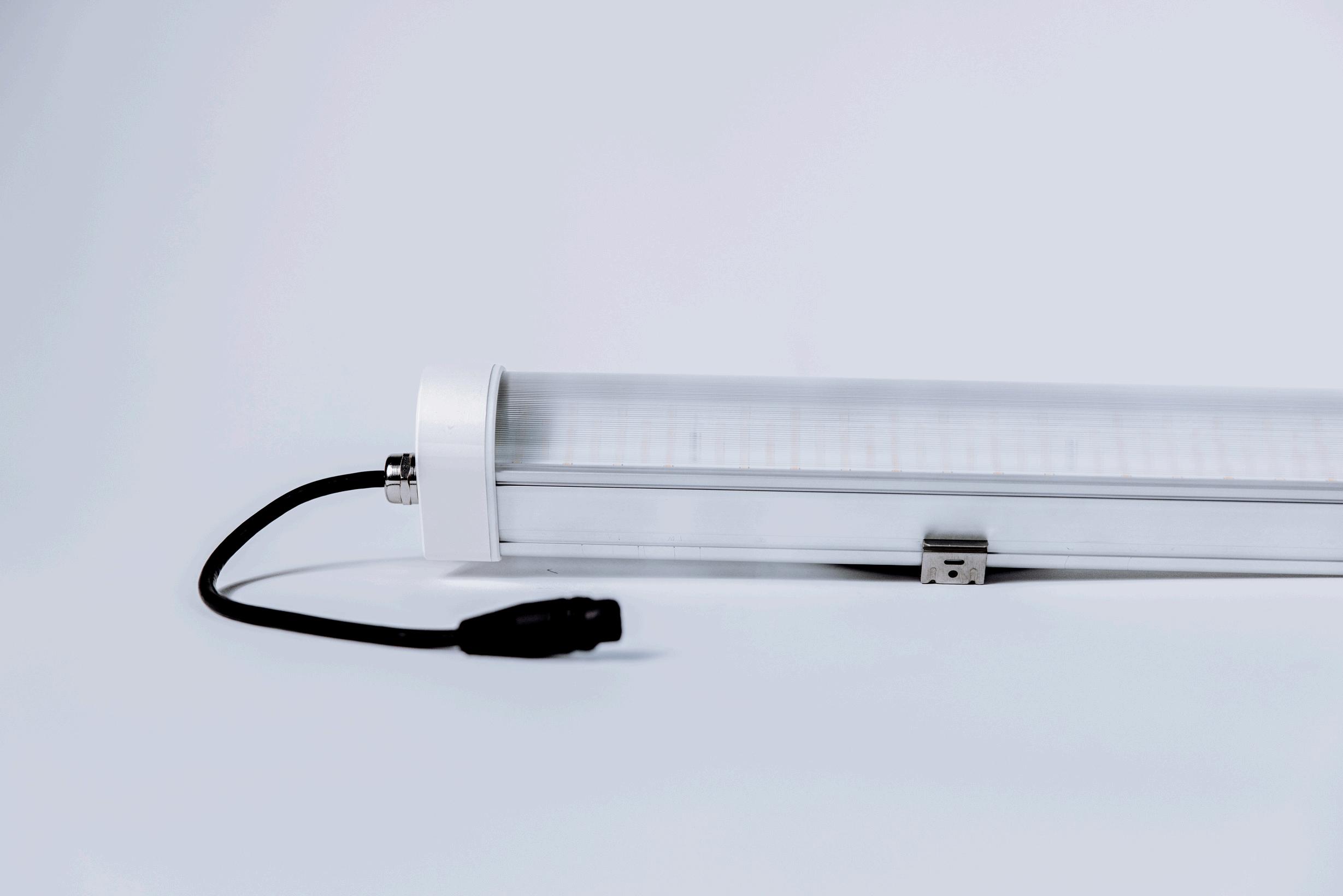

THE AELIUS 20W LED TUBE BUILD

DIMENSIONS & WEIGHT Single Bar

Length: 46" (1160 mm) Height: 1.5" (38mm)

0.8 LBS

The Aelius 20W LED Tube holds a classic, practical design that replaces T5 & T8 fixtures perfectly. With quick connectors and a built-in driver, you can daisy chain the 20w tubes together to suit your needs. The fixture comes with end caps designed for easy mounting with included ties.

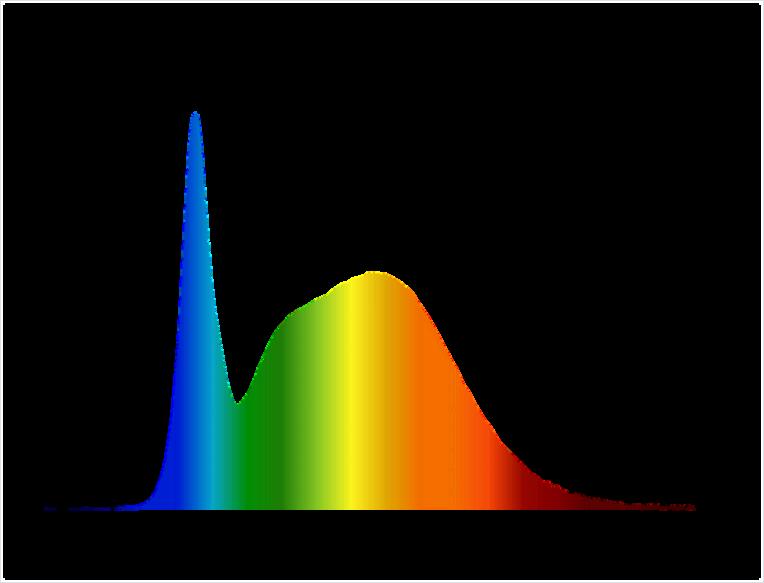

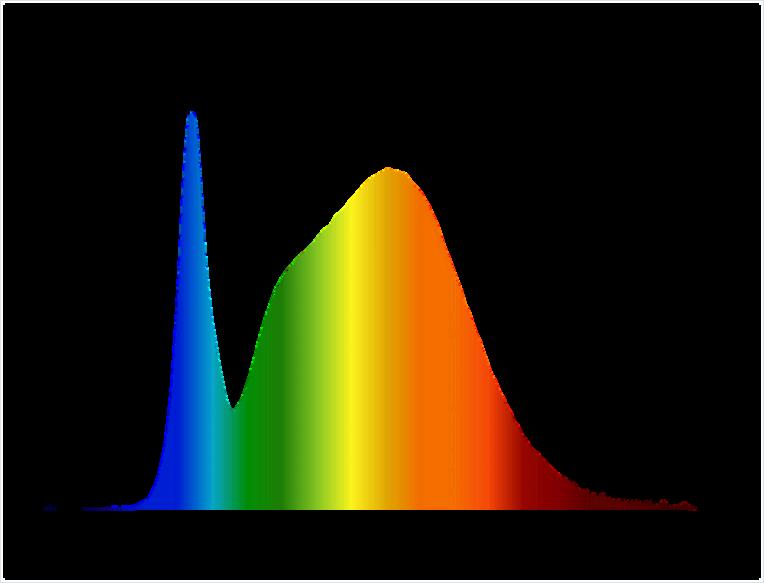

SPECTRUMS AVAILABLE 6500k

5000k

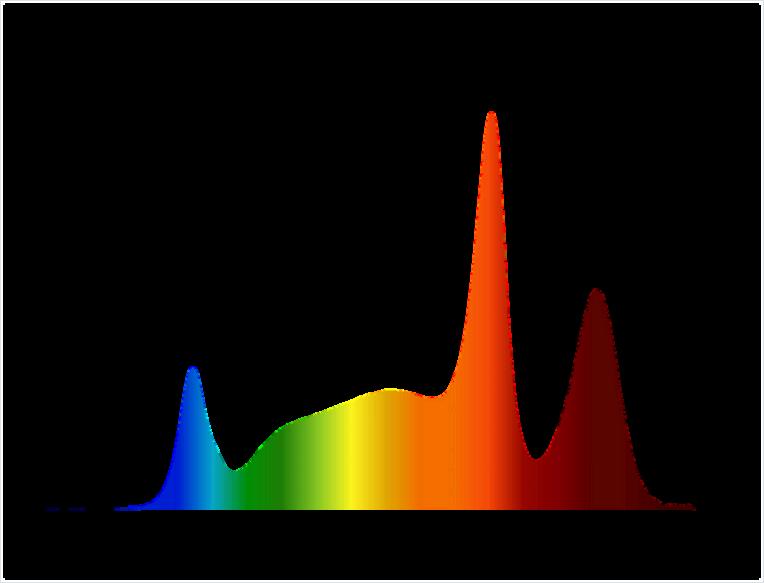

5000K + 660nm & 730nm

The LED tube is available in three different light recipes, 6500K for cloning cannabis, as well as 5000K and 5000K+ 660nm & 730nm for greens and other vegetables. Tube lights are sold in packs of four to provide you with the coverage you need while saving on costs.


THE AELIUS 20W LED TUBE FIXTURE OVERVIEW MODEL

Aelius 20W LED

PHOTON FLUX

Tube 50 μmol/S

EFFICACY

2.5 μmol/J

LIFETIME

Q70 > 20,000hrs

LED OPTICS

120 Primary Optics

DIMMABLE

No

SPECIFICATIONS

OTHER

FIXTURE POWER

20 W

INPUT VOLTAGE RANGE

120-240V

MAX VOLTAGE RANGE

120-240V

POWER FACTOR

0.90

FREQUENCY

50/60Hz

THD

<20%

CERTIFICATIONS

CE / cETLus

INDIVIDUAL COVERAGE 8" x 44" TOTAL BOX COVERAGE

44" x 48" (12"

WARRANTY PERIOD

spacing) 5 Years

DAMP LOCATIONS

IP65

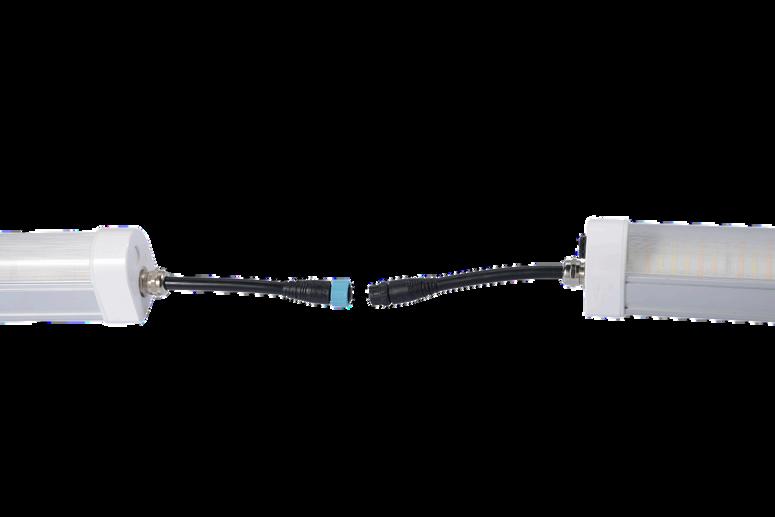

DAISY-CHAIN

up to 20 fixtures

PEACE OF MIND Aelius LED products are fully certified, safe, and easy to use! We offer a 5-year warranty, unmatched customer service, and our #AELIUSFAM at your fingertips! SUPPORT

Let's Talk

Visit Us Online

AELIUSLED.COM

WWW.AELIUSLED.COM

SALES@AELIUSLED.COM PHONE: 1.705.674.5242 TOLL FREE: 1.844.472.3389

@AELIUSLED

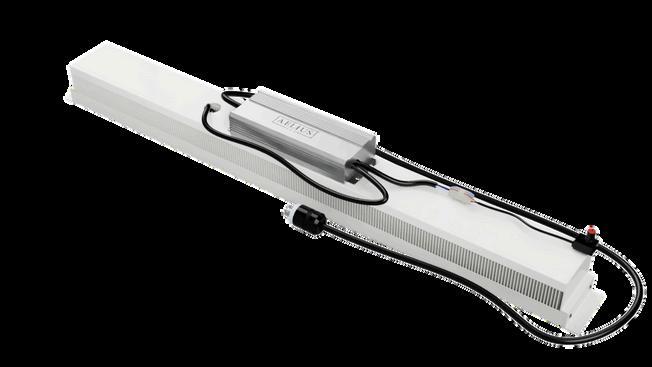

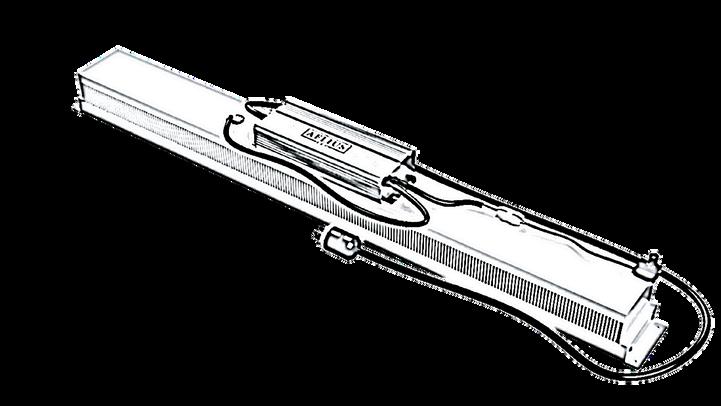

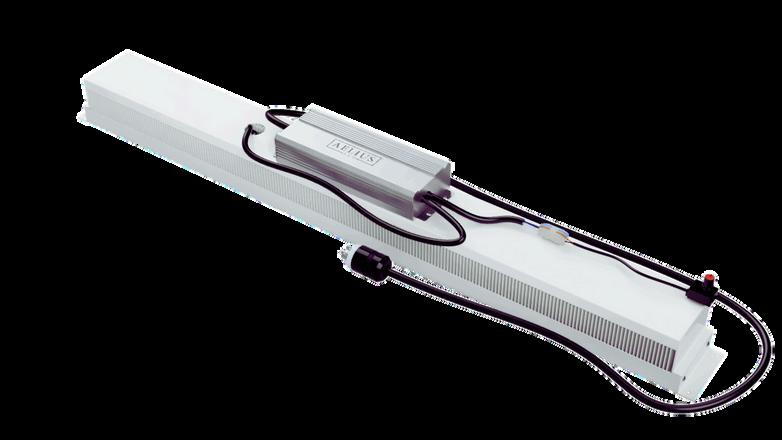

THE AELIUS 60W LED TUBE BUILD

DIMENSIONS & WEIGHT Single Bar

Length: 48" (1200 mm) Height: 2.6" (65mm)

3.15 LBS

Width: 2.0" (50mm)

The Aelius 60W LED Tube has a slim, practical profile that is designed for growing leafy greens in vertical farming applications. With a built-in driver and one connector for power and dimming, installation is a breeze. You can daisy chain the 60w tubes together quickly and easily to suit your unique growing needs. Each box contains four fixture, with power cables and mounting hardware.

SPECTRUMS AVAILABLE Standard Spectrum

Far Red Spectrum

The Aelius 60W LED Tube is available in two different full-spectrum light recipes. The Standard Spectrum is a balanced distribution of light that is proven to excel with most crops. The Far Red Spectrum has the benefits of the standard spectrum with a spike in far red, leading to increased biomass production and fuller leaves. Try out both spectrums or mix them up to find out what works best in your unique environment with your crop.


THE AELIUS 60W LED TUBE FIXTURE OVERVIEW MODEL

The Aelius 60W LED Tube

PHOTON FLUX

Light 156 μmol/S

EFFICACY

2.60 μmol/J

LIFETIME

L90 > 43,000hrs

LED OPTICS

120 Primary Optics

DIMMABLE

0-10V with RJ12 port

SPECIFICATIONS

OTHER

FIXTURE POWER

60 W

INPUT VOLTAGE RANGE

100-277V &

TEMPERATURE RANGE

347V -20 to 35

POWER FACTOR

FREQUENCY

0.90

THD

50/60Hz

CERTIFICATIONS

CE / cETLus / DLC pending

INDIVIDUAL COVERAGE 12" x 48" TOTAL BOX COVERAGE

48" x 48" (12" spacing)

WARRANTY PERIOD

5 Years

WET LOCATIONS

IP65

DAISY-CHAIN

8 Fixtures 120V 16 Fixtures 240V

<20%

PEACE OF MIND Aelius LED products are fully certified, safe, and easy to use! We offer a 5-year warranty, unmatched customer service, and our #AELIUSFAM at your fingertips! SUPPORT

Let's Talk

Visit Us Online

AELIUSLED.COM

WWW.AELIUSLED.COM

SALES@AELIUSLED.COM PHONE: 1.705.674.5242 TOLL FREE: 1.844.472.3389

@AELIUSLED

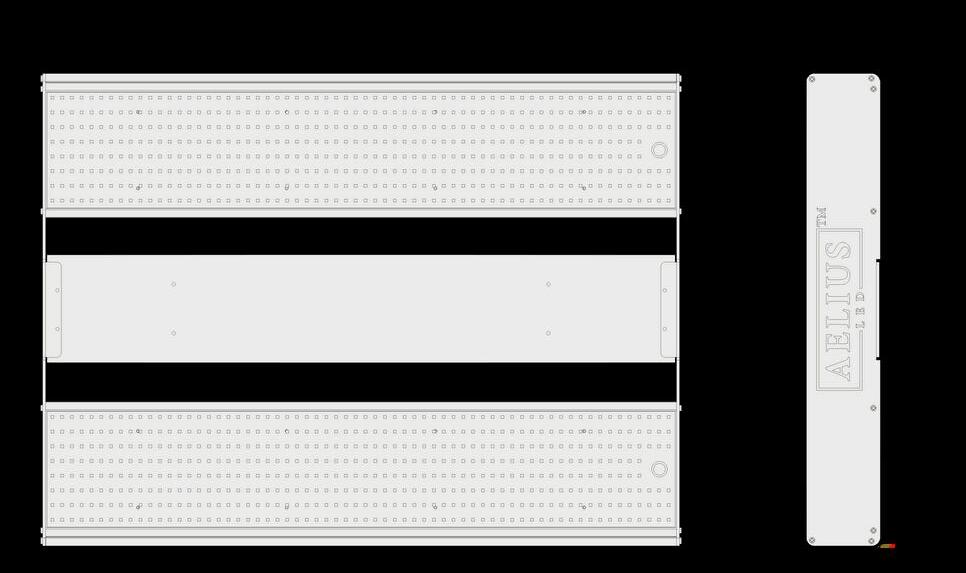

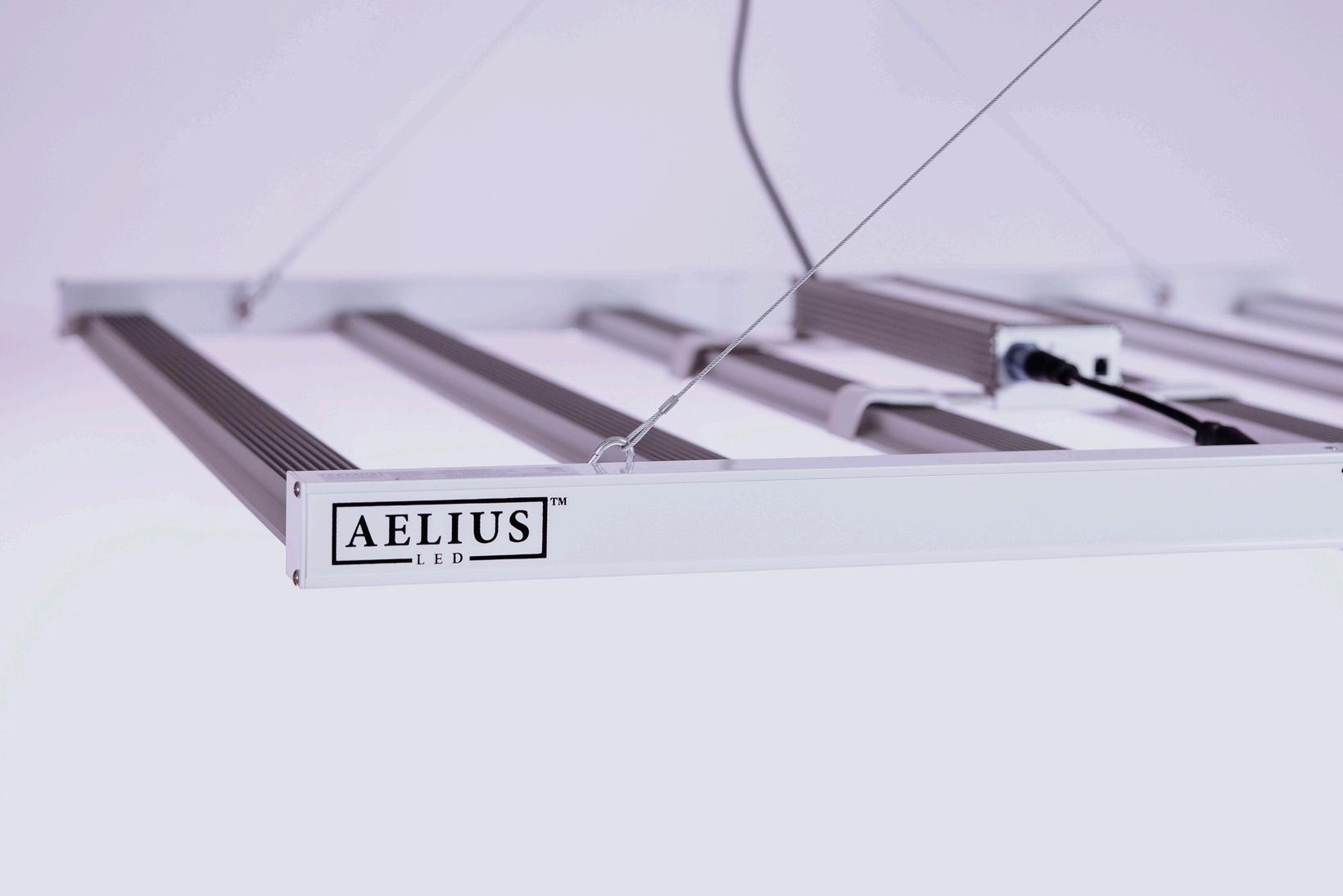

MATRX 420F BUILD The Aelius Matrx 420F is a durable commercial-grade folding fixture with a full spectrum for use with any crop. Subtle metal heat sinks and a slim bare aluminum design, with a fixture-mounted driver make it easy to install and clean. Designed for lower ceiling spaces and vertical racking installations, this fixture has six sleek light bars that ensure even coverage. This fixture will not disappoint!

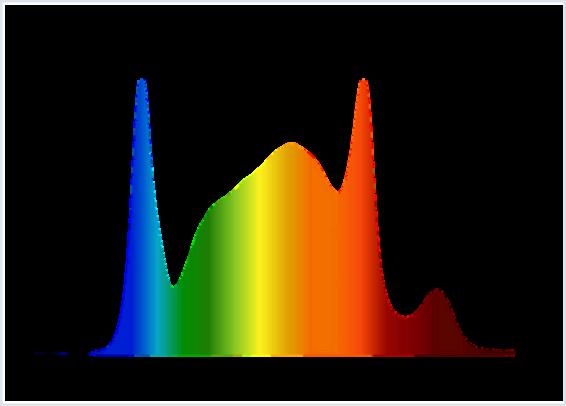

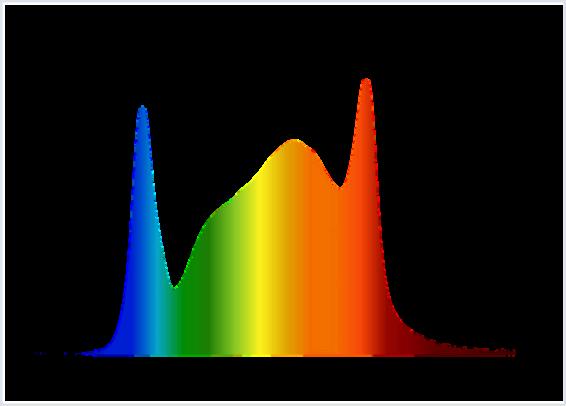

SPECTRUM

DIMENSIONS & WEIGHT 1100mm(43.3") * 1051mm(41.4") * 78mm(3") 24.4 LBS

Many growers look for a well rounded, full spectrum LED that provides even coverage over their vegging plants and mothers, all while keeping energy use down and maintaining desired plant structure. All that and more can be found in the XR spectrum of the Matrx 420F. This spectrum has proved itself time and time again to keep plants happy and healthy, and the lower power of this fixture make it a perfect fit for vegetative stage plants and maintaining mothers.


MATRX 420F FIXTURE OVERVIEW MODEL

Matrx 420F LV/HV

PHOTON FLUX

1,176 µmol/S

EFFICACY (300-800NM)

2.90 µmol/J

LIFETIME

L90 > 43,000hrs

LED OPTICS

120° Primary Optics

DIMMABLE

0-10V Daisy-Chainable

SPECIFICATIONS FIXTURE POWER

410 W

LOW VOLTAGE RANGE

100-277V

HIGH VOLTAGE RANGE

185-528V

POWER FACTOR

0.95-0.99

FREQUENCY

50/60Hz

THD @ 100% POWER

6.5-7.5%

OTHER CERTIFICATIONS

CE / cETLus / RoHS / DLC Pending

COVERAGE AREA

4'X4' - 5'X5'

WARRANTY

5 Years

WET LOCATIONS

IP65

DRIVER

uPowerTek (Fixture Mounted)

PEACE OF MIND Aelius LED products are fully certified, safe, and easy to use! We offer a 5-year warranty, unmatched customer service, and our #AELIUSFAM at your fingertips! SUPPORT

Let's Talk

sales@aeliusled.co

Visit Us Online WWW.AELIUSLED.COM

m 844-472-3389 705-674-5242 @AELIUSLED

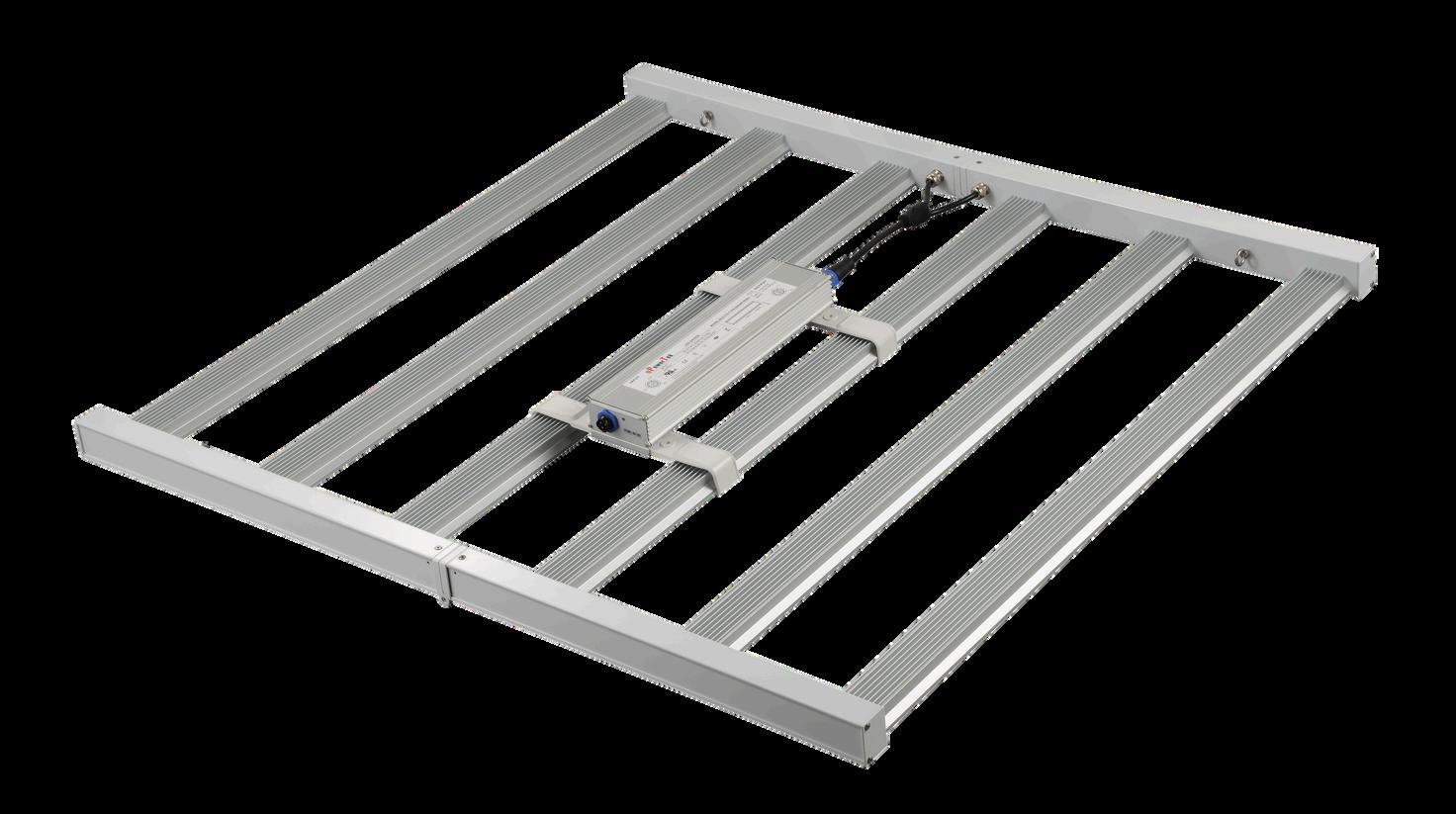

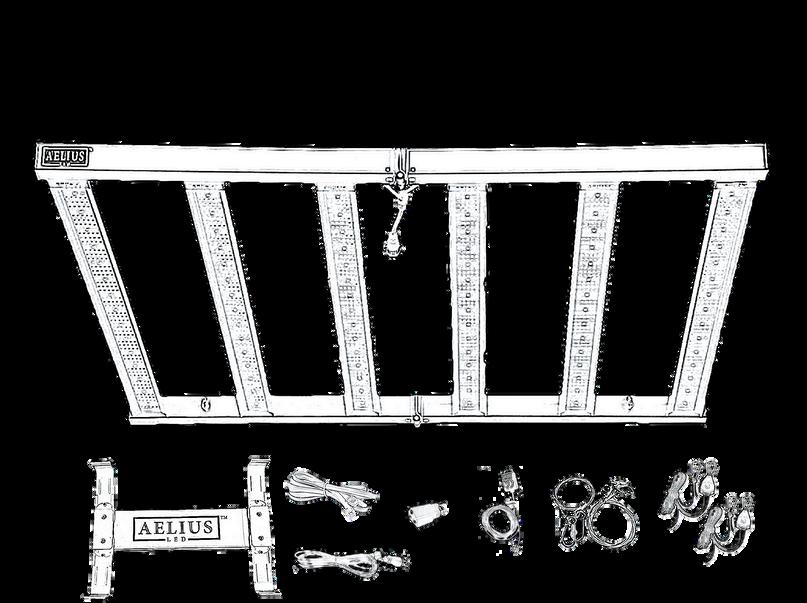

MATRX 630F BUILD

As the first folding fixture in the Aelius LED line up, the Matrx 630F was designed with quality and function in mind. The 630F features robust hinges, a top mount driver, and a sleek aluminum design. This lightweight full spectrum fixture is designed to provide LED solutions for both vegetative and flowering states.

SPECTRUM

DIMENSIONS & WEIGHT 47.2" x 43.1" x 2.3" 24.2 LBS

Many growers look for a well-rounded, full-cycle LED grow light that is easy to work under, yet still provides excellent growth characteristics and efficacy. The original, proven Aelius LED spectrum has been refined to include a higher percentage of red without sacrificing vegetative performance, allowing the Matrx 630F to excel in both vegetative and flowering cycles. Engineered to maximize photosynthesis, growth, and yield, this spectrum has proven itself time and time again in our trials.


MATRX 630F

FIXTURE OVERVIEW

MODEL

Matrx 630F

PHOTON FLUX

1886 μmol/S

EFFICACY

2.81 μmol/J

LIFETIME

Q90 > 50,000hr

LED OPTICS

120 Primary Optics

DIMMABLE

0-10V

SPECIFICATIONS FIXTURE POWER

672 W

INPUT VOLTAGE RANGE

100-277V

MAX VOLTAGE RANGE

90-305V

POWER FACTOR

0.995

FREQUENCY

50/60Hz

THD

8.1%

OTHER CERTIFICATIONS

CE / cETLus / DLC

COVERAGE AREA

4X4 / 5X5 Reflective

WARRANTY PERIOD

5 Years

DAMP LOCATIONS

Yes

DRIVER

uPowerTek

PEACE OF MIND Aelius LED products are fully certified, safe, and easy to use! We offer a 5-year warranty, unmatched customer service, and our #AELIUSFAM at your fingertips! SUPPORT

Let's Talk

Visit Us Online

AELIUSLED.COM

WWW.AELIUSLED.COM

SALES@AELIUSLED.COM PHONE: 1.705.674.5242 TOLL FREE: 1.844.472.3389

@AELIUSLED


MATRX 730F BUILD The Aelius Matrx 730F is a durable commercial-grade folding fixture with a full spectrum for use with any crop. Subtle metal heat sinks and a slim bare aluminum design, with a fixture-mounted driver make it easy to install and clean. Designed for lower ceiling spaces and vertical racking installations, this fixture has six sleek light bars ensure even coverage. This fixture will not disappoint!

SPECTRUM

DIMENSIONS & WEIGHT 1100mm(43.3") * 1051mm(41.4") * 78mm(3") 26 LBS

Many growers look for a well rounded, full spectrum LED grow light that will produce great results in various applications, has high PAR output, and an even coverage. All that and more can be found in the XR spectrum of the Matrx 730F. This spectrum has proved itself time and time again to lead your plants happily from vegetation cycle through to finishing off your flowers.


MATRX 730F FIXTURE OVERVIEW MODEL

Matrx 730F LV/HV

PHOTON FLUX

2,044 µmol/S

EFFICACY (300-800NM)

2.90 µmol/J

LIFETIME

L90 > 43,000hrs

LED OPTICS

120° Primary Optics

DIMMABLE

0-10V Daisy-Chainable

SPECIFICATIONS

OTHER

FIXTURE POWER

730 W

CERTIFICATIONS

CE / cETLus / RoHS / DLC Pending

LOW VOLTAGE RANGE

100-277V

COVERAGE AREA

5'X5'

HIGH VOLTAGE RANGE

185-528V

WARRANTY

5 Years

POWER FACTOR

0.95-0.99

WET LOCATIONS

IP65

FREQUENCY

50/60Hz

DRIVER

uPowerTek (Fixture Mounted)

THD @ 100% POWER

6.5-7.5%

PEACE OF MIND Aelius LED products are fully certified, safe, and easy to use! We offer a 5-year warranty, unmatched customer service, and our #AELIUSFAM at your fingertips! SUPPORT

Let's Talk

sales@aeliusled.co

Visit Us Online WWW.AELIUSLED.COM

m 844-472-3389 705-674-5242 @AELIUSLED


MATRX REDD 3.0F BUILD The Aelius Matrx REDD 3.0F is a durable commercial-grade folding fixture boasting industry-leading efficacy. Subtle metal heat sinks and a slim bare aluminum design, with a fixture-mounted driver make it easy to install and clean. Designed for lower ceiling flower spaces, the Matrx REDD 3.0F is sure to set your canopy apart. Six sleek light bars ensure even coverage of its unique far-red spectrum. This fixture will not disappoint!

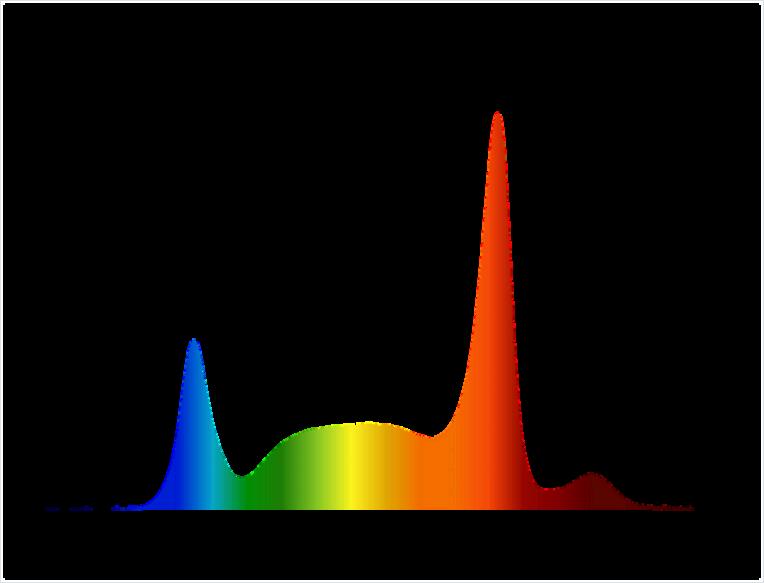

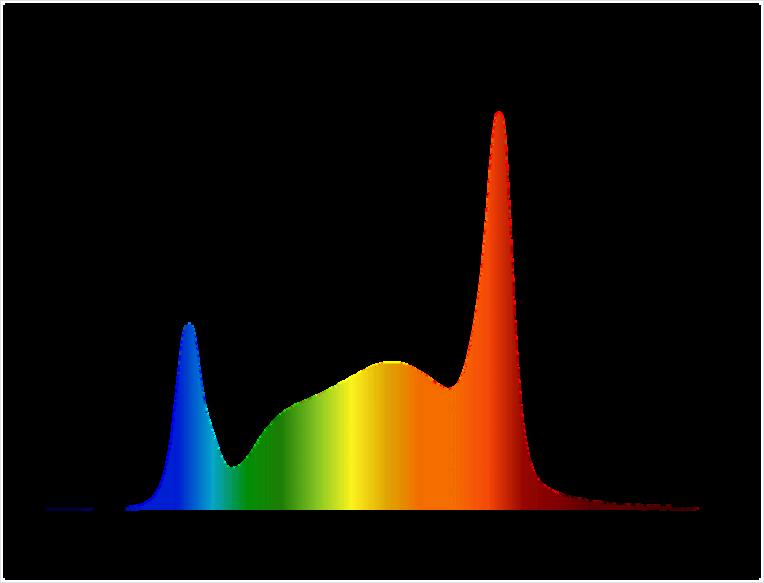

SPECTRUM

DIMENSIONS & WEIGHT 1100mm(43.3") * 1051mm(41.4") * 78mm(3") 26 LBS

Creating the perfect flowering spectrum isn't easy, but we got pretty close with this one. With the same Aelius REDD spectrum our customers have come to know and love - now with higher efficacy to get more photons down to your canopy. This Feisty Far Red has changed the game when it comes to terpene profile, bud size and genetic expression. Change your flower game with the Aelius LED Matrx REDD. Now available in a Low Voltage model (100-277V) as well as High Voltage (200-480V).


MATRX REDD 3.0F FIXTURE OVERVIEW MODEL

Matrx REDD 3.0F

PHOTON FLUX

LV/HV 2190 µmol/S

EFFICACY

3.00 µmol/J

LIFETIME

L90 > 43,000hrs

LED OPTICS

120° Primary Optics

DIMMABLE

0-10V Daisy-Chainable

SPECIFICATIONS FIXTURE POWER

725 W

LOW VOLTAGE RANGE

100-277V

HIGH VOLTAGE RANGE

200-480V

POWER FACTOR

0.95-0.99

FREQUENCY

50/60Hz

THD @ 100% POWER

6.5-7.5%

OTHER CERTIFICATIONS

CE / cETLus / RoHS / DLC Pending

COVERAGE AREA

5X5

WARRANTY PERIOD 5 Years DAMP LOCATIONS

IP65

DRIVER

uPowerTek (Fixture Mounted)

PEACE OF MIND Aelius LED products are fully certified, safe, and easy to use! We offer a 5-year warranty, unmatched customer service, and our #AELIUSFAM at your fingertips! SUPPORT

Let's Talk

sales@aeliusled.co

Visit Us Online WWW.AELIUSLED.COM

m 844-472-3389 705-674-5242 @AELIUSLED


MATRX REDD 3.4F BUILD The Aelius Matrx REDD 3.4F is a durable commercial-grade folding fixture boasting industry-leading efficacy. Subtle metal heat sinks and a slim bare aluminum design, with a fixture-mounted driver make it easy to install and clean. Designed for lower ceiling flower spaces, the Matrx REDD 3.4F is sure to set your canopy apart. Six sleek light bars ensure even coverage of its unique far-red spectrum. This fixture will not disappoint!

SPECTRUM

DIMENSIONS & WEIGHT 1100mm(43.3") * 1051mm(41.4") * 78mm(3") 26 LBS

Creating the perfect flowering spectrum isn't easy, but we got pretty close with this one. With the same Aelius REDD spectrum our customers have come to know and love - now with higher efficacy to get more photons down to your canopy. This Feisty Far Red has changed the game when it comes to terpene profile, bud size and genetic expression. Change your flower game with the Aelius LED Matrx REDD. Now available in a Low Voltage model (100-277V) as well as High Voltage (200-480V).


MATRX REDD 3.4F FIXTURE OVERVIEW MODEL

Matrx REDD 3.4F

PHOTON FLUX

LV/HV 2482 µmol/S

EFFICACY

3.40 µmol/J

LIFETIME

L90 > 43,000hrs

LED OPTICS

120° Primary Optics

DIMMABLE

0-10V Daisy-Chainable

SPECIFICATIONS FIXTURE POWER

730 W

LOW VOLTAGE RANGE

100-277V

HIGH VOLTAGE RANGE

200-480V

POWER FACTOR

0.95-0.99

FREQUENCY

50/60Hz

THD @ 100% POWER

6.5-7.5%

OTHER CERTIFICATIONS

CE / cETLus / RoHS / DLC Pending

COVERAGE AREA

5X5

WARRANTY PERIOD 5 Years DAMP LOCATIONS

IP65

DRIVER

uPowerTek (Fixture Mounted)

PEACE OF MIND Aelius LED products are fully certified, safe, and easy to use! We offer a 5-year warranty, unmatched customer service, and our #AELIUSFAM at your fingertips! SUPPORT

Let's Talk

Visit Us Online

sales@aeliusled.co

WWW.AELIUSLED.COM

m 844-472-3389 705-674-5242 @AELIUSLED

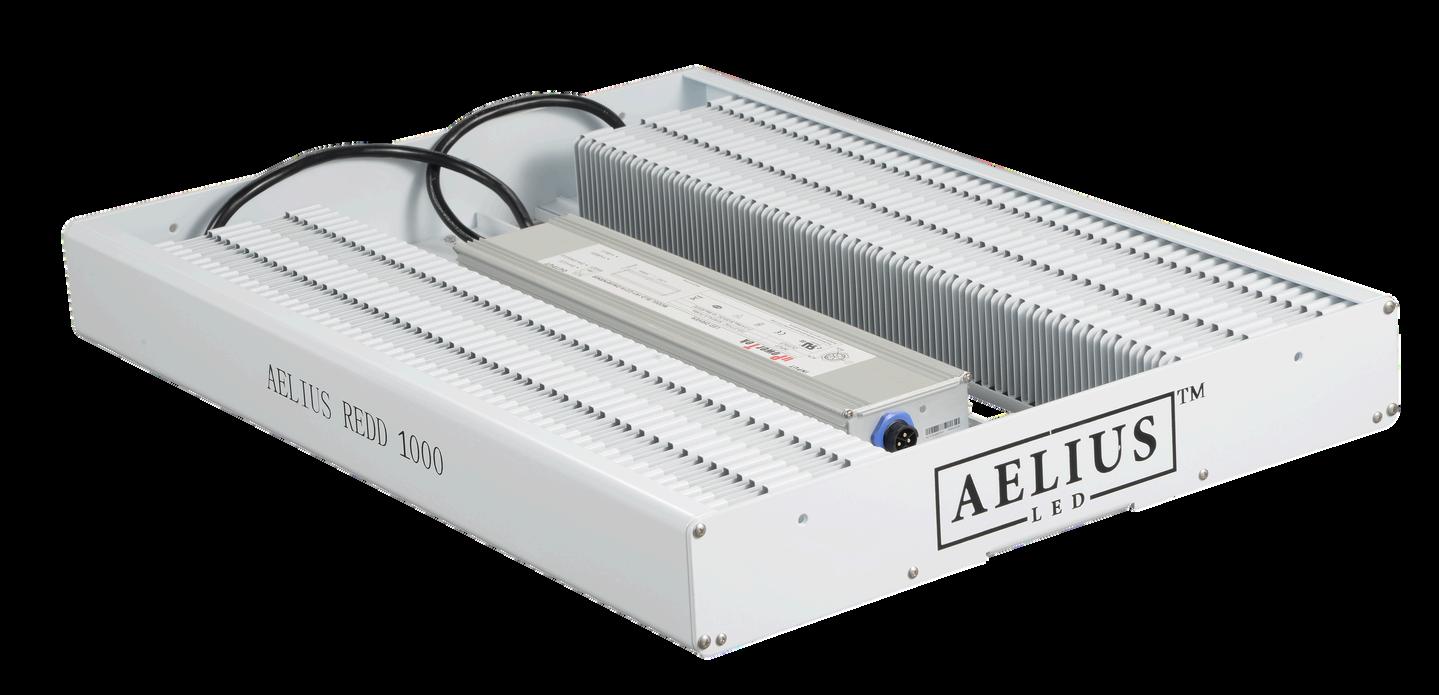

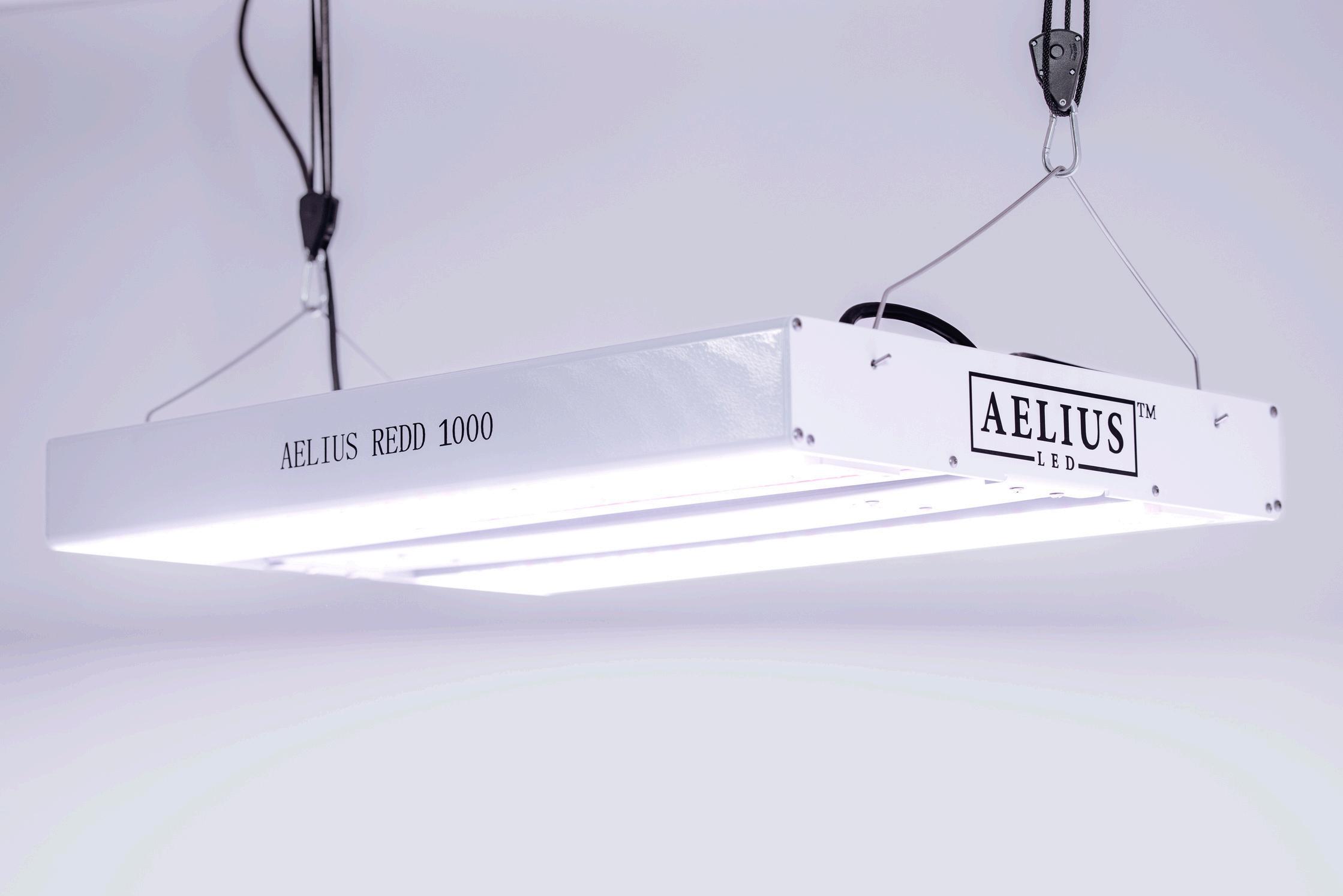

AELIUS REDD 3.4 1000 BUILD The Aelius REDD 1000 is a durable commercial-grade fixture boasting industry-leading efficacy. Our premium quality Aelius REDD fixtures include large metal heat sinks to aid in climate control and a powder-coated aluminum frame for a strong, clean, durable look. A fixturemounted driver makes installation and cleaning a breeze. Designed for higher ceiling flower spaces, the Aelius REDD 1000 is sure to set your canopy apart. This fixture will not disappoint!

SPECTRUM

DIMENSIONS & WEIGHT 651mm(25.6") * 482.4mm(19") * 75.4mm(3") 23.2 LBS

Creating the perfect flowering spectrum isn't easy, but we got pretty close with this one. With the same Aelius REDD spectrum our customers have come to know and love - now with higher efficacy to get more photons down to your canopy. This Feisty Far Red has changed the game when it comes to terpene profile, bud size and genetic expression. Change your flower game with the Aelius REDD 1000. Now available in a Low Voltage model (100-277V) as well as High Voltage (200-480V).


AELIUS REDD 3.4 1000 FIXTURE OVERVIEW MODEL

Aelius REDD 3.0 1000

PHOTON

FLUX

(380-

LV/HV 3,400 µmol/S

780nm) EFFICACY

3.4 µmol/J

LIFETIME

L90 > 43,000hrs

LED OPTICS

120° Primary Optics

DIMMABLE

0-10V Daisy-Chainable RJ12

SPECIFICATIONS FIXTURE POWER

1,000W

LOW VOLTAGE RANGE

100-277V

HIGH VOLTAGE RANGE

200-480V

POWER FACTOR

0.95-0.99

FREQUENCY

50/60Hz

THD @ 100% POWER

6.5-7.5%

OTHER CERTIFICATIONS

CE / cETLus / RoHS / DLC Pending

COVERAGE AREA

5X5

WARRANTY PERIOD 5 Years DAMP LOCATIONS

IP65

DRIVER

uPowerTek (Fixture Mounted)

PEACE OF MIND Aelius LED products are fully certified, safe, and easy to use! We offer a 5-year warranty, unmatched customer service, and our #AELIUSFAM at your fingertips! SUPPORT

Let's Talk

Visit Us Online

sales@aeliusled.co

WWW.AELIUSLED.COM

m 844-472-3389 705-674-5242 @AELIUSLED


AELIUS REDD 3.4 800 BUILD The Aelius REDD 800 is a durable commercial-grade fixture boasting industry-leading efficacy. Our premium quality Aelius REDD fixtures include large metal heat sinks to aid in climate control and a powder-coated aluminum frame for a strong, clean, durable look. A fixturemounted driver makes installation and cleaning a breeze. Designed for higher ceiling flower spaces, the Aelius REDD 800 is sure to set your canopy apart. This fixture will not disappoint!

SPECTRUM

DIMENSIONS & WEIGHT 651mm(25.6") * 482.4mm(19") * 75.4mm(3") 23.2 LBS

Creating the perfect flowering spectrum isn't easy, but we got pretty close with this one. With the same Aelius REDD spectrum our customers have come to know and love - now with higher efficacy to get more photons down to your canopy. This Feisty Far Red has changed the game when it comes to terpene profile, bud size and genetic expression. Change your flower game with the Aelius REDD 800. Now available in a Low Voltage model (100-277V) as well as High Voltage (200-480V).


AELIUS REDD 3.4 800 FIXTURE OVERVIEW MODEL

Aelius REDD 3.4 800 LV/HV

PHOTON

FLUX

(380-

2,720 µmol/S

780nm) EFFICACY

3.4 µmol/J

LIFETIME

L90 > 43,000hrs

LED OPTICS

120° Primary Optics

DIMMABLE

0-10V Daisy-Chainable RJ12

SPECIFICATIONS FIXTURE POWER

800W

LOW VOLTAGE RANGE

100-277V

HIGH VOLTAGE RANGE

185-528V

POWER FACTOR

0.95-0.99

FREQUENCY

50/60Hz

THD @ 100% POWER

6.5-7.5%

OTHER CERTIFICATIONS

CE / cETLus / RoHS / DLC Pending

COVERAGE AREA

5X5

WARRANTY PERIOD 5 Years DAMP LOCATIONS

IP65

DRIVER

uPowerTek (Fixture Mounted)

PEACE OF MIND Aelius LED products are fully certified, safe, and easy to use! We offer a 5-year warranty, unmatched customer service, and our #AELIUSFAM at your fingertips! SUPPORT

Let's Talk

Visit Us Online

sales@aeliusled.co

WWW.AELIUSLED.COM

m 844-472-3389 705-674-5242 @AELIUSLED


AELIUS REDD 3.4 700 BUILD The Aelius REDD 700 is a durable commercial-grade fixture boasting industry-leading efficacy. Our premium quality Aelius REDD fixtures include large metal heat sinks to aid in climate control and a powder-coated aluminum frame for a strong, clean, durable look. A fixturemounted driver makes installation and cleaning a breeze. Designed for higher ceiling flower spaces, the Aelius REDD 700 is sure to set your canopy apart. This fixture will not disappoint!

SPECTRUM

DIMENSIONS & WEIGHT 651mm(25.6") * 482.4mm(19") * 75.4mm(3") 23.2 LBS

Creating the perfect flowering spectrum isn't easy, but we got pretty close with this one. With the same Aelius REDD spectrum our customers have come to know and love - now with higher efficacy to get more photons down to your canopy. This Feisty Far Red has changed the game when it comes to terpene profile, bud size and genetic expression. Change your flower game with the Aelius REDD 700. Now available in a Low Voltage model (100-277V) as well as High Voltage (200-480V).


AELIUS REDD 3.4 700 FIXTURE OVERVIEW MODEL

Aelius REDD 3.4 700 LV/HV

PHOTON

FLUX

(380-

2,380 µmol/S

780nm) EFFICACY

3.4 µmol/J

LIFETIME

L90 > 43,000hrs

LED OPTICS

120° Primary Optics

DIMMABLE

0-10V Daisy-Chainable RJ12

SPECIFICATIONS FIXTURE POWER

700W

LOW VOLTAGE RANGE

100-277V

HIGH VOLTAGE RANGE

185-528V

POWER FACTOR

0.95-0.99

FREQUENCY

50/60Hz

THD @ 100% POWER

6.5-7.5%

OTHER CERTIFICATIONS

CE / cETLus / RoHS / DLC Pending

COVERAGE AREA

5X5

WARRANTY PERIOD 5 Years DAMP LOCATIONS

IP65

DRIVER

uPowerTek (Fixture Mounted)

PEACE OF MIND Aelius LED products are fully certified, safe, and easy to use! We offer a 5-year warranty, unmatched customer service, and our #AELIUSFAM at your fingertips! SUPPORT

Let's Talk

Visit Us Online

sales@aeliusled.co

WWW.AELIUSLED.COM

m 844-472-3389 705-674-5242 @AELIUSLED


AELIUS REDD 3.0 1000 BUILD The Aelius REDD 1000 is a durable commercial-grade fixture boasting industry-leading efficacy. Our premium quality Aelius REDD fixtures include large metal heat sinks to aid in climate control and a powder-coated aluminum frame for a strong, clean, durable look. A fixturemounted driver makes installation and cleaning a breeze. Designed for higher ceiling flower spaces, the Aelius REDD 1000 is sure to set your canopy apart. This fixture will not disappoint!

SPECTRUM

DIMENSIONS & WEIGHT 651mm(25.6") * 482.4mm(19") * 75.4mm(3") 23.2 LBS

Creating the perfect flowering spectrum isn't easy, but we got pretty close with this one. With the same Aelius REDD spectrum our customers have come to know and love - now with higher efficacy to get more photons down to your canopy. This Feisty Far Red has changed the game when it comes to terpene profile, bud size and genetic expression. Change your flower game with the Aelius REDD 1000. Now available in a Low Voltage model (100-277V) as well as High Voltage (200-480V).


AELIUS REDD 3.0 1000 FIXTURE OVERVIEW MODEL

Aelius REDD 3.0 1000

PHOTON

FLUX

(380-

LV/HV 3,000 µmol/S

780nm) EFFICACY

3.0 µmol/J

LIFETIME

L90 > 43,000hrs

LED OPTICS

120° Primary Optics

DIMMABLE

0-10V Daisy-Chainable RJ12

SPECIFICATIONS FIXTURE POWER

1,000W

LOW VOLTAGE RANGE

100-277V

HIGH VOLTAGE RANGE

200-480V

POWER FACTOR

0.95-0.99

FREQUENCY

50/60Hz

THD @ 100% POWER

6.5-7.5%

OTHER CERTIFICATIONS

CE / cETLus / RoHS / DLC Pending

COVERAGE AREA

5X5

WARRANTY PERIOD 5 Years DAMP LOCATIONS

IP65

DRIVER

uPowerTek (Fixture Mounted)

PEACE OF MIND Aelius LED products are fully certified, safe, and easy to use! We offer a 5-year warranty, unmatched customer service, and our #AELIUSFAM at your fingertips! SUPPORT

Let's Talk

Visit Us Online

sales@aeliusled.co

WWW.AELIUSLED.COM

m 844-472-3389 705-674-5242 @AELIUSLED


AELIUS REDD 3.0 800 BUILD The Aelius REDD 800 is a durable commercial-grade fixture boasting industry-leading efficacy. Our premium quality Aelius REDD fixtures include large metal heat sinks to aid in climate control and a powder-coated aluminum frame for a strong, clean, durable look. A fixturemounted driver makes installation and cleaning a breeze. Designed for higher ceiling flower spaces, the Aelius REDD 800 is sure to set your canopy apart. This fixture will not disappoint!

SPECTRUM

DIMENSIONS & WEIGHT 651mm(25.6") * 482.4mm(19") * 75.4mm(3") 23.2 LBS

Creating the perfect flowering spectrum isn't easy, but we got pretty close with this one. With the same Aelius REDD spectrum our customers have come to know and love - now with higher efficacy to get more photons down to your canopy. This Feisty Far Red has changed the game when it comes to terpene profile, bud size, and genetic expression. Change your flower game with the Aelius REDD 800. Now available in a Low Voltage model (100-277V) as well as High Voltage (200-480V).


AELIUS REDD 3.0 800 FIXTURE OVERVIEW MODEL

Aelius REDD 3.0 800 LV/HV

PHOTON

FLUX

(380-

2,400 µmol/S

780nm) EFFICACY

3.0 µmol/J

LIFETIME

L90 > 43,000hrs

LED OPTICS

120° Primary Optics

DIMMABLE

0-10V Daisy-Chainable RJ12

SPECIFICATIONS FIXTURE POWER

800W

LOW VOLTAGE RANGE

100-277V

HIGH VOLTAGE RANGE

185-528V

POWER FACTOR

0.95-0.99

FREQUENCY

50/60Hz

THD @ 100% POWER

6.5-7.5%

OTHER CERTIFICATIONS

CE / cETLus / RoHS / DLC Pending

COVERAGE AREA

5X5

WARRANTY PERIOD 5

Years

DAMP LOCATIONS

IP65

DRIVER

uPowerTek (Fixture Mounted)

PEACE OF MIND Aelius LED products are fully certified, safe, and easy to use! We offer a 5-year warranty, unmatched customer service, and our #AELIUSFAM at your fingertips! SUPPORT

Let's Talk

Visit Us Online

sales@aeliusled.co

WWW.AELIUSLED.COM

m 844-472-3389 705-674-5242 @AELIUSLED


AELIUS REDD 3.0 700 BUILD The Aelius REDD 700 is a durable commercial-grade fixture boasting industry-leading efficacy. Our premium quality Aelius REDD fixtures include large metal heat sinks to aid in climate control and a powder-coated aluminum frame for a strong, clean, durable look. A fixturemounted driver makes installation and cleaning a breeze. Designed for higher ceiling flower spaces, the Aelius REDD 700 is sure to set your canopy apart. This fixture will not disappoint!

SPECTRUM

DIMENSIONS & WEIGHT 651mm(25.6") * 482.4mm(19") * 75.4mm(3") 23.2 LBS

Creating the perfect flowering spectrum isn't easy, but we got pretty close with this one. With the same Aelius REDD spectrum our customers have come to know and love - now with higher efficacy to get more photons down to your canopy. This Feisty Far Red has changed the game when it comes to terpene profile, bud size and genetic expression. Change your flower game with the Aelius REDD 700. Now available in a Low Voltage model (100-277V) as well as High Voltage (200-480V).


AELIUS REDD 3.0 700 FIXTURE OVERVIEW MODEL

Aelius REDD 3.0 700 LV/HV

PHOTON

FLUX

(380-

2,100 µmol/S

780nm) EFFICACY

3.0 µmol/J

LIFETIME

L90 > 43,000hrs

LED OPTICS

120° Primary Optics

DIMMABLE

0-10V Daisy-Chainable RJ12

SPECIFICATIONS FIXTURE POWER

700W

LOW VOLTAGE RANGE

100-277V

HIGH VOLTAGE RANGE

185-528V

POWER FACTOR

0.95-0.99

FREQUENCY

50/60Hz

THD @ 100% POWER

6.5-7.5%

OTHER CERTIFICATIONS

CE / cETLus / RoHS / DLC Pending

COVERAGE AREA

5X5

WARRANTY PERIOD 5 Years DAMP LOCATIONS

IP65

DRIVER

uPowerTek (Fixture Mounted)

PEACE OF MIND Aelius LED products are fully certified, safe, and easy to use! We offer a 5-year warranty, unmatched customer service, and our #AELIUSFAM at your fingertips! SUPPORT

Let's Talk

Visit Us Online

sales@aeliusled.co

WWW.AELIUSLED.COM

m 844-472-3389 705-674-5242 @AELIUSLED


AELIUS 880 BUILD

BUILD The Aelius 880 LED is is crafted of quality aluminum and has a 3mm tempered glass lens, protecting its 5,440 quality diodes. Unique copper pipe dynamic-passive cooling enhances heat dissipation which results in a lighter weight fixture that packs power.

SPECTRUMS AVAILABLE

DIMENSIONS & WEIGHT 49.51" x 4.63" 28.4 LBS

SPECTRUM 2 (VCG)

117.5 [4.63]

SPECTRUM 1 (VBG)

1257.5 [49.51]

SPECTRUM 3 (VDG)

SPECTRUM 4 (VAG)

Spectrum 1, white+ 660nm+ 10% 730nm – This spectrum is designed for cannabis flowering and larger fruiting crops ie. tomatoes, cucumbers, peppers within a greenhouse setting. Spectrum 2, white+ 660nm+ 5% 730nm + 5% 780nm – This spectrum is specially created for cannabis flowering & craft cannabis production. Spectrum 3, 15% white + 85% red - Created as a supplemental greenhouse spectrum only, this recipe provides extra light energy to create ideal DLI for a specific crop. Spectrum 4, white+ 660nm+ 5% 730nm - With slightly less far-red than Spectrum 1, this spectrum is more versatile for a wider range of cultivars and more practical for use in vegetative stages of cannabis right through to flower. This spectrum is the stock spectrum in the Aelius 880.


AELIUS 880 FIXTURE OVERVIEW MODEL

Aelius 880

PHOTON FLUX

2640 μmol/S

EFFICACY

2.93 μmol/J

LIFETIME

L90 > 50,000hrs

DIMMABLE

0-10V

SPECIFICATIONS

OTHER

FIXTURE POWER

880 W

CERTIFICATIONS

CE / cETLus / DLC

INPUT VOLTAGE RANGE

200-277

COVERAGE AREA

4X4 High-Bay

MAX VOLTAGE RANGE

V 120-277

WARRANTY PERIOD

5 Years

POWER FACTOR

V 0.98

DAMP LOCATIONS

IP65

FREQUENCY

50/60Hz

DRIVER

Fixture Mounted

THD

8.5%

PEACE OF MIND Aelius LED products are fully certified, safe, and easy to use! We offer a 5-year warranty, unmatched customer service, and our #AELIUSFAM at your fingertips! SUPPORT

Let's Talk

Visit Us Online

AELIUSLED.COM

WWW.AELIUSLED.COM

SALES@AELIUSLED.COM PHONE: 1.705.674.5242 TOLL FREE: 1.844.472.3389

@AELIUSLED


AELIUS 300 BUILD

BUILD Our premium quality Aelius 300s boast large metal heat sinks to aid in climate control as well as a powder-coated aluminum frame for a strong and clean look. Suited to almost any growing environment, the Aelius 300 is a great choice for full-cycle growing.

SPECTRUM

DIMENSIONS & WEIGHT 4" x 40" 12.4 LBS

Many growers look for a well rounded, full cycle led grow light that is easy on the eyes to work under, yet still provides excellent growth characteristics and efficacy. All that and more can be found in the Aelius 300 original spectrum. This spectrum has proved itself time and time again to lead your plants happily from vegetation cycle through to finishing off your flowers.


AELIUS 300 FIXTURE OVERVIEW MODEL

Aelius 300

PHOTON FLUX

896 μmol/S

EFFICACY

2.80 μmol/J

LIFETIME

L90 > 50,000hrs

LED OPTICS

120 Primary Optics

DIMMABLE

0-10V

SPECIFICATIONS FIXTURE POWER

320 W

LV VOLTAGE RANGE

100-277V

HV VOLTAGE RANGE

185-528V

POWER FACTOR

0.96

FREQUENCY

50/60Hz

THD

7.7%

OTHER CERTIFICATIONS

CE / cETLus / DLC

COVERAGE AREA

3X4

WARRANTY PERIOD

5 Years

DAMP LOCATIONS

IP65

DRIVER

uPowerTek

PEACE OF MIND Aelius LED products are fully certified, safe, and easy to use! We offer a 5-year warranty, unmatched customer service, and our #AELIUSFAM at your fingertips! SUPPORT

Let's Talk

Join The Fam

AELIUSLED.COM

WWW.AELIUSLED.COM/FORUM

SALES@AELIUSLED.COM PHONE: 1.705.674.5242 TOLL FREE: 1.844.472.3389

@AELIUSLED @AELIUSLED


READY TO GET GROWING? WE’VE GOT YOU COVERED WE WILL GUIDE YOU THROUGH FIXTURE SELECTION LET US DESIGN YOU A CUSTOM LIGHTING PLAN TIME TO DISCUSS REBATES, TRIALS & FINANCING

CONTACT TO GET STARTED

705.674.5242 1.844.472.3389

@AELIUSLED #AeliusFam

AELIUS HQ Sudbury, ON

AELIUSLED.COM sales@aeliusled.com


Issuu converts static files into: digital portfolios, online yearbooks, online catalogs, digital photo albums and more. Sign up and create your flipbook.
